A new robust design method for path-generating linkages with multi-stochastic noises

Abstract

This article presents a robust design method for the path-generating linkage, which can run orderly through desired points. The proposed method excels in accurately considering the influence of more stochastic noises, including dimensional errors, assembling errors, pair clearances, friction coefficients, velocity of drivers, external loads and so on since the multi-rigid-body system dynamics theory and the joint clearance contact theory are combined for building the mechanism model. And a fast algorithm is integrated for estimating the probabilistic output displacement error of the linkage mechanism. The previous work only considered the partial influence of dimensional errors, assembling errors and pair clearances, especially the method for dealing with the influence of the pair clearances is too simple. Hence, the proposed method in this article is more applicable to engineering practice. Finally, a four-bar path-generating linkage is selected for numerical illustrations.

Keywords

Robust design path-generating linkage multi-rigid-body system dynamics model Kriging model joint clearance contact model

Introduction

Generally, the mechanism performance is inevitably influenced by a number of stochastic noises, such as dimensional errors, assembling errors, pair clearances, friction coefficients, velocity of drivers and external loads.¹ Hence, in the design stage, proper methods should be resorted to take the above influential factors into account. Robust design method introduced by Taguchi et al.² and Rout and Mittal³ is such a promising method that it has been getting increased attention by researchers. The objective of robust design method is to optimize the mean performance and minimize the performance variation due to uncertainties. When it is applied to the path-generating linkage, two tasks follow. The first is to make sure the linkage runs orderly according to the desired generating path for accomplishing the desired function, that is, R3 should be close to R0 in Figure 1. Then the optimal deterministic design variables for configuring the linkage, such as the linkage lengths and assembling positions, should be found by optimization techniques.

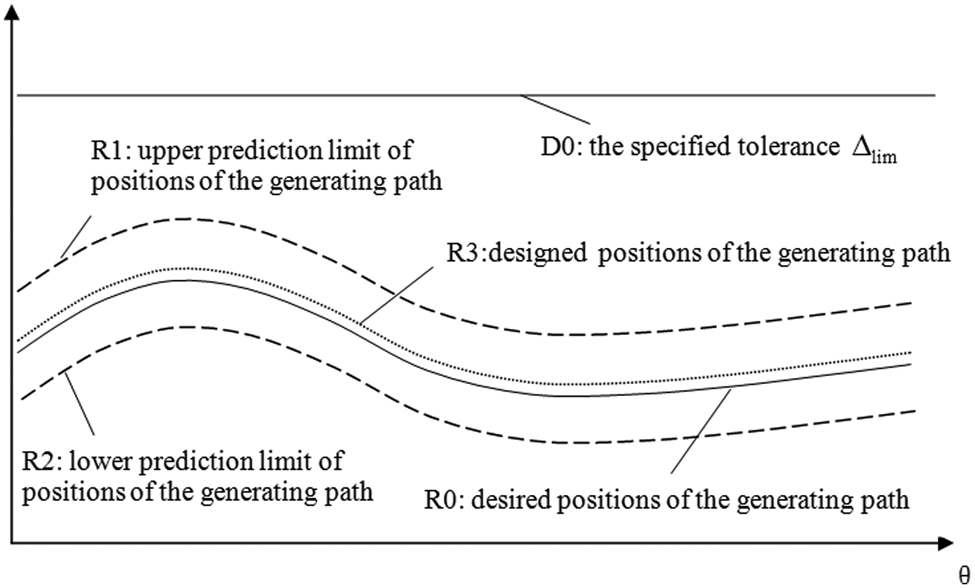

Figure 1.

The distribution of positions of the generating path.

The second is to minimize the probabilistic deviation of the generating path, that is, the deviations of R1 and R2 from R3 should be as small as possible due to the influence of the above-mentioned stochastic noises. In this way, the generating path of the linkage is not sensitive to the above noises given the above deterministic configurations.

In the past studies on robust design of mechanisms, researchers have done a lot of work. Using the Taguchi method, Kota and Chiou⁴ presented a new optimization approach for robust synthesis of mechanisms under the influence of uncertain factors in early 1990s. Lio⁵ applied the concept of robustness in the design of linkages, that is, linkages with minimum sensitivity to variations in dimensions, in which it used the equations of closure of linkage kinematic chains to build the mechanisms model and further considered the influence of dimensional noises. During the robust synthesis of mechanisms, Shi et al.⁶ first used the homogeneous transformation matrix to build the mechanisms and then incorporated the clearances in the effective links and further considered dimensional errors and assembling errors in mechanism. Du and colleagues^7,8 used a simple analytical method to build the model of the typical linkages and developed methods for robustness synthesis of function generating mechanisms, in which dimension variables and clearance variables are treated as truncated random variables and interval variables, respectively. Huang and Zhang⁹ presented an improved Taguchi method to determine the optimal tolerances for individual components so that the total assembling cost is minimized while satisfying the accuracy requirements of the mechanism.

As can be seen from the above literature, partial noises (e.g. dimensional errors, assembling errors, pair clearances) are considered in robust design since the method of building up the linkage mechanism model is too simple. In fact, as mentioned above, there are other noises, including friction coefficients, velocities of drivers, external loads and so on, influencing the linkage mechanisms. Meanwhile, the method for considering the influence of the pair clearances in the linkage mechanisms is usually ignored or simply treated as dimensional errors. The effects of them on the accuracy of mechanisms, to the best of the authors’ knowledge, have not yet been explicitly addressed in previous mechanism robust design. Hence, in order to make the robust design more applicable to the actual engineering problems, the article uses the multi-rigid-body system dynamics model (MRBSDM) and joint clearance contact model (JCCM) to depict the mechanism model for accurately considering the influence of more types of noises.

In this article, a robust design method of path-generating linkage considering the above noises is proposed. In section “Building of mechanism model,” the method for building up the linkage mechanism model is presented followed by a robust design method of the path-generating linkage presented in section “Robust design of path-generating linkage.” Then section “A fast algorithm to estimate the probabilistic output displacement error of the linkage mechanism” proposes a fast algorithm to estimate the probabilistic output displacement of the linkage mechanism which can be integrated in robust design of path-generating linkage. Finally, one typical example is given in section “Numerical example” and section “Conclusion” is the closure of the article.

Building of mechanism model

In this section, the article resorts to the MRBSDM and JCCM to simulate the real running state of the linkage mechanism, which can take both kinematics and dynamics into consideration. Based on this model, as many as related influential noises can be parameterized and the kinematic and dynamic influence of clearances is also considered.

Building of MRBSDM

As for multi-rigid-body systems, the unified dynamic equation is as follows

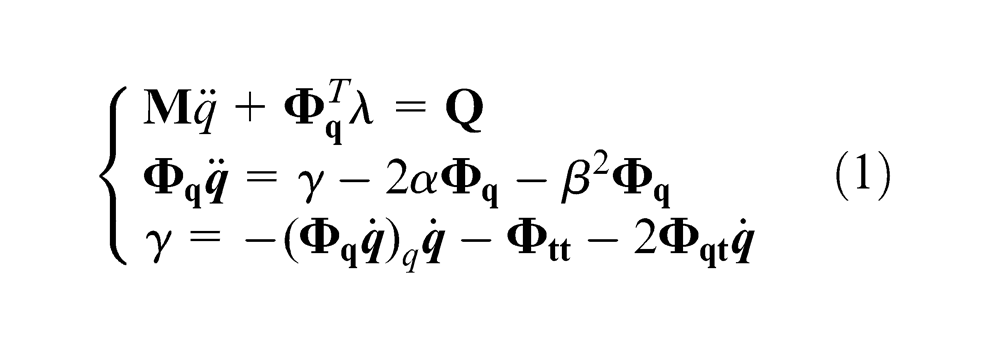

{\begin{matrix} M \overset{\cdot\cdot}{q} + Φ_{q}^{T} λ = Q \\ Φ_{q} \overset{\cdot\cdot}{q} = γ - 2 α Φ_{q} - β^{2} Φ_{q} \\ γ = - {(Φ_{q} \overset{\cdot}{q})}_{q} \overset{\cdot}{q} - Φ_{tt} - 2 Φ_{qt} \overset{\cdot}{q} \end{matrix}

(1)

where $q = {[q_{1}, q_{2}, \dots, q_{n}]}^{T}$ represents system generalized coordinates; $M = diag (M_{1}, M_{2}, \dots, M_{n})$ represents system mass matrix; $Q = {[Q_{1}, Q_{2}, \dots, Q_{n}]}^{T}$ represents system generalized force matrix and $Φ = {[Φ_{1}^{T}, Φ_{2}^{T}, \dots, Φ_{m}^{T}]}^{T}$ represents system constraint equation

Φ_{q} = \frac{\partial Φ}{\partial q} Φ_{tt} = \frac{\partial^{2} Φ}{\partial t^{2}} Φ_{qt} = \frac{\partial^{2} Φ}{\partial q \partial t}

where $λ$ represents the vector of Lagrange multiplier, n represents the number of rigid body, m represents the number of constraint equation and $α$ and $β$ are positive constants that represent the feedback control parameters for the velocities and position constraint violations.

According to the theory above, the mechanism model can be conveniently set up, which helps study as many influential stochastic noises as possible. More details of this methodology can be seen in Flores and Ambrosio.¹⁰

JCCM

There inevitably exits clearance in revolute joints, which generates separation and impact between motion parts. It influences both the kinematic and dynamic outputs of mechanism. In the work of Flores and Ambrosio,¹⁰ the authors presented a good computational methodology for dynamic analysis of multi-body mechanical systems with planar joint clearance, based on a thorough geometric description of contact conditions and on a continuous contact force model.

Resorting to this methodology and aiming at each joint, two planar circles (denoted by pin circle and bushing circle) are used to represent the pin and bushing, which are, respectively, attached to rigid body i and j, as shown by Figure 2. Then the contact model of the two planar circles is built to simulate the real contact state of joint clearance. The next is the procedure for constructing contact model, which closely follows the work of Flores and Ambrosio.¹⁰

Figure 2.

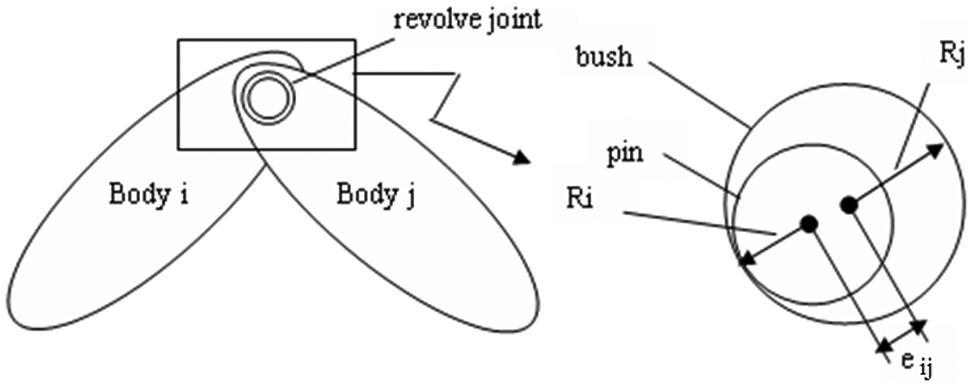

Planar revolute joint with clearance between body i and body j.

In Flores and Ambrosio,¹⁰ it displaced several kinds of the impact force models. By comparison, the impact force model proposed by Lankarani and Nikravesh is more reasonable since it is the only model that accounts for the energy dissipation during the impact process. The formula of this impact force model is as follows

F_{⊥} = K δ^{1.5} (1 + \frac{3 (1 - e^{2})}{4} \frac{\overset{\cdot}{δ}}{{\overset{\cdot}{δ}}^{(-)}})

(2)

where $δ$ is the penetration, $e$ is the coefficient of restitution, $\overset{\cdot}{δ}$ is the relative penetration velocity and ${\overset{\cdot}{δ}}^{(-)}$ is the impact velocity. $K$ is a constant that is dependent on the material properties of the components and their geometry. The constant is

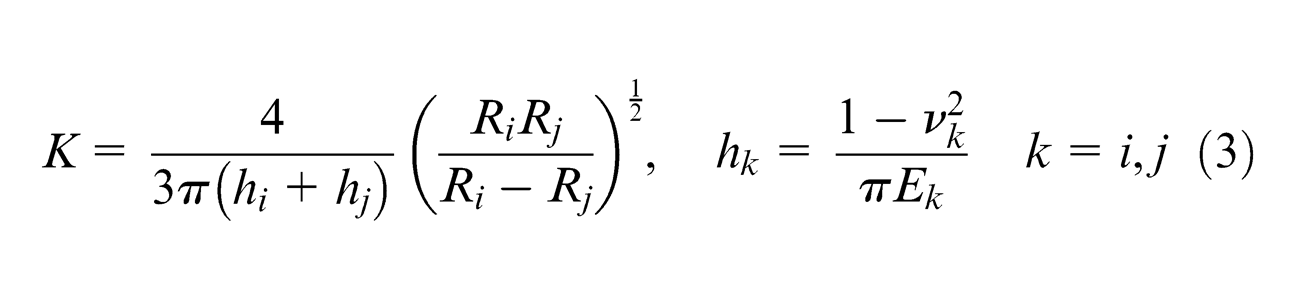

K = \frac{4}{3 π (h_{i} + h_{j})} {(\frac{R_{i} R_{j}}{R_{i} - R_{j}})}^{\frac{1}{2}}, h_{k} = \frac{1 - ν_{k}^{2}}{π E_{k}} k = i, j

(3)

where $ν_{k}$ and $E_{k}$ are the Poisson’s coefficient and Young’s modulus, respectively.

Furthermore, owing to the simplicity and easiness of this impact force model to implement in a computational program, the article will use it in JCCM. To get more information about the establishment of kinematic aspects of JCCM, please see section “Robust design of path-generating linkage” in Flores and Ambrosio.¹⁰

When the JCCM is integrated in the MRBSDM model, as many influential stochastic noises as possible can be included to study the probabilistic output deviation of the linkage mechanism.

Robust design of path-generating linkage

As for the design of path-generating linkages, the actual designed position of a coupler point $P (x_{j}, y_{j}, z_{j})$ should be quite close to a specified set of desired positions $P (x_{j}^{*}, y_{j}^{*}, z_{j}^{*})$ (j = 1 ∼d). The displacement errors between them are denoted as

ε_{j} = [x_{j}^{*} - x_{j}, y_{j}^{*} - y_{j}, z_{j}^{*} - z_{j}]

(4)

Then the estimated error as the standard for the path-generating linkages can be defined as

Δ = {max}_{j = 1}^{d} (max ε_{j})

(5)

The conventional optimal design method assumes all the considered influential variables to be deterministic. Correspondingly, the uncertain influence of stochastic noises cannot be considered. Hence, the format of the optimal design model for path-generating linkage is as follows

\begin{matrix} min : Δ \\ s . t . : h_{i} \geq 0 i = 1 ~ t \end{matrix}

(6)

where $h_{i}$ is the deterministic constraint conditions required in the linkage mechanism.

The optimal design model above is too simple to be applicable to the actual engineering problems. While the robust design method is more suitable. The next will present the robust design method of path-generating linkage.

As mentioned above, the stochastic noises $X$ include dimensional errors, assembling errors, pair clearances, friction coefficients, velocity of drivers, external loads and so on. In order to configure the linkage mechanism, the article here chooses the nominal value of random link lengths and assembling coordinates as the deterministic design variables, denoted by $Z = [Z_{1}, Z_{2}, \dots Z_{k}]$ . Hence, $Δ$ is the function of both $Z$ and $X$ , written as $Δ (Z, X)$ .

The object of robust design is to find the optimal $Z$ for satisfying the following two requirements simultaneously: (1) to minimize the mean of the error $Δ$ by finding the optimal configurations $Z$ and (2) the error $Δ$ is not sensitive to the stochastic noises $X$ under the configurations $Z$ . Hence, the object of robust design of the path-generating linkage is given by

min : obj = {\bar{Δ}}^{2} + Var (Δ)

(7)

where $\bar{Δ}$ and $Var (Δ)$ in equation (7) can be solved by the approach presented in the section “A fast algorithm to estimate the probabilistic output displacement error of the linkage mechanism.”

On the other hand, it is common that there are some restrictions in geometry or/and performance to guarantee the optimum design solution to be feasible. Restrictions in geometry or/and performance are assumed to be represented by

P {h_{i} (Z, X) \geq 0} \geq α_{0}, i = 1, 2, \dots, t

(8)

where $α_{0} \in [0, 1]$ is the confidence level which can be generally given by designers in advance. For the sake of convenience, equation (8) can be converted into deterministic ones

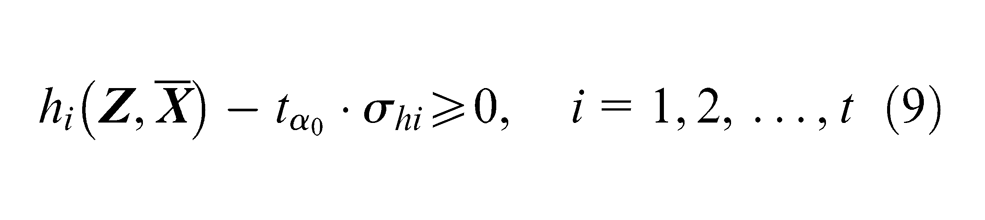

h_{i} (Z, \bar{X}) - t_{α_{0}} \cdot σ_{hi} \geq 0, i = 1, 2, \dots, t

(9)

where $t_{α_{0}}$ is named as the confidence coefficient that can be derived strictly from the normal distribution table according to the confidence level $α_{0}$ . For example, $α_{0} = 99.73 %$ indicates the confidence coefficient to be $t_{α_{0}} \approx 3$ .

Usually, there is a specified tolerance $Δ_{lim}$ for the design requirement of the linkage mechanism. However, the above robust design model combined by equations (7) and (9) is not enough since it cannot definitely make sure the error $Δ$ is smaller than $Δ_{lim}$ . In order to take it into consideration, the article here presents another constraint condition, that is

h_{t + 1} : \bar{Δ} + 3 \times σ_{Δ} - Δ_{lim} < 0

(10)

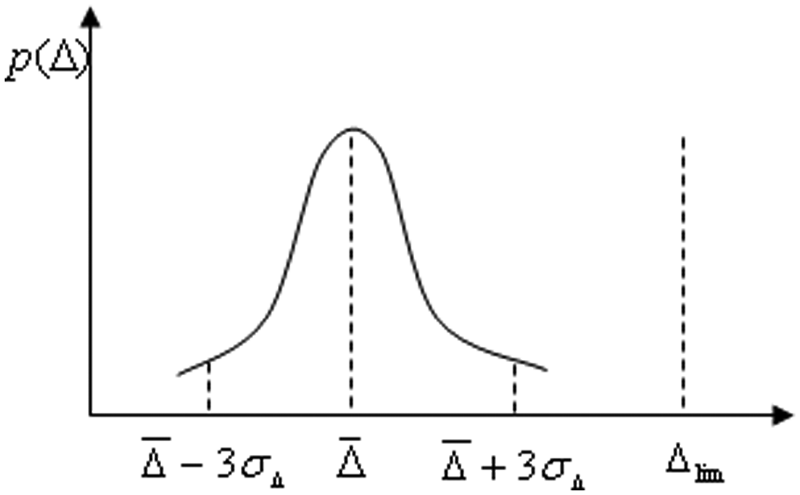

As shown in Figure 3, the article supposes the probability distribution of the error $Δ$ is normal. Since the probability $P (\bar{Δ} - 3 σ_{Δ} < Δ < \bar{Δ} + 3 σ_{Δ})$ approximates 99.73%, the article here chooses that $\bar{Δ} + 3 σ_{Δ}$ should be smaller than the specified tolerance $Δ_{lim}$ , that is, equation (10), from the perspective of a great possibility.

Figure 3.

The probability distribution of the error $Δ$ .

A fast algorithm to estimate the probabilistic output displacement error of the linkage mechanism

Given the deterministic configurations $Z$ , the output displacement error of the linkage mechanism denoted by $Y$ can be expressed as follows

Y = Δ (X)

(11)

where $X = [X_{1}, X_{2}, \dots, X_{Ω}]$ denotes all kinds of random influential factors, which contains the above stochastic noises; $Δ$ is the output function of $X$ . Generally, $Δ$ is implicit. But it can be numerically solved out as long as the linkage mechanism model is built according to the method presented in section “Building of mechanism model.”

Since $X$ is a random vector, the output $Y$ is also the random variable. In engineering cases, the linkage mechanism is usually complex and the corresponding numerical computation of the output $Y$ for one time may be time-consuming. Then the large-scale loop computation of the output $Y$ for roughly obtaining the probabilistic distribution of $Y$ may be prohibitively expensive. In order to tackle this problem, the article here presents a fast method to estimate the probabilistic output displacement of the linkage mechanism, given the specified tolerance.

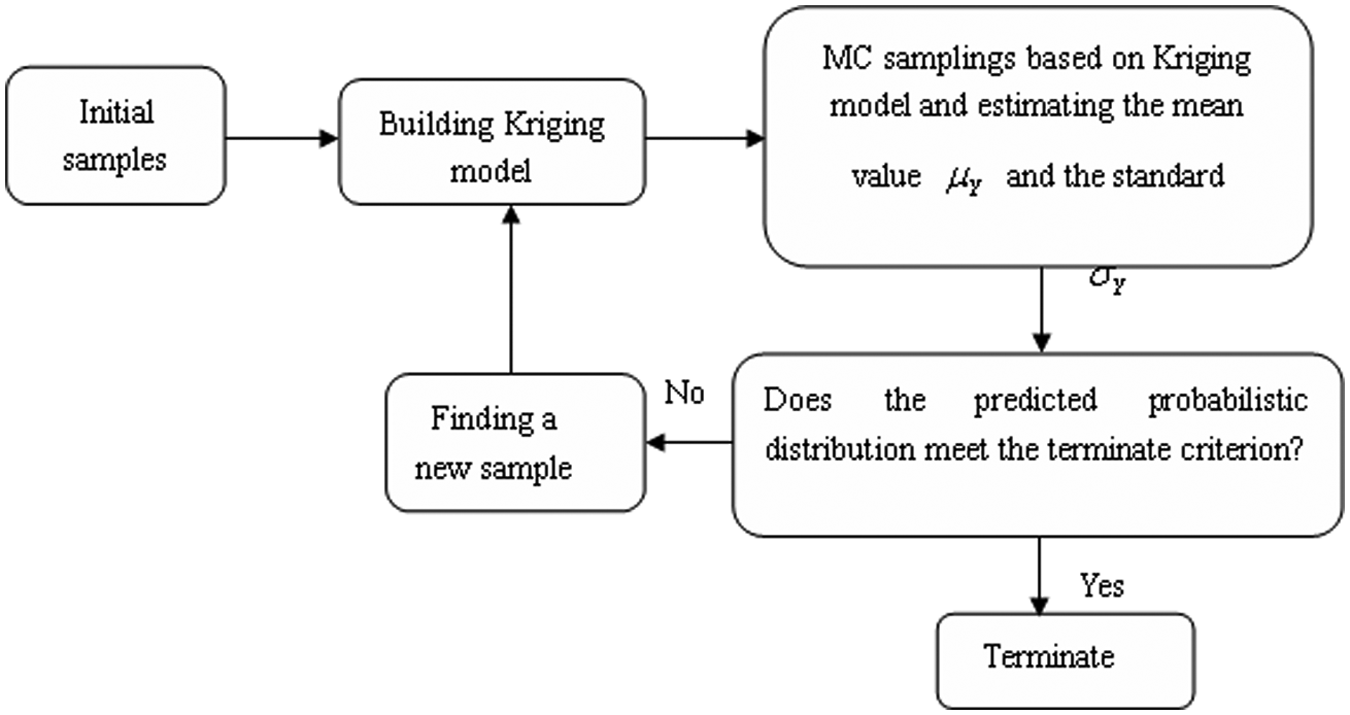

The general procedure of this method is shown in Figure 4.

Figure 4.

Algorithm flowchart.

Initial samples

For the first step, initial samples generated by the Monte Carlo sampling (MCS) method or the Latin hypercube sampling (LHS) methods are reasonable. In order to effectively explore the information of the design space while balancing the accuracy and efficients, the LHS methods are used, whose samples are evenly distributed in the design space.¹¹

Building Kriging model

For the second step, the Kriging model built by the N initial point set $S_{N \times Ω} = {[s_{1}, s_{2}, \dots, s_{N}]}^{T}$ with $s_{i} \in I R^{Ω}$ and their function output $Y_{N \times 1} = {[Y_{1}, Y_{2}, \dots, Y_{N}]}^{T}$ with $Y_{i} \in I R^{1}$ is used as the surrogate of the original mechanism model. Its expression contains two parts, shown as follows

y {(X) = f (X)}^{T} \times ρ + H (X)

(12)

where $f (X) = [f_{1} (X), f_{2} (X), \dots, f_{p} (X)]$ is the vector of the regression function; $ρ = {[ρ_{1}, ρ_{2}, \dots, ρ_{p}]}^{T}$ is the vector of the regression coefficients; $H (X)$ is a Gaussian random function with 0 mean and covariance $σ_{H}^{2}$ given by

Cov (H (a), H (b)) = σ_{H}^{2} R (a, b)

(13)

where $a$ and $b$ belong to the arbitrary sampling points in $S_{N \times Ω}$ ; $R$ is the correlation function.

Generally, there are several forms for the correlation function. In this article, the common squared exponential function is used

R (θ, a, b) = \exp (- \sum_{h = 1}^{Ω} θ_{i} {(a_{i} - b_{i})}^{2})

(14)

where $θ_{i}$ is a parameter that indicates the correlation between the points within dimension i.

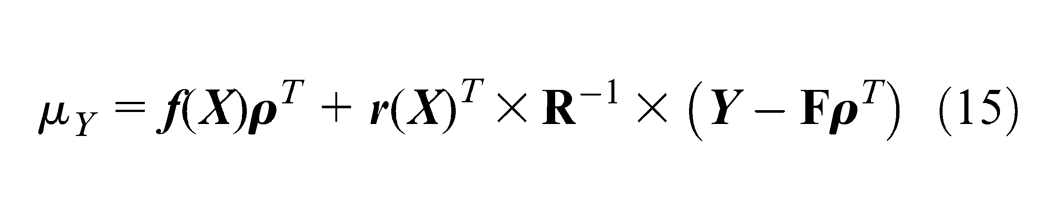

Then the expected value $μ_{Y}$ and variance $σ_{Y}^{2}$ at the unknown point $X$ in equation (12) are

μ_{Y} = f (X) ρ^{T} + r {(X)}^{T} \times R^{- 1} \times (Y - F ρ^{T})

(15)

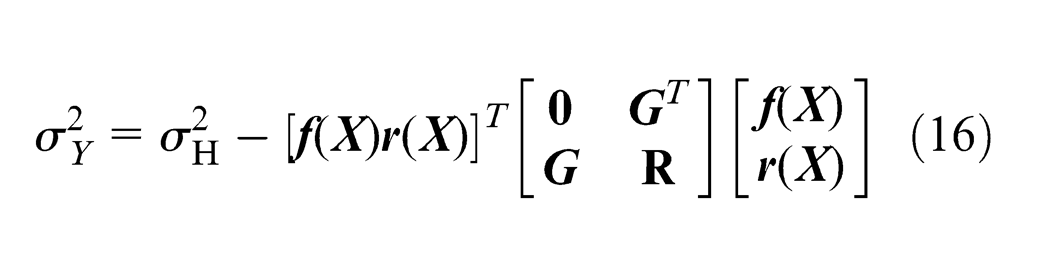

σ_{Y}^{2} = σ_{H}^{2} - {[f (X) r (X)]}^{T} [\begin{matrix} 0 & G^{T} \\ G & R \end{matrix}] [\begin{matrix} f (X) \\ r (X) \end{matrix}]

(16)

where $r (X)$ is a vector containing the covariance between $X$ and each of N sampling points defined in equation (13). $R$ is a $Ω \times Ω$ matrix containing the correlation between each pair of sampling points. $G = {[f (s_{1}), f (s_{2}), \dots, f (s_{m})]}^{T}$ is an $N \times p$ matrix composed by the regression function of the sampling points. For more details of Kriging model, please see Lophaven et al.¹²

A new strategy to find new samplings

As shown in section 3.1, the Kriging model has the advantage that can provide not only a prediction at an unknown point but also an estimate of the prediction variance. The larger the number of the samples is, the smaller the prediction variance is. Generally, the difference between the initial Kriging model and the mechanism model cannot satisfy the specified tolerance and new samples should be added to train the Kriging model. In order to reduce the computation, the article here presents a new efficient strategy to find the least number of samples for training the Kriging model. The thought of the strategy is to make maximum exploration of the information provided by the existing samples and use the corresponding information to find the new samples that help train the Kriging model to be closer to the mechanism model as much as possible. Then maximizing equation (17) or (18) to obtain the optimal solution being the new sampling locations

\begin{matrix} obj : Γ_{1} = max {min}_{i = 1}^{m} ‖ X_{new} - s_{i} ‖ \\ s . t . : X_{down} \leq X_{new} \leq X_{up} \end{matrix}

(17)

where $X_{down}$ and $X_{up}$ are the lower limit and the upper limit of $X$ . Equation (17) is to find the new point $X_{new}$ whose minimum distance between the existing samples is maximum in design space. In another words, the new sample is found in the most sparse area in design space, where the prediction from the Kriging model is usually relatively bad

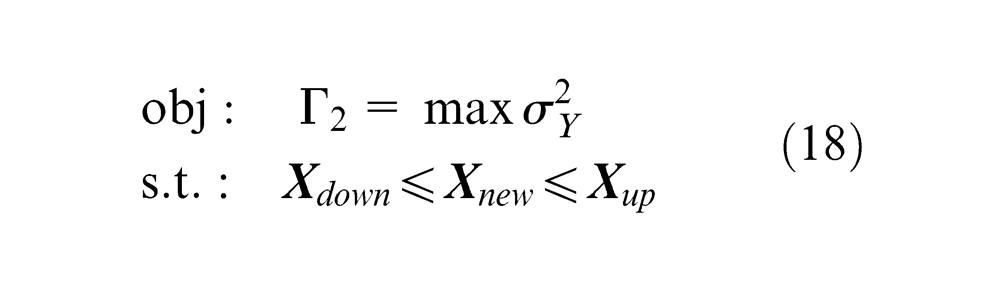

\begin{matrix} obj : Γ_{2} = max σ_{Y}^{2} \\ s . t . : X_{down} \leq X_{new} \leq X_{up} \end{matrix}

(18)

In equation (18), the maximum value of $σ_{Y}^{2}$ at $X_{new}$ always means that the prediction from the Kriging model is the most uncertain and the prediction error may be relatively bad comparing to the mechanism model.

In order to combine the advantages of both equations (17) and (18), the new criteria for finding the new sample are shown as follows

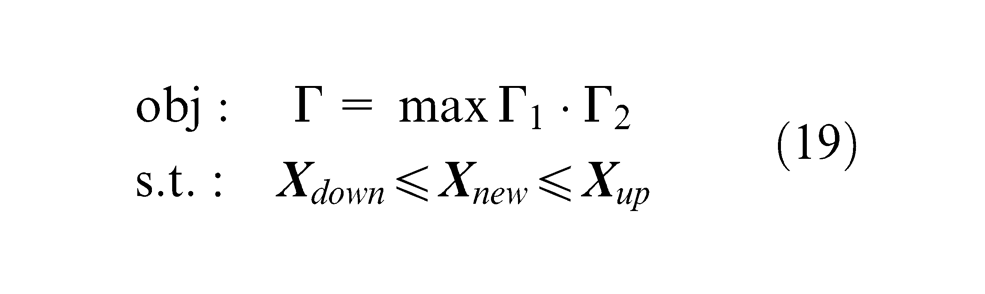

\begin{matrix} obj : Γ = max Γ_{1} \cdot Γ_{2} \\ s . t . : X_{down} \leq X_{new} \leq X_{up} \end{matrix}

(19)

Termination criteria

In this article, the optimal problem in equation (7) needs to find the mean $\bar{Δ}$ and the variance $Var (Δ)$ . Hence, when using the Kriging model to predict the probabilistic output displacement error of the linkage mechanism, which is equation (11), the mean $\bar{Y}$ and variance $Var (Y)$ should be estimated. In this article, the Kriging model is used as the fast surrogate of the mechanism model. Then use the LHS method to carry out simulation on Kriging model. Finally, the statistical computations of the mean $\bar{Y}$ and the variance $Var (Y)$ can be done. To ensure whether the mean $\bar{Y}$ and the variance $Var (Y)$ computed from the Kriging model are accurate or not, the termination criteria to stop finding new samples are written as below

max {\frac{‖ {\bar{Y}}^{k + 1} - {\bar{Y}}^{k} ‖}{{\bar{Y}}^{k}}, \frac{‖ Var {(Y)}^{k + 1} - Var {(Y)}^{k} ‖}{Var {(Y)}^{k}}} \leq Δ_{tol}

(20)

Equation (20) means that further iteration will not improve the Kriging model to predict the mean and the variance. Generally speaking, one should select the convergence value, that is, $Δ_{tol}$ as small as possible to ensure the accuracy of the final solution. In this article, $Δ_{tol}$ is set to 0.001.

Numerical example

A four-bar mechanism as shown in Figure 5 is to be designed so that point P should follow orderly according to the desired path specified in Table 1. It should be noted that the input angle $φ_{1}$ is usually expressed as $φ_{1}^{(i)} = φ_{10} + φ_{10}^{(0 i)}$ , where $φ_{10}$ is the initial input angle and $φ_{1}^{i}$ is the relative angle from $φ_{10}$ to $φ_{1}^{(i)}$ .

Figure 5.

The four-bar linkage.

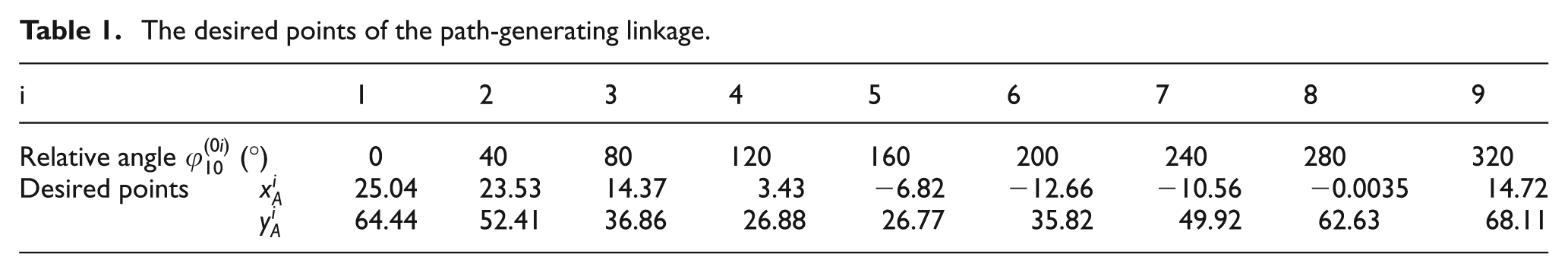

Table 1.

The desired points of the path-generating linkage.

i		1	2	3	4	5	6	7	8	9
Relative angle $φ_{10}^{(0 i)}$ (°)		0	40	80	120	160	200	240	280	320
Desired points	$x_{A}^{i}$	25.04	23.53	14.37	3.43	−6.82	−12.66	−10.56	−0.0035	14.72
	$y_{A}^{i}$	64.44	52.41	36.86	26.88	26.77	35.82	49.92	62.63	68.11

In this mechanism, the deterministic design variables $Z = [x_{A}, y_{A}, l_{1}, l_{2}, l_{3}, l_{4}, l_{5}, α, β, φ_{10}]$ . Here, $φ_{10}$ is the initial start angle of $φ_{1}$ . The restrictions for the above design variables are shown in Table 2.

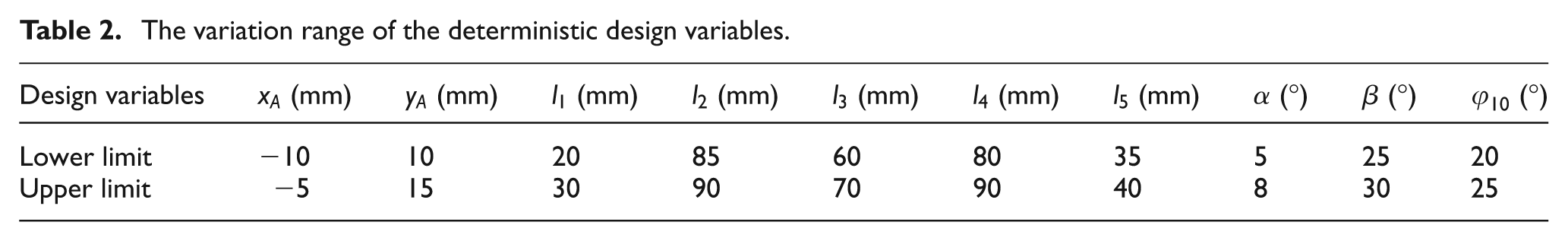

Table 2.

The variation range of the deterministic design variables.

Design variables	$x_{A}$ (mm)	$y_{A}$ (mm)	$l_{1}$ (mm)	$l_{2}$ (mm)	$l_{3}$ (mm)	$l_{4}$ (mm)	$l_{5}$ (mm)	$α$ (°)	$β$ (°)	$φ_{10}$ (°)
Lower limit	−10	10	20	85	60	80	35	5	25	20
Upper limit	−5	15	30	90	70	90	40	8	30	25

Meanwhile, the stochastic noises $X$ considered in the mechanism are supposed to be independently normal and shown in Table 3.

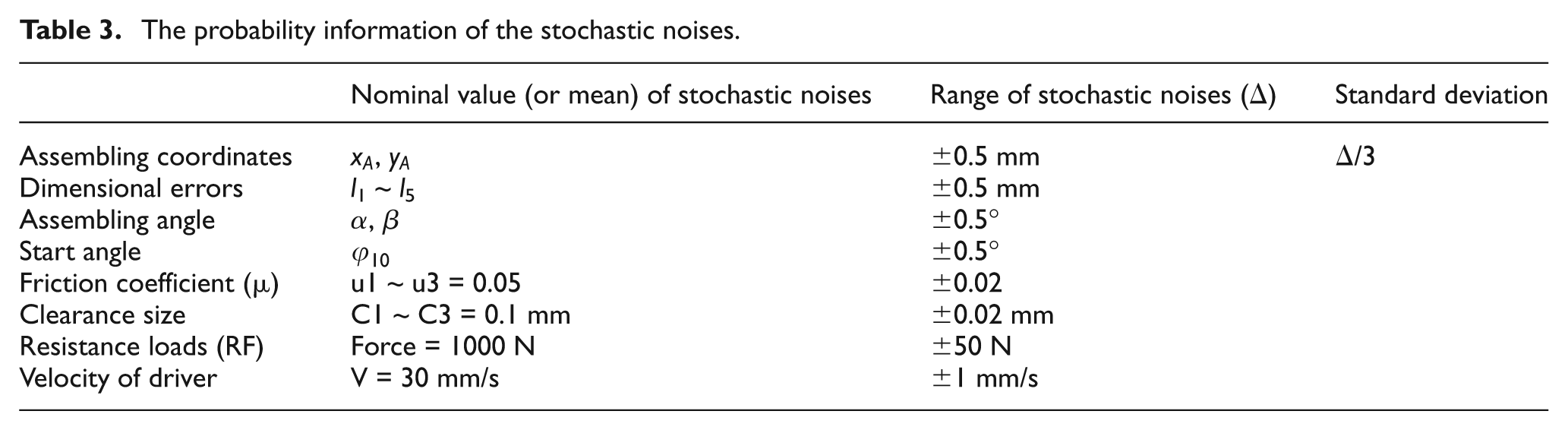

Table 3.

The probability information of the stochastic noises.

	Nominal value (or mean) of stochastic noises	Range of stochastic noises (Δ)	Standard deviation
Assembling coordinates	$x_{A}$ , $y_{A}$	±0.5 mm	Δ/3
Dimensional errors	l ₁ ~ l ₅	±0.5 mm
Assembling angle	$α$ , $β$	±0.5°
Start angle	$φ_{10}$	±0.5°
Friction coefficient (µ)	u1 ~ u3 = 0.05	±0.02
Clearance size	C1 ~ C3 = 0.1 mm	±0.02 mm
Resistance loads (RF)	Force = 1000 N	±50 N
Velocity of driver	V = 30 mm/s	±1 mm/s

In this example, robust design model of the path-generating linkage is given by

\begin{matrix} min : obj = {\bar{Δ}}^{2} + Var (Δ) \\ s . t . : h_{i} (Z, \bar{X}) - 3 \cdot σ_{hi} \geq 0, i = 1, 2, 3 \\ h_{4} : \bar{Δ} + 3 \times σ_{Δ} - Δ_{lim} < 0 (Δ_{lim} = 1) \end{matrix}

(21)

\begin{matrix} h_{1} : - l_{1} - l_{2} + l_{3} + l_{4} > 0 \\ h_{2} : - l_{1} + l_{2} - l_{3} + l_{4} > 0 \\ h_{3} : - l_{1} + l_{2} + l_{3} - l_{4} > 0 \end{matrix}} crank existence conditions

The $h_{5} ~ h_{24}$ constraint conditions of the linkage lengths and assembling positions are shown in Table 2.

The robust design results are shown in Table 4, while the conventional optimal design results are also given for comparison.

Table 4.

Design solutions of path-generating linkage.

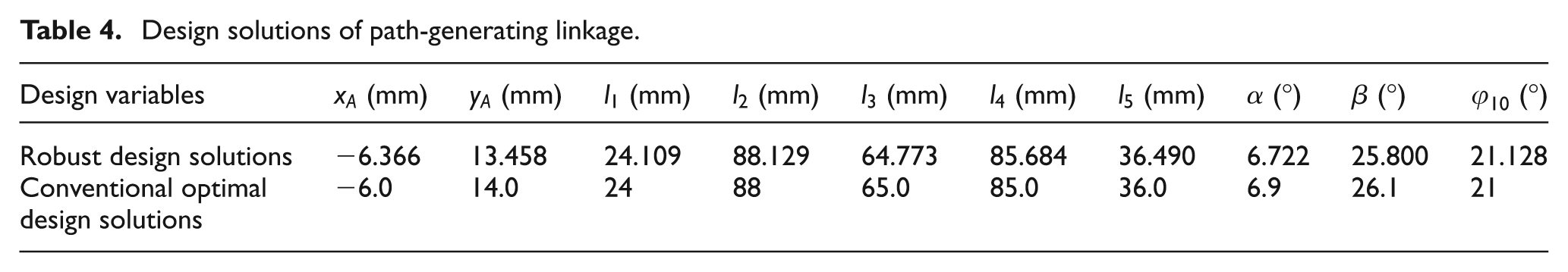

Design variables	$x_{A}$ (mm)	$y_{A}$ (mm)	$l_{1}$ (mm)	$l_{2}$ (mm)	$l_{3}$ (mm)	$l_{4}$ (mm)	$l_{5}$ (mm)	$α$ (°)	$β$ (°)	$φ_{10}$ (°)
Robust design solutions	−6.366	13.458	24.109	88.129	64.773	85.684	36.490	6.722	25.800	21.128
Conventional optimal design solutions	−6.0	14.0	24	88	65.0	85.0	36.0	6.9	26.1	21

In order to further compare the robustness of both solutions, the article first builds the mechanism models based on both solutions and carries out MCS with sampling size N = 1000, respectively, on different mechanism models. Then two criteria are used to estimate the robustness of the solutions:

Criterion 1. For each LHS, compute the total output displacement errors along both X- and Y-axes at different input angles of $φ_{1}$ with equation (22)

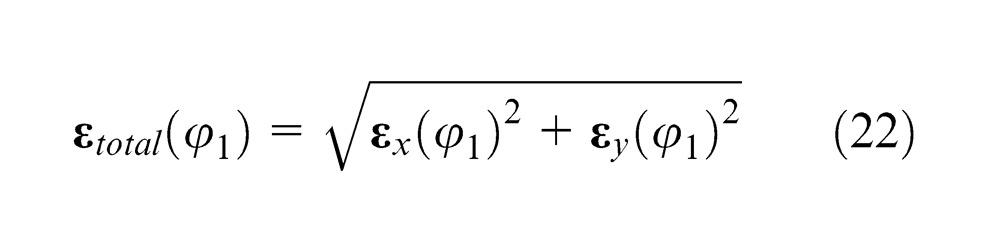

ε_{total} (φ_{1}) = \sqrt{ε_{x} {(φ_{1})}^{2} + ε_{y} {(φ_{1})}^{2}}

(22)

Criterion 2. For each LHS, compute the maximum output displacement errors along both X- and Y-axes during the whole running process and express the maximum errors as

ε_{max} = max (ε_{x}, ε_{y}) |_{φ_{1} = 0 ~ 360 °}

(23)

Figures 6 and 7 show the total output displacement errors along both X- and Y-axes at different positions of $φ_{1}$ for each LHS based on the configuration of conventional optimal design solutions and robust design solutions, respectively. Although $\bar{ε_{total}}$ in Figure 7 is larger than that in Figure 6, the variation in $ε_{total}$ at different positions of $φ_{1}$ is obviously closer to $\bar{ε_{total}}$ than that in Figure 6.

Figure 6.

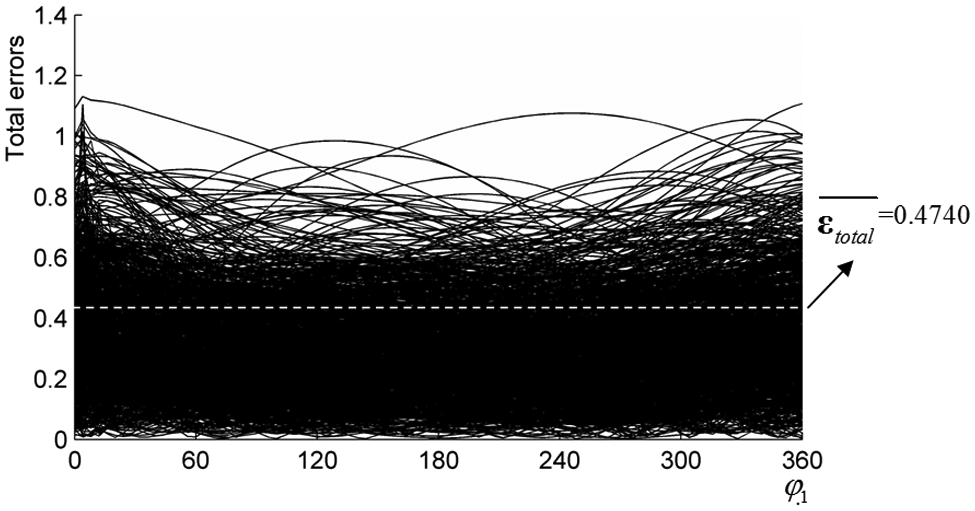

The total errors $ε_{total} (φ_{1})$ for each LHS based on the configuration of the conventional optimal design solutions.

Figure 7.

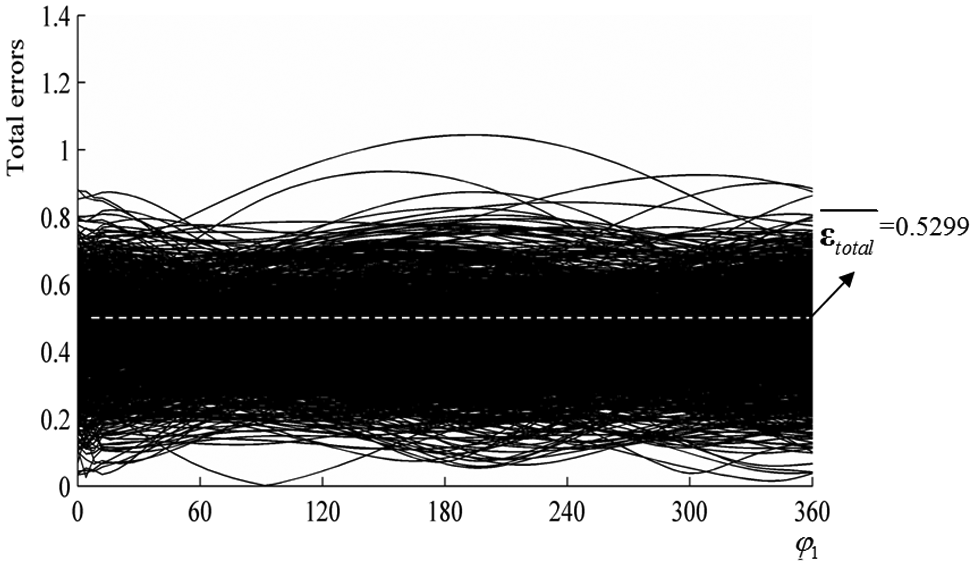

The total errors $ε_{total} (φ_{1})$ for each LHS based on the configuration of the robust design solutions.

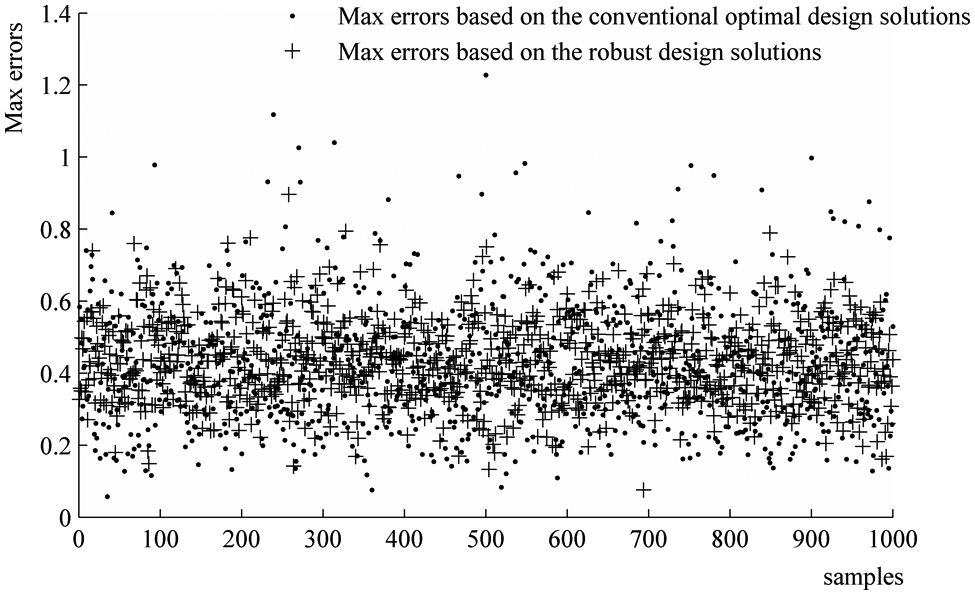

Figure 8 shows the maximum output displacement errors along both X- and Y-axes during the whole running process for each LHS based on the configuration of the configuration of the conventional and the robust design solutions. The variation in $ε_{max}$ for the conventional design solutions is also obviously larger than that of the robust design solutions, but $σ_{ε_{max}}$ is the opposite case, which is also verified by Table 5. As compared to the former, the mean error $\bar{ε_{max}}$ of the latter increases to 1.95% and the standard deviation of errors $σ_{ε_{max}}$ greatly decreases to 33.6%.

Figure 8.

The maximum errors $\bar{ε_{max}}$ for each LHS based on the configuration of the robust design solutions.

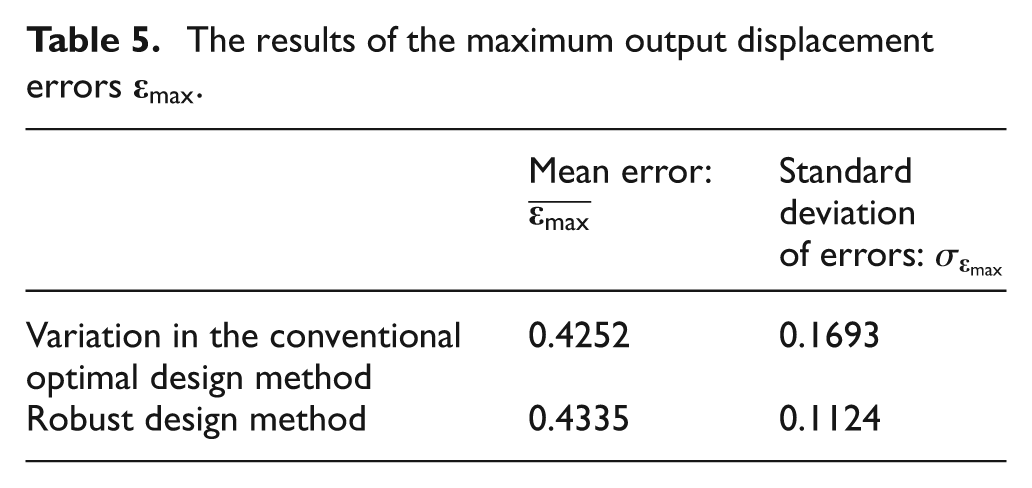

Table 5.

The results of the maximum output displacement errors $ε_{max}$ .

	Mean error: $\bar{ε_{max}}$	Standard deviation of errors: $σ_{ε_{max}}$
Variation in the conventional optimal design method	0.4252	0.1693
Robust design method	0.4335	0.1124

No matter computing the output displacement errors by criterion 1 or criterion 2, both results show that though the mean errors of the conventional design solutions are smaller than those of the robust design solutions, the variance of the output errors is the opposite case. In another word, the solutions of the former are more sensitive to stochastic noises than those of the latter. Besides, the definition of $ε_{max}$ in equation (23) is the same as $Δ$ in equation (5) and $Δ$ is equal to $ε_{max}$ in this example. Then the former cannot satisfy $h_{4} : \bar{Δ} + 3 \times σ_{Δ} - Δ_{lim} < 0 (Δ_{lim} = 0.8)$ in equation (22) since $h_{4}$ is 0.1331, while the latter satisfies equation (22) with h ₄ = −0.0293. All in all, the solutions of the former are more robust to the influence of the stochastic noises than those of the latter.

Conclusion

The article presents a robust design method for the path-generating linkage. In order to make designed results more robust, the proposed method excels in accurately considering the influence of more stochastic noises, which include dimensional errors, assembling errors, pair clearances, friction coefficients, velocity of drivers, external loads and so on by bringing in the multi-rigid-body system dynamics theory and the joint clearance contact theory for building up the mechanism model. Additionally, a fast algorithm is presented to estimate the probabilistic output displacement error of the linkage mechanism and further integrated in robust design of path-generating linkage. Hence, the proposed method in this article is more applicable to engineering practice. Finally, a four-bar path-generating linkage designed by the conventional optimal design method and the presented robust design method is used for comparison, which shows the feasibility and superiority of the latter.
