A distance-based decision making method to improve multiple criteria supplier selection

Abstract

This article extends the Ng-model for multiple criteria supplier selection problem based upon a distance-based decision-making method. The proposed method determines the common weights associated with all rankings of the criteria importance, and then provides a comprehensively scoring scheme by aggregating all rankings. A numerical illustration is presented to compare our computational results with that of the Ng-model.

Keywords

Multiple criteria decision making supplier selection common weights distance

Introduction

Supplier selection is an important strategic supply chain design decision, which motivates an extensive output in the academic literature to address this issue. De Boer et al.¹ present a review of decision methods for supporting the supplier selection process. Ho et al.² provide an exhaustive review of multi-criteria decision-making approaches for supplier evaluation and selection. Chai et al.³ introduce a systematic literature review on the academic papers published from 2008 to 2012 on the application of decision-making techniques for supplier selection. Tadic et al.⁴ develop a multi-criteria decision problem, including both qualitative and quantitative criteria to address the problem of supplier ranking and selection under uncertainties. Zhang et al.⁵ address the supplier selection problem based on evidence theory and analytic network process.

Recently, Ng⁶ presented a weighted linear optimization model (hereafter called the Ng-model) for multiple criteria supplier selection problem, which converts all criteria measures of an inventory supplier into a scalar score. The Ng-model is well-known as simple-to-understand and easy-to-implement. The optimal scores for each supplier can be easily obtained without a linear optimizer. Despite its many advantages, the Ng-model requires the decision maker to subjectively rank the criteria importance in a sequence. However, Soylu and Akyol⁷ point out that the importance of criteria may change from industry to industry, from company to company, and even from decision maker to decision maker. Therefore, some questions inevitably arise: which ranking is more suitable? Which viewpoint is more desirable? Are there common weights associated with each of the rankings?

It is clear that the optimal scores derived from different rankings may not be the same. Each of the aforementioned rankings and viewpoints has some valuable advantages which we could not ignore. While it is impossible to ignore any ranking completely, the best way to make a decision is to accept all possible rankings first, and then aggregate the results of the different rankings and viewpoints.⁸

The purpose of this short communication is to provide an extended version of the Ng-model based upon a distance-based decision-making method, and to present a comprehensively scoring scheme by determining the common weights associated with all criteria importance rankings. Undoubtedly, combining the scores of different criteria sequence definitely provides a more realistic classification compared with employing any ranking individually.

Compared with the Ng-model, our proposed distance-based decision-making method has at least three advantages. First, our method proposes a unique ranking among the suppliers. Second, our method eliminates unrealistic subjective ranking of the criteria importance, without requiring the elicitation of ranking restrictions from industry experts. Third, the comprehensive scoring scheme effectively distinguishes between good and poor performance.

Ng-model

Assume that there are $I$ suppliers to be evaluated and selected by the purchasing manager on the basis of their performance in terms of $J$ criteria.⁶ Let $y_{ij}$ denote the performance score of the supplier $i$ in terms of criterion $j$ , which are transformed to 0–1 scale for comparable purpose

\frac{y_{ij} - \min_{i = 1, 2, . . ., I} {y_{ij}}}{\max_{i = 1, 2, . . ., I} {y_{ij}} - \min_{i = 1, 2, . . ., I} {y_{ij}}}

(1)

Furthermore, all the criteria are assumed to be benefit-type criteria. More specifically, all these criteria are positively related to the importance level of a supplier. To realize the multiple criteria supplier selection, Ng⁶ defines a nonnegative weight $w_{ij}$ of contribution of performance of supplier $i$ under criterion $j$ to the score of the supplier. The criteria are assumed to be ranked in a descending order for any supplier $i$ , that is, $w_{i 1} ⩾ w_{i 2} ⩾ . . . ⩾ w_{iJ}$ . The score of supplier $i$ is denoted as a weighted sum of performance measures under multiple criteria. Therefore, the Ng-model for aggregation purpose is presented as

\begin{matrix} \max S_{i} = \sum_{j = 1}^{J} w_{ij} y_{ij} \\ s . t . \sum_{j = 1}^{J} w_{ij} = 1 \\ w_{ij} ⩾ w_{i (j + 1)} ⩾ 0, j = 1, 2, . . ., J - 1 \\ w_{ij} ⩾ 0, j = 1, 2, . . ., J \end{matrix}

(2)

By employing the following transformations, namely, $u_{ij} = w_{ij} - w_{i (j + 1)}, u_{iJ} = w_{iJ}$ , and $x_{ij} = \sum_{k = 1}^{j} y_{ik}$ , the above model (2) is transformed to the following formulations for each supplier $i$

\begin{matrix} \max S_{i} = \sum_{j = 1}^{J} u_{ij} x_{ij} \\ s . t . \sum_{j = 1}^{J} {ju}_{ij} = 1 \\ u_{ij} ⩾ 0, j = 1, 2, . . ., J \end{matrix}

(3)

One can easily obtain the maximal score $S_{i}$ by the dual of (3), which is

\begin{matrix} \min z_{i} \\ z_{i} ⩾ \frac{1}{j} x_{ij}, j = 1, 2, . . ., J \end{matrix}

(4)

Finally, the maximal score $S_{i}$ can be derived as $\max_{j = 1, 2, . . ., J} {(1 / j) \sum_{k = 1}^{j} y_{ik}}$ .

The proposed method

In this section, we propose a distance-based decision-making method to combine different subjective rankings of the criteria importance by determining the common weights for all the rankings. It is clear that each ranking has limited discriminability which we would like not to ignore. We employ the concept of Euclidean distance to measure the degree of inconsistence between the peer-evaluation score and the self-evaluation score.⁹ Note that this so-called inconsistence can be explained as the information redundancy or noisy generated from the process of assessment, which definitely should be reduced or eliminated to derive reasonable performance score for each supplier.¹⁰ Without loss of generality, the smaller the distance is, the more consistent the evaluation between result of the peer-evaluation score and the self-evaluation score, and the better the evaluation results.

It is assumed that there are $I$ suppliers to be evaluated and selected based on $J$ criteria. We also assume that these $J$ criteria are sequenced by a set of different rankings, namely

R = {R_{1}, R_{2}, . . ., R_{K}}

(5)

Therefore, the derived scores for each supplier are listed in the following matrix

S_{I \times K} = (\begin{matrix} S_{11} & S_{12} & . . . & S_{1 K} \\ S_{21} & S_{22} & . . . & S_{2 K} \\ . . . & . . . & . . . & . . . \\ S_{I 1} & S_{I 2} & . . . & S_{IK} \end{matrix})

(6)

Each row of $S_{I \times K}$ is corresponding to a supplier and each column of $S_{I \times K}$ is related to typical ranking of the importance of the criteria. Hence, $S_{ik}$ exhibits the score of supplier $i$ derived from ranking $R_{k}$ , which could be defined as the self-evaluation score. For each supplier $i$ , the mean of all $S_{ik}, k = 1, 2, . . ., K$ , namely, ${\bar{S}}_{i} = (1 / K) \sum_{k = 1}^{K} S_{ik}$ , alternatively defined as peer-evaluation score, can be deemed as a new performance score measure for supplier $i$ . Similar definitions of self-evaluation and peer-evaluation have been presented by Wu and Liang¹¹ and Wu et al.¹²

Definition 1. For each supplier $i$ , the distance function between self-evaluation score $S_{ik}$ and its peer-evaluation score ${\bar{S}}_{i}$ is defined as

d_{ik} = | S_{ik} - {\bar{S}}_{i} |, k = 1, 2, . . ., K

(7)

Definition 2. For each supplier $i$ , we seek to minimize the square of the difference between the weighted self-evaluation score and the weighted peer-evaluation score as the objective function, which is defined as follows

\begin{matrix} \min z_{i} = \sum_{k = 1}^{I} (d_{ik} λ_{k})^{2} \\ \sum_{k = 1}^{K} λ_{k} = 1, λ_{k} > 0 \end{matrix}

(8)

Finally, a multi-objective programming model is presented below to optimize the performance scores of all the suppliers

{\begin{matrix} {\begin{matrix} \min z_{1} = \sum_{k = 1}^{K} (d_{1 k} λ_{k})^{2} \\ \min z_{2} = \sum_{k = 1}^{K} (d_{2 k} λ_{k})^{2} \\ . . . \\ \min z_{I} = \sum_{k = 1}^{K} (d_{Ik} λ_{k})^{2} \end{matrix} \\ s . t . \sum_{k = 1}^{K} λ_{k} = 1, λ_{k} > 0 \end{matrix}

(9)

In what follows, we seek to derive the optimal solution $λ_{k}^{*}$ to model (9) by converting this multi-objective programming into a single-objective optimization model as below

{\begin{matrix} \min Z = \sum_{i = 1}^{I} \sum_{k = 1}^{K} d_{ik}^{2} λ_{k}^{2} \\ s . t . \sum_{k = 1}^{K} λ_{k} = 1, λ_{k} > 0 \end{matrix}

(10)

For the ease of solving the quadratic programming (10), we construct a Lagrange function as follows

L = \sum_{i = 1}^{I} \sum_{k = 1}^{K} d_{ik}^{2} λ_{k}^{2} + η (\sum_{k = 1}^{K} λ_{k} - 1)

(11)

and the Hessian matrix of (11) with respect to $λ_{k}$ is

H = [\begin{matrix} \frac{\partial^{2} L}{\partial λ_{1}^{2}} & \frac{\partial^{2} L}{\partial λ_{1} \partial λ_{2}} & . . . & \frac{\partial^{2} L}{\partial λ_{I}^{2}} \\ \frac{\partial^{2} L}{\partial λ_{2} \partial λ_{1}} & \frac{\partial^{2} L}{\partial λ_{2}^{2}} & . . . & \frac{\partial^{2} L}{\partial λ_{2} \partial λ_{I}} \\ . . . & . . . & . . . & . . . \\ \frac{\partial^{2} L}{\partial λ_{I} \partial λ_{1}} & \frac{\partial^{2} L}{\partial λ_{I} \partial λ_{2}} & . . . & \frac{\partial^{2} L}{\partial λ_{I}^{2}} \end{matrix}]

(12)

Obviously, in the Hessian matrix (12), $\frac{\partial^{2} L}{\partial λ_{i} \partial λ_{j}} = 0, i \neq j, \frac{\partial^{2} L}{\partial λ_{i}^{2}} = 2 \sum_{k = 1}^{I} d_{i, k}^{2} > 0$ . According to the Hessian theorem, the proposed Lagrange function (11) has a minimum value.

By setting ${\begin{matrix} \frac{\partial L}{\partial η} = 0 \\ \frac{\partial L}{\partial λ_{k}} = 0 \end{matrix}$ , the optimal solutions to (10) are derived as ${\begin{matrix} η = \frac{1}{2 \sum_{k = 1}^{K} {(\sum_{i = 1}^{I} d_{ik}^{2})}^{- 1}} \\ λ_{k}^{*} = \frac{1}{[\sum_{k = 1}^{K} {(\sum_{i = 1}^{I} d_{ik}^{2})}^{- 1}] [\sum_{i = 1}^{I} d_{ik}^{2}]} \end{matrix}$

Recall the quadratic programming (10), we note that the constraints are nonempty convex sets, and the objective function is a convex set. Therefore, the model (10) is a convex programming model, and thus the generated $λ_{k}^{*}, k = 1, 2, . . ., K$ , are the global optimal solutions to model (10).

Consequently, the ultimate comprehensive score derived from a distance-based decision-making method for each supplier $i$ can be determined by employing the optimal values of $λ_{k}^{*}, k = 1, 2, . . ., K$ , as follows

S_{i}^{*} = \sum_{k = 1}^{K} λ_{k}^{*} S_{ik}, i = 1, 2, . . ., I

(13)

Numerical illustration

For the purpose of illustrating our proposed method, we investigate the same multiple criteria supplier selection problem as discussed by Xia and Wu.¹³ Three criteria, namely, Price, Quality, and Service are considered for supplier selection. Moreover, these criteria are rated using a 3-point scale, that is, the values of 1, 2, and 3, which are associated with “low,”“middle,” and “high,” respectively, for the Price criterion, and are also associated with “poor,”“middle,” and “good,” respectively, for the Quality and Service criteria. The criteria of Quality and Service are benefit-type criteria, which are positively related to the importance level of a supplier. However, the criterion Price is negatively related to the performance of a supplier, which could be taken as a reciprocal transformation to evaluate the candidate suppliers. A company with 14 candidate suppliers and the measures of each criterion are listed in Table 1.

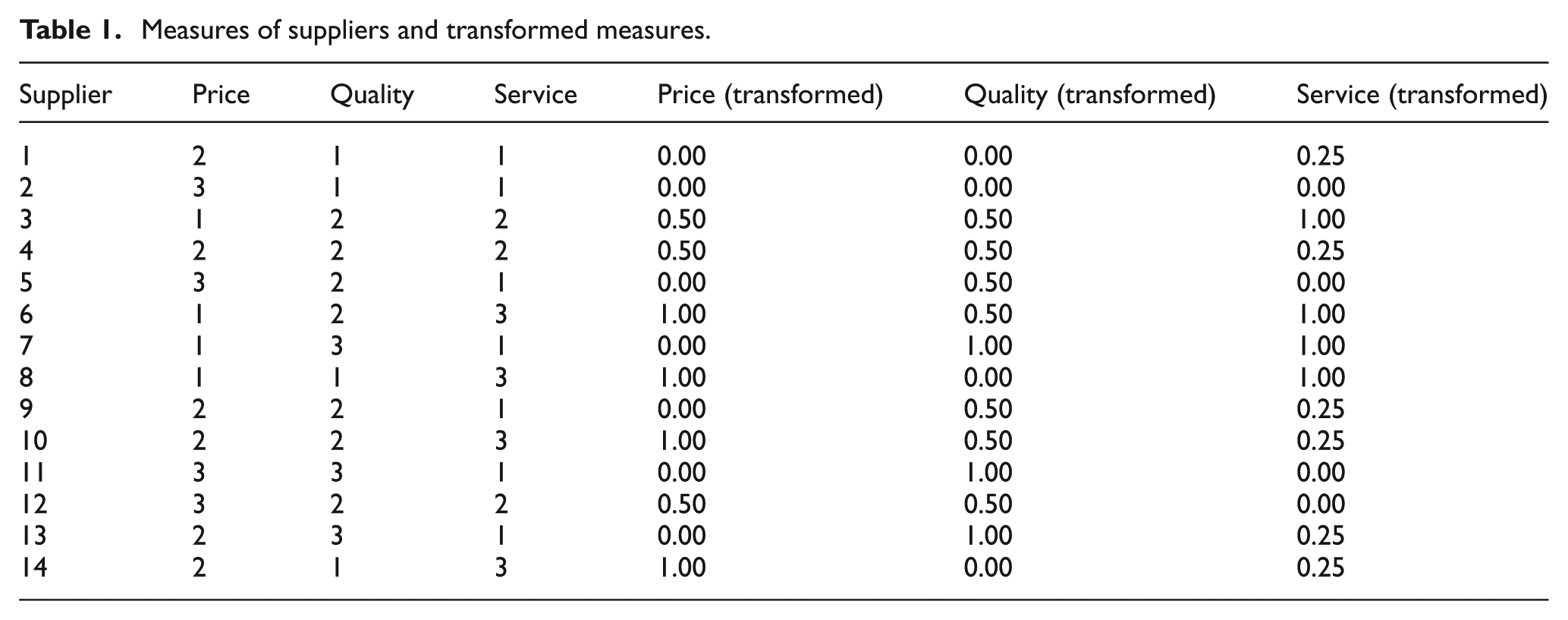

Table 1.

Measures of suppliers and transformed measures.

Supplier	Price	Quality	Service	Price (transformed)	Quality (transformed)	Service (transformed)
1	2	1	1	0.00	0.00	0.25
2	3	1	1	0.00	0.00	0.00
3	1	2	2	0.50	0.50	1.00
4	2	2	2	0.50	0.50	0.25
5	3	2	1	0.00	0.50	0.00
6	1	2	3	1.00	0.50	1.00
7	1	3	1	0.00	1.00	1.00
8	1	1	3	1.00	0.00	1.00
9	2	2	1	0.00	0.50	0.25
10	2	2	3	1.00	0.50	0.25
11	3	3	1	0.00	1.00	0.00
12	3	2	2	0.50	0.50	0.00
13	2	3	1	0.00	1.00	0.25
14	2	1	3	1.00	0.00	0.25

In order to compare our results with that of the Ng-model, we maintain the same number of selected suppliers, that is, five selected suppliers, as in the work of Xia and Wu.¹³ Since the multiple criteria supplier selection problem is processed with three criteria, we investigate $A_{3}^{3} = 6$ ranking of the importance of the criteria, that is, $Price ≻ Quality ≻ Service$ , $Price ≻ Service ≻ Quality$ , $Quality ≻ Price ≻ Service$ , $Quality ≻ Service ≻ Price$ , $Service ≻ Price ≻ Quality$ , and $Service ≻ Quality ≻ Price$ . The final results and related comparison are summarized in Table 2 below, where the number “1” in the square bracket represents “the supplier is selected” and the number “0” indicates “the supplier is not selected.”

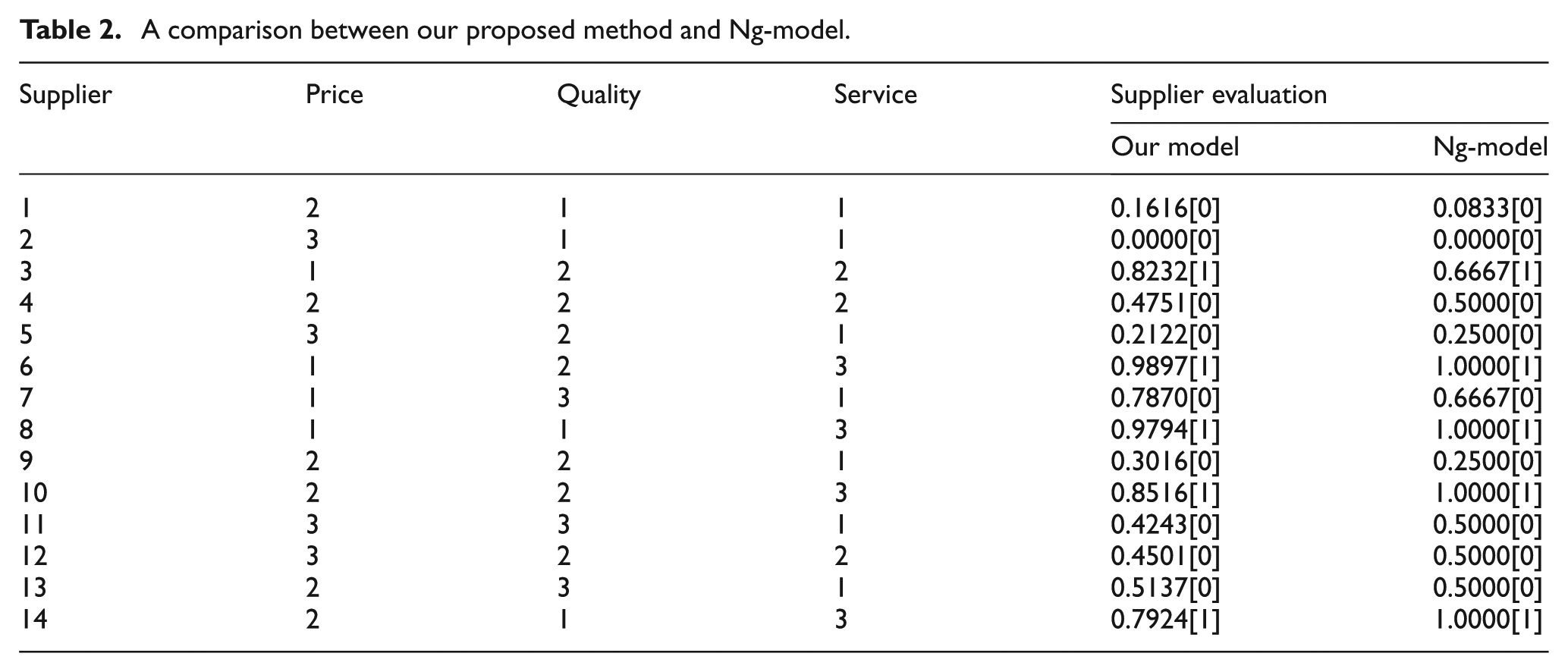

Table 2.

A comparison between our proposed method and Ng-model.

Supplier	Price	Quality	Service	Supplier evaluation
Supplier	Price	Quality	Service	Our model	Ng-model
1	2	1	1	0.1616[0]	0.0833[0]
2	3	1	1	0.0000[0]	0.0000[0]
3	1	2	2	0.8232[1]	0.6667[1]
4	2	2	2	0.4751[0]	0.5000[0]
5	3	2	1	0.2122[0]	0.2500[0]
6	1	2	3	0.9897[1]	1.0000[1]
7	1	3	1	0.7870[0]	0.6667[0]
8	1	1	3	0.9794[1]	1.0000[1]
9	2	2	1	0.3016[0]	0.2500[0]
10	2	2	3	0.8516[1]	1.0000[1]
11	3	3	1	0.4243[0]	0.5000[0]
12	3	2	2	0.4501[0]	0.5000[0]
13	2	3	1	0.5137[0]	0.5000[0]
14	2	1	3	0.7924[1]	1.0000[1]

For both models, 5 out of 14 suppliers are selected according to the evaluating scores. More specifically, for the Ng-model, both supplier 3 and supplier 7 are scored equally, but as for our model, the final scores are completely different, and only supplier 3 will be selected. Therefore, our proposed method is more acceptable with more discriminability.

The common weights for each ranking of importance of the criteria are depicted in Figure 1.

Figure 1.

Common weights of criteria importance rankings.

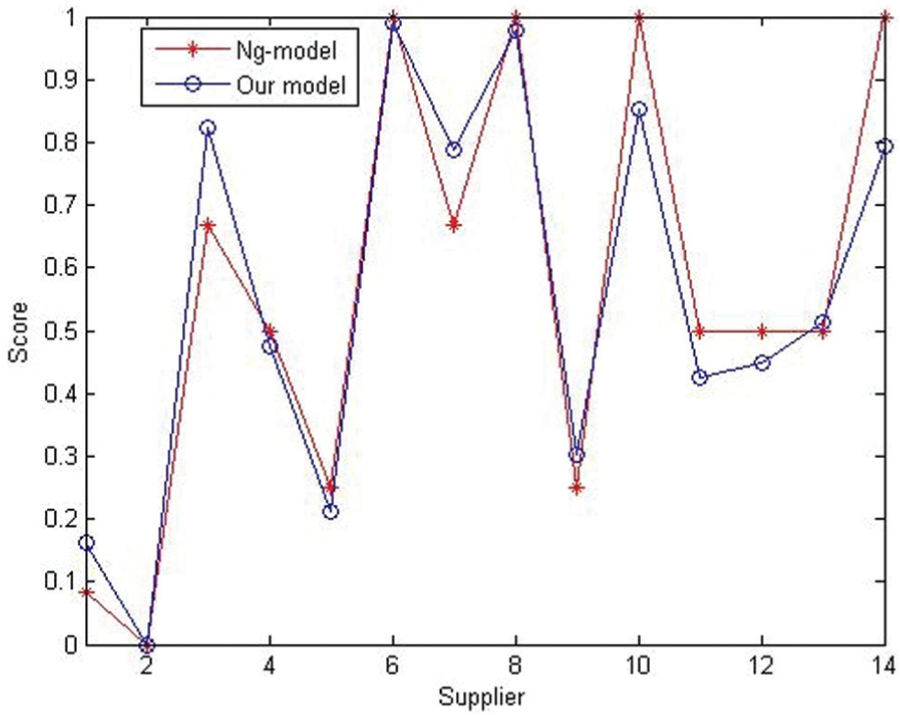

The following Figure 2 shows the evaluated scores derived from our proposed method and the Ng-model.

Figure 2.

Comparison between our model and the Ng-model.

Concluding remarks

The present short article provides an extended version of the Ng-model for multiple criteria supplier selection problem. The contribution of our article is to present a distance-based decision making method for comprehensively classifying all available suppliers, which improves the Ng-model by deriving the common weights for all criteria importance sequences. The scores derived from the proposed method are calculated to provide a unique sequence of the suppliers. The ranking method presented in this article is originated from easily understood premises and provides interesting insights for ranking construction to avoid conflict.
