Optimization of hydraulic electric energy-feeding suspension based on improved cloud particle swarm optimization-cuckoo search algorithm

Abstract

To address the problems of slow steady-state response, poor optimization accuracy, and easy falling into local optima in the parameter optimization of hydraulic electric energy-feeding suspension systems, an improved cloud particle swarm optimization-cuckoo search (CPSO-CS) algorithm was proposed. The algorithm innovatively integrated cloud theory and Logistic chaotic initialization into the traditional particle swarm optimization (PSO) and, combined with the levy flight local search mechanism of cuckoo search (CS), achieved a balance between global exploration and local development. Under Class-B, Class-C, and convex road excitations, the dynamic characteristics of passive control, sliding mode control (SMC), PSO control, and CPSO-CS control strategy applied to the hydraulic electric energy-feeding suspension were analyzed. Vertical body acceleration, suspension dynamic deflection, and tire dynamic load were selected as the evaluation indices. The results indicate that the proposed improved algorithm enhances both the optimization accuracy and convergence speed of the suspension system’s dynamic performance indices, thereby significantly improving the ride comfort of the hydraulic electric energy-feeding suspension system.

Keywords

Hydraulic electric energy-feeding suspension cloud particle swarm optimization cuckoo search logistic chaotic initialization ride comfort

Introduction

As a critical component connecting the vehicle body to the wheels, the automotive suspension system absorbs road impact energy, supports the vehicle’s weight, and provides occupants with a comfortable and safe driving experience.¹ Traditional automotive suspension systems typically dissipate vibration energy as heat through damping valves installed in shock absorbers, thereby achieving energy absorption and reducing vibration.^2,3 Energy-harvesting suspension systems not only effectively suppress vibrations caused by road irregularities but also recover a portion of the vibrational energy. Compared to traditional passive suspensions, the electrohydraulic energy-feedback suspension system offers advantages such as simplified structural design and lower cost. It effectively recovers vibrational energy to achieve energy-feedback damping, gaining widespread application in the field. Intelligent control strategies can be applied to enhance system performance.⁴

Numerous control algorithms exist for semi-active suspension systems, including PID, LQR, Fuzzy, RBF, and SMC.^5–7 Lu⁸ et al. combined adaptive sliding mode control with fuzzy logic systems, enhancing system reliability while addressing external disturbances and actuator failures in the suspension system. Simulation results across multiple driving scenarios validated the effectiveness of the designed fault-tolerant control method. Su⁹ et al. proposed integrating adaptive sliding mode control with radial basis function neural networks to compensate for uncertainties in nonlinear system models, thereby achieving high-performance system control.

The FAPID control algorithm designed by Hu¹⁰ et al. balances the advantages of fast response speed, high control accuracy, and excellent stability, demonstrating superior control performance compared to SMC and PID control algorithms. Tan¹¹ et al. designed a dual-closed-loop PID controller based on the particle swarm optimization algorithm for active suspension control. The designed controller not only mitigates body vibrations caused by road surface irregularities but also enhances vehicle ride comfort. Zhao¹² developed a CS-PID control strategy that generates desired damping forces in real time based on vehicle state. Numerical simulation results demonstrate that the CS-PID control strategy can be successfully applied to suspension systems, exhibiting practical value. Chiou¹³ et al. employed a Q-learning collaborative approach to assist PSO in efficiently searching for optimal fuzzy PID controller parameters. This algorithm reduces the number of evolutionary generations while also evolving fuzzy systems to achieve superior performance. Hooi Hung Tang¹⁴ et al. combined PSO with water wave optimization (WWO), significantly improving the integral time absolute error (ITAE) of body displacement. Zhao¹⁵ et al. employed an LQR controller based on a hybrid particle swarm optimization genetic algorithm to control an active suspension system, enhancing metrics such as suspension mass acceleration, suspension deflection, and tire dynamic load.

Zhang¹⁶ employed a particle swarm optimization algorithm to globally optimize the LQR weighting matrix, thereby enhancing the stability of the suspension dynamic stroke. A fuzzy adaptive cuckoo search algorithm was proposed, capable of reducing computational time during the evolutionary process while improving the accuracy of multi-objective optimization problems.¹⁷ Traditional particle swarm optimization algorithms offer advantages such as computational simplicity and rapid convergence.^18,19 However, their flight states are not entirely controlled by particles, which weakens local search capabilities and may lead to overlooking optimal solutions.²⁰ The cuckoo search algorithm proves more effective than particle swarm optimization. Integrating Levy flight enhances both its local and global search capabilities.²¹

This paper establishes a mathematical model of the hydraulic electric energy-feeding suspension system. To address the system uncertainties and achieve a longer steady-state response time, the CPSO-CS algorithm is introduced. Aiming at nonlinear factors in the suspension system such as faults, time-varying mass and unknown disturbances, this study combines cloud theory, PSO and CS to form the CPSO-CS algorithm tailored for hydraulic electric energy-feeding suspensions. Comparative numerical simulations verify the effectiveness and convergence performance of the proposed algorithm.

The main contributions of this paper are listed as follows:

(1) A two-degree-of-freedom 1/4 hydraulic electric energy-feeding suspension model was established to investigate the characteristics of the suspension system.

(2) CPSO-CS is applied to a hydraulic electric energy-feeding suspension to reduce the time required for the system to reach steady-state response.

The main work of this paper is as follows: Chapter 2 establishes the model of a two-degree-of-freedom 1/4-scale hydraulic electric energy-feeding suspension system; Chapter 3 describes the design process of the CPSO-CS; Chapter 4 verifies the effectiveness of the designed CPSO-CS algorithm through simulation comparison experiments; Chapter 5 presents the conclusions.

Dynamic model of hydraulic electric energy-feeding suspension

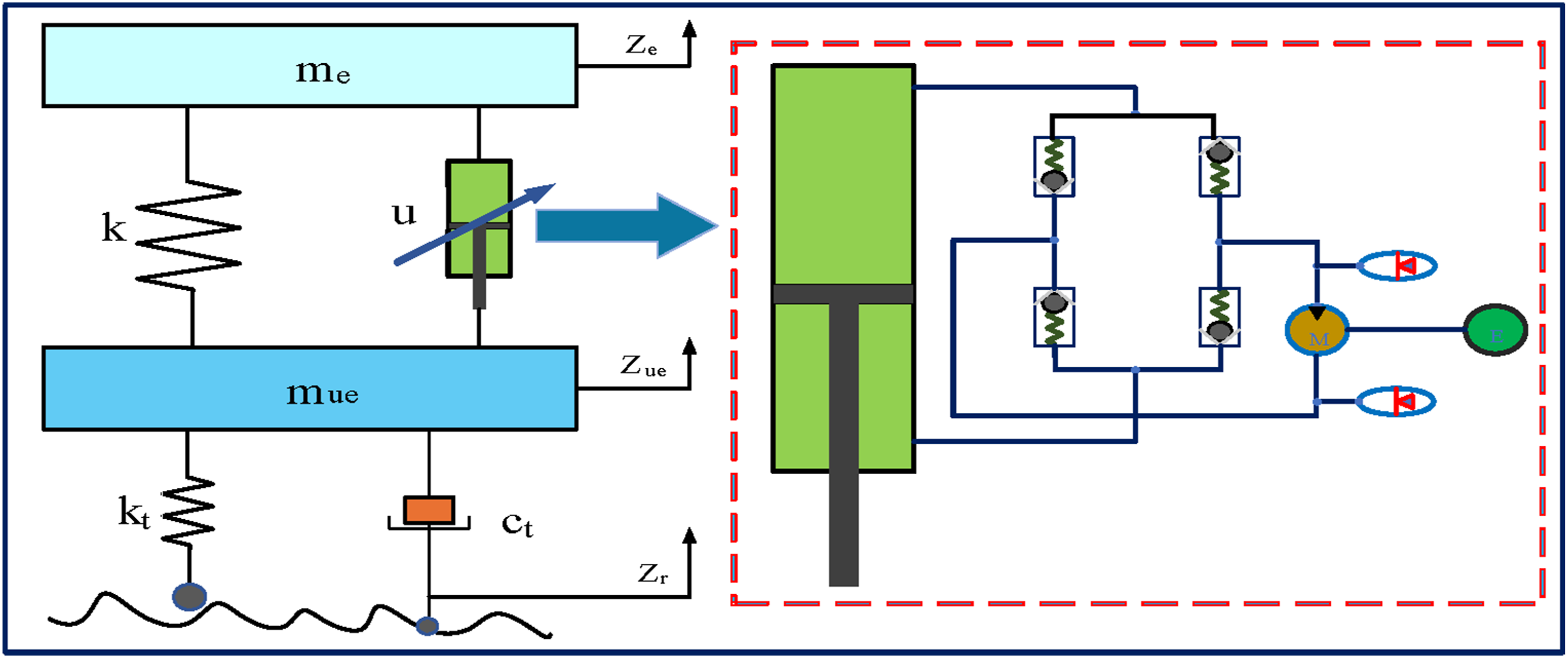

As shown in Figure 1, a mathematical model of a two-degree-of-freedom 1/4 vehicle hydraulic electric energy-feeding suspension system is constructed based on the following dynamic equations of the system:

{\begin{cases} m_{e} \cdot {\ddot{z}}_{e} = F_{k s} + u \\ m_{u e} \cdot {\ddot{z}}_{u e} = - k_{t} (z_{u e} - z_{r}) - c_{t} ({\dot{z}}_{u e} - {\dot{z}}_{r}) - u - F_{k s} \end{cases}

(1)

where

m_{e}

is the sprung mass,

m_{u e}

is the unsprung mass;

z_{e}

is the displacement of the sprung mass;

z_{u e}

is the displacement of the unsprung mass;

z_{r}

is the road displacement input;

k

is the spring stiffness;

k_{t}

is the tire stiffness;

c_{t}

is the tire damping; and

u

is the semi-active control force.

Figure 1.

A quarter-vehicle dynamics model.

This model serves as a classic fundamental model for studying vertical vibrations in vehicle suspensions. It accurately characterizes the core transmission mechanisms of vertical vibrations while eliminating coupling interference from non-vertical dynamics such as pitch and roll. This facilitates focused validation of the CPSO-CS algorithm’s ability to optimize key vertical-suspension parameters.

F_{k s} = - k_{1} (z_{e} - z_{u e}) - k_{2} {(z_{e} - z_{u e})}^{2} - k_{3} {(z_{e} - z_{u e})}^{3}

(2)

Where, $k_{1}$ , $k_{2}$ , and $k_{3}$ represent the linear, quadratic, and cubic spring stiffness coefficients, respectively.

The state vector is selected as:

\begin{array}{l} X_{e} = [\begin{array}{l} z_{e} & {\dot{z}}_{e} & z_{u e} & {\dot{z}}_{u e} \end{array}] \\ = [\begin{array}{l} x_{1} & x_{2} & x_{3} & x_{4} \end{array}] \end{array}

(3)

Considering that the control objective primarily involves the movement of spring-loaded mass and incorporating the uncertainty of key parameters, the parameter variation is introduced:

{\begin{cases} {m_{e}}^{z} = m_{e} + Δ m_{e} \\ {k_{1}}^{z} = k_{1} + Δ k_{1} \end{cases}

(4)

Where ${m_{e}}^{z}$ represents the spring-loaded mass accounting for uncertainty; ${k_{1}}^{z}$ represents the linear spring stiffness accounting for uncertainty.

Equation (1) can be decoupled as follows:

{\begin{cases} {\dot{x}}_{2} = \frac{u}{{m_{e}}^{z}} + \frac{1}{{m_{e}}^{z}} (- {k_{1}}^{z} (x_{1} - x_{3})) + \frac{1}{{m_{e}}^{z}} g_{c} (t) \\ d_{c} = - \frac{Δ m_{e}}{{m_{e}}^{z} m_{e}} (- {k_{1}}^{z} (x_{1} - x_{3}) + u) + \frac{1}{{m_{e}}^{z}} g_{c} (t) \\ + \frac{1}{m_{e}} (- Δ k_{1} (x_{1} - x_{3})) \\ d_{t} = - \frac{Δ k_{1}}{m_{u e}} (x_{1} - x_{3}) \end{cases}

(5)

Where $d_{c}$ represents the body disturbance term, $d_{t}$ represents the wheel disturbance term, satisfying $| d_{c} | \leq d_{0}$ (where $d_{0}$ is the upper limit of system disturbance).

Define $A$ , $B$ , $f (x)$ and $g (x)$ as:

{\begin{cases} A = \frac{1}{m_{e}}, B = - \frac{1}{m_{u e}} \\ f (x) = - \frac{k_{1}}{m_{e}} x_{1} + \frac{k_{1}}{m_{e}} x_{3} \\ g (x) = \frac{k_{1}}{m_{u e}} x_{1} - (\frac{k_{1} + k_{t}}{m_{e}}) x_{3} - \frac{c_{t}}{m_{u e}} x_{4} + \frac{k_{t}}{m_{u e}} z_{r} + \frac{c_{t}}{m_{u e}} {\dot{z}}_{r} \end{cases}

(6)

The final state space expression for the suspension system is:

{\begin{cases} {\dot{x}}_{1} = x_{2}, {\dot{x}}_{3} = x_{4} \\ {\dot{x}}_{2} = f (x) + A u + d_{c} \\ {\dot{x}}_{4} = g (x) + B u + d_{t} \end{cases}

(7)

Power feed capacity:

P = u \cdot ({\dot{z}}_{e} - {\dot{z}}_{u e})

(8)

Intelligent algorithm optimization

CPSO algorithm

Normalize each target to eliminate dimensional effects:

{\bar{J}}_{i} = \frac{J_{i} - J_{i, \min}}{J_{i, \max} - J_{i, \min}} (i = 1, 2, 3)

(9)

Where: $J_{i, \min}$ and $J_{i, \max}$ denote the minimum and maximum values allowed for the indicator, respectively.

Original calculation formulas for each target:

{\begin{cases} J_{1} = \int_{0}^{T} {({\dot{x}}_{2})}^{2} (t) d t \\ J_{2} = \int_{0}^{T} {(x_{1} - x_{3})}^{2} (t) d t \\ J_{3} = \int_{0}^{T} {[k_{t} (z_{u e} - z_{r}) + c_{t} ({\dot{z}}_{u e} - {\dot{z}}_{r})]}^{2} (t) d t \end{cases}

(10)

Where $J_{1}, J_{2}, J_{3}$ represent the root mean square values of vertical body acceleration, suspension dynamic deflection, and tire dynamic load, respectively.

Construct the single-objective fitness function:

f_{e} = ω ({\bar{J}}_{1} + {\bar{J}}_{2} + {\bar{J}}_{3})

(11)

A Logistic chaotic mapping is employed to generate the initial population of optimization variables:

θ_{i, j}^{(0)} = θ_{j, \min} + (θ_{j, \max} - θ_{j, \min}) \cdot Z_{i, j}^{(0)}

(12)

Where $i$ denotes the population size; $j$ denotes the optimization dimension; $θ_{j, \min}$ and $θ_{j, \max}$ represent the upper and lower bounds of constraint for the j optimization variable, and $Z_{i, j}^{(0)}$ denotes the Logistic chaotic sequence.

Introducing cloud theory, the average fitness value of particles is:

f_{m} = \frac{1}{N} \sum_{i = 1}^{N} f_{e}

(13)

Where $N$ denotes the number of particles, $N = 40$ , $f_{e}$ denotes the fitness value of the objective function.

Divide the particles into two groups: those with fitness values greater than the average, and those with fitness values less than the average. Calculate the average fitness values for each group, denoted as ${\bar{f}}_{m}$ and ${\tilde{f}}_{m}$ .

(1) When $f_{e} \leq {\bar{f}}_{m}$ , accelerate global convergence with $ω$ set to 0.2.

(2) When ${\bar{f}}_{m} < f_{e} < {\tilde{f}}_{m}$ , $ω = ω_{e}$

(3) When $f_{e} \geq {\tilde{f}}_{m}$ , accelerate local convergence, set $ω$ to 0.9.

{\begin{cases} E_{a} = {\bar{f}}_{m} \\ E_{c} = \frac{(f_{m} - f_{\min})}{c_{1}} \\ H_{e} = \frac{E_{c}}{c_{2}} \\ E_{c}^{'} = n o r m r a n d (E_{c}, H_{e}) \end{cases}

(14)

Where $E_{a}$ represents expectation, $E_{c}$ represents entropy, $H_{e}$ represents super-entropy, and $E_{c}^{'}$ represents the generated normal random number.

The cloud-adaptive inertial weighting coefficient is obtained as:

ω_{e} = α e^{\frac{- {(f_{e} - E_{a})}^{2}}{(2 {(E_{c}^{'})}^{2})}}

(15)

By employing appropriate inertia weight coefficients to balance global search capability and local search capability, the particle swarm optimization algorithm formula is derived as follows:

\begin{array}{l} V_{i, j}^{(t + 1)} = ω_{i}^{(t)} \cdot v_{i, j}^{(t)} + c_{1} \cdot r_{1} (p b e s t_{i, j} - θ_{i, j}^{(t)}) \\ + c_{2} \cdot r_{2} (g b e s t_{j} - θ_{i, j}^{(t)}) \end{array}

(16)

Where $V_{i, j}^{(t + 1)}$ represents the velocity parameter of the particle; $θ_{i, j}^{(t)}$ represents the corresponding position parameter; $c_{1}$ and $c_{2}$ represent the cognitive factor and social factor, respectively $r_{1} = r_{2} = 0.25$ ; $p b e s t_{i, j}$ represents the fitness value of the individual; $g b e s t_{j}$ represents the global optimal fitness value.

Update particle velocity:

V_{i, j}^{(t + 1)} = {\begin{cases} v_{j, \max}, v_{i, j}^{(t + 1)} > v_{j, \max} \\ - v_{j, \max}, v_{i, j}^{(t + 1)} \leq - v_{j, \max} \\ v_{i, j}^{(t + 1)}, o t h e r w i s e \end{cases}

(17)

Where $v_{j, \max}$ represents the maximum particle velocity.

Particle position update:

θ_{i, j}^{(t + 1)} = θ_{i, j}^{(t)} + v_{i, j}^{(t + 1)}

(18)

Variable constraints:

θ_{i, j}^{(t + 1)} = {\begin{cases} θ_{j, \max}, θ_{i, j}^{(t + 1)} > θ_{j, \max} \\ θ_{j, \min}, θ_{i, j}^{(t + 1)} < θ_{j, \min} \\ θ_{i, j}^{(t + 1)}, o t h e r w i s e \end{cases}

(19)

Update local optimum and global optimum:

p b e s t_{i}^{(t + 1)} = {\begin{cases} θ_{i}^{(t + 1)}, f (θ_{i}^{(t + 1)}) < f (p b e s t_{i}^{(t)}) \\ p b e s t_{i}^{(t)}, o t h e r w i s e \end{cases}

(20)

g b e s t_{i}^{(t + 1)} = {\begin{cases} p b e s t_{i}^{(t + 1)}, f (p b e s t_{i}^{(t + 1)}) < f (g b e s t_{i}^{(t)}) \\ g b e s t_{i}^{(t)}, o t h e r w i s e \end{cases}

(21)

CPSO-CS algorithm

Define the Levy flight function:

θ_{i, j, n e w}^{(t + 1)} = g b e s t_{j}^{(t)} + α L (λ) \cdot (g b e s t_{j}^{(t)} - θ_{i, j}^{(t + 1)})

(22)

where,

α = 0.01

λ = 1.5

L (λ) = \frac{ϕ \cdot σ}{{| ψ |}^{1 / β}}

(23)

σ = {(\frac{Γ (1 + β) \cdot \sin (π β / 2)}{Γ (\frac{1 + β}{2}) \cdot β \cdot 2^{(β - 1) / 2}})}^{1 / β}

(24)

Where $ϕ$ and $ψ$ follow a standard normal distribution $N (0, 1)$ , with $β = 1.5$ .

Retain the best particles:

θ_{i, j}^{(t + 1)} = {\begin{cases} θ_{i, j, n e w}^{(t + 1)}, r < P_{a} \\ θ_{i, j}^{(t)}, otherwise \end{cases}

(25)

Where

P_{a} = 0.25

r

is a random number in the interval (0, 1).

So:

f (g b e s t^{(t + 1)}) \leq f (g b e s t^{(t)})

(26)

So:

\lim_{t \to \infty} f (g b e s t^{(t)}) = {f_{e}}^{*}

(27)

Where $f (g b e s t^{(t)})$ represents the global optimal fitness value within the population at iteration $t$ , meaning this sequence must converge.

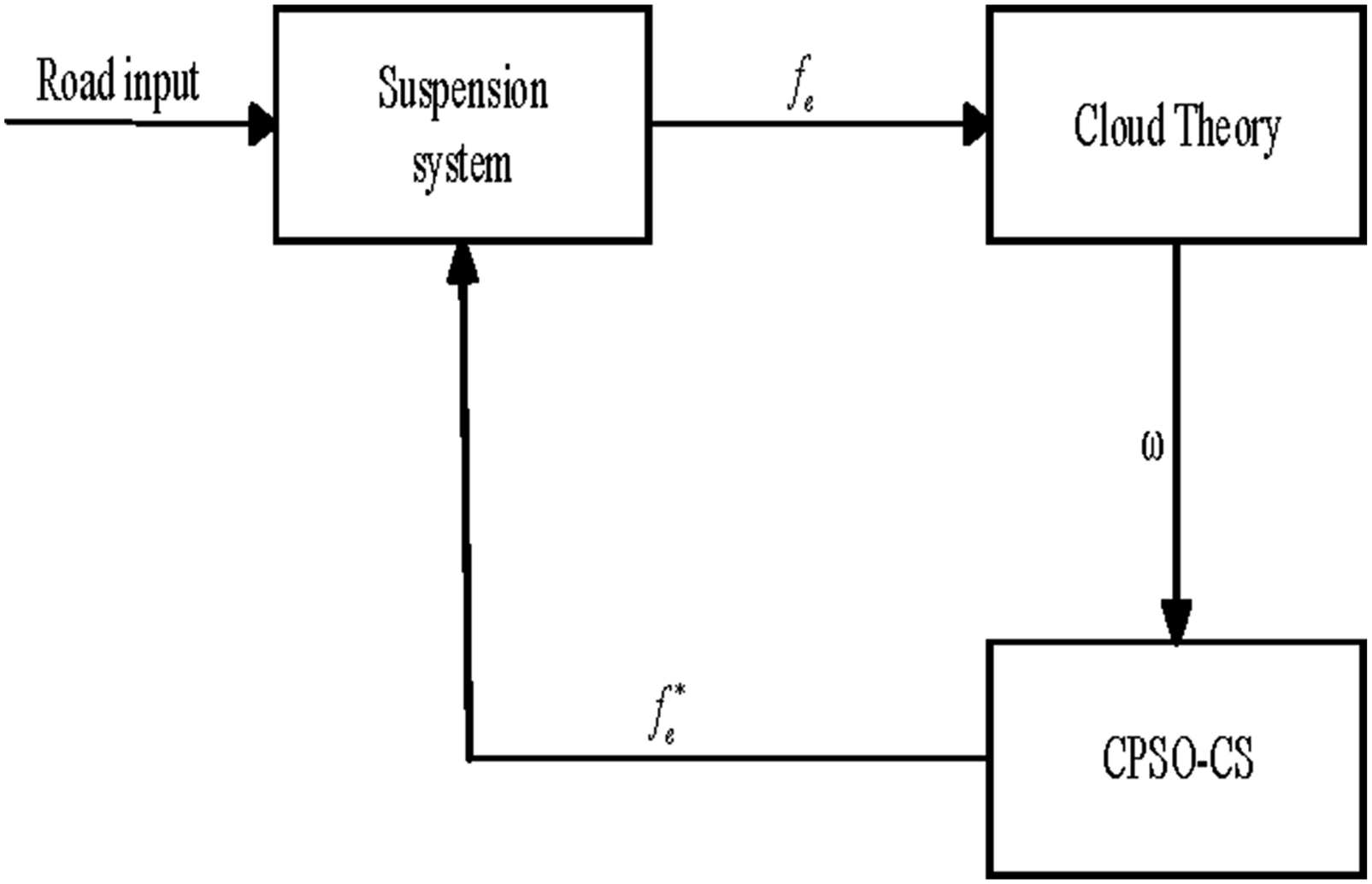

Figure 2 shows a schematic diagram of a suspension system controlled based on the CPSO-CS.

Figure 2.

Control schematic based on CPSO-CS.

Research objectives

To address the shortcomings of traditional PSO-CS hybrid algorithms, such as fixed inertia weight, synchronous search mode, and random population initialization, this study develops an improved CPSO-CS algorithm incorporating three core innovations. Unlike existing approaches that merely concatenate PSO and CS algorithms, this work reconstructs the hybrid algorithm’s search logic by introducing: Logistic chaotic initialization; a cloud-adaptive inertia weight mechanism based on cloud theory; and a serial search pattern in which CPSO performs a global search first, followed by CS triggering local search.

This algorithm overcomes the limitations of traditional hybrid PSO-CS algorithms with fixed weights and synchronous search. It adapts to the nonlinear characteristics and parameter uncertainties of the hydraulic electric energy-feeding suspension system, enhancing the optimization accuracy and convergence speed of suspension system dynamic metrics. This significantly improves the ride comfort and driving safety of hydraulic electric energy-feeding suspension systems.

Test function simulation analysis

To verify the global search, local development, and resistance to local optima of the proposed improved CPSO-CS algorithm, the Rastrigin test function was selected for simulation validation. This function is a classic, highly nonlinear multimodal function for testing the performance of intelligent algorithms. It has numerous local optima and only one global optimum, making it effective for evaluating whether an algorithm is prone to getting stuck in local optima. It is suitable for assessing the performance of algorithms for high-dimensional parameter optimization of Hydraulic electric energy-feeding suspension systems.

The traditional PSO algorithm and the improved CPSO-CS algorithm were used, respectively, to perform 400 iterations of optimization on this function, resulting in the algorithm fitness convergence curve (Figure 3), the three-dimensional distribution of the Rastrigin function (Figure 4), and the contour map (Figure 5). The results of each figure and their physical significance are explained as follows:

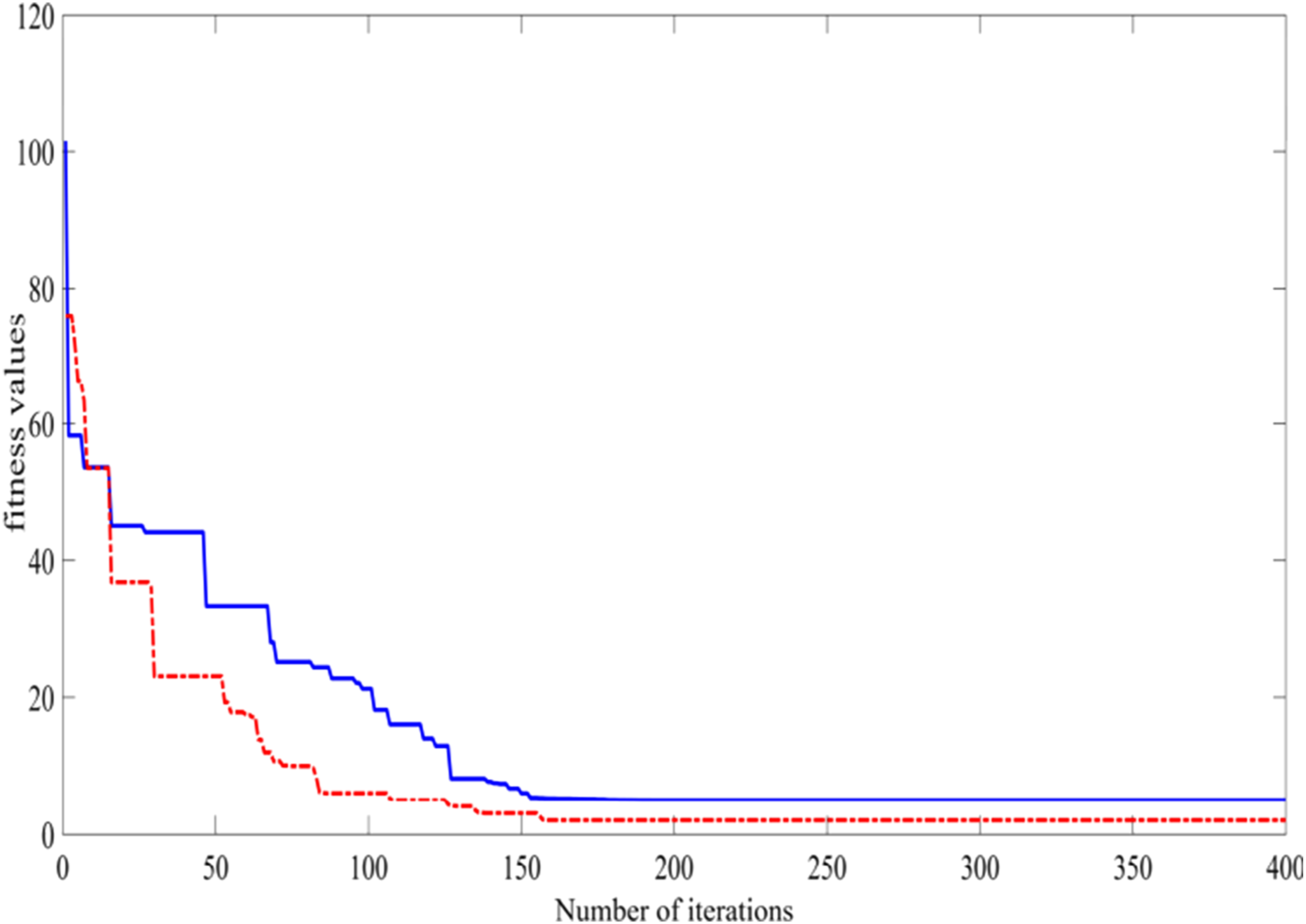

Figure 3.

Fitness curves of test functions for PSO and CPSO-CS.

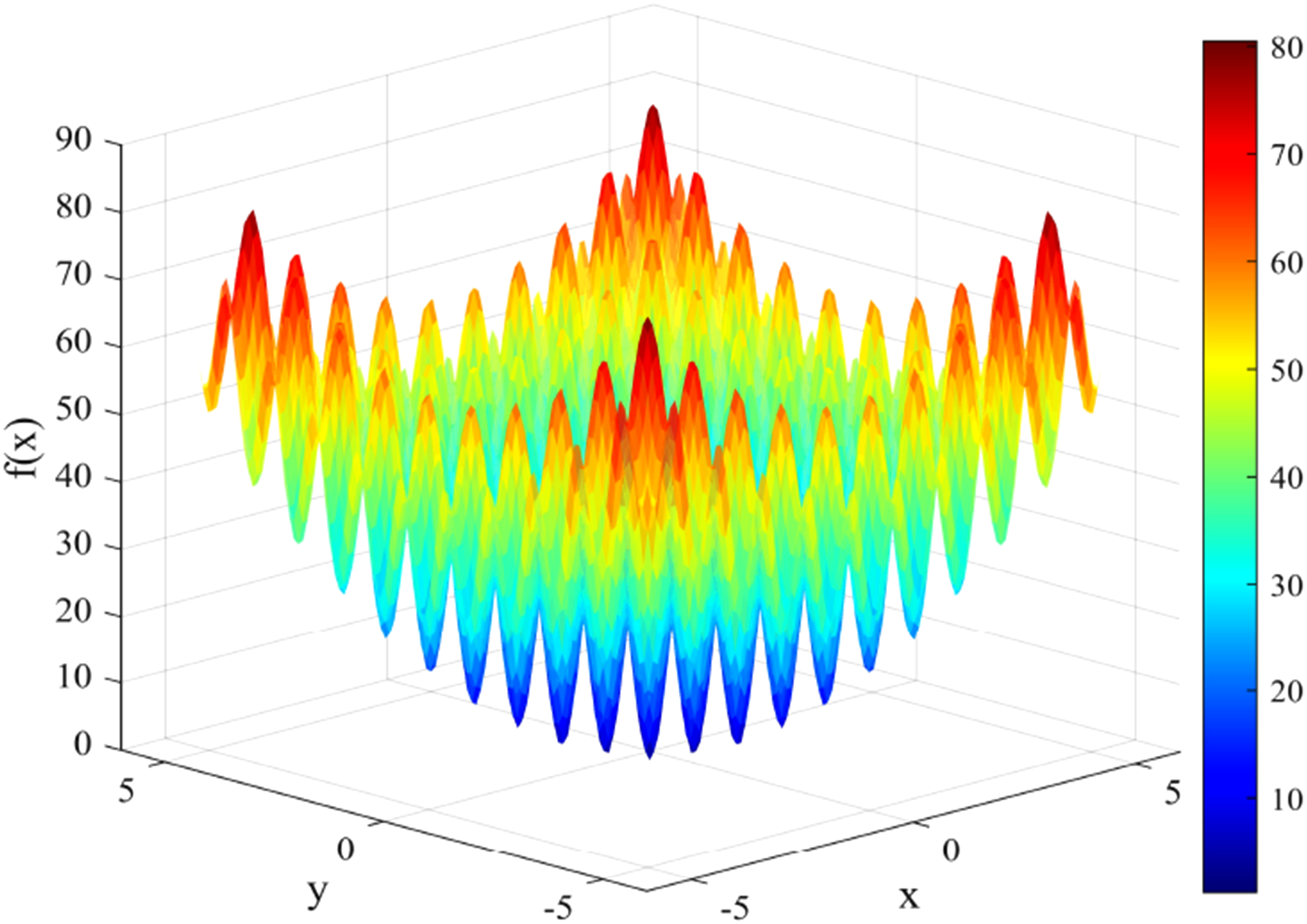

Figure 4.

Rastrigin function 3D image.

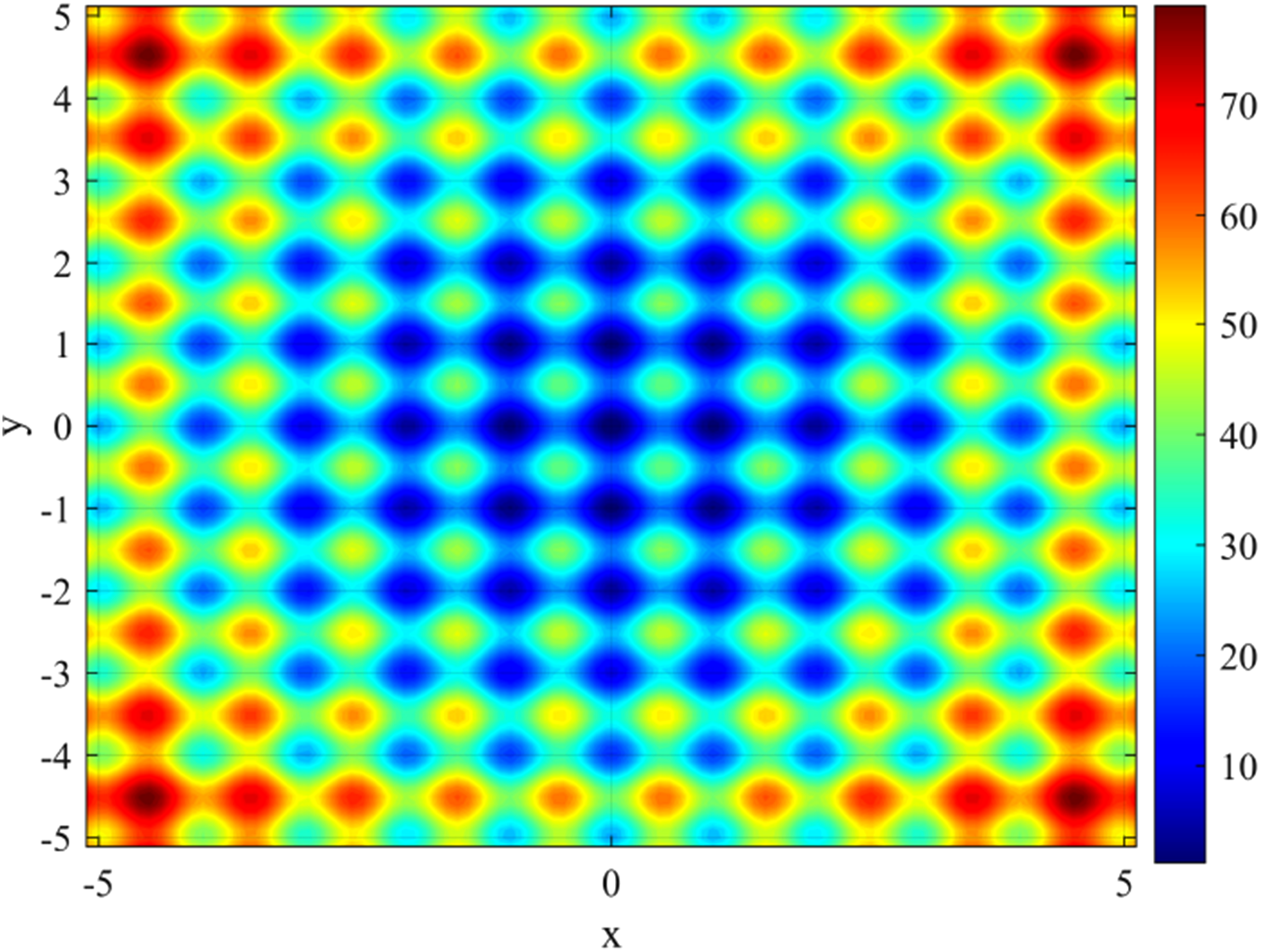

Figure 5.

Rastrigin function contour plots.

As shown in Figure 3:

(1) Early iteration stage, the fitness values of both algorithms decrease rapidly, reflecting their basic global search capabilities, but the decline rate of the CPSO-CS algorithm is significantly faster than that of the traditional PSO algorithm. This characteristic arises from the combination of the Logistic chaotic initialization and cloud-adaptive inertia weight design in the CPSO-CS algorithm: chaotic initialization allows the initial population to uniformly cover the solution space, preventing clustering of initial solutions; cloud-adaptive weights use small weights (ω = 0.2) in the early iterations to enhance global exploration, enabling the algorithm to quickly traverse the solution space and approach the region of the global optimum.

(2) Mid-iteration, the decline rate of the CPSO-CS algorithm is still significantly faster than that of the traditional PSO algorithm. The main reason is the intervention of CS Lévy flight for local fine search. After the global search of CPSO locks onto the potential optimal solution region, the CS algorithm conducts a high-precision fine search within that region, effectively overcoming the constraints imposed by local optima.

(3) In the later iterations, the fitness value of the traditional PSO algorithm remained at a relatively high level, while the fitness curve of the CPSO-CS algorithm gradually converged to a very low stable value, achieving precise capture of the global optimum. This result directly validates that the improved CPSO-CS algorithm significantly outperforms the traditional PSO algorithm in terms of convergence speed, optimization accuracy, and resistance to local optima, laying a solid performance foundation for subsequent applications of this algorithm to the parameter optimization of liquid-electric energy-harvesting suspension systems.

As shown in Figure 4, the spatial distribution of the three-dimensional image clearly indicates that there are many local optima in the solution space, while there is only one global optimum. This distribution makes the algorithm easily trapped in local optima during the search. However, in nonlinear, complex solution spaces with multiple local optima, the CPSO-CS algorithm can still achieve efficient optimization, demonstrating its robustness.

As shown in Figure 5, the contour distribution and the algorithm’s search trajectory indicate that closed areas in the contour distribution correspond to local optimal solutions, and the smallest closed area at the center corresponds to the region of the global optimal solution. The search trajectory of the CPSO-CS algorithm can continuously move toward the central region of the global optimal solution, eventually converging to its core. Figure 6 shows the CPSO-CS flowchart.

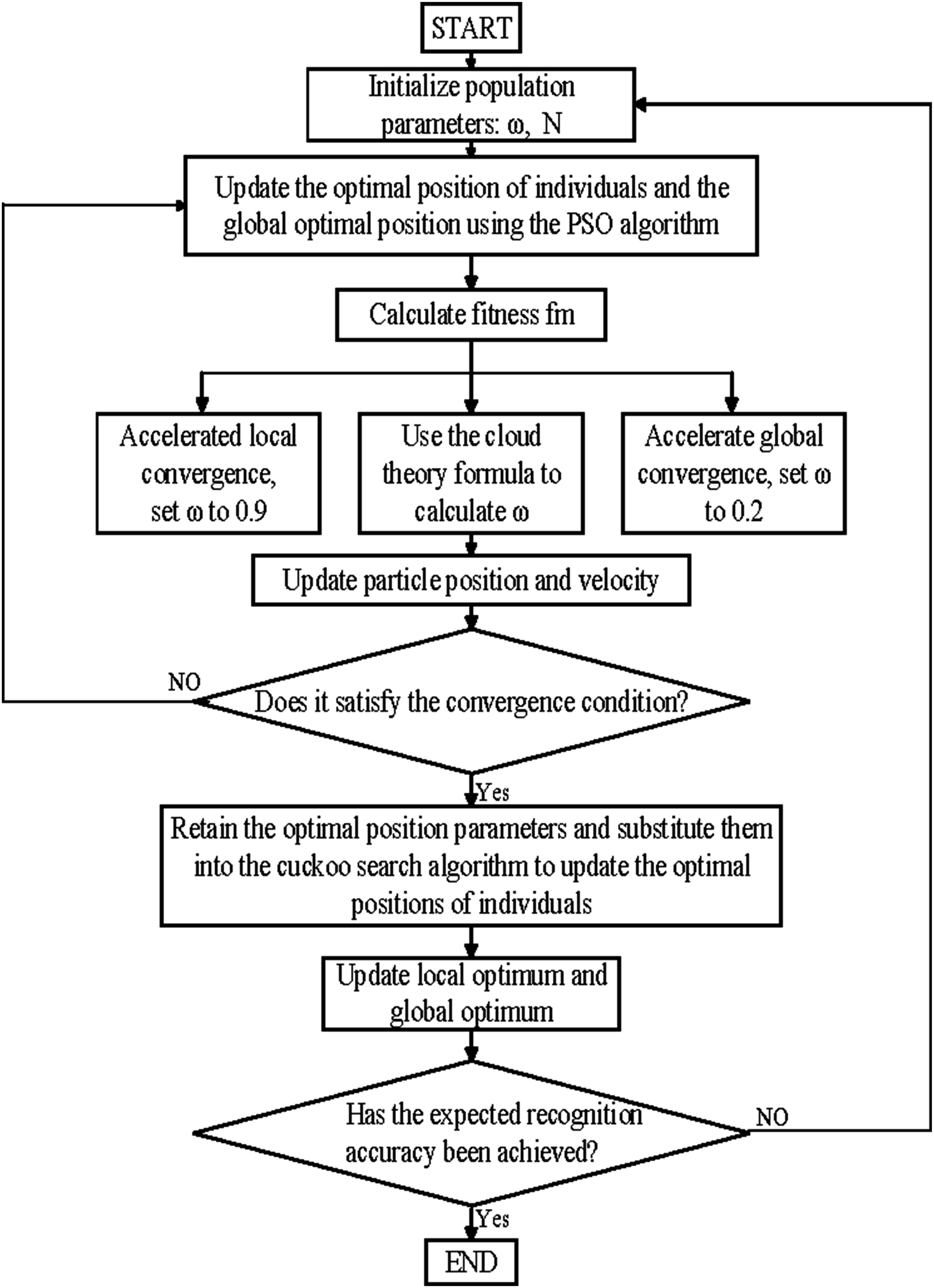

Figure 6.

CPSO-CS flowchart.

Furthermore, the underlying reason for the superior performance of the CPSO-CS algorithm is explained: the cloud-adaptive inertia weight dynamically switches between global exploration and local exploitation based on the particle’s fitness value, and the long-tail characteristic of Levy flights allows the algorithm to break free from local optima, ultimately achieving precise capture of the global optimal solution.

Simulation results and analysis

The time-domain mathematical expression for filtering white noise random pavement inputs to better simulate urban road conditions is given by²²:

\dot{q} (t) = - \partial v q (t) + w (t)

(28)

where

q (t)

represents the random excitation of the road surface to which the tire is subjected;

v

represents the driving speed;

w (t)

represents the white noise signal.

\partial

is the road estimation parameter.

The power spectral density of the filtered white noise is:

G_{q} (f) = 4 π^{2} G_{q} (n_{0}) {n_{0}}^{2} v

(29)

where

G_{q} (n_{0})

is the pavement unevenness coefficient, the value of B-class pavement and C-class pavement is

64 \times 10^{- 6}

and

256 \times 10^{- 6}

, respectively;

n_{0}

is the spatial frequency, take 0.1 m⁻¹;

v

is the traveling speed, take 20 m/s.

Select B-Class and C-Class road excitations, set the vehicle speed to 20 m/s, run the established 1/4 vehicle suspension system model in MATLAB, and input the road excitation. The simulation results are shown in Figure 7.

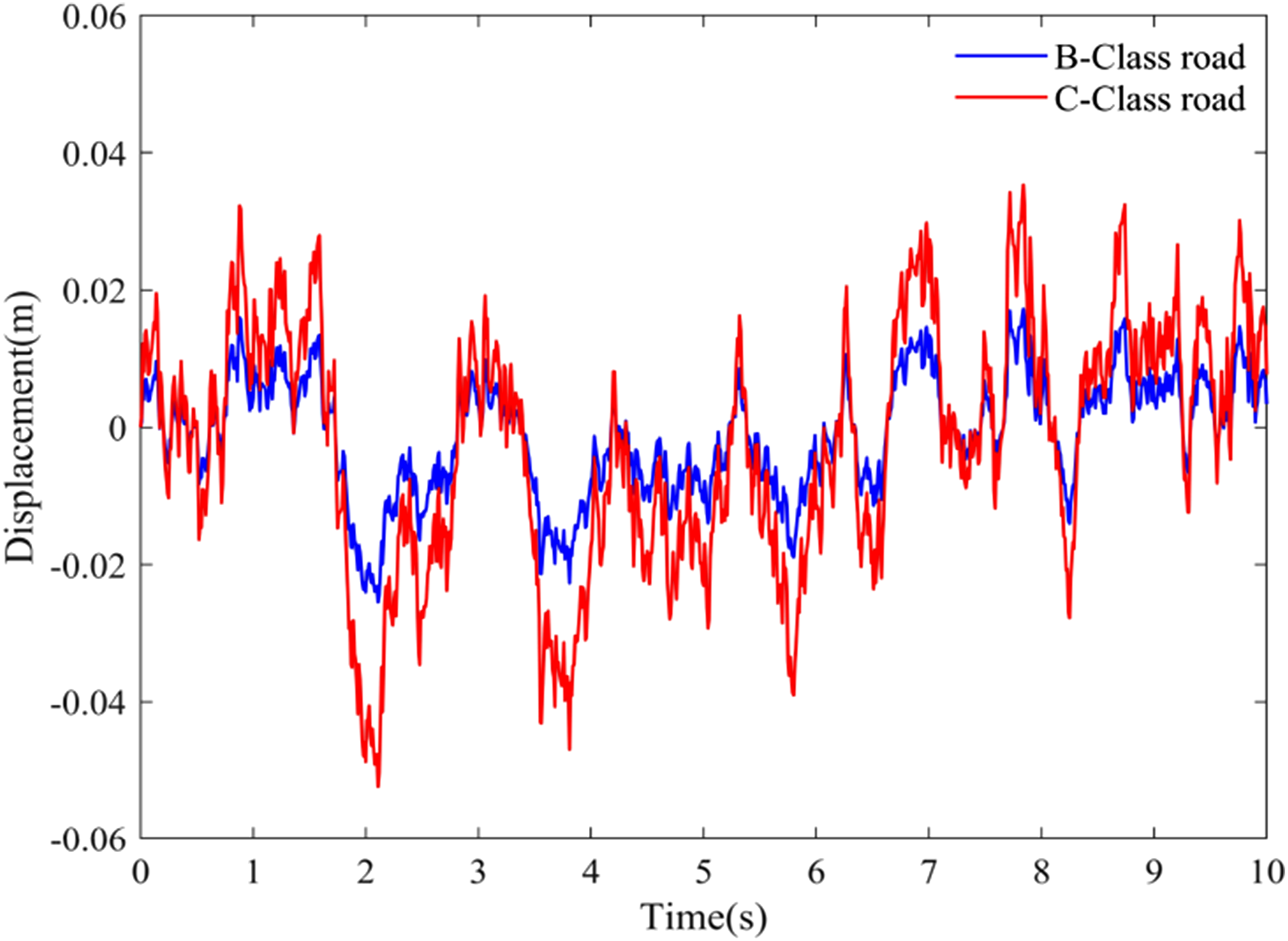

Figure 7.

Road input excitations.

Using vertical body acceleration, suspension dynamic deflection, and tire dynamic load as evaluation metrics for the suspension system, this study investigates CPSO-CS and conducts comparative simulation analyses against traditional passive control, SMC and PSO algorithms.

The root mean square value is:

x_{R M S} = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} {x_{i}}^{2},}

(30)

The basic parameters of the vehicle suspension system are shown in Table 1, and the simulation experiments are carried out by choosing two conditions of B-Class road surface and C-Class road surface, and the simulation time is set to 10 seconds, and the simulation results of B-Class road surface time domain are shown in Figures 8–11, and the simulation results of C- Class road surface time domain are shown in Figures 12–15.

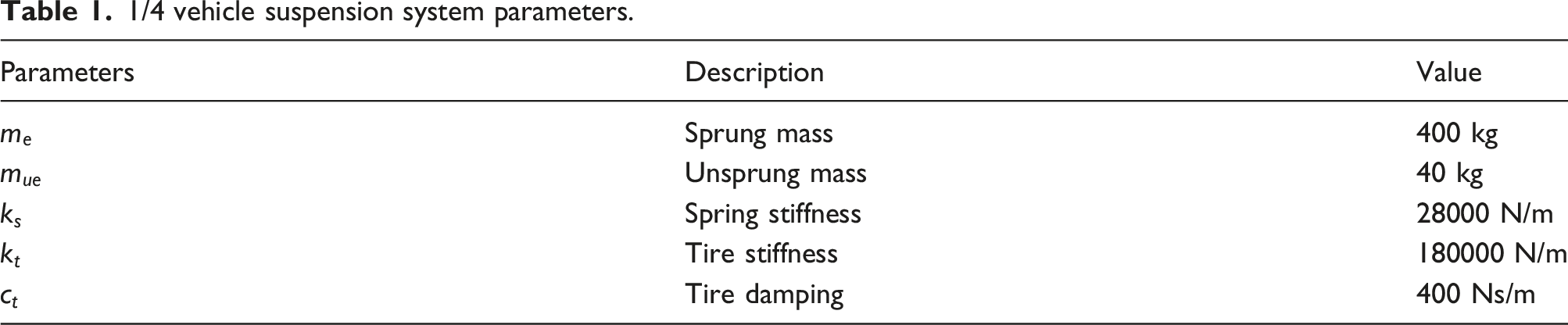

Table 1.

1/4 vehicle suspension system parameters.

Parameters	Description	Value
$m_{e}$	Sprung mass	400 kg
$m_{u e}$	Unsprung mass	40 kg
$k_{s}$	Spring stiffness	28000 N/m
$k_{t}$	Tire stiffness	180000 N/m
$c_{t}$	Tire damping	400 Ns/m

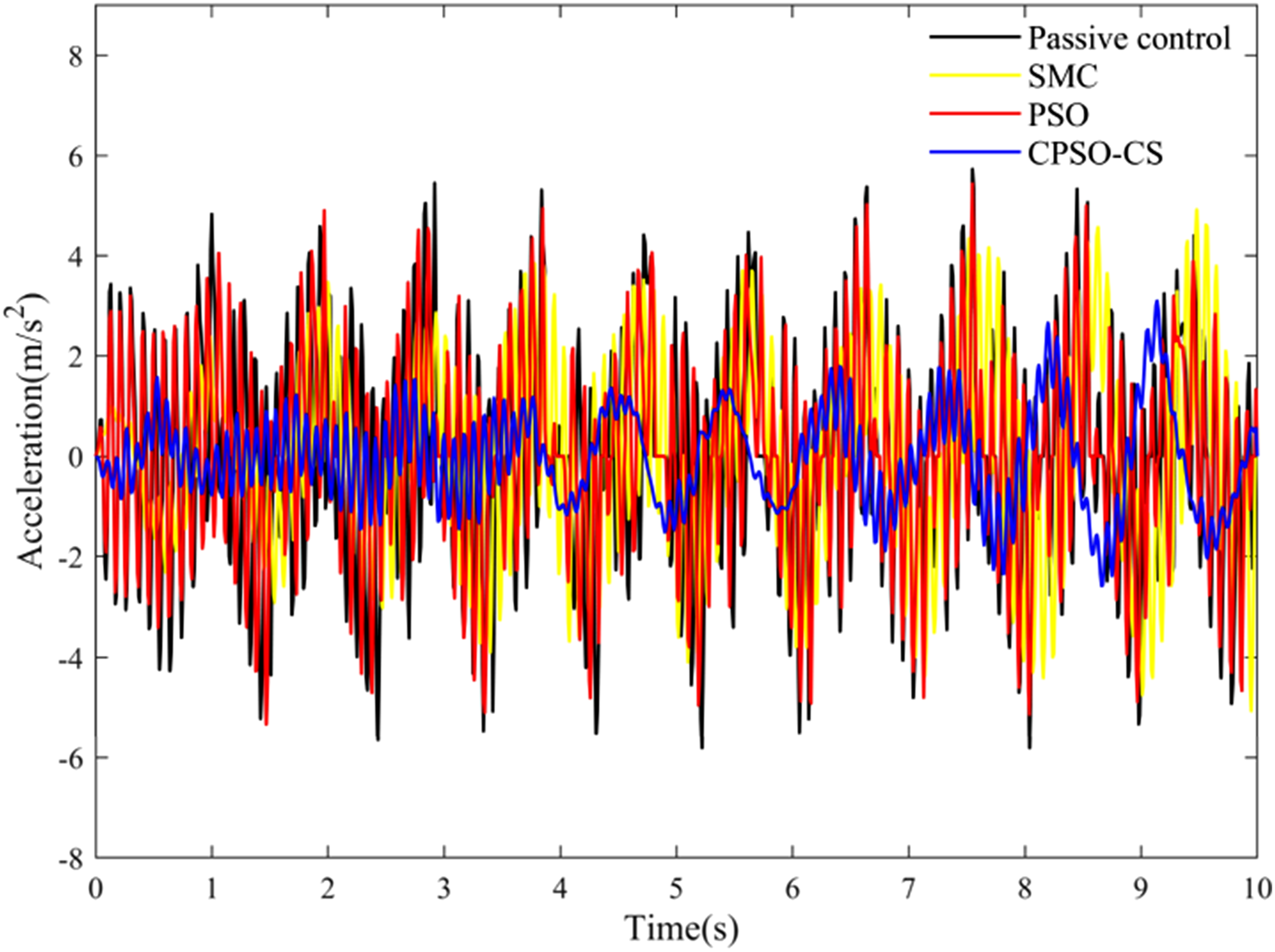

Figure 8.

Acceleration.

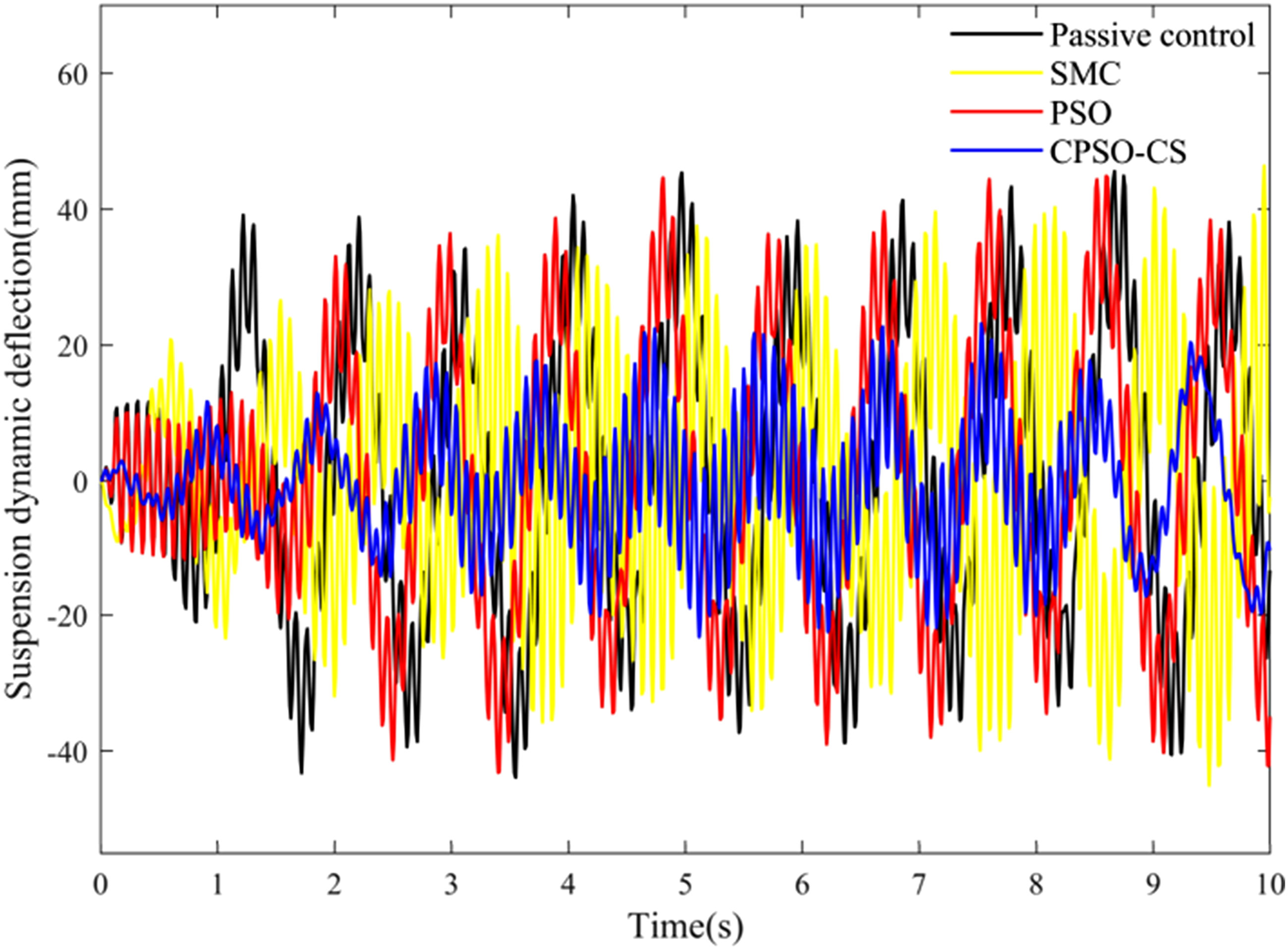

Figure 9.

Suspension dynamic deflection.

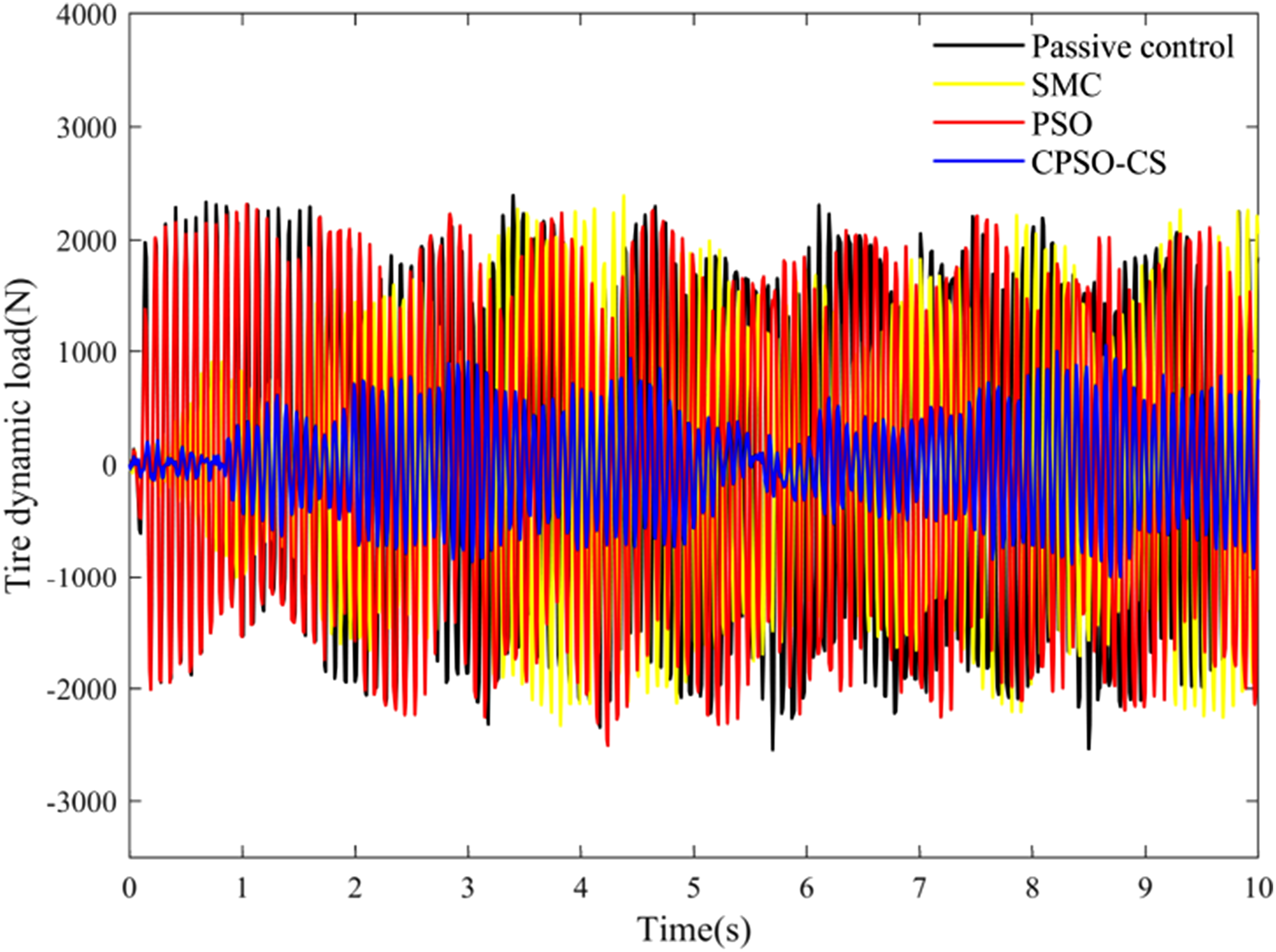

Figure 10.

Tire dynamic load.

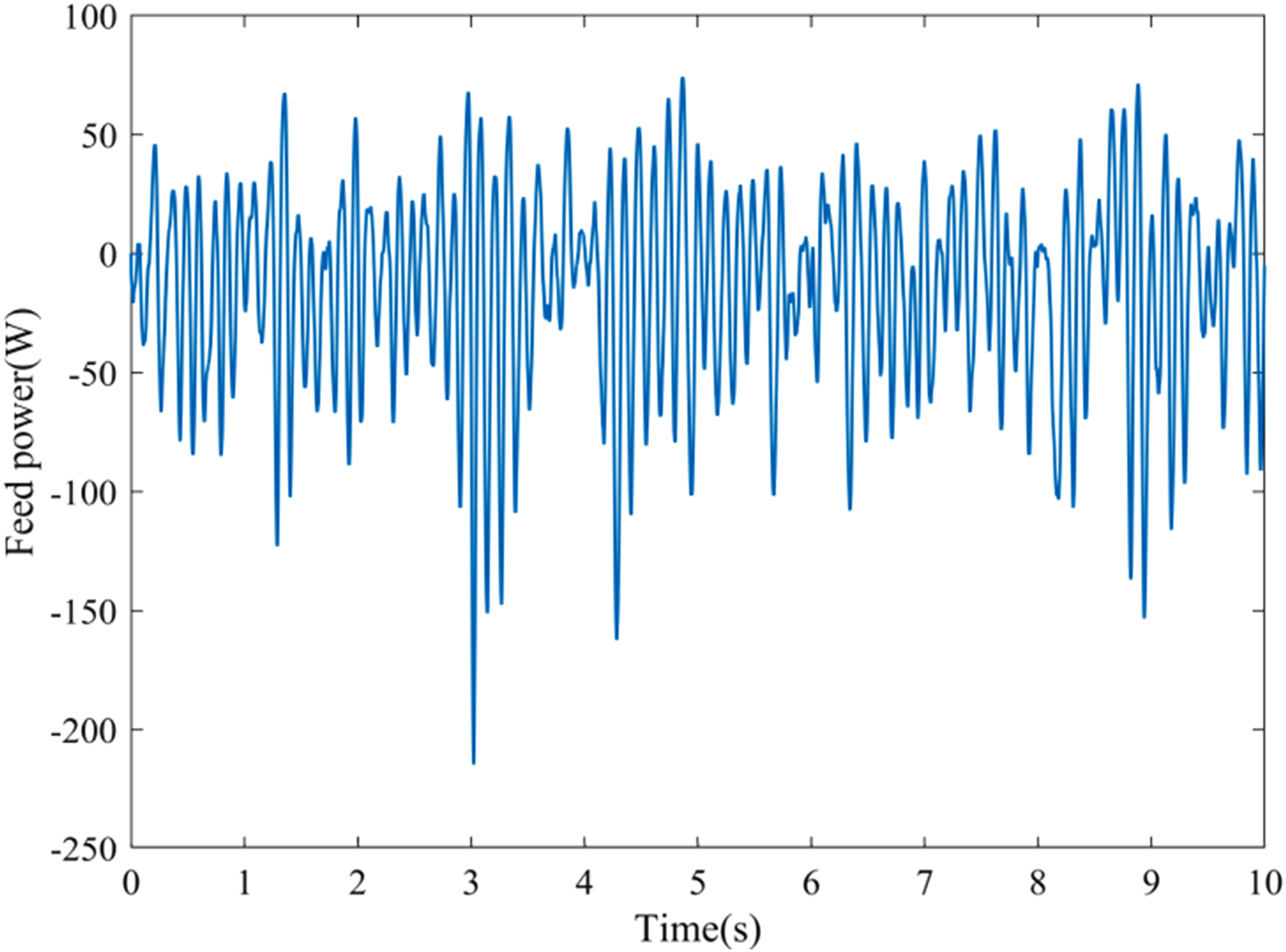

Figure 11.

Feed power.

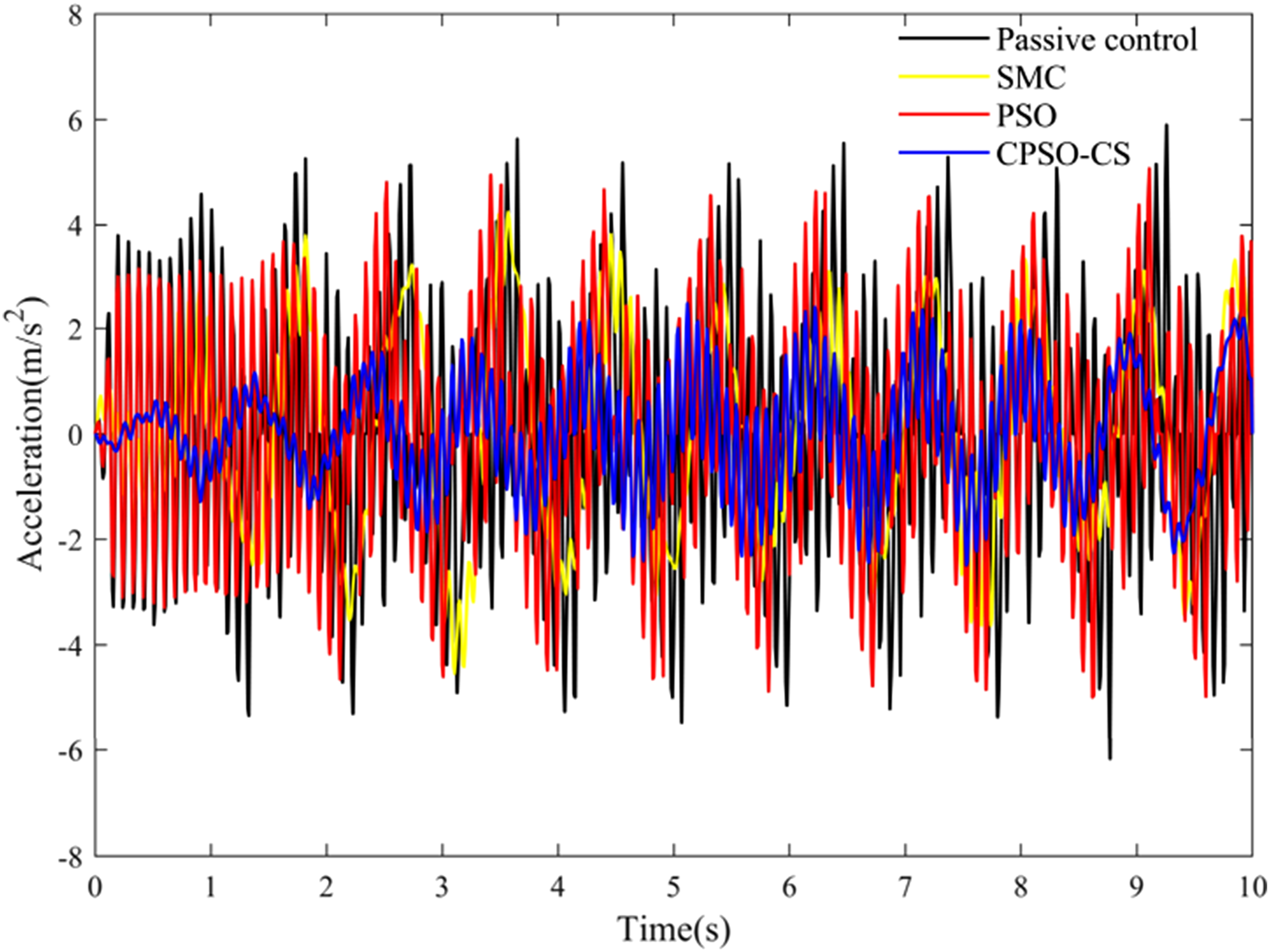

Figure 12.

Acceleration.

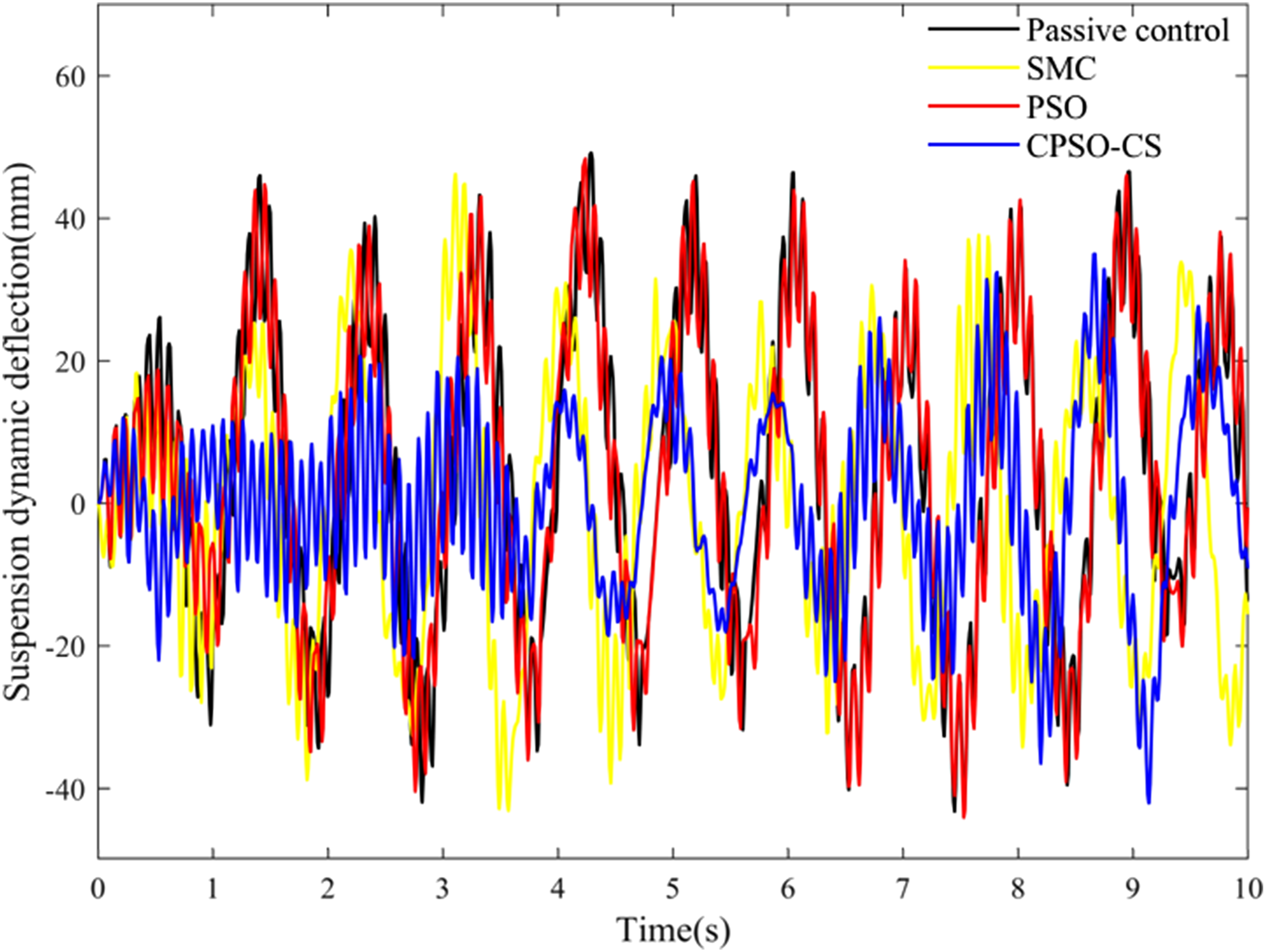

Figure 13.

Suspension dynamic deflection.

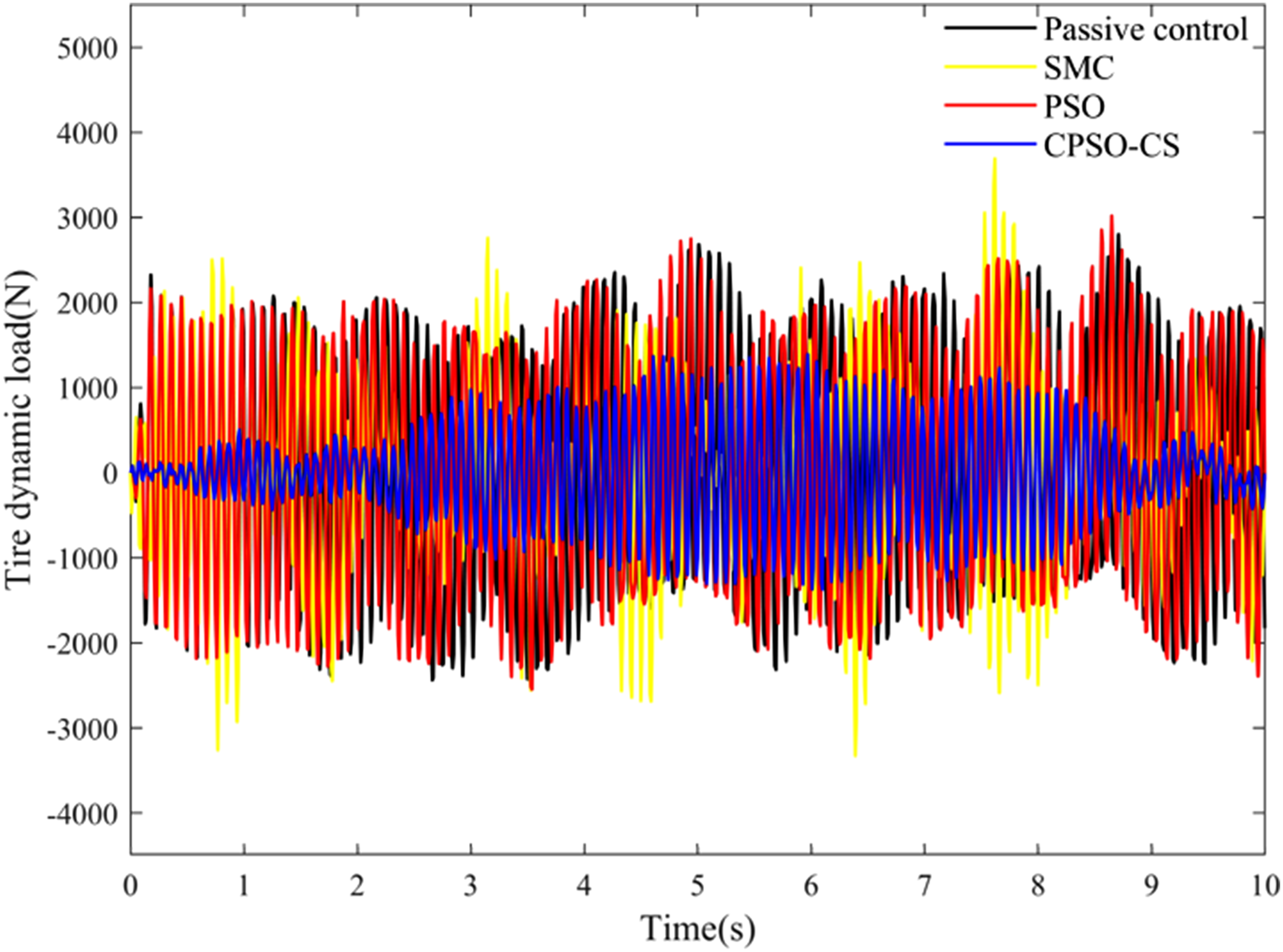

Figure 14.

Tire dynamic load.

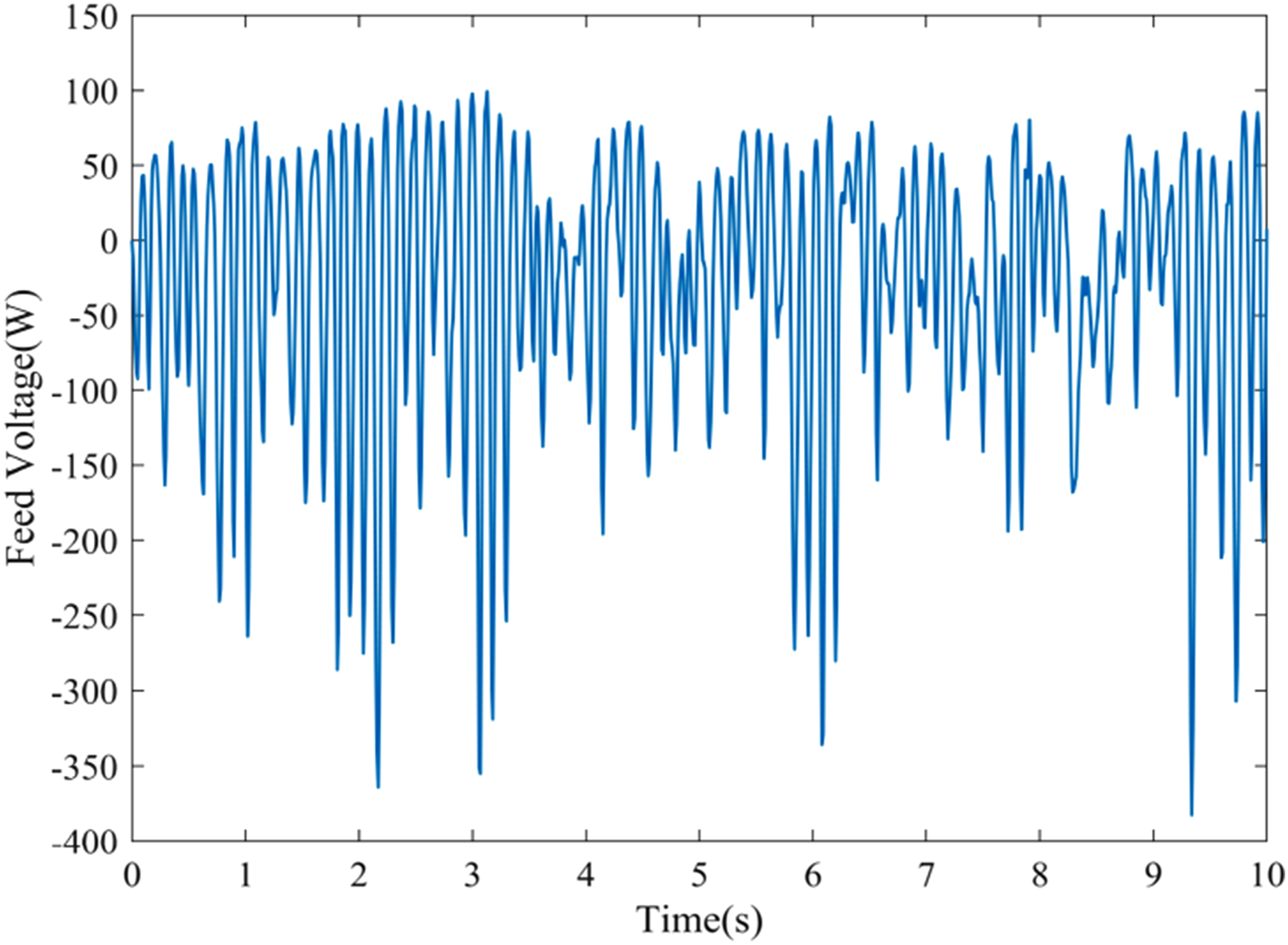

Figure 15.

Feed power.

Figures 8–15 shows the time-domain response analysis of a 1/4 vehicle suspension model using traditional passive control, PSO, and CPSO-CS under B-Class and C-Class road excitations. Figures 8 and 12 show the time-domain response analysis of vertical body acceleration for traditional passive control, SMC, PSO, and CPSO-CS; Figures 9 and 13 show the time-domain response analysis of suspension dynamic deflection for traditional passive control, SMC, PSO, and CPSO-CS. Figures 10 and 14 show the time-domain response analysis of tire dynamic load for traditional passive control, SMC, PSO, and CPSO-CS; Figure 11 shows the suspension system energy feed power during B-Class road surface excitation. Figure 15 shows the energy feed power of the suspension system during C-Class road surface excitation.

In this study, the RMS method was adopted to evaluate and statistically analyze three key performance indices, namely vertical body acceleration, suspension dynamic deflection, and tire dynamic load, thereby providing a more accurate quantitative assessment of suspension performance.

As can be seen from Tables 2 and 3, under Class-B road excitation, compared with the traditional passive control, SMC, PSO, and CPSO-CS reduced the RMS value of vertical body acceleration by 12.48%, 9.72%, and 57.20%, respectively, while the corresponding peak values were reduced by 14.12%, 5.06%, and 45.88%, respectively. The RMS value of suspension dynamic deflection was reduced by 14.25%, 4.00%, and 53.56%, respectively, while the corresponding peak value was reduced by 5.44%, 1.49%, and 49.14%, respectively. In addition, the RMS value of tire dynamic load was reduced by 18.63%, 2.51%, and 69.96%, respectively, whereas the corresponding peak value was reduced by 0.16%, 3.28%, and 55.94%, respectively.

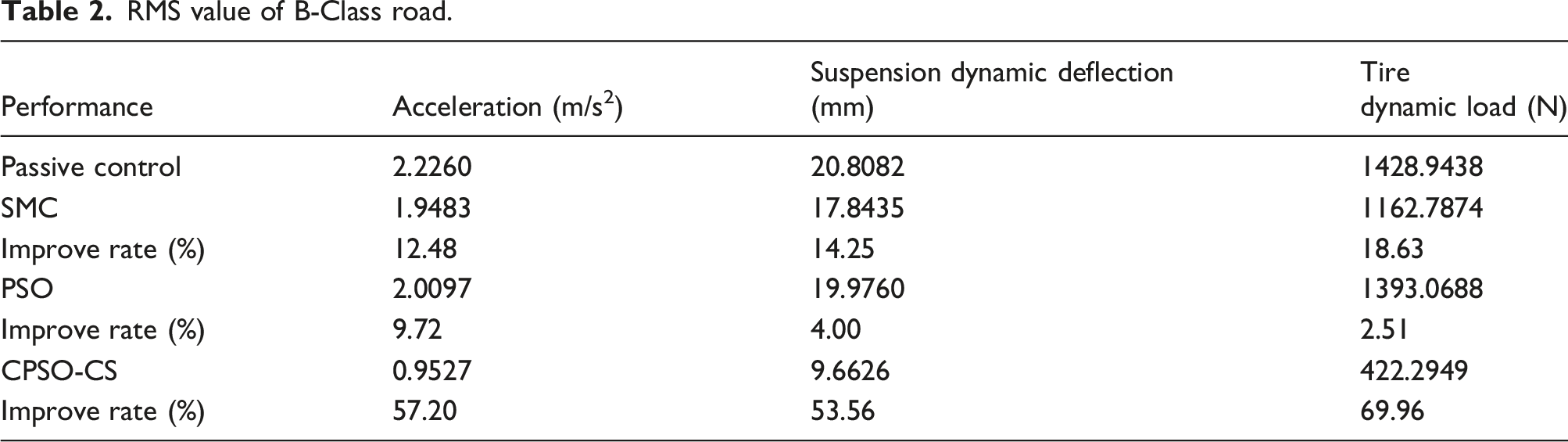

Table 2.

RMS value of B-Class road.

Performance	Acceleration (m/s²)	Suspension dynamic deflection (mm)	Tire dynamic load (N)
Passive control	2.2260	20.8082	1428.9438
SMC	1.9483	17.8435	1162.7874
Improve rate (%)	12.48	14.25	18.63
PSO	2.0097	19.9760	1393.0688
Improve rate (%)	9.72	4.00	2.51
CPSO-CS	0.9527	9.6626	422.2949
Improve rate (%)	57.20	53.56	69.96

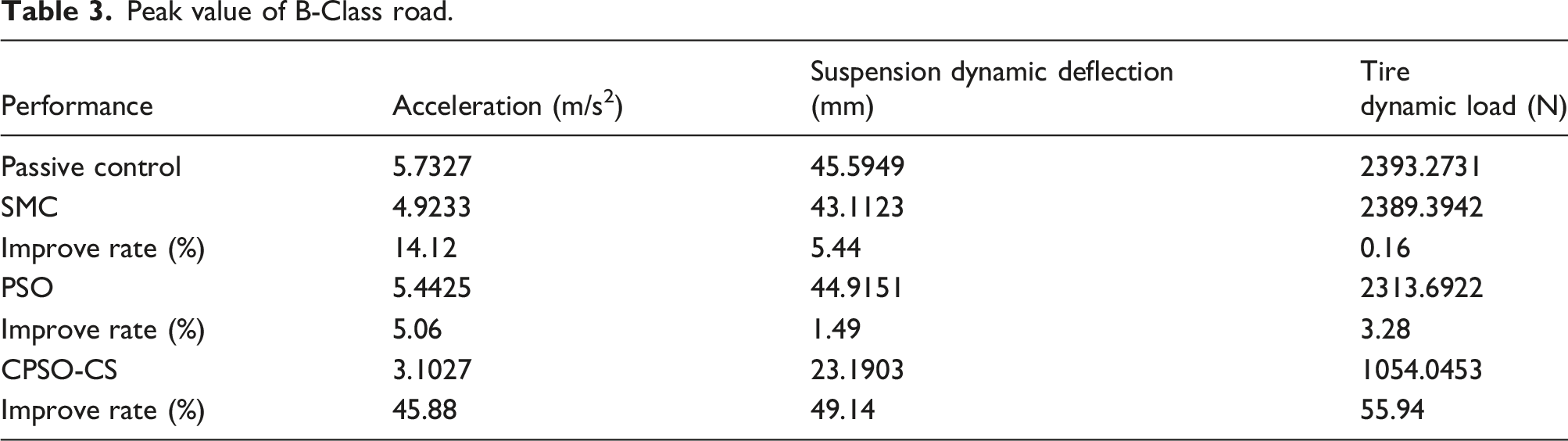

Table 3.

Peak value of B-Class road.

Performance	Acceleration (m/s²)	Suspension dynamic deflection (mm)	Tire dynamic load (N)
Passive control	5.7327	45.5949	2393.2731
SMC	4.9233	43.1123	2389.3942
Improve rate (%)	14.12	5.44	0.16
PSO	5.4425	44.9151	2313.6922
Improve rate (%)	5.06	1.49	3.28
CPSO-CS	3.1027	23.1903	1054.0453
Improve rate (%)	45.88	49.14	55.94

As can be seen from Tables 4 and 5, under Class-C road excitation, compared with the traditional passive control, SMC, PSO, and CPSO-CS reduced the RMS value of vertical body acceleration by 16.46%, 9.47%, and 54.08%, respectively, while the corresponding peak values were reduced by 27.99%, 14.02%, and 57.98%, respectively. The RMS value of suspension dynamic deflection was reduced by 11.40%, 1.78%, and 40.16%, respectively, while the corresponding peak value was reduced by 6.10%, 1.66%, and 28.86%, respectively. Moreover, the RMS value of tire dynamic load was reduced by 22.51%, 2.50%, and 57.90%, respectively, whereas the corresponding peak value was reduced by −22.30%, 7.22%, and 53.90%, respectively.

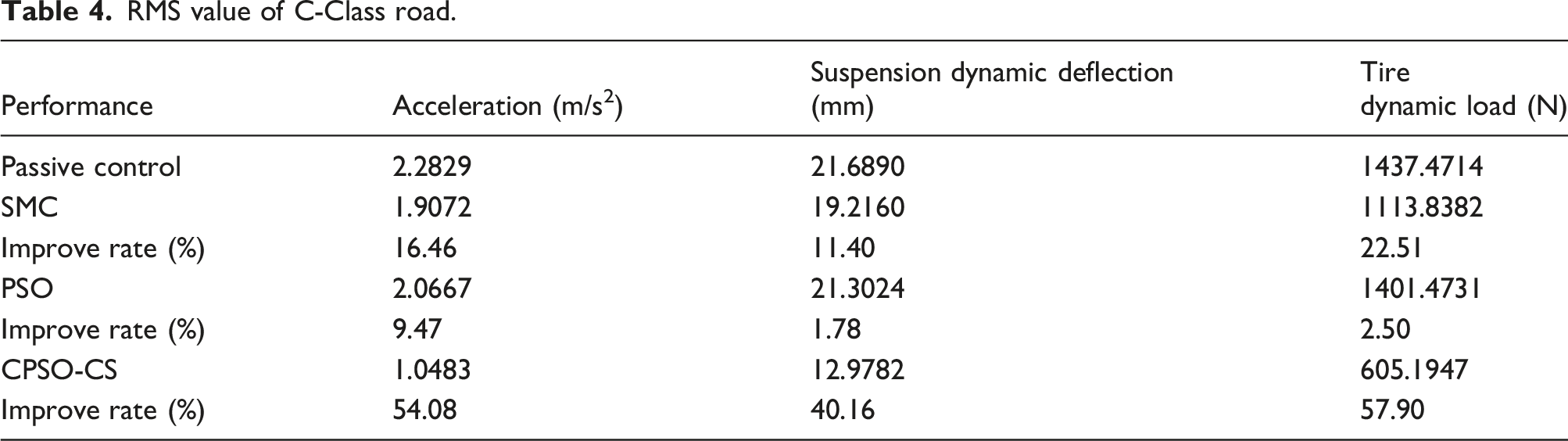

Table 4.

RMS value of C-Class road.

Performance	Acceleration (m/s²)	Suspension dynamic deflection (mm)	Tire dynamic load (N)
Passive control	2.2829	21.6890	1437.4714
SMC	1.9072	19.2160	1113.8382
Improve rate (%)	16.46	11.40	22.51
PSO	2.0667	21.3024	1401.4731
Improve rate (%)	9.47	1.78	2.50
CPSO-CS	1.0483	12.9782	605.1947
Improve rate (%)	54.08	40.16	57.90

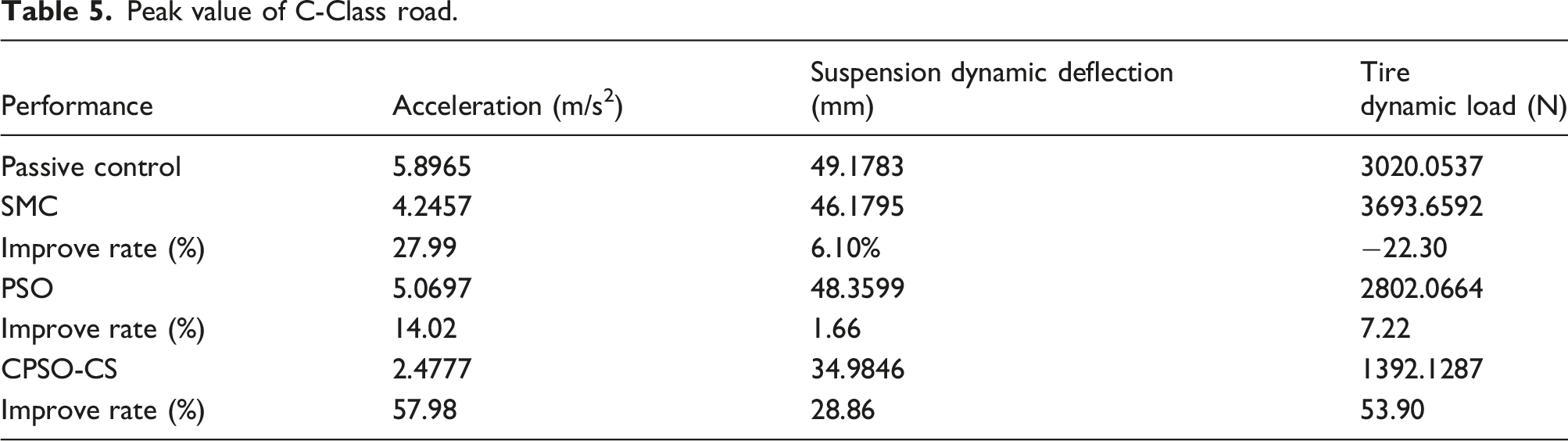

Table 5.

Peak value of C-Class road.

Performance	Acceleration (m/s²)	Suspension dynamic deflection (mm)	Tire dynamic load (N)
Passive control	5.8965	49.1783	3020.0537
SMC	4.2457	46.1795	3693.6592
Improve rate (%)	27.99	6.10%	−22.30
PSO	5.0697	48.3599	2802.0664
Improve rate (%)	14.02	1.66	7.22
CPSO-CS	2.4777	34.9846	1392.1287
Improve rate (%)	57.98	28.86	53.90

The convex road was selected as the disturbance signal:

Z_{R S} = {\begin{cases} \frac{H}{2} [1 - \cos (\frac{2 π v t}{l})] 0 \leq t \leq \frac{v}{l} \\ 0 t > \frac{v}{l} \end{cases}

(31)

where,

H

represents the height of the speed bump, which is taken as 0.05 m.

l

denotes the length of the speed bump, which is taken as 6 m,

v

represents the speed of the vehicle, which is taken as 20 m/s,

t

signifies the time.

Select convex road excitation, set the vehicle speed to 20 m/s, run the established 1/4 vehicle suspension system model in MATLAB, and input the road excitation. The simulation results are shown in Figure 16.

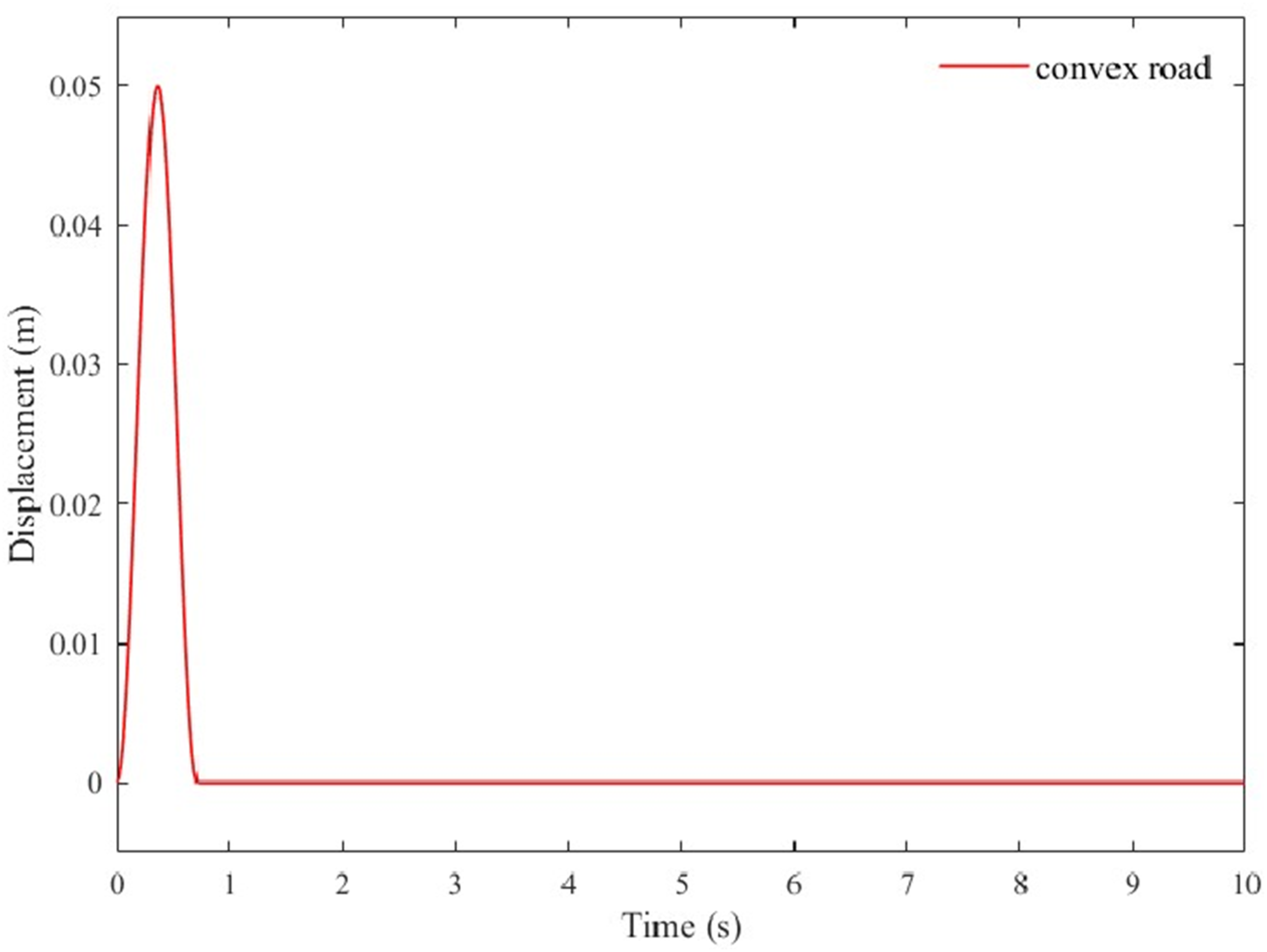

Figure 16.

Road input excitations.

Figures 17–19 shows a simulation comparison of CPSO-CS with traditional passive control, SMC, and traditional PSO. The evaluation metrics for the suspension system include vertical body acceleration, suspension dynamic deflection, and tire dynamic load, all measured under convex pavement excitation. Figure 20 shows the energy feed power of the suspension system during convex road surface excitation.

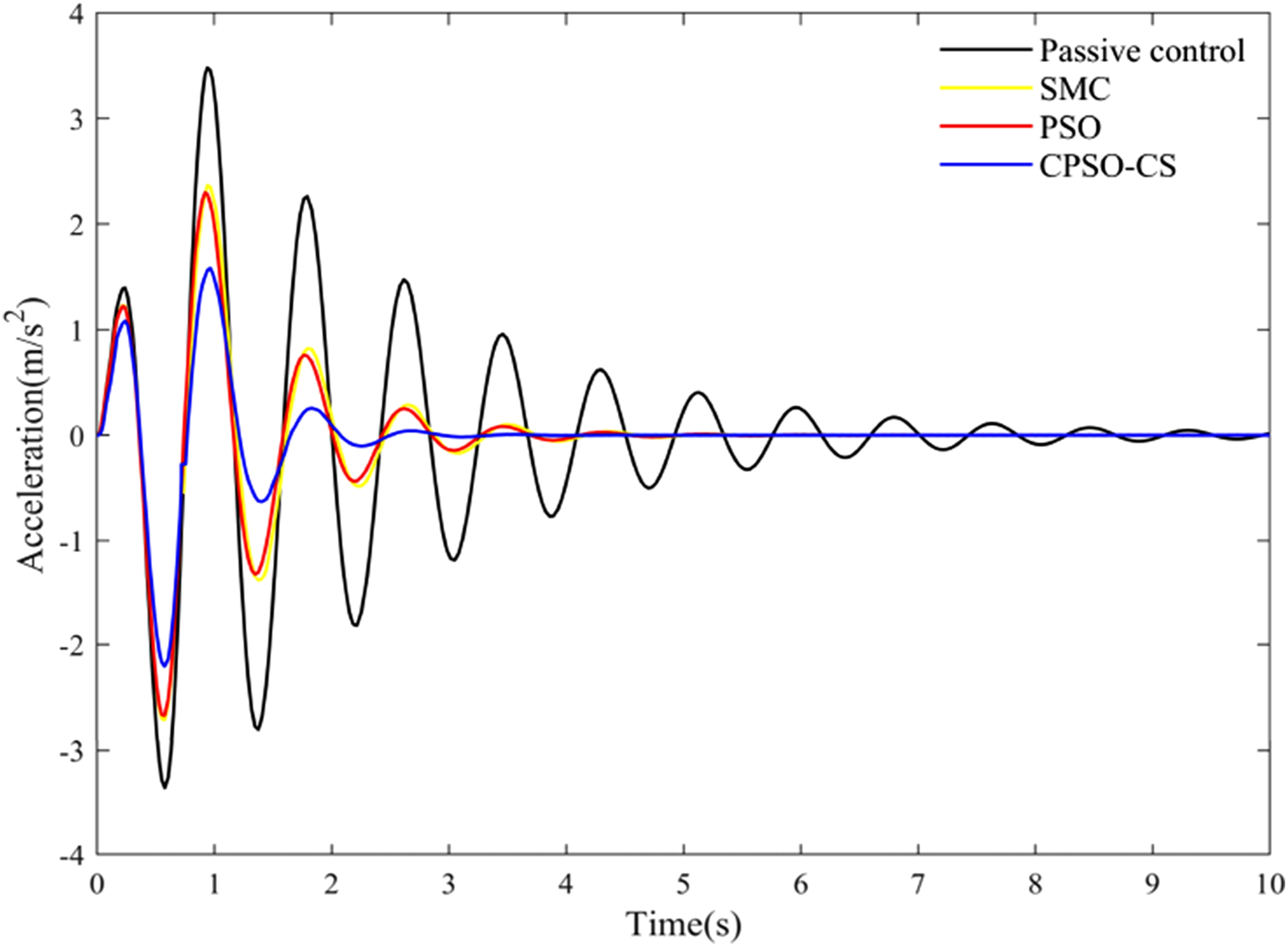

Figure 17.

Acceleration.

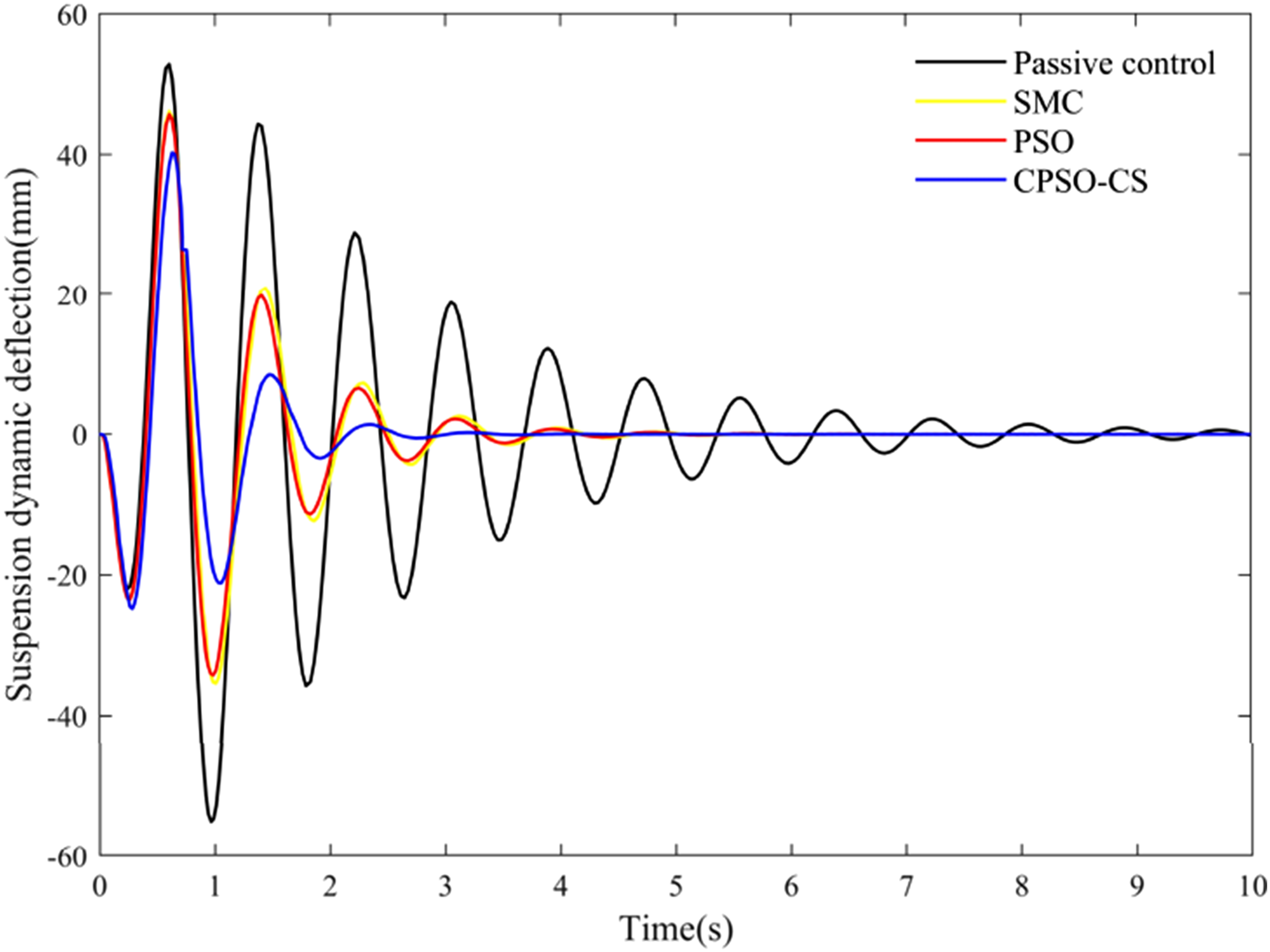

Figure 18.

Suspension dynamic deflection.

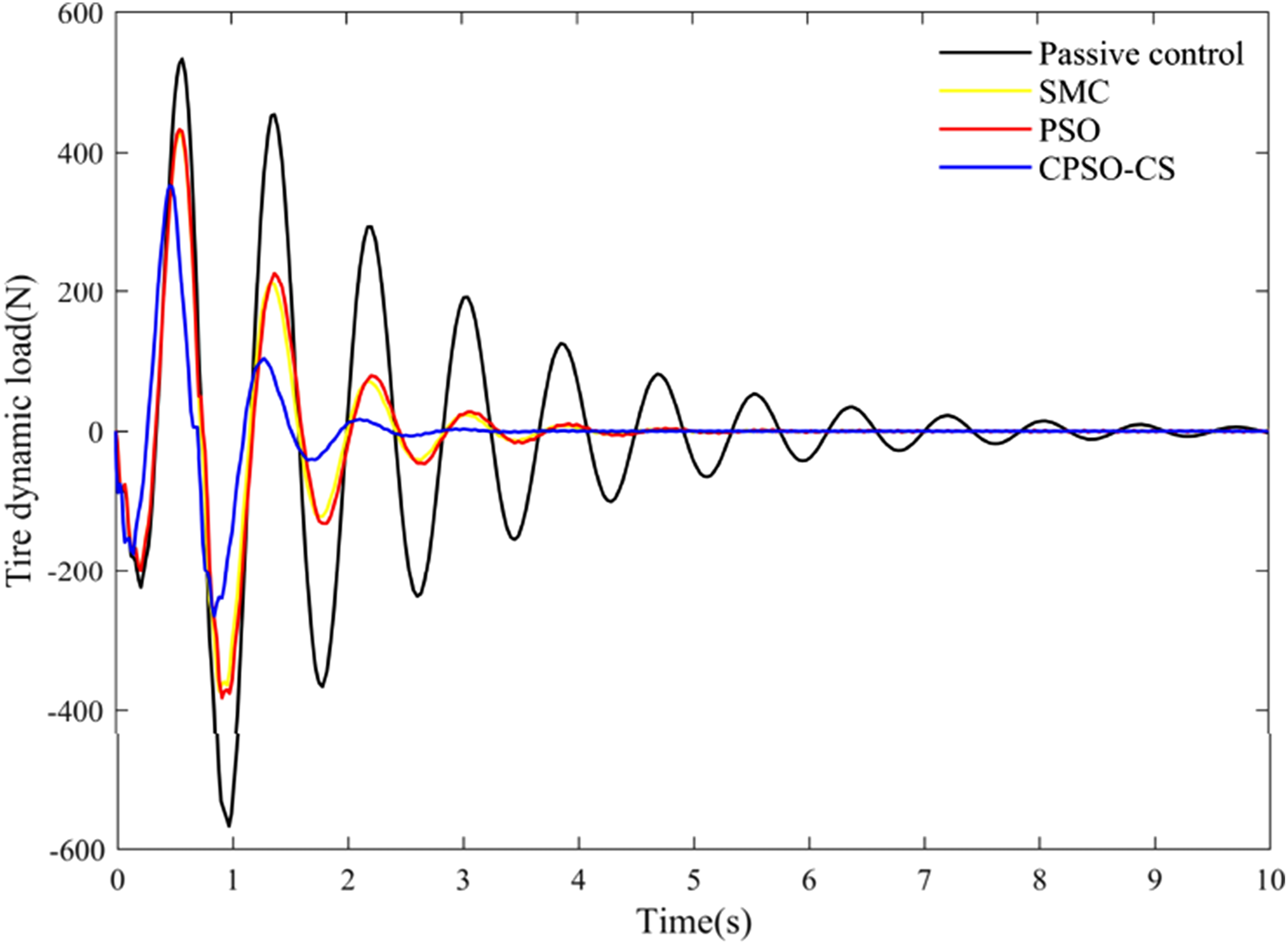

Figure 19.

Tire dynamic load.

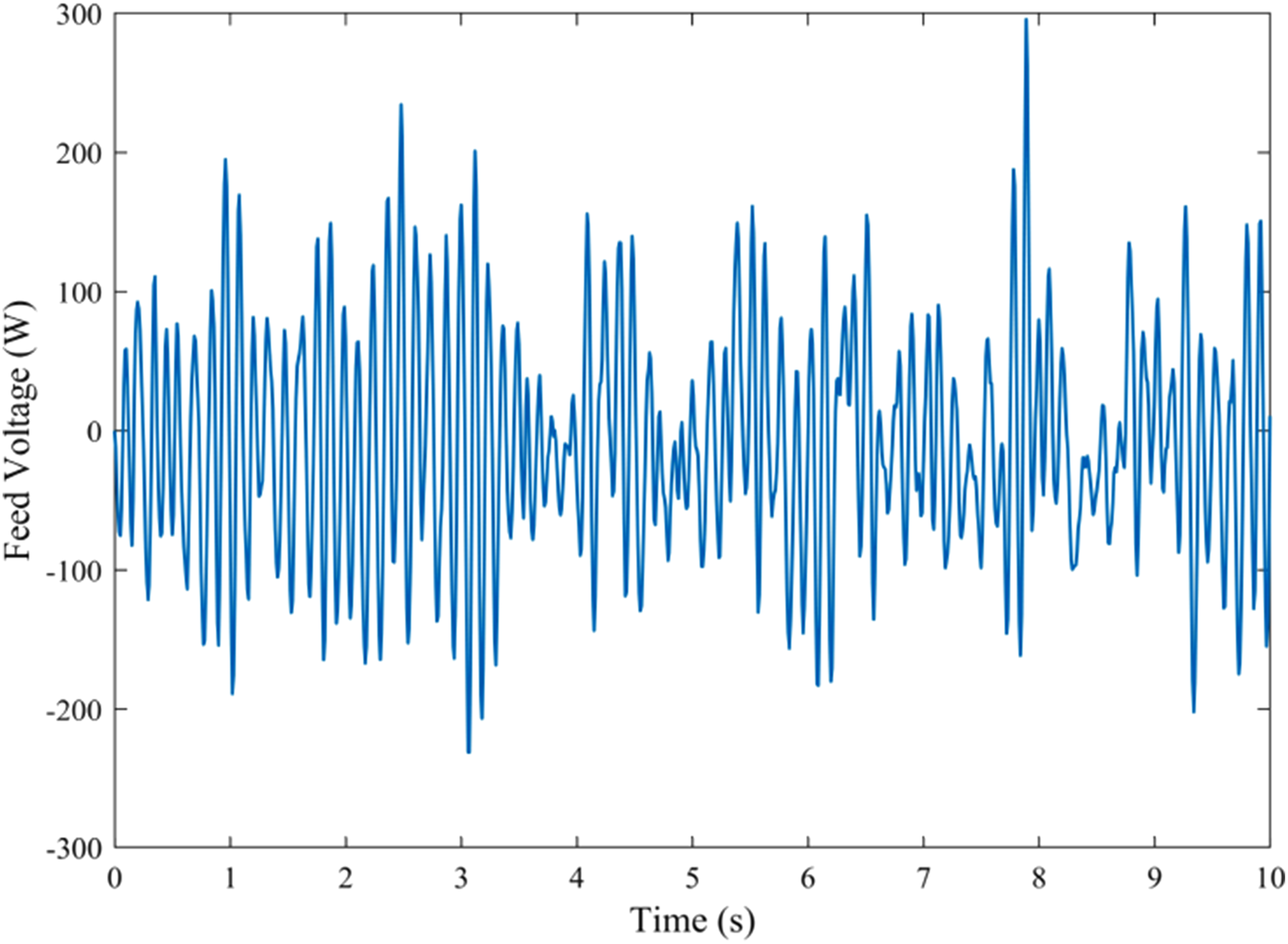

Figure 20.

Feed power.

In this study, we use the RMS method to process and statistically analyze three key evaluation metrics: vertical body acceleration, suspension dynamic deflection, and tire dynamic load. From Table 6, it can be observed that under convex road excitation, compared to the traditional passive control, SMC, PSO, and CPSO-CS can improve the RMS value of the vertical body acceleration by 38.62%, 36.94%, and 54.48%, and the peak value of the vertical body acceleration by 29.22%, 33.91%, and 54.56%, respectively. The RMS value of suspension dynamic deflection improved by 36.06%, 34.18%, and 47.40%, and the peak value of suspension dynamic deflection improved by 38.56%, 36.92%, and 54.16%, respectively. The RMS value of tire dynamic load improved by 38.56%, 36.92%, and 54.16%, and the peak value of tire dynamic load by 20.04%, 18.85%, and 33.76%, respectively (Table 7).

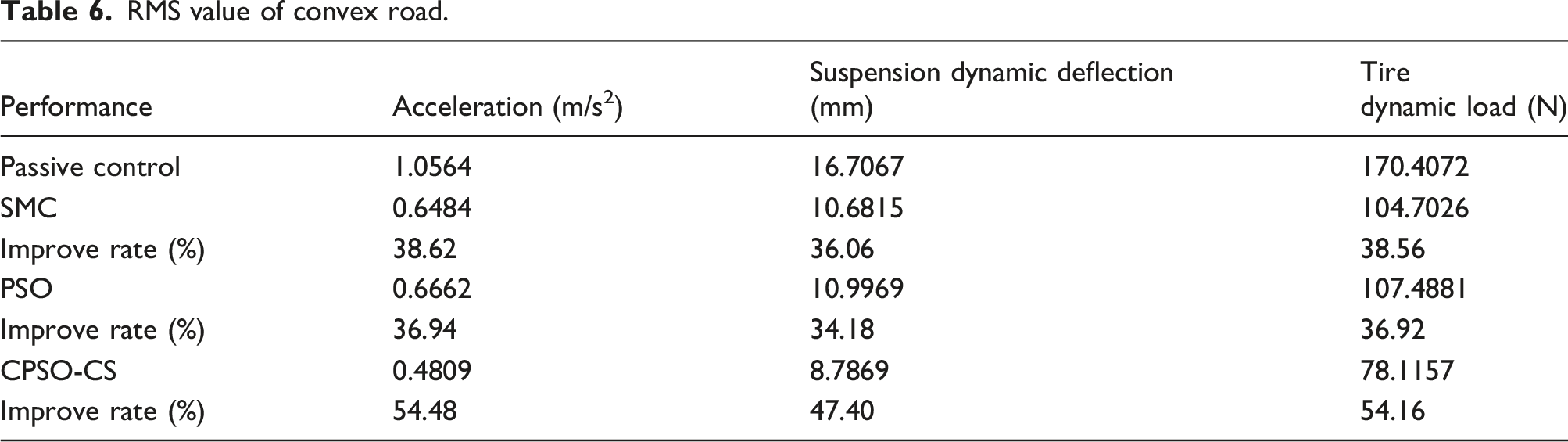

Table 6.

RMS value of convex road.

Performance	Acceleration (m/s²)	Suspension dynamic deflection (mm)	Tire dynamic load (N)
Passive control	1.0564	16.7067	170.4072
SMC	0.6484	10.6815	104.7026
Improve rate (%)	38.62	36.06	38.56
PSO	0.6662	10.9969	107.4881
Improve rate (%)	36.94	34.18	36.92
CPSO-CS	0.4809	8.7869	78.1157
Improve rate (%)	54.48	47.40	54.16

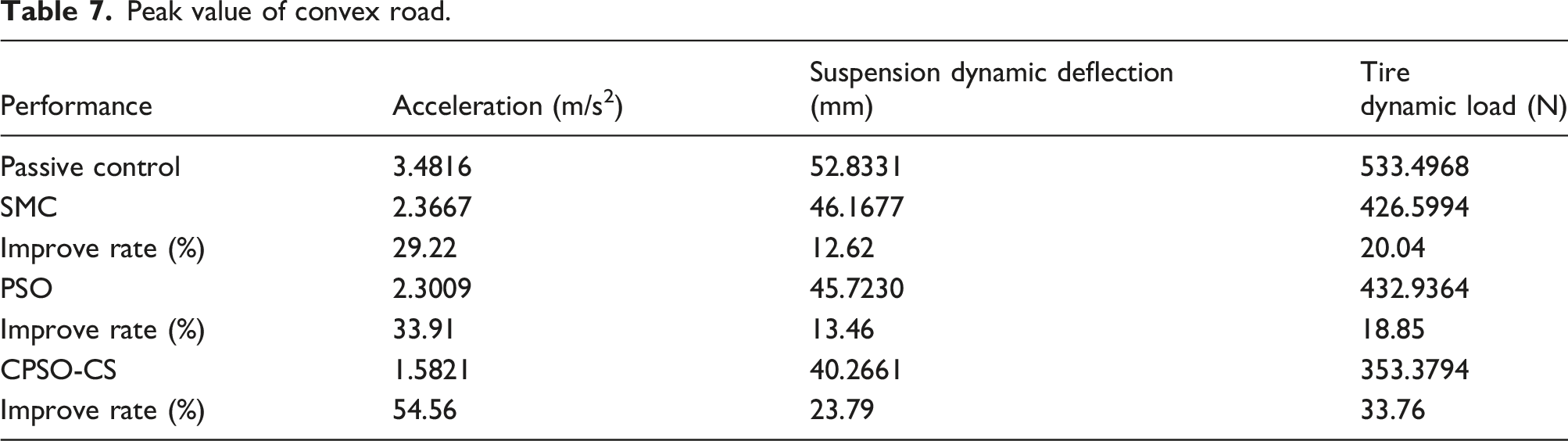

Table 7.

Peak value of convex road.

Performance	Acceleration (m/s²)	Suspension dynamic deflection (mm)	Tire dynamic load (N)
Passive control	3.4816	52.8331	533.4968
SMC	2.3667	46.1677	426.5994
Improve rate (%)	29.22	12.62	20.04
PSO	2.3009	45.7230	432.9364
Improve rate (%)	33.91	13.46	18.85
CPSO-CS	1.5821	40.2661	353.3794
Improve rate (%)	54.56	23.79	33.76

Statistical results based on root mean square (RMS) values indicate that the proposed optimization strategy can effectively improve suspension performance compared to passive suspension systems. Under B-class, C-class, and convex road surface excitations, the traditional PSO algorithm achieved only limited improvements across all three performance metrics, whereas the hybrid CPSO-CS achieved significantly greater reductions in both RMS and peak response. In particular, this hybrid algorithm demonstrates significant advantages in reducing body vertical acceleration, suspension dynamic deflection, and tire dynamic load, confirming its superior global optimization capability and better adaptability to complex road conditions. Therefore, this hybrid optimization method shows significant potential for improving ride comfort and road traction performance.

To address the parameter optimization problem of the hydraulic electric energy-feeding suspension system, an improved CPSO-CS algorithm is proposed in this study. A quarter-car two-degree-of-freedom dynamic model of the hydraulic electric energy-feeding suspension is established, and simulation experiments are conducted under Class-B, Class-C, and convex road excitations to verify the effectiveness of the proposed control strategy. The main conclusions are summarized as follows.

First, the improved CPSO-CS algorithm introduces innovations in three key stages, which effectively compensate for the limitations of the conventional PSO and CS algorithms. Specifically, Logistic chaotic initialization is employed instead of conventional random initialization to improve the uniformity of population distribution and the diversity of initial solutions. In addition, an adaptive inertia weight adjustment mechanism based on cloud theory is introduced to dynamically balance the global exploration and local exploitation capabilities according to particle fitness, thereby preventing the algorithm from being trapped in local optima. Furthermore, after the global search stage of CPSO, the Lévy flight-based local search mechanism of the CS algorithm is incorporated to perform refined exploration in the potential optimal region identified by CPSO, which significantly enhances the optimization accuracy.

Second, when applied to the hydraulic electric energy-feeding suspension system, the improved CPSO-CS algorithm exhibits excellent dynamic performance under both B-Class and C-Class road excitations. Compared with the conventional passive control strategy, the proposed method shortens the time required for vertical body acceleration, suspension dynamic deflection, and tire dynamic load to reach steady-state response, and significantly improves the RMS values of all three performance indices. Meanwhile, the peak values of these dynamic indices are also effectively suppressed. In particular, under C-Class road excitation, the peak vertical body acceleration is reduced by as much as 57.98%. Moreover, compared with the conventional PSO algorithm, the steady-state response time of the suspension system is shortened by more than 30%.

Third, the comprehensive performance of the improved CPSO-CS algorithm is significantly superior to that of the conventional PSO algorithm. Under B-Class road excitation, the maximum improvement achieved by the conventional PSO algorithm in the RMS value of vertical body acceleration is only 9.72%, whereas the improved CPSO-CS algorithm achieves improvements of more than 40% for all dynamic performance indices. By combining the cloud theory-based adaptive inertia weight mechanism with the CS-based refined local search strategy, the proposed method effectively overcomes the major drawbacks of the conventional PSO algorithm, namely slow convergence and susceptibility to local optima, thereby achieving a substantial enhancement in optimization capability.

Conclusion

In summary, comparative simulation results under B-Class, C-Class and convex road excitations show that the improved CPSO-CS algorithm proposed in this paper can reduce the RMS values of body acceleration, suspension dynamic deflection, and tire dynamic load by more than 20% under the three road excitation conditions, compared with the passive suspension. Compared with the traditional PSO algorithm, the standard CS algorithm, and the sliding mode control algorithm, the proposed algorithm provides more stable vibration suppression performance for the suspension under different road excitations, and achieves better convergence performance, with the number of convergence iterations reduced by more than 30% relative to the traditional PSO algorithm.

The improved CPSO-CS algorithm achieves higher optimization accuracy, faster convergence, and stronger resistance to local optima, with a convergence success rate of more than 95% across multiple road conditions. By introducing cloud-adaptive inertia weight, chaotic initialization, and a serial hybrid search strategy, this paper provides a practical and reliable optimization approach for the parameter design of hydraulic electric energy-feeding suspensions. The improved, algorithm-optimized comprehensive suspension performance can effectively enhance vehicle ride comfort and suspension energy regeneration efficiency across various road conditions, demonstrating clear engineering application value for the design and development of high-performance vehicle suspension systems.

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (NSFC) (Ref. 52102443).

ORCID iDs

Xin Xiong

Jiakun Yan

References

Zhang

Jing

. A bioinspired dynamics-based adaptive fuzzy SMC method for half-car active suspension systems with input dead zones and saturations. IEEE Trans Cybern 2021; 51: 1743–1755. https://doi.org/10.1109/TCYB.2020.2972322

Zhang

Jing

Huang

, et al. Saturated PD-SMC method for suspension systems by exploiting beneficial nonlinearities for improved vibration reduction and energy-saving performance. Mech Syst Signal Process 2022; 179: 109376. https://doi.org/10.1016/j.ymssp.2022.109376

Prassad

Mohan

. A contemporary adaptive air suspension using LQR control for passenger vehicles. ISA Trans 2019; 93: 244–254. https://doi.org/10.1016/j.isatra.2019.02.031

Pedro

Dangor

Dahunsi

, et al. Dynamic neural network-based feedback linearization control of full-car suspensions using PSO. Appl Soft Comput 2018; 70: 723–736. https://doi.org/10.1016/j.asoc.2018.06.002

Ab Talib

Darus

IZM

Samin

, et al. Experimental evaluation of ride comfort performance for suspension system using PID and fuzzy logic controllers by advanced firefly algorithm. J Braz Soc Mech Sci Eng 2023; 45.

Mollabashi

Mazinan

. Incremental SMC-based CNF control strategy considering magnetic ball suspension and inverted pendulum systems through cuckoo search-genetic optimization algorithm. Complex Intell Syst 2019; 5: 353–362. https://doi.org/10.1007/s40747-019-0097-0

Xiong

Chen

Wei

, et al. Research on ride control strategy of electromagnetic suspension based on sliding mode algorithm. Noise Vib Worldw 2025; 56: 25–37. https://doi.org/10.1177/09574565241306315

Huang

Zhang

, et al. Adaptive finite-time fuzzy prescribed performance fault-tolerant control for uncertain active suspensions with actuator nonlinear characteristics. J Sound Vib 2025; 618: 119232. https://doi.org/10.1016/j.jsv.2025.119232

Yang

. Neural network adaptive sliding mode control without overestimation for a maglev system. Mech Syst Signal Process 2022; 168: 108661. https://doi.org/10.1016/j.ymssp.2021.108661

10.

Zhang

. Position control algorithm of fuzzy adaptive PID of hydraulic interconnected suspension under load impact disturbance. IEEE Access 2022; 10: 39665–39673. https://doi.org/10.1109/access.2022.3166479

11.

Tan

Zhang

. Dual-loop PID control with PSO algorithm for the active suspension of the electric vehicle driven by in-wheel motor. Journal of Vibroengineering 2016; 18: 3915–3929. https://doi.org/10.21595/jve.2016.16689

12.

Zhao

Wong

Xie

, et al. Design and control of an automotive variable hydraulic damper using cuckoo search optimized pid method. Int J Automot Technol 2019; 20: 51–63. https://doi.org/10.1007/s12239-019-0005-z

13.

Chiou

Tsai

Liu

. A PSO-based adaptive fuzzy PID-controllers. Simulat Model Pract Theor 2012; 26: 49–59. https://doi.org/10.1016/j.simpat.2012.04.001

14.

Tang

Ahmad

. Enhanced fuzzy logic control for active suspension systems via hybrid water wave and particle swarm optimization. Int J Control Autom Syst 2025; 23: 560–571. https://doi.org/10.1007/s12555-024-0513-0

15.

Zhao

. Hybrid particle swarm optimization genetic LQR controller for active suspension. Applied Sciences-Basel 2023; 13: 8204. https://doi.org/10.3390/app13148204

16.

Zhang

Dai

Zhang

, et al. PSO-LQR control of ISD suspension for vehicle coupled with bridge considering general boundary conditions. Machines 2025; 13: 935. https://doi.org/10.3390/machines13100935

17.

Chao

Liu

Wang

, et al. A fuzzy adaptive controller for cuckoo search algorithm in active suspension system. J Low Freq Noise Vib Act Control 2020; 39: 761–771. https://doi.org/10.1177/1461348418811473

18.

Wang

, et al. Optimization of the semi-active-suspension control of BP neural network PID based on the sparrow search algorithm. Sensors 2024; 24: 1757. https://doi.org/10.3390/s24061757

19.

Das

Elumalai

Subramanian

, et al. Adaptive predator-prey optimization for tuning of infinite horizon LQR applied to vehicle suspension system. Appl Soft Comput 2018; 72: 518–526. https://doi.org/10.1016/j.asoc.2018.06.044

20.

Chen

, et al. Commercial vehicle ride comfort optimization based on intelligent algorithms and nonlinear damping. Shock Vib 2019; 2019: 2973190. https://doi.org/10.1155/2019/2973190

21.

Wang

Liu

Ding

, et al. Switching control of semi-active suspension based on road profile estimation. Veh Syst Dyn 2022; 60: 1972–1992. https://doi.org/10.1080/00423114.2021.1889621

22.

Xiong

Liu

. A fuzzy skyhook control strategy optimized by particle swarm strategy for magnetorheological semi-active suspension. Noise Vib Worldw 2024; 55: 651–662. https://doi.org/10.1177/09574565241282687
