A hybrid technique for optimal power quality enhancement in grid-connected photovoltaic interleaved inverter

Abstract

A grid-connected photovoltaic (PV) system with interleaved inverter using a hybrid approach is presented in the paper. Generally, high deviation of DC voltage causes severe damage to the grid-linked system generate power quality issues. Therefore, a hybrid technique called LA-HBO, which is a combination of Lichtenberg optimization algorithm (LA) and heap-based optimizer, is proposed. The proposed method works with the interleaved inverter to realize a multifunctional operation and improve the power quality efficiency of the system. Here, LA techniques improve the power generated from PV and self-charging of the DC-link voltage control loop. The reference current signal is generated through the self-charging DC-link voltage control loop to eliminate the power quality issues. The double band hysteresis current controller generated a minimum switching frequency to provide low switching losses. A MATLAB platform is utilized to implement the proposed system, and the performance of the system is compared with other existing techniques. The test result validated that the proposed system can able to perform multilevel functions and produce power with high quality compared to other techniques. The value for the THD that achieves the proposed hybrid technique is 21.22%. The elapsed time of the proposed hybrid technique is 2.09 seconds.

Keywords

Grid-connected PV system interleaved inverter deviation power quality multifunction switching loss switching frequency.

Introduction

In recent days, the need for unconventional energy resources is increasing based on the continuous depletion of conventional resources. The photovoltaic (PV) system, wind power, and tidal energy are considered as unconventional energy resources.^1,2 In unconventional energy resources, the PV system is the most chosen one due to its adaptability, availability across the world, and easy installation process. The maintenance of the PVs is very cheap. Due to these characteristics, many governments around the world give subsidies to admire people who install PV energy on the roof of its house. Therefore, solar panels are installed in many private companies and government buildings. From these installed PV plants, electricity is generated and given to the local grid.^3,4 The power consumed by the customer and the power given to the grid are determined by the net metering specialty developed by electricity distributors. Generally, an inverter is utilized to feed the grid by the PV.^5,6 Voltage source inverter is one with simple construction, development, and control.^7–9 So it is the most preferable inverter. Even though, the conventional VSI has different limitations such as shoot-through problems. When the power switch of voltage source inverter (VSI) is in ON or OFF condition, and two switches of the same leg come close because of the delay in turning on the switches causes the shoot-through problem. Burning power switches happen because an enormous current flow takes place through the switches at a short duration time.

The shoot-through problem is neglected by inserting the dead band circuit to generate dead time among inverter power switching on the same leg for safe operation. The entire VSI power circuit^10,11 is influenced by the enormous amount of power flow caused by the dead band circuit failure.¹² Hardware experiments probably do not support the introduced system. In the introduced system, the interleaved inverter is employed in wind energy conversion systems and uninterruptible power supplies. The efficiency of the PV system is calculated based on the tracking capacity of the MPP in conditions of solar isolation.^13,14 The Perturb and Observe (P&O) maximum power point tracking (MPPT) algorithm has less complexity in the execution of low-cost digital signal processing (DSP) controllers.¹⁵ The shunt APF is used in the process of eliminating power quality issues such as harmonics, excessive reactive power, and low power factor.^16–18 The external disturbance present in the grid is the reason behind the disturbance of shunt APF operation. The reference current generation approaches mentioned earlier cannot provide an accurate reference current, which makes the APF unable to ignore power quality issues.¹⁹ There are two closed loops present in the control techniques such as current control and DC-link voltage control loop. The reference current strongly affects the performance of the APF shunt. Simultaneously, reference current generation and harmonic compensation used to manage stability within the condition are influenced by DC-link stabilization. Proportional integral (PI) controllers are simple and reliable and may be executed using low-cost controllers.^20–25

Objectives and contribution

A grid-connected PV system with interleaved inverter using a hybrid approach is presented. The proposed LA-HBO system is a combination of the Lichtenberg optimization algorithm (LA) and heap-based optimizer (HBO), and thus it is known as the LA-HBO method. At MATLAB/Simulink working platform, the performance of the proposed system is evaluated with existing systems.

The main innovation of the proposed work is to get the general optimal solution gathered as the search space.

LA techniques improve the power generated from PV and self-charging of the DC-link voltage control loop through double band hysteresis current controller (DBHCC) using the HBO technique.

The performance of the proposed system is accomplished on the matrix laboratory/Simulink working platform and the performance is evaluated with existing systems as particle swarm optimization (PSO), salp swarm algorithm (SSA), wild horse optimizer (WHO), and ladder spherical evolution (LSE)-WHO (LSE-WHO).

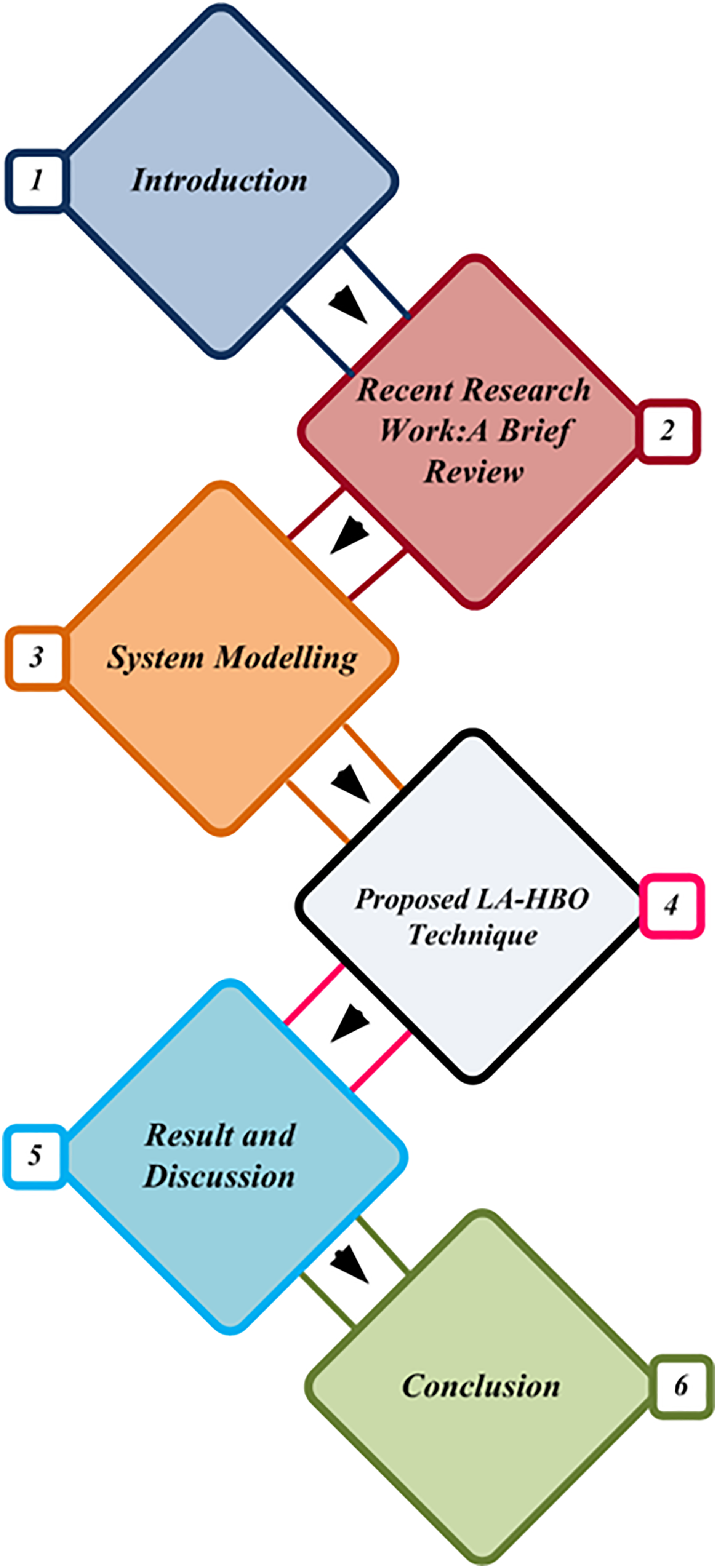

The organization of the work is shown in Figure 1.

Figure 1.

Organization of work.

Recent research works

Several investigation works have earlier existed in the literature that is based on the enhancement of power quality in renewable energy sources with various techniques and features. Some of them are reviewed here.

Sangari et al.²⁶ have illustrated the design and analysis of single-stage reduced-order sliding mode control (ROSMC)-fed Z-source inverter (ZSI) that uses sinusoidal pulse-width modulation (SPWM) system to improve the quality of output power. ZSI output voltage has been improved by executing the shoot-through mode. The matching method was used by the ZSI-reduced second-order model that was developed as the original sixth-order model. The investigation of the system dynamic response takes place by achieving closed-loop control with the cascade control technique. For outer voltage control, a genetic algorithm (GA) tuned PI controller was employed. The internal current control loop was developed by the sinusoidal reference signal. The result of right half plane zero was minimized by proportional integral derivative (PID) controller adjusted through the internal model control (IMC) and provides shoot-through duty ratio (STDR). Golla et al.²⁷ have provided a novel control system for the solar PV combined universal active power filter (PV-UAPF). The reference signal extraction for the shunt active filter (ShAPF) and the series active power filter (SeAPF) was achieved through instantaneous power balance theory (IPBT). To remove positive and negative sequence components and the phase angle, the modified reduced-order generalized integrator (MROGI) based on frequency locked loop (FLL) was used at the IPBT control scheme. Therefore, through the proposed system, benefits such as the generation of clean energy and the improvement of energy quality were obtained.

Gupta²⁸ has implemented the operational effect of distribution static compensator (D-STATCOM) and unified power quality conditioner (UPQC) at a cascaded H-bridge nine-level multilevel inverter (NL:MLI). The performance of the system at constant voltages of 200 V DC was investigated, and a comparative linear road PQ analysis was performed. Here, the control techniques of D-STATCOM and UPQC balance the power needs of the load and utility grid. At the coupling points, the distortionless current voltage was determined. Kumar and Raglend²⁹ have provided a versatile multi-objective control technique to control the PV microgrid-side multipurpose grid-integrated inverter (µ1G-MPGII). To restrict µG-MPGII, the envisaged system used the implemented synchronous reference frame (SRF) theory. The µG-MPGII was determined for the following concept, such as the investigation of control of real power of the network that depends on state of charge (SOC) of battery and operation to recover the quality of distributed power to ignore the harmonics formed through nonlinear loads at point of common coupling and manage the public grid in a balanced way according to the unbalanced load system. Iqbal et al.³⁰ proclaimed a novel controller for microgrid-connected UPQC. The UPQC VSC shift was performed by taking the derivative of the error at three dissimilar stages. By switching series or shunt compensators that were triggered by the fuzzy logic-based sensor. Savrun¹ has explained that the integrated z-source converter (zDCES) DCES topology achieved an extensive offset voltage range along with a lower duty cycle range in addition to a tremendous drop in nominal battery voltage compared to the conventional system. The existing full-bridge switches were developed, and a high gain z-source converter was obtained.

Motivation for the research work

In the review of the current investigation work, the power quality enhancement in renewable energy sources is considered as a major factor. The management of renewable energy sources involves different sources like PV, wind power generators, and battery storage. The presence of a power rating inverter produces the amount of compensation. Therefore, a PQ compensator with a good controller is needed for minimizing the quality problem. To overcome the power quality problem different techniques such as BSA, ANN, and fuzzy logic controller (FLC) were analyzed. Advantages of ANN include control of flow of power and switching loss in the MG system. Likewise, it has drawbacks such as hardware reliance, nonillustrated network features, exact network structure determination, and complexity of displaying the issue to the network. The FLC approach has advantages in improving reliability as well as efficiency. But the drawback of the FLC is not always accurate; hence, the outcome is only based on the consideration. So, it is not considered and requires optimal schemes for power quality improvement of hybrid renewable energy sources (HRES) to tackle these limitations.

System modeling configuration

The architecture of a three-phase grid-connected PV system depends on the interleaved inverter demonstrated in Figure 2, and the system consists of an interleaved inverter,³¹ a three-phase power grid, an interface inductor, an MPPT controller, a nonlinear load controller, and PV solar array. The enormous power produced by PV sources is tracked using the MPPT method based on projected RIO. A cascaded H-bridge MLI on the grid system is controlled by the introduced controller method. The interleaved inverter circuit topology consists of four legs. Each leg consists of a power electronic switch and a diode. These circuit configurations are used to solve the limitation such as the shoot-through effect. During shunt active power filter (APF) operation, the electrolytic capacitor is linked to the DC side. The arrangement configuration is linked through the ripple filter, nonlinear load, and interface inductor. The MLI consists of a high switching ripple. Literally, the MLI connected to the interfaced solar phovovoltaic (SPV) network also generated current harmonics, and it is decaying by the interface inductor.³²

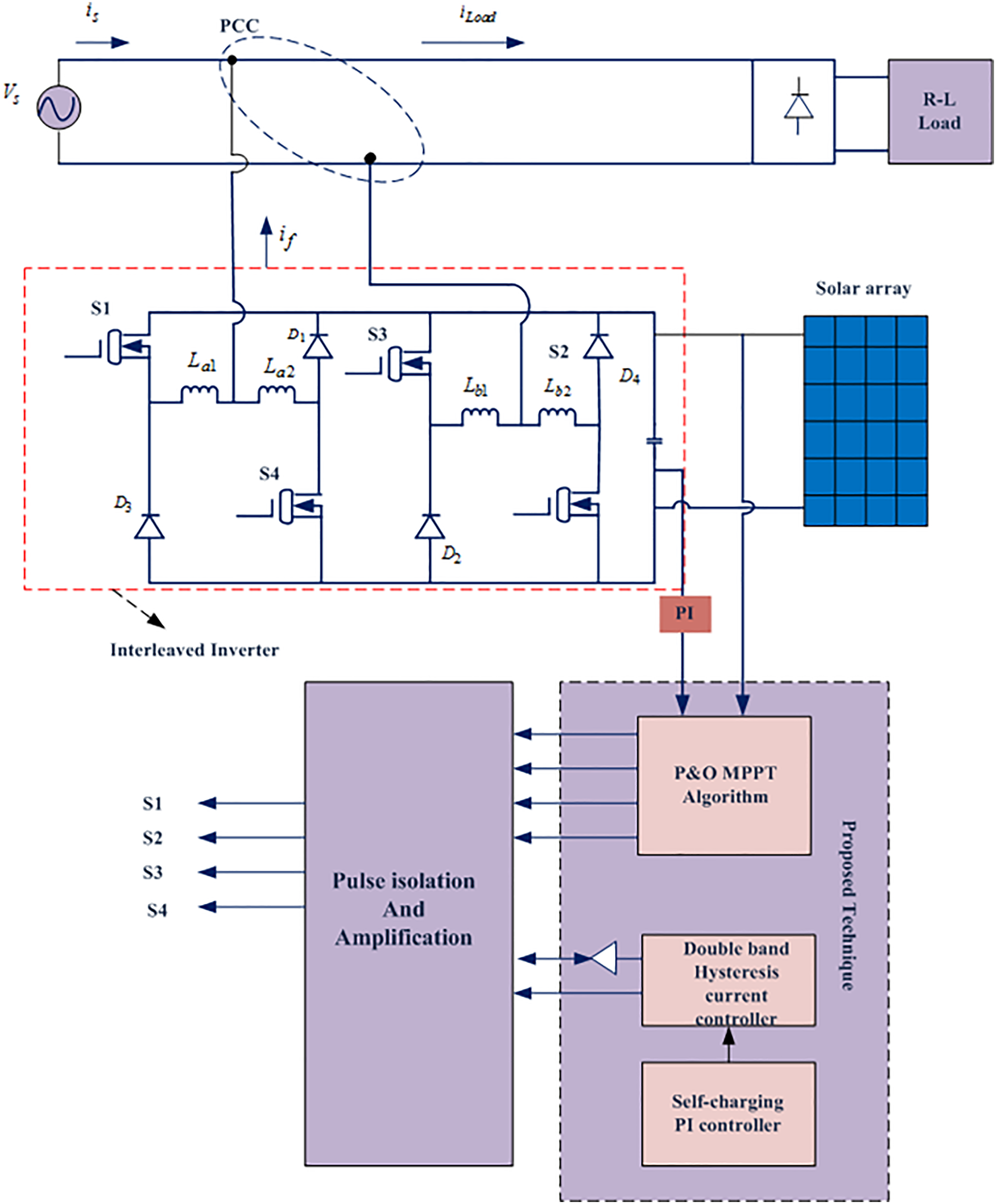

Figure 2.

Overall block diagram of interleaved inverter fed PV system.

Modeling of system components

The hardware architecture of a PV system based on interleaved inverter involves different components. Each component of the system is illustrated in the following. The introduced system is developed in order to achieve multifunctional operation.

Solar PV array model

Photon energy from sunlight is converted into power using the PV cell and the cell material produces a constant open circuit voltage. The system modeling of PV is illustrated in Figure 3.

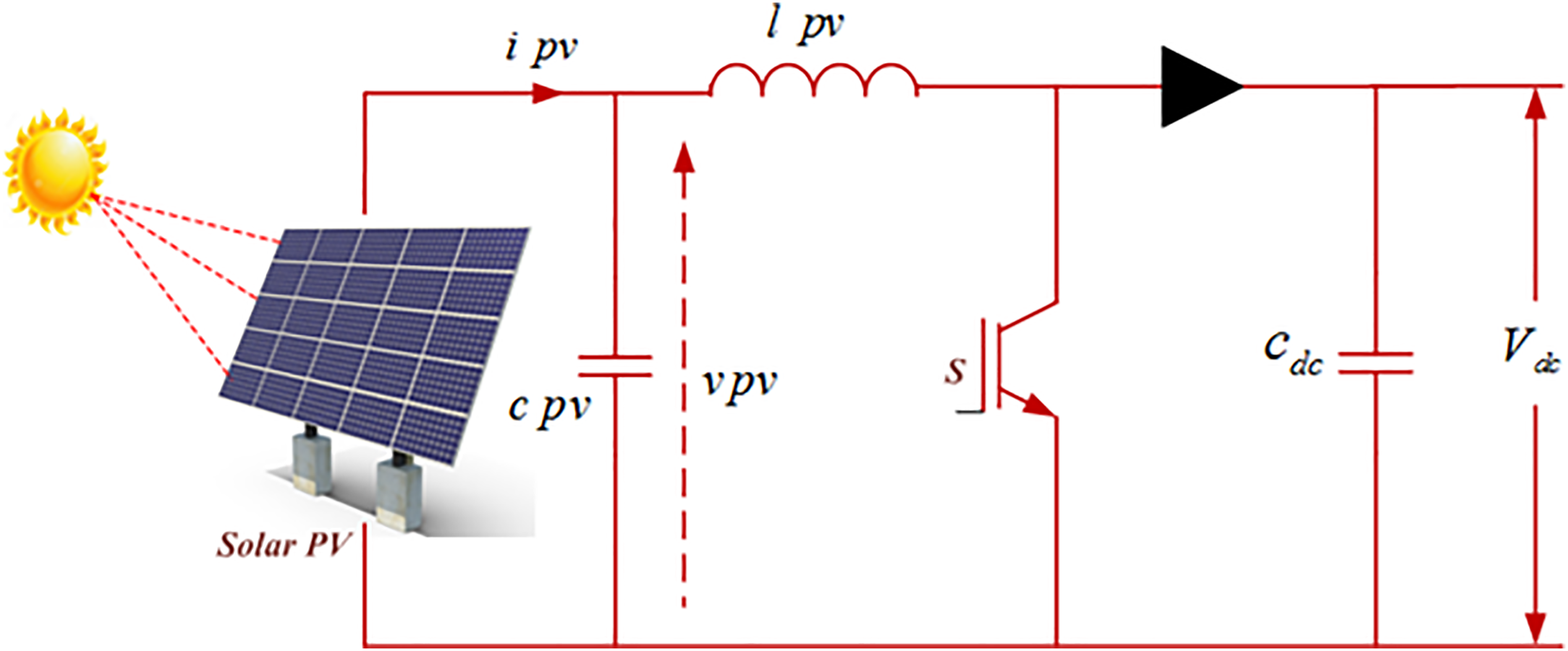

Figure 3.

Pv system modeling.

According to the light energy, the current (I_PV(cell)) is flowing through the load, which is expressed as follows:

I_{P V (c e l l)} = I_{p h} - I_{o} [\exp {\frac{χ (V_{P V} + I_{P V} R_{s})}{η_{k} T}} - 1] - \frac{V_{P V} + I_{P V} R_{s}}{R_{P}}

(1)

The above equation is changed for the PV array by considering the parameters n and m, which are expressed in the following equation,

\begin{aligned} I_{P V (a r r a y)} = m I_{p h} - \\ m I_{o} [\begin{matrix} \exp {\frac{χ (V_{P V (a r r a y)} + I_{P V (a r r a y)} R_{s} (n / m))}{n η_{k} T}} \\ - 1 \end{matrix}] - \frac{V_{P V (a r r a y)} + I_{P V (a r r a y)} R_{s} (n / m)}{R_{P} (n / m)} \end{aligned}

(2)

The

I_{p h}

subject parameters, such as ambient temperature and solar irradiance, are articulated below:

I_{p h} = I_{s c} \frac{I_{r r a d}}{I_{r r a d} *} [1 + (T - T_{r e f}) \times k_{i}]

(3)

Boost converter

At continuous mode operation, the boost converter is employed to set this input voltage, the diode is off, and insulated gate bipolar transistor (IGBT) is on. The IGBT device is used to give the voltage produced by the PV to the inverter. The output voltage of the converter is managed by the duty cycle and is expressed as

V_{o} * = V_{P V} * \times \frac{1}{(1 - D *)}

(4)

The duty cycle is D* and the accomplished voltage is equal to the input voltage if D* equals zero.

DC-link capacitor

The DC link based on the capacitor is developed in order to rate the system and is expressed by

C_{d c}^{/} = \frac{P_{d c} * / V_{d c} *}{2 * ω * V_{d c r i p} *} = 200 μ F

(5)

Here, the ripple voltage is illustrated as

V_{d c r i p} *

, the angular frequency is denoted as

ω

, and the dc voltage

V_{d c} *

Interfacing inductor

The interface inductor that depends on ripple current, DC link, and switching frequency is designed and is stated as

L_{f} * = \frac{\sqrt{3} m_{i} V_{d c} *}{12 O_{f} f_{s} * Δ I *}

(6)

Here, the modulation index is denoted as

m_{i}

, ripple current is noted as

Δ I *

, the dc voltage is mentioned as

V_{d c} *

, the keying incidence is represented as

f_{s} *

and the overload factor is

O_{f}

Working principle of interleaved inverter

According to half-bridge topology, the operation of interleaved inverter is investigated, which is represented in Figure 4. Here, the compensating current $i_{f}$ includes two cycles such as positive and negative cycles.³³ In the positive half cycle of compensating current, if $\frac{d i f}{d t} > 0$ , $S_{1}$ is at ON condition and $C_{d c}$ gets charged. Simultaneously, if $\frac{d i f}{d t} < 0$ , D₄ is at ON condition and $C_{d c}$ gets charged. In such cases, one switch is in ON condition and the remaining switches are in OFF condition.

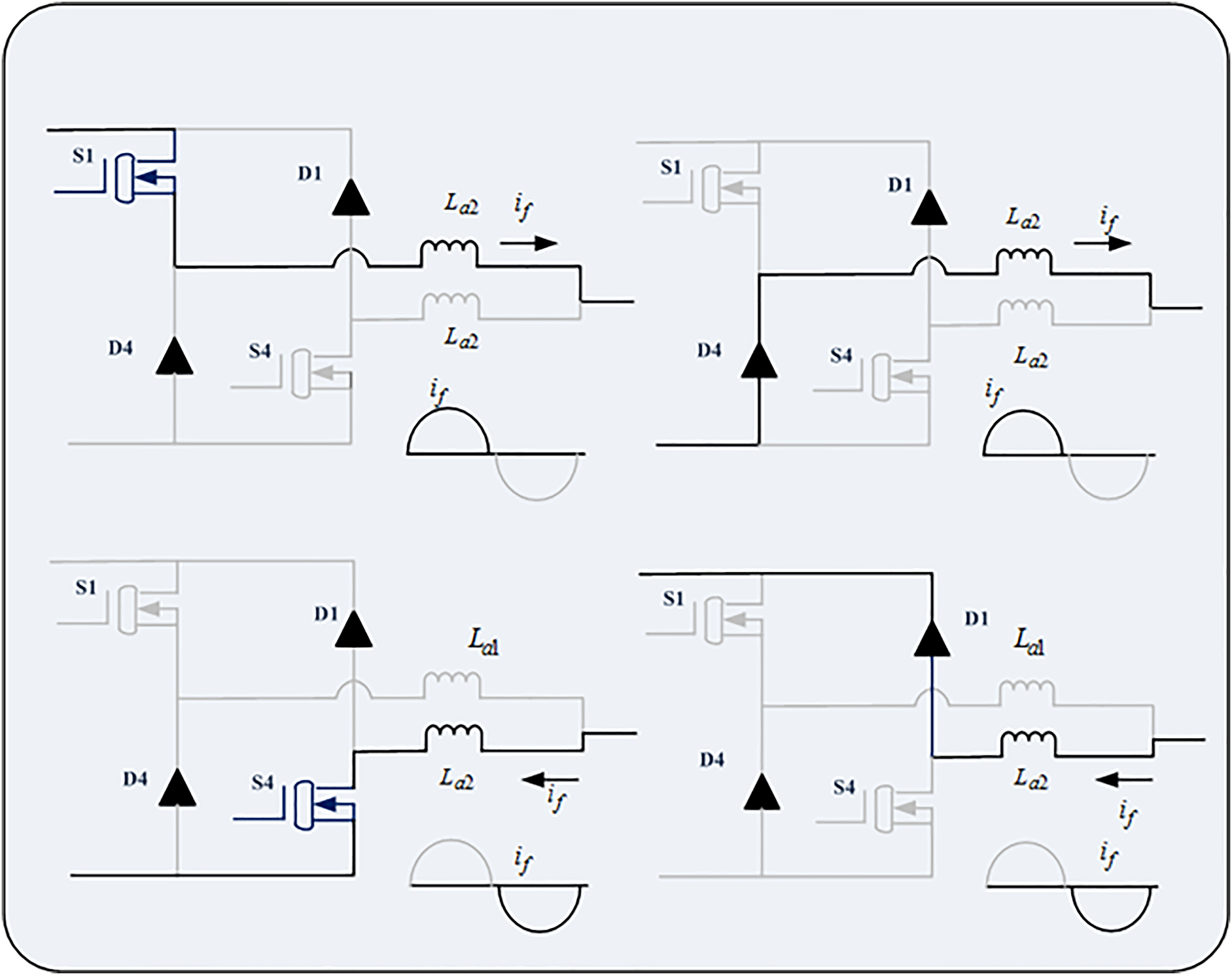

Figure 4.

Working principle of interleaved inverter.

Control loop

MPPT control algorithm

According to variations in solar radiation and cell temperature, the generation of PV energy varies and the controller measures the maximum power point. Different power point measurement systems are used to observe the maximal power point present in the PV array. The MPPT P&O is a simple system to determine MPP. After finding the MPP, the perturbation is performed. The algorithm is designed with low-cost controllers and is very capable of tracking through changing solar radiation conditions. The P&O algorithm uses a power sample at each step to track the MPP and compares the power in different power samples.

DC-link voltage control algorithm

The DC-link voltage control loop is considered to address the shunt APF compensation capability. There are three sections in the proposed control technique. In the first section, self-charging of the DC link at the voltage control loop is carried out. In the second section, the improved PLL³⁴ extracts the essential component of the voltage signal. The third section involves minimizing the generation of switching pulses using a unipolar hysteresis current controller. During harmonic current compensation, the PI controller generates DC-link voltage by supplying an active component of current and sends a reactive power component to the load when loads demand excess reactive power. Finally, harmonic mitigation and reactive power compensation take place. There is little deviation in DC-link voltage during the charging and discharging state in the compensation principle. The stored energy of the capacitor is articulated as

Δ E = \frac{C_{d c}}{2} \times {(V_{D C, p v} *) - {(V_{D C, p v})}^{2}}

(7)

Here, the reference DC-link voltage is mentioned as

V_{D C, p v} *

, actual DC-link voltage denoted as

V_{d c}

, DC-link capacitor value defined as

C_{d c}

, and energy stored on capacitor illustrated as

Δ E

E_{a c} = P \times t_{c} = V_{R M S} \times I_{R M S} \times t_{c}

(8)

The total time is represented as T. Equation (7) is rewritten as

E_{a c} = V_{R M S} \times I_{R M S} \times t_{c} = \frac{V}{\sqrt{2}} \times \frac{I_{p v}}{\sqrt{2}} \times \frac{T}{2}

(9)

Based on energy conversion law, the variation in capacitor voltage is illustrated as

Δ E = E_{a c}

(10)

The equation for

I_{d c}

is illustrated using equations (7) and (9):

I_{d c} = (2 C_{d c} / V_{D C . p v} \times T) \times {{(V_{d c} *)}^{2} - {(V_{d c})}^{2}}

(11)

The error is defined as the variance among actual and reference DC-link voltage and is signified; e may be computed as

e = {{(V_{D C, P V} *)}^{2} - {(V_{D C, p v})}^{2}}

(12)

The self-charge and discharge DC-link algorithm is very simple and is generated by the PI controller. The compensation capability of the controller is affected by the variation in the error quality.³⁵ By adjusting the proportional gain parameter, the above-mentioned drawback is overcome. At last, the reference current generation is done by processing the output of the controller.

Calculation of PI controller

The DC-link voltage is stabilized by controllers in the multifunctional operation of the interleaved inverter. According to the voltage control loop, the gain parameters are $K_{p}$ and $K_{i}$ . The calculation of the gain parameter is illustrated as

1 + (K_{P} + \frac{K_{i}}{s}) \frac{3 [V_{S -} L_{f} I_{f o} s - 2 I_{f o} R_{f}]}{C_{d c} V_{D C . p v . o} s} = 0

(13)

3.3.4. Double band hysteresis current controller

The DBHCC acquires switching frequency, which is lower than the conventional hysteresis current controller system.³⁶ The upper and lower hysteresis band is used to control the upper $(S_{1} and S_{3})$ and lower $(S_{2} and S 4)$ switches. The controller consists of three switching levels $+ V_{p v}, - V_{p v}$ , zero and reliable switching operation. The equation for turning on $S_{1}$ is expressed as

T_{O N} = \frac{H L_{f}}{V_{D C, p v} - V_{O, int}}

(14)

The interfacing inductor is represented as

L_{f}

, PV array voltage is defined as

V_{D C, p v}

, and the interleaved inverter output is denoted as

V_{O, int}

. H defines the hysteresis band value. The switch

S_{1}

will turn ON while the interleaved inverter error reaches lower band and the switch will turn into an OFF condition. When the inverter error signal change from –H to 0, it turns OFF the switch. The turn OFF time of switch S1 is expressed as

T_{O F F} = \frac{H L_{f}}{V_{O, int}}

(15)

The total time period through the positive half cycle of interleaved inverter current is illustrated as

T_{s w} = T_{O N} + T_{O F F} = \frac{H L_{f}}{V_{D C, p v} - V_{O, int}} + \frac{H L_{f}}{V_{O, int}}

(16)

T_{s w} = T_{O N} + T_{O F F} = \frac{V_{p v} . H . L_{f}}{(V_{D C, p v} - V_{O, int}) V_{O, int}}

(17)

The switching frequency calculation is represented as

f_{s w} = \frac{V_{p v}}{2 H L_{f}} (m \sin φ - m^{2} \sin^{2} φ)

(18)

The modulation index is defined as m, and the phase angle is noted as

φ

. One complete cycle of current signals' average switching frequency is expressed as follows:

f_{s w} = \frac{V_{p v}}{2 H L_{f}} (\frac{2}{π} m - 0.5 m^{2})

(19)

The above equation shows that the modulation index is zero. Therefore, the average switching frequency is significantly less and shows that the introduced DBHCC provides a lesser switching frequency.

Proposed LA-HBO hybrid technique

The control approach is separated into two sections: one is to collect the maximal power as solar array and second is to regulate the DC-link voltage for a long time using DBHCC through shunt APF operation.

Lichtenberg optimization algorithm

Lichtenberg is defined as optimization algorithm (LA) and is developed based on the idea of radial propagation of intracloud lightning. Lichtenberg figures (LF) is the one which is obtained from the figure generated in the sky because of lightning. The superior configuration of LF has significant property³⁷ lichtenberg optimization algorithm (LOA) population is shared to small branches through the use of LF. By plotting the y values randomly, the exploration process is enhanced. The algorithm is utilized to provide its number to its branch. In this paper, cost minimization is achieved through the LOA approach. The flow chart of the LOA algorithm is shown in Figure 5, and the step-by-step method of LOA is defined as follows:

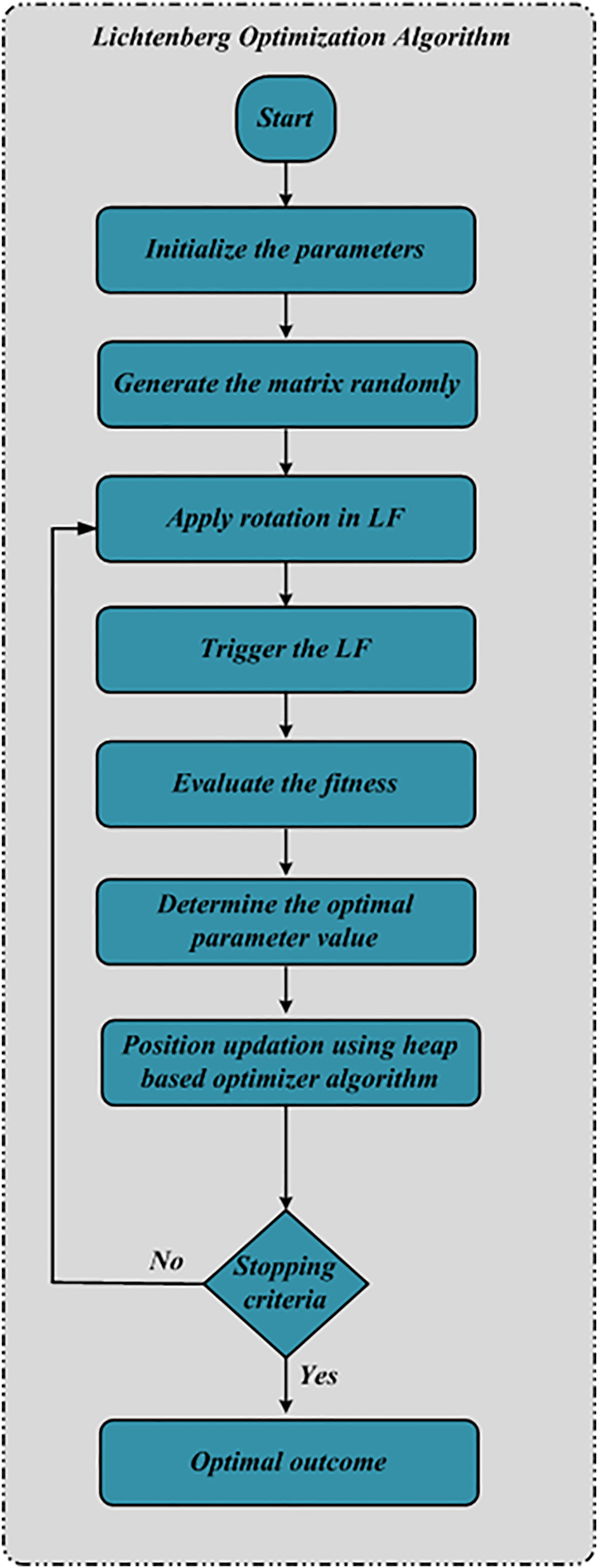

Figure 5.

Flowchart of LA algorithm.

Step 1: Initiation

Initiate the prediction data of PV, WT, load data, and historic data of the system.

Step 2: Random generation

Create LF utilizing routine parameter mand population of Lichtenberg is created, which is illustrated as follows:

R a = [\begin{matrix} {(c)}_{11} & {(c)}_{12} & \dots & {(c)}_{1 n} \\ {(c)}_{21} & {(c)}_{22} & \dots & {(c)}_{2 n} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ {(c)}_{m 1} & {(c)}_{m 2} & \dots & {(c)}_{m n} \end{matrix}]

(20)

Load the subsequent LF according to routine parameter.

Step 3: Rotation on LF

According to rotation, the next LF is formed in which the speed of reference is not similar with zero.

Step 4: LF triggering

Trigger the LF for the initial time, and the optimum point of the earlier one is achieved. It is continued to get better fitness

Step 5: Evaluate fitness

The fitness is assessed at a certain point in LF. It depends on the objective function

F = M i n [C o s t_{M i n}]

(21)

Step 6: Determine minimal point

Calculate the best value at search space.

Step 7: Termination

In this step, termination of the process takes place after receiving the optimal outcome or else go to step 3. It is found by using the following equation:

[\begin{matrix} F_{11} & F_{12} & \dots & F_{1 n} \\ F_{21} & F_{22} & \dots & F_{2 n} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ F_{m 1} & F_{m 2} & \dots & F_{m n} \end{matrix}] = [\begin{matrix} {(c)}_{11} & {(c)}_{12} & \dots & {(c)}_{1 n} \\ {(c)}_{21} & {(c)}_{22} & \dots & {(c)}_{2 n} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ {(c)}_{m 1} & {(c)}_{m 2} & \dots & {(c)}_{m n} \end{matrix}]

(22)

Heap-based optimizer

Corporate position is one that is nominated to executives within a company or organization. The position is the one that defines the employee’s job descriptions and responsibilities. According to the company and business, the position will change but they are arranged in a hierarchical order, which is mentioned in different names such as Corporate Ranking Hierarchy (CRH), Organizational Chart Tree, or Corporate Hierarchy.³⁸ Based on the fitness present in the hierarchy, the algorithm enhanced the logic of search agents. Simultaneously, communication between co-workers and employee self-involvement takes place. HBO involves different levels such as (1) upper, (2) middle, and (3) lower levels. The approach proposed under this document is used to improve the power factor at the grid connection point. The flowchart of the HBO algorithm is demonstrated in Figure 6, and the step-by-step method of HBO is defined as follows.

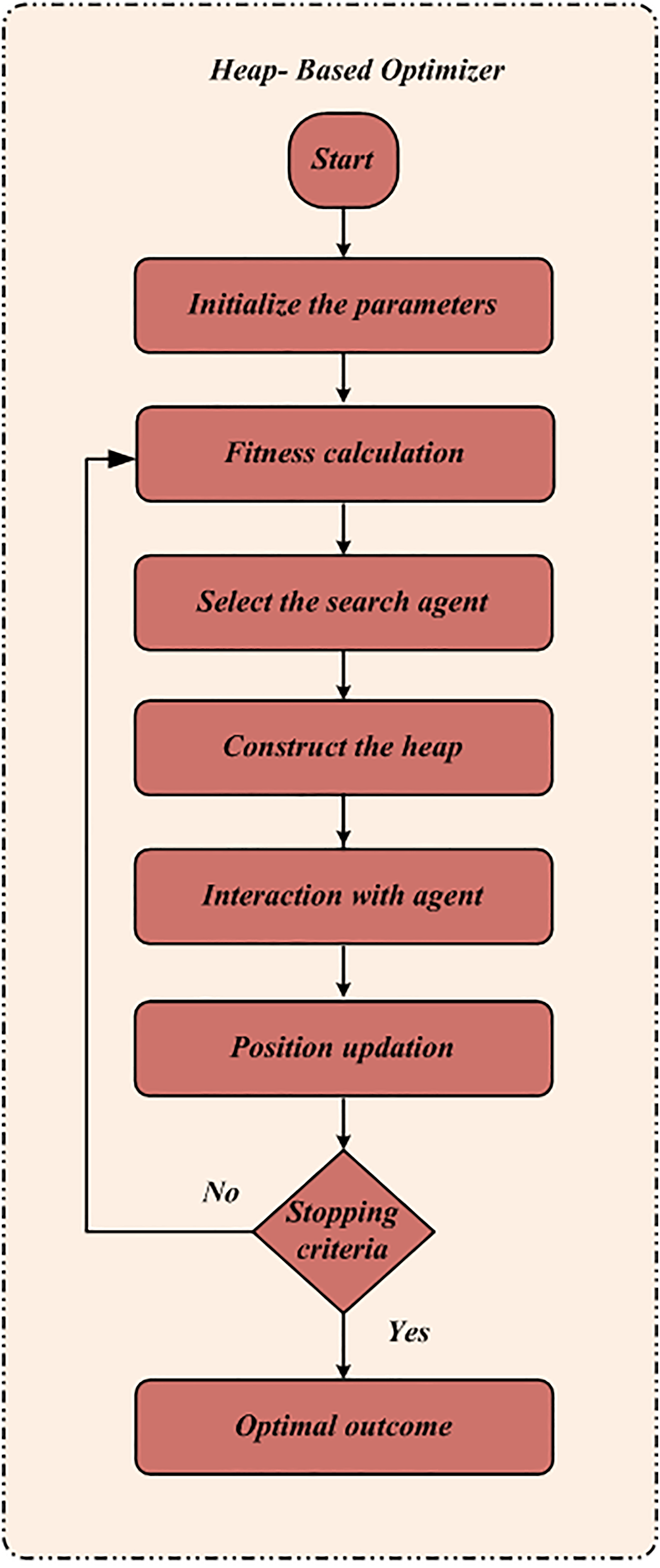

Figure 6.

Flowchart of HBO algorithm.

Step 1: Initiation

In this step, the reactive power, the apparent power of the network, EV and energy storage system (ESS), the optimal cost, the system restrictions, and the balanced value are initialized.

Step 2: Random generation

Create population of search agents randomly defined by

R a = [\begin{matrix} (P_{f})_{1}^{1} & (P_{f})_{1}^{2} & \dots & (P_{f})_{1}^{D} \\ (P_{f})_{2}^{1} & (P_{f})_{2}^{2} & \dots & (P_{f})_{2}^{D} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ (P_{f})_{n}^{1} & (P_{f})_{n}^{2} & \dots & (P_{f})_{n}^{D} \end{matrix}]

(23)

Step 3: Fitness function

The fitness is used to regulate the best optimal value. The fitness functions are assessed according to the objective function

F = M a x [P_{f}]

(24)

Step 4: Choose search agent

Assume that probabilities $q_{1}, q_{2}, q_{3}$ are defined as

q_{1} = 1 - \frac{i}{I} q_{2} = q_{1} + \frac{1 - q_{1}}{2} q_{3} = 1

(25)

Step 5: Construct heap

A tree-like data structure may be executed proficiently using an array, as it has properties of integrity. Heap is built with the below equation:

P a r (k) = \frac{k + 1}{d}

(26)

C h i (k, l) = d \times k - d + l + 1

(27)

D e p (k) = \log_{d} (d \times k - k + 1) - 1

(28)

C o l l e a g u e (k) = [\frac{d d^{D e p (k) - 1} - 1}{d - 1} + 1, \frac{d d^{D e p (k)} - 1}{d - 1}]

(29)

The structure looks upwards at heap and inserts node k at appropriate place to preserve the heap properties.

Step 6: Interaction with instant boss

Design parent node as an immediate boss to their children is illustrated by

α = | 2 - (\frac{i mod \frac{I}{s}}{\frac{T}{4 s}}) |

(30)

Step 7: Position updation

Update position by utilizing the below equation,

X_{k}^{l} (i + 1) = X_{k}^{l} (i)

(31)

Step 8: Termination

Once after receiving the optimal result the process is terminated otherwise go to step 3.

Result and discussion

This section explains about the result obtained by simulating the power quality enhancement of a grid-connected PV system using LA-HBO on MATLAB/Simulink working platform. The grid-linked PV system consists of DC link capacitors, interleaved inverter, MPPT controller, and nonlinear loads. The proposed system is authenticated under two cases such as PV irradiance change and PV constant irradiance change.

Case 1: PV irradiance change

In this case, the proposed system performance is analyzed under PV irradiance change. If a grid-connected PV system is subjected to solar irradiance variation, the parameter such as current voltage and power is investigated. Figure 7 represents the input reference irradiance waveform of the proposed LA-HBO system. Figure 8 portrays the reference temperature of the proposed system. Figure 9 illustrates the capacitor current, voltage, and power waveform. In Figure 9(a), the capacitor current increases up to 2 A and remains constant till 1.1 s then there is a fluctuation from 1.1 time/s to 1.7 time/s in the current due to the PV irradiance. Again the current value of 2 A remains constant for the remaining time period. Figure 9(b) represents the capacitor power variation in which the power value emerged up to 550 W and remains constant till 1.1 time/s; then, power value decreased to 210 W at 1.2 s and remains the same during 1.2–1.6 time/s. Again the power rises to 550 W at 1.6 time/s and remains constant. Figure 9(c) illustrates the capacitor voltage waveform where the voltage increased to 295 V and remains at the same value till 1.2 time/s; then, the voltage value decreases to 160 V at 1.25 time/s and remains constant till 1.6 time/s; again, there is a sudden increase in voltage up to 295 V at 1.65 time/s and remains constant.

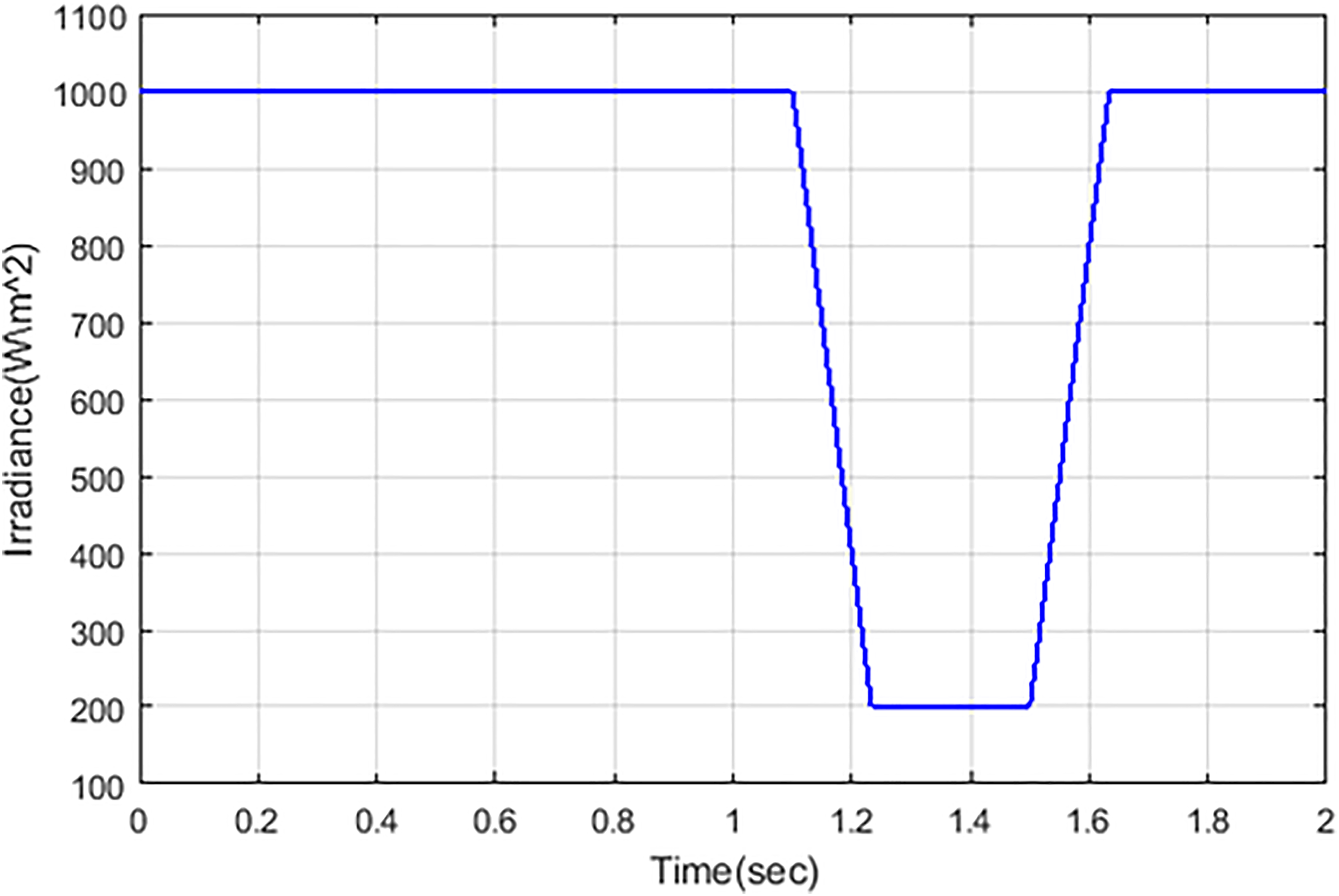

Figure 7.

Reference irradiance LA-HBO.

Figure 8.

Reference temperature LA-HBO.

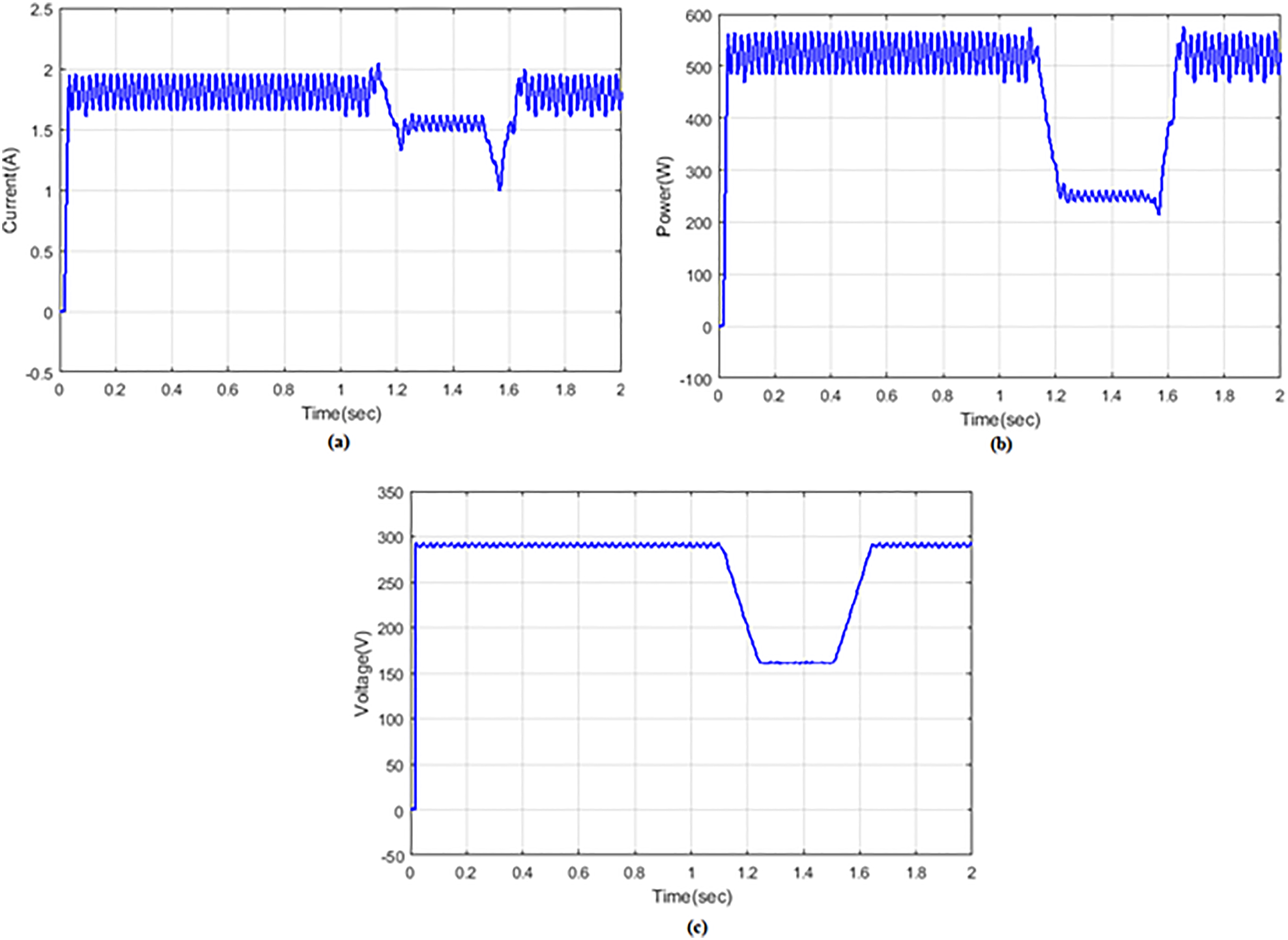

Figure 9.

Capacitor: (a) current, (b) power, and (c) voltage.

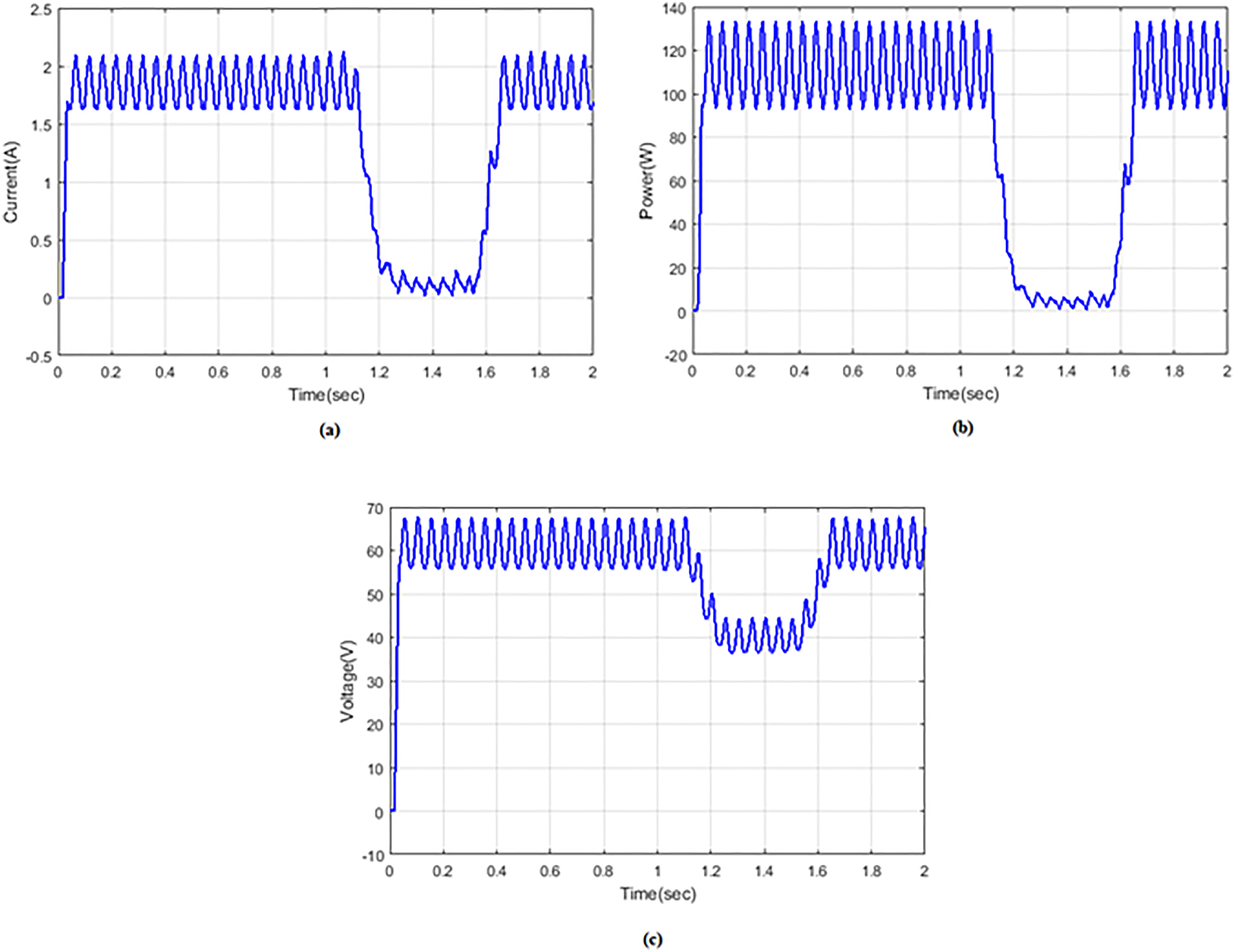

Figure 10 represents the inductor 1 current, voltage, and power waveform. In Figure 10(a), the inductor 1 current increased up to 2 A and remains constant during the time period of 0.1–1.08 time/s; then, there is a sudden decrease at 0.1 time/s due to the PV irradiance and remains constant during 1.22–1.6 time/s. Again, the current value increases to 2 A and remains constant for the remaining time period. Figure 10(b) represents the inductor 1 power variation in which the power value emerged up to 130 W and remains constant till 1.1 time/s; then, power value decreased to 0 W at 1.2 s and remains the same during 1.2–1.6 time/s. Again, the power rises to 120 W at 1.6 time/s and remains constant. Figure 10(c) shows the inductor 1 voltage waveform where the voltage increased to 68 V and remains at the same value till 1.1 time/s; then, the voltage value decreases to 38 V during 1.2–1.5 time/s. Again, there is a sudden increase in voltage up to 68 V at 1.5 time/s and remains constant.

Figure 10.

Inductor 1: (a) current, (b) power, and (c) voltage.

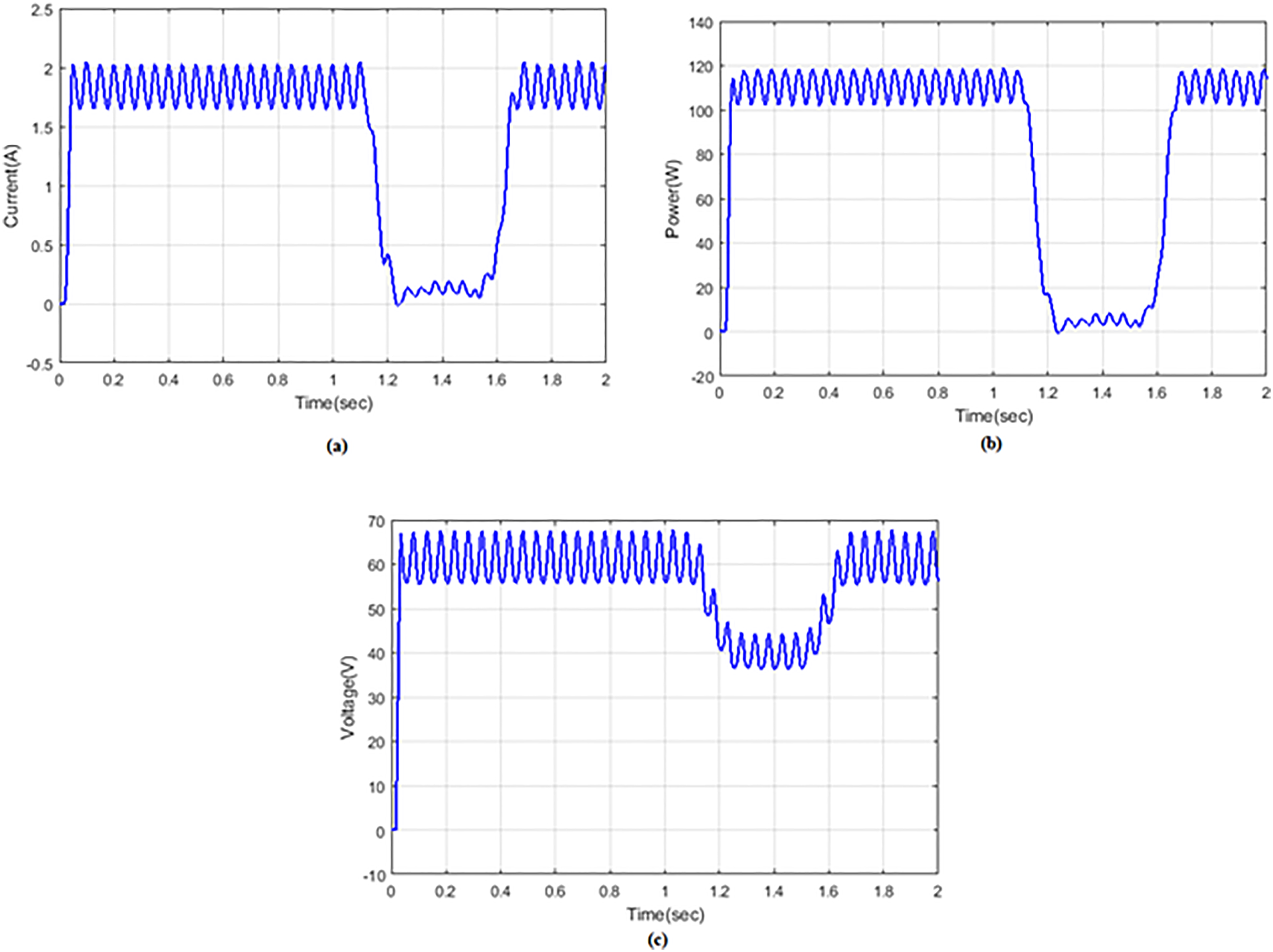

Figure 11 represents the inductor 2 current, voltage, and power waveform. In Figure 11(a), the inductor 2 current increased up to 2 A and remains constant during the time period of 0.01–1.1 time/s; then, there is a sudden decrease to 0 A during 1.2–1.5 time/s due to the PV irradiance. Again the current value increases to 2A at 1.5 time/s and remains constant for the remaining time period. Figure 11(b) represents the inductor 2 power variation in which the power value emerged from 0 to 110 and then increases to 120 W during time period of 0–0.1 time/s and remains constant during 0.1–1.1 time/s; then, power value decreased to 0 W during 1.2–1.5 time/s and remains the same. Again, the power rises to 120 W at 1.5 time/s and remains constant. Figure 11(c) shows the inductor 2 voltage waveform where the voltage increased to 68 V and remains at the same value till 1.1 time/s; then, the voltage value decreases to 35 V during 1.1–1.55 time/s. Again, there is a sudden increase in voltage up to 68 V at 1.55 time/s and remains constant.

Figure 11.

Inductor 2: (a) current, (b) power, and (c) voltage.

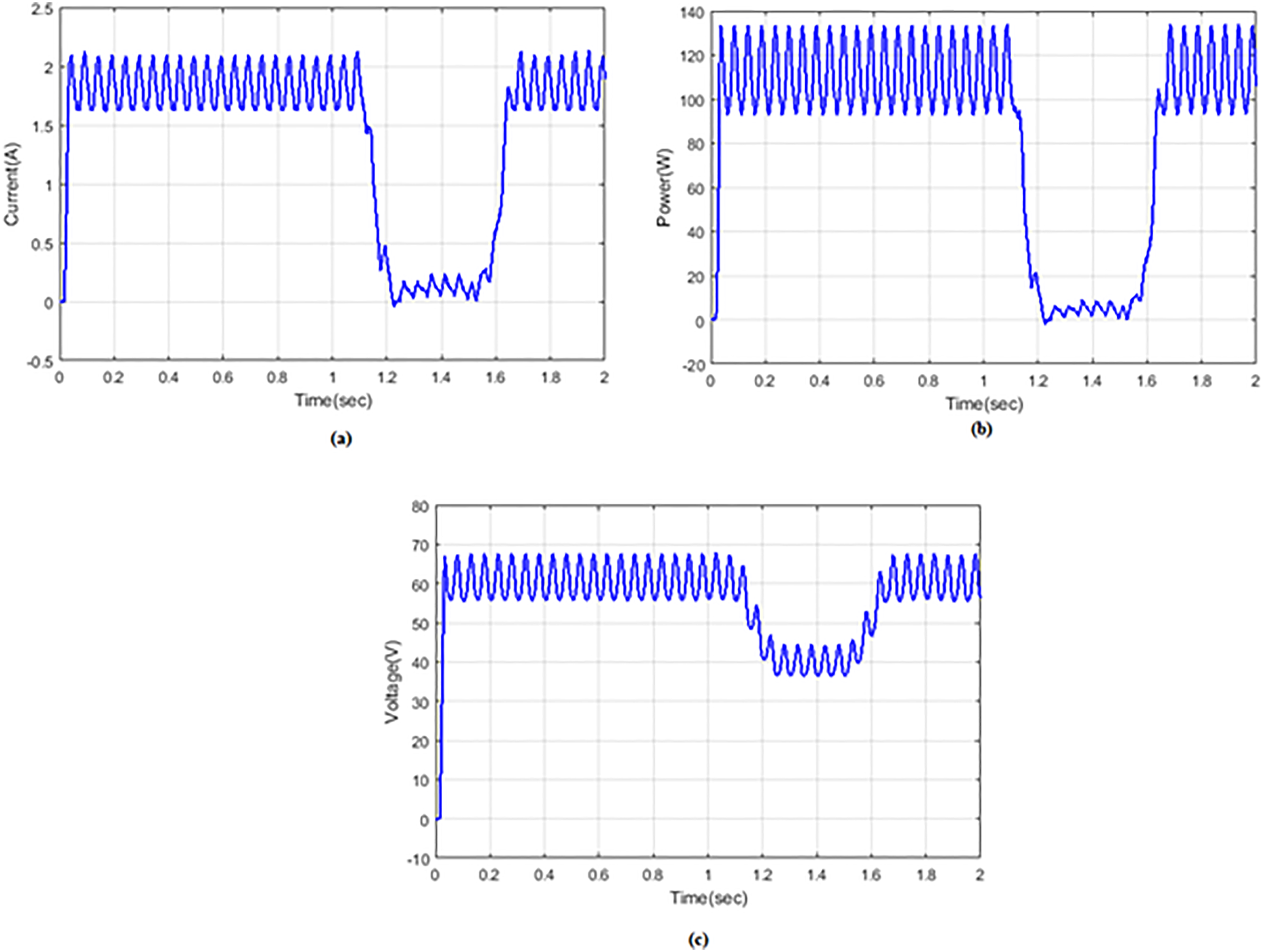

Figure 12 represents the inductor 4 current, voltage, and power waveform. In Figure 12(a), the inductor 4 current increased up to 2 A and remains constant during the time period of 0.01–1.1 time/s; then, there is a sudden decrease to 0 A during 1.2–1.5 time/s due to the PV irradiance. Again, the current value increases to 2 A at 1.5 time/s and remains constant for the remaining time period. Figure 12(b) represents the inductor 4 power variation in which the power value emerged from 0 to 138 W and during the time period of 0–1.1 time/s, it remains constant. Then, the power value decreased to 0 W during 1.2–1.5 time/s and remains the same. Again, the power rises to 138 W at 1.65 time/s and remains constant. Figure 12(c) shows the inductor 4 voltage waveform where the voltage increased to 68 V and remains at the same value till 1.1 time/s; then, the voltage value decreases to 38 V during 1.1–1.55 time/s. Again, there is a sudden increase in voltage up to 68 V at 1 .65 time/s and remains constant.

Figure 12.

Inductor 4: (a) current, (b) power, and (c) voltage.

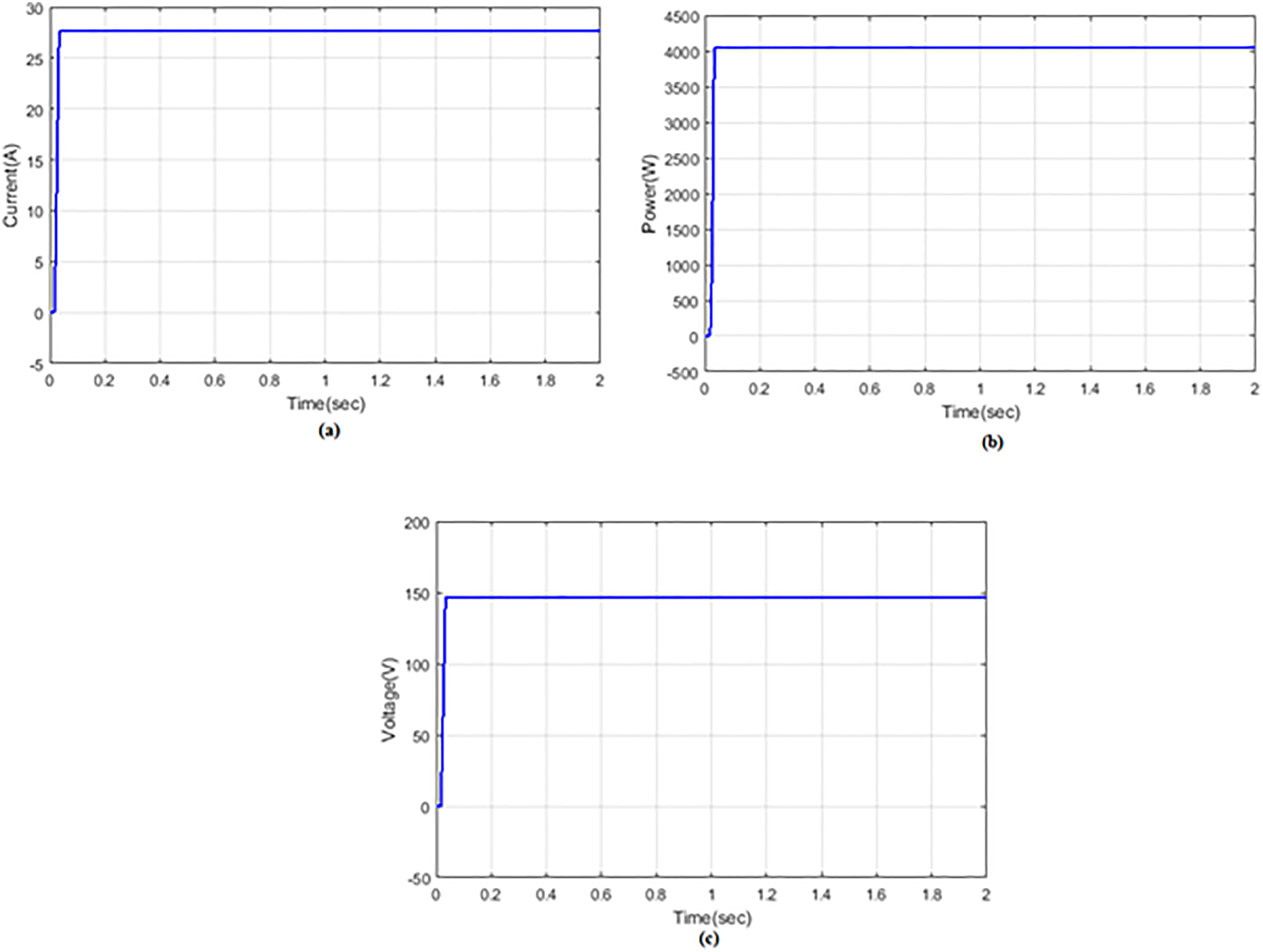

Figure 13 represents load current, voltage, and power waveform. In Figure 13(a), the load current increased up to 27.5 A at 0.01 time/s and remains constant. Figure 13(b) represents the load power variation in which the power value emerged from 0 to 4000 W through time period of 0–0.01 time/s and it remains stable. Figure 13(c) shows that load voltage waveform where the voltage increased to 150 V at 0.01 time/s and it remainsstable.

Figure 13.

Load: (a) current, (b) power, and (c) voltage.

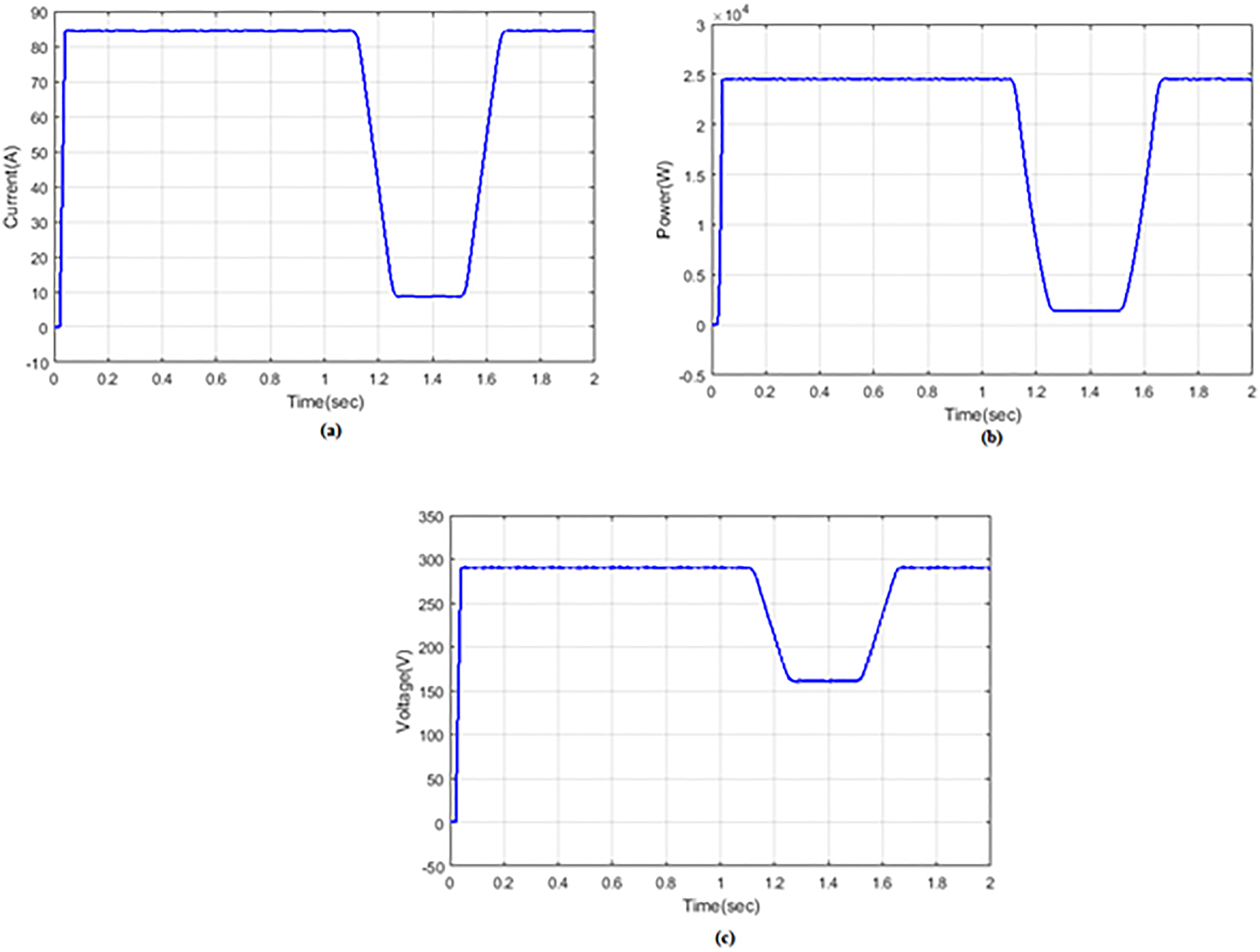

Figure 14 represents that PV current, voltage, and power waveform. In Figure 14(a), the PV current increased up to 84 A at 0.01 time/s and remains constant during the time period of 0.01–1.25 time/s; then, there is a sudden decrease to 10 A during 1.22–1.5 time/s due to PV irradiance. Again, the current value increases to 84 A at 1.5 time/s and remains constant for the remaining time period. Figure 14(b) represents the PV power variation in which the power value emerged from 2.4 W during the time interval 0–0.01 time/s and remains constant during 0.01–1.1 time/s. Then the power value decreased to 0 W during 1.1–1.21 time/s and remains the same. Again, the power rises to 2.4 W at 1.5 time/s and remains constant. Figure 14(c) shows the PV voltage waveform where the voltage increased to 290 V and remains at the same value till 1.1 time/s; then, the voltage value decreases to 160 V during 1.1–1.55 time/s. Again, there is a sudden increase in voltage up to 290 V at 1.65 time/s and remains constant.

Figure 14.

PV: (a) current, (b) power, and (c) voltage.

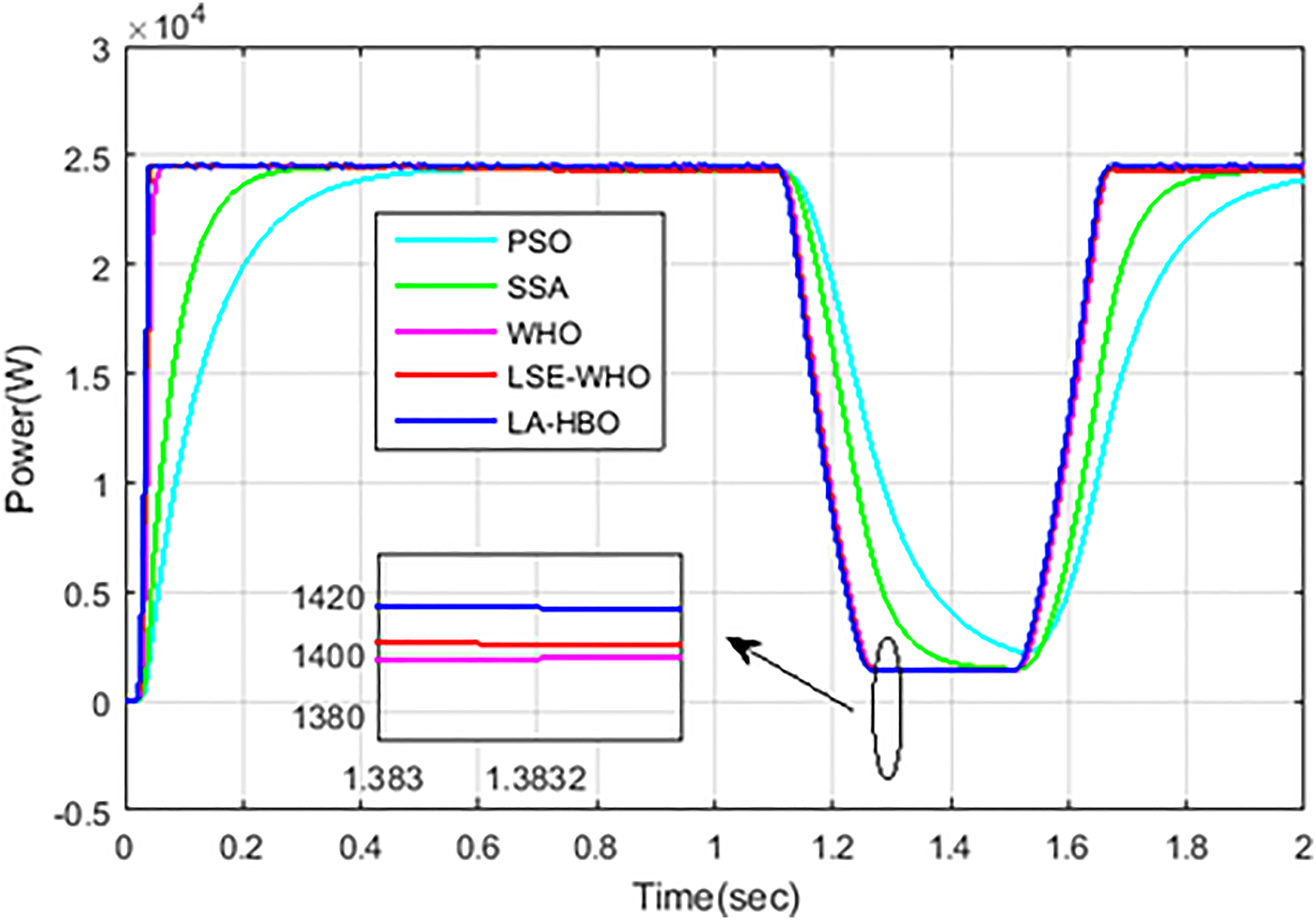

Figure 15 shows the performance comparison of the PV power of the proposed LA-HBO method with other existing methods such as LSE-WHO, WHO, SSA, and PSO. From the waveform, it is proved that the PV power value of the proposed system is higher than other existing systems. The total harmonic distortion (THD) of solution techniques is shown in Table 1. Comparison analysis of settling, rise, and peak overshoot time is shown in Table 2. Performance comparison of sensitivity and absence of renewable energy is shown in Table 3. Elapsed time of the proposed and several solution systems is provided in Table 4.

Figure 15.

Performance comparison of PV power.

Table 1.

THD of solution techniques.

Solution techniques	(% THD)
PSO	14.71
SSA	16.51
WHO	20.68
LSE-WHO	24.65
Proposed technique	21.22

Table 2.

Comparison of settling, rise, and peak overshoot time.

Statistic analysis (in s)	Performance
	Case 1					Case 2
	PSO	SSA	WHO	LSE-WHO	Proposed technique	PSO	SSA	WHO	LSE-WHO	Proposed technique
Settling Time	200	160	135	65	41	280	250	150	70	65
Rising Time	9	12	13	10	8	15	20	18	11	10
Peak Overshoot Time	12	18	20	12	11	18	23	22	13	10.5

Table 3.

Performance of sensitivity and absence of renewable energy.

Performance index	Sensitivity
Performance index	PSO	SSA	WHO	LSE-WHO	Proposed technique
System	0.857	0.815	0.789	0.725	0.577

Table 4.

Elapsed time of proposed with numerous solution systems.

Solution	Elapsed time (s)
PSO	3.82
SSA	4.43
WHO	5.91
LSE-WHO	2.89
Proposed	2.10

Case 2: PV constant irradiance change

In this case, the proposed system performance is analyzed under PV constant irradiance change. When the grid-connected PV system is subjected to solar constant irradiance variation, the parameter such as current voltage and power is investigated for different components such as capacitor, inductor 1, inductor 2, and inductor 4. Figure 16 depicts the input reference irradiance waveform of proposed LA-HBO system. Figure 17 portrays the reference temperature of the proposed system. Figure 18 illustrates the capacitor current, voltage, and power waveform. In Figure 18(a) the capacitor current increased from 0 to 1.9A at time period of 0–0.01 time/s and remains constant. Figure 18(b) represents the capacitor power variation in which the power value emerged from 0 to 560 W during the time interval 0–0.01 time/s. Figure 18(c) demonstrates that capacitor voltage waveform where the voltage increased from 0 to 290 V during 0–0.01 time/s and remains constant.

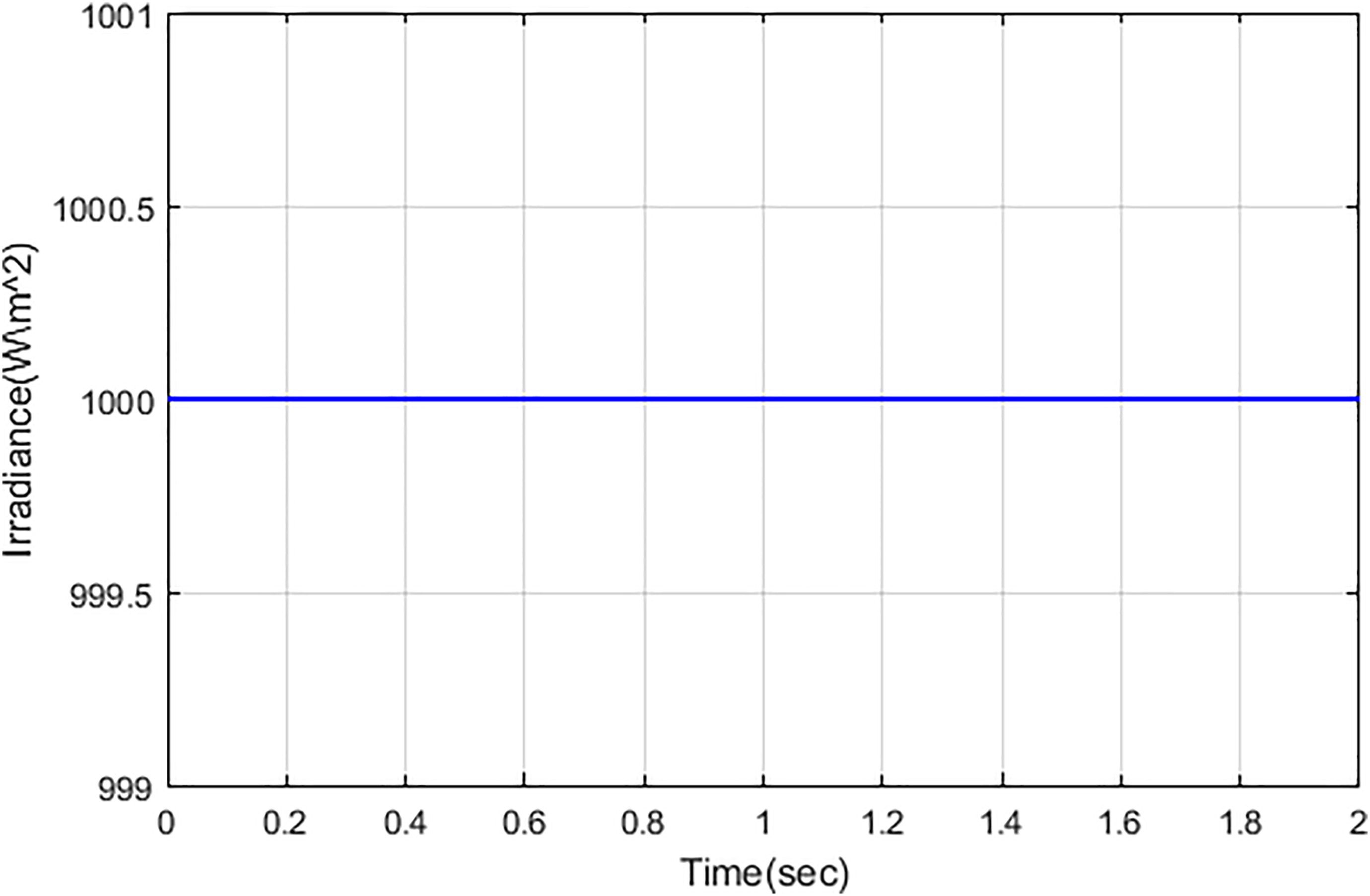

Figure 16.

Reference irradiance LA-HBO.

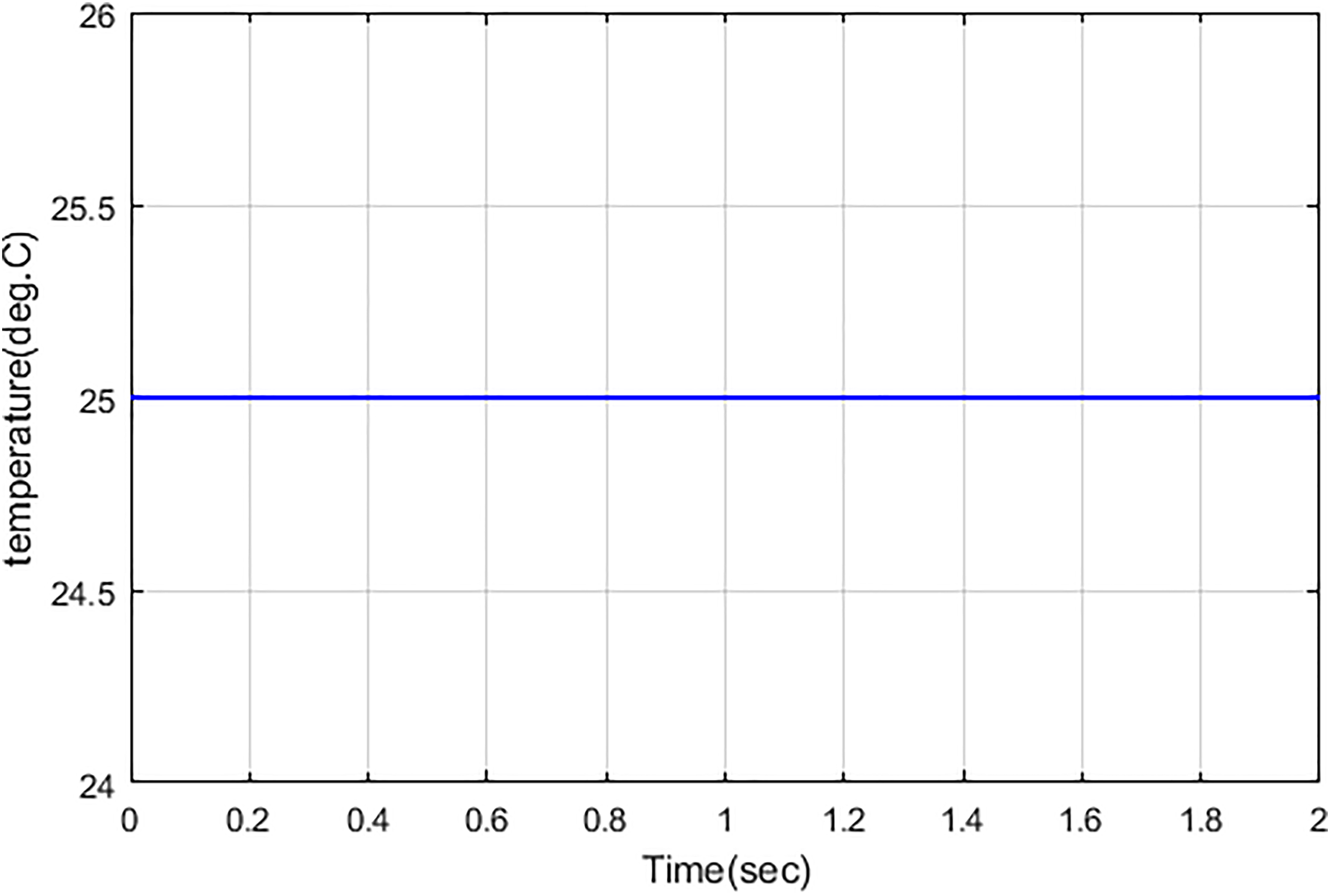

Figure 17.

Reference temperature LA-HBO.

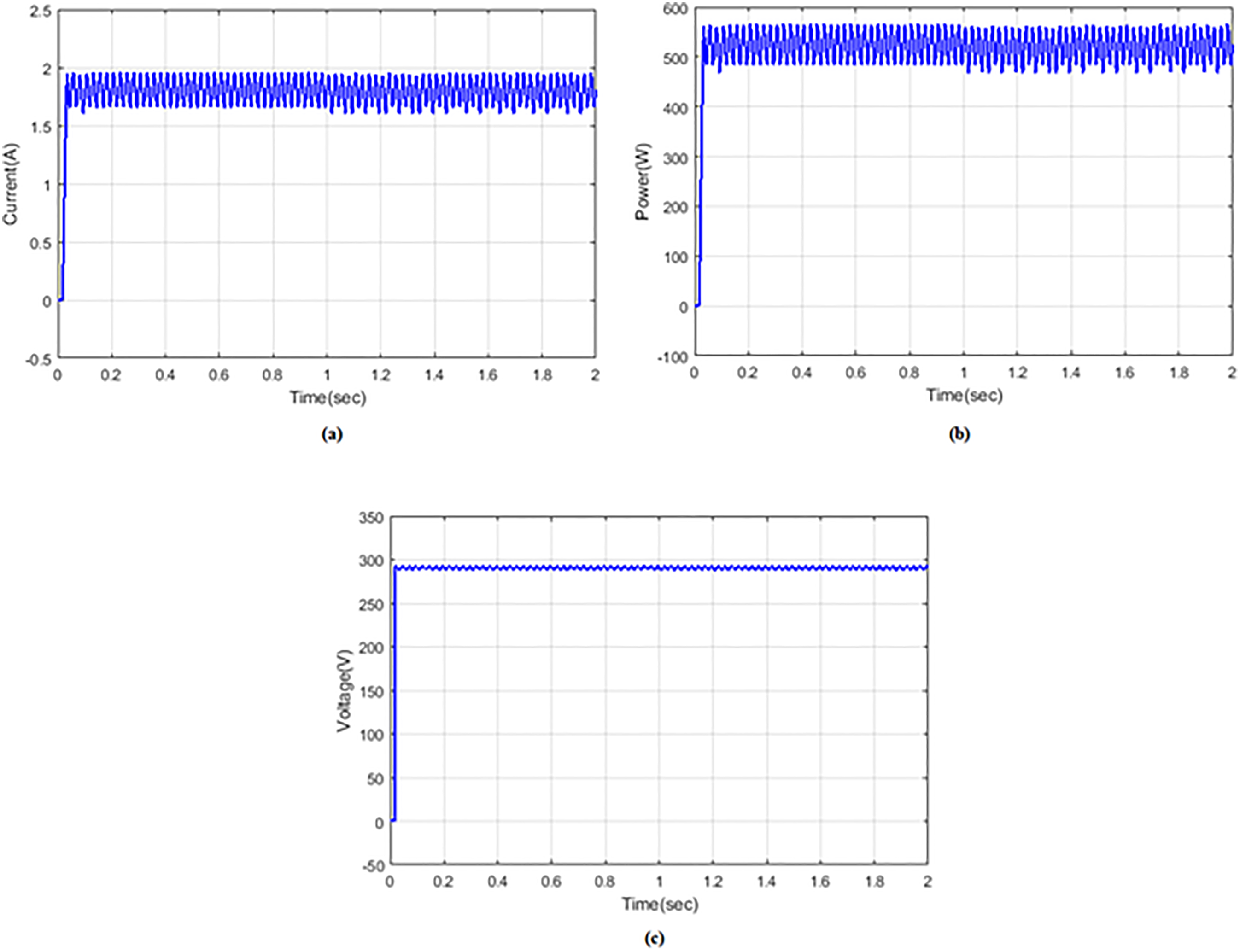

Figure 18.

Capacitor: (a) current, (b) power, and (c) voltage.

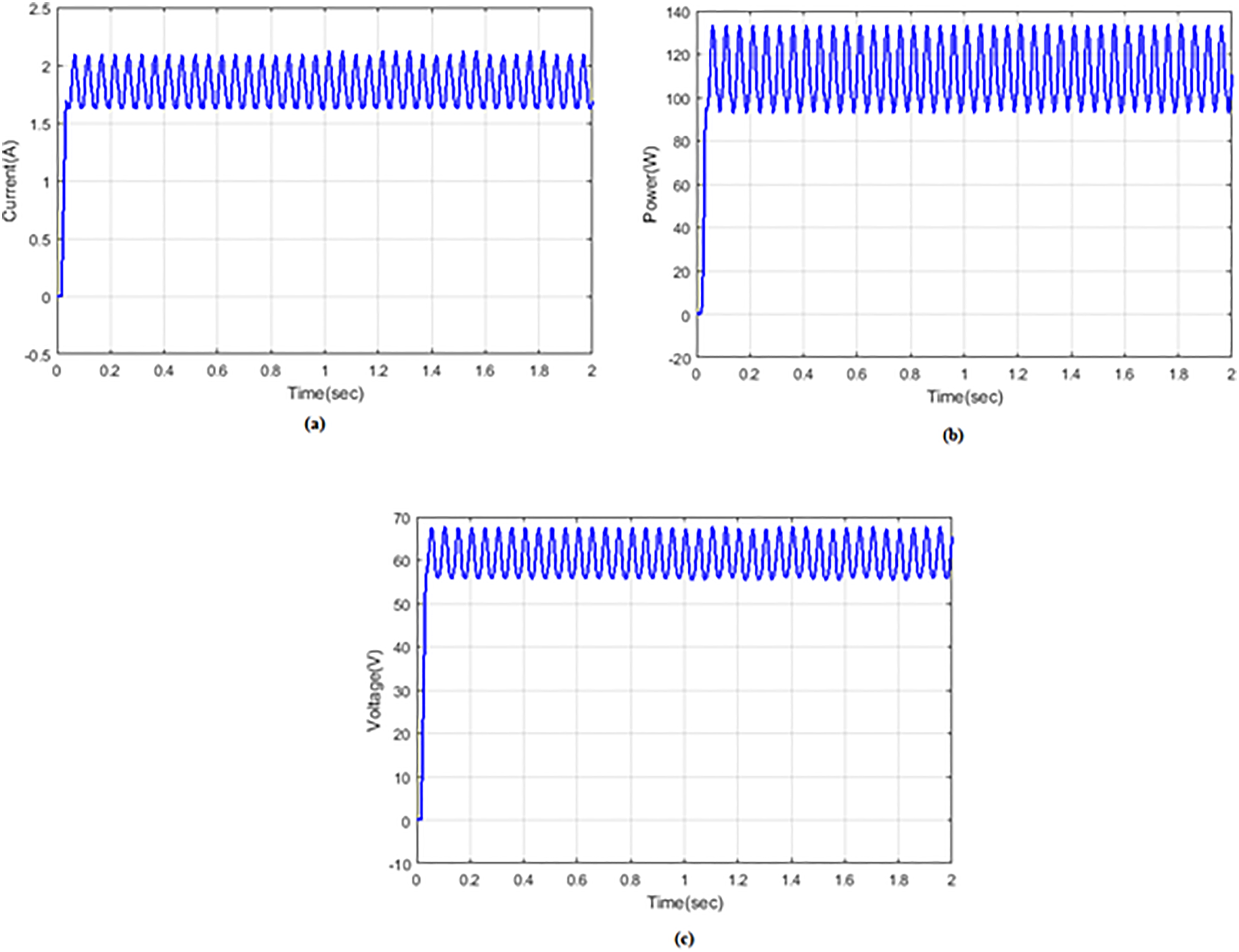

Figure 19 represents the inductor current, voltage, and power waveform. In Figure 19(a), the inductor current rises from 0 to 2 A at 0–0.01 time/s and remains constant. Figure 19(b) represents the inductor power variation in which the power value emerged from 0 to 130 W during the time period of 0–0.03 time/s. Figure 19(c) demonstrates an inductor voltage waveform where the voltage increases from 0 to 68 V during 0–0.03 time/s and remains constant.

Figure 19.

Inductor 1: (a) current, (b) power, and (c) voltage.

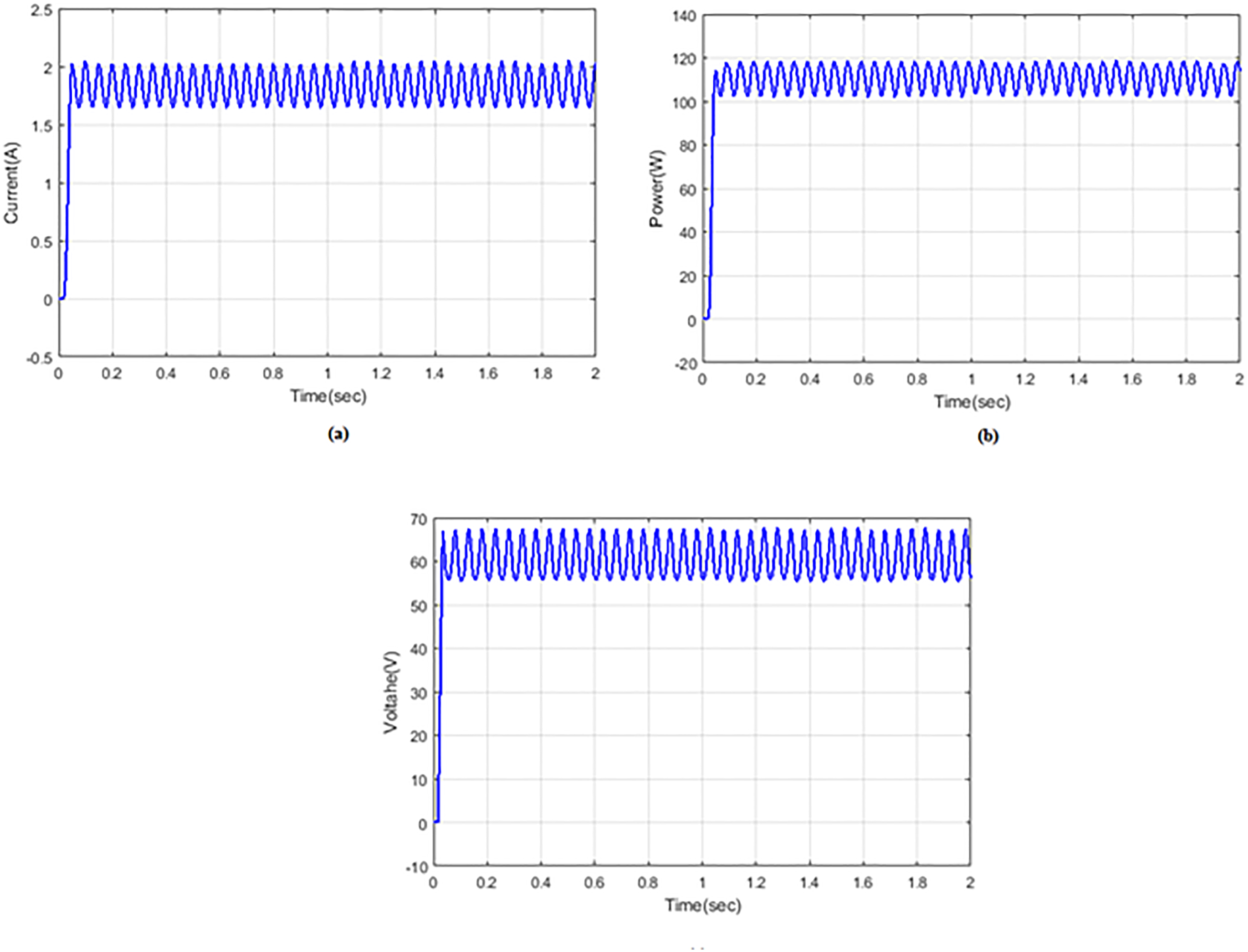

Figure 20 illustrates the inductor 2 current, voltage, and power waveform. In Figure 20(a), the inductor 2 current increased from 0 to 2A at 0–0.01 time/s and remains constant. Figure 20(b) represents the inductor 2 power variation in which the power value rises from 0 to 116 W again increases to 119 W throughout the time period of 0–0.1 time/s and it remains constant. Figure 20(c) illustrates the inductor 2 voltage waveform where the voltage increased from 0 to 68 V during 0–0.01 time/s and remains constant. Figure 21 illustrates the inductor 4 current, voltage, and power waveform. In Figure 21(a), the inductor 4 current increased from 0 to 2A at 0–0.01 time/s and remains constant. Figure 21(b) represents the inductor 4 power variation in which the power value rises from 0 to 138 W throughout the time period of 0–0.1 time/s and it remains constant. Figure 21(c) illustrates the inductor 4 voltage waveform where the voltage increased from 0 to 68 V during 0–0.01 time/s and remains constant.

Figure 20.

Inductor 2: (a) current, (b) power, and (c) voltage.

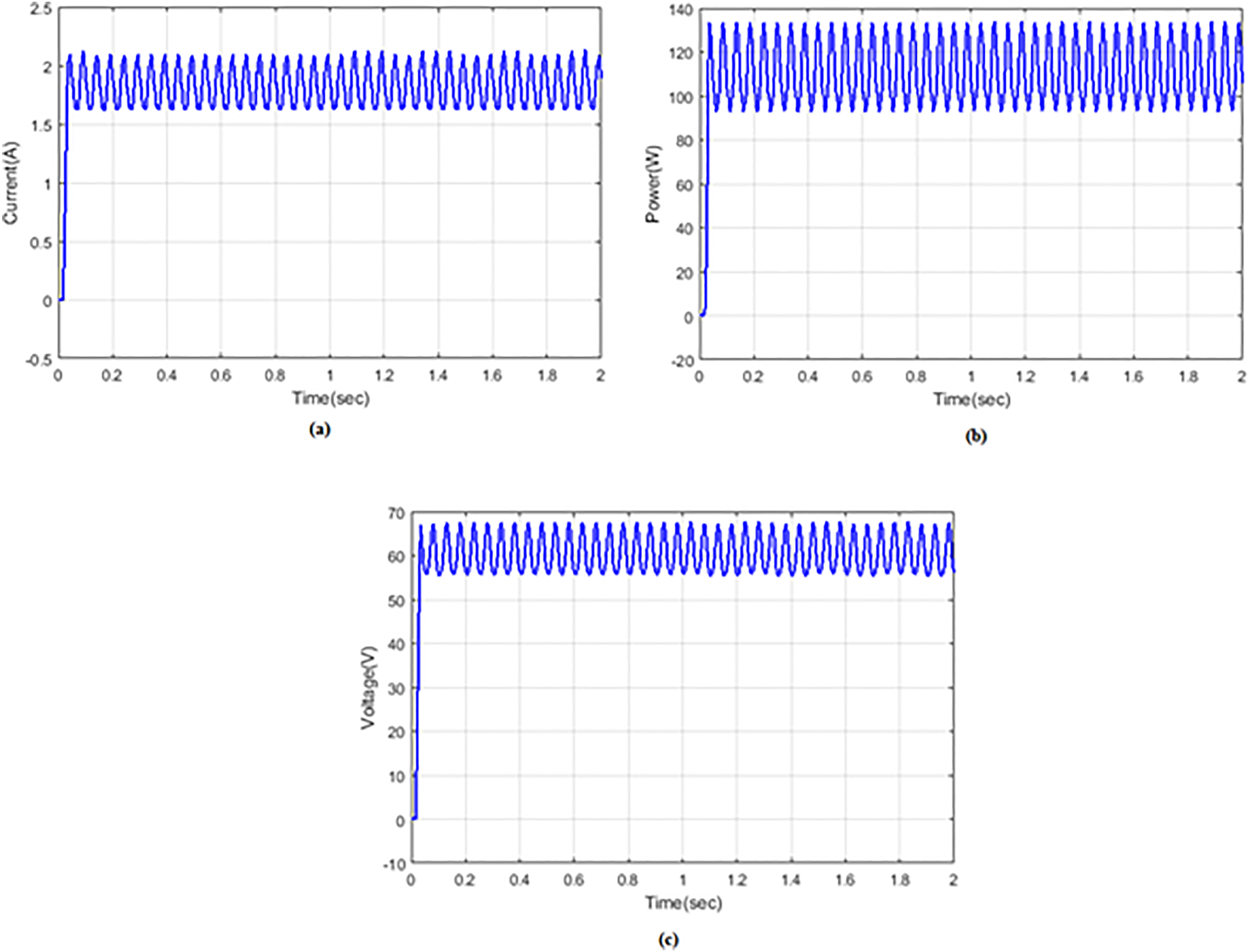

Figure 21.

Inductor 4: (a) current, (b) power, and (c) voltage.

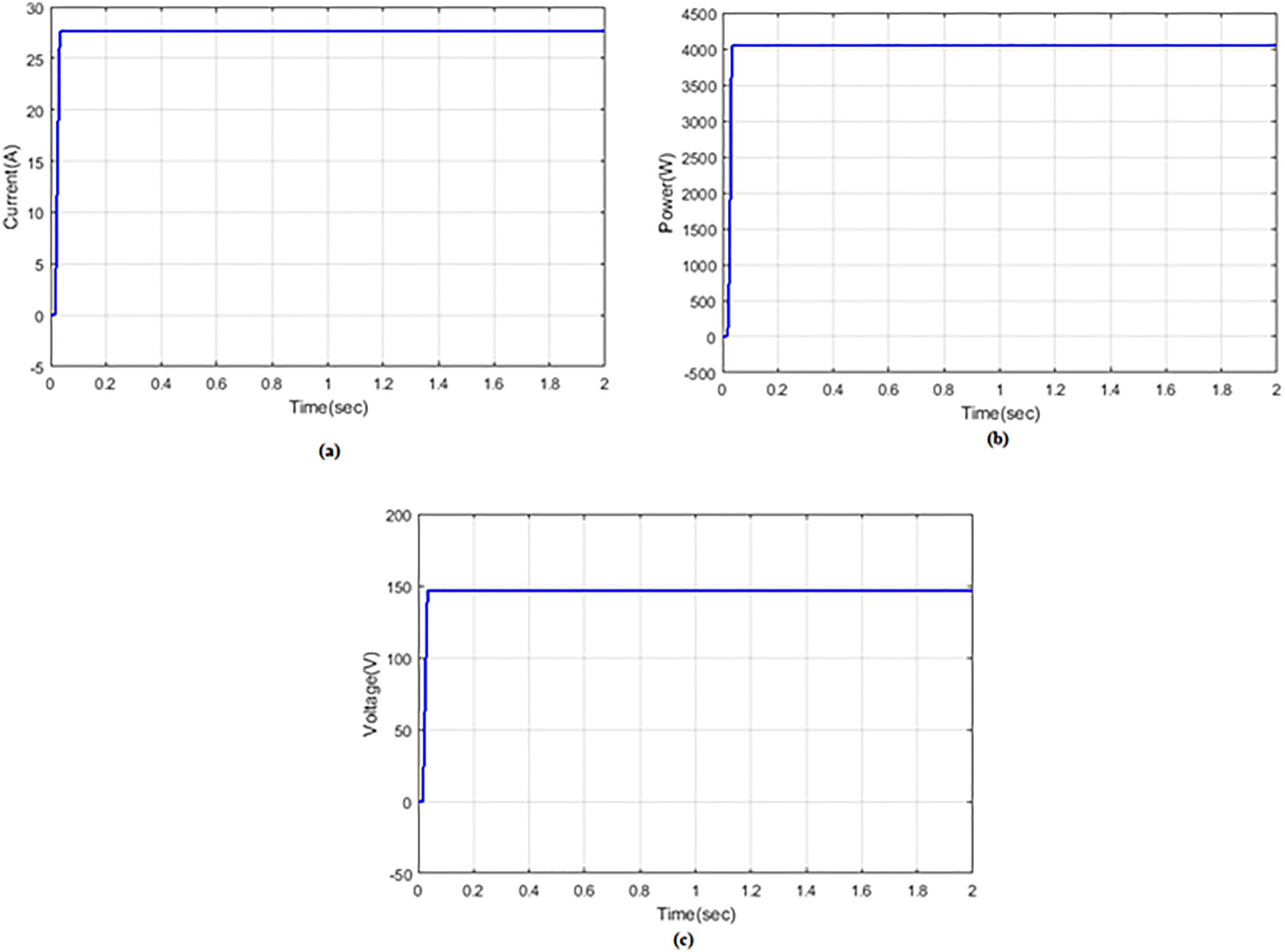

Figure 22 illustrates the load current, voltage, and power waveform. In Figure 22(a), the load current increased from 0 to 27A at 0–0.01 time/s and remains constant. Figure 22(b) represents the load power variation in which the power value rises from 0 to 4000 W throughout the time period of 0–0.1 time/s and it remains constant. Figure 22(c) illustrates the load voltage waveform where the voltage increased from 0 to 149 V during 0–0.01 time/s and remains constant. Figure 23 illustrates the PV current, voltage, and power waveform.

Figure 22.

Load: (a) current, (b) power, and (c) voltage.

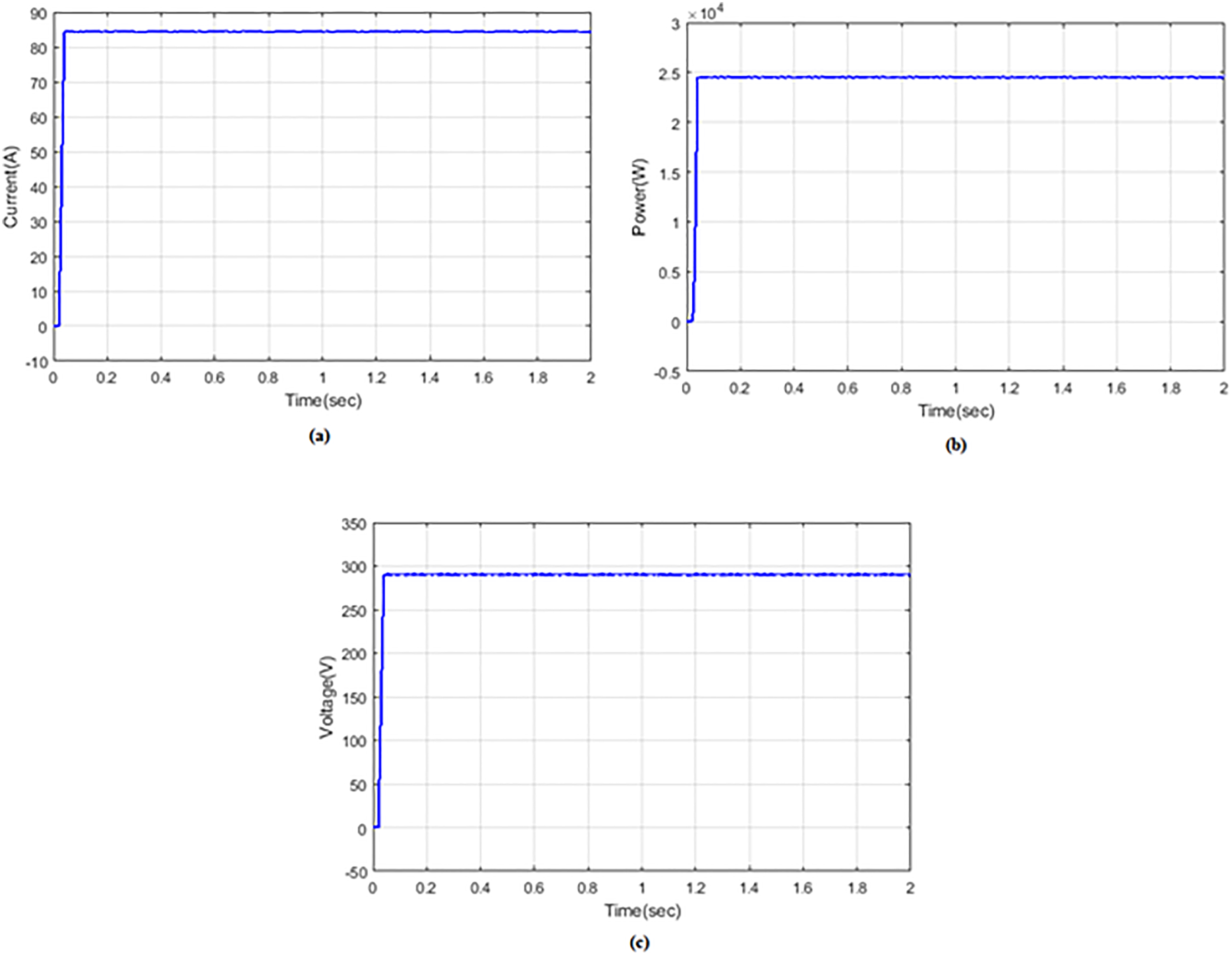

Figure 23.

PV: (a) current, (b) power, and (c) voltage.

Figure 23(a) presents the PV current increased from 0 to 85 A at 0–0.01 time/s and remains constant. Figure 23(b) represents the PV power variation in which the power value rises from 0 to 2500 W throughout the time period of 0–0.1 time/s and it remains constant. Figure 23(c) illustrates the PV voltage waveform where the voltage increased from 0 to 295 V during 0–0.01 time/s and remains constant. Figure 24 shows the performance comparison of the PV power of the proposed LA-HBO method with other existing methods such as LSE-WHO, WHO, SSA, and PSO. From the waveform, it is validated that the PV power value of the proposed system is higher than other existing methods and there is no deviation.

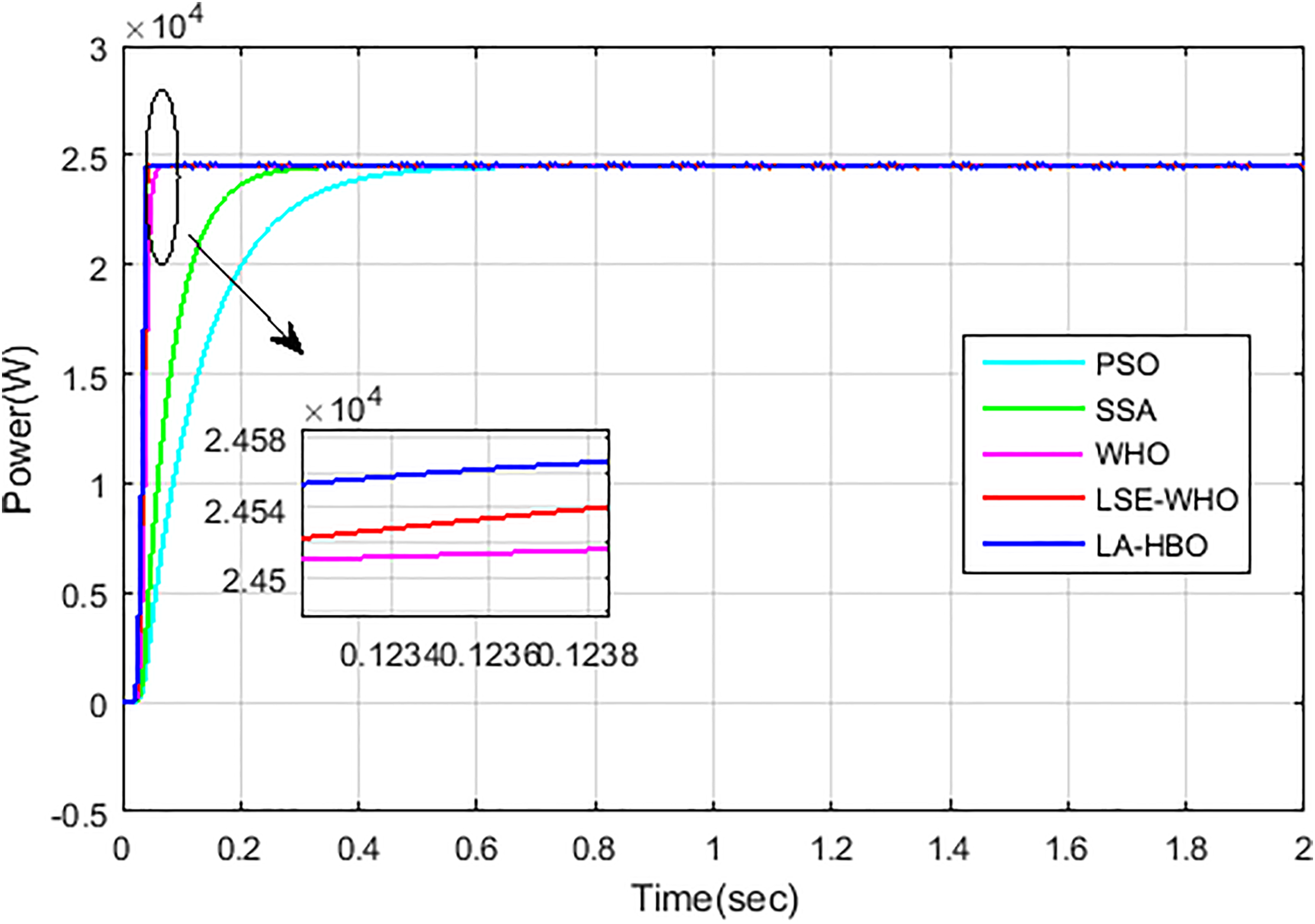

Figure 24.

Performance comparison of PV power.

Discussion of obtained results and main accomplishments

Based on the findings of the forecast system, the focus on quality power supplies offers the best conclusion. The power quality on grid-coupled systems is assessed with two scenarios, and the outcomes are obtainable. The proposed control system has accomplished a lower THD value than the other systems portrayed in Table 1. The THD of the grid current was observed for every case, but PSO was unable to authenticate the THD value of the grid current. Furthermore, the benefits of the proposed system on the existing method are comprehensive in Table 2. The results signify that the proposed control system has accomplished less THD for grid current and voltage compared to other control systems. Therefore, the general understanding demonstrates that the projected system is better suited to enrich the power quality of the grid-coupled SPV system compared to other traditional systems.

Conclusion

The paper presented a grid-connected PV system using the LA-HBO method to improve power quality. In the proposed system, the interleaved inverter works with different control techniques in order to perform multifunctional operation and to improve power quality. The operation of the control approach is separated into two sections. In the first section, the power generated from PV using the LA technique. In the second section, self-charging of the DC-link voltage control loop using DBHCC by HBO technique is working. The reference signal is produced through the DC-link voltage control loop to remove power quality issues, and DBHCC produces a lesser switching frequency resulting in low switching losses. In the conclusion, the performance of the proposed system is determined by implementing the proposed system in the MATLAB platform and compared with existing approaches. The future scope of the control systems may be improved to design dissimilar control systems. The proposed system may be utilized with a battery-based system even in the absence of wind power. Artificial intelligence techniques may also be incorporated into the proposed system to accomplish better performance.

Footnotes

Data availability statement

Data sharing is not proper in this article as no novel data were created or examined in this study.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Ethical approval

ORCID iD

K Vidhya

K Vidhya received BE degree in Electrical and Electronics Engineering from K.S. Rangasamy College of Technology, Tiruchengode, affiliated to Madras University, Chennai, Tamil Nadu in 2001. She has completed MTech Degree in Power Electronics and Drives from SASTRA Deemed University, Thanjavur, Tamil Nadu in 2004. She is currently working toward the PhD degree at the Department of Electrical and Electronics Engineering, Velammal Engineering College, Chennai, India. Her research interests include Power electronic converters and Renewable energy systems.

K Krishnamoorthi received his BE degree in Electrical and Electronics Engineering from K.S. Rangasamy College of Technology, Tiruchengode affiliated to Madras University, Chennai, Tamil Nadu in 2001. He has completed his MTech Degree in Power Electronics from Vellore Institute of Technology, Vellore, Tamil Nadu in 2003 and PhD degree from the Anna University Chennai, India, in 2012. He is presently working as Associate Professor in Department of Electrical and Electronics Engineering at Sona College of Technology, Salem, India. His research interest includes Condition monitoring of pollution flashover of power transmission line insulators in High voltage Engineering and Power electronic drive systems.

References

Savrun

. Z-source converter integrated dc electric spring for power quality improvement in dc microgrid. Eng Sci Technol Int J 2021; 24: 1408–1414.

Singh

Khadkikar

Chandra

, et al. Grid interconnection of renewable energy sources at the distribution level with power-quality improvement features. IEEE Trans Power Delivery 2011; 26: 307–315.

Zeng

Yang

Zhao

, et al. Topologies and control strategies of multi-functional grid-connected inverters for power quality enhancement: a comprehensive review. Renew Sust Energy Rev 2013; 24: 223–270.

Zhang

. Wavelet transform and Kernel-based extreme learning machine for electricity price forecasting. Energy Syst 2018; 9: 113–134.

Vilathgamuwa

Loh

. Microgrid power quality enhancement using a three-phase four-wire grid-interfacing compensator. IEEE Trans Ind Appl 2005; 41: 1707–1719.

Jeyanthi

Krishnamoorthi

. Quasi Z-source network-based photovoltaic supported STATCOM for voltage and frequency control of stand-alone WECS. J Circuits Syst Comput 2022; 31: 2250003.

Stevanoni

Deblecker

Vallée

. Cooperative control strategy of multifunctional inverters for power quality enhancement in smart microgrid. 2021.

Chinnusamy

Kanagaraj

. Photovoltaic module integrated modified three–port interleaved flyback converter fed six–level shunt active power filters. Int Trans Elect Energy Syst 2021; 31: 12717.

Chihab

Ouadi

Giri

, et al. Adaptive non-linear control of three-phase four-wire Shunt active power filters for unbalanced and nonlinear loads. IFAC Proc Vol 2014; 47: 5061–5066.

10.

Rajakumar

Anbukumar

Selwynraj Arunodayaraj

. Power quality enhancement using linear quadratic regulator based current-controlled voltage source inverter for the grid integrated renewable energy system. Electr Power Compon Syst 2017; 45: 1783–1794.

11.

Mehta

Singh

. Power quality improvement through grid integration of renewable energy sources. IETE J Res 2013; 59: 210–218.

12.

Dkhili

Eynard

Thil

, et al. A survey of modelling and smart management tools for power grids with prolific distributed generation. Sustain Energy Grids Netw 2020; 21: 100284.

13.

Patil

Mahajan

Patel

. Microgrid power quality improvement by using dual output four-leg inverter.

14.

Singh

Pychadathil

Kothari

. Star/hexagon transformer based three-phase four-wire DSTATCOM for power quality improvement. Int J Emerg Electr Power Syst 2008; 9.

15.

Tareen

Mekhilef

Seyedmahmoudian

, et al. Active power filter (APF) for mitigation of power quality issues in grid integration of wind and photovoltaic energy conversion system. Renew Sust Energy Rev 2017; 70: 635–655.

16.

Vickers

. Animal communication: when i’m calling you, will you answer too? Curr Biol 2017; 27: R713–R715.

17.

Narender Reddy

Chandrashekar

Srujana

. Power quality enhancement by MPC based multi-level control employed with improved particle Swarm optimized selective harmonic elimination. Energy Sources Part A 2019; 41: 2396–2414.

18.

Zeng

Yang

Guerrero

, et al. Multi–functional distributed generation unit for power quality enhancement. IET Power Electron 2015; 8: 467–476.

19.

Accetta

D’Antona

Della Giustina

, et al. Power quality improvement in LV smart grid by using the open UPQC device. ICREPQ 2013; 13: 2172–2038.

20.

Sood

Kalpesh

. THD reduction and power quality improvement in grid connected PV system. 2020.

21.

Huang

Yan

. Design of power quality monitoring system based on PV grid-connected inverter. Adv Mater Res 2013; 722: 126–130. Trans Tech Publications Ltd

22.

Rajesh

Shajin

Kommula

. An efficient integration and control approach to increase the conversion efficiency of high-current low-voltage DC/DC converter. Energy Syst 2021; 29: 1–20.

23.

Rajesh

Shajin

. Optimal allocation of EV charging spots and capacitors in distribution network improving voltage and power loss by Quantum-Behaved and Gaussian Mutational Dragonfly Algorithm (QGDA). Electr Power Syst Res 2021; 194: 107049.

24.

Shajin

Rajesh

Thilaha

. Bald eagle search optimization algorithm for cluster head selection with prolong lifetime in wireless sensor network. J Soft Comput Eng Appl 2020; 1: 7.

25.

Shajin

Rajesh

. FPGA realization of a reversible data hiding scheme for 5G MIMO-OFDM system by chaotic key generation-based paillier cryptography along with LDPC and its side channel estimation using machine learning technique. J Circuits Syst Comput 2022; 31: 2250093.

26.

Sangari

Umamaheswari

Lekshmi Sree

. Design and development of ROSMC-based single-stage Z source inverter for power quality enhancement in hybrid electric vehicle applications. IETE J Res 2021: 1–21.

27.

Golla

Chandrasekaran

Simon

. PV Integrated universal active power filter for power quality enhancement and effective power management. Energy Sustain Dev 2021; 61: 104–117.

28.

Gupta

. Power quality evaluation of photovoltaic grid interfaced cascaded H-bridge nine-level multilevel inverter systems using D-STATCOM and UPQC. Energy 2022; 238: 121707.

29.

Kumar

Raglend

. Multi-objective control of multi-operational grid-integrated inverter for PV integration and power quality service. Ain Shams Eng J 2021; 12: 2859–2874.

30.

Iqbal

Waqar

Madurai Elavarasan

, et al. Stability assessment and performance analysis of new controller for power quality conditioning in microgrids. Int Trans Elect Energy Syst 2021; 31: e12891.

31.

Chandrasekaran

Sahayam

Thanasingh

, et al. Performance of multifunctional smart PV-based domestic distributed generator in dual-mode operation. Machines 2021; 9: 356.

32.

Tamyurek

Kirimer

. An interleaved high-power flyback inverter for photovoltaic applications. IEEE Trans Power Electron 2015; 30: 3228–3241.

33.

Turksoy

Yilmaz

Teke

. Minimizing capacitance value of interleaved power factor corrected boost converter for battery charger in electric vehicles. Elektron Elektrotech 2019; 25: 11–17.

34.

Prabhu

Sundararaju

. Power quality improvement of solar power plants in grid connected system using novel Resilient Direct Unbalanced Control (RDUC) technique. Microprocess Microsyst 2020; 75: 103016.

35.

Nguyen-Van

Abe

Tanaka

. Digital adaptive hysteresis current control for multi-functional inverters. Energies 2018; 11: 2422.

36.

Komurcugil

. Double-band hysteresis current-controlled single-phase shunt active filter for switching frequency mitigation. Int J Electr Power Energy Syst 2015; 69: 131–140.

37.

Pereira

Francisco

Diniz

, et al. Lichtenberg algorithm: a novel hybrid physics-based meta-heuristic for global optimization. Expert Syst Appl 2021; 170: 114522.

38.

Askari

Saeed

Younas

. Heap-based optimizer inspired by corporate rank hierarchy for global optimization. Expert Syst Appl 2020; 161: 113702.
