Synthesis and characterization of novel methacrylate copolymers having pendant piperonyl group: monomer reactivity ratio,thermal degradation kinetics,and biological activity

Abstract

In this study, 2-{[(2H-1,3-benzodioxol-5-yl)methyl]amino}-2-oxoethyl 2-methylprop-2-enoate (BMAOME) monomer was synthesized, and copolymers were prepared with glycidyl methacrylate (GMA). Structural characterizations of the compounds were performed using FTIR, 1H-, and 13C-NMR techniques. Monomer reactivity ratio values were calculated by Finemann–Ross (FR) and Kelen–Tudos (KT) methods. The Tg value of the polymers was determined by differential scanning calorimetry (DSC) and their thermal stability was determined by thermogravimetric analysis (TGA). The molecular weights (w and n) and polydispersity index of the polymers were determined by gel permeation chromatography. The Ea value of thermal decomposition was determined by using the Ozawa and Kissinger methods. The photo-stability of the copolymers was investigated. Furthermore, the photo-stability of the copolymers and the biological activity of polymers against different types of bacteria and fungi were investigated.

Keywords

Methacrylate glycidyl methacrylate thermal stability monomer reactivity ratio biological activity

Introduction

Due to their unique properties and wide range of applications, the interest in functional polymers is increasing day by day both in academia and industry. The properties of such materials are usually determined by the presence of polar or ionic functional groups in the side branch. Functional polymers allow the polymer to adapt to a wide variety of applications beyond its mechanical properties. Also, polymers with desired functions can be easily prepared by using monomers with appropriate functional groups.^1–3

Copolymerization offers flexibility with respect to possible monomers and a great diversity of polymeric products, and composition drift, which may need to be minimized or exploited in a controlled way, for specific structure–property relationships. The reactivity ratio is a measure of the tendency for a comonomer to show a preference for insertion into a growing chain in which the last inserted unit was the same, rather than the other comonomer.⁴

The benzopiperonyl amine skeleton is an essential template for many biologically active compounds. This molecule and its derivatives are known to be potent antitumor agents, calmodulin antagonists, neurotransmission blocking, and neuroprotective agents.⁵ A previous study showed that piperonyl acetate, a piperonyl derivative, has no dermatological effect when used as a toxicological fragrance.⁶ Cypermethrin (CY), which contains the piperonyl group, is a frequently used class II pyrethroid pesticide, and piperonyl butoxide (PBO) plays an essential role in the pesticide formulation of synthetic pyrethroids.⁷

Poly methyl methacrylate (PMMA) and related acrylic and methacrylic polymers have been widely applied in medicine because of their low cost, straightforward polymerization initiation by free radical or anionic mechanisms, ease of processing, and generally inert quality. Application areas include orthopedics, dentistry, controlled-release systems, cosmetics, and ophthalmology.⁸ PMMA has a light transmittance of 92% and is also used to produce transparent nanocomposites reinforced with nano-filler reinforcement.⁹

The epoxy group carried by the glycidyl methacrylate (GMA) monomer reacts with various functional groups, leading to the formation of new modified polymers. These functionalized polymers can be used as curing agents to harden engineering plastics or to improve the compatibility of^10–13 mixing systems. GMA-based copolymers are of great importance in biotechnological applications. In addition, homogeneous and heterogeneous polymer network structures prepared with GMA are used in coatings, matrix resins, and adhesives.¹⁴

In this study, first, a methacrylate monomer (BMAOME) carrying benzopiperonyl in the side branch was synthesized. The copolymers of BMAOME with GMA were prepared by the free radical polymerization method. Then, the monomer reactivity ratios were calculated and the thermal degradation kinetics and biological activities of the copolymers were investigated. The results were discussed in detail and revealed a relationship between structure and activity.

Experimental

Materials

Chloroacetyl chloride, sodium methacrylate, and piperonylamine (Sigma) were used as in their original form. Ethanol, dichloro methane, chloroform, and n-hexane were freshly purified in molecular sieves before their use. 1,4-dioxane, acetonitrile, and potassium carbonate (Sigma) were used as in their original form. Azobisisobutyronitrile (AIBN) was recrystallized from a chloroform–methanol mixture (v/v:3/1).

Characterization techniques

FTIR spectra were measured on a Perkin–Elmer Spectrum BX FT-IR spectrometer. ¹H- and ¹³C-NMR spectra were recorded in DMSO with tetramethylsilane as the internal standard using a Bruker GmbH DPX-400 400 MHz spectrometer. The glass transition (Tg) temperatures were determined by DSC with a Shimadzu DSC60H. Samples of about 5–8 mg held in sealed aluminium crucibles and the heating rate of 10^oC/min under a dynamic nitrogen flow (5 L/h) were used for the measurements. The thermal stabilities of the polymers were investigated by TGA with a Shimadzu TG60H in a nitrogen stream at a heating rate of 20^oC min⁻¹. Molecular weight characteristics of the polymers were determined by e waters 410 GPC equipped with a differential RI detector and calibrated with polystyrene standards.

Synthesis of the BMAOME monomer

Monomer synthesis was carried out in two steps. In the first step, the piperonylamine compound was reacted with chloroacetyl chloride as described in the literature and the N-(2H-1,3-benzodioxol-5-yl)-2-chloroacetamide compound was prepared.¹⁵

In the second step, N-(2H-1,3-benzodioxol-5-yl)-2-chloroacetamide (0.004 mol, 0.98 g), sodium methacrylate (0.004 mol, 0.47 g), and 30 mL acetonitrile at 75–80°C was kept in a reflux condenser for 24 h and thus the BMAOME monomer was obtained. After the reaction, the mixture was cooled and filtered, and the solvent was removed by the evaporator. The monomer obtained was purified by crystallization of ethanol (yield 78%). Scheme 1 shows the reaction flow.

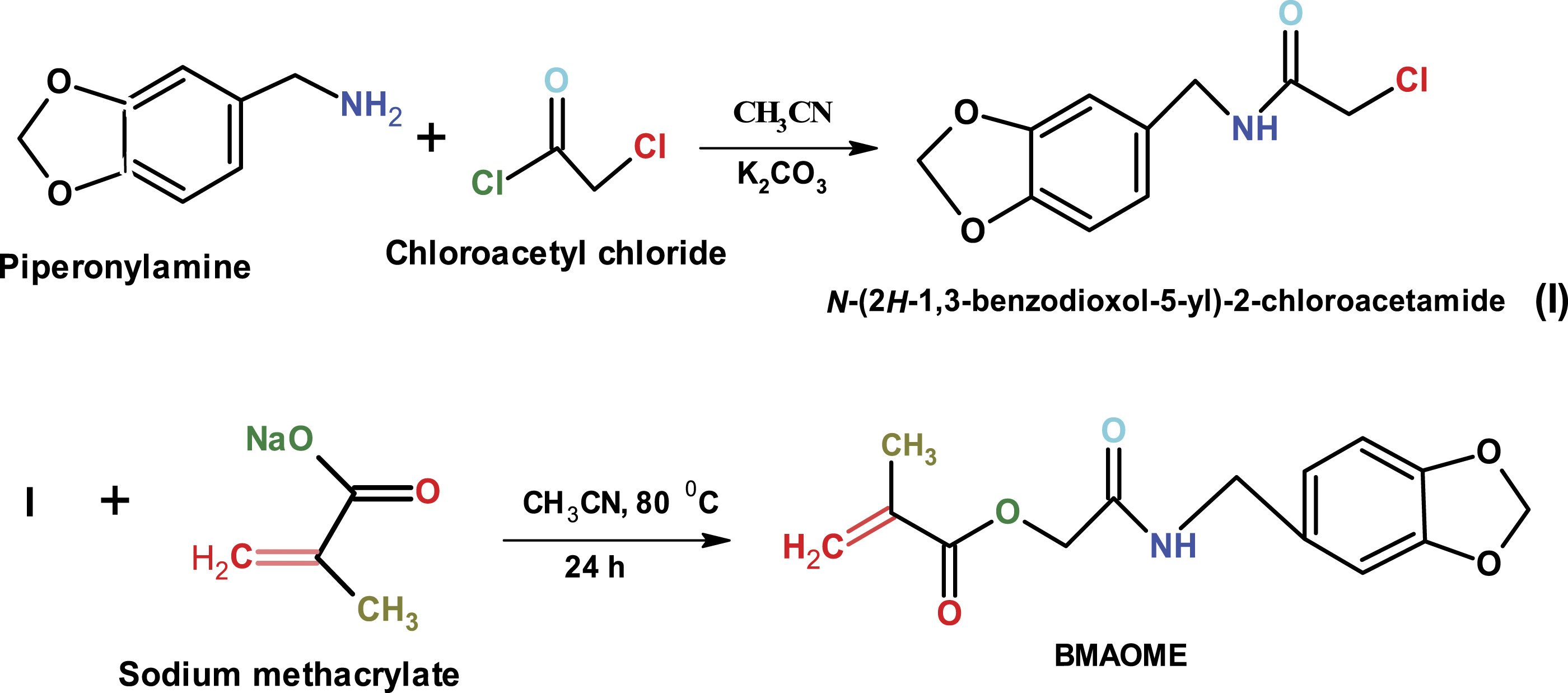

Scheme 1

Synthesis of BMAOME monomer.

IR (neat), cm^−1: 1682 (C=O for amide), 1724 (C=O for ester), 1633 (CH₂=C-), 1600 (C=C), 3235 (-NH), and 3100 (ArC-H).

¹H-NMR (δ, ppm from TMS in CDCl₃): 6.6–7.1 (aromatic protons, 3H); 5.6 (CH₂=, 1H); 6.2 (CH₂=, 1H); 8.6 (-NH-, 1H); 1.9 (CH₃-, 3H); 4.4,4.6(OCH_2, 2H, 2H); 6.0(OCH₂, 2H in piperonyl ring).

¹³C-NMR (δ, ppm from TMS in CDCl₃): 165, 168 (C=O of esters and amide); 133 (=C); 125 (CH₂=); 103–150 (Aromatic ring carbon); 63,64 (OCH₂ carbons); 43 (OCH₂ carbon in piperonyl ring); 19 (CH₃).

Synthesis of poly(BMAOME-co-GMA)

The copolymerization of BMAOME with GMA using different feed ratio was carried out in glass ampoules under N₂ atmosphere in 1,4-dioxane solution with AIBN (1 wt. % concerning the total monomer weight) at constant monomer concentration (2 mol/L) in an oil bath at 65 ± 0.1^oC for a given reaction time. After the polymerization was complete, all copolymers were precipitated in ethanol. The copolymers were then dissolved in CH₂Cl₂ and reprecipitated in ethanol for purification. The resulting copolymer was dried to constant weight in a vacuum oven at room temperature. The BMAOME monomer was polymerized under the conditions in which the copolymers were obtained.

Antimicrobial activity of the polymers

The antimicrobial effects of compounds on various microorganisms were investigated in DMSO solution at 100 μg concentration. To do this, we used Staphylococcus aureus ATCC 29,213, Escherichia coli ATCC 25,922, Pseudomonas aeruginasa ATCC 27,853, Proteus vulgaris, Salmonella enteritidis, and Klebsiella pneumoniae as bacteria, and Candida albicans CCM 31 as fungi. The results were standardized against penicillin G under the same conditions. The medium cell culture of Yeast Extract Peptone Dextrose (YEPD) was prepared according to the methods in the literature.¹⁶ The standard deviation (SD) values of the detected biological activity results were calculated. The mean ± standard deviation (SD) values of the results were obtained by one-way analysis of variance using SPSS software, where the level of significant difference was determined as p <0.05.

Photo-stability of the copolymers

A series of studies were conducted to determine the photo-stability of the synthesized copolymers. Solutions of each polymer with a specific concentration in dimethyl sulfoxide (DMSO) were prepared and used for the photo-stability experiments. A quartz cuvette was used as a photoreactor. Two Philips black lamps (8 W) at 365 nm were used as the UV light source. The photo-stability of the polymers was characterized using the UV-visible spectrometer (UV-1700 PC Shimadzu device, Japan) for different time intervals.

Results and Discussion

Characterization of the poly(BMAOME-co-GMA)

Figure 1 shows the ¹H-NMR spectrum and peak evaluation of the BMAOME monomer. Table 1 gives the experimental data for six BMAOME-co-GMA copolymers of different compositions, and Scheme 2 illustrates the formula of poly(BMAOME-co-GMA).

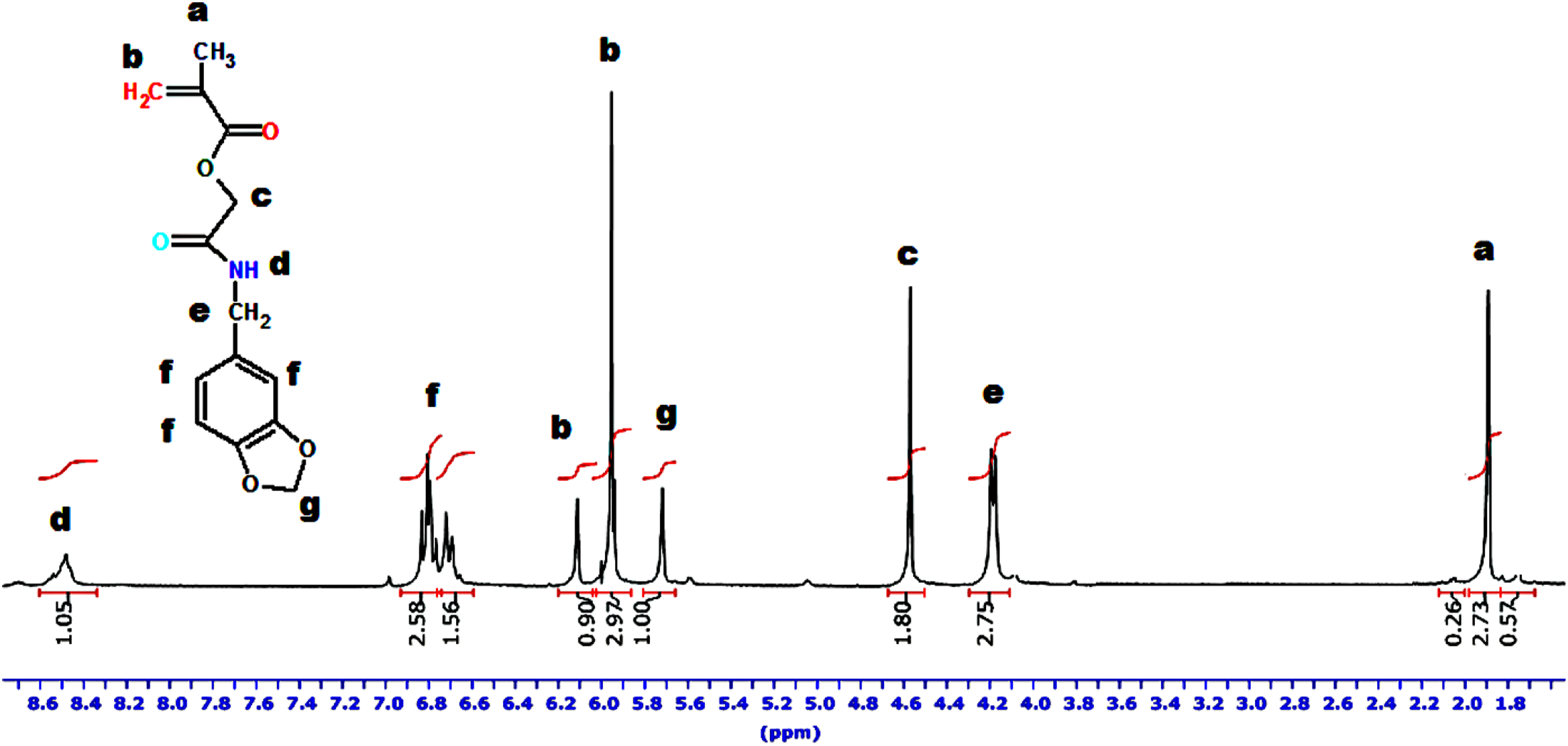

Figure 1.

1H-NMR spectrum of poly(BMAOEM).

Table 1.

Feed and composition ratio of monomers in the copolymer.

	Feed composition (mol fraction %)		Conv. (%)	N (%)	Copolymer composition (mol fraction %)
No	BMAOME (M₁)	GMA (M₂)	Conv. (%)	N (%)	BMAOME (m₁)	GMA (m₂)
1	15	85	9.50	1.62	19	81
2	30	70	9.25	2.34	32	68
3	50	50	9.50	3.37	46	54
4	65	35	10.25	3.57	55	45
5	75	25	9.95	3.94	64	36
6	90	10	10.70	4.41	78	22

Scheme 2

Formation of the copolymer.

Copolymers were characterized using FTIR, ¹H- and ¹³C-NMR techniques. Figure 2 shows the FTIR spectrum of poly(BMAOME-co-GMA) [46:54]. The peaks corresponding to aromatic C-H stretch were observed to be at 3058 cm⁻¹. The asymmetrical and symmetrical stretching due to the methyl and methylene groups were observed at 2995, 2948, and 2892 cm⁻¹. The shoulder at 1728 cm⁻¹ and peak at 1682 cm⁻¹ were attributed to the ester and amide carbonyl stretching of BMAOME and GMA units. Figure 3 shows ¹H- and ¹³C-NMR spectra of poly(BMAOME-co-GMA) [46:54] and characteristic peaks in both spectra corresponding to the copolymer formula. The peaks were consistent with the molecular structure in both spectroscopic curves.

Figure 2.

FTIR spectrum of the poly(BMAOME-co-GMA) (0.46:0.54).

Figure 3.

1H-NMR and 13C-NMR spectrum of the poly(BMAOME-co-GMA) (0.46:0.54).

Determination of monomer reactivity ratios

The compositions of the poly(BMAOME-co-GMA) samples were determined by elemental analysis. Table 1 presents the obtained results.

The monomer reactivity ratios for the copolymerization of BMAOME with GMA were determined from the monomer feed ratios and the copolymer composition. The Kelen–Tudos (KT) ¹⁷ and Fineman–Ross (FR) ¹⁸ methods were used to determine the monomer reactivity ratios. Table 2 presents the significance of parameters of KT and FR equations.

Table 2.

FR and KT parameters for the poly(BMAOME-co-GMA) system.

No	F=M₁/M₂	F=m₁/m₂	G=F (f-1)/f	H=F²/f	μ=G/(H+α)	ɛ=H/(H+α)
1	0.177	0.235	-0.576	0.133	-0.307	0.071
2	0.429	0.471	-0.482	0.390	-0.226	0.183
3	1.000	0.852	-0.174	1.174	-0.060	0.403
4	1.857	1.222	0.338	2.822	0.074	0.618
5	3.000	1.778	1.313	5.063	0.193	0.744
6	9.000	3.546	6.462	22.850	0.283	0.929

α = (H_max.H_min)^1/2=1.7416. M₁ and M₂ are molar fractions of the monomers in the feed. m_l and m₂ are the molar fractions in the copolymer composition.

According to the FR method, the monomer reactivity ratios can be obtained as follows

G = H r_{1} - r_{2}

(1)

where r₁ and r₂ correspond to the BMAOME and GMA monomers, respectively. The parameters G and H are defined as follows

G = F / (f - 1) / f and H = F^{2} / f

(2)

with

F = M 1 / M 2 and f = m_{1} / m_{2}

(3)

where M₁ and M₂ are the monomer molar compositions in the feed and m₁ and m₂ are the copolymer molar compositions.

Alternatively, the reactivity ratios can be obtained with the KT method, which is based on the following equation

η = (r_{1} {+ r}_{2} / α) ξ {- r}_{2} / α

(4)

where η and ξ are functions of the parameters G and H

η = G / (α + H) and ξ = H / (α + H)

(5)

And α is a constant equal to (H_max.H_min)^1/2, H_max and H_min being the maximum and minimum H values, respectively, from the series of measurements. From a linear plot of η as a function of ξ, the values of η for ξ = 0 and ξ =1 can be used to calculate the reactivity ratios according to the following equations

ξ = 0 \to η = - r_{2} / α and ξ = 1 \to η = r_{1}

(6)

The graphical plots concerning the methods previously reported are given in Figures 4(a) and (b), whereas the reactivity ratios are summarized in Table 3.

Figure 4.

(a) KT plots and (b) FR plots for determining the monomer reactivity ratios in the copolymerization of poly(BMAOME-co-GMA).

Table 3.

Monomer reactivity ratios for free-radical copolymerization of the BMAOME-GMA system.

Method	r₁^a	r₂^b	r₁r₂	1/r₁	1/r₂
F-R	0.31	0.52	0.16	3.23	1.92
K-T	0.35	0.61	0.21	2.86	1.64
Average	0.33	0.57	0.19	3.05	1.78

^aReactivity ratio of BMAOME.

^bReactivity ratio of GMA.

Calculated r₁ and r₂ values by FR and KT methods were less than one. The r_GMA value was greater than the r_BMAOME value. This result indicates that GMA had higher reactivity compared to BMAOME. Calculated r₁ and r₂ values close to zero means that this type of copolymer has an alternative tendency. In the BMAOME-GMA system, monomers that are the active centers always tend to add other types of monomers. The monomers were neatly lined up in the polymer chain. The entry of monomer molecules into the copolymer chain does not depend on the starting composition. In such copolymeric systems, alternating copolymers containing predominantly methacrylate monomer were formed.¹⁹

Thermal stability of the polymers

Figures 5 and 6 shows TGA and DTG curves for poly(BMAOME) and three copolymers, respectively. The thermal degradation of poly(BMAOME) took place in one step. Decomposition started at 285°C and ended at about 490°C. The temperature value at which 50% mass loss occurred was 360°C. Also, the amount of residue left at 600^oC was around 11%. The initial decomposition temperature of poly(GMA) was 184^oC, and the residue left at 600^oC was measured as 2%. The high thermal stability of poly(BMAOME) is the functional group diversity caused by the piperonyl group in the side branch. In particular, dipole–dipole interactions of ester carbonyl groups create secondary forces between the polymer chains, increasing thermal stability. The initial decomposition temperatures of the copolymers were observed to be between the homopolymers’ values as expected. ²⁰ According to the TGA data, the thermal stability of the copolymers was observed to be between 220 and 262^oC depending on the composition. Table 4 shows some thermal properties of the polymers.

Figure 5.

TGA curves for poly(BMAOME) and some copolymers.

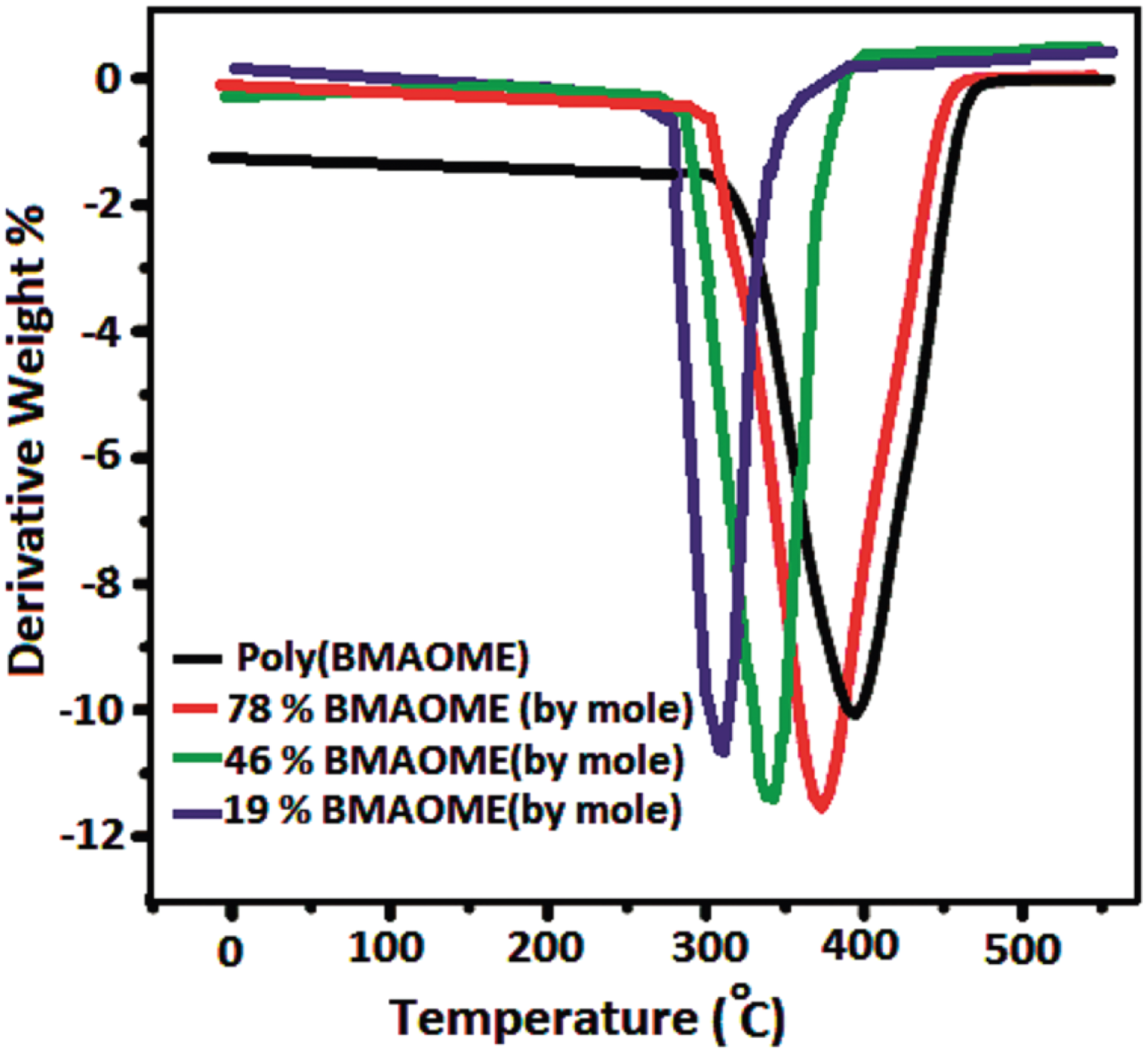

Figure 6.

DTG curves for poly(BMAOME) and some copolymers.

Table 4.

TGA data of the some copolymers.

	Temperature (^oC) for a weight loss of (%)					The residue (%) at 500^oC
Polymer	IDT^a	10	35	50	70	The residue (%) at 500^oC
Poly(BMAOME)	285	318	345	360	405	11
Poly(GMA)	184	205	233	246	264	2
Poly(BMAOME-co-GMA)
(78/22)	262	295	330	355	398	10
(46/54)	241	258	318	340	380	6
(19/81)	220	239	298	320	360	3

^aInitial decomposition temperatures.

Thermal degradation of the methacrylate polymers takes place in the form of breakage in the main chain, which is called depolymerization; degradation continues with ester decomposition at high temperatures, eliminating small molecules, and the cyclic anhydride structure develops as the temperature rises further.²¹

T_g’s of the polymers

DSC curves are shown in Figure 7 for certain copolymers. The pure poly(BMAOME) and poly(GMA) showed single glass transition temperatures, at about 112^oC and 74^oC, respectively. The glass transition temperature values of copolymers increased with the increase of BMAOME units in the copolymer. H bonds formed between highly electronegative O atoms and NH groups and strong dipole–dipole interactions between polar ester and amide groups cause a decrease in the free volume of the BMAOEM monomer and an increase in the Tg value. The values of Tg for copolymers are between the values of the homopolymers in question.

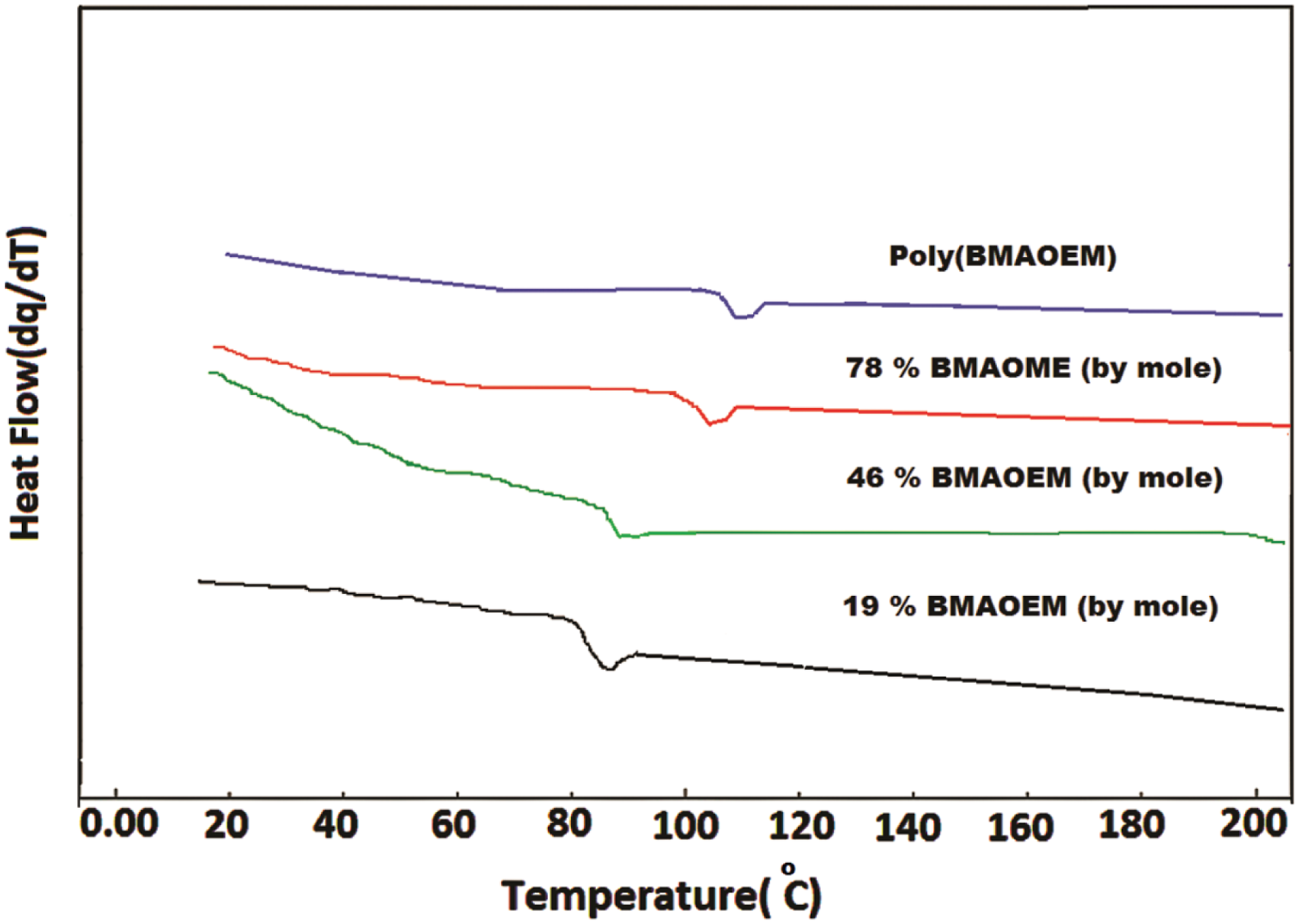

Figure 7.

DSC curves of the polymers heating rate of 10 0 C/min.

The experimental Tg value in copolymers can be determined with the Gibbs–Di Marzio²² equation (7)

T_{g} = {}_{B M A O M E} T_{g B M A O M E} + {}_{G M A}T_{g G M A}

(7)

where

φ

is the mole fraction of the monomers in the composition and Tg is the glass transition temperature of the respective homopolymer.

Another relationship showing the effect of the composition on Tg in polymers is the Fox ²³ equation (8)

\frac{1}{T_{g}} = \frac{W_{B M A O M E}}{T_{g B M A O M E}} + \frac{W_{G M A}}{T_{g G M A}}

(8)

where W is the weight fractions of the monomers in the copolymer. Therefore, the values obtained by both methods showed deviations from the Tg values obtained from DSC. Table 5 shows the Tg values obtained from DSC, Gibbs–Di Marzio equation, and Fox equation.

Table 5.

Comparison of observed Tg value of copolymers.

Sample	W₁^a	W₂^b	Tg (^oC)^c	Tg (^oC)^d	Tg (^oC)^e
GMA	0	1			74
1	0.19	0.81	81	79	80
2	0.32	0.68	86	83	85
3	0.46	0.54	91	88	90
4	0.55	0.45	95	91	94
5	0.64	0.36	98	94	97
6	0.78	0.22	104	100	103
BMAOME	1	0			112

^aWeight fraction of BMAOME in the copolymer.

^bWeight fraction of GMA in the copolymer.

^cTg Calculated by the Gibbs–Di Marzio equation.

^dTg Calculated by the Fox equation.

^eTg Observed in the DSC curve.

Thermal degradation kinetics

Non-isothermal methods are based on the ratio of the temperature difference between the sample and the reference material receiving equal heat to the temperature of the reference material.²⁴ The most widely used non-isothermal methods for determining the thermal activation energy are known as Kissinger and Ozawa. For kinetic studies, thermograms of all polymer samples were obtained at four different heating rates (5.0, 10.0, 15.0, and 20.0^oC min⁻¹) in an inert N₂ atmosphere.

The Kissinger method

The Kissinger method²⁵ has been used in the literature to determine the activation energy of solid state reactions from plots of the logarithm heating rate versus the inverse of the temperature at the maximum reaction rate in constant heating rate experiments.

With the Kissinger method, the activation energy can be determined using equation (6) given below

\frac{d (I n (β / {Τ_{Ρ}}^{2}))}{d (1 1 / Τ_{Ρ})} = \frac{E_{a}}{R}

(9)

where β is the heating rate, Tp is the temperature corresponding to the rate peak maximum position, and R is the ideal gas constant. Using the Kissinger method and from the recorded experimental data, the activation energy of polymers was calculated from a straight line fit of a plot of ln(β/T_p²) versus 1000/Tp. The activation energy value of poly(BMAOME) was determined to be 137.37 kJ/mol. The Kissinger graphs for poly(BMAOME) and poly(BMAOME 46%-co-GMA) are shown in Figure 8, while the values for the copolymers are given in Table 6. From the TGA data, it was determined that the thermal stability of poly(BMAOME) was higher than that of poly(GMA). This may be due to strong dipole–dipole interactions between poly(BMAOME) units and strong H bonds caused by amide groups. These are the reasons why thermal stability increases as the amount of BMAOME in the copolymer increases. The Ea values of the copolymers were between 128.49 and 105.67 kJ/mol calculated by using the Kissinger method.

Figure 8.

Kissinger graphs of (a) poly(BMAOME) and (b) poly(BMAOME-co-GMA) (0.46:0.54).

Table 6.

Activation energies (Ea) obtained by the Kissinger equation for polymers.

Polymer	Ea(kJ/mol)	R ²
Poly(BMAOME)	137.37	0.98
Poly(BMAOME 78%-co-GMA)	128.49	0.98
Poly(BMAOME 64%-co-GMA)	122.93	0.99
Poly(BMAOME 55%-co-GMA)	115.31	0.97
Poly(BMAOME 46%-co-GMA)	110.35	0.98
Poly(BMAOME 32%-co-GMA)	107.71	0.99
Poly(BMAOME 19%-co-GMA)	105.67	0.98

The Ozawa method

Activation energy (Ea) of the obtained polymers was found according to the equation of Ozawa,²⁶ whose equation is given below

E_{a} = - \frac{R}{b} [\frac{d \log β}{d 1 / T}]

(10)

where R is the gas constant; b is a constant (0.4567); β is the heating rate (^oC/min); and T is the temperature at which mass loss occurs. According to equation (7), the activation energy of degradation can be determined from the slope of the linear relationship between log β and 1/T.

When the results of the Ozawa analysis for poly(BMAOME 46 %-co-GMA) were plotted, the data consisted of parallel lines (Figure 9), confirming the accuracy of the method. The calculated Ea values of the polymers at different conversions are listed in Table 7. The average Ea values of the poly(BMAOME) were determined to be 133.26 kJ/mol by the Ozawa method. The average Ea values of the copolymers increased with the increase of the mole fraction of BMAOME in the copolymer. This result indicates that BMAOME units increased the thermal stability of the copolymers. Intermolecular secondary interaction forces between the polar groups in BMAOME units contributed positively to the thermal stability. The Ea values of the copolymer are obtained between 126.64 and 106.13 kJ/mol using the Ozawa method.

Figure 9.

Ozawa plot of poly(BMAOME-co-GMA) (0.46:0.54).

Table 7.

Apparent Ea values of the polymers by the Ozawa method.

Sample	10	20	30	40	50	60	70	80
Poly(BMAOME)	129.11	128.54	132.34	139.78	136.55	123.23	141.35	135.24
Poly(BMAOME 78%-co-GMA)	121.23	131.54	125.61	135.11	136.21	128.98	115.54	118.91
Poly(BMAOME 64%-co-GMA)	119.63	103.39	128.02	106.18	142.72	125.31	113.93	114.31
Poly(BMAOME 55%-co-GMA)	113.15	97.19	121.13	140.14	111.42	100.19	129.13	113.61
Poly(BMAOME 46%-co-GMA)	107.01	126.12	114.32	110.21	104.87	107.03	108.09	105.13
Poly(BMAOME 32%-co-GMA)	111.11	98.54	115.23	107.19	97.61	106.83	103.61	103.67
Poly(BMAOME 19%-co-GMA)	104.22	101.92	108.74	101.31	109.03	107.32	105.21	111.32

Changes in FTIR spectra during degradation of the polymers

The thermal degradation behavior of polymers has been studied by monitoring changes in FTIR spectra. For this purpose, thin films were prepared on a salt plate using about 5 mg of polymer. The prepared polymer films were heated in a thermostat-controlled oven at a heating rate of 10 C/min, and in N₂ inert environment, up to three different temperatures, and FTIR spectra were obtained. The IR spectra of the polymer films heated to 300, 360, and 435^oC are shown in Figure 10. It is seen that degradation starts at 320^oC in the spectrum of poly(BMAOME). The mass loss at this temperature in the TG of the polymer is about 18%. The mass loss at 360^oC reached around 45%, and significant degradation was observed in the FTIR peaks. At 435^oC, where the rate of degradation and loss of mass increased, bands of cyclic anhydride structures began to appear at 1805, 1763, and 1018 cm⁻¹, especially in the carbonyl region. The fact that the loss of mass at this temperature is around 80% indicates that the degradation has mainly occurred. The same studies have been done on the copolymer samples, and similar results have been obtained.^27,28

Figure 10.

FTIR spectra of partially degraded poly(BMAOME) after heating to 300, 360, and 425 0C.

Molecular weights of Polymers

The Mw and Mn values and polydispersity indices (PI) of the polymers determined using GPC are listed in Table 8. The PI values of the copolymers showed a random distribution regardless of composition. The smallest PI value in the composition was 1.61% for the copolymer containing 78 BMAOME, and the highest PI value was 1.73% for the copolymer containing 47 BMAOME. A theoretical value of 1.5–2.0 Mw/Mn means termination is radical coupling and disproportionation.²⁹ It is clear that Mw/Mn values in copolymerization depend on chain termination reactions as well as in homopolymerization.

Table 8.

Molecular weights, the polydispersity index and tg values of polymers.

Polymer	w x 10⁻⁴	n x 10⁻⁴	PI
Poly(BMAOME)	6.29	3.81	1.65
Poly(BMAOME 78%-co-GMA)	5.89	3.65	1.61
Poly(BMAOME 65%-co-GMA)	6.02	3.12	1.63
Poly(BMAOME 55%-co-GMA)	6.71	3.97	1.69
Poly(BMAOME 47%-co-GMA)	6.23	3.60	1.73
Poly(BMAOME 31%-co-GMA)	5.95	3.52	1.69
Poly(BMAOME 17%-co-GMA)	6.23	3.66	1.70

PI: Polydispersity Index.

Antimicrobial Screening of the polymers

The biological activities of the polymers were determined using the disk diffusion method.³⁰ The results of the biological activity tests, which are the average of three experiments, are shown in Table 9. The activity of the copolymers against microorganisms increased with the increase in the amount of BMAOME in the composition. Functional ester and amide groups in the structure of poly(BMAOME) can be the source of biological activity.

Table 9.

Antimicrobial Effects of the Compounds (mm of zones).

Compounds	Pseudomonas aeruginasa	Escherichia coli	Proteus vulgaris	Salmonella enteridis	Klebsiella pneumoniae	Staphylococcus aureus	Candida albicans
Poly(BMAOME)	13±0.5	11±1.0	12±1.75	14±1.25	13±0.75	16±1.0	13±0.25
Poly(BMAOME-co-GMA)
78/22	12±0.75	10±0.25	11±0.50	13±1.0	12±0.75	15±0.25	12±0.75
64/36	12±1.0	11±1.5	10±1.0	12±0.75	−	14±0.25	11±0.25
55/45	11±0.25	10±1.00	−	11±0.25	11±1.0	13±0.75	−
46/54	−	9±1.0	9±0.25	10±0.25	10±0.25	12±0.75	10±0.5
32/68	10±0.25	−	8±0.75	8±0.25	9±0.25	11±1.0	−
19/81	8±0.75	8±0.25	7±0.25	−	−	10±0.75	9±0.25
Penicillin G	16±0.25	12±0.25	9±0.75	16±0.25	18±1.0	8±0.25	35±1.0
DMSO	−	−	−	−	−	−	−

Compound concentration: 100 μg/disc; the symbol (−) reveals that the compounds had no activity against the microorganisms. DMSO: dimethyl sulfoxide (control). Results calculated are means ± SD; superscript means are statistically significance at p < 0.05.

It has been reported in the literature that many amide containing molecules have a wide range of biological activities such as antituberculosis, anticonvulsant, insecticidal, antifungal, and antitumor.^31–33 Besides, BMAOME and GMA units in the copolymer structure carry ester groups. Ester compounds have attracted extensive research attention due to their broad biological activities and potential health benefits. In addition, some ester compounds, which are widely used in medicine, food, and cosmetics, have been reported to have various biological activities such as antimicrobial,³⁴ antiviral,³⁵ anti-inflammatory, and nematicidal activities.³⁵ The results show that the analyzed polymers have a mild biological activity similar to conventional penicillin G. All polymers showed strong activity especially against Staphylococcus aureus bacteria.

Photo-stability of the copolymers

Most synthetic polymers are susceptible to UV and visible-light-induced degradation. As the wavelength of the beam becomes smaller, the energy increases. The UV rays from the sun are the most important type of light responsible for the degradation of polymers used especially outdoors. Functional groups in the polymer structure absorb the energy of the UV rays. In the UV-Vis spectra of copolymers, the maximum wavelength of the peaks was about 275 nm. This value corresponds to π-π* transition of C=C and C=O of the pendant aryl and carbonyl chromophore groups in the polymer unit. In the UV-Vis spectra, significant changes were observed in the absorption values of copolymers exposed to UV light for 12, 18, 24, 36, 48 and 60 h. The photo-degradation data indicated that degradation in the carbonyl region occurred and a crosslinking followed. Methacrylate polymers displayed photo-degradation.³⁶ While all copolymers could be dissolved in polar solvents, such as CH₂Cl₂, acetone, DMF, DMSO, and 1,4-dioxane, before exposure to UV light, none of them dissolved in any solvent after 60 h of UV irradiation. However, a practical evaluation from spectral data is rather dubious because the sensitivity of photocrosslinkable polymers is a function of the Tg, molecular weight, polymer solubility, etc. The separation of photo responsibilities of the chromophores themselves is possible to a certain extent. Methacrylates generally have a low absorption at 270 nm and undergo photo-degradation. As a result of photo-degradation, degradation occurs in the region of carbonyl groups in the UV region.^37,38

The piperonyl group in the side branch of poly(BMAOME) was observed to not improve the UV stability of the copolymers. The UV stability of BMAOME-GMA copolymers was similar to other methacrylates in the literature.³⁹

Conclusions

In our study, a new methacrylate monomer (BMAOME) and its homopolymer containing piperonyl group in the side branch were synthesized. The structure of the compounds was characterized by FTIR and NMR techniques. The copolymers of BMAOME with glycidyl methacrylate (GMA) were synthesized by free radical polymerization at 65^oC in 1,4 dioxane. The copolymer composition was determined using elemental analysis. The reactivity ratios of copolymers were determined by the FR and KT methods. It was concluded that the GMA monomer is more reactive, so the copolymers are rich in GMA. The thermal stability of poly(BMAOME) was better than poly(GMA). Thermal degradation activation energy (Ea) values for the polymers were calculated using Ozawa and Kissinger methods. The polymers showed moderate biological activity against some microorganisms. The photo-stability of copolymers was investigated under UV light. However, it was observed that functional side groups did not contribute positively to UV stability.
