Amidoximes potentials in the bioremediation of heavy metal and organic pollutants

Amidoxime: Synthesis, bioremediation potential

Bioremediation is an increasingly crucial field in environmental science, offering sustainable solutions to pollution challenges. This introduction will explore the potential of amidoxime complexes in bioremediation, a topic integrating chemistry, biology, and environmental engineering. We will explore into the mechanisms by which these complexes can contribute to the degradation of pollutants, their advantages over conventional methods, and the future prospects of their application. In recent years, research has expanded beyond conventional metal sequestration to explore the potential of amidoxime-based complexes in bioremediation. These complexes exhibit properties that align well with bioremediation objectives: high metal-binding affinity, chemical stability in aqueous environments, and potential for integration with microbial or enzymatic systems. The bioremediation potential of amidoxime complexes lies not only in their ability to immobilize or remove toxic elements but also in their potential to mediate biocatalytic transformations and enhance microbial tolerance to pollutants.^1–5

The pervasive nature of environmental pollution, inspired by industrialization and anthropogenic practices present a major risk to ecosystems and human health. Contaminants like heavy metals, organic dyes, pesticides, and petroleum hydrocarbons are discharged into the surroundings contaminating air, water, and soil. Traditional remediation methods commonly face drawbacks including high expense and the risk of secondary pollution, and inefficiency in treating diverse pollutants. This necessitates the development of innovative and eco-friendly approaches. Bioremediation, which employs microorganisms and their metabolic pathways, plants, or enzymes to neutralize or remove pollutants, has emerged as a promising alternative. It offers an affordable, sustainable, and environmentally benign way out for various types of contamination. Table 1 shows the role of microorganisms in amidoxime-enhanced pollutant removal processes.

OPEN IN VIEWER

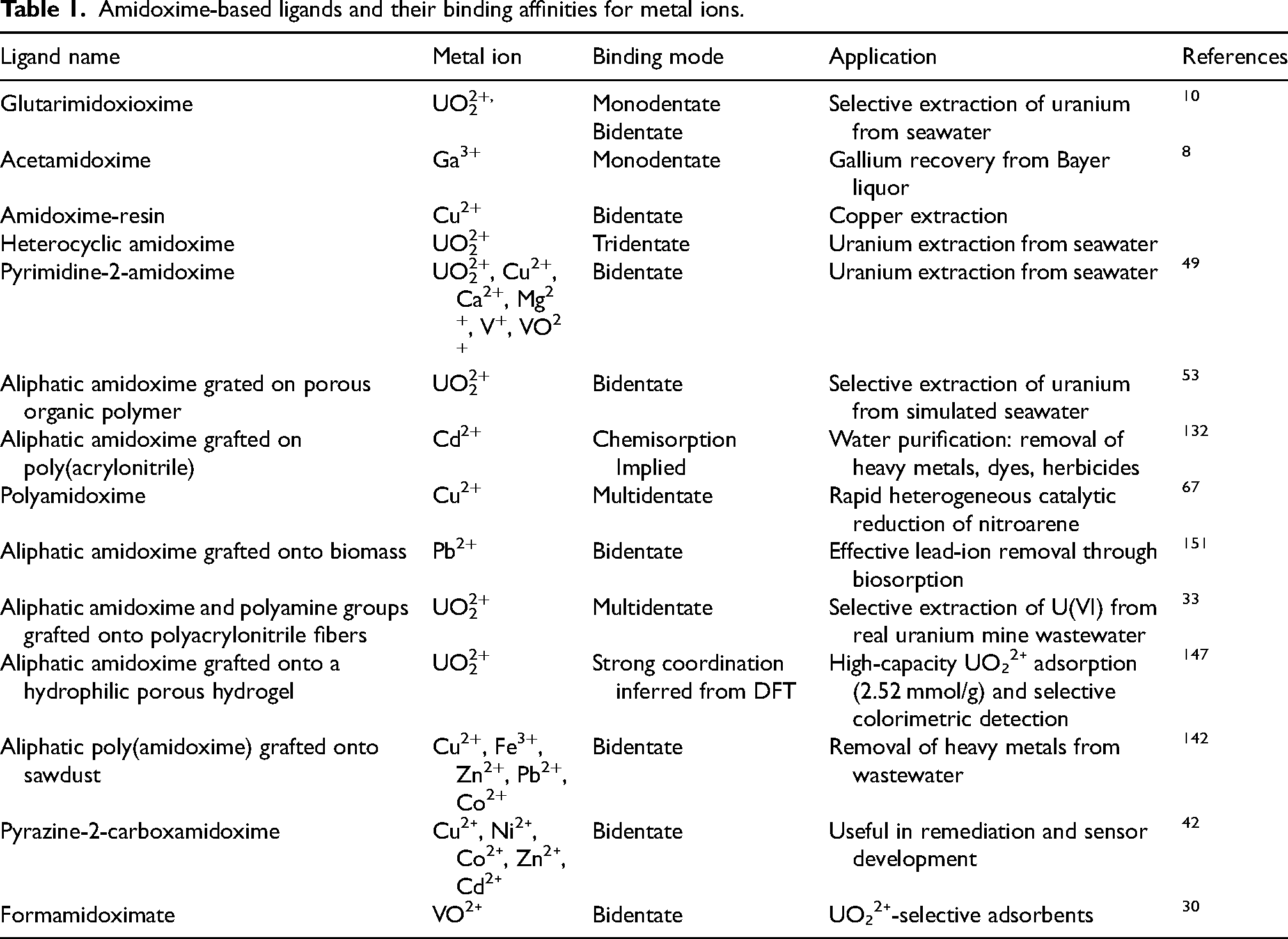

Table 1.

Amidoxime-based ligands and their binding affinities for metal ions.

Ligand name	Metal ion	Binding mode	Application	References
Glutarimidoxioxime	UO22+,	Monodentate	Selective extraction of uranium from seawater	10
		Bidentate
Acetamidoxime	Ga3+	Monodentate	Gallium recovery from Bayer liquor	8
Amidoxime-resin	Cu2+	Bidentate	Copper extraction
Heterocyclic amidoxime	UO22+	Tridentate	Uranium extraction from seawater
Pyrimidine-2-amidoxime	UO22+, Cu2+, Ca2+, Mg2+, V+, VO2+	Bidentate	Uranium extraction from seawater	49
Aliphatic amidoxime grated on porous organic polymer	UO22+	Bidentate	Selective extraction of uranium from simulated seawater	53
Aliphatic amidoxime grafted on poly(acrylonitrile)	Cd2+	Chemisorption Implied	Water purification: removal of heavy metals, dyes, herbicides	132
Polyamidoxime	Cu2+	Multidentate	Rapid heterogeneous catalytic reduction of nitroarene	67
Aliphatic amidoxime grafted onto biomass	Pb2+	Bidentate	Effective lead-ion removal through biosorption	151
Aliphatic amidoxime and polyamine groups grafted onto polyacrylonitrile fibers	UO22+	Multidentate	Selective extraction of U(VI) from real uranium mine wastewater	33
Aliphatic amidoxime grafted onto a hydrophilic porous hydrogel	UO22+	Strong coordination inferred from DFT	High-capacity UO₂2⁺ adsorption (2.52 mmol/g) and selective colorimetric detection	147
Aliphatic poly(amidoxime) grafted onto sawdust	Cu2+, Fe3+, Zn2+, Pb2+, Co2+	Bidentate	Removal of heavy metals from wastewater	142
Pyrazine-2-carboxamidoxime	Cu2⁺, Ni2⁺, Co2⁺, Zn2⁺, Cd2⁺	Bidentate	Useful in remediation and sensor development	42
Formamidoximate	VO2⁺	Bidentate	UO₂2⁺-selective adsorbents	30

Amidoximes are organic ligands characterized by the presence of the -C(NH₂)=NOH functional group, which are enriched with high affinity with respect to metal ions, especially actinides, lanthanides, and transition metals. Their bifunctional chelating nature allows them to coordinate metal centers through both the oxime and amino nitrogen atoms; this structure enables them to readily coordinate with various metal ions to form stable complexes which makes them especially important in environmental uses where selective binding of metal ions is essential. The introduction of amidoxime groups onto organic polymers or small molecules significantly improves their ion exchange, adsorption, and coordination capabilities.

The synthesis of amidoximes typically involves the reaction of nitriles with hydroxylamine. Their distinctive chemical structure grants them remarkable properties, including high chelating ability, thermal stability, and tunable electronic properties. These properties have led to their use in diverse areas, for example; polymer chemistry, pharmaceuticals, and particularly in the selective adsorption and extraction of metal ions. Consequently, amidoxime complexes have been investigated for various applications, including nuclear waste treatment, water purification, and removal of industrial effluents.

The utility of amidoxime complexes in bioremediation is rooted in their coordination chemistry. Depending on the nature of the metal ion oxidation state and the ligand environment, amidoxime can form mono-, bi-, or polynuclear complexes with distinct geometries. These geometries influence the redox potential, solubility, and biological compatibility of the complexes, making them suitable for specific remediation tasks.^6–10 For example, amidoxime-uranium complexes have shown promise in uranium recovery and detoxification from contaminated aquatic systems. Similarly, amidoxime complexes of transition metals such as Fe(III), Cu(II), and Zn(II) have been studied for their catalytic roles in redox reactions involved in pollutant degradation.

The significance of amidoxime complexes in bioremediation stems from their unique interaction with pollutants. One key aspect is their ability to chelate heavy metal ions. Toxic metals such as lead, cadmium, mercury, and chromium are persistent environmental contaminants that bioaccumulate and are highly toxic. Amidoxime complexes can selectively bind to these metal ions, forming stable, nontoxic complexes that can then be removed from the environment or rendered less bioavailable. This chelation can occur through various mechanisms, Incorporating coordination bonds between the metal ion and the nitrogen and oxygen atoms of the amidoxime group. The stability and selectivity of these complexes are crucial for effective heavy metal remediation, preventing their further dispersion and uptake by living organisms.

Beyond heavy metal chelation, the bioremediation potential of amidoxime complexes extends to the decomposition of organic pollutants. While the direct biodegradation of amidoxime complexes, themselves is an area of ongoing studies, their role often lies in facilitating microbial degradation or acting as catalysts. For instance, some amidoxime complexes can interact with enzymes participate in the breakdown of organic contaminants, potentially enhancing their activity or stability.^8,10–13 Moreover, the ability of amidoximes to complex with transition metals, which are often cofactors in enzymatic reactions, could indirectly influence microbial metabolic pathways. This suggests a multifaceted role for amidoxime complexes in bioremediation, encompassing both direct pollutant removal and the enhancement of natural degradation processes. Figure 1 shows the microbial processes for metal removal.

OPEN IN VIEWER

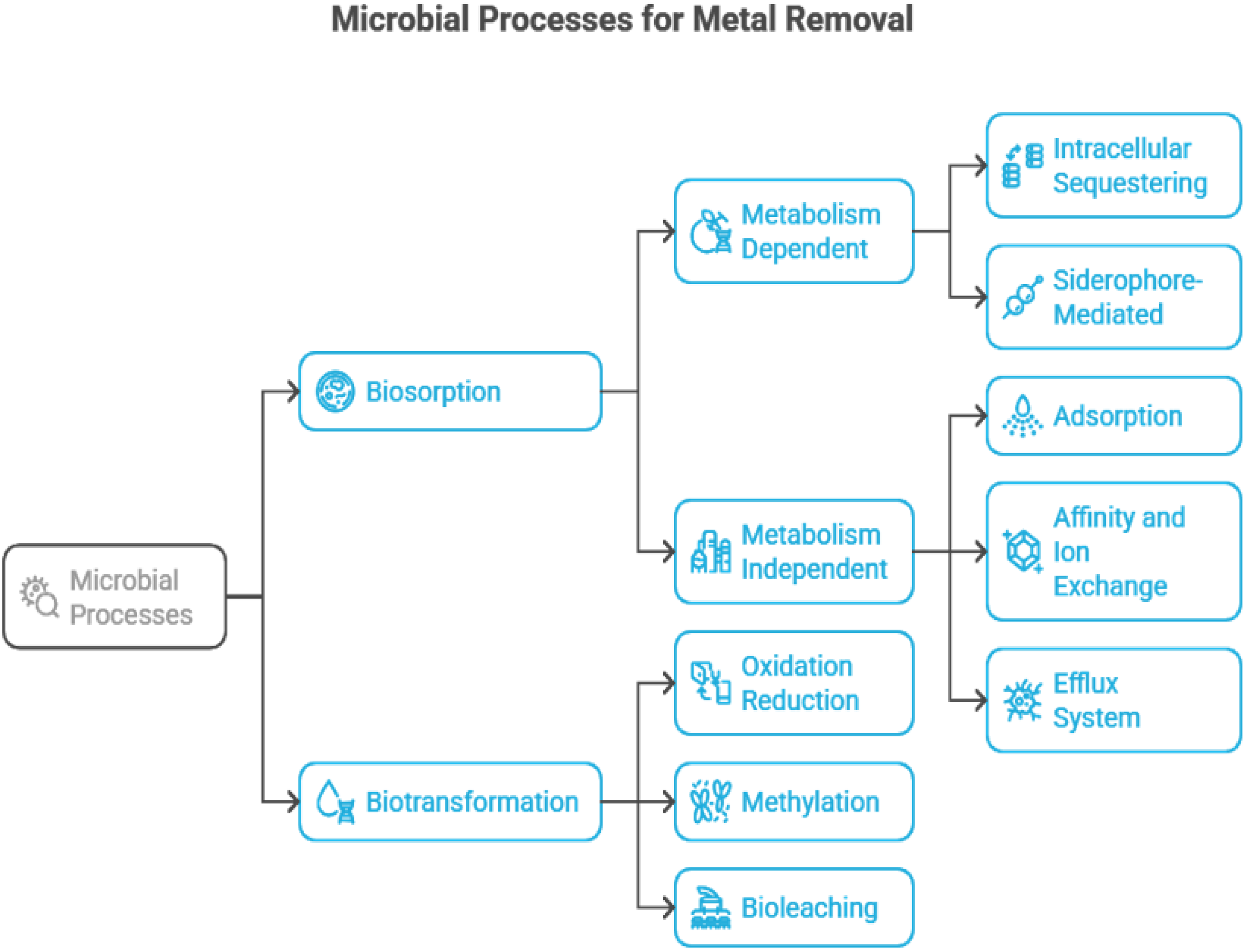

Figure 1.

Diagram showing microbial processes for metal removal (Source: author).

The advantages of employing amidoxime complexes in bioremediation are numerous. Firstly, their high selectivity for specific pollutants, particularly heavy metals, minimizes interference with beneficial environmental components. This targeted approach enhances remediation efficiency and reduces the risk of secondary pollution. Secondly, the adjustable characteristic of amidoxime complexes allows for the design of specialized materials customized to specific contaminants and environmental conditions. Modifications to the amidoxime structure can alter their binding affinity, solubility, and stability, optimizing their performance for diverse applications. Thirdly, the potential for integration with existing bioremediation techniques offers a synergistic approach. Amidoxime complexes could be immobilized on solid supports, incorporated into microbial cultures, or used in conjunction with phytoremediation, leading to enhanced overall remediation efficacy.^14–17

Importantly, amidoxime complexes demonstrate tunable properties that can be optimized for specific remediation challenges. Through structural modifications of the ligand or by changing the metal ion, researchers have tailor the complex's affinity, selectivity, and stability under diverse environmental conditions. This versatility is advantageous when dealing with complex mixtures of pollutants, where selective sequestration or transformation is necessary. Moreover, the integration of these complexes into nanomaterials or membrane systems has enhance their deployment in field-scale remediation efforts.

The coordination of amidoximes with metal ions also imparts redox activity and catalytic properties that can be leveraged in environmental remediation. For instance, iron-amidoxime complexes have shown peroxidase-like behavior, enabling them to participate in Fenton-like oxidative decomposition of organic pollutants.^8,13,18,19 These reactions can be particularly useful in advanced oxidation processes (AOPs), which are employed to decompose refractory pollutants in industrial wastewaters. Similarly, copper- and manganese-based amidoxime complexes have been investigated for their superoxide dismutase-mimetic activity, providing antioxidative protection in bioremediation systems exposed to oxidative stress.

From a green chemistry perspective, amidoxime complexes also align with sustainability goals. They are often synthesized under mild conditions, using environmentally benign solvents and reagents. Additionally, their high reusability and regeneration potential reduce the environmental footprint of remediation processes. When incorporated into biosorbents or biofilters, amidoxime complexes contribute to the development of low-waste, circular approaches to pollution control. The environmental applications of amidoxime complexes are not limited to heavy metal removal. There is growing interest in their use for capturing radionuclides, such as plutonium, thorium, and neptunium, from nuclear waste streams and natural waters. These radionuclides pose long-term risks due to their radiotoxicity and persistence in the environment. Amidoxime-based materials, particularly those incorporated into fibrous matrices or hydrogels, offer an effective means of extracting these ions through selective and reversible binding. In addition, hybrid systems integrating amidoxime complexes with microbial consortia are being developed, or enzymes opens new avenues for catalytic transformation of organopollutants, such as dyes, pesticides, and pharmaceuticals.^20,21

Synthesis of amidoximes

Amidoximes are a group of bifunctional organic compounds possessed by the presence of the -C(=NOH)-NH₂ functional group. Owing to their strong binding capacity for metal ions and their chelating behavior, amidoximes have gained significant attention in environmental sciences, particularly in bioremediation applications. Understanding their synthesis is therefore fundamental, both to tailor their properties for specific contaminant interactions and to improve their environmental stability and efficiency.

The most widely used synthetic pathway to amidoximes involves the nucleophilic addition of hydroxylamine hydrochloride to nitriles. This reaction proceeds under mild to moderately basic conditions and is widely favored due to its operational simplicity and the availability of both starting materials. The synthesis of amidoxime can be represented by the following simple reaction equation:

In this reaction, a nitrile (RCN) undergoes nucleophilic attack by hydroxylamine hydrochloride (NH₂OH. HCl), forming the amidoxime product. Typically, hydroxylamine hydrochloride is used in combination with a base such as sodium carbonate, sodium hydroxide, or pyridine to liberate the free nucleophile.

The choice of solvent and temperature shows an important role in measuring the reaction yield. Common solvents include methanol, ethanol, or aqueous mixtures, with reaction temperatures extending from room temperature to 60–80 °C depending on the reactivity of the nitrile substrate. The reagents used are nitrile compounds, hydroxylamine hydrochloride with sodium carbonate or sodium hydroxide in a suitable solvent gives amidoxime compound.^11,22 This route offers excellent atom economy and can be adapted for a wide variety of aromatic and aliphatic nitriles, making it ideal for generating libraries of amidoximes for screening in bioremediation studies.

Another developed synthetic route for amidoxime is solvent-free methods and microwave-assisted synthesis. For instance, the reaction of hydroxylamine hydrochloride with nitriles under microwave irradiation significantly reduces reaction time (often to under 10 min) and enhances yields.^11,22–26 Additionally, room-temperature ionic liquids and deep eutectic media have been explored as environmentally harmless media for amidoxime formation. This method helps to reduce solvent waste, lower energy consumption, faster reaction kinetics and potential scalability for industrial applications.

These methods are particularly relevant for the design of amidoxime-based polymers or functionalized materials intended for environmental applications, where sustainable synthesis is paramount. The reactivity of the nitrile precursor significantly determines the structure and characteristics of the resulting amidoxime. Aromatic nitriles such as benzonitrile, phthalonitrile, and isonicotinonitrile yield aromatic amidoximes that exhibit π-conjugation and enhanced stability. Aliphatic nitriles, on the other hand, produce amidoximes with flexible backbones, potentially advantageous for polymer grafting or surface anchoring in adsorbent materials.^13,27,28 Moreover, substituents on the aromatic ring or in the alkyl chain can modulate the electron density at the nitrile carbon, altering both the reaction kinetics and the chemical behavior of the amidoxime. For instance, electron-withdrawing groups (e.g., -NO₂, -CN) accelerate the reaction by increasing electrophilicity, whereas electron-donating groups (e.g., -CH₃, -OH) tend to slow it down. Pyridine amidoxime is very useful in uranium binding while bis(amidoxime) ligand is used for polymeric scaffolds. The ability to tailor the electronic environment through judicious choice of nitrile precursors is central to optimizing amidoximes for specific metal-binding or degradation activities in bioremediation settings.^{10,13,29–32}

Beyond simple mono-amidoximes, several synthetic strategies allow for multi-functionalization or polymer grafting, which are especially useful for applications such as heavy metal adsorption or radionuclide capture from aqueous media. Nitriles bearing multiple cyano groups, such as dicyanobenzene or acrylonitrile polymers, can be simultaneously converted into bis- or polyamidoximes. These compounds are highly sought after in the fabrication of chelating resins or adsorbent fibers. For example, Polyacrylonitrile (PAN) fibers treated with hydroxylamine yield amidoxime-grafted polymers, widely used in uranium recovery from seawater.^33–36 This class of amidoximes features prominently in bioremediation as a result of their large surface area, tunable porosity, and the cooperative effect of multiple binding sites. The synthesis of amidoximes represents a versatile and adaptable process that enables the production of structurally diverse molecules suitable for bioremediation applications. The direct conversion of nitriles using hydroxylamine hydrochloride under mild conditions remains the cornerstone of amidoxime synthesis, while innovations such as green solvents, microwave irradiation, and polymer functionalization continue to expand the scope and efficiency of these compounds.

Synthesis of amidoxime metal complexes

Amidoximes are a class of organic compounds with the functional group -C(=NOH)-NH₂, which imparts excellent chelating ability. The structural versatility and strong affinity for transition and post-transition metals make amidoximes particularly attractive ligands for complexation reactions. These complexes have found considerable attention in coordination chemistry due to their roles in catalysis, sensing, medicinal chemistry, and most recently, environmental remediation through bioremediation pathways. This section details the synthetic methodologies employed to prepare metal complexes of amidoximes, including choice of ligands, metal precursors, reaction conditions, and characterization techniques.

The synthesis of amidoxime metal complexes typically involves the reaction of a metal salt or precursor with an amidoxime ligand in a suitable solvent.^8,10,13,37 Amidoxime ligands may be monodentate, bidentate, or polydentate, depending on the availability of donor atoms and the steric/electronic environment of the molecule. The reaction often proceeds under mild to moderate conditions and can be facilitated by stirring, heating, or refluxing. Most amidoxime ligands are synthesized through nucleophilic addition of hydroxylamine to nitriles:

Where R is can be aliphatic, aromatic, or heterocyclic substituent.

These reactions are typically carried out in an alcoholic solvent such as ethanol, methanol, or aqueous media with a mild base such as sodium carbonate, sodium hydroxide or triethylamine to neutralized the acid byproducts and facilitate nucleophilic attack reaction, often under reflux conditions. These ligands are isolated by filtration or solvent evaporation and purified by recrystallization.^8,22,38–40 Once the amidoxime ligand is prepared and the metal salt selected, the complexation reaction is initiated. This typically involves dissolving both components in a compatible solvent such as ethanol, methanol, water, or dimethylformamide (DMF), and allowing them to react under stirring, reflux, or even room temperature conditions.

The nature of the metal salt used often influences the geometry, stability, and solubility of the resulting complex. The coordination reaction of amidoxime metal complex metal-to-ligand ratio is usually 1:2 or 1:3, depending on coordination number.^10,41–43 These salts are selected based on their solubility, coordination tendencies, and environmental relevance, the reaction times vary from 2 to 24 h. For bioremediation applications, metal complexes involving uranium, copper, cobalt, and iron are of particular interest due to their roles in radionuclide capture and redox-mediated pollutant degradation.^44–47

In some reaction cases, the pH control is crucial, especially for uranyl or lanthanide complexes. A slightly acidic to neutral pH (5–7) condition is necessary to avoid hydrolysis of metal salts such as U(IV) or deprotonation of the amidoxime moiety. The resulting complexes generally obtained are colored solids gotten from the crystalline precipitates from solvent evaporation, the precipitate is filtered by suction, washed with solvent and dried in a desiccator over calcium chloride. The significance of these metal complexes in bioremediation lies in their stability and binding capacity. Amidoxime groups can strongly chelate metals such as uranium, cobalt, and copper, making them ideal for extracting toxic or radioactive metals from wastewater, contaminated soils, and seawater. Also, polymer-supported amidoximes (e.g., on polyacrylonitrile fibers) form crosslinked networks that can be deployed in environmental cleanup operations. The synthesized complexes may also serve as a catalysts in the degradation of organic contaminants, further enhancing their environmental value.^{8,10,13,29,39,48,49}

FT-IR spectroscopy

Fourier Transform Infrared (FT-IR) spectroscopy is an analytical technique used to identify functional groups present in a molecule and to study molecular vibrations. It operates on the basis that molecules take up infrared radiation at distinct wavelengths that match their vibrational modes. When applied to amidoximes, FT-IR provides crucial fingerprints for their structural confirmation and for monitoring their behavior during bioremediation processes. The characteristic functional groups of amidoximes, namely the C=N (imine) bond and the N-OH (oxime) group, exhibit distinct absorption bands in the infrared region. Typically, the C=N stretching vibration appears in the 1680–1620 cm⁻¹ range, while the N-OH stretching vibration is observed around 3600–3200 cm⁻¹ (often broad due to hydrogen bonding). The O-H bending vibration from the oxime group can be found near 1400 cm⁻¹.^50–52 Additionally, N-O stretching vibrations usually show in the 980–930 cm⁻¹ band. The presence and shifts of these bands are critical for confirming the successful synthesis of amidoximes and for assessing their purity. For instance, if an amidoxime is synthesized from a nitrile, the disappearance of the C≡N stretching band (approximately 2260–2220 cm⁻¹) and the accompanying appearance of the C=N and N-OH bands confirm the conversion. The exact positions of these bands can vary depending on substitution on the amidoxime scaffold, the presence of electron-withdrawing or electron-donating groups, and the molecular geometry.^11,22,26

FT-IR spectroscopy plays a crucial role in identifying characteristic functional groups and examining metal-ligand interactions in amidoximes and their complexes. The binding of amidoximes with metal ions leads to notable shifts in vibrational frequencies, which are diagnostic of bonding modes. During bioremediation, amidoximes form stable chelates with heavy metals (e.g., UO₂²⁺, Cu²⁺, Pb²⁺, Cd²⁺), thereby aiding in their immobilization or removal. The FT-IR spectra of these metal complexes typically display:

A downfield shift of the C=N stretching band (to ∼1600–1630 cm⁻¹), indicative of coordination through the nitrogen of the oxime group.

Changes in the N-O stretching band, often shifting or splitting due to metal-oxygen bonding.

Decreased intensity or merging of the O-H/N-H bands, often resulting from deprotonation upon coordination or from hydrogen bonding alterations in the ligand framework.

For example, in uranyl-amidoxime complexes, the formation of chelate rings is confirmed by strong bands near 910–920 cm⁻¹ (asymmetric U=O stretching) along with changes in the amidoxime moiety vibrations, confirming bidentate coordination through the N and O atoms.^10,37,49

Amidoximes can adopt several coordination modes, including:

FT-IR spectra provide evidence of these modes through comparative analysis of free ligands and their complexes. Shifts in both stretching and bending modes enable researchers to differentiate between end-on and side-on binding geometries, that are closely linked to the stability and performance of amidoxime complexes in pollutant binding. In practical bioremediation applications, amidoxime-functionalized materials (e.g., grafted polymers, resins, hydrogels) are employed to capture toxic metals and radionuclides from aqueous environments.^{13,29,35,53,54} FT-IR spectroscopy is frequently employed to track: surface modification and functionalization steps, metal ion binding by observing shifts in amidoxime-related bands and regeneration or desorption processes through the return of bands to their original positions post-washing or chelator treatment.^13,55 This dynamic monitoring enables optimization of material reuse cycles, an essential factor for cost-effective and sustainable bioremediation technologies.

In bioremediation applications, amidoximes are often immobilized onto various support materials (e.g., polymers, activated carbon, silica) to enhance their stability, reusability, and separation from the treated medium. FT-IR spectroscopy is invaluable for characterizing these composite materials. Through comparison of the FT-IR spectra of the unmodified support material, the amidoxime, and the immobilized amidoxime, researchers will be able to identify new peaks corresponding to the amidoxime functional groups on the support, indicating successful grafting or adsorption. Shifts in the characteristic amidoxime peaks upon immobilization can also provide insights into the type of interaction between the amidoxime and the support surface (e.g., hydrogen bonding, covalent attachment). Some studies show that, a typical characterization workflow might involve using FT-IR to confirm the successful grafting of amidoximes onto a polymer support.^35,56,57

Furthermore, FT-IR is instrumental in monitoring the bioremediation process itself. For example, when amidoximes are used for heavy metal adsorption, changes in the N−OH and C=N stretching frequencies can indicate complexation with metal ions. The non-bonding electron pairs on the nitrogen and oxygen atoms of the amidoxime moiety serve as primary coordination sites for metal ions. Upon metal binding, the electron density around these atoms’ changes, leading to observable shifts in their vibrational frequencies. Similarly, in the decomposition of organic pollutants, FT-IR can track the disappearance of pollutant-specific functional groups and the emergence of new peaks corresponding to degradation products, providing evidence for the effectiveness of the amidoxime-mediated process. The technique can also help in assessing the stability of amidoximes in different environmental conditions (e.g., pH changes, presence of microbial activity) by observing any degradation or transformation of the amidoxime structure over time.^58,59 The nondestructive nature and relatively rapid analysis time of FT-IR make it a highly practical tool to enable real-time observation and ensure quality control in bioremediation studies.

UV-visible spectroscopy

UV-Vis spectroscopy complements FT-IR by providing insights into the electronic structures of amidoxime compounds and their metal complexes. It is particularly useful for analyzing the nature of metal-ligand interactions, ligand-field transitions, and charge transfer phenomena relevant to redox activity and photo reactivity in bioremediation contexts. It provides a broad understanding of amidoximes in bioremediation. It is highly sensitive for quantitative analysis of concentrations and monitoring electronic transitions, making it ideal for tracking pollutant removal in solution and complexation.

UV-Visible spectroscopy is a commonly employed analytical method that detects light absorption within the ultraviolet (200–400 nm) and visible (400–800 nm) regions of the electromagnetic spectrum.^60,61 This absorption occurs when electrons are elevated from ground-state orbitals to excited-state orbitals within a molecule. For amidoximes, UV-Visible spectroscopy provides valuable information regarding their electronic structure, concentration, and interactions with other species in solution, which is especially significant in relation to bioremediation. Free amidoxime ligands typically exhibit absorption bands in the 200–300 nm region, associated with π→π* and n→π* transitions of the conjugated C=N–OH system.^11,13,62,63 The intensity and position of these bands depend on:

The nature of substituents on the amidoxime ring (e.g., electron-donating or withdrawing groups).

These bands serve as baseline references for evaluating spectral changes upon metal coordination. Upon coordination to metal ions, amidoxime ligands undergo changes in their electronic environment, resulting in spectral shifts and the emergence of new absorption bands. These are typically classified as:

Ligand-to-metal charge transfer (LMCT) bands, usually in the 250–400 nm region, indicating electron donation from amidoxime donor atoms (N or O) to the metal center.

The identification of these transitions allows for the estimation of ligand field strength, coordination number, and complex geometry. For example, copper(II) amidoxime complexes may show bands near 600–700 nm corresponding to d-d transitions, which broaden or shift with changes in ligand denticity or geometry (e.g., square planar vs. octahedral).^64,65 The intensity and wavelength of LMCT bands provide qualitative information about binding strength, which is critical for predicting metal selectivity in mixed-pollutant environments.

Amidoximes typically contain π-electron systems (e.g., C=N bond, aromatic rings if present) and non-bonding electrons on oxygen and nitrogen atoms, which can undergo π→π∗ and n→π∗ electronic excitation upon absorption of UV or visible light. The characteristic absorption maxima (λ_max) and molar absorptivities (ɛ) are unique to each amidoxime structure and can be used for identification and quantification.^13,66 For instance, simple aliphatic amidoximes might show absorption in the far UV region, while amidoximes with conjugated systems or aromatic substituents will exhibit stronger and red-shifted absorptions in the near UV or even visible region. Variations in solution pH can also affect the UV-Visible spectrum of amidoximes due to protonation or deprotonation of the oxime group, leading to shifts in λ_max and changes in absorbance intensity. This pH-dependent behavior can be exploited to determine the pK_a values of amidoximes, which is crucial for understanding their speciation and reactivity in different environmental conditions relevant to bioremediation.

One of the primary applications of UV-Visible spectroscopy in bioremediation studies involving amidoximes is the quantitative determination of their concentration in solution. By establishing a calibration curve (absorbance versus concentration) at a specific λmax, researchers can accurately measure the amount of amidoxime present in a sample. This is essential for monitoring the synthesis yield, assessing the stability of amidoxime solutions ove r time, and tracking their release from immobilized materials. More importantly, UV-Visible spectroscopy performs an important role in monitoring the removal effectiveness of pollutants. If the pollutant itself has a characteristic UV-Visible absorption (e.g., organic dyes, certain heavy metal complexes), the decrease in its absorbance intensity over time can be directly correlated with its removal by the amidoxime. This allows for the calculation of removal percentages, adsorption capacities, and kinetic parameters of the bioremediation process. Subsequently, UV-Visible could be employed to quantify the amount of amidoxime loaded onto the support and to monitor the elimination of a targeted dye from an aqueous medium. More also, UV-Visible spectroscopy can provide insights into the mechanism of interaction between amidoximes and pollutants. For example, when amidoximes binds to heavy metal ions it leads to the formation of metal amidoxime complexes which can lead to changes in the UV-Visible band of both the amidoxime and the metal ion. These changes, such as shifts in λ_max, changes in absorbance intensity, or the appearance of new absorption bands, are indicative of complex formation and can serve to establish stoichiometric ratios and stability constants of the complexes.^67–69 Similarly, in the case of degradation of organic contaminants, the disappearance of the pollutant's characteristic peaks and the appearance of new peaks corresponding to degradation intermediates or products can be tracked using UV-Visible, providing evidence for the transformation pathway. The simplicity, speed, and relatively low cost of UV-Visible spectroscopy make it an indispensable tool for routine analysis and preliminary investigations in amidoxime-based bioremediation research.

NMR spectroscopy

NMR spectroscopy is possibly one of the most effective spectroscopic methods for revealing detailed molecular structures, conformation, and dynamics of organic compounds. It provides a comprehensive understanding of amidoximes in bioremediation. NMR, with its unparalleled capacity to elucidate detailed molecular structures and confirm connectivity, is crucial for unambiguous structural assignment, purity assessment, and mechanistic studies of transformations. It relies on the principle that atomic nuclei with a non-zero spin (e.g., ¹H,¹³C, ¹⁵N, ¹⁹F) behave like tiny magnets and can take up radiofrequency energy in the presence of a strong magnetic field. The specific wavelengths at which these nuclei resonate are highly sensitive to their local electronic environment, providing a wealth of structural information. For amidoximes, NMR spectroscopy, particularly ¹H NMR and ¹³C NMR, is indispensable for confirming their synthesis, determining their purity, and understanding their transformations in complex bioremediation systems.^70–72 NMR spectroscopy would be applied to confirm the structure of the synthesized amidoxime, identify any impurities, and potentially examine the pathway of dye decomposition by analyzing the chemical shifts of the amidoxime and dye components before and after the bioremediation process.

In ¹H NMR spectroscopy, the spectra shifts, integration values, and splitting patterns of proton signals provide explicit details about the number, type, and coordination of hydrogen atoms in the amidoxime molecule.^8,11,73 For instance, the proton of the N-OH group in amidoximes typically appears as a broad singlet in the range of 8–12 ppm, although its exact position can be highly variable and sensitive to concentration, solvent, and temperature due to hydrogen bonding. The protons on the carbon atom adjacent to the C=N bond will also exhibit characteristic chemical shifts. For example, in acetamidoxime (CH₃C(NH₂)=NOH), the methyl protons would appear as a singlet, and the NH₂ protons would also appear as a broad signal. The ability to distinguish between different proton environments allows for unambiguous confirmation of the amidoxime structure and differentiation from starting materials or side products. Moreover, the presence of geometric isomers (E/Z isomers) around the C=N double bond is common for amidoximes, and these isomers often give rise to distinct sets of NMR signals, allowing for their identification and quantification.^8,22,74

¹³C NMR spectroscopy complements ¹H NMR by providing information about the carbon skeleton of the amidoxime. The carbon atom of the C=N bond is highly deshielded and typically resonates in the range of 150–165 ppm, which is a characteristic signal for amidoximes.^8,11,13 Other carbon atoms in the molecule will also exhibit specific chemical shifts depending on their electronic environment and connectivity. The combination of ¹H and ¹³C NMR data, often supported by two-dimensional NMR techniques like COSY (Correlation Spectroscopy) and HSQC (Heteronuclear Single Quantum Coherence), allows for the complete assignment of all proton and carbon signals and the unequivocal determination of the amidoxime's structure.^75–77

In the context of bioremediation, NMR spectroscopy is invaluable for monitoring the fate of amidoximes and pollutants. When amidoximes are used for heavy metal sequestration, NMR serves as a tool for examining the coordination of metal ions to the amidoxime ligand. Paramagnetic metal ions can induce significant shifts and broadening of NMR signals of the surrounding protons and carbons, providing insights into the binding sites and coordination geometry. For diamagnetic metal ions, subtle chemical shift changes can still indicate complex formation. Furthermore, NMR can track the decomposition of organic pollutants by amidoxime-based systems.^13,29,38,78 By analyzing the NMR spectra of the reaction mixture over time, researchers can observe the disappearance of pollutant signals and the appearance of new signals corresponding to degradation products, thereby elucidating the reaction mechanism and identifying intermediates. This is particularly useful for complex organic molecules where multiple degradation pathways might exist. The high resolution and quantitative nature of NMR make it an indispensable tool for mechanistic studies, kinetic analysis, and evaluating the prolonged stability and reusability of amidoxime-based adsorbents in bioremediation. However, NMR typically requires samples to be in solution, which can be a limitation for solid-state immobilized amidoxime materials, although solid-state NMR techniques are emerging to address this.^6,79

Solubility

Solubility characterization is an indispensable tool in the study and application of amidoximes for bioremediation, it serves a key function in bioremediation potential, particularly in the removal of toxic metals, radionuclides, and organic pollutants, relies heavily on their physicochemical properties, which are in turn governed by their solubility profiles. Amidoximes, a group of organic compounds have gained a progressive interest in the area of environmental remediation as a result of their strong chelating capacities and structural versatility. Solubility test is an essential tool for elucidation of which contribute to the significant of the coordination environment, molecular conformation and interaction potential of amidoximes with environmental contaminants and also governs the environmental transport and functional deployment of amidoxime compounds.

Solubility serves as a major determinant of the environmental mobility, bioavailability, and reactivity of amidoxime compounds. Water solubility is especially crucial for bioremediation applications, as it governs the diffusion of amidoximes in aqueous environments where pollutants are typically encountered.^13,29,80,81 Additionally, solubility in organic solvents is relevant for synthesis, formulation, and modification steps during material preparation. Amidoximes typically exhibit moderate polarity, which allows solubility in polar protic and aprotic solvents, such as methanol, ethanol, DMSO, and acetonitrile.^11,22,82 However, their solubility in water varies widely depending on structural modifications (e.g., alkyl, aryl, or heterocyclic substituents) and pH conditions. The protonation state of the amidoxime moiety also significantly affects its solubility and reactivity.^{8,10,11,37,38,49,66,83}

In their free ligand forms, amidoximes show variable solubility profiles. Simple aliphatic amidoximes, such as acetamidoxime, are generally water-soluble due to hydrophilicity of their functional groups. However, aromatic amidoximes, such as benzamidoxime or substituted phenylamidoximes, demonstrate limited aqueous solubility due to increased hydrophobicity from the aryl rings.^10,11,13,66 Amidoximes containing heterocyclic systems (e.g., pyridine or quinoline) may show enhanced solubility water and organic solvents depending on the position and type of nitrogen-containing substituents. These solubility trends are important in designing amidoxime derivatives that balance hydrophilicity for environmental dispersion with sufficient stability and adsorption capacity for pollutant capture.^7,13,29,84

The formation of metal complexes generally alters the solubility characteristics of amidoximes. Metal coordination can result in reduced water solubility due to lattice energy contributions and increased molecular weight, but it can also enhance solubility under acidic or basic conditions depending on the metal-ligand charge distribution. The formation of complex with transition metals such as Fe(III), Cu(II), Zn(II), and U(VI) has been widely reported. For instance, amidoxime-based chelating resins used in uranium extraction from seawater typically show improved performance under basic conditions, where the ligand-metal complex is sufficiently soluble to maintain effective uptake kinetics.^{8–10,13,22,48,66,83,85} Conversely, in soil or groundwater bioremediation, where pH and ionic strength vary, solubility-tuned formulations are required for efficient pollutant mobilization and capture.

Standard solubility measurements involve determining saturation concentrations in various solvents at room temperature or controlled thermal conditions. The shake-flask method, dynamic solubility testing, and turbidimetric titration are commonly employed. UV-Visible and high-performance liquid chromatography (HPLC) quantification methods are employed to assess the dissolved concentration. For bioremediation relevance, solubility tests under simulated environmental conditions (e.g., synthetic groundwater, seawater, variable pH) are highly informative. Solubility data is often complemented by thermodynamic parameters such as solvation free energy and solubility product constants (Ksp), particularly for metal complexes.^86,87 These parameters help model the behavior of amidoxime materials in situ, thereby informing their deployment in dynamic environmental systems.

X-ray diffraction

X-ray diffraction analysis in an essential instrument for the elucidation of characterization in the study and application of amidoximes for bioremediation, it contributes significantly to the understanding of the coordination environment, molecular conformation, and interaction potential of amidoximes with environmental contaminants. X-ray diffraction (XRD), particularly single-crystal X-ray diffraction and powder X-ray diffraction (PXRD), continues to be the benchmark for elucidating the molecular and crystalline structure of amidoximes and their metal complexes. Understanding the crystal structure provides insights into the geometry of coordination, ligand conformation, hydrogen bonding interactions, packing motifs, and structural variability factors that directly impact the efficacy of amidoximes in pollutant binding and sequestration.

Single-crystal X-ray diffraction offers atomistic resolution, revealing the exact coordination mode of the amidoxime functional group, which typically binds metals through the oxime oxygen, the amine nitrogen, or both, in the formation of bidentate chelates.^8,10 Powder X-ray diffraction is essential for characterizing bulk materials, including polymers and composite sorbents, where single crystals are unattainable.^88,89 X-ray diffraction studies have confirmed diverse coordination behaviors for amidoximes. In most metal complexes, amidoximes act as neutral or monoanionic bidentate ligands, forming five- or six-membered chelate rings. For example, in metal-ligand complexes with Co(II), Ni(II), or Cu(II), amidoximes often coordinate through both the N and O atoms, forming planar or slightly deformed octahedral geometries.

In actinide chemistry, especially uranyl(VI) complexes, amidoximes preferentially coordinate at equatorial positions through the oxime O and amino N, contributing to high thermodynamic stability and selectivity.^8,10,13,37 X-ray diffraction data has also revealed extensive hydrogen bonding networks in amidoxime crystal lattices, contributing to their stability and influencing solubility. These structural details are essential in understanding the selectivity, binding affinity, and reusability of amidoxime-based sorbents and chelators in bioremediation contexts. Powder X-ray diffraction is particularly useful in the characterization of amidoxime-functionalized polymers, such as grafted polyacrylonitrile fibers, amidoxime-modified cellulose, or amidoxime-modified hydrogels. Powder X-ray diffraction patterns reveal the degree of crystallinity, amorphous content, and changes upon metal binding. For instance, uranium-loaded amidoxime fibers often show peak broadening or shifts in the 2θ values, indicating complexation-induced structural rearrangements.

Changes in crystallinity are directly related to the sorption behavior, swelling properties, and mechanical stability of these materials. Powder X-ray diffraction also helps identify phase transitions, hydration states, and possible crystal forms, all of which affect performance during bioremediation cycles.^90,91 Several recent works have shown the utility of X-ray diffraction in validating the binding mechanism of amidoximes with environmental pollutants:

Uranium sequestration: Single-crystal X-ray diffraction of uranyl-amidoxime compounds has revealed hexadentate coordination environments, contributing to the development of selective sorbents for nuclear waste remediation and uranium recovery from seawater. ¹⁰

The above examples, highlighted the centrality of X-ray diffraction in rational design and functional evaluation of amidoxime-based materials for bioremediation applications. An integrated approach combining solubility profiling and X-ray diffraction analysis enables an in-depth knowledge of amidoxime e compounds for environmental deployment. For example, a material with favorable crystallinity and coordination geometry, but poor aqueous solubility, may underperform in field conditions. Conversely, a highly soluble compound without structural rigidity may suffer from leaching or instability.

X-ray diffraction provides the structural basis for understanding solubility trends: tighter hydrogen bonding and extensive π-stacking generally reduce solubility, while disordered or less crystalline materials may exhibit higher water uptake.^94,95 Furthermore, changes in X-ray diffraction patterns upon solubilization or complexation inform stability, reversibility, and performance under cycling conditions. Such integrative data allows for predictive modeling of amidoxime behavior in environmental matrices, informing the development of tunable formulations such as nanocomposites, hydrogels, resins, or biodegradable carriers optimized for field deployment.

The effective development and deployment of amidoxime-based materials for bioremediation critically depend on thorough and accurate characterization. X-ray diffraction, solubility, FT-IR, UV-Visible, and NMR spectroscopies are foundational tools in this endeavor, each contributing distinct yet complementary information. The integrated application of these spectroscopic techniques enables researchers to synthesize, characterize, and optimize amidoxime materials with precision, paving the way for their enhanced performance and broader implementation in addressing pressing environmental pollution challenges. As studies in bioremediation continues to advance, the sophisticated application of these characterization methods will remain paramount in fully harnessing the capabilities of amidoximes as versatile agents for environmental clean-up. With the increasing need for effective and eco-friendly remediation approaches, the careful characterization of amidoxime-based systems will continue to significantly contribute to the evolution of future sorbents, sensors, and catalysts for pollutant capture and detoxification.

Amidoximated polymers and fibers

One of the most studied classes of amidoxime-containing materials involves the chemical modification of PAN fibers. Through hydroxylamine treatment, polyacrylonitrile's groups are converted into amidoxime groups, creating chelating resins with high metal-binding capacity. Amidoxime-modified polyacrylonitrile fibers have been widely tested for the adsorption of uranium, lead, cadmium, and copper from aqueous systems.^35,103,104 In most cases, the adsorption process follows Langmuir or Freundlich isotherms, indicating monolayer adsorption with site heterogeneity. The adsorption occurs through chelation, driven by the formation of amidoxime-metal complexes on the fiber surface. These interactions are reinforced by hydrogen bonding and electrostatic forces in some cases. The adsorption capacity varies depending on the degree of amidoxime-modification, fiber surface area, and pH. For instance, amidoxime-modified polyacrylonitrile shows high affinity for Pb(II) at neutral to slightly acidic pH, reaching adsorption capacities of up to 200 mg/g in optimized conditions. Table 3 shows amidoxime-based ligands and their binding affinities for metal.^{13,63,99,105,106}

OPEN IN VIEWER

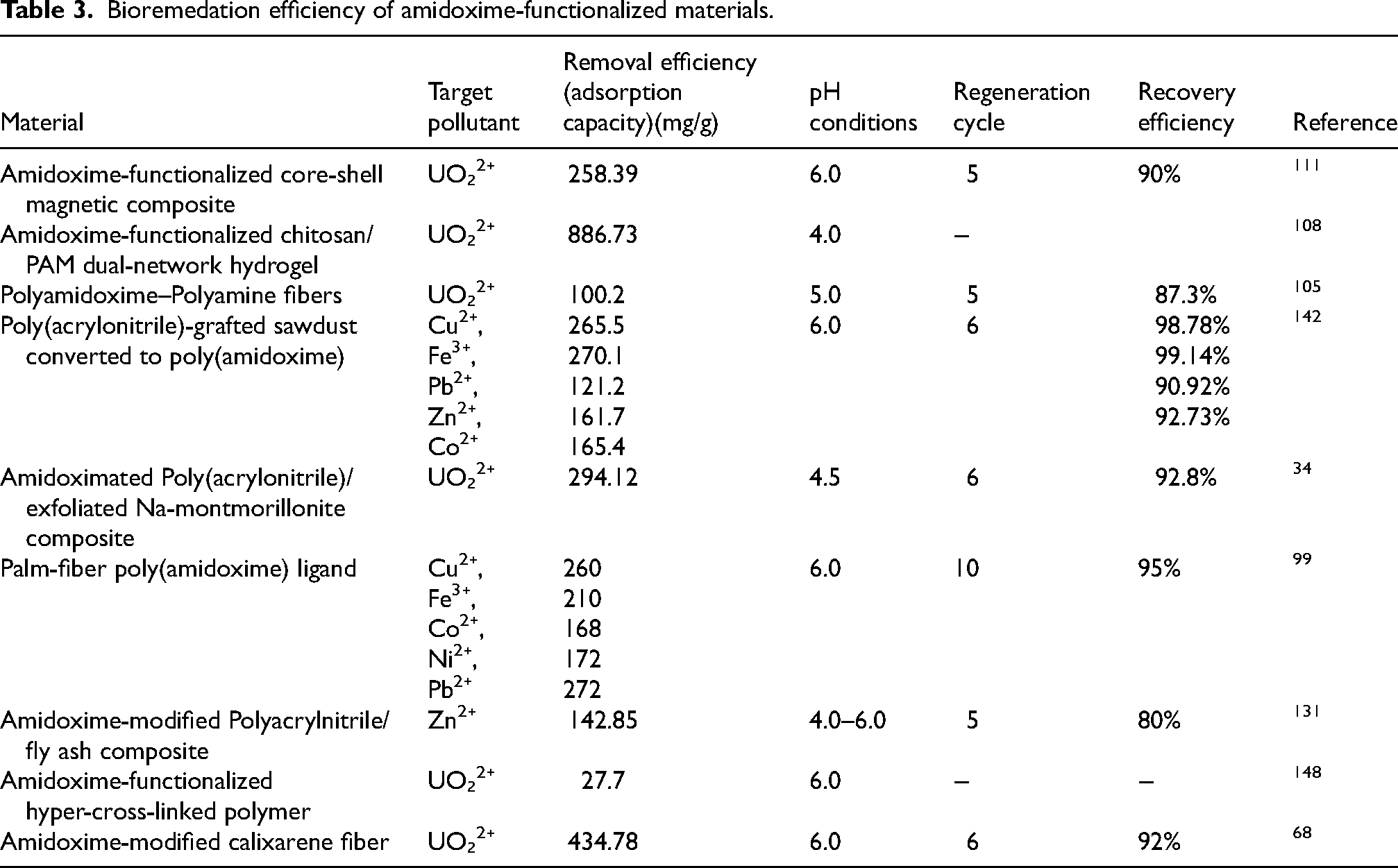

Table 3.

Bioremedation efficiency of amidoxime-functionalized materials.

Material	Target pollutant	Removal efficiency (adsorption capacity)(mg/g)	pH conditions	Regeneration cycle	Recovery efficiency	Reference
Amidoxime-functionalized core-shell magnetic composite	UO₂2⁺	258.39	6.0	5	90%	111
Amidoxime-functionalized chitosan/PAM dual-network hydrogel	UO₂2⁺	886.73	4.0	−		108
Polyamidoxime–Polyamine fibers	UO₂2⁺	100.2	5.0	5	87.3%	105
Poly(acrylonitrile)-grafted sawdust converted to poly(amidoxime)	Cu2⁺,	265.5	6.0	6	98.78%	142
	Fe3⁺,	270.1			99.14%
	Pb2⁺,	121.2			90.92%
	Zn2⁺,	161.7			92.73%
	Co2⁺	165.4
Amidoximated Poly(acrylonitrile)/exfoliated Na-montmorillonite composite	UO₂2⁺	294.12	4.5	6	92.8%	34
Palm-fiber poly(amidoxime) ligand	Cu2⁺,	260	6.0	10	95%	99
	Fe3⁺,	210
	Co2⁺,	168
	Ni2⁺,	172
	Pb2⁺	272
Amidoxime-modified Polyacrylnitrile/fly ash composite	Zn2⁺	142.85	4.0–6.0	5	80%	131
Amidoxime-functionalized hyper-cross-linked polymer	UO₂2⁺	27.7	6.0	−	−	148
Amidoxime-modified calixarene fiber	UO₂2⁺	434.78	6.0	6	92%	68

Amidoxime-modified hydrogels and gels

Hydrogels based on natural or synthetic polymers functionalized with amidoxime groups have earned attention for their tunable swelling behavior and ease of metal ion diffusion. For example, amidoxime-modified polyvinyl alcohol (PVA), chitosan, and cellulose hydrogels have been synthesized and evaluated for the adsorption of Cu(II), Zn(II), and Cr(VI). These materials exhibit excellent regeneration potential and high-water uptake, allowing fast migration of metal ions into the gel matrix. Amidoxime groups inside the hydrogel network provide strong metal chelation.^{29,35,97,107,108} Based on the studies reported, the challenges involved is their mechanical stability and recyclability remain areas of improvement, especially under real-world environmental conditions involving fluctuating pH, salinity, or competitive ions. Table 4 shows bioremediation efficiency of amidoxime-functionalised materials with their pH and regeneration potential.

OPEN IN VIEWER

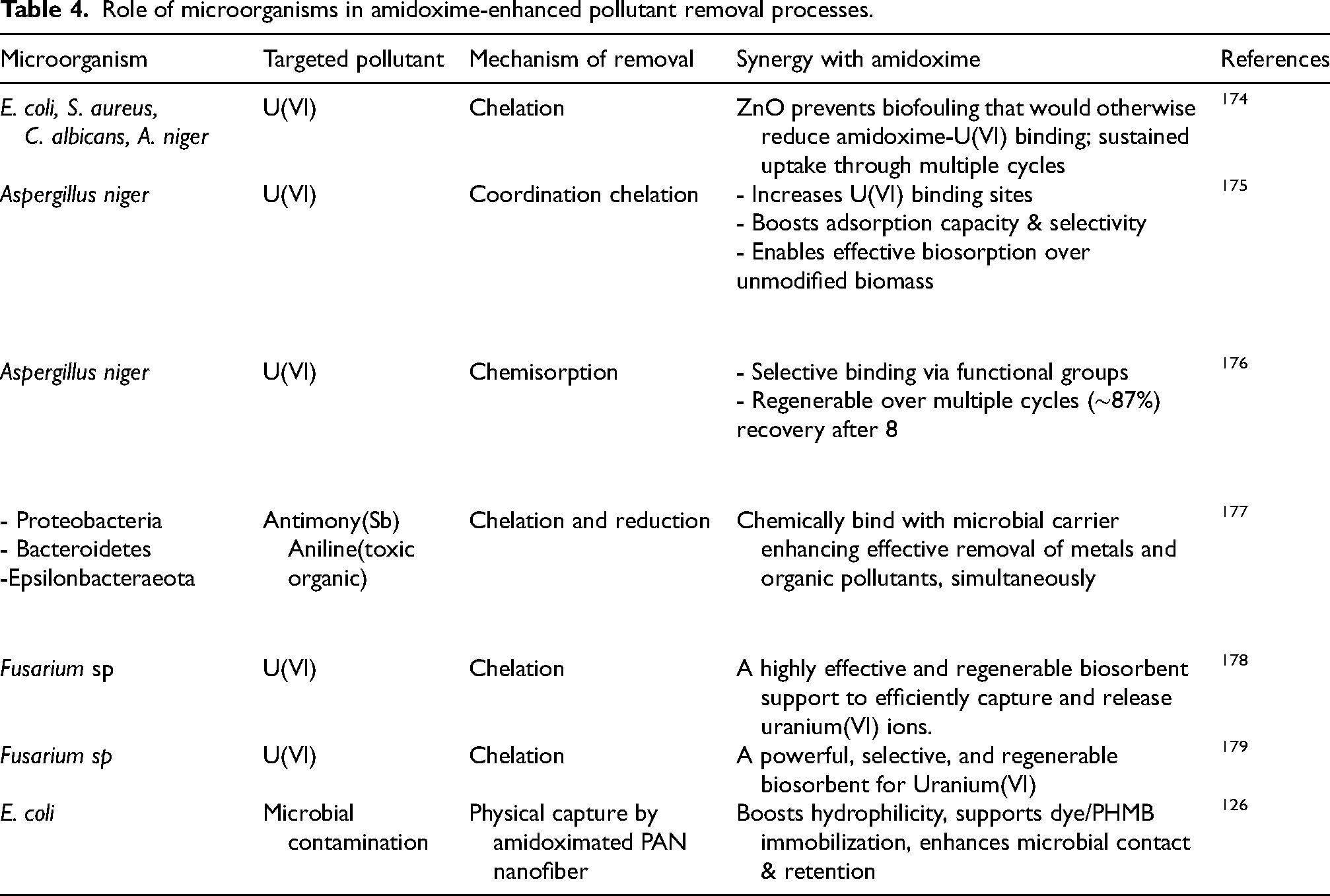

Table 4.

Role of microorganisms in amidoxime-enhanced pollutant removal processes.

Microorganism	Targeted pollutant	Mechanism of removal	Synergy with amidoxime	References
E. coli, S. aureus, C. albicans, A. niger	U(VI)	Chelation	ZnO prevents biofouling that would otherwise reduce amidoxime-U(VI) binding; sustained uptake through multiple cycles	174
Aspergillus niger	U(VI)	Coordination chelation	- Increases U(VI) binding sites - Boosts adsorption capacity & selectivity - Enables effective biosorption over unmodified biomass	175
Aspergillus niger	U(VI)	Chemisorption	- Selective binding via functional groups - Regenerable over multiple cycles (∼87%)recovery after 8	176
- Proteobacteria - Bacteroidetes -Epsilonbacteraeota	Antimony(Sb)Aniline(toxic organic)	Chelation and reduction	Chemically bind with microbial carrier enhancing effective removal of metals and organic pollutants, simultaneously	177
Fusarium sp	U(VI)	Chelation	A highly effective and regenerable biosorbent support to efficiently capture and release uranium(VI) ions.	178
Fusarium sp	U(VI)	Chelation	A powerful, selective, and regenerable biosorbent for Uranium(VI)	179
E. coli	Microbial contamination	Physical capture by amidoximated PAN nanofiber	Boosts hydrophilicity, supports dye/PHMB immobilization, enhances microbial contact & retention	126

Functionalized mesoporous and nanostructured materials

Incorporating amidoximes into mesoporous silica, graphene oxide, and other nanomaterials enhances available surface and exposure of active sites, thus enhancing adsorption kinetics.

Amidoxime-grafted mesoporous silica (MCM-41, SBA-15) has demonstrated high uptake of Pb(II) and Cu(II) at minimal amount concentrations.^109,110

Factors influencing heavy metal adsorption

Kinetics and isotherms

Adsorption of heavy metals onto amidoxime-containing materials generally follows pseudo-second-order kinetics, suggesting that chemisorption is the rate-limiting step. Isotherm models such as Langmuir and Freundlich are frequently applied to determine monolayer capacity and adsorption intensity.^117,118

Typical values:

Langmuir capacity for Pb(II): 150–250 mg/g (PAN-based adsorbents)

Langmuir capacity for Cd(II): 80–120 mg/g (hydrogels, fibers)

Freundlich constants (n > 1): indicating favorable adsorption Table 5 shows the summary of amidoxime-based adsorption processes for pollutant removal with their kinetics and isotherm models.

OPEN IN VIEWER

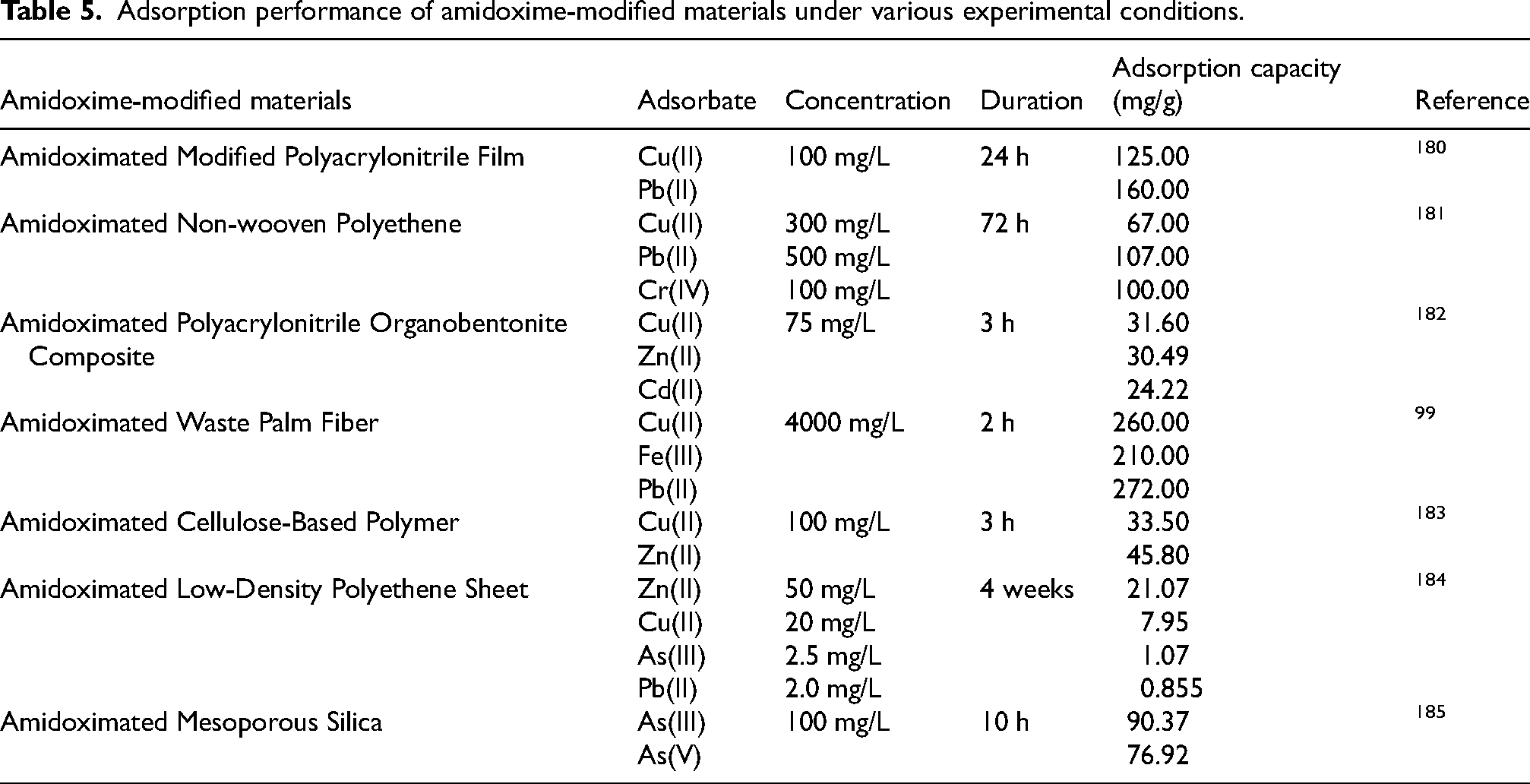

Table 5.

Adsorption performance of amidoxime-modified materials under various experimental conditions.

Amidoxime-modified materials	Adsorbate	Concentration	Duration	Adsorption capacity (mg/g)	Reference
Amidoximated Modified Polyacrylonitrile Film	Cu(II)	100 mg/L	24 h	125.00	180
	Pb(II)			160.00
Amidoximated Non-wooven Polyethene	Cu(II)	300 mg/L	72 h	67.00	181
	Pb(II)	500 mg/L		107.00
	Cr(IV)	100 mg/L		100.00
Amidoximated Polyacrylonitrile Organobentonite Composite	Cu(II)	75 mg/L	3 h	31.60	182
	Zn(II)			30.49
	Cd(II)			24.22
Amidoximated Waste Palm Fiber	Cu(II)	4000 mg/L	2 h	260.00	99
	Fe(III)			210.00
	Pb(II)			272.00
Amidoximated Cellulose-Based Polymer	Cu(II)	100 mg/L	3 h	33.50	183
	Zn(II)			45.80
Amidoximated Low-Density Polyethene Sheet	Zn(II)	50 mg/L	4 weeks	21.07	184
	Cu(II)	20 mg/L		7.95
	As(III)	2.5 mg/L		1.07
	Pb(II)	2.0 mg/L		0.855
Amidoximated Mesoporous Silica	As(III)	100 mg/L	10 h	90.37	185
	As(V)			76.92

Hydrogen bonding

Amino and oxime groups donate and accept hydrogen bonds, forming stable complexes with dye molecules containing -OH, -NH₂, or sulfonate groups.^135,136 Conjugated dye molecules interact with aromatic or electron-rich frameworks such as amidoxime-modified graphene or polymer backbones. In amidoxime-metal complexes, the metal center may act as a coordination site for dye ligands, improving selectivity for specific functional groups in dye structures.

Effect of pH

The pH of the dye solution profoundly influence adsorption. Best pH values vary with dye type; for cationic dyes, its better adsorption is at alkaline pH (6–8) while anionic dyes enhanced uptake at acidic pH (3–5). pH also influences the adsorbent's surface charge and the ionization state of dye molecules.^137–139

Isotherms and kinetics

Thermodynamics

Adsorption is often spontaneous (negative ΔG⁰) and endothermic (positive ΔH⁰), indicating that increased temperature improves dye uptake due to enhanced diffusion and surface interactions.

Reusability and regeneration

The efficiency and sustainability of adsorbents in water treatment applications rely not only on their adsorption capacity but also on their ability to be reused and regenerated with minimal loss of performance. For amidoxime complexes used in dye removal, reusability is a key advantage, enabling repeated use over multiple adsorption-desorption cycles. This section explores the principles, mechanisms, and performance of regeneration methods applied to amidoxime-based dye adsorbents, assessing their durability, economic feasibility, and operational implications.

One of the most compelling economic advantages of amidoxime-based materials is their excellent reusability. Unlike traditional adsorbents like activated carbon, which often require thermal regeneration or are disposed of after single use, amidoxime complexes can be easily regenerated using mild reagents, such as dilute acids, bases, or salts. Studies show that amidoxime-based adsorbents can hold over 80% of their original adsorption capability after five or more cycles.^{13,29,53,119,140}

The implications of this reusability are significant:

Reduced operational expenses through extended material lifespan

Thus, even if the initial synthesis cost is marginally higher than unmodified biosorbents, the overall lifecycle cost per treatment cycle is substantially lower.
