Investigation and evaluation of effect of dehydration on vibration characteristics of silver-electroded ionic polymer

Abstract

Theoretical and experimental investigation of dehydration loss of ionic polymer–metal composite actuator is important to evaluate the stability, accuracy, and effectiveness of actuation. An ionic polymer–metal composite actuator of silver electrode has been analyzed to demonstrate the effect of dehydration on vibration characteristics during actuation. Experiment is conducted in cantilever configuration under direct current potential, and the bending and vibration characteristics are measured by Laser Vibrometer. As dehydration occurs during the actuation process, these experimental data are used to establish empirical model for loss-factor in terms of input voltage and time using Cobb–Douglas production method. A correlation is also developed for tip deflection with applied voltage. For theoretical investigation, multimode approximation has been taken into consideration and extended Hamilton’s principle is applied for developing the governing equation of motion of the actuator. Few modes are taken into consideration, and the equations are solved numerically to obtain the transient and steady-state responses of the actuator. Theoretical steady-state results are compared and validated with the experimental results. Both theoretical and experimental results show the gradual reduction of tip displacement due to dehydration.

Keywords

Ionic polymer–metal composites loss-factor Hamilton’s principle Cobb–Douglas production function steady-state response

Introduction

Artificial muscle materials such as electroactive polymers (EAPs) mimicking the biological actuating devices are attracted much attention nowadays as new means of active actuator due to the similarity in mechanical properties, and easiness of actuation compared to that of biological systems. In the quest for advanced artificial muscle actuators, ionic polymer metal–composites (IPMCs) that belong to the class of EAPs are emerging as active materials having a wide range of applications as actuator and sensor (Bar-Cohen, 2001; Nemat-Nasser, 2002; Nguyen et al., 2008; Shahinpoor and Kim, 2001, 2005). The low-activation voltage, actuation capability in aqueous medium as well as in air environment, and light weight, makes the polymer actuator to respond that of natural muscle in many ways. The advantages make them particularly attractive for use anywhere, where a muscle-like response is desirable, including in medical devices, prostheses, microrobotics, toys, biomimetic devices, aerospace, and micro/nanoelectromechanical systems (Shahinpoor and Kim, 2005). IPMC shows considerable bending response to an applied electric potential (usually < 3 V) and produces voltage in the order of millivolts when deformed mechanically (Bonomo et al., 2008; Chen et al., 2007).

IPMC is usually composed of an ion-exchange polymer film (Nafion^®; Ion Power, Inc., New Castle, DE, USA/Flemion^®; Asahi Glass Co., Ltd., Japan) membrane, saturated with water or ionic liquid, sandwiched between two thin electrodes made up of high-conducting pure metals such as gold or platinum. The electrode serves as a medium to maintain the moisture level in the base polymer, while the moisture content in the IPMC serves as a medium for ion migration. Nemat-Nasser and Li (2000), and Lee et al. (2005) reported that when an external voltage is applied across the thickness of the electrodes, cations inside the membrane migrate toward the cathode carrying the water molecules with them, which in turn results in the mechanical bending toward the direction of anode. Thus, the quantity of water present inside the polymer influences the actuation behavior of IPMC (Kim and Shahinpoor, 2003). However, for prolonged operation, electrolysis occurs beyond certain input voltage and also moisture dehydrates due to the applied electric potential, resulting in decrease of the performance of IPMC (Bandopadhya, 2009; Jung et al., 2003; Paquette et al., 2005; Shahinpoor and Kim, 2004).

Several studies have been carried out to find the effect of water content on the actuation performance of IPMC (Enikov and Seo, 2005; Lee et al., 2005; Nemat-Nasser, 2002; Nemat-Nasser and Wu, 2003; Yeh and Shih, 2010). A physics-based model has been developed to investigate the change in stiffness with hydration level and compared with experimental data (Nemat-Nasser, 2002; Nemat-Nasser and Wu, 2003). The results show that the stiffness of the IPMC is significantly influenced by the hydration level. Electrochemical and thermal experiments were conducted by Lee et al. (2005) to investigate the effect of water content on the actuation performance of IPMC. Using a cyclic voltammogram, they showed that the electric current is proportional to the water content in the IPMC under the same electric potential. A model has been proposed, and an experimental investigation is carried out by Enikov and Seo (2005) at high voltage (>1.2 V) to find out the effect of initial water content on the current and displacement. An experimental investigation has been carried out by Yeh and Shih (2010) to find out the effect of water content on the actuation performance of IPMC under actuation time of 7200 s with alternating current (AC) voltage. They showed that with the decrease in initial water content, the actuation performance of IPMC decreases, and maximum deformation of the IPMC is obtained when the initial water content is around 70%.

When a small actuating potential is applied to a fully hydrated IPMC actuator, it shows a considerable bending vibration at that applied frequency (Nemat-Nasser and Wu, 2006). An analytical model has been developed using Euler–Bernoulli beam theory, and the vibration response of an IPMC actuator subjected to an alternative electric potential was studied (Zhang and Yang, 2007). The vibration of a slender IPMC beam in a fluid medium is also analyzed using classical Euler–Bernoulli cantilever beam theory, and the interaction between IPMC and water is described by using the concept of hydrodynamic functions (Brunetto et al., 2008). An experimental and numerical study was carried out on thrust generation of a vibrating IPMC strip in salted aqueous medium (Kim et al., 2007). In order to understand the thrust generation mechanism of an IPMC actuator, the hydrodynamics of a vibrating cantilever IPMC along its fundamental mode shape in an aqueous environment has been numerically analyzed (Abdelnour et al., 2009). One-dimensional finite element model of a vibrating IPMC has been developed to analyze the effect of hydrodynamic loading on forced vibration (Dogruer et al., 2007). Volterra series has been used to identify the nonlinearities that arise in IPMC actuator during actuation response (Kothera and Leo, 2005). Furthermore, the effect of dehydration on the vibration characteristics of an IPMC actuator has been studied by considering the average moisture loss (Biswal et al., 2009), and IPMC was used as an active vibration attenuator in large bending vibration (Bandopadhya et al., 2007, 2008).

Past researches established the fact that an IPMC actuator dehydrates continuously in an open environment, reduces initial water content with the applied electric potential, and affects significantly the actuation performance of IPMC. However, past researches indicate that limited success or no work has been done to figure out and model the continuous dehydration of IPMC actuator during working condition. Furthermore, very limited research has been carried out to address the effect of dehydration on the vibration characteristics of IPMC. In this work, efforts are given to develop a new simple but robust empirical model from the experimental data to predict continuous loss of water contents in terms of input voltage and time in the open working environment. This dehydration model is then applied to study the effect of dehydration loss on vibration response. It is proven fact that during actuation, IPMCs experiencing low-amplitude vibration during bending motion influences the system accuracy and stability. The objectives of this analysis include the following points:

To investigate and evaluate the loss of water content (loss-factor) in the open working environment.

To analyze the vibration characteristics of IPMC actuator under direct current (DC) potential gradient.

To demonstrate the effect of dehydration on vibration response both theoretically and experimentally.

To estimate the moisture loss, experiment is conducted with an IPMC actuator with varying input voltage. At the beginning of the experiment, the moisture content is assumed to be 100% and then the dehydration is estimated gradually on account of bending deflection loss. Based on the experimentally obtained deflection data, a power fit correlation is established for “loss-factor” in terms of input voltage and time using Cobb–Douglas production method. Theoretical modeling of the actuator is done using multimode approximation of fixed-free configuration, and the governing equation of motion of the actuator has been derived by using the extended Hamilton’s principle incorporating loss due to dehydration. The obtained multidegree-of-freedom system equation has been solved numerically to obtain the transient and steady-state vibration responses. Several experiments are conducted to investigate the vibration characteristics, and the results are validated and compared with the dehydration model.

Calculation of loss-factor

An IPMC actuator of silver electrode is developed and prepared in the laboratory and cut into a size of 20 mm × 5 mm × 0.2 mm for the experimental study. A Nafion-117 membrane (Ion Power, Inc.) with a standard thickness of 0.183 mm is used as the base polymer for fabrication. The process comprises multisteps including pretreatment, adsorption, reduction, and development. Silver nitrate (AgNO₃) with dilute ammonia solution (NH₃) is used to prepare the diamminesilver(I) hydroxide, and Ag (NH₃)₂OH–silver complex solution is used for providing the cations (Ag⁺). Sodium hydroxide (NaOH) is used for providing Na⁺ cations into the membrane; dextrose anhydrous GR (C₆H₁₂O₆), as an agent to reduce the silver cations into silver metal; hydrochloric acid (HCl), 2N solution, as cleaning agent; and finally, deionized/distilled water (Merck Specialities Pvt Ltd., Mumbai, India) is used for rinsing and washing. The detailed fabrication process is outlined in Biswal et al. (2011). The photographs of the Nafion membrane and the fabricated IPMC are shown in Figure 1(a) and (b), respectively.

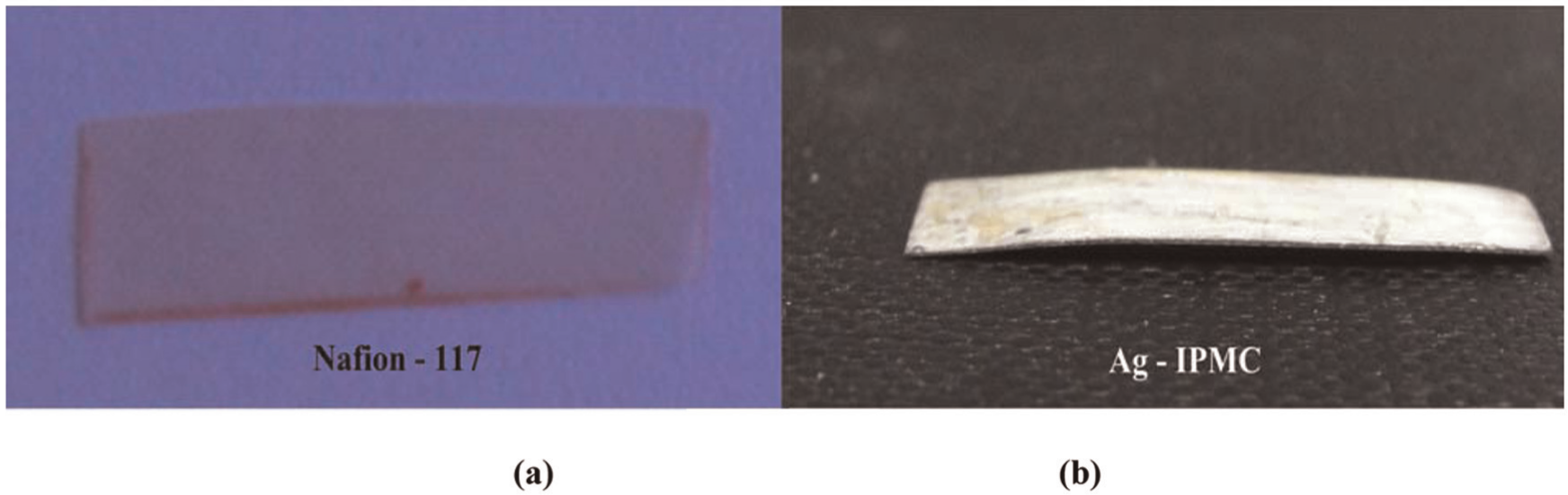

Figure 1.

Photograph of the (a) Nafion membrane and (b) Ag-IPMC.

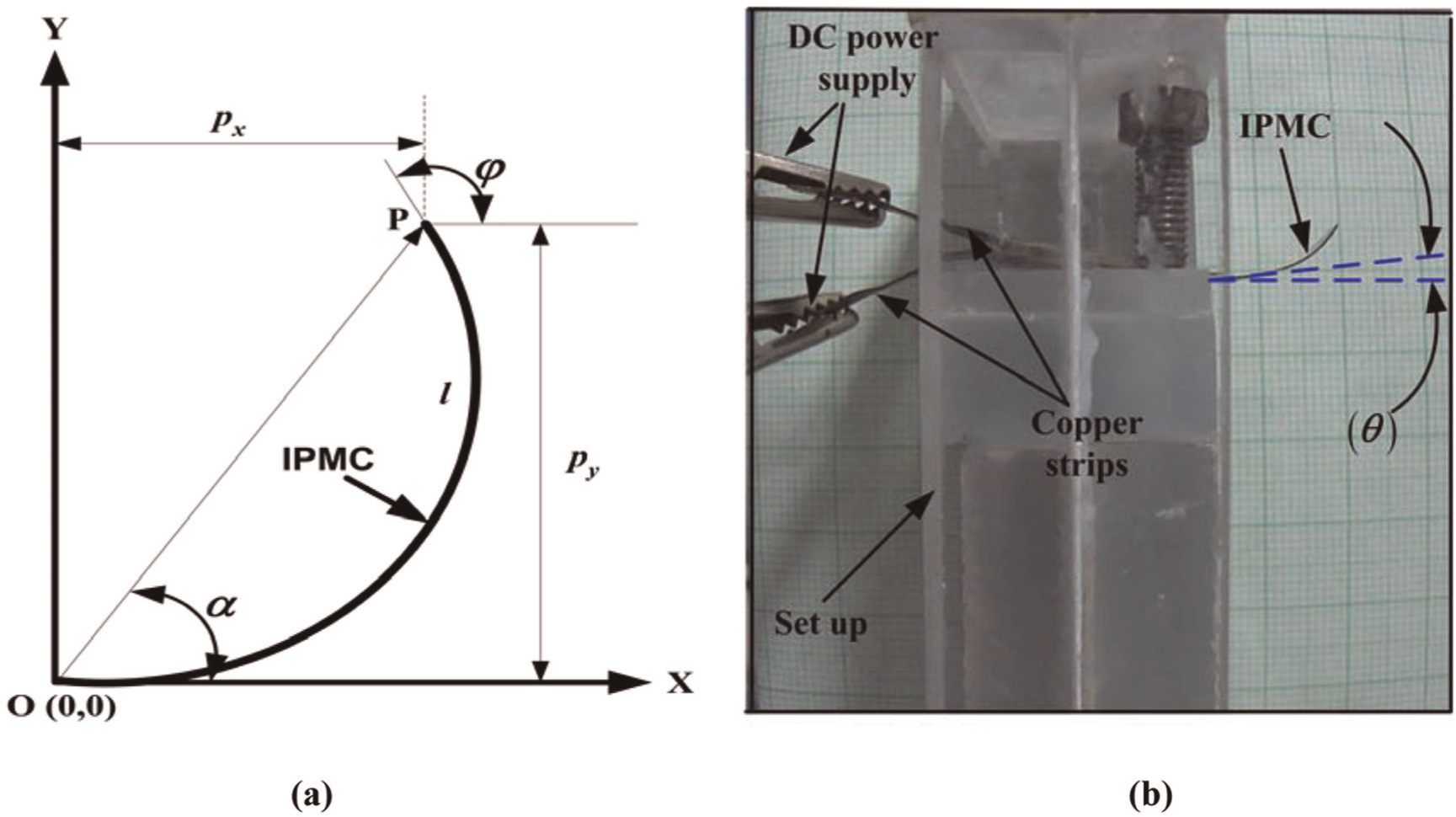

Figure 2(a) shows the schematic diagram of bending configuration, while Figure 2(b) shows the experimental setup to obtain the bending characteristics of the IPMC actuator subjected to input voltage (V). The experiment is conducted in hydrated state in fixed-free mode. Voltage is applied from a DC power supply (0–32 V DC, 0–2 A) through copper strips attached to the fixed end. Subsequently, the tip deflection of IPMC is measured and the bending characteristics are calibrated. Experimentally, the dehydration loss is studied for the same IPMC sample subjected to an input voltage of 0.2–1.2 V with an increment of 0.2 V. Before starting the experiment, the IPMC is considered as fully hydrated, that is, moisture content is assumed to be 100% (reference value), while dehydration is zero. For each input voltage after 30 s (sufficient time is allowed to settle any back relaxation effect and to attain the steady-state), the tip position ( $p_{x}, p_{y}$ ) of the IPMC has been measured that are given in Table 1.

Figure 2.

(a) Bending configuration and (b) setup for bending experiment of IPMC for an input voltage V.

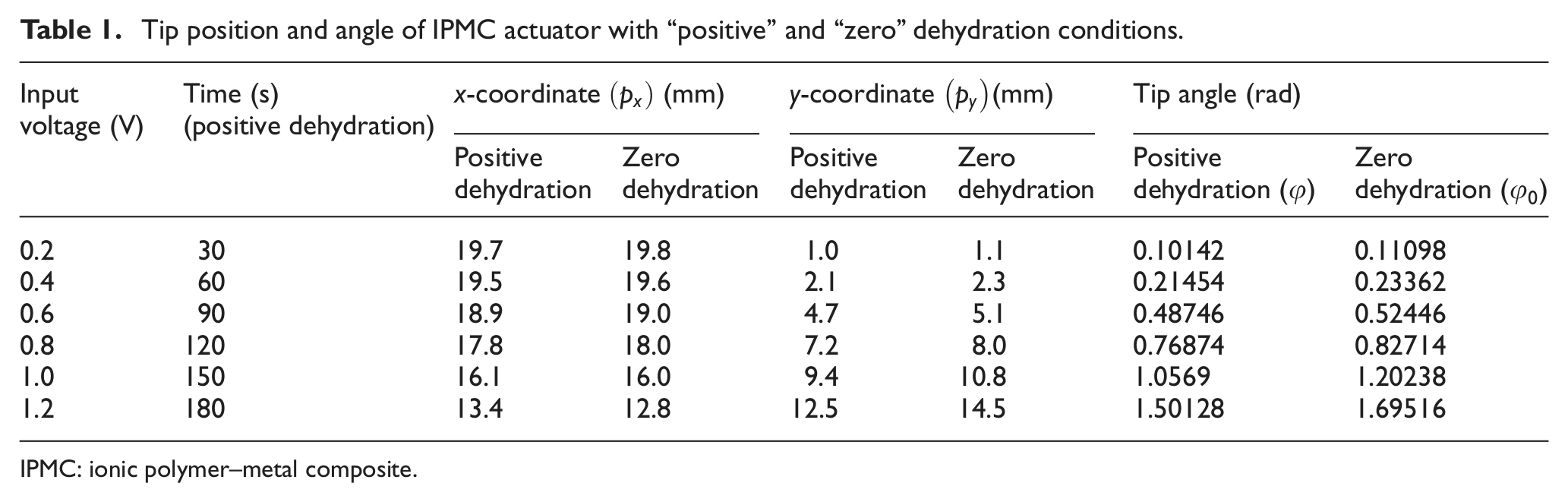

Table 1.

Tip position and angle of IPMC actuator with “positive” and “zero” dehydration conditions.

Input voltage (V)	Time (s) (positive dehydration)	x-coordinate $(p_{x})$ (mm)		y-coordinate $(p_{y})$ (mm)		Tip angle (rad)
		Positive dehydration	Zero dehydration	Positive dehydration	Zero dehydration	Positive dehydration ( $φ$ )	Zero dehydration ( $φ_{0}$ )
0.2	30	19.7	19.8	1.0	1.1	0.10142	0.11098
0.4	60	19.5	19.6	2.1	2.3	0.21454	0.23362
0.6	90	18.9	19.0	4.7	5.1	0.48746	0.52446
0.8	120	17.8	18.0	7.2	8.0	0.76874	0.82714
1.0	150	16.1	16.0	9.4	10.8	1.0569	1.20238
1.2	180	13.4	12.8	12.5	14.5	1.50128	1.69516

IPMC: ionic polymer–metal composite.

To obtain experimentally the tip position ( $p_{x}, p_{y}$ ) for zero dehydration, the same IPMC sample has been taken for each time in fully hydrated condition. After each experiment, the IPMC is retrieved and allowed to hydrate in aqueous deionized water and used for another set of experiment. The obtained tip positions for “zero dehydration” are given in Table 1. The tip angle with dehydration can be obtained as $φ = 2 {\tan^{-}}^{1} (p_{y} / p_{x})$ (Bandopadhya and Njuguna, 2009) as shown in Figure 2(a). Similarly, one may obtain the tip angle in “zero dehydration” ( $φ_{0}$ ) using the same formula. The calculated $φ$ and $φ_{0}$ values for the given input voltages are given in Table 1. As there is loss in bending moment due to dehydration during working, the bending moment at any instant $(t)$ for an input voltage (V) can be expressed as follows

M = M_{0} - M_{0} λ

(1)

where, $M$ and $M_{0}$ are the bending moment of the actuator for “positive” and “zero” dehydration conditions, respectively, and $λ$ is the “loss-factor.”

Assuming pure bending, that is, $M = EI / R = EI / (l / φ) = EI φ / l$ , equation (1) can be reduced to

\frac{EI φ}{l} = \frac{EI φ_{0}}{l} (1 - λ)

(2)

Simplifying equation (2), one can rewrite the equation as

λ = 1 - \frac{φ}{φ_{0}}

(3)

where $EI$ is the flexural rigidity of IPMC, $R$ is the radius of curvature, and $φ$ and $φ_{0}$ are the measurable parameters. As the IPMC dehydrates continuously in working condition, the primary goal is to develop an empirical model satisfying the working condition that can predict the loss of dehydration for any instant $(t)$ and input voltage (V). It is observed that the tip position and hence the tip angle depend on the applied voltage and actuation time while assuming temperature remains constant during the experiment. Therefore, the loss-factor also depends on these parameters and hence a power fit correlation is proposed as

λ (V, t) = ϒ V^{a} t^{b}

(4)

where $ϒ$ , $a$ , and $b$ are the constants and depend on the material properties. Equation (4) also can be written as

\ln (λ (V, t)) = \ln (ϒ) + a \ln (V) + b \ln (t)

(5)

The goal is to develop a power fit correlation using Cobb–Douglas production method that correlates the loss-factor $(λ)$ in terms of input voltage ( $V$ ) and actuation time $(t)$ . Using equation (5) and the experimental data given in Table 1, a set of equations have been developed and are solved by the Cobb–Douglas production method. The resulting expression for the loss-factor is obtained as

λ (V, t) = 0.9626 V^{0.7184} t^{- 0.681}, V \geq 0, t > 0

(6)

Loss-factor for various voltages with time has been calculated subsequently and is given in Table 2. It is observed that with constant input voltage, loss-factor decreases continuously with time, although it increases as the input voltage increases. Figure 3(a) and (b) shows the variation of loss-factor with actuation time and applied voltage, respectively. These results are in good agreement with the observation that initial water content decreases with time (Enikov and Seo, 2005) and also that larger electric potential causes more loss of water content (Yeh and Shih, 2010). Furthermore, it is observed that for a given input voltage, as the loss-factor decreases with time, there is a gradual reduction of actual bending moment and hence the tip deflection of the actuator. Table 3 shows both the estimated data (using equation (6)) and the observed data at zero dehydration for 30 s.

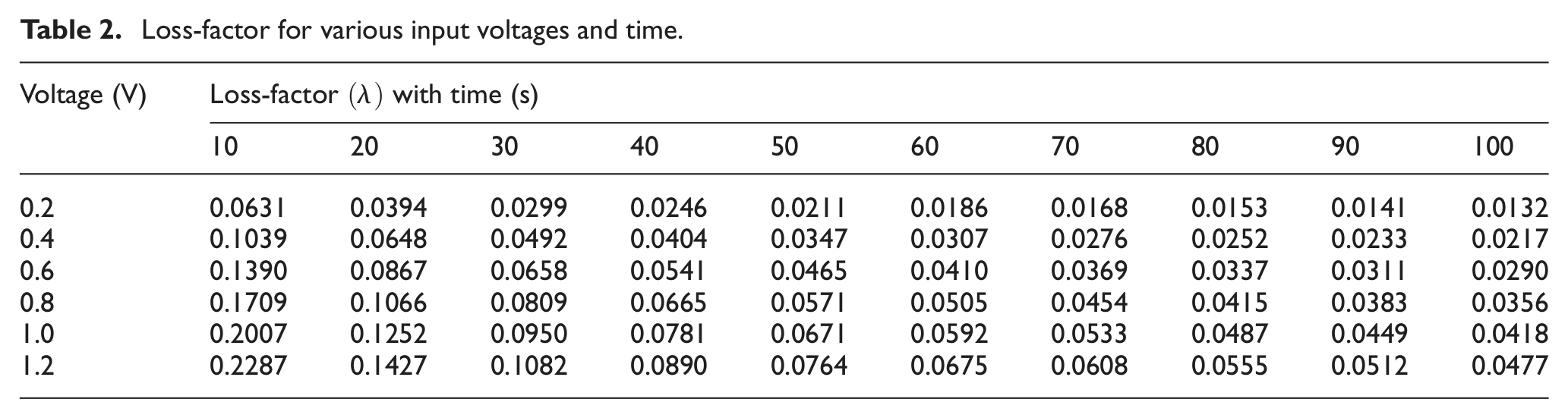

Table 2.

Loss-factor for various input voltages and time.

Voltage (V)	Loss-factor $(λ)$ with time (s)
	10	20	30	40	50	60	70	80	90	100
0.2	0.0631	0.0394	0.0299	0.0246	0.0211	0.0186	0.0168	0.0153	0.0141	0.0132
0.4	0.1039	0.0648	0.0492	0.0404	0.0347	0.0307	0.0276	0.0252	0.0233	0.0217
0.6	0.1390	0.0867	0.0658	0.0541	0.0465	0.0410	0.0369	0.0337	0.0311	0.0290
0.8	0.1709	0.1066	0.0809	0.0665	0.0571	0.0505	0.0454	0.0415	0.0383	0.0356
1.0	0.2007	0.1252	0.0950	0.0781	0.0671	0.0592	0.0533	0.0487	0.0449	0.0418
1.2	0.2287	0.1427	0.1082	0.0890	0.0764	0.0675	0.0608	0.0555	0.0512	0.0477

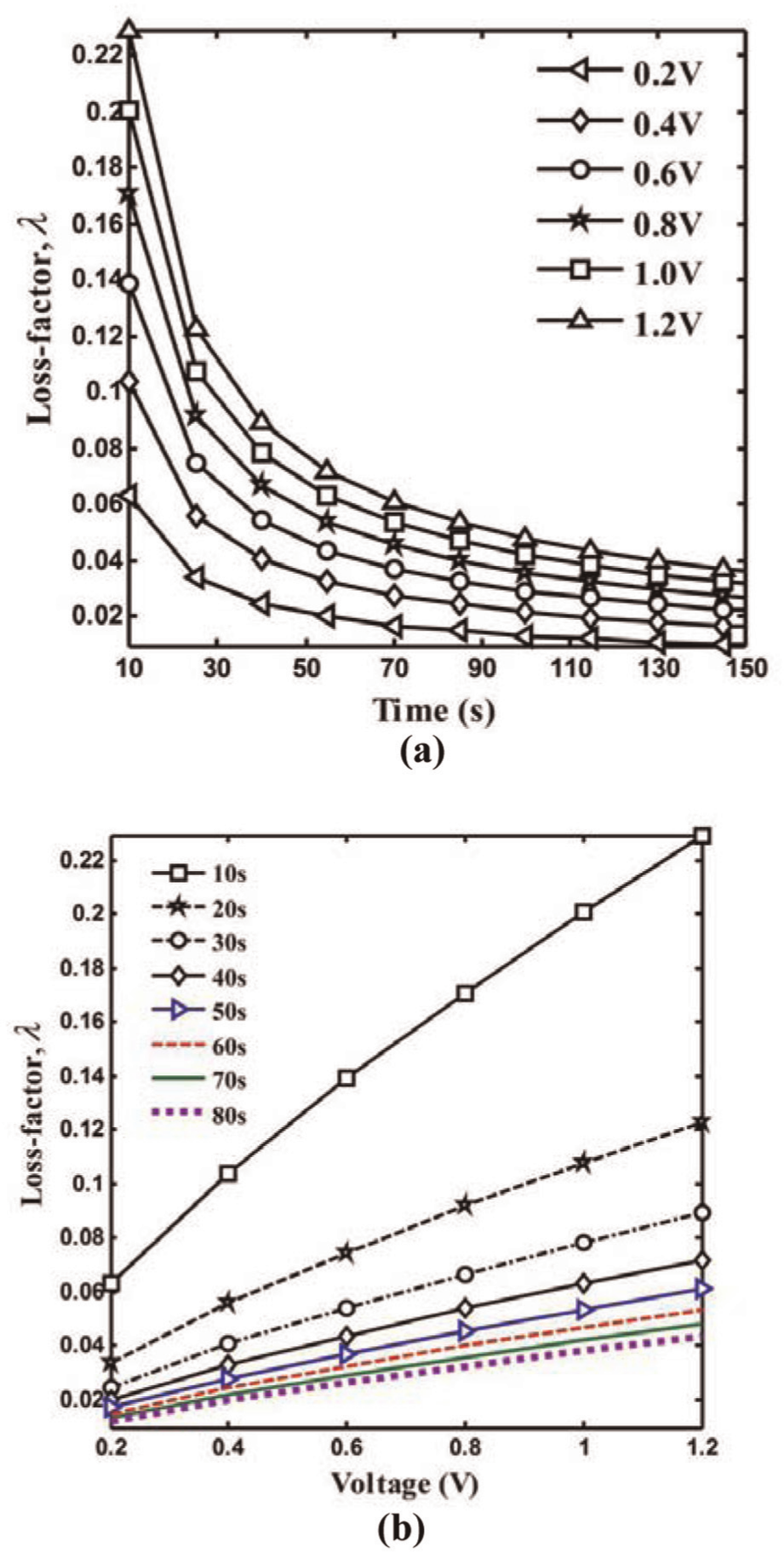

Figure 3.

Variation of loss-factor with (a) time and (b) input voltage.

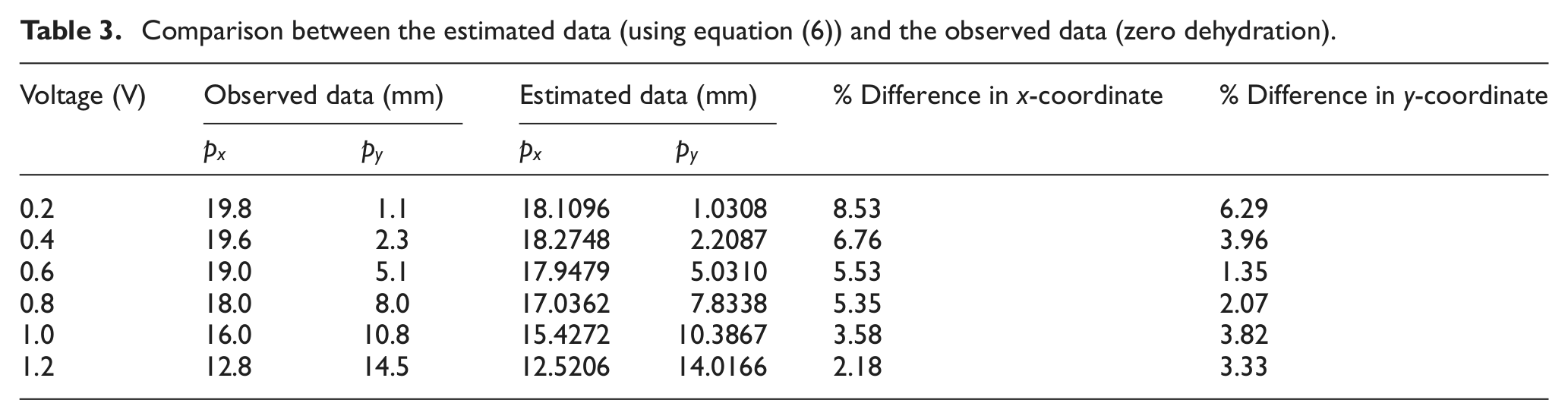

Table 3.

Comparison between the estimated data (using equation (6)) and the observed data (zero dehydration).

Voltage (V)	Observed data (mm)		Estimated data (mm)		% Difference in x-coordinate	% Difference in y-coordinate
	$p_{x}$	$p_{y}$	$p_{x}$	$p_{y}$
0.2	19.8	1.1	18.1096	1.0308	8.53	6.29
0.4	19.6	2.3	18.2748	2.2087	6.76	3.96
0.6	19.0	5.1	17.9479	5.0310	5.53	1.35
0.8	18.0	8.0	17.0362	7.8338	5.35	2.07
1.0	16.0	10.8	15.4272	10.3867	3.58	3.82
1.2	12.8	14.5	12.5206	14.0166	2.18	3.33

Bending characteristics of IPMC

The experimental data obtained, as given in Table 1, are used to establish relationship between bending moment and tip deflection with input voltage. Treating IPMC as continuous distributed parameter system with large deflection bending problem and using the Euler–Bernoulli bending-curvature relationship, one can establish the following relationship

\frac{d φ}{ds} = \frac{M}{EI} = \frac{d φ}{dy} \frac{dy}{ds} = \frac{d φ}{dy} \sin φ

(7)

where $d φ / ds$ is the rate of change in angular deflection along the IPMC strip (curvature $s$ ), $φ$ is the tip angle as shown in Figure 2(a), and $EI$ is the flexural rigidity of IPMC. Separating the variables and integrating, tip position $P (p_{x}, p_{y})$ of the actuator is obtained as

\int_{0}^{p_{y}} dy = \frac{EI}{M} \int_{0}^{φ} \sin φ d φ

(8)

p_{y} = \frac{EI}{M} (1 - \cos φ)

(9)

Similarly

p_{x} = \frac{EI}{M} \sin φ

(10)

The bending moment and force generated by the actuator are obtained as

F = \frac{M}{p_{x}}

(11)

The experimental data for tip position $(p_{x}, p_{y})$ with an applied voltage $(V)$ as given in Table 1 is plotted in Figure 4. The experimental results are approximated by third-order polynomial curve fitting technique and the following expression is obtained between $(p_{y})$ and $(V)$

\begin{matrix} p_{y} = - 4.1667 V^{3} + 12.5 V^{2} + 1.1667 V \\ + 0.2, R^{2} = 0.9971, 0.2 \leq V \leq 1.2 \end{matrix}

(12)

Similarly

\begin{matrix} p_{x} = - 3.819 V^{3} + 0.476 V^{2} - 0.3948 V \\ + 18.8, R^{2} = 0.9999, 0.2 \leq V \leq 1.2 \end{matrix}

(13)

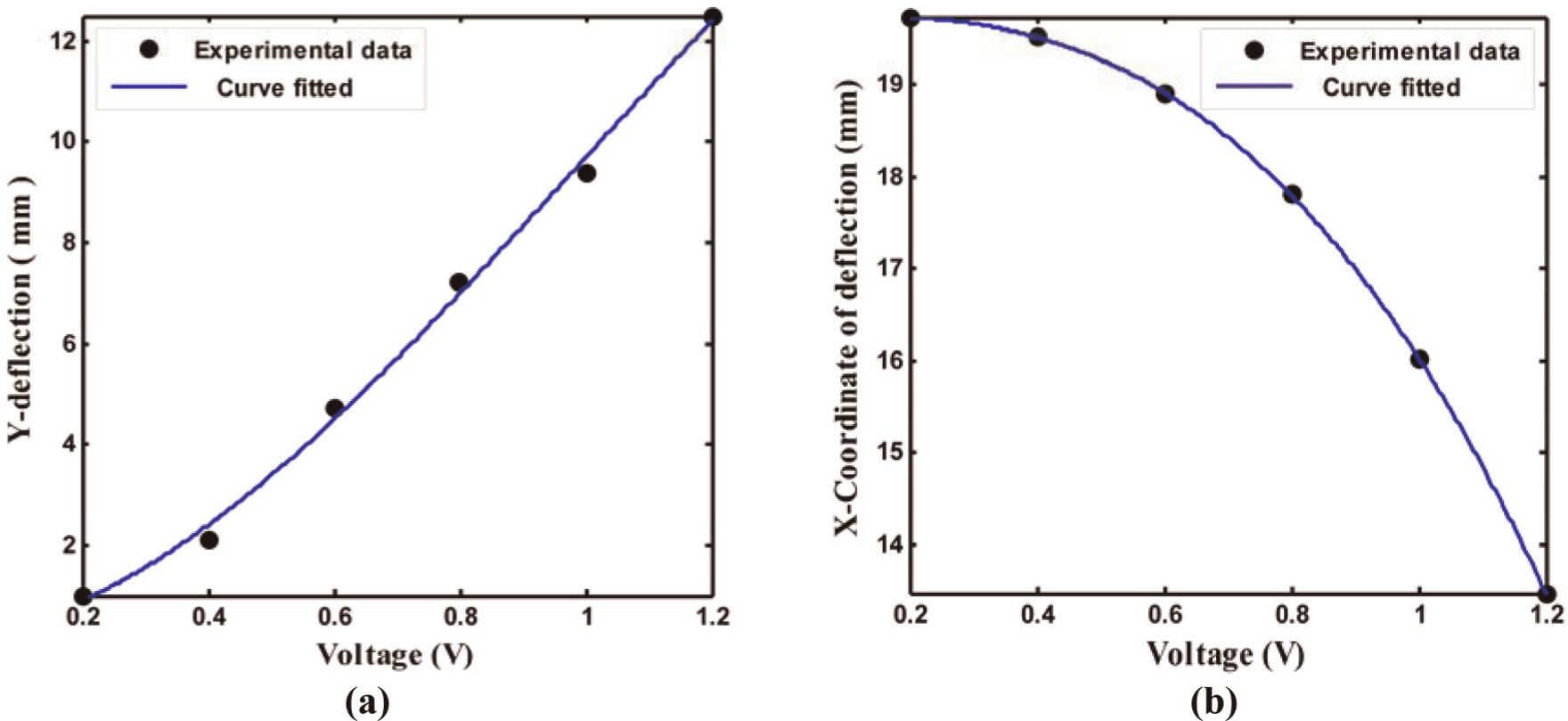

Figure 4.

Change in tip position with input voltage: (a) y-coordinate and (b) x-coordinate of the tip position.

Taking the material properties of the actuator as given in Table 4 and using equation (9), the bending moment obtained for various input voltage is shown in Figure 5. It is observed that the bending moment gradually decreases due to dehydration in working environment. The bending moment developed depends on the moisture contents and subsequently the movement of ions within IPMC and the backbone materials. Figure 6 shows the effect of dehydration on the bending pattern of IPMC for various input voltages.

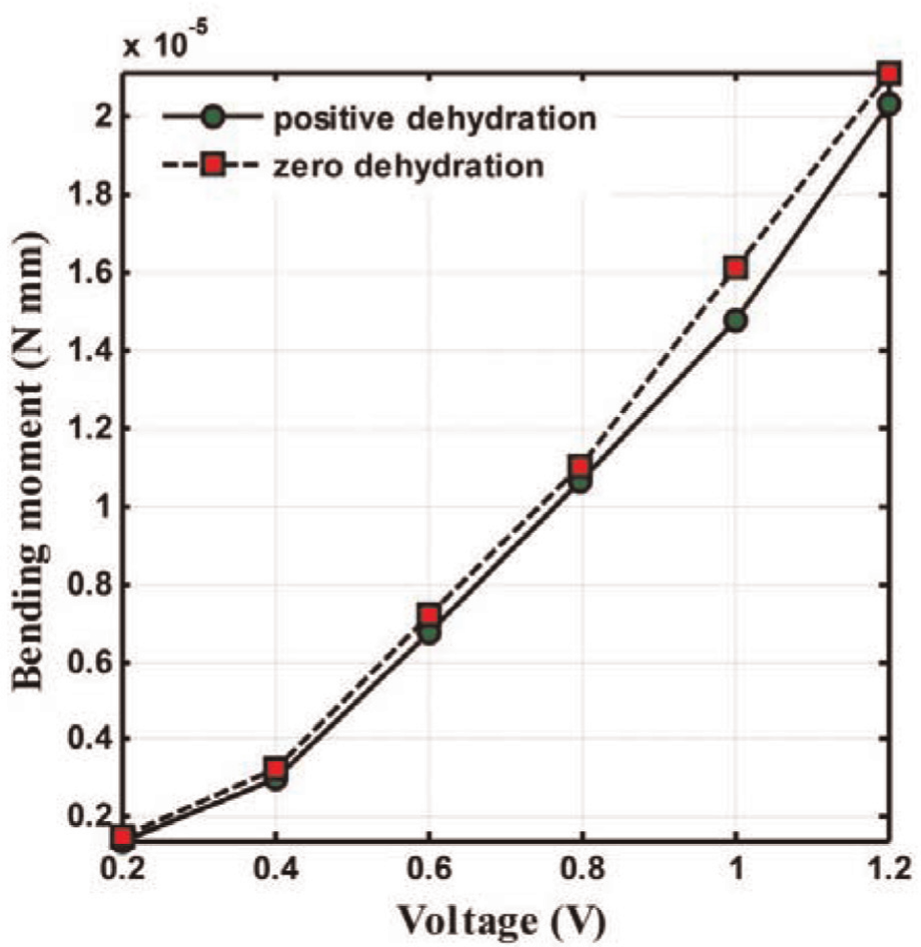

Figure 5.

Bending moment generated for various input voltages.

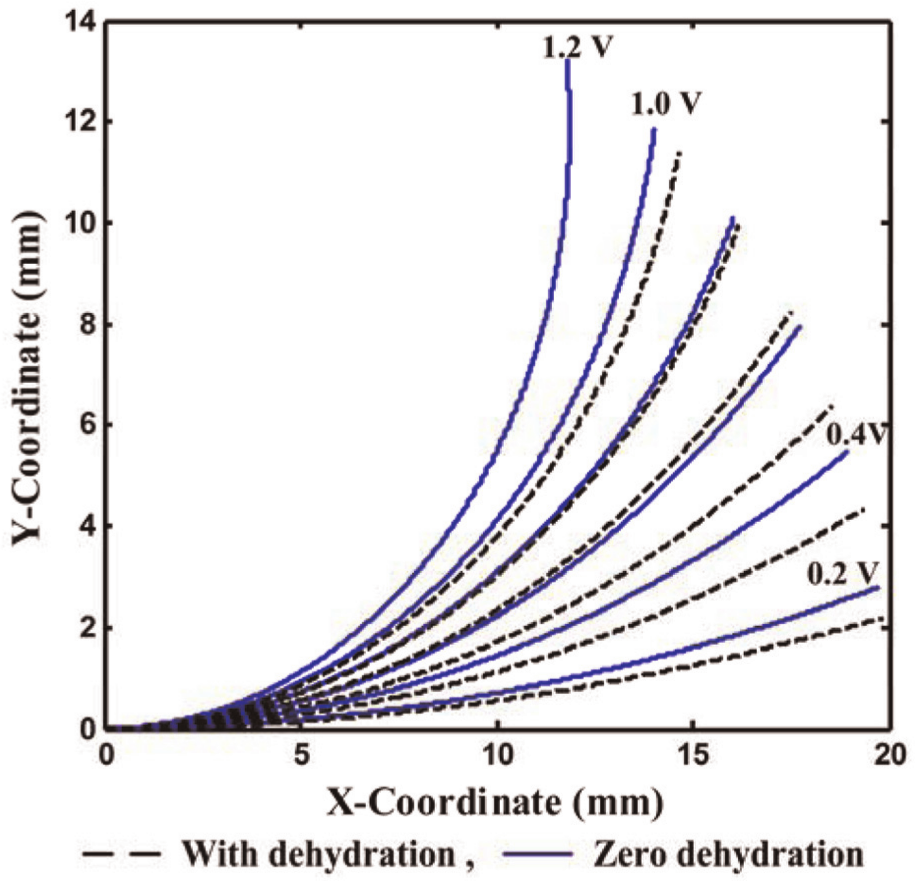

Figure 6.

Bending deflection of IPMC for various input voltages.

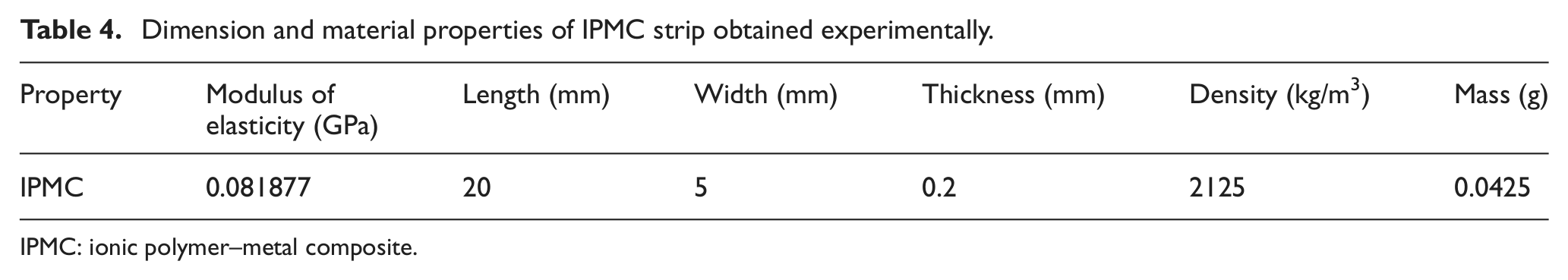

Table 4.

Dimension and material properties of IPMC strip obtained experimentally.

Property	Modulus of elasticity (GPa)	Length (mm)	Width (mm)	Thickness (mm)	Density (kg/m³)	Mass (g)
IPMC	0.081877	20	5	0.2	2125	0.0425

IPMC: ionic polymer–metal composite.

Modeling of the IPMC actuator

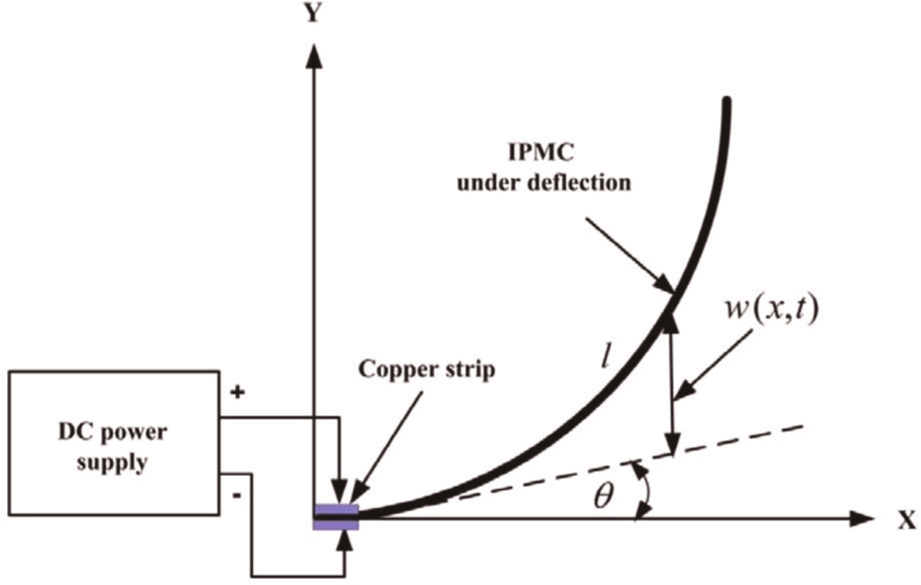

Figure 7 shows the schematic bending configuration of the IPMC actuator in cantilever mode subjected to an electric potential at the fixed end across its thickness. The actuator is modeled as a continuous distributed parameter system where the bending deflection is assumed to be consisting of two components, namely, displacement due to rigid-body motion ( $x θ$ ) and displacement due to the flexibility of the structure $(w)$ , as shown in Figure 7. The actuator is assumed as an Euler–Bernoulli beam. As shown in Figure 7, $w$ is the transverse displacement at any location “x.” Extended Hamilton’s principle is applied for deriving the governing equation of motion of the system and is discussed subsequently in the following subsections.

Figure 7.

Schematic configuration of an IPMC actuator for an input voltage V.

Kinetic energy of the system

Velocity $(v)$ at any point at a distance $x$ on the link can be expressed as

v = x \overset{\cdot}{θ} + \overset{\cdot}{w}

(14)

where $θ$ is the angle between the undeformed IPMC actuator (x-axis) and the tangent to the deformed actuator at zero slopes, as shown in Figure 7. A similar modeling approach was also found in the literature (Bandopadhya et al., 2007; Wang and Vidyasagar, 1989). The kinetic energy of the actuator $(T_{a})$ can be expressed as

\begin{matrix} T_{a} = \frac{1}{2} \int_{0}^{l} ρ A (x \overset{\cdot}{θ} + \overset{\cdot}{w})^{2} dx = \frac{ρ A}{2} \int_{0}^{l} (x^{2} {\overset{\cdot}{θ}}^{2} + 2 x \overset{\cdot}{θ} \overset{\cdot}{w} + {\overset{\cdot}{w}}^{2}) dx \end{matrix}

(15)

Here, $ρ$ is the mass density of the IPMC material and $A$ is the area of cross section of the link. Considering multimode approximation, $w$ can be written as follows

w (x, t) = \sum_{i = 1}^{n} ψ_{i} (x) q_{i} (t)

(16)

Here, $n$ is the number of participating modes in the approximation and $ψ_{i} (x)$ and $q_{i} (t)$ are the admissible function and time modulation, respectively. The admissible function $ψ_{i} (x)$ is considered to be same as the eigenfunction of a cantilever beam that is given by

\begin{matrix} ψ_{i} (x) = - \frac{(\cos {(β l)}_{i} + \cosh {(β l)}_{i})}{(\sin {(β l)}_{i} + \sinh {(β l)}_{i})} (\sin (β x)_{i} \\ - \sinh (β x)_{i}) + (\cos (β x)_{i} - \cosh (β x)_{i}) \end{matrix}

(17)

where $i = 1, 2, 3, \dots n$ and $β l$ can be obtained from the following characteristic equation

\cos β l \cosh β l = - 1

(18)

For the first three modes, ${(β l)}_{1} = 1.8751, {(β l)}_{2} = 4.6941 and {(β l)}_{3} = 7.8548$ . Substituting the expression of equation (16) into equation (15) and arranging the coefficients of $θ$ and $q$ , the kinetic energy of the actuator can be written as

\begin{matrix} T_{a} = \frac{1}{2} ρ A \frac{l^{3}}{3} {\overset{\cdot}{θ}}^{2} + ρ A \int_{0}^{1} x \sum_{i = 1}^{n} ψ_{i} (x) {\overset{\cdot}{q}}_{i} \overset{\cdot}{θ} dx \\ + \frac{1}{2} ρ A \int_{0}^{1} \sum_{i = 1}^{n} \sum_{j = 1}^{n} {\overset{\cdot}{q}}_{i} ψ_{i} {\overset{\cdot}{q}}_{j} dx \end{matrix}

(19)

T_{a} = \frac{1}{2} I_{tt} {\overset{\cdot}{θ}}^{2} + \sum_{i = 1}^{n} I_{t q_{ii}} \overset{\cdot}{θ} {\overset{\cdot}{q}}_{i} + \frac{1}{2} \sum_{i = 1}^{n} \sum_{j = 1}^{n} {\overset{\cdot}{q}}_{i} I_{q q_{ij}} {\overset{\cdot}{q}}_{j}

(20)

where $I_{tt} = ρ A (l^{3} / 3), I_{t q_{ii}} = ρ A \int_{0}^{l} x ψ_{i} (x) dx, I_{q q_{ij}} = \int_{0}^{l} ψ_{i} (x) ρ A ψ_{j} (x) dx$

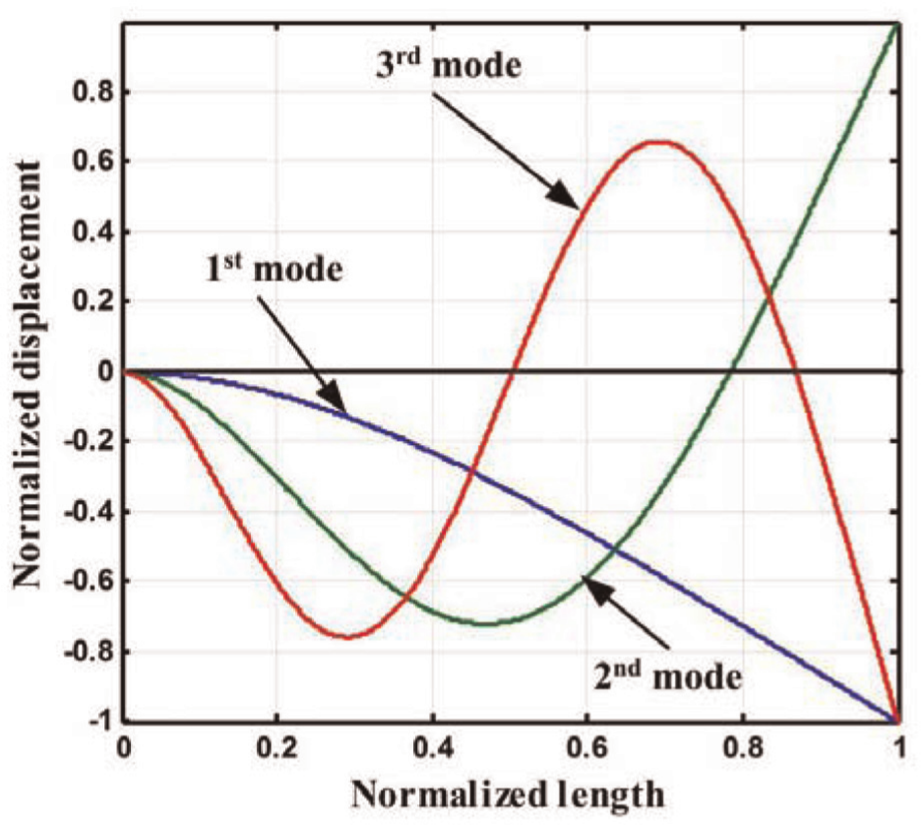

Figure 8 shows the first three mode shapes of vibration of the actuator.

Figure 8.

First three mode shapes of vibration of the IPMC actuator.

Potential energy of the system

The potential energy of the system is due to only deformation of the actuator as the motion is restricted in the horizontal plane. Therefore, neglecting gravitational effect, the potential energy of the system can be expressed as

V_{a} = \frac{1}{2} \int_{0}^{1} EI {[\frac{\partial^{2} w}{\partial x^{2}}]}^{2} dx

(21)

Substituting equation (16) into equation (21), one may write

\begin{matrix} V_{a} = \frac{1}{2} \int_{0}^{l} EI {[\frac{\partial^{2} w}{\partial x^{2}}]}^{2} dx = \frac{1}{2} \int_{0}^{l} EI {[\sum_{i = 1}^{n} \frac{\partial^{2} ψ_{i}}{\partial x^{2}} (x) q_{i} (t)]}^{2} dx \\ = \sum_{i = 1}^{n} \sum_{j = 1}^{n} q_{i}^{T} [\frac{1}{2} \int_{0}^{l} EI \frac{\partial^{2} ψ_{i}}{\partial x^{2}} \frac{\partial^{2} ψ_{j}}{\partial x^{2}} dx] q_{j} = \frac{1}{2} \sum_{i = 1}^{n} \sum_{j = 1}^{n} q_{i}^{T} K_{ij} q_{j} \end{matrix}

(22)

where $K_{ij} = \int_{0}^{l} (\partial^{2} ψ_{i} / \partial x^{2}) EI (\partial^{2} ψ_{j} / \partial x^{2}) dx$

Work done due to damping and input voltage

Work done due to structural damping of the actuator can be expressed as

W_{c} = \frac{1}{2} \int_{0}^{1} C {\overset{\cdot}{w}}^{2} dx

(23)

Here, $C$ is the equivalent viscous damping coefficient assumed in this work. Substituting equation (16) into equation (23), one may write

W_{c} = \frac{1}{2} C \int_{0}^{l} {[\sum_{i = 1}^{n} ψ_{i} (x) {\overset{\cdot}{q}}_{i} (t)]}^{2} dx = \frac{1}{2} \sum_{i = 1}^{n} \sum_{j = 1}^{n} {\overset{\cdot}{q}}_{i}^{T} C_{ij} {\overset{\cdot}{q}}_{j}

(24)

where $C_{ij} = \int_{0}^{l} ψ_{i} (x) C ψ_{j} (x) dx$

Furthermore, work done by IPMC actuator is due to the bending moment generated by the applied electric potential. Assuming an equivalent force $F$ acting at the tip of the actuator (at x = l), which causes the same bending moment $M$ due to the applied voltage, the work done due to infinitesimal bending $δ θ$ can be written as follows

δ W_{a} = M δ θ = M_{0} (1 - λ) δ θ = {F (x, V, t) . p_{x}} δ θ

(25)

where $λ$ is the loss-factor, the expression of which is derived in the ‘Calculation of loss-factor’ section. Also, M and M₀ are the bending moments generated due to the applied electric potential for “positive” and “zero” dehydration conditions, respectively. The force $F (x, V, t)$ depends on the applied voltage and the material properties of the IPMC actuator as discussed in section “Bending characteristics of IPMC.” It may be noted that for fully hydrated system, $λ = 0$ .

Equation of motion of the system

Clubbing together the expression for total kinetic and potential energies, work done and then applying the extended Hamilton’s principle

\int_{t_{1}}^{t_{2}} (δ T_{a} - δ V_{a} - δ W_{c} + δ W_{a}) dt = 0

(26)

The equation of motion is obtained as follows

\int_{t_{1}}^{t_{2}} δ T_{a} dt = - I_{tt} \int_{t_{1}}^{t_{2}} \overset{\cdot\cdot}{θ} δ θ dt - I_{t q_{ii}} \int_{t_{1}}^{t_{2}} \overset{\cdot\cdot}{θ} δ q_{i} dt - I_{t q_{ii}} \int_{t_{1}}^{t_{2}} {\overset{\cdot\cdot}{q}}_{i} δ θ dt - I_{q q_{ij}} \int_{t_{1}}^{t_{2}} {\overset{\cdot\cdot}{q}}_{i} δ q_{i} dt

\int_{t_{1}}^{t_{2}} δ V_{a} dt = \int_{t_{1}}^{t_{2}} K_{ij} q_{i} δ q_{i} dt

\int_{t_{1}}^{t_{2}} δ W_{c} dt = \int_{t_{1}}^{t_{2}} C_{ij} {\overset{\cdot}{q}}_{i} δ q_{i} dt

\int_{t_{1}}^{t_{2}} δ W_{a} dt = \int_{t_{1}}^{t_{2}} M δ θ dt = \int_{t_{1}}^{t_{2}} M_{0} (1 - λ) δ θ dt

Substituting the value of $δ T_{a}, δ V_{a}, δ W_{c}, and δ W_{a}$ in equation (26), and clubbing the coefficients of $δ θ δ t$ and $δ q δ t$ together, the equation is simplified to

\begin{matrix} = \int_{t_{1}}^{t_{2}} [- I_{tt} \overset{\cdot\cdot}{θ} - I_{t q_{ii}} {\overset{\cdot\cdot}{q}}_{i} + M_{0} (1 - λ)] δ θ dt \\ + \int_{t_{1}}^{t_{2}} [- I_{t q_{ii}} \overset{\cdot\cdot}{θ} - I_{q q_{ij}} {\overset{\cdot\cdot}{q}}_{i} - C_{ij} q_{i} - K_{ij} q_{i}] δ q_{i} dt = 0 \end{matrix}

(27)

As $δ θ$ and $δ q_{i}$ are the virtual displacements and can take any value, the terms in the square brackets are set to zero to get the equation of motions of the system in terms of mass $(I_{s})$ , damping $(C_{s})$ , and stiffness $(K_{s})$ matrices as

I_{s} \overset{\cdot\cdot}{Θ} + C_{s} \overset{\cdot}{Θ} + K_{s} Θ = M_{s}

(28)

where

I_{s} = (\begin{matrix} I_{tt} & I_{t q_{11}} & I_{t q_{12}} & I_{t q_{13}} \\ I_{t q_{11}} & I_{q q_{11}} & 0 & 0 \\ I_{t q_{21}} & 0 & I_{q q_{22}} & 0 \\ I_{t q_{31}} & 0 & 0 & I_{q q_{33}} \end{matrix})

C_{s} = (\begin{matrix} C_{11} & C_{12} & C_{13} & C_{14} \\ C_{21} & C_{22} & C_{23} & C_{24} \\ C_{31} & C_{32} & C_{33} & C_{34} \\ C_{41} & C_{42} & C_{43} & C_{44} \end{matrix})

K_{s} = (\begin{matrix} 0 & 0 & 0 & 0 \\ 0 & K_{11} & 0 & 0 \\ 0 & 0 & K_{22} & 0 \\ 0 & 0 & 0 & K_{33} \end{matrix})

M_{s} = (\begin{matrix} M_{0} (1 - λ) \\ 0 \\ 0 \\ 0 \end{matrix})

ϒ = (\begin{matrix} θ \\ q_{1} \\ q_{2} \\ q_{3} \end{matrix})

Equation (28) is solved using RK4 method to obtain $θ, q_{1,} q_{2}, and q_{3}$ , which can be further used to obtain the position of the actuator at a given voltage. Damping matrix is considered to be Rayleigh proportional type and can be expressed as $C_{s} = α I_{s} + β K_{s}$ , where $α and β$ are the parameters obtained from the experiment.

Results and discussion

Numerical results

Numerical simulation are performed for a single-patch IPMC actuator taking into account of the experimental data as given in Table 1 and the physical properties of the IPMC as given in Table 4. Unlike in most of the analyses where single-mode study is done, in this study, first three modes have been taken into consideration for analysis. The governing equation of motion of the system (equation (28)) is solved subsequently to obtain the vibration response for various input voltage. For simulation, the $α and β$ values are obtained as 0.0860 and 0.0032, respectively. All the results show the vibration response with dehydration and also for the zero dehydration condition. In the experiment, tip deflection data are measured in steady-state for various input voltages. Thus, in numerical study, vibration response data are plotted and the steady-state results are taken for both the cases (positive and zero dehydration conditions), and the results are compared subsequently. The vibration response for various input voltages has been plotted for the first three modes as shown in Figure 9. It is observed that for a particular input voltage, the high transient response gradually diminishes with time and reaches steady state. Furthermore, it is also observed that as the input voltage increases, the amplitude of vibration increases rapidly but the response diminishes at a faster rate with time. It may also be noted that with “positive” dehydration, the amplitude of vibration reduces to hydrated condition.

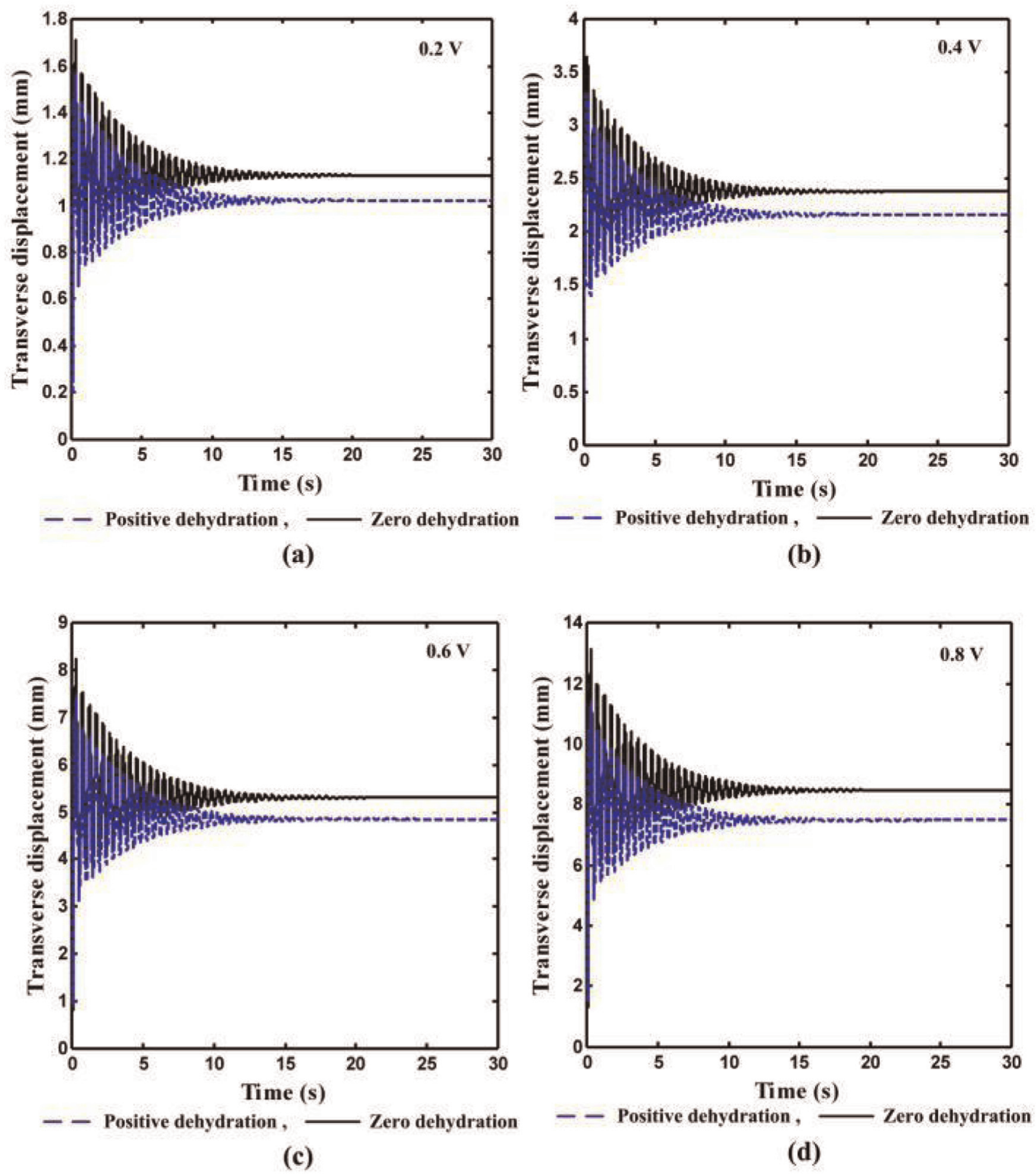

Figure 9.

Vibration response of the IPMC actuator with various input voltages: (a) 0.2, (b) 0.4, (c) 0.6, and (d) 0.8 V.

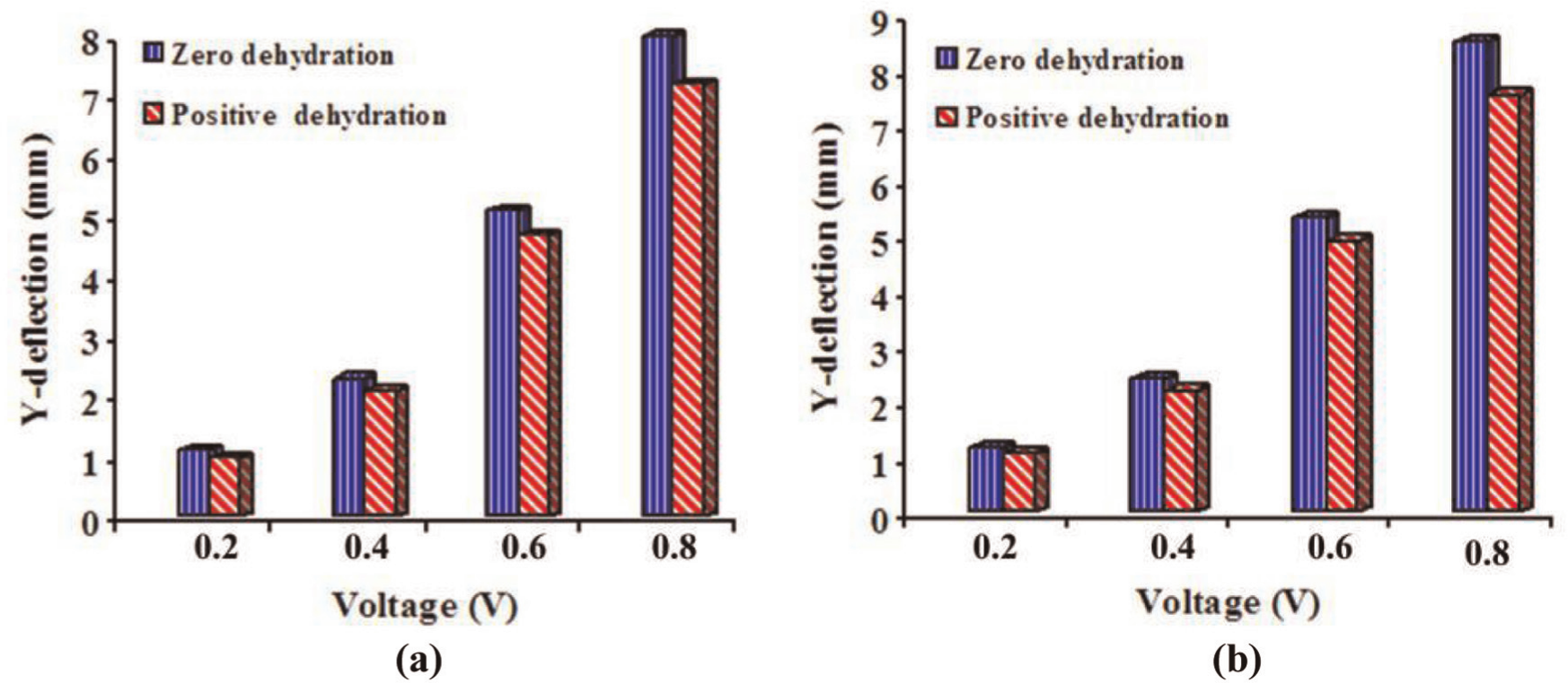

Figure 10(a) and (b) shows the comparative study on tip deflection obtained through experimentally and numerically solving equation (28). It is observed that the percentage error between experimental and simulated results for “positive” and “zero” dehydration conditions at 0.2 V is around 2.4% and 2.9%, respectively, while at 0.8 V, it is around 4.0% and 6.0%. Therefore, it is clearly observed with the increment of input voltage, the percentage error of tip deflection increases. These results clearly validate the dehydration model (equation (6)), that is, with the increase of input voltage, the dehydration factor increases. Figure 11 shows the percentage change in tip deflection during steady state for input voltage of 0.2 and 0.8 V. It is observed that during steady state, the percentage reduction of amplitude is around 9.5% and 11.6% for an input voltage of 0.2 and 0.8 V, respectively. The results also clearly validate the dehydration model (equation (6)), that is, the loss-factor increases with the input voltage. Hence, the developed model is suitable for finding the response of the actuator easily without going for expensive experiments.

Figure 10.

(a) Experimental and (b) estimated results for y-deflection at steady state.

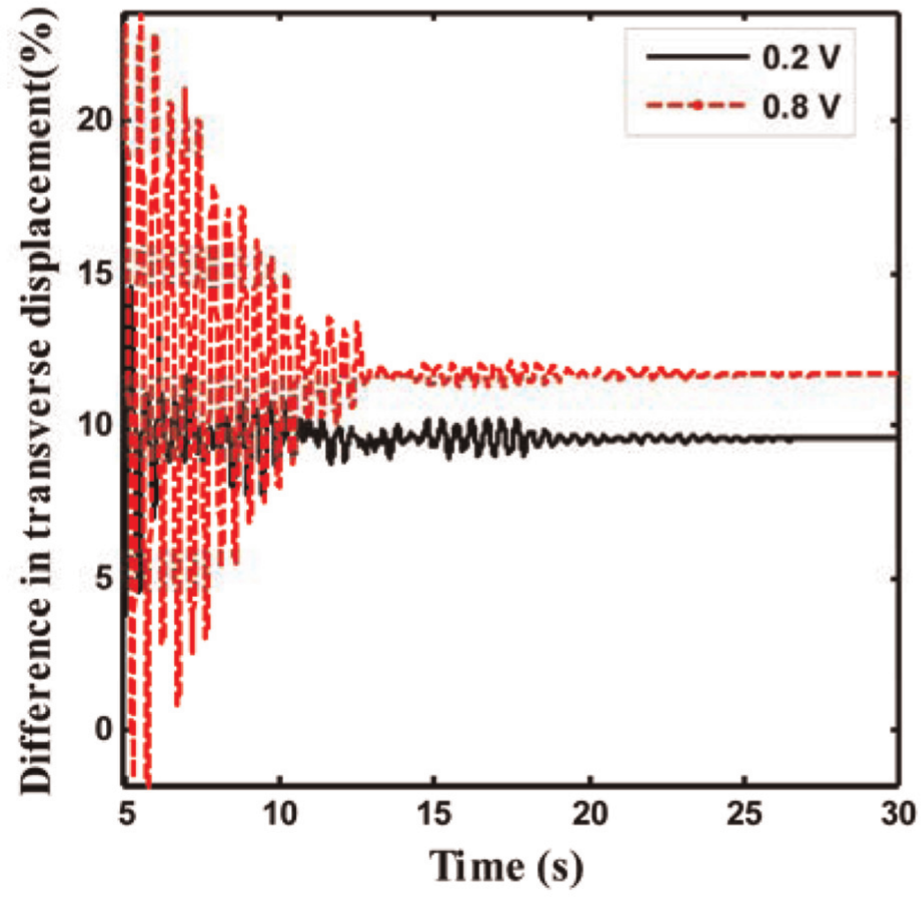

Figure 11.

Percentage differences in the transverse displacement of IPMC with an input voltage of 0.2 and 0.8 V for both hydrated and dehydrated conditions.

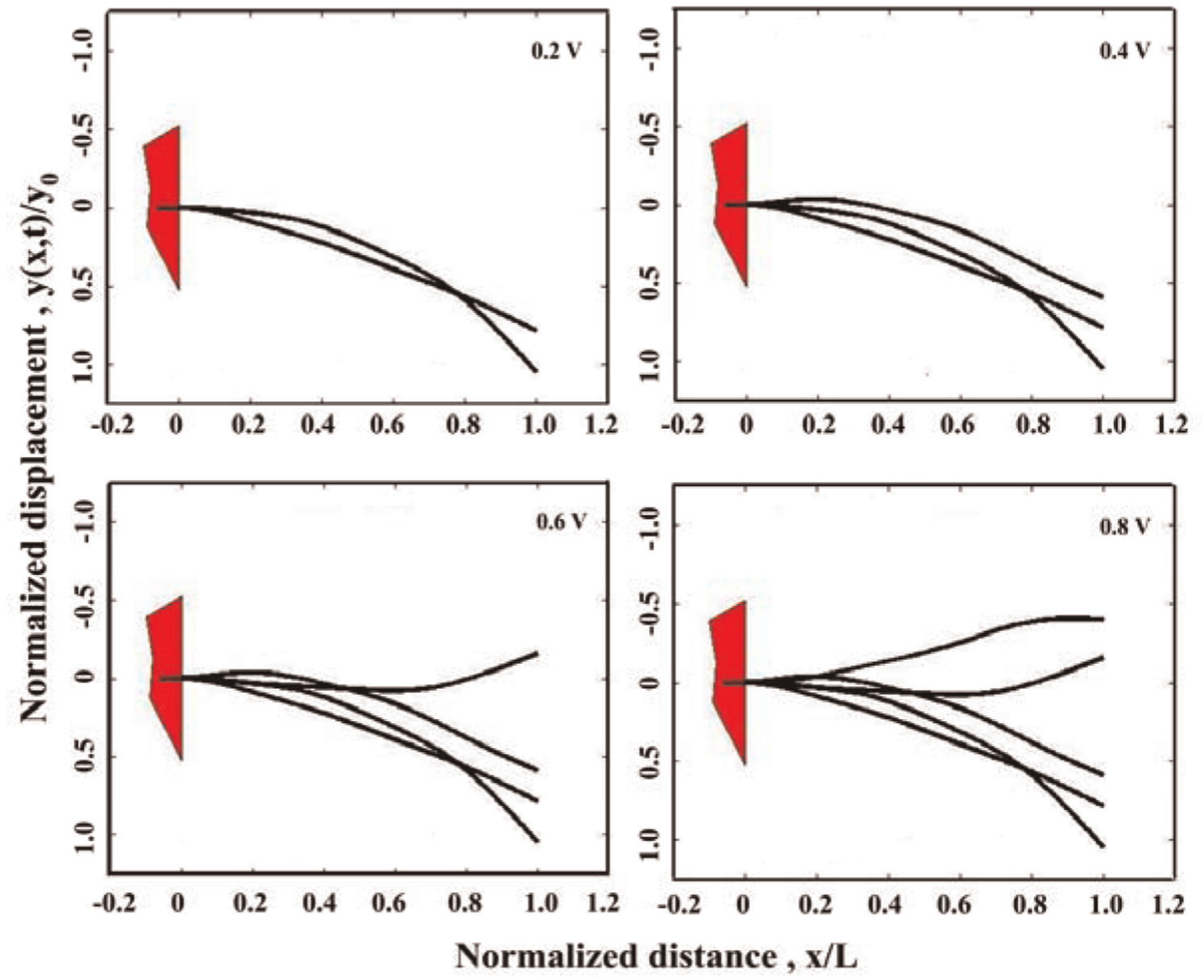

Figure 12 shows the actual bending of the IPMC actuator with vibration of first three modes. It is also observed that as the voltage increases the reduction increases gradually. Furthermore, it is anticipated that as the IPMC actuator dehydrates continuously in working medium, the transport of mobile cations along with water molecules with them is reduced gradually. Thus, the numerical study of the vibration response of the IPMC actuator clearly demonstrates the effect of dehydration on steady-state response and also on the transient response. In both the cases, it is observed that due to dehydration, steady-state tip position and also the amplitude of vibration (transient) response decrease.

Figure 12.

Actual bending of IPMC for various input voltages.

Experimental results

An IPMC actuator of size 20 mm × 5 mm × 0.2 mm is prepared and tested at different time intervals under input voltage of 0.2 V, and the transient vibration characteristics with dehydration are studied. The experimental setup is shown in Figure 13. One end of the control module is connected to the Rotational Laser Vibrometer (RVL-5500; Polytec, GmbH) and other end to the computer where the data are processed using Bruel and Kjaer PULSE Lab Shop, Version 13.1.0.246 software (Bruel and Kjaer sound and vibration measurement A/S, Denmark). The DC power supply (0–32 V DC, 0–2 A; Aplab Ltd., Aplab House, Mumbai, India) is used to apply voltage.

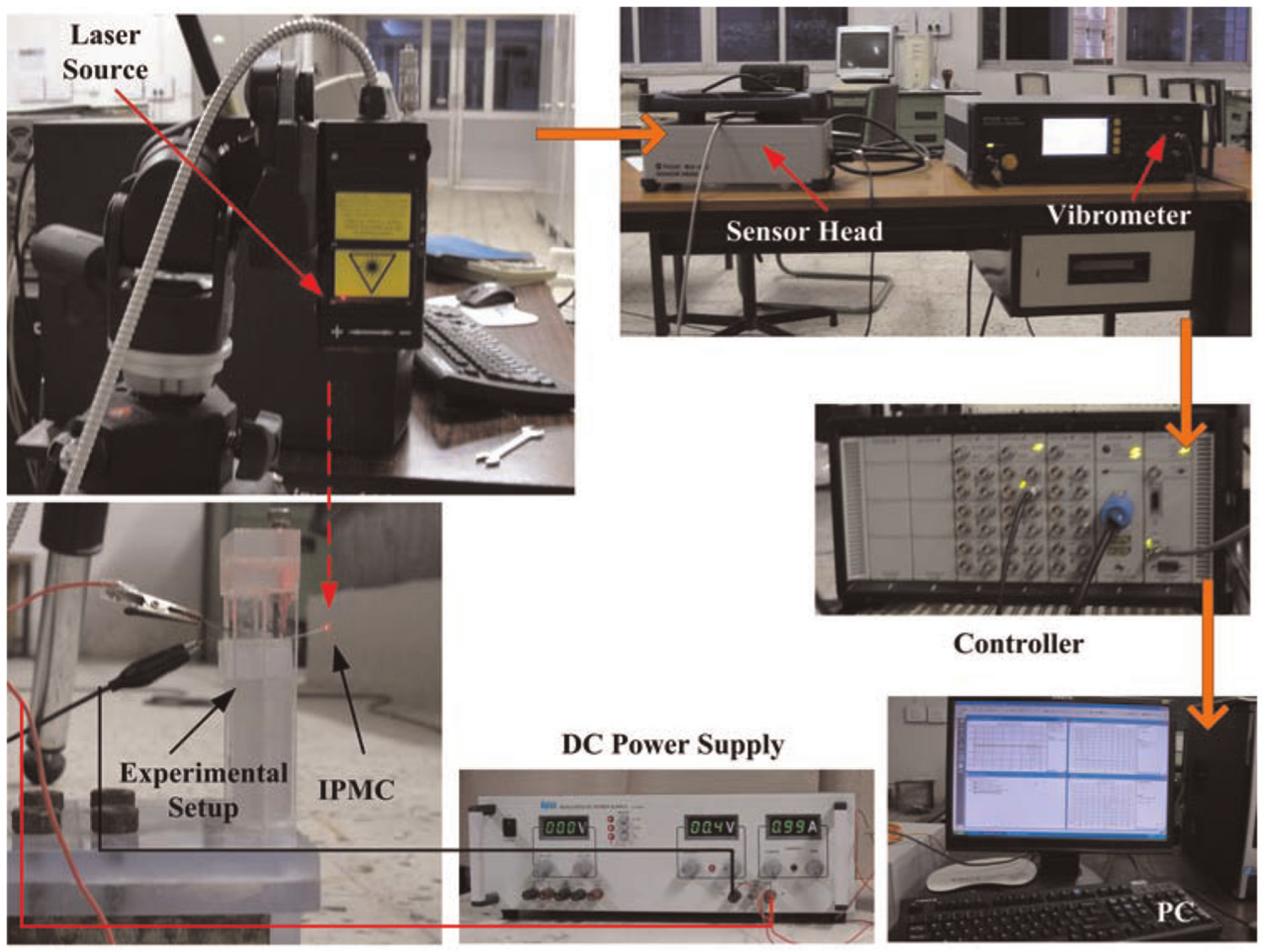

Figure 13.

Experimental setup for vibration analysis.

Before the experiment, IPMC sample is boiled in deionized water for 10 min and kept within deionized water at room temperature for 24 h to ensure full hydration. The entrapped surface moistures are removed by keeping the actuator in an open environment for 5 min prior to the experiment. Experiments are conducted by applying voltage at the fixed end of the cantilever actuator for 30 s and the response of the free end is measured by RVL. The sample is kept in an open environment further for 10, 15, 30, and 60 min, successively prior to the next experiment to ensure adequate dehydration. All the experiments are conducted at room temperature. The experimental results are given in Figures 14 to 19.

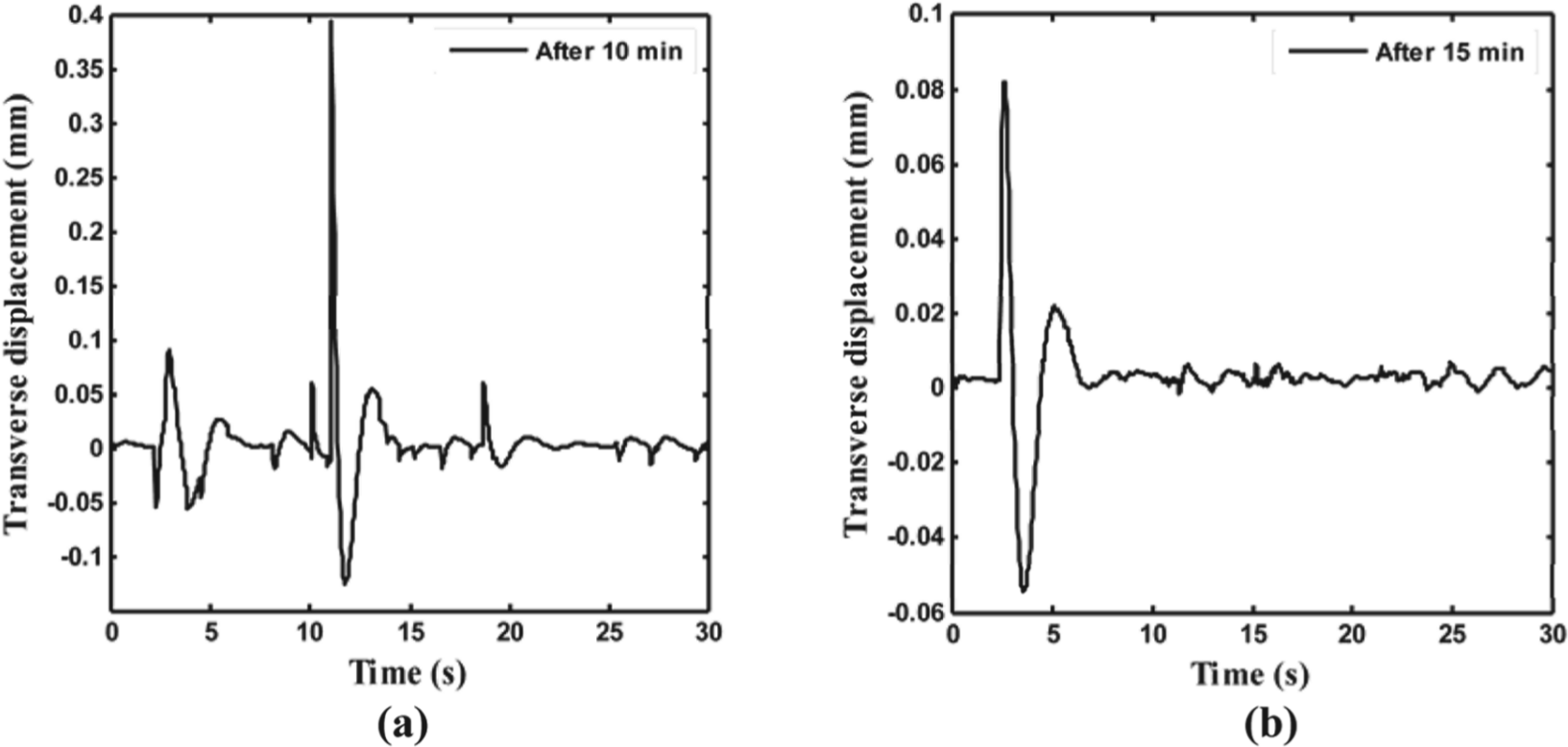

Figure 14.

Vibration response after (a) 10 and (b) 15 min for an input voltage of 0.2 V.

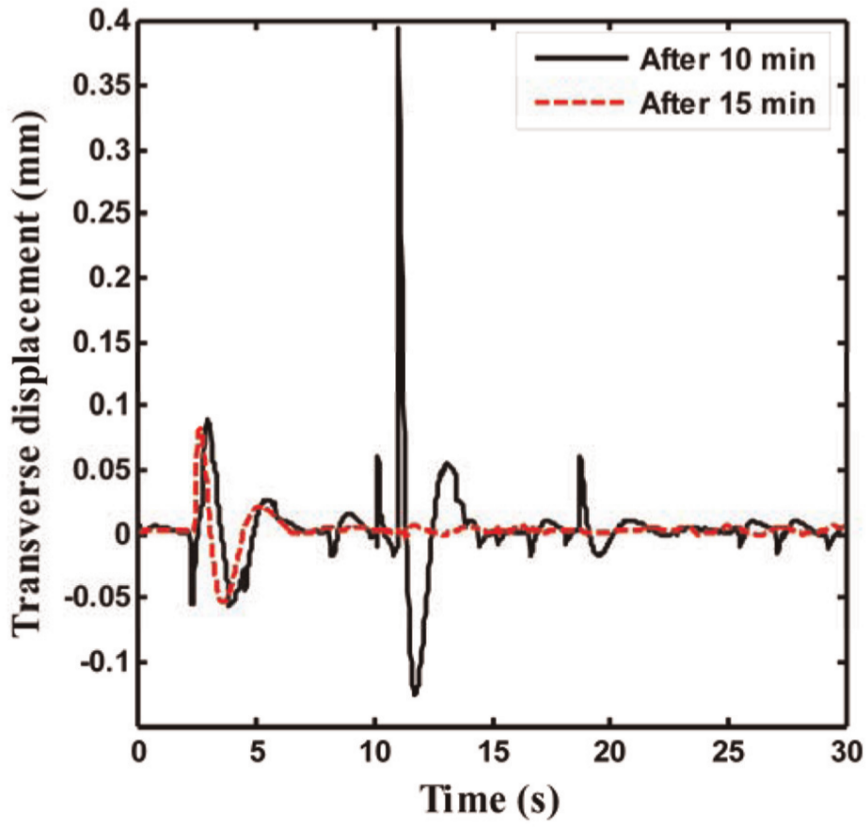

Figure 15.

Vibration response after 10 and 15 min for an input voltage of 0.2 V.

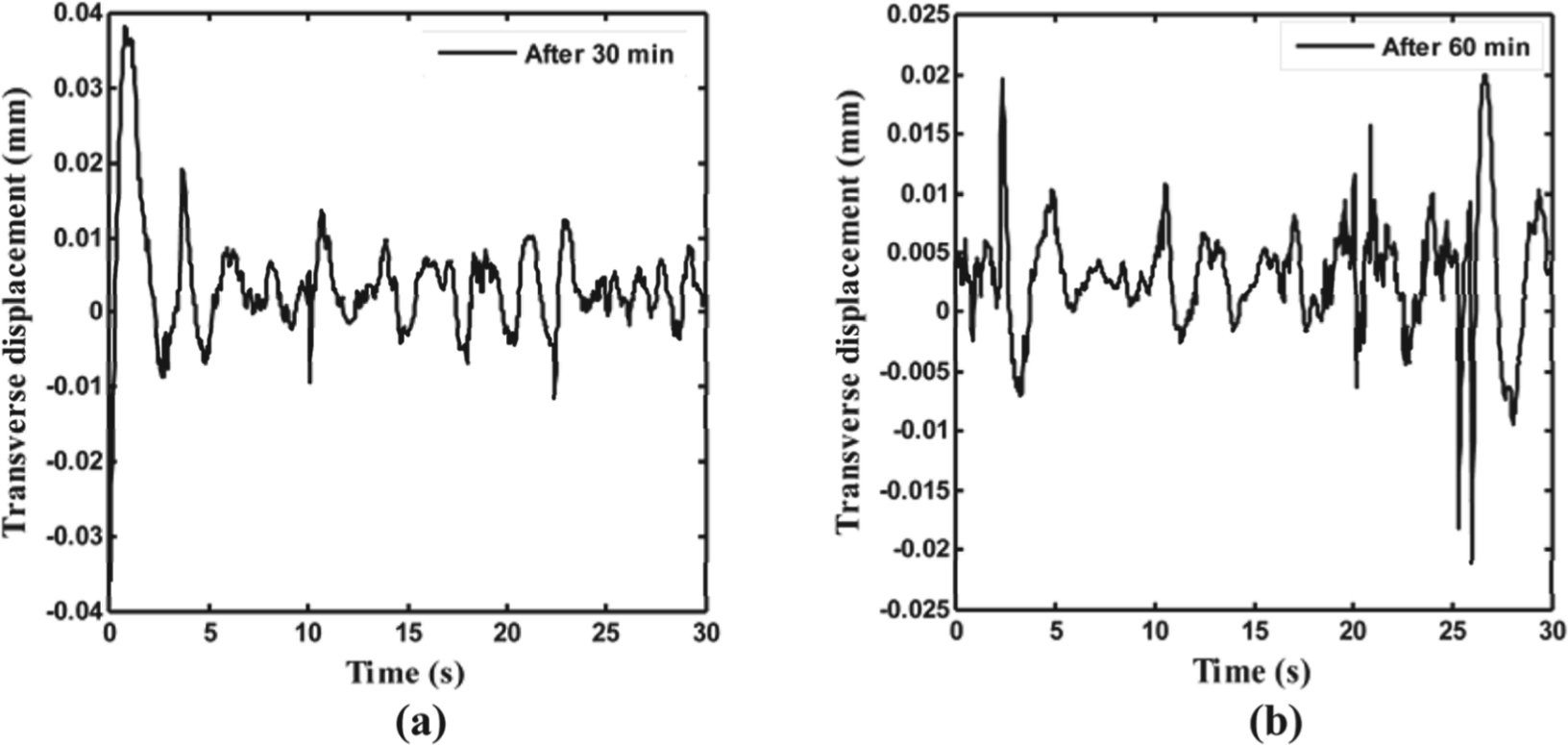

Figure 16.

Vibration response after (a) 30 and (b) 60 min for an input voltage of 0.2 V.

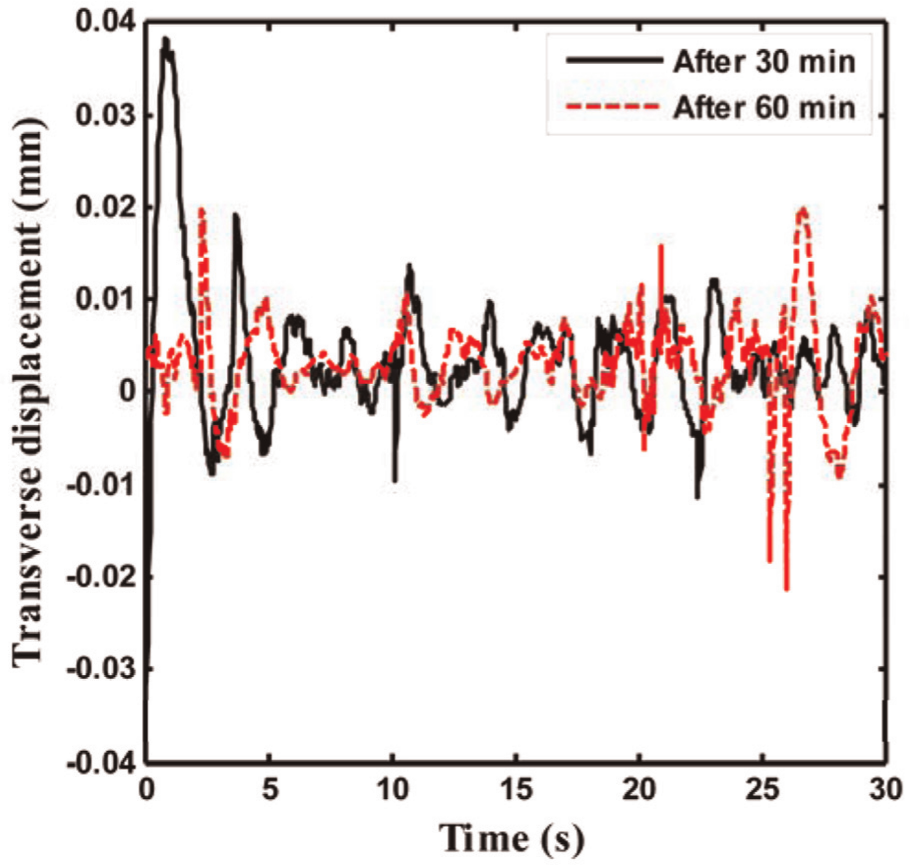

Figure 17.

Vibration response after 30 and 60 min for an input voltage of 0.2 V.

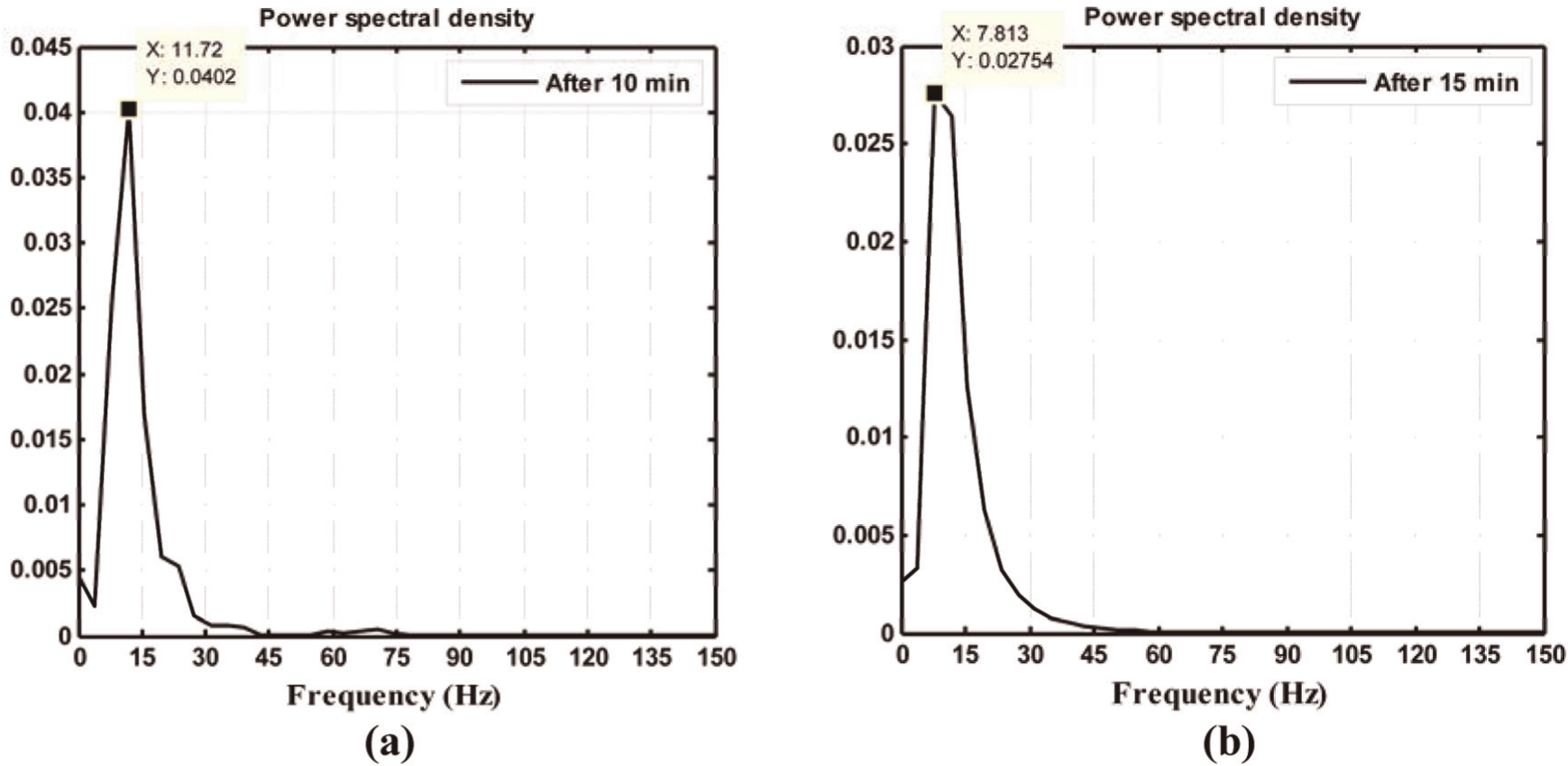

Figure 18.

FFT after (a) 10 and (b) 15 min for an input voltage of 0.2 V.

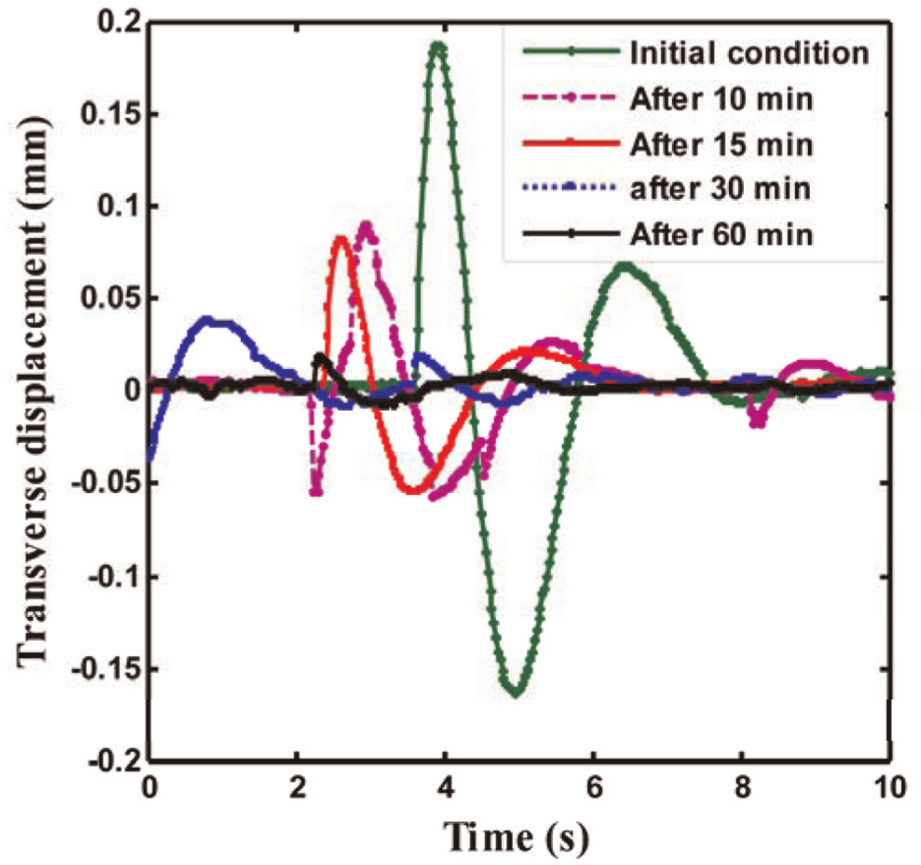

Figure 19.

Vibration response at different time intervals compared to the initial condition for an input voltage of 0.2 V.

Figure 14(a) and (b) shows the vibration response of the actuator after 10and 15 min from the initial condition, while the combined response of the actuator up to 30 s is shown in Figure 15. The combined response of the actuator shows significant reduction of vibration amplitude due to dehydration validates the proposed dehydration model. Figure 16(a) and (b) shows the vibration response of the actuator after 30 and 60 min from the starting of the experiment. It is also observed that due to dehydration transverse displacement of the actuator is reduced considerably. Furthermore, it is observed that the reduction of maximum amplitude occurs around 50%. The combined results up to 30 s are shown in Figure 17. The results clearly show the additional reduction of the transverse displacement compared to the results shown in Figure 15. These results validate the fact that with time and input voltage, the dehydration increases, that is, more losses of water content and, hence, further reduction of vibration amplitude. Figure 18(a) and (b) shows the corresponding fast Fourier transform (FFT) of the vibration response as shown in Figure 14(a) and (b), respectively. It is observed that the bandwidth of the vibration remains within the range of 2–30 Hz. Thus, the results indicate low-frequency excitation of the IPMC actuator.

From the experimental results (Figures 14 to 18), it is observed that the system reaches steady state after approximately 15–20 s. It is due to the fact that as the time interval increases, the loss of moisture content increases and, after certain period of time, it reaches a saturation limit (IPMC actuator gets dried). This observation also validates the dehydration factor model, presented in the ‘Calculation of loss-factor’ section (Table 2 and Figure 3). Figure 19 illustrates all the response results for time interval of 10 s and compared with the initial (fully hydrated) condition.

Figure 20 shows the vibration response and the effect of dehydration for four more instances for an input voltage of 0.4 V. It is observed that the amplitude of vibration response increases with the increase in input voltage. Furthermore, it is also observed that with “positive dehydration,” the amplitude of vibration decreases significantly compared to hydrated condition.

Figure 20.

Comparison between vibration response after (a) 5 and 10 min and (b) 45 and 60 min for step input voltage of 0.4 V.

Thus, it can be concluded that for a particular input voltage, the amplitude of vibration (transverse displacement) of the IPMC actuator gradually decreases due to dehydration effect. This also indicates that with time and input voltage, dehydration increases and reduces the effectiveness of the actuator. Thus, the experimental results demonstrate that as the IPMC actuator gets dehydrated, both the transient response (transverse displacement) and the steady-state response (Figure 10(a)) decrease compared to the fully hydrated condition.

Conclusion

In this article, loss of moisture content of the IPMC actuator is modeled by introducing a new term “loss-factor” in terms of input voltage and time. The proposed model is valid for any IPMC actuator in working medium that experiences continuous dehydration. Both theoretical and experimental investigations confirm that both bending tip deflection and amplitude of vibration response decreases with dehydration. The steady-state response is found to be in good agreement with the experimental results. The proposed dehydration model and experimental results useful for controlling the end-tip position accurately by compensating the loss due to dehydration.

Footnotes

Funding

This study received partial support from Department of Science and Technology, Government of India under SERC FAST Track Scheme (SR/FTP/ETA – 076/2009).

References

Abdelnour

Mancia

Peterson

. (2009) Hydrodynamics of underwater propulsors based on ionic polymer–metal composites: a numerical study. Smart Materials and Structures 18. DOI: 10.1088/0964–1726/18/8/085006.

Bandopadhya

(2009) Quasi-static tip positioning of multi-segmented IPMC for micro-manipulation following Euler-Bernoulli and pseudo-rigid body model. Journal of Reinforced Plastics and Composites 28: 743–764.

Bandopadhya

Njuguna

(2009) Estimation of bending resistance of ionic polymer metal composite (IPMC) actuator following variable parameters pseudo-rigid body model. Materials Letters 63: 745–747.

Bandopadhya

Bhattacharya

Dutta

(2007) An active vibration control strategy for a flexible link using distributed ionic polymer metal composites. Smart Materials and Structures 16: 617–625.

Bandopadhya

Bhattacharya

Dutta

(2008) Active vibration control strategy for a single-link flexible manipulator using ionic polymer metal composite. Journal of Intelligent Material Systems and Structures 19: 487–496.

Bar-Cohen

(2001) Electro active polymers as artificial muscles-reality and challenges. In: Proceeding of the 42nd AIAA structures, structural dynamics, and materials conference, April, 16–19, 2001, Seattle, WA, paper no. 2001–1492.

Biswal

Bandopadhya

Dwivedy

(2011) Preparation and experimental investigation of thermo-electro-mechanical behavior of Ag-IPMC actuator. International Journal of Precision Engineering and Manufacturing 13: 777–782.

Biswal

Dwivedy

Bandopadhya

(2009) Effect of dehydration on the vibration characteristics of ionic polymer–metal composite actuator. In: Proceeding of the interdisciplinary conference on chemical, mechanical and materials engineering. December 7–20 (2009), Melbourne, Australia: Australian Institute of High Energetic Materials, pp. 245–250.

Bonomo

Fortuna

Giannone

. (2008) A resonant force sensor based on ionic polymer metal composites. Smart Materials and Structures 17: 015014.

10.

Brunetto

Fortuna

Graziani

. (2008) A model of ionic polymer–metal composite actuator in underwater operations. Smart Materials and Structures 17: 1–12.

11.

Chen

Tan

Will

. (2007) A dynamic model for ionic polymer–metal composite sensors. Smart Materials and Structures 16: 1477–1488.

12.

Dogruer

Lee

Yim

. (2007) Fluid interaction of segmented ionic polymer–metal composites under water. Smart Materials and Structures 16: S220–S226.

13.

Enikov

Seo

(2005) Experimental analysis of current and deformation of ion-exchange polymer metal composite actuators. Experimental Mechanics 45: 383–391.

14.

Jung

Nam

Choi

(2003) Investigations on actuation characteristics of IPMC artificial muscles actuator. Sensors and Actuators A: Physical 107: 183–192.

15.

Kim

Shahinpoor

(2003) Ionic polymer–metal composites: II. Manufacturing techniques. Smart Materials and Structures 12: 65–79.

16.

Kim

Yim

Paquette

. (2007) Ionic polymer–metal composites for underwater operation. Journal of Intelligent Material Systems and Structures 18: 123–131.

17.

Kothera

Leo

(2005) Identification of ionic polymer actuators using the Volterra series. Journal of Vibration and Control 11: 519–541.

18.

Lee

Nam

J-D

. (2005) Water uptake and migration effects of electroactive ion-exchange polymer metal composite (IPMC) actuator. Sensors and Actuators A: Physical 118: 98–106.

19.

Nemat-Nasser

(2002) Micromechanics of actuation of ionic polymer–metal composites. Journal of Applied Physics 92: 2899–2915.

20.

Nemat-Nasser

(2000) Electromechanical response of ionic polymer-metal composites. Journal of Applied Physics 87: 3321–3331.

21.

Nemat-Nasser

(2003) Comparative experimental study of ionic polymer-metal composites with different backbone ionomers and in various cation forms. Journal of Applied Physics 93: 5255–5267.

22.

Nemat-Nasser

(2006) Tailoring the actuation of ionic polymer–metal composites. Smart Materials and Structures 15: 909–923.

23.

Nguyen

Goo

Nguyen

. (2008) Design, fabrication, and experimental characterisation of a flap valve IPMC micropump with a flexibly supported diaphragm. Sensors and Actuators A: Physical 141: 640–648.

24.

Paquette

Kim

. (2005) The behaviour of ionic polymer–metal composites in a multi-layer configuration. Smart Materials and Structures 14: 881–888.

25.

Shahinpoor

Kim

(2001) Ionic polymer–metal composites: I. Fundamentals. Smart Materials and Structures 10: 819–833.

26.

Shahinpoor

Kim

(2004) Ionic polymer–metal composites: III. Modeling and simulation as biomimetic sensors, actuators, transducers, and artificial muscles. Smart Materials and Structures 13: 1362–1388.

27.

Shahinpoor

Kim

(2005) Ionic polymer–metal composites: IV. Industrial and medical applications. Smart Materials and Structures 14: 197–214.

28.

Wang

Vidyasagar

(1989) Transfer function for a single flexible link. IEEE International Conference on Robotics and Automation 2: 1042–1047.

29.

Yeh

C-C

Shih

W-P

(2010) Effect of water content on the actuation performance of ionic polymer–metal composites. Smart Materials and Structures 19. DOI: 10.1088/0964-1726/19/12/124007.

30.

Zhang

Yang

(2007) Modelling of an ionic polymer–metal composite beam on human tissue. Smart Materials and Structures 16: S197–S206.

Investigation and evaluation of effect of dehydration on vibration characteristics of silver-electroded ionic polymer–metal composite actuator

Abstract

Keywords

Introduction

Calculation of loss-factor

Bending characteristics of IPMC

Modeling of the IPMC actuator

Kinetic energy of the system

Potential energy of the system

Work done due to damping and input voltage

Equation of motion of the system

Results and discussion

Numerical results

Experimental results

Conclusion

Footnotes

Funding

References
