Synchronization of chaotic satellite systems with an unknown parameter

Abstract

Spacecraft (satellite) formation has several applications in space exploration. Synchronization controllers are essential in satellite formation systems. This article proposes a novel robust adaptive synchronization control (RASC) technique for two identical three-dimensional chaotic satellite systems attitude synchronization with an unknown system parameter, unknown bounded model uncertainties, unknown external disturbances, and nonlinear terms. This controller achieves smooth error vector convergence to zero. The closed-loop has a robust performance as the controller avoids plant nonlinear terms cancellation. This controller has two parts. (i) A nonlinear controller for keeping the closed-loop stable; it flourishes robust and faster error vector convergence to zero with reduced fluctuations. (ii) An adaptive nonlinear controller that compensates exogenous disturbances and model uncertainties using online estimations of model uncertainties and bounds. The Lyapunov stability theory assures the closed-loop's global asymptotic robust stability. Computer simulation results-based analysis verifies the theoretical findings. The article includes a comparative study and discusses the control effort saturation effects.

Keywords

Chaos synchronization chaotic satellite system adaptive control unknown parameter Lyapunov theory

1. Introduction

Chaotic dynamical systems show sensitivity to parameter variations and initial conditions; such systems display irregular, unpredictable, and complex behaviour (Miillin, 1991). Many dynamical systems in natural and basic sciences exhibit chaos (Abarbanel et al., 1993). Satellite systems have potential applications in astronomical sciences, including remote sensing, earth observation, space colonization, navigation, and communications systems (Zhou et al., 2018). The angular velocity of the satellite's dynamical system is sensitive to time-varying external disturbances (Piper and Kwatny, 1992). Aerodynamic drag torque, gravitation rotation, mass variations, and solar radiations cause uncertainty in the satellite dynamics model (Xiao et al., 2010). For specific choices of the perturbation torques, the satellite dynamics during the orbital motion exhibit both strange attractors and limit cycles and experience chaos (Dracopoulos and Jone, 1994, Leipnik and Newton, 1981, Meehan and Asokanthan, 2012). These torques are chosen sufficiently large to induce chaotic motion (Kemih et al., 2009). Space formation (a group of smaller satellites) accomplishes space and earth observation missions, which a single satellite cannot complete. It reduces the launching cost and improves the mission accomplishment robustness and efficiency (Sarcheshmeha et al., 2017). Spacecraft formation requires the synchronization of several small satellites (Du and Li, 2014). A follower satellite converges to the targeted prescribed orbit of a leader satellite; ultimately, multiple satellites attain a desired position and posture in a designated orbit. These spacecraft formations may have many master satellites (Liu et al., 2019).

Fast and precise chaotic satellite systems synchronization requirements in numerous applications motivate researchers to design synchronization control algorithms. Chaos in satellite kinematics revealed fundamental issues in satellite attitude synchronization (Liu et al., 2004). The three-dimensional chaotic satellite (TDCS) systems attitude synchronization through feedback controller schemes is an active research topic; a brief literature review of this research follows. Leipnik and Newton (1981) identified chaos in the three-dimensional satellite dynamics and designed a linear feedback controller; the closed-loop system has two distinct strange attractors contingent on specific feedback gains and the ultimate attractor orbit on the initial local orbit. Dracopoulos and Jones (1994) designed an adaptive neuro-genetic controller for TDCS system attitude control exhibiting strange attractors. The article (Kuang and Tan, 2000) applies the Melnikov method for analyzing quasi-rigid energy-dissipating satellites subject to the time-periodic non-Hamiltonian perturbation torques and gyrostat satellites under small perturbation torques. The paper (Liu et al., 2004) shows that satellite attitude motion has Smale horseshoe chaos based on the Melnikov method and designs a nonlinear controller for penalizing the attitude's perturbation effect. The article (Sadaoui et al., 2011) develops a systematic procedure for designing a continuous-time predictive controller; it determines necessary and sufficient conditions to ensure closed-loop exponential stability in synchronizing two identical TDCS systems. The authors (Liu et al., 2018) developed an adaptive sliding mode control for synchronizing the angular velocity of the TDCS system exposed to external disturbances. Ref. Khan and Kumar, 2018a analyses the TDCS system's chaotic behaviour using equilibrium points, dissipativity, Poincare maps, Kaplan–Yorke dimension, Lyapunov exponents, and bifurcation diagrams methods and proposes a nonlinear feedback control strategy for attitude synchronization of two identical time-delay TDCS systems. The article (Khan and Kumar, 2018b) designs a Lyapunov-based sliding mode controller synchronizing two identical TDCS systems. Khan and Kumar (2019a) realize the adaptive synchronization of two identical TDCS systems with uncertain parameters. Using the linear matrix inequality technique and Takagi-Sugeno fuzzy modelling, Khan and Kumar (2019b) designed a predictive controller for synchronizing two identical uncertain TDCS systems. The paper (Le et al., 2020) develops an interval type-2 fuzzy neural network controller that studies synchronizing two identical TDCS systems with uncertain parameters and unknown external disturbances. Based on the Lyapunov theory and Barbalat's Lemma, the paper (Pal et al., 2022) proposes an adaptive backstepping sliding mode controller that realizes two identical TDCS systems' synchronization. Al Saade et al. (2022) propose a fixed-time adaptive control technique and investigate the attitude synchronization and anti-synchronization of two identical TDCS systems with unknown parameters, moments of inertia, and disturbance torques. In the presence of external disturbances and model uncertainties, the article (Xiao et al., 2022a) proposes a fixed-time disturbance observer-based robust control strategy; it accomplishes satellite attitude control in a prescribed time. The paper (Xiao et al., 2022b) designs a Lyapunov stability theory-based robust controller for establishing attitude coordination control for flexible spacecraft formations in the presence of measurement errors, external disturbances, and model uncertainties. It successively develops less conservative attitude coordination performance bounds.

The following subsection discusses the challenges and motivations.

1.1. Challenges and motivations

(1) Most feedback control strategies (Al Saade et al., 2022, Liu et al., 2018, Khan and Kumar, 2018a, 2018b, 2019a, 2019b, Le et al., 2020, Pal et al., 2022) for synchronizing two identical TDCS systems follow the nonlinear terms cancellation approach. These approaches need exact state variables and parameters measurement; such measurements are technologically challenging due to the noisy and uncertain environments. Consequently, the closed loops (Al Saade et al., 2022, Liu et al., 2018, Khan and Kumar, 2018a, 2018b, 2019a, 2019b; Le et al., 2020, Pal et al., 2022) are contaminated by residual nonlinear terms. Therefore, these controllers assimilate erroneous control efforts, possibly causing instability in the closed-loop system. The residual terms disturb the closed-loop performance, including transient, steady-state, and long-time delays (Ma and Bigdeli, 2017).

(2) Minimizing synchronization process energy consumption is challenging. Reducing variable oscillations improves energy efficiency. Accurate attitude synchronization of coupled TDCS systems keeps them in the orbit of interest. Precise coupled TDCS systems attitude synchronization maintains their orbit. Large fluctuations in synchronization errors may cause actuators' failure and complete system disaster in the worst-case scenario.

(3) The proposed controllers (Al Saade et al., 2022, Liu et al., 2018, Khan and Kumar, 2018a, 2018b, 2019a, 2019b, Le et al., 2020; Pal et al., 2022) furnish a smaller synchronization error convergence gradient.

(4) Several internal and external disturbances induce state variables oscillations in the TDCS system during orbital motion, resulting in the escape of the satellite from the desired orbit. The model uncertainties and external disturbances have different natures. Model uncertainties result from modelling errors, unmeasured variables, and variations in system parameters due to manufacturing tolerances, wear and tear, or changes in environmental conditions. These uncertainties are state variables functions. The sources of external disturbances are torques, including solar radiation pressure, deviations in weight, aerodynamic torque, gravity gradient torques, moving parts and mechanisms, misalignment of thrusters, out-gassing, and reaction wheels (Meehan and Asokanthan, 2012, Kemih et al., 2009), among others, causing plant parameters variations. Further, the temperature gradient is a function of the orbit altitude, which remains there. This variation severely affects the functioning of the electronic systems, which also causes variations in the system parameters.

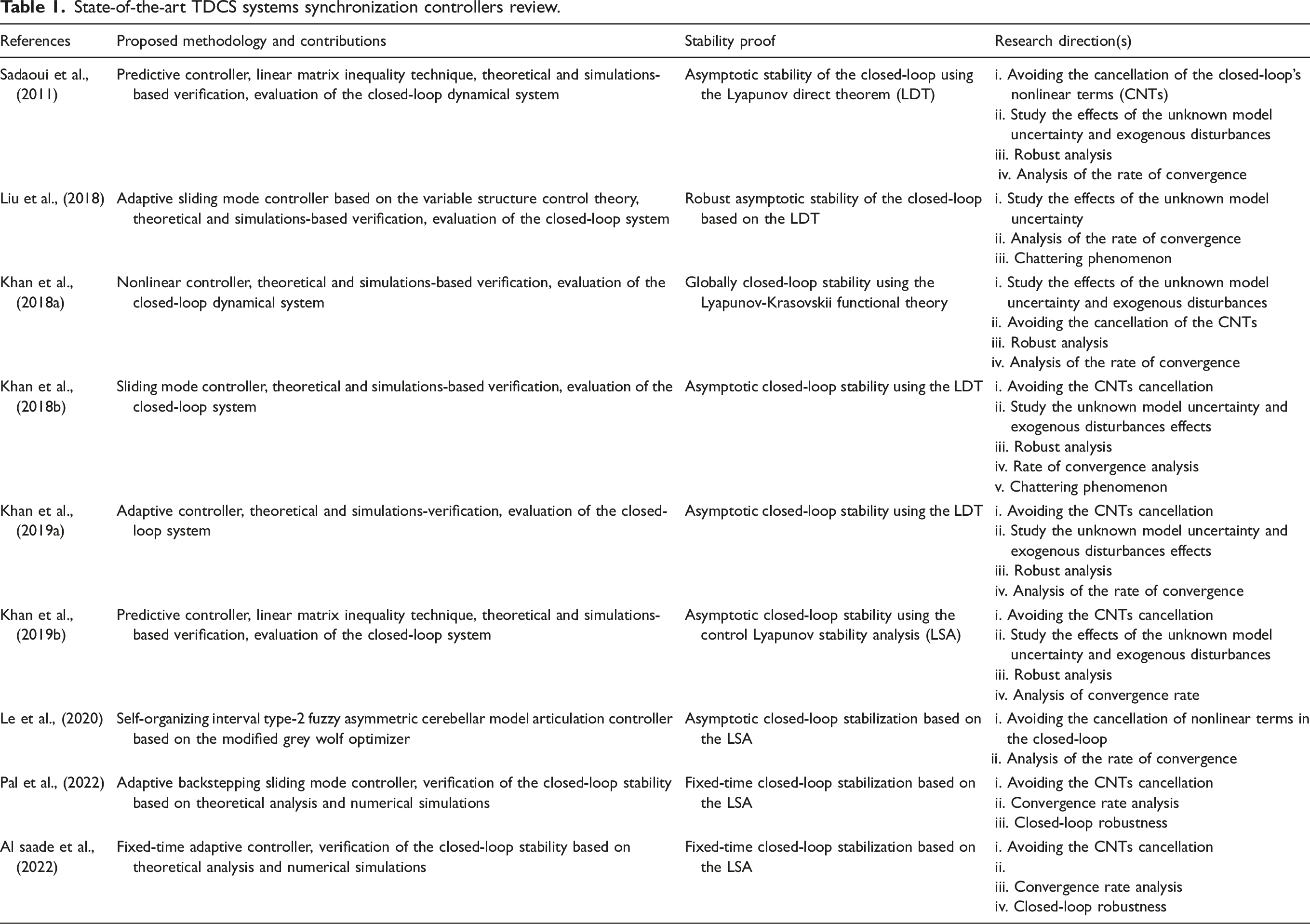

Table 1 summarizes the recent research contributions (Al Saade et al., 2022, Liu et al., 2018, Khan and Kumar, 2018a, 2018b, 2019a, 2019b, Le et al., 2020, Pal et al., 2022) in the attitude synchronization between two identical TDCS systems and describes research directions emerging from the state-of-the-art closed-loop structures (Al Saade et al., 2022, Liu et al., 2018, Khan and Kumar, 2018a, 2018b, 2019a, 2019b, Le et al., 2020, Pal et al., 2022).

Table 1.

State-of-the-art TDCS systems synchronization controllers review.

References	Proposed methodology and contributions	Stability proof	Research direction(s)
Sadaoui et al., (2011)	Predictive controller, linear matrix inequality technique, theoretical and simulations-based verification, evaluation of the closed-loop dynamical system	Asymptotic stability of the closed-loop using the Lyapunov direct theorem (LDT)	i. Avoiding the cancellation of the closed-loop's nonlinear terms (CNTs) ii. Study the effects of the unknown model uncertainty and exogenous disturbances iii. Robust analysis iv. Analysis of the rate of convergence
Liu et al., (2018)	Adaptive sliding mode controller based on the variable structure control theory, theoretical and simulations-based verification, evaluation of the closed-loop system	Robust asymptotic stability of the closed-loop based on the LDT	i. Study the effects of the unknown model uncertainty ii. Analysis of the rate of convergence iii. Chattering phenomenon
Khan et al., (2018a)	Nonlinear controller, theoretical and simulations-based verification, evaluation of the closed-loop dynamical system	Globally closed-loop stability using the Lyapunov-Krasovskii functional theory	i. Study the effects of the unknown model uncertainty and exogenous disturbances ii. Avoiding the cancellation of the CNTs iii. Robust analysis iv. Analysis of the rate of convergence
Khan et al., (2018b)	Sliding mode controller, theoretical and simulations-based verification, evaluation of the closed-loop system	Asymptotic closed-loop stability using the LDT	i. Avoiding the CNTs cancellation ii. Study the unknown model uncertainty and exogenous disturbances effects iii. Robust analysis iv. Rate of convergence analysis v. Chattering phenomenon
Khan et al., (2019a)	Adaptive controller, theoretical and simulations-verification, evaluation of the closed-loop system	Asymptotic closed-loop stability using the LDT	i. Avoiding the CNTs cancellation ii. Study the unknown model uncertainty and exogenous disturbances effects iii. Robust analysis iv. Analysis of the rate of convergence
Khan et al., (2019b)	Predictive controller, linear matrix inequality technique, theoretical and simulations-based verification, evaluation of the closed-loop system	Asymptotic closed-loop stability using the control Lyapunov stability analysis (LSA)	i. Avoiding the CNTs cancellation ii. Study the effects of the unknown model uncertainty and exogenous disturbances iii. Robust analysis iv. Analysis of convergence rate
Le et al., (2020)	Self-organizing interval type-2 fuzzy asymmetric cerebellar model articulation controller based on the modified grey wolf optimizer	Asymptotic closed-loop stabilization based on the LSA	i. Avoiding the cancellation of nonlinear terms in the closed-loop ii. Analysis of the rate of convergence
Pal et al., (2022)	Adaptive backstepping sliding mode controller, verification of the closed-loop stability based on theoretical analysis and numerical simulations	Fixed-time closed-loop stabilization based on the LSA	i. Avoiding the CNTs cancellation ii. Convergence rate analysis iii. Closed-loop robustness
Al saade et al., (2022)	Fixed-time adaptive controller, verification of the closed-loop stability based on theoretical analysis and numerical simulations	Fixed-time closed-loop stabilization based on the LSA	i. Avoiding the CNTs cancellation ii. iii. Convergence rate analysis iv. Closed-loop robustness

The above challenges motivate designing two identical TDCS systems synchronizing controllers for the closed-loop structure having the following attributes.

(1) Avoid the TDCS system nonlinear terms cancellation.

(2) Faster error vector convergence rates.

(3) Robust against unknown time-varying model uncertainties and exogenous disturbances.

1.2. Research objectives

This article proposes a controller that achieves the following objectives. These objectives address all the challenges in subsection 1.1.

(1) The proposed control strategy should decouple the control input from plant nonlinear terms, resulting in a stable closed-loop, robust against time-varying uncertainties, external disturbances, and the TDCS system's parameter variations.

(2) The controller should synthesize a chatter-free control effort to construct an energy-efficient closed-loop. Such state-feedback control signals smooth the actuator operation, reducing failure and malfunction probability.

(3) It should develop a faster-reduced oscillation stable closed-loop.

1.3. Contributions

The proposed novel adaptive controller synchronizes attitudes of two identical TDCS systems with an unknown parameter and devises a closed-loop stability analysis procedure. The proposed RASC strategy achieves all objectives in subsection 1.2. The article provides a detailed stability analysis using the Lyapunov stability theory (Khalil, 2022), ensuring robust asymptotic closed-loop stability. Computer simulation results are discussed to verify the theoretical findings. The paper compares the closed-loop's performance with other state-of-the-art synchronization control methodologies reported in (Khan and Kumar, 2018b, 2019a, Haris et al., 2020).

The paper is organized as follows. Section 2 illustrates the TDCS system attitude dynamics. Section 3 formulates the attitude synchronization problem between two identical TDCS systems with an unknown parameter. Section 4 designs a novel feedback controller for synchronizing master-slave TDCS systems and proves the robust closed-loop stability. Section 5 provides numerical simulation results analysis and comparative studies. It also discusses the control effort saturation sequels. Section 6 concludes the article.

2. Attitude dynamics of the chaotic satellite system

2.1. Notations and symbols

Table 2 describes the terminology.

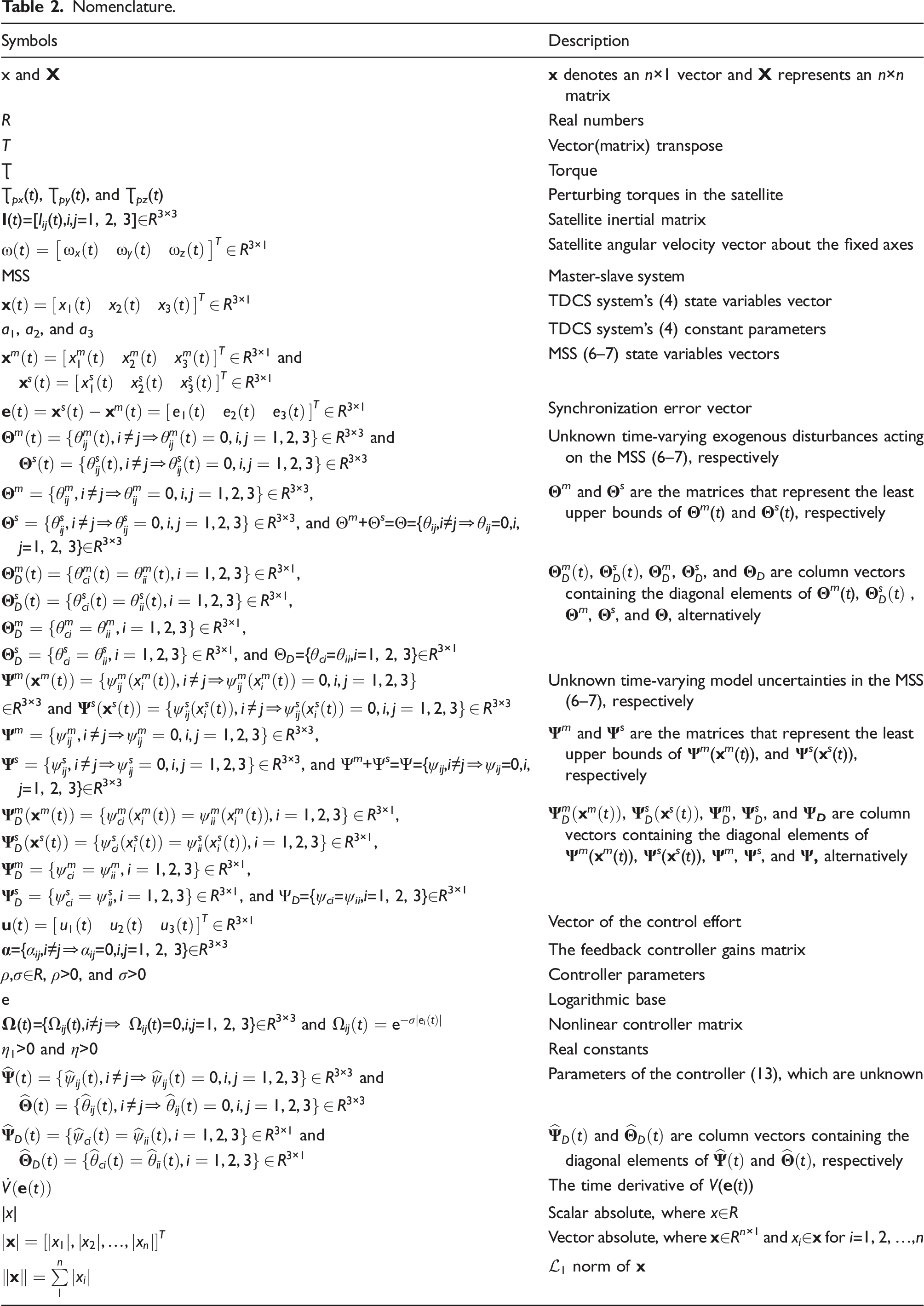

Table 2.

Nomenclature.

Symbols	Description
x and X	x denotes an n×1 vector and X represents an n×n matrix
R	Real numbers
T	Vector(matrix) transpose
Ʈ	Torque
Ʈ_px(t), Ʈ_py(t), and Ʈ_pz(t)	Perturbing torques in the satellite
I(t)=[I_ij(t),i,j=1, 2, 3]∈R^3×3	Satellite inertial matrix
$ω (t) = {[\begin{array}{l} ω_{x} (t) & ω_{y} (t) & ω_{z} (t) \end{array}]}^{T} \in R^{3 \times 1}$	Satellite angular velocity vector about the fixed axes
MSS	Master-slave system
$x (t) = {[\begin{array}{l} x_{1} (t) & x_{2} (t) & x_{3} (t) \end{array}]}^{T} \in R^{3 \times 1}$	TDCS system's (4) state variables vector
a₁, a₂, and a₃	TDCS system's (4) constant parameters
$x^{m} (t) = {[\begin{array}{l} x_{1}^{m} (t) & x_{2}^{m} (t) & x_{3}^{m} (t) \end{array}]}^{T} \in R^{3 \times 1}$ and $x^{s} (t) = {[\begin{array}{l} x_{1}^{s} (t) & x_{2}^{s} (t) & x_{3}^{s} (t) \end{array}]}^{T} \in R^{3 \times 1}$	MSS (6–7) state variables vectors
$e (t) = x^{s} (t) - x^{m} (t) = {[\begin{array}{l} e_{1} (t) & e_{2} (t) & e_{3} (t) \end{array}]}^{T} \in R^{3 \times 1}$	Synchronization error vector
$Θ^{m} (t) = {θ_{i j}^{m} (t), i \neq j \Rightarrow θ_{i j}^{m} (t) = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$ and $Θ^{s} (t) = {θ_{i j}^{s} (t), i \neq j \Rightarrow θ_{i j}^{s} (t) = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$	Unknown time-varying exogenous disturbances acting on the MSS (6–7), respectively
$Θ^{m} = {θ_{i j}^{m}, i \neq j \Rightarrow θ_{i j}^{m} = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$ ,	Θ^m and Θ^s are the matrices that represent the least upper bounds of Θ^m(t) and Θ^s(t), respectively
$Θ^{s} = {θ_{i j}^{s}, i \neq j \Rightarrow θ_{i j}^{s} = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$ , and Θ^m+Θ^s=Θ={θ_ij,i≠j⇒θ_ij=0,i,j=1, 2, 3}∈R^3×3
$Θ_{D}^{m} (t) = {θ_{c i}^{m} (t) = θ_{i i}^{m} (t), i = 1, 2, 3} \in R^{3 \times 1}$ ,	$Θ_{D}^{m} (t)$ , $Θ_{D}^{s} (t)$ , $Θ_{D}^{m}$ , $Θ_{D}^{s}$ , and Θ_D are column vectors containing the diagonal elements of Θ^m(t), $Θ_{D}^{s} (t)$ , Θ^m, Θ^s, and Θ, alternatively
$Θ_{D}^{s} (t) = {θ_{c i}^{s} (t) = θ_{i i}^{s} (t), i = 1, 2, 3} \in R^{3 \times 1}$ ,
$Θ_{D}^{m} = {θ_{c i}^{m} = θ_{i i}^{m}, i = 1, 2, 3} \in R^{3 \times 1}$ ,
$Θ_{D}^{s} = {θ_{c i}^{s} = θ_{i i}^{s}, i = 1, 2, 3} \in R^{3 \times 1}$ , and Θ_D={θ_ci=θ_ii,i=1, 2, 3}∈R^3×1
$Ψ^{m} (x^{m} (t)) = {ψ_{i j}^{m} (x_{i}^{m} (t)), i \neq j \Rightarrow ψ_{i j}^{m} (x_{i}^{m} (t)) = 0, i, j = 1, 2, 3}$	Unknown time-varying model uncertainties in the MSS (6–7), respectively
∈R^3×3 and $Ψ^{s} (x^{s} (t)) = {ψ_{i j}^{s} (x_{i}^{s} (t)), i \neq j \Rightarrow ψ_{i j}^{s} (x_{i}^{s} (t)) = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$
$Ψ^{m} = {ψ_{i j}^{m}, i \neq j \Rightarrow ψ_{i j}^{m} = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$ ,	Ψ^m and Ψ^s are the matrices that represent the least upper bounds of Ψ^m(x^m(t)), and Ψ^s(x^s(t)), respectively
$Ψ^{s} = {ψ_{i j}^{s}, i \neq j \Rightarrow ψ_{i j}^{s} = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$ , and Ψ^m+Ψ^s=Ψ={ψ_ij,i≠j⇒ψ_ij=0,i,j=1, 2, 3}∈R^3×3
$Ψ_{D}^{m} (x^{m} (t)) = {ψ_{c i}^{m} (x_{i}^{m} (t)) = ψ_{i i}^{m} (x_{i}^{m} (t)), i = 1, 2, 3} \in R^{3 \times 1}$ ,	$Ψ_{D}^{m} (x^{m} (t))$ , $Ψ_{D}^{s} (x^{s} (t))$ , $Ψ_{D}^{m}$ , $Ψ_{D}^{s}$ , and Ψ_D are column vectors containing the diagonal elements of Ψ^m(x^m(t)), Ψ^s(x^s(t)), Ψ^m, Ψ^s, and Ψ, alternatively
$Ψ_{D}^{s} (x^{s} (t)) = {ψ_{c i}^{s} (x_{i}^{s} (t)) = ψ_{i i}^{s} (x_{i}^{s} (t)), i = 1, 2, 3} \in R^{3 \times 1}$ ,
$Ψ_{D}^{m} = {ψ_{c i}^{m} = ψ_{i i}^{m}, i = 1, 2, 3} \in R^{3 \times 1}$ ,
$Ψ_{D}^{s} = {ψ_{c i}^{s} = ψ_{i i}^{s}, i = 1, 2, 3} \in R^{3 \times 1}$ , and Ψ_D={ψ_ci=ψ_ii,i=1, 2, 3}∈R^3×1
$u (t) = {[\begin{array}{l} u_{1} (t) & u_{2} (t) & u_{3} (t) \end{array}]}^{T} \in R^{3 \times 1}$	Vector of the control effort
α={α_ij,i≠j⇒α_ij=0,i,j=1, 2, 3}∈R^3×3	The feedback controller gains matrix
ρ,σ∈R, ρ>0, and σ>0	Controller parameters
e	Logarithmic base
Ω(t)={Ω_ij(t),i≠j⇒ Ω_ij(t)=0,i,j=1, 2, 3}∈R^3×3 and $Ω_{i j} (t) = e^{- σ \| e_{i} (t) \|}$	Nonlinear controller matrix
η₁>0 and η>0	Real constants
$\hat{Ψ} (t) = {{\hat{ψ}}_{i j} (t), i \neq j \Rightarrow {\hat{ψ}}_{i j} (t) = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$ and $\hat{Θ} (t) = {{\hat{θ}}_{i j} (t), i \neq j \Rightarrow {\hat{θ}}_{i j} (t) = 0, i, j = 1, 2, 3} \in R^{3 \times 3}$	Parameters of the controller (13), which are unknown
${\hat{Ψ}}_{D} (t) = {{\hat{ψ}}_{c i} (t) = {\hat{ψ}}_{i i} (t), i = 1, 2, 3} \in R^{3 \times 1}$ and ${\hat{Θ}}_{D} (t) = {{\hat{θ}}_{c i} (t) = {\hat{θ}}_{i i} (t), i = 1, 2, 3} \in R^{3 \times 1}$	${\hat{Ψ}}_{D} (t)$ and ${\hat{Θ}}_{D} (t)$ are column vectors containing the diagonal elements of $\hat{Ψ} (t)$ and $\hat{Θ} (t)$ , respectively
$\dot{V} (e (t))$	The time derivative of V(e(t))
\|x\|	Scalar absolute, where x∈R
$\| x \| = {[\| x_{1} \|, \| x_{2} \|, \dots, \| x_{n} \|]}^{T}$	Vector absolute, where x∈R^n×1 and x_i∈x for i=1, 2, …,n
$‖ x ‖ = \sum_{1}^{n} \| x_{i} \|$	$L_{1}$ norm of x

2.2. Dynamics of the chaotic satellite system

Numerous satellite kinematic models are reported in the literature for spacecraft dynamics (Leipnik and Newton, 1981, Dracopoulos and Jones, 1994, Kuang and Tan, 2000, Liu et al., 2004; Sadaoui et al., 2011). The dynamical system Euler equations in (1) represent satellite attitude (Dracopoulos and Jones, 1994, Kuang and Tan, 2000, Liu et al., 2004, Sadaoui et al., 2011).

{\begin{cases} I_{x} {\dot{ω}}_{x} (t) = Ʈ_{p x} (t) + (I_{y} - I_{z}) ω_{y} (t) ω_{z} (t) \\ {I_{y} \dot{ω}}_{y} (t) = Ʈ_{p y} (t) + (I_{z} - I_{x}) ω_{x} (t) ω_{z} (t) \\ {I_{z} \dot{ω}}_{z} (t) = Ʈ_{p z} (t) + (I_{x} - I_{y}) ω_{x} (t) ω_{y} (t) \end{cases}

(1)

The perturbing torques are given in (2) (Leipnik and Newton, 1981, Dracopoulos and Jones, 1994, Kuang and Tan, 2000, Liu et al., 2004).

{\begin{cases} Ʈ_{p x} (t) = - 1.2 ω_{x} (t) + \sqrt{\frac{3}{2}} ω_{z} (t) \\ Ʈ_{p y} (t) = 0.35 ω_{y} (t) \\ Ʈ_{p z} (t) = - \sqrt{6} ω_{x} (t) - 0.4 ω_{z} (t) \end{cases}

(2)

Remark 1

The perturbation torques may disrupt the spacecraft's attitude. Some sources of these torques are solar radiation pressure, earth's gravity field, magnetic field interactions, atmospheric drag, un-modelled forces or moments, friction, elastic forces (Piper and Kwatny, 1992, Xiao et al., 2010, Kemih et al., 2009, Liu et al., 2018), etc.

Substituting equation (2) into equation (1) gives equation (3).

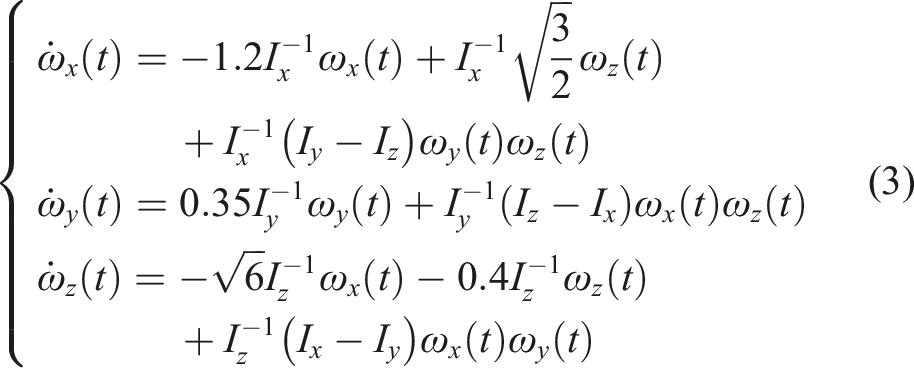

{\begin{cases} {\dot{ω}}_{x} (t) = - 1.2 I_{x}^{- 1} ω_{x} (t) + I_{x}^{- 1} \sqrt{\frac{3}{2}} ω_{z} (t) + I_{x}^{- 1} (I_{y} - I_{z}) ω_{y} (t) ω_{z} (t) \\ {\dot{ω}}_{y} (t) = 0.35 I_{y}^{- 1} ω_{y} (t) + I_{y}^{- 1} (I_{z} - I_{x}) ω_{x} (t) ω_{z} (t) \\ {\dot{ω}}_{z} (t) = - \sqrt{6} I_{z}^{- 1} ω_{x} (t) - 0.4 I_{z}^{- 1} ω_{z} (t) + I_{z}^{- 1} (I_{x} - I_{y}) ω_{x} (t) ω_{y} (t) \end{cases}

(3)

Equation (3) represents the satellite system attitude dynamics (Leipnik and Newton, 1981, Dracopoulos and Jones, 1994, Liu et al., 2004) exhibiting chaotic behaviour for I_x>I_y>I_z (Leipnik and Newton, 1981, Xiao et al., 2010). This paper considers I_x=3, I_y=2, and I_z=1 for the benchmark problem (Khan and Kumar, 2018a, 2018b, 2019a, 2019b). Let ω_x(t)=x₁(t), ω_y(t)=x₂(t), ω_z(t)=x₃(t), $a_{1} = 1.2 I_{x}^{- 1}$ , $a_{2} = 0.35 I_{y}^{- 1}$ , and $a_{3} = 0.4 I_{z}^{- 1}$ (Khan and Kumar, 2018a, 2018b, 2019a, 2019b), then (4) governs the TDCS system's attitude dynamics (Khan and Kumar, 2018a, 2018b, 2019a, 2019b).

{\begin{cases} {\dot{x}}_{1} (t) = - a_{1} x_{1} (t) + \frac{1}{\sqrt{6}} x_{3} (t) + \frac{1}{3} x_{2} (t) x_{3} (t) \\ {\dot{x}}_{2} (t) = a_{2} x_{2} (t) - x_{1} (t) x_{3} (t) \\ {\dot{x}}_{3} (t) = - a_{3} x_{3} (t) - \sqrt{6} x_{1} (t) + x_{1} (t) x_{2} (t) \end{cases}

(4)

Equation (5) presents the mathematical model of the TDCS system (4) in the matrix form.

\dot{x} (t) = [\begin{array}{l} - a_{1} & 0 & \frac{1}{\sqrt{6}} \\ 0 & a_{2} & 0 \\ - \sqrt{6} & 0 & - a_{3} \end{array}] x (t) + [\begin{array}{l} \frac{1}{3} x_{2} (t) x_{3} (t) \\ - x_{1} (t) x_{3} (t) \\ x_{1} (t) x_{2} (t) \end{array}] .

(5)

The computer simulation results are produced using a₁=0.4, a₂=0.175, and a₃=0.4 (Khan and Kumar, 2018a, 2018b, 2019a, 2019b) with initial conditions ${[\begin{array}{l} x_{1} (t) & x_{2} (t) & x_{3} (t) \end{array}]}^{T} = {[\begin{array}{l} 1.5 & 2.5 & 2 \end{array}]}^{T} .$ Figure 1 illustrates the Euler equations frame of reference. Figure 2(a) shows the 3D phase plot, and Figure 2(b) depicts the time behaviour of the state variables. These plots show that for the given parameters, the system exhibits chaos.

The following section presents the problem statement for attitude synchronization of two identical TDCS systems described in (5).

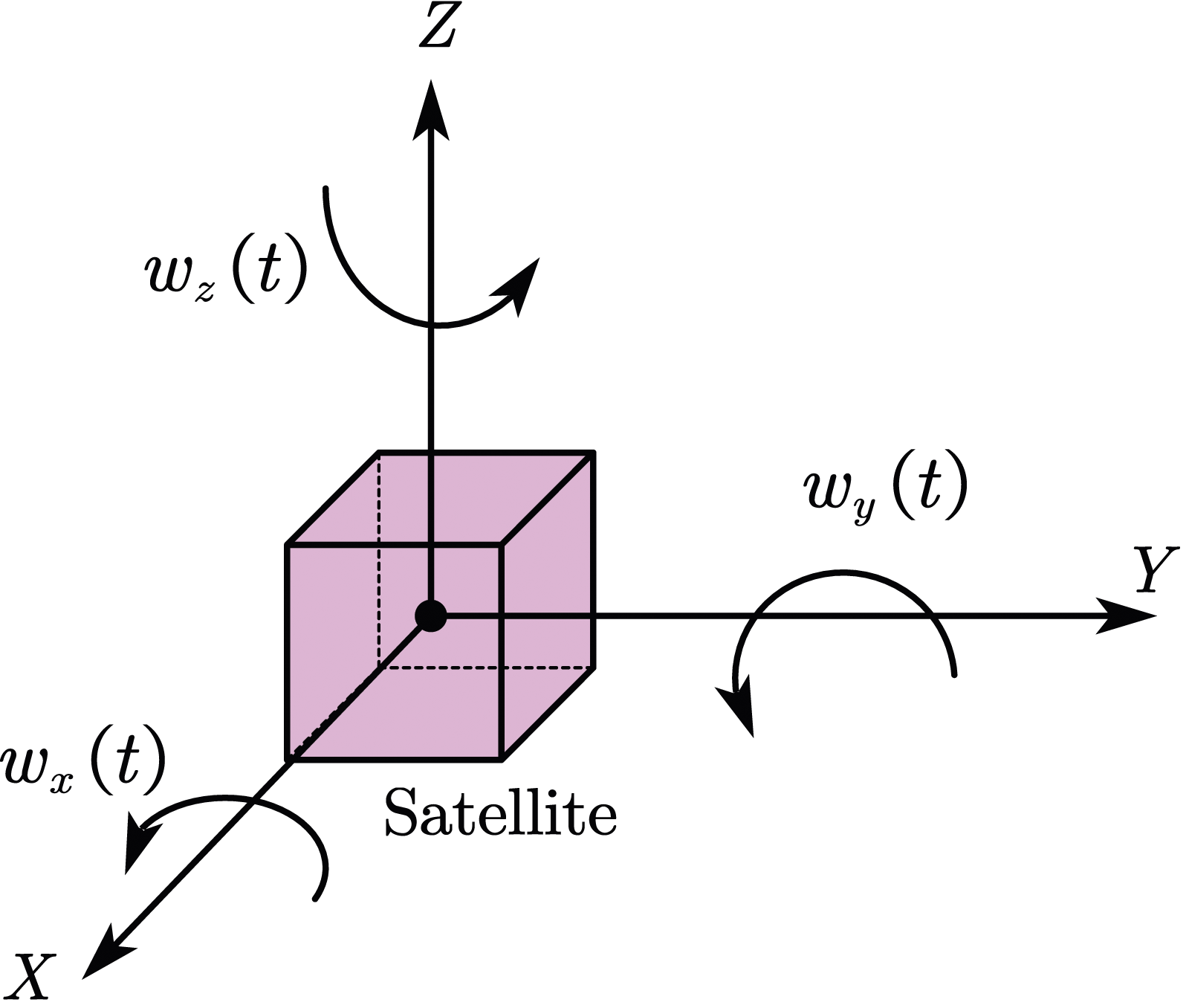

Figure 1.

Reference frame.

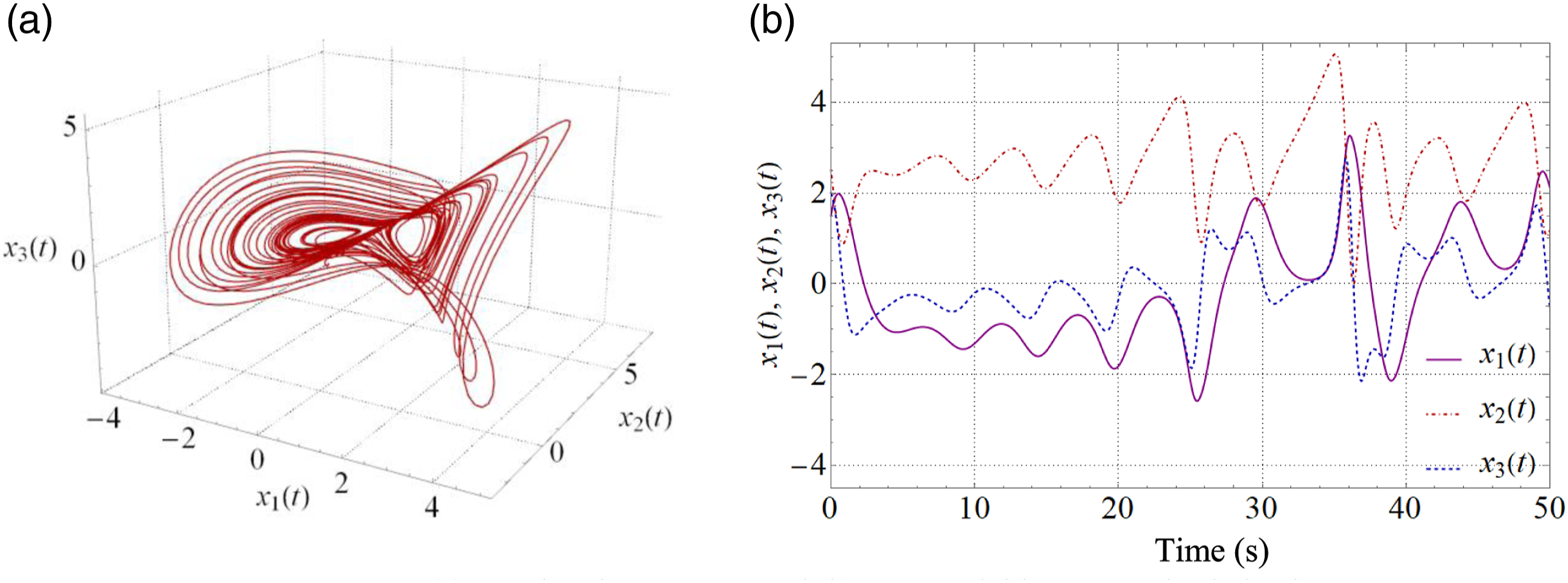

Figure 2.

(a) 3D chaotic attractor and (b) state variable trajectories behaviour.

3. Problem formulation

3.1. Attitude synchronization of two identical TDCS systems with an unknown parameter

Consider master and slave TDCS systems state variable vectors are x^m(t) and x^s(t), respectively. The MSS configuration (6–7) exposed to the unknown model uncertainties {Ψ^m(x^m(t)), Ψ^s(x^s(t))} and time-varying exogenous disturbances {Θ^m(t), Θ^s(t)} is formed using the TDCS system (5), and control input u(t)∈R^3×1 is added to the slave system (7).

Master TDCS system:

{\dot{x}}^{m} (t) = [\begin{array}{l} - a_{1} & 0 & \frac{1}{\sqrt{6}} \\ 0 & a_{2} & 0 \\ - \sqrt{6} & 0 & - a_{3} \end{array}] x^{m} (t) + [\begin{array}{l} \frac{1}{3} x_{2}^{m} (t) x_{3}^{m} (t) \\ - x_{1}^{m} (t) x_{3}^{m} (t) \\ x_{1}^{m} (t) x_{2}^{m} (t) \end{array}] + Ψ^{m} (x^{m} (t)) + Θ^{m} (t)

(6)

Slave TDCS system:

{\dot{x}}^{s} (t) = [\begin{array}{l} - a_{1} & 0 & \frac{1}{\sqrt{6}} \\ 0 & a_{2} & 0 \\ - \sqrt{6} & 0 & - a_{3} \end{array}] x^{s} (t) + [\begin{array}{l} \frac{1}{3} x_{2}^{s} (t) x_{3}^{s} (t) \\ - x_{1}^{s} (t) x_{3}^{s} (t) \\ x_{1}^{s} (t) x_{2}^{s} (t) \end{array}] + Ψ^{s} (x^{s} (t)) + Θ^{s} (t) + u (t) .

(7)

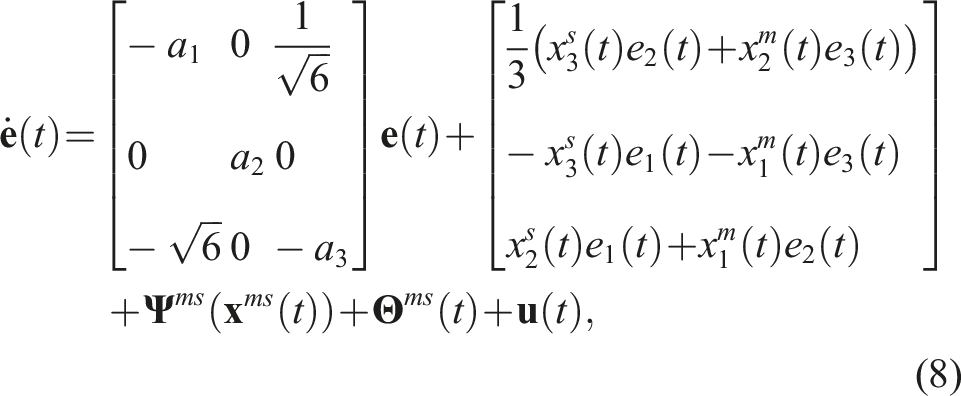

Equation (8) defines the error dynamics of the MSS arrangement in (6–7).

\dot{e} (t) = [\begin{array}{l} - a_{1} & 0 & \frac{1}{\sqrt{6}} \\ 0 & a_{2} & 0 \\ - \sqrt{6} & 0 & - a_{3} \end{array}] e (t) + [\begin{array}{l} \frac{1}{3} (x_{3}^{s} (t) e_{2} (t) + x_{2}^{m} (t) e_{3} (t)) \\ - x_{3}^{s} (t) e_{1} (t) - x_{1}^{m} (t) e_{3} (t) \\ x_{2}^{s} (t) e_{1} (t) + x_{1}^{m} (t) e_{2} (t) \end{array}] + Ψ^{m s} (x^{m s} (t)) + Θ^{m s} (t) + u (t),

(8)

where

{\begin{cases} e (t) = {\dot{x}}^{m} (t) - {\dot{x}}^{s} (t), \\ x_{2}^{s} (t) x_{3}^{s} (t) - x_{2}^{m} (t) x_{3}^{m} (t) = x_{3}^{s} (t) e_{2} (t) + x_{2}^{m} (t) e_{3} (t), \\ \begin{array}{l} - x_{1}^{s} (t) x_{3}^{s} (t) + x_{1}^{m} (t) x_{3}^{m} (t) = - x_{3}^{s} (t) e_{1} (t) - x_{1}^{m} (t) e_{3} (t), \\ x_{1}^{s} (t) x_{2}^{s} (t) - x_{1}^{m} (t) x_{2}^{m} (t) = x_{2}^{s} (t) e_{1} (t) + x_{1}^{m} (t) e_{2} (t), \\ \begin{array}{l} Ψ^{m s} (x^{m s} (t)) : = Ψ_{D}^{s} (x^{s} (t)) - Ψ^{m} (x^{m} (t)), \\ Θ_{D}^{m s} (t) : = Θ_{D}^{s} (t) - Θ_{D}^{m} (t) . \end{array} \end{array} \end{cases}

(9)

Remark 2

Internal and external disturbances influence the satellite's attitude uniform motion by producing model uncertainties, ultimately causing the satellite to escape from the desired orbit (Du and Li, 2014, Piper and Kwatny, 1992, Meehan and Asokanthan, 2012). Among others, the disturbance sources are measurement and dynamic modelling errors (Zhang et al., 2021, Carpentras and Quayle, 2022), various propagation errors (Mezic and Runolfsson, 2008, Januszewski, 2017), and control system errors (Avanzini et al., 2019). These uncertainties are time-varying due to variations in the spacecraft's aerodynamic drag, mass, and spatial structure (Xiao et al., 2010), which generates oscillations in the system state variables, resulting in the divergence of the system's state error signal. Further, exogenous disturbances are mainly the un-modelled parts of the perturbation torques. The random noise sources are due to the electronic measurement and actuation systems, including the solar system and associated power electronics.

Assumption 1

Let us assume the unknown model uncertainties {Ψ(x^m(t)),Ψ(x^s(t))} and exogenous disturbances {Θ^m(t), Θ^s(t)} are bounded, and equations (10a) and (11a) define their bounds.

| ψ_{i i}^{m} (x_{i}^{m} (t)) | \leq ψ_{i i}^{m}, | ψ_{i i}^{s} (x_{i}^{s} (t)) | \leq ψ_{i i}^{s}, i = 1, 2, 3

(10a)

\Rightarrow

| ψ_{i i}^{s} (x_{i}^{s} (t)) - ψ_{i i}^{m} (x_{i}^{m} (t)) | \leq | ψ_{i i}^{s} (x_{i}^{s} (t)) | + | ψ_{i i}^{m} (x_{i}^{m} (t)) | \leq ψ_{i i}^{s} + ψ_{i i}^{m} \leq ψ_{i i}, i = 1, 2, 3

(10b)

and

| θ_{i i}^{m} (t) | \leq θ_{i i}^{m}, | θ_{i i}^{s} (t) | \leq θ_{i i}^{s}, i = 1, 2, 3

(11a)

\Rightarrow

| θ_{i i}^{s} (t) - θ_{i i}^{m} (t) | \leq | θ_{i i}^{s} (t) | + | θ_{i i}^{m} (t) | \leq θ_{i i}^{s} + θ_{i i}^{m} \leq θ_{i i}, i = 1, 2, 3

(11b)

Hence, equations (10b) and (11b) conclude that:

\begin{array}{l} | ψ_{i i}^{s} (x_{i}^{s} (t)) - ψ_{i i}^{m} (x_{i}^{m} (t)) + θ_{i i}^{s} (t) - θ_{i i}^{m} (t) | \\ \leq | ψ_{i i}^{s} (x_{i}^{s} (t)) - ψ_{i i}^{m} (x_{i}^{m} (t)) | + | θ_{i i}^{s} (t) - θ_{i i}^{m} (t) | \\ = | ψ_{i i}^{m s} (x_{i}^{m s} (t)) | + | θ_{i i}^{m s} ((t)) | \leq ψ_{i i} + θ_{i i}, i = 1, 2, 3, \end{array}

(12)

where

ψ_{i i}^{m} > 0

ψ_{i i}^{s} > 0, ψ_{i i} > 0, θ_{i i}^{m} > 0, θ_{i i}^{s} > 0, ψ_{i i} > 0

, and θ_ii>0 are unknown real constants.

Remark 3

The suitability of Assumption 1 is described in the appendix.

3.2. Problems in the controllers and a possible solution

The synchronization control strategies (Liu et al., 2018, Khan and Kumar, 2018b, 2019a) use discontinuous signum (sgn) functions for compensating uncertainties and increasing the convergence rates; this approach leads to abrupt changes in control signals, causing chattering and producing oscillations. Articles (Aghababa and Akbari, 2012, Fang et al., 2019, Haris et al., 2020) (among others) compute control signals using continuous hyperbolic tangent functions instead of signum functions to avoid chattering, but the proposed control laws generate oscillations due to hefty controller gains.

3.2.1. Challenge 1

The literature survey substantiates that various control strategies synchronize MSS in (6–7), but the state error vector oscillates and has large overshoots, and they provide slow convergence rates.

3.3.2. Objective 1

The aim is to construct a feedback control algorithm synthesizing a chattering-free control signal vector u(t)∈R^3×1, which establishes faster and smoother synchronization error vector (8) convergence to zero with less active oscillations.

The following section proposes a novel robust adaptive controller that addresses the challenges described above and develops a controller design procedure based on the Lyapunov stability analysis theory.

4. A solution to the problem

4.1. Controller design and parameters update laws

Equation (13) designs an RASC structure, which computes a control effort u(t)∈R^3×1 that enforces the slave TDCS system (7) to follow the master TDCS system (6), satisfying objective 1.

u (t) = [\begin{array}{l} u_{1} (t) \\ u_{2} (t) \\ u_{3} (t) \end{array}] = [\begin{array}{l} \begin{array}{l} - α_{11} Ω_{11} (t) e_{1} (t) + ({\hat{ψ}}_{11} (t) + {\hat{θ}}_{11} (t)) \tanh ρ e_{1} (t) \\ - (α_{22} Ω_{22} (t) + {\hat{a}}_{2} (t)) e_{2} (t) + ({\hat{ψ}}_{22} (t) + {\hat{θ}}_{22} (t)) \tanh ρ e_{2} (t) \end{array} \\ - α_{33} Ω_{33} (t) e_{3} (t) + ({\hat{ψ}}_{33} (t) + {\hat{θ}}_{33} (t)) \tanh ρ e_{3} (t) \end{array}]

(13)

where ${\hat{a}}_{2} (t)$ , ${\hat{ψ}}_{i i} (t)$ , and ${\hat{θ}}_{i i} (t)$ for i=1, 2, 3 are the estimate of a₂, ψ_ii, and θ_ii, alternatively.

Theorem

Applying the control effort u(t) in (13) to the slave TDCS system (7) and using adaptive laws in (14) for estimating the unknown parameters ${\hat{a}}_{2} (t)$ , ${\hat{ψ}}_{i i} (t)$ , and ${\hat{θ}}_{i i} (t)$ , effectively reduce the dynamical error signals (8) to zero vicinity.

{\begin{cases} {\dot{\hat{Ψ}}}_{D} (t) = {\dot{\hat{Θ}}}_{D} (t) = - η | p (t) |, {\dot{\hat{a}}}_{2} (t) = \frac{2 η}{η_{1}} e_{2}^{2} (t), \\ {\hat{ψ}}_{i i} (0) = {\hat{ψ}}_{i i 0}, {\hat{θ}}_{i i} (0) = {\hat{θ}}_{i i 0}, {\hat{a}}_{2} (0) = {\hat{a}}_{20} \geq 0, i = 1, 2, 3, \end{cases}

(14)

where

{\hat{ψ}}_{i i 0}

{\hat{θ}}_{i i 0}

, and

{\hat{a}}_{20}

are the initial values of

{\hat{ψ}}_{i i} (0)

{\hat{θ}}_{i i} (0)

, and

{\hat{a}}_{2} (0)

, alternatively and

p^{T} (t) = [\begin{array}{l} 6 e_{1} (t) & 2 e_{2} (t) & e_{3} (t) \end{array}] .

(15)

4.2. Robust stability analysis of the closed-loop

Let us construct the Lyapunov candidate function as follows:

V (e (t)) = η e^{T} (t) [\begin{array}{l} 3 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & \frac{1}{2} \end{array}] e (t) + \frac{η_{1}}{2} {\tilde{a}}_{2}^{2} (t) + \frac{1}{2} ({\tilde{Ψ}}_{D}^{T} (t) Ψ_{D} + {\tilde{Θ}}_{D}^{T} (t) Θ_{D}) \geq 0,

(16)

provided

‖ {\hat{Ψ}}_{D} (t) ‖ \leq Ψ_{D}

and

‖ {\hat{Θ}}_{D} (t) ‖ \leq Θ_{D}

, where

{\tilde{Ψ}}_{D} (t) = Ψ_{D} + {\hat{Ψ}}_{D} (t)

{\tilde{Θ}}_{D} (t) = Θ_{D} + {\hat{Θ}}_{D} (t)

, and

{\tilde{a}}_{2} (t) = a_{2} - {\hat{a}}_{2} (t)

Remark 4

${\tilde{Ψ}}_{D}^{T} (t) Ψ_{D} \geq 0$ and ${\tilde{Θ}}_{D}^{T} (t) Θ_{D} \geq 0$ when $‖ {\hat{ψ}}_{D} (t) ‖ \leq Ψ_{D}$ and $‖ {\hat{Θ}}_{D} (t) ‖ \leq 5 Θ_{D}$ , it requires that $\lim_{t \to \infty} {\hat{Ψ}}_{D} (t) = - Ψ_{D}$ and $\lim_{t \to \infty} {\hat{Θ}}_{D} (t) = - Θ_{D}$ without fluctuations. Therefore, equation (16) holds.

Remark 5

The parameters adaptation laws (14) ensure that ${\hat{Ψ}}_{D} (t) \leq 0$ and ${\hat{Θ}}_{D} (t) \leq 0$ for different initial conditions.

Remark 6

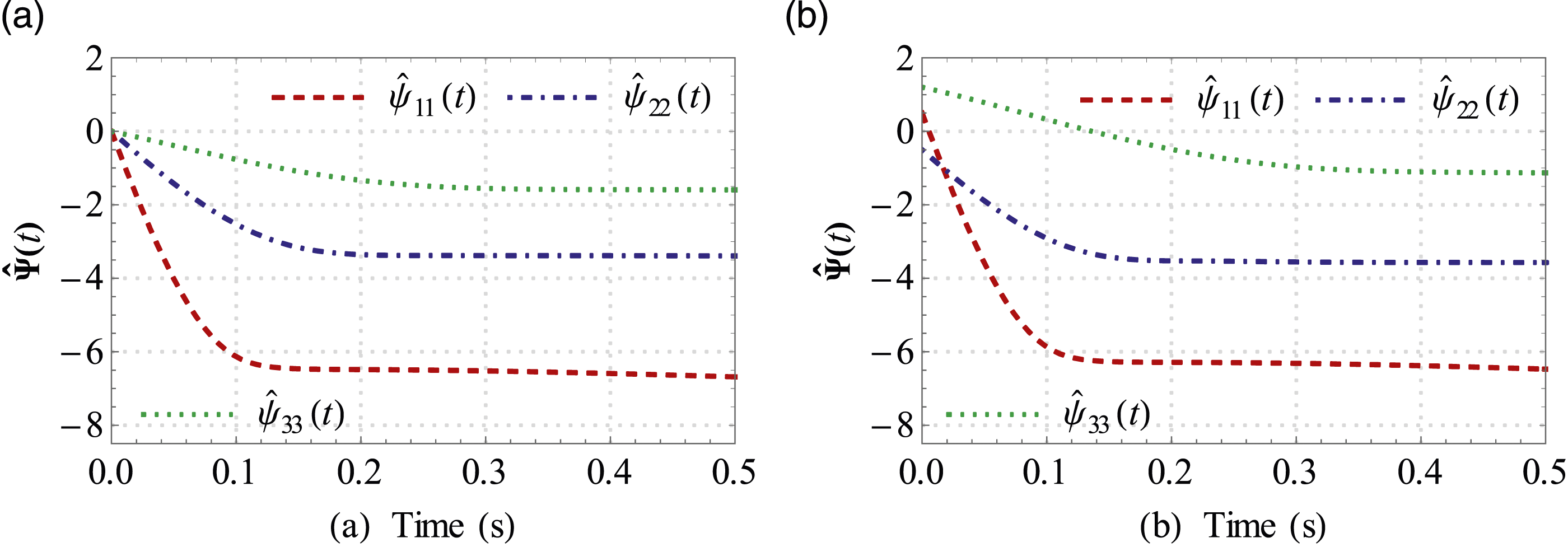

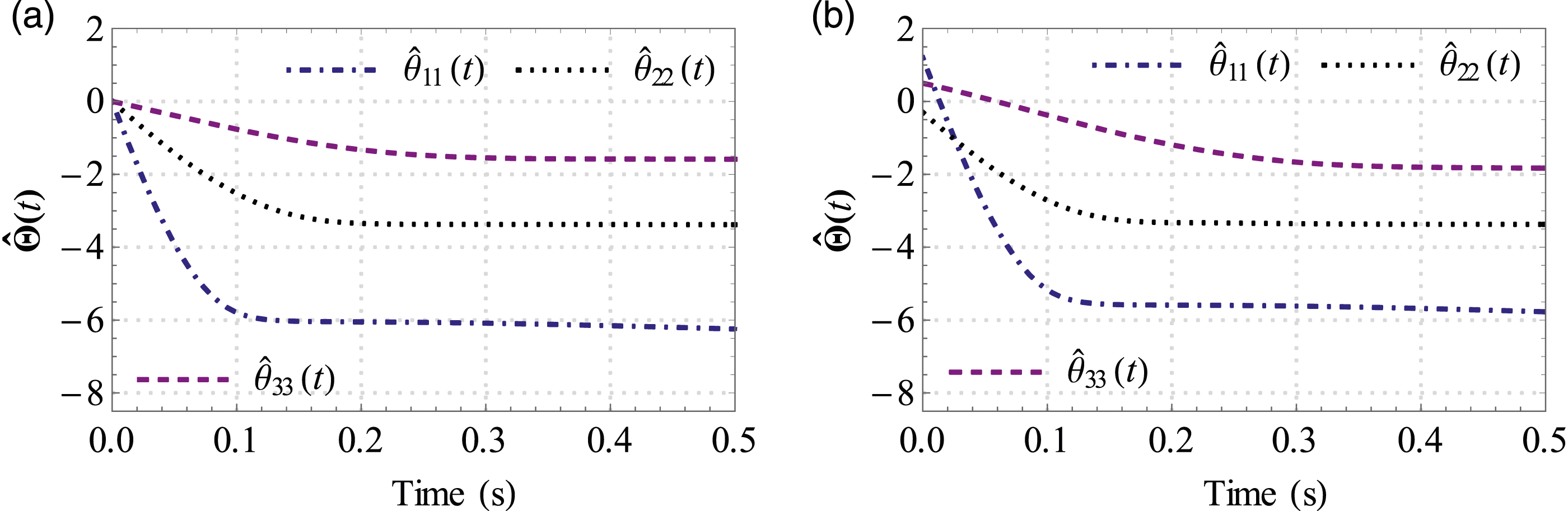

The simulation results in Figures 10(a)–(b) and 11(a)–(b) verify Remarks 4 and 5.

Now,

\dot{V} (e (t)) = η e^{T} (t) [\begin{array}{l} 6 & 0 & 0 \\ 0 & 2 & 0 \\ 0 & 0 & 1 \end{array}] \dot{e} (t) - η_{1} {\tilde{a}}_{2} (t) {\dot{\hat{a}}}_{2} (t) + ({\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D})

(17)

Substituting $\dot{e} (t)$ (equation (8)), u_i(t),i=1, 2, 3 (equation (13)), and ${\dot{\hat{a}}}_{2} (t)$ (equation (14)) in equation (17) and using Assumption 1 yield:

\begin{array}{c} \dot{V} (e (t)) = η e^{T} (t) [\begin{array}{c} 6 & 0 & 0 \\ 0 & 2 & 0 \\ 0 & 0 & 1 \end{array}] ([\begin{array}{c} - a_{1} & 0 & \frac{1}{\sqrt{6}} \\ 0 & a_{2} & 0 \\ - \sqrt{6} & 0 & - a_{3} \end{array}] e (t) + [\begin{array}{l} \frac{1}{3} (x_{3}^{s} (t) e_{2} (t) + x_{2}^{m} (t) e_{3} (t)) \\ - x_{3}^{s} (t) e_{1} (t) - x_{1}^{m} (t) e_{3} (t) \\ x_{2}^{s} (t) e_{1} (t) + x_{1}^{m} (t) e_{2} (t) \end{array}]) \\ - η p^{T} (t) α Ω (t) e (t) + η p^{T} (t) (Ψ_{D}^{m s} (x^{m s} (t)) + Θ_{D}^{m s} (t)) \\ + η p^{T} (t) (\hat{Ψ} (t) + \hat{Θ} (t)) \tanh ρ e (t) + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \\ + 2 η {\tilde{a}}_{2} (t) e_{2}^{2} (t) - η_{1} {\tilde{a}}_{2} (t) (\frac{2 η}{η_{1}} e_{2}^{2} (t)) \end{array}

\begin{array}{l} = - η (6 a_{1} e_{1}^{2} (t) + a_{3} e_{3}^{2} (t)) + η ((2 x_{2}^{m} (t) + x_{2}^{s} (t)) e_{1} (t) e_{3} (t) - x_{1}^{m} (t) e_{2} (t) e_{3} (t)) \\ - η p^{T} (t) α Ω (t) e (t) + η p^{T} (t) (Ψ_{D}^{m s} (x^{m s} (t)) + Θ_{D}^{m s} (t)) \\ + η p^{T} (t) (\hat{Ψ} (t) + \hat{Θ} (t)) \tanh ρ e (t) + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \end{array}

\begin{array}{l} = - η e^{T} (t) G e (t) + η e^{T} (t) B (t) e (t) - η p^{T} (t) α Ω (t) e (t) \\ + η p^{T} (t) Ψ_{D}^{m s} (x^{m s} (t)) + η p^{T} (t) Θ_{D}^{m s} (t) + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} \\ + η p^{T} (t) (\hat{Ψ} (t) + \hat{Θ} (t)) \tanh ρ e (t) + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \end{array}

\begin{array}{l} \leq - e^{T} (t) Q (t) e (t) \\ + η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) + η | {(Ψ_{D}^{m s} (x^{m s} (t)))}^{T} p (t) | + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} \\ + η p^{T} (t) \hat{Θ} (t) \tanh ρ e (t) + η | {(Θ_{D}^{m s} (t))}^{T} p (t) | + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \end{array}

\begin{array}{l} = - e^{T} (t) Q (t) e (t) \\ + η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) + η | {(Ψ_{D}^{m s} (x^{m s} (t)))}^{T} | | p (t) | + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} \\ + η p^{T} (t) \hat{Θ} (t) \tanh ρ e (t) + η | {(Θ_{D}^{m s} (t))}^{T} | | p (t) | + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \end{array}

\begin{array}{l} \leq - e^{T} (t) Q (t) e (t) \\ + η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) + η Ψ_{D}^{T} | p (t) | + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} \\ + η p^{T} (t) \hat{Θ} (t) \tanh ρ e (t) + η Θ_{D}^{T} | p (t) | + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \end{array}

= {\dot{V}}_{Q} (e (t)) + {\dot{V}}_{Ψ} (e (t)) + {\dot{V}}_{Θ} (e (t)),

(18)

where

G = [\begin{array}{l} 6 a_{1} & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & a_{3} \end{array}],

(19)

\begin{array}{l} (2 x_{2}^{m} (t) + x_{2}^{s} (t)) e_{1} (t) e_{3} (t) - x_{1}^{m} (t) e_{2} (t) e_{3} (t) \\ = e^{T} (t) B (t) e (t) = e^{T} (t) [\begin{array}{c} 0 & 0 & 2 x_{2}^{m} (t) + x_{2}^{s} (t) \\ 0 & 0 & - x_{1}^{m} (t) \\ 0 & 0 & 0 \end{array}] e (t) \end{array}

(20)

Q (t) = η (G + α Ω (t) - B (t)) = η [\begin{array}{c} 6 (α_{11} Ω_{11} (t) + a_{1}) & 0 & - 2 x_{2}^{m} (t) - x_{2}^{s} (t) \\ 0 & 2 α_{22} Ω_{22} (t) & x_{1}^{m} (t) \\ 0 & 0 & α_{33} Ω_{33} (t) + a_{3} \end{array}]

(21)

and

{\begin{cases} {\dot{V}}_{Q} (e (t)) = - e^{T} (t) Q (t) e (t) \\ {\dot{V}}_{Ψ} (e (t)) = η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) + η Ψ_{D}^{T} | p (t) | + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} \\ {\dot{V}}_{Θ} (e (t)) = η p^{T} (t) \hat{Θ} (t) \tanh ρ e (t) + η Θ_{D}^{T} | p (t) | + {\dot{\hat{Θ}}}_{D}^{T} (t) Θ_{D} \end{cases}

(22)

4.3. Analysis of ${\dot{V}}_{Q} (e (t))$ , ${\dot{V}}_{Ψ} (e (t))$ , and ${\dot{V}}_{Θ} (e (t))$ stability

4.3.1 Analysis of ${\dot{V}}_{Q} (e (t))$

Let us choose α_ii>0, which assures that Q(t)>0; consequently ${\dot{V}}_{Q} (e (t)) \leq 0$

4.3.1.1. Analysis of ${\dot{V}}_{Ψ} (e (t))$ and ${\dot{V}}_{Θ} (e (t))$

To show that ${\dot{V}}_{Ψ} (e (t)) \leq 0$ and ${\dot{V}}_{Θ} (e (t)) \leq 0$ , consider,

{\dot{V}}_{Ψ} (e (t)) = η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) + η Ψ_{D}^{T} | p (t) | + {\dot{\hat{Ψ}}}_{D}^{T} (t) Ψ_{D} .

(23)

Using update law (14) into (23) gives:

{\dot{V}}_{Ψ} (e (t)) \leq η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) + η Ψ_{D}^{T} | p (t) | - η Ψ_{D}^{T} | p (t) |

\leq η p^{T} (t) \hat{Ψ} (t) \tanh ρ e (t) \leq 0,

(24)

because

\hat{Ψ} (t) \leq 0

Similarly,

{\dot{V}}_{Θ} (e (t)) = η p^{T} (t) \hat{Θ} (t) \tanh ρ e (t) \leq 0,

(25)

Therefore,

\dot{V} (e (t)) = {\dot{V}}_{Q} (e (t)) + {\dot{V}}_{Ψ} (e (t)) + {\dot{V}}_{Θ} (e (t)) \leq 0 .

(26)

The inequality (26) determines that the error vector trajectories converge in the origin's vicinity. The unknown parameter estimations are associated with the exogenous disturbances and uncertainties and approach some constant values. Hence, the closed-loop (8) global asymptotic stability is assured (Khalil, 2022). Thus,

\lim_{t \to \infty} ‖ e (t) ‖ = 0

. □

Remark 7

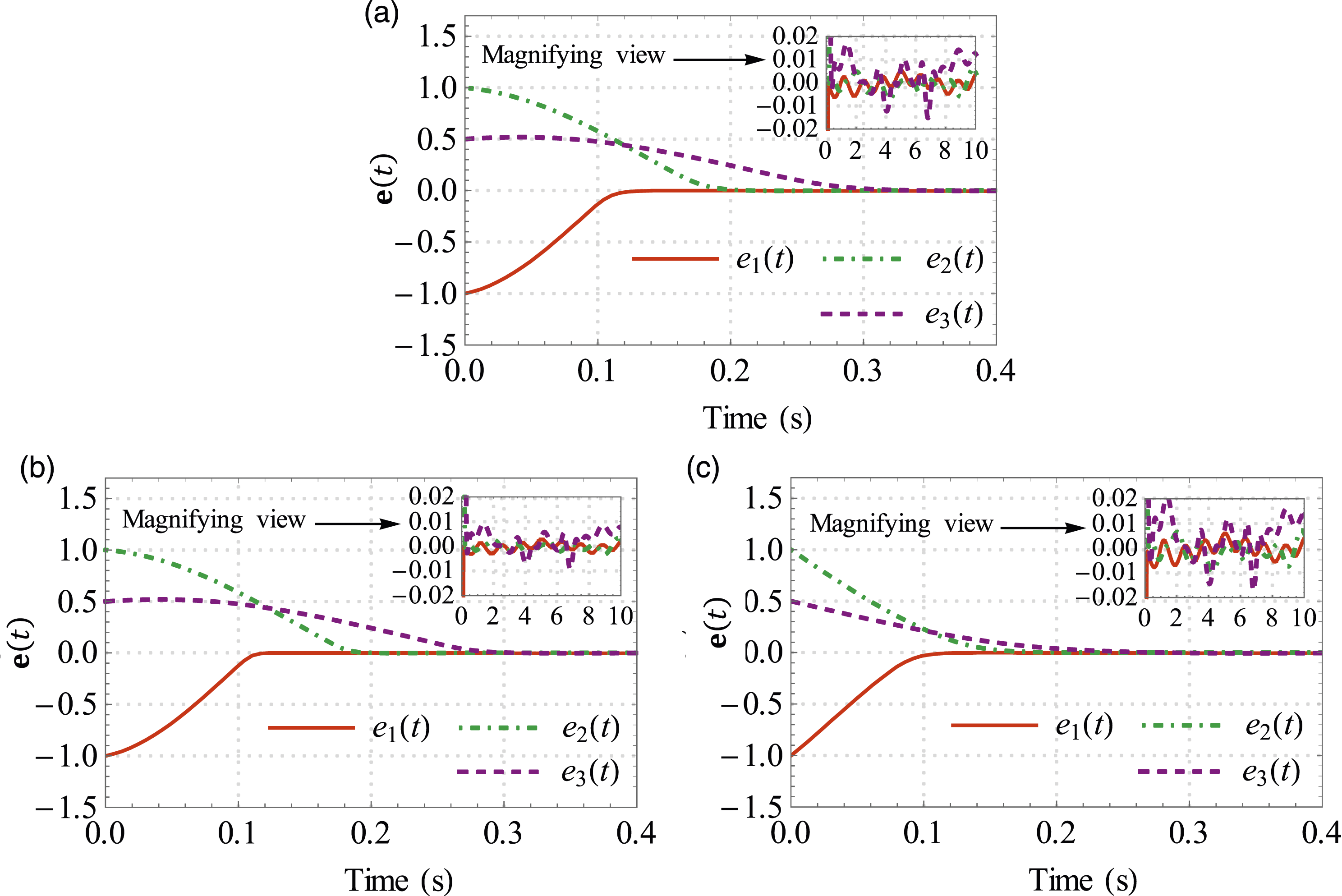

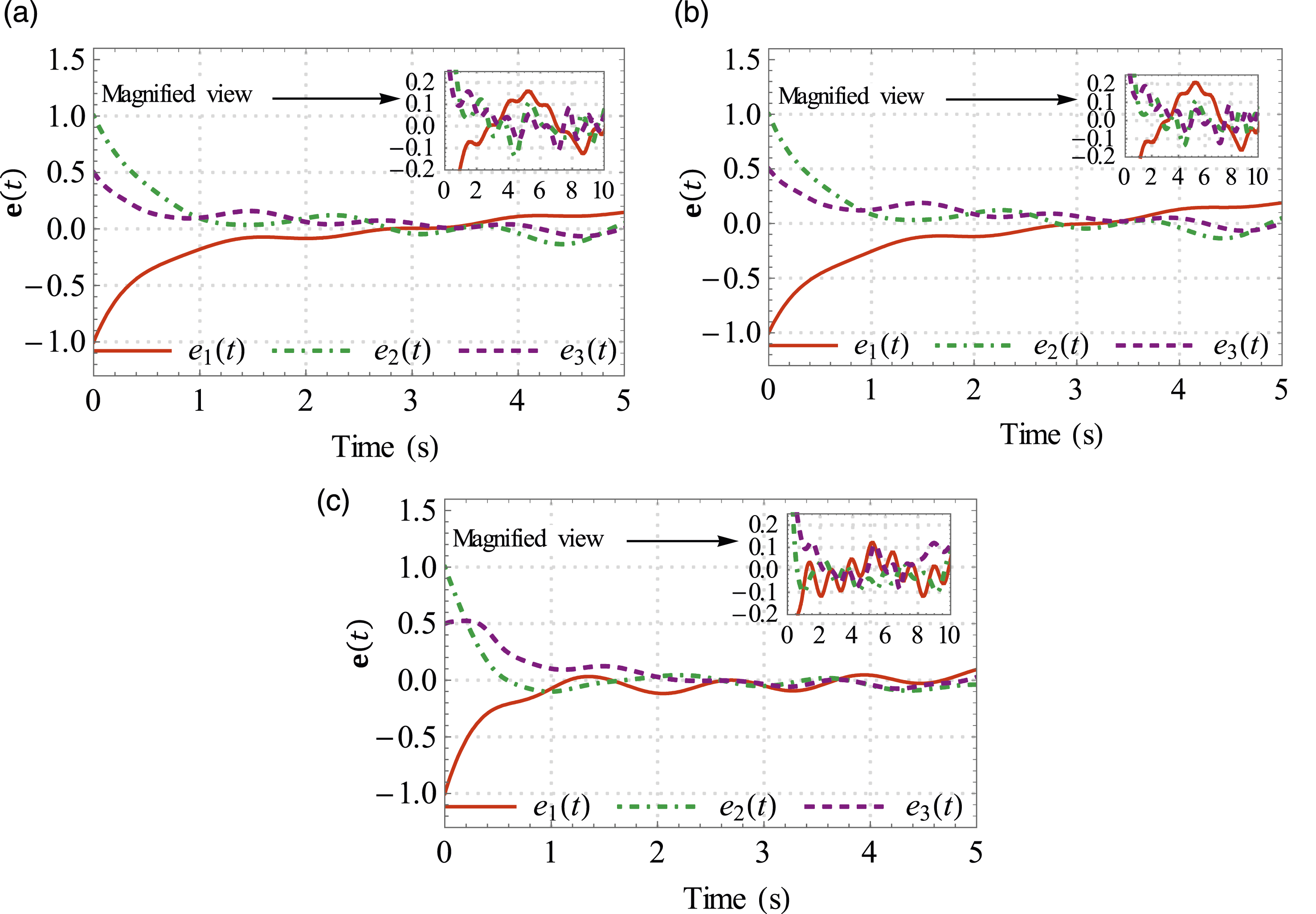

Large values of α_ii and ρ increase the synchronization speed as depicted in Figure 13(a)–(c).

5. Numerical simulations

Table 3 assumes the initial conditions, TDCS system parameters, controller parameters, exogenous disturbances, and model uncertainties for numerical simulations. All differential equations are simulated using the Explicit Runge-Kutta method (Burden et al., 2014) in Mathematica 12.0.

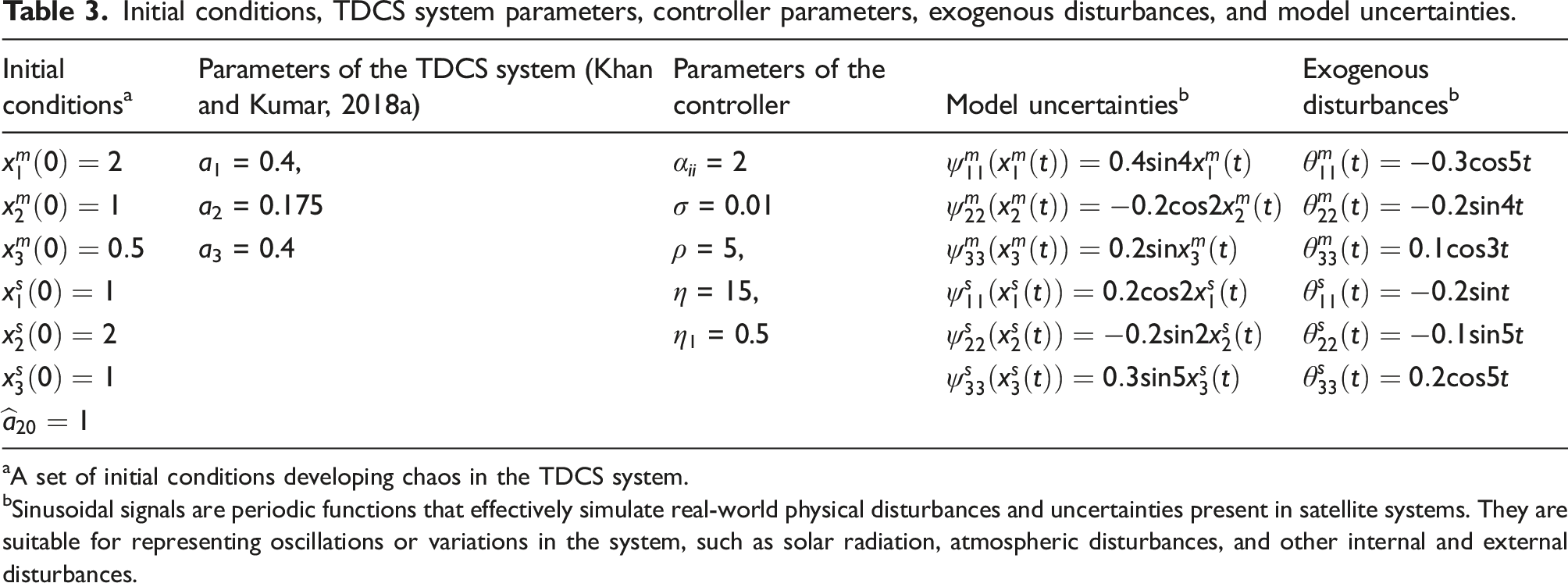

Table 3.

Initial conditions, TDCS system parameters, controller parameters, exogenous disturbances, and model uncertainties.

Initial conditions^a	Parameters of the TDCS system (Khan and Kumar, 2018a)	Parameters of the controller	Model uncertainties^b	Exogenous disturbances^b
$x_{1}^{m} (0) = 2$	a₁ = 0.4,	α_ii = 2	$ψ_{11}^{m} (x_{1}^{m} (t)) = 0.4 \sin 4 x_{1}^{m} (t)$	$θ_{11}^{m} (t) = - 0.3 \cos 5 t$
$x_{2}^{m} (0) = 1$	a₂ = 0.175	σ = 0.01	$ψ_{22}^{m} (x_{2}^{m} (t)) = - 0.2 \cos 2 x_{2}^{m} (t)$	$θ_{22}^{m} (t) = - 0.2 \sin 4 t$
$x_{3}^{m} (0) = 0.5$	a₃ = 0.4	ρ = 5,	$ψ_{33}^{m} (x_{3}^{m} (t)) = 0.2 \sin x_{3}^{m} (t)$	$θ_{33}^{m} (t) = 0.1 \cos 3 t$
$x_{1}^{s} (0) = 1$		η = 15,	$ψ_{11}^{s} (x_{1}^{s} (t)) = 0.2 \cos 2 x_{1}^{s} (t)$	$θ_{11}^{s} (t) = - 0.2 \sin t$
$x_{2}^{s} (0) = 2$		η₁ = 0.5	$ψ_{22}^{s} (x_{2}^{s} (t)) = - 0.2 \sin 2 x_{2}^{s} (t)$	$θ_{22}^{s} (t) = - 0.1 \sin 5 t$
$x_{3}^{s} (0) = 1$			$ψ_{33}^{s} (x_{3}^{s} (t)) = 0.3 \sin 5 x_{3}^{s} (t)$	$θ_{33}^{s} (t) = 0.2 \cos 5 t$
${\hat{a}}_{20} = 1$

^aA set of initial conditions developing chaos in the TDCS system.

^bSinusoidal signals are periodic functions that effectively simulate real-world physical disturbances and uncertainties present in satellite systems. They are suitable for representing oscillations or variations in the system, such as solar radiation, atmospheric disturbances, and other internal and external disturbances.

The state variables in Figure 3(a)–(c) and error trajectories in Figure 4 demonstrate that the MSS (6–7) do not synchronize without any control effort.

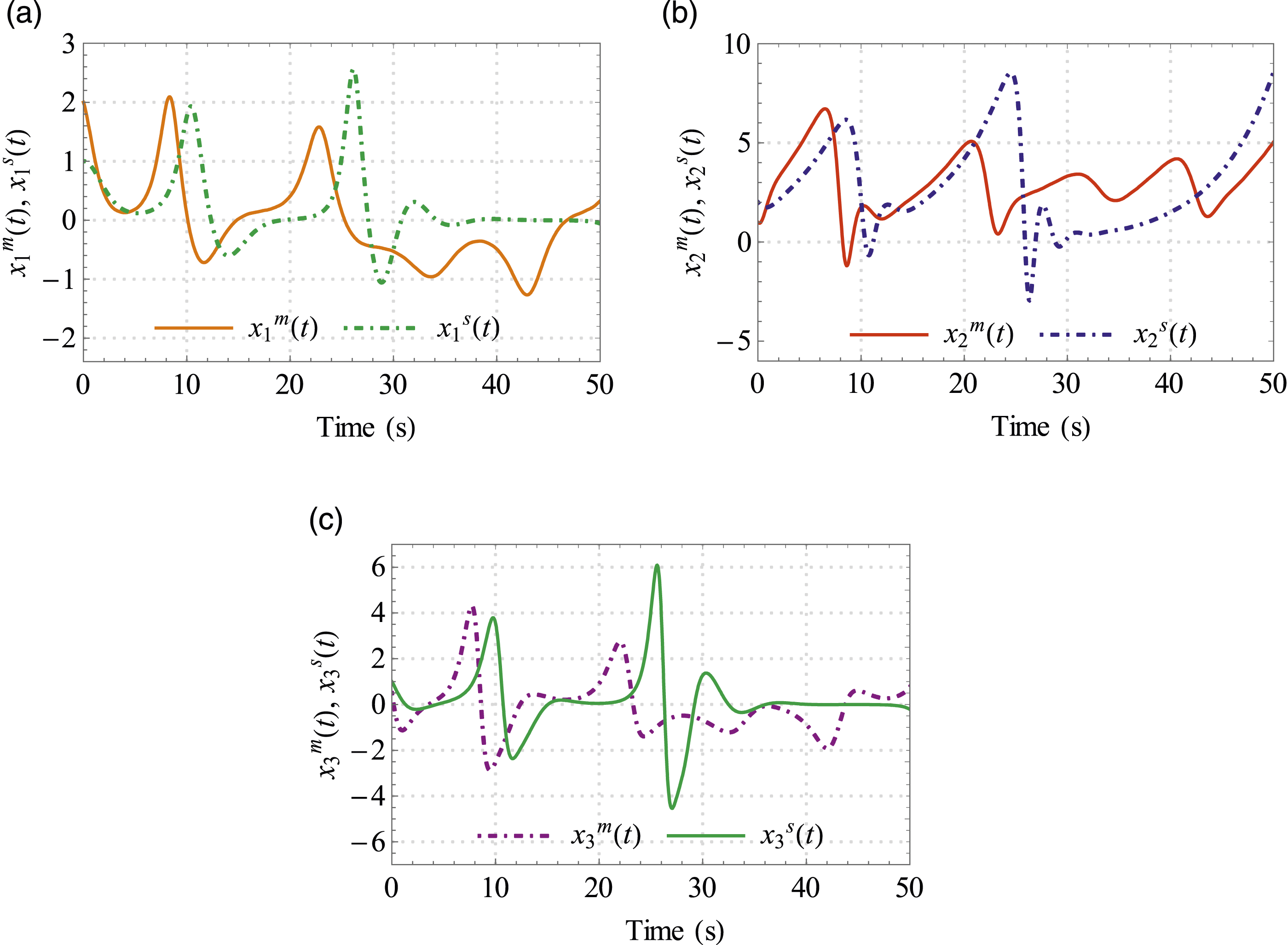

Figure 3.

The MSS (6–7) state variables behaviour (a) $x_{1}^{m} (t)$ and $x_{1}^{s} (t)$ , (b) $x_{2}^{m} (t)$ and $x_{2}^{s} (t)$ , and (c) $x_{3}^{m} (t)$ and $x_{3}^{s} (t)$ without any control effort.

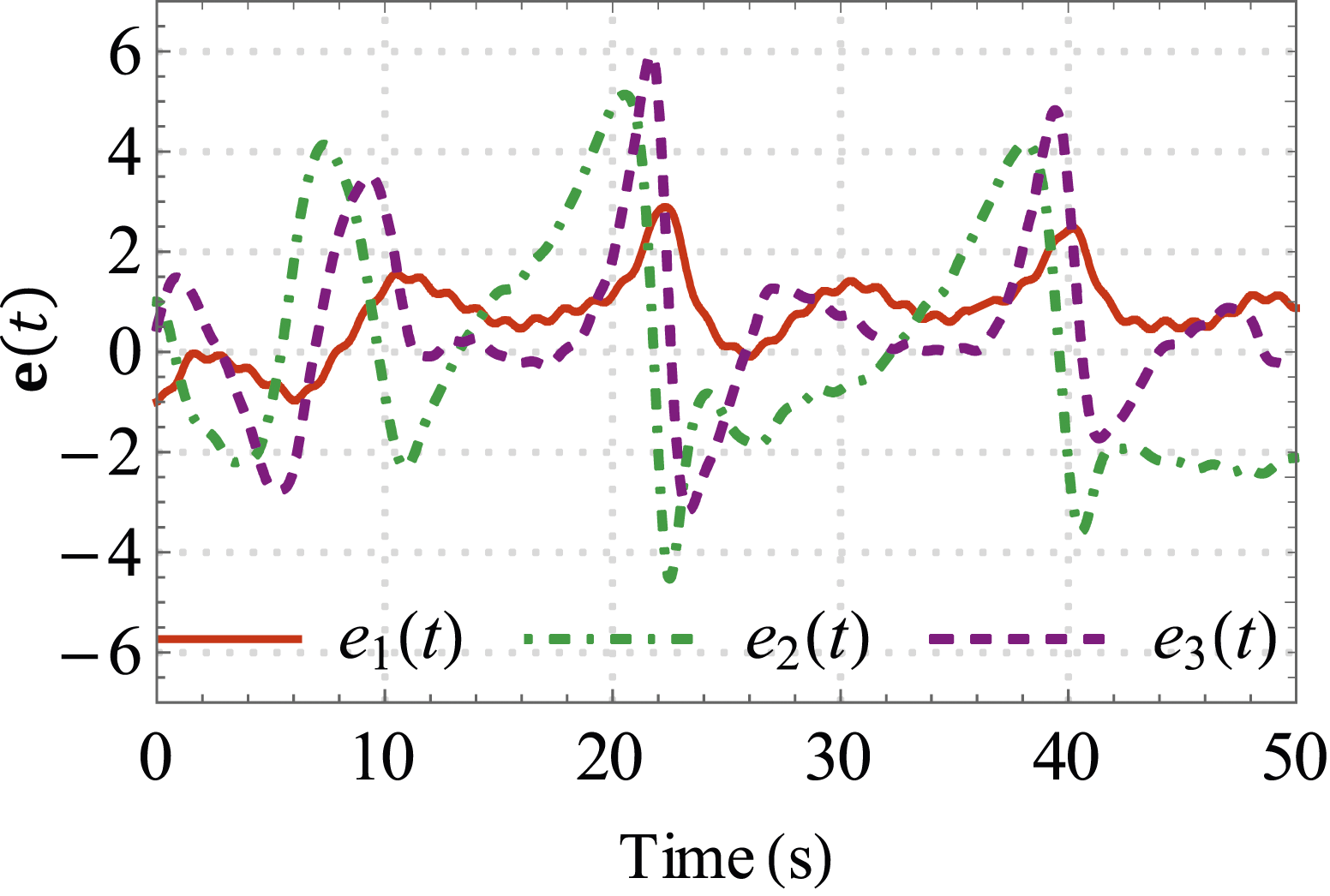

Figure 4.

Synchronization error vector behaviour without any control effort.

Figures 5(a)–(c) and 6 depict that the MSS (6–7) state variables show similar behaviour, and error trajectories (8) converge to the vicinity of zero under the control effort computed by (13).

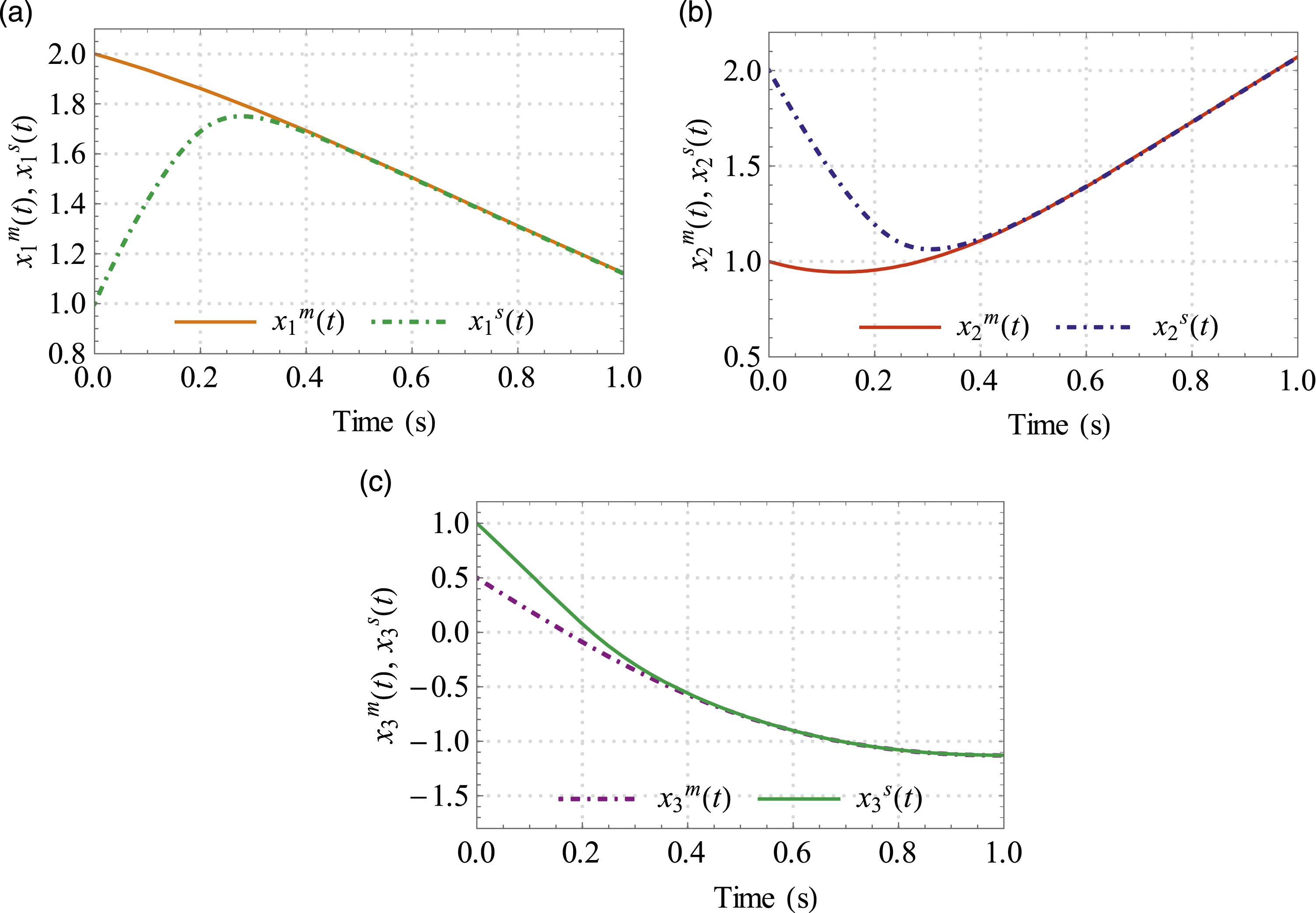

Figure 5.

The MSS (6–7) state variable synchronization behaviour using a control effort (13). (a) $x_{1}^{m} (t)$ and $x_{1}^{s} (t)$ , (b) $x_{2}^{m} (t)$ and $x_{2}^{s} (t)$ , and (c) $x_{3}^{m} (t)$ and $x_{3}^{s} (t)$ .

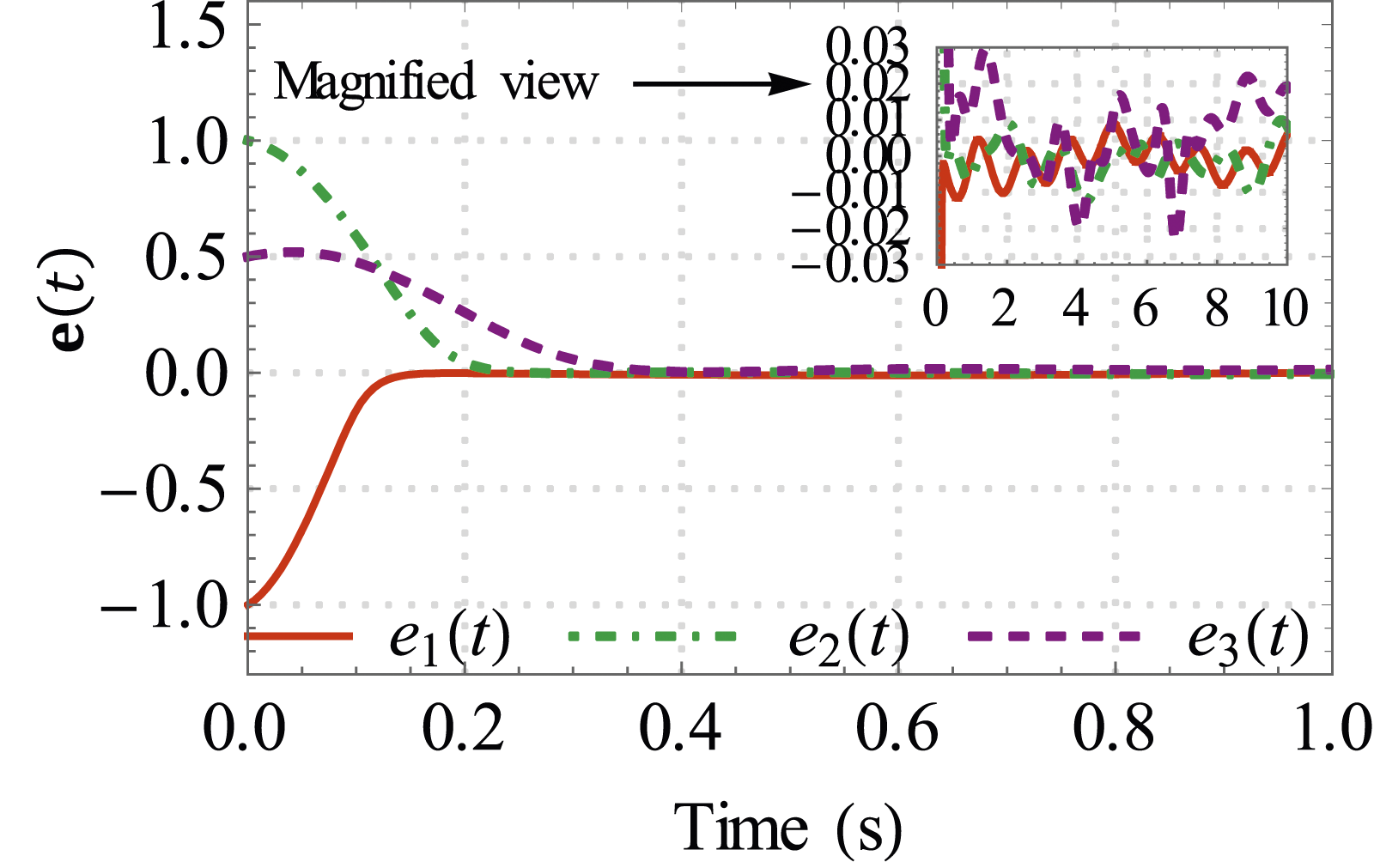

Figure 6.

Synchronization error vector using a control effort (13).

Figures 7, 8(a)–(b), and 9(a)–(b) illustrate the estimated parameters ${\hat{a}}_{2} (t)$ , $\hat{Ψ} (t)$ , and $\hat{Θ} (t)$ convergence behaviour, alternatively under the parameters update laws given in (14). Figure 7 shows that the unknown system parameter converges to its true value asymptotically. Figures 8(a) and 9(a) establish that the controller parameters associated with the parametric uncertainties and disturbances converge to suitable values for the synchronization of the master-slave system from the initial conditions zero, while Figures 8(b) and 9(b) demonstrate this behaviour for non-zero initial conditions.

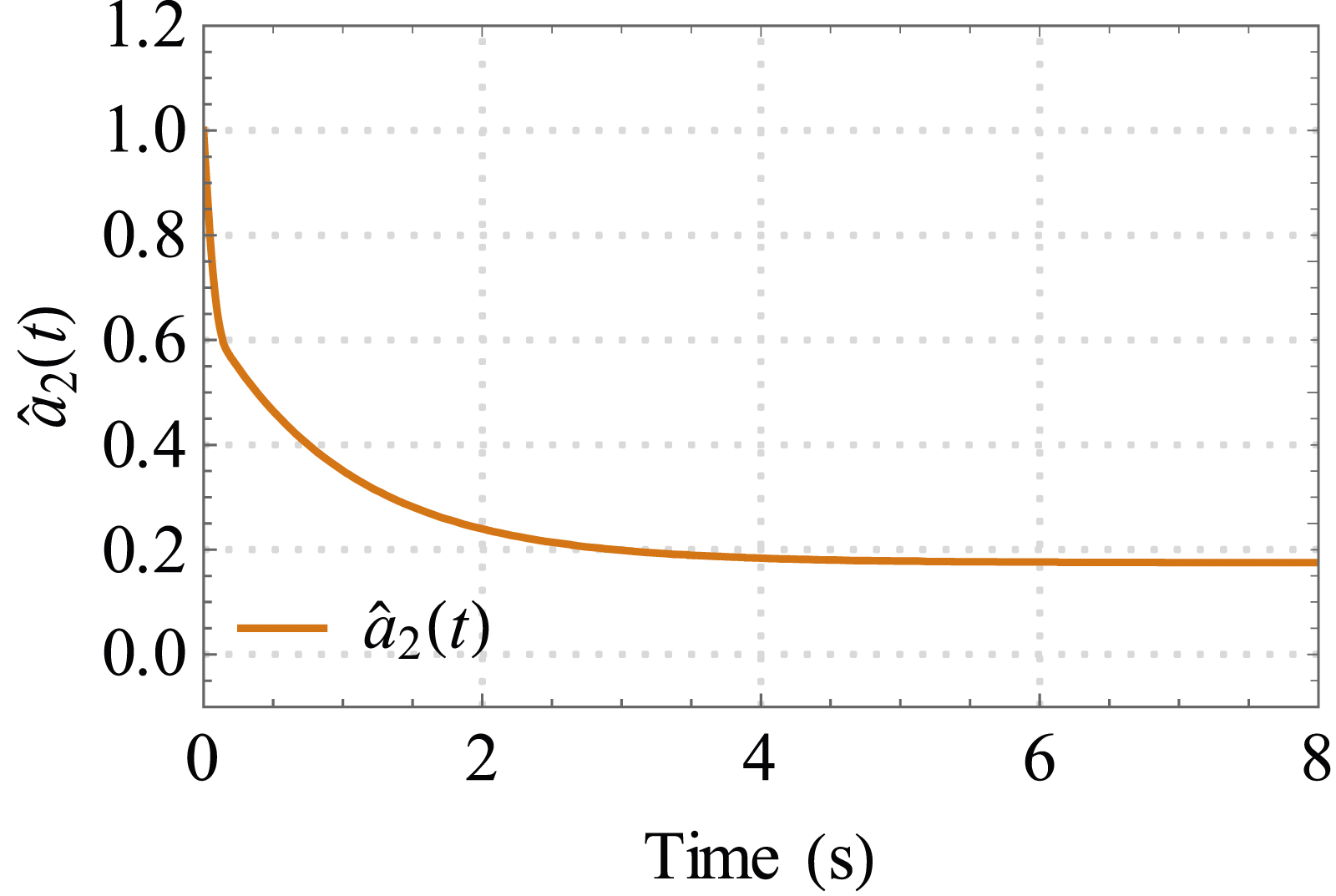

Figure 7.

${\hat{a}}_{2} (t)$ convergence. (a) Zero initial conditions, ${\hat{ψ}}_{i i} (0) = 0$ and i=1, 2, 3, and (b) non-zero initial conditions, ${\hat{ψ}}_{11} (0) = 0.5$ , ${\hat{ψ}}_{22} (0) = - 0.5$ , and ${\hat{ψ}}_{33} (0) = 1.2$ .

Figure 8.

Estimated parameters ${\hat{ψ}}_{i i} (t)$ and i=1, 2, 3 convergence using different initial conditions. (a) Zero initial conditions, ${\hat{θ}}_{i i} (0) = 0$ and i=1, 2, 3, and (b) non-zero initial conditions, ${\hat{θ}}_{11} (0) = 1.2$ , ${\hat{θ}}_{22} (0) = - 0.3$ , and ${\hat{θ}}_{33} (0) = 0.5$ .

Figure 9.

Estimated parameters ${\hat{θ}}_{i i} (t)$ and i=1, 2, 3 convergence using different initial conditions.

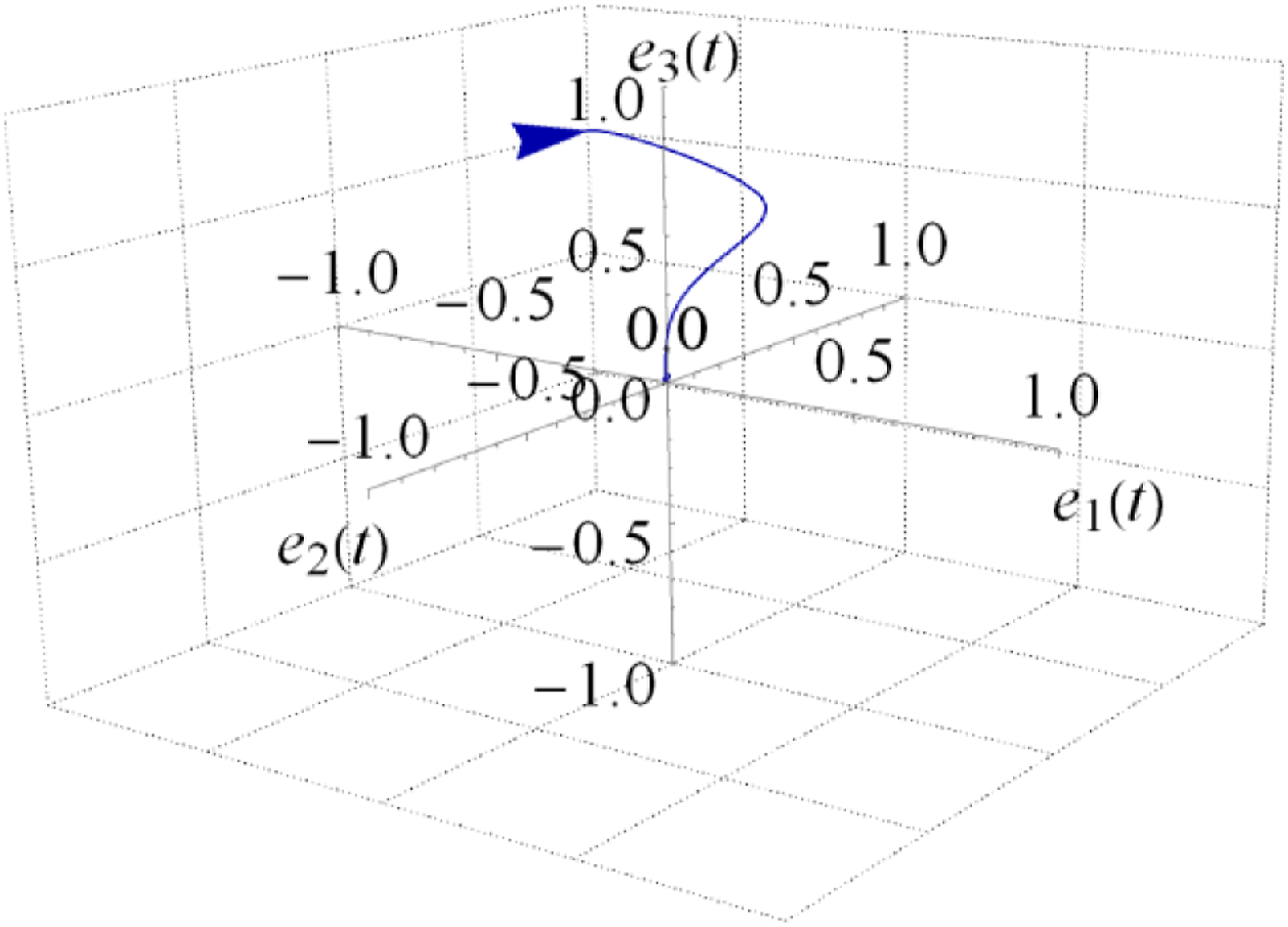

Figure 10 demonstrates the synchronization error vector behaviour to the vicinity of zero. It shows reduced oscillation of the error vector convergence.

Figure 10.

Error vector convergence.

The error vector convergence behaviour for different controller parameters ρ and α_ii are shown in Figure 11(a)–(c). These figures demonstrate that the error convergence speed increases and the steady-state oscillations reduce when the values of ρ are large. Faster error convergence speed is also observed by increasing the values of α_ii(i=1, 2, 3), but it slightly raises the steady-state oscillations. Table 4 summarizes the data for the simulation results shown in Figure 11(a)–(c).

Figure 11.

Error vector behaviour with a control effort (13) when (a) ρ=10 and α_ii=2, (b) ρ=15 and α_ii=2, and (c) ρ=10,α_ii=10.

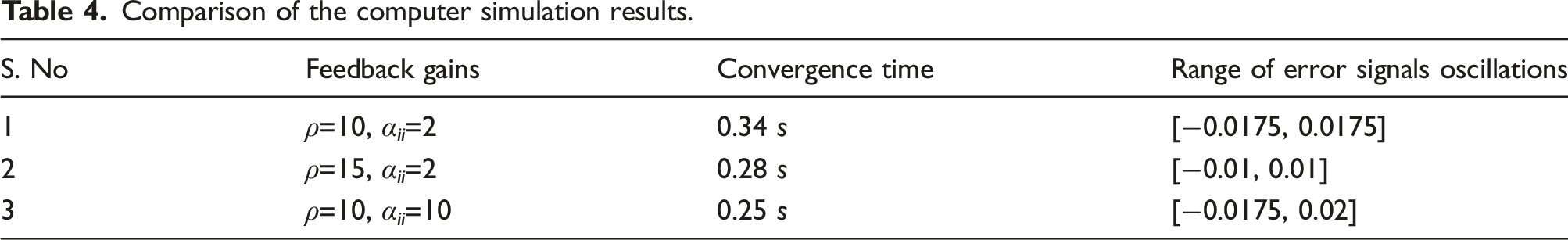

Table 4.

Comparison of the computer simulation results.

S. No	Feedback gains	Convergence time	Range of error signals oscillations
1	ρ=10, α_ii=2	0.34 s	[−0.0175, 0.0175]
2	ρ=15, α_ii=2	0.28 s	[−0.01, 0.01]
3	ρ=10, α_ii=10	0.25 s	[−0.0175, 0.02]

Based on numerical simulation results, the following subsection performs a comparative study with the other control techniques (Khan and Kumar, 2018b, 2019a, Haris et al., 2020) to evaluate the proposed RASC approach (13) effectiveness.

5.1. Comparative study

The state-feedback control input vector u(t)∈R^3×1 synthesized by the sliding mode control (SMC) strategy (27) in (Khan and Kumar, 2018b), the adaptive controller (28) in (Khan and Kumar, 2019a), and the nonlinear controller (29) in (Haris et al., 2020), alternatively. For the benchmark, initial state variable conditions and controller parameters shown in Table 3 are used in all simulations.

(i) SMC strategy (Khan and Kumar, 2018b):

u (t) = {\begin{cases} u_{1} (t) = a_{1} e_{1} (t) - \frac{1}{\sqrt{6}} e_{3} (t) - \frac{1}{3} x_{3}^{s} (t) e_{2} (t) - \frac{1}{3} x_{2}^{m} (t) e_{3} (t) - α_{11} s_{1} (t) \\ - β_{11} sgn (e_{1} (t)) \\ \begin{array}{l} u_{2} (t) = - a_{2} e_{2} (t) + x_{3}^{s} (t) e_{1} (t) + x_{1}^{m} (t) e_{3} (t) - α_{22} s_{2} (t) - β_{22} s g n (e_{2} (t)) \\ u_{3} (t) = a_{3} e_{3} (t) + \sqrt{6} e_{1} (t) - x_{2}^{s} (t) e_{1} (t) - α_{33} (t) s_{3} (t) - β_{33} s g n (e_{3} (t)) \end{array} \end{cases}

(27)

According to Khan and Kumar, 2018b, s_i(t)=γ_iie_i(t)∈R and $s (t) = {[s_{i} (t), i = 1, 2, 3]}^{T}$ , where s(t) is the switching surface, γ_ii>0 is the switching surface parameter, and α_ii and β_ii (i=1, 2, 3) are the controller gains.

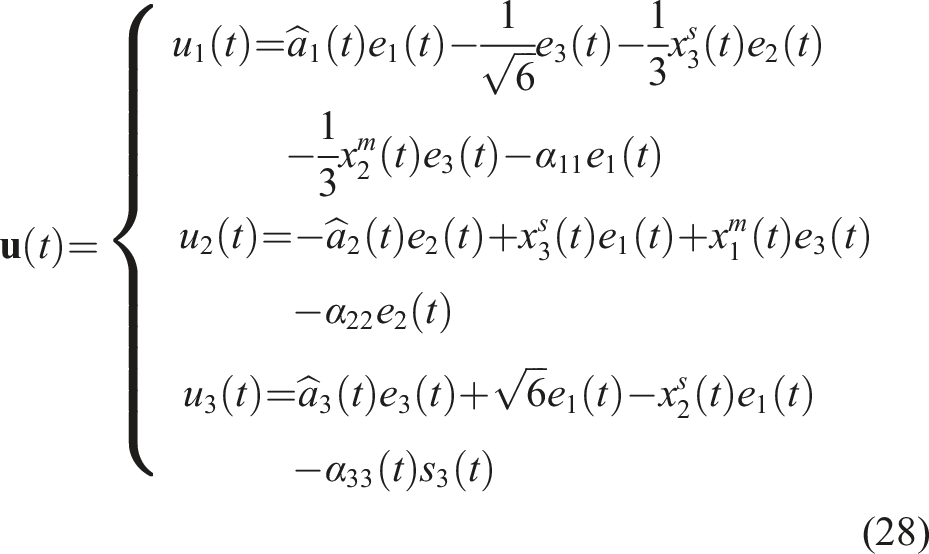

(ii) The adaptive controller (Khan and Kumar, 2019a):

u (t) = {\begin{cases} u_{1} (t) = {\hat{a}}_{1} (t) e_{1} (t) - \frac{1}{\sqrt{6}} e_{3} (t) - \frac{1}{3} x_{3}^{s} (t) e_{2} (t) - \frac{1}{3} x_{2}^{m} (t) e_{3} (t) - α_{11} e_{1} (t) \\ \begin{array}{l} u_{2} (t) = - {\hat{a}}_{2} (t) e_{2} (t) + x_{3}^{s} (t) e_{1} (t) + x_{1}^{m} (t) e_{3} (t) - α_{22} e_{2} (t) \\ u_{3} (t) = {\hat{a}}_{3} (t) e_{3} (t) + \sqrt{6} e_{1} (t) - x_{2}^{s} (t) e_{1} (t) - α_{33} (t) s_{3} (t) \end{array} \end{cases}

(28)

where α_ii (i=1, 2, 3) are the feedback gains and

{\hat{a}}_{i} (t)

(i=1, 2, 3) are the estimated parameters (Khan and Kumar, 2019a).

(iii) The nonlinear control technique (Haris et al., 2020):

u (t) = - α e (t) - β (1 {- e}^{- σ | e (t) |}) - γ \tanh e (t)

(29)

where α={α_ij,i≠j⇒α_ij=0,i,j=1, 2, 3}∈R^3×3 and β={ β _ij,i≠j⇒ β _ij=0,i,j=1, 2, 3}∈R^3×3 are the controller gains matrices, and γ denotes the bound of model uncertainties Ψ_D(x^ms(t)) and exogenous disturbances

Θ_{D}^{m s} (t)

(Haris et al., 2020).

Figures 6 and 12(a)–(c) depict the error vector convergence behaviour accomplished by the controllers (13) and (27–29), respectively, demonstrating that the proposed RASC strategy (13) establishes the synchronization in 0.4 s with reduced oscillations. Figure 13(a)–(c) shows oscillatory behaviour; the error vectors do not achieve a steady state.

Figure 12.

(a) Error vector behaviour with a control input (a) SMC strategy (27), (b) adaptive controller (28), and (c) nonlinear controller (29).

The proposed controller (13) synthesizes a control effort, shown in Figure 13(a), is chatter-free, and takes appropriate action for compelling the state error vector to the origin. Controllers in (27–29) synthesize similar control signals, but the synchronization error vectors remain oscillatory.

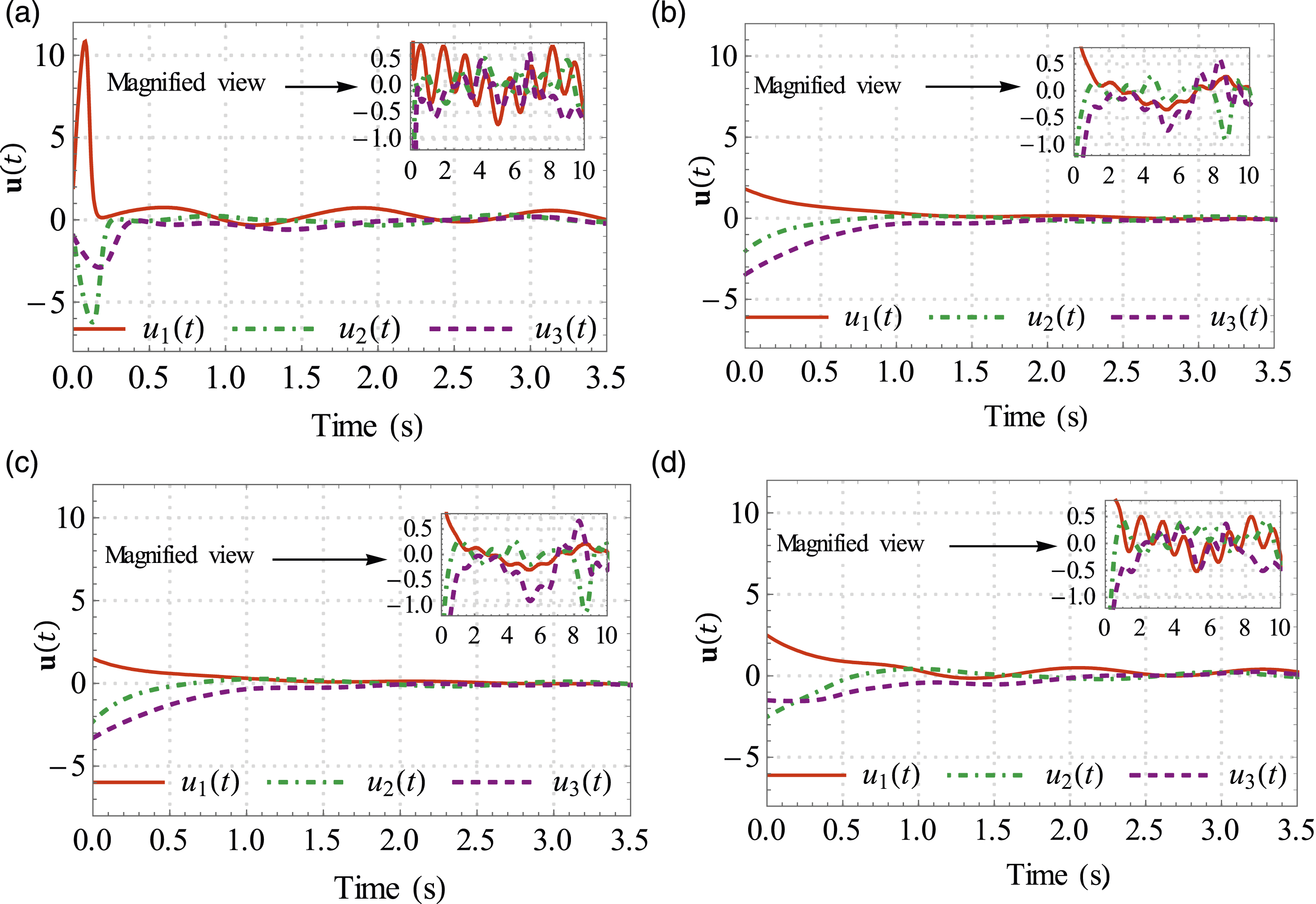

Figure 13.

The transient behaviour of the (a) proposed RASC signals (13), (b) SMC signals (27), (c) adaptive control signals (28), and (d) nonlinear control signals (29).

The closed-loop (8) essential performance indicators are extracted and summarized in Table 5 for comparative analysis based on the computer simulation results. These simulation results are shown in Figures 6 and 12(a)–(c)–13(a)–(d).

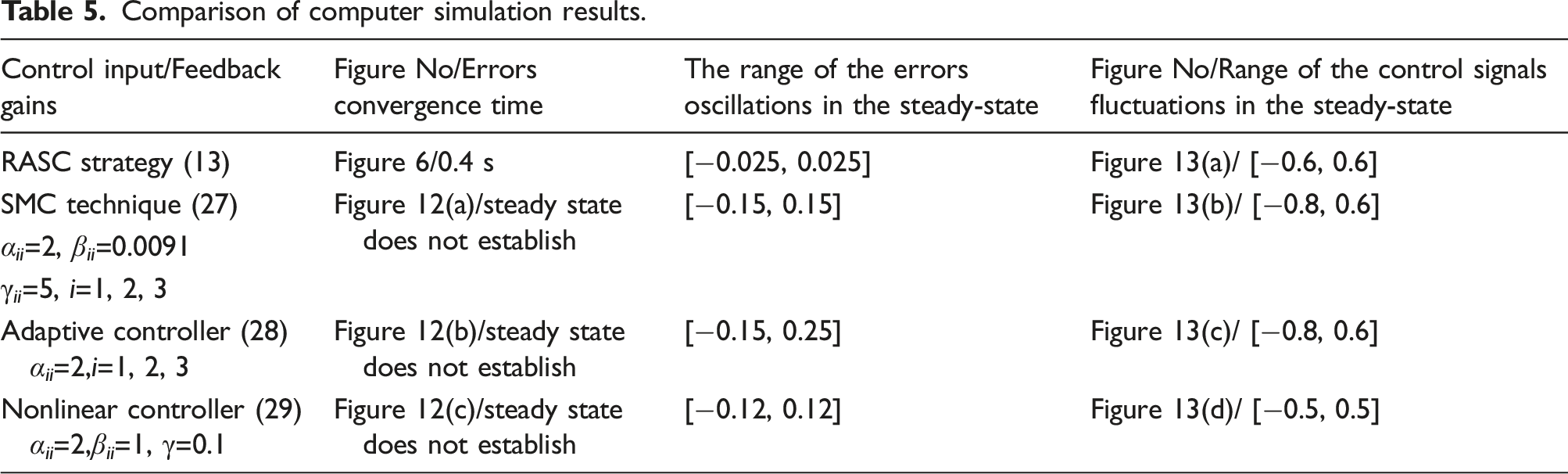

Table 5.

Comparison of computer simulation results.

Control input/Feedback gains	Figure No/Errors convergence time	The range of the errors oscillations in the steady-state	Figure No/Range of the control signals fluctuations in the steady-state
RASC strategy (13)	Figure 6/0.4 s	[−0.025, 0.025]	Figure 13(a)/ [−0.6, 0.6]
SMC technique (27)	Figure 12(a)/steady state does not establish	[−0.15, 0.15]	Figure 13(b)/ [−0.8, 0.6]
α_ii=2, β_ii=0.0091
γ_ii=5, i=1, 2, 3
Adaptive controller (28) α_ii=2,i=1, 2, 3	Figure 12(b)/steady state does not establish	[−0.15, 0.25]	Figure 13(c)/ [−0.8, 0.6]
Nonlinear controller (29) α_ii=2,β_ii=1, γ=0.1	Figure 12(c)/steady state does not establish	[−0.12, 0.12]	Figure 13(d)/ [−0.5, 0.5]

Simulation results in Figure 14 illustrate that the proposed RASC approach (13) furnishes faster convergence by initially dissipating energy at a higher rate. In the zero's vicinity, the energy dissipation rate is low, which reduces oscillations in the closed-loop signals as well, where energy refers to V(e(t)). In Figure 14, ${\dot{V}}_{i} (e (t)), i = 1, 2, 3$ represent the rate of dissipation of V_i(e(t)),i=1, 2, 3 by the controllers in (27–29), alternatively.

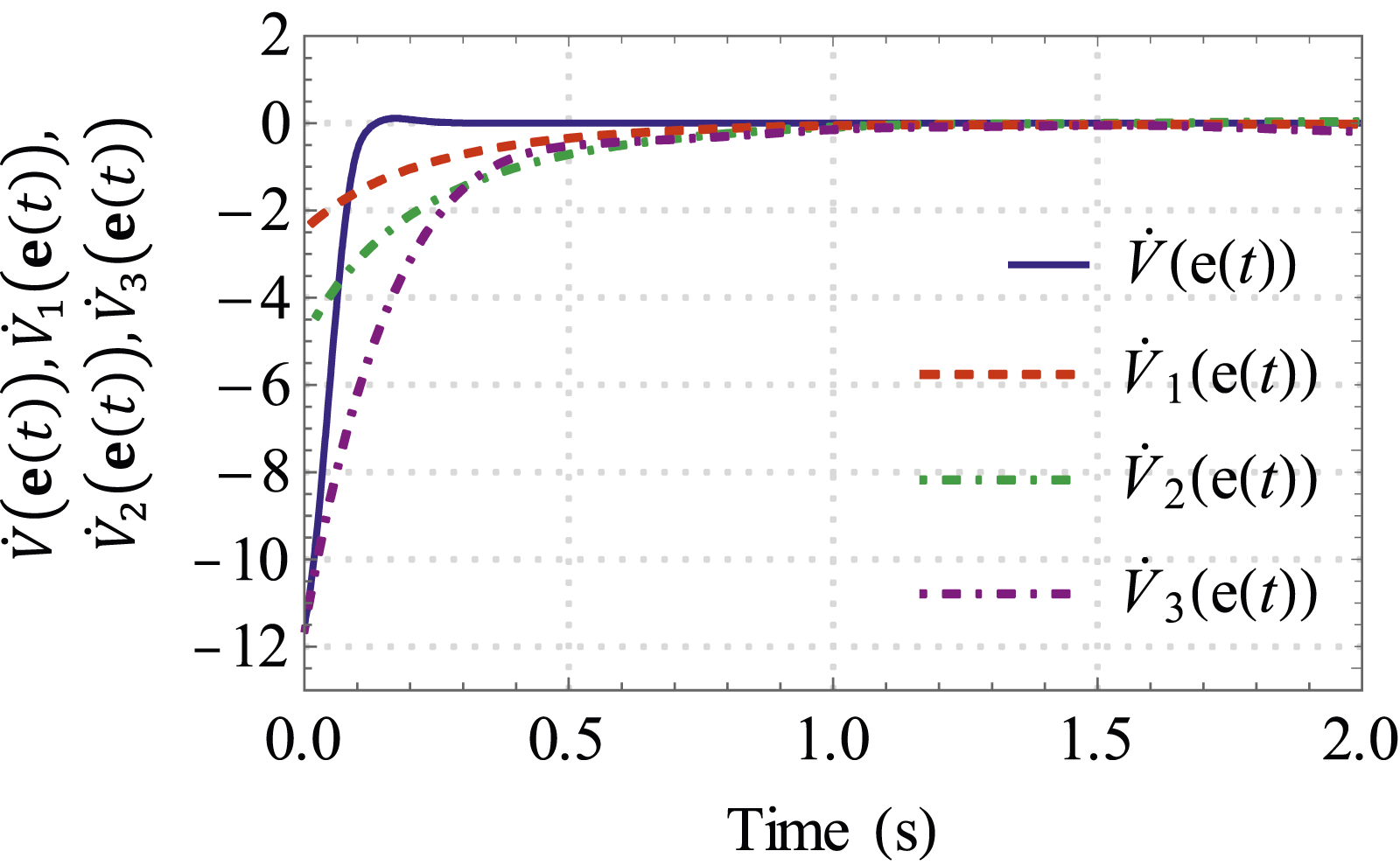

Figure 14.

Comparison of $\dot{V} (e (t))$ , ${\dot{V}}_{1} (e (t))$ , ${\dot{V}}_{2} (e (t))$ , and ${\dot{V}}_{3} (e (t))$ .

Figure 15 shows that the proposed RASC strategy (13) flourishes faster and smoother synchronization error convergence root-mean-square deviation (RMSD) than (27–29). Equation (30) represents the synchronization error RMSD.

RMSD = \sqrt{\frac{\sum_{i = 1}^{3} e_{i}^{T} (t) e_{i} (t)}{3}}

(30)

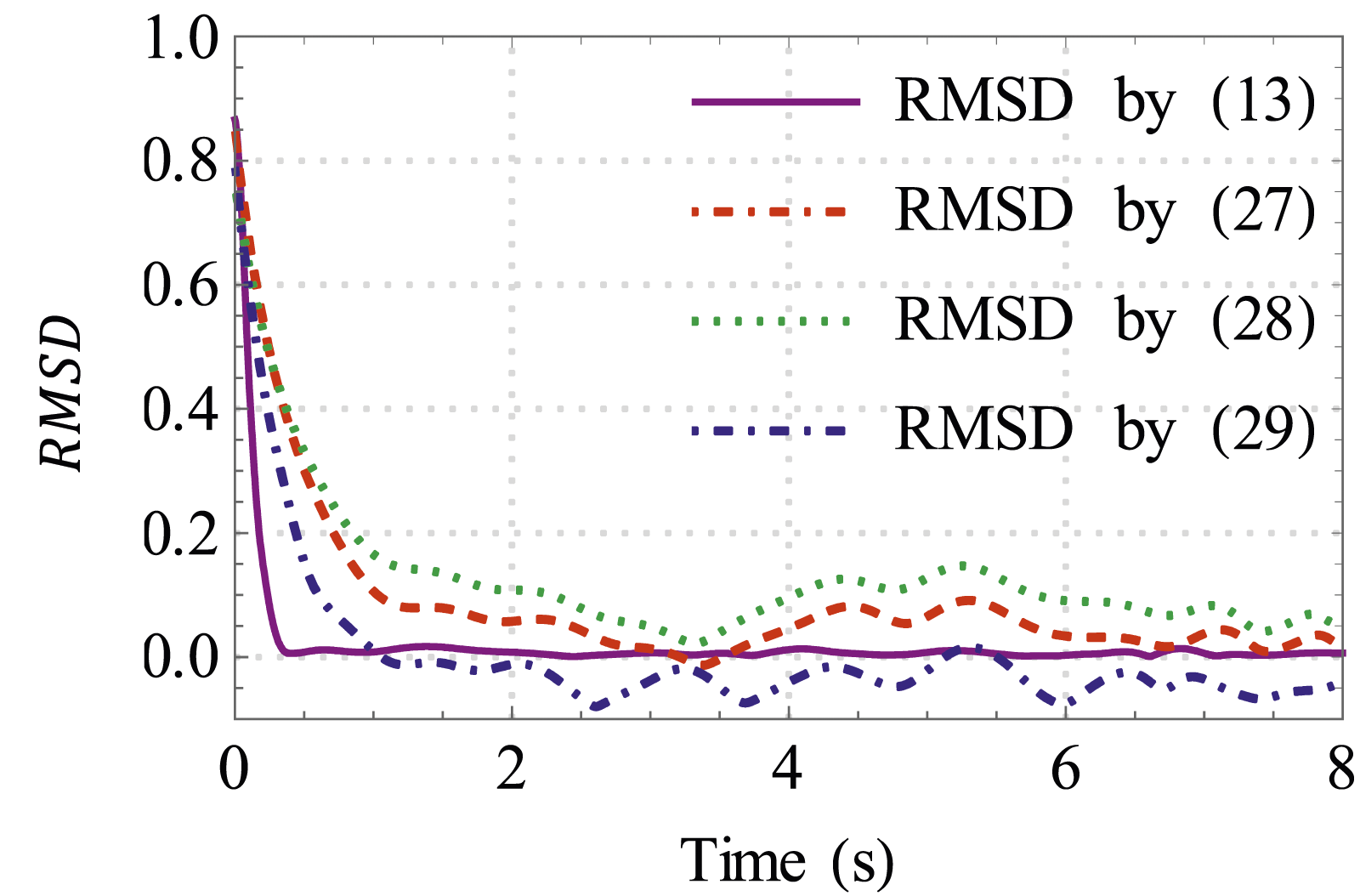

Figure 15.

Comparison of RMSD.

Data in Table 6 verify that the proposed method achieves better error convergence according to the standard error convergence performance indices. It shows that the values of IAE, ITAE, and ISE (Shinners, 1998) are higher for the controllers (27–29) than the proposed RASC strategy (13). The simulation duration is T_s=100 seconds.

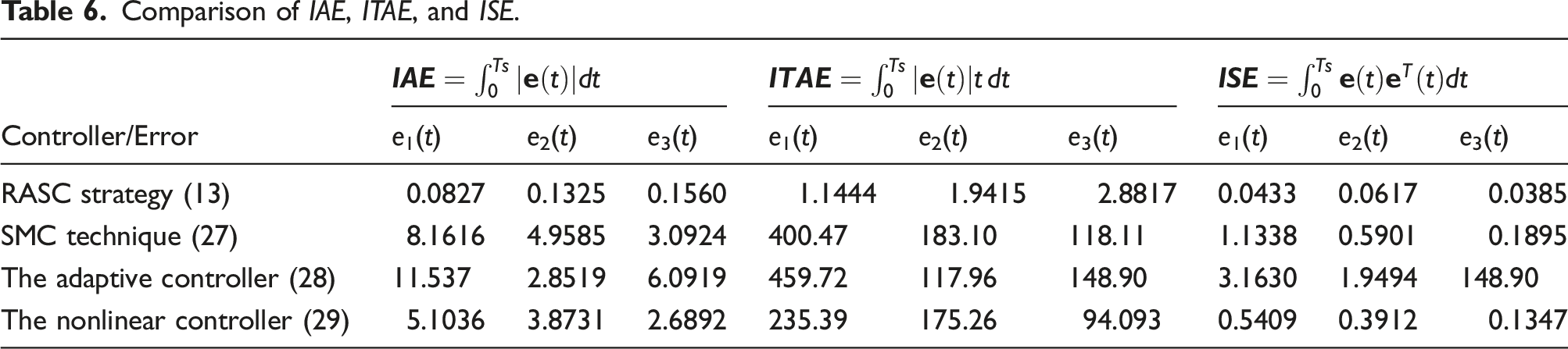

Table 6.

Comparison of IAE, ITAE, and ISE.

Controller/Error	$I A E = \int_{0}^{T s} \| e (t) \| d t$			$I T A E = \int_{0}^{T s} \| e (t) \| t d t$			$I S E = \int_{0}^{T s} e (t) e^{T} (t) d t$
Controller/Error	e₁(t)	e₂(t)	e₃(t)	e₁(t)	e₂(t)	e₃(t)	e₁(t)	e₂(t)	e₃(t)
RASC strategy (13)	0.0827	0.1325	0.1560	1.1444	1.9415	2.8817	0.0433	0.0617	0.0385
SMC technique (27)	8.1616	4.9585	3.0924	400.47	183.10	118.11	1.1338	0.5901	0.1895
The adaptive controller (28)	11.537	2.8519	6.0919	459.72	117.96	148.90	3.1630	1.9494	148.90
The nonlinear controller (29)	5.1036	3.8731	2.6892	235.39	175.26	94.093	0.5409	0.3912	0.1347

5.1.1. Control effort saturation consequences

In practice, actuation processes have saturation limits. Simulation results shown in Figure 16(a) and (b) and 17(a) and (b) are included for analysis to study the saturation effects on the synchronization error. The control effort should be kept below the actuator's saturation level. Adjusting the controller's parameters to ensure the control effort remains within a specific limit is possible. In the current situation, the synchronization process will take longer if the control effort exceeds the saturation point. It is evident from Figure 16(a) and (b) that the synchronization time is increased when the control input saturation is [−1, 1]. But still, it is faster than the simulation results of other algorithms shown in Figure 12(a)–(c).

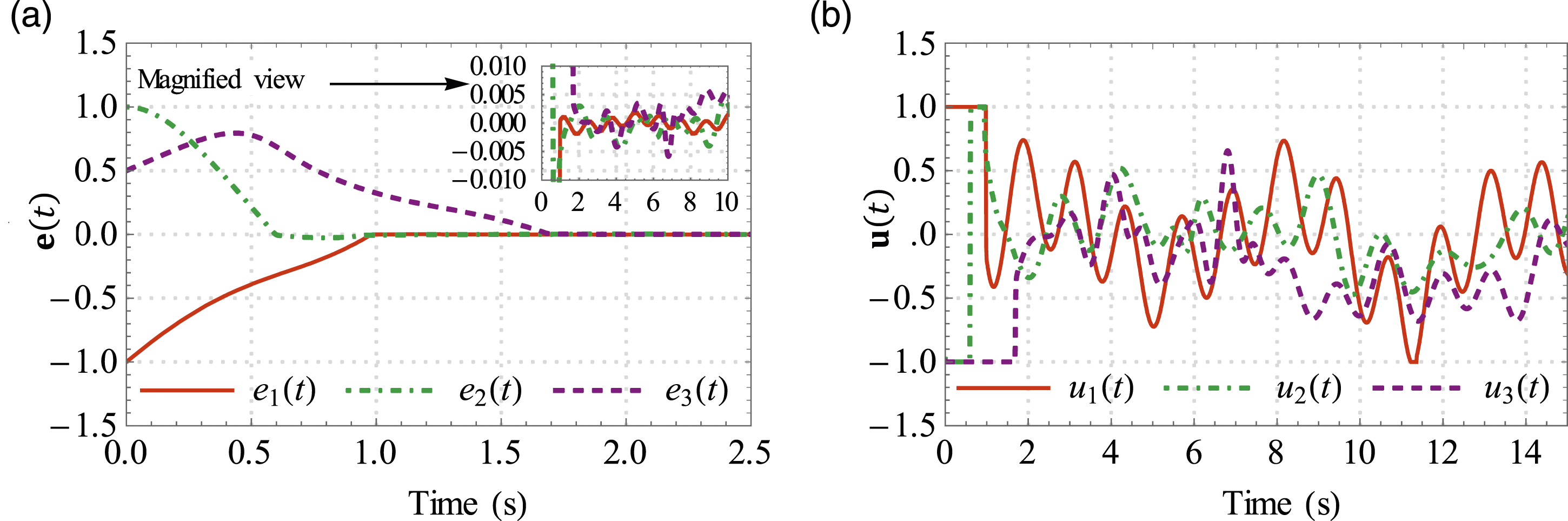

Figure 16.

(a) Synchronization error vector using a control effort (13) and (b) the transient behaviour of the proposed RASC signals (13).

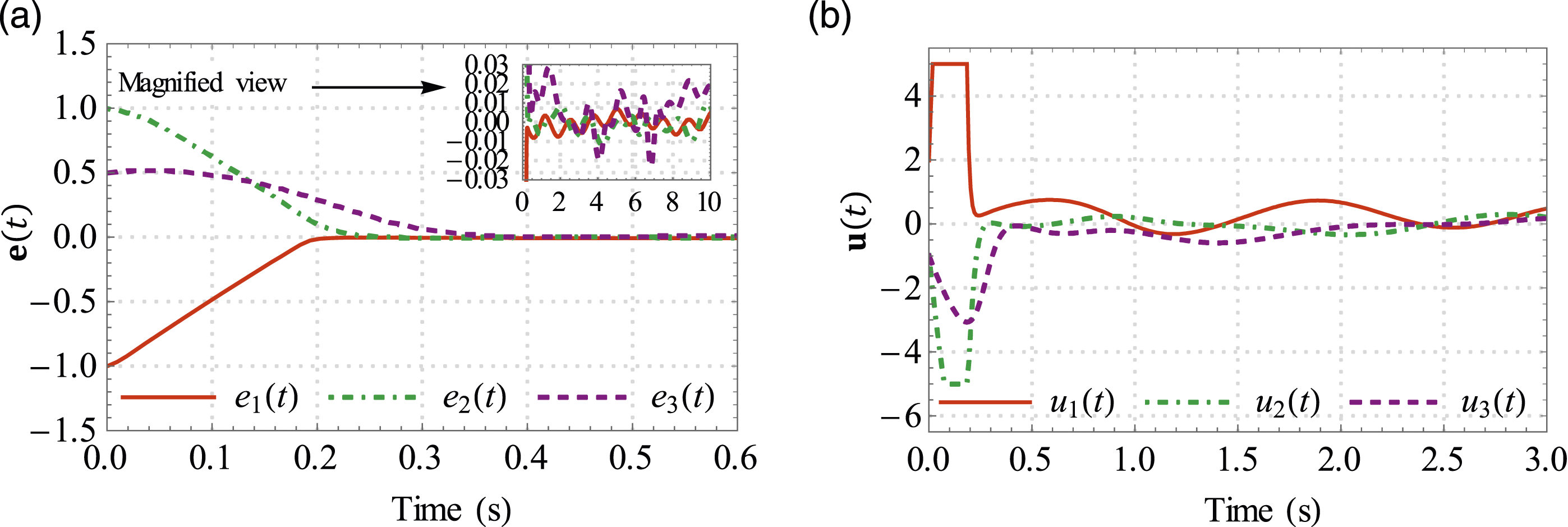

Figure 17.

(a) Synchronization error vector using a control effort (13) and (b) the transient behaviour of the proposed RASC signals (13).

Further, the steady-state error in Figure 16(a) is closer to zero than in Figure 6. When control input saturation is [−5, 5], the behaviour is depicted in Figure 17(b); the error synchronization time is similar to Figure 6, while the steady-state performance is better than it. Improvement in the steady-state behaviour seems to be due to the reduced control effort as it transfers less energy to the state variables.

6. Conclusions

The article proposes a new robust adaptive control law that realizes synchronization between two identical three-dimensional chaotic satellite systems with time-varying unknown model uncertainties and exogenous disturbances. The mathematical proofs are based on the Lyapunov stability theory. The computer simulations analysis proves that the proposed adaptive controller achieves faster and smoother synchronization error convergence to zero. The closed-loop shows robust performance to the unknown model uncertainties and compensates for the effect of exogenous disturbances. Simulation results of many representative examples demonstrate that the proposed controller performs effectively and verifies the analytic findings. The article also provides a comparative simulation results analysis showing faster and non-oscillatory behaviour of the synchronization errors due to the chatter-free control effort. The saturated control effort simulation results show an increase in the synchronization error time and an improvement in the steady-state error.

Footnotes

Acknowledgements

The authors thank the anonymous reviewers for providing expert and constructive feedback that has helped enhance the article's presentation.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Israr Ahmad

Appendix

The appendix uses (Λ#) for an equation number, where # denotes a positive integer.

Consider the following open-loop system. (A1)

x (t) = {\begin{cases} {\dot{x}}_{1} (t) = - a_{1} x_{1} (t) + \frac{1}{\sqrt{6}} x_{3} (t) + \frac{1}{3} x_{3} (t) x_{2} (t) \\ {\dot{x}}_{2} (t) = a_{2} x_{2} (t) - x_{3} (t) x_{1} (t) \\ {\dot{x}}_{3} (t) = - a_{3} x_{3} (t) - \sqrt{6} x_{1} (t) + x_{2} (t) x_{1} (t) \end{cases}

and (A2)

V (x (t)) = \frac{1}{2} {(x_{2} (t) - x_{3} (t))}^{2} + 3 x_{1}^{2} (t),

then (A3)

\begin{array}{l} \dot{V} (x (t)) = - 6 a_{1} x_{1}^{2} (t) + (a_{2} - x_{1} (t)) x_{2}^{2} (t) \\ + (x_{1} (t) - a_{3}) x_{3}^{2} + (a_{3} - a_{2}) x_{2} (t) x_{3} (t) \\ + \sqrt{6} x_{1} (t) x_{2} (t) + 2 x_{1} (t) x_{2} (t) x_{3} (t) . \end{array}

The gradient of the system energy is a function of x₁(t), x₂(t), and x₃(t), and it is denoted by $\dot{V} (x (t))$ .

$\dot{V} (x (t)) < 0$ shows energy dissipation causes state variable trajectories (SVTs) convergence to zero. SVTs do not change if $\dot{V} (x (t)) = 0$ . Otherwise, trajectories diverge. In 3D bounded space, $\dot{V} (x (t))$ variations generate chaotic oscillations.

Bounded disturbances cause bounded variations in the output of a stable physical system, while unbounded disturbances do not guarantee bounded output for even stable systems. In spacecraft systems dynamics, gravitation rotation, mass variations, electronic components, solar radiation pressure, etc., are the sources of state-dependent and time-dependent disturbances, which are considered bounded. Hence, Assumption 1 is compliant.

References

Abarbanel

HDI

Brown

Sidorowich

, et al. (1993) The analysis of observed chaotic data in physical systems. Reviews of Modern Physics 65(4): 1331–1392.

Aghababa

Akbari

(2012) A chattering-free robust adaptive sliding mode controller for synchronization of two different chaotic systems with unknown uncertainties and external disturbances. Applied Mathematics and Computation 218(9): 5757–5768.

Al Saade

Yao

Bekiros

, et al. (2022) Chaotic attitude synchronization and anti-synchronization of master-slave satellites using a robust fixed-time adaptive controller. Chaos, Solitons & Fractals 165: 112883.

Avanzini

Angelis

Giulietti

, et al. (2019) Attitude control of low earth orbit satellites by reaction wheels and magnetic torquers. Acta Astronautica 160: 625–634.

Burden

Fairs

Burden

(2014) Numerical Analysis. 10th edition. Miami: CENAGE Learning.

Carpentras

Quayle

(2022) Propagation of measurement error in opinion dynamics models: the case of the Deffuant model. Physica A: Statistical Mechanical and its Applications 606: 127993.

Dracopoulos

Jones

(1994) Neuro-genetic adaptive attitude control. Neural Computing & Applications 2(4): 183–204.

(2014) Attitude synchronization control for a group of flexible spacecraft. Automatica 50(2): 646–651.

Fang

Tsai

Yan

, et al. (2019) Adaptive chattering-free sliding mode control of chaotic systems with unknown input nonlinearity via smooth hyperbolic tangent function. Mathematical Problems in Engineering 9: 4509674.

10.

Haris

Shafiq

Ibrahim

, et al. (2020) Nonlinear feedback controller for the synchronization of hyper(chaotic) systems with known parameters. The Journal of Mathematics and Computer Science 23: 124–135.

11.

Januszewski

(2017) Sources of error in satellite navigation positioning. The International Journal on Marine Navigation and Safety of Sea Transportation 11(3): 419–423.

12.

Kemih

Kemiha

Ghanes

(2009) Chaotic attitude control of satellite using impulsive control. Chaos, Solitons & Fractals 42: 735–744.

13.

Khalil

(2002) Nonlinear Systems. 2nd edition. New Jersey: Prentice-Hall.

14.

Khan

Kumar

(2018a) Analysis and time-delay synchronization of chaotic satellite systems. Pramana - Journal of Physics 91(49): 1–13.

15.

Khan

Kumar

(2018b) Measuring chaos and synchronization of chaotic satellite systems using sliding mode control. Optimal Control Applications and Methods 39(5): 1597–1609.

16.

Khan

Kumar

(2019a) Measuring chaos and adaptive synchronization of chaotic satellite systems. International Journal of Dynamics and Control 7(39): 536–546.

17.

Khan

Kumar

(2019b) T-S fuzzy modelling and predictive control and synchronization of chaotic satellite systems. International Journal of Modeling and Simulation 39(3): 203–213.

18.

Kuang

Tan

(2000) Chaotic attitude motion of satellites under small perturbation torques. Journal of Vibration and Sound 235(2): 175–200.

19.

Huynh

Hong

(2020) Self-organizing interval type-2 fuzzy asymmetric CMAC design to synchronize chaotic satellite systems using a modified Grey Wolf optimizer. IEEE Access 8: 53697–53709.

20.

Leipnik

Newton

(1981) Double strange attractors in rigid body motion with linear feedback control. Physics Letters A 86A(2): 63–67.

21.

Liu

Chen

(2004) Chaotic attitude motion and its control of spacecraft in elliptic orbit and geomagnetic field. Acta Astronautica 55(3-9): 487–494.

22.

Liu

Sun

, et al. (2018) Robust adaptive variable structure tracking control for spacecraft chaotic attitude motion. IEEE Access 6: 3851–3857.

23.

Liu

Zou

Meng

, et al. (2019) Coordinated attitude synchronization and tracking control of multiple spacecraft over a communication network with a switching topology. IEEE Transactions on Aerospace and Electronic Systems 56(2): 1148–1162.

24.

Bigdeli (2017) Robust H ∞ synchronization of chaotic systems with unmatched disturbances and time-delay. International Journal of Machine Learning and Cybernetics 8: 929–939.

25.

Meehan

Asokanthan

(2012) Control of chaotic motion in a dual-spin spacecraft with nutational damping. Journal of guidance. Control and Dynamics 25(2): 209–214.

26.

Mezic

Runolfsson (2008) Uncertainty propagation in dynamical system. Automatica 44(12): 30003–30013.

27.

Miillin

(1991). In: Crilly

Earnshow

Fractals

, et al. (eds) Chaos in Physical Systems. New York: Springer.

28.

Pal

Jin

Bhakta

(2022) Adaptive chaos synchronization of an attitude control of satellite: a backstepping based sliding mode approach. Heliyon 8: e11730.

29.

Piper

Kwatny

(1992) Complicated dynamics in spacecraft attitude control systems. Journal of Guidance, Control, and Dynamics 15(4): 825–831.

30.

Sadaoui

Boukabou

Merabtine

, et al. (2011) Predictive synchronization of chaotic satellite systems. Expert Systems with Applications 38(7): 9041–9045.

31.

Sarcheshmeha

Esmaelzadeha

Afshari

(2017) Chaotic satellite synchronization using neural and nonlinear controllers. Chaos, Solitons & Fractals 97: 19–27.

32.

Shinners

(1998) Modern Control System Theory and Design. New York: John Wiley and Sons.

33.

Xiao

Q-L

(2010) Adaptive sliding mode backstepping control for attitude tracking of flexible spacecraft under input saturation and singularity. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering 224: 199.

34.

Xiao

Cao

(2022a) Prescribed time attitude tracking control of spacecraft with arbitrary disturbance. IEEE Transactions on Aerospace and Electronic Systems 58(3): 2531–2540.

35.

Xiao

Ruiter

, et al. (2022b) Attitude coordination control for flexible spacecraft formation flying with guaranteed performance bounds. IEEE Transactions on Aerospace and Electronic Systems 59(2): 1534–1550.

36.

Zhang

Yuan

, et al. (2021) Precise orbit determination for LEO satellites with ambiguity resolution: improvement and comparison. Journal of Geophysical Research 126(9): e2021JB022491.

37.

Zhou

Chen

Xia

, et al. (2018) Neural network–based reconfiguration control for spacecraft formation in obstacle environments. International Journal of Robust and Nonlinear Control 28(6): 2442–2456.

Synchronization of chaotic satellite systems with an unknown parameter

Abstract

Keywords

1. Introduction

1.1. Challenges and motivations

1.2. Research objectives

1.3. Contributions

2. Attitude dynamics of the chaotic satellite system

2.1. Notations and symbols

2.2. Dynamics of the chaotic satellite system

3. Problem formulation

3.1. Attitude synchronization of two identical TDCS systems with an unknown parameter

3.2. Problems in the controllers and a possible solution

3.2.1. Challenge 1

3.3.2. Objective 1

4. A solution to the problem

4.1. Controller design and parameters update laws

4.2. Robust stability analysis of the closed-loop

4.3. Analysis of V ˙ Q ( e ( t ) ) , V ˙ Ψ ( e ( t ) ) , and V ˙ Θ ( e ( t ) ) stability

4.3.1 Analysis of V ˙ Q ( e ( t ) )

4.3.1.1. Analysis of V ˙ Ψ ( e ( t ) ) and V ˙ Θ ( e ( t ) )

5. Numerical simulations

5.1. Comparative study

5.1.1. Control effort saturation consequences

6. Conclusions

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

ORCID iD

Appendix

References

4.3. Analysis of ${\dot{V}}_{Q} (e (t))$ , ${\dot{V}}_{Ψ} (e (t))$ , and ${\dot{V}}_{Θ} (e (t))$ stability

4.3.1 Analysis of ${\dot{V}}_{Q} (e (t))$

4.3.1.1. Analysis of ${\dot{V}}_{Ψ} (e (t))$ and ${\dot{V}}_{Θ} (e (t))$
