Optimal dynamic semi-active control of high-speed elevator car horizontal vibration based on DDPG

Abstract

When the elevator car operates at high speed, it can experience unpredictable horizontal vibrations due to factors such as guide rail unevenness, guide shoe nonlinearity, and variations in load, all of which affect both safety and ride comfort. To effectively suppress the horizontal vibration of the car, this paper proposes an optimal dynamic semi-active control method based on deep deterministic policy gradient (DDPG). First, a dynamic model of the elevator car’s horizontal vibration system is established, accounting for the nonlinear coupling between the guide rail, guide shoe, car frame, and car body, while the unevenness of the guide rail is simulated using power spectral density. Second, a Markov decision process model is formulated for controlling horizontal vibrations, with the state space, action space, and reward function designed for deep reinforcement learning. Third, to improve the generalization performance, the DDPG algorithm is enhanced by normalizing the state space of the elevator, and the controller learns the optimal dynamic semi-active control strategy by interacting with the simulation environment, and achieves real-time control of the car’s horizontal vibration. Simulation results demonstrate that, compared to passive control, Mixed SH-ADD control, PID control, and DQN-based control, the DDPG-based method reduces the average horizontal acceleration of the elevator car by 68.90%, 45.46%, 21.35%, and 20.95%, respectively, effectively mitigating horizontal vibration.

Keywords

car horizontal vibration semi-active guide shoes DDPG optimal dynamic control deep reinforcement learning

Introduction

During the operation of high-speed elevators, the car is influenced by factors such as guide rail unevenness, the nonlinear behavior of guide shoes, and load fluctuations, all of which introduce uncertainties that result in unpredictable horizontal vibrations. These vibrations will not only cause passengers dizziness, tinnitus, and other adverse reactions, seriously affecting the ride comfort, but also damage the parts, posing a threat to the long-term safe and stable operation of the elevator system. Therefore, how to effectively suppress the horizontal vibration of the elevator car has become one of the key issues in the field of high-speed elevator research.

To address the horizontal vibration problem of elevator carriages in a targeted manner, researchers have conducted numerous studies. Tusset et al. (2023) introduced a Nonlinear Energy Sink (NES) into a four-degree-of-freedom elevator horizontal vibration control system and explored the influence of the parameter configuration of the NES on the vibration reduction effect under specific external disturbances. Su et al. (2023) optimized the damping parameters based on the Sparrow Search Algorithm and used electromagnetic active rolling guide shoes to control the horizontal vibration amplitude of the carriage. Tang et al. (2023) took the control cost and system performance as objective functions, designed and optimized a fractional-order PID controller with the aid of a multi-objective genetic algorithm, and verified its effectiveness in vibration reduction through numerical simulations. However, these studies lack the self-learning ability for the random excitation of the elevator system, making it difficult to cope with the dynamic disturbances in actual working conditions, and there is a lack of intelligent and effective vibration reduction schemes.

Santo et al. (2018) studied the horizontal nonlinear response of a three-degree-of-freedom vertical transportation model under the excitation of guide rail deformation and proposed a control strategy based on the State Dependent Riccati Equation (SDRE). Zhao et al. (2024) designed a controller for the horizontal vibration response induced by guide rail excitation based on acceleration feedback and optimized the control cost to reduce power consumption. Wang et al. (2021) proposed a predictive sliding mode controller based on adaptive fuzzy theory and carried out numerical simulations for typical guide rail excitations. However, the Gaussian random functions used in these studies differ significantly from the actual guide rail excitations, making it difficult to deal with the complex multi-source external disturbances of the car system when the elevator is running at high speed, thus limiting their practical applications.

He et al. (2022) proposed an adaptive sliding mode control scheme to suppress the horizontal vibration of high-speed elevator carriages and verified its effectiveness. Zhang et al. (2021), aiming at the uncertainty of external excitation of the elevator system, designed a BP-PID controller based on a linear prediction model for intelligent active control and analyzed the control effect using MATLAB/Simulink. However, when facing the complex nonlinear system of the elevator and the variable external environment, the control accuracy and response speed of these methods decline. Moreover, the training of the BP neural network requires a large amount of real data, resulting in low practicality. Traditional methods such as PID control (Tang et al., 2023), fuzzy control (Zhang et al., 2024), and robust control (Feng et al., 2009) also have limitations when dealing with the vibration problem of high-speed elevator carriages.

Optimized control methods based on deep reinforcement learning have achieved fruitful results in the field of continuous dynamic control, demonstrating great potential and advantages (Cai et al., 2023; Hagmar et al., 2023; Tang et al., 2024; S Wang et al., 2024; Y Wang et al., 2024; Yin et al., 2024; Zhu et al., 2024). In the field of vibration control, for instance, the hybrid RL controller designed by Panda et al. (2024) shows superior performance in the vibration control of multi-dimensional complex structures. The semi-active suspension controller based on deep reinforcement learning proposed by Lee et al. (2022) significantly improves the riding comfort of vehicles. Aiming at the problem of high-frequency and high-dimensional continuous vibration control, Shu et al. (2024) proposed a multi-reward mechanism to assist the lightweight network in finding an approximately optimal control strategy. Based on transfer learning, Ren et al. (2024) further explored the wake-induced vibration in the staggered configuration, confirming that DRL can provide a general solution for controlling flow-induced vibration. In response to the problem of intensified vibration between the pantograph and the catenary, Wang et al. (2024b) proposed an improved Deep Deterministic Policy Gradient (IDDPG) and verified the steady-state performance of the controller through simulations. However, in the field of horizontal vibration control of high-speed elevator carriages, there are relatively few related studies, and a systematic theoretical framework has not yet been formed. Therefore, conducting research by combining the capabilities of deep reinforcement learning with the control requirements of horizontal vibration of high-speed elevator carriages is expected to achieve more advanced and efficient control schemes and improve the operation quality of elevators.

The purpose of this paper is to address the horizontal vibration problem of high-speed elevator cars through a DRL approach. This study targets vibration issues arising from uncertainty factors such as uneven guide rails, nonlinear behavior of guide shoes, and load fluctuations. We propose an optimal dynamic semiactive control method based on the DDPG to mitigate horizontal vibrations in high-speed elevator cars. The damping coefficient of the semiactive guide shoe is explicitly constrained by the output of the strategy network, facilitating real-time control of horizontal vibrations.

The structure of this paper is as follows: The section “Horizontal vibration control model for high-speed elevators” models the horizontal vibration dynamics of a high-speed elevator car and simulates uneven guide rail excitations. The section “Optimal dynamic control of car horizontal vibration based on DDPG” formulates a Markov decision process to address the vibration issue, proposes a control method based on an enhanced DDPG algorithm, and analyzes controller convergence. The section “Simulation result and analysis” compares the simulation results of passive control, Mixed Semi-Active Control (SH-ADD), PID control, Deep Q-Network (DQN)-based control, and DDPG-based control, highlighting the superior performance of the enhanced DDPG-based controller. The section “Conclusion” summarizes the study. The appendix provides the parameters of the vibration model and DRL algorithm used.

Horizontal vibration control model for high-speed elevators

Nonlinear dynamics model of car horizontal vibration based on semi-active guide shoes

Figure 1 illustrates the horizontal vibration system of a high-speed elevator. Rubber blocks between the car and frame, along with roller guide shoes connecting the frame to the guide rail, jointly reduce vibrations. Due to the nonlinear nature of materials like rubber and the presence of semi-active guide shoes with controllable actuators, the guide shoe’s nonlinear behavior is crucial for vibration control. Semi-active guide shoes adjust damping in real-time based on vibration states, improving control effectiveness. To investigate the horizontal vibration of elevator car under various uncertainties, the following assumptions are made: (1) The car and car frame are considered rigid. (2) The semi-active guide shoe is modeled as a nonlinear spring-damped system. (3) Given that the dynamic models for front-back and left-right vibrations of the car are nearly identical, this paper primarily focuses on the left-right horizontal vibration.

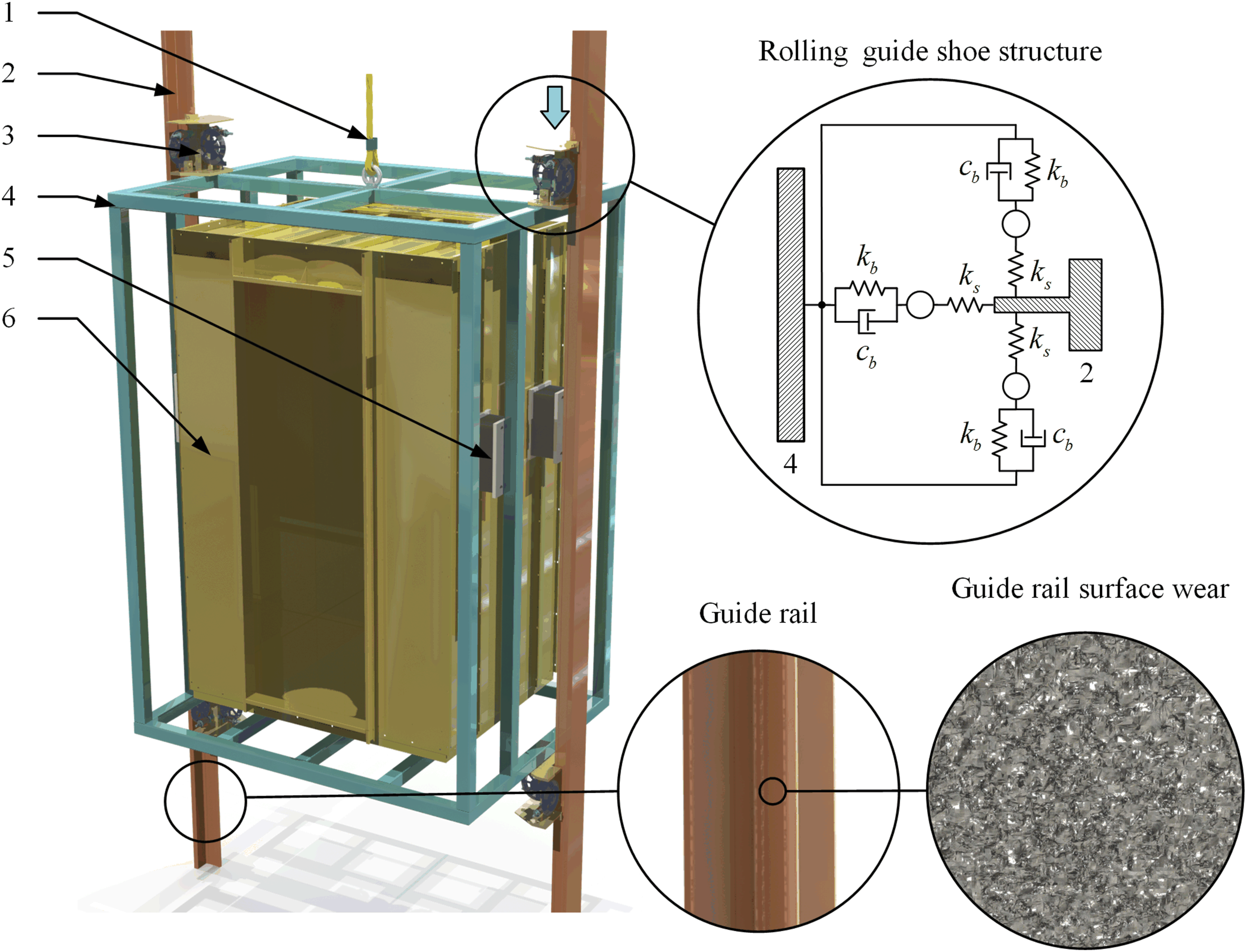

Figure 1.

Schematic structure of horizontal vibration system in high-speed elevator (1. Wirerope; 2. Guide rail; 3. Roller guide shoe; 4. Car frame; 5. Rubber block; 6. Car).

Figure 2 shows the equivalent physical model of the horizontal vibration of a high-speed elevator car. Here, m_w is the mass of the car body, m_b is the mass of the car frame, m_s is the mass of the guide shoe, k_w is the stiffness of the rubber block, c_w is the damping coefficient of the rubber block, k_b is the stiffness coefficient of the guide shoe, c_b1 and c_b2 are the controlled damping coefficients of the left and right guide shoes, k_s is the stiffness coefficient of the guide wheel, x_r1 and x_r2 are the left and right guide shoe displacements, x_s1 and x_s2 are the left and right guide shoe excitations, x_b is the car frame displacement, and x_w is the car displacement.

Figure 2.

Equivalent physical model of horizontal vibration of high-speed elevator car.

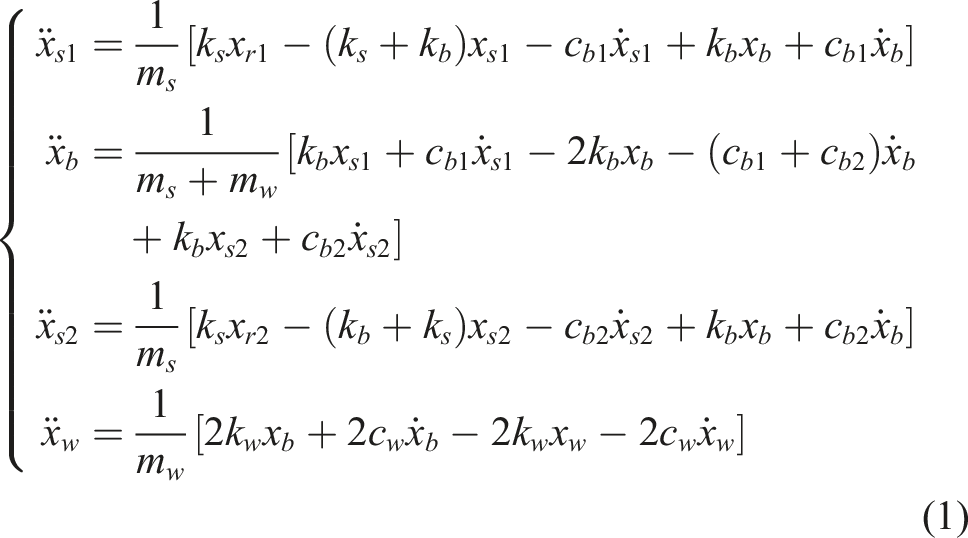

According to Newton’s second law, the system dynamics equation can be obtained as shown in equation (1):

\{\begin{cases} {\ddot{x}}_{s 1} = \frac{1}{m_{s}} [k_{s} x_{r 1} - (k_{s} + k_{b}) x_{s 1} - c_{b 1} {\dot{x}}_{s 1} + k_{b} x_{b} + c_{b 1} {\dot{x}}_{b}] \\ {\ddot{x}}_{b} = \frac{1}{m_{s} + m_{w}} [k_{b} x_{s 1} + c_{b 1} {\dot{x}}_{s 1} - 2 k_{b} x_{b} - (c_{b 1} + c_{b 2}) {\dot{x}}_{b} + k_{b} x_{s 2} + c_{b 2} {\dot{x}}_{s 2}] \\ {\ddot{x}}_{s 2} = \frac{1}{m_{s}} [k_{s} x_{r 2} - (k_{b} + k_{s}) x_{s 2} - c_{b 2} {\dot{x}}_{s 2} + k_{b} x_{b} + c_{b 2} {\dot{x}}_{b}] \\ {\ddot{x}}_{w} = \frac{1}{m_{w}} [2 k_{w} x_{b} + 2 c_{w} {\dot{x}}_{b} - 2 k_{w} x_{w} - 2 c_{w} {\dot{x}}_{w}] \end{cases}

(1)

Considering that the horizontal vibration of a high-speed elevator car is a nonlinear multiple-input multiple-output control problem, we will focus on the horizontal vibration of the car. The state-space model of this system can be expressed as equation (2):

\{\begin{cases} \dot{x} = A x + B u \\ y = C x \end{cases}

(2)

where each parameter is given by the following equations:

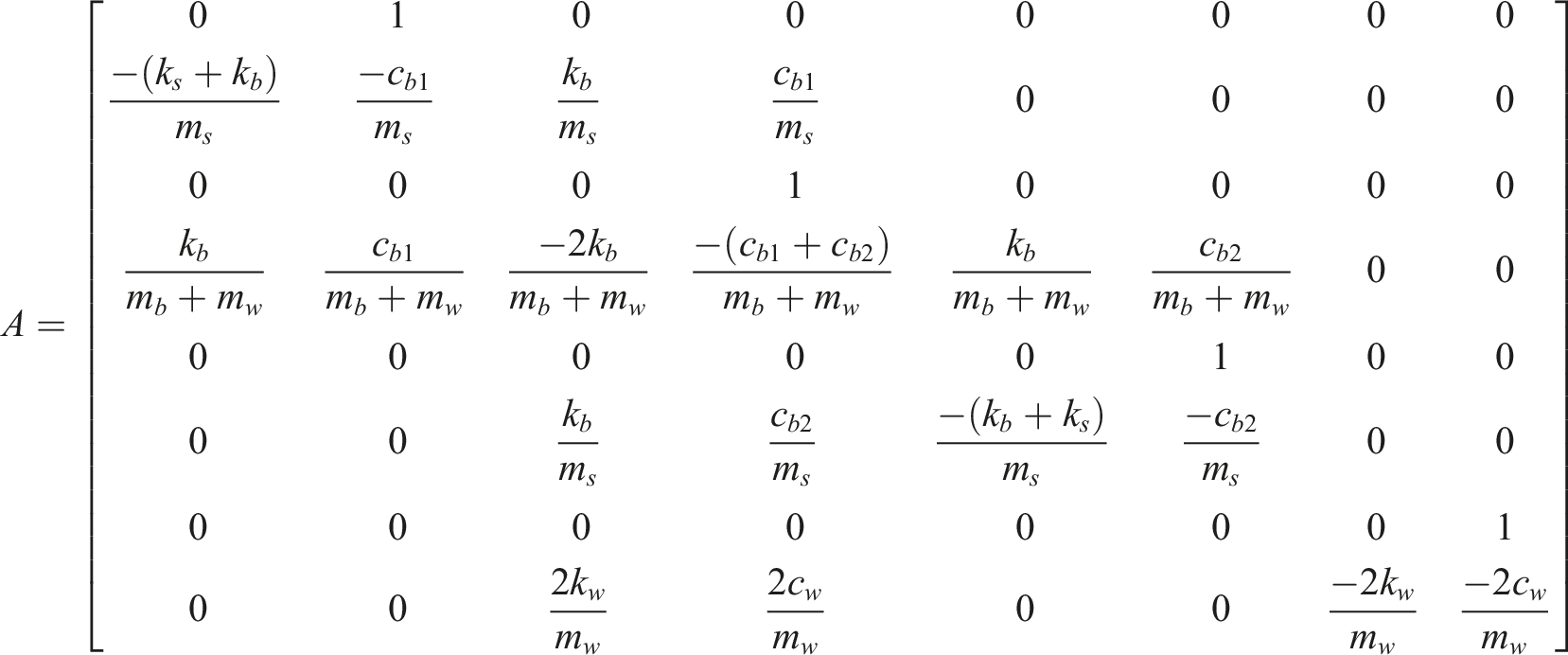

A = [\begin{matrix} 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ \frac{- (k_{s} + k_{b})}{m_{s}} & \frac{- c_{b 1}}{m_{s}} & \frac{k_{b}}{m_{s}} & \frac{c_{b 1}}{m_{s}} & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ \frac{k_{b}}{m_{b} + m_{w}} & \frac{c_{b 1}}{m_{b} + m_{w}} & \frac{- 2 k_{b}}{m_{b} + m_{w}} & \frac{- (c_{b 1} + c_{b 2})}{m_{b} + m_{w}} & \frac{k_{b}}{m_{b} + m_{w}} & \frac{c_{b 2}}{m_{b} + m_{w}} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & \frac{k_{b}}{m_{s}} & \frac{c_{b 2}}{m_{s}} & \frac{- (k_{b} + k_{s})}{m_{s}} & \frac{- c_{b 2}}{m_{s}} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & \frac{2 k_{w}}{m_{w}} & \frac{2 c_{w}}{m_{w}} & 0 & 0 & \frac{- 2 k_{w}}{m_{w}} & \frac{- 2 c_{w}}{m_{w}} \end{matrix}]

B = {[\begin{matrix} 0 & k_{s} / m_{s} & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & k_{s} / m_{s} & 0 \end{matrix}]}^{T} C = [\begin{matrix} 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 2 k_{w} / m_{w} & 2 c_{w} / m_{w} & 0 & 0 & - 2 k_{w} / m_{w} & - 2 c_{w} / m_{w} \end{matrix}]

x = {[\begin{matrix} x_{s 1} & {\dot{x}}_{s 1} & x_{b} & {\dot{x}}_{b} & x_{s 2} & {\dot{x}}_{s 2} & x_{w} & {\dot{x}}_{w} \end{matrix}]}^{T} y = {[\begin{matrix} x_{w} & {\dot{x}}_{w} & {\ddot{x}}_{w} \end{matrix}]}^{T} u = [\begin{matrix} x_{r 1} \\ x_{r 2} \end{matrix}]

Simulation of guide rail unevenness excitation

The elevator system is complex, with factors such as uneven guide rail excitation, nonlinearity of the guide wheel and guide shoe, and variations in load capacity contributing to the horizontal vibration of the car. Studies indicate that the guide rail unevenness is the primary cause of this vibration (Zhang et al., 2018). Guide rail excitation can be classified into four patterns: elastic bending, joint step, joint tilt, and surface wear. Among these, joint step and surface wear are the most prevalent; therefore, this paper simulates these two types of guide rail excitations as inputs for subsequent experiments.

Joint step excitation

Given the influence of rail installation errors and other factors, rail step excitation is quite common. In this paper, we simulate the step excitation of the guide rail, as illustrated in Figure 3, to assess the effectiveness of the proposed damping method. The simulation assumes that the left rail of the elevator car has two different degrees of installation error, while the right rail remains smooth.

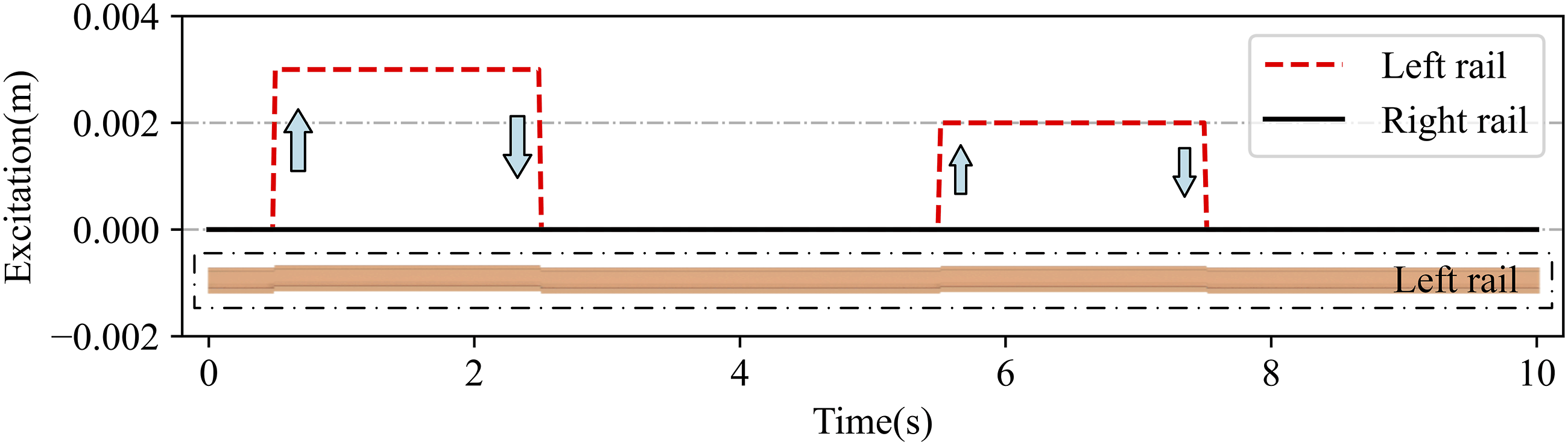

Figure 3.

Step excitation of the guide rail.

Surface wear excitation

Surface wear excitation of the guide rail introduces significant uncertainty, posing challenges for the horizontal vibration control of high-speed elevator cars. In this paper, we propose a simulation method based on power spectral density. This method models the surface wear excitation of the actual guide rail by controlling both the frequency components and the phase, and they are defined by equations (3) and (4), respectively:

n_{s} = \{n_{\min}, n_{\min} + Δ n, n_{\min} + 2 Δ n, \dots, n_{\max}\}

(3)

φ_{j} = 2 π \cdot r a n d (j)

(4)

where n_min and n_max represent the minimum and maximum spatial frequencies, respectively, and Δn is the frequency spacing, j determines the level of detail of the excitation. The amplitude corresponding to each frequency component is calculated from the power spectral density function (equation (5)):

G d_{j} = \sqrt{G_{d 0} {(\frac{n_{j}}{n_{0}})}^{- w} \cdot 2 \cdot \frac{n_{\max} - n_{\min}}{j}}

(5)

The guide rail surface wear excitation is obtained by superimposing all frequency components:

x_{r} (i) = \sum_{i = 1}^{j} G d_{j} \cdot \cos (2 π \cdot n_{j} \cdot x_{i} - φ (j))

(6)

where x_i denotes the location point of the guide rail surface wear excitation. Figure 4 illustrates the simulated guide rail surface wear excitation derived from this model.

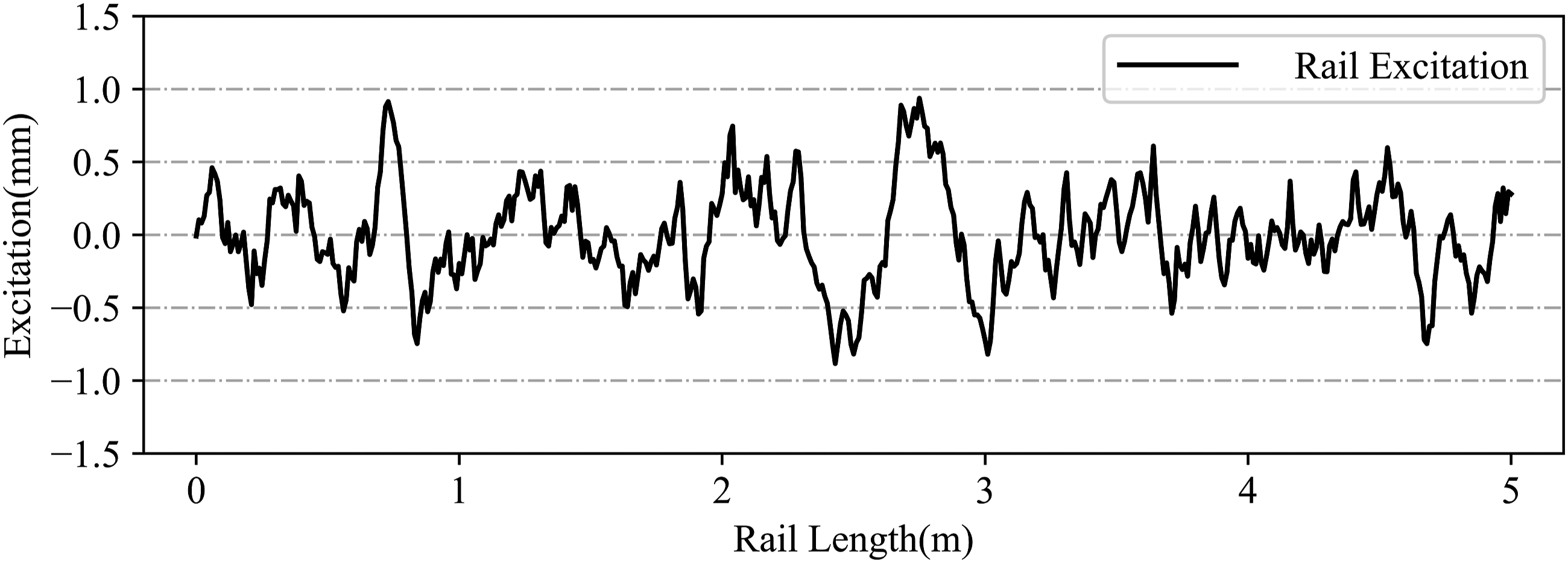

Figure 4.

Simulated surface wear excitation of the guide rail.

To more accurately describe the statistical characteristics of the guide rail surface wear excitation, the periodogram method is applied to estimate the one-sided power spectral density of the simulated guide rail surface wear excitation signal, and the guide rail surface wear excitation power spectral density function is fitted as equation (7):

G_{d} (n) = G_{d} (n_{0}) {(\frac{n}{n_{0}})}^{- ω}

(7)

where n is the spatial frequency, n₀ is the reference spatial frequency, and ω is the frequency index. Figure 5 shows the spatial power spectral density image of this excitation, with the red dashed line indicating the approximate average power spectral density of the actual measured guide rail. The figure illustrates that the rail surface wear excitation derived from the power spectral density simulation shares the same frequency components and energy distribution as the actual rail, which establishes laboratory conditions that effectively simulate the horizontal vibration control of the car.

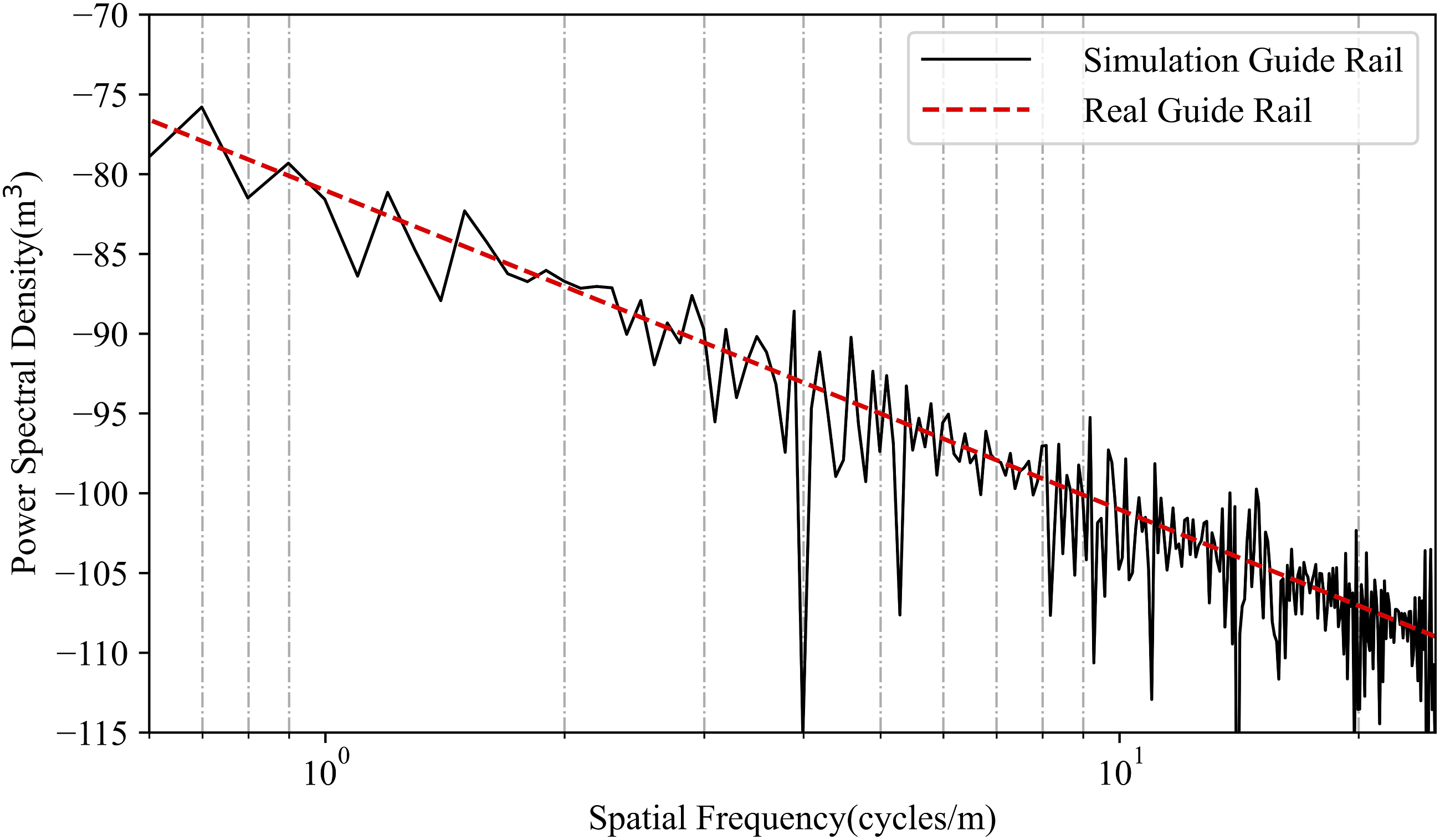

Figure 5.

Displacement power spectral density of guide rail surface wear.

Optimal dynamic control of car horizontal vibration based on DDPG

Markov decision process modeling for horizontal vibration in elevator car

The mathematical foundation of reinforcement learning is based on Markov decision process (MDP) with Markovianity. An MDP is generally defined by its state space, action space, state transition probability function, and reward function. The horizontal vibration control system of high-speed elevator can be modeled as an MDP, at each time step t, the state space is derived from the state space model and the guide rail unevenness excitation model presented in the section “Horizontal vibration control model for high-speed elevators”:

s_{t} = [\begin{matrix} {\dot{x}}_{r 1}^{t} & {\dot{x}}_{w}^{t} & {\dot{x}}_{r 2}^{t} & {\dot{x}}_{r 1}^{t - 1} & {\dot{x}}_{w}^{t - 1} & {\dot{x}}_{r 2}^{t - 1} \end{matrix}]

(8)

The state space includes the gradients of the excitation changes on both sides of the guide rail, denoted as ${\dot{x}}_{r 1}^{t}$ , ${\dot{x}}_{r 2}^{t}$ as well as the horizontal vibration velocity of the car, ${\dot{x}}_{w}^{t}$ , at time t. Additionally, to leverage potential time dependence, the gradients of the excitation changes on both sides of the guide rail ${\dot{x}}_{r 1}^{t - 1}$ , ${\dot{x}}_{r 2}^{t - 1}$ and the horizontal vibration velocity of the car ${\dot{x}}_{w}^{t - 1}$ at time t − 1 are also included.

The action space is given by equation (9):

a_{t} = [c_{b 1}, c_{b 2}]

(9)

where c_b1 and c_b2 are constrained to a specific range and are linearly bounded by the output of the strategy network.

The state transfer probability function can be defined according to equation (1). By considering the input guide rail excitation and the horizontal vibration state of the high-speed elevator car, the vibration state at the subsequent moment can be determined by solving the system of ordinary differential equations.

The horizontal vibration control system for high-speed elevator cars aims to reduce horizontal vibrations of the car. In compliance with ISO 8100-34:2021 and ISO 2631-1:1997, the ride comfort metric is evaluated using vibration acceleration. Additionally, system safety considerations are incorporated into the reward function through displacement and velocity terms. The reward function is defined by equation (10).

r = - b | x_{w} | - e |{\dot{x}}_{w}| - l | {\ddot{x}}_{w} |

(10)

where b, e, and l are the weights assigned to the rewards for horizontal displacement, velocity, and acceleration of the car, respectively.

DDPG-based generalized control method for car horizontal vibration

The horizontal vibration control of high-speed elevator car involves a continuous action space, categorizing it as a continuous control problem. This paper is based on the DDPG algorithm (Lillicrap et al., 2015) to obtain the optimal dynamic control strategy for the horizontal vibration of high-speed elevator car, and the training process is shown in Figure 6.

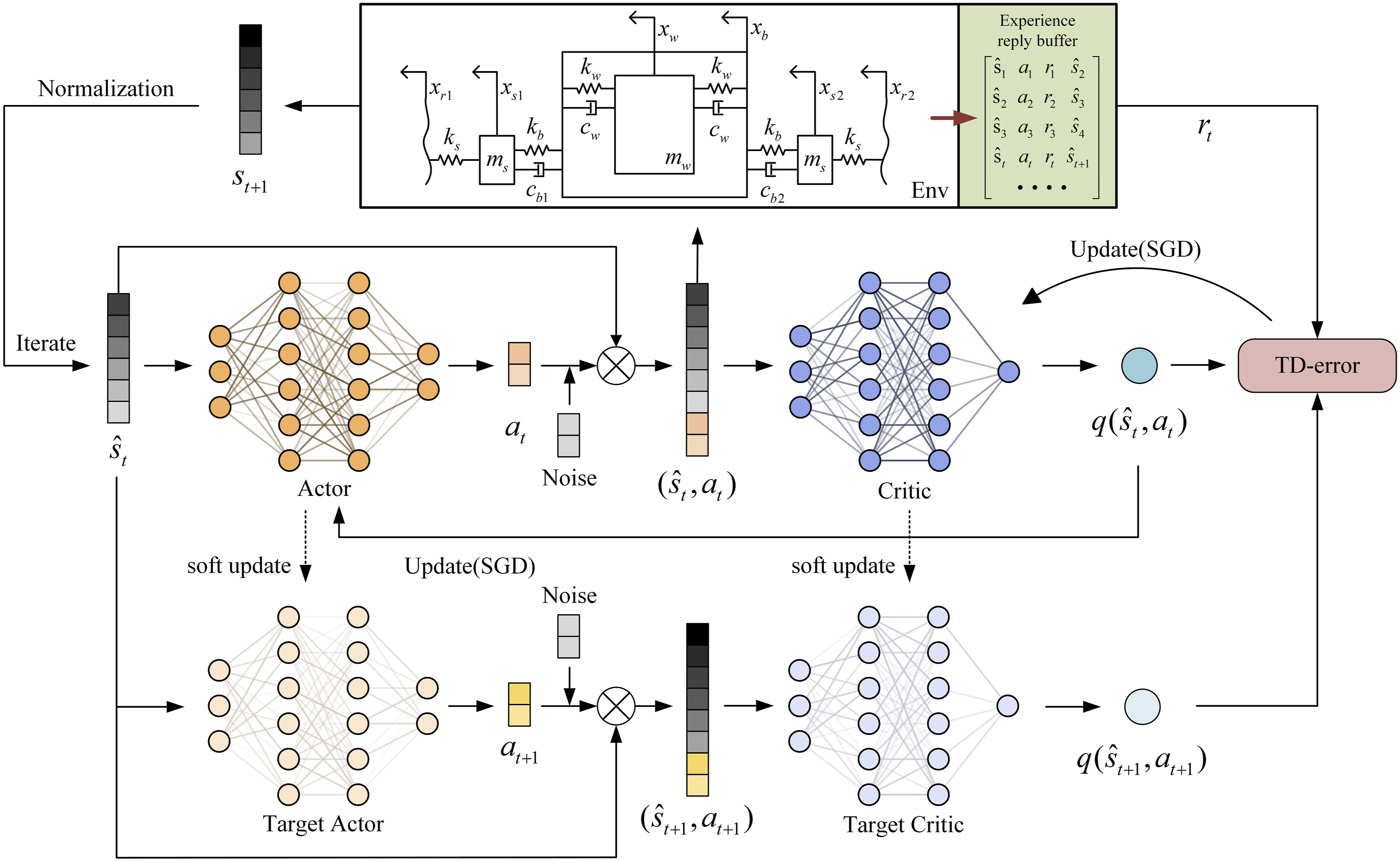

Figure 6.

Training flow of high-speed elevator car horizontal vibration control based on DDPG.

DDPG belongs to an actor-critic approach with a strategy network (actor) and a value network (critic). The strategy network selects the optimal action based on the state observed from the environment, while the value network evaluates the expectation of the reward in the current state and action. The strategy network and the value network update the network parameters through equations (11) and (12):

θ_{new} \leftarrow θ_{now} + β \cdot \nabla_{θ} q (s_{t}, a_{t})

(11)

ω_{new} \leftarrow ω_{now} - α \cdot δ_{t} \cdot \nabla_{ω} q (s_{t}, a_{t})

(12)

where θ is the parameter of the strategy network, β is the learning rate of the strategy network, ∇q(s_t, a_t) is the deterministic strategy gradient, ω is the parameter of the value network, α is the learning rate of the value network, and δ_t is the temporal difference error (TD-error). The output of the strategy network is activated using the tanh function and is linearly scaled according to the actual adjustable damping range, thus closely linking the strategy network output to the actual elevator horizontal vibration control system.

High-speed elevator systems may encounter different excitations and environmental perturbations during operation, leading to differences between the state space encountered by the controller during training and that during actual operation. In this paper, state data are normalized before being input to the strategy network, ensuring that the input data across different elevator operating conditions maintain the same scale, thereby enhancing the generalization performance of the controller. State normalization is achieved by calculating the moving average and variance over a specified time window, allowing states to be dynamically adjusted over time:

u_{t} = \frac{s_{t - n + 1} + \dots + s_{t - 1} + s_{t}}{n}

(13)

σ_{t}^{2} = \frac{{(s_{t - n + 1} - u_{t})}^{2} + \dots + {(s_{t} - u_{t})}^{2}}{n}

(14)

{\hat{s}}_{t} = \frac{s_{t} - u_{t}}{\sqrt{σ^{2} + ε}}

(15)

where u_t is the moving average,

σ_{t}^{2}

is the moving variance, and ɛ is the infinitesimal term. The enhanced DDPG algorithm is shown as algorithm 1.

To enhance algorithm performance and mitigate the overestimation problem, two target networks are utilized during training, with their parameters updated every k rounds through a soft update method:

θ_{new} \leftarrow τ θ_{new} + (1 - τ) θ_{now}

(16)

ω_{new} \leftarrow τ ω_{new} + (1 - τ) ω_{now}

(17)

where

θ

is the target strategy network parameter,

ω

is the target value network parameter, and

τ \in (0,1)

is the hyperparameter.

In this paper, experience replay is used to store the past experience $({\hat{s}}_{t}, a_{t}, r_{t}, {\hat{s}}_{t + 1})$ in an experience cache and to reuse these experiences during training. This method helps to break the correlation between data sequences, enabling the use of fewer samples to achieve better training results. Additionally, experience replay utilizes the temporal difference error (TD-error) as a priority evaluation criterion, the larger the TD-error, the more the algorithm needs to learn from the samples. The calculation of the TD-error is given by equation (18):

δ_{t} = q ({\hat{s}}_{t}, a_{t}) - [r_{t} + γ \cdot q ({\hat{s}}_{t + 1}, a_{t + 1})]

(18)

where

q ({\hat{s}}_{t}, a_{t})

and

q ({\hat{s}}_{t + 1}, a_{t + 1})

represent the predicted values generated by the value network and the target value network, respectively, r_t is the cumulative reward at the current moment, and γ ∈ [0, 1] is the discount rate.

When the elevator is operating at high speed, factors such as variations in passenger load, air resistance, and track unevenness may induce nonlinear vibrations in the car system. To address this, noise is added to the strategy network to ensure that the action output satisfies equation (19):

a_{t} = μ ({\hat{s}}_{t} | θ^{μ}) + N_{t}

(19)

where a_t is the action,

μ ({\hat{s}}_{t} | θ^{μ})

is the output of the strategy network, and

N_{t}

is the random noise. The application of the noise network not only increases the sensitivity of the system to different states, but also promotes the exploration of the agent in changing environments and enhances the robustness of the controller to sudden perturbations. Similarly, random noise is introduced in the target strategy network.

Training convergence of horizontal vibration controllers

The parameters, network structure, and hardware configuration used in training are detailed in the Appendix. The algorithm underwent 5000 iterations, and Figure 7 shows the cumulative reward profile for each iteration. In the early stages of training, the cumulative reward values exhibit considerable fluctuations, which are mainly due to the strategy network exploring new control strategies. As the training progresses, the cumulative reward values gradually increase and stabilize in the later stages. This indicates that our deep reinforcement learning algorithm learns optimal control strategies to improve the performance of horizontal vibration control in the elevator car.

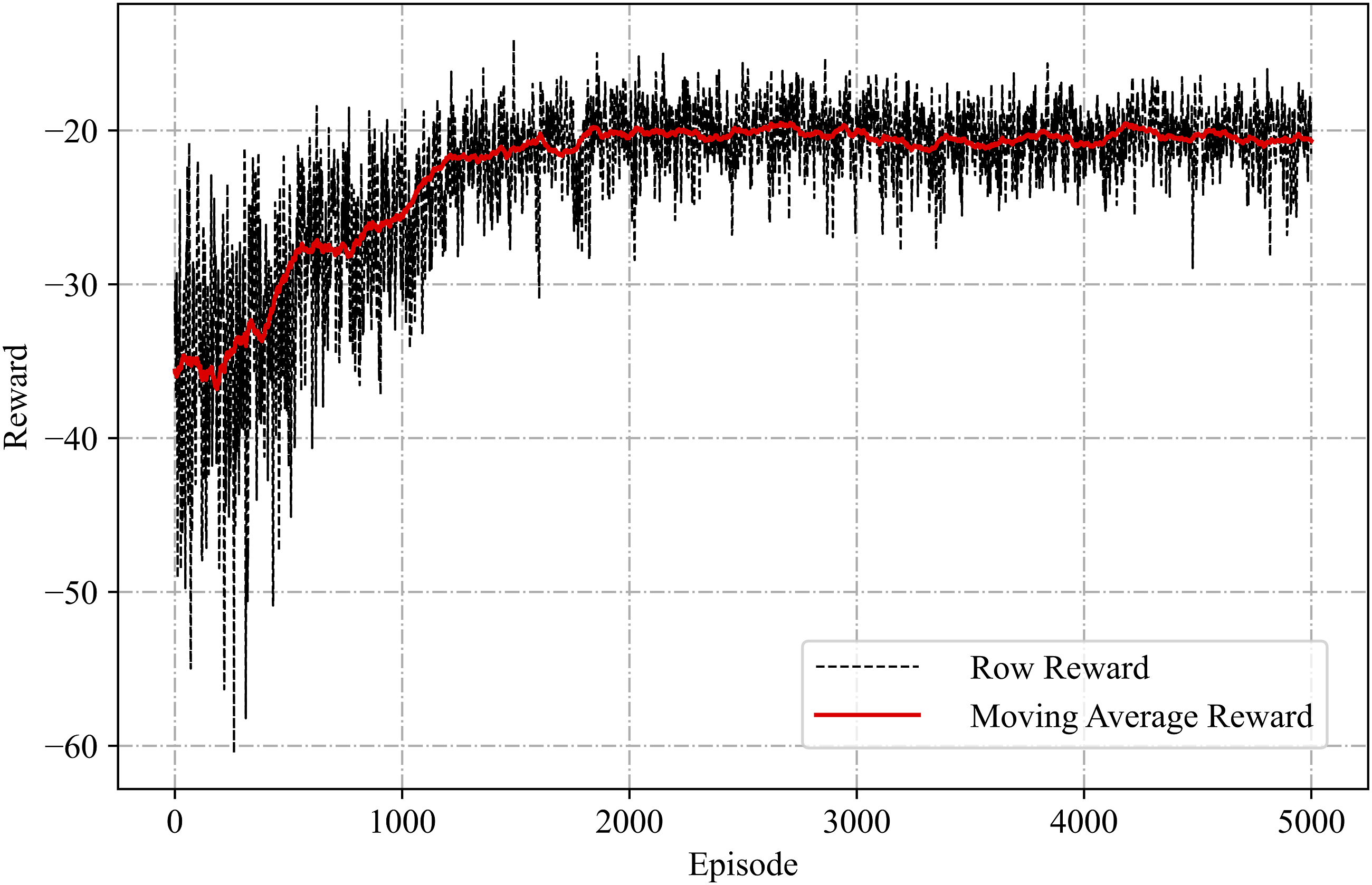

Figure 7.

Total reward curve of the training process.

Simulation result and analysis

Horizontal vibration responses of the car induced by guide rail surface wear

In this study, a horizontal vibration model for a high-speed elevator car is built using Python, with the guide rail uneven excitation from the section “Horizontal vibration control model for high-speed elevators” as input. We compare passive control, Mixed SH-ADD (Savaresi and Spelta, 2007), PID control, DQN-based control (Feng et al., 2009), and DDPG-based control to analyze the time-domain responses of acceleration under guide rail surface wear (Figure 8(a)). The frequency-domain response of acceleration is shown in Figure 9(a).

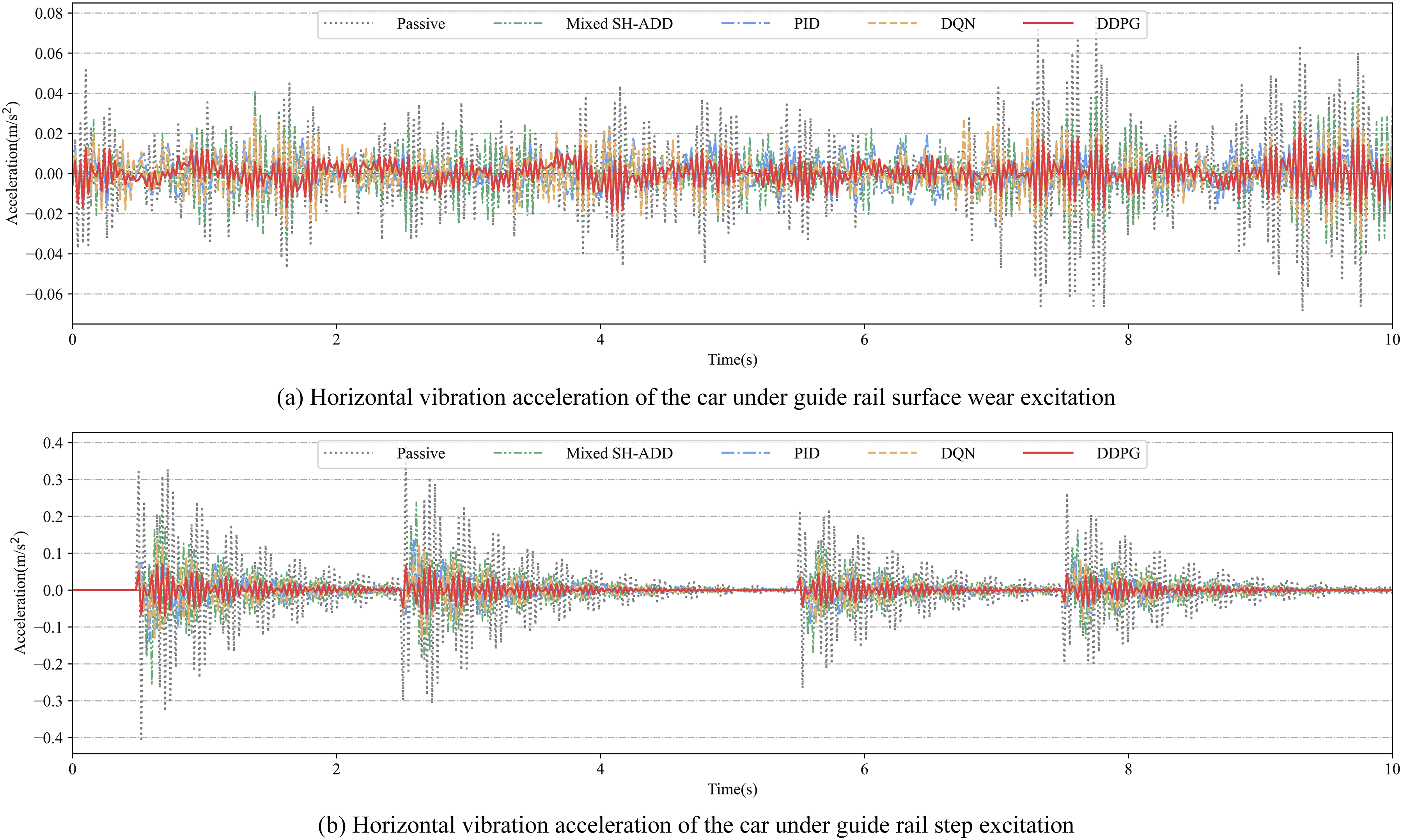

Figure 8.

Time-domain response of car horizontal vibration.

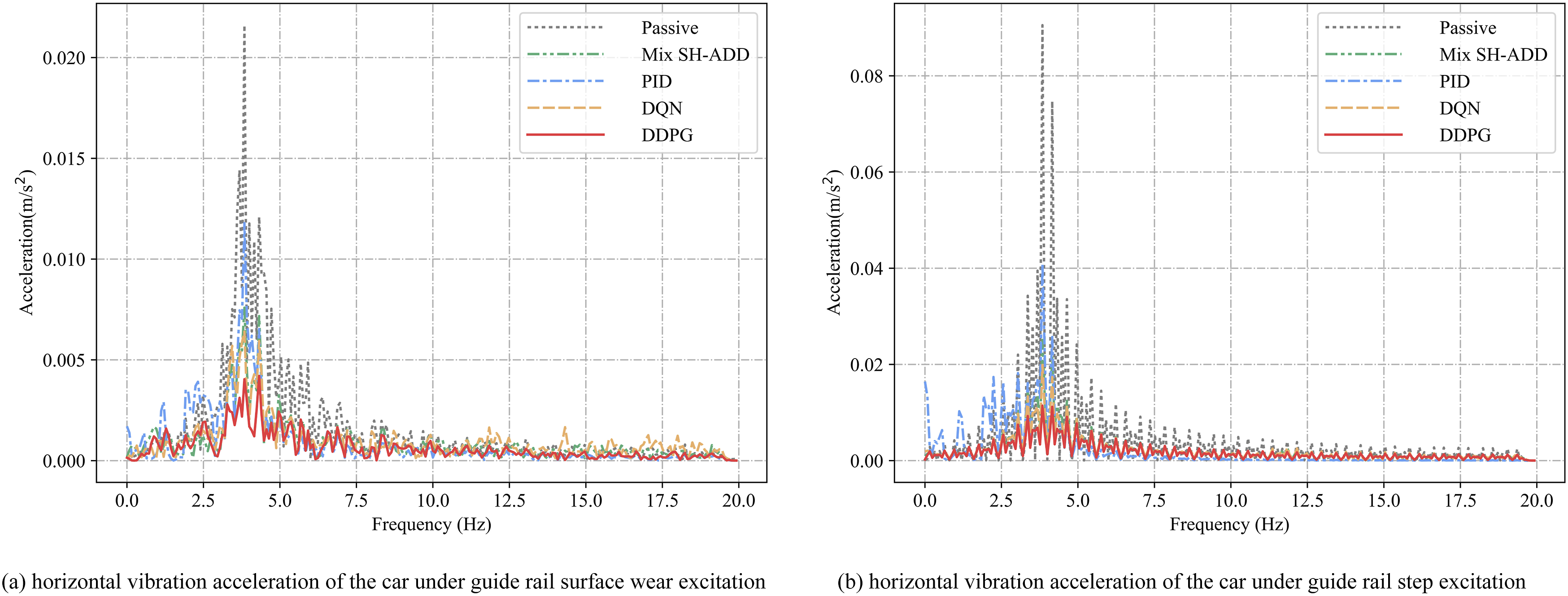

Figure 9.

Frequency-domain response of car horizontal vibration.

The figures demonstrate that Mixed SH-ADD, a semi-active control algorithm achieving near-ideal global optimality approaching the filtering limit, significantly reduces peak vibration acceleration compared to passive control systems while maintaining superior horizontal vibration suppression across the entire frequency domain. Although the PID controller does show a significant acceleration reduction effect in the high frequency band, the suppression amplitude is smaller compared with other methods in the low frequency region, and the low frequency vibration control has obvious shortcomings, as demonstrated by frequency domain analysis. The DQN-based controller produces smaller amplitude oscillations in acceleration throughout the operational timeframe. However, its inherent limitation in handling discrete action spaces restricts practical applications to continuous control scenarios like car horizontal vibration suppression. In contrast, the DDPG-based controller effectively manages high-dimensional continuous state-action spaces, achieving optimal dynamic control performance. Frequency-domain analysis confirms that the proposed DDPG controller maintains car horizontal vibration amplitudes at minimal levels across all frequency bands, establishing its superiority in multidimensional vibration control.

In accordance with ISO 8100-34:2021 and ISO 2631-1:1997, passenger comfort evaluation prioritizes weighted root mean square (RMS) acceleration and A95 peak values, to further address system safety, car displacement and velocity were additionally calculated. Comparative analysis (Table 1) against passive control baselines reveals that the DDPG-based controller achieves optimal performance, exhibiting reductions of 45.46%, 21.35%, and 20.95% in RMS acceleration compared to Mixed SH-ADD, PID, and DQN methods, respectively. Notably, its A95 peak value reaches only 31.30% of the passive system’s baseline.

Table 1.

Comparison of displacement, velocity, and acceleration responses across different control methods.

Assessment of indicators	Passive system	Mixed SH-ADD	PID	DQN	DDPG
RMS of displacement	100%	74.87%	84.15%	70.15%	57.48%
RMS of velocity	100%	91.6%	87.52%	70.57%	56.93%
RMS of acceleration	100%	57.02%	39.54%	39.34%	31.10%
A95 peak	100%	64.09%	36.59%	52.36%	31.30%

Horizontal vibration responses of the car induced by guide rail step excitation

To assess the impact of installation errors, the proposed method is tested using guide rail step excitation simulations. Figures 8(b) and 9(b) present the time and frequency responses of horizontal vibration acceleration. Despite not accounting for the influence of guide rail step excitation during training, the normalization of the input elevator state data enables the DDPG-based controller to effectively cope with step disturbances caused by installation errors, resulting in superior control performance compared to other methods.

Verification of generalized performance

To assess the generalization of the DDPG-based controller, its performance was tested on three elevator types under varying load conditions (Figure 10). The controller effectively suppressed horizontal vibrations in all scenarios, demonstrating its ability to adapt robustly to complex disturbances and provide a safe, smooth, and comfortable ride.

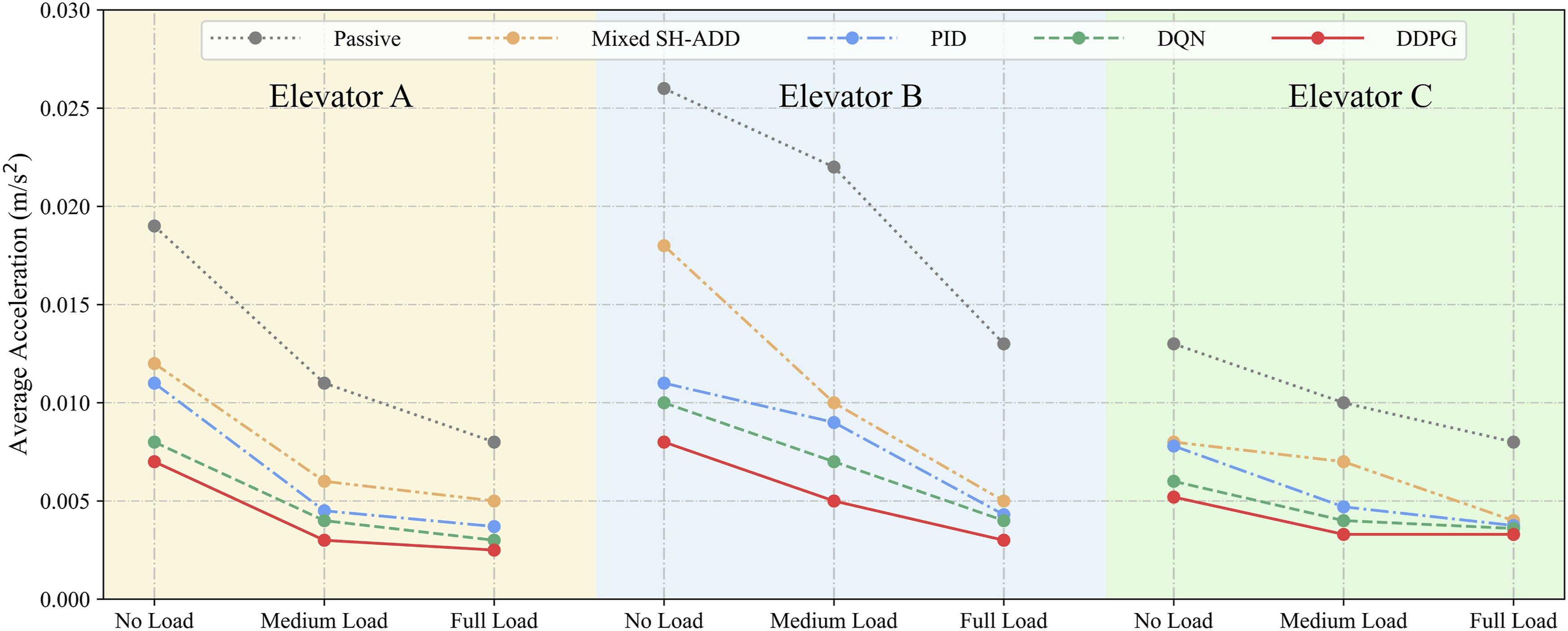

Figure 10.

Mean acceleration responses influenced by multiple factors.

In conclusion, we compare the effectiveness of various control methods on the horizontal vibration of the car under the influence of guide rail surface wear excitation, guide rail step excitation, and various uncertainties. The proposed DDPG-based method significantly reduces the acceleration peak-to-peak value, shortens stabilization time, and enhances resistance to disturbances. These improvements contribute to a smoother operation of the elevator car and increased safety.

Conclusion

To address the horizontal vibration issues of high-speed elevator cars caused by uncertain excitations due to uneven guide rails, nonlinear guide shoes, and complex operating environments, a semi-active control method for horizontal vibrations in high-speed elevator cars based on an enhanced DDPG-based approach is proposed. The main conclusions are as follows:

(1) A nonlinear horizontal vibration model of a high-speed elevator car is established, and the uneven excitation of the guide rail is simulated. By considering the nonlinearity of the semi-active guide shoe and the power spectral density characteristics of real guide rail surface wear excitation, the complex external perturbations experienced by the high-speed elevator during operation are accurately represented, revealing the key factors influencing the car’s horizontal vibrations.

(2) A Markov decision process model for controlling horizontal vibrations in elevator cars is developed. This model effectively characterizes the state space, action space, and reward function related to vibration control, providing a framework for addressing the horizontal vibration issue of elevator cars using deep reinforcement learning methods.

(3) The DDPG algorithm is enhanced through state normalization to improve the controller’s generalization performance. In this study, state data is normalized before being input into the strategy network, enabling the controller to effectively handle high-dimensional input data during training. This enhanced algorithm demonstrates stable control performance across varying environmental conditions, exhibiting exceptional adaptability and robustness.

Future research may explore integrating energy-efficient metrics into the control framework and validating the strategy under real-world operational conditions to further enhance its engineering applicability.

Footnotes

ORCID iDs

Donghang Cai

Dongsheng Cong

Ruijun Zhang

Chengxing Yuan

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Natural Science Foundation of Shandong Province (grant number ZR2023ME174).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data Availability Statement

The data to support the findings will be made available upon reasonable request for academic use by contacting the corresponding author.*

Appendix

The elevator state parameters and training hyperparameters used in this study are listed in Tables 2 and 3. Figure 11 illustrates the algorithm’s network structure. The network weights were trained for approximately 2 h, with the software and hardware configurations detailed in Table 4. Table 2.

Elevator state parameters.

Parameters	Unit	A	B	C
Mass of car m_w	kg	1200	750	2000
Mass of car frame m_b	kg	750	500	1000
Mass of roller m_z	kg	10	5	15
Stiffness coefficient of rubber block k_w	N/m	5.0e5	4.0e5	5.0e5
Damping coefficient of rubber block c_w	Ns/m	320	320	320
Damping coefficient of guide shoe k_b	N/m	4.0e4	4.0e4	5.0e4
Damping coefficient of roller k_z	N/m	6.0e5	5.0e5	6.0e5

Table 3.

Hyperparameters used in training.

Parameters	Value
Number of episodes	500
Batch size	128
Buffer size	10e5
Optimizer	Adam
Learning rate (Q-network)	2e-5
Learning rate (Strategy-network)	2e-6
Discount factor (γ)	0.95
Soft update rate (τ)	0.99

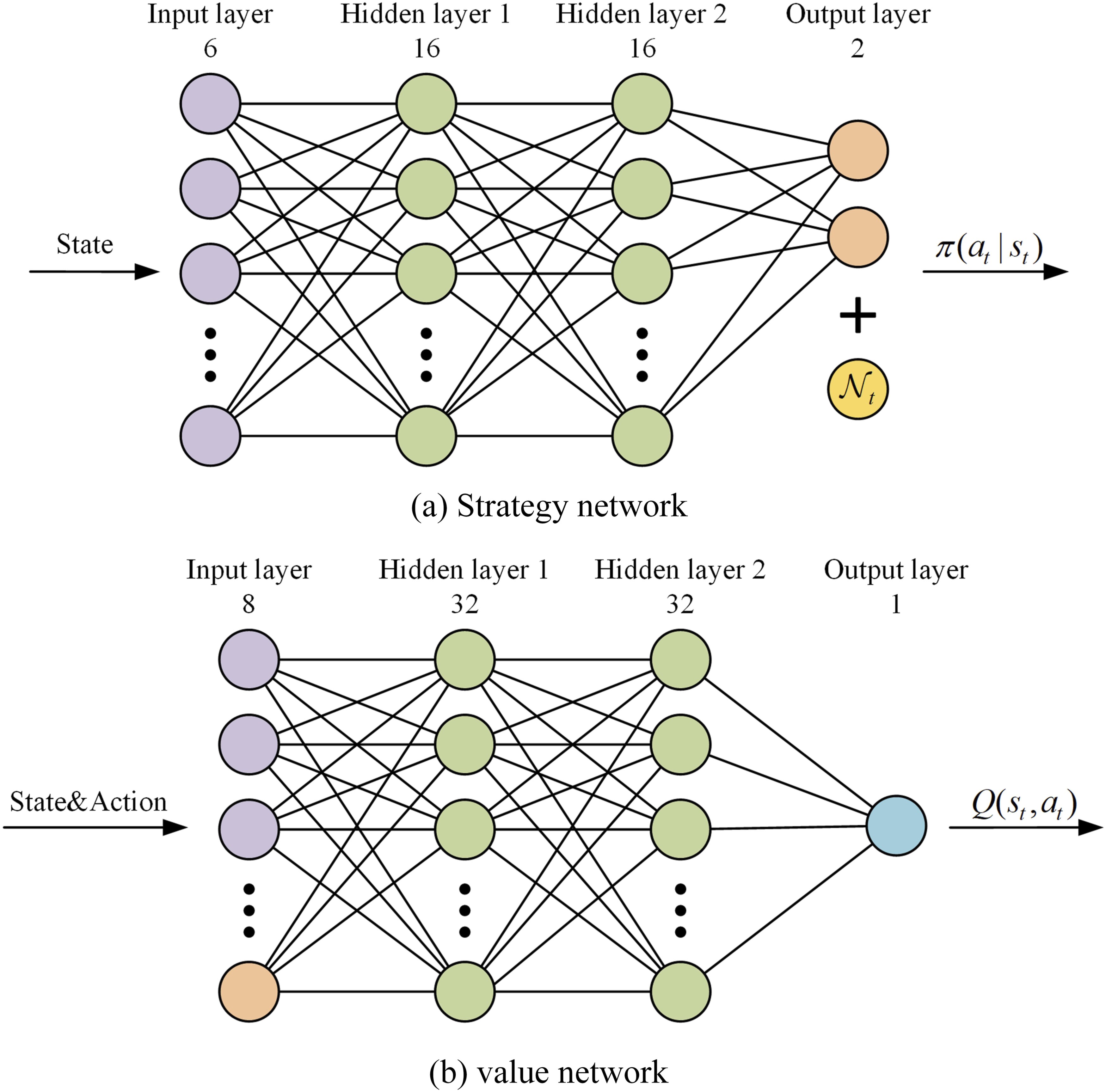

Figure 11.
