Finite-time trajectory tracking of parallel manipulators: An adaptive barrier terminal sliding mode approach with input constraints

Abstract

For parallel manipulators, traditional trajectory tracking techniques suffer from input saturation and external disturbances, which results in poor transient responsiveness and decreased control accuracy. In order to guarantee quick and reliable trajectory tracking under such limitations, this study suggests an improved control approach that combines adaptive barrier functions with terminal sliding mode control. First, a compensator is added to lessen the consequences of input saturation. Then, for finite-time tracking, a new terminal sliding surface is constructed, which is based on tracking error and an auxiliary variable connected to the compensator. To reject time-varying disturbances, the adaptive barrier function is further expanded. The whole system’s finite-time stability is guaranteed by applying Lyapunov theory. The enhanced tracking performance of the proposed method over traditional approaches is demonstrated by simulation results. Compared to SOSMC and NTSMC, the proposed controller achieves up to 14% improvement in performance indices and 31% faster convergence, highlighting its effectiveness for precise trajectory tracking in parallel robots. Additionally, the effectiveness of the suggested controller is validated by real-time experiments on a physical parallel manipulator. The resilience of the approach against real-world uncertainties, including sensor noise, unmodeled dynamics, and actuator nonlinearities, is confirmed by this high correlation. All things considered, the suggested method provides a dependable and effective way to track trajectories in applications requiring a high degree of precision and utilizing parallel manipulators.

Keywords

parallel manipulator nonsingular terminal sliding mode control adaptive barrier function input saturation disturbance rejection

Introduction

Motivation and background

Parallel manipulators, often referred to as parallel robots (PRs), represent a category of closed-chain kinematic structures in which several independent limbs or kinematic chains concurrently connect a stationary base to a mobile platform. In contrast to serial manipulators—where motion is transmitted sequentially through a single chain of actuators—parallel robots distribute actuation forces and motions across multiple branches simultaneously. This architecture results in enhanced structural rigidity, improved positioning accuracy, and superior dynamic response, making them particularly advantageous for high-speed and precision-demanding applications (Liu et al., 2024b; Merlet, 2006; Zhao et al., 2025). The main reason for this interest is the benefits they provide over traditional serial models, such as greater accuracy, rigorousness, and increased velocity and acceleration features (Briot and Khalil, 2015b; Chen et al., 2024). As a result, parallel manipulators show potential for various uses like machining (Zhang, 2009), operations involving picking up objects and placing them elsewhere (Nabat et al., 2005), 3D printing (Seward and Bonev, 2014), and touch-based interfaces (Birglen et al., 2002; Saafi et al., 2015). These manipulators are made up of secure chains of jointed stiff body systems (Khalil and Dombre, 2004). Creating accurate dynamic models for these robots is a difficult and complex job due to the need to work with a significant number of stiff bodies. Motions equation have to be established using a distinct group of joint coordinates, particularly the joints that are controlled by an external force. Hence, designing control systems for parallel manipulators is recognized as challenging (Boschetti and Minto, 2025; Cheng et al., 2003). The shortened dynamic models capturing just the most important features related to inertia of the manipulator may have to be utilized due to the difficulty of the model (Pierrot et al., 1990). Furthermore, one must also take into account unidentified joint frictions and ambiguities in inertial factors, such as those resulting from unfamiliar payloads. Robust and/or adaptive control structures are necessary to handle the unmodeled dynamics that arise from these popularizations in order to achieve high precision.

Literature review

One of the efficient control methods that has been applied for the control of the PR systems is the Proportional-Integral-Derivative (PID) control scheme. As a novel configuration of a 3-DOF PR system, a PID controller which may asymptotically follow a chosen reference signal is suggested in (Ruiz-Hidalgo et al., 2019). In reference (Ren et al., 2007), the effects of PI harmonized control and classic PID control methods on tracking precision of a 3-DOF planar parallel manipulator were assessed. Su et al. (2006) established a combined control input that can bring both position and harmonization errors to the origin and it includes a PD control and a PI control signal with input saturation. Unfortunately, the ability of kinematic control systems to follow a trajectory at a high speed is not guaranteed, despite their ability to function well at low speeds. As a result, the certain contemporary and sophisticated control algorithms are added to the established PID control system. Reference (Wang et al., 1995) uses a three-layer backpropagation neural-network approach, where may minimize trajectory tracking errors. A novel control technique and traditional PID control are combined in a controller presented in reference (Li and Wang, 2009) to improve system’s adaptability, where the result is a robust system. Whereas high-speed PRs are a nonlinear, heavily coupled system and highly accurate robot control cannot be achieved by contemplating solely kinematics. The impact of dynamic factors on control is also increasingly apparent as robot speed increases. As a result, it is important to research control algorithms for high-speed PRs that take dynamic characteristics into account. For this reason, the Sliding Mode Control (SMC), has been expended in an extensive variety of industrial applications because of its considerable resilience against nonlinear coupled system (Li et al., 2021; Van et al., 2016; Zhang and Hua, 2022). Some examples of these applications include magnetic bearings (Zad et al., 2017) and industrial robots (Baek et al., 2016). To achieve the improved trajectory tracking of target, paper (Begon et al., 1995) created a fuzzy-SMC for a rapid parallel robot. Relevant studies on distributed coordination in multi-robot systems (Liu et al., 2024a) also provide theoretical support for multi-DOF collaboration in parallel manipulators. In particular, Liu et al. (2024a) proposed a distributed coordination framework that integrates both competitive and collaborative behaviors inspired by natural swarm intelligence. By introducing a k-winner-take-all mechanism and combining a recurrent neural dynamics solver with a consensus-based distributed algorithm, their approach ensures effective resource utilization and system stability in multi-robot settings.

Real-world systems are sensitive to numerous sources of uncertainty and disturbance, for example, measurement noise, parameter variations, unmodeled dynamics, and outdoor disruption. To validate the practicality of managing the PR system, we should assess the impact of these uncertainties and disturbances, and consider worst-case scenarios. To reject model improbability and exterior interruption, the upper bound on external disturbance and model uncertainties is often derived from mathematical models of the system. To justify its feasibility, we need to certify that the model precisely signifies the real-world system. If our used model is too simplistic or fails to capture important dynamics, the derived upper bound may not be realistic. In practical system, it is presumed that these upper bounds are uncertain and need to be estimated using the various adaptive control mechanism (Zhang et al., 2022). Numerous robust controllers, including backstepping control (Azad et al., 2022), fault-tolerant control (Alizadeh et al., 2022), learning control (Dolatyabi et al., 2025; Jin et al., 2023; Mukherjee et al., 2022), synchronization control (Alinezhad and Esfanjani, 2022), fractional-order-based Linear Quadratic Integral Regulator (LQIR) (Saleem et al., 2023), and fuzzy control (Naghibi et al., 2017), have been developed in recent years to accomplish the required control performance. Barrier function is one of the main powerful types of the adaptive control technique that can offset the ambiguities and disorders happened in the PR system. The main advantageous of the barrier function technique includes the fast reachability and the strength against change of disturbances (Chen et al., 2019; Li et al., 2020; Long et al., 2020; Obeid et al., 2018). This mode may adaptively reduce the gain of controller as the disruption reduces, and it similarly ensures that the sliding surface will reach a proximity of the origin in a limited amount of time (Plestan et al., 2010; Shtessel et al., 2017). Additionally, the control chattering persists as a result of the reaching control law’s employment of signum function (Afifa et al., 2023). For LM positioner control, fast nonsingular terminal sliding mode (FNTSM) is established in (Zheng et al., 2014). The control signal of FNTSM controller lacks a switching device that can effectively muffle control chattering. That said, in a manner similar to that of APSSM, the size of its converging region is dependent of the upper bound of unknown disturbances. The barrier function (BF) is a continuous function created in a small neighborhood near the origin, with its value increasing infinitely as the variable gets closer to the boundary of the region. This feature can be included to enable control over output or constraint states. As an instance, a barrier Lyapunov function is created in (Jin, 2018; Tee et al., 2009;) for an adaptive backstepping approach where the output error magnitude is independent of the unknown disturbance and the states may be asymptotically tracked without breaking the constraints. BF is now used in an SMC scheme, which is foundation for achieving the finite-time convergence (Barghandan et al., 2023). Another control challenge that has not been investigated in the above papers is the existence of saturation or constraint on the control inputs. However, for the PR system that needs high amplitude control inputs, the saturation functions can diminish the system’s performance cause instability. Thus, it is crucial to design the saturation function C2 using the auxiliary system to estimate the actual saturation function to suppress the input saturation impression (Yang et al., 2020). Reference (Awan et al., 2019) proposes a fault-tolerant control scheme for a 6-DOF robotic manipulator designed to maintain reliable performance under sensor and actuator faults. It integrates nonlinear observers to estimate system states and identify faults, which are then addressed using hardware redundancy and control reconfiguration. The actuator fault compensation leverages an adaptive backstepping technique to ensure continued operation despite failures. Simulation results conducted in LabVIEW demonstrate improved trajectory tracking even in the presence of multiple fault conditions, highlighting the effectiveness of the hybrid control approach.

Contribution

After considering the earlier conversation, it can be deduced that there has been little focus on efficiently controlling the PR system in the existence of external disturbances and input saturation by employing the barrier function-based adaptive terminal sliding mode control (BFATSMC). Next, the dynamic PR system model is created under external disturbance and input saturation conditions, with the implementation of the BFATSMC methodology ensuring fast trajectory tracking control of PR system. Therefore, the key benefits of the suggested approach include: (1) the prescribed control strategy does not need any prior information of disturbances. (2) The control command varies according to the level of disturbance, thus, when the disturbance is decreased, the control effort decreases as well. (3) The tracking error converges within a predetermined area near zero within a limited time frame using Lyapunov criteria. Therefore, the primary fundamental novelty of this paper can be outlined in the subsequent manner.

(1) Enhancing the precision of the PR system in relation to the saturation over the input by utilizing a nonlinear function compensator;

(2) Proposal for controlling the PR systems in finite time by means of a nonsingular terminal sliding surface;

(3) Using the adaptive barrier function, which is lowly sensitive to disturbance reduction, for the rejection of external disturbance;

(4) Ensuring that the tracking error can be brought to a predetermined set by applying Lyapunov’s stability theory and the BFATSMC technique.

Organization

The paper is organized in the succeeding way. In the next section, dynamical model of the PR system is descripted. The main results including presentation of the compensator for input saturation, design of the BFATSMC technique is provided later. Then, the simulation and experimental results are existed. Finally, the conclusions are reported.

PR dynamic model

This section of the paper presents the general formulation of the dynamics of the PR, which can be applied to any type and degree of freedom (DOF) of parallel robots. The three stages for representing the dynamics of parallel robots are mentioned in references (Briot and Khalil, 2015a; Cheng et al., 2003), and can be stated in a typical joint-space format as found in (Ghorbel et al., 1994; Spong et al., 2020):

u (t) = M (q, t) \ddot{q} (t) + H (C (q (t), \dot{q} (t)), G (q (t)), F_{d, s})

(1)

H = C (q (t), \dot{q} (t)) + G (q (t)) + F_{d} \dot{q} (t) + F_{s} (\dot{q} (t))

where

M

(n \times n)

positive-definite inertia matrix which relies on the coordinates

q (t)

of actuator and the Cartesian coordinates of moving platform

x (t)

. H is

(n \times 1)

vector contains the gravity terms

G (q (t))

, the terms of centrifugal and Coriolis

C (q (t), \dot{q} (t))

, and also friction terms

F_{s} (\dot{q} (t))

and

F_{d} \dot{q} (t)

are static and dynamic friction, respectively.

\ddot{q} (t) = A (q (t), \dot{q} (t)) + B (q (t), \dot{q} (t)) u (t) + D (t)

(2)

where

A (q (t), \dot{q} (t)) = - M^{- 1} (q, t) (C (q (t), \dot{q} (t)) + G (q (t)))

and

B (q (t), \dot{q} (t)) = M^{- 1} (q, t) u (t)

are two known functions, and

D (q (t), t)

represents unknown parts.

By considering input saturation and input diagonalization, the dynamic model of equation (2) is denoted in second-order form as

{\ddot{z}}_{i} = A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) s a t (u_{i} (t)) + D_{i} (z (t), t)

(3)

where

z_{i} \in R

represents the states (joint positions) of PR,

u_{i} (t) \in R

represents the controller signal,

A_{i} (z (t), \dot{z} (t))

and

B_{i} (z (t), \dot{z} (t)) \neq 0

display two known parts, and

D_{i} (z (t), t)

represents an unknown disturbance that is constrained as

| D_{i} (z (t), t) | < d_{i}

(4)

where

d_{i}

indicates the disturbance bound, which is not necessary to be known a priori. In addition,

s a t (u_{i} (t))

represents the actual control input affected by saturation type nonlinearities, that is

s a t (u_{i} (t)) = {\begin{cases} u_{i \max}, & u_{i} \geq u_{i \max} \\ u_{i}, & u_{i \min} < u_{i} < u_{i \max} \\ u_{i \min}, & {u_{i} \leq u}_{i \min} \end{cases}

(5)

where

u_{i \min}

and

u_{i \max}

are the upper/lower bounds of

s a t (u_{i} (t))

Remark 1: The outputs that can be measured are the states $z_{i} (t)$ and ${\dot{z}}_{i} (t)$ ; thus, the relative degree is one when ${\dot{z}}_{i} (t) \neq 0$ is not equal to zero. The required reference $z_{d_{i}} (t)$ is supposed to be tracked by the second-order robotic manipulator (3). The error signal consists of the following components:

{\tilde{z}}_{i} (t) = z_{i} (t) - z_{d_{i}} (t)

(6)

Main results

In this section, the BFATSMC design for the parallel manipulator’s tracking control is provided. To start with, a compensator is created to improve the response to input saturation. When disturbances alter, the resulting controller can follow the command signal rapidly and precisely without overestimating the gain of adaptive control. Furthermore, the tracking error could narrow down to a predetermined range nearing zero within a short timeframe. Next, the system’s stability is examined and various control parameter choices are discussed as well.

Lemma 1 (Xiu and Guo, 2018): Assume that $x$ and $I$ , where $x \in ℵ \subset R^{n}$ and $I : R^{n} \to R^{n}$ with $I (0) = 0$ . Equivalently, presume that $\dot{x} = I (x)$ is a continuous function on vicinity $ℵ$ of origin and Locally Lipschitz on $ℵ \ {0}$ . Therefore, if there is a positive-definite function $V : ℵ \to R$ that meets $\dot{V} + ℷ_{1} V^{ℷ_{2}} \leq 0$ in a proximity $N \subset ℵ \ {0}$ , where $ℷ_{1} > 0$ and $0 < ℷ_{2} < 1$ , then the origin is a stable equilibrium of $\dot{x} = I (x)$ for a finite amount of time. For any specified starting time $t_{0}$ , the Lyapunov function $V$ will approach zero within a finite amount of time:

t_{s} = \frac{V {(t_{0})}^{1 - ℷ_{2}}}{ℷ_{1} (1 - α)}

(7)

where

t_{s}

is the reachability time.

Estimation of the input saturation

In this section, to overcome the impression of the saturation on control input that progress the productivity of the recommended technique, a function is designed to approximate the real control input $s a t (u_{i} (t))$ , which is considered as

χ_{i} (u_{i}, L_{i}) = {\begin{cases} {L_{i} u}_{i \max} + (1 - L_{i}) ι_{i \max} (u_{i}) & u_{i} \geq {L_{i} u}_{i \max} \\ u_{i} & {L_{i} u}_{i \min} < u_{i} < {L_{i} u}_{i \max} \\ {L_{i} u}_{i \min} + (1 - L_{i}) ι_{i \min} (u_{i}) & {u_{i} \leq L_{i} u}_{i \min} \end{cases}

(8)

where

{0 < L}_{i} < 1

ι_{i \max} (u_{i}) = \frac{2}{π} u_{i \max} \tan^{- 1} (\frac{π}{2} \frac{u_{i} - {L_{i} u}_{i \max}}{(1 - L_{i}) u_{i \max}})

, and

ι_{i \min} (u_{i}) = \frac{2}{π} u_{i \min} \tan^{- 1} (\frac{π}{2} \frac{u_{i} - {L_{i} u}_{i \min}}{(1 - L_{i}) u_{i \min}})

. Now, the bounded variable

ϵ_{i}

is defined as

ϵ_{i} = s a t (u_{i} (t)) - χ_{i} (u_{i}, L_{i})

Construction controller

In order to design the BFATSMC law, a nonsingular function $s_{i}$ , which is presented as terminal sliding surface, is stated below:

s_{i} (t) = ϱ_{i, 1} {\tilde{z}}_{i} (t) + μ s i g {({\dot{\tilde{z}}}_{i} (t))}^{ξ} - ϱ_{i, 2} ℏ_{i} (t)

(9)

where, in the above equation, the parameters

μ

and

ξ

to be chosen in a manner that

μ > 0

, and

1 < ξ < 2

. Also, we have

ϱ_{i, 1}, ϱ_{i, 2} > 0

. The expression

sig {(a (t))}^{b}

is equivalent to statement below:

sig {(a)}^{b} = {| a (t) |}^{b} sgn (a)

(10)

Moreover, the auxiliary variable $ℏ_{i} (t)$ is designed as

{\dot{ℏ}}_{i} (t) = \frac{1}{ϱ_{i, 2}} μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (B_{i} (z (t), \dot{z} (t)) χ_{i} (u_{i}, L_{i}))

(11)

Next, time-derivative of switching surface (9) is gained as

{\dot{s}}_{i} (t) = ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) + μ \frac{d}{d {\dot{\tilde{z}}}_{i} (t)} ({| {\dot{\tilde{z}}}_{i} (t) |}^{ξ} sgn ({\dot{\tilde{z}}}_{i} (t))) {\ddot{\tilde{z}}}_{i} (t) - ϱ_{i, 2} {\dot{ℏ}}_{i} (t) = {\dot{\tilde{z}}}_{i} (t) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} {\ddot{\tilde{z}}}_{i} (t) - ϱ_{i, 2} {\dot{ℏ}}_{i} (t)

(12)

Substitution from (3), one can gain

{\dot{s}}_{i} (t) = {ϱ_{i, 1} \dot{\tilde{z}}}_{i} (t) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) s a t (u_{i} (t)) + D_{i} (z (t), t) - {\ddot{z}}_{d_{i}} (t)) - ϱ_{i, 2} {\dot{ℏ}}_{i} (t)

(13)

whereas

s a t (u_{i} (t)) = ϵ_{i} + χ_{i} (u_{i}, L_{i})

, we have

{\dot{s}}_{i} (t) = ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) ϵ_{i} + B_{i} (z (t), \dot{z} (t)) χ_{i} (u_{i}, L_{i}) + D_{i} (z (t), t) - {\ddot{z}}_{d_{i}} (t)) - ϱ_{i, 2} {\dot{ℏ}}_{i} (t)

(14)

Doing some simplifications, it can gain

{\dot{s}}_{i} (t) = ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) ϵ_{i} + D_{i} (z (t), t) - {\ddot{z}}_{d_{i}} (t)) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (B_{i} (z (t), \dot{z} (t)) χ_{i} (u_{i}, L_{i})) - ϱ_{i, 2} {\dot{ℏ}}_{i} (t)

(15)

Considering auxiliary variable design (11) and removal of the same expression, we have

{\dot{s}}_{i} (t) = ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) ϵ_{i} + D_{i} (z (t), t) - {\ddot{z}}_{d_{i}} (t))

(16)

where considering

{\dot{s}}_{i} (t) = 0

yields the following statement:

ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) ϵ_{i} - {\ddot{z}}_{d_{i}} (t)) = 0 .

(17)

By simplifying equation (17), the equivalent control input

{\tilde{ϵ}}_{i} (t)

can be found as

{\tilde{ϵ}}_{i} (t) = {B_{i} (z (t), \dot{z} (t))}^{- 1} (- ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) {- (μ ξ)}^{- 1} {| {\dot{\tilde{z}}}_{i} (t) |}^{1 - ξ} - A_{i} (z (t), \dot{z} (t)) + {\ddot{z}}_{d_{i}} (t))

(18)

Moreover, the reaching control law is formed as

{\hat{ϵ}}_{i} (t) = {{- B}_{i} (z (t), \dot{z} (t))}^{- 1} {\hat{κ}}_{i} (t) sgn (s_{i} (t))

(19)

where in the above expression,

{\hat{κ}}_{i} (t)

represents an adaptive control gain.

A positive constant $β$ to be defined that indicates the region to which the tracking error signal eventually converges and then remains in that. Also, $\hat{t}$ represents the first-time instance that $s_{i} (t)$ reaches the region $[\frac{- β}{2}, \frac{+ β}{2}]$ from any initial quantity away from this bound, that is, for $| s_{i} (0) | > \frac{β}{2}$ . Differently, $\hat{t} = 0$ if $| s_{i} (0) | \leq \frac{β}{2}$ . Afterward, we will design an adaptation law for the adaptive control gain $\hat{κ}$ as

{\hat{κ}}_{i} (t) = {\begin{cases} ρ \int_{0}^{t} \exp (λ | s_{i} (t) |) | s_{i} (t) | d t, f o r 0 \leq t \leq \hat{t} \\ f_{b} (s_{i} (t)), f o r t > \hat{t} \end{cases}

(20)

where

ρ \geq 0, λ > 0,

and

{\hat{κ}}_{i} \geq 0

are control parameters and the initial value of integral respectively.

f_{b} (s_{i} (t))

is the barrier function which is proposed as

f_{b} (s_{i} (t)) = \frac{| s_{i} (t) |}{β - | s_{i} (t) |}, f o r | s_{i} (t) | < β

(21)

In the final step, the complete BFATSMC law is formed as

ϵ_{i} (t) = {\tilde{ϵ}}_{i} (t) + {\hat{ϵ}}_{i} (t)

(22)

where

{\tilde{ϵ}}_{i} (t)

and

{\hat{ϵ}}_{i} (t)

are introduced in equations (18) and (19), previously.

Remark 2: In order to increase convergence speed, the exponential expression $\exp (λ | s_{i} (t) |)$ is suggested in (20) (which is equivalent to smaller $\hat{t}$ ); this strategy will show its advantage for the case, where $s_{i}$ is far from equilibrium point (Fallaha et al., 2010).

Remark 3: In Figure 1, the variation of the barrier function (or ${\hat{κ}}_{i}$ ) in terms of $s_{i} (t)$ for $t > \hat{t}$ is illustrated. It can be seen that $f_{b} (s_{i} (t))$ tends to infinity when $| s_{i} (t) |$ goes from $0$ to $β$ ; the result of which is a rapid increase in the adaptive control factor ${\hat{κ}}_{i} (t)$ and consequently, an increase in the control command ${\hat{ϵ}}_{i} (t)$ based on (19) which will be considered later in (41), it causes the sliding variable $s_{i} (t)$ to quickly return to the origin. This is the clear advantage of using the barrier function in the adaptation law.

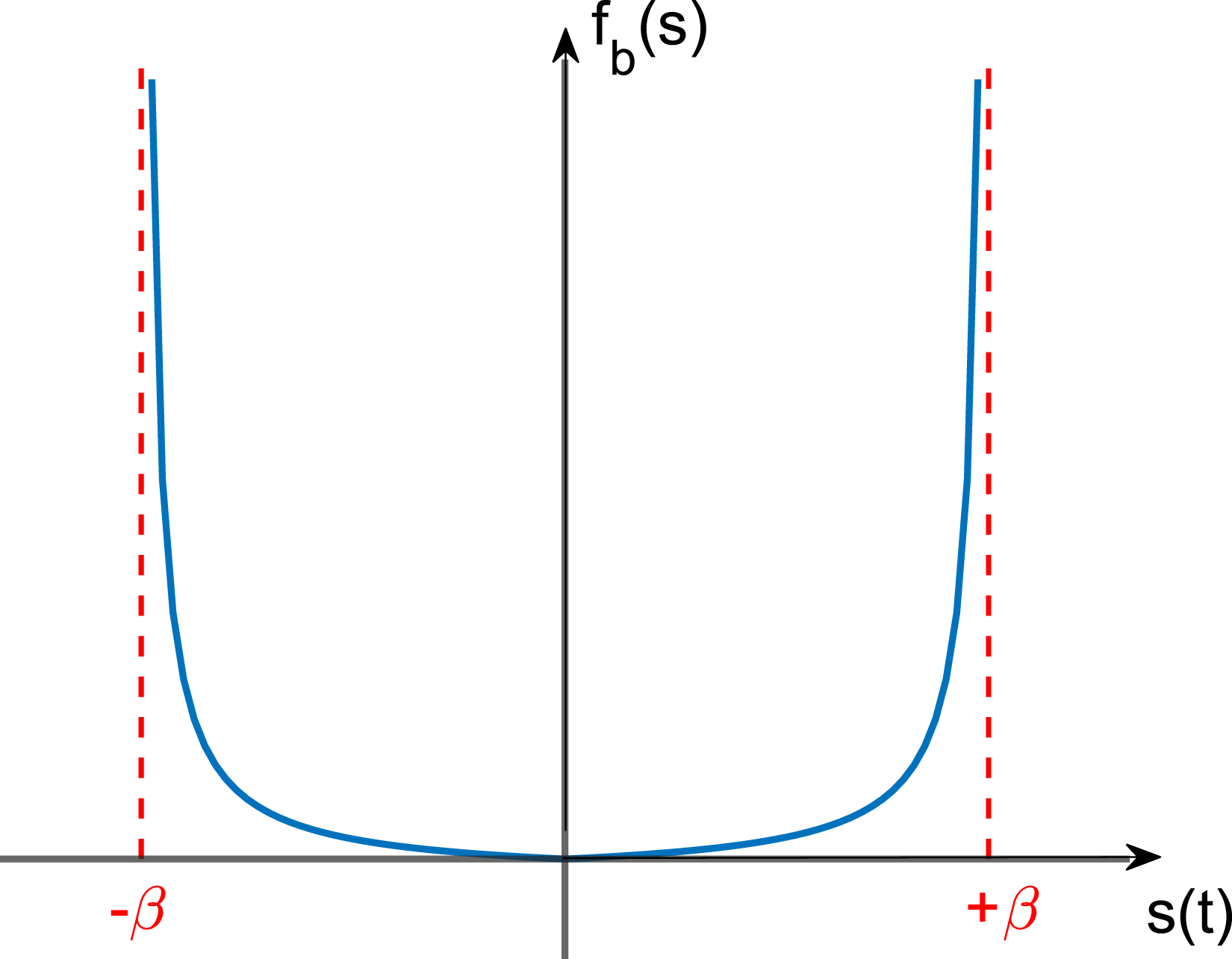

Figure 1.

Variation of the barrier function $f_{b} (s)$ in terms of $s (t) \in {[- β, + β]}^{T}$ .

Stability analysis

The next part explores the stability analysis of the suggested BFATSMC law via the Lyapunov criteria.

Lemma 2: The PR dynamic system in equation (3) under the BFATSMC law (22) is assumed for $0 < t \leq \hat{t}$ ; there is a $d_{i} > 0$ in equation (9) so that the inequality ${\hat{κ}}_{i} (t) \leq d_{i}$ holds for the control coefficient ${\hat{κ}}_{i} (t)$ in equation (20).

Proof of Lemma 2: For the $| s_{i} (t) |$ , which meets $| s_{i} (0) | > \frac{β}{2}$ , it results that the adaptive gain ${\hat{κ}}_{i} (t)$ will keep increasing because of the integral of $| s_{i} (t) | > 0$ (based on equation (20)), So, there is a time $\bar{t}$ such that:

{\hat{κ}}_{i} (\bar{t}) > | D_{i} (z (t), t) |

(23)

Case 1: If ${\dot{\tilde{z}}}_{i} (t) \neq 0$ , considering (23) and (12), the time-derivate of terminal sliding surface is negative ( ${\dot{s}}_{i} (t) < 0$ ) when $t \geq \bar{t}$ . This implies that the absolute value of $| s_{i} (t) |$ will start to decrease. Subsequently, the gain ${\hat{κ}}_{i} (t)$ will continue to increase until $| s_{i} (t) | = 0$ , which is done in a finite time $Δ t$ . Then, ${\hat{κ}}_{i} (t)$ will maintain the final quantity ${\hat{κ}}_{i} (\bar{t} + Δ t)$ . That is evident ${\hat{κ}}_{i} (\bar{t} + Δ t)$ is finite because of its continuity trait. In other words, ${\hat{κ}}_{i} (t)$ always has an upper bound with a positive constant, for example, $d_{i}$ . Therefore, it can be said that ${{\hat{κ}}_{i} (t) < d}_{i}$ . Furthermore, the constant $d_{i}$ also satisfies (4) due to (23).

Case 2: If ${\dot{\tilde{z}}}_{i} (t) = 0$ , by substitution equation (22) into equation (3), we have

{\ddot{z}}_{i} = A_{i} (z (t), \dot{z} (t)) + B_{i} (z (t), \dot{z} (t)) ({\tilde{ϵ}}_{i} (t) + {\hat{ϵ}}_{i} (t)) + D_{i} (z (t), t)

(24)

where using (19), one obtains

{\ddot{z}}_{i} = - ϱ_{i, 1} {\dot{\tilde{z}}}_{i} (t) {- (μ ξ)}^{- 1} {| {\dot{\tilde{z}}}_{i} (t) |}^{1 - ξ} - A_{i} (z (t), \dot{z} (t)) + {\ddot{z}}_{d_{i}} (t) - \hat{κ} sgn (s_{i} (t)) + D_{i} (z (t), t) = {\ddot{z}}_{d_{i}} (t) - {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D_{i} (z (t), t)

(25)

where considering (6), one finds

{{\ddot{\tilde{z}}}_{i} (t) = - {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D}_{i} (z (t), t)

(26)

Because we always have a time

\bar{t}

such that, based on (26), for any

| s_{i} (t) | > \frac{β}{2}

. The inequality

{\ddot{\tilde{z}}}_{i} (t) \neq 0

holds, that implies

{\dot{\tilde{z}}}_{i} (t) = 0

, which is not absorbent. It is noteworthy that if the initial value of integral

{\hat{κ}}_{i} (0) > | D_{i} (z (t), t) |

, using a proof similar to mentioned procedure, the same conclusion can be drawn (Qiao and Zhang, 2017, 2019).

Theorem 1: Assume the PR system in (3) with uncertainty in its parameters. Then, for any random initial tracking error defined in equation (6), the sliding surface $s_{i} (t)$ and error signal ${\tilde{z}}_{i} (t)$ will reach the specified regions in a limited amount of time by applying BFATSMC law (22):

| s_{i} (t) | < β

(27)

| {\tilde{z}}_{i} (t) | < 2 β

(28)

where the parameter

β

is a positive constant.

Proof: In the first step, by considering the equivalent control input, we have

{\dot{s}}_{i} (t) = - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} ({\hat{κ}}_{i} (t) sgn (s_{i} (t)) - D_{i} (z (t), t))

(29)

In the next step, the proof is done by two phases based on the switching succession of the adaptive control in equation (20). In what follows, it is illustrated that the states of a closed-loop system converge to a bounded region by utilizing adaptive predefined control. With the switching succession of

0 \leq t \leq \hat{t}

and

t > \hat{t}

, respectively:

Phase 1) Using adaptive control in equation (20) for $0 \leq t \leq \hat{t}$ . In this point, based on the definition of $\hat{t}$ in (20) one can see $s_{i} (0) > \frac{β}{2}$ . Then choose a Lyapunov function $V_{i}$ as

V_{i} = \frac{1}{2} {s_{i} (t)}^{2} + \frac{1}{2} ω {{\tilde{κ}}_{i} (t)}^{2}

(30)

where

ω

is a positive number and

{\tilde{κ}}_{i} (t) = {\hat{κ}}_{i} (t) - d_{i}

. Using (29) and getting derivative of

V_{i}

, we have

{\dot{V}}_{i} = s_{i} (t) {\dot{s}}_{i} (t) + ω {\tilde{κ}}_{i} (t) {\dot{\tilde{κ}}}_{i} (t)

= s_{i} (t) μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D_{i}) + ω {\tilde{κ}}_{i} (t) {\dot{\tilde{κ}}}_{i} (t)

= μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) | s_{i} (t) | + D_{i} s_{i} (t)) + ω ({\hat{κ}}_{i} (t) - d_{i}) ρ \exp (λ | s_{i} (t) |) | s_{i} (t) |

\leq μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) | s_{i} (t) | + | D_{i} | | s_{i} (t) |) + ω ({\hat{κ}}_{i} (t) - d_{i}) ρ \exp (λ | s_{i} (t) |) | s_{i} (t) | + μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} ({\hat{κ}}_{i} (t) - d_{i}) | s_{i} (t) |

= μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- d_{i} | s_{i} (t) | + | D_{i} | | s_{i} (t) |) + ω ({\hat{κ}}_{i} (t) - d_{i}) ρ \exp (λ | s_{i} (t) |) | s_{i} (t) | - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} ({\hat{κ}}_{i} (t) - d_{i}) | s_{i} (t) | = - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (d_{i} - | D_{i} |) | s_{i} (t) | + (ρ ω \exp (λ | s_{i} (t) |) - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1}) | s_{i} (t) | ({\hat{κ}}_{i} (t) - d_{i})

(31)

According to Lemma 2, there is a positive constant $d_{i}$ in equation (9) which satisfies ${\hat{κ}}_{i} (t) \leq d_{i}$ . So, one can obtain $({\hat{κ}}_{i} (t) - d_{i}) = - | ({\hat{κ}}_{i} (t) - d_{i}) |$ which yields:

{\dot{V}}_{i} \leq - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (d_{i} - | D_{i} |) | s_{i} (t) | - (ρ ω \exp (λ | s_{i} (t) |) - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1}) | s_{i} (t) | | {\hat{κ}}_{i} (t) - d_{i} |

(32)

In order to reduce expressions and express equations more simply, the following relations are defined:

Ω_{s_{i}} = μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (d_{i} - | D_{i} |) Ω_{i} = (ρ ω \exp (λ | s_{i} (t) |) - μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1}) | s_{i} (t) |

(33)

It is clear that from (4), one can obtain $Ω_{s_{i}} > 0$ for ${\dot{\tilde{z}}}_{i} (t) \neq 0$ . Also, always there is a positive constant $ω$ , which satisfying $ρ ω \exp (λ | s_{i} (t) |) > μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1}$ , and thus, leading to $Ω_{i} > 0$ .

Then, by some algebraic handwork on (32), one can obtain:

{\dot{V}}_{i} \leq - Ω_{s_{i}} \frac{\sqrt{2}}{\sqrt{2}} | s_{i} (t) | - Ω_{i} \sqrt{2 ω^{- 1}} \sqrt{\frac{ω}{2}} | {\tilde{κ}}_{i} (t) |

(34)

\leq - H_{i} (\frac{| s_{i} (t) |}{\sqrt{2}} + \sqrt{\frac{ω}{2}} | {\tilde{κ}}_{i} (t) |) \leq - H_{i} V_{i}^{\frac{1}{2}}

where

H_{i} = \min {\begin{cases} Ω_{s_{i}} \sqrt{2}, & Ω_{i} \sqrt{2 ω^{- 1}} \end{cases}}

(35)

Since $H_{i} > 0$ , the positive constant ${\bar{H}}_{i}$ is expected to exist provided that

{\tilde{H}}_{i} \leq H_{i} (t), \forall | s_{i} (t) | > \frac{β}{2}

(36)

Then, from (34), we have

{\dot{V}}_{i} \leq - {\tilde{H}}_{i} V_{i}^{\frac{1}{2}}

(37)

Then, according to Lemma 1, the expression (37) guarantees the fast stabilization of the closed-loop system as studied in (Moulay and Perruquetti, 2006), which indicates that there is a fast reachability time $\hat{t}$ , at which $s_{i} (t)$ is convergent to region of $[\frac{- β}{2}, \frac{β}{2}]$ and as a result, for all $t > \hat{t}$ , the adaptive control law is switched to the barrier function (21). In addition, the finite-time $\hat{t}$ is bounded by

\hat{t} \leq \frac{V_{i}^{\frac{1}{2}} (0) - V_{i}^{\frac{1}{2}} (\hat{t})}{\frac{1}{2} {\tilde{H}}_{i}}

(38)

Moreover, ${\dot{\tilde{z}}}_{i} (t) = 0$ is not an attractor during reaching phase, which has been confirmed in the proof of Lemma 2. So, it is proved that using the adaptive control within $0 < t \leq \hat{t}$ , $s_{i} (t)$ will converge to $[\frac{- β}{2}, \frac{β}{2}]$ in the finite-time $\hat{t}$ .

Phase 2) Using adaptive control equation (22) for $t > \hat{t}$

The advantage of employing barrier function-based adaptive control equation (22) is to generate control gain ${\hat{κ}}_{i} (t)$ , which is non-overestimated and continuous. To demonstrate finite-time convergence of closed-loop system with the control law specified, first, it is needed to describe a mediating variable $σ_{i}$ as

σ_{i} = β \frac{| {B_{i}}^{- 1} D_{i}^{- 1} |}{| {B_{i}}^{- 1} D_{i}^{- 1} | + {B_{i}}^{- 1}} < β

(39)

It is noteworthy that $σ_{i}$ is modulated by the absolute value of disturbance ${B_{i}}^{- 1} D_{i}^{- 1}$ , which is time-varying.

In the prior phase, it is represented that $| s_{i} (\hat{t}) | = \frac{β}{2}$ , which is the initial value of sliding surface for this phase. Then, we shall verify that if $| s_{i} (\hat{t}) | = \frac{β}{2} > σ_{i}$ , the BFATSMC equation (22) will ensure that $| s_{i} (t) | \leq σ_{i}$ in a finite-time $t_{f}$ . Furthermore, the sliding surface $s_{i} (t)$ will stay internal the zone $| s_{i} (t) | \leq σ_{i} < β$ for all $t > \hat{t} + t_{f}$ . On the other hand, if $| s_{i} (\hat{t}) | = \frac{β}{2} \leq σ_{i}$ , then $t_{f} = 0$ ; and thus, it is clear that $| s_{i} (t) | \leq σ_{i} < β$ for all $t > \hat{t}$ .

Consider the case of $| s_{i} (\hat{t}) | = \frac{β}{2} > σ_{i}$ . Choose a Lyapunov function ${\bar{V}}_{i}$ as

{\bar{V}}_{i} = \frac{1}{2} {s_{i} (t)}^{2} + \frac{1}{2} {{\hat{κ}}_{i} (t)}^{2}

(40)

Using (12) and derivatizing of

{\bar{V}}_{i}

over the system trajectories with the BFATSMC equation (22) yields:

{\dot{\bar{V}}}_{i} = s_{i} (t) {\dot{s}}_{i} (t) + {\hat{κ}}_{i} (t) {\dot{\hat{κ}}}_{i} (t)

= s_{i} (t) μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D_{i}) + {\hat{κ}}_{i} (t) {\dot{\hat{κ}}}_{i} (t)

= s_{i} (t) μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D_{i}) + {\hat{κ}}_{i} (t) \frac{β}{{(β - | s_{i} (t) |)}^{2}} sgn (s_{i} (t)) {\dot{s}}_{i} (t)

{= s}_{i} (t) μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D_{i}) + {\hat{κ}}_{i} (t) \frac{β}{{(β - | s_{i} (t) |)}^{2}} sgn (s_{i} (t)) μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) sgn (s_{i} (t)) + D_{i})

= μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) | s_{i} (t) | + D_{i} s_{i} (t)) + {\hat{κ}}_{i} (t) \frac{β}{{(β - | s_{i} (t) |)}^{2}} μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) + D_{i} sgn (s_{i} (t)))

\leq μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) | s_{i} (t) | + | D_{i} ‖ s_{i} (t) |) + {\hat{κ}}_{i} (t) \frac{β}{{(β - | s_{i} (t) |)}^{2}} μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) + | D_{i} |)

= μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} (- {\hat{κ}}_{i} (t) + | D_{i} |) | s_{i} (t) | - {| \hat{κ}}_{i} (t) | \frac{β}{{(β - | s_{i} (t) |)}^{2}} μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} ({\hat{κ}}_{i} (t) - | D_{i} |)

(41)

The following symbols are defined similarly to the previous step:

{\bar{Ω}}_{s_{i}} = μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} ({\hat{κ}}_{i} (t) - | D_{i} |) {\bar{Ω}}_{i} = \frac{β}{{(β - | s_{i} (t) |)}^{2}} μ ξ {| {\dot{\tilde{z}}}_{i} (t) |}^{ξ - 1} ({\hat{κ}}_{i} (t) - | D_{i} |)

(42)

According to the expressions of (21) and (39), one can obtain that ${\hat{κ}}_{i} (s_{i} (t)) > {\hat{κ}}_{i} (σ_{i}) = | D_{i} |$ for any $s_{i} (t) > σ_{i}$ . Then, we have ${\bar{Ω}}_{s_{i}}, {\bar{Ω}}_{i} > 0$ for ${\dot{\tilde{z}}}_{i} (t) \neq 0$ . Hence, it follows from (41) that

{\dot{\bar{V}}}_{i} \leq - {\bar{Ω}}_{s_{i}} \frac{\sqrt{2}}{\sqrt{2}} | s_{i} (t) | - {\bar{Ω}}_{i} \frac{\sqrt{2}}{\sqrt{2}} | {\tilde{κ}}_{i} (t) |

(43)

\leq - {\bar{H}}_{i} (\frac{| s_{i} (t) |}{\sqrt{2}} + \sqrt{\frac{1}{2}} | {\tilde{κ}}_{i} (t) |) \leq - {\bar{H}}_{i} {\bar{V}}_{i}^{\frac{1}{2}}

where

{\bar{H}}_{i} = \min {\begin{cases} Ω_{s_{i}} \sqrt{2}, & Ω_{i} \sqrt{2 ω^{- 1}} \end{cases}}

(44)

Since $H_{i} > 0$ , the positive constant ${\tilde{H}}_{i}$ is expected to exist provided that:

{\tilde{H}}_{i} \leq H (t), \forall σ_{i} < | s_{i} (t) | \leq \frac{β}{2}

(45)

Then, from (43), we have

{\dot{\bar{V}}}_{i} \leq - {\hat{H}}_{i} {\bar{V}}_{i}^{\frac{1}{2}}

(46)

Accordingly, based on Lemma 1, the expression (46) fulfills the finite-time stability condition for any $| s_{i} (t) | > σ_{i}$ and ${\dot{\tilde{z}}}_{i} (t) \neq 0 (for more details see$ (Moulay and Perruquetti, 2006)); which means that $s_{i} (t)$ converges ultimately from initial condition $s_{i} (\hat{t})$ to the zone $[{- σ}_{i}, σ_{i}]$ in the finite-time $t_{f}$ :

t_{f} \leq \frac{{\bar{V}}_{i}^{\frac{1}{2}} (0) - {\bar{V}}_{i}^{\frac{1}{2}} (\hat{t} + t_{f})}{0.5 {\hat{H}}_{i}}

(47)

For ${\dot{\tilde{z}}}_{i} (t) = 0$ , because ${\hat{κ}}_{i} (s_{i} (t)) > {\hat{κ}}_{i} (σ_{i}) = | D_{i} |$ for any $s_{i} (t) > σ_{i}$ holds, it yields ${\ddot{\tilde{z}}}_{i} (t) \neq 0$ from (26), which indicates that ${\dot{\tilde{z}}}_{i} (t) = 0$ is not an attractor. Eventually, due to the monotonic feature of ${\dot{\bar{V}}}_{i}$ with respect to $| s_{i} (t) |$ , it is proved that the surface $s_{i} (t)$ remains inside the zone $| s_{i} (t) | \leq σ_{i} < β$ for all $t > \hat{t} + t_{f}$ .

As a result, it is evidenced that by using the BFATSMC law (22), the sliding surface satisfies the condition $| s_{i} (t) | \leq σ_{i} < β$ in the finite-time. Moreover, by considering the procedure of (Zheng et al., 2014), equation (10) derives $| {\tilde{z}}_{i} (t) | < 2 β$ .

Remark 4: Since $s_{i} (t)$ is bounded by $| s_{i} (t) | \leq σ_{i}$ , then from the barrier function (21), the controller gain becomes bounded by ${\hat{κ}}_{i} (s_{i} (t)) \leq f_{b} (σ_{i}) = | D_{i} |$ . In addition, according to equation (39), a small (or large) disturbance amplitude δ results in a small (or large) $σ_{i}$ , leading to a small (or large) $f_{b} (σ_{i})$ . This implies that the controller’s gain adjusts based on changes in disturbance, effectively reducing chattering caused by equation (13). This is a substantial difference from other existing adaptive controls such as the techniques of (Incremona et al., 2016; Li et al., 2018), which cause additional chattering because they cannot adapt the resulting control gains with decreasing disturbances.

Remark 5: The discontinuous functions of $s i g n (s_{i} (t))$ cause chattering in the control input, so, the functions $\tanh (\frac{s_{i} (t)}{I_{i}})$ can be used instead of sign function where $I_{i}$ is boundary layer thickness factor (Afshari et al., 2018). Thus, the reaching law controller is rephrased as

{\hat{ϵ}}_{i} (t) = {{- B}_{i} (z (t), \dot{z} (t))}^{- 1} {\hat{κ}}_{i} (t) \tan h (\frac{s_{i} (t)}{I_{i}})

(48)

Simulation and experiment

In the upcoming part, the comparative simulation outcomes between two nonlinear controller and proposed method are provided; then, for validation of the suggested control technique, the results of the simulation and experimental tests on the actual Five-bar robot prototype are showcased, which is designed in SolidWorks (Figure 2). The mentioned platform specification has been provided in Table 1.

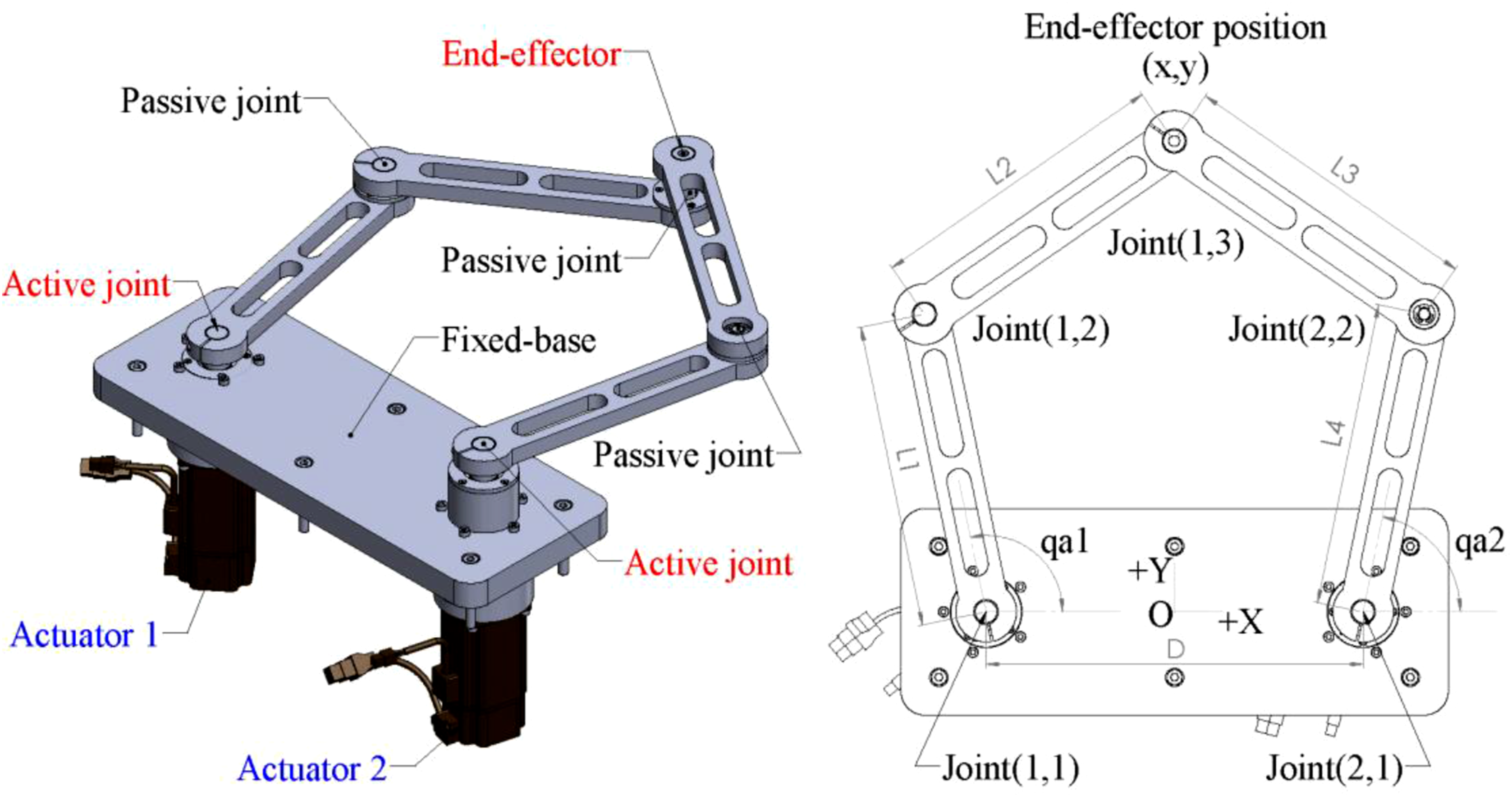

Figure 2.

CAD of Five-bar robot modeled in SolidWorks 2021sp4; (left) illustrates active/passive joints, fixed base, end-effector and actuators; (right) illustrates links and joints, end-effector position and origin of the robot.

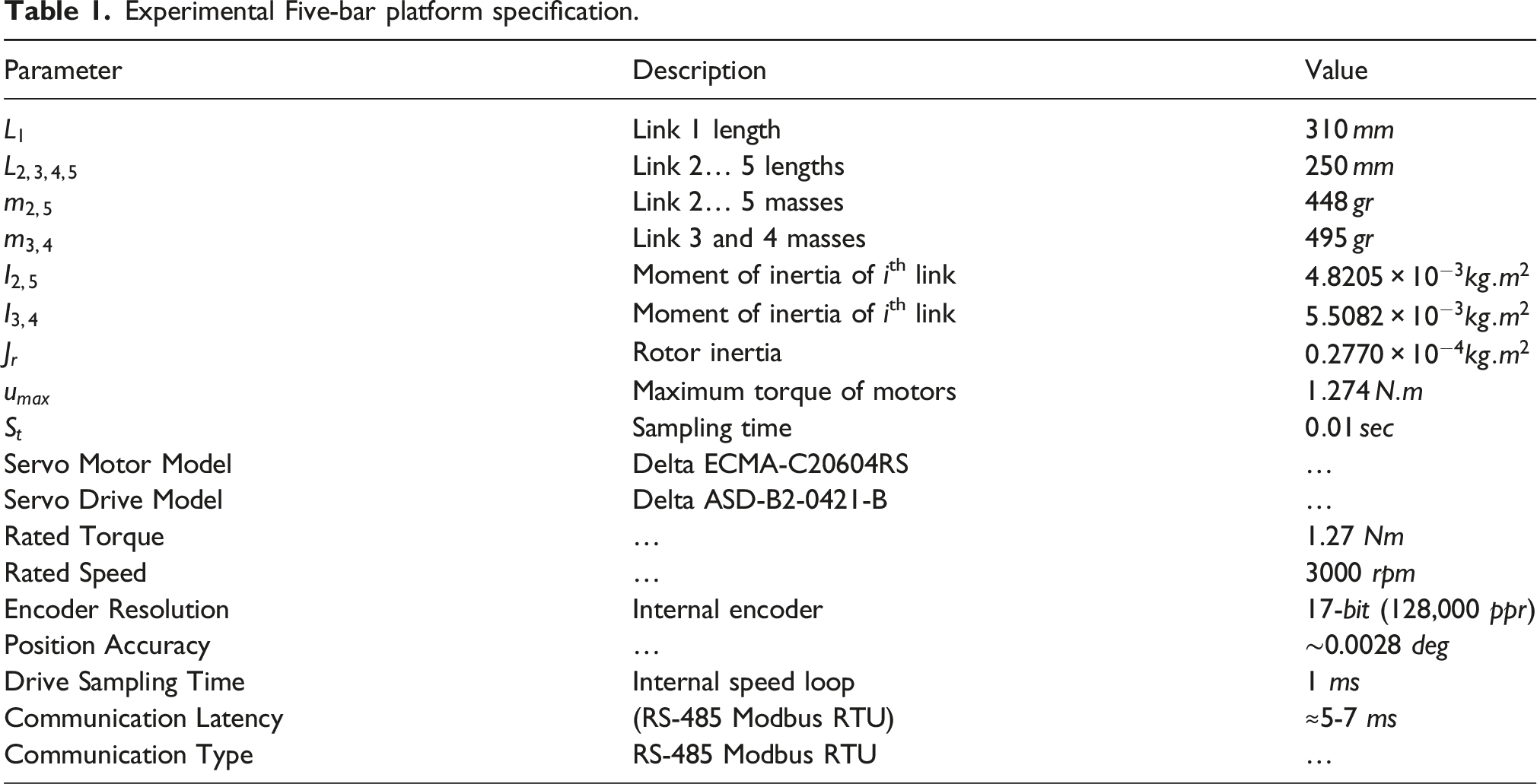

Table 1.

Experimental Five-bar platform specification.

Parameter	Description	Value
$L_{1}$	Link 1 length	$310 m m$
$L_{2, 3, 4, 5}$	Link 2… 5 lengths	$250 m m$
$m_{2, 5}$	Link 2… 5 masses	$448 g r$
$m_{3, 4}$	Link 3 and 4 masses	$495 g r$
$I_{2, 5}$	Moment of inertia of $i$ ^th link	$4.8205 \times 10^{- 3} k g . m^{2}$
$I_{3, 4}$	Moment of inertia of $i$ ^th link	$5.5082 \times 10^{- 3} k g . m^{2}$
$J_{r}$	Rotor inertia	$0.2770 \times 10^{- 4} k g . m^{2}$
$u_{\max}$	Maximum torque of motors	$1.274 N . m$
$S_{t}$	Sampling time	$0.01 \sec$
Servo Motor Model	Delta ECMA-C20604RS	…
Servo Drive Model	Delta ASD-B2-0421-B	…
Rated Torque	…	1.27 $N m$
Rated Speed	…	3000 $r p m$
Encoder Resolution	Internal encoder	17- $b i t$ (128,000 $p p r$ )
Position Accuracy	…	∼0.0028 $\deg$
Drive Sampling Time	Internal speed loop	1 $m s$
Communication Latency	(RS-485 Modbus RTU)	≈5-7 $m s$
Communication Type	RS-485 Modbus RTU	…

Assumptions

To guarantee both implementability and theoretical soundness, the suggested BFATSMC control technique is built under realistic and widely recognized assumptions. It is predicated on the reasonable knowledge of the parallel manipulator’s fundamental dynamics, which include important inertial and frictional characteristics. In accordance with conventional adaptive control procedures, modeling uncertainties and external disruptions are regarded as bounded but unknown. An auxiliary compensator is used to handle the assumed smooth actuator saturation. It is expected that joint locations and velocities may be measured or estimated using common sensors or observers. Furthermore, Lyapunov-based finite-time stability analysis is made possible by assuming that system functions are continuous and locally Lipschitz close to the operational point. These presumptions back up the controller’s theoretical assurances and represent actual circumstances in common robotic systems.

Limitations

Though there are still some practical issues, the suggested BFATSMC controller performs well in simulation and experimentation. Its application in highly uncertain systems or with unknown models is limited by its reliance on incomplete understanding of system dynamics. Velocity measurements may be susceptible to noise, particularly when numerical differentiation is used, and time delays in sensors or actuators are not specifically handled. Filtering or observer techniques can be used to improve this. For simpler implementation, parameter adjustment may alternatively call for methodical or optimization-based approaches. Future research could improve resilience against sudden failures and intricate unmodeled dynamics, even though the controller manages constrained disturbances adequately. These elements point to possible avenues for enhancing the controller’s usability and dependability in increasingly difficult real-world situations.

Hardware and software platform

A specially designed five-bar parallel robot was created in order to verify the suggested BFATSMC control mechanism. The prototype, which was made using 7000-series aluminum alloy and designed in SolidWorks, is robust and lightweight. Digital servo drives and microcontroller boards regulate two AC servo motors that power the active joints. Real-time joint position feedback is provided by high-resolution encoders, and control is managed by a desktop computer over a fast serial connection. The control loop uses Simulink Real-Time and MATLAB/Simulink to operate at intervals of 0.01 seconds. The control architecture and the manufactured prototype are depicted in Figure 3(a) and 3(b), respectively. Reliable real-time testing of the BFATSMC controller’s tracking accuracy, robustness, and disturbance rejection under dynamic, real-world settings is made possible by this integrated hardware-software arrangement.

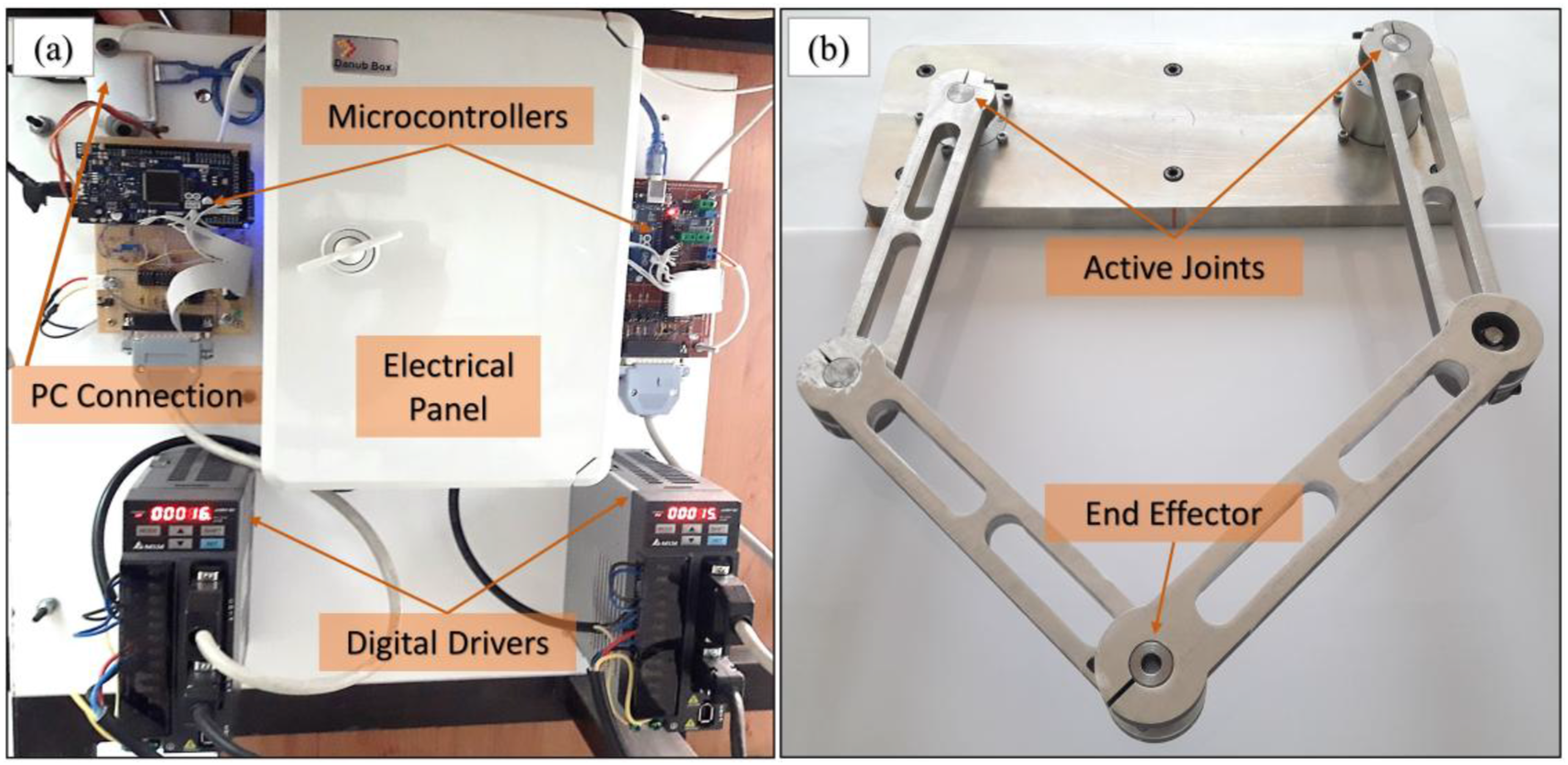

Figure 3.

Illustration of real experimental setup: (a) Actuation and control system including the digital actuators, microcontroller boards, and the electrical control panel; (b) general view of the fabricated Five-bar parallel robot prototype.

Simulation results

In the upcoming subpart, the comparative simulation outcomes between SOSMC (for more detail see (Jia et al., 2019)), NTSMC controller (for more detail see (Ye et al., 2021)) and the proposed method (22) on the designed Five-bar parallel robot has been presented; where the suggested controller parameters, acquired through trial-and-error, are: $μ = 7.7 \times 10^{- 3}$ , $ξ = 1.9$ , $β = 1.5 \times 10^{- 4}$ , $ρ = 2.5 \times 10^{3}$ , $λ = 3.5$ , $u_{i \max} = 1.274$ , $u_{i \min} = - 1.274$ , $ϱ_{i, 2} = 0.1$ , $L_{i} = 0.5$ .

In Figure 4, the diagram displays the chronological progression of the end-effector’s position in job space, demonstrating that the end-effectors of robot swiftly converges the intended trajectory within 0.3 seconds and remains on track. Figure 5 exhibits the chronological record of angular positions of active joints and tracking the reference signals in joint space. Figure 6 shows tracking error signals of the end-effector and joint. Finally, Figure 7 illuminates the time history of actuators control inputs and time history of sliding surfaces (sliding variables).

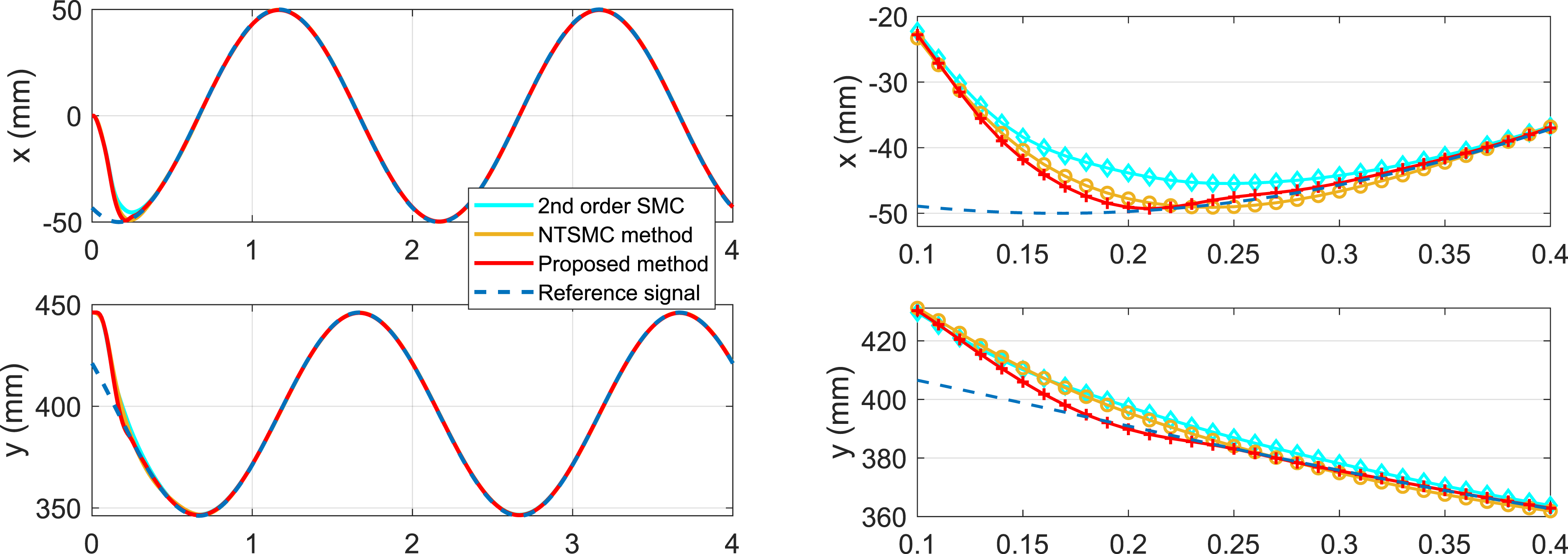

Figure 4.

Trajectories of the location of the end-effector during the task space.

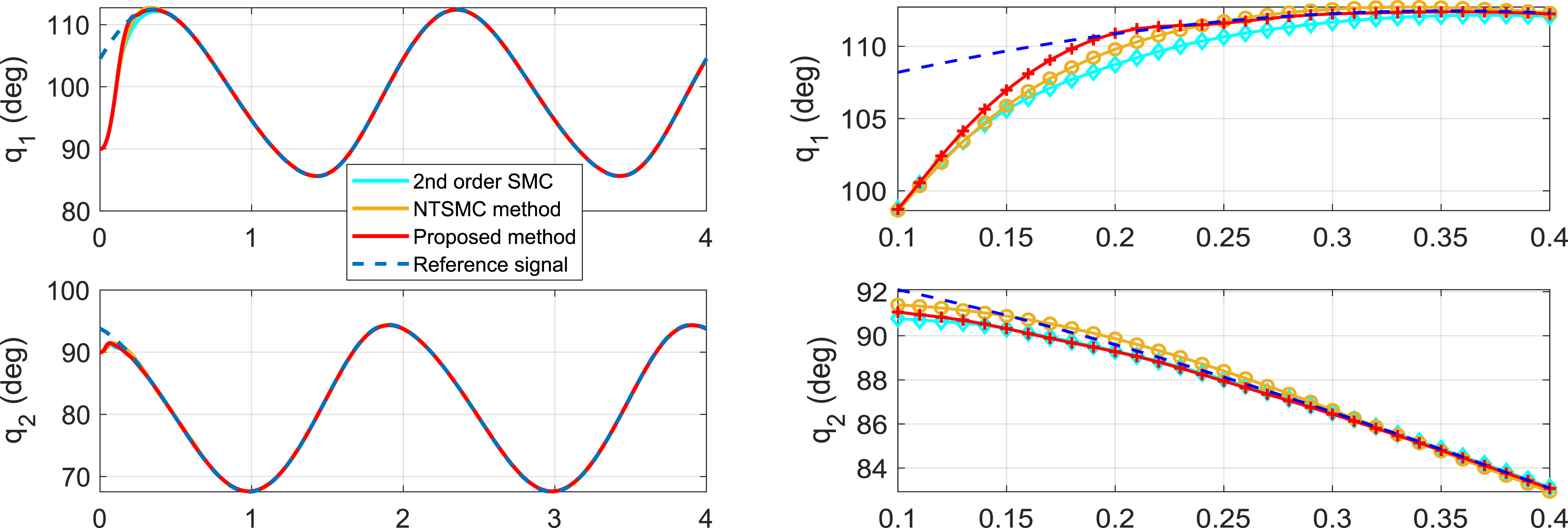

Figure 5.

Trajectories of the angular position of the active joints during the joint space.

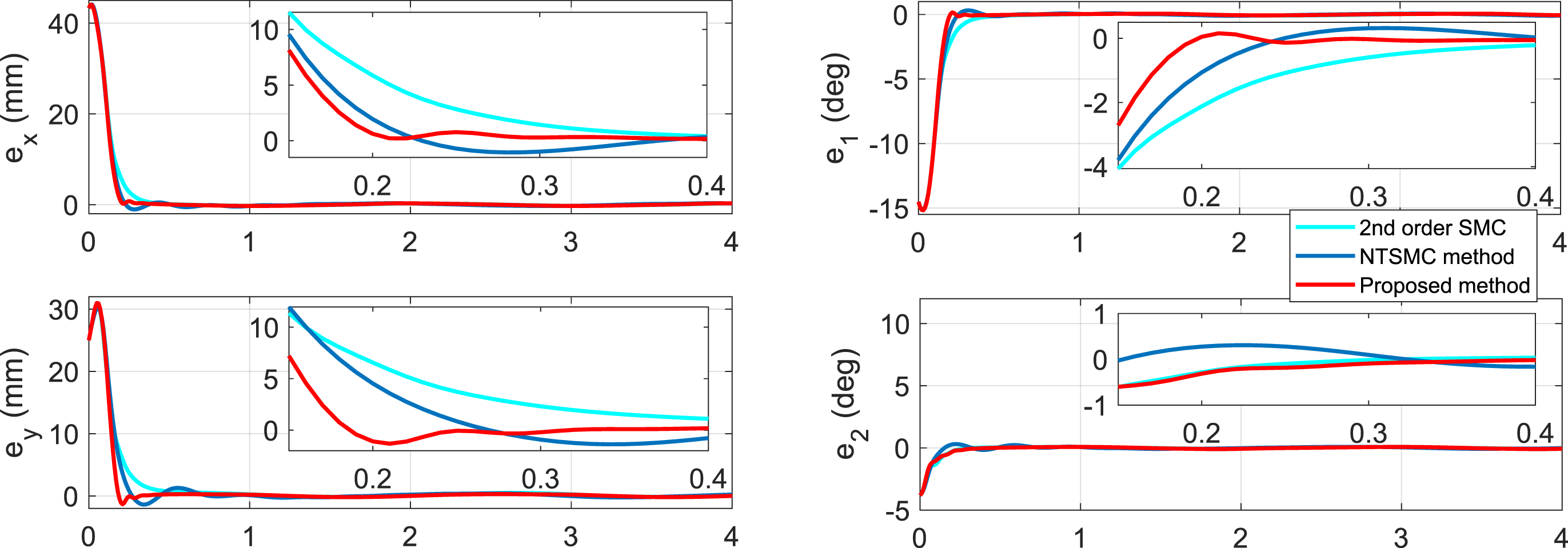

Figure 6.

(Left) Trajectories of the tracking error related to the end-effector. (Right) Trajectories of the tracking error related to the active joints.

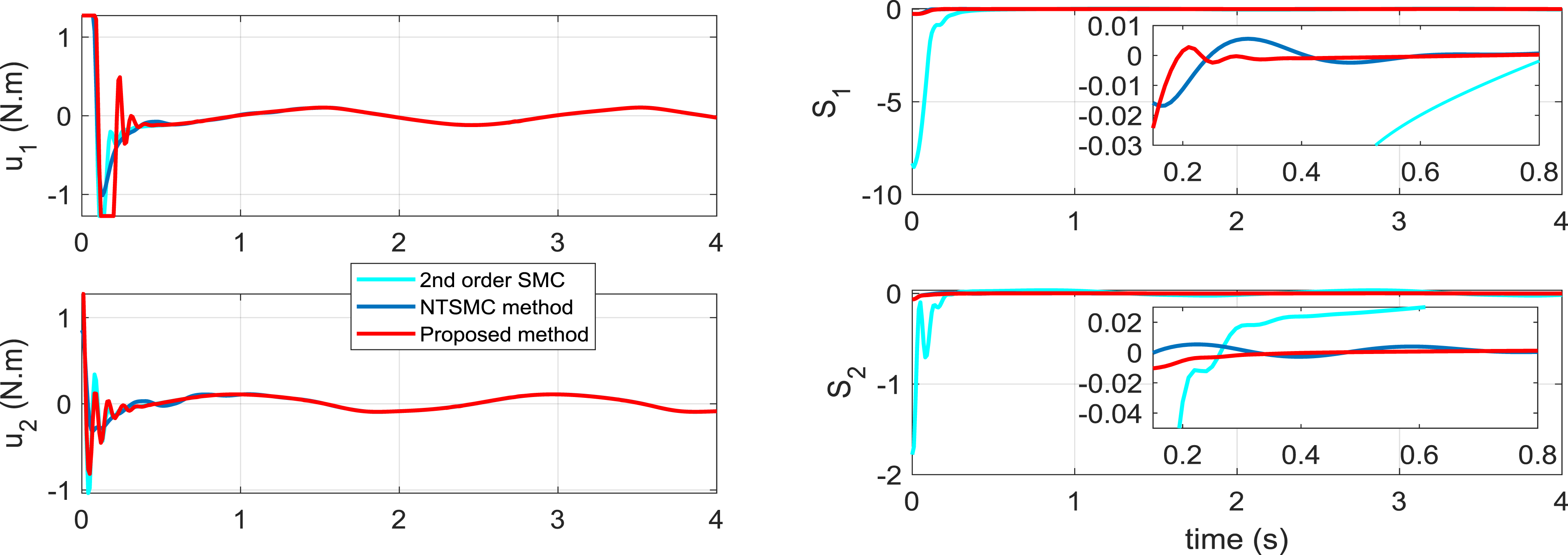

Figure 7.

(Left) Time history of control inputs. (Right) Time history of sliding surfaces.

In order to have more better comparison between simulation outcomes the performance indexes of the mentioned controllers is provided in Table 2, which includes

I A E_{i} = \int_{0}^{t} | e_{i} | d t

I T A E_{i} = \int_{0}^{t} t | e_{i} | d t

I S V_{i} = \int_{0}^{t} | u_{i} | d t

and

I S E_{i} = \int_{0}^{t} e_{i}^{2} d t

indexes.

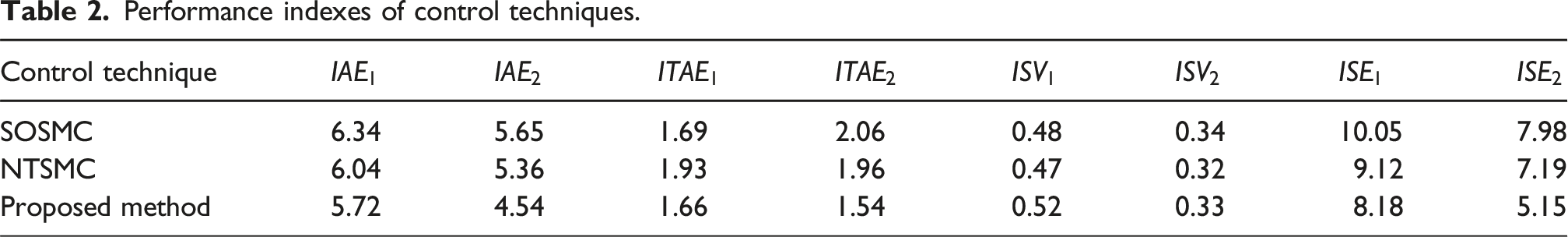

Table 2.

Performance indexes of control techniques.

Control technique	$I A E_{1}$	$I A E_{2}$	$I T A E_{1}$	$I T A E_{2}$	$I S V_{1}$	$I S V_{2}$	$I S E_{1}$	$I S E_{2}$
SOSMC	6.34	5.65	1.69	2.06	0.48	0.34	10.05	7.98
NTSMC	6.04	5.36	1.93	1.96	0.47	0.32	9.12	7.19
Proposed method	5.72	4.54	1.66	1.54	0.52	0.33	8.18	5.15

According to Table 2, the proposed scheme achieves superior

I A E_{i}

and

I T A E_{i}

values compared to the other methods, while its average

I S V_{i}

is only slightly higher. In the following, the convergence time among different methods is calculated based on the Lemma1 and given in Table 3. To provide a final overview, compared to the conventional SOSMC technique, the proposed method achieves an approximately 17% enhancement in tracking performance indices and 41% faster convergence. Similarly, relative to the NTSMC method, it yields about a 14% improvement in tracking metrics and 31% faster convergence, thereby underscoring its capability for high-precision trajectory tracking in parallel manipulators.

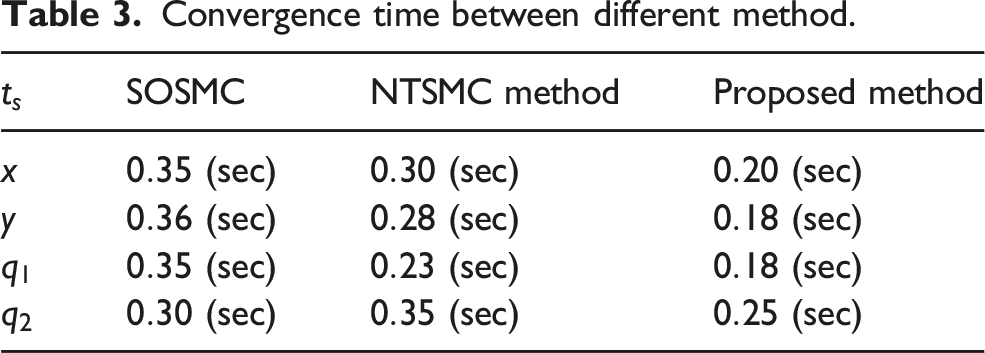

Table 3.

Convergence time between different method.

$t_{s}$	SOSMC	NTSMC method	Proposed method
$x$	$0.35$ (sec)	$0.30$ (sec)	$0.20$ (sec)
$y$	$0.36$ (sec)	$0.28$ (sec)	$0.18$ (sec)
$q_{1}$	$0.35$ (sec)	$0.23$ (sec)	$0.18$ (sec)
$q_{2}$	$0.30$ (sec)	$0.35$ (sec)	$0.25$ (sec)

Experimental results

In upcoming subpart, the experimental findings of the parallel robot are illustrated as depicted in Figure 8. The simulations were conducted using a Dell Inspiron 5110 laptop equipped with an Intel Core i7-2670QM processor (2.20 GHz), 8 GB of RAM, a 250 GB SSD, and a 500 GB HDD, running Windows 10 (64-bit). The robot is powered by two motors (located on active joint in Figure 3) that are linked to the microcontrollers via two digital drives. The drives, also known as actuators, use encoders to gather the positions of the joints and then transmit torque commands to the actuators. During the control process, the computer directs the controllers and receives outputs from them, while the End-effector (Figure 3) follows the specified trajectory. The benchmark properties are provided in Table 1. The proposed controller parameters have been selected as $μ = 1.6 \times 10^{- 2}$ , $ξ = 1.98$ , $β = 5 \times 10^{- 4}$ , $λ = 1.2 \times 10^{- 3}$ , $ρ = 48$ . The reference signals during the test are characterized as task space trajectory, which is implemented on the Five-bar platform: $x = - r s i n ((2 π f) t + φ_{0}) + x_{0}$ and $y = - r s i n ((2 π f) t + φ_{0}) + y_{0}$ where $r = 50.00 m m$ , $f = 0.50$ , $φ_{0} = \frac{π}{3} r a d$ , $x_{0} = 0$ and $y_{0} = 446.15 m m$ . Consequently, the robot’s end-effector traces a circular trajectory having a specific radius $r$ .

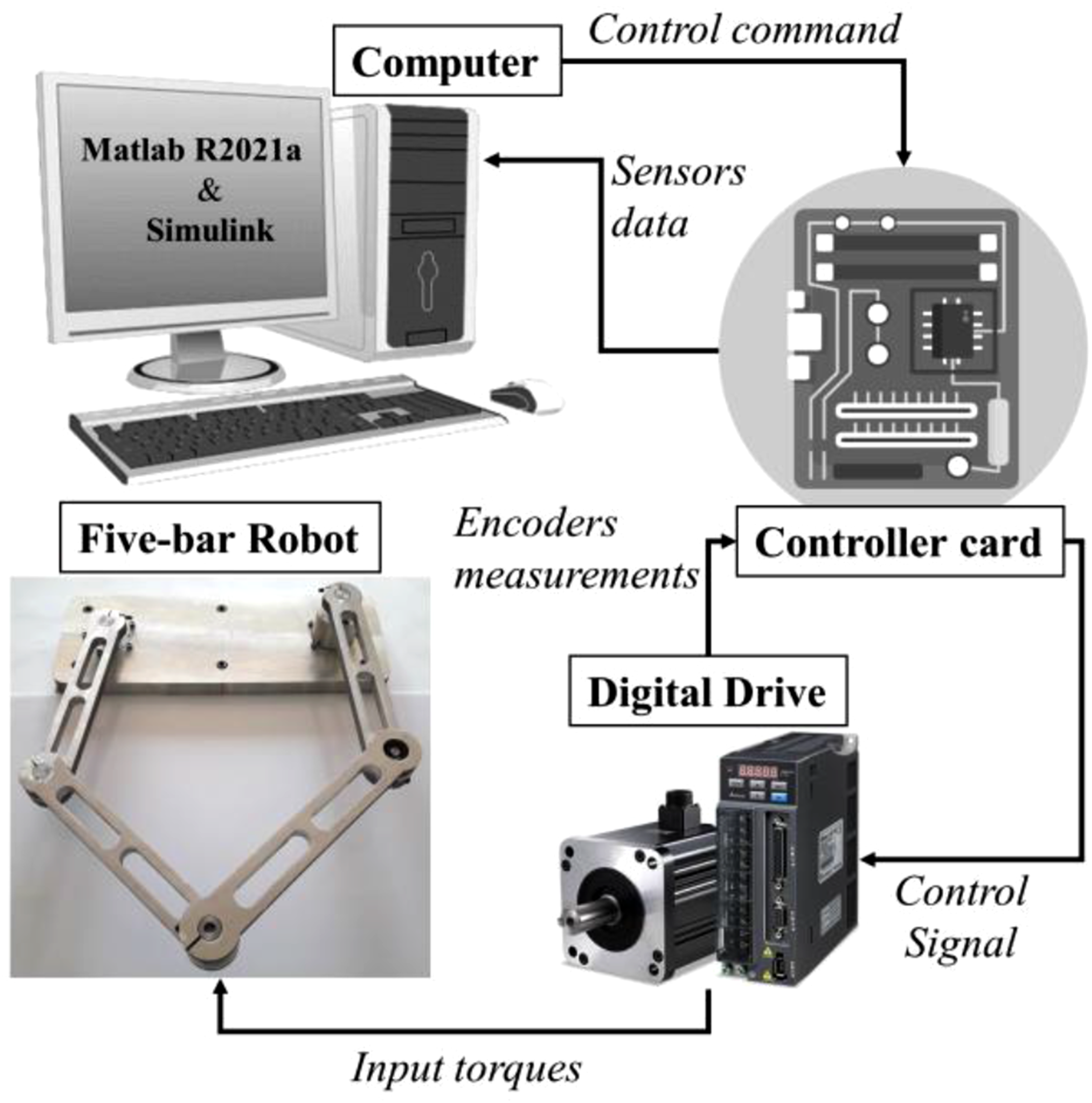

Figure 8.

Experimental benchmark of the parallel robot.

The simulation results presented in Figure 9 through Figure 11 offer a detailed evaluation of the proposed control method’s performance in tracking accuracy, stability, and control input behavior. Figure 9 illustrates the trajectory tracking performance of the end-effector. The results show that the end-effector successfully converges to the desired trajectory within approximately 0.28 seconds, demonstrating rapid response and fast settling time. After convergence, the tracking error remains consistently bounded within $\pm 2 \times 10^{- 3}$ meters, which confirms the high precision and stability of the control system under the influence of disturbances and input saturation. This level of accuracy is critical for high-precision applications such as robotic manipulation and surgical automation, where minimal deviation from the desired path is essential. Figure 10 provides insight into the tracking behavior of the manipulator’s joint positions, showing that all joint angles closely follow their reference trajectories. The associated tracking errors remain within $\pm 0.6 \deg$ degrees, indicating excellent coordination and minimal deviation even across multiple degrees of freedom. Such precision in joint-level tracking contributes significantly to the overall end-effector accuracy and the manipulator’s dynamic response. In Figure 11, the time histories of the control inputs and sliding surfaces are depicted. The control signals remain smooth and bounded, demonstrating the effectiveness of the saturation compensator in preventing input constraint violations. Moreover, the sliding surface trajectories show rapid convergence to zero, verifying the successful enforcement of the sliding condition and the robustness of the terminal sliding mode component. Together, these results comprehensively validate that the proposed control law achieves robust, fast, and highly accurate trajectory tracking for the parallel manipulator under realistic operational constraints.

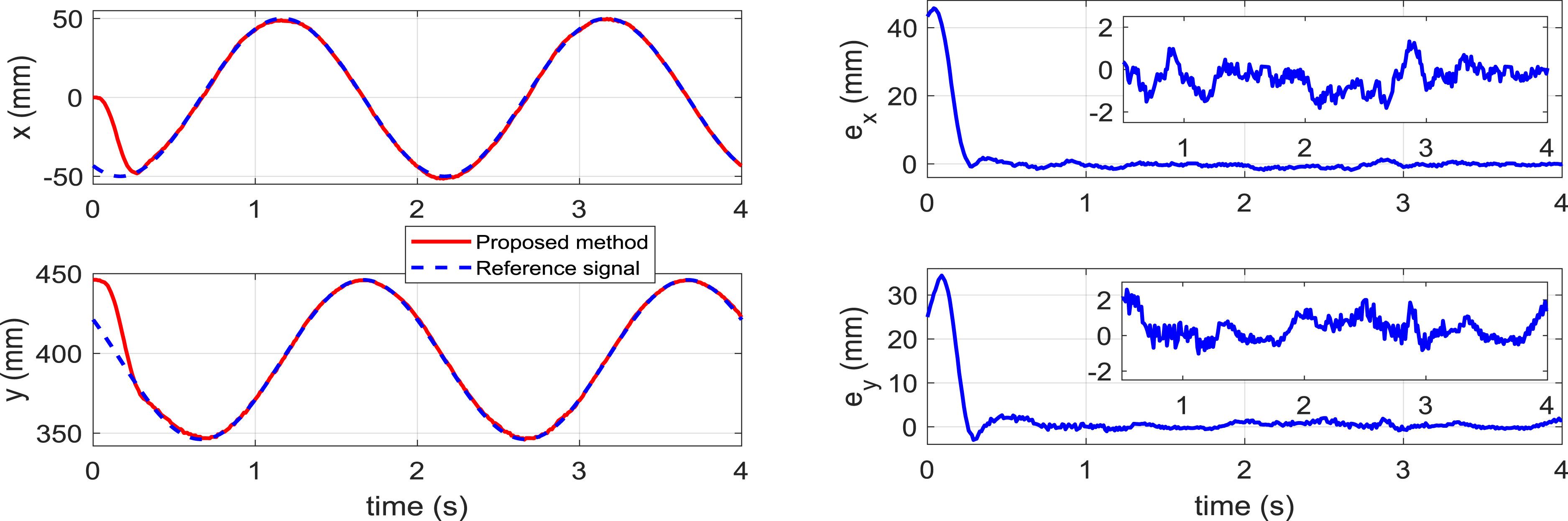

Figure 9.

(Left) Trajectories of the location tracking of the end-effector (Right) Trajectories of the tracking error of the end-effector.

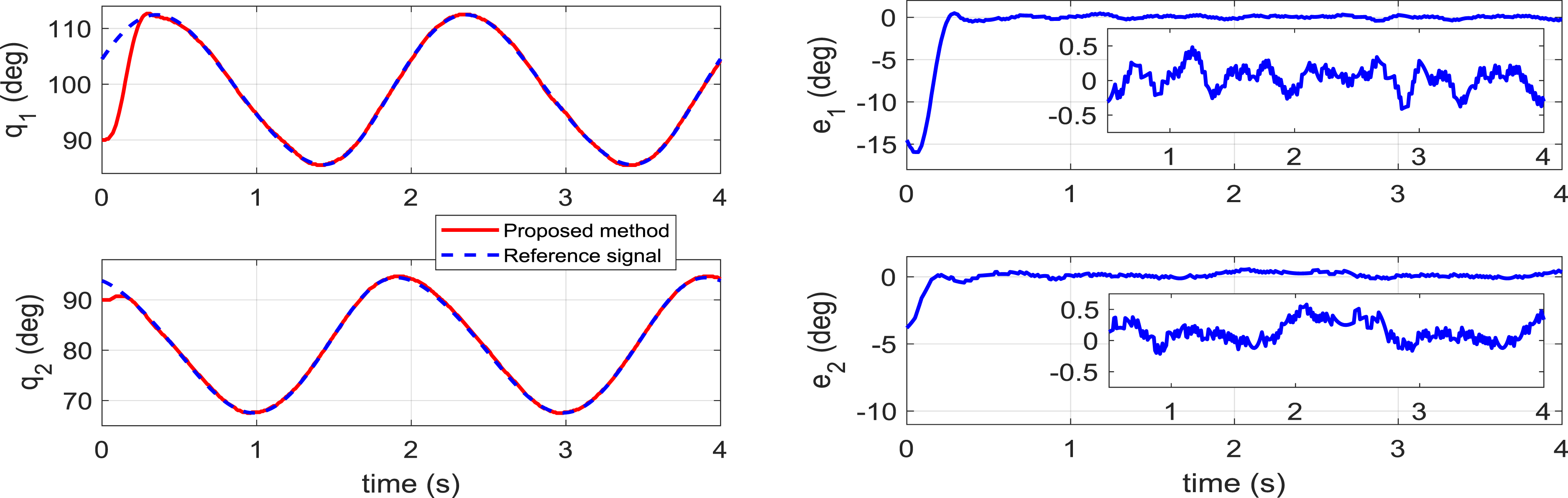

Figure 10.

(Left) Trajectories of the location tracking of the joint (Right) Trajectories of the tracking error of the joint.

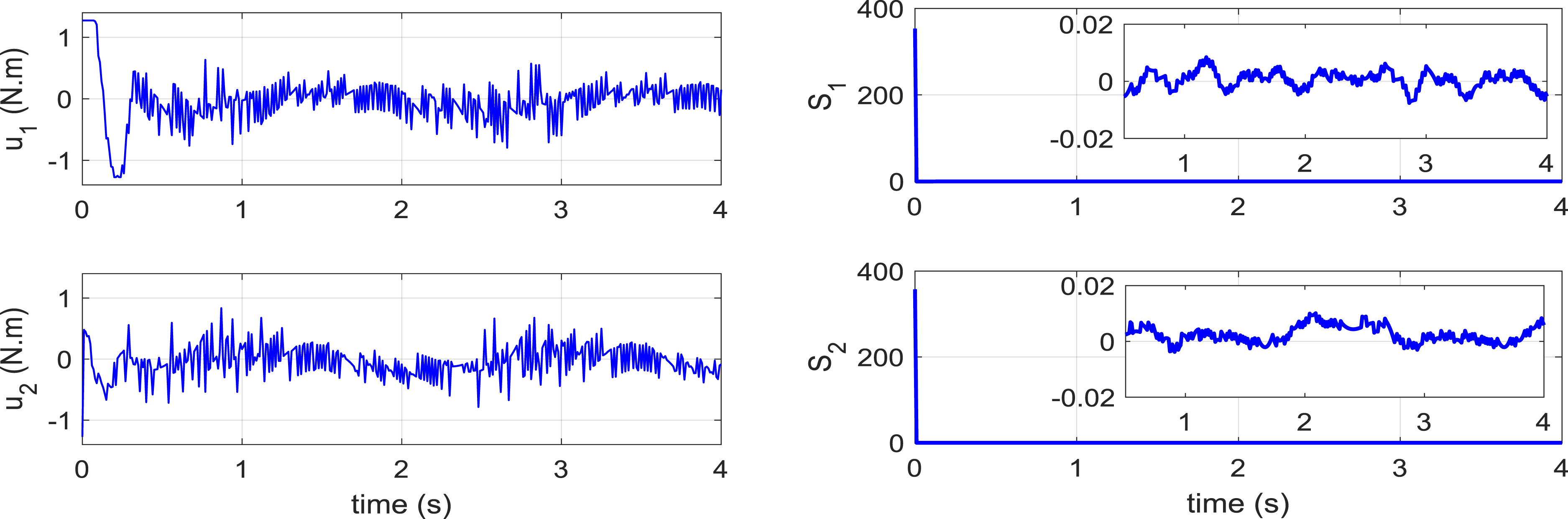

Figure 11.

(Left) Time history of control inputs. (Right) Time history of sliding surfaces.

Conclusions

In upcoming article, a novel fast control approach to trajectory tracking of parallel manipulators was introduced, which was combination of the barrier function with TSMC. Stability analysis for the proposed method was done by Lyapunov criteria. Simulation outcomes obtained in the previous part showed that the designed controller has been able to achieve the desired goals well with respect to the SOSMC and NTSMC techniques, and its robust behavior against unknown disturbances and better performance in trajectory tracking is visible, then the experimental results approved the performance of designed controller which was applied on the benchmark of parallel robot including real prototype of Five-bar manipulator. For the future work, the combination of the event-triggered control method, for improvement of the controller performance, and the reinforcement learning, for estimation of the controller’s parameters, with the adaptive barrier function technique can be considered.

Future work

Although the proposed BFATSMC control method has shown promising performance in both simulations and experiments, several directions remain for future research. A primary focus will be on quantitatively analyzing the discrepancy observed between simulations and real-world tests through detailed error modeling and statistical metrics such as RMSE, MAE, and frequency-domain analysis. Special attention will be given to isolating effects from sensor noise, unmodeled friction, actuator delays, and time-varying uncertainties. Future work will also explore advanced compensation strategies—like observer-based disturbance estimation, enhanced friction models, adaptive parameter tuning, and machine learning-based refinements—to bridge the simulation-experiment gap and further enhance robustness. Additionally, integrating event-triggered schemes or reinforcement learning could improve efficiency and adaptability, especially in high-speed or resource-constrained settings. Beyond the current 2-DOF validation, future studies will investigate real-time feasibility and computational demands for higher-DOF systems. Finally, validation will extend to more complex trajectories (splines, segmented paths) to assess tracking accuracy and industrial applicability under diverse conditions.

Footnotes

ORCID iD

Saleh Mobayen

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data Availability Statement

The data supporting the findings of this study are available from the corresponding author upon reasonable request.*

References

Afifa

Ali

Pervaiz

, et al. (2023) Adaptive backstepping integral sliding mode control of a mimo separately excited DC motor. Robotics 12(4): 105.

Afshari

Mobayen

Hajmohammadi

, et al. (2018) Global sliding mode control via linear matrix inequality approach for uncertain chaotic systems with input nonlinearities and multiple delays. Journal of Computational and Nonlinear Dynamics 13(3): 031008.

Alinezhad

Esfanjani

(2022) Nonlinear H∞ control for synchronization of networked manipulators subject to delayed communication. Journal of the Franklin Institute 359(2): 999–1017.

Alizadeh

Ramezani

Saadatinezhad

(2022) Fault tolerant control in an unmanned bicycle robot via sliding mode theory. IET Cyber-Systems and Robotics 4(2): 139–152.

Awan

Ali

Iqbal

, et al. (2019) Adaptive backstepping based sensor and actuator fault tolerant control of a manipulator. Journal of Electrical Engineering & Technology 14: 2497–2504.

Azad

Rad

Arashpour

(2022) Back-stepping control of Delta parallel robots with smart dynamic model selection for construction applications. Automation in Construction 137: 104211.

Baek

Jin

Han

(2016) A new adaptive sliding-mode control scheme for application to robot manipulators. IEEE Transactions on Industrial Electronics 63(6): 3628–3637.

Barghandan

Pirmohamadi

Mobayen

, et al. (2023) Optimal adaptive barrier-function super-twisting nonlinear global sliding mode scheme for trajectory tracking of parallel robots. Heliyon 9: e13378.

Begon

Pierrot

Dauchez

(1995) Fuzzy sliding mode control of a fast parallel robot. In: Proceedings of 1995 IEEE International Conference on Robotics and Automation. IEEE, 1178–1183.

10.

Birglen

Gosselin

Pouliot

, et al. (2002) SHaDe, a new 3-DOF haptic device. IEEE Transactions on Robotics and Automation 18(2): 166–175.

11.

Boschetti

Minto

(2025) A sensorless approach for cable failure detection and identification in cable-driven parallel robots. Robotics and Autonomous Systems 183: 104855.

12.

Briot

Khalil

(2015a) Dynamics of parallel robots from rigid bodies to flexible elements. In: Mechanisms and Machine Science. Switzerland: Springer, Vol. 35.

13.

Briot

Khalil

(2015b) Dynamics of Parallel Robots: From Rigid Bodies to Flexible Elements. Springer.

14.

Chen

, et al. (2019) Barrier Lyapunov function-based sliding mode control for BWB aircraft with mismatched disturbances and output constraints. IEEE Access 7: 175341–175352.

15.

Chen

Zhan

Jiang

, et al. (2024) Adaptive impedance control for docking robot via Stewart parallel mechanism. ISA Transactions 155: 361–372.

16.

Cheng

Yiu

Y-K

(2003) Dynamics and control of redundantly actuated parallel manipulators. IEEE/ASME Transactions on mechatronics 8(4): 483–491.

17.

Dolatyabi

Regan

Khodayar

(2025) Deep learning for traffic scene understanding: a review. IEEE Access 13: 13187–13237.

18.

Fallaha

Saad

Kanaan

, et al. (2010) Sliding-mode robot control with exponential reaching law. IEEE Transactions on Industrial Electronics 58(2): 600–610.

19.

Ghorbel

Chételat

Longchamp

(1994) A reduced model for constrained rigid bodies with application to parallel robots. IFAC Proceedings Volumes 27(14): 57–62.

20.

Incremona

Cucuzzella

Ferrara

(2016) Adaptive suboptimal second-order sliding mode control for microgrids. International Journal of Control 89(9): 1849–1867.

21.

Jia

Shang

Xie

, et al. (2019) Second-order sliding-mode-based synchronization control of cable-driven parallel robots. IEEE/ASME Transactions on Mechatronics 25(1): 383–394.

22.

Jin

(2018) Adaptive fixed-time control for MIMO nonlinear systems with asymmetric output constraints using universal barrier functions. IEEE Transactions on Automatic Control 64(7): 3046–3053.

23.

Jin

, et al. (2023) Coevolutionary neural solution for nonconvex optimization with noise tolerance. IEEE Transactions on Neural Networks and Learning Systems.

24.

Khalil

Dombre

(2004) Modeling, Identification and Control of Robots. Butterworth-Heinemann.

25.

Wang

(2009) Trajectory tracking control of a redundantly actuated parallel robot using diagonal recurrent neural network. In: 2009 Fifth International Conference on Natural Computation. IEEE, pp. 292–296.

26.

Zhang

(2018) The design of quasi-optimal higher order sliding mode control via disturbance observer and switching-gain adaptation. IEEE Transactions on Systems, Man, and Cybernetics: Systems 50(11): 4817–4827.

27.

Nguang

, et al. (2020) Barrier function-based adaptive neuro network sliding mode vibration control for flexible double-clamped beams with input saturation. IEEE Access 8: 125887–125898.

28.

Wang

Liu

, et al. (2021) Adaptive finite-time tracking control for continuous stirred tank reactor with time-varying output constraint. IEEE Transactions on Systems, Man, and Cybernetics: Systems 51(9): 5929–5934.

29.

Liu

Chen

, et al. (2024a) A distributed competitive and collaborative coordination for multirobot systems. IEEE Transactions on Mobile Computing 23(12): 11436–11448.

30.

Liu

Fantoni

Chriette

(2024b) Decentralized control and state estimation of a flying parallel robot interacting with the environment. Control Engineering Practice 144: 105817.

31.

Long

Zhu

Cui

, et al. (2020) Barrier Lyapunov function based sliding mode control for Mars atmospheric entry trajectory tracking with input saturation constraint. Aerospace Science and Technology 106: 106213.

32.

Merlet

J-P

(2006) Parallel Robots. Springer Science & Business Media.

33.

Moulay

Perruquetti

(2006) Finite time stability and stabilization of a class of continuous systems. Journal of Mathematical Analysis and Applications 323(2): 1430–1443.

34.

Mukherjee

Gupta

Chang

, et al. (2022) A survey of robot learning strategies for human-robot collaboration in industrial settings. Robotics and Computer-Integrated Manufacturing 73: 102231.

35.

Nabat

de la

ORM

Company

, et al. (2005) Par4: very high speed parallel robot for pick-and-place. In: 2005 IEEE/RSJ International Conference on Intelligent Robots and Systems. IEEE, 553–558.

36.

Naghibi

Pirmohamadi

Moosavian

SAA

(2017) Fuzzy MTEJ controller with integrator for control of underactuated manipulators. Robotics and Computer-Integrated Manufacturing 48: 93–101.

37.

Obeid

Fridman

Laghrouche

, et al. (2018) Barrier function-based adaptive integral sliding mode control. In: 2018 IEEE Conference on Decision and Control (CDC). IEEE, 5946–5950.

38.

Pierrot

Reynaud

Fournier

(1990) DELTA: a simple and efficient parallel robot. Robotica 8(2): 105–109.

39.

Plestan

Shtessel

Bregeault

, et al. (2010) New methodologies for adaptive sliding mode control. International Journal of Control 83(9): 1907–1919.

40.

Qiao

Zhang

(2017) Adaptive non‐singular integral terminal sliding mode tracking control for autonomous underwater vehicles. IET Control Theory & Applications 11(8): 1293–1306.

41.

Qiao

Zhang

(2019) Trajectory tracking control of AUVs via adaptive fast nonsingular integral terminal sliding mode control. IEEE Transactions on Industrial Informatics 16(2): 1248–1258.

42.

Ren

Mills

Sun

(2007) Experimental comparison of control approaches on trajectory tracking control of a 3-DOF parallel robot. IEEE Transactions on Control Systems Technology 15(5): 982–988.

43.

Ruiz-Hidalgo

Blanco Ortega

Abúndez Pliego

, et al. (2019) Dynamic analysis and control of a three-revolute–prismatic–spherical parallel robot by algebraic parameters identification. International Journal of Advanced Robotic Systems 16(3): 1729881419841533.

44.

Saafi

Laribi

Zeghloul

(2015) 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). In: Optimal Haptic Control of a Redundant 3-RRR Spherical Parallel Manipulator. IEEE, 2591–2596.

45.

Saleem

Abbas

Iqbal

(2023) Complex fractional-order LQIR for inverted-pendulum-type robotic mechanisms: design and experimental validation. Mathematics 11(4): 913.

46.

Seward

Bonev

(2014) A new 6-DOF parallel robot with simple kinematic model. In: 2014 IEEE International Conference on Robotics and Automation (ICRA). IEEE, pp. 4061–4066.

47.

Shtessel

Moreno

Fridman

(2017) Twisting sliding mode control with adaptation: Lyapunov design, methodology and application. Automatica 75: 229–235.

48.

Spong

Hutchinson

Vidyasagar

(2020) Robot Modeling and Control. John Wiley & Sons.

49.

Sun

Ren

, et al. (2006) Integration of saturated PI synchronous control and PD feedback for control of parallel manipulators. IEEE Transactions on Robotics 22(1): 202–207.

50.

Tee

Tay

(2009) Barrier Lyapunov functions for the control of output-constrained nonlinear systems. Automatica 45(4): 918–927.

51.

Van

Ren

(2016) Finite time fault tolerant control for robot manipulators using time delay estimation and continuous nonsingular fast terminal sliding mode control. IEEE Transactions on Cybernetics 47(7): 1681–1693.

52.

Wang

Xue

Gruver

(1995) Neural network control of a parallel robot. In: 1995 IEEE International Conference on Systems, Man and Cybernetics. Intelligent Systems for the 21st Century. IEEE, 2934–2938.

53.

Xiu

Guo

(2018) Global terminal sliding mode control with the quick reaching law and its application. IEEE Access 6: 49793–49800.

54.

Yang

Huang

, et al. (2020) Neural control of robot manipulators with trajectory tracking constraints and input saturation. IEEE Transactions on Neural Networks and Learning Systems 32(9): 4231–4242.

55.

Gao

Zhong

, et al. (2021) Finite-time dynamic tracking control of parallel robots with uncertainties and input saturation. Sensors 21(9): 2996.

56.

Zad

Khan

Lazoglu

(2017) Design and adaptive sliding-mode control of hybrid magnetic bearings. IEEE Transactions on Industrial Electronics 65(3): 2537–2547.

57.

Zhang

(2009) Parallel Robotic Machine Tools. Springer Science & Business Media.

58.

Zhang

Hua

(2022) Composite learning finite-time control of robotic systems with output constraints. IEEE Transactions on Industrial Electronics 70(2): 1687–1695.

59.

Zhang

Song

, et al. (2022) Adaptive finite-time control scheme for teleoperation with time-varying delay and uncertainties. IEEE Transactions on Systems, Man, and Cybernetics: Systems.

60.

Zhao

(2025) Vibration suppression of redundantly controlled cable-driven parallel robots. Robotics and Autonomous Systems 183: 104838.

61.

Zheng

Wang

Man

, et al. (2014) Robust motion control of a linear motor positioner using fast nonsingular terminal sliding mode. IEEE/ASME Transactions on Mechatronics 20(4): 1743–1752.
