Adaptive finite-time fractional-order sliding-mode control of a state-constraint inverted pendulum cart system with limited sensing range

Abstract

This research outlines the development of an adaptive finite-time fractional-order sliding-mode controller aimed at achieving stabilization and control for the inverted pendulum cart system with limited sensing range of sensors. The proposed algorithm is formulated on the basis of a Barrier Lyapunov function, which unites the benefits of innovative adaptive fractional-order sliding-mode control with a finite-time methodology. The input force is established to stabilize the nonlinear inverted pendulum cart system while adjusting both the position and the pendulum angle to a value of zero. To enhance the robustness of the proposed controller in the face of uncertainties related to the friction and viscous coefficients of the system, these parameters are compensated through an adaptive multi-layer neural-network algorithm. Both the simulation results and the experimental findings validate that the stabilizing controller, which integrates a constrained adaptive finite-time fractional-order sliding-mode control, effectively stabilizes the nonlinear inverted pendulum cart system.

Keywords

constraint-state fractional-order inverted pendulum cart system sliding-mode control limited sensing range

Introduction

A variety of practical applications, such as robot balancing, segway, and hoverboard riding, as well as the operation of a rocket propeller, fundamentally rely on the principles of the nonlinear inverted pendulum cart (IPC) system. The management of an IPC system presents significant challenges due to high sensitivity, and inherent instability (Qu et al., 2025; Ayad et al., 2024; Mehedi et al., 2020; Hu et al., 2024). Controlling a nonlinear IPC system presents a complex challenge because of the numerous real-world phenomena that contribute to its instability, nonlinearity, and underactuated nature (Basaran, 2025; Daksh and Mishra, 2025). A multitude of initiatives have been undertaken to improve the motion control of nonlinear IPCs to guarantee their stability. These initiatives encompass a range of control strategies, including sliding-mode control (Pathak et al., 2024; Mokhtare et al., 2022; Xiong et al., 2025), predictive control (Tian et al., 2021), output feedback control (Messikh et al., 2022), fractional-order PID controller (Dey et al., 2025), robust control (Naderolasli and Chatraei, 2019; Mahmoud et al., 2022), among others.

In practical systems, the existing constraints are unavoidable, including limited sensing ranges, restricted field-of-view (FOV), and specific performance. Consequently, exceeding these constraints during operations can lead to a decline in the system performance and potentially result in system instability (Mohren et al., 2020; Naderolasli, 2025a). Adjusting the constraints in control design has emerged as a critical concern across various domains of science and engineering, owing to the theoretical difficulties and unique traits observed in real-world performance (Feng et al., 2023; Wang et al., 2019). To address the constraints of these output states, the Barrier Lyapunov function (BLF) is utilized in the numerous knowledge acquisition processes to ensure that the constraint states remain within the predefined and limited bounds (Naderolasli, 2025b; Chu et al., 2023; Tian et al., 2025).

Achieving a convergence rate of stabilization error to zero becomes increasingly complex when both parameter uncertainties and unmodeled dynamics are present in the design of controllers (Kang et al., 2022; Huang et al., 2020; Xiong and Chen, 2025). The stability of finite-time control is examined across various nonlinear systems, highlighting significant benefits such as high tracking accuracy, swift convergence rates, and robust disturbance rejection capabilities (Yao, 2020; Mofid et al., 2023; Aly et al., 2022; Hu et al., 2024). Nevertheless, the issue of finite-time stability in the nonlinear IPC systems, particularly when accounting for the constrained output states amidst uncertain parameters and unmodeled dynamics, remains a considerable challenge and is still an open question. The fixed-time approaches typically necessitate substantial control gains to ensure that the convergence time remains unaffected by the initial conditions. In contrast, the finite-time approaches demand the lower control gains, which consequently facilitate their practical application owing to the reduced amplitude of the control signal. Furthermore, the predefined-time convergence method, in contrast to the finite-time method, intensifies system jumps, induces transient instability, and heightens sensitivity to variations in parameters.

Driven by the aforementioned discussions, the constrained control of nonlinear IPC systems faces challenges due to the lack of precise measuring instruments, alongside rising costs and weights. Consequently, the measurement limitations will be imposed on the system, necessitating that these state constraints be taken into account during the controller design. This paper explores the impact of these restrictions, which are characterized as time-varying asymmetric constraints that influence stabilization errors. To address this challenge, an asymmetric BLF-based controller is incorporated with the constrained fractional-order sliding-mode control to manage nonlinear IPC systems that have a restricted sensing range, aiming to tackle these time-varying constraints. Furthermore, a finite-time approach is integrated with the proposed constrained controller to enhance the convergence rate of stabilization errors towards zero in the context of fractional-order sliding-mode control of nonlinear IPC systems.

The major contributions of this article are outlined as follows:

(i) In comparison to the current findings documented in the literature (Lei et al., 2024; Pesterev and Morozov, 2022; Nguyen et al., 2023), the IPC systems characterized by state-space structures are universally nonlinear with respect to their parameters. To maintain the stabilization errors of these systems with limited sensing range, a constrained control design utilizing the time-varying asymmetric BLF is proposed to tackle the difficulties presented by defined and restricted boundaries resulting from the limited sensing range.

(ii) In comparison to all prior constrained controllers (Liang et al., 2021; Zauner et al., 2023; Wang et al., 2019), the finite-time methodology is integrated with the BLF-based control design within the constrained fractional-order sliding-mode control of the nonlinear IPC system, aiming to enhance stabilization accuracy, achieve a rapid convergence rate, and improve disturbance rejection capability. The earlier selections for controller gains, initial conditions, and restricted bounds cope the predetermined analysis and assumptions of the closed-loop system while defining the appropriate output state constraints.

(iii) Despite comprehensive studies on the nonlinear IPC systems (Mondal and Dey, 2020; Irfan et al., 2018; Sanjeewa and Parnichkun, 2022), the design of the controller for constrained fractional-order sliding-mode control integrates a multi-layer neural network and an adaptive-robust structure. This integration seeks to ensure robustness against uncertainties in parameters, unmodeled dynamics, and approximation errors associated with neural networks that are inherent in the dynamic equations of IPC systems.

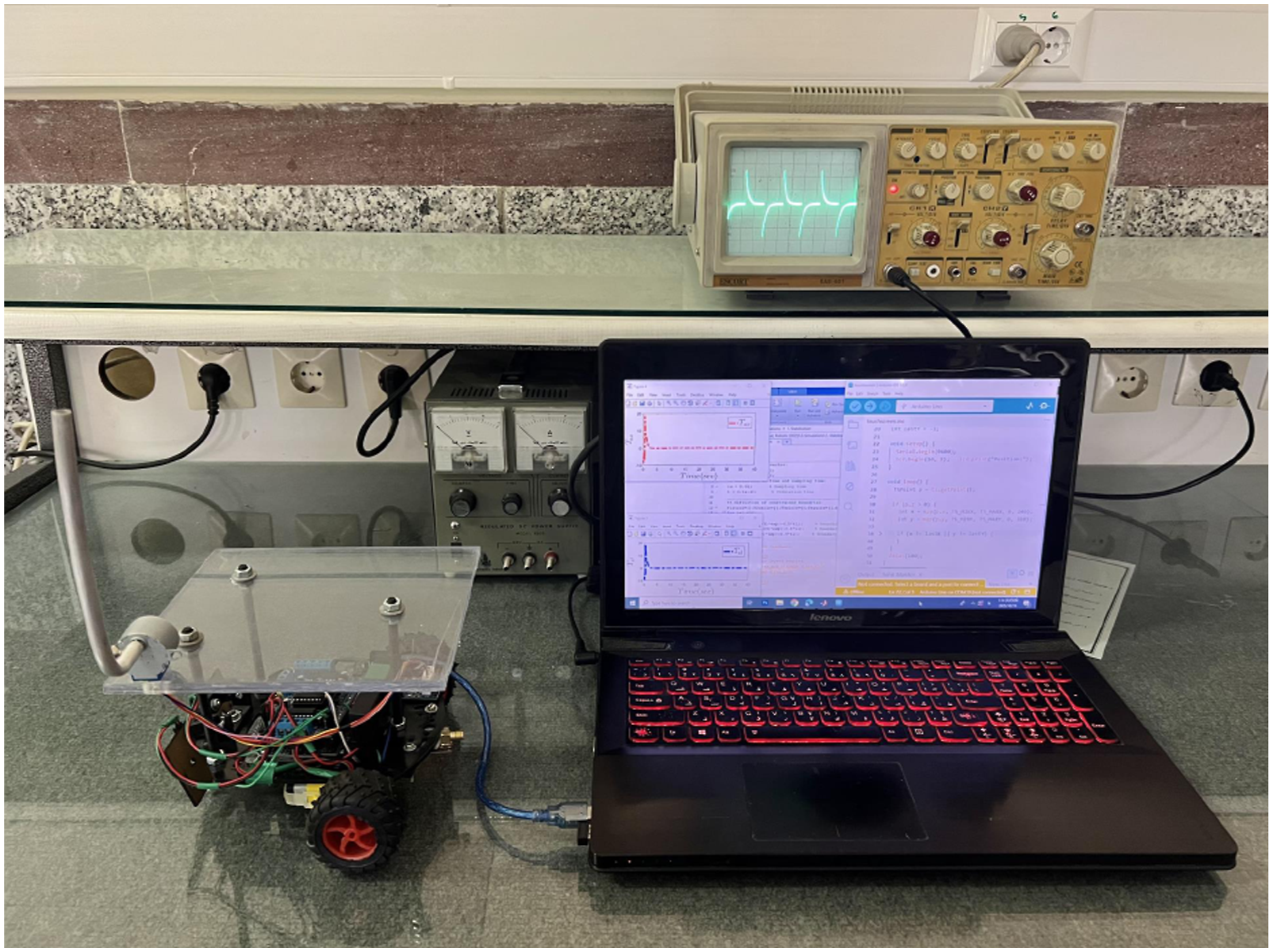

(iv) In contrast to the majority of results that are purely theoretical in nature within Literature, the proposed controller is particularly employed in the design and experimental execution of the nonlinear IPC system within the control laboratory, addressing all practical challenges encountered in these systems.

The remainder of this paper is structured in the following manner. Preparations and explanations of the problem are detailed in Section 2; the implementation of adaptive finite-time fractional-order sliding-mode control for a state-constrained IPC system with limited sensing range is discussed in Section 3; Section 4 presents the simulation results and experimental findings, and the conclusion of the paper is found in Section 5, respectively.

Preparations and discussions about challenges

The modeling of the inverted pendulum cart system

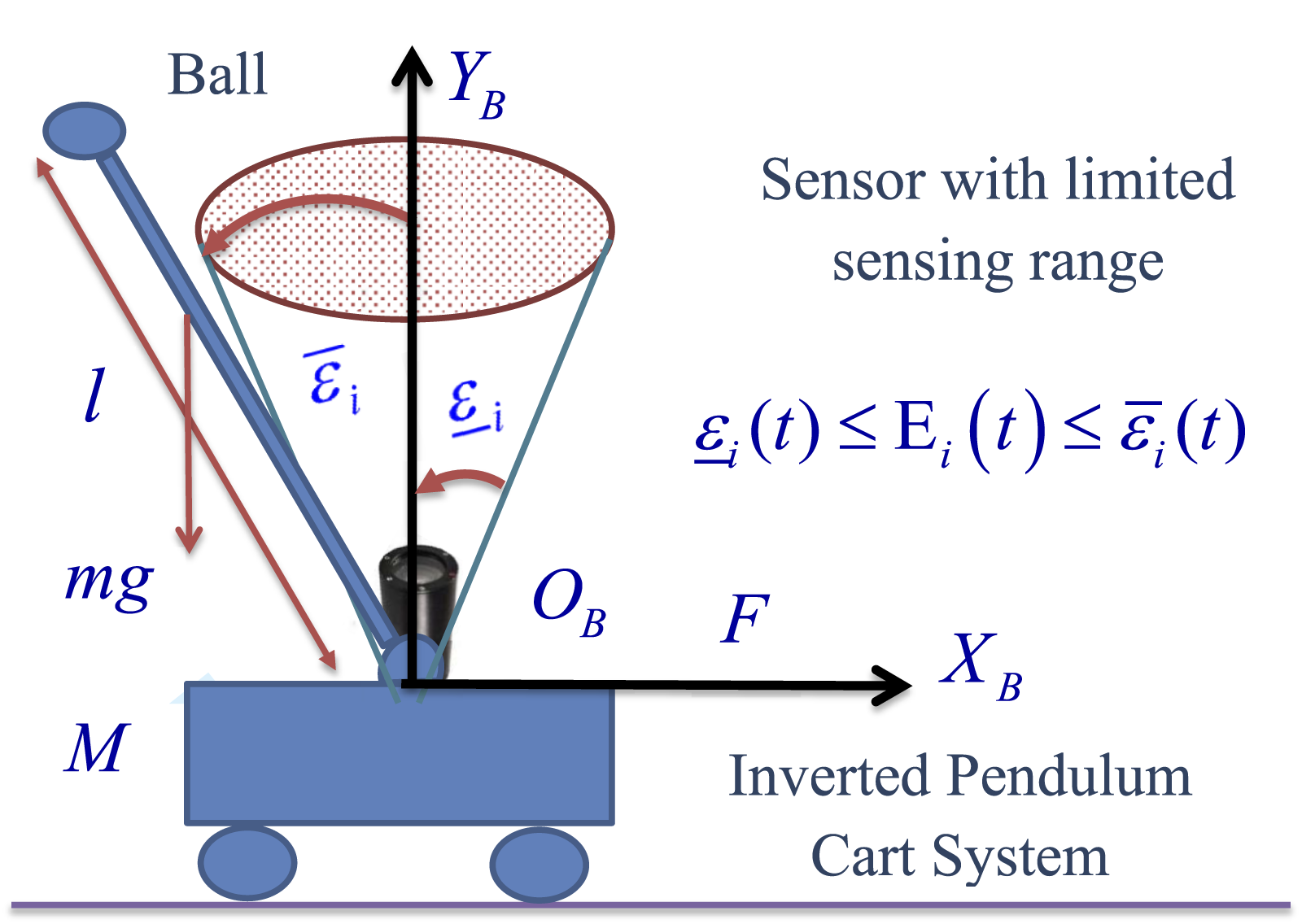

The essential geometric configuration of a state-constraint IPC system is depicted in Figure 1. This system comprises a cart that travels along the horizontal plane and a pendulum that swings around a defined pivot. The objective is to develop a controller τ_i for the nonlinear IPC system to maintain the stabilization errors of the system within the specified limits. This system exhibits instability, and its dynamic equations can be represented as equation (1):

\{\begin{cases} (m + M) \ddot{x} + b \dot{x} - m l {\dot{θ}}^{2} \sin θ + m l \ddot{θ} \cos θ = F \\ (I + m l^{2}) \ddot{θ} - m g l \sin θ + d \dot{θ} + m l \ddot{x} \cos θ = 0 \end{cases},

(1)

where m and M represent the mass of the pendulum rod and the mass of the moving cart, respectively; g denotes the acceleration due to gravity; θ signifies the angle of the pendulum measured from the vertical y-axis; x indicates the position of the cart relative to the starting point; l denotes the length of the pendulum; F refers to the force exerted on the cart or the control signal; I represents the moment of inertia; and b and d correspond to the friction coefficient of the cart and the viscous friction of the pendulum, respectively.

Figure 1.

The geometric configuration of a state-constraint IPC system.

To facilitate the simplification of the mathematical equations pertaining to the proposed controller design, the dynamic equation (1) may be reformulated as follows:

\{\begin{cases} \ddot{x} = f_{1} + b_{1} F \\ \ddot{θ} = f_{2} + b_{2} F \end{cases} .

(2)

In this context, we will present the subsequent equations:

f_{1} = \frac{(I + m l^{2}) (m l {\dot{θ}}^{2} \sin θ - b \dot{x}) - m^{2} l^{2} g \sin θ \cos θ + m l d \cos θ \dot{θ}}{q},

(3)

b_{1} = \frac{1 + m l^{2}}{q},

(4)

f_{2} = \frac{(m + M) (m g l \sin θ - d \dot{θ}) + m l \cos θ (b \dot{x} - m l \sin θ {\dot{θ}}^{2})}{q},

(5)

b_{2} = \frac{- m l \cos θ}{q},

(6)

q = (I + m l^{2}) (m + M) - m^{2} l^{2} \cos^{2} θ .

(7)

In accordance with the dynamic equations of IPC system obtained in equation (2), the state-space equations for the nonlinear IPC system can be derived as shown in equation (8):

\{\begin{cases} {\dot{x}}_{1} = x_{2} \\ {\dot{x}}_{2} = f_{1} + b_{1} τ \\ {\dot{x}}_{3} = x_{4} \\ x_{4} = f_{2} + b_{2} τ \end{cases},

(8)

where x₁ = x,

x_{2} = \dot{x}

, x₃ = θ,

x_{4} = \dot{θ}

and τ = F.

Assumptions

To attain the previously mentioned control objectives, the subsequent assumptions have been taken into account in addressing the constrained control problem and the practical execution of nonlinear IPC system.

S1: In addressing the constrained control problem, it is presumed that the nonlinear IPC system is outfitted with sensors that have a limited sensing range.

S2: In practical terms, it is presumed that the drivers and thrusters attain saturation at specific values.

Barrier Lyapunov function (BLF)

In order to prevent the transgression of states beyond the defined limits, it is proposed to employ a BLF-based approach to address the constrained control issues. A notable feature of BLFs is that their arguments tend to infinity as the system states approach the boundaries of the defined limits. This characteristic enables us to tackle practical constraints related to the state limitations and to avert the violation of state constraints as specified in equation (19). Consequently, an asymmetric time-varying BLF is implemented to avoid boundary violations and to ensure that all output states remain within the established and limited bounds. The subsequent Lemma articulates in a formula the structures of the BLF, ensuring that the state restrictions are not violated. Lemma 1

Tee et al. (2011):For any positive constants ${\underset{̲}{ε}}_{1}$ and ${\bar{ε}}_{1}$ , allow $E_{1} : = \{E_{1} \in R : {\underset{̲}{ε}}_{1} < E_{1} < {\bar{ε}}_{1}\} \subset R$ , the subsequent system is taken into account:

\dot{η} = f (t, η),

(9)

where

η : = {[ω, E_{1}]}^{T}

and f is the piece of continuous in t and in a particular states Lipchitz and uniformly in t. There exists function

U : R \to R^{+}

and

V_{1} : E_{1} \to R

continuously differentiable and positive definite within their respective regions as:

V_{1} (E_{1}) \to \infty a s E_{1} \to - {\underset{̲}{ε}}_{1} o r E_{1} \to {\bar{ε}}_{1},

(10)

π_{1} (‖ω‖) \leq U (ω, t) \leq π_{2} (‖ω‖),

(11)

where π₁ and π₂ are the class k_∞ functions. Allow V(η) = V(E₁) + U(ω, t) and E₁(0) related to the collection

E_{1} \in (- {\underset{̲}{ε}}_{1}, {\bar{ε}}_{1})

. If the subsequent inequality maintains accuracy:

\dot{V} = \frac{\partial V}{\partial η} f \leq 0,

(12)

thus, the output state E₁(t) remains within the public collection

E_{1} \in (- {\underset{̲}{ε}}_{1}, {\bar{ε}}_{1})

\forall t \in [0, \infty)

The concept of the fractional-order derivative

Numerous definitions for the fractional-order derivative have been suggested in academic literature, including those by Riemann–Liouville, Grunwald–Letnikov, and Caputo. In this research, the Caputo definition is utilized. According to the Caputo definition, the fractional-order derivative of a given function $f (t)$ , denoted ${as}_{0} D_{t}^{υ} f (t)$ , can be articulated as follows Naderolasli et al. (2020):

_{0} D_{t}^{υ} f (t) = \frac{1}{Γ (n - υ)} \int_{0}^{t} \frac{f^{(n)} (τ)}{{(t - τ)}^{υ + 1 - n}} d τ, (n - 1 \leq υ < n), n \in N,

(13)

where υ represents the fractional order, N denotes the set of natural numbers, and

Γ (.)

illustrates the well-known Gamma function defined as shown in equation (14):

Γ (x) = \int_{0}^{\infty} e^{- z} z^{x - 1} d z .

(14)

The implementation of fractional-order derivatives and integrals is carried out in the MATLAB software through the utilization of various toolboxes. This study specifically employs the non-integer toolbox to approximate the fractional-order operators utilizing high-order ordinary transfer functions.

Design of adaptive finite-time fractional-order sliding-mode controller for the nonlinear IPC system

The objective of sliding-mode control is to establish the control signal that guides the system states towards a specified sliding surface and subsequently drives them to zero via that surface. Once the system states arrive at the sliding surface, it is essential to ascertain the equivalent control signal that will keep the states on the sliding surface and direct them to zero through this surface. In scenarios where the states are either within or beyond the sliding surface, a switching term must be incorporated into the equivalent control signal to propel the system states towards the surface.

In addressing the stabilization challenge of the nonlinear IPC system, it is essential to modify the input force τ in order to guide the cart position (x1) and the pendulum angle (x3) towards zero. To accomplish this control objective, the subsequent fractional-order sliding surface is taken into account.

\{\begin{cases} E_{1} = (c_{1}^{2} D^{- υ} + D + 2 c_{1}) x_{1}, \\ E_{2} = (c_{2}^{2} D^{- ω} + D + 2 c_{2}) x_{3}, \end{cases} E_{i} = α E_{1} + β E_{2},

(15)

where υ > 0 and ω ≤ 1 are the fractional orders, E_i denotes the sliding surface, c₁ and c₂ are arbitrary positive constants, α is a variable that will be defined subsequently, β is a positive constant, and D signifies the derivative operator.

Lemma 2

Assume the fractional-order sliding surfaces E₁ and E₂ in equation (15) υ > 0, ω ≤ 1 and c₁, c₂ > 0. The dynamics E₁ = E₂ = 0 are asymptotically stable.

Proof

For the evidence, readers who are interested may consult the reference Jafary and Tabatabaei (2022).

Remark 1

In the scenario where υ = ω = 1, an integer-order sliding surface is achieved. By applying the Laplace transform to the sliding surfaces presented in equation (15), the characteristic equations for the integer-order sliding surfaces are derived as ${(s + c_{1})}^{2} = 0$ and ${(s + c_{2})}^{2} = 0$ . The solutions to these equations are s = −c₁ and s = −c₂, respectively. Consequently, these solutions reside in the left half-plane, indicating that the integer-order sliding surfaces E₁ and E₂ exhibit stable dynamics. It is essential to further examine the stability of these two sliding surfaces in the context of fractional-order systems.

In accordance with the sliding-mode principle, it is possible to derive the equivalent control signals by setting the time derivative of the sliding surfaces to zero. The time derivatives of these specified sliding surfaces presented in equation (15) can be expressed as shown in equation (16):

\{\begin{cases} {\dot{E}}_{1} = c_{1}^{2} D^{1 - υ} x_{1} + {\dot{x}}_{2} + 2 c_{1} x_{2} \\ {\dot{E}}_{2} = c_{2}^{2} D^{1 - ω} x_{3} + {\dot{x}}_{4} + 2 c_{2} x_{4} \end{cases} .

(16)

By setting both the sliding surface dynamics ${\dot{E}}_{1}$ and ${\dot{E}}_{1}$ in equation (16) to zero, and taking into account equation (8), one can derive the subsequent relation expressed in equation (17):

\{\begin{cases} c_{1}^{2} D^{1 - υ} x_{1} + f_{1} + b_{1} τ_{1} + 2 c_{1} x_{2} = 0 \\ c_{2}^{2} D^{1 - ω} x_{3} + f_{2} + b_{2} τ_{2} + 2 c_{2} x_{4} = 0 \end{cases} .

(17)

With differentiating from the fractional-order sliding surface E_i obtained in equation (15) results in:

\begin{matrix} \dot{E_{i}} = α {\dot{E}}_{1} + β {\dot{E}}_{2} \\ = α (c_{1}^{2} D^{1 - υ} x_{1} + {\dot{x}}_{2} + 2 c_{1} x_{2}) + β (c_{2}^{2} D^{1 - ω} x_{3} + {\dot{x}}_{4} + 2 c_{2} x_{4}) . \end{matrix}

(18)

Remark 2

In the proposed fractional-order sliding-mode controller, the fractional-order sliding surfaces have been implemented, and as a result, the fractional-order integral of these error surfaces has been computed. This issue revolves around fractional-order integral calculus, employing Caputo’s definition alongside widely used techniques such as Grunwald–Letnikov, fractional Euler approximation, fractional-order Adams–Bashforth–Moulton method, and the Oustaloup frequency approximation method for effective control Li and Cai (2019). In this study, a modified Oustaloup method is employed to address this issue in both simulation and practical hardware implementation, approximating the fractional-order operator with an integer-order approximation within the frequency domain.

In typical industrial control systems, the presence of physical constraints and restricted measurement principles, which include limited resolution and bandwidth, along with measurement saturation, noise, and environmental interference, leads to inherent sensor limitations in sensing capabilities. The implementation of sensors with restricted range in practical applications results in inaccurate feedback from the output data of various systems, consequently negatively impacting the performance of their control systems and presenting numerous challenges. Hence, this paper proposes an adaptive finite-time fractional-order sliding-mode controller designed for nonlinear IPC systems that encounter limited sensing capabilities. The limited sensing range of these sensors is frequently represented by a conical space defined by two upper and lower bounds, as specified in the sensor datasheet. By taking into account the feedback derived from the output data of these sensors and the corresponding error definitions, these bounds will have a direct influence on the system error boundaries under the constraints imposed by the system as follows:

{\underset{̲}{ε}}_{i} (t) < E_{i} (t) < {\bar{ε}}_{i} (t),

(19)

where

{\underset{̲}{ε}}_{i}

and

{\bar{ε}}_{i}

represent the lower and upper limits of the constrained output states, respectively, which are both bounded and continuously differentiable.

In addition, there are limitations that include the feasibility conditions on the initial values of output state errors in the control design. Specifically, if the set of acceptable primary values guarantees the features of the output state constraints (19) for the asymmetric BLFs, then the feasibility conditions will be ensured in the future. Therefore, before the stabilization error E_i approaches the boundary limits $({\underset{̲}{ε}}_{i} (t), {\bar{ε}}_{i} (t))$ due to the limited sensing ranges, the nonlinear Barrier terms rise swiftly and generate significant control signals that prevent the stabilization error E_i from the boundary limits.

At this stage, the limitations of the sensors are represented as constraints for stabilization. Consequently, the objective of control is to follow the desired trajectory while ensuring that the measurement constraint ${\underset{̲}{ε}}_{i} \leq E_{i} \leq {\bar{ε}}_{i}$ remains unbreached. To facilitate the conversion regarding the state requirements of the stabilization errors, an asymmetric time-varying BLF V₁ is proposed for the nonlinear state-constraint IPC system as expressed in equation (20):

V_{1} = \frac{q_{e} (E_{i})}{2} \log (\frac{{\bar{ε}}_{i}^{2}}{{\bar{ε}}_{i}^{2} - E_{i}^{T} E_{i}}) + \frac{1 - q_{e} (E_{i})}{2} \log (\frac{{\underset{̲}{ε}}_{i}^{2}}{{\underset{̲}{ε}}_{i}^{2} - E_{i}^{T} E_{i}}),

(20)

where

q_{e} (E_{i})

represents the logical variable derived from the subsequent equation.

q_{e} (E_{i}) = \{\begin{cases} 1 i f E_{i} > 0 \\ 0 i f E_{i} \leq 0 \end{cases} .

(21)

Given that the constraint on stabilization error (19) is time-varying, the time derivative of the proposed BLF V₁ will require extensive calculations and may become cumbersome. Therefore, to address the time dependency, the following variable transformation is suggested:

ϑ_{1} = \frac{E_{i}}{{\underset{̲}{ε}}_{i}}, ϑ_{2} = \frac{E_{i}}{{\bar{ε}}_{i}}, ϑ = q_{e} ϑ_{2} + (1 - q_{e}) ϑ_{1} .

(22)

With the aforementioned alteration of coordinates, the suggested BLF V₁ is reformulated as follows:

V_{1} = \frac{1}{2} \log \frac{1}{1 - ϑ^{2}} .

(23)

This derived equation will replace in the design of the controller and the proof of stability, owing to the straightforward nature of the relationships, which encompass the asymmetric state errors resulting from the variable transformation and the non-time-varying characteristic of the BLF (22). It is evident that the proposed BLF V₁ is both positive-definite and continuously differentiable within the compact set $Ω_{ϑ} = \{ϑ \in R, |ϑ| < 1\}$ . Recalling the time derivative of the logarithmic function log, specifically $d / d t (1 / 2 \log ({\bar{ε}}^{2} / {\bar{ε}}^{2} - E_{i}^{T} E_{i})) = \dot{E_{i}} E_{i} / {\bar{ε}}^{2} - E_{i}^{T} E_{i}$ , the time derivative of the asymmetric time-varying BLF is computed as shown in equation (24):

{\dot{V}}_{1} = q_{e} (E_{i}) (\frac{{\dot{E}}_{i} E_{i}}{{\bar{ε}}_{i}^{2} - E_{i}^{T} E_{i}}) + (1 - q_{e} (E_{i})) (\frac{{\dot{E}}_{i} E_{i}}{{\underset{̲}{ε}}_{i}^{2} - E_{i}^{T} E_{i}}) .

(24)

By substituting the specified coordinate transformation outlined in equation (22) along with the limits of constrained states ${\underset{̲}{ε}}_{i} (t) < E_{i} (t) < {\bar{ε}}_{i} (t)$ , the time derivative of the proposed BLF is reformulated as shown in equation (25):

{\dot{V}}_{1} = \frac{q_{e} (E_{i}) ϑ_{2}}{{\bar{ε}}_{i} (1 - ϑ_{2}^{2})} ({\dot{E}}_{i} - \frac{{\dot{\bar{ε}}}_{i}}{{\bar{ε}}_{i}}) + \frac{(1 - q_{e} (E_{i})) ϑ_{1}}{{\underset{̲}{ε}}_{i} (1 - ϑ_{1}^{2})} ({\dot{E}}_{i} - \frac{{\dot{\underset{̲}{ε}}}_{i}}{{\underset{̲}{ε}}_{i}}) .

(25)

By replacing equations (17) and (18), the time derivative of the proposed BLF is determined using the stabilization errors as shown in equation (26):

\begin{matrix} {\dot{V}}_{1} = \frac{q_{e} ϑ_{2}}{{\bar{ε}}_{i} (1 - ϑ_{2}^{2})} (α (c_{1}^{2} D^{1 - υ} x_{1} + f_{1} + b_{1} τ_{1} + {\dot{x}}_{2} + 2 c_{1} x_{2}) \\ - \frac{{\dot{\bar{ε}}}_{i}}{{\bar{ε}}_{i}} + β (c_{2}^{2} D^{1 - ω} x_{3} + f_{2} + b_{2} τ_{2} + {\dot{x}}_{4} + 2 c_{2} x_{4})) \\ + \frac{(1 - q_{e}) ϑ_{1}}{{\underset{̲}{ε}}_{i} (1 - ϑ_{1}^{2})} (α (c_{1}^{2} D^{1 - υ} x_{1} + f_{1} + b_{1} τ_{1} + {\dot{x}}_{2} + 2 c_{1} x_{2}) \\ + β (c_{2}^{2} D^{1 - ω} x_{3} + f_{2} + b_{2} τ_{2} + {\dot{x}}_{4} + 2 c_{2} x_{4}) - \frac{{\dot{\underset{̲}{ε}}}_{i}}{{\underset{̲}{ε}}_{i}}) . \end{matrix}

(26)

Consequently, in relation to the time derivative of BLF (26), the proposed adaptive finite-time fractional-order sliding-mode control structure is organized as follows:

τ = τ_{1} + τ_{2} + τ_{s w} .

(27)

In this computed equation, we have the following designed terms:

τ_{1} = - \frac{c_{1}^{2} D^{1 - υ} x_{1} + 2 c_{1} x_{2} + f_{1}}{b_{1}},

(28)

τ_{2} = - \frac{c_{2}^{2} D^{1 - ω} x_{3} + 2 c_{2} x_{4} + f_{2}}{b_{2}},

(29)

τ_{s w} = - \frac{α b_{1} τ_{2} + β b_{2} τ_{1} + (k_{1} + {\bar{k}}_{1}) E_{i} + k_{2} {sgn}^{ξ} (Ω_{E})}{α b_{1} + β b_{2}},

(30)

where the parameters k₁ and k₂ are designated positive fixed parameters,

{sgn}^{α} (Ω_{E}) = {|Ω_{E}|}^{ξ} s i g n (Ω_{E})

with the condition that 0.5 < ξ < 1;

{\bar{k}}_{1}

represents the time-dependent coefficient derived from the subsequent equation.

{\bar{k}}_{1} = \sqrt{{(\frac{{\dot{\underset{̲}{ε}}}_{i}}{{\underset{̲}{ε}}_{i}})}^{2} + {(\frac{{\dot{\bar{ε}}}_{i}}{{\bar{ε}}_{i}})}^{2} + ε_{0}} .

(31)

where ɛ₀ is the positive constant that mitigates the singularity issue. The subsequent inequality is produced, which derives the time-varying control coefficients necessary for the controller design:

{\bar{k}}_{1} + q_{e} \frac{{\dot{\bar{ε}}}_{i}}{{\bar{ε}}_{i}} + (1 - q_{e}) \frac{{\dot{\underset{̲}{ε}}}_{i}}{{\underset{̲}{ε}}_{i}} \geq 0 .

(32)

Furthermore, the subsequent equation is derived, which is employed in the proof of stability:

Ω_{E} = \frac{q_{e} ϑ_{2}}{{\bar{ε}}_{i} (1 - ϑ_{2}^{2})} + \frac{(1 - q_{e}) ϑ_{1}}{{\underset{̲}{ε}}_{i} (1 - ϑ_{1}^{2})} .

(33)

The term for switching, as indicated in equation (30), is utilized within the control signal to achieve the reaching condition during the sliding-mode control design process. In accordance with Lemmas (1–2), and by substituting the equations (8) and (27)–(30), along with the relationship $Ω_{E} s i g n (Ω_{E}) = |Ω_{E}|$ , and through straightforward mathematical computations, the time derivative of the proposed BLF is derived as shown in equation (34):

{\dot{V}}_{1} = - \frac{(k_{1} + {\bar{k}}_{1}) ϑ^{2}}{1 - ϑ^{2}} - k_{2} {(Ω_{E}^{2})}^{ξ / 2} .

(34)

It is clear from equation (34) that ${\dot{V}}_{1}$ represents a negative-definite function. Consequently, the sliding surface E_i is expected to approach zero. In this regard, the sliding surfaces E₁ and E₂ must remain bounded. This implies that the states of the system should be bounded, indicating that the system described by equation (8) is stable according to the BLF-based control design.

The parameters within the dynamic model (8) of the nonlinear IPC system cannot be accurately identified, including the friction coefficients and the viscous friction of the pendulum, denoted as f₁ and f₂, which vary over time. The approximation of these functions is calculated in accordance with the utilized design as follows:

{\hat{f}}_{1} = \frac{(I + m l^{2}) (m l {\dot{θ}}^{2} \sin θ - θ_{1} \dot{x}) - m^{2} l^{2} g \sin θ \cos θ + m l θ_{2} \cos θ \dot{θ}}{q},

(35)

{\hat{f}}_{2} = \frac{(m + M) (m g l \sin θ - θ_{2} \dot{θ}) + m l \cos θ (θ_{1} \dot{x} - m l \sin θ {\dot{θ}}^{2})}{q},

(36)

where the control parameters θ₁ and θ₂ will be modified in accordance with a suitable mechanism. An adaptive multi-layer neural network approach will be utilized to address the uncertainties associated with these parameters. Following the allocation of the designed controller in the initial section, the subsequent Lyapunov function is presented in the second section:

\begin{matrix} V_{2} = \frac{1}{2} t r \{{\tilde{M}}_{i}^{T} Γ_{M i}^{- 1} {\tilde{M}}_{i}\} + \frac{1}{2} t r \{{\tilde{N}}_{i}^{T} Γ_{N i}^{- 1} {\tilde{N}}_{i}\} + \frac{1}{2 ζ_{i}} {\tilde{θ}}_{i}^{T} {\tilde{θ}}_{i}, \end{matrix}

(37)

where

{\tilde{M}}_{i} = M_{i} - {\hat{M}}_{i}

and

{\tilde{N}}_{i} = N_{i} - {\hat{N}}_{i}

represent the approximation errors of the neural network, while Γ_Mi and Γ_Ni denote the positive constants. The parameter ζ_i > 0 serves as a design parameter, and

{\tilde{θ}}_{i} = θ_{i}^{*} - {\hat{θ}}_{i}

indicates the superior boundary error associated with both the neural network approximation error and the upper bound of parameters uncertainties. By calculating the time-derivative of the Lyapunov function as shown in equation (37) during the second step, the following equation is derived:

\begin{matrix} {\dot{V}}_{2} = - t r \{{\tilde{M}}_{i}^{T} Γ_{M i}^{- 1} {\dot{\hat{M}}}_{i}\} - t r \{{\tilde{N}}_{i}^{T} Γ_{N i}^{- 1} {\dot{\hat{N}}}_{i}\} - \frac{1}{ζ_{i}} {\tilde{θ}}_{i}^{T} {\dot{\hat{θ}}}_{i} . \end{matrix}

(38)

where the unknown nonlinear functions

{\hat{f}}_{1}

and

{\hat{f}}_{2}

are approximated using the multi-layer neural network

H_{i} (μ_{i}) = M_{i}^{T} η (N_{i}^{T} μ_{i}) + ϖ_{i} (μ_{i})

, where

ϖ_{i} (μ_{i})

represents the approximation error that satisfies

‖ϖ_{i} (μ_{i})‖ \leq ϖ_{i M}

, which is the upper limit of the neural-network approximation error ϖ_iM.

Subsequently, the adaptive finite-time fractional-order sliding-mode controller is designated for the nonlinear state-constraint IPC system as expressed in equation (39):

\begin{matrix} τ = - \frac{c_{1}^{2} D^{1 - υ} x_{1} + 2 c_{1} x_{2}}{b_{1}} - \frac{α b_{1} τ_{2} + β b_{2} τ_{1} + (k_{1} + {\bar{k}}_{1}) E_{i} + k_{2} {sgn}^{ξ} (Ω_{E})}{α b_{1} + β b_{2}} - Ω_{E} E_{i} \\ - \frac{c_{2}^{2} D^{1 - ω} x_{3} + 2 c_{2} x_{4}}{b_{2}} - \frac{{\hat{θ}}_{i}^{2} E_{i}}{{\hat{θ}}_{i} ‖E_{i}‖ + ε_{i} (t)} - {\hat{M}}_{i}^{T} η ({\hat{N}}_{i}^{T} μ_{i}) - X_{i}, \end{matrix}

(39)

where k₁ and k₂ are the predetermined positive constants;

{\hat{θ}}_{i}

represents the upper bound estimation of both the neural network errors and the time-varying external disturbances, expressed as

‖ϖ_{i} (μ_{i}) + τ_{D} (t)‖ \leq {\hat{θ}}_{i}

. The term

ε_{i} (t)

signifies the thickness of the boundary layer, while

X_{i} = k_{3} ({‖μ_{i} {\hat{M}}_{i}^{T} {\hat{η}}^{'}‖}_{F}^{2} + {‖{\hat{η}}^{'} {\hat{N}}_{i}^{T} μ_{i}‖}^{2} + 1) E_{i}

. The sigma-modification is applied as a robust adaptive mechanism to ensure that the approximated parameters remain constant at specific regions. As a result, the adaptive-neural and update laws are derived for the constrained fractional-order sliding-mode control of the nonlinear state-constraint IPC system as follow:

{\dot{\hat{M}}}_{i} = Γ_{M} [(\hat{η} - {\hat{η}}^{'} {\hat{N}}_{i}^{T} μ_{i}) E_{i}^{T} - K_{M} Γ_{M i} {\hat{M}}_{i}],

(40)

{\dot{\hat{N}}}_{i} = Γ_{N} [μ_{i} E_{i}^{T} {\hat{N}}_{i}^{T} {\hat{η}}^{'} - K_{N} Γ_{N i} {\hat{N}}_{i}],

(41)

{\dot{\hat{θ}}}_{i} = ζ_{i} E_{i}^{T} Φ_{i} - ζ_{i} σ_{i} ({\hat{θ}}_{i} - θ_{i 0}),

(42)

where ζ_i, σ_i > 0, K_M, and K_N represent the designated parameters, and θ_i0 serves as an initial approximation of the parameter θ_i. Consequently, the subsequent equation is derived.

M_{i}^{T} η (N_{i}^{T} μ_{i}) - {\hat{N}}_{i}^{T} η ({\hat{N}}_{i}^{T} μ_{i}) = {\tilde{M}}_{i}^{T} (\hat{η} - {\hat{η}}^{'} {\hat{N}}_{i}^{T} μ_{i}) + {\hat{M}}_{i}^{T} {\hat{η}}^{'} {\tilde{N}}_{i}^{T} μ_{i} + ϒ_{i},

(43)

where

‖ϒ_{i}‖ \leq d_{1} {‖μ_{i} {\hat{M}}_{i}^{T} {\hat{η}}^{'}‖}_{F} + d_{2} ‖{\hat{η}}^{'} {\hat{N}}_{i}^{T} μ_{i}‖ + d_{3}

, indicating that the parameters d₁, d₂ and d₃ serve as design constants. By substituting the actual control signal and adaptive-neural update laws into the time derivative of the Lyapunov function during the second step of the stability proof and performing several simplifications, the following equality is derived:

\begin{matrix} {\dot{V}}_{2} = E_{i}^{T} ({\tilde{M}}_{i}^{T} (\hat{η} - {\hat{η}}^{'} {\hat{N}}_{i}^{T} μ_{i}) + {\hat{Z}}_{i}^{T} {\hat{η}}^{'} {\tilde{M}}_{i}^{T} μ_{i} + ϒ_{i} + ϖ_{i} (μ_{i})) \\ - E_{i} \frac{{\hat{θ}}_{i}^{2} {\hat{E}}_{i}}{{\hat{θ}}_{E i} |E_{i}| + ε_{E i} (t)} + {\tilde{θ}}_{i}^{T} σ_{i} ({\hat{θ}}_{i} - θ_{i 0}) . \end{matrix}

(44)

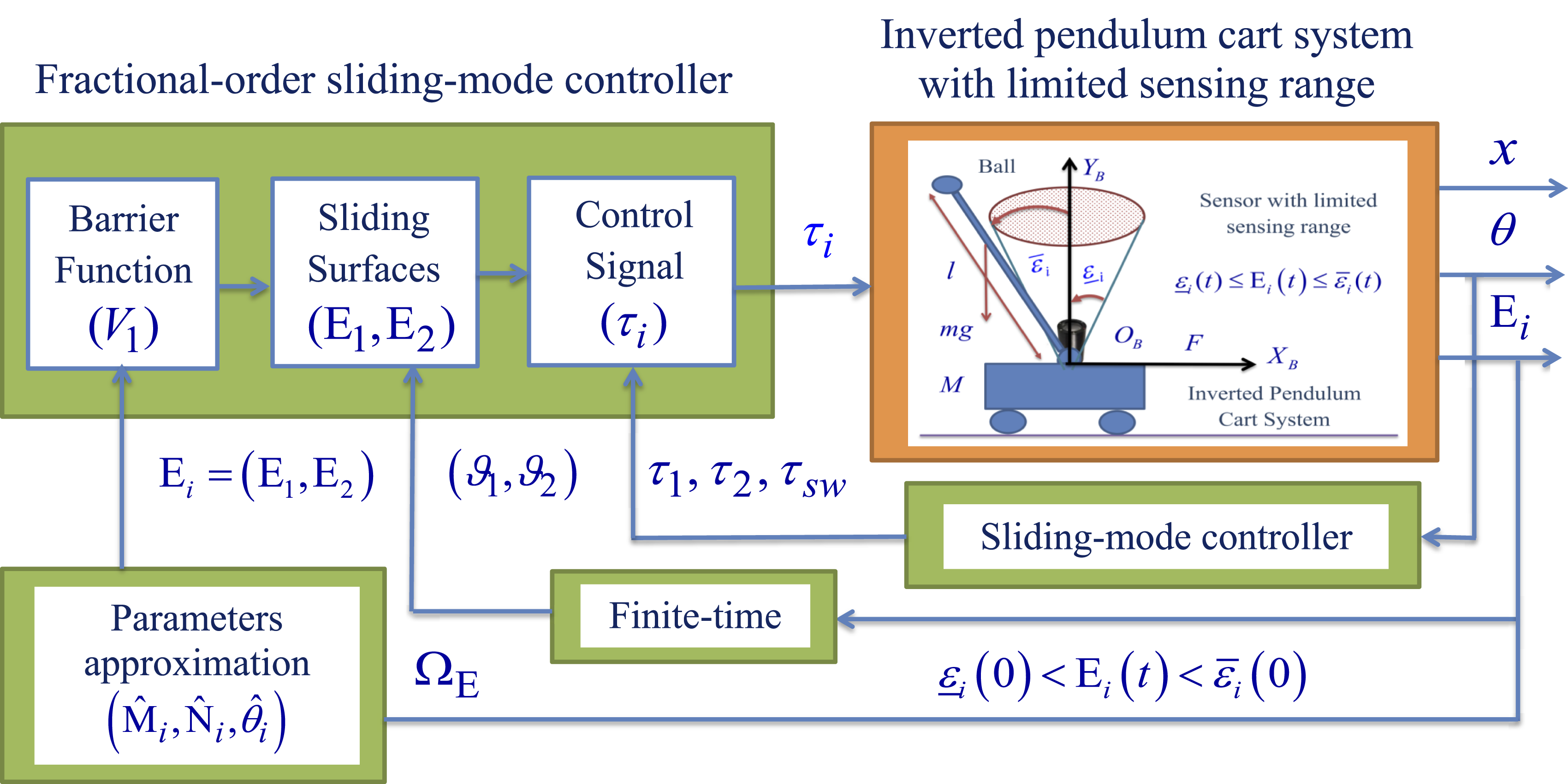

The proposed control block diagram for the adaptive finite-time fractional-order sliding-mode control of a nonlinear state-constraint IPC system is illustrated in Figure 2.

Figure 2.

The proposed control block diagram for the adaptive finite-time fractional-order sliding-mode control of a nonlinear state-constraint IPC system.

The fundamental findings regarding the proposed adaptive finite-time fractional-order sliding-mode control of a nonlinear state-constraint IPC system are summarized in the theorem below:

Theorem

Consider a nonlinear IPC system with limited sensing range where the dynamic equations are represented by equation (1). This system operates under the fractional-order sliding surfaces derived in equation (15), alongside specifications and state restrictions imposed by the limited sensing range as indicated in equation (19). Additionally, the transformation of error variables is described in equation (22), while the proposed actual control is detailed in equation (39). This designed controller incorporates time-varying coefficients as specified in equation (31), subject to the conditions outlined in equation (32). Furthermore, the update rules for the multi-layer neural network are provided in equations (40), and (41), and the adaptive rule is presented in equation (42). These components collectively ensure that all signals within the closed-loop system remain bounded as t → ∞, and the stabilization error E_i(t) is characterized as finite-time semi-globally uniformly bounded (FTSGUUB), converging to a small vicinity around the origin.

Proof

Consider the total Lyapunov function pertaining to the adaptive finite-time fractional-order sliding-mode control issue of the nonlinear IPC system:

\begin{matrix} V_{T} = \frac{q_{e} (E_{i})}{2} \log (\frac{{\bar{ε}}_{i}^{2}}{{\bar{ε}}_{i}^{2} - E_{i}^{T} E_{i}}) + \frac{1 - q_{e} (E_{i})}{2} \log (\frac{{\underset{̲}{ε}}_{i}^{2}}{{\underset{̲}{ε}}_{i}^{2} - E_{i}^{T} E_{i}}) \\ + \frac{1}{2 ζ_{i}} {\tilde{θ}}_{i}^{T} {\tilde{θ}}_{i} + \frac{1}{2} t r \{{\tilde{M}}_{i}^{T} Γ_{M}^{- 1} {\tilde{M}}_{i}\} + \frac{1}{2} t r \{{\tilde{N}}_{i}^{T} Γ_{N}^{- 1} {\tilde{N}}_{i}\} . \end{matrix}

(45)

The subsequent equation is established for the adaptive finite-time fractional-order sliding-mode control issue concerning nonlinear state-constraint IPC system:

\begin{aligned} {\dot{V}}_{T} & = - \frac{(k_{1} + {\bar{k}}_{1}) ϑ^{2}}{1 - ϑ^{2}} - k_{2} {(Ω_{E}^{2})}^{ξ / 2} \\ + {\tilde{θ}}_{i}^{T} σ_{i} ({\hat{θ}}_{i} - θ_{i 0}) + \frac{1}{4} ϕ_{i}^{2} \\ + E_{i}^{T} (ϖ_{i} (t) + ϒ_{i}) - K_{M} tr \{{\tilde{M}}_{i}^{T} {\hat{M}}_{i}\} - K_{N} tr \{{\tilde{N}}_{i}^{T} {\hat{N}}_{i}\} . \end{aligned}

(46)

Taking into account the assumption ${‖ϖ_{i}‖}^{2} < ϖ_{M}^{2}$ and applying Lemma 1, the subsequent inequalities are derived by employing Young’s inequality:

E_{i}^{T} ϖ_{i} \leq \frac{1}{2} E_{i}^{T} k_{2} E_{i} + \frac{1}{2} ϖ_{M}^{2},

(47)

{\tilde{θ}}_{i}^{T} σ_{i} ({\hat{θ}}_{i} - θ_{i 0}) \leq - (1 - 0.5 / k^{2}) σ_{i} {‖{\tilde{θ}}_{i}‖}^{2} + 0.5 σ_{i} {‖θ_{i} - θ_{i 0}‖}^{2},

(48)

E_{i}^{T} ϒ_{i} \leq γ_{i} {‖E_{i}‖}^{2} ({‖μ_{i} {\hat{M}}_{i}^{T} {\hat{η}}^{'}‖}_{F}^{2} + {‖{\hat{η}}^{'} {\hat{N}}_{i}^{T} μ_{i}‖}^{2} + 1) + \frac{d_{1}^{2} + d_{2}^{2} + d_{3}^{2}}{4 γ_{i}},

(49)

- K_{M} t r \{{\tilde{M}}_{i}^{T} {\hat{M}}_{i}\} \leq - K_{M} {‖{\tilde{M}}_{i}‖}_{F}^{2} + \frac{K_{M}}{4} {‖M_{i}‖}_{F}^{2},

(50)

- K_{N} t r \{{\tilde{N}}_{i}^{T} {\hat{N}}_{i}\} \leq - K_{N} {‖{\tilde{N}}_{i}‖}_{F}^{2} + \frac{K_{N}}{4} {‖N_{i}‖}_{F}^{2} .

(51)

As a result, the subsequent inequality is established in the adaptive finite-time fractional-order sliding-mode control issue of the nonlinear IPC system, as expressed in equation (52):

\begin{matrix} {\dot{V}}_{T} \leq - \frac{(k_{1} + {\bar{k}}_{1}) ϑ^{2}}{1 - ϑ^{2}} - k_{2} {(Ω_{E}^{2})}^{ξ / 2} + \frac{1}{2} ϖ_{M}^{2} - \frac{1}{2} E_{i}^{T} k_{2} E_{i} \\ - K_{M} {‖{\tilde{M}}_{i}‖}_{F}^{2} - K_{N} {‖{\tilde{N}}_{i}‖}_{F}^{2} + \frac{K_{M}}{4} {‖M_{i}‖}_{F}^{2} + \frac{K_{N}}{4} {‖N_{i}‖}_{F}^{2} \\ - (1 - \frac{0.5}{k^{2}}) σ_{i} {‖{\tilde{θ}}_{i}‖}^{2} + 0.5 σ_{i} {‖θ_{i} - θ_{i 0}‖}^{2} + \frac{d_{1}^{2} + d_{2}^{2} + d_{3}^{2}}{4 γ_{2 i}}, \end{matrix}

(52)

where the parameters satisfy

k > \sqrt{2} / 2

. Consequently, the inequality (52) is demonstrated for the adaptive finite-time fractional-order sliding-mode control issue pertaining to the nonlinear IPC system as outlined below:

{\dot{V}}_{T} (t) = - η_{i} {‖μ_{t i} (t)‖}^{2} + ϖ_{i} (t) \leq - η_{\min} {‖μ_{t} (t)‖}^{2} + χ (t),

(53)

In this context, $μ_{t i} = [E_{1}^{T}, E_{2}^{T}, E_{i}^{T}]$ , $η_{\min} = \min {\{η_{i}\}}_{i = 1}^{N}$ and $χ (t) = \sum_{i = 1}^{N} χ_{i} (t)$ such that the parameters η_min and χ are defined as follow:

η_{\min} = \min \{k_{1}, {\bar{k}}_{1}, k_{2}, K_{M}, K_{N}, ζ_{i}\},

(54)

\begin{matrix} χ = + \frac{1}{2} ϖ_{M}^{2} + 0.5 σ_{i} {‖θ_{i} - θ_{i 0}‖}^{2} + \frac{K_{M}}{4} {‖M_{i}‖}_{F}^{2} \\ + \frac{K_{N}}{4} {‖N_{i}‖}_{F}^{2} + \frac{d_{1}^{2} + d_{2}^{2} + d_{3}^{2}}{4 γ_{2 i}} . \end{matrix}

(55)

Subsequently, the following inequality is established for the adaptive finite-time fractional-order sliding-mode control issue pertaining to the nonlinear IPC system as:

{\dot{V}}_{T} (t) \leq - η_{\min} V_{T} (t) + χ .

(56)

Consequently, the specified signals $E_{1} (t)$ and $E_{2} (t)$ and as a result $E_{i} (t)$ remain within the established and restricted limits, achieved through a compact collection obtained via:

\begin{matrix} Ω_{E} : = E_{1}, E_{2} \in R : \{\begin{cases} - {\underset{̲}{X}}_{i} \leq E_{1} \leq {\bar{X}}_{i} \\ - {\underset{̲}{X}}_{i} \leq E_{2} \leq {\bar{X}}_{i} \end{cases}, \\ \{\begin{cases} {\underset{̲}{X}}_{i} = ε_{1} (t) {(1 - e^{- 2 V_{1} (0) e^{- k t}})}^{0.5}, \\ {\bar{X}}_{i} = {\bar{ε}}_{1} (t) {(1 - e^{- 2 V_{1} (0) e^{- k t}})}^{0.5}, \end{cases} \end{matrix}

(57)

which ensures that the adaptive fractional-order sliding-mode control of the nonlinear IPC system is FTSGUUB. In relation to Lemmas 1–2, the primary condition

{\underset{̲}{ε}}_{i} (0) < E_{i} (0) < {\bar{ε}}_{i} (0)

is satisfied, ensuring that the stabilization constraint

{\underset{̲}{ε}}_{i} < E_{i} (t) < {\bar{ε}}_{i}

, for all t > 0, will not be transgressed. Consequently, the stabilization errors converge to a small vicinity of the origin in finite-time by appropriately selecting the designed coefficients and the output constraint of the nonlinear IPC system will never be exceeded and all signals within the closed-loop system remain bounded.

If the parameter α meets the subsequent criterion, then the sliding surfaces E₁ and E₂ approach zero. This condition will be synonymous with the asymptotic stability of the closed-loop system.

α = \{\begin{cases} α_{0} E_{1} E_{2} \geq 0 \\ - α_{0} E_{1} E_{2} < 0 \end{cases}, α_{0} > 0 .

(58)

With regard to the relations

\int_{0}^{\infty} E_{1}^{2} (t) < \infty

and

\int_{0}^{\infty} E_{2}^{2} (t) < \infty

, we can deduce that E₁, E₂ ∈ L₂. By integrating the time derivative of the Lyapunov function as calculated in equation (56) on both sides, we can deduce that

\int_{0}^{t} {\dot{V}}_{T} (t) d τ = V_{T} (t) - V_{T} (0) = \int_{0}^{t} (- η_{\min} {‖μ_{t} (t)‖}^{2} + χ) < \infty .

(59)

According to the aforementioned equation, it can be deduced that $V_{T} (t) \leq V_{T} (0) < \infty$ , which leads us to conclude that $\int_{0}^{\infty} 1 / 1 - ϑ^{2} < \infty$ . Given that ${\dot{E}}_{1}, {\dot{E}}_{2} \in L_{\infty}$ and E₁, E₂ ∈ L_∞, along with E_i ∈ L_∞ and the relation $E_{i}^{2} = α^{2} E_{1}^{2} + β^{2} E_{1}^{2} + 2 α β E_{1} E_{2}$ , we can derive the following equation:

\{\begin{cases} {\dot{E}}_{1} = c_{1}^{2} D^{1 - υ} x_{1} + {\dot{x}}_{2} + 2 c_{1} x_{2} \\ {\dot{E}}_{2} = c_{2}^{2} D^{1 - ω} x_{3} + {\dot{x}}_{4} + 2 c_{2} x_{4} \end{cases} .

(60)

Given that the relationships defined by equation (60) are bounded, the following conclusion can be drawn:

\{\begin{cases} \sup |{\dot{E}}_{1}| = {‖{\dot{E}}_{1}‖}_{\infty} < \infty \\ \sup |{\dot{E}}_{2}| = {‖{\dot{E}}_{2}‖}_{\infty} < \infty \end{cases} .

(61)

Consequently, in light of equation (61) and in accordance with Barbalat’s lemma, it follows that $\lim_{t \to \infty} E_{1} (t) = 0$ and $\lim_{t \to \infty} E_{2} (t) = 0$ . This indicates that the nonlinear state-constraint IPC system is stabilized via the adaptive finite-time fractional-order sliding-mode control signal (39) and under the conditions specified in (31) and (32).

Simulation results

To illustrate the effectiveness of the proposed adaptive finite-time fractional-order sliding-mode control, a simulation of the nonlinear IPC dynamic model is conducted, utilizing the system parameters listed in Table 1. This simulation develops a constrained fractional-order sliding-mode control strategy to achieve the desired stabilization while avoiding violations of state constraints caused by the limited sensing range of the sensors. The trajectory of the pendulum’s angle

θ (r a d)

and the displacement trajectory of the car

x (m)

, derived from equation (8), are depicted in Figure 3. The output stabilization errors associated with the constrained fractional-order sliding-mode control problem (E₁, E₂) and the fractional-order sliding surface (E_i) are depicted within the limited boundaries, which result from the limited sensing range of the nonlinear IPC system, as demonstrated in Figures 4 and 5, respectively. Furthermore, the actual control signal specifically developed for this system (τ) is depicted in Figure 6. In these figures, it is evident that the system outputs converge to an adjacency near zero within a finite-time, without violating the state constraints resulting from a limited sensing range accompanied by a soft control signal of suitable magnitude.

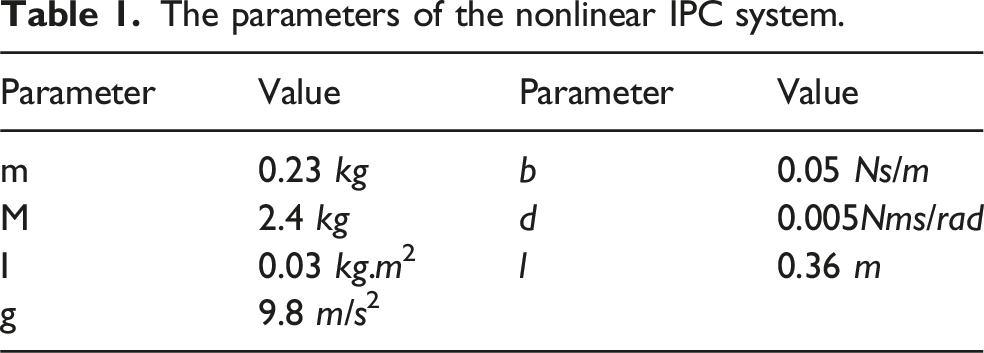

Table 1.

The parameters of the nonlinear IPC system.

Parameter	Value	Parameter	Value
m	0.23 kg	b	0.05 Ns/m
M	2.4 kg	d	0.005Nms/rad
I	0.03 kg.m²	l	0.36 m
g	9.8 m/s²

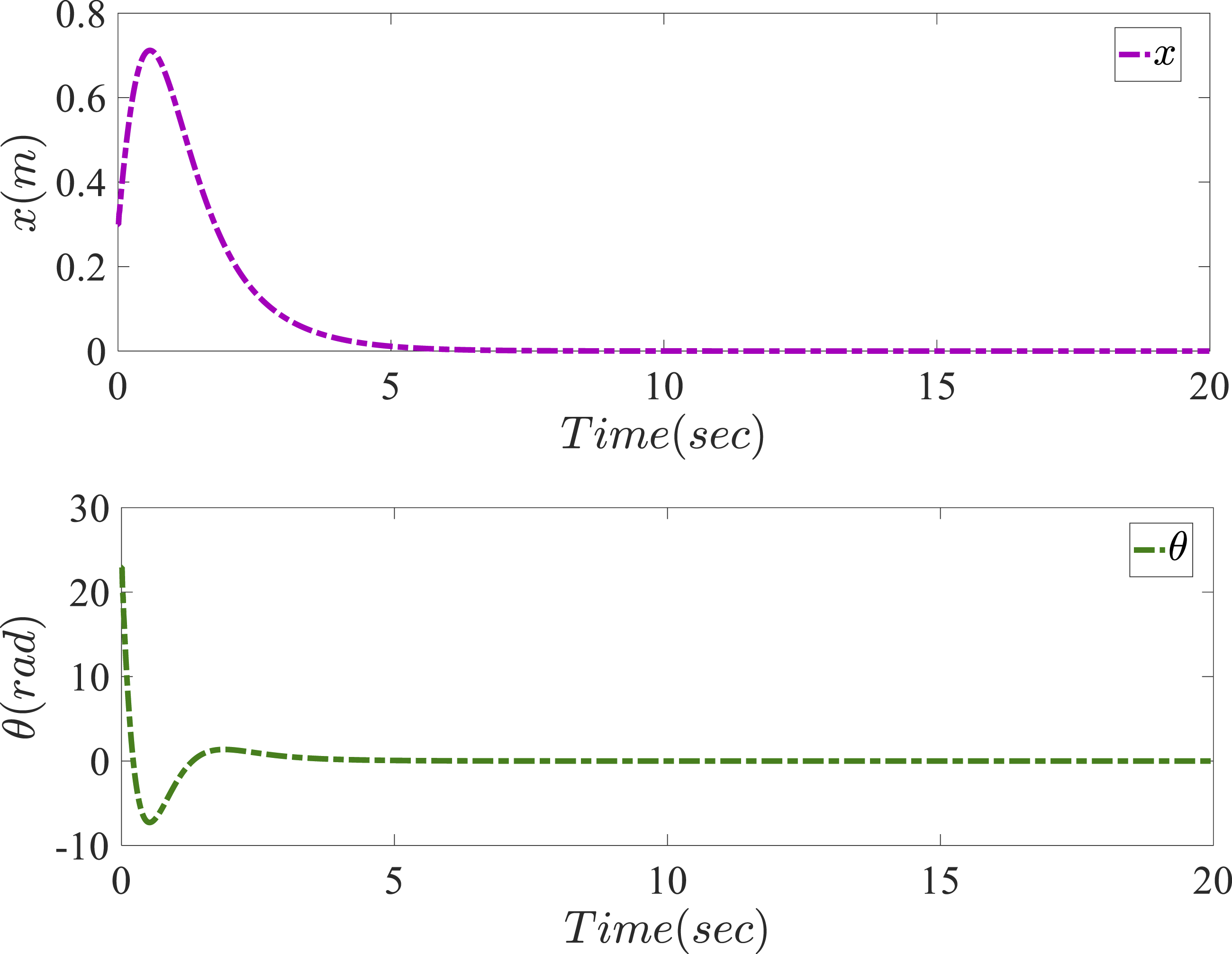

Figure 3.

The trajectory of the pendulum’s angle $θ (r a d)$ and the displacement trajectory of the car $x (m)$ with limited sensing range.

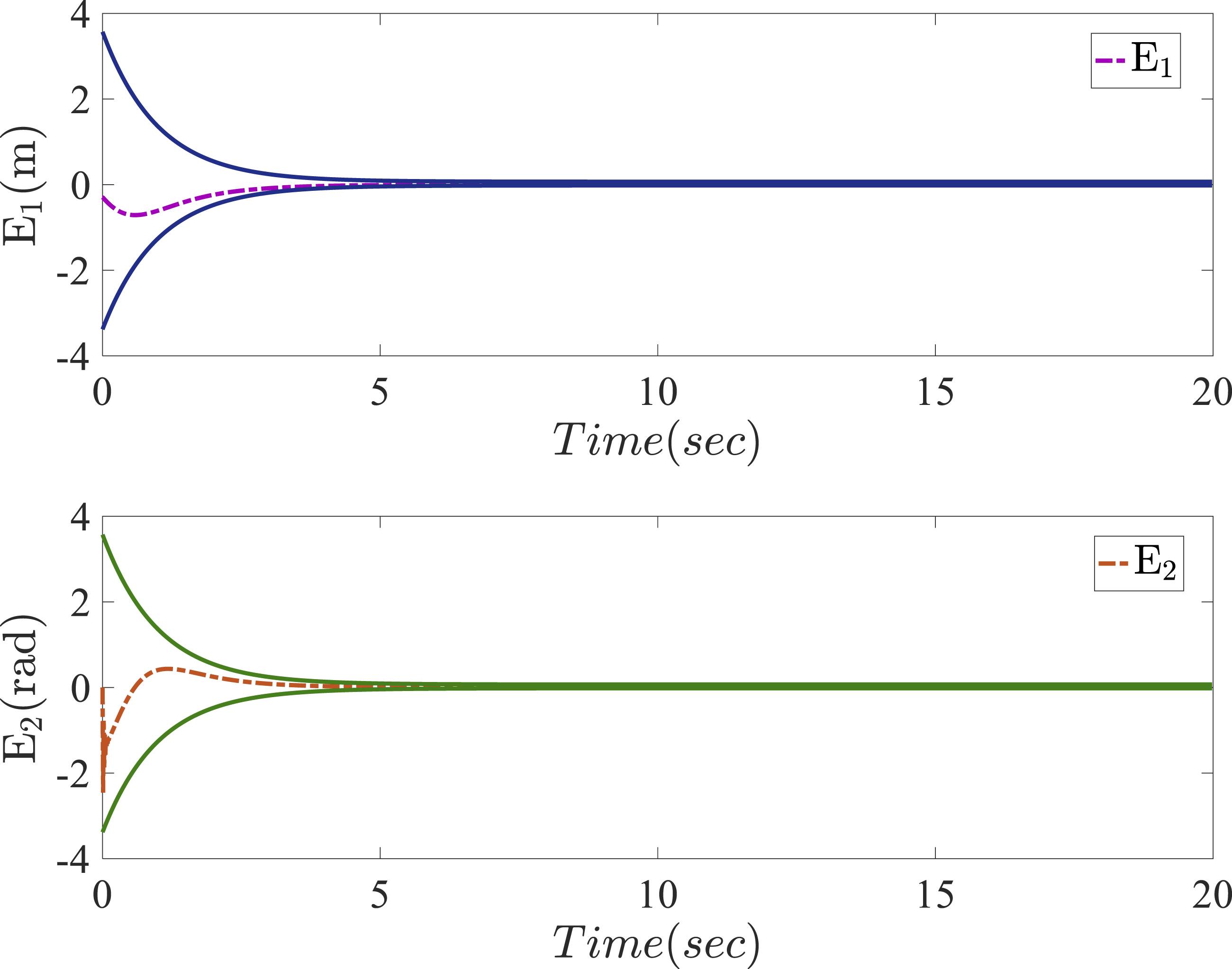

Figure 4.

The output stabilization errors associated with the constrained fractional-order sliding-mode control problem (E₁, E₂).

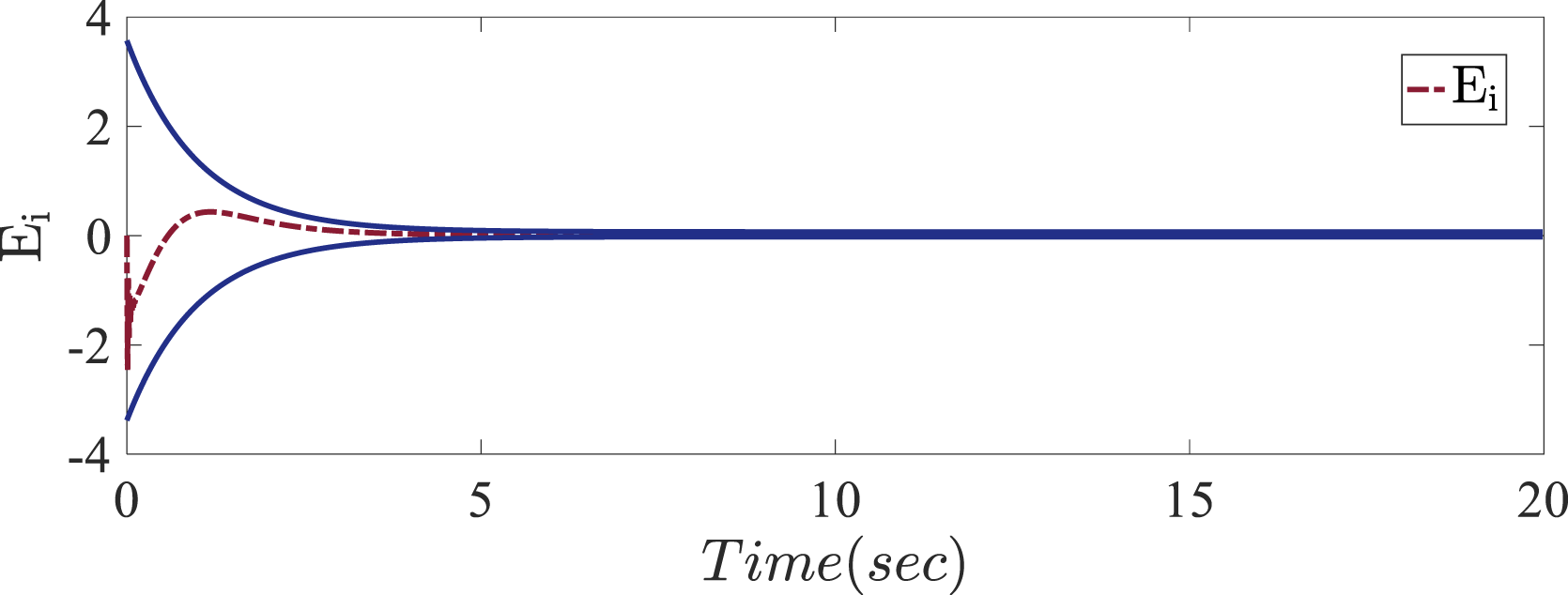

Figure 5.

The fractional-order sliding surface for the nonlinear IPC system (E_i).

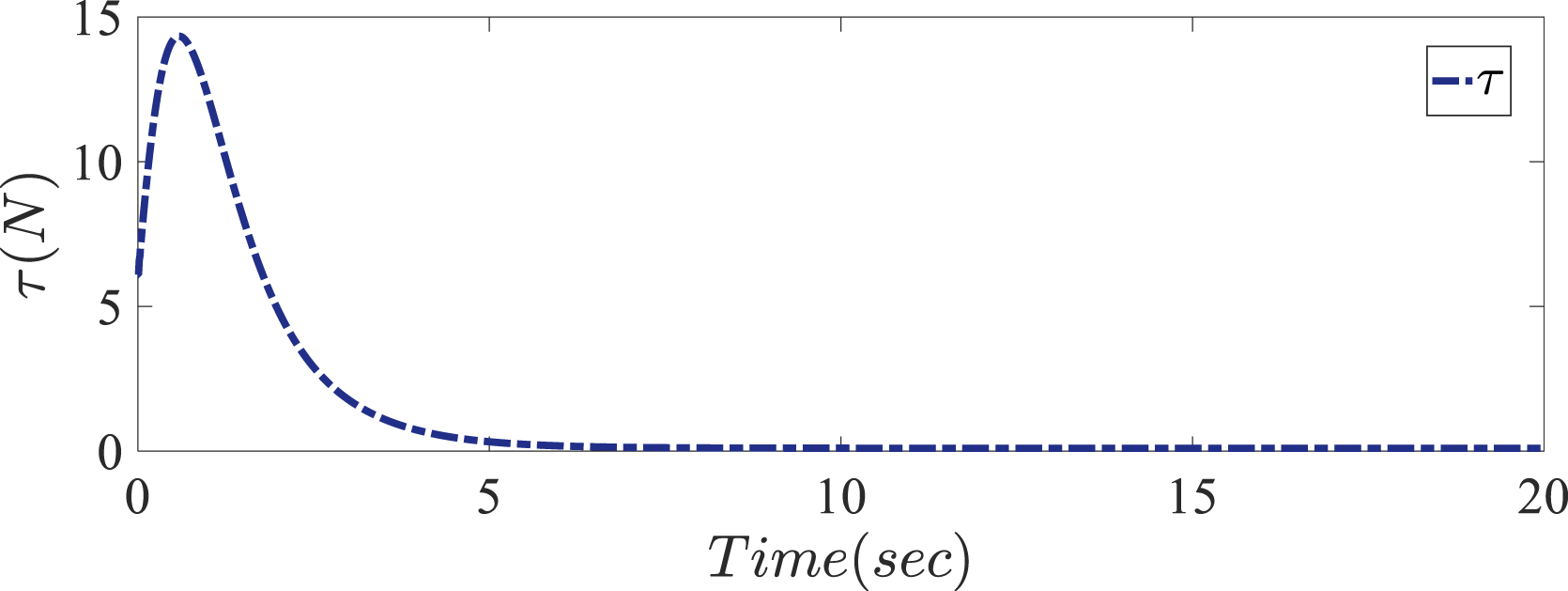

Figure 6.

The actual control signal designed for the nonlinear IPC system (τ).

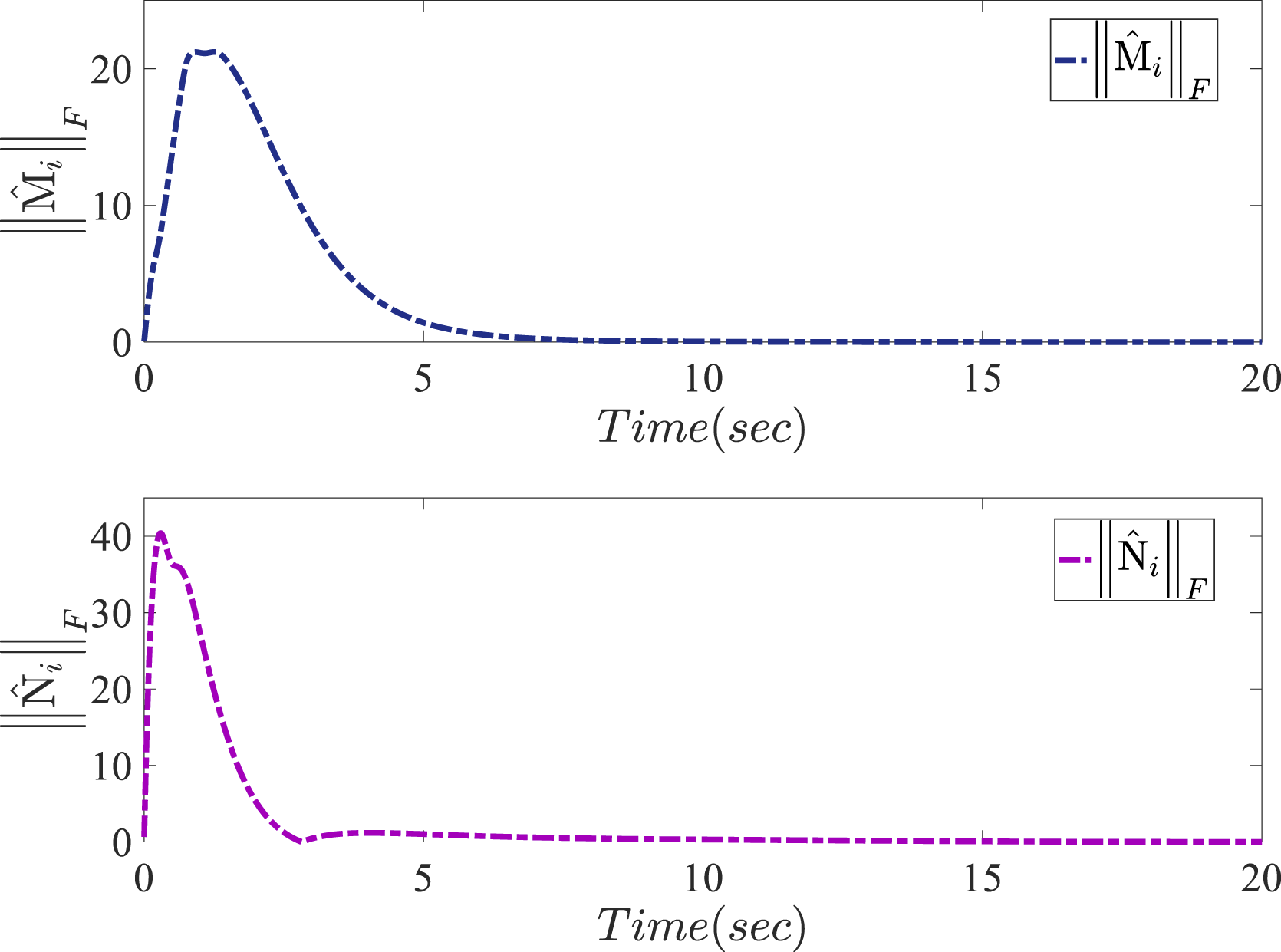

The Frobenius norm of the weight matrices approximations derived from the multi-layer neural network $({‖{\hat{M}}_{i}‖}_{F}, {‖{\hat{N}}_{i}‖}_{F})$ , along with the adaptive-neural approximation of the system parameters ${\hat{θ}}_{i}$ , are depicted in Figures 7 and 8, respectively.

Figure 7.

The Frobenius norm of the weight matrices approximations derived from the multi-layer neural network $({‖{\hat{M}}_{i}‖}_{F}, {‖{\hat{N}}_{i}‖}_{F})$ .

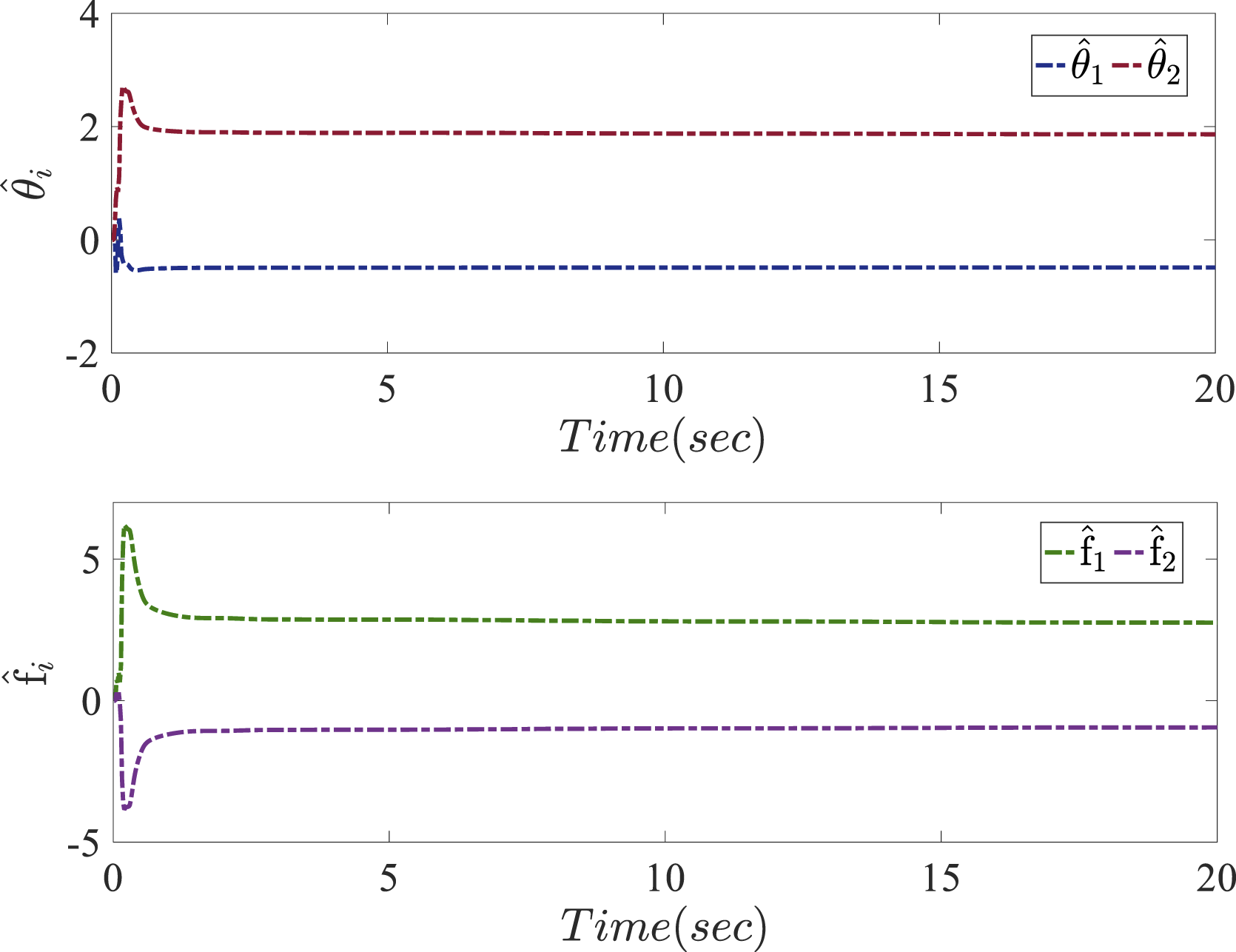

Figure 8.

The adaptive neural approximation of the system parameters $({\hat{θ}}_{i}, f_{i})$ .

The parameters tuning for the proposed controller

The system’s performance in meeting the requirements is guaranteed by adjusting the controller parameters based on the simulation results, in order to address the limitations imposed by the limited sensing ranges. The method of trial and error is employed to ensure that the fundamental assumptions of the constrained adaptive finite-time fractional-order sliding-mode control are achieved in order to determine the primary state of nonlinear IPC systems. Furthermore, the mean square error optimization algorithm is employed to modify the coefficients of the controller, with the objective of reducing the control indices. The controlling coefficients that have been requested are designated as k₁ = 30 and k₂ = 15; the upper and lower limits of the time-dependent state constraints concerning the stabilization errors are determined as ${\bar{ε}}_{1} (t) = 0.07 + (3.5 - 0.04) e^{- 1 t}$ and ${\underset{̲}{ε}}_{1} (t) = 0.02 + (- 3.5 - 0.02) e^{- 1 t}$ , respectively. The coefficients of the multi-layer neural network and the adaptive-neural update laws are taken into account as Γ_Mi = 20, Γ_Ni = 15, K_M = 10, K_N = 5, ζ_i = 15, and σ_i = 7. The initial parameters for the adaptive-neural network are chosen as θ_1i(0) = 0.5 and θ_2i(0) = 1. The fractional orders are established using a trial-and-error method to achieve the optimal transient response as υ = 0.9 and ω = 0.8. In this context, selecting 0.7 ≤ υ ≤ 0.9 and 0.7 ≤ ω ≤ 0.9 will mitigate the chattering issue and promote smoother operation. Conversely, when moving outside this range, values approaching 1 will yield a close resemblance to the traditional SMC, whereas values near 0.5 will exhibit heightened sensitivity and pose challenges in execution.

The substantial adaptive coefficients can enhance control efficiency and reduce stabilization errors within the closed-loop system; however, they may result in unexpectedly large control signals. By modifying the coefficients of the constrained controller terms, the limits of stabilization errors can be fine-tuned, and by adjusting the gains of finite-time terms, both the transient responses and the convergence rate can be improved. In simulation experiments, initially, the controller coefficients are set to larger values for the control gains, and as the stabilization performance nears the constraints due to the sensors’ limited sensing range, the controller parameters must be appropriately confined by evaluating the simulation runs. Opting for a greater number of layers in MLNN enhances the capacity to learn more intricate algorithms; however, selecting a significant depth may result in the risk of overfitting and complications during training. Consequently, two hidden layers have been implemented in the simulations presented in this paper.

The outcomes of the comparison regarding the proposed controller

To illustrate the efficacy of the proposed controller in stabilizing a nonlinear IPC system, four different plans are analyzed. These plans include the sliding-mode controller Guo et al. (2014), the constrained controller Huang et al. (2019), the finite-time controller Yao (2020), and a combination of the BLF-based controller with the finite-time approach that is introduced in this paper, each designed and simulated accordingly. To achieve a more precise analysis, the simulation parameters, which encompass the system model, initial conditions, inputs, and actuator constraints, were all treated as identical. Furthermore, the primary coefficients of the controllers were also regarded as uniform. The subsequent indices have been formulated for these plans, in order to evaluate the effectiveness of the proposed controller.

\{\begin{cases} I S E = \int_{0}^{T} E_{i}^{2} (t) d t \\ I A E = \int_{0}^{T} |E_{i} (t)| d t \\ I T A E = \int_{0}^{T} t |E_{i} (t)| d t \end{cases},

(62)

where E_i represents the stabilization error associated with the constrained control, T signifies a constant time, and the criteria for stabilization errors, namely, ISE, IAE, and ITAE, correspond to the integral square error, integral absolute error, and integral time absolute error, respectively. The comparative results regarding overshoot, settling time, the stabilization error E_i, and the error criteria ISE, IAE, and ITAE for the different plans of nonlinear IPC system are presented in Table 2.

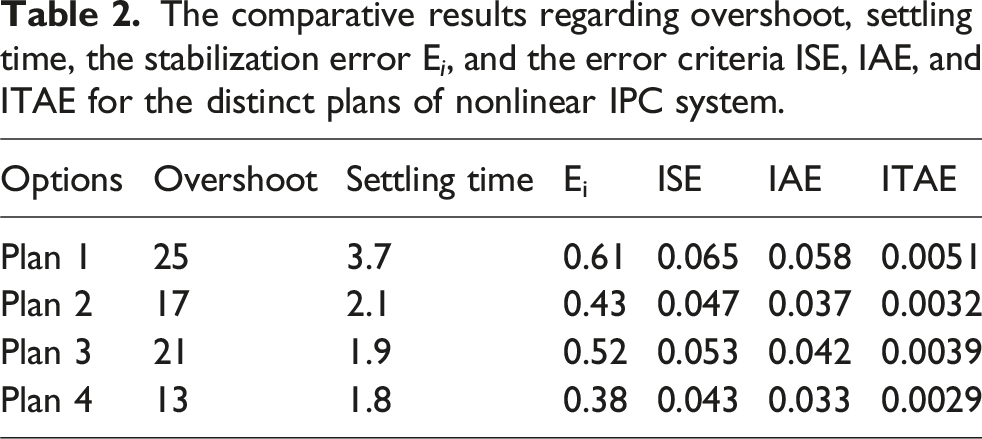

Table 2.

The comparative results regarding overshoot, settling time, the stabilization error E_i, and the error criteria ISE, IAE, and ITAE for the distinct plans of nonlinear IPC system.

Options	Overshoot	Settling time	E_i	ISE	IAE	ITAE
Plan 1	25	3.7	0.61	0.065	0.058	0.0051
Plan 2	17	2.1	0.43	0.047	0.037	0.0032
Plan 3	21	1.9	0.52	0.053	0.042	0.0039
Plan 4	13	1.8	0.38	0.043	0.033	0.0029

Upon evaluating the four plans, it becomes clear that the control strategy proposed in the first plan surpasses the established constrained limits, while the BLF-based design in the second plan complies with these constraints. The second plan demonstrates improved responses when compared to the first; however, it fails to manage the error bounds, leading to violations of the constraints. The third plan takes advantage of a finite-time structure that minimizes the settling time and improves the convergence rate. In the fourth plan, both the constrained errors resulting from the limitations of the sensor’s sensing capabilities stay within defined bounds, and the convergence rate of these errors is confined to a predetermined time. Consequently, the fourth plan achieves effective performance, guaranteeing compliance with the limited sensing range constraints that are crucial for system stabilization.

Importantly, the data presented in the tables indicates a notable decrease in errors and settling time in the fourth structure, suggesting that the nonlinear IPC system employing the constrained adaptive fractional-order sliding-mode controller surpasses the simulated outcomes. The findings from the simulation indicated that the proposed controller utilized in the fourth structure markedly enhances both transient and steady-state performance, while simultaneously decreasing the control effort relative to the controllers used in the first three structures. Notably, the fourth structure demonstrates significant improvements in settling time and maximum overshoot when compared to the other structures. The integration of constrained control with the adaptive fractional-order sliding-mode methodology results in a control system that effectively adheres to the specified constraints within the predefined boundaries.

After assessing the four suggested plans, simulations have been executed where the system parameters are treated as random variables with a 50% uncertainty. The presence of these uncertainties is expected to significantly influence the controller’s performance and may even exceed the stabilization errors beyond the established limits. The comparison between fractional-order sliding-mode surfaces and the corresponding control signals across these four distinct plans, all subjected to the same simulation conditions, is illustrated in Figures 9 and 10, respectively. As illustrated in these figures, even with the 50% uncertainty present in the parameters of nonlinear IPC systems, effective stabilization is achieved, ensuring that the limits of the constrained errors of the system remain intact in the forth plan.

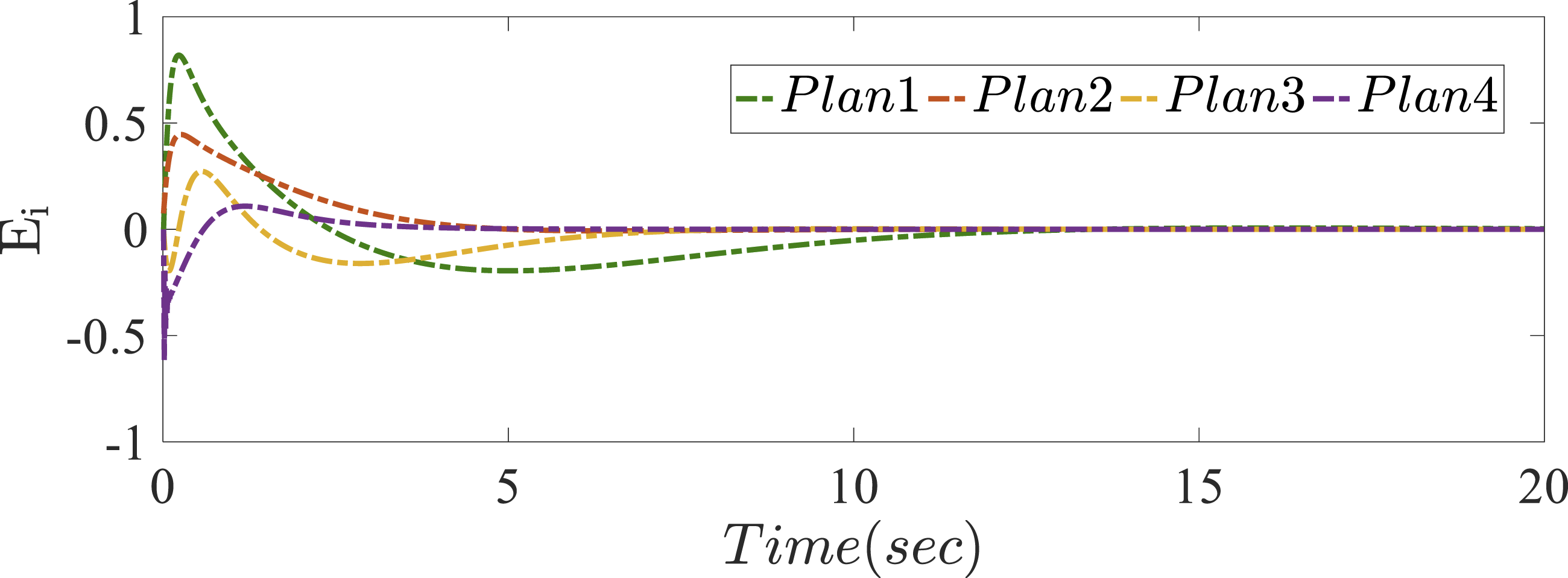

Figure 9.

The fractional-order sliding surfaces for the nonlinear IPC system with 50% parameter uncertainties (E_i) for four distinct plans.

Figure 10.

The actual control signals designed for the nonlinear IPC system with 50% parameter uncertainties (τ) for four distinct plans.

The control signal τ that has been designed signifies the force and torque inputs provided to the saturating ISP system thrusters, with their saturation nonlinearities represented in the subsequent manner:

τ = \{\begin{cases} τ_{\max} m τ \geq τ_{\max} \\ m τ τ_{\min} \leq m τ \leq τ_{\max} \\ τ_{\min} m τ \leq τ_{\min} \end{cases},

(63)

where m = 0.5 > 0 is a specified constant and τ_max = 20 N.m and τ_min = −10N.m represent the upper and lower limits of actuator saturation in a nonlinear IPC system, respectively. This function is executed in the practical application of the system by mapping it to the PWM pulse within the ESP32 microcontroller programming. Moreover, the calculation of the time-varying controller coefficients, which are directly related to the constraints set forth in tackling the constrained control issue, effectively curtails any escalation in the force and torque signals exerted on the actuators. As a result, the probability of saturation occurring in nonlinear IPC actuators is reduced, thereby preventing suboptimal tracking performance during the stabilization phase.

The controller proposed for addressing the constrained control problem in this article is evaluated against the controller introduced in article Nagarajan and Victoire (2023), utilizing identical parameters and conditions. To facilitate this comparison, the results pertaining to overshoot, settling time, and stabilization error E_i for the nonlinear IPC system within the control problem are presented in Table 3. In this table, the findings from this paper and the reference paper are denoted as “Prop.”and “Ref.,” respectively. The comparative findings presented in this Table indicate that the performance and efficiency of the controller proposed in this paper yield superior results when contrasted with the controller outlined in this reference. Furthermore, in comparison to the four proposed plans, the performance of the controller in the fourth plan, which integrates fractional-order sliding-mode control based on the BLF with a finite-time approach, demonstrates enhanced outcomes in minimizing overshoots, transient response times, and stabilization errors within the context of the constrained control problem. The results from the simulation of the constrained control problem highlight the effectiveness of the proposed controller.

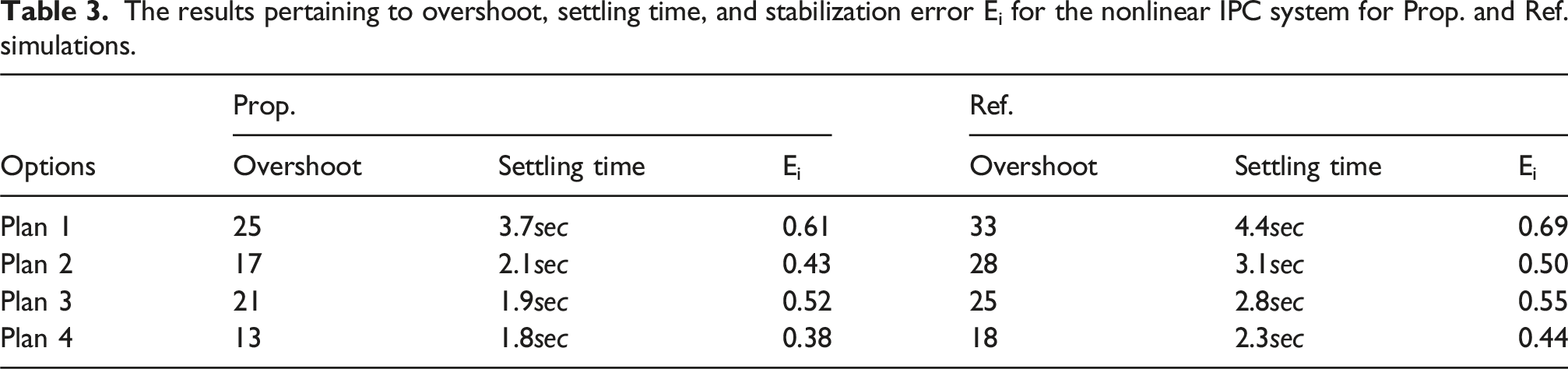

Table 3.

The results pertaining to overshoot, settling time, and stabilization error E_i for the nonlinear IPC system for Prop. and Ref. simulations.

	Prop.			Ref.
Options	Overshoot	Settling time	E_i	Overshoot	Settling time	E_i
Plan 1	25	3.7sec	0.61	33	4.4sec	0.69
Plan 2	17	2.1sec	0.43	28	3.1sec	0.50
Plan 3	21	1.9sec	0.52	25	2.8sec	0.55
Plan 4	13	1.8sec	0.38	18	2.3sec	0.44

Investigation and evaluation of the applied adaptive fractional-order sliding-mode controller for an IPC laboratory system

This section highlights the essential importance of real-time experimental validation for the control structures and methodologies that have been previously described. To achieve stabilization of the IPC system, a laboratory platform has been constructed using an MG995 servo motor. In the development of the IPC system platform, the initial focus was on the wheeled robot, which encompasses the robot chassis, a Plexiglas structure featuring a pendulum rod with integrated lighting, and aluminum components. To reduce the effective inertia between the inverted pendulum and cart system in this platform, the center of mass has been shifted closer to the axes, and lightweight polyethylene material has been utilized in the platform’s construction. Following the establishment of the mechanical components, the electronic components were introduced, which include an ESP32 microcontroller, a rotary encoder sensor, an MPU6050 gyroscope for the measurement of the pendulum angle, a robot wheel position encoder, and BLDC motors paired with an L298 motor driver. Following the simulation of the system’s dynamic model and the subsequent testing and evaluation of the designed controller using MATLAB software, the controller was transmitted to the ESP32 through the serial port. The Python software was additionally utilized online to save output data from the platform and the ESP32 microcontroller. By determining the position of the inverted pendulum, command signals can be generated to rotate the servos in either direction, ensuring that the angle remains aligned with the platform’s vertical axis. In the practical implementation, a boundary layer has been utilized to transform the designed control signal into PWM pulse, with the sign function being approximated through MLNN. Furthermore, taking into account the drives present in the system and the practical noise affecting the measured signals from the sensors, a Kalman filter has been incorporated into the system implementation. The configuration of the nonlinear IPC system with limited sensing range is depicted within the control laboratory subjected to simulation testing in Figure 11. Furthermore, Figures 12 and 13, respectively, depict the fractional-order sliding surface along with the actual control signals that have been developed for the nonlinear IPC system, which operates under a limited sensing range within the control laboratory.

Figure 11.

The configuration for the nonlinear IPC system with limited sensing range within the control laboratory.

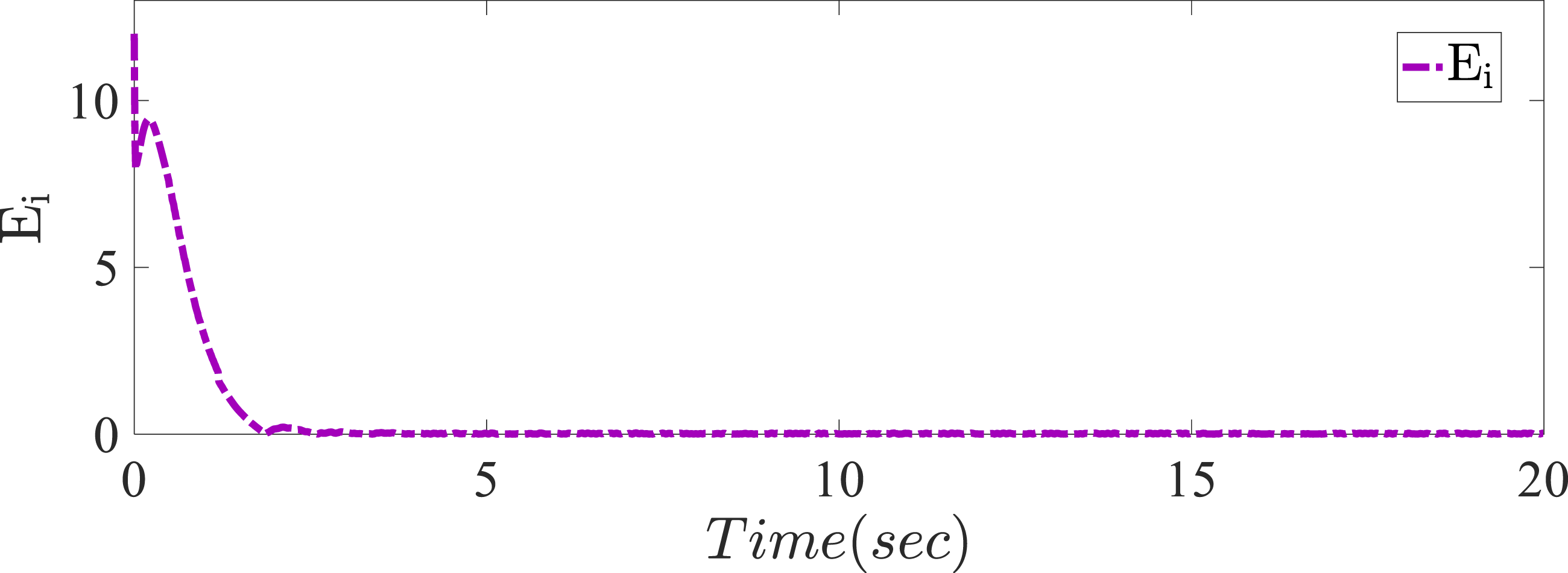

Figure 12.

The fractional-order sliding surface for the nonlinear IPC system (E_i) with limited sensing range within the control laboratory.

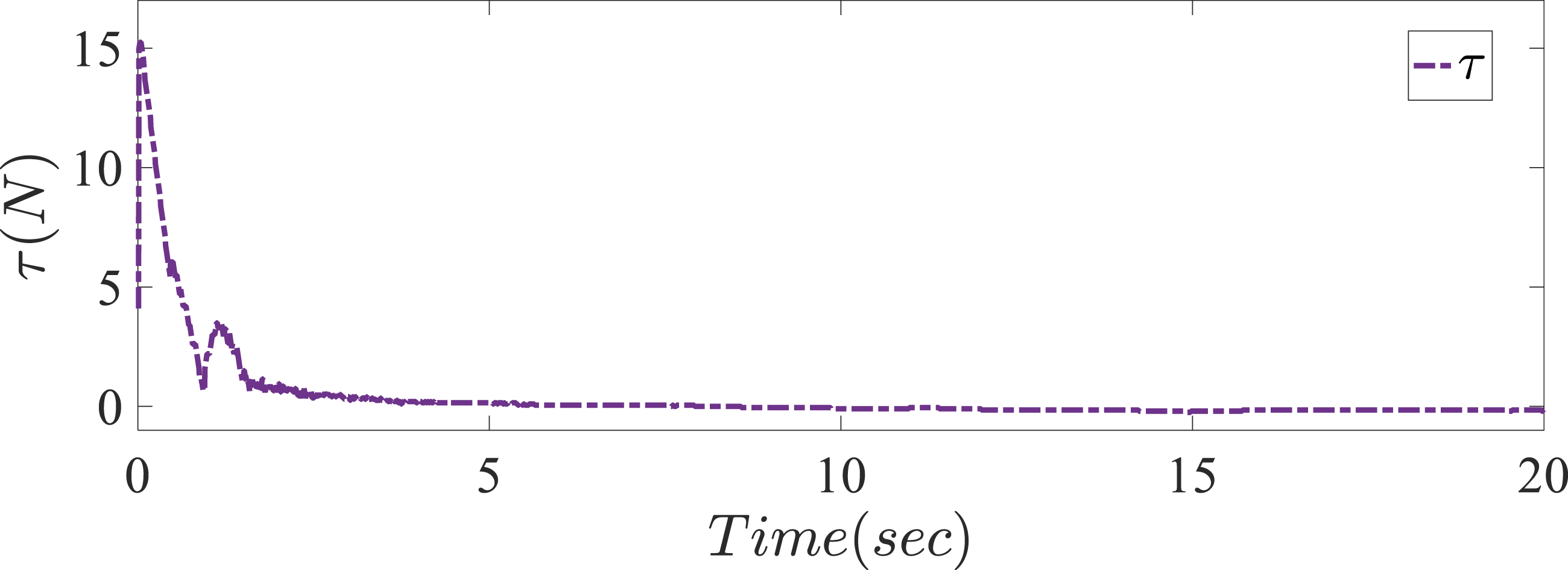

Figure 13.

The actual control signals designed for the nonlinear IPC system (τ) with limited sensing range within the control laboratory.

Conclusions

This paper presents an adaptive finite-time fractional-order sliding-mode control strategy for a state-constrained IPC system characterized by a limited sensing range, which encompasses a wide array of nonlinear systems. An asymmetric BLF-based controller design is employed to ensure that the output state constraints are not violated. To address the constrained control problem of the IPC system, an adaptive-neural structure is implemented to adjust both the unknown parameters and the unmodeled dynamics, while a finite-time approach is utilized to ensure the convergence of the system outputs, irrespective of the initial conditions. The proof of stability guarantees the FTSGUUB of the stabilization problem within the constrained control framework of the IPC nonlinear system. The results from simulations illustrate the effective performance of the controller, highlighting its advantages over adaptive finite-time fractional-order sliding-mode control in handling constraints. The nonlinear IPC system was developed and tested in a control laboratory setting to rigorously assess the performance of the controller. The findings of this study indicate the controller’s efficacy, and future research may explore the integration of alternative control methodologies to enhance the IPC system and facilitate comparative performance evaluations with existing control strategies.

Footnotes

ORCID iD

Amir Naderolasli

Author contributions

[Amir Naderolasli] Conceptualization, Methodology, Formal analysis and investigation, Writing—original draft preparation, Writing—review and editing.

Funding

The authors declare no funding sources.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Aly

The Vu

El-Sousy

, et al. (2022) Fuzzy-based fixed-time nonsingular tracker of exoskeleton robots for disabilities using sliding mode state observer. Mathematics 10(17): 3147.

Ayad

Arichi

Megnafi

, et al. (2024) Real time stabilization of a rotary inverted pendulum using neural networks approach. Journal of Vibration and Control 10775463251349249. doi: 10.1177/10775463251349249.

Basaran

(2025) Modified inverted pendulum on a cart system with four-bar mechanism. ISA Transactions 159: 364–374.

Chu

Zhou

(2023) A rapid stabilization method of the flexible inverted pendulum based on constrained boundary circumferential motion. Mechanical Systems and Signal Processing 187: 109895.

Daksh

Mishra

(2025) A feedback-assisted inverse neural network controller for cart-mounted inverted pendulum. Applied Computational Intelligence and Soft Computing 1: 4873425.

Dey

Pandey

Sengupta

(2025) Design of modified fractional order PID controller for cart inverted pendulum system. International Journal of Dynamics and Control 13(4): 1–17.

Feng

(2023) Adaptive decentralized control for constrained strong interconnected nonlinear systems and its application to inverted pendulum. IEEE Transactions on Neural Networks and Learning Systems 35(7): 10110–10120.

Guo

Lee

(2014) Design and implementation of a new sliding mode controller on an underactuated wheeled inverted pendulum. Journal of the Franklin Institute 351(4): 2261–2282.

Chen

Ghosh

(2024) Formation–circumnavigation switching control of multiple ODIN systems via finite-time intermittent control strategies. IEEE Transactions on Control of Network Systems 11(4): 1986–1997.

10.

Huang

Zhang

Fan

, et al. (2019) Control of rotary inverted pendulum using model-free backstepping technique. IEEE Access 7: 96965–96973.

11.

Huang

Zhang

, et al. (2020) Finite-time anti-saturation control for euler–lagrange systems with actuator failures. ISA Transactions 124: 468–477.

12.

Irfan

Mehmood

Razzaq

, et al. (2018) Advanced sliding mode control techniques for inverted pendulum: modelling and simulation. Engineering Science and Technology, an International Journal 21(4): 753–759.

13.

Jafary

Tabatabaei

(2022) Adaptive hierarchical fractional-order sliding mode control of an inverted pendulum–cart system. Arabian Journal for Science and Engineering 47(11): 13927–13942.

14.

Kang

Paek

Rim

(2022) A design of active disturbance rejection control with higher convergence rate and its application in inertia wheel pendulum stabilization. Journal of the Brazilian Society of Mechanical Sciences and Engineering 44(10): 477.

15.

Lei

Zhu

(2024) Design and stability analysis of semi-implicit cascaded proportional-derivative controller for underactuated cart-pole inverted pendulum system. Robotica 42(1): 87–117.

16.

Cai

(2019) Theory and Numerical Approximations of Fractional Integrals and Derivatives. Society for Industrial and Applied Mathematics.

17.

Liang

Wang

Stepan

(2021) Motion control of a two-wheeled inverted pendulum with uncertain rolling resistance and angle constraint based on slow-fast dynamics. Nonlinear Dynamics 104(3): 2185–2199.

18.

Mahmoud

Saleh

Maarif

(2022) Stabilizing of inverted pendulum system using robust sliding mode control. International Journal of Robotics and Control Systems 2(2): 230–239.

19.

Mehedi

Ansari

AL-Saggaf

(2020) Three degrees of freedom rotary double inverted pendulum stabilization by using robust generalized dynamic inversion control: design and experiments. Journal of Vibration and Control 26(23): 2174–2184.

20.

Messikh

Guechi

Bourahala

, et al. (2022) Stabilization of the cart-inverted-pendulum system using trivial state-feedback to output-feedback control conversion. Automatika 63(4): 640–655.

21.

Mofid

Khalid

Mobayen

, et al. (2023) Adaptive finite-time command-filtered backstepping sliding mode control for stabilization of a disturbed rotary-inverted-pendulum with experimental validation. Journal of Vibration and Control 29(5): 1431–1446.

22.

Mohren

Daniel

Brunton

(2020) Learning precisely timed feedforward control of the sensor-denied inverted pendulum. IEEE Control Systems Letters 4(3): 731–736.

23.

Mokhtare

Mobayen

, et al. (2022) Design of an LMI-based fuzzy fast terminal sliding mode control approach for uncertain MIMO systems. Mathematics 10(8): 1236.

24.

Mondal

Dey

(2020) Performance analysis and implementation of fractional order 2-DOF control on cart–inverted pendulum system. IEEE Transactions on Industry Applications 56(6): 7055–7066.

25.

Naderolasli

(2025a) Stabilization of plate and ball nonlinear system with limited field-of-view sensors using constrained adaptive sliding-mode controller. Advanced Control for Applications: Engineering and Industrial Systems 7(3): e70025.

26.

Naderolasli

(2025b) Constrained super-twisting sliding-mode controller for beam and ball nonlinear system stabilization with limited field-of-view constraints. Iranian Journal of Science and Technology, Transactions of Electrical Engineering 49(4): 1645–1659.

27.

Naderolasli

Chatraei

(2019) One DOF robot manipulator control through type-2 fuzzy robust adaptive controller. Journal of Automation, Mobile Robotics and Intelligent Systems 13(1): 65–70.

28.

Naderolasli

Hashemi

Shojaei

(2020) Approximation-based adaptive fault compensation backstepping control of fractional-order nonlinear systems: an output-feedback scheme. International Journal of Adaptive Control and Signal Processing 34(3): 298–313.

29.

Nagarajan

Victoire

(2023) Optimization reinforced PID-sliding mode controller for rotary inverted pendulum. IEEE Access 11: 24420–24430.

30.

Nguyen

TVA

Dong

Bui

(2023) Enhancing stability control of inverted pendulum using Takagi–Sugeno fuzzy model with disturbance rejection and input–output constraints. Scientific Reports 13(1): 14412.

31.

Pathak

Mohanty

Sengupta

(2024) An optimization-based adaptive sliding mode control for an inverted pendulum. IETE Journal of Research 70(1): 542–557.

32.

Pesterev

AVE

Morozov

(2022) Stabilization of a cart with inverted pendulum. Automation and Remote Control 83(1): 78–91.

33.

Liu

Cai

(2025) Simultaneous planning and executing (SPAE) control for a fourth-order underactuated inverted pendulum with double-layer asynchronous convergence. ISA Transactions 163: 162–171.

34.

Sanjeewa

Parnichkun

(2022) Control of rotary double inverted pendulum system using LQR sliding surface based sliding mode controller. Journal of Control and Decision 9(1): 89–101.

35.

Tee

Ren

(2011) Control of nonlinear systems with time-varying output constraints. Automatica 47(11): 2511–2516.

36.

Tian

Peng

Zeng

, et al. (2021) A modelling and predictive control approach to linear two-stage inverted pendulum based on RBF-ARX model. International Journal of Control 94(2): 351–369.

37.

Tian

Zhang

, et al. (2025) Dynamical analysis, feedback control circuit implementation, and fixed-time sliding mode synchronization of a novel 4D chaotic system. Symmetry 17(8): 1252.

38.

Wang

(2019) BLF-based asymptotic tracking control for a class of time-varying full state constrained nonlinear systems. Transactions of the Institute of Measurement and Control 41(11): 3043–3052.

39.

Xiong

Chen

(2025) RBFNN-Based parameter adaptive sliding mode control for an uncertain TQUAV with time-varying mass. International Journal of Robust and Nonlinear Control 35(11): 4658–4668.

40.

Xiong

Wang

(2025) Recurrent neural network based sliding mode control for an uncertain tilting quadrotor UAV. International Journal of Robust and Nonlinear Control 35: 8030–8046.

41.

Yao

(2020) Robust adaptive finite-time attitude tracking control of a 3D pendulum with external disturbance: numerical simulations and hardware experiments. Nonlinear Dynamics 102(1): 223–239.

42.

Zauner

Gattringer

Muller

(2023) Multistage approach for trajectory optimization for a wheeled inverted pendulum passing under an obstacle. Robotica 41(8): 2298–2313.
