Advanced dimensional analysis for robust control of benchmark structural system via generalized linear matrix inequalities

Abstract

While development of control strategies for building systems has gained considerable attention in the field of structural and earthquake engineering, it remains a challenging task due to the complexity of the problem and the high computational costs involved. This paper presents a novel methodology that integrates dimensional analysis with generalized linear matrix inequalities (GLMIs) to design robust control strategies for benchmark building structures subjected to seismic excitations. By applying the Buckingham Π Theorem, the approach identifies key dimensionless groups, simplifying the representation of complex structural behavior and enabling systematic controller design even under significant uncertainties. The GLMI framework ensures robust performance across a variety of physical parameters, including mass, stiffness, and damping perturbations. The efficiency of the proposed methodology is demonstrated through numerical simulations on twenty-story high-rise benchmark steel structure inspired by the SAC project in Los Angeles, California. The study focuses on uncertainties in top-floor mass, and compares the performance of the proposed controllers with passive, and linear quadratic regulator (LQR) strategies. Results show that the presented control scheme achieves reliable seismic control by effectively handling parameter uncertainties while maintaining structural safety. This work provides a clear, systematic framework that balances technical rigor with accessibility, offering practical guidance for engineers and a comprehensive reference for researchers in advanced structural control.

Keywords

dimensional analysis robust control Buckingham Π theorem generalized linear matrix inequalities dimensionally similar systems

1. Introduction

In recent years, the synthesis of robust control strategies for building systems has gained considerable attention in the field of structural and earthquake engineering. High-rise buildings constitute essential components of modern civil infrastructure, and ensuring their safety under dynamic excitations such as wind and earthquake loads remains a fundamental engineering challenge. The robust control of such systems is crucial to guarantee both stability and satisfactory performance in the presence of modeling uncertainties and unpredictable external disturbances. These challenges are further amplified by nonlinear dynamics, structural complexity, and parameter variability, which collectively demand control methods capable of maintaining reliable performance under uncertain real-world conditions.

Several researchers have investigated various active (Ramírez-Neria et al., 2022), robust (Zhang et al., 2025), and intelligent control (Zand et al., 2023) strategies to mitigate seismic responses in building structures. For instance, Galaz-Palma et al. (2023) developed an observer-based approach for estimating displacements, velocities, and seismic forces using Lyapunov theory. In another study, Umutlu et al., 2024 enhanced active tuned mass damper (ATMD) performance through improved control algorithms validated by numerical simulations. Saadatfar et al. (2023) introduced an adaptive sliding sector controller that achieved superior seismic response mitigation in an 11-story building. Similarly, Zamani and Etedali (2023) designed an ANFIS-based robust controller for tall buildings considering soil–structure interaction effects. Xu et al. (2023) proposed a fuzzy fractional-order sliding mode control strategy ensuring global stability under uncertainty, while Panda et al. (2022) employed reinforcement learning to develop a full-order PI controller for seismic response control. In addition, Miyamoto et al. (2022) formulated a robust tuned mass damper design method based on linear matrix inequalities (LMIs) for enhanced stability and adaptability. Earlier studies have also explored intelligent semi-active damping devices for seismic mitigation. Xu and Shen (2003) proposed an intelligent bi-state control strategy for structures equipped with magnetorheological dampers, demonstrating improved earthquake response reduction while overcoming time-delay limitations of conventional semi-active control systems. Furthermore, Shi et al. (2018) developed an optimization-based tuned mass damper design using an artificial fish swarm algorithm, showing enhanced robustness and vibration suppression efficiency compared with classical tuning approaches. Although these studies demonstrate the potential of robust and active control techniques, three major challenges remain: (i) scalability and transferability of controllers across different building scales, (ii) computational complexity in high-dimensional optimization problems, and (iii) the lack of a unifying framework that links physical modeling with dimensionless control synthesis.

The literature suggests that while robust control significantly enhances system stability and performance, most formulations are still expressed in dimensional form, making them dependent on specific geometric or material scales. This limitation hinders generalization and complicates controller re-tuning for structures with varying physical properties. To bridge this gap, dimensional analysis and the Buckingham Π theorem provide a systematic way to establish relationships among variables through the derivation of dimensionless groups, offering a path toward scalable, physically consistent control design (Oppenheimer et al., 2023). Previous studies have successfully applied dimensional analysis in various mechanical and structural contexts (Qin et al., 2025), including vibration mitigation (Karimi et al., 2021), fault diagnosis (Patil et al., 2022), and bearing dynamics (Suryawanshi et al., 2021). Málaga-Chuquitaype (2015) estimated seismic displacements, emphasizing dimensionless modeling, and later developed fragility functions for earthquake-sensitive structures (Málaga-Chuquitaype et al., 2019), as well as studied seismic responses of eccentric structures under various loading conditions (Málaga-Chuquitaype, 2021). Ortiz-Palacio et al. (2024) established a strong correlation between dilatational wave velocities and penetration test results using multivariable analysis. The Buckingham Π Theorem, as a fundamental outcome of dimensional analysis, provides a systematic approach for determining the functional relationships between variables in a system (Tang et al., 2020). By identifying dimensionless Π groups using the theorem, engineers can derive non-dimensional parameters that are crucial for understanding system behavior and designing control strategies (Deng et al., 2025). In parallel, the Linear Matrix Inequalities (LMI) approach offers a powerful mathematical framework for solving control synthesis problems (Ji et al., 2025). By formulating control objectives and constraints as LMIs, this approach enables the design of robust and optimal control strategies for complex dynamical systems.

Although the authors previously explored the integration of linear matrix inequalities with the Buckingham Π theorem for generic uncertain oscillating systems (Zand et al., 2024), the present study introduces several substantial new developments that clearly distinguish it from the earlier work. First, the proposed framework is extended from low-order mechanical benchmark systems to a realistic large-scale twenty-story high-rise building equipped with an Active Mass Damper (AMD), involving significantly higher-order coupled structural dynamics. Second, unlike the previous study, which focused primarily on general dynamic disturbances, the current manuscript investigates seismic vibration mitigation under both stochastic excitation and multiple real earthquake records, including near-fault and far-field events. Third, the dimensionless GLMI-based synthesis is reformulated specifically for civil infrastructure applications, where uncertainties in floor mass, damping, and structural stiffness play a critical role. Fourth, a comprehensive comparative assessment is conducted against open-loop, passive, and conventional linear quadratic regulator (LQR) control strategies using multiple structural performance indices and control-effort measures. Therefore, the present paper goes beyond the previously published theoretical concept and provides a new practical, scalable, and earthquake-oriented robust control framework for benchmark building structures. This research introduces a novel dimensionless robust control framework that synergistically combines the Buckingham Π theorem with a generalized linear matrix inequality (GLMI)-based synthesis methodology for effective vibration mitigation in benchmark building structures. By employing Buckingham Π analysis, a dimensionless state-space representation of structural dynamics is derived, providing a rigorous foundation for the formulation of a robust control problem that guarantees system stability under both parametric and structural uncertainties. The proposed approach is systematically validated on a high-rise benchmark building structure subjected to near-fault and far-field seismic excitations, capturing a wide spectrum of dynamic behaviors. Furthermore, the performance of the developed control strategy is thoroughly assessed against open-loop configurations, passive control systems, and conventional LQR controllers. The results highlight the superior effectiveness, adaptability, and robustness of the dimensionless GLMI-based framework, demonstrating its potential as a practical and innovative solution for enhancing the seismic resilience of building structures.

The remainder of this paper is organized as follows. Section 2 presents the theoretical background and the proposed methodology, detailing the integration of dimensional analysis with the generalized linear matrix inequality (GLMI)-based control synthesis. Section 3 describes the numerical modeling and simulation setup developed for the benchmark high-rise structural system. Section 4 demonstrates the implementation and performance assessment of the proposed dimensionless robust control approach through comprehensive numerical analyses and comparative evaluations. Finally, Section 5 provides the overall conclusions, practical insights, and future research perspectives derived from this research.

2. The theoretical background and proposed methodology

In this section, we present a systematic methodology for designing robust controllers for benchmark structural systems subjected to seismic excitations. The proposed approach combines dimensional analysis with generalized linear matrix inequalities (GLMIs) to handle parameter uncertainties efficiently. The methodology is structured to provide both a conceptual understanding for engineers and sufficient technical rigor for researchers.

2.1. Dimensional analysis framework

The first step in our approach is to identify dimensionless groups that capture the essential dynamics of the system. This is achieved using the Buckingham Π theorem.

• Dimensional Matrix: Each row corresponds to a fundamental dimension (such as length, mass, and time), while each column represents a system variable (Szirtes, 2007). The dimensional matrix serves as a compact representation of the dimensional properties of all variables involved in the problem. Its elements indicate the exponents associated with each fundamental dimension required to define the corresponding variable. The dimensional matrix consists of ( $N_{d}$ ) rows and ( $N_{v}$ ) columns, where ( $N_{d}$ ) denotes the number of fundamental dimensions necessary for describing the problem and ( $N_{v}$ ) is the total number of variables considered. This matrix is partitioned into two submatrices:

I. M matrix: A square, non-singular, full-rank matrix of size ( $N_{d} \times N_{d}$ ), formed from a selected set of independent variables. These variables constitute the repeating variables in accordance with the Buckingham Π theorem and ensure dimensional independence.

II. N matrix: The remaining ( $N_{v} - N_{d}$ ) columns corresponding to dependent or non-repeating variables.

It should be noted that the specific partitioning of variables may vary; however, the essential requirement is that the M matrix must remain full rank, guaranteeing the independence of the selected repeating variables.

• Dimensional Set: Using the predefined N and M matrices, a matrix-based dimensional set is established to systematically determine the required dimensionless group numbers. This set consists of four matrices, as summarized in Table 1. In addition to the N and M matrices, the P matrix is defined as an identity matrix of size ( $(N_{v} - N_{d}) \times (N_{v} - N_{d})$ ). The O matrix is then obtained as $O = - P {(M^{- 1} \times N)}^{T}$ , where the entries of O specify the exponents required to combine the dimensional variables into independent dimensionless Π groups. Through this formulation, the dimensional complexity of the structural system is significantly reduced, providing a simplified yet rigorous basis for robust controller design.

The dimensional set consists of four matrices, detailed in Table 1.

Table 1.

Dimensional set (conceptual representation).

Physical variables
Fundamental dimensions	$N$	$M$
Dimensionless variables	$P$	$O = - P {(M^{- 1} \times N)}^{T}$

Subsequently, Table 2 outlines the key dimensions and their respective measurement units in the International System of Units (SI).

Table 2.

The basic dimensions and SI units.

Physical quantity	Symbol	Name of SI unit	Abbreviation
Length	L	Meter	m
Mass	M	Kilogram	kg
Time	T	Second	s

This framework reduces the complexity of system behavior into manageable dimensionless groups, which serve as the foundation for controller design.

2.2. State-space representation in dimensionless form

The equations that govern the dynamics of systems with $n_{x}$ states, $n_{o}$ controlled outputs, $n_{d}$ external disturbances, and $n_{u}$ control inputs in a general state can be expressed in state-space form as follows.

{\begin{cases} \dot{x} (t) = A (t) x (t) + D (t) d (t) + B (t) u (t) \\ o (t) = C_{1} (t) x (t) + D_{11} (t) d (t) + D_{12} (t) u (t) \\ y (t) = C_{2} (t) x (t) + D_{21} (t) d (t) + D_{22} (t) u (t) \end{cases}

(1)

where, x(t) represents the state vector, d(t) signifies the external disturbance, u(t) denotes the control input, o(t) indicates the controlled output, and y(t) refers to the measured output. The system dynamics are expressed through state-space matrices A(t), D(t), B(t),

C_{1} (t)

D_{11} (t)

D_{12} (t)

C_{2} (t)

D_{21} (t)

, and

D_{22} (t)

Remark 1

In equation (1), a full-state feedback configuration is assumed for controller synthesis. Accordingly, the measured output is selected as the complete state vector, i.e., (y(t) = x(t)), which implies ( $C_{2} (t)$ = I), while ( $D_{21} (t)$ = 0) and ( $D_{22} (t)$ = 0). Therefore, there is no direct feedthrough path from the control input or external disturbance to the measured output, and the measurement channel is strictly proper. The controlled output (o(t)) represents the performance variables used in the robust optimization process, whereas (y(t)) denotes the feedback signal employed for control implementation. In practical structural control applications, full-state information may be obtained either through direct sensing or via state-estimation techniques such as observers or Kalman filtering. Under these assumptions, the uncertain system matrices are defined in state-space form as follows.

D_{11} (t) = 0, D_{12} (t) = 0, D_{21} (t) = 0, D_{22} (t) = 0, C_{2} (t) = I and u (t) = G y (t)

(2)

Remark 2

All uncertain parameters in the state-space matrices are considered in the form of Structure bounded uncertainty (Mao et al., 1998), as follows.

A (t) = A + Δ A (t), B (t) = B + Δ B (t), D (t) = D + Δ D (t), C_{1} (t) = C_{1} + Δ C_{1} (t)

(3)

In (3), $A, B, D and C_{1} are known real constant matrices, and Δ A (t),$ $Δ B (t),$ $Δ D (t),$ and $Δ C_{1} (t)$ represent the system parametric uncertainty and can be defined as follows.

{[Δ A (t)]}_{n_{x} \times n_{x}} = {[M_{A}]}_{n_{x} \times p} {[F (t)]}_{p \times p} {[N_{A}]}_{p \times n_{x}}, {[Δ B (t)]}_{n_{x} \times n_{u}} = {[M_{B}]}_{n_{x} \times p} {[F (t)]}_{p \times p} {[N_{B}]}_{p \times n_{u}}

{[Δ D (t)]}_{n_{x} \times n_{d}} = {[M_{D}]}_{n_{x} \times p} {[F (t)]}_{p \times p} {[N_{D}]}_{p \times n_{d}}, {[Δ C_{1} (t)]}_{n_{o} \times n_{x}} = {[M_{C_{1}}]}_{n_{o} \times p} {[F (t)]}_{p \times p} {[N_{C_{1}}]}_{p \times n_{x}}

(4)

In (4), p is optional, and $F (t)$ is the Lebesgue-measurable matrix-valued function that is unknown and subject to the following condition.

F^{T} (t) F (t) \leq I_{p \times p}

(5)

In (5), $I$ is used to denote the identity matrix of appropriate dimensions. for simplification, we can let p = 1, With this assumption, $F (t)$ will become a scalar, then $F^{2} (t) \leq 1$ , and to obtain the upper bound of uncertainty, we consider $F (t) = 1$ .

To obtain the dimensionless form of the state-space representation, we construct the following dimensionless group.

x (t) = N_{x} \bar{x} (\bar{t})

(6)

u (t) = N_{u} \bar{u} (\bar{t})

(7)

d (t) = N_{d} \bar{d} (\bar{t})

(8)

o (t) = N_{o} \bar{o} (\bar{t})

(9)

y (t) = N_{y} \bar{y} (\bar{t})

(10)

t = N_{t} \bar{t}

(11)

where

N_{x} \in R^{n_{x} \times n_{x}}, N_{u} \in R^{n_{u} \times n_{u}}, N_{d} \in R^{n_{d} \times n_{d}}, N_{o} \in R^{n_{o} \times n_{o}}, N_{y} \in R^{n_{x} \times n_{x}}, N_{t} \in R

are the system transformation matrices.

\bar{x} (\bar{t}), \bar{u} (\bar{t}), \bar{d} (\bar{t}), \bar{o} (\bar{t}),

and

\bar{y} (\bar{t})

denote the dimensionless states, control inputs, external disturbances, target outputs, and measured outputs, respectively.

\bar{t}

stands for the dimensionless time. Utilizing these dimensionless groups the dimensionless form of state-space equations in (1), can be express as follows.

\bar{\dot{x}} (\bar{t}) = \bar{A} (\bar{t}) \bar{x} (\bar{t}) + \bar{D} (\bar{t}) \bar{d} (\bar{t}) + \bar{B} (\bar{t}) \bar{u} (\bar{t})

(12)

\bar{o} (\bar{t}) = \bar{C_{1}} (\bar{t}) \bar{x} (\bar{t})

(13)

\bar{y} (\bar{t}) = \bar{C_{2}} (\bar{t}) \bar{x} (\bar{t})

(14)

where

\bar{A} (\bar{t}), \bar{D} (\bar{t}), \bar{B} (\bar{t}), \bar{C_{1}} (\bar{t}),

and

\bar{C_{2}} (\bar{t})

are the dimensionless state matrix, disturbance input matrix, control input matrix, target outputs matrix, and measured outputs matrix, respectively. These dimensionless matrices are obtained using the following equations.

\bar{A} (\bar{t}) = N_{t} N_{x}^{- 1} A (t) N_{x}

(15)

\bar{D} (\bar{t}) = N_{t} N_{x}^{- 1} D (t) N_{d}

(16)

\bar{B} (\bar{t}) = N_{t} N_{x}^{- 1} B (t) N_{u}

(17)

\bar{C_{1}} (\bar{t}) = N_{o}^{- 1} C_{1} (t) N_{x}

(18)

\bar{C_{2}} (\bar{t}) = N_{y}^{- 1} C_{2} (t) N_{x}

(19)

2.3. Robust control via linear matrix inequalities (LMIs)

The robust control problem is formulated to achieve:

• Closed-loop asymptotic stability.

• Minimization of the energy ratio between outputs and external disturbances, expressed as an $L_{2}$ Gain.

\frac{{‖ o (t) ‖}_{L_{2}}}{{‖ d (t) ‖}_{L_{2}}} \leq γ = {}_{w \in R}^{S U P}{{‖ G (j w) ‖}_{2} =} {‖ G (j w) ‖}_{H_{\infty}}

(20)

In (20), ${‖ . ‖}_{L_{2}}$ represents the $L_{2}$ -norm of the signals are equivalent to the signal’s energy. $G (jw)$ is the closed-loop system transfer function. To solve the $L_{2}$ Gain Stability problem, we utilize the following lemmas to transform the robust stability problem into a set of LMIs.

Lemma 1

Consider real matrices D, S, and F of suitable dimensions, where $F (t)$ meets the condition $F^{T} (t) F (t) \leq I$ . Then, for any scalar $ε$ greater than zero, the following holds:

DFS + {(DFS)}^{T} \leq ε^{- 1} D D^{T} + ε S^{T} S

(21)

Lemma 2

(Schur Complement): with constant matrices $Ω_{1}$ , $Ω_{2}$ , $Ω_{3}$ where $Ω_{2}$ is positive definite and $Ω_{1} = {Ω_{1}}^{T}$ , then

Ω_{1} + Ω_{3}^{T} Ω_{2}^{- 1} Ω_{3} < 0

(22)

if only if

[\begin{array}{l} Ω_{1} & Ω_{3}^{T} \\ Ω_{3} & - Ω_{2} \end{array}] < 0

(23)

Lemma 3

(Congruent Transformation):

Consider Ω_{2} < 0, P^{- 1} > 0, P^{- T} = P^{- 1} ⇄ P^{- T} Ω_{2} P^{- 1} = P^{- 1} Ω_{2} P^{- 1} < 0

(24)

Theorem 1

A closed-loop system $Σ_{c}$ is dissipative if the dissipater satisfies the following relation.

Σ_{c} : {\begin{cases} \dot{x} (t) = f (x (t), d (t)) \\ o (t) = h (x (t), d (t)) \end{cases}

S (x (t_{1})) \leq S (x (t_{0})) + \int_{t_{0}}^{t_{1}} S_{r} (d (t), o (t)) dt

(25)

In (25), S and $S_{r}$ are the storage function and supply rate, respectively.

Proof

Considering the closed-loop system $Σ_{c}$ with $S_{r} (d (t), o (t)) = \frac{1}{2} (γ^{2} {‖ d (t) ‖}_{2}^{2} - {‖ o (t) ‖}_{2}^{2})$ the dissipation inequality in (25), can be written as follows.

S (x (t_{1})) - S (x (t_{0})) \leq \int_{t_{0}}^{t_{1}} \frac{1}{2} (γ^{2} {‖ d (t) ‖}_{2}^{2} - {‖ o (t) ‖}_{2}^{2}) d t

(26)

From equation (26), it can be concluded that if the closed-loop system is dissipative, in a special case, it can be inferred that it will also be $L_{2}$ gain stable with a coefficient of $γ$ (see equation (27)).

\frac{{‖ o (t) ‖}_{L_{2}}}{{‖ d (t) ‖}_{L_{2}}} \leq γ = {}_{w \in R}^{S U P}{{‖ G (jw) ‖}_{2} =} {‖ G (jw) ‖}_{H_{\infty}}

(27)

We have used the direct Lyapunov method to analyze the stability of the closed-loop system and transformed it into an LMI problem. To do this, we define the quadratic Lyapunov function as follows.

V (t) = x^{T} (t) Px (t)

(28)

The closed-loop system, considering the Lyapunov function defined above, must be internally stable in the absence of external disturbances, i.e., the following conditions must hold.

{\begin{cases} V (t) > 0 ⟹ P > 0 \\ \dot{V} (t) < 0 ⟹ {(A (t) + B (t) K_{c})}^{T} P + P (A (t) + B (t) K_{c}) < 0 \end{cases}

(29)

In (29), $K_{c}$ denotes the robust control gain. Furthermore, utilizing the direct Lyapunov method, the stability of $Σ_{c}$ and disturbance attenuation in the presence of external disturbances must be ensured. The disturbance attenuation problem for the closed-loop system with initial zero conditions is transformed into an LMI form by variable transformation as follows.

{\begin{cases} X = P^{- 1} \\ Y = K_{c} P^{- 1} \\ Y^{T} = P^{- 1} {K_{c}}^{T} \end{cases}

(30)

Based on equation (30), the $L_{2}$ gain stability problem is transformed into the LMIs in the following form.

[\begin{array}{l} ψ_{11} & \bar{D} (\bar{t}) & X {\bar{C_{1}}}^{T} (\bar{t}) & X {N_{\bar{A}}}^{T} & Y^{T} {N_{\bar{B}}}^{T} & M_{\bar{D}} & X {N_{\bar{C_{1}}}}^{T} \\ {\bar{D} (\bar{t})}^{T} & ε_{2} N_{\bar{D}}^{T} N_{\bar{D}} - γ^{2} I & 0 & 0 & 0 & 0 & 0 \\ \bar{C_{1}} (\bar{t}) X & 0 & - I & 0 & 0 & 0 & 0 \\ N_{\bar{A}} X & 0 & 0 & - ε_{1} I & 0 & 0 & 0 \\ N_{\bar{B}} Y & 0 & 0 & 0 & - ε_{2} I & 0 & 0 \\ M_{\bar{D}}^{T} & 0 & 0 & 0 & 0 & - ε_{3} I & 0 \\ N_{\bar{C_{1}}} X & 0 & 0 & 0 & 0 & 0 & - ε_{4} I \end{array}] < 0

(31)

where

ψ_{11} = \bar{A} (\bar{t}) X + X {\bar{A}}^{T} (\bar{t}) + \bar{B} (\bar{t}) Y + Y^{T} {\bar{B}}^{T} (\bar{t}) + ε_{1} M_{\bar{A}} M_{\bar{A}}^{T} + + ε_{2} M_{\bar{B}} M_{\bar{B}}^{T}

X > 0, ε_{1} > 0, ε_{2} > 0, ε_{3} > 0, ε_{4} > 0

K_{c} = Y X^{- 1}

The resulting controller guarantees stability and attenuates the effect of external disturbances through the enforcement of dissipation inequalities. All uncertain parameters in the system are incorporated into the LMI formulation, ensuring that the derived controller maintains robust performance under a wide range of parametric variations.

The overall methodology can be summarized in four sequential steps. First, dimensionless groups are extracted from the system using dimensional analysis, reducing the complexity of the structural dynamics into a manageable set of non-dimensional parameters. Second, the state-space equations are transformed into dimensionless form, enabling a unified treatment of systems with varying physical properties. Third, the robust control problem is formulated and solved through LMIs to determine the controller gain $K_{c}$ . Finally, the designed controllers are validated through numerical simulations and comparative evaluations against open-loop, passive, and linear quadratic regulator (LQR) control strategies. This integrated approach provides a clear and systematic pathway from conceptual understanding to practical implementation, balancing theoretical rigor with accessibility for both engineers and researchers.

3. Numerical modeling and simulation setup

This section develops the dimensionless state-space formulation for the twenty-story high-rise benchmark building structure (Ohtori et al., 2004). Deriving the dimensionless state-space equations plays a critical role in the robust control design based on Linear Matrix Inequalities (LMIs). The dimensionless representation provides a unified mathematical framework that isolates the influence of physical units, simplifies the control design process, and enhances the robustness of controllers against variations in mass, stiffness, damping, and external disturbances. This formulation enables the design of control laws that can be generalized and effectively applied to dimensionally similar structures.

3.1. The twenty-story benchmark building

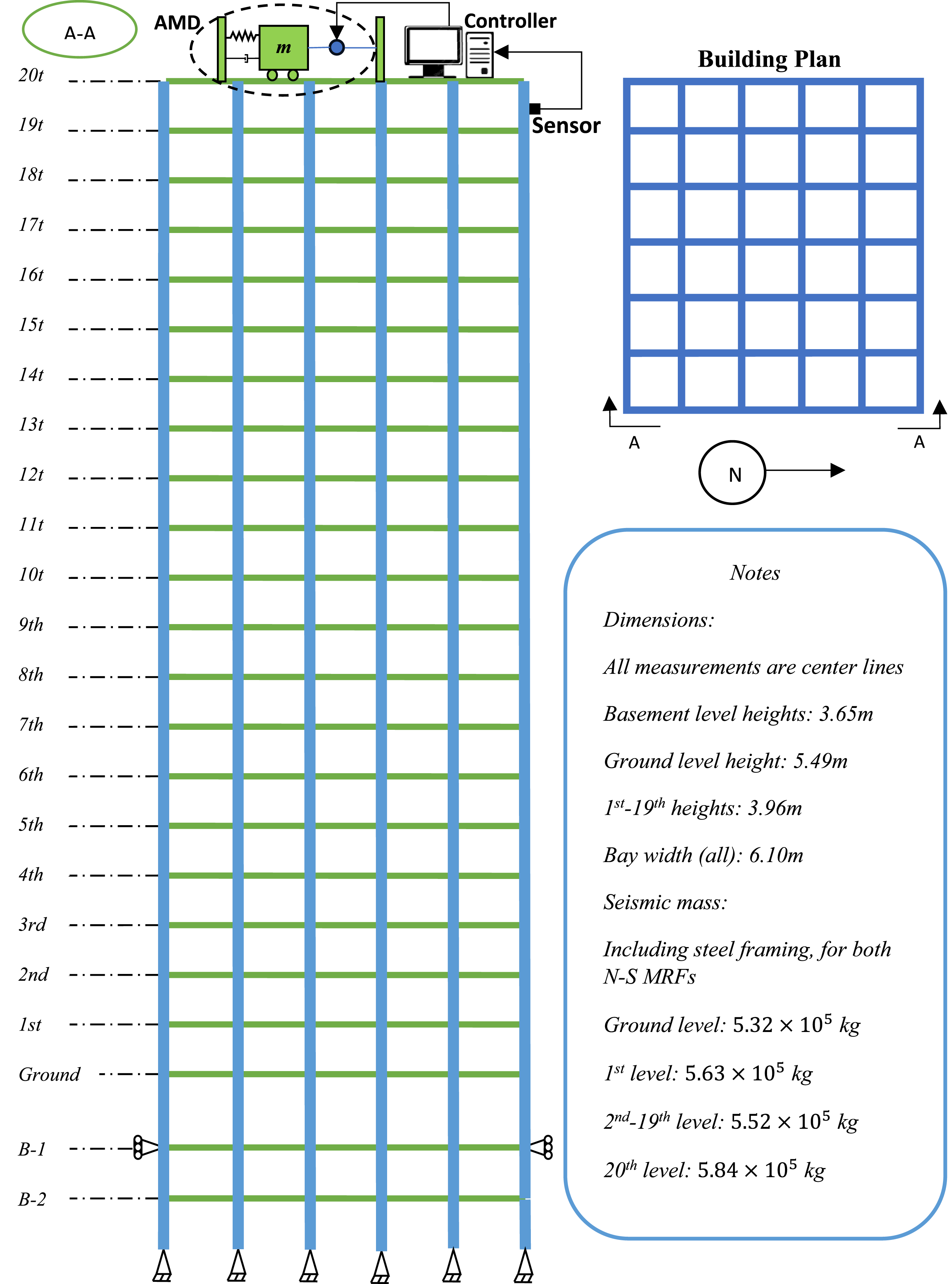

The twenty-story high-rise benchmark structure (Figure 1) serves as a representative model for tall buildings and is adopted from the ASCE Committee on Structural Control. The building utilizes a steel moment-resisting frame (SMRF) designed according to the 1994 Uniform Building Code (UBC) for Los Angeles seismic conditions.

Figure 1.

The twenty-story benchmark steel building structure.

In this configuration, an Active Mass Damper (AMD) is installed on the roof, acting as an actuator with a mass ratio of 2.5% and a damping ratio of 5% of the total structural weight. The AMD provides counteracting control forces proportional to roof acceleration, significantly improving dynamic stability during seismic excitations.

3.2. Dynamic formulation

The motion of an n-story building equipped with an AMD and subjected to ground acceleration d(t) can be expressed as follows:

[M] {\ddot{z}} + [C] {\dot{z}} + [K] {z} = - [M] {r} d + [γ] {u}

(32)

Equation (32) involves the relative displacement (z), velocity ( $\dot{z}$ ), and acceleration ( $\ddot{z}$ ) of each floor, along with the mass (M), damping (C), and stiffness (K) matrices. External disturbances are captured by the column vector (r), while active control forces are represented by the vector (u), and their positions indicated by the matrix γ. External excitation is denoted by d. The state-space matrices for the n-story building with an active mass damper (AMD) are outlined in equation (33).

A (t) = {[\begin{array}{c} 0 & I \\ - {[M]}^{- 1} [K] & - {[M]}^{- 1} [C] \end{array}]}_{2 \times (n + 1) * 2 \times (n + 1)}

D (t) = {\begin{cases} {0}_{(n + 1) \times 1} \\ {- 1}_{(n + 1) \times 1} \end{cases}}_{2 \times (n + 1) * 1}

B (t) = {\begin{cases} {0}_{(n + 1) \times 1} \\ {[M]}^{- 1} γ \end{cases}}_{2 \times (n + 1) * 1}

C_{1} = {[\begin{array}{l} 0 & 1_{n} & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1_{2 n + 1} & 0 \end{array}]}_{2 * 2 \times (n + 1)}

C_{2} = {[I]}_{2 \times (n + 1) * 2 \times (n + 1)}

(33)

In (33), I, is identity matrix.

We can obtain dimensionless signals from dimensional set of Table 3 for the two degrees of freedom (n = 2) building structure according to Buckingham Π Theorem.

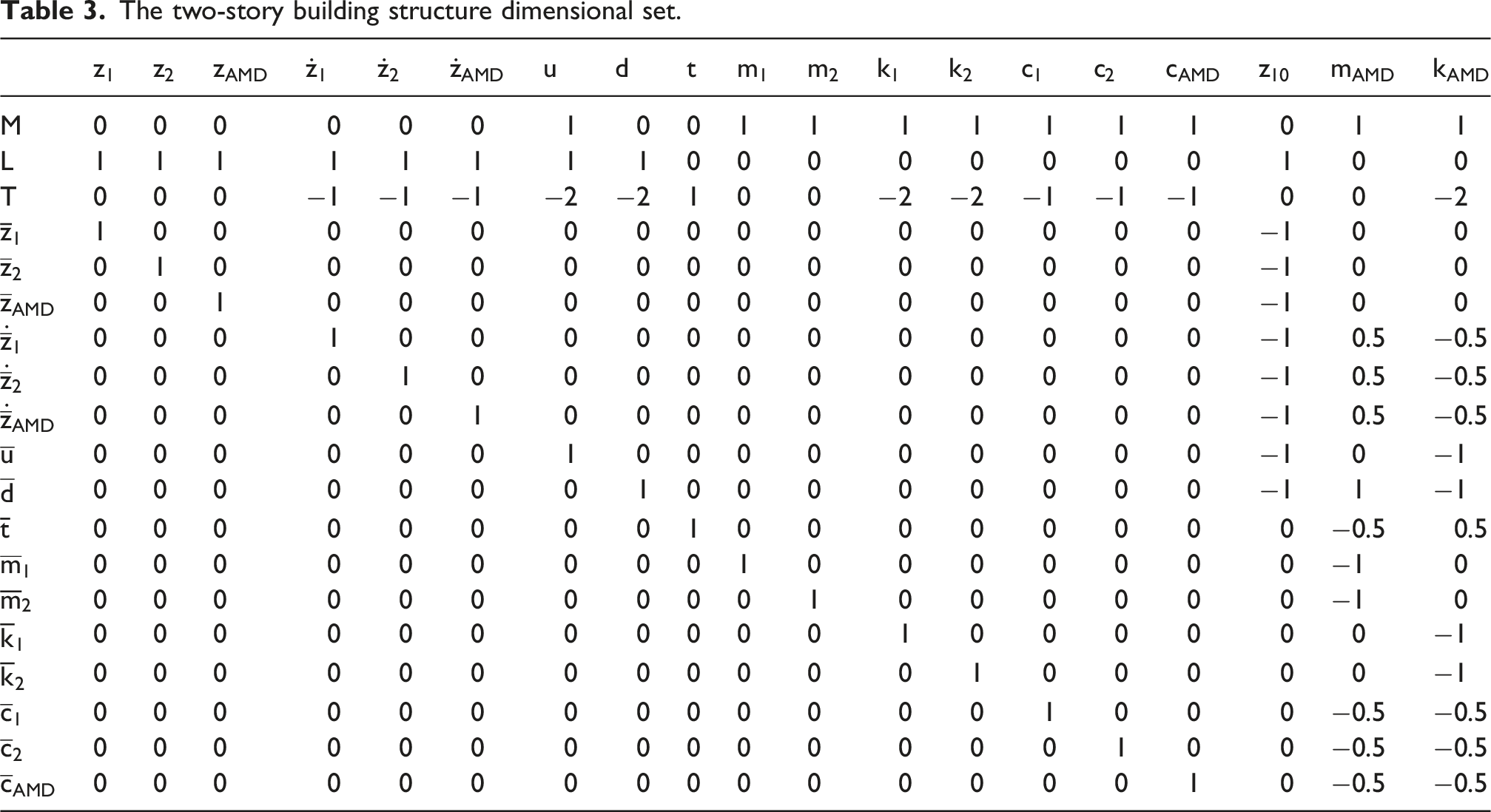

Table 3.

The two-story building structure dimensional set.

	$z_{1}$	$z_{2}$	$z_{AMD}$	${\dot{z}}_{1}$	${\dot{z}}_{2}$	${\dot{z}}_{AMD}$	u	d	$t$	$m_{1}$	$m_{2}$	$k_{1}$	$k_{2}$	$c_{1}$	$c_{2}$	$c_{AMD}$	$z_{10}$	$m_{AMD}$	$k_{AMD}$
M	0	0	0	0	0	0	1	0	0	1	1	1	1	1	1	1	0	1	1
L	1	1	1	1	1	1	1	1	0	0	0	0	0	0	0	0	1	0	0
T	0	0	0	−1	−1	−1	−2	−2	1	0	0	−2	−2	−1	−1	−1	0	0	−2
${\bar{z}}_{1}$	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	−1	0	0
${\bar{z}}_{2}$	0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	−1	0	0
${\bar{z}}_{AMD}$	0	0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	−1	0	0
${\dot{\bar{z}}}_{1}$	0	0	0	1	0	0	0	0	0	0	0	0	0	0	0	0	−1	0.5	−0.5
${\dot{\bar{z}}}_{2}$	0	0	0	0	1	0	0	0	0	0	0	0	0	0	0	0	−1	0.5	−0.5
${\dot{\bar{z}}}_{AMD}$	0	0	0	0	0	1	0	0	0	0	0	0	0	0	0	0	−1	0.5	−0.5
$\bar{u}$	0	0	0	0	0	0	1	0	0	0	0	0	0	0	0	0	−1	0	−1
$\bar{d}$	0	0	0	0	0	0	0	1	0	0	0	0	0	0	0	0	−1	1	−1
$\bar{t}$	0	0	0	0	0	0	0	0	1	0	0	0	0	0	0	0	0	−0.5	0.5
${\bar{m}}_{1}$	0	0	0	0	0	0	0	0	0	1	0	0	0	0	0	0	0	−1	0
${\bar{m}}_{2}$	0	0	0	0	0	0	0	0	0	0	1	0	0	0	0	0	0	−1	0
${\bar{k}}_{1}$	0	0	0	0	0	0	0	0	0	0	0	1	0	0	0	0	0	0	−1
${\bar{k}}_{2}$	0	0	0	0	0	0	0	0	0	0	0	0	1	0	0	0	0	0	−1
${\bar{c}}_{1}$	0	0	0	0	0	0	0	0	0	0	0	0	0	1	0	0	0	−0.5	−0.5
${\bar{c}}_{2}$	0	0	0	0	0	0	0	0	0	0	0	0	0	0	1	0	0	−0.5	−0.5
${\bar{c}}_{AMD}$	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	1	0	−0.5	−0.5

For example, considering the dimensional set outlined in Table 3, the dimension of variable $k_{1}$ is $M^{1} L^{0} T^{- 2}$ , and ${\dot{\bar{z}}}_{2} = {\dot{z}}_{2}^{1} {z_{10}}^{- 1} {m_{AMD}}^{0.5} {k_{AMD}}^{- 0.5}$ . According to Table 3, the dimensionless matrices are easily determined as follows.

N_{x} = [\begin{array}{c} z_{10} & 0 & 0 & 0 & 0 & 0 \\ 0 & z_{10} & 0 & 0 & 0 & 0 \\ 0 & 0 & z_{10} & 0 & 0 & 0 \\ 0 & 0 & 0 & \frac{z_{10} \sqrt{k_{AMD}}}{\sqrt{m_{AMD}}} & 0 & 0 \\ 0 & 0 & 0 & 0 & \frac{z_{10} \sqrt{k_{AMD}}}{\sqrt{m_{AMD}}} & 0 \\ 0 & 0 & 0 & 0 & 0 & \frac{z_{10} \sqrt{k_{AMD}}}{\sqrt{m_{AMD}}} \end{array}]

(34)

N_{u} = z_{10} \times k_{AMD}

(35)

N_{d} = \frac{z_{10} \times k_{AMD}}{m_{AMD}}

(36)

N_{o} = [\begin{array}{c} z_{10} & 0 \\ 0 & \frac{z_{10} \sqrt{k_{AMD}}}{\sqrt{m_{AMD}}} \end{array}]

(37)

N_{y} = N_{x}

(38)

N_{t} = \sqrt{\frac{m_{AMD}}{k_{AMD}}}

(39)

With these dimensionless matrices, the dimensionless state-space matrices can be determined as follows.

\bar{A} (\bar{t}) = [\begin{array}{l} 0 & 0 & 0 & {\bar{A}}_{14} & 0 & 0 \\ 0 & 0 & 0 & 0 & {\bar{A}}_{25} & 0 \\ 0 & 0 & 0 & 0 & 0 & {\bar{A}}_{36} \\ {\bar{A}}_{41} & {\bar{A}}_{42} & 0 & {\bar{A}}_{44} & {\bar{A}}_{45} & 0 \\ {\bar{A}}_{51} & {\bar{A}}_{52} & {\bar{A}}_{53} & {\bar{A}}_{54} & {\bar{A}}_{55} & {\bar{A}}_{56} \\ 0 & {\bar{A}}_{62} & {\bar{A}}_{63} & 0 & {\bar{A}}_{65} & {\bar{A}}_{66} \end{array}]

(40)

with

{\bar{A}}_{14} = {\bar{A}}_{25} = {\bar{A}}_{36} = \sqrt{m_{AMD} \times k_{AMD}} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}

{\bar{A}}_{41} = - \frac{(k_{1} + k_{2}) \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{1} \times \sqrt{m_{AMD} \times k_{AMD}}}, {\bar{A}}_{42} = \frac{k_{2} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{1} \times \sqrt{m_{AMD} \times k_{AMD}}}, {\bar{A}}_{44} = - \frac{(c_{1} + c_{2}) \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{1}}, {\bar{A}}_{45} = \frac{c_{2} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{1}}

{\bar{A}}_{51} = \frac{k_{2} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{2} \times \sqrt{m_{AMD} \times k_{AMD}}}, {\bar{A}}_{52} = - \frac{(k_{2} + k_{AMD}) \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{2} \times \sqrt{m_{AMD} \times k_{AMD}}}, {\bar{A}}_{53} = \frac{k_{AMD} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{2} \times \sqrt{m_{AMD} \times k_{AMD}}}

{\bar{A}}_{54} = \frac{c_{2} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{2}}, {\bar{A}}_{55} = - \frac{(c_{2} + c_{AMD}) \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{2}}, {\bar{A}}_{56} = \frac{c_{AMD} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{2}}

{\bar{A}}_{62} = \frac{k_{AMD} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{AMD} \times \sqrt{m_{AMD} \times k_{AMD}}}, {\bar{A}}_{63} = - \frac{k_{AMD} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{AMD} \times \sqrt{m_{AMD} \times k_{AMD}}}

{\bar{A}}_{65} = \frac{c_{AMD} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{AMD} \times \sqrt{m_{AMD} \times k_{AMD}}}, {\bar{A}}_{66} = - \frac{c_{AMD} \times \sqrt{\frac{m_{AMD}}{k_{AMD}}}}{m_{AMD} \times \sqrt{m_{AMD} \times k_{AMD}}}

\bar{D} (\bar{t}) = [\begin{array}{c} 0 \\ 0 \\ 0 \\ {\bar{A}}_{63} \\ {\bar{A}}_{63} \\ {\bar{A}}_{63} \end{array}]

(41)

\bar{B} (\bar{t}) = [\begin{array}{c} 0 \\ 0 \\ 0 \\ 0 \\ - {\bar{A}}_{53} \\ {\bar{A}}_{62} \end{array}]

(42)

\bar{C_{1}} (\bar{t}) = [\begin{array}{l} 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 \end{array}]

(43)

\bar{C_{2}} (\bar{t}) = {[I]}_{6 \times 6}

(44)

The same approach can be easily extended to derive the dimensionless state-space matrices for benchmark structures, such as three-story and twenty-story structural systems.

4. Implementation of dimensionless robust control approach for benchmark structural system

This section aims to address the challenges of uncertainties, disturbances, and parameter variations in the structural systems by utilizing Linear Matrix Inequality (LMI) techniques for controller synthesis. In the building structures, the challenge involves mitigating vibrations induced by external excitations while maintaining structural integrity and stability. The dimensionless robust control approach can help in designing controllers that can effectively dampen vibrations and ensure the safety of the building under dynamic loading conditions. To assess the effectiveness of the dimensionless robust controller, the proposed model is applied to a high-rise building structure equipped with an active mass damper (AMD), which is modeled as a linear shear frame. The external excitation is modeled as a stationary random process, specifically white noise across a broad frequency spectrum, filtered according to the Kanai-Tajimi spectral density (Abrass and Lavan, 2025), as described in equation (45).

S_{d d} (ω) = \frac{S_{0} (4 ξ_{g}^{2} ω_{g}^{2} ω^{2} + ω_{g}^{4})}{{(ω^{2} - ω_{g}^{2})}^{2} + 4 ξ_{g}^{2} ω_{g}^{2} ω^{2}}

(45)

where,

ω_{g}

represents the frequency of ground motion, while

ξ_{g}

denotes the damping ratio. The spectral intensity, denoted by

S_{0}

, is determined by the following formula.

S_{0} = \frac{0.03 ξ_{g} g^{2}}{π ω_{g} (4 ξ_{g}^{2} + 1)}

(46)

In this study, g signifies the gravitational acceleration, with

ω_{g}

and

ξ_{g}

set at 37.3 rad/s and 0.3, respectively. The spectral density function outlined in equation (46) is employed to generate artificial acceleration for modeling probabilistic seismic excitation with varying intensities and frequency content. Figure 2, illustrates the time history of the white noise disturbance.

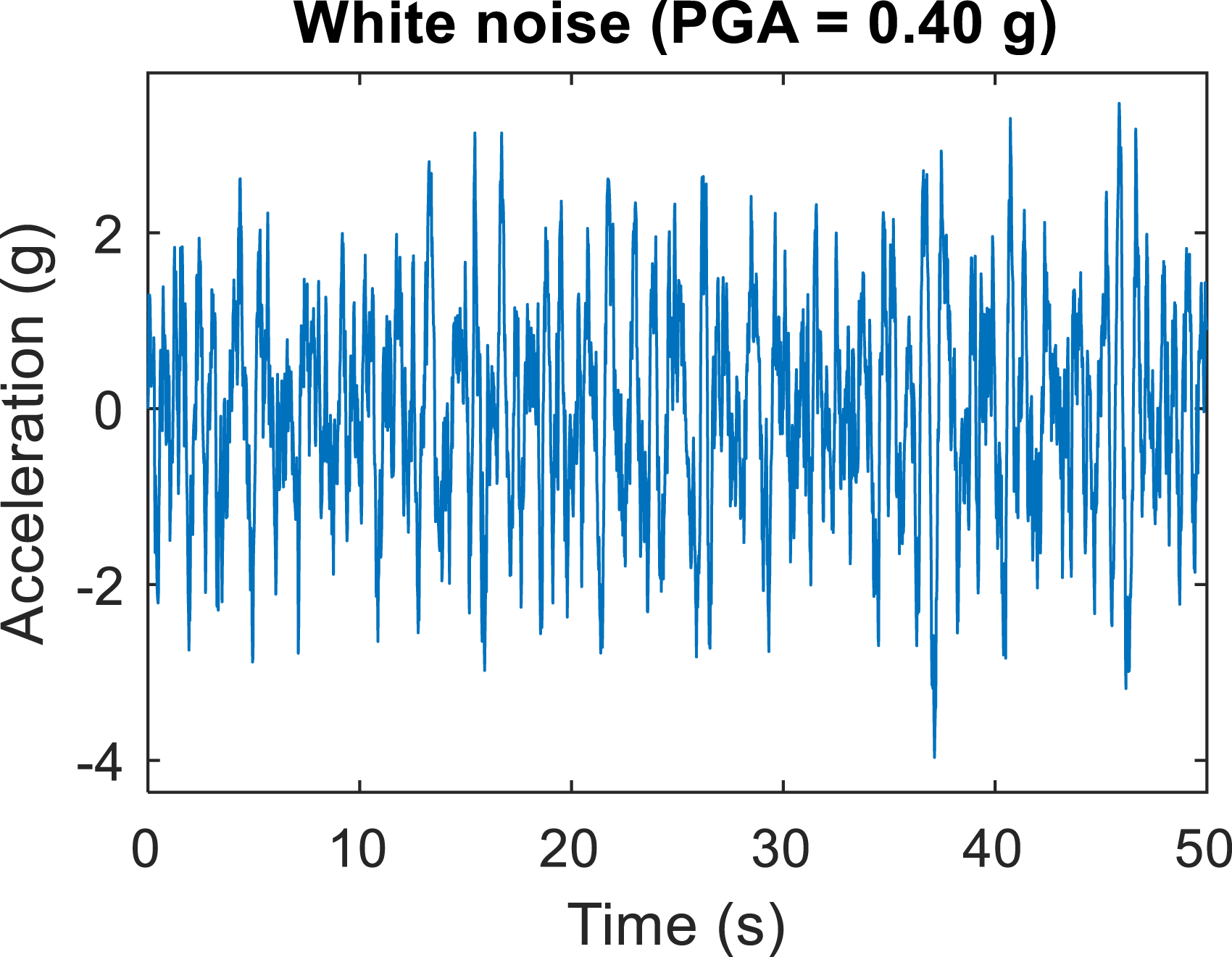

Figure 2.

Time history plot of the white noise disturbance.

For clarity, the numerical protocol adopted in this study consists of two distinct stages: controller synthesis and independent validation. In the synthesis stage, the proposed GLMI-based robust controller was designed using a stochastic broadband excitation generated from white noise filtered through the Kanai–Tajimi spectrum, representing uncertain seismic frequency content in a probabilistic manner. After obtaining the controller gain, a separate validation stage was conducted using four recorded earthquake motions, including two near-field and two far-field events. These historical records were not used during the controller design stage and were employed solely to assess the robustness and practical effectiveness of the proposed strategy under realistic seismic demands with varying amplitudes, frequency contents, and source characteristics.

In order to assess the seismic effectiveness of the proposed dimensionless robust control system, four benchmark earthquakes identified in Table 4, along with their respective specifications, were employed for evaluation.

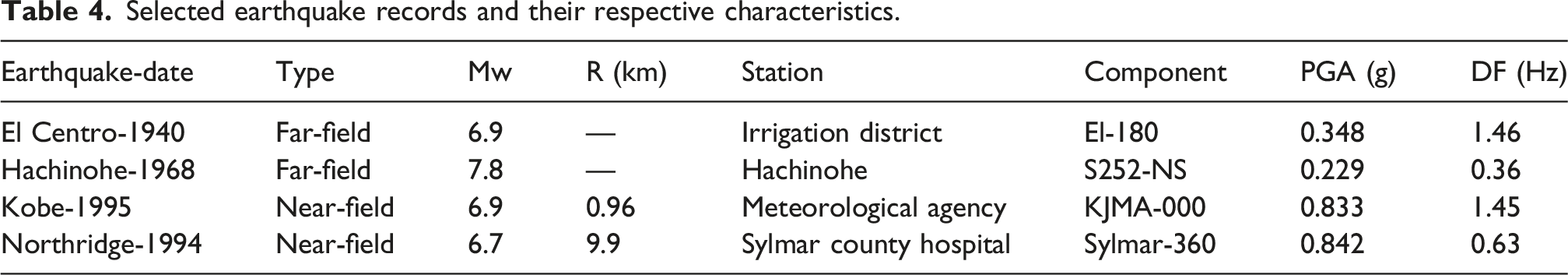

Table 4.

Selected earthquake records and their respective characteristics.

Earthquake-date	Type	Mw	R (km)	Station	Component	PGA (g)	DF (Hz)
El Centro-1940	Far-field	6.9	—	Irrigation district	El-180	0.348	1.46
Hachinohe-1968	Far-field	7.8	—	Hachinohe	S252-NS	0.229	0.36
Kobe-1995	Near-field	6.9	0.96	Meteorological agency	KJMA-000	0.833	1.45
Northridge-1994	Near-field	6.7	9.9	Sylmar county hospital	Sylmar-360	0.842	0.63

In Table 4, Mw, R, PGA, and DF refer to moment magnitude, distance to the active fault, peak ground acceleration, and dominant frequency content, respectively. Figures 3 –5 illustrate the frequency content and response spectra for the Elcentro and Kobe earthquake excitations, including the mean spectra for 5% damping.

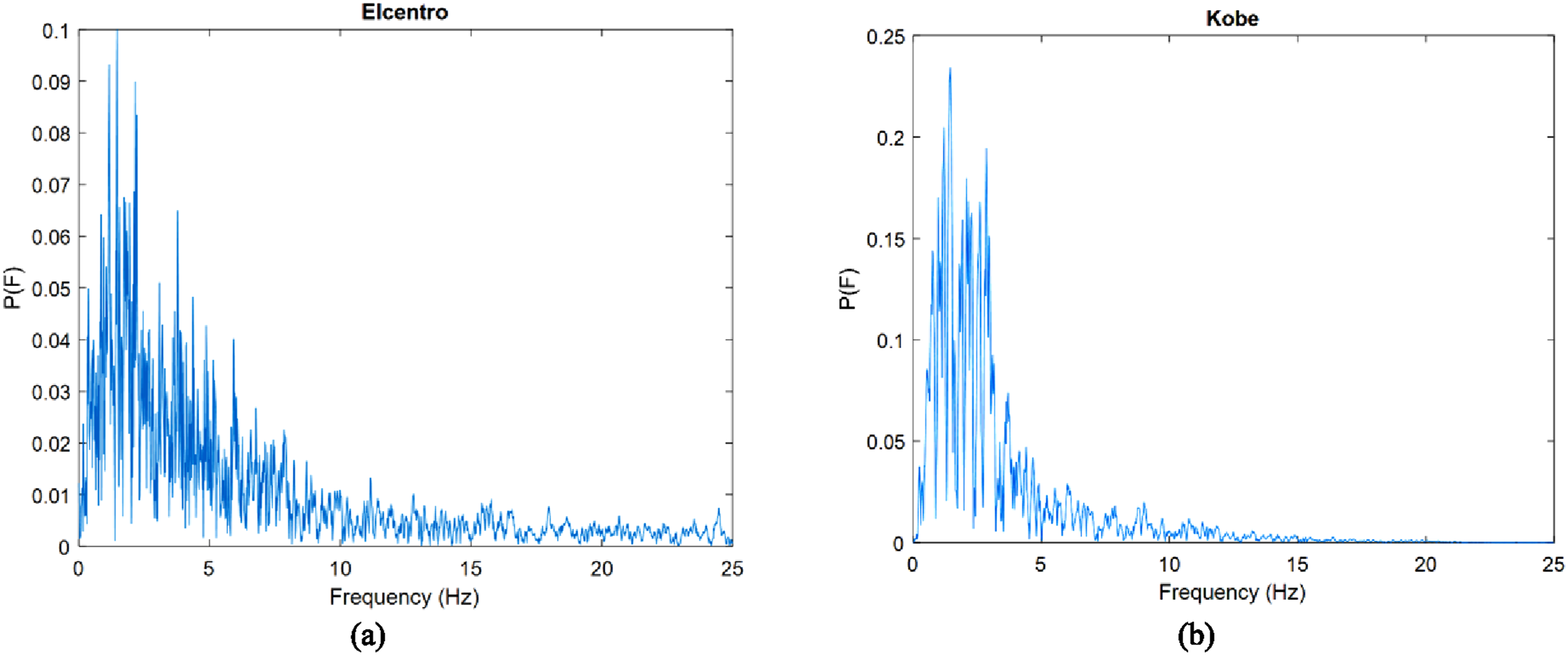

Figure 3.

The frequency content of the earthquake records: (a) Elcentro, and (b) Kobe.

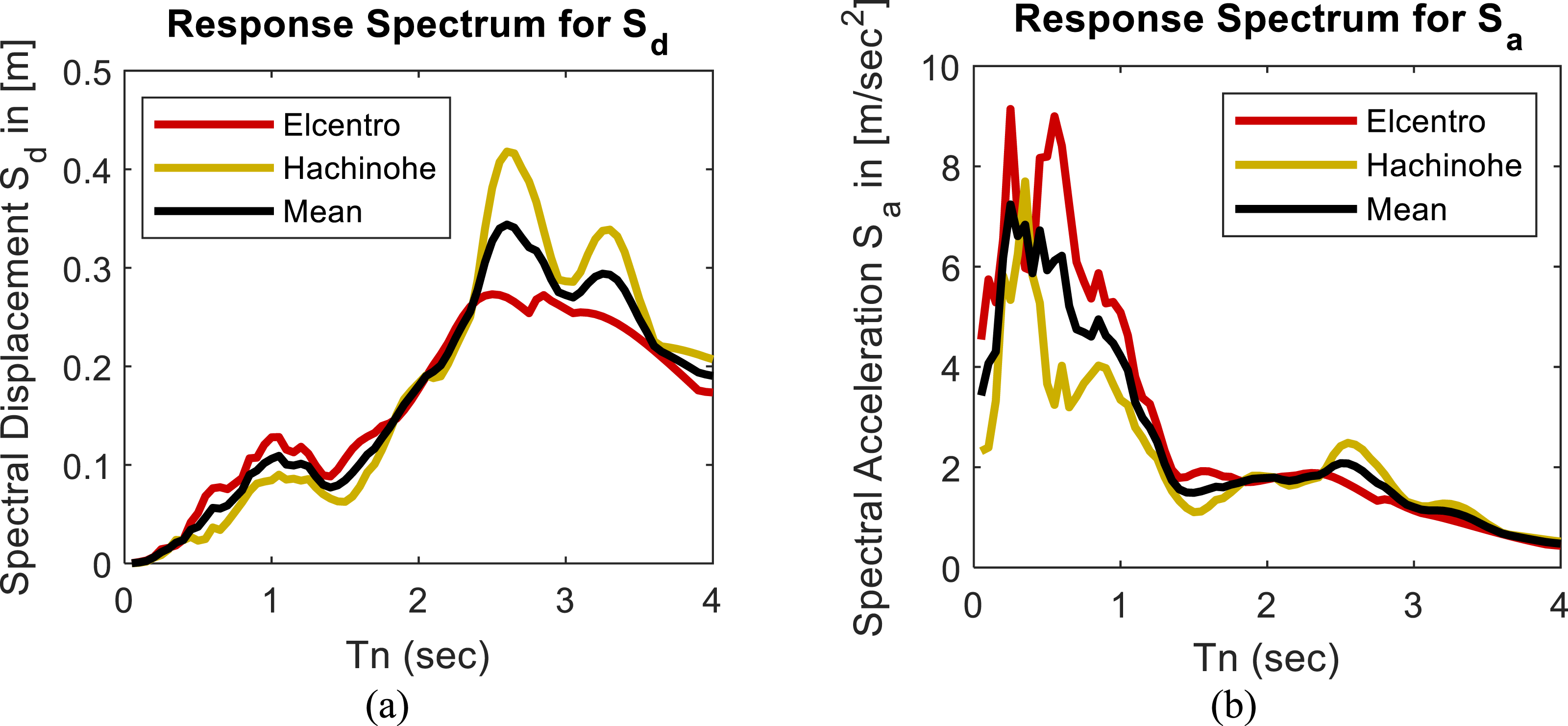

Figure 4.

The response spectra of the far-field selected earthquake records: (a) displacement, and (b) acceleration.

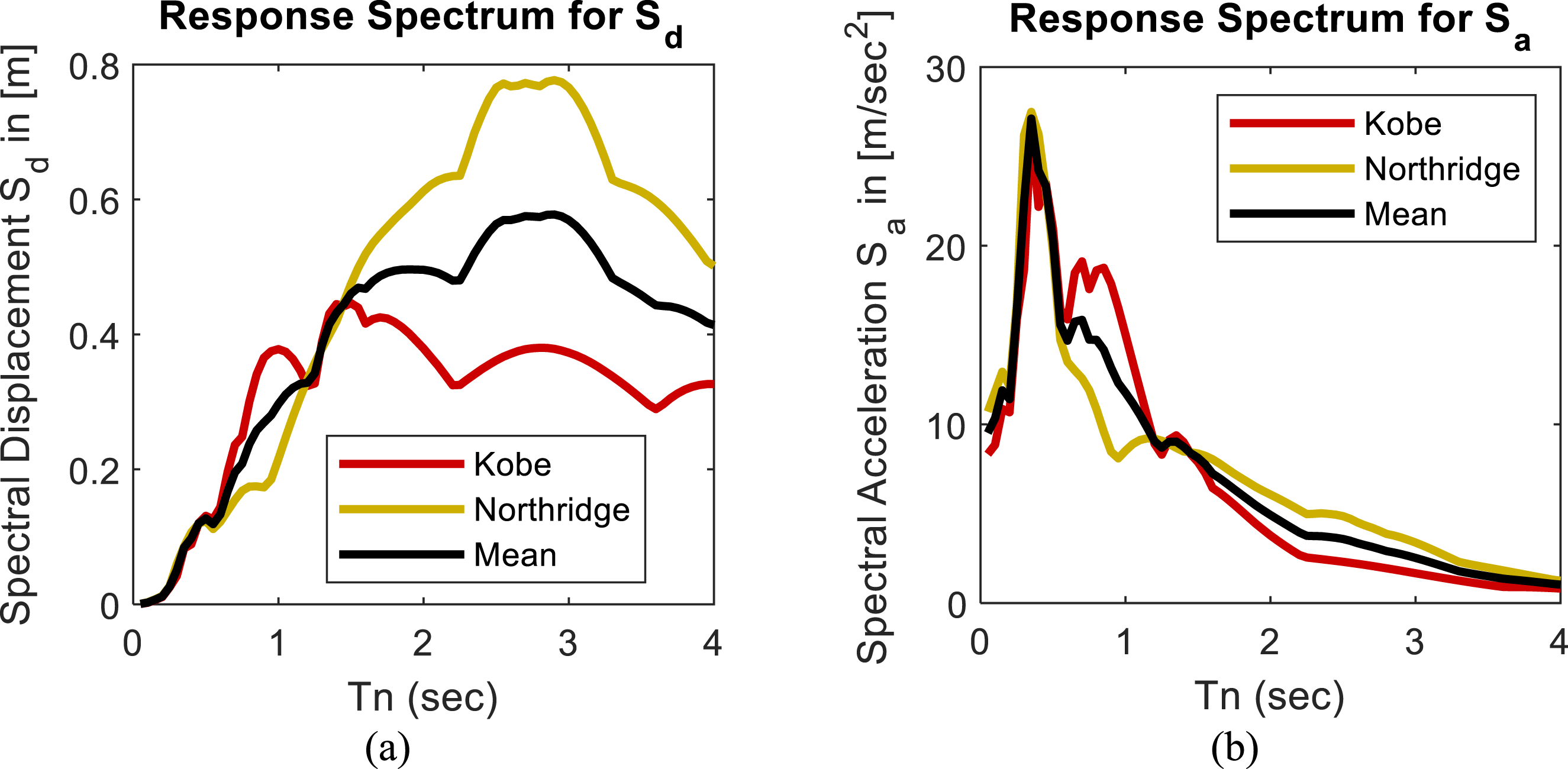

Figure 5.

The response spectra of the near-field selected earthquake records: (a) displacement, and (b) acceleration.

These figures provide a comprehensive overview of the seismic excitations considered in this study, highlighting both the dominant frequency ranges and the variability between far- and near-field earthquake excitations. The selected response spectra capture the essential characteristics of the ground motions, allowing for an accurate assessment of structural dynamic behavior under realistic seismic records. By including the mean spectra for 5% damping, the analysis ensures consistency in comparing the response of different building models, while also accounting for typical energy dissipation observed in structural systems.

4.1. Twenty-story high-rise robust vibration control

In order to investigate the efficiency of the presented dimensionless robust controller, the proposed model is applied to the high-rise twenty-story structural system equipped with an AMD. In this study, the model is treated as a shear frame with linear behavior. Consequently, four performance indices are proposed for the optimal design of the robust control based on the maximum values of the desired outputs defined in the dimensionless state-space model, as presented in Table 5, where

x_{i, c}

v_{i, c}

, and

a_{i, c}

are the controlled, and

x_{i, u}

v_{i, u}

, and

a_{i, u}

are the uncontrolled displacement, velocity, and acceleration of the floors of the benchmark building structure, respectively.

f_{AMD}

is the active control force, and

W

is the total weight of the structural system.

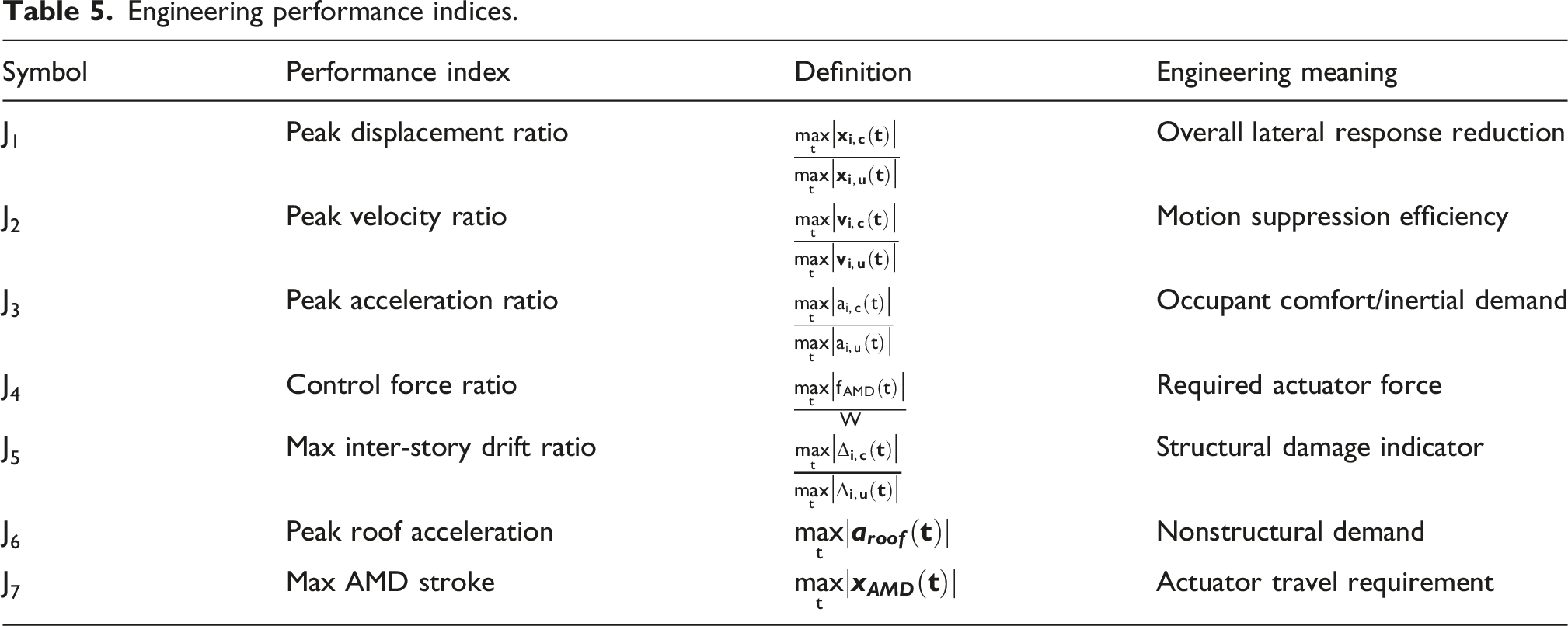

Table 5.

Engineering performance indices.

Symbol	Performance index	Definition	Engineering meaning
$J_{1}$	Peak displacement ratio	$\frac{\max_{t} \| x_{i, c} (t) \|}{\max_{t} \| x_{i, u} (t) \|}$	Overall lateral response reduction
$J_{2}$	Peak velocity ratio	$\frac{\max_{t} \| v_{i, c} (t) \|}{\max_{t} \| v_{i, u} (t) \|}$	Motion suppression efficiency
$J_{3}$	Peak acceleration ratio	$\frac{\max_{t} \| a_{i, c} (t) \|}{\max_{t} \| a_{i, u} (t) \|}$	Occupant comfort/inertial demand
$J_{4}$	Control force ratio	$\frac{\max_{t} \| f_{AMD} (t) \|}{W}$	Required actuator force
$J_{5}$	Max inter-story drift ratio	$\frac{\max_{t} \| Δ_{i, c} (t) \|}{\max_{t} \| Δ_{i, u} (t) \|}$	Structural damage indicator
$J_{6}$	Peak roof acceleration	$\max_{t} \| a_{r o o f} (t) \|$	Nonstructural demand
$J_{7}$	Max AMD stroke	$\max_{t} \| x_{A M D} (t) \|$	Actuator travel requirement

In order to select the optimal value of the $γ$ in solving the LMIs while considering the $\pm 20 %$ perturbation in the mass of the top floor of the structure, the variation of the $J_{1}$ and $J_{2}$ with respect to different $γ$ values are illustrated in Figure 6.

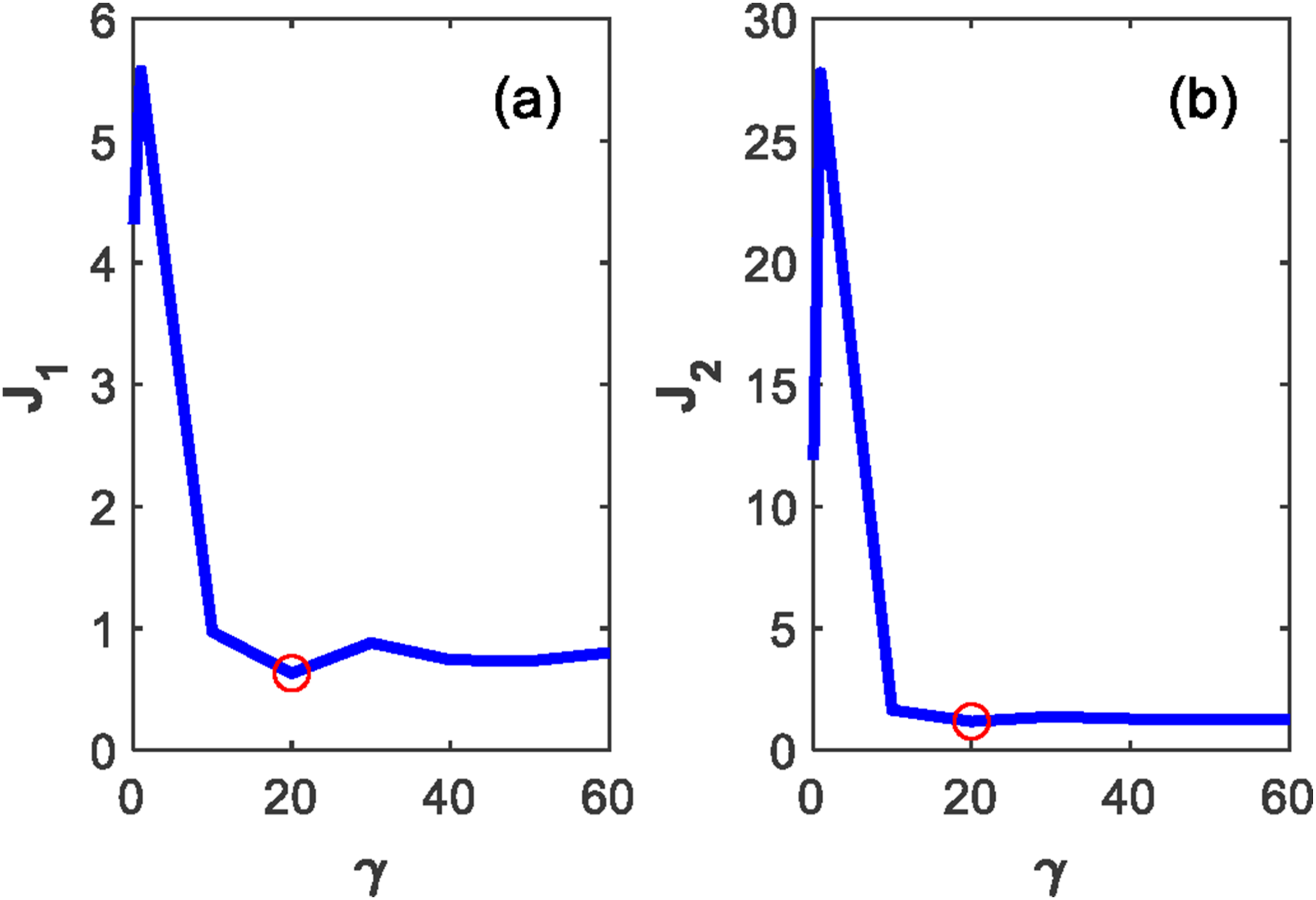

Figure 6.

Performance indices variations: (a) $J_{1}$ and (b) $J_{2}$ .

Based on Figure 6, by selecting the optimal value of $γ = 20$ , all LMIs in equation (31), are satisfied and the robust controller gain was determined as follows.

K_{c} = [\begin{array}{l} - 1.2 & - 2.5 & - 1.5 & - 0.4 & 1.4 & 4.3 & 6.8 & 8.6 & 9.3 & 9.5 & 10.1 & 12.4 & 17.3 & 25.6 \\ 38.2 & 57.9 & 69.6 & - 44.3 & 506.4 & - 55.5 & - 7.1 & - 0.8 & - 1.1 & - 1.4 & - 1.7 & - 2.1 & - 2.6 & - 3.1 \\ - 3.5 & - 3.9 & - 4.3 & - 4.7 & 5.1 & - 5.4 & - 5.7 & - 6.4 & 7.2 & - 7.8 & - 8.6 & - 5.4 & 5.2 & - 20.7 \end{array}]

(47)

With this robust control gain, the closed-loop system in (1), will be $L_{2}$ gain stable with a coefficient of γ. To facilitate a qualitative discussion on the control effects and highlight the engineering relevance of the proposed robust control scheme, a detailed analysis was performed. Figures 7 –9 show the time history plots, root mean square (RMS) values, and frequency responses for the top floor of a twenty-story structure regarding displacement, velocity, and acceleration under four scenarios: open-loop, passive, LQR, and the proposed dimensionless robust active control strategy.

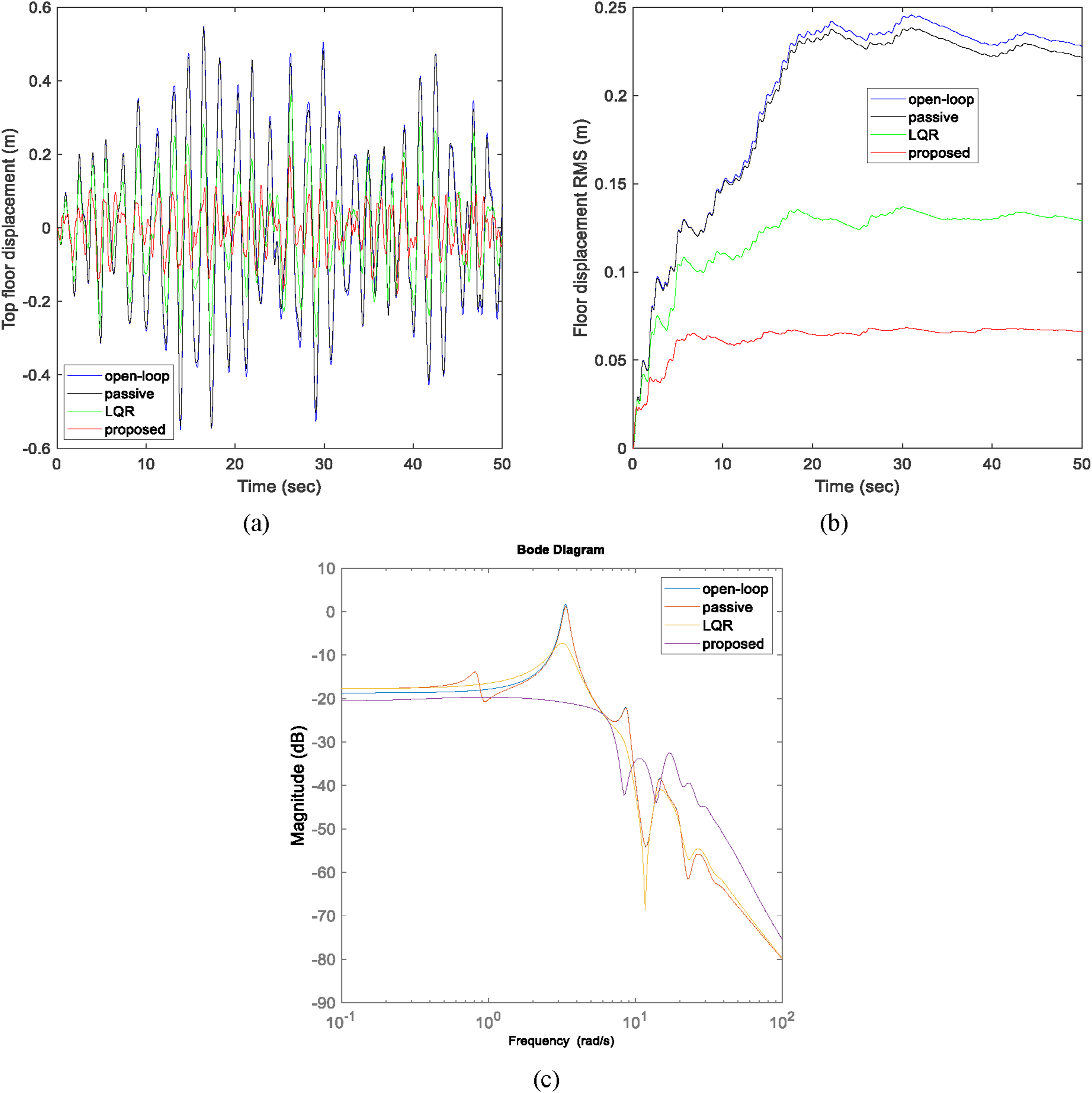

Figure 7.

Displacement responses of the high-rise twenty-story building structure under white noise disturbance: (a) Time history (b) RMS and (c) Frequency responses.

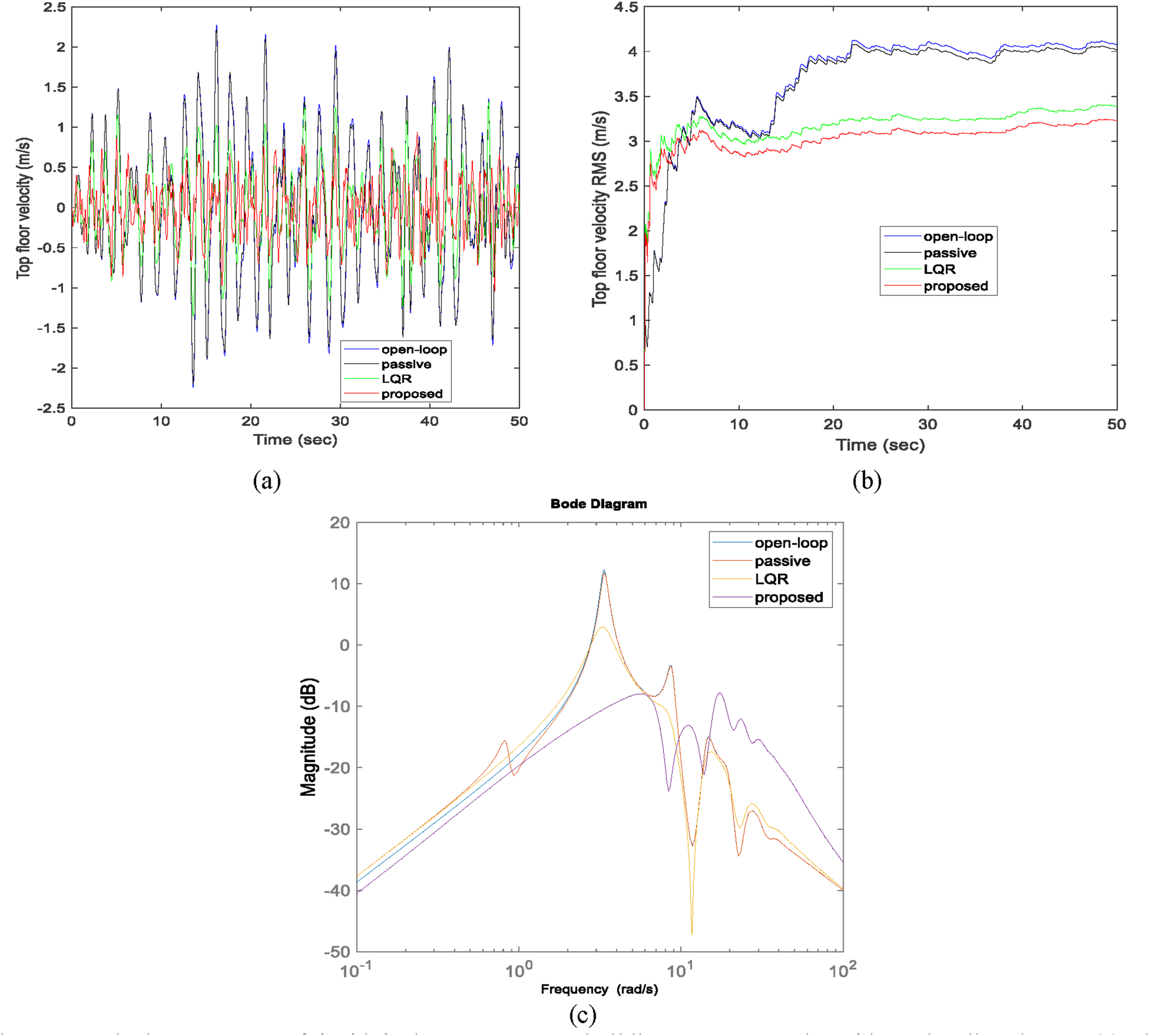

Figure 8.

Velocity responses of the high-rise twenty-story building structure under white noise disturbance: (a) Time history (b) RMS and (c) Frequency responses.

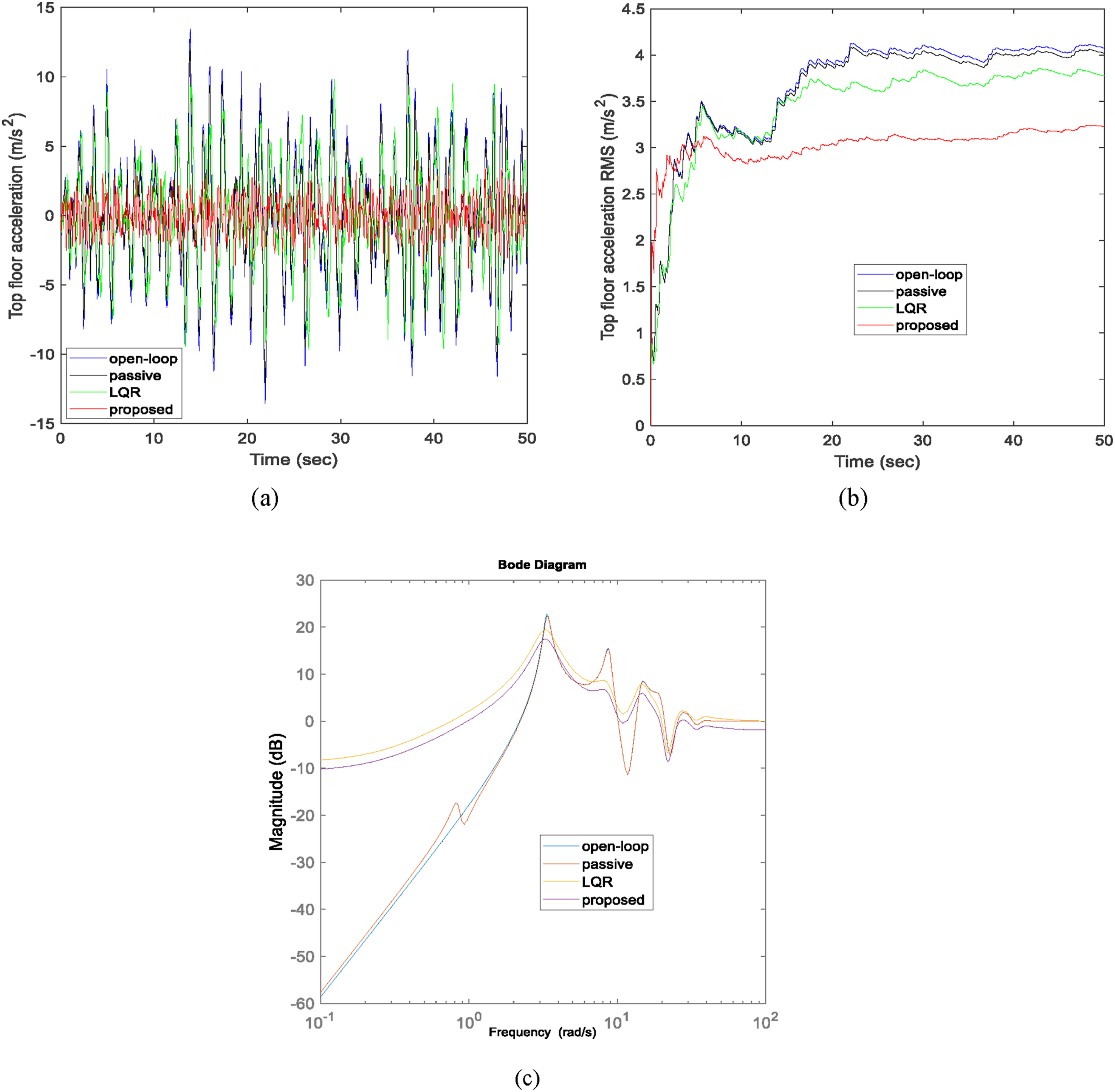

Figure 9.

Acceleration responses of the high-rise twenty-story building structure under white noise disturbance: (a) Time history (b) RMS and (c) Frequency responses.

For the LQR benchmark controller, the weighting matrices were selected based on a standard quadratic performance trade-off between state regulation and control effort. The state-weighting matrix was chosen as Q = I, which assigns uniform penalties to all normalized state variables and provides a neutral full-state regulation baseline without bias toward specific structural degrees of freedom. The control-weighting scalar R = $1 \times 10^{- 13}$ was determined through a parametric tuning process in which several candidate values were examined to balance response reduction and actuator demand. Larger values of R produced conservative control forces with weaker vibration mitigation, while smaller values led to excessively high control effort. The adopted value therefore represents a practically reasonable and stabilizing compromise for the considered twenty-story benchmark system. All LQR simulations were conducted under the same structural model, excitation inputs, and actuator assumptions used for the proposed controller to ensure a fair comparison. The results presented in Figures 7 –9 vividly demonstrate the remarkable performance of the proposed dimensionless robust active control strategy in mitigating dynamic responses of a twenty-story high-rise building. Under the considered seismic excitations, including stochastic and broadband disturbances, the structure is modeled as a linear shear frame, where higher modes contribute progressively to the dynamic behavior, yet the first few modes remain dominant in controlling the overall top-floor motion. The time history plots reveal that the proposed controller effectively suppresses peak displacements, velocities, and accelerations compared to open-loop, passive, and conventional LQR strategies, ensuring smooth and controlled structural responses throughout the excitation duration. RMS analyses further emphasize the consistent reduction in overall dynamic energy at the top floor, reflecting the controller’s ability to attenuate steady-state vibrations. The frequency response results highlight a pronounced decrease in peak amplitudes across the dominant frequency bands, confirming the method’s capability to mitigate resonant responses that are particularly critical in tall buildings. These findings underscore the substantial advantages of the proposed control framework for high-rise buildings, demonstrating its capacity to maintain structural integrity, enhance occupant comfort, and improve overall seismic resilience. The integration of dimensionless modeling and robust GLMI-based synthesis ensures that the methodology is not only effective but also scalable and adaptable to a wide range of high-rise structural systems, establishing it as a highly promising approach for real-world applications in earthquake engineering.

To assess the control requirement, Figure 10, illustrates the control effort needed for two control scenarios: LQR and the Proposed robust control.

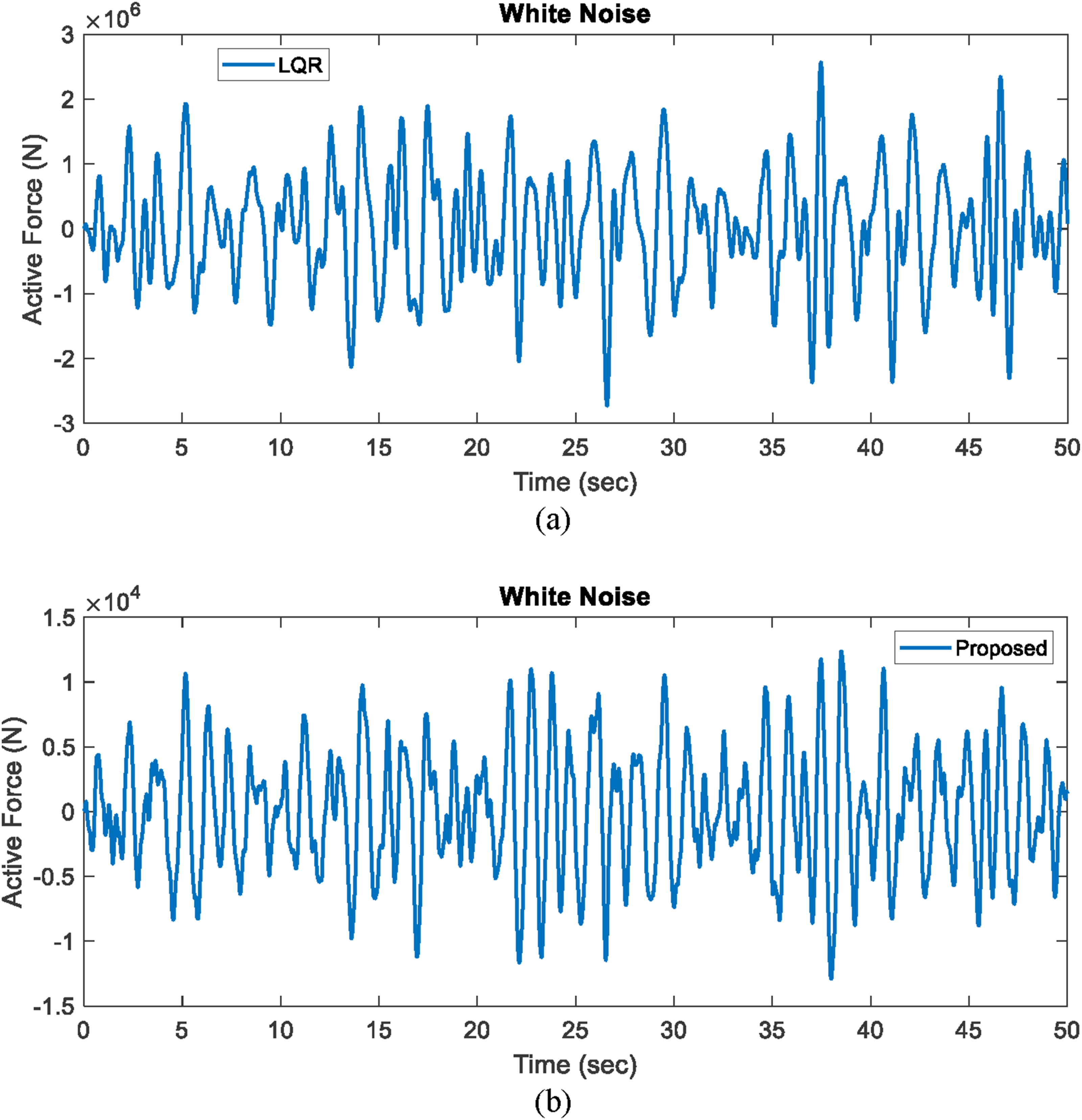

Figure 10.

The active control effort requirements subjected to white noise disturbance. (a) LQR and (b) Proposed robust control.

Upon evaluating the control needs of the two control strategies, namely LQR and the proposed method depicted in Figure 10, the proposed method clearly demonstrates reduced active control force values for real-time top story displacement, velocity, and acceleration, indicating its effectiveness in managing the building’s response to external disturbances. This implies that the proposed method can achieve better performance in stabilizing the building structure under white noise disturbance compared to the LQR method, as it requires less control force to achieve the desired level of control. Table 6 summarizes the mean and standard deviation values of the expanded engineering performance indices under far-field and near-field earthquake excitations. In addition to average performance, the statistical dispersion of the results is reported to evaluate the consistency and robustness of the compared control strategies against record-to-record variability.

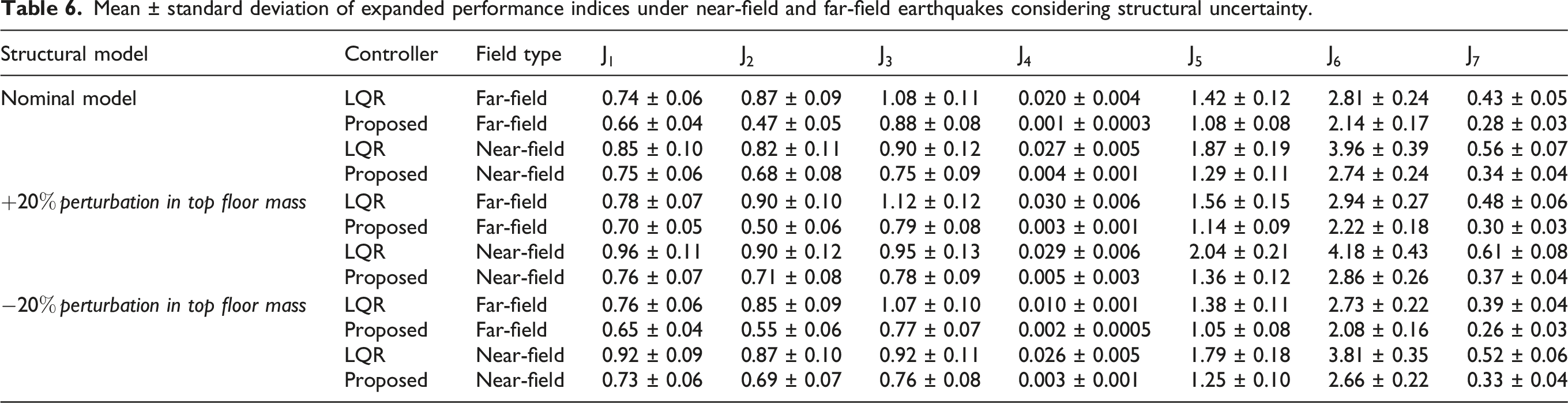

Table 6.

Mean ± standard deviation of expanded performance indices under near-field and far-field earthquakes considering structural uncertainty.

Structural model	Controller	Field type	$J_{1}$	$J_{2}$	$J_{3}$	$J_{4}$	$J_{5}$	$J_{6}$	$J_{7}$
Nominal model	LQR	Far-field	0.74 ± 0.06	0.87 ± 0.09	1.08 ± 0.11	0.020 ± 0.004	1.42 ± 0.12	2.81 ± 0.24	0.43 ± 0.05
	Proposed	Far-field	0.66 ± 0.04	0.47 ± 0.05	0.88 ± 0.08	0.001 ± 0.0003	1.08 ± 0.08	2.14 ± 0.17	0.28 ± 0.03
	LQR	Near-field	0.85 ± 0.10	0.82 ± 0.11	0.90 ± 0.12	0.027 ± 0.005	1.87 ± 0.19	3.96 ± 0.39	0.56 ± 0.07
	Proposed	Near-field	0.75 ± 0.06	0.68 ± 0.08	0.75 ± 0.09	0.004 ± 0.001	1.29 ± 0.11	2.74 ± 0.24	0.34 ± 0.04
$+ 20 % p e r t u r b a t i o n$ in top floor mass	LQR	Far-field	0.78 ± 0.07	0.90 ± 0.10	1.12 ± 0.12	0.030 ± 0.006	1.56 ± 0.15	2.94 ± 0.27	0.48 ± 0.06
	Proposed	Far-field	0.70 ± 0.05	0.50 ± 0.06	0.79 ± 0.08	0.003 ± 0.001	1.14 ± 0.09	2.22 ± 0.18	0.30 ± 0.03
	LQR	Near-field	0.96 ± 0.11	0.90 ± 0.12	0.95 ± 0.13	0.029 ± 0.006	2.04 ± 0.21	4.18 ± 0.43	0.61 ± 0.08
	Proposed	Near-field	0.76 ± 0.07	0.71 ± 0.08	0.78 ± 0.09	0.005 ± 0.003	1.36 ± 0.12	2.86 ± 0.26	0.37 ± 0.04
$- 20 % p e r t u r b a t i o n$ in top floor mass	LQR	Far-field	0.76 ± 0.06	0.85 ± 0.09	1.07 ± 0.10	0.010 ± 0.001	1.38 ± 0.11	2.73 ± 0.22	0.39 ± 0.04
	Proposed	Far-field	0.65 ± 0.04	0.55 ± 0.06	0.77 ± 0.07	0.002 ± 0.0005	1.05 ± 0.08	2.08 ± 0.16	0.26 ± 0.03
	LQR	Near-field	0.92 ± 0.09	0.87 ± 0.10	0.92 ± 0.11	0.026 ± 0.005	1.79 ± 0.18	3.81 ± 0.35	0.52 ± 0.06
	Proposed	Near-field	0.73 ± 0.06	0.69 ± 0.07	0.76 ± 0.08	0.003 ± 0.001	1.25 ± 0.10	2.66 ± 0.22	0.33 ± 0.04

Based on the average values of the engineering performance indices presented in Table 6, the proposed dimensionless robust controller consistently demonstrates superior performance compared with the conventional LQR strategy for the nominal model as well as for the ±20% perturbed top-floor mass cases under both far-field and near-field earthquake excitations.

For the nominal model under far-field earthquakes, the proposed controller reduces the peak displacement ratio ( $J_{1}$ ) from 0.74 to 0.66 (approximately 10.8% reduction), the peak velocity ratio ( $J_{2}$ ) from 0.87 to 0.47 (46.0% reduction), and the peak acceleration ratio ( $J_{3}$ ) from 1.08 to 0.88 (18.5% reduction) relative to the LQR controller. At the same time, the normalized control effort ( $J_{4}$ ) decreases significantly from 0.020 to 0.001, corresponding to nearly 95% lower actuator demand.

For the nominal model under near-field earthquakes, the proposed strategy lowers $J_{1}$ from 0.85 to 0.75 (11.8% reduction), $J_{2}$ from 0.82 to 0.68 (17.1% reduction), and $J_{3}$ from 0.90 to 0.75 (16.7% reduction). In addition, the control effort is reduced from 0.027 to 0.004, representing an improvement of approximately 85.2%. These results are particularly important because near-field motions typically impose stronger pulse-type demands on tall structures.

The additional engineering indices further confirm the practical advantages of the proposed methodology. Under the nominal far-field case, the maximum inter-story drift ratio ( $J_{5}$ ) decreases from 1.42% to 1.08% (23.9% reduction), while the peak roof acceleration ( $J_{6}$ ) decreases from 2.81 m/s² to 2.14 m/s² (23.8% reduction), and the maximum AMD actuator stroke ( $J_{7}$ ) decreases from 0.43 m to 0.28 m (34.9% reduction). For the nominal near-field case, the corresponding reductions are from 1.87% to 1.29% in drift ratio (31.0%), from 3.96 m/s² to 2.73 m/s² in roof acceleration (31.1%), and from 0.56 m to 0.34 m in actuator stroke (39.3%).

The robustness of the proposed controller is also evident under parameter uncertainty. For the +20% top-floor mass perturbation, under far-field excitation, $J_{1}$ decreases from 0.78 to 0.70, $J_{2}$ from 0.90 to 0.50, and $J_{3}$ from 1.12 to 0.79, while control effort drops from 0.030 to 0.003. Under near-field excitation, the proposed method reduces $J_{1}$ from 0.96 to 0.76, $J_{2}$ from 0.90 to 0.71, and $J_{3}$ from 0.95 to 0.78, with control effort decreasing from 0.029 to 0.005.

Likewise, for the −20% top-floor mass perturbation, the proposed controller maintains better performance in all indices. For example, under near-field motions, the peak displacement ratio decreases from 0.92 to 0.74, peak velocity ratio from 0.87 to 0.69, peak acceleration ratio from 0.92 to 0.76, and control effort from 0.026 to 0.003.

In addition to the improved mean values, the standard deviation results in Table 6 further verify the robustness and consistency of the proposed control strategy. Across nearly all response indices, the proposed controller exhibits smaller standard deviations than the LQR benchmark, indicating lower sensitivity to record-to-record variability and more stable performance under different earthquake characteristics. For the nominal far-field case, the standard deviation of $J_{1}$ decreases from ±0.06 to ±0.04, while that of $J_{2}$ decreases from ±0.09 to ±0.05 and $J_{3}$ from ±0.11 to ±0.08. Similarly, under nominal near-field excitations, the dispersion of $J_{1}$ reduces from ±0.10 to ±0.06, and the standard deviation of roof acceleration demand ( $J_{6}$ ) decreases from ±0.39 to ±0.24 m/s².

A similar trend is observed for the uncertainty cases. Under the +20% mass perturbation and near-field motions, the standard deviation of $J_{1}$ decreases from ±0.11 to ±0.07, while the variability of actuator stroke demand ( $J_{7}$ ) reduces from ±0.08 m to ±0.04 m. For the −20% perturbation case, the standard deviation of $J_{3}$ decreases from ±0.11 to ±0.08, confirming that the proposed controller maintains reliable acceleration mitigation despite structural parameter changes.

These lower dispersion levels are particularly significant from an engineering standpoint, since they imply that the proposed GLMI-based controller delivers not only better average performance but also more predictable and dependable behavior across a range of seismic inputs. This consistency is highly desirable in practical structural control applications, where earthquake excitation characteristics cannot be known in advance.

Overall, considering all structural models and excitation types, the proposed dimensionless robust controller provides lower structural responses, reduced drift demand, smaller floor accelerations, lower actuator stroke requirements, and significantly less actuator demand than the LQR benchmark, while simultaneously exhibiting smaller statistical variability. These results verify that the GLMI-based dimensionless control framework offers both theoretical robustness and strong practical effectiveness for seismic vibration mitigation of uncertain high-rise building systems.

Despite the encouraging results obtained in this study, several limitations should be acknowledged. First, the numerical validation has been conducted using a single twenty-story benchmark building model, and therefore the reported findings should be interpreted within the context of this representative structural configuration. Second, the structural system has been modeled using a linear shear-frame idealization; consequently, potential nonlinear behaviors such as material yielding, geometric nonlinearity, joint degradation, and pounding effects have not been explicitly considered. Third, the controller formulation assumes the availability of full-state feedback information, whereas practical implementation may require state-estimation techniques and sensor constraints. Finally, the present validation is numerical in nature, and experimental verification through shake-table or full-scale testing would be necessary to fully confirm practical applicability. Future studies may extend the proposed framework to nonlinear multi-hazard systems, soil–structure interaction effects, and large-scale experimental implementations.

5. Conclusions

This research presented a unified framework that integrates dimensional analysis with generalized linear matrix inequality (GLMI)-based robust control synthesis to enhance the stability and performance of structural systems under dynamic excitations. By combining the Buckingham Π theorem with modern LMI theory, a dimensionless robust controller was formulated to ensure consistent behavior across the considered high-rise benchmark structure, irrespective of its physical scales or material properties.

The presented approach effectively addressed the challenges of parametric uncertainty and external disturbances by transforming the system into a dimensionless state-space representation. This formulation provided a clear physical interpretation while simplifying the controller design process.

Numerical simulations conducted on a twenty-story linear benchmark shear-frame structure demonstrated that the proposed dimensionless robust controller significantly reduced displacement and acceleration responses compared to open-loop, passive, and classical LQR controllers. The results revealed improved damping characteristics, faster response recovery, and enhanced stability margins in both time and frequency domains. It is emphasized that these observations are obtained within the context of a single representative benchmark model, and therefore should be interpreted accordingly.

A key advantage of the proposed methodology lies in its conceptual scalability. Since the controller is formulated based on dimensionless parameters, it provides a unified representation that can facilitate extension to other dynamically similar structural systems. However, it should be noted that the present study is limited to a single twenty-story linear shear-frame benchmark, and therefore broader applicability across different structural configurations and nonlinear systems requires further investigation and validation.

From a broader perspective, the findings of this research provide a conceptual bridge between theoretical control synthesis and practical implementation in structural engineering. The approach not only establishes a mathematically rigorous framework but also ensures interpretability for engineers and researchers unfamiliar with advanced control mathematics.

This study opens several promising avenues for future research. The control synthesis can be further extended to nonlinear and hybrid systems, while experimental validation on shake-table or full-scale structures would confirm its practical effectiveness under real seismic conditions. Integration with adaptive and learning-based algorithms may also enhance real-time robustness against evolving uncertainties. Extension to time-delay and distributed-parameter systems would further improve the versatility of the proposed framework.

Footnotes

ORCID iDs

Javad Palizvan Zand

Arman Atasoy

Javad Katebi

Iman Hajirasouliha

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Abrass

Lavan

(2025) Optimal seismic design of high-rise buildings with outrigger tuned inertial mass damper. Earthquake Engineering and Structural Dynamics 55(1): 176–198. doi: Available at: https://doi.org/10.1002/eqe.70073

Deng

Shu

Wang

, et al. (2025) A data-driven framework for molten pool morphology prediction in laser welding with dimensionless numbers discovery. Journal of Manufacturing Processes 151: 826–842. https://doi.org/10.1016/j.jmapro.2025.07.057

Galaz-Palma

Targui

Hernández-González

, et al. (2023) Robust observer for input and state estimation in building structure systems. Journal of Vibration and Control 29: 4422–4438. https://doi.org/10.1177/10775463221117863

Liu

Sun

(2025) Linear matrix inequality-based vibration control of three-dimensional Euler–Bernoulli beam with external disturbance. Journal of Vibration and Control 31: 851–863. https://doi.org/10.1177/10775463241234472

Karimi

Shemshadi

Firoozfam

(2021) A simple method to design and analyze dynamic vibration absorber using dimensional analysis. Journal of Vibration and Control 27: 73–81. https://doi.org/10.1177/1077546320923928

Málaga-Chuquitaype

(2015) Estimation of peak displacements in steel structures through dimensional analysis and the efficiency of alternative ground-motion time and length scales. Engineering Structures 101: 264–278. https://doi.org/10.1016/j.engstruct.2015.07.019

Málaga-Chuquitaype

(2021) Strong-motion duration and response scaling of yielding and degrading eccentric structures. Earthquake Engineering and Structural Dynamics 50: 635–654. https://doi.org/10.1002/eqe.3350

Málaga-Chuquitaype

Psaltakis

Kampas

, et al. (2019) Dimensionless fragility analysis of seismic acceleration demands through low-order building models. Bulletin of Earthquake Engineering 17: 3815–3845. https://doi.org/10.1007/s10518-019-00615-2

Mao

Koroleva

Rodkina

(1998) Robust stability of uncertain stochastic differential delay equations. Systems & Control Letters 35: 325–336. https://doi.org/10.1016/s0167-6911(98)00080-2

10.

Miyamoto

Nakano

She

, et al. (2022) Design method of tuned mass damper by linear-matrix-inequality-based robust control theory for seismic excitation. Journal of Vibration and Acoustics 144: 041008. https://doi.org/10.1115/1.4053544

11.

Ohtori

Christenson

Spencer

Jr , et al. (2004) Benchmark control problems for seismically excited nonlinear buildings. Journal of Engineering Mechanics 130: 366–385. https://doi.org/10.1061/(asce)0733-9399(2004)130:4(366)

12.

Oppenheimer

Doman

Merrick

(2023) Multi-scale physics-informed machine learning using the Buckingham Pi theorem. Journal of Computational Physics 474: 111810. https://doi.org/10.1016/j.jcp.2022.111810

13.

Ortiz-Palacio

Ibanez

Sancho

, et al. (2024) Correlations between p-wave velocity and SPT-N for saturated and unsaturated alluvial clays using dimensional analysis. Soil Dynamics and Earthquake Engineering 177: 108401. https://doi.org/10.1016/j.soildyn.2023.108401

14.

Panda

Chakraborty

Ray-Chaudhuri

(2022) Development and performance evaluation of a robust suboptimal H∞-based proportional–integral controller–observer system with target tracking for better control of seismic responses. Structural Control and Health Monitoring 29: e3084. doi: Available at: https://doi.org/10.1002/stc.3084

15.

Patil

Malagi

Desavale

, et al. (2022) Fault identification in a nonlinear rotating system using dimensional analysis and central composite rotatable design. Measurement 200: 111610. https://doi.org/10.1016/j.measurement.2022.111610

16.

Qin

Yuan

(2025) Evaluation of thermal shock resistance of alumina–silica refractories based on Buckingham Π theorem. International Journal of Applied Ceramic Technology 22: e15156. https://doi.org/10.1111/ijac.15156

17.

Ramírez-Neria

Morales-Valdez

(2022) Active vibration control of building structure using active disturbance rejection control. Journal of Vibration and Control 28: 2171–2186. https://doi.org/10.1177/10775463211009377

18.

Saadatfar

Emami

Khatibinia

, et al. (2023) Sliding sector-based adaptive controller for seismic control of structures equipped with active tuned mass damper. Structures 51: 1507–1524. https://doi.org/10.1016/j.istruc.2023.03.117

19.

Shi

Wang

, et al. (2018) Application of an artificial fish swarm algorithm in an optimum tuned mass damper design for a pedestrian bridge. Applied Sciences 8(2): 175. https://doi.org/10.3390/app8020175

20.

Suryawanshi

Patil

Desavale

(2021) Dynamic model to predict vibration characteristics of rolling element bearings with inclined surface fault. Measurement 184: 109879. https://doi.org/10.1016/j.measurement.2021.109879

21.

Szirtes

(2007) Applied Dimensional Analysis and Modeling. Butterworth-Heinemann.

22.

Tang

Jang

Lan

, et al. (2020) Review on design factors of microbial fuel cells using Buckingham's Pi theorem. Renewable and Sustainable Energy Reviews 130: 109878. https://doi.org/10.1016/j.rser.2020.109878

23.

Shen

(2003) Intelligent bi-state control for the structure with magnetorheological dampers. Journal of Intelligent Material Systems and Structures 14(1): 35–42. https://doi.org/10.1177/1045389x03014001004

24.

Umutlu

Bidikli

Ozturk

, et al. (2024) Adaptive backstepping control design for ATMD systems in nonlinear structures with nonlinear disturbance and parametric uncertainties. Journal of Vibration and Control 30: 1635–1646. https://doi.org/10.1177/10775463231166734

25.

Chen

Lopes

, et al. (2023) Adaptive fuzzy variable fractional-order sliding mode vibration control of uncertain building structures. Engineering Structures 282: 115772. https://doi.org/10.1016/j.engstruct.2023.115772

26.

Zamani

Etedali

(2023) Robust output feedback-based neuro-fuzzy controller for seismically excited tall buildings with ATMD accounting for variations in the type of supporting soil. Soil Dynamics and Earthquake Engineering 164: 107614. https://doi.org/10.1016/j.soildyn.2022.107614

27.

Zand

Katebi

Yaghmaei-Sabegh

(2023) A generalized ANFIS controller for vibration mitigation of uncertain building structure. Structural Engineering and Mechanics 87: 231–242. doi: Available at: https://doi.org/10.12989/sem.2023.87.3.231

28.

Zand

Katebi

Yaghmaei-Sabegh

(2024) A hybrid clustering-based type-2 adaptive neuro-fuzzy forecasting model for smart control systems. Expert Systems with Applications 239: 122445. Available at: https://doi.org/10.1016/j.eswa.2023.122445

29.

Zhang

Mohammadzadeh

(2025) A novel vibration control system for active mass drivers based on dynamic fractional-order type-2 fuzzy model and adaptive fractional derivative. Journal of Vibration Engineering & Technologies 13: 553. https://doi.org/10.1007/s42417-025-02128-6
