Discrete predictive sliding-mode control with extended-state observation for an electronic throttle actuator: Suppression of high-frequency oscillations and experimental validation

Abstract

Electronic throttle actuators operate under strong nonlinearities, parametric uncertainties, and time-varying disturbances, where discontinuous control actions may introduce chattering and undesired high-frequency oscillations that degrade tracking accuracy and aggravate mechanical excitation. This paper proposes an extended-state-observer-based discrete predictive sliding-mode control strategy (ESO-DPSMC) for sampled-data electronic throttle systems. A discrete-time tracking-error model is established via Euler discretization to support controller synthesis directly in the discrete domain. A discrete-time extended state observer is developed to reconstruct the lumped disturbance online, and boundedness of the observation error is analytically guaranteed. On this basis, an adaptive implicit discrete reaching law with a predictive term is designed to enhance robustness while attenuating chattering-related high-frequency components in the control action. Closed-loop analysis establishes stability and bounded tracking performance in the presence of uncertainties and external disturbances. Comparative experiments on an electronic throttle platform demonstrate improved tracking and disturbance rejection with smoother control action than conventional sliding-mode control, indicating effective suppression of high-frequency oscillations under complex operating conditions.

Keywords

electronic throttle actuator vibration and noise control high-frequency oscillation suppression extended state observer adaptive implicit reaching law discrete-time predictive sliding-mode control

1. Introduction

The electronic throttle (ET) is a key actuator in engine control systems (Zhai et al., 2023), regulating the throttle-plate angle for closed-loop control of intake-air mass flow. In simplified engine architectures, it may serve as the sole actuator for integrated regulation of operating state and output performance. ET controllers must therefore achieve fast tracking and strong robustness against intake disturbances and parameter variations. ET actuation is driven by motor torque transmitted through a reduction gear train to the throttle shaft. However, gear backlash, return-spring nonlinear torque, and friction (Wang and Zhu, 2022) introduce strong nonlinearities and uncertainties, posing challenges to high-precision control. Consequently, many studies have focused on improving ET dynamic response and disturbance rejection (Peng et al., 2025; Wang et al., 2024; Wang et al., 2023).

Sliding mode control (SMC) has been widely investigated for complex dynamical systems due to its robustness and strong capability in handling nonlinearities (Fang et al., 2024; Cao et al., 2024; Rahul and Hariharan, 2024). With fast response, insensitivity to parameter perturbations and external disturbances, and a relatively simple structure, SMC has also been extensively applied to electronic throttle (ET) control (Ye and Wang, 2020). Nevertheless, conventional SMC typically uses a sign function to implement switching, and the associated high-frequency switching can induce severe chattering. Chattering degrades tracking accuracy and closed-loop stability, limiting engineering deployment. Accordingly, numerous variants have been proposed to alleviate chattering while preserving robustness and improving smoothness and precision. For instance, (Guo et al., 2024) combined SMC with a nonlinear disturbance observer to estimate unknown dynamics online and provide feedforward compensation, improving manipulator tracking. Xu et al., (2024) proposed a multi-input multi-output discrete integral terminal SMC method to enhance convergence and disturbance rejection under measurement disturbances. Quan (Quan, 2024) incorporated online zero-crossing detection to adapt to parameter variations in ET systems and improve control accuracy. Despite these advances, most methods are formulated in continuous time, whereas practical controllers operate in discrete time. Direct discretization of continuous-time SMC can degrade tracking, intensify chattering, and accumulate discretization errors, potentially compromising stability. Hence, DSMC methods tailored to digital implementation (Liu and Fu, 2025; Wang and Zhu, 2023; Chen et al., 2025) and their discrete-time performance analysis have become increasingly important.

In DSMC, reaching-law design strongly influences convergence rate, chattering, and robustness. For example (Hu et al., 2024), introduced a modified exponential reaching law with adaptive regulation to accelerate convergence over a wide disturbance range. For Delta robots (Fateh and Momeni, 2024), proposed a model-free adaptive SMC in which a new reaching law reduces conservatism in the sign-function gain and avoids actuator overload. For linear induction motor drives (Ma et al., 2024), embedded an exponential reaching law into an improved variable-structure framework to speed up reaching while suppressing reaching-phase oscillations. For PMSM speed regulation (Wang et al., 2024), developed a state-dependent variable-gain reaching law to achieve finite-time convergence and alleviate chattering. Despite these advances, many reaching laws are still derived in continuous time or implemented via explicit updates; when realized directly in discrete time, they may amplify switching jumps, aggravate chattering, and accumulate discretization errors, limiting suitability for high-precision digital actuators. To fill this gap, this paper proposes an adaptive implicit discrete reaching law that employs implicit updates to smooth discrete switching and adaptive regulation to enhance convergence speed and robustness.

Beyond the reaching law, sliding-surface design is equally important because it determines the closed-loop dynamics: once the state reaches the surface, the motion is governed by the surface dynamics (Janardhanan and Kariwala, 2008). To improve response and reduce chattering, DSMC variants such as discrete fast terminal sliding mode control (DFTSMC) (Hu and Wang, 2019) and discrete integral sliding mode control (Rubagotti et al., 2024) have been proposed and can achieve satisfactory performance in specific scenarios. Nevertheless, no single method resolves all practical issues. Moreover, many sliding-mode strategies rely on the equivalent-control term, whose accurate computation typically requires high-fidelity modeling or additional design effort. Consequently, composite schemes that integrate model predictive control (MPC) and sliding mode control (SMC) have attracted increasing attention. Abidi et al. (Abidi et al., 2006) investigated discrete-time integral sliding-mode control, Abdennebi et al. (Abdennebi et al., 2013) proposed a new sliding function for discrete predictive sliding-mode control of time-delay systems, and Zhang et al. (Zhang et al. 2019) developed a predictive DSMC that uses a multi-input chattering-free reaching law as the reference trajectory and applied it to networked control systems. Compared with single-controller structures, composite architectures generally accommodate a wider range of operating conditions. Disturbance observers have likewise been incorporated to enhance disturbance rejection. Sun et al. (Sun et al. 2024) combined an improved back-EMF observer with an extended state observer for sensorless robust control, whereas Hou et al. (Hou et al. 2024) developed an enhanced nonlinear extended state observer to estimate motor speed under measurement noise. Rsetam et al. (Rsetam et al., 2020) proposed a cascaded ESO-based sliding-mode control method for underactuated flexible joint robots, while Rsetam et al. (Rsetam et al., 2022) developed a robust adaptive ADRC method with an additional continuous sliding-mode component for electric furnaces. Later, Rsetam et al. (Rsetam et al., 2024) investigated adaptive ADRC for vehicle steer-by-wire systems under communication delays. More recently, Khan et al. (Khan et al., 2025) proposed an ESO-based adaptive fixed-time integral sliding-mode control method for flexible joint robots, and Rsetam et al. (Rsetam et al., 2025) developed a GPIO-based continuous sliding-mode control method for networked servo systems with communication delays. In addition, Mahmood et al. (Mahmood et al., 2024) designed an ESO for uncertainty estimation in an electronic throttle valve system. However, most existing ESO-based studies mainly focus on disturbance estimation or compensation, while their integration with constrained predictive sliding-mode control for sampled-data ET systems remains insufficient.

Robust constrained and predictive sliding-mode control methods have also been reported. Farbood et al. (Farbood et al., 2022) proposed a fuzzy Lyapunov-based predictive sliding-mode control method with recursive feasibility, Farbood et al. (Farbood et al., 2024) developed a relaxed nonquadratic $H_{\infty}$ constrained event-triggered fuzzy controller, and Echreshavi et al. (Echreshavi et al., 2023) investigated observer-based event-triggered integral sliding-mode load frequency control. These studies provide useful references, but they mainly focus on fuzzy nonlinear systems, event-triggered control, or power-system frequency regulation. In contrast, sampled-data ET control still requires the simultaneous treatment of nonlinear friction, return-spring torque, backlash, lumped disturbances, input constraints, and chattering-related high-frequency oscillations.

Based on these considerations, this paper proposes an extended-state-observer-based discrete predictive sliding-mode control method (ESO-DPSMC) for electronic throttle systems. Different from a simple combination of ESO, DSMC, and MPC, the proposed method couples a modified discrete-time extended state observer, an adaptive implicit discrete reaching law, and a constrained predictive sliding-mode optimization framework. Specifically, the DTESO estimates lumped disturbances online, the adaptive reaching law generates a smooth reference sliding-mode trajectory, and the predictive controller implicitly computes the equivalent control action under input and input-rate constraints. As a result, the proposed controller achieves fast, smooth, and robust tracking in the discrete-time domain while suppressing chattering-related high-frequency oscillations. Its effectiveness is evaluated against a discrete fast terminal sliding-mode controller (DFTSMC) and a discrete linear sliding-mode controller (DLSMC). The main contributions are summarized as follows.

1. To address nonlinearities, uncertainties, and external disturbances in electronic throttle systems, this paper proposes an ESO-DPSMC strategy formulated directly in the discrete-time domain. Different from conventional explicit or fixed-gain reaching laws, the proposed adaptive implicit discrete reaching law adjusts the convergence behavior of the sliding variable according to the error dynamics, thereby improving transient response while attenuating chattering-related high-frequency oscillations.

2. A constrained predictive sliding-mode framework is developed, in which the sliding-mode reference trajectory is generated by the adaptive reaching law and the control sequence is computed through receding-horizon optimization. In this way, the equivalent control component is obtained implicitly from the MPC optimization rather than being separately derived, enabling explicit handling of input magnitude and input-rate constraints.

3. A modified DTESO is designed for the sampled-data ET system. Unlike conventional ESO structures that mainly use position estimation error, the proposed observer incorporates both throttle-opening error and opening-rate estimation error into the correction mechanism, providing additional tuning freedom and improving online lumped-disturbance estimation.

The remainder of this paper is organized as follows. Section 2 derives a discrete-time dynamic model of the electronic throttle system. Section 3 presents the ESO-DPSMC design and the associated stability analysis. Sections 4 report numerical simulations and experimental tests, respectively, including comparative evaluations against DFTSMC and DLSMC. Section 5 concludes the paper.

2. Modeling of the electronic throttle (ET) system

The electronic throttle (ET) regulates intake airflow by controlling the throttle-plate opening. As shown in Figure 1, it consists of an electrical actuation unit and a mechanical transmission unit. The control input is generated by the ECU, and the controller produces a PWM signal to ensure accurate and smooth tracking. The ET dynamics are described by (Gao et al., 2020)

L \dot{I} = - R I - k_{e} N ω + u

(1)

J_{m} {\dot{ω}}_{m} = k_{t} i - B_{m} ω_{m} - T_{m}

(2)

Where

u

denotes the motor supply (armature) voltage subject to

∣ u ∣ \leq u_{\max}

, and

u_{\max} > 0

is the maximum allowable value for safe operation;

I

is the armature current;

R

k_{e}

, and

L

are the armature resistance, back-EMF constant, and armature inductance, respectively;

N

is the transmission (gear) ratio, computed as

N = ω_{m} / ω

;

T_{m}

is the motor output torque;

ω_{m}

and

ω

are the angular velocities of the DC motor and the ET throttle plate, respectively;

k_{t}

is the motor torque constant;

B_{m}

is the viscous friction coefficient of the DC motor; and

J_{m}

is the motor rotor inertia.

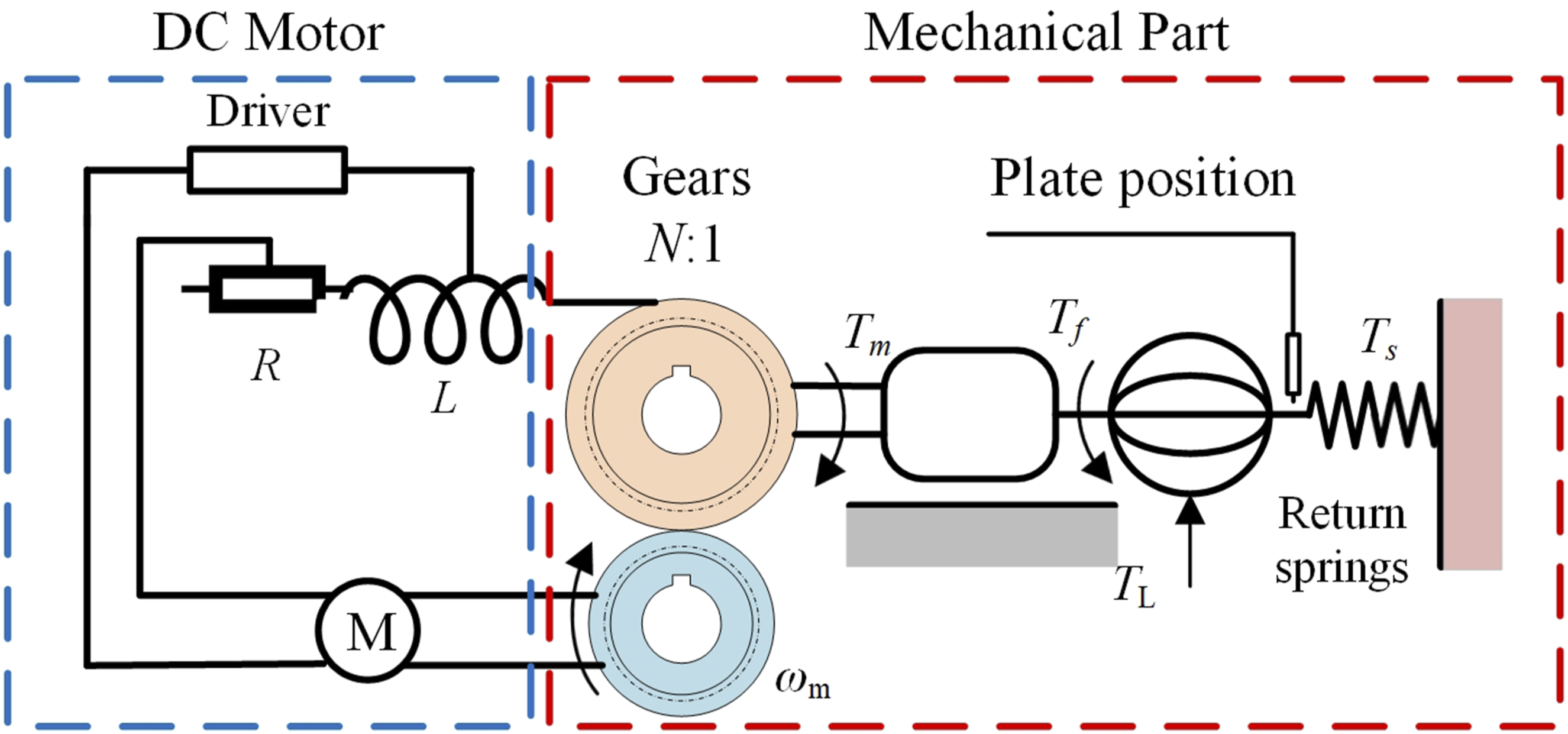

Figure 1.

Structure of the electronic throttle (ET) system.

According to Newton’s second law, noting that the friction torque comprises Coulomb and viscous components and that the return-spring torque is discontinuous, the torque-balance equations for the throttle body, reduction gear train, and return-spring/friction elements are formulated as follows

J_{e t} \dot{ω} = T_{l} - T_{f} - T_{s} - T_{L}

(3)

T_{f} = k_{d} ω + k_{k} sgn (ω)

(4)

T_{s} = k_{s} (θ - θ_{0}) + k_{m} sgn (θ - θ_{0})

(5)

Where

J_{e t}

denotes the rotational inertia of the throttle body;

T_{l}

T_{f}

T_{s}

, and

T_{L}

represent the output torque of the reduction gear set, the friction torque, the return-spring torque, and the load torque, respectively;

θ

is the throttle shaft angle, that is, the throttle-plate opening angle; and

k_{d}

k_{k}

k_{s}

k_{m}

, and

θ_{0}

denote the viscous damping coefficient, the Coulomb friction coefficient, the spring stiffness coefficient, the spring torque coefficient, and the initial throttle angle, respectively. By combining equations (1)–(5), the dynamic equation of the ET system can be derived as follows

\begin{array}{l} (J_{e t} + J_{m} N^{2}) \ddot{θ} + (\frac{N^{2} k_{t} k_{e}}{R} + B_{m} N^{2} + k_{d}) \dot{θ} \\ + k_{s} (θ - θ_{0}) + k_{k} ϑ (\dot{θ}) + k_{m} ϑ (θ - θ_{0}) + {\hat{T}}_{L} = N k_{t} \frac{u}{R} \end{array}

(6)

Considering parametric uncertainties in the nonlinear ET model obtained by combining equations (1)–(5), equation (6) can be rewritten as

β_{1} \ddot{θ} + β_{2} \dot{θ} + β_{3} (θ - θ_{0}) + β_{4} ϑ (θ - θ_{0}) + β_{5} ϑ (\dot{θ}) + {\hat{T}}_{L} = u

(7)

Where

β_{1} = β_{10} + Δ β_{1}, β_{2} = β_{20} + Δ β_{2}, β_{3} = β_{30} + Δ β_{3}, β_{4} = β_{40} + Δ β_{4}, β_{5} = β_{50} + Δ β_{5}

, Terms containing “

Δ

” represent parametric uncertainties.

\begin{array}{l} β_{10} = \frac{R J_{e t} + R J_{m} N^{2}}{N k_{t}}, β_{20} = \frac{N^{2} k_{t} k_{e} + R N^{2} B_{m} + R k_{d}}{N k_{t}}, β_{30} = \frac{R k_{s}}{N k_{t}}, β_{40} = \frac{R k_{m}}{N k_{t}}, \\ β_{50} = \frac{R k_{k}}{N k_{t}}, \end{array}

Let the system state variables $x_{1}$ and $x_{2}$ be defined as the valve-opening error and the angular-velocity error, respectively, that is, $x_{1} = θ - φ, x_{2} = {\dot{x}}_{1} = \dot{θ} - \dot{φ}$ where $φ$ is the reference signal of the desired opening angle. Accordingly, the control-oriented model of the ET system can be obtained as follows

{\begin{cases} {\dot{x}}_{1} = x_{2} \\ {\dot{x}}_{2} = - a_{1} (x_{1} + φ - θ_{0}) - a_{2} (x_{2} + \dot{φ}) - a_{3} \dot{ϑ} (x_{1} + φ - θ_{0}) - a_{4} \dot{ϑ} (x_{2} + \dot{φ}) - \ddot{φ} + μ_{0} u - d (t) \end{cases}

(8)

Where

\begin{array}{l} a_{1} = β_{20} / β_{10}, a_{2} = β_{30} / β_{10}, a_{3} = β_{40} / β_{10}, a_{4} = β_{50} / β_{10}, \\ μ_{0} = 1 / β_{10}, \end{array}

where d(t) denotes the lumped disturbance induced by parametric uncertainties

d (t) = \frac{1}{β_{10}} (Δ β_{1} \ddot{θ} + Δ β_{2} \dot{θ} + Δ β_{3} (θ - θ_{0}) + Δ β_{4} ϑ (θ - θ_{0}) + Δ β_{5} ϑ (\dot{θ}) - {\hat{T}}_{L})

(9)

As can be seen from (9), the lumped disturbance

d (t)

mainly consists of two parts: parametric uncertainties and external disturbances. The parametric uncertainties involved in (6) originate from deviations in the model parameters of the DC motor and the throttle actuator mechanism, which can be estimated through modeling and calibration.

Since practical controllers are typically implemented on digital platforms, the control law is designed in discrete time. Discretizing the continuous-time tracking-error model in equation (8) by the explicit Euler method yields the following discrete-time model (Hu et al., 2022)

\begin{array}{l} x_{1} (k + 1) = x_{1} (k) + h x_{2} (k) \\ x_{2} (k + 1) = - h a_{1} x_{1} (k) + (1 - h a_{2}) x_{2} (k) + \\ h μ u (k) - h g (k) - D (k) \end{array}

(10)

Where

h

denotes the sampling period,

D (k) = h d (k) = O (h)

, and the expression of

g (k)

is given by

g (k) = - a_{1} θ_{0} + a_{1} φ (k) + a_{2} \dot{φ} (k) + \ddot{φ} (k) + a_{3} \dot{ϑ} (x_{1} (k) + φ (k) - θ_{0}) + a_{4} \dot{ϑ} (x_{2} (k) + \dot{φ} (k))

(11)

In the discrete-time domain, the boundedness of the disturbance variation is further described in Assumption 2. The ET position-tracking performance directly influences engine operational safety, power performance, and fuel economy. In practice, nonlinear return-spring and friction effects, together with intake fluctuations and torque-load variations driven by changes in air mass flow, pose major challenges to high-precision ET control. Based on the boundedness of parametric uncertainties and the continuity of external disturbances, the assumptions used for observer and controller design are summarized below.

Assumption 1

The lumped disturbance $d (t)$ and its derivative $\dot{d} (t)$ are bounded, that is, $∣ d (t) ∣ \leq l_{d}$ and $∣ \dot{d} (t) ∣ \leq l_{d d}$ , where $l_{d}$ and $l_{d d}$ are positive constants.

Assumption 2

For the discretized ET system, the disturbance term and its variation are bounded (Yang et al., 2018), that is, $∣ d (k) ∣ \leq ξ_{1}$ and $∣ d (k) - d (k - 1) ∣ / h \leq ξ_{2}$ , where $ξ_{1}$ and $ξ_{2}$ are positive constants.

Remark 1. Roles of the assumptions. Assumption 1 provides the theoretical basis for treating parametric uncertainties and external load effects as a bounded lumped disturbance, which is required for the DTESO error-boundedness analysis. Assumption 2 is used in the discrete-time controller design and stability analysis, ensuring that the disturbance variation over one sampling interval remains bounded. In addition, the physical voltage limitation and input-rate constraints provide the constraint basis for the subsequent controller design, ensuring that the control input remains within the admissible operating range of the ET actuator. These assumptions and constraints help connect the physical ET system, the DTESO design, and the constrained ESO-DPSMC stability analysis.

3. Design of the ESO-DPSMC

3.1. Discrete-time extended state observer

To enhance the disturbance rejection capability of the system, a discrete-time extended state observer (DTESO) is designed to estimate disturbances. The lumped disturbance $d (k)$ is defined as an extended state variable $x_{3} (k)$ ; thus, equation (10) can be written as

{\begin{cases} x_{1} (k + 1) = x_{1} (k) + h x_{2} (k) \\ x_{2} (k + 1) = - h a_{1} x_{1} (k) + (1 - h a_{2}) x_{2} (k) + \\ h μ u (k) - h g (k) - h d (k) \\ x_{3} (k + 1) = x_{3} (k) + d (k + 1) - d (k) \end{cases}

(12)

Based on the ESO design in (Han, 2009), the following DTESO is designed for the sampled-data ET system

{\begin{cases} {\hat{x}}_{1} (k + 1) = {\hat{x}}_{1} (k) + h {\hat{x}}_{2} (k) + L_{1} (x_{1} (k) - {\hat{x}}_{1} (k)) \\ {\hat{x}}_{2} (k + 1) = - h a_{1} {\hat{x}}_{1} (k) + (1 - h a_{2}) {\hat{x}}_{2} (k) + \\ h μ u (k) - h g (k) - h x_{3} (k) + L_{2} [λ_{1} (x_{1} (k) - {\hat{x}}_{1} (k)) + λ_{2} (x_{2} (k) - {\hat{x}}_{2} (k))] \\ {\hat{x}}_{3} (k + 1) = {\hat{x}}_{3} (k) + L_{3} [λ_{3} (x_{1} (k) - {\hat{x}}_{1} (k)) + λ_{4} (x_{2} (k) - {\hat{x}}_{2} (k))] \end{cases}

(13)

Where

{\hat{x}}_{1} (k)

{\hat{x}}_{2} (k)

, and

{\hat{x}}_{3} (k)

denote the observer state estimates;

λ_{1}, λ_{2}, λ_{3}, λ_{4}

are positive error-weighting factors; and

L_{1}

L_{2}

, and

L_{3}

are the observer gains. In the proposed observer, not only

x_{1} (k)

is taken into account but

x_{2} (k)

is also incorporated into the injection mechanism, which improves estimation performance. Different from conventional ESO designs that mainly rely on the opening-angle estimation error, a new DTESO scheme is developed in this work. Specifically, the observer utilizes not only the throttle opening error but also the estimation error of the opening variation to compute the disturbance estimate. Moreover, the term

x_{2} (k) - {\hat{x}}_{2} (k)

is introduced to further enhance disturbance estimation accuracy, where

x_{2} (k)

can be obtained as

x_{2} (k) = \frac{x_{1} (k + 1) - x_{1} (k)}{h}

. As described in (13), the disturbance estimate is updated by

{\hat{x}}_{3} (k + 1) = {\hat{x}}_{3} (k) + L_{3} [λ_{3} (x_{2} (k) - {\hat{x}}_{2} (k)) + λ_{4} (x_{2} (k) - {\hat{x}}_{2} (k))]

. In addition, the estimation errors of the opening and its variation are simultaneously embedded in the opening-variation estimation update, that is,

\begin{array}{l} {\hat{x}}_{2} (k + 1) = - h a_{1} {\hat{x}}_{1} (k) + (1 - h a_{2}) {\hat{x}}_{2} (k) + \\ h μ u (k) - h g (k) + L_{2} [λ_{1} (x_{1} (k) - {\hat{x}}_{1} (k)) + λ_{2} (x_{2} (k) - {\hat{x}}_{2} (k))] \end{array}

, and two tunable parameters are further introduced to regulate the estimation errors of the opening and its variation, thereby improving the overall estimation performance. From this perspective, the proposed observer can be regarded as a higher-degree-of-freedom observer: by introducing the opening-variation estimation-error term, the observer gains additional tuning freedom. This implies that the estimation accuracy can be enhanced by appropriately adjusting parameters such as

λ_{2}

and

λ_{4}

. In particular, with the inclusion of

x_{2} (k) - {\hat{x}}_{2} (k)

, more accurate estimation can be achieved in the discrete-time implementation.

Define $σ (k) = {(σ_{1} (k), σ_{2} (k), σ_{3} (k))}^{T}$ , where $σ_{1} (k) = (x_{1} (k) - {\hat{x}}_{1} (k), σ_{2} (k) = x_{2} (k) - {\hat{x}}_{2} (k),$ and $σ_{3} (k) = x_{3} (k) - {\hat{x}}_{3} (k)$ . Then, we have

σ (k + 1) = \bar{A} σ (k) + \bar{B} Δ d (k)

(14)

\bar{A} = [\begin{array}{l} I - L_{1} & h I & 0 \\ - λ_{1} L_{2} - h α_{1} I & I - h α_{2} I - λ_{2} L_{2} & - h I \\ - λ_{3} L_{3} & - λ_{4} L_{3} & I \end{array}], \bar{B} = [\begin{array}{l} 0 \\ 0 \\ I \end{array}] .

(15)

Δ d (k) = d (k + 1) - d (k)

I

denotes an identity matrix with compatible dimensions.Theorem 1: For the electronic throttle system in (10) subject to lumped disturbances and uncertainties, based on the observer proposed in (13), if there exists a positive definite symmetric matrix

P_{a}

and a positive scalar

η

such that the following inequality holds

[\begin{array}{l} - P_{a} + η I & 0 & {\bar{A}}^{T} P_{a} \\ * & - I & {\bar{B}}^{T} P_{a} \\ * & * & - P_{a} \end{array}] < 0

(16)

Here “

*

” denotes the transpose of the symmetric part of the matrix. Then, the estimation error of the electronic throttle system is proven to be ultimately bounded.

Proof. The Lyapunov function is chosen as

V (k + 1) = σ_{a}^{T} (k) P_{a} σ_{a} (k)

(17)

From (17), we obtain

\begin{array}{l} Δ V_{1} = V (k + 1) - V (k) \\ = σ_{a}^{T} (k + 1) P_{a} σ_{a} (k + 1) - σ_{a}^{T} (k) P_{a} σ_{a} (k) \\ = {(\bar{A} σ_{a}^{T} (k) + \bar{B} Δ d (k))}^{T} P_{a} (\bar{A} σ_{a} (k) + \bar{B} Δ d (k)) - σ_{a}^{T} (k) P_{a} σ_{a} (k) \\ = σ_{a}^{T} (k) ({\bar{A}}^{T} P \bar{A} - P) σ_{a} (k) + σ_{a}^{T} (k) {\bar{A}}^{T} P \bar{B} Δ d (k) \\ + Δ d {(k)}^{T} {\bar{B}}^{T} P \bar{A} σ_{a} (k) + Δ d {(k)}^{T} {\bar{B}}^{T} P_{a} \bar{B} Δ d (k) \end{array}

(18)

by selecting a positive scalar

η

such that

η σ_{a}^{T} (k) P_{a} σ_{a} (k) - Δ d {(k)}^{T} Δ d (k) \geq 0

(19)

Then (18), can be rewritten as

\begin{array}{l} Δ V_{1} \leq σ_{a}^{T} (k) ({\bar{A}}^{T} P \bar{A} - P) σ_{a} (k) + σ_{a}^{T} (k) {\bar{A}}^{T} P \bar{B} Δ d (k) \\ + Δ d {(k)}^{T} {\bar{B}}^{T} P \bar{A} σ_{a} (k) + Δ d {(k)}^{T} {\bar{B}}^{T} P_{a} \bar{B} Δ d (k) + β σ_{a}^{T} (k) P_{a} σ_{a} (k) - Δ d {(k)}^{T} Δ d (k) \\ = σ_{d}^{T} (k) Ω_{d} σ_{d} (k) \end{array}

(20)

Where

Ω_{d} = [\begin{array}{l} {\bar{A}}^{T} P_{a} \bar{A} - P_{a} + β I & {\bar{A}}^{T} P_{a} \bar{B} \\ {\bar{B}}^{T} P_{a} \bar{A} & {\bar{B}}^{T} P_{a} \bar{B} - I \end{array}], σ_{d}^{T} (k) = [\begin{array}{l} σ_{a} (k) \\ Δ d (k) \end{array}] .

From (20) and by the Schur complement, if the condition in (16) holds, then

Ω_{d} < 0

, which implies

Δ V_{1} < 0

. Therefore, the observer error system in (14) is stable, and the estimation error is bounded. This completes the proof.

3.2. Predictive sliding-mode model

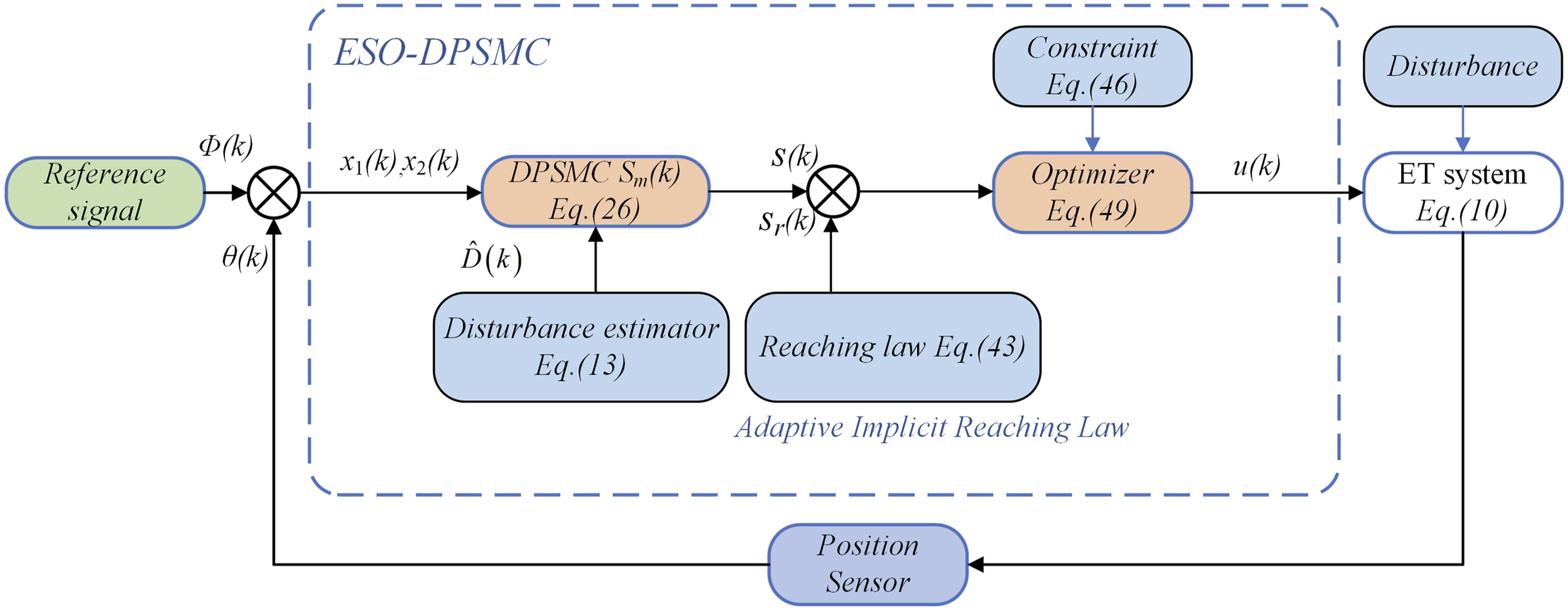

The controller design consists of two components: sliding-surface selection and reaching-law design. To ensure rapid and accurate convergence of the system states to the equilibrium, the following nonlinear sliding surface is adopted

\begin{array}{l} s (k) = c_{1} x_{1} (k) + x_{2} (k) - c_{2} ϑ (k - 1) \\ ϑ (k) = ϑ (k - 1) + sig {(x_{1} (k))}^{γ} \end{array}

(21)

Where

c_{1} = d i a g (c_{11}, c_{12}, c_{13}), c_{1 i} > 0

c_{2} = d i a g (c_{21}, c_{22}, c_{23}), c_{2 i} > 0

, and

s i g {(x_{1} (k))}^{γ} = {| x_{1} (k) |}^{γ} s i g (x_{1} (k))

. The fractional-order parameter γ satisfies

0 < γ < 1

. It is worth noting that, once the sliding surface reaches the vicinity of the origin of the switching hyperplane, introducing the fractional power

γ

provides a faster convergence rate for the system states than the case withγ = I.

Based on (21), the sliding-mode function $s (k + 1)$ can be derived as

s (k + 1) = c_{1} x_{1} (k + 1) + x_{2} (k + 1) - c_{2} ϑ (k)

(22)

Substituting (10) into (22) yields

s (k + 1) = s (k) + h (c_{1} - a_{2}) x_{2} (k) - h a_{1} x_{1} (k) + h μ u (k) - h g (k) - h d (k) - c_{2} sig {(x_{1} (k))}^{γ}

(23)

Let $A_{1} = h (c_{1} - a_{2}), A_{2} = - h a_{1}, B_{1} = h μ$ , then (23) can be rewritten as

s (k + 1) = s (k) + A_{1} x_{2} (k) + A_{2} x_{1} (k) + B_{1} u (k) - h g (k) - h d (k) - c_{2} sig {(x_{1} (k))}^{γ}

(24)

Based on (10), (21), and (24), the derivation can be continued to obtain the $N$ -step-ahead prediction of the sliding-mode dynamics, that is, $s (k + N)$ , where the positive integer $N$ denotes the prescribed prediction horizon. For convenience, the following vector containing future signals is defined

\begin{array}{l} S_{m} (k) = {[s (k + 1), s (k + 2), \dots s (k + N)]}^{T} \\ E (k - 1) = {[sig {(x_{1} (k))}^{r}, \dots sig {(x_{1} (k + N - 1))}^{r}]}^{r} \\ U (k - 1) = {[u (k), u (k + 1), \dots u (k + N - 1)]}^{T} \\ G (k - 1) = {[g (k), g (k + 1), \dots g (k + N - 1)]}^{r} \\ D (k - 1) = {[D (k), D (k + 1), \dots D (k + N - 1)]}^{r} \end{array}

(25)

By iteratively propagating the forward prediction equations, the output signal of the predictive sliding-mode model, $S_{m} (k)$ , can be expressed as

S_{m} (k) = Λ s (k) + θ_{1} x_{2} (k) + θ_{2} x_{1} (k) + Σ U (k - 1) + H G (k - 1) + Γ D (k - 1) + ψ E (k - 1)

(26)

Where the matrices

Λ, θ_{1}, θ_{2} \in R^{N * 1}

, and

Σ, H, Γ, ψ \in R^{N * N}

. Their explicit expressions are given by:

Λ = {[I, I, . . ., I]}^{T} |

(27)

θ_{1} = [\begin{array}{l} A_{1} \\ A_{1} + A_{2} h + A_{1} A_{11} \\ A_{1} + A_{2} h (2 I + A_{1}) + A_{1} ({A_{11}}^{2} + A_{11}) + A_{2} A_{11} h \\ ⋮ \end{array}]

(28)

θ_{2} = [\begin{array}{l} A_{2} \\ 2 A_{2} + A_{1} A_{2} \\ 3 A_{2} + 2 A_{1} A_{2} + A_{2}^{2} h + A_{1} A_{2} A_{11} \\ ⋮ \end{array}]

(29)

Σ = [\begin{array}{l} B_{1} \\ B_{1} + A_{1} B_{1} & B_{1} \\ Σ_{1} & B_{1} + A_{1} B_{1} \\ ⋮ & ⋮ & ⋱ \\ \dots & \dots & \dots & B_{1} \end{array}]

(30)

H = [\begin{array}{l} - h & 0 & \dots & 0 \\ 0 & - h & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & - h \end{array}], Γ = [\begin{array}{l} - h & 0 & \dots & 0 \\ 0 & - h & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & - h \end{array}]

(31)

ψ = [\begin{array}{l} - c_{2} \\ - c_{2} & - c_{2} \\ ⋮ & ⋮ & ⋱ \\ - c_{2} & - c_{2} & \dots & - c_{2} \end{array}]

(32)

Where

Σ_{1} = B_{1} + A_{1} (1 + A_{11}) B_{1} + A_{2} B_{1} h

, and

A_{11} = 1 - h a_{2}

3.3. Design of the reference sliding-mode trajectory

Unlike conventional DSMC strategies based on reaching laws, this work designs a reference trajectory for the sliding-mode state. The selection of a sliding-mode reference trajectory is flexible, and various forms can be adopted to guarantee strong continuity of the system and to address the issue that fixed switching-gain parameters in the switching term may lead to an unfavorable trade-off between convergence and chattering. Define $ξ (k) = C d (k) - C d (k - 1)$ and $ξ^{*} = \sup_{k \geq 0} (ξ (k))$ . To improve the convergence speed and control accuracy, a discrete-time high-order sliding-mode adaptive reaching law is introduced in this paper (Guo et al., 2023):

s (k + 1) = - β h {| s (k + 1) |}^{γ (k)} sgn (s (k + 1)) + (1 - α h) s (k) + ξ (k)

(33)

Where

α > 0, β > 0, γ (k) > 0

are adaptive (tuning) parameters. The reaching law enlarges the admissible range of parameter selection, implying that a wider variety of

γ (k)

values can be employed. By choosing an appropriate

γ (k)

at different stages of sliding motion, the reaching law in (33) can guarantee global fast finite-time convergence of the sliding variable.Theorem 2: For the discrete reaching law (33), if the adaptive parameter satisfies:

{\begin{cases} γ (k) > 1, | s (k + 1) | \geq 1 \\ γ (k) < \min {\log_{| s (k + 1) |} (\frac{ξ^{*}}{β h}), 1}, | s (k + 1) | < 1, \end{cases}

(34)

Then, starting from $s (0)$ , the sliding variable converges to $0$ within a finite time.

Proof. Define the Lyapunov function $V (k) = s^{2} (k)$ and $Δ V (k) = V (k + 1) - V (k) .$ Then, we have:

\begin{array}{l} Δ V (k) = \frac{- 1}{{(1 - α h)}^{2}} (β h {| s (k + 1) |}^{γ (k)} + α h | s (k + 1) | - ξ (k) sgn (s (k + 1))) \\ \times ((2 - α h) | s (k + 1) | + β h {| s (k + 1) |}^{γ (k)} - ξ (k) sgn (s (k + 1))) . \end{array}

(35)

Since $ξ^{*} = O (h^{2})$ , it follows that $\frac{ξ^{*}}{β h} < 1$ . The following three cases are considered.

Case 1: If $| s (k + 1) | \geq 1$ , then $γ (k) > 1$ , and the following two inequalities hold:

\begin{array}{l} β h {| s (k + 1) |}^{γ (k)} + (2 - α h) | s (k + 1) | - ξ (k) sgn (s (k + 1)) \\ \geq β h + 2 - α h - ξ (k) sgn (s (k + 1)) > 0 \end{array}

(36)

\begin{array}{l} β h {| s (k + 1) |}^{γ (k)} + α h | s (k + 1) | - ξ (k) sgn (s (k + 1)) \\ \geq β h + α h - ξ (k) sgn (s (k + 1)) > 0 . \end{array}

(37)

Case 2: If $\frac{ξ^{*}}{β h} \leq | s (k + 1) | < 1$ , then, from (34), one obtains $γ (k) < 1$ .

\begin{array}{l} β h {| s (k + 1) |}^{γ (k)} - ξ (k) sgn (s (k + 1)) + (2 - α h) | s (k + 1) | \\ > (2 + β h - α h) | s (k + 1) | - ξ (k) sgn (s (k + 1)) \\ \geq ξ^{*} - ξ (k) sgn (s (k + 1)) + (2 - α h) ξ^{*} / (β h) > 0, \end{array}

(38)

and:

\begin{array}{l} β h {| s (k + 1) |}^{γ (k)} - ξ (k) sgn (s (k + 1)) + α h | s (k + 1) | \\ > ξ^{*} - ξ (k) sgn (s (k + 1)) + α ξ^{*} / β > 0 . \end{array}

(39)

Case 3: If $0 \leq | s (k + 1) | < \frac{ξ^{*}}{β h}$ , then $γ (k) < \log_{| s (k + 1) |} (\frac{ξ^{*}}{β h})$ , and it further follows that:

\begin{array}{l} β h {| s (k + 1) |}^{γ (k)} - ξ (k) sgn (s (k + 1)) + (2 - α h) | s (k + 1) | \\ > ξ^{*} - ξ (k) sgn (s (k + 1)) + (2 - α h) | s (k + 1) | > 0 \end{array}

(40)

and:

\begin{array}{l} β h {| s (k + 1) |}^{γ (k)} - ξ (k) sgn (s (k + 1)) + α h | s (k + 1) | \\ > ξ^{*} - ξ (k) sgn (s (k + 1)) + α h | s (k + 1) | > 0 . \end{array}

(41)

In all three cases, the sliding variable always satisfies

Δ V (k) < 0

. Moreover, when

| s (k + 1) | < 1

, it holds that

γ (k) < 1

, which guarantees finite-time reachability of the sliding surface. Theorem 2 indicates that

γ (k)

should be selected according to the magnitude of

s (k + 1)

. Therefore, a desired sliding variable

s_{r} (k)

can be predesigned, and the adaptive parameter can then be determined accordingly. In addition, a certain design margin should be reserved for

γ (k)

. Based on the above analysis, the adaptive parameter is designed

as:

γ (k) = {\begin{cases} γ_{1} & | s (k) | \geq 1 \\ \min {\log_{| s_{r} (k) |} (\frac{ξ^{*}}{β h}), γ_{2}} & | s (k) | < 1 \\ γ_{3} & γ (k) \leq γ_{3} \end{cases}

(42)

Where

γ_{1} > 1, 0 < γ_{3} < γ_{2} < 1

. Clearly, it is reasonable to construct the reference trajectory of the sliding state using the reaching law in (33). Accordingly, the reference sliding-mode trajectory

s_{r} (k)

can be obtained as:

{\begin{cases} s_{r} (k + 1) = - β h {| s_{r} (k + 1) |}^{γ (k)} sgn (s_{r} (k + 1)) + (1 - α h) s_{r} (k) + ξ (k) \\ s_{r} (k) = s (k) \end{cases}

(43)

3.4. Design of the DPSMC controller

The optimal control input is obtained by minimizing a prescribed objective function over the control horizon. Based on the predictive sliding-mode model in (26) and the reference trajectory in (43), the cost function at time instant k is defined as follows:

J (k) = {[S_{r} (k) - S_{m} (k)]}^{T} [S_{r} (k) - S_{m} (k)] + U^{T} (k) W U (k)

(44)

Where

S_{r} (k) = {[s_{r} (k + 1), s_{r} (k + 2), \dots, s_{r} (k + N)]}^{T}

and

W \in R^{N * N}

is a weighting matrix used to tune the control effort. Substituting (26) into (44) yields:

J (k) = - 2 U^{T} (k - 1) Σ^{T} X + U^{T} (k - 1) (Σ^{T} Σ + W) U (k - 1) + X^{T} X

(45)

Where

X = S_{r} (k) - Λ s (k) - θ_{1} x_{2} (k) - θ_{2} x_{1} (k) - Σ U (k - 1) - H G (k - 1) - Γ D (k - 1) - ψ E (k - 1)

The constraints on the magnitude and rate of change of the control input can be formulated as follows:

{\begin{cases} u_{i \min} ⩽ u_{i} (k + j - 1) ⩽ u_{i \max} \\ Δ u_{i \min} ⩽ | u_{i} (k + j - 1) - u_{i} (k + j - 2) | ⩽ Δ u_{i \max} \end{cases}

(46)

Where

i = 1, 2, 3

and

j = 1, 2, 3, . . ., N

u_{i \min}

and

u_{i \max}

denote the lower and upper bounds of the control input, respectively, satisfying

u_{i \min} \leq 0 \leq u_{i \max}

Δ u_{i \min}

and

Δ u_{i \max}

denote the lower and upper bounds on the rate of change of the control input, respectively, satisfying

Δ u_{i \min} \leq 0 \leq Δ u_{i \max}

Based on the receding-horizon optimization in (45) together with the constraints in (46), the proposed constrained discrete-time predictive sliding mode control problem can be transformed into the following quadratic programming (QP) problem.

U (k) = {\begin{cases} \min_{U} [\frac{1}{2} U^{T} (k - 1) P U (k - 1) + U^{T} (k - 1) V] \\ s . t . & L U (k - 1) ⩽ Ω \end{cases}

(47)

Where

= - Σ^{T} [S_{r} (k) - Λ s (k) - θ_{1} x_{2} (k) - θ_{2} x_{1} (k) - Σ U (k - 1) - H G (k - 1) - Γ D (k - 1) - ψ E (k - 1)]

P = Σ^{T} Σ + W

L \in R^{N * N}

denotes the identity matrix. Moreover,

Ω \in R^{N}

is a matrix associated with the input constraints, which is computed from (46).

Since the error-related terms $E (k - 1)$ , $G (k - 1)$ , and $D (k - 1)$ are unknown, they can be estimated as:

\begin{array}{l} \hat{E} (k - 1) = {[s i g {(x_{1} (k))}^{r}, . . . s i g {(x_{1} (k))}^{r}]}^{r} \\ \hat{G} (k - 1) = {[g (k), g (k), . . . g (k)]}^{T} \\ \hat{D} (k - 1) = {[\hat{D} (k), \hat{D} (k), . . . \hat{D} (k)]}^{T} \end{array}

(48)

Remark 2. Online implementation of the predictive terms and constraints.In the online implementation, all terms required by the QP are updated at each sampling instant. The tracking states $x_{1} (k)$ and $x_{2} (k)$ are obtained from the measured throttle angle and its discrete-time difference, while the lumped disturbance is estimated by the DTESO. Over the short prediction horizon, the disturbance-related term is approximated by a zero-order-hold prediction using the latest estimate, i.e., $D (k + j) = h x_{3} (k), j = 0, 1, . . ., N - 1$ , The future reference signal is generated from the known command sequence or by interpolation between adjacent reference samples, and the corresponding prediction terms are computed using the discrete-time prediction model. Thus, the online QP does not require unavailable future measurements. The input magnitude and input-rate constraints are imposed as hard constraints. Feasibility is ensured under admissible reference commands, bounded disturbances, and actuator limits consistent with the ET operating range. When the constraints become active, the optimizer computes the best admissible control sequence within the prescribed limits; the sliding variable may converge more slowly, but the voltage command remains physically admissible and saturation-induced discontinuities are avoided. Since the prediction horizon is short and the prediction matrices can be computed offline, the online QP has a small scale and can be solved within the sampling period on the dSPACE real-time platform.

3.5. Stability analysis

Based on the terminal constraint approach in (44), the constrained cost function can be transformed into:

J (k) = \sum_{i = 1}^{N} [\tilde{s} {(k + i)}^{2} + u {(k + i - 1)}_{W}^{2}]

(49)

The overall block diagram of the proposed control scheme is shown in Figure 2.

Figure 2.

Block diagram of the proposed ESO-DPSMC for the ET system.

Subject to the following constraints on the control input and the sliding-mode state:

∥ u (k + i - 1) ∥ ⩽ \bar{u} \max

(50)

‖ u (k + i - 1) - u (k + i - 2) ‖ ⩽ Δ \bar{u} \max

(51)

\tilde{s} (k + N) = 0

(52)

Where

\bar{u} \max

and

Δ \bar{u} \max

specify whether the upper bounds satisfy (46), and

\tilde{s} (k + i) = s_{r} (k + i) - s (k + i)

. equation (52) is referred to as the terminal constraint.

Theorem 3: For the error dynamics system defined in (10), consider the discrete-time integral terminal sliding surface in (21) and the discrete-time adaptive reference sliding-mode trajectory in (43). If the control law is obtained by solving the optimal control problem associated with the cost function under the control-input constraints, then $S_{r} (k) = S (k)$ is a stable equilibrium point of the closed-loop control system.

Proof. Let the optimal solution of the cost function (44) at time instant $k$ be $U_{0} (k - 1) = {[u_{0} (k), u_{0} (k + 1), \dots u_{0} (k + N - 1)]}^{T}$ ,According to the receding-horizon optimization principle, the first element of the optimal sequence is applied as the implemented control input. Assume that $\tilde{s} = 0$ and $u = 0$ correspond to the equilibrium condition of system (10), and that the optimization problem at each step is feasible and solvable. Let $J_{0} (k)$ denote the value of $J (k)$ under the optimal candidate sequence $U_{0} (k - 1)$ . Clearly, $J_{0} (k) \geq 0$ , and $J_{0} (k) = 0$ if and only if $\tilde{s} (k + N) = 0$ and $u_{0} (k + i - 1) = 0$ for each future step $i$ .

Then, at time instant $k + 1$ , a feasible candidate control-input sequence is given by:

U_{0} (k) = {[u_{0} (k + 1), u_{0} (k + 2), \dots u_{0} (k + N - 1), 0]}^{T}

(53)

The corresponding optimal value of the cost function is $J_{0} (k + 1)$ , which satisfies

\begin{array}{l} J_{0} (k + 1) = \min_{u} \sum_{i = 1}^{N} [{‖ \tilde{s} (k + i + 1) ‖}^{2} + {‖ u (k + i) ‖}_{w}^{2}] \\ = \min_{u} {[\sum_{i = 1}^{N} {‖ \tilde{s} (k + i) ‖}^{2} + {‖ u (k + i) ‖}_{w}^{2}]] \\ - [{‖ \tilde{s} (k + 1) ‖}^{2} + {‖ u (k) ‖}_{w}^{2}] \\ + [{‖ \tilde{s} (k + N + 1) ‖}^{2} + {‖ u (k + N) ‖}_{w}^{2}]} \\ \leq - [{‖ \tilde{s} (k + 1) ‖}^{2} + {‖ u_{0} (k) ‖}_{w}^{2}] + J_{0} (k) \\ + \min_{u} [{‖ \tilde{s} (k + N + 1) ‖}^{2} + {‖ u (k + N) ‖}_{w}^{2}] \end{array}

(54)

By enforcing the terminal constraint (52), we can guarantee that

\min_{u} [\tilde{s} {(k + N + 1)}^{2} + u {(k + N)}_{w}^{2}] = 0

(55)

Since ${‖ \tilde{s} (k + 1) ‖}^{2} + {‖ u_{0} (k) ‖}_{w}^{2} \geq 0$ , we obtain

J_{0} (k + 1) \leq J_{0} (k)

(56)

This indicates that $J_{0} (k)$ is a monotonically decreasing function. Therefore, it can be concluded that $S_{r} (k) = S (k)$ is a stable equilibrium point of the control system.

Remark 3. The proposed ESO-DPSMC strategy is not a direct combination of ESO, DSMC, and predictive control. The modified DTESO is designed for the sampled-data ET tracking-error model and uses both the throttle-opening error and opening-rate estimation error for disturbance correction. In addition, a smooth reference sliding-mode trajectory is generated by the adaptive implicit discrete reaching law, and the equivalent control action is obtained through constrained receding-horizon optimization. Therefore, the novelty of the proposed method lies in the ET-oriented integration of DTESO, adaptive implicit reaching law, and constrained predictive sliding-mode optimization, which improves tracking accuracy, disturbance rejection, and chattering suppression in digital implementation.

4. Experimental study

4.1. Simulation verification of the DTESO

To directly evaluate the estimation quality of the proposed DTESO in equation (13), a simulation verification was conducted before the experimental tests. Since the actual lumped disturbance in the experimental ET platform is difficult to measure directly, the true disturbance is compared with the DTESO estimate in simulation, where the disturbance signal is known. Figure 3 shows the actual lumped disturbance $D (k)$ and the estimated disturbance $\hat{D} (k)$ . It can be observed that $\hat{D} (k)$ closely follows $D (k)$ during the whole simulation interval. Only small estimation deviations are observed near several rapidly varying parts of the disturbance signal, and the overall estimation error remains within a small bounded range. This indicates that the proposed DTESO has good online disturbance-reconstruction capability and can provide effective disturbance information for the subsequent ESO-DPSMC controller.

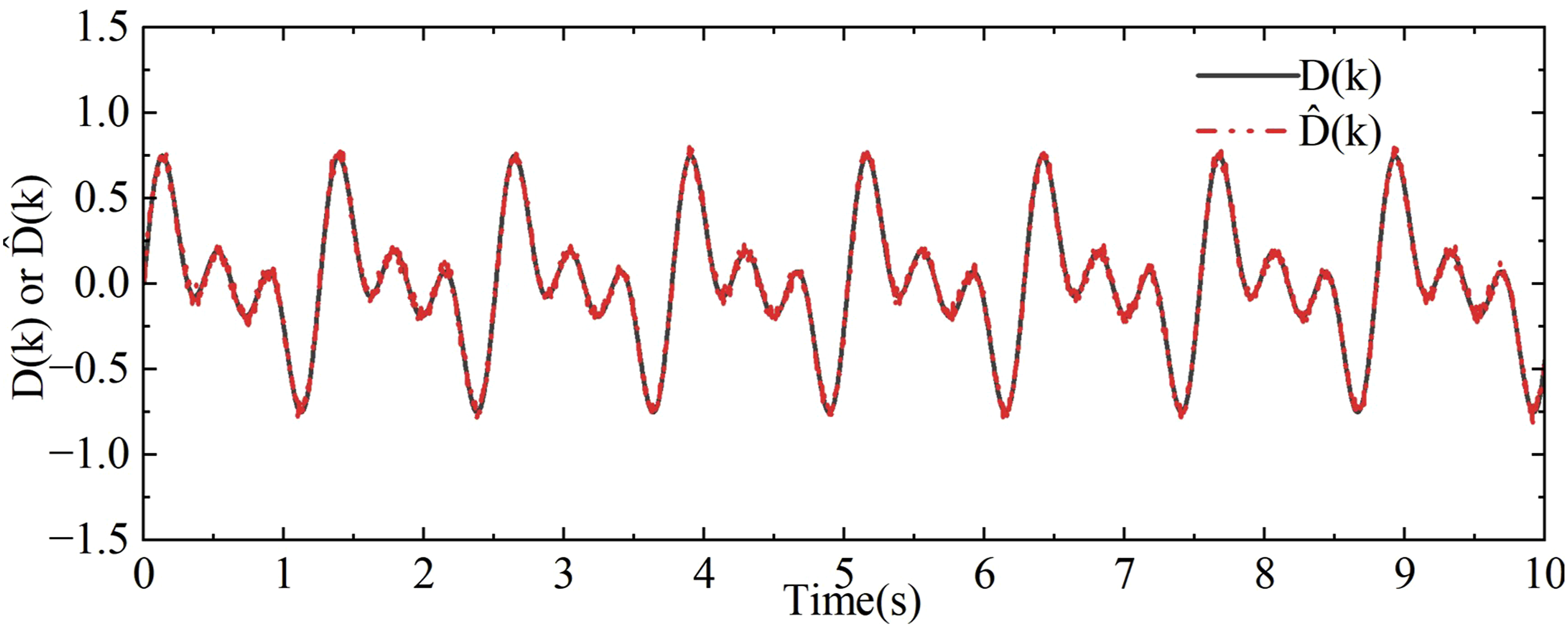

Figure 3.

Disturbance estimation performance of the DTESO.

4.2. Experimental setup

To further assess the tracking and disturbance-rejection performance of the proposed ESO-DPSMC on a practical electronic throttle (ET) system, experiments were performed on a dedicated hardware-in-the-loop (HIL) platform and compared with DFTSMC and DLSMC. The platform was built in Matlab/Simulink using the dSPACE real-time development system. As shown in Figure 4, a Bosch 028750156 electronic throttle body was used as the plant. The hardware comprised a dSPACE MicroAutoBox, a RapidPro unit, a dedicated power-supply module, and a host PC. Figure 5 shows the control architecture: the MicroAutoBox executes the control algorithm in real time and acquires the throttle-angle signal via the A/D interface, whereas the RapidPro delivers the motor driving voltage as 10-kHz PWM. This platform provides low-latency execution, well-configured I/O, and accurate data acquisition, enabling reliable evaluation of tracking and disturbance-rejection performance on real hardware.

Figure 4.

dSPACE experiment platform of ET system.

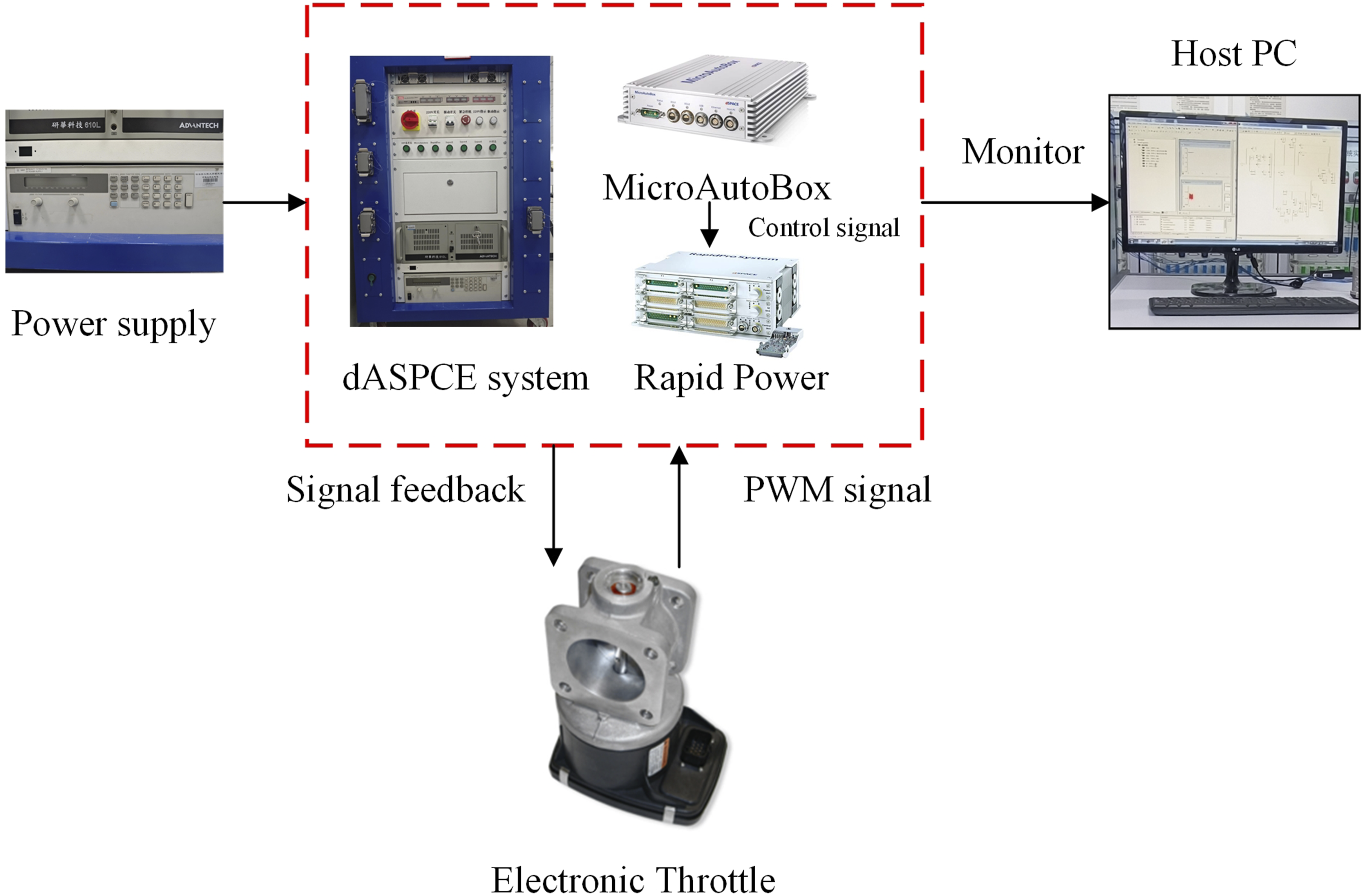

Figure 5.

Schematic diagram of dSPACE system.

The nominal physical parameters of the ET system are listed in Table 1, and they are determined from manufacturer data and experimental calibration. According to common ET identification procedures, electrical and mechanical parameters can be obtained through no-load/load, speed–torque, deceleration, and torque–angle tests (Park et al., 2022).

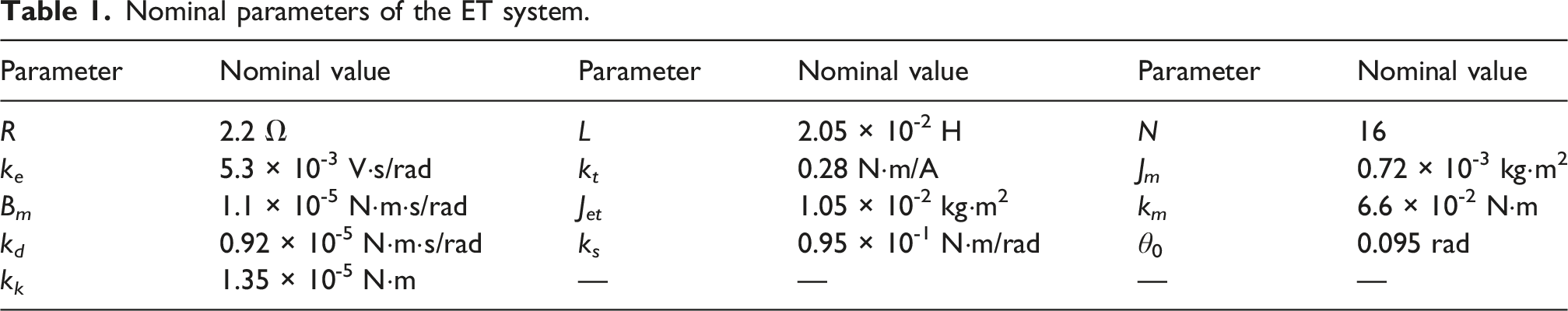

Table 1.

Nominal parameters of the ET system.

Parameter	Nominal value	Parameter	Nominal value	Parameter	Nominal value
R	2.2 Ω	L	2.05 × 10^-2 H	N	16
k_e	5.3 × 10^-3 V·s/rad	k _t	0.28 N·m/A	J _m	0.72 × 10^-3 kg·m²
B_m	1.1 × 10^-5 N·m·s/rad	J _et	1.05 × 10^-2 kg·m²	k _m	6.6 × 10^-2 N·m
k_d	0.92 × 10^-5 N·m·s/rad	k _s	0.95 × 10^-1 N·m/rad	θ ₀	0.095 rad
k_k	1.35 × 10^-5 N·m	—	—	—	—

To comparatively evaluate the performance of the proposed control strategy, the discrete fast terminal sliding-mode controller (DFTSMC) (Li et al., 2021) and the discrete linear sliding-mode (DLSMC) (Xiao et al., 2024) were selected as benchmark methods in the experiments. All three controllers employed the same parameter settings as those used in the numerical simulations to ensure consistency between the experimental and simulation results.

For the ET system (10), the sliding surfaces and control laws for DFTSMC, DLSMC are designed as follows

{\begin{cases} s_{l} (k) = c_{1} x_{1} (k) + x_{2} (k) + c_{2} {x_{1}}^{γ} (k) \\ s (k + 1) = - k_{1} s (k) - k_{2} s g n (s (k)) \\ u_{f} (k) = \frac{1}{h μ} [- k_{1} s (k) - k_{2} sgn (s (k)) - (c_{1} - h a_{1}) x_{1} (k) \\ - (1 + h c_{1} - h a_{2}) x_{2} (k) + h g (k) + D (k) - c_{2} {(x_{1} (k) + h x_{2} (k))}^{γ}] \end{cases} .

(57)

{\begin{cases} s_{l} (k) = c_{1} x_{1} (k) + x_{2} (k) \\ s (k + 1) = - k_{1} s (k) - k_{2} s g n (s (k)) \\ u_{l} (k) = \frac{1}{h μ} [- k_{1} s (k) - k_{2} sgn (s (k)) - (c_{1} - h a_{1}) x_{1} (k) \\ - (1 + h c_{1} - h a_{2}) x_{2} (k) + h g (k) + D (k)] \end{cases}

(58)

To ensure a fair and meaningful comparison, DFTSMC and DLSMC are selected as benchmark methods because they represent two typical discrete sliding-mode control structures for nonlinear actuator systems. DFTSMC uses a nonlinear fast terminal sliding surface and provides fast convergence, while DLSMC uses a conventional linear sliding surface and serves as a basic discrete sliding-mode baseline. All controllers are tested under the same ET platform, sampling period, reference commands, disturbance settings, input constraints, and evaluation indices. Parameters with similar roles are set to identical or comparable values where possible, and DFTSMC and DLSMC employ the same discrete reaching law to avoid bias caused by different reaching mechanisms.

The parameters of the proposed ESO-DPSMC are selected by balancing convergence speed, disturbance-estimation accuracy, control smoothness, and real-time implementation burden. Specifically,

c_{1}

c_{2}

, and

γ

are tuned to achieve fast but non-oscillatory tracking-error convergence, the DTESO gains are chosen to ensure rapid disturbance estimation without excessive noise amplification, and the QP-related parameters are selected to balance tracking accuracy and control effort under input constraints. The final values are obtained through simulation tuning and kept unchanged in the experiments, as summarized in Table 2.

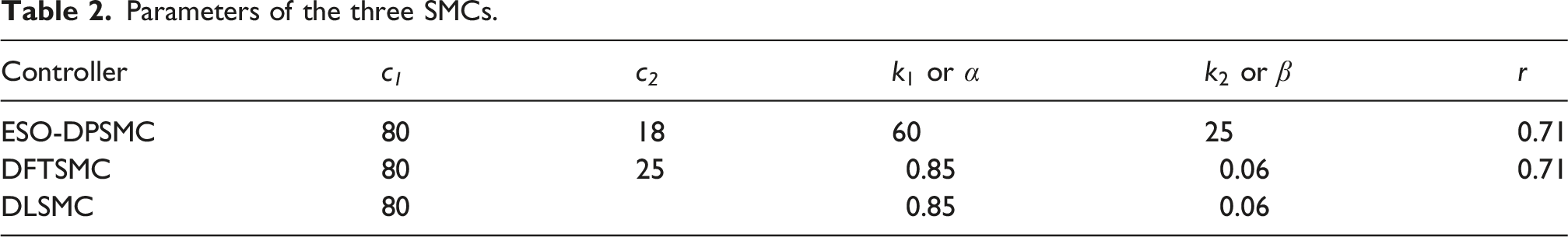

Table 2.

Parameters of the three SMCs.

Controller	c ₁	c ₂	$k_{1}$ or $α$	$k_{2}$ or $β$	r
ESO-DPSMC	80	18	60	25	0.71
DFTSMC	80	25	0.85	0.06	0.71
DLSMC	80		0.85	0.06

Moreover, to better reflect practical operating conditions, external disturbances are introduced in the simulation/experiment. Specifically, a composite sinusoidal disturbance is applied: $d (t) = 0.03 \sin (15 t) + 0.03 \sin (10 t) + 0.03 \sin (5 t)$ .This signal is used to emulate the combined effects of intake-air pulsation, friction variation, and load-torque fluctuation acting on the throttle actuator. Since $∣ \sin (\cdot) ∣ \leq 1$ the disturbance magnitude is bounded by $∣ d (t) ∣ \leq 0.09$ addition, the disturbance has a bounded rate of change, and thus satisfies the boundedness assumptions adopted in the theoretical analysis. This disturbance setting is employed to evaluate the robustness and tracking performance of the compared controllers under realistic perturbations.

In the same set of experiments, the DTESO is implemented with the error-weighting factors selected as $λ_{1} = 0.8$ , $λ_{2} = 0.4$ , $λ_{3} = 12$ , and $λ_{4} = 0.9$ . These coefficients are used to balance the estimation errors of the throttle position and its rate, thereby improving the disturbance-estimation accuracy. Based on the inequality conditions in Theorem 1, the corresponding observer gains are computed as $L_{1} = diag {0.6, 0.6}, L_{2} = diag {- 2.85, 2.85}, L_{3} = diag {0.95, - 0.95}$ . These settings ensure stable and fast convergence of the state and disturbance estimates, providing reliable disturbance compensation for the compared controllers.

In ESO-DPSMC, receding-horizon optimization based on the discrete-time throttle model generates the optimal equivalent control under input constraints, thereby ensuring smooth, accurate, and robust tracking.

4.3. Experimental results

To better characterize the control performance of different controllers, the maximum steady-state error $MAX (e)$ and the root-mean-square error $RMS (e)$ were selected as evaluation indices. Their definitions are given as follows

{\begin{cases} MAX (e) = \max (| e_{1} |) \\ RMS (e) = \sqrt{\sum_{i = 1}^{N} \frac{{e_{1}}^{2} (i)}{N}} \end{cases} .

(59)

Where

e_{1}

denotes the tracking error and Nis the number of sampling points.

Case 1. This case is used to evaluate the tracking performance of the control system under multiple fast transient operating conditions. The reference signal consists of a set of small step changes and two large-amplitude step changes, which are designed to emulate typical ET behaviors such as fine adjustment, rapid opening increase, and rapid closing. Accordingly, the dynamic tracking capability of the controller during acceleration, deceleration, emergency opening, and fast shutoff processes can be assessed.

The experimental results for Case 1 are shown in Figure 6 to assess the step-tracking performance of the proposed ESO-DPSMC controller. As illustrated in Figure 6(a), ESO-DPSMC responds rapidly to step commands with different amplitudes, achieving a settling time of approximately 120 ms. By comparison, DFTSMC settles in about 160 ms, whereas DLSMC exhibits the slowest response; for the larger step command, its settling time exceeds 320 ms. These results demonstrate that ESO-DPSMC provides substantially faster convergence than the other two discrete sliding-mode controllers. The improvement is mainly attributed to the proposed adaptive implicit discrete reaching law, which imposes stronger convergence action when the state is farther from the sliding surface, thereby accelerating the transient process.

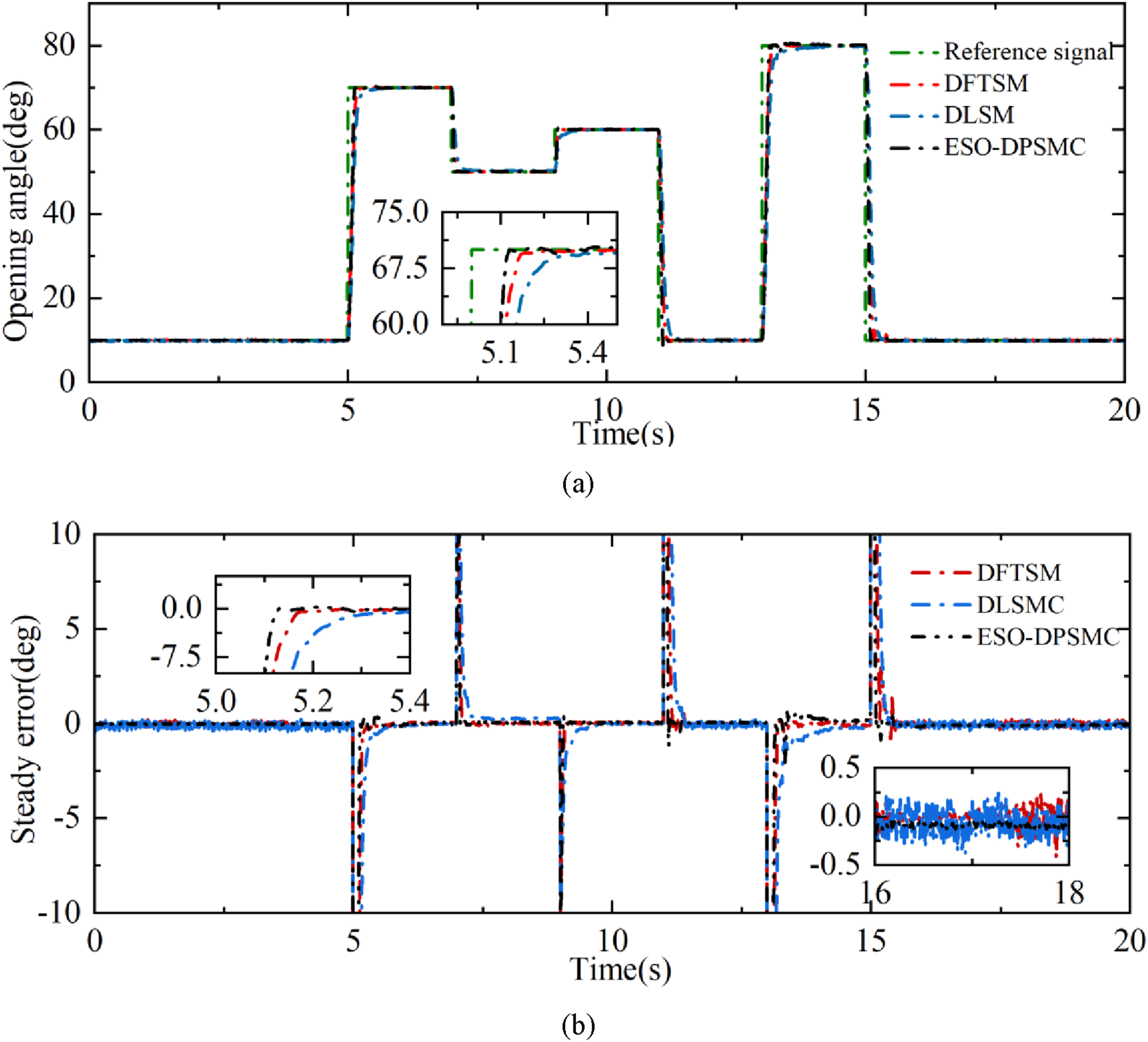

Figure 6.

Experimental comparison in Case 1. (a) Position tracking results. (b) Tracking error.

The steady-state performance shown in Figure 6(b) further reveals clear differences among the controllers after the system enters the steady tracking phase (e.g., $t = 5 - 6$ s). For the proposed ESO-DPSMC, the tracking error remains within a small range, and the error trajectory is smooth with very low fluctuation amplitude. Over this interval, the performance indices are approximately $MAX = {0.47}^{\circ}$ and $RMS = {0.08}^{\circ}$ , indicating that both peak error and average/energy-type error are effectively suppressed. By comparison, although DFTSMC achieves relatively fast convergence by virtue of a nonlinear sliding surface, it lacks active compensation for unmodeled dynamics and load disturbances; its steady-state error still exhibits slight fluctuations, with indices of approximately $MAX = {0.49}^{\circ}$ and $RMS = {0.11}^{\circ}$ , suggesting a marginally inferior steady-state accuracy relative to ESO-DPSMC. The conventional DLSMC shows the most limited performance, with pronounced oscillations and bias persisting in the steady-state interval. Its error curve presents a larger fluctuation amplitude and a longer decay time, yielding approximately $MAX = {0.51}^{\circ}$ and $RMS = {0.18}^{\circ}$ ; notably, the RMS error is nearly 2–3 times that of ESO-DPSMC.

These differences mainly arise from the controller structures. ESO-DPSMC uses an extended state observer to estimate lumped disturbances online and compensates them in a feedforward manner, thereby reducing the disturbance acting on the sliding manifold. This weakens the dependence on the switching term and significantly improves steady-state accuracy. In contrast, DFTSMC mainly relies on the inherent robustness of sliding-mode control, so residual errors remain under persistent disturbances. DLSMC, with a linear sliding surface, provides weaker rejection of nonlinear disturbances, resulting in the larger steady-state fluctuations in Figure 6(b). Overall, ESO-DPSMC yields smaller errors and smoother error trajectories, demonstrating better disturbance rejection and higher tracking precision.

To further show the reaching behavior of the sliding surface, the sliding variable responses in Case 1 are plotted in Figure 7(a). The sliding variables show transient peaks at the step-switching instants and then rapidly return to a small neighborhood of zero. This indicates that the sliding. Figure 7(b) compares the control voltages of the three controllers. ESO-DPSMC produces a relatively larger transient voltage at step changes because its adaptive reaching-law gain increases with tracking error, thereby accelerating convergence. In steady state, its control input becomes smoother and exhibits less oscillation than DFTSMC and DLSMC, indicating effective chattering reduction and good compatibility with input-constrained actuators. Overall, ESO-DPSMC shows superior transient performance, steady-state accuracy, and disturbance rejection, making it a more robust controller for practical electronic throttle systems.

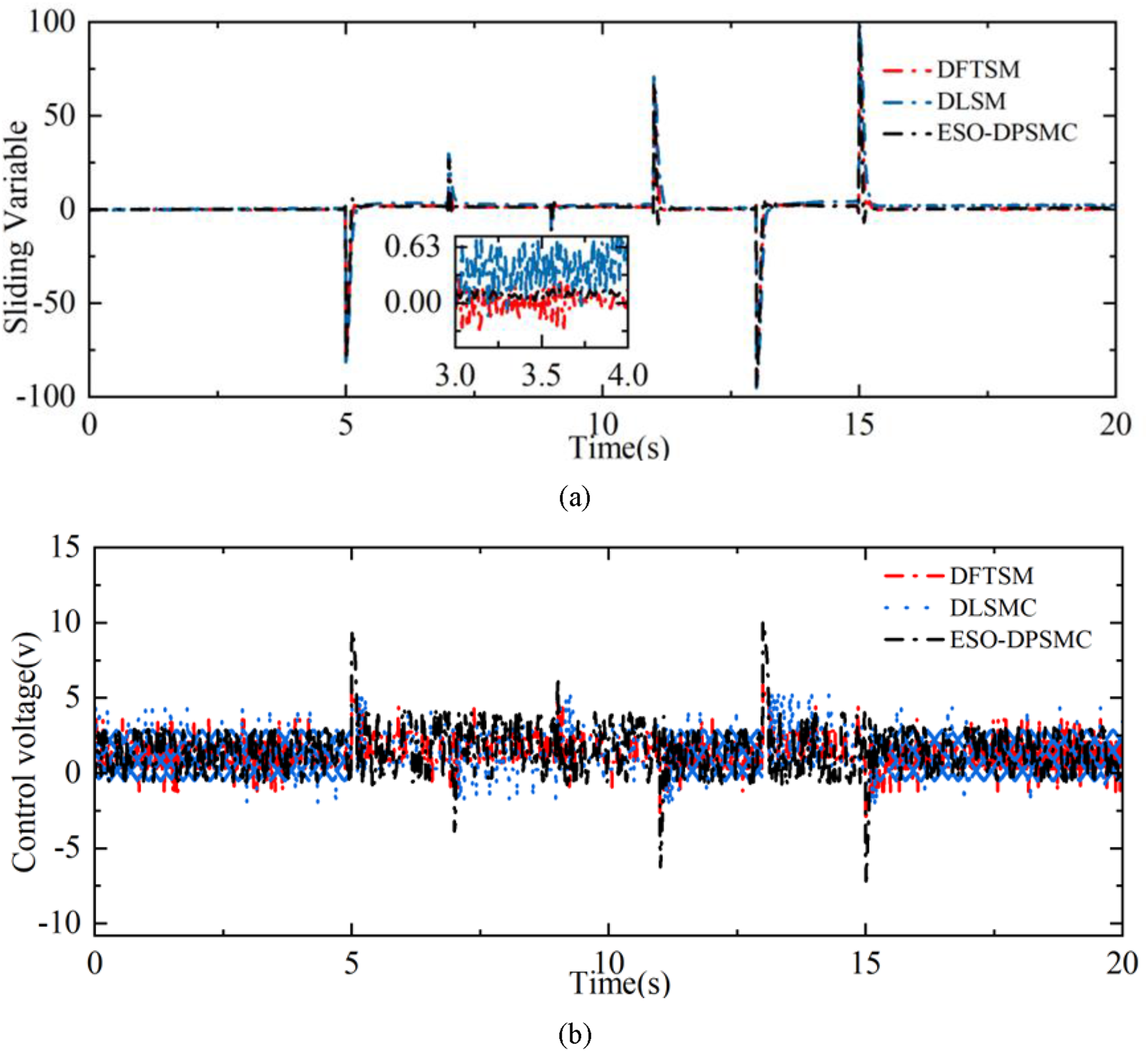

Figure 7.

Control voltage comparison in Case 1. (a) Sliding variable. (b) Control voltage.

Case 2 employs a sinusoidal reference signal to emulate a typical operating condition in which the throttle opening exhibits small periodic variations during steady engine operation. This case is used to evaluate the controller’s dynamic tracking performance and steady-state regulation capability under continuously varying, small-amplitude conditions.

As shown in Figure 8(a), Case 2 adopts a sinusoidal reference to represent small periodic throttle-opening fluctuations under steady operating conditions. Although all three controllers track the periodic command, their accuracies differ significantly. ESO-DPSMC follows the sinusoid most closely, with negligible phase lag and a smooth trajectory. DFTSMC shows slight lag in rapidly varying regions, while DLSMC exhibits larger deviations, particularly near the peaks. These results confirm the superior dynamic response and tracking performance of ESO-DPSMC for periodic references.

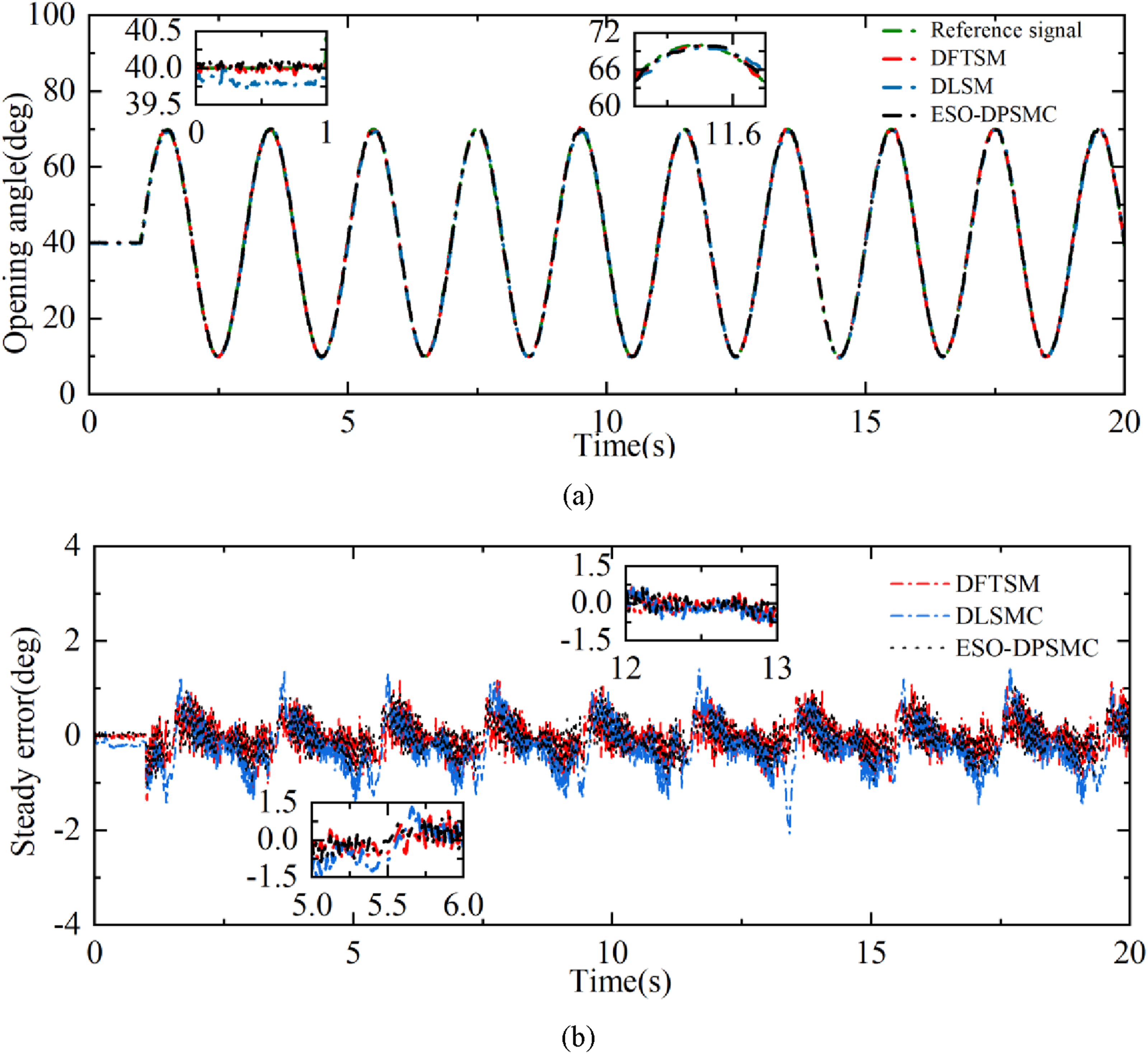

Figure 8.

Experimental comparison in Case 2. (a) Position tracking results. (b) Tracking error.

Figure 8(b) summarizes the average tracking errors over the entire sinusoidal period for the three algorithms. It can be observed that ESO-DPSMC achieves substantially lower steady-state errors than the other two controllers, with average $MAX (e)$ and $RMS (e)$ of approximately ${0.45}^{\circ}$ and ${0.22}^{\circ}$ , respectively. By comparison, DFTSMC yields an average $MAX (e)$ of about ${0.49}^{\circ}$ and $RMS (e)$ of about ${0.24}^{\circ}$ , whereas DLSMC exhibits the weakest steady-state performance, with average $MAX (e)$ and $RMS (e)$ close to ${0.52}^{\circ}$ and ${0.27}^{\circ}$ , respectively. The superior steady-state accuracy of ESO-DPSMC is mainly attributed to the extended state observer (ESO), which provides real-time estimation of lumped disturbances such as gear backlash, friction disturbances, and unmodeled dynamics. This enables effective compensation under periodic excitation and significantly reduces periodic error fluctuations in the sinusoidal tracking scenario.

The sliding variable responses under the sinusoidal reference are shown in Figure 9(a). The sliding variables fluctuate periodically but remain within a bounded neighborhood of zero, indicating that the sliding surface remains bounded under continuously varying reference conditions. As shown in Figure 9(b), ESO-DPSMC produces the smoothest control voltage with the least fluctuation and quickly suppresses transient oscillations, demonstrating better overall stability than DFTSMC and DLSMC.

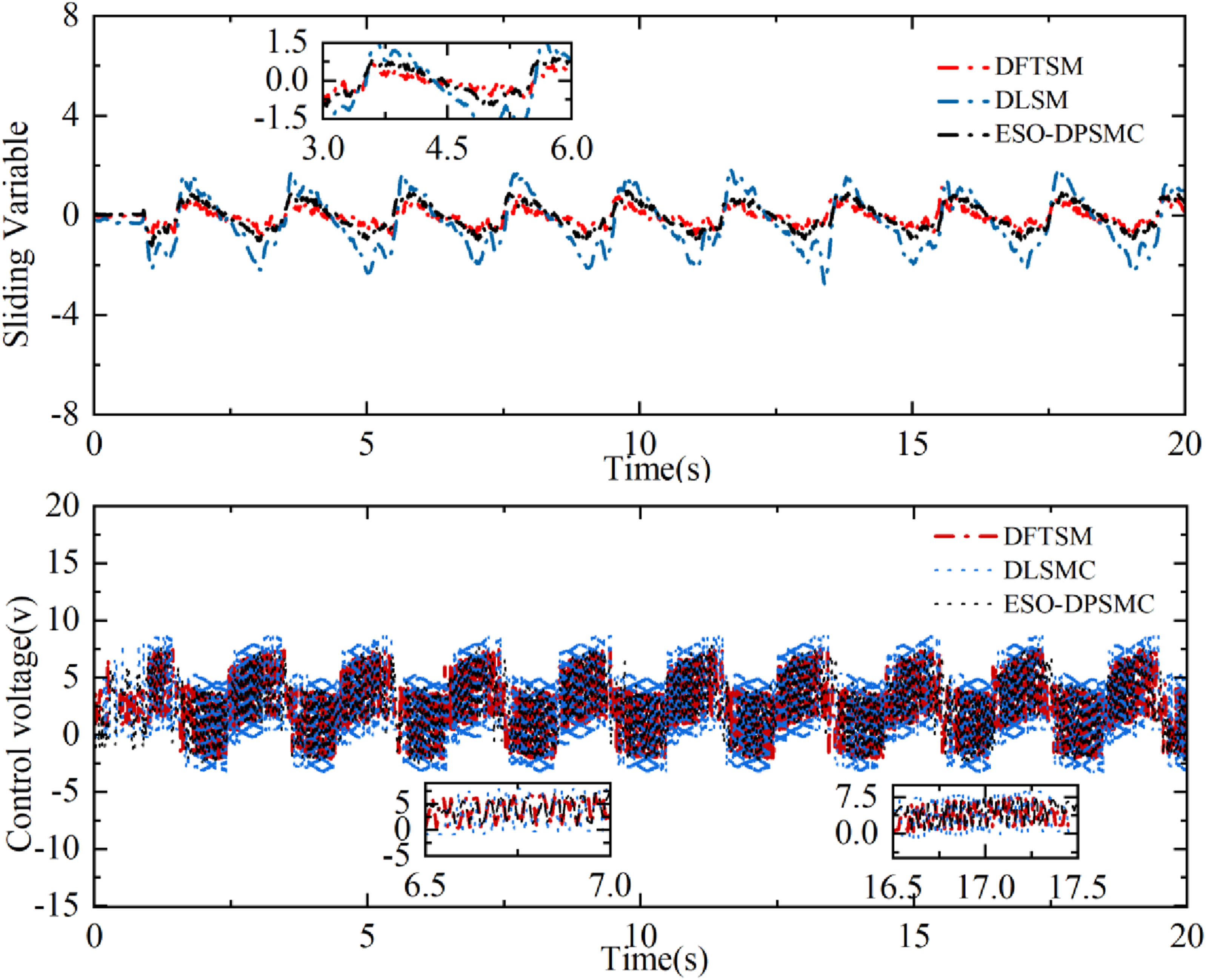

Figure 9.

Control voltage comparison in Case 2. (a) Sliding variable. (b) Control voltage.

Table 3 compares the three controllers in Case 1 and Case 2. ESO-DPSMC achieves the best overall performance, with faster convergence and smaller steady-state errors in both cases. DFTSMC shows moderate deviations and slower convergence, whereas DLSMC produces the largest errors and the poorest steady-state performance. These results further confirm the superior tracking accuracy and robustness of ESO-DPSMC under both step and periodic references.

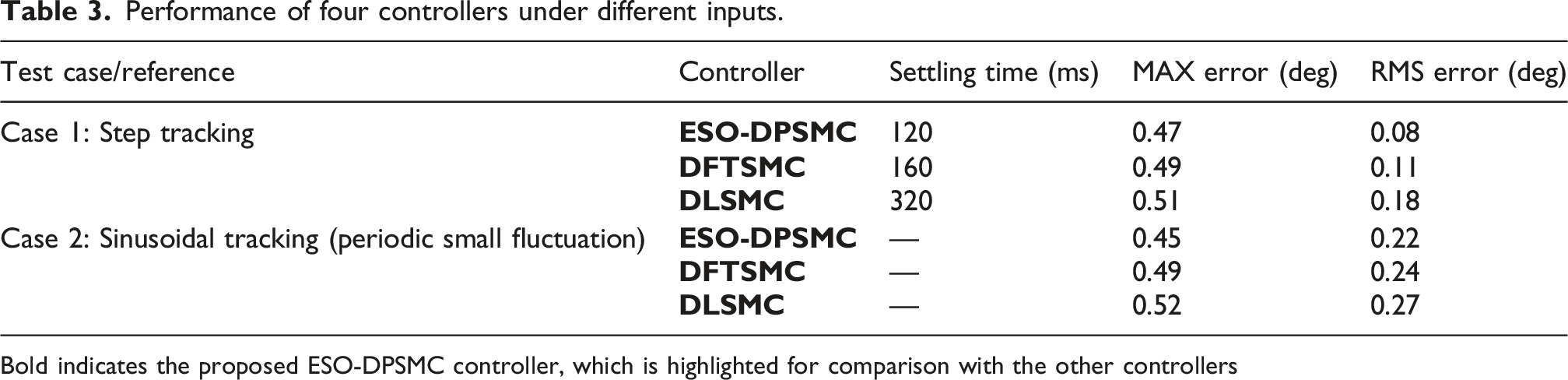

Table 3.

Performance of four controllers under different inputs.

Test case/reference	Controller	Settling time (ms)	MAX error (deg)	RMS error (deg)
Case 1: Step tracking	ESO-DPSMC	120	0.47	0.08
	DFTSMC	160	0.49	0.11
	DLSMC	320	0.51	0.18
Case 2: Sinusoidal tracking (periodic small fluctuation)	ESO-DPSMC	—	0.45	0.22
	DFTSMC	—	0.49	0.24
	DLSMC	—	0.52	0.27

Bold indicates the proposed ESO-DPSMC controller, which is highlighted for comparison with the other controllers

The ITAE and ISU indices are further calculated to evaluate the convergence performance and control energy consumption. The proposed ESO-DPSMC achieves the lowest overall ITAE among the three controllers, indicating better overall error convergence. Although the ISU of ESO-DPSMC is not always the minimum in every test case, it remains within an acceptable range. This is because the proposed controller applies stronger transient control action to achieve faster convergence and better tracking accuracy. Therefore, ESO-DPSMC provides a favorable tradeoff among convergence speed, tracking accuracy, and control energy consumption.

The simulation and experimental results show consistent performance trends: ESO-DPSMC achieves faster convergence and smaller tracking error than DFTSMC and DLSMC, while the experimental results contain slightly larger fluctuations due to sensor noise, PWM delay, unmodeled friction, backlash, and hardware uncertainties.

5. Conclusions

This paper investigates high-precision tracking control of an electronic throttle (ET) system subject to parametric uncertainties, nonlinear friction, and external disturbances, and proposes an extended-state-observer-based discrete predictive sliding-mode control method (ESO-DPSMC). A discrete-time error model is established, and an extended state observer is introduced to estimate lumped disturbances online and improve robustness. Combined with an adaptive implicit discrete reaching law and receding-horizon optimization, the proposed framework explicitly handles input constraints and reduces chattering.

Simulation and experimental results show that ESO-DPSMC outperforms DFTSMC and DLSMC in both step and sinusoidal tracking, with faster convergence, smaller steady-state errors, and stronger disturbance rejection. It also produces smoother control inputs and weaker steady-state oscillations under backlash and friction nonlinearities. These results demonstrate the superiority of ESO-DPSMC in transient response, accuracy, robustness, and digital implementation. Although the proposed ESO-DPSMC strategy improves control performance, several practical issues still need to be considered. The online QP introduces additional computational burden, and its real-time implementation depends on the sampling period, prediction horizon, and processor capability. Moreover, the DTESO and adaptive reaching law require proper parameter tuning, and the control performance may degrade under severe actuator constraints, strong measurement noise, or disturbances beyond the observer bandwidth. Future work will focus on computational reduction, systematic parameter tuning, and further hardware-in-the-loop or real-time validation.

Footnotes

ORCID iD

Chong Yao

Author contributions

Jiang Jiahui: Conceptualization, Methodology, Validation; Yao Chong*: Supervision, Project administration, Writing—Review & Editing; Long Yun: Formal analysis, Investigation, Data curation; Zhang Naifu: Software, Experiments, Writing—Original Draft.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Abdennebi

Ben Mansour

Nouri

(2013) A new sliding function for discrete predictive sliding mode control of time delay systems. International Journal of Automation and Computing 10(4): 288–295.

Abidi

J-X

, et al. (2006) On the discrete-time integral sliding mode control International Workshop on Variable Structure Systems, VSS’06, Alghero, Italy, 5–7 June. New York: IEEE, pp. 29–34.

Cao

Kao

Wang

, et al. (2024) Sliding mode control for uncertain fractional-order reaction–diffusion memristor neural networks with time delays. Neural Networks 178: 106402. https://doi.org/10.1016/j.neunet.2024.106402

Chen

Shi

Ouyang

(2025) Data-driven discrete learning sliding mode control for overhead cranes suffering from disturbances. Nonlinear Dynamics 113(4): 3357–3372. https://doi.org/10.1007/s11071-024-10384-6

Echreshavi

Farbood

Shasadeghi

(2023) Dynamic state observer-based event-triggered ISM load frequency control of power systems with disturbance observer. IEEE Systems Journal 17(3): 3928–3937. https://doi.org/10.1109/jsyst.2023.3261756

Fang

Zhang

Maltsev

, et al. (2024) A novel adaptive fast sliding mode control method based on fuzzy algorithm for the air management system of fuel cell stack. Process Safety and Environmental Protection 187: 506–517. https://doi.org/10.1016/j.psep.2024.04.088

Farbood

Shasadeghi

Niknam

, et al. (2022) Fuzzy Lyapunov-based model predictive sliding-mode control of nonlinear systems: an ellipsoid recursive feasibility approach. IEEE Transactions on Fuzzy Systems 30: 1929–1938. https://doi.org/10.1109/tfuzz.2021.3070680

Farbood

Echreshavi

Shasadeghi

(2024) Relaxed nonquadratic H_∞ robust constrained event-triggered fuzzy controller design for discrete-time nonlinear systems. Transactions of the Institute of Measurement and Control 46(2): 237–252. https://doi.org/10.1177/01423312231171626

Fateh

Momeni

(2024) Model-free adaptive task-space sliding mode control of a Delta robot using a novel reaching law. ISA Transactions 149: 69–80. https://doi.org/10.1016/j.isatra.2024.03.034

10.

Gao

Feng

Wang

, et al. (2020) Design, implementation and experimental verification of a compensator-based triple-step model reference controller for an automotive electronic throttle. Control Engineering Practice 100: 104447. https://doi.org/10.1016/j.conengprac.2020.104447

11.

Guo

Zhang

Huang

, et al. (2023) A generalized reaching-law-based discrete-time integral sliding-mode controller with matched/mismatched disturbance attenuation. Asian Journal of Control 25(5): 3497–3512. https://doi.org/10.1002/asjc.3030

12.

Guo

Zhang

Wei

, et al. (2024) Novel sliding mode control of the manipulator based on a nonlinear disturbance observer. Scientific Reports 14(1): 30656. https://doi.org/10.1038/s41598-024-77125-y

13.

Han

(2009) From PID to active disturbance rejection control. IEEE Transactions on Industrial Electronics 56(3): 900–906.

14.

Hou

Zuo

, et al. (2024) Enhanced active disturbance rejection control with measurement noise suppression for PMSM drives via augmented nonlinear extended state observer. IEEE Transactions on Energy Conversion 39(1): 287–299. https://doi.org/10.1109/tec.2023.3323310

15.

Wang

(2019) Discrete time fast sliding-mode control for permanent magnet linear motor with nonlinear extended state observer 2019 9th International Conference on Power and Energy Systems (ICPES). New York: IEEE, pp. 1–5.

16.

Wang

Yazdani

, et al. (2022) Adaptive full order sliding mode control for electronic throttle valve system with fixed time convergence using extreme learning machine. Neural Computing & Applications 34(7): 5241–5253. https://doi.org/10.1007/s00521-021-06365-0

17.

Ahn

Park

, et al. (2024) A modified exponential reaching law for sliding mode control and its applications. International Journal of Robust and Nonlinear Control 34(14): 9783–9796. https://doi.org/10.1002/rnc.7492

18.

Janardhanan

Kariwala

(2008) Multirate-output-feedback-based LQ-optimal discrete-time sliding mode control. IEEE Transactions on Automatic Control 53(1): 367–373. https://doi.org/10.1109/tac.2007.914293

19.

Khan

RFA

Rsetam

Cao

, et al. (2025) ESO based adaptive fixed-time integral sliding mode control for flexible joint robots using singular perturbation method. Nonlinear Dynamics 113: 24981–25000. https://doi.org/10.1007/s11071-025-11421-8

20.

Wang

(2021) Second-order adaptive discrete-time fast terminal sliding mode control of a DEAP actuator with hysteresis nonlinearity. International Journal of Systems Science 52(3): 468–492. https://doi.org/10.1080/00207721.2020.1830197

21.

Liu

(2025) Low-chattering consensus of second-order multi-agent system based on implicit discrete-sliding mode control. Asian Journal of Control 28(2): 672–684.

22.

Zhao

Xiong

, et al. (2024) Sliding-mode control of linear induction motor based on exponential reaching law. Electronics 13(12): 2352. https://doi.org/10.3390/electronics13122352

23.

Mahmood

Humaidi

Al-Azzawi

, et al. (2024) Extended state observer design for uncertainty estimation in electronic throttle valve system. International Review of Applied Sciences and Engineering 15(1): 107–115. https://doi.org/10.1556/1848.2023.00662

24.

Park

J-C

Ryu

J-Y

Park

S-H

, et al. (2022) Electronic throttle valve modeling considering nonlinearity of electrical and mechanical parameters based on experiments. IEEE/ASME Transactions on Mechatronics 27(5): 3309–3314. https://doi.org/10.1109/tmech.2021.3123137

25.

Peng

Wang

Tan

, et al. (2025) Jamming transition in car-following model with electronic throttles incorporating continuous memory capabilities to mitigate cyber-attacks within a connected vehicles environment. Chaos, Solitons & Fractals 198: 116629. https://doi.org/10.1016/j.chaos.2025.116629

26.

Quan

(2024) Adaptive second-order sliding mode control of electrical throttles based on online zero-crossing checking. International Journal of Control, Automation and Systems 22(2): 489–502.

27.

Rahul

Hariharan

(2024) Enhancement of solar PV panel efficiency using double integral sliding mode MPPT control. Tsinghua Science and Technology 29(1): 271–283. https://doi.org/10.26599/tst.2023.9010030

28.

Rsetam

Cao

Man

(2020) Cascaded-extended-state-observer-based sliding-mode control for underactuated flexible joint robot. IEEE Transactions on Industrial Electronics 67(12): 10822–10832. https://doi.org/10.1109/tie.2019.2958283

29.

Rsetam

Al-Rawi

Cao

(2022) Robust adaptive active disturbance rejection control of an electric furnace using additional continuous sliding mode component. ISA Transactions 130: 152–162. https://doi.org/10.1016/j.isatra.2022.03.024

30.

Rsetam

Zheng

Cao

, et al. (2024) Adaptive active disturbance rejection control for vehicle steer-by-wire under communication time delays. Applied System Innovation 7(2): 22. https://doi.org/10.3390/asi7020022

31.

Rsetam

Cao

Man

, et al. (2025) GPIO-Based continuous sliding mode control for networked control systems under communication delays with experiments on servo motors. IEEE/CAA Journal of Automatica Sinica 12(1): 99–113. https://doi.org/10.1109/jas.2024.124812

32.

Rubagotti

Incremona

Ferrara

(2024) A discrete-time integral sliding mode control law for systems with matched and unmatched disturbances. IEEE Control Systems Letters 8: 448–453. https://doi.org/10.1109/lcsys.2024.3394001

33.

Sun

Zhang

Liu

, et al. (2024) Adaptive robust sensorless control for PMSM based on improved back EMF observer and extended state observer. IEEE Transactions on Industrial Electronics 71(12): 16635–16643. https://doi.org/10.1109/tie.2024.3398688

34.

Wang

Zhu

(2022) Modeling and stability analysis of traffic flow considering electronic throttle dynamics on a curved road with slope. Physica A: Statistical Mechanics and its Applications 597: 127225. https://doi.org/10.1016/j.physa.2022.127225

35.

Wang

Zhu

(2023) Effects of electronic throttle dynamics in non-equilibrium heterogeneous traffic flow without Lane discipline. Applied Mathematical Modelling 116: 673–694. https://doi.org/10.1016/j.apm.2022.12.005

36.

Wang

Mei

Xin

(2023) Discrete sliding mode control method for particle swarm optimization-based brushless DC motor of electric vehicle. Journal of Vibroengineering 25(5): 1025–1039. https://doi.org/10.21595/jve.2023.22978

37.

Wang

Jiao

Xing

, et al. (2024a) Speed regulation of PMSM systems based on a new sliding mode reaching law. IEEE Access 12: 24062–24070. https://doi.org/10.1109/access.2024.3358866

38.

Wang

Xing

Zhu

, et al. (2024b) Modeling dedicated lanes for connected autonomous vehicles with poly-information uncertainties and electronic throttle dynamics. Physica A: Statistical Mechanics and its Applications 638: 129644. https://doi.org/10.1016/j.physa.2024.129644

39.

Xiao

Zhang

Zhao

, et al. (2024) Output feedback integral sliding mode predictive control for linear discrete time systems. European Journal of Control 80(B): 101131. https://doi.org/10.1016/j.ejcon.2024.101131

40.

Sui

Wang

, et al. (2024) An adaptive discrete integral terminal sliding mode control method for a two-joint manipulator. Processes 12(6): 1106. https://doi.org/10.3390/pr12061106

41.

Yang

Liu

Kim

, et al. (2018) Luenberger-sliding mode observer based fuzzy double loop integral sliding mode controller for electronic throttle valve. Journal of Process Control 61: 36–46. https://doi.org/10.1016/j.jprocont.2017.11.004

42.

Wang

(2020) A robust adaptive chattering-free sliding mode control strategy for automotive electronic throttle system via genetic algorithm. IEEE Access 8: 68–80. https://doi.org/10.1109/access.2019.2934232

43.

Zhai

Xiao

(2023) Non-lane-discipline-based continuum model considering the effect of lateral gaps and electronic throttle dynamics. Chinese Journal of Physics 83: 253–269. https://doi.org/10.1016/j.cjph.2023.03.013

44.

Zhang

Xie

Ren

, et al. (2019) A new predictive sliding mode control approach for networked control systems with time delay and packet dropout. IEEE Access 7: 134280–134292. https://doi.org/10.1109/access.2019.2941651
