Adaptive fractional-order control for flying robots under wind and ground effect

Abstract

Quadrotor trajectory tracking under wind gusts and ground effect remains challenging due to unknown disturbances, model uncertainties, and the system’s underactuated nature. This paper presents an adaptive fractional-order terminal integral sliding mode control (AFOTISMC) to address these challenges. The controller integrates fractional-order Riemann-Liouville operators into an integral terminal sliding surface, ensuring finite-time convergence while eliminating chattering and singularity. Adaptive laws estimate unknown disturbance bounds without requiring prior knowledge. Lyapunov analysis proves global finite-time stability. Comprehensive simulations under wind-like disturbances, 30% parametric uncertainties in mass and inertia, and ground effect show that AFOTISMC reduces Integral Absolute Error (IAE) by up to 53% for position and 77% for yaw compared to conventional SMC, and by 12–31% compared to recent fractional-order SMC methods. Control energy consumption is reduced by 20–40% across all channels. These results confirm the practical significance of AFOTISMC for safe quadrotor operation in real-world windy environments and during landing in ground effect.

Keywords

quadrotor UAV adaptive fractional-order terminal integral sliding mode control robust performances ground effect

1. Introduction

Research on unmanned aerial vehicles (UAVs) has highlighted their growing prominence in the field. Compared to fixed-wing aircraft and conventional rotor helicopters, quadrotor UAVs offer superior flexibility, speed, compact size, and cost-effectiveness (Wei et al., 2026). In the aftermath of natural disasters, quadrotor UAVs enhance disaster relief efforts by accessing areas that may be unreachable by humans. Their vertical take-off and landing (VTOL) capability (Golchin et al., 2025), combined with agile maneuverability, makes them particularly advantageous for a variety of missions, including delivery, mapping, agriculture, and search and rescue (Idrissi et al., 2022; Imran et al., 2023; Kashi et al., 2025; Mazare et al., 2024; Nekoukar and Dehkordi, 2021). Despite these advantages, controlling quadrotor UAVs presents several challenges. First, the quadrotor is an underactuated mechanical system, with four control inputs required to maintain six outputs. Second, its dynamics are highly nonlinear, characterized by strongly coupled states and multiple-input multiple-output (MIMO) interactions (Li et al., 2025). Third, during flight, the quadrotor is affected by various factors, including model uncertainties (such as the moment of inertia), external disturbances (like wind (Zhou et al., 2026)), sensor measurement noises, and time delays (Emran and Najjaran, 2018; Ghadiri et al., 2023; Imran et al., 2023; Iriarte et al., 2024; Zhang and Wu, 2025). These uncertainties and unwanted factors can lead to weak performance and even instability in the system’s operation (Ghadiri and Jahed-Motlagh, 2016). Consequently, controlling of a quadrotor requires high-precision control for both attitude and position control (Alqudsi et al., 2023; Chen et al., 2016; Eliker and Zhang, 2020; Ghadiri et al., 2023; Liu and Cai, 2023; Mellinger et al., 2012; Sun et al., 2020; Wang et al., 2019). In early research on quadrotor control, conventional linear approaches, such as proportional-integral-derivative (PID) (Lopez-Sanchez and Moreno-Valenzuela, 2023; Salih et al., 2010) and linear quadratic regulator (LQR) (Rinaldi et al., 2013) were commonly used. However, these linear control methods assess the stability of the quadrotor without accounting for undesirable factors, leading to suboptimal tracking accuracy and robustness. To address the limitations of these linear techniques, various advanced control schemes have been proposed by researchers to enhance the tracking performance of quadrotor flight control systems. These include adaptive control (Chen et al., 2022; Dydek et al., 2012; Eliker and Zhang, 2020; Li et al., 2022; Nekoukar and Dehkordi, 2021), sliding mode control (SMC) (Shi et al., 2019; Vahdanipour and Khodabandeh, 2023; Wang et al., 2019), H-∞ control (Ortiz et al., 2016), backstepping control (Chen et al., 2016; Eliker and Zhang, 2020; Shi et al., 2019), model predictive control (Erüst et al., 2026; Xu et al., 2023), and fuzzy control (Li et al., 2022).

Among the controllers listed above, the sliding mode control (SMC) is particularly well-suited for addressing challenges such as wind gusts and parametric uncertainties, which are common in quadrotor operations. SMC’s inherent robustness, along with its simplicity in design, makes it an attractive option for achieving reliable stability and performance in uncertain environments (El Hajjami et al., 2023; Ghadiri et al., 2022; Rahmanipour and Ghadiri, 2020). While SMC offers several advantages, including asymptotic response and strong robustness, it has some drawbacks, such as the requirement to know the upper bound of disturbances, chattering (a phenomenon that causes undesirable vibrations), and reduced robustness during the reaching phase (Chen et al., 2022). To address these issues, various techniques has been developed, including the boundary layer approach and higher-order sliding mode control. To mitigate chattering, methods such as using saturation or hyperbolic tangent instead of signum function have been applied to quadrotor (Guo and Ma, 2019; Ríos et al., 2018), as well as the adoption of terminal SMC (TSMC) (Wang et al., 2016), super-twisting SMC (Ghadiri et al., 2021), and fast TSMC (FTSMC) (Tripathi et al., 2022). By carefully balancing the trade-offs between robustness and chattering, SMC can be effectively applied to quadrotor control systems, enabling accurate and reliable trajectory tracking, even with the external disturbances.

Recent researches have consistently demonstrated the superior performance of TSMC family algorithms compared to other SMC approaches. Variants of TSMC offer several advantages, including faster convergence rates, reduced chattering, and enhanced robustness against uncertainties and disturbances. This improved performance can be attributed to the nonlinear nature of the sliding surfaces employed in TSMC algorithms, which allows for more aggressive control actions and quicker stabilization. However, one issues with these methods is the singularity problem, which can lead to infinite or undefined control signals. To address this, researchers have suggested various techniques. For instance, a finite-time controller based on nonsingular TSMC (NTSMC) has been used for control of position and attitude in the quadrotor system (Hou et al., 2020). In Nguyen et al. (2022), the NTSMC with integral-type sliding surface was designed for finite-time tracking control in the quadrotor system, aiming to reduce the chattering phenomenon and avoid singularities. Additionally, a finite-time observer was developed in Nguyen et al. (2022) to estimate the external disturbance. FTSMC outperforms both TSMC and NTSMC by offering faster convergence near the equilibrium point, while effectively avoiding singularities and maintaining robust performance against uncertainties. Its enhanced control precision, quicker response times, and reduced chattering make it a preferred choice for high-performance nonlinear systems. However, the robustness of these controllers relies on knowledge of the upper bounds of disturbances and uncertainties, which are often difficult to determine in practice.

Adaptive control is a widely used approach for quadrotor due to its ability to adapt to dynamic changes and enhance robustness (Basri, 2018; Chen et al., 2022; Eliker and Zhang, 2020; Ghadiri et al., 2021; Labbadi and Cherkaoui, 2021; Nekoukar and Dehkordi, 2021; Nojavanzadeh and Badamchizadeh, 2016; Vahdanipour and Khodabandeh, 2019; Wang et al., 2023). Adaptive control laws can update controller parameters to minimize tracking errors as system variables change over time (Yang et al., 2026a). This allows control signals to be automatically adjusted to address uncertainties and disturbances effectively (Yang et al., 2026b). Researchers have extensively investigated robust adaptive control to improve robustness and maintain stability with unknown external perturbations. For example, adaptive backstepping SMC has been proposed to stabilize and achieve position tracking for a quadrotor with external perturbations (Basri, 2018). In Ghadiri et al. (2021), an adaptive super-twisting NTSMC was considered for a quadrotor system, and resulting in reduced chattering effect and effective finite-time tracking of attitude and altitude without requiring knowledge of the upper bounds of external disturbances. Mao et al. (2026) proposes an adaptive robust backstepping control scheme for quadrotor UAVs, utilizing an integral sliding mode surface to improve performance under disturbances and payload variations. Additionally, an adaptive SMC for attitude control of a quadrotor, designed to handle unknown upper bounds of lumped disturbances, was presented in Pan et al. (2023).

The shift from integer-order to fractional-order sliding mode control in quadrotors stems from the real limitations of conventional methods. While IOSMC works well in many cases, it struggles when faced with the complex dynamics, noise, and uncertainties that quadrotors naturally exhibit. By introducing Riemann-Liouville fractional operators into the sliding surface, FOSMC brings a new level of flexibility. The value of the derivative or integral no longer depends solely on the present moment; it also takes into account the entire history of the signal to filter out sudden disturbances more effectively, resulting in smoother and more stable control with reduced chattering (Guo and Ma, 2019; Labbadi and Cherkaoui, 2021; Labbadi et al., 2021). Furthermore, because FOSMC captures a wider range of frequency information, the controller becomes more adaptive. It can better handle parameter changes, unknown dynamics, and nonlinear behaviors. In practice, this means more robust and reliable performance not only in quadrotors but also in robots, electric motors, and UAVs.

In Labbadi and Cherkaoui (2021), an adaptive finite-time controller based on fractional-order nonsingular fast TSMC was developed for quadrotor trajectory tracking. Similarly, a fractional-order backstepping approach, incorporating SMC, has been proposed for trajectory tracking in the presence of wind turbulence (Vahdanipour and Khodabandeh, 2023). In addition, an adaptive control method for estimating the moment of inertia matrix has been designed, which enhanced robustness and the tracking performance under disturbances and uncertainties.

When the airflow from a quadrotor’s propellers is obstructed by a surface such as the ground or a platform, aerodynamic forces increase, causing the so-called “ground effect” (Li et al., 2024). This phenomenon, encountered during tasks like landing, object grasping with a robotic arm, or mode transitions, introduces variable lift forces that challenge flight stability and control (Zhang et al., 2024). Therefore, developing robust control strategies to compensate for these ground-effect-induced disturbances (Li et al., 2026) is essential for safe and accurate execution of landing or attitude-tracking missions.

Recently Lian et al. (2022) proposed a fast nonsingular terminal sliding mode control with angular velocity planning (FNTSM-AVP) for quadrotor attitude control, where an arctangent-based sliding surface effectively eliminates chattering while preserving convergence speed. Shao et al. (2016) introduced an approach for trajectory tracking of underactuated quadrotors, offering an alternative perspective on constraint satisfaction. Compared to existing method such as Labbadi and Cherkaoui (2021) and Labbadi et al. (2021), our proposed AFOTISMC offers three distinct advantages: (i) the combination of fractional-order operators with integral terminal sliding surfaces provides additional tuning flexibility and enhances the controller’s steady-state accuracy, robustness, and transient performance while reducing chattering and compensating for slow system drift or disturbances, (ii) the adaptive laws eliminate the need for prior knowledge of disturbance bounds, and (iii) the explicit consideration of ground effect extends applicability to landing scenarios (Zhang et al., 2024).

The contributions of the proposed approach are as follows:

• Design a novel AFOTISMC for position and attitude tracking in a quadrotor system with bounded uncertain disturbances, ensuring that the reference trajectories are accurately followed and the control signals remain relatively smooth.

• Achieve zero tracking errors in finite-time using the proposed AFOTISMC.

• Comparison to the IOSMC, the proposed controller offers improved performance, including faster convergence, elimination of singularity, reduced chattering effect, more flexible control parameter assignment, and lower control effort.

• Implement an adaptation law to estimate the gains in the switching term of the control signal, simplifying controller design and enhancing system performance when dealing with uncertain disturbances.

The organization of the current study is as follows: Section 2 presents the flight dynamics equations for a six-degree-of-freedom (DOF) quadrotor system, including the problem formulation and the effects of uncertain bounded disturbances. Section 3 outlines the controller design process in two phases: initially without disturbances and uncertainties, and subsequently incorporating them. This section details the structure of the proposed AFOISMC and demonstrates its finite-time convergence for trajectory tracking in the presence of disturbances. Section 4 provides numerical results to validate the efficacy of the proposed method compared to existing approaches. The paper concludes with Section 5.

2. Modeling of quadrotor system

This section introduces the quadrotor dynamic model with parameter uncertainties and external disturbances.

2.1. Quadrotor dynamic model

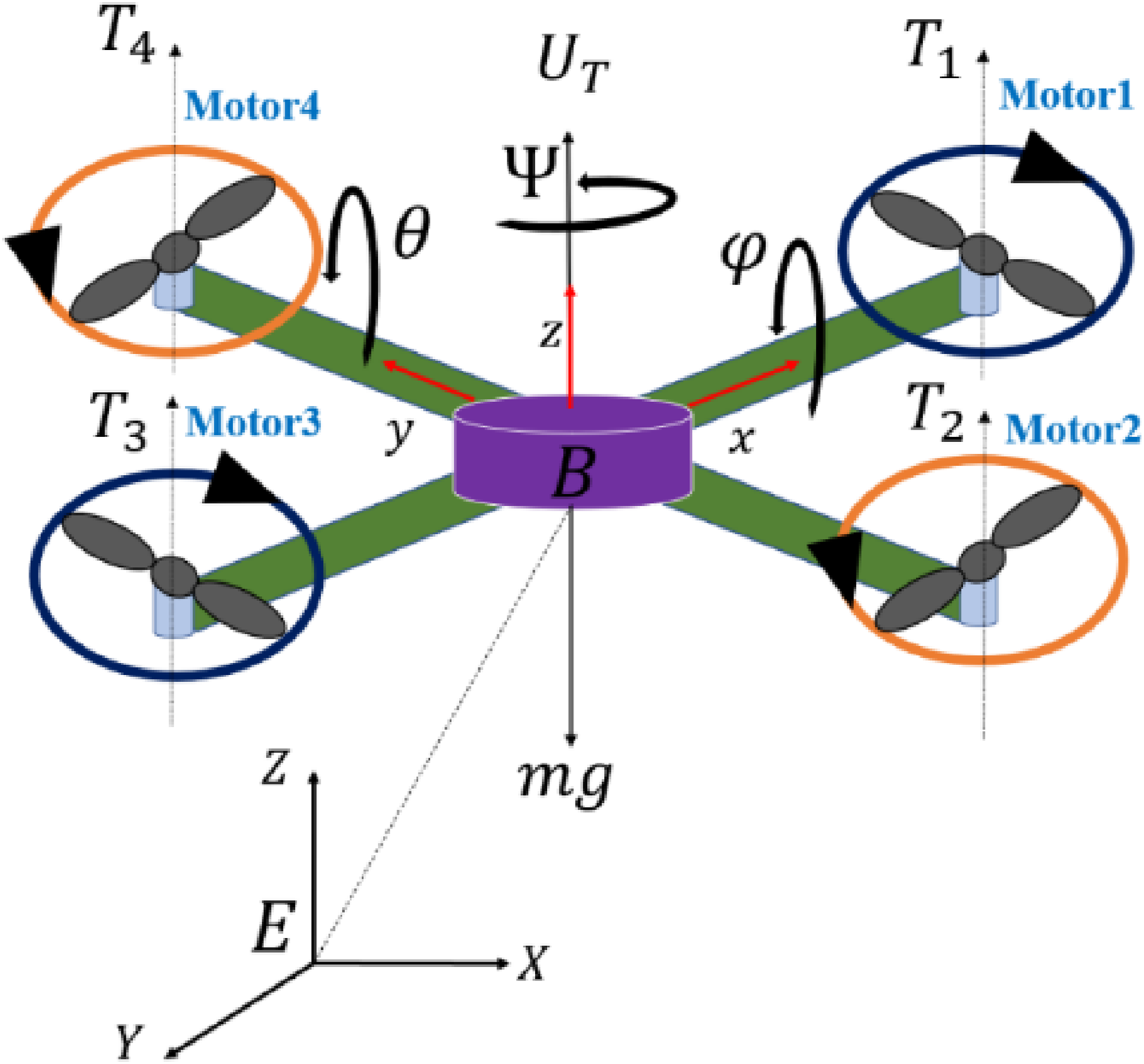

This section illustrates the model of a quadrotor with four rotors, as shown in Figure 1. The quadrotor configuration involves two reference frames: the body frame and earth frame, also shown in Figure 1.

Figure 1.

The schematic of a four motors quadrotor.

The general motion of the quadrotor in 6-DOF can be described by the following vectors:

η = {[η_{1}, η_{2}]}^{T}, v = {[v_{1}, v_{2}]}^{T} .

(1)

Here, $η_{1} = {[x y z]}^{T}$ denotes the position vector, which consists of forward ( $x$ ), lateral ( $y$ ), and vertical ( $z$ ) motions components. Similarly, $η_{2} = {[φ θ ψ]}^{T}$ represents the orientation vector, composed of roll ( $φ$ ), pitch ( $θ$ ), and yaw ( $ψ$ ) motion. The linear and angular velocities are given by $v_{1} = {[u v w]}^{T}$ and $v_{2} = {[p q r]}^{T}$ , respectively. The coupling dynamics between the inertial and body frames can be expressed as:

J_{1} (η_{2}) = [\begin{array}{l} \cos θ \cos ψ & \sin φ \sin θ \cos ψ - \sin ψ \cos φ & \cos φ \sin θ \cos ψ + \sin ψ \sin φ \\ \cos θ \cos ψ & \sin φ \sin θ \sin ψ + \cos ψ \cos φ & \cos φ \sin θ \sin ψ - \cos ψ \sin φ \\ - \sin φ & \sin φ \cos θ & \cos φ \cos θ \end{array}], J_{2} (η_{2}) = [\begin{array}{l} 1 & \sin φ \tan θ & \cos φ \tan θ \\ 0 & \cos φ & - \sin φ \\ 0 & \sin φ \sec θ & \cos φ \sec θ \end{array}],

(2)

assuming that

\cos φ

and

\cos θ

are non-zero, the relation

J_{1}^{- 1} (η_{2}) = J_{1}^{T} (η_{2})

can be easily derived.

Using the following transformation, the relationship between position and orientation vectors is obtained:

{\dot{η}}_{1} = J_{1} (η_{2}) v_{1}, {\dot{η}}_{2} = J_{2} (η_{2}) v_{2}

(3)

The Newton-Euler method formulates the dynamic model of the quadrotor as follows (Labbadi et al., 2021):

m {\ddot{η}}_{1} = - m g Ζ_{e} + K_{t} {\dot{η}}_{1} + J_{1} (η_{2}) u_{T} Ζ_{e} + d_{η_{1}} (t) I_{M} {\dot{v}}_{2} = - v_{2} \times I_{M} v_{2} + τ - τ_{a} - τ_{c} + d_{η_{2}} (t)

(4)

Here, $m$ , $τ = [τ_{p}, τ_{q}, τ_{r}] = [u_{φ}, u_{θ}, u_{ψ}]$ , and $I_{M} = d i a g (I_{x}, I_{y}, I_{z})$ denote the total mass, the torques acting in the body frame, and the moment of the inertia matrix of the quadrotor, respectively. The vector $Ζ_{e} = {[0, 0, 1]}^{T}$ denotes the unit vector along the vertical $z$ direction. The aerodynamic friction torque $τ_{a}$ is defined as follows:

τ_{a} = d i a g (K_{φ}, K_{θ}, K_{ψ}) {‖ v_{2} ‖}^{2},

(5)

where

K_{φ}

K_{θ}

, and

K_{ψ}

indicate the aerodynamic friction coefficients.

τ_{c}

denotes the resultant torque due to the gyroscopic effect. The notation

K_{t}

defines as:

K_{t} = d i a g (- K_{x}, - K_{y}, - K_{z}),

(6)

where

K_{x}

K_{y}

, and

K_{z}

are positive translation drag coefficients, and

d_{η_{1}} (t) = {[\begin{array}{l} d_{x} (t) & d_{y} (t) & d_{z} (t) \end{array}]}^{T}

, and

d_{η_{2}} (t) = {[\begin{array}{l} d_{φ} (t) & d_{θ} (t) & d_{ψ} (t) \end{array}]}^{T}

are bounded external disturbances acting on the quadrotor. The term

u_{T}

signifies the produced forces by propellers as follows:

u_{T} = \sum_{i = 1}^{4} f_{i} = \sum_{i = 1}^{4} K_{i} Ω_{i}^{2},

(7)

where

f_{i}

K_{i}

and

Ω_{i}

specify lift force, the positive constant, and the angular rotor speed by every rotor, respectively. The control inputs can be provided in terms of the angular rotor speeds as (Jia et al., 2017):

[\begin{array}{l} u_{T} \\ τ_{p} \\ τ_{q} \\ τ_{r} \end{array}] = [\begin{array}{l} 1 & 1 & 1 & 1 \\ 0 & l & 0 & - l \\ l & 0 & - l & 0 \\ d & - d & d & - d \end{array}] [\begin{array}{l} f_{1} \\ f_{2} \\ f_{3} \\ f_{4} \end{array}],

(8)

where

l

and

d

are the propeller and quadrotor center distance and the drag coefficient, respectively. In equation (8),

u_{T}

shows the overall thrust;

τ_{p}

τ_{q}

and

τ_{r}

are torques of the roll, pitch, and yaw, respectively. The quadrotor’s dynamical model under all perturbations can be obtained as follows (Labbadi et al., 2021):

\ddot{x} = a_{1} \dot{x} + (\cos φ \sin θ \cos ψ + \sin φ \sin ψ) \frac{u_{T} G E}{m} + \frac{d_{x}}{m} \ddot{y} = a_{2} \dot{y} + (\cos φ \sin θ \sin ψ - \sin φ \cos ψ) \frac{u_{T} G E}{m} + \frac{d_{y}}{m} \ddot{z} = a_{3} \dot{z} - g + b_{z} u_{T} G E + \frac{d_{z}}{m} \ddot{φ} = a_{4} \dot{θ} \dot{ψ} + a_{5} Ω_{r} \dot{θ} + b_{φ} u_{φ} + a_{6} {\dot{φ}}^{2} + \frac{d_{φ}}{I_{x}} \ddot{θ} = a_{7} \dot{φ} \dot{ψ} + a_{8} Ω_{r} \dot{φ} + b_{θ} u_{θ} + a_{9} {\dot{θ}}^{2} + \frac{d_{θ}}{I_{y}} \ddot{ψ} = a_{10} \dot{φ} \dot{θ} + b_{ψ} u_{ψ} + a_{11} {\dot{ψ}}^{2} + \frac{d_{ψ}}{I_{z}}

(9)

where

G E {= [1 - {(\frac{R}{4 h})}^{2}]}^{- 1}

is ground effect (Zhang et al., 2024),

h

is the vertical altitude,

R

is the radius and

\frac{R}{4} < h

and

Ω_{r} = Ω_{1} - Ω_{2} + Ω_{3} - Ω_{4}

a_{1} = - \frac{K_{x}}{m}

a_{2} = - \frac{K_{y}}{m}

a_{3} = - \frac{K_{z}}{m}

a_{4} = \frac{I_{y} - I_{z}}{I_{x}}

a_{5} = - \frac{J_{r}}{I_{x}}

a_{6} = - \frac{K_{φ}}{I_{x}}

a_{7} = \frac{I_{z} - I_{x}}{I_{y}}

a_{8} = \frac{J_{r}}{I_{y}}

a_{9} = - \frac{K_{θ}}{I_{y}}

a_{10} = \frac{I_{x} - I_{y}}{I_{z}}

a_{11} = - \frac{K_{ψ}}{I_{z}}

b_{φ} = \frac{l}{I_{x}}

b_{θ} = \frac{l}{I_{y}}

b_{ψ} = \frac{d}{I_{z}}

b_{z} = \frac{\cos φ \cos θ}{m}

Remark 1

(Ground Effect Validity). The expression $G E {= [1 - {(\frac{R}{4 h})}^{2}]}^{- 1}$ is derived from momentum theory for a rotor operating near a flat ground (Zhang et al., 2024). It is valid only for $h > \frac{R}{4}$ . As $h \to \frac{R^{+}}{4}$ , $G E \to + \infty$ , which models the rapid increase in lift due to ground proximity. In practice, quadrotors execute landing maneuvers from $h > \frac{R}{2}$ (where $R$ is rotor radius), and the region $h < \frac{R}{4}$ is typically avoided because the aerodynamic model becomes unreliable and control authority saturates. Therefore, the proposed controller is designed for $h > \frac{R}{4}$ , and the reference trajectory in Scenario 3 (Section 4.3) satisfies this condition. Extension to $h < \frac{R}{4}$ would require a switching control strategy or a more sophisticated ground effect model, which is left for future work.

It should be noted that there are only four control signals ( $u_{T}, u_{φ}, u_{θ}, u_{ψ}$ ) to control the quadrotor. Therefore, the virtual controls are considered to overcome the underactuated problem as follows:

u_{x} = (\cos φ \sin θ \cos ψ + \sin φ \sin ψ) \frac{u_{T}}{m}

(10)

u_{y} = (\cos φ \sin θ \sin ψ - \sin φ \cos ψ) \frac{u_{T}}{m}

(11)

u_{z} = (\cos φ \cos θ) \frac{u_{T}}{m} - g

(12)

As a result of solving equations (10)–(12) for a given yaw angle $ψ$ , the equations for roll, pitch angles, and thrust $u_{T}$ can be derived, respectively (Labbadi and Cherkaoui, 2021):

φ_{d} = \arctan (\cos θ_{d} \frac{u_{x} \sin ψ_{d} - u_{y} \cos ψ_{d}}{g + u_{z}})

(13)

θ_{d} = \arctan (\frac{u_{x} \cos ψ_{d} + u_{y} \sin ψ_{d}}{g + u_{z}})

(14)

u_{T} = m \sqrt{u_{x}^{2} + u_{y}^{2} + {(g + u_{z})}^{2}}

(15)

2.2. Quadrotor state-space model

Considering the state vector ${[x, \dot{x}, y, \dot{y}, z, \dot{z}]}^{T} = {[x_{1}, x_{2}, x_{3}, x_{4}, x_{5}, x_{6}]}^{T}$ , and ${[φ, \dot{φ}, θ, \dot{θ}, ψ, \dot{ψ}]}^{T} = {[x_{7}, x_{8}, x_{9}, x_{10}, x_{11}, x_{12}]}^{T}$ , and the input vector $u = {[u_{T}, u_{φ}, u_{θ}, u_{ψ}]}^{T}$ , the state-space model for translational dynamics of the quadrotor, accounting perturbations, can be rewritten as follows:

{\dot{x}}_{1} = x_{2}, {\dot{x}}_{2} = a_{1} x_{2} + (\cos φ \sin θ \cos ψ + \sin φ \sin ψ) \frac{u_{T}}{m} + H_{x}, {\dot{x}}_{3} = x_{4}, {\dot{x}}_{4} = a_{2} x_{4} + (\cos φ \sin θ \sin ψ - \sin φ \cos ψ) \frac{u_{T}}{m} + H_{y}, {\dot{x}}_{5} = x_{6}, {\dot{x}}_{6} = - g - a_{3} x_{6} + b_{z} u_{T} + H_{z}

(16)

Similarly, the state-space model of attitude dynamics with perturbations is considered as:

{\dot{x}}_{7} = x_{8}, {\dot{x}}_{8} = a_{4} x_{10} x_{12} + a_{5} Ω_{r} (t) x_{10} + a_{6} x_{8}^{2} + b_{φ} u_{φ} + H_{φ}, {\dot{x}}_{9} = x_{10}, {\dot{x}}_{10} = a_{7} x_{8} x_{12} + a_{8} Ω_{r} (t) x_{8} + a_{9} x_{10}^{2} + b_{θ} u_{θ} + H_{θ}, {\dot{x}}_{11} = x_{6}, {\dot{x}}_{12} = a_{10} x_{8} x_{10} + a_{11} x_{12}^{2} + b_{ψ} u_{ψ} + H_{ψ}

(17)

The notation $H_{j}$ for $j = x, y, z, φ, θ, ψ$ represents the external disturbances acting on the system.

Assumption 1

The Euler angles satisfy $| φ | < \frac{π}{2}$ , $| θ | < \frac{π}{2}$ , and $| ψ | < π$ . This ensures that the transformation matrices $J_{1}$ and $J_{2}$ in (2) are well-defined and invertible (i.e., no gimbal lock). For quadrotor trajectory tracking and landing scenarios considered in this paper (no aggressive acrobatic maneuvers), these bounds are naturally satisfied. In the unlikely event that the angles approach these limits, the control signals saturate; however, the finite-time stability guarantees of the proposed controller ensure convergence before violation. Extension to full attitude representation (e.g., quaternions) is possible but beyond the scope of this work.

Assumption 2

The lumped disturbance $H_{j} = d_{j} + Δ f_{j}$ (including external wind gusts, model uncertainties, and unmodeled aerodynamics) is unknown but bounded. Motivated by the fact that aerodynamic disturbances often scale with velocity and position errors in practice, the upper bound is parameterized as:

| D^{1 - η_{j}} H_{j} | \leq δ_{j} = a_{i 0} + a_{i 1} | e_{j} | + a_{i 2} | {\dot{e}}_{j} |, i = 1, 2, 3, 4, 5, 6, j = x, y, z, φ, θ, ψ

(18)

where

a_{i 0}

a_{i 1}

, and

a_{i 2}

are unknown positive constants. This linear-in-parameters form is a standard and sufficiently general representation for adaptive sliding mode control (Ghadiri et al., 2021; Labbadi and Cherkaoui, 2021). It captures constant biases (

a_{i 0}

), position-dependent disturbances (e.g., ground effect gradient), and velocity-dependent aerodynamic drag (

{\dot{e}}_{j}

). The fractional operator

D^{1 - η_{j}}

appears because the sliding surface

σ_{j}

involves fractional dynamics; the bound on

D^{1 - η_{j}} H_{j}

ensures the switching gain dominates the disturbance in the fractional domain.

Lemma 1

Consider a dynamic system for which the positive Lyapunov function $V (x)$ satisfies the following condition:

\dot{V} (x) + σ_{1} V^{σ_{2}} (x) \leq 0 .

(19)

Assuming that $σ_{1} > 0$ , $0 < σ_{2} < 1$ , and $x$ denotes the states of the system, it can be deduced that the system is finite-time stable. The convergence time $t_{V}$ of $V (x)$ from its initial value $V (0)$ to zero is given by:

t_{V} \leq \frac{V^{1 - σ_{2}} (0)}{σ_{1} (1 - σ_{2})} .

(20)

3. Proposed controller design

The primary objective of this study is to achieve quadrotor tracking by developing an adaptive fractional-order terminal integral sliding mode control (AFOTISMC) technique capable of handling unknown uncertainties and disturbances. To achieve this, the study first designs a finite-time tracking control method based on AFOTISMC, assuming known upper bounds of perturbations. Subsequently, an AFOTISMC technique is presented to address scenarios where the upper bounds of disturbances and model uncertainties are unknown.

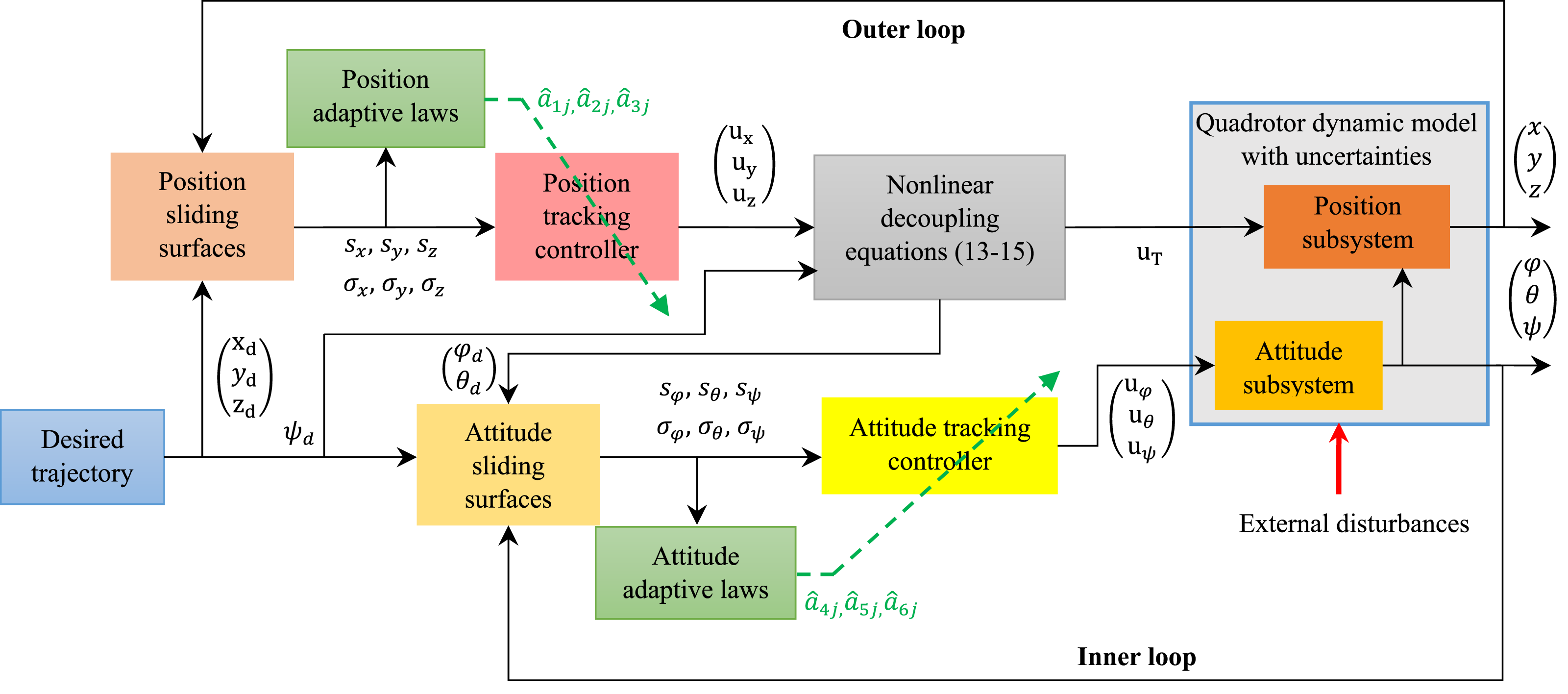

The proposed AFOTISMC follows a cascade architecture (Figure 2). The outer loop (position) generates virtual controls $u_{x}, u_{y}, u_{z}$ using the reference trajectory ( $x_{d}, y_{d}, z_{d}$ ). These are converted to desired attitude angles $φ_{d}$ , $θ_{d}$ via the nonlinear decoupling equations (13) and (14). The inner loop (attitude) then tracks $φ_{d}$ , $θ_{d}$ , and the user-defined $ψ_{d}$ using the same AFOTISMC structure. The adaptive blocks update the disturbance bound estimates using the sliding surfaces $σ_{j}$ . The fractional-order operators appear in both the sliding surface definitions and the control laws. This modular design allows independent tuning of position and attitude loops.

Figure 2.

The overall control architecture of the quadrotor.

3.1. Design controller for a quadrotor without parameter uncertainties and disturbances

The objective of this section is to design the sliding mode controllers that keep the state variables on the sliding manifolds. The terminal sliding manifolds with integral term are defined as follows:

s_{j} = {\dot{e}}_{j} + α_{j} e_{j} + \int_{0}^{t} β_{j} {\dot{e}}_{j}^{ρ_{j}} d τ

(21)

The sliding surface $s_{j}$ in (21) combines three terms: (i) the velocity error ${\dot{e}}_{j}$ drives the system toward the manifold; (ii) the proportional term $α_{j} e_{j}$ ensures exponential convergence when far from the origin; and (iii) the integral term $\int_{0}^{t} β_{j} {\dot{e}}_{j}^{ρ_{j}} d τ$ is the key innovation of terminal integral sliding modes—it eliminates steady-state error while preserving finite-time convergence. The exponent $0 < ρ_{j} < 1$ creates a nonlinear feedback that becomes more aggressive as the error decreases, guaranteeing fast finite-time convergence of $e_{j}$ .

Now, the suggested fractional-order terminal surfaces are given by:

σ_{j} = D^{1 - η_{j}} s_{j} + D^{1 - η_{j}} λ_{j} {s i g n}^{ρ_{j}} (s_{j}) + I^{η_{j}} {\bar{λ}}_{j} {s i g n}^{ρ_{j}} (s_{j})

(22)

where

0 < ρ_{j} < 1

α_{j}, β_{j}

λ_{j}

and

{\bar{λ}}_{j}

are positive constants and

{s i g n}^{ρ} (s_{j}) = s i g n (s_{j}) {| s_{j} |}^{ρ}

Remark 2

(Fractional-Order Operators). The sliding surface $σ_{j}$ in (22) is architected using Riemann-Liouville fractional operators to $s_{j}$ , yielding significant control advantages. The presence of both fractional derivative ( $D^{1 - η_{j}}$ ) and integral terms ( $I^{η_{j}}$ ) allows for more sophisticated shaping of the reaching dynamics and steady-state behavior compared to standard SMC. This approach serves critical functions:

1. Enhanced Robustness: The fractional derivative $D^{1 - η_{j}}$ operates as a history-dependent filtering mechanism, in contrast to the ordinary derivative $D$ , which amplifies high-frequency noise. By leveraging past information in its computation, the fractional operator effectively attenuates noise and chattering, thereby improving overall system resilience.

2. Tunable Transient Response: The parameter $η_{j} \in (0, 1)$ provides a unique tuning capability absent in integer-order SMC. As $η_{j} \to 1$ , the system approximates integer-order terminal SMC. However, decreasing $η_{j}$ amplifies the fractional memory effect, which is effectively utilized to dampen transient oscillations, leading to smoother system convergence.

The time derivative of $σ_{j} (t),$ are derived as:

{\dot{σ}}_{j} (t) = D^{1 - η_{j}} (D^{η_{j}} σ_{j}) = D^{1 - η_{j}} ({\dot{s}}_{j} + D^{1} λ_{j} {| s_{j} |}^{ρ_{j}} s i g n (s_{j}) + {\bar{λ}}_{j} {| s_{j} |}^{ρ_{j}} s i g n (s_{j}))

(23)

The equivalent parts of the control laws are defined as:

u_{x_{e q}} = - [D^{1} {λ_{x} | s_{x} |}^{ρ_{x}} s i g n (s_{x} (t)) + {\bar{λ}}_{x} {| s_{x} |}^{ρ_{x}} s i g n (s_{x}) + a_{1} x_{2} - {\ddot{x}}_{d} + α_{x} {\dot{e}}_{x} + β_{x} {\dot{e}}_{x}^{ρ_{x}}],

(24a)

u_{y_{e q}} = - [D^{1} {λ_{y} | s_{y} |}^{ρ_{y}} s i g n (s_{y}) + {\bar{λ}}_{y} {| s_{y} |}^{ρ_{y}} s i g n (s_{y}) + a_{2} x_{4} - {\ddot{y}}_{d} + α_{y} {\dot{e}}_{y} + β_{y} {\dot{e}}_{y}^{ρ_{y}}],

(24b)

u_{z_{e q}} = - [D^{1} {λ_{z} | s_{z} |}^{ρ_{z}} s i g n (s_{z}) + {\bar{λ}}_{z} {| s_{z} |}^{ρ_{z}} s i g n (s_{z}) + a_{3} x_{6} - {\ddot{z}}_{d} + α_{z} {\dot{e}}_{z} + β_{z} {\dot{e}}_{z}^{ρ_{z}}],

(24c)

u_{φ_{e q}} = - {(b_{φ})}^{- 1} [D^{1} λ_{φ} {| s_{φ} |}^{ρ_{φ}} s i g n (s_{φ}) + {\bar{λ}}_{φ} {| s_{φ} |}^{ρ_{φ}} s i g n (s_{φ}) + a_{4} x_{10} x_{12} - {\ddot{φ}}_{d} + a_{5} Ω_{r} x_{10} + a_{6} x_{8}^{2} + α_{φ} {\dot{e}}_{φ} + β_{φ} {\dot{e}}_{φ}^{ρ_{φ}}],

(24d)

u_{θ_{e q}} = - {(b_{θ})}^{- 1} [D^{1} λ_{θ} {| s_{θ} |}^{ρ_{θ}} s i g n (s_{θ}) + {\bar{λ}}_{θ} {| s_{θ} |}^{ρ_{θ}} s i g n (s_{θ}) + a_{7} x_{8} x_{12} + a_{8} Ω_{r} x_{8} - {\ddot{θ}}_{d} + a_{9} x_{10}^{2} + α_{θ} {\dot{e}}_{θ} + β_{θ} {\dot{e}}_{θ}^{ρ_{θ}}],

(24e)

u_{ψ_{e q}} = - {(b_{ψ})}^{- 1} [D^{1} λ_{ψ} {| s_{ψ} |}^{ρ_{ψ}} s i g n (s_{ψ}) + {\bar{λ}}_{ψ} {| s_{ψ} |}^{ρ_{ψ}} s i g n (s_{ψ}) + a_{10} x_{8} x_{10} + a_{11} x_{12}^{2} - {\ddot{ψ}}_{d} + α_{ψ} {\dot{e}}_{ψ} + β_{ψ} {\dot{e}}_{ψ}^{ρ_{ψ}}] .

(24f)

To enhance tracking control, switching control laws are added to the equivalent control laws as follows:

u_{x} = u_{x_{e q}} - [ε_{x} I^{1 - η_{x}} {s i g n}^{ρ_{x}} (σ_{x}) + μ_{x} I^{1 - η_{x}} σ_{x}],

(25a)

u_{y} = u_{y_{e q}} - [ε_{y} I^{1 - η_{y}} {s i g n}^{ρ_{y}} (σ_{y}) + μ_{y} I^{1 - η_{y}} σ_{y}],

(25b)

u_{z} = u_{z_{e q}} - [ε_{z} I^{1 - η_{z}} {s i g n}^{ρ_{z}} (σ_{z}) + μ_{z} I^{1 - η_{z}} σ_{z}],

(25c)

u_{φ} = u_{φ_{e q}} - {(b_{φ})}^{- 1} [ε_{φ} I^{1 - η_{φ}} {s i g n}^{ρ_{φ}} (σ_{φ}) + μ_{φ} I^{1 - η_{φ}} σ_{φ}],

(25d)

u_{θ} = u_{θ_{e q}} - {(b_{θ})}^{- 1} [ε_{θ} I^{1 - η_{θ}} {s i g n}^{ρ_{θ}} (σ_{θ}) + μ_{θ} I^{1 - η_{θ}} σ_{θ}],

(25e)

u_{ψ} = u_{ψ_{e q}} - {(b_{ψ})}^{- 1} [ε_{ψ} I^{1 - η_{ψ}} {s i g n}^{ρ_{ψ}} (σ_{ψ}) + μ_{ψ} I^{1 - η_{ψ}} σ_{ψ}] .

(25f)

Theorem 1

Consider the quadrotor system (16) and (17) with $H_{j} = 0$ (i.e., no external disturbances or model uncertainties). When the FOTISMC laws given by equations (25a)–(25f) are applied, the sliding surfaces $σ_{j} (t)$ converge to zero in finite time. Moreover, the reaching time satisfies

t_{s} \leq \frac{1}{μ_{j} (1 {- ρ}_{j})} \ln (1 + \frac{μ_{j}}{ε_{j}} {‖ σ_{j} (0) ‖}_{2}^{{1 - ρ}_{j}}), j = x, y, z, φ, θ, ψ .

(26)

Proof

The following Lyapunov function candidate is considered:

V_{j} = \frac{1}{2} σ_{j}^{2}, j = x, y, z, φ, θ, ψ .

(27)

The time derivative of $V_{j}$ is

{\dot{V}}_{j} = σ_{j} {\dot{σ}}_{j} = σ_{j} D^{1 - η_{j}} (D^{η_{j}} σ_{j}) .

(28)

Remark 3

The Riemann–Liouville fractional calculus framework (Kilbas et al., 2006; Labbadi and Cherkaoui, 2021; Labbadi et al., 2021), which is also adopted in MATLAB/Simulink implementations such as the FOMCON toolbox, provides a key inverse relation between the fractional integral and derivative operators. Specifically, for $x (t) \in L_{\infty} (a, b)$ and $0 < α < 1$ , the following identity holds:

{}_{a}^{R L}D_{t}^{α} (_{a} I_{t}^{α} x (t)) = x (t), (t > 0) .

This property is frequently used in the analysis and proof of fractional-order dynamic systems, where it enables the simplification of expressions involving successive fractional integration and differentiation. This characteristic will be instrumental in the subsequent analysis.

After performing the substitution of terms from equations (22), (23), (25a)–(25f) into equation (28), and leveraging the standard fractional calculus property $D^{1 - η} I^{1 - η} = I$ , as the identity operator, a simplification yields the following expression:

{\dot{V}}_{j} = σ_{j} D^{1 - η_{j}} (D^{η_{j}} σ_{j}) = σ_{j} D^{1 - η_{j}} [- ε_{j} I^{1 - η_{j}} {s i g n}^{ρ_{j}} (σ_{j}) - μ_{j} I^{1 - η_{j}} σ_{j}] = = σ_{j} D^{1 - η_{j}} [- ε_{j} I^{1 - η_{j}} s i g n (σ_{j}) {| σ_{j} |}^{ρ_{j}} - μ_{j} I^{1 - η_{j}} σ_{j}] = = σ_{j} [- ε_{j} {s i g n (σ_{j}) | σ_{j} |}^{ρ_{j}} - μ_{j} σ_{j}] = - ε_{j} {| σ_{j} |}^{ρ_{j} + 1} - μ_{j} σ_{j}^{2} \leq 0

(29)

Using equation (29), one has

{\dot{V}}_{j} = - ε_{j} {| σ_{j} |}^{ρ_{j} + 1} - μ_{j} σ_{j}^{2} = - ε_{j} {(2 V_{j})}^{\frac{ρ_{j} + 1}{2}} - μ_{j} (2 V_{j}) \leq 0

(30)

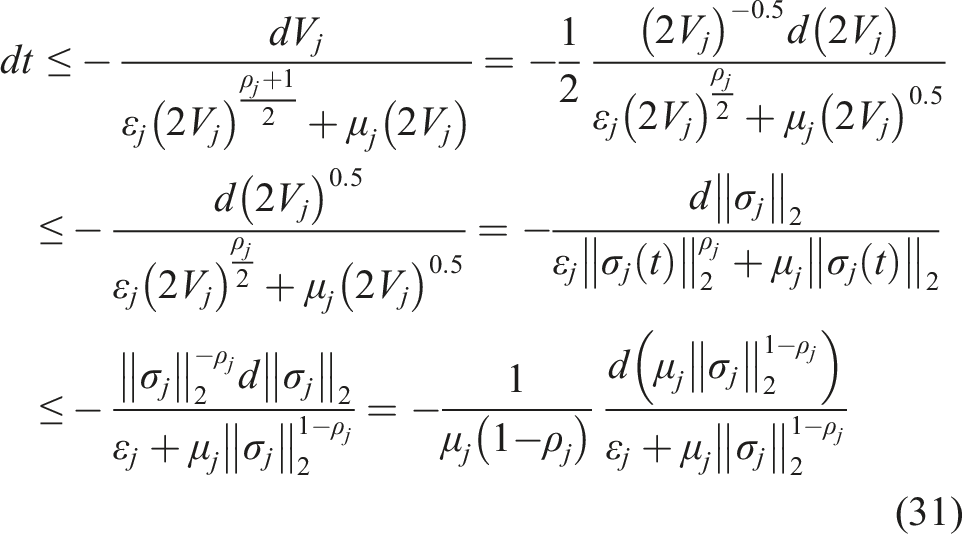

From the inequality (30), it can be obtained

d t \leq - \frac{d V_{j}}{ε_{j} {(2 V_{j})}^{\frac{ρ_{j} + 1}{2}} + μ_{j} (2 V_{j})} = - \frac{1}{2} \frac{{(2 V_{j})}^{- 0.5} d (2 V_{j})}{ε_{j} {(2 V_{j})}^{\frac{ρ_{j}}{2}} + μ_{j} {(2 V_{j})}^{0.5}} \leq - \frac{{d (2 V_{j})}^{0.5}}{ε_{j} {(2 V_{j})}^{\frac{ρ_{j}}{2}} + μ_{j} {(2 V_{j})}^{0.5}} = - \frac{d {‖ σ_{j} ‖}_{2}}{ε_{j} {‖ σ_{j} (t) ‖}_{2}^{ρ_{j}} + μ_{j} {‖ σ_{j} (t) ‖}_{2}} \leq - \frac{{‖ σ_{j} ‖}_{2}^{{- ρ}_{j}} d {‖ σ_{j} ‖}_{2}}{ε_{j} + μ_{j} {‖ σ_{j} ‖}_{2}^{{1 - ρ}_{j}}} = - \frac{1}{μ_{j} (1 {- ρ}_{j})} \frac{d (μ_{j} {‖ σ_{j} ‖}_{2}^{{1 - ρ}_{j}})}{ε_{j} + μ_{j} {‖ σ_{j} ‖}_{2}^{{1 - ρ}_{j}}}

(31)

By integrating equation (31) from $0$ to $t_{s}$ and $σ_{j} (t_{s}) = 0$ , we will have

t_{s} - 0 \leq - \frac{1}{μ_{j} (1 {- ρ}_{j})} \int_{0}^{t_{s}} \frac{d (μ_{j} {‖ σ_{j} ‖}_{2}^{{1 - ρ}_{j}})}{ε_{j} + μ_{j} {‖ σ_{j} ‖}_{2}^{{1 - ρ}_{j}}} \leq - \frac{1}{μ_{j} (1 {- ρ}_{j})} {\ln (ε_{j} + μ_{j} {‖ σ_{j} ‖}_{2}^{{1 - ρ}_{j}}) |}_{0}^{t_{s}}

(32)

\leq - \frac{1}{μ_{j} (1 {- ρ}_{j})} (\ln (ε_{j}) - \ln (ε_{j} + μ_{j} {‖ σ_{j} (0) ‖}_{2}^{{1 - ρ}_{j}})

\leq \frac{1}{μ_{j} (1 {- ρ}_{j})} \ln (1 + \frac{μ_{j}}{ε_{j}} {‖ σ_{j} (0) ‖}_{2}^{{1 - ρ}_{j}}) .

Thus, the reaching time to the sliding manifold will be

t_{s} \leq \frac{1}{μ_{j} (1 {- ρ}_{j})} \ln (1 + \frac{μ_{j}}{ε_{j}} {‖ σ_{j} (0) ‖}_{2}^{{1 - ρ}_{j}}) .

(33)

Hence, the closed-loop system satisfies finite-time stability criteria under Assumptions 1–2. This completes the proof.

• Design procedure overview

The design proceeds in three logical steps:

- Step 1 (Nominal controller, Section 3.1): Assume no disturbances ( $H_{j} = 0$ ) and known model parameters. Derive equivalent control $u_{j_{e q}}$ by setting ${\dot{σ}}_{j} = 0$ . The switching terms $ε_{j} I^{1 - η_{j}} {s i g n}^{ρ_{j}} (σ_{j}) + μ_{j} I^{1 - η_{j}} σ_{j}$ guarantee finite-time reaching of $σ_{j} = 0$ .

- Step 2 (Disturbed controller without adaptation, Section 3.2): When disturbances are present, the switching term is designed to overpower the worst-case disturbance. This leads to control law (34a)–(34f), where $δ_{j}$ is taken as the known bound of these disturbances, as specified in Assumption 2.

- Step 3 (Adaptive controller, Section 3.3): Because $δ_{j}$ depends on unknown constants $a_{i 0}$ , $a_{i 1}$ , $a_{i 2}$ , we replace $δ_{j}$ with its estimate ${\hat{δ}}_{j} = {\hat{a}}_{i 0} + {\hat{a}}_{i 1} | e_{j} | + {\hat{a}}_{i 2} | {\dot{e}}_{j} | + ℏ_{j}$ . The adaptive laws (44)–(49) update these estimates online using only the measurable sliding surface $σ_{j}$ , eliminating the need for prior knowledge of disturbance bounds.

3.2. Design controller for a perturbed quadrotor

In the preceding subsection, a controller was designed for the quadrotor assuming no uncertainties or disturbances. In this section, we extend the FOTISMC approach to address a quadrotor system affected by external disturbances and parameter uncertainties. Therefore, we follow the same design process outlined in Section 3.1.

Consequently, the control laws in equation (25a)–(25f) are modified to account for model uncertainties and disturbances as follows:

u_{x} = u_{x_{e q}} - [ε_{x} I^{1 - η_{x}} {s i g n}^{ρ_{x}} (σ_{x}) + μ_{x} I^{1 - η_{x}} σ_{x} + I^{1 - η_{x}} δ_{x}]

(34a)

u_{y} = u_{y_{e q}} - [ε_{y} I^{1 - η_{y}} {s i g n}^{ρ_{y}} (σ_{y}) + μ_{y} I^{1 - η_{y}} σ_{y} + I^{1 - η_{y}} δ_{y}]

(34b)

u_{z} = u_{z_{e q}} - [ε_{z} I^{1 - η_{z}} {s i g n}^{ρ_{z}} (σ_{z}) + μ_{z} I^{1 - η_{z}} σ_{z} + I^{1 - η_{z}} δ_{z}]

(34c)

u_{φ} = u_{φ_{e q}} - {(b_{φ})}^{- 1} [ε_{φ} I^{1 - η_{φ}} {s i g n}^{ρ_{φ}} (σ_{φ}) + μ_{φ} I^{1 - η_{φ}} σ_{φ} + I^{1 - η_{φ}} δ_{φ}]

(34d)

u_{θ} = u_{θ_{e q}} - {(b_{θ})}^{- 1} [ε_{θ} I^{1 - η_{θ}} {s i g n}^{ρ_{θ}} (σ_{θ}) + μ_{θ} I^{1 - η_{θ}} σ_{θ} + I^{1 - η_{θ}} δ_{θ}]

(34e)

u_{ψ} = u_{ψ_{e q}} - {(b_{ψ})}^{- 1} [ε_{ψ} I^{1 - η_{ψ}} {s i g n}^{ρ_{ψ}} (σ_{ψ}) + μ_{ψ} I^{1 - η_{ψ}} σ_{ψ} + I^{1 - η_{ψ}} δ_{ψ}]

(34f)

Theorem 2

Consider the quadrotor system (16) and (17) with unknown but bounded disturbances satisfying Assumption 2. Under the control laws (34a)–(34f) with the ideal sign function, the closed-loop system is stable and all state variables converge to the sliding surfaces $σ_{j} = 0$ in finite time.

Proof

The following Lyapunov function candidate is considered:

V_{j} = \frac{1}{2} σ_{j}^{2}, j = x, y, z, φ, θ, ψ

(35)

The time derivative of $V_{j}$ is

{\dot{V}}_{j} = σ_{j} {\dot{σ}}_{j} = σ_{j} D^{1 - η_{j}} (D^{η_{j}} σ_{j})

(36)

Substituting the control laws (34a)–(34f) into the expression for $D^{η_{j}} σ_{j}$ from (22) and (23) and using Assumption 2, we obtain:

{\dot{V}}_{j} = σ_{j} D^{1 - η_{j}} [- ε_{j} I^{1 - η_{j}} {s i g n}^{ρ_{j}} (σ_{j}) - μ_{j} I^{1 - η_{j}} σ_{j} + H_{j} - I^{1 - η_{j}} δ_{j}]

(37)

Applying the fractional composition property (verified in the proof of Theorem 1) and noting that $| D^{1 - η_{j}} H_{j} | \leq δ_{j}$ from Assumption 2, we simplify:

{\dot{V}}_{j} \leq σ_{j} D^{1 - η_{j}} [{- ε}_{j} I^{1 - η_{j}} s i g n (σ_{j}) {| σ_{j} |}^{ρ_{j}} - μ_{j} I^{1 - η_{j}} σ_{j} + H_{j} - I^{1 - η_{j}} δ_{j}]

(38)

Since $σ_{j} s i g n (σ_{j}) = | σ_{j} |$ and $σ_{j} (D^{1 - η_{j}} H_{j} - δ_{j}) \leq | σ_{j} | (| D^{1 - η_{j}} H_{j} | - δ_{j}) \leq 0$ , we have:

{\dot{V}}_{j} \leq - ε_{j} {| σ_{j} |}^{ρ_{j} + 1} - μ_{j} σ_{j}^{2}

(39)

From (39), we can write:

{\dot{V}}_{j} \leq - ε_{j} {| σ_{j} |}^{ρ_{j} + 1} - μ_{j} σ_{j}^{2} \leq - ε_{j} {(2 V_{j})}^{\frac{ρ_{j} + 1}{2}}

(40)

Inequality (40) satisfies the finite-time stability condition in Lemma 1. Therefore, $σ_{j}$ converges to zero in finite time. The reaching time is given by:

t_{s} \leq \frac{2^{\frac{1 - ρ_{j}}{2}} {V_{j} (0)}^{\frac{1 - ρ_{j}}{2}}}{ε_{j} (1 - ρ_{j})}

(41)

Hence, the closed-loop system satisfies the finite-time stability criteria under Assumptions 1-2. This completes the proof.

3.3. Adaptive law derivation

In this section, the adaptive FOTISMC approach is proposed for estimating the unknown upper bounds of perturbations affecting the quadrotor system. Accordingly, the adaptive switching control laws for the system can be written as:

u_{x, s w} = - [ε_{x} I^{1 - η_{x}} {s i g n}^{ρ_{x}} (σ_{x}) + μ_{x} I^{1 - η_{x}} σ_{x} + I^{1 - η_{x}} ({\hat{a}}_{10} + {\hat{a}}_{11} | e_{x} | + {\hat{a}}_{12} | {\dot{e}}_{x} | + ℏ_{x})],

(42a)

u_{y, s w} = - [ε_{y} I^{1 - η_{y}} {s i g n}^{ρ_{y}} (σ_{y}) + μ_{y} I^{1 - η_{y}} σ_{y} + I^{1 - η_{y}} ({\hat{a}}_{20} + {\hat{a}}_{21} | e_{y} | + {\hat{a}}_{22} | {\dot{e}}_{y} | + ℏ_{y})],

(42b)

u_{z, s w} = - [ε_{z} I^{1 - η_{z}} {s i g n}^{ρ_{z}} (σ_{z}) + μ_{z} I^{1 - η_{z}} σ_{z} + I^{1 - η_{z}} ({\hat{a}}_{30} + {\hat{a}}_{31} | e_{z} | + {\hat{a}}_{32} | {\dot{e}}_{z} | + ℏ_{z})],

(42c)

u_{φ, s w} = - {(b_{φ})}^{- 1} [ε_{φ} I^{1 - η_{φ}} {s i g n}^{ρ_{φ}} (σ_{φ}) + μ_{φ} I^{1 - η_{φ}} σ_{φ} + I^{1 - η_{φ}} ({\hat{a}}_{40} + {\hat{a}}_{41} | e_{φ} | + {\hat{a}}_{42} | {\dot{e}}_{φ} | + ℏ_{φ})],

(42d)

u_{θ, s w} = - {(b_{θ})}^{- 1} [ε_{θ} I^{1 - η_{θ}} {s i g n}^{ρ_{θ}} (σ_{θ}) + μ_{θ} I^{1 - η_{θ}} σ_{θ} + I^{1 - η_{θ}} ({\hat{a}}_{50} + {\hat{a}}_{51} | e_{θ} | + {\hat{a}}_{52} | {\dot{e}}_{θ} | + ℏ_{θ})],

(42e)

u_{ψ, s w} = - {(b_{ψ})}^{- 1} [ε_{ψ} I^{1 - η_{ψ}} {s i g n}^{ρ_{ψ}} (σ_{ψ}) + μ_{ψ} I^{1 - η_{ψ}} σ_{ψ} + I^{1 - η_{ψ}} ({\hat{a}}_{60} + {\hat{a}}_{61} | e_{ψ} | + {\hat{a}}_{62} | {\dot{e}}_{ψ} | + ℏ_{ψ})] .

(42f)

where

ℏ_{j}

j = x, y, z, φ, θ, ψ

are non-negative parameters.

Then, the adaptive FOTISMC for the attitude and altitude can be derived as follows:

u_{x} = - [\begin{array}{l} D^{1} {λ_{x} | s_{x} (t) |}^{ρ_{x}} s i g n (s_{x}) + {\bar{λ}}_{x} {| s_{x} |}^{ρ_{x}} s i g n (s_{x}) + a_{1} x_{2} - {\ddot{x}}_{d} \\ + α_{x} {\dot{e}}_{x} + β_{x} {\dot{e}}_{x}^{ρ_{x}} + ε_{x} I^{1 - η_{x}} {s i g n}^{ρ_{x}} (σ_{x}) + μ_{x} I^{1 - η_{x}} σ_{x} \\ + I^{1 - η_{x}} ({\hat{a}}_{10} + {\hat{a}}_{11} | e_{x} | + {\hat{a}}_{12} | {\dot{e}}_{x} | + ℏ_{x}) \end{array}],

(43a)

u_{y} = - [\begin{array}{l} D^{1} {λ_{y} | s_{y} (t) |}^{ρ_{y}} s i g n (s_{y}) + {\bar{λ}}_{y} {| s_{y} |}^{ρ_{y}} s i g n (s_{y}) + a_{2} x_{4} - {\ddot{y}}_{d} \\ + α_{y} {\dot{e}}_{y} + β_{y} {\dot{e}}_{y}^{ρ_{y}} ε_{y} I^{1 - η_{y}} {s i g n}^{ρ_{y}} (σ_{y}) + μ_{y} I^{1 - η_{y}} σ_{y} \\ + I^{1 - η_{y}} ({\hat{a}}_{20} + {\hat{a}}_{21} | e_{y} | + {\hat{a}}_{22} | {\dot{e}}_{y} | + ℏ_{y}) \end{array}],

(43b)

u_{z} = - [\begin{array}{l} D^{1} {λ_{z} | s_{z} |}^{ρ_{z}} s i g n (s_{z}) + {\bar{λ}}_{z} {| s_{z} |}^{ρ_{z}} s i g n (s_{z}) + a_{3} x_{6} - {\ddot{z}}_{d} + α_{z} {\dot{e}}_{z} \\ + β_{z} {\dot{e}}_{z}^{ρ_{z}} + ε_{z} I^{1 - η_{z}} {s i g n}^{ρ_{z}} (σ_{z}) + μ_{z} I^{1 - η_{z}} σ_{z} \\ + I^{1 - η_{z}} ({\hat{a}}_{30} + {\hat{a}}_{31} | e_{z} | + {\hat{a}}_{32} | {\dot{e}}_{z} | + ℏ_{z}) \end{array}],

(43c)

u_{φ} = - {(b_{φ})}^{- 1} [\begin{array}{l} D^{1} λ_{φ} {| s_{φ} |}^{ρ_{φ}} s i g n (s_{φ}) + {\bar{λ}}_{φ} {| s_{φ} |}^{ρ_{φ}} s i g n (s_{φ}) + a_{4} x_{10} x_{12} - {\ddot{φ}}_{d} \\ + a_{5} Ω_{r} x_{10} + a_{6} x_{8}^{2} + α_{φ} {\dot{e}}_{φ} + β_{φ} {\dot{e}}_{φ}^{ρ_{φ}} \\ ε_{φ} I^{1 - η_{φ}} {s i g n}^{ρ_{φ}} (σ_{φ}) + μ_{φ} I^{1 - η_{φ}} σ_{φ} \\ + I^{1 - η_{θ}} (({\hat{a}}_{50} + {\hat{a}}_{51} | e_{θ} | + {\hat{a}}_{52} | {\dot{e}}_{θ} | + ℏ_{φ}) \end{array}],

(43d)

u_{θ} = - {(b_{θ})}^{- 1} [\begin{array}{l} D^{1} λ_{θ} {| s_{θ} |}^{ρ_{θ}} s i g n (s_{θ}) + {\bar{λ}}_{θ} {| s_{θ} |}^{ρ_{θ}} s i g n (s_{θ}) + a_{7} x_{8} x_{12} + a_{8} Ω_{r} x_{8} \\ - {\ddot{θ}}_{d} + a_{9} x_{10}^{2} + α_{θ} {\dot{e}}_{θ} + β_{θ} {\dot{e}}_{θ}^{ρ_{θ}} ε_{θ} I^{1 - η_{θ}} {s i g n}^{ρ_{θ}} (σ_{θ}) + μ_{θ} I^{1 - η_{θ}} σ_{θ} \\ + I^{1 - η_{θ}} (({\hat{a}}_{50} + {\hat{a}}_{51} | e_{θ} | + {\hat{a}}_{52} | {\dot{e}}_{θ} | + ℏ_{θ}) \end{array}],

(43e)

u_{ψ} = - {(b_{ψ})}^{- 1} [\begin{array}{l} D^{1} λ_{ψ} {| s_{ψ} |}^{ρ_{ψ}} s i g n (s_{ψ}) + {\bar{λ}}_{ψ} {| s_{ψ} |}^{ρ_{ψ}} s i g n (s_{ψ}) + a_{10} x_{8} x_{10} + a_{11} x_{12}^{2} \\ - {\ddot{ψ}}_{d} + α_{ψ} {\dot{e}}_{ψ} + β_{ψ} {\dot{e}}_{ψ}^{ρ_{ψ}} ε_{ψ} I^{1 - η_{ψ}} {s i g n}^{ρ_{ψ}} (σ_{ψ}) + μ_{ψ} I^{1 - η_{ψ}} σ_{ψ} \\ + I^{1 - η_{ψ}} ({\hat{a}}_{60} + {\hat{a}}_{61} | e_{ψ} | + {\hat{a}}_{62} | {\dot{e}}_{ψ} | + ℏ_{ψ}) \end{array}] .

(43f)

The adaptive laws of the altitude and attitude quadrotor control can be formulated as:

{\dot{\hat{a}}}_{10} = β_{10} | σ_{x} (t) |, {\dot{\hat{a}}}_{11} = β_{11} | σ_{x} (t) | | e_{x} |, {\dot{\hat{a}}}_{12} = β_{12} | σ_{x} (t) | | {\dot{e}}_{x} |,

(44)

{\dot{\hat{a}}}_{20} = β_{20} | σ_{y} (t) |, {\dot{\hat{a}}}_{21} = β_{21} | σ_{y} (t) | | e_{y} |, {\dot{\hat{a}}}_{22} = β_{22} | σ_{y} (t) | | {\dot{e}}_{y} |,

(45)

{\dot{\hat{a}}}_{30} = β_{30} | σ_{z} (t) |, {\dot{\hat{a}}}_{31} = β_{31} | σ_{z} (t) | | e_{z} |, {\dot{\hat{a}}}_{32} = β_{32} | σ_{z} (t) | | {\dot{e}}_{z} |,

(46)

{\dot{\hat{a}}}_{40} = β_{40} | σ_{φ} (t) |, {\dot{\hat{a}}}_{41} = β_{41} | σ_{φ} (t) | | e_{φ} |, {\dot{\hat{a}}}_{42} = β_{42} | σ_{φ} (t) | | {\dot{e}}_{φ} |,

(47)

{\dot{\hat{a}}}_{50} = β_{50} | σ_{θ} (t) |, {\dot{\hat{a}}}_{51} = β_{51} | σ_{θ} (t) | | e_{θ} |, {\dot{\hat{a}}}_{52} = β_{52} | σ_{θ} (t) | | {\dot{e}}_{θ} |,

(48)

{\dot{\hat{a}}}_{60} = β_{60} | σ_{ψ} (t) |, {\dot{\hat{a}}}_{61} = β_{61} | σ_{ψ} (t) | | e_{ψ} |, {\dot{\hat{a}}}_{62} = β_{62} | σ_{ψ} (t) | | {\dot{e}}_{ψ} |,

(49)

where

β_{i 0}

β_{i 1}

, and

β_{i 2}

(

i = 1, 2, 3, 4, 5, 6

) are non-zero positive constants.

Lemma 2

(Shao et al., 2019). For the uncertain dynamic system described by (16) and (17), and the adaptive laws defined by (44)- (49), it can be concluded that there exists $a_{i 1}$ , and $a_{i 2}$ in (18) such that ${\hat{a}}_{i 0} \leq a_{i 0}$ , ${\hat{a}}_{i 1} \leq a_{i 1}$ , ${\hat{a}}_{i 2} \leq a_{i 2}$ , and ${\hat{a}}_{i 3} \leq a_{i 3}$ ( $i = 1, 2, 3, 4, 5, 6$ ).

Theorem 3

Consider the quadrotor system described by (16) and (17) under uncertainties and external disturbances. Using the adaptive FOTISMC approach in equations (43a)–(43f) and the adaptive laws defined in equations (44)–(49), then the tracking errors $e_{j} (f o r j = x, y, z, φ, θ, ψ)$ converge to origin in a finite time.

Proof

First, consider the estimation errors of adaptive gains and their time derivatives as follows:

{\tilde{a}}_{i 0} = {\hat{a}}_{i 0} - a_{i 0}, {\tilde{a}}_{i 1} = {\hat{a}}_{i 1} - a_{i 1}, {\tilde{a}}_{i 2} = {\hat{a}}_{i 2} - a_{i 2}, {\dot{\tilde{a}}}_{i 0} = {\dot{\hat{a}}}_{i 0}, {\dot{\tilde{a}}}_{i 1} = {\dot{\hat{a}}}_{i 1}, {\dot{\tilde{a}}}_{i 2} = {\dot{\hat{a}}}_{i 2}, i = 1, 2, 3, 4, 5, 6 .

(50)

Then, the following Lyapunov function candidates can be considered:

V_{j} = \frac{1}{2} σ_{j}^{2} + \frac{1}{2} \sum_{m = 0}^{2} ρ_{i m} {\tilde{a}}_{i m}^{2},

(51)

where

ρ_{i m}

, are positive numbers. The square root of (51) can be written as

V_{j}^{\frac{1}{2}} = \sqrt{\frac{1}{2} σ_{j}^{2} + \frac{1}{2} \sum_{m = 0}^{2} ρ_{i m} {\tilde{a}}_{i m}^{2}} \leq \sqrt{\frac{1}{2}} | σ_{j} | + \sqrt{\frac{ρ_{i 0}}{2}} | {\tilde{a}}_{i 0} | + \sqrt{\frac{ρ_{i 1}}{2}} | {\tilde{a}}_{i 1} | + \sqrt{\frac{ρ_{i 2}}{2}} | {\tilde{a}}_{i 2} |,

(52)

The time derivatives of (51) can be written as

{\dot{V}}_{j} = {\dot{σ}}_{j} σ_{j} + \sum_{m = 0}^{2} ρ_{i m} {\tilde{a}}_{i m} {\dot{\hat{a}}}_{i m},

(53)

Using the time derivative of ${\dot{σ}}_{x}$ defined in (23), we will have:

{\dot{V}}_{x} = {\dot{σ}}_{x} σ_{x} + \sum_{m = 0}^{2} ρ_{1 m} {\tilde{a}}_{1 m} {\dot{\hat{a}}}_{1 m} = σ_{x} D^{1 - η_{x}} (D^{η_{x}} σ_{x}) + \sum_{m = 0}^{2} ρ_{1 m} {\tilde{a}}_{1 m} {\dot{\hat{a}}}_{1 m} = σ_{x} D^{1 - η_{x}} (- ε_{x} I^{1 - η_{x}} {s i g n}^{ρ_{x}} (σ_{x}) - μ_{x} I^{1 - η_{x}} σ_{x} + H_{x}) - I^{1 - η_{x}} ({\hat{a}}_{10} + {\hat{a}}_{11} | e_{x} | + {\hat{a}}_{12} | {\dot{e}}_{x} | + ℏ_{x}) + ρ_{10} β_{10} {\tilde{a}}_{10} | σ_{x} | + ρ_{11} β_{11} {\tilde{a}}_{11} | σ_{x} | | e_{x} | + ρ_{12} β_{12} {\tilde{a}}_{12} | σ_{x} | | {\dot{e}}_{x} | = σ_{x} D^{1 - η_{x}} [\begin{array}{l} - ε_{x} I^{1 - η_{x}} s i g n (σ_{x}) {| σ_{x} |}^{ρ_{x}} - μ_{x} I^{1 - η_{x}} σ_{x} + H_{x} \\ - I^{1 - η_{x}} ({\hat{a}}_{10} + {\hat{a}}_{11} | e_{x} | + {\hat{a}}_{12} | {\dot{e}}_{x} | + ℏ_{x}) \end{array}] + ρ_{10} β_{10} {\tilde{a}}_{10} | σ_{x} | + ρ_{11} β_{11} {\tilde{a}}_{11} | σ_{x} | | e_{x} | + ρ_{12} β_{12} {\tilde{a}}_{12} | σ_{x} | | {\dot{e}}_{x} | + a_{10} | σ_{x} | + a_{11} | σ_{x} | | e_{x} | + a_{12} | σ_{x} | | {\dot{e}}_{x} | - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | = σ_{x} D^{1 - η_{x}} [- ε_{x} I^{1 - η_{x}} s i g n (σ_{x}) {| σ_{x} |}^{ρ_{x}} - μ_{x} I^{1 - η_{x}} σ_{x} + H_{x}] - ({\hat{a}}_{10} + {\hat{a}}_{11} | e_{x} | + {\hat{a}}_{12} | {\dot{e}}_{x} | + ℏ_{x}) | σ_{x} | + ρ_{10} β_{10} {\tilde{a}}_{10} | σ_{x} | + ρ_{11} β_{11} {\tilde{a}}_{11} | σ_{x} | | e_{x} | + ρ_{12} β_{12} {\tilde{a}}_{12} | σ_{x} | | {\dot{e}}_{x} | + a_{10} | σ_{x} | + a_{11} | σ_{x} | | e_{x} | + a_{12} | σ_{x} | | {\dot{e}}_{x} | - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | = σ_{x} D^{1 - η_{x}} [- ε_{x} I^{1 - η_{x}} s i g n (σ_{x}) {| σ_{x} |}^{ρ_{x}} - μ_{x} I^{1 - η_{x}} σ_{x} + H_{x}] + (ρ_{10} β_{10} - 1 {) \tilde{a}}_{10} | σ_{x} | + (ρ_{11} β_{11} - 1) {\tilde{a}}_{11} | σ_{x} | | e_{x} | + (ρ_{12} β_{12} - 1) {\tilde{a}}_{12} | σ_{x} | | {\dot{e}}_{x} | - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | - ℏ_{x} | σ_{x} | .

(54)

As stated in Lemma 2, we have ${\hat{a}}_{1 i} \leq a_{1 i}$ ( $i = 0, 1, 2$ ). This yields:

{\dot{V}}_{x} \leq σ_{x} D^{1 - η_{x}} [- ε_{x} I^{1 - η_{x}} s i g n (σ_{x}) {| σ_{x} |}^{ρ_{x}} - μ_{x} I^{1 - η_{x}} σ_{x} + H_{x}] - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | - ℏ_{x} | σ_{x} | - (ρ_{10} β_{10} - 1) | {\tilde{a}}_{10} | | σ_{x} | - (ρ_{11} β_{11} - 1) | {\tilde{a}}_{11} | | σ_{x} | | e_{x} | - (ρ_{12} β_{12} - 1) | {\tilde{a}}_{12} | | σ_{x} | | {\dot{e}}_{x} | \leq σ_{x} (- ε_{x} s i g n (σ_{x}) {| σ_{x} |}^{ρ_{x}} - μ_{x} σ_{x} + D^{1 - η_{x}} H_{x}) - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | - ℏ_{x} | σ_{x} | - (ρ_{10} β_{10} - 1) | {\tilde{a}}_{10} | | σ_{x} | - (ρ_{11} β_{11} - 1) | {\tilde{a}}_{11} | | σ_{x} | | e_{x} | - (ρ_{12} β_{12} - 1) | {\tilde{a}}_{12} | | σ_{x} | | {\dot{e}}_{x} | \leq (- ε_{x} σ_{x} s i g n (σ_{x}) {| σ_{x} |}^{ρ_{x}} - μ_{x} σ_{x}^{2} + σ_{x} D^{1 - η_{x}} H_{x}) - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | - ℏ_{x} | σ_{x} | - (ρ_{10} β_{10} - 1) | {\tilde{a}}_{10} | | σ_{x} | - (ρ_{11} β_{11} - 1) | {\tilde{a}}_{11} | | σ_{x} | | e_{x} | - (ρ_{12} β_{12} - 1) | {\tilde{a}}_{12} | | σ_{x} | | {\dot{e}}_{x} | \leq - ε_{x} {| σ_{x} |}^{ρ_{x} + 1} - μ_{x} σ_{x}^{2} + | D^{1 - η_{x}} H_{x} | | σ_{x} | - a_{10} | σ_{x} | - a_{11} | σ_{x} | | e_{x} | - a_{12} | σ_{x} | | {\dot{e}}_{x} | - ℏ_{x} | σ_{x} | - (ρ_{10} β_{10} - 1) | {\tilde{a}}_{10} | | σ_{x} | - (ρ_{11} β_{11} - 1) | {\tilde{a}}_{11} | | σ_{x} | | e_{x} | - (ρ_{12} β_{12} - 1) | {\tilde{a}}_{12} | | σ_{x} | | {\dot{e}}_{x} | \leq - (a_{10} | σ_{x} | + a_{11} | σ_{x} | | e_{x} | + a_{12} | σ_{x} | | {\dot{e}}_{x} | - | D^{1 - η_{x}} H_{x} | + ℏ_{x}) | σ_{x} | - (ρ_{10} β_{10} - 1) | {\tilde{a}}_{10} | | σ_{x} | - (ρ_{11} β_{11} - 1) | {\tilde{a}}_{11} | | σ_{x} | | e_{x} | - (ρ_{12} β_{12} - 1) | {\tilde{a}}_{12} | | σ_{x} | | {\dot{e}}_{x} | \leq - ℏ_{x} | σ_{x} | - (ρ_{10} β_{10} - 1) | {\tilde{a}}_{10} | | σ_{x} | - (ρ_{11} β_{11} - 1) | {\tilde{a}}_{11} | | σ_{x} | | e_{x} | - (ρ_{12} β_{12} - 1) | {\tilde{a}}_{12} | | σ_{x} | | {\dot{e}}_{x} | .

(55)

To simplify the expression, let us introduce the following variables:

b_{0} = a_{10} | σ_{x} | + a_{11} | σ_{x} | | e_{x} | + a_{12} | σ_{x} | | {\dot{e}}_{x} | - | D^{1 - η_{x}} H_{x} | + ℏ_{x}, b_{1} = (ρ_{10} β_{10} - 1) | σ_{x} |, b_{2} = (ρ_{11} β_{11} - 1) | σ_{x} | | e_{x} |, b_{3} = (ρ_{12} β_{12} - 1) | σ_{x} | | {\dot{e}}_{x} | .

(56)

From (18), (56) and $ℏ_{x} \geq 0$ , we can easily get $b_{0} > 0$ . According to (51), (55), and (56)

{\dot{V}}_{x} \leq - b_{0} \sqrt{2} \sqrt{\frac{1}{2}} | σ_{x} | - b_{1} \sqrt{2 {ρ_{10}}^{- 1}} \sqrt{\frac{ρ_{10}}{2}} | {\tilde{a}}_{10} | - b_{2} \sqrt{2 {ρ_{11}}^{- 1}} \sqrt{\frac{ρ_{11}}{2}} | {\tilde{a}}_{11} | - b_{3} \sqrt{2 {ρ_{12}}^{- 1}} \sqrt{\frac{ρ_{12}}{2}} | {\tilde{a}}_{21} | \leq - Υ (\begin{array}{l} \sqrt{\frac{1}{2}} | σ_{x} | + \sqrt{\frac{ρ_{10}}{2}} | {\tilde{a}}_{10} | + \sqrt{\frac{ρ_{11}}{2}} | {\tilde{a}}_{11} | \\ + \sqrt{\frac{ρ_{12}}{2}} | {\tilde{a}}_{21} | \end{array}) \leq - Υ V_{x}^{\frac{1}{2}},

(57)

where

Υ = \min {b_{0} \sqrt{2}, b_{1} \sqrt{2 {ρ_{10}}^{- 1}}, b_{2} \sqrt{2 {ρ_{11}}^{- 1}}, b_{3} \sqrt{2 {ρ_{12}}^{- 1}}}

From (57), we conclude that $V_{j}$ converges to zero in finite time, which implies $σ_{j} \to 0$ . The Lyapunov analysis also guarantees that ${\tilde{a}}_{i m}$ for $m = 1, 2, 3$ (and hence ${\hat{a}}_{i m}$ ) remain bounded.

Remark 4

(Parameter convergence). The adaptive laws (44)–(49) are formulated to ensure finite-time convergence of the sliding surfaces $σ_{j}$ to zero while maintaining boundedness of all adaptive parameters. Considering the Lyapunov candidate function in (51), and the corresponding Lyapunov derivative inequality (57), it follows that both the sliding variable $σ_{j}$ and the estimation errors of the adaptive parameters ${\tilde{a}}_{i m}$ aim converge to zero in finite time. Consequently, the parameter adaptation is activated only when $σ_{j} \neq 0$ . If the initial tracking error is non-zero, the adaptive parameters are automatically excited to drive $σ_{j}$ to zero. Conversely, when the initial error is zero, small adaptive gains may allow transient deviations due to disturbances or trajectory variations, which again trigger parameter adaptation to preserve tracking performance.

For any $β_{1 i} (i = 0, 1, 2)$ , there exists a positive constant $ρ_{1 i} (i = 0, 1, 2)$ such that $ρ_{1 i} β_{1 i} > 1$ . Consequently, we can deduce that $Υ$ is greater than 0. Thus, inequality (57) satisfies the criteria for finite-time convergence as stated in Lemma 1. Specifically, the function $V_{x}$ will converge from any initial condition $V_{x} (0)$ to zero in a finite time $t_{V_{x}}$ as given by:

t_{V_{x}} \leq \frac{2 {V_{x}}^{\frac{1}{2}} (0)}{Υ} .

(58)

In conclusion, the total convergence time required for the tracking error to reach zero can be expressed as

t_{f_{x}} = t_{V_{x}} + t_{s} .

(59)

From this analysis, the stability of the overall system has been established.

Remark 5

(Chattering attenuation in implementation). In the theoretical analysis (Theorems 1, 2, and 3), the ideal sign function $s i g n (*)$ is used to rigorously prove finite-time stability. For practical implementation in simulations, the discontinuous sign function is replaced by the smooth approximation $\tanh (\frac{*}{\in})$ , where $ϵ = 0.05$ is a small positive parameter. This substitution eliminates chattering while preserving the tracking performance, as confirmed by the simulation results. The theoretical guarantees remain valid because the analysis is carried out with the ideal sign function.

Remark 6

Due to the use of $\tanh (\frac{*}{\in})$ instead of $s i g n (*)$ function, the sliding surfaces $σ_{L} (t)$ will not remain exactly at zero. This causes that the adaptive parameters $a_{i 0}, a_{i 1}, a_{i 2}$ increase continuously and boundlessly. To solve this problem, adaptive laws (44)–(49) are only executed when $| σ_{L} (t) | > ϱ$ , where $ϱ$ is a small positive value. As a result, after converging $σ_{L} (t)$ to a small band, the adaption will be stopped, that is, ${\dot{\hat{a}}}_{i 0} = {\dot{\hat{a}}}_{i 1} = {\dot{\hat{a}}}_{i 2} = 0$ . Additionally, because the adaptive laws are only active when $| σ_{L} (t) | > ϱ$ , the parameters ${\hat{a}}_{i m}$ for $m = 1, 2, 3$ are guaranteed to remain bounded. This dead-zone modification is standard in adaptive sliding mode control to prevent parameter drift.

4. Simulation results

In this section, the proposed controller is evaluated for a quadrotor subjected to unknown perturbations. Both inner (attitude) and outer (position) loops are implemented to achieve cascaded control architecture. In the inner loop, the desired attitude is controlled and used in model equation with thrust for position tracking in outer loop. This approach ensures faster and more accurate control. The controller’s performance was assessed through comprehensive numerical simulations, with the AFOTISMC method verified via MATLAB simulink. To demonstrate performance of the proposed control scheme, in terms of robustness and tracking accuracy, two distinct scenarios were examined. The performance of AFOTISMC was compared with IO-SMC and the FOGSMC, as introduced in Labbadi et al. (2021), under condition of parametric uncertainties and external disturbances. The same conditions and proper tuning were applied to all controllers for a fair comparison.

In the simulations, realistic paths with roughness and abrupt changes in direction were assumed. In this way, the speed and sensitivity of the controllers were evaluated in response to the instantaneous references changes. To minimize tracking error, the control effort momentarily adjusts at these instances due to the presence of the second derivative of the desired position and attitude values in the control laws. To ensure a fair comparison between controllers, identical saturation levels were applied to the quadrotor control signals. This saturation is a common feature in practical applications and is explicitly considered in this study.

Remark 7

A quantitative evaluation of the proposed AFOTISMC, SMC, and FOGSMC (Labbadi et al., 2021) methods was conducted using the Integral Absolute Error (IAE) performance metric:

I A E = \int_{t_{i}}^{t_{f}} | e | d t .

(60)

It is essential to emphasize the need for meticulous tuning of the proposed controller’s parameters to achieve optimal tracking performance. The physical parameters of quadrotor are taken from Labbadi et al. (2021), and are presented in Table 1. Additionally, the parameters of the designed controllers are provided in Table 2.

Table 1.

Quadrotor parameters (Labbadi et al., 2021).

Parameter	Value	Parameter	Value
$g (m s^{- 2})$	$9.8$	$k_{y} (N . s^{- 2} . m)$	$0.01$
$m (k g)$	$2$	$k_{z} (N . s^{- 2} . m)$	$0.01$
$I_{x} (k g . m^{2})$	$0.016$	$k_{φ} (N . {r a d . s}^{2})$	$0.012$
$I_{y} (k g . m^{2})$	$0.016$	$k_{θ} (N . r a d . s^{2})$	$0.012$
$I_{z} (k g . m^{2})$	$0.032$	$k_{ψ} (N . r a d . s^{2})$	$0.012$
$J_{r} (k g . m^{2})$	$2.8385 e^{- 5}$	$b (N . s^{2})$	$2.9842 e^{- 3}$
$k_{x} (N . s^{- 2} . m)$	0.01	$c_{d} (N . m . s^{2})$	$3.2320 e^{- 2}$
$R (m)$	0.1

Table 2.

Control system parameters.

Parameter	Value	Parameter	Value
$α_{x, y, z}$	$5.0574$	$ε_{x, y, z}$	$0.7267$
$α_{φ, θ, ψ}$	$60.2941$	$ε_{φ, θ, ψ}$	$1.4515$
$β_{x, y, z}$	$0.0035$	$μ_{x, y, z}$	$2.9265$
$β_{φ, θ, ψ}$	$0.0392$	$μ_{φ, θ, ψ}$	$5.8993$
$λ_{x, y, z}$	$0.0138$	$ρ_{x, y, z, φ, θ, ψ}$	$5 / 9$
$λ_{φ, θ, ψ}$	$0.0929$	$ℏ_{x, y, z, φ, θ, ψ}$	$[2, 2, 3, 20, 20, 20]$
${\bar{λ}}_{x, y, z}$	$2.0787$	$β_{i 0} = β_{i 1} = β_{i 2}$	$[0.1, 0.1, 0.05, 0.05, 0.05, 0.03]$
${\bar{λ}}_{φ, θ, ψ}$	$3.6522$	$ϱ$	$0.005$
$\in$	$0.05$	$η_{x, y, z, φ, θ, ψ}$	$0.99$

Remark 8

Controller parameters were fine-tuned via the MATLAB Genetic Algorithm Toolbox to minimize the Integral of Absolute Error (IAE) for quadrotor tracking. Simulations were conducted in Simulink using a fixed-step ode1 (Euler) solver with a 1 ms sampling time. To reduce computational load, common gains were assigned to the three position and three attitude channels, yielding 12 independent parameters instead of 36. The GA was configured with a population size of 50 and a maximum of 25 generations. While tuning all 36 gains individually could further improve performance, the adopted strategy provides a computationally efficient and conservatively optimal solution.

Remark 9

The Fractional-order Modeling and Control (FOMCON) toolbox is employed for the fractional-order dynamic approximation in Simulink. The fractional-order terms in the proposed AFOTISMC are calculated by a 2nd-order Oustaloup modified filter, applied within a frequency range of 0.02 to 50 rad/s.

4.1. Scenario 1

In this scenario, uncertainty in the quadrotor model is introduced by varying the drag coefficients of the position states and the yaw angle. The variation in the drag coefficients $K_{x}, K_{y}, K_{z}, K_{ψ}$ , are modeled as Band-Limited White Noise. This noise is defined in Simulink using block with a noise power of $1 \times 10^{- 7}$ and a sample time of 0.01 second. It is important to note that the drag coefficients used in the simulation closely reflect their effects in a real flight environment. Also, external disturbances ( $H_{x}, \dots, H_{ψ}$ ) are applied to show the robustness of the proposed approach against perturbations.

H_{x} = {\begin{cases} 0 m / s^{2} t \in [0, 10) \\ 0.5 m / s^{2} t \in [10, 155) \end{cases}}, H_{y} = {\begin{cases} 0.4 m / s^{2} t \in [0, 20) \\ - 0.2 m / s^{2} t \in [20, 50) \\ 0.2 m / s^{2} t \in [50, 155) \end{cases}},

H_{z} = {\begin{cases} 0 m / s^{2} t \in [0, 10) \\ - 0.2 m / s^{2} t \in [10, 40) \\ 0.3 m / s^{2} t \in [40, 155) \end{cases}}, H_{φ} = {\begin{cases} 0 r a d / s^{2} t \in [0, 30) \\ 1 r a d / s^{2} t \in [30, 155) \end{cases}},

H_{θ} = {\begin{cases} 0 r a d / s^{2} t \in [0, 60) \\ 0.5 r a d / s^{2} t \in [60, 110) \\ 1 r a d / s^{2} t \in [110, 155) \end{cases}}, H_{ψ} = {\begin{cases} 0 r a d / s^{2} t \in [0, 100) \\ 1 r a d / s^{2} t \in [100, 155) \end{cases}} .

(61)

The duration of the simulation is set to 155 seconds. The reference trajectory, or desired path, with initial condition ${[x_{0}, y_{0}, z_{0}, φ_{0}, θ_{0}, ψ_{0}]}^{T} = [0 m, 4.6 m, 0 m, 0 r a d, 0 r a d, 0.1 r a d]$ is as follows (Labbadi et al., 2021):

x_{d} = {\begin{cases} \frac{5}{7} t m t \in [0, 7) \\ t - 2 m t \in [7, 27) \\ 25 m t \in [27, 32) \\ - t + 57 m t \in [32, 52) \\ 5 m t \in [52, 57) \\ t - 52 m t \in [57, 77) \\ 25 m t \in [77, 82) \\ - t + 107 m t \in [82, 102) \\ 5 m t \in [102, 107) \\ t - 102 m t \in [107, 127) \\ 25 m t \in [127, 132) \\ - t + 157 m t \in [132, 155) \end{cases}}, y_{d} = {\begin{cases} 0.03 t + 4.79 m t \in [0, 7) \\ 5 m t \in [7, 27) \\ t - 22 m t \in [27, 32) \\ 10 m t \in [32, 52) \\ t - 42 m t \in [52, 57) \\ 15 m t \in [57, 77) \\ t - 62 m t \in [77, 82) \\ 20 m t \in [82, 102) \\ t - 82 m t \in [102, 107) \\ 25 m t \in [107, 127) \\ t - 102 m t \in [127, 132) \\ 30 m t \in [132, 155) \end{cases}}, z_{d} = 0.5 m, ψ_{d} = 0 r a d .

(62)

The detailed simulation results are illustrated in the Figures 3 and 4, which display the state variables ( $x, y, z$ ) and ( $φ, θ, ψ$ ) under the proposed controllers and two other methods, considering variations in drag coefficients and external disturbances.

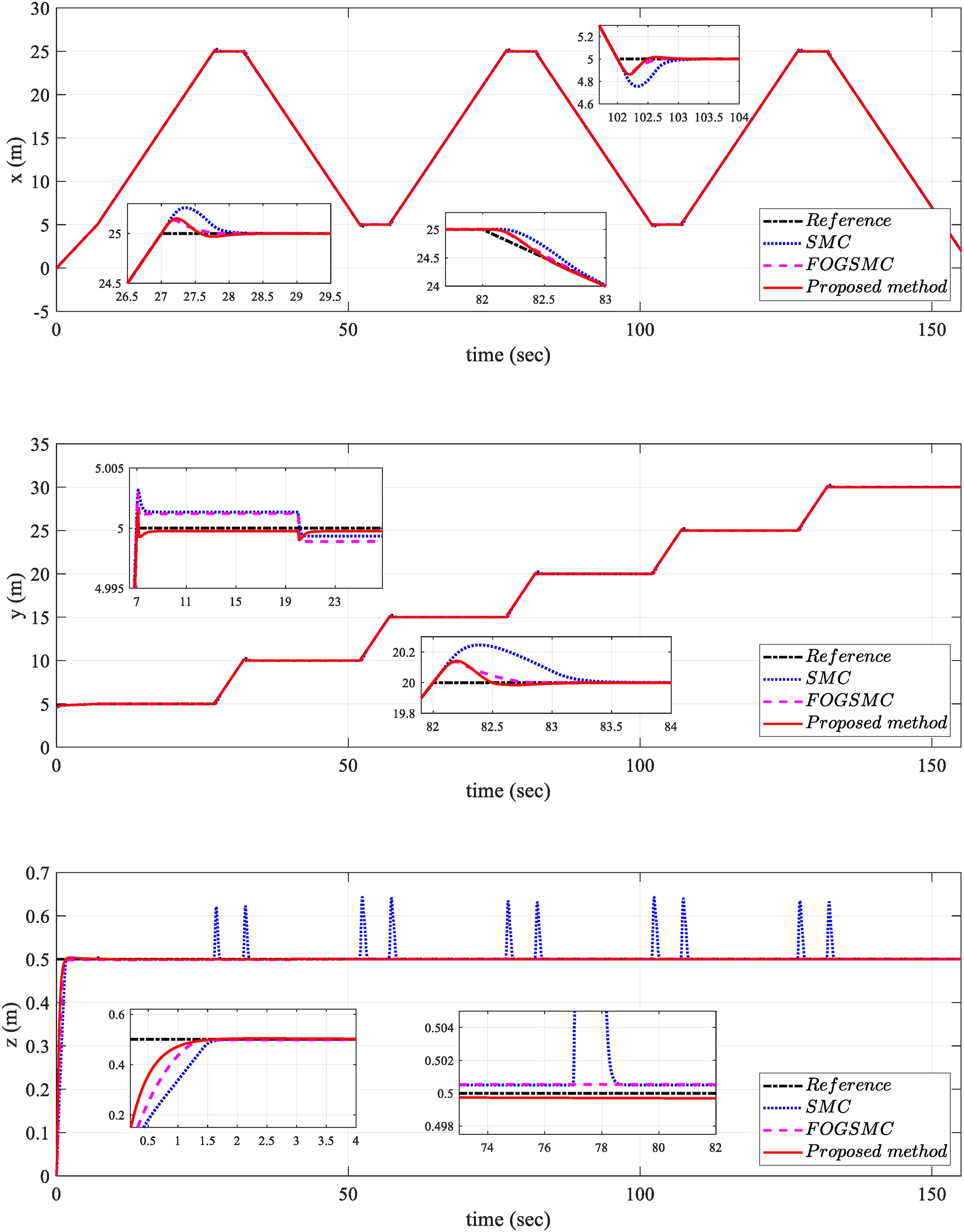

Figure 3.

Time evolution of position states in the scenario 1.

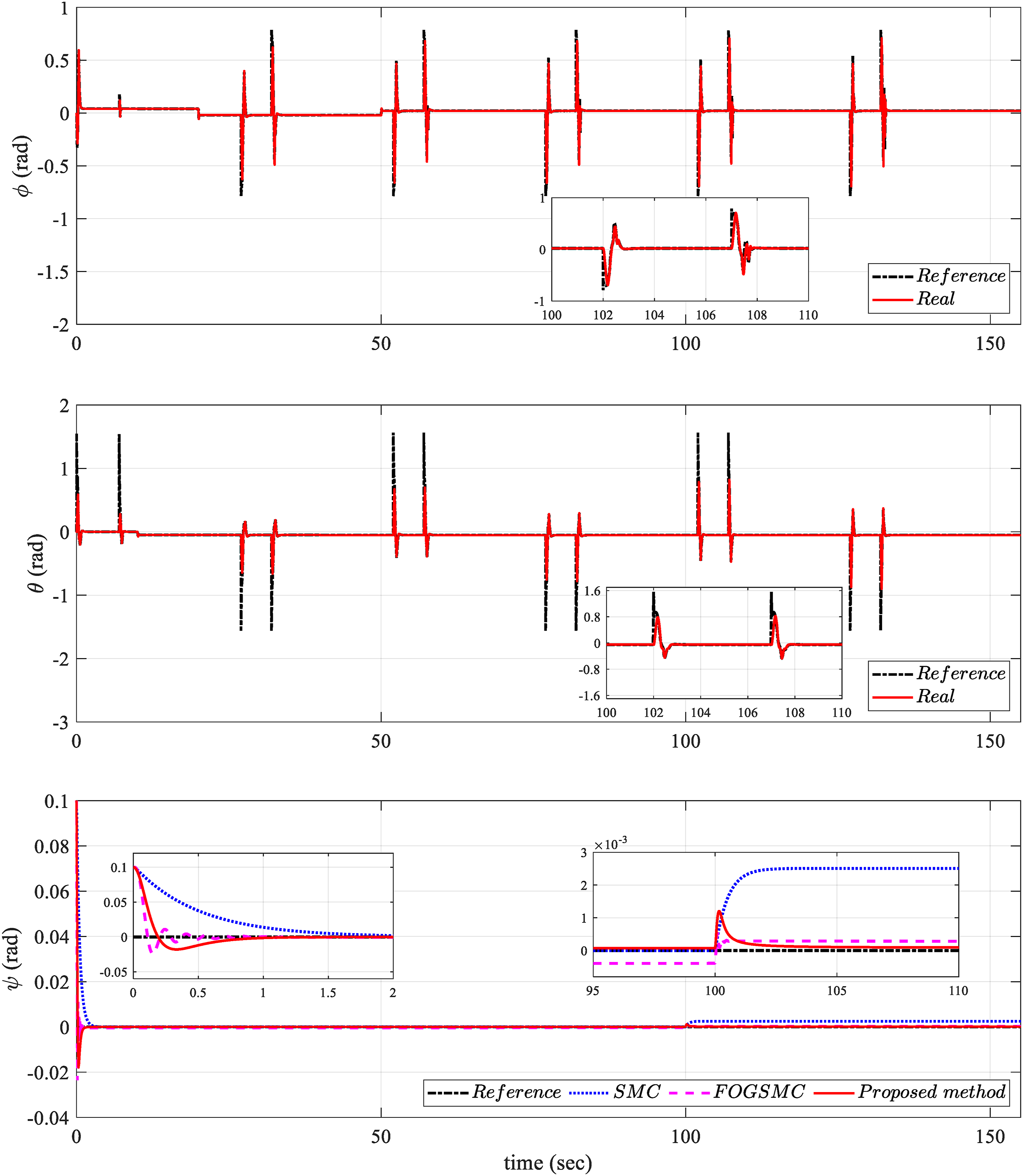

Figure 4.

Time evolution of attitude states in the scenario 1.

The signals $φ_{d}$ and $θ_{d}$ , shown in Figure 4, are transmitted through the virtual controllers $u_{x}$ and $u_{y}$ in the outer control loop. These reference angles operate within a limited range, contributing to the overall stability of the system.

In the $ψ$ angle signal (see Figure 4), the method in Labbadi et al. (2021) exhibits oscillations in the transient response with a larger band than the proposed method. Figure 5 illustrates the tracking paths in two and three-dimensional plots, highlighting the satisfactory tracking performance and robustness compared to existing methods.

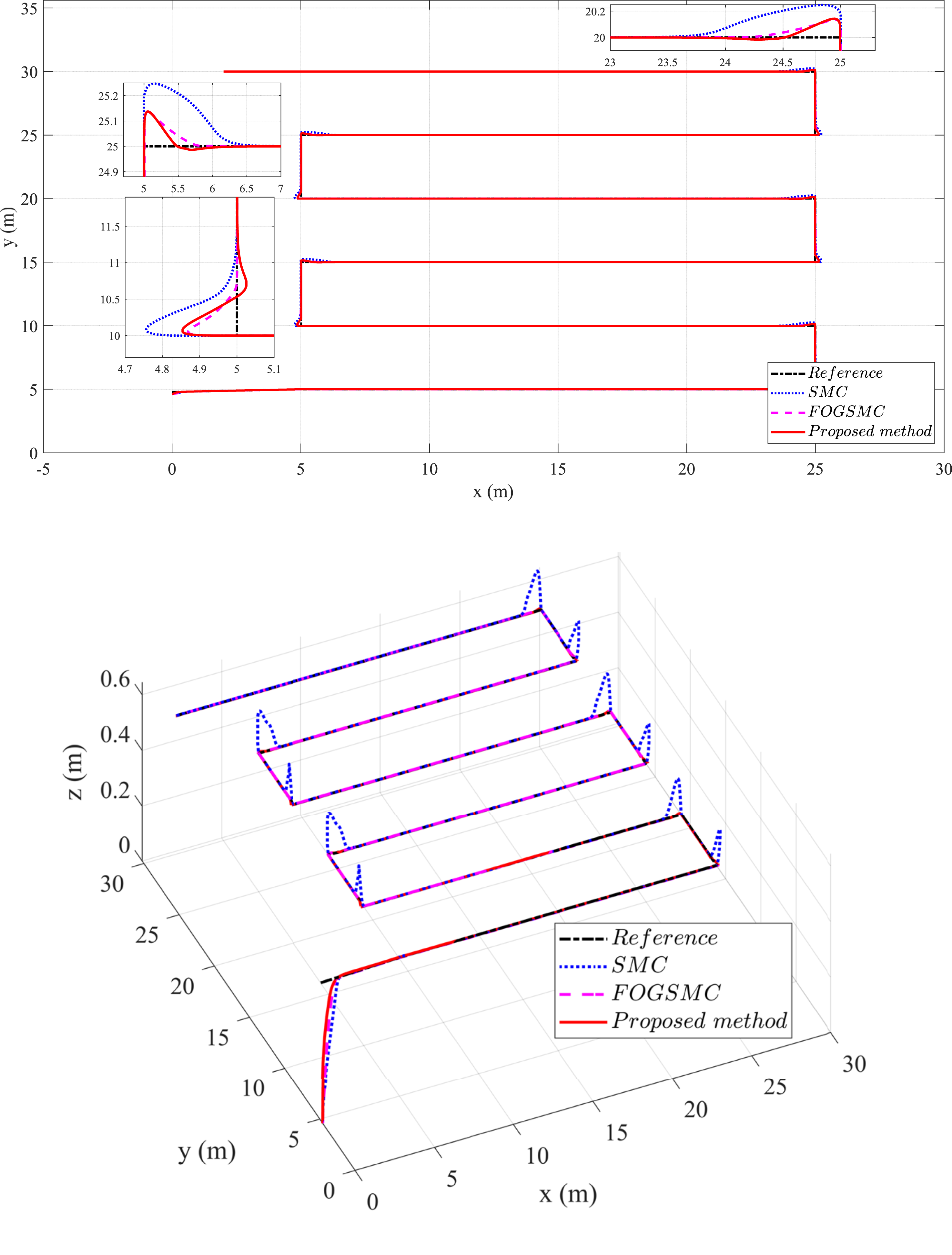

Figure 5.

2D and 3D trajectory tracking results for Scenario 1.

The control signals $u_{T}$ , $u_{φ}$ , $u_{θ}$ , and $u_{ψ}$ are presented in Figures 6 –9. As observed, the chattering phenomenon is quite pronounced in the IO-SMC; however, this effect is significantly reduced in other methods utilizing the fractional-order technique. Additionally, the energy consumption of the proposed method is more efficient compared to alternative approaches.

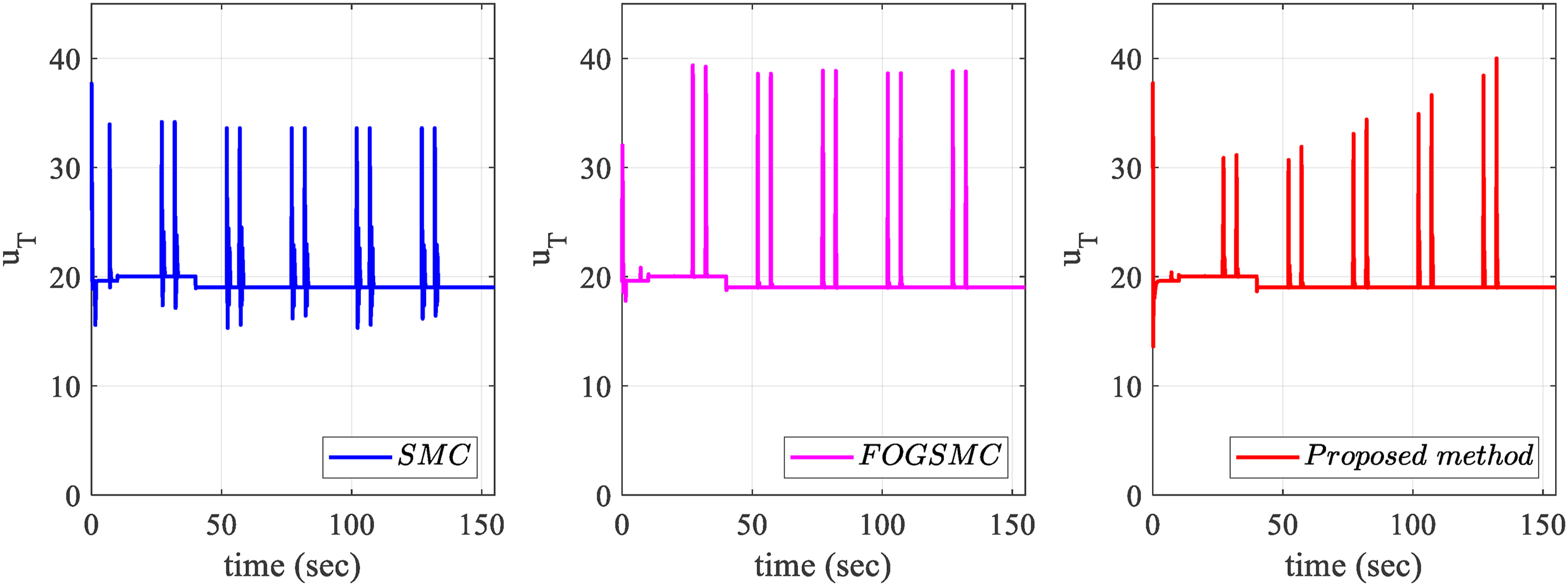

Figure 6.

Thrust control signal $u_{T}$ for Scenario 1.

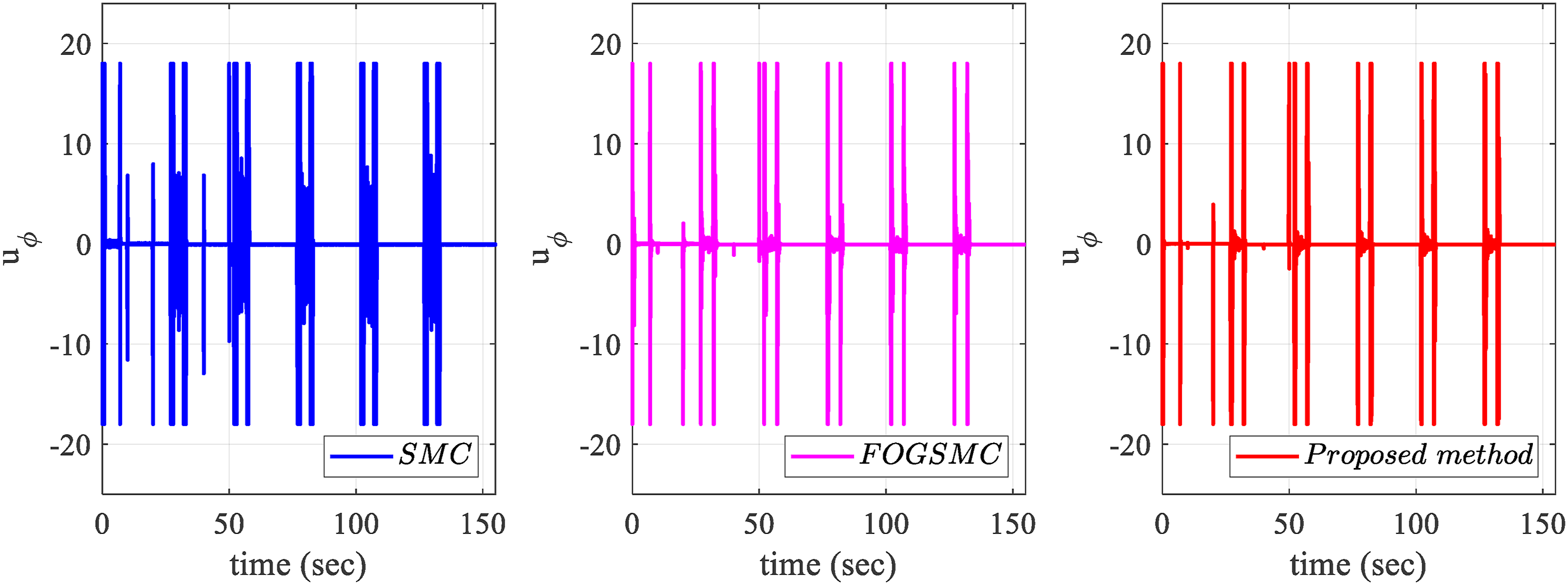

Figure 7.

Roll control signal $u_{φ}$ for Scenario 1.

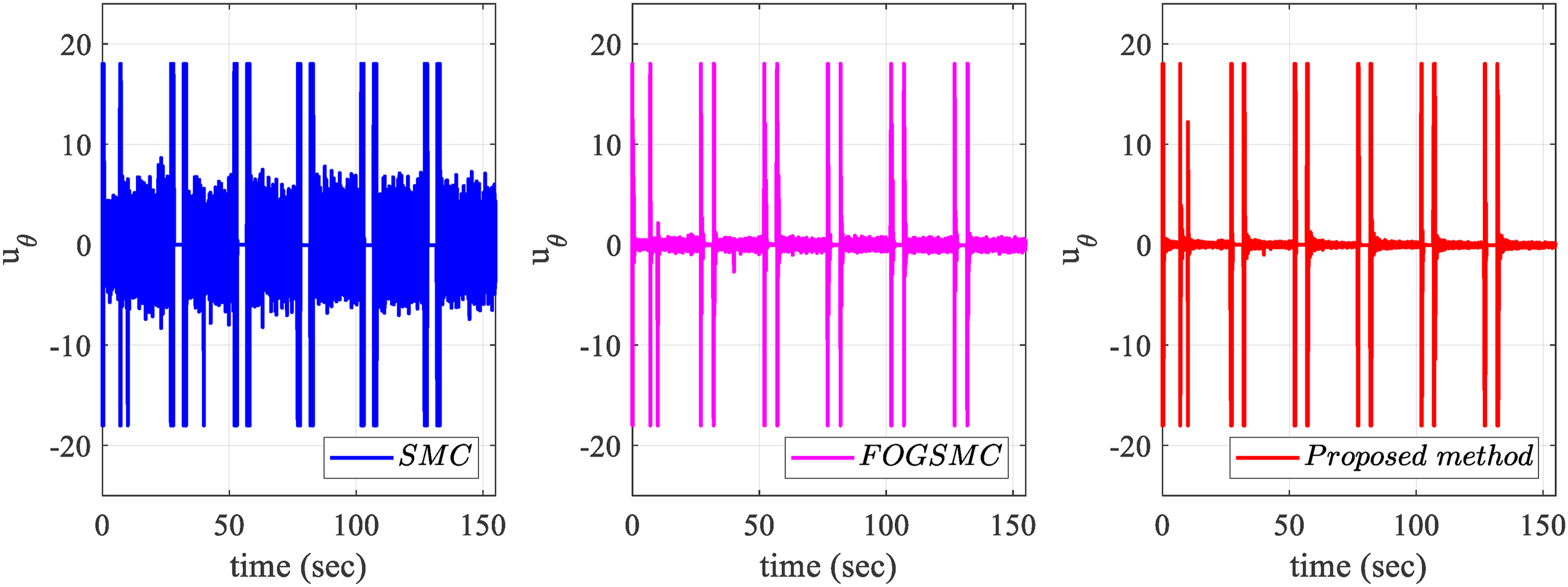

Figure 8.

Pitch control signal $u_{θ}$ for Scenario 1.

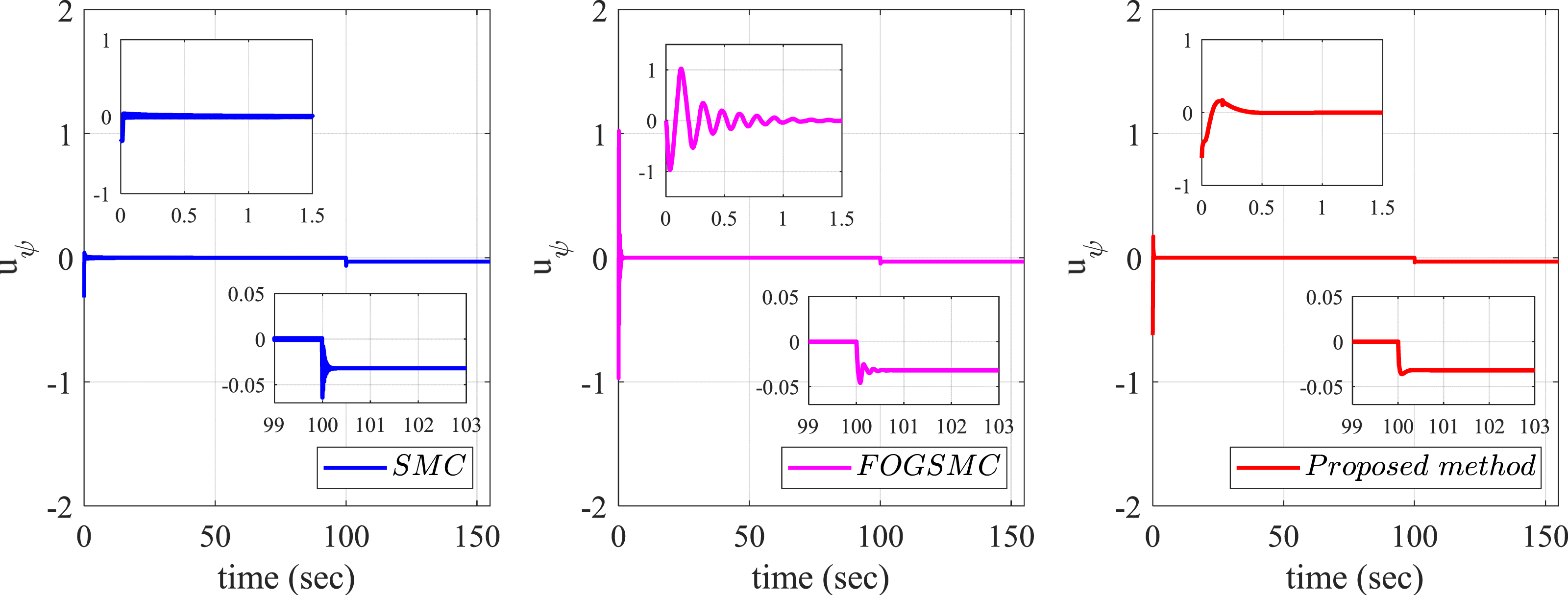

Figure 9.

Yaw control signal $u_{ψ}$ for Scenario 1.

The estimated unknown parameters of the controller, based on the proposed adaptive law in equations (44)–(49), converge to constant values as shown in Figure 10. The trust signal amplitude for tracking sharp turns in the flight path is high across all approach, due to sudden changes in position commands. In the proposed method, the trust signal has increased over time as needed, benefiting from its adaptability compared to other methods. This reduces the energy consumed by the controller.

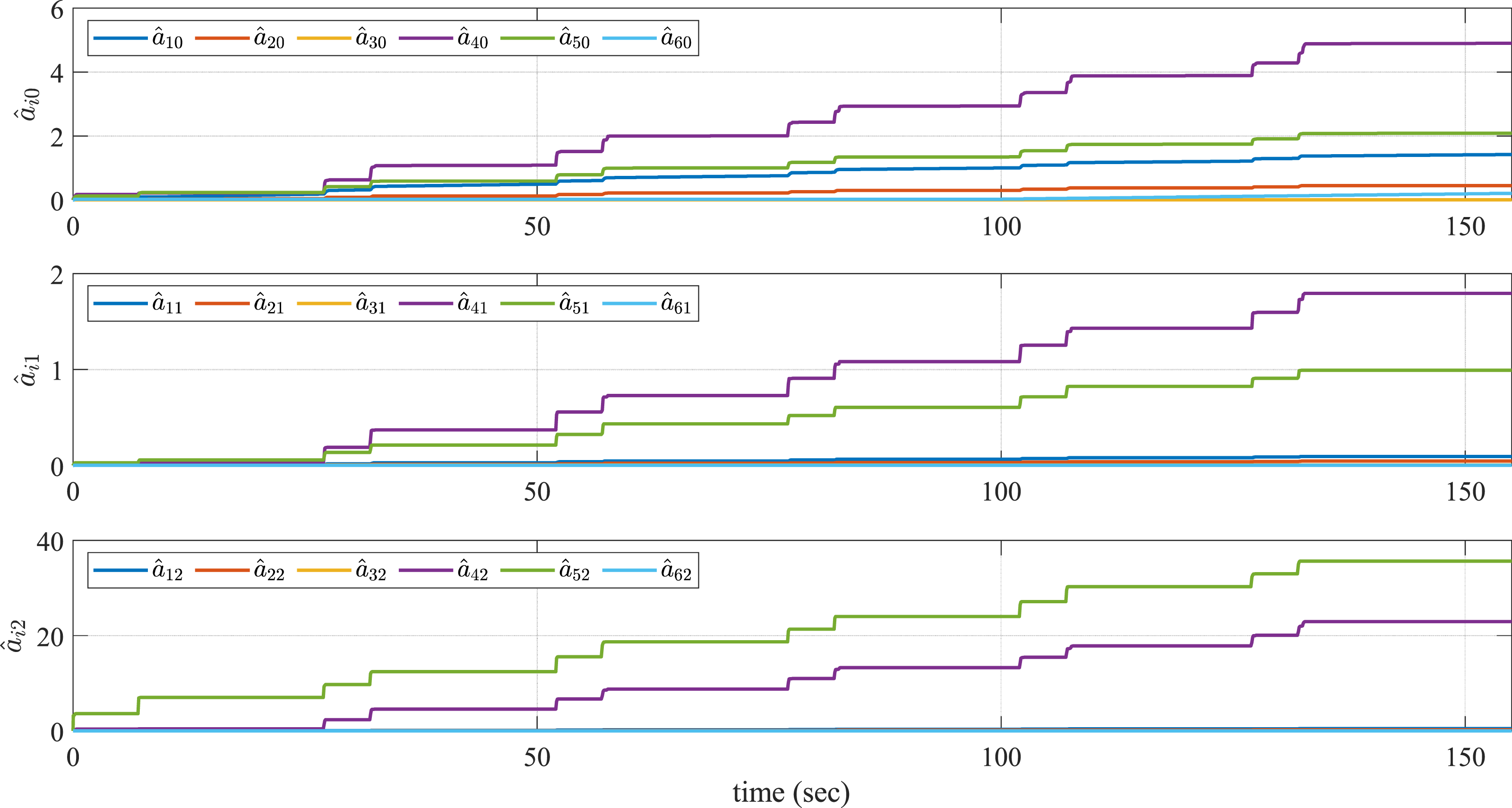

Figure 10.

Adaption parameters in the scenario 1.

Table 3 presents the IAE index for the proposed method, indicating superior tracking performance compared to the other methods. This improvement is attributed to the controller’s adaptive gain, which enhances energy management and allows for precise control and effective tracking of all six states. Consequently, based on the simulation results, the proposed adaptive controller offers accurate and rapid tracking, even under saturation, making it well-suited for practical applications and disturbance rejection.

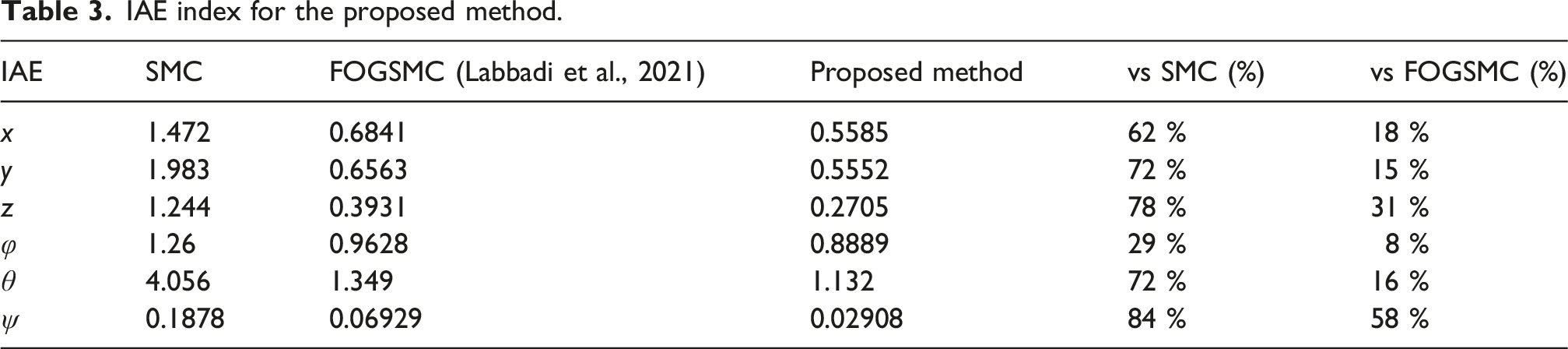

Table 3.

IAE index for the proposed method.

IAE	SMC	FOGSMC (Labbadi et al., 2021)	Proposed method	vs SMC (%)	vs FOGSMC (%)
$x$	1.472	0.6841	0.5585	62 %	18 %
$y$	1.983	0.6563	0.5552	72 %	15 %
$z$	1.244	0.3931	0.2705	78 %	31 %
$φ$	1.26	0.9628	0.8889	29 %	8 %
$θ$	4.056	1.349	1.132	72 %	16 %
$ψ$	0.1878	0.06929	0.02908	84 %	58 %

Compared to conventional SMC, the proposed AFOTISMC reduces IAE by 62–84% across all states. Compared to the recent FOGSMC, improvements range from 12% to 31% for position states and reach 58% for yaw.

4.2. Scenario 2

In this scenario, to evaluate the performance and robustness of the proposed approach, a 30% random uncertainty is considered beside the nominal parameters of mass and rotational inertia in the quadrotor $(\bar{Ξ} \in {\bar{m}, {\bar{I}}_{x}, {\bar{I}}_{y}, {\bar{I}}_{z}})$ . This can be expressed as: $Ξ = (1 + R a n d o m [0, 30 %]) \bar{Ξ}$ . The simulation runs for a total of 80 seconds, with the initial condition set to ${[x_{0}, y_{0}, z_{0}, φ_{0}, θ_{0}, ψ_{0}]}^{T} = [0 m, 0 m, 0 m, 0 r a d, 0 r a d, 0 r a d]$ . The new desired square-edged trajectory with instantaneous changes is as follows (Labbadi et al., 2021):

x_{d} = {\begin{cases} 0.6 m t \in [0, 10) \\ 0.3 m t \in [10, 30) \\ 0.6 m t \in [30, 80) \end{cases}}, y_{d} = {\begin{cases} 0.6 m t \in [0, 20) \\ 0.3 m t \in [20, 40) \\ 0.6 m t \in [40, 80) \end{cases}},

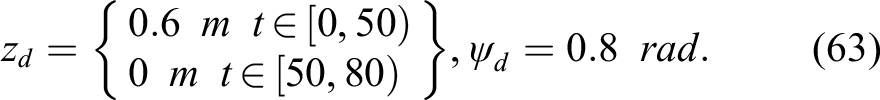

z_{d} = {\begin{cases} 0.6 m t \in [0, 50) \\ 0 m t \in [50, 80) \end{cases}}, ψ_{d} = 0.8 r a d .

(63)

and the time-varying external disturbances (

H_{x}, \dots, H_{ψ}

) are also considered as follows:

{\begin{array}{l} H_{x} = 0.15 \sin (2.5 t) + 0.1 \cos (4 t) m / s^{2} \\ H_{y} = 0.15 \sin (t) + 0.1 \cos (2.5 t) m / s^{2} \\ H_{z} = 0.5 \sin (1.5 t) + 0.3 \cos (2 t) m / s^{2} \end{array}}, {\begin{cases} H_{φ} = 0.8 \sin (2 t) + 1.5 \cos (3 t) r a d / s^{2} \\ H_{θ} = 2 \cos (2.5 t) + 0.9 \sin (1.5 t) r a d / s^{2} \\ H_{ψ} = 1.3 \cos (2 t) + 2 \sin (3 t) r a d / s^{2} \end{cases}} .

(64)

The detailed simulation results are illustrated in the Figures 11 and 12 for the state variables ( $x, y, z$ ) and ( $φ, θ, ψ$ ) under the proposed controllers and two other methods, considering uncertainties in the nominal parameters of mass, rotational inertia, and external disturbances.

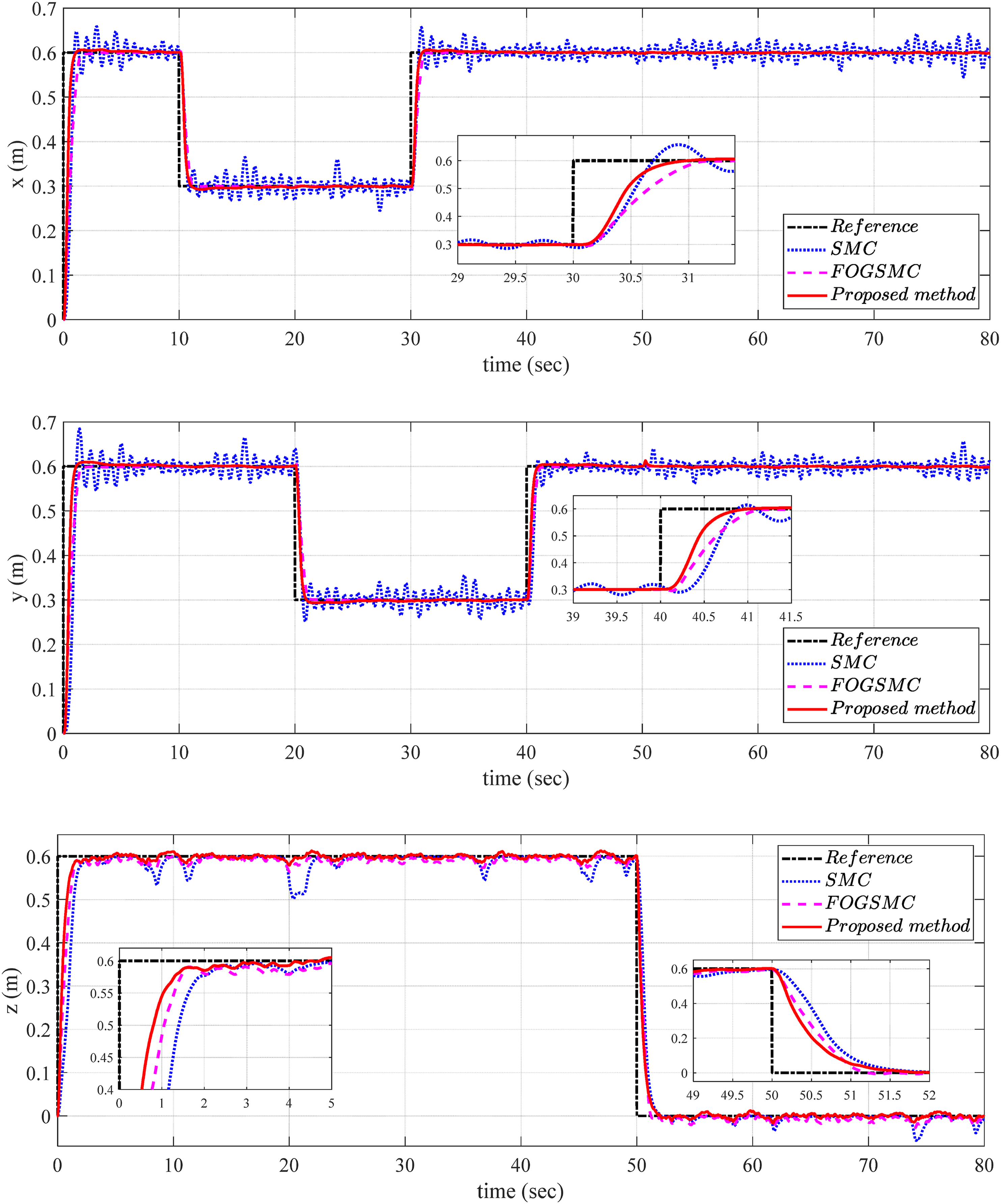

Figure 11.

Time evolution of position states in the scenario 2.

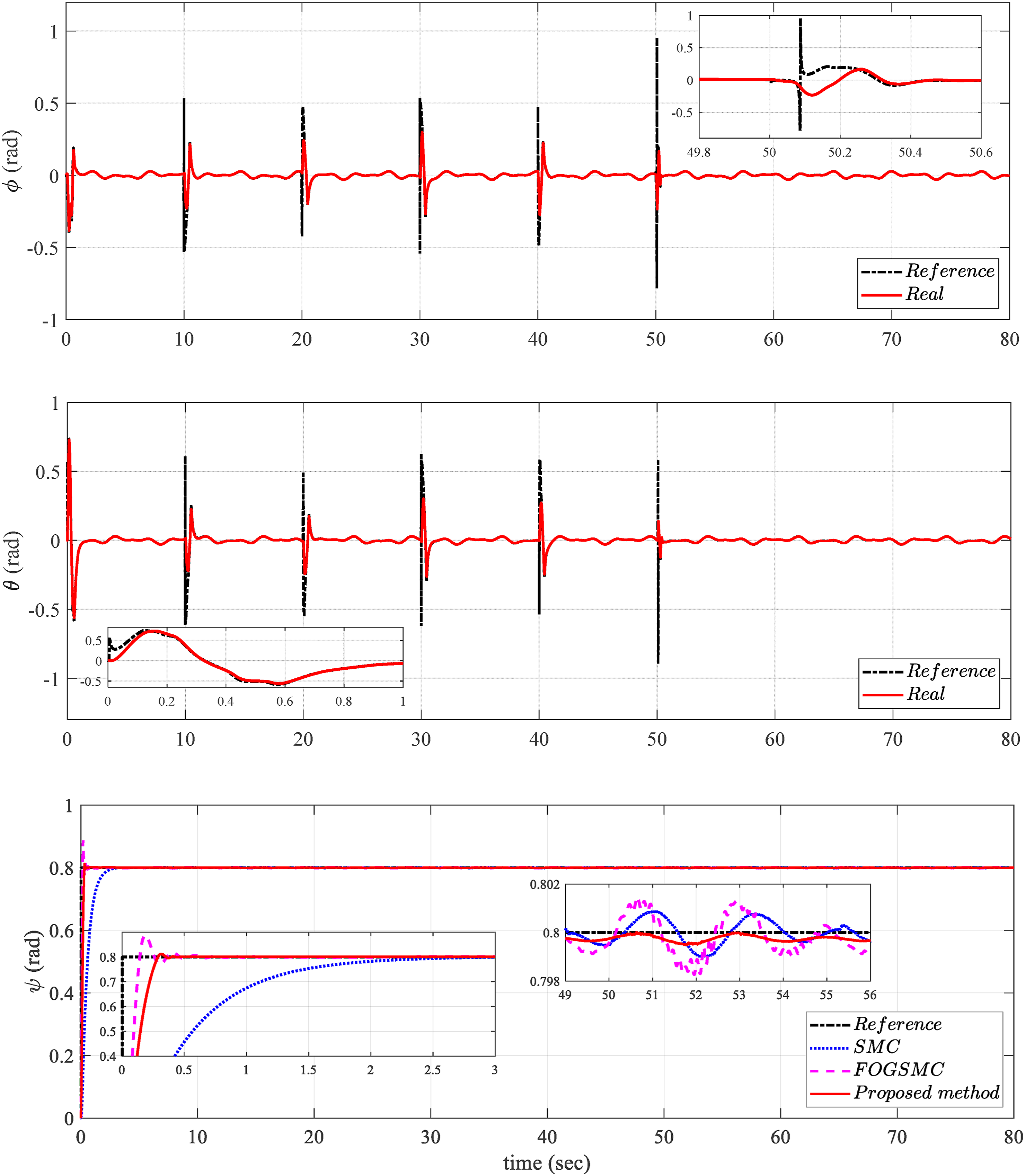

Figure 12.

Time evolution of attitude states in the scenario 2.

The proposed finite-time adaptive mechanism increases the gain from zero to a limited constant value, as shown in the Figure 13. This gain-increasing process is an automatic response to errors caused by uncertainties and rapid changes in the reference signal. These fast changes are necessary to track the twisted path. The slow rate of gain increase over the duration of the simulation ensures a lower amplitude in the control signal. Consequently, the energy index for the proposed method is smaller than that of the non-adaptive SMC method, as shown in Table 4.

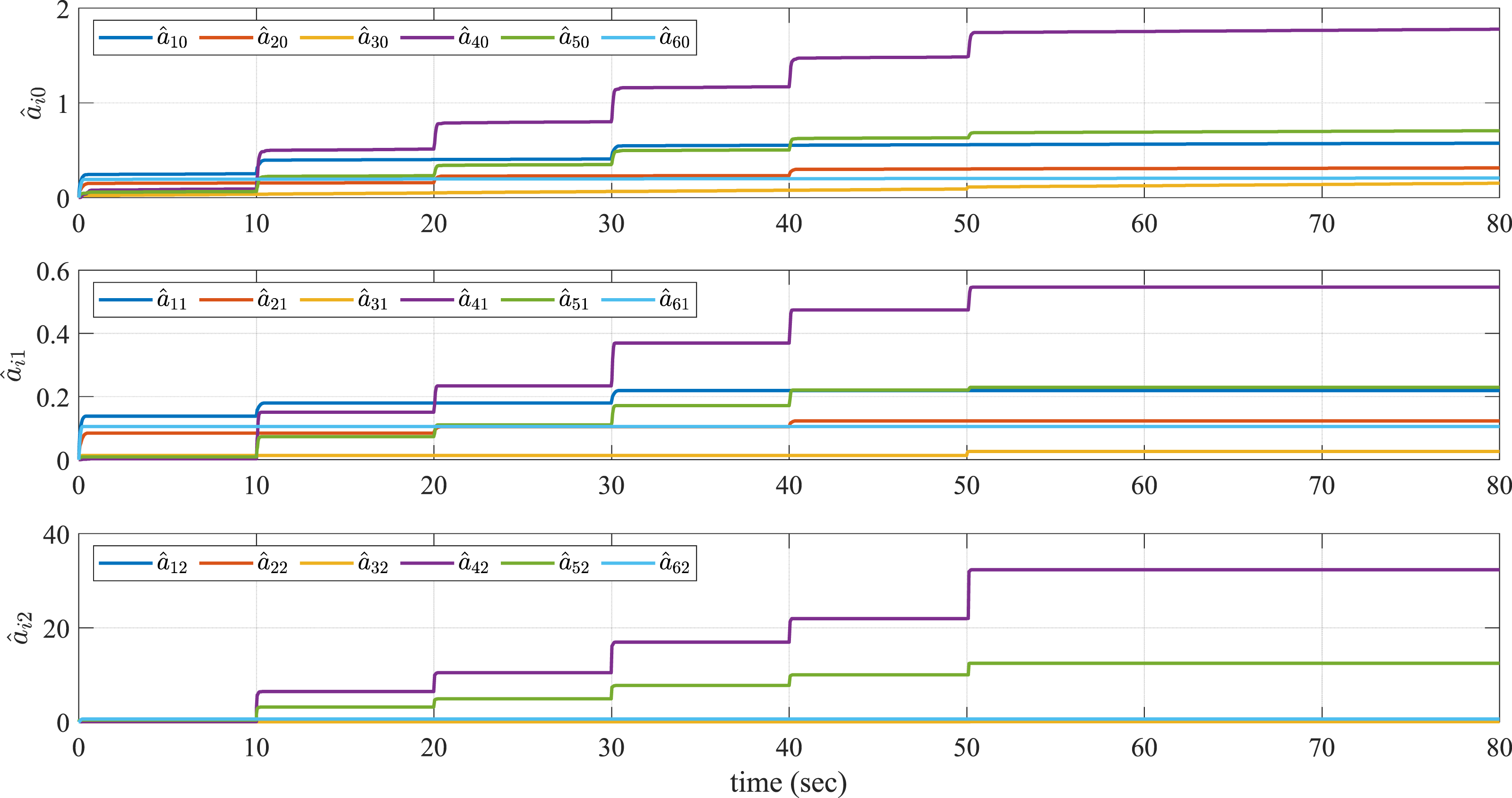

Figure 13.

Adaption parameters in the scenario 2.

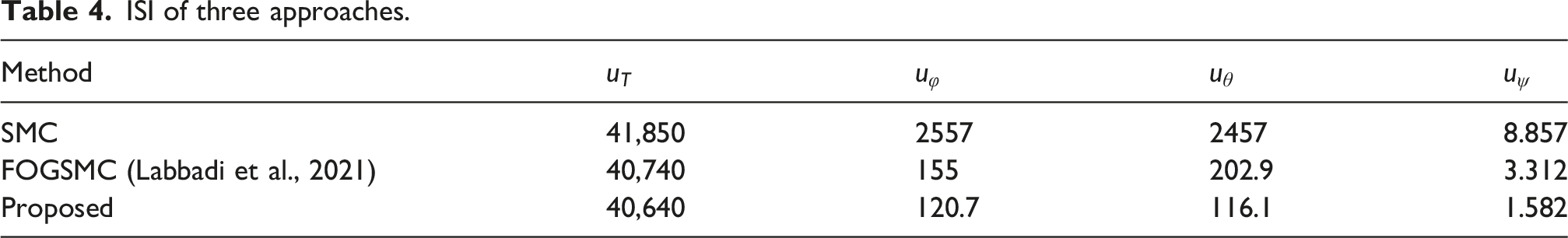

Table 4.

ISI of three approaches.

Method	$u_{T}$	$u_{φ}$	$u_{θ}$	$u_{ψ}$
SMC	41,850	2557	2457	8.857
FOGSMC (Labbadi et al., 2021)	40,740	155	202.9	3.312
Proposed	40,640	120.7	116.1	1.582

To illustrate the performance of the controllers, the following index is used (Falcón et al., 2019) (see Figure 14):

U_{R M S} (t) = {(\frac{1}{Δ T} \int_{t - Δ T}^{t} {‖ U ‖}^{2} d t)}^{0.5}, U = {[u_{T}, u_{φ}, u_{θ}, u_{ψ}]}^{T}, Δ T = 2 (\sec)

(65)

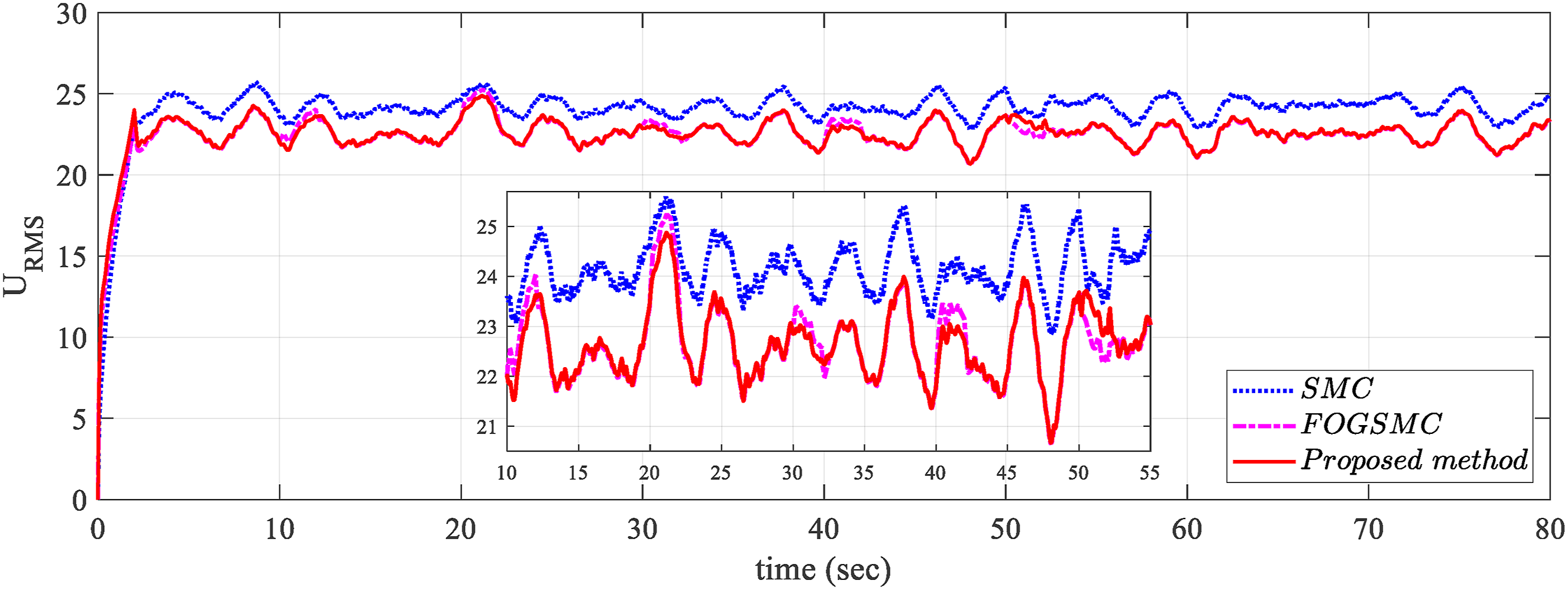

Figure 14:

$U_{R M S} (t)$ in the scenario 2.

In this scenario, the control energy consumed is also studied and reported in Table 4 based on a quantitative analysis using the integral of squared input (ISI) as follows (Aguila-Camacho and Duarte-Mermoud, 2016):

ISI = \int_{t_{i}}^{t_{f}} u^{2} d t, u \in {u_{T}, u_{ϕ}, u_{θ}, u_{ψ}}

(66)

The proposed method reduces IAE by 62–84% compared to conventional SMC and by 12–31% (up to 58% for yaw) compared to FOGSMC.

Figure 15 shows the position tracking in 2D and 3D plots. These results demonstrate satisfactory tracking performance and robustness compared to the existing methods. Table 5 presents the IAE index for the proposed method, indicating superior tracking performance compared to the other methods. This is attributed to the controller’s adaptive gain for energy management, which enables precise control and effective tracking of all six states, even in the presence of parameter uncertainties in mass and moment of inertia.

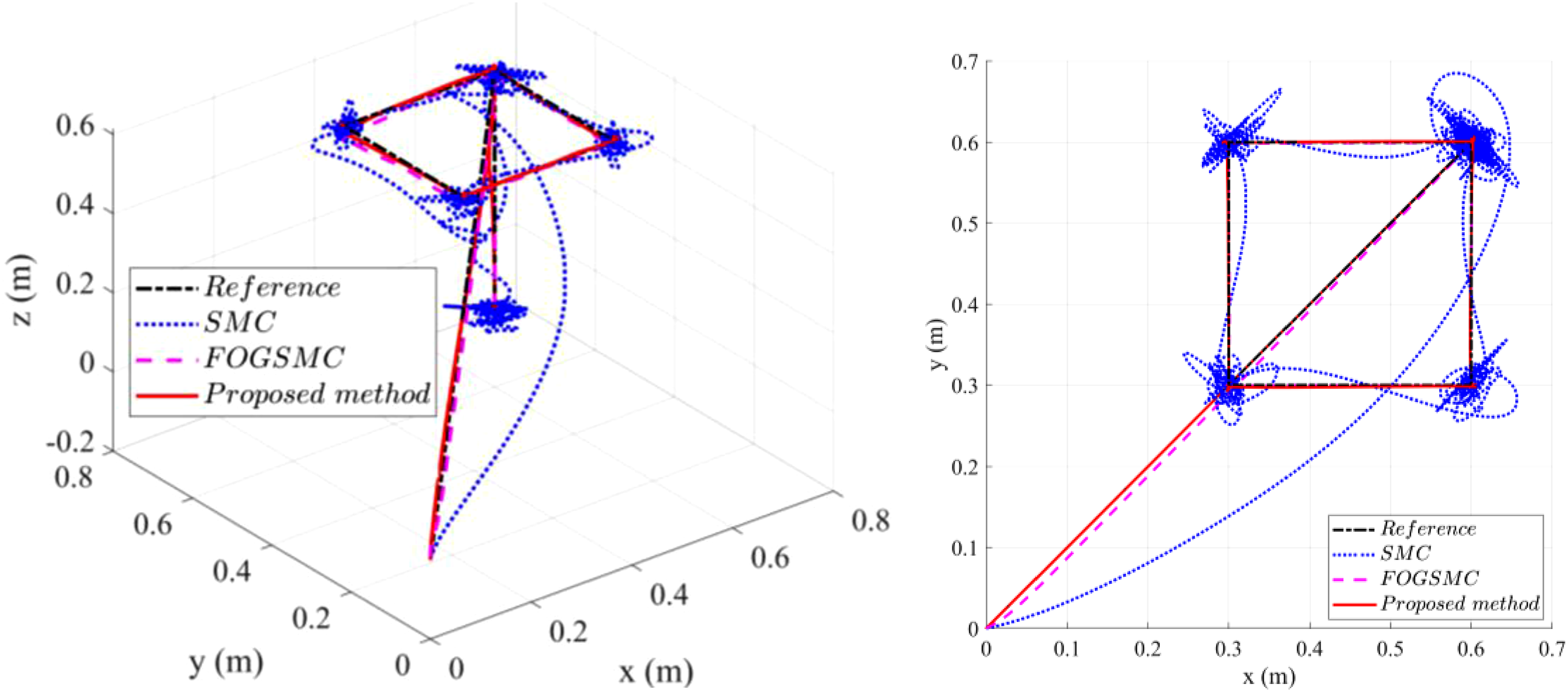

Figure 15.

2D and 3D trajectory tracking results for Scenario 2.

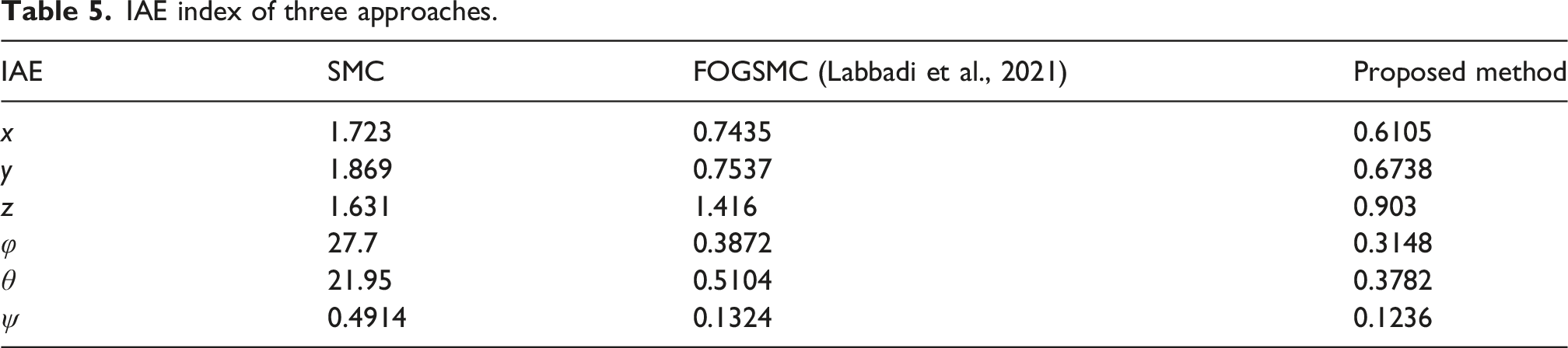

Table 5.

IAE index of three approaches.

IAE	SMC	FOGSMC (Labbadi et al., 2021)	Proposed method
$x$	1.723	0.7435	0.6105
$y$	1.869	0.7537	0.6738
$z$	1.631	1.416	0.903
$φ$	27.7	0.3872	0.3148
$θ$	21.95	0.5104	0.3782
$ψ$	0.4914	0.1324	0.1236

4.3. Scenario 3: Ground effect (GE) modeling for vertical landing

In this section, a specific quadrotor landing scenario is evaluated using the proposed robust adaptive control law under for two cases: with and without ground effect, and $x_{d} = y_{d} = ψ_{d} = 0, z_{d} = 0.05 + 7 \exp (- 0.3 t)$ and $H_{j} = 0$ . The results presented in the Figures 16 and 17 and Table 6 (for $η_{j} = 0.99)$ , demonstrate that when ground effect is considered using equation (9), the controller achieves system stability with reduced control effort.

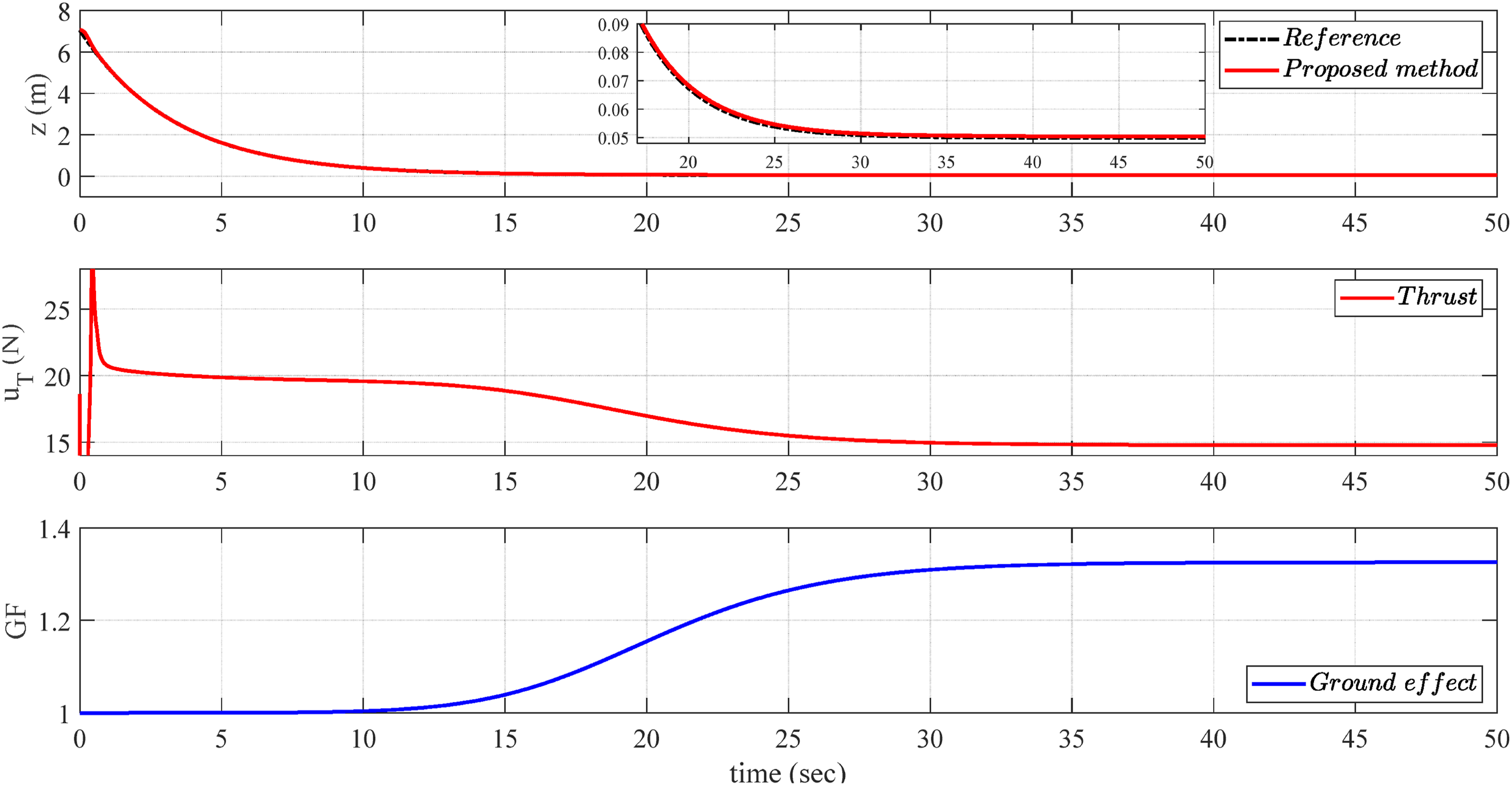

Figure 16.

Illustration of altitude, thrust’s control signal, ground effects in vertical landing ( $η_{j} = 0.99$ ).

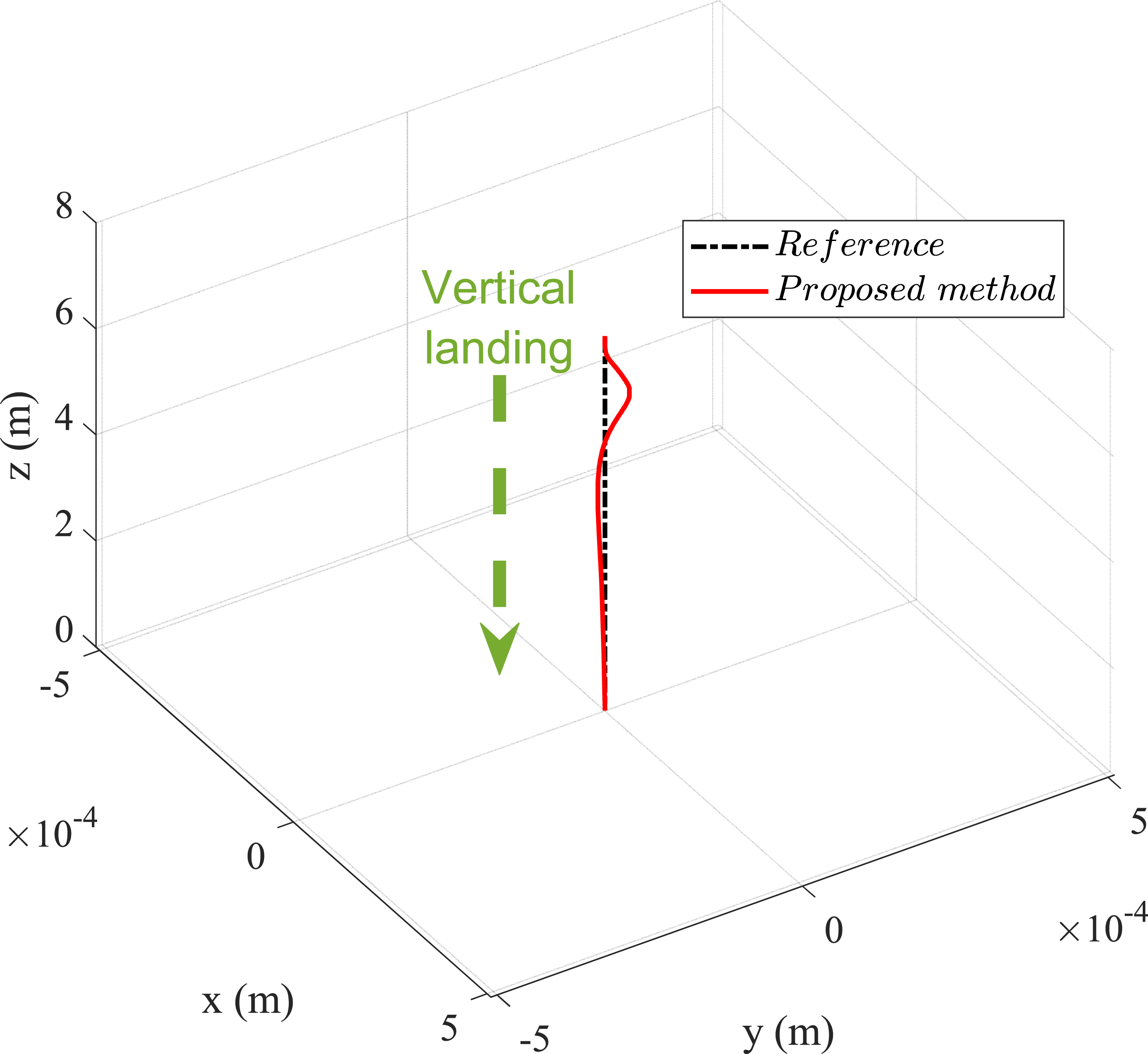

Figure 17.

3D tracking results of the proposed approach for ground effect in vertical landing ( $η_{j} = 0.99$ ).

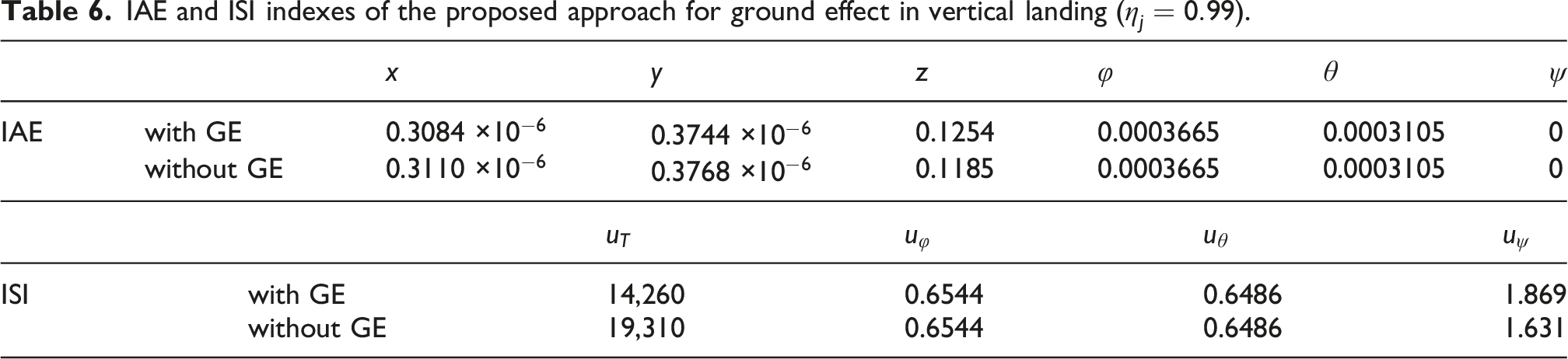

Table 6.

IAE and ISI indexes of the proposed approach for ground effect in vertical landing ( $η_{j} = 0.99$ ).

		$x$	$y$	$z$	$φ$	$θ$	$ψ$
IAE	with GE	0.3084 $\times 10^{- 6}$	0.3744 $\times 10^{- 6}$	0.1254	0.0003665	0.0003105	0
IAE	without GE	0.3110 $\times 10^{- 6}$	0.3768 $\times 10^{- 6}$	0.1185	0.0003665	0.0003105	0

		$u_{T}$	$u_{φ}$	$u_{θ}$	$u_{ψ}$
ISI	with GE	14,260	0.6544	0.6486	1.869
ISI	without GE	19,310	0.6544	0.6486	1.631

4.4. Fractional-order sensitivity analysis

In this section, the sensitivity of the proposed fractional-order controller is evaluated for the previously discussed ground effect scenario by varying the fractional-order parameter, $η_{j}$ . So, here we consider three additional cases: $η_{j} = 0.2$ , $η_{j} = 0.5$ , and $η_{j} = 0.8$ , as shown in Figure 18.

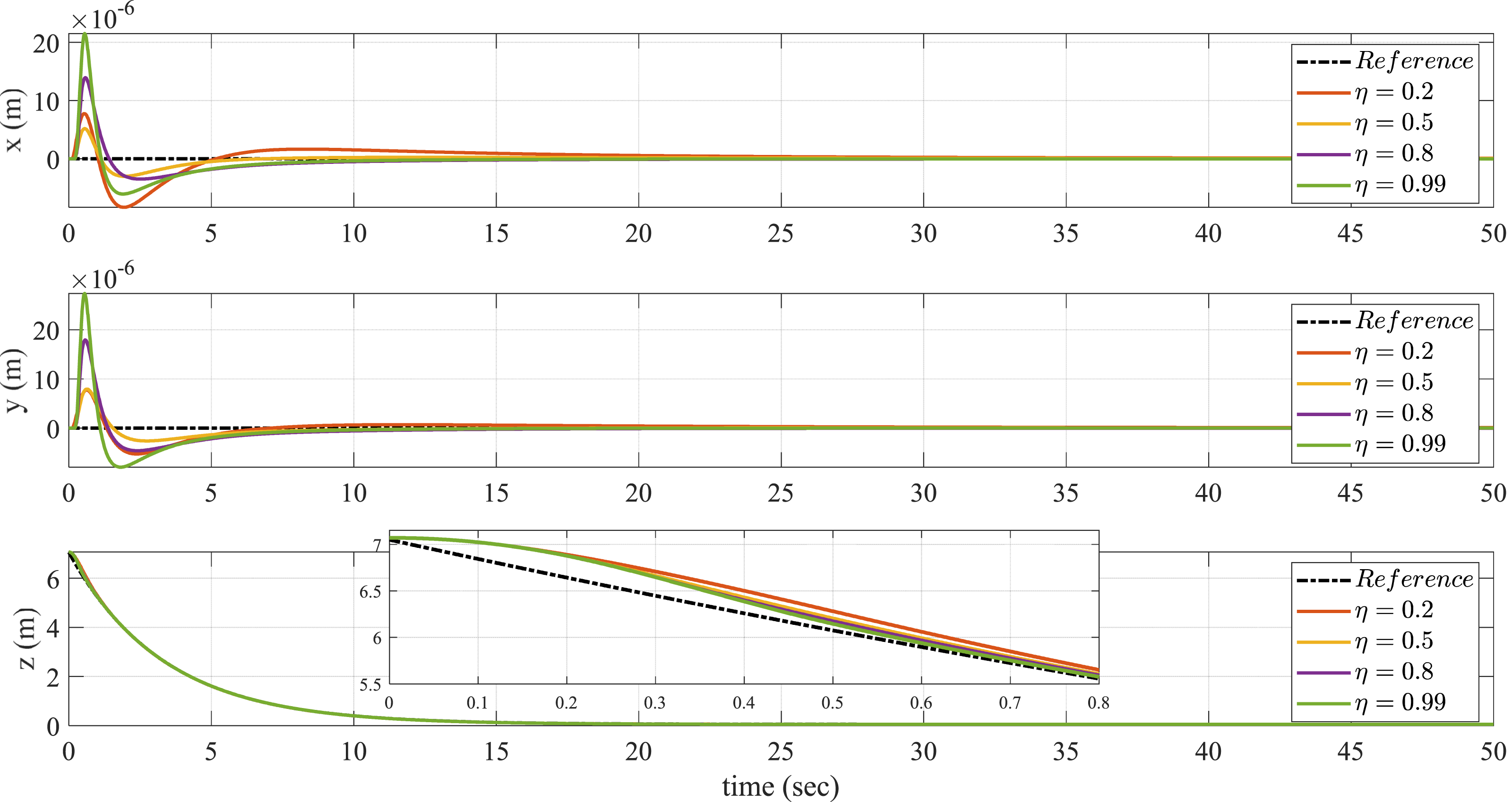

Figure 18.

Quadrotor position sensitivity to fractional-order parameter variations in the presence of GE.

It is evident from Figure 18 that the tracking accuracy remains well and the response speed is satisfactory, demonstrating that the proposed method exhibits strong robustness to variations in the fractional-order parameter

η_{j}

, which serves as an additional degree of freedom in the controller design. According to Tables 6 and 7, when

η_{j} = 0.99

, the total control effort (energy) across the four control signals

u_{T}, u_{φ}, u_{θ},

and

u_{ψ}

reaches its minimum value, whereas this energy gradually increases as

η_{j}

decreases. Conversely, the altitude-tracking errors diminish consistently with increasing

η_{j}

, indicating improved precision at higher fractional orders.

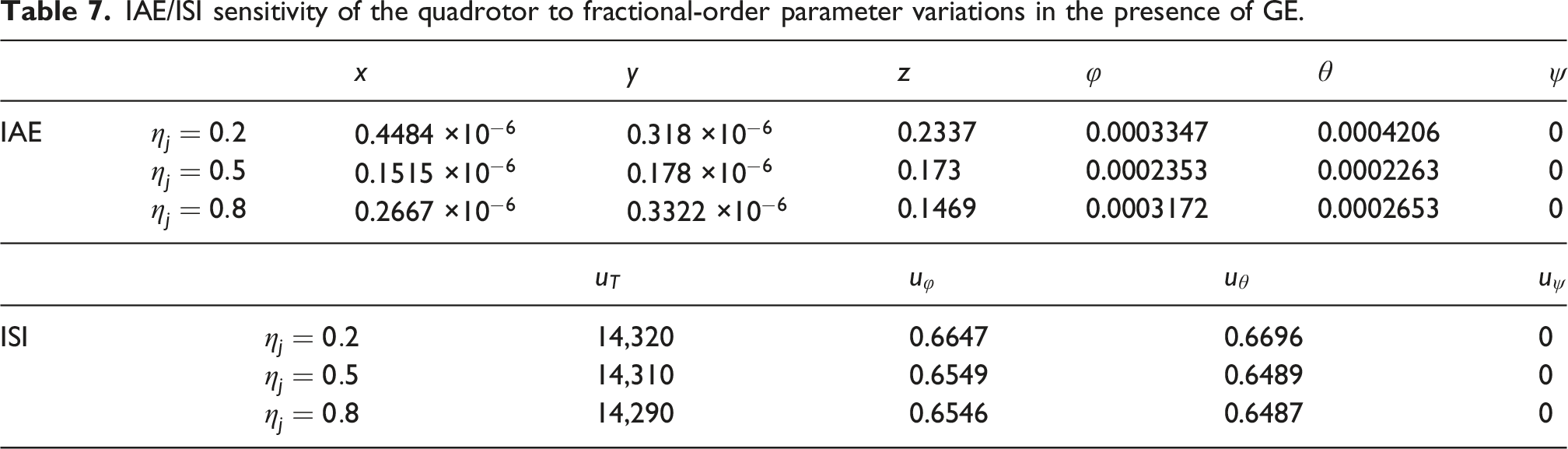

Table 7.

IAE/ISI sensitivity of the quadrotor to fractional-order parameter variations in the presence of GE.

		$x$	$y$	$z$	$φ$	$θ$
IAE	$η_{j} = 0.2$	0.4484 $\times 10^{- 6}$	0.318 $\times 10^{- 6}$	0.2337	0.0003347	0.0004206
	$η_{j} = 0.5$	0.1515 $\times 10^{- 6}$	0.178 $\times 10^{- 6}$	0.173	0.0002353	0.0002263
	$η_{j} = 0.8$	0.2667 $\times 10^{- 6}$	0.3322 $\times 10^{- 6}$	0.1469	0.0003172	0.0002653

		$u_{T}$	$u_{φ}$	$u_{θ}$
ISI	$η_{j} = 0.2$	14,320	0.6647	0.6696
	$η_{j} = 0.5$	14,310	0.6549	0.6489
	$η_{j} = 0.8$	14,290	0.6546	0.6487

In the nonlinear quadrotor model, the altitude $z$ and yaw angle $ψ$ are directly actuated and independently regulated through the thrust and yaw control inputs ( ${u_{T}, u}_{ψ}$ ). An increase in the fractional-order parameter $η_{j}$ improves the convergence characteristics of the altitude response, as evidenced by reduced IAE values. Since the yaw angle $ψ$ is maintained constant during the maneuver, its IAE remains identically zero.

In contrast, the translational positions $(x, y)$ are underactuated and controlled indirectly via a cascaded control structure. Virtual control laws are first designed to generate the desired roll and pitch references $(φ_{d}, θ_{d})$ , which are subsequently tracked by the inner-loop attitude controllers. The coordinated regulation of $φ, θ, ψ$ , and the total thrust—primarily determined by the altitude loop—ultimately governs the motion in $x$ and $y$ . Owing to this indirect and coupled control mechanism, the IAEs corresponding to $x, y, φ$ , and $θ$ do not exhibit a clear monotonic trend with respect to variations in $η_{j}$ . Nevertheless, closed-loop stability is consistently preserved, and all IAE values remain sufficiently small, demonstrating the robustness and effectiveness of the proposed fractional-order control strategy.

5. Conclusion

This paper proposes an AFOTISMC technique for precise tracking of both the position and attitude subsystems in a quadrotor, even with model uncertainties and external disturbances. The proposed method leverages the combined strengths of SMC and fractional-order theory. By incorporating Riemann-Liouville fractional-order operators, additional degrees of freedom are introduced, allowing for more flexible tuning. This leads to enhanced robustness, reduced chattering, and improved tracking speed compared to conventional IO-SMC approaches. The proposed control strategy effectively compensates for disturbances and uncertainties in the system using an integral term and adaptive laws. Consequently, it achieves smaller oscillations, minimal steady-state error, rapid finite-time convergence, and eliminates chattering or singularity issues. Additionally, the controller’s energy consumption is reduced through the use of adaptive gains. To handle the numerous control parameters, a meta-heuristic optimization algorithm, such as the genetic algorithm, was employed. By minimizing the IAE index as the cost function, the genetic algorithm facilitated efficient tuning of the control parameters. The robustness of the proposed approach is validated through various scenarios, including random variations in drag coefficients, external disturbances, and uncertainty in nominal parameters. As a result, the AFOTISMC method consistently outperformed other control strategies, delivering smaller signal errors, precise control, and accurate tracking of all system states, even amidst parameter uncertainties related to mass and moment of inertia. Moreover, we have evaluated the sensitivity of the proposed controller to variations in the fractional-order parameter and its effect on tracking accuracy and energy consumption in simulations, considering the ground effect on the quadrotor. It was observed that increasing the fractional-order parameter leads to reduced energy consumption and decreased altitude-tracking error, while maintaining the controller’s stability and robustness throughout these tests.

Footnotes

ORCID iD

Hamid Ghadiri

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Aguila-Camacho

Duarte-Mermoud

(2016) Improving the control energy in model reference adaptive controllers using fractional adaptive laws. IEEE/CAA Journal of Automatica Sinica 3(3): 332–337. https://doi.org/10.1109/jas.2016.7508809

Alqudsi

Makaraci

Kassem

, et al. (2023) A numerically-stable trajectory generation and optimization algorithm for autonomous quadrotor UAVs. Robotics and Autonomous Systems 170: 104532. https://doi.org/10.1016/j.robot.2023.104532

Basri

MAM

(2018) Design and application of an adaptive backstepping sliding mode controller for a six-DOF quadrotor aerial robot. Robotica 36(11): 1701–1727. https://doi.org/10.1017/s0263574718000668

Chen

Jiang

Zhang

, et al. (2016) Robust backstepping sliding-mode control and observer-based fault estimation for a quadrotor UAV. IEEE Transactions on Industrial Electronics 63(8): 5044–5056.

Chen

Liu

Gao

, et al. (2022) Robust adaptive recursive sliding mode attitude control for a quadrotor with unknown disturbances. ISA Transactions 122: 114–125. https://doi.org/10.1016/j.isatra.2021.04.046

Dydek

Annaswamy

Lavretsky

(2012) Adaptive control of quadrotor UAVs: a design trade study with flight evaluations. IEEE Transactions on Control Systems Technology 21(4): 1400–1406. https://doi.org/10.1109/tcst.2012.2200104

El Hajjami

Mellouli

Žuraulis

, et al. (2023) A novel robust adaptive neuro-sliding mode steering controller for autonomous ground vehicles. Robotics and Autonomous Systems 170: 104557. https://doi.org/10.1016/j.robot.2023.104557

Eliker

Zhang

(2020) Finite-time adaptive integral backstepping fast terminal sliding mode control application on quadrotor UAV. International Journal of Control, Automation and Systems 18: 415–430. https://doi.org/10.1007/s12555-019-0116-3

Emran

Najjaran

(2018) A review of quadrotor: an underactuated mechanical system. Annual Reviews in Control 46: 165–180. https://doi.org/10.1016/j.arcontrol.2018.10.009

10.

Erüst

Taşcıkaraoğlu

Küçükdemiral

İB

(2026) Dynamic event‐triggered robust model predictive control for quadrotor trajectory tracking. International Journal of Robust and Nonlinear Control.

11.

Falcón

Ríos

Dzul

(2019) Comparative analysis of continuous sliding-modes control strategies for quad-rotor robust tracking. Control Engineering Practice 90: 241–256. https://doi.org/10.1016/j.conengprac.2019.06.013

12.

Ghadiri

Jahed‐Motlagh

(2016) LMI‐based criterion for the robust guaranteed cost control of uncertain switched neutral systems with time‐varying mixed delays and nonlinear perturbations by dynamic output feedback. Complexity 21(S2): 555–578. https://doi.org/10.1002/cplx.21835

13.

Ghadiri

Emami

Khodadadi

(2021) Adaptive super-twisting non-singular terminal sliding mode control for tracking of quadrotor with bounded disturbances. Aerospace Science and Technology 112: 106616. https://doi.org/10.1016/j.ast.2021.106616

14.

Ghadiri

Mohammadi

Khodadadi

(2022) Fast terminal sliding mode control based on SDRE observer for two-axis gimbal with external disturbances. Journal of the Brazilian Society of Mechanical Sciences and Engineering 44(2): 1–23. https://doi.org/10.1007/s40430-022-03369-2

15.

Ghadiri

Khodadadi

Hazareh

(2023) Finite-time integral fast terminal sliding mode control for uncertain quadrotor UAV based on state-dependent Riccati equation observer subjected to disturbances. Journal of Vibration and Control 30(11–12): 2528-2548. 10775463231179770.

16.

Golchin

Bayat

Mobayen

, et al. (2025) Adaptive formation tracking control for heterogeneous unmanned air/ground vehicles: a barrier function approach for minimizing energy consumption. Iranian Journal of Science and Technology, Transactions of Electrical Engineering 49: 1–23. https://doi.org/10.1007/s40998-025-00865-8

17.

Guo

B-L

(2019) Global sliding mode with fractional operators and application to control robot manipulators. International Journal of Control 92(7): 1497–1510. https://doi.org/10.1080/00207179.2017.1398417

18.

Hou

(2020) Nonsingular terminal sliding mode control for a quadrotor UAV with a total rotor failure. Aerospace Science and Technology 98: 105716. https://doi.org/10.1016/j.ast.2020.105716

19.

Idrissi

Salami

Annaz

(2022) A review of quadrotor unmanned aerial vehicles: applications, architectural design and control algorithms. Journal of Intelligent and Robotic Systems 104(2): 22. https://doi.org/10.1007/s10846-021-01527-7

20.

Imran

Stolkin

Montazeri

(2023) Adaptive control of quadrotor unmanned aerial vehicle with time-varying uncertainties. IEEE Access 11: 19710–19724. https://doi.org/10.1109/access.2023.3243835

21.

Iriarte

Gorostiza

Iglesias

, et al. (2024) An overactuated aerial robot based on cooperative quadrotors attached through passive universal joints: modeling, control and 6-DoF trajectory tracking. Robotics and Autonomous Systems 180: 104761. https://doi.org/10.1016/j.robot.2024.104761

22.

Jia

Mei

, et al. (2017) Integral backstepping sliding mode control for quadrotor helicopter under external uncertain disturbances. Aerospace Science and Technology 68: 299–307. https://doi.org/10.1016/j.ast.2017.05.022

23.

Kashi

Hazareh

Ghadiri

(2025) Finite-time adaptive robust nonlinear control for uncertain quadrotor UAV carrying a load under external disturbances. Journal of Vibration and Control 10775463251346070. Available at: https://doi.org/10.1177/10775463251346070

24.

Kilbas

Srivastava

Trujillo

(2006) Theory and Applications of Fractional Differential Equations. Elsevier.

25.

Labbadi

Cherkaoui

(2021) Adaptive fractional-order nonsingular fast terminal sliding mode based robust tracking control of quadrotor UAV with Gaussian random disturbances and uncertainties. IEEE Transactions on Aerospace and Electronic Systems 57(4): 2265–2277. https://doi.org/10.1109/taes.2021.3053109

26.

Labbadi

Boukal

Cherkaoui

, et al. (2021) Fractional-order global sliding mode controller for an uncertain quadrotor UAVs subjected to external disturbances. Journal of the Franklin Institute 358(9): 4822–4847. https://doi.org/10.1016/j.jfranklin.2021.04.032

27.

Wang

Yang

(2022) Adaptive fuzzy control of a quadrotor using disturbance observer. Aerospace Science and Technology 128: 107784. https://doi.org/10.1016/j.ast.2022.107784

28.

Wang

, et al. (2024) Stable hovering of proximity quadrotor UAV in-ground effect via model compensation controller. Nonlinear Dynamics 112(17): 15349–15375. https://doi.org/10.1007/s11071-023-09124-z

29.

Zhu

Chen

W-H

(2025) Safety-critical control of quadrotor UAV system considering actuator faults and output constraints. IEEE Transactions on Industrial Informatics.

30.

Lang

, et al. (2026) Research on independent reference model–based anti‐interference control for quadrotor. Journal of Control Science and Engineering 2026(1): 9980829. https://doi.org/10.1155/jcse/9980829

31.

Lian

Meng

Shao

, et al. (2022) Full attitude control of a quadrotor using fast nonsingular terminal sliding mode with angular velocity planning. IEEE Transactions on Industrial Electronics 70(4): 3975–3984. https://doi.org/10.1109/tie.2022.3176314

32.

Liu

Cai

(2023) Simultaneous planning and execution for quadrotors flying through a narrow gap under disturbance. IEEE Transactions on Control Systems Technology.

33.

Lopez-Sanchez

Moreno-Valenzuela

(2023) PID control of quadrotor UAVs: a survey. Annual Reviews in Control 56: 100900. https://doi.org/10.1016/j.arcontrol.2023.100900

34.

Mao

Deng

Qing

, et al. (2026) Adaptive robust backstepping control for quadcopter UAV based on integral sliding mode surface: Y. Mao et al. Scientific Reports.

35.

Mazare

Taghizadeh

Ghaf-Ghanbari

, et al. (2024) Robust fault detection and adaptive fixed-time fault-tolerant control for quadrotor UAVs. Robotics and Autonomous Systems 179: 104747. https://doi.org/10.1016/j.robot.2024.104747

36.

Mellinger

Michael

Kumar

(2012) Trajectory generation and control for precise aggressive maneuvers with quadrotors. The International Journal of Robotics Research 31(5): 664–674. https://doi.org/10.1177/0278364911434236

37.

Nekoukar

Dehkordi

(2021) Robust path tracking of a quadrotor using adaptive fuzzy terminal sliding mode control. Control Engineering Practice 110: 104763. https://doi.org/10.1016/j.conengprac.2021.104763

38.

Nguyen

Moon

(2022) Continuous nonsingular terminal sliding-mode control with integral-type sliding surface for disturbed systems: application to attitude control for quadrotor UAVs under external disturbances. IEEE Transactions on Aerospace and Electronic Systems 58(6): 5635–5660. https://doi.org/10.1109/taes.2022.3177580

39.

Nojavanzadeh

Badamchizadeh

(2016) Adaptive fractional‐order non‐singular fast terminal sliding mode control for robot manipulators. IET Control Theory & Applications 10(13): 1565–1572. https://doi.org/10.1049/iet-cta.2015.1218

40.

Ortiz

Minchala

Reinoso

(2016) Nonlinear Robust H-Infinity PID controller for the multivariable system quadrotor. IEEE Latin America Transactions 14(3): 1176–1183. https://doi.org/10.1109/tla.2016.7459596

41.

Pan

Shao

Xiong

, et al. (2023) Attitude control of quadrotor UAVs based on adaptive sliding mode. International Journal of Control, Automation and Systems 21(8): 2698–2707. https://doi.org/10.1007/s12555-022-0189-2

42.

Rahmanipour

Ghadiri

(2020) Stability analysis for a class of fractional-order nonlinear systems with time-varying delays. Soft Computing 24(22): 17445–17453. https://doi.org/10.1007/s00500-020-05118-w

43.

Rinaldi

Chiesa

Quagliotti

(2013) Linear quadratic control for quadrotors UAVs dynamics and formation flight. Journal of Intelligent and Robotic Systems 70(1): 203–220. https://doi.org/10.1007/s10846-012-9708-3

44.

Ríos

Falcón

González

, et al. (2018) Continuous sliding-mode control strategies for quadrotor robust tracking: real-time application. IEEE Transactions on Industrial Electronics 66(2): 1264–1272. https://doi.org/10.1109/tie.2018.2831191

45.

Salih

Moghavvemi

Mohamed

HAF

, et al. (2010) Modelling and PID controller design for a quadrotor unmanned air vehicle. In: 2010 IEEE International Conference on Automation, Quality and Testing. Robotics (AQTR), pp. 1–5.

46.

Shao

Huang

Zhen

, et al. (2016) A novel approach for trajectory tracking control of an under-actuated quad-rotor UAV. IEEE/CAA Journal of Automatica Sinica 11(9): 2030–2032. https://doi.org/10.1109/jas.2016.7510238

47.

Shao

Zheng

Huang

, et al. (2019) Finite-time control of a linear motor positioner using adaptive recursive terminal sliding mode. IEEE Transactions on Industrial Electronics 67(8): 6659–6668. https://doi.org/10.1109/tie.2019.2937062

48.

Shi

Cheng

Yin

, et al. (2019) Design of fractional‐order backstepping sliding mode control for quadrotor UAV. Asian Journal of Control 21(1): 156–171. https://doi.org/10.1002/asjc.1946

49.

Sun

Wang

Chu

, et al. (2020) Incremental nonlinear fault-tolerant control of a quadrotor with complete loss of two opposing rotors. IEEE Transactions on Robotics 37(1): 116–130. https://doi.org/10.1109/tro.2020.3010626

50.

Tripathi

Kamath

Behera

, et al. (2022) An adaptive fast terminal sliding-mode controller with power rate proportional reaching law for quadrotor position and altitude tracking. IEEE Transactions on Systems, Man, and Cybernetics: Systems 52(6): 3612–3625. https://doi.org/10.1109/tsmc.2021.3072099

51.

Vahdanipour

Khodabandeh

(2019) Adaptive fractional order sliding mode control for a quadrotor with a varying load. Aerospace Science and Technology 86: 737–747. https://doi.org/10.1016/j.ast.2019.01.053

52.

Vahdanipour

Khodabandeh

(2023) Adaptive fractional-order back stepping control for tracking and estimation of moment of inertia matrix of a quadrotor. International Journal of Dynamics and Control 12: 1–14. https://doi.org/10.1007/s40435-023-01199-1

53.

Wang

Tian

, et al. (2016) Model-free–based terminal SMC of quadrotor attitude and position. IEEE Transactions on Aerospace and Electronic Systems 52(5): 2519–2528. https://doi.org/10.1109/taes.2016.150303

54.

Wang

van Kampen

E-J

Chu

(2019) Quadrotor fault-tolerant incremental nonsingular terminal sliding mode control. Aerospace Science and Technology 95: 105514. https://doi.org/10.1016/j.ast.2019.105514

55.

Wang

Luo

(2023) Adaptive fractional‐order nonsingular fast terminal sliding mode formation control of multiple quadrotor UAVs‐based distributed estimator. Asian Journal of Control.

56.

Wei

Zuo

(2026) Active disturbance rejection attitude control for a quadrotor UAV with control input constraints. IEEE Transactions on Industrial Electronics.

57.

Suleman

Shi

(2023) A multi-rate hierarchical fault-tolerant adaptive model predictive control framework: theory and design for quadrotors. Automatica 153: 111015. https://doi.org/10.1016/j.automatica.2023.111015

58.

Yang

Kou

, et al. (2026a) High-precision fuzzy-based force measurement and control with a novel air-suspended frictionless polishing pneumatic end-actuator. Precision Engineering.

59.

Yang

Niu

, et al. (2026b) Signal processing and force control for precision machining with grinding system integrating an aerostatic suspension compact pneumatic actuator. Mechanical Systems and Signal Processing 251: 114229. https://doi.org/10.1016/j.ymssp.2026.114229

60.

Zhang

(2025) Survey on anti-disturbance control of quadrotor UAVs landing on moving platform. Journal of Vibration and Control 10775463251347061. Available at: https://doi.org/10.1177/10775463251347061

61.

Zhang

Gao

Lin

, et al. (2024) Gain-scheduling tracking control for quadrotors under ground effects via NTSMC-sLPV. IEEE Transactions on Aerospace and Electronic Systems 61(2): 1958–1970. https://doi.org/10.1109/taes.2024.3462919

62.

Zhou

Tian

, et al. (2026) Control algorithms for quadrotor UAVs under wind disturbance. Journal of Aerospace Engineering 39(2): 04025131. https://doi.org/10.1061/jaeeez.aseng-6505
