Stress theory for classical fields

Abstract

Classical field theories, together with the Lagrangian and Eulerian approaches to continuum mechanics, are embraced under a geometric setting of a fiber bundle. The base manifold can be either the body manifold of continuum mechanics, the space manifold, or space–time. Differentiable sections of the fiber bundle represent configurations of the system and the configuration space containing them is given the structure of an infinite-dimensional manifold. Elements of the cotangent bundle of the configuration space are interpreted as generalized forces and a representation theorem implies that there exists a stress object representing forces, non-uniquely. The properties of stresses are studied, as well as the role of constitutive relations in this general setting.

Keywords

Continuum mechanics field theories stress fiber bundle configuration space

1. Introduction

Physical theories for which the states are represented by sections of a fiber bundle are predominant in both classical field theories of theoretical physics and studies of the material structure of bodies in continuum mechanics. This paper is concerned with the corresponding stress theory.

For about half a century now, classical fields have been modeled mathematically in the theoretical physics literature as sections of fiber bundles over space–time. Since the pioneering works on modern formulations of classical field theories [1 –6], a generic field has been viewed as a section $κ : B \to Y$ of a fiber bundle $π : Y \to B$ for a d -dimensional space–time $B$ . The field equations are obtained by considering stationary values of an action integral

\int_{B} L (j^{r} κ),

(1)

where the Lagrangian function $L : J^{r} Y \to Λ^{d} T^{*} B$ is a fiber preserving mapping of r -jets into the bundle of d -alternating multilinear forms over $B$ [7 –14]. The variational analysis of the action integral yields terms that may be interpreted as the components of the stress tensor.

Nontrivial fiber bundles originally appeared in continuum mechanics in works considering dislocations, and material uniformity and homogeneity [15 –20]. The modern formulations of these theories usually consider sections of the principal bundle of frames, or moving frames, over the body manifold as a mathematical model for the distributions of material directions. Since the sections are defined over the body manifold, no reference should be made to the physical space and its conceivable Euclidean structure.

The formulation of continuum mechanics using sections of a general fiber bundle has an additional advantage. While a major portion of studies in continuum mechanics use the Lagrangian approach, in which material points serve as fundamental objects, the Eulerian viewpoint may be advantageous for studies of chemically reacting matter and growing bodies. The Lagrangian and Eulerian viewpoints are unified when continuum theories are modeled on fiber bundles. For the Lagrangian formulation, one simply considers the trivial bundle $B \times S \to B$ , in which $S$ is the manifold representing the ambient physical space. In the Eulerian picture, $B$ is interpreted as the space manifold or a region therein.

Modern studies of the mathematical structure of stress theory in continuum mechanics may be traced back to Noll [21] and subsequently, for example, to Gurtin and colleagues [22, 23] and Silhavy [24 –26]. The relevance of the notion of stress to field theories led to contributions from the physics community [13], which, in some cases, applied ideas originating in the continuum mechanics research [13, 27 –31].

The stress object emerges in field theories as the vertical derivative of the Lagrangian function. Yet the studies of the stress object and the field equations it should satisfy are relevant in the more general situation where a Lagrangian mapping is not readily available. In the continuum theory of dislocations, for example, it is hard to expect that the motion of dislocations will be governed by a potential.

Thus, this paper considers the stress object and the equations governing it for fields represented as sections of a general fiber bundle. Extending the terminology of Truesdell and Toupin [32], and in view of the applications that have been described, we will use the terminology of a classical field theory to refer to any such mechanical, or other physical, theory.

In our approach, the analysis of the stress field is put in a broader (global) context. Extending the work of Segev [33], we consider a configuration space of sections, which is an infinite-dimensional manifold. Generalized forces are viewed as elements of the cotangent bundle of the configuration space and stresses emerge from a representation theorem for the force linear functionals. This “weak” approach allows for generalized, singular stress fields, with corresponding distributional field equations. We give special attention to the case of smooth stress fields, for which we write down the field equation in an explicit differential form. For example, a weak formulation of p -form [34, 35], premetric [36], electrodynamics was shown by Segev [37] to follow from stress theory for fields represented by p -forms in the case where the stress object has a particularly simple form. It should be mentioned that we study here the theory concerning the existence of stresses and the equations it satisfies; we do not study the analytic aspects of the field equations obtained after the constitutive relations are used, in terms of existence and uniqueness of solutions, appropriate function spaces, etc.

Following the introduction in Section 2 of the notation and terminology used pertaining to fiber bundles and their jet bundles, Section 3 is concerned with the infinite-dimensional configuration space of sections. Generalized velocities and generalized forces are modeled as elements of the tangent and cotangent bundles of the configuration space, respectively. Particular attention is given to smooth forces, those given in terms of body forces and surface forces. Section 4 considers the analog of “local configurations” [38]. In the present general geometric setting, these are described by sections of the jet bundle. Next, local velocities and their relation to the jets of generalized velocity fields are discussed. Stresses are considered in Section 5. Variational stresses are defined as functionals conjugate to velocity jets. A representation theorem for generalized forces in terms of variational stresses relates the two types of object through a general version of the principle of virtual power. While, in general, variational stresses are tensor-valued measures, smooth variational stresses, those represented by smooth tensor-valued densities induce traction stresses. The traction stress object determines surface forces on oriented $(d - 1)$ -submanifolds via a generalization of Cauchy’s formula. A differential operator generalizing the traditional divergence of the stress tensor is defined next, enabling one to write a generalized version of differential equations of equilibrium and boundary conditions. It is observed that, while in the classical formulation of stress theory, the stress tensor both acts on the rate of change of the deformation gradient to produce power and determines the traction on hypersurfaces, in the geometry of general manifolds, two objects, the variational stress and the traction stresses, are needed for these two roles. While the variational stress determines a unique traction stress, a traction stress field does not determine a unique variational stress. Next, in Section 6, loadings and constitutive relations are introduced, leading to a formulation of the problem of stress analysis. Finally, a number of particular cases are presented in Section 7. In particular, the relation between stress theory and premetric p -form electrodynamics is summarized.

2. Preliminaries and notation

The fundamental geometric object considered in this work is that of a fiber bundle, the sections of which are identified with the configurations of a mechanical system or with classical fields. In this section, we introduce the notation and terminology adopted throughout this paper.

A fiber bundle [39] will be denoted by a triple $(Y, π, M)$ , where Y is the total space, $M$ is the base manifold and $π : Y \to M$ is the projection. Let $M$ be a manifold. We denote by

(TM, τ_{M}, M) and (T^{*} M, τ_{M}^{*}, M)

its tangent and cotangent bundles. The bundle of k -alternating multilinear forms will be denoted $(Λ^{k} T^{*} M, τ_{M}^{*}, M)$ .

Let $(Y, π, M)$ be a fiber bundle. For a section $s : M \to Y$ and a point $m \in M$ , we denote by $s_{m}$ , rather than s(m), the value of s at m. We also denote the fiber of Y at m as $Y_{m} : = π^{- 1} (m)$ .

Consider $T π : TY \to TM$ . The kernel of $T π$ in TY is commonly denoted $V π \subset TY$ , and is referred to as the vertical sub-bundle of TY. The set $V π$ is the total space of two bundles: the vector bundle

(V π, τ_{Y} |_{V π}, Y),

and the fiber bundle

(V π, π \circ τ_{Y} |_{V π}, M) .

The vertical bundle of Y is often denoted in the literature as VY rather than $V π$ . The notation VY may be ambiguous in instances where Y is the total space of multiple bundles; the notation $V π$ makes explicit the projection with respect to which verticality is defined. Conversely, the latter notation is often cumbersome, for example, when the projection is a composition of several projections, some of which are restricted to sub-bundles. For improved readability, we adopt the following notation scheme: for a fiber bundle $(Y, π_{Y}, M)$ , we denote its vertical bundle as VY in cases where Y is the total space of a single bundle, or, in the case of repeated projections, $Y \to Z \to \dots \to M$ , in which case verticality is implied relative to the projection onto the manifold $M$ .

Consider two fiber bundles $(Y, π_{Y}, M)$ and $(Z, π_{Z}, M)$ over the same base manifold $M$ . Let $φ : Y \to Z$ be a fiber bundle morphism, i.e., $π_{Z} \circ φ = π_{Y}$ . The restriction of the tangent map $Tφ : TY \to TZ$ to VY defines a vertical bundle morphism,

T φ |_{V Y} : V Y \to V Z .

Let $(Y, π, N)$ be a fiber bundle and let $f : M \to N$ be a differentiable mapping. One has the natural pullback bundle, $(f^{*} Y, f^{*} π, M)$ with ${(f^{*} Y)}_{m}$ canonically identified with $Y_{f (m)}$ via the bundle morphism $π^{*} f : f^{*} Y \to Y$ over f, as in the following diagram. A section $s : N \to Y$ induces the section $f^{*} s : M \to f^{*} Y$ satisfying $π^{*} f \circ f^{*} s = s \circ f$ ; in other words, ${(f^{*} s)}_{m}$ is identified with $s_{f (m)}$ .

The tangent map of f, $Tf : TM \to TN$ induces the differential of f, $df : TM \to f^{*} TN$ satisfying $τ_{N}^{*} f \circ df = Tf$ .

In particular, for two fiber bundles $(Y, π, M)$ and $(Z, ρ, M)$ over the same base manifold $M$ , and a fiber bundle morphism $φ : Y \to Z$ , we use

d φ |_{V Y} : V Y \to φ^{*} V Z

(2)

to denote the vertical derivative of $φ$ , i.e., the restriction of $dφ$ to VY; this vertical derivative is sometimes denoted in the literature as $δφ$ .

Let $(Y, π_{Y}, N)$ and $(Z, π_{Z}, N)$ be fiber bundles over N. Let $f : M \to N$ and let $φ : Y \to Z$ be a fiber bundle morphism. Then f induces a fiber bundle morphism $f^{*} φ : f^{*} Y \to f^{*} Z$ , defined by the equality $π_{Z}^{*} f \circ f^{*} φ = φ \circ π_{Y}^{*} f$ .

For a manifold $M$ , $D (M)$ denotes the space of smooth real-valued functions on $M$ . For a fiber bundle $(Y, π, M)$ , it is common to denote by $C^{k} (π)$ the set of $C^{k}$ -sections $M \to Y$ . As in the case of the vertical bundle, we note that the space of $C^{k}$ -sections $M \to Y$ is often denoted in the literature as $C^{k} (Y)$ . Here too, we adopt the following notation scheme: for a fiber bundle $(Y, π_{Y}, M)$ , we denote its $C^{k}$ -sections as $C^{k} (Y)$ in cases where Y is the total space of a single bundle, or, in the case of repeated projections, $Y \to Z \to \dots \to M$ , when the section is with respect to projection onto the manifold $M$ .

Consider two fiber bundles $(Y, π_{Y}, M)$ and $(Z, π_{Z}, M)$ and let $φ : Y \to Z$ be a fiber bundle morphism. Then $φ$ induces a map between sections,

C^{k} (Y) ∋ s \mapsto φ \circ s \in C^{k} (Z) .

This mapping is often denoted by $φ_{*} : C^{k} (Y) \to C^{k} (Z)$ ; however, we will write explicitly either $φ \circ s$ or just $φ (s)$ .

Let $(Y, π, M)$ be a fiber bundle and let $m \in M$ . We say that two (local) sections $s, u \in C^{1} (Y)$ are 1 -equivalent at m if ${(Ts)}_{m} = {(Tu)}_{m}$ . Equivalently, s and u are 1 -equivalent if and only if they assume at m the same values and the same first derivatives in some (hence, any) coordinate system. The 1 -equivalence class at m of a (local) section s is denoted $j_{m}^{1} s$ . The first jet bundle of $π$ is the set

J^{1} π = \{j_{m}^{1} s | m \in M, s is a local C^{1} - section at m\} .

In analogy with vertical bundles and $C^{k}$ -sections, we adopt the following notation scheme: for a fiber bundle $(Y, π, M)$ , we denote its jet bundle as $(J^{1} Y, π^{1}, M)$ in cases where Y is the total space of a single bundle, or, in the case of repeated projections, $Y \to Z \to \dots \to M$ , when the sections are with respect to projection onto the manifold $M$ .

The first jet bundle of $(Y, π, M)$ is associated with the following projections:

The map $j^{1} : C^{k} (Y) \to C^{k - 1} (J^{1} Y)$ is termed the first jet extension.

Consider, once again, two fiber bundles $(Y, π, M)$ and $(Z, ρ, M)$ over the same base manifold $M$ . Let $φ : Y \to Z$ be a fiber bundle morphism. The first jet map of $φ$ is a fiber bundle morphism

j^{1} φ : J^{1} Y \to J^{1} Z,

defined by

j^{1} φ (j_{m}^{1} s) = j_{m}^{1} (φ \circ s),

where for $m \in M$ , s is a local section of Y at m.

Let Y and Z be vector bundles over a manifold $M$ . We denote by

Hom (Y, Z) ≃ Y^{*} \otimes Z

the vector bundle over $M$ whose elements at $m \in M$ are linear maps $Y_{m} \to Z_{m}$ . Using $L (Y, Z)$ to designate the set of vector bundle morphisms $Y \to Z$ , it is observed that a vector bundle morphism $ξ \in L (Y, Z)$ can be identified with a section of $Hom (Y, Z)$ ; thus, a vector bundle morphism may be viewed as a tensor field over $M$ . For a section $ξ$ of $Hom (Y, Z)$ and a section $η : M \to Y$ , we have the section $ξ \circ η : M \to Z$ , defined by ${(ξ \circ η)}_{m} = ξ_{m} (η_{m})$ .

Let $s \in Ω^{1} (N)$ be a one-form and let $f : M \to N$ be a mapping. Then, $f^{*} s$ is a section of $(f^{*} T^{*} N, f^{*} τ_{N}^{*}, M)$ ; it is not a differential form. In contrast, we denote by $f^{♯} s$ the one-form over $M$ defined by

f^{♯} s (v) = f^{*} s (df (v)),

(3)

for every $v \in TM$ .

Throughout this paper, we adopt the terms and notation listed in the Appendix.

3. Configurations, velocities, and forces

3.1. The manifold of configurations

In the global approach to mechanics, a system is characterized by its configuration space.

The fundamental object in a classical field theory is a fiber bundle, in which the various fields assume their values. The d -dimensional base manifold $B$ typically represents space–time in modern physical field theories and a body manifold in continuum mechanics. For $p \in B$ , the m -dimensional fiber $Y_{p}$ represents the values that the field may assume at p. Thus, a field theory is characterized by a particular fiber bundle.

Definition 1. Let $(Y, π, B)$ be a fiber bundle, where the base manifold $B$ is assumed to be compact, oriented, and possibly having a boundary. Consider the Banach manifold [40] of sections $C^{1} (Y)$ . The manifold of configurations, $Q$ , is an open subset of $C^{1} (Y)$ .

Since $Q$ is open in $C^{1} (Y)$ , it inherits its Banach manifold structure; moreover, for every $κ \in Q$ , $T_{κ} Q = T_{κ} C^{1} (Y)$ .

Comment 1. A basic example of a manifold of configurations is the case where Y is a trivial bundle. In the Lagrangian approach to continuum mechanics, a body is modeled as a smooth, compact, d -dimensional differentiable manifold, $B$ . The ambient space is modeled as a smooth m -dimensional differentiable manifold without boundary, S. The space of configurations is the space of $C^{1}$ -embeddings $B \to S$ , which can be given the structure of a smooth Banach manifold [40, 41]. We may also view such maps as sections, $C^{1} (Y)$ , where

Y = B \times S

is a trivial bundle over $B$ .

A construction of the manifold $C^{1} (Y)$ consistent with the Whitney $C^{1}$ -topology [41] can be found in Palais [40]. The construction may be roughly described as follows. Let $κ \in Q$ and let $C^{1} (κ^{*} V Y)$ be the Banachable space of sections $B \to V Y$ along $κ$ . That is, $w \in C^{1} (κ^{*} V Y)$ satisfies, for $p \in B$ ,

w_{p} \in {(κ^{*} V Y)}_{p} = {(V Y)}_{κ_{p}} .

A local chart for $Q$ in a neighborhood of $κ$ is a map

χ_{κ} : C^{1} (κ^{*} V Y) \to Q,

given by

{(χ_{κ} (w))}_{p} = {exp}^{Y} (w_{p}),

where ${exp}^{Y} : V Y \to Y$ is the exponential map on Y induced by some arbitrarily chosen spray, consistent with the fiber structure. Namely, for $e \in Y$ ,

{exp}^{Y} : {(V Y)}_{e} \to Y_{π (e)} .

Strictly speaking, ${exp}^{Y}$ is only defined on a neighborhood of the zero section of VY. However, one can always reparametrize ${exp}^{Y}$ to be defined globally on VY. This construction holds only for the case of a compact base manifold $B$ . See Remark 1 for the case of non-compact bases.

Throughout this paper, we complement the covariant, coordinate-free formulation with its corresponding local coordinate representation. We will use a typical local coordinate system,

X = (X^{1}, \dots, X^{d}) : p \in B \mapsto X (p) \in ℝ^{d},

for the base manifold $B$ , and a local coordinate system,

y = (X, x) = (X^{1}, \dots, X^{d}, x^{1}, \dots, x^{m}) : e \in Y \mapsto y (e) \in ℝ^{d} \times ℝ^{m},

for the fiber bundle Y. The components of X for a given chart will be denoted with Greek indexes, e.g., $X^{α}$ ; the components of x will be denoted with Roman indexes, e.g., $x^{i}$ . Note the abuse of notation where X is both a function on $B$ and a function on Y; this type of abuse will recur in several instances in the following.

The coordinate system y is assumed to be adapted to the bundle structure: for every $e \in Y$ , i.e.,

X (e) = X (π (e)) .

3.2. Generalized velocities

Definition 2. The bundle $(T Q, τ_{Q}, Q)$ tangent to the manifold of configurations is termed the bundle of generalized velocities, or the bundle of virtual displacements.

Following Lang [42], we define the tangent space of an infinite-dimensional manifold in the following way. Let $κ_{1}$ and $κ_{2}$ be two configurations, and let

χ_{1} : C^{1} (κ_{1}^{*} V Y) \to Q and χ_{2} : C^{1} (κ_{2}^{*} V Y) \to Q

be coordinate systems at $κ_{1}$ and $κ_{2}$ , respectively, whose images overlap. We will keep the simple notation $χ_{2}^{- 1}$ for the restriction to the overlap. Let

κ = χ_{1} (w_{1}) = χ_{2} (w_{2}) .

The triples

(κ, χ_{1}, v_{1}) and (κ, χ_{2}, v_{2}),

where $v_{1} \in C^{1} (κ_{1}^{*} V Y)$ and $v_{2} \in C^{1} (κ_{2}^{*} V Y)$ , are considered equivalent if

v_{2} = D_{w_{1}} (χ_{2}^{- 1} \circ χ_{1}) (v_{1}) .

The collection of all such equivalence classes for a fixed $κ$ forms the vector space $T_{κ} Q$ . Given an exponential map on Y, the canonical representative of an element of $T_{κ} Q$ is of the form

(κ, χ_{κ}, v), v \in C^{1} (κ^{*} V Y),

that is, the vector space of virtual velocities at $κ$ can be identified with the space of velocity fields at $κ$ ,

T_{κ} Q ≃ C^{1} (κ^{*} V Y) .

(4)

A velocity field at $κ$ , $v \in C^{1} (κ^{*} V Y)$ can be identified with a path $γ : I \to Q$ in a canonical way,

γ (t) = χ_{κ} (tv),

i.e.,

{(γ (t))}_{p} = {exp}^{Y} (t v_{p}) \in Y_{p} .

The bundle of velocities $T Q$ is the union of the tangent spaces $T_{κ} Q$ with the standard smooth structure. As a set, $T Q$ consists of sections of VY viewed as a fiber bundle over $B$ . The tangent space at $κ \in Q$ consists of those sections whose projection onto Y coincides with $κ$ . In the physics context, an element of $T_{κ} Q$ is interpreted as a fiber-wise variation of $κ$ .

The local coordinate system X on $B$ induces a smooth local frame for $T B$ ,

\{\partial_{α}^{B} : = \frac{\partial}{\partial X^{α}} : α = 1, \dots, d\},

defined by the paths

\partial_{α}^{B} |_{p} = [t \mapsto X^{- 1} (X (p) + t e_{α})], p \in B,

where ${e_{α}}$ is the standard basis of $ℝ^{d}$ . The action of this frame on a function $f \in D (B)$ is

(\partial_{α}^{B} f) (p) = D_{X (p)}^{α} (f \circ X^{- 1}) .

Likewise, the local coordinate system $y = (X, x) : Y \to ℝ^{d} \times ℝ^{m}$ induces a smooth local frame for TY,

{\partial_{i}^{Y}, \partial_{α}^{Y} : α = 1, \dots, d, i = 1, \dots, m},

defined by the paths

\begin{array}{l} \partial_{α}^{Y} |_{e} = [t \mapsto y^{- 1} (X (e) + t e_{α}, x (e))] \\ \partial_{i}^{Y} |_{e} = [t \mapsto y^{- 1} (X (e), x (e) + t e_{i})], e \in Y . \end{array}

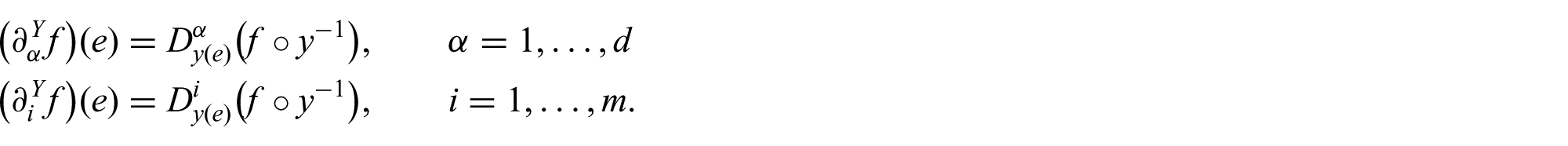

In terms of derivations, for $f \in D (Y)$ and $e \in Y$ ,

\begin{matrix} (\partial_{α}^{Y} f) (e) & = D_{y (e)}^{α} (f \circ y^{- 1}), α = 1, \dots, d \\ (\partial_{i}^{Y} f) (e) & = D_{y (e)}^{i} (f \circ y^{- 1}), i = 1, \dots, m . \end{matrix}

Since the coordinate systems are adapted,

dπ \circ \partial_{α}^{Y} = π^{*} \partial_{α}^{B} and dπ \circ \partial_{i}^{Y} = 0 .

(5)

The vertical bundle VY is spanned locally by the frame field $\partial_{i}^{Y}$ ; a local coordinate system for VY is

(X, x, ẋ) : v \in V Y \mapsto (X, x, ẋ) (v) \in ℝ^{d} \times ℝ^{m} \times ℝ^{m},

where

X^{α} (v^{i} \partial_{i}^{Y} |_{e}) = X^{α} (e), x^{j} (v^{i} \partial_{i}^{Y} |_{e}) = x^{j} (e) and ẋ^{j} (v^{i} \partial_{i}^{Y} |_{e}) = v^{j} .

A generalized velocity (or virtual displacement) field at $κ$ has a local representation

v = v^{i} κ^{*} \partial_{i}^{Y},

where $v^{i} \in C^{1} (B)$ .

We denote by ${dx}_{B}^{α}$ and ${dx}_{Y}^{α}$ , ${dx}_{Y}^{i}$ the co-frames dual to $\partial_{α}^{B}$ , $\partial_{α}^{Y}$ and $\partial_{i}^{Y}$ . We have

{dx}_{Y}^{α} = π^{♯} {dx}_{B}^{α},

(6)

because by equations (3) and (5)

π^{♯} {dx}_{B}^{α} (\partial_{β}^{Y}) = π^{*} {dx}_{B}^{α} (dπ \circ \partial_{β}^{Y}) = π^{*} {dx}_{B}^{α} (π^{*} \partial_{β}^{B}) = δ_{β}^{α}

and

π^{♯} {dx}_{B}^{α} (\partial_{i}^{Y}) = π^{*} {dx}_{B}^{α} (dπ \circ \partial_{i}^{Y}) = 0 .

3.3. Generalized forces

Definition 3. The bundle of forces is the vector bundle

(T^{*} Q, τ_{Q}^{*}, Q)

dual to the vector bundle of velocities. A generalized force at $κ$ is an element

f \in T_{κ}^{*} Q .

That is, for every configuration $κ \in Q$ , the vector space $T_{κ}^{*} Q$ of forces at $κ$ is the dual of the vector space $T_{κ} Q$ of velocities at $κ$ . The action of a force f at $κ$ on a velocity v at $κ$ yields a real number, f (v), termed the virtual power, or virtual work that f expends on v.

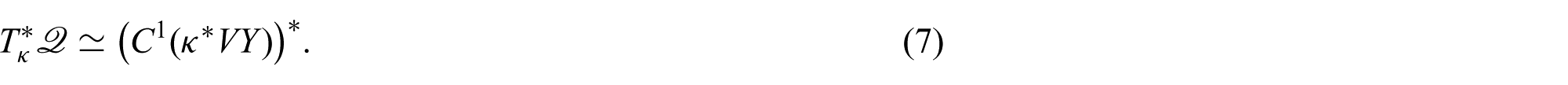

By the isomorphism of equation (4),

T_{κ}^{*} Q ≃ (C^{1} (κ^{*} V Y))^{*} .

(7)

Generally, forces may be represented by a collection of measures (see Subsection 5.1) and therefore cannot be assigned values at points. The remaining part of this section considers forces that can be represented by more regular fields.

Definition 4. The bundle of body force densities is

B : = Hom (V Y, π^{*} Λ^{d} T^{*} B) .

It is a vector bundle over Y, with a projection that we denote by $π_{B} : B \to Y$ . For $κ \in Q$ ,

κ^{*} B = Hom (κ^{*} V Y, Λ^{d} T^{*} B)

is the bundle of body force densities along $κ$ ; it is a vector bundle over $B$ .

The bundle of surface force densities is

T : = Hom (V Y |_{\partial B}, {(π |_{\partial B})}^{*} Λ^{d - 1} T^{*} \partial B) .

It is a vector bundle over $Y |_{\partial B}$ , with a projection that we denote by $π_{T}$ . Here, $π |_{\partial B} : Y |_{\partial B} \to \partial B$ is the restriction of Y to the boundary; see the formal definition in Section 5.3. For $κ \in Q$ , and $κ_{\partial B} : = κ |_{\partial B}$ ,

κ_{\partial B}^{*} T = Hom (κ^{*} V Y |_{\partial B}, Λ^{d - 1} T^{*} \partial B)

is the bundle of surface force densities along $κ_{\partial B}$ ; it is a vector bundle over $\partial B$ .

With these definitions, we can define the notion of a continuous force.

Definition 5. A force f at $κ$ is termed continuous if there exists a body force density field along $κ$ ,

b \in C^{0} (κ^{*} B) ≃ C^{0} (Hom (κ^{*} V Y, Λ^{d} T * B)),

and a surface force density field along κ,

t \in C^{0} (κ_{\partial B}^{*} T) ≃ C^{0} (Hom (κ^{*} V Y |_{\partial B}, Λ^{d - 1} T^{*} \partial B)),

such that for every velocity v at κ, the virtual power that f expends on v is given by

f (v) = \int_{B} b \circ v + \int_{\partial B} t \circ v |_{\partial B} .

(8)

Note that on the left-hand side of equation (8), v is viewed as an element of $T_{κ} Q$ , whereas on the right-hand side, v is viewed as a velocity field at κ, i.e., an element of $C^{1} (κ^{*} V Y)$ .

Remark 1. (Non-compact base manifolds). If the base manifold $B$ is not compact, the image of a section $s \in C^{1} (Y)$ is never compact; hence, it is not possible to endow $C^{1} (E)$ (or any other reasonable class of sections) with a Banach manifold structure (see discussion in the introduction of Piccione and Tausk [43]). However, as shown by Michor [41] and Kriegl and Michor [44] for smooth sections, the space $C^{\infty} (Y)$ of $C^{\infty}$ -sections $B \to Y$ can be given a structure of a smooth manifold modeled on a locally convex topological vector space. The tangent space at a configuration $κ \in C^{\infty} (Y)$ may be identified with the space $C_{c}^{\infty} (κ^{*} V Y)$ of differentiable sections with compact supports, equipped with the inductive limit topology

C_{c}^{\infty} (κ^{*} V Y) = \lim_{K} C_{K}^{\infty} (κ^{*} V Y),

where K runs through all compact sets in $B$ and $C_{K}^{\infty} (κ^{*} V Y)$ has the topology of uniform convergence of all derivatives [44]. Thus, generalized velocities are represented by sections of $κ^{*} V Y$ having compact supports so that forces may be viewed as tensor-valued currents or generalized sections [37, 45]. An analogous construction can be applied to C¹ -sections.

4. Deformation jets and velocity jets

4.1. The manifold of deformation jets

In this section, we consider what is termed by Segev [46] the local model—a notion of configuration that also encodes information about local deformations. In a first grade theory, this additional information is reflected by conceivable values of the first derivative of the configuration at the various points. These values of the derivatives need not be compatible with a particular configuration κ. For brevity, we refer to such fields as deformation jets (referred to by Segev [46], for the case of a trivial bundle, as local configurations after Truesdell and Noll [38]). The natural geometric construct for encoding this information is the first jet bundle $(J^{1} Y, π^{1}, B)$ .

Definition 6. The manifold of deformation jets, which we denote $E$ , is some open subset of $C^{0} (J^{1} Y)$ —the space of $C^{0}$ -sections $B \to J^{1} Y$ containing the image of $j^{1} : Q \to C^{0} (J^{1} Y)$ . That is,

j^{1} (Q) \subset E \subset C^{0} (J^{1} Y) .

A deformation jet that is a jet extension $j^{1} κ \in E$ of a configuration $κ \in Q$ is termed compatible or holonomic.

The manifold structure of $E$ is analogous to the manifold structure of $Q$ . Denote the vertical bundle of $J^{1} Y$ by

V J^{1} Y = \ker T π^{1} \subset T J^{1} Y .

For $ξ \in E$ , the modeling space for a chart in a neighborhood of ξ is the Banachable space $C^{0} (ξ^{*} V J^{1} Y)$ of sections $B \to V J^{1} Y$ along ξ; that is, $ξ^{'}$ in that neighborhood of ξ is represented by an element $η \in C^{0} (ξ^{*} V J^{1} Y)$ satisfying

η_{p} \in (ξ^{*} V J^{1} Y)_{p} ≃ (V J^{1} Y)_{ξ_{p}} \subset T_{ξ_{p}} J^{1} Y .

A local coordinate system for $J^{1} Y$ [39] is

z = (y, x^{'}) = (X, x, x^{'}) : j_{p}^{1} κ \in J^{1} Y \mapsto z (j_{p}^{1} κ) \in ℝ^{d} \times ℝ^{m} \times ℝ^{d \times m},

such that

y (j_{p}^{1} κ) = y (κ_{p}) and {x^{'}}_{α}^{i} (j_{p}^{1} κ) = \partial_{α}^{B} (x^{i} \circ κ) (p) .

4.2. The bundle of velocity jets

The analog of a generalized velocity for the case of the bundle of deformation jets is defined as follows.

Definition 7. The vector bundle $T E$ tangent to the manifold of deformation jets $E$ will be termed the bundle of velocity jets. Segev [46] refers to it as the bundle of local virtual displacements (again, in the context of a trivial bundle).

The construction of $T E$ is analogous to the construction of the bundle of velocities, $T Q$ . In particular, for $ξ \in E$ ,

T_{ξ} E ≃ C^{0} (ξ^{*} V J^{1} Y),

(9)

which is the space of sections $B \to V J^{1} Y$ along ξ.

As a set, $T E$ consists of sections of $V J^{1} Y$ viewed as a fiber bundle over $B$ . The tangent space at $ξ \in E$ consists of those sections whose projection onto $J^{1} Y$ coincides with ξ. In the physics context, an element of $T_{ξ} E$ is interpreted as a fiber-wise variation of ξ.

For later use, we will need the following well-known isomorphism.

Proposition 1. $V J^{1} Y$ is isomorphic to $J^{1} V Y$ ,

(V J^{1} Y, π^{1} \circ τ_{J^{1} Y} |_{V J^{1} Y}, B) ≃ (J^{1} V Y, {(π \circ τ_{Y} |_{V Y})}^{1}, B) .

We will denote the isomorphism by

K : V J^{1} Y \to J^{1} V Y .

Proof. See Palais [40] and Saunders [39]. □

Lemma 1. Let $j^{1} κ \in E$ be a holonomic deformation jet. Then, the isomorphism K induces an isomorphism of vector bundles over $B$ ,

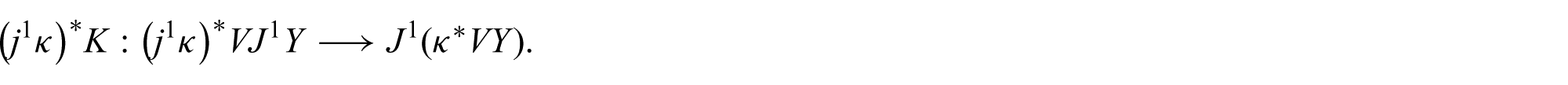

(j^{1} κ)^{*} K : (j^{1} κ)^{*} V J^{1} Y \to J^{1} (κ^{*} V Y) .

Proof. See Theorem 17.1 in Palais [40]. □

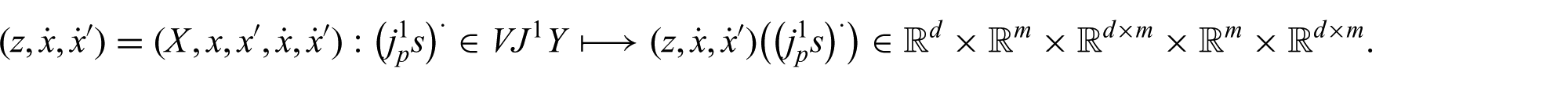

A local coordinate system for $V J^{1} Y$ is

(z, ẋ, ẋ^{'}) = (X, x, x^{'}, ẋ, ẋ^{'}) : (j_{p}^{1} s)^{\cdot} \in V J^{1} Y \mapsto (z, ẋ, ẋ^{'}) ((j_{p}^{1} s)^{\cdot}) \in ℝ^{d} \times ℝ^{m} \times ℝ^{d \times m} \times ℝ^{m} \times ℝ^{d \times m} .

This local system of coordinates is adapted in the sense that for $[t \mapsto j_{p}^{1} s (t)] \in V J^{1} Y$ , where s(0) = κ,

z ([t \mapsto j_{p}^{1} s (t)]) = z (j_{p}^{1} κ) .

For $j_{p}^{1} κ \in J^{1} Y$ ,

\begin{matrix} \partial_{α}^{J^{1} Y} |_{j_{p}^{1} κ} & = [t \mapsto z^{- 1} (X (j_{p}^{1} κ) + t e_{α}, x (j_{p}^{1} κ), x^{'} (j_{p}^{1} κ))], \\ \partial_{i}^{J^{1} Y} |_{j_{p}^{1} κ} & = [t \mapsto z^{- 1} (X (j_{p}^{1} κ), x (j_{p}^{1} κ) + t e_{i}, x^{'} (j_{p}^{1} κ))], \\ {(\partial^{J^{1} Y})}_{i}^{α} |_{j_{p}^{1} κ} & = [t \mapsto z^{- 1} (X (j_{p}^{1} κ), x (j_{p}^{1} κ), x^{'} (j_{p}^{1} κ) + t e_{i}^{α})], \end{matrix}

we have

z (\partial_{β}^{J^{1} Y} |_{j_{p}^{1} κ}) = z (j_{p}^{1} κ), z (\partial_{j}^{J^{1} Y} |_{j_{p}^{1} κ}) = z (j_{p}^{1} κ), z ((\partial^{J^{1} Y})_{j}^{β} |_{j_{p}^{1} κ}) = z (j_{p}^{1} κ) .

Moreover,

ẋ^{i} (\partial_{β}^{J^{1} Y} |_{j_{p}^{1} κ}) = 0, ẋ^{i} (\partial_{j}^{J^{1} Y} |_{j_{p}^{1} κ}) = δ_{j}^{i}, ẋ^{i} ((\partial^{J^{1} Y})_{j}^{β} |_{j_{p}^{1} κ}) = 0,

and

ẋ^{'}_{α}^{i} (\partial_{β}^{J^{1} Y} |_{j_{p}^{1} κ}) = 0, ẋ^{'}_{α}^{i} (\partial_{j}^{J^{1} Y} |_{j_{p}^{1} κ}) = 0, ẋ^{'}_{α}^{i} ((\partial^{J^{1} Y})_{j}^{β} |_{j_{p}^{1} κ}) = δ_{j}^{i} δ_{α}^{β} .

A local coordinate system for $J^{1} V Y$ is

(X, x, ẋ, x^{'}, ẋ^{'}) : j_{p}^{1} v \in J^{1} V Y \mapsto (X, x, ẋ, x^{'}, ẋ^{'}) (j_{p}^{1} v) \in ℝ^{d} \times ℝ^{m} \times ℝ^{m} \times ℝ^{d \times m} \times ℝ^{d \times m} .

For a local section $v = v^{i} κ^{*} \partial_{i}^{Y}$ of $κ^{*} V Y$ ,

\begin{matrix} X^{α} (j_{p}^{1} v) = X^{α} (v_{p}), x^{i} (j_{p}^{1} v) = x^{i} (v_{p}), ẋ^{i} (j_{p}^{1} v) = v^{i} (p), \\ {x^{'}}_{α}^{i} (j_{p}^{1} v) = {x^{'}}_{α}^{i} (j_{p}^{1} κ), and (ẋ^{'})_{α}^{i} (j_{p}^{1} v) = (\partial_{α}^{B} v^{i}) (p) . \end{matrix}

The isomorphism $V J^{1} Y ≃ J^{1} V Y$ is represented by

K (v^{i} (p) \partial_{i}^{J^{1} Y} |_{j_{p}^{1} κ} + (\partial_{α}^{B} v^{i}) (p) (\partial^{J^{1} Y})_{i}^{α} |_{j_{p}^{1} κ}) = j_{p}^{1} (v^{i} κ^{*} \partial_{i}^{Y}) .

In other words, the local representative $\bar{K}$ of K is given by

\bar{K} (X, x, x^{'}, ẋ, ẋ^{'}) = (X, x, ẋ, x^{'}, ẋ^{'}) .

Note that

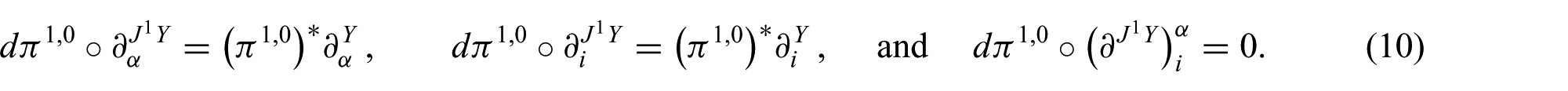

d π^{1, 0} \circ \partial_{α}^{J^{1} Y} = (π^{1, 0})^{*} \partial_{α}^{Y}, d π^{1, 0} \circ \partial_{i}^{J^{1} Y} = (π^{1, 0})^{*} \partial_{i}^{Y}, and d π^{1, 0} \circ (\partial^{J^{1} Y})_{i}^{α} = 0 .

(10)

We denote by ${dx}_{J^{1} Y}^{α}$ , ${dx}_{J^{1} Y}^{i}$ and $({dx}_{J^{1} Y})_{α}^{i}$ the corresponding co-frames:

{dx}_{J^{1} Y}^{α} = (π^{1, 0})^{♯} {dx}_{Y}^{α} = (π^{1})^{♯} {dx}_{B}^{α} and {dx}_{J^{1} Y}^{i} = (π^{1, 0})^{♯} {dx}_{Y}^{i} .

(11)

4.3. Compatibility and jet prolongation of velocity fields

Evidently, special attention should be given to configuration jets induced as jets of configurations. The analogous situation applies to generalized velocity fields. In this section, we consider compatible configuration jets and compatible velocity jets.

The jet prolongation mapping $j^{1} : Q \to E$ is an injection, where we omit the indication that j¹ needs to be restricted first from $C^{1} (Y)$ to $Q$ . Its differential is a vector bundle morphism (see diagram)

d j^{1} : T Q \to {(j^{1})}^{*} T E,

mapping velocities at κ into velocity jets at $j^{1} κ$ ,

{(d j^{1})}_{κ} : T_{κ} Q \to {({(j^{1})}^{*} T E)}_{κ} = T_{j^{1} κ} E .

Since $T_{κ} Q ≃ C^{1} (κ^{*} V Y)$ and $T_{j^{1} κ} E ≃ C^{0} ({(j^{1} κ)}^{*} V J^{1} Y)$ , the differential of j¹ at κ can also be viewed as a linear map,

(d j^{1})_{κ} : C^{1} (κ^{*} V Y) \to C^{0} ((j^{1} κ)^{*} V J^{1} Y),

mapping velocity fields at κ into velocity jet fields at $j^{1} κ$ .

Proposition 2. The differential of j¹ can be factored into the action of j¹ and a vector bundle morphism: for $v \in T_{κ} Q ≃ C^{1} (κ^{*} V Y)$ ,

(d j^{1})_{κ} (v) = (j^{1} κ)^{*} K^{- 1} \circ j^{1} v .

In other words, ${(d j^{1})}_{κ}$ is represented by

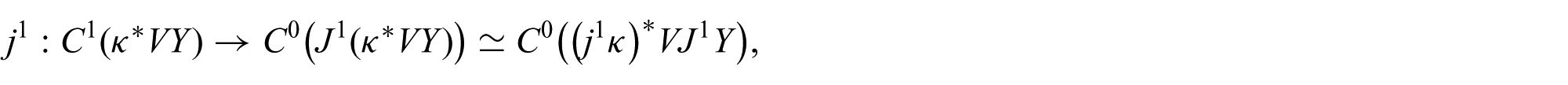

j^{1} : C^{1} (κ^{*} V Y) \to C^{0} (J^{1} (κ^{*} V Y)) ≃ C^{0} ((j^{1} κ)^{*} V J^{1} Y),

where the last isomorphism follows from Lemma 1.

Proof. For $v \in T_{κ} Q$ , let $s : I \to Q$ be a path of configurations satisfying

s (0) = κ and ṡ (0) = v .

By the definition of the differential via its action on curves,

(d j^{1})_{κ} (v) = [t \mapsto j^{1} s (t)] \in T_{j^{1} κ} E,

where we determine a tangent vector by a curve representing it. We now view v as a section of $C^{1} (κ^{*} V Y)$ , i.e., as a map

p \mapsto [t \mapsto s_{p} (t)],

which, for each point $p \in B$ , returns a path in $Y_{p}$ . Then

j^{1} v = j^{1} [t \mapsto s (t)] \in C^{0} (J^{1} (κ^{*} V Y)),

and

(j^{1} κ)^{*} K^{- 1} \circ j^{1} v = [t \mapsto j^{1} s (t)] \in C^{0} ((j^{1} κ)^{*} V J^{1} Y) .

□

Since ${(d j^{1})}_{κ} (v)$ can be identified with $j^{1} v$ , we will use the shorter notation $j^{1} v$ rather than ${(d j^{1})}_{κ} (v)$ to denote the corresponding element of $T_{j^{1} κ} E$ , and treat

j^{1} : C^{1} (κ^{*} V Y) \to C^{0} (J^{1} (κ^{*} V Y))

as a representative of ${(d j^{1})}_{κ}$ .

Using local coordinate frames, a velocity field v at κ may be represented locally in the form

v = v^{i} κ^{*} \partial_{i}^{Y},

where $v^{i}$ are differentiable functions defined on the domain of a chart. Its jet prolongation is the velocity jet field at $j^{1} κ$ , represented locally as

j^{1} v = v^{i} (j^{1} κ)^{*} \partial_{i}^{J^{1} Y} + (\partial_{α}^{B} v^{i}) (j^{1} κ)^{*} (\partial^{J^{1} Y})_{i}^{α} .

(12)

5. Stresses

This section introduces the stress object as a tensor-valued measure that represents a force functional, non-uniquely. Particular attention is given to stress measures that are continuous relative to volume measures on the manifold $B$ .

5.1. Variational stresses

Definition 8. The bundle $(T^{*} E, τ_{E}^{*}, E)$ dual to the bundle of velocity jets $T E$ is termed the bundle of variational stresses. Given a deformation jet $ξ \in E$ , an element $σ \in T_{ξ}^{*} E$ is referred to as a variational stress at ξ.

For every deformation jet $ξ \in E$ , the vector space $T_{ξ}^{*} E$ is the dual of the vector space of velocity jets at ξ, $T_{ξ} E$ . By the isomorphism of equation (9),

T_{ξ}^{*} E ≃ (C^{0} (ξ^{*} V J^{1} Y))^{*} .

(13)

Let $κ \in Q$ be given. The map

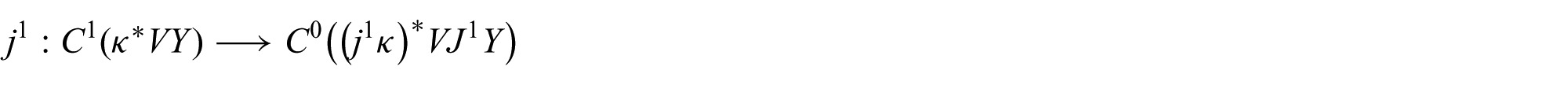

j^{1} : C^{1} (κ^{*} V Y) \to C^{0} ((j^{1} κ)^{*} V J^{1} Y)

is an embedding. It follows from the Hahn–Banach theorem that its dual,

(j^{1})^{*} : (C^{0} ((j^{1} κ)^{*} V J^{1} Y))^{*} \to (C^{1} (κ^{*} V Y))^{*}

is surjective; to every force at κ, $f \in {(C^{1} (κ^{*} V Y))}^{*}$ , there corresponds some (non-unique) variational stress at $j^{1} κ$ , $σ \in {(C^{0} ({(j^{1} κ)}^{*} V J^{1} Y))}^{*}$ , such that

f = (j^{1})^{*} σ .

(14)

That is, for every $v \in T_{κ} Q$ ,

f (v) = σ (j^{1} v) .

(15)

Equation (15) is a generalization of the principle of virtual work in continuum mechanics, and equation (14) is the corresponding generalization of the equilibrium equation.

It should be noted that the (generalized) equilibrium equation is merely a representation theorem; it is not a law of physics. Note also that the well-known static indeterminacy—the non-uniqueness of the stress representing a given force—is reflected by the non-injectivity of ${(j^{1})}^{*}$ , which, in turn, follows from the fact that j¹ is not surjective.

Let $κ \in Q$ , hence $j^{1} κ \in E$ . By the Riesz representation theorem, the space of continuous linear functionals on $C^{0}$ -sections,

T_{j^{1} κ}^{*} E ≃ (C^{0} ((j^{1} κ)^{*} V J^{1} Y))^{*},

coincides with the space of Radon measures valued in the dual vector bundle ${({(j^{1} κ)}^{*} V J^{1} Y)}^{*}$ . Locally, a variational stress $σ \in T_{j^{1} κ}^{*} E$ is represented by a collection of Radon measures,

\{μ_{i}, μ_{i}^{α} : 1 \leq i \leq m, 1 \leq α \leq d\},

so that in the case where v or $σ$ are supported in the domain of a single chart,

σ (j^{1} v) = \int_{B} v^{i} d μ_{i} + \int_{B} (\partial_{α}^{B} v^{i}) d μ_{i}^{α} .

(16)

In the general case, $σ (j^{1} v)$ is evaluated using a partition of unity.

5.2. Continuous variational stresses

Equation (16) shows that variational stresses may be as singular as measures. In this section, we restrict our attention to continuous variational stresses, that is, variational stresses for which the measures ${μ_{i}, μ_{i}^{α}}$ are absolutely continuous with respect to some smooth volume form on $B$ .

Definition 9. The bundle of stress densities is

S = Hom (V J^{1} Y, (π^{1})^{*} Λ^{d} T^{*} B) .

It is a vector bundle over $J^{1} Y$ , with a projection that we denote by $π_{S} : S \to J^{1} Y$ . For $ξ \in E$ ,

ξ^{*} S = Hom (ξ^{*} V J^{1} Y, Λ^{d} T^{*} B)

is the C⁰ -bundle of variational stress densities along ξ; it is a vector bundle over $B$ .

Definition 10. A variational stress $σ \in T_{ξ}^{*} E$ at $ξ \in E$ is termed continuous if there exists a variational stress density field at ξ,

s \in C^{0} (ξ^{*} S) = C^{0} (Hom (ξ^{*} V J^{1} Y, Λ^{d} T^{*} B)),

such that for every velocity jet η at ξ, the virtual power that σ expends on η is given by

σ (η) = \int_{B} s \circ η .

Note that on the left-hand side, η is viewed as an element of $T_{ξ} E$ , whereas on the right-hand side, η is viewed as an element of $C^{0} (ξ^{*} V J^{1} Y)$ . (See later for the local expressions for continuous variational stress densities.)

Let f be a force at κ and suppose that f is represented by a continuous variational stress at $j^{1} κ$ , $σ \in T_{j^{1} κ}^{*} E$ with variational stress density field $s \in C^{0} (Hom (V J^{1} Y, {(π^{1})}^{*} Λ^{d} T^{*} B))$ . Then, the virtual power expended by f is given by

f (v) = σ (j^{1} v) = \int_{B} s \circ (j^{1} v) .

(17)

5.3. Traction stresses

In classical formulations of continuum mechanics in a Euclidean space, the stress object plays two important roles: it determines the traction fields on sub-bodies via the Cauchy formula, and it acts on velocity jets to produce power. For continuous stresses on manifolds, two distinct objects play these two roles.

The variational stress, as its name suggests, produces power when it acts on velocity jets. The object that determines the traction fields on the boundaries of sub-bodies will be referred to as traction stress (see Segev [47], where it is referred to as the Cauchy stress, and Segev [48], for the case of a trivial bundle).

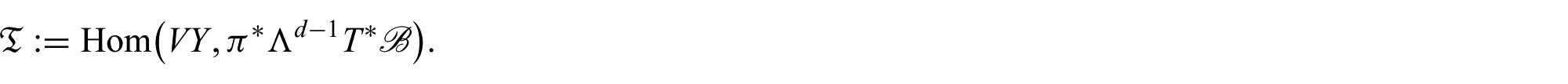

Definition 11. The bundle of traction stress densities is

T : = Hom (V Y, π^{*} Λ^{d - 1} T^{*} B) .

It is a vector bundle over Y, with a projection that we denote by $π_{T} : T \to Y$ . For $κ \in Q$ ,

κ^{*} T = Hom (κ^{*} V Y, Λ^{d - 1} T^{*} B)

is the bundle of traction stresses along κ; it is a vector bundle over $B$ .

Definition 12. A traction stress density field at κ is a continuous section of the bundle of traction stress densities along κ,

τ \in C^{0} (κ^{*} T) = C^{0} (Hom (κ^{*} V Y, Λ^{d - 1} T^{*} B)) .

One would like to restrict traction stress density fields to co-dimension-1 submanifolds of $B$ , in particular, to the boundary of $B$ . Consider, therefore, an embedded $(d - 1)$ -dimensional, oriented submanifold $V \subset B$ with the inclusion $ι_{V} : V \to B$ . We denote by $Y |_{V}$ the restriction of the fiber bundle Y to $V$ . Formally,

Y |_{V} : = {(ι_{V})}^{*} Y and π |_{V} : = {(ι_{V})}^{*} π : Y |_{V} \to V .

Let $(E, π_{E}, Y)$ be a vector bundle over Y (in the following, E will represent the vector bundles $T$ and VY). One can restrict E to $V$ by pulling E back over $Y |_{V}$ using the map $π^{*} ι_{V}$ to obtain the bundle $E |_{V} : = {(π^{*} ι_{V})}^{*} E$ with the corresponding projection,

π_{E} |_{V} = {(π^{*} ι_{V})}^{*} π_{E} : E |_{V} \to Y |_{V};

the construction is illustrated in the diagram

Equipped with this notation scheme,

\begin{matrix} T |_{V} = {(π^{*} ι_{V})}^{*} T \\ = Hom ({(π^{*} ι_{V})}^{*} V Y, {(π^{*} ι_{V})}^{*} π^{*} (Λ^{d - 1} T^{*} B)) \\ = Hom (V Y |_{V}, (π^{*} Λ^{d - 1} T^{*} B) |_{V}), \end{matrix}

(18)

the bundle $T |_{V}$ is the bundle of traction stress densities restricted to $V$ , which nonetheless act on any $(d - 1)$ -tuple of vectors in $T B$ ; it is a vector bundle over $Y |_{V}$ .

The inclusion $ι_{V} : V \to B$ induces a restriction

{(d ι_{V})}^{*} : ι_{V}^{*} Λ^{d - 1} T^{*} B \to Λ^{d - 1} T^{*} V

of $(d - 1)$ -forms to vectors tangent to $V$ . It follows that

\begin{matrix} {(π |_{V})}^{*} {(d ι_{V})}^{*} : {(π |_{V})}^{*} ι_{V}^{*} Λ^{d - 1} T^{*} B \to {(π |_{V})}^{*} Λ^{d - 1} T^{*} V \\ : π^{*} Λ^{d - 1} T^{*} B |_{V} \to {(π |_{V})}^{*} Λ^{d - 1} T^{*} V . \end{matrix}

Composition with the latter defines a vector bundle morphism over $Y |_{V}$ :

C_{V} : T | V \to Hom (V Y |_{V}, {(π |_{V})}^{*} Λ^{d - 1} T^{*} V) .

The mapping $C_{V}$ is a generalization of the traditional Cauchy formula for continuum mechanics in Euclidean space, $τ \mapsto τ (n)$ , where $n$ is the unit normal to the oriented submanifold. We will therefore refer to it as the Cauchy mapping.

Let $κ \in Q$ . Denote by

κ_{V} : V \to Y |_{V}

the restriction of κ to $V$ , namely,

π^{*} ι_{V} \circ κ_{V} = κ \circ ι_{V} .

Note that for every vector bundle E over Y,

κ_{V}^{*} E |_{V} = κ_{V}^{*} {(π^{*} ι_{V})}^{*} E = ι_{V}^{*} κ^{*} E = (κ^{*} E) |_{V} .

Let τ be a traction stress field at κ. Then, $ι_{V}^{*} τ$ is a section of ${(κ \circ ι_{V})}^{*} T$ , where

\begin{matrix} {(κ \circ ι_{V})}^{*} T ≃ Hom ((κ \circ ι_{V})^{*} V Y, ι_{V}^{*} Λ^{d - 1} T^{*} B) \\ ≃ Hom (κ^{*} V Y |_{V}, Λ^{d - 1} T^{*} B |_{V}), \end{matrix}

and we write $κ^{*} V Y |_{V}$ , rather than $(κ^{*} V Y) |_{V}$ , as no ambiguity should arise. Moreover, by equation (18),

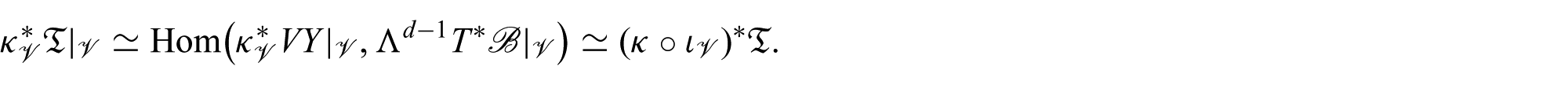

κ_{V}^{*} T |_{V} ≃ Hom (κ_{V}^{*} V Y |_{V}, Λ^{d - 1} T^{*} B |_{V}) ≃ {(κ \circ ι_{V})}^{*} T .

We may therefore apply the pullback of the Cauchy mapping $κ_{V}^{*} C_{V}$ on $ι_{V}^{*} τ$ to obtain a section

t : = (κ_{V}^{*} C_{V}) (ι_{V}^{*} τ) \in C^{0} (Hom (κ^{*} V Y |_{V}, Λ^{d - 1} T^{*} V)) .

In particular, for the case $V = \partial B$ , a traction stress density field τ at κ induces, via the Cauchy mapping, a surface force density field at κ, that is, a vector bundle morphism

t = (κ_{\partial B}^{*} C_{\partial B}) (ι_{\partial B}^{*} τ) \in C^{0} (Hom (κ^{*} V Y |_{\partial B}, Λ^{d - 1} T^{*} \partial B)) .

To simplify the notation, we define the morphism

C_{\partial B, κ} : C^{0} (Hom (κ^{*} V Y, Λ^{d - 1} T^{*} B)) \to C^{0} (Hom (κ^{*} V Y |_{\partial B}, Λ^{d - 1} T^{*} \partial B))

τ \mapsto (κ_{\partial B}^{*} C_{\partial B}) (ι_{\partial B}^{*} τ)

so that

t = C_{\partial B, κ} (τ) .

Thus, $C_{\partial B, κ}$ is the Cauchy mapping along κ. These formal definitions simply imply that

t \circ v |_{\partial B} = C_{\partial B, κ} (τ) \circ v |_{\partial B} = ι_{\partial B}^{♯} (τ |_{\partial B} \circ v |_{\partial B}) .

(19)

5.4. The traction stress induced by a variational stress density

The variational stress uniquely determines the traction stress, but the converse does not hold. This section introduces the construction of the traction stress from the variational stress for the fiber bundle setting.

The vector bundle $V π^{1, 0}$ is a sub-bundle of $V J^{1} Y$ . Its elements are represented by paths in $J^{1} Y$ that are vertical over Y along the fibers of $π^{1, 0}$ . The fiber bundle $(J^{1} Y, π^{1, 0}, Y)$ is an affine bundle modeled on the vector bundle [39]

π^{*} T^{*} B \otimes_{Y} V Y .

Consequently,

V π^{1, 0} ≃ (π^{1})^{*} T^{*} B \otimes_{J^{1} Y} {(π^{1, 0})}^{*} V Y ≃ Hom ((π^{1})^{*} T B, (π^{1, 0})^{*} V Y) .

The inclusion $I : V π^{1, 0} ↪ V J^{1} Y$ induces a restriction

I^{*} : S \to Hom (V π^{1, 0}, (π^{1})^{*} Λ^{d} T * B),

defined by

s \mapsto s \circ I .

In view of the isomorphism

Hom (V π^{1, 0}, (π^{1})^{*} Λ^{d} T * B) ≃ (π^{1, 0})^{*} (π^{*} T B \otimes_{Y} {(V Y)}^{*} \otimes_{Y} π^{*} Λ^{d} T * B),

we define

ℂ : Hom (V π^{1, 0}, (π^{1})^{*} Λ^{d} T * B) \to (π^{1, 0})^{*} ({(V Y)}^{*} \otimes_{Y} π^{*} Λ^{d - 1} T^{*} B) ≃ (π^{1, 0})^{*} T

to be the contraction of the third and first factors in the product, namely,

ℂ (v \otimes φ \otimes θ) = φ \otimes (v ⌟ θ) .

Note that ℂ is a vector bundle morphism over $J^{1} Y$ .

Next, define

P : S \to (π^{1, 0})^{*} T,

a vector bundle morphism over $J^{1} Y$ , by

P = ℂ \circ I^{*} .

(20)

For $κ \in Q$ ,

P_{κ} : = (j^{1} κ)^{*} P : (j^{1} κ)^{*} S \to κ^{*} T

maps variational stress densities at $j^{1} κ$ to traction stress densities at κ. It follows that composition with $P_{κ}$ maps variational stress density fields along $j^{1} κ$ to traction stress fields along κ.

An element of ${(j^{1} κ)}^{*} S$ at p is of the form

s_{p} = (a_{i} {dx}_{J^{1} Y}^{i} |_{j_{p}^{1} κ} + a_{i}^{α} ({dx}_{J^{1} Y})_{α}^{i} |_{j_{p}^{1} κ}) \otimes d X_{p},

where

d X = {dx}_{B}^{1} \land \dots \land {dx}_{B}^{d} .

Its restriction to ${(V π^{1, 0})}_{j_{p}^{1} κ}$ , it can be written as

a_{i}^{α} \partial_{α}^{B} |_{p} \otimes {dx}_{Y}^{i} |_{κ_{p}} \otimes d X_{p} .

Then

P_{κ} (s_{p}) = a_{i}^{α} {dx}_{Y}^{i} |_{κ_{p}} \otimes {(\partial_{α}^{B} ⌟ d X)}_{p} .

Thus, for a variational stress density at $j^{1} κ$ given locally by

s = (s_{i} (j^{1} κ)^{*} {dx}_{J^{1} Y}^{i} + s_{i}^{α} (j^{1} κ)^{*} ({dx}_{J^{1} Y})_{α}^{i}) \otimes d X,

we have

P_{κ} \circ s = s_{i}^{α} κ^{*} {dx}_{Y}^{i} \otimes (\partial_{α}^{B} ⌟ d X) .

5.5. The exterior jet of a differentiable traction stress density

Recall the definition of a linear differential operator [40].

Definition 13. Let $(E, π_{E}, M)$ and $(F, π_{F}, M)$ be vector bundles over the same base manifold M. A linear map $D : C^{k} (E) \to C^{k - 1} (F)$ is called a first-order linear differential operator from E to F if there exists a vector bundle morphism $\tilde{D} \in L (J^{1} E, F)$ , such that

D (s) = \tilde{D} \circ j^{1} s, \forall s \in C^{k} (E) .

Note that $J^{1} E$ is a vector bundle over M only if E is a vector bundle. We will refer to $\tilde{D}$ as the morphism associated with D.

For convenience, we recall the definitions of the following vector bundles:

\begin{matrix} body force densities & B & = Hom (V Y, π^{*} Λ^{d} T * B), \\ surface force densities & T & = Hom (V Y |_{\partial B}, (π |_{\partial B})^{*} Λ^{d - 1} T^{*} \partial B), \\ variational stress densities & S & = Hom (V J^{1} Y, (π^{1})^{*} Λ^{d} T * B), \\ traction stress densities & T & = Hom (V Y, π^{*} Λ^{d - 1} T^{*} B) . \end{matrix}

Each of these bundles can be pulled back with either κ or $j^{1} κ$ ; sections of the pullback bundles are referred to as fields along κ.

Definition 14. Let $κ \in Q$ . The exterior jet differential operator along κ,

d_{κ} : C^{1} (κ^{*} T) \to C^{0} ((j^{1} κ)^{*} S),

is defined as follows. Let $τ \in C^{1} (κ^{*} T)$ be a traction stress density field along κ. Then, for all $v \in C^{1} (κ^{*} V Y),$

(d_{κ} τ) \circ j^{1} v = d (τ \circ v) .

Proposition 3. $d_{κ}$ is a well-defined first-order linear differential operator.

Proof. In local coordinates, a traction stress density field along κ takes the form

τ = τ_{i}^{α} κ^{*} {dx}_{Y}^{i} \otimes (\partial_{α}^{B} ⌟ d X) .

A velocity at κ is given locally by

v = v^{i} κ^{*} \partial_{i}^{Y};

hence,

τ \circ v = τ_{i}^{α} v^{i} (\partial_{α}^{B} ⌟ d X) .

Taking the exterior derivative

d (τ \circ v) = ((\partial_{α}^{B} τ_{i}^{α}) v^{i} + τ_{i}^{α} (\partial_{α}^{B} v^{i})) d X .

By the local expression (equation (12)) for $j^{1} v$ , it follows that

d_{κ} τ = ((\partial_{α}^{B} τ_{i}^{α}) (j^{1} κ)^{*} {dx}_{J^{1} Y}^{i} + τ_{i}^{α} (j^{1} κ)^{*} ({dx}_{J^{1} Y})_{α}^{i}) \otimes d X

satisfies the defining property of $d_{κ} τ$ and depends linearly on τ and its derivatives. □

5.6. The divergence of differentiable variational stress densities and the equilibrium field equations

In this section, we define the divergence differential operator for differentiable variational stress densities. The divergence operator enables one to transform the weak form of the compatibility condition between continuous forces and stresses to a strong form of the equilibrium differential equation. For the rest of this section, we restrict ourselves to C² -configurations and C¹ -stress density fields.

Proposition 4. Letκ be a C² -configuration. There exists a first-order linear differential operator mapping differentiable variational stress density fields along $j^{1} κ$ into continuous body force density fields along κ,

{div}_{κ} : C^{1} ((j^{1} κ)^{*} S) \to C^{0} (κ^{*} B),

satisfying for every variational stress density field $s \in C^{1} ({(j^{1} κ)}^{*} S)$ and virtual velocity $v \in C^{1} (κ^{*} V Y)$ ,

({div}_{κ} s) \circ v = d_{κ} (P_{κ} \circ s) \circ j^{1} v - s \circ j^{1} v .

(21)

Proof. Using coordinates, a variational stress density field has a local representation in the form

s = (s_{i} (j^{1} κ)^{*} {dx}_{J^{1} Y}^{i} + s_{i}^{α} (j^{1} κ)^{*} {({dx}_{J^{1} Y})}_{α}^{i}) \otimes d X,

and a velocity has a local representation

v = v^{i} κ^{*} \partial_{i}^{Y} .

By equation (12),

s \circ j^{1} v = (s_{i} v^{i} + s_{i}^{α} (\partial_{α}^{B} v^{i})) d X .

In addition,

P_{κ} \circ s = s_{i}^{α} κ^{*} {dx}_{Y}^{i} \otimes (\partial_{α}^{B} ⌟ d X),

and

d_{κ} (P_{κ} \circ s) \circ j^{1} v = ((\partial_{α}^{B} s_{i}^{α}) v^{i} + s_{i}^{α} (\partial_{α}^{B} v^{i})) d X .

Subtracting, we obtain that

({div}_{κ} s) \circ v = ((\partial_{α}^{B} s_{i}^{α}) v^{i} - s_{i} v^{i}) d X .

That is,

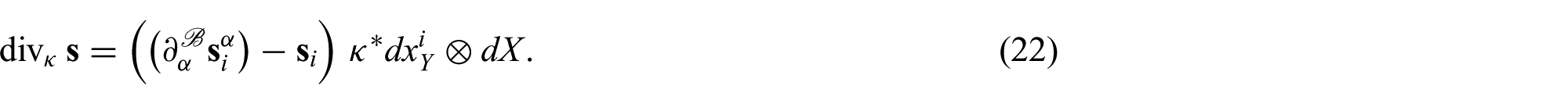

{div}_{κ} s = ((\partial_{α}^{B} s_{i}^{α}) - s_{i}) κ^{*} {dx}_{Y}^{i} \otimes d X .

(22)

□

Consider now a continuous force $f \in T_{κ}^{*} Q$ , given by

f (v) = \int_{B} b \circ v + \int_{\partial B} t \circ v |_{\partial B},

where $b \in C^{0} (κ^{*} B)$ and $t \in C^{0} (κ_{\partial B}^{*} T)$ . Consider further a continuous stress σ represented by a variational stress density field $s \in C^{1} ({(j^{1} κ)}^{*} S)$ . Then equation (17) takes the form

\begin{matrix} f (v) = σ (j^{1} v) = \int_{B} s \circ (j^{1} v) \\ = - \int_{B} ({div}_{κ} s) \circ v + \int_{B} (d_{κ} (P_{κ} \circ s)) \circ (j^{1} v) \\ = - \int_{B} ({div}_{κ} s) \circ v + \int_{B} d ((P_{κ} \circ s) \circ v) \\ = - \int_{B} ({div}_{κ} s) \circ v + \int_{\partial B} (P_{κ} \circ s) \circ v . \end{matrix}

We conclude that f is represented by a variational stress density field $s$ if, for every $v \in C^{1} (κ^{*} V Y),$

\int_{B} b \circ v + \int_{\partial B} t \circ v |_{\partial B} = - \int_{B} ({div}_{κ} s) \circ v + \int_{\partial B} (P_{κ} \circ s) \circ v .

It is observed that while the restriction of the various terms in the integrand $(P_{κ} \circ s) \circ v$ to $\partial B$ and to vectors tangent to $\partial B$ is implied in integration theory, formally, in view of equation (19) we write the integrand as $C_{\partial B, κ} (P_{κ} \circ s) \circ v$ . Thus, since equality holds for every v, we obtain

{div}_{κ} s + b = 0 on B and t = C_{\partial B, κ} (P_{κ} \circ s) on \partial B .

(23)

In coordinates, equation (23) transforms to an underdetermined set of d equations for the $(d m + m)$ components of $s$ .

Note that this proposition holds if the vector bundle $κ^{*} V Y \to B$ is replaced by an arbitrary vector bundle $ρ : W \to B$ , in which case $d iv : L (J^{1} ρ, Λ^{d} T * B) \to L (W, Λ^{d} T * B)$ , which is compatible with Segev [47].

6. The continuum mechanics problem

It is well known that a given force distribution does not determine a unique stress distribution. The source of this non-uniqueness may be traced back to Section 5.1. A unique stress field is determined when additional information in the form of a constitutive relation is provided. This couples the statics problem described previously with the kinematics of the body. The basic notions corresponding to the introduction of constitutive relations are discussed in this section.

Generally, the continuum mechanics problem takes the following form: the system under consideration is subject to external forces, usually dictated by a loading, which is an assignment of a force to every admissible configuration. A loading may consist of a body force component and a surface force component, and it may be singular or continuous. By analogy, a constitutive relation assigns stresses, regular or singular, to deformation jets, in particular, to jets of configurations. The continuum mechanics problem seeks a configuration κ, such that the stress associated through the constitutive relation with $j^{1} κ$ represents the force assigned by the loading to κ.

6.1. Loadings

Definition 15. A loading, F, is a one-form on the configuration space assigning a force $F_{κ} \in T_{κ}^{*} Q$ to every configuration $κ \in Q$ .

Definition 5 of continuous forces extends to a definition of continuous loadings.

Definition 16. A loading F is termed continuous if there exists a body loading density

B \in C^{0} (π_{B}),

and a surface loading density

T \in C^{0} (π_{T}),

such that for every $κ \in Q$ and $v \in T_{κ} Q ≃ C^{1} (κ^{*} V Y),$

F_{κ} (v) = \int_{B} κ^{*} B \circ v + \int_{\partial B} κ_{\partial B}^{*} T \circ v |_{\partial B},

That is, $F_{κ}$ is continuous with body force density field $κ^{*} B \in C^{0} (κ^{*} B)$ and surface force density field $κ_{\partial B}^{*} T \in C^{0} (κ_{\partial B}^{*} T)$ .

Note that, by our conventions, we write $C^{0} (π_{B})$ rather than $C^{0} (B)$ , because $B$ has multiple bundle structures, and the domain of those sections is not the base manifold, $B$ .

A body loading density has local representation

B = B_{i} {dx}_{Y}^{i} \otimes_{Y} π^{*} d X,

where $B_{i}$ are real-valued continuous functions defined locally on Y.

Assume that the chart X is adapted to $\partial B$ so that $(X^{1}, \dots, X^{d - 1})$ is a chart on $\partial B$ and $\partial_{d}^{B}$ is transversal to $T \partial B$ . Then, one has a volume element $\partial_{d}^{B} ⌟ d X$ on $\partial B$ and, locally,

T = T_{i} {dx}_{Y}^{i} \otimes_{Y |_{\partial B}} π |_{\partial B}^{*} (\partial_{d}^{B} ⌟ d X),

where $T_{i}$ are continuous functions defined locally on $Y |_{\partial B}$ . Let

v = v^{i} κ^{*} \partial_{i}^{Y}

be a local representation of a velocity at κ. As

κ^{*} B = (κ^{*} B_{i}) κ^{*} {dx}_{Y}^{i} \otimes_{B} d X and κ_{\partial B}^{*} T = κ_{\partial B}^{*} T_{i} κ_{\partial B}^{*} {dx}_{Y}^{i} \otimes_{\partial B} (\partial_{d}^{B} ⌟ d X) .

we have the local expression,

(κ^{*} B) \circ v = v^{i} (κ^{*} B_{i}) d X, κ_{\partial B}^{*} T \circ (v_{\partial B}) = v^{i} κ_{\partial B}^{*} T_{i} (\partial_{d}^{B} ⌟ d X) .

If the support of v may be covered by a single chart, we may write $F_{κ}$ explicitly:

F_{κ} (v) = \int_{B} v^{i} (κ^{*} B_{i}) d X + \int_{\partial B} v^{i} (κ_{\partial B}^{*} T_{i}) (\partial_{d}^{B} ⌟ d X) .

Definition 17. A loading F is termed conservative if

F = - d W,

for some loading potential,

W \in C^{1} (Q) .

Definition 18. A conservative loading is continuous if there exists a body loading potential density, which is a $C^{1}$ -section,

w_{B} : Y \to π^{*} Λ^{d} T * B,

(24)

and a boundary loading potential density, which is a $C^{1}$ -section,

w_{\partial B} : Y |_{\partial B} \to {(π |_{\partial B})}^{*} Λ^{d - 1} T^{*} \partial B,

(25)

such that the loading potential is given by

W (κ) = \int_{B} κ^{*} w_{B} + \int_{\partial B} κ_{\partial B}^{*} w_{\partial B}

(see diagrams).

Proposition 5. Consider a continuous conservative loading F, the potential function of which is given by a body loading potential density $w_{B}$ and boundary loading potential $w_{\partial B}$ . Then F is a continuous loading with corresponding loading densities

B = - d w_{B} |_{V Y}, T = - d w_{\partial B} |_{V Y |_{\partial B}} .

Proof. First, we should verify that this relation is well-defined type-wise. By the types (equations (24) and (25)) of $w_{B}$ and $w_{\partial B}$ , it follows that

\begin{matrix} d w_{B} \in C^{0} (Hom (TY, w_{B}^{*} T (π^{*} Λ^{d} T * B))), \\ d w_{\partial B} \in C^{0} (Hom (TY |_{\partial B}, w_{\partial B}^{*} T ((π |_{\partial B})^{*} Λ^{d - 1} T^{*} \partial B))) . \end{matrix}

Restricting ourselves to the vertical bundle,

\begin{matrix} d w_{B} |_{V Y} \in C^{0} (Hom (V Y, w_{B}^{*} V (π^{*} Λ^{d} τ_{B}^{*}))) \\ d w_{\partial B} |_{V Y |_{\partial B}} \in C^{0} (Hom (V Y |_{\partial B}, w_{\partial B}^{*} V ({(π |_{\partial B})}^{*} Λ^{d - 1} τ_{\partial B}^{*}))) . \end{matrix}

For every vector bundle $(E, π_{E}, Y)$ , section $w : Y \to E$ and $a \in Y$ ,

{(w^{*} V π_{E})}_{a} ≃ {(V π_{E})}_{w(a)} ≃ E_{a} .

In other words, $w^{*} V π_{E} ≃ E$ , so

\begin{matrix} Hom (V Y, w_{B}^{*} V (π^{*} Λ^{d} τ_{B}^{*})) ≃ Hom (V Y, π^{*} Λ^{d} T * B), \\ Hom (V Y |_{\partial B}, w_{\partial B}^{*} V ({(π |_{\partial B})}^{*} Λ^{d - 1} τ_{\partial B}^{*})) ≃ Hom (V Y |_{\partial B}, {(π |_{\partial B})}^{*} Λ^{d - 1} T^{*} \partial B), \end{matrix}

thus, $d w |_{V Y}$ and $d w_{\partial B} |_{V Y |_{\partial B}}$ are indeed loading densities.

It remains to be shown that $d w_{B} |_{V Y}$ and $d w_{\partial B} |_{V Y |_{\partial B}}$ are the loading densities corresponding to $F = - d W$ . By definition, for $v \in T_{κ} Q ≃ C^{1} (κ^{*} V Y),$

d W_{κ} (v) = {\frac{d}{d t} |}_{0} W ° γ,

where $γ : I \to Q$ satisfies $γ (0) = κ$ and $\overset{°}{γ} (0) = v$ . Substituting the representation of W in terms of a density,

\begin{array}{l} d W_{κ} (v) = {\frac{d}{d t} |}_{0} [\int_{B} {(γ (t))}^{*} w_{B} + \int_{\partial B} {(γ {(t)}_{\partial B})}^{*} w_{\partial B}], \\ = \int_{B} {\frac{d}{d t} |}_{0} (γ (t))^{*} w_{B} + \int_{\partial B} {\frac{d}{d t} |}_{0} (γ (t)_{\partial B})^{*} w_{\partial B}, \end{array}

where the derivatives ${\frac{d}{dt}|}_{0} {(γ (t))}^{*} w_{B}$ and ${\frac{d}{dt}|}_{0} {(γ {(t)}_{\partial B})}^{*} w_{\partial B}$ are taken pointwise in $B$ and $\partial B$ , respectively.

It follows from the chain rule and the definition of γ that

{\frac{d}{dt}|}_{0} {({(γ (t))}^{*} w_{B})}_{p} = {(d w_{B})}_{κ_{p}} \circ {(\overset{°}{γ} (0))}_{p} = {(κ^{*} d w_{B} |_{V Y} \circ v)}_{p},

and

{\frac{d}{dt}|}_{0} {({(γ {(t)}_{\partial B})}^{*} w_{\partial B})}_{q} = {(d w_{\partial B})}_{κ_{q}} \circ {(\overset{°}{γ} (0))}_{q} = {({(κ_{\partial B})}^{*} d w_{\partial B} |_{V Y |_{\partial B}} \circ v)}_{q} .

Thus,

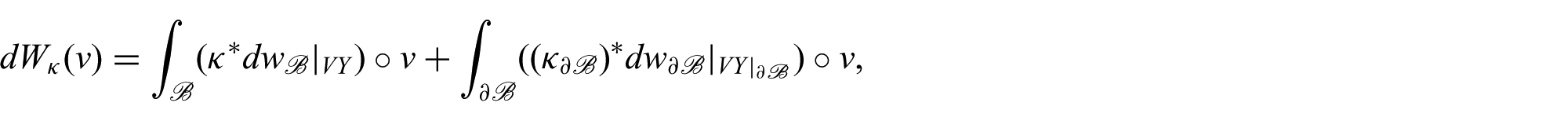

d W_{κ} (v) = \int_{B} (κ^{*} d w_{B} |_{V Y}) \circ v + \int_{\partial B} ({(κ_{\partial B})}^{*} d w_{\partial B} |_{V Y |_{\partial B}}) \circ v,

which completes the proof. □

In a local coordinate frame, a loading potential density takes the form

w_{B} = ω_{B} π^{*} d X and w_{\partial B} = ω_{\partial B} π |_{\partial B}^{*} (\partial_{d}^{B} ⌟ d X) .

where $ω_{B}$ and $ω_{\partial B}$ are differentiable functions defined on the domains of the adapted charts on $B$ and $\partial B$ , respectively. Since the exterior derivatives of the volume elements vanish identically, the loading densities are given locally by

B = - \partial_{i} ω_{B} {dx}_{Y}^{i} \otimes_{Y} π^{*} d X, T = - \partial_{i} ω_{\partial B} {dx}_{Y}^{i} \otimes_{Y |_{\partial B}} π |_{\partial B}^{*} (\partial_{d}^{B} ⌟ d X) .

6.2. Constitutive relations

All the notions analyzed so far—configurations, velocities, forces, deformation jets, and stresses—pertain to a particular theory depending on the choice of configuration space. Within a particular theory, the properties of a system are prescribed using a constitutive relation, associating the state-of-stress with the kinematics.

It is noted that since our base space $B$ may be interpreted naturally as physical space–time, constitutive relations may involve time even in cases where it is not explicitly indicated.

Definition 19. A constitutive relation is a one-form $Ψ : E \to T^{*} E$ on the manifold of deformation jets, assigning a stress $Ψ_{ξ} \in T_{ξ}^{*} E$ to every deformation jet $ξ \in E$ .

Since $j^{1} : Q \to E$ is injective, a constitutive relation Ψ induces a loading

{(j^{1})}^{♯} Ψ : Q \to T^{*} Q .

By the definition of the pullback of forms, for $v \in T_{κ} Q$ ,

((j^{1})^{♯} Ψ)_{κ} (v) = ((j^{1})^{*} Ψ)_{κ} (j^{1} v) = Ψ_{j^{1} κ} (j^{1} v),

where, in the first identity, we identified, as before, $d j^{1} (v)$ with $j^{1} v$ .

We note that, at this level of generality, and interpreting $B$ as space–time, this, seemingly elastic constitutive relation, is actually non-local, time dependent, and not necessarily causal.

The definition of continuous stresses extends readily to a definition of $C^{k}$ -differentiable constitutive relations.

Definition 20. A constitutive relation $Ψ : E \to T^{*} E$ is termed $C^{k}$ -differentiable, $k = 0, 1, \dots$ , if there exists a constitutive density, a differentiable section,

ψ \in C^{k} (π_{S}),

such that for every deformation jet $ξ \in E$ and for every velocity jet η at ξ,

Ψ_{ξ} (η) = \int_{B} (ξ^{*} ψ) \circ η .

In the case of a differentiable constitutive relation, the induced loading is given by

((j^{1})^{♯} Ψ)_{κ} (v) = Ψ_{j^{1} κ} (j^{1} v) = \int_{B} ((j^{1} κ)^{*} ψ) \circ (j^{1} v), v \in T_{κ} Q .

We note that a differentiable constitutive relation is local and elastic in the sense that the stress at a point depends only on the deformation jet at that point. Again, we mention that for the case where $B$ is interpreted as space–time or body–time, ξ contains components that may reflect velocities. However, history dependence is excluded.

In coordinates, a constitutive density is represented locally as

ψ = (ψ_{i} {dx}_{J^{1} Y}^{i} + ψ_{i}^{α} ({dx}_{J^{1} Y})_{α}^{i}) \otimes_{J^{1} Y} (π^{1})^{*} d X,

where $ψ_{i}, ψ_{i}^{α}$ are $C^{k}$ over the domain of a chart in $J^{1} Y$ .

6.3. The continuum mechanics equations

Given a constitutive relation Ψ and a loading F, the continuum mechanics problem seeks a configuration for which the stress determined by the constitutive relation represents the loading for that configuration. Thus, the condition is expressed by

{(j^{1})}^{♯} Ψ = F .

(26)

Explicitly, a configuration $κ \in Q$ is a solution of equation (26) if, for every virtual velocity v at κ,

Ψ_{j^{1} κ} (j^{1} v) = F_{κ} (v) .

6.4. The differential form of the continuum mechanics equations

Consider the continuum mechanics problem in the case of a $C^{k}$ -constitutive density $ψ$ and a continuous loading with densities $B$ and $T$ . A configuration $κ \in Q$ , which solves the continuum mechanics problem satisfies

\int_{B} (j^{1} κ)^{*} ψ \circ j^{1} v = \int_{B} κ^{*} B \circ v + \int_{\partial B} κ_{\partial B}^{*} T \circ (v |_{\partial B})

(27)

for every velocity field $v \in T_{κ} Q ≃ C^{1} (κ^{*} V Y) .$

In view of the definition of the divergence, restricting ourselves to C² -configurations and C¹ constitutive densities, we can rewrite these equations as follows:

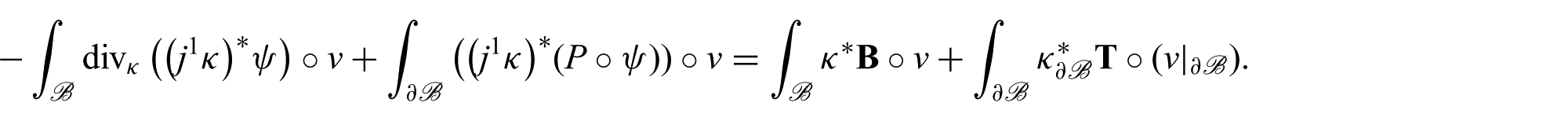

- \int_{B} {div}_{κ} ((j^{1} κ)^{*} ψ) \circ v + \int_{\partial B} ((j^{1} κ)^{*} (P \circ ψ)) \circ v = \int_{B} κ^{*} B \circ v + \int_{\partial B} κ_{\partial B}^{*} T \circ (v |_{\partial B}) .

Since this holds for every virtual velocity v, we obtain a boundary-value problem

\begin{matrix} {div}_{κ} ((j^{1} κ)^{*} ψ) + κ^{*} B & = 0, & in B, \\ C_{\partial B, κ} \circ ((j^{1} κ)^{*} (P \circ ψ)) & = κ_{\partial B}^{*} T, & on \partial B . \end{matrix}

Let the loading densities and the constitutive density be given locally by

B = B_{i} {dx}_{Y}^{i} \otimes_{Y} π^{*} d X, T = T_{i} {dx}_{Y}^{i} \otimes_{Y |_{\partial B}} π |_{\partial B}^{*} (\partial_{d}^{B} ⌟ d X),

and

ψ = (ψ_{i} {dx}_{J^{1} Y}^{i} + ψ_{i}^{α} ({dx}_{J^{1} Y})_{α}^{i}) \otimes_{J^{1} Y} {(π^{1})}^{*} d X .

Then

κ^{*} B = (κ^{*} B_{i}) κ^{*} {dx}_{Y}^{i} \otimes_{X} d X, κ_{\partial B}^{*} T = {(κ |_{\partial B})}^{*} T_{i} {(κ |_{\partial B})}^{*} {dx}_{Y}^{i} \otimes_{\partial B} (\partial_{d}^{B} ⌟ d X)

and

(j^{1} κ)^{*} ψ = (((j^{1} κ)^{*} ψ_{i}) (j^{1} κ)^{*} {dx}_{J^{1} Y}^{i} + ((j^{1} κ)^{*} ψ_{i}^{α}) (j^{1} κ)^{*} ({dx}_{J^{1} Y})_{α}^{i}) \otimes_{J^{1} Y} dX .

It follows from the local expressions derived in Sections 5.4 and 5.6 that

(j^{1} κ)^{*} (P \circ ψ) = ((j^{1} κ)^{*} ψ_{i}^{α}) κ^{*} d x_{Y}^{i} \otimes (\partial_{α}^{B} ⌟ d X),

and

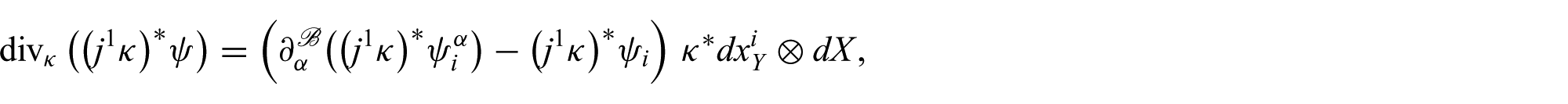

{div}_{κ} ((j^{1} κ)^{*} ψ) = (\partial_{α}^{B} ((j^{1} κ)^{*} ψ_{i}^{α}) - (j^{1} κ)^{*} ψ_{i}) κ^{*} {dx}_{Y}^{i} \otimes d X,

so that the field equation is

\partial_{α}^{B} ((j^{1} κ)^{*} ψ_{i}^{α}) - (j^{1} κ)^{*} ψ_{i} + κ^{*} B_{i} = 0 .

Since

ι_{\partial B}^{♯} (\partial_{α}^{B} ⌟ d X) = \{\begin{matrix} 0, & for α \neq d, \\ \partial_{d}^{B} ⌟ dX, & for α = d, \end{matrix}

(28)

the boundary conditions are

(j^{1} κ)^{*} ψ_{i}^{d} = {(κ |_{\partial B})}^{*} T_{i} .

6.5. Conservative constitutive relations

Definition 21. A constitutive relation is referred to as conservative, if there exists an energy function

U \in C^{1} (E),

such that the constitutive relation is given by

Ψ = d U .

Consider a conservative system with energy function U, subject to a conservative loading F = −dW. Then, the equilibrium equations are

\begin{matrix} {(j^{1})}^{♯} Ψ - F = {(j^{1})}^{*} Ψ \circ d j^{1} - F \\ = {(j^{1})}^{*} d U \circ d j^{1} + d W \\ = d (U \circ j^{1} + W) = 0, \end{matrix}

where we used the commutativity of external derivatives and pullbacks. Thus, the solution is a critical point of the total energy,

U \circ j^{1} + W .

(29)

Definition 22. A conservative constitutive relation is said to be differentiable if there exists a Lagrangian density form, a C² -section

L : J^{1} Y \to (π^{1})^{*} Λ^{d} T * B,

such that the energy function is of the form

U (ξ) = \int_{B} ξ^{*} L .

Evidently, differentiable conservative constitutive relations generalize hyperelastic constitutive relations to the setting considered in this paper.

Proposition 6. Consider a differentiable constitutive relation with a Lagrangian density $L$ . The resulting constitutive relation is C¹ with a constitutive density

ψ = d L |_{V J^{1} Y} .

(30)

Equation (30) is a generalization of the classical relation between the stress and the derivative of the elastic energy density.

Proof. By definition, for $η \in T_{j^{1} κ} E ≃ C^{0} ({(j^{1} κ)}^{*} V J^{1} Y)$ ,

d U_{j^{1} κ} (η) = {\frac{d}{d t} |}_{0} U (γ (t)),

where $γ : I \to E$ satisfies $γ (0) = j^{1} κ$ and $\overset{°}{γ} (0) = η$ . Substituting the representation of U in terms of a density,

{dU}_{j^{1} κ} (η) = \frac{d}{dt} |_{0} \int_{B} (γ (t))^{*} L = \int_{B} \frac{d}{dt} |_{0} (γ (t))^{*} L,

where the derivative $\frac{d}{dt} |_{0} (γ (t))^{*} L$ is taken pointwise at every $p \in B$ . It follows from the chain rule and the definitions of γ and η that

\frac{d}{dt} |_{0} (γ (t))^{*} L)_{p} = d L_{j_{p}^{1} κ} \circ (\overset{°}{γ} (0))_{p} = (d L |_{{VJ}^{1} Y})_{j_{p}^{1} κ} \circ η_{p},

i.e.,

{dU}_{j^{1} κ} (η) = \int_{B} ((j^{1} κ)^{*} d L |_{{V J}^{1} Y}) \circ η,

which completes the proof. □

Using a coordinate frame, a Lagrangian density is of the form

L = L (π^{1})^{*} d X,

where $L \in C^{\infty} (J^{1} Y)$ . Then

ψ = ((\partial_{i}^{j^{1} Y} L) d x_{j^{1} Y}^{i} + ((\partial^{j^{1} Y})_{i}^{α} L) (d x_{j^{1} Y})_{α}^{i}) \otimes_{J^{1} Y} (π^{1})^{*} d X .

It follows that

ψ_{i} = \partial_{i}^{j^{1} Y} L and ψ_{i}^{α} = (\partial^{j^{1} Y})_{i}^{α} L .

7. Some special cases

We present here a number of examples where the general settings assume particularly useful forms.

7.1. Vector bundles

Consider the case where $(Y, π, B)$ is a vector bundle. By the natural isomorphism $T_{w} W ≃ W$ for any vector space $W$ , it follows that

(V Y)_{y} ≃ T_{y} (Y_{π (y)}) ≃ Y_{π (y)}, for all y \in Y .

(31)

Hence, for $p \in B$ ,

(κ^{*} V Y)_{p} ≃ (V Y)_{κ (p)} ≃ Y_{π (κ (p))} = Y_{p},

i.e.,

κ^{*} V π ≃ Y,

(32)

independently of κ. As such, this theory may be referred to as linear.

Next, since $(Y, π, B)$ is a vector bundle, so is ${(J}^{1} Y, π^{1}, B)$ . Thus, in analogy, for any section $ξ : B \to J^{1} Y$ ,

ξ^{*} V J^{1} Y ≃ J^{1} Y .

(33)

7.2. Affine bundles

Consider the case where $(Y, π, B)$ is an affine bundle modeled on the vector bundle $(E, ρ, B)$ [39]. It is implied that, for every $y \in Y$ ,

{(V Y)}_{y} {≃ T}_{y} {(Y}_{π (y)}) ≃ E_{π (y)} .

(34)

Hence,

κ^{*} V Y ≃ E,

(35)

independently of κ. Likewise, by Lemma 1,

(j^{1} κ)^{*} V J^{1} Y ≃ J^{1} (κ^{*} V Y) ≃ J^{1} E,

(36)

independently of κ.

7.3. The bundle of frames

As mentioned in the introduction, the bundle of frames plays an important role in the geometric theory of continuous distributions of dislocations. Consider the bundle of frames $(F B, π, B)$ , whose fiber at $p \in B$ is $GL (ℝ^{d}, T_{p} B$ ), the space of invertible linear mappings $ℝ^{d} \to T_{p} B$ viewed as bases (frames) in $T_{p} B$ . Since $GL (ℝ^{d}, T_{p} B)$ is an open subset of the vector space of linear mappings, $Hom (ℝ^{d}, T_{p} B)$ , $F B$ is a sub-bundle of the vector bundle, $Hom (B \times ℝ^{d}, T B)$ . We may conclude that, for any $y \in F B$ ,

(V Y)_{y} ≃ T_{y} (GL (ℝ^{d}, T_{π (y)} B)) ≃ Hom (ℝ^{d}, T_{π (y)} B)

and for any frame field $κ : B \to F B$ ,

κ^{*} V Y ≃ Hom (B \times ℝ^{d}, T B) .

(37)

Again, we may further conclude that

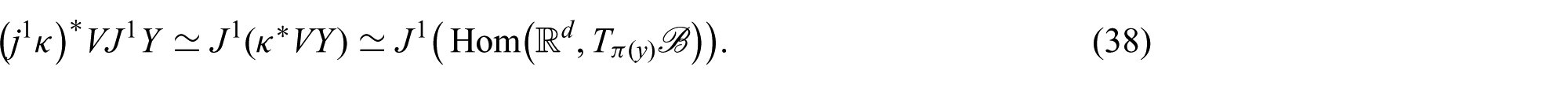

(j^{1} κ)^{*} V J^{1} Y ≃ J^{1} (κ^{*} V Y) ≃ J^{1} (Hom {(ℝ}^{d}, T_{π (y)} B)) .

(38)

7.4. Form-conjugate forces and stresses

Consider the case where $Y = Λ^{p} T^{*} B$ , where 1 ≤ p ≤ d. This is a special case of Subsection 7.1. It follows that, for any $κ \in Q$ , $κ^{*} V Y ≃ Λ^{p} T^{*} B$ and $(j^{1} κ)^{*} V J^{1} Y ≃ J^{1} (Λ^{p} T^{*} B)$ . Differentiable variational stress densities fields along $j^{1} κ$ are, therefore, sections of $Hom (J^{1} (Λ^{p} T^{*} B), Λ^{d} T^{*} B)$ and continuous traction stress density fields are sections of $Hom (Λ^{p} T^{*} B, Λ^{d - 1} T^{*} B)$ .

A particularly simple case follows when the traction stress density field $τ = P_{κ} \circ s$ is given in terms of a (d − p − 1) -differential form g by

τ \circ v = g \land v,

(39)

for any p -differential form v on $B$ . It follows that

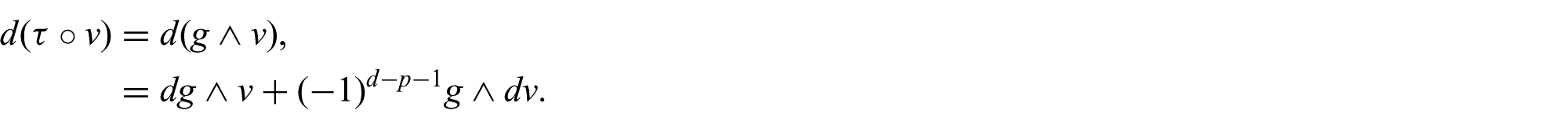

\begin{matrix} d (τ \circ v) = d (g \land v), \\ = dg \land v + (- 1)^{d - p - 1} g \land dv . \end{matrix}

Set

f = dv, J = dg .

(40)

It follows that

d f = 0, d J = 0 .

(41)

The representation of the force

\begin{matrix} \int_{B} s \circ j^{1} v = \int_{B} d ((P_{κ} \circ s) \circ v) - \int_{B} {div}_{κ} s \circ v, \\ = \int_{B} d ((P_{κ} \circ s) \circ v) + \int_{B} b \circ v, \end{matrix}

may now be written as

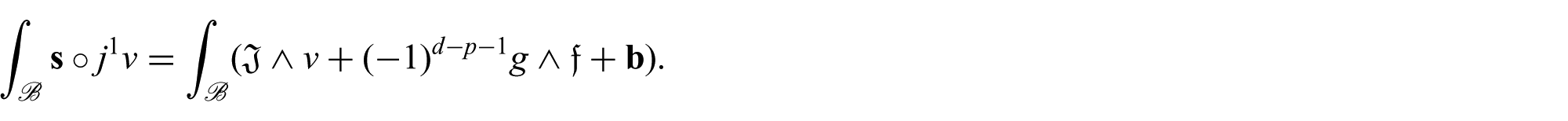

\int_{B} s \circ j^{1} v = \int_{B} (J \land v + (- 1)^{d - p - 1} g \land f + b) .

Assume that d=4, p=1, and consider the special case where $b = 0$ . If we interpret v as the 1 -form potential (vector potential) of electrodynamics, the expression we obtained for the power, together with equations (40) and (41) are the governing equations of electrodynamics. Here, $J$ is interpreted as the 4 -current density, $f$ is interpreted as the Faraday 2 -form, and g is interpreted as the Maxwell 2 -form. As no metric structure is used, the equations are in the framework of premetric electrodynamics [36]. If the Lorentz metric is used, one can apply the Hodge star operator and write $g = * f$ and obtain the usual Maxwell equations in vacuum, as for example in Misner et al. [49].

In the general case, one obtains a generalization of electrodynamics, referred to as p -form electrodynamics, as in Henneaux and Teitelboim [34, 35]. (For further details see Segev [37].) A different theory in which form-conjugate forces appear is the theory of dislocations. In the case of dislocations, however, the traction stress does not have a simple form, as assumed here. In fact, $d f = 0$ implies that no dislocations are present [50, 51].

7.5. Trivial fiber bundles

Consider the case where the fiber bundle $(Y, π . B)$ is trivial, that is

Y = B \times M,

for some m -dimensional manifold M. A section representing a configuration in this case is the graph of a mapping $B \to M .$ Thus, it is natural in the case of trivial bundles to identify the configuration with such a mapping:

κ : B \to M .

It follows that the configuration space $Q$ is an open subset of the manifold of mappings $C^{1} (B, M)$ .

Since $T Y ≃ T B \times TM$ , $V Y = \ker T π$ may be identified naturally with $B \times TM$ . It follows that a generalized velocity at κ may be represented by a mapping

v : B \to TM, such that, τ_{M} \circ v = κ,

or, alternatively, with a section of the vector bundle,

(κ^{*} T M, κ^{*} τ_{M}, B) .

The jet bundle $J^{1} Y$ can now be replaced by the jet space of mapping, $J^{1} (B, M)$ [41]. An element of $J^{1} (B, M)$ is determined by the tangent mapping $T_{p} κ$ for some mapping κ; $E$ may be identified with the space of continuous vector bundle morphisms $T B \to TM$ over C¹ -mappings $B \to M$ .

For further details regarding the forms assumed by continuous forces and stresses, see Segev [48].

7.6. Continuum mechanics on manifolds

The previous example includes the case of continuum mechanics on manifolds. Here, the manifold M is interpreted as the physical space S. For continuum mechanics, it is customary to require that configurations satisfy the principle of material impenetrability, which implies that $Q$ is the space of all embeddings $B \to S$ . Indeed, the subset of embeddings is open in the manifold of mappings $C^{1} (B, S)$ [41, 52].

In the classical case, both $B$ and S are three-dimensional and S is a Euclidean space.

7.7. Continua with microstructure

Continuum mechanics of materials with microstructures falls under the case where Y has the structure of a Cartesian product $B \times M$ ; however, the manifold M has the additional structure of a fiber bundle,

(M, ρ, S) .

The fiber over the point z ∈ S is interpreted as possible micro-states that a material point located at z may assume. Such terms as “internal variables,” “internal degrees of freedom,” and “order parameters” are also used for the micro-states.

A configuration of a body with microstructure is a mapping

κ : B \to M,

for which

κ_{0} : = ρ \circ κ : B \to S

is an embedding.

For bodies with microstructure, forces and stresses include components that are conjugate to the micro-velocities and their jets [53].

A number of examples of continua with microstructure are discussed by Capriz [54] and Mermin [55]. These include mixtures, liquid crystals, superfluid helium-3, and Cosserat continua.

7.8. Group action

We consider the case where, for some Lie group G, there is a smooth left action

λ : G \times Y \to Y,

such that for all g ∈ G,

λ_{g} : {g} \times Y \to Y

is a fiber bundle morphism over the identity of $B$ . Thus, for $p \in B$ , the image of $λ_{p} : G \times {p} \to Y$ is contained in $Y_{p}$ .

The tangent mapping

T λ : TG \times TY \to TY

may be decomposed into partial tangents; in particular,

T_{1} λ : TG \times Y \to T Y

may be restricted to the Lie algebra, $T_{e} G$ , and we obtain

T_{1} λ_{e} : T_{e} G \times Y \to TY .

It is observed that the image of $T_{1} λ_{e}$ is a subset of the vertical sub-bundle. It follows that, for any $γ \in T_{e} G$ , $κ \in Q$ , there is a generalized velocity

v_{γ} : B \to V Y, v_{γ} (p) = T_{1} λ_{e} (γ, κ (p)) .

It would be natural, therefore, to define an equilibrated force as an element $f \in T_{κ}^{*} Q$ , such that

f (v_{γ}) = 0, for all γ \in T_{e} G

(see also Segev [53]). Requiring that all forces on all sub-bodies be equilibrated restricts the class of stresses. For example, in the classical formulation of continuum mechanics in a Euclidean space, invariance under the Euclidean group implies that the components $μ_{i}$ of the variational stress vanish and the components $μ_{i}^{α}$ satisfy the usual symmetry conditions for the first Piola–Kirchhoff stress.

Footnotes

Appendix

Notation

Objects	Elements of	Notation
Points in the field (base manifold)	$B$	p
Values of a field	Y	e
Configurations	$Q \subset C^{1} (Y)$	$κ, κ_{1}, \dots$
Virtual velocities	$(T Q, τ_{Q}, Q)$
Velocities at κ	$T_{κ} Q ≃ C^{1} (κ^{*} V Y)$	$v, w, \dots$
Generalized forces	$(T^{} Q, τ_{Q}^{}, Q)$
Forces at κ	$T_{κ}^{} Q ≃ (C^{1} (κ^{} V Y))^{*}$	f
Body force densities	$B = Hom (V Y, π^{} Λ^{d} T B)$
Body force density field at κ	$C^{0} (κ^{*} B)$	$b$
Surface force densities	$T = Hom (V Y \|_{\partial B}, (π \|_{\partial B})^{} Λ^{d - 1} T^{} \partial B)$
Surface force density field at κ	$C^{0} (κ_{\partial B}^{*} T)$	$t$
Deformation jets	$E \subset C^{0} (J^{1} Y)$	ξ
Velocity jets	$(T E, τ_{E}, E)$
Velocity jets at ξ	$T_{ξ} E ≃ C^{0} (ξ^{*} V J^{1} Y)$	η
Variational stresses	$(T^{} E, τ_{E}^{}, E)$
Variational stresses at ξ	$T_{ξ}^{} E ≃ (C^{0} (ξ^{} V J^{1} Y))^{*}$	σ
Variational stress densities	$S = Hom (V J^{1} Y, (π^{1})^{} Λ^{d} T^{} B)$
Variational stress density fields at ξ	$C^{0} (ξ^{*} S)$	$s$
Traction stress densities	$T = Hom (V Y, π^{} Λ^{d - 1} T^{} B)$
Traction stress density fields at κ	$C^{0} (κ^{*} T)$	τ
Loadings	$C^{0} (τ_{Q}^{*})$	F
Body loading densities	$C^{0} (Hom (V Y, π^{} Λ^{d} T^{} B))$	$B$
Surface loading densities	$C^{0} (Hom (V Y \|_{\partial B}, (π \|_{\partial B})^{} Λ^{d - 1} T^{} \partial B))$	$T$
Loading potentials	$C^{1} (Q)$	W
Body loading potential densities	$C^{1} (π^{} Λ^{d} T^{} B)$	$w_{B}$
Boundary loading potential densities	$C^{1} ((π \|_{\partial B})^{} Λ^{d - 1} T^{} \partial B)$	$w_{\partial B}$
Constitutive relations	$C^{0} (τ_{E}^{*})$	Ψ
Constitutive densities	$C^{0} (Hom (V J^{1} Y, (π^{1})^{} Λ^{d} T^{} B))$	$ψ$
Elastic energy	$C^{1} (E)$	U
Elastic energy density	$C^{2} ((π^{1})^{} Λ^{d} T^{} B)$	$L$

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: RK was partially supported by the Israel Science Foundation (grant number 661/13), and by a grant from the Ministry of Science, Technology and Space, Israel and the Russian Foundation for Basic Research, the Russian Federation. RS was partially supported by the H. Greenhill Chair for Theoretical and Applied Mechanics and by the Pearlstone Center for Aeronautical Engineering Studies at Ben-Gurion University.

References

Hermann

Vector bundles in mathematical physics. New York: WA Benjamin, 1970.

Komorowski

. A modern version of the E. Noether’s theorems in the calculus of variations, I. Stud Math 1968; 29: 261–273.

Komorowski

. A modern version of the E. Noether’s theorems in the calculus of variations, II. Stud Math 1969; 32: 181–190.

Krupka

Lagrange theory in fibered manifolds. Rep Math Phys 1971; 2: 121–133.

Śniatycki

On the geometric structure of classical field theory in Lagrangian formulation. Proc Cambridge Philos Soc 1970; 68: 475–484.

Trautman

Noether equations and conservation laws. Commun Math Phys 1967; 6: 248–261.

Binz

Śniatycki

Fischer

Geometry of classical fields. Amsterdam: North-Holland, 1988.

de León

Rodrigues

PR.

Generalized classical mechanics and field theory: A geometrical approach of Lagrangian and Hamiltonian formalisms involving higher order derivatives. Amsterdam: North-Holland, 1985.

Echeverria-Enriquez

Munoz-Lecanda

Roman-Roy

Geometry of Lagrangian first-order classical field theories. Fortschr Phys 1996; 44: 235–280.

10.

Frankel

The geometry of physics: An introduction. Cambridge: Cambridge University Press, 2012.

11.

Gotay

Isenberg

Marsden

, et al. Momentum maps and classical fields. Part I: Covariant field theory, 2004. arXiv:physics/9801019v2.

12.

Giachetta

Mangiarotti

Sardansashvily

Advanced classical field theory. Singapore: World Scientific, 2009.

13.

Kijowski

Tuczyjew

WM.

A symplectic framework for field theories. New York: Springer, 1979.

14.

Ramond

Field theory: A modern primer. Boulder, CO: Westview, 2001.

15.

Bilby

Bullough

Smith

Continuous distributions of dislocations: A new application of the methods of non-Riemannian geometry. Proc R Soc Lond A 1955; 231: 263–273.

16.

Bloom

Modern differential geometric techniques in the theory of continuous distributions of dislocations. Berlin: Springer, 1979.

17.

Elzanowski

Epstein

Material inhomogeneities and their evolution: A geometrical approach. Berlin: Springer, 2007.

18.

Kondo

Geometry of elastic deformation and incompatibility. Tokyo: Gakujutsu Benken Fukyu-Kai, IC, 1955.

19.

Noll

Materially uniform simple bodies with inhomogeneities. Arch Ration Mech Anal 1967; 27: 1–32.

20.

Wang

C-C.

On the geometric structures of simple bodies, a mathematical foundation for the theory of continuous distributions of dislocations. Arch Ration Mech Anal 1967; 27: 33–93.

21.

Noll

. The foundations of classical mechanics in the light of recent advances in continuum mechanics. In: Henkin

Suppes

Tarski

(eds.) The axiomatic method, with special reference to geometry and physics. Amsterdam: North-Holland, 1959, 266–281

22.

Gurtin

Martins

LC.

Cauchy’s theorem in classical physics. Arch Ration Mech Anal 1975; 60: 305–324.

23.

Gurtin

Williams

An axiomatic foundation for continuum thermodynamics. Arch Ration Mech Anal 1967; 26(2): 83–117.

24.

Silhavy

The existence of the flux vector and the divergence theorem for general Cauchy fluxes. Arch Ration Mech Analysis 1985; 90: 195–212.

25.

Silhavy

Cauchy’s stress theorem and tensor fields with divergence in L^p. Arch Ration Mech Anal 1991; 116: 223–255.

26.

Silhavy

Cauchy’s stress theorem for stresses represented by measures. Continuum Mech Thermodyn 2008; 20: 75–96.

27.

Gronwald

Hehl

FW.

Stress and hyperstress as fundamental concepts in continuum mechanics and in relativistic field theory, 1997. arXiv:gr-qc/9701054.

28.

Hehl

FW.

On the energy tensor of spinning massive matter in classical field theory and general relativity. Rep Math Phys 1976; 9: 55–82.

29.

Hehl

McCrea

JD.

Bianchi identities and the automatic conservation of energy-momentum and angular momentum in general-relativistic field theories. Found Phys 1986; 16: 267–293.

30.

Hehl

McCrea

Mielke

, et al. Metric-affine gauge theory of gravity: Field equations, Noether identities, world spinors, and breaking of dilation invariance. Phys Rep 1995; 258: 1–171.

31.

Hehl

Ne’eman

. Spacetime as a continuum with microstructure and metric-affine gravity. In: Pronin

Obukhov

(eds.) Modern problems of theoretical physics: Festschrift for Professor D Ivanenko. Singapore: World Scientific, 1991, 31–52.

32.

Truesdell

Toupin

The classical field theories. In: Flügge

(ed.) Principles of classical mechanics and field theory (Handbuch der Physik vol. III/1). Berlin: Springer, 1960.

33.

Segev

Forces and the existence of stresses in invariant continuum mechanics. J Math Phys 1986; 27: 163–170.

34.

Henneaux

Teitelboim

p -form electrodynamics. Found Phys 1986; 16(7): 593–617.

35.

Henneaux

Teitelboim

Dynamics of chiral (self-dual) p -forms. Phys Lett B 1988; 206: 650–654.

36.

Hehl

Itin

Obukhov

. Recent developments in premetric electrodynamics, 2006. arXiv:physics/0610221v1.

37.

Segev

Continuum mechanics, stresses, currents and electrodynamics. Philos Trans R Soc London, Ser A 2016; 374: 20150174.

38.

Truesdell

Noll

The nonlinear field theories of mechanics. Berlin: Springer, 1965.

39.

Saunders

DJ.

The geometry of jet bundles (London Mathematical Society: Lecture Notes Series, vol. 142). Cambridge: Cambridge University Press, 1989.

40.

Palais

RS.

Foundations of global non-linear analysis. New York: WA Benjamin, 1968.

41.

Michor

PW.

Manifolds of differentiable mappings. Orpington: Shiva, 1980.

42.

Lang

Differential manifolds. Reading, MA: Addison-Wesley, 1972.

43.

Piccione

Tausk

DV.

On the Banach differential structure for sets of maps on non-compact domains. Nonlinear Anal Theory, Methods Appl 2001; 46(2): 245–265.

44.

Kriegl

Michor

PW.

The convenient setting of global analysis. Providence, RI: American Mathematical Society, 1997.

45.

Guillemin

Sternberg

Geometric asymptotics. Providence, RI: American Mathematical Society, 1977.

46.

Segev

Differentiable manifolds and some basic notions of continuum mechanics. PhD thesis, University of Calgary, Canada, 1981.

47.

Segev

Metric-independent analysis of the stress-energy tensor. J Math Phys 2002; 43: 3220–3231.

48.

Segev

Notes on metric independent analysis of classical fields. Math Methods Appl Sci 2013; 36: 497–566.

49.

Misner

Thorne

Wheeler

JA.

Gravitation. San Francisco: WH Freeman, 1973.

50.

Epstein

Segev

Geometric aspects of singular dislocations. Math Mech Solids 2014; 19: 335–347.

51.

Epstein

Segev

. On the geometry and kinematics of smoothly distributed and singular defects. In: Chen

Grinfeld

Knops

(eds.) Differential geometry and continuum mechanics (Springer Proceedings in Mathematics and Statistics, vol. 137). Cham: Springer, 2015, 203–234.

52.

Hirsch

MW.

Differential topology. New York: Springer, 1976.

53.

Segev

A geometrical framework for the statics of materials with microstructure. Math Models Methods Appl Sci 1994; 6:871–897.

54.

Mermin

ND.

The topological theory of defects in ordered media. Rev Mod Phys 1979; 51: 591–646.

55.

Capriz

Continua with microstructure. New York: Springer, 1989.
