Conical hydrostatic journal bearings for high speeds

Abstract

Conventional conical hydrostatic bearings are compared with less conventional three-recess and four-recess designs for operation in hybrid hydrostatic/hydrodynamic mode. Design implications are discussed with reference to operation at either low or high speeds. Conical spindle bearings are chosen for this study because they offer a compact arrangement that allows both radial load support and axial load support. While there is wide availability of design data for separate thrust and cylindrical journal bearings, there are very little data for conical bearings. This paper reviews the design of conical bearings and extends from previous knowledge into hybrid performance at high speeds. It is shown that long narrow recesses provide larger radial load support compared to long wide recesses for higher speeds. Sample data are provided for design of single cone bearings and also for opposed cone bearings. The data provide for radial and axial loads applied in combination for a selection of cone angles. Data are also provided as a guide for flowrate in the concentric bearing state and for effects on temperature rise.

Keywords

Hydrostatic hydrodynamic hybrid journal bearings high speed conical design

Introduction

Conical hydrostatic journal bearings can be employed for thrust bearings or for spindle bearings arrangements. Conical arrangements have advantages compared with separate journal and thrust bearings. Only two bearings are required for conical designs compared with two journal bearings and two thrust bearings for separate arrangements. This makes for economy of flow, economy of power and fewer parts. Furthermore, clearance is adjustable on assembly by adjustment of the axial location. However, accurate machining and accurate assembly of conical designs are required to ensure bearing alignment. The recesses for conical designs are relatively simple to manufacture by electro-discharge machining using a graphite carbon electrode suitably shaped that can be advanced axially into the bearing cones.

For brevity, the following research review is limited to publications on conical hydrostatic journal bearings, since there are hundreds of papers on other hydrostatic bearings.

Conical spindle bearings were applied by the author in 1967 for a precision grinding spindle used in an optical profile grinding machine.^1,2 The spindle operated at 7000 r/min and was remarkable for its smooth running and precision grinding performance. Approximate load and flow equations for hydrostatic conical bearings were published by Stansfield in 1970.³ Aston et al. computed load and flow using the lumped parameter technique.^4,5 Ettles and Svoboda in 1975 investigated a double conical bearing for high speeds and commented on geometrical constraints limiting the cone angles that could be employed.⁶ This unconventional design was basically a hydrodynamic conical bearing, although a degree of external pressurization was introduced to overcome insufficient radial load support. Rowe provided design procedures for hydrostatic conical bearings based on design maps derived for axial and radial loads applied in combination.⁷ Sharma et al. provided results for capillary compensated conical hydrostatic bearings.⁸ Rowe extended the design data in reference⁷ using finite difference (FD) computer solutions for greater accuracy and range of application. Data and design procedures were made available for both hydrostatic and aerostatic conical bearings including complementary cone arrangements.⁹ Zuo et al. published a new design of conical hydrostatic journal bearing where in-built restrictor lands introduce self-compensation.¹⁰ It offers benefits of increased radial stiffness but introduces further complexity into the mechanical structure. Khakse et al. analysed non-recessed hydrostatic conical journals with hole entry, having either capillary or orifice restrictors.¹¹ The load performance was compared with and shown to be very similar to non-recessed slot entry cylindrical plain bearings as described in Rowe.⁹ The unified design approach used for definition of the speed domain in Rowe⁷ was confirmed by Bassani and Piccigallo in 1992, and gave comparable results for hybrid cylindrical plain bearings.¹²

The design data for the conical hydrostatic bearings up to this point ignore hydrodynamic lift at high speeds. In practice, load support can be greatly increased as shown for cylindrical journals by taking advantage of hydrodynamic forces.^9–12 The extra lift provides additional safeguard for radial overload and offers an increased range of application. This study advances previous work by exploring combined hydrostatic and hydrodynamic load support at high speeds, employing either four recesses or three recesses to maximize plain bearing land area where it is most useful. It is shown that long and narrow or thin-recess bearings offer excellent hybrid load performance compared with wide-recess bearings and also offer strong scavenging flow to offset hot spot generation. Optimization procedures allow hybrid loads to be maximized and make it possible to critically assess safe operating regions.

Bearing arrangements

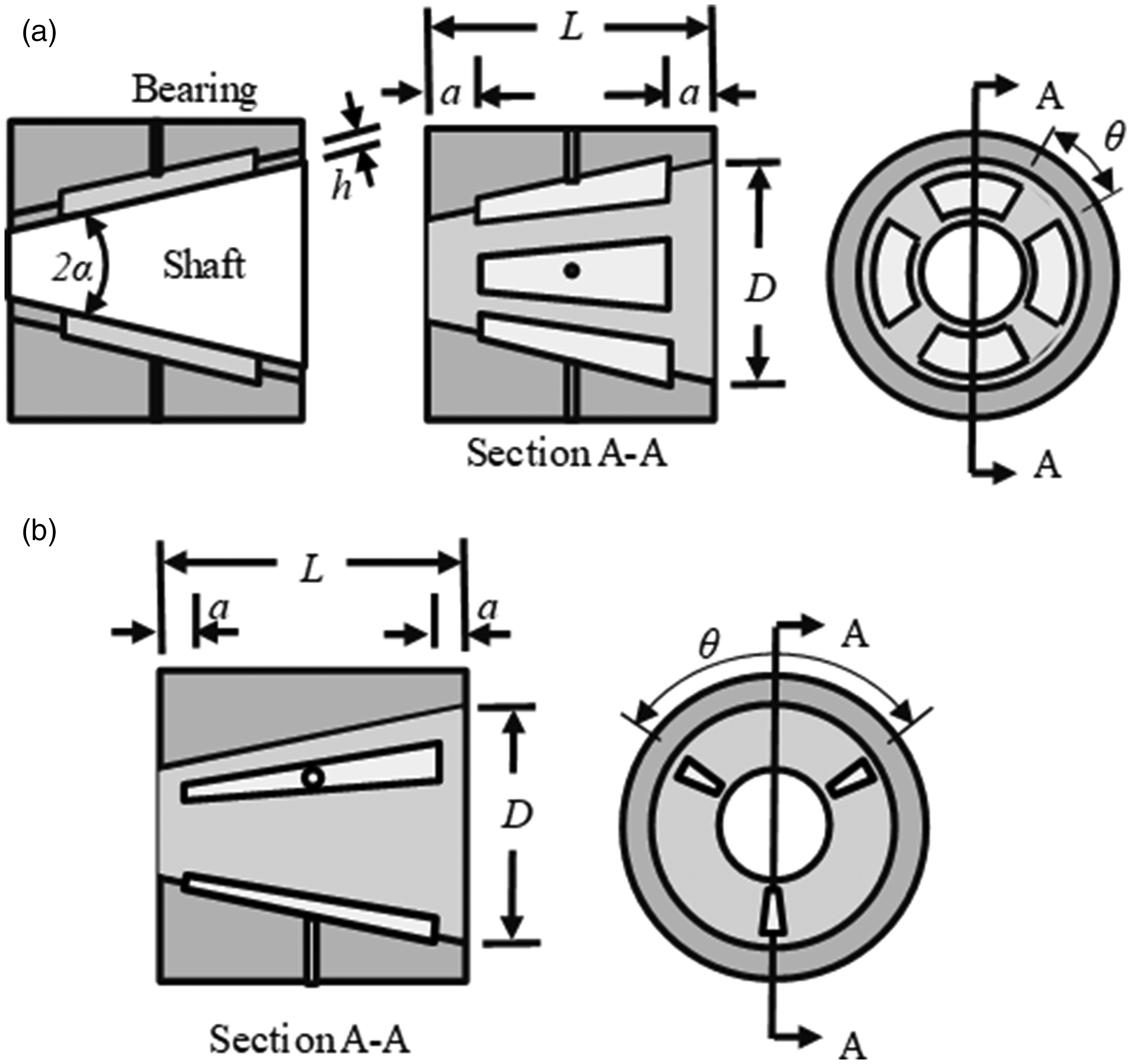

Bearing configurations are compared in Figure 1(a) and (b). The conventional conical hydrostatic bearing with four wide recesses is shown in Figure 1(a). The proposed bearing with three narrow recesses is shown in Figure 1(b). Both types of bearing carry applied loads by means of an external pump and a constant supply pressure $P_{s}$ . The conventional bearing is optimized for hydrostatic load support based on $P_{s}$ . By contrast, the thick-land thin-recess conical bearing is designed to support substantial additional loads generated by hydrodynamic action at high speeds. In both designs, provision is made for separate supply through an individual flow restrictor for each recess. The restrictors may be capillary, orifice, or slot restrictors. Another possibility is that a separate constant flow supply is ensured for each recess. For the data calculated in this paper, it is assumed that laminar flow restrictors such as capillaries or slots are employed.

The design and operation of basic cylindrical hydrostatic bearings are well understood, and Rowe⁹ provides detailed information on many aspects. The purpose of this paper is to establish basic principles and data for conical hybrid journal bearings operating at low to high speeds. It is also shown that a 4-recess bearing designed with long thin recesses offers hybrid performance almost as good as the 3-recess bearing with long thin recesses. Both designs offer much better load support than a conventional wide recess bearing.

The long thin recesses shown in Figure 1(b) lead to wide inter-recess lands. The wide inter-recess lands allow substantial hydrodynamic pressures to be generated. Another advantage is that the long thin recesses allow cooling flow to be distributed along the length of the bearing.

Possible configurations for opposed pad complementary-cone arrangements are illustrated in Figure 2. The two conical bearings at each end of the spindle should be well separated as shown rather than closely spaced. Close spacing is not recommended as explained more fully by Rowe.⁹ Wide spacing allows either central application of radial loads or, as more usual, overhung application of radial loads. The advantage of a widely spaced arrangement is that a slight tilt allows the total radial load supported to be almost doubled. With closely spaced bearings, a slight tilt greatly reduces minimum film thickness. Initial alignment during manufacture is also simplified with widely spaced arrangements.

Data are given below for a single cone while progressing development of suitable parameters for hybrid operation. Subsequent data are given for opposed pad bearings. Data are given for the maximum radial load that can be supported on one bearing, while the maximum thrust load is for the opposed pair acting together. The designer must first specify the maximum radial and thrust reaction loads and then evaluate the radial reaction forces on each bearing. Specified radial and thrust loads must not be exceeded. Exceeding the specified thrust load reduces the radial load that can be supported and also reduces the minimum film thickness.

If axial thrust loads applied to the journal are very small in comparison with radial loads, a small cone angle is best. However, if applied thrust loads are large, it may be necessary to design for a larger cone angle. Data are provided for four cone angles covering a suitable range. It is considered that a semi-cone angle of 15° is large enough to satisfy most situations.

This paper documents the development of suitable hybrid conical bearings. It also provides computed data for supported loads. Four-recess bearings are compared with three-recess bearings for hybrid performance over a range of zero, moderate and high speeds.

Theoretical analysis

Finite difference solution of the pressure field

The basic equations for hydrostatic lubrication are well known and established. For this paper, it is therefore only necessary to give a brief description of the basic theory and computational stages involved. A form of the Reynolds equation for steady loading of the fluid bearing film allowing for varying diameter and speed along the length is

\frac{\partial}{\partial x} (\frac{ρ h^{3}}{12 η} \frac{\partial p}{\partial x}) + \frac{\partial}{\partial z} (\frac{ρ h^{3}}{12 η} \frac{\partial p}{\partial z}) = \frac{ρ π D_{j} N}{2} \frac{dh}{dx}

(1)

In parallel with solution of the bearing film pressures, it is necessary to solve the recess pressures. A finite difference (FD) technique was employed to solve the Reynolds equation, first solving the concentric film pressures using the concentric recess pressures as the internal boundary condition. Typically, a 150 × 40 FD grid was employed, denominating position nodes i = 1 to n_g = 150 around the circumference and j = 1 to m = 40 along the length.

The FD equation employed for solution of the bearing film pressures has the form

\begin{matrix} P_{i, j} = {\frac{G}{{\bar{D}}_{j}} [H_{i + 12}^{3} P_{i + 1, j} + H_{i - 12}^{3} P_{i - 1 . j}] + \frac{{\bar{D}}_{j} H_{i}^{3}}{G^{2}} [{\bar{D}}_{j - 12} P_{i, j - 1} + {\bar{D}}_{j + 12} P_{i, j + 1}] \\ - 24 \frac{π L_{1}}{mD} S_{h} {\bar{D}}_{j} [H_{i - 12} - H_{i + 12}]} / \\ \times {\frac{G}{{\bar{D}}_{j}} [H_{i + 12}^{3} + H_{i - 12}^{3}] + 2 \frac{{\bar{D}}_{j}^{2}}{G^{2}} H_{i}^{3}} \end{matrix}

(2)

At high speeds and radial eccentricity ratios, hydrodynamic bearings cavitate. This is the situation where bearing pressures in the diverging film region initially become negative and then with further eccentricity the negative fluid film stresses collapse back to zero as the fluid film ruptures. This situation is accommodated in the computation using the usual approximation where negative pressures are set to zero.

After successive iterations of the pressure field, convergence is achieved. From the derived pressures, it is possible to sum the bearing flows through the whole bearing and also through each restrictor and recess.

The recess inlet pressures depend both on the resistance characteristics of the flow restrictors and the bearing film flow resistances from each recess. The subject of flow restrictors is fully described in Chapter 5 of Rowe.⁹ For the purpose of solving the conical bearing, the subject can be understood as follows. The flow out from each recess must equal the flow in through the appropriate restrictor. The flow from the rth recess may be calculated by summing the individual dimensionless flows ${\bar{q}}_{k}$ to the nodes surrounding the recess adding appropriate pressure terms and speed terms at each node where, ${\bar{q}}_{r} = \sum {\bar{q}}_{k} = \sum η q_{k} P_{s} h_{0}^{3}$ .

Flow summation performed for the concentric shaft yields a value ${\bar{q}}_{r 0}$ . The flow through a capillary restrictor for the concentric condition is given by

{\bar{q}}_{r 0} = (1 - P_{r}) (k_{c} h_{0}^{3})

(3)

The capillary factor $k_{c} = π d_{c}^{4} 128 l_{c}$ is a constant.

Flow summation from the rth recess performed for the eccentric shaft yields a value ${\bar{q}}_{r}$ and hence

\frac{{\bar{q}}_{r}}{{\bar{q}}_{r 0}} = \frac{1 - P_{r}}{1 - β}

(4)

During the iteration process, new values of recess pressure can therefore be derived with some manipulation by substituting the FD expression for $\bar{q_{r}}$ into

P_{r} = 1 - (1 - β) {\bar{q}}_{r} {\bar{q}}_{ro}

(5)

Successive iterations of film pressures and recess pressures leads to a stable convergence of the pressure, load and flow parameters until sufficient accuracy is achieved. Better than 0.1% is usually considered satisfactory. Following convergence of the pressure field, bearing flows and reaction forces are summed in the usual way.

Axial displacement ratio and radial eccentricity ratio

Radial eccentricity ratio is $ɛ = e_{r} / h_{ro}$ . Axial film thickness is $\bar{X} = h_{a} / h_{ao}$ so that axial displacement ratio is $1 - \bar{X}$ . Minimum film thickness is $h_{min} = (1 - ɛ) \bar{X} . h_{o}$ . The shaft is assumed to be displaced to a fixed eccentric position. The radial direction of the line of eccentricity is directed towards a mid-recess position when $Ø = 0 .$

When axial and radial loads are employed together, it is advisable to base design values conservatively, particularly for the cone having reduced film thickness. Axial displacement ratio of 0.2 for a complementary cone arrangement gives film thickness values of $\bar{X} = 0.8$ and 1.2. Combining ε = 0.5 and $\bar{X} = 0.8$ reduces minimum film thickness to 0.4h_o. A more heavily loaded combination would be ε = 0.7 and $\bar{X} = 0.8$ resulting in a minimum film thickness of $0.24 h_{0}$ . These maximum radial and axial displacements should not be exceeded for zero-speed hydrostatic operation without great caution although, with caution, slightly increased displacements may be permissible in high-speed hybrid operation.

Concentric pressure ratio

Restrictors for hydrostatic bearings are generally designed so that concentric pressure ratio $β = 0.5$ . It should be noted that the effective concentric pressure ratio changes when an axial displacement is imposed corresponding to a new value of film thickness $\bar{X}$ . The relaxation procedure is performed to solve for effective recess pressures and film pressures for the axially displaced shaft. Since the bearing arrangement is to be solved for opposed pads, an effective concentric pressure ratio $β_{h}$ must be calculated for the heavily loaded pad and an effective concentric pressure ratio $β_{l}$ for the lightly loaded bearing pad. The effective concentric pressure ratios for axially displaced pads are given by the well-established equation for hydrostatic thrust pads.⁸

β_{eff} = 1 / [1 + \frac{1 - β}{β} . {\bar{X}}^{3}]

(6)

Large variations from $β = 0.5$ lead to unacceptable pressure ratios after applying an axial displacement. Axial film thickness $\bar{X} = 0.75$ modifies concentric pressure ratio from $β = 0.5$ to effective values of $β_{e} = 0.7$ and $β_{e} = 0.34$ for the smaller gap bearing and the larger gap bearing respectively. This combination allows reasonable load support in both cones and is judged acceptable. For hydrostatic bearings, β = 0.5 is the suggested concentric pressure ratio value for complementary cone arrangements.

Power ratio and speed parameter

It is not always realized that power ratio is a great simplification in bearing design allowing selection of suitable combinations of design variables such as speed, viscosity, clearance and landwidth ratio. It was shown by Opitz that the minimum power when varying viscosity for a particular speed is obtained when the power ratio $K = 1$ .¹³ Alternatively, when varying concentric clearance, minimum power is obtained when $K = 3$ . These two values are limits for purely hydrostatic bearings so that it is possible to specify an optimum range $1 \leq K \leq 3 .$ The power ratio is a unique characterization of the speed domain of a hybrid bearing as should be clear from the following discussion of results. The speed characteristics of hybrid bearings are uniquely defined by the power ratio. In the power ratio range 1–3, a hybrid bearing is always in the range ‘low-speed’ to ‘moderate-speed’. The power ratio range 9–12 is always ‘high-speed’. Power ratios in the 25–50 range are ‘very high-speed’.

Power ratio K is closely related to the widely employed speed parameter $S_{h}$ . The speed parameter for optimum power ratio $K = 1$ is usually termed $S_{h 0}$ . Power ratio is proportional to speed squared, so that $K \propto N^{2} \propto S_{h}^{2}$ . This means increasing K from 1 to 3, corresponds to increasing speed by nine times.

Running at speeds within the optimum range for hydrostatic operation yields increased bearing load support as seen in the results that follow. However, deliberately designing the bearing geometry for increased hydrodynamic load support and at the same time further increasing the power ratio reduces hydrostatic load support but increases total load support. Increasing the power ratio from $K = 1$ to $K = 12$ implies increasing the speed by 144 times and the speed parameter $S_{h} = 144 S_{h 0}$ .

For a particular bearing geometry and concentric pressure ratio, an expression for concentric speed parameter can be determined from the parameter definitions given⁹

S_{h} = \frac{1}{4 π} \sqrt{K β {\bar{Q}}_{f} {\bar{A}}_{f}}

(7)

Equation (7) is a convenient form for calculating required numerical values for $S_{h}$ having first selected a bearing geometry and a suitable value of K.

Adiabatic temperature rise

At zero speed, the adiabatic temperature rise of a liquid bearing lubricant can be found by assuming pressure energy is all converted into heat. The temperature rise depends on the supply pressure $P_{s}$ , the heat capacity c of the liquid and the density ρ of the liquid. The term for flowrate cancels in the two expressions for pressure energy and the enthalpy rise so that

Δ T = P_{s} c ρ

(8)

Temperature rises with time if the heated lubricant is allowed to re-enter the bearing. Temperature rise with time can be prevented by cooling the lubricant in a cooler. Temperature rise can also be reduced if the liquid is cooled after passing through the restrictors and before passing through the bearing.

At speed, the heat energy is increased by frictional heating as the liquid passes through the bearing. The total temperature rise including the effect of supply pressure and frictional heating for a single pass through the bearing can be estimated very conveniently based on the power ratio K

Δ T = P_{s} (1 + K) c ρ

(9)

For a typical zero speed bearing employing light oil as a lubricant, the maximum temperature rise of the oil passing through the bearing is $0.55 x 10^{- 6} x P_{s}$ degrees Celsius where supply pressure units are $MPa$ . For a high-speed bearing, $K = 9$ , the temperature rise is increased by a factor of 10 compared to zero speed. For a supply pressure of 1 MPa, the high-speed bearing has a maximum temperature rise per pass equal to 5.5 ℃.

Flowrate

Concentric flow can be calculated based on a one-dimensional (1D) solution³

q = \frac{π β P_{s} h_{0}^{3} sin α}{6 η} (\frac{1}{\ln D D_{3}} + \frac{1}{\ln D_{2} D_{1}})

(10)

where D is the large-end bearing diameter and

$D_{1} = D (1 - 2 . tan α . L D)$ is the small-end bearing diameter.

$D_{2} = D (1 + 2 . tan α . a L . L D)$ is the small recess diameter.

$D_{3} = D (1 - 2 . tan α . a L . L D)$ is the large recess diameter.

A 1D flow solution gives a reasonable estimate for circumferentially wide recesses and large $a L$ values. However, for circumferentially thin recesses and small $a L$ values, it is necessary to employ a 2D solution for concentric flow or a 3D solution for eccentric flow. Computed flow can be expressed economically as a dimensionless flow factor

Q_{f} = \frac{q η}{P_{s} h_{0}^{3}} . \frac{a}{L} . \frac{L}{D} . \frac{1}{β}

(11)

1D concentric flow solutions using equation (10) are the same for three- or four-recess bearings.

The flow through each restrictor is given by $q n$ .

Results

Hydrostatic performance at zero speed

Figure 3 shows pressure contours for a conventional conical hydrostatic bearing having four large recesses running at zero speed, where L/D = 1.0 semi-cone angle is $α = 15 \deg .$ The radial eccentricity ratio is $ɛ = 0.5$ and the axial position ratio is $\bar{X} = 1.0$ . The bearing geometry is defined by the inter-recess angle $θ = 30 \deg$ giving a recess angle of $60 \deg$ . The axial landwidth ratio $a L = 0.25$ . It is seen that pressure is maximum in the heavily loaded recesses and minimum in the lightly loaded recesses on the opposite side. The pressure drops down slightly between the recesses and drops down sharply from the ends of the recesses. For clarity, pressures are only shown for the large end of the bearing. Pressures at the small end are almost similar.

Figure 4 shows the load support at zero speed for the same large recess bearing. Zero speed corresponds to a power ratio $K = 0 .$ Data are provided for a range of axial position ratios varying from $\bar{X} = 0.5 to 1.5$ . It is seen that axial load support falls away rapidly at $\bar{X} > 1.5 .$ Radial load support falls away at both extremes. It was found that reducing landwidth in the axial direction to $a L = 0.1$ gives almost one-third increase in radial load capacity compared with $a L = 0.25$ so the reduced value was adopted for further development. A further development was to employ three recesses instead of four which is favourable for radial load support. The aim was to show how load support may be enhanced at higher speeds. Development centred on increasing inter-recess lands to increase area where hydrodynamic pressure can be generated while reducing axial land width ratio to $a L = 0.1$ . A large inter-recess land also has the merit that it reduces inter-recess flows which detract from radial load support. A small axial land width ratio has the merit of spreading recess pressure over the maximum bearing length possible.

Figure 5 demonstrates that these changes provide adequate load support even at zero speed. Figure 5 is for the developed geometry with three thin recesses. Combining reduced axial land width $a L = 0.1$ and very large inter-recess land width, $θ = 112 \deg$ , corresponds to long thin recesses of $8 \deg$ width. The resulting load support may be compared with Figure 4 for the conventional four-recess bearing. It shows that zero speed load support is comparable for the two bearings.

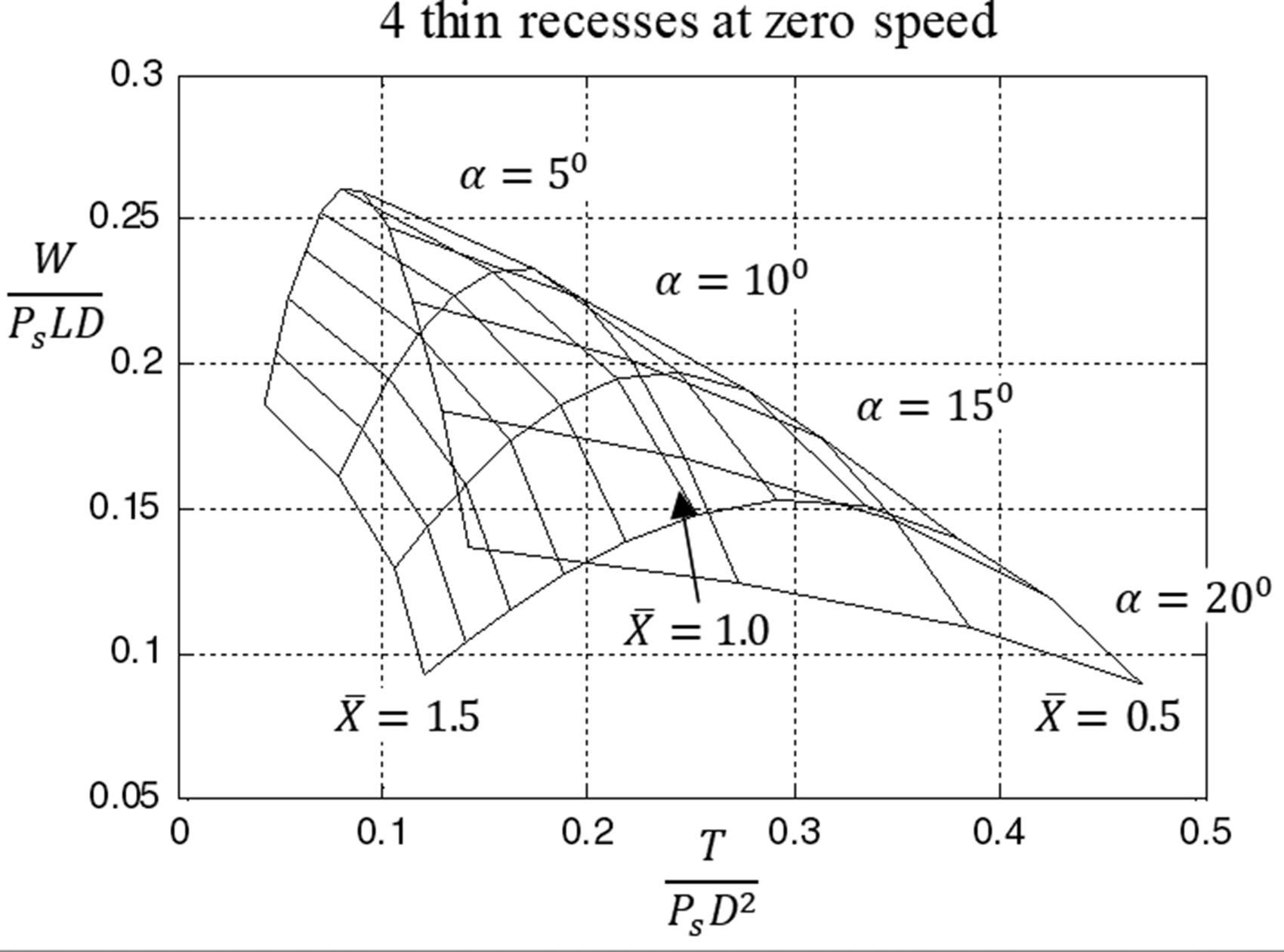

Since long thin recesses were so successful for the three-recess bearing, a similar change was tried for a four-recess bearing where the recess angle was reduced to $5 \deg$ . Figure 6 shows similarly favourable results. A recess angle of $10 \deg$ yields almost similar results, but the smaller recess angle offers a larger hydrodynamic load support at high speeds.

Hybrid performance at low to moderate speeds

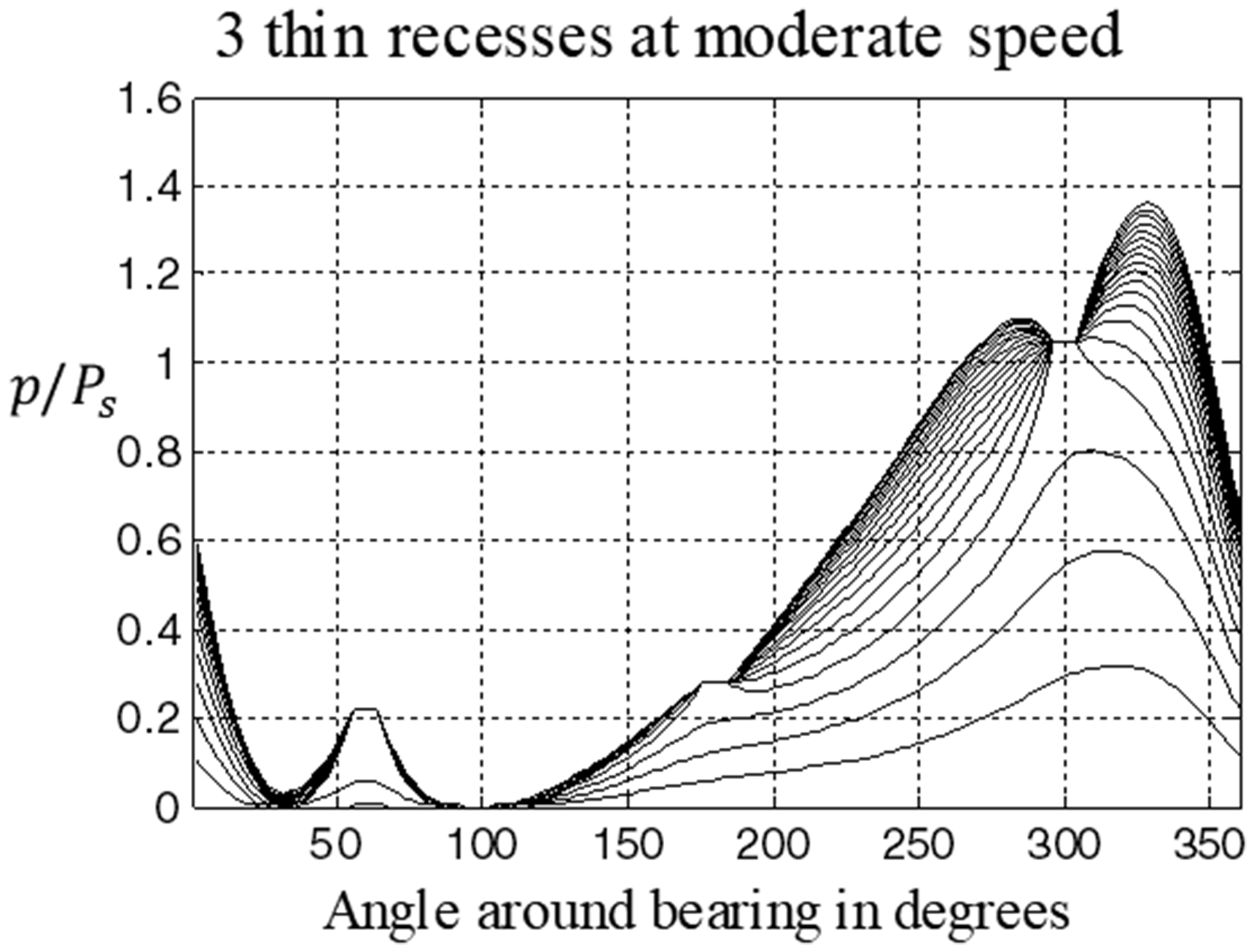

The optimum power ratio K for purely hydrostatic load support lies in the range 1 to 3. The higher power ratio represents a speed nine times higher than the lower value. The value $K = 3$ therefore represents a large increase in speed. However, it may still be considered a moderate speed bearing since many hydrodynamic bearings operate with very low pressures and high speeds which lead to much higher power ratios. The following example is given for the maximum of the low to moderate speed range where $K = 3$ . Figure 7 shows pressures for the three-recess bearing. Recess pressures and land pressures are increased in the converging film region, while in the diverging film, region pressures are reduced. An advantage of design within the power ratio range $1 < K < 3$ is that temperature rise is more moderate than at higher power ratios.

Although pressures are not shown for the four-recess bearing for the moderate speed condition, the maximum pressure supporting the load was found to be nearly 10% higher for the three-recess bearing than for the four-recess bearing.

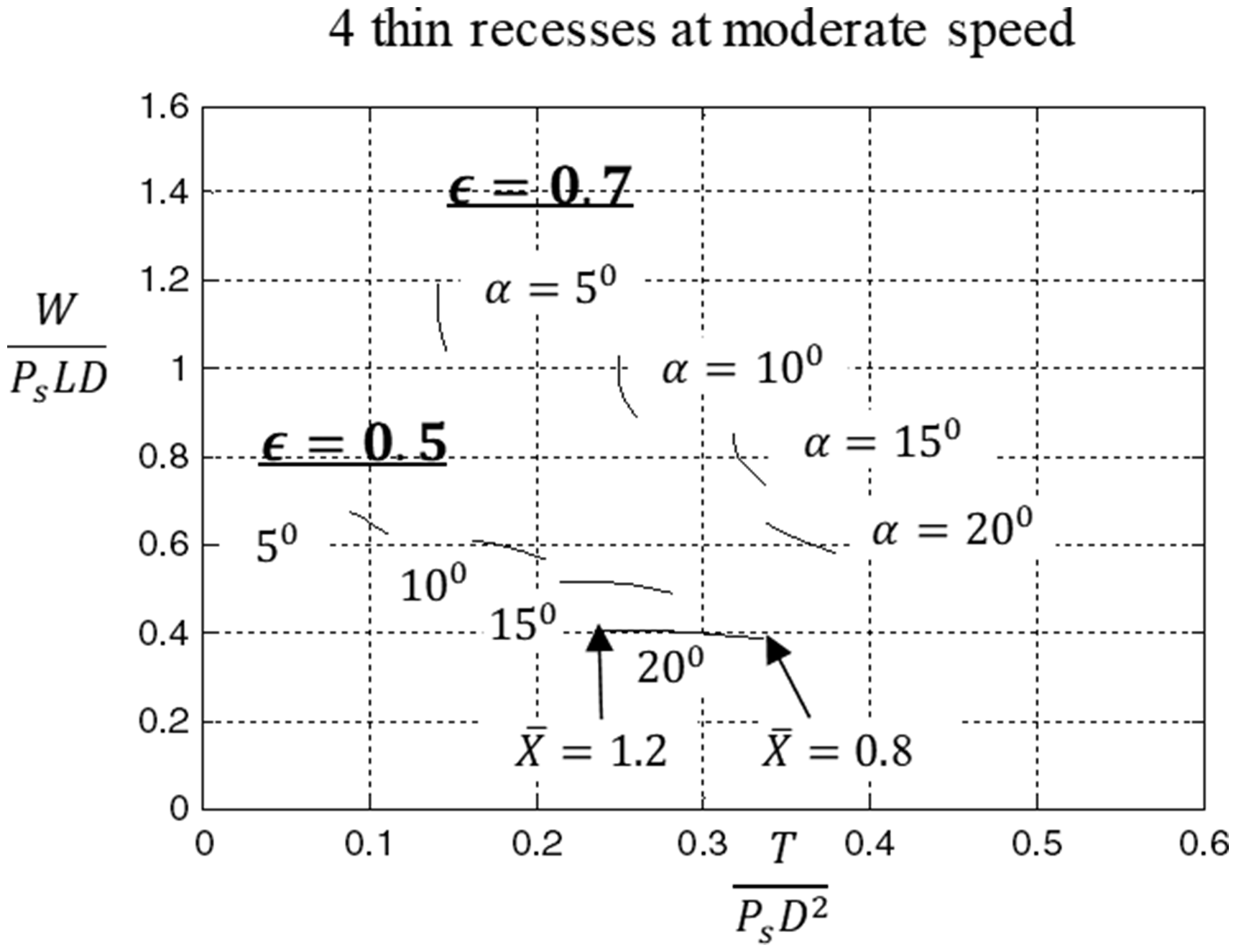

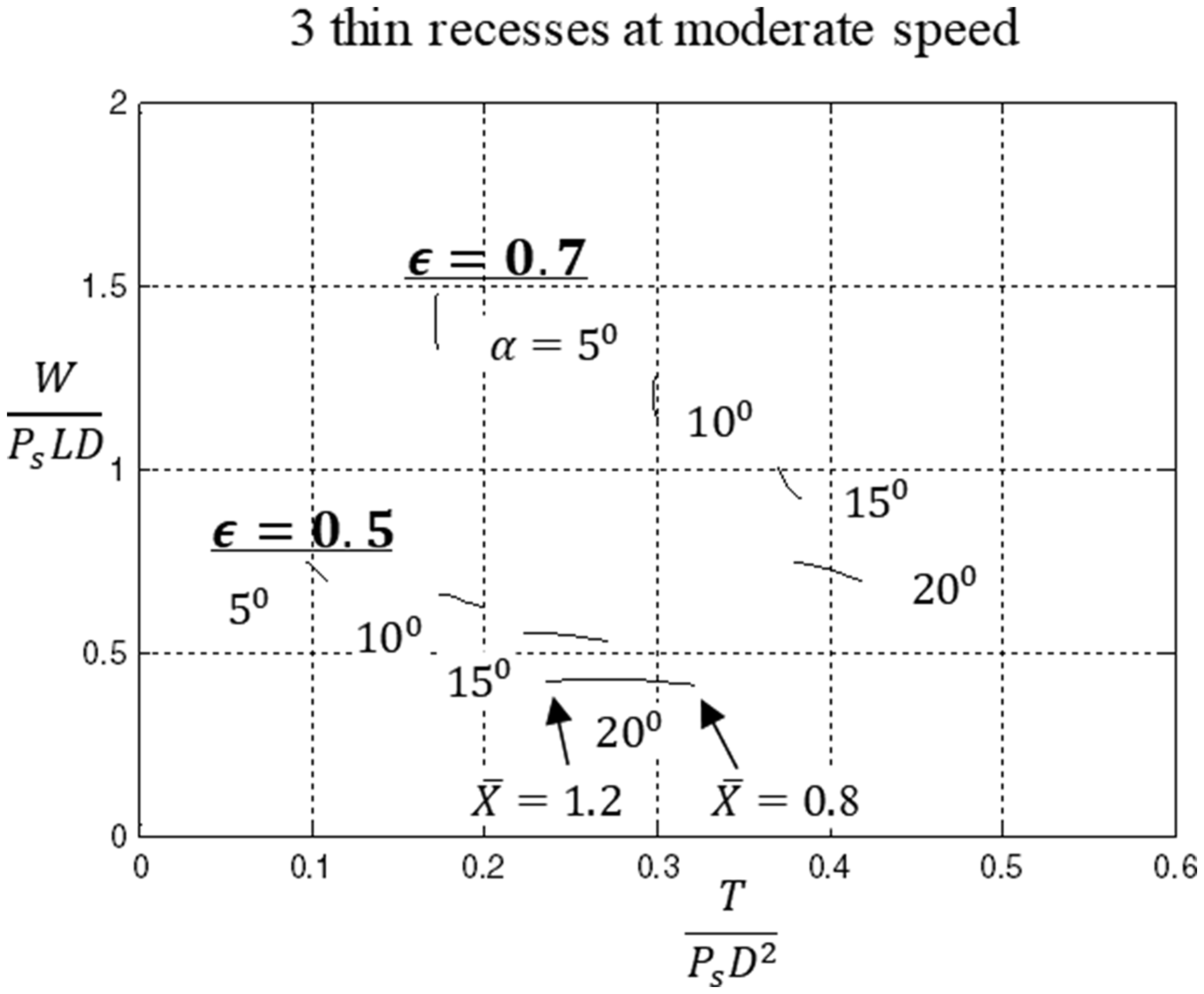

Figures 8 and 9 show bearing support loads for the two hybrid bearings for $K = 3$ . The axial position range for each bearing has been restricted to the range $0.8 < \bar{X} < 1.2 .$ This allows larger values of radial eccentricity ratio to be safely employed. In this figure, two sets of values are shown for $ɛ = 0.5$ and $ɛ = 0.7$ Figure 8 shows that bearing load support with long thin recesses is substantially increased at moderate speed compared with zero speed and wide recesses. It is also seen that radial load support increases greatly with radial eccentricity ratio due to hydrodynamic pressures. Load support for the three-recess bearing is even higher. And, in fact, the increase in load support for both bearings compared to zero-speed load support is more than 100% at the smaller eccentricity ratio and even more at the higher eccentricity ratio.

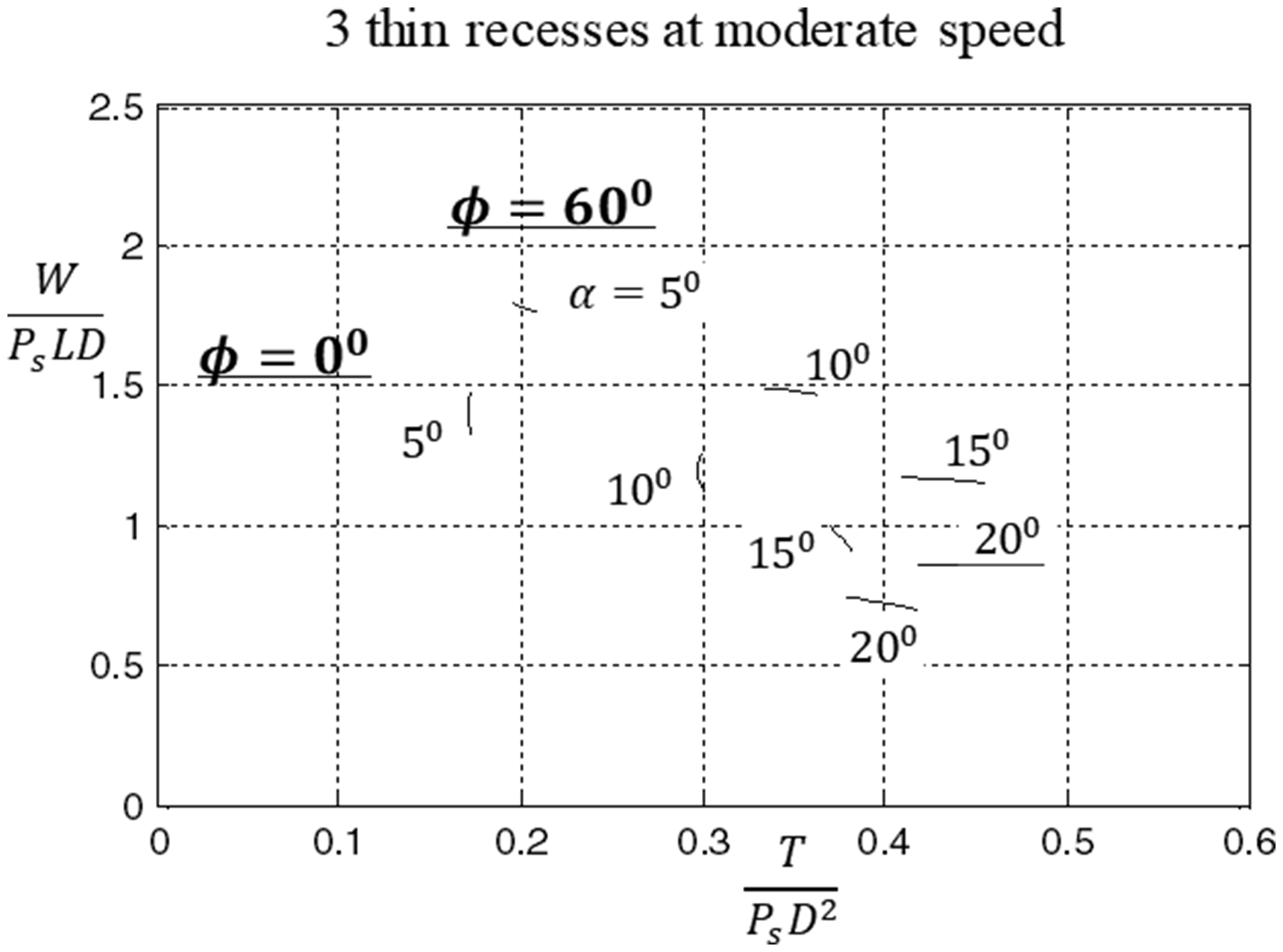

Figure 10 compares the effect of directing the radial eccentricity towards the middle of the inter-recess land $φ = 0 \deg$ and the effect of directing the radial eccentricity towards a recess $φ = 60 \deg$ for the three-recess bearing. Directing the eccentricity towards the recess yields higher radial load support. Previous figures were presented for the conservative case where $φ = 0 \deg$ .

In practice, the direction of the line of eccentricity is usually unknown at the design stage. The attitude angle ψ between the direction of the applied load and the line of eccentricity varies both with eccentricity ratio and with power ratio as shown in Figure 11. For a large inter-recess land, $θ = 112 \deg$ and very low speed, $K = 0.1$ , the attitude angle is less than $40 \deg$ throughout the range of eccentricity ratios. For high speed, $K = 9$ , and small eccentricity ratio, the attitude angle exceeds $80 \deg$ . At high speed, the shape of the curve is very similar to the well-known case of a purely hydrodynamic bearing, where attitude angle reduces from $90 \deg$ following an almost a circular arc towards $0 \deg$ at maximum eccentricity ratio.

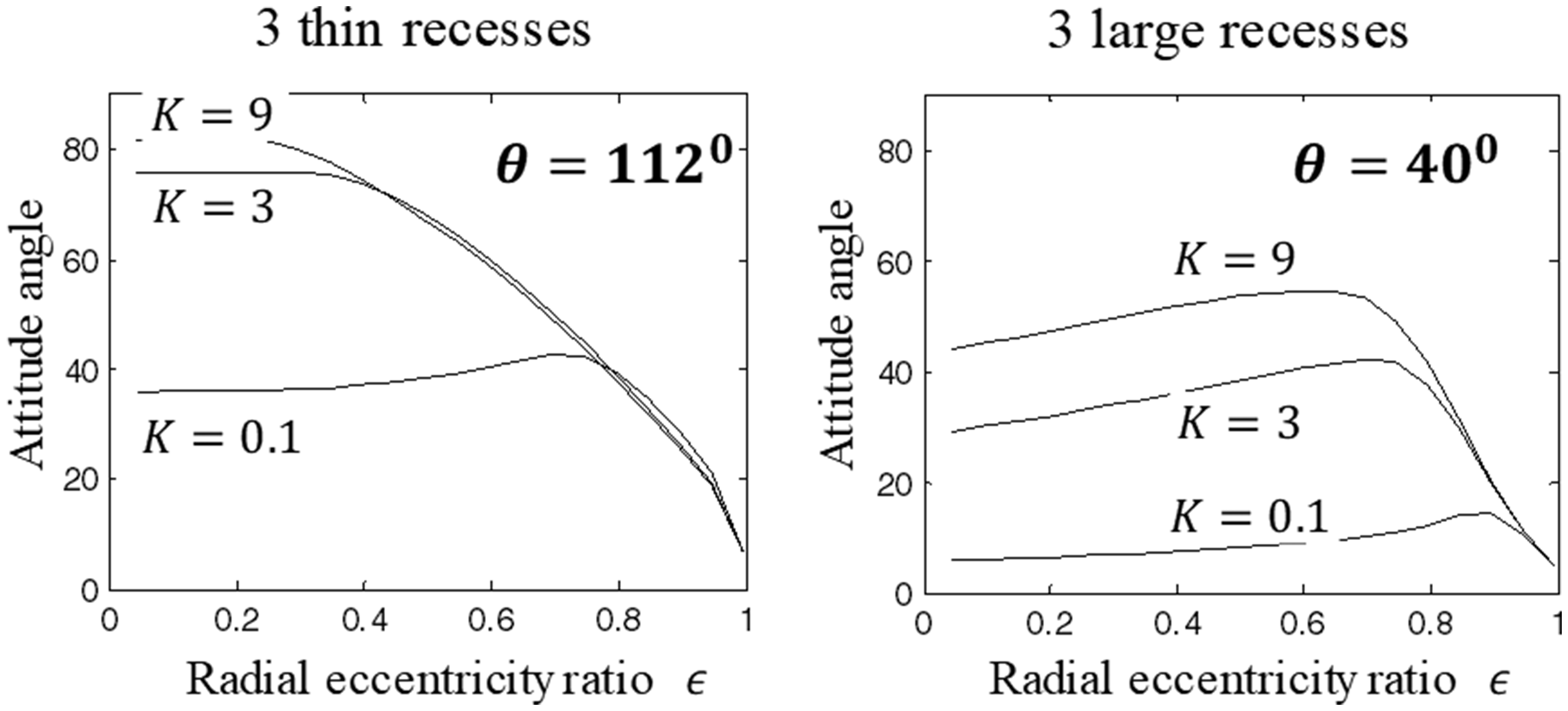

Figure 11 also shows a more conventional hydrostatic bearing with three large recesses where the inter-recess land $θ = 40 \deg$ . The resulting attitude angle is much smaller even at high speed, $K = 9$ , due to the greatly reduced hydrodynamic pressures.

Hybrid performance at high speed

Previous experimental and theoretical research on conventional recessed hydrostatic journal bearings showed that hybrid bearings could operate at much higher values of power ratio than $K = 3$ , subject to selection of suitable bearing materials and maximum temperature rise.¹⁴ A new optimization procedure based on minimum total power for total load support included both hydrostatic and hydrodynamic contributions. For plain slot entry designs, values of power ratio up to and exceeding $K = 12$ were employed. One concern arose at extremely high values of power ratio where $K >> 12$ . For double-row slot entry bearings, it was necessary to avoid a ‘hot spot’ in the minimum film thickness region between the two rows of slots. This potential problem arose when there was lack of sufficient oil recirculation at the mid-length position in the bearing.¹⁵ The thin recess designs, however, ensure continuous oil flow through the bearing mid-length zone.

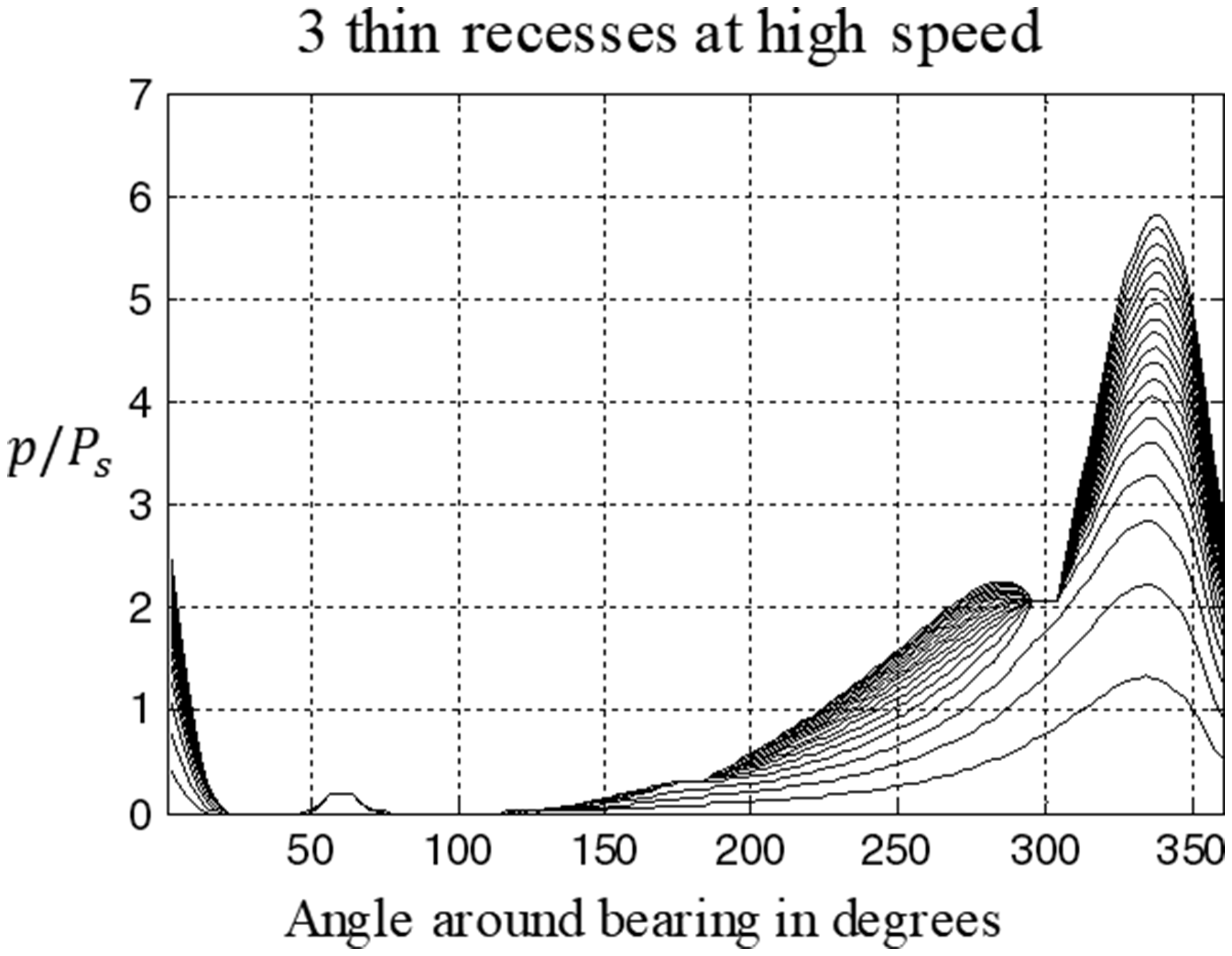

At high speed, $K = 12,$ the pressures for an increased eccentricity ratio of 0.7, show that hydrodynamic pressures become even more dominant, Figure 12. The inlet pressures due to the recesses have the beneficial effect of reducing the tendency for cavitation seen in more conventional hydrodynamic bearings. At the $60 \deg$ angle position around the bearing, positive pressure is provided in the diverging region. This positive pressure moderates the extent of the cavitation.

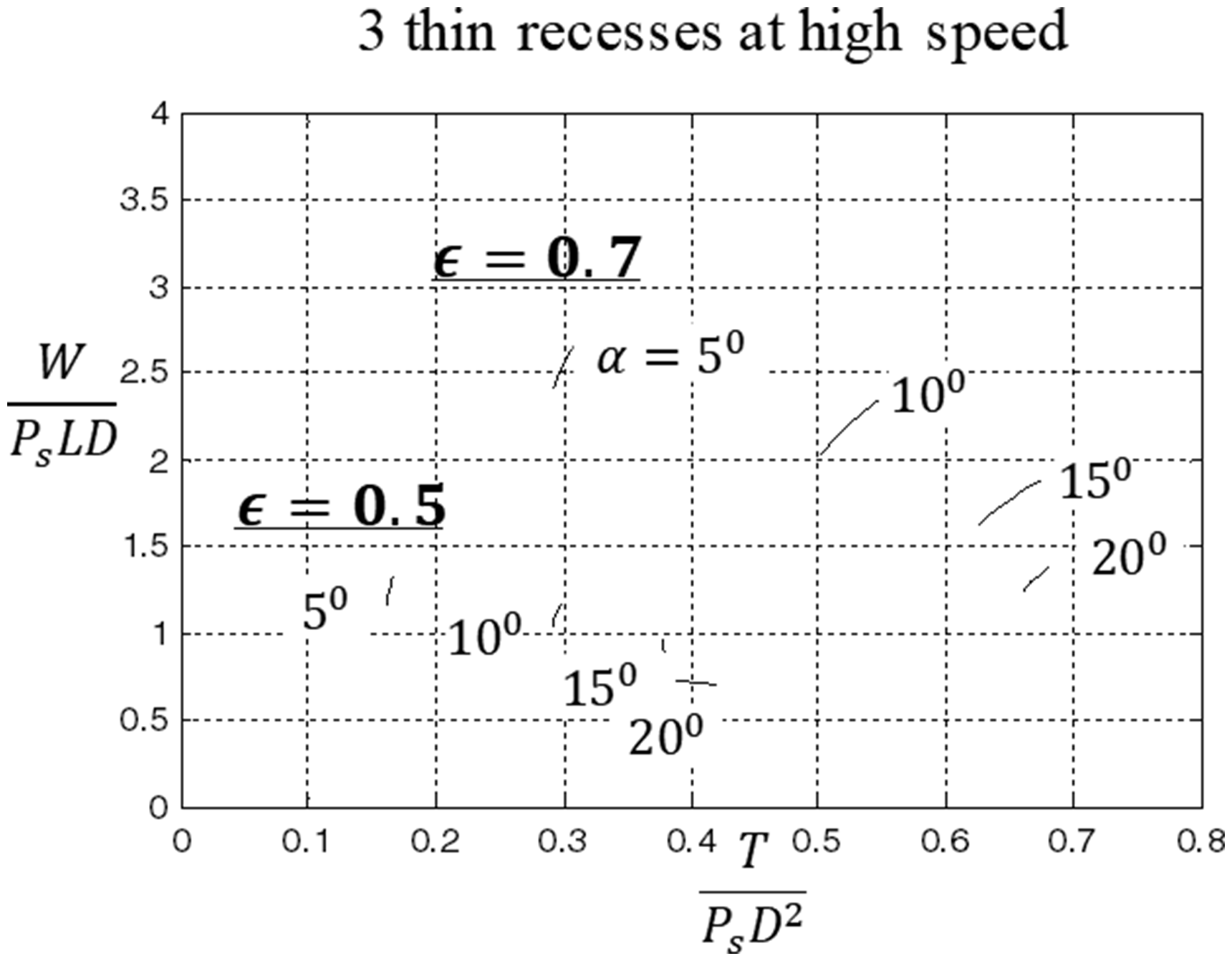

Figure 13 for the three-recess bearing at high speed compared with Figure 6 for the conventional zero-speed four-recess bearing shows that radial load support is almost quadrupled at $ɛ = 0.5$ . Load support is almost doubled compared with the moderate speed case, $K = 3$ , shown in Figure 9. Compared to the zero-speed designs, at high speed and $ɛ = 0.7$ , load support is increased by an order of magnitude. The results confirm the benefits of increased load support employing long thin recesses. Figure 14 for the equivalent four-recess case yields rather lower loads than the three-recess case, but the benefits are also substantial.

For even higher values of power ratio, where $K > 12$ , there are diminishing returns supporting a finding by Koshal and Rowe who minimized the function load/power.¹⁴ It was found for slot-entry bearings that optimum power ratio for hybrid operation lies within the range $9 < K < 12$ .

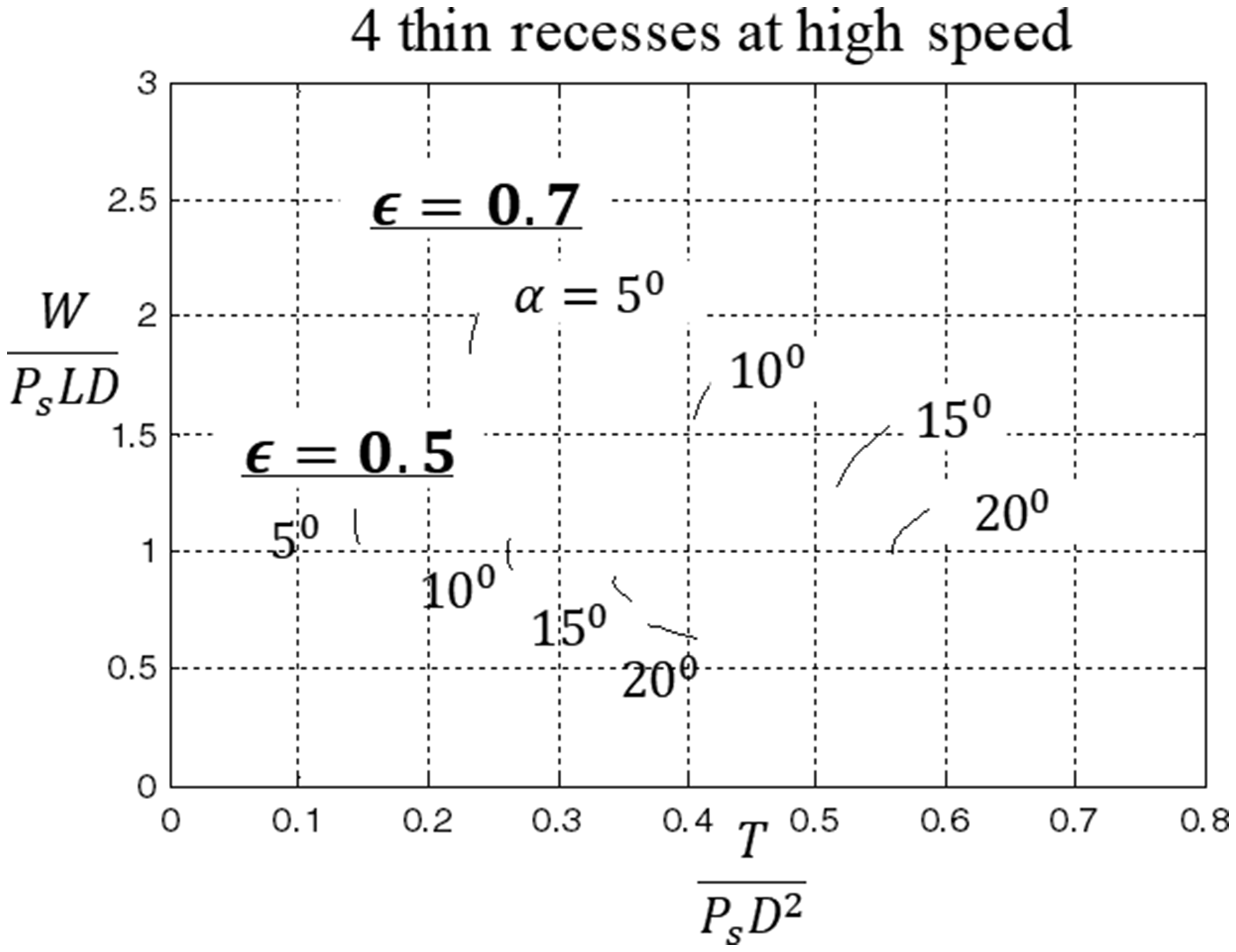

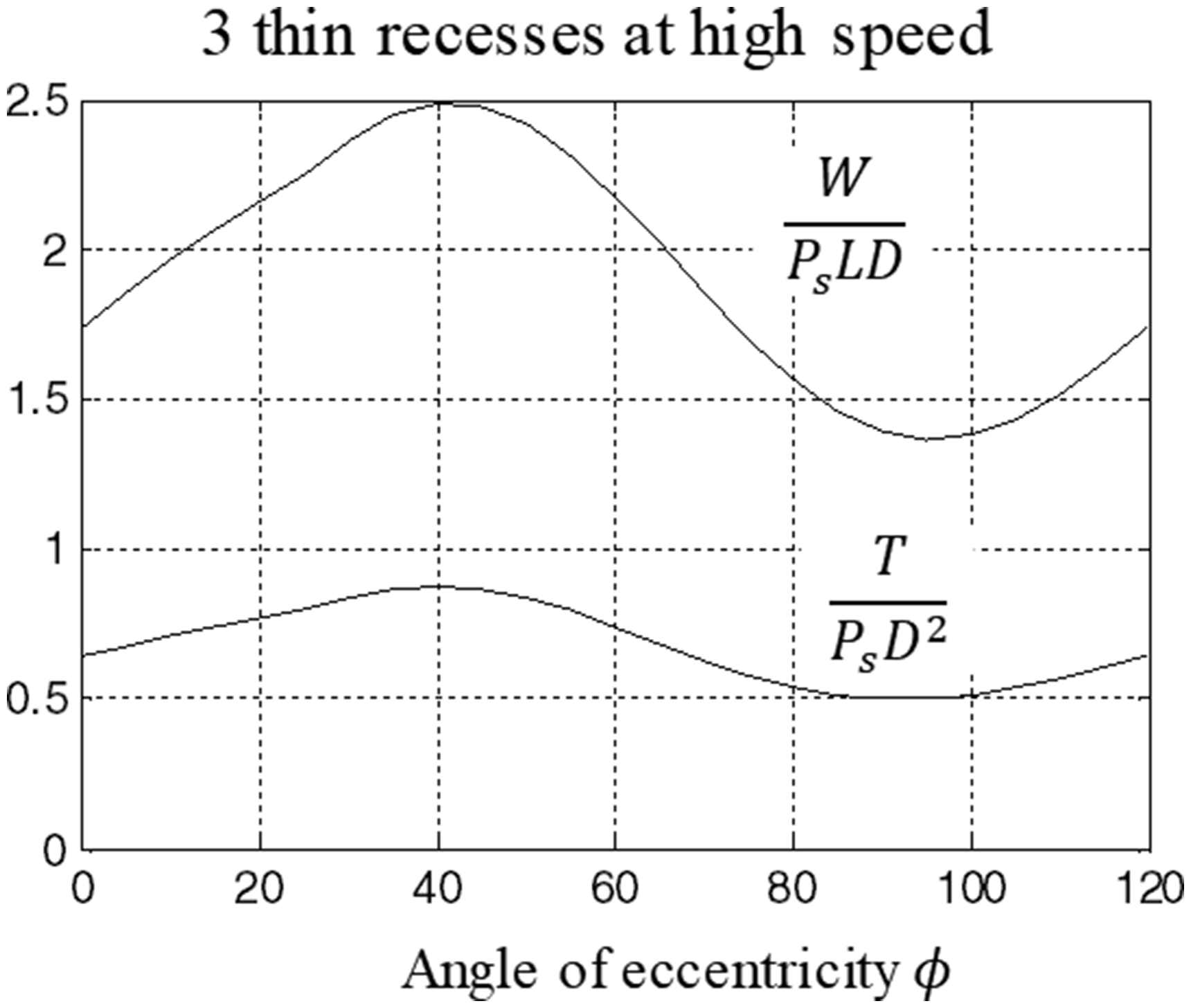

Load support varies significantly depending on the eccentricity ratio, and also on the position of the recesses relative to the direction of the applied loads, as seen in Figures 9 and 10. Figure 15 shows that the difference between the minimum radial load support and the maximum radial load support is almost 80% at an eccentricity ratio $ɛ = 0.7$ . As a rough and easily remembered guide for design of journal bearings, the mid-land position between the recesses should roughly lie so as to oppose the direction of the applied loads on the bearing. From Figure 15, the maximum load support is when φ is slightly greater than $40 \deg$ , which results in a recess approximately $15 \deg$ inside the diverging film region and the applied load favorably directed towards the maximum pressures in the converging film region.

Load support for complementary-cone arrangements

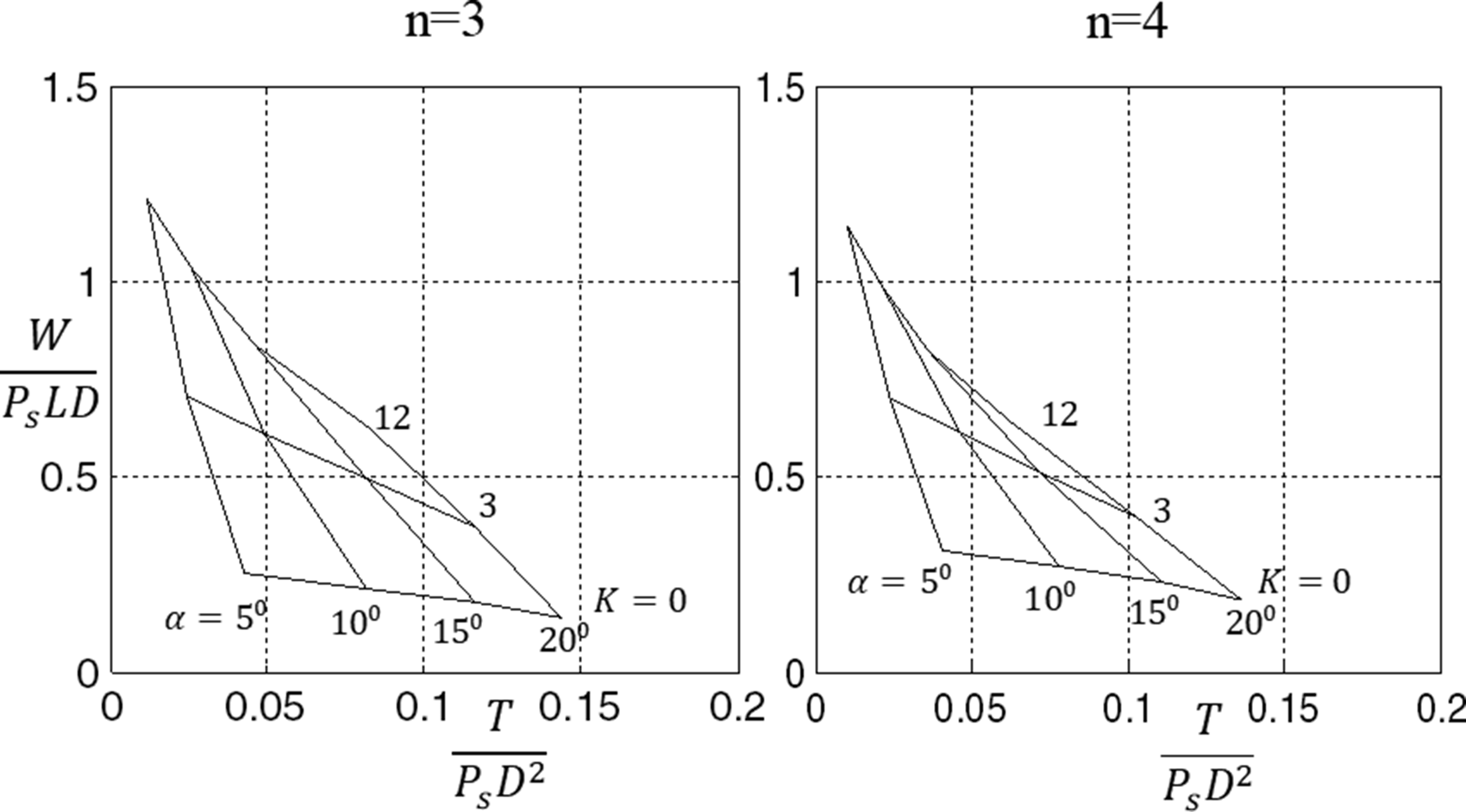

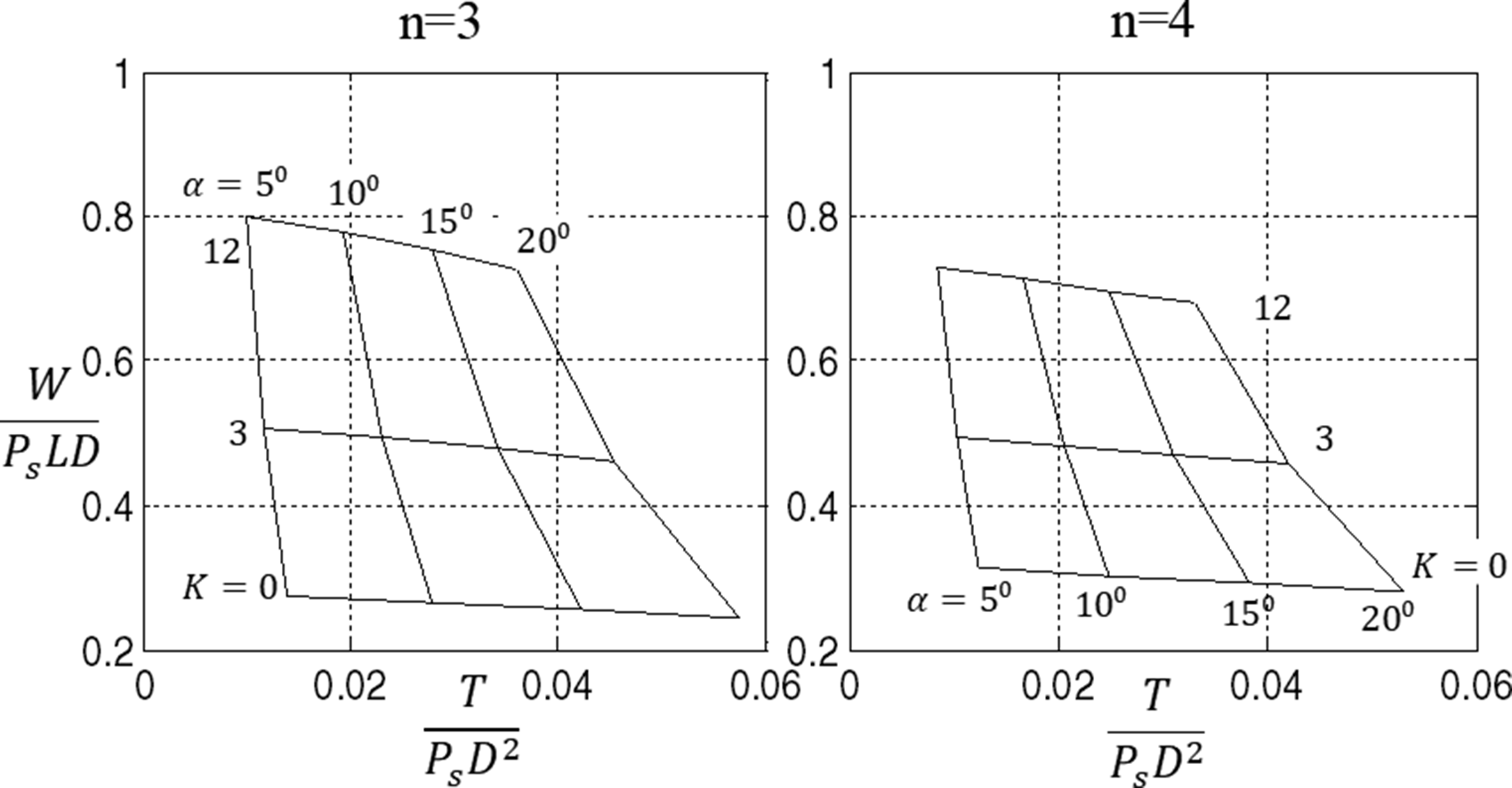

Two complementary-cone arrangements are shown schematically in Figure 2, where two conical bearings provide axial thrust loads acting in opposition. Complementary cone arrangements are convenient for spindles that have to support overhung loads as shown. The more centrally located bearing nearest the overhung load experiences the maximum radial load. The two conical bearings must be well separated so as to avoid excessive misalignment of the journal and bearings under the action of radial loads. Maximum radial load on the front bearing has to be supported based on the data provided in the above figures for a single cone bearing. However, the maximum axial load depends on the resultant axial support load for the two bearings acting in combination. With zero externally applied load, the resultant axial thrust due to the two bearings is therefore zero, and the resultant axial thrust loads are much reduced compared to the thrust loads for a single pad in the range $0.8 < \bar{X} < 1.2$ . Indicative data for design of a limited range of complementary conical bearings are therefore presented on the basis of radial support load for a single bearing and axial support load for two opposed bearings. Examples are shown in Figures 16 and 17 for a range of speeds and L/D ratios.

It can be seen that radial loads increase at the higher speeds corresponding to $K = 3$ and $K = 12$ compared with zero speed with $K = 0$ , but axial loads are reduced with increasing speeds. This tends to reduce the range of operating speeds that can reasonably be employed. A reasonable maximum speed for operation corresponds to a power ratio, $K = 12$ .

While three-recess arrangements give slightly more load support than four-recess arrangements the difference is modest. Reducing the L/D ratio from 1 to 0.5 has the effect of reducing radial and axial loads.

Flowrate and flow factors

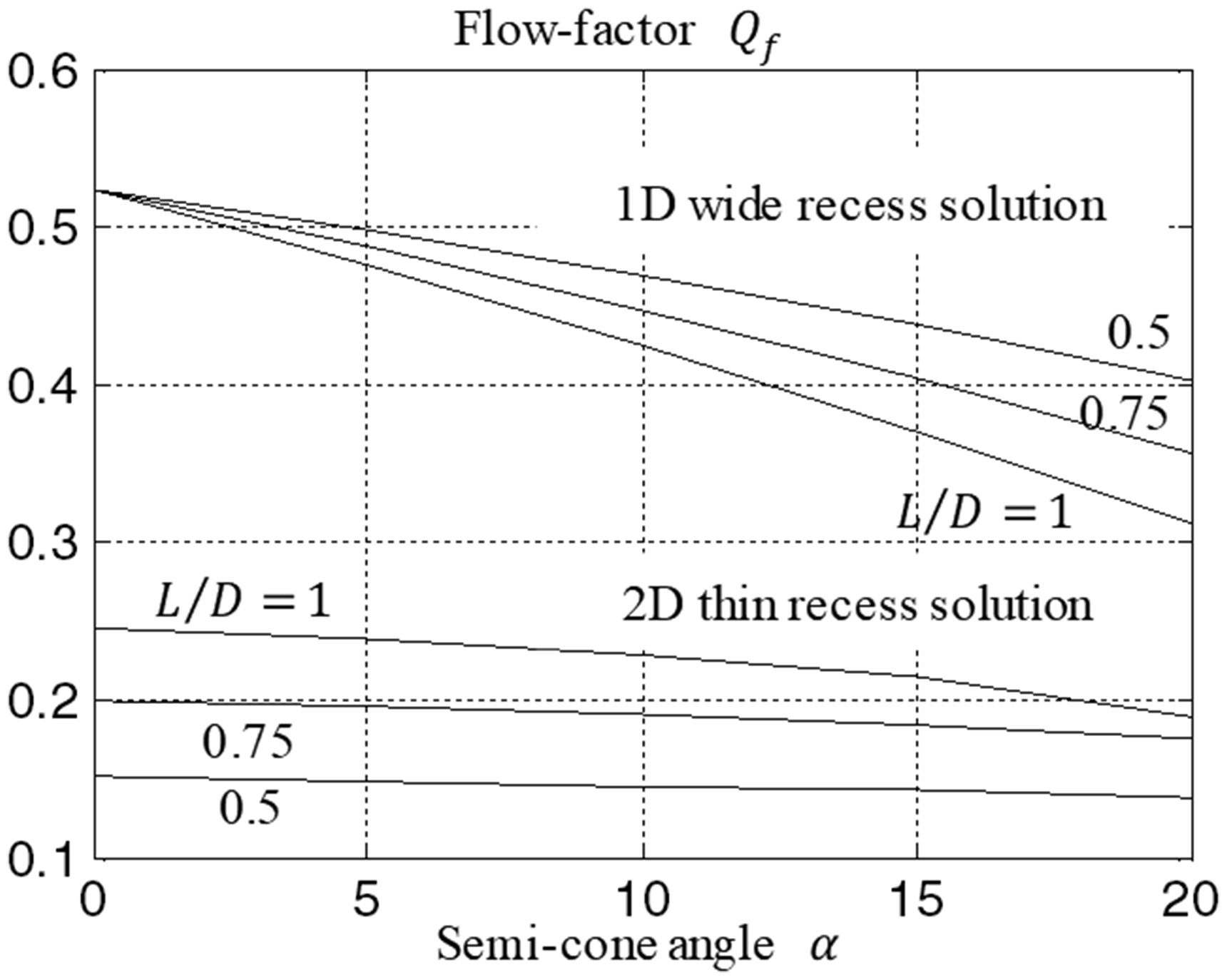

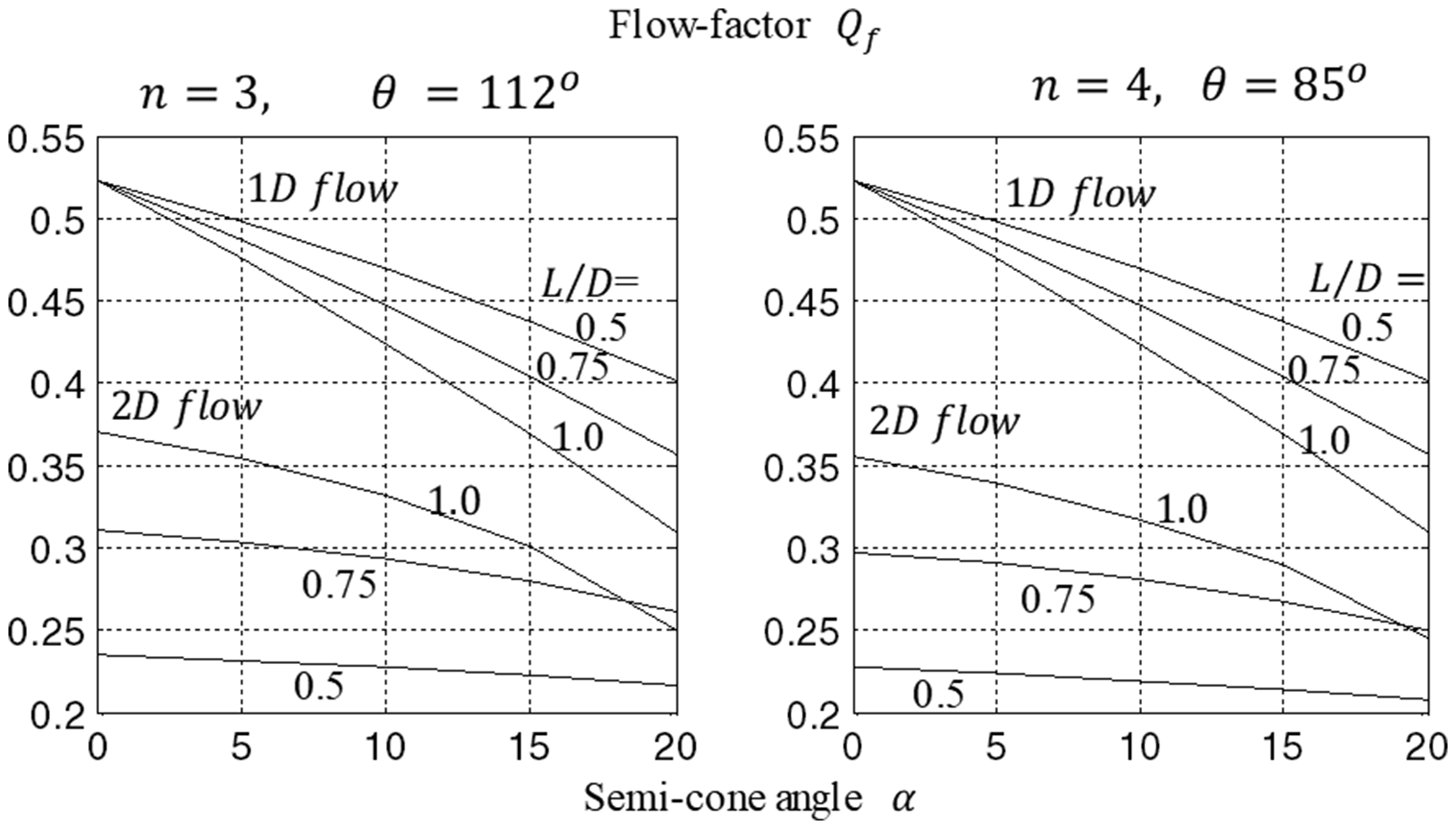

The main variables for the flow factor are the $L D$ ratio and the semi-cone angle α as illustrated in Figure 18. Flow factors based on the 1D solution are a reasonable estimate for bearings having three or more wide recesses.

Flow factors are reduced in the 2D results due to pressure drop between the recesses and also to some extent due to eccentricity ratio. Figure 18 also gives concentric flow factors based on the accurate 2D solution for three thin recesses with $θ = 112^{o}$ and $a L = 0.1$ . The flow factor values are very similar for four thin recesses with $θ = 85^{o}$ and $a L = 0.1$

The flow factors for three and four recess bearings are increased as axial land width is increased, whereas actual values of flowrate q are reduced. This difference is a consequence of the definition of flow factor $Q_{f}$ . The flow factors shown in Figure 19 are for $a L = 0.25$ . Figures 18 and 19 illustrate the range of values likely to apply in practice.

Conclusions

For high speeds, recessed conical hydrostatic bearings benefit from long and thin recesses as opposed to low speed bearings where wide recesses are usually employed. Three and four recess bearings employing long and thin recesses perform well throughout the speed range from zero speed to high speed.

Speed ranges can be conveniently defined by employing power ratio in the design process. Bearings operating in the range $K = 9$ to 12 are high-speed bearings. Operation with $K > 12$ is not recommended due to diminishing returns in terms of load supported for power expended. High power ratios also lead to higher values of temperature rise.

Data provided reveal the benefits for radial load support from operating at high speeds.
