Continuing to look in the mirror: A review of neuroscientific evidence for the broken mirror hypothesis,EP-M model and STORM model of autism spectrum conditions

Evidence from electroencephalography (EEG) studies

In EEG studies of the MNS, a common index of MNS activity is mu suppression, a characteristic reduction in alpha activity (8–13 Hz) from electrodes over the sensorimotor strip (i.e. typically sensors C1, C2, C3) during action observation or execution (Braadbaart et al., 2013). If indeed autistic participants have a dysfunctional MNS, as proposed by the BMH, ASC participants should show a lack of mu suppression or reduced mu suppression compared to controls during action observation. In comparison, the EP-M model would suggest that this lack of mu suppression should only be seen for conditions in which action stimuli or tasks lack a specific goal. The STORM model would only predict less mu suppression in ASC participants if input from regions such as the PFC was required to complete the task (i.e. to compute the social relevance of a situation within the task).

Comparing data from six studies, Hamilton (2013) found no clear evidence to support the BMH and advocated for the STORM model. For the current review, five additional studies meeting the search criteria were found, which compared mu suppression in the ASC and NT groups. In each study, EEG recordings were extracted, while the participant watched a video or a live demonstration of a biological action (e.g. a stranger opening and closing their hand, watching the experimenter place a toy in a box). Baseline conditions included either a rest condition or watching a non-biological action (i.e. a ball moving). Some researchers have proposed utilising the mu rhythm as a target for neurofeedback therapy: these studies are discussed in a subsequent section.

Oberman et al. (2013) attempted to investigate differences in developmental changes in the MNS in NT versus ASC groups, by pooling data from four previous mu suppression studies and examining the correlation between mu suppression and age. Age was associated with mu suppression, with stronger mu suppression to observing action stimuli with increasing age. The correlations did not differ between the ASC and NT groups, suggesting that the MNS develops along a similar trajectory in ASC and NT children. This pooled analysis did show a significant difference between NT and ASC groups in their mean mu suppression when observing action stimuli, which would support the BMH. However, arguably the EP-M model is also supported as the action observation condition for three out of the four studies’ data was exclusively from conditions that were actions without objects or goals (opening and closing a hand). These are actions that would be theoretically reliant on the M-pathway. The fourth dataset would have included both object-based and non-objected-based actions, and contributed only 8/66 ASC datasets. The results would thus be in-keeping with a dysfunction in the M-pathway.

Ruysschaert et al. (2014) investigated mu suppression in young children, using goal-based and non-goal-based stimuli: they report no significant group effects, nor any group by condition interactions. Thus, no deficits in mu suppression were seen for either kind of action. These results fit neither with the BMH nor the EP-M, but could be interpreted according to the STORM framework, which would predict abnormalities in the MNS only under task conditions which demand social top-down regulation.

Bernier et al. (2013) investigated the association between mu suppression and behavioural imitation abilities, in children with ASC and NT controls. In addition to the EEG procedure, in which participants observed and executed the action of grasping a wooden block, each child also completed a behavioural imitation task, which included tests of manual and facial imitation abilities. ASC and NT participants showed comparable mu suppression and imitative ability. These results are problematic for the BMH, although Bernier et al. (2013) noted that there was a sub-group of participants who demonstrated a lack of mu suppression and also poor imitation, derived from both the ASC and NT samples; the authors suggest that behaviours such as imitation, rather than autism per se, may be associated with MNS atypicalities. Mu suppression correlated with facial imitation abilities only. Arguably, facial imitation may have a greater reliance on MNS systems, given that one’s own face cannot be seen (as opposed to one’s hands), and thus action–observation matching mechanisms may be a more central process for this type of imitation. Facial imitation was also noted in Hamilton (2008) as being particularly reliant on the M-route, and thus these results also support the EP-M model. Furthermore, the EEG action observation condition involved actions where a hand grapes an object, an action that would be served by the EP route. As this route is intact in ASC according to Hamilton (2008), the lack of group differences supports the EP-M model. Finally, given there was no social top-down regulation required in this study’s procedure, the lack of group differences in mu suppression is also in keeping with the STORM model.

So far, the discussed investigations have focused on the 8–13 Hz rhythm as a single band width and focused dominantly on the central electrodes (positioned above the sensorimotor strip). Dumas et al. (2014) extended their EEG analysis to the whole scalp and split the mu frequency band into two sub-bands. Participants observed videos of meaningless hand gestures, imitated these hand gestures and produced their own. It was demonstrated that, when observing hand actions, adults with ASC show reduced mu suppression in the upper sub-band (10–12/13 Hz), yet demonstrated no differences to NT participants in the lower sub-band (8–10 Hz). These sub-bands have been attributed to different brain areas; the lower band has been attributed to the MNS, while the upper band may arise from executive control areas (Frenkel-Toledo et al., 2014). Therefore, these results are supportive of differences in top-down modulation. Furthermore, mu suppression differences arose in parietal–occipital regions (caudal to the regions typically implicated in mu suppression studies that only consider electrode sites over the sensorimotor strip) and frontal regions of the brain, rather than the sensorimotor regions. This suggests that differences between groups lie outside the typical MNS regions.

Finally, Cole et al. (2018) utilised both EEG and transcranial magnetic stimulation (TMS) measures of the MNS in their investigation (TMS findings are considered in the section below). Their conditions included a mentalising task (stating whether an actor was spiteful or clumsy when failing to post a poker chip through a slot) and a non-mentalising task (stating whether an actor was successful or unsuccessful at posting a poker chip through a slot). They also used the approach of Dumas et al. (2014), splitting their analyses into upper and lower mu bands. There were no group effects on the upper mu bands. For the lower mu band, there were significant differences between ASC participants and NT participants in right hemisphere mu suppression for the mentalising task, though differences were borderline. Autistic traits (as measured by the Autism Spectrum Quotient (AQ) predicted right hemisphere mu suppression during the mentalising task. Left hemisphere mu suppression differed between groups only during the non-mentalising control task, and this difference was between two control groups (high vs low AQ), rather than between ASC and NT groups. Left hemispheric mu suppression during the mentalising condition predicted performance on the mentalising task. These findings are difficult to fit neatly with the BMH, which would predict group differences in mu suppression during both tasks, as reduced mu suppression during the mere viewing of actions has been considered supportive of the BMH in the studies described above (see Oberman et al., 2013). The BMH would also predict correlations between mu suppression, AQ scores and mentalising ability, given the characteristics of autism are argued to stem from atypicalities in the MNS. The stimuli for this experiment required the processing of goal-oriented actions, processing which the EP-M model argues is not abnormal in ASC: the minimal group differences could be explained this way. Alternatively, the group difference in mu suppression in the non-mentalising task could be explained by the STORM model, which argues that modulation of MNS activation is what is impaired in ASC; potentially top-down modulation failed to reduce MNS activity for the ASC group during this condition. However, this should lead to a lack of a task effect for the ASC group only, which is not reported by Cole et al. (in fact across all participants, there were no significant task effects, once only stimuli shown in both mentalising and non-mentalising condition were considered). Therefore, Cole et al.’s findings do not neatly fit with any of the three models, though the study concludes that ASC is associated with reduced right hemisphere MNS activity during mentalising.

Taken together, these EEG studies refute the BMH, as predicted differences in mu suppression were either not reported or are better explained under the alternative models, particularly the EP-M model. More recent studies that have examined mu suppression band differences at other sites and using other sub-bands have also produced findings fitting the STORM model. However, this model struggles to explain some of the findings brought about by studies using mentalising tasks: tasks in which we would expect social cues to modulate MNS activity.

Evidence from TMS

TMS approaches to MNS research have typically utilised motor evoked potentials (MEPs). MEPs, movements stimulated by TMS over the motor cortex (e.g. arm flinches), are more pronounced during action observation, compared to a baseline condition. This has been suggested to represent pre-activation in the motor cortex during action observation; therefore, it is argued that differences in MEPs during action observation could provide a measure of the activity of the human MNS (Fadiga et al., 1995). Under the BMH, we would expect ASC participants to show no differences, or a reduced difference, in MEP responses during action observation versus a baseline condition, compared to controls. The EP-M hypothesis would suggest that this effect would depend on whether stimuli were goal-based or non-goal-based. STORM would predict effects would be dependent upon top-down modulation requirements. Compared to other methods, Hamilton (2013) found TMS to provide the most consistent results, in which ASC participants showed a lack of task modulation of MEPs when observing hand actions (Hamilton, 2013), a finding in keeping with the BMH.

Similar to Hamilton (2013), two studies that met the inclusion criteria were found to have collected TMS data: Enticott et al. (2013) and Cole et al. (2018). Cole et al. utilised the same paradigm as used in the EEG portion of their study (see above), whereas Enticott et al. asked participants to view videos of various hand actions: static hands, single hand actions or hands actions from two individuals interacting with one another.

No differences in MEPs were reported between ASC and NT participants in either investigation. This is intriguing as Cole et al. (2018) found significant group differences in MNS activity when using EEG (see above), despite incorporating the same participants. The conflicting reports between EEG and TMS measures suggest that these techniques may reflect activity from two different areas or cognitive processes. Indeed, it maybe that TMS-based MEPs reflect processes arising from the primary motor cortex, while EEG-derived mu suppression originates from the somatosensory cortex (Cheyne et al., 2003; Fadiga et al., 2005). Both areas have been shown to have mirror properties (Confalonieri et al., 2012); however, recent work with NT participants has suggested that the EEG measure of mu suppression mirrors the sensory aspects of an action, but not its motor components (Coll et al., 2015, 2017). Since group differences were only shown from EEG, these findings may suggest that purely the sensory aspects of the MNS are affected in ASC rather than the motor characteristics of the network.

Since Cole et al’.s stimuli were object-based and goal-directed (pushing a poker chip through a slot), the EP-M model would predict no MEP differences between ASC and NT participants, since these actions utilise the EP route. Enticott et al.’s (2013) stimuli involved interactive two-person hand actions; it is not clear whether such stimuli would be supported by the M or EP routes, but arguably one could conceive of these actions as having a goal. If so, a lack of group differences would be in keeping with the EP-M model.

The STORM model would predict that MEPs would be unaffected when viewing hand actions, as neither study was presented the task within a social context. However, deciding whether an actor is spiteful or clumsy could be argued to require social cues and therefore, ASC participants in the study by Cole et al. (2018) would be expected to show a lack of MEP modulation. The null effects are therefore contrary to STORM.

Evidence from magnetic resonance imaging and diffusion tensor imaging studies

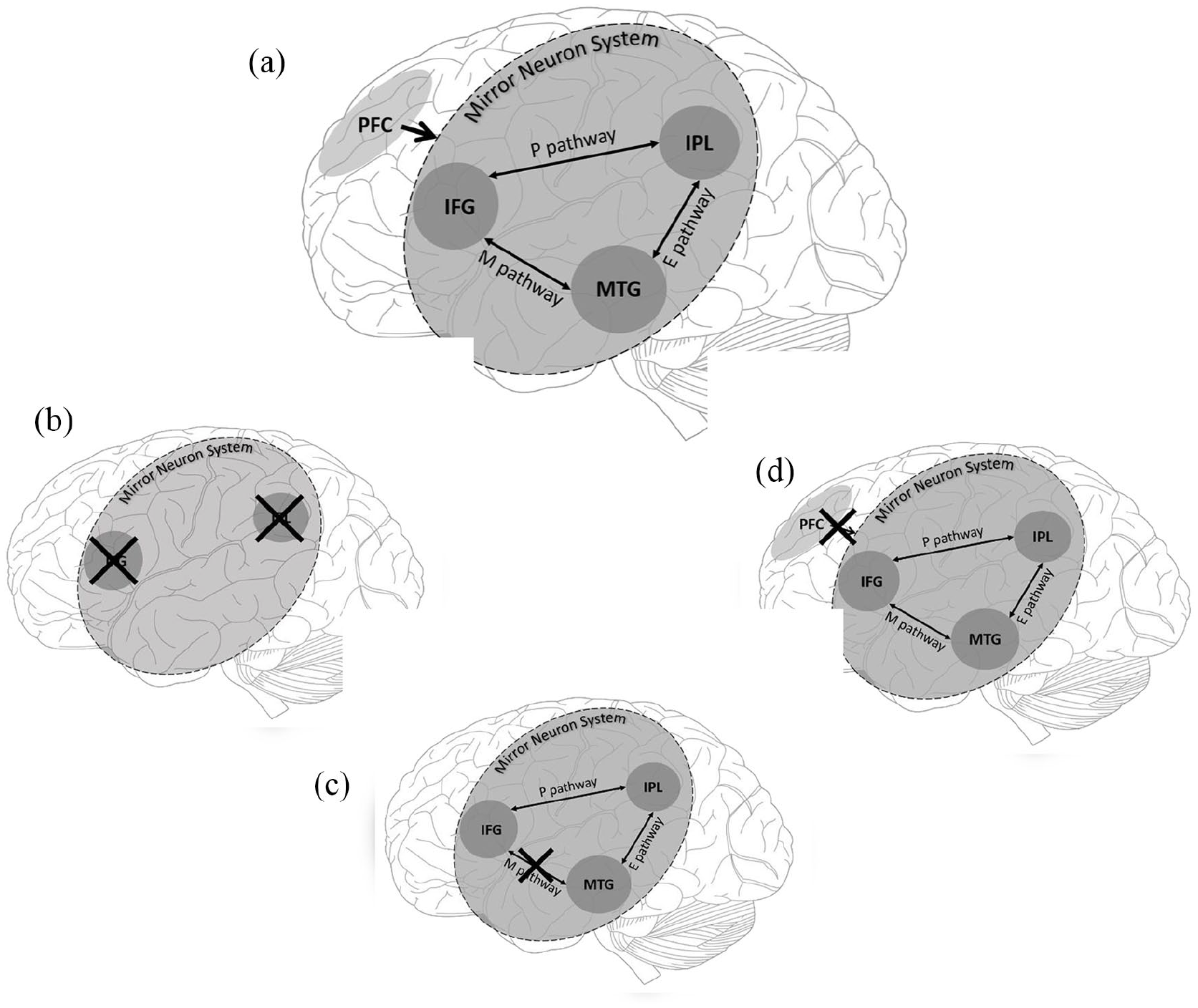

The brain regions typically considered to form the MNS usually include IFG and IPL. Magnetic resonance imaging (MRI) techniques allow for activity in these purported mirror neuron regions to be compared between ASC and NT groups. The BMH would predict global activity differences with the MNS, whereas the EP-M model would predict that differences lie within middle temporal regions, regions that support the M-route, and that activity differences would be specific to stimuli without objects. The STORM model predicts that differences in MNS activity, if any, are due to reduced top-down regulation. Therefore, differences in PFC activity should be present, and during tasks that require social modulation. In addition to differences in the activation of brain regions, diffusion tensor imaging (DTI) techniques allow for differences in the connectivity between regions belonging to the MNS to be investigated. Global connectivity differences would be in line with the BMH, whereas the EP-M model theorises that connectivity differences are specific to the M-pathway. Differences within top-down connections to the MNS would support the STORM account. Hamilton (2008, 2013) reported mixed evidence for the BMH in both reviews when reviewing the MRI literature. We identified 3 fMRI studies and 3 DTI studies.

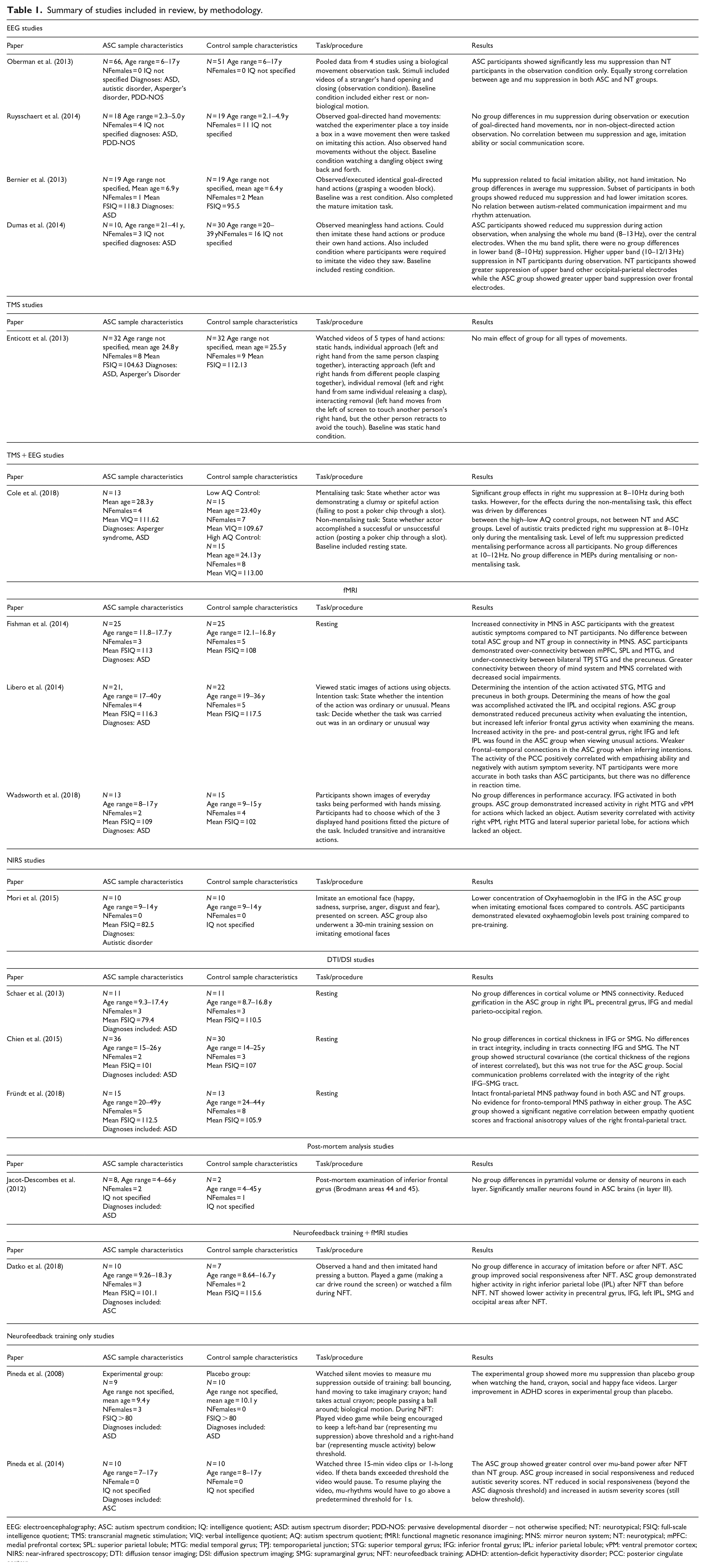

Recent work using fMRI has reported significant differences in activity from MNS brain areas between the NT and ASC groups (Libero et al., 2014; Wadsworth et al., 2018). Both studies incorporated a mentalising task incorporating images of hands (see Table 1 for details). Higher MNS activity (in the IFG) was reported for the ASC participants in both studies. These results complement a recent meta-analysis of fMRI research, which noted hyperactivity in the IFG of ASC participants, when viewing different actions (Yang & Hofmann, 2016). Clearly, this direction is not the one typically predicted by the BMH: one could perhaps suggest that ASC participants have an inefficient MNS, which must work harder to equal the mentalising ability of NT individuals, but this post hoc explanation remains speculative (Libero et al. themselves suggest that their data show a relatively intact response of the MNS in ASC). Even so, hyperactivity localised within frontal and temporal areas would imply that inefficiencies reside within the M-pathway, supporting EP-M predictions, or within top-down connections to the MNS, in line with STORM predictions. Furthermore, in Wadsworth et al. (2018) the group differences in activity were only seen in conditions where participants viewed actions which lacked the use of an object. This could imply a specific abnormality in the M-pathway.

Reduced functional connectivity between the IFG and the MTG (i.e. the M-route) has been reported (Libero et al., 2014), up-holding EP-M predictions. However, the direction of these findings is inconsistent, and some have suggested that connectivity differences are not seen throughout the spectrum: Fishman et al. (2014) reported that the ASC participants with the greatest autistic symptoms demonstrated enhanced functional connectivity within the MNS (rather than reduced connectivity, as reported by Libero et al., 2014), and average connectivity within the MNS positively correlated with ASC symptomatology. However, which brain regions are incorporated into each network varies among reports: Fishman et al. (2014) included the IFG and MTG in the theory of mind network (TOMn) rather than the MNS, which may explain why only TOMn differences were reported in less severe ASC cases. When focusing on the individual brain regions rather than purported networks, participants who demonstrate strongest symptomatology showed enhanced functional connectivity between the IFG, MTG and mPFC. Fishman et al. (2014) also report enhanced connectivity between the TOMn and MNS: this could fit with the STORM model to suggest that unusual connections from the TOMn to the MNS lead to problems with top-down control, particularly affecting the M-route.

Given potential functional connectivity differences, investigating the white matter connections within the MNS may provide more insight into the abnormalities associated with ASC. Three studies using DTI, or more recent diffusion spectrum imaging (DSI), were identified: Schaer et al. (2013), Chien et al. (2015) and Fründt et al. (2018). Schaer et al. (2013) did not aim to specifically test the connectivity between mirror neuron regions: they do report reduced gyrification in the IFG (and IPL), and make the note that this area has been implicated in MN theories and that this reduced gyrification could indicate early developmental abnormalities, but this interpretation is made post hoc. Chien et al. (2015) and Fründt et al. (2018) failed to find group differences in MNS connectivity, findings which are problematic for the BMH and the EP-M model. A lack of group differences in MNS structure may suggest that atypicilaties lie outside of this system, as per the STORM model. Furthermore, Fründt et al. (2018) found no evidence for a fronto-temporal MNS tract in the ASC or NT group. This queries the existence of the M-pathway and the validity of the EP-M model. However, it should be noted that Hamilton’s (2008) review considers DTI evidence to support the existence of an M-pathway. Furthermore, other recent studies not specifically examining structures in the context of mirror neuron and related theories have reported connections between the IFG and MTG: Briggs et al. (2019) report that these regions are connected via the superior longitudinal fasciculus.

In summary, imaging techniques demonstrate that MNS activity and functional connectivity differ between ASC and NT individuals, although the direction of group differences is often contrary to expectations. In particular, the IFG is reported across different studies as having different activity, different functional connectivity and different structural properties, in ASC. This would suggest a dysfunction, as proposed by both the BMH and EP-M. However, DTI studies fail to show structural connectivity differences between participant groups within the MNS itself, and thus atypicalities may be the result of reduced top-down modulation, as argued by STORM.

Evidence from near-infrared spectroscopy studies

Since near-infrared spectroscopy (NIRS) measures neural activity via oxy-haemoglobin levels, similar to fMRI, predictions from each model are identical to those made about MRI research. At the time of Hamilton’s (2013) review, no NIRS studies had been conducted. We identified one NIRS study investigating MNS function in ASC.

Mori et al. (2015) reported reduced IFG oxy-haemoglobin levels in ASC individuals compared to NT controls. This is intriguing given the hyperactivity reported in this region by Libero et al. (2014) and Wadsworth et al. (2018), using fMRI. Both methods essentially index blood-oxygen concentration levels and typically correlate in concurrent fMRI-fNIRS studies (e.g. see Cui et al., 2011). The participants used by Mori et al. (2015) had lower IQ scores than those of the fMRI studies (though IQ scores were still 70 and above, indicting no intellectual disability). It is unclear whether this could account for differences in levels of IFG activity; the recent meta-analysis by Yang and Hofmann (2016) of fMRI data also only included studies with participants with IQs within the normal range; thus, it appears that there are limited data to suggest whether lower IQs in autism pattern with underactivity of the IFG, as opposed to hyperactivity seen in autistic participants with higher IQs. Mori et al. (2015) also reported that activity in the IFG increased after the children with autism were taught to imitate facial expressions; however, the control group did not undergo this training, so relative increases in this area could not be examined.

Broadly, these findings support the BMH, in that the IFG, a key MNS area, is underactive, but training targeting behaviours that utilise the MNS can normalise the activity of the IFG. The involvement of the IFG, and its increase in activity after training of facial imitation – a form of imitation argued to rely particularly on the M-route – would also fit with the EP-M model.

Evidence from post-mortem studies

For the data reviewed thus far, the resolution limitations of neuroimaging prevent discovering whether group differences in MNS activation are due to atypicality in mirror neurons themselves. Here post-mortem studies may be able to shed light on differences at the cellular level. The BMH would predict differences in the IFG and IPL, the EP-M would predict differences in the IFG and MTG and the STORM model would predict differences in frontal brain regions. Hamilton (2008, 2013) did not include post-mortem studies, but our search revealed one study of relevance: Jacot-Descombes et al. (2012).

This study measured neuronal differences within the IFG in eight post-mortem brains from ASC individuals and two NT brains. It was reported that ASC brains had reduced neuron size but equal neuronal frequency and layer volume within the IFG. Since all models would predict some form of neuronal difference within this area, affecting either the top-down pathways to the MNS (STORM model) or the efficiency of the M-pathway or entire MNS (EP-M model and BMH respectfully), such limited investigation cannot differentiate between the models in question. However, this reduction in neuron size could be responsible for the reduced connectivity between the IFG and PFC, shown in DTI studies. Neural tissue from individuals as young as 4 years old were incorporated, suggesting neural differences being present from early life. Therefore, such findings can add to evidence supporting BMH, EP-M and STORM accounts. However, there is no way of confirming whether these neurons had mirror properties.

Evidence from NFT

NFT evidence with regard to the BMH argues that, assuming the BMH is valid, normalising MNS activity using NFT techniques should reduce ASC symptoms. In addition to its potential clinical uses, NFT could also provide an important experimental paradigm to acquire causal, rather than correlational, evidence regarding the role of the MNS in autistic symptomatology. NFT studies examining MNS function to date have relied on EEG measures of the MNS, in which children watch a film or play a game which is linked to EEG recordings of mu rhythms. The child must periodically decrease their mu rhythm (i.e. engage in MNS activity, as indexed by mu suppression) to continue the film or game while simultaneously ensuring that theta and beta activity (associated with distraction) remains below a threshold. If a deficit in the MNS is a cause of ASC symptomatology, as the BMH and EP-M models suggest, training based on MNS activity should reduce ASC symptoms (the EP-M model would specify that training M-route-based processes should be what supports a reduction in ASC symptoms). The STORM model would suggest that simply normalising activity will not help reduce autistic symptoms, rather training ought to consider the appropriate modulation of mirroring processes.

Studies into the effectiveness of NFT (Datko et al., 2018; Pineda et al., 2008, 2014) claim to show such findings. Furthermore, by combining NFT with fMRI, Datko et al. (2018) reported that NFT increased activity within the MNS in ASC participants.

Intriguingly, NFT may have disadvantageous effects on NT participants, including reduced social communication scores (Pineda et al., 2014) and reduced MNS activity measured by fMRI (Datko et al., 2018). It is possible that the disadvantageous effects of NFT on NT individuals result from the MNS becoming hyper-activate during NFT, comparable to the hyper-activity seen in ASC participants in some fMRI studies (e.g. Libero et al., 2014; Wadsworth et al., 2018). However, such findings do not rule out that changes in MNS activity may be due to punishing attentional laps, and therefore improving top-down control to the MNS, as expressed by the STORM model.

The NFT literature at present faces several methodological issues. Neither Pineda et al. (2014) or Datko et al. (2018) used a placebo NFT condition with ASC participants, and both studies relied on parental reports to measure behavioural improvements. This is clearly not a blind test, opening the possibility that parental expectations about the effectiveness of NFT confounded the improvements seen in the ASC group. This is especially worrisome given the stated motivations for parents to participate in the study: ‘Parents and children with ASD were primarily motivated by the expectation that the training would produce differences in behaviour’ (Pineda et al., 2014, p. 3).

Only Pineda et al. (2008) incorporated an ASC placebo group and a double-blind protocol. The study reported that NFT did improve behavioural measures only in the experimental group; however, these improvements were limited to attention and not ASC-specific symptoms. This increases the likelihood that improvements in ASC symptomatology are linked to increased prefrontal control (Kane & Engle, 2002), caused by punishing attentional shifts. Therefore, results are perhaps better explained by the STORM model or possibly a general attentional model (e.g. Chun et al., 2011) rather than the BMH. Furthermore, these paradigms may have failed to improve other symptoms (e.g. deficits in social interaction) because children were taught to modulate via explicit input (e.g. the film stopping and starting). Arguably, this does not represent the cues used, according to the STORM model, to modulate mirroring activity usually: perhaps if social cues were used, as suggested by the STORM model, improvements in social and communication may be seen.

To summarise, the NFT literature contains methodological flaws, and the most prominent study in the literature only shows improvements in attention, which could be better explained by the STORM model.
