Structure safety assessment under heavy traffic based on weigh in motion and simulation analysis

Abstract

This article presents a new method for structure assessment based on weigh-in-motion data and simulation analysis. The focus is particularly on the simply supported hollow slab bridges and extra-heavy truck (gross truck weight ≥ 80 t) from the right tail of weigh-in-motion data. The dynamic models of truck types are refined, and the coupling relationship between truck and multi-girder bridge are determined. A self-developed bridge–truck analysis system is established by separate iteration and is used in the simulation analysis of extra-heavy truck load cases. The truck load effect is first analyzed by a comparison with code values. The load rating index is introduced for the structure safety assessment; meanwhile, the key parameters, for example, the dynamic amplification factor, are optimized. The results show that the maximum load effect level of extra-heavy truck is obviously higher than the design vehicle load effect, and the average level is approximate to or a little higher than the latter. The displacements due to extra-heavy truck are seriously transfinite, while the structural stiffness can meet the requirement of serviceability. Both the proposed method and Chinese code method are used to assess the structure safety of hollow slab bridges. The maximum value of load rating index ranges from 0.69 to 0.78 and the average value is 0.53–0.67. The hollow slab bridges have not yet reached the ultimate limit state and have a safety redundancy under the extra-heavy truck load. The loading indices of MOCAT are close to the average values of load index of this study, but lower than those of the maximum values. Some extreme loading conditions may be thoughtless in the proposed safety assessment method by MOCAT.

Keywords

bearing capability bridge engineering hollow slab bridges safety assessment simulation analysis stiffness weigh in motion

Introduction

Heavy traffic stimulated by the transport cost and efficiency is more and more inevitable in many regions of China, which will definitely magnify the deviation between design vehicle load and actual traffic load. Thus, the operational safety of bridge structures can hardly satisfy the requirement from the design level. In fact, the long-term heavy traffic load is indeed pernicious to bridge structure and it can even lead to the collapse accident (Sasaki et al., 2010; Xu et al., 2016). Therefore, adequate safety assessments on bridge structures are crucial to eliminate catastrophic failures and serviceability problems for providing a safe driving environment to the motorists.

Currently, many assessment methods have been specified by national codes (e.g. American Association of State Highway and Transportation Officials (AASHTO), 2011; Canadian Highway Bridge Design Code (CHBDC; CSA International, 2006)) and are widely used to assess the present performance of bridges. In China, Ministry of Communications and Transportation (MOCAT, 2011) also published the technical manual used for bridge assessment, in which the adopted traffic load and partial factors are exactly same as those in the design code. The traffic load models given in design code are intentionally made to be valid for the design of a wide range of bridge types and loading conditions. In consideration of the deviation of design traffic load and actual traffic load, the assessment method specified by MOCAT (2011) may need an enhancement to understand the present structural performance more accurately.

Many researchers proposed to use structural health monitoring (SHM) system to assess the bridge structure via serviceability and safety indices (Frangopol et al., 2008a, 2008b; Liu et al., 2009; Orcesi and Frangopol, 2013; Strauss et al., 2008; Sung et al., 2016). It is quite robust and reliable; however, so far, only a few important or large-span bridges have installed the SHM system due to the high cost. The wide application of SHM on medium- and small-span bridges is still under investigation. Meanwhile, some other researchers carried out the structure assessment on the basis of field test (Bell et al., 2013; Brownjohn et al., 2003; Deng et al., 2016; Movaghati and Abdelnaby, 2016; Zhang et al., 2011). Besides, methods including reliability analysis (Liu et al., 2016; O’Connor and Enevoldsen, 2007; Val and Melchers, 1997; Xie et al., 2015), variable weight synthesis (Liu, 2016), and finite element crack analysis (Wang et al., 2013) have also been used in the structure assessment.

In recent years, advances in weigh-in-motion (WIM) technology have led to the increasing availability of accurate and unbiased site-specific traffic records (Haugen et al., 2016; Ren et al., 2014; Yu et al., 2016). These records have been successfully applied in the derivation of site-specific loading models (Getachew and Obrien, 2007; O’Connor and O’Brien, 2015; Ruan et al., 2016; Schmidt et al., 2016; Sivakumar and Ibrahim, 2007), calculation of load effects (Enright and O’Brien, 2013; O’Brien et al., 2011a, 2011b), and also the truck weight regulation (Jacob and Cottineau, 2016). Meanwhile, the past decade has also witnessed remarkable progress in structural computational simulation (Qureshi and Warnitchai, 2016; Wang et al., 2016). Hence, it can be feasible and economical to investigate the structure safety assessment based on WIM data and simulation analysis. One key to this method is the accurate simulation of the actual condition of bridge structure (Roschke and Pruski, 2000). Many researchers, including the authors of this article, have conducted a series of researches in this field (Brownjohn et al., 2003; Han et al., 2011; Li, 2010; Movaghati and Abdelnaby, 2016). Another key is the establishment of simulation analysis system. Tremendous studies have also focused on this field (Deng and Cai, 2010; Nassif et al., 2003; Xiang et al., 2007). Nevertheless, further optimization is still in demand, such as the coupling relationship between vehicle and multi-girder bridge and the refining of dynamic vehicle types.

This article is organized as follows. Seven typical simply supported hollow slab bridges are first selected as the research objects according to Chinese bridge construction condition. In all, 549 extra-heavy truck (EHT) scenarios are extracted from the right tail of WIM data collected in Shaoxing segment of G104 highway. The dynamic simulation analysis of these scenarios is conducted in the following by a self-developed bridge dynamic analysis system (BDANS). Then, the truck load effects are analyzed and compared with the code value. Finally, the load rating index of carrying capacity is introduced to assess the safety of hollow slab bridges, and the value of dynamic amplification factor (DAF) is optimized to improve the accuracy of assessment result.

Traffic monitoring

The traffic monitoring site is located at the Zhong-jiawan viaduct of Shaoxing City, which is a segment of the G104 highway in China. The information of the viaduct and monitoring equipment was introduced by Han et al. (2016).

The time precision of WIM data used in this study is 0.1 s. A precision of 0.01 s or higher is applicable when recording vehicle data, nevertheless a lower precision of 0.1 s is still acceptable (Enright and O’Brien, 2013). The time length of the processed traffic data records in this study is 10 months from April 2013 to January 2014, approximately 300 days covering different seasons, working days, and weekends. Totally, 871,719 sets of vehicle load data were collected.

To investigate the structure safety under heavy traffic, only a portion of trucks from the right tail, namely, EHT, will be considered. Therefore, a reasonable gross truck weight truncating point is needed. Some researchers have proposed to take the top 30% or top $2 \sqrt{n}$ of n data as the analysis object (Obrien, Schmidt, and Hajializadeh, et al., 2015). In this study, a higher truncating point with an approximate assurance rate of 99%, 80 t of gross truck weight, will be used to conduct a deterministic structure safety assessment. Compared with properly loaded trucks, EHTs occur less frequently but may significantly contribute to the distress of structure safety (O’Brien et al., 2010). In other words, the deterministic safety assessment results of structures under EHT load are more notable. In addition, the adoption of 80 t will greatly reduce the amount of data used for analysis and increase the analysis efficiency which is also considerable in simulation analysis. Besides this, the truncating point of 80 t is sufficient to cover the adverse loading scenarios, which has also been used in the previous researches by the authors of this article (Han et al., 2015, 2016).

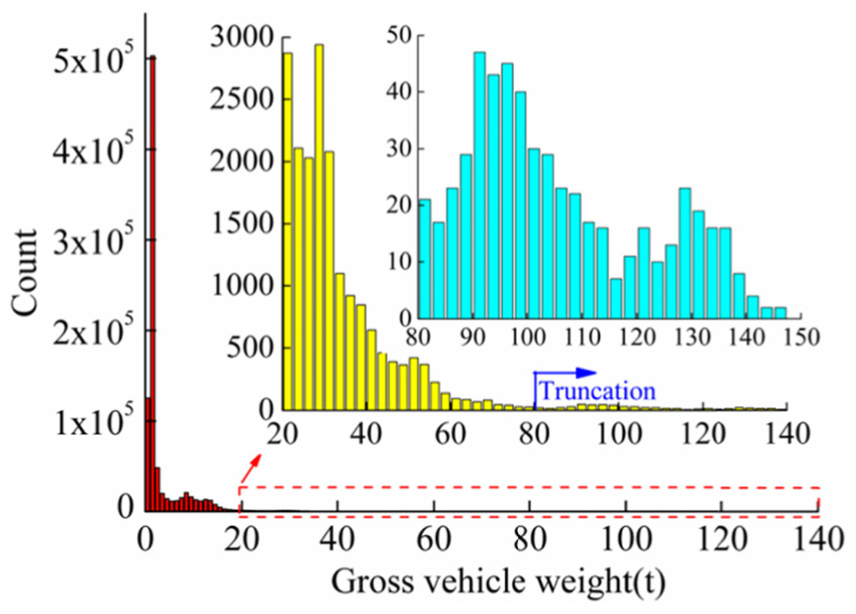

Figure 1 shows the gross weight distribution of all monitored vehicle and the truncation process. Totally, 549 EHTs are extracted. It can be found that the gross vehicle weight of tailed EHT is bimodal. The first peak is around 93 t and another is 130 t. The detailed characteristics of these EHTs have been analyzed (Han et al., 2016) and will not be repeated here due to the space limitation.

Figure 1.

Histograms of gross vehicle weight.

Load cases of EHT

For the vehicle load effect analysis of long-span bridges, random traffic flow is the optimal choice for simulating the vehicle load. Nevertheless, for small-span bridges, EHT load case from monitored traffic flow can also meet the requirement of accuracy. It should be noted that the heavy traffic means traffic with heavy trucks involved in this study. Specifically, the EHT load case will be used to quantify the effect of heavy traffic on bridge structure. The EHT load case is a group of vehicles moving along the bridge, in which at least one EHT involved. The extraction of load case is based on the information of arrival time, vehicle speed, and span length. The acceleration, deceleration, and lane changing will not be considered because the span length is pretty small.

Totally, 549 EHT load cases were extracted from the recorded database and classified into two types as follows. Case I: only one EHT is included and 542 cases can be classified into this type, occupying 98.7% of the gross. Case II: one EHT and one common vehicle are included simultaneously.

Typical bridges and analytical model

The simply supported hollow slab bridge amounts for a high percentage of Chinese existing bridges. For example, in Hebei province, this bridge type occupies more than 70% of the total amounts (Hebei Provincial Communications Planning and Design Institute (HPCPDI), 2009). The span length of simply supported hollow slab bridge is usually less than 20 m. The design ratio of live load effect to dead load effect is higher than other bridge types. As a result, its safety operation is more sensitive to the evolution of traffic load. In this study, the simply supported hollow slab bridges will be taken as the research object.

Simply supported hollow slab bridges

In China, the design and construction of hollow slab bridges are mainly based on the standard drawing for bridge superstructure. In this study, seven hollow slab bridges were selected from the standard drawing. The width of subgrade is 24.5 m. All the structures are separate bridge with left and right parts. The key geometrical parameters of the seven bridges are given in Table 1, where RC means the reinforced concrete structure and PC means the prestressed concrete structure. Correspondingly, the RC-6m denotes the referenced concrete slab bridge with a span length of 6 m. Figure 2 shows the arrangement of cross section of RC-10m and PC-20m.

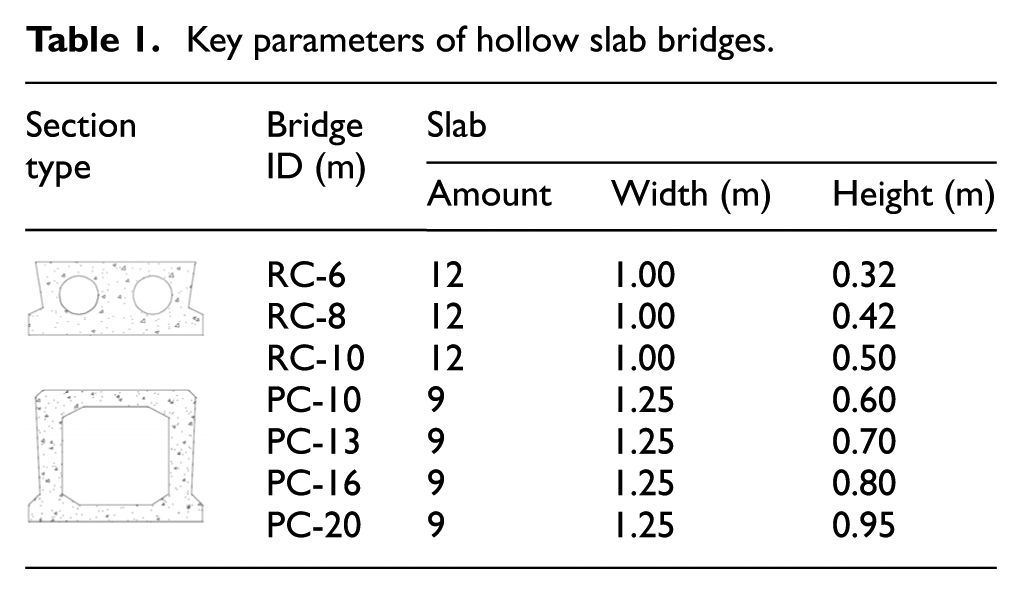

Table 1.

Key parameters of hollow slab bridges.

Section type	Bridge ID (m)	Slab
Section type	Bridge ID (m)	Amount	Width (m)	Height (m)
	RC-6	12	1.00	0.32
	RC-8	12	1.00	0.42
	RC-10	12	1.00	0.50
	PC-10	9	1.25	0.60
	PC-13	9	1.25	0.70
	PC-16	9	1.25	0.80
	PC-20	9	1.25	0.95

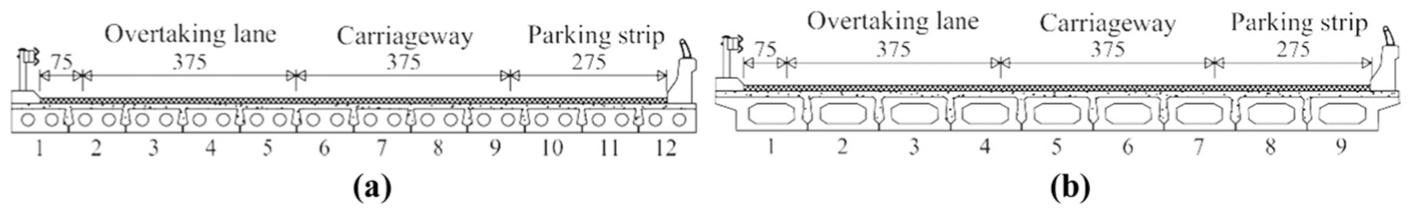

Figure 2.

The arrangement of cross section: (a) RC-10m and (b) PC-10m.

It should be noted that this study will focus on the majority part of slab bridges. Therefore, the defects on a specific bridge (e.g. cracking of connections) will not be considered in detail. The selected bridges are assumed to have a good structural integrity.

Analytical model and updating

As mentioned before, the model accuracy is important for the structure analysis of multi-girder slab bridge, especially the accuracy of lateral distribution of internal force. The grillage models were preliminarily established by ANSYS 12.0 as shown in Figure 3(a). The selected element type is beam4. The connection of hinge joint was simulated by releasing rotational degrees of freedom (DOFs) and coupling the translational DOFs.

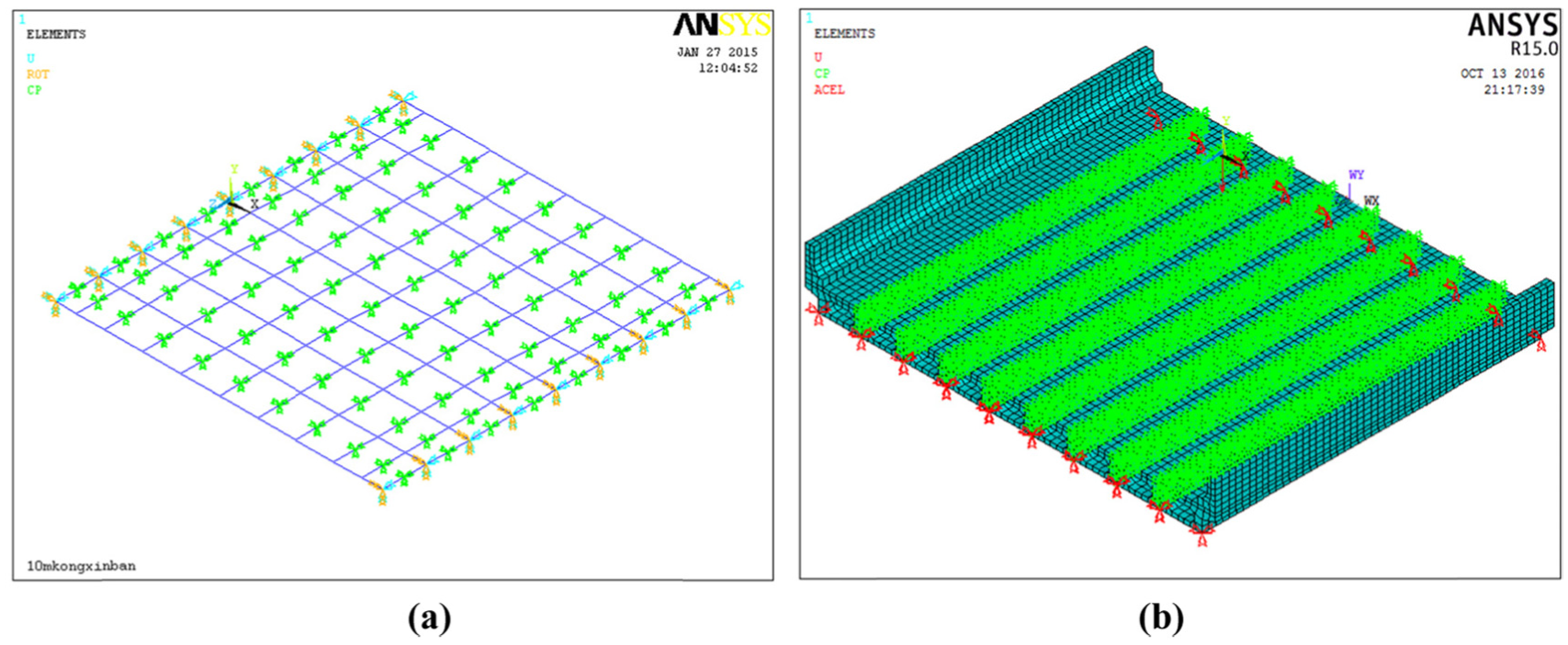

Figure 3.

Finite element model of PC-10m: (a) grillage model and (b) entity model.

The initial model usually needs to be updated. Model updating based on field test is regarded as the most reliable method, while the results may be very peculiar. The entity finite element models, which are assumed to have a higher accuracy of lateral distribution of internal force, were used to update the grillage models to meet the requirement of general analysis. Figure 3(b) shows the entity finite element of PC-10m, in which the slab, bridge deck, and hinge joint were simulated by element type solid65. The connections between slab and hinge joint were simulated by coupling the DOF of nodes. In the process of coupling DOF, the rotational DOFs were released and the translational ones were coupled, which corresponds with the grillage models.

The elasticity modulus and mass density of cross-girder have a significant influence on the lateral distribution of internal force and thus are chosen as target parameters of model updating. The static target function can be shown as (Li, 2010)

{\begin{matrix} f_{s t a s t i c} = \sum_{i = m}^{n_{s u}} β_{u m} {(\frac{M_{c m}}{M_{t m}} - 1)}^{2} \\ {0 \leq β_{u m} \leq 1.0, 0 \leq | M_{c m} - M_{t m} |} \leq τ_{u} \end{matrix}

(1)

where $n_{s u}$ is the number of slabs; $β_{u m}$ is the weight of correction term; $M_{c m}$ and $M_{t m}$ are the moment effect of grillage model and entity model, respectively; and $τ_{u}$ is the upper bound of error. Table 2 shows the updated values of elasticity modulus and mass density of cross-girder and the comparison with the initial values. The E₀ and ρ₀ are the original values of elasticity modulus and mass density and the E′ and ρ′ are the updated values, respectively. It can be found that both the elasticity modulus and mass density of cross-girder are increased, and this can be mainly attributed to the fact that the entity model owns a higher rigidity than grillage model. Compared with the initial value, the elasticity modulus has increased by 0.601%–0.980% and the mass density 0.171%–0.215%. It should be noted that the initial mass density is an equivalent value by considering the volume of hinge joint and width of cross-girder.

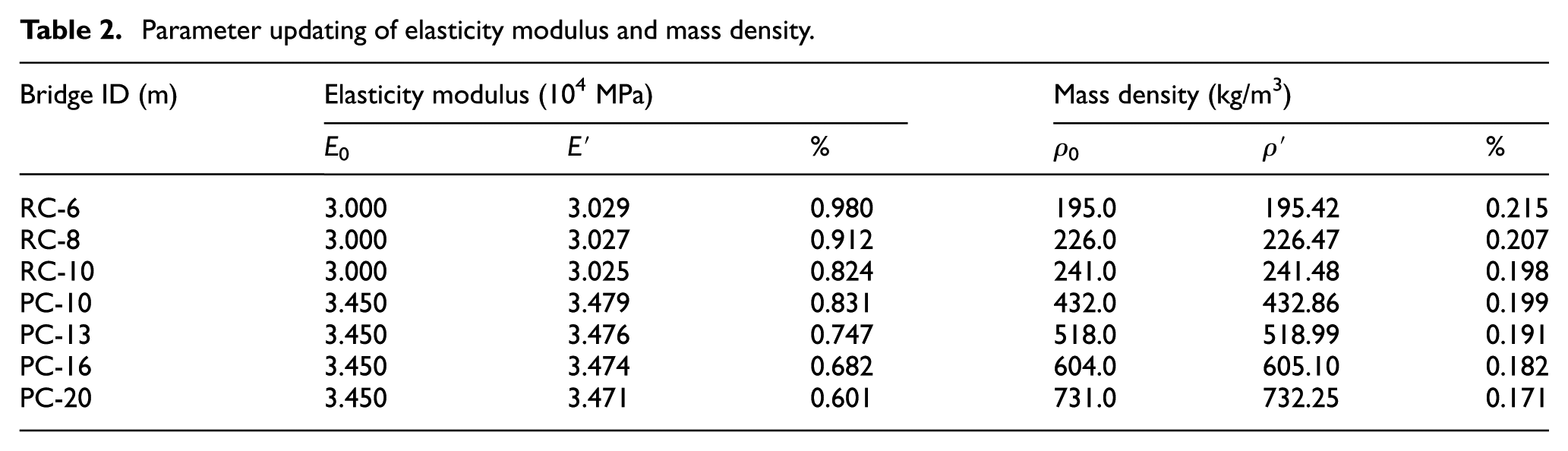

Table 2.

Parameter updating of elasticity modulus and mass density.

Bridge ID (m)	Elasticity modulus (10⁴ MPa)			Mass density (kg/m³)
Bridge ID (m)	E ₀	E′	%	ρ ₀	ρ′	%
RC-6	3.000	3.029	0.980	195.0	195.42	0.215
RC-8	3.000	3.027	0.912	226.0	226.47	0.207
RC-10	3.000	3.025	0.824	241.0	241.48	0.198
PC-10	3.450	3.479	0.831	432.0	432.86	0.199
PC-13	3.450	3.476	0.747	518.0	518.99	0.191
PC-16	3.450	3.474	0.682	604.0	605.10	0.182
PC-20	3.450	3.471	0.601	731.0	732.25	0.171

Furthermore, a comparison was conducted between the lateral distribution of internal force of updated grillage model and that of entity finite element model. The load case information and positive moment results are shown in Figure 4. It can be known from Figure 4 that the maximum relative error of positive moment is 7.51%, so the modified grillage models will be used in the following analysis.

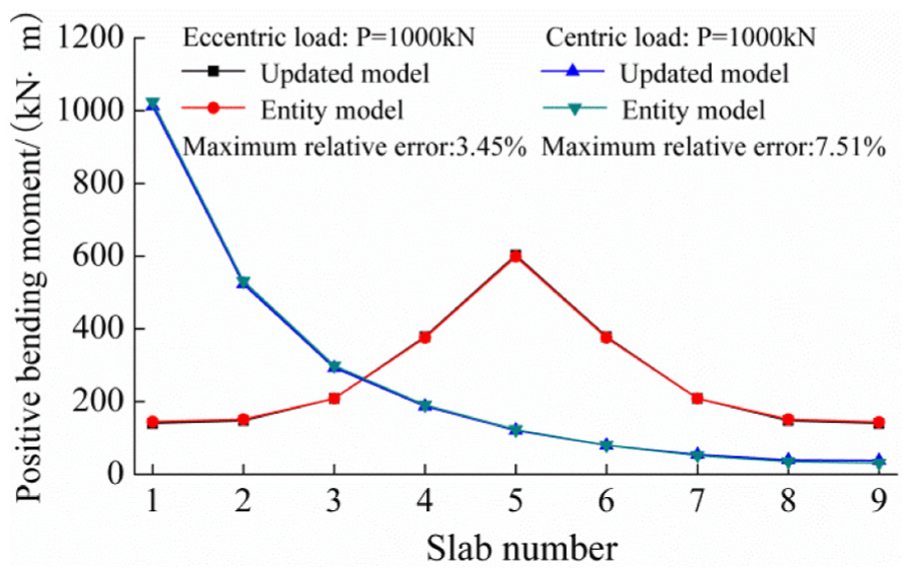

Figure 4.

Comparison of lateral distribution of internal force.

Truck and bridge interaction analysis

Dynamic models of trucks

To cover all the vehicle types of the monitored segment, the dynamic truck models, from biaxial to six-axle, were established. Figure 5 only shows the models of six-axle tractor-trailer, which is the predominant type of EHT. The $Z_{v r}^{i}$ and $θ_{v r}^{i}$ denote the vertical and pitching displacements of the ith rigid body, respectively, and $Z_{v a L}^{j}$ and $Z_{v a R}^{j}$ denote the vertical displacements of the left and right wheels of the jth axle, respectively. The K and C denote the spring stiffness and damping, respectively. Table 3 shows the parameter values of K and C of six-axle tractor-trailer.

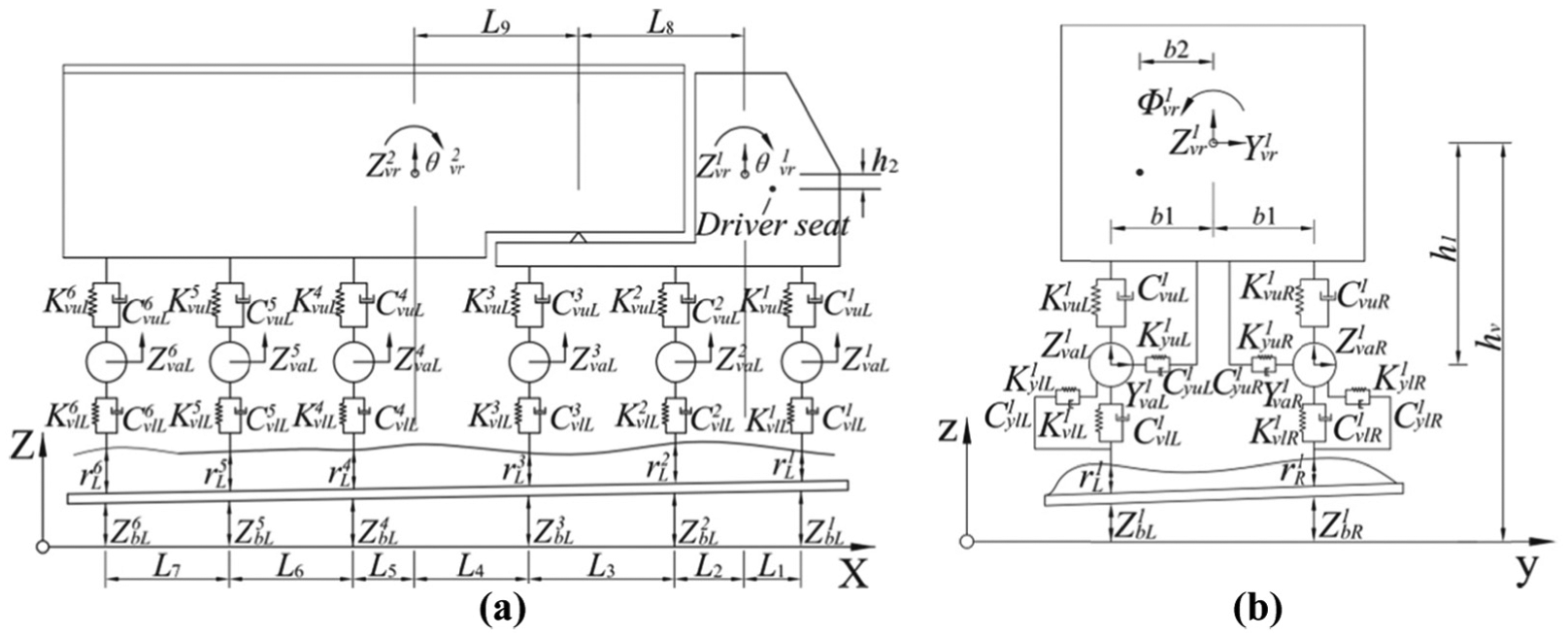

Figure 5.

Dynamic model of six-axle tractor-trailer: (a) side direction and (b) crosswise.

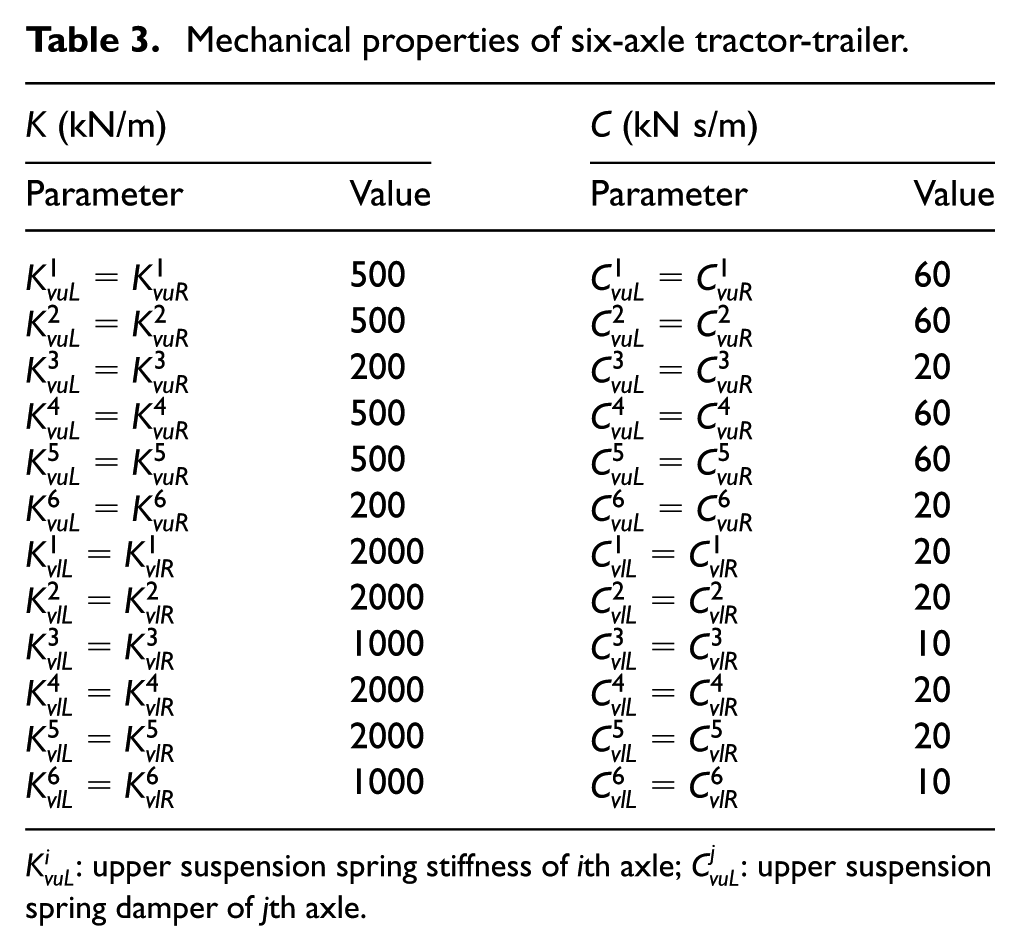

Table 3.

Mechanical properties of six-axle tractor-trailer.

K (kN/m)		C (kN s/m)
Parameter	Value	Parameter	Value
$K_{v u L}^{1} = K_{v u R}^{1}$	500	$C_{v u L}^{1} = C_{v u R}^{1}$	60
$K_{v u L}^{2} = K_{v u R}^{2}$	500	$C_{v u L}^{2} = C_{v u R}^{2}$	60
$K_{v u L}^{3} = K_{v u R}^{3}$	200	$C_{v u L}^{3} = C_{v u R}^{3}$	20
$K_{v u L}^{4} = K_{v u R}^{4}$	500	$C_{v u L}^{4} = C_{v u R}^{4}$	60
$K_{v u L}^{5} = K_{v u R}^{5}$	500	$C_{v u L}^{5} = C_{v u R}^{5}$	60
$K_{v u L}^{6} = K_{v u R}^{6}$	200	$C_{v u L}^{6} = C_{v u R}^{6}$	20
$K_{v l L}^{1} = K_{v l R}^{1}$	2000	$C_{v l L}^{1} = C_{v l R}^{1}$	20
$K_{v l L}^{2} = K_{v l R}^{2}$	2000	$C_{v l L}^{2} = C_{v l R}^{2}$	20
$K_{v l L}^{3} = K_{v l R}^{3}$	1000	$C_{v l L}^{3} = C_{v l R}^{3}$	10
$K_{v l L}^{4} = K_{v l R}^{4}$	2000	$C_{v l L}^{4} = C_{v l R}^{4}$	20
$K_{v l L}^{5} = K_{v l R}^{5}$	2000	$C_{v l L}^{5} = C_{v l R}^{5}$	20
$K_{v l L}^{6} = K_{v l R}^{6}$	1000	$C_{v l L}^{6} = C_{v l R}^{6}$	10

$K_{v u L}^{i}$ : upper suspension spring stiffness of ith axle; $C_{v u L}^{j}$ : upper suspension spring damper of jth axle.

Road surface roughness

The road surface irregularity is regarded as a main cause of the dynamic effect of moving trucks. An artificial road profile is generally represented by a zero-mean stationary random process that can be expressed by a power spectral density (PSD) function. A modified PSD function was used in this study (Huang and Wang, 1992)

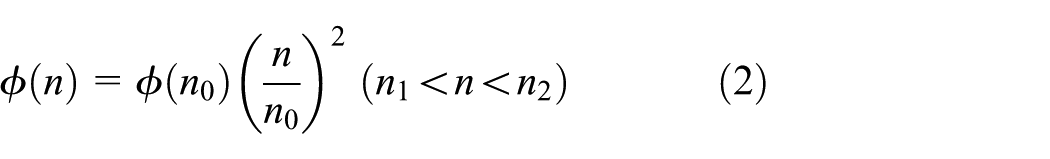

ϕ (n) = ϕ (n_{0}) {(\frac{n}{n_{0}})}^{2} (n_{1} < n < n_{2})

(2)

where n is the spatial frequency (cycle/m), n₀ is the discontinuity frequency of π/2 (cycle/m), $ϕ (n_{0})$ is the roughness coefficient (m³/cycle), and n₁ and n₂ are lower and upper cut-off frequencies, respectively. Five different road surface conditions (RSCs), namely, very good, good, average, poor, and very poor, were classified by ISO 8608:1995 (1995) based on the value of roughness coefficient.

With the PSD function, the road surface profile can be generated by an inverse Fourier transform as follows

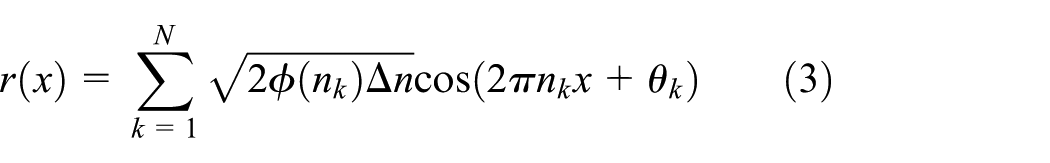

r (x) = \sum_{k = 1}^{N} \sqrt{2 ϕ (n_{k}) Δ n} \cos (2 π n_{k} x + θ_{k})

(3)

where $θ_{k}$ denotes the random phase angle uniformly distributed from 0 to 2π, $n_{k}$ is the wave number (cycle/m), N is the number of frequencies between n₁ and n₂, and $Δ n$ is the frequency interval between n₁ and n₂ divided by N.

Coupling relationship between truck and multi-girder bridge

The coupling relationship of existing research is mainly for signal girder. The applicability may be very poor for the multi-girder bridges and truss structure. Figure 6 shows the interpolation relationship of contact point and adjacent nodes of multi-girder structure.

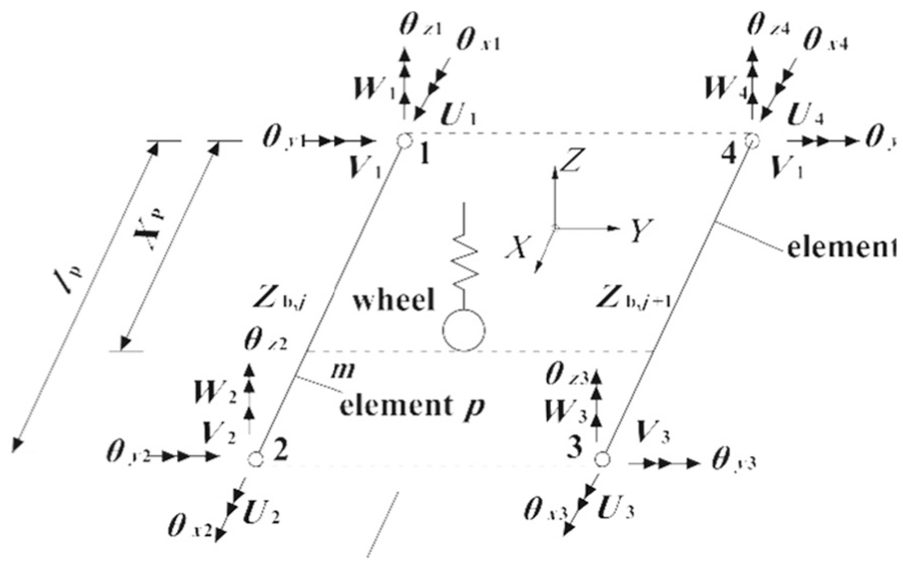

Figure 6.

Interpolation relationship of contact point and adjacent nodes.

The vertical displacement of contact point can be expressed as

Z_{b L (R)}^{i} = \frac{e_{L (R)}^{2}}{e_{L (R)}^{1} + e_{L (R)}^{2}} Z_{b, j} + \frac{e_{L (R)}^{1}}{e_{L (R)}^{1} + e_{L (R)}^{2}} Z_{b, j + 1}

(4)

The meaning of the symbols of equation (4) can be inferred from Figure 6. The vertical displacement of points m and n can be interpolated based on the vertical displacements and angular displacements of Node1–Node4

Z_{b, j} = N_{1} \cdot w_{1} + N_{2} \cdot θ_{y 1} + N_{3} \cdot w_{2} + N_{4} \cdot θ_{y 2}

(5)

Z_{b, j + 1} = N_{1} \cdot w_{4} + N_{2} \cdot θ_{y 4} + N_{3} \cdot w_{3} + N_{4} \cdot θ_{y 3}

(6)

where $w_{i} (i = 1 - 4)$ and $θ_{y i} (i = 1 - 4)$ denote the vertical displacements and angular displacements of Node1–Node4, respectively.

Then, the velocity of contact point can be expressed as

{\overset{\cdot}{Z}}_{b L (R)}^{i} = \frac{e_{L (R)}^{2}}{e_{L (R)}^{1} + e_{L (R)}^{2}} {\overset{\cdot}{Z}}_{b, j} + \frac{e_{L (R)}^{1}}{e_{L (R)}^{1} + e_{L (R)}^{2}} {\overset{\cdot}{Z}}_{b, j + 1}

(7)

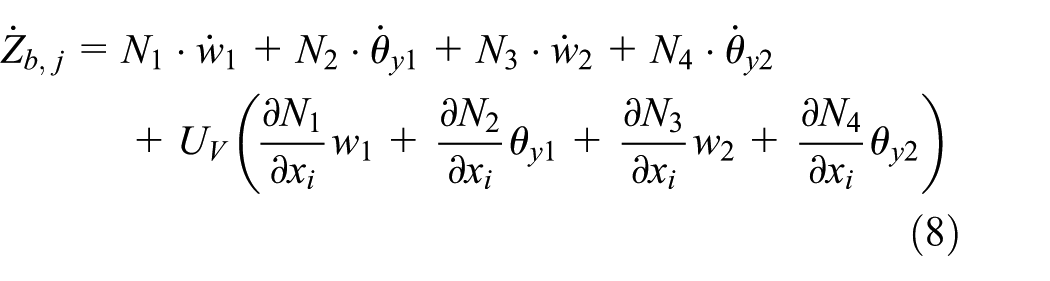

{\overset{\cdot}{Z}}_{b, j} = N_{1} \cdot {\overset{\cdot}{w}}_{1} + N_{2} \cdot {\overset{\cdot}{θ}}_{y 1} + N_{3} \cdot {\overset{\cdot}{w}}_{2} + N_{4} \cdot {\overset{\cdot}{θ}}_{y 2} + U_{V} (\frac{\partial N_{1}}{\partial x_{i}} w_{1} + \frac{\partial N_{2}}{\partial x_{i}} θ_{y 1} + \frac{\partial N_{3}}{\partial x_{i}} w_{2} + \frac{\partial N_{4}}{\partial x_{i}} θ_{y 2})

(8)

{\overset{\cdot}{Z}}_{b, j + 1} = N_{1} \cdot {\overset{\cdot}{w}}_{4} + N_{2} \cdot {\overset{\cdot}{θ}}_{y 4} + N_{3} \cdot {\overset{\cdot}{w}}_{3} + N_{4} \cdot {\overset{\cdot}{θ}}_{y 3} + U_{V} (\frac{\partial N_{1}}{\partial x_{i}} w_{4} + \frac{\partial N_{2}}{\partial x_{i}} θ_{y 4} + \frac{\partial N_{3}}{\partial x_{i}} w_{3} + \frac{\partial N_{4}}{\partial x_{i}} θ_{y 3})

(9)

Vertical force assigned to jth girder and (j + 1)th girder from the contact force of wheel of ith axle can be further expressed as

{\begin{matrix} F_{v i, j} = \frac{e_{L (R)}^{2}}{e_{L (R)}^{1} + e_{L (R)}^{2}} F_{v z L (R)}^{i} \\ F_{v i, j + 1} = \frac{e_{L (R)}^{1}}{e_{L (R)}^{1} + e_{L (R)}^{2}} F_{v z L (R)}^{i} \end{matrix}

(10)

Interaction equation of the bridge and truck

The interaction equation of the bridge and truck can be written in matrix form as follows

[\begin{matrix} M_{v} & 0 \\ 0 & M_{b} \end{matrix}] {\begin{matrix} {\overset{\cdot\cdot}{u}}_{v} \\ {\overset{\cdot\cdot}{u}}_{b} \end{matrix}} + [\begin{matrix} C_{v} & 0 \\ 0 & C_{b} \end{matrix}] {\begin{matrix} {\overset{\cdot}{u}}_{v} \\ {\overset{\cdot}{u}}_{b} \end{matrix}} + [\begin{matrix} K_{v} & 0 \\ 0 & K_{b} \end{matrix}] {\begin{matrix} u_{v} \\ u_{b} \end{matrix}} = {\begin{matrix} F_{v g} + F_{v b} \\ F_{b v} \end{matrix}}

(11)

where M , C , and K are the mass, damping, and stiffness matrices, respectively; subscripts v and b indicate the vehicle and bridge, respectively; u is the displacement vector; $F_{vg}$ indicates the self-weight of the vehicle; $F_{vb}$ is the vector of the wheel–bridge contact forces acting on the truck; and $F_{bv}$ is the wheel–bridge contact forces acting on the bridge.

To conduct the interaction analysis of the bridge and truck system as defined in equation (11), the BDANS software was developed by FORTRAN language. The accuracy and reliability of BDANS have been verified by Han, Wu, and Cai, et al. (2015).

Dynamic simulation analysis of EHT load cases

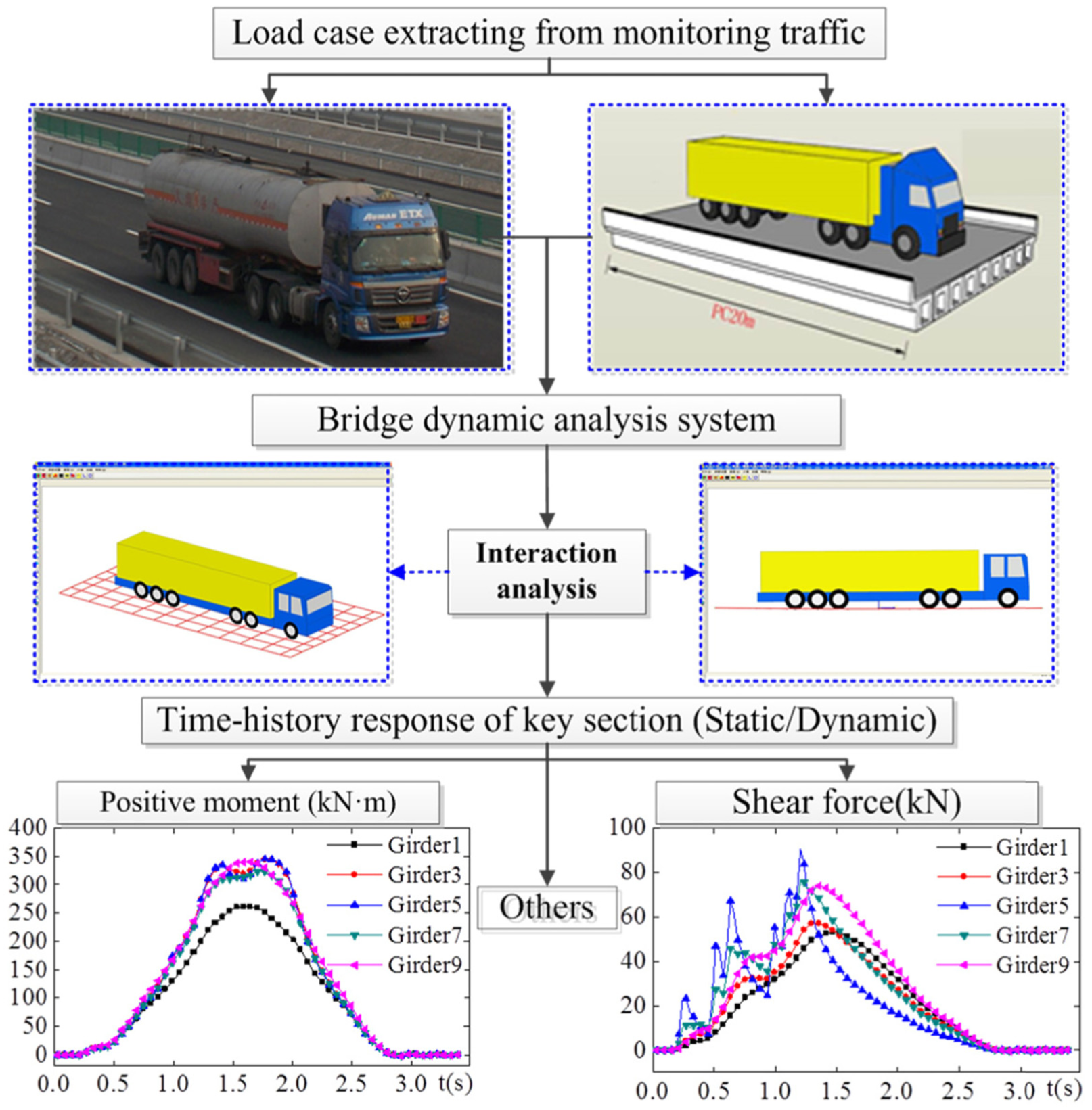

Figure 7 shows the flowchart of dynamic simulation analysis conducted in this research. The load case included in Figure 7 belongs to Case I. The truck weight is 81.7 t, and the truck can travel at carriageway of PC-20m in a speed of 40.7 km/h. Both the dynamic and static responses of the bridge can be obtained, and also, the DAF involved in this load case.

Figure 7.

Flowchart of dynamic simulation analysis.

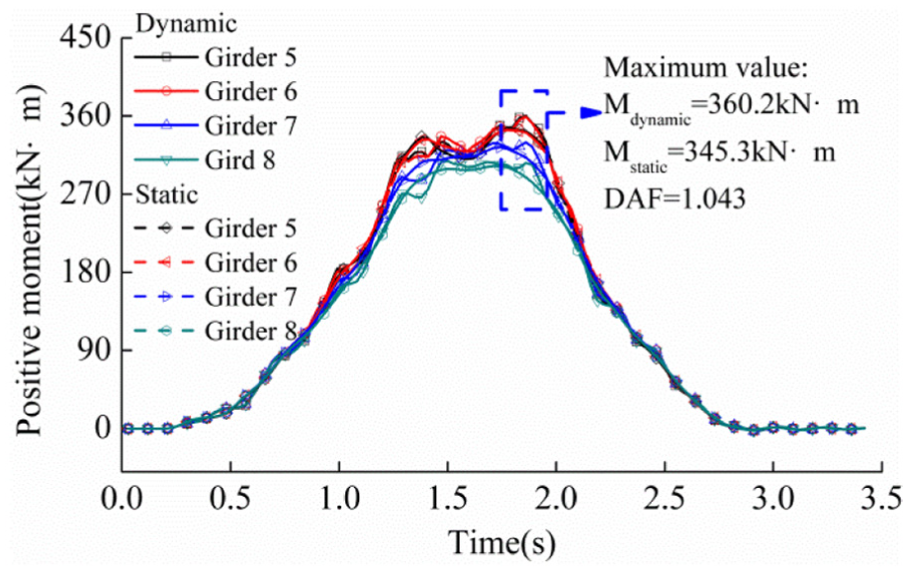

When the RSC is categorized as “good”, the comparison of dynamic effect and static effect of positive moment is shown in Figure 8. The two peaks of time-history correspond to the loading of tandem and tridem at the mid-span. The maximum value of both dynamic effect (360.2 kN m) and static effect (345.3 kN m) is obtained from girder5#, and the DAF of the EHT load case is 1.043.

Figure 8.

Analysis results of extra-truck load case.

Truck load effect analysis

Maximum truck load effect

The maximum truck load effect is defined as the maximum peak value of the time-history response curve of all the slabs. For each slab bridge, the maximum positive moment, maximum shear force, and maximum vertical displacement can be obtained based on the dynamic simulation analysis. Figure 9 shows the maximum positive bending moment of RC-10m. It should be noted that the impact effect will not considered in the analysis of this part.

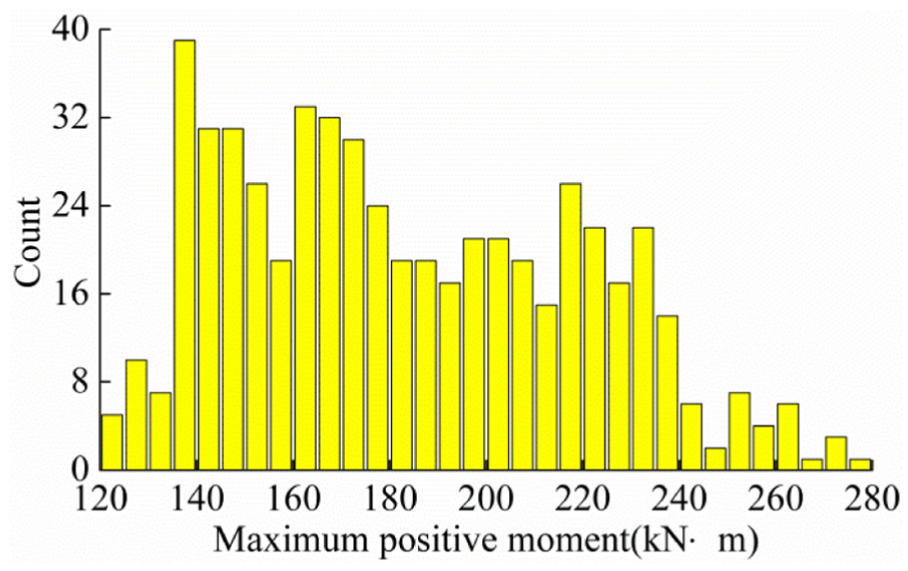

Figure 9.

Maximum positive bending moment of RC-10m.

Compared with the code value

The EHT load is extracted from the right tail of WIM data, so a significant difference may be existed between EHT load and design vehicle load. A comparison will be made in this section to assess the EHT load effect.

The first step is to determine the design traffic load. The AASHTO (2012) vehicle load HL-93 is a combination of the design load of 9.3 kN/m and the design truck or design tandem. The design vehicle load specified in the Chinese code (MOCAT, 2004b) is composed of a distributive lane load of 10.5 kN/m along the whole span of the bridge and a concentrated moving load P (determined by the span length of the bridge). Then, regarding the load layout along the transverse direction of the bridge, the loading, lanes, and selection of loading lanes are then determined according to the principle that the layout should produce the most unfavorable load effect.

Load effect ratios

The load effect ratio, which is the ratio of maximum truck load effect to the design vehicle load effect, can quantitatively show the relationship between EHT load effect and design vehicle load effect. Some statistical analysis of the sample of load effect ratio, including the maximum value and average value, was conducted. The results were plotted in Figure 10.

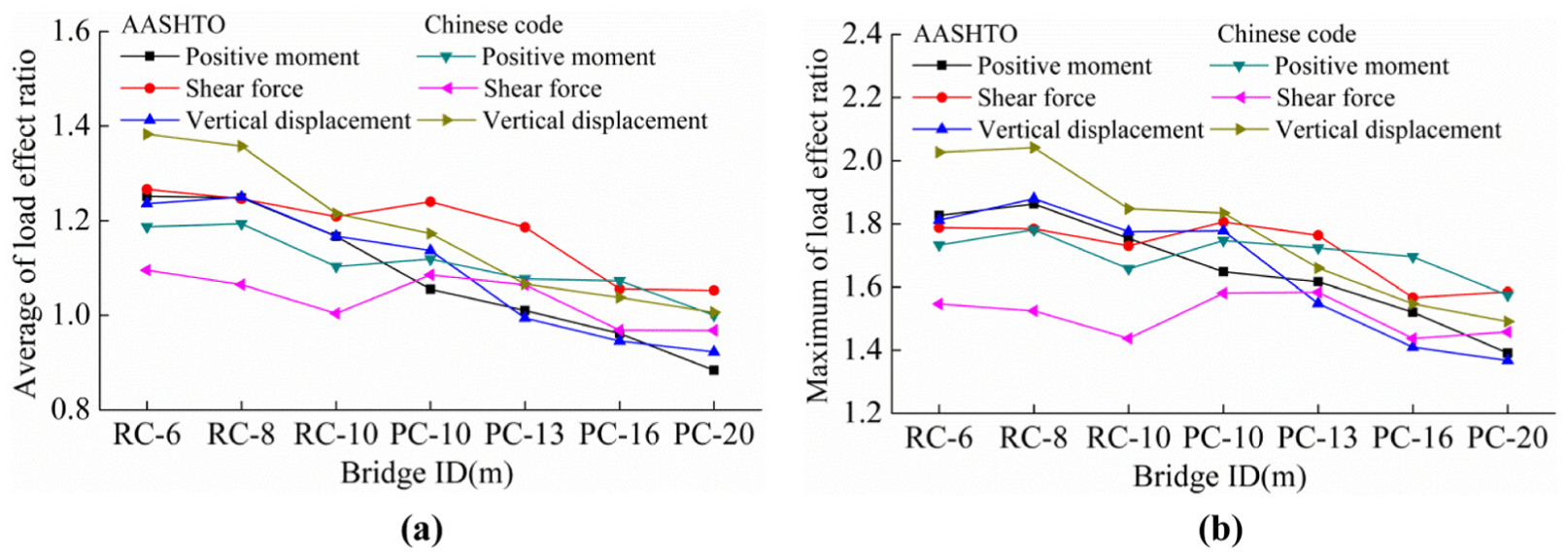

Figure 10.

Statistical analysis of load effect ratio: (a) average value and (b) maximum value.

For the hollow slab bridges, Figure 10(a) shows that the average value is mainly between 0.90 and 1.40. Most of the average values are higher than 1.0, which indicates that the average level of EHT load effect is approximate or a little higher than the design vehicle load effect of Chinese and American Association of State Highway and Transportation Officials (AASHTO).

Figure 10(b) shows that the maximum value of load effect ratio is mainly between 1.40 and 2.10, and the maximum value of internal force effect is around 1.80. This indicates that the maximum level of EHT load effect is obviously higher than the design vehicle load effect of Chinese and AASHTO. So, some further assessments are necessary for the serviceability and safety of slab bridges.

Stiffness analysis

As can be found from Figure 10, the vertical displacements of EHTs have exceeded the code value obviously. So, it is meaningful to investigate the serviceability of structural stiffness by a further comparison. L/600 is the upper limit value of vertical displacement stipulated by Chinese standard (MOCAT, 2004a), where L is the bridge span length. So, the ratio of vertical displacement, extreme value of maximum vertical displacement to L/600, will be used to evaluate the serviceability of stiffness.

The results of vertical displacements and corresponding ratios are given in Table 4. It can be found that the ratio of average displacement to design value is from 1.006 to 1.383, and the ratio of extreme displacement is from 1.491 to 2.027, which indicate that the vertical displacements of slab bridges under EHT load have also exceeded the code value obviously. However, it can also be found that all the ratios of extreme displacement to limited value are lower than 0.3. So, it can be regarded that the stiffness of hollow slab bridges can meet the requirement of serviceability.

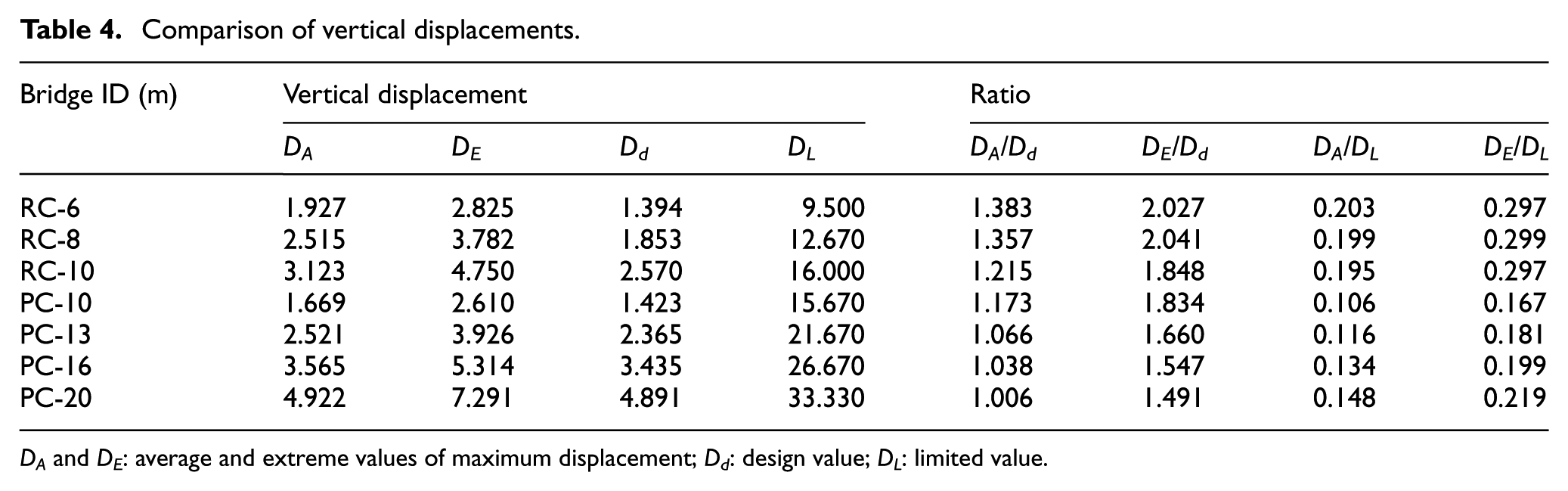

Table 4.

Comparison of vertical displacements.

Bridge ID (m)	Vertical displacement				Ratio
Bridge ID (m)	D_A	D_E	D_d	D_L	D_A/D_d	D_E/D_d	D_A/D_L	D_E/D_L
RC-6	1.927	2.825	1.394	9.500	1.383	2.027	0.203	0.297
RC-8	2.515	3.782	1.853	12.670	1.357	2.041	0.199	0.299
RC-10	3.123	4.750	2.570	16.000	1.215	1.848	0.195	0.297
PC-10	1.669	2.610	1.423	15.670	1.173	1.834	0.106	0.167
PC-13	2.521	3.926	2.365	21.670	1.066	1.660	0.116	0.181
PC-16	3.565	5.314	3.435	26.670	1.038	1.547	0.134	0.199
PC-20	4.922	7.291	4.891	33.330	1.006	1.491	0.148	0.219

D_A and D_E: average and extreme values of maximum displacement; D_d: design value; D_L: limited value.

Safety assessment of slab bridges

Bending is the main mechanical behavior of slab bridges. It can be found from Figure 10 that the positive bending moment needs to be paid more attention than shear force. So, the safety assessment of hollow slab bridges will target on the bending bearing capacity.

Assessment method

In order to take advantage of the abundant WIM data and efficient simulation analysis, the Chinese specified assessment method will be optimized by referencing the AASHTO load and resistance factor rating (LRFR) method. AASHTO LRFR is a method of Level II and has been widely used in America. The revised assessment equation, focusing on the vehicle load, can be expressed as

η_{i} = \frac{γ_{0} [γ_{G i} S_{G i k} + DAF \cdot S_{Q 1 k} + \sum_{j = 2}^{n} ψ_{c j} γ_{Q j} S_{Q i k}]}{[(1 - ξ_{e}) \cdot R]}

(12)

where $γ_{0}$ is the coefficient for importance of a structure; i denotes the serial number of EHT load case, $i = 1, 2, \dots, 549$ ; $η_{i}$ is the rating factor (RF) of ith load case; and $η_{i} \geq 1$ means that the structure is in a state of failure. The impact effect of vehicle load is considered by DAF. The partial factor is abandoned here because the truck load effect is specific for each load case. The randomness of truck load effect will be reflected by the result sample of ${η}$ . The partial factors are used in the load effect combination in addition to vehicle load effect specified in equation (12). $γ_{G}$ and $γ_{Q j}$ are the partial factors of dead load effect and other live load effect, respectively. $ψ_{c j}$ is the combination coefficient. The partial factors and combination coefficient can be derived from the design specification. $(1 - ξ_{e})$ and $R$ are the degradation coefficient and resistance, respectively.

A generalized value of 0.05 is used in this study instead of derive $ξ_{e}$ from a specific bridge. The value of 0.05 is chosen on the basis of the considerations given as follows:

The material deterioration of the structure as the service time passes and the corresponding influence on structural resistance (Xiao, 2011);

The potential defect existed in bridge structure;

The uncertainty of assessment model used in this study.

However, the generalized value can ensure the applicability of the analysis results of this study and helps to understand the overall safety conditions of Chinese hollow slab bridges. Thus, the result sample ${η}$ can be derived using equation (12).

Optimization of DAF

As had been mentioned by many existing researches, the DAF is closely related to the gross vehicle weight (Deng and Cai, 2010; Moghimi and Ronagh, 2008). The weight of EHT and the load effect are obviously higher than common vehicle, so the value of DAF of EHT will affect the reliability of evaluation results distinctly. The current standard has specified the DAF values for structure design, while they may be very conservative for the structure safety assessment under EHT load. So, an optimization toward DAF will be conducted in this section. The flow of the optimization of DAF is shown in Figure 11.

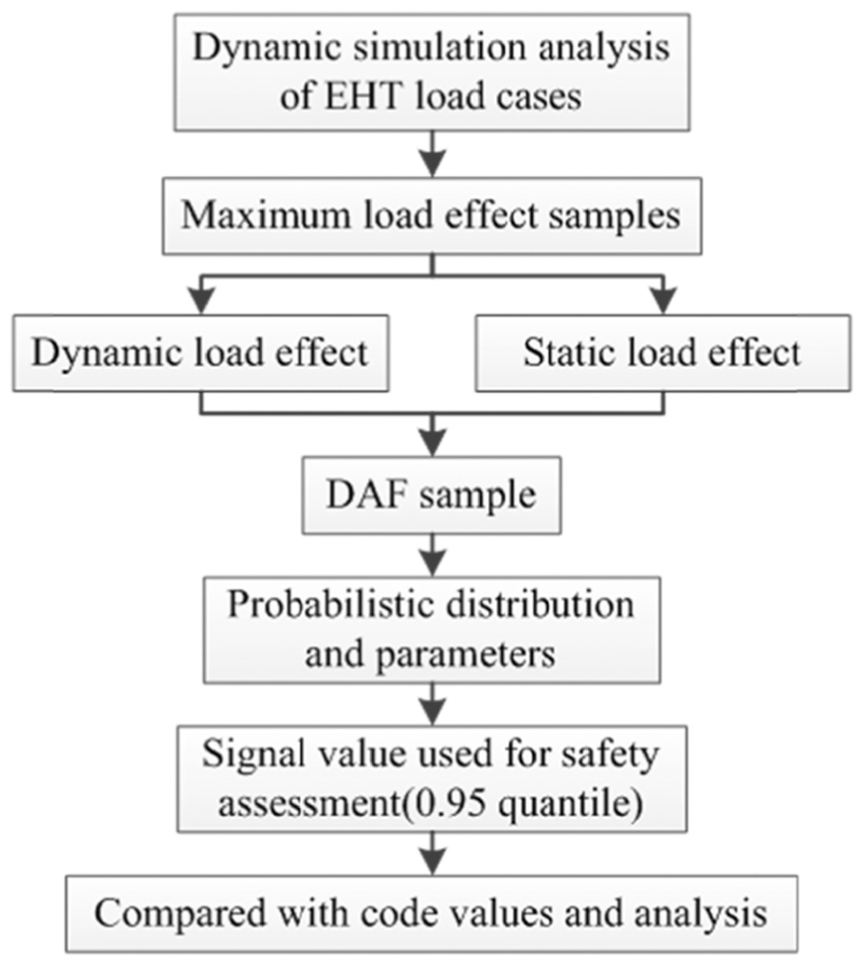

Figure 11.

Optimization of DAF used for safety assessment.

In this study, the optimization of DAF is based on the statistical analysis. The DAF sample of each hollow slab bridge can be obtained based on the dynamic simulation analysis of EHT load case, in which the RSC was set to be “good” in view of the high-speed requirements of Chinese highway. In the next step, the fitting analysis was conducted to determine the distribution type and parameters. Table 5 shows the Kolmogorov–Smirnov (K-S) test results of DAF samples when the significance level is 0.05. It can be seen that the observed values of K-S test are all less than the critical values, and the minimum value of R² is 0.8416. Therefore, the DAF sample of the hollow slab bridge can be described by lognormal distribution. Figure 12 only shows the fitting analysis results of RC-10m and PC-20m due to the space limitation.

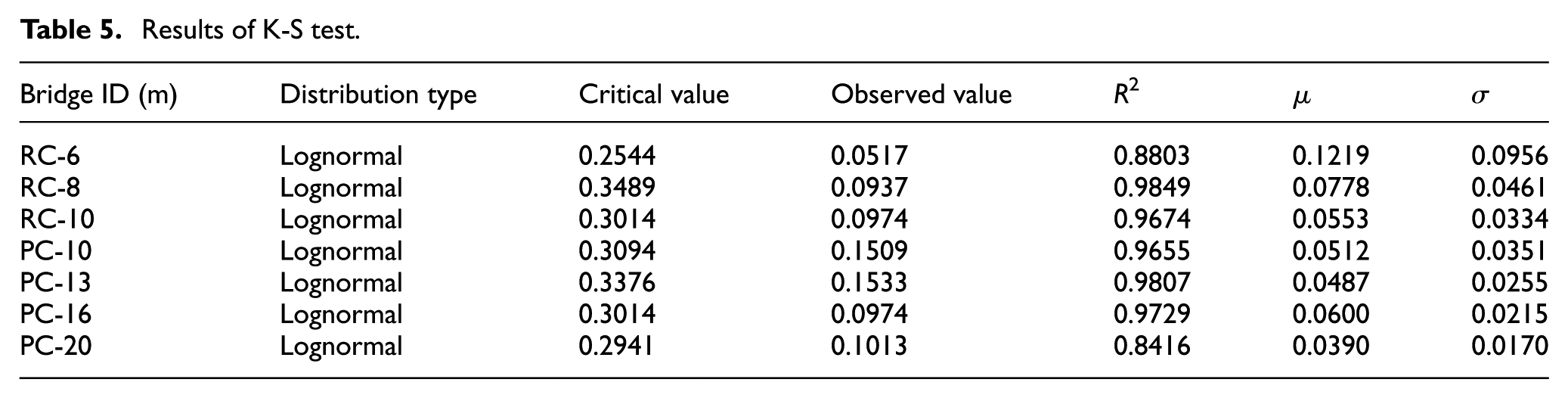

Table 5.

Results of K-S test.

Bridge ID (m)	Distribution type	Critical value	Observed value	R ²	μ	σ
RC-6	Lognormal	0.2544	0.0517	0.8803	0.1219	0.0956
RC-8	Lognormal	0.3489	0.0937	0.9849	0.0778	0.0461
RC-10	Lognormal	0.3014	0.0974	0.9674	0.0553	0.0334
PC-10	Lognormal	0.3094	0.1509	0.9655	0.0512	0.0351
PC-13	Lognormal	0.3376	0.1533	0.9807	0.0487	0.0255
PC-16	Lognormal	0.3014	0.0974	0.9729	0.0600	0.0215
PC-20	Lognormal	0.2941	0.1013	0.8416	0.0390	0.0170

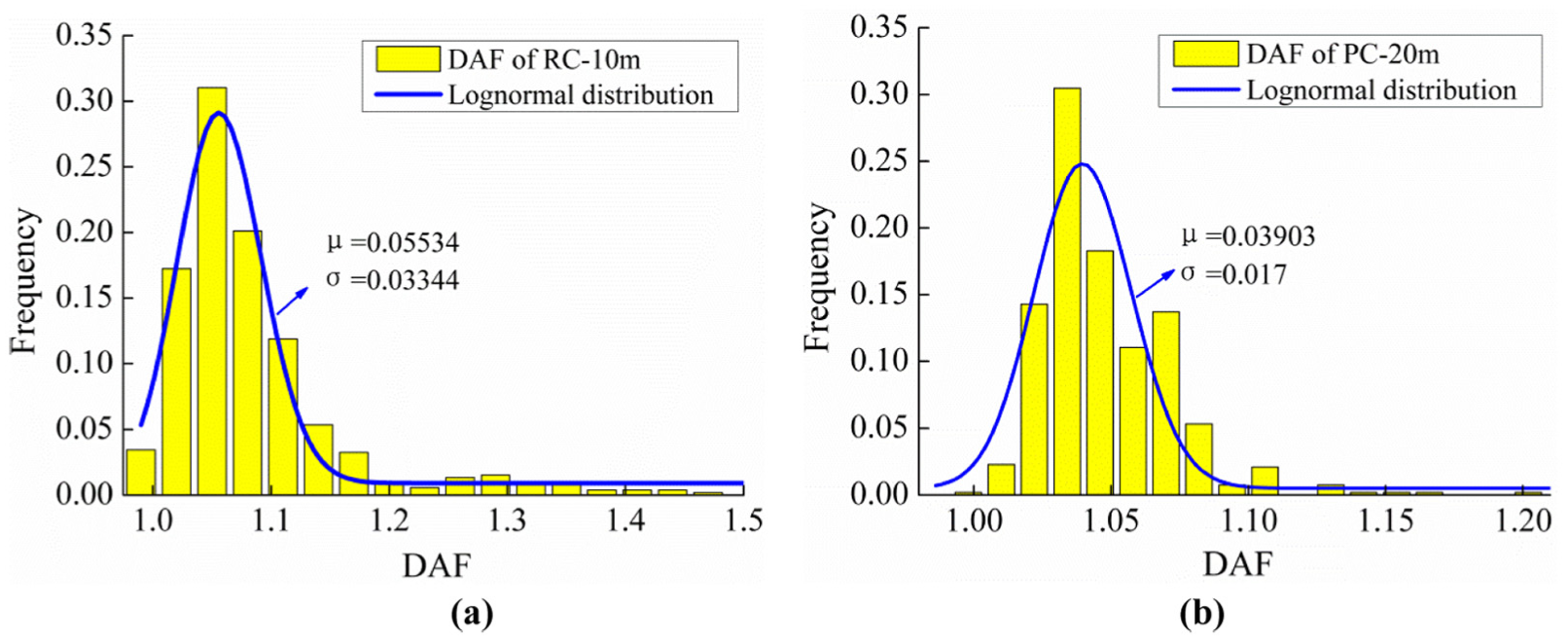

Figure 12.

Fitting analysis of distribution of DAF: (a) RC-10m and (b) PC-20m.

The value of DAF will directly affect the assessment result, especially for the EHT that owns a high level of static load effect. The principle of the conservation, as we all know, has been widely used in the design of new structure. However, the conservative assessment should not be adopted in the engineering practice because it will lead to the unreasonably increasing structure maintenance cost. The DAF of a specific load scenario is a random variable. The dynamic load effect of EHT may be underestimated if the calculated DAF for each loading case is directly used. A certain confidence level, between 0.95 and 0.99, is usually chosen to determine the single DAF value used for the structure safety assessment (Deng and Cai, 2010). For this study, the 0.95 quantile of DAFs of EHT load scenarios is used to fully consider the dynamic impact and also avoid the conservative assessment. The 0.95 quantiles of the DAF distributions and the comparison with the code value are plotted in Figure 13.

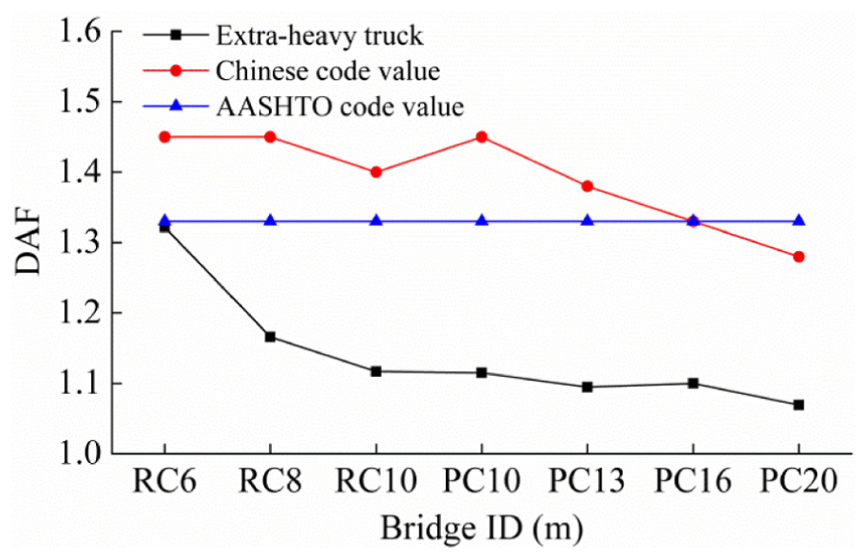

Figure 13.

0.95 quantile of the DAF distributions.

It can be found from Figure 13 that the 0.95 quantile of DAF decreases with the increasing span length. In addition, the DAFs are obviously lower than the code values of Chinese and AASHTO code. This can mainly be attributed to the high gross weight and low speed of EHT because the DAFs usually decrease with the increasing truck weight and the decreasing truck speed. As a result, the DAFs own a gentle variation trend when the span length is greater than 10 m, which can also be found from Figure 13.

Assessment method by MOCAT (2011)

In China, the technical code, namely, Specification for Inspection and Evaluation of Load-bearing Capacity of Highway Bridges (MOCAT, 2011), is used to conduct the safety assessment of bridge structures. The inequation of safety assessment specified by MOCAT (2011) is

γ_{0} S \leq R (f_{d}, ξ_{c} a_{d c}, ξ_{c} a_{d s}) Z_{1} (1 - ξ_{e})

(13)

where $γ_{0}$ denotes the importance coefficient of a structure and will be taken as 1.1 in this study corresponding with a design safety level of I; $S$ is the load effect function from design code; $R$ denotes the resistance function; $f_{d}, ξ_{c}, a_{d c}, and a_{d s}$ denote the design value of material strength, reduction factor of cross section, geometry parameter of component, and geometry parameter of rebar, respectively; $Z_{1}$ is the checking coefficient of resistance and will be taken as 1.0 in this study which corresponds with rating scale equals to 2 of flexural member; and the degradation coefficient of $ξ_{e}$ will be taken as 0.05 as has been illustrated above.

In addition, three coefficients, namely, $ξ_{q 1}$ , $ξ_{q 2}$ , and $ξ_{q 3}$ , are introduced by MOCAT (2011) to consider the influences of traffic volume, heavy truck proportion, and axle loads of real traffic, respectively, and the real traffic correction factor can be described as $ξ_{q} = \sqrt[3]{ξ_{q 1} ξ_{q 2} ξ_{q 3}}$ . The values of $ξ_{q 1}$ , $ξ_{q 2}$ , and $ξ_{q 3}$ can be obtained based on Table 6.

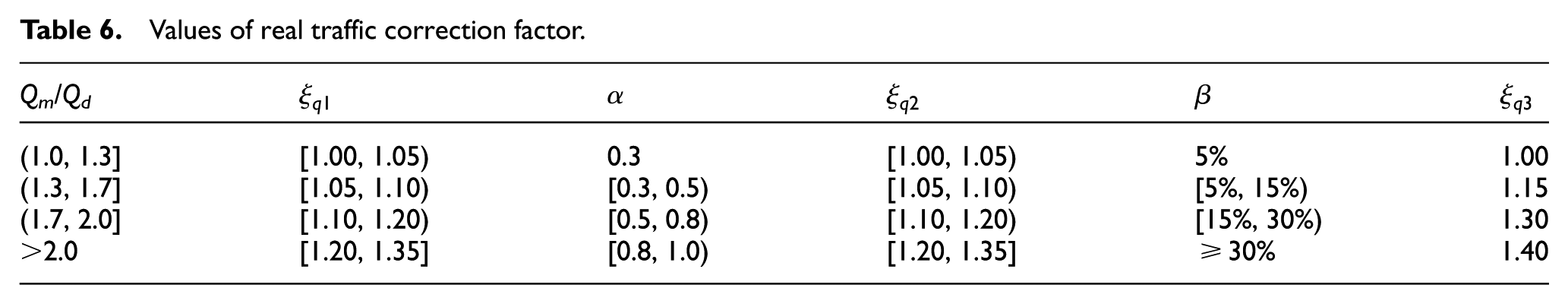

Table 6.

Values of real traffic correction factor.

Q_m/Q_d	$ξ_{q 1}$	α	$ξ_{q 2}$	β	$ξ_{q 3}$
(1.0, 1.3]	[1.00, 1.05)	0.3	[1.00, 1.05)	5%	1.00
(1.3, 1.7]	[1.05, 1.10)	[0.3, 0.5)	[1.05, 1.10)	[5%, 15%)	1.15
(1.7, 2.0]	[1.10, 1.20)	[0.5, 0.8)	[1.10, 1.20)	[15%, 30%)	1.30
>2.0	[1.20, 1.35]	[0.8, 1.0)	[1.20, 1.35]	≥30%	1.40

In Table 6, Q_m and Q_d are the typical characteristic traffic volume and design traffic volume, respectively, and Q_m can be obtained by WIM data and passenger car equivalent coefficient (PCEC) specified by MOCAT (2015). The values of PCEC are specified in Table 7. The specified Q_d (annual average daily traffic (AADT)) is 15,000 for motorway and first-class highway. α is the mixed rate of truck with a gross weight higher than 55 t and β is the percentage of axles with a weight higher than 14 t (MOCAT, 2011, 2015).

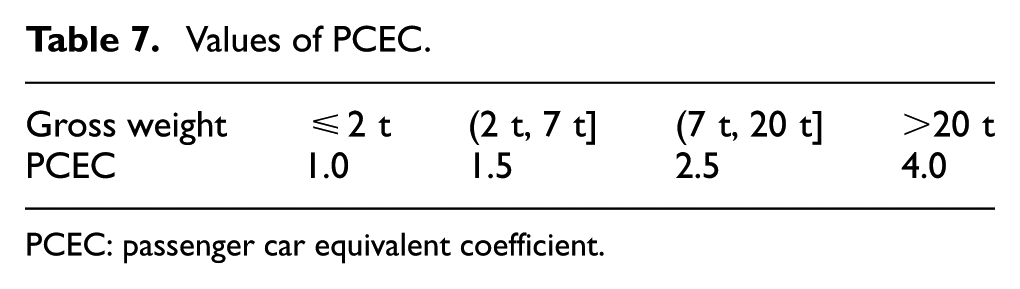

Table 7.

Values of PCEC.

Gross weight	≤2 t	(2 t, 7 t]	(7 t, 20 t]	>20 t
PCEC	1.0	1.5	2.5	4.0

PCEC: passenger car equivalent coefficient.

To compare the safety assessment results of this study with those of MOCAT (2011), equation (13) will be rewritten as

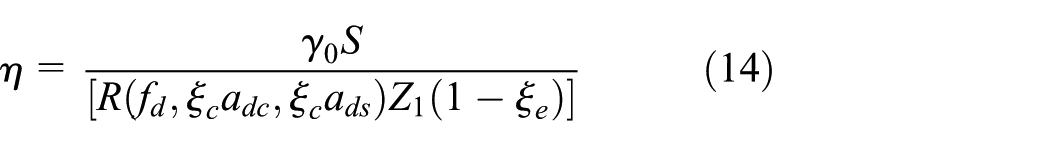

η = \frac{γ_{0} S}{[R (f_{d}, ξ_{c} a_{d c}, ξ_{c} a_{d s}) Z_{1} (1 - ξ_{e})]}

(14)

The PCEC will be determined based on WIM data. To ensure the applicability of PCEC value, WIM data with a time length of 544 days from Xuan-da expressway will be used, besides that of G104 highway. Xuan-da is a heavy-duty expressway of north China, which is mainly used for the coal transportation from Shanxi province to Beijing and Hebei province. The traffic load characteristics of Xuan-da are totally different from those of G104. The collection and analysis of WIM data of Xuan-da had been provided in a former publication of the author of this article (Han et al., 2015).

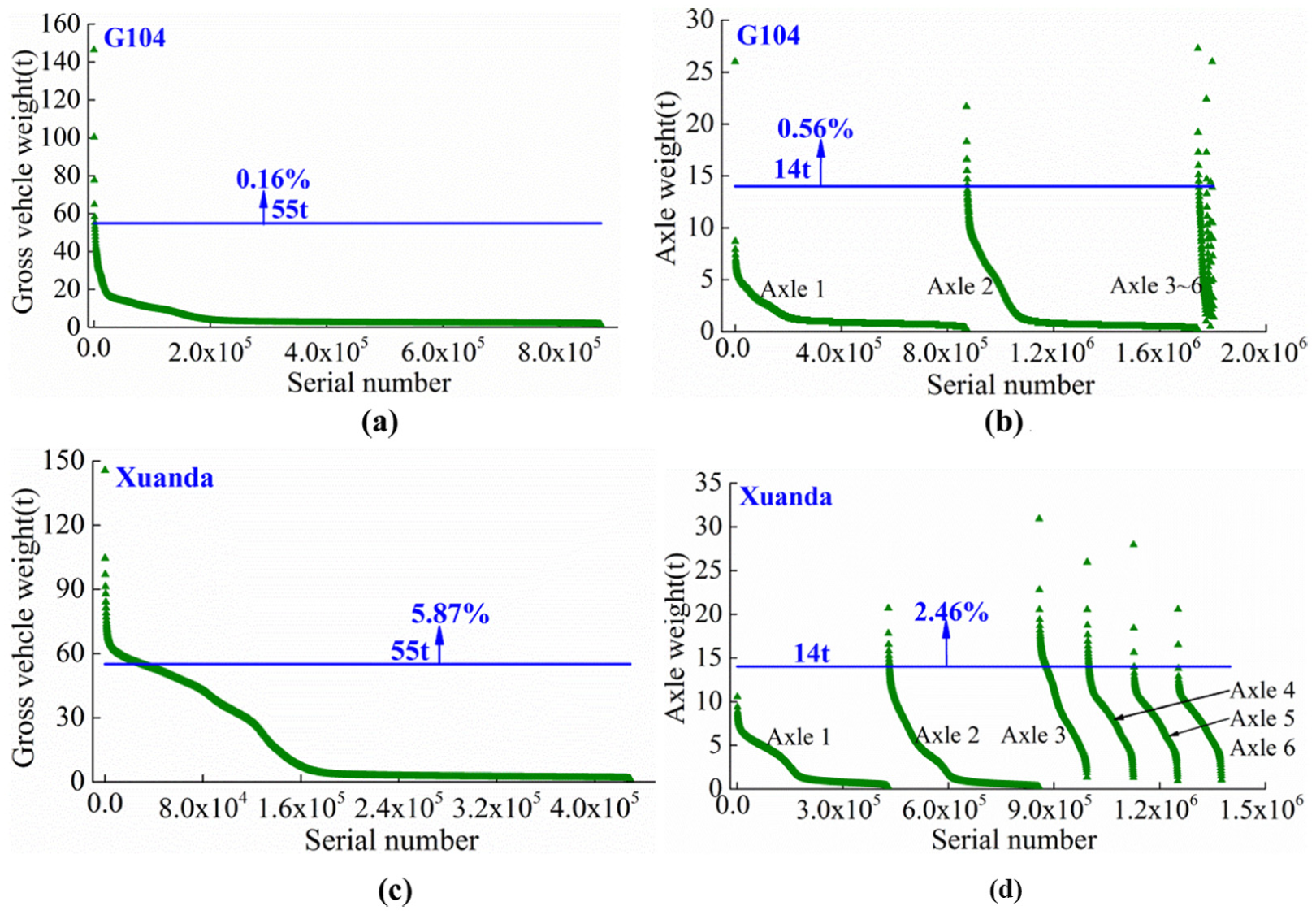

The gross vehicle weight and axle weight of G104 and Xuan-da are shown in Figure 14 in a descending order. The Q_m of these two segments are 4017 and 1630, respectively, both of them are obviously lower than Q_d. So, the $ξ_{q 1}$ will be taken as 1.0. It can also be found from Figure 14 that α of G104 highway and Xuan-da expressway are 0.0016 and 0.0587, respectively. The $ξ_{q 2}$ of G104 highway and Xuan-da expressway will be taken as 1.0003 and 1.01 based on the interpolation of Table 6. For the convenience, an average value of $ξ_{q 2}$ of the two segments will be adopted, that is, $ξ_{q 2} = 1.0052$ . Finally, Figure 14(b) and (d) shows that both of the β of the two segments are obviously lower than 5%, and $ξ_{q 3} = 1.0$ will be adopted in the following analysis.

Figure 14.

GVW and axle weight from WIM data: (a) GVW of G104 highway, (b) axle weight of G104 highway, (c) GVW of Xuan-da expressway, and (d) axle weight of Xuan-da expressway.

Safety assessment and result analysis

All the selected slab bridges are statically determinate. Only the resistance, gravity effect, and truck load effect will be considered in the assessment. Table 8 shows the positive bending moment effect of gravity, resistance, and design traffic load of the slab bridges and also the design DAF.

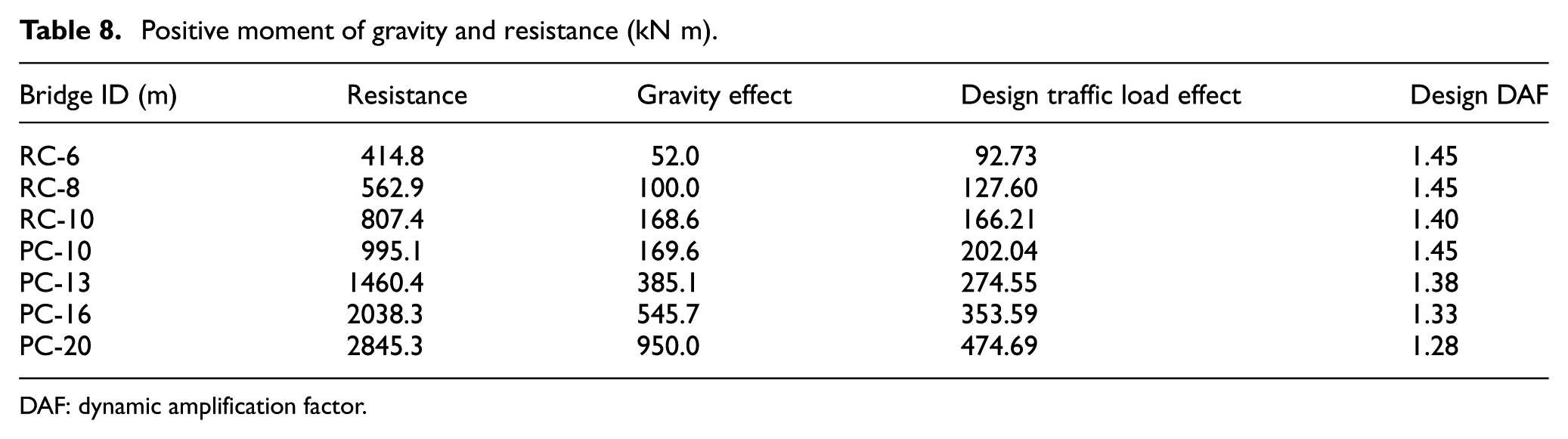

Table 8.

Positive moment of gravity and resistance (kN m).

Bridge ID (m)	Resistance	Gravity effect	Design traffic load effect	Design DAF
RC-6	414.8	52.0	92.73	1.45
RC-8	562.9	100.0	127.60	1.45
RC-10	807.4	168.6	166.21	1.40
PC-10	995.1	169.6	202.04	1.45
PC-13	1460.4	385.1	274.55	1.38
PC-16	2038.3	545.7	353.59	1.33
PC-20	2845.3	950.0	474.69	1.28

DAF: dynamic amplification factor.

Figure 15(a) shows the diagram of ${η}$ of RC-10m with the method proposed by this study. The statistical values are more helpful in assessing the structure safety of hollow slab bridges. So, a further statistical analysis was conducted based on the result samples of slab bridges. The statistical values of $η$ and the calculated $η$ of MOCAT (2011) are all plotted in Figure 15(b).

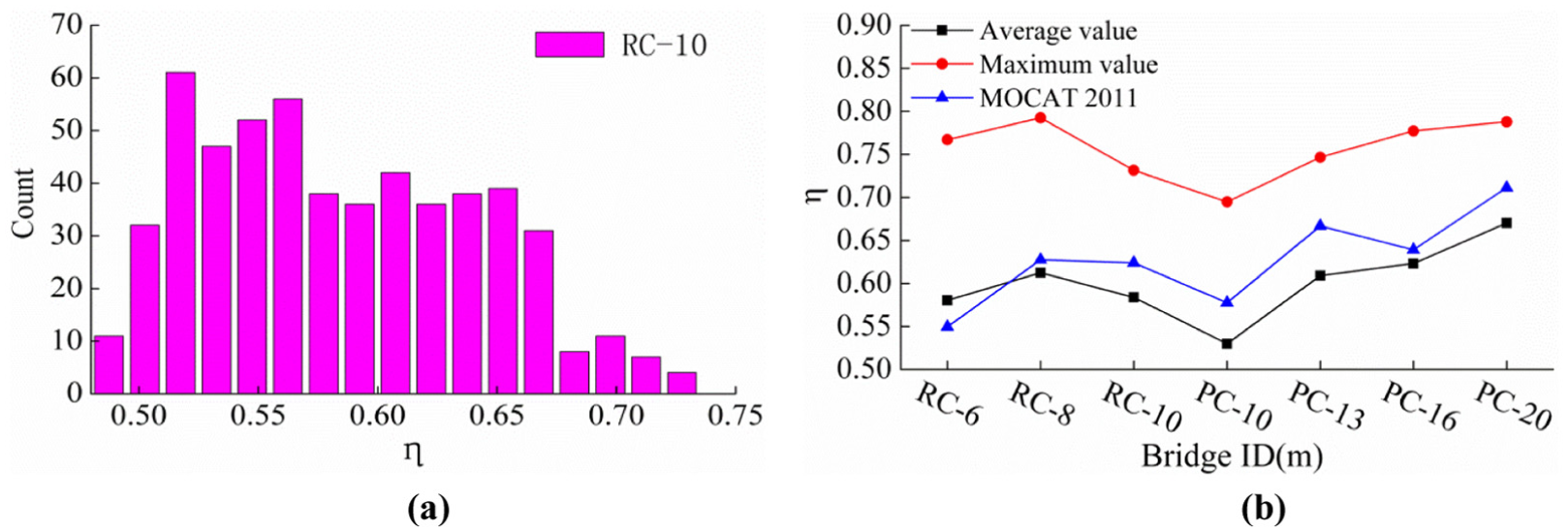

Figure 15.

Load rating indices and result comparison: (a) result sample of RC-10m and (b) result comparison.

It can be seen from Figure 15(b) that the maximum values of $η$ mainly range from 0.69 to 0.78 and the average values are mainly between 0.53 and 0.67. These indicate that the slab bridges have not yet reached the ultimate limit state under EHT load. The values of $η$ of MOCAT (2011) mainly range from 0.55 to 0.71, which are close to the average values of $η$ of this study, but lower than those of the maximum values. The maximum values of Figure 15(b) are related to the extreme load conditions which are existed in real traffic. The safety assessment method proposed by MOCAT may be thoughtless in these extreme conditions.

Conclusion

The structure safety assessment method based on WIM and simulation analysis was investigated. Seven simply supported hollow slab bridges were selected and taken as the research object. The long-term WIM data were used to extract EHT load cases. The original finite element methods (FEMs) of slab bridges were updated based on the static target function, and the target parameters are the elasticity modulus and mass density of cross-girder. The dynamic models of trucks and the coupling relationship between truck and multi-girder bridge were determined, and the oscillation equations were established by a separate iteration. The simulation analysis of EHT load cases was then conducted using the established bridge–truck interaction analysis system. An optimized rating method was then proposed and was used in the safety assessment of hollow slab bridges. The following conclusions can be drawn from this study.

The maximum level of EHT load effect is obviously higher than design vehicle load effect and the average level is approximate or a little higher than the latter.

The displacements due to EHT are seriously transfinite, while the extreme value is still far below the threshold value specified by Chinese standard. The structural stiffness can meet the requirement of serviceability.

On the premise of a good structural integrity, the maximum value of RF of hollow slab bridge ranges from 0.69 to 0.78 and the average value is between 0.53 and 0.67. The hollow slab bridges have not yet reached the ultimate limit state and have a safety redundancy under the EHT load.

The loading indices of MOCAT (2011) are close to the average values of load index of p, but lower than those of the maximum values, which indicate that some extreme loading conditions may be thoughtless in the proposed safety assessment method by MOCAT (2011).

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

American Association of State Highway and Transportation Officials (AASHTO) (2011) The Manual for Bridge Evaluation. 2nd ed. Washington, DC: AASHTO.

American Association of State Highway and Transportation Officials (AASHTO) (2012) LRFD Bridge Design Specifications. 6th ed. Washington DC: AASHTO.

Bell

Lefebvre

Sanayei

et al . (2013) Objective load rating of a steel-girder bridge using structural modeling and health monitoring. Journal of Structural Engineering 139: 1771–1779.

Brownjohn

JMW

Moyo

Omenzetter

et al . (2003) Assessment of highway bridge upgrading by dynamic testing and finite-element model updating. Journal of Bridge Engineering 8: 162–172.

CSA International (2006) Canadian Highway Bridge Design Code (CAN/CSA 06–06). Toronto, ON, Canada: CSA International.

Deng

Cai

(2010) Development of dynamic impact factor for performance evaluation of existing multi-girder concrete bridges. Engineering Structures 32: 21–31.

Deng

Phares

Steffens

(2016) Experimental and numerical evaluation of a folded plate girder system for short-span bridges—a case study. Engineering Structures 113: 26–40.

Enright

O’Brien

(2013) Monte Carlo simulation of extreme traffic loading on short and medium span bridges. Structure and Infrastructure Engineering 9(12): 1267–1282.

Frangopol

Strauss

Kim

(2008a) Bridge reliability assessment based on monitoring. Journal of Bridge Engineering 13(3): 258–270.

10.

Frangopol

Strauss

Kim

(2008b) Use of monitoring extreme data for the performance prediction of structures: general approach. Engineering Structures 30(12): 3644–3653.

11.

Getachew

Obrien

(2007) Simplified site-specific traffic load models for bridge assessment. Structure and Infrastructure Engineering 3(4): 303–311.

12.

Han

Wang

et al . (2011) Analysis system of vehicle-bridge coupling vibration with grillage method based on model updating. China Journal of Highway and Transport 24(5): 47–55.

13.

Han

Cai

et al . (2015) Characteristics and dynamic impact of overloaded extra heavy trucks on typical highway bridges. Journal of Bridge Engineering 20(2): 05014011.

14.

Han

Yuan

Huang

et al . (2016) Dynamic impact of heavy traffic load on typical T-beam bridges based on WIM data. Journal of Performance of Constructed Facilities. Epub ahead of print 23 January. DOI: 10.1061/(ASCE)CF.1943-5509.0000991.

15.

Haugen

Levy

Aakre

et al . (2016) Weigh-in-motion equipment—experiences and challenges. Transportation Research Procedia 14: 1423–1432.

16.

Hebei Provincial Communications Planning and Design Institute (HPCPDI) (2009) The Annual Report of Highway Bridge Technical Condition in Hebei Province. Shijiazhuang, China: HPCPDI.

17.

Huang

Wang

(1992) Impact analysis of cable-stayed bridges. Computers & Structures 43(5): 897–908.

18.

ISO 8608:1995 (1995) Mechanical vibration-road surface profiles—reporting of measured data.

19.

Jacob

Cottineau

(2016) Weigh-in-motion for direct enforcement of overloaded commercial vehicles. Transportation Research Procedia 14: 1413–1422.

20.

(2010) Program development and validation of vehicle-bridge coupling vibration with grillage method based on finite element model updating. PhD Dissertation, Chang’an University, Xi’an, China.

21.

Liu

(2016) Research on safety assessment method for bridge structure based on variable weight synthesis method. Perspectives in Science 7: 200–203.

22.

Liu

Frangopol

Kim

(2009) Bridge safety evaluation based on monitored live load effects. Journal of Bridge Engineering 14: 257–269.

23.

Liu

Deng

(2016) Fatigue reliability assessment of steel bridge decks under measured traffic flow. China Journal of Highway and Transport 29(5): 58–66.

24.

Ministry of Communications and Transportation (MOCAT) (2004a) Code for Design of Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts (JTG D62–2004). Beijing, China: MOCAT.

25.

Ministry of Communications and Transportation (MOCAT) (2004b) General Code for Design of Highway Bridges and Culverts (JTG D60–2004). Beijing, China: MOCAT.

26.

Ministry of Communications and Transportation (MOCAT) (2011) Specification for Inspection and Evaluation of Load-Bearing Capacity of Highway Bridges (JTG/T J21–2011). Beijing, China: MOCAT.

27.

Ministry of Communications and Transportation (MOCAT) (2015) General Code for Design of Highway Bridges and Culverts (JTG D60-2015). Beijing, China: MOCAT.

28.

Moghimi

Ronagh

(2008) Impact factors for a composite steel bridge using non-linear dynamic simulation. International Journal of Impact Engineering 35: 1228–1243.

29.

Movaghati

Abdelnaby

(2016) Advancements in fragility analysis using numerical calibration methods for a horizontally curved RC bridge. Engineering Structures 125: 236–243.

30.

Nassif

Liu

Ertekin

(2003) Model validation for bridge-road-vehicle dynamic interaction system. Journal of Bridge Engineering 8(2): 112–120.

31.

O’Brien

Enright

(2011a) Modeling same-direction two-lane traffic for bridge loading. Structural Safety 33: 296–304.

32.

O’Brien

Enright

(2011b) Using weigh-in-motion data to determine aggressiveness of traffic for bridge loading. Journal of Bridge Engineering 18: 232–239.

33.

O’Brien

Enright

Getachew

(2010) Importance of the tail in truck weight modeling for bridge assessment. Journal of Bridge Engineering 15(2): 210–213.

34.

O’Brien

Schmidt

Hajializadeh

et al . (2015) A review of probabilistic methods of assessment of load effects in bridges. Structural Safety 53: 44–56.

35.

O’Connor

Enevoldsen

(2007) Probability based modelling and assessment of an existing post-tensioned concrete slab bridge. Engineering Structures 30: 1408–1416.

36.

O’Connor

O’Brien

(2015) Traffic load modelling and factors influencing the accuracy of predicted extremes. Canadian Journal of Civil Engineering 32: 270–278.

37.

Orcesi

Frangopol

(2013) Bridge performance monitoring based on traffic data. Journal of Engineering Mechanics 139: 1508–1520.

38.

Qureshi

Warnitchai

(2016) Computer modeling of dynamic behavior of rocking wall structures including the impact-related effects. Advances in Structural Engineering 19(8): 1245–1261.

39.

Ren

Zuo

Wang

et al . (2014) Review of non-pavement bridge weigh-in-motion. China Journal of Highway and Transport 27(7): 45–53.

40.

Roschke

Pruski

(2000) Overload and ultimate load behavior of posttensioned slab bridge. Journal of Bridge Engineering 5(2): 148–155.

41.

Ruan

Zhou

Shi

et al . (2016) A site-specific traffic load model for long-span multi-pylon cable-stayed bridges. Structure and Infrastructure Engineering. Epub ahead of print 12 April. DOI: 10.1080/15732479.2016.1164724.

42.

Sasaki

Paret

Araiza

et al . (2010) Failure of concrete T-beam and box-girder highway bridges subjected to cyclic loading from traffic. Engineering Structures 32: 1838–1845.

43.

Schmidt

Jacob

Domprobst

(2016) Investigation of truck weights and dimensions using WIM data. Transportation Research Procedia 14: 811–819.

44.

Sivakumar

Ibrahim

FIS

(2007) Enhancement of bridge live loads using weigh-in-motion data. Bridge Structures 3: 3–4, 193–204.

45.

Sung

Lin

Chiu

et al . (2016) A bridge safety monitoring system for prestressed composite box-girder bridges with corrugated steel webs based on in-situ loading experiments and a long-term monitoring database. Engineering Structures 126: 571–585.

46.

Val

Melchers

(1997) Reliability of deteriorating RC slab bridges. Journal of Structural Engineering 123: 1638–1644.

47.

Wang

Shi

Nakano

(2013) Strength degradation analysis of an aging RC girder bridge using FE crack analysis and simple capacity-evaluation equations. Engineering Fracture Mechanics 108: 209–221.

48.

Wang

Lin

Feng

et al . (2016) Numerical simulation of aluminum alloy 6082-T6 columns failing by overall bucking. Advances in Structural Engineering 19(10): 1547–1574.

49.

Xiang

Zhao

(2007) Reliability evaluation of vehicle–bridge dynamic interaction. Journal of Structural Engineering 133(8): 1092–1099.

50.

Xiao

(2011) Carrying Capacity Evolution Theory of Bridge and Application Technology. 1st ed. Beijing, China.

51.

Xie

Wang

Zou

(2015) Reliability analysis of RC T-beam highway bridges in China based on a virtual bridge dataset. Engineering Structures 104: 133–140.

52.

Zhang

Wang

et al . (2016) Recent highway bridge collapses in China: review and discussion. Journal of Performance of Constructed Facilities 30. DOI: 10.10 61/(ASCE)CF.1943-5509.0000884.

53.

Cai

Deng

(2016) State-of-the art review on bridge weigh-in-motion technology. Advances in Structural Engineering 19(9): 1514–1530.

54.

Zhang

Peng

Cai

(2011) Field study of overload behavior of an existing reinforced concrete bridge under simulated vehicle loads. Journal of Bridge Engineering 16(2): 226–237.
