Abstract
Introduction
Radon (222Rn) and thoron (220Rn) are continuously decaying and giving rise to radon and thoron progenies. These are short-lived and decay until a stable long-lived isotope is reached. Radon (222Rn), thoron (220Rn) and their progenies are considered to be the major contributors to human exposure from natural sources. 1 The short-lived daughters of radon (222Rn) and thoron (220Rn) are well established as causative agents of lung cancer.2–5 These are mostly radioactive isotopes of Po, Pb and Bi which when produced in the air attach to the aerosol particles that are present. Although radon and its progenies are the main contributors in inhalation dose for the general public, thoron has gained increasing attention among health physicists in recent years. The short lifetime of thoron (half-life, 55.6 s) and its inhomogeneous distribution, with a strong dependence on the distance from the source, are responsible for this. However, there are some longer lifetime isotopes among the thoron progenies that are capable of spreading in the air by sticking to aerosol particles, and establishing a more or less homogeneous concentration distribution; therefore, the radiation dose contribution is not negligible. The values of radon and thoron progeny in the indoor air depends mainly on the pseudo-ventilation rates, which is the sum of the air exchange rate and the wall removal rate in the dwelling. These are expected to vary from house to house and from time to time in a given location. The nuclear track detector technique is the most reliable method for the integrated and long-term measurement of indoor radon activity. 6 With the advent of passive detection techniques using solid state nuclear track detectors (SSNTDs), direct progeny sensor (DPS) has been developed. Direct radon/thoron progeny sensor (DRPS/DTPS) is a passive, deposition-based technique for estimating the time-integrated equilibrium equivalent radon/thoron concentration (EERC/thoron) in indoor environment. Thoron cannot be assumed to be uniformly distributed in the room due to its short half-life. 7 Thoron decay products, being longer lived would mix more or less uniformly in the room and their activities will be fractions of a representative average thoron concentration. 8 The concentrations of radon, thoron and progeny deviate from place to place and depend on the building material in case of indoor concentration. In India, indoor radon measurements in some dwellings of 15 towns were specially selected on the basis of high uranium content in the soil. 9 Radon measurements are relatively simple to perform; however, to assess radon concentrations in homes, the measurements need to be based on standardized protocols to ensure accuracy and consistency. Radon and thoron progeny concentrations contribute to the natural radiation dose to general public. Due to the fact that the inhalation doses due to radon and thoron are contributed predominantly by their decay products, development of passive techniques for monitoring the decay products directly assumes considerable significance. DTPS and DRPS are developed which are deposition-based systems and hence ensure that they respond only to the decay products and not to gas concentrations. 10 The lower limit of detection for the DRPS is 1 Bq m−3 of EERC and that for DTPS is 0.1 Bq m−3 of EETC.
The measurements of radon/thoron progeny concentrations were conducted for the first time with DTPS and DRPS in Hamirpur and Una district of Himachal Pradesh. In these two districts, approximately 28 houses were selected and DRPS/DTPS sensors were installed. The present work will help in understanding the status of indoor radon and thoron progeny in the environs of Una and Hamirpur districts of Himachal Pradesh. The present study was done to measure radon and thoron daughter progenies to allow a record of indoor emanations during different seasons of the year.
Method of measurement
In the present experimental work, for indoor measurement, DRPS/DTPS sensors and wire mesh DRPS/DTPS sensors were used. These are made of passive nuclear track detectors (LR-115) mounted with absorbers of appropriate thickness.
From the model estimates, ∼70% of the total deposition flux is induced by 2–4% of the 212Pb fine fraction, while the remaining 30% is due to the coarse fraction. The average activity median diameter of the fine fraction is ∼5 nm and that for the coarse fraction is ∼100 nm. An increase in the turbulence would directly increase the fine fraction deposition velocity, but the effect would be less pronounced on the coarse fraction deposition velocity. Hence, a wire mesh-capped DTPS has been developed, in which the wire mesh will act as a fine-fraction separator. When the DTPS is capped with the wire mesh, the coarse fraction penetrates the wire mesh and gets deposited on the DTPS. The tracks registered in the DTPSs are due to the alpha particles emitted by the coarse fraction-attached progeny atoms.
The basic principle of operation of these DRPS/DTPS sensors is that the LR-115 detector detects the alpha particles emitted from the deposited progeny atoms. DRPS is an absorber-mounted LR-115-type nuclear track detector tuned to respond only to the 7.67 MeV alpha particles emitted from the deposited activity of 214Po on the absorber surface. DTPS is an absorber-mounted LR-115-type nuclear track detector tuned to respond only to the 8.78 MeV alpha particles emitted from the deposited activity of 212Po on the absorber surface. DTPS element is made up of LR-115 (2.5 × 2.5 cm2) mounted with 50 µm aluminized mylar while DRPS has an absorber combination comprising of aluminized mylar and cellulose nitrate of effective thickness of 37 µm. This thickness mainly ensures that lower energy alpha emissions (from the gases and other airborne alpha emitters) do not pass through the absorber. 11 Since the system is intended for use in the deposition mode, it is necessary to avoid uncontrolled static charges from affecting the deposition rates and hence aluminized side of the mylar was chosen to act as the deposition surface. 12
Sensors were hanged overhead on the ceiling at the height of minimum 1.5 m from the floor and at least 10 cm away from any surface for a minimum of 90 days. The exposed sensors were taken for analysis and replaced with new ones for the next deployment. The exposed films were then etched in an etching bath using 2.5 N NaOH solution at 60℃ for 90 min during which 4 µm thickness was etched away. Etching of the film was necessary because the tracks produced on the films would be visible for counting only after etching. The tracks recorded in this SSNTD films were then counted using a spark counter, which is an electronic counter operating on high voltage. The tracks recorded in the exposed LR-115 films related to equilibrium equivalent progeny concentration (EEC) using the sensitivity factor. To have seasonal variations in concentrations of these progeny particularly during autumn, spring, winter and summer season in a year, these sensors were exposed in each season for about three months. The number of windows, ventilations and doors were also counted; these contribute to the ventilation rate of air inside the specific room.
Indoor radon concentration is greatly influenced by the ventilation rate. During different seasons, the temperature would vary and would result in a change in ventilation rate of dwellings. Hence, seasonal variation of indoor radon as well as thoron was monitored. These detectors were employed in 28 different locations of Una and Hamirpur districts of Himachal Pradesh in bare mode and in wire mesh cup mode for a period of about 3 months. In this study, the monitoring was completed in the year 2012–2013 which was divided into four seasons viz. summer (June–Aug), autumn (September–November), winter (December–February) and spring (March–May).
In the present work, the time-integrated equilibrium equivalent radon/thoron progeny concentration (EERC/EETC) in bare mode and in wire mesh cup mode was calculated. In the calculation of the progeny concentrations, the track density obtained using DTPS were used directly in calculating EETC. However, in the case of EERC, since a mixture of radon and thoron progenies was expected in the environment, α energy of 212Po (thoron progeny) would be higher as compared to that of 214Po (radon progeny). So, the track density obtained using DTPS was used to eliminate the interference on the DRPS by 212Po. The number of tracks per unit area per unit time (T) was correlated to the EEC in air using the sensitivity factor (S). This was done by simple subtraction method. Equation (1) was used to calculate EETC and EERC10,11 as follows
The tracks registered in DTPS were related to EETC by using a sensitivity factor of 0.94 (Tracks cm−2 d−1) (Bq m−3)−1. Similarly the sensitivity factor, 0.09 (Tracks cm−2 d−1) (Bq m−3)−1 of DRPS was used to determine EERC. The tracks registered in wire-capped DTPS were related to the attached fraction of EETC by using a sensitivity factor of 0.33 (Tracks cm−2 d−1) (Bq m−3)−1. Similarly, a sensitivity factor, 0.04 (Tracks cm−2 d−1) (Bq m−3)−1 of DRPS was used to determine EERC.
Results

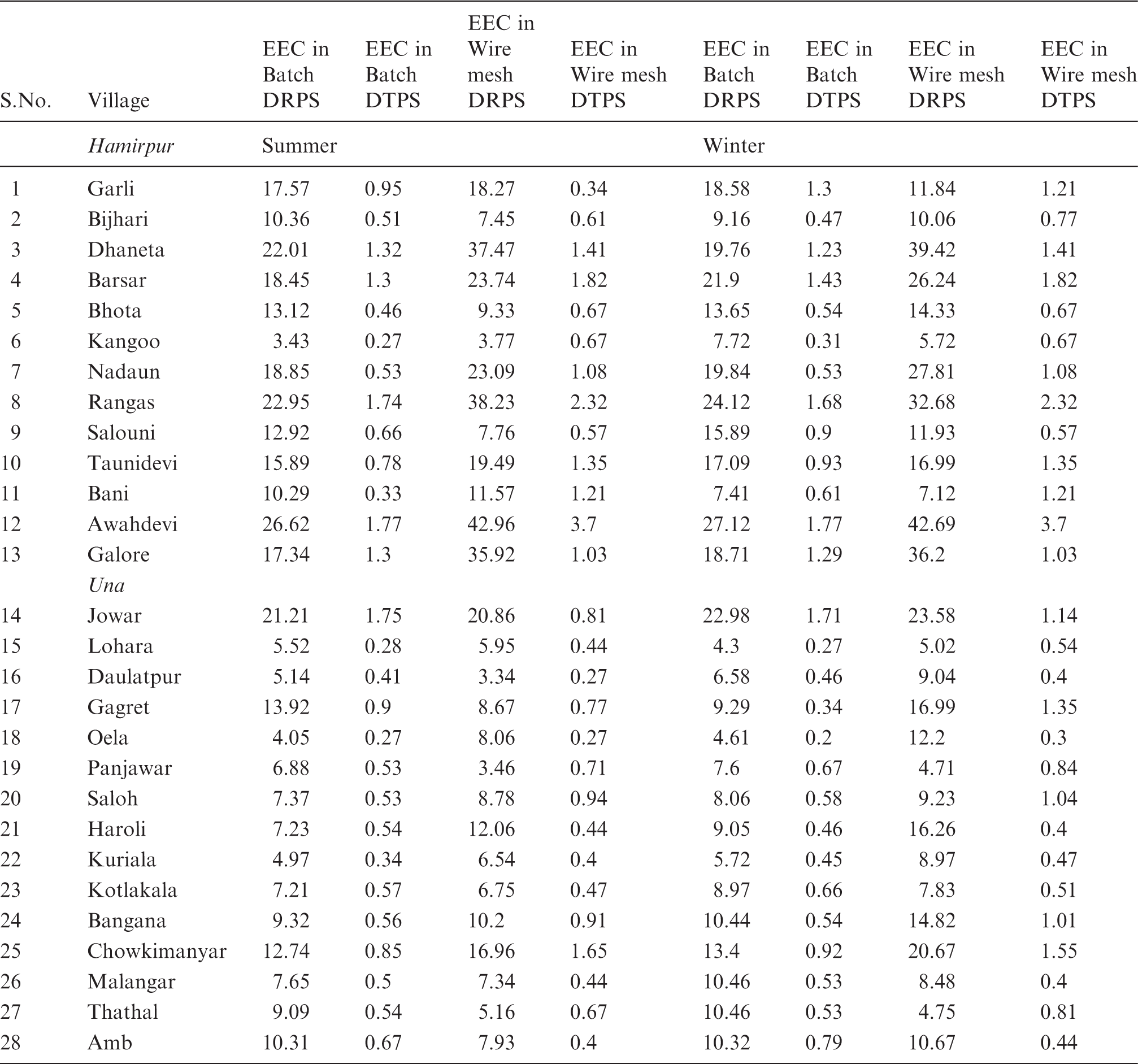

The calculated values of EERC/EETC in summer and winter seasons.

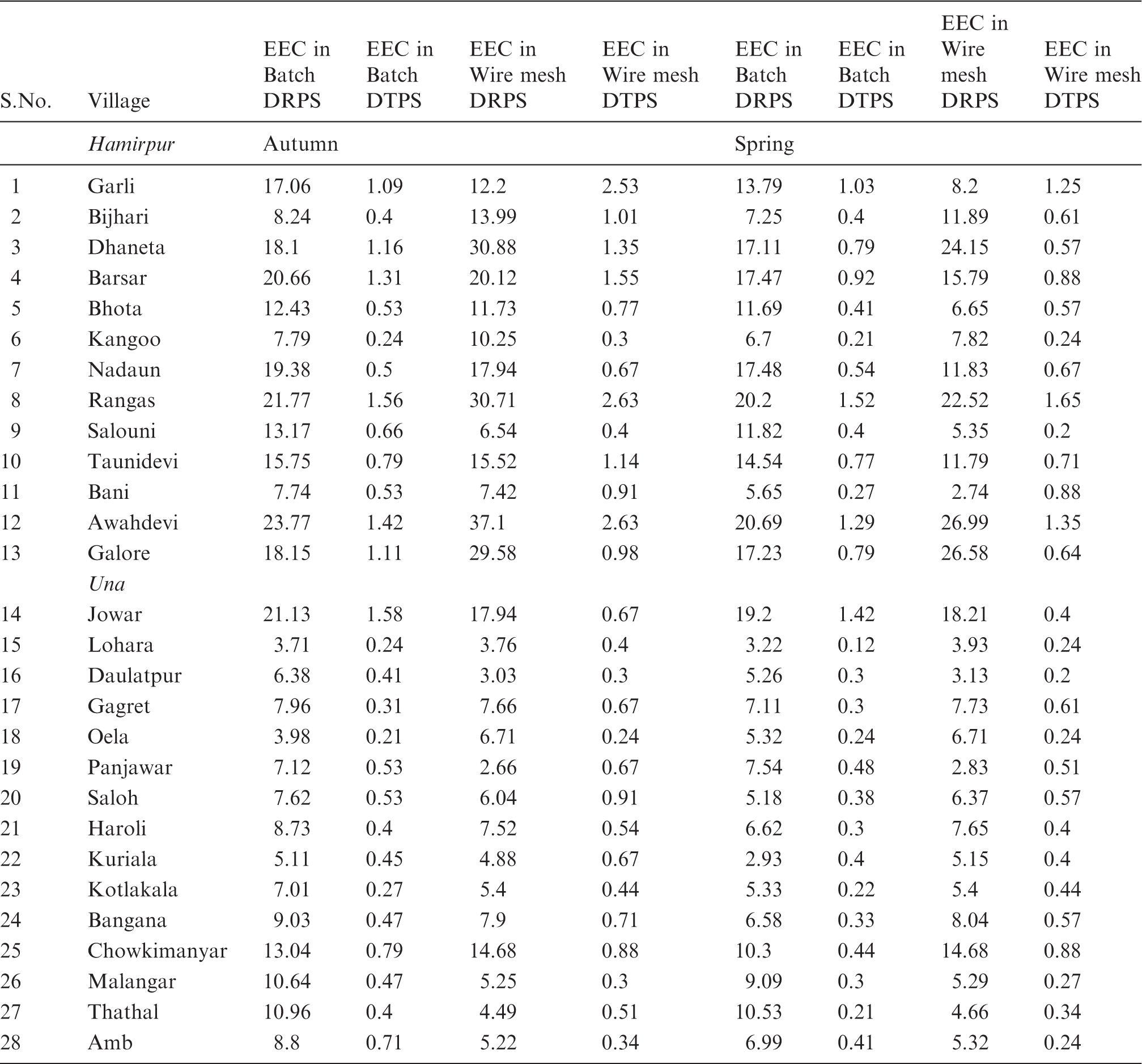

The calculated values of EERC/EETC in autumn and spring seasons.

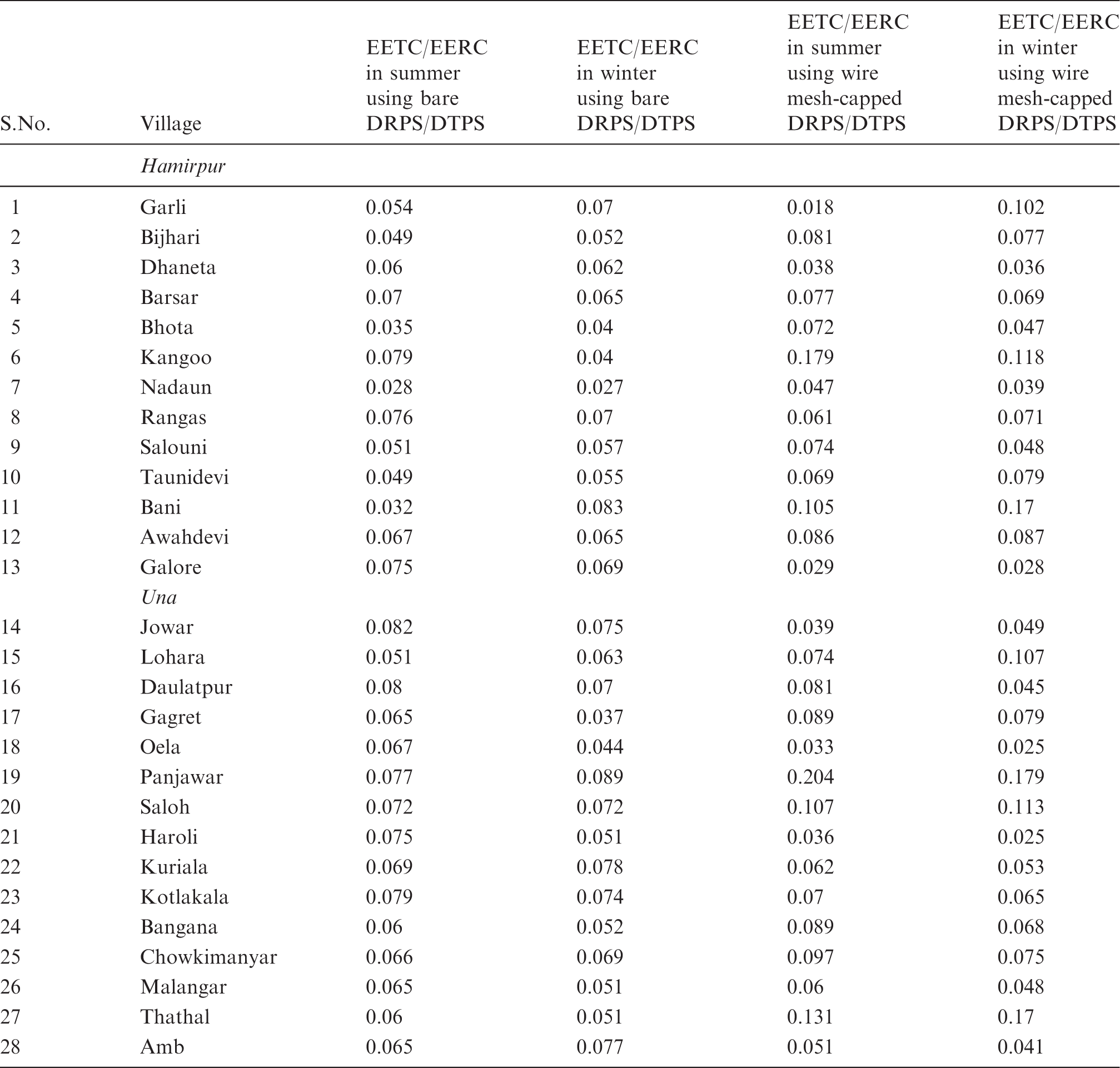

The calculated value of ratio of EETC and EERC in summer and winter seasons.
Discussion

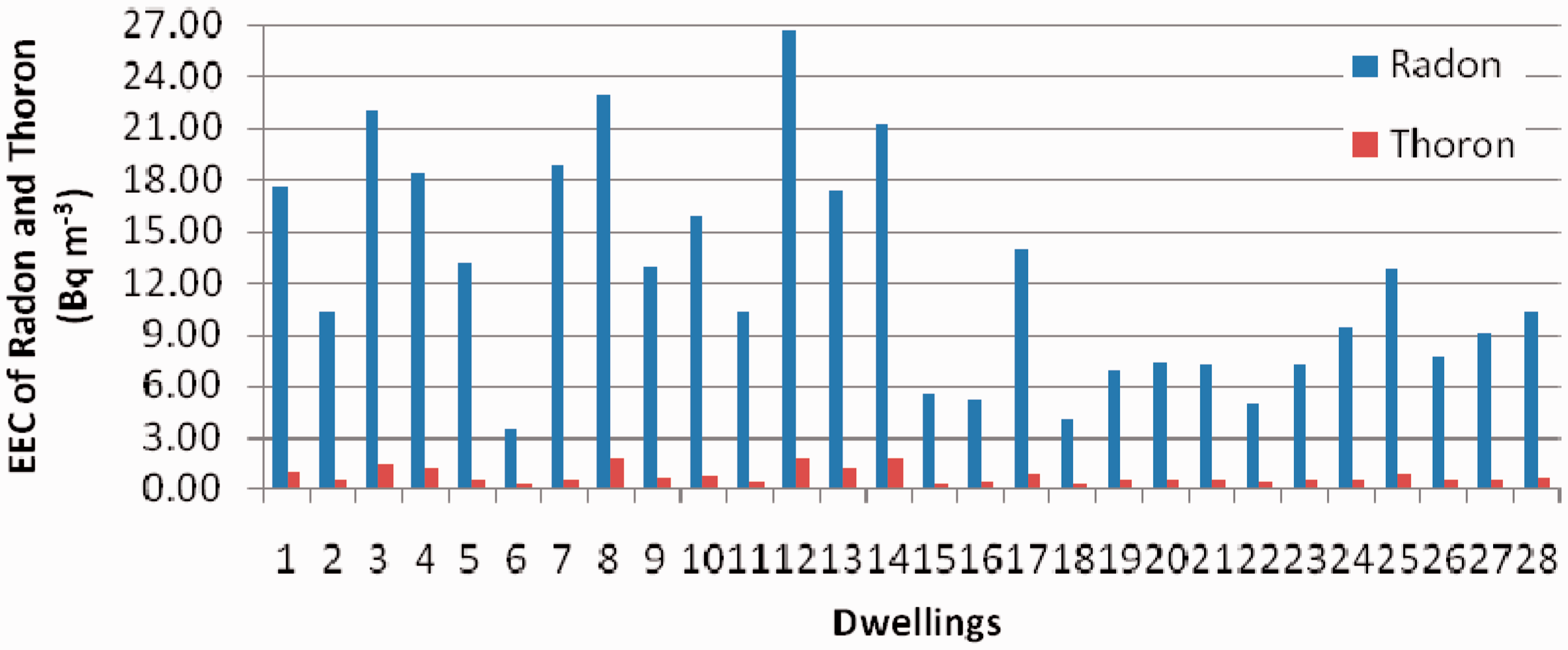

Figures 1 and 2 show the correlation between EERC and EETC for two seasons (summer and winter season) in each dwelling of Hamirpur and Una district of Himachal Pradesh. A remarkable finding is the positive correlation between EERC and EETC (R2 = 0.79 in summer and R2 = 0.81 in winter). This study is seen as a contribution to exploring whether and how the simple method based on track etch detectors can be used for regional surveys of indoor radon and thoron progenies. It was observed that the strongest influence on indoor radon and thoron levels is that of ventilation. To minimize the health hazards, it is necessary to characterize the sources. This requires attention to the rate at which radon and thoron are generated, the modes of transport and how they actually enter the indoor atmosphere. It is necessary to provide adequate ventilation to avoid building up of the daughter products in the dwelling. Both the bare and the wire mesh-capped DRPS/DTPS have the potential to be used as an easy to wear personal dosimeter for population dosimetry in indoor and occupational environments. Figures 3 and 4 show EERC and EETC in each dwelling of Una and Hamirpur District (attached and unattached progeny) in summer and winter seasons, respectively. As evident from the data, among all the selected locations, the maximum concentration of EERC and EETC is recorded in Awahdevi. Figure 5 shows the comparison of EEC of attached and unattached radon (Bq m−3) in summer and winter. In general, it is seen that the maximum concentration is found in winter season. The reason for higher values in winter may be due to poor ventilation, use of electric devices, coal fire, etc. Figure 6 shows the comparison of EEC of attached and unattached thoron (Bq m−3) in summer and winter seasons. Figures 7 and 8 show the EEC of radon and thoron in Una and Hamirpur District (attached progeny) in summer and winter seasons.

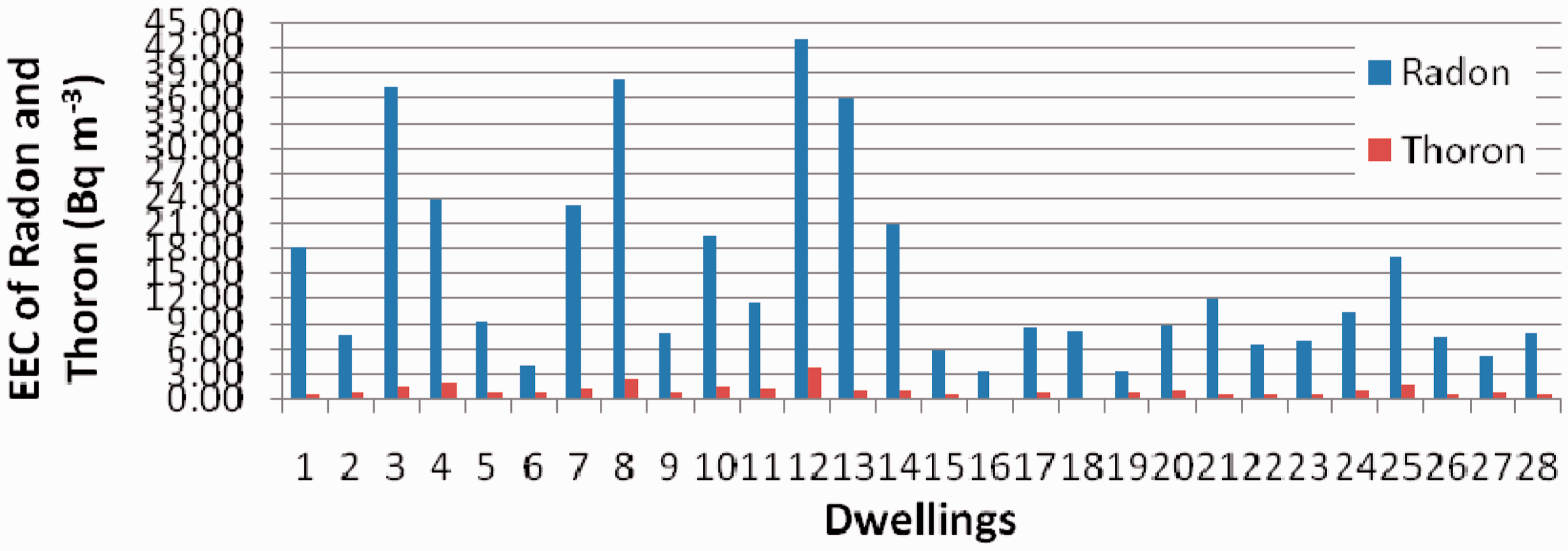

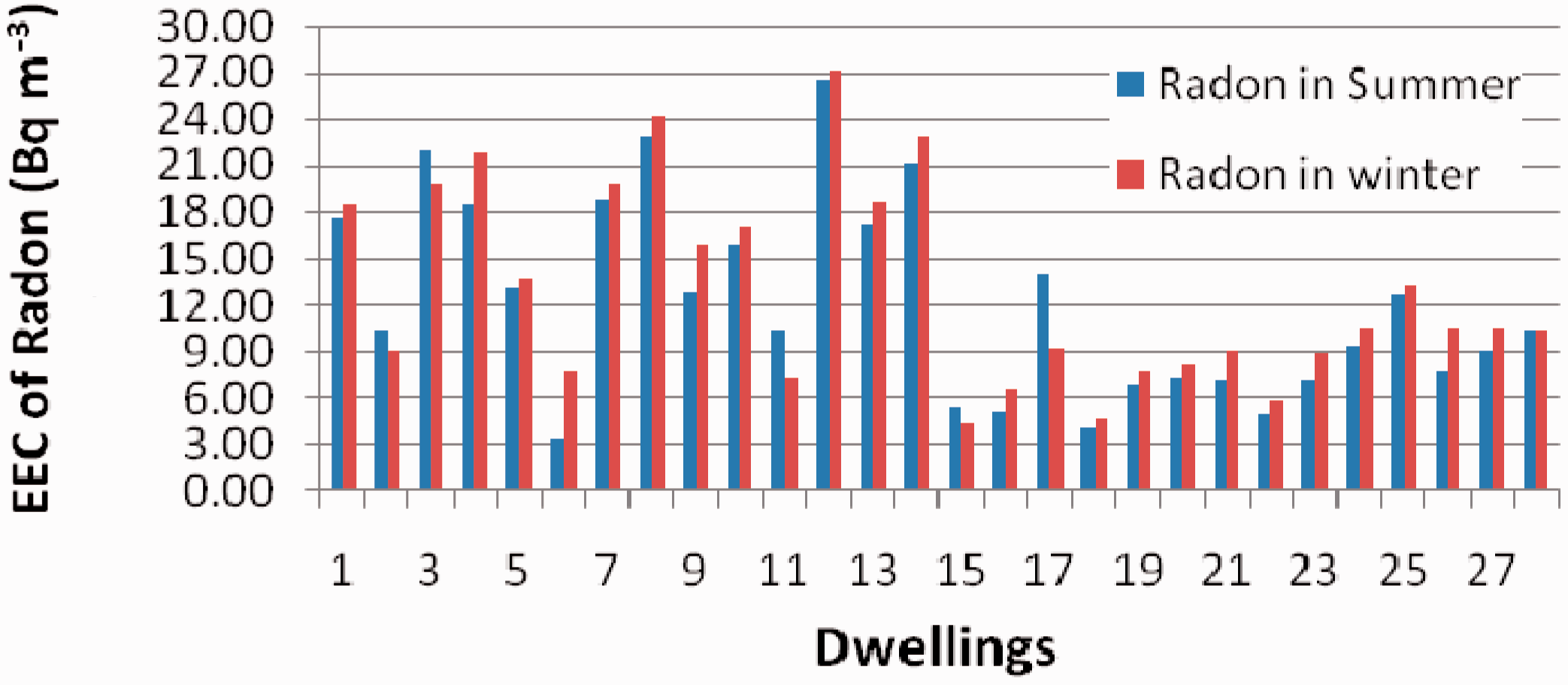

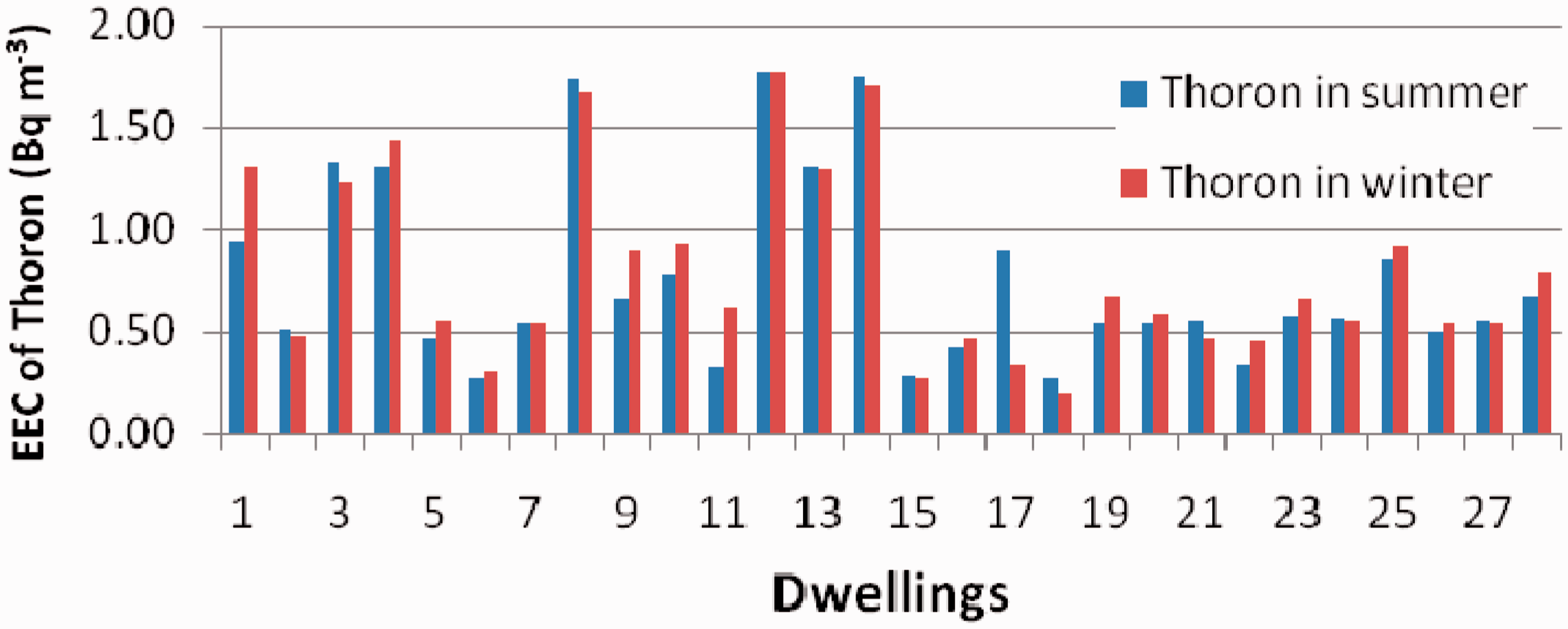

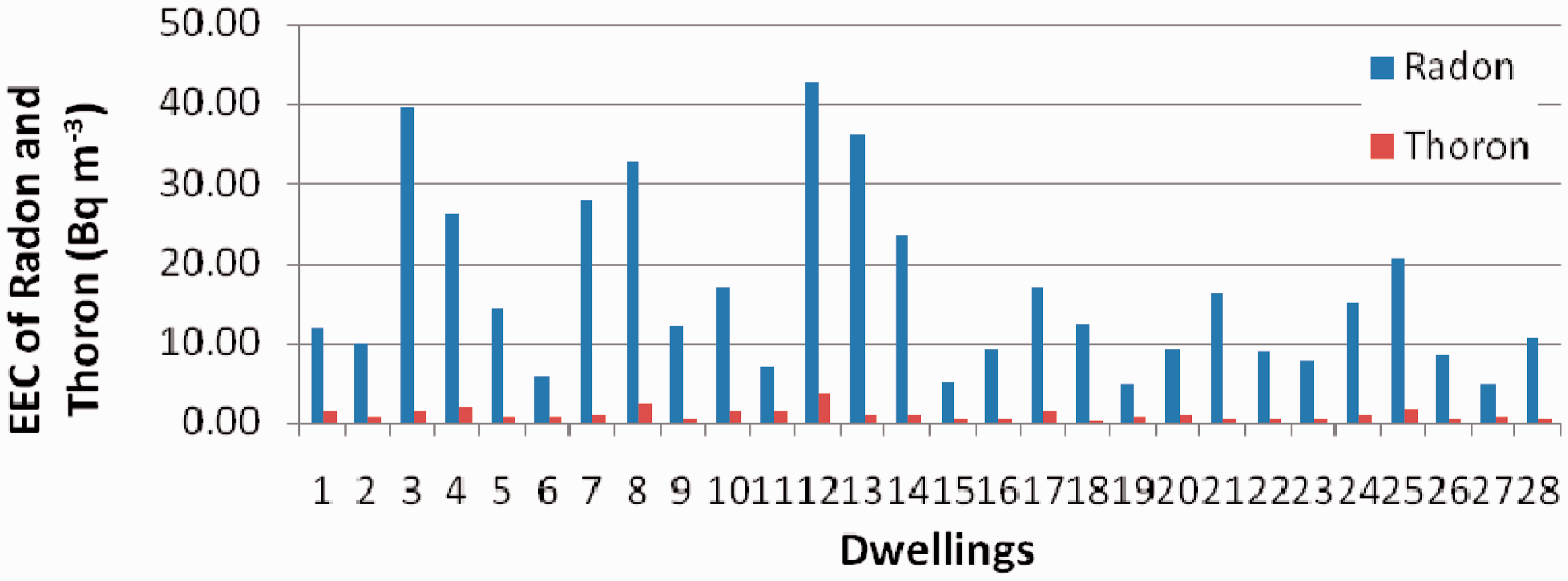

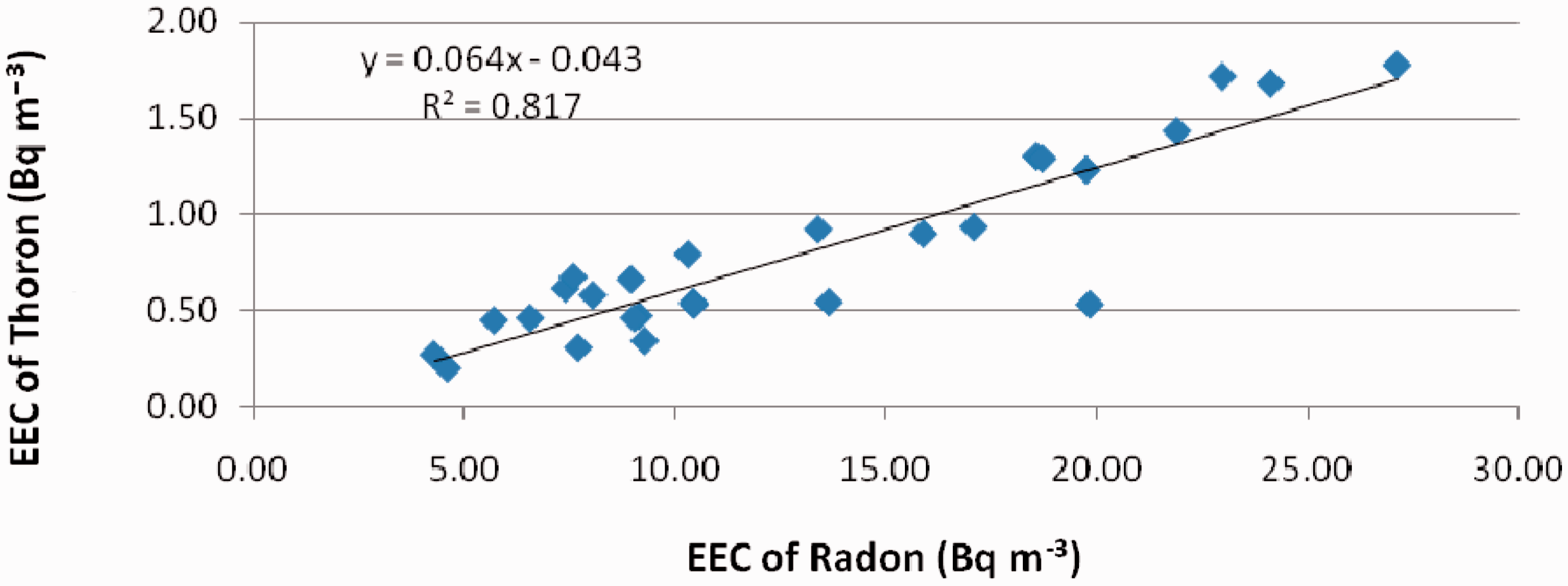

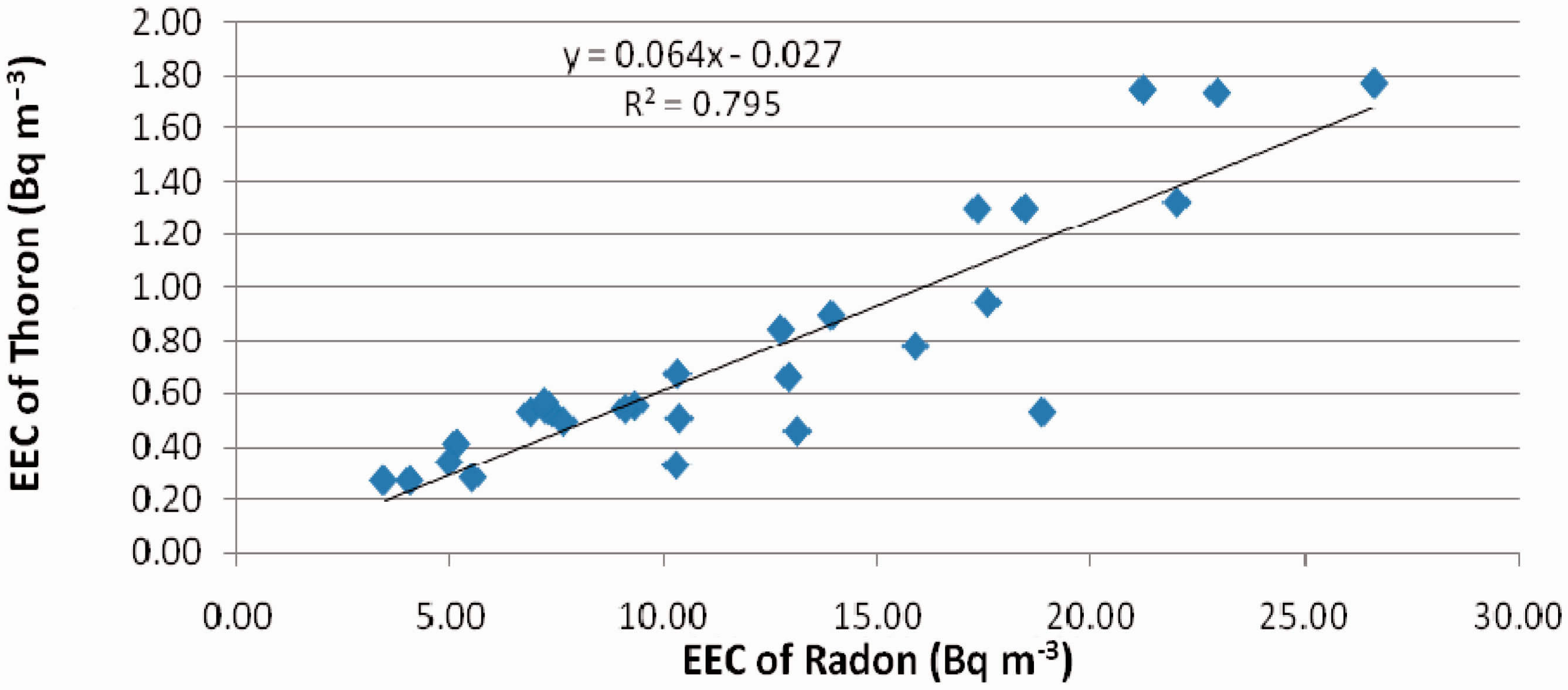

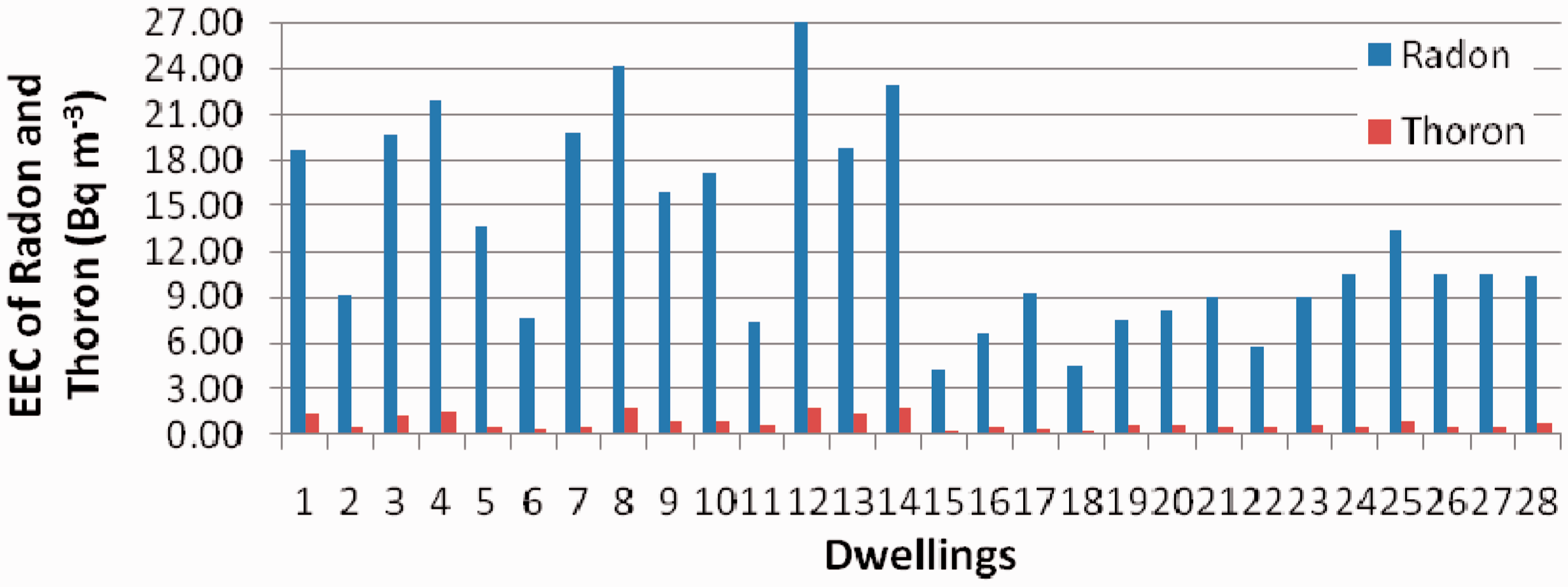

Correlation between EEC of radon and thoron in summer season. Correlation between EEC of radon and thoron in winter season. EEC of radon and thoron in Una and Hamirpur district (attached and unattached progeny) in summer season. EEC of radon and thoron in Una and Hamirpur district (attached and unattached progeny) in winter season. Comparison of EEC of attached or unattached radon (Bq m−3) in summer and winter seasons. Comparison of EEC of attached or unattached thoron (Bq m−3) in summer and winter seasons. EEC of radon and thoron in Una and Hamirpur District (attached progeny) in summer season. EEC of radon and thoron in Una and Hamirpur district (attached progeny) in winter season.







Conclusion
The time-integrated equilibrium equivalent radon/thoron progeny concentration (EERC/EETC) in bare mode and wire mesh cup mode was calculated. The calculated value of EERC was higher than the value of EETC in bare mode. The high EERC values were observed in houses located at higher altitude. In general, the maximum concentration was found in winter. A remarkable finding was the positive correlation between EERC and EETC (R2 = 0.79 in summer and R2 = 0.81 in winter). This study illustrates the feasibility of using simple method based on track etch detectors for the measurement of indoor radon and thoron progenies.
