Instability of the printing jet during the three-dimensional-printing process

Abstract

Euler’s instability criterion is widely used in engineering to design a column. However, this criterion is not suitable for judging the instability of a three-dimensional printing process because the axial motion of the printing jet has to be considered. A variational principle is established, and an equivalent Eulerian load is obtained. The theoretical results show that a higher printing velocity makes the moving jet much more stable, and an experiment is designed to verify our theoretical prediction.

Keywords

Bending energy electrospinning electrospraying printing variational theory

Introduction

The three-dimensional-printing technology is now playing an important role in materials science, constructional engineering, and food engineering.^1–5 It can print micro/nano devices, e.g. micro-electromechanical systems⁶ and Fangzhu-like devices for collecting water from air.^7–9 An accurate printed object requires an exact sprinting process, and any small instability is not allowed. However, when a column subjects to a buckling load, an instability occurs when the axial pressure reaches the Eulerian load

P_{c r} = \frac{π^{2} E I}{L^{2}}

(1)

where EI is the rigidity of the column, E is the elastic modulus, and I is section moment of inertia, L is the length, and

P_{c r}

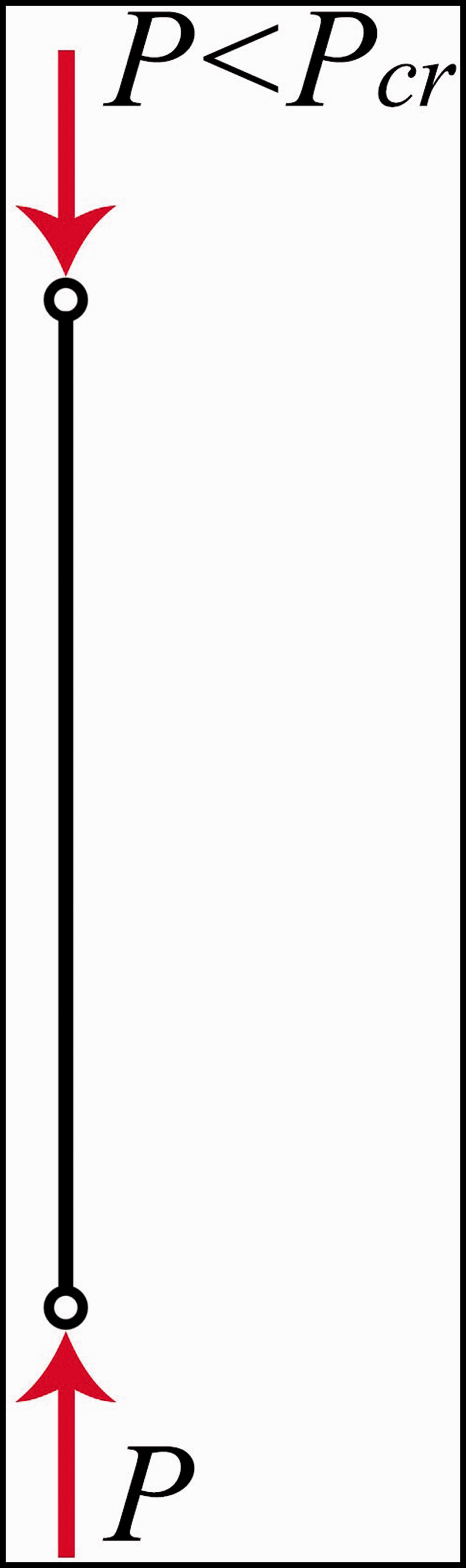

is Eulerian load, see Figure 1. For a cylindrical column, the moment of inertia is

I = \frac{π d^{4}}{64}

(2)

and equation (1) becomes

P_{c r} = \frac{π^{3} E d^{4}}{64 L^{2}}

(3)

Figure 1.

Stability of columns.

When $P > P_{c r}$ , the column becomes instability, and a low frequency vibration might occur.

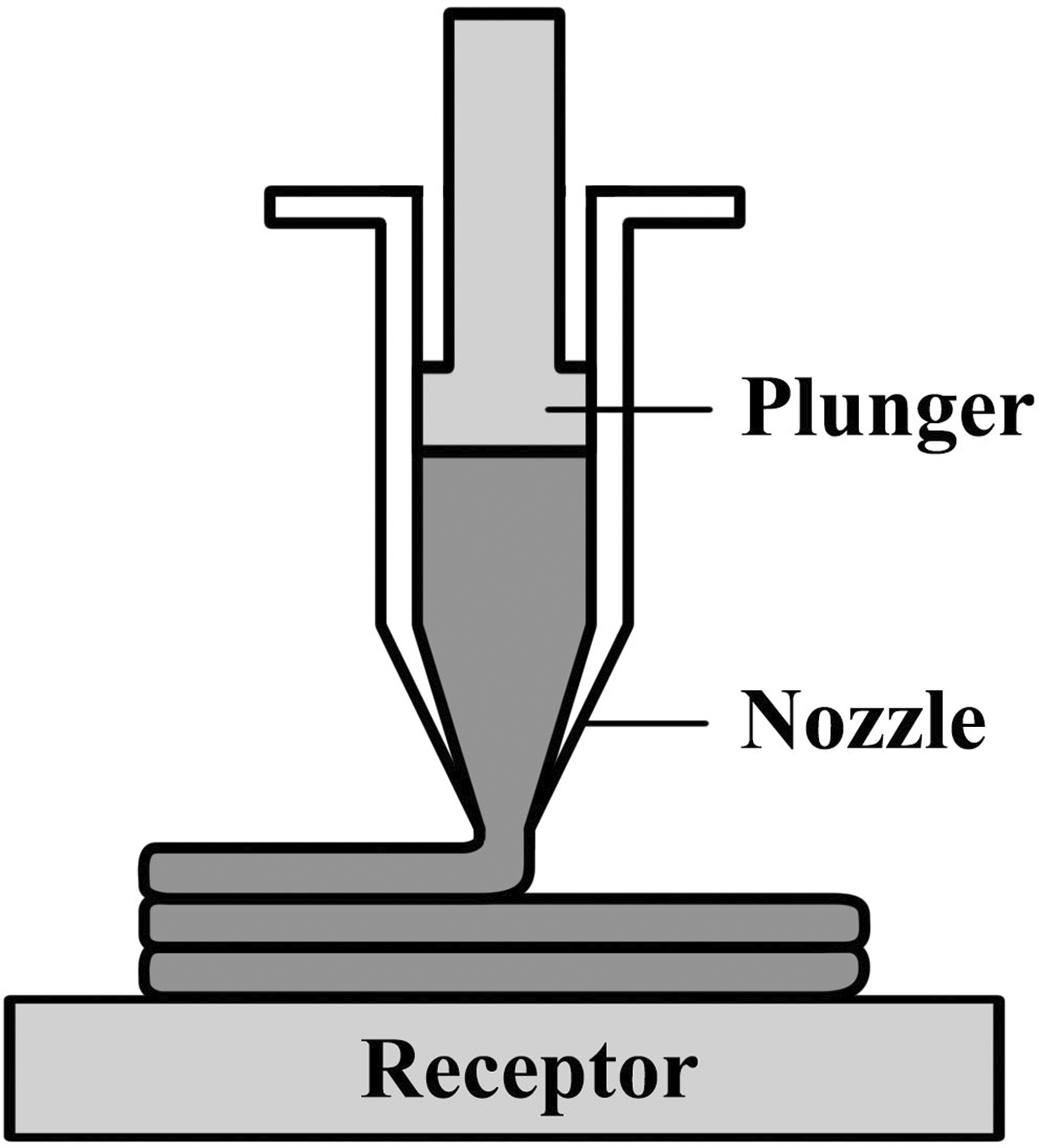

In the three-dimensional-printing process^1–5 (see Figure 2), an instability often occurs for the slender axially moving jet, and the instability always leads to morphology change of the printed object. The instability also occurs in some spinning process, see, for example, the following works.^10–17 In this paper, the moving jet is approximated as an axially moving cylindrical rod-like viscoelastic fluid, and its Eulerian load is studied.

Figure 2.

Extrusion-based 3D printing.

Newton’s law and variational principle

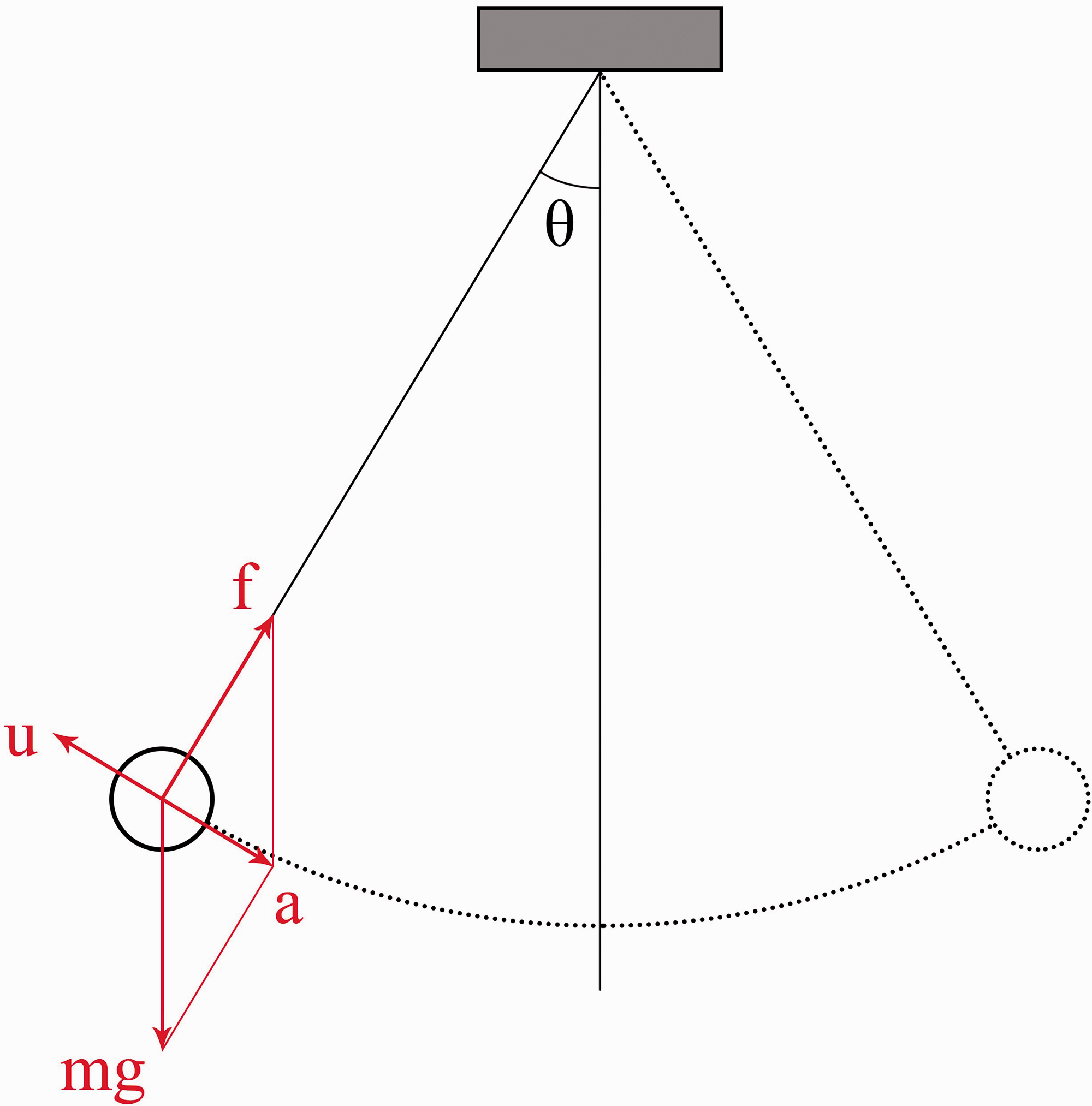

The Newton’s second law is widely used to establish a differential model. Consider the pendulum motion as illustrated in Figure 3, the Newton’s law leads to the following equation

m g \sin θ = - m \ddot{θ} l

(4)

\ddot{θ} + \frac{g}{l} \sin θ = 0

(5)

where L is the pendulum’s length.

Figure 3.

The pendulum.

The governing equation of the pendulum can be also derived from the variational principle, which is

J (θ) = \int {K - P} d t = \int {\frac{1}{2} m l^{2} {\dot{θ}}^{2} - mgl (1 - \cos θ)} d t

(6)

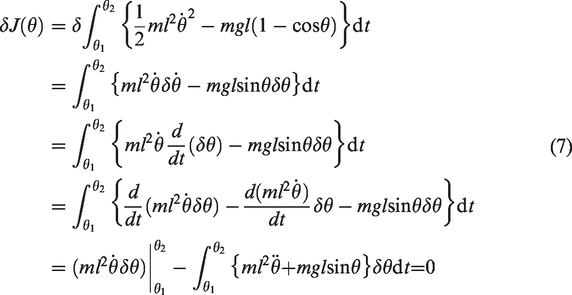

where K is the kinetic energy and P is the potential energy. The stationary condition of equation (6) is

\begin{array}{l} δ J (θ) = δ \int_{θ_{1}}^{θ_{2}} {\frac{1}{2} m l^{2} {\dot{θ}}^{2} - mgl (1 - \cos θ)} d t \\ = \int_{θ_{1}}^{θ_{2}} {m l^{2} \dot{θ} δ \dot{θ} - mgl \sin θ δ θ} d t \\ = \int_{θ_{1}}^{θ_{2}} {m l^{2} \dot{θ} \frac{d}{d t} (δ θ) - mgl \sin θ δ θ} d t \\ = \int_{θ_{1}}^{θ_{2}} {\frac{d}{d t} (m l^{2} \dot{θ} δ θ) - \frac{d (m l^{2} \dot{θ})}{d t} δ θ - mgl \sin θ δ θ} d t \\ = {(m l^{2} \dot{θ} δ θ) |}_{θ_{1}}^{θ_{2}} - \int_{θ_{1}}^{θ_{2}} {m l^{2} \ddot{θ} + mgl \sin θ} δ θ d t = 0 \end{array}

(7)

For any arbitrary $δ θ$ , from equation (7), we obtain

m l^{2} \ddot{θ} + mgl \sin θ = 0

(8)

Equation (8) can also be obtained directly from the Euler–Lagrange equation, which reads

\frac{\partial L}{\partial θ} - \frac{d}{d t} (\frac{\partial L}{\partial \dot{θ}}) = 0

(9)

where L is the Lagrange function

L = \frac{1}{2} m l^{2} {\dot{θ}}^{2} - mgl (1 - \cos θ)

(10)

Both Newton’s law and the variational principle can be used to establish a governing equation for simple problems, but the latter is more suitable for a complex problem.

Instability of the printing jet

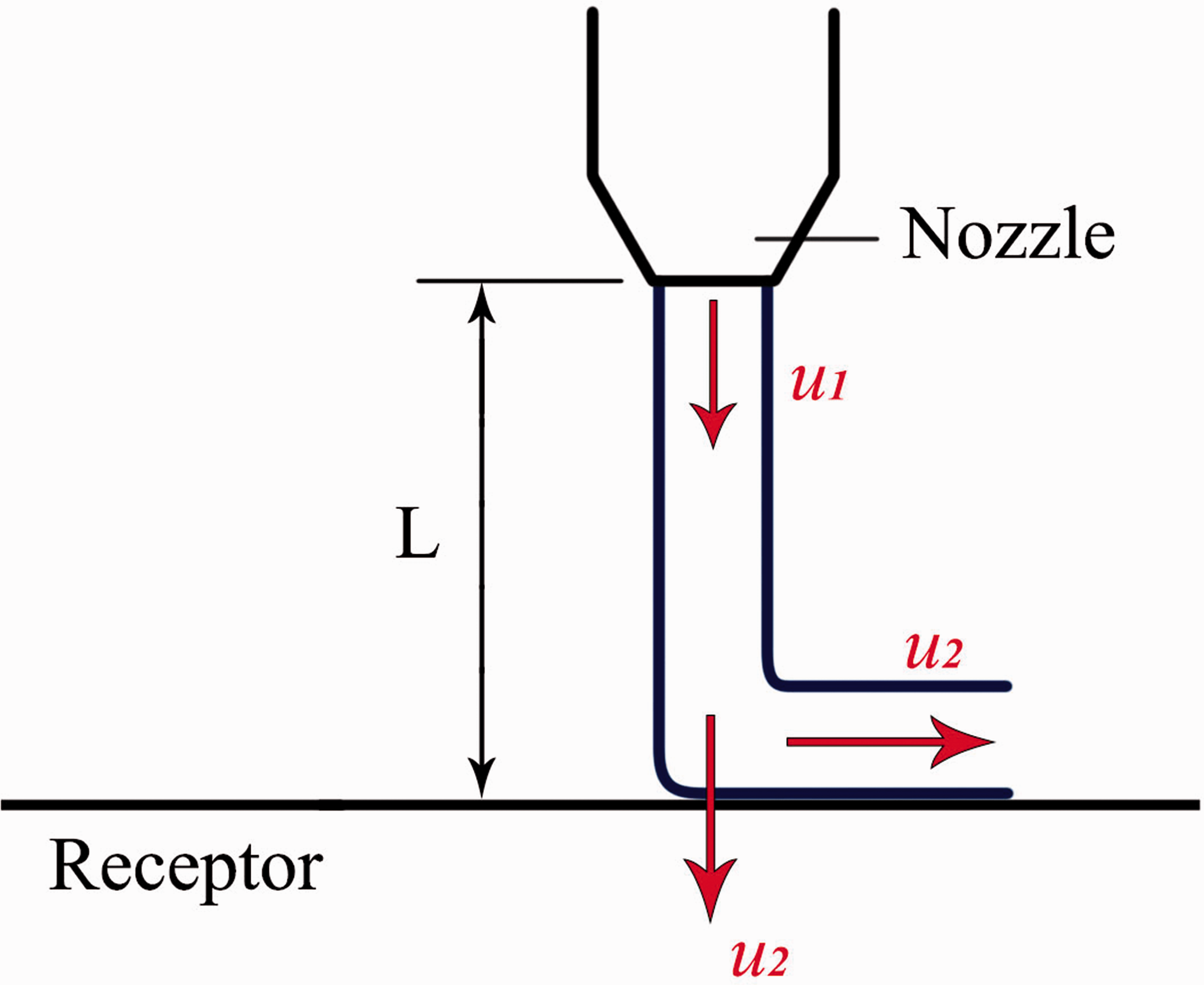

Figure 4 shows the printing process, the printing velocity is $u_{1}$ , and the platform moves at a velocity of $u_{2}$ .

Figure 4.

The printing jet.

According to literature,^18–22 the printing jet has the following bending energy similar to an elastic column

E = \frac{1}{2} E I {(\frac{d w}{d x})}^{2}

(11)

where w is the displacement. The jet moves axially, and its kinetic energy is

K = - \frac{1}{2} ρ A {(\frac{D w}{D t})}^{2}

(12)

where

ρ

is density, A is the sectional area, and D/Dt is the material derivative, and it is defined as

\frac{D w}{D t} = \frac{\partial w}{\partial t} + u \frac{\partial w}{\partial x}

(13)

where u is the velocity of the printing jet. For a steady printing process, we have

\frac{D w}{D t} = u \frac{\partial w}{\partial x}

(14)

The variational principle^22–28 for the bending jet is

J (w) = \int_{0}^{L} {E + K - \frac{1}{2} P_{c r} w^{2}} d x

(15)

J (w) = \int_{0}^{L} {\frac{1}{2} E I {(\frac{d w}{d x})}^{2} + \frac{1}{2} ρ A u^{2} {(\frac{d w}{d x})}^{2} - \frac{1}{2} P_{c r} w^{2}} d x

(16)

The stationary condition of equation (16) is

\frac{\partial L}{\partial w} - \frac{d}{d x} (\frac{\partial L}{\partial w_{x}}) = 0

(17)

where the Lagrange function is given as follows

L = \frac{1}{2} E I {(\frac{d w}{d x})}^{2} + \frac{1}{2} ρ A u^{2} {(\frac{d w}{d x})}^{2} - \frac{1}{2} P_{c r} w^{2}

(18)

It is obvious that

\frac{\partial L}{\partial w} = - P_{c r} w, \frac{\partial L}{\partial w_{x}} = E I \frac{d w}{d x} + ρ A u^{2} \frac{d w}{d x}

(19)

According to equation (17), the governing equation is

\frac{d}{d x} [(E I + ρ A u^{2}) \frac{d w}{d x}] + P_{c r} w = 0

(20)

We assume that the velocity at the nozzle is $u_{1}$ and the receptor’s moving velocity is $u_{2}$ , and the jet velocity changes gradually from $u_{1}$ to $u_{2}$ , so the jet velocity can be written as

u (x) = u_{1} + \frac{u_{2} - u_{1}}{L} x

(21)

In view of equation (21), equation (20) becomes

(E I + ρ A {(u_{1} + \frac{u_{2} - u_{1}}{L} x)}^{2}) \frac{d^{2} w}{d x^{2}} + 2 ρ \frac{u_{2} - u_{1}}{L} (u_{1} + \frac{u_{2} - u_{1}}{L} x) \frac{d w}{d x} + P_{c r} w = 0

(22)

with the following boundary conditions

w (0) = 0, \frac{d w}{d x} (L) = u_{2}

(23)

In practical applications, we always assume

u_{1} = u_{2} = u

(24)

If $u_{1}$ ≫ $u_{2}$ , the printed jet will be piled up, and if $u_{1}$ ≪ $u_{2}$ , the jet will be broken.

The bending equation becomes

(E I + ρ A u^{2}) \frac{d^{2} w}{d x^{2}} + P_{c r} w = 0

(25)

We introduce an equivalent rigidity

{(E I)}_{e q} = E I + ρ A u^{2}

(26)

and equation (25) becomes

{(E I)}_{e q} \frac{d^{2} w}{d x^{2}} + P_{c r} w = 0

(27)

This is exactly same with the Euler equation, so the critical Eulerian load reads

P_{c r} = \frac{π^{2} {(E I)}_{e q}}{L^{2}} = \frac{π^{2} (E I + ρ A u^{2})}{L^{2}} = \frac{π^{2} (E d^{4} + 16 ρ π d^{2} u^{2})}{64 L^{2}}

(28)

Equation (28) predicts that a larger nozzle diameter, or a higher printing velocity, or a shorter printing distance between the nozzle and the receptor leads to a more stable printing process.

Experimental verification

SiC/graphene composites can be printed by the 3D-printing technology.^1–3,29 In our experiment, SiC paste was prepared with 54.8 wt.% SiC particles, 4 wt.% TMAH, 0.8 wt.%PEG1500, 3.2 wt% glycerol, 6.4 wt.% carrageenan, 30.6 wt.% water, and 0.2 wt.% graphene.

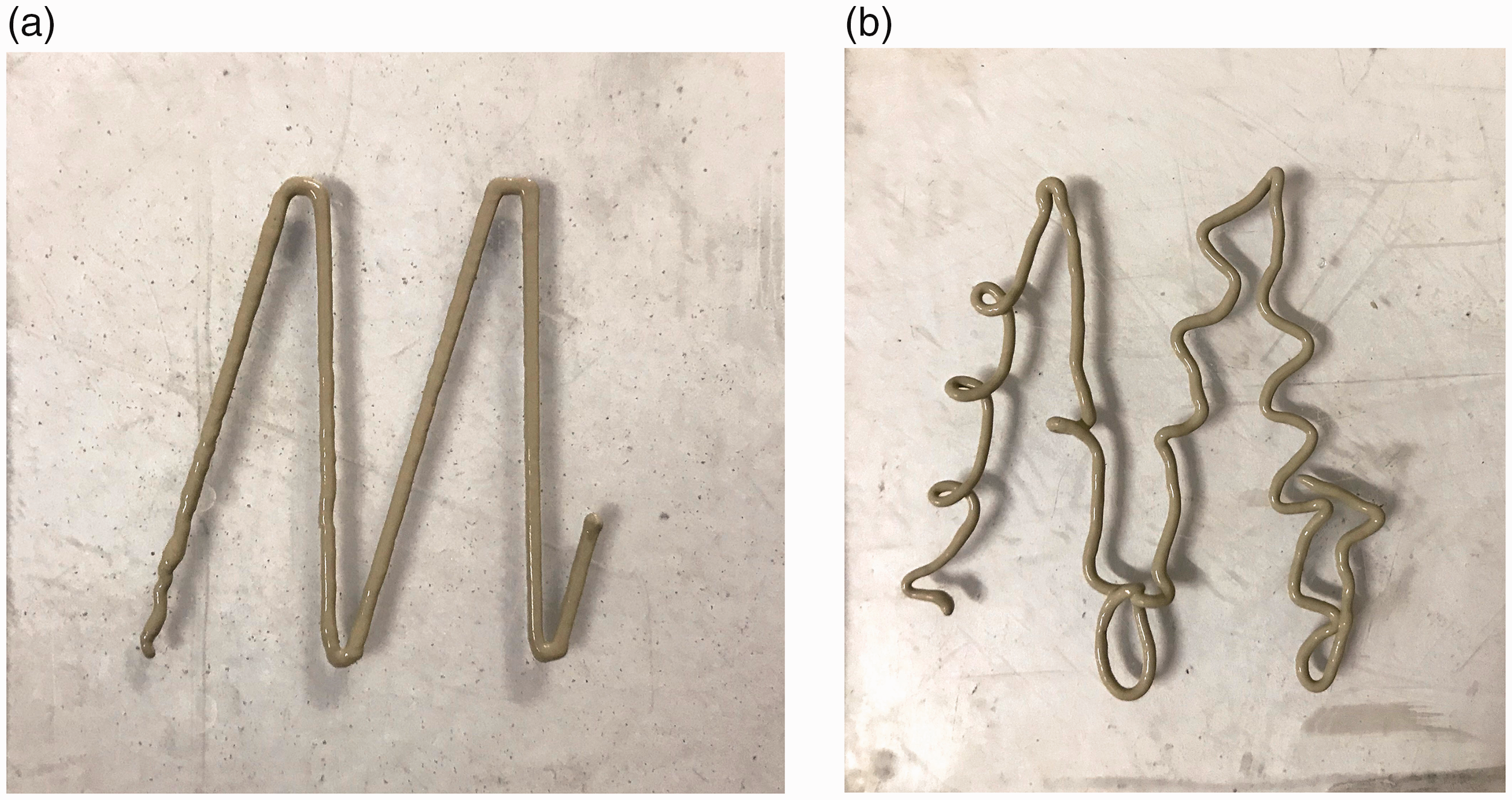

Figure 5 shows the effect of the printing distance between the nozzle and the receptor on the printed objects. A shorter distance always leads to a stable printing process, see Figure 5(a), while a longer distance results in instability (see Figure 5(b)).

Figure 5.

Effect of the printing distance on the printing instability with u = 6 mm/s and d = 0.86 mm: (a) L = 1 mm and (b) L = 5 mm.

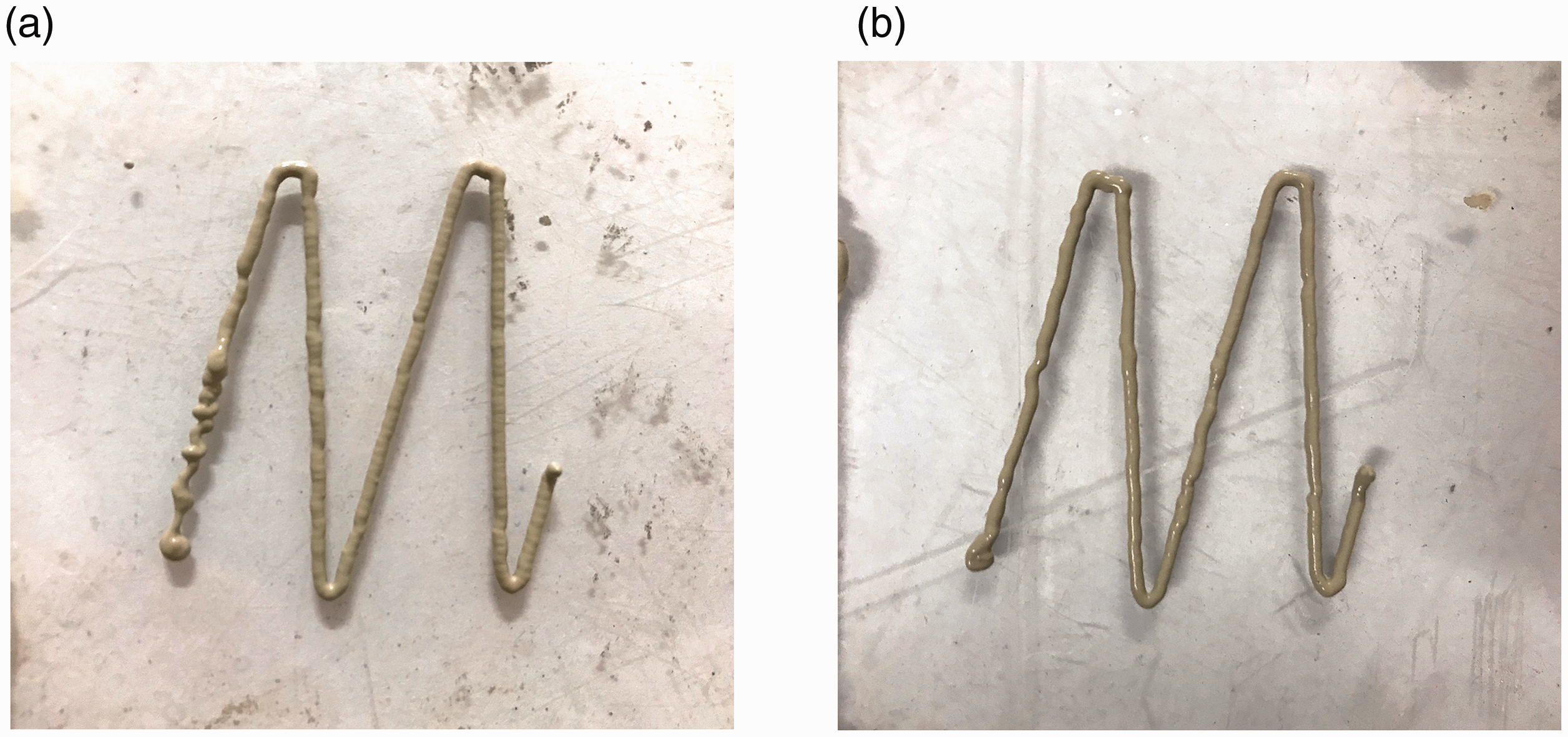

The printing velocity also affects the printing instability, and a higher velocity leads to a more stable printing process (see Figure 6).

Figure 6.

Velocity-induced stability, L = 1 mm, d = 0.86 mm: (a) u= 2 mm/s and (b) u = 4mm/s.

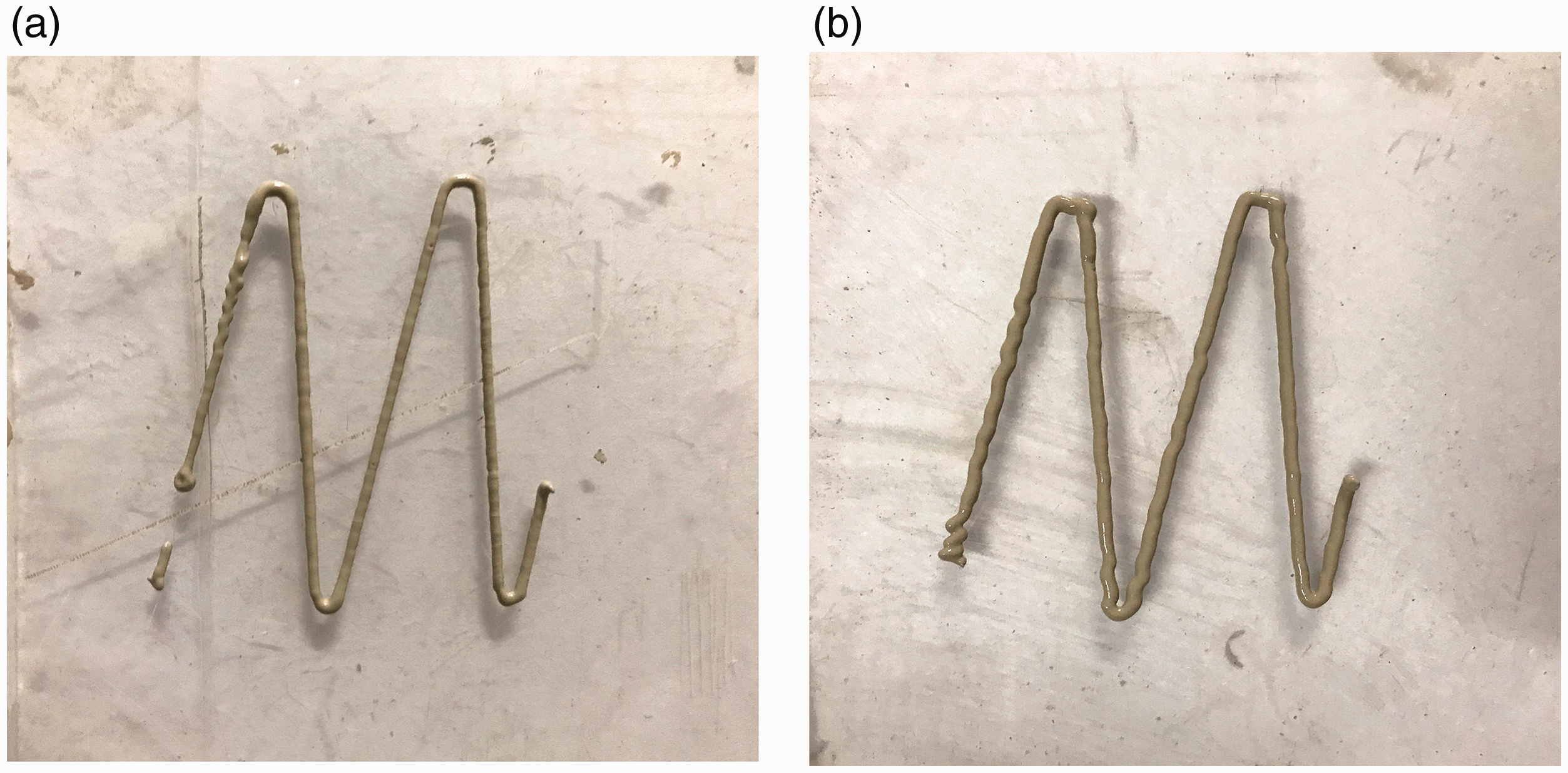

As shown in equation (28), the nozzle diameter also affects the printing instability. Figure 7 shows the experimental results for the different nozzle diameters, which agree with our theoretical prediction.

Figure 7.

Effect of the nozzle diameter on morphology of the printed object, u = 4 mm/s, L = mm: (a) d = 0.5 mm and (b) d = 0.86 mm.

Discussion and conclusion

For the first time ever, this paper suggests an instability criterion for axially moving jet of a 3D-printing process. A longer printing distance always results in a more instable printing process, see Figure 5, while a higher velocity always makes the moving jet much more stable, see Figure 6, and we call this phenomenon as the motion stability. Due to extremely low elastic modulus of the most printing materials, it is necessary to increase the printing velocity to make the printing process stable. However, due to the solvent evaporation is incomplete for a fast printing process, the printed object is easy to be deformed. We will discuss the problem in a forthcoming paper by establishing a fractal vibration model.^3,30,31 The instability of the printing jet will also affect the mechanical and electrical properties of graphene/sic composites.²
