Comprehensive vibration and noise reduction characteristics of particle damping fastener systems using in prefabricated assembled ballastless track

Abstract

The ballastless track structure is the main structure of urban rail transit, and the ballastless track has the advantages of high smoothness, high stability, and less maintenance. At present, urban rail transit requires high smoothness and convenient construction of track structure and also puts forward comprehensive requirements for vibration and noise reduction. This paper intends to combine particle damping fasteners with prefabricated track structure and analyze its comprehensive effect on inhibiting environmental vibration and wheel-rail noise while taking into account the characteristics of high smoothness and convenient construction and maintenance of track. The vibration and noise reduction are mainly achieved through the particle damping fastener system, while the prefabricated track primarily serves as a structural carrier for the particle damping fastener system, and mainly provides smooth performance, good constructability, and ease of maintenance. First, simulation models of typical metro vehicles, prefabricated assembled ballastless track with particle damping fasteners, and tunnel-earth environmental vibration characteristics are established. At the same time, a wheel-rail noise simulation model considering the above track characteristics is established. Based on the above two models, the vibration and noise reduction characteristics of preassembled ballastless track structure with particle damping fasteners are analyzed comprehensively. Through the research of track structure parameters, the comprehensive effect of vibration reduction of 9 dB and noise reduction of about 1.6 dB can be achieved. The research in this paper can provide reference for the comprehensive consideration of the smoothness, convenience, comfort, and environmental friendliness of the rail structure of urban rail transit.

Keywords

particle damping fastener systems prefabricated assembled ballastless track environmental vibration wheel-rail noise

Introduction

With the rapid development of the rail transit industry, by the end of 2023, the global urban rail transit network had reached 43,400.40 km, with metro systems accounting for 21,732.66 km across 200 cities in 63 countries and regions. The metro system has become the dominant mode of urban rail transit worldwide. As a major component of urban rail transit, metro systems play a crucial role in urban underground space utilization, offering advantages such as alleviating urban traffic congestion, high operational safety, large passenger capacity, and economic efficiency.¹ Metro systems have significantly eased traffic congestion in medium and large cities, expanded urban spaces, optimized urban functional layouts and spatial structures, and improved residents’ quality of life.²

However, the rapid expansion of metro networks has also led to deterioration in track conditions, exacerbation of wheel-rail interactions, increased track irregularities, intensified wheel-rail vibrations, and higher dynamic loads. Under the excitation of wheel-rail irregularities, the vehicle-track system inevitably generates vibrations.³ Moreover, metro vehicles induce environmental vibrations and vibration-related noise, which can disrupt the daily lives of residents along the railway corridors. Studies have shown that metro-induced vibration noise negatively affects human physiological functions, impacting the nervous system, muscles, and skeletal structures, leading to various adverse physiological reactions.⁴ Consequently, metro-induced noise pollution significantly affects work, daily life, and sleep patterns. Thus, it is crucial to investigate the formation mechanisms and influencing factors of metro vehicle noise and develop effective mitigation measures.

With the increasing application of particle damping, this paper will combine particle damping and fastener system to carry out comprehensive research on vibration and noise reduction. The following will review the literature from two aspects of track/fastener parameters and particle damping.

About track/fastener parameters, extensive research has been conducted on the damping mechanisms and performance of track fasteners. Wu and Thompson⁵ compared variable stiffness, low-stiffness, and high-stiffness fasteners in terms of their rail vertical vibration response and attenuation rates, concluding that higher fastener stiffness significantly enhances vibration attenuation. Li⁶ investigated the impact of fastener stiffness on in-car noise and found that reducing fastener stiffness increases rail vibrations, leading to higher interior noise levels. Song et al.⁷ developed a vertical dynamic model of the vehicle-track system, incorporating rail pad support, to analyze the effects of rail pad stiffness on wheel-rail forces. Their results demonstrated that optimizing rail pad stiffness can effectively mitigate vibrations. These findings collectively indicate that the parameters of the rail-track slab connection device have a significant impact on the vibration and noise of the vehicle-track system. Therefore, improving the structural design of fasteners is a feasible approach to reducing metro-induced vibration and noise.

About particle damping, Masri^8,9 conducted early theoretical studies on the impact damping mechanism, deriving analytical solutions for the steady-state vibration of structures equipped with single-cell and multi-cell particle impact dampers under periodic excitation and analyzing their motion stability. Panossian¹⁰ experimentally investigated the damping effects of obstructed particle dampers on aluminum beams, revealing that filling the beam with tungsten, steel, and zirconia powders significantly improved structural damping. Michon and Guilhem¹¹ studied inelastic collisions between particles and structures in the vertical vibration direction, further elucidating the underlying damping mechanisms. In China, research on particle damping technology started relatively late. Zhang et al.¹² explored the optimal particle motion modes in particle dampers, evaluating their effective mass and damping characteristics. Xiao et al.^13,14 incorporated particle dampers into high-speed gears, analyzing the effects of particle parameters on vibration reduction and further examining the energy dissipation mechanisms of particle dampers in a centrifugal field. Liao et al.¹⁵ studied on the energy dissipation mechanism of dynamic mechanical systems with particle dampers by using the novel energy method. Li et al.¹⁶ studied the performance of tuned mass particle dampers and elucidated the relationship between damping effectiveness and energy dissipation mechanisms. These studies indicate that particle dampers have been increasingly applied across various fields, and research interest in this area continues to grow. However, most existing studies focus on the energy dissipation, damping performance, and amplitude attenuation of particle dampers themselves. Research on the comprehensive vibration and noise reduction effects of particle dampers integrated into the entire metro vehicle-track system remains limited.

Conventional vibration mitigation measures often struggle to achieve both vibration and noise reduction simultaneously. For example, traditional vibration-reducing fasteners achieve effective environmental vibration mitigation by reducing fastener stiffness, but this comes at the cost of amplifying wheel-rail noise and potentially worsening rail surface conditions. Therefore, this paper intends to combine particle damping fasteners with prefabricated track structure and analyze its comprehensive effect on inhibiting environmental vibration and wheel-rail noise while taking into account the characteristics of high smoothness and convenient construction and maintenance of track. In the following sections, the ballastless track structure with particle damping fastener prefabricated is introduced, and the particle damping fastener model is established based on discrete element method and tested. Simulation models of typical metro vehicles, prefabricated assembled ballastless track with particle damping fasteners, and tunnel-earth environmental vibration characteristics are established. Environmental vibration characteristics and damping effect are analyzed. A wheel-rail noise simulation model considering the above track characteristics is established. Wheel-rail noise characteristics and noise reduction effect are analyzed. Finally, the vibration and noise reduction characteristics of preassembled ballastless track structure with particle damping fasteners are summarized comprehensively in Section 5.

Structure and modeling of particle damping fastener systems coupled with prefabricated assembled ballastless track

Structure introduction

Overall structure of prefabricated assembled ballastless track

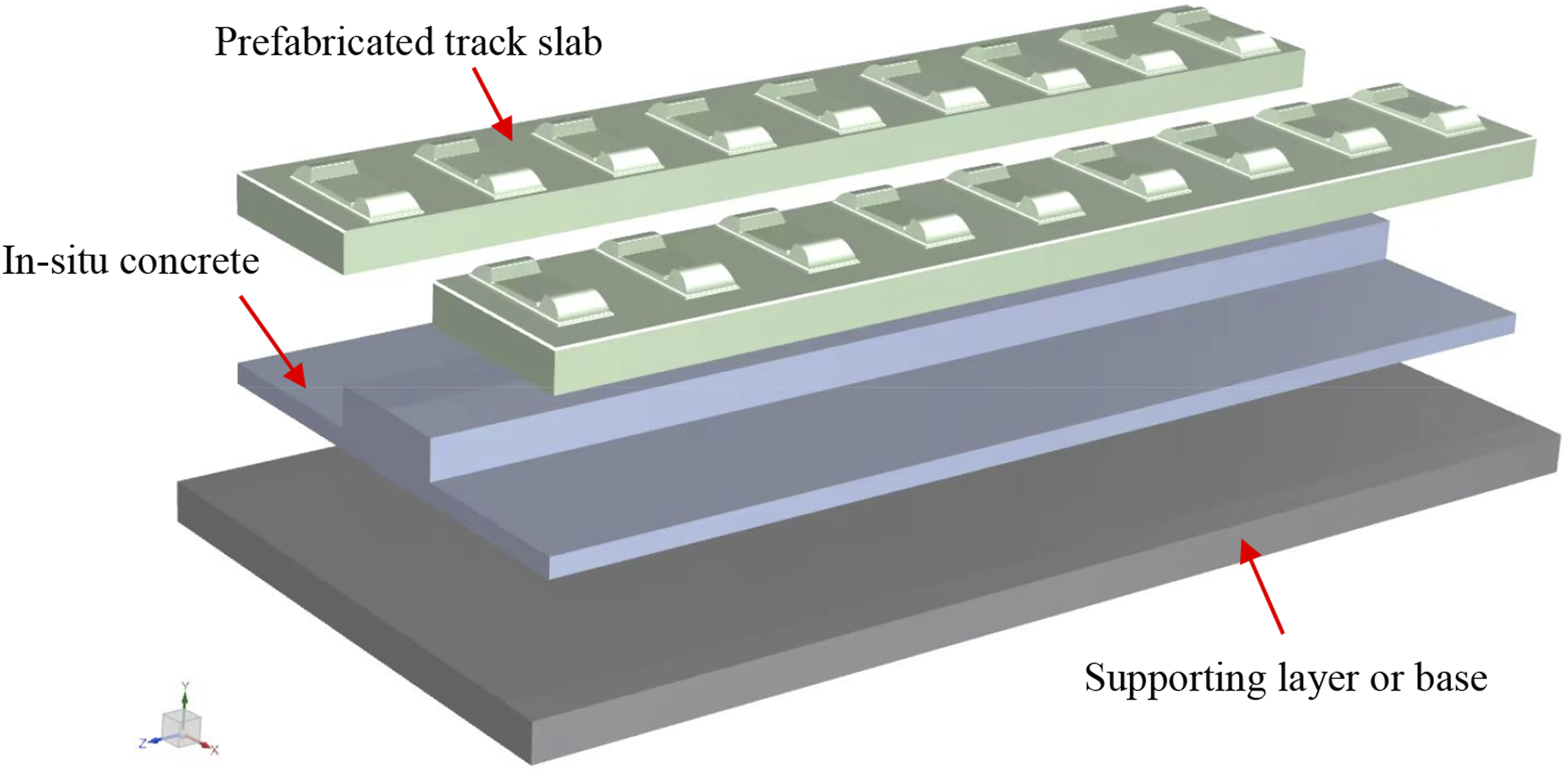

The prefabricated assembled ballastless track structure (Figure 1) adopts two prefabricated track slabs to support the rail, and the track slabs are joined into the whole track bed by in situ concrete. This track structure can have both the smooth performance of the slab ballastless track and the good constructability and maintenance performance of the double-block ballastless track in the tunnel. The upper part can flexibly adopt the fastening system with both vibration and noise reduction performance to meet the increasing comprehensive demand for vibration and noise reduction.

Structure of particle damping fastener system

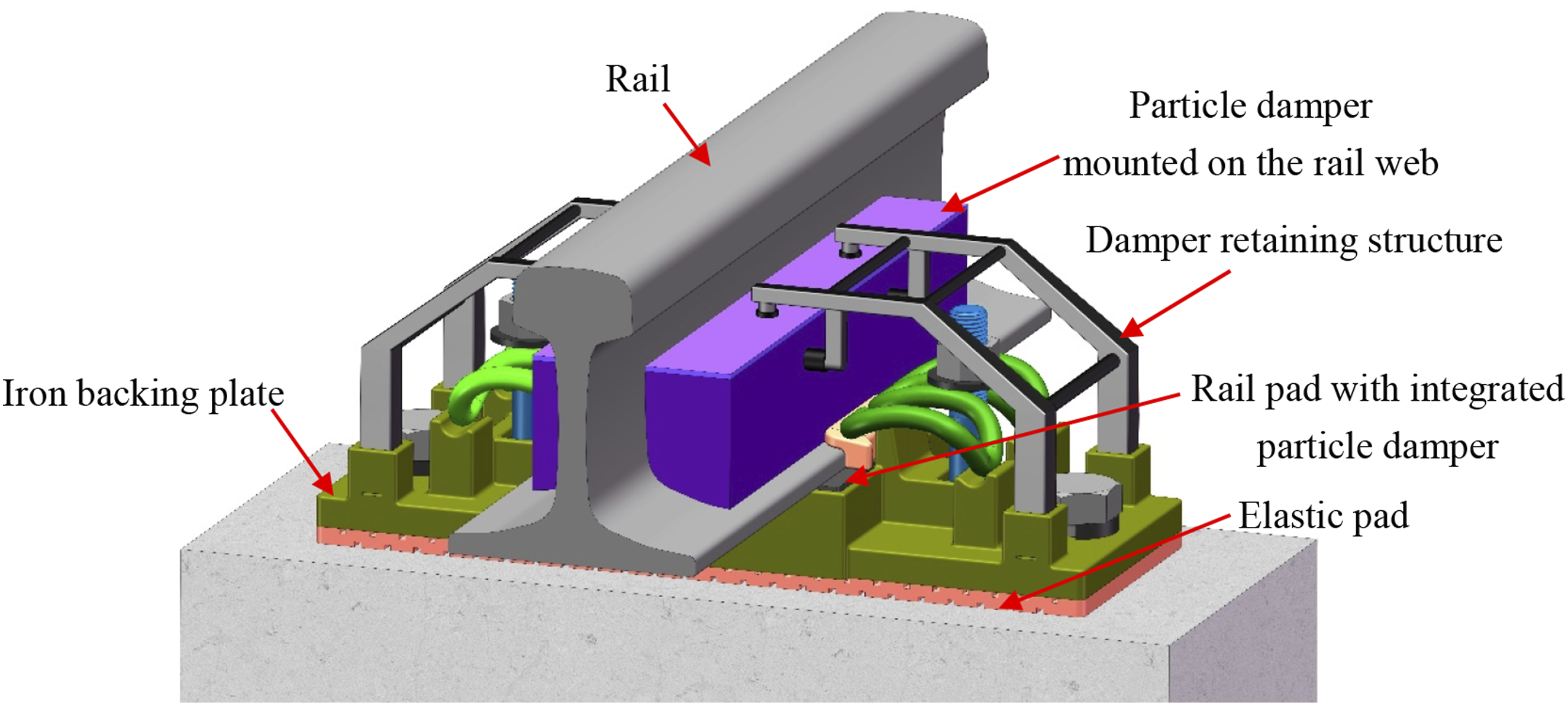

The structure of particle damping fastener systems is shown in Figure 2. Two particle dampers were designed, positioned at the rail web and under the rail, respectively. Additionally, a fixture for the rail web damper was incorporated, and the iron backing plate structure was redesigned.

Rail pad with integrated particle damper

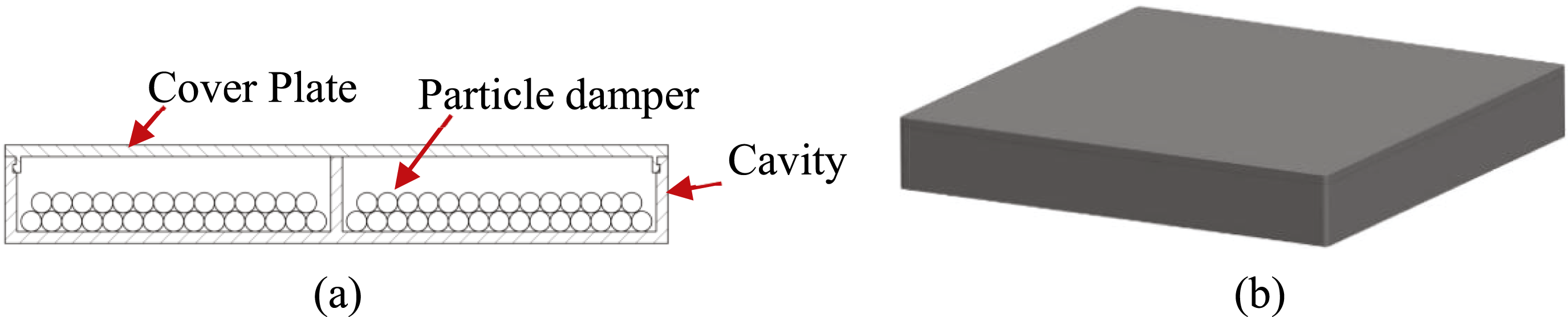

The detail structure of the rail pad with integrated particle damper is shown in Figure 3. The particle damper consists of a cavity, a cover plate, and damping particles. The cover plate is fitted to the cavity using a snap-fit mechanism, which reduces the number of bolts and other fasteners required for the overall fastening system. Due to the lateral and longitudinal constraints imposed by the rail pad, the dimensions of the particle damper in these directions are limited, while its vertical height offers a relatively larger range of variability. The external dimensions of the under-rail damper are 169 × 169 × 25 mm, and it is constructed using steel material.

Particle damper mounted on the rail web and retaining structure

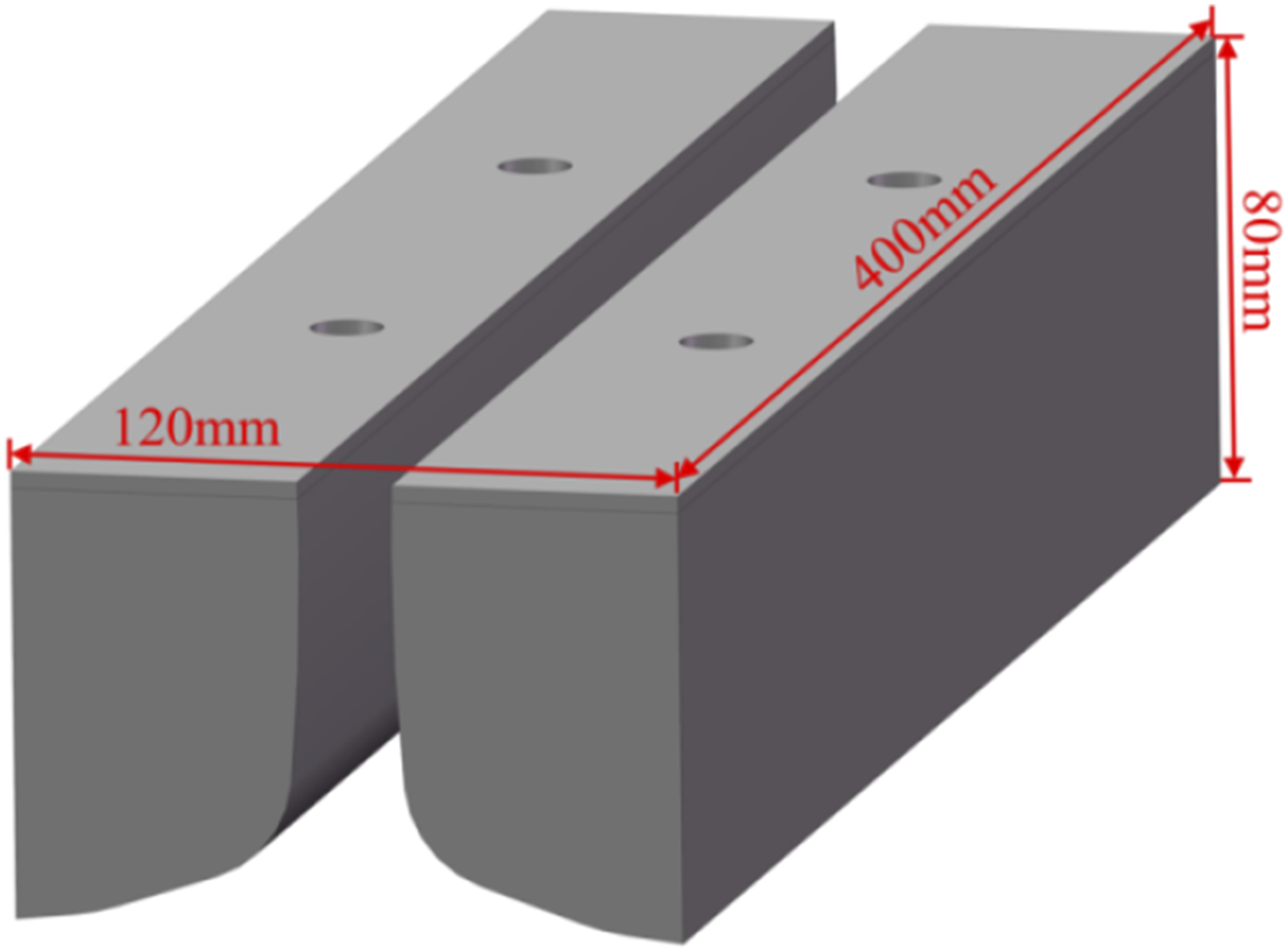

Figure 4 shows the detail structure of the particle damper mounted on the rail web. The composition of this damper is similar to that of the rail pad with integrated particle damper. But unlike the rail pad, the particle damper mounted on the rail web does not bear the load of the rail, allowing for the removal of reinforcement ribs to increase the volume available for granular filling. Additionally, circular holes are designed at the top of the cover plate for fastening and installation. The structure is made entirely of steel.

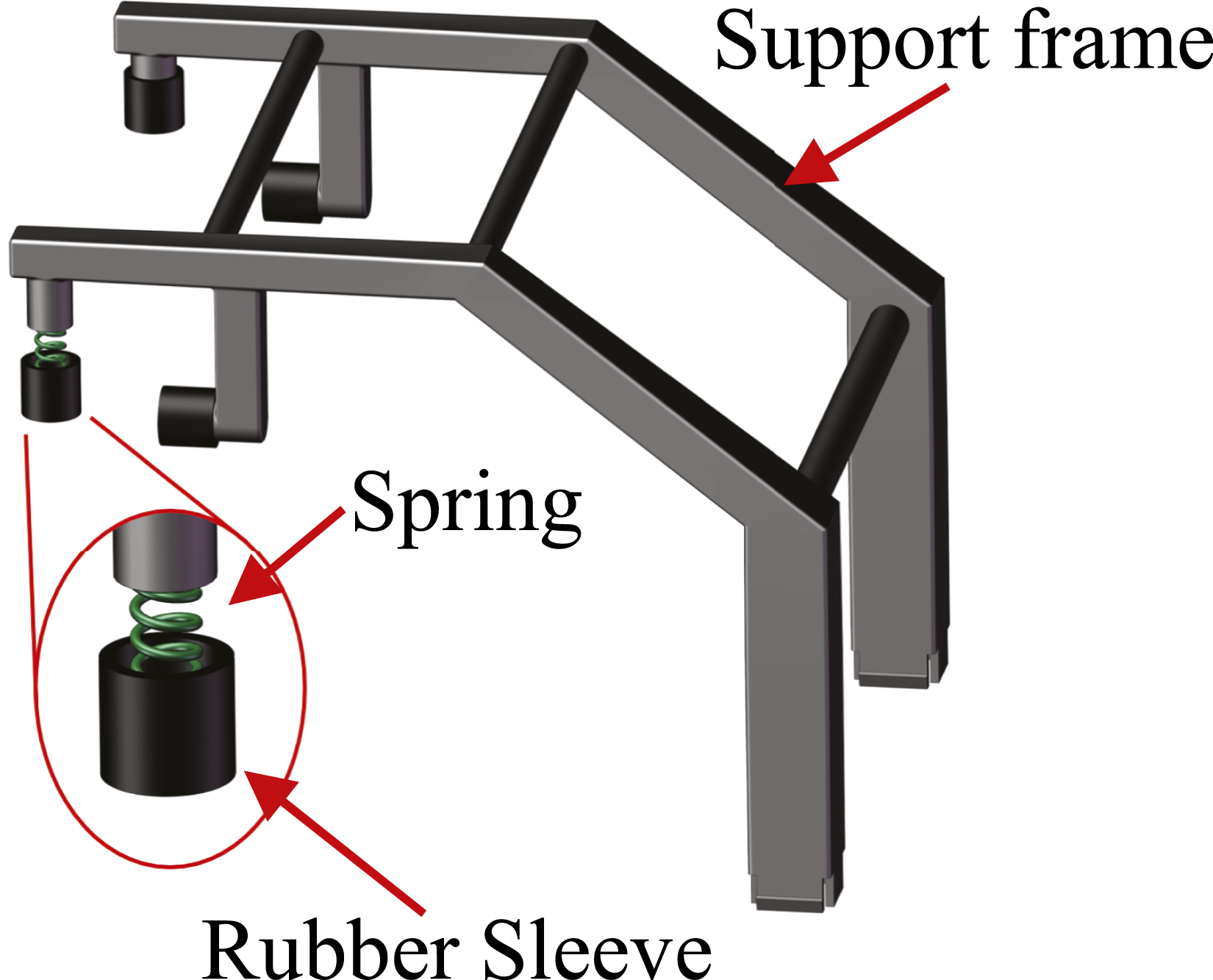

Figure 5 shows the retaining structure for the particle damper mounted on the rail web, which consists of a support frame, springs, and rubber sleeves. The support frame is connected to the iron backing plate via clips at its base. Its function is to ensure precise positioning between the particle damper mounted on the rail web and the iron backing plate, thereby maintaining the stability and reliability of the assembly.

Engineering applicability analysis

Manufacturability and ease of installation

The proposed particle damping module is an independently prefabricated, enclosed metal cavity that can be integrated with the fastening base structure via bolts or snap-fit connectors, without altering the basic rail-to-sleeper connection form. The module can be manufactured using standard metal casting or stamping techniques, requiring no high-precision machining, thus offering good manufacturability. The modular design also facilitates rapid on-site installation and replacement, improving construction efficiency.

Long-term performance and particle migration

To prevent particle migration, compaction, or leakage under long-term vibration, a sealed cavity structure is employed, with elastic liners installed at the structural boundaries to enhance dynamic dispersion of the internal particles. Additionally, particles with rough surfaces or irregular shapes (e.g., irregular lead alloy granules) can be selected to increase internal friction and mixing stability, reducing the risk of migration.

Particle leakage and environmental impact

The cavity is hermetically sealed using weathering steel or corrosion-resistant aluminum alloy materials to ensure no particle leakage during its service life. For harsh outdoor environments involving high temperatures, humidity, or dust, protective coatings or cladding can be applied to the exterior of the cavity. Drainage holes are also designed to prevent condensation and water accumulation. With proper sealing, the system avoids environmental contamination caused by particle leakage.

Performance degradation of particles over time

According to previous experimental studies on the long-term stability of dry particle dampers,^17,18 as long as the cavity structure remains sealed and stable, the damping performance of particles shows minimal degradation over millions of vibration cycles. In practical applications, a scheduled maintenance interval of 3 to 5 years is recommended, which is significantly longer than the typical maintenance cycle for railway fasteners.

Maintenance impact and replaceability

The particle damping module is designed to be replaceable independently from the rest of the fastening system. During maintenance, only the particle module needs to be replaced, ensuring good feasibility in engineering maintenance. We also suggest incorporating the particle cavity into the fastening system’s condition monitoring plan, using vibration-acoustic responses or changes in cavity weight as indicators for maintenance.

Modeling of particle damping fastener based on discrete element method

The particle damper dissipates vibrational energy through collisions and friction between the particles and between the particles and the cavity walls, thereby suppressing vibration-induced noise. The unique damping mechanism exhibits high nonlinearity. Among the methods used to study granular dampers, the most applied is the discrete element method (DEM), where the contact model plays a central role. The Hertz-Mindlin nonlinear contact model¹⁹ is frequently used in granular damping, as it offers more complex and accurate calculations compared to linear contact models. The DEM-based particle damping model is established under the following assumptions: (1) Particle shape is assumed to be ideally spherical. The particles used in this study are circular in shape, making this DEM assumption reasonable. (2) The particle contact model adopts the classical Hertz-Mindlin nonlinear contact model, which is widely used in dry particle systems. It accounts for normal elastic force, tangential friction force, and viscous damping. Since the particle damping devices considered in this study also involve dry particles, this DEM assumption is deemed appropriate. (3) Damping and energy dissipation mechanisms are assumed to arise from contact damping during collisions, with particle breakage not considered. The energy dissipation in the particle damping studied here primarily results from collision-induced energy loss, consistent with the DEM assumption. Moreover, the particles used are metallic and highly resistant to breakage during actual use, further validating the reasonableness of this DEM assumption.

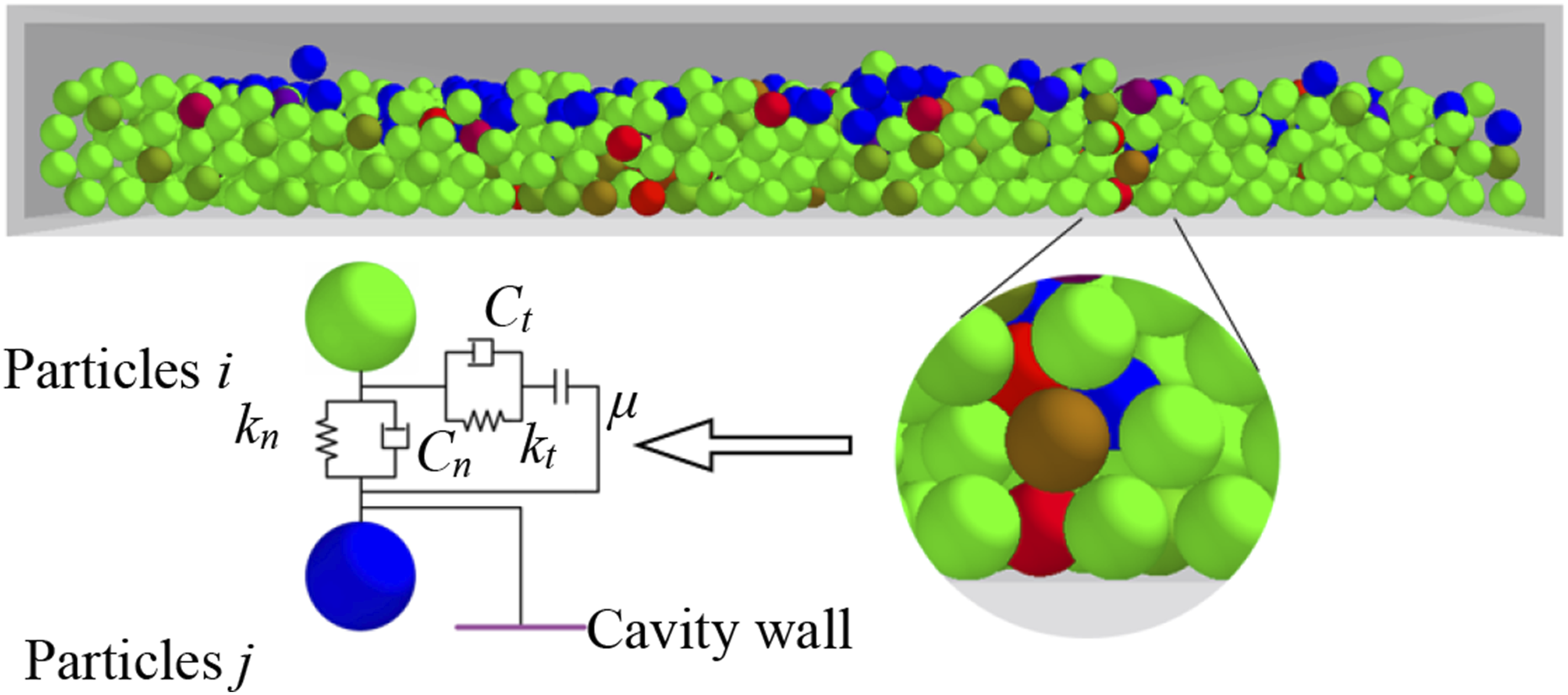

As shown in Figure 6, k_n represents the normal contact stiffness of the particles; C_n is the normal damping coefficient; k_t is the tangential contact stiffness of the particles; C_t is the tangential damping coefficient; and μ is the coefficient of static friction.

According to Hertzian contact theory, the normal contact stiffness k_n and k_t tangential contact stiffness of the particles can be expressed as follows²⁰

k_{n} = \frac{4}{3} (\frac{1 - v_{i}^{2}}{E_{i}} + \frac{1 - v_{j}^{2}}{E_{j}}) {(\frac{a_{i} + a_{j}}{a_{i} a_{j}})}^{- \frac{1}{2}}

(1)

k_{t} = 8 α^{\frac{1}{2}} (\frac{1 - v_{i}^{2}}{G_{i}} + \frac{1 - v_{j}^{2}}{G_{j}}) {(\frac{a_{i} + a_{j}}{a_{i} a_{j}})}^{- \frac{1}{2}}

(2)

where E_i, E_j—elastic modulus of particles i and j. v_i, v_j—Poisson’s ratio of particles i and j. a_i, a_j—the radius of particles i and j. α—normal overlap. G_i, G_j—shear modulus of particles i and j.

When a particle contacts the cavity, the cavity is treated as a particle with an infinitely large radius and a velocity of zero.

The normal damping C_n and tangential damping C_t of the particles can be expressed as follows:

C_{n} = 2 \sqrt{m k_{n}}

(3)

C_{t} = 2 \sqrt{m k_{t}}

(4)

where m represents the equivalent mass of the contact element.

The normal contact force F_n between particles can be expressed as follows:

F_{n} = k_{n} α^{\frac{3}{2}} + C_{n} (V_{j, n} - V_{i, n})

(5)

where V_i,n, V_i,n—the normal velocity of particles i and j.

When no relative sliding occurs, the tangential contact force F_t between particles is expressed as follows:

F_{t} = k_{t} α_{τ}^{\frac{3}{2}} + C_{t} (V_{j, t} - V_{i, t})

(6)

where

α_{τ}

—tangential overlap of particles. V_i,t, V_i,t—tangential velocity of particle i and particle j.

When relative sliding occurs, the inter-particle tangential force F_t is expressed as follows:

F_{t} = μ F_{n}

(7)

The acceleration ${\ddot{u}}_{i, t}$ and the angular acceleration ${\ddot{θ}}_{i, t}$ of each particle at the moment t can be obtained by Newton’s second law:

{\ddot{u}}_{i, t} = \frac{\partial {\dot{u}}_{i, t}}{\partial t} = \frac{{(\sum F_{t})}_{i}}{m_{i}}

(8)

{\ddot{θ}}_{i, t} = \frac{\partial {\dot{θ}}_{i, t}}{\partial t} = \frac{{(\sum M_{t})}_{i}}{I_{i}}

(9)

where

F_{t}

—force on particle i at moment t.

M_{t}

—moment on particle i at moment t.

m_{i}

—the mass of particle i, and

I_{i}

—moment of inertia of particle i.

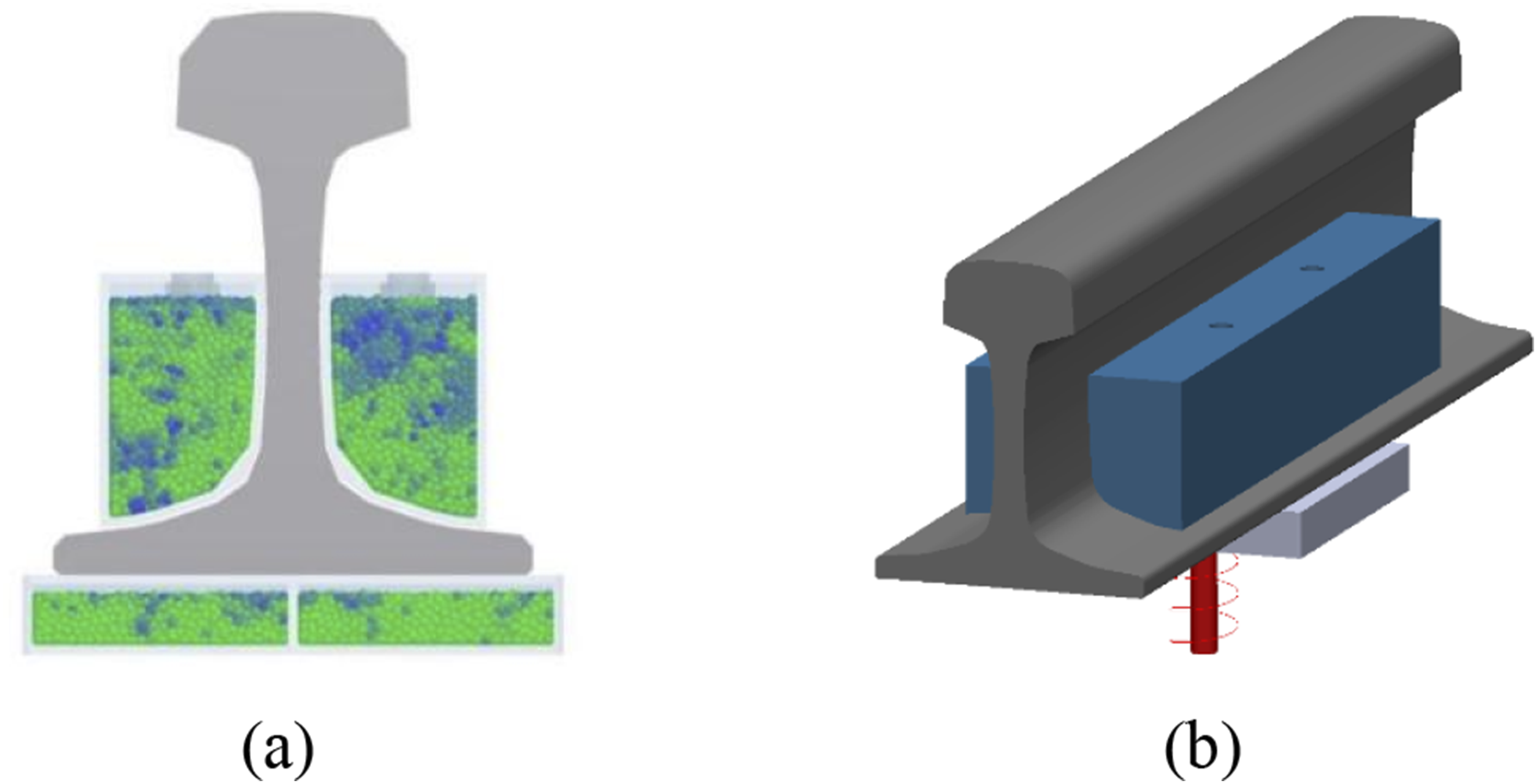

Based on the EDM, the particle damper mounted on the rail web and rail pad are simplified into a single closed cavity, and a discrete element model was established, as shown in Figure 7(a), and a single degree of freedom system dynamics model was established, as shown in Figure 7(b), and the two are jointly simulated to complete the fastener system model.

Experimental verification

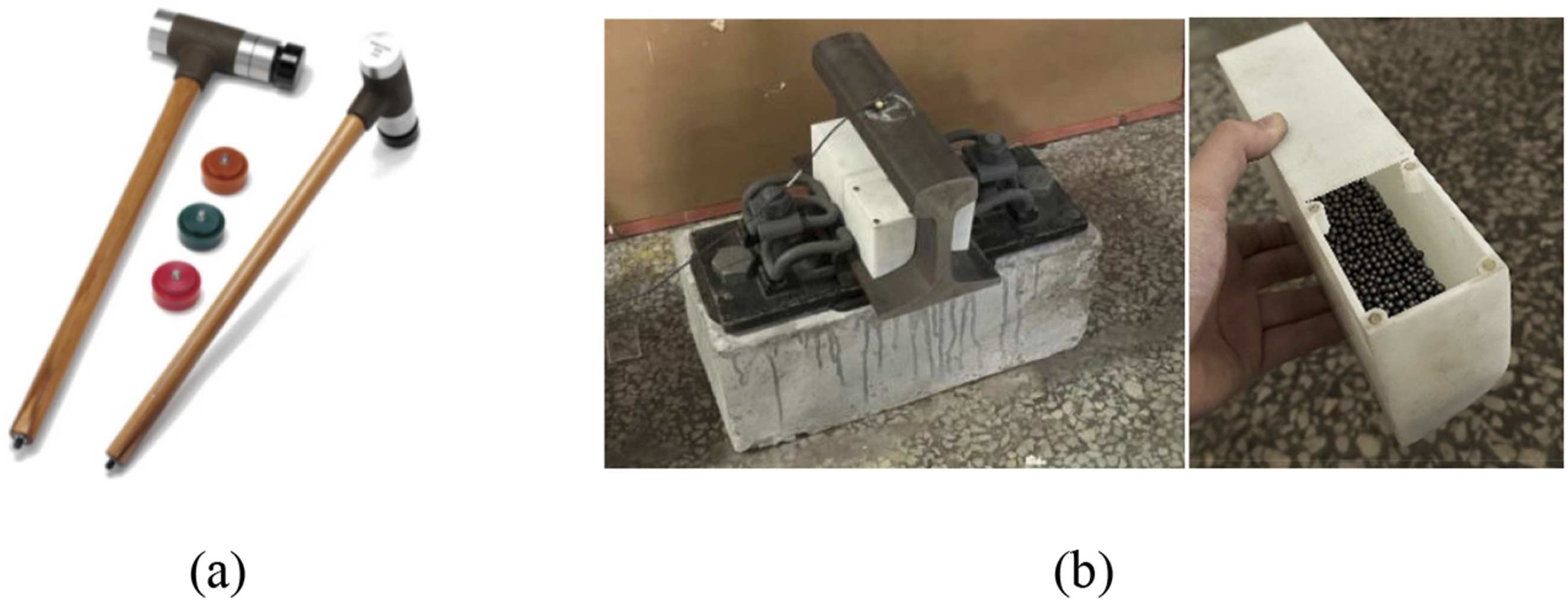

A prototype (0.3 m in length) was fabricated based on the developed granular damping fastener system, and frequency response function (FRF) tests were conducted to evaluate and verify the damping performance of the system. The damping performance was assessed by measuring the frequency response function of the fastener system. During the experiment, only the rail web particle dampers were installed. Both sides of damper on rail web are filled with 4000 steel balls with a diameter of 4 mm, with a filling rate of 20%. A photograph of the experimental setup is shown in Figure 8. The experiment employed a B&K 8210 type force hammer as the excitation source, and the accelerometer was positioned at the center of the railhead.

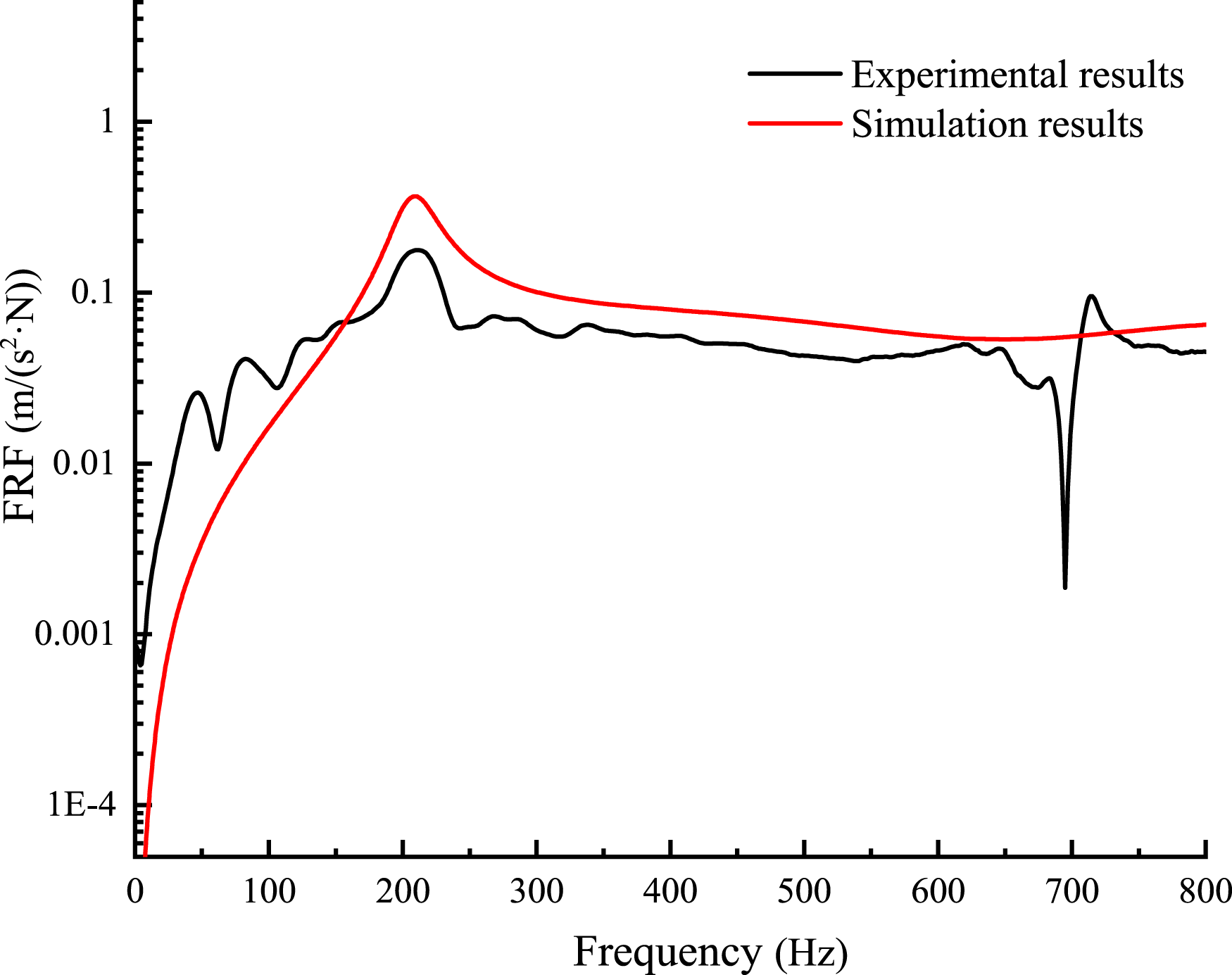

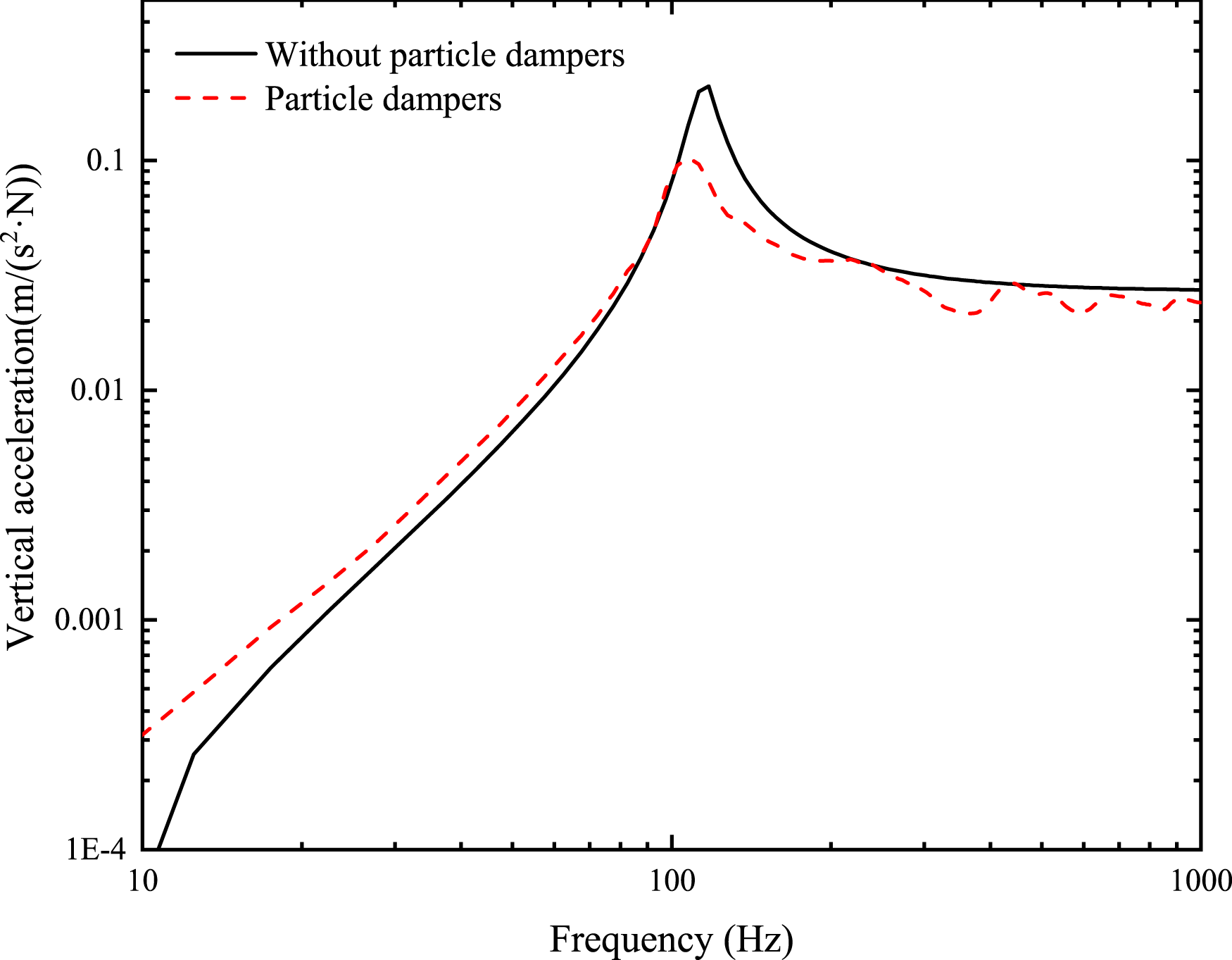

The experimental results of the FRF are shown in Figure 9. According to the simulation results, the damping ratio of the fastener system with the rail web damper installed is 0.0735, representing a 15% improvement as calculated using the half-power bandwidth method. When compared with the experimental results, the error is within 2%, indicating that the simulation model and parameter selection are reasonable in terms of the observed improvement in system damping ratio.

Damping characteristics

Based on experimental validation, the established particle damping simulation model was further used to analyze the effects of under-rail particle dampers and superimposed rail web particle dampers on the damping characteristics of the rail fastening system under different filling rates. Table 1 presents the particle damping parameters used in the modeling. The selection of material parameters is primarily based on the 5th edition of the Mechanical Design Handbook compiled by the China Nonferrous Metals Engineering and Design Institute.

Table 1.

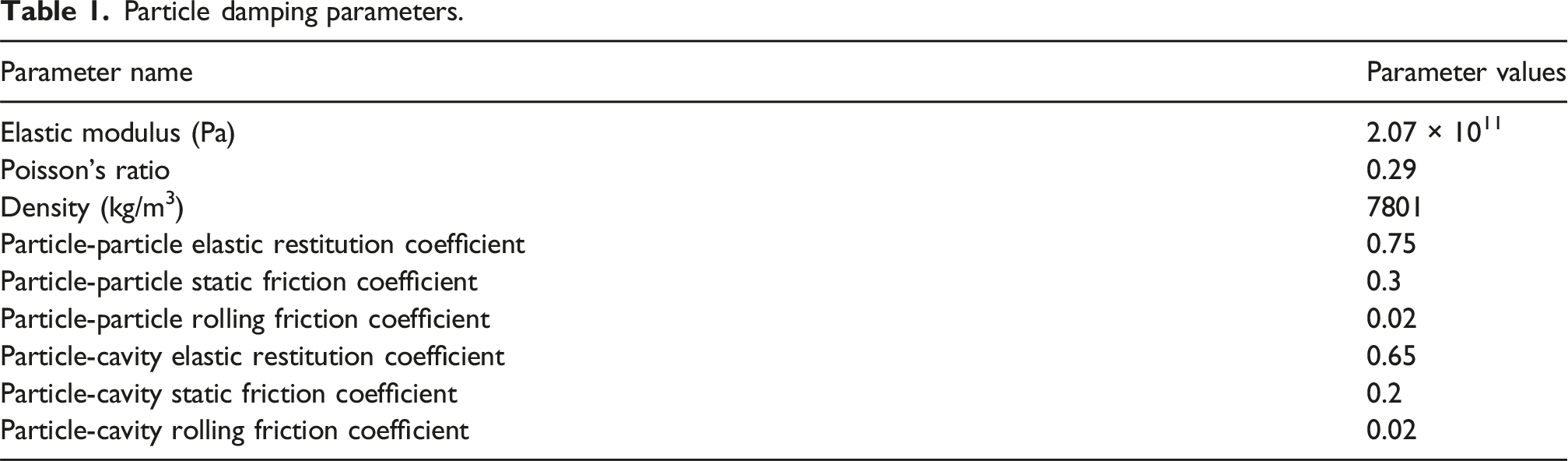

Particle damping parameters.

Parameter name	Parameter values
Elastic modulus (Pa)	2.07 × 10¹¹
Poisson’s ratio	0.29
Density (kg/m³)	7801
Particle-particle elastic restitution coefficient	0.75
Particle-particle static friction coefficient	0.3
Particle-particle rolling friction coefficient	0.02
Particle-cavity elastic restitution coefficient	0.65
Particle-cavity static friction coefficient	0.2
Particle-cavity rolling friction coefficient	0.02

According to the vibration-damping mechanism of particle dampers, friction and collisions between particles, as well as between particles and the cavity, are the primary energy dissipation methods. When the particle filling rate is too low, there are too few particles involved in friction and collisions, resulting in limited energy dissipation. Conversely, when the particle filling rate is too high, the movement space of the particles is restricted, preventing sufficient friction and collisions for effective energy dissipation. To preliminarily explore the impact of particle filling rates on the damping performance of the new fastening system, particle mass filling rates of 20%, 40%, 60%, 80%, and 100% were set. The models of the under-rail particle dampers under different filling rates are shown in Figure 10.

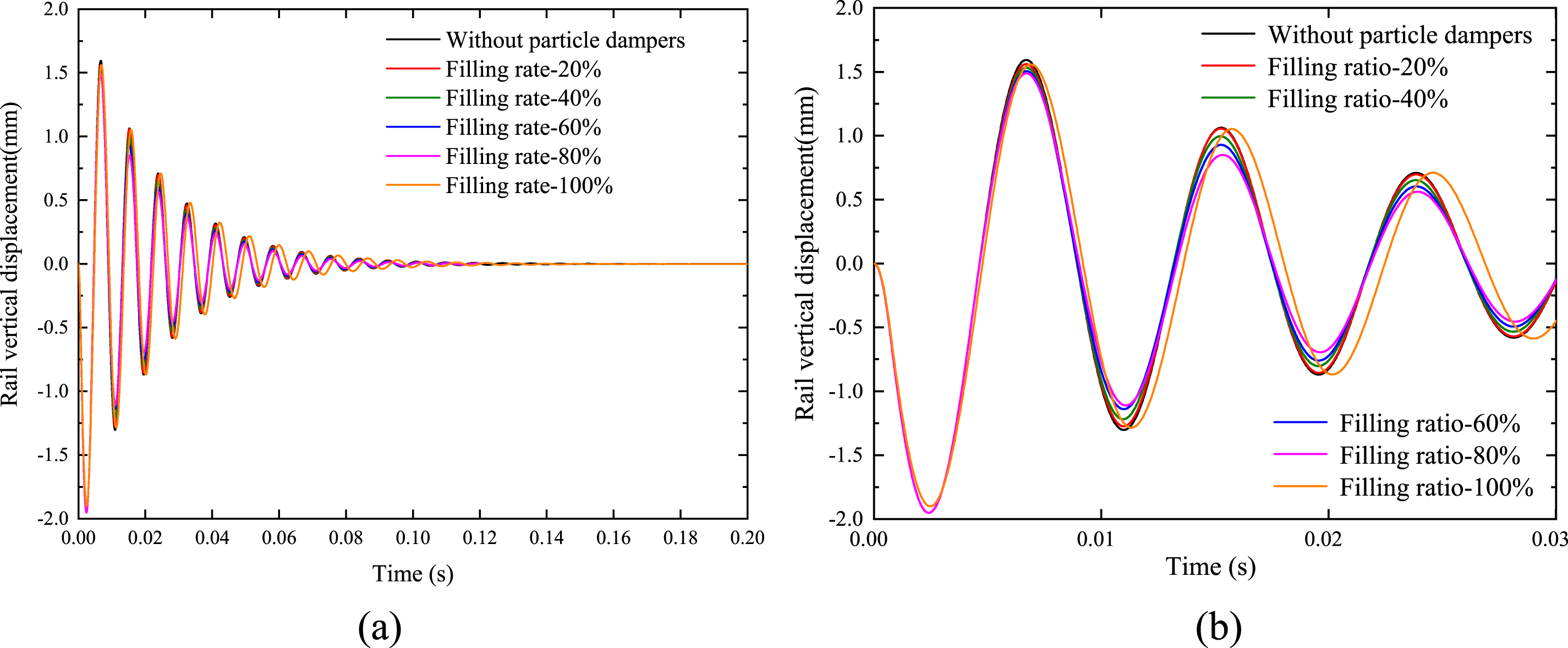

Figure 11 shows the time-domain attenuation curves of rail vertical displacement under different particle filling rates, with the simulation duration set to 0.2 s. Figure 11(b) is a localized magnification of Figure 11(a).

As shown in Figure 11, the rail vibration converges within 0.2 s, indicating that the simulation duration is reasonable. When the particle filling rate is between 0% and 80%, the amplitude attenuation of rail vibration increases with the particle filling rate. During this range, the rail vibration period changes slightly, suggesting that the particle motion is sufficient, resulting in effective energy dissipation. However, when the particle filling rate reaches 100%, the amplitude attenuation is weaker than that at 80%, and the rail vibration period increases. This is because an excessively high filling rate limits the space for particle friction and collisions, leading to poor energy dissipation. At this point, the under-rail particle damper essentially acts as an additional mass.

In this study, the equivalent system damping ratio of the particle damper was calculated using the half-power bandwidth method. According to the above analysis, the damping performance of the new fastening system improves as the particle filling rate increases from 0% to 80%. However, the variation pattern between 80% and 100% requires further discussion. Therefore, the following analysis adds the condition with a particle filling rate of 90%. The frequency-domain vertical acceleration of the rail under different particle filling rates is shown in Figures 12, and 13 shows damping ratio of rail fastener system under different particle filling rates.

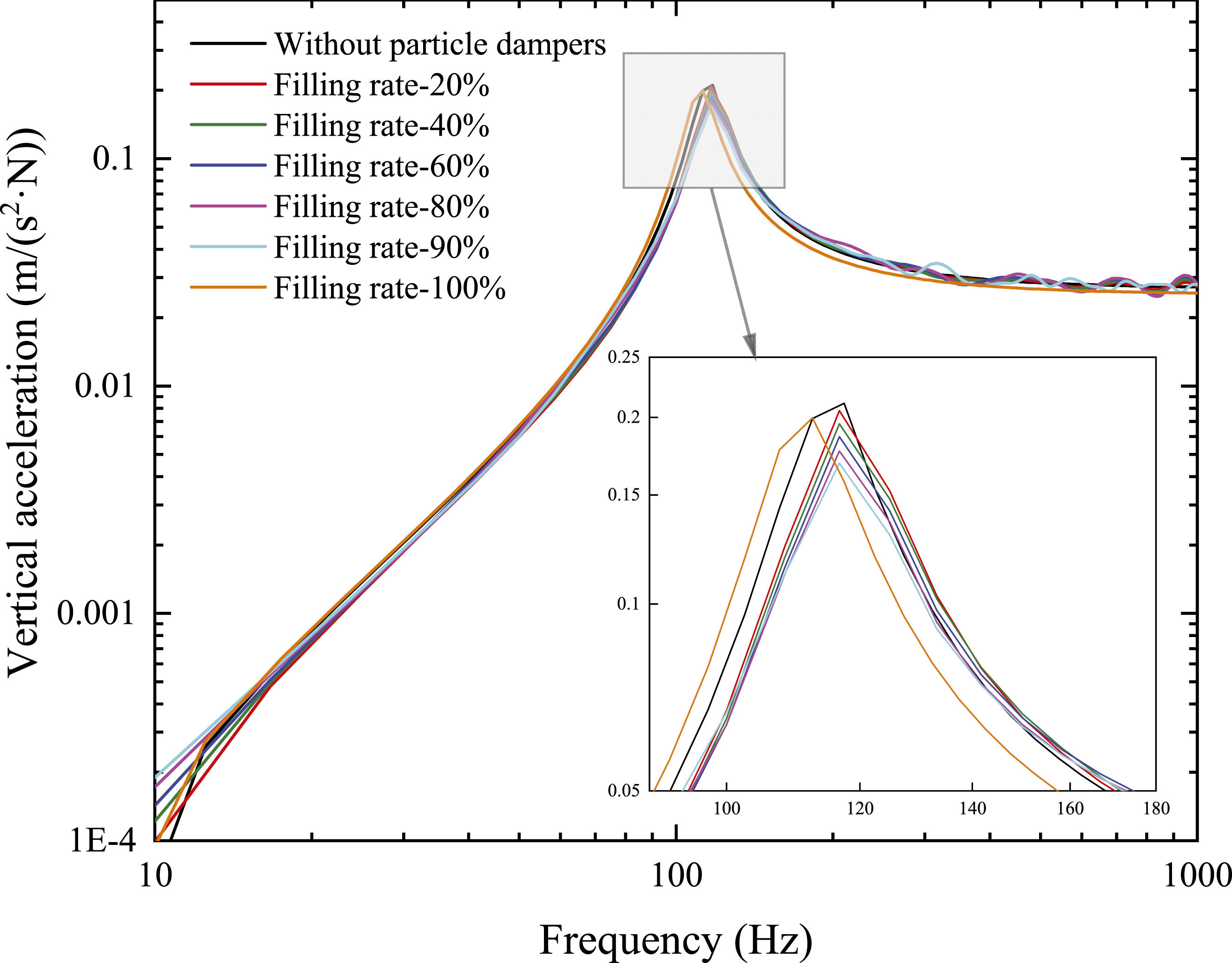

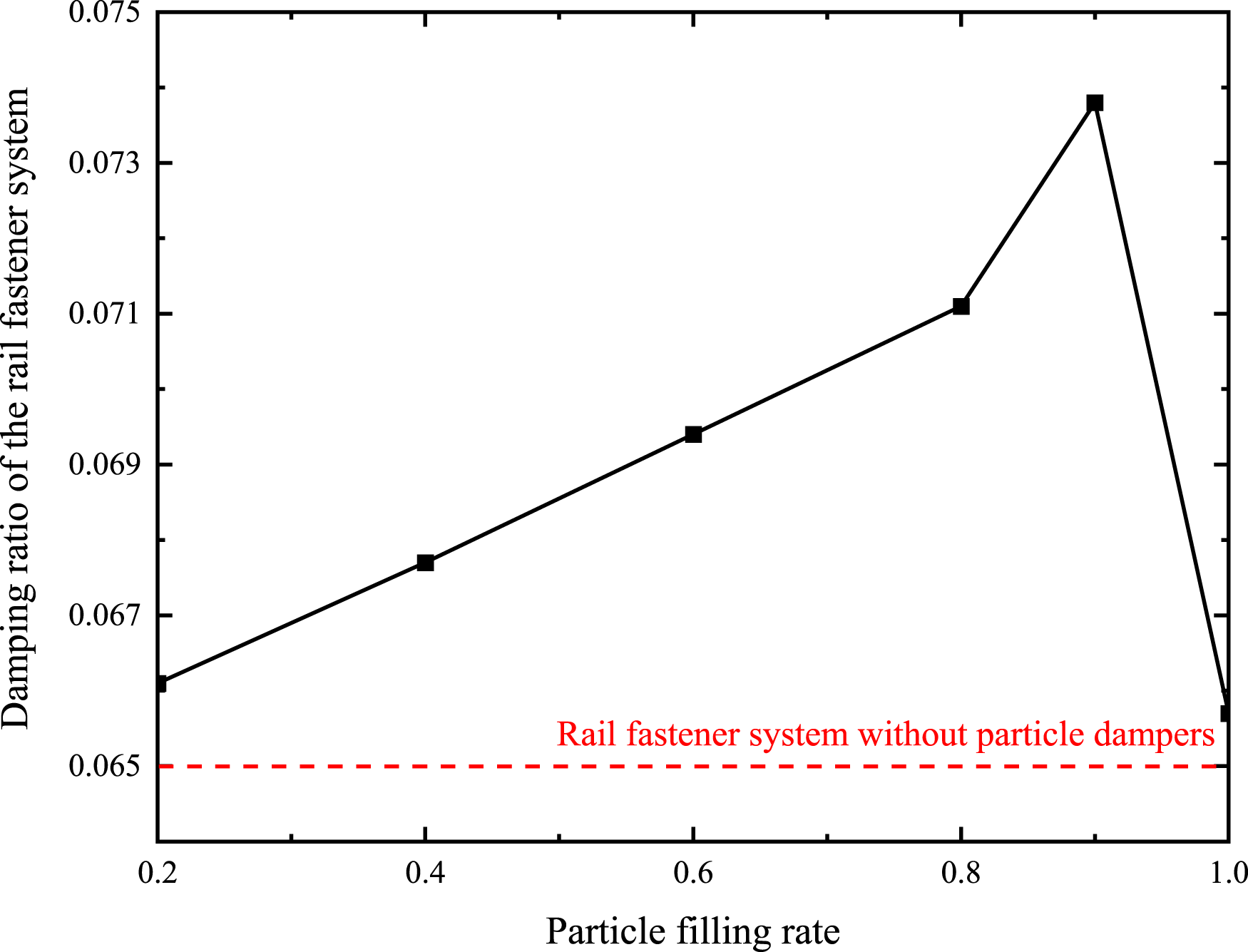

As shown in Figure 12, when the particle filling rate is 90%, the peak frequency of the rail’s vertical acceleration is similar to that observed at filling rates between 0% and 80%, but the peak value is lower, indicating that the energy dissipation effect is better at a 90% filling rate. According to Figure 13, when the particle filling rate is between 0% and 90%, the damping ratio of the particle damper increases with the particle filling rate. However, as the filling rate approaches 100%, the damping ratio decreases. At a 90% filling rate, the damping ratio of the fastening system with an under-rail particle damper is 0.0738, representing an approximately 12% increase in the damping ratio.

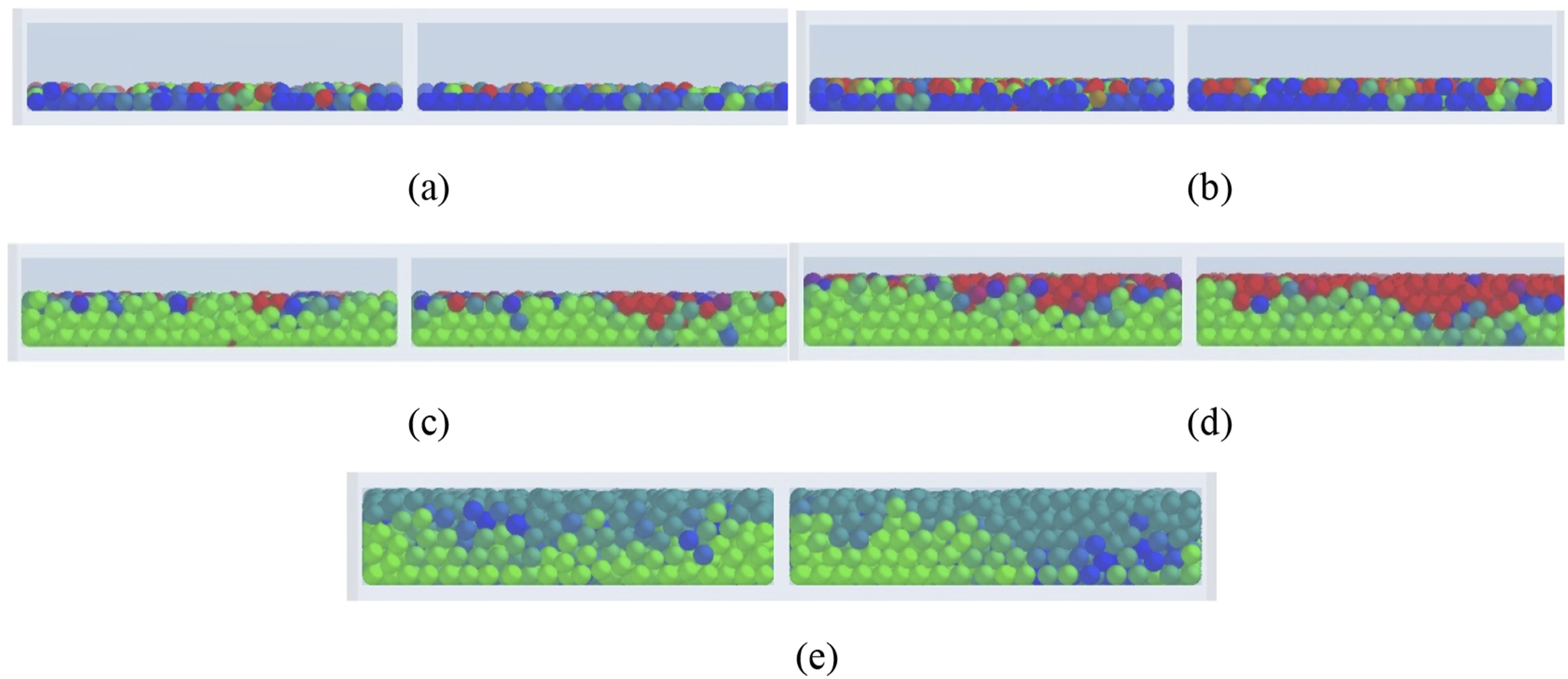

In addition to investigating the filling ratio, the effect of particle diameter was also examined. Particle diameters were set at 3 mm, 4 mm, and 5 mm, and the damping ratios of the fastener under different particle diameters were calculated, as shown in Figure 14.

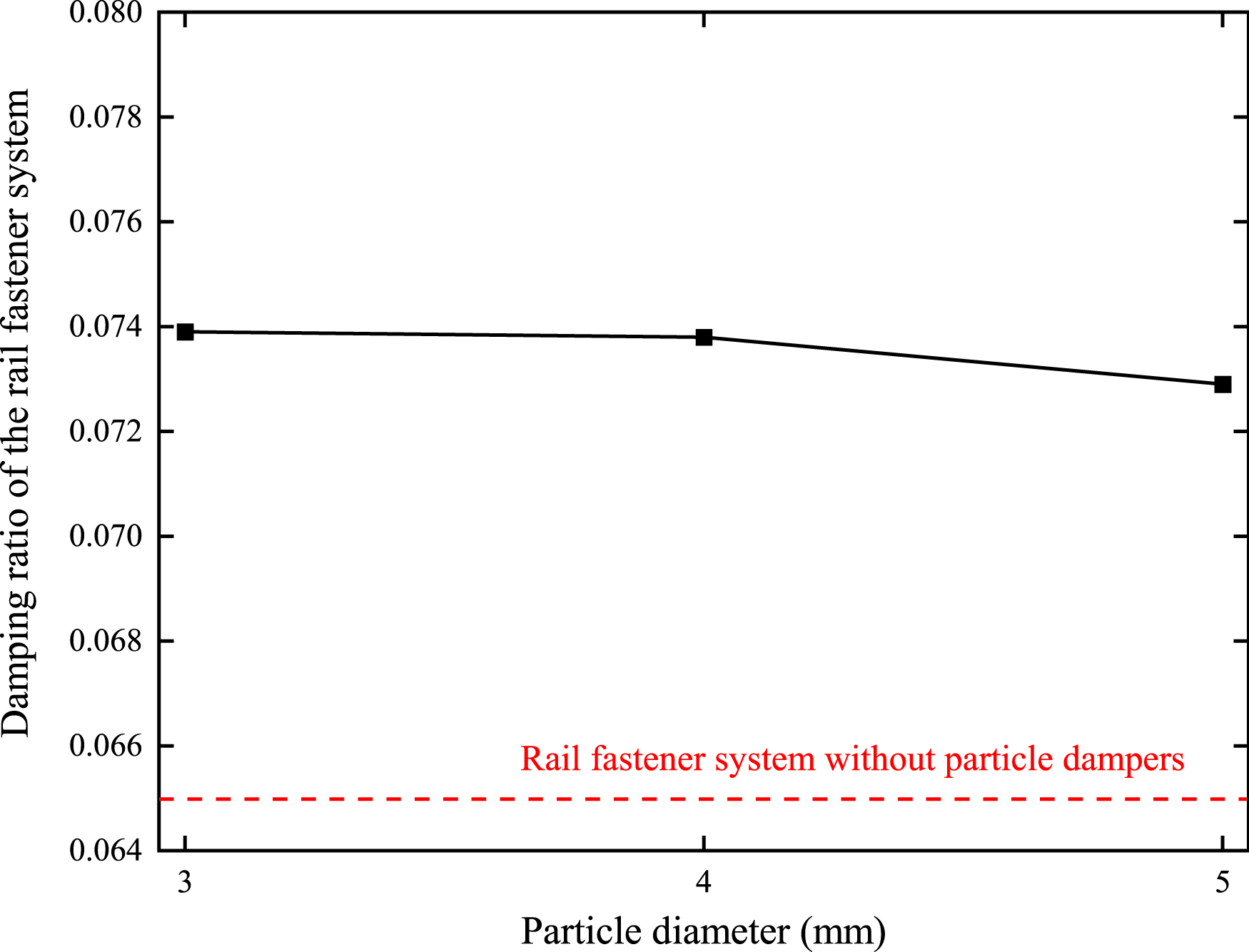

According to Figure 14, the impact of particle diameter on the damping ratio of the fastener is minimal and can be almost neglected. However, the fastener with a particle diameter of 3 mm shows a relatively higher damping ratio of 0.07, which represents a 13.7% improvement compared to a standard fastener. Therefore, this diameter should be selected in subsequent design considerations.

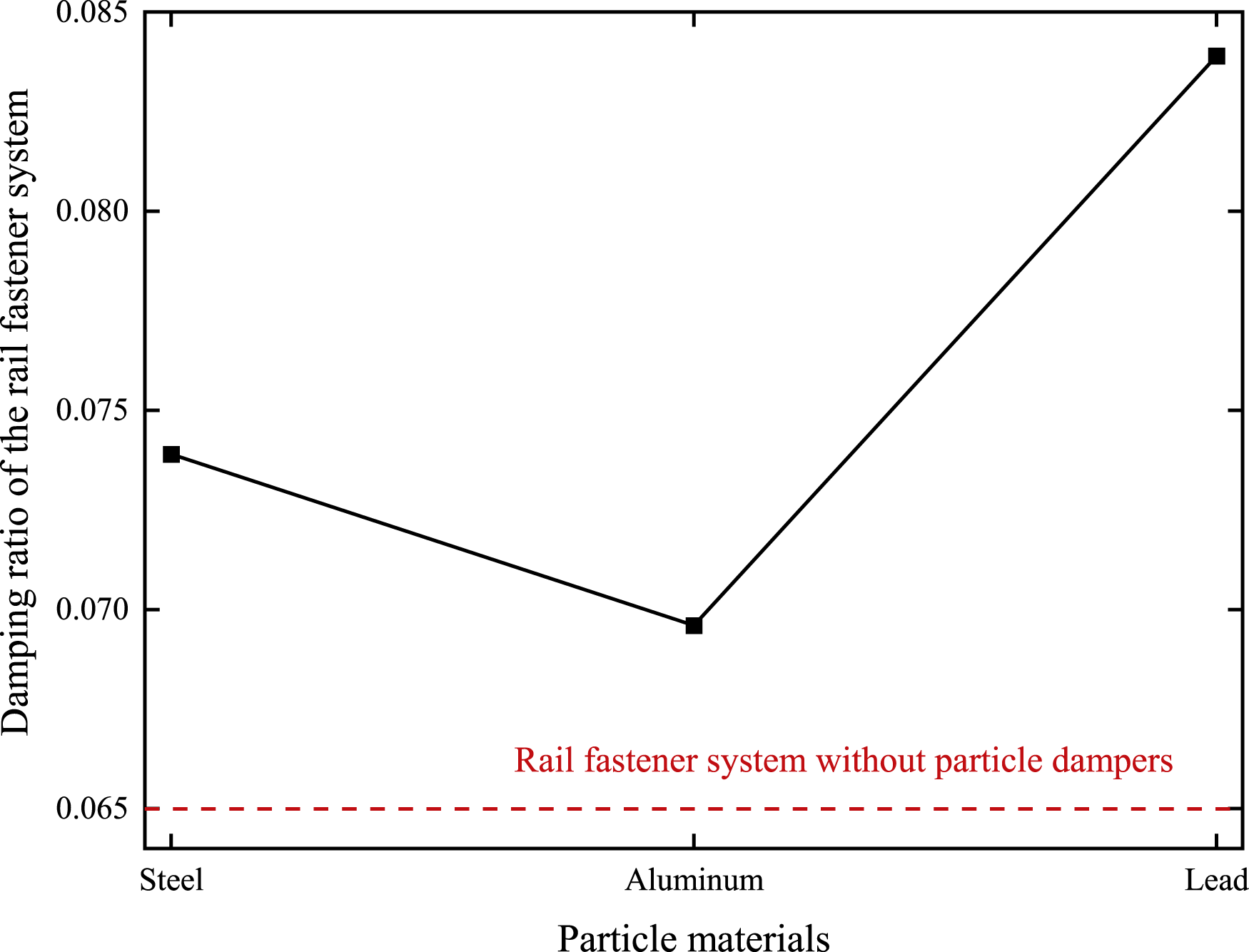

A wide range of materials can be used to make the filler particles, including metals, rubber, glass, ceramics, plastics, magnetorheological materials, and even liquids. This section focuses only on commonly used industrial metals: steel, aluminum, and lead. The simulation parameters for each type of particle material are also based on the 5th edition of the Mechanical Design Handbook compiled by the China Nonferrous Metals Engineering and Design Institute. The damping ratios of the fastener with different particle materials were calculated, as shown in Figure 15.

Based on the above analysis, the selected particle parameters are as follows: a filling ratio of 90%, a particle diameter of 3 mm, and lead as the particle material.

To further explore the damping characteristics of the under-rail particle damper combined with the rail web particle damper, the model was modified to include the rail web particle damper, as shown in Figure 7. The vertical acceleration of the fastening system with the additional rail web damper is shown in Figure 16, where the first-order resonance frequency of the fastener system with particle dampers is significantly lower than that of the standard fastening system. Using the half-power bandwidth method, the damping ratio considering both the under-rail and rail web particle dampers was calculated to be 0.1052, representing an approximately 62% increase in the damping ratio.

Environmental vibration characteristics and damping effect

Environmental vibration prediction model

The 2.5-dimensional finite element–boundary element method is a commonly used approach for predicting environmental vibrations and has been validated both theoretically and experimentally. In this section, the vehicle-track interaction model and the tunnel-earth 2.5-dimensional finite element–boundary element model are used to establish the environmental vibration prediction model and verify the correctness of the model.

Vertical dynamics model of multi-rigid body vehicle system

The vertical dynamics model of the multi-rigid body vehicle system proposed is established, each vehicle consists of one car body, two bogie frames, four wheelsets, and one or two series of suspensions. They are connected by damping springs.

The vibration differential equation for the vehicle system is shown in equation (10).

M_{vh} {\ddot{u}}_{vh} (t) + C_{vh} u_{vh} (t) + K_{vh} u_{vh} (t) = P_{vh} (t)

(10)

where M_vh denotes vehicle mass matrix, C_vh denotes vehicle damping matrix, K_vh denotes vehicle stiffness matrix,

P_{vh} (t)

denotes vehicle equivalent load vector, and

u_{vh} (t)

denotes vehicle displacement vector.

The wheel-rail irregularity is considered as a harmonic irregularity. When a load with a wavelength of λ is applied to the train, its circular frequency is $Ω = 2 π c / λ$ , then

P_{vh} (t) = P_{vh} (Ω) e^{i Ω t}

(11)

u_{vh} (t) = u_{vh} (Ω) e^{i Ω t}

(12)

By substituting equations (11) and (12) into the vehicle motion differential equation (10), the following equation is obtained:

{- Ω^{2} M_{vh} + i Ω C_{vh} + K_{vh}} u_{vh} (Ω) = P_{vh} (Ω)

(13)

The matrix ${(- Ω^{2} M_{vh} + i Ω C_{vh} + K_{vh})}^{- 1}$ is the overall flexibility matrix of the vehicle model.

Ballastless track model with infinitely long period structure

Based on the theory of infinitely periodic structures, a vibration model of the ballastless slab track system is established. The rail is modeled as a Timoshenko beam, and the track slab is analyzed using the modal superposition method.

The 2.5-dimensional equation for the vibration of ballastless track rails is as follows:

M {\ddot{w}}_{R} (x, t) + K_{0} w_{R} (x, t) + K_{1} \frac{\partial}{\partial x} w_{R} (x, t) - K_{2} \frac{\partial^{2}}{\partial x^{2}} w_{R} (x, t) = f (x, t)

(14)

where

w_{R} (x, t)

denotes rail displacement vector.

f (x, t)

denotes external excitation vector. M, K_0, K₁, K₂ denote the matrix shown below:

M = [\begin{array}{l} ρ A & 0 \\ 0 & ρ I \end{array}], K_{0} = [\begin{array}{l} 0 & 0 \\ 0 & κ A G \end{array}], K_{1} = [\begin{array}{l} 0 & κ A G \\ - κ A G & 0 \end{array}], K_{2} = [\begin{array}{l} κ A G & 0 \\ 0 & E I \end{array}]

(15)

where A denotes the cross-sectional area of the rail, I denotes the moment of inertia of the rail, κ denotes the shear correction factor of the Timoshenko beam, ρ denotes the density, E denotes the Young’s modulus, and G denotes the shear modulus.

Wheel-rail interaction model

The wheel-rail interaction relationship used in this study is given by the following equation:

w_{R} (a_{l} + c t, t) + w_{W}^{l} (t) + δ_{0}^{l} + (P^{l} (t) - W_{l}) / (k_{H}^{l}) = z (a_{l} + c t)

(16)

where

a_{l}

denotes the initial position at the l-th wheelset.

w_{W}^{l} (t)

denotes the wheel displacement at the l-th wheelset.

W_{l}

denotes the axle load of half an axle at the l-th wheelset. z denotes the wheel-rail roughness.

P^{l}

denotes the wheel-rail interaction force at the l-th wheelset.

k_{H}^{l}

denotes the contact stiffness at the l-th wheelset.

Tunnel–ground 2.5D finite element–boundary element model

In this section, a 2.5D finite element–boundary element model is established by taking into account the longitudinally infinite extent of the tunnel and ground, the semi-infinite nature of the ground, the stratification of soil layers, and the structural characteristics of the tunnel. According to Ref. 21, the differential equations of motion of the elements are finally obtained during the construction of the prediction model:

M_{A} {\ddot{q} (x, t)} + {K_{A}}_{0} {q (x, t)} + {K_{A}}_{1} \frac{\partial}{\partial x} {q (x, t)} - {K_{A}}_{2} \frac{\partial^{2}}{\partial x^{2}} {q (x, t)} = {F (x, t)}

(17)

where

{K_{A}}_{1} = {R_{A}}_{1} - {R_{A}}_{3}, {K_{A}}_{2} = {R_{A}}_{4}

M_{A}

{K_{A}}_{0}

and

{K_{A}}_{2}

are 3n × 3n symmetric matrix.

M_{A}

and

{K_{A}}_{2}

are positive definite matrix.

{K_{A}}_{0}

is a non-negative matrix and is an antisymmetric matrix.

Tunnel wall vibration is an important parameter to evaluate the environmental vibration of subway vehicles, and this paper evaluates the suppression effect on environmental vibration through the Z-weight vibration level on tunnel wall at the height of 1.2 m.

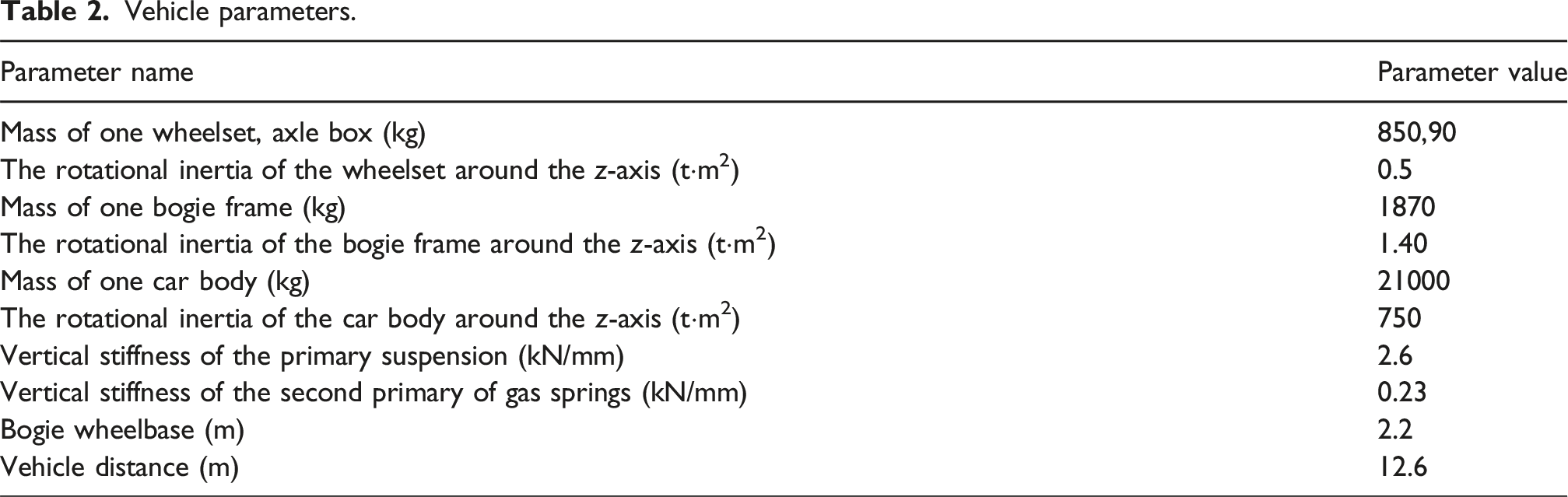

The vehicle and track parameters are shown in Tables 2 and 3.

Table 2.

Vehicle parameters.

Parameter name	Parameter value
Mass of one wheelset, axle box (kg)	850,90
The rotational inertia of the wheelset around the z-axis (t·m²)	0.5
Mass of one bogie frame (kg)	1870
The rotational inertia of the bogie frame around the z-axis (t·m²)	1.40
Mass of one car body (kg)	21000
The rotational inertia of the car body around the z-axis (t·m²)	750
Vertical stiffness of the primary suspension (kN/mm)	2.6
Vertical stiffness of the second primary of gas springs (kN/mm)	0.23
Bogie wheelbase (m)	2.2
Vehicle distance (m)	12.6

Table 3.

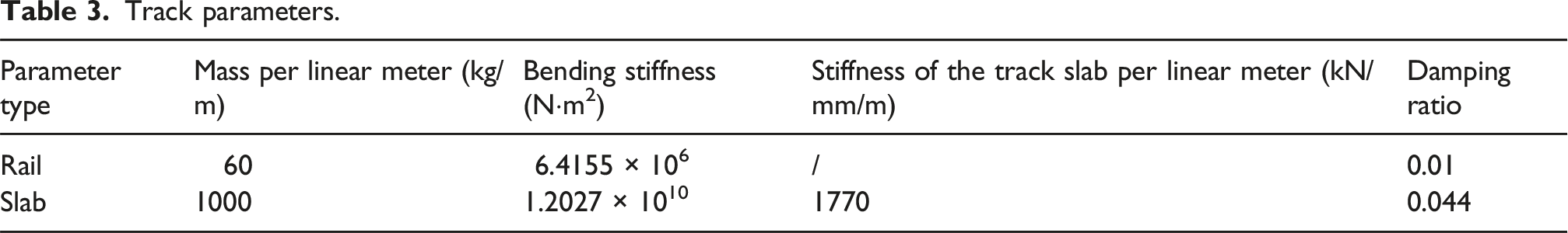

Track parameters.

Parameter type	Mass per linear meter (kg/m)	Bending stiffness (N·m²)	Stiffness of the track slab per linear meter (kN/mm/m)	Damping ratio
Rail	60	6.4155 × 10⁶	/	0.01
Slab	1000	1.2027 × 10¹⁰	1770	0.044

Vibration characteristics and damping effect

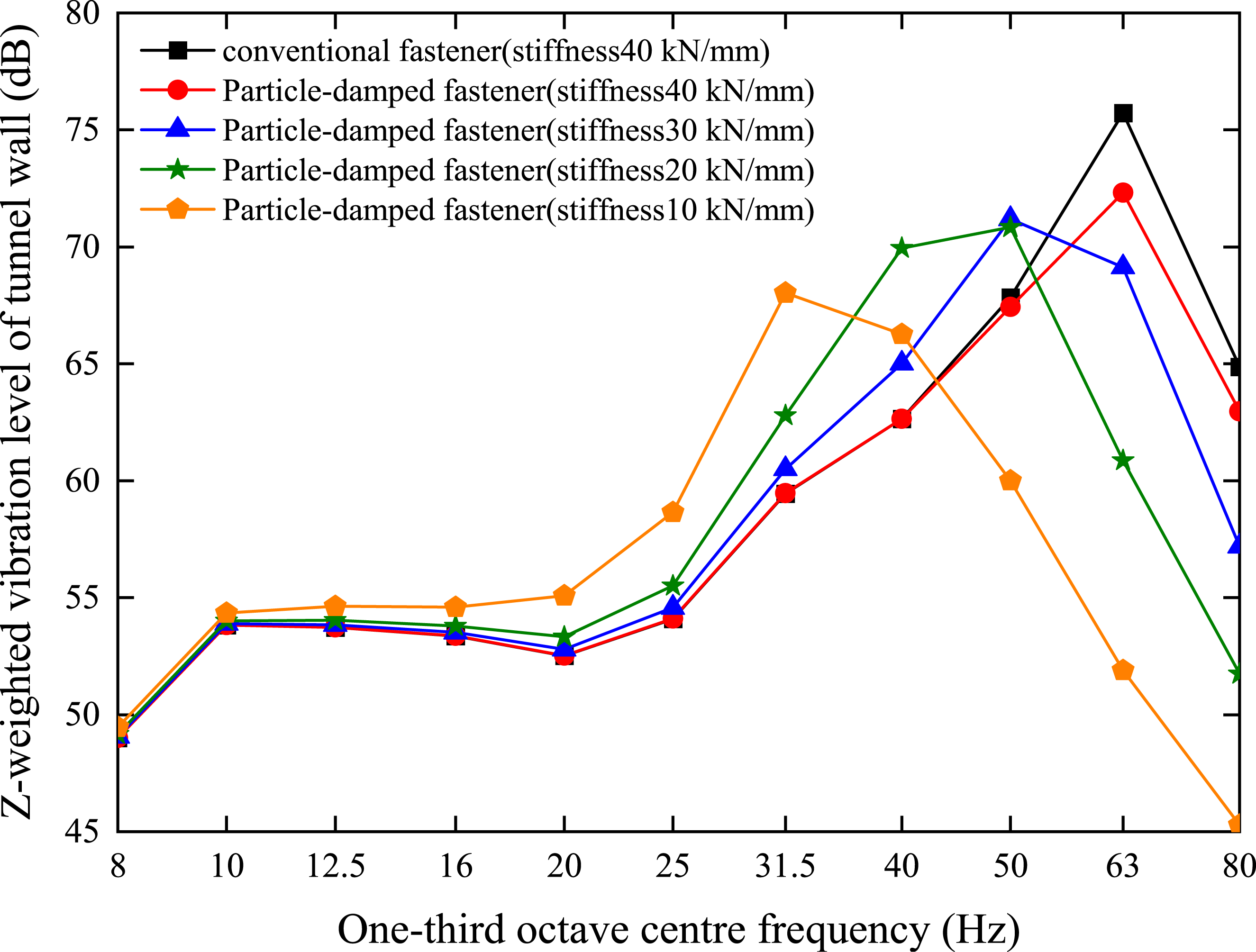

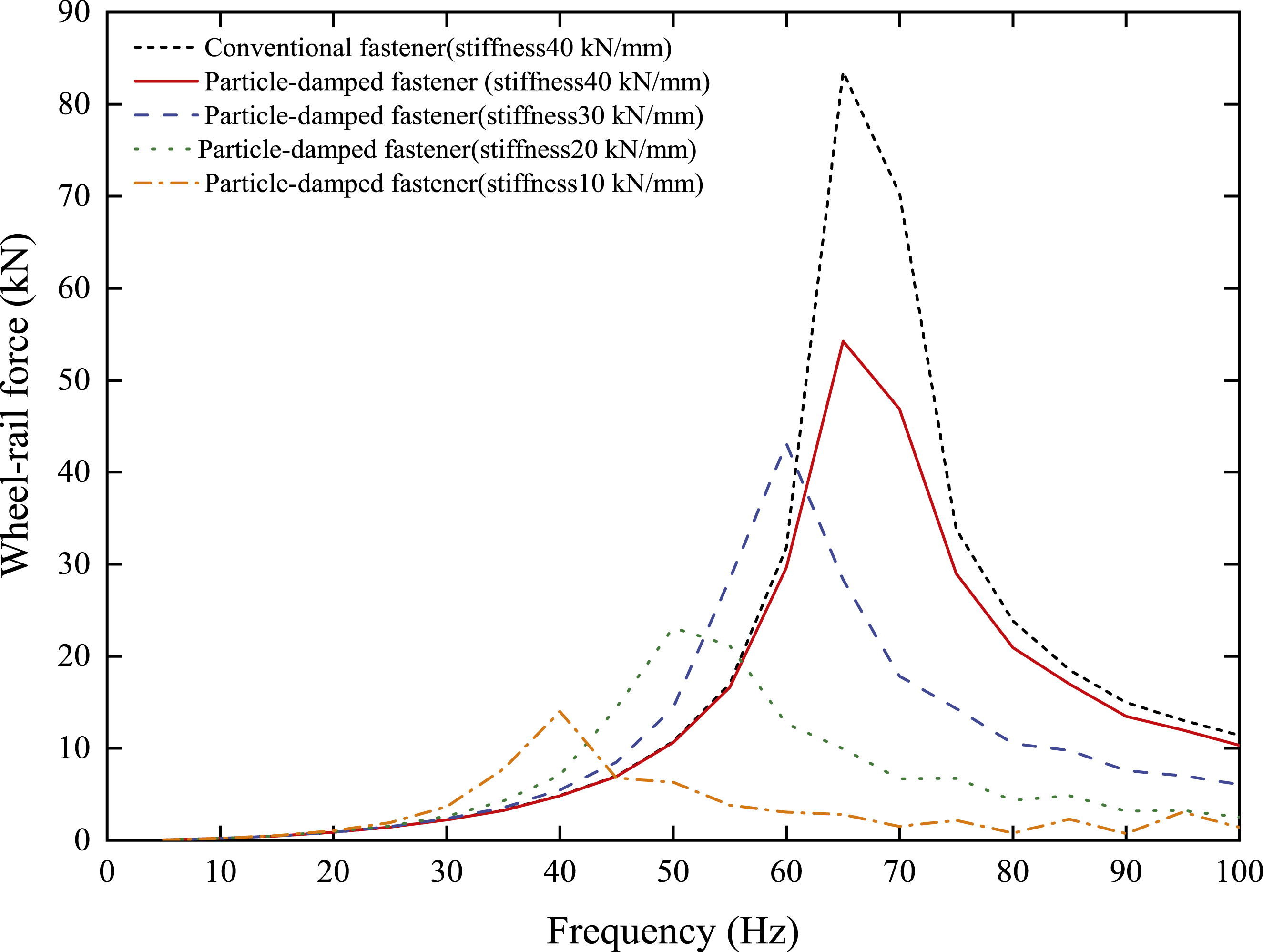

Figure 17 shows the wheel-rail forces for conventional fastener and particle-damped fasteners with different pad stiffnesses, where the stiffness of the pad in the conventional fastener is 40 kN/mm. Figure 18 shows the corresponding Z-weighted vibration levels in the vertical direction on the tunnel wall, which are used to assess their influence on environmental vibration.

As shown in Figures 17 and 18, the vibration characteristics of the tunnel wall generally correspond to the wheel-rail forces. Under the same stiffness conditions, the particle-damped fastener results in lower wheel-rail forces and reduced tunnel wall vibration compared to the conventional fastener. For the particle-damped fastener, both the frequency and the magnitude of the peak values in the wheel-rail force and tunnel wall vibration decrease as the pad stiffness decreases. Compared with the conventional fastener, the particle-damped fastener with a pad stiffness of 40 kN/mm reduces vibration by 2.4 dB, while a stiffness of 10 kN/mm yields a reduction of 5.6 dB. This indicates that particle-damped fasteners can effectively reduce vibration under the same stiffness conditions, and that vibration mitigation can be further enhanced through the proper matching of particle damping and fastener stiffness.

Wheel-rail noise characteristics and noise reduction effect

Wheel-rail noise prediction model

A prediction model of acoustic radiation of wheel-rail structure was established to study the influence of new fasteners on the acoustic radiation of subway wheel-rail system. The influence of the spring part of the vehicle on the wheel-rail noise is small,^22,23 so the analysis is not carried out, and the reduction effect of particle-damped fastener on the wheel-rail noise is studied.

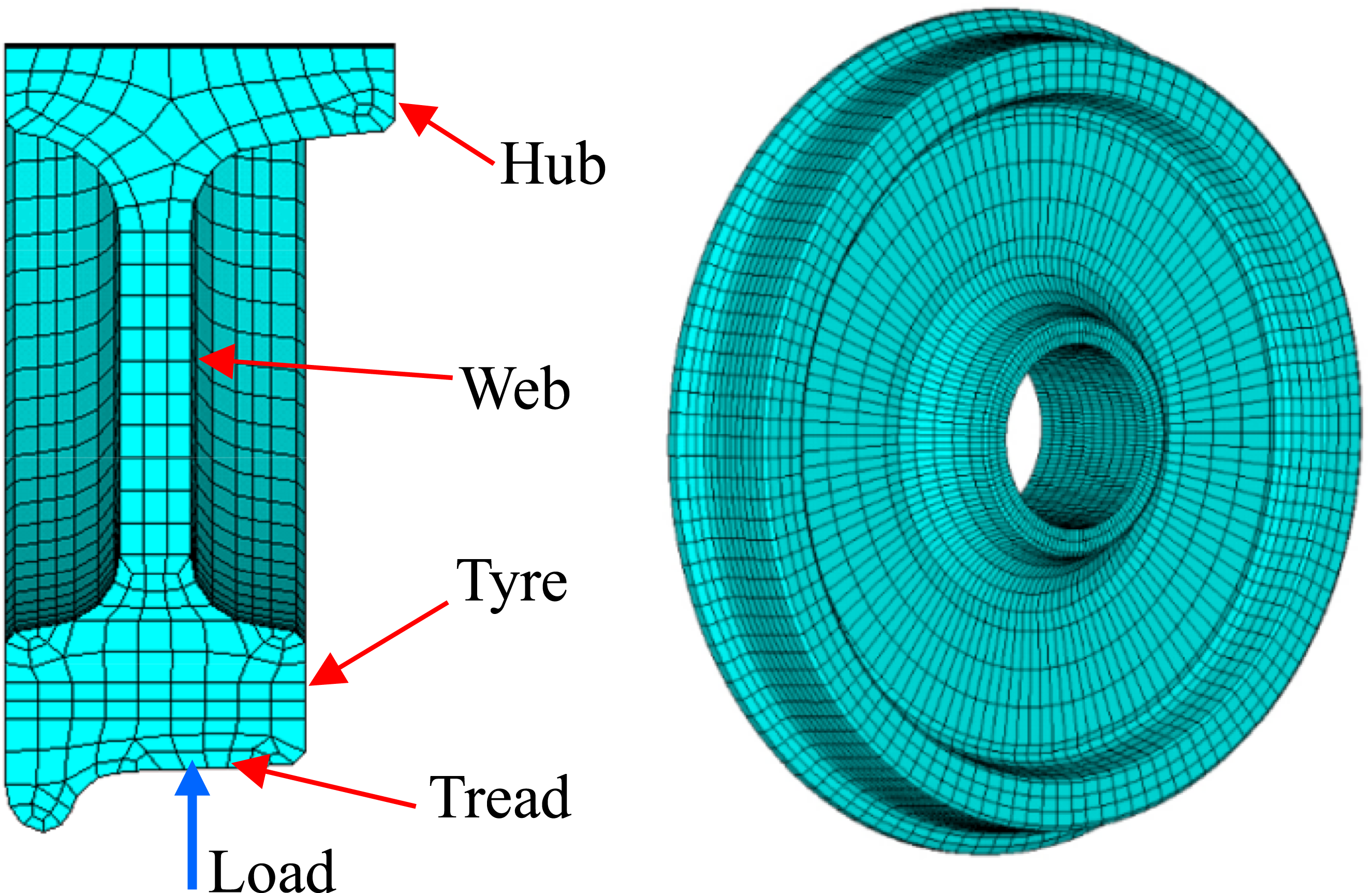

Vibration and sound radiation model of wheel based on FEM-BEM

According to the mechanism of wheel-rail rolling noise generation, surface roughness excitation at the wheel-rail interface induces vibration in the wheel structure. When this vibration is transmitted to the upper components, the high-frequency components are significantly attenuated due to the effect of the vibration-isolating springs. As a result, the high-frequency vibration of the bogie is mainly dominated by the wheel. Therefore, in the analysis of high-frequency vibration in the wheel system, the model above the excitation point typically retains only the wheel, while the superstructure above the suspension is neglected. Figure 19 shows the finite element model of a typical metro train wheel. The wheel has a diameter of 840 mm and shares the same material properties as the steel described earlier. The loading position is indicated in the figure, and constraints are applied at the wheel hub.

The vibration responses obtained from the wheel vibration model are used as input for the wheel boundary element model. The radiated noise of the wheel is then calculated using the acoustic boundary element method. As shown in Figure 20, to prevent sound leakage through the hub holes, additional elements are applied to seal the openings. The wheel’s acoustic radiation is computed using the direct boundary element method. In the simulation, the air density is set to 1.21 kg/m³ and the speed of sound in air is 344 m/s. The calculation covers a frequency range of 20 to 5000 Hz with a frequency step of 20 Hz. In general, for acoustic boundary element analysis, the maximum element size should be smaller than one-sixth of the shortest wavelength in the frequency range.

Vibration and sound radiation model of track based on FEM-BEM

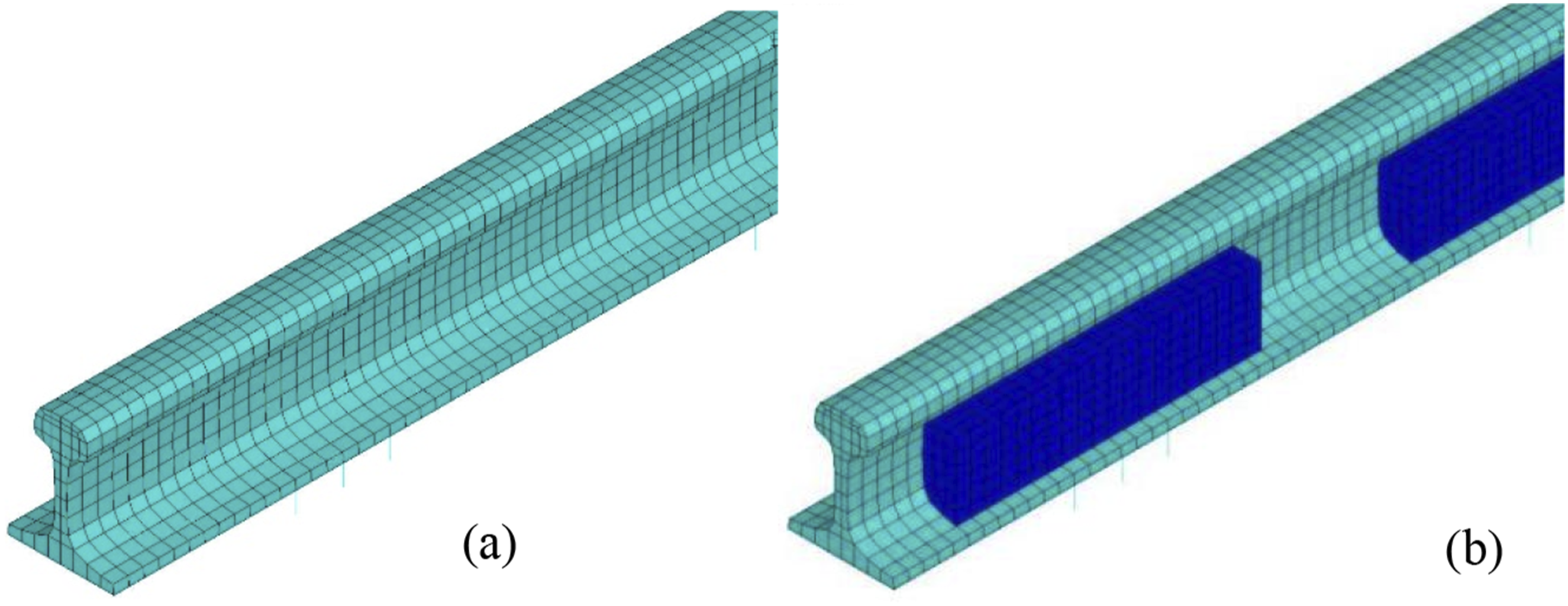

Three-dimensional solid finite element models of the track structure are established to obtain vibration input, considering both conventional fasteners and particle-damped fasteners. The total length of the modeled track is 30 spans, corresponding to 18 m. The rails and particle dampers are modeled using solid elements, while the fasteners are represented by spring–damper elements. The mass and damping ratio of the particle dampers are based on the previously calculated equivalent mass and damping ratio. A vertical load is applied at the center of the rail. The bottom of the fastener springs is fully constrained, and symmetric boundary conditions are applied at the longitudinal ends of the track. Subsequently, a boundary element model of the track is constructed to analyze the acoustic radiation. The boundary element mesh is consistent with the surface mesh of the finite element model and is therefore not described separately. The finite element and boundary element meshes are shown in Figure 21.

The interaction between the wheel and rail is consistent with that described in Section 3 and is therefore not repeated here.

Field test of wheel-rail noise and model validation

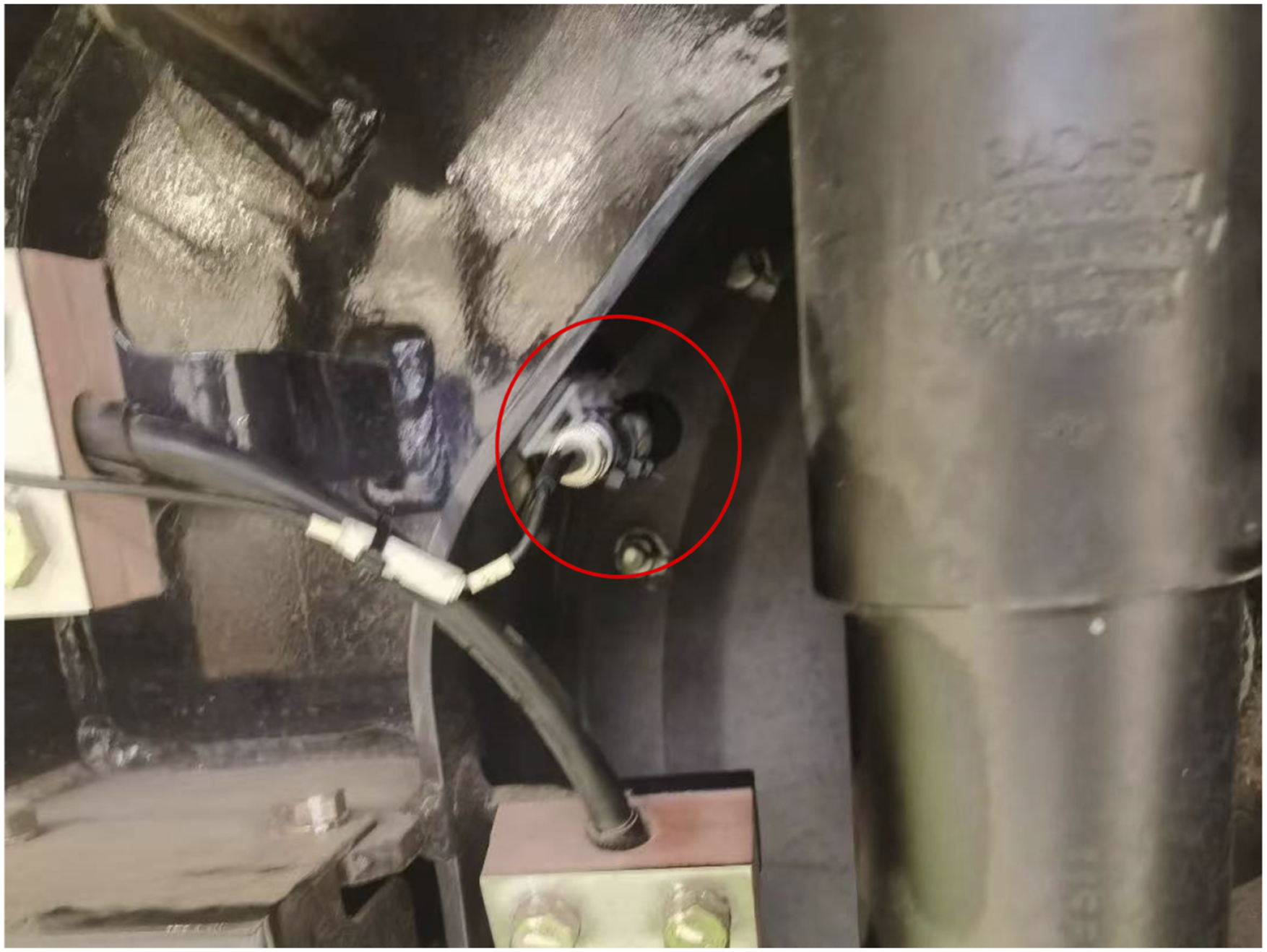

To verify the effectiveness of the wheel-rail noise model, wheel-rail noise tests were conducted on a metro line at speeds of 50 km/h, 60 km/h, and 70 km/h. The microphone was positioned 30 mm away from the wheel. A photo of the test site is shown in Figure 22.

Wheel-rail noise test results, mean values, and confidence intervals were obtained at speeds of 50 km/h, 60 km/h, and 70 km/h. The frequency spectra and overall levels of the simulated wheel-rail noise under the same speeds and wheel-rail roughness conditions were also compared. A comparison of the statistical values between the simulation and test results is shown in Table 4, and the spectral comparison is presented in Figure 23.

Table 4.

Test and simulation results (dBA).

Operation no	Speeds
Operation no	50 km/h	60 km/h	70 km/h
Test 1	101.5	103.6	105.6
Test 2	101.6	103.7	105.4
Test 3	101.6	103.8	105.5
Test 4	101.4	103.7	105.7
Test 5	101.6	103.6	105.5
Test 6	101.4	103.7	105.3
Test 7	101.8	103.5	105.6
Test 8	101.6	103.9	105.5
Test 9	101.5	103.6	105.4
Test 10	101.6	103.7	105.5
Mean	101.6	103.7	105.5
95% confidence interval	[101.5,101.6]	[103.6,103.8]	[105.4,105.6]
Simulation	101.4	103.4	104.9

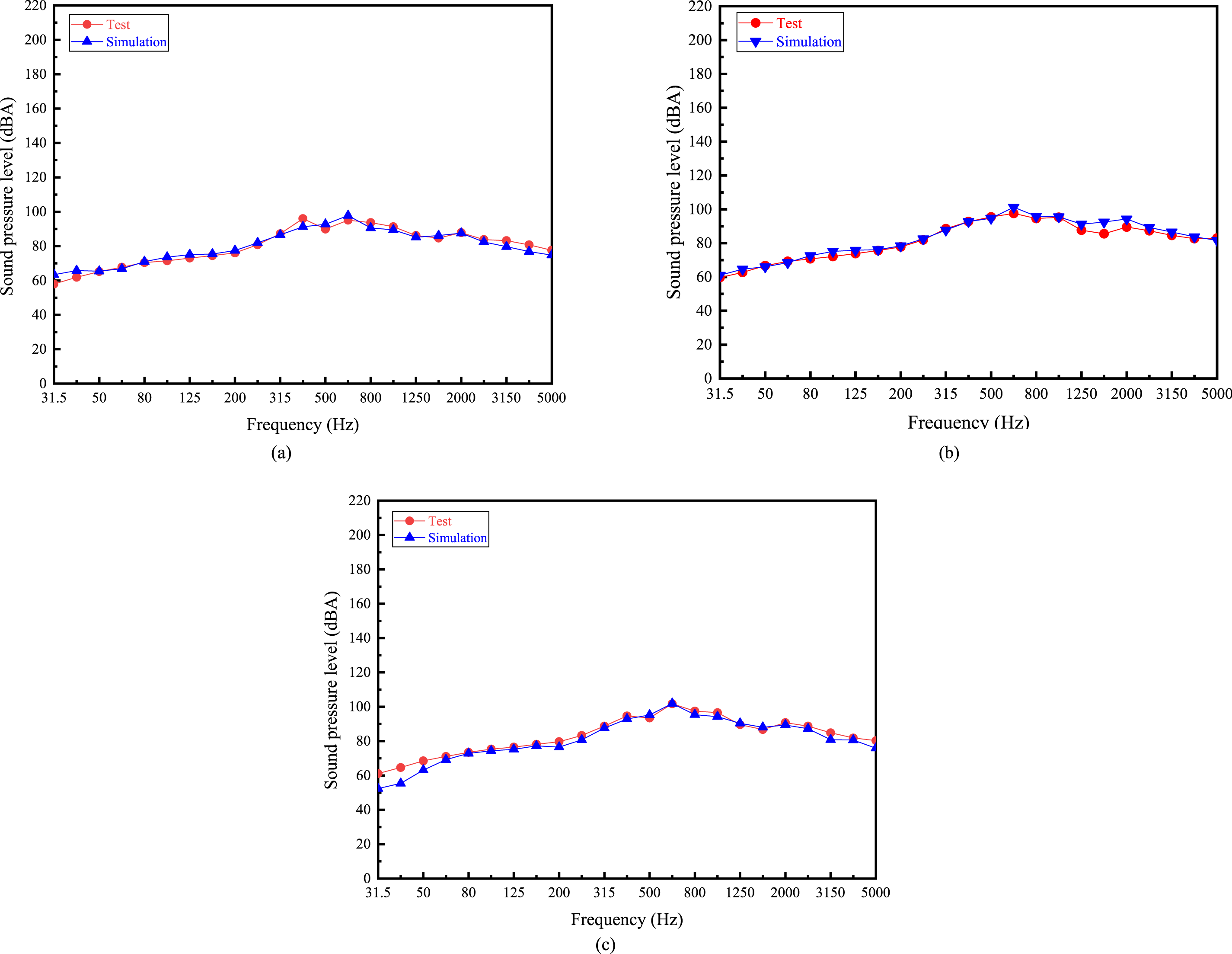

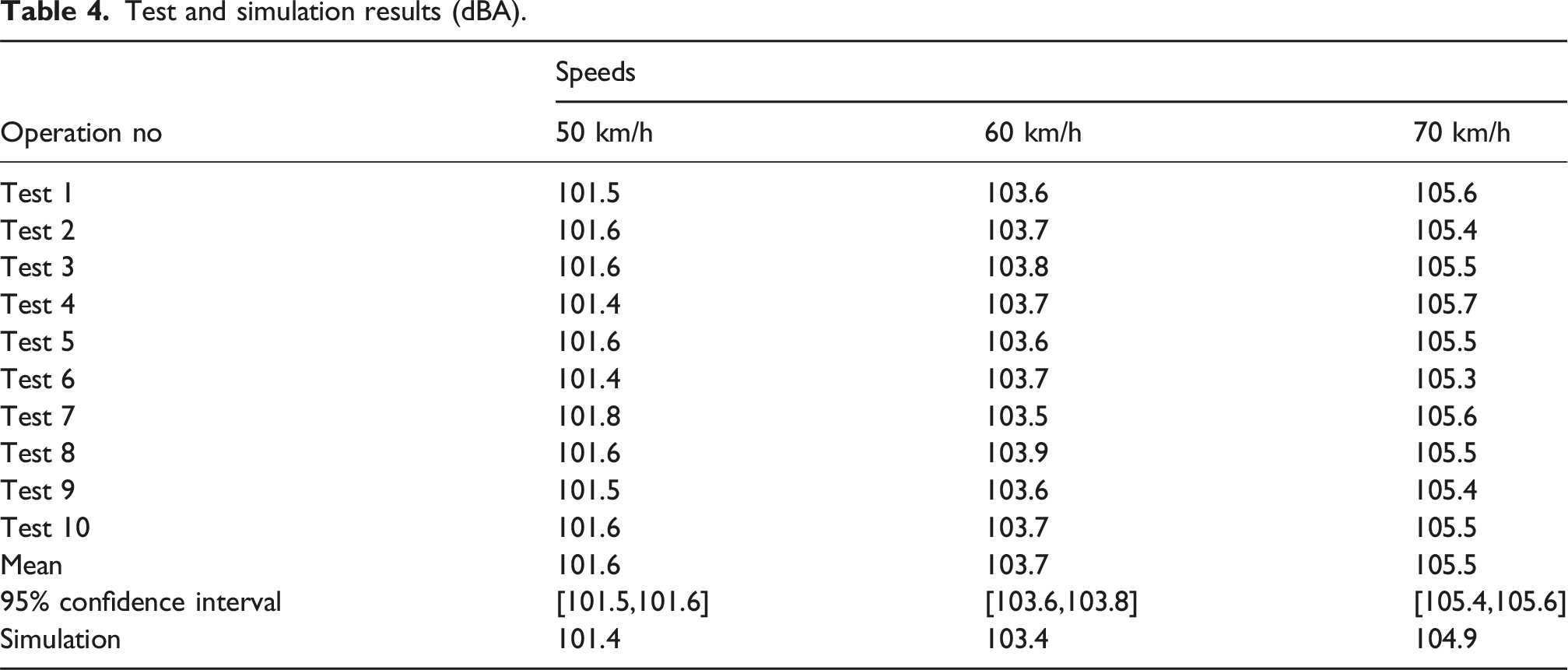

As shown in Table 4 and Figure 23, the simulation results agree well with the test results under the same conditions. The deviation between the simulation and the statistical test results is 0.1–0.7 dB(A), which falls within a relatively small and acceptable range for noise calculations.

Noise characteristics and noise reduction effect

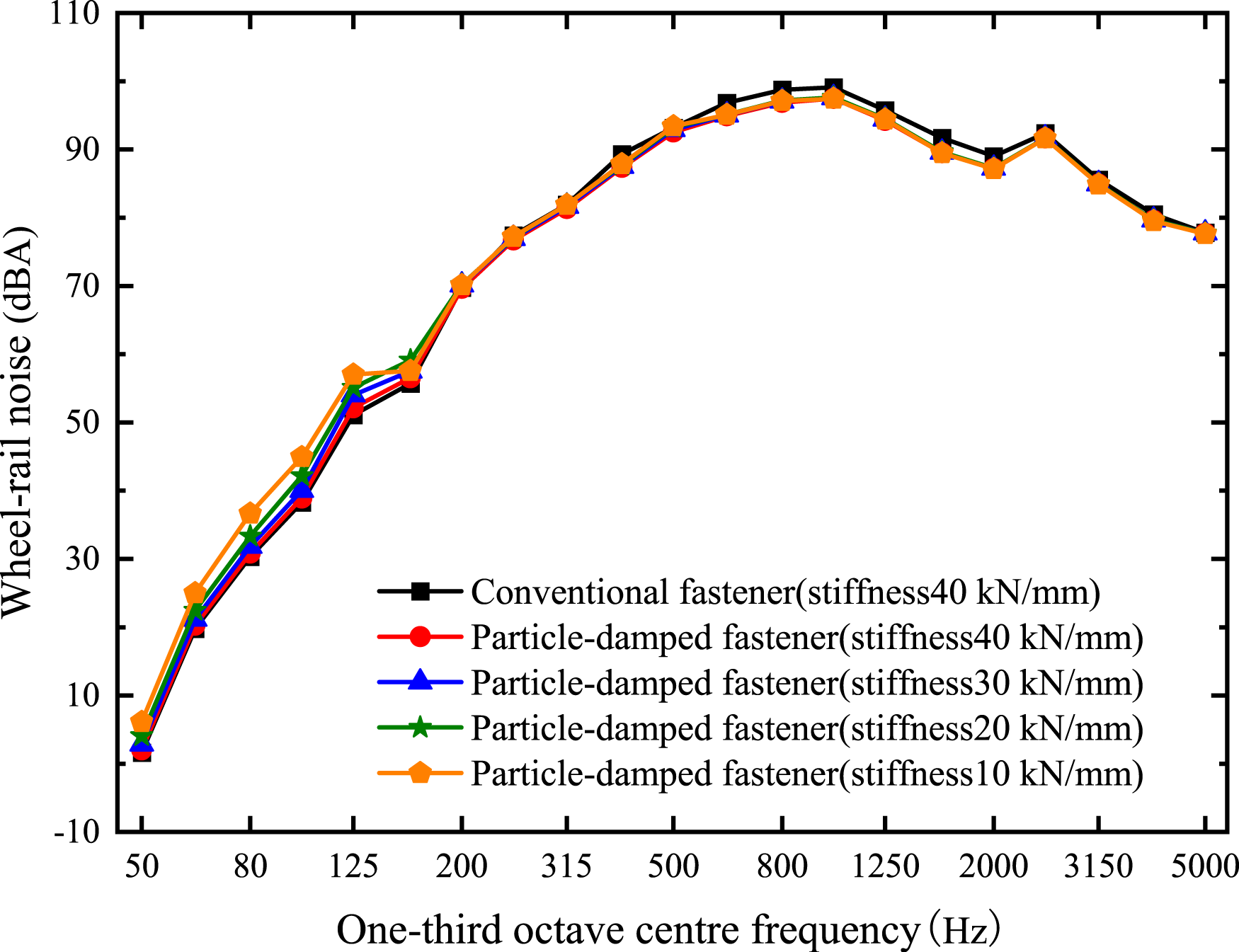

Figure 24 shows the wheel-rail noise for conventional fastener and particle-damped fasteners with different pad stiffnesses, where the stiffness of the pad in the conventional fastener is 40 kN/mm.

As can be seen from Figure 24, the noise value in the low-frequency band increases with the decrease of the stiffness of the elastic pad, while the change in the noise value in the high-frequency band is small. To facilitate the evaluation of the noise reduction effect of particle damping on wheel-rail noise, the total value of wheel-rail noise under these working conditions is shown in Figure 25.

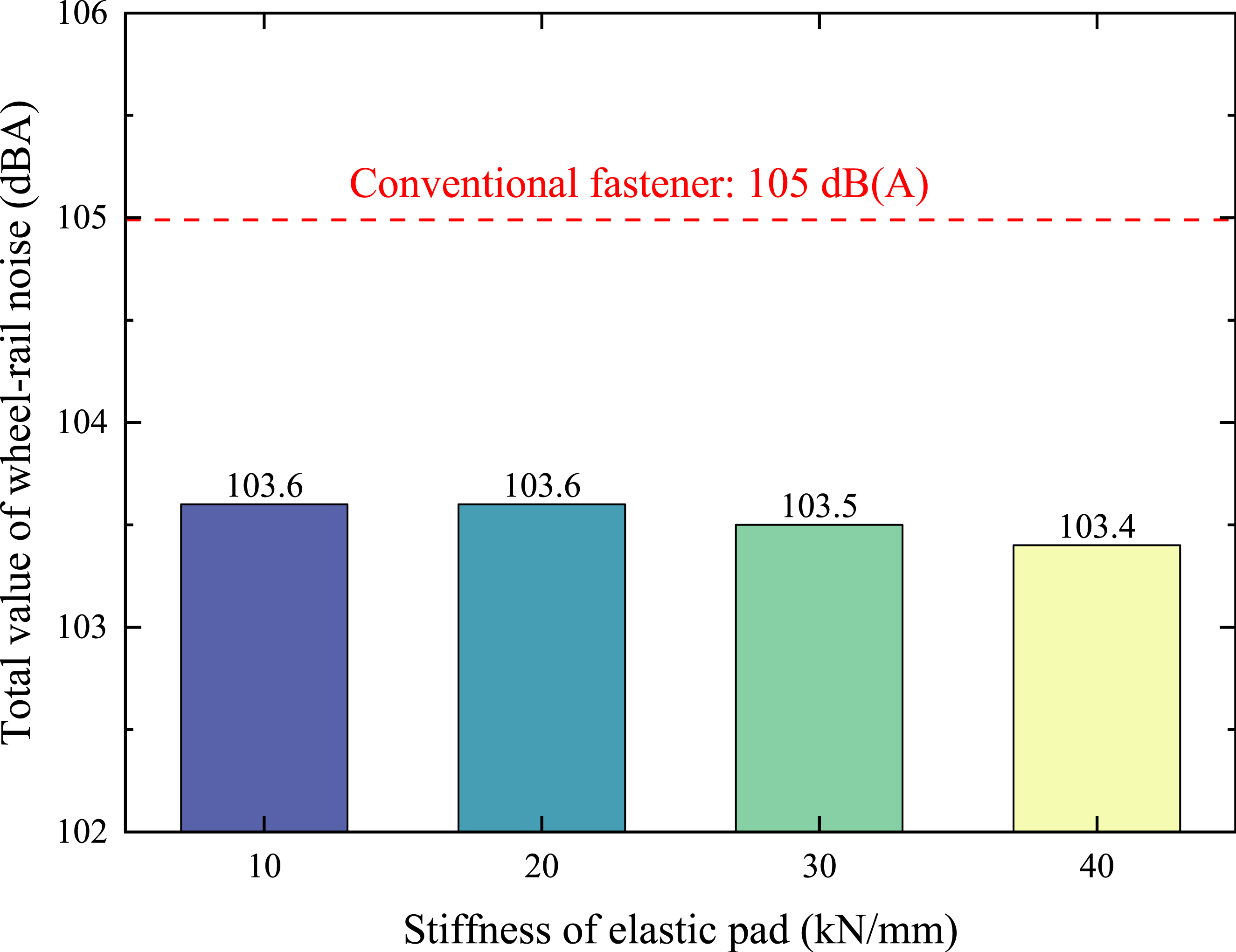

As shown in Figure 25, when the stiffness of the elastic pad ranges from 10 to 40 kN/mm, the total wheel-rail noise slightly increases as the stiffness of the particle-damped fastener decreases, though the increase is minimal. For instance, when the pad stiffness is 20 kN/mm, the noise reduction is only 0.2 dB higher than that with a stiffness of 40 kN/mm. This is because, even without considering the damping effect of the new fastener, a decrease in fastener stiffness tends to increase wheel-rail noise.²⁴ In summary, the particle-damped fastener with a pad stiffness of 40 kN/mm achieves the greatest noise reduction of 1.6 dBA. However, the fastener with a stiffness of 10 kN/mm still achieves a reduction of 1.40 dBA, with a negligible difference between the two. Considering the analysis of environmental vibration in Section 3, selecting a particle-damped fastener with a pad stiffness of 10 kN/mm offers the optimal balance between mitigating environmental vibration and reducing wheel-rail noise.

Based on the statistical analysis of the wheel-rail noise test results and the simulation validation in Section 4.2, it can be concluded that, taking simulation error into account, the simulated noise reduction of 1.6 dB(A) corresponds to an actual noise reduction range of 0.9 dB(A) (in the least favorable case) to 2.3 dB(A) (in the most favorable case) under real operating conditions. Although the noise reduction effect is relatively modest, it is an additional benefit achieved on top of the effective vibration reduction already demonstrated in Section 3. Typically, vibration-damping fasteners cannot reduce noise and may even amplify it. Therefore, the simulated 1.6 dB(A) noise reduction achieved by the fastener system in this study—when combined with the environmental vibration mitigation—contributes positively to the overall goal of vibration and noise reduction. Moreover, this combined effect is practically perceptible and meaningful.

Conclusions

(1) A discrete element–dynamic coupling model was established and combined with experimental studies to investigate the influence of particle-damped fastener parameters on its damping performance. The particle filling ratio has a significant impact on the damping ratio of the fastener. When the filling ratio increases from 0% to 90%, the damping ratio of the particle damper increases accordingly. However, when the filling ratio approaches 100%, the damping ratio decreases instead.

(2) A 2.5D finite element–boundary element coupled model incorporating particle-damped fasteners was developed to predict environmental vibration. The effectiveness of particle-damped fasteners in reducing environmental vibration was investigated. Compared with the conventional fastener, the particle-damped fastener with the same stiffness reduces vibration by 2.4 dB, while the one with a stiffness of 10 kN/mm achieves a reduction of 5.6 dB.

(3) A 3D finite element–boundary element coupled model incorporating particle-damped fasteners was developed to predict wheel-rail noise, and the noise reduction performance of the particle-damped fastener was analyzed. Under the same fastener stiffness, the particle-damped fastener can reduce wheel-rail noise by 1.6 dB(A). Considering its combined effect on both environmental vibration and noise reduction, a particle-damped fastener with a stiffness of 10 kN/mm offers better overall vibration and noise mitigation performance.

Footnotes

ORCID iD

Jian Han

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: the present work is supported by the National Natural Science Foundation of China (52002340), and the Fundamental Research Funds for the Central Universities (2682024CG007).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Lin

Broere

Cui

. Metro systems and urban development: impacts and implications. Tunn Undergr Space Technol 2022; 125: 104509.

Song

Abuduwayiti

Gou

. The Role of subway network in urban spatial structure optimization – Wuhan city as an example. Tunn Undergr Space Technol 2023; 131: 104842.

Lei

. Effect and its mechanism of spatial coherence of track irregularity on dynamic responses of railway vehicles. Mech Syst Signal Process 2020; 145: 106957.

Halmai

Holsgrove

Vine

, et al. The after-effects of occupational whole-body vibration on human cognitive, visual, and motor function: a systematic review. Appl Ergon 2024; 118: 104264.

Thompson

. The effects of local preload on the foundation stiffness and vertical vibration of railway track. J Sound Vib 1999; 219(5): 881–904.

Thompson

Xie

, et al. Influence of rail fastener stiffness on railway vehicle interior noise. Appl Acoust 2019; 145: 69–81.

Song

Qian

Wang

, et al. Effect of rail pad stiffness on vehicle–track dynamic interaction excited by rail corrugation in metro. Transp Res Rec 2020; 2674: 225–243.

Masri

. Analytical and experimental studies of multiple‐unit impact dampers. J Acoust Soc Am 1969; 45(5): 1111–1117.

Masri

Ibrahim

. Response of the impact damper to stationary random excitation. J Acoust Soc Am 1973; 53(1): 200–211.

10.

Panossian

. Non-obstructive particle damping tests on aluminum beams. Proceedings of damping 1991; 91: 13–15.

11.

Michon

Almajid

Aridon

. Soft hollow particle damping identification in honeycomb structures. J Sound Vib 2013; 332(3): 536–544.

12.

Zhang

Chen

Wang

, et al. Motion mode of the optimal damping particle in particle dampers. J Mech Sci Technol 2016; 30: 1527–1531.

13.

Xiao

Wang

, et al. Study on vibration suppression based on particle damping in centrifugal field of gear transmission. J Sound Vib 2016; 366: 62–80.

14.

Xiao

Chen

Pan

, et al. Research on the impact of surface properties of particle on damping effect in gear transmission under high speed and heavy load. Mech Syst Signal Process 2018; 98: 1116–1131.

15.

Liao

Chung

Weng

. A study on the energy dissipation mechanism of dynamic mechanical systems with particle dampers by using the novel energy method. Nonlinear Dyn 2023; 111(17): 15955–15980.

16.

Tang

. On vibration suppression and energy dissipation using tuned mass particle damper. J Vib Acoust 2017; 139(1): 011008.

17.

Xue

Wang

. Experimental study on the energy dissipation performance of particle dampers under long-term vibration loading. J Sound Vib 2020; 478: 115349.

18.

Chen

Yang

. Performance degradation mechanism of particle damping under cyclic vibration environment. Mech Syst Signal Process 2018; 105: 157–170.

19.

Iwnicki

. Handbook of railway vehicle dynamics. CRC Press, 2006.

20.

Cundall

Strack

ODL

. A discrete numerical model for granular assemblies. Geotechnique 1979; 29(1): 47–65.

21.

Sheng

Jones

CJC

Thompson

. Modelling ground vibration from rail traffic using the discrete wavenumber finite and boundary element methods. ISVR Technical Memorandum No 899. 2ISVR Technical. Memorandum. 2022; 899: 1–61.

22.

Thompson

. Railway noise and vibration: mechanisms, modelling and means of control. Elsevier, 2008.

23.

Han

Xiao

, et al. Effect of rail corrugation on metro interior noise and its control. Appl Acoust 2018; 130: 63–70.

24.

Wang

. Study on reasonable fastener stiffness of ballastless turnout's vibration decrease and noise reduction of 350 km/h passenger dedicated line. Appl Mech Mater 2012; 105: 1175–1180.
