A sensitive and specific solid-phase extraction–gas chromatography–tandem mass spectrometry method for the determination of 11 haloacetic acids in aqueous samples

Abstract

A method for the analysis of 11 haloacetic acids in water samples has been developed. It involves enrichment of the target analytes from water samples by solid-phase extraction, derivatization to methyl esters, and gas chromatography coupled with tandem mass spectrometry determination. Gas chromatography conditions were optimized for a good separation of all haloacetic acids in a short runtime. Data were acquired in the multiple reaction monitoring mode. Six solid-phase extraction sorbents among the most widely used in environmental analysis were tested. Bakerbond SDB was retained because it has been shown to provide the best results for a large class of targeted haloacetic acids. The performances of the developed method have been assessed according to the French Standard NF T 90-210. The calibration curves for all the studied haloacetic acids had consistent slopes with r² values > 0.99. Quantification limits between 0.01 and 0.50 µg l⁻¹ were achieved. Satisfactory repeatability (relative standard deviation ≤ 14.3%) and intermediate precision (relative standard deviation ≤ 15.7%) were obtained. Applied to the analysis of 15 untreated water samples collected from three rivers, the method allowed the detection of five haloacetic acids including monochloroacetic acid (in 100% of the samples, <0.5–1.85 µg l⁻¹), dichloroacetic acid (87%, <0.05–0.22 µg l⁻¹), trichloroacetic acid (93%, <0.05–0.52 µg l⁻¹), dibromoacetic acid (53%, <0.01–0.40 µg l⁻¹), tribromoacetic acid (20%, <0.05–0.14 µg l⁻¹), and bromodichloroacetic acid (6%, < 0.05 µg l⁻¹).

Keywords

Haloacetic acids river water solid-phase extraction gas chromatography tandem mass spectrometry

Introduction

Haloacetic acids (HAAs) are among the main organohalogen by-products (OXBPs) regularly identified in water.¹ They are primarily formed as a result of disinfection treatments using halogen-based biocides, such as chlorine (Cl₂/HOCl/OCl^-), chlorine dioxide (ClO₂), ozone in presence of bromide (O₃/Br⁻), and monochloramine (NH₂Cl).² With trihalomethanes, HAAs constitute the largest group of OXBPs by weight in drinking water.³ The formation mechanism of HAAs is well understood and their concentration levels in drinking water are regulated in various countries.⁴ HAAs are also widespread environmental contaminants, their presence in aquatic environments is not only related to human activities but also to natural sources.^5–7 Trichloroacetic acid (TCAA) is used as a selective herbicide, an etching or pickling agent in the surface treatment of metals and an auxiliary in textile finishing, while monochloroacetic acid (MCAA) is mainly used as intermediate in the synthesis of a wide variety of chemicals (e.g. drugs, dyes, and pesticides).^8–10 HAAs may thus enter aquatic ecosystems through many routes, including discharges of water treated with halogen-based biocides, degradation of halogenated organic compounds, runoff from contaminated soils, atmospheric deposit, as well as natural production.^10–15 In vitro and in vivo laboratory studies have shown that HAAs are cytotoxic, genotoxic, mutagenic, and teratogenic.^16–20 Several HAAs have been shown to produce developmental and/or reproductive toxicity.²¹ Due to their potential adverse effects on human health, the World Health Organization has proposed guideline values for MCAA, dichloroacetic acid (DCAA), and TCAA.² In the US, HAAs are regulated by the Environmental Protection Agency (US EPA), which has established a maximum contaminant level for the total concentrations of MCAA, monobromoacetic acid (MBAA), DCAA, dibromoacetic acid (DBAA), and TCAA in drinking water.² A guideline value for these same five HAA species also exists in Canada. However, to date, no regulation has been promulgated in the European Union (EU) to control the level of HAA concentrations in drinking water. To protect freshwater aquatic organisms, the European Chemicals Agency included nine brominated and chlorinated HAAs in a selection of relevant disinfection by-products and representative compounds to be addressed in environmental risk assessments under the European biocide law (Regulation (EU) 528/2012).²² To date, there is a need for a sensitive and specific method permitting the quantitation of these compounds at trace concentrations in river water, in order to evaluate their effects on aquatic ecosystems. Currently, the standard methods more commonly used for HAAs analysis involve liquid–liquid extraction (LLE) followed by gas chromatography using electron capture detection or mass spectrometry (MS) detection (552.2 EPA Method; ISO 23631:2006). However, LLE is coming under increasing criticism because it is time consuming, labor intensive, and it requires large volumes of organic solvents. Solid-phase extraction (SPE) is gradually replacing classical LLE because it generally provides best extraction recoveries with low solvent consumption. Only a few studies using MS operated in the multiple reaction monitoring (MRM) mode rather than selected ion monitoring have been reported, although the potential presence of a large number of interfering OXBPs requires using a very selective mode for unambiguous determination of HAAs.^23,24 In the context of trace analysis in complex mixtures, MRM provides unparalleled selectivity, which allows accurate quantitation of HAAs even if they are not fully chromatographically resolved.

The aim of the present work was to develop a fast and efficient alternative analytical method for the simultaneous determination of 11 HAAs including five US EPA-regulated HAAs (MCAA, DCAA, TCAA, MBAA, and DBAA), four unregulated HAAs (tribromoacetic acid (TBAA), bromochloroacetic acid (BCAA), dichlorobromoacetic acid (DCBAA), and dibromochloroacetic acid (DBCAA)), as well as two emerging iodinated HAAs (monoiodoacetic acid (MIAA) and diiodoacetic acid (DIAA)) in river water samples. The analytical approach combines SPE with chemical derivatization and GC–MS/MS analysis in the MRM mode.

Material and methods

Reagents and chemicals

A mixed standard containing MBAA, BCAA, bromodichloroacetic acid (BDCAA), MCAA, DBCAA, DBAA, DCAA, TBAA, and TCAA (EPA 552.2 Haloacetic Acids Mix, 2000 µg ml⁻¹ each component in MTBE, >99%) was obtained from Sigma Aldrich (Saint-Quentin Fallavier, France). Iodoacetic acid (98%), 1,2-dibromopropane (internal standard, 97%) and sulfuric acid were also purchased from Sigma Aldrich, as well as l-ascorbic acid (99%) for neutralization of residual oxidants. DIAA (90%) was supplied from Santa Cruz Biotechnology (Heidelberg, Germany). 2,3–dibromopropionic acid (surrogate, 1000 µg ml⁻¹ in MTBE) was obtained from Dr Ehrenstorfer GmbH (Augsburg, Germany). Methanol (MeOH, HPLC grade, 99.8%) and methyl-tert-butyl-ether (MTBE, GC grade, 99.8%) were purchased from Merck (Darmstadt, Germany).

Pretreatment, extraction, and derivatization procedures

All samples were collected in 2 l amber bottles. Two milliliters of l-ascorbic acid at 1.6 g l⁻¹ was introduced into each bottle prior to water collection in order to quench residual oxidants, thus preventing the formation of HAAs between sample collection and analysis.²⁵ A volume of 20 µl of 2,3-dibromopropionic acid surrogate standard (50 µg ml⁻¹ in MTBE) was added to each sample on receipt at the laboratory. All samples were gently mixed, adjusted to pH < 2 with concentrated sulfuric acid (1% v:v) and transferred into a 1 l glass bottle. An “AutoTrace 280” (Thermo Fisher Scientific, Courtaboeuf, France) automated SPE system was used to extract the analytes from water. Six widely used SPE cartridges including Strata SDB-L (500 mg, 6 ml) purchased from Phenomenex (Le Pecq, France); Bakerbond Carbon (500 mg, 6 ml), Bakerbond SDB-1 (200 mg, 6 ml), and Bakerbond C18 (500 mg, 6 ml) from Interchim (Montluçon, France); Oasis-HLB (500 mg, 6 ml) from Waters (Guyancourt, France); and LiChrolut EN (200 mg, 6 ml) from Merck (Fontenay-sous-Bois, France) were evaluated in terms of selectivity and recovery yields. The same extraction procedure was followed for all cartridges. The stationary phase was conditioned with 5 ml of MeOH and 10 ml of acidified water (H₂SO₄ 10% v:v). A sample volume of 1 l was percolated at a flow rate of 5 ml min⁻¹. The cartridge was then rinsed with 5 ml of acidified water (H₂SO₄ 10% v:v) and the sorbent was left to dry for 10 min. The retained HAAs were eluted with 5 ml of acidified methanol (H₂SO₄ 10% v:v) followed by 3 ml of MTBE. The eluate was collected in a 20 ml conical amber glass tube, which was hermetically sealed and placed for 2 h in a water bath regulated at 50℃ for derivatization of HAAs to methyl esters. The vial was subsequently cooled to 4℃ for 10 min and 7.5 ml of an aqueous sodium sulfate solution (150 g l⁻¹) was added. The vial was then vortexed for 2 min and let to settle for 10 min. The aqueous layer was discarded before quenching the acid-catalyzed esterification of HAAs. The organic phase was neutralized by adding 1 ml of an aqueous saturated sodium bicarbonate solution (89 g l⁻¹). The vial was then vortexed for 2 min and let to settle for 5 min. Five hundred microliters of the MTBE extract was transferred into an amber vial, with 10 µl of 1,2-dibromopropane (500 µg ml⁻¹ in MTBE) as internal standard. Finally, 1.5 µl of the MTBE extract was analyzed by gas chromatography coupled with tandem mass spectrometry (GC–MS). The surrogate standard was used to compensate errors related to sample preparation (both extraction and chemical derivatization) while the internal standard was used to compensate errors related to GC–MS analysis. For each target HAA, the relative recovery was calculated as the ratio between the GC–MS peak area measured for the SPE cartridge considered and that measured with the cartridge providing the best recovery for the same HAA.

Instrumentation and GC–MS/MS analytical conditions

GC–MS analysis of the SPE extracts was performed using a Thermo Fisher Scientific “Trace GC Ultra” gas chromatograph equipped with a “TriPlus” autosampler and coupled with a “TSQ Quantum XLS” triple quadrupole mass spectrometer (Thermo Fisher Scientific, Courtaboeuf, France). The chromatographic separation was carried out on a Thermo Scientific “TG–5MS” (5% phenyl, 95% methylpolysiloxane) 30 m capillary column (internal diameter: 0.25 mm, film thickness: 0.25 µm). High purity helium (99.9995%) was used as the carrier gas at a constant flow of 1.4 ml min⁻¹. All experiments were performed using automatic injection of 1.5 µl of sample into a programmed temperature vaporization (PTV) injector in the splitless mode. The PTV conditions were the following: injection temperature, 180℃; cleaning temperature, 270℃; splitless time, 2.00 min; split flow, 30 ml min⁻¹; and cleaning time, 4.00 min. In order to trap the analytes at column head, the oven temperature was maintained at 35℃ for 5.00 min before being raised at 10℃ min⁻¹ to 110℃ and then at 20℃ min⁻¹ to 200℃, for a total duration of 17 min. The solvent delay was set at 4.50 min. The transfer line and ion source temperatures were maintained at 280 and 250℃, respectively. In the first approach, acquisition was carried out in the EI full scan mode from 50 to 450 m/z at 100 ms per scan. The mass spectrometer was operated in the electron ionization mode at 70 eV. The filament emission current was set at 25 µA in the full scan mode and at 50 µA for MS/MS experiments. The electron multiplier voltage was set at 1040 V using automatic tuning (3.10⁵ gain). The tandem MS experiments were performed with argon as collision gas at a nominal pressure of 1 mTorr. The collision-induced dissociation parameters were subjected to optimization and are given below.

Results and discussion

GC–MS/MS characterization

The mass spectrometer and gas chromatograph parameters were optimized by injecting a mixture of all HAAs (methyl ester derivatives) in MTBE each one at 20 µg ml⁻¹. Separation of HAAs was optimized in the gradient mode with the purpose to achieve good chromatographic resolution in a short analysis time. The optimum gradient is described in “Instrumentation and GC–MS/MS analytical conditions” section. The upper part of Figure 1 displays the chromatogram of the mixture of all HAAs (after SPE and derivatization), each at 5 µg l⁻¹, together with the surrogate and internal standards at 4 µg l⁻¹. Most of the target HAAs are well separated with the exception of BCAA, MIAA, DBCAA, and 2,3–dibromopropionic acid (surrogate standard, SA). MS/MS optimization led to the selection of the two most intense transitions per HAA for operation in MRM according to the EU criteria (C.D. 2002/657/EC). The transition providing the most intense signal was used for quantification. MRM transitions and their corresponding collision energies are summarized in Table 1.

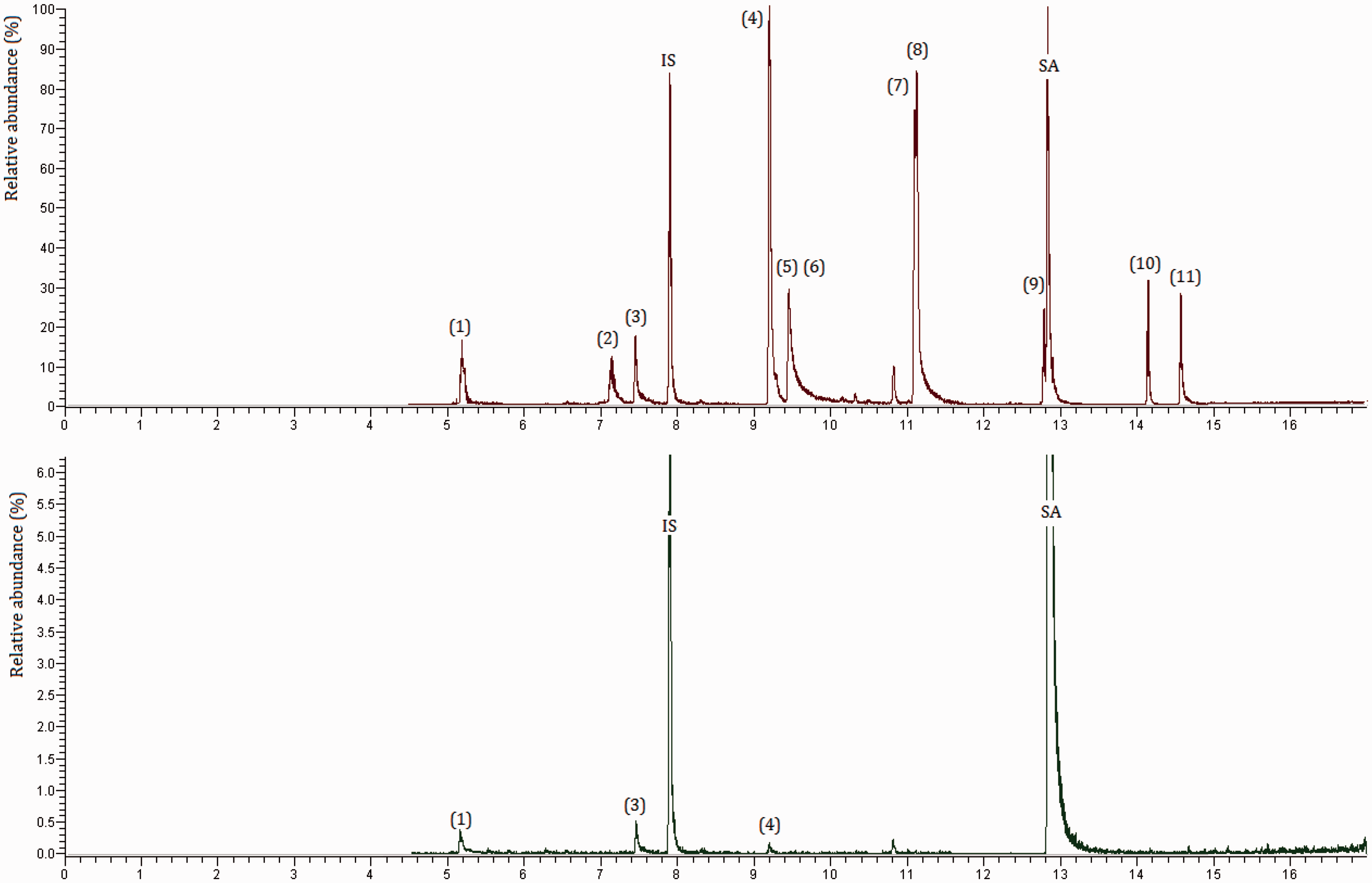

Figure 1.

Chromatograms of the reference solution of HAAs at 5 µg ml⁻¹ (above) and of a real sample taken on 22 August 2016 (below). 1: MCAA, 2: MBAA, 3: DCAA, IS: 1,2-dibromopropane, 4: TCAA, 5: BCAA, 6: MIAA, 7: DBAA, 8: BDCAA, 9: DBCAA, SA: 2,3-dibromopropionic acid, 10: TBAA, 11: DIAA.

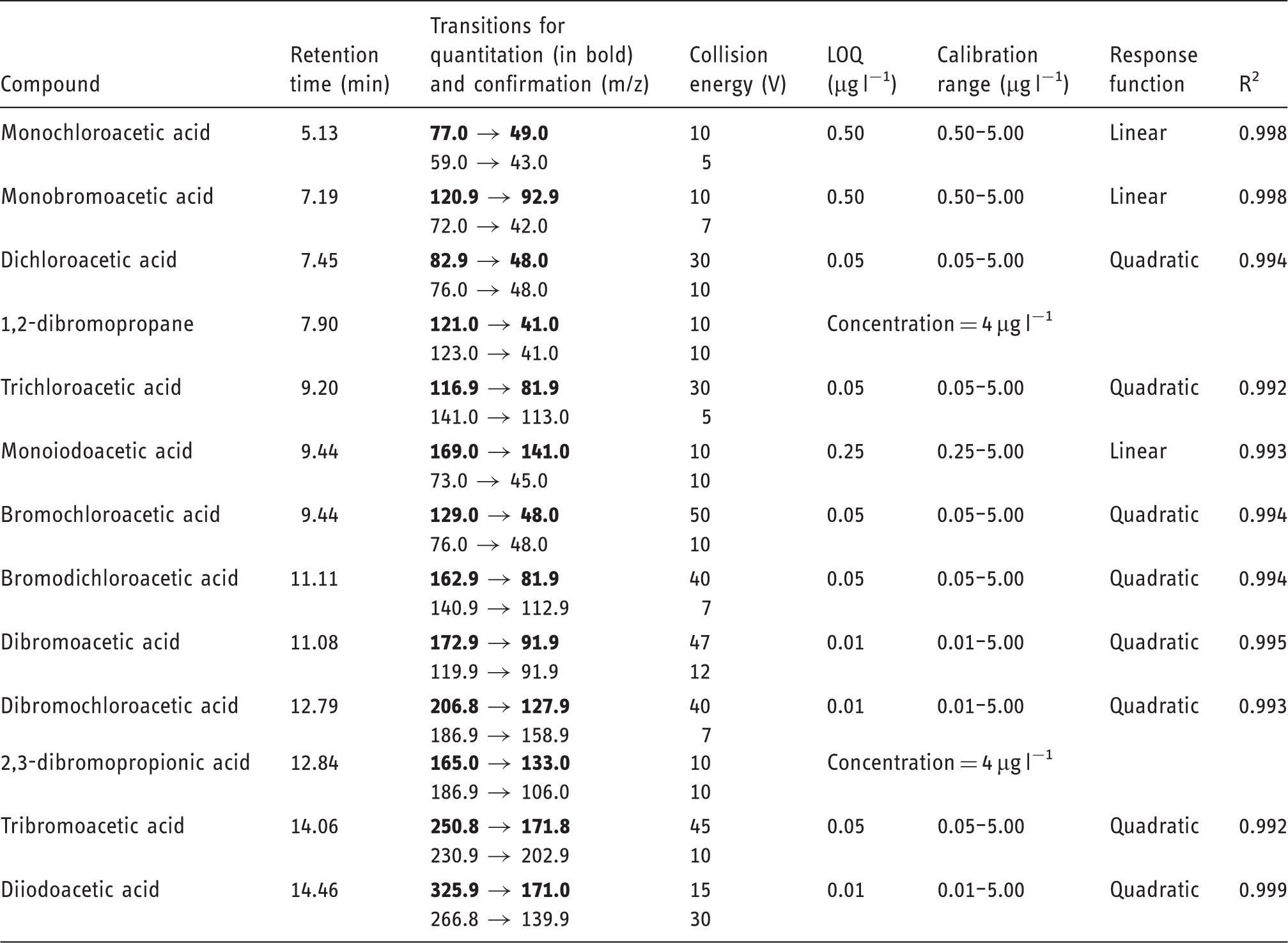

Table 1.

Main characteristics of the GC–MS/MS method.

Compound	Retention time (min)	Transitions for quantitation (in bold) and confirmation (m/z)	Collision energy (V)	LOQ (µg l⁻¹)	Calibration range (µg l⁻¹)	Response function	R²
Monochloroacetic acid	5.13	77.0 → 49.0 59.0 → 43.0	10 5	0.50	0.50–5.00	Linear	0.998
Monobromoacetic acid	7.19	120.9 → 92.9 72.0 → 42.0	10 7	0.50	0.50–5.00	Linear	0.998
Dichloroacetic acid	7.45	82.9 → 48.0 76.0 → 48.0	30 10	0.05	0.05–5.00	Quadratic	0.994
1,2-dibromopropane	7.90	121.0 → 41.0 123.0 → 41.0	10 10	Concentration = 4 µg l⁻¹
Trichloroacetic acid	9.20	116.9 → 81.9 141.0 → 113.0	30 5	0.05	0.05–5.00	Quadratic	0.992
Monoiodoacetic acid	9.44	169.0 → 141.0 73.0 → 45.0	10 10	0.25	0.25–5.00	Linear	0.993
Bromochloroacetic acid	9.44	129.0 → 48.0 76.0 → 48.0	50 10	0.05	0.05–5.00	Quadratic	0.994
Bromodichloroacetic acid	11.11	162.9 → 81.9 140.9 → 112.9	40 7	0.05	0.05–5.00	Quadratic	0.994
Dibromoacetic acid	11.08	172.9 → 91.9 119.9 → 91.9	47 12	0.01	0.01–5.00	Quadratic	0.995
Dibromochloroacetic acid	12.79	206.8 → 127.9 186.9 → 158.9	40 7	0.01	0.01–5.00	Quadratic	0.993
2,3-dibromopropionic acid	12.84	165.0 → 133.0 186.9 → 106.0	10 10	Concentration = 4 µg l⁻¹
Tribromoacetic acid	14.06	250.8 → 171.8 230.9 → 202.9	45 10	0.05	0.05–5.00	Quadratic	0.992
Diiodoacetic acid	14.46	325.9 → 171.0 266.8 → 139.9	15 30	0.01	0.01–5.00	Quadratic	0.999

LOQ: limits of quantitation.

SPE

The results of evaluation tests carried out on the SPE cartridges are summarized in Table 2, in terms of recovery yields and relative standard deviations (RSD) for n = 3. The performances achieved with the Bakerbond C18 phase are very poor and the Strata SDB-L also proved unsatisfactory, with a recovery yield for MCAA of only 4% of that obtained with the Bakerbond Carbon phase. Compared with the other stationary phases, the latter tends to favor the recovery of low molecular weight over high molecular weight HAAs. In terms of mean relative recoveries, Oasis-HLB, Bakerbond SDB, LiChrolut EN, and Bakerbond Carbon phases provide comparable results with relative recovery yields ranging from 32 to 100% depending on the HAA and cartridge considered. This work being part of a larger study devoted to the determination of the AOX (adsorbable organohalogen compounds) parameter,² the Bakerbond SDB phase has been retained as it provides the best results for several classes of halogenated disinfection by-products.²⁶ In the present work, this sorbent allowed achieving the best recovery yields for almost all of the studied HAAs. This is in good agreement with results reported in the literature. Martınez et al.²⁷ compared four different commercial sorbents, namely LC-SAX (a quaternary ammonium anion exchanger), LiChrolut EN (ethyl vinyl benzene divinyl benzene polymer copolymer from Merck Millipore), Envi-Carb (graphitized black carbon), and Oasis HLB (divinylbenzene-co-N-vinylpyrrolidone copolymer from Waters), to recover various HAAs from water samples. LiChrolut EN provided the best results with recovery values between 37 and 85% obtained in the preconcentration of 500 ml of tap water samples. Prieto-Blanco et al.²⁸ investigated the use of Oasis HLB, Isolute ENV (hyper cross-linked hydroxylated PS-DVB sorbent from Biotage) and LiChrolut EN for the recovery of HAAs from water samples. Isolute ENV offered a higher recovery rate for monohalogenated acetic acids whereas LiChrolut EN offered a better overall rate, with an average recovery of 80%. Similar results were reported by Sun and Ping²⁹ for the recovery of HAAs from chlorinated hospital effluents, using C18 cartridge pretreatment to reduce sample turbidity and LiChrolut EN to extract the targeted compounds.

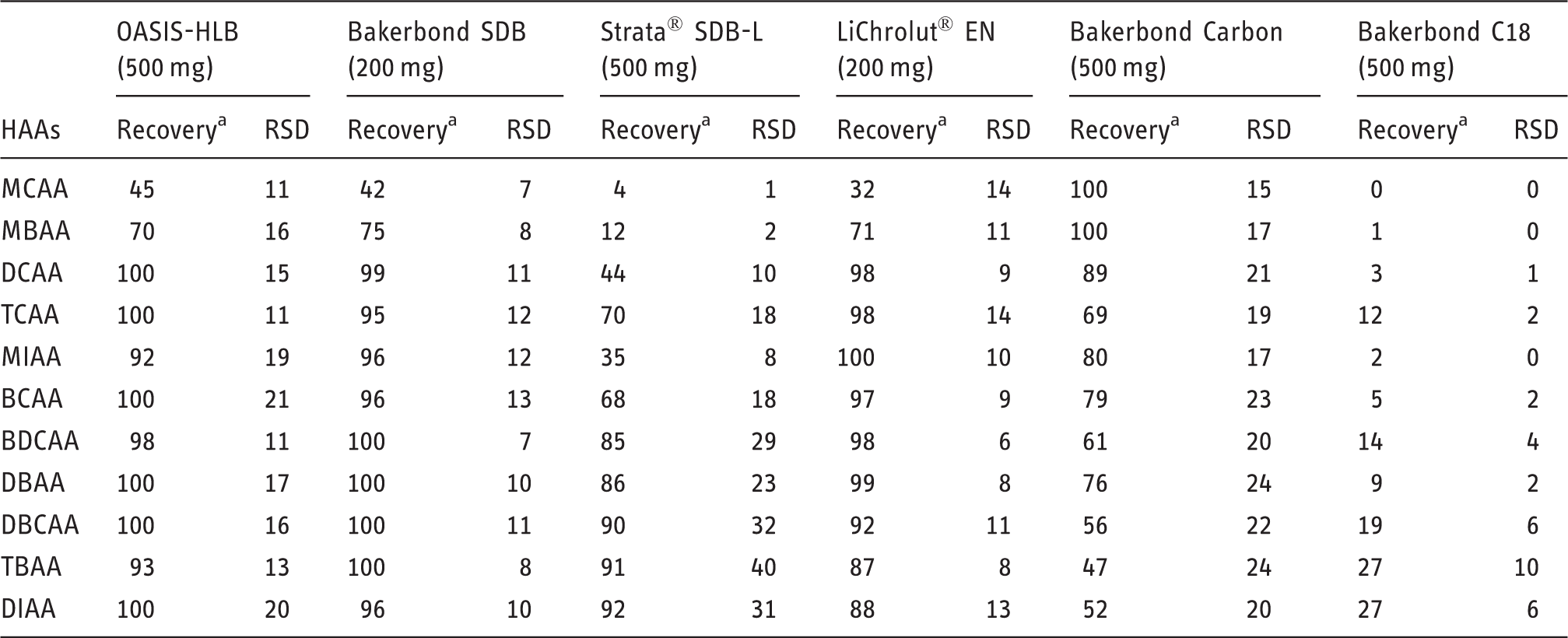

Table 2.

Relative recovery yields of 11 HAAs from 1 l of river water using six SPE commercial sorbents.

HAAs	OASIS-HLB (500 mg)		Bakerbond SDB (200 mg)		Strata® SDB-L (500 mg)		LiChrolut® EN (200 mg)		Bakerbond Carbon (500 mg)		Bakerbond C18 (500 mg)
HAAs	Recovery^a	RSD	Recovery^a	RSD	Recovery^a	RSD	Recovery^a	RSD	Recovery^a	RSD	Recovery^a	RSD
MCAA	45	11	42	7	4	1	32	14	100	15	0	0
MBAA	70	16	75	8	12	2	71	11	100	17	1	0
DCAA	100	15	99	11	44	10	98	9	89	21	3	1
TCAA	100	11	95	12	70	18	98	14	69	19	12	2
MIAA	92	19	96	12	35	8	100	10	80	17	2	0
BCAA	100	21	96	13	68	18	97	9	79	23	5	2
BDCAA	98	11	100	7	85	29	98	6	61	20	14	4
DBAA	100	17	100	10	86	23	99	8	76	24	9	2
DBCAA	100	16	100	11	90	32	92	11	56	22	19	6
TBAA	93	13	100	8	91	40	87	8	47	24	27	10
DIAA	100	20	96	10	92	31	88	13	52	20	27	6

BCAA: bromochloroacetic acid; BDCAA: bromodichloroacetic acid; DBAA: dibromoacetic acid; DBCAA: dibromochloroacetic acid; DCAA: dichloroacetic acid; DIAA: diiodoacetic acid; HAAs: haloacetic acids; MBAA: monobromoacetic acid; MCAA: monochloroacetic acid; MIAA: monoiodoacetic acid; RSD: relative standard deviation (n = 3); TBAA: tribromoacetic acid; TCAA: trichloroacetic acid.

% average recovery of SPE cartridges.

The breakthrough volume, defined as the maximum water sample volume that can be percolated on the SPE cartridge without analyte losses, was evaluated for Bakerbond SDB cartridges. This parameter was tested by analyzing a river water sample spiked with HAAs at 5 µg l⁻¹. For most target analytes, the best results were achieved using a water sample volume of 1 l.

Method performances

Response functions, limits of quantitation (LOQ), trueness (bias), and precision of the analytical method were assessed according to the French method validation standard NF T90-210, as previously described for the validation of a method devoted to monochloramine determination in river water.³⁰ Table 1 summarizes the method performances achieved for each HAA, in terms of limit of quantitation and correlation coefficient over the calibration range. Various regression functions, including linear, quadratic, and cubic equations, were fitted to the data and compared, in order to determine the best regression model of each HAA. The most suitable mathematical models to describe the relationship between the concentrations of the studied HAAs and their respective responses were the linear model for MCAA, MBAA, and MIAA, and the quadratic model for the other target HAAs. A good correlation was obtained for all the studied compounds with correlation coefficients (r²) values higher than 0.99. The calibration curves were also evaluated with and without using weighting factors. The lower errors were obtained when a 1/x weighting factor was applied, where x represents the concentration in HAAs.

The LOQ values were first theoretically estimated and then experimentally confirmed by the analysis of blank rivers samples fortified at the estimated levels. For each HAA, the concentration for which the signal-to-noise ratio was found to be equal to or greater than 10 was considered as the presupposed LOQ. The LOQ values were then approved according to the “B test” of the NF T90-210 standard. The LOQ of each HAA was defined as the lowest concentration, which could be accurately and precisely determined with less than 60% total error. As shown in Table 1, LOQ values range from 0.01 to 0.50 µg l⁻¹, depending on the HAA considered. Several research groups have previously developed analytical methods for HAAs analysis. This new method provided lower LOQs for several HAAs in comparison with LOQs reported using methods based on the standard ISO 23631 guidelines (from 0.5 to 10 µg l⁻¹). Li et al. used a method combining LLE and GC–MS/MS analysis; it was equally sensitive with comparable LOQs (from 0.03 to 0.24 µg l⁻¹).²⁴ Compared with LLE, SPE tends to be relatively more efficient for MCAA and, to a lesser extent, for brominated HAAs, while being slightly less efficient for other species.

The trueness is the closeness of agreement between the average value of a series of measurements and a value considered as true. It estimates the systematic error at each concentration level and is expressed as a relative bias. As no certified reference material is available for HAAs analysis in water samples, the trueness of the developed method was assessed by analyzing river water samples spiked with standard solutions of HAAs. The precision (intra-day precision) is the closeness of agreement between the values obtained from repeated measurements. It estimates the random error of the method and is expressed in terms of relative standard deviation (% RSD). The intermediate precision (inter-day precision) was investigated to determine the time-dependent variability of the method.

For the study of trueness and precision, three concentration levels have been considered: low (LOQ), medium (5 ×LOQ), and high (10 ×LOQ). The river water samples were analyzed before spiking to determine the possible presence of target analytes. The spiked samples were analyzed in triplicate over five days and the bias was estimated for each HAA as the difference between the measured and “real” concentration. The acceptance criterion was set within ± 15% of nominal value (± 20% close to LOQ) for bias and within ± 15% RSD (20% close to LOQ) for precision. Results are displayed in Table 3. RSD (%) for intra- and inter-day precision were between 1.7–14.3 and 3.4–15.7%, respectively. Regarding trueness, bias was below ± 14.3% for all HAAs, indicating a good agreement between spiked and measured concentrations. Both precision and accuracy data were satisfactory according to the acceptance criteria mentioned above.

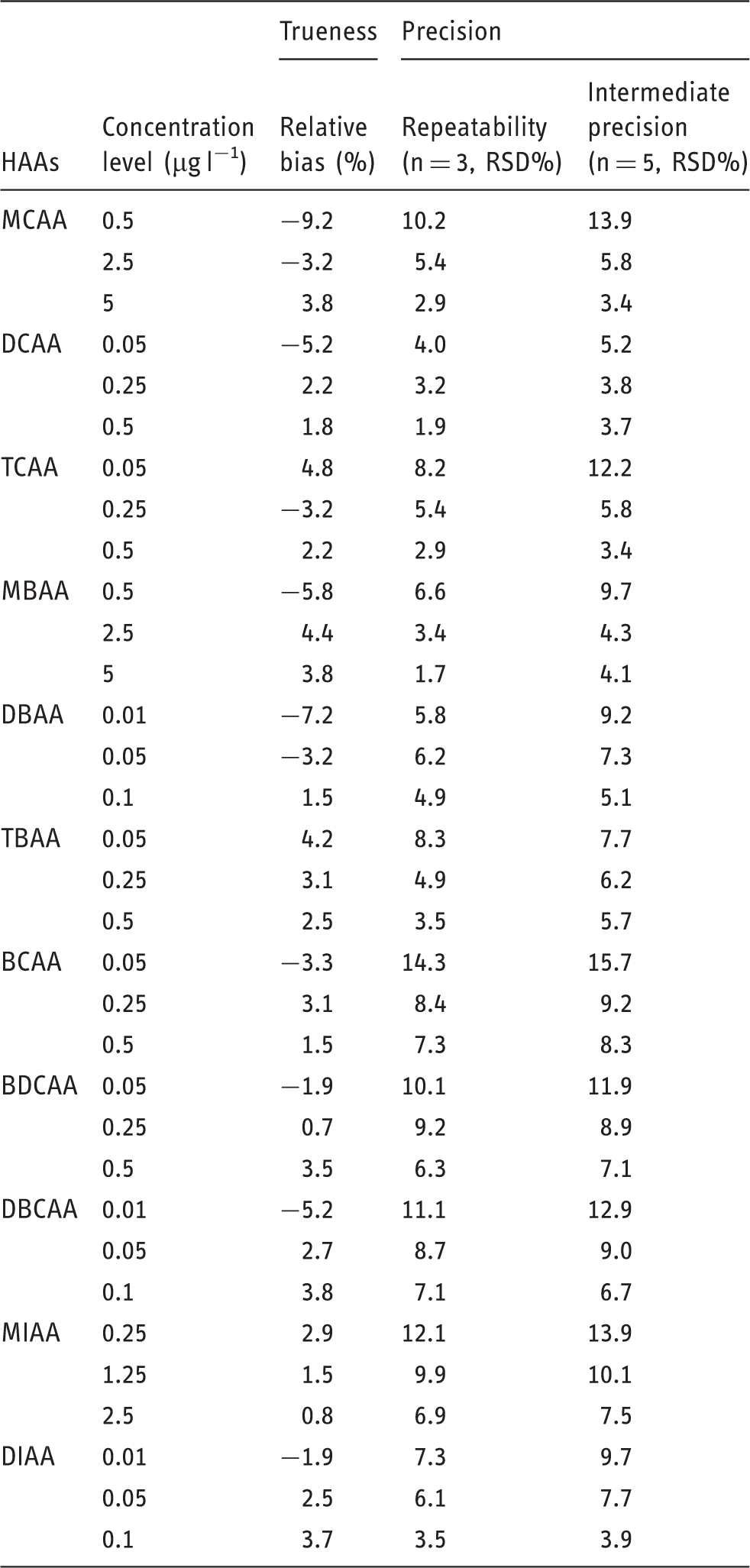

Table 3.

Trueness and precision of the SPE GC-MS/MS developed method.

HAAs	Concentration level (µg l⁻¹)	Trueness	Precision
HAAs	Concentration level (µg l⁻¹)	Relative bias (%)	Repeatability (n = 3, RSD%)	Intermediate precision (n = 5, RSD%)
MCAA	0.5	−9.2	10.2	13.9
	2.5	−3.2	5.4	5.8
	5	3.8	2.9	3.4
DCAA	0.05	−5.2	4.0	5.2
	0.25	2.2	3.2	3.8
	0.5	1.8	1.9	3.7
TCAA	0.05	4.8	8.2	12.2
	0.25	−3.2	5.4	5.8
	0.5	2.2	2.9	3.4
MBAA	0.5	−5.8	6.6	9.7
	2.5	4.4	3.4	4.3
	5	3.8	1.7	4.1
DBAA	0.01	−7.2	5.8	9.2
	0.05	−3.2	6.2	7.3
	0.1	1.5	4.9	5.1
TBAA	0.05	4.2	8.3	7.7
	0.25	3.1	4.9	6.2
	0.5	2.5	3.5	5.7
BCAA	0.05	−3.3	14.3	15.7
	0.25	3.1	8.4	9.2
	0.5	1.5	7.3	8.3
BDCAA	0.05	−1.9	10.1	11.9
	0.25	0.7	9.2	8.9
	0.5	3.5	6.3	7.1
DBCAA	0.01	−5.2	11.1	12.9
	0.05	2.7	8.7	9.0
	0.1	3.8	7.1	6.7
MIAA	0.25	2.9	12.1	13.9
	1.25	1.5	9.9	10.1
	2.5	0.8	6.9	7.5
DIAA	0.01	−1.9	7.3	9.7
	0.05	2.5	6.1	7.7
	0.1	3.7	3.5	3.9

Accuracy is an important concept in method validation because it represents the global performance of the method (precision and trueness). Based on the obtained trueness and precision values, the accuracy of the method has been evaluated for each HAA. The accuracy profiles obtained respect the maximum acceptable deviation fixed by our laboratory, set at ± 60% for the LOQ and ± 20% in the 5–10 ×LOQ concentration range.

Application to real river water samples

The developed method was applied to the quantitative determination of HAAs in untreated river water samples. These samples were collected between July and September 2016 from three rivers in France; their characteristics are presented in Table 4. The very good selectivity of the method is illustrated in Figure 1, the bottom part of which displaying the chromatogram of a real river water sample (River 1, S3), in which MCAA, DCAA, and TCAA were detected in trace amounts. Values of 1.34 < 0.05 µg l⁻¹ and 0.12 µg l⁻¹ were determined for the concentrations of MCAA, DCAA, and TCAA, respectively. As can be seen in Table 5, HAAs were detected in all the samples. Five of the 11 target HAAs were detected at least once above their LOQ. MCAA, DCAA, TCAA, and DBAA were measured in all the sampled rivers, while TBAA and BDCAA were only observed in water samples from River 1. In terms of frequency of detection and magnitude of concentration, they take the following order: MCAA (<0.5–1.85 µg l⁻¹) > TCAA (<0.05–0.52 µg l⁻¹) > DCAA (0.05–0.22 µg l⁻¹) > DBAA (<0.01–0.40 µg l⁻¹) > TBAA (<0.05–0.14 µg l⁻¹) > BDCAA (<0.05 µg l⁻¹). MCAA was the most abundant species detected. When it was detected at concentrations above LOQ, its mass concentration was found to account for 56–91% of the total HAAs’ concentration. Unfortunately, there are very few publications reporting HAA concentrations in surface waters (lakes and rivers) and most of available data relate to TCAA. The concentrations of TCAA in the three studied rivers are in good agreement with those reported in lakes and rivers in Europe, where concentrations have generally been found to fall within the range from < 0.03 to 1.88 µg l⁻¹.^10,31–34 For example, in their survey encompassing four German rivers (nine samples), Frank et al.³² found TCAA at concentrations ranging between 0.12 and 0.6 µg l⁻¹. However, in the study conducted by Loos and Barcelo,³¹ TCAA concentrations of up to 308 µg l⁻¹ were measured in a Portuguese river. These authors measured MCAA, DCAA, BCAA, BDCAA, and TBAA concentrations of 36, 1–3, 29, 7–48, and 26–42 µg l⁻¹, respectively. To our knowledge, this is the first time that HAAs other than MCAA, DCAA, DBAA, and BCAA have been measured in river waters.

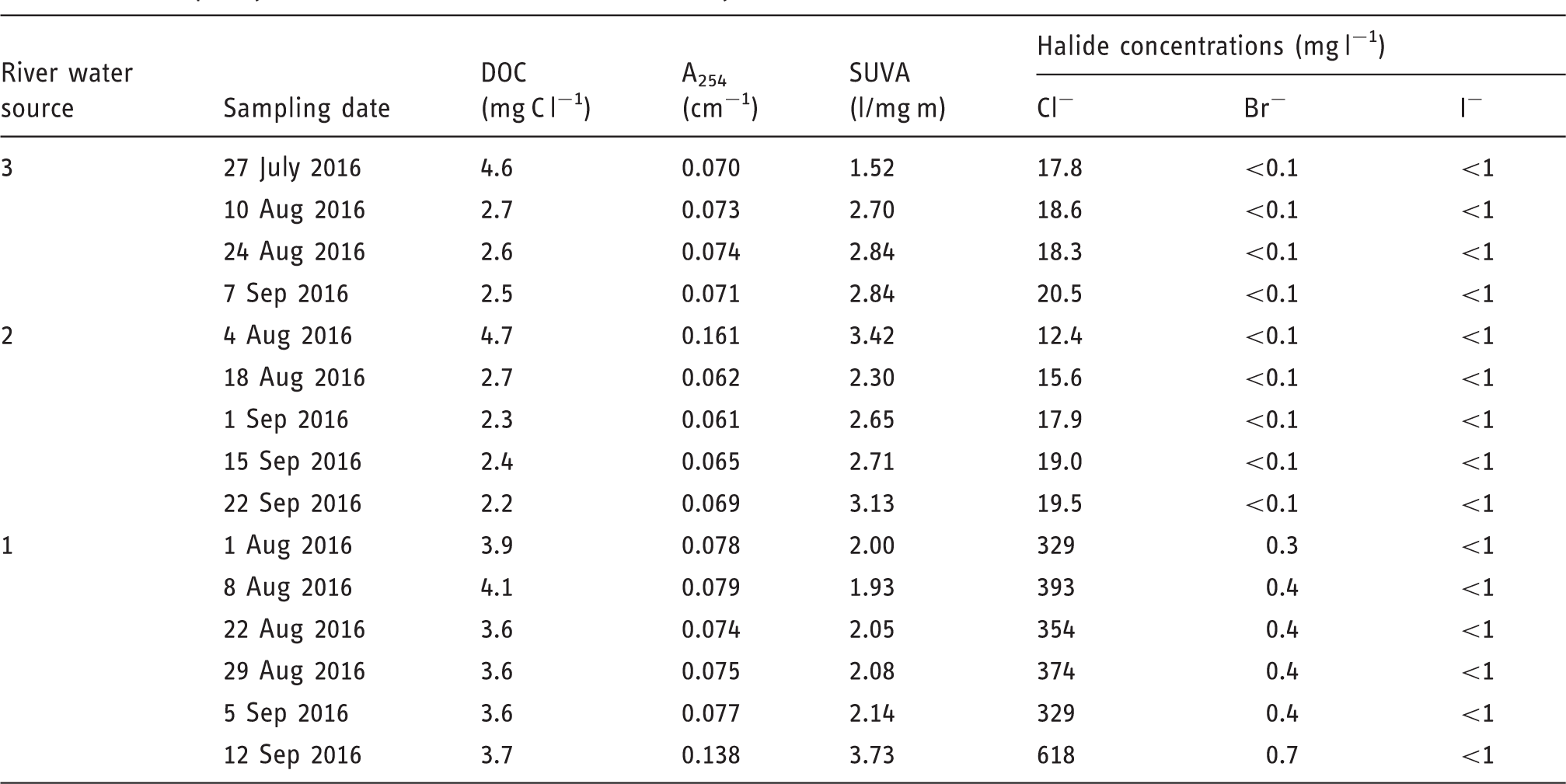

Table 4.

Water quality characteristics of the river waters analyzed.

River water source	Sampling date	DOC (mg C l⁻¹)	A₂₅₄ (cm⁻¹)	SUVA (l/mg m)	Halide concentrations (mg l⁻¹)
River water source	Sampling date	DOC (mg C l⁻¹)	A₂₅₄ (cm⁻¹)	SUVA (l/mg m)	Cl⁻	Br⁻	I⁻
3	27 July 2016	4.6	0.070	1.52	17.8	<0.1	<1
	10 Aug 2016	2.7	0.073	2.70	18.6	<0.1	<1
	24 Aug 2016	2.6	0.074	2.84	18.3	<0.1	<1
	7 Sep 2016	2.5	0.071	2.84	20.5	<0.1	<1
2	4 Aug 2016	4.7	0.161	3.42	12.4	<0.1	<1
	18 Aug 2016	2.7	0.062	2.30	15.6	<0.1	<1
	1 Sep 2016	2.3	0.061	2.65	17.9	<0.1	<1
	15 Sep 2016	2.4	0.065	2.71	19.0	<0.1	<1
	22 Sep 2016	2.2	0.069	3.13	19.5	<0.1	<1
1	1 Aug 2016	3.9	0.078	2.00	329	0.3	<1
	8 Aug 2016	4.1	0.079	1.93	393	0.4	<1
	22 Aug 2016	3.6	0.074	2.05	354	0.4	<1
	29 Aug 2016	3.6	0.075	2.08	374	0.4	<1
	5 Sep 2016	3.6	0.077	2.14	329	0.4	<1
	12 Sep 2016	3.7	0.138	3.73	618	0.7	<1

A₂₅₄: Absorbance at 254 nm; DOC: dissolved organic carbon; SUVA: specific ultraviolet absorbance.

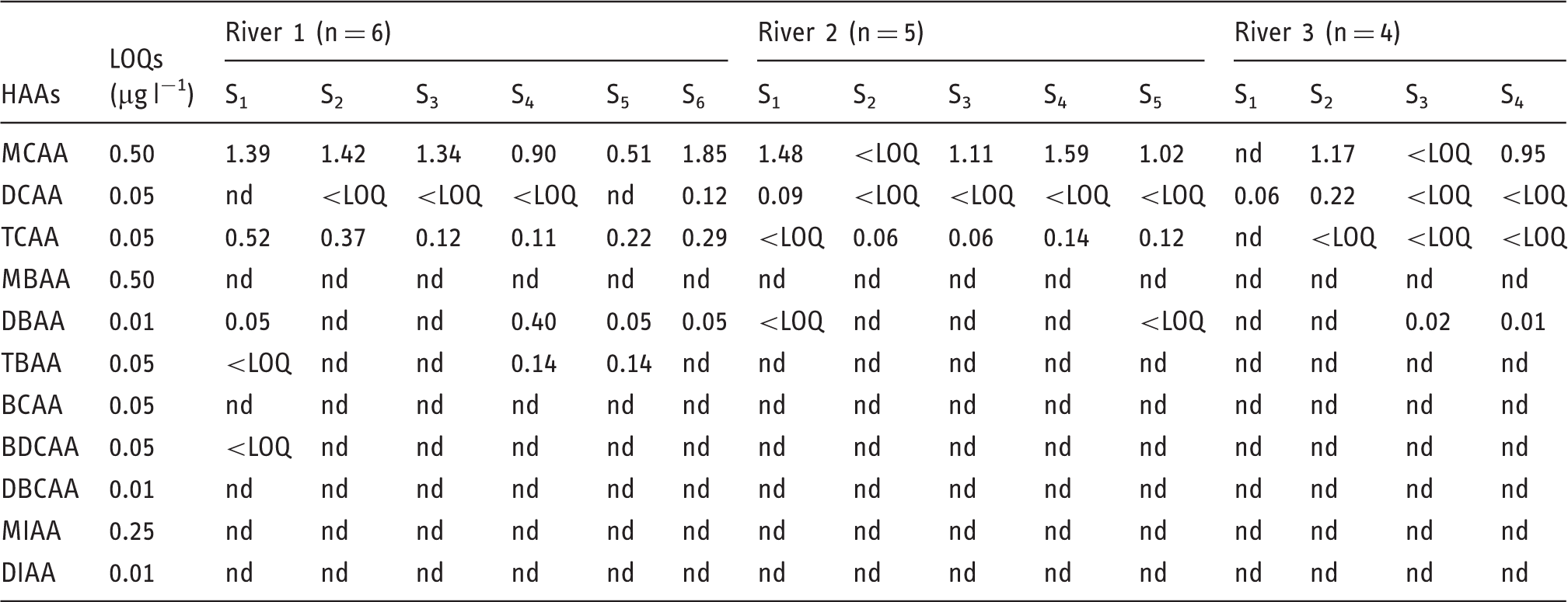

Table 5.

HAAs occurrence (µg l⁻¹) in the three studied rivers.

HAAs	LOQs (µg l⁻¹)	River 1 (n = 6)						River 2 (n = 5)					River 3 (n = 4)
HAAs	LOQs (µg l⁻¹)	S₁	S₂	S₃	S₄	S₅	S₆	S₁	S₂	S₃	S₄	S₅	S₁	S₂	S₃	S₄
MCAA	0.50	1.39	1.42	1.34	0.90	0.51	1.85	1.48	<LOQ	1.11	1.59	1.02	nd	1.17	<LOQ	0.95
DCAA	0.05	nd	<LOQ	<LOQ	<LOQ	nd	0.12	0.09	<LOQ	<LOQ	<LOQ	<LOQ	0.06	0.22	<LOQ	<LOQ
TCAA	0.05	0.52	0.37	0.12	0.11	0.22	0.29	<LOQ	0.06	0.06	0.14	0.12	nd	<LOQ	<LOQ	<LOQ
MBAA	0.50	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd
DBAA	0.01	0.05	nd	nd	0.40	0.05	0.05	<LOQ	nd	nd	nd	<LOQ	nd	nd	0.02	0.01
TBAA	0.05	<LOQ	nd	nd	0.14	0.14	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd
BCAA	0.05	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd
BDCAA	0.05	<LOQ	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd
DBCAA	0.01	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd
MIAA	0.25	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd
DIAA	0.01	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd	nd

BCAA: bromochloroacetic acid; BDCAA: bromodichloroacetic acid; DBAA: dibromoacetic acid; DBCAA: dibromochloroacetic acid; DCAA: dichloroacetic acid; DIAA: diiodoacetic acid; HAAs: haloacetic acids; LOQ: limits of quantitation; MBAA: monobromoacetic acid; MCAA: monochloroacetic acid; MIAA: monoiodoacetic acid; n: number of water samples analyzed for each river water; nd: not detected (concentration < LOD); Si: sampling dates (see table SI 1, in the supporting information file); TBAA: tribromoacetic acid; TCAA: trichloroacetic acid.

Conclusion

This article presents a sensitive, selective, and specific method for the determination of several classes of HAAs in water samples. In terms of LOQs, the developed method provides performances dramatically enhanced in comparison with those reported by standards methods following the ISO 23631 guidelines. These performances are comparable to those achieved by the method reported by Li et al.²⁴ SPE allows percolation of large sample volumes and is compatible with the principles of sustainable chemistry as it uses small amounts of organic solvents in comparison to LLE processes. This method is currently employed by our research group for the simultaneous extraction and determination of HAAs in river waters. It has been applied to the determination of target HAAs in water samples from three rivers in France; results indicate the quasi-systematic presence of four of the 11 target HAAs: MCAA, DCAA, TCAA, and DBAA.

Footnotes

Acknowledgements

This research was conducted in partnership between Electricité de France (EDF) and Ecole Polytechnique/CNRS (National Center for Scientific Research).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: A part of the financial support for this work was provided by EDF Research & Development to which the authors are thankful.
