Structural rotor rub-impact diagnosis under intricate noise interferences based on targeted component extraction and stochastic resonance enhancement

Abstract

Rub-impact is a common nonlinear fault of the rotor system, occurring in rotating machines with radial clearance between the rotor and the stator, which may lead to serious consequences. Since the vibration response of rotor rub-impact is shown as multicomponent with time-varying characteristics of undulatory instantaneous frequency, it is desired to exploit advanced signal processing methods for rub-related feature excavation and failure diagnosis under complex noise interferences, which is of crucial significance to ensure the stable and efficient operation of the whole unit. This paper concerns the processing of acceleration signals and proposes a novel intrawave frequency modulation detection approach for structural rotor rubbing diagnosis based upon targeted component extraction and stochastic resonance enhancement. First, the acquired vibratory acceleration signal is converted into displacement signal via a two-stage integration strategy. Next, to extract the rotating frequency component of high information clarity for further time–frequency analysis from the multicomponent signal, an especially designed improved variational mode decomposition method based on the modified target frequency index is put forward, and the instantaneous frequency of the objective component is estimated. Then, the optimum stochastic resonance is leveraged for intrawave frequency modulation enhancement. Finally, the rotor rub-related symptom can be distinctly revealed and the diagnostic procedure can be performed. The effectiveness and superiority of the proposed rotor rub-impact diagnosis approach are demonstrated through both simulations and experiments, indicating that it is suitable to be implemented in practical applications, with high noise-resistance ability, and can efficiently extract the potential characteristics of rotor rub-impact malfunction from multicomponent signals.

Keywords

Rotor rub-impact fault detection and diagnosis intrawave frequency modulation variational mode decomposition optimum stochastic resonance

Introduction

The structural rotor is one of the most pivotal components of rotor-system-based rotating machineries, such as wind turbines, rotary compressors, centrifugal pumps, engines, generator sets, and so on, which have occupied a crucial place in numerous modern applications, including mining, metallurgy, energy production, and transportation. Due to the extreme and harsh operating conditions, structural rotors can be subjected to a variety of potential malfunctions, for instance, imbalance,^1–4 cracking,^5,6 misalignment,^4,7 looseness,^2,3 oil whirl,^6,7 cocked,⁸ and so on. As a frequently occurring failure exhibiting nonlinearities, a rub-impact fault happens when the rotor cyclically strikes the rotor system’s stator, the cause of which usually can be the initial subtle imbalance and faint misalignment of the rotor, especially when the shaft is at a tremendously high rotational speed and the radial clearance between the stator and the rotor is considerably faint. As a matter of fact, with the higher requirements and more stringent specifications of assembly precision, today’s machine structure has become relatively more sophisticated and more compact, which operates under extremely diminutive clearance, making the occurring probability of rub-impact in the rotor system increase more impressively. Once the rub-impact fault occurs, it can induce the rotor dynamic instability and attenuate the operating accuracy of machine to a large extent, and provoke prejudicial impacts on the concerned equipment’s structural attributes and performance as well as bring about extra defects to the parts associated with it, like bearings and impellers, which will diminish the level of safety and eventually result in system-wide catastrophic failures. Therefore, it is of immense practical significance to perform condition monitoring and fault diagnosis on rotor systems for detecting the initial occurrence of incipient rubbing failures, which can effectively promote the equipment prognosis and health management level and guarantee the safe and stable production of industries.

Research status of rotor rub-impact diagnostic approaches

At present, heaps of researchers have made valuable achievements in rotor rub-impact detection and diagnosis utilizing various techniques, which can be mainly categorized into signal-processing-based methods and intelligence-based approaches. For intelligence-based approaches, rub-related features can be extracted from the acquired signals through feature engineering and then be fused and identified by machine learning approaches, such as support vector machine and random forest. For exemplar, to avoid the loss of structure information in the dimension reduction process, Shi et al.¹ presented a local–global balanced orthogonal discriminant projection method for effective fusion of tridomain features, and the K-nearest neighbor classifier was adopted for various rotor fault identification, including misalignment, unbalance, rubbing, and looseness, which achieved high recognition accuracy. Furthermore, unlike the limited learning capacity of conventional machine learning models due to shallow architectures, the deep learning approaches emerging in recent years have made significantly important contributions toward solving the problem of automatically feature learning with the informative semantics from raw data via the well-known representation learning mechanism, whose capability in rotor system failure distinguish have also been exploited extensively, such as deep belief network,⁷ convolutional neural network (CNN),⁹ multibranch CNN,¹⁰ and so on. Notwithstanding, these intelligence-based approaches could suffer from several deficiencies in practice, as: (1) intelligent models usually require a large number of high-quality labeled data with same distribution as the support of training, which is difficult to satisfy in practical applications; (2) the opacity and inexplicability of most deep learning models make them “black boxes” and the prediction results are hard to be trusted; and (3) most of the intelligence-based methods have insufficient generalization ability for tasks of cross-domain diagnosis, which may restrict their application for industrial assets to a great extent. Though the reliable diagnostics of rotor rub-impact based upon intelligent approaches assisted by advanced methodologies like deep domain adaption and physics-informed learning can be considered as a prospective research hotspot, it is out of the scope of this work.

By contrast, signal-processing-based methods are on the basis of comprehensive and profound understanding of system kinematics and failure mechanisms, which can be performed for robust and dependable fault detection and diagnosis of rotor systems. Usually, when rotor rub-impact occurs in a rotating machinery, failure signatures, including synchronous vibration, subsynchronous as well as supersynchronous vibrations, will coexist in the measured signals, which can be observed from the Fourier spectrum. However, these fault characteristics could also be observed in the measured vibration signals when rotor cracking or mechanical looseness fault occurs,¹¹ which makes it impracticable to diagnose the rotor rub-impact simply based on this principle. Another common defective signature of rubbing is the impacts generated by the contact and separation process between the rotor and the stator, which is relatively inconspicuous and usually hidden in the acquired vibratory signals, and effective decomposition methods are needed to separate the target signal from the original signal. Cheng et al.¹² utilized empirical mode decomposition (EMD) to separate the rub-impact signal from the background signal and the noise signal, and the rotor rubbing feature could be unveiled clearly. Jing and Meng⁶ leveraged a blind source separation method based on cumulant decorrelation to perform multifault diagnosis of rotor system, including crack and rub-impact, crack and oil-whirl, unbalance, and rub-impact. As a powerful technique for adaptive signal decomposition, the equivalent filtering characteristic and the behavior of wavelet packet-like expansion of variational mode decomposition (VMD) were investigated in the study by Wang et al.,¹³ and then, the VMD was employed to detect multiple rubbing-caused signatures for rotor system fault diagnosis, and the conducted comparison analysis showcased that the performance of VMD was superior to empirical wavelet transform (EWT), EMD, and ensemble EMD. An adaptive parameterless EWT (APEWT) method was presented in the study by Zheng et al.¹⁴ to achieve adaptive separation of the rub-induced signal, with the experimental results indicating that the APEWT could fulfill effective and robust fault detection and diagnosis of rotor rubbing. In addition, the vibration response of rotor rub-impact can be characterized by nonlinear stochastic dynamics caused by extra excitations, based upon which indicative approaches could be studied and coined for failure identification. Xia et al.¹⁵ proposed a novel Volterra series identification method based on key kernel-particle swarm optimization (PSO) to classify different fault conditions of the rotor-bearing system, including rub-impact and imbalance. Based on Volterra series theory, nonlinear output frequency response functions (NOFRFs) are a series of one-dimensional functions that can solve the multidimensional problem and improve the calculation accuracy for the nonlinear output of a system. On the basis of NOFRFs, Liu et al.¹⁶ constructed an instructive indicator for rotor rub-impact diagnosis, where the stochastic resonance (SR) was used for periodic component enhancement of the raw signal, and its parameters were optimized via the genetic algorithm. Similarly, Lu et al.¹⁷ developed a quantitative diagnosis method of rotor rub-impact based upon improved NOFRFs, and the weighted contribution ergodic index was proposed to consider rotor system responses in a wide range of harmonic excitations, which could capture more comprehensive system characteristics and make the diagnosis results more reliable. Actually, the vibration signal of rotor rub-impact can exhibit a periodic amplitude modulation (AM), which is induced by the periodically modulated instantaneous amplitude (IA) of rubbing, and a more distinct rotor rub-impact feature is that the instantaneous frequency (IF) of the principal component in vibration response periodically fluctuates around the rotational frequency. In order to extract these rotor rub-induced features from the nonstationary vibratory signals, time–frequency analysis (TFA) methods seem to be promising tools. Chandra and Sekhar¹⁸ evaluated the fault detection performance of three TFA methods, namely, short-time Fourier transform, continuous wavelet transform (CWT), and Hilbert–Huang transform (HHT) in rotor systems, where the rotor startup vibrations were utilized for analysis, and the results embodied that both the CWT and the HHT were effective for diagnosis of shaft misalignment and rotor rubbing faults based on the run-up data. Hu et al.¹¹ conducted a purposeful research on the intrawave frequency modulation (FM) characteristics of rotor rubbing and cracking faults via the HHT method, both simulation and experimental results of which showed that the diverse combinations of modulated IF could be the attributes to diagnose rub-impact, cracking, and cracking-rubbing coupled rotor failure. Meng et al.¹⁹ presented a general synchroextracting chirplet transform for rotor rubbing diagnostics based on time–frequency ridge extraction, where the time–frequency representation (TFR) was concentrated via the second-order synchroextracting transform. Zhou et al.²⁰ developed a modified variational nonlinear chirp mode decomposition (VNCMD) method for intrawave FM phenomenon detection and the rotor-rubbing-related responses could be revealed distinctly. Similarly, Chen et al.²¹ proposed a promising method coined adaptive chirp mode decomposition (ACMD), which overcame the instability issues of the original VNCMD, to excavate the rapid fluctuating IF from vibratory mixture for tangibly unveiling the rotor rub-impact failure. Demonstration analysis based upon both dynamic simulations and real-world vibration signals of the rubbing rotor indicated the viability as well as effectiveness of ACMD in multifeature extraction and incipient rub-impact diagnosis.

Motivation

As can be seen from the above, the development trends and characteristics of various methods for rotor rub-impact fault detection and diagnosis can be broadly summarized as follows: (1) recently, the fluctuating frequency of the fundamental component’s IF, which is accordant with the rotating harmonics of the measured vibratory signal when rotor rubbing occurs, has become the most distinct and significant feature for rub-impact failure authenticating; (2) advanced TFA-based methods are vigorous means for analyzing rotor rub-impact failure, which are not only utilized for target component extraction from the complex multicomponent signal, but also used to perform accurate estimation of the fast fluctuating IF, which is of vital importance for the diagnostic process; and (3) most of the aforementioned methods are based on vibratory displacement signals for diagnostic analysis of rotor systems, because the displacement signal usually has a higher signal-to-noise ratio (SNR) and can accurately reflect the vibration state of the rotor, as described in references.^6,18,22–24 However, it should be noted that although the displacement sensor has the advantages of large linear range, zero frequency response, strong anti-interference ability, and easy-to-calibrate, its practical application is not as extensive as that of the acceleration sensor and is generally only applicable to rotor system monitoring of large rotating machineries, which is mainly restricted by complex installation requirements, economic considerations, and other factors. Thereupon, the signal-processing-based diagnosis methods developed based on displacement signal analysis may not be applicable in practice in some scenarios, and it is imperative to study more universal advanced diagnostic strategies, as rub-impact failure could occur in all kinds of rotor-system-based rotating machineries. In order to develop a pragmatic as well as effective approach for rotor rub-impact diagnosis, this paper concerns the processing of acceleration signals, which are the most widely used in actual measurement, and develops a novel intrawave FM detection method based on improved VMD (IVMD) and optimum SR (OSR) for targeted component extraction and FM characteristic enhancement. Aiming at capturing more discernible rotor dynamic characteristics as well as promoting the overall rotor rubbing diagnostics effect, a two-stage integration strategy combined with high-pass filtering is employed to convert the collected vibration acceleration signals into displacement signals. Coping with the multicomponent signal subject to intricate noise interferences, a newly designed modified target frequency index (MTFI)-oriented IVMD is utilized for the extraction of the most informative component for further TFA purpose, for the reason that VMD and its variants featuring the merits in the counterbalance of the backward error with high noise resistance, and sparsity-oriented quasi-orthogonal bandwidth-limited purposeful modals, possess strengths in multicomponent nonstationary signal analysis and have attained extensive adoption in the field of rotation machinery fault diagnosis.^13,25–29 Then, the IF of the targeted component is estimated, where the rotor rub-related symptoms are presumably obscured by noise. To address the aforesaid issue, the SR optimized by PSO is leveraged to enhance the faint FM characteristic for proclaiming the rotor-rubbing-induced features, inasmuch as SR as a weak oscillation heightening methodology with the assistance of proper noise has been widely used in tenuous failure feature excavation of rotating machines.^30–32 Based upon the integration of these methods, the reliable and robust rub-impact diagnostics of structural rotor of rotating machineries via vibration acceleration signals under intricate noise interferences can be materialized, and it is worth mentioning that these technical methods used in this work are not simple combinations, but they are closely related internally, forming the efficient sequential procedure of signal converting, targeted component extraction, feature enhancement, and fault diagnosis. Furthermore, when the proposed rotor rubbing diagnosis approach is applied for deployment and implementation in practical tasks, only the acceleration signal, sampling frequency, and target rotating frequency are needed as the input, and the output TFR and spectrum of IF can be utilized as support for the diagnostic decision, which can significantly reduce the expert knowledge requirements for the maintenance personnel.

Novelties and structure of this study

In this paper, in view of utilizing acceleration signals instead of displacement signals for analysis, a novel structural rotor rubbing diagnostic approach based upon targeted component extraction and SR enhancement is proposed, where the IVMD and OSR are developed for intrawave FM detection and noise interferences resisting. First, the acquired vibration acceleration signal is converted into displacement signal via a two-stage integration strategy, where the low-frequency components that can cause great disturbances to the integration result are eliminated by the high-pass filters during the converting process. Nonetheless, the obtained vibration displacement signal will inevitably contain a lot of intricate interferences, including complex noises from the external environment and sensor measurement, as well as errors from the digital signal integration process. Thereby, aiming at extracting the principal harmonic for further TFA from the noisy multicomponent signal with more efficiency, the IVMD method based on the indicator of MTFI is developed to recover the most informative rotational frequency component while eliminating the interference noises, where the prior initial center frequency (ICF) and mode number can be set in advance and the optimal bandwidth control parameter can be selected in an iterative process, and then, the modulated IF of the target intrinsic mode function (IMF) is estimated by the quadrature-derivative-based normalized Hilbert transform (QDBNHT). Subsequently, the intrawave FM characteristic of potential rotor rub-impact is ulteriorly enhanced by the SNR-maximization-oriented OSR approach with the small-parameter limitation problem being solved by the fourth-order Runge–Kutta method, whose system configuration parameters and tunable calculation step are jointly optimized via the PSO algorithm. Ultimately, the underlying rotor rubbing failure signatures can be revealed from the Fourier spectrum of the enhanced IF distinctly, which can be used as support for diagnostic decisions. Furthermore, both simulation analysis and experimental verifications profoundly corroborate the effectiveness and superiority of the proposed rotor rub-impact diagnosis approach.

The main novelties and contributions of this paper can be summarized as follows:

(1) Different from most of the displacement-signal-analysis-based methods, the proposed approach considers utilizing the vibration acceleration signal that is more universal in practice for rotor rub-impact diagnosis, through a two-stage integration strategy and other advanced techniques, which is of prominent practical engineering significance. To the best of the authors’ knowledge, this has been rarely studied and explored in the literature before.

(2) To handle the complex interference noise and approximate error effects of the converted multicomponent signal, a novel signal-deconstruction-method-coined IVMD is developed, which features the capability of efficient excavating of the informative targeted component with high noise resistance.

(3) For intrawave FM detection, the IF estimation of the objective component via the QDBNHT can overcome the drawbacks of conventional Hilbert transform methods, including energy leakage, negative frequency, and boundary effect, and the rubbing-fault-induced nonlinear FM characteristic enhancement based upon OSR can help capture weak rub-impact patterns of the rotor system and attain robust fault diagnostics, which has also been seldom reported in the previous research work.

(4) For reliable and robust structural rotor rub-impact diagnostics, the proposed approach is not a straightforward combination of many technical methods, but all the related parts are inextricably linked with each other internally, to sequentially actualize the novel procedure of signal converting, targeted component extraction, feature enhancement, and fault diagnosis. Moreover, when the proposed approach is deployed for engineering applications, it can be encapsulated into an end-to-end formality and only the acceleration signal, sampling frequency, and target rotating frequency are needed as the input, which can reduce the reliance on expert knowledge for maintenance personnel to a great extent.

(5) The proposed approach is validated by utilizing simulation data and vibration signals of rotating machineries with diverse cases to sufficiently illustrate its superiority in targeted component extraction, noise resistance, and intrawave FM capturing, compared with other state-of-the-art TFA methods.

The content of the remaining part of this article is as follows. The second section presents the proposed diagnostic framework and techniques involved. Then, the performance of the proposed approach is investigated and verified by synthetic signals in the third section. In the fourth and fifth sections, the effectiveness and superiority of the proposed approach are experimentally validated through the vibration data from a rotor system test rig and a centrifugal pump bench, respectively. Finally, the sixth section concludes this research.

Methodology

Overview of the proposed structural rotor rub-impact diagnostic approach

In order to develop a utilitarian and effective approach for structural rotor rub-impact diagnosis, this paper proposes a novel intrawave FM detection method based upon targeted component extraction and SR enhancement, combining signal integration, IVMD, QDBNHT, and OSR, which can be implemented directly on the vibration acceleration signals. For the excavation of the faint rubbing-induced characteristics, Figure 1 showcases the flow-process diagram of the proposed approach, and the detailed steps are as follows.

Step 1: The acceleration signal is collected from the rotating machinery by a vibration sensor.

Step 2: The acquired vibratory acceleration signal is converted into the approximated displacement signal via the two-stage integration strategy.

Step 3: The proposed IVMD is utilized to extract the target rotating frequency component from the converted displacement signal.

Step 4: The IF of the target rotating frequency component is estimated via the QDBNHT method.

Step 5: The SR method is used for intrawave FM enhancement, whose potential parameters and tunable calculation step are synergistically optimized via the PSO algorithm.

Step 6: The enhanced IF is processed by the fast Fourier transform, and the refined identification of structural rotor rub-impact can be carried out.

According to the above structural rotor rub-impact diagnostic framework, techniques about the two-stage signal integration, IVMD, QDBNHT, SR, and PSO algorithm are required in implementing the proposed approach, the technical details of which will be provided in the following.

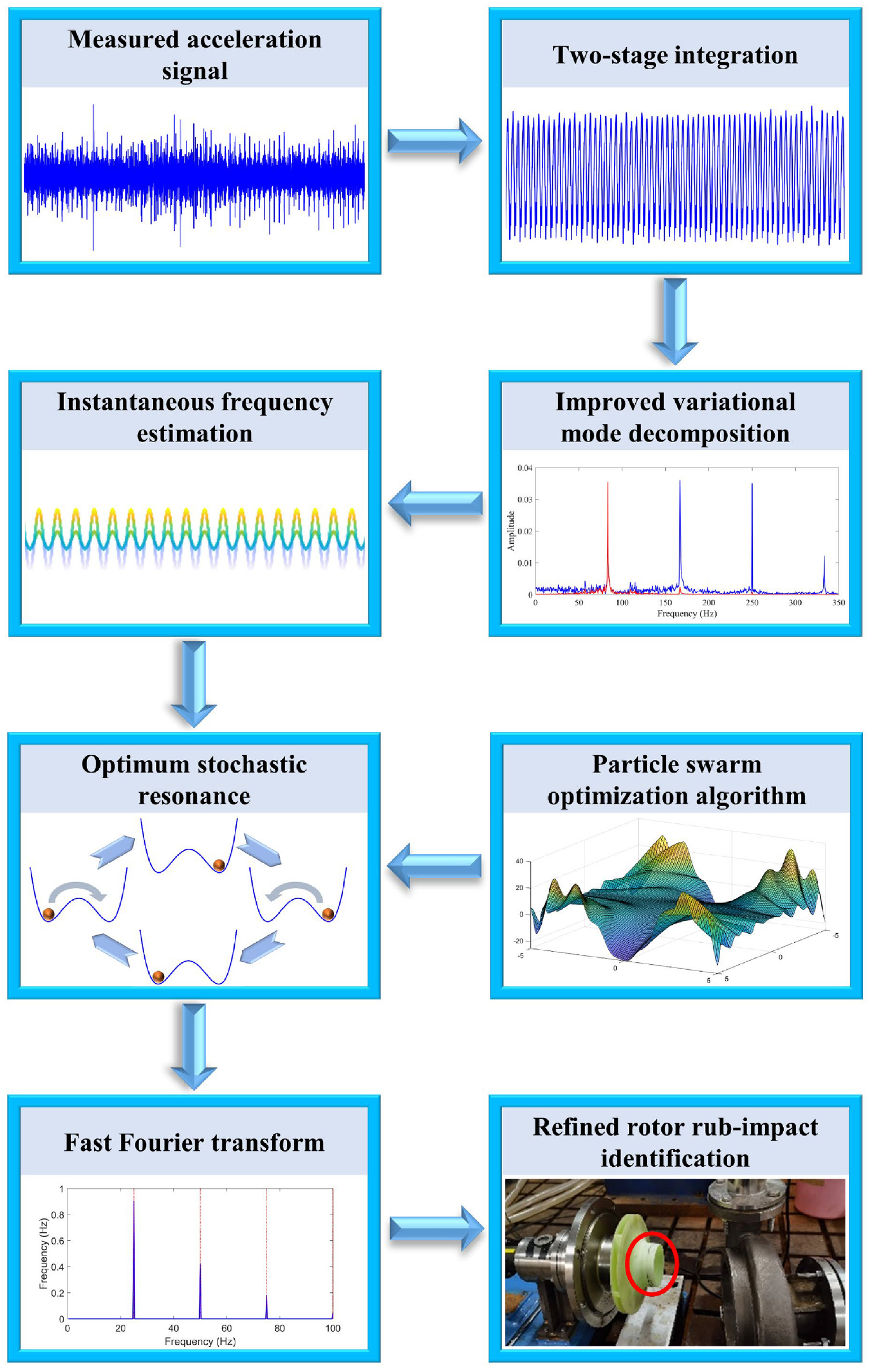

Figure 1.

Overall procedure of the proposed method.

Two-stage integration strategy

According to references,^6,18,22–24 displacement signals possess preponderances in reflecting the vibration state of the rotor; ergo, it is necessary to transform the acquired acceleration signals into the approximated displacement signals for further detection of potential rotor rubbing signatures. For a measured acceleration signal $S_{a_{o}} (i), i = 1, 2, 3, . . ., N$ , with sampling frequency of $f_{s}$ , it is first converted into velocity signal $S_{v_{o}}$ through one integration and then into displacement signal through another integration, which is called the two-stage integration strategy. However, it should be noted that the raw acceleration signal usually contains a lot of noise, in which the low-frequency noise components will have a greater adverse effect on the integration result notably. Therefore, $S_{a_{o}}$ is passed through a high-pass filter to eliminate the low-frequency noise components for a better integration result, where the cutoff frequency is usually set from 10 to 25 Hz empirically. For the output signal $S_{a}$ , the velocity signal $S_{v_{o}}$ can be calculated as follows:

S_{v_{o}} (1) = 0

S_{v_{o}} (i) = S_{v_{o}} (i - 1) + S_{a} (i - 1) \times Δ T, i = 2, 3, . . ., N + 1

(1)

where $Δ T = 1 / f_{s}$ represents the time interval between two adjacent sampling points. Similarly, $S_{v_{o}}$ also contains low-frequency noise components, which will have significant negative effects on the final integration result, and a high-pass filter with cutoff frequency of 10–25 Hz is again adopted to process the velocity signal. For the filtered signal $S_{v}$ , the second integration is employed to obtain the final approximate displacement signal $S_{x}$ :

S_{x} (1) = (S_{v} (1) + S_{v} (2)) / 2 \times Δ T

S_{x} (i) = S_{x} (i - 1) + (S_{v} (i) + S_{v} (i + 1)) / 2 \times Δ T, i = 2, 3, . . ., N

(2)

The whole two-stage integration strategy for signal converting is unveiled in Figure 2. The signal $S_{x}$ derived via the aforementioned strategy could unavoidably incorporate complex interference noise and approximation errors, and thus, cutting-edge methods with the capability of multicomponent signal processing and potent noise-resistance are requisites for rotor-rubbing-induced feature extraction.

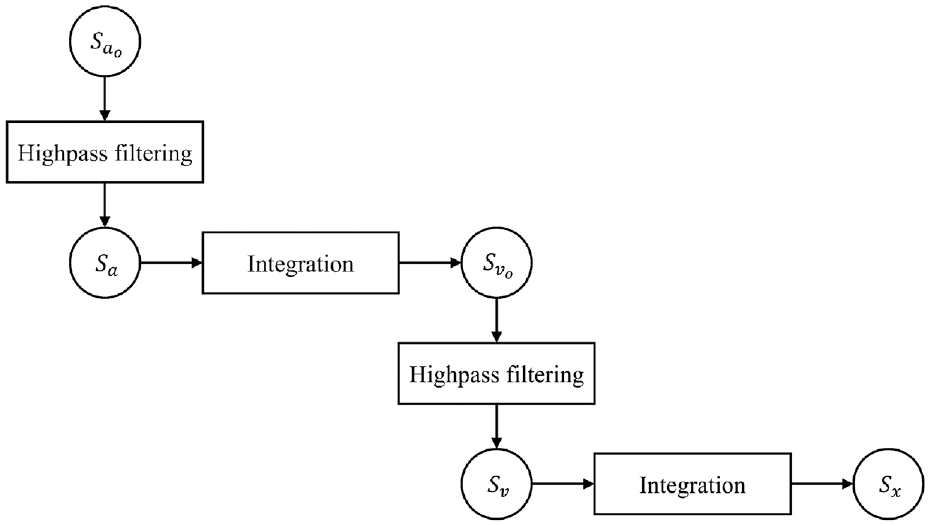

Figure 2.

Flowchart of the two-stage integration strategy for signal converting.

Improved VMD

Related theory of VMD

As an alternative scheme of EMD, VMD is a recently proposed, nonrecursive, fully intrinsic, and self-adaptive signal decomposition method with a solid theoretical foundation, which can be viewed as a generalization of the canonical Wiener filter into multiple adaptive bands. Through the constraint condition by minimizing the sum of the estimated bandwidth of each variational modal, VMD can disintegrate the input signal $f (t)$ into $K$ relevant modes $u_{k} (t), k \in (1, 2, . . ., K)$ , which are quasi-orthogonal band-limited signals with specific sparsity properties in the spectral domain and most compact around their center frequencies. Different from the IMF defined in EMD, VMD redefines each IMF as an AM-FM signal, which can be expressed as³³

u_{k} (t) = A_{k} (t) \cos (φ_{k} (t))

(3)

where $A_{k} (t)$ and $φ_{k} (t)$ , respectively, represent the IA and instantaneous phase (IP), and $φ_{k} (t)$ is a nondecreasing function, that is, the IF $ω_{k} (t) = d [φ_{k} (t)] / d t \geq 0$ . Compared with $φ_{k} (t)$ , the varying rates of both $A_{k} (t)$ and $ω_{k} (t)$ are much more sluggish, and the IMFs can be assumed to be bandwidth-limited signals, instructed as:

B W_{k} = {| | \partial_{t} [(δ (t) + \frac{j}{π t}) * u_{k} (t)] e^{- j ω_{k} t} | |}_{2}

(4)

where $δ (\cdot)$ denotes the Dirac function and * is the convolution manipulator.

Therefore, the constrained variational problem of VMD can be given as:

\begin{matrix} min_{{u_{k}}, {ω_{k}}} {\sum_{k = 1}^{K} {| | \partial_{t} [(δ (t) + \frac{j}{π t}) * u_{k} (t)] e^{- j ω_{k} t} | |}_{2}^{2}} \\ subject to \sum_{k = 1}^{K} u_{k} (t) = f (t) \end{matrix}

(5)

where ${u_{k}} : {u_{1}, u_{2}, \dots, u_{K}}$ and ${ω_{k}} : {ω_{1}, ω_{2}, \dots, ω_{K}}$ , respectively, denote the abbreviations for the set of $K$ modes as well as the corresponding center frequencies.

A quadratic penalty term and a Lagrangian multiplier term can be applied to make equation (5) unfettered to address the minimization problem, as follows:

\begin{matrix} L ({u_{k}}, {ω_{k}}, λ) = α \underset{Gradient of squared L_{2} - norm of shift signal}{\sum_{k = 1}^{K} {| | \partial_{t} [(δ (t) + \frac{j}{π t}) * u_{k} (t)] e^{- j ω_{k} t} | |}_{2}^{2}} \\ + | | \underset{Quadratic penalty term}{f (t) - \sum_{k = 1}^{K} u_{k} (t) | |^{2}} + 〈 \underset{Lagrangian multiplier term}{λ (t), f (t) - \sum_{k = 1}^{K} u_{k} (t)} 〉 \end{matrix}

(6)

where $α$ represents the balance parameter, and $λ (t)$ is the Lagrangian multiplier coefficient. Equation (6) can be resolved via the alternate direction method of multiplier (ADMM) algorithm by searching the saddle point of the augmented Lagrangian $L ({u_{k}}, {ω_{k}}, λ)$ , and the specific implementation steps of VMD are as follows (where ${\hat{u}}_{k} (ω)$ , $\hat{f} (ω),$ and $\hat{λ} (ω)$ are the Fourier transform of $u_{k} (t)$ , $f (t)$ , and $λ (t)$ , respectively):

(1) Initialize ${{\hat{u}}_{k}^{1}}$ , ${ω_{k}^{1}}$ , ${\hat{λ}}^{1}$ , $n = 0$ .

(2) Iteration $n = n + 1$ .

(3) For $k = 1 : K$ , update ${\hat{u}}_{k}$ for all $ω \geq 0$ :

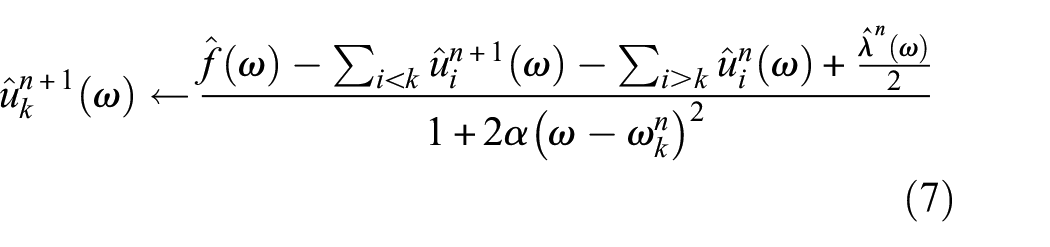

{\hat{u}}_{k}^{n + 1} (ω) \leftarrow \frac{\hat{f} (ω) - \sum_{i < k} {\hat{u}}_{i}^{n + 1} (ω) - \sum_{i > k} {\hat{u}}_{i}^{n} (ω) + \frac{{\hat{λ}}^{n} (ω)}{2}}{1 + 2 α {(ω - ω_{k}^{n})}^{2}}

(7)

Update $ω_{k}$ :

ω_{k}^{n + 1} \leftarrow \frac{\int_{0}^{\infty} ω {| {\hat{u}}_{k}^{n + 1} (ω) |}^{2} d ω}{\int_{0}^{\infty} {| {\hat{u}}_{k}^{n + 1} (ω) |}^{2} d ω}

(8)

(4) Dual ascent for all $ω \geq 0$ :

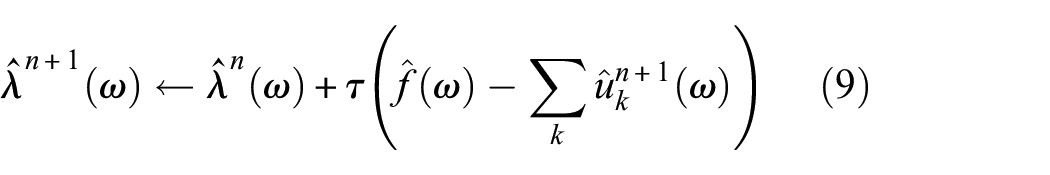

{\hat{λ}}^{n + 1} (ω) \leftarrow {\hat{λ}}^{n} (ω) + τ (\hat{f} (ω) - \sum_{k} {\hat{u}}_{k}^{n + 1} (ω))

(9)

where $τ$ is the tolerance parameter of noise. When exact reconstruction is not the orientation, in particular in the presence of (heavy) noise, it is rational to set $τ$ to zero to mitigate the impact of noise on the decomposition process.

(5) Repeat steps (2)–(4), till the iteration termination condition is gratified:

\sum_{k} | | {\hat{u}}_{k}^{n + 1} - {\hat{u}}_{k}^{n} | |_{2}^{2} / | | {\hat{u}}_{k}^{n} | |_{2}^{2} < ε

(10)

where $ε$ represents the convergence tolerance parameter of decomposition process.

For more details about VMD, refer to reference.³³

The developed IVMD

As a parametric adaptive signal decomposition approach, VMD is in relation to two pivotal parameters, including the modal number $K$ and balancing parameter $α$ , which have a significant influence on the decomposition process and results, and the appropriate selection of ICFs is also of vital magnitude. On the one hand, there have been a considerable number of methods that promote the performance of VMD based upon a variety of principles, which can reflect the malfunction-related pattern in many mechanical diagnostic and prognostic tasks. On the other hand, the converted displacement signals from the measured acceleration signals of rotor rub-impact are usually multicomponent and subject to noise interferences, from mechanical components, sensor measurement, as well as approximation errors in this work, where the conventional VMD and its variants may not be valid any more. That is to say, the rotor-rubbing-induced characteristics in the analyzed signal sequences could be severely affected by various intricate noise interferences, which could even lead to the invalid of many advanced TFA methods. Thus, it renders the rotor-rubbing information mining of rotor systems under multisource intricate noise interferences to be a grand challenging assignment.

In order to deal with the aforesaid issues, an improved-VMD-algorithm-coined IVMD is designed, which concentrates on the extraction and denoising of the principal frequency component, and accordingly, the mode number is set as 1 with the prior ICF of $f_{roc}$ , namely, the shaft rotating frequency. Subsequently, aiming at sufficiently restrict the bandwidth of the obtained IMF, the initial balance parameter $α_{0}$ should be set large enough (5000 in this work) and can be optimally selected through an iterative process, where the MTFI that evaluates the clarity of the interested characteristic spectral line of the decomposition result is utilized to ensure the extracted component with the most failure-related information abundance and the least interferences, as follows:

MTFI = \frac{F^{*} (f_{roc})}{\sum_{j = 1}^{J} F (f_{j})}

(11)

F^{*} (f_{roc}) = \max [F (f_{roc} - 0.02 f_{roc}, f_{roc} + 0.02 f_{roc})]

(12)

where $F (f_{j})$ is the Fourier spectrum amplitude of the output signal at frequency $f_{j}$ , and $J$ is the total number of spectrum lines. From equation (11) it can be seen that MTFI focuses on the aggregation degree of the target frequency on the obtained signal’s spectrum, which can be employed as the guiding indicator for the IVMD process.

The specifics of the proposed IVMD are indicated in Figure 3, with the concrete implementation steps as follows:

(1) Input the displacement signal $S_{x}$ , and initialize the ICF $ω_{0} = f_{roc}$ , bandwidth control parameter $α_{0} = 5000$ , searching step $α = 500$ , modal number $K = 1$ , update parameter $τ = 0$ (since the final goal is to extract only the rotating frequency component from the multicomponent noisy signal), and tolerance parameter $ε = 1 \times 10^{- 6}$ for VMD. Set the current iteration number $Iter = 0$ and the maximum iteration number $MaxIter = 500$ for IVMD.

(2) The VMD is executed on the displacement signal $S_{x}$ , and the target IMF $u_{0}$ can be obtained, with its $MTF I_{0}$ calculated via equation (11).

(3) Start loop. Set $Iter = Iter + 1$ , and change the value of balance parameters, respectively, to $α_{1} = α_{0} + α$ and $α_{2} = α_{0} - α$ . Then, the VMD with different balance parameters is executed, respectively, and two target IMFs $u_{1, Iter}$ and $u_{2, Iter}$ can be obtained, with the corresponding $MTF I_{1, Iter}$ and $MTF I_{2, Iter}$ calculated by equation (11).

(4) If $MTF I_{0} > MTF I_{1, Iter}$ and $MTF I_{0} > MTF I_{2, Iter}$ are satisfied, then break the loop and re-execute VMD with $α_{0}$ , and the candidate rotating frequency component $u_{target}$ can be obtained. Else, update $MTF I_{0} = \max (MTF I_{1, Iter}, MTF I_{2, Iter})$ and $α_{0} = \underset{α_{i}, i = 1, 2}{argmax} (MTF I_{i, Iter})$ .

(5) If $Iter > MaxIter$ , then break the loop and re-execute VMD with $α_{0}$ , and the candidate rotating frequency component $u_{target}$ can be obtained. Else, go back to step (3).

(6) End loop. Obtain the target rotating frequency component $u_{target}$ .

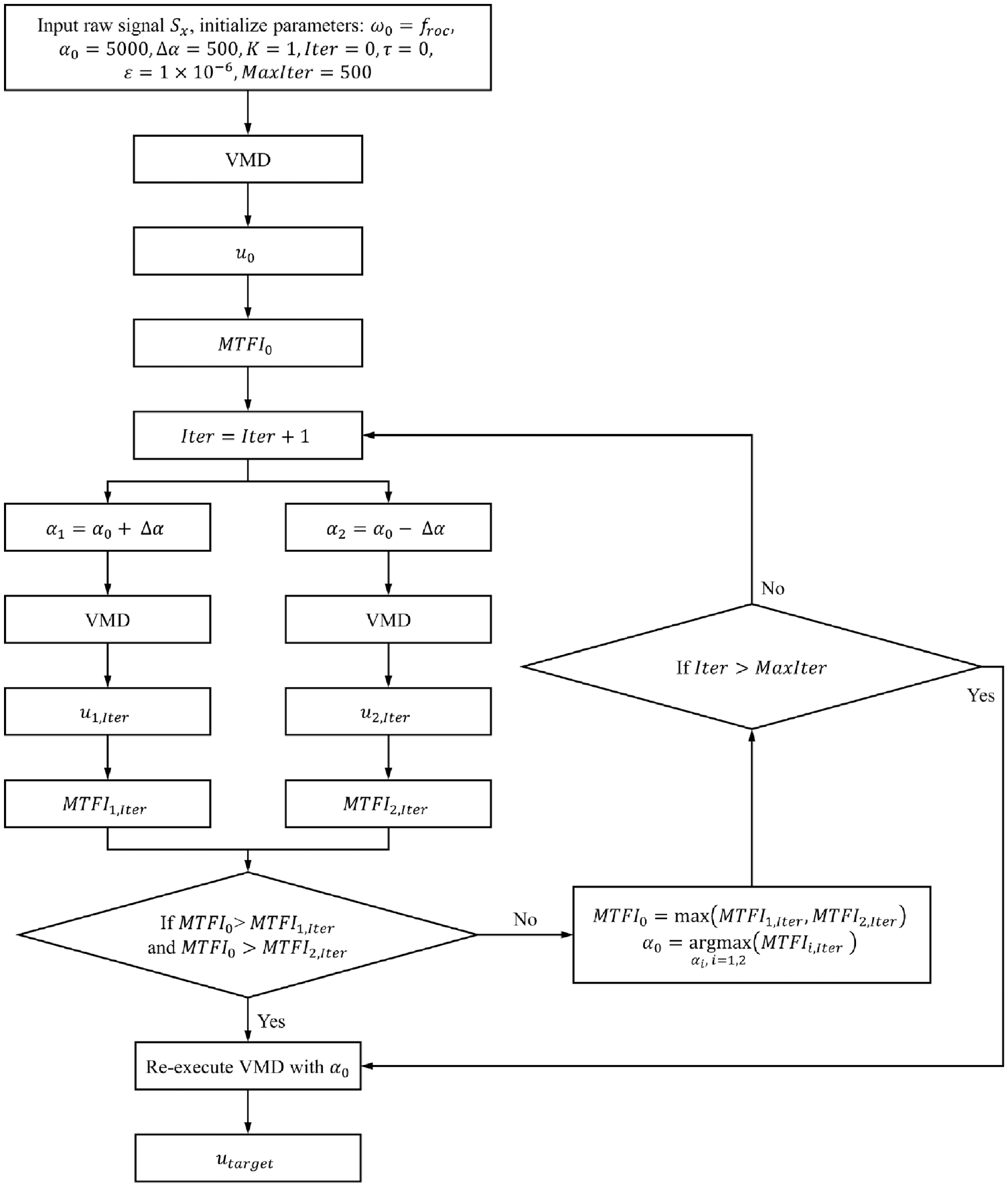

Figure 3.

The algorithm flow diagram of IVMD.

Demonstration of IVMD performance

In this subsection, the intrinsic mechanism of the proposed IVMD is briefly elaborated by taking the synthetic signal with SNR = −10 dB in “Numerical validation using synthetic signal” section as an exemplar, whose waveform and Fourier spectrum are presented in Figure 9. This is a three-component simulation signal with rapidly fluctuating IFs and additional tumultuous noise, and the aim is to extract the target rotating frequency component and eliminate other irrelevant components as well as interference noise as much as possible. Here, another indicator $Ff$ is utilized to synergistically describe the agglomeration degree of the spectrum power of the target IMF and reflect the effect of targeted component excavation, as follows:

Ff = \sqrt{\frac{\sum_{j = 1}^{J} {(f_{j} - ϖ_{g})}^{2} F (f_{j})}{J}}

(13)

ϖ_{g} = \frac{\sum_{j = 1}^{J} f_{j} F (f_{j})}{\sum_{j = 1}^{J} F (f_{j})} .

(14)

During the IVMD signal processing process, the changes of indicator values of $MTFI$ and $Ff$ along with the iteration number are depicted in Figure 4(a), from which it can be observed that $MTFI$ gradually increases and finally tends to flatten out, and $Ff$ exhibits oscillating at first and then keeps decreasing until convergence (due to the initial oscillation property of the $Ff$ index, it is not suitable for developing the IVMD algorithm), indicating that the spectrum of the IVMD output signal sustains concentrating on the target frequency and the superfluous components as well as interference noise are obviated piecemeal. The Fourier spectra of the original synthetic signal and the final output IMF are showcased in Figure 4(b), where the spectral clarity of the latter is markedly ameliorated compared to the former, with most of the extraneous components and interference noise being removed and the aggregation level of the target frequency being sufficiently prominent, and the extracted target component can be considered as high SNR as well as informative, which fulfills the requirements of further TFA and intrawave FM characteristic detection.

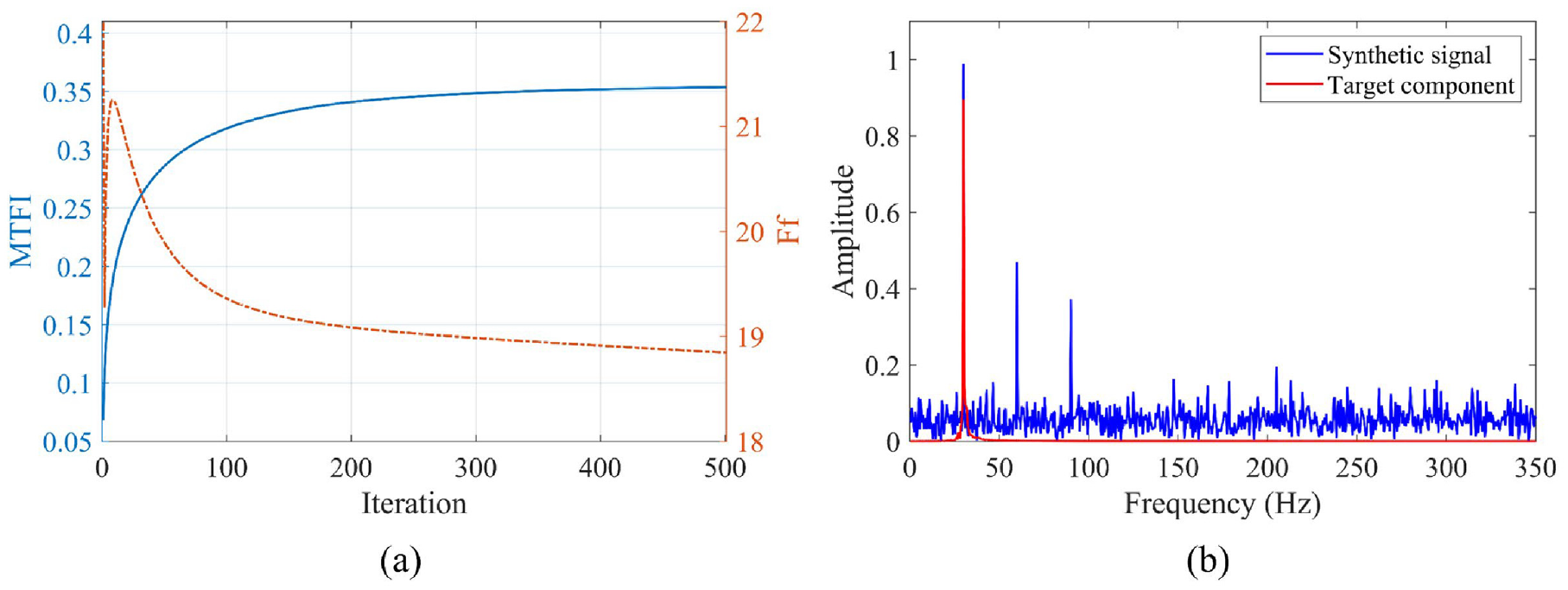

Figure 4.

Demonstration of the IVMD process and the results: (a) changes in two indicators along with the IVMD iteration and (b) the Fourier spectra of the original synthetic signal and the extracted target component.

IF estimation

Hilbert transform is an effective demodulation approach for AM-FM signal analysis, which has been widely used in various applications, for a given real-valued signal $g (t)$ , the definition of which is as follows:

H (g) (t) = \frac{1}{π} p . v . \int_{- \infty}^{+ \infty} \frac{g (τ)}{t - τ} d τ

(15)

where $p . v .$ denote the Cauchy principal value, and the analytic form of $g (t)$ is given as:

z (t) = g (t) + jH (g) (t) = a (t) e^{j θ (t)}

(16)

where the real-valued functions $a (t)$ and $θ (t)$ denote the IA and IP of $z (t)$ , and the IF is defined as the derivative of $θ (t)$ , that is, $ω (t) = [d θ (t) / d t] / 2 π$ .

Nonetheless, the estimated value of IF using Hilbert transform is usually influenced by the problems of energy leakage and negative frequencies. A modified version of original Hilbert transform, the normalized Hilbert transform, is able to evade the negative frequencies, yet the end effect is inevitable in considerable number of scenarios, limited by the Bedrosian theory. Thereupon, to overcome the shortcomings of the above methods, an improved IF estimation technique is adopted in this work, namely, the QDBNHT method.¹⁴ On the basis of empirical AM-FM decomposition, the detailed steps of the improved IF estimation method are instructed as follows:

(1) For a monocomponent AM-FM signal $g (t)$ whose amplitude is not unit, seek out all the maximum value of $g (t)$ ’s absolute form, and then, an empirical envelope function $B_{0} (t)$ can be gained via the cubic spline function fitting.

(2) Divide $B_{0} (t)$ from $g (t)$ for normalization, that is, $g_{1} (t) = g (t) / B_{0} (t)$ . If the amplitude of $g_{1} (t)$ is nonequal to 1, repeat step (1) until the amplitude of $L$ th empirical envelope function $B_{L} (t)$ is almost equivalent to 1, and the output signal $g_{L + 1} (t)$ can be considered as a pure FM signal.

(3) The IA of $g (t)$ can be obtained via $B (t) = B_{0} (t) . B_{1} (t), \dots, B_{L} (t)$ , and $g (t)$ can be rewritten as $g (t) = B (t) F (t)$ , where $F (t) = g (t) / B (t)$ is an FM signal with unit amplitude.

(4) Let $Q (t) = \pm \sqrt{1 - F^{2} (t)}$ and $Z (t) = F (t) + jQ (t)$ , and the IP function is defined as $ϕ (t) = \arctan [Q (t) / F (t)]$ and the IF can be estimated as $ω (t) = [d ϕ (t) / d t] / 2 π$ .

The PSO-optimized SR

Related theory of SR

SR, as a nonlinear signal processing method, can be described as a physical phenomenon: consider a Brownian particle that oscillates within a bistable potential in the presence of noise and periodic force, and it can spring between two potential wells with the aid of appropriate noise, following the frequency of the faint periodic force. To describe SR, the overdamped stochastic differential equation is considered as follows³²:

\frac{d x}{d t} = - \frac{d U (x)}{d x} + S (t) + N (t)

(17)

where $x$ is the motion trajectory of the point particle, and $S (t) = C_{0} \sin (2 π f_{0} t + φ)$ denotes the tenuous periodic signal to be discerned described by amplitude $C_{0}$ , frequency $f_{0}$ , and phase $φ$ . $N (t)$ represents the Gaussian white noise satisfying the autocorrelation function $〈 N (t) N (0) = 2 D_{0} δ (t)$ , where $D_{0}$ represents the noise intensity. $U (x)$ represents the SR potential whose shape could be multifarious. In this work, the reflection-symmetric quartic potential is considered, as follows:

U (x) = - \frac{1}{2} a x^{2} + \frac{1}{4} b x^{4}

(18)

where $a$ and $b$ denote positive obstacle parameters, which, respectively, control the potential barrier and potential well. According to equation (18), $U (x)$ possesses a critical stable point $x_{0} = 0$ and two potential wells located at $x_{m} = \pm \sqrt{a / b}$ , with the potential depth being calculated as $Δ U = a^{2} / (4 b)$ .

The output amplitude $\hat{x}$ of the bistable SR model relies on $D_{0}$ , which can be written as:

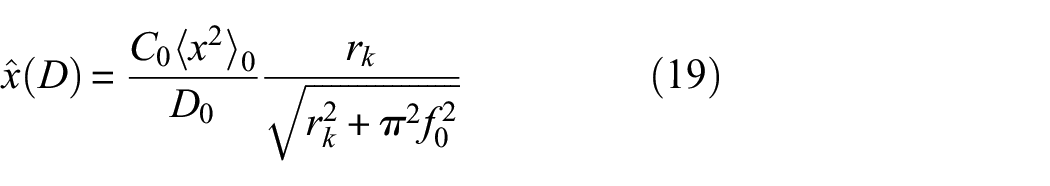

\hat{x} (D) = \frac{C_{0} 〈 x^{2} 〉_{0}}{D_{0}} \frac{r_{k}}{\sqrt{r_{k}^{2} + π^{2} f_{0}^{2}}}

(19)

where $〈 x^{2} 〉_{0}$ denotes the $D_{0}$ -dependent variance of the stationary unperturbed system ( $C_{0} = 0$ ), and $r_{k}$ is the Kramers rate, which can be calculated as:

r_{k} = \frac{1}{\sqrt{2 π}} \exp (- \frac{a^{2}}{4 b D_{0}}) .

(20)

It can be seen from equations (19) and (20) that, for a deterministic periodic signal, the output signal’s amplitude of SR is a nonlinear function of $D_{0}$ . Especially, with the increase of noise intensity $D_{0}$ , the amplitude of the system response first increases until reaching the maximum value and then decreases, which indicates the SR phenomenon, with the maximum amplitude being attained when the following matching relationship is satisfied:

\frac{2}{r_{k}} = \frac{1}{f_{0}} .

(21)

Therefore, equations (19)–(21) indicate that the output of the SR system can be manipulated by turning the system parameters or noise intensity properly.

PSO algorithm

Inspired by the collective foraging behavior of birds and other animals to solve optimization problems through swarm intelligence, the PSO algorithm is a powerful technique for finding the optimal solution, which is especially suitable for issues with high dimensionality and complicated framework. During the optimization procedure of PSO, it selects the optimal solution from the searching space to maximize the prespecified objective function, defined as $F (\cdot)$ , and the optimizing issue can be expressed as follows:

Given F (\cdot) : Ω^{D} \to R

Find C_{opt} | F (C_{opt}) \geq F (C) for \forall C \in Ω^{D}

(22)

where $Ω^{D}$ is the $D$ -dimensional search space, and $C$ denotes the candidate solution with $C_{opt}$ being the optimal solution. In PSO, candidate solutions are denoted as particles, the position and velocity of which can be defined as:

\bar{C_{i}} = [c_{i, 1}, c_{i, 2}, . . ., c_{i, D}]

\bar{V_{i}} = [v_{i, 1}, v_{i, 2}, . . ., v_{i, D}]

(23)

where $i$ is the particle index ranging from $1$ to $N_{p}$ , and $\bar{C_{i}},$ and $\bar{V_{i}}$ denote the swarm position and velocity, respectively. In the optimization process, the movement of the $i$ th particle can be given as follows:

\bar{C_{i}} (k + 1) = \bar{C_{i}} (k) + \bar{V_{i}} (k + 1)

(24)

where the iteration number $k$ is a nonnegative integer. Accordingly, the updated velocity of each particle can be given as:

\bar{V_{i}} (k + 1) = w \bar{V_{i}} (k) + γ_{1} η_{1} (\bar{P_{i}} (k) - \bar{C_{i}} (k)) + γ_{2} η_{2} (\bar{G} (k) - \bar{C_{i}} (k))

(25)

where $w$ is the inertia weight; $γ_{1}$ and $γ_{2}$ are the cognitive coefficient and social coefficient, respectively; $η_{1}$ and $η_{2}$ are random numbers uniformly distributed in the range $[0, 1]$ ; and $\bar{P_{i}} (k)$ and $\bar{G} (k)$ , respectively, represent the local best solution from the specific particle and the global best position of the whole swarm, as:

\bar{P_{i}} (k + 1) = {\begin{matrix} \bar{C_{i}} (k + 1), F (\bar{C_{i}} (k + 1)) \geq F (\bar{P_{i}} (k)) \\ \bar{P_{i}} (k), F (\bar{C_{i}} (k + 1)) < F (\bar{P_{i}} (k)) \end{matrix}

(26)

\bar{G} (k + 1) = \underset{i = 1, 2, . . ., N_{p}}{argmax} F (\bar{P_{i}} (k + 1)) .

(27)

Also, the position and velocity of each particle are modified to prohibit the particles from moving beyond the borderlines of the searching space at each iteration, as follows:

\begin{matrix} {\begin{matrix} c_{i, d} (k + 1) = c_{d}^{\max}, if c_{i, d} (k + 1) > c_{d}^{\max} \\ c_{i, d} (k + 1) = c_{d}^{\min}, if c_{i, d} (k + 1) < c_{d}^{\min} \end{matrix} \end{matrix}

(28)

\begin{matrix} {\begin{matrix} v_{i, d} (k + 1) = v_{d}^{\max}, if v_{i, d} (k + 1) > v_{d}^{\max} \\ v_{i, d} (k + 1) = v_{d}^{\min}, if v_{i, d} (k + 1) < v_{d}^{\min} \end{matrix} \end{matrix}

(29)

where $c_{i, d} (k + 1)$ and $v_{i, d} (k + 1)$ represent the $d$ th position and velocity components of the $i$ th particle at the $(k + 1)$ th iteration, respectively; $c_{d}^{\max}$ and $c_{d}^{\min}$ are the boundaries of particle’s position of the $d$ th component; $v_{d}^{\max}$ and $v_{d}^{\min}$ are the boundaries of particle’s velocity of the $d$ th component. The PSO algorithm keeps searching for the global optimization until the termination condition is satisfied.

Optimum stochastic resonance

After the target rotating frequency component has been extracted from the displacement signal via IVMD, the QDBNHT method is employed for IF estimation. Notwithstanding, due to the influence of interference noise and approximation errors, the fault characteristics related to rotor rub-impact in the estimated IF may be not significant enough and may be misdiagnosed as other faults if directly utilized for analysis, such as rotor cracking and mechanical loosening.^6,11 Ergo, the noise-driven SR method optimized by the PSO algorithm is leveraged for intrawave FM characteristic enhancement to perform refined and robust rotor rub-impact identification.

Recalling equation (17), derive the overdamped bistable SR system as follows:

\frac{d x}{d t} = ax - b x^{3} + S (t) + N (t) .

(30)

The fourth-order Runge–Kutta approach is employed to solve equation (30), as:

{\begin{matrix} \begin{matrix} k_{1} = ax (i) - bx {(i)}^{3} + S (i) + N (i) \\ k_{2} = a (x (i) + h k_{1} / 2) - b {(x (i) + h k_{1} / 2)}^{3} + S (i) + N (i) \\ k_{3} = a (x (i) + h k_{2} / 2) - b {(x (i) + h k_{2} / 2)}^{3} + S (i + 1) + N (i + 1) \\ k_{4} = a (x (i) + h k_{3}) - b {(x (i) + h k_{3})}^{3} + S (i + 1) + N (i + 1) \\ x (i + 1) = x (i) + (k_{1} + 2 k_{2} + 2 k_{3} + k_{4}) h / 6 \end{matrix} \end{matrix}

(31)

where $x (i)$ , $S (i)$ , and $N (i)$ are the discrete forms of $x (t)$ , $S (t)$ , and $N (t)$ , respectively, and $h$ is the calculation step. As an indicator adopted in this work, the SNR of the discrete output $x (i)$ can be deduced as:

SNR = 10 \log_{10} \frac{P_{signal}}{P_{noise}} = 10 \log_{10} \frac{P (round (\frac{f_{m}}{Δ f}) + 1)}{\sum_{j = 1}^{Num} P (j) - P (round (\frac{f_{m}}{Δ f}) + 1)}

(32)

in which $P (\cdot)$ represents the power spectrum of $x (i)$ , $Δ f = f_{s} / N$ denotes the frequency resolution, $f_{m}$ represents the target frequency, and $Num$ is the number of spectral lines in the power spectrum. For a deterministic input $S (i) + N (i)$ in practice, the system output $x (i)$ is determined by $a$ , $b$ , and $h$ , as demonstrated in equation (31). Hence, by tuning these parameters properly, the small parameter limitation can be overcome and the OSR can be achieved,³⁰ as:

(a^{*}, b^{*}, h^{*}) = \underset{a \in (0, + \infty), b \in (0, + \infty), h \in (0, + \infty)}{argmax} SNR (a, b, h)

(33)

where $a^{*} and b^{*}$ represent the optimum obstacle parameters, while $h^{*}$ denotes the optimum calculation step.

The procedure of the OSR method for FM characteristic enhancement, as depicted in Figure 5, is illustrated as follows:

(1) Input the estimated IF $ω (t)$ , and initialize particle swarm size $N_{p} = 50$ , dimension of search space $D = 3$ for $a$ , $b$ , and $h$ , lower bound for search space $LB = [0, 0, 0]$ , higher bound for search space $HB = [0.05, 5000, 0.05]$ , inertia weight $w = 0.6$ , acceleration constants $γ_{1} = γ_{2} = 1.5$ , lower bound for velocity $v_{\min} = - 0.8$ , and higher bound for velocity $v_{\max} = 0.8$ . Set the current iteration number $IterPSO = 0$ and the maximum iteration number $MaxIterPSO = 500$ , with precision parameter $ε_{P} = 0.001$ .

(2) Randomly initialize the particles, and the output of the SR system is calculated for each particle. Find the current global best position ${\bar{G}}_{0} (k)$ and its corresponding output $ω_{0}^{*} (t)$ with ${SNR}_{0}$ .

(3) Start loop, and set $IterPSO = IterPSO + 1$ . Update and modify the position and velocity of each particle, and the output of SR system is calculated for each particle. Find the current global best position ${\bar{G}}_{IterPSO} (k)$ and its corresponding output $ω_{IterPSO}^{*} (t)$ with $SN R_{IterPSO}$ .

(4) Calculate the difference change of SNR: $Δ SNR = | SN R_{0} - SN R_{IterPSO} |$ , and update $SN R_{0} = \max (SN R_{0}, SN R_{IterPSO})$ and $ω_{0}^{*} (t) = \underset{ω_{i}^{*} (t), i = 0, IterPSO}{argmax} (SN R_{0}, SN R_{IterPSO})$ .

(5) If $IterPSO > MaxIterPSO$ or $Δ SNR < ε_{P}$ , then break the loop and output optimal $ω_{0}^{*} (t)$ . Else, go back to step (3).

(6) End loop. Obtain the final optimal output $ω_{0}^{*} (t)$ .

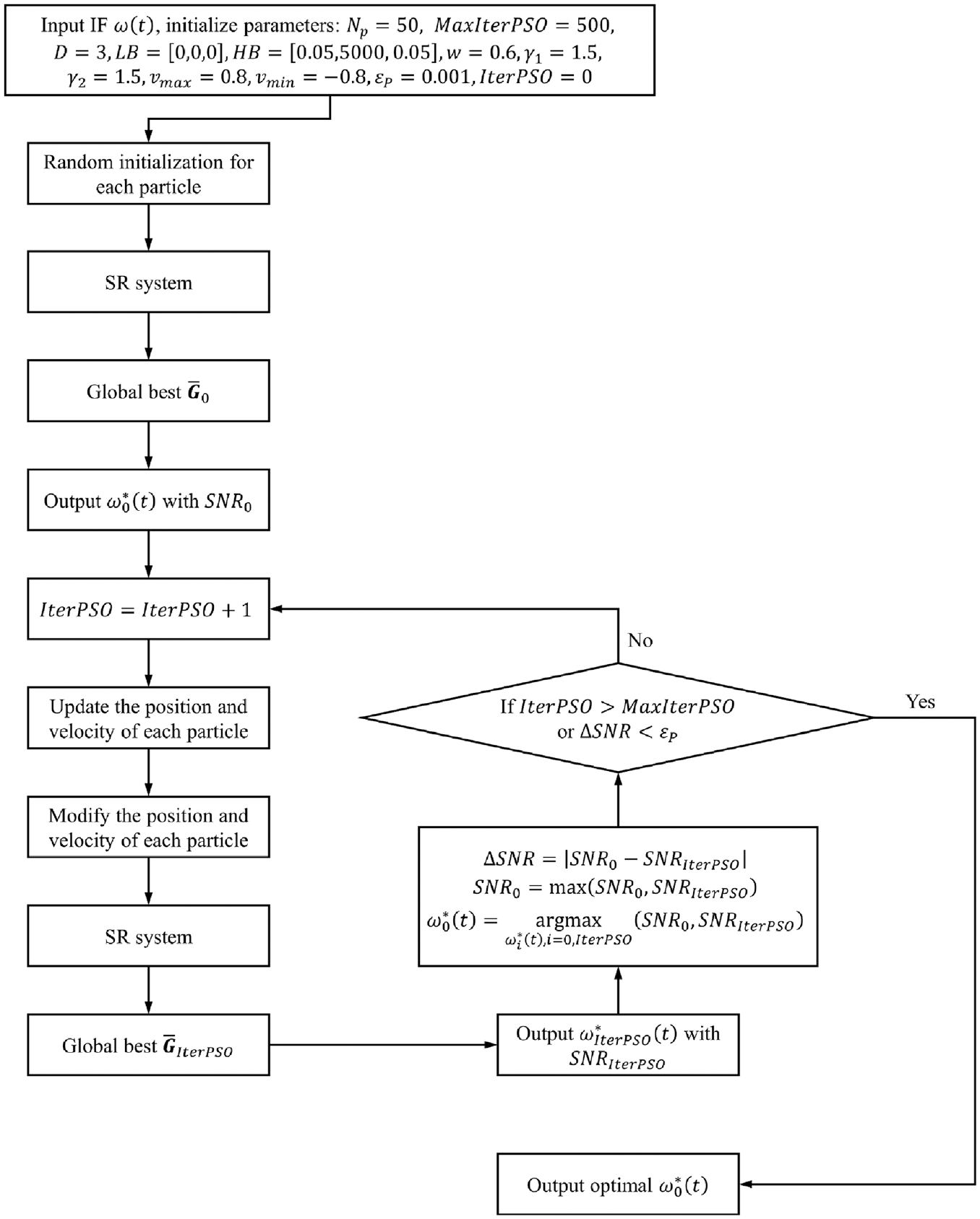

Figure 5.

The PSO-optimized SR flowchart.

Simulation analysis

In this section, to verify the effectiveness and preponderance of the proposed approach, two types of signals are imitated for simulation analysis. It should be noted that the two-stage integration strategy in the proposed approach is applicable for practical applications coping with the measured acceleration signals. Here, only the multicomponent signal processing ability and noise-resistant capability in targeted component extraction and FM characteristic enhancement of the proposed IVMD and OSR method are investigated, so the integration strategy is not considered (the simulated signals are all displacement signals). In addition, two advanced TFA methods for intrawave FM detection, that is, HHT¹¹ and ACMD²¹, are utilized for comparison, where HHT composed of EMD and Hilbert transform has been proved to be an effective tool for analysis of nonlinear unsteady transient vibration signals, which is capable to supply meaningful IF exploration,^11,34 and ACMD as a tractable version of VNCMD³⁵ has showcased promising advantages in analyzing strongly FM signals and computing high-resolution adaptive TFR with more stability.^21,36 Consequently, these two representative TFA methods can be considered as the state-of-the-art approaches in nonstationary FM attribute detection and rotor rub-impact signal analysis in the present.

Numerical validation using synthetic signal

In this subsection, a three-component signal with undulatory IFs and additional noise is simulated to verify the proposed method:

s (t) = \sum_{i = 1}^{3} R_{i} \cos (i \cdot 2 π f_{b} t + ϑ_{i} + ξ_{i} \sin (2 π f_{b} t + θ_{i})) + n (t)

(34)

where $R_{i}$ , $f_{b}$ , $ξ_{i}$ , $ϑ_{i},$ and $θ_{i}$ denote the amplitude, rotating frequency, intensity coefficient of FM, and initial phases, respectively, whose simulation values are listed in Table 1. Additionally, Gaussian white noise $n (t)$ is applied to synthetize the background noise, with the SNR equaling to −5 dB at first. The synthetic signal is sampled at 5000 Hz and the length is 2 s, whose waveform and spectrum are shown in Figure 6. It can be seen from Figure 6(a) that the deterministic signal composed of three components is faint relative to the synthetic signal and submerged by heavy noise. Notwithstanding, the rotating frequency $f_{b}$ = 30 Hz as well as its two harmonics can be observed plainly from the Fourier spectrum, as demonstrated in Figure 6(b).

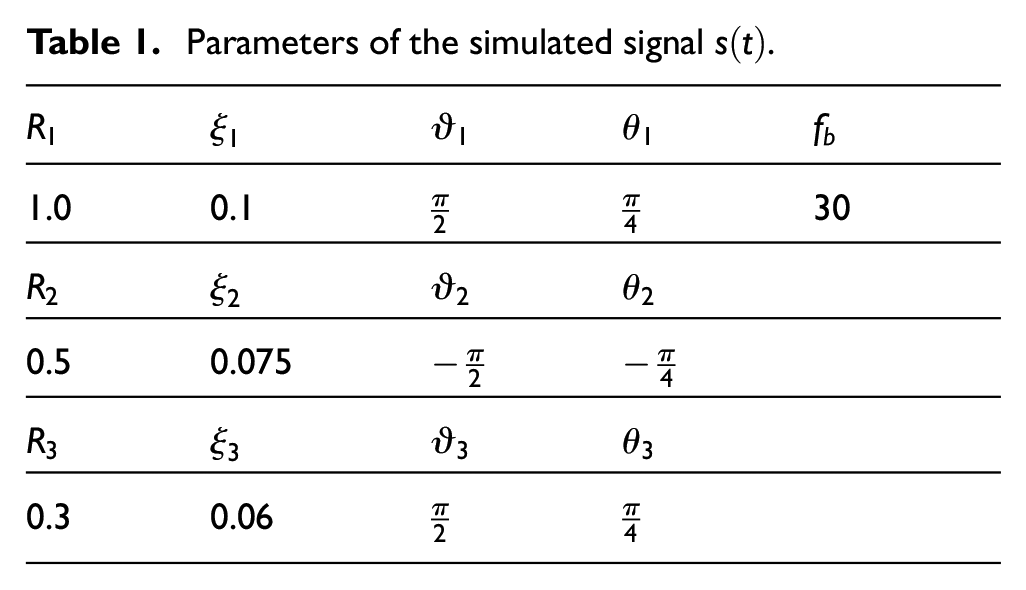

Table 1.

Parameters of the simulated signal $s (t)$ .

$R_{1}$	$ξ_{1}$	$ϑ_{1}$	$θ_{1}$	$f_{b}$
1.0	0.1	$\frac{π}{2}$	$\frac{π}{4}$	30
$R_{2}$	$ξ_{2}$	$ϑ_{2}$	$θ_{2}$
0.5	0.075	$- \frac{π}{2}$	$- \frac{π}{4}$
$R_{3}$	$ξ_{3}$	$ϑ_{3}$	$θ_{3}$
0.3	0.06	$\frac{π}{2}$	$\frac{π}{4}$

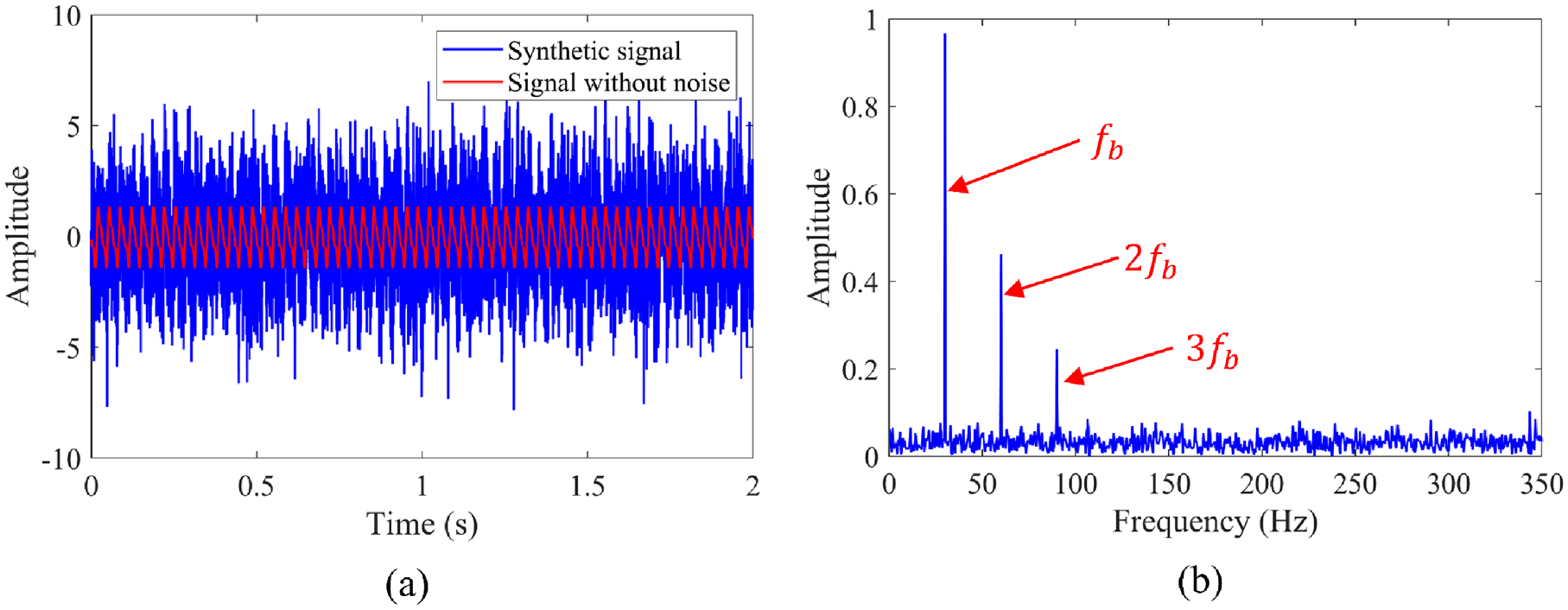

Figure 6.

The synthetic multicomponent signal with SNR = −5 dB: (a) time-domain waveform and (b) the Fourier spectrum.

Subsequently, the synthetic multicomponent signal is processed by the proposed method, with the results presented in Figure 7. The TFR of the target component extracted by IVMD is displayed in Figure 7(a), where the subtle intrawave FM around the rotating frequency can be inspected. Then, as displayed in Figure 7(b), the Fourier transform of the estimated IF is conducted, where the rotating frequency and the harmonics from 2× to 5× can be observed. However, there exists strong noise in the spectrum that may interfere with the actual identification. Thereby, the PSO-optimized SR is utilized to enhance the intrawave FM and further suppress the noise, and the Fourier spectrum of the estimated IF after enhancement by OSR is illustrated in Figure 7(c). It can be found that the SNR of the IF component is improved from −13.4 to −4.7 dB, and the target frequency becomes more predominant in the spectrum.

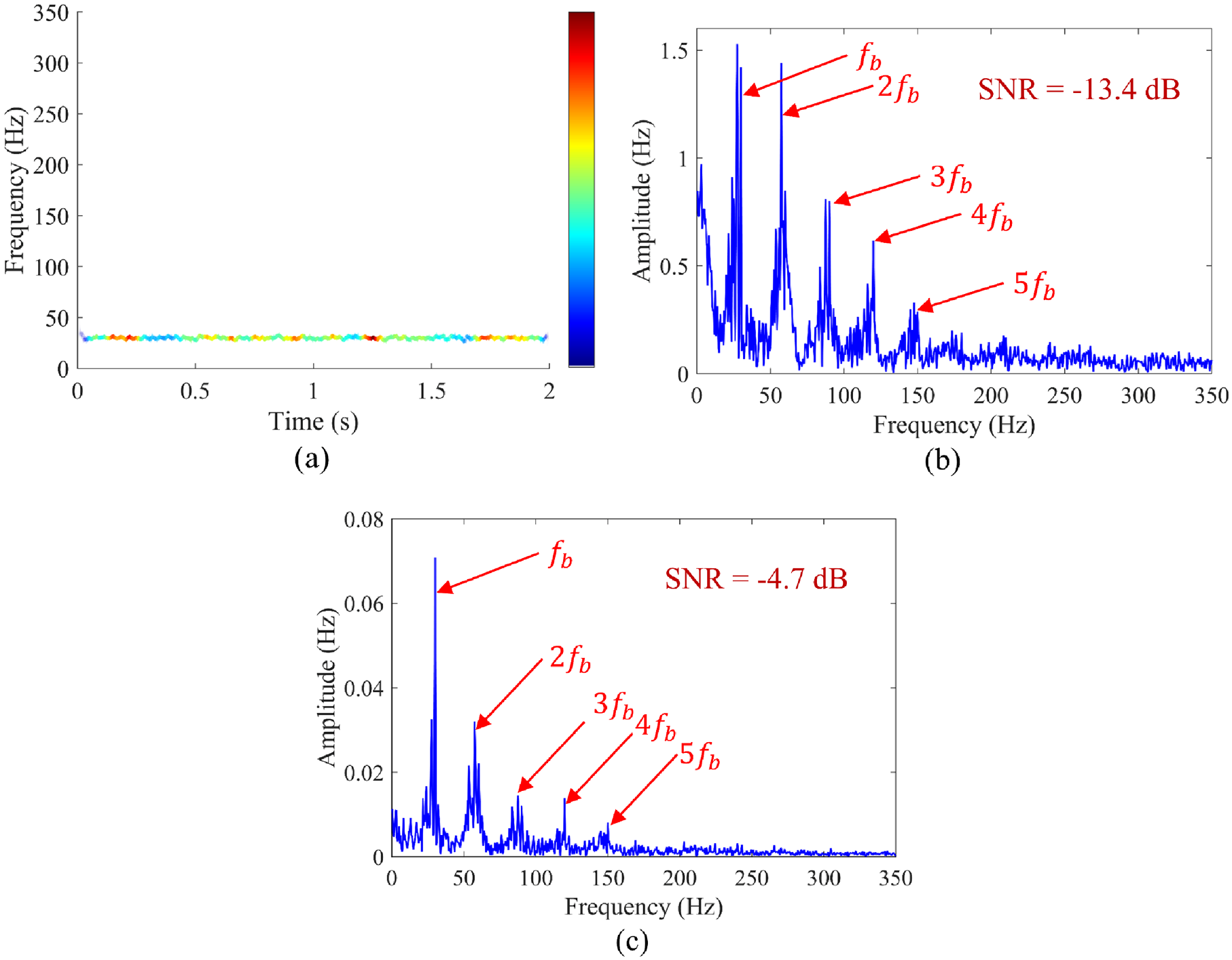

Figure 7.

The signal processing results of the proposed approach: (a) TFR of the obtained component via IVMD, (b) Fourier spectrum of the estimated IF, and (c) Fourier spectrum of the estimated IF after enhancement by OSR. IVMD: improved variational mode decomposition; TFR: time-frequency representation; IF: instantaneous frequency; OSR: optimum stochastic resonance.

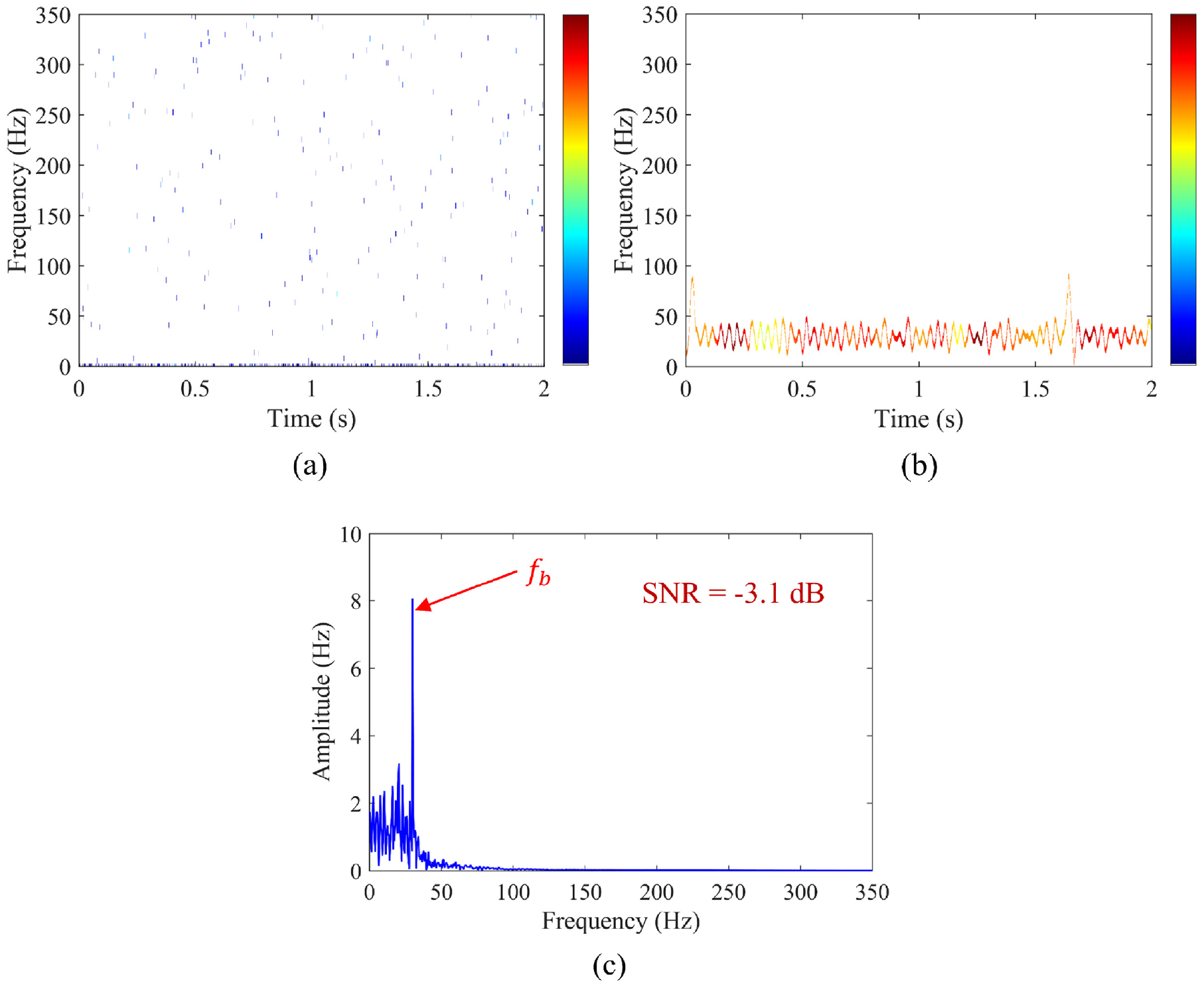

For comparison, the results of HHT and ACMD are provided in Figure 8. From Figure 8(a), it can be found that HHT fails to reveal the target IF structure of the multicomponent signal with noise. This is because HHT is evolved based upon EMD, and EMD is known to suffer from the problems of mode mixing, recursive sifting, and misclassification caused by fixed band allocation. For ACMD, as mentioned in the study by Chen et al.,²¹ both the weighting coefficient and smooth parameter have a significant influence on the smoothness of the excavated signal component as well as its IF, so these two parameters are selected from $[1 \times 10^{- 1}, 1 \times 10^{- 2}, \dots, 1 \times 10^{- 10}]$ , respectively, for an optimal result in this work. As showcased in Figure 8(b), the ACMD can extract the fast varying IF via the greedy matching pursuit process, where the weighting coefficient is selected as $1 \times 10^{- 8}$ and the smooth parameter is selected as $1 \times 10^{- 4}$ . However, the oscillation amplitude of the target IF is larger than the real one (which can be calculated as $ξ_{1} \times f_{b} = 0.1 \times 30 = 3$ Hz), with two obvious abnormal fluctuations in the TFR of ACMD near 0.05 and 1.6 s. Figure 8(c) illustrates the Fourier spectrum of the IF extracted by ACMD, in which the target frequency can be extracted successfully with SNR = −3.1 dB. While the SNR of the result obtained by ACMD is higher than the result of the proposed method, there exists low-frequency noise, and the harmonics of $f_{b}$ are not visible in the spectrum of the IF extracted by ACMD.

Figure 8.

The results of HHT and ACMD: (a) TFR of HHT, (b) TFR of ACMD, and (c) Fourier spectrum of the IF extracted by ACMD.

In order to further study the noise-resistant ability of the proposed method under the circumstance of intense noise contaminating, the simulated signal with SNR of −10 dB is analyzed. As shown in Figure 9(a), the three-component signal is submerged by heavier background noise, and the noise on the spectrum in Figure 9(b) is also more significant. For this synthetic signal, Figure 10 displays the signal processing results of the proposed approach, where the fluctuating pattern of IF can be captured by the proposed IVMD method, as shown in the TFR in Figure 10(a). The Fourier transform of the estimated IF is presented in Figure 10(b). Though there exists the rotating frequency as well as the harmonics, the interference noise on the spectrum is too marked, even interfering with the observation. Moreover, in practical applications, this kind of spectrum is no longer able to support refined identification and diagnosis of rotor rub-impact. Then, the OSR is used to ulteriorly restrain the interference noise and boost the intrawave FM, the Fourier spectrum of whose result is demonstrated in Figure 10(c). The SNR is improved by 10.2 dB after FM enhancement, and the target frequency of $f_{b}$ = 30 Hz becomes more distinct with the noise being effectively suppressed. Also, comparison analyses with HHT and ACMD are conducted, with the results presented in Figure 11. In Figure 11(a), it shows that HHT is subject to the mode mixing issue and noise interference, which is not capable to unveil the target IF pattern correctly. For ACMD, the weighting coefficient is selected as $1 \times 10^{- 8}$ and the smooth parameter is selected as $1 \times 10^{- 5}$ in this case. From the TFR shown in Figure 11(b), it can be found that the fast fluctuating IF recovering performance of ACMD becomes poorer due to the stronger noise, and there exist more abnormal fluctuations compared to the TFR shown in Figure 8(b). In the meantime, it can hardly observe the rotating frequency component from the Fourier spectrum of the IF extracted by ACMD, as displayed in Figure 11(c), where there exist serious low-frequency noise components and the SNR is only −20.3 dB.

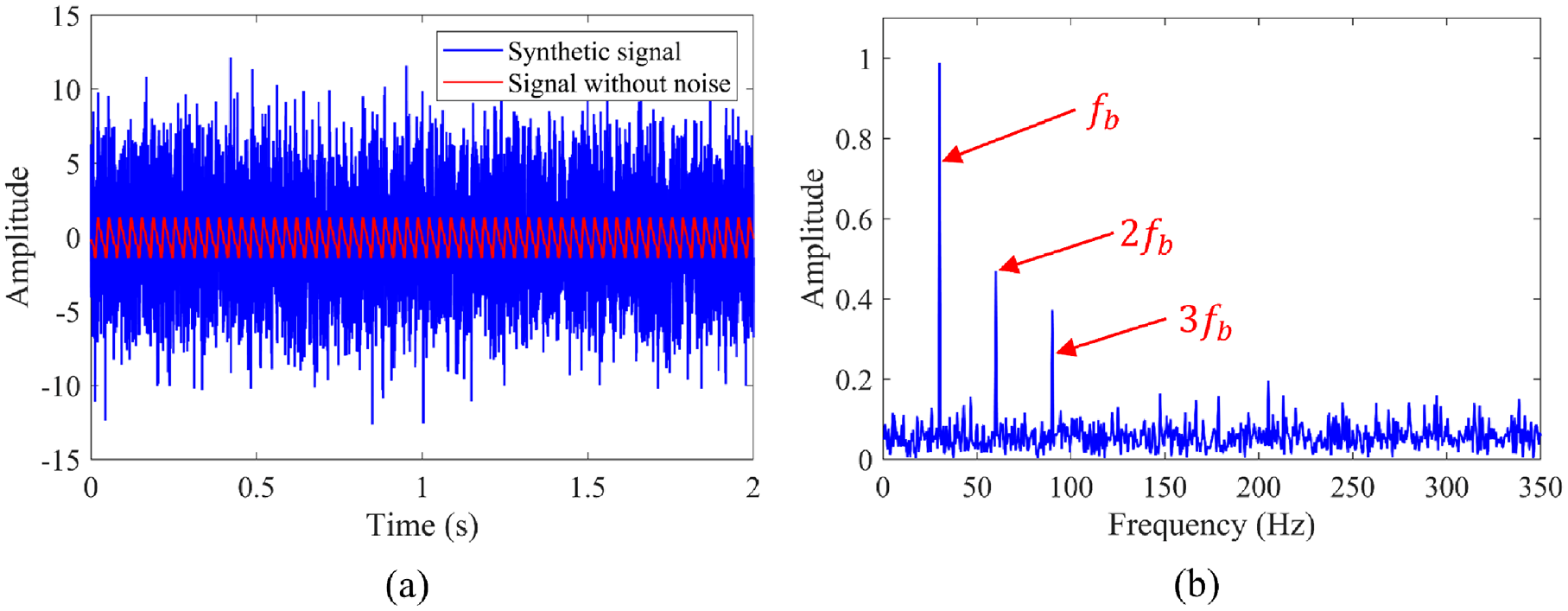

Figure 9.

The synthetic multicomponent signal with SNR = −10 dB: (a) time-domain waveform and (b) the Fourier spectrum.

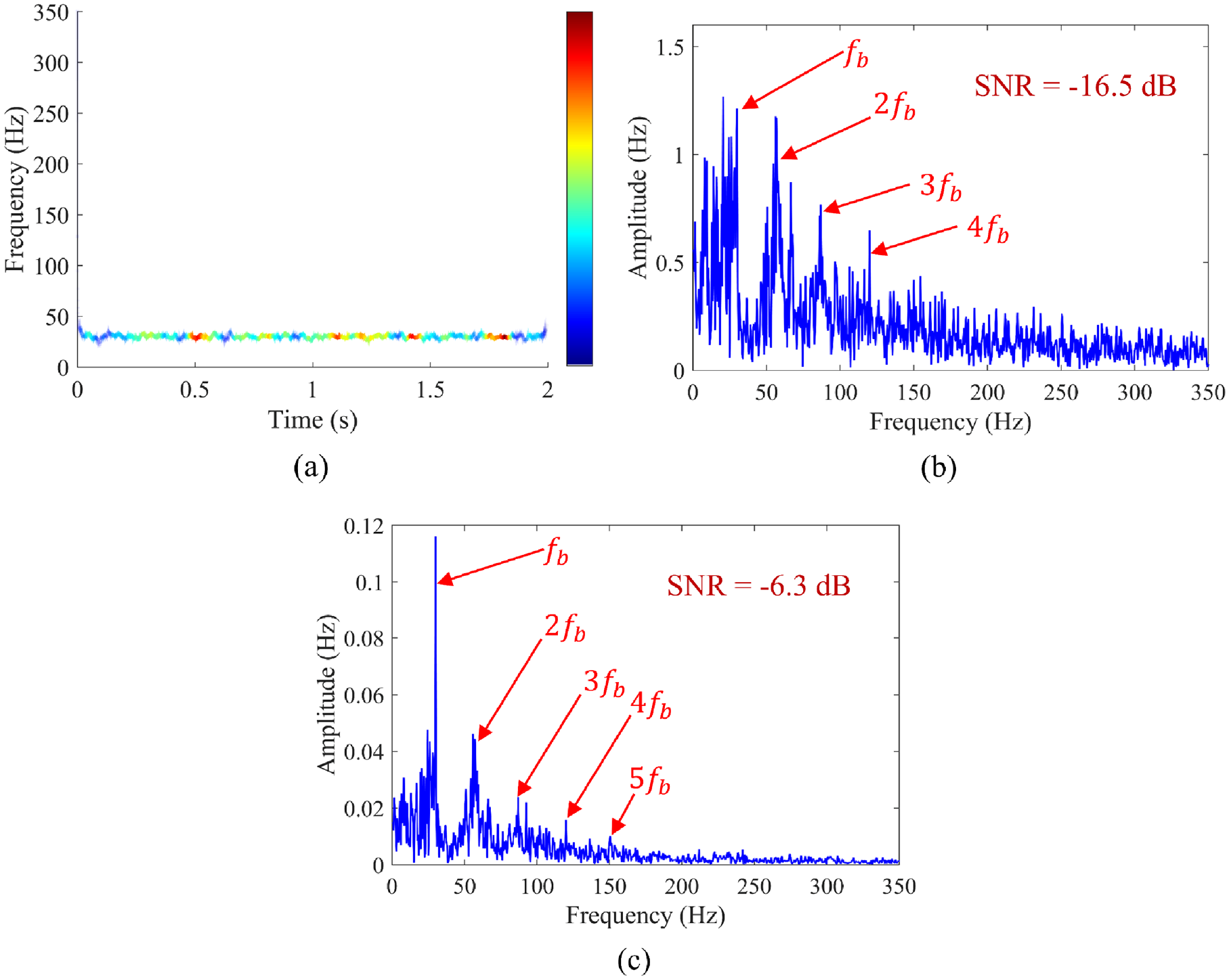

Figure 10.

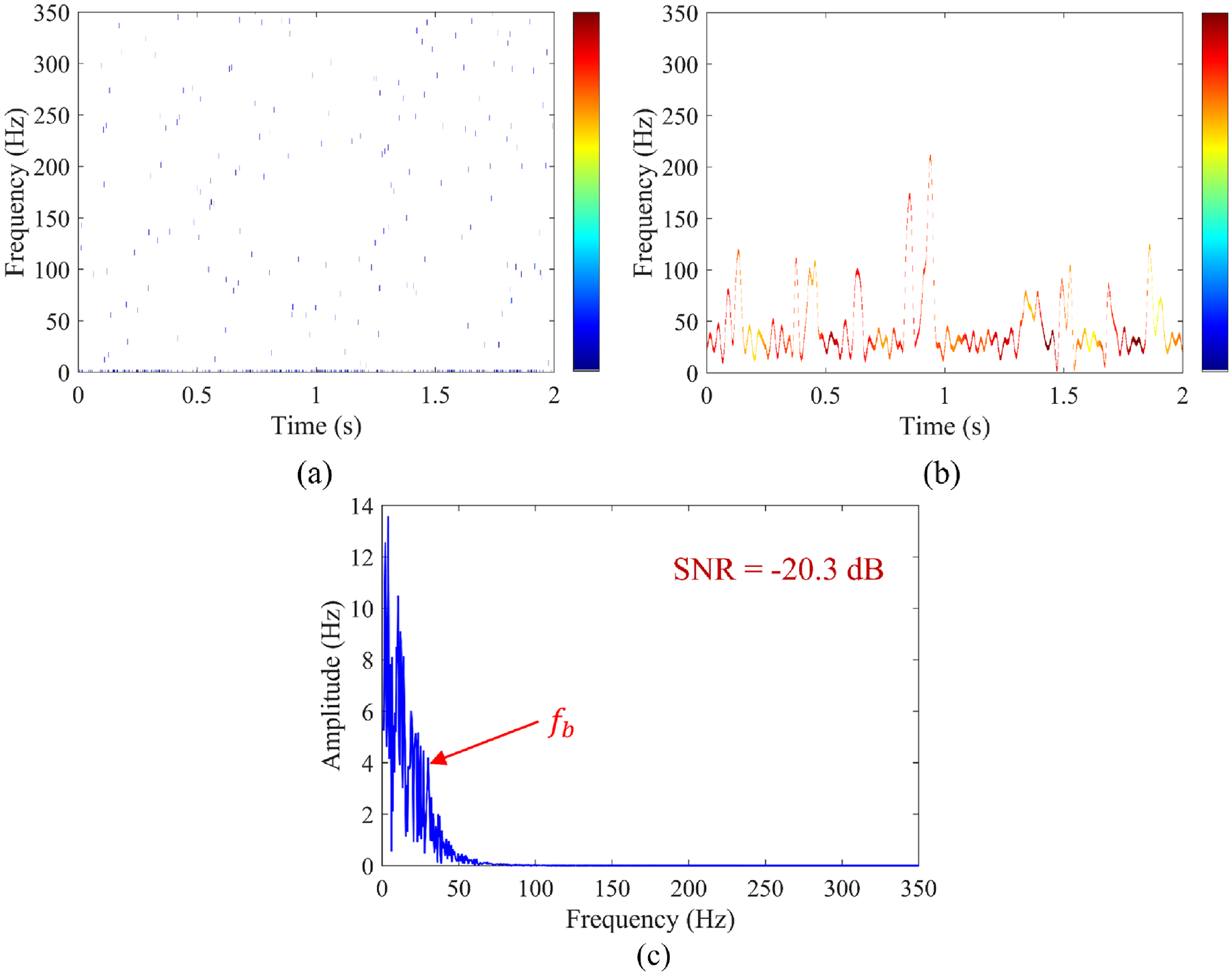

Figure 11.

The results of HHT and ACMD: (a) TFR of HHT, (b) TFR of ACMD, and (c) Fourier spectrum of the IF extracted by ACMD.

Herein, it can be found that the HHT is prone to fail when processing multicomponent signals with noise, which is mainly rooted in the deficiencies of EMD. Although the ACMD is capable to capture the fast varying IF to some extent when the noise level is relatively low, it becomes invalid after the SNR is further reduced, and its performance is inferior to the proposed approach in both cases. As for the proposed approach, the IVMD can effectively extract the target component from noisy multicomponent signals and the OSR is utilized for further noise suppressing and weak IF oscillating characteristic enhancement, which demonstrates superior capacity in faint intrawave FM detection and noise resistance.

Intrawave FM in a rubbing rotor

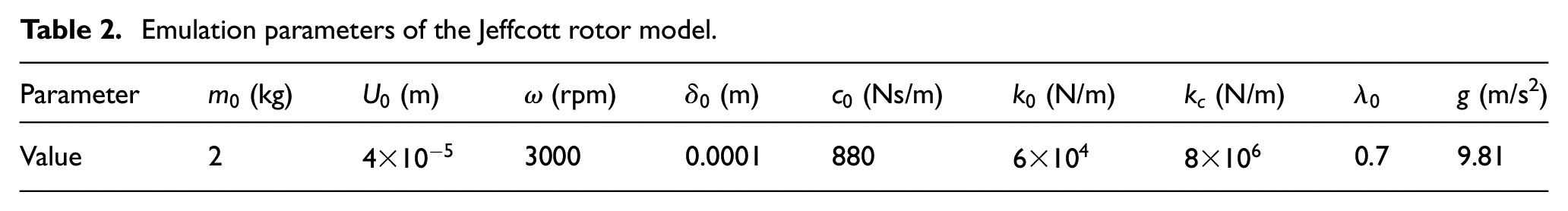

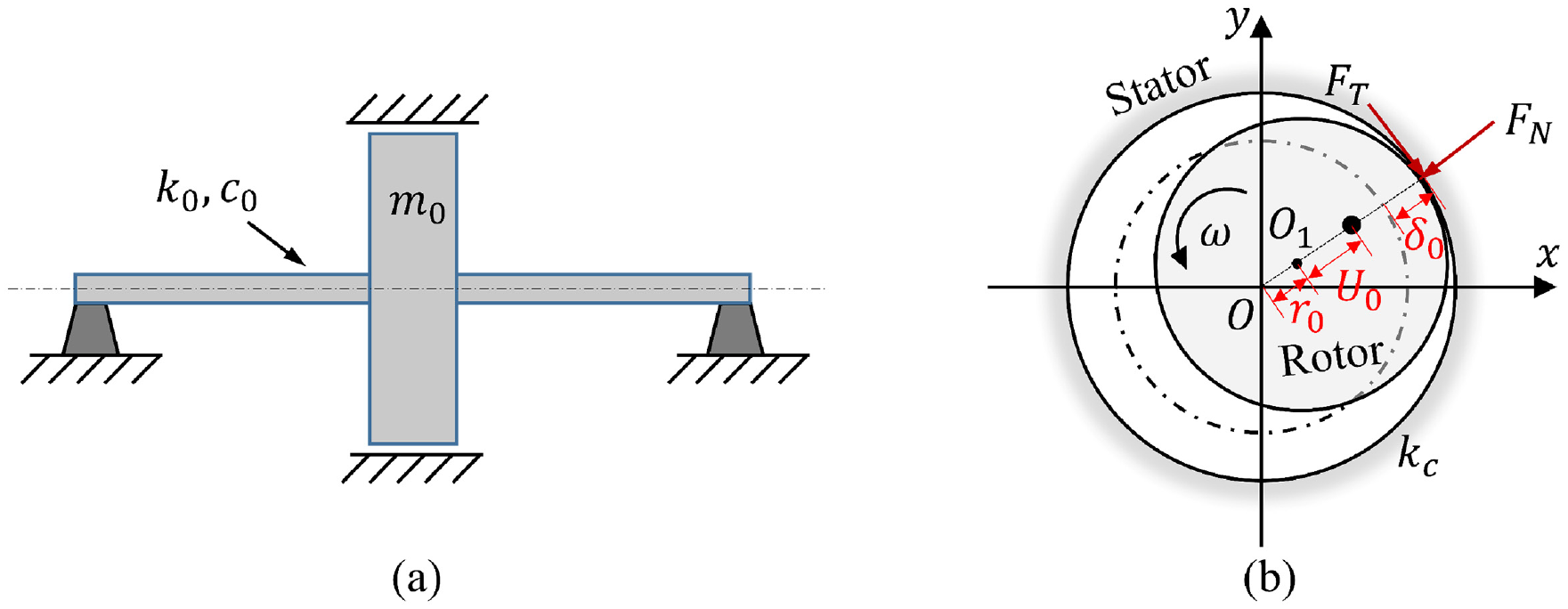

In this subsection, to validate the availability and robustness of the proposed approach in rotor rubbing detection and diagnostics, simulated signals from numerical simulation are considered. The single-disk Jeffcott rotor model depicted in Figure 12 is adopted to analyze rotor dynamics and rub-impact feature extraction approaches for the rubbing rotor.^19,20 As presented in Figure 12(a), the rotor consists of a rigid disk with mass $m_{0}$ and an elastic shaft whose stiffness coefficient and damping coefficient are $k_{0}$ and $c_{0}$ , respectively. In Figure 12(b), the stator’s center (i.e., $O$ ) is taken as the coordinate origin, and the rotor center’s offsets (i.e., $O_{1}$ ) relative to the center of the stator along two orthogonal directions are denoted as $x (t)$ and $y (t)$ , respectively. The rotor system is mainly subjected to the imbalanced force, the gravity and the rubbing forces, whose kinetic equation can be written as:

\begin{matrix} [\begin{matrix} m_{0} & 0 \\ 0 & m_{0} \end{matrix}] [\begin{matrix} \overset{\cdot\cdot}{x} (t) \\ \overset{\cdot\cdot}{y} (t) \end{matrix}] + [\begin{matrix} c_{0} & 0 \\ 0 & c_{0} \end{matrix}] [\begin{matrix} \overset{\cdot}{x} (t) \\ \overset{\cdot}{y} (t) \end{matrix}] + [\begin{matrix} k_{0} & 0 \\ 0 & k_{0} \end{matrix}] [\begin{matrix} x (t) \\ y (t) \end{matrix}] \\ = m_{0} U_{0} ω^{2} [\begin{matrix} \cos (ω t) \\ \sin (ω t) \end{matrix}] - [\begin{matrix} 0 \\ m_{0} g \end{matrix}] + [\begin{matrix} F_{x} (x, y) \\ F_{y} (x, y) \end{matrix}] \end{matrix}

(35)

where $U_{0}$ , $ω$ , and $g$ denote the unbalance variable, rotating speed, and acceleration of gravity, respectively; $F_{x} (x, y)$ and $F_{y} (x, y)$ are the rub-impact forces along $x$ and $y$ directions, respectively, which can be further expressed as:

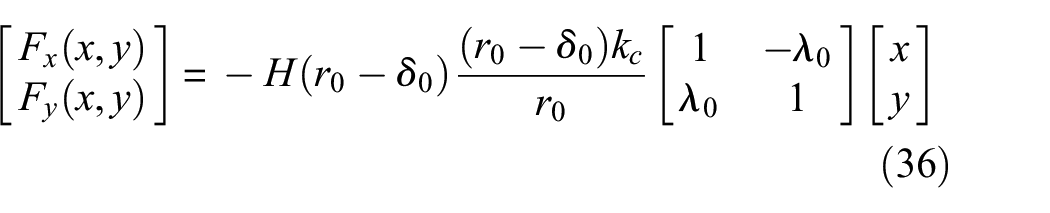

[\begin{matrix} F_{x} (x, y) \\ F_{y} (x, y) \end{matrix}] = - H (r_{0} - δ_{0}) \frac{(r_{0} - δ_{0}) k_{c}}{r_{0}} [\begin{matrix} 1 & - λ_{0} \\ λ_{0} & 1 \end{matrix}] [\begin{matrix} x \\ y \end{matrix}]

(36)

where $r_{0} = \sqrt{x^{2} + y^{2}}$ and $δ_{0}$ represent the rotor’s radial displacement and the initial clearance between the stator and the rotor, respectively; $k_{c}$ and $λ_{0}$ , respectively, denote the stator’s radial stiffness and the friction coefficient. Here, $H (\cdot)$ is the Heaviside function, as below:

H (x) = {\begin{matrix} \begin{matrix} 0, & x < 0 \end{matrix} \\ \begin{matrix} 1, & x \geq 0 \end{matrix} \end{matrix}

(37)

The Heaviside function instructs that the rubbing fault of rotor system occurs only when $r_{0} \geq δ_{0}$ .

Figure 12.

Jeffcott rotor model: (a) sketch of the rotor and (b) schematic diagram of fixed-point rub-impact.

Table 2 presents the relevant parameters of the rotor system, and numerical values of the rotor displacement can be acquired via solving equation (35). Figure 13 displays the time-domain waveform and spectrum of the simulated vibration response, which is sampled at the frequency of 2560 Hz with the length of 1 s. There exist rotating frequency $f_{rs} = ω / 60 = 50$ Hz and its second harmonic component in the spectrum, which is not sufficient to determine whether there is rotor rub-impact.

Table 2.

Emulation parameters of the Jeffcott rotor model.

Parameter	$m_{0}$ (kg)	$U_{0}$ (m)	$ω$ (rpm)	$δ_{0}$ (m)	$c_{0}$ (Ns/m)	$k_{0}$ (N/m)	$k_{c}$ (N/m)	$λ_{0}$	$g$ (m/s²)
Value	2	$4 \times 10^{- 5}$	3000	0.0001	880	$6 \times 10^{4}$	$8 \times 10^{6}$	0.7	9.81

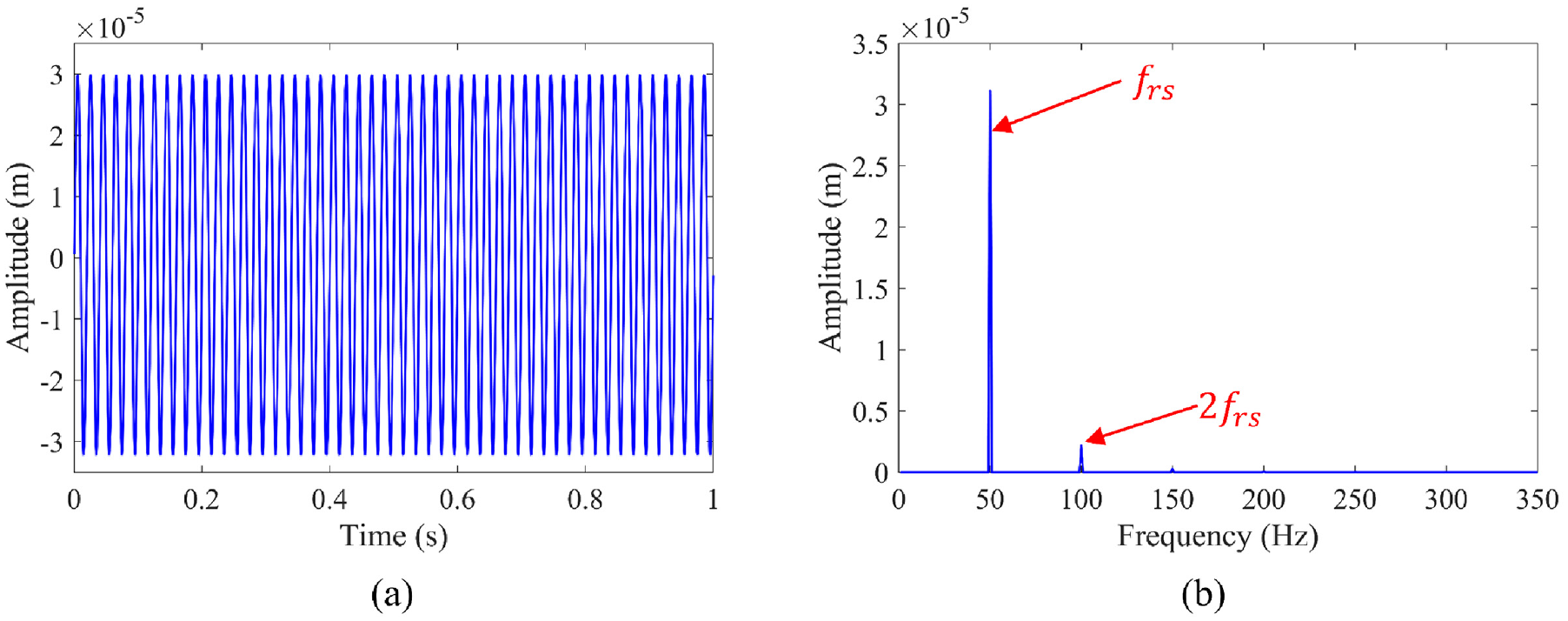

Figure 13.

Simulated vibration signal: (a) waveform of vibration response and (b) the Fourier spectrum.

Next, the simulated displacement response is analyzed via the proposed approach. As presented in Figure 14, the IF oscillating around the rotating frequency can be revealed from the TFR, and the target frequency as well as the harmonics can be distinctly observed from the Fourier spectrum of the estimated IF as well as its enhanced version. In this case, the OSR for FM enhancement seems no longer essential due to the high SNR of the simulated signal itself. Similarly, the processing results of the simulated signal by HHT and ACMD are displayed in Figure 15, where the weighting coefficient and smooth parameter of ACMD are selected as $1 \times 10^{- 3}$ and $1 \times 10^{- 4}$ , respectively. Both the TFRs of HHT and ACMD can capture the fast fluctuating structure of the IF, and rotor rub-related frequencies emerge in the Fourier spectrums with high SNRs, which are even better than the result of the proposed method in this case.

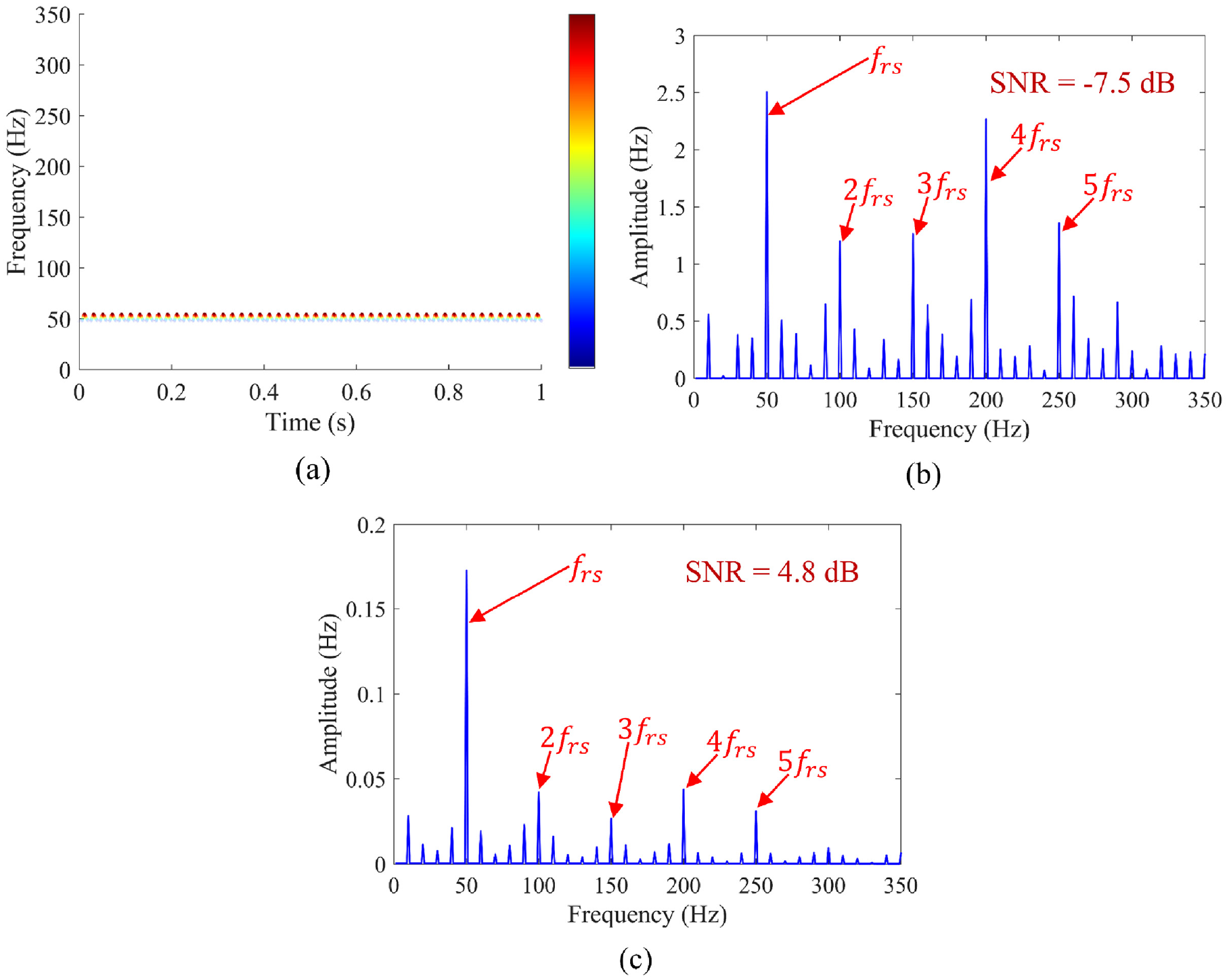

Figure 14.

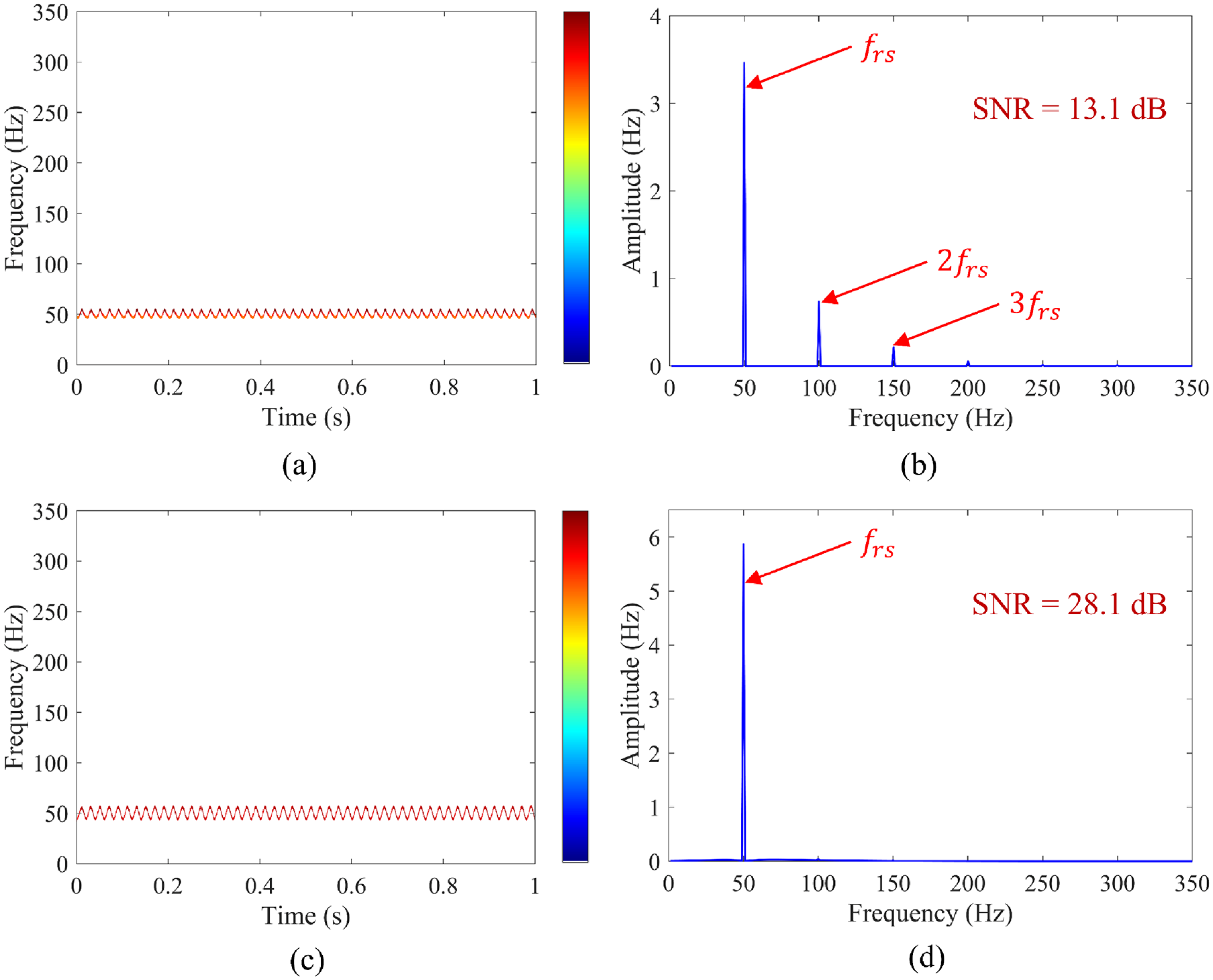

Figure 15.

The results of HHT and ACMD: (a) TFR of HHT, (b) Fourier spectrum of the IF extracted by HHT, (c) TFR of ACMD, and (d) Fourier spectrum of the IF extracted by ACMD.

Furthermore, to explore the performance of above approaches in processing the simulated rotor-rubbing-induced signal with heavy noise, the synthetic signal with additional Gaussian white noise is analyzed. The SNR of the synthetic rotor-rubbing-induced signal is simulated to −10 dB, as demonstrated in Figure 16(a), where the rubbing-induced signal is completely submerged in the strong noise. As a result, in Figure 16(b), only the rotating frequency $f_{rs}$ can be detected and its harmonics can hardly be seen owing to the intense noise.

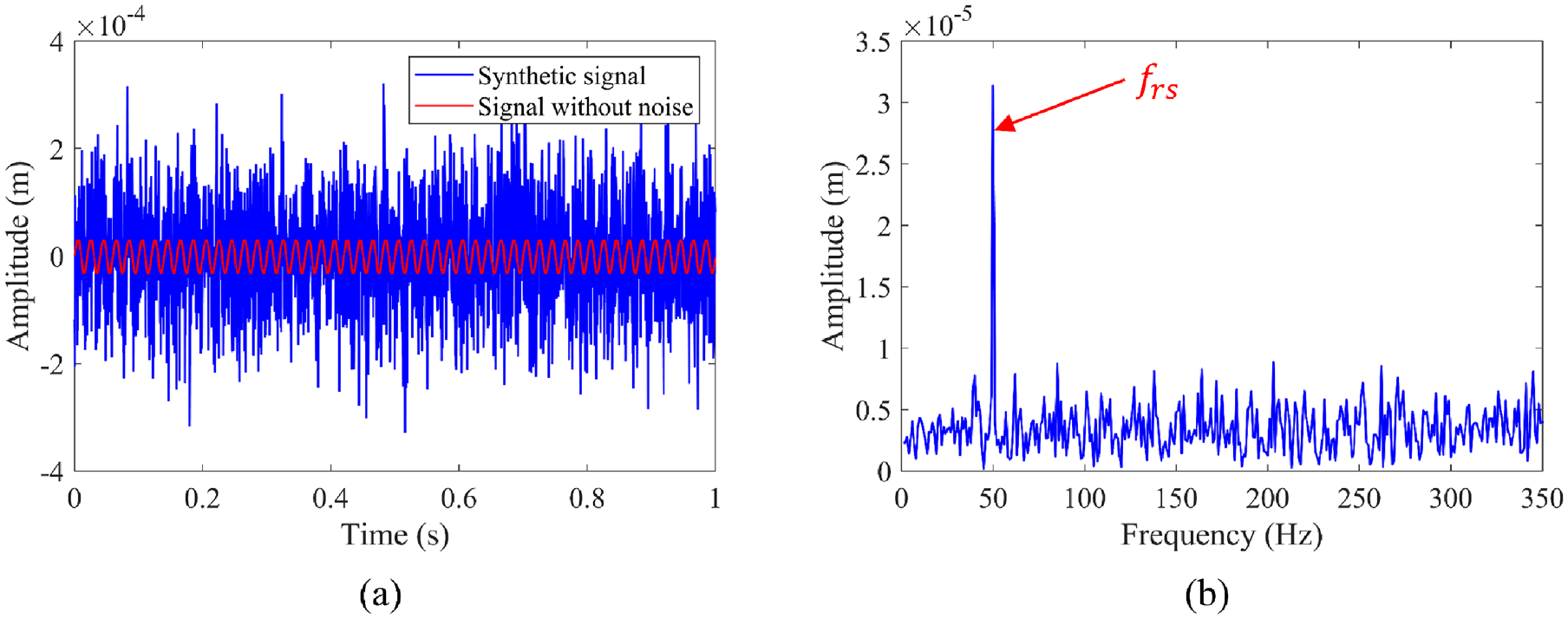

Figure 16.

The synthetic rotor-rubbing-induced signal with SNR = −10 dB: (a) time-domain waveform and (b) Fourier spectrum.

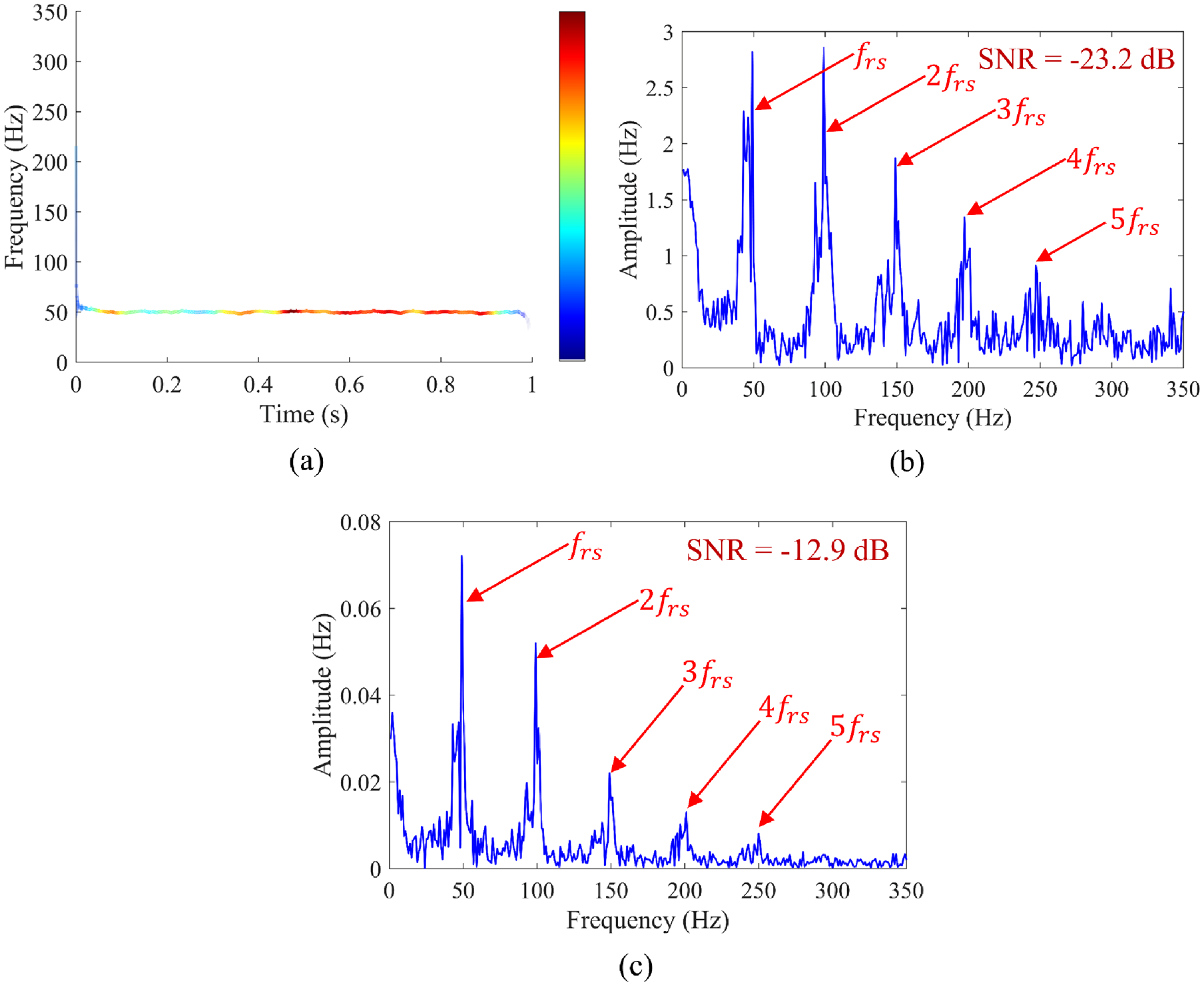

Then, the synthetic signal is analyzed via the proposed approach, and the results are presented in Figure 17. The TFR suggests that the extremely faint intrawave FM characteristic can be extracted to some extent by the proposed IVMD method, as shown in Figure 17(a). As a consequence, in Figure 17(b), though the rotating frequency components can be found in the Fourier spectrum of the estimated IF, there exists interference noise. Additionally, the relative amplitude values of the rotating frequency component and its second harmonic are pernicious to the accurate identification of rotor rub-impact failure in practice, since it may be misclassified as rotor cracking or mechanical looseness, and so on. Hence, the PSO-optimized SR method is adopted for FM characteristic enhancement and noise suppressing, as showcased in Figure 17(c), where the target frequency of the fast oscillating IF can be extracted more distinctly, with the SNR being improved from −23.2 to −12.9 dB, and the refined identification of rotor rub-impact can be attained.

Figure 17.

The comparison results of HHT and ACMD are presented in Figure 18, and it demonstrates that the HHT is unable to deal with the noisy signal by reason of its inherent shortcomings. For ACMD, the weighting coefficient and smooth parameter are adjusted to $1 \times 10^{- 6}$ and $1 \times 10^{- 3}$ , respectively, to gain a relatively optimal result. Nonetheless, in the TFR of ACMD shown in Figure 18(b), the extracted IF manifests as high amplitude oscillating and nonaggregative (energy diffusion), and in the Fourier spectrum of its IF displayed in Figure 18(c), the rubbing-induced frequency component is almost invisible and covered by a lot of interference noise, where the SNR is −28.3 dB, indicating that the ACMD is incapable of action when coping with strong noise, rooted in the shortcomings of VNCMD, as discussed in the study by Chen et al.³⁵ Hereto, the effectiveness and superiority of the proposed approach for multicomponent signal processing under intricate noise interferences are validated once again, and its feasibility for rotor rub-impact diagnosis is also preliminarily verified.

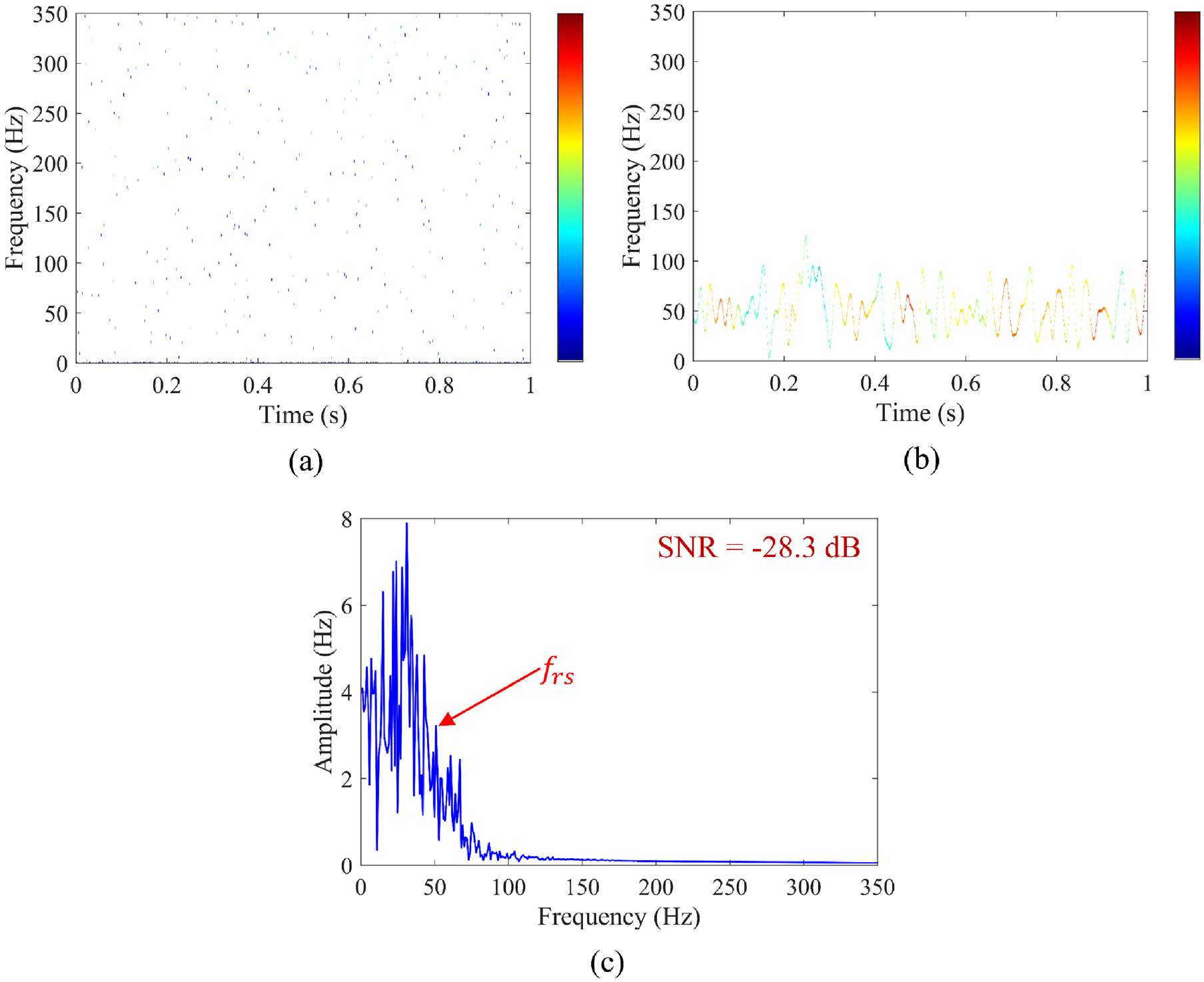

Figure 18.

The results of HHT and ACMD: (a) TFR of HHT, (b) TFR of ACMD, and (c) Fourier spectrum of the IF extracted by ACMD.

Experimental investigations on rotor rubbing data from a rotor system test rig

In this section, experimental data from a real-world rotor system test rig are considered to ulteriorly evaluate the practicability and preponderance of the entire proposed approach in rotor rub-impact diagnosis comprehensively, with the two-stage integration strategy being implemented. In likewise, TFA methods of HHT and ACMD are adopted for comparison, by analyzing the displacement signals after conversion.

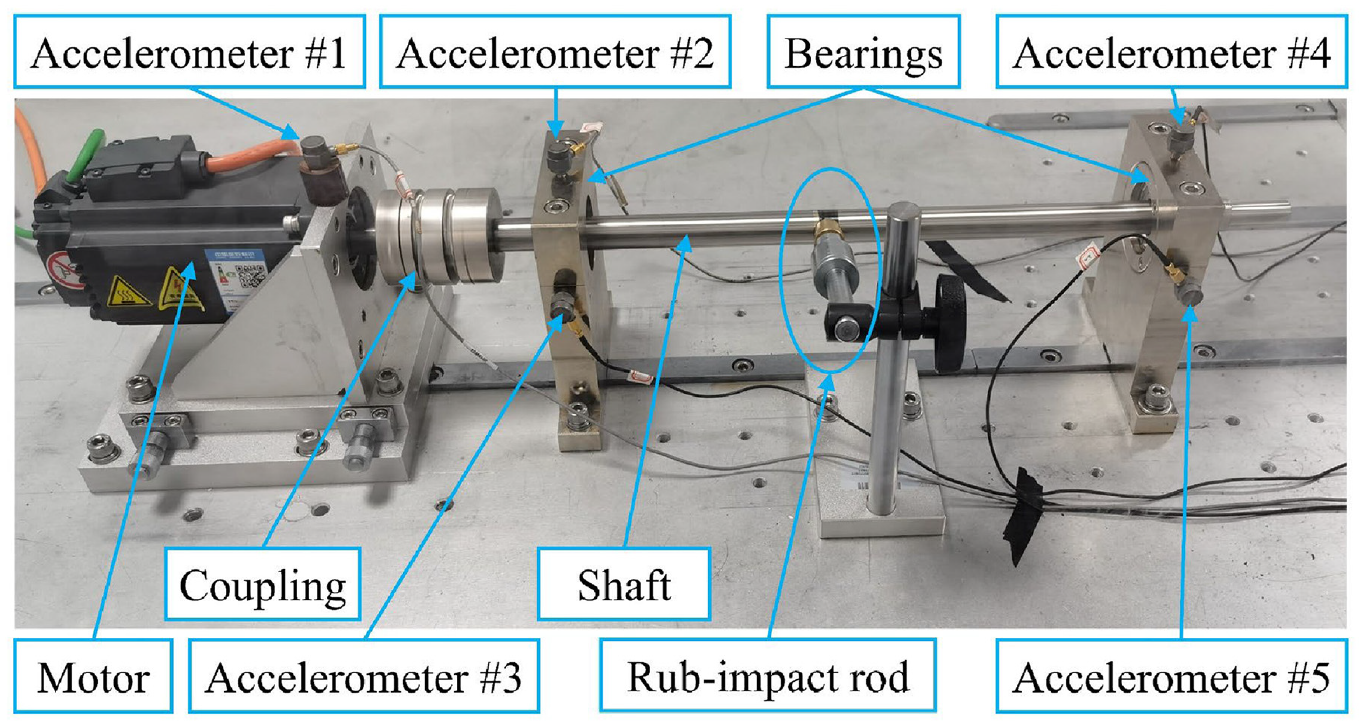

As demonstrated in Figure 19, the rotor system test rig is mainly composed of a servo motor, a coupling, a shaft, a rub-impact rod, and two bearings, with five B&K accelerometers for vibration data acquisition. During the experiment, the rub-impact rod can be adjusted manually for a desired degree of rotor rubbing and secured with the locknut to keep the stable rubbing process. Vibration acceleration signals collected by accelerometer #2 are analyzed in this study, with the sampling frequency of 50 kHz and sampling time of 1 s.

Figure 19.

Experiment setup of the rotor system test stand.

Rotor rub-impact diagnosis under the shaft speed of 2000 rpm

First, the vibratory signal collected under the normal condition of the rotor system (without rubbing) is taken as the baseline data for analysis, where the rotating speed of the motor was set to 2000 rpm. The acquired acceleration signal is presented in Figure 20(a), and the proposed two-stage integration strategy is executed on it, with the cutoff frequencies set as 24 Hz, which is found to be effective and robust in eliminating the low-frequency noise components in practice. It should be noted that in the following contents, the cutoff frequencies are set to 24 Hz by default if there is no special explanation. The integration result and the Fourier spectrum of the displacement signal are, respectively, displayed in Figure 20(b) and (c). From the spectrum, it can be found that there exists the prominent rotating-speed-related frequency component, and the harmonic components are very inconspicuous, with the noise level being relatively low. Then, the displacement signal is processed by the proposed method, and the TFR of IVMD is demonstrated in Figure 21(a), from which it can be found that the estimated IF is almost a straight line at the rotating frequency $f_{r 1} = 2000 / 60 = 33.33$ Hz, indicating that there is no intrawave FM phenomenon, and thus, the rub-impact failure of rotor system does not exist, which is coincident with the actual state. Further, HHT and ACMD are employed for comparison analysis, the results of which are, respectively, shown in Figure 21(b) and (c), where the weighting coefficient and the smooth parameter of ACMD are, respectively, set to $1 \times 10^{- 6}$ and $1 \times 10^{- 4}$ . Because of the inferior noise-resistant capabilities and other influence factors, it can be found that both of the TFA results are too rough to reflect the actual changes of the IFs, so that the actual state of the rotor system cannot be identified well. What is more, the intrawave FM phenomenon can be clearly observed from the TFR of ACMD, as shown in Figure 21(c), which could lead to the misdiagnosis of rotor rubbing fault.

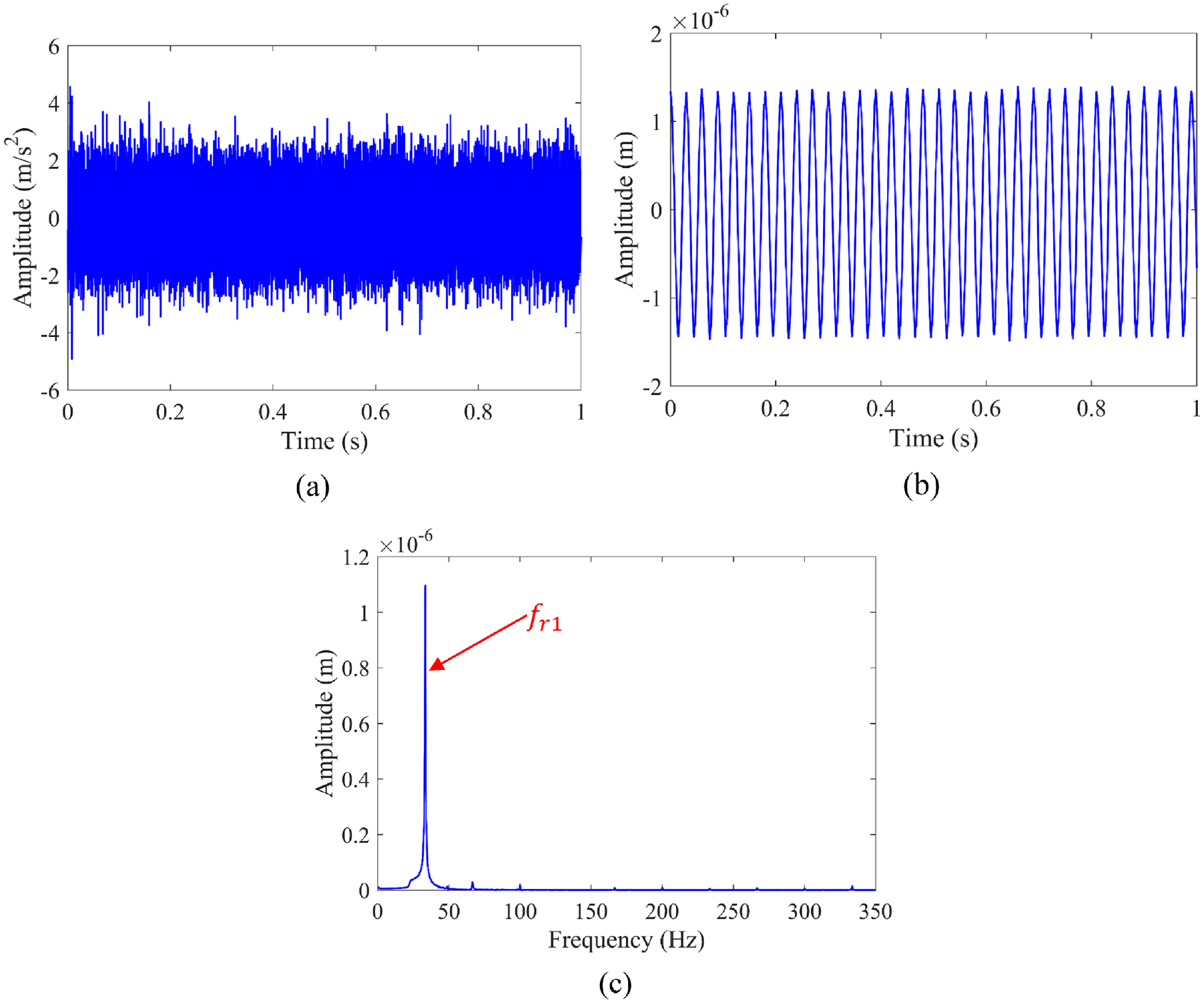

Figure 20.

Vibratory signal acquired under the normal condition at the shaft speed of 2000 rpm: (a) time-domain waveform of the acceleration signal, (b) time-domain waveform of the converted displacement signal, and (c) Fourier spectrum of the displacement signal.

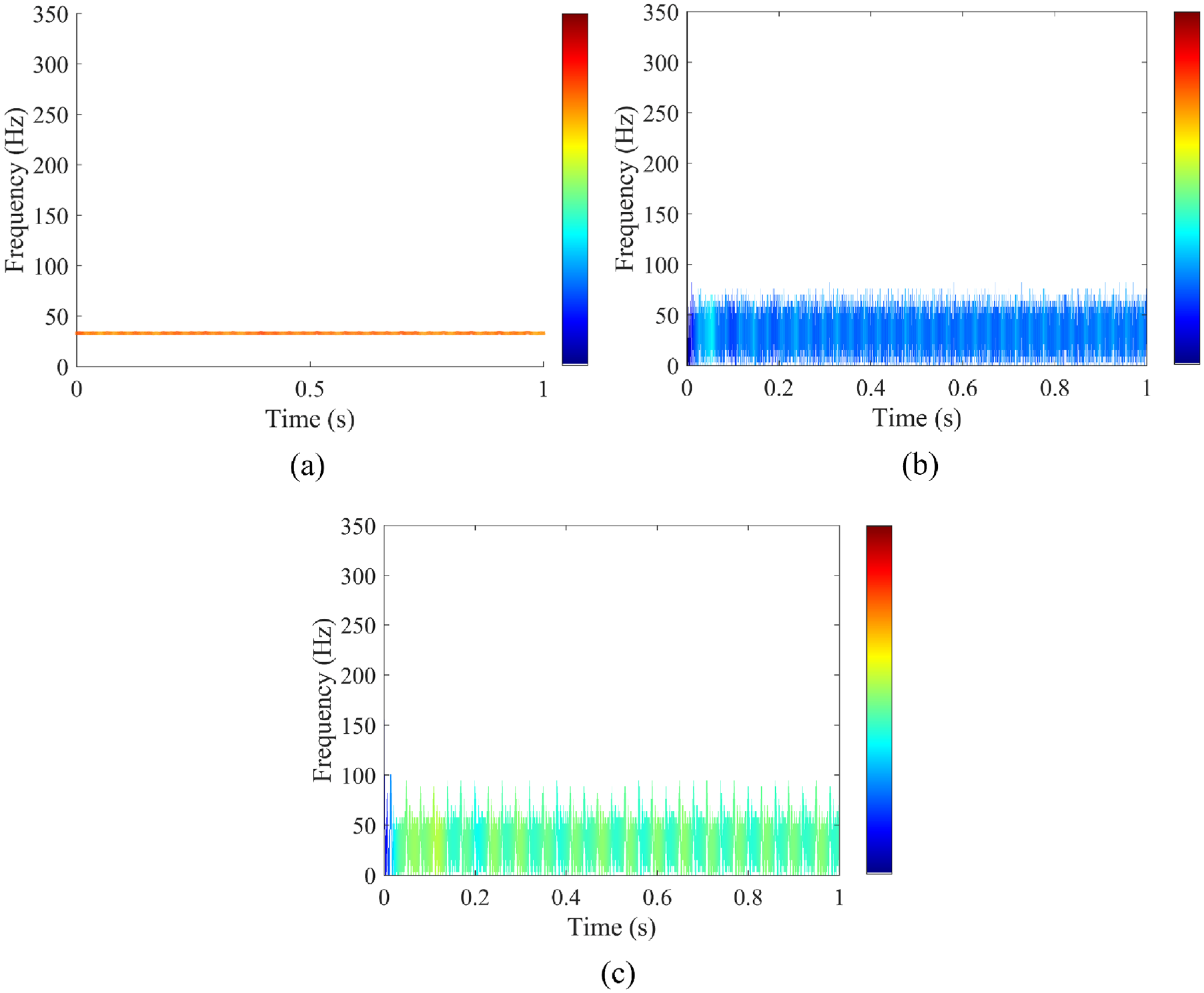

Figure 21.

The TFA results: (a) TFR of IVMD, (b) TFR of HHT, and (c) TFR of ACMD.

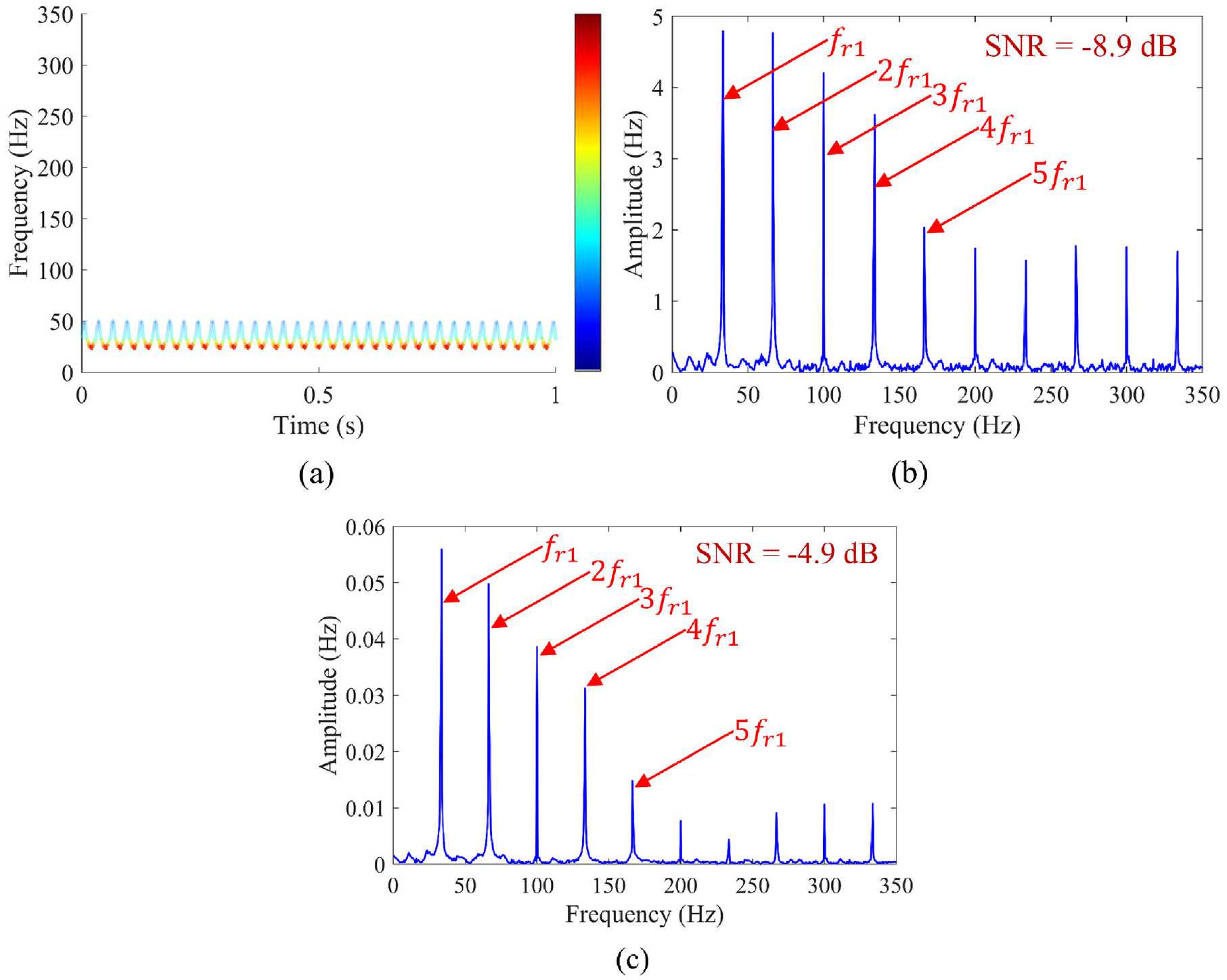

Next, the rub-impact rod is adjusted for a desired degree of rotor rubbing, and the acquired signal is analyzed, as showcased in Figure 22(a), from which it can be seen that there exist some impact components in the acceleration signal caused by rotor rub-impact failure. The displacement signal after two-stage integration is presented in Figure 22(b), and its Fourier spectrum is displayed in Figure 22(c), with the rotating frequency component being the most apparent and its harmonics being nonsignificant. TFR of the target component obtained via the proposed IVMD is presented in Figure 23(a), where the IF fast oscillating around the rotating frequency can be observed plainly. Figure 23(b) illustrates the Fourier spectrum of the estimated IF with SNR of −8.9 dB, and the rub-induced frequency at $f_{r 1} = 33.33$ Hz and its harmonics can be seen distinctly. It should be noted that only harmonics from 1× to 5× are marked for the neatness of figures in this case. However, the relative values of amplitudes of the rotating frequency component and its second harmonic are inadequate to achieve the efficient recognition of rotor rubbing failure in practice and may cause misdiagnosis, as described above. Thus, the proposed OSR method is adopted to process the estimated IF, and the result is presented in Figure 23(c), whose SNR is improved by 4 dB and the rotor rub-impact fault can be well diagnosed accordingly. The signal processing results of HHT and ACMD are shown in Figure 24, where the weighting coefficient and smooth parameter of ACMD are set to $1 \times 10^{- 8}$ and $1 \times 10^{- 8}$ , respectively, to obtain a relatively satisfactory result. It can be observed that the results of HHT and ACMD demonstrated in Figure 24(a) and (c) are both too coarse, and negative frequencies are generated during the IF estimation process, which are truncated and cannot be seen from the TFRs. Nonetheless, both the HHT and ACMD methods can detect the intrawave FM to some extent and the rubbing fault can be diagnosed in this case, as showcased in Figure 24(b) and (d), even though the proposed method still exhibits better performance of intrawave FM characteristic detection for rotor rub-impact diagnosis than the HHT and ACMD.

Figure 22.

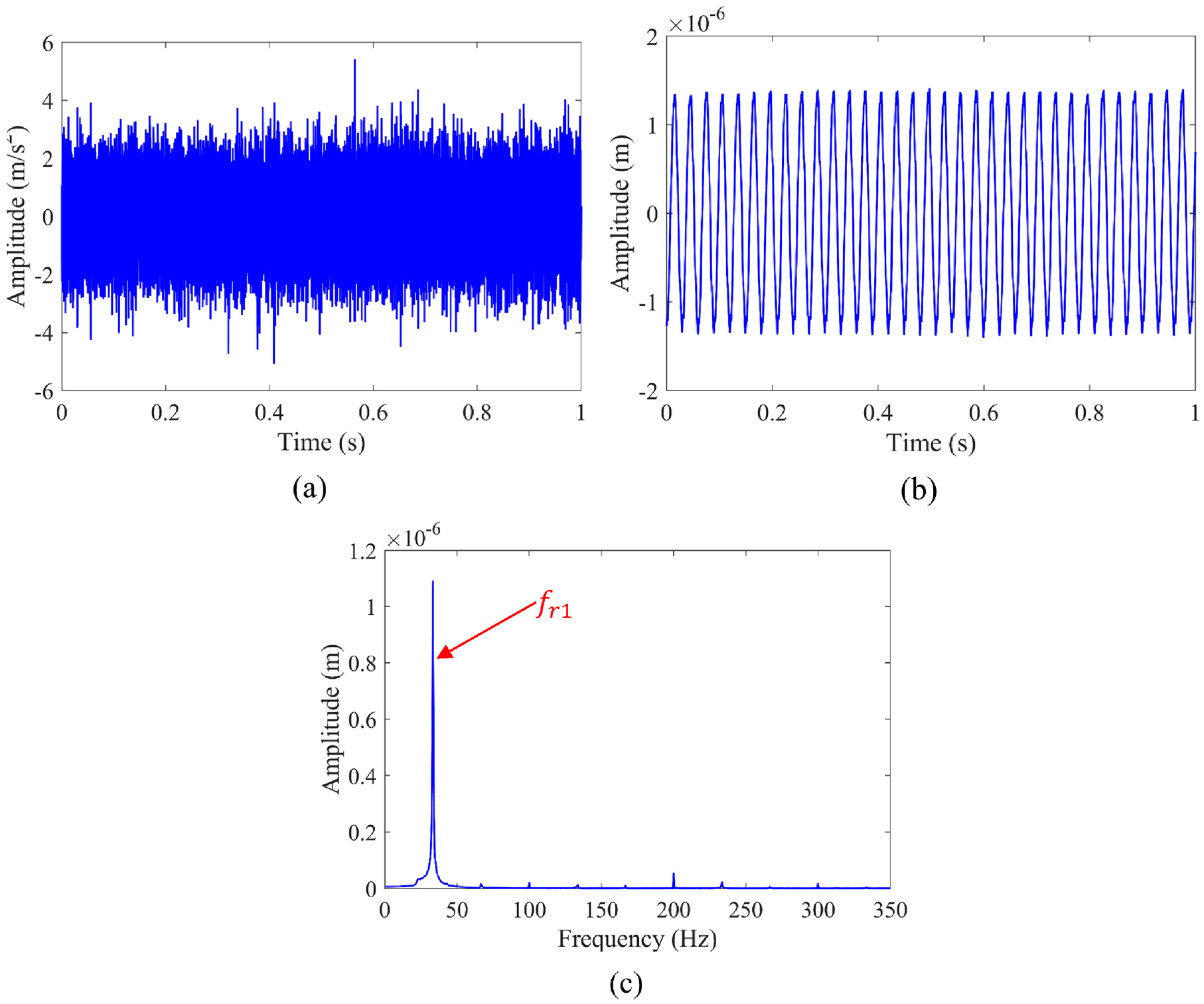

Vibratory signal acquired under the rubbing condition at the shaft speed of 2000 rpm: (a) time-domain waveform of the acceleration signal, (b) time-domain waveform of the converted displacement signal, and (c) Fourier spectrum of the displacement signal.

Figure 23.

Figure 24.

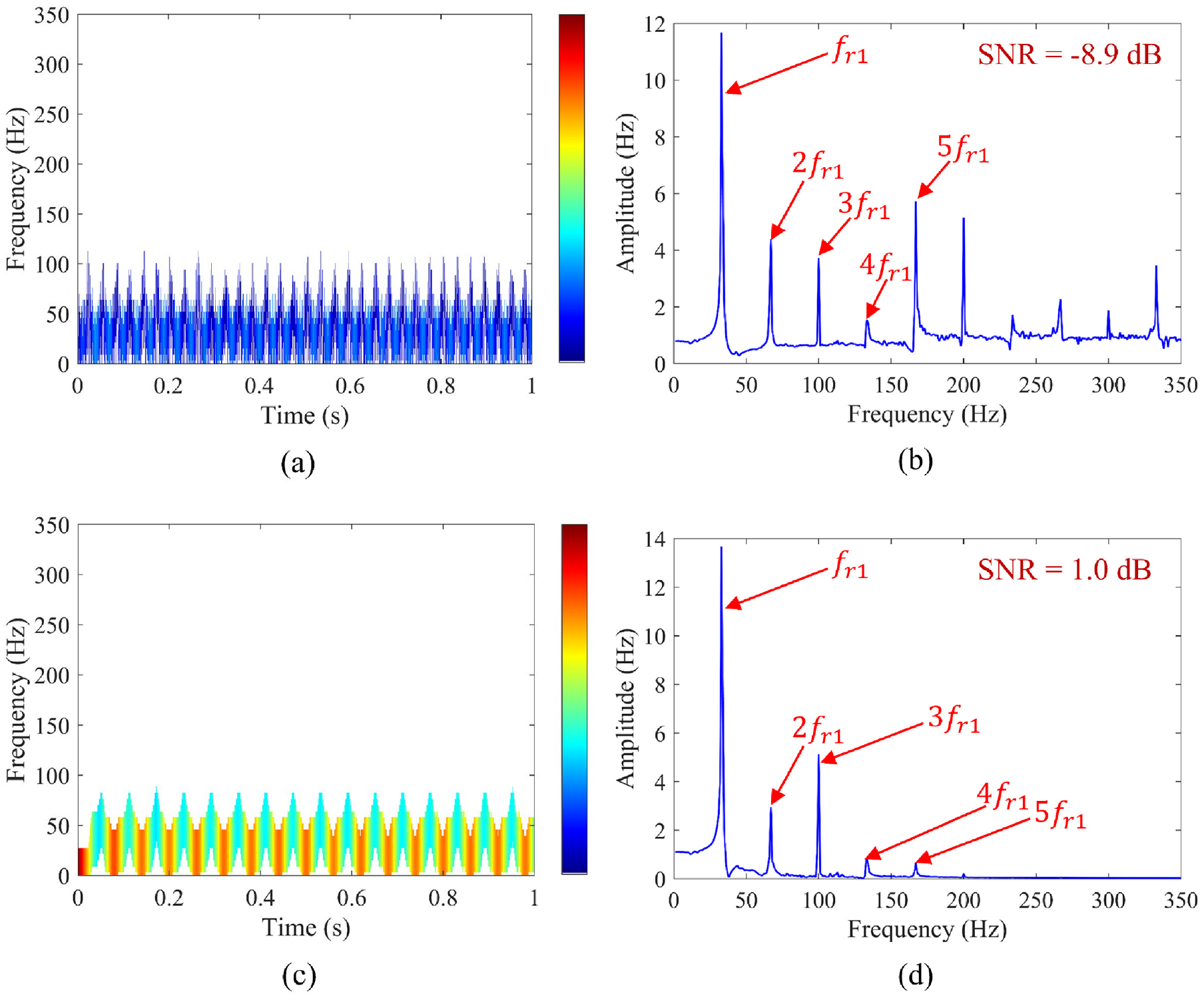

The results of HHT and ACMD: (a) TFR of HHT, (b) Fourier spectrum of the IF extracted by HHT, (c) TFR of ACMD, and (d) Fourier spectrum of the IF extracted by ACMD.

Rotor rub-impact diagnosis under the shaft speed of 5000 rpm

Subsequently, the shaft rotating speed was set as 5000 rpm, and the vibratory signal collected under the normal condition is analyzed at first. As shown in Figure 25(a), the amplitude of the acceleration signal at 5000 rpm is increased impressively compared to Figures 20(a) and 22(a), and there exist many pulses even though the rotor system is fault-free. The converted displacement signal is displayed in Figure 25(b) and the Fourier spectrum is presented in Figure 25(c), from which it can be observed that in addition to the rotating frequency $f_{r 2} = 5000 / 60 = 83.33$ Hz, there are also more noticeable harmonics, suggesting that the converted signal is more evident of multicomponent. Signal processing results of three TFA methods considered in this study are illustrated in Figure 26, in which the weighting coefficient and the smooth parameter of ACMD are set to $1 \times 10^{- 8}$ and $1 \times 10^{- 6}$ , respectively. It can be found that the extracted IF by IVMD showcased in Figure 26(a) is almost a straight line and the intrawave FM can hardly be observed, indicating that there is no rotor rubbing failure, which is consistent with the actual health state of the rotor system. Figure 26(b) illustrates that the HHT is subjected to the mode mixing problem and other interference factors and is not able to reveal the target IF component from its TFA result. As depicted in Figure 26(c), the TFR of ACMD shows that the captured IF is too crude with a large range of variation, and there exists the intrawave FM erroneously suggesting the potential rotor failure, which emanates the inferiority of the ACMD method.

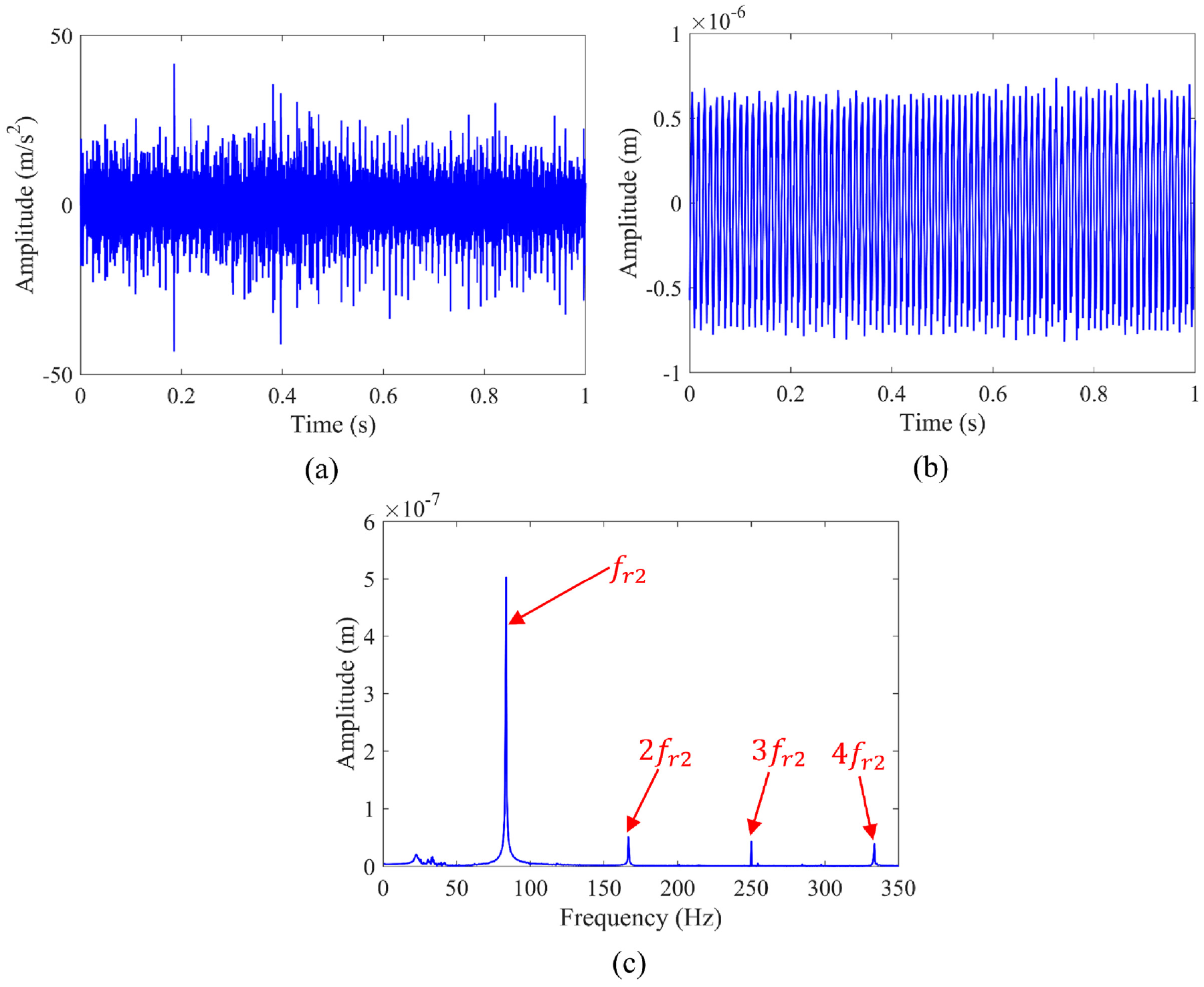

Figure 25.

Vibratory signal acquired under the normal condition at the shaft speed of 5000 rpm: (a) time-domain waveform of the acceleration signal, (b) time-domain waveform of the converted displacement signal, and (c) Fourier spectrum of the displacement signal.

Figure 26.

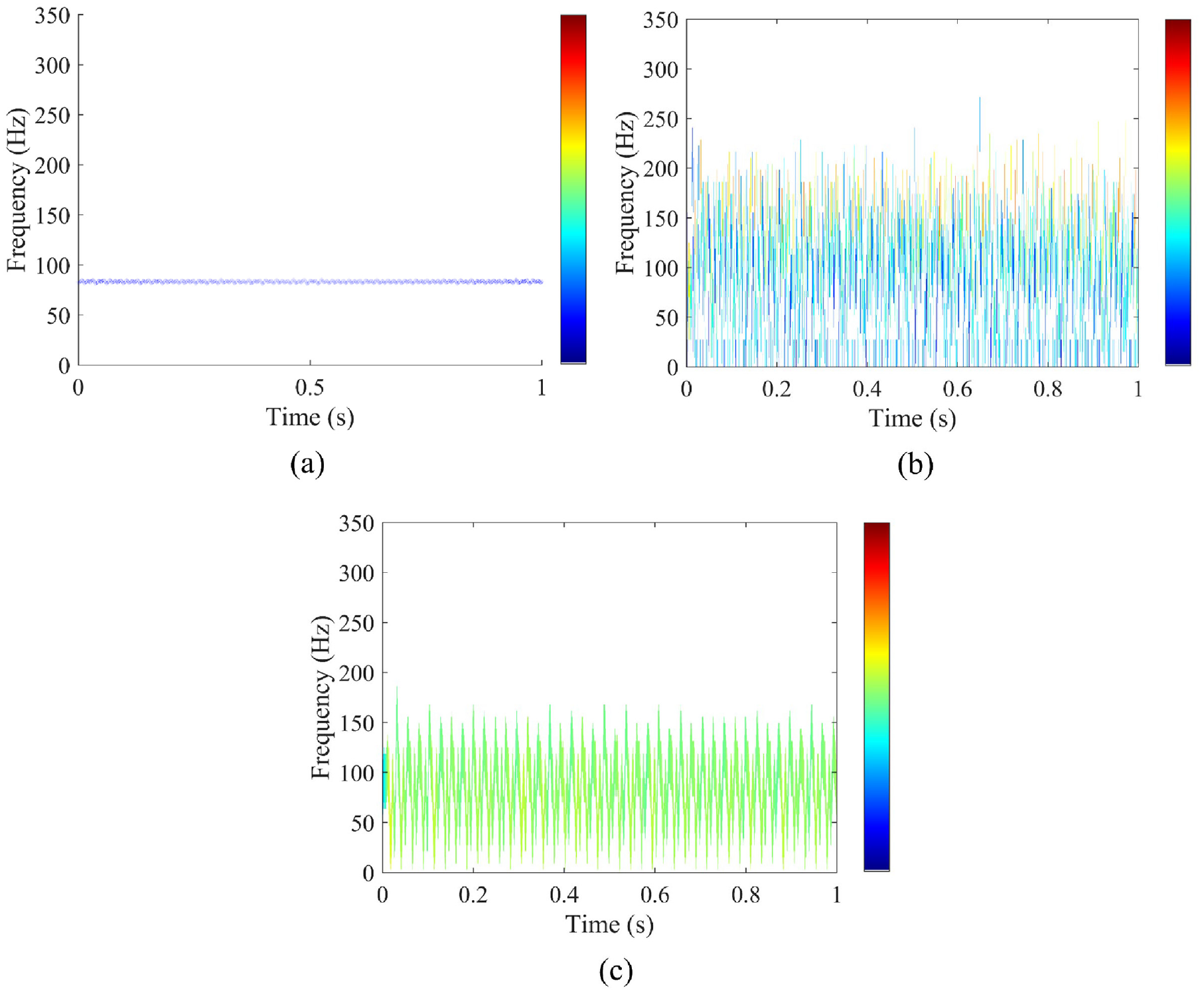

The TFA results: (a) TFR of IVMD, (b) TFR of HHT, and (c) TFR of ACMD.

Afterward, the vibration acceleration signal collected under the rubbing condition at the shaft speed of 5000 rpm is adopted for analysis, which is shown in Figure 27(a), from which it can be seen that both the amplitude and impulses of the acceleration signal increase significantly in the case of rotor rubbing. The displacement signal after two-stage integration is presented in Figure 27(b), from which several nonstationary impacts can be observed. From the Fourier spectrum of the displacement signal shown in Figure 27(c), there exist the rotating frequency $f_{r 2}$ and its harmonics, with obvious low-frequency noise. Then, this noisy multicomponent signal is analyzed by the proposed approach, and the results are provided in Figure 28. From the TFR of the proposed IVMD shown in Figure 28(a), it can be seen that the fast varying IF pattern near the rotating frequency $f_{r 2} = 83.33$ Hz is revealed clearly, and the fluctuating property of the target IF showcases obvious intrawave FM phenomenon. Figure 28(b) presents the Fourier spectrum of the estimated IF, whose SNR is −12.2 dB. While the harmonics of $f_{r 2}$ are conspicuous in the spectra, in this situation, it is more likely to be misdiagnosed as rotor cracking fault, as the amplitudes of 2× and 3× harmonic components are much greater than the amplitude of fundamental frequency at $f_{r 2} .$ ¹¹ The proposed OSR method is utilized to ameliorate this phenomenon, by further enhancing the intrawave FM characteristic and suppressing the noise interferences, and the result is presented in Figure 28(c), where the relationship of the target frequency and its harmonics supports the refined identification of rotor rub-impact and the SNR is improved to −6.7 dB. The comparison results of HHT and ACMD are provided in Figure 29, and Figure 29(a) illustrates that the HHT fails to reveal the target IF from the noisy multicomponent signal due to its inherent drawbacks. For ACMD, the weighting coefficient and smooth parameter are, respectively, adjusted to $1 \times 10^{- 8}$ and $1 \times 10^{- 6}$ , and despite that the TFR of ACMD displayed in Figure 29(b) exhibits as intrawave FM of the IF, the variation range of the target IF is too large to verily reflect its intrinsic structure. In addition, the Fourier spectrum of the IF extracted by ACMD is also not supportive for accurate rotor rubbing failure diagnosis, as shown in Figure 29(c), even though the SNR of which is higher than the result of the proposed approach.

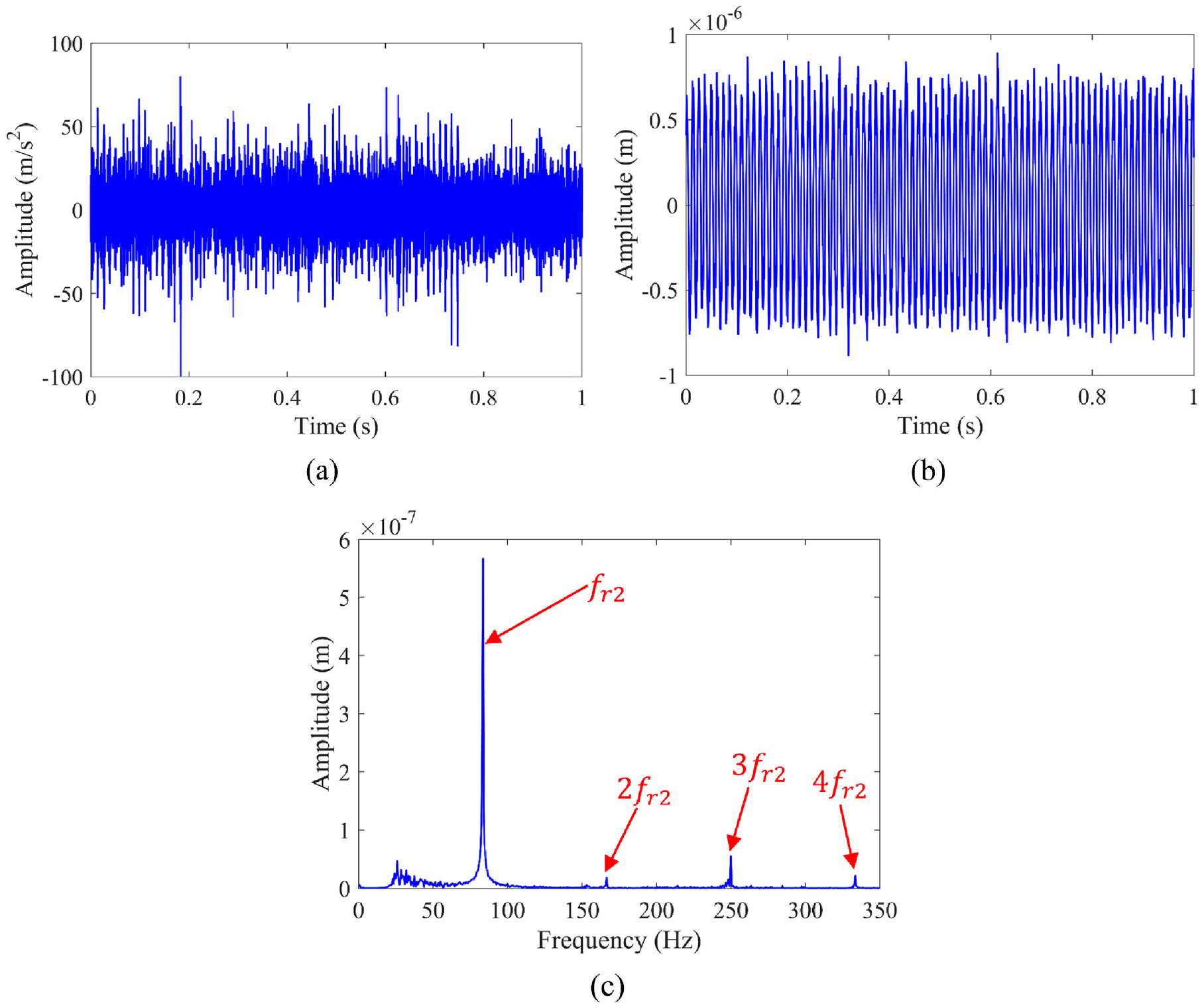

Figure 27.

Vibratory signal acquired under the rubbing condition at the shaft speed of 5000 rpm: (a) time-domain waveform of the acceleration signal, (b) time-domain waveform of the converted displacement signal, and (c) Fourier spectrum of the displacement signal.

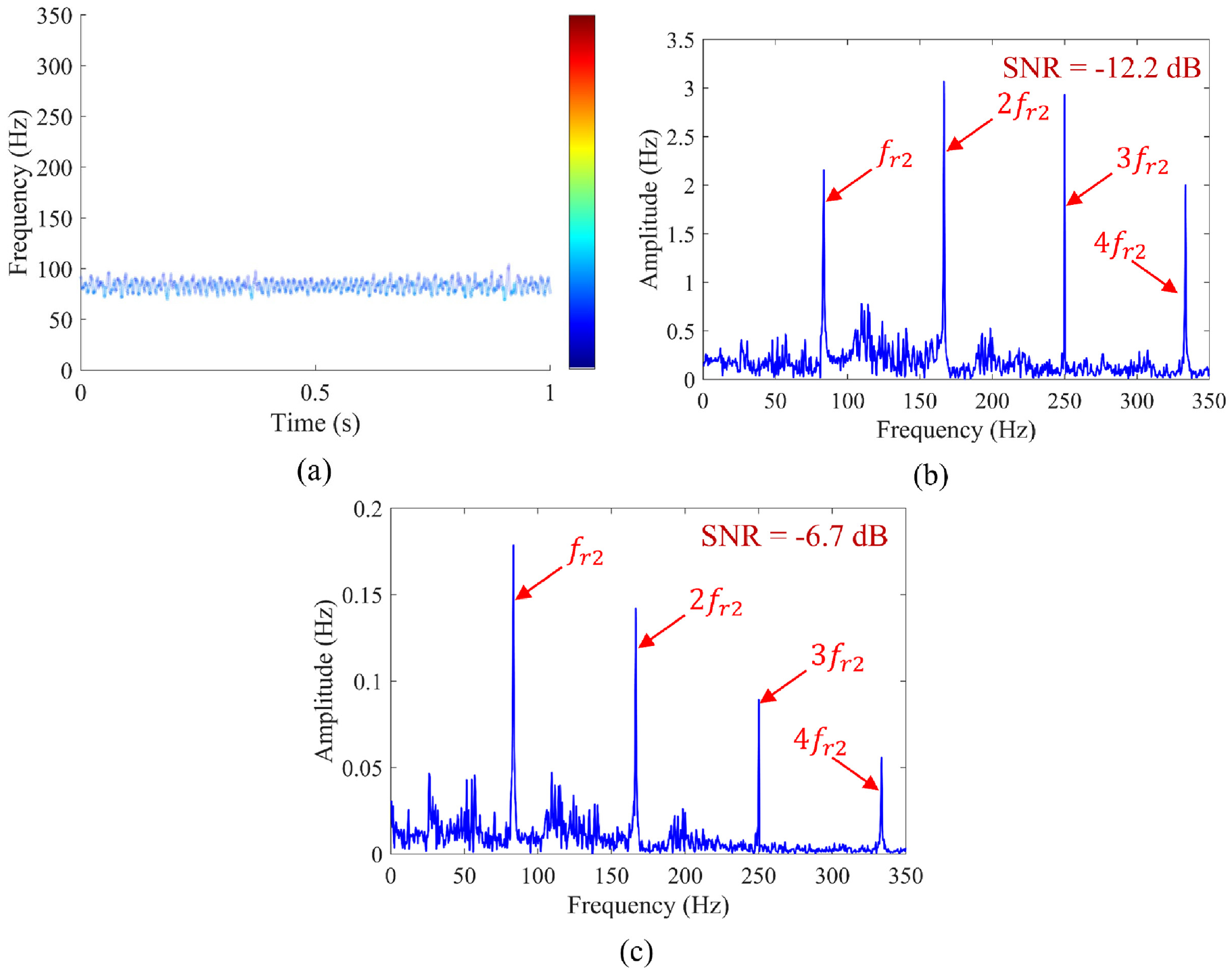

Figure 28.

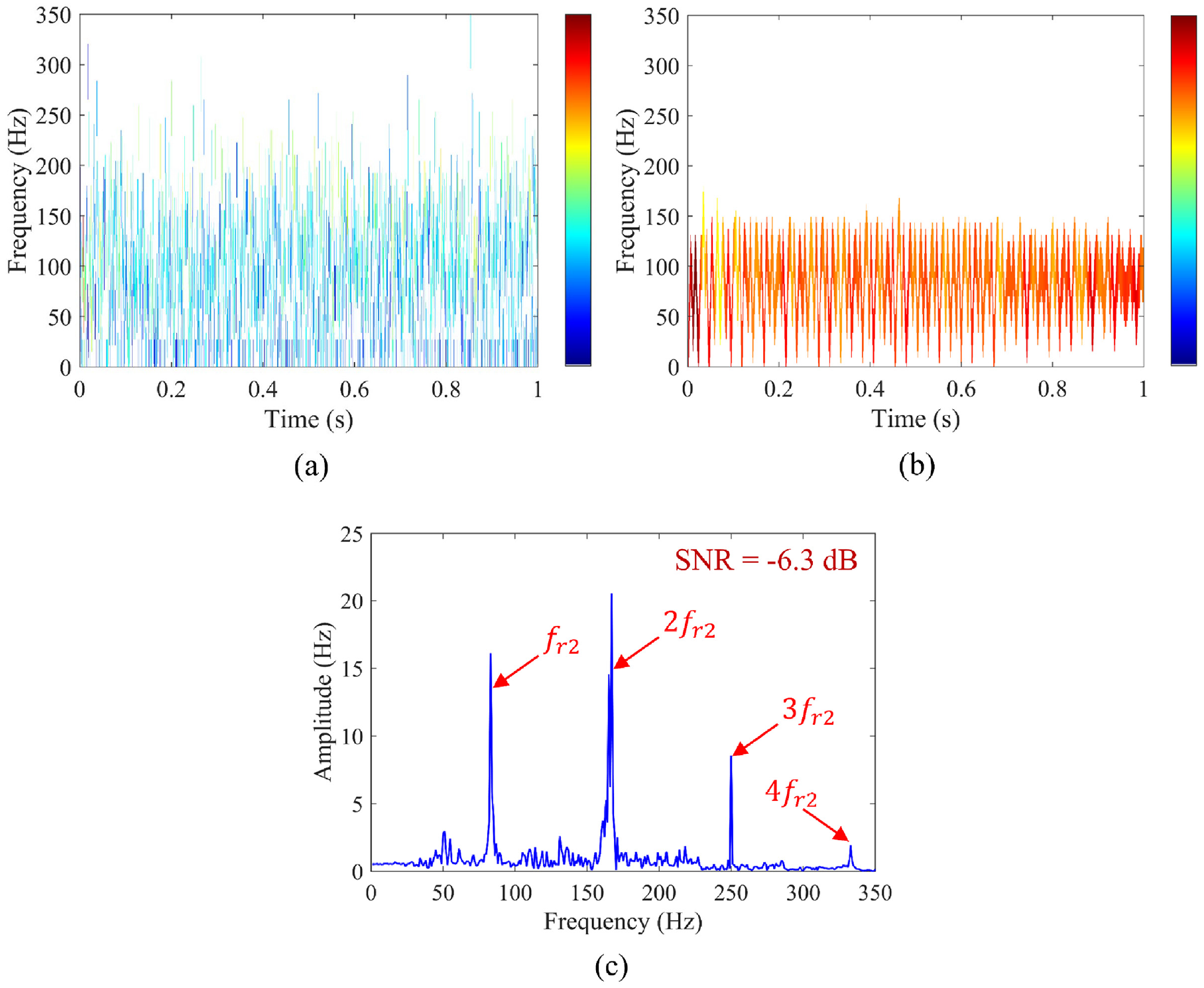

Figure 29.

The results of HHT and ACMD: (a) TFR of HHT, (b) TFR of ACMD, and (c) Fourier spectrum of the IF extracted by ACMD.

Application in centrifugal pump rubbing detection

In this section, vibratory signals acquired from a centrifugal pump test platform are utilized for analysis. As showcased in Figure 30(a), the induction motor drives the centrifugal pump through a flexible coupling, and the fluid is sucked in from the inlet and discharged from the outlet. During the test, the motor speed was set to 1500 rpm. For the centrifugal pump utilized in this experimentation, its impeller was manufactured by three-dimensional printing (as shown in Figure 30(b)), and the number of blades was five. Two wireless vibratory sensors were installed at the induction motor and the bearing pedestal of the centrifugal pump, respectively, to perform condition monitoring and signal acquisition, with the sampling frequency of 5120 Hz. Vibration acceleration signals acquired by wireless sensor #1 are analyzed in this study, and the sampling time is 2 s for each signal.

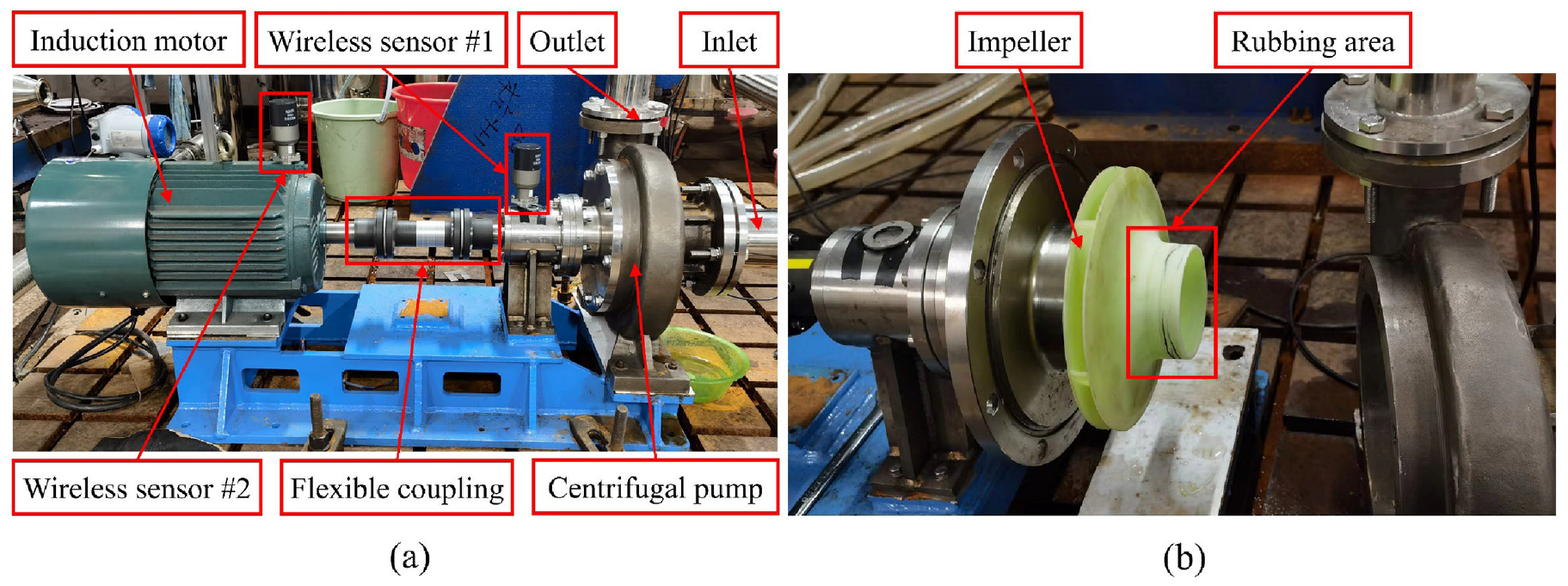

Figure 30.

The centrifugal pump test platform for rotor rubbing simulation: (a) overview of the test stand and (b) the rotatable part suffered from rub-impact.

To start with, the vibration acceleration signal collected under rubbing-free condition of the centrifugal pump is processed, as shown in Figure 31(a). Time waveform of the converted displacement signal via the two-stage integration strategy is depicted in Figure 31(b), and its Fourier spectrum is presented in Figure 31(c), from which it can be observed that there are two predominant peaks corresponding to the rotating frequency $f_{rz} = 1500 / 60 = 25$ Hz and the blade passing frequency $5 f_{rz} = 125$ Hz, respectively. Besides, there are also some harmonic components of the fundamental frequency as well as interference noise in the spectrum. Three TFA methods are employed to analyze the converted displacement signal, where the weighting coefficient and the smooth parameter of ACMD are selected as $1 \times 10^{- 10}$ and $1 \times 10^{- 10}$ , respectively, and the results are provided in Figure 32. It can be found that both the proposed IVMD method and the ACMD can extract the target IF with no intrawave FM successfully, while the HHT is incapable of representing the correct IF structure because of the modal mixing problem and its weaker noise-resistant ability.

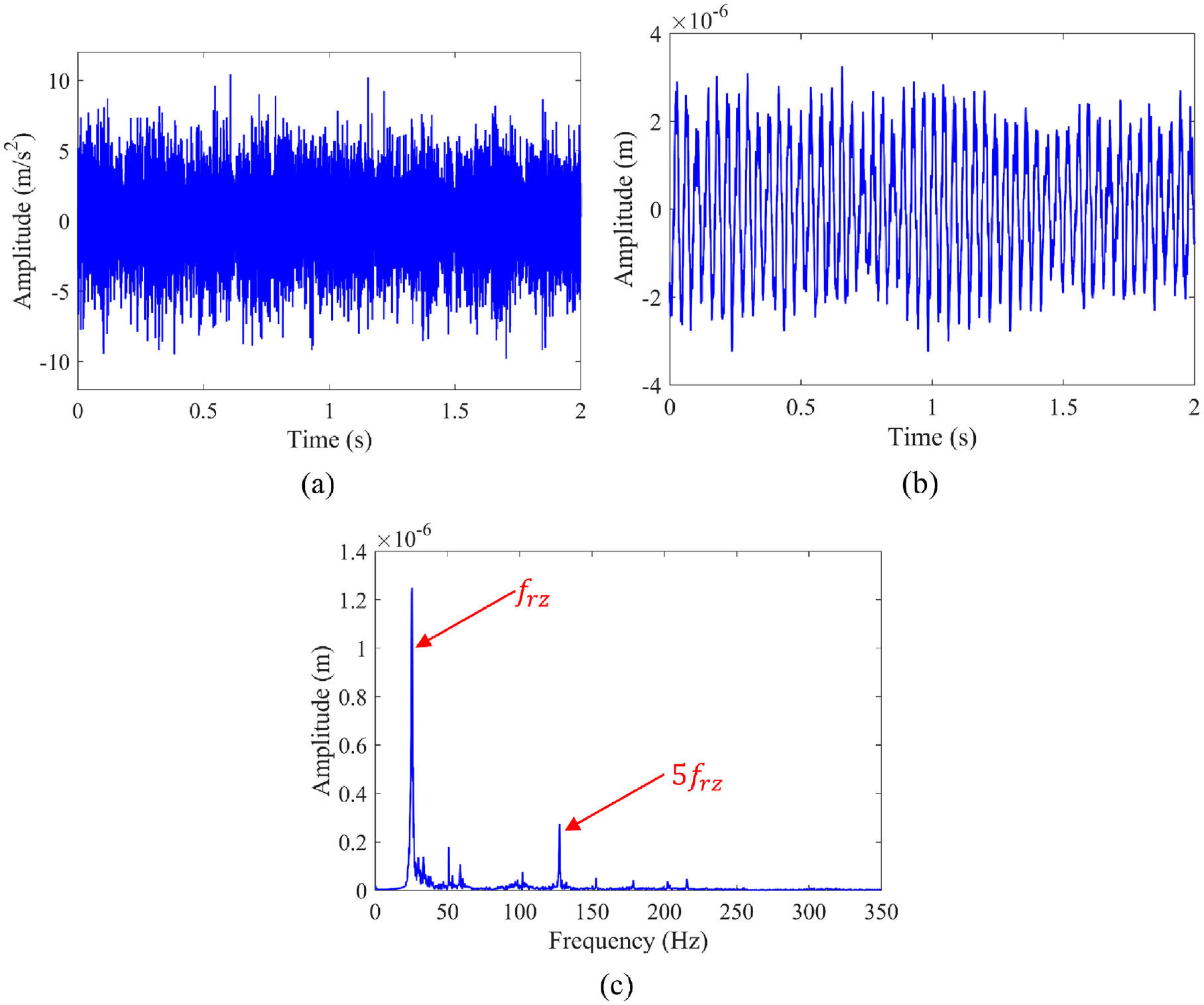

Figure 31.

Vibratory signal acquired under the rubbing-free condition: (a) time-domain waveform of the acceleration signal, (b) time-domain waveform of the converted displacement signal, and (c) Fourier spectrum of the displacement signal.

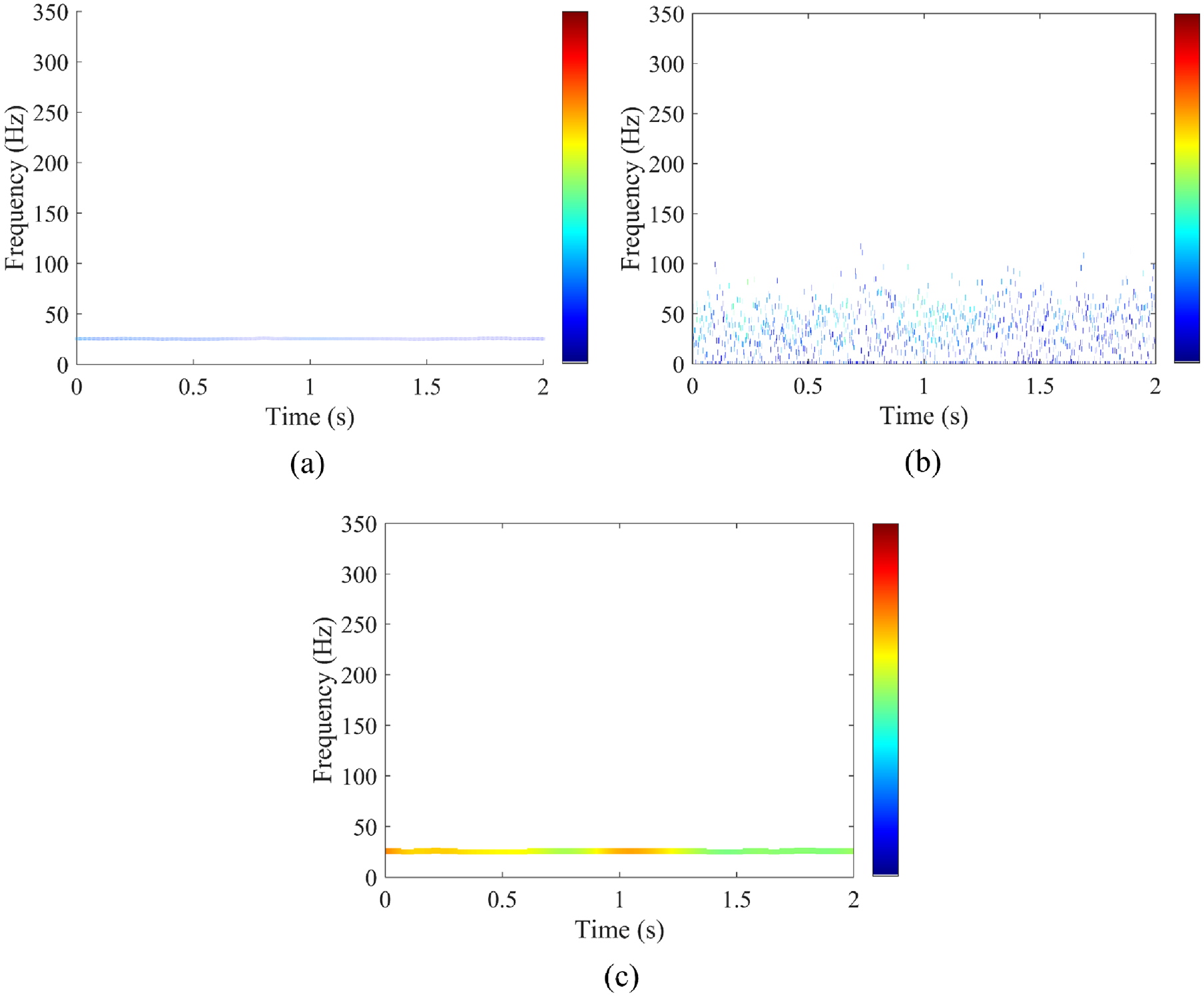

Figure 32.

The TFA results: (a) TFR of IVMD, (b) TFR of HHT, and (c) TFR of ACMD.

Next, by manually fine-tuning the relative position of the impeller and the pump housing, the rubbing failure of the rotor system of the tested centrifugal pump can be simulated. The rubbing area on the impeller is displayed in Figure 30(b), where the water-insoluble black coating layer is damaged due to the rub-impact. Then, the acceleration signal collected under rubbing condition of the centrifugal pump is analyzed, as depicted in Figure 33(a). Figure 33(b) presents the converted displacement signal after integration, and it can be found that the amplitude is increased due to the rubbing of the rotor system compared with Figure 31(b). Also, in the Fourier spectrum of the displacement signal displayed in Figure 33(c), the amplitude of the rotation frequency component is almost two to three times larger compared to Figure 31 (c), and the blade passing frequency can hardly be seen from the spectrum this time. The proposed approach is applied to analyze the signal, and the signal processing results are illustrated in Figure 34. One can see that the fast fluctuating IF recovered on the TFR depicted in Figure 34(a) clearly manifests the intrawave FM pattern of the target frequency. The Fourier spectrum of the IF estimated by the QDBNHT is presented in Figure 34(b), where the target frequency and its harmonic components can be observed and the SNR is −28.5 dB. Notwithstanding, as described above, this kind of spectrum does not support the robust diagnostics of rotor rub-impact. Therefore, the PSO-optimized SR is utilized to highlight the intrawave FM and further suppress the noise, and the result is illustrated in Figure 34(c), where the target frequency $f_{rz}$ becomes more preponderant and the diagnostic process of rotor rubbing can be more reliable despite the fact that the SNR of the spectra is only improved by 5 dB. For comparative purposes, the analysis results of HHT and ACMD are provided in Figure 35. For HHT, due to its inherent deficiencies of mode mixing, recursive sifting, and misclassification caused by fixed band allocation, it is still unable to seize the rapid fluctuating IF modal of the target frequency component in this case, and the TFR of HHT severely suffers from energy diffusion that can smear the manifestation. For ACMD, the weighting coefficient is selected as $1 \times 10^{- 6}$ and the smooth parameter is selected as $1 \times 10^{- 4}$ , and the revealed target IF pattern demonstrated in Figure 35(b) registers as excessive amplitude of intrawave FM and a certain degree of energy diffusion. Even so, in Figure 35(c), the rotating frequency $f_{rz}$ and its harmonics can be observed and the rotor rubbing failure can be diagnosed through this result. It is worth mentioning that although the SNR of the result obtained by using ACMD here (SNR = −18.3 dB) is higher than that of the proposed approach, and this is primarily due to the different numerical ranges of the ordinates, and the value of SNR can only be used as a reference measure to some extent. Here, the harmonic components in the ACMD result are very damaged by the interference component, which is visually inferior to the result obtained by the proposed approach. As a consequence, the overall performance of the proposed approach in intrawave FM characteristic detection for structural rotor rub-impact detection and diagnostics is generally more robust and superior to the HHT and ACMD methods.

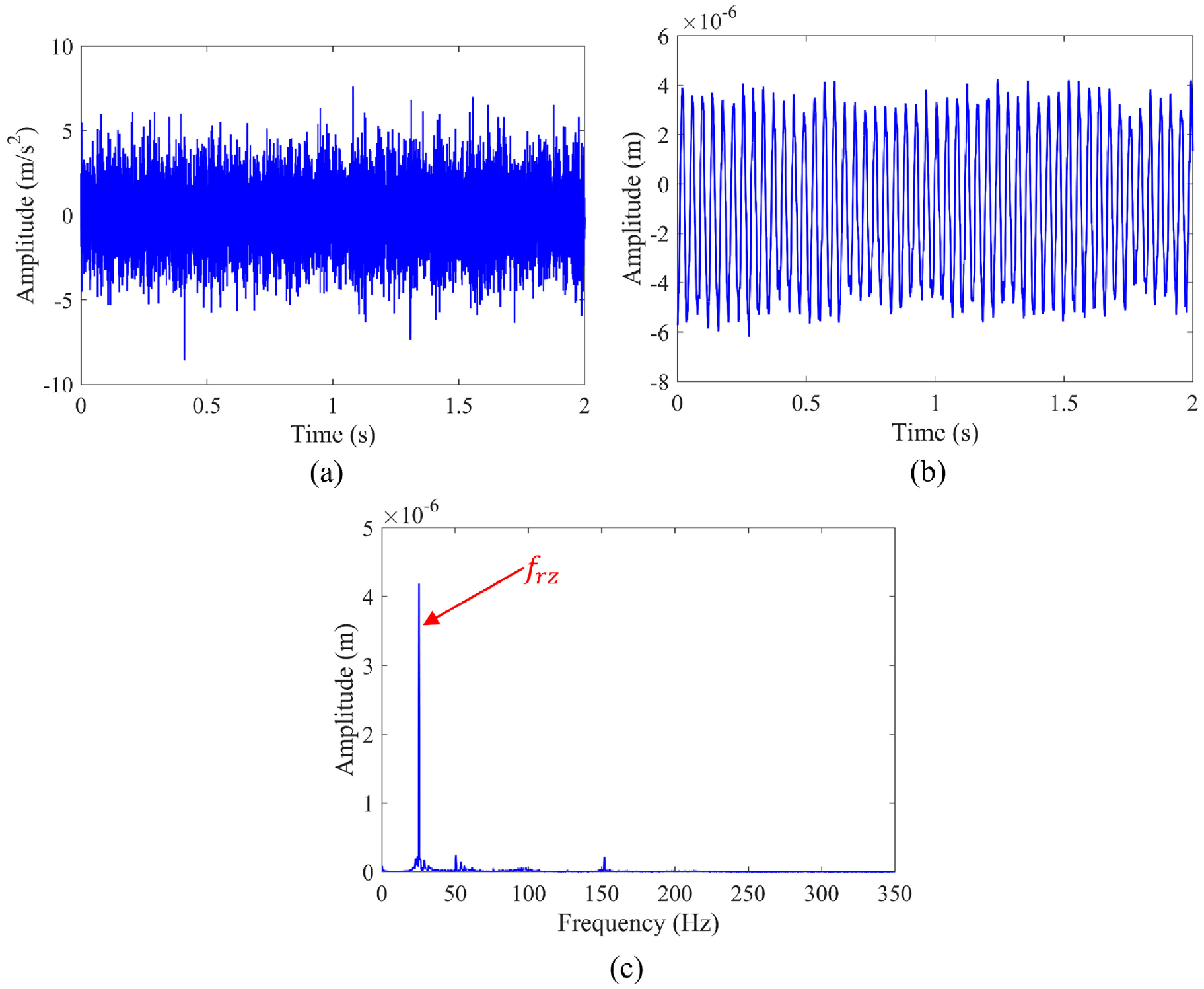

Figure 33.

Vibratory signal acquired under the rubbing condition: (a) time-domain waveform of the acceleration signal, (b) time-domain waveform of the converted displacement signal, and (c) Fourier spectrum of the displacement signal.

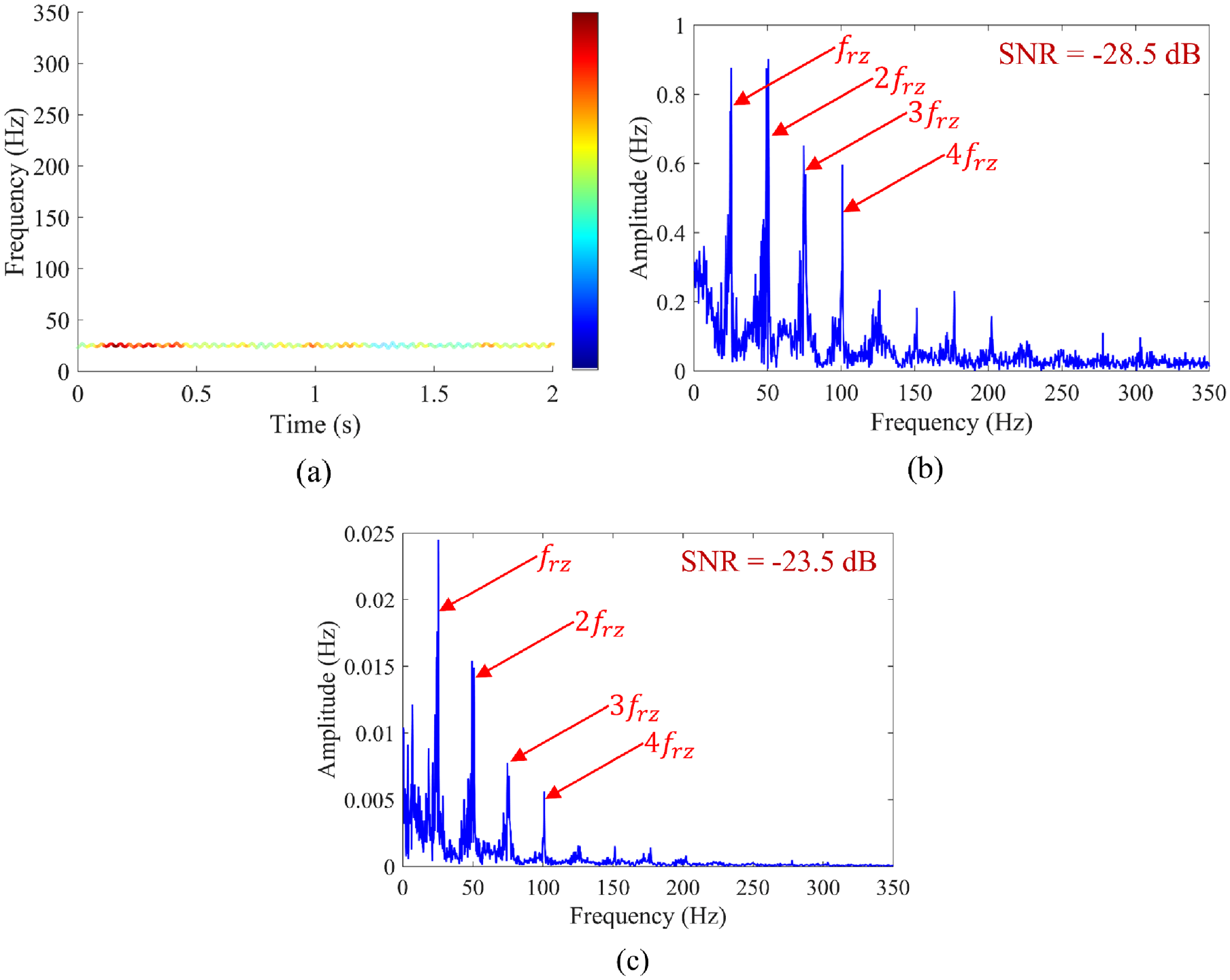

Figure 34.

Figure 35.

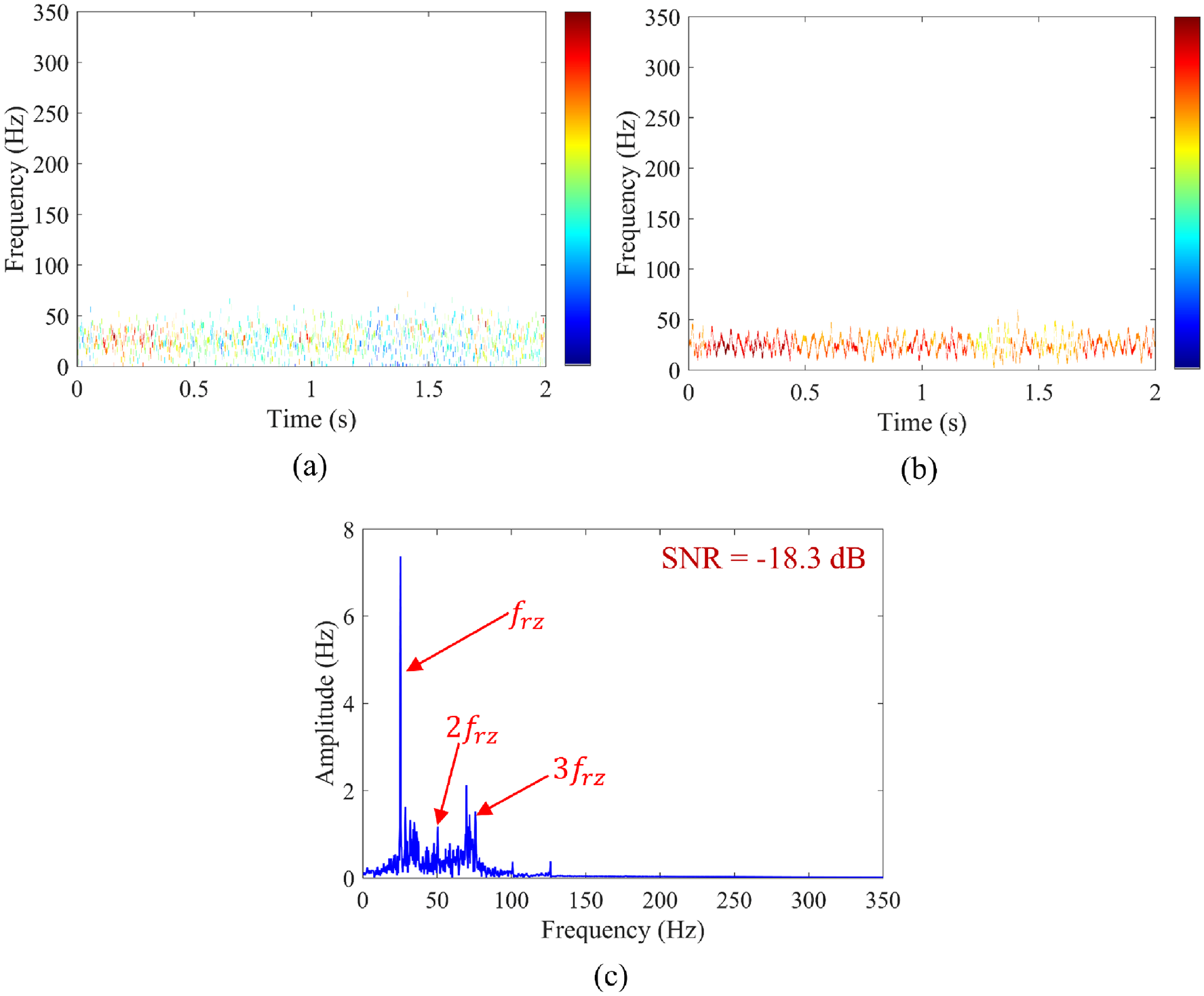

The results of HHT and ACMD: (a) TFR of HHT, (b) TFR of ACMD, and (c) Fourier spectrum of the IF extracted by ACMD.

Conclusion

Aiming at developing a practical and effective approach for robust diagnosis of structural rotor rub-impact under intricate noise interferences, a novel intrawave FM characteristic detection method based upon targeted component extraction via IVMD and OSR-based IF fluctuation enhancement is presented in this work, which can be directly applied to more commonly used vibration acceleration signals through the two-stage integration strategy and the advanced signal processing procedure. In the mainstay of the proposed approach, the IVMD method based on the indicator of MTFI, combined with the QDBNHT method, can effectively capture the rapid fluctuating IF representation of the rotor rub-induced vibration response from the noisy multicomponent signal. Then, the intrawave FM structure of the objective IF is enhanced, and the interference noise is further inhibited by the PSO-optimized SR method, and finally, the reliable and refined identification of rotor rub-impact can be achieved. The effectiveness and superiority of the proposed approach have been validated by using both simulation and experimental data, indicating its merits over existing state-of-the-art TFA methods are that: (1) compared to the HHT, the proposed approach possesses ascendant capability of complex multicomponent signal processing, while the HHT suffers from the deficiencies originated from EMD; (2) compared with ACMD, the proposed approach has few parameters that need to be adjusted to obtain a satisfactory result, which makes it more effortless to be implemented in practice; and (3) in general, compared to both the HHT and ACMD methods, the proposed approach showcases a better performance of TFA, with higher noise resistance and more advanced ability of targeted component extraction, which can efficiently reveal the potential characteristics of rotor rubbing failure. All the results sufficiently confirm that the proposed approach is a promising tool for rotor rub-impact diagnosis under intricate operating conditions in practical applications. Furthermore, the technical methods utilized in the proposed approach are inseparably interconnected to form the novel efficient sequential procedure of signal converting, targeted component extraction, feature enhancement, and fault diagnosis for reliable and robust structural rotor rub-impact diagnostics through vibration acceleration signals under intricate noise interferences, and it can be programmed into an end-to-end formality and implemented with only the measured acceleration signal, sampling frequency, and target rotating frequency as the input, with the output TFR and spectrum of IF as support for the diagnostic decision, where the dependency of expert knowledge for maintenance personnel is substantially lessened.

In the future, research about diagnostic approaches for rotor cracking, mechanical looseness, rotor cocked, and coupled mechanical faults should be conducted based upon a promoted scheme.

Footnotes

CRediT authorship contribution statement

Yaochun Hou was involved in conceptualization, methodology, software, investigation, validation, writing—original draft, writing—review and editing. Huan Wang was involved in conceptualization, methodology, writing—review and editing. Yuxuan Wang was involved in formal analysis, investigation, writing—review and editing. Peng Wu was involved supervision, writing—review and editing. Wenjun Huang was involved in resources, supervision, funding acquisition, writing—review. Dazhuan Wu was involved in resources, supervision, funding acquisition, writing—review.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was financially supported by Key Research and Development Program of Zhejiang Province (No. 2022C01047) and Eyas Program Incubation Project of Zhejiang Provincial Administration for Market Regulation (No. CY2022226).

ORCID iD

Dazhuan Wu

References

Shi

Zhao

, et al. Fault diagnosis of rotor based on local-global balanced orthogonal discriminant projection, Measurement 2021; 168: 108320.

Nath

Udmale

Raghuwanshi

, et al. Improved structural rotor fault diagnosis using multi-sensor fuzzy recurrence plots and classifier fusion. IEEE Sens J 2021; 21: 21705–21717.

Nath

Sharma

Udmale

, et al. An early classification approach for improving structural rotor fault diagnosis. IEEE Trans Instrum Meas 2021; 70: 1–13.

Wang

Jiang

Vibration response characteristics of a dual-rotor with unbalance-misalignment coupling faults: theoretical analysis and experimental study. Mech Mach Theory 2018; 125: 207–219.

Liu

Zhao

Lang

Z-Q

, et al. Weighted contribution rate of nonlinear output frequency response functions and its application to rotor system fault diagnosis. J Sound Vib 2019; 460: 114882.

Jing

Meng

A novel method for multi-fault diagnosis of rotor system. Mech Mach Theory 2009; 44: 697–709.

Jung

Jeon

, et al. Scalable and unsupervised feature engineering using vibration-imaging and deep learning for rotor system diagnosis. IEEE Trans Ind Electron 2018; 65: 3539–3549.

Sonkul

Dhage

Vyas

NS.

Single and multi-label fault classification in rotors from unprocessed multi-sensor data through deep and parallel CNN architectures. Expert Syst Appl 2021; 185: 115565.

Zhu

Hou

Zhou

, et al. Rotor fault diagnosis using a convolutional neural network with symmetrized dot pattern images. Measurement 2019; 138: 526–535.

10.

Yan

Zhang

Liu

Multi-branch convolutional neural network with generalized shaft orbit for fault diagnosis of active magnetic bearing-rotor system. Measurement 2021; 171: 108778.

11.

Xiang

Zhang

Experimental study on the intrawave frequency modulation characteristic of rotor rub and crack fault. Mech Syst Signal Process 2019; 118: 209–225.

12.

Cheng

Tang

, et al. Local rub-impact fault diagnosis of the rotor systems based on EMD. Mech Mach Theory 2009; 44: 784–791.

13.

Wang

Markert

Xiang

, et al. Research on variational mode decomposition and its application in detecting rub-impact fault of the rotor system. Mech Syst Signal Process 2015; 60–61: 243–251.

14.

Zheng

Pan

Yang

, et al. Adaptive parameterless empirical wavelet transform based time-frequency analysis method and its application to rotor rubbing fault diagnosis. Signal Process 2017; 130: 305–314.

15.

Xia

Zhou

Xiao

, et al. A novel identification method of Volterra series in rotor-bearing system for fault diagnosis. Mech Syst Signal Process 2016; 66–67: 557–567.

16.

Liu

Feng

, et al. A novel fault diagnosis method for rotor rub-impact based on nonlinear output frequency response functions and stochastic resonance. J Sound Vib 2020; 481: 115421.

17.

Feng

Liang

, et al. An improved NOFRFs-based fault feature extraction method and its application to quantitative diagnosis in rotor rub-impact. J Sound Vib 2021; 513: 116406.

18.

Chandra

Sekhar

AS.

Fault detection in rotor bearing systems using time frequency techniques. Mech Syst Signal Process 2016; 72–73: 105–133.

19.

Meng

Liu

, et al. General synchroextracting chirplet transform: application to the rotor rub-impact fault diagnosis. Measurement 2021; 169: 108523.

20.

Zhou

Chen

, et al. Study on intra-wave frequency modulation phenomenon in detection of rub-impact fault. Mech Syst Signal Process 2019; 122: 342–363.

21.

Chen

Yang

Peng

, et al. Detection of rub-impact fault for rotor-stator systems: a novel method based on adaptive chirp mode decomposition. J Sound Vib 2019; 440: 83–99.

22.

Feng

Chu

Nonstationary vibration signal analysis of a hydroturbine based on adaptive chirplet decomposition. Struct Health Monit 2007; 6: 265–279.

23.

Ouyang

Wang

Cheng

, et al. Comprehensive diagnosis and analysis of spur gears with pitting-crack coupling faults. Mech Mach Theory 2022; 176: 104968.

24.

Hua

Xiong

, et al. Multi-fault classification of rotor systems based on phase feature of axis trajectory in noisy environments. Struct Health Monit 2024; 23: 924–944.

25.

Jiang

Shen

Shi

, et al. Initial center frequency-guided VMD for fault diagnosis of rotating machines. J Sound Vib 2018; 435: 36–55.

26.

Yao

Wang

, et al. Periodic impulses extraction based on improved adaptive VMD and sparse code shrinkage denoising and its application in rotating machinery fault diagnosis. Mech Syst Signal Process 2019; 126: 568–589.

27.

Miao

Zhao

, et al. Application of sparsity-oriented VMD for gearbox fault diagnosis based on built-in encoder information. ISA Trans 2020; 99: 496–504.

28.

Feng

, et al. A fault information-guided variational mode decomposition (FIVMD) method for rolling element bearings diagnosis. Mech Syst Signal Process 2022; 164: 108216.

29.

Hou

An operating condition information-guided iterative variational mode decomposition method based on Mahalanobis distance criterion for surge characteristic frequency extraction of the centrifugal compressor. Mech Syst Signal Process 2023; 186: 109836.

30.

Yuan

, et al. Online fault diagnosis of motor bearing via stochastic-resonance-based adaptive filter in an embedded system. IEEE Trans Syst Man Cybern Syst 2017; 47: 1111–1122.

31.

Qiao

Lei

Applications of stochastic resonance to machinery fault detection: a review and tutorial. Mech Syst Signal Process 2019; 122: 502–536.

32.

Wang

A review of stochastic resonance in rotating machine fault detection. Mech Syst Signal Process 2019; 116: 230–260.

33.

Dragomiretskiy

Zosso

Variational mode decomposition. IEEE Trans Signal Process 2014; 62: 531–544.

34.

Liu

Peng

Zuo

, et al. Improved Hilbert–Huang transform with soft sifting stopping criterion and its application to fault diagnosis of wheelset bearings. ISA Trans 2022; 125: 426–444.

35.

Chen

Dong

Peng

, et al. Nonlinear chirp mode decomposition: a variational method. IEEE Trans Signal Process 2017; 65: 6024–6037.

36.

Wang

Liu

Sun

, et al. An order tracking-free method for variable speed fault diagnosis based on adaptive chirp mode decomposition. Measurement 2021; 185: 109949.
