Nonlinear vibration analysis and defect characterization using entropy measure-based learning algorithm in a defective rolling element bearings

Abstract

Rolling element bearings (REBs) constitute a crucial element in rotating machinery, and their malfunction is one of the most common reasons for unplanned outages and shutdowns. As a result, monitoring the health of REBs, detecting and diagnosing the size and location of faults, and assessing their degradation have been the subject of extensive research. In the last few decades, several signal processing techniques such as Fast Fourier transform, Wavelet transform, Hilbert transform, artificial neural network, and recurrence plot (RP), among others, have been proposed for the diagnosis and prognosis of REBs. However, most of these techniques provide only a qualitative diagnosis while ignoring the quantitative aspect of the faults. The current work proposes a novel entropy-based fault detection approach and grading the condition of bearings from noisy time history measurements. Entropy-based measures based on Kullback–Leibler and Shannon entropy from vibration signals have been used for grading the condition of bearings. Subsequently, these entropy basis measures have been successfully tested on vibration signatures from various bearing fault types occurring at different locations. The results indicate a one-to-one relation between fault severity and its entropy measure. Moreover, each type of bearing fault has been shown to have a well-defined entropy measure, for different faults lie on a nearly linear locus. In addition to the field and experimental data obtained in the workshop, a nonlinear vibration model under the combined effect of the unbalanced and non-Gaussian Poisson loading has been developed to obtain the acceleration time waveform for the fault severity assessment. The noisy nonlinear model takes into account the Hertizian contact force between the ball and races, internal clearance, race waviness, varying compliances, and localized defects. The adaptive time stepping (ATSP) numerical integration combined with the Brownian tree is used to obtain the nonlinear vibration response. The results show the effectiveness of the proposed algorithm in the diagnosis and prognosis of various types of REB faults.

Keywords

Rolling element bearing Shannon entropy Kullback–Leibler divergence recurrence quantification Poisson white noise structural health monitoring.

Introduction

Rolling element bearings (REBs) are essential components in rotating machinery associated with automobile, aerospace, agriculture, and other industrial applications. REBs endure heavy dynamical loads during harsh operating conditions and the ease of maneuverability of the machines depends on the form and finish of the rolling contact surface. REBs usually undergo progressive degradation with time, leading to structural faults such as pitting, wear, fatigue cracking, galling, and spalling. Moreover, even after using high-precision machining techniques and strict quality inspection procedures during manufacturing, defects in REBs may still arise during the manufacturing process. Any such micro scratch or defect on mating surfaces in the bearing, if it remains undetected, may cause malfunctions and even lead to catastrophic failure of the machinery. Such faults, therefore, not only reduce the reliability and availability of the plant, affecting its financial health but also can prove to be a safety hazard to the operators. Another difficulty associated with fault detection in REBs is examining whether a localized surface defect is associated with bearing components or other faults related to rotor dynamics. Therefore, advanced and unambiguous detection of the severity and position of the localized defects through analysis of the vibration time waveform is essential for system maintenance, process automation, reliability, and quality inspection during manufacturing.^1–4

With the advancement in the field of digital networks, microprocessors, and sensors, various condition monitoring techniques based on vibration signals, acoustic emission, ultrasound, wear debris analysis, bearing temperature measurement, sound pressure, and motor current signature analysis have been developed and widely used for the health inference of REBs.^2–4 These techniques provide an enormous amount of failure data in raw form, which brings significant challenges in extracting fault features effectively. For instance, vibration condition monitoring using accelerometers mounted on the bearing housing and tracking the spectral characteristics of the vibration signals is a well-established method for fault assessment of REBs. However, it is difficult to precisely identify the bearing defect frequency as it gets masked by ambient noise and other interferences, such as impact vibration, shaft rotational frequency, misalignment, gear noise, and other related components.^3–5 Hence, conventional time and frequency domain analyses of raw vibration signals have limitations in capturing nonstationary and nonlinear behavior from real-world time waveforms and are insufficient for accurately assessing the bearing health; the data have to be further processed using advanced signal processing techniques to execute apposite diagnosis and prognosis of the REBs.^1–3

Many studies based on advanced signal processing techniques of the time series data from faulty REBs have been conducted to detect and diagnose the fault.^5–11 For several decades, statistical parameters, such as kurtosis, crest factor, skewness, autoregressive modeling, and correlation of the vibration signals, have been widely used for fault detection.⁸ Apart from these time domain techniques, a wide range of spectral methods based on Fast Fourier transform (FFT), spectral kurtosis, envelope analysis, and improving the signal-noise ratio (SNR) through adaptive noise cancellation have been attempted to characterize faulty bearing signals.^1,9 Envelope analysis is another dominant frequency domain technique for fault diagnosis.¹² However, it does not usually provide temporal localization, and also characteristic defect frequencies are not easily distinguishable, hence not able to make the right diagnostic decision when used alone. To overcome the deficiencies of the aforementioned time and frequency domain analyses, several advanced signal processing techniques such as Wavelet transform (WT),^13,14 Hilbert-Huang transform (HHT),^15,16 adaptive dynamic mode decomposition,¹⁷ particle swarm optimization-based optimized hierarchical dispersion entropy,¹⁸ empirical Fourier decomposition method,¹⁹ artificial neural network (ANN),^20,21 cyclostationary analysis,^22–25 support vector machine,²⁰ and recurrence plot (RP)²⁶ methods have been implemented.

WT¹² is a powerful tool for analyzing nonstationary signals, which decomposes the original time waveform into various frequency bands and hence effectively separates the transient, intermittent, and steady-state behavior.^27,28 WT-based de-noising has been used to enhance weak periodic impulse signatures masked by standard Gaussian white noise (GWN).¹¹ However, WT as a diagnostic tool has its limitations. The efficiency of signal de-noising is governed by the selection of appropriate wavelet basis functions,²⁹ which requires careful choice of mother wavelet filters. Wrong choices of mother wavelet filters lead to errors in the diagnosis. Furthermore, due to the limited length of the Wavelet basis functions, leakage of signal energy occurs, which, in turn, affects the accuracy of the diagnosis. Alternative methodologies based on various forms of the Kalman filter have been proposed to estimate the system states.³⁰ However, for strongly nonlinear systems, Kalman-based filters lead to divergence, thereby significantly reducing the accuracy of the diagnosis. Hilbert transform (HT)¹⁴ has also been applied to obtain the instantaneous energy-frequency distribution of nonstationary and nonlinear vibration signals for feature extraction. However, accuracy depends on selecting the optimal frequency band sensitive to rolling bearing fault.³¹ Yang et al.³² conducted the HT of the intrinsic mode functions obtained via Empirical mode decomposition.³³ Recently, the RP³⁴ and various recurrence quantification analysis techniques for nonlinear time series have been proposed for evaluating machine defect severity.²⁶

Most of these signal processing techniques require suitable pre-defined feature vectors as input and focus only on qualitative diagnosis, which concentrates mainly on the type or severity of the fault while ignoring its quantitative aspects. Hence, most available signal analysis techniques are suitable for identifying single-point defects. The present study focuses on the detection of multiple faults. To extract the features of faults in REBs from time histories of signals that are most often noisy, the current work proposes a novel entropy-based approach for assessing the degradation in REBs. First, the characteristics of Shannon entropy and Kullback–Leibler entropy measures are investigated. Next, a classification akin to a learning algorithm is developed from field vibration data, where faults are artificially introduced on the outer race, inner race, and rolling elements. The defects in the REBs are considered to be of different types and severity levels. Finally, the status of the health of REBs is extracted from bearing vibration (acceleration) time histories. Experimental and field vibration data are used to determine the effectiveness and robustness of the proposed measures.

In addition to field and workshop vibration data, a nonlinear noisy model is also used to simulate the vibration time waveform in the presence of localized and distributed bearing defects. The two degrees of freedom nonlinear stochastic model of rotor bearing system considers various sources of nonlinearity such as Hertizian contact force³⁵ between ball and races, internal clearance, race waviness, varying compliances, and localized defects.^36,37 To make the model more appropriate, the nonlinear model is subjected to the simultaneous action of the harmonic force to model the effect of rotor unbalance and a non-Gaussian Poisson force to include the effect of several unmodeled defects such as background noise, bearing looseness, and lubrication system. Due to the presence of discontinuity induced by the Hertzian impact, to capture the finer details at the discontinuity points, the adaptive time stepping (ATSP) numerical integration combined with the Brownian tree continuation is used to obtain the nonlinear vibration response.^38–42

The present work is organized as follows: Section “Brief introduction about signal processing techniques for diagnosis of defective REBs” presents a brief review of various signal processing techniques for analyzing vibration waveform for a defective rolling bearing. An entropy-based methodology for vibration diagnostics and performance degradation assessment is proposed in Section “Entropy-based performance degradation measure.” Section “Experimental setup” discusses the experimental setup used in the study. Section “Theoretical model for vibration response to predict the localized and distributed defect of faulty REBs” presents the numerical nonlinear stochastic model for vibration response to predict the localized and distributed defects of faulty REBs. Section “Results and discussion” presents the computational results, and the behavior of the defective REBs is discussed using the Kullback–Leibler and Shannon entropy measures, as obtained from the vibration signatures. The conclusions emerging from the present study are presented in the final section.

Brief introduction about signal processing techniques for diagnosis of defective REBs

Analysis of REB structural signals using statistical parameters in the time domain and characteristic frequency in the frequency domain of either vibration or acoustic emission datasets have been frequently used as features for machine performance degradation assessment. However, it has a limited diagnostic capability (Figure 1 shows the kurtosis trend with bearing degradation).

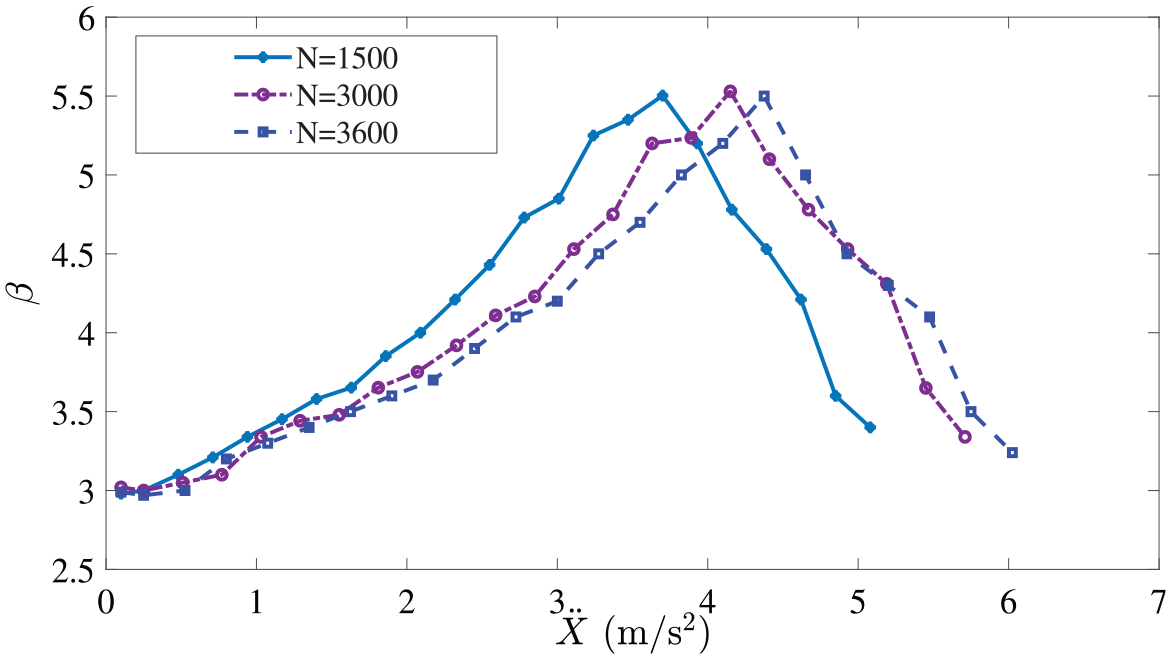

Figure 1.

Variation of kurtosis with the severity of bearing damage; $N$ denotes RPM of the shaft.

To overcome the deficiencies of the time and frequency domain techniques, various modern signal processing methods, such as WT^13,14 and HHT,^15,16 have been proposed to process the faulty bearing signals. Essentially, WT is an extended form of FT, which uses a family of adjustable windows functions. The WT for a signal $X (t)$ is given by¹³

WT (a, b) = \frac{1}{\sqrt{a}} \int_{- \infty}^{\infty} X (t) ψ^{*} \frac{t - b}{a} dt

(1)

where $a$ and $b$ denote scale (dilation) and time offset parameters, respectively, $ψ$ is a reference wavelet and $* stands$ for the complex conjugate. The translation and dilation parameters facilitate the wavelet function $ψ$ to manipulate its shape and thus help to extract the impulsive component from the noisy vibration signal obtained from the sensor.

However, the convolution-based WT has limitations in selecting the optimal frequency band corresponding to the defect frequencies, causing errors in amplitude envelope and instantaneous frequency.^13,14 To overcome the limitation of WT and conventional envelope analysis in dealing with the noisy signal, the HHT^15,16 has been proposed for condition monitoring of REBs. The HHT essentially integrates the HT, which decomposed signals into a finite and small number of components known as intrinsic mode functions (IMFs) using the empirical mode decomposition (EMD).⁴³ HT is used to extract the instantaneous frequencies of IMFs. The HT for a given signal $X (t)$ is given by¹⁴

\hat{X} (t) = H (X (t)) = \frac{1}{π} \int_{- \infty}^{\infty} \frac{X (τ)}{t - τ} d τ .

(2)

Next, the analytical signal is obtained by adding the original signal $X (t)$ with the HT of the vibration signal.

Z (t) = X (t) + i \hat{X} (t) = A (t) e^{i θ (t)}, i = \sqrt{- 1}

(3)

where $A (t) = \sqrt{X^{2} (t) + {\hat{X}}^{2} (t)}$ is the instantaneous amplitude and $θ = \arctan \frac{\hat{X} (t)}{X (t)}$ is the phase function. Figure 2(b) and (c), respectively, shows the FFT and corresponding harmonics after the envelope analysis for the time waveform, as shown in Figure 2(a). Even though many researchers have suggested promising application of EMD in the diagnostic of rolling element bearing,⁴⁴ critically reviewed EMD and other similar decomposition techniques and discussed in detail that these empirical and iterative techniques provide little or no benefits in REB fault diagnostic, as they do not have continuous differential phase and also analysis gets masked by additive noise content.

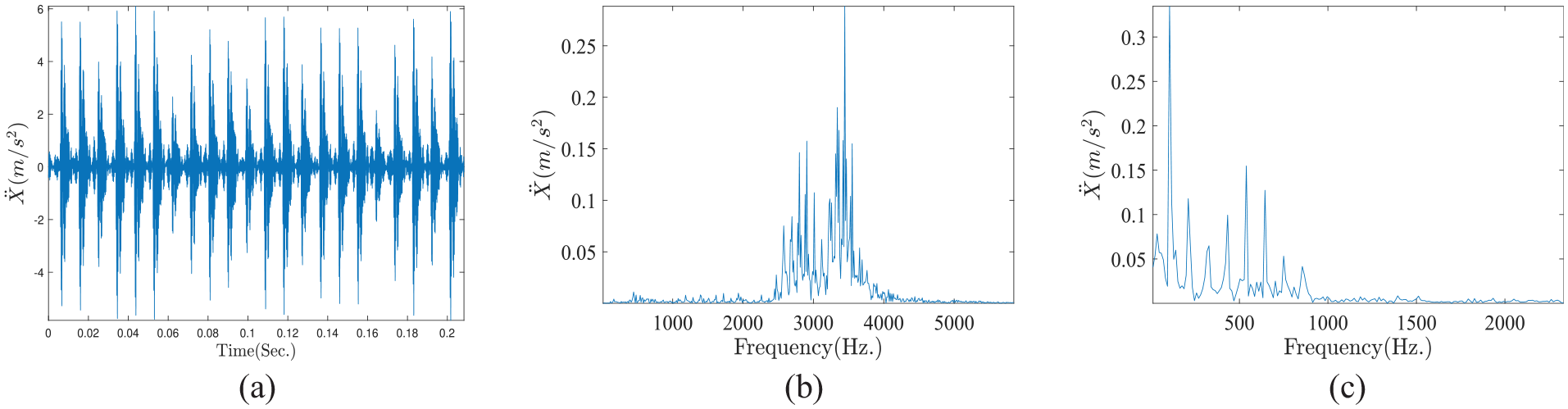

Figure 2.

(a) Time series, (b) spectrum, and (c) envelope spectrum (HT) for rolling bearing with outer race fault.

On the assumption that the surface defects in the mating surface of REBs usually generate repetitive transient impulses embedded with second-order cyclostationary, the cyclostationary analysis has recently gained momentum as an alternative to time/frequency analysis for diagnostics of bearing faults.^23–25 Cyclic spectral analysis, giving statistical properties such as the spectral correlation (SC) and its normalized version, spectral coherence (SCoh),⁴⁵ is an effective tool for bearing second-order cyclostationary fault characterization and extraction. However, in many practical cases, bearing vibration signal exhibits mixed cyclostationarity, which inevitably complicates the analysis when the SCoh is used as the analysis tool.

The various classical time (statistical) and spectral analysis techniques are best suited for linear stationary time series having low noise and long data series with high sampling rates. However, due to instantaneous variations in loading pattern, friction between ball bearings, and damping, the actual field time-series waveforms are often inherently a mixture of non-stationarity, nonlinearity, and noise. Recently, various nonlinear time-series analysis techniques, such as RP³⁴ and related recurrence quantification analysis tools, have emerged as a new research tool for defect severity evaluation in the measured signals for rotating machines with REBs due to their good anti-noise ability and short time waveform requirement.

An RP,³⁴ based on the Taken embedding theorem,⁴⁶ is a graphical method to examine the recurrent behavior, using time correlation information of a single short time series qualitatively. Given a time series data for a dynamical system $X = {x_{1}, x_{2} \dots x_{i}, \dots x_{n}}$ , an RP is specified as symmetric matrix $R (i, j)$ defined as

R (i, j) = Θ (ε - || y_{i} - y_{j} ||), i, j = 1, 2, \dots, N - τ (M - 1) .

(4)

where $ε$ is a threshold parameter, $Θ$ is the Heaviside function, $τ$ is the time delay parameter, $M$ is the embedding dimension, $and (y_{i}, y_{j})$ are delayed vectors. The embedding dimension $M$ is calculated using the false nearest neighbor algorithm.⁴⁷ The matrix $R (i, j)$ , characterizing the proximity of state vectors is composed of $[N - τ (M - 1) \times N - τ (M - 1)]$ black $(R (i, j) = 1)$ and white points $(R (i, j) = 0)$ in a two-dimensional space, which allows to distinguishing between different serenity levels of REBs fault.

Entropy-based performance degradation measure

The present work proposes a novel entropy-based vibration diagnostic tool for REB faults to accurately diagnose different types of faults and their severities from real-time vibration time histories. The time history measurements from the field (or workshop) are often noisy and, hence, most suitable for analysis using entropy-based measures. The concept of entropy has wide application in science and engineering as a tool for statistical measure and pattern recognition. We describe in the current section the Shannon and Kullback–Leibler entropy measures to extract features of the fault and compare them with existing methods.

Kullback–Leibler entropy

Kullback–Leibler divergence measure, also known as Kullback–Leibler entropy or relative entropy, measures the distinguishability of a particular probability density function (pdf) $f (x)$ from a reference pdf $g (x)$ and is expressed as a distance measure $D_{KL} (f (X) | | g (X))$ ,⁴⁸ which is mathematically expressed as

D_{KL} (f (X) ‖ g (X)) = \int_{- \infty}^{\infty} \ln \frac{f (x)}{g (x)} f (x) dx .

(5)

It is evident that the relative divergence measure satisfies $D_{KL} (f (X) ‖ g (X)) \geq 0$ for all $f (\cdot), g (\cdot)$ and $D (f (X) ‖ f (X)) = 0$ only when $f (\cdot)$ and $g (\cdot)$ are identical. The computation of $D_{KL} (f (x) ‖ g (x))$ requires that the reference pdf $g (x)$ of a fault-free vibration signal of a similar bearing be available. Taking advantage of this property, the measure $D_{KL} (f (x) ‖ g (x))$ can be used to assess the degree of deterioration of a faulty rolling bearing. As the damage increases, there is an increase in the Kullback–Leibler divergence measure. As mentioned previously, kurtosis is used to measure departure from Gaussianity, which is often observed in vibration data during the initial stage of structural degradation in REBs. However, the KL divergence measure provides global information on relative sensitivity between two probability distributions. Having the distribution $g (x)$ of healthy bearing as a reference, KL divergence measure evaluates conditional divergence of faulty signal $f (x)$ both in terms of departure from normality and the intensity of time waveform which continuously increases as the defect grows and hence KL divergence measure is more robust against other known statistical measures.

Shannon entropy

In statistical mechanics, Shannon entropy $H (x, t)$ is a measure used to quantify the uncertainty of information through the Shannon axioms. In other words, in the context of a noisy signal, $H$ provides a measure of the randomness associated with the signal. The Shannon entropy is mathematically expressed as⁴⁹

H (x, t) = - \int_{- \infty}^{\infty} p (x, t) \log_{b} p (x, t) dx .

(6)

where $p (x, t)$ is the pdf of $x$ , and $b$ is an arbitrarily chosen logarithmic base. In the present work, to measure the average uncertainty of the random variables, $b$ is taken to be $2$ for computing $H (x, t)$ . The Shannon entropy $H (x, t)$ associated with the bearing vibration signal can be used as a measure to quantify the characteristic changes due to a bearing fault. As the fault inside the bearing advances, the SNR increases, resulting in a change in the value of the Shannon entropy measure.

Experimental setup

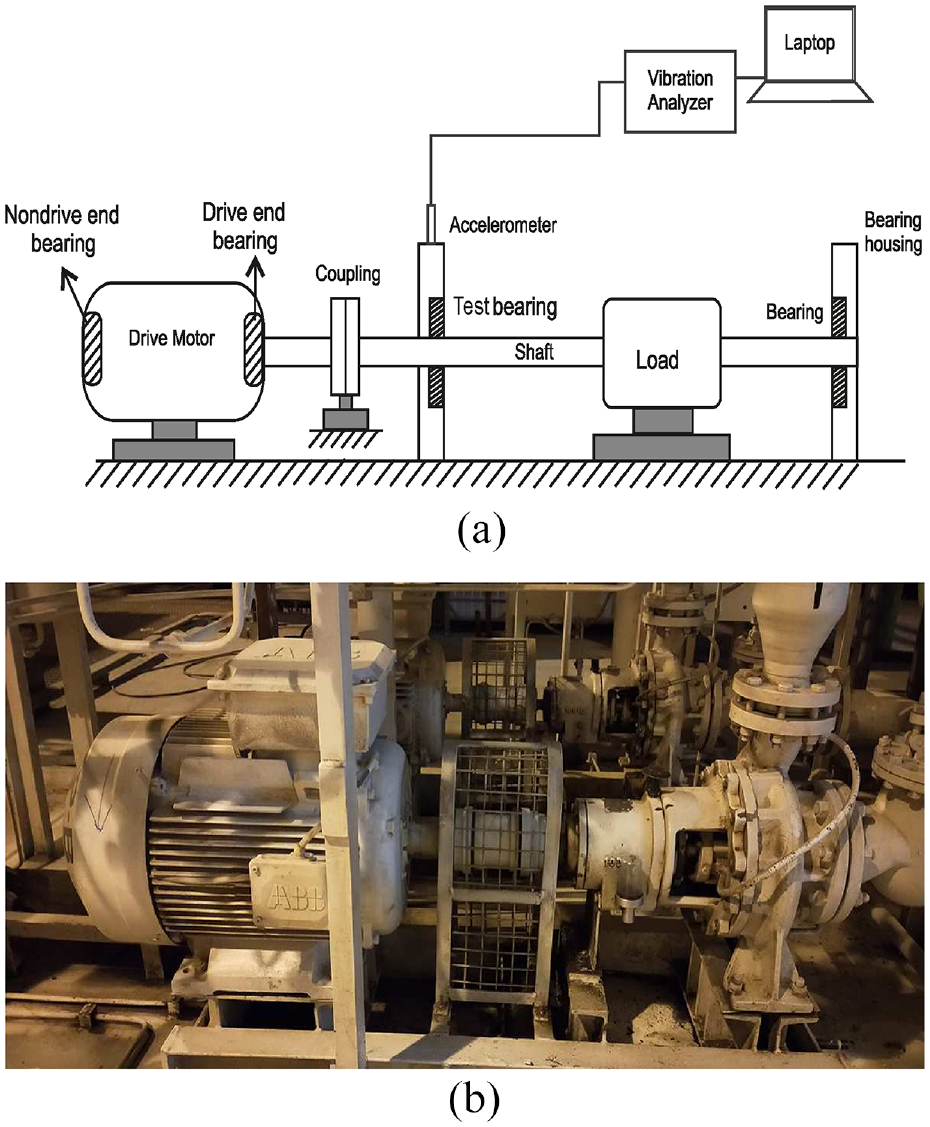

Figure 3 shows the experimental setup designed to simulate various operating conditions. It consists of a variable-speed motor, a rotor supported on two bearings, and a loading unit.

Figure 3.

(a) A schematic diagram of the rotor-bearing test rig and (b) a photograph of the motor pump assembly for the field data.

Single point defects of varying degrees of intensity are artificially induced through electric spark erosion (using a wire-cutting machine) on the inner race, outer race, and the rolling elements of bearings. The fault depth and width are taken to be $0.25$ and $0.5 mm$ , respectively, while the length of defects is varied as $1, 3$ , $5$ , and $7.5 mm$ . Figure 4 illustrates healthy REB and three different REBs having these three fault types.

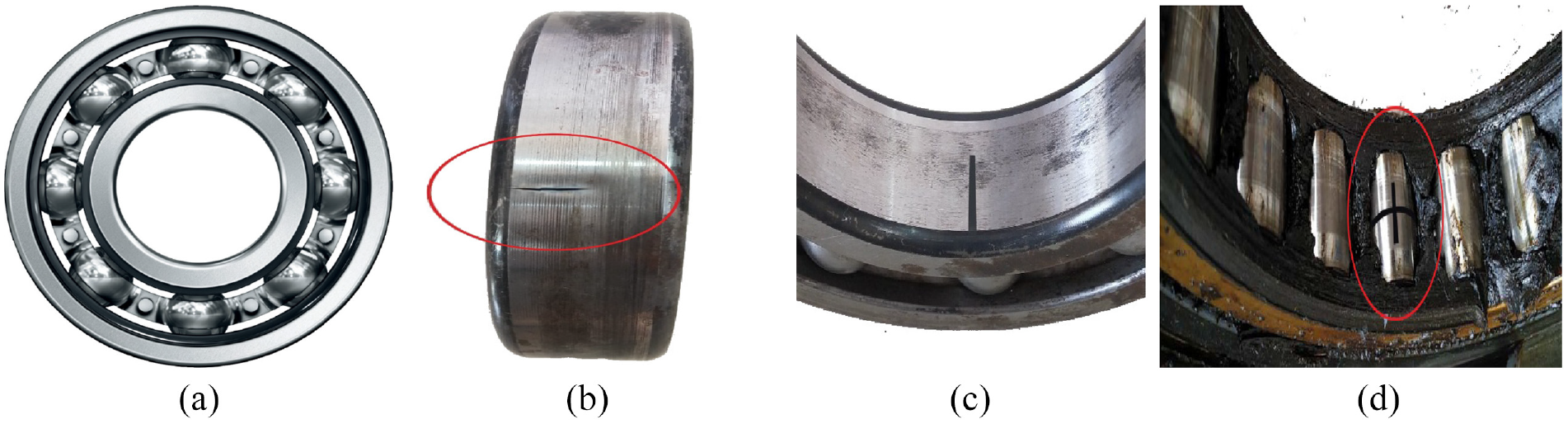

Figure 4.

Four different conditions of the rolling bearings: (a) healthy bearing as a reference, (b) with inner race defect, (c) with outer race defect, and (d) with roller defect.

As the mating parts of bearings pass over the defects, a series of pulses of very short duration is generated, and these pulses are picked up by the accelerometers mounted on the bearing casing. The vibration (acceleration) data acquisition system includes an accelerometer, signal conditioner, signal recorder, and laptop. Data acquisition is carried out using ADRE 408 DSPI/Sxp Dynamic Signal Processing Vibration Analyzer. The piezoelectric accelerometer (sensitivity $50 mv / g$ ) is mounted on the bearing housing and has an operating frequency range of $20$ Hz– $5$ kHz. After reaching the steady-state condition, the raw vibration (acceleration) signals are collected for 0.5-s. duration with a sampling rate of $48$ kHz for each fault case. After processing through the signal conditioner, the signals are transformed into the signal recorder. The proposed method is also applied to the vibration signature database available in the public domain provided by the CWRU-bearing data center,^10,50 datasets as captured from the actual field, and also obtained from numerical simulation.

Theoretical model for vibration response to predict the localized and distributed defect of faulty REBs

To investigate the structural vibration characteristics of the rolling element bearing, a nonlinear dynamic model of the rotor-ball bearing system, as shown in Figure 5, is considered in which the inner race is rigidly fastened on a rotating shaft, and the outer race is rigidly fastened to the bearing housing. In addition to unbalanced force, various nonlinear factors specific to REBs, namely, Hertzian contact force, varying compliance, race waviness, cracks, distributed defects, misaligned races, bearing clearance, and localized defects, complicate the rotor dynamics analysis of rotor supported on ball bearings.

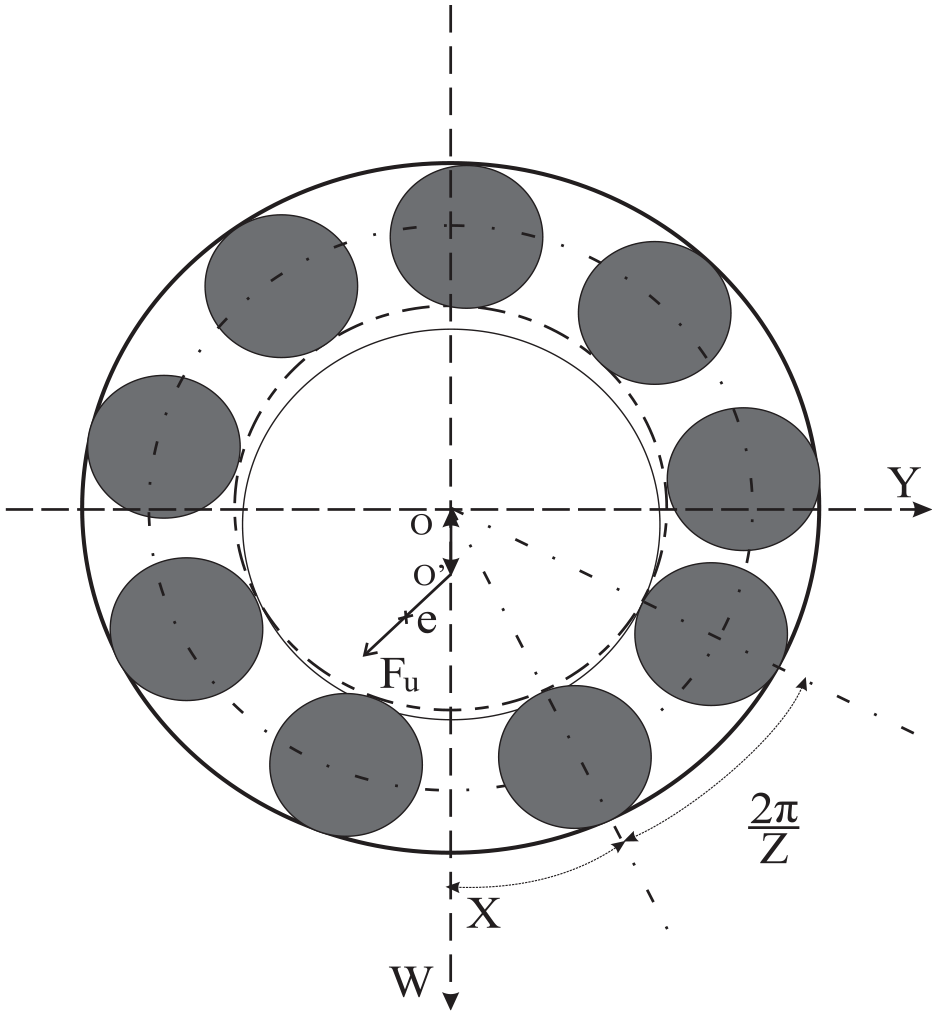

Figure 5.

Schematic diagram of rolling element bearings.

The interaction between the outer and inner race through the rolling balls generates a nonlinear restoring force, which can be obtained using Hertz contact deformation theory.³⁵ The total nonlinear restoring force acting on the bearing in the $X -$ and $Y -$ directions can be given as^37,51

F_{X}^{N} = K_{N} \sum_{j = 1}^{Z} γ_{j} δ_{j}^{n} \cos θ_{j}, F_{Y}^{N} = K_{N} \sum_{j = 1}^{Z} γ_{j} δ_{j}^{n} \sin θ_{j} .

(7)

where $j = 1, 2, \dots Z$ , $Z$ is the number of balls, $K_{N}$ is the constant for Hertzian contact elastic deformation, $n = \frac{3}{2}$ for ball bearing and $\frac{10}{9}$ for roller bearing, $δ_{j}$ is the radial deflection, and $γ_{j}$ is the switch function defined as follows:

\begin{matrix} γ_{j} \end{matrix} = {\begin{matrix} 1 if δ_{j} \geq 0; \\ 0 otherwise, \end{matrix}

(8)

Considering internal radial clearance and race waviness, the normal contact deformation at the jth ball at angle $θ_{j}$ can be expressed as

δ_{j} = x \cos θ_{j} + y \sin θ_{j} - [C_{r} + Π_{j}] .

(9)

where $x$ and $y$ are the vibration displacements of the center of the inner race along the $X -$ and $Y -$ axis, $C_{r}$ is the radial internal clearance, and $Π$ is the amplitude of race waviness. Since the inner race is moving with the shaft, the angular position of the jth ball $θ_{j}$ will change with time and is given as^36,37

θ_{j} = ω_{cage} \times t + \frac{2 π}{Z} (j - 1), j = 1, \dots, Z

(10)

where $ω_{cage} = ω_{rotor} (\frac{r}{r + R})$ and $r$ and $R$ are, respectively, the radius of the inner and outer race. The distributed defects, such as surface waviness, roughness, and an off-size design due to deviation in the manufacturing process, material property, and operating conditions, can be modeled using a sinusoidal-shaped function, as shown in Figure 6.³⁷ The amplitude of surface waviness at the contact angle can be expressed as^36,37

Π_{j} = Π_{0} + Π_{p} \sin (N_{p} θ_{j}),

(11)

where $Π_{0}$ and $Π_{p}$ are the initial and maximum amplitude of the wave, $N_{p}$ is the number of lobes and $θ_{j}$ is the contact angle of the jth ball.

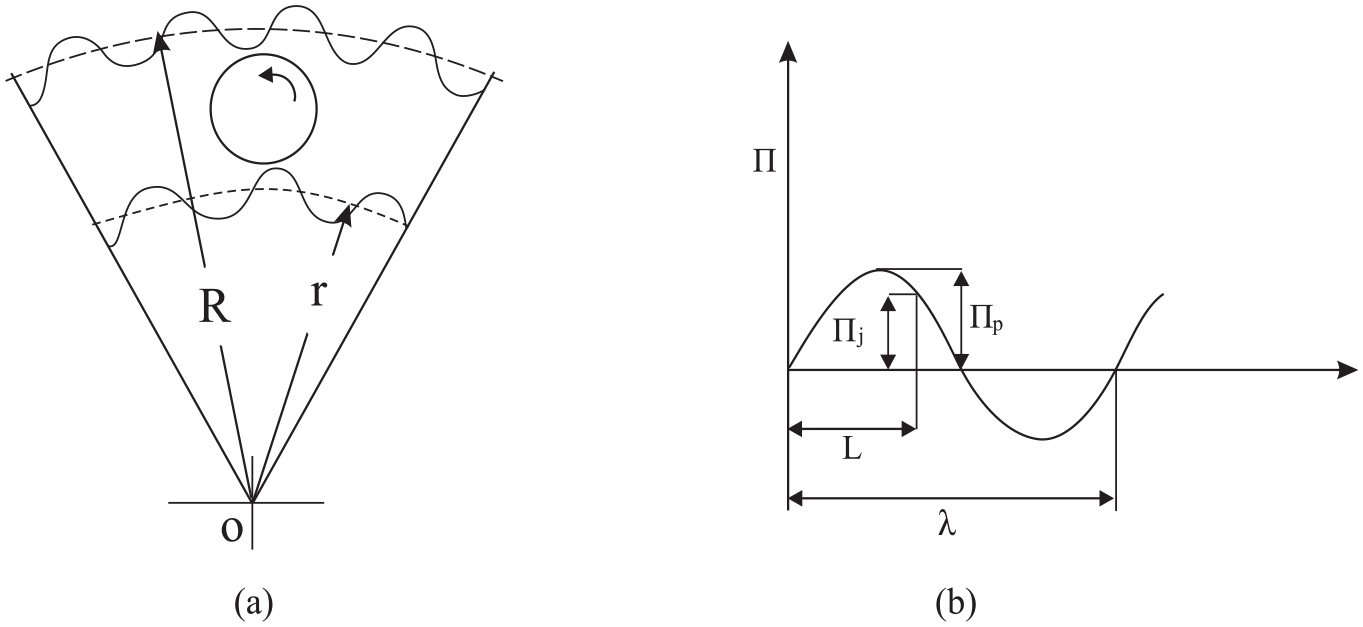

Figure 6.

(a) Waviness at the outer and inner races of rolling element bearings and (b) amplitude of wave.

Moreover, when the ball passes over the site of localized defect on the bearing surface having an angular position of $θ_{d}$ and angle spanned by the fault is $Φ$ , as shown in Figure 7, deformation of the jth bearing is modified to consider the effect of the defect as,

δ_{j} = x \cos θ_{j} + y \sin θ_{j} - [C_{r} + Π_{j} + β_{j} C_{D}],

(12)

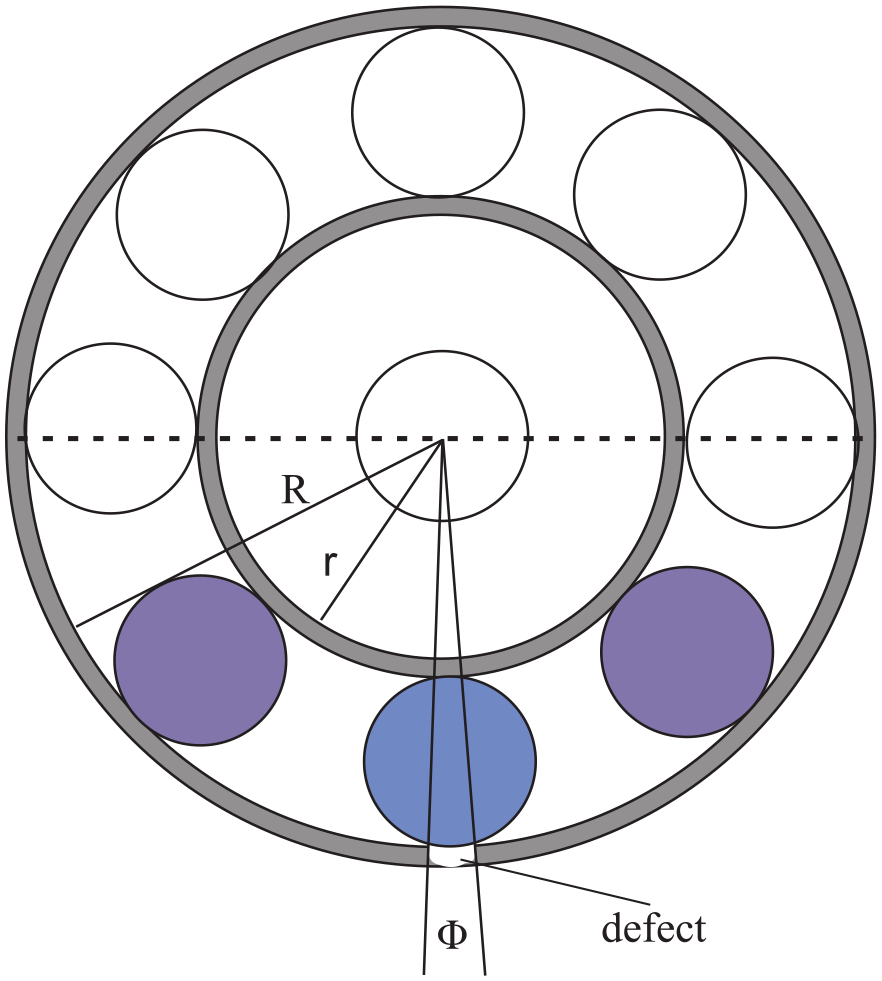

Figure 7.

Defect on outer race of rolling element bearings.

where $C_{D}$ is the depth of the local fault, and $β_{j}$ is a switching function defined as:

\begin{matrix} β_{j} \end{matrix} = {\begin{matrix} 1 if θ_{d} < θ_{j} < θ_{d} + Φ; \\ 0 otherwise, \end{matrix}

(13)

Considering all the different components as discussed above, the equation of motion for two degrees of freedom REBs subjected to the simultaneous action of rotor unbalance force and Poisson white noise (PWN) can be expressed as:

\begin{matrix} m \overset{\cdot\cdot}{x} + c \overset{\cdot}{x} + F_{X}^{N} = W + Δ me ω^{2} \cos (ω t) + W_{P} (t), \\ m \overset{\cdot\cdot}{y} + c \overset{\cdot}{y} + F_{Y}^{N} = Δ me ω^{2} \sin (ω t) + W_{P} (t), \end{matrix}

(14)

where $m$ is the rotor mass supported by the bearing, $c$ is viscous damping, $ω$ is the angular rotational speed of rotor, $Δ me ω^{2}$ is the unbalance force due to rotor mass eccentricity $e$ , and $W_{P} (t)$ is additive PWN included to replace the effect of the excitation generated due to several unmodeled characteristics in the system such as lubricant film, bolt looseness, pits, and background noise among others.

The forcing function acting on a defective REB system has two components: deterministic parts, such as unbalanced forces and excitation generated due to the interaction of rolling elements with a defect for which a mathematical model exists, and stochastic parts generated due to numerous unmodeled factors, such as form error, out of roundness, off-sized rolling elements, and lubricant film. Traditionally, stochastic excitation in mechanical systems is hypothesized as GWN excitation. However, GWN having uniformly distributed power spectral density is not precise in simulating interference noise caused by random impact caused by the impact of rolling elements over defective surfaces. Random time waveforms, as obtained from defective REBs in industrial applications, are not always continuous, and hence, in line with practical data, the PWN (a typical non-GWN signal) is used to simulate the discrete disturbance generated by several unmodeled effects. The sample function of randomly acting PWN excitation $W_{P} (t)$ composed of independent and identically distributed random impulse sequences with random amplitude and generated at random time can be expressed in the following form⁵²:

E [W_{P} (t)] = \sum_{k = 1}^{N (t)} Z_{k} δ (t - t_{k}),

(15)

where $N (t)$ is a homogeneous Poisson counting process giving the total number of impulses that occur in the time interval $(- \infty, T]$ with impulse arrival rate $λ$ , $δ (\cdot)$ is Dirac-delta function and $Z_{k}$ are independent identically distributed (i.i.d) random variables representing the amplitude of the $k^{th}$ impulse occurring at time $t_{k}$ with a assigned probability distribution $P_{z} (z)$ .

Introducing the variables $X_{1} = x$ , $X_{2} = \overset{\cdot}{x}$ , $X_{3} = \overset{\cdot}{y}$ and $X_{4} = \overset{\cdot}{y}$ , the probabilistic response of RBEs as of in Equation (14) under PWN excitations can be expressed in the form of the following set of first-order It $ô$ stochastic differential equation,^53,54

d X (t) = A [X, t] dt + H [X, t] d C (t),

(16)

where $X = [X_{1} (t), X_{2} (t), X_{3} (t), X_{4} (t)]^{T}$ is the $4 \times 1$ dimensional random response vector, $A [X, t]$ is related to the Wong-Zakai corrected⁵⁵ drift vector of form,

(\begin{matrix} X_{2} \\ - \frac{c}{m} X_{2} - \frac{K_{N}}{m} \sum_{j = 1}^{Z} γ_{j} {[X_{1} \cos θ_{j} + X_{3} \sin θ_{j} - [C_{r} + Π_{j} + β_{j} C_{D}]]}^{n} \cos θ_{j} + \frac{W}{m} + \frac{Δ me ω^{2}}{m} \cos (ω t) \\ X_{4} \\ - \frac{c}{m} X_{4} - \frac{K_{N}}{m} \sum_{j = 1}^{Z} γ_{j} {[X_{1} \cos θ_{j} + X_{3} \sin θ_{j} - [C_{r} + Π_{j} + β_{j} C_{D}]]}^{n} \sin θ_{j} + \frac{Δ me ω^{2}}{m} \sin (ω t) \end{matrix}),

(16)

$H [X, t]$ is diffusion matrix of dimensions $4 \times 4$ ,

H [X, t] = [\begin{matrix} 0 0 0 0 \\ 0 \frac{1}{m} 0 0 \\ 0 0 0 0 \\ 0 0 0 \frac{1}{m} \end{matrix}],

(16)

and $dC (t)$ is an increment of the homogeneous compound Poisson process $C (t)$ defined as⁵²:

C (t) = \sum_{k = 1}^{N (t)} Z_{k} U (t - t_{k}),

(17)

where $U (t)$ is the unit step function. As the intensities $λ \to \infty$ , and same time $λ E [Z^{2}]$ keeps a constant value, then the samples of the homogenous compound Poisson process $C (t)$ resemble to the Brownian motion $B (t)$ . Then PWN $W_{P} (t)$ reverts towards the GWN $W (t)$ in the second moment sense (see Figure 8), irrespective of the distribution of $Z$ .

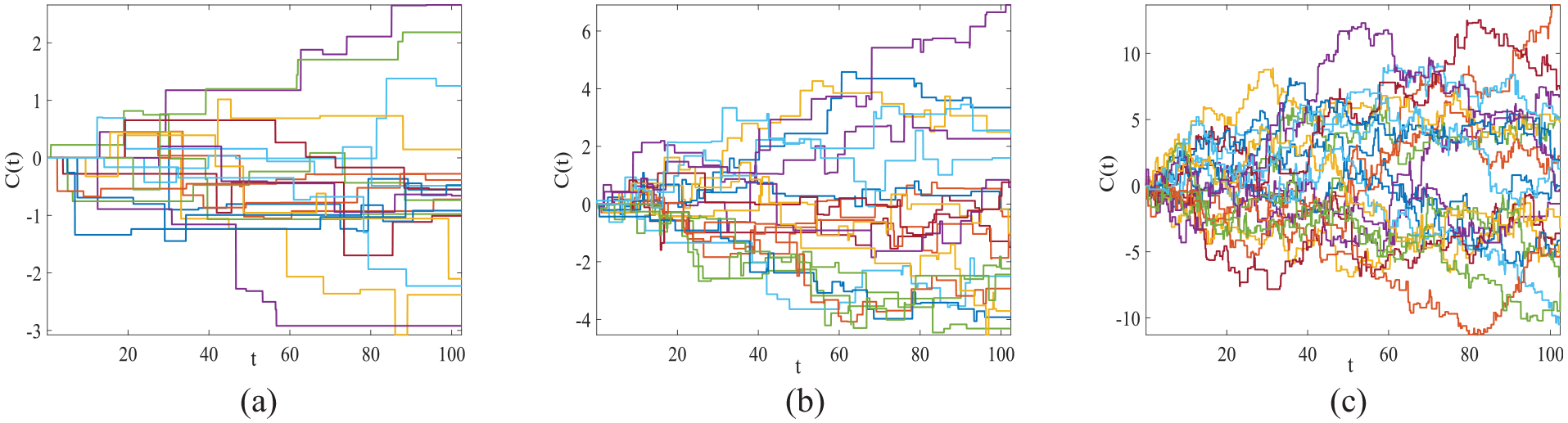

Figure 8.

Samples of compound Poisson process $C (t)$ for (a) $λ = 0.5$ (b) $λ = 2$ , (c) $λ = 20$ and having equal second-moment properties.

Due to switching functions such as $γ_{j}$ and $β_{j}$ numerical analysis of discontinuous dynamic systems, Equation (14) becomes quite difficult. For obtaining the path-wise solutions of discontinuous stochastic differential equations (SDEs), such as for time series analyses, Monte Carlo simulation (MCS), or Poincaré section-based analyses, designing adaptive time stepping is still an active area of research. One of the primary challenges in investigating discontinuous SDEs is accurately determining the time and states as the trajectories encounter the discontinuity in the manifold. Another difficulty in implementing adaptive time stepping for the path-wise solution of SDEs is that as a discontinuity point is detected and step size is varied, the numerical solution should remain on the original Brownian path.

To obtain the vibration response of faulty bearing, the recently developed adaptive time stepping method (ATSM) approach (Figure 9(a)) is used to integrate Equation (14) to accurately locate the discontinuity point arising due to bearing defects and a Brownian tree continuation approach (Figure 9(b)) is used to direct the integration along the correct Brownian path.^38–40 Dynamical behavior and response statistics of the defective bearing are studied through the time series analysis, phase plane plots, Poincaré sections, and marginal pdf with changes in system and excitation parameters. Marginal pdf of the state variables is obtained using MCS for the system of Equation (14). This involves simulation of the increment of the jump component of the compound Poisson process and numerically integrating the SDE Equation (14) using the forward Euler–Maruyama (EM) integration scheme to each individual excitation until the steady state is obtained for the statistical properties.⁵³ On average, $2.5 \times 10^{6}$ realizations have been used in MCS to obtain the pdf of the system response.

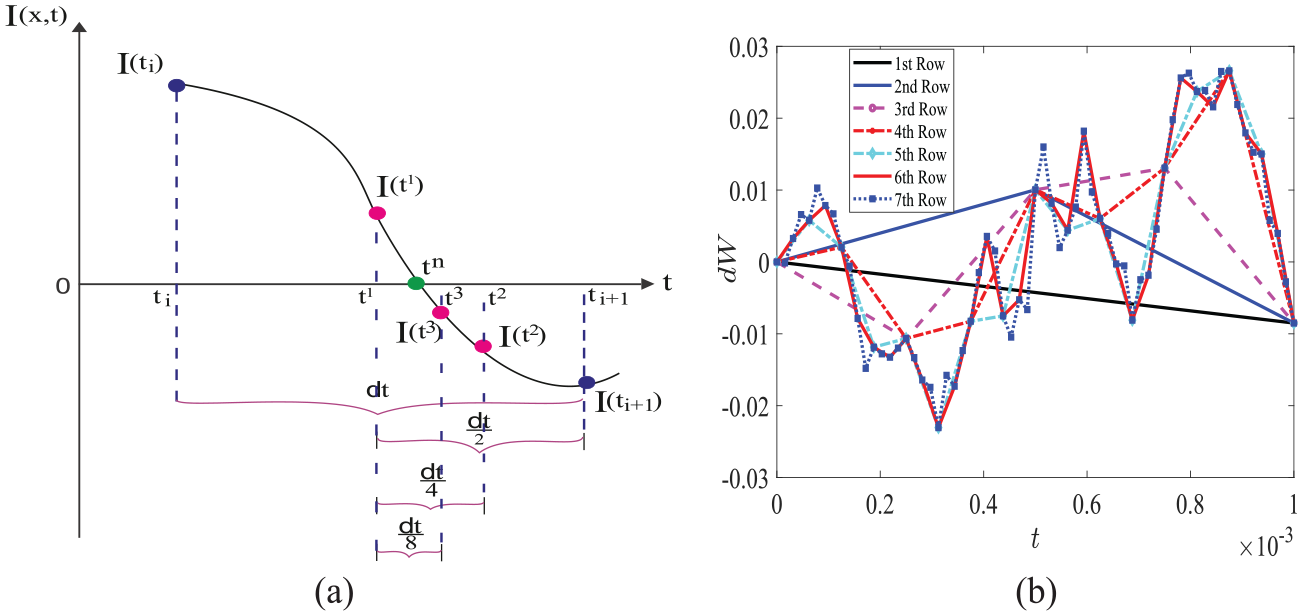

Figure 9.

(a) Bisection scheme and (b) sample of a Brownian tree.

Results and discussion

Nonlinear vibration analysis

To investigate the effects of the system parameters on the vibration response of defective REBs, the system and excitation parameters are kept fixed, as listed in Table 1, for most of the numerical calculations. The intensity of impulse amplitude $X$ is assumed to be a zero mean Gaussian random distribution $N (0, σ_{X})$ having $E [X^{2}] = σ_{X}^{2}$ , $E [X^{4}] = 3 σ_{X}^{4}$ . The initial displacements and velocities are set as $10^{- 6} m$ and $0 m / \sec$ for the variables $x$ and $y$ . The time step for integration is taken as the time required for $0 . 01^{0}$ rotation.

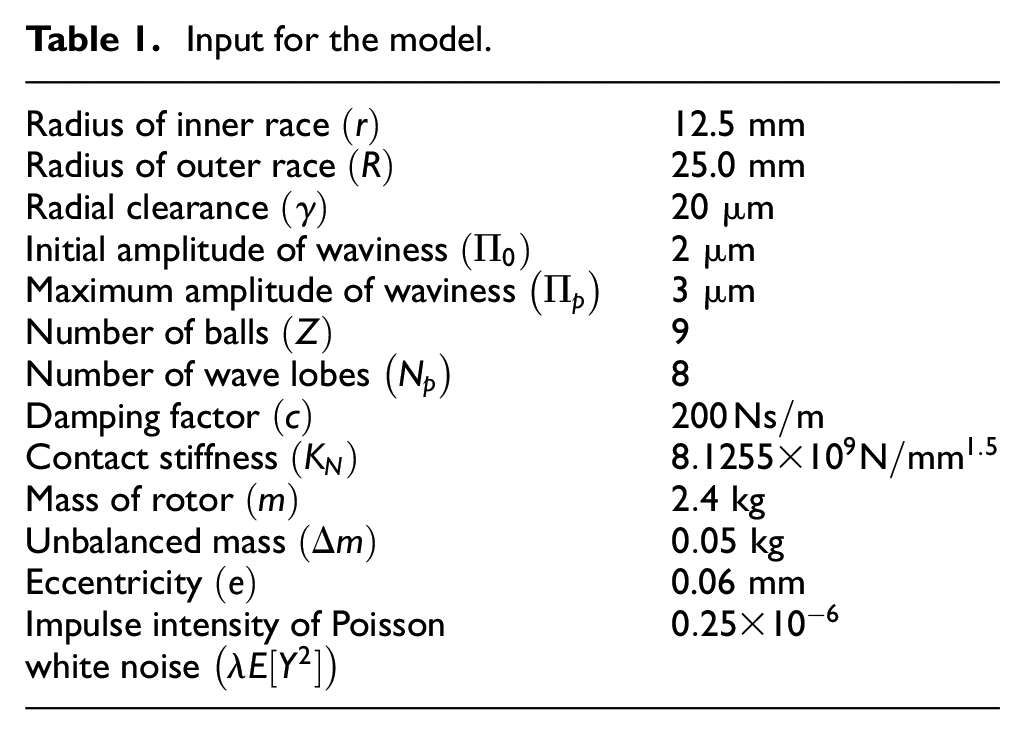

Table 1.

Input for the model.

Radius of inner race $(r)$	12.5 mm
Radius of outer race $(R)$	25.0 mm
Radial clearance $(γ)$	20 $μ$ m
Initial amplitude of waviness $(Π_{0})$	2 $μ$ m
Maximum amplitude of waviness $(Π_{p})$	3 $μ$ m
Number of balls $(Z)$	9
Number of wave lobes $(N_{p})$	8
Damping factor $(c)$	$200 Ns / m$
Contact stiffness $(K_{N})$	$8.1255 \times 10^{9} N / m m^{1.5}$
Mass of rotor $(m)$	$2.4$ kg
Unbalanced mass $(Δ m)$	$0.05$ kg
Eccentricity $(e)$	0.06 mm
Impulse intensity of Poissonwhite noise $(λ E [Y^{2}])$	$0.25 \times 10^{- 6}$

The marginal pdf of horizontal acceleration for different values of bearing internal clearance $γ,$ amplitude of surface waviness $Π_{p}$ , and viscous damping coefficient $c$ are shown in Figures 10–12, respectively, both in linear and in logarithmic scales, to present low probability levels. Results depict that as the bearing clearance $γ$ decreases and surface waviness $Π_{p}$ increases, the probability of high vibration level also increases. However, changing viscous damping from $c = 150 Ns / m$ to $c = 250 Ns / m$ does not influence the response statistics of vibration level. Next, the influence of intensity $λ E [Y^{2}]$ of random Poisson impulse loading on the bearing response is considered. Marginal pdf as shown on linear and logarithmic scale in Figure 13(a) and (b) indicate that with an increase in the noise intensity probability of large amplitude of bearing vibration increases. The time waveform of acceleration as shown in Figure 13(c) and (d) for two different noise intensities $λ E [Y^{2}] = 0.25 \times 10^{- 6}$ , and $6.25 \times 10^{- 6}$ demonstrates that as the noise intensity increases, periodic bursts attenuate and time waveform becomes more random.

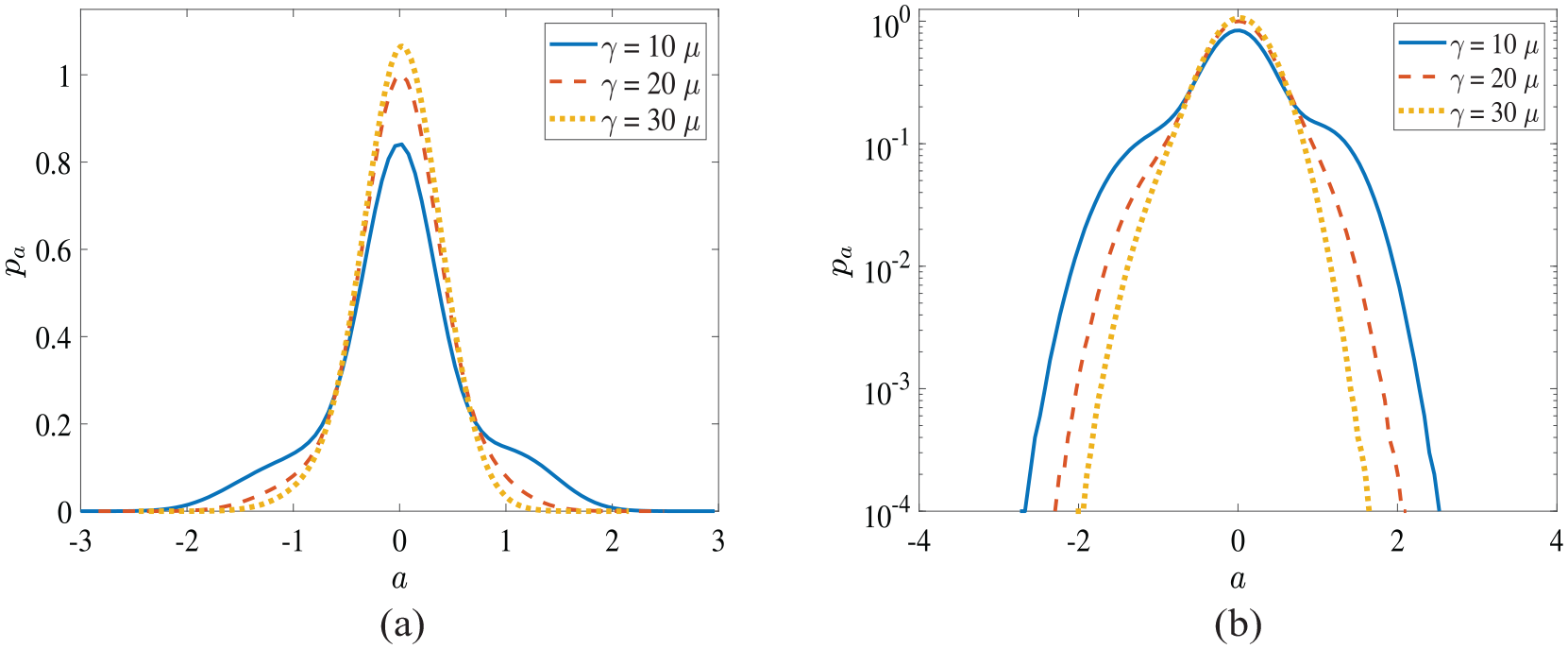

Figure 10.

Marginal pdf of horizontal acceleration for different values of bearing internal clearance $γ$ : (a) linear and (b) logarithmic plot.

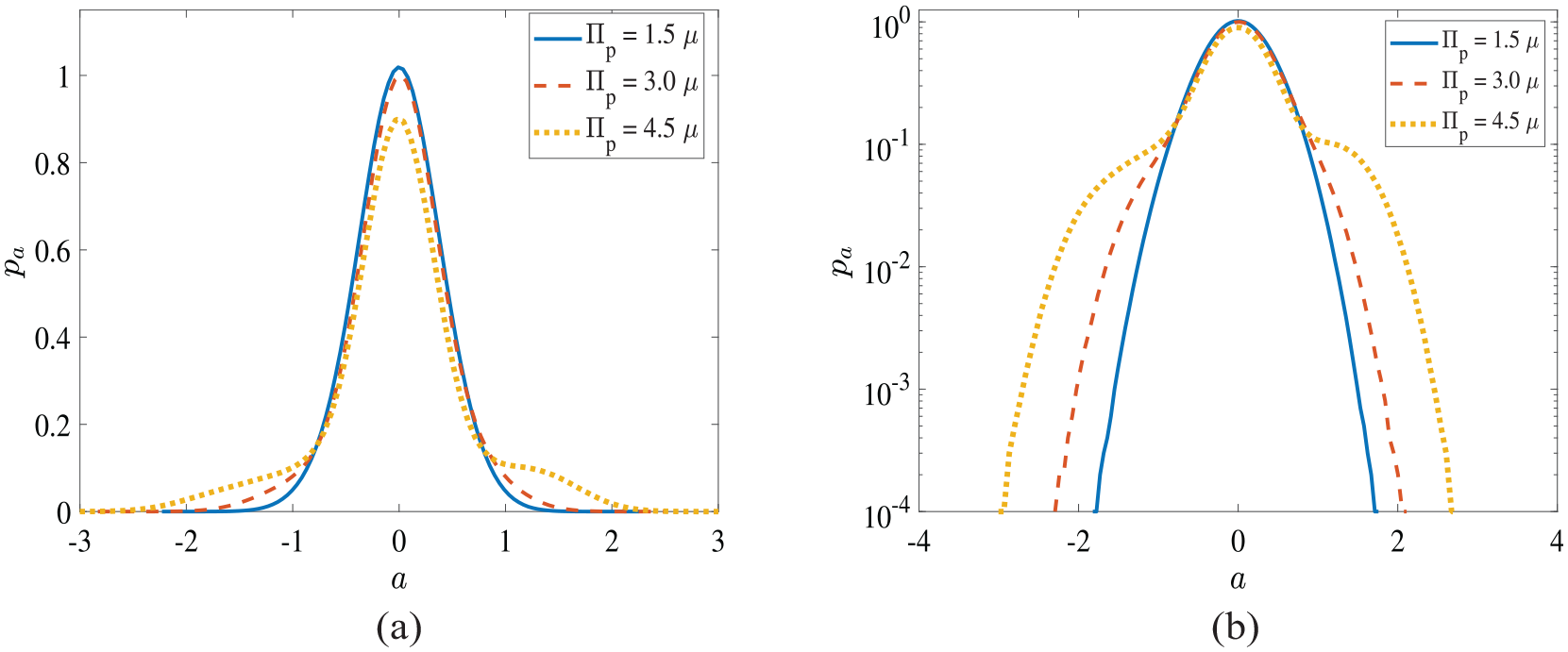

Figure 11.

Marginal pdf of horizontal acceleration for different values of amplitude of surface waviness $Π_{p}$ : (a) linear and(b) logarithmic plot.

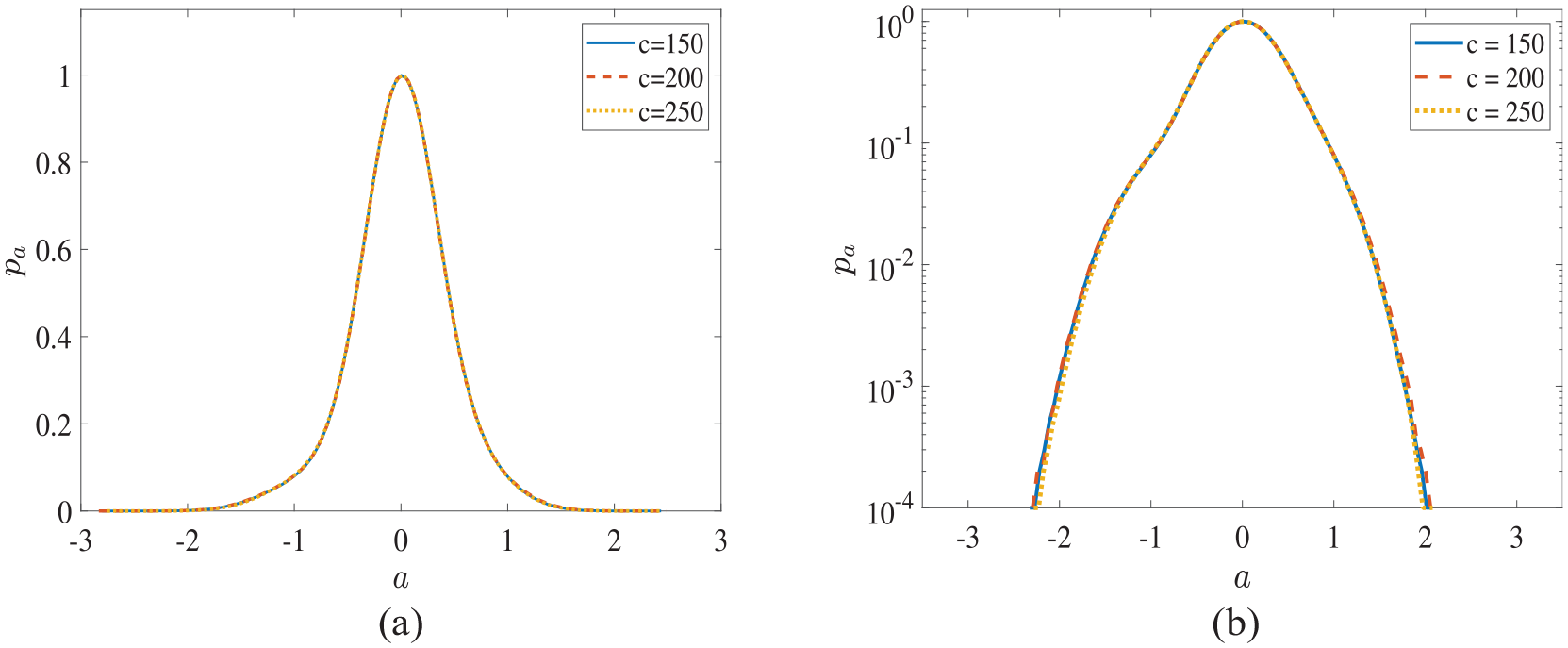

Figure 12.

Marginal pdf of horizontal acceleration for different values of viscous damping coefficient $c$ : (a) linear and (b) logarithmic plot.

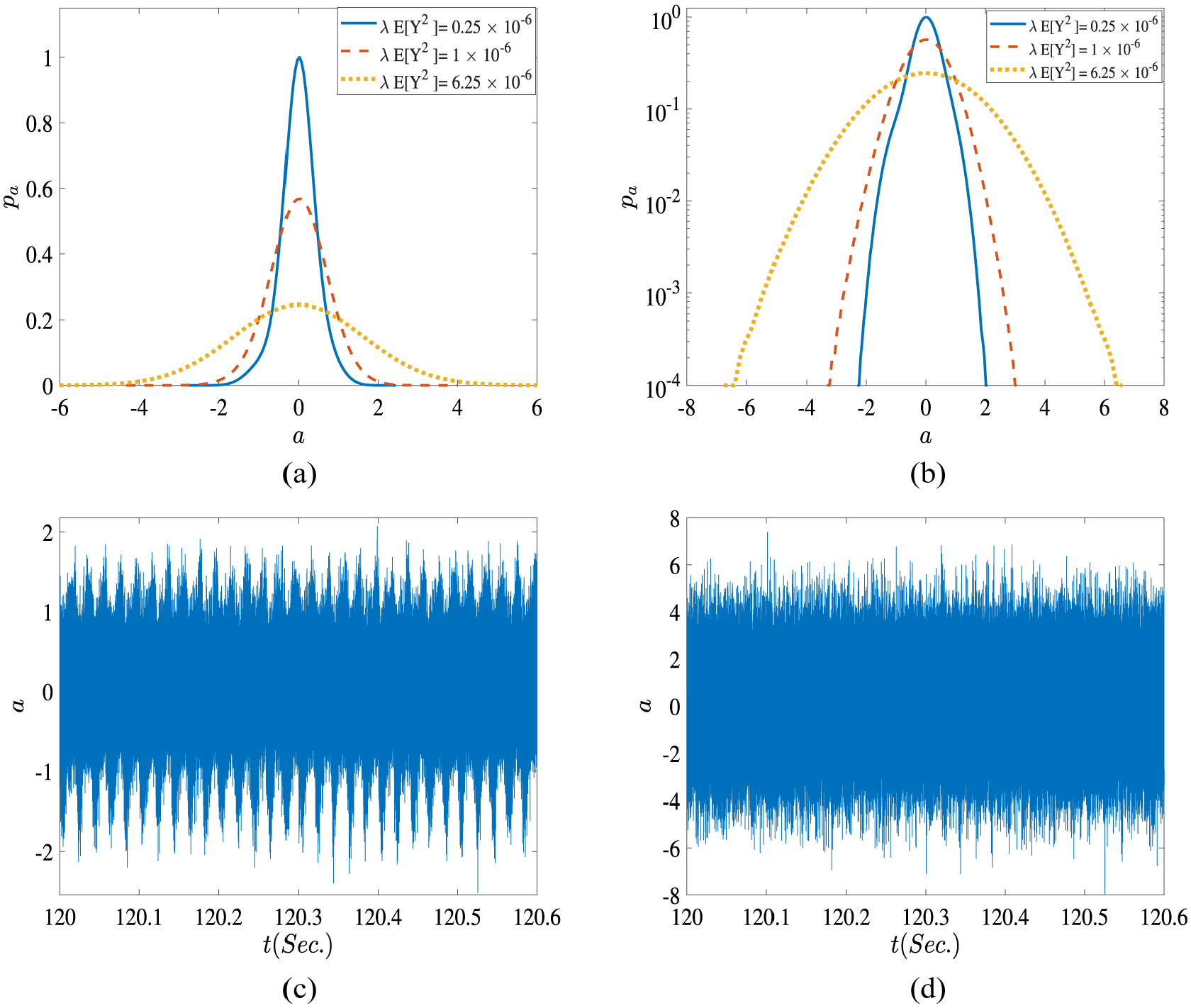

Figure 13.

Marginal pdf of acceleration time waveform for different values of $λ E [Y^{2}]$ : (a) linear, (b) logarithmic plot, (c) time waveform for $λ E [Y^{2}] = 0.25 \times 10^{- 6}$ , and (d) $λ E [Y^{2}] = 6.25 \times 10^{- 6}$ .

Next, the influence of unbalanced force $F_{u} = Δ me ω^{2}$ for four different shaft rotational speed $N = 3000, 4500, 6000$ , and $7500$ revolutions per minute (RPM) are considered. The marginal pdf of acceleration on linear and logarithmic scale as shown in Figure 14(a) and (b) indicates that as the unbalanced force $F_{u}$ increases, bearing vibration also increases, and after some threshold of shaft speed, marginal pdf becomes considerably non-Gaussian. The influence of unbalanced force $F_{u}$ for fixed shaft speed at $N = 3000$ RPM for three different values of $Δ m \times e$ is shown in Figure 15(a) and (b). The phase portraits and the associated Poincaré section on $X_{1} - X_{2}$ , $X_{3} - X_{4}$ , and $X_{1} - X_{3}$ planes for three different values of unbalanced force and noise intensity are shown in Figures 16 –18. Results indicate that as the magnitude of unbalanced force increases, the response becomes aperiodic. The time waveform of acceleration corresponding to Figures 16–18 is shown in Fig. 19.

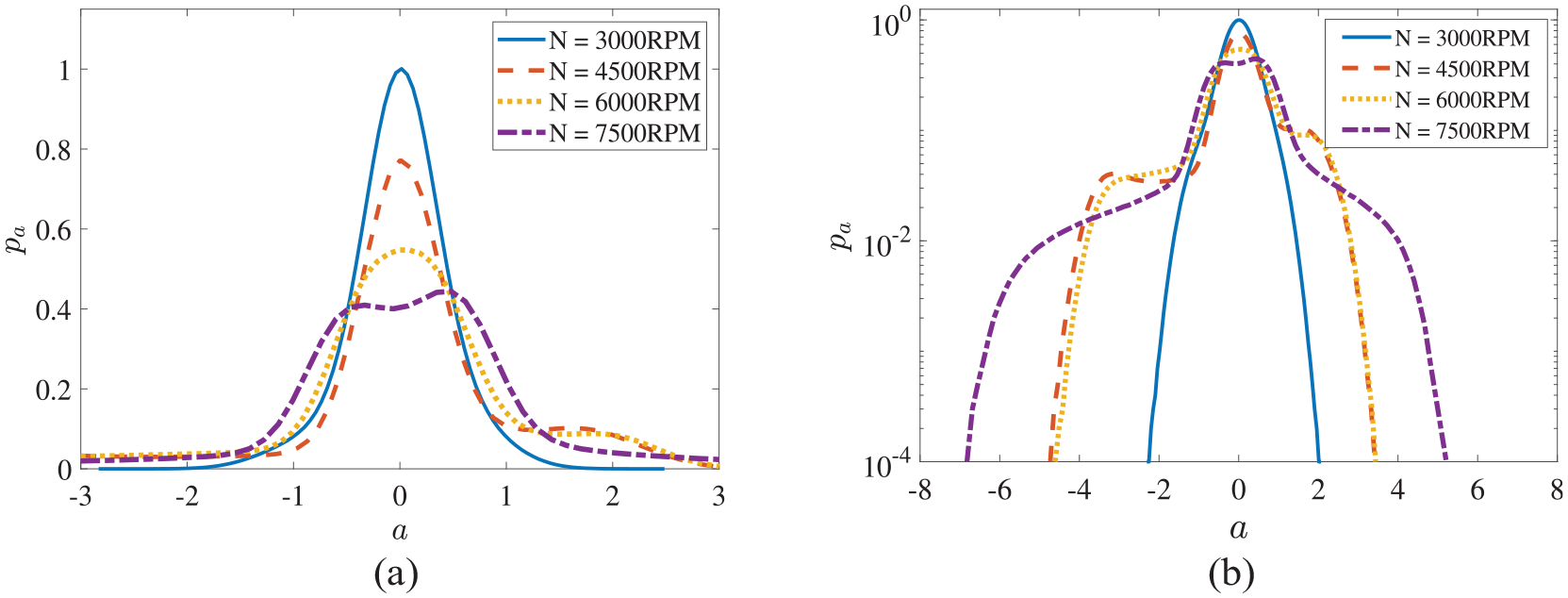

Figure 14.

Marginal pdf of horizontal acceleration for different values of rotational speed $N$ : (a) linear and (b) logarithmic plot.

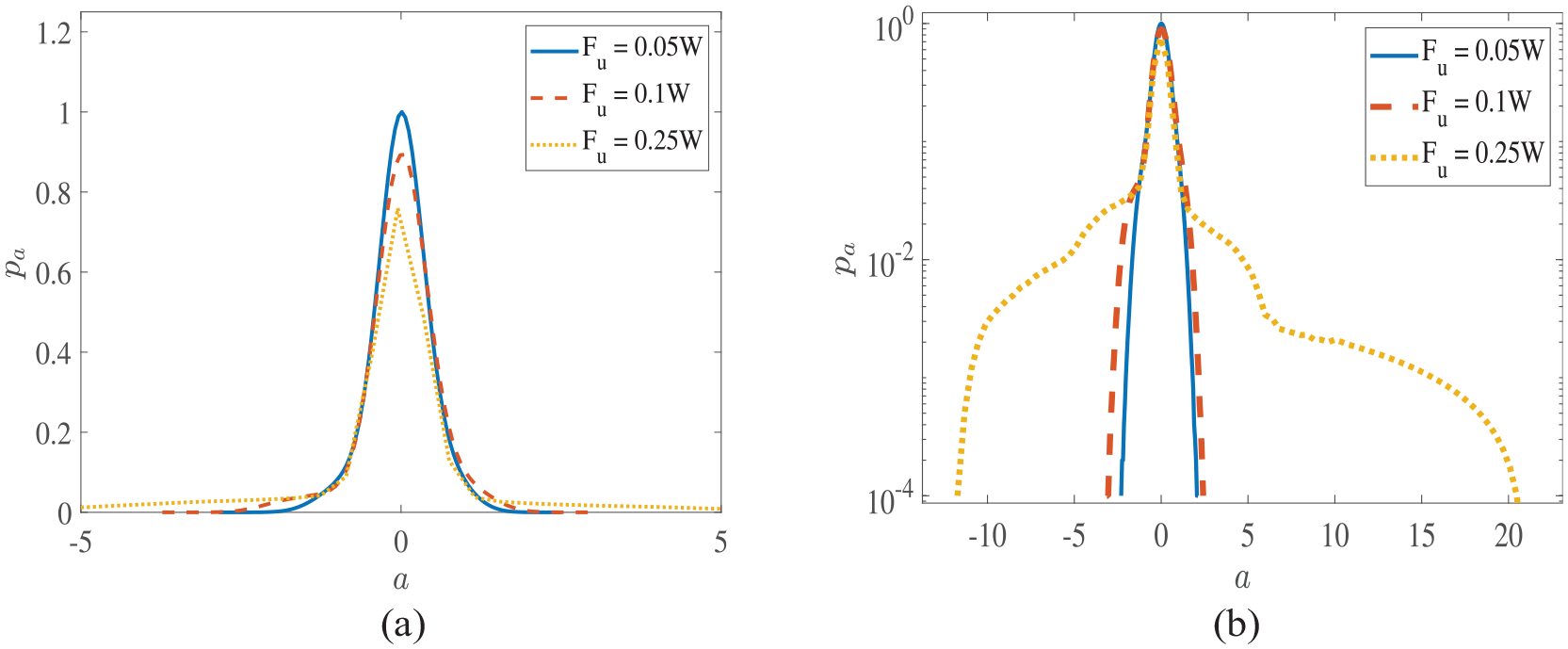

Figure 15.

Marginal pdf of horizontal acceleration time waveform: (a) linear plot and (b) logarithmic plot.

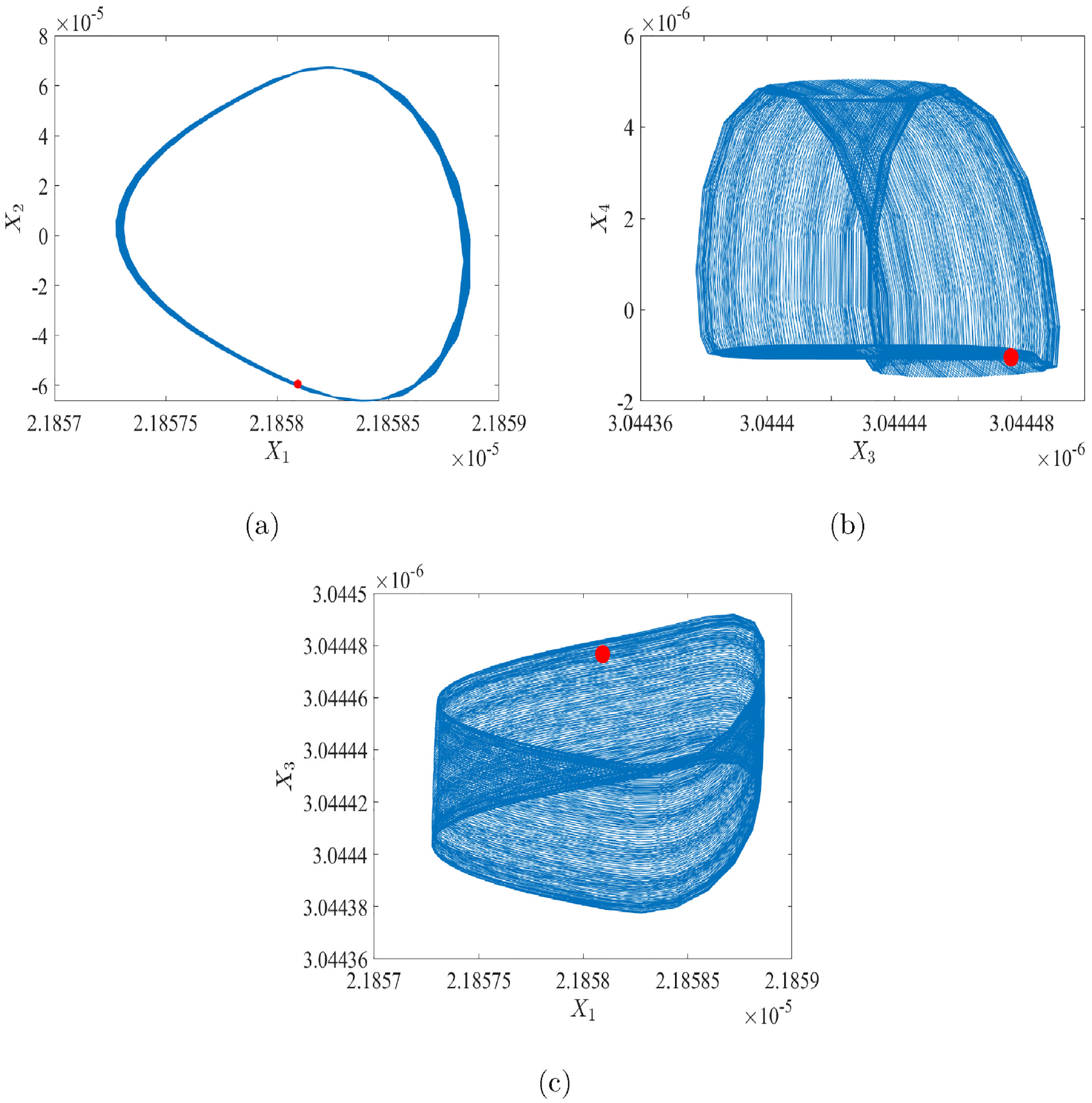

Figure 16.

Phase space plot ( $F_{u} = 0, λ E [Y^{2}] = 0$ ) for (a) $X_{1} - X_{2}$ , (b) $X_{3} - X_{4}$ , and (c) $X_{1} - X_{3}$ plane.

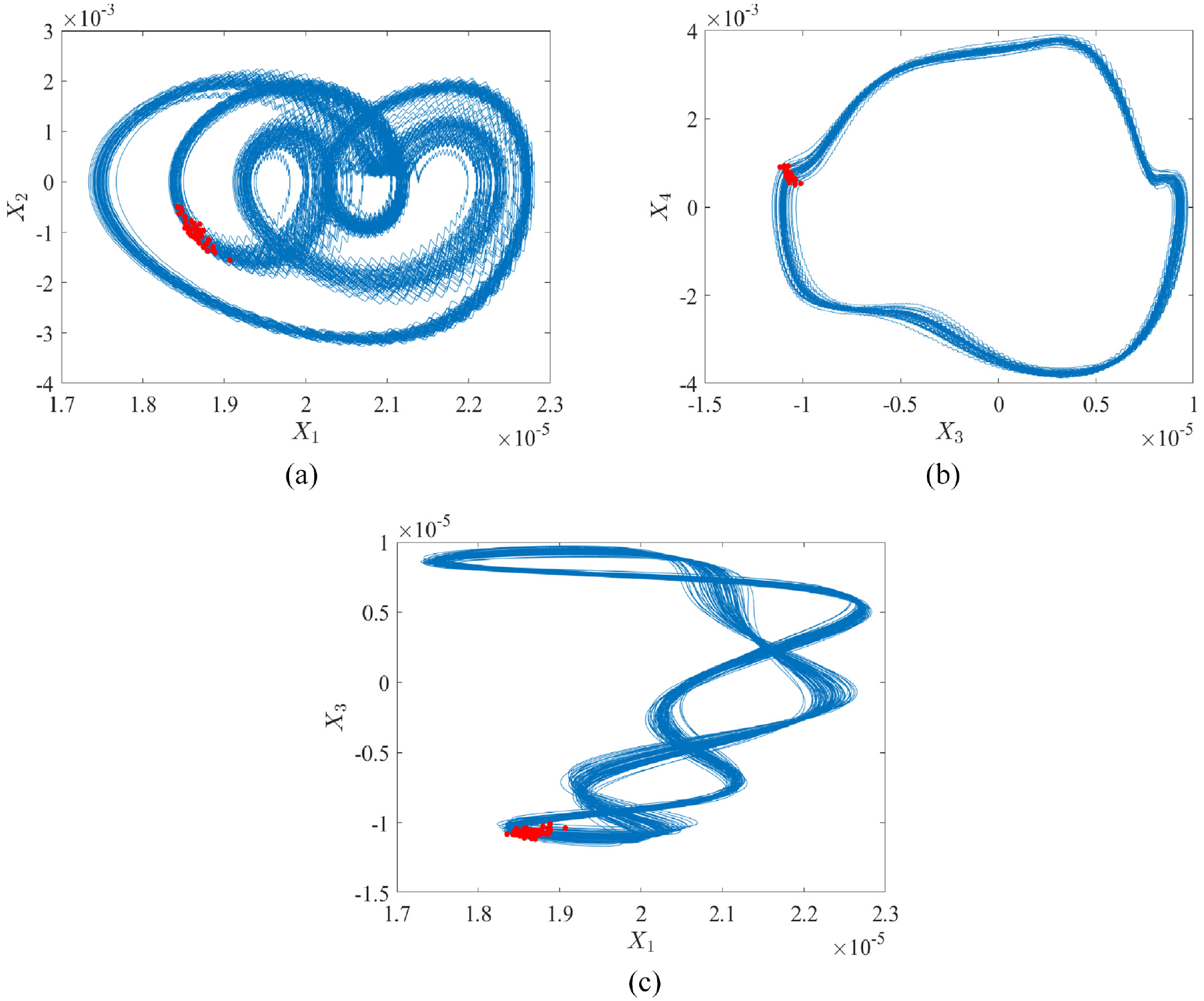

Figure 17.

Phase space plot ( $F_{u} = 0.15 W, λ E [Y^{2}] = 0.25 \times 10^{- 6}$ ) for (a) $X_{1} - X_{2}$ , (b) $X_{3} - X_{4}$ , and (c) $X_{1} - X_{3}$ plane.

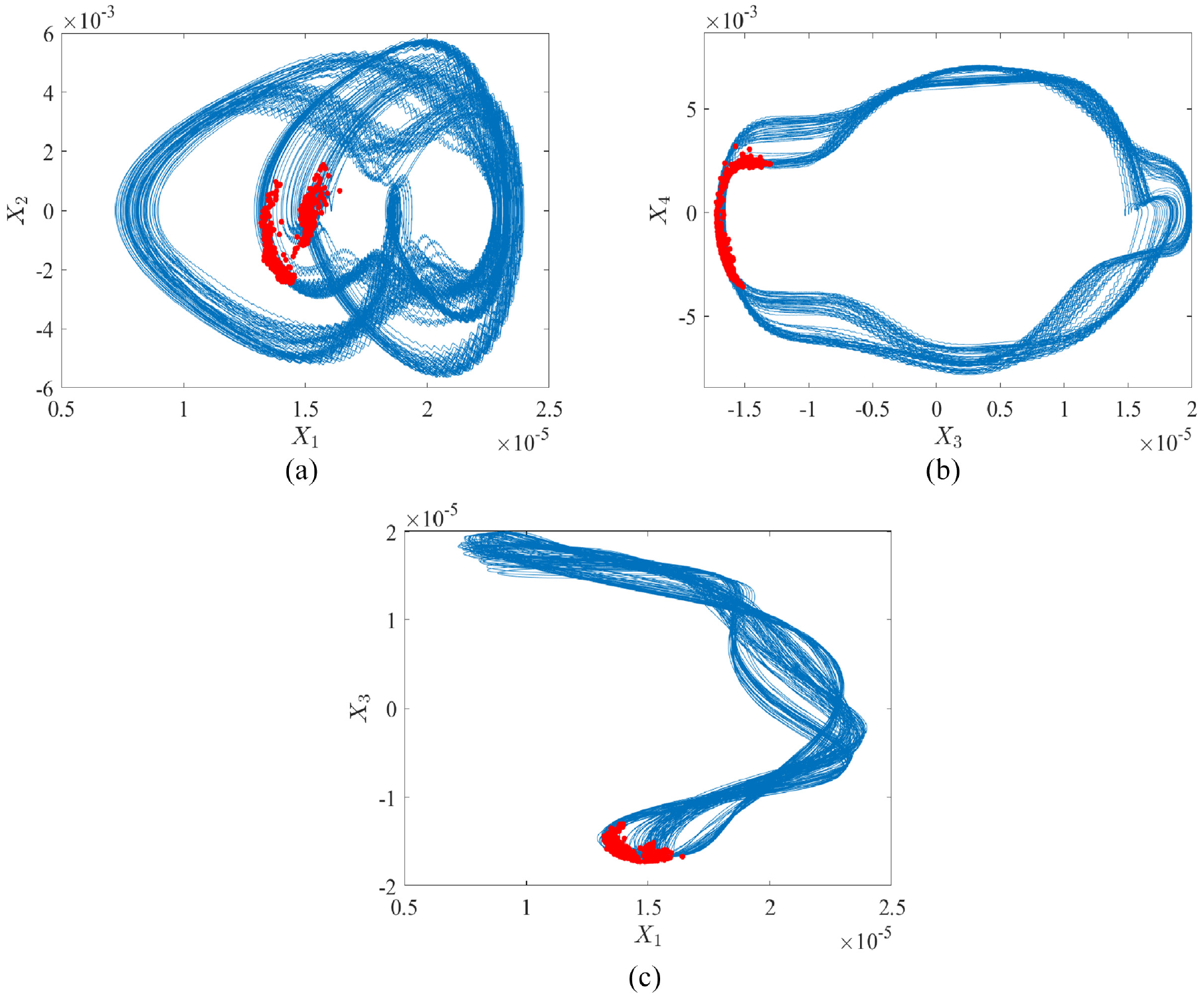

Figure 18.

Phase space plot ( $F_{u} = 0.3 W, λ E [Y^{2}] = 0.25 \times 10^{- 6}$ ) for (a) $X_{1} - X_{2}$ , (b) $X_{3} - X_{4}$ , and (c) $X_{1} - X_{3}$ plane.

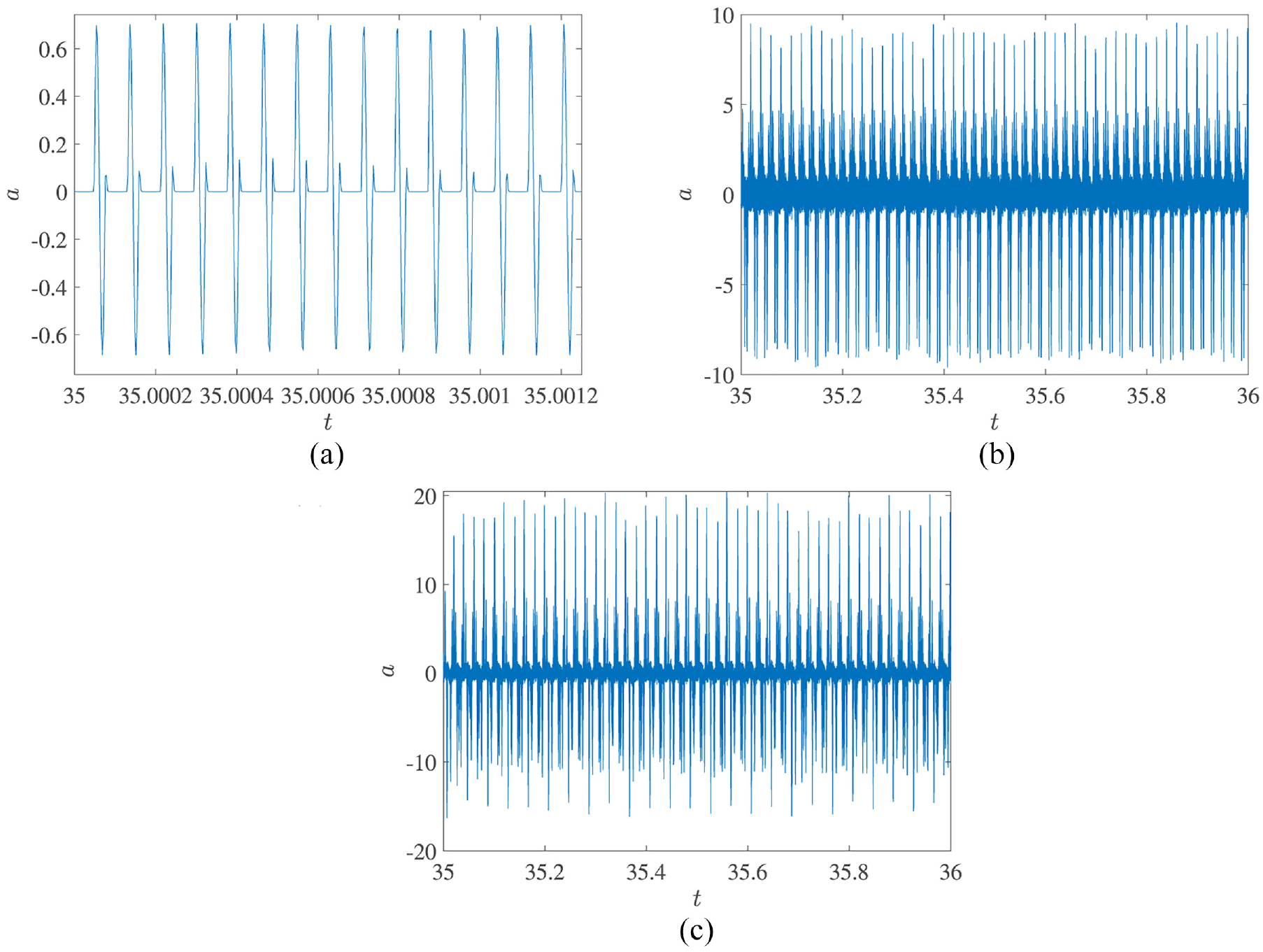

Figure 19.

Time waveform for horizontal acceleration for (a) $F_{u} = 0, λ E [Y^{2}] = 0$ , (b) $F_{u} = 0.15 W, λ E [Y^{2}] = 0.25 \times 10^{- 6}$ , and(c) $F_{u} = 0.3 W, λ E [Y^{2}] = 0.25 \times 10^{- 6}$ .

Defect characterization using entropy measure-based learning algorithm

The entropy measures are computed from measured time histories of the vibration signals of a rolling bearing under four different vibration severities, classified viz. good (acceptable), fair, rough (above alarm limit), and very rough (danger to failure). The analysis is carried out with respect to defects in the outer race, inner race, and other kinds of defects and are discussed separately in the following subsections. In this work, the vibration signal corresponding to a new fault-free bearing classified as “very good (desirable),” as shown in Figure 20, is taken as a benchmark signal as required for computing the Kullback–Leibler entropy.

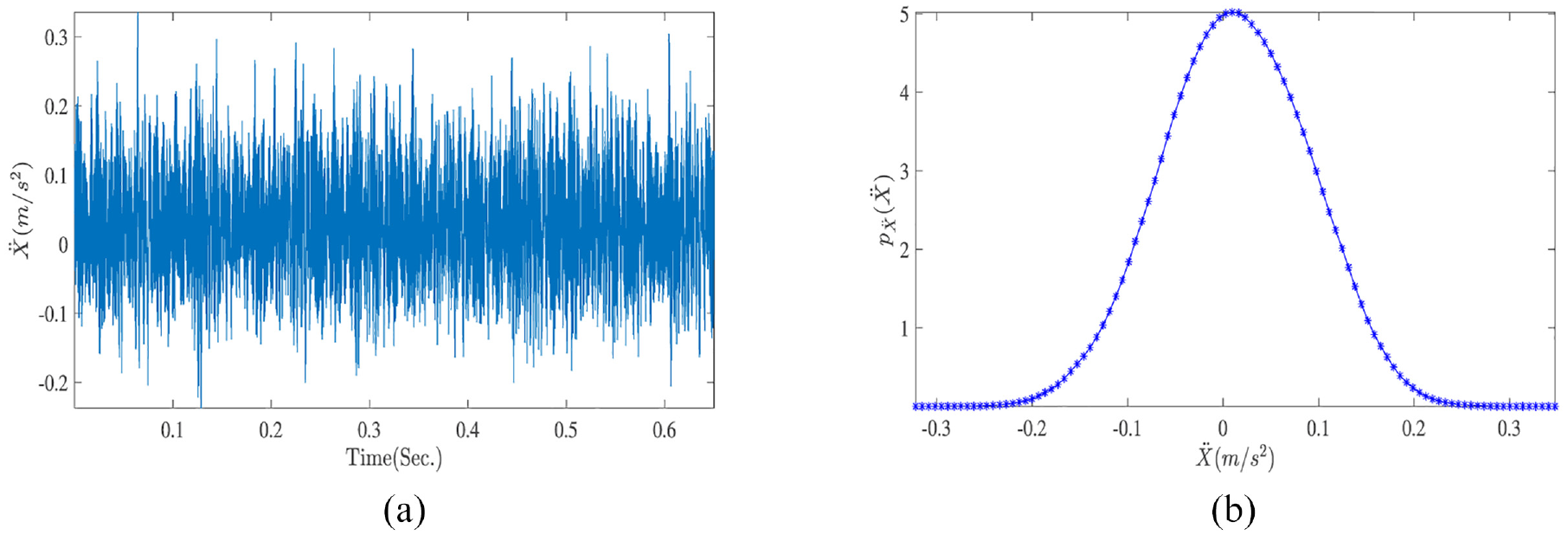

Figure 20.

(a) Vibration time waveform and (b) pdf corresponding to new and defect-free REBs.

Analysis with a defect on the outer race

Rolling bearing having localized outer race defect is considered. For better signal transmission and to minimize signal attenuation, the accelerometer was mounted just above the defect position on the outer race. Figure 21 presents a sample of vibration (acceleration) waveform corresponding to each of the different fault severity of the outer race fault for a test rolling bearing. The impact vibration caused by the localized fault is reflected in the time domain waveform.

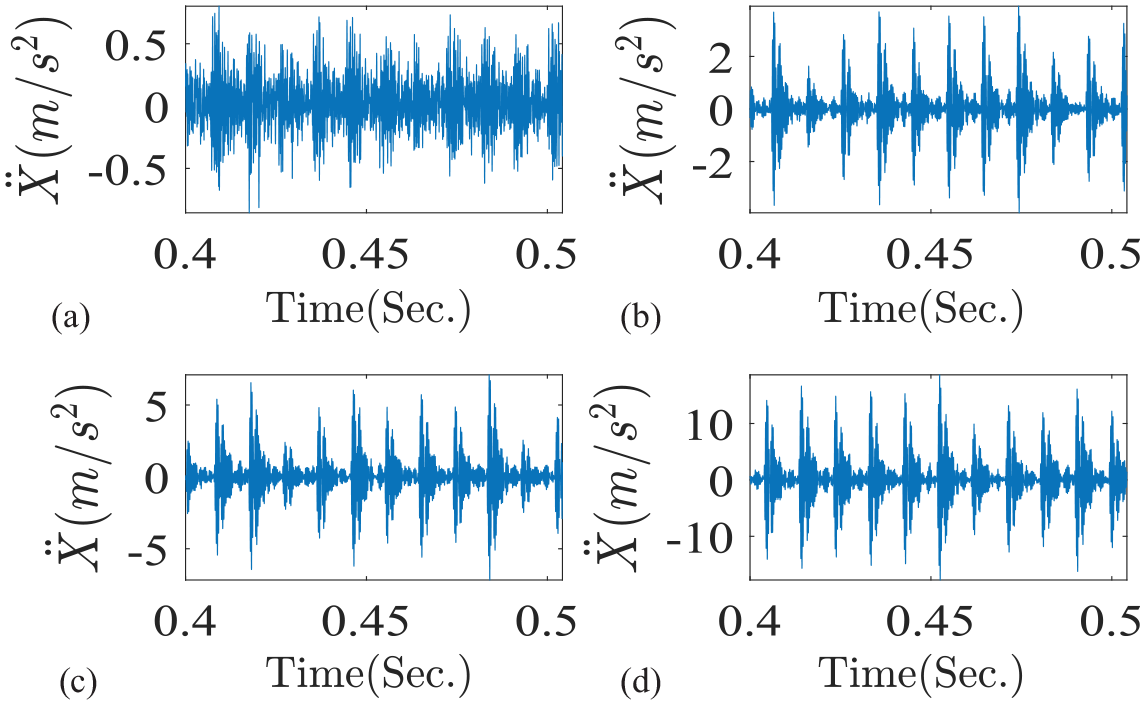

Figure 21.

Time waveform for bearing outer race fault conditions with different sensitivities in a rolling element bearing: (a) good, (b) fair, (c) rough, and (d) very rough.

The large transient vibration impulses of high energy are released whenever the rolling element passes over the defect site, and thus, time histories of the vibration signal have a periodic impact time corresponding to the defect frequency (BFPO). This defect frequency is a characteristic of the bearing element. The intensity and the peak value of the vibration signals increase with an increase in defect severity. However, in many industrial applications, having a high level of operational background noise can attenuate the spike due to a low signal-to-noise ratio, and these spikes may not always be visually evident in the acceleration time histories. Figure 22 presents the pdf of the four acceleration time histories corresponding to Figure 21.

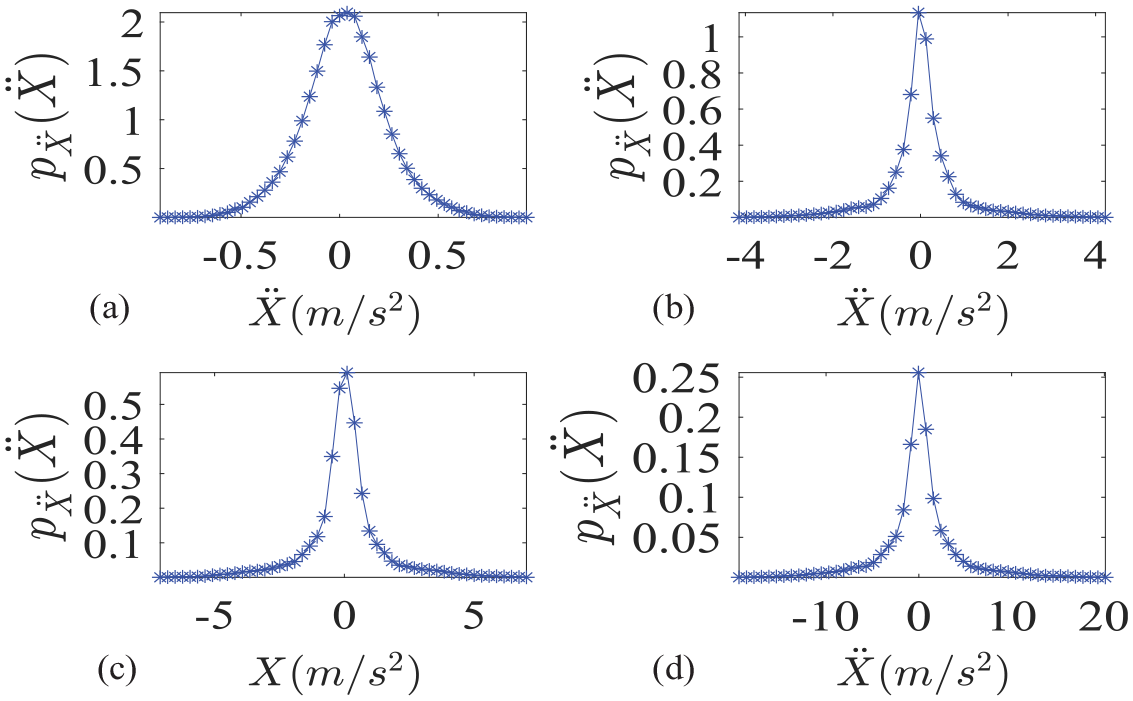

Figure 22.

PDF of vibration signal for bearing outer race fault conditions with different sensitivities in a rolling element bearing (a) good (b) fair (c) rough (d) very rough.

As the defect progresses, periodic impulses appear in the vibration signature. This led to the pdf displaying increasingly non-Gaussian characteristics, as seen in Figure 22. Initially, the non-Gaussian characteristics were quite pronounced (Figure 22(b)). However, as more and more periodic impulses are generated, the pdf again appears to have Gaussian characteristics.

Next, the KL entropy and the Shannon entropy measures are computed. For each severity category, $48$ data samples are chosen under the same operating conditions but with different loads. Figure 23 shows the variations of the Shannon and Kullback entropy in $D - H$ space for a deteriorating outer race bearing for the four operating conditions: good, fair, rough, and very rough. The standard statistical parameters corresponding to these defective bearings have been shown later (Figure 27). It can be noted that for the healthy bearings, Shannon entropy $H (x, t)$ is almost zero (and sometimes shows negative values as well). Near zero value of $H (x, t)$ for healthy bearings corresponds to the near Gaussian nature of the time history.

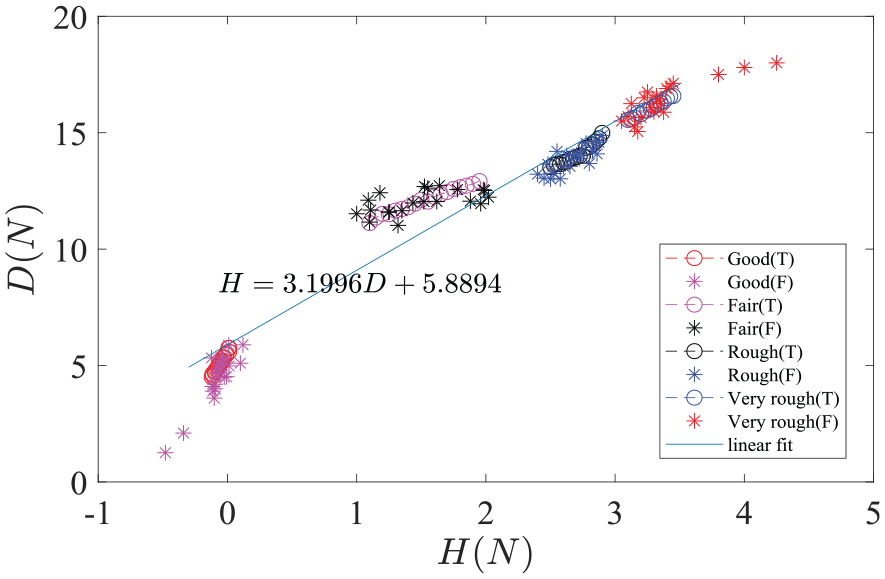

Figure 23.

Shannon–Kullback entropy characteristics for bearing outer race fault conditions with different sensitivities in a rolling element bearing (T = theoretical time waveform and F = field data).

Both Kullback and Shannon entropy start with low values for healthy bearings and progressively increase as the bearing degradation advances to fair, rough, and very rough bearings. It is observed that there exists a one-to-one correlation between vibration severity and entropy. Lower numerical values of both the entropy measures— $D$ and $H$ —indicate that the rolling bearing is relatively healthy. As the defect severity increases, the acceleration signals become more noisy, and hence, there is an increase in both the entropy measures. The increase in entropy should be correlated with an increase in the random event occurring in the time waveform due to malfunctioning inside the rolling bearing. Hence, the entropy characteristics serve the purpose of rating the state of health of a rolling element bearing.

Furthermore, to check the accuracy and effectiveness of the proposed entropy-based measure, an ANN using a multilayer perceptron (MLP) classifier is used with the following 1 to 9 features: mean ( $μ$ ), variance ( $σ^{2}$ ), root mean square (RMS), standard deviation, skewness, kurtosis, crest factor, Shannon entropy, and Kullback entropy (Table 2). It is observed that the accuracy score of the model with features 1 to 7 (without Shannon entropy and Kullback entropy) comes to be $0.7143$ . By contrast, the accuracy score for the model with features 1 to 9 (with Shannon entropy and Kullback entropy) comes to be $1$ . In both cases, the log–log function was optimized using stochastic gradient senses and the test size was taken as $0.2$ .

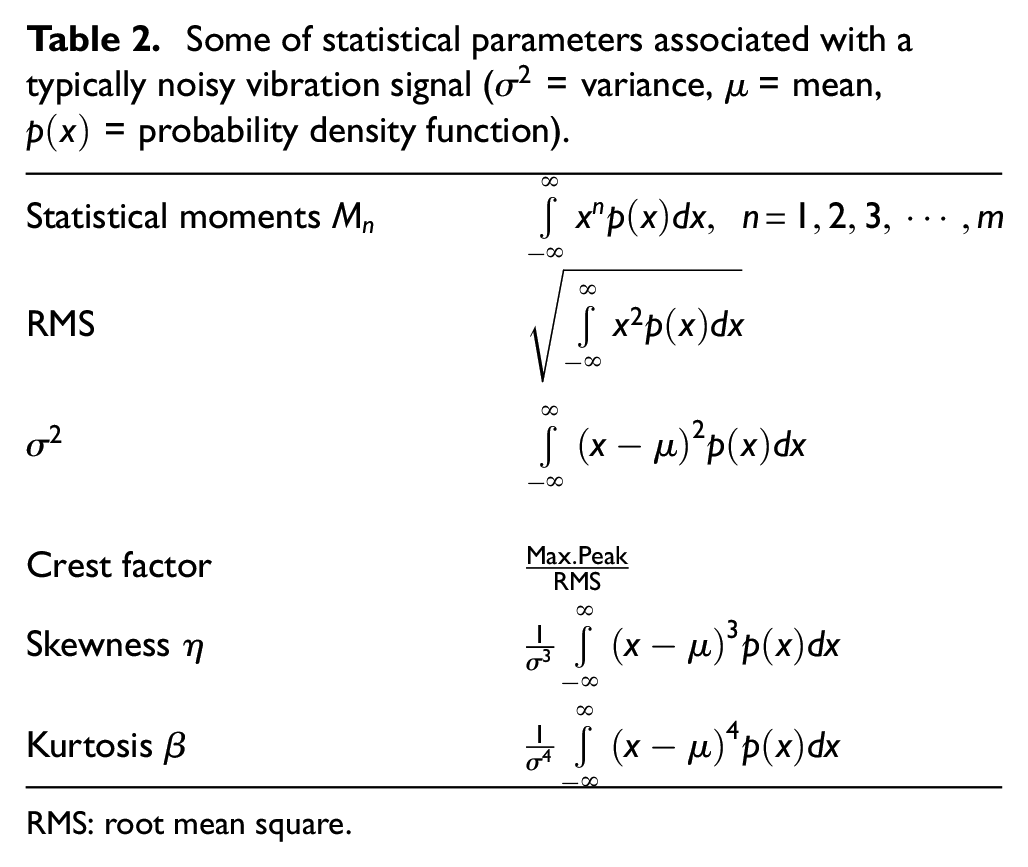

Table 2.

Some of statistical parameters associated with a typically noisy vibration signal ( $σ^{2}$ = variance, $μ$ = mean, $p (x)$ = probability density function).

Statistical moments $M_{n}$	$\int_{- \infty}^{\infty} x^{n} p (x) dx, n = 1, 2, 3, \dots, m$
RMS	$\sqrt{\int_{- \infty}^{\infty} x^{2} p (x) dx}$
$σ^{2}$	$\int_{- \infty}^{\infty} {(x - μ)}^{2} p (x) dx$
Crest factor	$\frac{Max . Peak}{RMS}$
Skewness $η$	$\frac{1}{σ^{3}} \int_{- \infty}^{\infty} {(x - μ)}^{3} p (x) dx$
Kurtosis $β$	$\frac{1}{σ^{4}} \int_{- \infty}^{\infty} {(x - μ)}^{4} p (x) dx$

RMS: root mean square.

Analysis with a defect on the inner race

Next, the rolling bearing having a defect on the inner race is considered. In the case of an inner race defect, the vibration signature is quite complicated due to varying loadings on defect sites and the ball. Figure 24 illustrates the experimental acceleration sample waveforms with inner race defects in the REBs under different defect severity conditions for the test rolling bearing. During the experiment, the acceleration time waveforms are captured on the top of the defective test bearing housing.

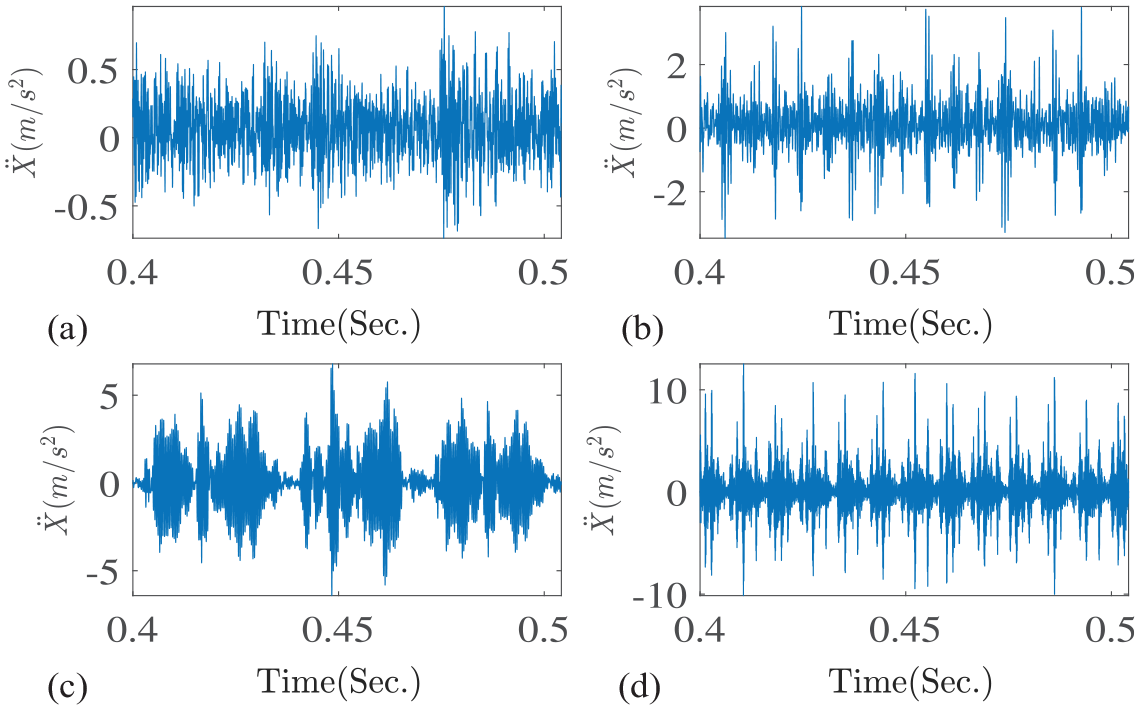

Figure 24.

Time waveform for bearing inner race fault conditions with different sensitivities in a rolling element bearing: (a) good, (b) fair, (c) rough, and (d) very rough.

A series of short bursts of high energy of varying amplitude is observed in Figure 24. For the inner race defect, the defect keeps moving in or out of the load zone once in a revolution. Large amplitude vibrations are generated while defects are in the load zone, and weaker vibration signatures are produced while the defects are outside the load zone. Therefore, the inner race gets modulated with the shaft rotating frequency. The amplitude modulation with the shaft rotating frequency diminishes the defect amplitudes for some impulses. Figure 25 presents the pdf of the four acceleration time histories corresponding to Figure 24.

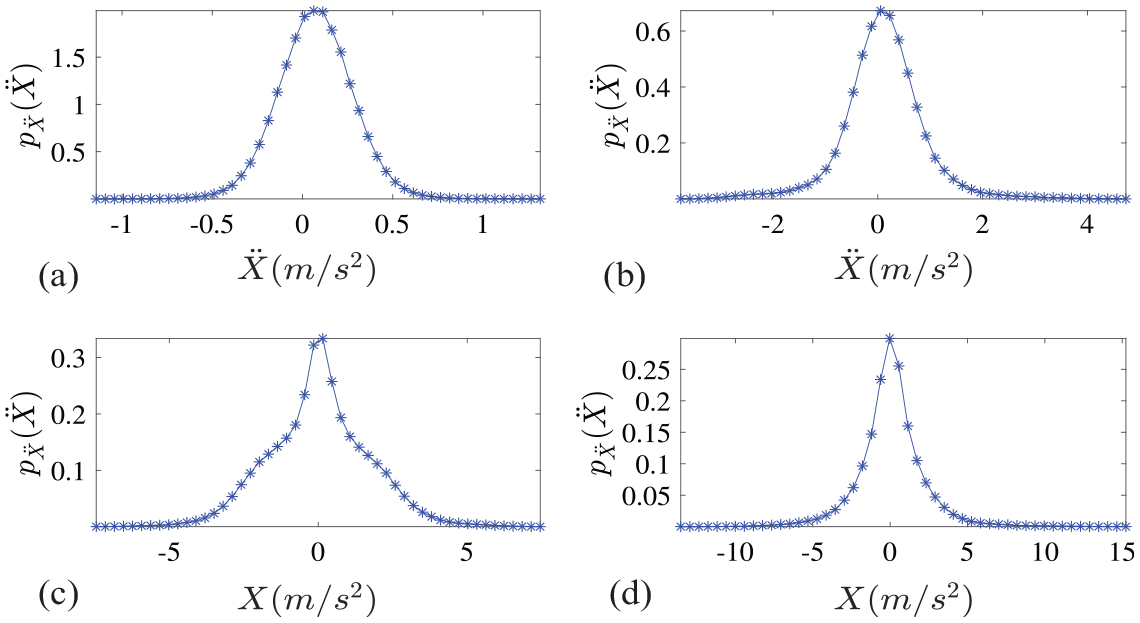

Figure 25.

PDF of vibration signal for bearing inner race fault conditions with different sensitivities in a rolling element bearing: (a) good, (b) fair, (c) rough, and (d) very rough.

The Shannon and the KL entropy measures are computed. These data points are plotted in the $D - H$ space as shown in Figure 26. The plot in Figure 26 indicates that for each level of severity, a well-defined entropy value at a given operating condition and the entropy of vibration signal ranging from good to very rough lie on a nearly linear locus. Hence, the increase in defect severity either on the inner or the outer race can be characterized by the proposed entropy-based approach.

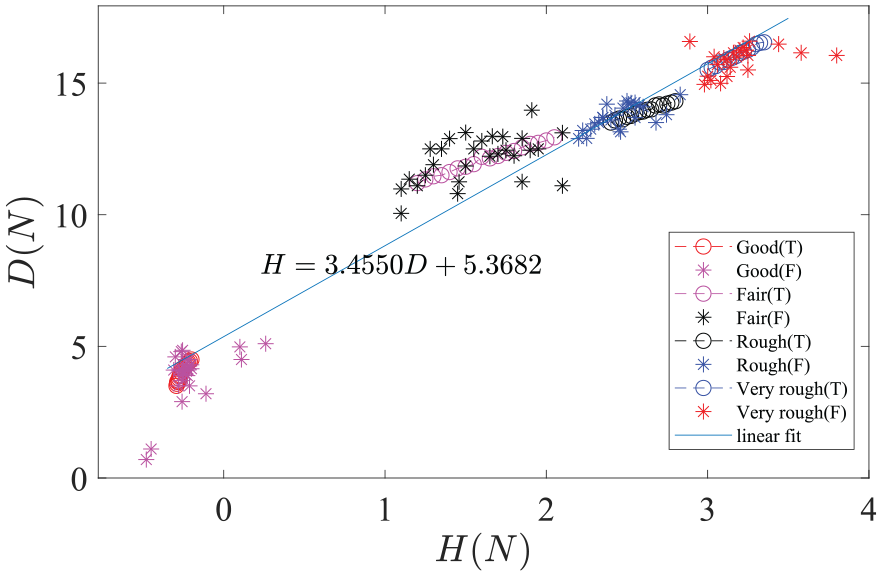

Figure 26.

Shannon–Kullback entropy characteristics for bearing inner race fault conditions with different sensitivities in a rolling element bearing (T = theoretical time waveform and F = field data).

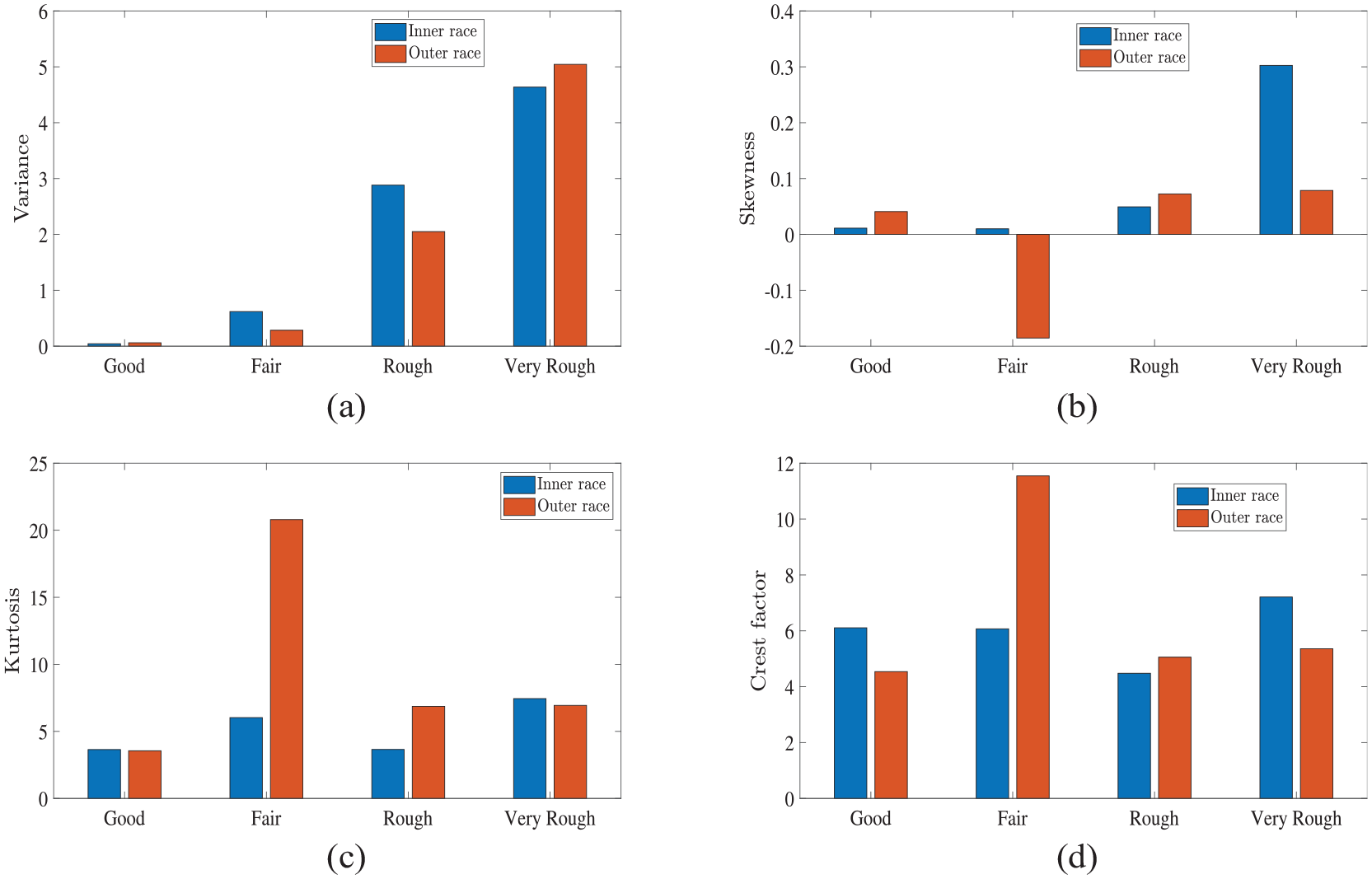

Figure 27 presents the behavior obtained using the value of standard statistical parameters using the acceleration time waveform. The result presents the average value of $48$ vibration waveforms for each bearing fault condition. As can be seen, the change and distribution of these statistical parameters are very complicated with varying fault conditions. Using these measures, some insights can be drawn for bearing defects. However, none of these statistical moment measures can be reliably used to identify the fault position or their severity for different types of faults.

Figure 27.

Comparison of statistical parameters (a) variance, (b) skewness (c) kurtosis, and (d) crest factor for various defect conditions at inner and outer race .

Analysis with different kinds of defects

In this section, three different kinds of bearing faults—(a) inner race defect, (b) outer race defect, and (c) rolling element defects—all having similar defect severity are analyzed. Since bearing vibration data for different fault types with similar severity are difficult to obtain from the field, most of the vibration signature is obtained theoretically using numerical simulation or experimentally in the workshop. The corrosive pitting defects of diameter $3$ and $0.25$ mm depth are artificially produced onto the inner race, outer race, and ball bearing separately using electric spark erosion. Sample time histories extracted from rolling bearings under normal operating conditions and different fault conditions with similar fault sizes are shown in Figure 28.

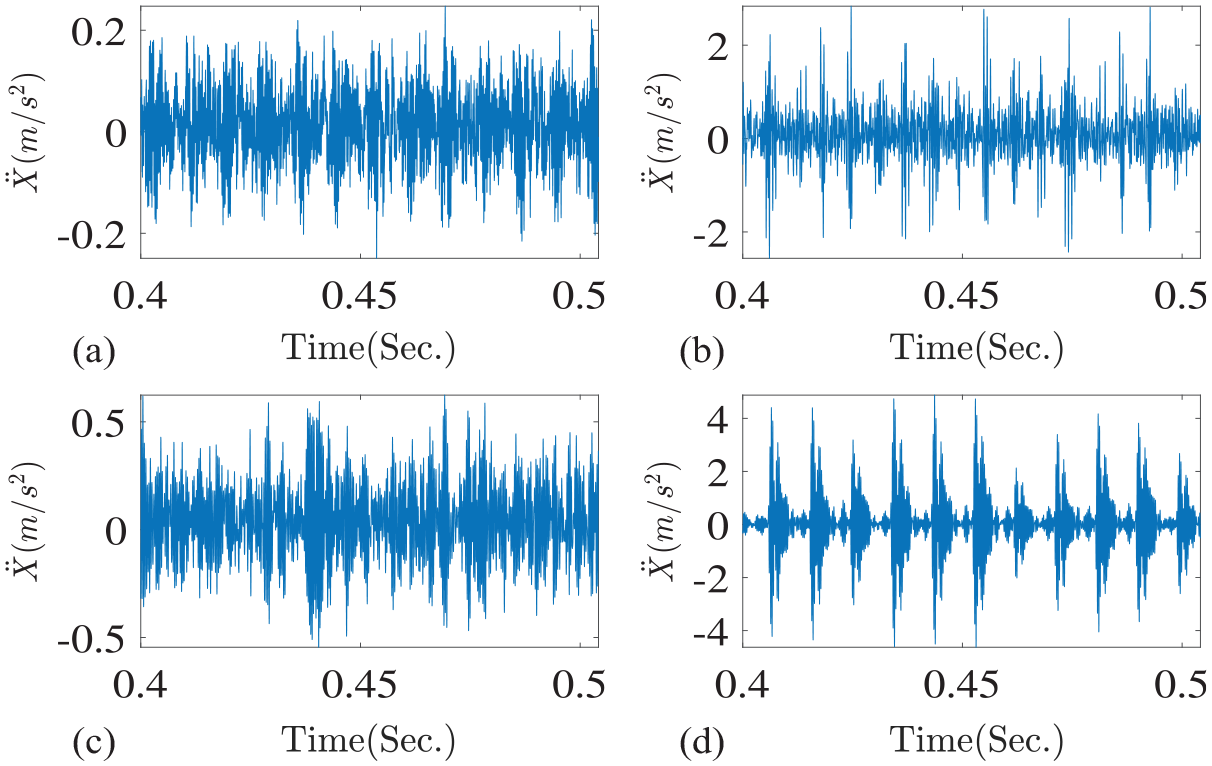

Figure 28.

Time waveform for normal as well as various fault conditions in a rolling element bearing: (a) very good, (b) inner race defect, (c) rolling elements defects, and (d) outer race defect.

Using numerical simulation for Equation (14), 12 vibration signatures for different defect sizes were recorded for each bearing fault condition. In Figure 28, it can be seen that vibration amplitude is sensitive to the bearing fault position, and these characteristics help to group the Kullback–Shannon entropy. As discussed earlier, more vibration energy is released for outer race defects under similar fault sizes. Figure 29 presents the pdf of the four acceleration time histories corresponding to Figure 28. For the similar fault size, localized surface defect at the outer race induces more non-Gausianity in the acceleration time waveform. The average value of standard statistical parameters such as RMS, standard deviation, kurtosis, crest factor, and skewness is given in Table 3. Once again, the variation of these statistical parameters with respect to fault location is complicated. Hence, these measures cannot be reliably used to identify the fault position or their severity for different types of faults.

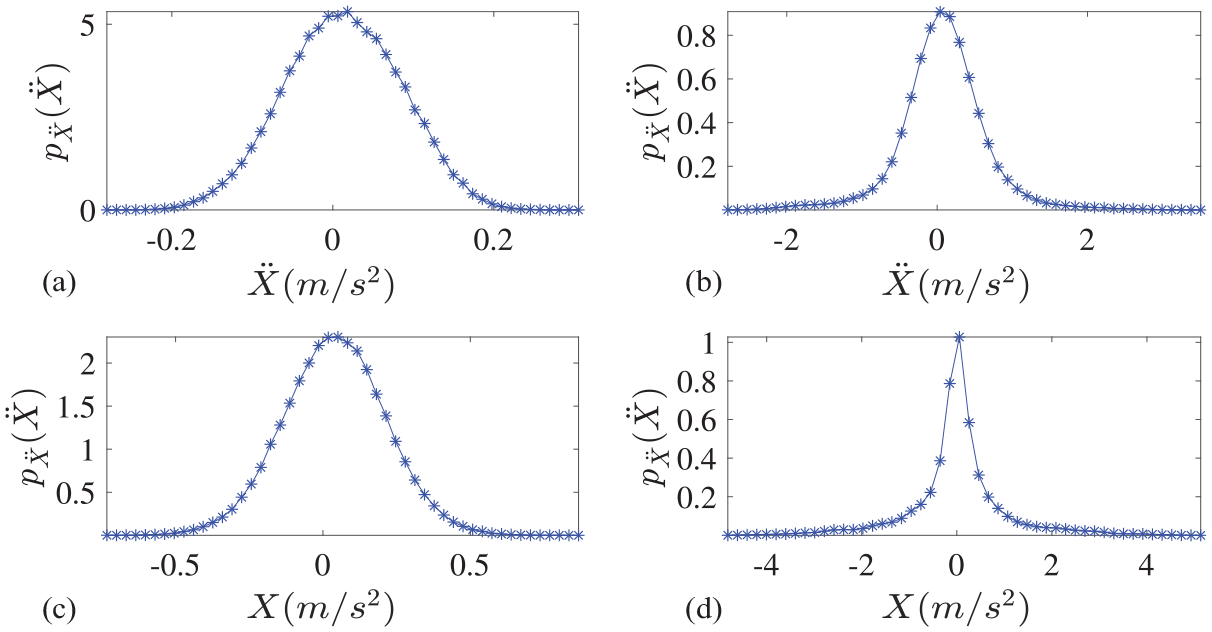

Figure 29.

PDF of vibration signal for normal as well as various fault conditions in a rolling element bearing: (a) very good, (b) inner race defect, (c) rolling elements defects, and (d) outer race defect.

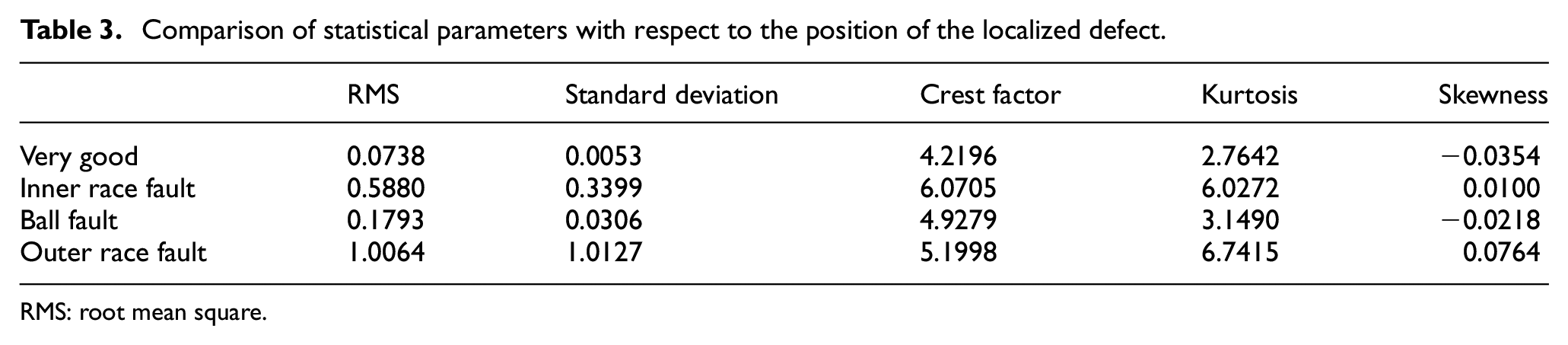

Table 3.

Comparison of statistical parameters with respect to the position of the localized defect.

	RMS	Standard deviation	Crest factor	Kurtosis	Skewness
Very good	0.0738	0.0053	4.2196	2.7642	−0.0354
Inner race fault	0.5880	0.3399	6.0705	6.0272	0.0100
Ball fault	0.1793	0.0306	4.9279	3.1490	−0.0218
Outer race fault	1.0064	1.0127	5.1998	6.7415	0.0764

RMS: root mean square.

The Shannon and the KL entropy measures for very good bearing and those corresponding to the defective outer race, inner race, and rolling element with defects of similar size and severity are shown in Figure 30. It can be seen that similar fault sizes at different locations also have better inter-class separation for Kullback–Shannon characteristics. For healthy bearings, Shannon entropy is negative, and both Kullback and Shannon entropy measures increase with an increase in the vibration amplitude. Hence, it is possible to accurately identify the different bearing fault types using the Kullback and Shannon entropy measures.

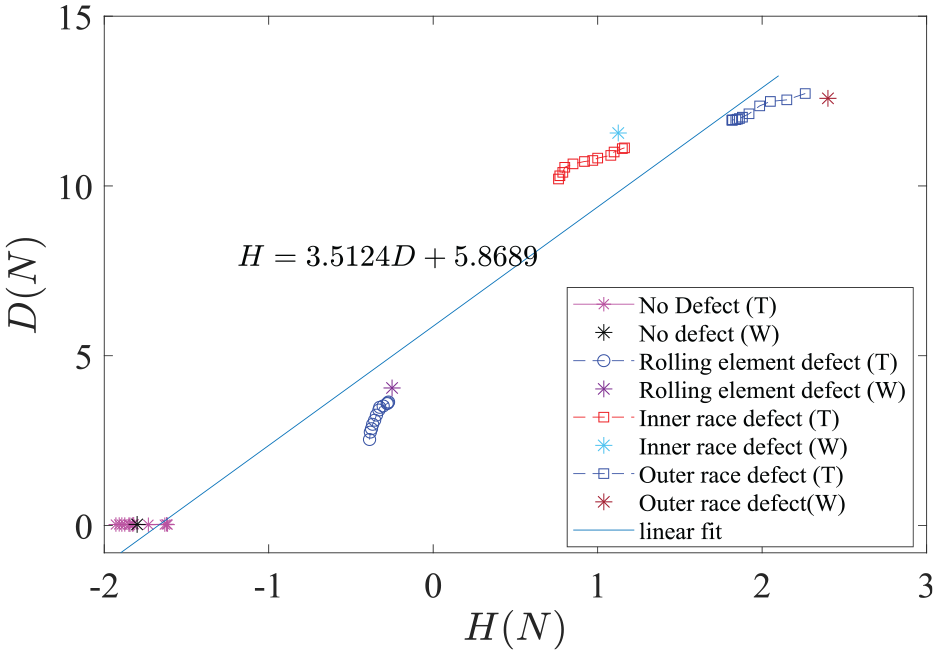

Figure 30.

Shannon–Kullback entropy characteristics for normal as well as various fault conditions in a rolling element bearing (T = theoretical time waveform and W = workshop data).

For comparison purposes, vibration waveforms corresponding to different fault types, as shown in Figure 28, are also investigated using various existing modern signal processing techniques. Figures 31(a)–(d) present the RPs for various fault locations corresponding to the time series shown in Figure 28. The RPs for all the cases are computed for approximately $0.2$ s. The RPs exhibit specific patterns depending on the fault location and underlying dynamics. For healthy bearing, a homogeneous type of feature can be seen in Figure 31(a). Uniformly generated white space appears for inner (Figure 31(b)) and outer race faults (Figure 31(d)) and is more prominent in the latter case. The observation means that the spike occurs frequently in the time series; the intermittent states also occur more frequently and are dominant in the RP. Even though RPs exhibit different patterns and provide clues about system dynamics; however, it is challenging to obtain unambiguous conclusions about underlying dynamics.

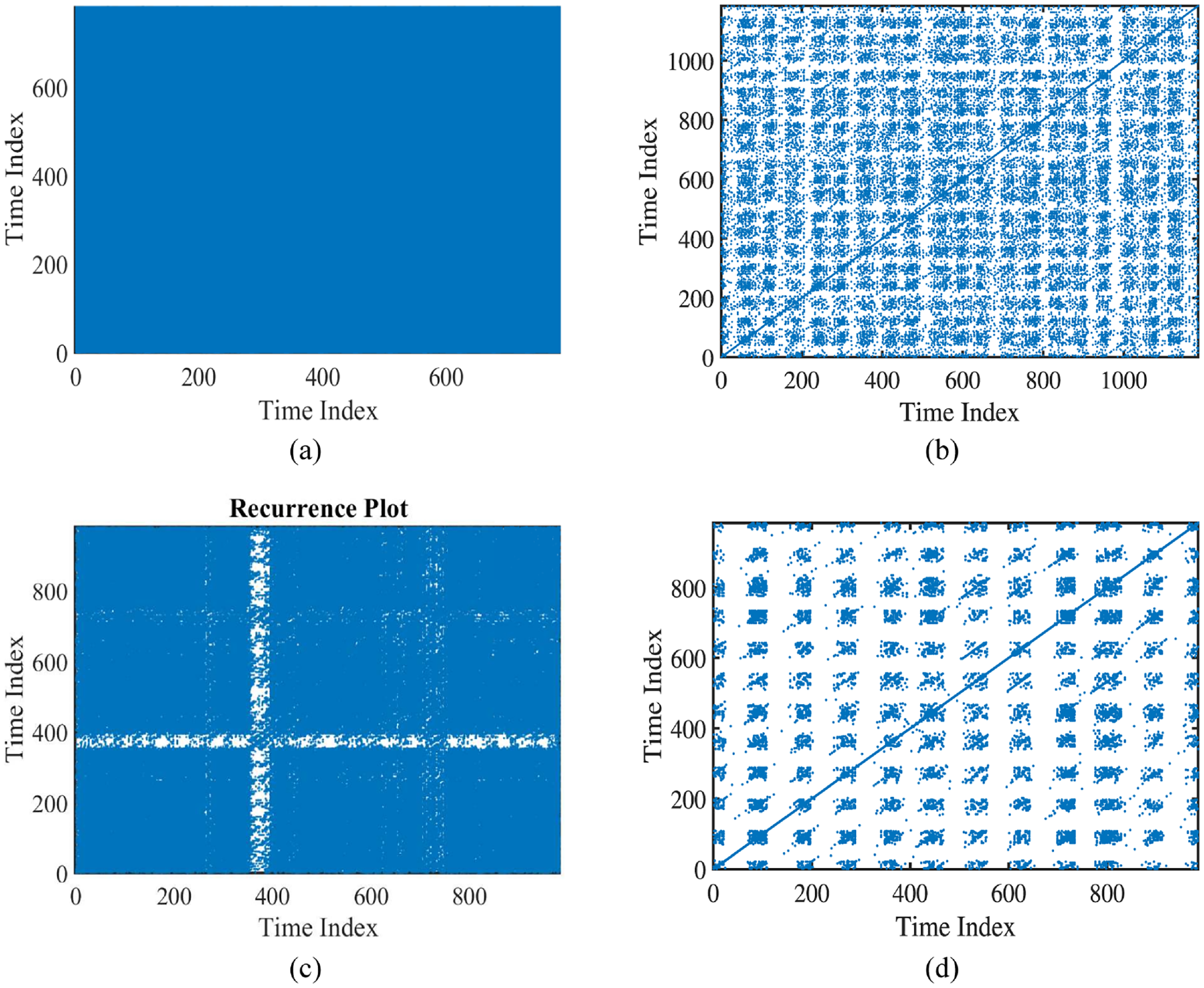

Figure 31.

Recurrence plot for normal as well as various fault conditions in a rolling element bearing: (a) very good, (b) inner race defect, (c) rolling elements defects, and (d) outer race defect.

Figures 32(a)–(d) present the WT scalogram for various fault locations corresponding to the time series shown in Figure 28. The number of distinct peaks observed in the scalogram can be an excellent feature to differentiate between inner race faults, outer race faults, and normal conditions. However, except for the scalogram of the case of the outer race fault (Figure 32(d)), which shows 11 distinct peaks during the $0.1$ s and is consistent with the impulses in the time-domain signal as shown in Figure 28(d), such clarity is not available with other cases. Hence, although these techniques quantitatively reveal the fault feature, they only roughly reveal the defect feature, and hence, it is difficult to obtain a clear and quantitative measure of faults.

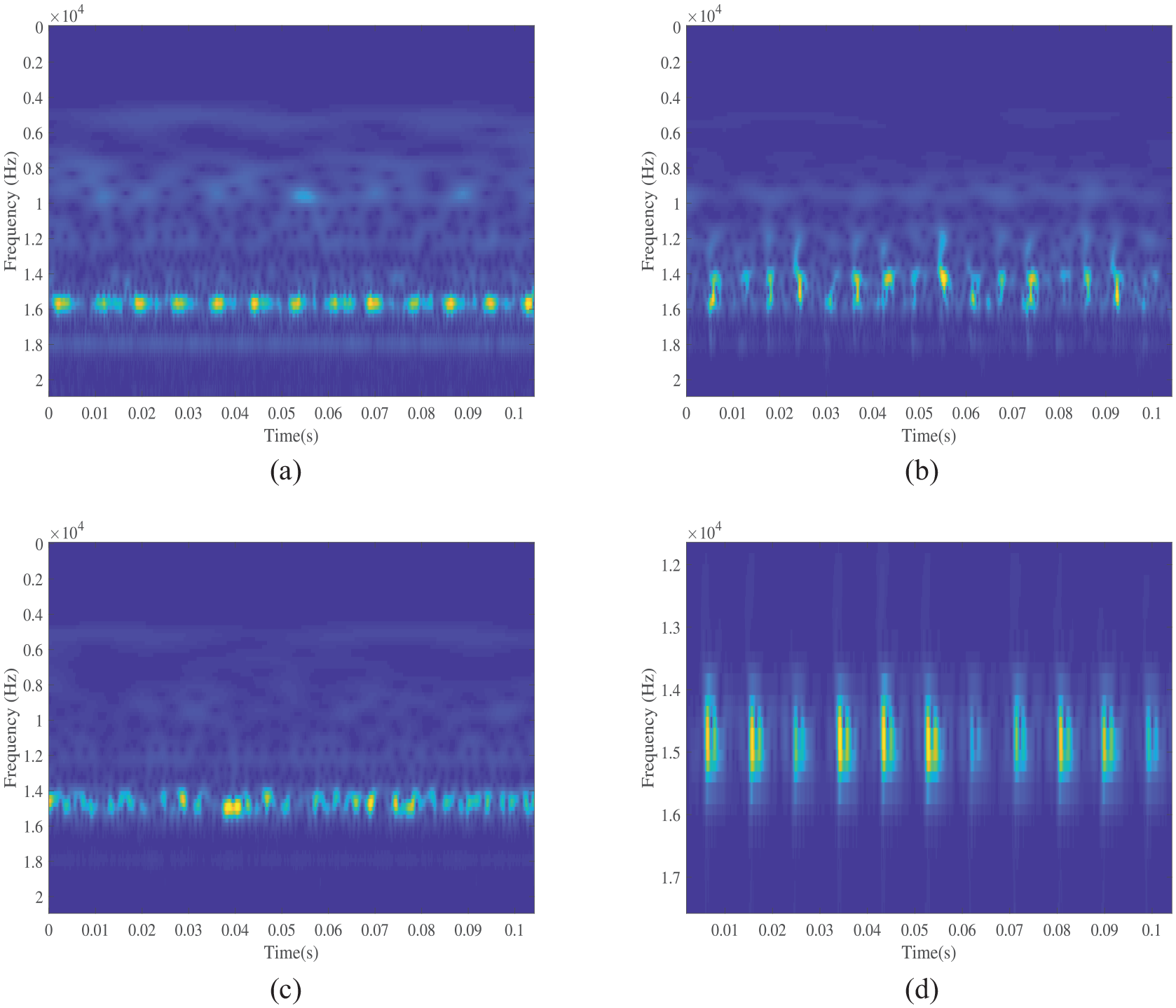

Figure 32.

Wavelet plot for normal as well as various fault conditions in a rolling element bearing: (a) very good (b) inner race defect, (c) rolling elements defects, and (d) outer race defect.

Conclusions

The present work presents a new approach based on Kullback–Leibler divergence and Shannon entropy to diagnose different fault types and severities of rolling element bearings (REBs) with real-time computational performance. Shannon–Kullback entropies for various types of REB faults are calculated. Results indicate that for a given operating condition, each type of fault has a well-defined entropy measure and entropies of faulty bearing, ranging from “very good” to “very rough,” lie on a nearly linear locus. The results show that the proposed method is also well suited to weak time waveforms where defect features are masked by the background noise. Application with the field and experimental data shows that three types of bearing faults have been effectively identified using the proposed techniques. Results of the proposed method are also compared with existing traditional methods, such as statistical measures of vibration signals, and the effectiveness of proposed entropy measures in characterizing rolling bearing defects is established. Compared with the state-of-the-art fault identification approaches, the proposed method offers scope for a different diagnostic tool for REB fault detection. Combined with the other traditional vibration condition monitoring techniques, the proposed entropy-based diagnosis tool promises to be very effective and robust, especially for noisy vibration signals. In addition to the field and workshop data, a nonlinear vibration model under the combined effect of the unbalance and PWN has been developed to obtain the acceleration time waveform. An adaptive time-stepping numerical integration combined with the Brownian tree is used to obtain the nonlinear vibration response. Nonlinear random vibration analysis for the rolling element bearing helps to predict the effect of various sources of nonlinearity, such as Hertzian contact force, internal clearance, surface waviness, and localized defects among others under the combined effect of unbalanced force and non-Gaussian random excitations.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Piyush Shakya

References

Randall

Antoni

Rolling element bearing diagnostics—A tutorial. Mech Syst Signal Proc 2011; 25(2): 485–520.

Rai

Upadhyay

SH.

A review on signal processing techniques utilized in the fault diagnosis of rolling element bearings. Tribol Int 2016; 96: 289–306.

Piyush

Ashish

Makarand

SK.

Bearing diagnosis using proximity probe and accelerometer. Measurement 2016; 80: 190–200.

Piyush

Makarand

Ashish

. Bearing diagnosis based on Mahalanobis–Taguchi–Gram–Schmidt method. J Sound Vibrat 2015; 337: 342–362.

Tandon

Choudhury

A review of vibration and acoustic measurement methods for the detection of defects in rolling element bearings. Tribol Int 1999; 32(8): 469–480.

Sandaram

Piyush

Bearing fault diagnosis and prognosis using data fusion based feature extraction and feature selection. Measurement 2022; 188: 110506.

Piyush

Makarand

Ashish

KD.

A novel methodology for online detection of bearing health status for naturally progressing defect. J Sound Vibrat 2014; 333(21): 5614–5629.

Dyer

Stewart

RM.

Detection of rolling element bearing damage by statistical vibration analysis. ASME J Mech Design 1978; 100(2): 229–235.

Zhang

Zhu

Zhong

BJ.

Study on the features of some specific parameters utilized for machine condition monitoring. J Vibrat Shock 2001; 20(6): 20–25.

10.

Huang

Baddour

Bearing vibration data collected under time-varying rotational speed conditions. Data Brief 2018; 21: 1745–1749.

11.

Mori

Kasashima

Yoshioka

, et al. Prediction of spalling on a ball bearing by applying the discrete wavelet transform to vibration signals. Wear 1996; 195(1): 162–168.

12.

Borghesani

Ricci

Chatterton

, et al. A new procedure for using envelope analysis for rolling element bearing diagnostics in variable operating conditions. Mech Syst Signal Process 2013; 38(1): 23–35.

13.

Tse

Peng

Yam

Wavelet analysis and envelope detection for rolling element bearing fault diagnosis—their effectiveness and flexibilities. J Vibrat Acoust 2001; 123(3): 303–310.

14.

Huang

A wavelet-based algorithm for the Hilbert transform. Mech Syst Signal Process 1996; 10(2): 125–134.

15.

Peng

Peter

Chu

FL.

An improved Hilbert–Huang transform and its application in vibration signal analysis. J Sound Vibrat 2005; 286(1–2): 187–205.

16.

Supriyo

Piyush

N Ramesh

. A robust condition monitoring methodology for grinding wheel wear identification using Hilbert Huang transform. Precis Eng 2021; 70: 77–91.

17.

Zhang

Wang

Adaptive dynamic mode decomposition and its application in rolling bearing compound fault diagnosis. Struct Health Monit 2023; 22(1): 398–416.

18.

Yan

Liu

Huang

, et al. A new approach to health condition identification of rolling bearing using hierarchical dispersion entropy and improved Laplacian score. Struct Health Monit 2021; 20(3): 1169–1195.

19.

Zhu

Liu

, et al. An enhanced empirical Fourier decomposition method for bearing fault diagnosis. Struct Health Monit 2024; 23(2): 903–923.

20.

Samanta

Gear fault detection using artificial neural networks and support vector machines with genetic algorithms. Mech Syst Signal Process 2004; 18(3): 625–644.

21.

Tse

Neural networks based robust machine fault diagnostic & life span predicting system. PhD Thesis, University of Sussex, UK, 1998.

22.

Bonnardot

Randall

Guillet

Extraction of second-order cyclostationary sources—application to vibration analysis. Mech Syst Signal Process 2005; 19(6): 1230–1244.

23.

Randall

Antoni

Chobsaard

The relationship between spectral correlation and envelope analysis in the diagnostics of bearing faults and other cyclostationary machine signals. Mech Syst Signal Process 2021; 15(5): 945–962.

24.

Lee

JH.

Enhancement of decomposed spectral coherence using sparse nonnegative matrix factorization. Mech Syst Signal Process 2021; 157: 107747.

25.

Yao Cheng

Chen

Zhang

. Enhanced spectral coherence and its application to bearing fault diagnosis. Measurement 2022; 188: 110418.

26.

Kecik

Smagala

Lyubitska

Ball bearing fault diagnosis using recurrence analysis. Materials 2022; 15: 1–14.

27.

Havale

Narayanan

Diagnosis of manufacturing defects in a gear pair using wavelet analysis of vibration and acoustic signals and an ANN-based inference technique. Insight Non-Destruct Test Cond Monit 2014; 56(8): 426–433.

28.

Purushotham

Narayanan

Suryanarayana Prasad

AN.

Multi-fault diagnosis of rolling bearing elements using wavelet analysis and hidden Markov model based fault recognition. NDT &E Int 2005; 38(8): 654–664.

29.

Rafiee

Tse

PW.

Use of autocorrelation of wavelet coefficients for fault diagnosis. Mech Syst Signal Process 2009; 23(5): 1554–1572.

30.

Wang

Stephan Heyns

Application of computed order tracking, Vold–Kalman filtering and EMD in rotating machine vibration. Mech Syst Signal Process 2011; 25: 416–430.

31.

Sitesh

Piyush

Vimaleswar

, et al. An approach to improve high-frequency resonance technique for bearing fault diagnosis. Measurement 2021; 178: 109318.

32.

Dejie

Cheng

A fault diagnosis approach for roller bearing based on IMF envelope spectrum and SVM. Measurement. 2007; 40(9): 943–950.

33.

Akash

Piyush

Early fault detection based on empirical mode decomposition method. Proc CIRP 2020; 88: 31–35.

34.

Eckmann

Oliffson

Ruelle

Recurrence plots of dynamical systems. Europhys Lett 1987; 4(9): 973–977.

35.

Hertz

. On the contact of elastic solids, In: Jones

Schott

(ed.) Miscellaneous papers, Chapter V. London: Macmillan, 1896, pp.146–162.

36.

Tiwari

Gupta

Prakash

Dynamic response of an unbalanced rotor supported on ball bearings. J Sound Vibrat 2000; 238(5): 757–779.

37.

Harsha

Sandeep

Prakash

The effect of speed of balanced rotor on nonlinear vibrations associated with ball bearings. Int J Mech Sci 2003; 45(4): 725–740.

38.

Kumar

Narayanan

Chaos and bifurcation analysis of stochastically excited discontinuous nonlinear oscillators. Nonlinear Dyn 2020; 102: 927–950.

39.

Kumar

Narayanan

Gupta

Dynamics of stochastic vibro-impact oscillator with compliant contact force models. Int J Non-Linear Mech 2022; 144: 104086.

40.

Kumar

Narayanan

Nonlinear dynamics of dry friction oscillator subjected to combined harmonic and random excitations. Nonlinear Dyn 2022; 109: 755–778.

41.

Burrage

A variable stepsize implementation for stochastic differential equation. SIAM J Sci Comput 2003; 24(3): 848–864.

42.

Lamba

An adaptive time-stepping algorithm for stochastic differential equations. J Comput Appl Math 2003; 161(2): 417–430.

43.

Dejie

Cheng

Yang

Application of EMD method and Hilbert spectrum to the fault diagnosis of roller bearings. Mech Syst Signal Process 2005; 19(2): 259–270.

44.

Randall

Antoni

Why EMD and similar decompositions are of little benefit for bearing diagnostics. Mech Syst Signal Process 2023; 192: 110207.

45.

Wang

Zhao

Kou

, et al. A simple and fast guideline for generating enhanced/squared envelope spectra from spectral coherence for bearing fault diagnosis. Mech Syst Signal Process 2019; 122: 754–768.

46.

Noakes

The takens embedding theorem. Int J Bifurcat Chaos 1991; 01(04): 867–872.

47.

Kennel

Brown

Abarbanel

HDI

. Determining embedding dimension for phase-space reconstruction using a geometrical construction. Phys Rev A 1992; 45(6): 3403–3411.

48.

Kullback

Information theory and statistics. New York: Wiley, 1959.

49.

Shannon

Weaver

The mathematical theory of communication. Urbana: University of Illinois Press, 1949.

50.

LOPARO

KA.

Bearing vibration data set, Vol. 161. Cleveland, OH: Case Western Reserve University, 2003, pp.417–430, https://engineering.case.edu/bearingdatacenter/download-data-file

51.

Patil

Mathew

Rajendrakumar

, et al. A theoretical model to predict the effect of localized defect on vibrations associated with ball bearing. Int J Mech Sci 2010; 52(9): 1193–1201.

52.

Cai

Lin

YK.

Response distribution of non-linear system excited by non-Gaussian impulsive noise. Int J Non-Linear Mech 1992; 27: 955–967.

53.

Kloeden

Platen

Numerical solution of stochastic differential equation. Berlin: Springer-Verlag, 1992.

54.

Itô

On stochastic differential equations. Mem Am Math Soc 1951; 4: 51–89.

55.

Wong

Zakai

On the relation between ordinary and stochastic differential equation. Int J Eng Sci 1965; 3: 213–229.
