Fine art under low illuminance: Gamut and tint

Abstract

Museum conservation guidelines restrict illuminance for sensitive artwork to levels that can cause objects to be perceived as less colourful, a phenomenon known as the Hunt effect. Previous colour rendering research identified red saturating gamuts that consistently increased perceived saturation and personal preference. A study was conducted to evaluate the visual experience of fine art illuminated by a red saturating gamut family constrained to be uniquely identified by their TM-30 gamut scores (denoted as $R_{g}^{*}$ ) and position above or below the blackbody locus (D_uv). $R_{g}^{*}$ and D_uv were systematically varied according to response surface methodology, designed to map second-order terms and interactions, with 96 ⩽ $R_{g}^{*}$ ⩽ 124 and −0.0212 ⩽ D_uv ⩽ 0.0036, all at 3000 K and 50 lx. Thirty-one naïve participants each evaluated a pair of paintings in a mock art gallery under nine independently presented scenes along semantic scales corresponding to preference, saturation and naturalness. The study identified a response surface for preference that maps an interaction between $R_{g}^{*}$ and D_uv, predicting D_uv = −0.013 was preferred at $R_{g}^{*} = 100$ and D_uv = −0.005 was preferred at $R_{g}^{*} = 120$ . Increasing $R_{g}^{*}$ consistently increased both personal preference and perceived saturation.

1. Introduction

To limit photochemical degradation, many museums restrict illuminance to as low as 50 lx.¹ Such low light levels reduce the perceived colourfulness of objects, a phenomenon known as the Hunt effect.^2,3 Studies utilizing real artwork have demonstrated that illuminances of at least 200 lx are needed to create a rich viewing experience.^4–6

Early work from Jerome⁷ and Thornton⁸ identified colour gamut as a predictor of colour preference, and Harper⁹ explicitly identified red as having special importance. Lee et al.¹⁰ found that observers prefer foods to appear with increased saturation, where the preference for increased saturation in red strawberries was in the direction opposite to the colour change a strawberry undergoes during decomposition. Recent colour rendering studies designed to probe quantities derived from TM-30^11–13 demonstrated that a particular family of red saturating gamuts were consistently associated with higher preference and perceived saturation.^14–19

Studies investigating the Hunt effect suggest that red saturating gamuts may be able to compensate for some of the perceived desaturation associated with the Hunt effect.^20–22 This study utilized a similar family of gamut shapes constrained such that a particular TM-30 gamut score (R_g) corresponded to a reasonably unique spectra with a gamut shape distinct from other members of the gamut family. We denote this constrained version of the TM-30 gamut score as $R_{g}^{*}$ , as described in Section 3.3.1.

Studies of preferred chromaticity suggest a red tint or negative D_uv (chromaticity below the blackbody locus²³) is preferred.^24–28 Spectra with lower D_uv are more likely to exhibit larger gamuts,²⁹ indicating a potential confound that can be controlled, but is ignored by many studies that treat correlated colour temperature (CCT) as a proxy for chromaticity without considering D_uv.

This study was designed to characterize the effects of varying D_uv and $R_{g}^{*}$ on the perception of fine art when viewed at conservation light levels. Response surface methodology (RSM) was utilized to evaluate second-order terms and possible interactions between D_uv and $R_{g}^{*}$ . A pair of paintings were placed in a mock art gallery setting to determine if results could be generalized when viewing different media (watercolour and acrylic), different themes (still life and landscape) and a diverse colour palette. Live spectral feedback was utilized throughout the experiment to carefully control illuminance (E_avg), CCT, D_uv and TM-30 R_g to well below just noticeable difference (JND) thresholds, eliminating possible confounding from spectral inaccuracy. Semantic scales and colorimetric characteristics (including the gamut family) were aligned with previous studies of TM-30 colour rendering to ensure results could be contextualized within those from previous studies.

A priori hypotheses are stated below without embellishment, first in narrative form, then in the form of statistically tested hypotheses. Section 3.3 characterizes the experimental variables. Section 3.5 describes the statistical models utilized to test these hypotheses.

Values for $R_{g}^{*}$ and D_uv that correspond to nominally white illumination exist that maximize preference for the colour appearance of fine art at E_avg = 50 lx.

The stepwise reduced RSM model of preference will include significant $R_{g}^{* 2}$ and D_uv² terms.

The response surface for preference will contain a local maximum.

Perceived saturation is directly correlated with $R_{g}^{*}$ and not correlated with D_uv.

The stepwise reduced RSM model of saturation for both paintings will include a significant $R_{g}^{*}$ term and will not include a D_uv term.

Participants will not be able to consis-tently judge the naturalness of abstract paintings.

The naturalness model will exhibit poor fit statistics and marginal effect sizes.

Participants will evaluate preference, perceived saturation, and perceived naturalness similarly for both paintings.

The painting interaction terms in the mixed-effects model will be insignificant.

Red hues and objects will have the most influence on participant evaluations.

For participant rankings of the influence of various painting components, red hues and objects will have the highest mean influence rank.

2. Background

First quantified by Hunt in 1950, the Hunt effect is a perceived reduction in colourfulness as light levels decrease, describing a widely acknowledged aspect of our daily experience of colour.^2,3,30 Decreasing the optical power of the visual stimulus is the primary physiological driver of the Hunt effect. Reduced light levels lead to reduced stimulus at the retina, which reduces the strength of colour perceptions. Colours become less distinct and more difficult to discriminate, compressing the range of distinct colours, an effect that is present at both photopic and mesopic light levels.^2,31

Until recently, most electric light in museums and galleries was provided by halogen sources.³² Spectral considerations mostly dealt with CCT and filtering of ultraviolet radiation to minimize photochemical degradation. Colour rendering was less relevant, given that most light sources were nearly blackbody radiators exhibiting high fidelity with little variation in their colour rendering qualities.^33–35 Current multichannel light-emitting diode (LED) sources are capable of matching or potentially exceeding the visual qualities of halogen sources.

2.1 Colour rendering

Five recent studies^15–19 evaluated colour perception under spectra at systematically mapped combinations of Illuminating Engineering Society (IES) TM-30 fidelity index (R_f), gamut index (R_g) and gamut shape as defined by the colour vector graphic (CVG). The CVG is composed of 16 hue angle bins, with colour rendering for each hue characterized by a vector with a radial component representing chroma (or saturation) shift relative to a same-CCT reference source (R_cs,hj) and an angular component representing hue shift relative to a same-CCT reference source (R_hs,hj).^11,36 Local chroma shift in a red hue bin (R_cs,h1 or R_cs,h16) may be used as a proxy for gamut shape, with positive shifts generally associated with red saturating gamuts, and negative shift generally associated with green saturating gamuts. All five studies evaluated various lighting conditions using a preference scale and illuminance levels between 200 lx and 600 lx. Three of the studies additionally made evaluations using saturation and naturalness scales.^16,17,19

Four of the five studies found R_g was a stronger predictor of preference than R_f.^15–17,19 The study that found R_f better predicted preference than R_g employed the widest range of gamut shapes.¹⁸ Four of the five studies found that R_cs,h1 or R_cs,h16 was as good a predictor of preference and saturation as was R_g, underscoring the importance of gamut shape, specifically with respect to red preference.^16–19 Follow-up questions indicated that red objects were the most relevant to participants’ evaluations.

Each study also suggested a plateau in preference for increasingly large values of R_g and R_cs,h16. The most comprehensive study among those reviewed provided evidence at five chromaticities that preference decreased for especially high values of R_g and R_cs,h16.¹⁷ Averaging the boundaries of the optimal regions suggests preference may be maximized in the region of 106 < R_g < 117 and 4% < R_cs,h16 < 17% for illuminance levels above 200 lx. This range is similar to but more restrictive than the recommendations proposed in IES TM-30-20 Annex E,¹² which references the same studies.^15–19 This range is also compatible with other efforts to identify specification criteria for colour preference using measures from TM-30.^18,37

Three studies investigated red saturating gamut families to determine if they could be used to compensate for the perceived desaturation associated with the Hunt effect. Each study suggested preference for larger gamuts at lower light levels.^20–22 The most robust study of the group found an inverse linear relationship between preferred R_g and log-illuminance. Those results indicate a preferred region near R_g = 114 at 50 lx. The lighting conditions in that study did not carefully control D_uv, which varied noticeably over a range of −0.0078 < D_uv < 0.0018.²² The two studies evaluating artwork only utilized a single red-dominated oil still life.^20,22 Previous studies on the perception of lighting for fine art have identified differences in evaluations between paintings.^5,6,38–40 To investigate the generalizability of previous results, this study evaluated a pair of paintings across systematically varied levels of D_uv.

2.2 Chromaticity

Systematically quantifying position above or below the blackbody with D_uv is relatively new within the lighting literature.²³ Along with CCT, D_uv provides the second dimension necessary to uniquely specify chromaticity for sources near the Planckian locus.²³ D_uv is salient within the context of colour rendering, where most metrics are calculated in comparison to a reference source at the same CCT, but not necessarily the same D_uv.

Dikel et al.²⁵ found that D_uv as low as −0.014 was preferred when participants were allowed to freely adjust chromaticity. Ohno and Fein²⁸ found the most natural D_uv fell consistently below the blackbody locus (−0.02 < D_uv < −0.01) for CCTs between 2700 K and 6500 K. Neither study attempted to control for colour rendering, prompting Wei and Houser²⁹ to demonstrate that D_uv is inversely correlated with measures of gamut area, suggesting low D_uv spectra are more likely to be associated with large gamut areas, both of which are correlated with increased preference. Ohno and Oh repeated an earlier experiment while controlling for gamut. The findings were consistent with their previous study, providing further evidence of a correlation between preference and negative D_uv.⁴¹ Zhai et al. attempted to characterize the effect of D_uv on the visual experience of fine art. Their study did not attempt to control gamut and was conducted at only two levels of D_uv (−0.02 and 0.0). They found only marginal evidence of preference for D_uv = −0.02.²⁴ These previous results informed the D_uv range for this study, which was selected to be −0.02 < D_uv < 0.0.

3. Method

3.1 Materials

The experimental chamber was designed to imitate an art gallery, with wall-mounted fine art illuminated by a ceiling-mounted directional luminaire as illustrated in Figure 1. The walls of the chamber were painted with spectrally neutral Munsell N8 matte paint (GTI, Graphic Technology Inc., Newburgh, NY, USA).

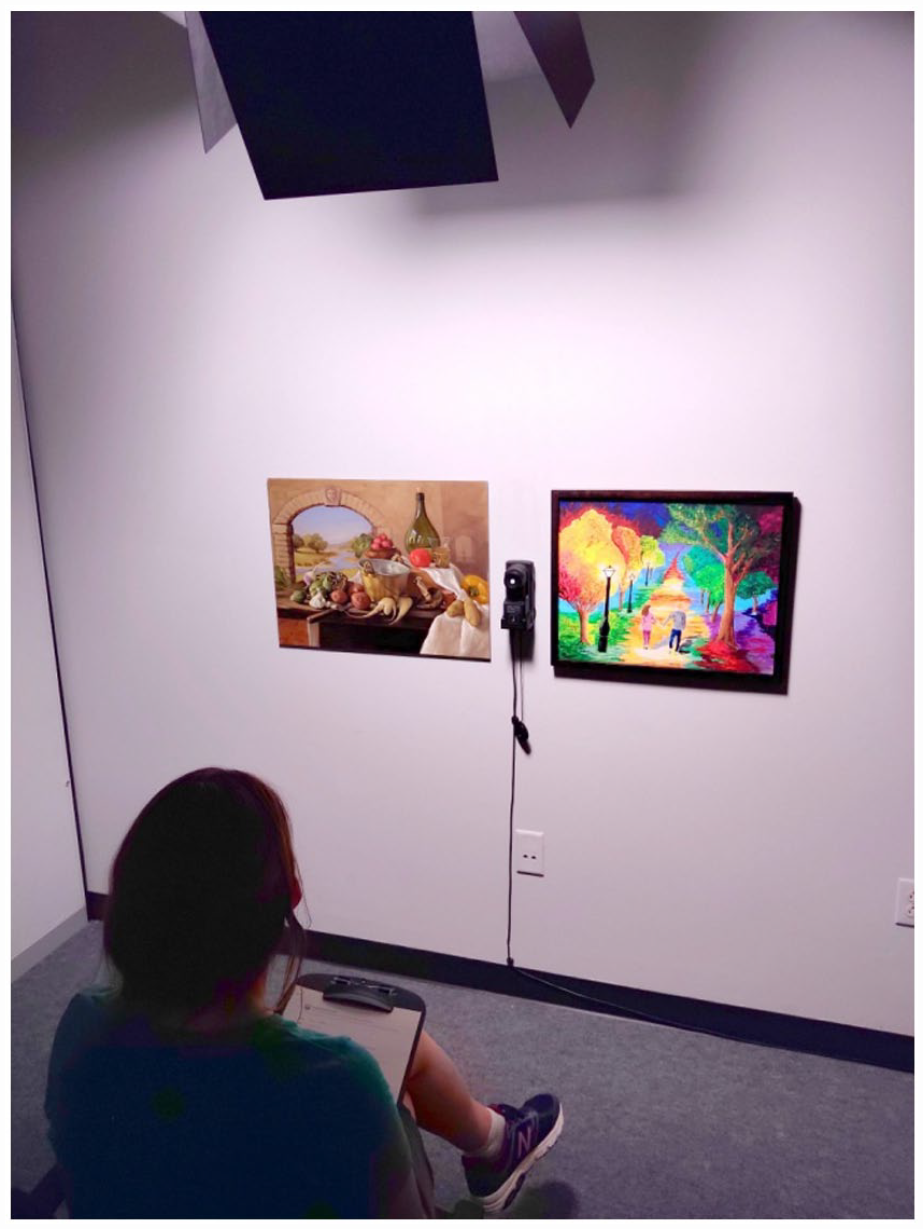

Figure 1

Configuration of the experimental chamber shown during a trial run of the experimental protocol. The painting on the left was not used in this present study; the paintings utilized in the current study are shown in Figure 2.

The watercolour and acrylic paintings shown in Figure 2 were commissioned to include colour from each of the 16 TM-30 hue angle bins, with an emphasis on hue angle bins 1 and 16 (red hues). Both paintings were 40 cm by 50 cm and mounted in matching frames, allowing the paintings to be arranged symmetrically.

Figure 2

The watercolour still life (left) and the acrylic landscape (right) shown in their experimental arrangement. Though a glass sheet covering the watercolour is pictured, to minimize veiling reflections both paintings were viewed directly without glass covers.

The selected frames were matte black with a low profile to minimize shadowing. The watercolour still life was painted with Dr. Ph. Martin’s Radiant concentrated watercolours (providing highly saturated colours) on Arches 140 lb. cold-pressed watercolour paper. The acrylic landscape was painted with Grumbacher Academy Acrylic on an Artist’s Loft gallery wrapped heavy duty canvas.

Participants were seated in an immobile chair. The centre of the chair seat was positioned 120 cm from the wall and 40 cm above the floor. Since the average sitting eye height is 75 cm above the chair seat,⁴² paintings were positioned with their vertical centres located 115 cm above the floor.

A single LEDCube-11 (Thousand Lights Lighting, Changzhou, Jiangsu, China) produced the experimental spectra. A Unistrut mounting frame was constructed with articulating joints to allow for careful aiming and complete rigidity after aiming was finalized. Theatrical barn doors were fastened to the front of the frame to prevent direct viewing, restrict waste light and reduce interreflections within the experimental chamber. The centre of the emitting face of the LEDCube-11 was positioned 80 cm from the wall and 230 cm above the floor, adequate to remove the LEDCube-11 from participants’ field of view.

A CL-500A illuminance spectrophotometer (Konica Minolta Sensing Americas Inc., Ramsey, NJ, USA) was purchased and factory calibrated for this experiment. The CL-500A was mounted on the wall between the paintings with the receiving sensor located 120 cm above the floor. This position for the CL-500A was utilized for all spectral measurements including the dimming profiles for the spectral optimizer, live spectral feedback and measurement during the experiment and the final reported experimental spectra.

Illuminance on the paintings was measured using a T-10MA illuminance meter (Konica Minolta Sensing Americas Inc., Ramsey, NJ, USA). Average illuminance (E_avg) across each painting was estimated by averaging a set of four measurements taken at each corner of the painting. Once the light level corresponding to E_avg = 50 lx was established, a point illuminance measurement taken between the paintings by the CL-500A for use as the target illuminance (E_target). Values for E_target are necessarily higher than E_avg because the CL-500A was centred in the beam of the luminaire.

For E_avg = 50 lx, the top-inside corner of each painting was illuminated to approximately 64 lx, whereas the bottom-outside corner was illuminated to approximately 37 lx. Luminance distributions were readily reproducible and exhibited little difference between lighting conditions at the same E_avg.

A workstation was placed just outside of the experimental chamber to allow the experimenter to observe participants, trigger scenes on the LEDCube-11, take measurements using the CL-500A and make live adjustments in LEDNavigator v6.3.7, the LEDCube-11’s native software. As the only non-experimental light source active in the laboratory, workstation displays were dimmed and confirmed to have no effect on the lighting conditions within the experimental chamber measurable by the CL-500A, and they were outside of a participant’s field of view.

3.2 Participants

Ethics approval for the experiment was provided by The Pennsylvania State University Institutional Review Board (study #10205). Each participant was paid $20.

The study included 31 naïve participants living in or near State College, Pennsylvania. The average age was 22 years with a range of 18 years to 43 years. Thirteen 13 (42%) participants wore glasses and three (10%) participants wore contacts; they were instructed to continue wearing them for the duration of the experiment. No participants reported cataract surgery or abnormal colour vision, and all participants passed a six-plate Ishihara test for colour-vision abnormalities.⁴³ No participants reported previous participation in colour-related experiments.

3.3 Variables

The experimental scenes illustrated in Figure 3 were systematically varied according to RSM as described in Section 3.5 along axes corresponding to D_uv and $R_{g}^{*}$ . Table 1 provides the RSM coordinate relationships and the related levels of the experimental variables. The value for $R_{g}^{*}$ is not only the same as the TM-30 R_g score but also uniquely identifies a specific member of the red-saturating gamut family as described in Section 3.3.1.

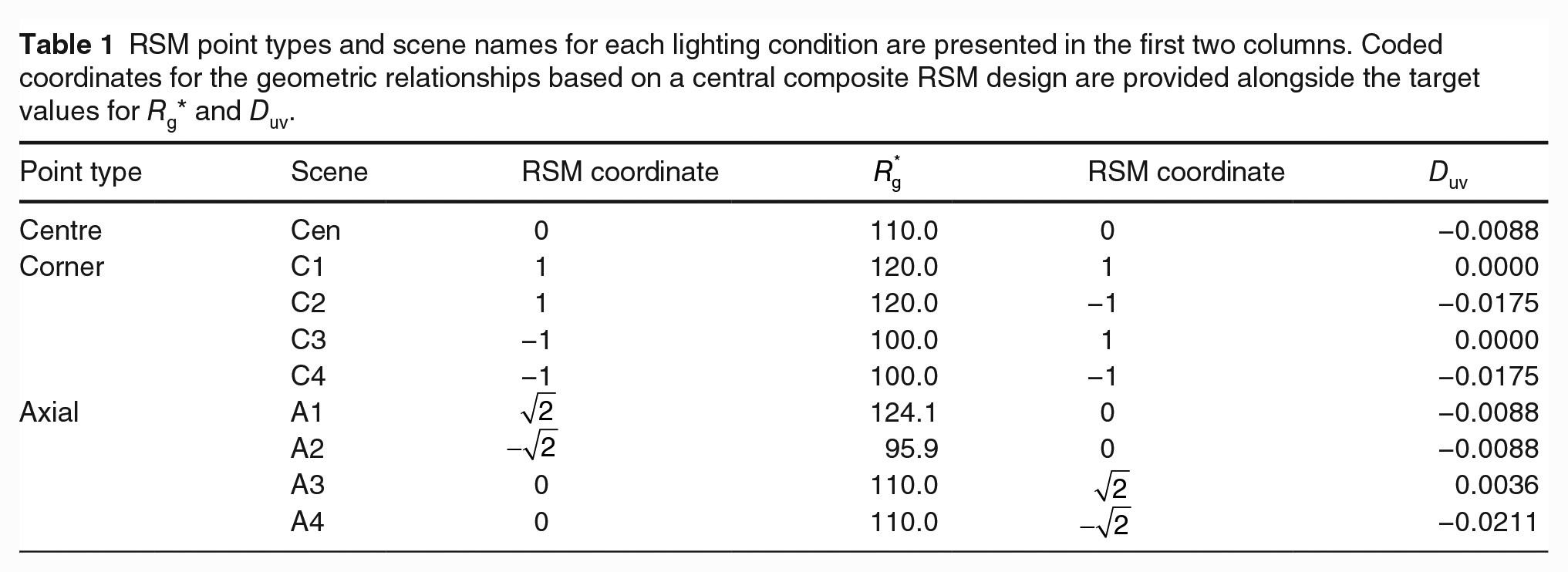

Table 1

RSM point types and scene names for each lighting condition are presented in the first two columns. Coded coordinates for the geometric relationships based on a central composite RSM design are provided alongside the target values for R_g^* and D_uv.

Point type	Scene	RSM coordinate	$R_{g}^{*}$	RSM coordinate	D _uv
Centre	Cen	0	110.0	0	−0.0088
Corner	C1	1	120.0	1	0.0000
	C2	1	120.0	−1	−0.0175
	C3	−1	100.0	1	0.0000
	C4	−1	100.0	−1	−0.0175
Axial	A1	$\sqrt{2}$	124.1	0	−0.0088
	A2	$- \sqrt{2}$	95.9	0	−0.0088
	A3	0	110.0	$\sqrt{2}$	0.0036
	A4	0	110.0	$- \sqrt{2}$	−0.0211

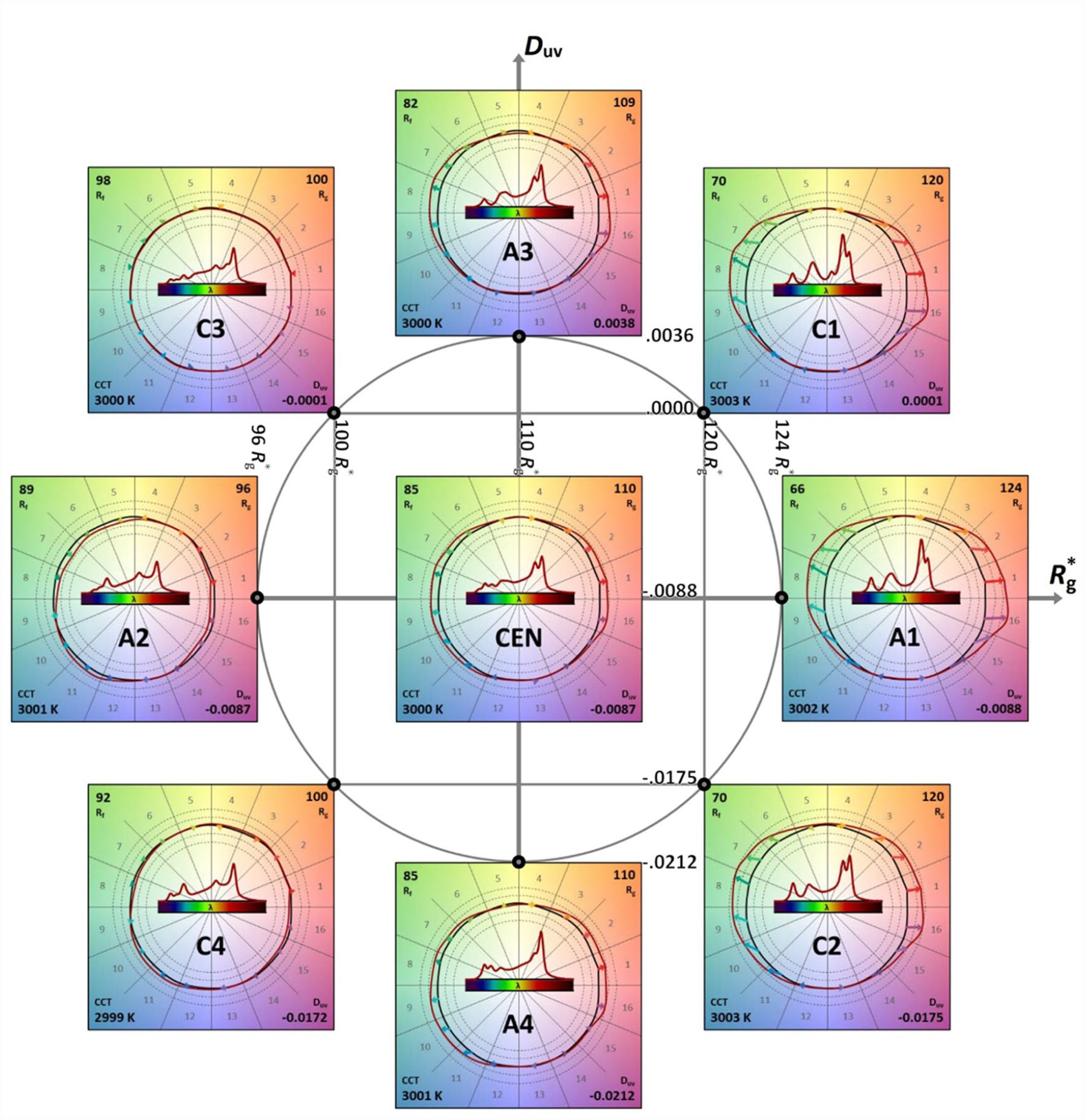

Figure 3

TM-30 CVGs with associated SPDs superimposed in the centre for each experimental scene. Presented values are the average of all spectral measurements recorded as each participant evaluated each scene. The RSM coordinate geometry is shown behind the CVGs with target $R_{g}^{*}$ and D_uv values provided by large black text. Actual coordinate locations for each scene are represented by black and grey dots, with the CEN scene’s dot hidden.

Perceptual response variables and their semantic scales shown in Figure 4 were adopted from previous studies to allow the results to be more readily compared.^16–19 Participants were provided a 6-point scale with no middle value to restrict centring bias.^44,45 The scales represent the perceptual attributes of preference, naturalness and saturation, respectively. The goal of the gamut family was to enhance preference, making it the primary response variable. Recording saturation allows the presence of the Hunt effect to be directly investigated. Naturalness was included to make overall models more comparable to existing studies^15–19 because it did not markedly influence an observer’s time commitment. The naturalness scale was included with a cautionary mindset informed by a priori reservations about the veracity of attributing participant responses to lighting conditions when evaluating impressionist paintings (e.g. see Hypothesis 3 in Section 1).

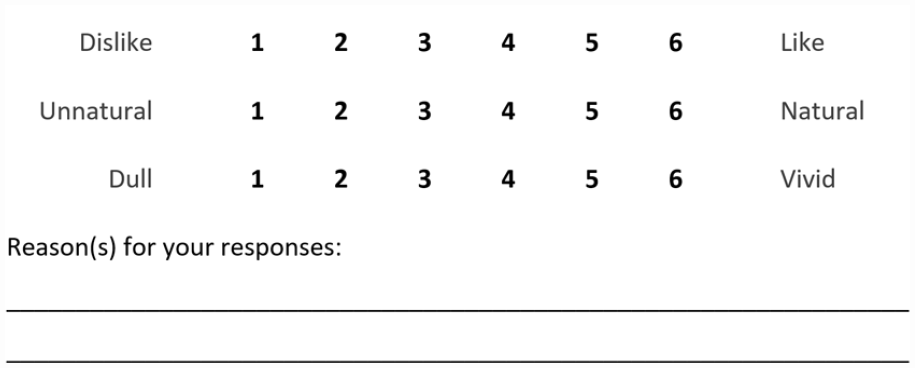

Figure 4

Semantic scales used by the participants.

3.3.1 Gamut family

This research considers the complete gamut shape characterized by the IES TM-30 CVG. To allow for RSM, it is necessary to adopt a single-number proxy value that identifies a reasonably unique gamut shape while also quantifying the relationship between distinct spectra along a linear scale. TM-30 provides a linear scale by quantifying relative gamut area, but R_g does not uniquely identify a spectrum or gamut shape. Additional constraints must be paired with R_g to restrict experimental spectra to a progression of related gamut shapes such that a particular TM-30 gamut score corresponds to a reasonably unique spectra with a gamut shape distinct from other members of the gamut family. The resulting proxy measure is denoted as $R_{g}^{*}$ , defined below by constraint (1) where TM-30 R_g is used to specify a particular member of the experimental gamut family. Constraint (2) directly supports the utility of the proxy metric $R_{g}^{*}$ by forcing it to be directly correlated with R_cs,h1 and R_cs,h16. Constraint (4) minimizing hue shift is expected to improve preference and naturalness.⁴⁶ Constraints (3–5) create more regular gamut shapes. These constraints were designed to produce gamut families with a focus on red saturation without sacrificing colour rendering in other hue angle bins.

$R_{g}$ = $R_{g}^{*}$

R_cs,hj = (R_g – 100) ± 5 for hue angle bins 1, 8, 9 and 16

ΔR_cs,hj < 7% between any two of hue angle bins 1, 8, 9 and 16

Minimize R_hs,hj averaged across all hue angle bins

R_cs,hj > −1% for all hue angle bins (defer to constraint 4 when R_g < 105)

A sample gamut family produced by these constraints is illustrated in Figure 5. Individual gamuts were identified by an optimizer written in Excel 2016 (Microsoft Corporation, Redmond, WA, USA) by progressively increasing R_g with commensurate increases in R_cs in hue bins 1, 8, 9 and 16 while minimizing the average R_hs and desaturation in other hue bins.

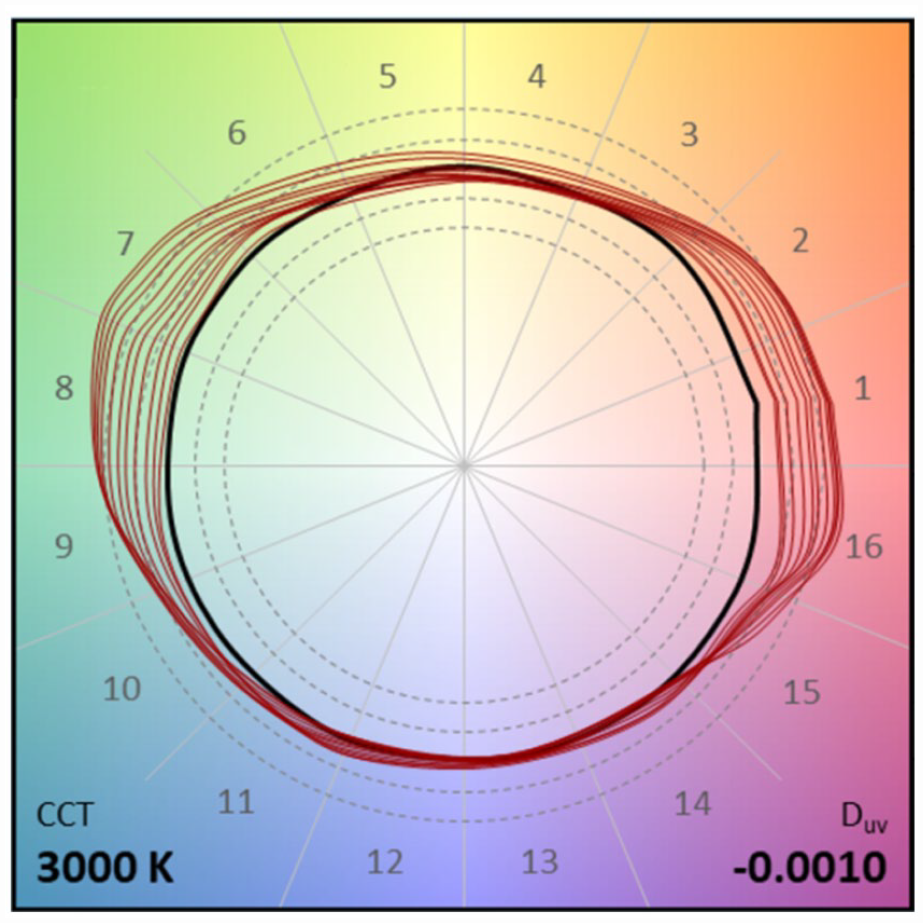

Figure 5

Eleven members of one realization of the experimental gamut family over the range of 105 < $R_{g}^{*}$ < 125. Hue bin vectors were removed to simplify the CVG.

3.3.2 Spectral accuracy

Live spectral feedback was generated during the experiment by the CL-500A controlled by LEDNavigator v6.3.7. E_target, CCT, D_uv and TM-30 R_f and R_g reported in Table 2 were recorded from three measurement averages as each scene was shown to each participant. LEDNavigator v6.3.7 does not provide tenths for R_f and R_g on the readily available spectral summary, making it difficult to estimate the variability of these values. TM-30 R_g values without a reported interval were not measured to have any variation, though this does not rule out variation up to ±0.4 points. Reported illuminance values are averages of point measurements taken between the paintings. The higher number of replications (N) for the CEN scene is due to the RSM model utilized, which required five replications of the centre point for each participant.

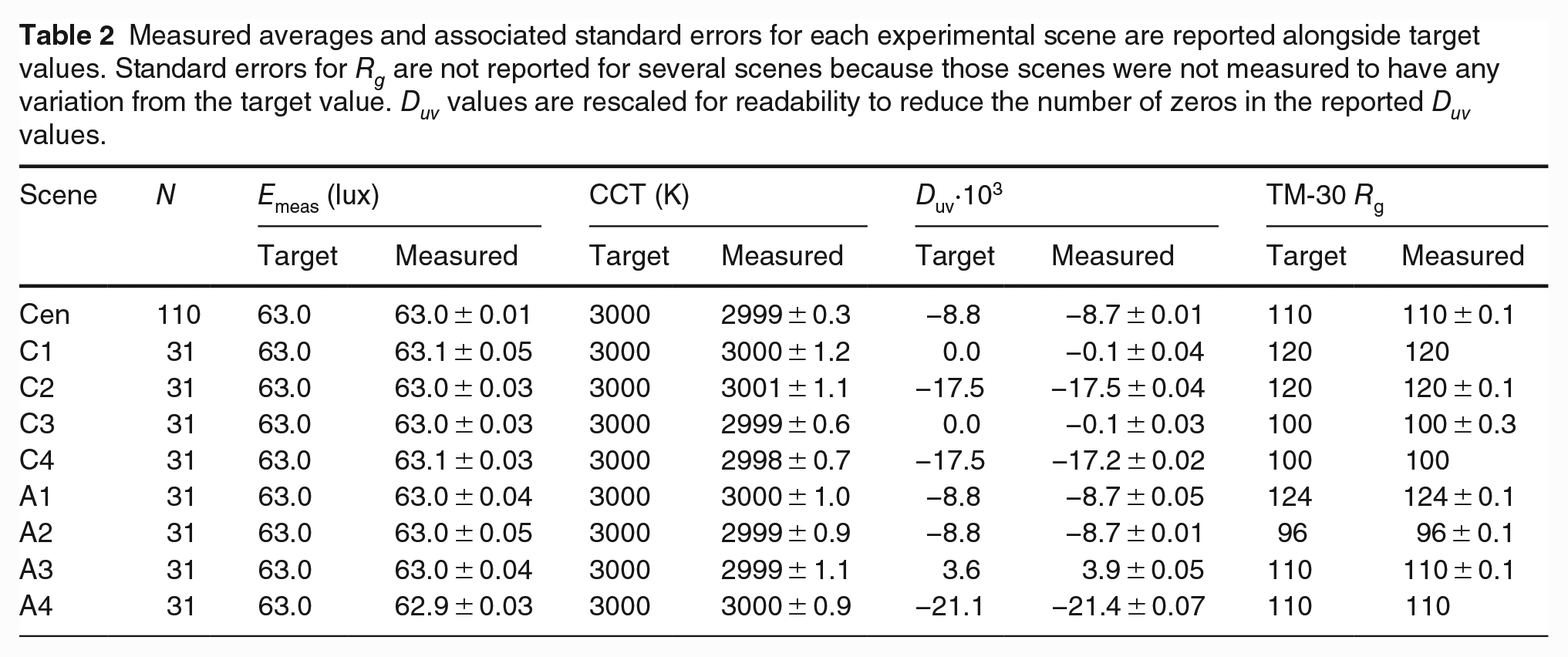

Table 2

Measured averages and associated standard errors for each experimental scene are reported alongside target values. Standard errors for R_g are not reported for several scenes because those scenes were not measured to have any variation from the target value. Duv values are rescaled for readability to reduce the number of zeros in the reported Duv values.

Scene	N	E_meas (lux)		CCT (K)		D_uv∙10³		TM-30 R_g
Scene	N	Target	Measured	Target	Measured	Target	Measured	Target	Measured
Cen	110	63.0	63.0 ± 0.01	3000	2999 ± 0.3	−8.8	−8.7 ± 0.01	110	110 ± 0.1
C1	31	63.0	63.1 ± 0.05	3000	3000 ± 1.2	0.0	−0.1 ± 0.04	120	120
C2	31	63.0	63.0 ± 0.03	3000	3001 ± 1.1	−17.5	−17.5 ± 0.04	120	120 ± 0.1
C3	31	63.0	63.0 ± 0.03	3000	2999 ± 0.6	0.0	−0.1 ± 0.03	100	100 ± 0.3
C4	31	63.0	63.1 ± 0.03	3000	2998 ± 0.7	−17.5	−17.2 ± 0.02	100	100
A1	31	63.0	63.0 ± 0.04	3000	3000 ± 1.0	−8.8	−8.7 ± 0.05	124	124 ± 0.1
A2	31	63.0	63.0 ± 0.05	3000	2999 ± 0.9	−8.8	−8.7 ± 0.01	96	96 ± 0.1
A3	31	63.0	63.0 ± 0.04	3000	2999 ± 1.1	3.6	3.9 ± 0.05	110	110 ± 0.1
A4	31	63.0	62.9 ± 0.03	3000	3000 ± 0.9	−21.1	−21.4 ± 0.07	110	110

The average deviation in E_target recorded during this study was 0.3% and the most extreme E_target deviation was a 1.2% increase of 0.8 lx, both of which are more than an order of magnitude below the ±20% illuminance JND proposed by previous research for indirect comparisons of lighting conditions.^47–49 The deviation in chromaticity is presented numerically in terms of CCT and D_uv in Table 2. A chromaticity JND is presented graphically in terms of MacAdam ellipses centred on each cluster of points in Figure 6, which demonstrates that no lighting conditions measured during the experiment came close to exceeding the chromaticity JND, even for expert observers.^30,50

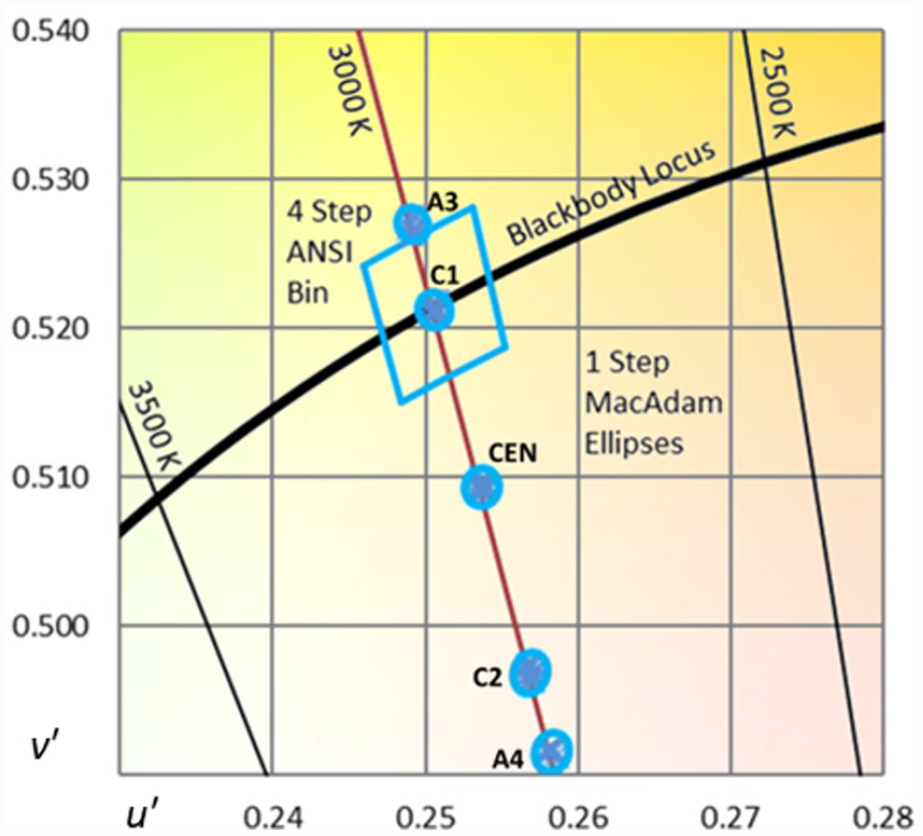

Figure 6

Custom ellipses centred on the five distinct experimental chromaticities. A 4-step ANSI bin for commercial LEDs specified at 3000 K is provided alongside the 1-step MacAdam ellipses representing the expert chromaticity JND at each chromaticity.

3.4 Procedure

Experimenters read from a prepared script to reduce experimenter bias and ensure all participants received the same information and instructions. Each experimental session began with an explanation the experimental scales, focused on the terms anchoring the scales to reduce the differences between participants’ interpretation of the questions’ scales. Participants were then twice shown the full range of experimental scenes in 3-second stepped intervals; participants were instructed to focus on the watercolour for the first run-through and to focus on the landscape for the second run-through. Participants were directed not to evaluate brightness, glare, shadow or the content of the paintings and to instead focus on the effects of each lighting scene on the colour of the paintings.

Each participant was informed their first scene was practice affording them a chance to become familiar with the procedure and questions. The practice scene was not one of the nine experimental scenes, and practice responses were not analysed.

A 1–2- second blackout was used when switching between scenes to prevent instantaneous comparisons. Participants were instructed to observe the paintings for 90 seconds before recording their evaluations to allow for chromatic adaptation.⁵¹ A timer was utilized to notify participants of the conclusion of the observation period. The first 15 seconds of the observation period was also used by the experimenter to take a preliminary measurement and make small adjustments to LED channel levels in LEDNavigator to ensure the spectral accuracy presented in Table 2. Deviations were largely due to warmup-related LED colour shift in the 595 nm and 635 nm LED channels.

Participants were presented with the 13 lighting scenes that systematically varied in $R_{g}^{*}$ and D_uv, as described in Section 3.3.2. There were nine distinct scenes with four additional replications of the centre scene. Each participant’s evaluations comprised one complete replication of the experiment. Scene order was based on a Williams balanced Latin square design to provide counterbalancing and reduce ordering bias.⁵² A complete Williams balanced Latin square with 13 elements includes 26 unique series. Replication of the centre point led to four series with all five replications in a row, and four series with four replications in a row. These series were not utilized, reducing the number to 22 unique series that were imperfectly counterbalanced.

After evaluating 13 experimental scenes, participants were asked to reflect on the entirety of the experiment while indicating which hues and elements within the painting most influenced their evaluations. The entire experiment took between 50 minutes and 60 minutes for each participant.

3.5 Statistics

Experimental lighting conditions were selected based on the distribution of a central composite design for RSM, which was the primary statistical analysis. RSM is designed to characterize interactions and second-order terms indicating curvature, which was expected for $R_{g}^{*}$ in the preference model, given the results of previous studies.^15–19 Limitations surrounding the inclusion of nuisance variables in RSM prompted the post hoc inclusion of a mixed-effects model, which also served to validate and provide additional context to models where RSM exhibited significant lack-of-fit.

Rank data for the influence of specific objects and hues were analysed with the Friedman test in conjunction with a multiple pairwise comparison test utilizing the Bonferroni correction.⁵³

3.5.1 Response surface methodology

RSM provides a framework for efficiently characterizing the relationship between a response variable and multiple continuous, quantitative predictor variables. RSM was originally developed for use in the chemical industry; while uncommon in human factors research, RSM has been used successfully in a variety of vision and colour experiments.^54–56 Because each participant formed a complete replication, a participant blocking term that enables the model to account for inter-observer variation could be included.⁵⁷

The central composite design for RSM provides a geometric relationship between treatment levels, illustrated in Figure 3, that enhances the model’s statistical power for detecting curvature. Corner points form a two-level full factorial design effective for estimating first-order linear effects as well as interaction effects. Axial points allow estimation of second-order quadratic effects that characterize curvature. Replicating the centre point allows for a pure error estimate and therefore a lack-of-fit test, which is used to characterize the validity of the response surface. A complete replication for this study was composed of 13 runs, including nine unique experimental scenes and four replications of the centre scene.^53,57

Effect sizes characterize the magnitude of the effect of the experimental treatments (in this case, the lighting scenes) on the response variables. Effect sizes also provide somewhat standardized values for comparison between studies. To account for different sample sizes between the scenes for this research, effect size was calculated using Hedge’s G. This research considered reference values of <0.2 (no effect), 0.2–0.5 (small), 0.5–0.8 (moderate) and >0.8 (large). The significance of effect sizes was determined using Tukey’s test for multiple pairwise comparisons.^53,58,59

Some prior colour rendering research utilized regression models based on mean response levels for each scene.^16–19 Those models collapsed across participant, discarding the majority of the observer variance for the final model and inflating the R² values for those models. It is nearly certain that participants would have had significantly different responses; therefore, participant should remain in the analysis of variance (ANOVA) model as a random term. This allows the model to randomize intercepts for each participant, smoothing out differences in the use of semantic scales and retaining inter-observer variation for p-values, R² and lack-of-fit tests.⁵³

For this reason, rather than only comparing model fit against R² values from recent work on colour rendering, this research also considers thresholds proposed by meta-analyses of preference studies that did not collapse observer variance.^60,61 Reference values for the quality of correlation indicated by R² include <30% (poor), 30%–50% (moderate), 50%–70% (substantial) and >70% (excellent).

3.5.2 Mixed-effects model

The mixed-effects model is a type of general linear model that allows for the inclusion of random variables in addition to the fixed and continuous variables available in RSM. By not estimating the lack-of-fit and the significance of the order of the regression equation, the mixed-effects model has additional degrees of freedom that enable inclusion of nuisance variables that would otherwise saturate an RSM model. A restricted mixed-effects model was utilized. Restricted maximum likelihood was used for estimating the variance components (random variables and interactions with random variables) and Kenward–Roger was used for estimating fixed effects (fixed and continuous variables); both methods include correction factors for small sample sizes.⁵³

Significant nuisance variables indicate a need to subdivide the respective RSM models. For example, a significant painting term indicates that separate response surfaces must be fit for each painting. Insignificant nuisance variables allow the RSM models to utilize larger data sets collapsed across the insignificant variable, which is then omitted from the respective RSM models. For these studies, a term is considered significant when that term’s p < 0.05, marginally significant when 0.05 < p < 0.10 and is otherwise insignificant.

3.5.3 Rank order data

Rank order data are discrete and ordinal, and evaluations are not independent. The nonparametric Friedman test is commonly used to determine whether the mean ranks of listed items are equal. The test is similar to a one-way ANOVA; significance indicates that mean ranks are not all equal. A Friedman test is typically paired with the Bonferroni multiple pairwise comparison test to produce 95% confidence intervals that demonstrate which mean ranks significantly differ from one another.^53,62

4. Results

Statistical analysis was performed in Minitab 19.1 (Minitab Inc., State College, PA, USA) and Excel 2016, consistent with the principles suggested by Royer et al.⁶³ Though ordinal data were collected, parametric statistics were employed since they have been shown to be robust and acceptable for analysis of Likert scale data.^64,65

4.1 Artwork perceptions

The mixed-effects model presented in Table 3 was utilized as a preliminary analysis to investigate interactions with the painting term and other potential nuisance variables. Painting was modelled as a fixed variable. $R_{g}^{*}$ and D_uv were modelled as continuous covariates. Participant was modelled as a random variable, allowing the models to average across participants and adjust for inter-participant variation. CCT and E_meas were not included due to variation in both measures falling well below their respective JNDs established in Section 3.3.2. TM-30 R_f and R_cs,h16 were considered, but models that included either term alongside $R_{g}^{*}$ led to both terms becoming insignificant. This is likely a result of multicollinearity due to the Section 3.3.1 gamut constraints driving high correlation between $R_{g}^{*}$ , R_f and R_cs,h16, which supports using $R_{g}^{*}$ as a proxy metric for the differences between members of the gamut family used in this study.

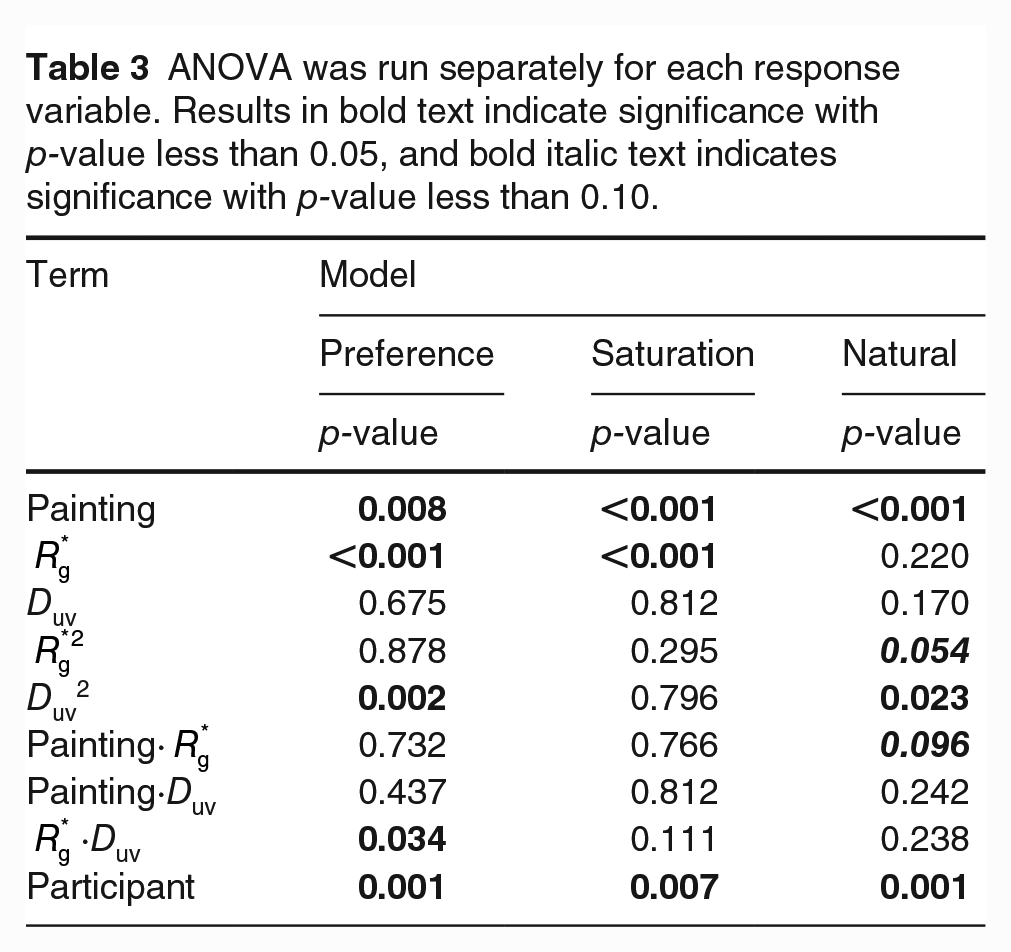

Table 3

ANOVA was run separately for each response variable. Results in bold text indicate significance with p-value less than 0.05, and bold italic text indicates significance with p-value less than 0.10.

Term	Model
	Preference	Saturation	Natural
	p-value	p-value	p-value
Painting	0.008	<0.001	<0.001
$R_{g}^{*}$	<0.001	<0.001	0.220
D _uv	0.675	0.812	0.170
$R_{g}^{* 2}$	0.878	0.295	0.054
D _uv ²	0.002	0.796	0.023
Painting∙ $R_{g}^{*}$	0.732	0.766	0.096
Painting∙D_uv	0.437	0.812	0.242
$R_{g}^{*}$ ∙D_uv	0.034	0.111	0.238
Participant	0.001	0.007	0.001

No interactions with the painting term reached significance, allowing the RSM models to span both paintings. The significant painting and participant terms in each model (p < 0.01 in all cases) indicate the mean response level that was distinct between paintings and between participants for each response variable. Due to this significance, the terms cannot be removed from the model. To allow the RSM models to account for these differences in opinion, a painting–participant blocking term was included, forming a total of 62 blocks. The blocking terms allow the RSM models presented in Table 4 to average across the distinct means for both participants and paintings. No valid RSM models were found that did not include the blocking terms. Terms without reported p-values were eliminated via stepwise model reduction with an inclusion threshold of 0.1. Some insignificant terms were included to maintain a hierarchical model. Collapsing the models across the paintings allows for a more straightforward understanding of the variable relationships at the expense of increased lack-of-fit. The preference and saturation models are acceptably well-fit with fair R² values and insignificant or marginally significant lack-of-fit. The naturalness model is the least viable given the significant lack-of-fit.

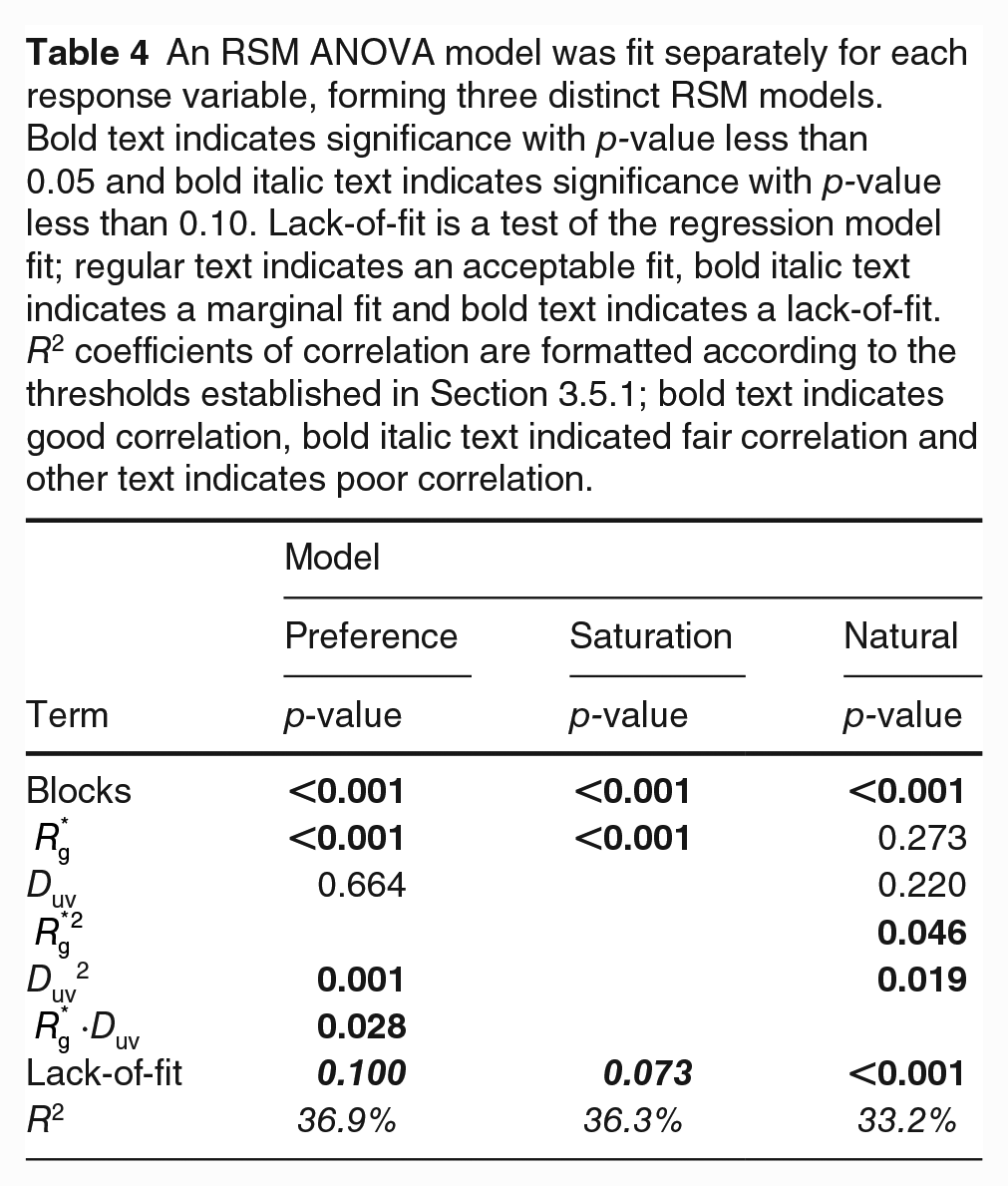

Table 4

An RSM ANOVA model was fit separately for each response variable, forming three distinct RSM models. Bold text indicates significance with p-value less than 0.05 and bold italic text indicates significance with p-value less than 0.10. Lack-of-fit is a test of the regression model fit; regular text indicates an acceptable fit, bold italic text indicates a marginal fit and bold text indicates a lack-of-fit. R² coefficients of correlation are formatted according to the thresholds established in Section 3.5.1; bold text indicates good correlation, bold italic text indicated fair correlation and other text indicates poor correlation.

	Model
	Preference	Saturation	Natural
Term	p-value	p-value	p-value
Blocks	<0.001	<0.001	<0.001
$R_{g}^{*}$	<0.001	<0.001	0.273
D _uv	0.664		0.220
$R_{g}^{* 2}$			0.046
D _uv ²	0.001		0.019
$R_{g}^{*}$ ∙D_uv	0.028
Lack-of-fit	0.100	0.073	<0.001
R ²	36.9%	36.3%	33.2%

The preference model exhibits a linear $R_{g}^{*}$ correlation, curvature in D_uv, and an interaction between $R_{g}^{*}$ and D_uv. These complex relationships are best described by the response surface presented in Figure 7. Single-factor linear regressions cannot be fit due to the interaction term. Figure 7 illustrates the direct linear relationship between preference and $R_{g}^{*}$ , indicating that preference always increased with gamut across the range of values investigated. Preference was maximized for D_uv below the black body locus, in agreement with some earlier studies.^24–28 The interaction term suggests that the preferred D_uv decreases with decreasing $R_{g}^{*}$ , which was also suggested by a previous study.¹⁷ The model predicts D_uv = −0.013 is preferred at $R_{g}^{*} = 100$ , and D_uv = −0.005 is preferred at $R_{g}^{*} = 120$ . The region of lowest preference is characterized by high D_uv and low $R_{g}^{*}$ .

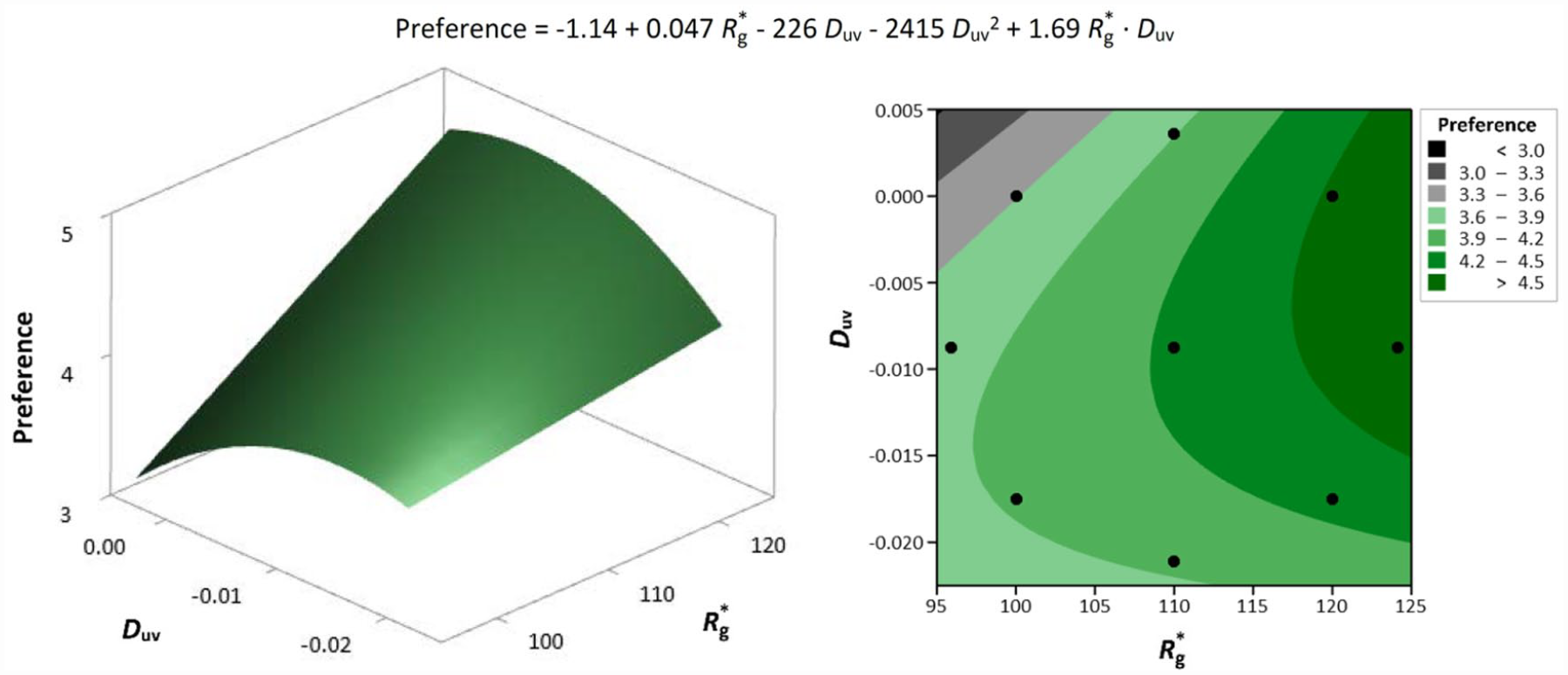

Figure 7

The preference model illustrated by a response surface and contour plot with the model presented at top. The contour plot is a plan view of the response surface with preference represented by colour contours that are quantified by the legend at top right. The locations of the experimental scenes are marked with black points on the contour plot.

Moderate-to-large effect sizes and good distinction between Tukey’s groupings in Figure 8 reinforce the validity and predictive power of the response surface in Figure 7. The most preferred scenes were A1 ( $R_{g}^{*} = 124$ , D_uv = −0.0088) and C1 ( $R_{g}^{*} = 120$ , D_uv = 0.0), whereas the least preferred scenes were C3 ( $R_{g}^{*} = 100$ , D_uv = 0.0), C4 ( $R_{g}^{*} = 100$ , D_uv = −0.0175) and A2 ( $R_{g}^{*} = 96$ , D_uv = −0.0088). These results agree with both the linear relationship between preference and $R_{g}^{*}$ and the second-order relationship between preference and D_uv for the evaluated paintings.

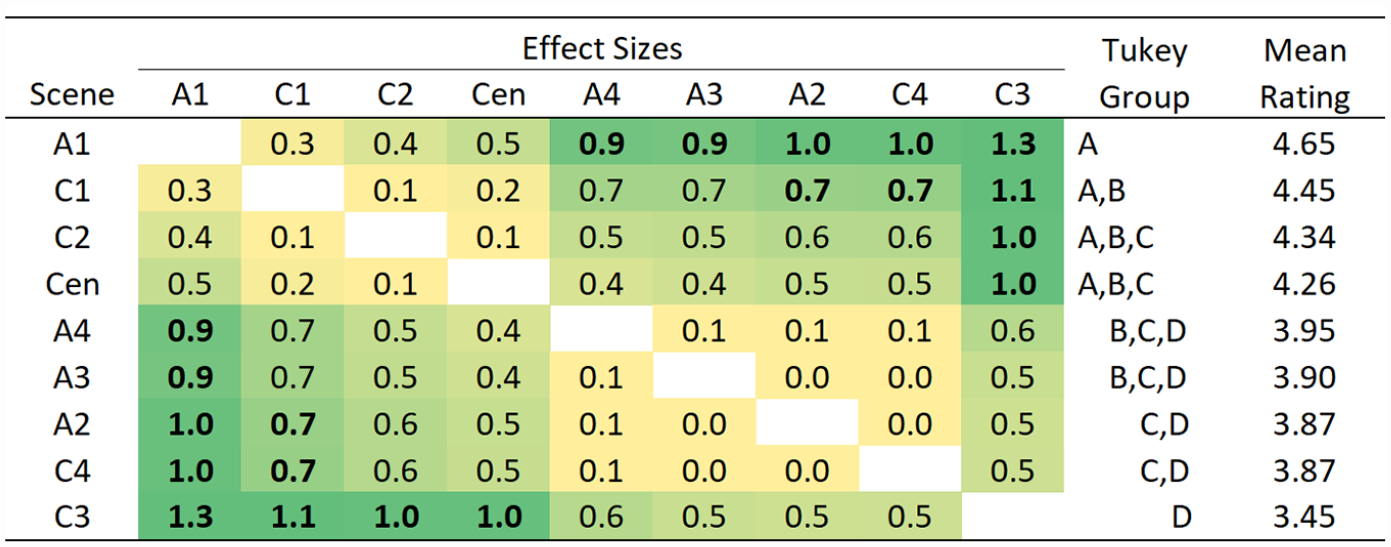

Figure 8

Scenes are ordered by mean preference rating. Hedge’s G was used to calculate effect sizes between each pair of scenes. Colour coding corresponds to effect size; green cells indicate large effects and yellow cells indicate small or no effect. A mixed-effects ANOVA model was used to calculate Tukey’s multiple pairwise comparisons for all scene pairs with significance marked by bold effect sizes.

The saturation model is composed of only a linear $R_{g}^{*}$ correlation. With no second-order terms, a response surface reduces to a linear regression. The single-factor linear regression in Figure 9 illustrates the direct linear correlation between saturation and $R_{g}^{*}$ , comparable to previous studies.^16–19

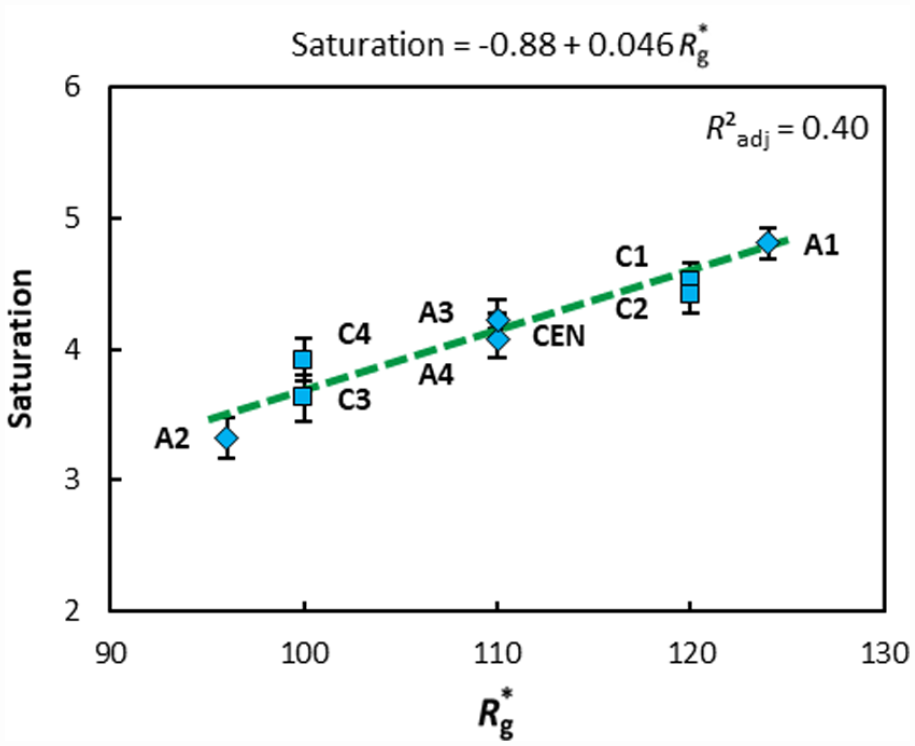

Figure 9

Predicted saturation versus R_g*. Mean response levels for each experimental scene are marked with by blue shapes. Error bars represent ±1 standard error.

Moderate-to-large effect sizes and good distinction between Tukey’s groupings in Figure 10 reinforce the validity and predictive power of the linear regression model. The scenes perceived as most saturated were A1 ( $R_{g}^{*} = 124$ ), C1 ( $R_{g}^{*} = 120$ ) and C2 ( $R_{g}^{*} = 120$ ), whereas the scenes perceived as least saturated were C3 ( $R_{g}^{*} = 100$ ) and A2 ( $R_{g}^{*} = 96$ ).

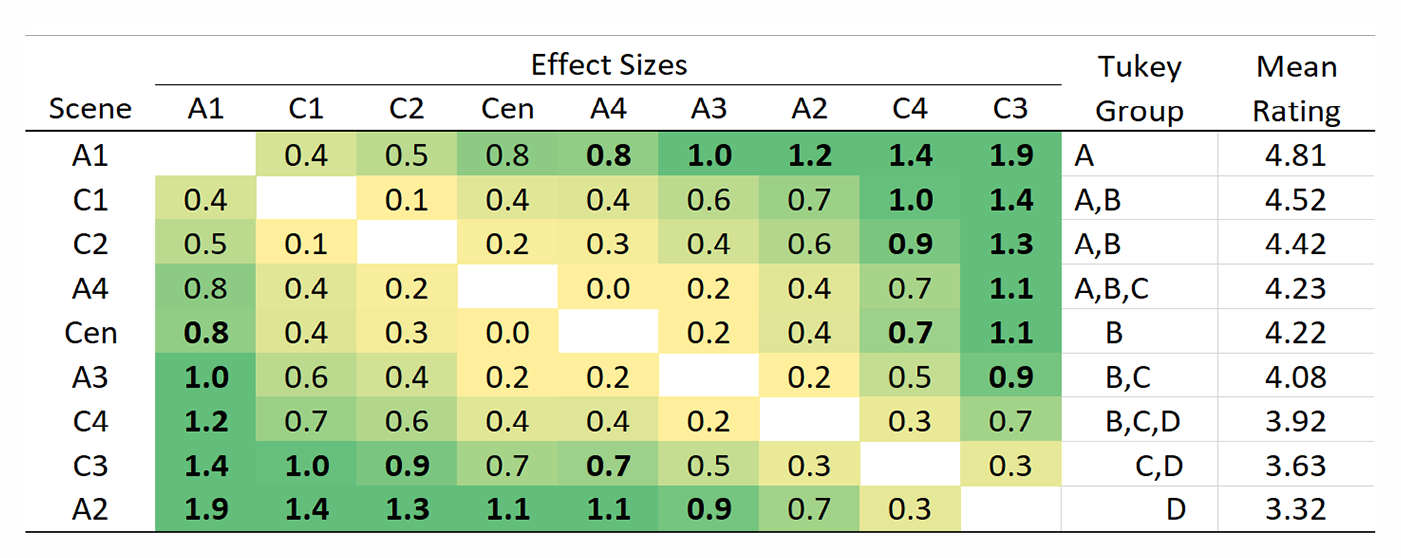

Figure 10

Scenes are ordered by mean saturation rating. Hedge’s G was used to calculate effect sizes between each pair of scenes. Colour coding corresponds to effect size; green cells indicate large effects and yellow cells indicate small or no effect. A mixed-effects ANOVA model was used to calculate Tukey’s multiple pairwise comparisons for all scene pairs with significance marked by bold effect sizes.

Naturalness exhibits marginal curvature in both $R_{g}^{*}$ and D_uv; however, a significant lack-of-fit undermines the validity of the model. The mixed-effects model suggests marginal significance for an interaction between painting and $R_{g}^{*}$ . When naturalness models were fitted separately for each painting, the significance of second-order terms mostly disappeared, but the significant lack-of-fit remained. The single-factor plots in Figure 11 and the effect sizes in Figure 12 are both consistent with no effect.

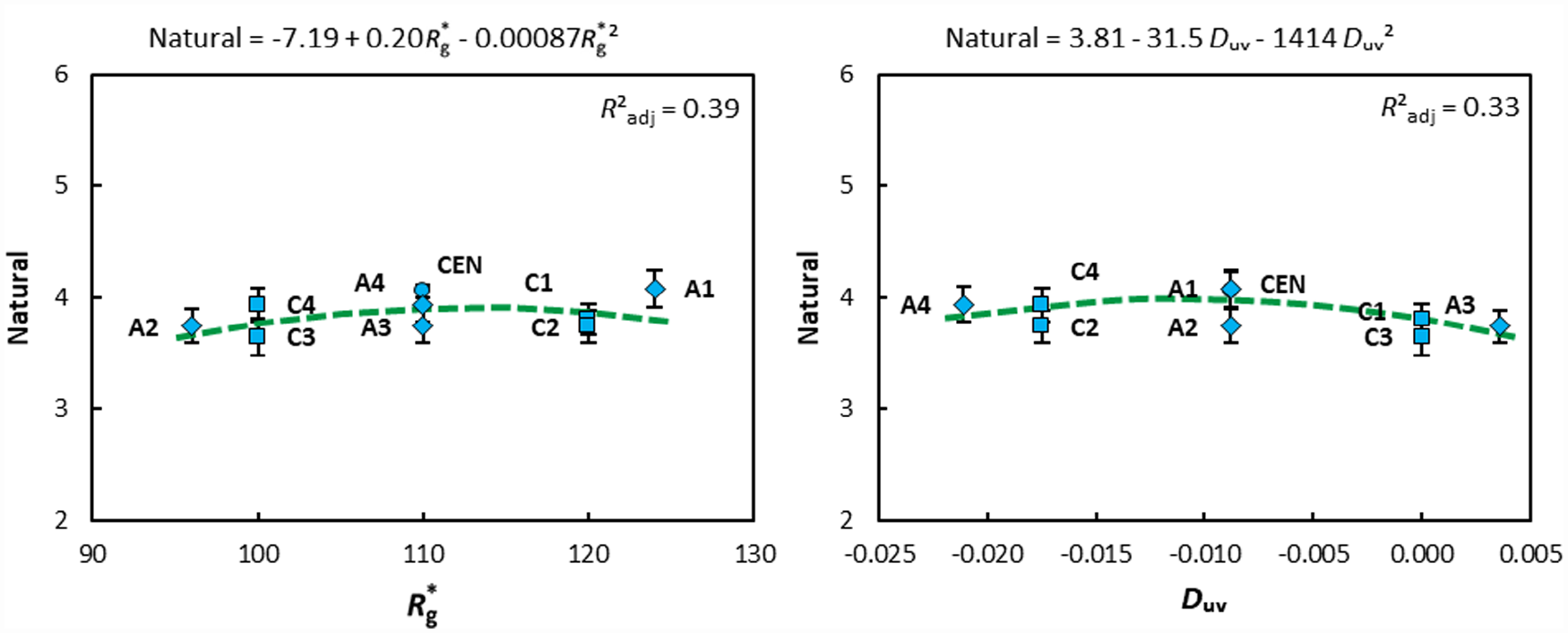

Figure 11

The naturalness model illustrated by single-factor plot models, which were fit separately for $R_{g}^{*}$ and D_uv. Mean response levels for each experimental scene are marked with blue shapes. Error bars represent ±1 standard error.

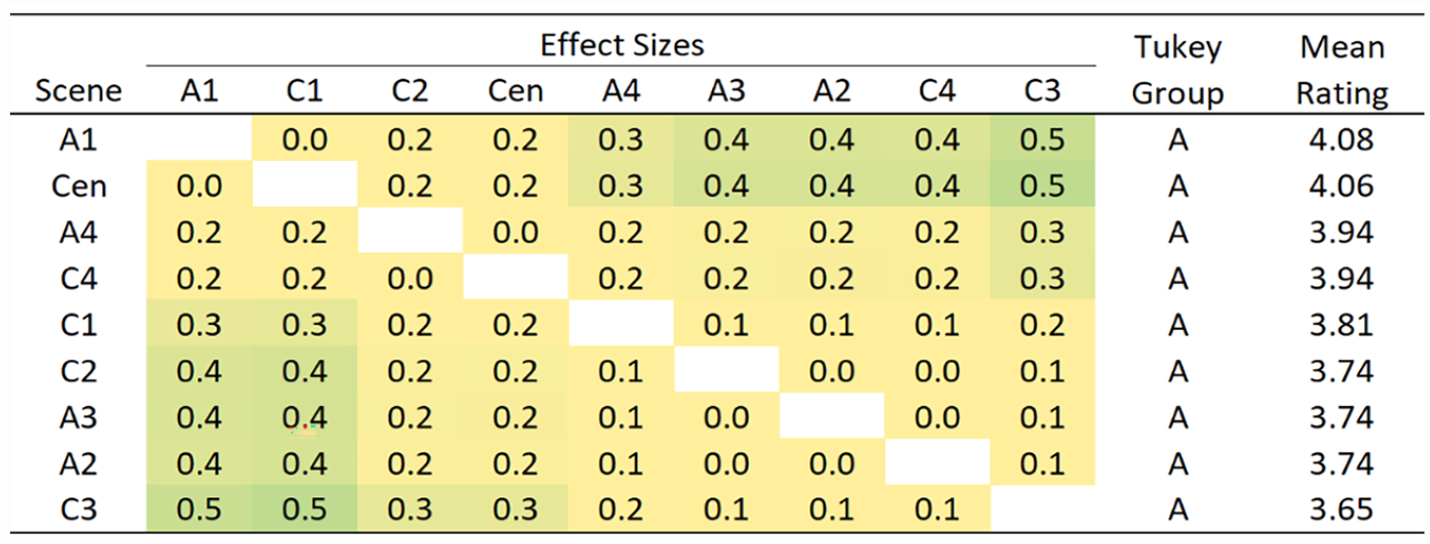

Figure 12

Scenes are ordered by mean naturalness rating. Hedge’s G was used to calculate effect sizes between each pair of scenes. Colour coding corresponds to effect size: green cells indicate large effects and yellow cells indicate small or no effect. A mixed-effects ANOVA model was used to calculate Tukey’s multiple pairwise comparisons for all scene pairs with significance marked by bold effect sizes.

Participants were provided space below each set of semantic scales to share reasoning for their evaluations. They were not required to provide comments. Comment language mirrored the language of the semantic scales, and their descriptions provided prior to start of each experimental run. Most comments could be grouped into one of three types, labelled in Table 5 with the most common language used by participants. For saturation-related comments, only those comments were counted that indicated general under or oversaturation; comments about single colours were not included in the counts. The most common participant reasoning discussed colour contrast and detail including colour diversity, depth and range.

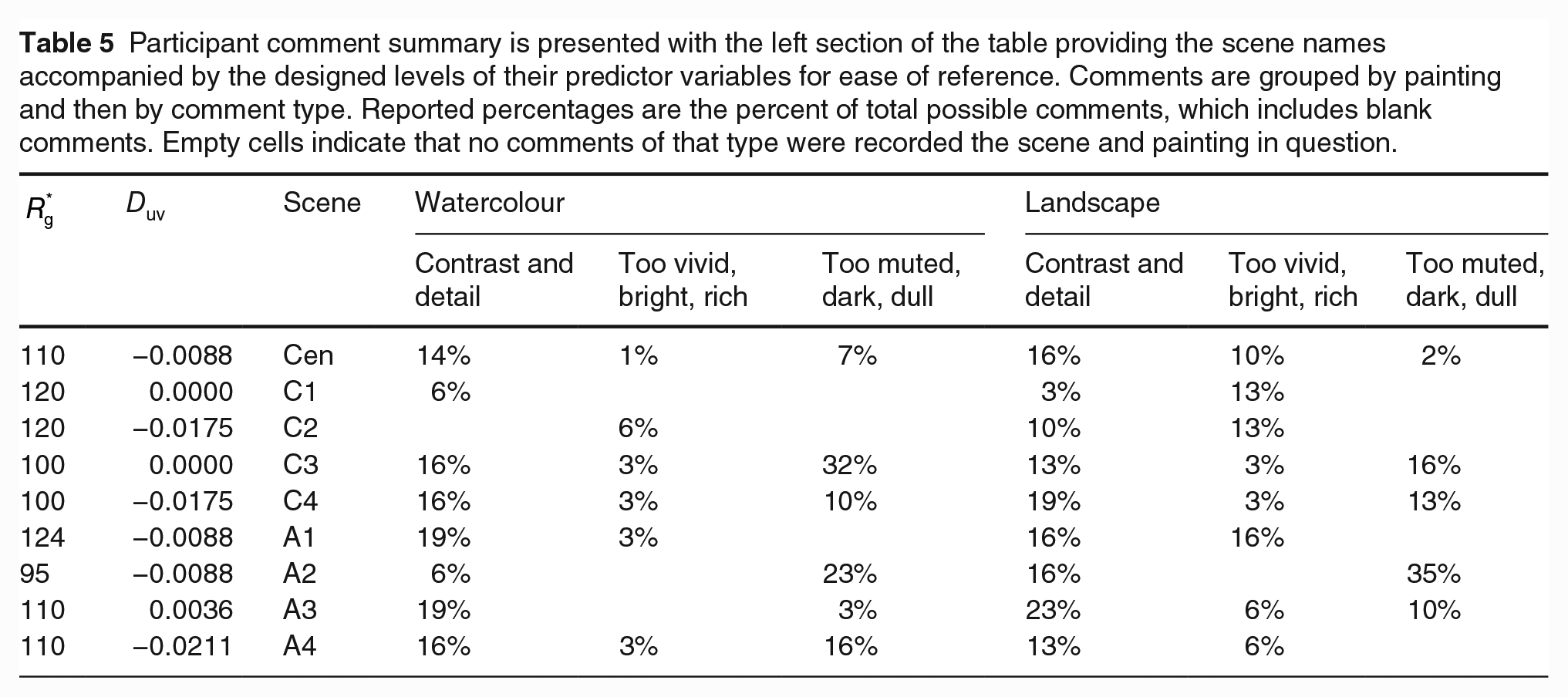

Table 5

Participant comment summary is presented with the left section of the table providing the scene names accompanied by the designed levels of their predictor variables for ease of reference. Comments are grouped by painting and then by comment type. Reported percentages are the percent of total possible comments, which includes blank comments. Empty cells indicate that no comments of that type were recorded the scene and painting in question.

$R_{g}^{*}$	D _uv	Scene	Watercolour			Landscape
$R_{g}^{*}$	D _uv	Scene	Contrast and detail	Too vivid, bright, rich	Too muted, dark, dull	Contrast and detail	Too vivid, bright, rich	Too muted, dark, dull
110	−0.0088	Cen	14%	1%	7%	16%	10%	2%
120	0.0000	C1	6%			3%	13%
120	−0.0175	C2		6%		10%	13%
100	0.0000	C3	16%	3%	32%	13%	3%	16%
100	−0.0175	C4	16%	3%	10%	19%	3%	13%
124	−0.0088	A1	19%	3%		16%	16%
95	−0.0088	A2	6%		23%	16%		35%
110	0.0036	A3	19%		3%	23%	6%	10%
110	−0.0211	A4	16%	3%	16%	13%	6%

The difference in rates of perceived undersaturation and oversaturation reflect the saturation model means for each painting; the landscape painting had a higher mean saturation rating and comments suggest it was perceived as more saturated. A small number of comments regarding overall warmth or coolness appear to be related to D_uv. Scenes described as warm included C1 (6% of participants, D_uv = 0.0) and A3 (6% of participants, D_uv = 0.0036). Scenes described as cool or cold included A4 (11% of participants, D_uv = −0.0211), Cen (4% of participants, D_uv = −0.0088) and C4 (2% of participants, D_uv = −0.0175).

4.2 Object and colour focus

Participants reported significant trends in their ranking of hues as shown in Figure 13, still life painting objects as shown in Figure 14, and landscape painting objects as shown in Figure 15. Red hues and objects consistently held the highest mean rank; orange, yellow, green and purple hues and objects held similar intermediate influence; blue and cyan hues and objects consistently ranked near the bottom but may have been underrepresented in the object lists. The object list for the landscape painting contained no red-dominated objects; the object with the highest mean rank was composed of mostly orange and red-orange hues. These results are in agreement with previous studies.^16–19 Unqueried hues and compositional elements noted in participant comments include black, white or neutral hues (19% of participants) and colour contrast and/or blending (42% of participants).

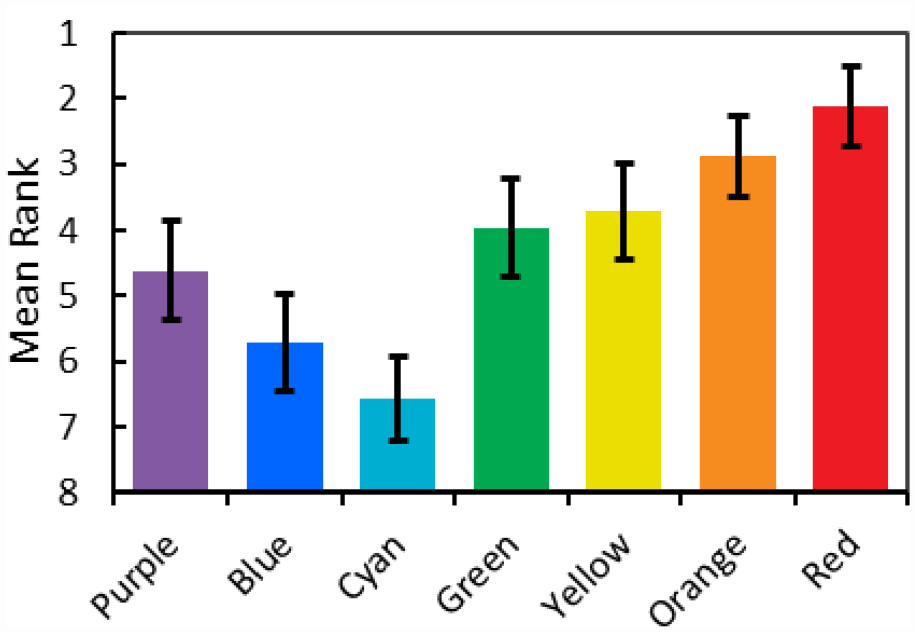

Figure 13

Importance of different hues. Mean rank is denoted by bar height and 95% CIs by black error bars per values provided in the Supplemental Material.

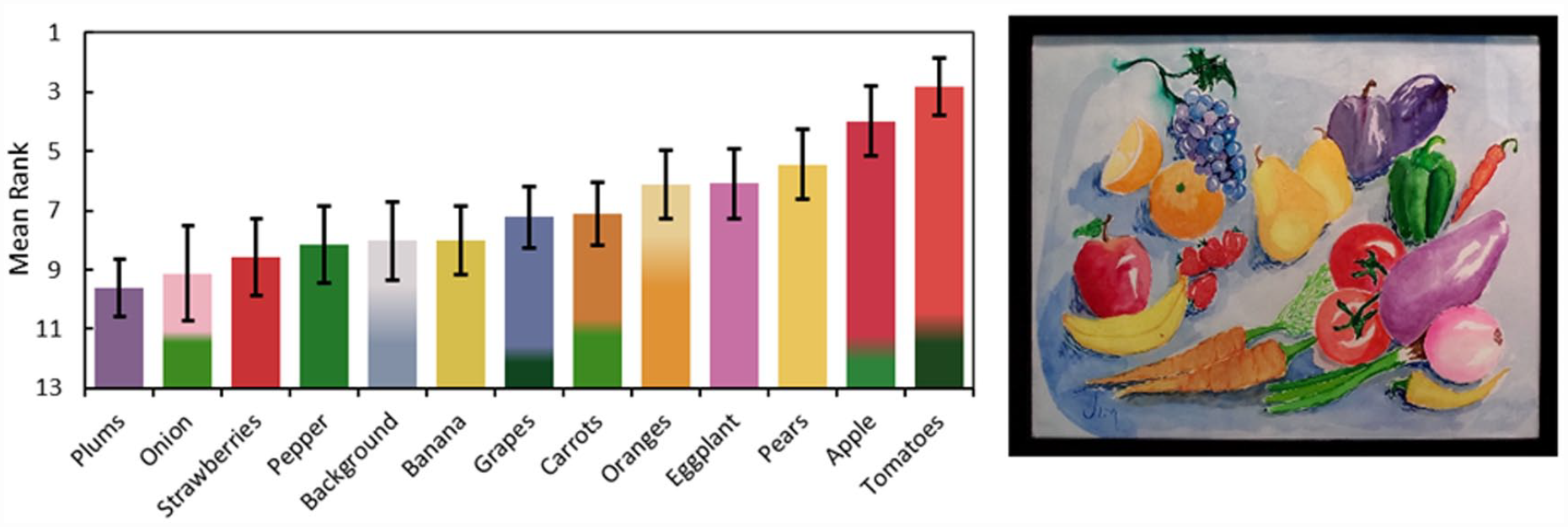

Figure 14

Importance of different objects in the watercolour painting. Mean rank is denoted by bar height and 95% CIs by black error bars per values provided in the Supplemental Material. Colours for each bar were obtained from Adobe Photoshop CC 2015 by subdividing each object into 1–3 colour zones and averaging the hue values within each zone.

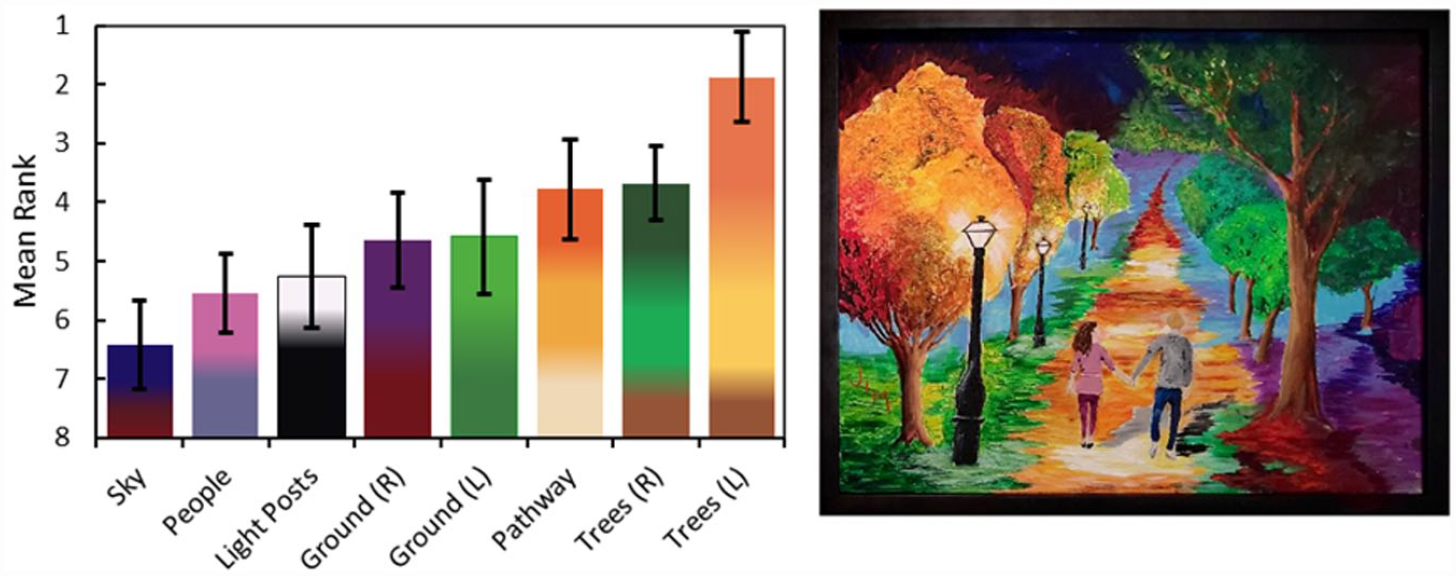

Figure 15

Importance of objects in the landscape painting. Mean rank is denoted by bar height and 95% CIs by black error bars per values provided in the Supplemental Material. Colours for each bar were obtained from Adobe Photoshop CC 2015 by subdividing each object into 1–3 colour zones and averaging the hue values within each zone.

5. Discussion

The results demonstrated the viability of RSM as a statistical tool for colour rendering studies by identifying a valid response surface for preference. The model fit was acceptable with a moderate R² = 0.37 and an insignificant lack-of-fit statistic (p-value = 0.10). Previous TM-30 studies that also presented lighting conditions independently and provided ANOVA models for preference reported R² values of 0.94,¹⁶ 0.61¹⁷ and 0.86.¹⁹ Each of these studies collapsed their datasets across participants, eliminating substantial variance and markedly increasing the reported R² values. When this study’s preference model was recalculated using the same approach, the R² term increased to 0.97, indicating the model fit was at least as robust as previous studies. This reinforces the use of reference values for R² of <30% (poor), 30%–50% (moderate), 50%–70% (substantial) and >70% (excellent).^60,61

Results were mixed with respect to the primary hypothesis (1). Significant curvature was identified for D_uv but not for $R_{g}^{*}$ and an interaction was present between $R_{g}^{*}$ and D_uv. Participants were nonetheless able to consistently judge differences, with moderate-to-large effect sizes between the four most preferred scenes (mean $R_{g}^{*}$ of 119 and D_uv of −0.0087) and the five least preferred scenes (mean $R_{g}^{*}$ of 103 and D_uv of −0.0087). Notably, the two least preferred scenes had the highest and lowest D_uv both at 110 $R_{g}^{*}$ , driving the significant curvature seen in D_uv. The preferred levels of D_uv are more specific but in good agreement with previous studies of D_uv.^{17,24,25,27,28,41}

The interaction between $R_{g}^{*}$ and D_uv represents a new finding that was not anticipated within hypothesis (1). Other studies that simultaneously varied both R_g and D_uv lacked the resolution in D_uv necessary to identify a similar interaction.^17,18 The gamut family in this study was constrained such that an increase in R_g was always accompanied by a commensurate increase in red saturation. Similarly, decreasing D_uv lends an increasingly magenta tint in comparison to the reference light source. It is reasonable to assume the interaction was a result of both variables affecting red hues, which are the typical focus of participant evaluations, both in this study and in previous studies.^15–19 Other studies have found an interaction between CCT and D_uv, suggesting the results of this study should not be generalized to other CCTs without further study.^17,25,27,66

No evidence was found of curvature in $R_{g}^{*}$ that might suggest decreased preference for large gamuts. The mixed-effects model reported an insignificant p-value of 0.878 for $R_{g}^{* 2}$ . Participant comments suggested that increasing $R_{g}^{*}$ increased the likelihood of perceiving the paintings as oversaturated, but these comments are not reflected in the preference ratings. This result is at odds with hypothesis (1), which is based on previous studies that found either a plateau or decreased preference for R_g > 115 at illuminances much higher than those studied here.^15–20,46

Colour rendering studies conducted at illuminances below 200 lx indicate desaturation related to the Hunt effect likely drives preference for larger gamuts at lower illuminances.^20–22 None of those Hunt effect studies suggested preference should continue increasing above 120 R_g, even at 20 lx. Kawashima and Ohno²⁰ likely saw preference decrease for large gamuts because they presented familiar objects at a minimum of 100 lx. Wei et al. and Bao and Wei likely found preferred R_g < 120 because their single painting was dominated by red hues subject to the largest hue and chroma shifts under the largest gamuts studied.^21,22 All three of these studies utilized forced choice or free choice methodologies, allowing participants to directly compare spectra. In context, these results suggest that for this gamut family illuminating independently viewed high saturation abstract paintings at 50 lx, increasing $R_{g}^{*}$ continues to increase preference at least through 124 $R_{g}^{*}$ . An upper bound for preferred R_g may exist at higher R_g or it may not exist at all for these abstract paintings. While independent viewing is representative of art galleries, inclusion of only high saturation abstract colour is not, suggesting the need for inclusion of a broader range of paintings in future studies.

Hypothesis (2) was confirmed by the saturation model, which featured a significant (p < 0.001) direct linear correlation (R² = 0.40) with $R_{g}^{*}$ and no dependence on D_uv. The model was accompanied by moderate-to-large effect sizes, indicating differences between lighting scenes were clearly perceived and consistently judged by participants. These results mirror the models from previous studies that primarily modelled saturation with R_cs,h16, a metric that was intentionally correlated to $R_{g}^{*}$ for the investigated gamut family. Recalculated for comparison to those studies by collapsing across participant, R² increases to 0.92. The earlier saturation models reported R² values of 0.95,¹⁶ 0.87¹⁷ and 0.86.¹⁹ This model exhibited no dependence on D_uv (p = 0.812), in agreement with previous results.¹⁷

Hypothesis (3) was confirmed by the naturalness model, which exhibited the expected lack-of-fit, featured only second-order terms with somewhat marginal significance and a moderate R² = 0.33 (0.57 recalculated). No large effect sizes and no significant differences were seen between any of the presented scenes. Previous studies suggest perceived naturalness decreases at both high and low R_g,^19,46 which is likely a factor in those studies’ ability to identify an upper bound for preferred R_g. Because the artwork was abstract, it was not possible for the participants to judge naturalness, which may be partially responsible for lack of an identified upper bound for preferred R_g in this study.

Given the abstract and saturated composition of the paintings and the lack of external reference for the painting’s colour, naturalness was expected to be difficult to judge consistently. Participants evaluated the naturalness of the two paintings differently (mean naturalness rating for the landscape = 3.6 and mean naturalness for the still life = 4.1). It is possible that a participant did not respond to naturalness of the colours in the painting, but to the naturalness of the painting itself. We intend to expand on this consideration with an additional painting that will be reported in a companion paper that is under development.

Hypothesis (4) was confirmed by the mixed-effects model presented in Table 3, where no painting interaction terms reached significance. This indicates that the effects of varying $R_{g}^{*}$ and D_uv were perceived the same across both paintings. The paintings themselves were judged to be significantly different (participants preferred the landscape and perceived it as more saturated but less natural). The RSM models spanned both paintings, adjusting for the distinct means by employing a painting by participant blocking term. Differences were not expected, given that participants evaluated both paintings simultaneously under each scene with semantic scales presented on the same sheet of paper. Though the colour composition of both paintings was polychromatic with high saturation and unnatural hues, the paintings did vary by theme (still life and landscape) and by medium (watercolour and acrylic), providing some support for the generalizability of this study’s findings.

Hypothesis (5) was confirmed by results presented in Section 4.2, where participants consistently focused on red hues and the reddest objects while making their evaluations. Differences in rank between objects of similar hue may have been driven by a combination of visual prominence within the painting, centring in the field of view and object lightness or brightness. For the landscape painting, the left-side (innermost) trees ranked significantly higher than the path despite being composed of the same hues. The left-side trees were both more centred in participants’ field of view and are foreground objects within the painting. For the watercolour painting, the less prominent and slightly darker strawberries were significantly lower ranked than the tomatoes and apple despite being painted with the same watercolour paint at different dilutions. Participant comments indicated that colour contrast and detail were central to their evaluations. These results and observations hint at the influence of the composition and content of the paintings.

6. Conclusions

Four of five a priori hypotheses (2–5) were confirmed by a robust empirical dataset in good agreement with the results of important prior research on colour rendering within the context of TM-30.^15–19 Those findings support the general validity of these results, suggesting the decrease in preference for large values of $R_{g}^{*}$ expected by hypothesis (1) was genuinely not present, at least for these high saturation abstract paintings when viewed at 50 lx under independently presented lighting conditions.

By identifying a valid response surface for preference, this study demonstrated the viability of RSM as a statistical tool for mapping complex interactions in colour rendering studies. The model fit was acceptable with R² similar to previous colour rendering studies when calculated using the same statistical methodology. The model predicts D_uv = −0.013 was preferred at $R_{g}^{*} = 100$ , and D_uv = −0.005 was preferred at $R_{g}^{*} = 120$ . The region of lowest preference was characterized by high D_uv and low $R_{g}^{*}$ .

To support the generalizability of these results, careful selection of more diverse and representative artwork is necessary. A Renaissance style painting would provide an improved representation of artwork typically found in museums and galleries. Inclusion of less saturated colours and objects depicted in their natural hues would improve the diversity of colour provided for participants to evaluate and improve their ability to accurately judge colour appearance. The lack of expected curvature in $R_{g}^{*}$ and the inability of participants to judge naturalness provide numerical support for replacing one the paintings used in this study.

Having established an experimental protocol and statistical analysis suitable for investigating the complex effects of colour rendering for artwork at light levels subject to the Hunt effect, the next step is clear: investigation of the experimental gamut family across a range of conservation illuminance levels. The present study leaves open two key questions. Firstly, will increased preference remain for high values of $R_{g}^{*}$ when presented at higher illuminances? Secondly, can the results of this study and those presented by Bao and Wei²² be generalized across a more diverse and representative set of paintings?

Supplemental Material

sj-pdf-1-lrt-10.1177_14771535231172100 – Supplemental material for Fine art under low illuminance: Gamut and tint

Supplemental material, sj-pdf-1-lrt-10.1177_14771535231172100 for Fine art under low illuminance: Gamut and tint by J Mundinger and K Houser in Lighting Research & Technology

Footnotes

Acknowledgements

Jim Mundinger is gratefully acknowledged for painting pro bono and providing the paintings used in this study.

Declaration of conflicting interests

The authors declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: Kevin Houser is a co-founder and shareholder of Lyralux, Inc. and inventor on U.S. Patent No. 11,064,583, Japanese Patent No. 7,198,212, U.S. Patent Application No. 2021/0345461 A1 and European Union Patent Application No. 18760286.7, which disclose intellectual property related to colour rendering under dimmed lighting conditions.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This material is based upon work supported by the United States Department of Education under Award No. P200A180031. Any opinions, findings and conclusions or recommendations expressed in this publication are those of the authors and do not necessarily reflect the views of the United States Department of Education. Funding for the experimental apparatus was provided by The Pennsylvania State University College of Engineering’s ENGineering for Innovation & ENtrepreneurship (ENGINE) grant. Funding for participant honoraria was provided by Project CANDLE.

ORCID iDs

J Mundinger

K Houser

Supplemental material

Supplemental material for this article is available online.

References

Illuminating Engineering Society. Recommended Practice for Museum Lighting. RP-30-17. New York, NY: Illuminating Engineering Society, 2017: 104.

Hunt

The effects of daylight and tungsten light-adaptation on colour perception. Journal of the Optical Society of America 1950; 40: 362–371.

Hunt

Light and dark adaptation and the perception of colour. Journal of the Optical Society of America 1952; 42:190–199.

Loe

Rowlands

Watson

NF.

Preferred lighting conditions for the display of oil and watercolour paintings. Lighting Research and Technology 1982; 14: 173–192.

Luo

Chou

Chen

Luo

. Using LED technology to build up museum lighting environment. Proceedings of AIC Colour Conference 2013, Newcastle upon Tyne, UK, 2013: 1757–1760.

Zhai

Luo

Liu

XY.

The impact of illuminance and colour temperature on viewing fine art paintings under LED lighting. Lighting Research and Technology 2015; 47: 795–809.

Jerome

CW.

Flattery vs color rendition. Journal of the Illumination Engineering Society 1972; 1: 208–211.

Thornton

WA.

A validation of the color preference index. Journal of the Illumination Engineering Society 1974; 4: 48–52.

Harper

WJ.

On the interpretation of preference experiments in illumination. Journal of the Illumination Engineering Society 1974; 3: 157–159.

10.

Lee

Song

JK.

Origin of human color preference for food. Journal of Food Engineering 2013; 119: 508–515.

11.

Illuminating Engineering Society (IES). IES Method for Evaluating Light Source Color Rendition. TM-30-15. New York, NY: IES, 2015: 26.

12.

Illuminating Engineering Society (IES). TM-30-20 IES Method for Evaluating Light Source Color Rendition. TM-30-20.New York, NY: IES, 2020: 26.

13.

David

Fini

Houser

Ohno

Royer

Smet

KAG

, et al. Development of the IES method for evaluating the color rendition of light sources. Optics Express 2015; 23: 15888–15906.

14.

Zhang

Feng

Toward a unified model for predicting color quality of light sources. Applied Optics 2017; 56: 8186–8195.

15.

Wei

Houser

David

Krames

Colour gamut size and shape influence colour preference. Lighting Research and Technology 2017; 49: 992–1014.

16.

Royer

Wilkerson

Wei

Houser

Davis

Human perceptions of colour rendition vary with average fidelity, average gamut, and gamut shape. Lighting Research and Technology 2017; 49: 966–961.

17.

Royer

Wilkerson

Wei

Human perceptions of colour rendition at different chromaticities. Lighting Research and Technology 2018; 50: 965–944.

18.

Royer

Wei

Wilkerson

Experimental validation of colour rendition specification criteria based on ANSI/IES TM-30-18. Lighting Research and Technology 2019; 52: 323–349.

19.

Esposito

Houser

Models of colour quality over a wide range of spectral power distributions. Lighting Research and Technology 2019; 51: 331–352.

20.

Kawashima

Ohno

. Vision experiment on verification of Hunt effect in lighting. Proceedings of the 29th CIE session, Washington, DC. USA, 14–22 June 2019: 496–504.

21.

Wei

Bao

Huang

Consideration of light level in specifying light source colour rendition. Leukos 2020; 16: 55–65.

22.

Bao

Wei

Change of gamut size for producing preferred colour appearance from 20 to 15000 lux. Leukos 2021; 17: 21–42.

23.

Ohno

Practical use and calculation of CCT and D_uv. Leukos 2014; 10: 47–55.

24.

Zhai

Luo

Liu

XY.

The impact of LED lighting parameters on viewing fine art paintings. Lighting Research and Technology 2016; 48: 711–725.

25.

Dikel

Burns

Veitch

Mancini

Newsham

GR.

Preferred chromaticity of colour-tunable LED lighting. Leukos 2014; 10: 101–115.

26.

Smet

Deconinck

Hanselaer

Chromaticity of unique white in object mode. Optics Express 2014; 22: 25830–25841.

27.

Smet

Two neutral white illumination loci based on unique white rating and degree of chromatic adaptation. Leukos 2018; 14: 55–67.

28.

Ohno

Fein

. Vision experiment on acceptable and preferred white light chromaticity for lighting. Proceedings of CIE 2014 Lighting Quality and Energy Efficiency, Kuala Lumpur, Malaysia, 23–26 April 2014: 8.

29.

Wei

Houser

What is the cause of apparent preference for sources with chromaticity below the blackbody locus?

Leukos 2015; 12: 95–99.

30.

DiLaura

Houser

Mistrick

Steffy

GR.

The Lighting Handbook: Reference and Application, 10th edition. New York, NY: The Illuminating Engineering Society (IES), 2011: 1328.

31.

Hurvich

Jameson

An opponent-process theory of colour vision. Psychological Review 1957; 64: 384–404.

32.

Perrin

Druzik

Miller

. SSL Adoption by Museums: Survey Results, Analysis, and Recommendations (No. PNNL-23899). Richland, WA: Pacific Northwest National Lab (PNNL), 2014: 66.

33.

Cuttle

Damage to museum objects due to light exposure. Lighting Research and Technology 1996; 28: 1–9.

34.

Cuttle

. Light for Art’s Sake: Lighting for Artworks and Museum Displays. Burlington, MA: Elsevier, 2007: 301.

35.

Innes

. Is there a right white for museum and gallery lighting? Proceedings of the Professional Lighting Design Convention, Copenhagen, Denmark, 2013: 5.

36.

Royer

Houser

David

Chroma shift and gamut shape: going beyond average color fidelity and gamut area. Leukos 2017; 14: 149–165.

37.

Royer

. Analysis of color rendition specification criteria. Proceedings of SPIE, San Francisco, CA, 2019: 18.

38.

Nascimento

SMC

Masuda

Best lighting for visual appreciation of artistic paintings–experiments with real paintings and real illumination. Journal of the Optical Society of America 2014; 31: 214–219.

39.

Feltrin

Leccesse

Hanselaer

Smet

Impact of illumination correlated color temperature, background lightness, and painting color content on color appearance and appreciation of paintings. Leukos 2020; 16: 25–44.

40.

Liu

Tuzika

Žukauskas

Vaicekauskas

Prančiskas

Shur

Cultural preferences to color quality of illumination of different artwork objects revealed by a color rendition engine. IEEE Photonics Journal 2013; 5: 1–10.

41.

Ohno

. Vision Experiment II on White Light Chromaticity for Lighting. Toronto, Canada: CNC/CIE-CIE/USA Biennial Joint Meeting, 2015: 10.

42.

Gordon

Churchill

Clauser

Bradtmiller

McConville

Tebbetts

, et al. Anthropometric Survey of US Personnel: Summary Statistics Interim Report. Natick, MA: US Army Natick Research Development and Engineering Center, 1988: 335.

43.

Ishihara

. Tests for Colour-Blindness. 24 Plates edition. Tokyo, Japan: University of Tokyo, 1972: 33.

44.

Fotios

Houser

KW.

Research methods to avoid bias in categorical ratings of brightness. Leukos 2009; 5: 167–181.

45.

Fotios

Atli

Cheal

Houser

Logadottir

Lamp spectrum and spatial brightness at photopic levels: a basis for developing a metric. Lighting Research and Technology 2015; 47: 80–102.

46.

Wei

Houser

Systematic changes in gamut size affect color preference. Leukos 2017; 13: 23–32.

47.

Krzysztof

Boyce

PR.

Detection of slow light level reduction. Journal of the Illuminating Engineering Society 2002; 31: 3–10.

48.

Akashi

Neches

Detectability and acceptability of illuminance reduction for load shedding. Journal of the Illuminating Engineering Society 2004; 33: 3–13.

49.

Akashi

Neches

Potential recommendations for illuminance reductions by load-shedding. Lighting Research and Technology 2005; 37: 133–153.

50.

MacAdam

DL.

The graphical representation of small color differences. Journal of the Optical Society of America 1943; 33: 675–679.

51.

Fairchild

Reniff

Time course of chromatic adaptation for color-appearance judgments. Journal of the Optical Society of America 1995; 12: 824–833.

52.

Williams

Experimental designs balanced for the estimation of residual effects of treatments. Australian Journal of Scientific Research, Series A: Physical Sciences 1948; 2: 149–168.

53.

Kutner

Nachtsheim

Neter

Applied Linear Statistical Models, 5th edition. New York, NY: McGraw-Hill Education 2005: 1396.

54.

Williges

Simon

Applying response surface methodology to problems of target acquisition. Human Factors 1971; 13: 511–519.

55.

Liu

Chen

Optimal color design of psychological counseling room by design of experiments and response surface methodology. PLoS ONE 2014; 9: 1–9.

56.

Lin

Prasetyo

Siswanto

Jiang

BC.

Optimization of color design for military camouflage in CIELAB color space. Color Research and Application 2019; 44: 367–380.

57.

Clark

Williges

Response surface methodology central-composite design modifications for human performance research. Human Factors 1973; 15: 295–310.

58.

Durlak

How to select, calculate, and interpret effect sizes. Journal of Pediatric Psychology 2009; 34: 917–928.

59.

Uttley

Power analysis, sample size, and assessment of statistical assumptions—improving the evidential value of lighting research. Leukos 2019; 15: 143–162.

60.

Chin

The partial least squares approach to structural equation modeling. Advances in Hospitality and Leisure 1998; 8(2): 1998; 295–358.

61.

Hair

Sarstedt

Hopkins

Kuppelweiser

Partial least squares structural equation modeling (PLS-SEM) – an emerging tool in business research. European Business Review 2014; 26: 106–121.

62.

Pereira

Afonso

Medeiros

FM.

Overview of Friedman’s test and post-hoc analysis. Communications in Statistics – Simulation and Computation 2015; 44: 2636–2653.

63.

Royer

Houser

Durmus

Esposito

Wei

Recommended methods for conducting human factors experiments on the subjective evaluation of colour rendition. Lighting Research and Technology 2021; 54: 199–236.

64.

Willits

Theodori

Luloff

Another look at Likert scales. Journal of Rural Social Sciences 2016; 31: 126–139.

65.

Norman

Likert scales, levels of measurement and the “laws” of statistics. Advances in Health Sciences Education 2010; 15: 625–632.

66.

Rea

Freyssinier

JP.

White lighting. Color Research and Application 2013; 38: 82–92.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

1.11 MB
