Effectiveness of the preventive administration of vasoactive amines in counterbalancing significant patient blood pressure drops following nimodipine administration during mechanical thrombectomy procedures

Introduction

A focal vasospasm (FV) of the target vessel can occur during mechanical thrombectomy (MTB) performed for the endovascular treatment of acute ischemic stroke (AIS) and is commonly related to the mechanical stress exerted by MTB devices over the vessel wall. Angiographically, FV appears as the narrowing of the vessel, which is visualized as a reduction of the diameter of the vessel lumen and a reduction of the anterograde blood flow. Nevertheless, such an appearance could be related to other causes such as iatrogenic dissection of the target vessel or the presence of residual clot. In clinical practice, nimodipine is commonly administered during the course of neurointerventions to treat FV.^1–3 Nimodipine is a dihydropyridine drug, which blocks the voltage-gated calcium channels leading to the arterial smooth muscle relaxation and thus to vasodilation. ⁴ Hence, nimodipine can cause arterial hypotension and alterations in heart rate ⁴ and, consequently, a drop in blood pressure. Such a drop during AIS can result in increased neural loss with potentially negative consequences for the patient's outcome.^5,6

The aim of the present study was to evaluate whether the preventive and continuous infusion of vasoactive amines could effectively counterbalance the hypotensive effect of intraarterial (ia) nimodipine in the treatment of FV triggered by the interaction between thrombectomy devices and the target artery.

Methods

We conducted a retrospective review of the clinical and radiological records of our institutional stroke prospective registry, which included all patients treated at our center for an AIS between January 2019 and January 2022 by MTB. To investigate the impact of ia nimodipine administration on mean arterial blood pressure (MABP) during MTB procedures for the treatment of AIS, we conducted an analysis of MABP values measured every minute through an arterial cannula during endovascular treatment and ia nimodipine infusion. We also investigated whether the preventive and continuous administration of amines could maintain MABP values within the recommended range.

MABP data collection consisted of measuring MABP once per minute for 10 min before nimodipine administration (T10–T0), for 5 min immediately after nimodipine administration (T1–T5), and for 10 more minutes after nimodipine administration (T6–T15). This resulted in a total of 25 measurements for each of the 75 patients included in the study. For each of these three intervals, the mean value and standard deviation of MABP were calculated.

We also investigated whether the administration of ia nimodipine played a role in the diagnosis of other pathological conditions, such as iatrogenic dissection or the presence of residual clot. Such conditions have been shown to be associated with a poor clinical outcome contributing to a reocclusion of a previously recanalized artery within 24 h. ⁷ Therefore, we analyzed the reasons for nimodipine administration, the site of the vascular stenosis where it was most frequently used, and the dosages administered. We then assessed the angiographic outcomes of each procedure according to the thrombolysis in cerebral infarction score (TICI). ⁸

To evaluate the clinical outcome, we assessed the National Institutes of Health Stroke Scale (NIHSS) score at 24 h and the modified Rankin Scale (mRS) score at 90 days. In addition, we investigated whether an enlargement of the ischemic core resulting from a potential decrease in MABP due to ia nimodipine administration had occurred. For this purpose, we compared the size of the ischemic core using pre- and posttreatment radiological imaging by evaluating the ASPECT score.

Results

Between January 2019 and January 2022, a total of 554 patients were treated for AIS at our center. Of these, 90 received ia nimodipine. Fifteen patients were excluded due to noninvasive, blood pressure monitoring with a sphygmomanometer. Among the 75 included patients, one underwent treatment for simultaneous bilateral occlusions of the middle cerebral arteries, resulting in a total of 76 treated occlusions. Table 1 provides an overview of the baseline, procedural, and clinical variables of the included patients.

OPEN IN VIEWER

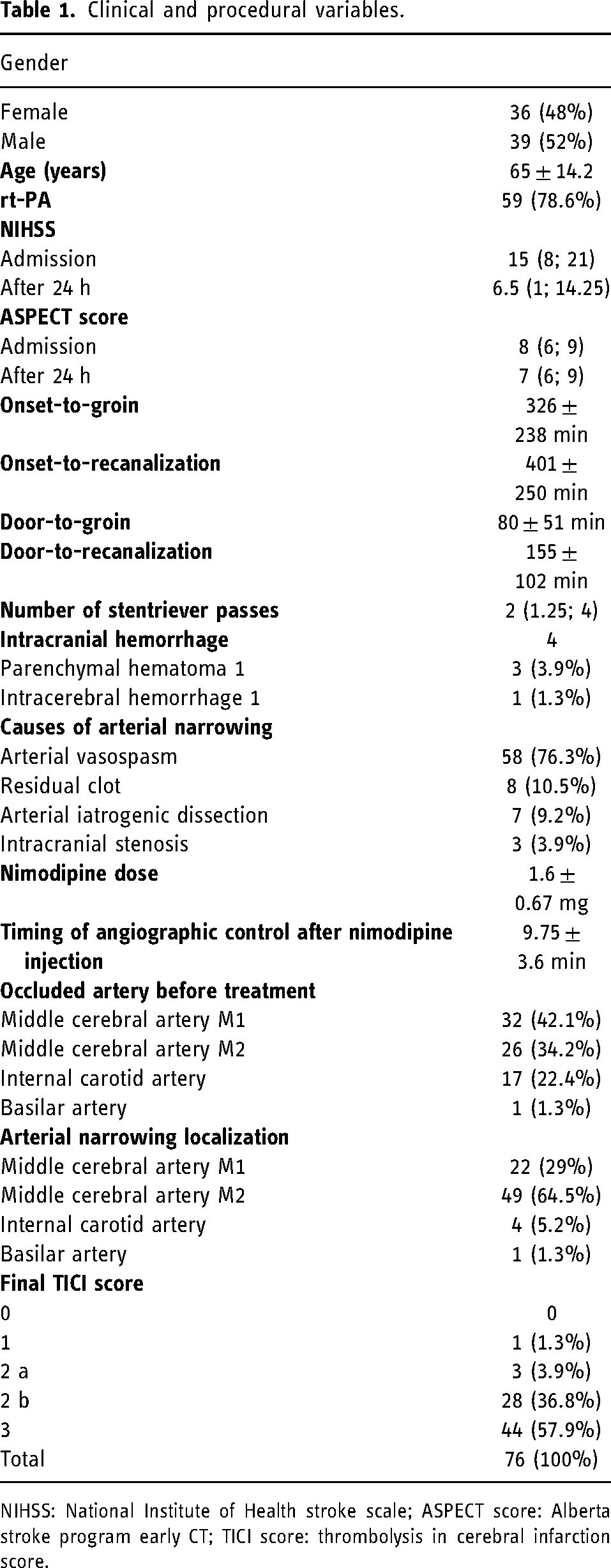

Table 1.

Clinical and procedural variables.

Gender
Female	36 (48%)
Male	39 (52%)
Age (years)	65 ± 14.2
rt-PA	59 (78.6%)
NIHSS
Admission	15 (8; 21)
After 24 h	6.5 (1; 14.25)
ASPECT score
Admission	8 (6; 9)
After 24 h	7 (6; 9)
Onset-to-groin	326 ± 238 min
Onset-to-recanalization	401 ± 250 min
Door-to-groin	80 ± 51 min
Door-to-recanalization	155 ± 102 min
Number of stentriever passes	2 (1.25; 4)
Intracranial hemorrhage	4
Parenchymal hematoma 1	3 (3.9%)
Intracerebral hemorrhage 1	1 (1.3%)
Causes of arterial narrowing
Arterial vasospasm	58 (76.3%)
Residual clot	8 (10.5%)
Arterial iatrogenic dissection	7 (9.2%)
Intracranial stenosis	3 (3.9%)
Nimodipine dose	1.6 ± 0.67 mg
Timing of angiographic control after nimodipine injection	9.75 ± 3.6 min
Occluded artery before treatment
Middle cerebral artery M1	32 (42.1%)
Middle cerebral artery M2	26 (34.2%)
Internal carotid artery	17 (22.4%)
Basilar artery	1 (1.3%)
Arterial narrowing localization
Middle cerebral artery M1	22 (29%)
Middle cerebral artery M2	49 (64.5%)
Internal carotid artery	4 (5.2%)
Basilar artery	1 (1.3%)
Final TICI score
0	0
1	1 (1.3%)
2 a	3 (3.9%)
2 b	28 (36.8%)
3	44 (57.9%)
Total	76 (100%)

NIHSS: National Institute of Health stroke scale; ASPECT score: Alberta stroke program early CT; TICI score: thrombolysis in cerebral infarction score.

There were significant differences between all three time periods (p < 0.001), with nimodipine having a significant blood pressure-lowering effect despite the concomitant administration of amines. MABP values were 95.24 ± 0.47 mmHg before ia nimodipine administration (T10–T0), 91.84 ± 0.69 mmHg 5 min after nimodipine injection (T1–T5), and 81.79 ± 0.49 mmHg 15 min after nimodipine injection (T6–T15) (Figure 1). A comparison of the ischemic core volume before and 24 h after symptom onset was performed, based on the ASPECT score on pre- and postprocedural imaging. Ten patients were excluded due to the absence of either one of the two radiological examinations. In 53/65 (81.5%) cases, the volume of the ischemic core remained unchanged as assessed by the ASPECT score, while in 8/65 (12.3%) cases, the ischemic core expanded by 1 ASPECT score point and in 4/65 (6.1%) cases, it expanded by more than 1 ASPECT score point.

OPEN IN VIEWER

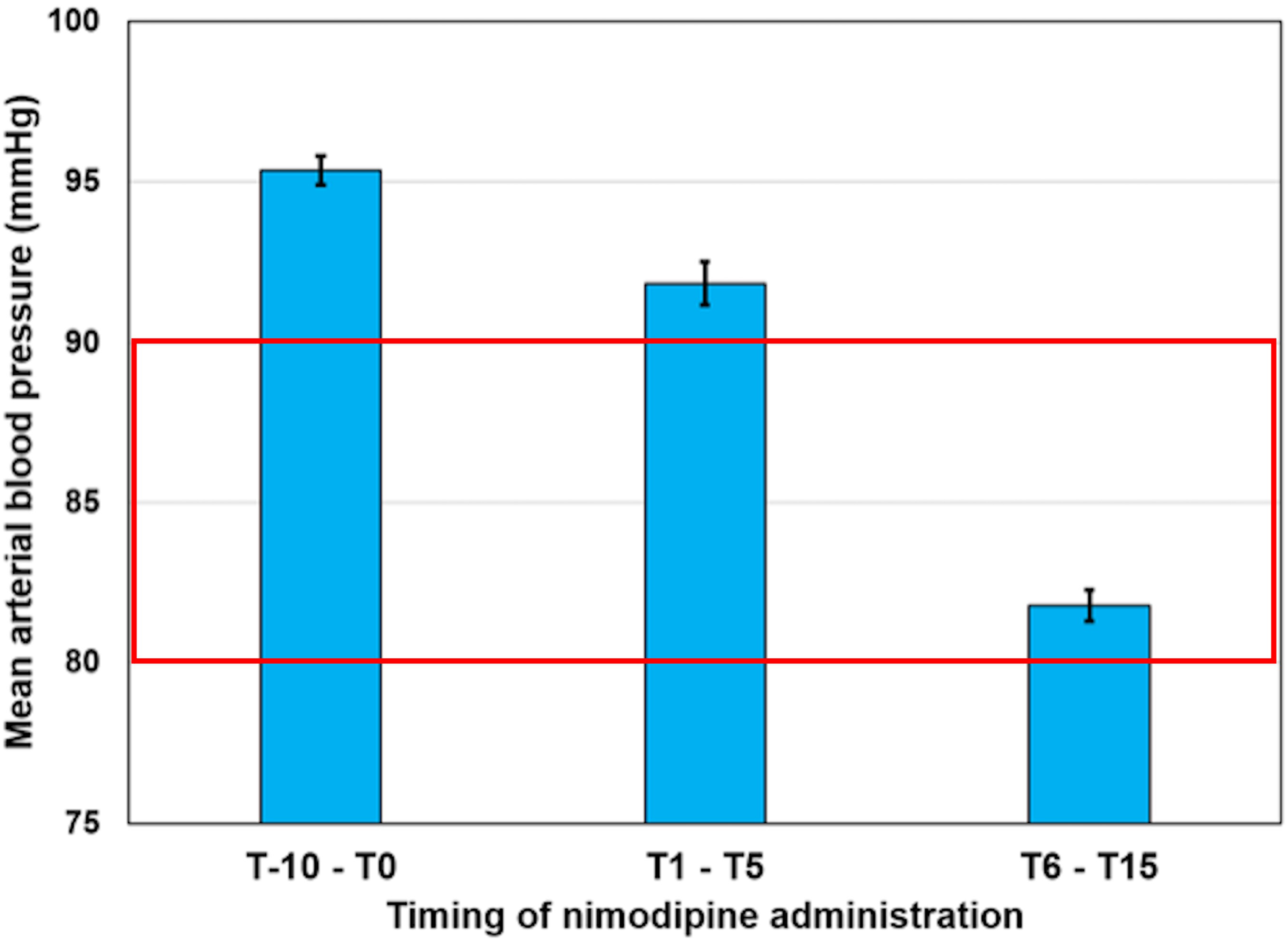

Figure 1.

Mean arterial blood pressure before (T10–T₀), immediately after (T₁–T₅), and post (T₆–T₁₅) administration of nimodipine (mean ± SE). Target values to be maintained during endovascular treatment for mean arterial blood pressure are included in the red rectangle.

On average, 1.6 ± 0.67 mg of nimodipine per artery was administered, and angiographic control was conducted at an average of 9.75 ± 3.6 min after nimodipine injection. In 58/76 (76.3%) cases, ia nimodipine revealed and resolved FV (Figure 2(A)–(D)). Additionally, it allowed the diagnosis of iatrogenic dissection in 9.2% of cases, residual clot in 10.5% of cases, and intracranial stenosis in 4% of cases. Among the cases of iatrogenic dissection (n = 7) and intracranial stenosis (n = 3), stent placement in the acute phase was performed in 5 and 1 case, respectively, resulting in a TICI score of ≥2b in 3/6 cases (Figure 2(E)–(G)). In the eight cases diagnosed with residual clot, additional thrombectomy maneuvers were conducted, achieving a TICI score of ≥2b in 7/8 cases (Figure 2(H)–(K)). Overall, a TICI score of ≥2b was obtained in 94.7% of cases at the end of the procedure, which aligns with the recanalization rate observed in a recent clinical trial. ¹⁰

OPEN IN VIEWER

Figure 2.

(A–D). Angiographic example of focal vasospasm following stent retriever thrombectomy. (A–B). Before nimodipine administration (anteroposterior and latero-lateral views, respectively). (C–D). Results at angiographic control at 10 min (anteroposterior and latero-lateral views, respectively). (E–G). Angiographic example of iatrogenic dissection. (E). Image after stent retriever thrombectomy; (F) image 10 min after nimodipine administration; (G) control after intracranial stent placement. (H–K). Angiographic example of artery narrowing due to residual clot. (H) Angiographic image after thrombectomy with a stent retriever; (I) angiographic image 10 min after administration of nimodipine; (J) angiographic image with open stent retriever and visualization of clot within the stent retriever; K, angiographic result after thrombectomy maneuver.

Cone beam CT performed at the end of the procedure showed intracranial hemorrhage in 4/75 (5.3%) patients (three cases with PH1 and one case with HI1). ⁹ Three-month follow-up was collected for 72/75 patients, revealing an mRS score ≤2 in 39 (54%) patients (Figure 3).

OPEN IN VIEWER

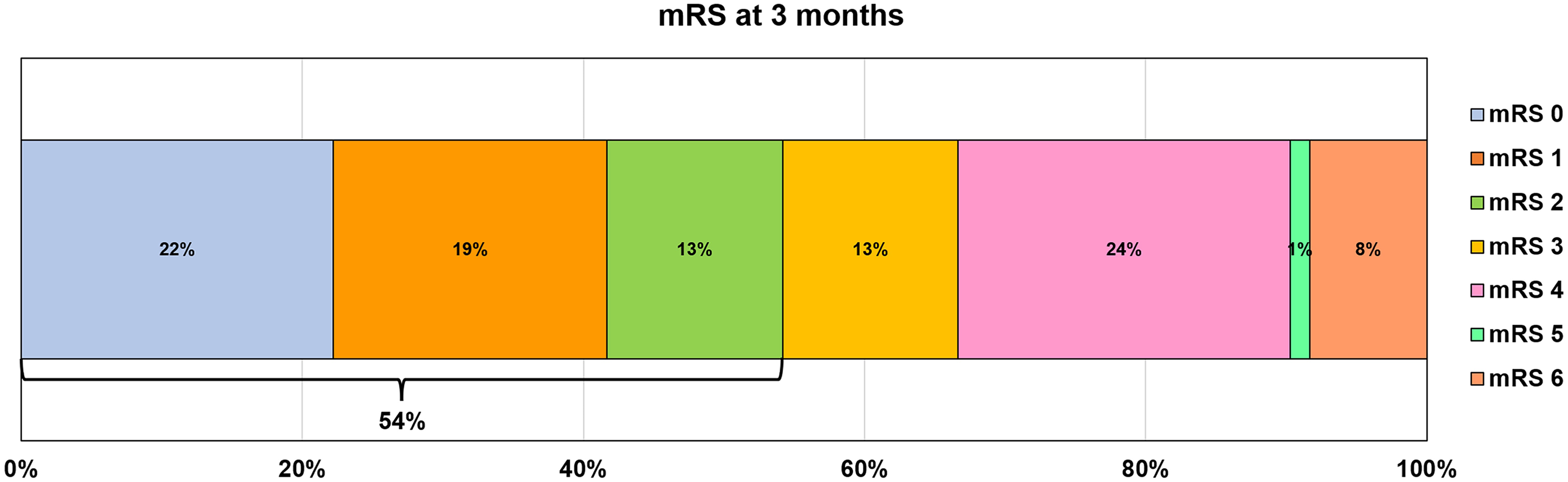

Figure 3.

mRS distribution at three-month follow-up after endovascular treatment.

Discussion

We aimed to evaluate whether a prior infusion of vasoactive amines was able to reduce the hypotensive effect of nimodipine administered for the purpose of resolving FV or unmasking the presence of iatrogenic target artery dissection or residual clot. Our findings revealed that despite MABP significant reduction, the preventive administration of vasoactive amines played a crucial role in maintaining MABP at an acceptable level of 81.79 ± 0.49 mmHg, following ia nimodipine administration during endovascular treatment for AIS. Previous studies by Markus et al. ¹¹ and Henry et al. ¹² suggest that MABP is a more sensitive indicator than the systolic blood pressure of the brain parenchymal perfusion. Target MABP values recommended by Rasmussen et al. ⁵ for the optimal endovascular treatment of ischemic stroke fall within the range of 70–90 mmHg. Prolonged periods of MABP below 70 mmHg or above 90 mmHg have been associated with unfavorable clinical outcomes. MABP serves as a reliable indicator for assessing cerebral perfusion and its reduction can exacerbate the extent of ischemic damage. ¹³ Consequently, our MABP target during AIS endovascular procedures was set at 90 mmHg. However, it is important to acknowledge that patients may respond differently to various anesthesia drugs, emphasizing the necessity of strict MABP monitoring, particularly when patients undergo treatment under general anesthesia. ¹⁴

Jesser et al. ³ conducted a comparative analysis between two groups of patients who underwent endovascular treatment for AIS. One group received ia nimodipine based on the presence of FV, while the other did not. At 24 h after symptom onset, patients who received ia nimodipine during thrombectomy exhibited a lower ASPECT score and a higher NIHSS score compared to the control group. This suggests that in this specific patient population, the hypotension induced by ia nimodipine administration may have compromised cerebral perfusion, leading to an enlargement of the ischemic core. However, an enlargement of the ischemic core may also depend on late or incomplete reperfusion of the involved vascular territory.^15,16 Our MABP management protocol aims to mitigate the hypotensive effects of ia nimodipine through the early administration of amines, thereby ensuring that MABP values remain above 70 mmHg. In our study, the comparison between ASPECT scores at patient admission and 24 h after symptom onset revealed no ischemic core enlargement of the ischemic core shift in 81.5% of patients. This finding indicates that the size of the ischemic core remained stable in most patients, thus confirming the adequate control of MABP and maintenance of cerebral perfusion. Furthermore, the three-month clinical follow-up showed an mRS ≤2 in 39/72 (54%) patients.

While FV induced by the passage of a stent retriever is often mild and transient, it is important to recognize that an apparent FV can mask other underlying conditions, such as iatrogenic dissection or residual clot. Endovascular treatment of a medium vessel occlusion increases the likelihood of acute arterial FV or iatrogenic artery dissection following the use of a stent retriever.^1,2,17 Notably, our study revealed that arterial narrowing predominantly occurred in the M2 segment of the middle cerebral artery in 64.5% of cases in our patient cohort. In our study, ia nimodipine was effective in reducing FV caused by stent retriever passage in 76.3% of cases. Furthermore, when ia nimodipine administration did not resolve arterial narrowing, it proved valuable in diagnosing iatrogenic dissection (9.2%), residual clot (10.5%), or intracranial stenosis (4%).

Limitations

The study's main limitation is its retrospective and observational nature, conducted solely within a single center. All procedures were performed under general anesthesia with the assistance of a dedicated team of anesthesiologists, highlighting the need to consider the specific context and resources available when interpreting and applying these results.

Conclusions

Infusion of vasoactive amines effectively counteracted the intraarterial nimodipine effect, thus avoiding frank arterial hypotension during endovascular treatment. Nimodipine is useful in differentiating the diagnosis of FV resulting from MTB and other potential causes, such as iatrogenic dissection or residual clot.
