Passive fault-tolerant control design for robotic arm using robust fractional order sliding mode controller

Abstract

Enhancing the technological autonomy, controllability, and intelligence of manipulator robots can enable companies to achieve their increasing production requirements. The demand for fault-tolerant control (FTC) research is increasingly realized in manipulator robots. This work describes the design and assessment of a Fractional-Order Sliding Mode Controller (FOSMC) for precise trajectory tracking of a PUMA560 robotic manipulator. The proposed control strategy is validated using a reduced-order three-degree-of-freedom (DOF) model and considering only the first three joints. The traditional Sliding Mode Control (SMC) is first implemented on a reference model in order to develop a performance baseline. Despite having sufficient robustness, SMC produces chattering and increases tracking inaccuracy due to its high-frequency switching. The authors overcome these constraints by employing a fractional-order sliding manifold, which enhances the dynamic responsiveness and smoothness of the control action. To improve robustness against time-varying disturbances and nonlinear uncertainty, the suggested FOSMC design includes fractional derivative filtering, equivalent control compensation, and a saturation-based switching function. Further results show that the FOSMC works better with additional disturbances and actuator faults. The work shows that the high-precision and fault-rejection capabilities of robotic manipulators can be successfully replaced by fractional-order control.

Keywords

robotics fractional-order SMC passive FTC robust controller control engineering fractional-order control

Introduction

Robotic manipulators can move objects from one place to another and are quickly replacing conventional manual labor with the advent of smart manufacturing.¹ They are employed in a variety of applications, as shown in Figure 1. Automated manufacturing has a clear separation of labor at every stage and closely working robots.² But these robots may be error-prone and faulty, hence lowering productivity, raising maintenance costs, and posing safety risks.^3,4 Any accident can happen if, for instance, a technician or engineer moves into the robot’s operating area when it is carrying out such tasks.⁵ A worker who was checking the sensor was recently killed and crushed by a robot at a South Korean vegetable packing facility.⁶

Figure 1.

Major applications of robotic manipulators.

The need for fault diagnostics research is increasingly realized in manipulator robots.⁷ Production efficiency and product quality are highly influenced by the working conditions of manipulator robots, which are essential tools for modern manufacturing.⁸ By using manipulator robot fault diagnostics, companies can extend the time between overhauls and maintenance. Enhancing the technological autonomy, controllability, and intelligence of manipulator robots can enable companies to achieve their increasing production requirements.^9,10 Manipulator robots often work in harsh and intricate environments. Safety problems may be avoided by sensing problems, keeping track of the working situation, and warning staff of unusual conditions on time.¹¹ Lee et al.¹² also add that when all the possible risks are considered, organizational, communication, psychological, cultural, and systematic factors should also be considered.

In manipulator robot systems, employment of advanced fault detection algorithms enhances system performance¹³ and reliability.¹⁴ These techniques enable the fault detection process.¹⁵ By attempting to combat difficulties, many robot manufacturers have invested their time and money in research and development.¹⁶ For instance, famous robot manufacturers like FANUC, KUKA, and ABB offer advanced technology and solutions regarding the identification of problems with manipulator robots.¹⁷ Detection of faults in manipulator robots has also been researched by some research institutes and universities.¹⁸ The focus of the major references is mainly on possible actuator faults in heavy-duty manipulator robot joints under operation.¹⁹ They discuss an intelligent fault-detection system with a data-driven approach that injects multiple fault types into the heavy-load manipulator robot’s dynamics model, making the samples imbalanced.

Passive fault-tolerant control systems (PFTCS)

PFTCS continue to operate effectively without the need for explicit fault detection or controller reconfiguration when any external disturbances and uncertainties occur.²⁰ PFTCS focuses on a robust control architecture to ensure that it is effective for a set of known failure scenarios. In a study by Zuñiga et al.,²¹ a passive FTC strategy was applied to a two-DOF robotic helicopter using structural redundancy and a robust state-feedback architecture. Freddi et al.²² presented that robotic manipulators can keep track of trajectories accurately even when some actuator faults occur. The PFTCS utilizes robust control techniques to prevent certain faults from affecting the control loop system. A PFTC method with a three-block controller was devised in²³ to get good trajectory tracking in the case of faults. Despite the developments, the majority of solutions still rely on fault estimation or adaptation approaches, which may be challenging for real-time industrial controllers to execute. PFTCS, on the other hand, provides a more straightforward method by maintaining acceptable performance without specifically identifying the issue. Nevertheless, a PFTCS framework for robotic manipulators still lacks complete integration of FOSMC.

Literature review

A robust nonlinear control method that helps robots keep working despite faults is sliding mode control (SMC).²⁴ It does this by sliding system states to a specified surface and regulating nonlinearities and external disturbances while the robot is operating. The well-designed SMC variants can even mitigate chattering, a known consequence of SMC design.²⁵

Classical SMC is widely famous in the robotics field because of its improved robustness against external uncertainties and actuator faults. For robot manipulators without joint-velocity data, Van et al.’s²⁶ robust FD-FTC technique employs a sliding-mode-type robust controller to continue tracking even if actuators and other components fail or any uncertainty occurs.²⁷ For FD and FTC in robotic manipulators, a super-twisting sliding-mode observer of third order is a better observer/controller than conventional active FTC techniques.²⁵ Bui et al.²⁸ demonstrated that a well-designed SMC law may sustain tracking in the presence of nonlinearities and inefficient actuators. A critic-only dynamic programming framework and optimal sliding-mode FTC for multi-robotic manipulators were incorporated in recent work by Zhang et al.²⁹; despite actuator flaws and disturbances, they were able to achieve the necessary performance. These SMC techniques perform better than traditional SMC in terms of actuator protection and control effort smoothness when high precision or cooperative manipulators are needed.

Intelligent and adaptable SMC systems that include learning and parametric adaptation are able to handle the complex failure patterns and time-varying uncertainty of manipulators. Van and Ge’s²⁷ adaptive fuzzy integral SMC with a disturbance observer is a prime example.³⁰ Ahmed et al.³¹ developed an adaptive fractional-order SMC for nonlinear uncertain manipulators based on fixed-time stability theory. A fast terminal sliding surface ensures quick convergence in the case of uncertainties or actuator failures.³² Ahmed et al.³³ created a fractional-order non-singular FTSMC-based FTC for robotic manipulators. For less efficient robot manipulators, Le et al.³⁴ created an active FTC technique using synchronous fast terminal SMC and an extended state observer. These FTC designs based on TSMC or FTSMC are perfect for high-speed, high-precision manipulators, but they require careful design to prevent singularities and excessive control effort. In a recent work,³⁵ a fixed-time fractional-order super-twisting SMC based on barrier functions was developed to improve robustness against actuator defects and uncertainties. Disturbance observers are not necessary for this controller. An adaptive fractional-order PID controller based on recursive least squares was developed in³⁶ to improve trajectory tracking accuracy and stability for manipulators working in the event of nonlinear uncertainty. Using a robust, precise differentiator, the fractional-order fixed-time nonsingular terminal SMC system in³⁷ showed better tracking performance and faster convergence under disturbances. In order to accelerate robotic system convergence and enable more accurate trajectory tracking, recent work in³⁸ integrated fractional-order sliding mode control (FOSMC) with intelligent optimization techniques. A dependable FOSMC method that takes uncertainty and time-varying disturbances into consideration was introduced by.³⁹ Compared to conventional methods, it showed improved tracking performance and reduced chattering. Fractional-order adaptive SMC is one technique employed by space robots to manage dynamic uncertainty and disturbances in low-gravity conditions.⁴⁰

Hybrid fractional-order controllers are suggested for spherical joint manipulators and flexible robotic arms because of their better performance than integer-order controls for handling uncertainties and nonlinearities.⁴¹ The useful benefits of FOSMC have been further confirmed by experimental research. When used in real-time, these controllers exhibit reduced power consumption and more sophisticated control actions.⁴² By adding non-integer order derivatives to the sliding surface or control law, FOSMC, an extension of SMC, improves smoothness and robustness trade-offs, increases tuning freedom, and better manages complex manipulator dynamics.^43,44 Fractional-order integral FTSMC is another technique that has been applied to dual-arm robots.⁴⁵

Although FOSMC has theoretical advantages, its practical use in robotic systems is currently restricted, especially in dynamic disturbances and ideal operating environments with external perturbations and fast parameter changes. Robotic manipulators encounter difficulties in enhancing their robustness and stability, such as in the case of intricate frictional interactions inside joints, external disturbances, and system uncertainties.

General robotic dynamic model

The three-DOF robotic manipulator is described in joint space by the generalized coordinate vector and with corresponding joint velocities and accelerations as:

q (t) = [\begin{matrix} q_{1} (t) \\ q_{2} (t) \\ q_{3} (t) \end{matrix}] ϵ R^{3}

(1)

The control input vector is the vector of joint torques and given as:

\begin{matrix} τ (t) = [τ_{1} (t) & τ_{2} (t) & τ_{3} \end{matrix} (t)]^{T} ϵ R^{3}

(2)

The kinetic energy (T(q, $\overset{\cdot}{q}$ )) and potential energy ( $V (q (t))$ of the manipulator due to gravity can be written as:

T (q, \overset{\cdot}{q}) = \frac{1}{2} \sum_{i = 1}^{3} (m_{i} {v_{i}}^{T} v_{i} + {ω_{i}}^{T} I_{i} ω_{i})

(3)

V (q) = \sum_{i = 1}^{3} m_{i} g h_{i} (q)

(4)

Where $m_{i}$ is the mass of link i, $v_{i}$ and $ω_{i}$ are the linear and angular velocities of link i, $I_{i}$ is inertia tensor, $h_{i} (q)$ denotes the height of the center of mass of link i in the gravity direction and g is the gravitational acceleration.

Applying Euler–Lagrange equation for each generalized coordinate $q_{i}$ gives⁴⁶:

\frac{d}{dt} (\frac{\partial L}{\partial {\overset{\cdot}{q}}_{i}}) - \frac{\partial L}{\partial q_{i}} = τ_{i}

(5)

Hence, the gravity vector can be written as:

G (q) = \begin{matrix} [g_{1} (q) & g_{2} (q) & g_{3} \end{matrix} (q)]^{T}

(6)

where each $g_{i} (q)$ depends on the link masses, link lengths, and joint angles through trigonometric functions. Assuming the total disturbance is bounded, for some known or estimated constant $D_{\max}$ > 0:

∥ D (q, \overset{\cdot}{q}, t) ∥ \leq D_{\max}

(7)

Despite recent developments, several challenges with FTC for robotic manipulators still exist: The majority of passive FTC techniques now in use rely on integer order SMC, which has substantial chattering and poor steady-state accuracy. Unlike most published controllers that presume well-known robot dynamics, real manipulators face unmodeled friction and parameter uncertainty. There are currently no complete Simulink frameworks for active disturbances on joint torques, which makes repeatability challenging. Therefore, a robust controller that maintains stability and tracking precision is still required in the face of shocks and dynamic uncertainty.

Current FTC techniques for robotic manipulators handle most external disturbances and actuator failures, but in complex fault scenarios, this leads to reduced tracking precision and restricted reliability. Therefore, to provide precise, low-chattering tracking under actuator faults and uncertainties, a passive FTC technique that combines fractional-order control with a better sliding function is required.

The three-DOF reduced-order PUMA560 robotic manipulator is studied to use a PFTCS method based on FOSMC. The fundamental purpose is to improve durability and reduce chattering, in contrast to conventional SMC. Assessing the controller in the face of disruptions and dynamic uncertainty does not necessitate a fault reconfiguration approach.

Novel contribution and significance statement

The primary contributions made in this study are as follows:

A FOSMC controller is proposed to improve tracking accuracy and robustness for robotic manipulators.

A comprehensive robustness evaluation is carried out by integrating disturbance scenarios, also abrupt, intermittent, and incipient fault situations.

A saturation-based discontinuous control approach is used to minimize chattering and maintain stability. Using RMSE-based performance analysis, the authors evaluate the effectiveness of the proposed controller in several operational scenarios.

The research work demonstrates that FOSMC can withstand faults and uncertainty brought on by disturbances and actuator faults.

The remaining sections of the paper are organized as follows: Section 2 details the mathematical portion and the formulation of the FOSMC controller. It also describes the complete methodology of the proposed work. Section 3 provides the simulation setup, trajectory generation, and discusses the results and related discussion of the proposed study in detail. Section 4 provides a brief comparison of this study with some other similar works in the literature. Section 5 summarizes the study and presents a conclusion, also suggesting future research directions, including extension to other actuator fault scenarios and hardware implementation.

Research methodology

This section describes the controller architecture and modeling methodology for passive FTC of the three-DOF reduced-order PUMA560 robotic manipulator under healthy conditions and in the case of uncertainties or faults. The method strictly adheres to the passive control concept and does not include reconfiguring controllers, identifying errors, or calculating parameters. The controller implemented includes robustness and is FOSMC. The system flow chart and closed-loop block diagram in Figures 2 and 3 elaborate on the research methodology followed.

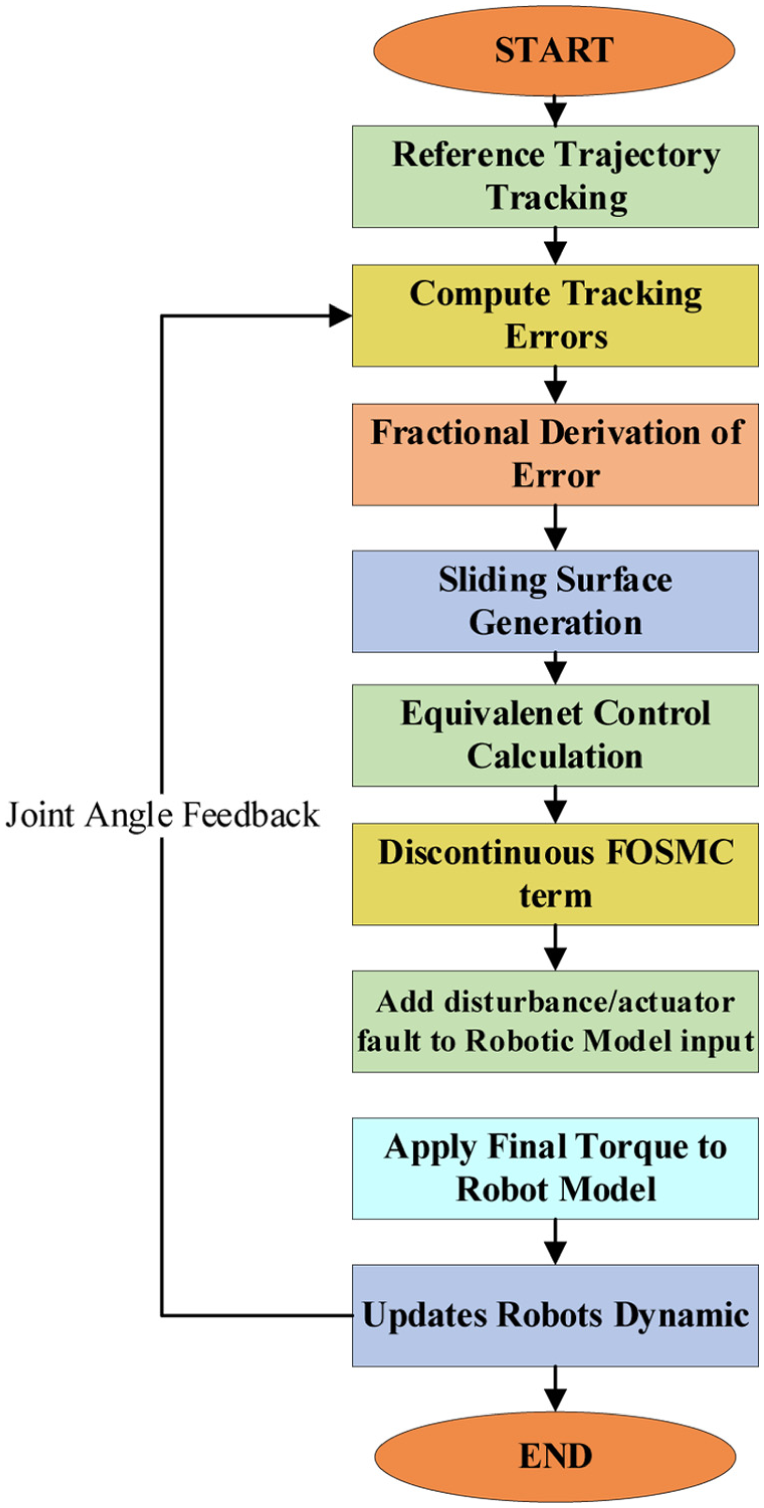

Figure 2.

Flowchart of methodology.

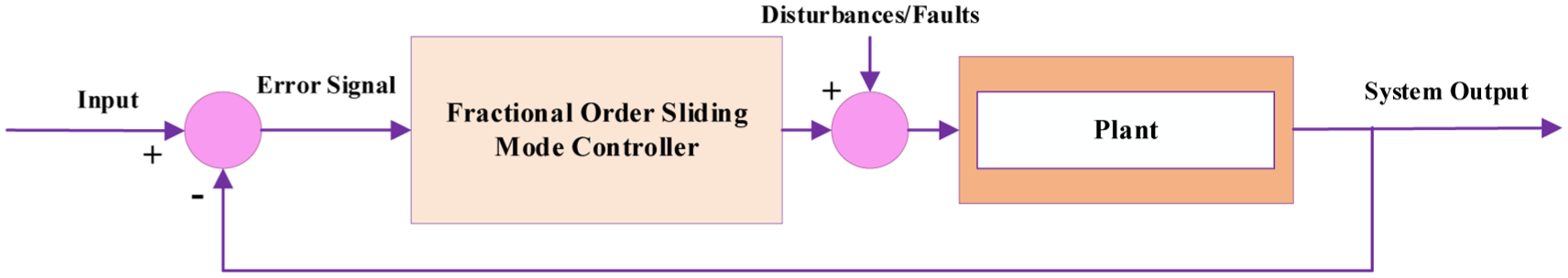

Figure 3.

Block diagram of the system.

Robot dynamic model

The three-DOF reduced-order PUMA560 manipulator satisfies the famous rigid-body dynamic equation. This configuration-dependent model accounts for all nonlinearities involving link masses, inertial parameters, and geometric couplings.⁴⁷ The manipulator dynamics can be expressed in the standard form as:

\begin{matrix} M (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + G (q) \\ = τ + d + f \end{matrix}

(8)

Where M(q) is the mass matrix, C(q, $\overset{\cdot}{q})$ represents Coriolis and centrifugal effects, G(q) is the gravity vector, d represents outside disturbances or uncertainties, and f denotes the actuator fault. The q here corresponds to theta in the simulation model and results. The three-DOF reduced-order PUMA560 manipulator satisfies the famous rigid-body dynamic equation. The configuration-dependent model accounts for all nonlinearities involving link masses, inertial parameters, and geometric couplings.

A simplified three-DOF model that considers the first three joints is displayed. The conventional Lagrange approach is used to derive the manipulator dynamics. In this model, inertia terms are explained in a compact form by grouping constant parameters. The primary dynamics are considered to be controlled by the first three joints, with higher-order coupling effects being insignificant. For the first three joints, the inertia matrix appears in an organized form. The elements ( $a_{i}$ , $b_{i}$ , $c_{i}$ ) are constant inertial parameters and can be obtained from the link masses, lengths, and centers of mass of the PUMA560 arm^48,49:

M (q) = [\begin{matrix} m_{11} & 0 & 0 \\ 0 & m_{22} & m_{23} \\ 0 & m_{23} & m_{33} \end{matrix}]

(9)

\begin{matrix} where : m_{11} = a_{1} + a_{2} \cos^{2} q_{2} + a_{3} \cos^{2} (q_{2} + q_{3}) \\ + a_{4} \cos q_{2} \cos (q_{2} + q_{3}) \end{matrix}

(10)

m_{22} = b_{1} + b_{2} \cos q_{2}

(11)

m_{33} = c_{1}

(12)

m_{23} = m_{32} = c_{1} + c_{2} \cos q_{2}

(13)

C (q, \overset{\cdot}{q}) \overset{\cdot}{q} = [\begin{matrix} c_{11} & c_{12} & c_{13} \\ c_{21} & c_{22} & c_{23} \\ c_{31} & c_{23} & c_{33} \end{matrix}] \begin{matrix} [{\overset{\cdot}{q}}_{1} (t) & {\overset{\cdot}{q}}_{2} (t) & {\overset{\cdot}{q}}_{3} \end{matrix} (t)]^{T}

(14)

Where c_{11} = d_{1} {\overset{\cdot}{q}}_{2} \sin (2 q_{2}) + d_{2} ({\overset{\cdot}{q}}_{2} + {\overset{\cdot}{q}}_{3}) \sin (2 q_{2} + 2 q_{3})

(15)

c_{12} = d_{3} {\overset{\cdot}{q}}_{1} \sin (2 q_{2}) + d_{4} {\overset{\cdot}{q}}_{1} \sin (2 q_{2} + 2 q_{3}) = - c_{21}

(16)

c_{22} = d_{5} {\overset{\cdot}{q}}_{3} \sin (q_{3})

(17)

c_{32} = - d_{5} ({\overset{\cdot}{q}}_{3} + {\overset{\cdot}{q}}_{2}) \sin (q_{3}) = c_{23}

(18)

c_{33} = 0

(19)

The elements of gravity torque are given as:

g_{1} = 0

(20)

g_{3} = m_{3} h_{3} \cos (q_{3} + q_{2})

(21)

g_{2} = (m_{3} l_{2} + m_{2} h_{2}) \cos q_{2} + g_{3}

(22)

For this work, Armstrong et al’s⁴⁸ original six-DOF PUMA560 dynamic matrices in the long symbolic expressions (inertia, Coriolis, and centrifugal) are not written because this experiment only studies the first three joints. Like its six-DOF version, the three-DOF reduced-order PUMA560 robot’s configuration space formulation has a simple structure. The full six-DOF PUMA560 dynamic model is used in simulation, with the last three joints constrained. This type prevents the last three joints from moving ( $q_{4}$ = $q_{5}$ = $q_{6}$ = 0) and maintains them in their initial positions. It is possible to express a reduced-order version of the higher-DOF robot by applying constraints to the entire dynamic model.

FOSMC controller design

The joint-space tracking error is defined as:

e_{i} (t) = q_{di} (t) - q_{i} (t)

(23)

with corresponding derivatives:

{\overset{\cdot}{e}}_{i} (t) = {\overset{\cdot}{q}}_{di} (t) - \overset{\cdot}{q_{i}} (t) and {\overset{\cdot\cdot}{e}}_{i} (t) = {\overset{\cdot\cdot}{q}}_{di} (t) - {\overset{\cdot\cdot}{q}}_{i} (t)

(24)

The proposed fractional order sliding surface for joint i = 1,2,3, element-wise, can be written as:

s_{i} (t) = D^{\propto} e_{i} (t) + λ_{i} e_{i} (t)

(25)

The sliding motion is achieved when:

s (t) = 0 and \overset{\cdot}{s} (t) \to 0

(26)

which implies e(t), $\overset{\cdot}{e} (t)$ , and ^C $D_{t}^{α} e (t)$ converge to zero.

The derivative of the sliding surface is:

{\overset{\cdot}{s}}_{i} = 0 \to λ_{i} {\overset{\cdot}{e}}_{i} (t) + D^{\propto} {\overset{\cdot}{e}}_{i} (t) = 0

(27)

Using dynamic and ideal sliding behavior, the equivalent torque is given by:

τ_{eq, i} = M_{i} (q) {\overset{\cdot\cdot}{q}}_{d, i} + C_{i} (q, \overset{\cdot}{q}) {\overset{\cdot}{q}}_{i} + G_{i} (q)

(28)

The discontinuous (robust) switching part is chosen as:

τ_{dis, i} = (- k_{i} sat (s_{i} / ϕ_{i}))

(29)

The discontinuous control component uses a saturation-based switching function to ensure it functions and reduces chattering. More specifically, “sat” gives the switching function, and ϕ is the boundary layer thickness. The saturation function provides a continuous approximation within a predetermined boundary layer; it is preferred over other functions for control actions that are smoother and more robust against limited disturbances and actuator faults. In practical applications, this formulation improves the controller’s overall performance and ensures steady sliding motion.

The total control law for full FOSMC is given by:

τ_{i} (t) = τ_{eq, i} + τ_{dis, i}

(30)

Although the control law for each joint is applied independently, system’s overall dynamics remain interconnected. The closed-loop system is expressed in vector form for stability analysis.

Proof: Consider Lyapunov candidate function as:

V (s) = \frac{1}{2} s^{T} s

(31)

\overset{\cdot}{s} = M^{- 1} (q) (- Ksat (\frac{s}{ϕ}) + d)

(32)

Its derivative can be written as:

\overset{\cdot}{V} (s) = s^{T} \overset{\cdot}{s} = s^{T} M^{- 1} (q) (- Ksat (\frac{s}{ϕ}) + d)

(33)

Using bounds on || $M^{- 1} (q)$ || $\leq \frac{1}{m_{\min}}$ , || $M (q)$ || $\leq m_{\max}$ and disturbance || $d$ || $\leq D_{\max}$ , we can write an inequality:

\overset{\cdot}{V} \leq - \frac{k_{\min}}{m_{\max}} \sum_{i = 1}^{3} | s_{i} | + \frac{D_{\max}}{m_{\min}} \sum_{i = 1}^{3} | s_{i} |

(34)

Where $m_{\max}$ and $m_{\min}$ are lower and upper bounds on inertia eigen values, $k_{\min}$ > $\frac{m_{\max}}{m_{\min}} D_{\max}$ , and the second term represents the effect of bounded disturbance.

Then, there exists a constant $η > 0$ with:

\overset{\cdot}{V} \leq - η \sum_{i = 1}^{3} | s_{i} | \leq 0

(35)

This guarantees sliding-variable convergence despite bounded disturbances.

Both the coupled Coriolis-centrifugal structure and the positive definite inertia matrix employed in this study are derived from the traditional Euler-Lagrange rigid-body dynamic formulation. The classical skew-symmetry property is also satisfied by it. All other parameters, such as external disturbances, model errors, and known and constant actuator torque limitations, are assumed to be constrained at the joint-torque level. It is anticipated that the joint velocities will be measured or closely approximated by discrete differentiation, and that the trajectories will be smooth and limited to provide well-characterized tracking error dynamics. If the sliding surface uses a fractional derivative, the discrete Oustaloup filter should provide a reasonable estimate.

Results and discussion

In this part, numerical findings from simulations of the reduced-order three-DOF PUMA560 robotic manipulator model are also compared with those of the baseline SMC and the proposed FOSMC. The reference/base Simulink model has been obtained from,⁴⁹ and it implements a standard Sliding Mode Controller. The robotic system, the blocks for generating tracking errors, the application of the SMC law, and the desired trajectory are all part of the model’s structure. The parameters of the controller in the base model are defined as: first, second, and third surface constant values are equal to 10, and all three joints’ discontinuous control constants are set to 0.2. Figure 4 demonstrates the corresponding joint angle tracking performance with desired trajectories given as:

q_{d} = [\begin{matrix} \frac{1}{5} (\cos (\frac{1}{2} t - \frac{1}{5}) + \cos (\frac{7}{10} t)) \\ \frac{1}{5} (\cos (\frac{7}{10} t) + \cos (\frac{1}{2} t - 2)) \\ \frac{1}{5} (\cos (\frac{1}{2} t - \frac{1}{5}) + \cos (\frac{7}{10} t)) \end{matrix}]

(36)

Figure 4.

Tracking joint position with SMC.

The complete control architecture of the proposed FOSMC is shown in Figure 5. The system consists of three independent FOSMC controllers, one for each joint. To offer control torques, these controllers are given the desired and actual joint positions. The disturbance and actuator fault signals are injected into the control input via a multiport switching mechanism, allowing for a variety of operating scenarios, including healthy, disturbance-only, and fault scenarios. The generator blocks for these signals are shown in Figure 6. The robotic manipulator’s dynamics are described by a three-DOF PUMA block, and the controller receives the joint outputs generated for closed-loop operation. The FOSMC controller parameters are given in Table 1.

Figure 5.

Overall Simulink model of the FOSMC-controlled three-DOF PUMA manipulator.

Figure 6.

Disturbance and actuator fault generation blocks.

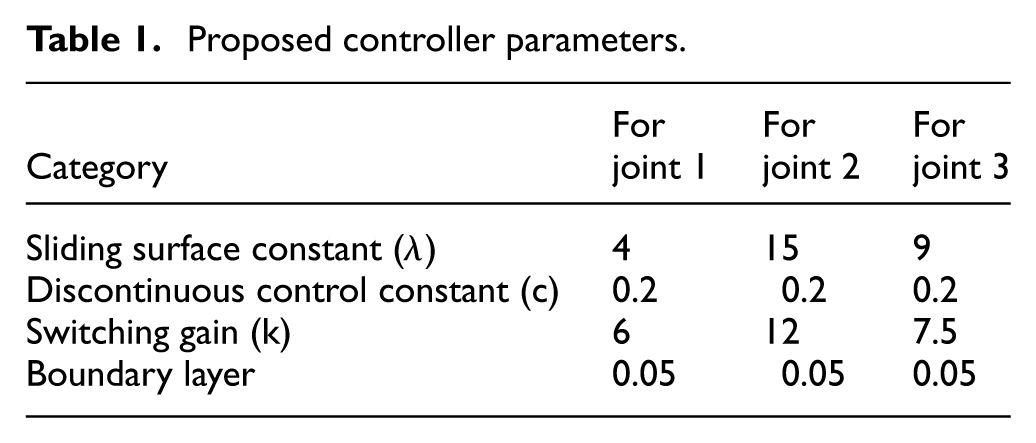

Table 1.

Proposed controller parameters.

Category	For joint 1	For joint 2	For joint 3
Sliding surface constant (λ)	4	15	9
Discontinuous control constant (c)	0.2	0.2	0.2
Switching gain (k)	6	12	7.5
Boundary layer	0.05	0.05	0.05

Case 1: Healthy system

The joint tracking with the suggested FOSMC in an uncertainty/disturbance-free setting is depicted in Figure 7. The tracking error convergence to zero is shown in Figure 8. The results include smoother joint motion and more convergence in the desired direction.

Figure 7.

Tracking joint position (rad) with FOSMC (without fault).

Figure 8.

Case 1–tracking errors (rad).

The tracking performance under nominal conditions is quantitatively compared in Table 2, where the proposed FOSMC demonstrates improved accuracy over the conventional SMC approach. The following are definitions of root mean square error (RMSE) and average normalized RMSE (NRMSE), which are used to measure tracking performance:

RMS E_{i} = \sqrt{\frac{1}{N} \sum_{k = 1}^{N} e_{i}^{2} (k)}

(37)

where $e_{i} (k)$ is tracking error of the ith joint at sample k, and N denotes the number of total samples.

RMS E_{sum} = \sum_{i = 1}^{3} RMS E_{i}

(38)

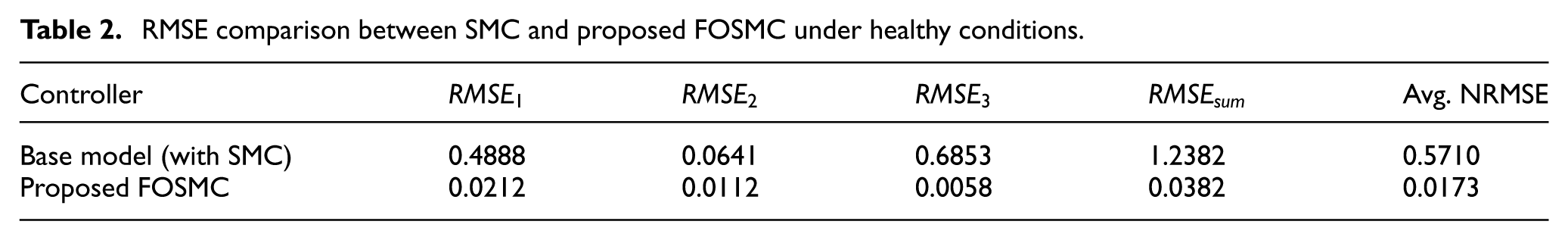

Table 2.

RMSE comparison between SMC and proposed FOSMC under healthy conditions.

Controller	$RMS E_{1}$	$RMS E_{2}$	$RMS E_{3}$	$RMS E_{sum}$	Avg. NRMSE
Base model (with SMC)	0.4888	0.0641	0.6853	1.2382	0.5710
Proposed FOSMC	0.0212	0.0112	0.0058	0.0382	0.0173

The average NRMSE values are calculated using:

NRMS E_{i} = \frac{RMS E_{i}}{q_{d, i}^{\max} - q_{d, i}^{\min}}

(39)

where $q_{d, i}^{\max}$ and $q_{d, i}^{\min}$ denotes the maximum and minimum values of the desired trajectory.

NRMS E_{Avg} = \frac{1}{3} \sum_{i = 1}^{3} NRMS E_{i}

(40)

NRMSE gives a performance statistic that is independent of scale, whereas RMSE gives absolute tracking error.

The robustness of the proposed controller is also evaluated with the addition of disturbance terms and assuming multiple fault scenarios, including abrupt, intermittent, and incipient faults, as described below:

Case 2: Disturbance addition

To test the robustness of the suggested approach, nonlinear state-dependent frictional force and disturbance terms similar to those in another study’s⁵⁰ structure are incorporated into the model. The applied disturbances are defined as:

d_{1} = 1.23 {q^{3}}_{1} + \frac{3}{2} \sin (t - 2) {\overset{\cdot}{q}}_{1}

(41)

d_{2} = 1.1 {q^{3}}_{2} + 1.3 \sin (t - 2) {\overset{\cdot}{q}}_{2}

(42)

d_{3} = 1.3 {q^{3}}_{3} + \frac{5}{2} \sin (t - 2) {\overset{\cdot}{q}}_{3}

(43)

These disturbance signals are added smoothly in the torque input lines of the robotic model. The disturbance model includes both velocity-dependent and position-dependent nonlinear components to account for real external uncertainty. The joint angle responses to disturbances are displayed in Figure 9. The proposed FOSMC keeps tracking performance constant to lessen the effect of disturbances, as shown in Table 3. The system remains well within allowed tracking limits even when Joints 1 and 3 undergo mild oscillations, indicating the robustness of the controller, shown by tracking errors in Figure 10.

Figure 9.

Tracking joint position (rad) with case 2.

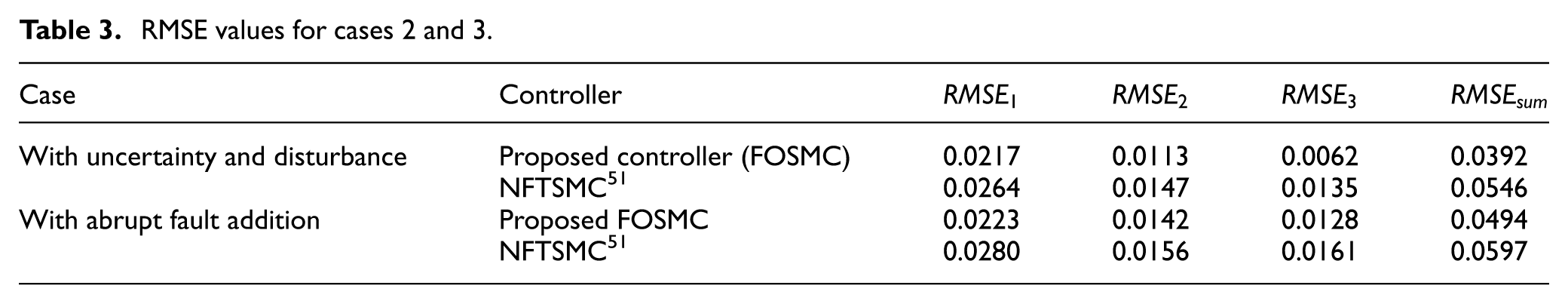

Table 3.

RMSE values for cases 2 and 3.

Case	Controller	$RMS E_{1}$	$RMS E_{2}$	$RMS E_{3}$	$RMS E_{sum}$
With uncertainty and disturbance	Proposed controller (FOSMC)	0.0217	0.0113	0.0062	0.0392
	NFTSMC⁵¹	0.0264	0.0147	0.0135	0.0546
With abrupt fault addition	Proposed FOSMC	0.0223	0.0142	0.0128	0.0494
	NFTSMC⁵¹	0.0280	0.0156	0.0161	0.0597

Figure 10.

Tracking errors (rad)–case 2.

Case 3: Disturbance + abrupt fault

In addition to the external disturbance/uncertainties model from case 2, an abrupt fault signal ( $f_{i} (t))$ is also added as input to the robotic arm model. The abrupt fault, occurring at specified intervals, indicates the actuator’s rapid decline:

τ_{f, i} (t) = τ_{i} (t) + d_{i} (t) + f_{i} (t)

(44)

f_{i} (t) = [\begin{matrix} f_{1} (t) \\ f_{2} (t) \\ f_{3} (t) \end{matrix}]

(45)

\begin{array}{l} Where f_{1} (t) = \\ {\begin{matrix} 0, & t < 10 \\ 25 \sin (q_{1} q_{2}) + 1.5 \cos ({\overset{\cdot}{q}}_{1} q_{2}) + 2.5 \cos ({\overset{\cdot}{q}}_{1} {\overset{\cdot}{q}}_{2}), & t \geq 10 \end{matrix} \end{array}

(46)

f_{2} (t) = {\begin{matrix} 0, t < 20 \\ 0.3 \sin (t) τ_{2} (t), t \geq 20 \end{matrix}

(47)

\begin{matrix} f_{3} (t) = \\ {\begin{matrix} 0, t < 20 \\ 15 \sin (q_{3} q_{1}) + 1.2 \cos ({\overset{\cdot}{q}}_{2} q_{2}) + 2.5 \cos ({\overset{\cdot}{q}}_{2} {\overset{\cdot}{q}}_{3}), t \geq 20 \end{matrix} \end{matrix}

(48)

Table 3 demonstrates fault-tolerant performance for the proposed method and another work under case 2 and 3 fault conditions. The joint tracking performance for this case is shown in Figure 11. The table also includes values from other study.⁵⁰ This comparison is based on values provided in the literature and may vary slightly due to changes in system parameters and simulation settings.

Figure 11.

Joint tracking (case 3).

Case 4: Intermittent fault

During an abrupt fault scenario, the fault signal is activated at a precise instant and stays active continually. To simulate intermittent actuator failures, switching signals are used to periodically activate and deactivate the fault. An intermittent fault is defined as:

f_{i} (t) = σ_{i} (t) \tilde{f_{I}} (t)

(49)

Here, $\tilde{f_{I}} (t)$ denotes the abrupt fault component, same as the previous case with I = 1,2,3, and $σ_{i}$ (t) is a switching function defined as:

σ_{i} (t) = \frac{1 + sign (\sin (ω_{i}))}{2}, and i = 1,, 2,, 3

(50)

The switching frequencies are applied as:

ω_{1} = 2, ω_{2} = 1.5 and ω_{3} = 1.8

(51)

Thus, the intermittent fault components are expressed as:

Where f_{1} (t) = {\begin{matrix} 0, t < 10 \\ σ_{1} (t) \tilde{f_{1}} (t), t \geq 10 \end{matrix}

(52)

f_{2} (t) = {\begin{matrix} 0, t < 20 \\ σ_{2} (t) \sin (t) τ_{2} (t), t \geq 20 \end{matrix}

(53)

f_{3} (t) = {\begin{matrix} 0, t < 20 \\ σ_{3} (t) \tilde{f_{3}} (t), t \geq 20 \end{matrix}

(54)

Where $\tilde{f_{1}} (t)$ and $\tilde{f_{3}} (t)$ are non-linear fault expressions defined in the abrupt fault model. Unlike abrupt faults, intermittent faults introduce repeated disturbances in the control input, making the control problem more challenging and providing a more rigorous test of controller robustness. The tracking performance for case 4 is illustrated in Figure 12.

Figure 12.

Joints tracking (in radians) with intermittent fault.

Case 5: Incipient fault

In the incipient fault scenario, the abrupt fault function is scaled by a time-varying exponential growth factor, resulting in a gradual increase in fault magnitude:

f_{i} (t) = g_{i} (t) \tilde{f_{I}} (t)

(55)

Where $\tilde{f_{I}} (t)$ denotes the abrupt fault component, same as the case 3 with I = 1,2,3, and $g_{i}$ (t) are growth functions defined as:

g_{1} (t) = (1 - e^{- 0.5 (t - 10)}) u (t - 10)

(56)

g_{2} (t) = (1 - e^{- 0.3 (t - 20)}) u (t - 20)

(57)

g_{3} (t) = (1 - e^{- 0.4 (t - 20)}) u (t - 20)

(58)

Thus:

f_{1} (t) = {\begin{matrix} 0, t < 10 \\ g_{1} (t) \tilde{f_{1}} (t), t \geq 10 \end{matrix}

(59)

f_{2} (t) = {\begin{matrix} 0, t < 20 \\ 0.3 g_{2} (t) \sin (t) τ_{2} (t), t \geq 20 \end{matrix}

(60)

f_{3} (t) = {\begin{matrix} 0, t < 20 \\ \tilde{f_{3}} (t) g_{3} (t), t \geq 20 \end{matrix}

(61)

The exponential growth function ensures a smooth transition from healthy to faulty operation, capturing incipient fault behavior. The performance under more realistic fault scenarios, including intermittent and incipient faults, is summarized in Table 4. The tracking performance for this case is illustrated in Figure 13, where the actual joint trajectories closely follow the desired trajectories.

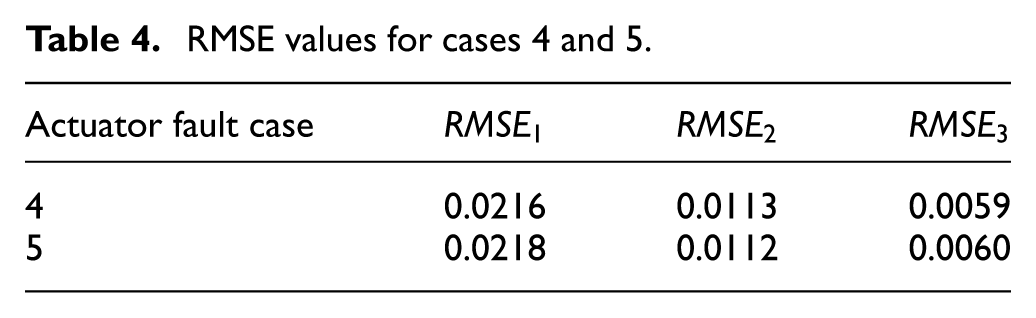

Table 4.

RMSE values for cases 4 and 5.

Actuator fault case	$RMS E_{1}$	$RMS E_{2}$	$RMS E_{3}$
4	0.0216	0.0113	0.0059
5	0.0218	0.0112	0.0060

Figure 13.

Joint position tracking (in radians) in the presence of an incipient fault.

Table 5 provides an overall comparison across all operating conditions by summarizing the sum of RMSE and average NRMSE. The suggested controller consistently maintains robustness against both abrupt switching and gradually developing faults, as seen by the identical RMSE values for Cases 4 and 5. The overall results show that the error gradually increased while maintaining acceptable performance levels from the healthy case to the fault conditions.

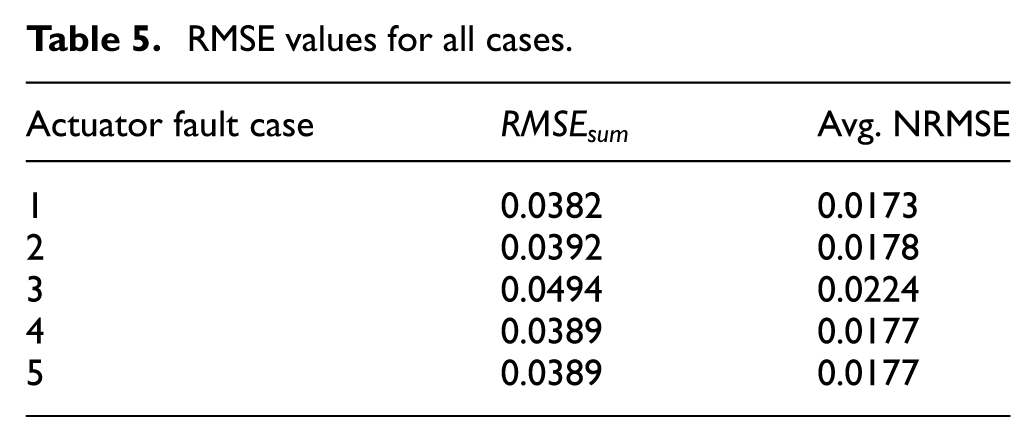

Table 5.

RMSE values for all cases.

Actuator fault case	$RMS E_{sum}$	Avg. NRMSE
1	0.0382	0.0173
2	0.0392	0.0178
3	0.0494	0.0224
4	0.0389	0.0177
5	0.0389	0.0177

The suggested FOSMC controller is noticeably efficient, according to the performance data. Even if the baseline SMC can track trajectories, there is still perceptible chattering and larger RMS tracking errors, especially in joints with larger amplitudes. When nonlinear uncertainty and actuator faults are considered, the FOSMC exhibits improved resilience qualities, maintaining tracking performance with only a slight degradation. The RMSE values and the graphical responses to joint angles demonstrate this improvement; the suggested controller continuously performs better than the traditional SMC. Under all operational conditions, the proposed FOSMC uses the same control law and fixed parameters; it is not developed with explicit fault detection or controller reconfiguration. The system is tested by introducing the additive actuator faults, and despite these unknown disturbances, the controller manages stability and reasonable tracking. Instead of actively diagnosing and compensating for faults, this behavior demonstrates passive fault-tolerant control, in which the controller architecture inherently achieves robustness to faults. These results highlight the importance of fractional-order sliding dynamics in robotic control systems, especially those that need to be highly accurate and robust to external disturbances, frictional forces, model uncertainties, and actuator faults.

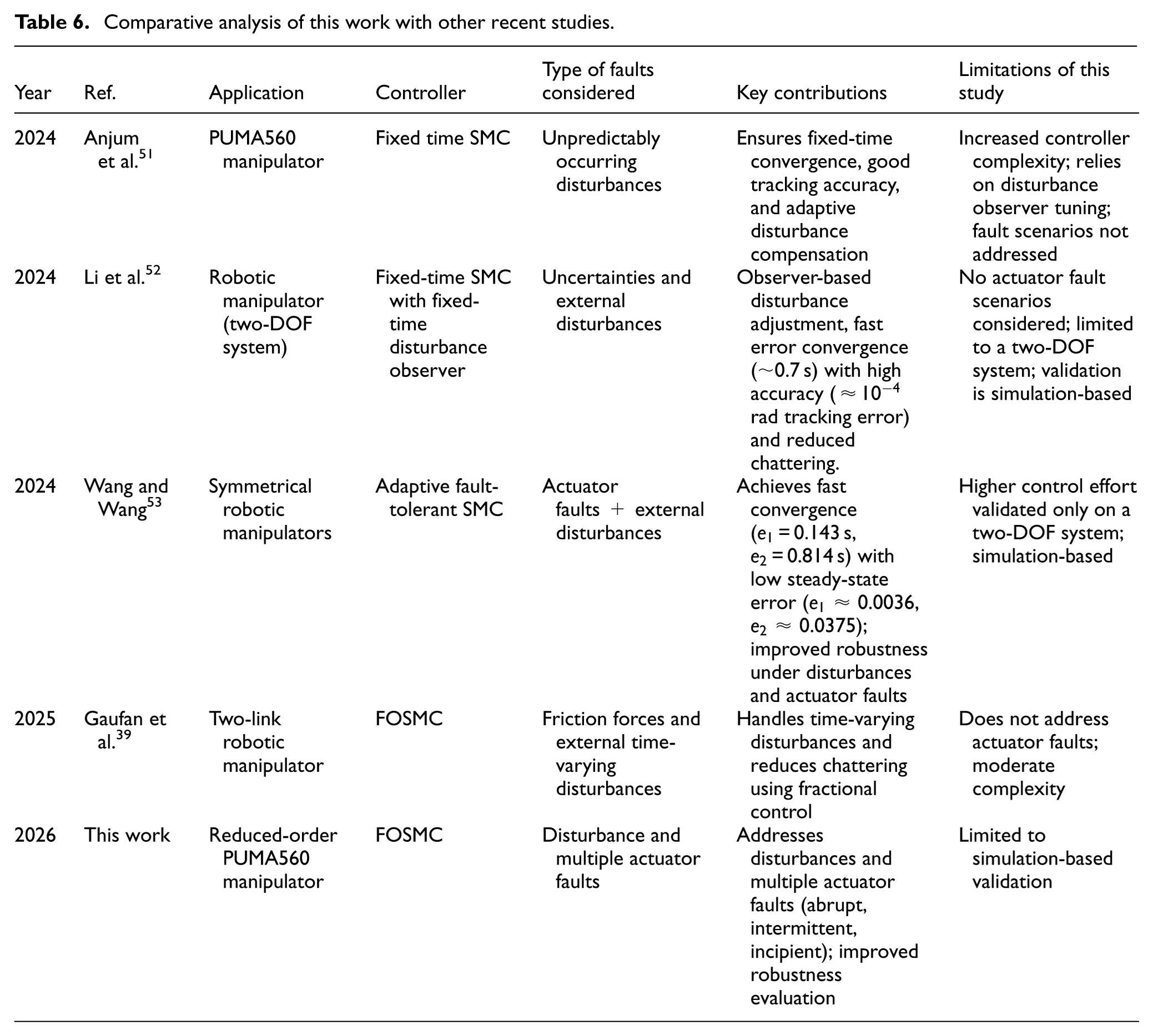

Comparison with other works

The proposed FOSMC achieves comparable disturbance rejection while maintaining an essential framework. To highlight the significance of the proposed approach, a qualitative comparison with earlier studies is given in Table 6, acknowledging their efforts, too. Numerous studies have been conducted on the dependability of SMC for robotic manipulators, although most of them have focused on model uncertainties and external disturbances rather than actuator failure situations. The current work offers a more comprehensive and useful evaluation approach by considering disturbances and other types of actuator failures. The Simulink architecture of the proposed method also enables it to be easily extended to real-world robotic applications and systems with more degrees of freedom.

Table 6.

Comparative analysis of this work with other recent studies.

Year	Ref.	Application	Controller	Type of faults considered	Key contributions	Limitations of this study
2024	Anjum et al.⁵¹	PUMA560 manipulator	Fixed time SMC	Unpredictably occurring disturbances	Ensures fixed-time convergence, good tracking accuracy, and adaptive disturbance compensation	Increased controller complexity; relies on disturbance observer tuning; fault scenarios not addressed
2024	Li et al.⁵²	Robotic manipulator (two-DOF system)	Fixed-time SMC with fixed-time disturbance observer	Uncertainties and external disturbances	Observer-based disturbance adjustment, fast error convergence (∼0.7 s) with high accuracy (≈ $10^{- 4}$ rad tracking error) and reduced chattering.	No actuator fault scenarios considered; limited to a two-DOF system; validation is simulation-based
2024	Wang and Wang⁵³	Symmetrical robotic manipulators	Adaptive fault-tolerant SMC	Actuator faults + external disturbances	Achieves fast convergence ( $e_{1}$ = 0.143 s, $e_{2}$ = 0.814 s) with low steady-state error ( $e_{1}$ ≈ 0.0036, $e_{2}$ ≈ 0.0375); improved robustness under disturbances and actuator faults	Higher control effort validated only on a two-DOF system; simulation-based
2025	Gaufan et al.³⁹	Two-link robotic manipulator	FOSMC	Friction forces and external time-varying disturbances	Handles time-varying disturbances and reduces chattering using fractional control	Does not address actuator faults; moderate complexity
2026	This work	Reduced-order PUMA560 manipulator	FOSMC	Disturbance and multiple actuator faults	Addresses disturbances and multiple actuator faults (abrupt, intermittent, incipient); improved robustness evaluation	Limited to simulation-based validation

Conclusion

In order to track the trajectory of the three-DOF reduced-order PUMA560 robotic manipulator, an FOSMC was developed and assessed in this study. The suggested FOSMC was constructed using fractional derivative filtering and an enhanced sliding manifold, based on a traditional SMC construction. The disturbances and different actuator faults were applied to the torque input to evaluate the controller. The RMS error analysis depicts that all joints’ performance improved to some extent, which should not be surprising given the inherent stability and smoothness of the fractional-order framework. The results show that complex robotic control tasks demanding accuracy, stability, and resilience to disruptions can be well-suited for FOSMC applications.

It should be noted that the proposed method is validated using a reduced-order three-DOF model of the PUMA560 manipulator. In future studies, the proposed control architecture can be extended to the whole six-DOF system, other manipulator models, and validated experimentally under actual actuator fault scenarios. The controller may be enhanced in the future to manage fault-tolerant scenarios, demonstrate the degradation of actuators, or apply learning-based control structures to apply data-driven adaptation.

Footnotes

Acknowledgements

The authors would like to thank colleagues for their suggestions to improve the paper quality.

Handling Editor: Sharmili Pandian

ORCID iD

Arslan Ahmed Amin

Ethical considerations

The authors adhere to the ethical considerations as deemed necessary.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was supported by the Faculty Research Support Program (FRSG-2023) of FAST National University of Computer and Emerging Sciences.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data availability statement

The data and supportive information are available within the article.

AI declaration statement

The Grammarly Professional Version tool was used to assist language refinement, grammar correction, and paraphrasing.

References

Deng

Wang

, et al. Research on event logic knowledge graph construction method of robot transmission system fault diagnosis. IEEE Access 2022; 10: 17656–17673.

Villani

Pini

Leali

, et al. Survey on human–robot collaboration in industrial settings: safety, intuitive interfaces and applications. Mechatronics 2018; 55: 248–266. https://api.semanticscholar.org/CorpusID:46999711

Hentout

Aouache

Maoudj

, et al. Human–robot interaction in industrial collaborative robotics: a literature review of the decade 2008–2017. Adv Robot 2019; 33: 764–799.

Yang

Cai

, et al. Fault prognosis of industrial robots in dynamic working regimes: find degradation in variations. Measurement 2021; 173: 108545.

Waseem

Adnan

Iqbal

, et al. From classical to intelligent control: evolving trends in robotic manipulator technology. Comput Electr Eng 2025; 127: 110559.

Dorgan

Man crushed to death by industrial robot that confused him for a box: police. Fox Business, 2023.

Amin

Hasan

KM.

A review of fault tolerant control systems: advancements and applications. Measurement 2019; 143: 58–68.

Wang

Liu

, et al. Data-driven and knowledge-based predictive maintenance method for industrial robots for the production stability of intelligent manufacturing. Expert Syst Appl 2023; 234: 121136.

Nagy

Lăzăroiu

Valaskova

Machine intelligence and autonomous robotic technologies in the corporate context of SMEs: deep learning and virtual simulation algorithms, cyber-physical production networks, and industry 4.0-based manufacturing systems. Appl Sci 2023; 13: 1681.

10.

Huang

Sun

Wang

, et al. Data privacy protection diagnostic algorithm for industrial robot joint harmonic reducers based on swarm learning. IEEE/ASME Trans Mechatron 2025; 30: 6268–6277.

11.

Xue

Yang

. Health management system for the industrial robot control cabinet. In: Proceedings of the 2024 IEEE international conference on mechatronics and automation (ICMA), Tianjin, China, pp. 142–146. IEEE.

12.

Lee

Shin

Lim

JY.

Critical hazard factors in the risk assessments of industrial robots: causal analysis and case studies. Saf Health Work 2021; 12: 496–504.

13.

Kumar

Khalid

Kim

Prognostics and health management of rotating machinery of industrial robot with deep learning applications—a review. Mathematics 2023; 11: 3008.

14.

Mustafa

Khan

Samee

, et al. Advanced statistical and meta-heuristic based optimization fault diagnosis techniques in complex industrial processes: a comparative analysis. IEEE Access 2023; 11: 104373–104391.

15.

Long

Mou

Zhang

, et al. Attitude data-based deep hybrid learning architecture for intelligent fault diagnosis of multi-joint industrial robots. J Manuf Syst 2021; 61: 736–745.

16.

Pinto

Cerquitelli

Robot fault detection and remaining life estimation for predictive maintenance. Procedia Comput Sci 2019; 151: 709–716.

17.

Sanfilippo

Hatledal

Zhang

, et al. Controlling Kuka industrial robots: flexible communication interface–JOpenShowVar. IEEE Robot Autom Mag 2015; 22: 96–109.

18.

Lei

Liu

, et al. Condition monitoring and fault diagnosis of industrial robots: a review. Sci China Technol Sci 2025; 68: 1110301.

19.

Wang

, et al. Intelligent joint actuator fault diagnosis for heavy-duty industrial robots. IEEE Sens J 2024; 24: 15292–15301.

20.

Amin

Mahmood-ul-Hasan

Robust passive fault tolerant control for air fuel ratio control of internal combustion gasoline engine for sensor and actuator faults. IETE J Res 2023; 69: 2846–2861.

21.

Zuñiga

Ramírez

Romero

, et al. Passive fault-tolerant control of a 2-DOF robotic helicopter. Information 2021; 12: 445.

22.

Hachemi

Guiatni

Nemra

, et al. Fault tolerant control for unicycle mobile robot navigation: active vs passive approaches. In: Proceedings of the 2018 international conference on communications and electrical engineering (ICCEE), El Oued, Algeria, pp. 1–6. IEEE.

23.

Stefanovski

JD.

Passive fault tolerant perfect tracking with additive faults. Automatica 2018; 87: 432–436.

24.

Ahmed

Wang

Tian

Fault tolerant control using fractional-order terminal sliding mode control for robotic manipulators. Stud Inform Control 2018; 27(1): 55–64.

25.

Omali

Kabbaj

Benbrahim

Fault-tolerant control with high-order sliding mode for manipulator robot. IJPEDS 2022; 13: 1854.

26.

Van

Franciosa

Ceglarek

Fault diagnosis and fault-tolerant control of uncertain robot manipulators using high-order sliding mode. Math Probl Eng 2016; 2016: 1–14.

27.

Van

SS.

Adaptive fuzzy integral sliding-mode control for robust fault-tolerant control of robot manipulators with disturbance observer. IEEE Trans Fuzzy Syst 2021; 29: 1284–1296.

28.

Bui

Pham

, et al. A sliding mode fault tolerant control method for a manipulator in task-space under dead zone and actuator fault. IFAC-PapersOnLine 2022; 55: 488–493.

29.

Zhang

Yang

Liu

, et al. Optimal sliding mode fault-tolerant control for multiple robotic manipulators via critic-only dynamic programming. Sensors 2025; 25: 5410.

30.

Fan

, et al. Decentralized fault-tolerant control of modular robot manipulators with actuator saturation: neural adaptive integral terminal sliding mode-based control approach. Complex Intell Syst 2023; 9: 7495–7510.

31.

Ahmed

Azar

AT.

Adaptive fractional tracking control of robotic manipulator using fixed-time method. Complex Intell Syst 2024; 10: 369–382.

32.

Anjum

Guo

Yao

Fault tolerant control for robotic manipulator using fractional-order backstepping fast terminal sliding mode control. Trans Inst Meas Contr 2021; 43: 3244–3254.

33.

Ahmed

Azar

Tounsi

. Design of adaptive fractional-order fixed-time sliding mode control for robotic manipulators. Entropy 2022; 24: 1838.

34.

Kang

HJ.

An active fault-tolerant control based on synchronous fast terminal sliding mode for a robot manipulator. Actuators 2022; 11: 195.

35.

Wan

Wang

A barrier function-based fixed-time fractional order sliding mode super-twisting control for robotic manipulators with actuator faults. Sci Rep 2025; 15: 42788.

36.

Girgis

Elkhateeb

NA.

Trajectory tracking of 2-DOF robotic manipulator system based on adaptive exponential forgetting recursive least squares fractional-order PID control. Proc IMechE, Part I: J Systems and Control Engineering 2025; 239: 1292–1304.

37.

Wang

Jiang

Yao

, et al. Fractional-order fixed-time sliding mode control of robotic manipulators with robust exact differentiator. Asian J Control 2025; 27: 1087–1098.

38.

Ning

Trajectory tracking for mobile robots based on fractional-order sliding mode and dynamic modeling. Front Mech Eng 2025; 11: 1695174.

39.

Gaufan

Aremu

Alyazidi

, et al. Robust fractional-order sliding mode control for robotic manipulator system with time-varying disturbances. Franklin Open 2025; 12: 100287.

40.

Aguila

Torres

Robust fractional-order adaptive sliding mode control for space robotic manipulators under dynamic uncertainties. Aerosp Syst 2023; 12: 55–70.

41.

Sun

Song

Fractional-order adaptive integral hierarchical sliding mode control method for high-speed linear motion of spherical robot. IEEE Access 2020; 8: 66243–66256.

42.

Kharrat

Neural networks-based adaptive fault-tolerant control for stochastic nonlinear systems with unknown backlash-like hysteresis and actuator faults. J Appl Math Comput 2024; 70: 1995–2018.

43.

Pan

Peng

Fault-tolerant control of multi-joint robot based on fractional-order sliding mode. Appl Sci 2022; 12: 11908.

44.

Zhao

Liu

Fixed-time fractional second-order sliding mode control for robotic systems with actuator faults. Rev Sci Instrum 2025; 96: 074707.

45.

Tuan

QP.

Adaptive fractional-order integral fast terminal sliding mode and fault-tolerant control of dual-arm robots. Robotica 2024; 42: 1476–1499.

46.

Denizhan

The Euler-Lagrange equations of motion for the three-link planar RPR robotic arm. Black Sea J Eng Sci 2025; 8: 1856–1863.

47.

Tutunji

Al-Khawaldeh

Alkayyali

A three-stage PSO-based methodology for tuning an optimal PD-controller for robotic arm manipulators. Evol Intell 2022; 15: 381–396.

48.

Armstrong

Khatib

Burdick

. The explicit dynamic model and inertial parameters of the PUMA 560 arm. In: Proceedings of the 1986 IEEE international conference on robotics and automation, San Francisco, CA, USA, pp. 510–518. IEEE.

49.

Abdel-Razzak. Nonlinear control of 3 DOF PUMA robot. MATLAB Central File Exchange, Mathworks, https://www.mathworks.com/matlabcentral/fileexchange/22077-nonlinear-control-of-3-dof-puma-robot (accessed 10 October 2025).

50.

Anjum

Sun

Chen

Disturbance-observer-based fault-tolerant control of robotic manipulator: a fixed-time adaptive approach. IET Control Theory Appl 2024; 18: 1398–1413.

51.

Anjum

Zhou

Ahmed

, et al. Fixed time sliding mode control for disturbed robotic manipulator. J Vib Control 2024; 30: 1580–1593.

52.

Zhang

, et al. Fixed-time sliding mode control for robotic manipulators based on disturbance observer. Int J Aerosp Eng 2024; 2024: 1263459.

53.

Wang

Adaptive fault-tolerant sliding mode control design for robotic manipulators with uncertainties and actuator failures. Symmetry 2025; 17: 1547.
