An offset optimization approach for coordinated signal systems with preferred measure considerations

Abstract

By analyzing the limitations of existing offset optimization models about coordinated signal systems and considering the random distribution of road travel speed, we obtain an offset optimization algorithm based on the multi-attribute decision-making method, in which road travel speed, delay, and queue length are considered. Finally, the algorithm is applied to a coordinated signal system and an analysis is conducted using SIMIO, a simulation tool. The results show that the optimized model improves the existing models for offset optimization of coordinated signal system.

Keywords

Traffic signal control coordinated signal system offset travel speed

Introduction

Signalized arterials carry a significant portion of traffic flow in urban traffic networks. Thus, urban arterial operation plays an important role in improving the network efficiency and easing traffic congestion. One of the most effective means of improving urban arterial operations is through signal coordination. Among the various signal timing parameters for coordination, offset is considered the most important one. The state of the research on offset optimization can be categorized into two types: the maximum green bandwidth method (MGBM) and the minimum delay method (MDM).¹

The MGBM is more widely used in practice and includes both analytical and graphical approaches. Due to simplified assumptions and the lack of considerations of many traffic flow factors, the result of its field application is not satisfactory. The MDM, on the other hand, takes into consideration many relevant traffic flow factors, which require complicated mathematical models and extensive computing time. As a result, its real-time application is somewhat limited.

Based on control theory and vehicle delay characteristics at intersections, Wan and Lu² developed an offset optimization model, which aimed at minimizing delay of vehicles in both directions. Liu and Yang³ depicted a vehicle dispersion model using traffic density parameter. The offset was determined by forcing both vehicles to a stop, thus creating a domino effect onto the residual vehicles at the end as they reached the next intersection. Other studies^4,5 considered the influence of cross streets and used generic algorithm to derive optimal offset with the objective function of minimizing delays and stops. These studies proved to be advantageous over traditional approaches by considering turning vehicles and platoon dispersion. Algorithms such as cellular automaton (CA), genetic algorithm (GA), and particle swarm optimization (PSO) were generally applied to solve these complex models.^6–9

The approaches mentioned above presented improvements over the traditional methods to some extent; however, all of these methods assumed constant travel speeds. Meanwhile, the objective functions primarily focused on delay, queue length, or stops which cannot reflect the operational state of the traffic flow already past the stop line of an intersection, thus these approaches are not always practical. In coordinating signal systems, many parameters such as road segment length, traffic composition, travel speed, delay, and queue length should be comprehensively considered. Studies and field observations have shown that travel speed is time-varying and changes substantially.^10,11

Regarding speed variations, Lv and Niu^12,13 addressed the random nature of travel speed as well as the relationship between speed and offset. Based on information entropy theory and multi-attribute decision-making methodology, they developed an offset optimization algorithm with an objective function of weighting several measures including travel time, delay, and queue length. Simulation results demonstrated the effectiveness of the proposed method.

Because of the influence of travel time and road network information, which constantly change, a decision maker may have different views on the offset schemes. For example, according to the information entropy theory, an offset scheme may produce the best overall system performance; however, delays on certain movements may not be ideal. It is likely that the suboptimal offset schemes may result in more desirable delay or queue length, thus they might be chosen by decision makers in this case.¹² Because of the differences in how various performance measures are viewed by decision makers, different offset schemes can be selected and implemented.¹³

This article improves over the existing methodologies by considering the differences in operating results of these indexes under different schemes. In order to reduce the bias between subjective preference of decision makers and the objective information, the random nature of travel speed is particularly considered. By analyzing the relationship between travel speed and offset, a single-objective optimization model is proposed, where different levels of attentions are given to the relevant indexes, including travel time, delay, and queue length. We obtain an optimal offset solution on the basis of multi-attribute decision-making methods and Lagrange multiplier method.¹⁴ In the end, a simulation model named SIMIO is used to verify the validity of the method.

Multiple attribute optimization model

Description of the research problem

The main factors affecting coordinated signal systems include average speed of each road section, turning traffic from side streets, discrete characteristic of vehicle, and inhomogeneity of arriving vehicles. A coordinated signal system could completely fail if these factors are not given proper consideration.

Studies have shown that travel speed V, as a random variable, follows the normal distribution $N (u, σ^{2})$ .^15–17 The probability density function of travel speed is expressed in equation (1)

f (V) = \frac{1}{\sqrt{2 π} σ} e^{- \frac{{(V - u)}^{2}}{2 σ^{2}}}, 0 \leq V \leq V_{f}

(1)

Here, V is travel speed and u is the mean or expectation of the distribution. The parameter $σ$ is its standard deviation with its variance then $σ^{2}$ . The parameters u and $σ^{2}$ can be estimated by maximum likelihood method, which requires maximization of the log-likelihood function. $V_{f}$ is the free-flow travel speed in an arterial system.

The existing offset optimization models always assume that the travel speed is constant, which does not reflect actual field observations. The random variation of vehicle arrivals has shown to affect traffic signal settings.^18,19 Consequently, the random variation of travel speed would most likely affect the offset value, which ultimately determines the efficiency of coordinated signal systems.

When offset optimization only considers vehicle delay, stops, or queuing length, it is limited to the performance and traffic state before the stop line. To overcome this limitation, travel time is another important measure, which can reflect the traffic performance beyond the stop line and the system as a whole. Therefore, in order to improve the efficiency and adaptability of coordinated signal systems, travel time, delay, and queue length should be comprehensively considered in offset optimization.

In order to identify different indexes that affect the modeling result, a preference value for each offset scheme is first given according to a multiplicative judgment matrix. Because there are errors between subjective and objective values of decision makers, a single-objective optimization model is established to minimize the error, and the model is solved by an analytic method called Lagrange multiplier method.¹⁴ Finally, the multi-attribute decision-making method is used to obtain the optimal offset scheme by ranking the schemes based on the random characteristics of travel speed.

Model establishment

For a given travel speed distribution, a group of offset schemes $x_{i} (i = 1, 2, \dots, L)$ can be obtained correspondingly, which also constitute an offset scheme set $X = {x_{1}, x_{2}, \dots, x_{L}}$ for coordinated signal systems. The properties of each scheme are described by Q indexes, and $U = {q_{1}, q_{2}, \dots, q_{Q}}$ is the corresponding index set.²⁰

Let $i (1 \leq i \leq L)$ be the row variables and $j (1 \leq j \leq Q)$ be the column variables. $a_{ij}$ is the value of index $q_{j}$ for scheme $x_{i}$ . The decision-making matrix $A = {a_{ij}}_{L \times Q}$ is obtained as follows

A = [\begin{matrix} a_{11} & a_{12} & \dots & a_{1 Q} \\ a_{21} & a_{22} & \dots & a_{2 Q} \\ \dots & \dots & \dots & \dots \\ a_{L 1} & a_{L 2} & \dots & a_{LQ} \end{matrix}]

(2)

Through simulation of each offset scheme, operation indexes can be obtained which include travel time, delay, and queue length. These operation indexes form the decision-making matrix $A$ . In order to eliminate the influence of different dimensions for decision-making, we use formulas (3), (4), or (5) to standardize decision matrix $A$ , and a standardized matrix $R = {r_{ij}}_{L \times Q}$ is obtained

\begin{matrix} cost - type : r_{ij} = \frac{min_{1 \leq i \leq L} {a_{ij}}}{a_{ij}}, \\ i = 1, 2, \dots, L; j = 1, 2, \dots, Q \end{matrix}

(3)

\begin{matrix} benefit - type : r_{ij} = \frac{a_{ij}}{max_{1 \leq i \leq L} {a_{ij}}}, \\ i = 1, 2, \dots, L; j = 1, 2, \dots, Q \end{matrix}

(4)

central - type : r_{ij} = {\begin{matrix} \frac{\sum_{i = 1}^{L} a_{ij}}{L \cdot a_{ij}}, \sum_{i = 1}^{L} a_{ij} < L \cdot a_{ij} \\ \frac{L \cdot a_{ij}}{\sum_{i = 1}^{L} a_{ij}}, \sum_{i = 1}^{L} a_{ij} \geq L \cdot a_{ij} \end{matrix}

(5)

The preference values of each offset scheme, expressed by a multiplicative judgment matrix, are given by decision makers according to operational results, which are related to the travel speed distribution.

Definition 1

For matrix $H = {h_{ij}}_{L \times L}$ , if $h_{ij} \cdot h_{ji} = 1$ , $h_{ij} > 0$ , and $h_{ii} = 1$ , then $H$ is a multiplicative judgment matrix.²⁰

There are four types of reciprocal scale in Table 1.²⁰ The judgment matrix, which is composed by one type of reciprocal scales, is the multiplicative judgment matrix according to Definition 1. In addition, the reciprocal scale is valid when the value is within the range. For example, 2, 4, 6, or 8 represent intermediate values on a 1–9 scale. If the reciprocal scale of scheme $x_{i}$ to scheme $x_{j}$ is $h_{ij}$ , then the reciprocal scale of scheme $x_{j}$ to scheme $x_{i}$ is $h_{ji} = 1 / h_{ij}$ .

Table 1.

Four types of reciprocal scale.

1–9 Scale	Exponent scale	10/10–18/2 Scale	9/9–9/1 Scale	Significance
1	$a^{0}$	10/10	9/9	Scheme $x_{i}$ and $x_{j}$ are same
3	$a^{2}$	12/8	9/7	Scheme $x_{i}$ is slightly better than scheme $x_{j}$
5	$a^{4}$	14/6	9/5	Scheme $x_{i}$ is better than scheme $x_{j}$
7	$a^{6}$	16/4	9/3	Scheme $x_{i}$ is significantly better than scheme $x_{j}$
9	$a^{8}$	18/2	9/1	Scheme $x_{i}$ is much better than scheme $x_{j}$

At first, the schemes $x_{i} (i = 1, 2, \dots, L)$ are compared with each other according to the reciprocal scale listed in Table 1, and a multiplicative judgment matrix $H = {h_{ij}}_{L \times L}$ is constructed. Then, the index weight vector $ω = (ω_{1}, ω_{2}, \dots, ω_{Q})$ is obtained.

In order to achieve uniformity of the decision-making information, the synthetic attribution value of all schemes $x_{i}$ is converted to a multiplicative judgment matrix $H = {h_{ij}}_{L \times L}$ using a transformation function, where

{\bar{h}}_{ij} = \frac{Z_{i} (ω)}{Z_{j} (ω)} = \frac{\sum_{k = 1}^{Q} r_{ik} ω_{k}}{\sum_{k = 1}^{Q} r_{jk} ω_{k}}, i, j = 1, 2, \dots, L

(6)

where $Z_{i} (ω)$ is synthetic attribution value of scheme $x_{i}$ .

If multiplicative judgment matrix $H = \bar{H}$ , namely $h_{ij} = {\bar{h}}_{ij}$ , then

h_{ij} = \frac{Z_{i} (ω)}{Z_{j} (ω)} = \frac{\sum_{k = 1}^{Q} r_{ik} ω_{k}}{\sum_{k = 1}^{Q} r_{jk} ω_{k}}

(7)

h_{ij} \sum_{k = 1}^{Q} r_{jk} ω_{k} = \sum_{k = 1}^{Q} r_{ik} ω_{k}

(8)

In this case, sorting methods of multiplicative judgment matrix such as the eigenvector method²¹ can be directly used to get the priority vector of matrix $H$ , based on which all schemes are ranked and selected.

However, there are some errors between multiplicative judgment matrix $H = {h_{ij}}_{L \times L}$ and $\bar{H} = {{\bar{h}}_{ij}}_{L \times L}$ . That is, formula (7) is not valid in general and the line deviation function (9) is proposed as follows²²

f_{ij} (ω) = h_{ij} \sum_{k = 1}^{Q} r_{jk} ω_{k} - \sum_{k = 1}^{Q} r_{ik} ω_{k} = \sum_{k = 1}^{Q} (h_{ij} r_{jk} - r_{ik}) ω_{k}

(9)

In order to minimize the errors, a single-objective model (10) is established to compute the index weight vector $ω = (ω_{1}, ω_{2}, \dots, ω_{Q})$

\begin{matrix} min F (ω) = \sum_{i = 1}^{L} \sum_{j = 1}^{L} f_{ij}^{2} (ω) = \sum_{i = 1}^{L} {\sum_{j = 1}^{L} [\sum_{k = 1}^{Q} (h_{ij} r_{jk} - r_{ik}) ω_{k}]}^{2} \\ s . t . {\begin{matrix} \sum_{j = 1}^{Q} ω_{j} = 1 \\ ω_{j} \geq 0 \end{matrix} \end{matrix}

(10)

No matter what values the variables in formula (10) take, $F (ω) \geq 0$ is always true. The Lagrange function is constructed as below

L (ω, ξ) = F (ω) + 2 ξ (\sum_{j = 1}^{Q} ω_{j} - 1)

(11)

Let $\partial L / \partial ω_{l} = 0 (l = 1, 2, \dots, Q)$ , $\partial L / \partial ξ = 0$ , we can get

{\begin{matrix} \sum_{i = 1}^{L} \sum_{j = 1}^{L} [\sum_{k = 1}^{Q} 2 (h_{ij} r_{jk} - r_{ik}) ω_{k}] (h_{ij} r_{jl} - r_{il}) + 2 ξ = 0 \\ \sum_{j = 1}^{Q} ω_{j} - 1 = 0 \end{matrix}

(12)

Expanding formula (12) and taking $ω_{k}$ as an unknown by combining similar terms, we obtain the following

\sum_{k = 1}^{Q} [\sum_{i = 1}^{L} \sum_{j = 1}^{L} (h_{ij} r_{jk} - r_{ik}) (h_{ij} r_{jl} - r_{il})] ω_{k} + ξ = 0

(13)

Let $β = {(1, 1, \dots, 1)}_{1 \times Q}$ , $M = {q_{kl}}_{Q \times Q}$ , where

q_{kl} = \sum_{i = 1}^{L} \sum_{j = 1}^{L} (h_{ij} r_{jk} - r_{ik}) (h_{ij} r_{jl} - r_{il})

(14)

Formula (13) can be transferred into the matrix form as shown below

M ω^{T} = - ξ β^{T}

(15)

Write $\sum_{j = 1}^{Q} ω_{j} = 1$ in a vector form, and we can get

β ω^{T} = 1

(16)

Combining formulas (14) and (15), an optimal solution is obtained by

ω^{*} = \frac{M^{- 1} β^{T}}{β M^{- 1} β^{T}}

(17)

If $ω^{*} \geq 0$ , we then substitute formula (17) into $Z_{i} (ω) = \sum_{j = 1}^{Q} r_{ij} ω_{j}$ , and the synthetic attribution value of each scheme is obtained, based on which the schemes are ranked. If $ω^{*} < 0$ , formula (9) can be solved with the quadratic programming method²³ to obtain the index weight vector $ω$ . Similarly, the index weight vector $ω$ is substituted into $Z_{i} (ω) = \sum_{j = 1}^{Q} r_{ij} ω_{j}$ to obtain the synthetic attribution value of each scheme and the optimal offset scheme is then obtained.

Calculating steps

Step 1. Normalizing the decision-making matrix $A = {a_{ij}}_{L \times Q}$ expressed in formulas (3), (4), or (5) to obtain $R = {r_{ij}}_{L \times Q}$ as the normalized decision-making matrix;

Step 2. Making a pairwise comparison between two schemes $x_{i} (i = 1, 2, \dots, L)$ according to any of one reciprocal scale selected form Table 1 and then the multiplicative judgment matrix $H = {h_{ij}}_{L \times L}$ is obtained;

Step 3. Using formula (13) to compute matrix $M = {q_{kl}}_{Q \times Q}$ and its inverse matrix $M^{- 1}$ ;

Step 4. Using formula (17) to compute the optimal weight vector $ω = (ω_{1}, ω_{2}, \dots, ω_{Q})$ of indexes;

Step 5. Computing the synthetic attribute value of each scheme $x_{i}$ according to $Z_{i} (ω) = \sum_{j = 1}^{Q} r_{ij} ω_{j}$ ;

Step 6. According to $Z_{i} (ω) (i = 1, 2, \dots, L)$ , the optimal scheme can be obtained on the basis of sequence from high to low with the highest ranked $x^{*}$ being the optimal scheme.

Numerical example

SIMIO was selected as a modeling tool for this study due to proven accuracy.²⁴ The true object-oriented design makes SIMIO to be easily extended, and the objects of SIMIO in the standard library offer a comprehensive modeling capability. The modeling objects in SIMIO are defined using graphical process flows that can be viewed and changed by the user.

Using SIMIO as a simulation tool in this study, a simulation model is established for a coordinated signal system that has four intersections. First, we compute the cycle and phase times of each intersection based on the methodology documented in the literature.^18,19 Then, according to the random distribution of travel speed, we obtain the objective weight for each index and the two best schemes based on the information entropy and multi-attribute decision-making methods.¹² Finally, analyses of the offset schemes are done which correspond to different travel time, delay, and queue length. The optimal offset scheme is selected after a comparison of the schemes with the multiplicative judgment matrix.

Basic data of the coordinated signal system

A coordinated signal system of four signalized intersections is established to illustrate the analysis process. Each intersection has eight lanes (both directions) on the main street and four lanes on the minor street. The distances between each intersection are 350, 450, and 420 m, respectively. No midblock driveways and pedestrian crossings exist on the main street. Figures 1 and 2 show the system layout and intersection geometry.

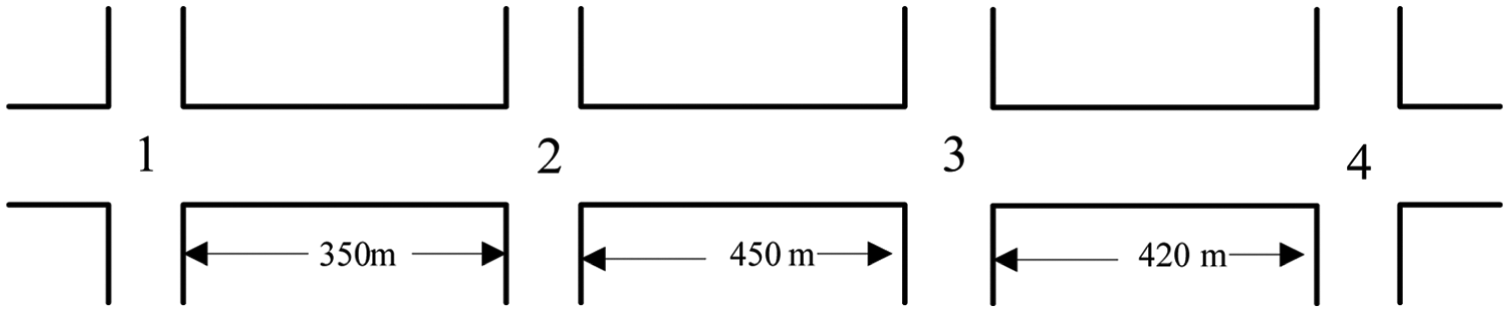

Figure 1.

The structure of coordinated signal system.

Figure 2.

The graph of intersection channelization and phase scheme.

The parameters used in simulation are as described below:

All of the section length is more than 150 m and the maximum queue storage is 17 pcu when the section length is less than 150 m.

The traffic turning movement ratios of left-turn, through, and right-turn from intersections 1–4 are: 5%, 83%, and 12%; 6%, 81%, and 13%; 4%, 83%, and 13%; and 4%, 86%, and 10%, respectively. The turning movement ratios of left-turn, through, and right-turn are 2%, 87%, and 11% on all of the minor streets.

Three-stage signal control plan is used at these intersections with the through movement signal phases in Stage 1 being the coordinated phases. Intersection 1 is determined to be the critical intersection based on volume and geometric configuration. Meanwhile, we assume that all of the approaches have ideal conditions, that is, ideal saturation flow rates, and the cycle length for coordination is 80 s. Lost time per phase is 3 s without red clearance interval.

The traffic volumes for each intersection are shown in Table 2.

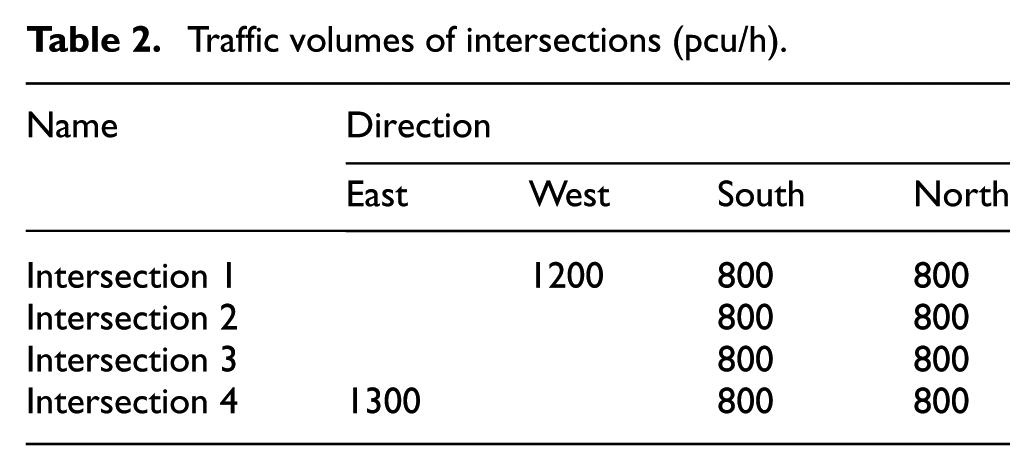

Table 2.

Traffic volumes of intersections (pcu/h).

Name	Direction
Name	East	West	South	North
Intersection 1		1200	800	800
Intersection 2			800	800
Intersection 3			800	800
Intersection 4	1300		800	800

Analysis of the simulation result

We assume that the mean travel speed of each section is 40 km/h but with three different standard deviations of 0, 5, and 10 km/h. A set of offset schemes is obtained first by traditional MGBM. After 50 simulation runs with SIMIO, we obtain the average operating indexes of the system including travel time, delay, and queue length.

In order to demonstrate the validity and practicability of the proposed method, we obtain the objective weight for each index and two of the best schemes using information entropy theory and multi-attribute decision-making methods when the standard deviation of travel speed is changed.¹² Then, decision makers give the preference values of each offset scheme, and the multiplicative judgment matrix is obtained. The optimal offset scheme is selected after a comparison of the schemes based on the synthetic attribution value of each scheme.

Results when travel speed is constant

When travel speed is assumed constant at 40 km/h, the two best schemes obtained by the information entropy and multi-attribute decision-making methods are shown in Table 3, and the operations indexes of each section and direction are listed in Table 4. When a decision maker has no subjective preference about these offset schemes, preference values of scheme 1 and scheme 2 are 0.9946 and 0.8210, respectively. At this point, operations result of scheme 1 is better than scheme 2.

Table 3.

Offset scheme when travel speed is constant (unit: s).

Offset	Intersection 1	Intersection 2	Intersection 3	Intersection 4
Scheme 1	0	32	68	70
Scheme 2	0	31	69	67

Table 4.

Operational indicators when travel speed is constant.

Indexes	Direction	Scheme 1	Scheme 2	Direction	Scheme 1	Scheme 2
Travel time (s)	West→East	165.97	165.52	East→West	164.49	166.56
Delays (s/pcu)		58.15	53.24		64.73	61.92
Queue length (pcu)		0.73	0.79		0.75	0.85
Travel time (s)	1→2	55.29	48.25	4→3	53.02	56.04
Delays (s/pcu)		19.04	20.88		21.3	21.44
Queue length (pcu)		0.90	0.92		0.61	0.79
Travel time (s)	2→3	58.38	60.92	3→2	56.13	54.84
Delays (s/pcu)		23.13	18.76		24.61	21.32
Queue length (pcu)		0.75	0.80		0.73	0.84
Travel time (s)	3→4	52.31	56.35	2→1	55.34	55.68
Delays (s/pcu)		15.98	13.6		18.82	19.16
Queue length (pcu)		0.54	0.65		0.92	0.93
Travel time (s)	Average of both directions	165.23	166.04
Delays (s/pcu)		61.44	57.58
Queue length (pcu)		0.743	0.924

Next, we discuss how the proposed method is used to compute the synthetic attribution values of schemes and to obtain the optimal scheme by considering the differences among decision makers in their subjective preference.

Because there are two directions in arterial system, let $μ_{e}$ , $μ_{w}$ are the priority weight of eastbound and westbound, respectively. Let $μ_{e}$ , $μ_{w}$ be equal to 0.5, that is, both eastbound and westbound traffic flow are equally important in arterial system. We compute the average synthetic attribution values of two directions, and the decision-making matrix $A = [\begin{matrix} \begin{matrix} 165.23 \\ 166.04 \end{matrix} & \begin{matrix} 61.44 \\ 57.58 \end{matrix} & \begin{matrix} 0.743 \\ 0.924 \end{matrix} \end{matrix}]$ . The calculation steps are as follows:

Step 1. Because travel time, delay, and queue length are cost-type index, we normalized the decision-making matrix $A$ by formula (3), and the normalized decision-making matrix $R = [\begin{matrix} \begin{matrix} 1 \\ 0.9951 \end{matrix} & \begin{matrix} 0.9372 \\ 1 \end{matrix} & \begin{matrix} 1 \\ 0.8041 \end{matrix} \end{matrix}]$ is obtained.

Step 2. A pairwise comparison between scheme 1 and scheme 2 is made according to the reciprocal scale which is selected from Table 1. With the data in Table 4, one regards scheme 2 being better than scheme 1 because the delay of scheme 2 is less than that of scheme 1, then the multiplicative judgment matrix $H = [\begin{matrix} 1.0 & 2.0 \\ 0.5 & 1.0 \end{matrix}]$ is obtained.

Step 3. By formula (14), we get the matrix $M = [\begin{matrix} 0.3650 & 0.4243 & 0.2804 \\ 0.4243 & 0.4933 & 0.3260 \\ 0.2804 & 0.3260 & 0.2154 \end{matrix}]$ and its inverse matrix $M^{- 1} = [\begin{matrix} 2.0535 & - 1.7323 & - 0.0514 \\ - 1.7323 & 0.3383 & 1.7430 \\ - 0.0514 & 1.7430 & - 2.5707 \end{matrix}]$ .

Step 4. By formula (17), we compute and get the optimal weight vectors $ω = (0.2777, 0.7659, 0.5583)$ of these indexes. By $Z_{i} (ω) = \sum_{j = 1}^{Q} r_{ij} ω_{j}$ , the synthetic attribute values of both schemes are 0.5758 and 0.5923, thus scheme 2 is the optimal.

It can be clearly seen, when preference values of each offset scheme are different, the decision maker’s subjective judgment has an obvious influence on the offset scheme selection.

In Table 5, there are synthetic attribute values of each section and direction for two schemes. When a decision maker regards scheme 2 being better than scheme 1, the multiplicative judgment matrix $H = [\begin{matrix} 1.0 & 2.0 \\ 0.5 & 1.0 \end{matrix}]$ .

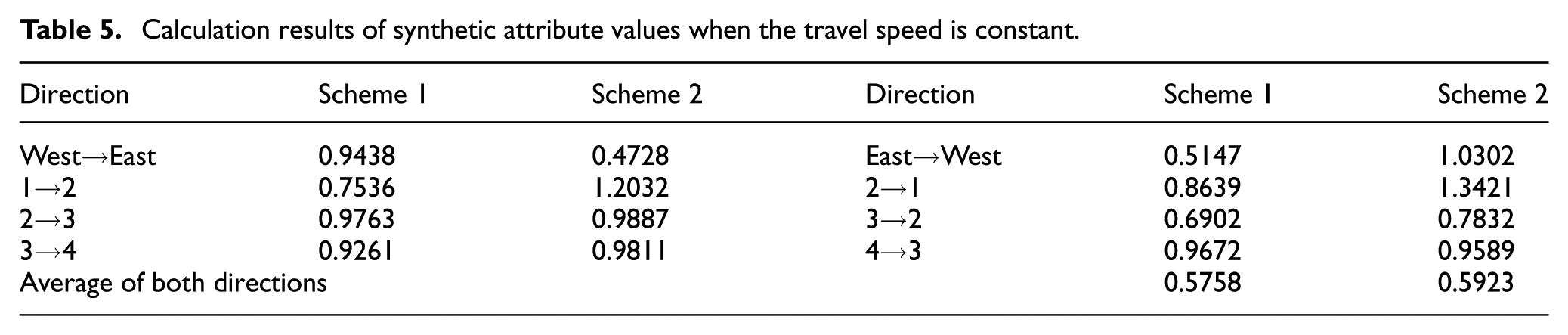

Table 5.

Calculation results of synthetic attribute values when the travel speed is constant.

Direction	Scheme 1	Scheme 2	Direction	Scheme 1	Scheme 2
West→East	0.9438	0.4728	East→West	0.5147	1.0302
1→2	0.7536	1.2032	2→1	0.8639	1.3421
2→3	0.9763	0.9887	3→2	0.6902	0.7832
3→4	0.9261	0.9811	4→3	0.9672	0.9589
Average of both directions				0.5758	0.5923

Similarly, when the standard deviation of section travel speed is 5 km/h and the expectation of section travel speed is 40 km/h, the two best schemes obtained by information entropy and multi-attribute decision-making methods are shown in Table 6, and the operations indexes of each section and direction are listed in Table 7.

Table 6.

Offset scheme when the standard deviation of travel speed is 5 km/h.

Offset	Intersection 1	Intersection 2	Intersection 3	Intersection 4
Scheme 1	0	30	67	70
Scheme 2	0	31	66	69

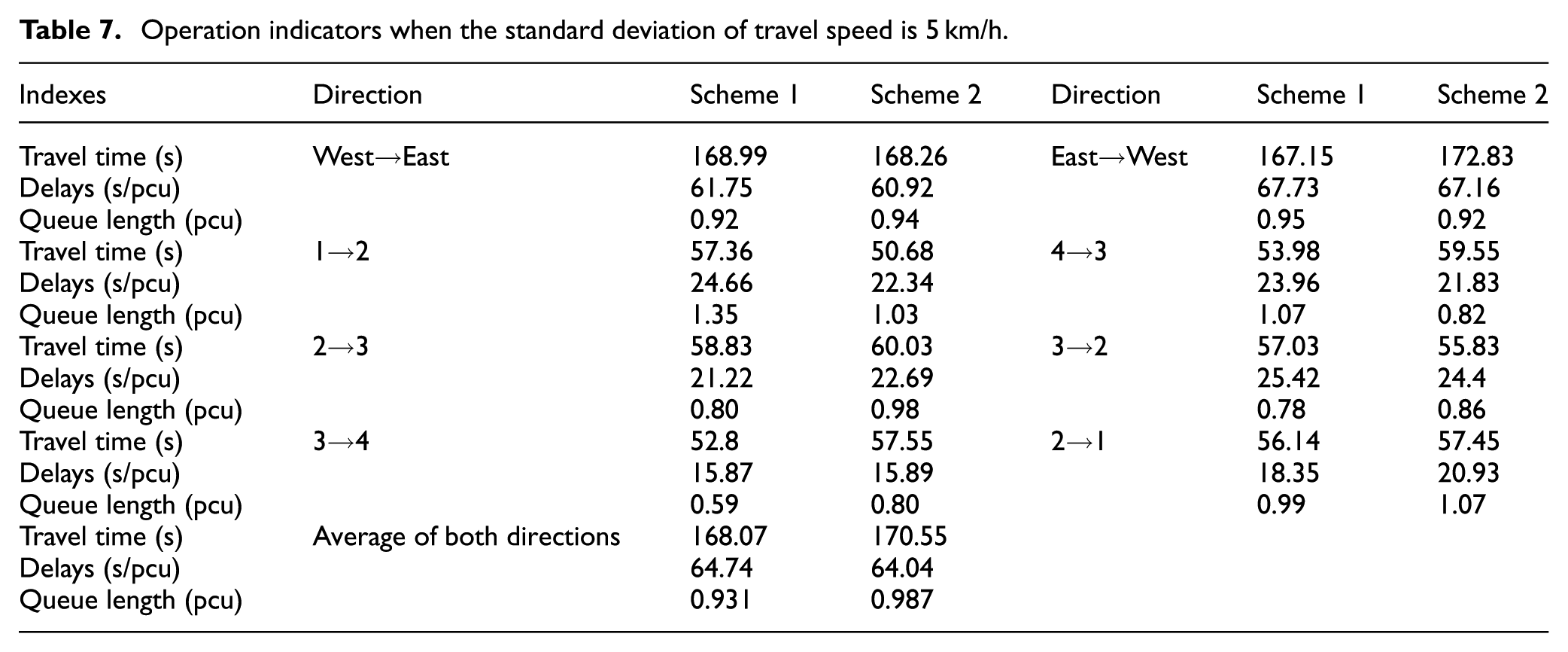

Table 7.

Operation indicators when the standard deviation of travel speed is 5 km/h.

Indexes	Direction	Scheme 1	Scheme 2	Direction	Scheme 1	Scheme 2
Travel time (s)	West→East	168.99	168.26	East→West	167.15	172.83
Delays (s/pcu)		61.75	60.92		67.73	67.16
Queue length (pcu)		0.92	0.94		0.95	0.92
Travel time (s)	1→2	57.36	50.68	4→3	53.98	59.55
Delays (s/pcu)		24.66	22.34		23.96	21.83
Queue length (pcu)		1.35	1.03		1.07	0.82
Travel time (s)	2→3	58.83	60.03	3→2	57.03	55.83
Delays (s/pcu)		21.22	22.69		25.42	24.4
Queue length (pcu)		0.80	0.98		0.78	0.86
Travel time (s)	3→4	52.8	57.55	2→1	56.14	57.45
Delays (s/pcu)		15.87	15.89		18.35	20.93
Queue length (pcu)		0.59	0.80		0.99	1.07
Travel time (s)	Average of both directions	168.07	170.55
Delays (s/pcu)		64.74	64.04
Queue length (pcu)		0.931	0.987

Similar to the case of constant travel speed, when the standard deviation of section travel speed is 5 km/h, the results are shown in Table 8, which includes the synthetic attribute values of each section and direction for two schemes.

Table 8.

Calculation results of synthetic attribute values when the standard deviation of travel speed is 5 km/h.

Direction	Scheme 1	Scheme 2	Direction	Scheme 1	Scheme 2
West→East	1.2372	0.6118	East→West	0.9659	0.8791
1→2	0.9657	0.9688	2→1	0.8834	0.7342
2→3	0.8629	0.4781	3→2	1.0873	0.9756
3→4	1.0383	0.7862	4→3	0.9611	0.9644
Average of both directions				0.8732	0.7521

Travel speed is random with a standard deviation of 10 km/h

Similarly, when the mean travel speed is 40 km/h with a standard deviation of 10 km/h, the best two schemes which are obtained by information entropy and multi-attribute decision-making methods are shown in Table 9, and the operation indexes of each section and direction are listed in Table 10.

Table 9.

Offset scheme when the standard deviation of travel speed is 10 km/h.

Offset	Intersection 1	Intersection 2	Intersection 3	Intersection 4
Scheme 1	0	30	68	71
Scheme 2	0	31	69	70

Table 10.

Operation indicators when the standard deviation of travel speed is 10 km/h.

Indexes	Direction	Scheme 1	Scheme 2	Direction	Scheme 1	Scheme 2
Travel time (s)	West→East	170.49	172.08	East→West	171.42	173.87
Delays (s/pcu)		59.78	57.38		70.94	70.29
Queue length (pcu)		0.89	1.05		0.86	0.93
Travel time (s)	1→2	55.65	51.05	4→3	55.68	59.94
Delays (s/pcu)		23.31	21.71		25.78	24.04
Queue length (pcu)		1.23	1.07		1.01	0.88
Travel time (s)	2→3	60.15	61.12	3→2	57.78	56.61
Delays (s/pcu)		19.53	21.6		25.17	25.54
Queue length (pcu)		0.90	1.18		0.54	0.88
Travel time (s)	3→4	54.69	59.91	2→1	57.96	57.32
Delays (s/pcu)		16.94	14.07		19.99	20.71
Queue length (pcu)		0.53	0.91		1.04	1.04
Travel time (s)	Average of both directions	170.96	172.98
Delays (s/pcu)		65.36	63.84
Queue length (pcu)		0.876	1.040

Similarly, when the standard deviation of section travel speed is 10 km/h, the synthetic attribute values of each section and direction for two schemes are shown in Table 1.

The following can be observed from Tables 5, 8, and 11:

When travel speed is random, the performance indexes, which run their own optimal scheme, are inferior to that of constant speed. This trend becomes more obvious as the standard deviation of travel speed increases.

When decision makers vary in their subjective judgment on a scheme’s performance, there are significant differences in the synthetic attribute values of schemes with and without preferences whether they are at the system level or the intersection level. For example, when travel speed has a standard deviation of 0 and 10 km/h, the scheme 2 is optimal if a decision maker is satisfied with the delay of scheme 2. When the standard deviation of travel speed is 5 km/h, the scheme 1 becomes optimal.

In the above calculation, delay is considered as the more important evaluation criteria; therefore, the role of delay is more obvious than other indexes. These results indicate that different preference values of the indexes or schemes have an obvious influence on the offset value, and different traffic management objective can lead to different control effect.

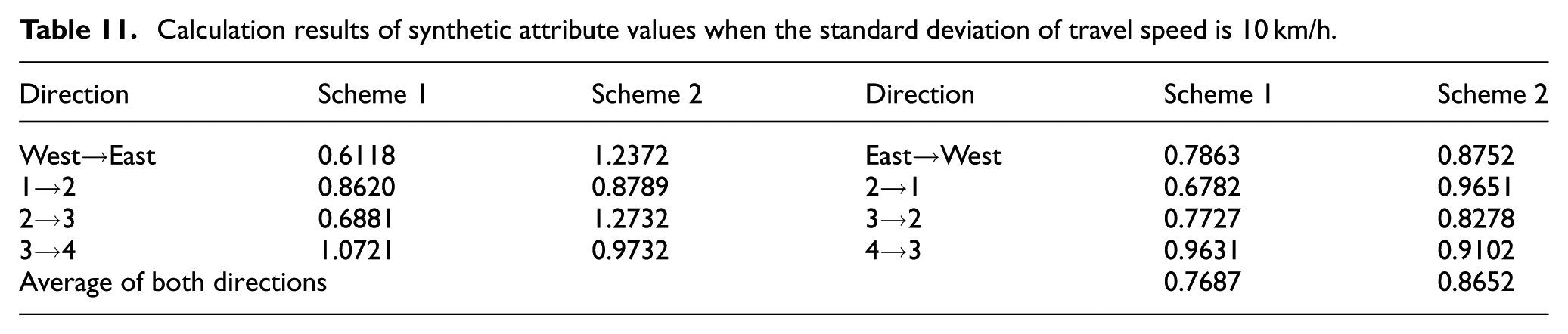

Table 11.

Calculation results of synthetic attribute values when the standard deviation of travel speed is 10 km/h.

Direction	Scheme 1	Scheme 2	Direction	Scheme 1	Scheme 2
West→East	0.6118	1.2372	East→West	0.7863	0.8752
1→2	0.8620	0.8789	2→1	0.6782	0.9651
2→3	0.6881	1.2732	3→2	0.7727	0.8278
3→4	1.0721	0.9732	4→3	0.9631	0.9102
Average of both directions				0.7687	0.8652

From the above discussions, the simulation and computation results indicate that different concerns of decision makers about indexes or schemes have an obvious influence on the offset. Using the proposed methodology by the authors, we can obtain a relatively optimal offset scheme. Moreover, it shows that the random characteristics of travel speed have an obvious influence on offset. This phenomenon should be taken into consideration when developing coordination signal timing plans.

Summary and conclusion

By examining the limitations of existing offset optimization models for signal coordination, the authors propose a new offset optimization methodology, in which the random nature of travel speed is considered. Based on multi-attribute decision-making method, the algorithm is obtained. And a decision maker could give his or her preference on each scheme by considering travel speed, delay, or queue length. At the end, the methodology is applied to a coordinated signal system to demonstrate its effectiveness using SIMIO simulation.

Although the proposed methodology takes the travel speed as a random variable which follows a normal distribution, the type of distribution does not really affect its application. The method can not only be used in optimizing timing parameters of coordinated signal systems but also in evaluating existing signal timing plans. Future work would involve analysis of the relationship between offset and traffic operation schemes and traffic composition to optimize all relevant signal timing parameters such as cycle, split, and offset to fit the random characteristics of traffic arrivals and travel speed.

Footnotes

Academic Editor: Xiaobei Jiang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work described in the paper was supported by Natural Science Foundation of China (Nos 71261014, 61463026, and 61463027), Research the Fund for the Doctoral Program of Higher Education under Grant of China (No. 20136204120007), and the Natural Science Foundation of Gansu Province of China (No. 1308RJZA128).

References

Gartner

Stamatiadis

Arterial-based control of traffic flow in urban grid networks. Math Comput Model 2002; 35: 657–671.

Wan

HP.

An optimal offset model for artery traffic signal control system. China J Highw Transp 2001; 14: 99–102.

Liu

Yang

PK.

Diffusion models of traffic platoon on signal-intersection and control of coordinated signals. J Tongji Univ 1996; 24: 636–641.

Sun

Liu

KP.

Simulation optimization for urban arterial coordinate control. J Tongji Univ 2009; 37: 1467–1471.

Wang

Luo

Huang

. Optimal coordination of artery system based on modified particle swarm algorithm. Syst Eng Theor Pract 2007; 10: 165–171.

Tian

Urbanik

System partition technique to improve signal coordination and traffic progression. J Transp Eng: ASCE 2007; 133: 119–128.

Liu

Dai

. Revised MAXBAND model for bandwidth optimization of traffic flow dispersion. In: Proceedings of the international colloquium on computing, communication, control and management, Guangzhou, China, 3–4 August 2008, pp.85–89. New York: IEEE.

Liu

Chang

GL.

An arterial signal optimization model for intersections experiencing queue spillback and lane blockage. Transport Res C: Emer 2011; 19: 130–144.

ZC.

Modeling arterial signal optimization with enhanced cell transmission formulations. J Transp Eng: ASCE 2011; 137: 445–454.

10.

Zhang

HM.

Link-journey-speed model for arterial traffic. J Transport Res Board 2007; 1676: 109–115.

11.

Joonho

Randall

. Characterization of congestion based on speed distribution: a statistical approach using Gaussian mixture model. Washington, DC: CD-ROM, Transportation Research Board, National Research Council, 2005.

12.

Niu

HM.

Offset optimization method of urban traffic arterial control system. J Traffic Transport Eng 2011; 8: 103–107.

13.

Niu

HM.

Offset optimization method of arterial traffic control. Appl Mech Mater 2012; 130: 3946–3949.

14.

Fletcher

Practical methods of optimization. 2nd ed.New York: Wiley, 2000.

15.

Gao

Yang

XG.

Study on arterial traffic control probability model. J Highw Transp Res Dev 2006; 23: 106–109.

16.

Mai

Liu

XM.

The analysis of characterization of urban traffic congestion based on mixed speed distribution of taxi GPS data. Appl Mech Mater 2012; 241–244: 2076–2081.

17.

Mahnke

Kaupužs

Lubashevsky

Probabilistic description of traffic flow. Phys Rep 2005; 408: 1–130.

18.

Niu

HM.

Calculation method of green time for pre-timed signal control at isolated intersection under random condition. J Highw Transp Res Dev 2010; 27: 108–113.

19.

Niu

HM.

Optimization for signal plans at isolated intersections on random condition. J Traffic Transport Eng 2010; 10: 116–120.

20.

ZS.

Uncertain multiple attribute decision making: methods and applications. Beijing, China: Tsinghua University, 2004.

21.

ZS.

Generalized chi square method for the estimation of weights. J Optimiz Theory App 2000; 107: 183–192.

22.

Wei

CP.

A new method for priorities in the analytic hierarchy process. Oper Res Trans 2000; 4: 47–54.

23.

Hartley

Linear and nonlinear programming: an introduction to linear methods in mathematical programming. Chichester: Ellis Horwood Limited, 1985.

24.

Zhang

Tao

XQ.

Simulation analysis of queue system based on simio. Ordnance Ind Autom 2011; 30: 94–96.
