A study on the dynamics of a novel seven degrees of freedom spray-painting robot with a telescopic forearm

Abstract

In this article, the dynamics of a seven degrees of freedom robot with a telescopic forearm for the spray-painting of large workpiece is investigated. A novel two-step inverse kinematic solving method that combines numerical and analytical approaches is proposed to solve the inverse kinematics of the seven degrees of freedom robot with two redundant degrees of freedom for spray-painting applications. Based on the kinematic model, the dynamic model is derived using the Newton–Euler method. For the dynamic parameter identification, the dynamic model is written in a linear form with respect to dynamic parameters. Considering the effect of the telescopic forearm on the dynamics of the robot, two novel performance indices concerning the inertial load and gravitational load in the joint space are proposed to evaluate the effect of the telescopic forearm on the dynamic load of the robot. Monte Carlo method is used to solve these two indices. This work is essential for the motion planning and control of the seven degrees of freedom spray-painting robot with a telescopic forearm.

Keywords

7-DOF robot inverse kinematics closed-loop solution dynamics inertial load

Introduction

The spraying process is an important manufacturing procedure for the coating of some large workpieces. Due to the huge size of the workpiece, the semiautomatic spraying method is generally used. It is obvious that there are many disadvantages such as bad spraying environment, poor spraying quality, and low spraying efficiency. The most ideal solution is to use robots for automatic spraying. In general, it is required that the spray-painting robot has two rotational degrees of freedom (DOFs) and three translational DOFs to complete the painting of a workpiece with a conical surface. However, in practical applications, the workspace of a 5-DOF robot is not enough for the painting task of large workpieces and the 7-DOF redundant robot is generally used.^1
–3 The redundant DOF can not only enlarge the workspace but also be used to minimize energy dissipation, avoid joint limits, and so on.^4
–6

The inverse kinematics is an important issue in robotics, which is the basis of robot design and control. The inverse kinematics is to find the joint parameters by giving a specified position and orientation of the end effector.^7

–11 Some methods are proposed to find the inverse solution of kinematics for the robots with six or less DOFs and the exact solution with low computational cost can be found.^12,13 However, the 7-DOF redundant robots have complex inverse kinematics.^7

–11 For the 7-DOF robot, the system of equations is indeterminate and the inverse kinematics has many solutions.^14
–16 Some researchers have concluded that the inverse kinematics of a 7-DOF robot like the Barrett whole arm manipulator does not have analytical solutions.¹⁷ Weghe et al.¹⁸ reported that there is no closed-form solution of the inverse kinematics for manipulators with more than six links. Berenson et al.¹⁹ state that the inverse kinematics of the 7-DOF whole arm manipulator cannot be found by utilizing the existing methods.

Dynamics plays an important role for the industrial application of robots, especially large robots. An accurate dynamic model is critical for the dynamic model-based control, which is the most popular control method for industrial robots.^20,21 In general, the accurate dynamic model is obtained through two steps: (1) The dynamic model is derived by using some modeling methods such as virtual work principle, Newton–Euler method, and Kane method. (2) The accurate dynamic parameters are identified by using the identification technology based on the linear form of dynamic model. Since the 7-DOF robot is redundant, its dynamics generally involve optimization problems. Thus, the dynamics of a 7-DOF robot is complex even if its structure looks simple. There are works that contribute to the dynamics of 7-DOF robot. He et al.²² derived the dynamic model of a 7-DOF robot by using Newton–Euler method that requires the calculation of all of the internal reactions of constraint of the robot. Carbone et al.²³ obtained the dynamic model of a 7-DOF biped walking leg for a humanoid robot by using Newton–Euler formulation. Li et al.²⁴ derived the dynamics of the 7-DOF modular robot based on an improved Kane model theory that the sum of generalized force and generalized inertia force is zero. These works concentrate on the robot with constant-length links. For the robot with telescopic link in our research, it is important to investigate the effect of the length of telescopic link on the dynamics. In addition, for the dynamic parameter identification, the linear form of the dynamic model is required.^25,26 However, due to the complex and coupled dynamics of the 7-DOF robot, it is a difficult task to find the linear dynamic model with respect to the base dynamic parameters.

In this article, the dynamics of a novel 7-DOF spray-painting robot with a telescopic forearm is thoroughly investigated. The solution of the inverse kinematics is found by proposing a two-step inverse kinematic method that combines numerical and analytical approaches. The linear form of the dynamic model of a 7-DOF spray-painting robot for a 5-DOF painting task is derived, and the effect of the telescopic forearm on inertial load and gravitational load is investigated. Two indices indicating the average inertial load and gravitational load in the joint space are proposed to evaluate the effect of the telescopic forearm on the dynamic load of the 7-DOF robot.

Structure description of the redundant robot

In theory, the spray-painting of large workpiece can be completed by a 5-DOF robot. However, in practical applications, the workspace of a 5-DOF robot is not enough for the painting task. Thus, a 7-DOF redundant robot is generally used for the spray-painting of large workpieces. In this article, a 7-DOF robot for completing complex painting tasks of large workpieces is designed, as shown in Figure 1. The robot has two translational and five rotational DOFs. One translational DOF corresponds to the motion that the robot moves along a long guideway. The other translational motion is realized by a four-side deployable link, which consists of many scissor-form structures. To improve the stiffness of the robot, one arm is driven by a parallelogram structure.

Figure 1.

3D model of the spray-painting robot.

Based on the Denavit–Hartenberg (D-H) convention, the coordinate systems are established, as shown in Figure 2. The base coordinate system O ₀-X ₀ Y ₀ Z ₀ and the joint coordinate system O_i -X_iY_iZ_i are attached to the base and the joint i + 1, respectively. The forward kinematics of the 7-DOF robot that finds the position and orientation of the painting gun with the specified seven joint variables [d ₁, θ ₂, θ ₃, θ ₄, θ ₅, d ₆, θ ₇]^T is easily expressed according to the D-H convention. Let the angle from the axes Z_i ₋₁ to Z_i about the axis X_i be α_i , the distance from the axes Z_i ₋₁ to Z_i along the axis X_i be a_i , the distance from the axes X_i ₋₁ to X_i along the axis Z_i ₋₁ be d_i , and the angle from the axes X_i ₋₁ to X_i about the axis Z_i ₋₁ be θ_i . The transformation matrix from coordinate system O_i ₋₁-X_i ₋₁ Y_i ₋₁ Z_i ₋₁ to O_i -X_iY_iZ_i can be derived as

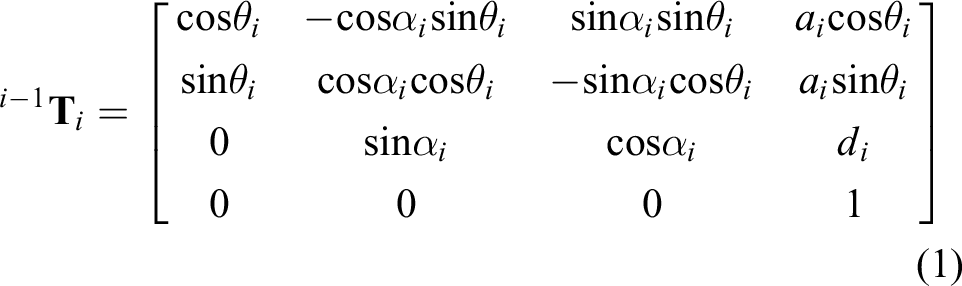

^{i - 1} T_{i} = [\begin{matrix} cos θ_{i} & - cos α_{i} sin θ_{i} & sin α_{i} sin θ_{i} & a_{i} cos θ_{i} \\ sin θ_{i} & cos α_{i} cos θ_{i} & - sin α_{i} cos θ_{i} & a_{i} sin θ_{i} \\ 0 & sin α_{i} & cos α_{i} & d_{i} \\ 0 & 0 & 0 & 1 \end{matrix}]

Figure 2.

Kinematic model: (a) simplified kinematic model and (b) coordinate system.

Based on equation (1), the transformation matrix between adjacent coordinate systems ⁰ T ₁–⁶ T ₇ can be determined. The complete transformation matrix from the base coordinate to the last joint coordinate system can be expressed as

^{0} T_{7} =^{0} T_{1}^{1} T_{2}^{2} T_{3}^{3} T_{4}^{4} T_{5}^{5} T_{6}^{6} T_{7} = [\begin{matrix} n_{x} & o_{x} & a_{x} & p_{x} \\ n_{y} & o_{y} & a_{y} & p_{y} \\ n_{z} & o_{z} & a_{z} & p_{z} \\ 0 & 0 & 0 & 1 \end{matrix}]

where

{\begin{array}{l} n_{x} = s_{2} s_{5} c_{7} - c_{2} s_{34} s_{7} + c_{2} c_{34} c_{5} c_{7} \\ n_{y} = - s_{34} c_{5} c_{7} - c_{34} s_{7} \\ n_{z} = c_{2} s_{5} c_{7} + s_{2} s_{34} s_{7} - s_{2} c_{34} c_{5} c_{7} \\ o_{x} = - s_{2} s_{5} s_{7} - c_{2} s_{34} c_{7} - c_{2} c_{34} c_{5} s_{7} \\ o_{y} = s_{34} c_{5} s_{7} - c_{34} c_{7} \\ o_{z} = - c_{2} s_{5} s_{7} + s_{2} s_{34} c_{7} + s_{2} c_{34} c_{5} s_{7} \\ a_{x} = - s_{2} c_{5} + c_{2} c_{34} s_{5} \\ a_{y} = - s_{34} s_{5} \\ a_{z} = - s_{2} c_{34} s_{5} - c_{2} c_{5} \\ p_{x} = a_{2} c_{2} + a_{3} c_{2} c_{3} + a_{4} c_{2} c_{34} - d_{6} c_{2} s_{34} \\ p_{y} = d_{2} - a_{3} s_{3} - a_{4} s_{34} - d_{6} c_{34} \\ p_{z} = d_{1} - a_{2} s_{2} - a_{3} s_{2} c_{3} - a_{4} s_{2} c_{34} + d_{6} s_{2} s_{34} \end{array}

where s _i = sin (θ_i ), c _i = cos (θ_i ), s₃₄ = sin (θ ₃ + θ ₄), c₃₄ = cos (θ ₃ + θ ₄), and d ₁, θ ₂, θ ₃, θ ₄, θ ₅, d ₆, and θ ₇ are seven joint variables that correspond to the seven active joints of the robot. Table 1 shows the D-H parameters of the 7-DOF redundant robot.

Table 1.

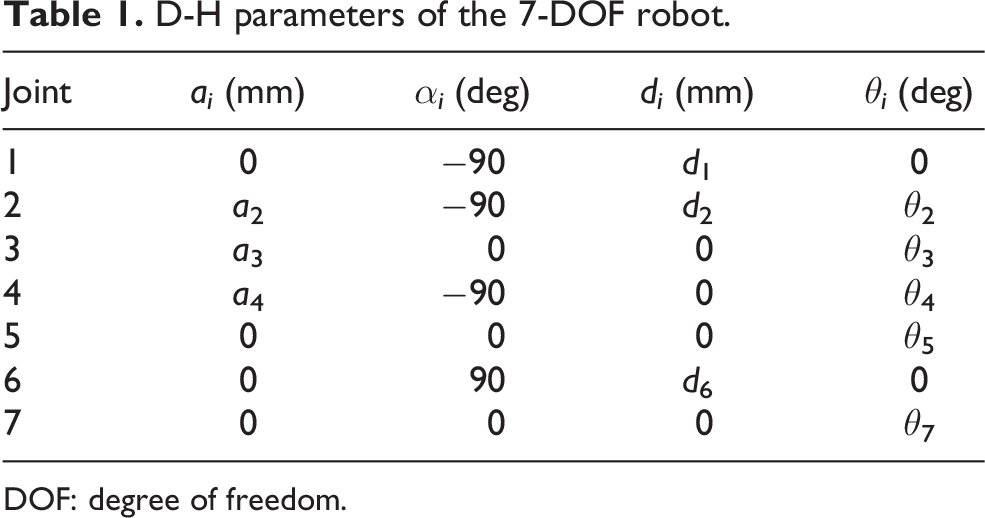

D-H parameters of the 7-DOF robot.

Joint	a_i (mm)	α_i (deg)	d_i (mm)	θ_i (deg)
1	0	−90	d ₁	0
2	a ₂	−90	d ₂	θ ₂
3	a ₃	0	0	θ ₃
4	a ₄	−90	0	θ ₄
5	0	0	0	θ ₅
6	0	90	d ₆	0
7	0	0	0	θ ₇

DOF: degree of freedom.

Kinematic analysis

For the painting task, it is expected that the end of the painting gun locates on the desired position and the painting gun is perpendicular to the workpiece surface. The painting task has no special requirement on the rotational motion of the painting gun around the axis along the gun length direction. Five DOFs are required to complete the painting task, while the robot has seven DOFs. Thus, there are many solutions for the inverse kinematics of the redundant robot and the best solution can be chosen to complete the painting task. The axes of joints 5 and 7 are perpendicular and joints 5 and 7 determine the orientation of the painting gun. The position of the end of the painting gun is independent of joints 5 and 7.

In this article, a two-step inverse kinematic method is proposed to find the solution of the inverse kinematics. In this method, the seven active joints of the redundant robot are divided into two joint groups. Joint group 1 includes joints 1, 2, 3, 4, and 6, and joints 5 and 7 belong to joint group 2. The position of the end of the painting gun is ensured by the joints in joint group 1, and the orientation of the painting gun is ensured by the joints in joint group 2.

For joint group 1, the input of the five active joints corresponds to the output of the end of the painting gun. The Jacobian matrix that reflects the velocity mapping relationship between the five active joints and the end of the painting gun can be derived as

J_{v p} = [\begin{matrix} J_{v}^{1} & J_{v}^{2} & J_{v}^{3} & J_{v}^{4} & J_{v}^{6} \end{matrix}]

where J _vp is a 3 × 5 matrix and $J_{v}^{i}$ is the velocity mapping relationship between the ith joint and the end point of the painting gun. If the ith joint is a rotational joint, $J_{v}^{i}$ can be expressed as

J_{v}^{i} = z_{i - 1} \times (o_{7} - o_{i - 1})

where z _k is the unit vector of the Z_k axis in the base coordinate system O ₀-X ₀ Y ₀ Z ₀, o _k is the position vector of O_k in the base coordinate system. If the ith joint is a translational joint, $J_{v}^{i}$ can be expressed as

J_{v}^{i} = z_{i - 1}

The null space of the Jacobian matrix J _vp can be expressed as

η_{v} = [\begin{matrix} - \frac{a_{3} (a_{4} s_{4} + d_{6} c_{4})}{s_{2} (a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34})} & - \frac{a_{3} s_{4} - d_{6}}{s_{2} (a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34})} \\ - \frac{a_{3} (a_{4} s_{4} + d_{6} c_{4})}{s_{2} (a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34})} \cdot A & - \frac{a_{3} s_{4} - d_{6}}{s_{2} (a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34})} \cdot A \\ - \frac{a_{4} c_{34} - d_{6} s_{34}}{a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34}} & - \frac{c_{34}}{a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34}} \\ 1 & 0 \\ 0 & 1 \end{matrix}]

where

A= \frac{c_{2}}{a_{2} + a_{3} c_{3} + a_{4} c_{34} - d_{6} s_{34}}

From equation (6), it can be concluded that the null space of J _vp consists of two noncollinear vectors. This means that the robot has two independent DOFs when the end point of the painting gun is fixed. From equation (6), it can also be concluded that the two row vectors in the first and second row of η _v are collinear, which shows that joint 1 and joint 2 move synchronously. From the second joint to the seventh joint, the robot works in a plane and the plane is determined by $θ_{2}$ . When the robot has self-motion, the following equation can be obtained:

d_{1} = p_{z} + p_{x} \cdot tan θ_{2}

From the above analysis, the relationship between the joints and the end effector can be studied and a two-step inverse kinematic method is proposed. In the two-step inverse kinematic method, based on the given position of the end point of the painting gun, the inverse solution for the five joints in joint group 1 is found and then the rotational angles of joints 5 and 7 in joint group 2 are determined based on the orientation of the painting gun. For joint group 1, a numerical method that depends on iterative optimization is used to find an approximate solution since there are 5-DOF input and 3-DOF output. For joint group 2, the closed solution can be found since there are 2-DOF input and 2-DOF output.

The process of the two-step kinematic method to find the solution of the inverse kinematics can be summarized as follows:

Based on the painting task of the large workpiece, the moving trajectory of the painting gun is given, and the motion trajectory is discretized into many points.

The initial position and velocity of the joints in joint group 1 at the ith (i = 0) time are found. Based on the random search method, the joint position within the motion range is generated by giving the initial position of the end of the painting gun. Then, the joint velocity is found.

Based on the numerical method, the position and velocity of the joints in joint group 1 at the ith (i ≠ 0) time are computed.

Based on the solutions of joints in joint group 1, the analytical solutions of joints in joint group 2 are determined.

Dynamic model and numerical simulation

In robot control, control methods based on dynamics models are often used. To achieve effective and stable dynamics control, an accurate dynamics model must first be established. First, it should be noted that friction is a very important part of robot dynamics modeling theory. However, since friction is very complex and there is still no unified friction modeling method, the friction is not considered in this article.

Velocity and acceleration derivation based on Newton–Euler method

The Newton–Euler method is used to derive the dynamic model in this session. For convenience, q_i is used to represent the joint variable. Namely, q = [q ₁ q ₂…q ₇]^T = [d ₁, θ ₂, θ ₃, θ ₄, θ ₅, d ₆, θ ₇]^T. When the ith joint is a rotational joint, the linear velocity v _i can be expressed as

v_{i} = {}^{i}R_{i - 1} v_{i - 1} + ω_{i} \times r_{i}

where r _i = [a_i , d_i sα_i , d_i cα_i ]^T is the vector O _i ₋ ₁ O _i , ⁱ R _i ₋₁ is the orientation matrix of coordinate system O_i ₋₁-X_i ₋₁ Y_i ₋₁ Z_i ₋₁ with respect to O_i -X_iY_iZ_i .

The angular velocity ω _i of the ith link can be expressed as

ω_{i} = {}^{i}R_{i - 1} (ω_{i - 1} + {\dot{q}}_{i} e_{3})

where e ₃ = [0 0 1]^T is a unit vector. If not specified, the kinematic parameters of the ith link are all with respect to O_i -X_iY_iZ_i .

When the ith joint is a translational one, ω _i and v _i can be expressed as

{\begin{array}{l} ω_{i} = {}^{i}R_{i - 1} ω_{i - 1} \\ v_{i} = {}^{i}R_{i - 1} (v_{i - 1} + {\dot{q}}_{i} e_{3}) + ω_{i} \times r_{i} \end{array}

For the rotational joint, the joint acceleration and angular acceleration of the ith link can be written as

{\begin{array}{l} {\dot{ω}}_{i} = {}^{i}R_{i - 1} ({\dot{ω}}_{i - 1} + {\ddot{q}}_{i} e_{3} + ω_{i - 1} \times {\dot{q}}_{i} e_{3}) \\ {\dot{v}}_{i} = {}^{i}R_{i - 1} {\dot{v}}_{i - 1} + {\dot{ω}}_{i} \times r_{i} + ω_{i} \times (ω_{i} \times r_{i}) \end{array}

For the translational joint, the joint acceleration and angular acceleration of the ith link can be written as

{\begin{array}{l} {\dot{ω}}_{i} = {}^{i}R_{i - 1} {\dot{ω}}_{i - 1} \\ {\dot{v}}_{i} = {}^{i}R_{i - 1} ({\dot{v}}_{i - 1} + {\ddot{q}}_{i} e_{3}) + ω_{i} \times r_{i} + ω_{i} \times (ω_{i} \times r_{i}) + 2 ω_{i} \times ({}^{i}R_{i - 1} {\dot{q}}_{i} e_{3}) \end{array}

Therefore, the velocity and acceleration of the mass center can be computed as

{\begin{array}{l} v_{c i} = v_{i} + ω_{i} \times r_{c i} \\ {\dot{v}}_{c i} = {\dot{v}}_{i} + {\dot{ω}}_{i} \times r_{c i} + ω_{i} \times (ω_{i} \times r_{c i}) \end{array}

where r _ci = [r_cxi r_cyi r_czi ]^T is the position vector of the mass center of the ith link with respect to O_i -X_iY_iZ_i .

Dynamic model

In modeling, it is supposed that the joints are well lubricated, and thus the joint friction is not considered. Let f _k _,i and n _k _,i be the force and moment that the kth link imposes on the ith link with respect to O_i -X_iY_iZ_i , respectively. For the first link, f _0,1 and n _0,1 are the force and moment that the base provides. For the end effector, f _7,8 and n _7,8 are the output force and moment. The force and moment equation of the ith link can be written as

f_{i - 1, i} - f_{i, i + 1} - m_{i} {\dot{v}}_{c i} + m_{i}^{i} g = 0

n_{i - 1, i} - n_{i, i + 1} - (r_{i} + r_{c i}) \times f_{i - 1, i} + r_{c i} \times f_{i, i + 1} - I_{c i} {\dot{ω}}_{i} - ω_{i} \times (I_{c i} ω_{i}) = 0

where m_i is the mass of the ith link, ⁱ g is the gravitational acceleration with respect to O_i -X_iY_iZ_i , ⁱ g = ⁱ R _i ₋₁ g , g is the gravitational acceleration, and I _ci is the inertial moment of the ith link with respect to its mass center.

Based on Newton’s third law, the following equation can be obtained

f_{i - 1, i} + f_{i, i - 1} = 0

\begin{matrix} n_{i - 1, i} + n_{i, i - 1} = 0, & 2 \leq i \leq 7 \end{matrix}

It is assumed that the load force and moment imposing on the end effector is known. The unknown variables are f _i _−1,i and n _i _−1,i. There are 26 variables, and each variable is a three-dimensional vector.

Based on equations (14)–(17), 26 equations are obtained and unknown variables f _i _−1,i and n _i _−1,i can be recursively calculated as

{\begin{array}{l} f_{i - 1, i} = {}^{i}R_{i + 1} f_{i, i + 1} + m_{i} {\dot{v}}_{c i} - m_{i}^{i} g \\ n_{i - 1, i} = {}^{i}R_{i + 1} n_{i, i + 1} + (r_{i} + r_{c i}) \times f_{i - 1, i} - r_{c i} \times ({}^{i}R_{i + 1} f_{i, i + 1}) + I_{c i} {\dot{ω}}_{i} - ω_{i} \times (I_{c i} ω_{i}) \end{array}

Let f _i and n _i be the force and moment that the (i − 1)th link imposes on the ith link with respect to O_i ₋₁-X_i ₋₁ Y_i ₋₁ Z_i ₋₁, respectively. Therefore

{\begin{array}{l} f_{i} = {}^{i - 1}R_{i} f_{i - 1, i} \\ n_{i} = {}^{i - 1}R_{i} n_{i - 1, i} \end{array}

Furthermore, the driving force or torque of the seven active joints can be found as

τ = [\begin{array}{l} f_{1} \\ τ_{2} \\ τ_{3} \\ τ_{4} \\ τ_{5} \\ f_{6} \\ τ_{7} \end{array}] = [\begin{array}{l} f_{1}^{T} e_{3} \\ n_{2}^{T} e_{3} \\ n_{3}^{T} e_{3} \\ n_{4}^{T} e_{3} \\ n_{5}^{T} e_{3} \\ f_{6}^{T} e_{3} \\ n_{7}^{T} e_{3} \end{array}]

where τ_i is the driving torque for the ith active joint.

Numerical simulation

To simulate the kinematics and dynamics of the 7-DOF robot, a motion trajectory is designed. The simulation trajectory is given by

\begin{matrix} {\begin{cases} x = r sin (\frac{π}{4} (1 + sin 2 π \frac{z}{l})) - 2.8 \\ y = r cos (\frac{π}{4} (1 + sin 2 π \frac{z}{l})) - 1.8 \end{cases} & (m) \end{matrix}

where r = 1.5 m and l = 1 m.

The internal normal on the cylindrical plane at each point on the trajectory can be calculated from equation (21), which is the pointing direction of the gun. It is specified that the end point of the painting gun moves along the trajectory with a velocity of 0.04 m/s.

In simulation, two translational joint variables d ₁ and d ₆ are regarded as undetermined variables. The solution of d ₁ and d ₆ is optimized based on numerical method. The joint variables θ ₂, θ ₃, θ ₄, θ ₅, and θ ₇ that are the function of d ₁ and d ₆ are then determined. Table 2 gives the geometrical and inertial parameters of the robot. When the robot moves along the trajectory as shown in Figure 3, the inverse kinematics is found. Figure 4 shows the joint positions along the trajectory, which changes smoothly. Besides, by taking these positions to calculate the forward kinematic, the error is around 10⁻¹⁵ m. Therefore, our two-step inverse kinematic solving method is effective and accurate.

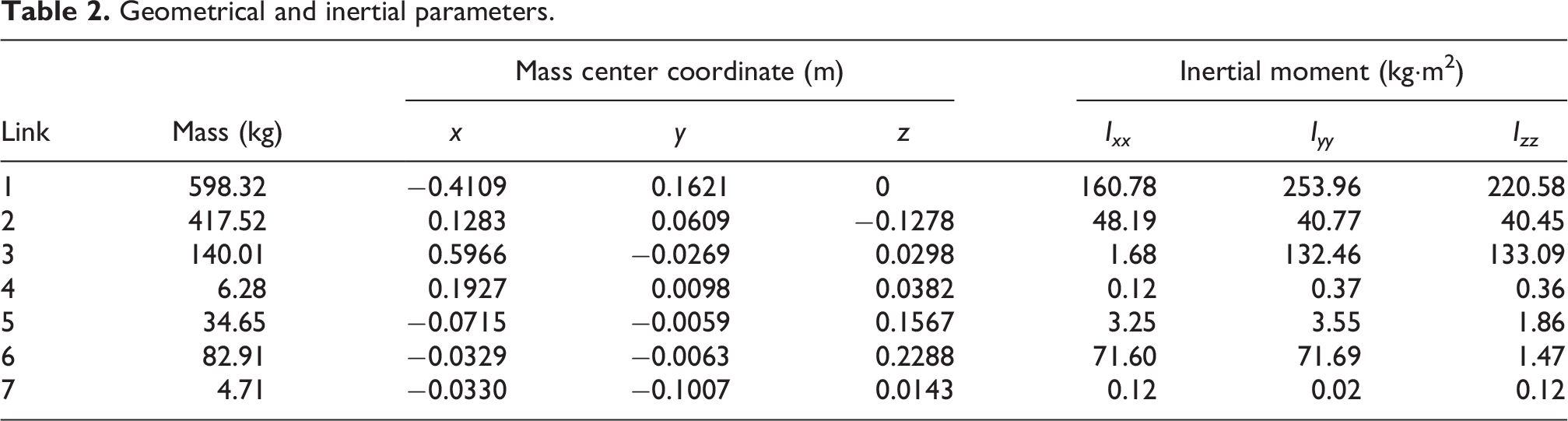

Table 2.

Geometrical and inertial parameters.

Link	Mass (kg)	Mass center coordinate (m)			Inertial moment (kg·m²)
Link	Mass (kg)	x	y	z	I_xx	I_yy	I_zz
1	598.32	−0.4109	0.1621	0	160.78	253.96	220.58
2	417.52	0.1283	0.0609	−0.1278	48.19	40.77	40.45
3	140.01	0.5966	−0.0269	0.0298	1.68	132.46	133.09
4	6.28	0.1927	0.0098	0.0382	0.12	0.37	0.36
5	34.65	−0.0715	−0.0059	0.1567	3.25	3.55	1.86
6	82.91	−0.0329	−0.0063	0.2288	71.60	71.69	1.47
7	4.71	−0.0330	−0.1007	0.0143	0.12	0.02	0.12

Figure 3.

Motion trajectory.

Figure 4.

Joint positions.

Based on the dynamic model, the driving forces of active joints are shown in Figure 5(a) when the robot moves along the trajectory shown in equation (21). In order to validate the dynamic model derived by Newton–Euler method, the dynamic model is also derived by the Lagrangian method. When the robot also moves along the trajectory shown in equation (21), the driving forces are computed based on the model derived by the Lagrangian method, as shown in Figure 5(b). One may see that the driving forces derived from two modeling methods are consistent, which shows that the dynamic model is effective.

Figure 5.

Driving torques of revolute joints: (a) Newton–Euler method and (b) Lagrangian method.

Linearized dynamic model

For the application of dynamic parameter identification, it is necessary to write the dynamic model into the linear form. For the 7-DOF spray-painting robot, there are 70 dynamic parameters, that is, 7 parameters of mass, 21 parameters of the center of mass, and 42 parameters of inertia. Denote the inertia matrix of the ith link with respect to O_i in O_i -X_iY_iZ_i by $I_{o i} = [\begin{matrix} I_{i x x} & I_{i x y} & I_{i x z} \\ I_{i y x} & I_{i y y} & I_{i y z} \\ I_{i z x} & I_{i z y} & I_{i z z} \end{matrix}]$ . Let M_ix , M_iy _, and M_iz be the first-order moment of link i around O_i -X_iY_iZ_i . The dynamic parameters of the ith link can be written as θ _i = [m _i M_ix M_iy M_iz I_ixx I_ixy I_ixz I_iyy I_iyz I_izz ]^T. It can be deduced from parallel axis theorem that

I_{o i} = I_{c i} + m_{i} (r_{c i}^{T} r_{c i} E_{3} - r_{c i} r_{c i}^{T})

where E ₃ is a 3 × 3 unit matrix.

Substituting equation (22) into equation (18) yields

n_{i - 1, i} = {}^{i}R_{i + 1} n_{i, i + 1} + r_{i} \times f_{i - 1, i} + ({}^{i}g - {\dot{v}}_{i}) \times m_{i} r_{c i} + I_{o i} {\dot{ω}}_{i} + ω_{i} \times (I_{o i} ω_{i})

Therefore, equation (19) can be rewritten in a linearized form with respect to θ _i as

F_{i} = \sum_{k = i}^{n} {}^{i}C_{k} A_{k} θ_{k}

where

F_{i} = {[\begin{array}{l} f_{i - 1, i}^{T} & n_{i - 1, i}^{T} \end{array}]}^{T}

{}^{i}C_{k} = {\begin{array}{l} \prod_{s = i}^{k - 1} {}^{s}C_{s + 1} & k > i \\ I & k = i \end{array}

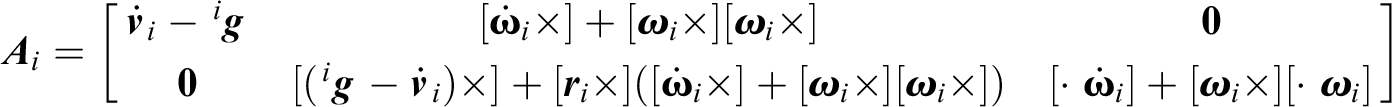

A_{i} = [\begin{matrix} {\dot{v}}_{i} - {}^{i}g & [{\dot{ω}}_{i} \times] + [ω_{i} \times] [ω_{i} \times] & 0 \\ 0 & [({}^{i}g - {\dot{v}}_{i}) \times] + [r_{i} \times] ([{\dot{ω}}_{i} \times] + [ω_{i} \times] [ω_{i} \times]) & [\cdot {\dot{ω}}_{i}] + [ω_{i} \times] [\cdot ω_{i}] \end{matrix}]

{}^{i}C_{i + 1} = [\begin{matrix} {}^{i}R_{i + 1} & 0 \\ [r_{i} \times] {}^{i}R_{i + 1} & {}^{i}R_{i + 1} \end{matrix}]

in which

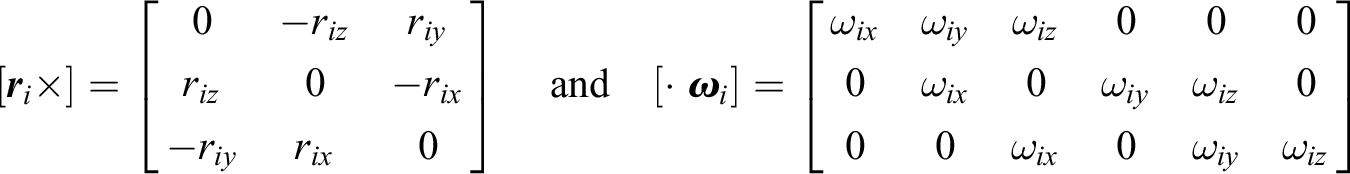

[r_{i} \times] = [\begin{matrix} 0 & - r_{i z} & r_{i y} \\ r_{i z} & 0 & - r_{i x} \\ - r_{i y} & r_{i x} & 0 \end{matrix}] and [\cdot ω_{i}] = [\begin{matrix} ω_{i x} & ω_{i y} & ω_{i z} & 0 & 0 & 0 \\ 0 & ω_{i x} & 0 & ω_{i y} & ω_{i z} & 0 \\ 0 & 0 & ω_{i x} & 0 & ω_{i y} & ω_{i z} \end{matrix}]

Equation (24) can be rewritten in a matrix form as

F = U θ

where $F = {[\begin{matrix} F_{1}^{T} & F_{2}^{T} & \dots & F_{7}^{T} \end{matrix}]}^{T}$ , $U = [\begin{matrix} U_{11} & \dots & U_{17} \\ ⋮ & ⋱ & ⋮ \\ U_{71} & \dots & U_{77} \end{matrix}]$ , and $θ = {[\begin{matrix} θ_{1}^{T} & \dots & θ_{7}^{T} \end{matrix}]}^{T}$ . U _ij is a submatrix and can be expressed as

U_{i j} = {\begin{array}{l} {}^{i}C_{j} A_{j} & i < j \\ A_{i} & i = j \\ 0 & i > j \end{array}

By taking the relations of

F_{i}^{*} = {}^{i - 1}R_{i}^{*} F_{i}

where $F_{i}^{*} = {[\begin{array}{l} f_{i}^{T} & n_{i}^{T} \end{array}]}^{T}$ and $^{i - 1} R_{i}^{*} = [\begin{matrix} ^{i - 1} R_{i} & 0 \\ 0 & {}^{i - 1}R_{i} \end{matrix}]$ , equation (25) can be written as

F^{*} = U^{*} θ

where $U^{*} = [\begin{matrix} ^{0} R_{1}^{*} & 0 \\ ⋱ \\ 0 & ^{6} R_{7}^{*} \end{matrix}] U$ . Therefore, $τ$ can be expressed in a linear form with respect to dynamic parameters as

τ = K θ

where

K = [\begin{matrix} K_{11} & \dots & K_{17} \\ ⋮ & ⋱ & ⋮ \\ K_{71} & \dots & K_{77} \end{matrix}]

and

K_{i j} = {\begin{matrix} [\begin{matrix} 0 & 0 & 1 & 0 & 0 & 0 \end{matrix}] U_{i j}^{*} & i = 1, 6 \\ [\begin{matrix} 0 & 0 & 0 & 0 & 0 & 1 \end{matrix}] U_{i j}^{*} & i = 2, 3, 4, 5, 7 \end{matrix}

Effect of telescopic forearm on dynamics

Inertial load and gravitational load

Since the studied robot can paint very large workpieces, a long forearm is required. However, the long link will also have associated problems such as large joint load, low stiffness, and vibrations. Thus, a telescopic forearm is introduced to adjust the workspace. It is obvious that the dynamic characteristics of the robot changes with the length of the telescopic forearm. Since the robot is redundant, the robot has many motion modes for a given painting task. When the painting workspace can be achieved, the robot can work with better dynamic characteristics by adjusting the length of the telescopic forearm. Thus, it is important to study the effect of the telescopic forearm on the robot dynamics.

According to the kinematics derived by Newton–Euler method in the previous session, the velocity of the mass center and angular velocity of the ith link can be written as

\begin{matrix} v_{c i} = J_{v i} \cdot \dot{q}, & ω_{i} = \end{matrix} J_{ω i} \cdot \dot{q}

where J _vi and J _ωi represent the mapping relationship from the joint velocity to the mass center velocity v _ci and angular velocity ω _i of the ith link.

The dynamic model of the 7-DOF robot can be rewritten as

F = M (q) \cdot \ddot{q} + V (q, \dot{q}) + G (q)

where $M (q) = \sum_{i = 1}^{7} (J_{v i}^{T} \cdot (m_{i} E_{3}) \cdot J_{v i} + J_{ω i}^{T} \cdot {}^{0}R_{i} I_{c i} {}^{0}R {_{_{i}}^{T}}^{} \cdot J_{ω i})$ , $V (q, \dot{q})$ is the velocity term relating to Coriolis and centrifugal forces, the ith element of $V (q, \dot{q})$ is $V_{i} (q, \dot{q}) = \sum_{j = 1}^{7} \frac{\partial M_{i, j}}{\partial q_{j}} \dot{q} \cdot {\dot{q}}_{i}$ , M_i _,j is the ith row and jth column of M ( q ), G is the gravitational term and the ith element of G is $G_{i} (q) = \sum_{j = 1}^{7} m_{j} g^{T} \cdot J_{v j}^{i}$ , $J_{v i}^{j}$ is the jth elements of J _v , ⁰ R _i is the orientation matrix of coordinate system O_i -X_iY_iZ_i with respect to the base coordinate system.

In painting applications, the velocity of the end effector is not fast. Thus, the velocity term is omitted because it has little contribution to the dynamics. The inertial matrix M ( q ) reflects the effect of joint acceleration on inertia force and M_i _,j reflects the effect of the jth joint acceleration on the inertial force of the ith joint. M ( q ) depends on the joint position and changes with the joint position. Thus, the change of M ( q ) can reflect the change of dynamic characteristics. The gravitational term reflects the effect of link gravity on joint load with a given position.

Since the robot has rotational joints and translational joints, the elements in the inertial matrix have different dimensions. It is necessary to make the elements have the same dimension. Considering that the kinematic energy of the robot is $E_{k} = M {\dot{q}}^{2} / 2$ , the inertial matrix can also be determined by the kinematic energy and joint velocity. Both rotational joints and translational joints are driven by servomotors. If the joint velocity is converted into the rotational velocity of the servomotor based on the transmission ratio from servomotor to the joint, the elements in the inertial matrix will have the same dimension. Therefore, the kinematic energy will be considered in this section and then the inertial matrix relating to the rotational velocity of the servomotor can be determined.

Let the transmission ratio from servomotor to the joint be i ₁, i ₂,…, i ₇ and $i_{m} = [\begin{matrix} i_{1} \\ i_{2} \\ ⋱ \\ i_{7} \end{matrix}]$ . The rotational velocity of the seven servomotors can be expressed as

ω_{m} = i_{m} \dot{q}

Substituting equation (32) into equation (30) yields

\begin{matrix} v_{c i} = J_{v i} \cdot i_{m}^{- 1} ω_{m}, & ω_{i} = J_{ω i} \cdot i_{m}^{- 1} ω_{m} \end{matrix}

where $i_{m}^{- 1}$ is the inverse of i _m , and $i_{m}^{- 1} = [\begin{matrix} i_{1}^{- 1} \\ i_{2}^{- 1} \\ ⋱ \\ i_{7}^{- 1} \end{matrix}]$ .

The kinematic energy of the robot can be expressed as

E_{k} = \sum_{i = 1}^{7} (\frac{1}{2} {(J_{v i} \cdot i_{m}^{- 1} ω_{m})}^{T} m_{i} J_{v i} \cdot i_{m}^{- 1} ω_{m} + \frac{1}{2} {(J_{ω i} \cdot i_{m}^{- 1} ω_{m})}^{T}^{0} R_{i} I_{i}^{0} R_{i}^{T} J_{ω i} \cdot i_{m}^{- 1} ω_{m}) = \sum_{i = 1}^{7} \frac{1}{2} ω_{m}^{T} i_{m}^{- 1} (J_{v i}^{T} (m_{i} E_{3}) \cdot J_{v i} + J_{ω i}^{T} \cdot ({}^{0}R_{i} I_{i}^{0} R_{i}^{T}) \cdot J_{ω i}) i_{m}^{- 1} ω_{m}

Thus, the inertial matrix with respect to the rotational velocity of the servomotor can be expressed as

M_{m} = \sum_{i = 1}^{7} i_{m}^{- 1} (J_{v i}^{T} \cdot (m_{i} E_{3}) \cdot J_{v i} + J_{ω i}^{T} \cdot ({}^{0}R_{i} I_{i}^{0} R_{i}^{T}) \cdot J_{ω i}) i_{m}^{- 1}

Let M_mij be the ith row and jth column of M _m and M_mij reflects the effect of the jth servomotor acceleration on the inertial force of the ith joint. The sum of the ith-row elements reflects the inertial load of the ith joint when all servomotors have unit acceleration. Therefore, the sum of the ith-row elements in M _m can be used to show the inertial load of the ith joint at a given configuration of the robot. Namely

M_{m i} = \sum_{j = 1}^{7} M_{m i j}

where M_mi is the sum of the ith-row elements in M _m .

Numerical simulation

When the telescopic forearm ranges from its lower length to its upper length, the average inertial load and gravitational load in the joint space are used to consider the effect of the telescopic forearm on the inertial load and gravitational load. It can be observed that the inertial matrix and gravitational matrix are related to the robot orientation not to the translation motion of the first joint. Thus, the average inertial load and gravitational load in the joint space can be expressed as

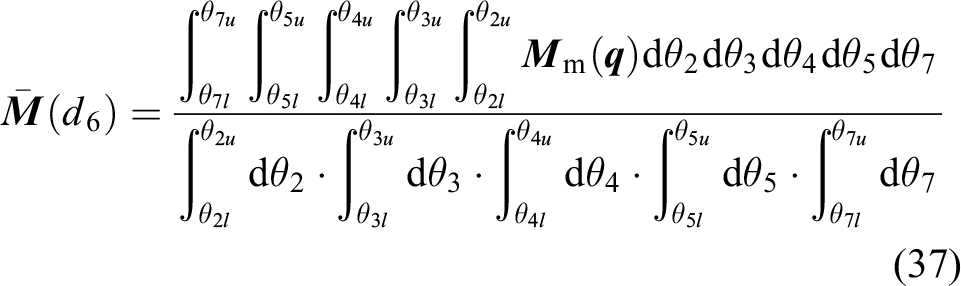

\bar{M} (d_{6}) = \frac{\int_{θ_{7 l}}^{θ_{7 u}} \int_{θ_{5 l}}^{θ_{5 u}} \int_{θ_{4 l}}^{θ_{4 u}} \int_{θ_{3 l}}^{θ_{3 u}} \int_{θ_{2 l}}^{θ_{2 u}} M_{m} (q) d θ_{2} d θ_{3} d θ_{4} d θ_{5} d θ_{7}}{\int_{θ_{2 l}}^{θ_{2 u}} d θ_{2} \cdot \int_{θ_{3 l}}^{θ_{3 u}} d θ_{3} \cdot \int_{θ_{4 l}}^{θ_{4 u}} d θ_{4} \cdot \int_{θ_{5 l}}^{θ_{5 u}} d θ_{5} \cdot \int_{θ_{7 l}}^{θ_{7 u}} d θ_{7}}

\bar{G} (d_{6}) = \frac{\int_{θ_{7 l}}^{θ_{7 u}} \int_{θ_{5 l}}^{θ_{5 u}} \int_{θ_{4 l}}^{θ_{4 u}} \int_{θ_{3 l}}^{θ_{3 u}} \int_{θ_{2 l}}^{θ_{2 u}} G (q) d θ_{2} d θ_{3} d θ_{4} d θ_{5} d θ_{7}}{\int_{θ_{2 l}}^{θ_{2 u}} d θ_{2} \cdot \int_{θ_{3 l}}^{θ_{3 u}} d θ_{3} \cdot \int_{θ_{4 l}}^{θ_{4 u}} d θ_{4} \cdot \int_{θ_{5 l}}^{θ_{5 u}} d θ_{5} \cdot \int_{θ_{7 l}}^{θ_{7 u}} d θ_{7}}

where θ_iu and θ_il are the upper and lower rotational limits of the ith joint.

Since MATLAB cannot directly calculate multiple integrals, equations (37) and (38) are calculated by the Monte Carlo method in this article. The detailed algorithm can be described as: (1) For the telescopic forearm, assign the coordinate value d ₆ of the sixth joint a series of values with an equal interval and the algorithm will proceed to the following steps with a given value of d ₆. (2) Assign the other six joints random values within their joint limits to form a joint vector q . (3) Substitute q into equations (35) and (31) to obtain the inertial matrix and gravitational matrix. Repeat the second and third steps many times and the corresponding inertial matrix and gravitational matrix can be obtained each time. Considering the computational time and accuracy, the algorithm is repeated 10,000 times. Then, the average inertial matrix and gravitational matrix can be obtained. The ith element in the average gravitational matrix is the average gravitational load of the ith joint. The inertial load of the ith joint can be obtained based on equation (36). The Pseudo Code of the above algorithm is shown in Table 3.

Table 3.

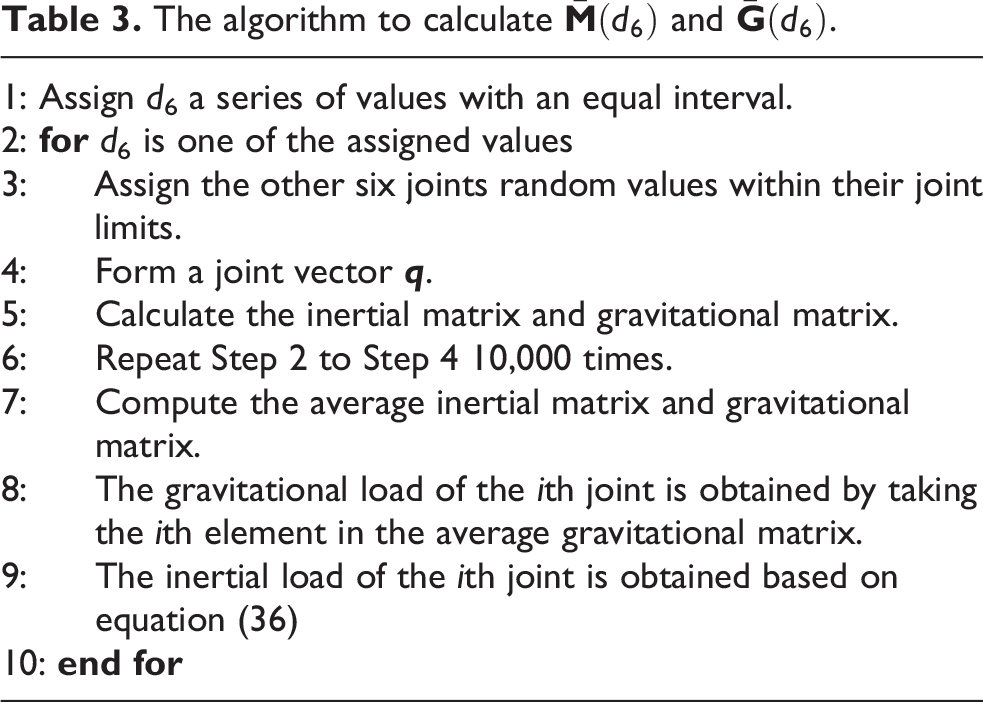

The algorithm to calculate $\bar{M} (d_{6})$ and $\bar{G} (d_{6})$ .

1: Assign d ₆ a series of values with an equal interval.

2: for d ₆ is one of the assigned values

3: Assign the other six joints random values within their joint limits.

4: Form a joint vector q .

5: Calculate the inertial matrix and gravitational matrix.

6: Repeat Step 2 to Step 4 10,000 times.

7: Compute the average inertial matrix and gravitational matrix.

8: The gravitational load of the ith joint is obtained by taking the ith element in the average gravitational matrix.

9: The inertial load of the ith joint is obtained based on equation (36)

10: end for

The transmission ratio and joint limit are shown in Table 4. It can be seen that joints 1 and 6 are translational joints and the transmission ratio has dimension. Joint 1 is a gear-rack drive, the diameter of the gear is 150 mm and the reduction ratio is 40. Joint 6 is driven by servomotor via ball screw, the pitch of the screw is 25 mm, and the reduction ratio is 10.

Table 4.

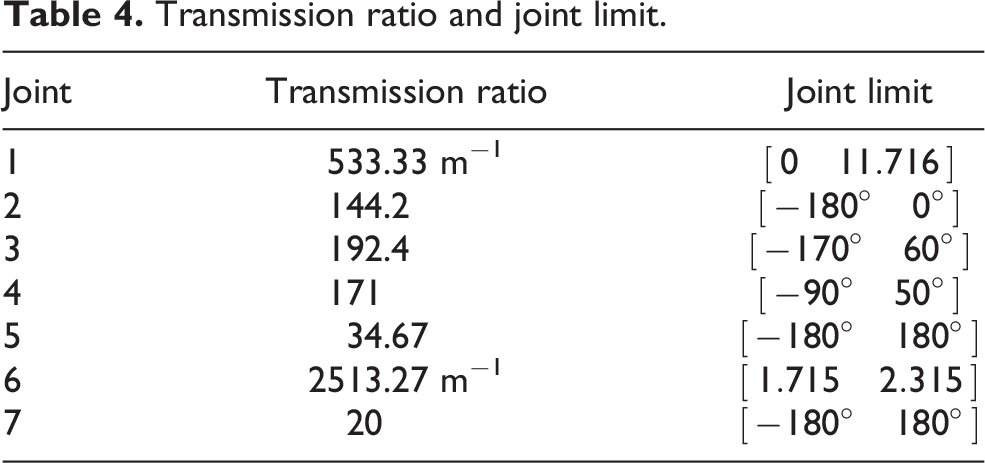

Transmission ratio and joint limit.

Joint	Transmission ratio	Joint limit
1	533.33 m⁻¹	$[\begin{matrix} 0 & 11.716 \end{matrix}]$
2	144.2	$[\begin{matrix} - 180 ° & 0 ° \end{matrix}]$
3	192.4	$[\begin{matrix} - 170 ° & 60 ° \end{matrix}]$
4	171	$[\begin{matrix} - 90 ° & 50 ° \end{matrix}]$
5	34.67	$[\begin{matrix} - 180 ° & 180 ° \end{matrix}]$
6	2513.27 m⁻¹	$[\begin{matrix} 1.715 & 2.315 \end{matrix}]$
7	20	$[\begin{matrix} - 180 ° & 180 ° \end{matrix}]$

By conducting several rounds of experiments, several sets of data are obtained. Due to the randomness of the Monte Carlo method in choosing q , the exact values of different experiments are slightly different. However, the following analysis is qualitative, thus such minor difference won’t affect our analysis of the influence of the telescopic forearm on the dynamic load of each joint. Figure 6 shows the relationship between the average inertial load and d ₆. The inertial load of joints 2, 3, and 4 increases greatly with the length of telescopic forearm. The inertial load of joint 5 increases slightly with the length of telescopic forearm. The inertial load of joints 1, 6, and 7 fluctuates with the length of telescopic forearm and does not obviously increase or decrease.

Figure 6.

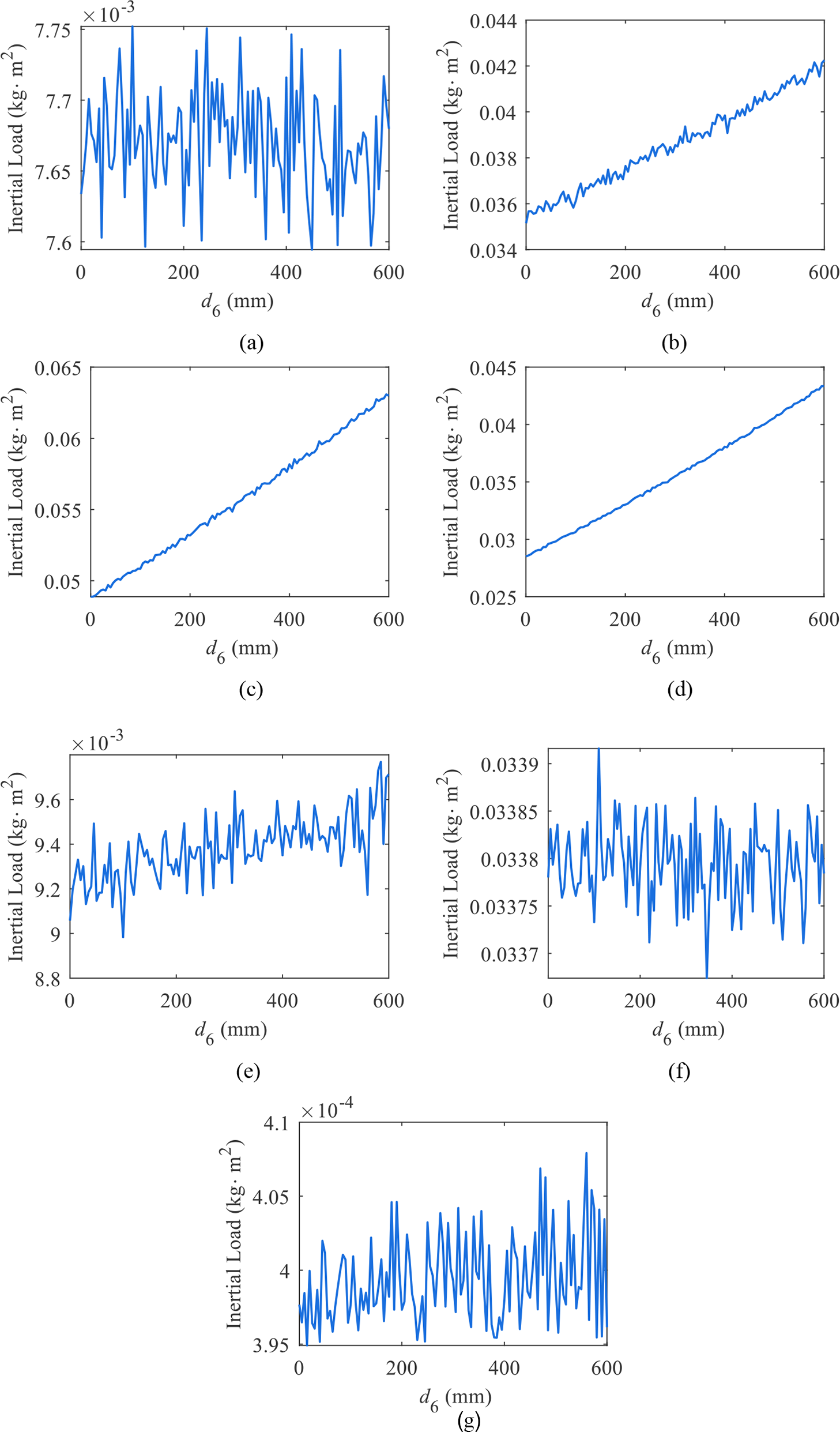

Inertial load of joints: (a) first joint, (b) second joint, (c) third joint, (d) fourth joint, (e) fifth joint, (f) sixth joint, and (g) seventh joint.

Figure 7 shows the relationship between the average gravitational load and d ₆. The gravitational load of joints 1 and 2 is zero and the gravitational load of joints 3 and 4 increases with the length of telescopic forearm. The gravitational load of joints 5, 6, and 7 fluctuates with the length of telescopic forearm and does not obviously increase or decrease. Since joint 1 is connected to the base and the driving force direction of joints 1 and 2 are perpendicular to the gravitational direction, the gravitational load of joints 1 and 2 are zero. Thus, when the length of the telescopic forearm is increased, the inertial load and gravitational load of the joints change in a similar trend.

Figure 7.

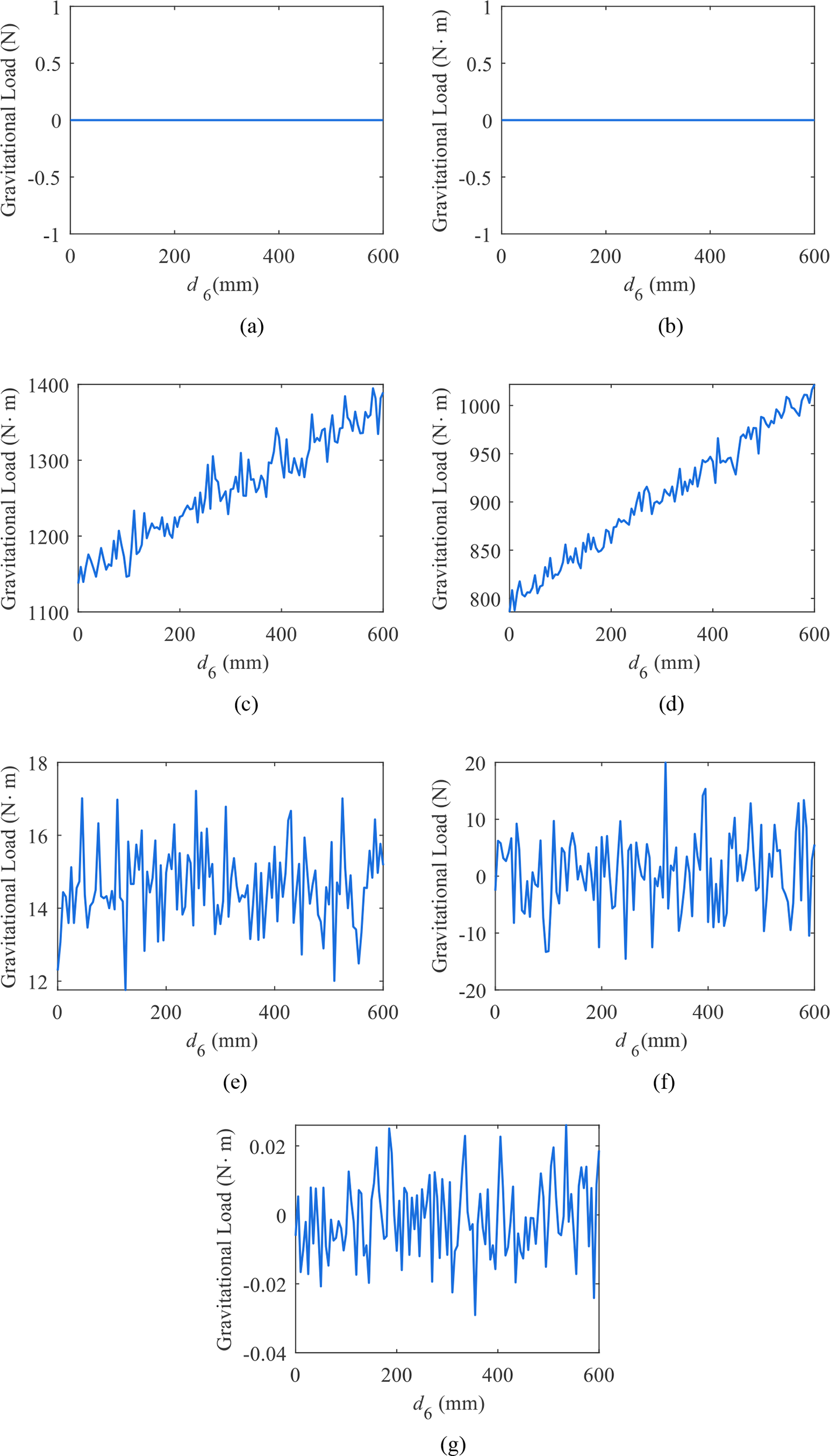

Gravitational load of joints: (a) first joint, (b) second joint, (c) third joint, (d) fourth joint, (e) fifth joint, (f) sixth joint, and (g) seventh joint.

Taking the inertial load and gravitational load as the dynamic load, the dynamic load of joints 2, 3, and 4 increases greatly with the length of telescopic forearm, and the dynamic load of joints 1, 5, 6, and 7 does not increase or decrease obviously. If the motion planning of the 7-DOF redundant robot is considered, it is better to reduce the length of the telescopic forearm to reduce the dynamic load of the joints. Namely, d ₆ should be as small as possible. Therefore, this work is very useful for the control and application of the 7-DOF spray-painting robot.

Conclusions

The kinematics and dynamics of a 7-DOF robot with a telescopic forearm for the spray-painting of large workpieces is investigated. A novel two-step inverse kinematic solving method is proposed to find the solution of the redundant inverse kinematics. The inverse solution for five joints that ensure the end-point position of the painting gun is found by numerical means while the analytical solutions of the other two joints are determined by analytical means. The dynamic model is derived and written in a linear form with respect to the dynamic parameters for the application of dynamic parameter identification. Two indices revealing the average inertial load and gravitational load in the joint space are proposed to evaluate the effect of the telescopic forearm on the dynamic load. Simulation results show that the dynamic load of joints 2, 3, and 4 increases greatly with the length of the telescopic forearm, and the dynamic load of joints 1, 5, 6, and 7 does not change significantly. Specifically, the gravitational load of joints 1 and 2 is always zero regardless of the length of the telescopic forearm. As the length of the telescopic forearm increases, the inertial load and gravitational load of joints 3 and 4, and the inertial load of joint 2 increase greatly, the inertial load and gravitational load of joints 6 and 7, the inertial load of joint 1 and the gravitational load of joints 5 fluctuate, and the inertial load of joint 5 slightly increases. If the motion planning of the 7-DOF redundant robot is considered, d ₆ should be as small as possible. This work is helpful for the motion planning and control of the 7-DOF spray-painting robot with a telescopic forearm.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant nos. 52375502 and U23B20103) and EU H2020 MSCA R&I Programme (no. 101022696).

ORCID iDs

Jiahao Qiu

Jun Wu

References

Zhao

. Structure synthesis and workspace analysis of a telescopic spraying robot. Mech Mach Theory 2019; 133(1): 295–310.

Tong

Liu

, et al. Analytical inverse kinematic computation for 7-DOF redundant sliding manipulators. Mech Mach Theory 2020; 155(1): 104006.

, et al. A novel dynamic evaluation method and its application to a 4-DOF parallel manipulator. Mech Mach Theory 2022; 168: 104627.

Zhao

Gao

. The joint velocity, torque, and power capability evaluation of a redundant parallel manipulator. Robotica 2011; 29(3): 483–493.

Zhao

Gao

Dong

, et al. Elastodynamic characteristics comparison of the 8-PSS redundant parallel manipulator and its non-redundant counterpart-the 6-PSS parallel manipulator. Mech Mach Theory 2010; 45(2): 291–303.

Gao

, et al. Mechatronics modeling and vibration analysis of a 2-DOF parallel manipulator in a 5-DOF hybrid machine tool. Mech Mach Theory 2018; 121: 430–445.

Zhang

Wang

. Stability analysis of a novel mobile spray-painting robot for touch-up painting in vehicle repair plant. J Mech Sci Technol 2022; 36: 2571–2584.

Lai

Liao

Chao

. Inverse kinematics for a novel hybrid parallel serial five-axis machine tool. Robot Comput Integr Manuf 2018; 50: 63–79.

Wang

. A general approach for geometric error modeling of over-constrained hybrid robot. Mech Mach Theory 2022; 176: 104998.

10.

Wang

Zhou

Bao

, et al. Trajectory tracking control using fractional-order terminal sliding mode control with sliding perturbation observer for a 7-DOF robot manipulator. IEEE/ASME Trans Mechatron 2020; 25(4): 1886–1893.

11.

Bagheri

Naseradinmousavi

. Analytical and experimental nonzero-sum differential game-based control of a 7-DOF robotic manipulator. J Vib Control 2022; 28(1): 707–718.

12.

Zhang

. Two-step optimum design of a six-axis loading device with parallel mechanism considering dynamic coupling. Int J Robot Autom 2022; 37(6): 498–511.

13.

Zhu

Wang

, et al. Optimization design and performance comparison of two 5-DOF parallel manipulators used for loading device. Int J Robot Autom 2022; 37(4): 310–320.

14.

Wang

Zhao

Wang

, et al. Inverse kinematics of a 7-DOF spraying robot with 4R 3-DOF non-spherical wrist. J Intell Robot Syst 2021; 101(4): 68.

15.

Dou

, et al. Inverse kinematics for a 7-DOF humanoid robotic arm with joint limit and end pose coupling. Mech Mach Theory 2022; 169: 104637.

16.

Ding

, et al. Kinematic reliability analysis of a 7-DOF redundant robot. J Robot 2022; 2022: 5917530.

17.

Singh

Claassens

. An analytical solution for the inverse kinematics of a redundant 7DoF manipulator with link offsets. In: 2010 IEEE/RSJ international conference on intelligent robots and systems, Taipei, Taiwan, 18–22 October 2010, pp. 2976–2982. Taipei: IEEE.

18.

Weghe

Ferguson

Srinivasa

. Randomized path planning for redundant manipulators without inverse kinematics. In: 2007 Seventh IEEE-RAS international conference on humanoid robots, Pittsburgh, PA, USA, 29 November 2007–01 December 2007, pp. 477–482. Pittsburgh: IEEE.

19.

Berenson

Srinivasa

Ferguson

, et al. Manipulation planning with workspace goal regions. In: 2009 IEEE international conference on robotics and automation, Kobe, Japan, 12–17 May 2009. Kobe: IEEE.

20.

Wang

Liu

, et al. An approach for elastodynamic modeling of hybrid robots based on substructure synthesis technique. Mech Mach Theory 2018; 123: 124–136.

21.

Dong

Liu

Yue

, et al. Stiffness modeling and analysis of a novel 5-DOF hybrid robot. Mech Mach Theory 2018; 125: 80–93.

22.

Zheng

Gao

, et al. Dynamics and control of a 7-DOF hybrid manipulator for capturing a non-cooperative target in space. Mech Mach Theory 2019; 140(3): 83–103.

23.

Carbone

Ogura

Lim

, et al. Dynamic simulation and experiments for the design of a new 7-DOFs biped walking leg module. Robotica 2004; 22(1): 41–50.

24.

Sun

Liao

, et al. Establishing an improved Kane dynamic model for the 7-dof reconfigurable modular robot. Math Probl Eng 2017; 2017(1): 1–13.

25.

Ramdani

Poignet

. Robust dynamic experimental identification of robots with set membership uncertainty. IEEE/ASME Trans Mechatron 2005; 10(2): 253–256.

26.

Olsen

Swevers

Verdonck

. Maximum likelihood identification of a dynamic robot model: implementation issues. Int J Robot Res 2002; 21(2): 89–96.
