Navigation risk assessment scheme based on fuzzy Dempster

Abstract

In order to reduce the influence of subjective factors on navigation risk assessment, we present a novel scheme based on the fuzzy Dempster–Shafer evidence theory in this article. At first, we deduce the fuzzy set after analyzing various indicators in actual vessel navigation as an example. What’s more, the current data can be adaptively transformed into quantitative information on the basis of two-order membership functions. Considering the inherent defects of standard Dempster–Shafer evidence framework, the assessment process is improved to combine the uncertain and conflicting evidences from available indicators to make reliable decision. Further, three propositions are derived to explain the proposed scheme step by step. Finally, the numerical study results indicate that the proposed scheme has satisfactory performance for vessel navigation risk assessment in the complex waters without any subjective factors.

Keywords

Navigation risk fuzzy set D-S evidence theory indicator risk level

Introduction

As a potentially dangerous navigation state, in effect, the navigation risk damages both nature environment and human life. In 2002, the International Maritime Organization (IMO) reported that the vessel navigation risk (VNR) is involved in the likelihood of occurrence and severity of consequence.^1
–3 With the vigorous development of modern transportation, there are plenty of traffic accidents in the complex waters, such as the port, bay, and reservoir. It is necessary to make accurate identification based on the promising assessment scheme. Given that the water traffic is a complex system determined by multifactor, it often involves the intelligent decision-making. Therefore, we should analyze the multi-information and carry out multilevel processing to mine the inherent information as much as possible.

The navigation risk assessment, as an important decision method, is getting more and more accepted to evaluate the risk level. In the past decades, many papers addressing this research topic have been published in some important journals. First, a fuzzy risk assessment in Akyildiz and Mentes⁴ was incorporated in terms of a set of plausible model scenarios leading to traffic accidents. In view of different navigation conditions, the automatic identification system was implemented as the input for risk assessment under the convention on the international regulations guidelines.⁵ In general, the maneuvers consist of complex dynamics owing to the external environmental conditions, such as the wind, wave, and water depth. In Perera,⁶ a mathematical framework for predicting vessel maneuvers in a short interval was presented. In order to seek the different effects on navigation and conduct numerical weather routing system, the representative typhoon was analyzed to make a valuable simulation in Chen et al.⁷ However, the complex structure of operations usually makes the occurrence of traffic accidents inevitable. For minimizing the negative impacts, a particular technique in Kececi and Arslan⁸ was feasible to identify stakeholders responsible in implementing corrective actions. Of course, the situational risk awareness is also crucial for the intelligent decision-making. In Gauss and Rötting,⁹ a navigational risk assessment system was further proposed. Proceeding from the risk-based approach, the aim of Lin and Fang¹⁰ was to identify challenges for operators when preparing for various threats. In view of piloting factors, Hu et al.¹¹ proved a grey assessment model conform the result of subjective judgment with the fuzzy set. In order to enhance the maritime safety, the IMO presented the formal safety assessment method. Liu et al.¹² focused on this method on the vessel navigation, and then took the possible incidents into account. Nowadays, the analytic hierarchy process (AHP) is regarded as a popular assessment method that divides the completed water transportation system into many subsystems. Considering the uncertainty of factors and incompleteness of data, we can get navigation information by using the AHP method. With the comprehensive collection of maritime accident database, Li and Hao¹³ made analysis on the safety risks by combining the AHP with fuzzy set. Hans et al.¹⁴ selected the vessel integrated navigation system as an object, and then applied the AHP method to assess the security. In the AHP model, the weight of risk indicator is calculated by the discriminant matrix owing to the expert experience, where the information is obtained using the associated weights and the consistency test is executed on the basis of discriminant matrix.¹⁵ In this way, the subjective factors play a leading role inevitably. In order to reduce the influence of expert experience in the AHP method, we should improve the assessment schemes and finalize credible results by mining the available information. As we know, the Dempster–Shafer (D-S) evidence theory is an appropriate approach to combine the multi-information.^16,17 With the dependent basic probabilistic assignment (BPA), the alternative technique for combining evidences was introduced in Blasch et al.¹⁸ Subsequently, Zadeh showed that the use of normalization factor of D-S combination rule on highly conflicting evidence could lead to the counterintuitive results in some cases.¹⁹ On the other hand, the fuzzy logic has its own advantage on the intelligent decision-making, whose solution can be cast in terms that are readily understood. Modeling with the incomplete data, the fuzzy logic gets the connotation through the representation of current information, which is a quantitative technique.^20,21 For this reason, Wang et al.²² designed a vessel steering control method via the generalized ellipsoidal function-based fuzzy logic. Subject to both fully unknown dynamics and complex input nonlinearities of autonomous vehicle, a Nussbaum-based adaptive fuzzy algorithm was further proposed in the homogeneity-based finite-time control framework.²³

In this article, it is our intention to solve the diplex problems: How to assess the navigation risk without any interference from subjective factors? How to make a credible decision based on the proposed intelligent scheme? Therefore, we mainly analyze the VNR assessment by combining the fuzzy logic with improved D-S evidence theory, where the innovations of are outlined: (1) the fuzzy set of available indicators is built, and then the current data can be adaptively transformed into quantitative information; (2) the fuzzy assessment matrix is derived based on the enhanced membership function and the entropy of associated weight coefficient; (3) the optimal evidence combination rules are explored to deal with the uncertain and conflicting evidences from various indicators. The remainder of this note is organized as follows: In the “Theory analysis” section, the main navigation indicators are briefly discussed, and then the associated fuzzy sets are presented. In the “Innovative assessment scheme” section, the proposed scheme is discussed with the innovative propositions in detail. Subsequently, the numerical studies are presented with results to analyze the overall performance of proposed scheme in the “Numerical study and discussion” section. Finally, we come to the conclusion with the next research plan in the “Conclusion” section.

Theory analysis

In this section, we briefly analyze the indicators of vessel navigation,^24,25 and then present the associated fuzzy set.

Navigation indicator

The primary indicators of water traffic includes three categories: the hydrological–meteorological indicator, natural environmental indicator, and navigable condition indicator.

Taking into account the enormously increasing probability of traffic accidents in bad weather, we consider the secondary indicators during the whole process, that is, the visibility, wind, wave, and current. It is generally known that the water traffic is affected by the poor visibility. Regarding the course and speed of vessels, the wind speed is an increasing probability function of water traffic accident, and the wave and current can cause vessel collision in channel. Therefore, we choose the visible distance of route as a standard to measure the visibility level. The wind speed, wave speed, and current speed are used as the levels of wind, wave, and current.

In view of natural environment, the vessel operator should comprehensively judge the water length, water depth, and obstacle width. The longer the channel length, the larger the probability of water traffic accident. With the increase of water resistance in the shallow region, the vessel power gradually decreases. Also, the narrow channel increases the probability of encounters. Inevitably, the obstacles are also the inherent harm. Then, we select the channel length, ratio of water depth to draft, ratio of channel width to vessel width, and obstacle size as the assessment standard.

Navigable condition includes the natural and artificial background, where the traffic management rate, channel crossing, vessel density, and chasing are the secondary indicators. Most of all, the navigable facilities are essential. The crossing channels increase the probability of vessel encounters, that is, the larger the number of vessels in unit waters, the greater the accident likelihood. Further, the chasing situation may cause collision. We use the navigable facilities to assess the management rate. The channel situation is measured with the channel intersections. As for vessels, their number in unit waters and chasing ratio are regarded as the assessment standard.

Fuzzy set of VNR

The IMO navigation rulemaking requires five risk levels $(k = 1, 2, 3, 4, 5)$ to assess the VNR in the complex waters,^1,3,24 which are the trivial risk, tolerable risk, moderate risk, substantial risk, and intolerable risk. According to the substantial analysis and statistics on the navigation factors, the primary indicator $X_{j} (j = 1, 2, 3)$ and the corresponding secondary indicators $x_{j i} (i = 1, 2, 3, 4)$ are cited in Table 1, where the viability x₁₁, ratio of depth to draft x₂₂, ratio of channel width to vessel width x₂₃, and traffic management rate x₃₁ are the benefit-type indicators. In other words, the greater the value, the better the performance. By comparison, other secondary indicators follow the cost-type distribution, which should be assigned the small value.

Table 1.

Assessment standard for indicator.

Indicator		Risk level $μ_{j i}^{k}$
Primary indicator, X_j	Secondary indicator, $x_{j i}$	Trivial, $μ_{j i}^{1}$	Tolerable, $μ_{j i}^{2}$	Moderate, $μ_{j i}^{3}$	Substantial, $μ_{j i}^{4}$	Intolerable, $μ_{j i}^{5}$
Hydrology and meteorology, X₁	Visibility, x₁₁ (km)	>50	50∼10	10∼2	2∼0.5	<0.5
	Wind, x₁₂ (m/s)	<1.6	1.6∼8	8∼13.9	13.9∼20.8	>20.8
	Wave, x₁₃ (knot)	<3	3∼4	4∼5	5∼6	>6
	Current, x₁₄ (knot)	<1.5	1.5∼2.5	2.5∼4	4∼6	>6
Nature environment, X₂	Channel length, x₂₁ (km)	<25	25∼90	90∼155	155∼200	>200
	Depth/draft, x₂₂	>4.0	4.0∼2.0	2.0∼1.6	1.6∼1.2	<1.2
	Channel width/vessel width, x₂₃	>8	8∼5	5∼3	3∼2	<2
	Obstacle size, x₂₄ (m)	<25	25∼50	50∼100	100∼200	>200
Navigable condition, X₃	Management rate, x₃₁ (%)	>95	95∼90	90∼80	80∼70	<70
	Channel intersections, x₃₂	<2	2∼3	3∼5	5∼8	>8
	Vessel density, x₃₃ (vessel/km²)	<5	5∼10	10∼20	20∼25	>25
	Vessel chasing, x₃₄ (vessel)	<2	2∼5	5∼15	15∼25	>25

Innovative assessment scheme

This section derives the proposed assessment scheme by combing the fuzzy logic with enhanced D-S evidence theory.

Principle of proposed scheme

Due to the uncertain and insufficient information, the fuzzy set has no fixed representation. We suppose that the fuzzy set is based on the fuzzy comprehensive cluster, where the inputs are mapped by the membership functions, and the starting and ending points have large information content^26

–29

μ = f (x) = {\begin{array}{l} {(\frac{x - b}{c - b})}^{κ} & b \leq x \leq c \\ {(\frac{b - x}{b - a})}^{κ} & a \leq x \leq b \\ 0; (1) & x \leq a, x \geq c; (when a is the minimum value or c is the maximum value) \end{array}

where the power κ is often taken to 1, 2, and 3. The fuzzy set has the simplest linear type under the condition of $κ = 1$ . In this note, we use $κ = 2$ to represent the characteristics of uncertain information. Figure 1 indicates the relationship between the indicator $x_{j i}$ and its function $f_{i j}^{k} (x_{i j})$ . Note that the maximal value of $f_{i j}^{k} (x_{i j})$ is 1, and the rising and trailing edges follow the nonlinear distribution.

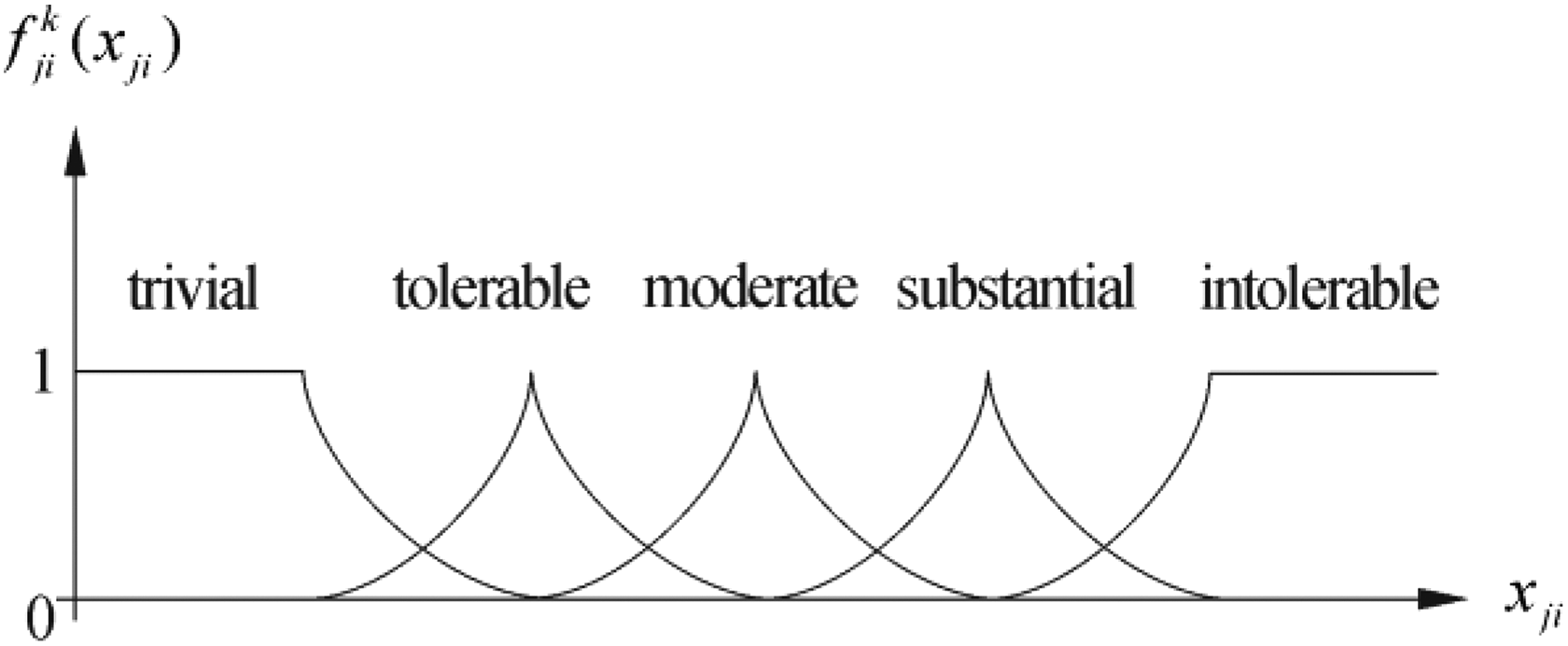

Figure 1.

Risk level and its fuzzy set.

For example, we only derive the risks based on x₁₁ to define the membership functions. Further, $f_{i j}^{k} (\cdot)$ is reduced to the form $f_{i j}^{k} [\cdot, \cdot, \cdot]$ , where the middle element is the crossing point between two adjacent curves. Then, Table 2 gives the membership function of 12 secondary indicators after our statistics

μ_{11}^{1} = f_{11}^{1} (x_{11}) = {\begin{array}{l} 1 & x_{11} \geq 50 \\ {(\frac{50 - x_{11}}{20})}^{2} & 30 \leq x_{11} \leq 50 \\ 0 & x_{11} \leq 30 \end{array}

μ_{11}^{2} = f_{11}^{2} (x_{11}) = {\begin{array}{l} {(\frac{x_{11} - 30}{20})}^{2} & 30 \leq x_{11} \leq 50 \\ {(\frac{30 - x_{11}}{24})}^{2} & 6 \leq x_{11} \leq 30 \\ 0 & x_{11} \leq 6, x_{11} \geq 50 \end{array}

μ_{11}^{3} = f_{11}^{3} (x_{11}) = {\begin{array}{l} {(\frac{x_{11} - 6}{24})}^{2} & 6 \leq x_{11} \leq 30 \\ {(\frac{6 - x_{11}}{4.75})}^{2} & 1.25 \leq x_{11} \leq 6 \\ 0 & x_{11} \leq 1.25, x_{11} \geq 30 \end{array}

μ_{11}^{4} = f_{11}^{4} (x_{11}) = {\begin{array}{l} {(\frac{x_{11} - 1.25}{4.75})}^{2} & 1.25 \leq x_{11} \leq 6 \\ {(\frac{1.25 - x_{11}}{0.75})}^{2} & 0.5 \leq x_{11} \leq 1.25 \\ 0 & x_{11} \leq 1.25, x_{11} \geq 6 \end{array}

μ_{11}^{5} = f_{11}^{5} (x_{11}) = {\begin{array}{l} 0 & x_{11} \geq 1.25 \\ {(\frac{x_{11} - 0.5}{0.75})}^{2} & 0.5 \leq x_{11} \leq 1.25 \\ 1 & x_{11} \leq 0.5 \end{array}

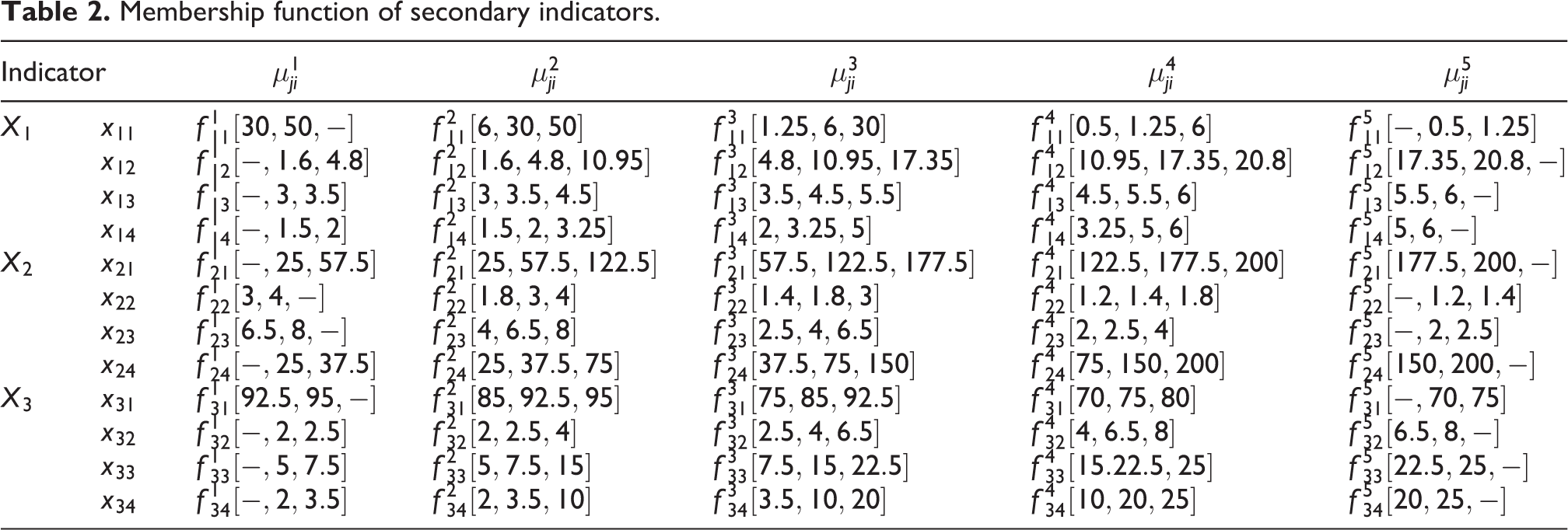

Table 2.

Membership function of secondary indicators.

Indicator		$μ_{j i}^{1}$	$μ_{j i}^{2}$	$μ_{j i}^{3}$	$μ_{j i}^{4}$	$μ_{j i}^{5}$
X ₁	x ₁₁	$f_{11}^{1} [30, 50, -]$	$f_{11}^{2} [6, 30, 50]$	$f_{11}^{3} [1.25, 6, 30]$	$f_{11}^{4} [0.5, 1.25, 6]$	$f_{11}^{5} [-, 0.5, 1.25]$
	x ₁₂	$f_{12}^{1} [-, 1.6, 4.8]$	$f_{12}^{2} [1.6, 4.8, 10.95]$	$f_{12}^{3} [4.8, 10.95, 17.35]$	$f_{12}^{4} [10.95, 17.35, 20.8]$	$f_{12}^{5} [17.35, 20.8, -]$
	x ₁₃	$f_{13}^{1} [-, 3, 3.5]$	$f_{13}^{2} [3, 3.5, 4.5]$	$f_{13}^{3} [3.5, 4.5, 5.5]$	$f_{13}^{4} [4.5, 5.5, 6]$	$f_{13}^{5} [5.5, 6, -]$
	x ₁₄	$f_{14}^{1} [-, 1.5, 2]$	$f_{14}^{2} [1.5, 2, 3.25]$	$f_{14}^{3} [2, 3.25, 5]$	$f_{14}^{4} [3.25, 5, 6]$	$f_{14}^{5} [5, 6, -]$
X ₂	x ₂₁	$f_{21}^{1} [-, 25, 57.5]$	$f_{21}^{2} [25, 57.5, 122.5]$	$f_{21}^{3} [57.5, 122.5, 177.5]$	$f_{21}^{4} [122.5, 177.5, 200]$	$f_{21}^{5} [177.5, 200, -]$
	x ₂₂	$f_{22}^{1} [3, 4, -]$	$f_{22}^{2} [1.8, 3, 4]$	$f_{22}^{3} [1.4, 1.8, 3]$	$f_{22}^{4} [1.2, 1.4, 1.8]$	$f_{22}^{5} [-, 1.2, 1.4]$
	x ₂₃	$f_{23}^{1} [6.5, 8, -]$	$f_{23}^{2} [4, 6.5, 8]$	$f_{23}^{3} [2.5, 4, 6.5]$	$f_{23}^{4} [2, 2.5, 4]$	$f_{23}^{5} [-, 2, 2.5]$
	x ₂₄	$f_{24}^{1} [-, 25, 37.5]$	$f_{24}^{2} [25, 37.5, 75]$	$f_{24}^{3} [37.5, 75, 150]$	$f_{24}^{4} [75, 150, 200]$	$f_{24}^{5} [150, 200, -]$
X ₃	x ₃₁	$f_{31}^{1} [92.5, 95, -]$	$f_{31}^{2} [85, 92.5, 95]$	$f_{31}^{3} [75, 85, 92.5]$	$f_{31}^{4} [70, 75, 80]$	$f_{31}^{5} [-, 70, 75]$
	x ₃₂	$f_{32}^{1} [-, 2, 2.5]$	$f_{32}^{2} [2, 2.5, 4]$	$f_{32}^{3} [2.5, 4, 6.5]$	$f_{32}^{4} [4, 6.5, 8]$	$f_{32}^{5} [6.5, 8, -]$
	x ₃₃	$f_{33}^{1} [-, 5, 7.5]$	$f_{33}^{2} [5, 7.5, 15]$	$f_{33}^{3} [7.5, 15, 22.5]$	$f_{33}^{4} [15.22.5, 25]$	$f_{33}^{5} [22.5, 25, -]$
	x ₃₄	$f_{34}^{1} [-, 2, 3.5]$	$f_{34}^{2} [2, 3.5, 10]$	$f_{34}^{3} [3.5, 10, 20]$	$f_{34}^{4} [10, 20, 25]$	$f_{34}^{5} [20, 25, -]$

For simplicity, the membership function $μ_{11}^{k}$ is illustrated by the example of the visibility $x_{11} = 32$ km in Table 3. Note that the referenced methods^24,25 only give the result with the linear estimation. As a result, the interference component $μ_{11}^{2}$ is relatively large. By comparison, the proposed scheme reduces $μ_{11}^{2}$ by using the two-order approximation. Regarding the uncertain and conflicting evidences, the extended component $μ_{11}^{0}$ can be solved in the proposed D-S framework.

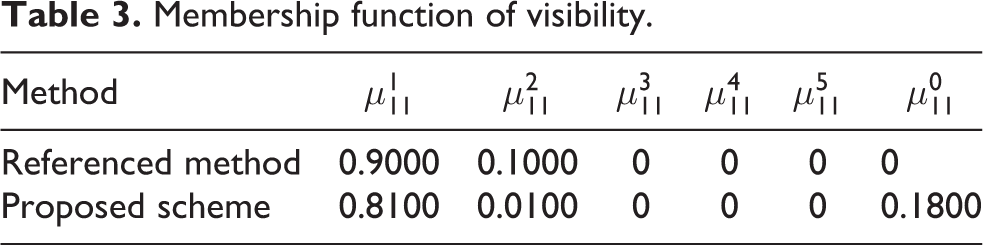

Table 3.

Membership function of visibility.

Method	$μ_{11}^{1}$	$μ_{11}^{2}$	$μ_{11}^{3}$	$μ_{11}^{4}$	$μ_{11}^{5}$	$μ_{11}^{0}$
Referenced method	0.9000	0.1000	0	0	0	0
Proposed scheme	0.8100	0.0100	0	0	0	0.1800

Proposition 1

Given that the membership function $μ_{j i}^{k} (1 \leq j \leq q, 1 \leq i \leq n, 0 \leq k \leq p)$ represents the risk level of secondary indicator $x_{j i}$ , its normalized weight $w_{j i}$ in the fuzzy set can be computed as

w_{j i} = \frac{\sum_{k = 0}^{p} μ_{j i}^{k} \sum_{j = 1}^{q} \sum_{i = 1}^{n} μ_{j i}^{k}}{\sum_{j = 1}^{q} \sum_{i = 1}^{n} (\sum_{k = 0}^{p} μ_{j i}^{k} \sum_{j = 1}^{q} \sum_{i = 1}^{n} μ_{j i}^{k})}

Proof

The information entropy is defined as the averaged information content produced by a stochastic source. The information entropy fully takes into account the probability of achieving a specific indicator, so the information is about the underlying probability distribution. Given that rarer indicators provide more information, the information entropy should quantify the considerations when a probability distribution of the source information is unknown. We use ${log}_{2} w$ to represent the variable that takes the value of w. Considering the information entropy $H (w_{j i})$ of normalized weight $w_{j i} (w_{j i} \geq 0)$ , we have in hand the following equations

{\begin{cases} H (w_{j i}) = - \sum_{j = 1}^{q} \sum_{i = 1}^{n} w_{j i} {log}_{2} w_{j i} \\ s.t. \sum_{j = 1}^{q} \sum_{i = 1}^{n} w_{j i} = 1 \end{cases}

In the usual optimization, the method of Lagrange multiplier is a strategy for finding the local maxima or minima of a nonlinear function subject to equality constraints. Further, the Lagrange multiplier is a mathematical tool without the need to explicitly solve the conditions and utilize them to eliminate extra variables. Suppose that λ is the Lagrange multiplier, then the Lagrange function of $w_{j i}$ can be structured as

L (w_{j i}, λ) = - \sum_{j = 1}^{q} \sum_{i = 1}^{n} w_{j i} {log}_{2} w_{j i} + λ (\sum_{j = 1}^{q} \sum_{i = 1}^{n} w_{j i} - 1)

We define that $L (w_{j i}, λ)$ has continuously one-partial derivatives and set the above equation derivations to 0

{\begin{array}{l} \frac{\partial L}{\partial w_{j i}} = {log}_{2} w_{j i} + 1 - λ = 0 \\ \frac{\partial L}{\partial λ} = \sum_{j = 1}^{q} \sum_{i = 1}^{n} w_{j i} - 1 = 0 \end{array}

After solving the mentioned equations, we can obtain the optimal solution $w_{j i, OP}$ as

w_{j i, OP} = \frac{1}{q n}

Note that $H (w_{j i})$ reaches the maximum in the case of equivalent $w_{j i}$ . Regarding the uncertainty of $μ_{j i}^{k}$ , we compute the mathematical expectation of ${\bar{μ}}_{j i}^{k}$ as follows

\begin{array}{l} {\bar{μ}}_{j i}^{k} = w_{j i, OP} \sum_{j = 1}^{q} \sum_{i = 1}^{n} μ_{j i}^{k} \\ = \frac{1}{q n} [(μ_{11}^{k} + μ_{12}^{k} + \dots + μ_{1 n}^{k}) + \dots + (μ_{q 1}^{k} + μ_{q 2}^{k} + \dots + μ_{q n}^{k})] \end{array}

Let ${[\cdot]}^{T}$ be the transposed matrix, we use the correlation coefficient $r_{j i}$ to define the similarity between $μ_{j i}^{k}$ and ${\bar{μ}}_{j i}^{k}$

\begin{array}{l} r_{j i} = \sum_{k = 0}^{p} μ_{j i}^{k} {\bar{μ}}_{j i}^{k} \\ = [\begin{array}{l} μ_{j i}^{1} & μ_{j i}^{2} & \dots & μ_{j i}^{p} & μ_{j i}^{0} \end{array}] {[\begin{array}{l} {\bar{μ}}_{j i}^{1} & {\bar{μ}}_{j i}^{2} & \dots & {\bar{μ}}_{j i}^{p} & {\bar{μ}}_{j i}^{0} \end{array}]}^{T} \end{array}

Therefore, the normalized weight $w_{j i}$ can be written as

w_{j i} = \frac{r_{j i}}{\sum_{j = 1}^{q} \sum_{i = 1}^{n} r_{j i}}

Note that $w_{j i}$ is mainly depended on $r_{j i}$ . The larger the value of $w_{j i}$ , the better the approximation performance. Substituting equations (12) and (13) into equation (14), we can get $w_{j i}$ defined in equation (7). Although $w_{j i, OP}$ and ${\bar{μ}}_{j i}^{k}$ are used in the above recursion, $μ_{j i}^{k}$ is only the factor that affects $w_{j i}$ .

After obtaining $w_{j i}$ , we obtain the fuzzy matrix G

G = [\begin{array}{l} w_{11} μ_{11}^{1} & w_{11} μ_{11}^{2} & \dots & w_{11} μ_{11}^{p} & w_{11} μ_{11}^{0} \\ w_{12} μ_{12}^{1} & w_{12} μ_{12}^{2} & \dots & w_{12} μ_{12}^{p} & w_{12} μ_{12}^{0} \\ ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ w_{q n} μ_{q n}^{1} & w_{q n} μ_{q n}^{2} & \dots & w_{q n} μ_{q n}^{p} & w_{q n} μ_{q n}^{0} \end{array}]

As we know, the D-S evidence theory is a general reasoning framework. It is bounded by both belief and plausibility, where the belief in a hypothesis is constituted by the sum of masses in all sets. The plausibility equals 1 minus the sum of masses in all sets whose intersection with the hypothesis is empty. It is an upper bound on the possibility that the hypothesis is true.³⁰ Then, we use the BPA in the space Θ to define the belief for one evidence on the probabilities for a related evidence. The BPA is updated when a new evidence is available based on the combination rule. Therefore, the BPA $m : 2^{Θ} \to [0, 1]$ can be written as

{\begin{array}{l} \sum_{k = 0}^{p} m_{j i} (A^{k}) = 1 & 0 \leq m_{j i} (A^{k}) \leq 1 \\ m_{j i} (Φ) = 0 \end{array}

Note that the normalized $m_{j i} (A^{k})$ reflects the occurrence probability of one-point subset A^k, and the ratio of $w_{j i} μ_{j i}^{k}$ to the sum of corresponding line $\sum_{k = 0}^{p} w_{j i} μ_{j i}^{k}$ defines $m_{j i} (A^{k})$

m_{j i} (A^{k}) = \frac{w_{j i} μ_{j i}^{k}}{\sum_{k = 0}^{p} w_{j i} μ_{j i}^{k}}

Therefore, the BPA matrix M is given by

M = [\begin{array}{l} m_{11} (A^{1}) & m_{11} (A^{2}) & \dots & m_{11} (A^{p}) & m_{11} (A^{0}) \\ m_{12} (A^{1}) & m_{12} (A^{2}) & \dots & m_{12} (A^{p}) & m_{12} (A^{0}) \\ ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ m_{q n} (A^{1}) & m_{q n} (A^{2}) & \dots & m_{q n} (A^{p}) & m_{q n} (A^{0}) \end{array}]

where each element in one line has been normalized. Suppose that $\sum_{\cap_{k = 0}^{p} A^{k} = A} \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{k})$ and $\sum_{\cap_{k = 0}^{p} A^{k} \neq Φ} \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{k})$ are the belief and plausible, respectively, according to the D-S evidence combination rule, the combined BPA of the secondary indicators can be written as^19,31
–33

m (A^{k}) = \frac{\sum_{\cap_{k = 0}^{p} A^{k} = A} \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{k})}{\sum_{\cap_{k = 0}^{p} A^{k} \neq Φ} \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{k})}

Note that $m (A^{k})$ becomes more unstable when there is $\sum_{\cap_{k = 0}^{p} A^{k} \neq Φ} \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{k}) = 0$ . In order to overcome the inherent defects in the standard D-S evidence combination rule, we present proposition 2 as follows:

Proposition 2

Suppose that there exists the exceptional case $m_{j i} (A^{k_{0}}) = 0$ in the BPA matrix M, then its value can be updated as

\begin{array}{l} m_{j i} (A^{k_{0}}) = ε & ε > 0 \end{array}

where the threshold of BPA is taken to ε > 0.

Proof

In equation (19), it is obvious that $\sum_{\cap_{k = 0}^{p} A^{k} \neq Φ} \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{k}) = 0$ when the exceptional term is $m_{j i} (A^{k}) = 0$ . According to the D-S evidence combination rule, the normal reasoning result may become incredible. Therefore, we suppose that $max {m_{j i} (A^{k})}$ is the maximal BPA in the same line corresponding to $m_{j i} (A^{k_{0}}) = 0$ , then the $max {m_{j i} (A^{k})}$ can be divided into two components

{\begin{array}{l} max {m_{j i} (A^{k})} - ε \\ ε \end{array}

Note that the threshold of BPA ε should be set assigned in the practical applications. After reassigning the related BPAs, the sum of elements in each line is equal to 1. We adaptively update $max {m_{j i} (A^{k})}$ when the total number of 0s is γ

{\begin{array}{l} max {m_{j i} (A^{k})} - γ ε \\ ε \end{array}

□

The belief is usually converted to the Bayesian belief and turns assigning the BPA for sets.^34,35 If there are some conflicting evidences or the conclusion is not accord with the common sense, it cannot effectively combine the evidences

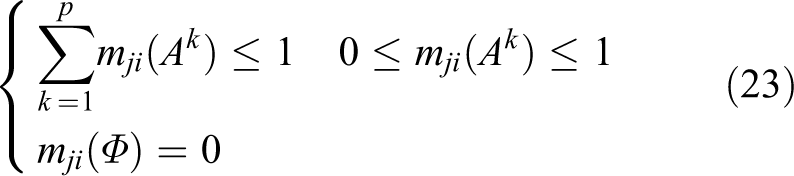

{\begin{array}{l} \sum_{k = 1}^{p} m_{j i} (A^{k}) \leq 1 & 0 \leq m_{j i} (A^{k}) \leq 1 \\ m_{j i} (Φ) = 0 \end{array}

Therefore, we continue to adjust the BPAs of some elements in Θ for the uncertain situation

m_{j i} (A^{0}) = 1 - \sum_{k = 1}^{p} m_{j i} (A^{k})

Proposition 3

Suppose that $m_{j i}^{N} (A^{k}) (k = 1, \dots, p)$ is the modified BPA, then we have the enhanced D-S combination rule based on $χ = q \times n$ secondary indicators

{\begin{array}{l} m (A^{k}) = \frac{m_{j i}^{N} (A^{k})}{\sum_{k =1}^{p} m_{j i}^{N} (A^{k}) + \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0})} \\ m (A^{0}) = \frac{\prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0})}{\sum_{k =1}^{p} m_{j i}^{N} (A^{k}) + \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0})} \end{array}

where $m_{j i}^{N} (A^{k})$ is given by

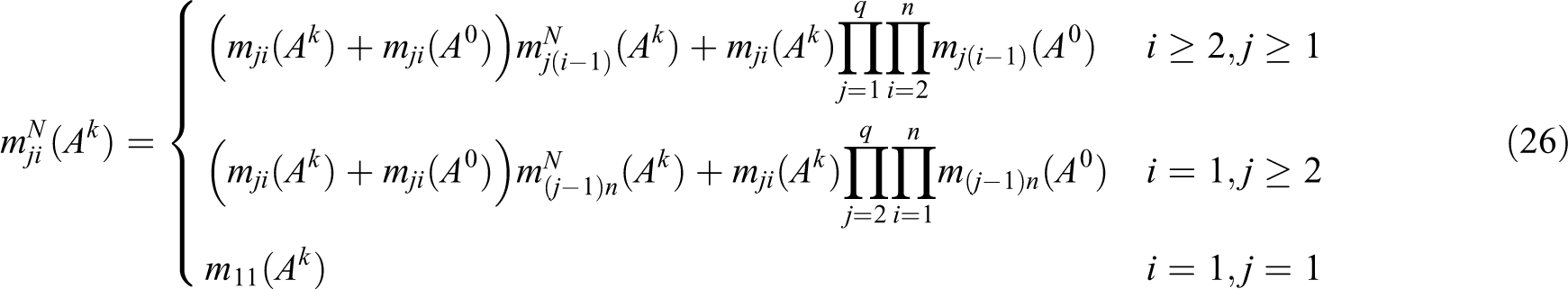

m_{j i}^{N} (A^{k}) = {\begin{array}{l} (m_{j i} (A^{k}) + m_{j i} (A^{0})) m_{j (i - 1)}^{N} (A^{k}) + m_{j i} (A^{k}) \prod_{j = 1}^{q} \prod_{i = 2}^{n} m_{j (i - 1)} (A^{0}) & i \geq 2, j \geq 1 \\ (m_{j i} (A^{k}) + m_{j i} (A^{0})) m_{(j - 1) n}^{N} (A^{k}) + m_{j i} (A^{k}) \prod_{j = 2}^{q} \prod_{i = 1}^{n} m_{(j - 1) n} (A^{0}) & i = 1, j \geq 2 \\ m_{11} (A^{k}) & i = 1, j = 1 \end{array}

Proof

In equation (24), the value of BPA should be the single element in Θ as well as A⁰ itself. Then, $m_{j i}^{N} (A^{k})$ can be rewritten as

\begin{array}{l} m_{j i}^{N} (A^{k}) = (m_{j i} (A^{k}) + m_{j i} (A^{0})) m_{j (i - 1)}^{N} (A^{k}) + m_{j i} (A^{k}) \prod_{j = 1}^{q} \prod_{i = 2}^{n} m_{j (i - 1)} (A^{0}) \\ = (m_{j i} (A^{k}) + m_{j i} (A^{0})) (m_{j (i - 1)}^{N} (A^{k}) + \prod_{j = 1}^{q} \prod_{i = 2}^{n} m_{j (i - 1)} (A^{0})) - m_{j i} (A^{0}) \prod_{j = 1}^{q} \prod_{i = 2}^{n} m_{j (i - 1)} (A^{0}) \\ = (m_{j i} (A^{k}) + m_{j i} (A^{0})) (\begin{array}{l} (m_{j (i - 1)} (A^{k}) + m_{j (i - 1)} (A^{0})) (m_{j (i - 2)}^{N} (A^{k}) + \prod_{j = 1}^{q} \prod_{i = 3}^{n} m_{j (i - 2)} (A^{0})) \\ - \prod_{j = 1}^{q} \prod_{i = 2}^{n} m_{j (i - 1)} (A^{0}) + \prod_{j = 1}^{q} \prod_{i = 2}^{n} m_{j (i - 1)} (A^{0}) \end{array}) - \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0}) \\ = (m_{j i} (A^{k}) + m_{j i} (A^{0})) (m_{j (i - 1)} (A^{k}) + m_{j (i - 1)} (A^{0})) (m_{j (i - 2)}^{N} (A^{k}) + \prod_{j = 1}^{q} \prod_{i = 3}^{n} m_{j (i - 2)} (A^{0})) - \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0}) \\ = (m_{j i} (A^{k}) + m_{j i} (A^{0})) (m_{j (i - 1)} (A^{k}) + m_{j (i - 1)} (A^{0})) \cdot \dots \cdot (m_{(j - 1) i} (A^{k}) + m_{(j - 1) i} (A^{0})) \cdot \dots \cdot (m_{11} (A^{k}) + m_{11} (A^{0})) \\ - \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0}) \\ = \prod_{j = 1}^{q} \prod_{i = 1}^{n} (m_{j i} (A^{k}) + m_{j i} (A^{0})) - \prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0}) \end{array}

Note that the numerator in equation (19) can be presented by equation (27), which takes into account the uncertain situation given by equation (24). We compute the sum of $\sum_{k =0}^{p} m_{j i}^{N} (A^{k})$ and $\prod_{j = 1}^{q} \prod_{i = 1}^{n} m_{j i} (A^{0})$ , then the denominator in equation (19) can be easily replaced. Further, the representation of $m (A^{0})$ in equation (25) is supplemented when the sum of the total BPAs equals 1

\sum_{k =0}^{p} m (A^{k}) = 1

□

Remark 1

Let $O (\cdot)$ be the computational complexity, then the complexity of 1 evidence based on proposition 3 is the number of elements $| Θ |$ , that is, $O (| Θ |)$ . Comparison with the computational complexity of standard D-S evidence theory^30,33,34 $O (2^{| Θ |})$ , it is obvious that the proposed scheme has the linear transformation. With the increase of $| Θ |$ , the proposed scheme drastically reduces the computational complexity.

Implementation of proposed scheme

With respect to all the secondary indicators, Table 4 presents the pseudo-code of proposed scheme. In step 2, the membership function $μ_{i j}^{k}$ is comprehensively computed based on Tables 1 and 2. According to proposition 1, the corresponding weight $w_{j i}$ is computed in step 3. By constructing the fuzzy assessment matrix G, the BPA $m_{j i} (A^{k})$ and its matrix M are obtained in steps 4 to 6. After analyzing the BPAs in M, we apply propositions 2 and 3 to combine the BPAs when $m_{j i} (A^{k_{0}}) = 0$ or $\sum_{k = 1}^{p} m_{j i} (A^{k}) \leq 1$ in steps 7 and 8. At last, the decisions are reported in step 9.

Table 4.

Pseudo-code of proposed assessment scheme.

1. Input the secondary indicators.

2. Compute the risk degree $μ_{i j}^{k}$ using its fuzzy set $f_{i j}^{k} (\cdot)$ based on Table 2.

3. Compute the normalized weight $w_{j i}$ using equation (7).

4. Construct the fuzzy assessment matrix G using equation (15).

5. Compute the BPA $m_{j i} (A^{k})$ using equation (17).

6. Construct the BPA matrix M using equation (18).

7. If there exists $m_{j i} (A^{k_{0}}) = 0$ , compute the related BPAs using equation (22).

8. If there exists $\sum_{k = 1}^{p} m_{j i} (A^{k}) \leq 1$ , compute the combined BPAs using equation (25).

9. Report the final assessment results.

BPA: basic probabilistic assignment.

Numerical study and discussion

In this scenario, we make the numerical experiment to verify the assessment performance of proposed scheme. Given that the available secondary indicators have limitation and uncertainty, the proposed scheme is used to make intelligent decision. Our experimental environment was: Intel^TM Core^TM i5, RAM 4 GB, Microsoft^TM Windows^TM 7, and MATLAB^TM V8.4. Twelve indicators refer to the visibility, wind, wave, current, channel length, ratio of depth to draft, ratio of channel width to vessel width, obstacle size, management rate, channel intersections, vessel density, and vessel chasing. Correspondingly, the related parameters are set as q = 3, n = 4, and p = 5.

Figure 2 demonstrates the main channel of Dalian, and Table 5 gives the detailed characteristics of this channel and a tested liner. We can compute that the ratio of depth to draft is 1.34 and the ratio of channel width to vessel width is 8.44. After getting all secondary indicators, we use equation (2) and Table 2 to get the membership function in Table 6.

Figure 2.

Main channel of Dalian.

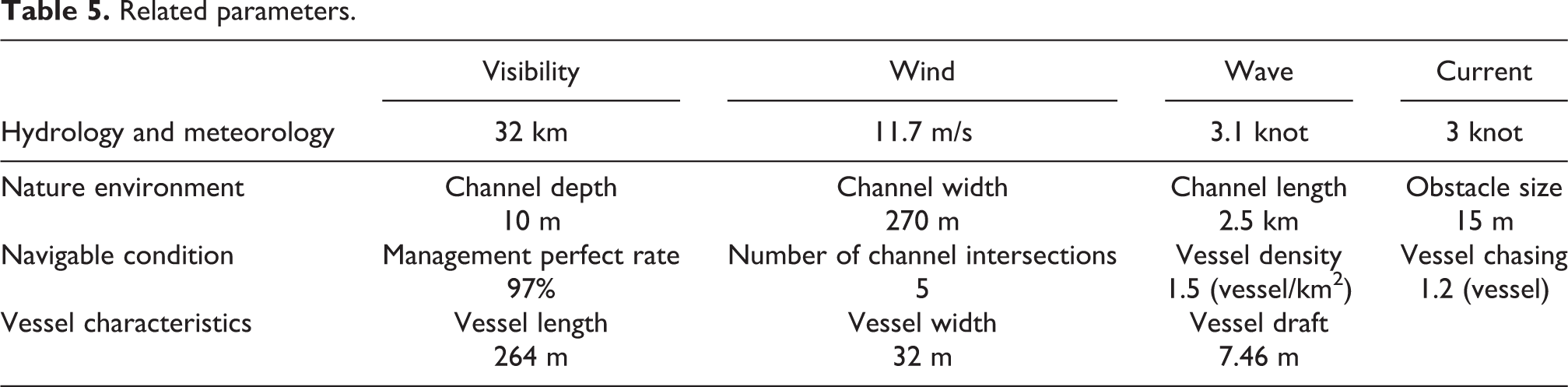

Table 5.

Related parameters.

Hydrology and meteorology	Visibility	Wind	Wave	Current
Hydrology and meteorology	32 km	11.7 m/s	3.1 knot	3 knot
Nature environment	Channel depth	Channel width	Channel length	Obstacle size
Nature environment	10 m	270 m	2.5 km	15 m
Navigable condition	Management perfect rate	Number of channel intersections	Vessel density	Vessel chasing
Navigable condition	97%	5	1.5 (vessel/km²)	1.2 (vessel)
Vessel characteristics	Vessel length	Vessel width	Vessel draft
Vessel characteristics	264 m	32 m	7.46 m

Table 6.

Membership function.

Indicators	$μ_{j i}^{1}$	$μ_{j i}^{2}$	$μ_{j i}^{3}$	$μ_{j i}^{4}$	$μ_{j i}^{5}$	$μ_{j i}^{0}$
x ₁₁	0.8100	0.0100	0.0000	0.0000	0.0000	0.1800
x ₁₂	0.0000	0.0000	0.7793	0.0137	0.0000	0.2069
x ₁₃	0.6400	0.0400	0.0000	0.0000	0.0000	0.3200
x ₁₄	0.0000	0.0400	0.6400	0.0000	0.0000	0.3200
x ₂₁	0.0000	0.0000	0.0000	0.4900	0.0900	0.4200
x ₂₂	1.0000	0.0000	0.0000	0.0000	0.0000	0.0000
x ₂₃	1.0000	0.0000	0.0000	0.0000	0.0000	0.0000
x ₂₄	1.0000	0.0000	0.0000	0.0000	0.0000	0.0000
x ₃₁	1.0000	0.0000	0.0000	0.0000	0.0000	0.0000
x ₃₂	0.0000	0.0000	0.3600	0.1600	0.0000	0.4800
x ₃₃	1.0000	0.0000	0.0000	0.0000	0.0000	0.0000
x ₃₄	1.0000	0.0000	0.0000	0.0000	0.0000	0.0000

Note that the information of the former five columns represents five levels of assessment risks, where x₁₂, x₁₄, and x₃₂ are the components that mainly support the “moderate” risk, and x₂₁ represents the risk level is “substantial”. Therefore, they are conflicting with other indicators. Further, the data of the last column denote the remainder risk (uncertain situation) that doesn’t belong to any level owing to the characteristics of required quadratic curve. As seen, some values in this column are unequal to 0, especially the value of x₃₂ is maximal, which defines there is uncertainty among them. To a certain extent, the uncertain situation also causes $\sum_{k = 1}^{p} m_{j i} (A^{k}) \leq 1$ . At this time, we substitute the membership function into equation (7), then the normalized weight can be written as

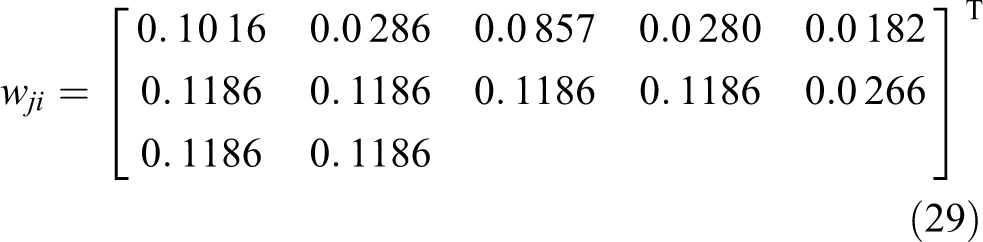

w_{j i} = {[\begin{matrix} 0. 1016 & 0.0 286 & 0.0 857 & 0.0 280 & 0.0 182 \\ 0. 1186 & 0. 1186 & 0. 1186 & 0. 1186 & 0.0 266 \\ 0. 1186 & 0. 1186 \end{matrix}]}^{T}

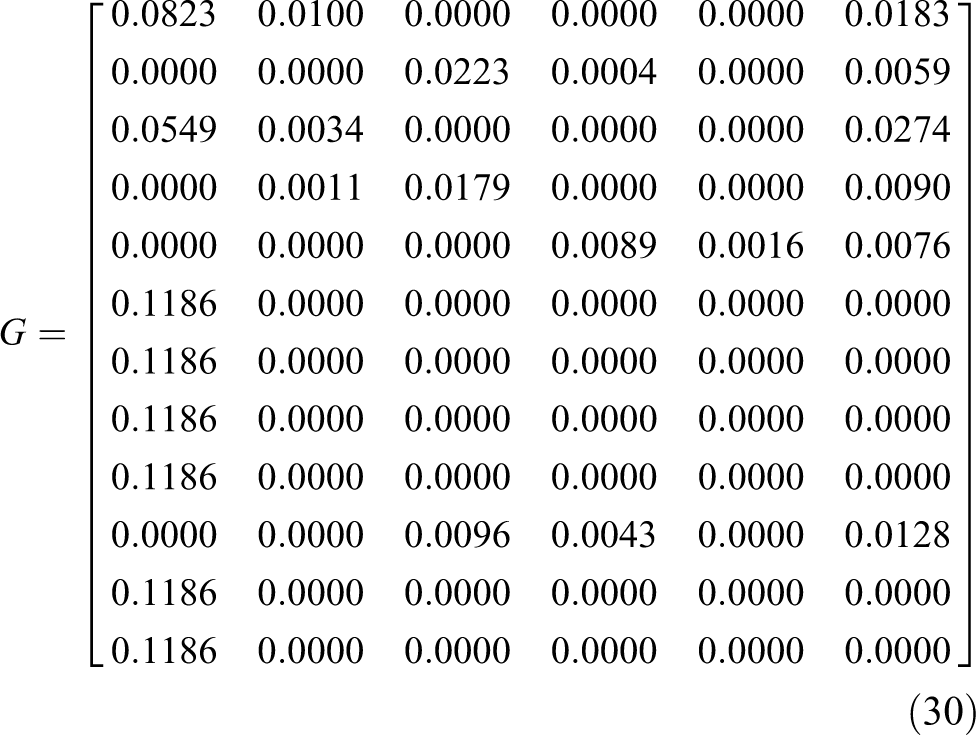

Regarding equation (15), we get the fuzzy assessment matrix G based on $μ_{j i}^{k}$ and $w_{j i}$

G = [\begin{matrix} 0.0823 & 0.0100 & 0.0000 & 0.0000 & 0.0000 & 0.0183 \\ 0.0000 & 0.0000 & 0.0223 & 0.0004 & 0.0000 & 0.0059 \\ 0.0549 & 0.0034 & 0.0000 & 0.0000 & 0.0000 & 0.0274 \\ 0.0000 & 0.0011 & 0.0179 & 0.0000 & 0.0000 & 0.0090 \\ 0.0000 & 0.0000 & 0.0000 & 0.0089 & 0.0016 & 0.0076 \\ 0.1186 & 0.0000 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \\ 0.1186 & 0.0000 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \\ 0.1186 & 0.0000 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \\ 0.1186 & 0.0000 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \\ 0.0000 & 0.0000 & 0.0096 & 0.0043 & 0.0000 & 0.0128 \\ 0.1186 & 0.0000 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \\ 0.1186 & 0.0000 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \end{matrix}]

Given that many 0s are in equation (30), there will be some BPAs in the matrix M by using equation (17). After setting the threshold $ε = 0.0020$ and the number of 0s in each row

γ_{j i} = {[\begin{matrix} 3 & 3 & 3 & 3 & 3 & 5 & 5 & 5 & 5 & 3 & 5 & 5 \end{matrix}]}^{T}

we can update the related BPAs based on equation (22). Therefore, the BPA matrix M becomes

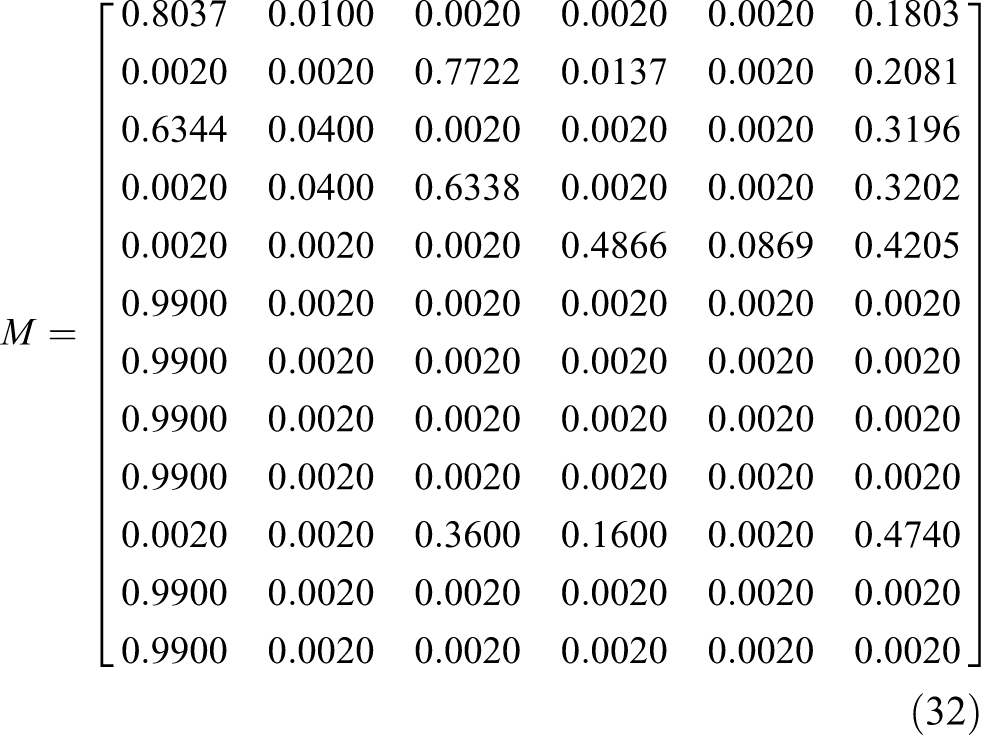

M = [\begin{matrix} 0.8037 & 0.0100 & 0.0020 & 0.0020 & 0.0020 & 0.1803 \\ 0.0020 & 0.0020 & 0.7722 & 0.0137 & 0.0020 & 0.2081 \\ 0.6344 & 0.0400 & 0.0020 & 0.0020 & 0.0020 & 0.3196 \\ 0.0020 & 0.0400 & 0.6338 & 0.0020 & 0.0020 & 0.3202 \\ 0.0020 & 0.0020 & 0.0020 & 0.4866 & 0.0869 & 0.4205 \\ 0.9900 & 0.0020 & 0.0020 & 0.0020 & 0.0020 & 0.0020 \\ 0.9900 & 0.0020 & 0.0020 & 0.0020 & 0.0020 & 0.0020 \\ 0.9900 & 0.0020 & 0.0020 & 0.0020 & 0.0020 & 0.0020 \\ 0.9900 & 0.0020 & 0.0020 & 0.0020 & 0.0020 & 0.0020 \\ 0.0020 & 0.0020 & 0.3600 & 0.1600 & 0.0020 & 0.4740 \\ 0.9900 & 0.0020 & 0.0020 & 0.0020 & 0.0020 & 0.0020 \\ 0.9900 & 0.0020 & 0.0020 & 0.0020 & 0.0020 & 0.0020 \end{matrix}]

With respect to equation (25), the combined BPAs are achieved based on the enhanced D-S evidence combination rule

{\begin{array}{l} m (A^{k}) = [\begin{matrix} 0.9999 & 0.0000 & 0.0000 & 0.0000 & 0.0000 \end{matrix}] \\ m (A^{0}) = 0.0001 \end{array}

Note that the largest $m (A^{1})$ means the current navigation risk is the “trivial” level, which is in accordance with fact. In the same scenario, we achieve the comparison results of standard D-S evidence theory, AHP method,¹⁵ neural network³⁶ and proposed scheme under 100 trails in Table 7. As seen, the standard D-S evidence theory uses the infinite “NaN” as the result. The reason can be explained that the different BPAs may lead to extremely unstable fusion results. Only some BPAs are taken to zero, the standard D-S method makes the unreasonable decision owing to the uncertain and conflicting evidences. The AHP method needs the expert experience to compute the coefficient of consistency ratio. Then, the “trivial” risk assessment result can be obtained whereas the “moderate” risk result is in the second order. Through survey, the subjective factors of some experts still affect the final decision. Further, the neural network gives relatively satisfactory result.

Table 7.

Comparison of averaged assessment accuracy.

Assessment method	Trivial	Tolerable	Moderate	Substantial	Intolerable	Uncertain
Standard D-S method	NaN	NaN	NaN	NaN	NaN	0
AHP method	0.9574	0.0318	0.0108	0	0	0
Neural network	0.9703	0.0236	0.0061	0	0	0
Proposed scheme	0.9996	0.0002	0.0001	0	0	0.0001

D-S: Dempster–Shafer; AHP: analytic hierarchy process.

For the assessment efficiency, as a powerful criterion, the computational complexity is considered in depth. In Figure 3, we note that the larger the number of indicators χ, the higher the complexity O when the level of risks $| Θ |$ is fixed. Although it takes some time for the proposed assessment scheme to reassign the BPAs, the complexity keeps the smallest fluctuation against other methods. After the analysis, the complexity of the proposed scheme is almost $O (6 χ)$ , whereas the standard D-S method has the complexity of $O (32 χ)$ . For the AHP method, the eigenvalue of χ-order matrix is necessary when getting the coefficient of consistency ratio. Since the complexity reaches $O (χ^{3})$ , it becomes more distinguished with the increasing χ. In the neural network (eight nodes in one hidden layer), the computational complexity approximates the product of the size of risk sets and the number of nodes in the hidden layer, that is, $O (40 χ)$ . On the other hand, we set the number of secondary indicators $χ = 12$ , and then obtain Figure 4. As seen, the computational complexity of standard D-S evidence theory and neural network is $O (12 \times 2^{| Θ |})$ and $O (96 | Θ |)$ , respectively. However, the AHP method has the maximum when χ is less than 7. The proposed scheme still keeps convergence when χ gradually increases, whose complexity is $O (12 | Θ |)$ .

Figure 3.

Computational complexity under different χ.

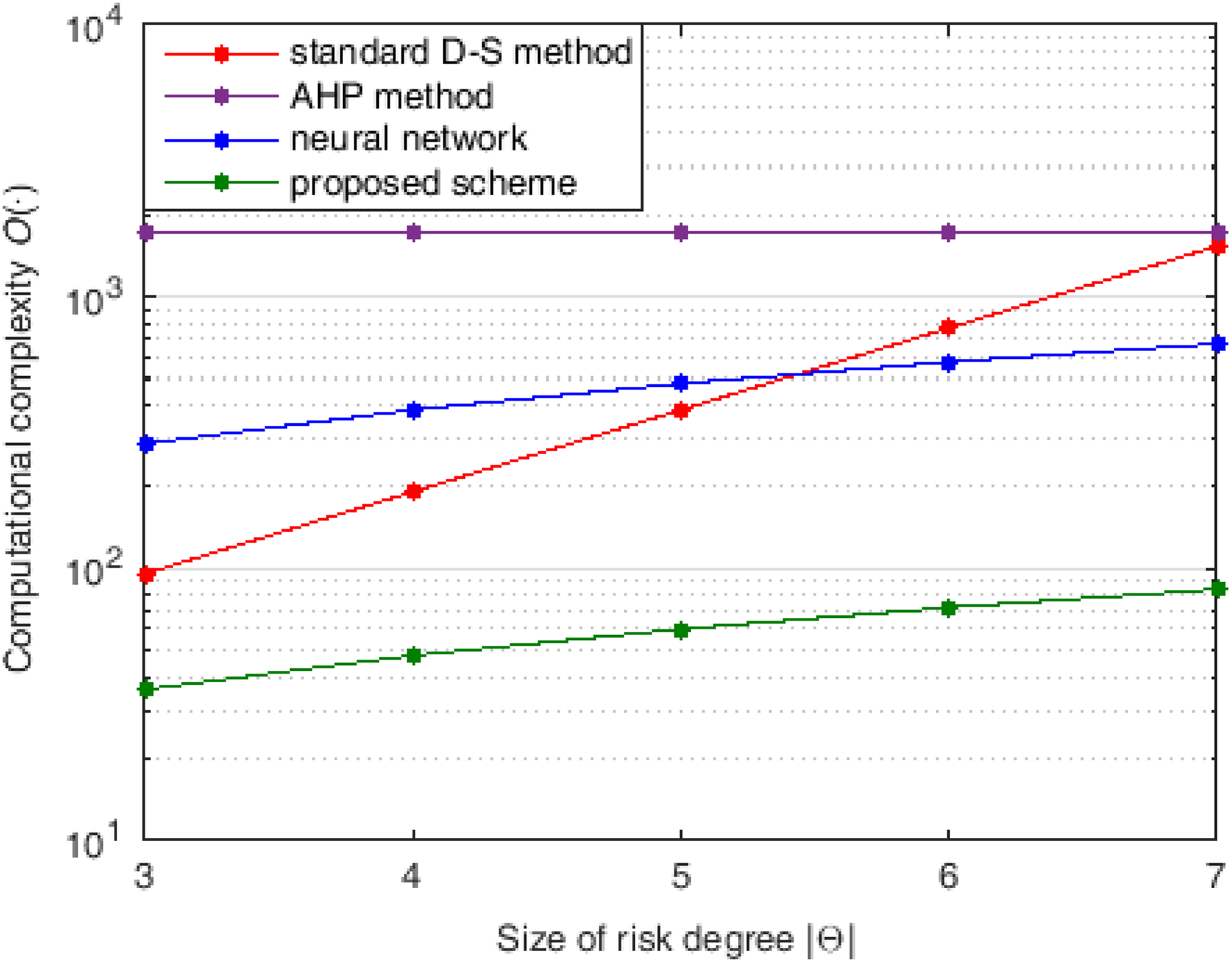

Figure 4.

Computational complexity under different $| Θ |$ .

Finally, Figure 5 presents the averaged assessment accuracy of risk levels under various trails. Note that the proposed scheme has the largest accuracy for each risk level with the innovative rule. Although the neural network and AHP method have the modest decision, there is some expert experience in the AHP method. Unfortunately, the standard D-S method fails to combine the uncertain and conflicting evidences, and then achieves unstable result.

Figure 5.

Averaged assessment accuracy.

Conclusion

This article develops an assessment scheme of VNR based on the fuzzy D-S evidence theory. We analyze the important indicators in the navigation engineering as an example. According to the fuzzy logic, the membership functions are derived to define five risk levels. In the enhanced D-S evidence framework, we further optimize the D-S evidence combination rule to deal with highly uncertain and conflicting evidences, which is more suitable to various applications. Finally, the numerical studies demonstrate that the intelligent decision can be achieved with the satisfactory performance for VNR assessment in the complex waters. As for the next research developments, we will further improve the assessment efficiency of the proposed scheme under the condition of insufficient indicators.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant no. 51679116), the Innovative Talents Support Plan of Universities in Liaoning Province (grant no. LR2017068), the Doctoral Scientific Research Foundation Guidance Project of Liaoning Province (grant no. 201601343), and the Program for Liaoning Innovative Research Team in University (grant no. LT2016006).

ORCID iD

Bo Li

References

IACS. A guide to risk assessment in ship operations. London: International Association of Classification Societies, 2012.

IMO. Formal safety assessment, decision parameters including risk acceptance criteria. London: International Maritime Organization, 2000.

IMO. Guidelines for formal safety assessment for use in the IMO rule-making process. London: International Maritime Organization, 2002.

Akyildiz

Mentes

. An integrated risk assessment based on uncertainty analysis for cargo vessel safety. Safety Sci 2017; 92: 34–43.

Zamana

Kobayashib

Wakabayashic

. Risk of navigation for marine traffic in the Malacca Strait using AIS. Proc Earth Planet Sci 2015; 14(6): 33–40.

Perera

. Navigation vector based ship maneuvering prediction. Ocean Eng 2017; 138: 151–160.

Chen

Shiotani

Sasa

. Numerical ship navigation based on weather and ocean simulation. Ocean Eng 2013; 69: 44–53.

Kececi

Arslan

. SHARE technique: a novel approach to root cause analysis of ship accidents. Safety Sci 2017; 96: 1–21.

Gauss

Rötting

. Supporting situational risk awareness in ship navigation. IFAC Proc Vol 2007; 40(16): 342–346.

10.

Lin

Fang

. Grey assessment model of risks in ship pilotage. In: IEEE international conference on management of innovation and technology (ICMIT), 2–5 June 2010, Singapore, Singapore, pp. 1099–1102. Institute of Electrical and Electronics Engineers, Inc.

11.

Fang

Xia

. Formal safety assessment based on relative risks model in ship navigation. Reliab Eng Syst Saf 2007; 92(3): 369–377.

12.

Liu

Sun

Chen

. Risk assessment and control of inland ships navigation safety—a case study of Shanghai inland waters. In: International conference on industrial economic system and industrial security engineering (IEIS), 24–27 July 2016, Sydney, Australia, pp. 1–8. Institute of Electrical and Electronics Engineers, Inc.

13.

Hao

. A study of ship integrated navigation system risk assessment based on fuzzy analytic hierarchy process. In: International conference on educational and network technology (ICENT), 25–27 June 2010, Qinhuangdao, China, pp. 305–308. Institute of Electrical and Electronics Engineers, Inc.

14.

Hans

Sörenson

Österman

. Ship security challenges in high-risk areas: manageable or insurmountable? WMU J Marit Aff 2015; 14(2): 201–217.

15.

Yan

. Study on information fusion of traffic system. Beijing: Science Press, 2016.

16.

Zhu

. Extended Dampster–Shafer combination rules based on random set theory. Proc SPIE 2004; 5434: 112–120.

17.

Pang

. An approach of vessel collision risk assessment based on the D-S evidence theory. Ocean Eng 2013; 74: 16–21.

18.

Blasch

Dezert

Pannetier

. Overview of Dempster–Shafer and belief function tracking methods. Proc SPIE 2014; 8745: 241–253.

19.

Zadeh

. A simple view of the Dempster–Shafer theory and its implications for the rule of combination. AI Magazine 1986; 7(2): 85–90.

20.

Wang

Han

. Backpropagating constraints based trajectory tracking control of a quadrotor with constrained actuator dynamics and complex unknowns. IEEE Trans Syst Man Cybern Syst 2018. DOI: 10.1109/TSMC.2018.2834515.

21.

Bai

Wang

Xing

. Fuzzy clustering ensemble based on DS theory. Syst Eng Elect 2014; 36(7): 1443–1452.

22.

Wang

Qiu

. Vessel steering control using generalized ellipsoidal basis function based fuzzy neural networks. Int Sympos Neural Netw 2012; 23(5): 515–524.

23.

Wang

Meng

. Fast and accurate trajectory tracking control of an autonomous surface vehicle with unmodeled dynamics and disturbances. IEEE Trans Int Vehicle 2017; 1(3): 230–243.

24.

Zhou

. Research on the safety of passenger ship route under the uncertain information environment. Master’s Thesis, Department of Communication and Transportation Engineering, Dalian Maritime University, Dalian, 2016.

25.

Liu

. Identification, evaluation and warning technology of ship navigation risk source. Beijing: China Communications Press, 2012.

26.

Wang

Yin

. Global asymptotic model-free trajectory-independent tracking control of an uncertain marine vehicle: an adaptive universe-based fuzzy control approach. IEEE Trans Fuzzy Syst 2018; 26(3): 1613–1625.

27.

Liu

Pal

Marathe

. Weighted fuzzy Dempster–Shafer framework for multi-modal information integration. IEEE Trans Fuzzy Syst 2018; 26(1): 338–352.

28.

Liu

. Interval-valued intuitionistic fuzzy numbers decision-making method based on grey incidence analysis and D-S theory of evidence. Acta Autom Sinica 2011; 27(8): 993–998.

29.

Wang

Sun

. Tracking-error-based universal adaptive fuzzy control for output tracking of nonlinear systems with completely unknown dynamics. IEEE Trans Fuzzy Syst 2017; 26(2): 869–883.

30.

Glenn

. A mathematical theory of evidence. Princeton: Princeton University Press, 1976.

31.

Quost

Masson

Denoeux

. Classifier fusion in the Dempster–Shafer framework using optimized t-norm based combination rule. Int J Approx Reason 2011; 52(3): 353–374.

32.

Geng

Pan

. Method to solve a kind of “0 absolutization” problems in evidential reasoning. Comput Sci 2000; 27(5): 53–56.

33.

Liu

Ouyang

Tang

. Research on a simplified evidence theory mode. J Comput Res Dev 1999; 36(2): 134–138.

34.

Liu

Zhao

Liu

. Combination of conflict evidences in D-S theory. J University Elect Sci Tech China 2007; 37(5): 701–704.

35.

Yang

Feng

. A new conflict evidence fusion method in D-S evidence theory. Comput Appl Software 2014; 31(2): 82–85.

36.

Wang

Sun

Han

. Adaptive approximation-based regulation control for a class of uncertain nonlinear systems without feedback linearizability. IEEE Trans Neural Netw Learn Syst 2018; 29(8):3747–3760.

Navigation risk assessment scheme based on fuzzy Dempster–Shafer evidence theory

Abstract

Keywords

Introduction

Theory analysis

Navigation indicator

Fuzzy set of VNR

Innovative assessment scheme

Principle of proposed scheme

Proposition 1

Proof

Proposition 2

Proof

Proposition 3

Proof

Remark 1

Implementation of proposed scheme

Numerical study and discussion

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
