Beyond primary patents: Strategic intellectual property frameworks for sustained pharmaceutical market dominance in US & EU

New formulation and drug delivery innovation

Formulation patents are the leading attempted way of extending the life-cycle pharmaceutical drugs. ¹⁵ The development of new formulations is frequently accompanied by a high level of scientific innovation, which combats genuine medical needs like better patient adherence, reduced side effects and increased treatment effect.^16,17 An old example, Eli Lilly’s Prozac Weekly as a replacement of the daily fluoxetine. Dose. This not only helped in increasing the patient compliance but also provided a longer patent protection over and above the initial compound patent expiry. ¹⁸

Extended-release formulations have become particularly valuable in markets of treatment where compliance of patients is a critical factor of treatment success. ¹⁹ Such products often need advanced drug delivery systems, e.g., advanced excipients, coating technology, or patented delivery systems for individual use that can provide protection. ²⁰ The new product regulatory process often needs proof of bioequivalence or clinical superiority, thereby placing additional hurdles in front of generic competitors. ²¹

Pharmaceuticals have progressed from oral to transdermal patches, inhalers, and injectable depot formulations. Each route of delivery presents special technical challenges and possibilities of patent protection, typically in the form of new manufacturing processes and quality controls. ²² The integration of drug and device components, for example, autoinjectors or metered-dose inhalers, provides additional layers of intellectual property protection. ⁴

Polymorphs and enantiomers: The science of patent extensions

Polymorphism, the property of drug substances to exist in more than one crystalline form, has become a mainstay of pharmaceutical patent policy. ²³ Polymorphs may have different physical and chemical properties such as solubility, stability, and bioavailability and hence are legitimate targets for patent protection. ²³ The experience of ranitidine (Zantac) illustrates how multiple polymorph patents produce complicated patent landscapes, and both innovators and generic companies file numerous applications that cover different crystalline forms. ²⁴

Formation of single polymorphs can be a time-consuming process, involving sophisticated analytical techniques and manufacturing process optimization. ²³ It is understood by the regulatory authorities that various polymorphs will have varying regulatory routes, especially when they deliver variable profiles of stability and bioavailability. ²⁴ Such regulatory issues bestow further time benefits to innovative firms and pose challenges to generic firms. ²⁵

Enantiomer patents are a more advanced life-cycle management strategy, for example, AstraZeneca’s optimization of Nexium (esomeprazole) from Prilosec (omeprazole). ¹⁸ Isolation and formulation of the biologically active S-enantiomer is a time-consuming scientific undertaking and offered real therapeutic benefit, for example, decreased inter-patient variability and enhances acid suppression. ²⁶ However, this tactic has been meet with resistance by regulators, with agencies demanding increasing amounts of evidence of clinical superiority for enantiomer products. ²⁷

Combination products: Fixed doses and drug hybrids

Fixed-dose combinations (FDCs) represent a significant category of pharmaceutical innovation that, addresses genuine, real clinical demands while offering room for patentability. ²⁸ GlaxoSmithKline’s Advair, with fluticasone propionate and salmeterol combined in a single inhaler device, exemplifies the efficient merging of multiple active substances with new delivery technology. ⁴ This approach not only enhanced patient compliance by minimizing pill burden but also generated complex intellectual property scenarios involving both drug combination and device delivery. ²⁹

The development of FDCs requires considerable clinical research to identify optimal combinations of dosing, bioequivalences, and therapeutic efficacies. ³⁰ FDCs’ regulatory approval procedures differ worldwide, as regulators demand proof that the combination is more effective than single use of the individual components. ³¹ Such controls create natural barriers to generic competition in that manufacturers have to reproduce both drug combinations and delivery mechanisms. ³²

Drug-delivery hybrids, such as drug-eluting stents, implantable drug-delivery systems, and smart inhaler technology, represent a convergence of pharmaceutical and medical innovations. ⁴ These products generally involve multiple patent families for device design, drug formulation, process manufacturing, and often software components. ²² The regulatory approval process requires expertise in both pharmaceutical and device development, yet another barrier to entry. ³³

Brand and product switching

Product switching, also known as product hopping, is a strategic migration of patients from an original formulation that is nearing expiration to a newer, patent-protected version.^8,34 Teva’s management of Copaxone case is a classic example where the company managed to successfully switch patients from daily injection to three-times-weekly formulation before generic competition emerged. ³⁵ This approach requires timely and well-planned implementation and to be extensively financed through promotion to be accepted by physicians and patients. ³⁶

The success of product hopping depends on demonstrating the clinical superiority of the new formulation, i.e., improved convenience, reduced side effects, and enhanced efficacy. ⁸ The regulators have been scrutinizing product reformulations that seem to be driven primarily by patent considerations rather than genuine therapeutic advances. ³⁷ The timing of product launches is critical as pioneering entry provides education of the market and acceptance before generic competition to the leader drug. ³⁴

Anti-trust litigation has presented legal challenges relating to product hopping with courts examining whether such strategies constitute anti-competitive behaviour.^8,38 The narrow distinction between tolerable and anti-competitive behaviour is one that is polarizing both regulatory and judicial means. ³⁹ The business must move very carefully to recognize the scientific and clinical benefit of new products to endure such obstacles. ⁴⁰

Over-the-counter rebranding: Extending brand life beyond prescription

The switch from prescription to over-the-counter (OTC) status is a strategic approach for extending brand life post-patent expiry. ¹⁸ The transitions of Claritin, Allegra and Zyrtec from prescription to OTC are such prominent examples, where these brands were able to capture the consumer market while generic products jostled for space in the prescription segment. ⁴¹ This strategy involves huge safety data and regulatory clearance but has great commercial advantages. ⁴²

OTC switching usually constitutes reformulation for consumer use, such as changes in form, strength, packaging, and labelling to ensure safe self-medication. ⁴³ Regulatory approval needs complete safety information providing evidence that a product can be used safely and effectively by consumers without the oversight of a physician. ⁴⁴ Marketing practices for OTC products are unlike marketing practices for prescription drugs and involve direct consumer education and brand distinction. ⁴⁵

The replacement of prescription by over-the-counter (OTC) is a strategic decision to prolong the brand life, post-patent expiry. ¹⁸ The changes of Claritin, Allegra and Zyrtec to OTC from prescription are eminent examples, in which such brands could seize the consumer market at the time when generic products were bumping heads over the place in the prescription segment. ⁴¹ This strategy involves immense safety records and regulatory clearance but has great commercial benefits. ⁴²

OTC switching is typically consumer reformulation like changes in form, strength, packaging and labelling to ensure safe self-medication. ⁴³ Regulatory approval requires full disclosure of safety information, evidence that a drug can be safely and effectively used by the consumers without supervision of a physician. ⁴⁴ The marketing of OTC products cannot be compared with that of prescription drug’s marketing practices which involve direct brand distinction and consumer education. ⁴⁵

New therapeutic indications: The power of drug repositioning

Repurposing or drug repositioning has become a valuable strategy to prolong life-cycles of products whilst addressing the unmet medical needs.^46,47 The case study of Sildenafil (Viagra/Revatio) shows how one product may have multiple applications and Pfizer has succeeded in creating markets for erectile dysfunction and pulmonary arterial hypertension. ⁴⁹

Extension to new indications requires substantial clinical investments including phase II and III trails form the evidence on demonstration of efficacy and safety in the new patient populations. ⁵⁰ Regulatory approval pathways are a function of the interplay between the original and the new indications where the agencies also consider overlap between patient populations and similarity in the safety profile amongst others. ⁹ Orphan drug claims would be similarly feasible with extra exclusivity incentives for rare disease indications.^46,47

Paediatric indications are a high-value segment form life-cycle management since paediatric exclusivity deals have the capacity to lock up a drug for any formulation indications for a considerable period in the marketplace. ⁵¹ The paediatric study generates generic competition barriers incorporated while for genuine unmet need for drugs for the undeserved. ⁹ One need to balance paediatric development mandated investments versus possible returns for exclusivity. ⁵²

Thickets and patent clustering

Patent thickets of AbbVie’s huge patent portfolio for Humira is a good example of the advanced legal structuring strategized to postpone generic competition.^4,7 AbbVie has registered over 100 patents worldwide on various aspects of adalimumab, formulation and manufacture of this drug, dosage regimens and patient selection criteria. ⁶ This comprehensive approach has several layers of protection even after the expiry of compound patent. ⁷

The formation of patent thickets involves strategic planning and considerable investment in intellectual property development. ²² Companies should discover patentable elements of the product throughout the entire life-cycle from manufacturing process to clinical applications. ⁴ The time of patent filing is of prime importance for ensuring optimal periods of protection and to avoid obviousness. ⁵³

Patent thickets create substantial barriers for generic and biosimilar players, who have to face complicated legal issues and be prone to multiple patent infringement claims. ⁶ The delay in generic entry due to the time and money needed to challenge large patent portfolios can be for several years, thus allowing the brand name products to keep market exclusivity. ⁷ However, patent thickets have attracted the regulatory authorities and antitrust bodies, with agencies carefully examining the question of whether such strategies represent anti-competitive behaviour.^8,38

Biosimilar barriers and trade secret protection

The unique characteristics of biologic drugs provides additional avenues of patent protection and trade secret strategies. ¹⁴ Biologics, compared to small molecule drugs, are complex to manufacture and therefore are maintained as trade secrets. ⁶ The three-dimensional structure and post-translational modifications of the biologics create multiple opportunities for patent protection beyond the basic protein sequence. ¹⁴

Biologic manufacturing processes can provide extended protection, as these processes are usually proprietary and difficult to engineer around. ²² Cell line development, purification methods and quality control processes are all available to be patented. ⁵³ Trade secrets complement patent strategies by protecting know-how and manufacturing know-how and manufacturing expertise that cannot be easily reverse-engineered. ⁶

Biosimilar regulation entails substantial clinical and analytical comparability studies to, create natural barriers to entry. ¹⁴ The complexity and cost of developing biosimilars and patent barriers drive competition years subsequent to compound patent expiry. ⁶ Companies position their patent portfolios strategically to maximize the amount of time the biosimilar developers spend trying to overcome patent thickets. ⁷

Companion diagnostics: Diagnostics as an IP frontier

Companion diagnostics is a new arena of drug patent strategy, and the HER2 test associated with Herceptin treatment is a paradigmatic case. ⁵⁷ The diagnostic tools, required for the selection of the right patients for the appropriate therapy, provides additional intellectual property layers and business hurdles to competitors. ²⁹ The integration of therapeutics and diagnostics characterize the growing importance of personalized medicine. ⁵⁷

The companion diagnostic development process is cost-intensive for biomarker discovery, assay development and clinical validation. ² Regulatory approval pathways for companion diagnostic regimen approval processes involve collaboration of drug and diagnostic development programs and render generic competition complex and possibly barriered. ⁹ Diagnostic strategies, biomarkers and assay technologies patent protection provides complementary exclusivity to drug patents. ⁵³

Companion diagnostics business prospects extend beyond the life-time of patent protection to include ongoing revenue from diagnostic testing. ⁵⁷ Companies can license diagnostic technology to laboratories or maintain control over testing procedures, and thus secure sustainable competitive advantages. ²⁹ Following the use of digital health technologies and artificial intelligence in diagnostics, there are new sources for patent protection and product differentiation. ²²

Strategic litigation and regulatory stays

Patent litigation has become a central component of pharmaceutical life-cycle management of drugs, with firms employing strategic lawsuits as an instrument of regulatory delay and prolonged market monopoly.^4,8 The 30-months stay provision of Hatch-Waxman Act provides automatic stays every time the patent owners sue generic applicants, creating opportunities for extended monopoly periods even when patents are eventually invalidated. ¹¹ Both Humira and Entresto have endured protracted litigation tactics that delayed generic and biosimilar competition. ⁷

Calendar and patent use issue since companies have to weigh the quality of their patent portfolios against risk of early generic entry. ⁶ Weak patents that induce stays are later invalidated can still provide valuable time extensions while subjecting companies to potential anti-trust liability. ³⁸ The complexity of patent litigation, particularly for biologics can extend to legal proceedings for years. ¹⁴

International patent litigation strategies require preparations in several jurisdictions with different legal norms and proceedings. ²² Companies must take into account the timing of patent challenges, likelihood of success in different courts and feasible foreign resolutions. ⁵³ The extent of increase in complexity in generic and biosimilar companies has created stronger patent challenges and minimized litigation durations. ¹³

Citizen petitions: Influencing the approval process

Citizen petitions to regulatory agencies represent a controversial strategy to delay generic competition. ⁸ These petitions usually tend to raise safety or efficacy concerns regarding pending generic approval, causing agency review that can delay approval. ³⁷ While some petitions raise legitimate scientific concerns, others appear to be commerce-driven. ³⁸

The FDA has implemented reforms to counterbalance potentially frivolous citizen petitions by such means as expedited review time frames and enhanced scrutiny of petitions filed close to generic approval dates. ⁹ Companies must scientifically weigh the merits of their objections in response to regulatory sanctions or anti-trust liability. ³⁹ Successful petitions must be supported by robust scientific evidence and regulatory acumen. ⁴⁰

The international regulatory appealing context varies significantly, each agency owning distinct procedures and standards. ⁴⁴ Firms need to be familiar with local legislations and cultural practices with such challenges. ³¹ The increased transparency in the regulatory process has further complicated it to apply delaying tactics. ⁵¹

Pay-for-delay settlements and market access control

Reverse payment settlements, in which brand companies pay off generic competition to delay on the introduction of generic drugs, have become a major anti-trust problem.^8,38 The Provigil case, e.g. demonstrates that Cephalon company spent over $300 million to block competition by generics, revealing not just commercially but also legal risks of such agreement. ³⁹ Such settlements have the potential to yield billions in additional revenues on brand companies at the same period they continue to keep patients from having affordable drug choices for a long period. ⁴⁰

The courts firmly opposed to pay-for-delay along with the regulators thus, taking a complete turnaround completely changing these types of responses with more anti-trust exposure potential and focus. ³⁸ The Supreme Court’s decision in FTC v. Actavis established the precedent that these settlements fell under anti-trust scrutiny, subject to more cautious application of patent settlements. ³⁹ Companies must balance commercial benefits of settlements increasing legal exposures. ⁴⁰

Alternative settlement structures have emerged in response to regulatory pressure, e.g., approved generic transactions and short-term exclusivity. ⁸ The complexity of the modern patent litigation offers opportunities for settlements that delay generic entry without explicit reverse payments. ³⁸ International variations in anti-trust law creates different risks and opportunities across the global markets. ³¹

Jurisdiction shopping for global exclusivity

Global patent prosecution strategies involve the careful selection of jurisdictions for the purpose of optimizing the patent life and period of exclusivity. ²² Gilead’s Sovaldi exemplifies a paradigm case of strategic jurisdiction shopping whereby patent filings take precedence in markets offering longer exclusivity terms. ⁵³ Companies must balance patent prosecution costs with potential revenue in different markets. ⁵⁴

Variations in patent laws, examination standards and exclusivity provisions across jurisdictions create opportunities for strategic filing decisions. ⁵⁵ Some markets offer extended patent terms for regulatory delays, whereas others provide robust data exclusivity independent of patent protection. ³¹ The timing of global filings should also take into account of the priority dates and potential obviousness. ⁵³

International patent harmonization has reduced some jurisdictional shopping alternatives, but significant variations remain. ²² Companies must navigate different patent prosecution strategies while maintaining consistency in the global patent family. ⁵⁶ The increasing importance of emerging markets has led to more sophisticated global intellectual property strategies. ³¹

Strategic pricing, rebates and formulary management

Sophisticated pricing and contracting strategies have become essential components of life-cycle management, particularly in markets that have been penetrated by managed care^9,10. Companies negotiate complex rebate arrangements with pharmacy benefit managers and health plans to maintain formulary positions and discourage generic substitutions. ⁴⁵ These strategies are more likely to be successful than patent protection in maintaining the market share. ³⁶

The health care reimbursement systems are designed to facilitate competitive contracting, which can effectively exclude generic competition. ⁴⁴ Volume-based rebates, single-source formulary placement and bundling agreements can make branded therapies financially competitive at higher list prices. ⁹ The complexity of these arrangements usually obscures the true cost of the therapies. ¹⁰

Regulatory responses to anti-competitive pricing practices have emerged in multiple jurisdictions, with agencies examining whether certain contracting practices constitute unfair competition.^31,38 Firms need to balance their competitiveness with regulatory penalties and damage to reputation. ³⁹ Increasing the transparency of pricing information has made some strategies difficult to implement. ⁵¹

Blocking raw material supplies: Controlling the supply chain

Supply chain control strategies involve limiting access to essential raw materials or manufacturing capacity needed for generic production. ⁸ Companies may secure exclusory supply agreements for specialized active pharmaceutical ingredients or assert control over distinctive manufacturing processes. ²² These strategies are particularly efficient for complex molecules or biologics that demand specialized manufacturing capabilities. ¹⁴

The vertical integration of pharmaceutical supply chain opportunities for supply control strategies. ⁵² Companies may acquire raw materials or maintain exclusive relationships with specialized manufacturers. ⁵³ The regulatory agencies have begun to examine whether such arrangements constitute anti-competitive behaviour. ³⁸

International supply chain complexity creates additional opportunities for supply control strategies. ³¹ Companies may concrete production in specific jurisdictions or maintain control over regulatory approvals needed for manufacturing. ⁵⁴ The increasing focus on supply chain resilience has led to greater regulatory attention being paid to these practices. ⁵¹

Anti-trust challenges and regulatory reforms

The increasing sophistication of pharmaceutical patent strategies has attracted significant attention from regulators worldwide.^8,38 Competition authorities have brought about numerous cases challenging patent clustering, pay-for-delay settlements and other life-cycle management tactics.^39,40 These challenges reflect growing concerns regarding the balance between innovation incentives and competition. ⁵²

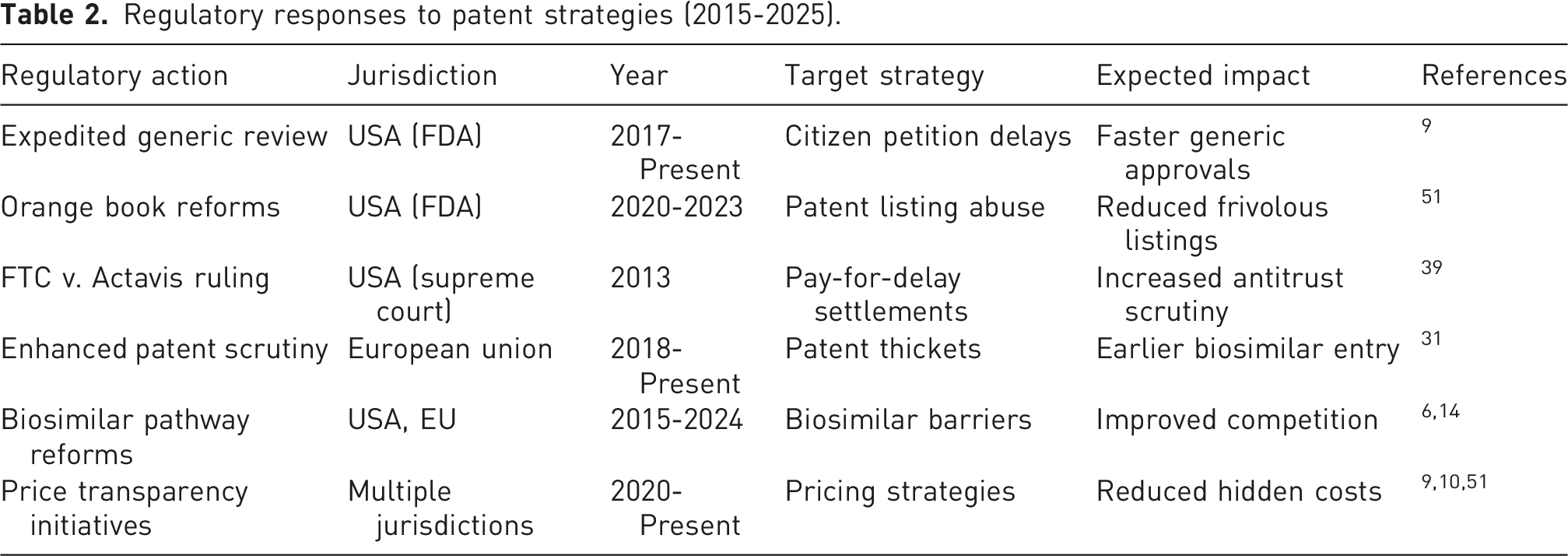

Regulatory reform has emerged in multiple jurisdictions to address the perceived abuse of patents and the regulatory regime.^9,51 The FDA has enforced expedited review processes for generic applications and more exhaustive scrutiny of citizen petitions. ⁹ European regulators have also intensified their oversights of pharmaceutical patent strategies. ³¹ The international collaboration anti-trust enforcement increases, whereby agencies collaborate in sharing data and coordinating investigations. ³⁸ Companies have to research potential anti-trust liabilities across multiple jurisdictions when implementing life-cycle management strategies. ³⁹ The evolution of competition laws in this rea continues to create new compliance challenges. ⁴⁰

Balancing innovation, access and affordability

The fundamental conflict between innovation incentives and access to medicines drives policy debates on pharmaceutical patent systems.^9,10 Although patents provide essential incentives for research and drug development, they can also restrict access to life-saving medications. ³¹ The challenge for policymakers is maintaining innovation while ensuring reasonable access. ³⁰

Recent proposals for patent system reform include limitations on continuation patents, enhanced obviousness standards and prohibiting certain forms of life-cycle management strategies.^38,39 These proposals highlight the increasing worries about the higher social costs of allowing a longer pharmaceutical monopolies. ⁵¹ Companies must change their business model in order to understand and shape their environment both from a legislative and regulatory standpoint. ⁴⁰

Furthermore, the fact that pharmaceutical markets worldwide make the matter even more complicated since each country has a different legal framework deciding the access-innovation balance differently. ³¹ For instances, the use of compulsory licenses, parallel imports and other arrangements for access complicate international patent strategies. ³⁰ Companies must operate through different regulatory systems while ensuring consistent intellectual property rights. ²²
