Overexpression of suppressor of cytokine signaling 3 in dorsal root ganglion attenuates cancer-induced pain in rats

Animals

Female Sprague-Dawley rats weighing 160–180 g were housed in temperature (24 ± 1℃) and light-controlled (12-h light/dark cycle) room with free access to standard rodent chow and water. Experiments were carried out in accord with protocols that were approved and monitored by the Institutional Animal Care and Use Committee at Soochow University and the Association of laboratory animals in Jiangsu Province, China.

Induction of CIP model

The procedures for induction of BC pain model were in accordance with the previous report.^25,26 In brief, rats were anesthetized with Chloral hydrate (360 mg/kg, i.p.) for surgery. A skin incision was made to expose the tibia plateau. A needle was then inserted into the medullary canal parallel to the tibia to create a pathway for the Walker 256 cell injection. Then, Walker 256 cells (4 × 10⁵) or the same volume of normal saline (NS) (control group) was slowly injected into the tibia cavity by using a 10 -µL microinjection syringe with 23-gauge needle. The syringe was left in place for an additional 2 min to avoid the tumor cells leaking out along the injection track. ²⁷ All rats were allowed to recover from the surgery for at least three days prior to further experimentation.

Mechanical allodynia, thermal hyperalgesia, and weight-bearing experiments

The 50% paw withdrawal threshold (PWT) to a static mechanical stimulus was measured using von Frey filaments and the up-and-down methods, as described previously. ²⁵ Rats (n = 8 in each group) were placed individually on an elevated iron mesh in a plastic cage, and they were allowed to adapt to the testing environment for 30 min. An ascending series of von Frey hairs (0.4, 0.6, 1.0, 1.4, 2.0, 4.0, 6.0, 8.0, 10.0, 15.0 g) were applied to stimulate the plantar aspect of each hind paw. A trial began with the application of the 2.0 g hair and with 15.0 g as the cutoff strength of von Frey filaments. A withdrawal of hind paw upon the stimulus was defined as a positive response. In the presence of a response, a filament of a greater force was applied. The tactile stimulus producing a 50% likelihood of withdrawal was determined by the “up-down” calculating method. The mean value was used as the force to produce withdrawal response.

The paw withdrawal latency (PWL) to radiant heat was also examined as described previously.^28,29 Rats were allowed to adapt to the acrylic enclosures on a transparent and clear glass plate for 30 min. A radiant heat source was focused on the plantar surface of the hindpaw. Measurements of PWL were taken by a timer that was started upon activation of heat source and stopped upon withdrawal of the hindpaw detected with a photodetector. A maximal cut-off time was set at 20 s to prevent unnecessary tissue damage. Three measurements were taken for each rat. The averaged value was the result of each test session. The hindpaw was tested alternately with at least 5 min interval between consecutive tests.

Hind limb weight-bearing difference (WBD) was measured using a Dual Channel Weight Averager (Churchill Electronic Services Ltd). Rat was placed in a Perspex chamber designed so that each hindpaw rests on a separate transducer pad. The average was set to record the load on the transducer over 5 s and the two displayed readings represented the distribution of the rat’s body weight on each paw. For each rat, the two numbers from each paw were taken and the results are presented as WBD.^30,31 All behavioral tests were carried out by a trained observer in a blinded manner.

LV vector production and intrathecal injection

The coding sequence of rat SOCS3, 5-ggtaagcctatccctaaccctctcctcggtctcgattctacg-3, was used for the experiment. ¹⁵ An additional scrambled sequence was also designed as a negative control (NC) (5′-ttctccgaacgtgtcacgtttc-3′). Replication-deficient, self-inactivating LV expressing vectors pFU-GW-RNAi-GFP [LV-SOCS3 and LV-NC] were generated. The cDNAs were subcloned into the vector (Shanghai Gene Chem Co, Ltd.). The resulting recombinant LV vectors were designated as LV-SOCS3 and LV-NC, respectively. As described previously, 293 T cells were co-transfected with 20 µg of pFU-GW-SOCS3 plasmid or pFU-GW-free and 15 µg of pHelper 1.0 and 10.0 µg of pHelper 2.0 packaging plasmids. ³² The culture medium was collected 48 h later, concentrated by ultracentrifugation, aliquoted. The final viral suspension was stored at −80℃ until use. LV suspension was titrated and normalized for the p24 antigen (Beckman Coulter). The final titer of LV-SOCS3 and LV-NC were 1 × 10⁹TU/mL. A guiding needle (18G) was passed between the lumbar vertebrae 5 and 6 to enter the intrathecal space and 10 µL volume of lentivirus was slowly injected.

Western blotting analysis of SOSCS3 and TLR4 expression

The expressions of SOCS3 and TLR4 in L2-L5 DRGs from control rats and BC rats injected with LV-SOCS3 or LV-NC were measured using Western blotting analysis. Rats were rapidly sacrificed by cervical dislocation. L2-L5 DRGs were quickly dissected out and lysed, then lysates were left for 2 h to rotate at 4℃, and were then centrifuged at 12,000 r/min for 20 min at 4℃. Supernatants were collected and total protein concentration was titrated using a bicinchoninic acid (BCA) kit. Equivalent amounts of protein (20 µg) were fractionated on 10% polyacrylamide gels (Bio-Rad, California, USA). Then proteins were transferred to polyvinylidenedifluoride membranes (Bio-Rad) at 200 mA for 2 h. Membranes were blocked with 5% fat-free milk solution in Tris Buffered Saline (TBS) (50 mM Tris-HCl, 133 mM NaCl, pH = 7.4) for 1 h at room temperature and incubated overnight at 4℃ with primary antibody (anti-SOCS3 at 1:500, Santa Cruz Biotechnology, Santa Cruz, California, USA or anti-TLR4 at 1:1000, Abcam, UK) in TBS containing 1% milk. After washed in TBST, membranes were then incubated with horseradish peroxidase-conjugated secondary antibodies (1:5000) in TBS containing 1% milk for 2 h at room temperature. Bands were revealed with an ECL kit (Amersham, Buckinghamshire, UK) and appropriate exposure to Kodak X-ray film. Membranes were subsequently stripped and re-probed for actin (anti-β-actin 1:4000, Chemicon, Temecula, California, USA). β-actins were used as a loading control. The densities of protein bands were analyzed using NIH image software. SOCS3 and TLR4 protein expressions were normalized to β-actin.

Retrograde labeling of DRG neurons innervating the tibia

To determine the origin of the primary afferent innervation of the tibia, 1, 19 -dioleyl-3, 3, 39, 3-tetramethylindocarbocyanine methanesulfonate (DiI, Invitrogen, Carlsbad, California) was used to retrogradely label the neurons, as described previously. ²⁵ In brief, seven days after injection of tumor cells or NS, rats were anesthetized with chloral hydrate (360 mg/kg, intraperitoneal). A skin incision was made to expose the tibia plateau. A needle was then inserted into the medullary canal parallel to the tibia to create a pathway for the DiI injection. Then, a volume of 5 -µL DiI was slowly injected ipsilaterally to the tumor cell injected tibia cavity from the tibia plateau by a 10 -µL microinjection syringe with 23-gauge needle. The syringe was left in place for an additional 2 min to prevent the DiI from leaking out along the track. One week later, lumbar L2–L5 DRGs were dissected out to study its excitability by using patch clamp recordings or to perform immuno-fluorescent staining.

Dissociation of DRG neurons and patch clamping experiments

To isolate DRG neurons, rats (two weeks after injection of tumor cells or NS) were sacrificed by cervical dislocation, followed by decapitation, as described previously. ³³ In brief, L2-L5 DRGs ipsilateral to the injection tibia were dissected out and transferred to an ice-cold, oxygenated fresh dissecting solution (in mM): 130 NaCl, 5 KCl, 1.5 CaCl₂, 2 KH₂PO4, 6 MgSO₄, 10 HEPES, and 10 glucose. The pH of solution was adjusted to 7.2 and osmolarity was 305 mOsm. The DRGs were incubated in dissecting solution, which contained collagenase D (1.8 ∼ 2.0 mg/ml; Roche, Indianapolis, IN) and trypsin (1.5 mg/ml; Sigma, St. Louis, MO), for 1.5 h at 34.5℃. DRGs were taken out, washed, and transferred to 2 mL of dissecting solution containing DNase (0.5 mg/ml; Sigma). Single cell suspension was subsequently obtained by repeated trituration through a series of flame-polished glass pipettes. Cells were then plated onto acid-cleaned glass coverslips. Coverslips containing adherent DRG cells were then put in a small recording chamber (0.5 mL) and attached to the stage of an inverting microscope (Olympus IX71, Tokyo, Japan), which is fitted with both fluorescent and phase objectives. DiI-labeled neurons were identified by their fluorescence. For patch clamp recordings, cells were perfused at room temperature with normal external solution. The external solution contains (in mM) 130 NaCl, 5 KCl, 2 KH₂PO4, 2.5 CaCl₂, 1 MgCl₂, 10 HEPES, and 10 glucose (pH = 7.2, adjusted with NaOH, osmolarity = 295–300 mOsm). Recording pipettes were pulled from borosilicate glass tubing using a horizontal puller (P-97, Sutter Instruments, California, USA) and typically had a resistance of 3.0 ∼ 5.0 MΩ when filled with normal internal solution. Resting membrane potential (RP) and rheobase were recorded under current clamp configuration. Whole cell voltages, filtered at 2 ∼ 5 kHz and sampled at 100 μs/point, were acquired with an EPC10 patch-clamp amplifier and stored on a computer using FitMaster (HEKA, Germany). All experiments were performed at room temperature (22 ∼ 24℃).

Immunofluorescence study of SOCS3 and TLR4

One week after DiI injection, rats were perfused transcardially with 300 mL phosphate-buffered saline (PBS) followed by 300 mL ice-cold 4% paraformaldehyde in PBS. L2-L5 DRGs were removed and postfixed for 4 h in paraformaldehyde and cryoprotected overnight in 20% sucrose in PBS. For triple labeling, 10 µm sections of DRG were simultaneously incubated with SOCS3 (1:200), TLR4 (1:200), CD11b (1:200), β-tubulin (1:500), and GFAP (1:1000) antibodies for overnight at 4℃ and then incubated with secondary antibody with Alexa Fluor 488 and 355 for 2 h at room temperature. NC was performed by omitting primary antibodies. Sections were viewed with filter cubes appropriate for DiI (rhodamine filter), Alexa 355, and 488. Images were captured and analyzed using Metaview software.

Data analysis

Data are expressed as mean ± SEM for electrophysiology, behavior, and molecular assays. Statistical analyses were conducted using OriginPro 8 (OriginLab, US) and SPSS statistics 17.0 software and were performed by Student’s t-test for two-sample data and by Mann–Whitney test following Friedman ANOVA or Kruskal–Wallis ANOVA followed by Tukey’s post hoc test for multiple comparisons where appropriate. Normality was verified for all data before analyses. A p value < 0.05 was set as the level of statistical significance.

Tumor cell injection produced pain hypersensitivity

To confirm cancer development in the tibia, we examined the bone with an X-ray machine and anatomic studies 14 days after injection of tumor cells (4 × 10⁵) or NS into tibias. As shown in the radiographic images, the tibia bone matrix and the cortex were normal in the NS injection group (CON, Figure 1(a), left). However, in tumor cell injection group, the bone showed signs of absorbance of bone tissue and erosion of the cortical bone in the proximal epiphysis close to the site of the injection (BC, Figure 1(a), right). Anatomic study showed that 14 days after injection of Walker 256 tumor cells, the proximal epiphysis of the tumor cells bearing tibia was destroyed (BC, Figure 1(b), right) while no damage was observed in NS injection group (CON, Figure 1(b), left). Importantly, rats treated with Walker 256 tumor cells displayed a gradual increase in sensitivity to von Frey filament stimulation. The PWT to von Frey filaments in the tumor-bearing hind paw of rats decreased from the baseline level 13.10 ± 1.40 g to 3.57 ± 0.49 g and 3.25 ± 0.49 g, 14 and 21 days after injection, respectively (Figure 1(c), ***p < 0.001; n = 8 rats for each group, Mann–Whitney test following Friedman ANOVA). Similarly, the PWL to the radiant heat stimulation began to decrease at day 14 and maintained at day 21 after injection (Figure 1(d)). The mean PWL was 14.23 ± 0.20 s prior to implantation of tumor cells. The mean PWL was 6.51 ± 0.16 s and 6.33 ± 0.13 s at day 14 and 21 after tumor cell injection, respectively (Figure 1(d), ***p < 0.001, n = 8 rats for each group, Mann–Whitney test following Friedman ANOVA). However, there was no obvious difference in the PWT or PWL between the control rats and the contralateral side of tumor-injected rats (Figure 1(e) and (f), p > 0.05, n = 8 rats for each group, Mann–Whitney test following Friedman ANOVA). In addition, the hind limb WBD was also examined. Rats injected with Walker 256 tumor cells showed a significant increase in hind limb WBD beginning from day 14 and lasting for one week within our observation time period (Figure 1(g)). The WBD was 2.70 ± 2.79 g before tumor cell injection and increased to 54.32 ± 2.10 g at day 14 and 62.75 ± 5.15 g at day 21 (Figure 1(g), ***p < 0.001, n = 6 rats for each group, Mann–Whitney test following Friedman ANOVA). In contrast, the NS-injected rats (CON) had no significant alteration in PWT (Figure 1(c)), PWL (Figure 1(d)), or WBD (Figure 1(g)) during the time course of post-injection. These data suggest that injection of Walker 256 tumor cells into the tibial canal resulted in CIP in rats.

OPEN IN VIEWER

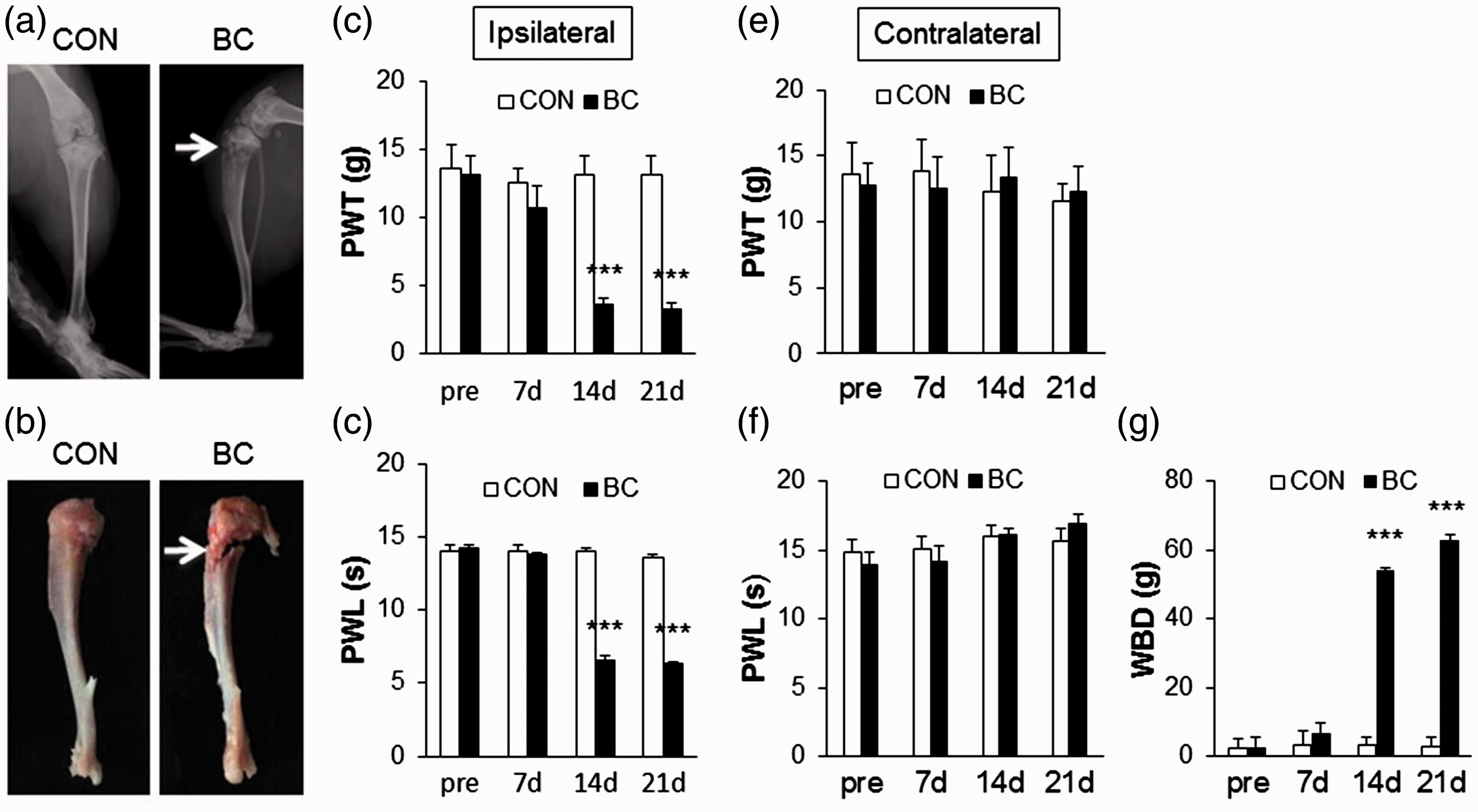

Figure 1.

Injection of tumor cells induced bone destruction and developed pain hypersensitivity. (a) Radiographic images (a, left) and anatomic study (b, left) showed no damage of the tibia bone matrix and the cortex in control group. However, the tumor cells bearing tibia showed signs of absorbance of bone tissue and erosion of the cortical bone in the proximal epiphysis (a, right) and anatomic study showed the proximal epiphysis of the tumor cells bearing tibia was destroyed (b, right) at 14 days post injection. (c) The mechanical PWT was decreased significantly on the ipsilateral side in BC group at 14 and 21 days after surgery compared to the control group (***p < 0.001, n = 8 for each group, Mann–Whitney test following Friedman ANOVA). (d) The PWL to heat was decreased significantly on the ipsilateral side in BC group at 14 and 21 days after surgery compared with the control group (***p < 0.001, n = 8 for each group, Mann–Whitney test following Friedman ANOVA). (e, f) There was no obvious difference in the PWT and PWL between the control rats and the contralateral side of tumor-injected rats (p > 0.05, n = 8 for each group, Mann–Whitney test following Friedman ANOVA). (g) In BC group, the body WBD was dramatically increased between two hind limbs at 14 and 21 days after surgery when compared with the control group (***p < 0.001, n = 6 for each group, Mann–Whitney test following Friedman ANOVA).

Tumor cell injection led to downregulation of SOCS3 expression in Ipsilateral DRGs

Interestingly, tumor cell injection significantly reduced the expression of suppressor of cytokine signaling-3 (SOCS3) at the protein levels in ipsilateral L2-L5 DRGs when compared with NS-injected group (Figure 2(a)). The relative densitometry of SOCS3 was 0.08 ± 0.01 in the control group (CON) and 0.02 ± 0.01 in the BC group (Figure 2(a), **p < 0.01, n = 4 rats for each group, student’s t-test). However, SOCS3 protein levels were not altered in contralateral L2-5 and ipsilateral T7-10 DRGs of the same tumor-injected rats. The relative densitometry of SOCS3 in contralateral L2-5 DRGs was 0.40 ± 0.13 in BC group and 0.53 ± 0.04 in CON group (Figure 2(b), p > 0.05, n = 4 rats for each group, student’s t-test). The relative densitometry of SOCS3 in ipsilateral T7-10 DRGs was 0.65 ± 0.01 in the BC group and 0.46 ± 0.03 in CON group (Figure 2(c), p > 0.05, n = 4 rats for each group, student’s t-test). These data suggest that the tumor-injection effects were local in special DRGs and in the injected side.

OPEN IN VIEWER

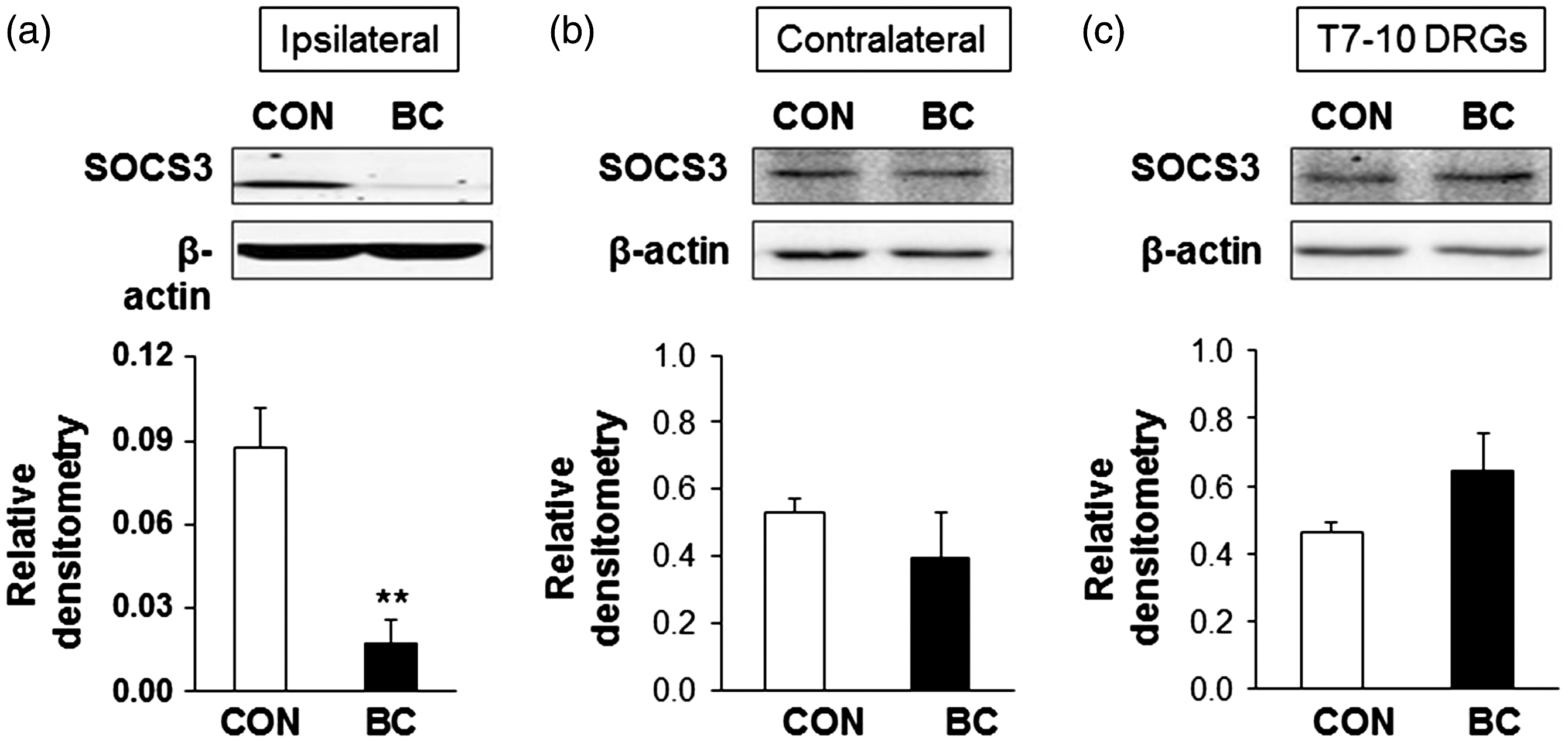

Figure 2.

SOCS3 protein level was decreased in DRGs in BC rats. (a) Compared with the control group, SOCS3 protein level was greatly decreased in ipsilateral L2–L5 DRGs of BC rats, **p < 0.01, n = 4 for both groups, student’s t-test. (b) SOCS3 protein level was not changed in contralateral L2–L5 DRGs (p > 0.05, n = 4, student’s t-test). (c) SOCS3 protein level was not altered in ipsilateral T7-10 DRGs (p > 0.05, n = 4, student’s t-test).

Since DRG tissues consist of many kinds of cells, immunohistochemical staining of β-tubulin, CD11b, and GFAP with SOCS3 were performed in the present study. Figure 3 showed that SOCS3 were co-localized with some of β-tubulin (top) positive DRG neurons but not with CD11b positive microglia cells (middle) and GFAP positive astrocytes (bottom). To evaluate the specificity of the SOCS3 primary antibody, we performed additional experiments by adding SOCS3 pre-absorption antigen. After SOCS3 antibody was pre-absorpted, DRG neurons were not stained (Figure 3, bottom right).

OPEN IN VIEWER

Figure 3.

Immunohistochemical staining of β-tubulin, CD11b, and GFAP with SOCS3 in DRGs. SOCS3 were co-localized with some of β-tubulin (top) positive DRG neurons but not with CD11b positive microglia cells (middle) and GFAP positive astrocytes (bottom). After SOCS3 antibody was pre-absorpted, DRG neurons were not stained (bottom right). Bar = 50 µm.

Overexpression of SOCS3 by LV infection attenuated pain hypersensitivity of BC rats

To increase the protein level of SOCS3 in DRGs, we developed a highly efficient method of LV-mediated delivery of SOCS3 cDNA for overexpression as described previously. ¹⁵ NC lentivirus (LV-NC, 10 µl) was used as controls. After intrathecal injection of LV-SOCS3 (10 µl), the expression of SOCS3 at protein level was enhanced in BC rats. The relative densitometry was 0.06 ± 0.00 in the LV-SOCS3 group and 0.03 ± 0.01 in the LV-NC group (Figure 4(a), *p < 0.05, compared with LV-NC, student’s t-test, n = 4 rats for each group). Importantly, intrathecal injection of LV-SOCS3 produced a strong antinociceptive effect in BC rats. The decreased PWTs were partially reversed after LV-SOCS3 injection when compared with LV-NC injection in BC rats (Figure 4(b), *p < 0.05, n = 8 rats for each group, Mann-Whitney test following Friedman ANOVA). Further, rats injected with LV-SOCS3 showed a significant reduction in hind limb body WBD at day 14 and day 21 when compared with the LV-NC groups (Figure 4(d), ***p < 0.001, n = 8 for each group, Mann–Whitney test following Friedman ANOVA). However, thermal hyperalgesia induced by tumor cells were not alleviated by intrathecal injection of LV-SOCS3 (Figure 4(c), n = 8 rats for each group, Mann–Whitney test following Friedman ANOVA).

OPEN IN VIEWER

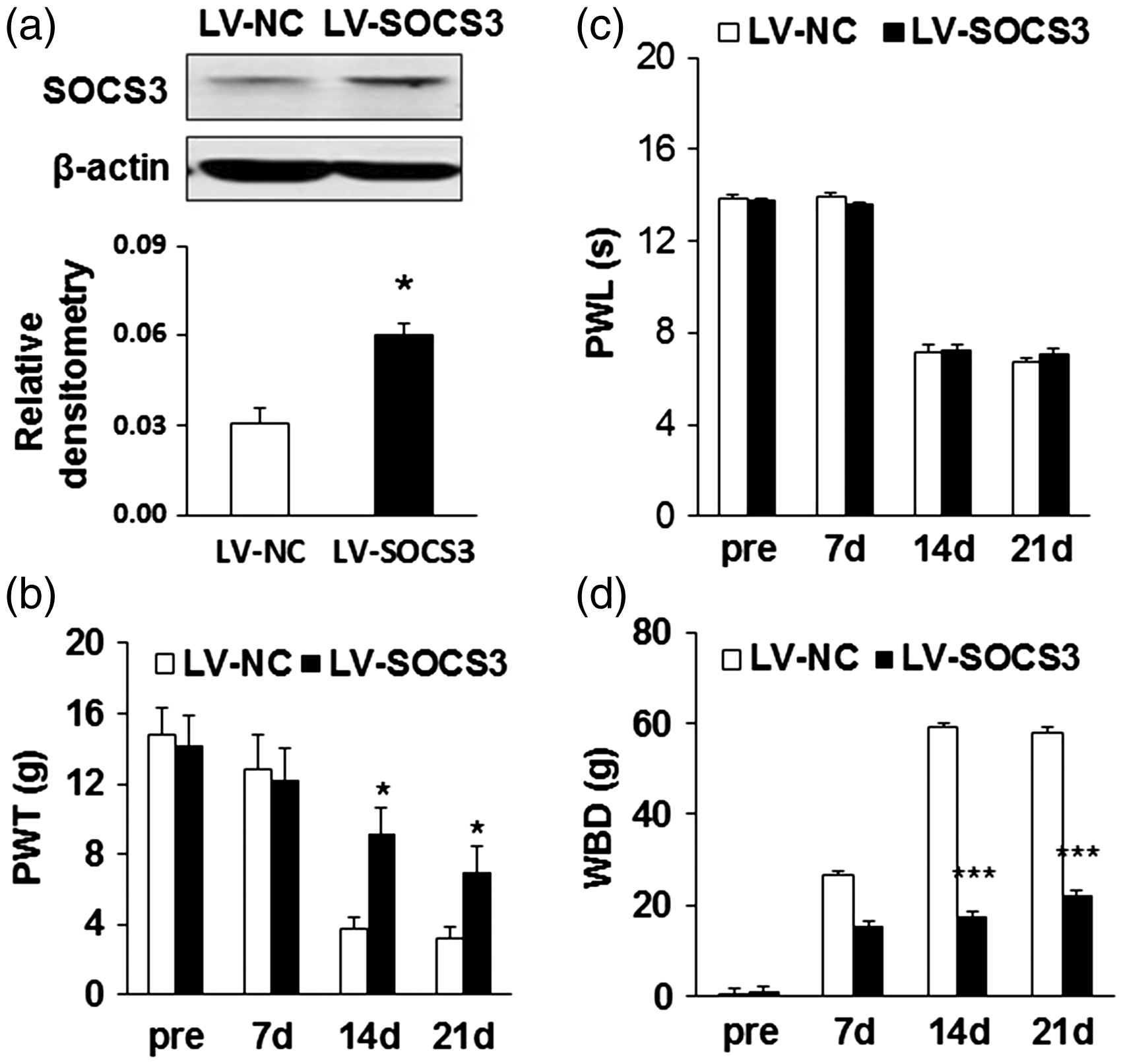

Figure 4.

Injection of LV-SOCS3 enhanced expression of SOCS3 and relieves CIP. (a) Intrathecal injection of LV-SOCS3 at 10 µl significantly increased the SOCS3 protein level in L2–L5 DRGs in BC rats when compared with LV-NC injected BC rats (*p < 0.05, n = 4 for each group, Student’s t-test). (b) The mechanical PWT was increased significantly on the ipsilateral side in LV-SOCS3 group at 14 and 21 days after surgery when compared with the LV-NC group (*p < 0.05, n = 8 for each group, Mann–Whitney test following Friedman ANOVA). (d) The PWL to heat was not altered significantly on the ipsilateral side in LV-SOCS3 group at 14 and 21 days after surgery compared with the LV-NC group (n = 8 for each group). (e) In LV-SOCS3 group, the body BWD was dramatically decreased at 14 and 21 days after surgery when compared with the NC (***p < 0.001, n = 6 for each group, Mann–Whitney test following Friedman ANOVA).

Overexpression of SOCS3 reversed hyperexcitability of DRG neurons innervating the tibia of CIP rats

Next, we investigated whether overexpression of SOCS3 changed electrophysiological properties of DRG neurons innervating the tibia. Acutely isolated tibia innervating DRG neurons (Figure 5(a)) were labeled by DiI (Figure 5(c)) and GFP (Figure 5(b)), which were overexpressed with SOCS3 or LV-NC. The RP of the DiI-labeled neurons from rats injected with tumor cells showed a slight but significant depolarization. Overexpression of SOCS3 significantly hyperpolarized RP (Figure 5(d), ***p < 0.001, compared with CON, n = 14 neurons from CON and n = 24 neurons from LV-NC, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test; ###p < 0.001, compared with LV-NC, n = 12 neurons from LV-SOCS3). The rheobase was significantly reduced after tumor cell injection while it was increased after LV-SOCS3 injection intrathecally (Figure 5(e), ***p < 0.001, LV-NC vs. CON, n = 14 neurons for CON and n = 24 neurons for LV-NC; ###p < 0.001, compared with LV-NC, n = 12 neurons for LV-SOCS3, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test). The action potential (AP) threshold was hyperpolarized after tumor cell injection while it was depolarized after LV-SOCS3 injection intrathecally (Figure 5(f), ***p < 0.001, LV-NC vs. CON, n = 14 neurons for CON and n = 24 neurons for LV-NC; ##p < 0.01, compared with LV-NC, n = 12 neurons for LV-SOCS3, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test).

OPEN IN VIEWER

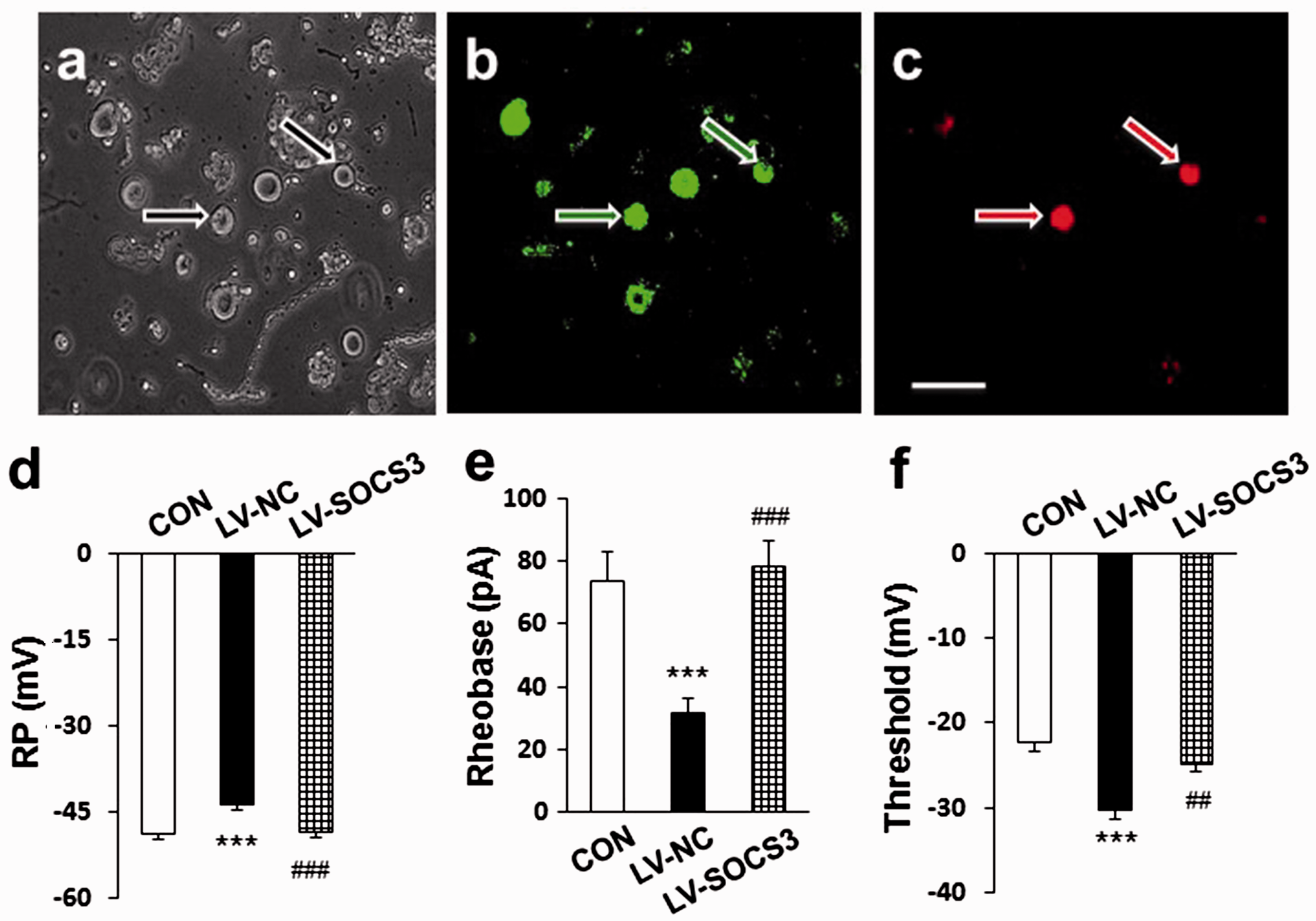

Figure 5.

Treatment with LV-SOCS3 reduced the hyperexcitability of tibia-specific lumbar DRG neurons. (a) Images of acutely dissociated DRG neurons. (b) Some of the same DRG neurons in (a) were labeled by GFP, which overexpressed SOCS3 or LV-NC. (c) Two of the same DRG neurons in (a) were labeled by DiI (red). Arrows indicate that these neurons were GFP and DiI double-labeled neurons. Bar = 50 µm. (d) RP was depolarized after tumor cell injection (BC) and was hyperpolarized after LV-SOCS3 treatment. (e) The rheobase was reduced after tumor cell injection and was increased after LV-SOCS3 injection. (f) AP threshold was hyperpolarized after tumor cell injection and was depolarized after LV-SOCS3 injection. n = 14 neurons from 4 control rats; n = 24 neurons from 4 LV-NC rats; n = 14 neurons from 4 LV-SOCS3 rats, ***p < 0.001, LV-NC versus control; ##p < 0.01, ###p < 0.001, LV-SOCS3 versus LV-NC, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test.

In addition, representative traces of APs evoked by 1000 ms depolarizing ramp current injection at 100 pA (left), 300 pA (middle), and 500 pA (right) of DRG neurons from control, LV-NC, and LV-SOCS3 group of rats under current-clamp conditions were shown in Figure 6. Tumor cell injection remarkably increased the number of APs in response to a 100 pA, 300 pA, and 500 pA ramp current stimulation when compared with control rats (Figure 6, *p < 0.05, **p < 0.01, ***p < 0.001, LV-NC vs. CON, n = 14 neurons for CON and n = 24 neurons for LV-NC, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test). Overexpression of SOCS3 greatly reduced the number of APs evoked by 100 pA (Figure 6(d)), 300 pA (Figure 6(e)), and 500 pA (Figure 6(f)) ramp current stimulation (Figure 6, #p < 0.05, compared with LV-NC, n = 24 neurons for LV-NC and n = 14 neurons for LV-SOCS3, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test). These findings demonstrated that CIP elevated the excitability of tibia-specific lumbar DRG neurons and that overexpression of SOCS3 reversed the hyperexcitability of these neurons.

OPEN IN VIEWER

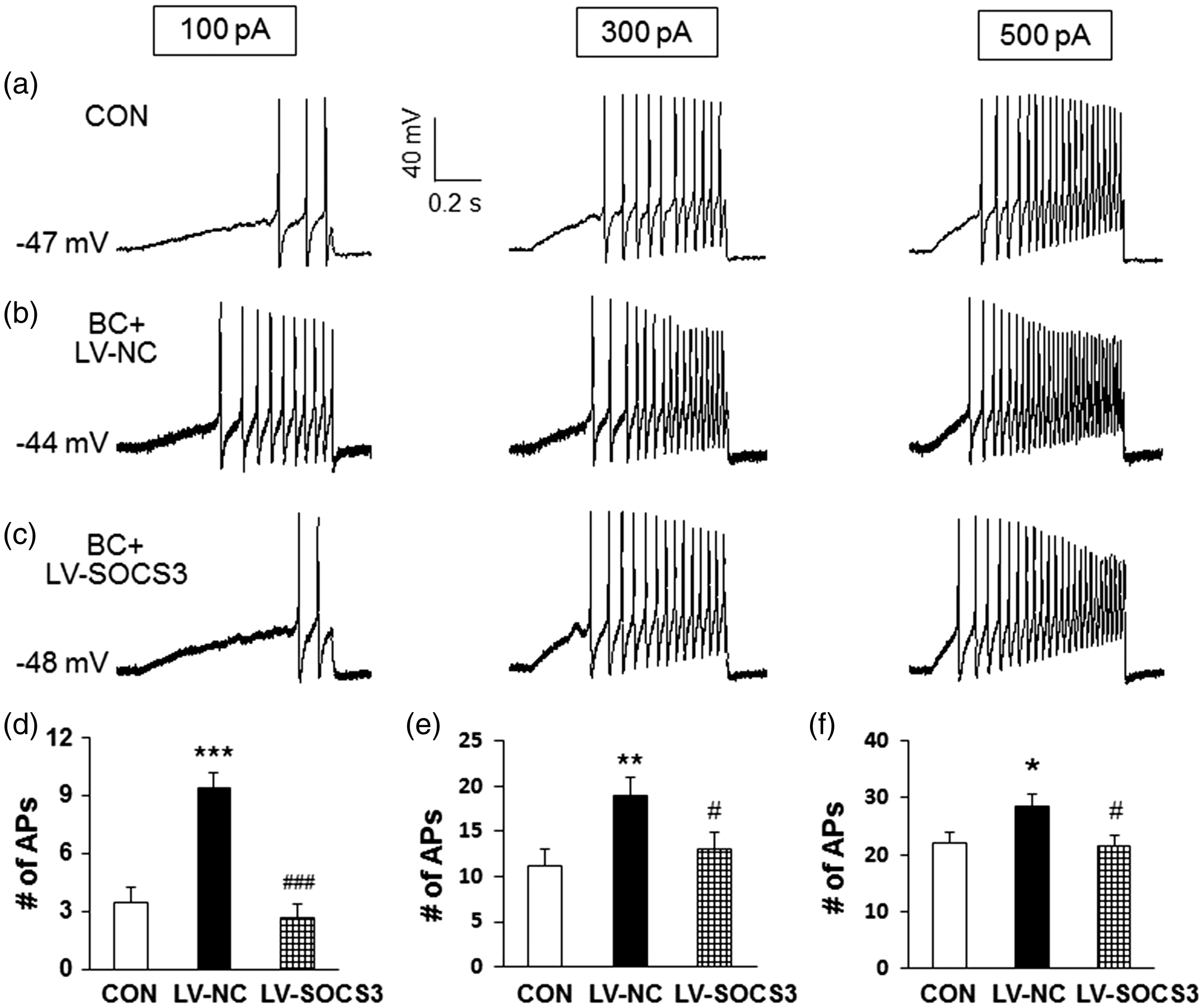

Figure 6.

Overexpression of SOCS3 reduced the cell firing frequency. (a–c) Representative traces of APs induced by 1000 ms depolarizing current injection at 100 pA (left), 300 pA (middle), and 500 pA (right) ramp stimulation in DRG neurons from CON (a) and LV-NC (b), and LV-SOCS3 (c) rats. Numbers in the left side of each trace are the RPs of each neuron recorded. Tumor cells injection resulted in a significant increase in the number of APs induced by 100 pA (a), 300 pA (b), and 500 pA (c) ramp current stimulation of DRG neurons when compared with control neurons. LV-SOCS3 overexpression decreased the number of APs induced by a 100 pA, 300 pA, and 500 pA ramp current stimulation when compared with LV-NC, respectively. (d–f) Bar graphs showing the average number of APs elicited by 100 pA, 300 pA, and 500 pA ramp current stimulation in CON and BC rats injected with LV-NC or LV-SOCS3 (*p < 0.05, **p < 0.01, ***p < 0.001, LV-NC vs. CON; #p < 0.05, ###p < 0.001, LV-SOCS3 vs. LV-NC, Kruskal–Wallis ANOVA followed by Tukey’s post hoc test).

Overexpression of SOCS3 reversed the upregulation of TLR4 in DRGs of BC rats

We then examined the role of TLR4 in CIP since these receptors have been reported to be involved in development of inflammatory pain ³⁴ and visceral pain hypersensitivity. ³⁵ The protein level of TLR4 was slightly but significantly increased in L2-5 DRGs of BC rats when compared with control rats. The relative densitometry was 0.41 ± 0.08 (n = 4) and 0.70 ± 0.06 (n = 4) for control and BC rats, respectively (Figure 7(a), *p < 0.05, student’s t-test), indicating tumor cell injection promoted expression of TLR4 in DRGs. We next determined the expression of TLR4 after LV-SOCS3 injection. Interestingly, overexpression of SOCS3 significantly reduced the expression of TLR4. The relative densitometry of TLR4 was 0.53 ± 0.06 (n = 4) and 0.37 ± 0.03 (n = 4) for LV-NC and LV-SOCS3, respectively (Figure 7(b), *p < 0.05, student’s t-test). Further experiment showed that TLR4 were co-expressed with SOCS3 in DRG neurons innervating the tibia (Figure 7(c)). As mentioned previously, tibia innervating DRG neurons were labeled by DiI in red in Figure 7(c) (top left, arrows). SOCS3 positive DRG neurons were displayed in blue in Figure 6(c) (top middle, arrows). TLR4 receptor positive DRG neurons were displayed in green in Figure 6(c) (top right, arrows). Merge of double labeling of DiI and SOCS3 in DRGs was shown in Figure 7(c) (bottom left, arrows). Merge of TLR4-positive staining and DiI labeling was shown in Figure 7(c) (bottom middle, arrows). Merge of SOCS3 staining and TLR4 receptors labeling was shown in Figure 7(c) (bottom right, arrows).

OPEN IN VIEWER

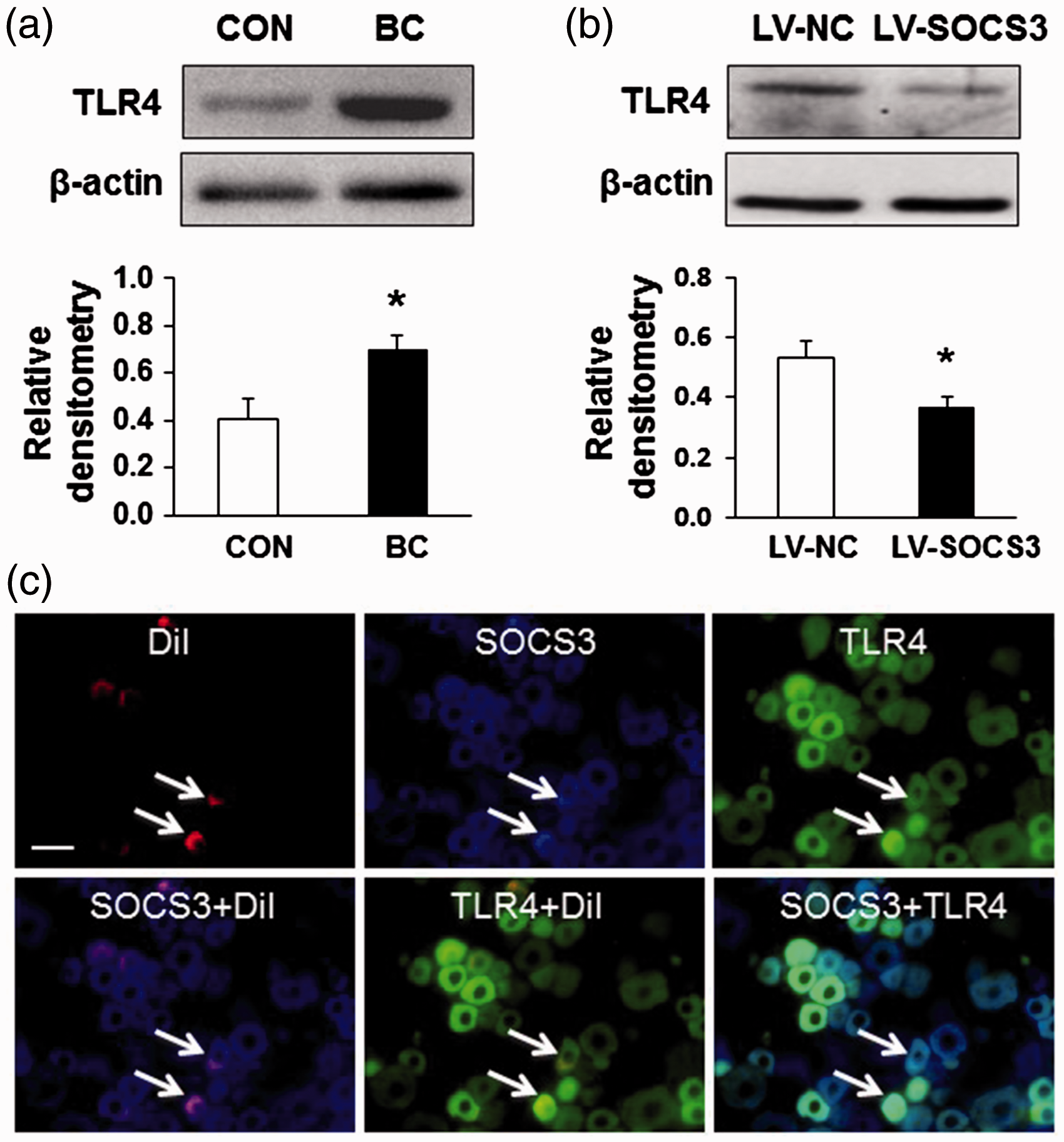

Figure 7.

Overexpression of SOCS3 reversed the increase of TLR4 expression. (a) Western blots and bar graph showed the mean density relative to β-actin for TLR4 receptors from BC rats was significantly increased when compared with controls (CON; *p < 0.05; n = 4 for each group, student’s t-test). (b) After LV-SOCS3 treatment, the relative TLR4 receptors density was decreased when compared with LV-NC group (*p < 0.05; n = 4 for each group, student’s t-test). (c) Co-expression of SOCS3 with TLR4 receptors in tibia innervating DRG neurons. L5 DRG cells innervating the tibia were labeled with DiI in red (top left, arrows). SOCS3 positive cells are shown in blue (top middle). TLR4 receptors positive cells are shown in green (top right). Bar in the top left of figure (c) equals 50 µm.
