Inhibiting STAT3 in a murine model of human breast cancer-induced bone pain delays the onset of nociception

Introduction

Cancer is the leading world-wide cause of morbidity and mortality, with 14 million new cases and 8 million cancer-related deaths reported in 2012. ¹ Up to 70% of cancer patients experience pain, ² with greater than 33% describing pain as a distressing and intolerable aspect of the disease. ³ Adequate pain management has been associated with clinically relevant improvements in patient quality of life. ⁴ In an effort to intensify research into its underlying mechanisms, including pain due to bone metastases, ⁵ the International Association for the Study of Pain launched 2008 as the Global Year Against Cancer Pain. Increased opioid prescriptions and intensified research into developing new therapeutic analgesic agents raised expectations that the prevalence of cancer pain would decline. Analysis of data from 1966–2005 revealed the prevalence of pain in cancer patients after curative therapy to be 33%, 59% in those undergoing anti-cancer treatment, 64% in those with advanced, metastatic or terminal disease and 53% at all stages of cancer. ² However, a systematic review and meta-analysis of data collected during the period from 2005–2014 revealed no improvements, with a 39.3% prevalence of pain in cancer patients after curative therapy, 55.0% in those undergoing anti-cancer treatment, 66.4% in those with advanced disease and 50.7% at all stages of cancer, ⁶ indicating that pain continues to be a prevalent co-morbidity. Given that opioids are not a sustainable solution to increase patient quality of life in terms of daily functionality, there remains a clinical need to adopt new pharmacological agents that produce tolerable side effects. ⁷

In terms of breast cancer, an estimated 1.4 million women and men are diagnosed each year, with skeletal metastases that occur in 65% to 75% of breast cancer patients ⁸ representing a source of significant pain. ⁹ The severity of cancer-induced bone pain (CIBP) varies considerably, with some patients experiencing minimal symptoms while others describe deep and penetrating pain, which may be accompanied by sporadic episodes of intractable discomfort. ⁸ The variable nature of CIBP may be cancer subtype-dependent, and influenced, at least in part, by the specific metabolic profile of metastatic cells, which may also be linked with their tumour growth potential within the bone microenvironment. Currently, analgesic options for treating CIBP are limited primarily to non-steroidal anti-inflammatories and opioids, with the latter further impacting patient quality of life. ⁹

Our group has been actively exploring the contribution of glutamate derived from peripherally induced skeletal tumours to CIBP in relevant animal models. In the bone, changes in extracellular glutamate levels affect osteoclasts, osteocytes and osteoblasts. ¹⁰ Exogenous glutamate also acts as an excitatory neurotransmitter, stimulating peripheral afferents to evoke nociceptive responses.^11,12 We and others have shown that stearic blockers (sulfasalazine, capsazepine) of system x_c⁻, a membrane antiporter present on particularly aggressive cancer cells that specifically mediates the release of excess intracellularly produced glutamate in exchange for cystine uptake, delay the onset or ameliorate the severity of nociceptive behaviours in preclinical CIBP models.^13–15 Of additional relevance, it has been shown that inhibiting system x_c⁻ activity with sulfasalazine decreases tumour growth, which is of interest in targeting cancer subtypes associated with a particularly poor prognosis. ¹⁶ For example, sulfazalazine markedly reduced the growth and viability of human pancreatic cancer cells in vitro as well as xenograft growth in immunodeficient mice. ¹⁷ In human non-Hodgkin’s lymphoma and rat Nb2 lymphoma cultures, this agent potently blocked system x_c⁻ and induced high growth-inhibitory activity in vitro, and its intraperitoneal (IP) administration to rats inhibited continued growth of Nb2 lymphoma transplants. ¹⁸ However, the clinical application of sulfasalazine to treat CIBP is not being actively pursued, given its rapid metabolism into two bioactive constituents in vivo, reducing its potency in blocking system x_c⁻ activity.

Up-regulated functional antiporter activity may be indicative of a shift in cancer cell metabolism towards glutaminolysis to support the production of intracellular glutamate. Glutamine dependency indirectly supports cystine acquisition through system x_c⁻, which is present on a third of triple-negative human breast carcinomas. ¹⁶ The ability to take up cystine presents an additional growth advantage in the form of increased reactive oxygen species (ROS) neutralization, which is important, given that, as by-products of dysregulated metabolism, these molecules disrupt intracellular redox balance. ¹⁹ This is countered in part by the antioxidant glutathione, with its synthesis dependent on an adequate intracellular pool of cysteine, which is refreshed through continuous system x_c⁻-mediated cystine uptake. ²⁰ Taken together, targeting system x_c⁻ to ameliorate CIBP provides several advantages, both as an anti-nociceptive strategy by limiting glutamate release and as a means of controlling tumour growth, which itself may be associated with bone pain by inducing mechanical pressure as well as fractures.

Interestingly, CIBP includes inflammatory components, and pro-inflammatory cytokines such as IL-1β have been linked with the expression of xCT, the functional component of system x_c⁻, at the protein level. ²¹ Down-regulating xCT at the mRNA level may therefore provide another means of therapeutically targeting cancer cell-mediated glutamate release. Signal transducer and activator of transcription (STAT) proteins are constitutively active in many human cancers, including lymphomas, pancreatic cancers and aggressive breast cancers, play a role in cancer inflammation, ²² affect redox homeostasis ²³ and regulate xCT.^24,25 Phospho-STAT3 (pSTAT3) is constitutively active in triple-negative human MDA-MB-231 breast cancer cells, which release significant levels of glutamate and have been used by our group to induce CIBP xenograft models.^13,14 We have shown that after 24 h in the presence of the STAT3/STAT5 pathway inhibitor SH-4–54, ²⁶ xCT mRNA levels were up-regulated in MDA-MB-231 cells through a ROS-mediated stress response. ²⁴ After the initial spike in ROS levels, a sustained block of pSTAT3, achieved through continued culture in the presence of SH-4–54, induced significant down-regulation of xCT mRNA in clonally selected MDA-MB-231 cell lines. ²⁵ In contrast, human SH-4–54-selected T47D breast cancer clones exhibited significant increases in xCT mRNA levels relative to parental cells, ²⁵ which do not normally express pSTAT3 in the absence of relevant growth factor stimulation. This suggested that xCT and STAT3 are positively correlated, and that targeting STAT3 in aggressive breast cancer cells could be another means of down-regulating system x_c⁻.

In the present investigation, (1) the pSTAT3/xCT over-expressing T47D cell line described above was applied as a tool to examine the contribution of this aggressive cellular signature to nociceptive responses in a CIBP xenograft model and (2) the putative anti-nociceptive effects of DR-1–55, a small-molecule inhibitor of STAT3 with enhanced in vivo stability and bioavailability compared to SH-4–54, ²⁷ were examined. We hypothesized that two weeks of daily DR-1–55 administration would significantly down-regulate xCT mRNA levels in bone tumours to ameliorate nociceptive behaviours.

Methods

Isolation of total RNA and quantitative RT-PCR

After end point sacrifice through exsanguination via intracardiac puncture coupled with cervical dislocation, the tumour-bearing limb was flash-frozen in liquid nitrogen and stored at −80°C. Once X-rays were taken, total RNA was extracted using a method optimized for bone based on homogenization in liquid nitrogen-chilled Trizol reagent (Life Technologies) paired with Qiagen RNeasy mini column clean-up. ²⁸ DNase (Ambion)-treated RNA was spectrophotometrically quantified and cDNA was synthesized from a standardized final concentration of 3 μg of total RNA per reaction using Superscript III Reverse Transcriptase (Life Technologies) according to the manufacturer’s protocol. Quantitative polymerase chain reaction (qPCR) was carried out using SsoAdvanced Universal SYBR Green Supermix (Bio-Rad) and the CFX Connect Detection System (Bio-Rad). Each qPCR reaction (12.5 μL) consisted of a 1×Master Mix with 0.04 μM of forward and reverse primers and 1:3 diluted cDNA, with all samples assayed in duplicate. Amplification of specific products was performed by initial denaturation at 95°C, followed by 40 cycles of 95°C for 5 s and 60°C for 15 s. Data were normalized to the appropriate housekeeping gene (Table 1) using the 2-[Δ][Δ]Ct method.^29,30

OPEN IN VIEWER

Table 1.

Human qPCR primers used to detect mRNA levels of each target.

Human target gene	Forward (5′–3′)	Reverse (5′–3′)	Melt peak (°C)
xCT (SLC7A11)*	CCT CTA TTC GGA CCC ATT TAG T	CTG GGT TTC TTG TCC CAT ATA A	79.5–80.0
IL6**	ACT CAC CTC TTC AGA ACG AAT TG	CCA TCT TTG GAA GGT TCA GGT TG	82.5–83.0
IL1B*	ATG ATG GCT TAT TAC AGT GGC AA	GTC GGA GAT TCG TAG CTG GA	84.0–84.5
MYC*	GTC AAG AGG CGA ACA CAC AAC	TTG GAC GGA CAG GAT GTA TGC	84.5–85.0
Actin*	GGT CAT CAC CAT TGG CAA TG	GGT AGT TTC GTG GAT GCC ACA	89.0–89.5
RPII-2**	GAA ACG GTG GAC GTG CTT AT	TCT CCA TGC CAT ACT TGC AC	87.5–88.0

Note: Human housekeeping gene primers are underlined; asterisks denote which targets were paired with efficiency-tested housekeepers for ΔCt calculations.

Results

MDA-MB-231 and T47D clones previously characterized for changes in pSTAT3 and xCT protein levels relative to passage-matched wild-type counterparts ²⁵ were cultured in the absence of continuous SH-4–54 administration. Consistent with previous findings in which clones were cultured with SH-4–54, extracellular glutamate levels were 2-fold lower in MDA-MB-231 clones (p = 0.007), while in T47D clones, levels increased by five-fold (p = 0.0008), relative to respective wild-type parental cells (Figure 1(a)). A secretome analysis of these cell lines was also carried out, given that IL-6 was recently identified as a cytokine associated with CIBP in a rat breast cancer model. ³¹ While not statistically significant, secreted IL-6 levels were 5.3-fold lower in MDA-MB-231 clones relative to wild-type cells (from 2.2 × 10⁻⁴ for the wild-type to 4 × 10⁻⁵ for the clone, p = 0.1124; Figure 1(b)). In contrast, IL-6 levels increased significantly by 200-fold, from 3.3 × 10⁻⁷ pg/mL/cell in conditioned media collected from T47D wild-type cells to over 6.7 × 10⁻⁵ pg/mL/cell in the high pSTAT3/xCT-expressing T47D clone group (p = 0.0097; Figure 1(b)). In addition, IL-1β secretion was also significantly up-regulated by 2.8-fold in T47D clones relative to their wild-type cells (p < 0.05; Figure 1(c)). Extracellular glutamate profiles, coupled with the release of several known pro-nociceptive cytokines, supported our strategy to target STAT3/xCT in cells comprising a bone tumour as a means to ameliorate CIBP.

OPEN IN VIEWER

Figure 1.

The xCT/pSTAT3 profile influences extracellular glutamate and cytokine levels in two different human breast cancer cell lines clonally derived through chronic SH-4–54 treatment. (a) Glutamate, (b) IL-6 and (c) IL-1β release. Data were obtained from media collected from n = 3 independently cultured wild-type (WT) and SH-4–54-resistant (Clone) MDA-MB-231 and T47D cells, with ** corresponding to p < 0.01 and *** to p < 0.001. (d) Subcutaneous injection of T47D Clones into nude mice revealed differences in their growth rate compared to WT counterparts. Although not statistically significant, a four-fold larger mean tumour volume was recorded using n = 4 animals per group.

Subcutaneously injected MDA-MB-231 clones give rise to tumour xenografts that are 20-fold smaller in volume relative to those initiated from wild-type counterparts (a grain of rice compared to a marble, respectively). ²⁵ This difference in growth potential is in line with reports that system x_c⁻ is essential for the growth and survival of particularly aggressive cancers. However, in order to circumvent the possible experimental pitfall that slower growing MDA-MB-231 clones might not become established in the bone microenvironment, T47D clones were assessed as subcutaneous tumour xenografts, with wild-type cells and clones growing at similar rates until approximately day 21 post-injection (Figure 1(d)). Although not statistically significant, a four-fold difference in tumour volume (18.3 mm³ for wild-types vs. 72.4 mm³ for clones) was observed between groups at end point (Figure 1(d)), and this set of cells was selected to establish a CIBP xenograft model to assess nociceptive behaviours.

Mice intrafemorally injected with T47D clones demonstrated significantly more nociceptive behaviours relative to animals injected with wild-type cells using the DPA (Figure 2(a)) and DWB (Figure 2(b)) tests (P < 0.0001, two-way ANOVA with a Bonferroni post hoc), with the sham not differing statistically from the wild-type group. Nociception first emerged at day 24 with the DPA test, with the force required to withdraw the tumour-bearing paw being 6.94 ± 0.53 g in the wild-type vs. 5.97 ± 0.53 g in the clone-initiated tumour group (p < 0.001), although the difference in weight placed on the tumour-bearing limb (10.91 ± 0.45 g in the wild-type vs. 9.74 ± 0.79 g in the clone) was not significant at this time point, likely due to differences in the threshold sensitivity detected by each test. Radiography revealed that, although not statistically significant (1-way ANOVA coupled with a Tukey’s post hoc), T47D wild-type-derived tumours induced bone lesions that were less severe than those initiated from T47D clones (Figure 2(c); mean osteolytic lesion scores of 1.25 vs. 2.5, respectively), with results confirmed by H&E staining (data not shown).

OPEN IN VIEWER

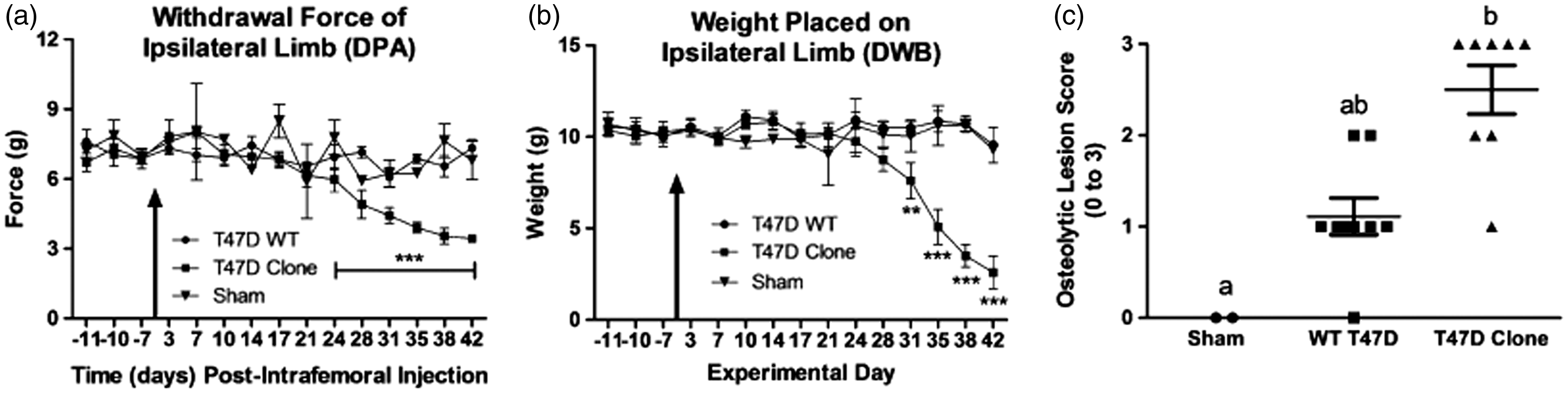

Figure 2.

The intrafemoral presence of a bone tumour derived from a T47D human breast cancer cell line over-expressing xCT/pSTAT3 evokes significant nociceptive behaviours in a CIBP xenograft model. (a) Withdrawal force measured in grams (g) of the tumour-bearing hind paw in response to a progressive stimulus (the DPA filament) applied to the plantar surface. Statistically significant differences were observed beginning at day 24 between animals with a bone tumour initiated from T47D wild-type (WT) and the SH-4–54-resistant, xCT/pSTAT3-overexpressing cell line (Clone). WT tumours did not differ from heat/freeze-thaw treated clones (no tumour, Sham). (b) Weight (g) distributed on the tumour-bearing limb, assessed in the DWB test, was significantly different beginning at day 31 between WT and clonal groups, with animals intrafemorally injected with WT cells maintaining postural equilibrium for a longer period of time during the later stages of bone tumour development. In (a) and (b), the arrow indicates the day at which cancer cells were intrafemorally injected, corresponding to day 0, and data represent the mean ± the standard error of the mean for each group, with ** corresponding to p < 0.01 and *** to p < 0.001. (c) A graphical representation of radiographic lesion scores (0–3) for individual animals in each bone tumour group. Although not statistically significant, bone tumours induced by intrafemoral injection of clones were associated with a higher incidence of osteolysis than those induced by the presence of WT cells, with letters denoting statistical differences between groups. Sham animals showed no loss of bone density. Results in (a), (b) and (c) represent n = 8 animals for T47D WT and Clone, and n = 2 for Sham.

After establishing that bone tumours initiated from T47D clones did induce significant nociceptive responses, the efficacy of DR-1–55, a novel STAT3 inhibitor, the structure of which is shown in Figure 3(a), was assessed. This particular molecule was selected based on pharmacokinetic analyses (Figure 3(b), Table 2) demonstrating enhanced in vivo stability and bioavailability compared to SH-4–54. ²⁷ Whereas DR-1–55, which selectively targets STAT3 relative to STAT5, did not significantly alter the number of wild-type T47D cells at any of the selected concentrations (Figure 3(c)), T47D clone numbers were significantly reduced at 3.87 µM (Figure 3(d)). Blocking pSTAT3 increases the levels of ROS, evoking an acute survival mechanism to regain redox homeostasis through xCT up-regulation/increased system x_c⁻ activity similar to what we have previously observed with SH-4–54 ³² as well as with capsazepine, an agent that blocks cystine uptake in vitro. ¹³ Therefore, a time point not associated with high ROS or reduced cell numbers was selected to assess changes in xCT expression. Under serum-free conditions after a 6 h culture, xCT protein levels were reduced by approximately 30% relative to vehicle-treated cells, correlating with a 20% reduction in total STAT3 levels in response to a 3.87 µM concentration of DR-1–55 (Figure 3(e)). A decline in total STAT3 levels correlating with reduced pSTAT3 levels in response to DR-1–55 is in line with the effects reported for this particular class of compounds, which also includes BP-1–102 and AC-3–19, two molecules that have been shown to specifically bind to and induce the degradation of STAT3 in thermal shift assays. ³³ After 24 h, 1.94 µM of DR-1–55 affected total STAT3 levels similarly to the 3.87 µM concentration at 6 h, with xCT protein levels beginning to rise as cells first began to “round up,” a sign of cellular stress. ³⁴ Lysates from cells treated with 3.87 µM of DR-1–55 at 24 h were not prepared, as a proportion of cells at this higher concentration had detached from the plate by this time.

OPEN IN VIEWER

Figure 3.

The novel STAT3 inhibitor DR-1–55 affects cell growth and down-regulates xCT and total STAT3 protein levels in a T47D human breast cancer cell line over-expressing xCT/pSTAT3. (a) A diagrammatic representation of the structure of DR-1–55 and (b) its in vivo pharmacokinetics assessed in CD-1 male mice (n = 3) following IP injection with a 25 mg/mL concentration at selected time points ranging from 5 min to 24 h. (c) A range of concentrations of DR-1–55 failed to affect T47D wild-type (WT) cell numbers after a 72-h culture in the presence of this small molecule inhibitor, while (d) the T47D SH-4–54-resistant, xCT/pSTAT3-overexpressing cell line (Clone) were sensitive, with a significant reduction in cell number beginning at approximately 2 µM. Letters denote statistical differences between groups. In (a) and (b), results represent n = 3 independent experiments. (e) As few cells remained at 72 h post-treatment and xCT levels are highly influenced by cell stress, DR-1–55 target validation at 1.94 and 3.87 µM was confirmed by Western blotting at 6 h and 24 h, revealing an approximate 30% reduction of xCT protein levels at 3.87 µM, which corresponded with a 20% reduction of total STAT3 relative to vehicle. Note that pSTAT3 (86 and 79 kDa), xCT (35 kDa) and actin (42 kDa) were co-detected on the same membrane, while total STAT3 (86 kDa) was detected post-strip. Numerical values represent densitometric analyses expressed relative to actin as a fold of vehicle-treated cells at each time point, with data obtained from n = 2 independent experiments.

OPEN IN VIEWER

Table 2.

Pharmacokinetics of DR-1–55 (25 mg/kg) administered by intraperitoneal injection in CD-1 male mice (n = 3).

Animal	t1/2 (h)	tmax (h)	Cmax (ng/mL)	AUClast (h·ng/mL)	AUCInf (h·ng/mL)	AUC Extr (%)	MRT (h)	AUC/D (h·mg/mL)
1	2.45	0.500	6090	13,769	13,773	0.0321	1.77	688
2	2.69	0.500	5070	11,892	11,899	0.0561	1.82	595
3	2.70	0.500	6120	14,028	14,037	0.0630	1.89	701
Mean	2.61	0.500	5760	13,230	13,236	0.0504	1.83	661
SD	0.14	0.000	598	1165	1166	0.0162	0.06	58
CV%	5.38	0.000	10.4	8.81	8.81	32.2	3.09	8.81

AUC: area under the curve; SD: standard deviation; CV: coefficient of variation; MRT: mean residence time.

We next evaluated whether DR-1–55 administration elicited anti-nociceptive effects in the T47D clone CIBP xenograft model. Daily IP injections were initiated at day 21 post-intrafemoral cancer cell implantation, as the emergence of nociceptive behaviours for this particular cell line first begins to be apparent at day 24 (Figure 2(a)). A 25 mg/kg daily dose of DR-1–55 was selected based on its in vivo pharmacokinetics (Figure 3(b), Table 2) and analysis of a wild-type MDA-MB-231 subcutaneous tumour xenograft study demonstrating that this concentration halts tumour growth seven days after the first IP injection of this agent (data not shown). DR-1–55-treated tumour-bearing animals presented with a significantly delayed onset and reduced severity of nociceptive behaviours relative to vehicle-treated counterparts across all three tests, an effect that was not observed between sham animals (Figure 4, compare right vs. left panels, respectively). For the DPA analysis (Figure 4(a)), the force required to induce paw withdrawal of the tumour-bearing limb was significantly higher on day 29 in the DR-1–55-treated relative to the vehicle-treated tumour-bearing group (two-way ANOVA with a Bonferroni post hoc; 4.86 ± 0.68 g vs. 7.14 ± 0.47 g, respectively, p < 0.05,). The paw withdrawal force recorded between groups was not statistically significant at day 32 (4.43 ± 0.65 g vs. 6.52 ± 1.14 g, respectively). The DPA test also indicated that DR-1–55-treated tumour-bearing animals did not differ in their responses from combined shams (n = 3) at any of the experimental time points. Similarly, a two-way ANOVA with a Bonferroni post hoc of the DWB data (Figure 4(b)) revealed significant, approximately two-fold increases (p < 0.01) in weight borne on the tumour-bearing limb of DR-1–55-treated animals relative to those treated with vehicle on experimental day 29 (5.05 ± 1.44 g vs. 8.94 ± 0.35 g, respectively) and day 32 (3.93 ± 1.31 g vs. 8.01 ± 1.08 g, respectively). The DWB test also indicated that weight borne by the tumour-bearing limb of DR-1–55-treated animals did not differ from combined shams at any time point. Finally, open-field observational scoring of nociceptive behaviours demonstrated that limb favouring in mice implanted with sham cells did not statistically differ from animals with tumours initiated from T47D clones treated with DR-1–55, while tumour-bearing mice treated with vehicle were scored significantly lower relative to the DR-1–55 treatment tumour-bearing group on experimental day 29 (2.3 ± 0.5 vs. 3.3 ± 0.3, respectively) and day 32 (1.7 ± 0.4 vs. 3.3 ± 0.7, respectively), as assessed by two-way ANOVA with a Bonferroni post hoc (p < 0.0001; Figure 4(c)). T47D clone-derived tumour-bearing animals that did not exhibit osteolytic lesions at either day 28 (Figure 5(a)) or end point (Figure 5(b)) due either to a tumour outside of the femur or a flawed bone injection on day 0 were excluded from final analyses and were not included in any of the behavioural results summarized in Figure 4. Final animal numbers, from an initial n = 8, were n = 7 for the vehicle-treated tumour-bearing group, n = 6 for the DR-1–55-treated tumour-bearing group and n = 3 for combined shams (n = 1 for an untreated sham animal, n = 1 for a sham injected with vehicle, and n = 1 for a sham injected with DR-1–55. No statistically significant differences were observed between lesion scores of animals treated with vehicle or DR-1–55 at either experimental time point (Figure 5(a) and (b)).

OPEN IN VIEWER

Figure 4.

DR-1–55 significantly delays the onset of nociceptive behavioural responses relative to vehicle-treated animals with CIBP. Mice were inoculated with T47D SH-4–54-resistant, xCT/pSTAT3-overexpressing cells or heat-inactivated cancer cells (shams) on day 0 (solid arrow). Treatments administered via daily IP injections were initiated on day 21 (dashed arrow). Left panels for (a) to (c) represent ungrouped behavioural results for each sham animal, while right panels represent data for a grouped sham compared to tumour-bearing mice without (vehicle-treated) and with DR-1–55. (a) Hind paw withdrawal force in grams (g) was significantly different on day 29 between the DR-1–55- and vehicle-treated tumour-bearing groups, with the latter being more sensitive to a lower filament pressure, indicating a delay in the onset of evoked nociceptive behaviour. (b) Gram weight (g) distributed on the tumour-bearing limb, assessed in the DWB test, was significantly different on day 29 and 32 between the DR-1–55- and vehicle-treated groups, with animals injected with DR-1–55 maintaining postural equilibrium for a longer period of time. (c) Open-field observational scoring of nociceptive behaviours based on a predefined 0–4 visual pain scale in which a 4 represents no indication of distress. Significant differences were observed on day 29 and 32 between tumour-bearing DR-1–55- and vehicle-treated mice. Results in (a) to (c) represent n = 7 animals for tumour with vehicle, n = 6 for tumour with DR-1–55, n = 3 for combined Sham, n = 1 for Sham with vehicle, and n = 1 for Sham with DR-1–55. Data represent the mean ± the standard error of the mean for each group, with * corresponding to p < 0.05, ** to p < 0.01 and *** to p < 0.001.

OPEN IN VIEWER

Figure 5.

DR-1–55 does not affect osteolytic lesion size relative to lesions formed in vehicle-treated animals with CIBP. (a) day 28 and (b) day 34 graphical representations of radiographic lesion scores (0–3) for individual animals in each treatment group represented in Figure 4. No statistically significant differences were observed between animals intrafemorally injected with T47D SH-4–54-resistant, xCT/pSTAT3-overexpressing cells treated with either vehicle or DR-1–55 at either experimental time point, with both groups scoring close to 3 (high degree of osteolysis). Shams showed no loss of bone density. Letters denote statistical differences between groups. (c) Animal weight in grams (g), measured daily from the baseline until end point. No statistically significant differences were observed between groups.

The average daily body weight of all animals was recorded, starting at the baseline (day 4) until end point (Figure 5(c)). The presence of a bone tumour evoked an expected drop in body weight, irrespective of treatment (compare total grams at day 15 and end point; vehicle: 26.9 ± 0.5 g vs. 25.1 ± 0.5 g, p = 0.028; DR-1–55: 26.9 ± 0.9 g vs. 23.8 ± 0.6 g, p = 0.0034). Although not statistically significant, a 7% reduction in total body weight was observed four days after first initiating daily IP injections between the two treatment groups (25.9 ± 0.5 g for vehicle vs. 24.1 ± 0.7 g for DR-1–55, p = 0.06). The cause of this difference in weight loss remains to be determined, although, based on animal skin condition, it could be attributed to DR-1–55-induced dehydration. After conferring with CAF staff, fluid-enriched nutrient gel packs were introduced into each cage coupled with subcutaneous fluid administration to all animals, irrespective of treatment. This intervention resulted in a recovery of mean body weight among the DR-1–55-treated group to levels that did not significantly differ from those in the vehicle-treated group (compare weights at end point). However, this unexpected in vivo effect resulted in early termination of the trial, with final behavioural measures collected at day 32.

To assess whether DR-1–55 down-regulates expression of the primary target, human xCT, in bone tumours, we capitalized on the CIBP xenograft model, which allowed for differentiation between human tumour mRNA and mouse host mRNA. Using RNA extracted from crushed bone and surrounding soft tissue in tumour-bearing limbs as a cDNA source for qPCR, human xCT (SLC7A11) mRNA levels were found to be significantly down-regulated by >6-fold in animals administered with DR-1–55 for 14-days relative to the vehicle-treated group (Figure 6(a)). The upper panel in Figure 6(a) depicts the mean ΔCt values (SLC7A11 target gene Ct values – housekeeping gene Ct values for each individual animal per treatment group), which were significantly different (p < 0.01). A graphical representation of the calculated relative fold changes in xCT mRNA levels relative to vehicle (1- vs. 0.15-fold for vehicle vs. DR-1–55-treated, respectively) is summarized in the lower panel of Figure 6(a) based on the 2-[Δ][Δ]Ct method.^29,30 Putative changes in human cytokine mRNA levels in the bone tumour that were identified to be differentially secreted by breast cancer cells (Figure 1) were also assessed. Human IL6 mRNA levels were significantly down-regulated in response to DR-1–55 treatment by two-fold in tumour-bearing limbs relative to corresponding tissue isolated from vehicle-treated animals (1- vs. 0.47-fold, respectively, p = 0.05, Figure 6(b)) using the same approach employed for xCT described above. Data for human IL1B mRNA are summarized in Figure 6(c), with an approximate six-fold down-regulation in response to DR-1–55 relative to vehicle (1- vs. 0.17-fold, respectively, p < 0.01). In addition, as MYC is a known target of pSTAT3 previously identified to be differentially regulated in both the T47D and MDA-MB-231 wild-type/clone comparisons by NextGen sequencing, ²⁵ changes in its expression at the mRNA level were also examined. Indeed, human MYC mRNA levels followed the pattern of down-regulation observed for the other genes, with its expression decreasing by five-fold in bone tissue derived from DR-1–55-treated animals relative to those treated with vehicle (1- vs. 0.2-fold, respectively, p < 0.01, Figure 6(d)). The standard SEM for ΔCt values was based on n = 7 (vehicle-treated) and n = 6 (DR-1–55-treated) animals.

OPEN IN VIEWER

Figure 6.

DR-1–55 treatment results in down-regulation of xCT and other relevant targets at the mRNA level in bone xenografts relative to tissue derived from vehicle-treated animals. Human (a) xCT, (b) IL6, (c) IL1B and (d) MYC mRNA levels, assessed by qPCR, were significantly down-regulated in the tumour-bearing limb of DR-1–55- relative to vehicle-treated animals originally implanted with T47D SH-4–54-resistant, xCT/pSTAT3-overexpressing cells. The top panels depict ΔCt (target-housekeeper) for each individual animal, represented by a dot for vehicle (n = 7) and a square for DR-1–55 (n = 6) ± the SEM, with * corresponding to p < 0.05 and ** to p < 0.01. The bottom panels provide a fold change representation relative to vehicle of the top panels based on the 2-[Δ][Δ]Ct method, demonstrating overall changes in target mRNA levels.

An examination of human IL-6 levels released by the bone xenografts revealed that, similar to results reported in vitro, tumours initiated from human T47D wild-type cells released no detectable amount of this cytokine (n = 8; 0 pg/mL) compared to circulating human IL-6 levels detected in animals intrafemorally injected with T47D Clone cells (n = 6; 17.33 ± 5.88 pg/mL, p = 0.0048; Figure 7(a)), assessed at the 42 day experimental end point. In support of IL6 mRNA data shown in Figure 6(b), DR-1–55 treatment of mice bearing a T47D Clone-initiated tumour reduced the release of IL-6 by 1.8-fold relative to results obtained for the vehicle-treated group, from 2.63 ± 0.59 pg/mL for the vehicle (n = 7) to 1.46 ± 0.57 pg/mL for the DR-1–55 group (n = 7) to a concentration that did not statistically differ from Shams lacking a viable bone xenograft (0 pg/mL, one-way ANOVA with a Tukey’s post hoc test; Figure 7(b)). No human IL-6 could be detected in the serum of non-tumour-bearing sham-injected animals (Figure 7(a) and (b))

OPEN IN VIEWER

Figure 7.

Circulating human IL-6 levels are elevated in the serum of mice bearing a tumour derived from T47D human breast cancer cell line over-expressing xCT/pSTAT3 relative to T47D wild-type cells, and DR-1–55 treatment down-regulates systemic human IL-6 levels relative to vehicle. (a) While no human IL-6 was detected in the serum of an animal injected with heat/freeze-thaw-inactivated cells (Sham) of the T47D human breast cancer cell line over-expressing xCT/pSTAT3 at the day 42 experimental end point, significantly higher levels (p < 0.0048) were measured in serum collected from animals intrafemorally injected with the T47D xCT/pSTAT3 over-expressing Clone (n = 6) relative to wild-type T47D tumour-bearing animals (WT; n = 8). (b) Analysis of serum collected 34 days post-intrafemoral injection of T47D clone-derived cells revealed a trend towards higher levels of human IL-6 in vehicle-treated animals (n = 7) relative to those treated with DR-1–55 (n = 7), which did not differ from Shams (n = 3). Data represent the mean ± the standard error of the mean for each group in pg/mL, with ** corresponding to p < 0.005 and letters denoting statistical differences between groups.

Discussion

The development and therapeutic evaluation of STAT3 inhibitors continues to be of ongoing interest to target “difficult-to-treat” cancers, including triple-negative breast carcinomas, pancreatic cancer and gliomas, which, in addition to high pSTAT3 levels, also exhibit up-regulated xCT expression.^16,35,36 Napabucasin (BBI608), an orally available STAT3/cancer cell stemness inhibitor^37,38 currently in phase 1, 2 and 3 trials for pancreatic, colorectal and non-squamous non-small cell lung cancers (ClinicalTrials.gov), highlights the potential translational impact of the findings presented here, assessing whether a block in STAT3 pathway activation, which is positively associated with xCT expression in aggressive breast cancer cells, alters nociception in a preclinical CIBP model. Mechanisms that support xCT up-regulation and promote system x_c⁻-mediated glutamate release by cells comprising a skeletal metastasis may also be inextricably linked to tumour growth. In CIBP patients, the absence of pain is generally indicative of a positive prognosis. Although it remains to be experimentally determined, changes in tumour size may reflect changes in the threshold level of a repertoire of pro-nociceptive factors released by cancer cells into the bone environment, potentially dictating the severity of pain experienced by a patient due to aberrant bone remodelling and activation of nociceptive pathways that contribute to central sensitization. Therefore, limiting tumour size could potentially also limit the release and action of pro-nociceptive factors from cancer cells, improving patient morbidity. This study evaluated the analgesic potential of DR-1–55, a novel agent within the class of therapeutically relevant small molecules designed to specifically target STAT3, in the context of down-regulating xCT mRNA levels in the bone tumour. This approach may be particularly relevant for painful tumours that have become resistant to first-line chemotherapy and/or radiation, as surviving cells often demonstrate up-regulated system x_c⁻ activity accompanied by a significant growth advantage (reviewed in Lewerenz et al. ²⁰ ), potentially also causing severe pain. While the precise pluripotency-associated targets of napabucasin, which blocks cancer stem cell self-replication and differentiation into heterogeneous cell populations associated with malignant growth, recurrence and resistance to chemotherapy, remain to be fully defined, it would not be surprising to discover that this agent also targets xCT through its action on the STAT3 pathway.

Given their five-fold increase in glutamate release, we employed a T47D breast cancer cell line stably over-expressing pSTAT3 and xCT relative to parental wild-type cells as a tool to examine the effects of down-regulating xCT/system x_c⁻ activity in an animal model of CIBP. Specifically, we assessed whether DR-1–55, a novel STAT3 inhibitor demonstrating extended in vivo half-life and improved bioavailability, affects nociceptive behaviours by targeting cancer cell-expressed xCT in vivo. In addition to delaying the onset of nociception, xCT mRNA levels were significantly down-regulated in bone tumours derived from DR-1–55-treated animals relative to those isolated from animals treated with vehicle. While osteolytic lesion scores, which may provide indirect cues regarding overall tumour burden, did not differ significantly between groups, it is likely that, given the four-fold subcutaneous growth advantage of xCT over-expressing T47D clones relative to parental wild-type cells, and given that DR-1–55 treatment reduced the cell number of T47D clones in vitro, this agent also impaired bone tumour growth in the CIBP model. Indeed, a recent study based on a xenograft osteosarcoma mouse model induced through intratibial human 143B cell injection reported a significant decrease in tumour volume, accompanied by weight loss and reduced incidence of lung metastases in response to IP napabucasin injection (every three days for a total of eight treatments, which were initiated two weeks post-model induction). ³⁹ It should be noted that no radiographic images were presented by Zuo et al., ³⁹ and the size of each osteosarcoma was calculated based on methods designed for measuring subcutaneous tumour volume, which includes local tissue inflammation and tumour growth outside of the bone in addition to growth of cancer cells within the tibial medullary cavity. ³⁹ Importantly, differences in tumour size will remain a significant confound in CIBP studies that target STAT3 or xCT down-regulation, in light of the essential role of system x_c⁻ in supporting the growth and survival of aggressive cancer subtypes. This premise is supported by the growth-inhibitory properties of sulfasalazine, an established system x_c⁻ inhibitor, ¹⁴ in human pancreatic cancer xenografts ¹⁷ and in a syngeneic rat lymphoma model. ¹⁸ In addition, STAT3 targets other metabolic pathways in cancer cells that are linked with cell proliferation and growth, including MYC, a well-characterized oncogene that drives cell proliferation and growth (reviewed in Miller et al. ⁴⁰ ).

An additional finding of the current investigation was the significant down-regulation of human IL6 and human IL1B mRNA levels in bone tumours in response to DR-1–55 treatment. These encode IL-6 and IL-1β, pro-inflammatory cytokines that are differentially secreted by T47D clones relative to wild-type cells. Both of these cytokines require STAT3 tyrosine phosphorylation for their production in lipopolysaccharide-challenged murine macrophages ⁴¹ and play important roles in inflammatory diseases, cancer and pain (reviewed in Vendrell et al. ⁴² ). Importantly, we show that not only are IL6 mRNA levels down-regulated in the tumour xenograft, but human IL-6 protein levels derived exclusively from the bone tumour are lower in the serum of DR-1–55-treated relative to vehicle-treated mice bearing an xCT-positive tumour. A recent study assessed the effects of a novel small molecule antagonist (TB-2–081) of IL-6 signalling on nociceptive behaviours, bone integrity and tumour progression in a syngeneic rat model of breast CIBP, demonstrating a significant treatment-induced reduction in osteolytic and osteoblastic bone remodelling and time-to-fracture. ³¹ The authors concluded that an early block of IL-6-mediated signalling using agents such as TB-2–081 represents a disease-modifying strategy that could diminish chronic CIBP. ³¹ In the current investigation, it is possible that bone remodelling initiated during the first several weeks following introduction of cancer cells into the head of the femur may have already reached a threshold level to induce the formation of osteolytic lesions, a process that could not be repaired upon initiation of DR-1–55 treatment 3 weeks post-cancer cell injection. Given the inter-relationship between IL-6 and STAT3 in bone metabolism, ⁴³ earlier administration of DR-1–55 could potentially have similar effects on bone remodelling as reported for the IL-6 antagonist used by Remeniuk et al. ³¹ However, STAT3, as well as system x_c⁻, are closely tied to tumour size and disease progression, and it may therefore be difficult to assess early bone remodelling as well as later CIBP-induced nociception in vivo, given that treatment with DR-1–55 at an earlier time point may inhibit tumour establishment by limiting breast cancer cell proliferation in the bone microenvironment.

Another possibility to consider in comparing the findings of the current investigation with those in the study by Remeniuk et al. ³¹ is that blocking STAT3 may produce different effects than targeting IL-6, which may occur in a cell type-dependent manner. In support of this notion, Yokota et al. ⁴⁴ showed that conditional knockout of murine Stat3 in osteoclast-like cells did not significantly reduce their differentiation efficiency in response to IL-6, which was unexpected, given the role of STAT3 in IL‐6 signalling. ⁴⁴ The study further showed that IL-6-mediated activation of the Jak/Mapk/Erk/c-fos pathway was involved, with IL-6 in combination with TNFα driving the differentiation of multinucleated cells closely resembling osteoclasts in their ability to absorb bone matrix in vitro, with the same proinflammatory cytokines inducing calvarial bone erosion in vivo. ⁴⁴ While Remeniuk et al. ³¹ clearly demonstrated that rat IL-6 levels were elevated in the circulation as well as in bone exudates, which include multiple cell types found within bone marrow in addition to the injected rat MAT B III mammary adenocarcinoma cells, it was not shown whether the latter, which responded to IL-6 stimulation as assessed by increased STAT3 phosphorylation in vitro, also produce and release this cytokine themselves, which would then be blocked by TB-2–081. These interesting nuances in tumour-derived versus osteoclast-derived IL-6 and CIBP remain to be further elucidated.

With regard to IL-1β, this cytokine activates STAT3 directly and indirectly, also inducing the expression of IL-6 family cytokines to perpetuate STAT3 activation in murine fibroblasts. ⁴⁵ IL-1β has also been shown to increase the expression and extend the half-life of xCT mRNA in primary murine astrocytes. ²¹ In response to energy deprivation, astrocytic IL-1β contributes to glutamate-mediated neuronal injury by promoting xCT expression, thereby enhancing system x_c⁻ activity (references in Shi et al. ²¹ ). Ultimately, a combination of factors and their intracellular cross-talk, including glutamate, IL-6 and IL-1β, among others such as nerve growth factor, which itself has recently been linked to system x_c⁻, ⁴⁶ are likely modulating CIBP. Targeting a common signalling pathway mediated by, for example, STAT3 may provide a promising therapeutic approach (Figure 8).

OPEN IN VIEWER

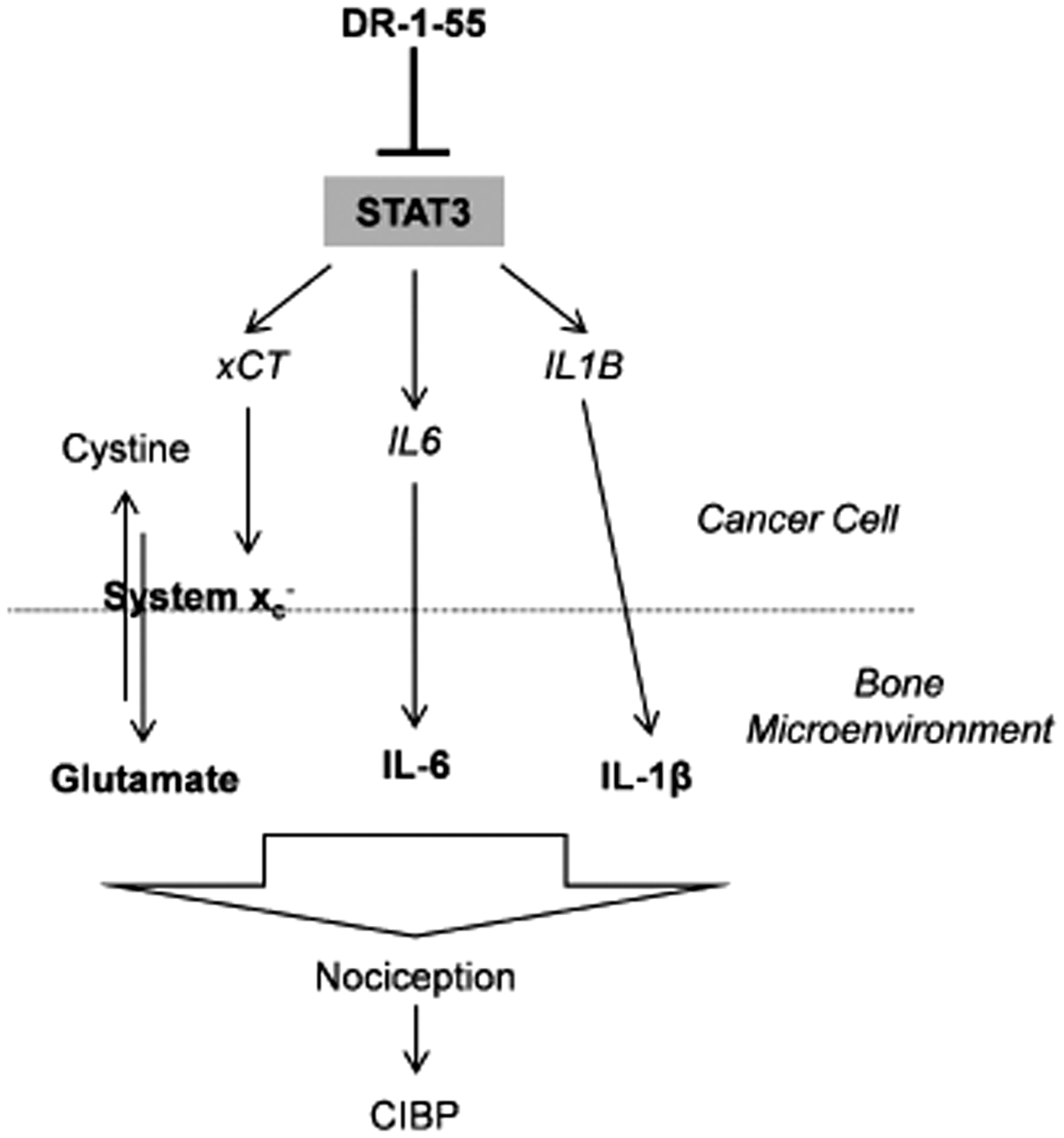

Figure 8.

Diagrammatic summary of the putative relationship between STAT3, system x_c⁻, IL-6 and IL-1β in response to DR-1–55 and nociception. Agents that block STAT3 activity down-regulate the expression of specific target genes such as xCT, IL6 and IL1B at the mRNA level in aggressive breast cancer cell subtypes with specific metabolic profiles that rely on uptake of cystine through system x_c⁻. In turn, less glutamate is released through system x_c⁻, and less of each cytokine (IL-6 and IL-1β) is secreted by the cell, resulting in less nociception and CIBP.

Conclusions and Future Directions

The current investigation is the first to employ a pSTAT3/xCT over-expression CIBP model to examine the role of STAT3 inhibition on nociceptive behaviours. The metabolic signature of breast cancer subtypes likely dictates their production of specific pro-nociceptive factors and an exploration of the secretome profile of aggressive bone-seeking cancer cells could potentially serve as a diagnostic indicator predictive of the severity of CIBP in patients. Our results indicate that DR-1–55 elicits anti-nociceptive behavioural responses, down-regulating xCT as well as IL6 and IL1B at the mRNA level in bone tumours initiated from a human breast cancer cell line initially expressing high levels of pSTAT3 and xCT. It will be of future interest to characterize the putative relationship between xCT, IL-6, IL-1β and STAT3, and to associate the co-release of glutamate and relevant cytokines with nociceptive responses in vivo. In addition, it will be important to assess tumour size at selected time points over the duration of a CIBP experiment and to employ a means of directly measuring the levels of secreted factors in bone exudates in response to relevant treatments at end point. Results from our investigation will hopefully provide insights for studies aimed at targeting STAT3, potentially enhancing existing clinical cancer pain management strategies, which ultimately may not differ from targeting the bone tumour itself at an as early as possible stage post-detection to avoid later central sensitization.
