Selective aerobic allylic oxidation of α-pinene catalyzed by metalloporphyrins in the absence of solvents and additives

Abstract

Selective aerobic oxidation of α-pinene to high-value products is a major challenge in chemistry. Metalloporphyrins are proved to be selective catalysts for aerobic oxidation of simple hydrocarbons. Herein, we extend this method to more complex substrates using metallodeuteroporphyrins as model catalysts. It was found that the oxidation occurs mainly on the C=C and allylic C–H bonds of α-pinene influenced by the reaction temperature, reaction time, catalyst concentration, and oxygen flow rate. Allylic C–H oxidation products are obtained with a maximum selectivity value of 78.4% using the following reaction conditions: 105°C, 7 h, 5 ppm, and 60 mL/min. The influence of the metal nuclei of the metallodeuteroporphyrins on this reaction is also investigated. It was found that metallodeuteroporphyrins with Fe³⁺ as the metal nucleus exhibit the highest catalytic activity.

Keywords

α-pinene metalloporphyrins biomimetic catalysis selective aerobic allylic oxidation

Introduction

Due to the gradual decrease of fossil resources, there is an ever-increasing interest for the transformation of renewable resources toward more valuable products.^1,2 Turpentine is one of the most important and cheapest monoterpenes.³ As the major component of turpentine, the content of α-pinene (1) (Figure 1) reaches over 65% in most turpentine raw materials.⁴ Several essential products of the pharmaceutical and chemical industries can be manufactured utilizing the unique structure of α-pinene that is composed of a double bond and a strained four-membered ring, with both these moieties readily undergoing various transformations.^5–10 Thus, the conversion of α-pinene into high value-added chemical products is of commercial interest.

Figure 1.

Structure and different oxidation sites of α-pinene.

α-pinene oxidation products are crucial intermediates with broad applications in the fragrance industry and in organic synthesis.^6,10–17 The 2,3-epoxypinane (2) (Figure 2) often serves as a starting material for the synthesis of fragrances, flavors, and therapeutically active substances.⁶ Verbenol (3) and verbenone (4) are nutritional supplements adding flavor and are important precursors in the production of fragrance chemicals.¹⁰ Myrtenol (5) exhibits a range of biological activities and has been widely used in bactericidal, antiphlogistic, and fungicidal applications.^11,12 In addition, a wide variety of chemical products derived from natural resources can be prepared directly from compounds 2–5,^5,13–15 including perillyl alcohol and myrtenal.

Figure 2.

Aerobic oxidation products of α-pinene derived from catalysis by MDPs.

In general, direct oxidation of α-pinene by stoichiometric oxidants such as organic and inorganic peracids, NaIO₄, or H₂O₂ is the most efficient process for the production of oxygenated α-pinene derivatives.^16–19 These procedures have raised concerns due to the production of large amounts of toxic waste and their adverse impacts on the environment. In contrast, molecular oxygen is an excellent oxidant because it is inexpensive, eco-friendly, abundant, and readily available. However, selective aerobic oxidation of α-pinene by molecular oxygen is still a major challenge in academic and industrial research because of the inertness of molecular oxygen and the complex molecular structure of α-pinene.

In recent years, considerable efforts have been made to investigate highly selective aerobic oxidation of α-pinene.^{10,13,20–23} Selective aerobic epoxidation of α-pinene to 2,3-epoxypinane (2) has been achieved in several studies,^21,22 while selective aerobic oxidation of allylic C–H bonds in α-pinene to synthesize high value-added oxyfunctionalized products has rarely been reported.²³ Cobalt and chromium salts have been adopted as selective catalysts for allylic oxidation of α-pinene to verbenol/verbenone and myrtenol/myrtenal.²³ These procedures are not the first choice from an environmental perspective because they require considerable amounts of stoichiometric additives and generate toxic waste products.²⁴ Therefore, developing effective methods for aerobic allylic oxidation of α-pinene with high selectivity is still highly desirable.

During the last decade, numerous research projects have shown that metalloporphyrins (MPs) are efficient and selective catalysts for aerobic oxidation of hydrocarbons to their oxyfunctionalized products in the absence of solvents and additives (co-catalysts, reductants, stoichiometric oxidants, and other additives).^24–27 Furthermore, compared with commercial catalysis in industrial processes, MP-based technology can be performed under mild conditions with significantly improved reaction conversions and product selectivities. The oxidation of simple hydrocarbons such as cyclohexane, cyclohexene, toluene, and other substrates has been widely studied.^24,25 Furthermore, industrial-scale application of this biomimetic oxidation technology for aerobic oxidation of cyclohexane has been reported.²⁶ However, only simple hydrocarbon molecules have been investigated in most of these research studies. Selective aerobic oxidation of complex substrates with different reactive bonds in the same molecule catalyzed by MPs in solvent- and additive-free systems has not been examined frequently in previous research.²⁷

In the present work, an efficient metallodeuteroporphyrin (MDP)-catalyzed aerobic allylic oxidation of α-pinene (see Figure 1), containing one active C=C bond and six different C–H bonds, was established in the absence of solvents and additives. Allylic oxidation products were obtained in high selectivity because of the higher reactivity of the allylic C–H bonds of α-pinene in this aerobic oxidation system. The effects of reaction parameters and the metal nucleus of the MDPs on the yield and selectivity of the allylic oxidation products were investigated. A possible reaction mechanism for this procedure and the role of MDPs in this reaction are discussed.

Results and discussion

Aerobic oxidation of α-pinene catalyzed by MDPs

Oxidation of α-pinene was performed in solvent-free liquid substrates with molecular oxygen at atmospheric pressure. MDPs were applied as catalysts without the addition of co-catalysts, reductants, stoichiometric oxidants, or other additives. α-pinene was smoothly oxidized to high-value oxygenated products at high concentrations in this process. According to gas chromatography (GC) and gas chromatography–mass spectrometry (GC-MS) data, the oxidation product consisted of 2,3-epoxypinane (2), verbenol (3), verbenone (4), myrtenol (5), pinocarveol (6), pinocarvone (7), myrtenal (8), carveol (9), camphorenal (10), and hydroperoxide products 11–13. Product 2 was attributed to epoxidation of the π-bond in α-pinene and could be over-oxidized and rearranged to products 9 and 10. Products 3–5, 6–8, and 11–13 were derived from oxidation of the allylic C–H bonds of α-pinene. Because of the neat reaction conditions, only a trace amount of allylic hydroperoxide products 12–13 could be detected and were neglected in the calculation of conversion ( C ) and selectivity ( S ) values in this work. Compared with previous investigations concerning the aerobic oxidation of α-pinene (Table 1),^28–30 our research provided a more efficient and selective procedure for the eco-friendly transformation of allylic oxidation products of α-pinene, especially for verbenol (3) and verbenone (4).

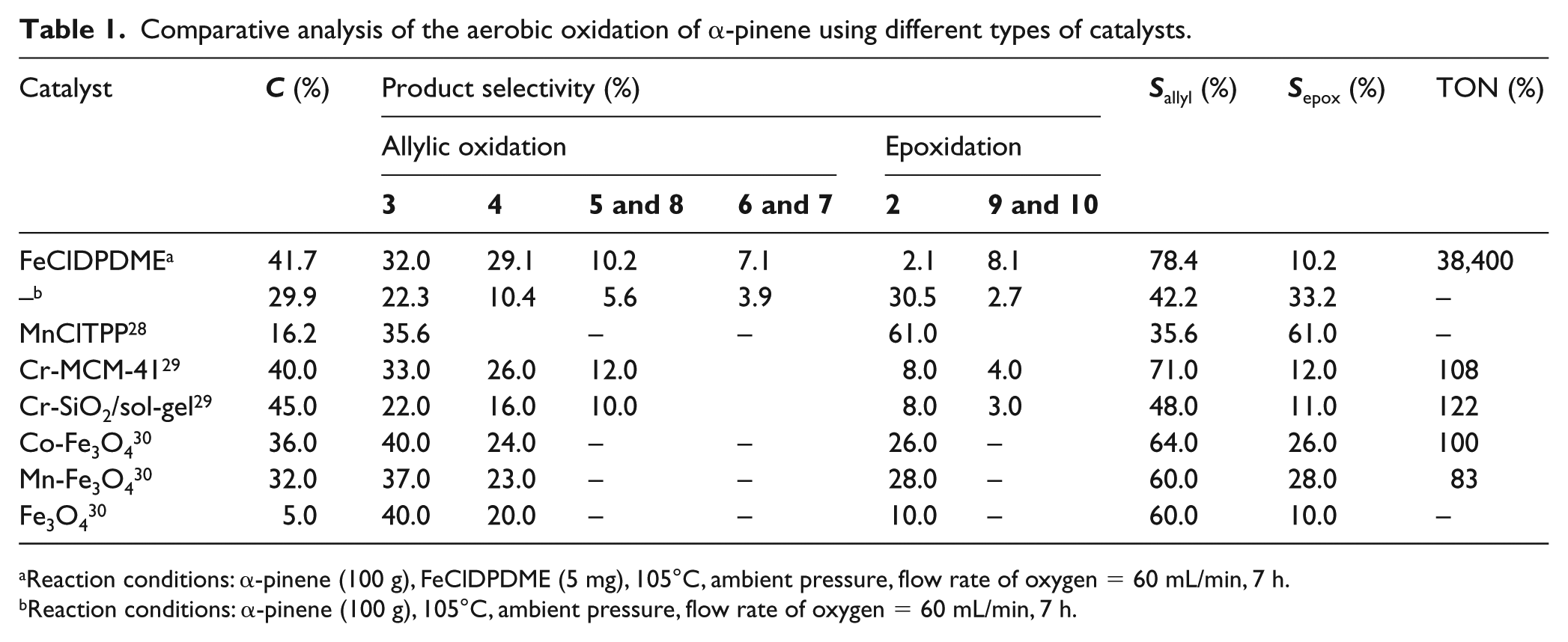

Table 1.

Comparative analysis of the aerobic oxidation of α-pinene using different types of catalysts.

Catalyst	C (%)	Product selectivity (%)						S _allyl (%)	S _epox (%)	TON (%)
		Allylic oxidation				Epoxidation
		3	4	5 and 8	6 and 7	2	9 and 10
FeClDPDME^a	41.7	32.0	29.1	10.2	7.1	2.1	8.1	78.4	10.2	38,400
–^b	29.9	22.3	10.4	5.6	3.9	30.5	2.7	42.2	33.2	–
MnClTPP²⁸	16.2	35.6		–	–	61.0		35.6	61.0	–
Cr-MCM-41²⁹	40.0	33.0	26.0	12.0		8.0	4.0	71.0	12.0	108
Cr-SiO₂/sol-gel²⁹	45.0	22.0	16.0	10.0		8.0	3.0	48.0	11.0	122
Co-Fe₃O₄³⁰	36.0	40.0	24.0	–	–	26.0	–	64.0	26.0	100
Mn-Fe₃O₄³⁰	32.0	37.0	23.0	–	–	28.0	–	60.0	28.0	83
Fe₃O₄³⁰	5.0	40.0	20.0	–	–	10.0	–	60.0	10.0	–

Reaction conditions: α-pinene (100 g), FeClDPDME (5 mg), 105°C, ambient pressure, flow rate of oxygen = 60 mL/min, 7 h.

Reaction conditions: α-pinene (100 g), 105°C, ambient pressure, flow rate of oxygen = 60 mL/min, 7 h.

It has been reported that α-pinene could also be oxidized by molecular oxygen in the absence of any catalyst.³¹ In order to obtain the data regarding the influence of MDPs on this procedure, the selectivity of various oxidation products without any catalysts was investigated, and the results are also listed in Table 1. The results showed that similar products were obtained in this aerobic oxidation process. However, compared with the reaction without a catalyst, the oxidation under the catalysis of MDPs was restricted to allylic C–H bonds, indicating that these reactions proceeded in a different manner and that MDPs played an important role as site specific catalysts in this reaction.

Reaction mechanism of the aerobic oxidation of α-pinene via the catalysis by MDPs

Aerobic oxidation of hydrocarbons in the presence and absence of catalysts has been widely investigated in previous research studies. It is widely accepted that these processes are initiated and propagated by iron-oxy radicals.^24,31–37 These radicals remove hydrogen atoms in substrate molecules, yielding the corresponding resonance-stabilized alkyl radicals. In aerobic oxidations catalyzed by ferric porphyrins (FePs), high-valence radical intermediates generated according to the process shown in Scheme 1 are regarded as the active species.^24,34–36 Although these intermediates were not characterized directly in this work because of the limitations of our detection conditions, the formation of high-valence FeP radical species has been proved by Groves and Watanabe^38,39 and Decker et al.,⁴⁰ and has been successfully tracked by ultraviolet–visible (UV-Vis) spectra. The UV-Vis spectra of the FeClDPDME interaction with oxidants in dimethyl sulfoxide (DMSO) were recorded and are shown in Figure 3. The results demonstrated that the absorption peak of FeClDPDME was red-shifted from 321 to 390 nm gradually and the Q bands absorption peaks at 558 nm and 586 nm were strengthened after the bubbling of molecular oxygen. Such observations were consistent with the formation of [PFe^IV=O]⁺ from the activation of molecular oxygen by ferric(III) porphyrins.^38,39

Scheme 1.

The formation of high-valence radical intermediates in FeP-catalyzed oxidation reactions.

Figure 3.

The UV-Vis spectrum of the FeClDPDME interactions with molecular oxygen.

Even though the details for the formation of oxygenated hydrocarbon products are not well established at this stage, an increasing number of scientists agree on the hypothesis that a so-called oxygen rebound step is involved in FeP-catalyzed aerobic oxidation reactions.^24,34 In this consensus mechanism, high-valence FeP radicals remove hydrogen atoms that are components of relatively weak C–H bonds (e.g. allylic C–H) in substrate molecules, yielding caged pair of resonance-stabilized alkyl radicals and high-valence FePs, which collapse to an alcohol or over-oxidized ketone products via a complex oxygen transfer process (Scheme 2(a)).²⁴ The interaction of high-valence FeP radicals with C=C bonds leads to the formation of a caged pair of alkyl cation radicals with high-valence FeP radicals and collapses by free-radical interactions to give an epoxide through an electron-transfer procedure (Scheme 2(b)).⁴¹ It has been reported that the methyl group at the a-site of α-pinene would sterically hinder the approach of other molecules and hamper their addition to this site.³¹ Perhaps, this is the most probable reason for the high site specificity of allylic C–H bonds in this catalytic oxidation system.

Scheme 2.

Reaction mechanism for the FeP-catalyzed aerobic oxidation of (a) alkanes and (b) alkenes.

Quantum chemical calculation results from previous investigations showed that removal of hydrogen from α-pinene mainly occurs at the 1 and 2 sites of the molecule and produces two resonance-stabilized radicals (Figure 4).³¹ In most cases, secondary C–H radicals are much more stable than the radicals derived from primary C–H bonds. Thus, the selectivity of verbenyl-oxidation products (3 and 4) in our protocol is higher than pinocarvyl and myrtenyl oxidation products (5, 6, 7, and 8). Furthermore, the observed myrtenyl to pinocarvyl oxidation product ratio of 1.4 in our work is in good agreement with the calculated spin density ratio of positions 1 and b, which indirectly proved that a hydrogen abstraction mechanism is involved in this process.

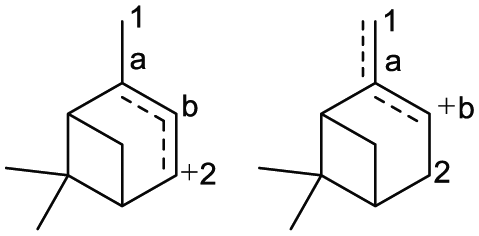

Figure 4.

Two resonance-stabilized radicals formed upon abstraction of a proton from α-pinene.

Optimization of the working conditions

MPs are important biomimetic catalysts with bright prospects in industrial applications. In order to obtain the optimum reaction conditions, FeClDPDME was selected as a model to investigate the influence of temperature, time, catalyst concentration, and oxygen flow rate on this reaction.

Table 2 lists the C and S values of this reaction at different reaction temperatures. An interesting observation is that the selectivity pattern was obviously influenced by the external reaction temperature. The selectivity of epoxidation products evidently decreased from 27.1% to 2.1% and the selectivity of allylic C–H oxidation products significantly improved from 27.1% to 78.4% when the reaction temperature was increased from 60°C to 105°C. In particular, the selectivity of products 3 and 4, which are thought to be the most important allylic oxidation products of α-pinene, increased from 20.8% to 61.1% over this temperature range. It has been reported that the critical event for aerobic oxidation of hydrocarbons catalyzed by MPs is the activation of molecular oxygen.²⁴ In this step, a high-valence MP radical intermediate is formed and plays a vital role in this reaction. However, only high-spin unsteady state perfluorinated or polyhalogenated MPs can activate molecular oxygen under ambient reaction conditions.²⁴ The reductive potentials of simple MPs such as metallotetraphenylporphyrin (MTPPs) and MDPs are too low and should be reduced to their high-spin unsteady states by thermal decomposition reduction in solvent- and additive-free systems.^24,42,43 In other words, MDPs could not efficiently activate molecular oxygen directly at low external reaction temperatures and α-pinene might react with different kinetics at this stage. Perhaps this is the main reason for the influence of the external reaction temperature on the S values of allylic C–H oxidation products.

Table 2.

Comparison of the aerobic oxidation of α-pinene at different reaction temperatures.

Catalyst	Temperature (°C)	C (%)	Product selectivity (%)						S _allyl (%)	S _epox (%)
			Allylic oxidation				Epoxidation
			3	4	5 and 8	6 and 7	2	9 and 10
FeClDPDME^a	60	4.8	14.5	6.3	2.1	4.2	27.1	–	27.1	27.1
FeClDPDME^a	90	31.1	25.4	12.5	4.2	5.8	31.8	1.9	47.9	33.7
FeClDPDME^a	105	41.7	32.0	29.1	10.2	7.1	2.1	8.1	78.4	10.2
FeClDPDME^a	120	21.8	24.8	15.6	10.1	8.2	17.2	3.9	58.7	21.1
–^b	60	1.4	18.5	4.1	2.1	5.1	25.7	–	29.8	25.7
–^b	90	30.9	20.4	9.5	3.5	4.7	29.3	3.0	38.1	32.3
–^b	105	29.9	22.3	10.4	5.6	3.9	30.5	2.7	42.2	33.2
–^b	120	30.8	21.3	11.0	2.7	6.2	21.8	9.9	41.2	31.7

Reaction conditions: α-pinene (100 g), MPs (5 mg), ambient pressure, flow rate of oxygen = 60 mL/min, 7 h.

Reaction conditions: α-pinene (100 g), ambient pressure, flow rate of air = 60 mL/min, 7 h.

To identify the influence of the external reaction temperature on the selectivity of MDPs, aerobic oxidation of α-pinene at various reaction temperatures in the presence and absence of catalysis was investigated (Table 2). The results show that the selectivity of various oxidation products under the catalysis of MDPs at low reaction temperature was similar to those obtained without catalysis. The selectivity ratio between epoxidation products and allylic C–H oxidation products in the absence of MDPs did not change with variation of the external reaction temperature. However, the selectivity of allylic C–H oxidation products in MDP-catalyzed reactions increased significantly when the reaction temperatures were raised and reached a maximum value of 78.4% at a reaction temperature of 105°C, indicating that the external reaction temperature exerted a tremendous influence on the selectivity of MDPs.

The conversion of α-pinene and the selectivity of various oxidation products as a function of reaction time at 105°C were evaluated and are illustrated in Figure 5(a) and (b). The results show that the C values of α-pinene increased with reaction time after an induction period of approximately 2 h (Figure 5(a)). The selectivity of allylic oxidation products 3–7 reached a maximum value of 78.4% at 7 h and fell to 68.5% at 8 h (Figure 5(b)) due to over-oxidation of the initial oxidation products. It should be noted that allylic hydroperoxidation product 11 accumulated during the induction period of this reaction and then decreased to about 10.0% when the reaction had proceeded for longer than 7 h. The formation of 11 can be attributed to the direct aerobic oxidation of α-pinene without the catalysis of MDPs, especially during the induction period of this reaction. It has been reported in a previous study that hydroperoxides can decompose to hydroxylation products under the catalysis of MPs.^27,44 Thus, most of the hydroperoxidation product 11 decomposed into 3 or 4 and caused a deviation for the S value of 11.

Figure 5.

The effects of reaction time on the (a) C values of α-pinene and (b) S values of various oxidation products.

In our previous research, catalyst concentration was found to be a critical factor in biomimetic reactions catalyzed by MDPs.⁴⁵ Table 3 shows the conversion of α-pinene and the selectivity of various oxidation products over the FeClDPDME concentration from 1 to 9 ppm. The results indicated that the conversion of α-pinene and the selectivity of the allylic C–H oxidation products were enhanced with increased FeClDPDME concentrations when the catalyst concentration was lower than 5 ppm. Higher concentrations of FeClDPDME have been reported to lead to the formation of inactive μ-oxo MP dimers.²⁷ Thus, when more catalyst was added, the efficient concentration of the active catalyst was reduced and caused a decrease of the C and S _allyl values in this reaction.

Table 3.

Comparison of aerobic oxidation of α-pinene at different catalyst concentrations.

Concentration (ppm)	C (%)	Product selectivity (%)						S _allyl (%)	S _epox (%)
		Allylic oxidation				Epoxidation
		3	4	5 and 8	6 and 7	2	9 and 10
1	34.7	23.2	12.9	7.0	5.5	19.2	4.4	48.6	23.6
3	38.5	31.7	28.2	10.9	7.1	1.9	9.4	77.9	11.3
5	41.7	32.0	29.1	10.2	7.1	2.1	8.1	78.4	10.2
7	32.9	27.6	18.7	7.3	7.1	23.0	3.5	60.7	26.5
9	28.4	27.2	18.5	7.6	7.0	24.5	3.4	60.3	27.9

Reaction conditions: α-pinene (100 g), 105°C, ambient pressure, flow rate of air = 60 mL/min, 7 h.

The effect of oxygen flow rate on the conversion and product selectivity was also investigated. As is illustrated in Figure 6, the conversion of α-pinene was enhanced with an increase of the flow rate of oxygen, especially at an oxygen flow rate range from 40 to 60 mL/min. However, when the oxygen flow rate was higher than 80 mL/min, the selectivity of products 3–10 decreased with an increase of the oxygen flow rate. This phenomenon can be explained as follows: The dissolved oxygen in the liquid phase increased on increasing the oxygen flow rate. Thus, the production of 3–10 increased with the increase of oxygen flow rate. However, the higher flow rate of oxygen accelerates the over-oxidation of 3–10 to other by-products.

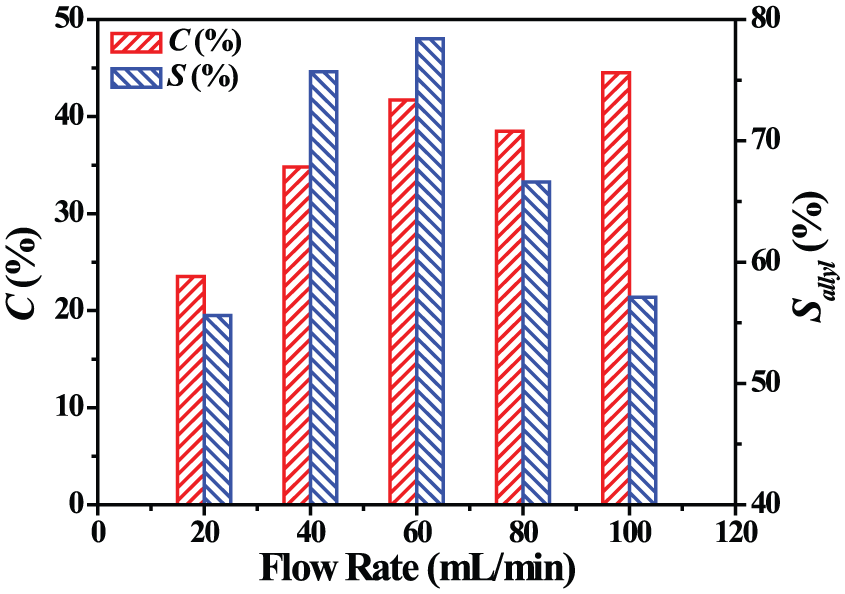

Figure 6.

Effects of oxygen flow rate on the C and S _allyl values for the aerobic oxidation of α-pinene.

Effect of the central metal on the catalytic activity of MDPs

As reported in our previous work,^27,45 MDPs complexed with various metal ions presented very different catalytic activities. Table 4 summarizes the data obtained from the aerobic oxidation of α-pinene under the catalysis of various MDPs. The results show that the C and S values varied when the central metal was changed.

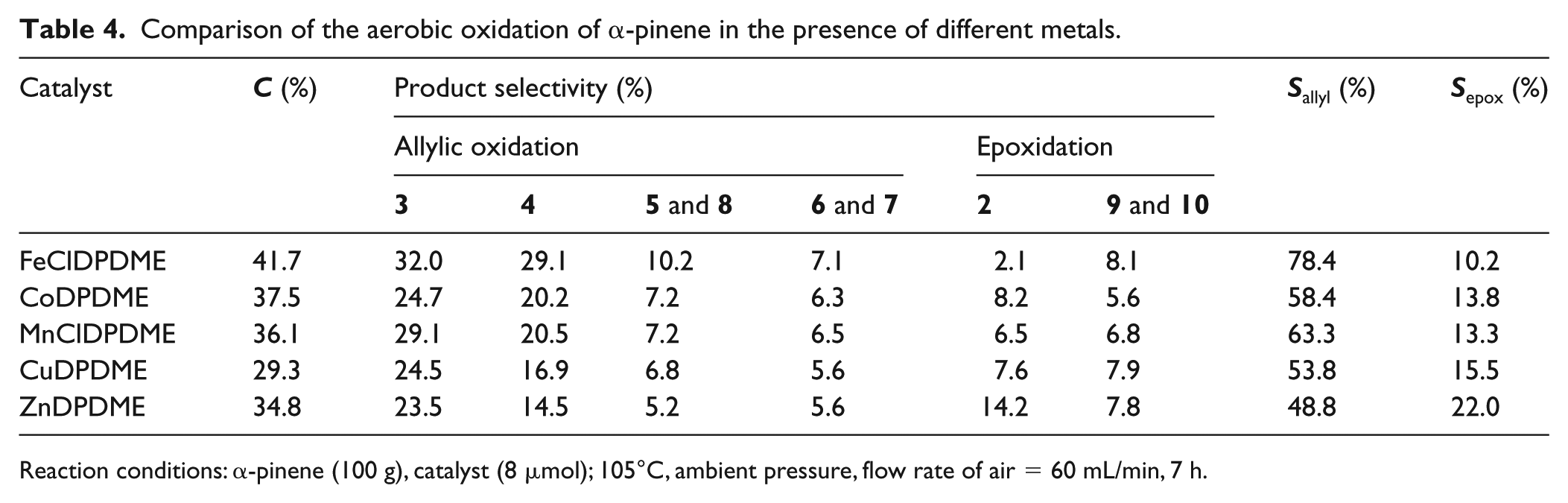

Table 4.

Comparison of the aerobic oxidation of α-pinene in the presence of different metals.

Catalyst	C (%)	Product selectivity (%)						S _allyl (%)	S _epox (%)
		Allylic oxidation				Epoxidation
		3	4	5 and 8	6 and 7	2	9 and 10
FeClDPDME	41.7	32.0	29.1	10.2	7.1	2.1	8.1	78.4	10.2
CoDPDME	37.5	24.7	20.2	7.2	6.3	8.2	5.6	58.4	13.8
MnClDPDME	36.1	29.1	20.5	7.2	6.5	6.5	6.8	63.3	13.3
CuDPDME	29.3	24.5	16.9	6.8	5.6	7.6	7.9	53.8	15.5
ZnDPDME	34.8	23.5	14.5	5.2	5.6	14.2	7.8	48.8	22.0

Reaction conditions: α-pinene (100 g), catalyst (8 μmol); 105°C, ambient pressure, flow rate of air = 60 mL/min, 7 h.

Under the optimized reaction conditions, FeClDPDME was found to be the most efficient catalyst with the highest conversion and selectivity values, while the lowest yield of allylic oxidation products was obtained with the CuDPDME catalyst. The catalytic activity of MDPs follows the sequence: FeClDPDME > CoDPDME≈MnClDPDME > ZnDPDME > CuDPDME, similar to the conclusions obtained in previous studies.^27,46 It has been reported that the catalytic activity and selectivity of MPs are influenced by the stabilities and redox potentials of the central metals.^27,28,46,47 It is conceivable that these factors may explain the higher catalytic activity of FeClDPDME in comparison to the other catalysts.

Conclusion

Aerobic oxidation of α-pinene catalyzed by MDPs in the absence of solvents and additives at ambient pressure was studied. The C and S values of the reactions were influenced by the external reaction temperature, the reaction time, the MDP concentration, and the oxygen flow rate. The optimum reaction conditions in this protocol were 105°C, 7 h, 5 ppm, and 60 mL/min. Under the optimized conditions, 41.7% of α-pinene could be oxidized to allylic oxidation products with a selectivity of 78.4%. MDPs complexed with various central metals acted as efficient catalysts in this system. In summary, the activity of MDPs can be described as FeClDPDME > CoDPDM≈MnClDPDME > CuDPDME > ZnDPDME. There is great potential for the industrial adoption of α-pinene oxidation products based on this biomimetic oxidation system because unreacted substrate can be separated and reused in a continuous reaction process.

Experimental

Instruments and equipment

¹H NMR spectra were obtained on a Bruker Avance III 500 MHz spectrometer (Bruker, Germany) using CDCl₃ or DMSO-d₆ as solvents, and all chemical shifts were compared to tetramethylsilane (TMS) as the reference. Infrared (IR) spectra were recorded using a Thermo Nicolet IS10 IR instrument (Thermo, USA) using the attenuated total reflection method. ESI-MS/MS results were recorded on a Finnigan TSQ Quantum ultra AM mass spectrometer (Finnigan, USA) with an electrospray ionization (ESI) source. UV-Vis spectra were recorded on a Lambda-35 UV-spectrofluorimeter (Perkin-Elmer, USA). GC data were acquired on a Shimadzu GC-2014AF (Shimadzu, Japan) equipped with a 0.25 mm i.d. × 30 m quartz capillary column and a hydrogen flame ionization detector. GC-MS analysis was performed on an Agilent 6890N/5973N GC-MS instrument (Agilent, USA) equipped with a 0.25 mm i.d. × 30 m quartz capillary column.

Chemicals and reagents

Hemin (purity 98.5%) was obtained from Tianjin Institute of Life Sciences Applications (China). Other analytical grade chemicals were obtained commercially and were used without further purification. Organic solvents were dried before use. α-pinene (96.2%) was obtained from Zhuzhou Sonbon Forest Chemical Co., and redistilled to over 98.0% before use. Metallodeuteroporphyrin dimethyl esters (MDPDMEs, 14a–e) (Figure 7) were synthesized according to our routes and were identified by ¹H NMR, IR, MS, and UV-Vis.^27,45,48,49

Figure 7.

Chemical structure of the MDPs. M = FeCl (a), Co (b), MnCl (c), Cu (d), Zn (e).

Aerobic oxidation procedure

Aerobic oxidation of α-pinene was carried out in a 250 mL four-necked glass flask containing a reflux condenser, a thermometer, and a breather pipe. The mixture was agitated and heated with an electromagnetic heating stirrer apparatus. Air or oxygen was pumped into the reactor through an air bottle under continuous stirring and the flow rate was regulated and measured by a needle valve and a rotameter, respectively. In a typical procedure, α-pinene (100 g) and the appropriate amount of MDP were added. When the reaction temperature reached 60–130°C, oxygen was added to the mixture with a flow rate of 10–100 mL/min. Samples were taken from the reaction mixture every 1 h and quantified by GC using n-nonane as an inert, internal standard. Hydroperoxide yields were determined by double injection before and after the treatment of the reaction sample with triphenylphosphine. The components of the acquired samples were identified by GC-MS.
