On finding exact and approximate solutions to fractional systems of ordinary differential equations using fractional natural adomian decomposition method

Abstract

In this work, we present proofs for new theorems that deal with natural transform method (NTM) with Caputo derivative. Also, we give exact and approximate solutions to systems of fractional differential equations along with fractional ordinary and partial differential equations using the fractional natural decomposition method (FNDM). The Caputo derivative is used here to minimize the amount of computational, and this is of great significance for large-scale problems. The work outlines the significant features of the FNDM. Our work can be considered as another technique to existing methods, and will have many applications in variant areas of science and engineering.

Keywords

Fractional Differential Equations Caputo Derivative Natural Transform System Differential Equations Adomian Method.45A05 45B05 45D05 45E10 45G15 45J05.

Introduction

Fractional derivatives have proven their capability to describe several phenomena associated with memory and aftereffects due to their non-locality property.¹ Such phenomena are commonplace in physical processes, biological structures, and cosmological phenomena. For instance, the fractional Kelvin-Voigt rheological models have been employed to examine the low applied force frequencies.^2–5 For this reason, this became necessary to illuminate the solutions of the models that describe these phenomena. Several analytical techniques were presented to achieve their objectives. Actually, all these approaches were accommodation for the existing methods to handle the integer case models which is natural since the fractional derivative generalizes the classical derivative to an arbitrary order.

Recently, fractional calculus and their applications have been treated by many researchers, see^4–9 and the references therein. Even though fractional derivatives have existed as long as their integer order counterparts, but only in recent decades have fractional derivative models became exciting new tools in the study of practical problems in disciplines as diverse as physics,^10–12 finance,^13,10 biology^5,6 and hydrology.^3,14,9,15 As fractional derivative models are becoming increasingly popular among the wider scientific community, is the main motivation to study numerical schemes for fractional differential equations. There are many applications of fractional differential equations and just to name few: control systems, elasticity, electric drives, circuits systems, continuum mechanics, heat transfer, quantum mechanics, fluid mechanics, signal analysis, biomathematics, biomedicine, social systems and bio-engineering.

Lately, many techniques discussed the way how to explore approximate solutions of FDEs, such as FDTM,¹⁶ the fractional sub-equation method,⁹ the FNDM,^11,12,17,18 the FVM,⁴ the modified homotopy perturbation method (MHPM),¹⁹ the Conformable Sumudu Decomposition Method²⁰ and the (FADM).^21,15 The outline of our work is as follows: First, in Chapters 2, we give the history of natural transform method, definitions of fractional derivatives. In chapter 3, we present proofs to theorems related to the natural fractional derivatives. Chapter 4 is devoted for applications model of FDEs using the proposed method. In chapter 5, we solve fractional systems of ODEs. Finally, our concluding remarks is presented, in chapter 6, to outline of what we have accomplished in this research.

Related Materials

We explore some definitions terminologies of natural transform that will be needed later on in the proofs of our results, (see for example,^22,13,10).

Definition 1

We say a function $φ (y) \in C_{υ}$ , where $υ \in R, y > 0$ , if $\exists r \in R$ with $r > υ$ , such that $φ (y) = y^{r} f (y)$ , and $f (y) \in C [0, \infty)$ , and we say $φ (y) \in C_{υ}^{k}$ , if $f^{(k)} \in C_{υ}$ where $k = 1, 2, 3, \dots$ .

Definition 2

If $k - 1 < υ \leq k, k \in N, y > 0, φ \in C_{- 1}^{k}$ . We define the Caputo type of $φ$ as

^{c} D^{υ} φ (y) = J^{k - υ} D^{k} φ (y) = \frac{1}{Γ (υ - k)} \int_{0}^{y} (y - t)^{k - υ - 1} φ^{(k)} (t) d t .

(1)

Definition 3

²³ The Mittag-Leffler in two parameters is given by $E_{υ, η} (z) = \sum_{k = 0}^{\infty} \frac{z^{k}}{Γ (υ k + η)}, υ > 0, η > 0, z \in C .$

Definition 4

Let $H (t)$ denote the Heaviside function, more precisely $H (t) = 1$ for $t > 0$ and $H (t) = 0$ for $t < 0$ . We introduce a real-valued function, on which $N^{+}$ -transform can be defined on [0, $\infty$ ), where $s > c u$ , $c > 0$ . Let $φ (t)$ be continuous on $R$ . For some $K, c > 0$ . Consider

B = {φ (t) : | φ (t) | < K e^{c | t |} H (t) + K e^{- c | t |} H (- t)} .

Note that for any

φ (t)

in the class

B

we have

\begin{aligned} | \int_{- \infty}^{\infty} e^{- s t} φ (t u) d t | & \leq K \int_{0}^{\infty} e^{- s t} e^{c | t u |} d t + K \int_{- \infty}^{0} e^{- s t} e^{- c | t u |} d t \\ = K \int_{0}^{\infty} e^{- (s - c u) t} d t + K \int_{- \infty}^{0} e^{- (s + c u) t} d t, \end{aligned}

(2)

which is convergent provided that

s > c u

. Then, we define the natural transform

N^{+} (φ (t)) = R (s, u) = \int_{0}^{\infty} e^{- s t} φ (u t) d t .

(3)

Alternatively,

N^{+} (φ (t)) = R (s, u) = \frac{1}{u} \int_{0}^{\infty} e^{- \frac{s t}{u}} φ (t) d t .

(4)

Note that one can obtain the Laplace transform and the Sumudu transform if we plug in

u = 1

s = 1

in the above equations, respectively.

We shall use the well-known gamma function through out this paper

Γ (z) = \int_{0}^{\infty} e^{- t} t^{z - 1} d t, z > 0,

(5)

where

Γ (z + 1) = z Γ (z)

Important Properties

Some basic properties of the N-transforms are given as follows^22,11,12

Property 1

$N^{+} (1) = \frac{1}{s}$ .

Property 2

$N^{+} (y^{υ}) = \frac{Γ (υ + 1) u^{υ}}{s^{υ + 1}}, υ > - 1.$

Property 3

$N^{+} (^{c} D_{t}^{υ} φ (t)) (s, u) = \frac{s^{υ}}{u^{υ}} N^{+} (φ (t)) (s, u) - \frac{s^{υ - 1}}{u^{υ}} φ (0) .$

Natural Caputo Fractional Derivatives

Here we give detailed proofs to some theorems of N-transform of Caputo fractional derivative. The proofs of theorem (1) was given in another published paper by the first author.

Caputo Fractional Derivative

For the sake of readers, we give just some of natural transforms properties. We direct the reader for more properties to see for example.^22,11,12

Theorem 1

If $k \in Z^{+}$ , where $k - 1 \leq υ < k$ . Then, the N-transform of Caputo derivative of $φ (t)$ is

N^{+} (^{c} D_{t}^{υ} φ (t)) = \frac{s^{υ}}{u^{υ}} R (s, u) - \sum_{m = 0}^{k - 1} \frac{s^{υ - (m + 1)}}{u^{υ - m}} {(D^{m} φ (t))}_{t = 0} .

(6)

Theorem 2

The natural transform of the Caputo derivative for $φ (t) = 1$ is given by

N^{+} (^{c} D_{t}^{υ} (1)) = 0.

Proof.

From Eq. (6), we have

\begin{aligned} N^{+} (^{c} D_{t}^{υ} (1)) & = \frac{s^{υ}}{u^{υ}} N^{+} (1) - \sum_{m = 0}^{k - 1} \frac{s^{υ - (m + 1)}}{u^{υ - m}} {(D^{m} φ (t))}_{t = 0} \\ = \frac{s^{υ}}{u^{υ}} \frac{1}{s} - \frac{s^{υ - 1}}{u^{υ}} [1] - 0 \\ = \frac{s^{υ - 1}}{u^{υ}} - \frac{s^{υ - 1}}{u^{υ}} = 0. \end{aligned}

(7)

The proof of Theorem (2) is complete. □

Theorem 3

The natural transform of the Caputo derivative for $φ (t) = t$ with $0 < υ \leq 1$ is given by

N^{+} (^{c} D_{t}^{υ} (t)) = \frac{s^{υ - 2}}{u^{υ - 1}} .

The natural transform of the Caputo derivative for $φ (t) = t$ with $k - 1 < υ \leq k$ , and $k = 2, 3, 4, \dots$ is

N^{+} (^{c} D_{t}^{υ} (t)) = 0.

Proof.

First note that $f^{'} (t) = 1, f^{″} (t) = 0, \dots, f^{(k - 1)} (t) = 0$ .

Case 1. $0 < υ \leq 1$ . From Eq. (6), we have

\begin{aligned} N^{+} (^{c} D_{t}^{υ} (t)) & = \frac{s^{υ}}{u^{υ}} N^{+} (t) - \sum_{m = 0}^{k - 1} \frac{s^{υ - (m + 1)}}{u^{υ - m}} {(D^{m} φ (t))}_{t = 0} \\ = \frac{s^{υ}}{u^{υ}} \frac{u}{s^{2}} - \frac{s^{υ - 1}}{u^{υ}} [0] \\ = \frac{s^{υ - 2}}{u^{υ - 1}} . \end{aligned}

(8)

Case 2.

k - 1 < υ \leq k

, and

k = 2, 3, 4, \dots .

We get from Eq. (6),

\begin{aligned} N^{+} (^{c} D_{t}^{υ} (t)) & = \frac{s^{υ}}{u^{υ}} N^{+} (t) - \sum_{m = 0}^{k - 1} \frac{s^{υ - (m + 1)}}{u^{υ - m}} {(D^{m} φ (t))}_{t = 0} \\ = \frac{s^{υ}}{u^{υ}} \frac{u}{s^{2}} - \frac{s^{υ - 1}}{u^{υ}} [0] - \frac{s^{υ - 2}}{u^{υ - 1}} [1] - \dots - \frac{s^{υ - n}}{u^{υ - n + 1}} [0] \\ = \frac{s^{υ - 2}}{u^{υ - 1}} - \frac{s^{υ - 2}}{u^{υ - 1}} \\ = 0. \end{aligned}

(9)

The proof of Theorem (3) is complete. □

Theorem 4

The natural transform of the Caputo derivative for $φ (t) = \frac{t^{k - 1}}{k!}$ is

N^{+} (^{c} D_{t}^{υ} (\frac{t^{k - 1}}{k!})) = \frac{s^{υ - k}}{k u^{υ - k + 1}},

with

k = 3, 4, \dots .

Proof.

First note that

f^{'} (t) = \frac{(k - 1) t^{k - 2}}{k!}, f^{″} (t) = \frac{(k - 1) (k - 2) t^{k - 3}}{k!}, \dots, f^{(n - 1)} (t) = {\frac{(k - 1) (k - 2) \dots (k - n + 1) t}{k!}}^{k - n} .

One can conclude from Eq. (6),

\begin{aligned} N^{+} (^{c} D_{t}^{υ} (\frac{t^{k - 1}}{k!})) & = \frac{s^{υ}}{u^{υ}} N^{+} [\frac{t^{k - 1}}{k!}] - \sum_{j = 0}^{n - 1} \frac{s^{υ - (j + 1)}}{u^{υ - j}} {[D^{j} φ (t)]}_{t = 0} \\ = \frac{s^{υ}}{u^{υ}} \frac{u^{k - 1}}{k s^{k}} - (0 + 0 + \dots + 0) \\ = \frac{s^{υ - k}}{k u^{υ - k + 1}} . \end{aligned}

The proof of Theorem (4) is complete. □

Theorem 5

The natural transform of the Caputo derivative for $φ (t) = e^{a t}$ is

N^{+} (^{c} D_{t}^{υ} (e^{a t})) = \frac{a^{n} u^{n} s^{υ - n}}{u^{υ} (s - a u)} .

Proof.

First note that $φ^{'} (t) = a e^{a t}, φ^{″} (t) = a^{2} e^{a t}, \dots, φ^{(n - 1)} (t) = a^{n - 1} e^{a t}$ . Then, we get

\begin{aligned} N^{+} (^{c} D_{t}^{υ} (e^{a t})) & = \frac{s^{υ}}{u^{υ}} N^{+} (e^{a t}) - \sum_{k = 0}^{n - 1} \frac{s^{υ - (k + 1)}}{u^{υ - k}} D^{k} {(φ (t))}_{t = 0} \\ = \frac{s^{υ}}{u^{υ}} \frac{1}{s - a u} - [\frac{s^{υ - 1}}{u^{υ}} + \frac{s^{υ - 2}}{u^{υ - 1}} a + \dots + \frac{s^{υ - n}}{u^{υ - n + 1}} a^{n - 1}] \\ = \frac{s^{υ}}{u^{υ}} \frac{1}{s - a u} - [\frac{s^{υ - 1}}{u^{υ}} + \frac{s^{(υ - 1) - 1}}{u^{υ - 1}} a + \dots + \frac{s^{(υ - 1) - (n - 1)}}{u^{υ - (n - 1)}} a^{n - 1}] \\ = \frac{s^{υ}}{u^{υ}} \frac{1}{s - a u} - \sum_{k = 0}^{n - 1} \frac{s^{(υ - 1) - k}}{u^{υ - k}} a^{k} \\ = \frac{a^{n} u^{n} s^{υ - n}}{u^{υ} (s - a u)} . \end{aligned}

The proof of Theorem (5) is complete. □

Theorem 6

The Caputo Fractional Natural Transform of $f (t) = \frac{e^{b t} - e^{a t}}{b - a}, a \neq b$ is

\begin{aligned} N^{+} [^{c} D^{α} (\frac{e^{b t} - e^{a t}}{b - a})] \\ = \frac{s^{α + 1 - n} u^{n - α} (b^{n} - a^{n}) + u^{n + 1 - α} s^{α - n} (a^{n} b - b^{n} a)}{(b - a) (s - u b) (s - u a)} \end{aligned}

Proof.

First note that

f^{'} (t) = \frac{b e^{b t} - a e^{a t}}{b - a}, f^{″} (t) = \frac{b^{2} e^{b t} - a^{2} e^{a t}}{b - a}, \dots, f^{(n - 1)} (t) = \frac{b^{n - 1} e^{b t} - a^{n - 1} e^{a t}}{b - a} .

\begin{aligned} N^{+} [^{c} D^{α} (\frac{e^{b t} - e^{a t}}{b - a})] & = \frac{s^{α}}{u^{α}}^{+} [\frac{e^{b t} - e^{a t}}{b - a}] - \sum_{k = 0}^{n - 1} \frac{s^{α - (k + 1)}}{u^{α - k}} [D^{k} f (t)]_{t = 0} \\ = \frac{s^{α}}{u^{α}} \frac{u}{(s - a u) (s - b u)} - [\frac{s^{α - 2}}{u^{α - 1}} \frac{b - a}{b - a} + \dots + \frac{s^{α - n}}{u^{α - n + 1}} \frac{b^{n - 1} - a^{n - 1}}{b - a}] \\ = \frac{u^{1 - α} s^{α}}{(s - a u) (s - b u)} - \frac{1}{b - a} [\frac{\mp s^{α - 1}}{u^{α}} + \dots + \frac{s^{α - n}}{u^{α - (n - 1)}} (b^{n - 1} - a^{n - 1})] \\ = \frac{u^{1 - α} s^{α}}{(s - a u) (s - b u)} - \frac{1}{b - a} \sum_{k = 0}^{n - 1} \frac{s^{α - (k + 1)}}{u^{α - k}} (b^{k} - a^{k}) \\ = \frac{s^{α}}{u^{α}} \frac{u}{(s - a u) (s - b u)} - \frac{s^{α - 1}}{u^{α} (b - a)} \sum_{k = 0}^{n - 1} {(\frac{u b}{s})}^{k} + \frac{s^{α - 1}}{u^{α} (b - a)} \sum_{k = 0}^{n - 1} {(\frac{u a}{s})}^{k} \\ = \frac{s^{α}}{u^{α}} \frac{u}{(s - a u) (s - b u)} - \frac{s^{α - 1}}{u^{α} (b - a)} \frac{1 - {(\frac{u b}{s})}^{n}}{1 - \frac{u b}{s}} + \frac{s^{α - 1}}{u^{α} (b - a)} \frac{1 - {(\frac{u a}{s})}^{n}}{1 - \frac{u a}{s}} \\ = \frac{s^{α + 1 - n} u^{n - α} (b^{n} - a^{n}) + u^{n + 1 - α} s^{α - n} (a^{n} b - b^{n} a)}{(b - a) (s - u b) (s - u a)} . \end{aligned}

(10)

The proof of Theorem (6) is complete. □

Applications of FNDM for Fractional ODEs and PDEs

For this section, we shall implement the new scheme to solve two nonlinear fractional ODEs and we present solution to the diffusion fractional differential equations. Finally, we present numerical tables for these examples for multiple values of $υ$ and $t$ . Methodology of FDM

Consider the general nonlinear (FODE)

^{c} D_{t}^{υ} φ (t) + L (φ (t)) + F (φ (t)) = g (t),

(11)

where

t > 0

and

0 < υ \leq 1

, and along with initial condition

φ (0) = h (t),

(12)

where

^{c} D_{t}^{υ} φ (t)

is the Caputo derivative for

φ (t)

L

is the linear differential operator and

F

represents the nonlinear part. Also

g (t)

is the non-homogeneous part.

Applying theorem 1 to Eq. (11) one can conclude

N^{+} (φ (t)) = \frac{u^{υ}}{s^{υ}} \sum_{k = 0}^{n - 1} \frac{s^{υ - (k + 1)}}{u^{υ - k}} D^{k} φ (0) + \frac{u^{υ}}{s^{υ}} N^{+} (g (t)) - \frac{u^{υ}}{s^{υ}} N^{+} (L (φ (t)) + (F φ (t))) .

(13)

Substituting Eq. (12) into Eq. (13) and taking

N^{- 1}

of Eq. (13) one conclude

\begin{aligned} φ (t) & = N^{- 1} (\frac{h (t)}{s}) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (g (t))) \\ - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (φ (t)) + F (φ (t)))) \\ = H (t) - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (φ (t)) + F (φ (t)))) \end{aligned}

(14)

where

H (t)

is arising from the non-homogeneous part together with the initial condition. Assuming a solution exist of

φ (t)

as follow

φ (t) = \sum_{n = 0}^{\infty} φ_{n} (t) .

(15)

But the nonlinear part in our problem is

F (φ (t)) = \sum_{n = 0}^{\infty} A_{n} (t),

(16)

where the polynomials of

φ_{0}, φ_{1}, \dots, φ_{n}

will be computed using

A_{n} = \frac{1}{n!} \frac{d^{n}}{d λ^{n}} {[F (\sum_{j = 0}^{n} λ^{i} φ_{i})]}_{λ = 0}, n = 0, 1, 2, \dots

(17)

Thus, Eq. (17) can be reduced to

\begin{aligned} A_{0} = F (φ_{0}) \\ A_{1} = y_{1} F^{'} (φ_{0}) \\ A_{2} = φ_{2} F^{'} (φ_{0}) + \frac{1}{2!} φ_{1}^{2} F^{'}^{'} (φ_{0}) . \end{aligned}

(18)

The rest of polynomials can be obtained likewise. Substituting Eq. (15) and Eq. (16) into Eq. (14) one arrive at

\begin{aligned} \sum_{n = 0}^{\infty} φ_{n} (t) = G (t) - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (\sum_{n = 0}^{\infty} φ_{n} (t)) + \sum_{n = 0}^{\infty} A_{n} (t))) . \end{aligned}

(19)

With the help of Eq. (19), one can arrive at

\begin{aligned} φ_{0} (t) & = G (t) \\ φ_{1} (t) & = - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (φ_{0} (t)) + A_{0} (t))) \\ φ_{2} (t) & = - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (φ_{1} (t)) + A_{1} (t))) \\ φ_{3} (t) & = - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (φ_{2} (t)) + A_{2} (t))) \end{aligned}

Eventually, we have the general recursive formula as

\begin{aligned} φ_{n + 1} (t) = - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (L (φ_{n} (t)) + A_{n} (t))), n \geq 1. \end{aligned}

(20)

Hence, our approximate solution of the form

φ (t) = \sum_{n = 0}^{\infty} φ_{n} (t) .

(21)

Numerical Examples

Example 1

Consider the nonlinear FDE in the form²¹:

^{c} D_{^{t}}^{υ} φ (t) + φ^{2} (t) = 2 φ (t) + 1, 0 < υ \leq 1,

(22)

together with condition

φ (0) = 0

(23)

Applying theorem 3.1 to equation (22), one arrive at

\begin{aligned} N^{+} (φ (t)) & = \frac{u^{υ}}{s^{υ}} N^{+} (1) + 2 \frac{u^{υ}}{s^{υ}} N^{+} (φ (t)) - \frac{u^{υ}}{s^{υ}} N^{+} (φ^{2} (t)) \\ = \frac{u^{υ}}{s^{υ + 1}} + 2 \frac{u^{υ}}{s^{υ}} N^{+} (φ (t)) - \frac{u^{υ}}{s^{υ}} N^{+} (φ^{2} (t)) \end{aligned}

(24)

Taking the N-transform inverse of Eq. (24) one conclude

φ (t) = N^{- 1} (\frac{u^{υ}}{s^{υ + 1}}) + 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (φ (t))) - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (φ^{2} (t)))

(25)

Suppose a solution exist for

φ (t)

and the nonlinear term

φ^{2} (t)

is given as

φ (t) = \sum_{n = 0}^{\infty} φ_{n} (t), φ^{2} (t) = \sum_{n = 0}^{\infty} A_{n} (t) .

(26)

Note here,

\begin{aligned} A_{0} = {(φ_{0})}^{2} \\ A_{1} = 2 φ_{0} φ_{1} \\ A_{2} = 2 φ_{0} φ_{2} + {(φ_{1})}^{2} \\ A_{3} = 2 φ_{0} φ_{3} + 2 φ_{1} φ_{2} . \end{aligned}

From Eq. (26), then Eq. (25) becomes

\begin{aligned} φ (t) & = \sum_{n = 0}^{\infty} φ_{n} (t) = N^{- 1} (\frac{u^{υ}}{s^{υ + 1}}) + 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (φ (t))) \\ - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (φ^{2} (t))) \end{aligned}

(27)

Looking at both sides of Eq. (27), one can conclude

\begin{aligned} φ_{0} (t) & = \frac{t^{υ}}{Γ (υ + 1)} . \\ φ_{1} (t) & = 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (φ_{0} (t))) - N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (A_{0})) \\ = 2 N^{- 1} [\frac{u^{υ}}{s^{υ}} N^{+} (\frac{t^{υ}}{Γ (υ + 1)})] - \frac{Γ (2 υ + 1)}{{(Γ (υ + 1))}^{2}} N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (t^{2 υ})) \\ = 2 N^{- 1} (\frac{u^{2 υ}}{s^{2 υ + 1}}) - \frac{Γ (2 υ + 1)}{{(Γ (υ + 1))}^{2}} N^{- 1} (\frac{u^{3 υ}}{s^{3 υ + 1}}) \\ = \frac{2}{Γ (2 υ + 1)} t^{2 υ} - \frac{Γ (2 υ + 1)}{Γ (3 υ + 1) {(Γ (υ + 1))}^{2}} t^{3 υ} \end{aligned}

Likewise,

\begin{aligned} φ_{2} (t) & = \frac{4 t^{3 α}}{Γ (3 α + 1)} - [\frac{2 Γ (2 α + 1)}{{(Γ (α + 1))}^{2}} + \frac{4 Γ (3 α + 1)}{Γ (α + 1) Γ (2 α + 1)}] \frac{t^{4 α}}{Γ (4 α + 1)} - \frac{2 Γ (2 α + 1) Γ (4 α + 1) t^{5 α}}{{(Γ (α + 1))}^{3} Γ (3 α + 1) Γ (5 α + 1)} . \\ φ_{3} (t) & = \frac{8 t^{4 υ}}{Γ (4 υ + 1)} - (\frac{4 Γ (2 υ + 1)}{{(Γ (υ + 1))}^{2}} + \frac{8 Γ (3 υ + 1)}{Γ (υ + 1) Γ (2 υ + 1)}) \frac{t^{5 υ}}{Γ (5 υ + 1)} \\ - \frac{4 Γ (2 υ + 1) Γ (4 υ + 1)}{{(Γ (υ + 1))}^{3} Γ (3 υ + 1)} \frac{t^{6 υ}}{Γ (6 υ + 1)} - (\frac{8}{Γ (υ + 1) Γ (3 υ + 1)} + \frac{4}{{(Γ (2 υ + 1))}^{2}}) \frac{Γ (4 υ + 1) t^{5 υ}}{Γ (5 υ + 1)} \\ + (\frac{4 Γ (2 υ + 1)}{{(Γ (υ + 1))}^{3} Γ (4 υ + 1)} + \frac{8 Γ (3 υ + 1)}{{(Γ (υ + 1))}^{2} Γ (2 υ + 1) Γ (4 υ + 1)} - \frac{4}{{(Γ (υ + 1))}^{2} Γ (3 υ + 1)}) \frac{Γ (5 υ + 1) t^{6 υ}}{Γ (6 υ + 1)} \\ - (\frac{{(Γ (2 υ + 1))}^{2}}{{(Γ (υ + 1))}^{4} {(Γ (3 υ + 1))}^{2}} - \frac{Γ (2 υ + 1) Γ (4 υ + 1)}{{(Γ (υ + 1))}^{4} Γ (3 υ + 1) Γ (5 υ + 1)}) \frac{Γ (6 υ + 1) t^{7 υ}}{Γ (7 υ + 1)} . \end{aligned}

Thus, the approximate solution for

φ (t)

becomes

\begin{aligned} φ (t) & = \sum_{n = 0}^{\infty} φ_{n} (t) \\ = φ_{0} (t) + φ_{1} (t) + φ_{2} (t) + φ_{3} (t) + \dots \end{aligned}

(28)

If we choose

υ = 1

, then Eq. (28) becomes

ϕ (t) = 1 + \sqrt{2} \tanh (\sqrt{2} t + \frac{1}{2} \log (\frac{\sqrt{2} - 1}{\sqrt{2} + 1})) .

This exact solution agrees with the one exists in the literature (Figure 1 and Table 1).

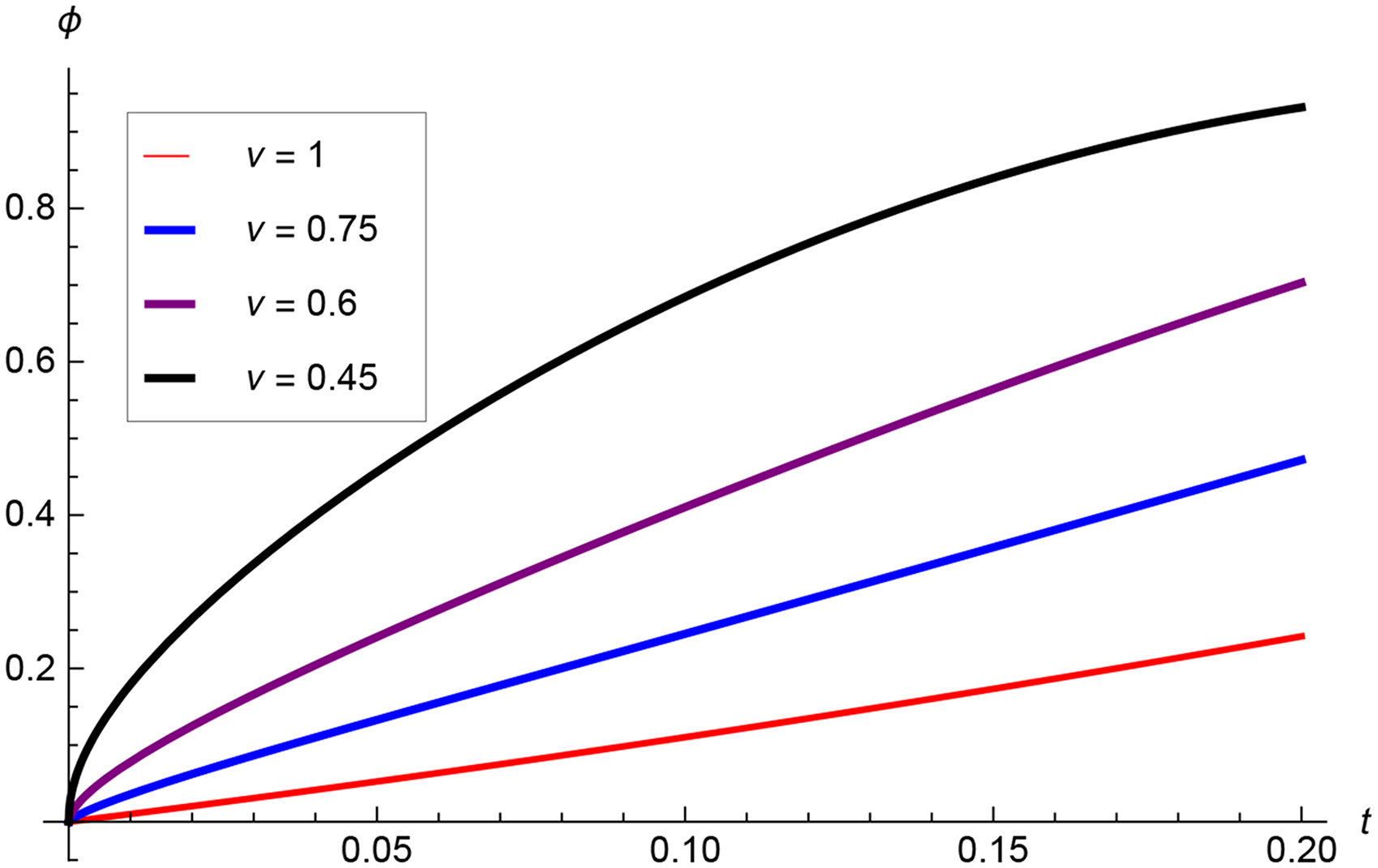

Figure 1.

These are solutions for example 1 for distinct values of $υ$ .

Table 1.

Numerical Values for example 1 for different values of $υ$ .

$t$	$υ = 0.45$	$υ = 0.6$	$υ = 0.75$	$υ = 1$
				Numerical	Exact
0.2	0.931788	0.702985	0.471891	0.241863	0.2419768
0.4	0.706152	1.02876	0.897507	0.564371	0.564371
0.6	−0.432075	0.794303	1.11755	0.926696	0.9535662
0.8	−2.4294	−0.222495	0.873956	1.2210187	1.3463637
1	−5.21527	−2.18641	−0.117103	1.2555556	1.6894984

Example 2

Let us consider one model of the time fractional diffusion of the form¹⁹:

^{c} D_{t}^{υ} ϕ (x, t) = ϕ_{x x} (x, t) + ϕ (x, t), t > 0, 0 < υ \leq 1,

(29)

together with initial condition

ϕ (x, 0) = c o s (π x) .

(30)

Employ first theorem 1 to equation (29) and see that

\begin{aligned} N^{+} (ϕ (x, t)) & = \frac{u^{υ}}{s^{υ}} \sum_{k = 0}^{n - 1} \frac{s^{υ - (k + 1)}}{u^{υ - k}} D_{t}^{k} ϕ (x, 0) + \frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{x x}) + \frac{u^{υ}}{s^{υ}} N^{+} (ϕ) \\ = \frac{1}{s} ϕ (x, 0) + \frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{x x}) + \frac{u^{υ}}{s^{υ}} N^{+} (ϕ) . \end{aligned}

(31)

Taking the N-transform inverse of equation (31), we arrive at

ϕ (x, t) = c o s (π x) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{x x})) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ)) .

(32)

Suppose that our solution for

ϕ (x, t)

ϕ (x, t) = \sum_{n = 0}^{\infty} ϕ_{n} (x, t) .

(33)

From equation (33), one see Eq. (32) becomes

\begin{aligned} \sum_{n = 0}^{\infty} ϕ_{n} (x, t) & = c o s (π x) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (\sum_{n = 0}^{\infty} ϕ_{n x x} (x, t))) \\ + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (\sum_{n = 0}^{\infty} ϕ_{n} (x, t))) . \end{aligned}

(34)

Looking at equation (34), one can get

\begin{aligned} ϕ_{0} (x, t) = c o s (π x) \\ ϕ_{1} (x, t) = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{0 x x})) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{0})) \\ ϕ_{2} (x, t) = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{1 x x})) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{1})) \\ ϕ_{3} (x, t) = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{2 x x})) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{2})) \end{aligned}

We follow this direction to obtain

ϕ_{n + 1} (x, t) = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{n x x})) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{n}))

Finally, with the help of Eq. (34), one can easily explore the rest of the iterations

\begin{aligned} ϕ_{1} (x, t) & = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{0 x x})) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (ϕ_{0})) \\ = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (- π^{2} c o s (π x))) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (c o s (π x))) \\ = N^{- 1} (\frac{u^{υ}}{s^{υ}} \frac{- π^{2} c o s (π x)}{s}) + N^{- 1} (\frac{u^{υ} π c o s (π x)}{s^{υ + 1}}) \\ = (1 - π^{2}) c o s (π x) \frac{t^{υ}}{Γ (υ + 1)} . \end{aligned}

Likewise,

\begin{aligned} ϕ_{2} (x, t) = {(1 - π^{2})}^{2} c o s (π x) \frac{t^{2 υ}}{Γ (2 υ + 1)} \\ ϕ_{3} (x, t) = {(1 - π^{2})}^{3} c o s (π x) \frac{t^{3 υ}}{Γ (3 υ + 1)} . \end{aligned}

Now, our approximate solution for

ϕ (x, t)

\begin{aligned} ϕ (x, t) & = \sum_{n = 0}^{\infty} ϕ_{n} (x, t) \\ = ϕ_{0} (x, t) + ϕ_{1} (x, t) + ϕ_{2} (x, t) + ϕ_{3} (x, t) + \dots \\ = c o s (π x) (1 + (1 - π^{2}) \frac{t^{υ}}{Γ (υ + 1)} + {(1 - π^{2})}^{2} \frac{t^{2 υ}}{Γ (2 υ + 1)} \\ + {(1 - π^{2})}^{3} \frac{t^{3 υ}}{Γ (3 υ + 1)} + \dots) \end{aligned}

Therefore, our exact solution is

ϕ (x, t) = c o s (π x) E_{υ} ((1 - π^{2}) t^{υ}) .

(35)

Substitute

υ = 1

in Eq. (35) to conclude

ϕ (x, t) = c o s (π x) e^{(1 - π^{2}) t} .

This is indeed the intended solution for equation (29) which exists through out the literature (Figures 2 and 3).

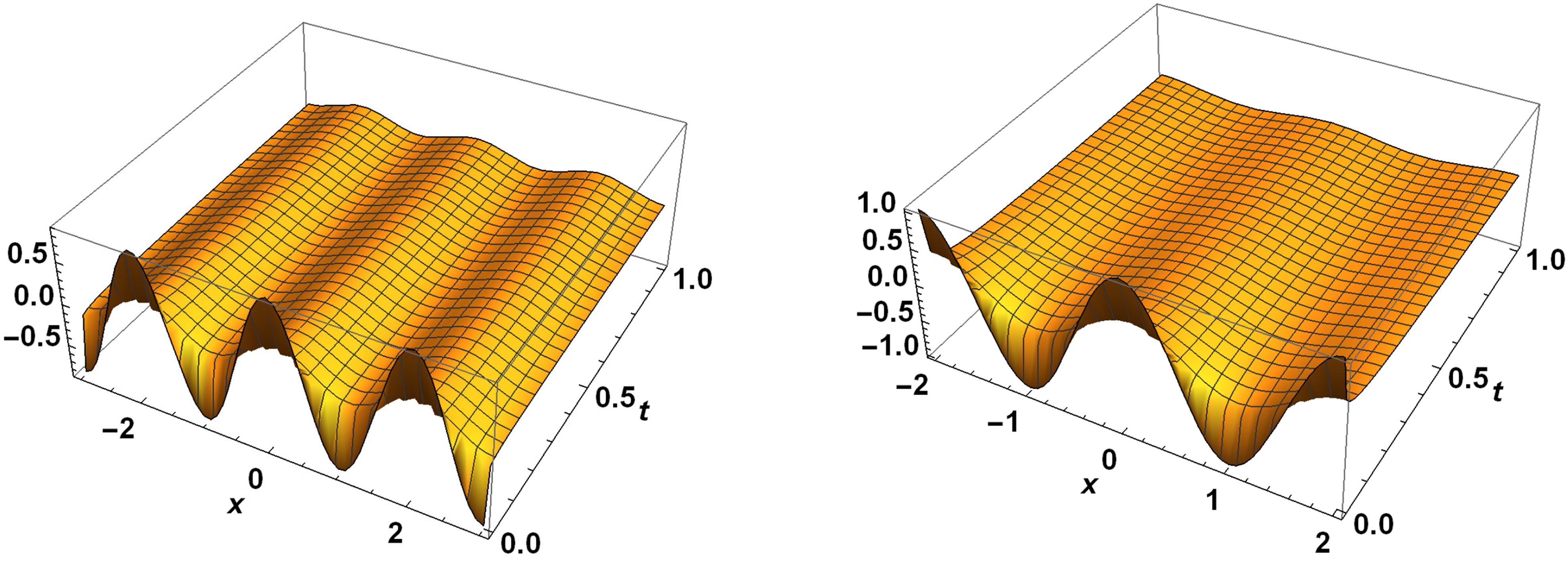

Figure 2.

Exact solutions for example 4.2 with $υ = 0.25, υ = 0.50$ , respectively.

Figure 3.

Exact solutions for example 4.2 with $υ = 0.75, υ = 1$ , respectively.

Remark. Figure 2 shows that the solution peak is high and one can see that the peak of the solutions of the diffusion equation becomes more and more smooth as the fractional factor

υ

increases (Table 2).

Table 2.

Numerical results for Example 2 for distinct values for $υ$ .

x	t	$υ = 0.25$	$υ = 0.5$	$υ = 0.75$	$υ = 1$
					Numerical	Exact
0	0.02	0.20104552	0.36691625	0.61998793	0.83745132	0.83745132
	0.04	0.17414299	0.28187077	0.46534302	0.70132479	0.70132479
	0.06	0.15978832	0.23813296	0.37076063	0.58732540	0.58732540
	0.08	0.1502041	0.21016121	0.30658126	0.49185646	0.49185646
	0.1	0.14310464	0.19025412	0.26034611	0.41190586	0.41190586
1/4	0.02	0.14216065	0.25944897	0.43839767	0.59216754	0.59216754
	0.04	0.12313769	0.19931273	0.32904721	0.49591151	0.49591151
	0.06	0.11298741	0.16838543	0.26216736	0.41530177	0.41530177
	0.08	0.10621033	0.14860641	0.21678569	0.34779504	0.34779504
	0.1	0.10119026	0.13452998	0.1840925	0.29126143	0.29126143
1/3	0.02	0.10052276	0.18345812	0.30999396	0.41872568	0.41872568
	0.04	0.087071497	0.14093539	0.23267151	0.35066239	0.35066239
	0.06	0.079894162	0.11906648	0.18538032	0.29366270	0.29366270
	0.08	0.075102048	0.1050806	0.15329063	0.24592823	0.24592823
	0.1	0.071552321	0.09512706	0.13017306	0.20595293	0.20595293

Fractional Systems of Ordinary Differential Equations

Now let us examine two models of systems of FDEs. Then, we present numerical values in tables for some values of $t$ . We only used 5 $^{t h}$ order approximate solutions for the two functions.

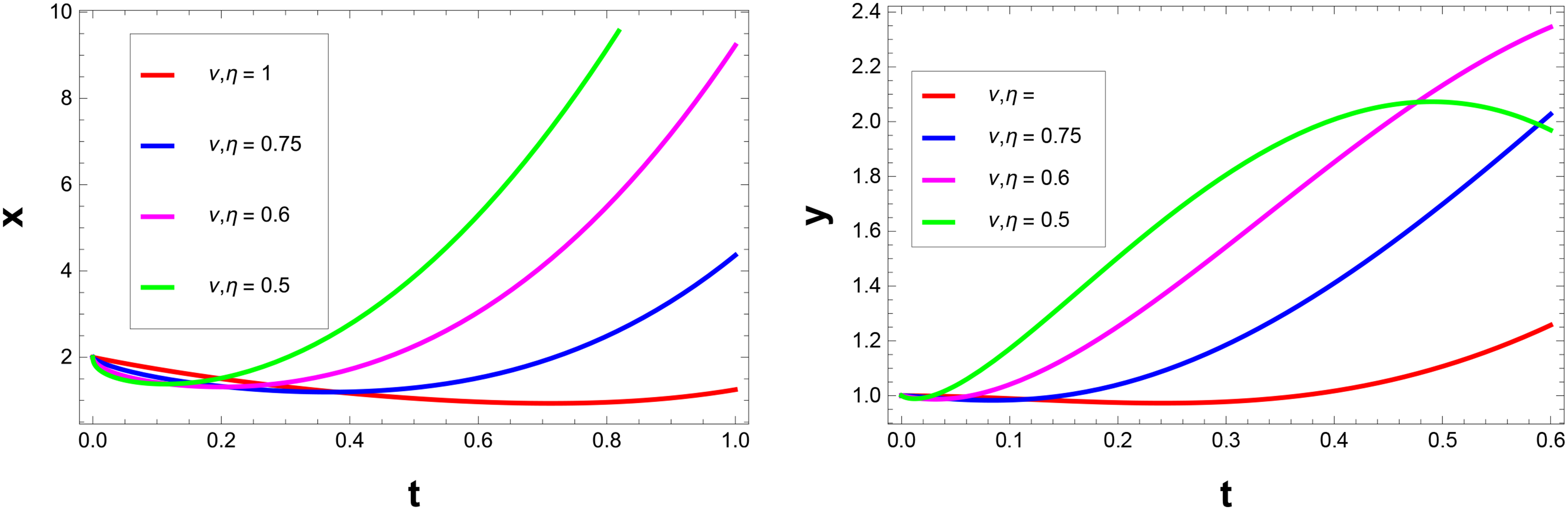

Example 3

Given the system of LFDE in the form⁹:

\begin{aligned} ^{c} D_{t}^{υ} x (t) = 2 x (t) + y (t), 0 < υ \leq 1 \\ ^{c} D_{t}^{η} y (t) = x (t) + 2 y (t), 0 < η \leq 1 \end{aligned}

(36)

together with value conditions

x (0) = 2 y (0) = 1.

(37)

Applying the natural transform of equations (36) and (37), one conclude

\begin{aligned} N^{+} (x (t)) = \frac{2}{s} + 2 \frac{u^{υ}}{s^{υ}} N^{+} (x (t)) + \frac{u^{υ}}{s^{υ}} N^{+} (y (t)) \\ N^{+} (y (t)) = \frac{1}{s} + \frac{u^{η}}{s^{η}} N^{+} (x (t)) + 2 \frac{u^{η}}{s^{η}} N^{+} (y (t)) \end{aligned}

(38)

Using the

N^{- 1}

on equation (38) to arrive at

\begin{aligned} x (t) = 2 + 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (x (t))) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (y (t))) \\ y (t) = 1 + N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (x (t))) + 2 N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (y (t))) \end{aligned}

(39)

Suppose our solutions are of the forms

x (t) = \sum_{n = 0}^{\infty} x_{n} (t) y (t) = \sum_{n = 0}^{\infty} y_{n} (t)

(40)

Then,

\begin{aligned} \sum_{n = 0}^{\infty} x_{n} (t) = 2 + 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (x (t))) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (y (t))) \\ \sum_{n = 0}^{\infty} y_{n} (t) = 1 + N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (x (t))) + 2 N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (y (t))) \end{aligned}

(41)

Using equation (41) we obtain

\begin{aligned} x_{0} (0) = 2 y_{0} (0) = 1 \\ x_{1} (t) = 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (x_{0} (t))) + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (y_{0} (t))) = \frac{5 t^{υ}}{Γ (υ + 1)} \\ y_{1} (t) = - N^{- 1} (\frac{u^{^{η}}}{s^{^{η}}} N^{+} (x_{0} (t))) + N^{- 1} (\frac{u^{η}}{s^{^{η}}} N^{+} (y_{0} (t))) = \frac{4 t^{η}}{Γ (η + 1)} \end{aligned}

Likewise,

\begin{aligned} x_{2} (t) = \frac{10 t^{2 υ}}{Γ (2 υ + 1)} + \frac{4 t^{υ + η}}{Γ (υ + η + 1)} \\ y_{2} (t) = \frac{8 t^{2 η}}{Γ (2 η + 1)} + \frac{5 t^{υ + η}}{Γ (υ + η + 1)} \end{aligned}

We proceed in a similar way to get

\begin{aligned} x_{3} (t) = \frac{20}{Γ (3 υ + 1)} t^{3 υ} + \frac{13}{Γ (2 υ + η + 1)} t^{2 υ + η} + \frac{8}{Γ (α + 2 η + 1)} t^{υ + 2 η} \\ y_{3} (t) = \frac{16}{Γ (3 η + 1)} t^{3 η} + \frac{28}{Γ (υ + 2 η + 1)} t^{υ + 2 η} + \frac{10}{Γ (2 υ + η + 1)} t^{2 υ + η} \\ x_{4} (t) = \frac{40}{Γ (4 υ + 1)} t^{4 υ} + \frac{36}{Γ (3 υ + η + 1)} t^{3 υ + η} + \frac{30}{Γ (3 υ + 2 η + 1)} t^{2 υ + 2 η} \\ + \frac{16}{Γ (υ + 3 η + 1)} t^{υ + 3 η} y_{4} (t) = \frac{32}{Γ (4 η + 1)} t^{4 η} + \frac{36}{Γ (υ + 3 η + 1)} t^{υ + 3 η} \\ + \frac{33}{Γ (2 υ + 2 η + 1)} t^{2 υ + 2 η} + \frac{20}{Γ (3 υ + η + 1)} t^{3 υ + η} \end{aligned}

Finally, the approximate solutions for these functions as

\begin{aligned} x (t) & = \sum_{n = 0}^{\infty} x_{n} (t) \\ y (t) & = \sum_{n = 0}^{\infty} y_{n} (t) . \end{aligned}

Thus,

\begin{aligned} x (t) & = 2 + \frac{5 t^{υ}}{Γ (υ + 1)} + \frac{10 t^{2 υ}}{Γ (2 υ + 1)} + \frac{4 t^{υ + η}}{Γ (υ + η + 1)} + \frac{20 t^{3 υ}}{Γ (3 υ + 1)} \\ + \frac{8 t^{υ + 2 η}}{Γ (υ + 2 η + 1)} + \frac{13 t^{2 υ + η}}{Γ (2 υ + η + 1)} \\ + \dots y (t) = 1 + \frac{4 t^{η}}{Γ (η + 1)} + \frac{8 t^{2 η}}{Γ (2 η + 1)} + \frac{5 t^{υ + η}}{Γ (υ + η + 1)} \\ + \frac{16 t^{3 η}}{Γ (3 η + 1)} + \frac{14 t^{υ + 2 η}}{Γ (υ + 2 η + 1)} + \frac{10 t^{2 υ + η}}{Γ (2 υ + η + 1)} + \dots \end{aligned}

Note that when

υ = η = 1

, then the exact solutions are

x (t) = e^{t} + e^{3 t}; y (t) = - e^{t} + e^{3 t} .

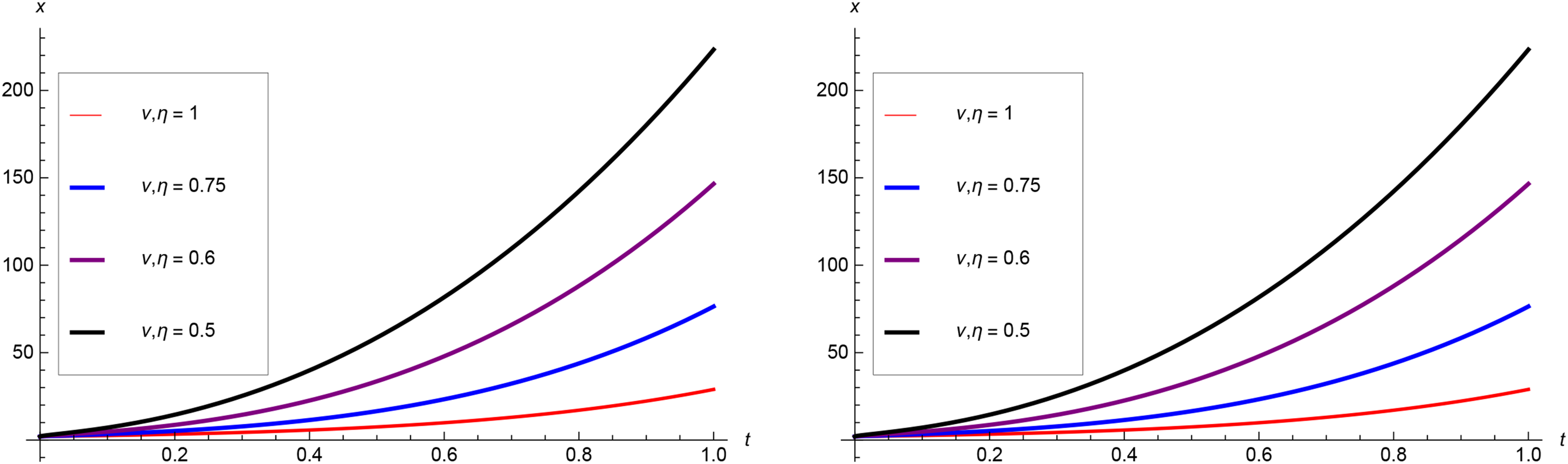

Figure 4.

Approximate solutions $x (t), y (t)$ for example 1 with some values of $υ, η$ , respectively.

Table 3.

The numerical values for $x (t)$ with some values for $υ$ and $η$ .

$t$	$υ = η = 0.5$	$υ = η = 0.6$	$υ = η = 0.75$	$υ = η = 1$
				Numerical	Exact
0.2	14.4864	8.66865	5.21454	3.04352	3.04352
0.4	39.8447	22.5925	11.4568	4.81194	4.81194
0.6	81.6907	47.9029	23.3317	7.87177	7.87177
0.8	142.225	88.083192	43.831967	13.2487	13.2487
1	223.31317	146.51415	76.394554	22.8038	22.8038

Example 4

Suppose we are given a system of LFDE of the form⁹:

\begin{aligned} ^{c} D_{t}^{υ} x (t) = y (t) - 2 x (t), 0 < υ \leq 1 \\ ^{c} D_{t}^{η} y (t) = x (t) - 2 y (t), 0 < η \leq 1 \end{aligned}

(42)

together with two value conditions

x (0) = 2 y (0) = 1.

(43)

Apply natural transform to equations (42) and (43), to get

\begin{aligned} N^{+} (x (t)) = \frac{2}{s} + \frac{u^{υ}}{s^{υ}} N^{+} (y (t)) - 2 \frac{u^{υ}}{s^{υ}} N^{+} (x (t)) \\ N^{+} (y (t)) = \frac{1}{s} + \frac{u^{η}}{s^{η}} N^{+} (y (t)) - 2 \frac{u^{η}}{s^{η}} N^{+} (x (t)) \end{aligned}

(44)

Applying

N^{- 1}

on equation (44)

\begin{aligned} x (t) = 2 + N^{- 1} [\frac{u^{υ}}{s^{υ}} N^{+} (y (t))] - 2 N^{- 1} [\frac{u^{υ}}{s^{υ}} N^{+} (x (t))] \\ y (t) = 1 + N^{- 1} [\frac{u^{η}}{s^{η}} N^{+} (x (t))] - 2 N^{- 1} [\frac{u^{η}}{s^{η}} N^{+} (y (t))] \end{aligned}

(45)

Suppose our approximate solutions are given as:

x (t) = \sum_{n = 0}^{\infty} x_{n} (t); y (t) = \sum_{n = 0}^{\infty} y_{n} (t) .

(46)

Thus, Eq. (45) become:

\begin{aligned} \sum_{n = 0}^{\infty} x_{n} (t) = 2 + N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (y_{n} (t))) - 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (x_{n} (t))) \\ \sum_{n = 0}^{\infty} y_{n} (t) = 1 + N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (x_{n} (t))) - 2 N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (y_{n} (t))) . \end{aligned}

(47)

Using the equations in (47) one concludes:

\begin{aligned} x_{0} (0) = 2 y_{0} (0) = 1 \\ x_{1} (t) = N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (y_{0} (t))) - 2 N^{- 1} (\frac{u^{υ}}{s^{υ}} N^{+} (x_{0} (t))) = \frac{- 3 t^{υ}}{Γ (υ + 1)} \\ y_{1} (t) = N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (x_{0} (t))) - 2 N^{- 1} (\frac{u^{η}}{s^{η}} N^{+} (y_{0} (t))) = 0. \end{aligned}

Likewise,

\begin{aligned} x_{2} (t) = \frac{6 t^{2 υ}}{Γ (2 υ + 1)} \\ y_{2} (t) = \frac{- 3 t^{υ + η}}{Γ (υ + η + 1)} . \end{aligned}

We proceed as before to obtain:

\begin{aligned} x_{3} (t) & = \frac{- 3 t^{2 υ + η}}{Γ (2 υ + η + 1)} - \frac{12 t^{3 υ}}{Γ (3 υ + 1)} \\ y_{3} (t) & = \frac{12 t^{υ + 2 η}}{Γ (υ + 2 η + 1)} + \frac{6 t^{2 υ + η}}{Γ (2 υ + η + 1)} \\ x_{4} (t) & = \frac{24 t^{4 υ}}{Γ (4 υ + 1)} + \frac{12 t^{3 υ + η}}{Γ (3 υ + η + 1)} + \frac{6 t^{2 υ + 2 η}}{Γ (2 υ + 2 β + 1)} \\ y_{4} (t) & = \frac{- 12 t^{υ + 3 η}}{Γ (υ + 3 η + 1)} - \frac{15 t^{2 υ + 2 η}}{Γ (2 υ + 2 η + 1)} - \frac{12 t^{3 υ + η}}{Γ (3 υ + η + 1)} . \end{aligned}

Finally, the approximate solutions for these functions are as follows:

x (t) = \sum_{n = 0}^{\infty} x_{n} (t); y (t) = \sum_{n = 0}^{\infty} y_{n} (t) .

(48)

It follows that,

\begin{aligned} x (t) = 2 - \frac{3 t^{υ}}{Γ (υ + 1)} + \frac{6 t^{2 υ}}{Γ (2 υ + 1)} - \frac{3 t^{2 υ + η}}{Γ (2 υ + η + 1)} - \frac{3 t^{3 υ}}{Γ (3 υ + 1)} + \frac{6 t^{2 υ + 2 η}}{Γ (2 υ + 2 η + 1)} + \frac{12 t^{3 υ + η}}{Γ (3 υ + η + 1)} + \frac{24 t^{4 υ}}{Γ (4 υ + 1)} \dots \\ y (t) = 1 - \frac{3 t^{υ + η}}{Γ (υ + η + 1)} + \frac{6 t^{υ + 2 η}}{Γ (υ + 2 η + 1)} + \frac{6 t^{2 υ + η}}{Γ (2 υ + η + 1)} - \frac{15 t^{2 υ + 2 η}}{Γ (2 υ + 2 η + 1)} - \frac{12 t^{3 υ + η}}{Γ (3 υ + η + 1)} - \frac{12 t^{υ + 2 η}}{Γ (υ + 2 η + 1)}, \dots \end{aligned}

Note that when

υ = η = 1

, then the exact solutions are

x (t) = e^{- 3 t} + e^{- t}; y (t) = e^{- 3 t} - e^{- t}

Figure 5.

Approximate solutions $x (t), y (t)$ for example 2 with some values of $υ, η$ , respectively.

Table 4.

The results obtained for $x (t)$ with different values of $υ$ and $η$

$t$	$υ = η = 0.5$	$υ = η = 0.6$	$υ = η = 0.75$	$υ = η = 1$
				Numerical	Exact
0.2	14.4864	8.66865	5.21454	1.36754	1.36754
0.4	39.8447	22.5925	11.4568	0.971514	0.971514
0.6	81.6907	47.9029	23.3317	0.714111	0.714111
0.8	142.225	88.083192	43.831967	0.540047	0.540047
1	223.31317	146.51415	76.394554	0.417667	0.417667

Conclusion

Prior to this work, many techniques were used to handle FDEs. We successfully explore solutions for both linear and nonlinear ordinary FDEs and systems of FDODEs using the FNDM. We found exact and approximate solutions to systems of ordinary fractional differential equations and fractional diffusion differential equations such as diffusion model using fractional natural decomposition method (FNDM). The results showed that the new scheme is accurate and efficient. We were being able to explore solutions to physical models when $υ = η = 1$ . The next step for our research is to further apply the new scheme to other FDEs that arises in other areas of scientific fields.

Footnotes

Acknowledgements

We are thankful to the referees for their comments and remarks that will help in improving the quality of our work.

Funding

Funding not applicable.

Competing interests

The authors declare that they have no competing interests.

Authors contributions

All authors contributed equally to the manuscript. All authors read and approved the final manuscript.

Availability of data and materials

Data sharing not applicable to this article as no data sets were generated or analyzed during the current study.

ORCID iD

Mahmoud S. Alrawashdeh

References

Wang

. Measuring memory with the order of fractional derivative. Sci Rep 2013; 3: 3431.

Nigmatullin

. To the theoretical explanation of the “universal response”. Phys Stat Solidi B 1984; 123(2): 739–745.

Coussot

Kalyanam

Yapp

et al. Fractional derivative models for ultrasonic characterization of polymer and breast tissue viscoelasticity. IEEE Trans Ultrason Ferroelectr., req Control 2009; 56(4): 715–725.

Song

Jiang

. Study on the constitutive equation with fractional derivative for the viscoelastic fluids-modified jeffreys model and its application. Rheol Acta 1998; 37(5): 512–517.

Djordjevic

Jaric

Fabry

et al. Fractional derivatives embody essential features of cell rheological behavior. Ann Biomed Eng 2003; 31(6): 692–699.

Eringen

Edelen

. On nonlocal elasticity. Int J Eng Sci 1972; 10(3): 233–248.

Adomian

. A new approach to nonlinear partial differential equations. J Math Anal Appl 1984; 102: 420–434.

Ghosh

Sarkar

Das

. Solution of system of linear fractional differential equations with modified derivative of Jumarie type.” arXiv preprint arXiv:1510.00385, 2015.

Guo

Mei

et al. The improved fractional sub-equation method and its applications to the space–time fractional differential equations in fluid mechanics. Phys Lett A 2012; 376: 407–411.

10.

Podlubny

. Fractional Differential Equations. California: Academic Press, 1999.

11.

Rawashdeh

. The fractional natural decomposition method: Theories and applications. Math Methods Appl Sci 2017; 40(7): 2362–2376.

12.

Rawashdeh

Hadeel

A-J

. Numerical solutions for systems of nonlinear fractional ordinary differential equations using the FNDM. Mediterranean Journal of Mathematics 2016; 13(6): 4661–4677.

13.

Oldman

Spanier

. The Fractional Calculus. New York: Academic Press, 1974.

14.

Baleanu

Jassim

Al Qurashi

. Solving helmholtz equation with local fractional derivative operators. Fractal and Fractional 2019; 3(3): 43.

15.

Hua

Luoa

. Analytical solution of the linear fractional differential equation by adomian decomposition method. J Comput Appl Math 2008; 215: 220–229.

16.

Rawashdeh

. A new approach to solve the fractional harry dym equation using the FRDTM. Int J Pure Appl Math 2014; 95(4): 553–566.

17.

. Fractional complex transform for fractional differential equations. Math Comput Appl 2010; 15: 970–973.

18.

Alrawashdeh

Bani-Issa

. An efficient technique to solve coupled–time fractional boussinesq–burger equation using fractional decomposition method. Advances in Mechanical Engineering 2021 Jun; 13(6): 16878140211025424.

19.

Baleanu

Jassim

. Exact solution of two-dimensional fractional partial differential equations. Fractal and Fractional 2020; 4(2): 21.

20.

Obeidat

Bentil

. New theories and applications of tempered fractional differential equations. Nonlinear Dyn 2021; 105(2): 1689–1702.

21.

Momani

Shawagfeh

. Decomposition method for solving fractional riccati differential equations. Appl Math Comput 2006; 182(2): 1083–1092.

22.

Belgacem

FBM

Silambarasan

. Maxwell’s equations solutions through the natural transform. 2012; 3(3): 313–323.

23.

Mittag-Leffler

. Sur la nouvelle fonction

E_{α} (x)

. C R Acad Sci Paris 1903; 137: 554–558.
