Health economic modeling of the potential cost saving effects of Neurally Adjusted Ventilator Assist

Objectives

The 1952 polio epidemic triggered the construction of a new reliable ventilator for positive pressure ventilation [Bang, 1953]. The Engström ventilator from 1950, the ventilator predecessor to Servo 900, Servo 300 and Servo-i was introduced for this purpose [Engstrom, 1954]. Introducing this treatment into standard clinical practice required the development of special intensive care units (ICUs) which in the 1960s increased in numbers and contributed to impressive reductions in mortality. When ventilatory care became more widespread questions arose on how the patients should be weaned from the ventilatory support.

With the introduction of spontaneous breaths added to the mandatory breaths and these breaths being either assisted or unassisted, the delicate patient–ventilator interaction was introduced as an important issue. The ventilator can be classified as a pressure, volume or flow controller and the individual breath is shaped by phase variables that determine how the breath is triggered (started), limited (sustained) and cycled (stopped) and is either mandatory or spontaneous. Information from all these entities is needed to describe all the different modes of ventilation which currently are available from different manufacturers [Sassoon et al. 1989].

The perfect trigger should be in synchrony with the electrical impulses from the brain to the breathing muscles to increase synchrony between ventilator and patient. Today all ventilators can trigger from the pressure and or flow signal measured within the patient circuit. A number of factors affect the time delay during pressure triggering as described by Sassoon [Sassoon et al. 1989]. The inspiratory phase ends when a set time, pressure, flow or set delivered volume is reached.

Asynchrony between patient and machine breaths is very common, especially in patients with high intrinsic respiratory rates, low drive or muscle weakness, or in patients with airway obstruction [Parthasarathy et al. 1998; Sassoon and Foster, 2001; Tobin et al. 2001]. Asynchrony is caused by either missed breaths due to ineffective efforts (IEEs) or triggering delays due to set sensitivity and ventilator response time. The neural inspiratory time may be shorter or longer than the inflation time of the ventilator. If set volume is reached before the end of neural inspiratory time the patient continues to make an inspiratory effort which can lead to double triggering. Autotriggering is a problem which can be due to water and debris accumulating on the flow-measuring device. All flow triggering also has the potential problem that leakage is recognized as a patient effort which is especially common during neonatal and pediatric ventilation with uncuffed tubes. Delayed off cycling can be due to reduced expiratory flow (e.g. slow time constant as in chronic obstructive pulmonary disease) when mechanical inflation persists into the neural expiration. In summary, there are four different types of asynchrony:

Asynchrony has been studied and shown to be associated with increased length of stay on the ventilator if the percentage of asynchrony is high [asynchrony index (AI) > 10%] and could prolong the stay in the ICU by 4–8 days and hospital length of stay (HLOS) by 8–21 days [Chao et al. 1997; de Wit et al. 2009; Thille et al. 2006]. The capability of different systems to evaluate asynchrony has been described in two recent articles. Colombo and colleagues reported that the ability to properly recognize patient–ventilator asynchronies by visual inspection of flow and pressure tracings was low; ICU staff physicians were able to identify just one-third of asynchronies and residents 16%. In a computerized system (Better Care, Barcelona, Spain) Blanch and colleagues showed sensitivity values of 65% to identify IEEs [Blanch et al. 2012; Colombo et al. 2011].

In 1999 a new ventilatory mode Neurally Adjusted Ventilatory Assist (NAVA, Solna, Sweden) was presented by Sinderby [Sinderby et al. 1999]. This mode uses the neural excitation of the diaphragm to estimate the respiratory center output. During NAVA an electromyogram of the diaphragm is sensed by electrodes mounted on a regular nasogastric tube. The esophageal/gastric reading of the diaphragm electrical activity (Edi) is shown on the ventilator screen as a curve and is used to control a mechanical ventilator. The signal from the brain is used to trigger and off cycle the ventilator breaths and provide pressure support proportional to the Edi signal and is totally independent of leaks. The assist (NAVA level) is set by the user and support is proportional to the Edi signal with the goal to have a balanced offloading of the patient effort. The goal is to offload and sedate but still have the Edi signal active and avoid disuse atrophy in the diaphragm. The steps to transform central respiratory drive into an inspiration are explained in an adapted figure from the original article (see Figure 1).

OPEN IN VIEWER

Figure 1.

Principle of Neurally Adjusted Ventilator Assist (NAVA) in relation to ventilation physiology. Steps necessary to transform central respiratory drive into an inspiration with NAVA (neuroventilatory coupling, left), and with conventional pressure/flow triggering (pneumatic coupling, right).

This new mode, NAVA, was implemented into the Servo-i ventilator (Maquet Critical Care AB, Solna, Sweden) in 2007 and in 2010 as noninvasive NAVA (NIV NAVA). In these modes the triggering will be according to Edi or to the set pneumatic trigger (pressure or flow) on a first come first serve basis. The off cycling is when the Edi has peaked and decreased to 70% of the peak value.

NAVA versus other means of mechanical ventilation (MV) has been researched in several comparative studies, in which a clear emphasis has been put on physiological outcomes, such as patient–ventilator asynchrony, tidal volumes, peak airway pressure and respiratory rates. NAVA has primarily been compared with pressure support ventilation (PSV), which is the most commonly used support mode of ventilation. Based on the physiological outcomes measured, the most common study design has been within patient crossover, when outcomes have been measured for patients, during the course of sequential switching between different ventilation modes (e.g. PSV followed by NAVA, followed by PSV).

In adults, NAVA has been shown to give similarly low average tidal volumes compared with PSV [Colombo et al. 2008; Spahija et al. 2010; Terzi et al. 2010]. A difference has been demonstrated only for high assist levels, when NAVA tidal volumes plateau, based on a negative feedback loop, and lower tidal volumes are observed for NAVA compared with PSV [Colombo et al. 2008; Spahija et al. 2010; Terzi et al. 2010]. However, NAVA is never fixed on tidal volumes and the breathing pattern represents a more chaotic/natural breathing when an average tidal volume can still represent a large spread of values.

In line with the expectations of its fundamental principle, NAVA has in over 10 clinical studies been shown to decrease (and in several studies almost eradicate) patient–ventilator asynchrony, in comparison to other modes of ventilation [Alander et al. 2012; Beck et al. 2009; Bengtsson and Edberg, 2010; Breatnach et al. 2010; Cammarota et al. 2011; Clement et al. 2011; Colombo et al. 2008; de la Oliva et al. 2012; Moerer et al. 2008; Piquilloud et al. 2011; Spahija et al. 2010; Terzi et al. 2010]. Based on these results, the relationship between NAVA and improved synchrony is well established. Moreover, asynchrony has been shown to be associated with increased duration of MV [de Wit et al. 2009; Thille et al. 2006]. However, there is limited comparative clinical trial evidence demonstrating a reduction in MV time with NAVA. To date there is no trial evidence in adult populations, with the exception of an abstract from King’s College in London, which refers to an increase in ventilator-free days in survivors when using Edi monitoring. The median ventilated days were significantly reduced from 9 (3–82) in the NAVA/Edi monitoring group compared with 12 (3–91) in the no NAVA group [Hadfield et al. 2013]. In the pediatric setting, Kallio and colleagues showed in a recent randomized controlled study, in a per protocol analysis, that the stay in the pediatric ICU was significantly shorter in the NAVA group compared with conventional MV [Kallio et al. 2015].

The adoption of a new technology in the healthcare sector is not only dependent on the clinical benefit it provides to patients. Healthcare payers and reimbursement bodies are becoming more and more interested in understanding whether a new health technology could reduce overall healthcare costs, which would balance the extra cost imposed by the new treatment. In situations like this, health economic models are often used to synthesize indirect evidence chains to evaluate the economic value of a health technology based on a number of assumptions [Hjelmgren et al. 2001]. The cost effectiveness or value for money of NAVA could be expressed as an assumed reduction in the number of days spent on MV as a result of improved patient–ventilator synchrony. The purpose of this study was to develop such a health economic model based on the published literature, which attempted to answer the overarching question: what is the potential cost saving of decreasing asynchrony through NAVA? In the model we used for this analysis we aimed to establish an indirect link between improved synchrony with NAVA [Cammarota et al. 2011; Colombo et al. 2008; de la Oliva et al. 2012; Moerer et al. 2008; Piquilloud et al. 2011; Spahija et al. 2010; Terzi et al. 2010] and fewer days spent on MV in synchronous patients [de Wit et al. 2009; Thille et al. 2006].

Methods

The outline of the economic model

We developed a model with two decision nodes, where the first node represents: ‘treat with NAVA’ or ‘treat with PSV’, and for the second node, each arm of ventilated patients has a probability of having an AI less than 10% (P_sync) or an AI of at least 10% (1 – P_sync) (see Figure 2). In the model, each state of synchrony/asynchrony is associated with a specified duration of MV (in days) and a corresponding cost (daily ICU cost). Further, NAVA incremental costs are implemented in the model and the effect of each model parameter on the overall results are evaluated through sensitivity analyses.

OPEN IN VIEWER

Figure 2.

Two-node decision tree model. (a) Describes the two nodes of the decision model: (1) treat with Neurally Adjusted Ventilator Assist (NAVA) or pressure support ventilation (PSV), and (2) patient is synchronous or asynchronous. (b) Described the adjustable model input parameters (shown in orange) and the model output parameters (shown in blue). In addition to adjusting the proportion of patients with asynchrony index of at least 10% and costs, the duration of mechanical ventilation (MV) for synchronous and asynchronous patients can be adjusted from the default, originating from the de Wit et al. (2009) study. ICU, intensive care unit.

Data used in the economic model

An overview of the data used in the economic model base case is presented in Table 1. The following sections describe the methods used to arrive at these data.

OPEN IN VIEWER

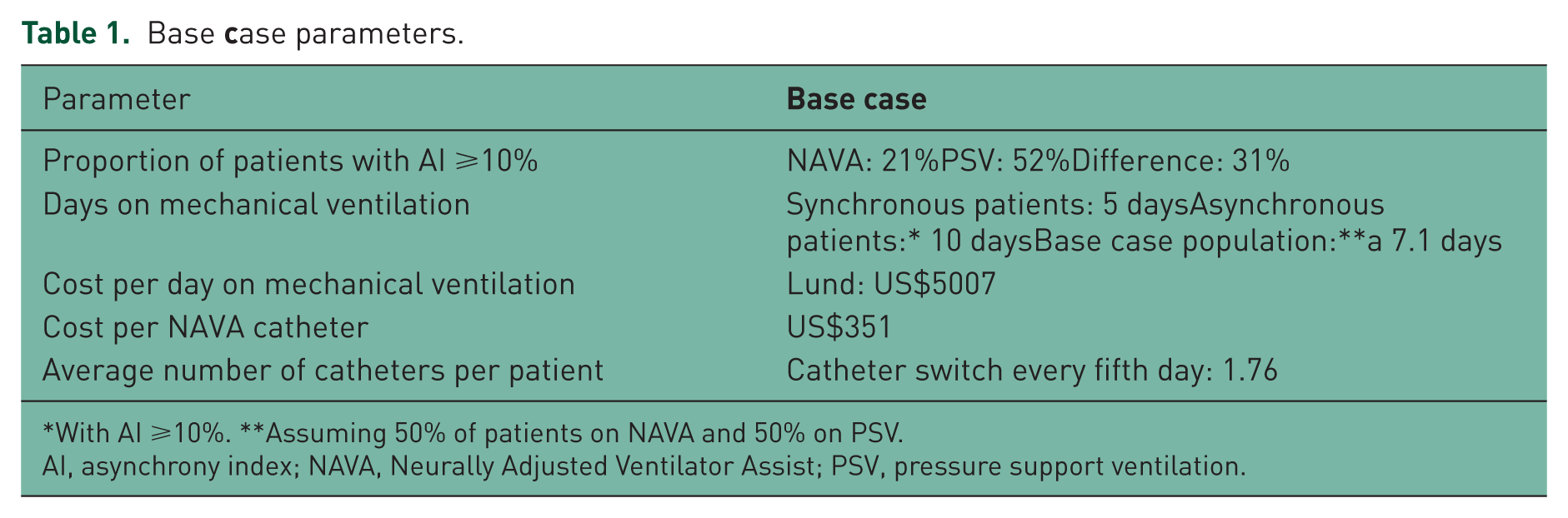

Table 1.

Base case parameters.

Parameter	Base case
Proportion of patients with AI ⩾10%	NAVA: 21%PSV: 52%Difference: 31%
Days on mechanical ventilation	Synchronous patients: 5 daysAsynchronous patients:* 10 daysBase case population:**a 7.1 days
Cost per day on mechanical ventilation	Lund: US$5007
Cost per NAVA catheter	US$351
Average number of catheters per patient	Catheter switch every fifth day: 1.76

*

With AI ⩾10%. **Assuming 50% of patients on NAVA and 50% on PSV.

AI, asynchrony index; NAVA, Neurally Adjusted Ventilator Assist; PSV, pressure support ventilation.

Difference in asynchrony between NAVA and PSV

Based on the nodes of the decision tree model, a cutoff for defining patient–ventilator asynchrony had to be implemented, and this was set to an AI of 10%, based on the studies by de Wit and Thille and colleagues [de Wit et al. 2009; Thille et al. 2006]. Through using the AI 10% cutoff, patients could be stratified and an associated duration of MV (see below) could be assigned.

We evaluated the published literature on NAVA versus PSV comparisons by building a search strategy for Medline, to identify which studies used the AI as an outcome, and identified seven studies (see Table 2). The literature review and evaluation were categorized by clinical/physiological search terms (sedation, sleep, synchrony/asynchrony, spontaneous breathing, diagram atrophy); mode of MV (any MV, PSV, NAVA); and long-term health outcomes (cost, days in ICU, days on ventilator, ventilator-induced lung injury). Medical subject heading terms were used in the literature search, when available. When a search generated over 40 hits, the search terms were used in combination so that a manageable number of articles were retrieved for abstract relevance screening. Articles were required to be written in English to be considered for further evaluation. The search was originally performed in 2010 and later updated during 2011. The result included studies with adult, but also few with pediatric patients, and both invasive and noninvasive (helmet) NAVA. The largest study constituted a within-patient crossover design in which invasive NAVA was compared with PSV in 22 adult ICU patients [Piquilloud et al. 2011]. This study provided the observed median and 25th and 75th percentiles of the AI for NAVA 4.5 (2.6–9.9) and PSV 12.4 (4.8–26.4), respectively, and from there the proportion of patients with AI at least 10% had to be inferred. This was done by fitting two exponential functions to the published data, one for PSV and NAVA, respectively. These functions were used to identify the percentile at which AI equaled 10% for each alternative. The corresponding proportion of asynchronous patients (AI ⩾ 10%) was 21% for NAVA and 52% for PSV. This difference in asynchrony of NAVA versus PSV was used as the base case. It should be noted that the study by Piquilloud and colleagues is based on data from Switzerland; to our knowledge there is no published literature using Swedish data. However, Swedish data presented in oral presentations indicate that the data reported by Piquilloud are also representative of Swedish clinical practice.

OPEN IN VIEWER

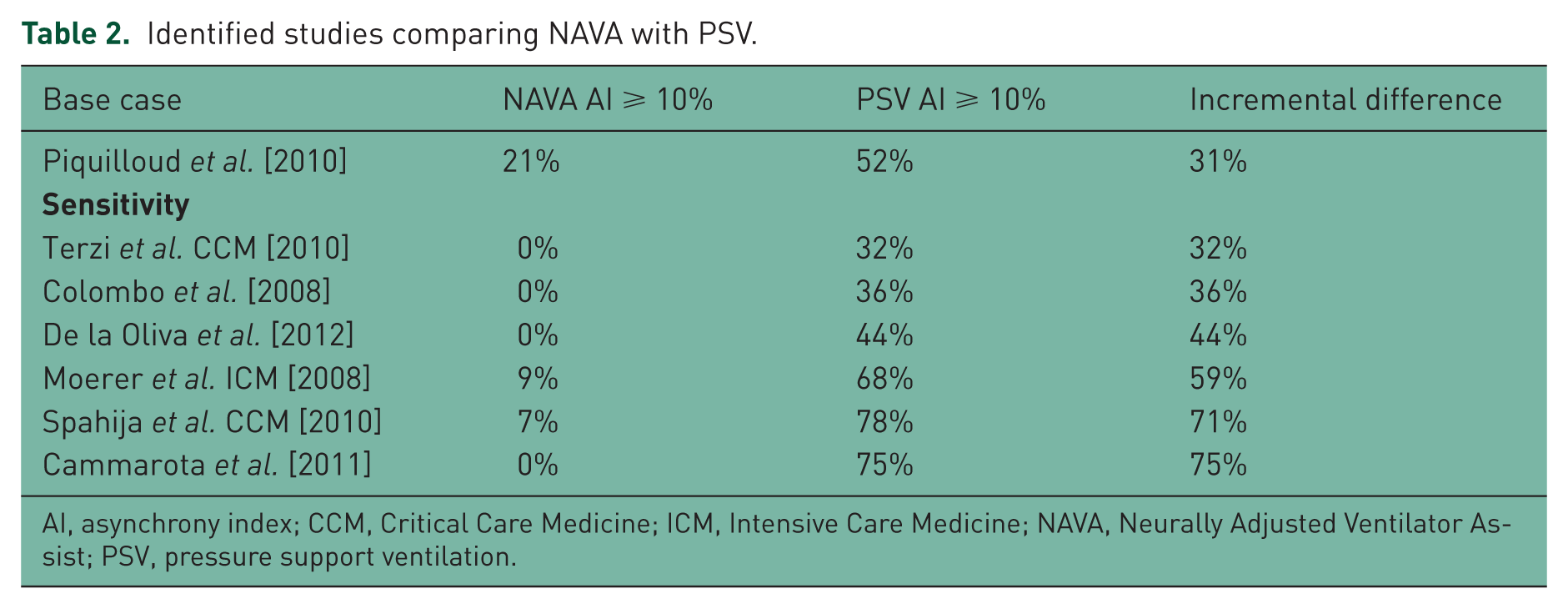

Table 2.

Identified studies comparing NAVA with PSV.

Base case	NAVA AI ⩾ 10%	PSV AI ⩾ 10%	Incremental difference
Piquilloud et al. [2010]	21%	52%	31%
Sensitivity
Terzi et al. CCM [2010]	0%	32%	32%
Colombo et al. [2008]	0%	36%	36%
De la Oliva et al. [2012]	0%	44%	44%
Moerer et al. ICM [2008]	9%	68%	59%
Spahija et al. CCM [2010]	7%	78%	71%
Cammarota et al. [2011]	0%	75%	75%

AI, asynchrony index; CCM, Critical Care Medicine; ICM, Intensive Care Medicine; NAVA, Neurally Adjusted Ventilator Assist; PSV, pressure support ventilation.

Further, few of the other studies reported the proportion of patients with AI at least 10% and therefore this often had to be inferred. Where medians and percentiles were reported, the proportion of patients with AI at least 10% was inferred in the same way as described above, while a normal distribution was assumed when mean ± standard deviation (SD) had been reported, and the normal distribution was used to work out the proportion of patients with AI ⩾ 10%, by using the reported mean and SD (see Table 2).

Based on the corresponding estimated difference between NAVA and PSV, sensitivity analyses were performed. For two studies, several different ventilation modes had been explored during the course of the trial, and here sensitivity analyses were performed for the weighted average of all comparative results [Moerer et al. 2008; Terzi et al. 2010].

In summary, the various differences in asynchrony between NAVA and PSV in all identified studies were used as the reference points in the sensitivity analyses to estimate their effect on the overall results.

Duration of MV

We used the latest publication describing the association between patient–ventilator asynchrony and duration of MV to extract an estimate of the number of days on MV for asynchronous (AI ⩾ 10%) and synchronous patients (AI < 10%), respectively [de Wit et al. 2009]. This study did not provide mean days on MV, but these were estimated based on plotting the information provided in Figure 3 of the publication into an Excel sheet. The estimated weighted average was calculated and this corresponded to 4.6 days for synchronic patients and 10.3 days for asynchronous patients. However, to make the model flexible for adjusting the duration on MV, we needed a manageable distribution of days on MV, not just average values. The Poisson distribution is a discrete probability distribution that only returns whole numbers and was used to generate two random number distributions based on λ = 5 (mean value 5 days) and λ = 10 (mean value 10 days) for synchronous and asynchronous patients, respectively. These distributions were used to estimate the average days on MV in the base case analysis based on the difference in asynchrony results from the study by Piquilloud and colleagues (assuming half of the patients were on NAVA and half of the patients were on PSV), which corresponded to 7.1 days [Piquilloud et al. 2011].

OPEN IN VIEWER

Figure 3.

Average number of catheters per Neurally Adjusted Ventilator Assist (NAVA) patient, in relation to switch frequency. The model was used to estimate the average number of catheters per NAVA patient, given alternative catheter switch frequencies. The frequencies used for the sensitivity analyses are indicated by dashed lines; catheter switch every fifth day (base case), every third day, and every day, corresponded to an average 1.76 catheters, 2.59 catheters, and 6.20 catheters per patient.

The average duration of MV can differ between countries, hospitals, ICUs and over time. We therefore searched the Swedish Intensive Care Unit Register (www.icuregswe.org/) for updated and comprehensive statistics for the Swedish setting. Based on the 2010 report, the average duration of MV was 88.5, corresponding to 3.7 days. This weighted average duration and a hypothetical duration of 1.45 days were used as lower bounds for the sensitivity analysis.

Results

Base case

Table 3 shows the results per patient from the base case analysis in terms of days on MV and the associated cost per patient, for patients ventilated on NAVA compared with PSV. Patients in our model ventilated with NAVA would spend on average 1.7 days less on MV compared with PSV, as derived from the lower patient–ventilator asynchrony. The reduced days on MV would amount to a cost saving of US$8501 for patients on NAVA, and the total cost saving of NAVA compared with PSV was in total US$7886, after having accounted for the NAVA catheter cost.

OPEN IN VIEWER

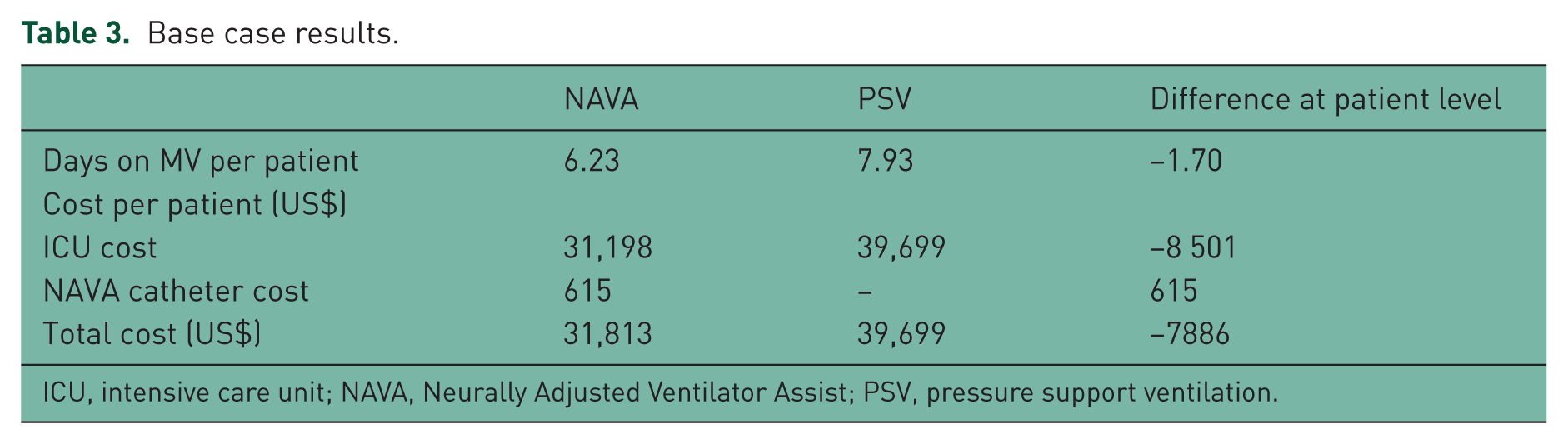

Table 3.

Base case results.

	NAVA	PSV	Difference at patient level
Days on MV per patient	6.23	7.93	−1.70
Cost per patient (US$)
ICU cost	31,198	39,699	−8 501
NAVA catheter cost	615	–	615
Total cost (US$)	31,813	39,699	−7886

ICU, intensive care unit; NAVA, Neurally Adjusted Ventilator Assist; PSV, pressure support ventilation.

Sensitivity analyses

Altogether, 16 sensitivity analyses were performed to explore the effect of all model parameters on the cost effectiveness of NAVA versus PSV. The sensitivity analyses are summarized in Table 4, and the results are presented in the subsections, below.

OPEN IN VIEWER

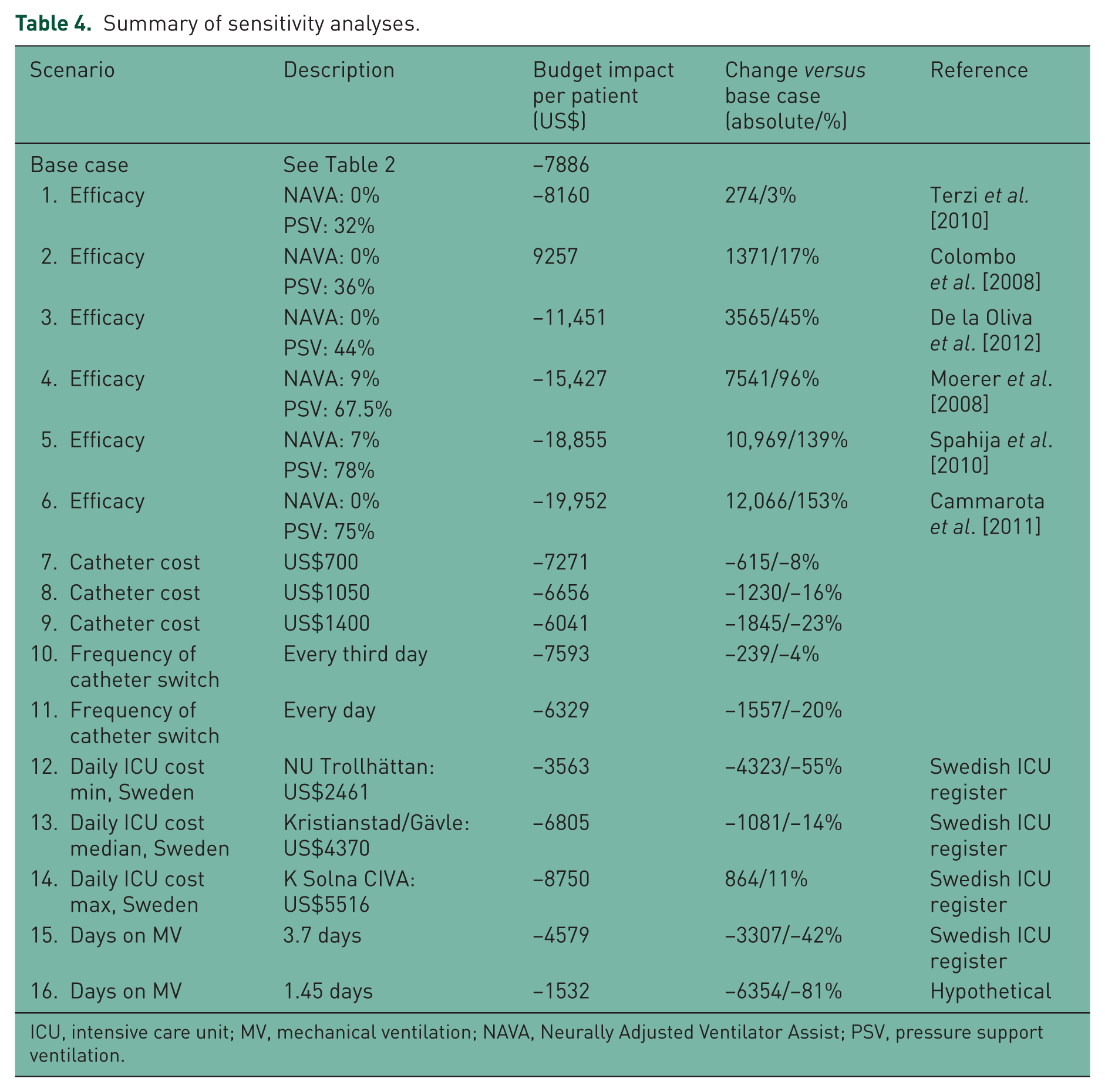

Table 4.

Summary of sensitivity analyses.

Scenario	Description	Budget impact per patient (US$)	Change versus base case (absolute/%)	Reference
Base case	See Table 2	−7886
1. Efficacy	NAVA: 0%	−8160	274/3%	Terzi et al. [2010]
	PSV: 32%
2. Efficacy	NAVA: 0%	9257	1371/17%	Colomboet al. [2008]
	PSV: 36%
3. Efficacy	NAVA: 0%	−11,451	3565/45%	De la Olivaet al. [2012]
	PSV: 44%
4. Efficacy	NAVA: 9%	−15,427	7541/96%	Moerer et al. [2008]
	PSV: 67.5%
5. Efficacy	NAVA: 7%	−18,855	10,969/139%	Spahija et al. [2010]
	PSV: 78%
6. Efficacy	NAVA: 0%	−19,952	12,066/153%	Cammarotaet al. [2011]
	PSV: 75%
7. Catheter cost	US$700	−7271	−615/–8%
8. Catheter cost	US$1050	−6656	−1230/–16%
9. Catheter cost	US$1400	−6041	−1845/–23%
10. Frequency of catheter switch	Every third day	−7593	−239/–4%
11. Frequency of catheter switch	Every day	−6329	−1557/–20%
12. Daily ICU cost min, Sweden	NU Trollhättan: US$2461	−3563	−4323/–55%	Swedish ICU register
13. Daily ICU cost median, Sweden	Kristianstad/Gävle: US$4370	−6805	−1081/–14%	Swedish ICU register
14. Daily ICU cost max, Sweden	K Solna CIVA: US$5516	−8750	864/11%	Swedish ICU register
15. Days on MV	3.7 days	−4579	−3307/–42%	Swedish ICU register
16. Days on MV	1.45 days	−1532	−6354/–81%	Hypothetical

ICU, intensive care unit; MV, mechanical ventilation; NAVA, Neurally Adjusted Ventilator Assist; PSV, pressure support ventilation.

Sensitivity analyses of difference in asynchrony between NAVA and PSV

The observed difference in asynchrony (as measured through the proportion of patients with AI ⩾ 10%), for the seven comparative studies of NAVA versus PSV were implemented in a sensitivity analysis (see Table 2). In comparison to the base case, the six identified studies all showed larger differences between NAVA and PSV, and the modeled differences in days on MV and total cost were consequently larger. The largest difference was observed in the study by Cammarota and colleagues [Cammarota et al. 2011], which corresponded to a total cost saving of close to US$20,000, while the smallest difference from the study by Terzi and colleagues corresponded to a total cost saving of US$8000 [Terzi et al. 2010], which was still slightly higher compared with the base case (see Table 4).

Sensitivity analyses of duration of MV

Since the base case analysis was built using the average days on MV as estimated in the study by de Witt and colleagues, we wanted to explore the effect of changing the average duration on MV to more recent observations. In the sensitivity analyses, the average time on MV in the Swedish ICU setting (3.7 days) was evaluated, in which case the total cost saving of NAVA ventilation amounted to US$4600 compared with US$7900 in the base case (see Table 4). To make the analysis more comprehensive we also tested an average 1.45 days on MV, which resulted in a per patient cost saving of US$1532.

Sensitivity analyses of costs

Further, the costs that were used to build the model were explored in sensitivity analyses, evaluating the effects of the daily ICU cost, the NAVA catheter cost and the frequency of switching the NAVA catheter.

The daily ICU cost had a relatively large effect on the results, whereby the lowest observed ICU cost in Sweden (Trollhättan, US$2461) corresponded to a reduction in costs of US$3560 and the largest observed ICU cost (Karolinska Solna, US$5500) corresponded to a reduction in costs of US$8750, when ventilating a patient on NAVA compared with PSV (see Table 4). The NAVA catheter cost and the frequency of switching had a small effect on the overall model results, whereby the largest change observed in cost, when increasing the NAVA catheter cost by 400%, was a 30% reduction in the cost saving (see Table 4). For frequency of switching, the base case scenario of switching every fifth day resulted in an average 1.8 catheters per patient, and switching every third day or every day resulted in an average of 2.6 and 6.2 catheters per patient, respectively (see Figure 3). However, when relating the additional cost of switching the NAVA catheter every day instead of every fifth, to the overall budget impact of ventilating patients on NAVA, the increased switch frequency only corresponded to a 25% reduction in the potential cost saving of NAVA (see Table 4).

Breakeven analyses

Given that the difference in asynchrony of NAVA versus PSV can vary between clinics, and that the published references identified for the sensitivity analyses might not capture the full range of that variation, we performed a breakeven analysis searching for the level of relative difference in asynchrony when NAVA is no longer cost effective in relation to PSV (from an absolute difference in the proportion of asynchronous patients of 31% in the base case, down to no difference). The results are illustrated in Table 5. Further, these results from hypothetical scenarios were combined with that from the clinical studies to perform a regression analysis that demonstrated at which incremental efficacy level the breakeven is reached. In this analysis, an absolute difference greater than 2.5% between NAVA and PSV in the proportion of asynchronous patients with an AI at least 10% (49.5% versus 52% asynchronous patients with NAVA and PSV, respectively) was needed in order for NAVA to be cost effective (see Figure 4).

OPEN IN VIEWER

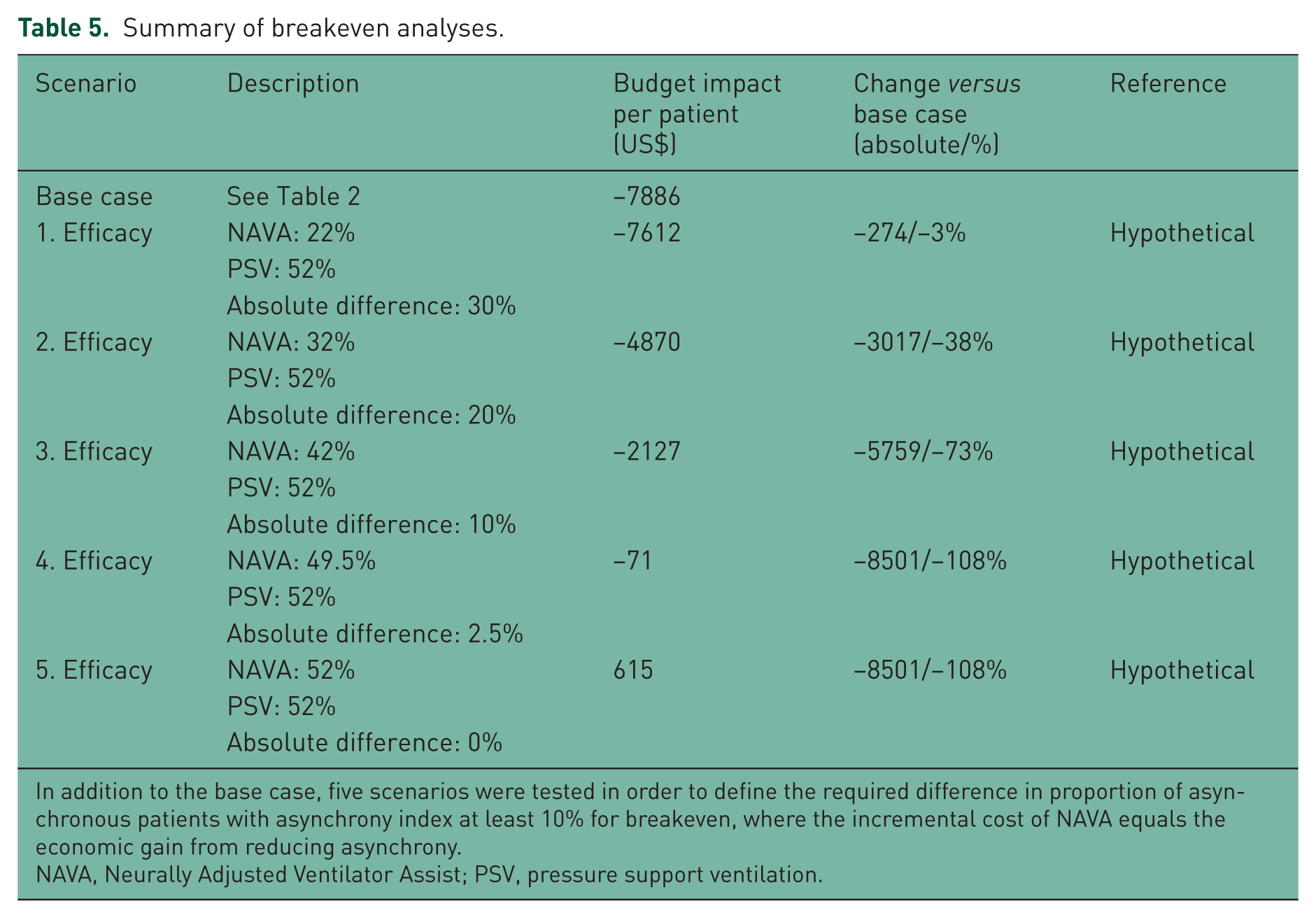

Table 5.

Summary of breakeven analyses.

Scenario	Description	Budget impact per patient (US$)	Change versus base case (absolute/%)	Reference
Base case	See Table 2	−7886
1. Efficacy	NAVA: 22%	−7612	−274/–3%	Hypothetical
	PSV: 52%
	Absolute difference: 30%
2. Efficacy	NAVA: 32%	−4870	−3017/–38%	Hypothetical
	PSV: 52%
	Absolute difference: 20%
3. Efficacy	NAVA: 42%	−2127	−5759/–73%	Hypothetical
	PSV: 52%
	Absolute difference: 10%
4. Efficacy	NAVA: 49.5%	−71	−8501/–108%	Hypothetical
	PSV: 52%
	Absolute difference: 2.5%
5. Efficacy	NAVA: 52%	615	−8501/–108%	Hypothetical
	PSV: 52%
	Absolute difference: 0%

In addition to the base case, five scenarios were tested in order to define the required difference in proportion of asynchronous patients with asynchrony index at least 10% for breakeven, where the incremental cost of NAVA equals the economic gain from reducing asynchrony.

NAVA, Neurally Adjusted Ventilator Assist; PSV, pressure support ventilation.

OPEN IN VIEWER

Figure 4.

Incremental cost in relation to the efficacy of Neurally Adjusted Ventilator Assist (NAVA) versus pressure support ventilation (PSV). The relation between the incremental cost (model output) and the absolute difference in proportion of asynchronous patients with asynchrony index (AI) at least 10% between PSV and NAVA (model input) is illustrated. The base case, with efficacy taken from Piquilloud and colleagues [Piquilloud et al. 2011] is indicated, and the results of the clinical studies applied in the sensitivity analyses are shown in the following order from the base case: [Terzi et al. 2010; Colomboet al. 2008; de la Oliva et al. 2012; Moereret al. 2008; Spahija et al. 2010; Cammarota et al. 2011]. In addition, four hypothetical scenarios were added, to illustrate breakeven; that is, at which point the difference in proportion of asynchronous patients with AI at least 10% between NAVA and PSV is so small that the additional cost of the NAVA catheter balances the gain from reducing the number of days on mechanical ventilation (MV). In this analysis, an absolute efficacy difference larger than 2.5% is needed in order for NAVA to be cost effective.

Discussion

In this study we developed a decision analytical model evaluating the economic effects of using the NAVA technology, which reduces patient ventilator asynchrony. Extrapolating the de Wit and Thille data [de Wit et al. 2009; Thille et al. 2006] and demonstrating a decrease in ventilator days in patients with less asynchrony (AI < 10%), our results show that only a minor decrease (2.5%) in the proportion of asynchronous ICU patients (AI ⩾ 10%) with NAVA is needed for investments to pay off in terms of reduced days on MV. The base case results were generally very stable and robust to changes in important parameters, such as proportion of asynchronous patients with an AI at least 10%, duration of ventilation and daily ICU costs. Decision analytic modeling allows a feasible, scientific and timely approach to measure the cost effectiveness of new medical technologies in healthcare by using the best available evidence of different sources to produce detailed estimates of the clinical and economic consequences of different healthcare interventions. To the best of our knowledge, no studies have yet reported health economic outcomes of the NAVA technology, so we see the positive results of the model as an encouragement to start designing and performing studies that also evaluate this important aspect.

This model is based on the direct link between NAVA and improved patient–ventilator asynchrony and the association between patient ventilator asynchrony and long duration of mechanical ventilation. The link between NAVA and synchrony is well established and had by 2012 been reported in over 10 peer-reviewed publications, investigating both adult and pediatric populations [Alander et al. 2012; Beck et al. 2009; Bengtsson and Edberg, 2010; Breatnach et al. 2010; Cammarota et al. 2011; Clement et al. 2011; Colombo et al. 2008; de la Oliva et al. 2012; Moerer et al. 2008; Piquilloud et al. 2011; Spahija et al. 2010; Terzi et al. 2010]. Three studies have reported on an association between asynchrony and days on MV; all have been observational [Chao et al. 1997; de Wit et al. 2009; Thille et al. 2006]. We note however that the NAVA technology enables an intervention study on reducing asynchrony for the first time, while other parameters that were previously potential subject to intervention, for example fixed tidal volumes and sedation levels, have already been explored in randomized controlled trials for evaluation of health economic outcomes. For example, decreased tidal volumes have been shown to decrease both mortality and days on MV [ARDSNet, 2012; Petrucci and Iacovelli, 2007], and reduced sedation and improved sedation protocols have been shown to decrease days on ventilation [Brattebo et al. 2002; Breen et al. 2005; de Wit et al. 2008; Strom et al. 2010].

This health economic model is built based on clinical data that have been gathered from several different sources, including both clinical studies and the Swedish ICU register, and further it is based on a number of assumptions and simplifications. Therefore, in our sensitivity analyses, we have evaluated the effect on the results when considering different extreme scenarios for the parameters of the model to illustrate potential applicability to various scenarios, complementary to the base case. In order to do this, we chose upper and lower limits of the parameters to be evaluated that reflect a range of relevant scenarios in the real-world setting. When evaluating the efficacy of NAVA versus PSV in reducing patient–ventilator asynchrony, we included all identified studies that report outcomes as an AI. This gives us potential incremental efficacies for different patient groups, different NAVA modes and different study sizes. The study chosen for the base case included the largest population, all adults, and on invasive NAVA, and the difference (compared with PSV) in the proportion of asynchronous patients proved to be the most conservative estimate since all additional studies showed larger differences between NAVA and PSV, and hence a larger cost-saving potential. The sensitivity analyses we performed based on the other studies indicate that differences in the proportion of asynchronous patients had a large impact on results, and that the data used in the base case corresponded to a conservative estimate.

In the sensitivity analyses of daily ICU cost, we evaluated the full scenario of costs observed across Swedish hospitals and note that even at the lowest daily ICU cost, NAVA was clearly cost saving. As in many other countries, Sweden has over a 20-year period been trying to control the escalating cost in healthcare. Hence, the number of ICU beds (ventilator beds) in Sweden has been reduced and was 8/100,000 inhabitants in 2011 (extrapolated from occupancy statistics in SIR 2011 annual report; www.icuregswe.org/). When comparing this to the situation in other countries [Brattebo et al. 2002; Breen et al. 2005; de Wit et al. 2008; Strom et al. 2010], it is in the lower end of the number of ICU beds/100,000, for example, the UK is the only European country with fewer number of ICU beds (3/100,000 population) while Germany has as many as 25 ICU beds/100,000 population. A high occupancy of beds means a high demand for effective treatment of ICU patients to move the patients to intermediate care or regular wards as soon as possible. Thus we believe that overall cost per ICU patient in Sweden could be on the lower side among comparable countries. In our analysis of various Swedish hospitals, the total range of incremental cost savings spanned from US$3560 to 8750, representing a 245% difference between the highest and lowest values, while all were well within the limits of NAVA being less costly.

The average duration of MV can also differ between countries, hospitals, wards and also over time. We therefore explored the effects of implementing an average duration of MV from 2010, national Swedish statistics (3.7 days) and a hypothetical value of 1.45 days, compared with that of the study by Thille and colleagues (7.1 days). This resulted in a 42% and 81% reduction in the incremental patient budget impact, respectively. Further, we could illustrate that the cost of the NAVA catheter had negligible effects on the total results, when a fourfold cost increase only resulted in a 23% reduction in the incremental cost saving. A similar trend was observed when evaluating the effect of changing the catheter every day instead of changing the catheter every fifth day (as per recommendations), which only resulted in a 25% reduction in the incremental cost saving at the patient level, even though the average number of NAVA catheters per patient increased from 1.8 to 6.2.

The key limitation of these results is the lack of randomized controlled studies in adults with which to compare the results; however, decision tree models like the one used in this study are frequent in situations when the availability of data is limited. The aim of these models is to synthesize data from different sources, as well as assumptions. Decision tree models are widely used and typically accepted by reimbursement authorities and payers when evaluating health technologies.

Another potential limitation with this model is that we have not evaluated all costs that might differ between NAVA and PSV, but have focused on daily ICU costs, and NAVA catheter costs. Several studies have suggested that the sedation costs are likely to be reduced with NAVA compared with PSV, since the improved patient–ventilator synchrony results in a higher comfort level for the patient. No study has yet been performed with this as an end point in an adult population. In the recent pediatric study published by Kallio and colleagues it was reported that when postoperative patients were excluded from the analysis the amount of sedation needed was significantly lower in the NAVA group [Kallio et al. 2015]. However, since no adult studies have measured and reported on comparative sedation levels, this potential cost saving of NAVA was not incorporated. The two ventilation modes have more or less equal amounts of parameters to set, implement and support, and no studies have reported that either method is more labor intensive than the other. Since the same ventilator can be used for both NAVA and PSV ventilation, the only additional incremental investment, on top of the catheter cost, is that of a NAVA module and software, which can be considered low in comparison to catheter costs. The same conclusion applies for the capital cost for the NAVA-enabled ventilator.

In the current model, the economic effects of reducing days on MV have been evaluated by assigning a daily ICU cost to the duration. The cost for a day on MV in the ICU is most likely higher than the average daily ICU cost, which we have implemented here. Previous studies have estimated the incremental cost of MV in the ICU to be on average 13–38% higher than intensive care without MV [Dasta and Kane-Gill, 2009; Tan et al. 2008]. In summary, we decided to use a more conservative estimate of the daily costs by focusing on the average daily ICU cost. Bearing this in mind, the results point to an even larger cost-saving potential.

Moreover, differences in patient characteristics and context should be considered when the results from the model are interpreted and validated with real-world data; the fact that potential subgroups of patients can benefit differently from treatment should be taken into account. For example, patients with a longer average duration of MV might have a larger cost saving potential, or from the clinics perspective, the case mix at specific clinics can have a large impact on the cost-saving potential. The studies performed in neonates show that triggering of ventilator support is difficult due to leakage using uncuffed tubes. This makes it difficult for the ventilator to identify patient efforts and has been shown to increase patient ventilator asynchrony extensively. Most recently, Piastra and colleagues published results from a nested study comparing retrospective data on neonates recovering from acute respiratory distress syndrome treated with NAVA with a control group not treated with NAVA. The study found that the duration of MV with NAVA (41 ± 17 h) was significantly lower than that of PSV (72.5 ± 44 h, p = 0.011) [Piastra et al. 2014]. This corresponds to a difference of 1.3 days which, despite being based on a different patient population, is in line with our model results of 1.7 days. Future studies in this patient group might also, beside the important impact on time on ventilator, show an even more important decrease in morbidity as this is linked to time on MV. Thus future research should investigate the efficacy of NAVA in different patient populations. Clearly, it would be of great interest to conduct an intervention study that would be designed to validate the results in a real-world setting at clinics that ventilate their patients with both NAVA and PSV.

The potential effects of an increased patient flow through ICUs could also generate interesting and important health economic data.

Conclusion

This economic study showed economically favorable results for NAVA compared with PSV. Our results show that only a minor decrease in the proportion of asynchronous patients (AI ⩾ 10%) with NAVA is needed for investments to pay off in terms of reduced days on MV. Future studies need to confirm this result by directly relating improved synchrony to the number of days on MV.
