Co-infusion of high-dose haploidentical donor cells and CD19-targeted CART cells achieves complete remission,successful donor engraftment and significant CART amplification in advanced ALL

Introduction

The application of autologous CD19-targeted chimeric antigen receptor-modified T cells (CD19-CART) has significantly improved outcome of patients with advanced B-cell acute lymphoblastic leukemia (B-ALL). ¹ However, limitations such as leukemia relapse and application of universal CART cells still exist.^2–4 Some researchers utilized bridging allogeneic stem cell transplant (allo-SCT) following CART therapy to prevent or reduce leukemia relapse. Others used transcription activator-like effector nucleases to engineer human leukocyte antigen (HLA)-mismatched donor T cells to produce universal CART19 cells. ⁵ However, although these treatments improved outcome in some patients, those who received CD19-CART to bridge allo-SCT were still subject to sequential toxicities from CART infusion and transplantation, and in vitro CART gene editing is more complicated. Moreover, in vivo outcomes of allogeneic CART cells by non-gene-editing preparation were undetermined. We have previously reported an older patient with advanced ALL who received co-infusion of allogeneic CD19-CART cells and low-dose granulocyte colony-stimulating factor (G-CSF) mobilized peripheral blood mononuclear cells (GPBMCs) and showed a short-term persistence of allogeneic CART cells in vivo, suggesting that co-infusion of allogeneic CART cells and GPBMCs may benefit the expansion and persistence of allogeneic CART cells. ⁶ In addition, some researchers reported that large donor cell doses were able to markedly enhance donor engraftment,^7,8 though only in low or high percentages of mixed chimerism rather than in full donor chimerism (FDC). Our recent experiments in H-2 mice further found that if the number of haploidentical G-CSF-mobilized donor splenic cells infused was progressively increased from 1 × 10⁷ to 9 × 10⁷ with 1 Gy total body irradiation and no prevention of graft-versus-host disease (GVHD), recipient mice could establish a high percentage of mixed chimerism or even FDC with mild GVHD. With this in mind, we further designed the study so that two patients with advanced B-ALL received a co-infusion of high dose HLA-haploidentical donor GPBMCs with the same donor-derived CD19-targeted CART cells without additional gene editing following a reinduction chemotherapy. Preliminary results showed that all patients achieved complete remission (CR), stable FDC, and persistence of allogeneic CART cells.

Case presentation

Two patients who had advanced ALL with 57.5–84.5% leukemic cells and who had a failed collection of sufficient autologous T cells were enrolled from March to September 2017. Both of them were lacking an HLA-matched donor but had an available HLA-haploidentical relative donor. Patients received a reinduction chemotherapy (vindesine 4 mg for 1 day, idarubicin 7.5 mg/m² for 3 days, cyclophosphamide 450 mg/m² for 2 days, and dexamethasone 5 mg/m² for 5 days) as a precondition, followed by CD19-CART cell and high-dose GPBMC infusion from the same donor (Table 1). Donor T cells for CART cell preparation were collected ahead of mobilization of peripheral blood cells, and the materials and methods to produce and quantify CD19-CART cells were reported previously. ⁶ Mobilization and apheresis of donor GPBMCs were also described previously. ⁹ CART cells were infused at 48 h after the completion of cyclophosphamide from the second to fifth day with escalating doses, and GPBMCs were infused on the last day of CART cell infusion. No GVHD prophylaxis was used. If patients developed cytokine release syndrome (CRS) after co-infusion, ruxolitinib, tocilizumab, or steroid was given and doses of ruxolitinib were progressively reduced following symptom alleviation. Hematopoietic donor chimerism was assessed with standard cytogenetic, semiquantitative polymerase chain reaction and HLA-typing as previously described. ⁹ Detection of immune function, cytokines, and CD19-CART copy number were performed as previously described. ⁶ Outcome data were determined through March 1st, 2019. Response criteria of ALL, diagnoses, and grading of GVHD and CRS were defined according to published criteria.^10–13

OPEN IN VIEWER

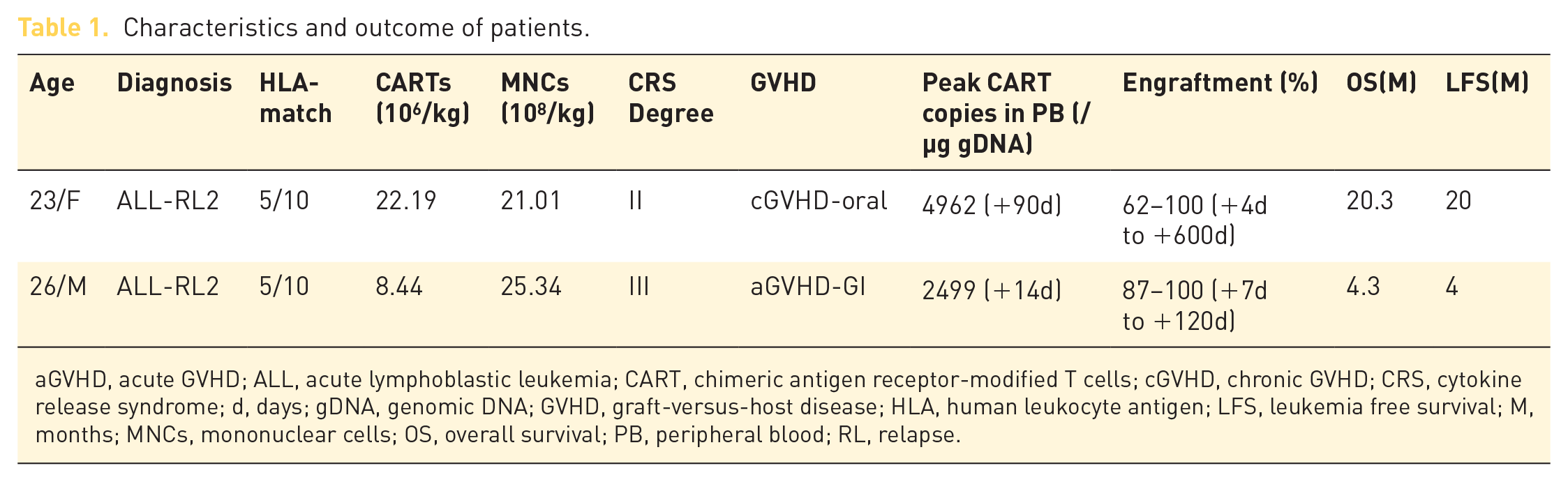

Table 1.

Characteristics and outcome of patients.

Age	Diagnosis	HLA-match	CARTs (106/kg)	MNCs (108/kg)	CRS Degree	GVHD	Peak CART copies in PB (/µg gDNA)	Engraftment (%)	OS(M)	LFS(M)
23/F	ALL-RL2	5/10	22.19	21.01	II	cGVHD-oral	4962 (+90d)	62–100 (+4d to +600d)	20.3	20
26/M	ALL-RL2	5/10	8.44	25.34	III	aGVHD-GI	2499 (+14d)	87–100 (+7d to +120d)	4.3	4

aGVHD, acute GVHD; ALL, acute lymphoblastic leukemia; CART, chimeric antigen receptor-modified T cells; cGVHD, chronic GVHD; CRS, cytokine release syndrome; d, days; gDNA, genomic DNA; GVHD, graft-versus-host disease; HLA, human leukocyte antigen; LFS, leukemia free survival; M, months; MNCs, mononuclear cells; OS, overall survival; PB, peripheral blood; RL, relapse.

Patient 1 was a 23-year-old female who was diagnosed with BCR-ABL positive ALL. She experienced two relapses and failed to respond to further induction chemotherapy with leukemic cells of 57.5% in the bone marrow before transplant. She was infused with CD19-CART cells (22.19 × 10⁶/kg) and GPBMCs (21.01 × 10⁸/kg) from her HLA 5/10 matched mother (Figure 1 and Table 1) following the reinduction chemotherapy. She developed Grade II CRS accompanied by cytokine elevation (Figure 1b and c) during day 5–14 and had a good response to ruxolitinib treatment. The proportion of donor engraftment was 62%, 89%, and 100% on day 7, 14, and 21, respectively. Copy numbers of CART cells in the peripheral blood were 547, 818, and 4962 per µg of genomic DNA (gDNA) on day 7, 35, and 90, respectively, after transplant. The percentages of leukemic cells in the bone marrow and CD19⁺ cells in the peripheral blood dropped to 0% and 0.1% respectively on day 14 (Figure 1a). The neutrophil count recovered over 0.5 × 10⁹/L on day 12 and the platelet count recovered over 30 × 10⁹/L on day 15. She developed a limited chronic oral GVHD on day 125. She has maintained FDC and disease-free survival for 20 months accompanied with persistence of CART cells in the peripheral blood.

OPEN IN VIEWER

Figure 1.

Clinical responses of co-infusion of haploidentical CART cells and GPBMCs in two patients with advanced CD19⁺ ALL. (a) In Patient 1, the proportion of donor engraftment was 62%, 89%, and 100% on day 7, 14, and 21, respectively. The copy numbers of CART cells in the peripheral blood were 547, 818, and 4962 per µg of gDNA on day 7, 35, and 90, respectively, after transplant. The percentages of CD19⁺ cells in the peripheral blood dropped to 0.1% on day 14. CSF examination on day 14 showed 64% of CD19⁺ cells and 263 per µg of gDNA of CART cells, respectively. After intrathecal injection, CD19⁺ cells dropped to 0% and copy numbers of CART cells in the CSF maintained between 207 and 1894 per µg of gDNA. (b) Patient 1 experienced dramatic elevation of cytokine levels, especially IL-6 and IL-8, after treatment. (c) Patient 1 developed a significant elevation of C-reaction protein, alanine transaminase, and total bilirubin after treatment. (d) In Patient 2, donor engraftment in the peripheral blood was 87% on day 7 and 100% on day 14. CART copy numbers in the peripheral blood were 550 per µg of gDNA on day 4, 2499 per µg of gDNA on day 14, and fluctuated between 286 and 1334 per µg of gDNA 21–120 days after treatment. CD19⁺ cells in the peripheral blood dropped to 0% on day 14 and persisted from 0% to 0.25% 21–120 days after treatment. (e) Patient 2 experienced significant elevations of sIL-2R, IL-6, IL-8, and IL-10 after treatment. (f) Patient 2 developed a significant elevation of C-reaction protein, alanine transaminase, and total bilirubin after treatment.

Patient 2 was a 26-year-old male who was diagnosed with B-cell ALL. He relapsed twice and had no responses to further reinduction chemotherapy with leukemic cells and CD19⁺ cells of 84.5% and 94.9%, respectively, in the bone marrow. He received co-infusion of CD19-CART cells (8.44 × 10⁶/kg) and GPBMCs (25.34 × 10⁸/kg) from his HLA 5/10 matched mother (Table 1) following the reinduction chemotherapy. He developed Grade III CRS associated with dramatic cytokine elevation during days 4–14 and had a good response to treatment from ruxolitinib and tocilizumab (Figure 1e and 1f). Donor chimerism in peripheral blood was 87% and 100% on day 7 and 14, respectively. CD19-CART copy numbers were 550 per µg of gDNA on day 4, increased to 2499 per µg of gDNA on day 14, and fluctuated between 286 and 1334 per µg of gDNA during 21–120 days. Leukemic cells in the bone marrow dropped to 0% on day 14 and CD19⁺ cells in the peripheral blood also dropped to 0% on day 14 and persisted from 0% to 0.25% for 21–120 days after treatment (Figure 1d). The neutrophil and platelet counts were recovered on day 18 and day 30, respectively. He developed Grade II acute intestinal GVHD on day 27 and had a good response to anti-GVHD treatment but was associated with an incomplete hematological recovery. During day 100–125, he developed hemorrhagic cystitis, severe drug-resistant bacteria infection, viremia of cytomegalovirus, and died of multiple organ failure on day 132.

Discussion

Autologous CD19-targeted CART cells could efficiently eliminate leukemic cells with significant amplification in advanced ALL. ¹ However, it is often difficult to collect enough autologous T cells in patients with high leukemia burdens and the clinical outcome of universal CART cells is still unclear. In this study, two patients had high leukemia burdens and had failed to collect enough autologous T cells. Allogeneic CART cells from haploid donors were collected at a dose of approximately 8.44–22.19 × 10⁶/kg, which is similar to the dosage of autologous CD19-targeted CART cells. Results showed that two patients had a rapid decrease of leukemic cells, achieved CR within 7–14 days, and remained in leukemia-free survival for 4 months or over 20 months. Furthermore, the highest amount of copies of the donor CART cells in the peripheral blood reached 4962 and 2449 per µg of gDNA, respectively, and the longest persistence was 20 months associated with B cell aplasia. These results indicated that donor CART cells without additional gene editing also possessed a strong anti-leukemic activity and a significant amplification and long-term persistence in vivo.

Standard allo-SCT employs myeloablative or non-myeloablative conditioning to establish FDC. ¹⁴ In this study, two patients only received a high-dose GPBMC infusion (21.01–25.34 × 10⁸/kg) from a HLA-mismatched donor, which was 2–3 folds of the dose in standard transplants, following a reinduction chemotherapy as a precondition and established a stable FDC at day 21 or 14. These results suggested that high-dose GPBMCs may play an important role in establishing FDC except for cyclophosphamide-containing reinduction chemotherapy, consisting with results from our previous animal studies (Supplemental material). In addition, we found that two patients successfully established FDC associated with high amounts of copies of donor CART cells in the peripheral blood, suggesting that the formation of FDC may also contribute to enhancing expansion and persistence of allogeneic CART cells.

Severe CRS and GVHD are major concerns in CART treatment and allo-SCT, respectively.^2,10 In this study, two patients presented with Grade II or III CRS and Grade II acute intestinal GVHD or limited chronic GVHD, which was the same as – or at least not more severe than – the CRS/GVHD of the autologous CD19-targeted CART treatment or standard transplantation, suggesting that the toxicity of allogeneic CD19-targeted CART cells is controllable and relatively safe.

Collectively, co-infusion of donor CD19-targeted CART and high-dose HLA-haploidentical GPBMC cells may maintain expansion and persistence of allogeneic CART cells, suggesting an alternative therapy for advanced CD19⁺ ALL patients.

Supplemental Material
