Quality factor assessment of finite-size all-dielectric metasurfaces at the magnetic dipole resonance

Abstract

Recently there has been a large interest in achieving metasurface resonances with large quality factors. In this article, we examine metasurfaces that comprised a finite number of magnetic dipoles oriented parallel or orthogonal to the plane of the metasurface and determine analytic formulas for their resonances’ quality factors. These conditions are experimentally achievable in finite-size metasurfaces made of dielectric cubic resonators at the magnetic dipole resonance. Our results show that finite metasurfaces made of parallel (to the plane) magnetic dipoles exhibit low quality factor resonances with a quality factor that is independent of the number of resonators. More importantly, finite metasurfaces made of orthogonal (to the plane) magnetic dipoles lead to resonances with large quality factors, which ultimately depend on the number of resonators comprising the metasurface. In particular, by properly modulating the array of dipole moments by having a distribution of resonator polarizabilities, one can potentially increase the quality factor of metasurface resonances even further. These results provide design guidelines to achieve a sought quality factor applicable to any resonator geometry for the development of new devices such as photodetectors, modulators, and sensors.

Keywords

High quality factor finite-size metasurfaces dipole approximation Mie resonances magnetic dipole resonance

Introduction

A large variety of optical behaviors, such as flat lenses, beam converters, Huygens’ sources, and holograms,^{1

–12} can be obtained using metasurfaces, or two-dimensional arrays of subwavelength resonators. In general, these structures exhibit broad spectral resonances with low quality factor (Q), and the generation of narrow spectral resonances with high Q is a challenging task. High-Q metasurfaces would open new avenues in optical modulation, sensing, and spectral filtering.

Recent works based on the concepts of “electromagnetically induced transparency” and “Fano resonances” have reported high-Q metasurfaces.^{13

–20} In particular, Campione et al.²⁰ showed a monolithic resonator design that achieves ultrahigh Q, thanks to the “perturbed” resonators composing the arrays; for details about perturbation theory, refer to the literature.^8,10,21,22 The perturbation was used to induce mode mixing between the bright, in-plane electric dipole mode p_x , and the dark longitudinal magnetic dipole mode m_z . While the p_x dipole was subject to both radiative and non-radiative decay processes, the m_z dipole was subject to only non-radiative decay and high Q values could be achieved using low loss dielectric materials. Campione et al.²⁰ highlighted the possibility that parallel or orthogonal (to the plane) magnetic dipole arrays may exhibit very different resonant properties.

Thus, we aim to attain in this article a more in-depth understanding of Q properties of finite-size metasurfaces composed of magnetic dipoles, including the dependence of the Q on the number of dipoles as well as their orientation. These magnetic dipoles are a good approximation of dielectric resonators, for example, experimentally achievable dielectric cubic resonators, at the magnetic dipole resonance. We derive analytical formulas for the Qs exhibited by various finite-size metasurfaces featuring parallel or orthogonal (to the plane) magnetic dipoles, which ultimately indicate in a succinct manner the strategies to achieve high-Q resonances in all-dielectric metasurfaces at the magnetic dipole resonance. While it is well-known from antenna theory that we can decompose the antenna pattern into an array factor times an element pattern,²³ what we are after is finding the radiated power when the element pattern is arranged to minimize the radiation. Previous work on infinite arrays²⁴ has concentrated on parallel (to the plane) dipoles, while work on finite arrays²⁵ has concentrated on arbitrary arrangements for boosting directivity, but no discussion was reported regarding orthogonal dipoles. Other metamaterials work²⁶ discussed array truncation effects. We note that by properly modulating the dipole array to have a distribution of polarizabilities, one can potentially increase substantially the Q of metasurface resonances. This modulation could be achieved by employing active metasurfaces,^6,27 where the distribution of dipole moments can be, in principle, chosen at will.

The article is structured as follows. We investigate a finite-size metasurface of cubic all-dielectric resonators at the magnetic dipole resonance in the second section, reporting the distribution of dipole moments along the array that will be necessary for the analytical portion of this work. We then in the third and fourth sections report analytical expressions for metasurfaces with uniform and nonuniform distributions of dipole moments, respectively. Derivations of these formulas are reported in Appendix 1.

Finite metasurface composed of cubic all-dielectric resonators at the magnetic dipole resonance

Consider the case of a metasurface made of lead telluride dielectric cubic resonators with side $2 a = 2 b = 2 c = 1.53 μm$ (about one-seventh of the free-space wavelength at the magnetic resonance) and relative permittivity equal to $ε_{d} / ε_{0} = 32.04 + i 0.0566$ embedded in free space, as shown in Figure 1(a), with periods $d_{x}$ and $d_{y}$ along the x and y directions, respectively. The monochromatic time harmonic convention $exp (- i ω t)$ is implicitly assumed. Other resonator shapes such as spheres could be alternatively investigated, but cubic resonators have shown to be experimentally achievable at the wavelength range analyzed in this article.^7,28

Figure 1.

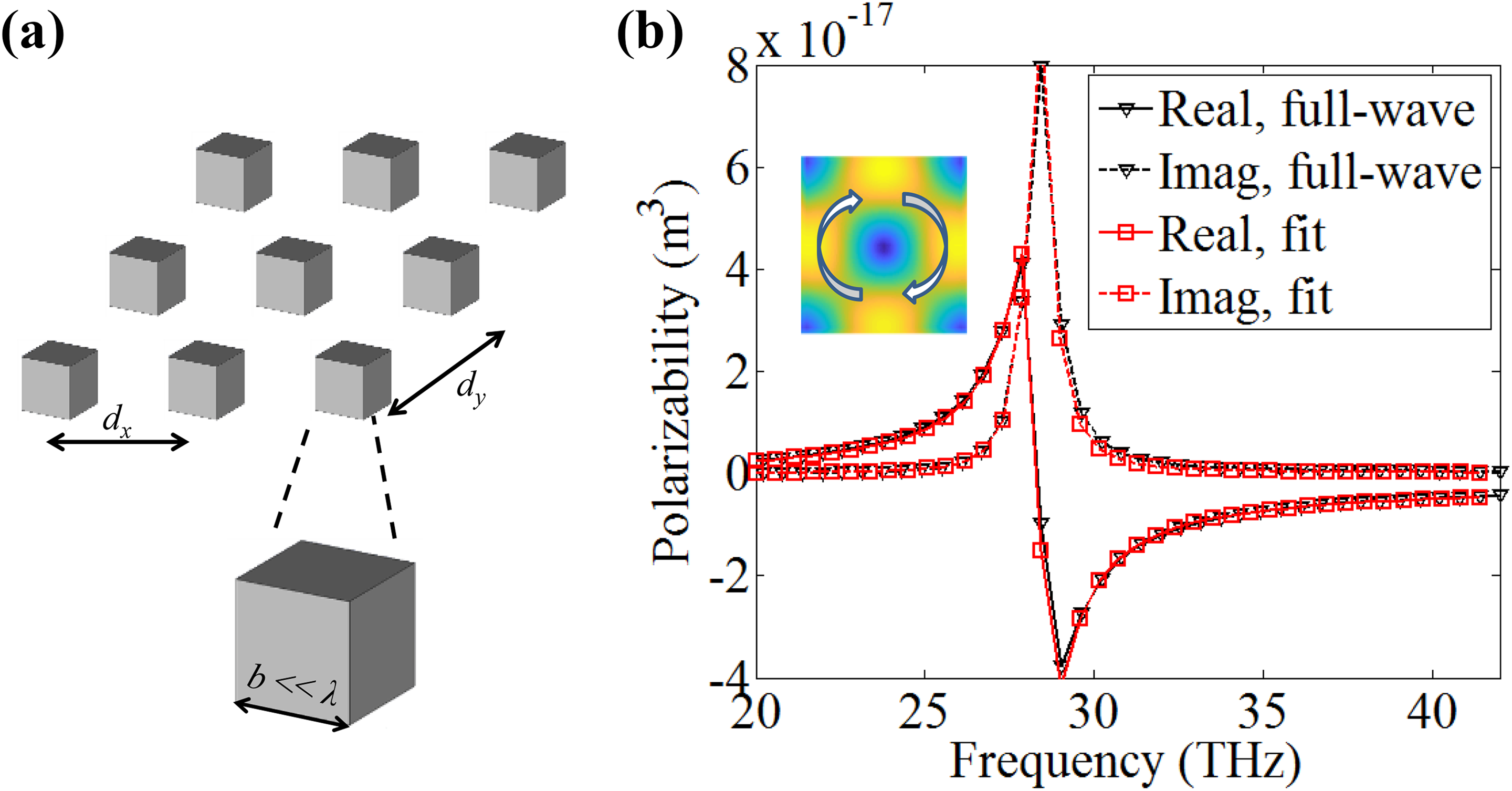

(a) Schematic of a metasurface made of dielectric cubic resonators. (b) The magnetic polarizability $α_{m 0}$ of an isolated cubic resonator; the inset shows the normalized electric field distribution in the x–z plane at the magnetic dipole resonance of 28.31 THz; white arrows indicate field direction.

We assume near-normal incidence illumination with a set of plane waves (four) to have a normal magnetic drive with negligible phase variation over the array (alternatively, by broken symmetry, this drive can be set up due to the structure of the resonator,²⁰ which could also be tapered with position to generate a desired distribution of dipole moments) and negligible transverse magnetic field on the array. Each resonator may then be modeled as a vertical magnetic dipole at the magnetic resonance, provided the resonators are sufficiently subwavelength. Note that the first mode of these dielectric resonators is typically the magnetic dipole mode. The magnetic dipole moment $m_{z}^{(n', m')}$ of a resonator at location $(n', m')$ in the array can be expressed as

m_{z}^{(n', m')} = α_{m 0} H_{z}^{loc}

where $α_{m 0}$ is the magnetic dipole polarizability, and the local magnetic field acting on the resonator is given by

H_{z}^{loc} = H_{z}^{ext} + \sum_{\begin{array}{l} n \neq n' \\ m \neq m' \end{array}}^{N, M} m_{z}^{(n, m)} (\frac{i k_{0}}{R} - \frac{1}{R^{2}} + k_{0}^{2}) \frac{e^{i k_{0} R}}{4 π R}

$H_{z}^{e x t}$ is the external incident magnetic field, $k_{0} = ω \sqrt{ε_{0} μ_{0}}$ , ω is the angular frequency, $ε_{0}$ and $μ_{0}$ are the absolute permittivity and permeability of free space, respectively, and $R = \sqrt{{(n - n')}^{2} d_{x}^{2} + {(m - m')}^{2} d_{y}^{2}}$ . We retrieved the magnetic polarizability of an isolated cube $α_{m 0}$ in Figure 1(b) using full-wave simulations with the procedure described in the literature.^8,29,30 We have developed an analytic fit of such polarizability as

α_{m 0} = \frac{k_{0}^{2} α_{m c}}{(k_{n j m}^{2} - k_{0}^{2}) - i k_{0} k_{n j m} / Q_{n j m}}

where the fitting parameters are $α_{m c} = {(1.36 μm)}^{3}$ , $k_{n j m} = 2 π / λ_{n j m}$ , $λ_{n j m} = 10.57 μm$ , $1 / Q_{n j m} = k_{0}^{3} α_{m 0} / (6 π)$ , and $Q_{n j m} = 35.7$ . A good agreement between the fit in equation (3) and the full-wave simulations is observed in Figure 1(b). We observe the magnetic dipole resonance in Figure 1(b) at 28.31 THz, as confirmed by the circulating electric field reported in the inset; a multipolar decomposition of the resonator’s scattered field⁸ shows the electric dipole resonance at 38.37 THz and the magnetic quadrupole resonance at 42.98 THz. This justifies the use of the dipole approximation at the magnetic resonance as performed in this article.

An effective dipole polarizability $α_{m}$ can be retrieved for each resonator in the array by defining an effective magnetic dipole moment $m_{z}^{eff} = α_{m} H_{z}^{ext}$ , using the matrix system obtained by combining equations (1) and (2); $α_{m 0}$ is the intrinsic polarizability of the resonator that depends on its geometry, while the quantity $α_{m}$ will vary with the position in the array because we have defined it by normalizing out the external drive field rather than the local field. The magnitude of $α_{m}$ (normalized to the magnitude of $α_{m 0}$ ) is given for the resonators from the edge to the center for two finite metasurfaces with $d_{x} = d_{y} = 2.88 μm$ ( $5 \times 5$ and $9 \times 9$ ) in Figure 2. One can see that outer resonators exhibit smaller polarizability magnitudes than inner resonators in the finite array.

Figure 2.

Effective polarizability $α_{m}$ for resonators modeled as orthogonal (to the plane) magnetic dipoles from edge (n = 1) to center (n = 3 or 5) for a (a) $5 \times 5$ and (b) $9 \times 9$ finite metasurface of dielectric cubic resonators under near normal incidence illumination. The inset in panel (a) indicates the position of the resonators in the finite $5 \times 5$ array.

We then show the distribution of the magnitude of $α_{m}$ (normalized to its peak) in the array along the x direction in Figure 3 for various sizes of finite arrays, ranging from $5 \times 5$ to $9 \times 9$ . One can see that the dipole moments follow a parabolic distribution (note that this is nearly the same as the trigonometric modal form $cos π x / (N d_{x}) cos π y / (M d_{y})$ ) as confirmed by the fit reported in Figure 3. Furthermore, we report that the phase of $α_{m}$ is nearly constant.

Figure 3.

Distribution of the magnitude of $α_{m}$ (normalized to its peak) in the array for various sizes of finite arrays: $5 \times 5$ , $7 \times 7$ , and $9 \times 9$ . The figure shows the dipole moments of the resonators at a center location of the array in y direction along the x direction, as indicated in the inset for a $5 \times 5$ array. The distribution follows a parabolic fit as shown by the solid black line, while the phase is essentially constant.

In the subsequent sections, we develop analytical formulas to compute the resonance Qs of finite-size metasurfaces composed of magnetic dipoles.

Theory of Qs of finite metasurfaces with uniform distribution of dipole moments

Consider the finite array of orthogonal (to the plane) magnetic dipoles in Figure 4(a) or of parallel magnetic dipoles in Figure 4(b), with periods d_x and d_y along the x and y directions, respectively. These schematics represent dipole approximations of cubic resonator arrays as shown in Figure 1(a). Assume there are M dipoles along the y direction and N dipoles along the x direction, so that the array is composed of $N \times M$ magnetic dipoles. As a first approximation, assume the dipole moments to be uniformly distributed in the array. Although this is usually not the case, as observed in the second section, it is instructive to initially investigate this condition. This uniform result will be contrasted with the more realistic case of a nonuniform distribution of the dipole moments in the array in the next section.

Figure 4.

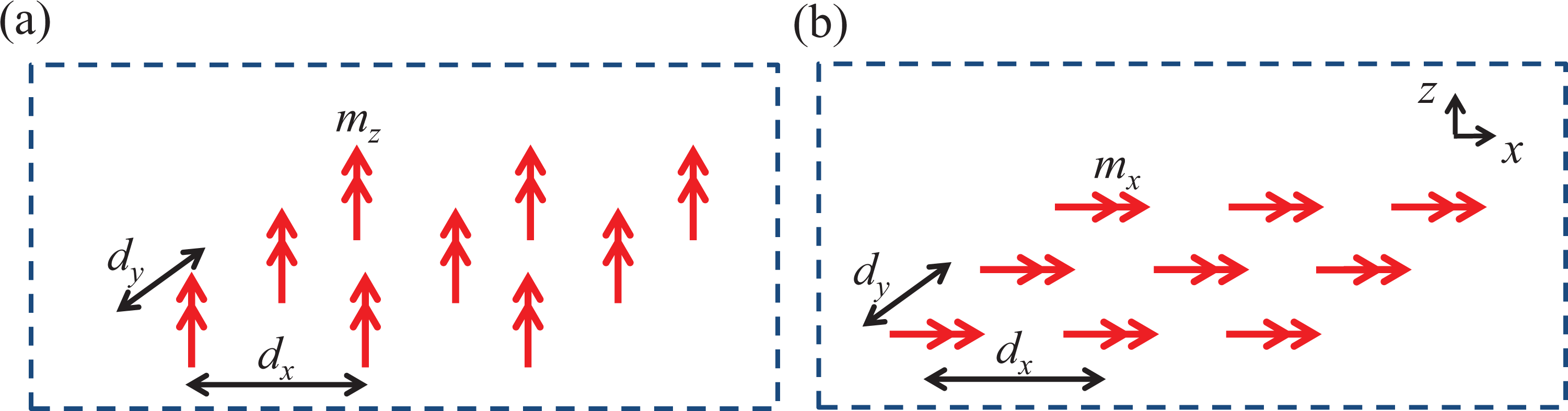

A finite array of (a) orthogonal (to the plane) and (b) parallel magnetic dipoles.

We first estimate the radiation from a finite array of magnetic dipoles oriented in the orthogonal direction to the array as shown in Figure 4(a), representing dielectric resonators with sizes $2 a \times 2 b \times 2 c$ along the x, y, and z directions. Note that other multipole moments associated with a dielectric resonator may also contribute to the radiated power, but will be small for electrically small resonators, which are the focus of this article. If we take a two-dimensional square array of orthogonal magnetic dipole moments, as shown in Figure 4(a), the total power radiated is (see Appendix 1)

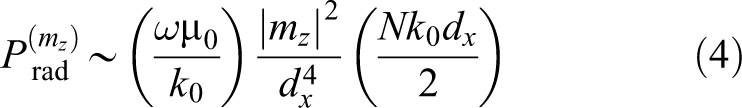

P_{rad}^{(m_{z})} \sim (\frac{ω μ_{0}}{k_{0}}) \frac{{| m_{z} |}^{2}}{d_{x}^{4}} (\frac{N k_{0} d_{x}}{2})

where m_z is the strength of the vertical magnetic dipoles. The approximate theory based on perfect magnetic conductor side walls for a lossless dielectric cubic resonator gives the resonant frequency for the first transverse mode based on the transcendental equation $k_{z} c = arctan \sqrt{\frac{(k_{x}^{2} + k_{y}^{2})}{k_{z}^{2}} (1 - \frac{ε_{0}}{ε_{d}}) - \frac{ε_{0}}{ε_{d}}}$ , leading to a resonant wavelength of 10.97 µm, in good agreement with the numerical resonance of an isolated cube of 10.57 µm as shown in Figure 1(b). The electrical energy for large resonator dielectric constant is approximately that stored interior to the resonator and can be written in terms of m_z as

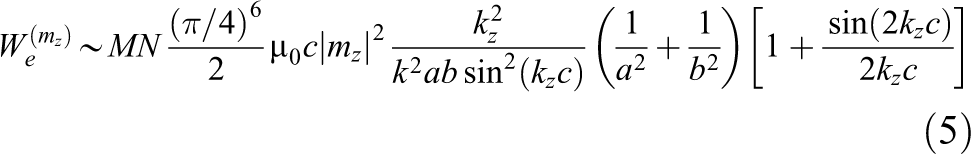

W_{e}^{(m_{z})} \sim M N \frac{{(π / 4)}^{6}}{2} μ_{0} c {| m_{z} |}^{2} \frac{k_{z}^{2}}{k^{2} a b {sin}^{2} (k_{z} c)} (\frac{1}{a^{2}} + \frac{1}{b^{2}}) [1 + \frac{sin (2 k_{z} c)}{2 k_{z} c}]

where $k^{2} = k_{x}^{2} + k_{y}^{2} + k_{z}^{2} = ω^{2} μ_{0} ε_{d}$ is the wave number in the dielectric resonator with absolute permittivity $ε_{d}$ , $k_{x} \sim π / (2 a)$ , $k_{y} \sim π / (2 b)$ , and k_j is the component of the wavevector $\underline{k} = k_{x} {\underline{e}}_{x} + k_{y} {\underline{e}}_{y} + k_{z} {\underline{e}}_{z}$ along the $j = x, y, z$ direction. Thus, we can define the Q as

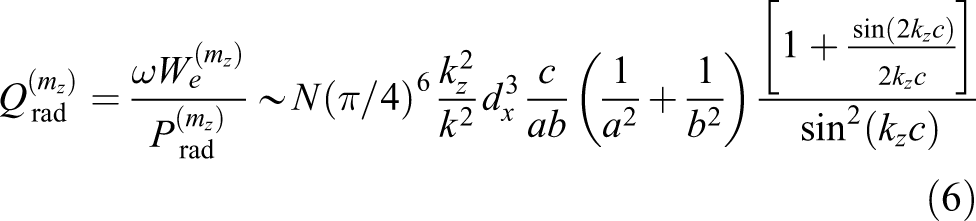

Q_{rad}^{(m_{z})} = \frac{ω W_{e}^{(m_{z})}}{P_{rad}^{(m_{z})}} \sim N {(π / 4)}^{6} \frac{k_{z}^{2}}{k^{2}} d_{x}^{3} \frac{c}{a b} (\frac{1}{a^{2}} + \frac{1}{b^{2}}) \frac{[1 + \frac{sin (2 k_{z} c)}{2 k_{z} c}]}{{sin}^{2} (k_{z} c)}

Consider now the radiation from a finite square array of magnetic dipoles oriented in the parallel direction to the array as shown in Figure 4(b), representing dielectric resonators with sizes $2 a \times 2 b \times 2 c$ along the x, y, and z directions. The total power radiated is

P_{rad}^{(m_{x})} \sim (\frac{ω μ_{0}}{k_{0}}) \frac{{| m_{x} |}^{2}}{d_{x}^{4}} {(\frac{N k_{0} d_{x}}{2})}^{2}

The electrical energy can be written in terms of m_x similar to equation (5), through which we can define the Q as

Q_{rad}^{(m_{x})} = \frac{ω W_{e}^{(m_{x})}}{P_{rad}^{(m_{x})}} \sim 2 {(π / 4)}^{6} \frac{k_{z}^{2}}{k_{0} k^{2}} d_{x}^{2} \frac{c}{a b} (\frac{1}{a^{2}} + \frac{1}{b^{2}}) \frac{[1 + \frac{sin (2 k_{z} c)}{2 k_{z} c}]}{{sin}^{2} (k_{z} c)}

Looking at equations (6) and (8), one can note a striking difference between the two metasurface topologies (parallel vs. orthogonal dipoles). The Q of a finite array of small dipoles oriented in the orthogonal direction to the array is linearly dependent on the number of resonators N. In contrast, the Q of a finite array of small dipoles oriented in the parallel direction to the array does not depend on the number of resonators in the array. This is because the horizontal array approximately radiates a certain power per unit area per resonator, and therefore, the Q of a particular cell is nearly the same as the Q of the array. This is clearly observed in Figure 5, showing the Q versus number of resonators N for arrays of parallel and orthogonal magnetic dipoles, assuming $2 a = 2 b = 2 c = 1.53 μm$ , $d_{x} = d_{y} = 2.88 μm$ , and $ε_{d} / ε_{0} = 32.04$ at $λ = 10.57 μm$ . Thanks to this analytical investigation, we conclude that arrays of small magnetic dipoles oriented in the orthogonal direction to the array are good candidates for high Q resonances.

Figure 5.

The Q versus number of resonators N from equations (6) and (8) for an array of orthogonal and parallel magnetic dipoles with uniform distribution of dipole moments. Q: quality factor.

Theory of Qs of finite metasurfaces with nonuniform distribution of dipole moments

Consider again the finite arrays of orthogonal magnetic dipoles in Figure 4(a) or of parallel magnetic dipoles in Figure 4(b), but now with a more realistic, nonuniform distribution of dipole moments in the array. Under a parabolic distribution of the dipole moments as determined in the second section and following the steps reported in Appendix 1, the Q for orthogonal dipoles is

Q_{rad}^{(m_{z})} \sim \frac{5}{32} N^{2} {(π / 4)}^{6} \frac{k_{0} k_{z}^{2}}{k^{2}} d_{x}^{4} \frac{c}{a b} (\frac{1}{a^{2}} + \frac{1}{b^{2}}) \frac{[1 + \frac{sin (2 k_{z} c)}{2 k_{z} c}]}{{sin}^{2} (k_{z} c)}

and for parallel dipoles is (this is given for comparison purposes with equation (9), even though we did not expect to obtain this result without tapering $α_{m 0}$ )

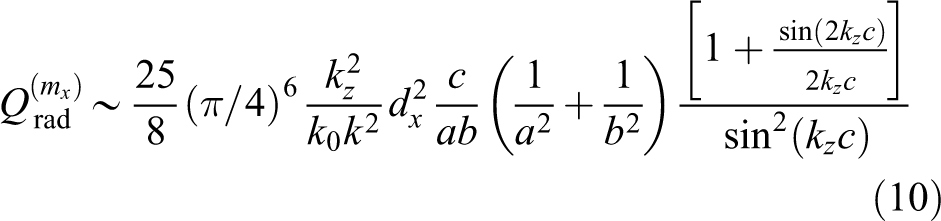

Q_{rad}^{(m_{x})} \sim \frac{25}{8} {(π / 4)}^{6} \frac{k_{z}^{2}}{k_{0} k^{2}} d_{x}^{2} \frac{c}{a b} (\frac{1}{a^{2}} + \frac{1}{b^{2}}) \frac{[1 + \frac{sin (2 k_{z} c)}{2 k_{z} c}]}{{sin}^{2} (k_{z} c)}

Note the electrical energy now has an extra factor of $4 / 9$ owing to the parabolic distribution ${[\int_{0}^{1} (1 - u^{2}) d u]}^{2}$ .

Looking at equations (9) and (10), compared to equations (6) and (8), one can note that the Q of a finite array of small magnetic dipoles oriented in the orthogonal direction to the array is quadratically dependent on the number of resonators N because of the parabolic distribution of dipole moments. This can be clearly observed in Figure 6, showing the Q versus number of resonators N for arrays of parallel and orthogonal magnetic dipoles, assuming the same parameters, as shown in Figure 5. Again, thanks to this analytical model, we conclude that arrays comprising small orthogonal magnetic dipoles are good candidates for high Q resonances. We also compared the Qs to the results computed from the matrix solution in Figure 2 and observed very good agreement with our formulas, as shown in Figure 6.

Figure 6.

The Q versus number of resonators N from equations (9) and (10) for an array of orthogonal and parallel magnetic dipoles with parabolic distribution of dipole moments. Qs from the matrix solution in Figure 2 are also reported for comparison. Q: quality factor.

In this section, we developed analytical formulas to compute the resonance Qs in the absence of dielectric losses. By comparing the results of Figures 5 and 6, it is clear that the distribution and orientation of dipole moments along the array dramatically affect the Q of metasurface resonances. While for parallel (to the plane) dipole moments, Qs are independent on the number of resonators in the array, for orthogonal dipoles, we have observed a linear (for uniform distribution) or quadratic (for parabolic or trigonometric modal distribution, which here is a natural distribution for a uniform excitation of the array) dependence on the number of resonators. Inherently, this points to the fact that a different distribution of dipole moments could result in different, and potentially larger, Qs. However, we note that this Q dependence on the dipole moments is limited by the presence of losses. If dielectric losses were present, the overall Q is approximately given by $Q_{t} = {(1 / Q_{d} + 1 / Q)}^{- 1}$ , with $Q_{d} = Re (ε_{d}) / Im (ε_{d}) \approx 566$ , and Q as shown in Figures 5 and 6. Therefore, this stresses that to have high Q metasurfaces there is a need for low-loss dielectrics.

Conclusion

In this article, we examined metasurfaces with a finite number of magnetic dipoles oriented orthogonal or parallel to the plane of the metasurface and determined analytic formulas for their resonances’ Qs. Finite metasurfaces made of orthogonal (to the plane) magnetic dipoles are very good candidates for achieving resonances with large Qs, which ultimately depend on the number of resonators in the metasurface. We have found that the distribution of dipole moments along the array, which for a uniform excitation ends up being parabolic or trigonometric (but could be modified by modulating the intrinsic polarizabilities of the resonators), affects substantially the Q of metasurface resonances. These results provide design guidelines to achieve a sought Q applicable to any resonator geometry.
