Handwriting patterns in isolated rapid eye movement sleep behaviour disorder

Abstract

Background

Handwriting changes are recognised as an early manifestation of Parkinson's disease. Whilst isolated rapid eye movement sleep behaviour disorder (iRBD) is strongly associated with future Parkinson's diagnosis, changes in handwriting remain under-explored.

Objective

To assess the handwriting of people with iRBD and develop a rating scale for detection of early disease clinical hallmarks.

Methods

Cross-sectional study involving 33 people with polysomnography-confirmed iRBD and 29 controls. Participants copied a standard sentence using pen and paper. A graphologist analysed each script blindly and designed a scale based on observed abnormal patterns which included: micrographia, sentence slope, hidden tremor, retracing, resting marks, irregular shape, excessive pen pressure, and inconsistent word spacing. Each item was scored 0/1 based on their absence/presence. Separately, three blinded movement disorders experts assessed the scripts based on their global clinical impression as well as using the rating scale.

Results

People with iRBD were slower to complete the task than controls (76.70 s (SD = 30.39) vs 61 s (SD = 10.71); p = 0.004). Hidden tremor was the most common feature amongst the iRBD group (72.0% vs 34.5%; p = 0.005), followed by sentence slope (60% vs 24% p = 0.005) and pen pressure (48% vs 14%; p = 0.006). Micrographia was observed in both groups (iRBD 45.4%, controls 41.4% p = 0.801). Classification accuracy of the scale for iRBD was higher than expert global assessment (AUC 0.76 vs AUC 0.62; p = 0.029).

Conclusions

Writing speed, tremor, pen pressure and sentence slope are handwriting features that warrant further investigation to define early patterns in people with iRBD.

Plain Language Title

Handwriting changes in patients with REM Sleep Disturbances.

Plain Language Summary

Background: Handwriting changes are a known early manifestation of Parkinson's disease. Whilst disturbances in rapid eye movement (REM) sleep are strongly associated with future Parkinson's diagnosis, changes in handwriting remain under-explored. Objective: To assess the handwriting of people with REM sleep disturbances and develop a rating scale for detection of early disease features. Methods: Cross-sectional study involving 33 people with sleep study confirmed REM sleep disturbances and 29 controls. Participants copied a standard sentence using pen and paper. A graphologist analysed each script blindly and designed a scale based on observed abnormal patterns. Each item of abnormal pattern on the scale was scored 0/1 (absence/presence). Separately, three movement disorders experts assessed the scripts based on their global clinical impression as well as using the rating scale. Results: People with REM sleep disturbances were slower to complete the task than controls (76.70s vs 61s). Hidden tremor was the most common feature amongst the iRBD group (72.0% vs 34.5%), followed by sentence slope (60% vs 24%) and pen pressure (48% vs 14%). Micrographia was observed in both groups (iRBD 45.4% vs controls 41.4%). Classification accuracy of the scale for REM sleep disturbances was higher than experts' assessment. Conclusions: Writing speed, tremor, pen pressure and sentence slope are handwriting features that warrant further investigation to define early changes in people with REM sleep disturbances.

Keywords

isolated RBD handwriting Parkinson's disease graphology

Introduction

Rapid Eye Movement (REM) sleep behaviour disorder (RBD) is a parasomnia characterised by the loss of normal muscle atonia during REM sleep, leading to dream enactment behaviours.¹ It requires video-polysomnography (v-PSG) to confirm the diagnosis. Longitudinal studies have demonstrated a strong link between isolated RBD (iRBD) and synucleinopathies, such as Parkinson's disease (PD), Dementia with Lewy Bodies (DLB) or Multiple System Atrophy (MSA), with more than 80% of people with iRBD developing one of these later in life.^2–4

In individuals with iRBD, subtle motor signs seem to be the strongest predictor of future parkinsonism; in a large multicenter study including over 1000 individuals with iRBD, it was found that motor impairment had the highest hazard ratio among 21 potential markers of phenoconversion.² Additionally, a smaller study suggested that motor dysfunction may precede a formal diagnosis by 6 to 9 years.² Despite that, early recognition of these features remains challenging primarily due to the limited number of scalable, reliable, and replicable motor assessment tools.

Handwriting analysis is a promising approach to fill this gap. As a complex motor-cognitive task, handwriting integrates voluntary and automatic movements requiring a coordinated interplay of fine motor movements, sensory feedback and cognitive processing.⁵ This makes it a valuable tool for detecting clinical abnormalities in parkinsonian disorders and dementia. In fact, handwriting changes are a frequent and early manifestation of PD, often preceding other motor symptoms.^6–10 James Parkinson noted in 1817 that writing difficulties could precede walking impairment.¹¹ Amongst handwriting disruptions, micrographia, defined as a progressive decrement in letter size and writing speed over time, is the most well-described handwriting pattern in PD. Originally described by Arnol Pick in 1903 and later linked to PD by Froment approximately two decades later, micrographia remains a clinically relevant marker of parkinsonian motor dysfunction.⁸^12–14

Graphology could be highly valuable in this context, as its core objective is to analyse the dynamics of gestures related to drawing and writing.¹⁵ By identifying subtle, premorbid handwriting changes that might otherwise go unnoticed by the untrained eye, graphology offers a unique tool for early detection. Several studies have investigated handwriting features in movement disorders, using either traditional graphological approaches or computational techniques.^16–18 Moreover, the benefits of this approach extend beyond letters and sentences to include drawings such as the Archimedean spiral and circles, which are all relevant elements of the clinical motor assessments.^19–22

The aim of this study is to describe handwriting patterns of people with iRBD through the help of a graphologist, and to develop a clinically meaningful, replicable, rating scale to help clinicians and researchers to assist in the assessment and early identification of motor dysfunction in iRBD.

Methods

Participants

People with iRBD were identified from the Sleep Clinic at Guy's & St Thomas’ NHS Foundation Trust (UK) and had undergone overnight v-PSG to confirm the diagnosis of iRBD. Healthy controls were recruited from the PREDICT-PD study; a longitudinal web-based study involving over 10,000 people from the UK general population with the main goal to detect PD early.²³ A movement disorders specialist (CS) screened for exclusion criteria in both individuals with iRBD and controls for exclusion criteria which included a formal diagnosis of dementia, PD, and/or any other condition that could interfere with the performance of the handwriting exercise, including essential tremor, motor neuron disease, multiple sclerosis and polyneuropathy. People who were not fluent in English and illiterate were excluded. Similarly, people on medications with potential for causing pharmacological parkinsonism were also excluded.

Clinical assessment

Participants were examined by CS (unblinded) using the motor section (III) of MDS-UPDRS and asked about motor symptoms using the MDS-UPDRS-II (Motor Aspects of Experiences of Daily Living, M-EDL).²³ Subthreshold Parkinsonism (SP) was used as a motor outcome measure. The definition for SP was based on the MDS Task Force research criteria for prodromal PD (MDS-UPDRS-III >6 points, excluding postural and kinetic tremor). Participants completed the Montreal Cognitive Assessment (MoCA) to detect cognitive impairment (Table 1).

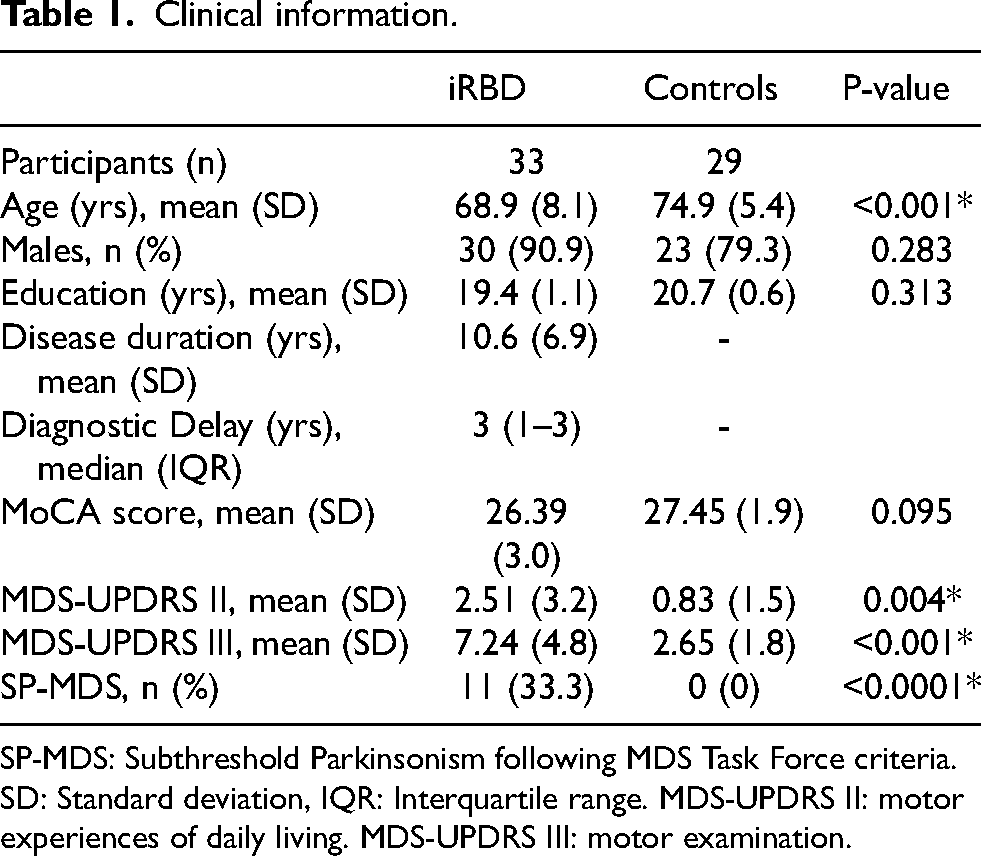

Table 1.

Clinical information.

	iRBD	Controls	P-value
Participants (n)	33	29
Age (yrs), mean (SD)	68.9 (8.1)	74.9 (5.4)	<0.001*
Males, n (%)	30 (90.9)	23 (79.3)	0.283
Education (yrs), mean (SD)	19.4 (1.1)	20.7 (0.6)	0.313
Disease duration (yrs), mean (SD)	10.6 (6.9)	-
Diagnostic Delay (yrs), median (IQR)	3 (1–3)	-
MoCA score, mean (SD)	26.39 (3.0)	27.45 (1.9)	0.095
MDS-UPDRS II, mean (SD)	2.51 (3.2)	0.83 (1.5)	0.004*
MDS-UPDRS III, mean (SD)	7.24 (4.8)	2.65 (1.8)	<0.001*
SP-MDS, n (%)	11 (33.3)	0 (0)	<0.0001*

SP-MDS: Subthreshold Parkinsonism following MDS Task Force criteria. SD: Standard deviation, IQR: Interquartile range. MDS-UPDRS II: motor experiences of daily living. MDS-UPDRS III: motor examination.

Handwriting assessment

A clinical rater and neurologist (CS) asked participants to copy the sentence ‘Mary had a little lamb, its fleece was white as snow’ three times without stopping, using a pen and plain paper with their dominant hand, and timed them while doing so. Patients were instructed to write at a comfortable speed and letters joined together.

Separately, an expert graphologist (EB), who was blinded to the participants’ diagnoses, reviewed the handwriting scripts of both groups using a mini, hand-held magnifying lens, so that individual strokes could be better seen. Handwriting features considered to be ‘abnormal’ were identified and selected to create an 8-item scoring scale:

Micrographia: a progressive decrease in letter size within a sentence, followed by a brief increase, and then a repeated reduction with each subsequent sentence.

Sentence slope: gradient or angle of the line of handwriting.

Tremor: evidence of irregular pen marks caused by involuntary hand movements.

Retracing: parts of the handwriting that have been covered by a secondary pen mark.

Resting marks: ink marks made on the paper by temporary cessation of hand movement.

Excessive pen pressure: evidence of strong pen pressure applied to the paper creating indentations or excessive ink flow.

Irregular shape: shape of letters that go against usual formation taught as copy book and variation of letter shape within one handwriting sample.

Word spacing: space left between handwritten words on a page.

Handwriting speed: graphologist's evaluation of the speed and spontaneity of the handwriting.

The graphologist scored as 0 or 1 all the items based on the absence or presence of the feature respectively (Table 2). Details of the assessment have been included as supplementary material.

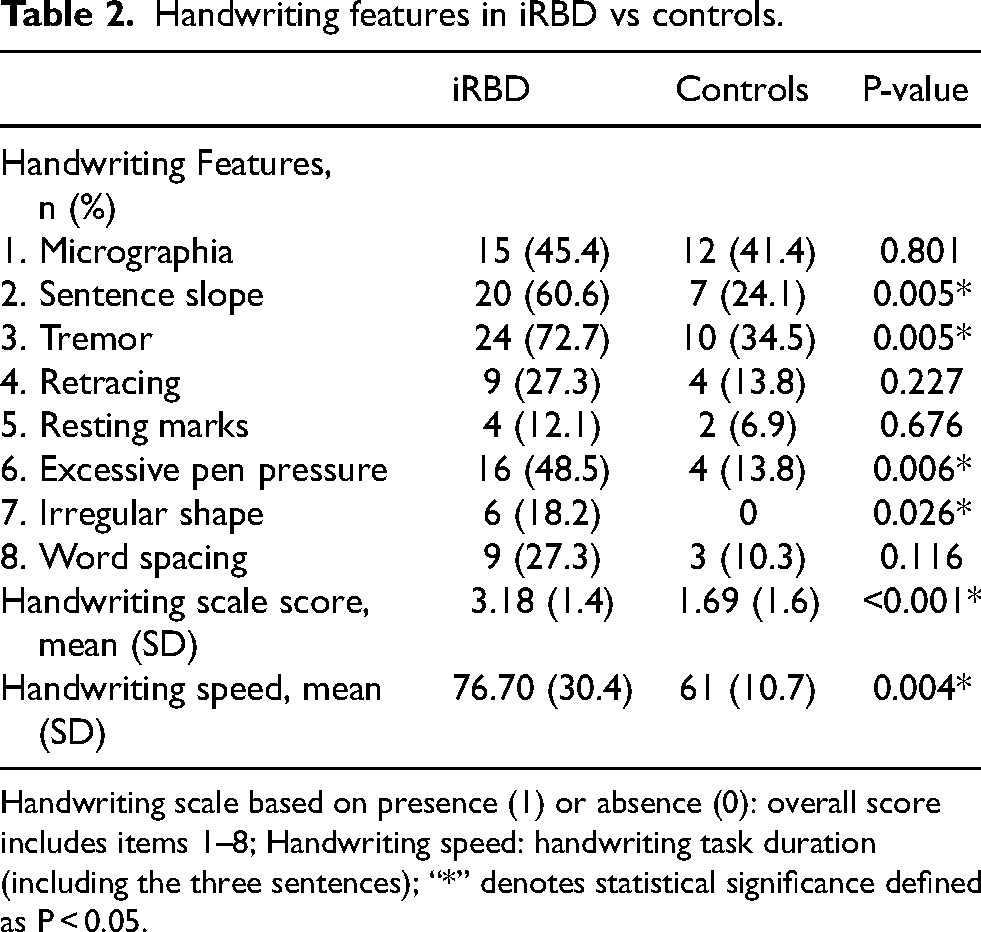

Table 2.

Handwriting features in iRBD vs controls.

	iRBD	Controls	P-value
Handwriting Features, n (%)
1. Micrographia	15 (45.4)	12 (41.4)	0.801
2. Sentence slope	20 (60.6)	7 (24.1)	0.005*
3. Tremor	24 (72.7)	10 (34.5)	0.005*
4. Retracing	9 (27.3)	4 (13.8)	0.227
5. Resting marks	4 (12.1)	2 (6.9)	0.676
6. Excessive pen pressure	16 (48.5)	4 (13.8)	0.006*
7. Irregular shape	6 (18.2)	0	0.026*
8. Word spacing	9 (27.3)	3 (10.3)	0.116
Handwriting scale score, mean (SD)	3.18 (1.4)	1.69 (1.6)	<0.001*
Handwriting speed, mean (SD)	76.70 (30.4)	61 (10.7)	0.004*

Handwriting scale based on presence (1) or absence (0): overall score includes items 1–8; Handwriting speed: handwriting task duration (including the three sentences); “*” denotes statistical significance defined as P < 0.05.

Three movement disorders expert neurologists (JA, AJN, AJL), who were blinded to clinical information and not trained to use the scale, independently reviewed scanned copies of the scripts. They were asked to use the handwriting scale developed by the graphologist, excluding the assessment of excessive pen pressure, which could not be evaluated in the scanned versions. They were also asked to classify each script as either abnormal (RBD) or normal (control) based on their overall clinical impression, using their individual clinical judgement.

Statistical analysis

Normality of the distribution of data was assessed using D’Agostino K2 test. Mean and standard deviation (SD) were calculated for normally distributed data, whilst interquartile ranges (IQRs) were used for non-normally distributed data. Categorical variables were presented by absolute frequency and percentage, calculating statistical significance using Fisher's exact test, whilst quantitative data for demographic and motor outcomes were compared using Welch's test for unequal variances.

The classification accuracy of the handwriting rating scale was determined using the Wilson/Brown method, including the generation of Receiver Operator Characteristic (ROC) curves to evaluate its performance at different thresholds. A cut-off that maximised Youden's J index was selected for each variable.

Inter-rater variability of the three movement disorder specialists was calculated using Kappa index.

All statistical tests were two-tailed. Bonferroni correction method was used to adjust the cut-off for evidence of association in the handwriting scale, which included nine variables, setting the p-value at <0.006 (0.05/9).

An ANCOVA analysis was performed to evaluate the effect of iRBD vs control group on handwriting scale score whilst controlling for age as a covariate.

Data analysis was carried out using STATA v.13 (StataCorp, College Station, TX).

Results

Demographics and comorbidities

A total of 34 people with iRBD and 29 controls were recruited. One participant with iRBD fulfilled the diagnosis of PD upon clinical examination, so their data was subsequently excluded from the analysis. In the final sample, there were 33 participants with iRBDs and 29 controls. Mean disease duration from symptoms onset in people with iRBD was 10.6 years (SD 6.87), with a delay in the iRBD diagnosis since noticeable symptom onset of 3 years (IQR 1 to 3). People with iRBD were younger than controls (iRBD mean age 68.9 years (SD 8.1) vs controls 74.9 years (SD 5.4); p < 0.001) but the percentage of male participants was similar (controls: 23/29 (79.3%) vs iRBD: 30/33 (90.9%); p = 0.283). There were no group differences in MoCA scores (iRBD mean 26.39 (SD 2.96), controls 27.45 (SD 1.86); p = 0.095) or years of education (iRBD mean 19.5 (SD 1.1), controls 20.7 (SD 0.6); p = 0.313) (Table 1).

Motor assessment

Eleven people with iRBD (33.3%) fulfilled criteria for SP. In contrast, only one healthy control scored seven points in the MDS-UPDRS-III (excluding action and postural tremor). On average, the iRBD group scored four points higher than controls on the MDS-UPDRS-III (7.24 (SD 4.81) vs. 3.0 (SD 2.25); p < 0.001). Additionally, people with iRBD were more prone to report motor symptoms than controls as reflected in their higher MDS-UPDRS-II total scores (2.51 (SD 3.16) vs. 1.41 (SD 1.68); p = 0.04) (Table 1).

Handwriting assessment

The iRBD group took an average of 15 s longer to write three sentences than controls (iRBD 76.70 s (SD 30.39) vs control 61 s (SD 10.71); p = 0.004). In fact, handwriting speed was found to be able to correctly detect iRBD participants from controls with 63.6% sensitivity and 75.9% specificity when using a cut-off of 21 s (AUC 0.71; 95% CI, 0.58 to 0.84). By increasing the cut-off 24 s, handwriting speed improved its accuracy to detect iRBD with SP from those without SP, achieving a detection rate of 81.8% for 82.8% specificity (AUC 0.86; 95% CI, 0.68 to 1.00).

Several handwriting differences were found by the graphologist amongst the iRBD group (Table 2). Markers of tremor were the most common feature amongst the iRBD group (present in 72.0% vs 34.5% respectively; p = 0.005), followed by sentence slope (60% vs 24%; p = 0.005) and increased pen pressure (48% vs 14%; p = 0.006). It was noteworthy that, in ten iRBD participants and in six controls, tremor was only visible in handwriting scripts and not with the naked eye during MDS-UPDRS assessment. Examples of handwriting scripts considered abnormal according to graphologist impression criteria are presented in Figure 1 and Figure 2. Despite the above findings, the proportion of people with micrographia in the iRBD group did not differ from controls (15 people with iRBD (45.4%) and 12 controls (41.4%); p = 0.801) (Figure 3). Importantly, there were no signs of task-specific neurological movement disorders such as focal hand dystonia, or “writer's cramp”, during assessment in the iRBD group.

Figure 1.

Examples of abnormal handwriting. 1) Individual with established PD and micrographia: progressive reduction in handwriting size across sentences (e.g. ‘white’ and ‘snow’). 2) Participant with iRBD and dysgraphia: untidy (irregular letter and word shape). Note sentence slope in both examples.

Figure 2.

Examples of handwriting markers in iRBD. 1) hidden tremor in green, 2) resting marks in red and 3) irregular word shape across sentences.

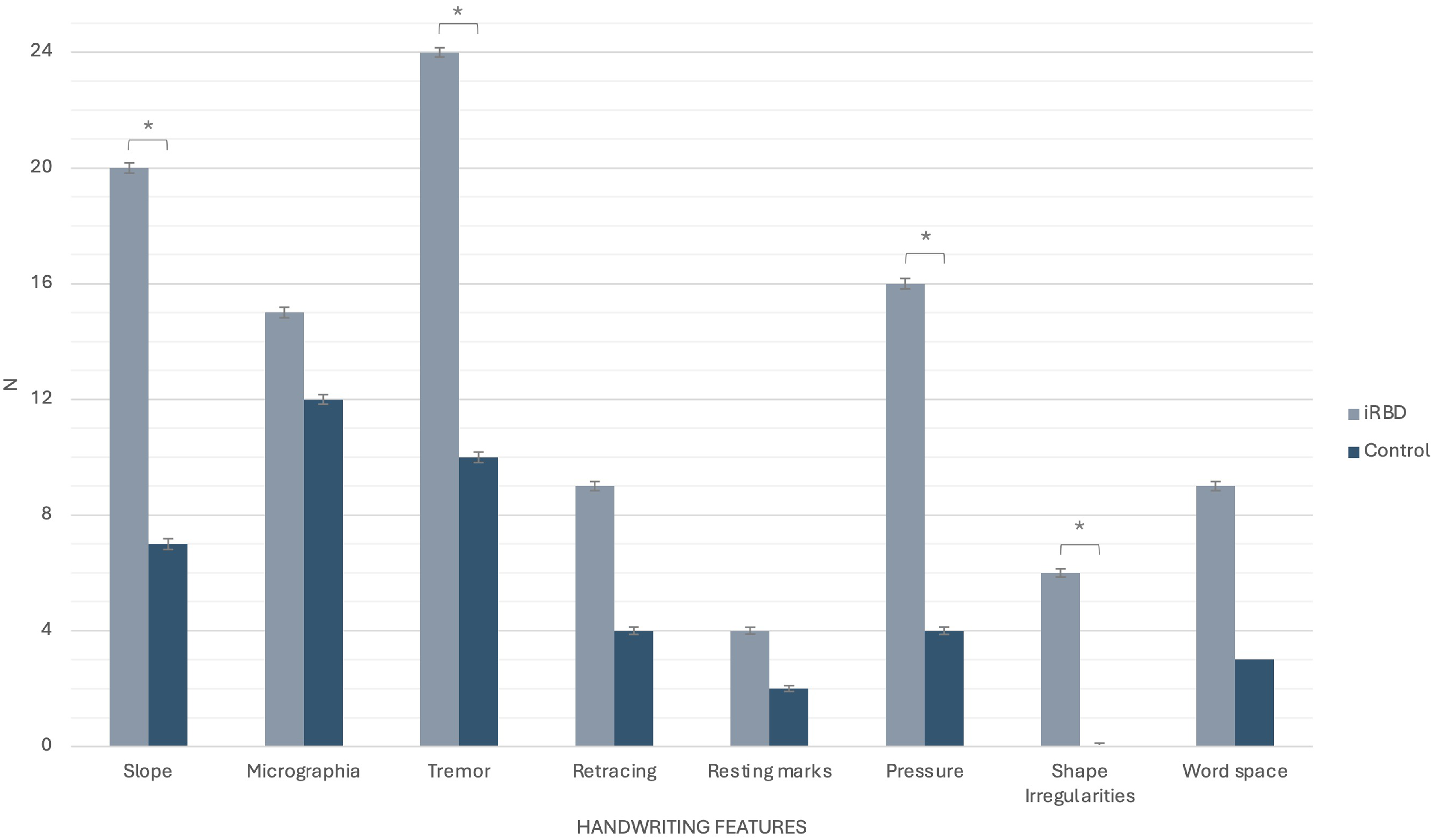

Figure 3.

Histogram of abnormal handwriting characteristics in iRBD and control groups

ANCOVA analysis to evaluate the effect of iRBD vs control group on handwriting scale score whilst controlling for age demonstrated that group was significantly associated with handwriting scale score (p < 0.001), even when controlling for age. Furthermore, age had no significant effect on handwriting scale score (p = 0.290).

The same analysis, repeated between the SP group and people with iRBD exclusively, did not reveal any statistically significant differences (Table 3).

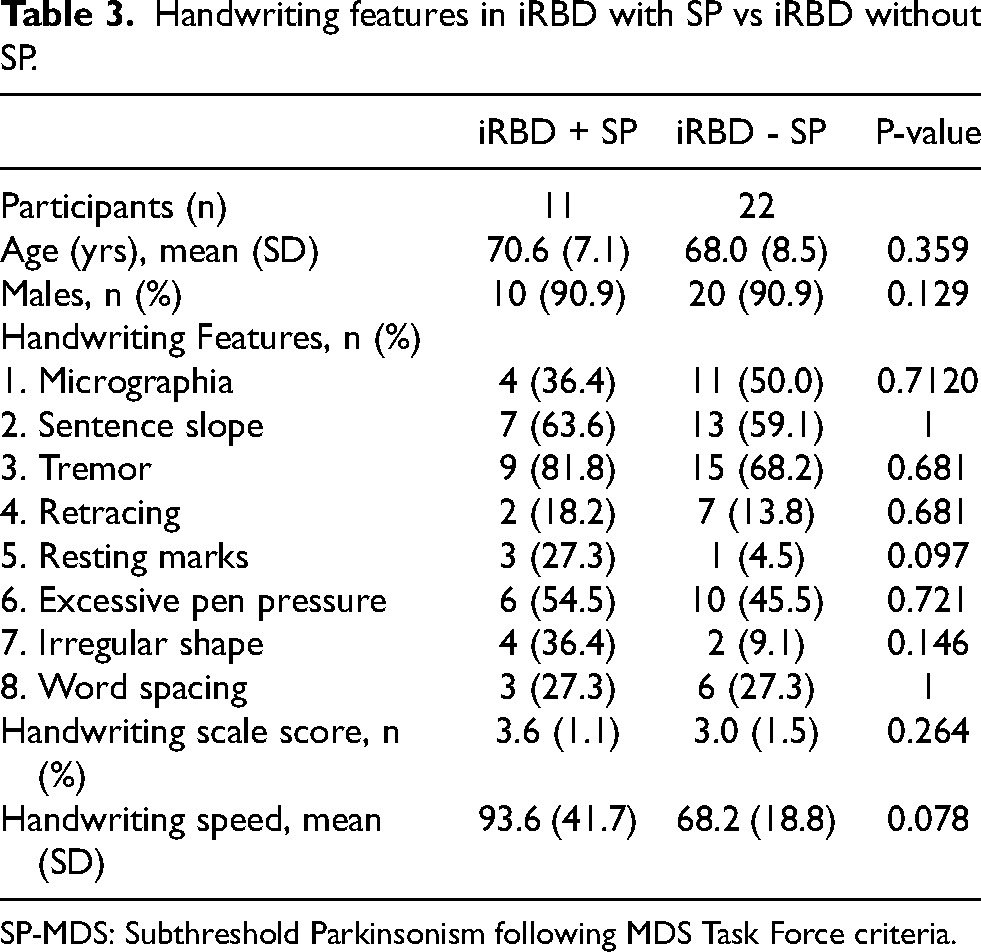

Table 3.

Handwriting features in iRBD with SP vs iRBD without SP.

	iRBD + SP	iRBD - SP	P-value
Participants (n)	11	22
Age (yrs), mean (SD)	70.6 (7.1)	68.0 (8.5)	0.359
Males, n (%)	10 (90.9)	20 (90.9)	0.129
Handwriting Features, n (%)
1. Micrographia	4 (36.4)	11 (50.0)	0.7120
2. Sentence slope	7 (63.6)	13 (59.1)	1
3. Tremor	9 (81.8)	15 (68.2)	0.681
4. Retracing	2 (18.2)	7 (13.8)	0.681
5. Resting marks	3 (27.3)	1 (4.5)	0.097
6. Excessive pen pressure	6 (54.5)	10 (45.5)	0.721
7. Irregular shape	4 (36.4)	2 (9.1)	0.146
8. Word spacing	3 (27.3)	6 (27.3)	1
Handwriting scale score, n (%)	3.6 (1.1)	3.0 (1.5)	0.264
Handwriting speed, mean (SD)	93.6 (41.7)	68.2 (18.8)	0.078

SP-MDS: Subthreshold Parkinsonism following MDS Task Force criteria.

Specificity and sensitivity were calculated to evaluate the accuracy of the scale; indeed, we found that when administered by a graphologist, it was able to correctly detect iRBD with 75.8% specificity and 68.9% sensitivity (cut-off: four points; AUC 0.77; 95% CI, 0.64 to 0.89). However, it was less accurate in identifying iRBD with SP from iRBD without SP with a detection rate of 72.4% for 69.7% sensitivity (cut-off: three points; AUC 0.81; 95% CI, 0.60 to 0.88) compared to handwriting speed.

We found a high inter-observer variability (Kappa index −0.08) amongst movement disorders expert neurologists when asked to provide their global impression and score the items in the handwriting scale. For that reason, instead of diluting accuracy by averaging with lower-performing raters, we choose the rater with the most reliable individual performance, the most stable and accurate AUC estimate (lowest standard error rate) to be compared with the graphologist assessment. Despite this, the scale was still found to be better performing (AUC 0.62 vs AUC 0.77; p = 0.029).

In terms of the MDS-UPDRS-III, it had a similar accuracy to the handwriting scale when implemented by a graphologist to correctly detect iRBD (cut-off: three points; AUC 0.81; 95% CI, 0.68 to 0.87; 69.7% sensitivity and 72.4% specificity).

Examples of Abnormal Handwriting. 1) Individual with established PD and micrographia: progressive reduction in handwriting size across sentences (e.g. ‘white’ and ‘snow’). 2) Participant with iRBD and dysgraphia: untidy (irregular letter and word shape). Note sentence slope in both examples.

Examples of Handwriting Markers in iRBD. 1) hidden tremor in green, 2) resting marks in red and 3) irregular word shape across sentences.

Histogram of abnormal handwriting characteristics in iRBD and HC

Discussion

To our knowledge, this is the first study to explore handwriting features in people with iRBD. We developed a simple handwriting scale that can be applied in practice, without the need for sophisticated equipment, allowing for the identification of distinctive handwriting patterns in iRBD beyond micrographia. In addition to reduced writing speed, we observed distinctive features in iRBD including altered sentence slope, hidden tremor within letters, irregular letter shape, and increased pen pressure. The fact that our scale, applied by a blinded graphologist, showed similar accuracy to the MDS-UPDRS-III, administered by an unblinded clinical rater, further strengthens the robustness of our results.

Micrographia has been linked to dopamine depletion within cortico-subcortical networks, and it is used as a supportive diagnostic feature to test for PD medication response.²⁴ However, it can also be used as a differential diagnostic tool to distinguish between PD and atypical parkinsonism, such as in Progressive Supranuclear Palsy (PSP) which, in contrast to PD, classically presents with consistent small handwriting without decrement.^10,25 Interestingly, micrographia did not discriminate iRBD in this cohort suggesting that additional handwriting parameters related to movement execution beyond letter size (dysgraphia) may emerge earlier in the early disease course.

Dysgraphia, defined as a disorder of mechanical handwriting skills, has been proposed as a broader term encompassing handwriting impairments in PD, which share similarities with developmental dysgraphia in children. To more comprehensively capture the spectrum of handwriting disturbances in PD, some authors advocate using the term “dysgraphia” instead of restricting analysis exclusively to letter size.²⁶ This broader conceptualisation might facilitate the identification of handwriting abnormalities beyond micrographia, including spatial, temporal, and pressure-related disturbances. For example, irregular word spacing and slope could be interpreted as indicators of impaired visuospatial organisation. This aligns with previous evidence linking handwriting abnormalities to deficits beyond pure motor control, encompassing spatial planning and executive function.^24,26 Equally, increased pen pressure could indicate greater effort required during writing, a feature previously described in dystonia. Although interestingly, none of our participants exhibited focal neurological deficits during the task.

Handwriting and drawing analysis have also been used in the dementia field^27,28 which has important implications for iRBD, given that a proportion of individuals with this condition will develop DLB. Graphology is traditionally defined as the analysis of an individual's psychological structure through their handwriting and has been applied in various fields where critical decision-making is essential, such as forensic evidence evaluation, criminology, and mental health disease analysis, especially to historical texts.^29–32 Incorporating graphology expertise into handwriting assessments helped identifying distinct handwriting patterns in iRBD. Follow-up of these participants will be crucial to know who will follow a predominantly cognitive (DLB) or motor (PD) disease trajectory.

Several limitations should be considered in this study. An important one, is the difference in age between the iRBD and the control groups used in the handwriting analysis, with the former being younger. Of note, the older mean age of the control group should count against, not for, a confounding effect on the handwriting assessment scores of participants, as age itself is associated with a further decline in motor function in both iRBD and PD.^33–35 Equally, the ANCOVA analysis outcome confirmed that the variation in handwriting scale scores observed was genuine, and not explained by the difference in age.

Educational background may also represent a confounding factor in handwriting analysis. To minimise this, we chose a sentence that it is commonly learned in school. However, both groups were comparable in terms of years of education. We did not account for other factors that might have an impact on our results such as writing literacy (time spent writing each day) pain/arthritis in hands, anxiety and fatigue.

Another limitation is the absence of a second graphologist to explore whether there also exists interrater variability among handwriting experts, similar to what has been observed among movement disorders specialists. Reasons for their interrater variability could be the lack of consensus on specific handwriting features associated with iRBD. Additionally, the quality of scanned handwriting samples may differ from the original documents, potentially making handwriting analysis more challenging for movement disorder experts compared to the graphologist. Movement disorder specialists were further disadvantaged in their assessments due to lack of previous training with the scale, and their inability to evaluate pen pressure or time to complete the task, which was one of the most distinctive handwriting features in iRBD and could have negatively impacted their overall performance rating the copied samples. As with the MDS-UPDRS, training may be necessary to improve the accuracy and reliability of handwriting assessments based on this scale³⁶

Moreover, although having a reference sentence is necessary to standardise assessment, research has shown that handwriting abnormalities, in particular micrographia, become more evident during free writing and could instead be masked by copying tasks.³⁷ This could explain why micrographia did not differ between the groups. Nonetheless, the lack of visual cues on the paper, such as lines or squares, would still have allowed for more of the handwriting abnormalities and potential sentence inclination to emerge.³⁸

It is important to acknowledge that our results might not be generalisable to other cohorts due to our small sample size from a predominantly White UK-based population. Additionally, there might be a healthy volunteer bias as individuals who participate in research studies are often healthier than those recruited from healthcare or community settings.³⁹

Lastly, the cross-sectional nature of our study limits our ability to assess disease progression and determine whether specific handwriting patterns may serve as early markers of neurodegenerative disease. Longitudinal follow-up studies would be essential to validate this handwriting scale and establish its predictive value in identifying individuals at risk for PD.

To conclude, we present handwriting signatures in iRBD which could be capable of detecting early motor and cognitive manifestations. However, our findings remain exploratory and warrant further investigation towards the development of tools capable of detecting handwriting signatures in iRBD.

Supplemental Material

sj-docx-1-pkn-10.1177_1877718X251412236 - Supplemental material for Handwriting patterns in isolated rapid eye movement sleep behaviour disorder

Supplemental material, sj-docx-1-pkn-10.1177_1877718X251412236 for Handwriting patterns in isolated rapid eye movement sleep behaviour disorder by Roberta Torricelli, Jack ES Kenny, Emma Bache, Laura Pérez-Carbonell, Brook FR Huxford, Harneek Chohan, Guy Leschziner, Jane Alty, Andrew J Lees, Anette Schrag, Alastair J Noyce and Cristina Simonet in Journal of Parkinson's Disease

Footnotes

Ethical considerations

Ethics approval was granted by the Queen Square Research Ethics Committee (09/H0716/48). We confirm that we have read the Journal's position on issues involved in ethical publication and affirm that this work is consistent with those guidelines.

Consent to participate

Participants received verbal and written information about the study and appropriately consented.

Author contributions

1. Research project: A. Conception, B. Organization, C. Execution;

2. Statistical Analysis: A. Design, B. Execution, C. Review and Critique;

3. Manuscript Preparation: A. Writing of the first draft, B. Review and Critique.

RT: 2A, 2B, 2C, 3A

JESK: 2A, 2B, 2C, 3A

EB: 1C

LPC: 1B, 2C, 3B

BFRH: 1B

HC: 1B

GL: 1B, 2C, 3B

JA: 1C, 3C

AJL: 1A, 1C, 3B

AS: 1C, 2C, 3B

AJN: 1C, 2C, 3B

CS: 1A, 1B, 1C, 2A, 2B, 3B

Funding

The authors disclosed receipt of the following financial support forthe research, authorship, and/or publication of this article: This work was supported by Barts Charity and Parkinson's UK (G-001226).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data sharing

The data that support the findings of this study are available on request from the corresponding author. The data are not publicly available due to privacy or ethical restrictions.

Supplemental material

Supplemental material for this article is available online.
