Tissue Response to Subcutaneous Infusion Catheter

Inflammatory Response Caused by the Catheter

SC tissue is an important target for drug delivery. For people with diabetes treated either by MDI or CSII, SC tissue of different anatomical regions, including the arm, abdomen, thigh, and buttocks, can be used for insulin adminstration.^41-44 In particular, the abdomen is recommended as the preferred insertion site for the IIS since this region is not only convenient and comfortable for catheter insertion but also enables rapid insulin absorption.^44,45 Among several clinical studies where patients received CSII, inflammation at the infusion sites has been frequently observed. For example, Mecklenburg et al reported that the inflammation at the infusion site was the main reason (53%) for discontinuing insulin pump therapy reported by adult patients on CSII. ⁴⁶ Clinical data from a group of 177 patients followed for up to 5  years showed that the most common reason reported by patients for terminating CSII therapy was discomfort, irritation, or inflammation at the infusion site. ⁴⁷ In a contrastive study, 48% (24 of 50) of people with diabetes treated with CSII reported inflammation at the infusion site while it was only 12% (6 of 50) in daily insulin injecting patients. ⁴⁸ According to the self-reported data from 116 CSII-treated patients for 518 patient years, a total of 134 cases of SC inflammation at the infusion site were reported. ⁴⁹ It should be noted that all these clinical data were symptom-based and there is limited research on why inflammation was observed following the catheter insertion.

In general, tissue exposure to biomaterial implants, for example, insulin infusion catheters, triggers a foreign body response, which is a stepwise process consisting of inflammatory events, wound healing and, if not resolved, end-stage tissue fibrosis and scarring.^50,51 For insulin therapy, insertion of an infusion catheter into the SC tissue will inevitably introduce a local trauma. This trauma can induce an acute inflammatory response and subsequently affect local blood flow and metabolism in the SC tissue.^52,53 Moreover, in contrast to inserting a needle for seconds into the skin in MDI therapy, an inserted infusion catheter will indwell in SC tissue for several days. Tissue reaction during the catheter indwelling period has rarely been studied, but it is similar to an implanted CGM that has been numerously studied,^54-56 a sustained local irritation occurs and further causes increased production of proinflammatory cytokines in the interstitial fluid and possible foreign body response. In the case of CGMs, tissue reactions to the implanted sensors (ie, inflammation, wound healing, and fibrosis) can lead to the migration and accumulation of inflammatory cells at the sensor implantation site, which creates a metabolic barrier to retard glucose diffusion to the implanted sensor and decreases glucose availability, thereby compromising the accuracy and lifespan of implanted sensor.^57,58 Similarly for the implanted catheter, one would expect, again few scientific evidence has been reported, that the inflammation-induced alteration in the local SC microenvironment after the catheter insertion could affect the insulin absorption and compromise the wear time of the infusion catheter.

To further understand the tissue response after SC catheter insertion, histological information with skin biopsies from people with diabetes will be extremely helpful, though obtaining tissue samples from pump users could be difficult. Furthermore, future histological studies on animals receiving the catheters are required to obtain more insights into the SC inflammation issue.

Infections and Other Complications Caused by the Catheter

In the early years of CSII therapy, infection at the infusion site was a common complication and always resulted in a termination of CSII.^59,60 The high frequency of infections typically resulted from inadequate disinfection before catheter insertion and a low-frequency change of the IIS. The IIS indwells at the same site for several days and the insertion site beneath the adhesive is typically warm and humid. This provides an ideal condition for bacterial growth. Majority cases of infusion site infections were reported to be caused by Staphylococcus. ⁶¹ Infections caused by other pathogens (eg, Streptococcus or Rhizomucor) have also been found.^62,63 In clinical practice, most of these infections were mild and did not require antibiotic treatment. So far there were only two cases, extremely rare though, reporting serious systemic complications caused by IIS-related infections, including one incident of acute bacterial endocarditis ⁶⁴ and one incident of toxic-shock syndrome. ⁶⁵ In the past few years, with increasing hygienic precautions and improved training experience with insulin pumps, the skin infection has been less frequently observed in CSII therapy.

Other skin-related complications that frequently observed in insulin pump therapy involve both acute and chronic adverse effects. Commonly seen acute skin reactions include bruising, redness, swelling, and erythema, and typically occur when the catheter was kept at the same insertion site for over 2-3 days.^37,66 A pilot investigation has examined the link of IIS-related events to the prolonged use of catheters beyond the recommended duration. ⁶⁶ It was found that the skin problems, such as itching, bruising, swelling, and pain, started to occur in a measurable amount on the 3rd day of catheter use and were reported to be significant by 40% patients on the 5th day of use. Recent data from a prospective randomized crossover study with 2×3-month observation periods with 22 T1D patients using a Teflon catheter showed that significantly more skin-related adverse events such as erythema, rash, pain, reddening, irritation, hemorrhage were observed with 4-day use than that with 2-day use. ³⁷

Unlike the acute adverse reaction where the inserted catheter is considered as a major cause, chronic side effects such as scars, nodules, and lipohypertrophy, are recognized to be associated with both the inserted catheter and the subsequent presence of insulin in the SC tissue.^36,37,66 These chronic effects can be observed in both adults and children even though the catheter set is changed every 3 days following the manufacturer’s recommendation. An across-sectional study of dermatological side effects in 50 children and adolescents with T1D who were using CSII therapy for more than 6 months showed that 94% had scars with a diameter less than 3 mm, 66% had erythema not associated with nodules, 62% had SC nodules, and 42% had lipohypertrophy (Figure 1). ³⁵ A recent report based on 54 T1D patients on CSII therapy aged between 3 and 20 years also indicated the prevalence of these dermatological complications. ⁶⁷

OPEN IN VIEWER

Figure 1.

Photographs of skin-related complications at the CSII sites. (A) Hypopigmented scars and bruise. (B) Multiple hypopigmented scars and two areas of erythema. (C) Single erythematous nodule. (D) Multiple areas of erythema, erythematous nodules, and larger hypopigmented scars. (E) Epidermal abrasion caused by infusion set tape. (F) Bilateral lipohypertrophy. Reprinted with permission from Conwell et al, ³⁵ © 2008 by Elsevier Ltd.

As discussed above, the inserted catheter is a major cause of the skin problems despite being approved for the intended SC use. There is a variety of IISs currently available for patients to choose from; however, it is unclear whether changing catheter types will significantly resolve the complication issues. Some comparative studies on different types of IISs have been reported, while most of them focused on the impact of different catheter materials on the duration of usage, ⁶⁸ glucose control, ⁶⁹ and insulin absorption. ⁷⁰ To date, no systematic studies have been performed to evaluate the influence of different catheters on skin-related complications under controlled conditions. A recent review article summarized the available published studies on the different catheter materials in CSII and pointed out that no clear statement could be made on the pro or con for a steel versus a Teflon catheter when it comes to local skin reactions and insulin absorption at the infusion site. ⁴⁰

Complications Caused by the Infused Insulin

Both lipohypertrophy and lipoatrophy are common tissue response mainly associated with the SC bolus and continuous insulin infusion. Insulin-induced lipoatrophy presents as the loss of SC fat at the site of insulin injection and occurs more often in people with diabetes with MDI than CSII. ³³ Since the introduction of highly purified recombinant human insulin over recent years, lipoatrophy has been extremely rare in insulin pump-treated patients.^35,71 Lipohypertrophy usually presents as soft dermal nodules within the normal surface epidermis with fat cell hypertrophy, which, however, remains the most commonly occurred cutaneous complication during CSII (Figure 1F). In an across-sectional study of dermatological side effects in 50 children and adolescents with T1D who were using CSII therapy for more than 6 months, it was found that the occurrence rate of lipohypertrophy at the infusion site was 42%. ³⁵ In another similar study of dermatological side effects and complications in preschool-age and school-age children, lipohypertrophy showed a high incidence during CSII (45% in preschool-age children and 47% in school-age children). ³⁶ According to a self-reported questionnaire completed by subjects with T1D under CSII, the average occurrence rate of lipohypertrophy at the infusion site was 26.1%, and this incidence became more often in those with a longer history of CSII therapy. ³¹ Lipohypertrophic areas have been clinically found to be coincident with impaired insulin absorption and deteriorative glycemic control in patients with long-term insulin pump therapy.^72,73

Complications Caused by Adhesives

For IIS systems, adhesives have been employed to immobilize the catheters on the skin. There is also an increasing practice on using tapes to immobilize infusion lines to the skin that connect the infusion catheter to the pump. These actions are based on the concerns that without fixing the infusion lines with tapes, any tug or movement of the infusion line can be directly transferred to the catheter, leading to loosened adhesives, skin irritation, redness, bruising around inserted site and insulin leakage through the skin trauma. ⁶⁷ Nevertheless, the extensive use of adhesives and tapes may cause allergies or contact dermatitis. This skin problem, although rare, has been reported during the CSII therapy.^74,75 On a very rare occasion, the contact dermatitis persists despite changing the type of adhesives. This may be attributed to the different responses to adhesives among the pump users.

The Longevity Issue of IIS

It is well known that the FDA recommended the continuous use of IIS for only 2-3 days at the insertion site. However, in practice, this recommendation was originally developed based on anecdotal case reports. In 1983, the Centers for Disease Control and Prevention (CDC) reported a case study of an 11-year-old girl with T1D using CSII who frequently did not change the pump infusion site for 10 days, resulting in a Staphylococcus aureus abscess at the insertion site and toxic shock syndrome. ⁶⁵ At that time this concern had not been verified in any randomized controlled trial, and there was no specific procedural guideline available to minimize the risk of SC infections in CSII users. So FDA adopted CDC’s Guideline for Prevention of Intravascular Infections to formulate their “2-3 days” recommendation. ⁷⁶ Since then, both the catheter manufacturers and insulin manufacturers recommend changing infusion sets and infusion sites after 2-3 days of use to avoid skin and other undesired side effects in CSII therapy. This recommendation is still in use today although IIS has experienced great evolution in the last few decades.

Despite the “2-3 days” recommendation in place, many pump users do not adhere to it according to the self-reported questionnaires ³¹ and diabetes forums.^77,78 In practice, pump users often keep their IIS inserted for several days (3-5 days) or even longer (7-10 days). Typically, they do not change the IIS until the self-monitored blood glucose level starts to rise or visually adverse event starts to occur at the infusion site. There are also pump users reporting that they have to change the IIS more frequently (even daily or every 12 hours). The reason for such interindividual difference among patients is still not clear.

To our knowledge, investigation on the longevity of the inserted catheter is extremely limited. In a pilot study to assess the optimal frequency for changing catheters in insulin pump therapy, 12 patients with T1D were asked to continuously wear an IIS with a Teflon catheter for up to 5 days. ⁶⁶ The results indicated a consistent increase in mean daily blood glucose levels with the duration of catheter usage (that from 135 mg/dL on Day 1 to 162 mg/dL on Day 5). In addition, clinically relevant adverse events also started to occur during the first three days and their incidence increased further with longer use (Figure 2). The authors concluded that infusion catheters should only be used for 2-3 days to avoid adverse events and potential metabolic deterioration. In another similar study, a double-blind, randomized, crossover trial was conducted with 20 T1D patients using an IIS without change for up to 100 hours. ³⁹ The results indicated that from Day 2 to Day 5 of the IIS use, the daily average glucose level increased from 123 to 164 mg/dL, and the daily maximum glucose increased from 208 to 243 mg/dL. Deteriorated glycemic control was observed even after increasing the total daily insulin dose from 49 to 55 U. The authors suggested that the optimal duration of IIS use is 2 days. In a more recent web-based study with 243 participating adults with T1D, it was found that the fasting blood glucose levels increased with the duration of IIS use (from 126 mg/dL on Day 1 to 133 mg/dL on Day 3 to 147 mg/dL on Day 5). ³⁸

OPEN IN VIEWER

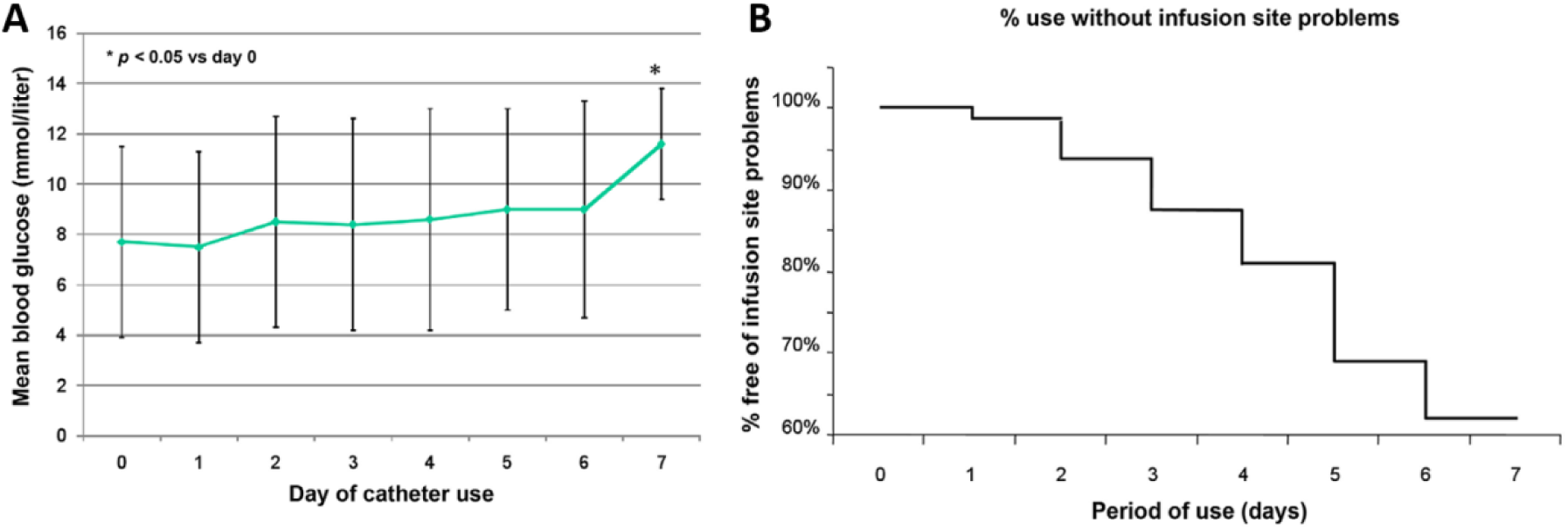

Figure 2.

(A) Mean daily blood glucose of the patients during the insertion of catheters. (B) Kaplan–Meyer curve for patients free from IIS treatment-induced adverse events. Reprinted with permission from Schmid et al, ⁶⁶ © 2010 by Diabetes Technology Society.

To further understand the longevity of inserted IIS and its relation to the observed deteriorated glycemic control or adverse reaction, the histological study should be followed, though obtaining samples could be difficult as previously discussed. In addition, IIS systems have experienced a major update on the tubing and catheter materials, and studies on the up-to-date IISs are desirable.

Conclusion

With fast-paced development of insulin pump and closed-loop infusion systems, the CGM and CSII will become more and more feasible for people with T1D in the near future. Several recently FDA-approved CGMs are transitioning from 7-day to 10-day wear without the need for recalibration through fingerpricks. However, as a critical part of insulin pump therapy, the studies on the IIS is still limited. Many IIS-related problems have been reported since the 1980s, while little progress has been made over the last three decades in understanding and solving these problems. In particular, the proper use of IIS in CSII therapy is still 2-3 days, which can hardly match the current duration of CGM for potential closed-loop system development. The investigation to develop IIS with longer duration of use is challenging but highly desirable. This will require further study to understand SC tissue response to the inserted catheter and major factors contributing to the short-term in vivo use (patient samples will be invaluable here). Based on this knowledge, future strategies could be developed to significantly reduce the incidence of IIS-related problems, extend the wear time, and increase the acceptance of insulin pump based therapy.
