A Review of Digital Innovations for Diet Monitoring and Precision Nutrition

Introduction

A recent survey examining the consumption of major foods and nutrients among adults aged 25 or older in 195 countries has estimated that improving diet can potentially prevent one in every 5 deaths globally. ¹ Using a number of dietary risk factors (eg, diet high in sodium, or low in fiber), the study concluded that poor diet was responsible for more deaths than any other risks globally, including tobacco smoking. ¹ An essential step to improve diet is to monitor food intake and eating behaviors. However, conventional methods for monitoring diet are based on self-report measures (eg, food diaries, 24-hour recall), which are problematic. For example, food diaries require manual input, which is burdensome ² and often leads to low adherence rates. ³ Further, 24-hour records suffer from memory recall, which can lead to severe over and under-reporting. ⁴ Compounding the problem are the very large inter-individual differences in the response to the same foods, ⁵ which puts into question the utility of universal dietary recommendations. Thus, there is a need for new techniques that can reduce the burden of monitoring food intake and also allow individuals to personalize their diets to achieve optimum health.

To address these issues, this article provides an overview of current technology in 3 key areas related to precision nutrition, as illustrated in Figure 1: advances in mobile applications for diet logging, new wearable sensors to detect dietary behaviors, and personalized nutrition programs based on analyzing biochemical markers (gut microbiome, blood glucose) through artificial intelligence (AI) techniques. The article concludes with a discussion of potential pitfalls when relying excessively on technology to solve the problems of diet monitoring and personalized nutrition, and other important health problems.

OPEN IN VIEWER

Figure 1.

Overview of the chapter in 3 key areas. advances in mobile apps for diet monitoring, wearable and handheld sensors, and personalized nutrition. (a) Snapshot of the Undermyfork app, ⁶ which tracks glucose patterns (bottom) and aligns them with food photographs (top). (b) Recognition of foods from photographs. ⁷ (c) Tooth-mounted sensor (from Tseng et al ⁸ ). (d) Smart fork utensil. ⁹ (e) Epidermal sweat sensor (from Sempionatto et al ¹⁰ ). Personalized nutrition is achieved by combining (f) continuous glucose monitors, (g) microbiome information and (h) machine learning techniques. (a) Provided, with permission, by Undermyfork, (b) reprinted (adapted) with permission from authors ⁷ (c) reprinted (adapted) with permission from Tseng et al, ⁸ (d) reprinted (adapted) with permission from Zhang et al, ⁹ (e) reprinted (adapted) with permission from Sempionatto et al, ¹⁰ Copyright 2020 American Chemical Society, (f) photo credit: iStock.com/AzmanJaka, (g) photo credit: iStock.com/Design Cells, and (h) photo credit: iStock.com/KENGKAT.

Mobile Applications for Diet Monitoring

A major step in reducing the burden of diet monitoring has been the replacement of paper-based journals with smartphone apps. The ubiquity of smartphones makes dieting apps very convenient, since the user does not need to carry around a physical log book or diary. Further, dieting apps provide access to databases containing the nutritional content of a very large number of foods and meals. As an example, one of the most popular dieting apps, MyFitnessPal, ¹¹ has over 11 million food items, though not all of its entries are verified for accuracy (to our knowledge, the largest verified nutrition database is Nutritionix, with nearly 800,000 grocery items and 170,000 restaurant items). Having access to such massive databases can greatly simplify guesswork for users (ie, by providing precise nutritional information of meals) and guide them when

choosing portion sizes and meals. An additional advantage of mobile apps is their ability to scan barcodes for packaged foods, which reduces the need to look up the food in a database or enter food nutrients manually. Finally, dieting apps can also be integrated with external devices, such as smart scales, fitness trackers, and continuous glucose monitors (CGMs) to help users understand the effect of diet and exercise on their weight trends and glucose patterns.

However, written food diaries –whether paper-based or electronic, require a high level of engagement that can lead to fatigue and reduced adherence over time. ¹² An alternative that has gained popularity over the past decade are photographic food diaries. ¹³ Photographic food diaries offer several advantages over written diaries. They can reduce data hording, the situation where the user completes multiple entries at once, typically at the end of each day. Because photographs have to be taken at the point of consumption, they tend to encourage in-the-moment awareness and more accurate recalls (eg, the context in which the meal was eaten, the preparation and makeup of the food, and how much of the food was eaten). In addition, studies with adult and pediatric populations have shown that photographic diaries are preferred to paper diaries, and are easier to use. Further, previous studies have shown that combining images with other forms of information (eg, written, verbal) can increase retention, understanding and future problem solving. ¹⁴ An interesting example in this direction is Undermyfork, ¹⁵ a diabetes app that combines photo-based food logging with glucose data from CGMs. The app shows food photographs with the corresponding glucose responses, which helps users identify foods that lead to high postprandial glucose, and foods that keep glucose within a more normal range. A further advantage of photo-based food diaries is they can be combined with AI techniques to detect and identify foods, and estimate the nutritional content of foods. ¹⁶ An increasing number of commercial apps use these techniques to track nutrition from food photographs, for example, Lose It!, ¹⁷ CalorieMama, ¹⁸ Snaq, ¹⁹ Undermyfork, and several software libraries for food image recognition are available for integration with mobile apps, for example, bite.ai, ²⁰ FoodAI. ²¹

Sensors for Tracking Eating and Nutrition

In parallel with advances in mobile apps, a number of sensor-based approaches are being developed to automate the process of tracking eating behaviors, thus reducing user burden and increasing measurement accuracy. We organize these various sensing modalities into two broad categories: physical sensors and chemical sensors.

Chemical Sensors

While physical sensors can be used to detect moments of dietary intake, in most cases they have limited ability to estimate the nutritional content of foods. The latter requires measuring dietary biomarkers that are associated with intake of nutrients. A number of biomarkers have been identified that correlate with intake of various foods, such as fruits and vegetables (eg, vitamin C and carotenoids in blood), sugar (eg, urinary sucrose and fructose), or protein (eg, urinary nitrogen), to mention a few.^30,31 Here we focus on dietary biomarkers that can be measured with wearable or handheld sensors.

CGMs have gained acceptance to manage type 1 diabetes, but also offer promise for monitoring dietary intake. The mechanism by which CGMs may be used to monitor diet is based on the fact that the change in blood glucose after a meal, also known as the post-prandial glucose response (PPGR), depends on the macronutrients in the meal (eg, carbohydrates, protein, fat, fiber). The major determinant of post-prandial glucose is the amount of carbohydrates, but adding protein, fat, or fiber to a meal generally yields smaller increases and lengthier responses; see Figure 2. This suggest that the shape of the PPGR can be used to recover the macronutrient composition of the meal through the use of machine learning techniques. To test this hypothesis, we recently conducted a study in which 15 healthy participants (not diagnosed with prediabetes or type 2 diabetes, 60-85 years, body mass index 25-35 kg/m²) consumed 9 different meals over the course of 2-3 weeks while wearing a CGM. Each meal had a known but varying amount of CHO (low C1: 42.5 g, medium C2: 85 g, high C3: 170 g), protein (low P1: 15 g, medium P2: 30 g, high P3: 60 g), and fat (low F1: 13 g, medium F2: 26 g, high F3: 52 g). Then, we trained several machine learning models to predict the amount of macronutrients from the PPGRs in a leave-one-participant-out fashion, for example, using data from 14 participants for training and the remaining participant for testing.^32,33 The best performing models were able to predict the amount of macronutrients in the meal with a normalized root mean squared error (NRMSE) of 22% for carbohydrates, 50% for protein and 40% for fat, a promising result given the large inter-individual differences in food metabolism ⁵ and the fact that the models were not customized for each participant.

OPEN IN VIEWER

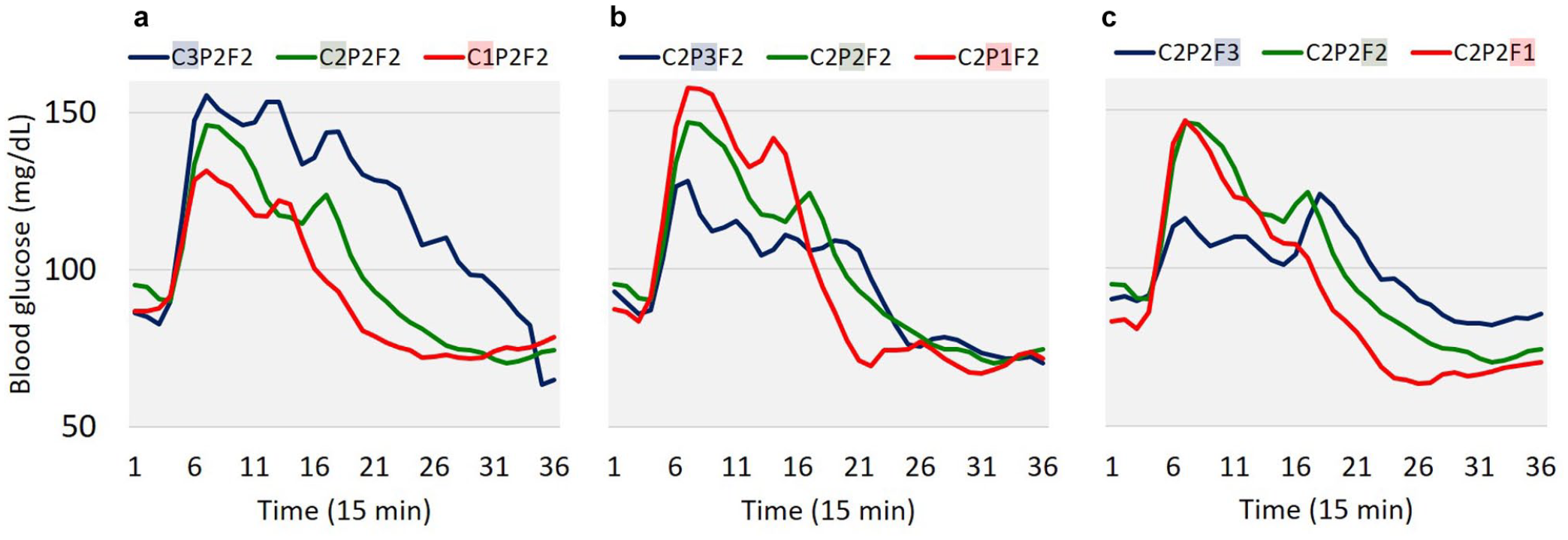

Figure 2.

PPGRs to mixed meals with carbohydrates (C), protein (P) and fat (F), denoted as CxPxFx, where x represents the amount of each macronutrient in the meal (1: low; 2: medium; 3: high). (a) Average PPGR across subjects as the amount of carbohydrates increases (C1, C2, C3) while the other 2 macronutrients remain fixed (P2, F2). The PPGR becomes more pronounced at higher levels of C. (b) Average PPGR protein increases (P1, P2, P3) while the other 2 macronutrients are fixed (C2, F2). As protein increases, the PPGR decreases, with lower maximum levels and slower return to baseline. (c) Average PPGR as fat increases (F1, F2, F3) while the other 2 macronutrients are fixed (C2, P2). As with protein, as fat increases, the PPGR also decreases, with lower maximum levels and slower return to the baseline (from Das et al. ³² ).

Handheld devices are also available to analyze breath biomarkers associated with metabolism. A primary target of these devices are ketones (eg, acetone). During prolonged fasting or carbohydrate restriction, the body resorts to burning fat in order to produce ketones, which are then used as an alternative source of energy instead of glucose. ³⁴ This results in elevated values of ketones in the breath, which can serve as an indicator of whether the body has reached ketosis (ie, the metabolic state where the body generates energy primarily from fat). Several breath ketone meters exist currently in the market, including the Ketonix analyzer, ³⁵ and the Biosense monitor. ³⁶ These devices are aimed at people attempting to lose weight through ketogenic diets, but may also be beneficial for people with diabetes who may be at risk of ketoacidosis (this type of breath analyzers provide a single-point measurement of ketones; for continuous measurement, several recent studies have proposed the development of continuous ketone monitors (CKMs) to measure ketones in interstitial fluid^37,38).

Another metabolic biomarker that can be derived from breath analysis is metabolic fuel, a parameter that reflects the body’s fuel preference for energy production (ie, carbohydrates vs. fat). Metabolic fuel is generally estimated as the respiratory exchange ratio (RER), the ratio of CO₂ produced during metabolism and oxygen used. But this requires the use of metabolic carts, which are only available in specialized clinics and thus are unsuited for regular use. To address this issue, a hand-held device by Lumen ³⁹ has become available that estimates metabolic fuel by measuring CO₂ while the user performs a brief breath maneuver. This information is then used to provide personalized nutrition and exercise recommendations.

Additional dietary biomarkers can be extracted ambulatorily with wearable sensors from other bodily fluids. A primary target of these devices is sweat, since it can be measured at convenient body locations and is ideal for continuous monitoring. A variety of analytes present in sweat may be of interest for metabolic disorders, including various electrolytes, glucose, lactate, ammonia, ethanol, cortisol, and hydration markers.^10,40 As an example, Sempionatto et al. ¹⁰ developed an epidermal biosensor to track the dynamics of vitamin C in sweat. The device is in the form of a flexible tattoo, and uses iontophoresis stimulation to draw sweat and an enzymatic process for detection. Along the same lines, Yang et al. ⁴¹ developed a sweat sensor that can detect uric acid and tyrosine, analytes that are well established for metabolic and nutritional management. For personalized nutrition, another interesting target is saliva, since it can be highly informative of eating behaviors (eg, increase in salivary secretion with eating) and the nutritional composition of the meals. Kim et al. ⁴² developed a non-invasive mouthguard biosensor that was capable of monitoring lactate continuously during sport activities. However, wearing a large mouthguard is impractical for long studies, so better mounting solutions have also been investigated, such as tooth-mounted sensors. Along these lines, Tseng et al. ⁸ developed a hydrogel-based sensor that, attached to a tooth, could track glucose, salt and alcohol intake. However, in contrast with CGMs and breath analyzers, which are already available commercially, many of these sweat/saliva sensing devices are still at the research stage.

Technologies for Personalized Nutrition

Finally, we describe how technologies are being used to develop personalized nutrition programs. Here we discuss measurements of gut microbiome (i.e., collection of microorganisms, such as bacteria, viruses and fungi, and their genetic material present in the gastrointestinal tract) and blood glucose to develop personalized nutrition recommendations. In a seminal study on personalized nutrition, Zeevi et al. ⁵ used CGMs to track the glucose response of 800 participants (healthy and with prediabetes) for 1 week while participants kept detailed records of their diet. The authors then developed a machine-learning model (gradient boosting regression) that could predict the glucose response of a meal for each participant based on individual factors, such as anthropometric variables, blood panels, and gut microbiome. Note that after the machine-learning model is trained, CGMs are no longer needed to make predictions (ie, CGMs only provide the outputs of the model during training). When tested on an independent cohort of 100 participants, the model was able to generate personalized diets that led to improved glucose responses (ie, reduced postprandial hyperglycemia). In a related study, Hall et al. ⁴³ used CGMs to estimate the frequency of hyperglycemia among healthy adults (not previously diagnosed with diabetes). Surprisingly, they found glucose levels that reached prediabetes and diabetes ranges 15% and 2% of the time, respectively, suggesting that glucose dysregulation is more prevalent than commonly assumed.

A number of companies have emerged that seek to provide personalized recommendations of diet intake to improve glucose control and weight loss. As an example, the company DayTwo ⁴⁴ measures gut microbiome to provide nutrition recommendations using the machine-learning model developed in the study by Zeevi et al. ⁵ The company Thryve ⁴⁵ also uses gut microbiome measurements to customize probiotics and food recommendations to improve health. The gut microbiome company Viome ⁴⁶ conducted a study that tracked the glycemic response of 550 adults for up to 2 weeks, while they consumed a set of standardized meals carefully designed to cover a broad range of proportions of carbohydrates, proteins, fats and fiber. ⁴⁷ Then, they built a multilevel mixed-effects regression model to predict PPGRs. This allowed the authors to quantify (for the first time) the relative influence of meal composition, anthropometric, gut microbiome and lifestyle variables to postprandial glucose. Based on a proprietary analysis of the gut microbiome, Viome also makes recommendations about the likely positive, neutral, or negative impact that certain dietary choices will have on individual’s health. Note that these companies do not require CGM use: nutrition recommendations are based on information from the gut microbiome and other individual factors; as noted earlier, CGMs are only needed to build the machine-learning model.

Alternatively, the company NutriSense ⁴⁸ relies on CGMs to develop personalized nutrition recommendations. NutriSense combines CGMs with a smartphone application that integrates diet logging and physical activity, and allows the user to interact with nutritionists that provide recommendations to improve health through a balance of food, exercise and rest. While CGMs are primarily prescribed for people with diabetes (PwD), this is (to our knowledge) the first company to provide CGMs and integrate them with an application for personal health. Other companies in this space also exist, for example, Signos, ⁴⁹ Levels, ⁵⁰ but at the time of this writing they appear to be in the early-access stage. These nascent companies and technologies are laying the groundwork for personalized nutrition and health, through improved logging of meals through intelligent smartphone applications and CGMs, and through individualized reporting and recommendation with the measurement of the gut microbiome.

Discussion

We have reviewed a number of technologies and digital tools that can significantly reduce the burden of dietary monitoring, compared to traditional methods that require users to look up the nutritional content of foods in a calorie book and then manually enter the information in a log book. We have also reviewed innovative personalized-nutrition approaches that overcome the limitations of universal dietary recommendations by modeling the unique metabolism of each individual through machine learning techniques. These advances in precision nutrition can be invaluable tools in the fight against diabetes and other metabolic diseases, if used properly. Accordingly, and in the interest of providing a balanced treatment of this field, we wish to close this article by highlighting some potential pitfalls of these tools, and also highlight the need to engage behavior-modification researchers to help design interventions with the highest likelihood of adherence and lifestyle modification.

With diet monitoring tools, the hope is that reducing burden will result in increased adherence and eventually better clinical outcomes (eg, weight loss, glucose control). However, there is a well-established “law of attrition” ⁵¹ in eHealth trials, which tend to experience significantly higher dropout rates than drug trials. Thus, it seems likely that adherence to dietary monitoring tools will decrease with time, no matter how low-burden the tool is. A further issue is whether full automation of diet monitoring (ie, no burden) is desirable, as it may prevent users from developing the in-the-moment awareness that comes with food logging. ¹² As an example, Turner-McGrievy et al ⁵² conducted a study (DIET) where participants were randomly assigned to 2 different diet-monitoring methods, a standard diet tracking app (high burden), and a wearable bite tracking device (low burden). After 6 months, participants in the high-burden group lost significantly more weight (−6.8 ± 0.8 kg) than those in the low-burden group (−3.0±0.8 kg; p < 0.001). In a follow up study (2SMART), the authors compared the standard diet tracking app (high burden) against a photo-based app (low burden). ⁵³ At 6 weeks and at 6 months, both apps were equally effective in reducing weight. However, weight loss was correlated with adherence only for the high-burden app (ie, counting calories more often was associated with more weight loss, but taking more food photographs was not). Further, at 6 weeks participants in the 2 low-burden groups (bite-tracking device in DIET, photo-based app in 2SMART) found it more “difficult to remember to use [their] assigned diet tracking device on a regular basis” than participants in the high-burden condition. Thus, there appears to be a tradeoff between developing tools that reduce user burden and allowing the users to form the critical habit of monitoring their diet. ⁵⁴

Some concerns have also been raised about personalized- or precision-nutrition programs that rely on CGMs. In a recent study, Howard et al ⁵⁵ asked participants to wear 2 CGM devices simultaneously (Dexcom G4 Platinum, Abbott Freestyle Libre Pro) for 28 days while they consumed ad libitum meals. Then, meals for each participant were ranked according to their corresponding post-prandial glucose (eg, from low to high). Surprisingly, the authors found a low degree of concordance between the meal rankings obtained from the 2 CGM devices. While some of these discrepancies could be explained by the fact that the 2 CGMs were placed at different anatomical locations (upper arm for Abbott, lower abdomen for Dexcom), this result raises important questions about the effectiveness of personalized dietary recommendations based on CGM measurements that are imprecise.
