A rare localization of pure dermoid cyst in the frontal bone

Introduction

Craniofacial dermoid cysts represent about 7% of all dermoids; common locations include the periorbital, nasal, scalp and postauricular region. ¹ They are typically present during infancy as non-tender, subcutaneous masses along embryonal skin fusion lines; on the contrary, epidermoid cysts are usually diagnosed in adulthood. The differential diagnosis of circumscribed lytic defects of the skull includes benign cysts as well as neoplasms. ² The definitive diagnosis is made only by histopathology.

We here present a case of an elderly patient with an extracerebral intradiploic lytic lesion in the right fronto-orbital region studied with computed tomography (CT) and magnetic resonance (MR) imaging that turned out to be a pure dermoid cyst.

Case report

An 84-year-old woman came to our department with a six-month history of progressively worsening right palpebral edema associated with pain in the omolateral orbital and fronto-temporal region, exacerbated by palpation.

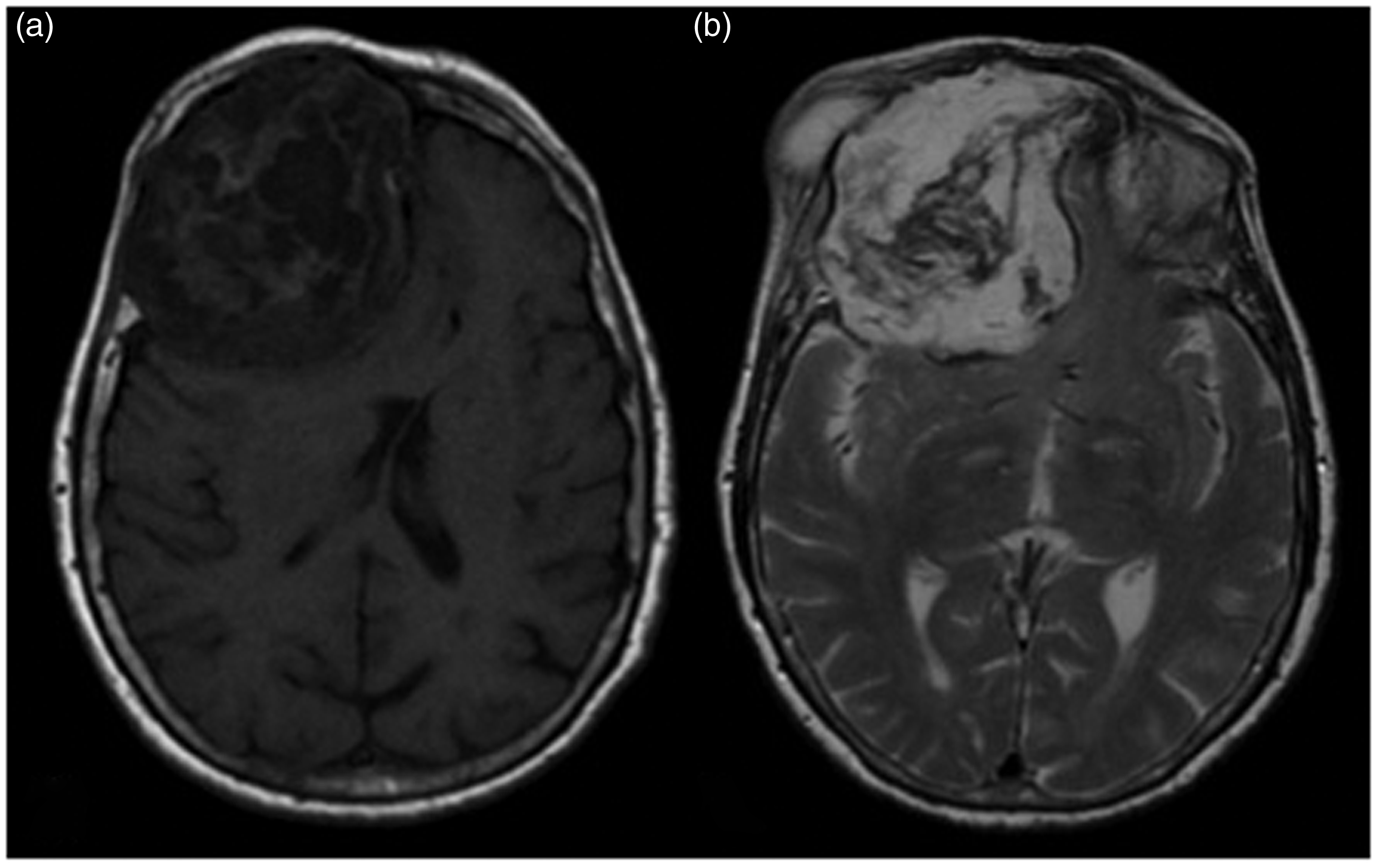

Given the symptomatology, the patient underwent MRI examination that showed the presence of an extracerebral, intradiploic lesion, measuring about 7 cm in diameter, with rounded shape and irregular margins. The lesion determined deformation and swelling of the frontal bone, with impression and posterior dislocation of the frontal lobe (Figure 1). There was also reshaping of the orbital medial wall and the orbital roof, which appeared to be interrupted in its antero-lateral portion, with leakage of the neoplastic material in the subcutaneous eyebrow region (Figure 2). The mass also invaded the frontal sinus, extending to the controlateral side and determining deviation of middle line structures of about 10 mm. The lesion showed dyshomogeneous signal intensity, from hypo- to hyperintensity on T1- and T2-weighted sequences. It demonstrated high signal intensity on diffusion-weighted imaging (DWI) and related restriction on an apparent diffusion coefficient (ADC) map (Figure 3). OPEN IN VIEWER

OPEN IN VIEWER

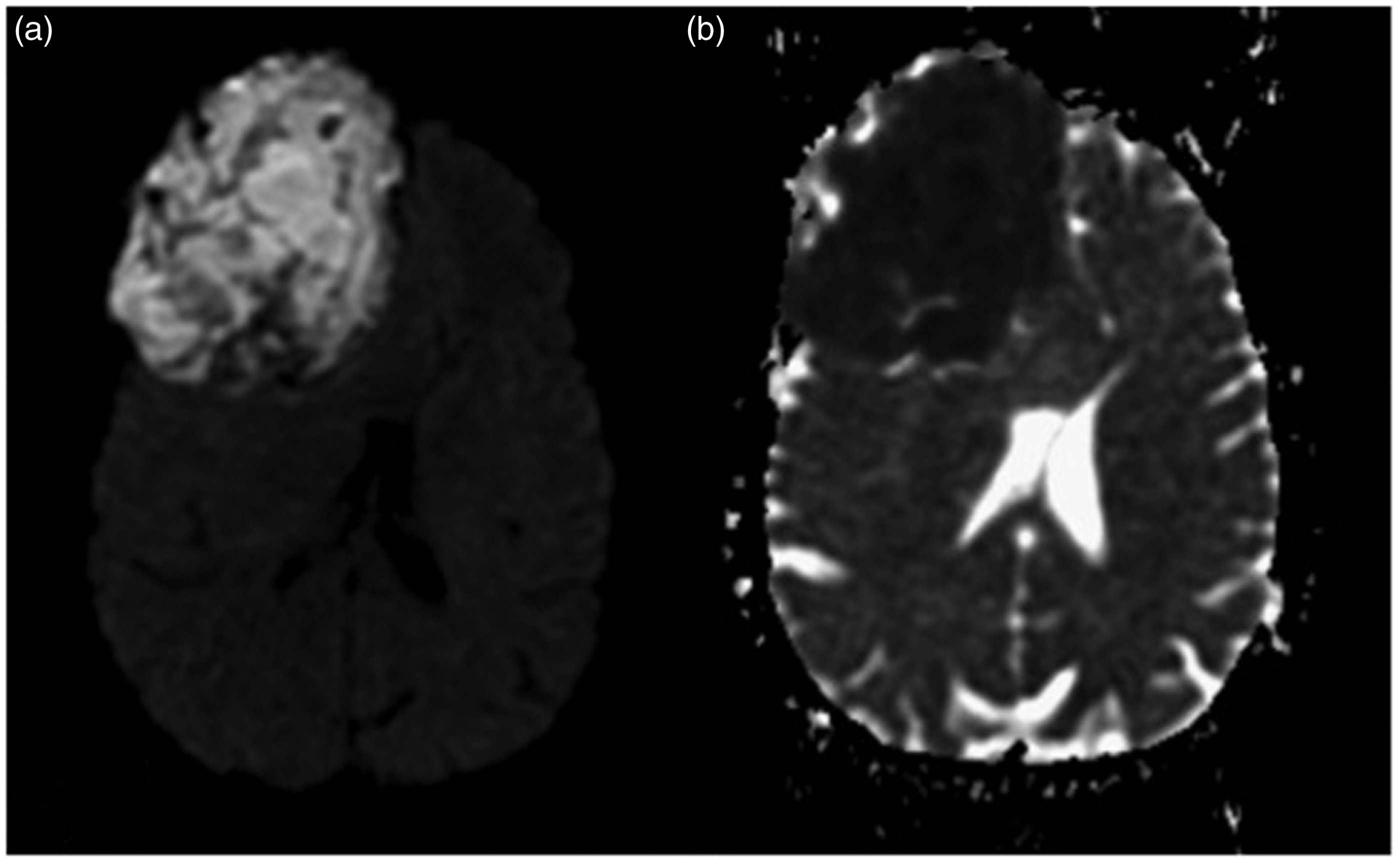

Figure 2.

(a) Axial diffusion-weighted imaging (DWI) and (b) apparent diffusion coefficient (ADC) images. The lesion shows high signal intensity on DWI and related restriction on an ADC map. DWI is a valuable imaging sequence in diagnosing epidermoid cysts, since they show restricted diffusion with higher signal intensity than that of cerebrospinal fluid on DWI.

OPEN IN VIEWER

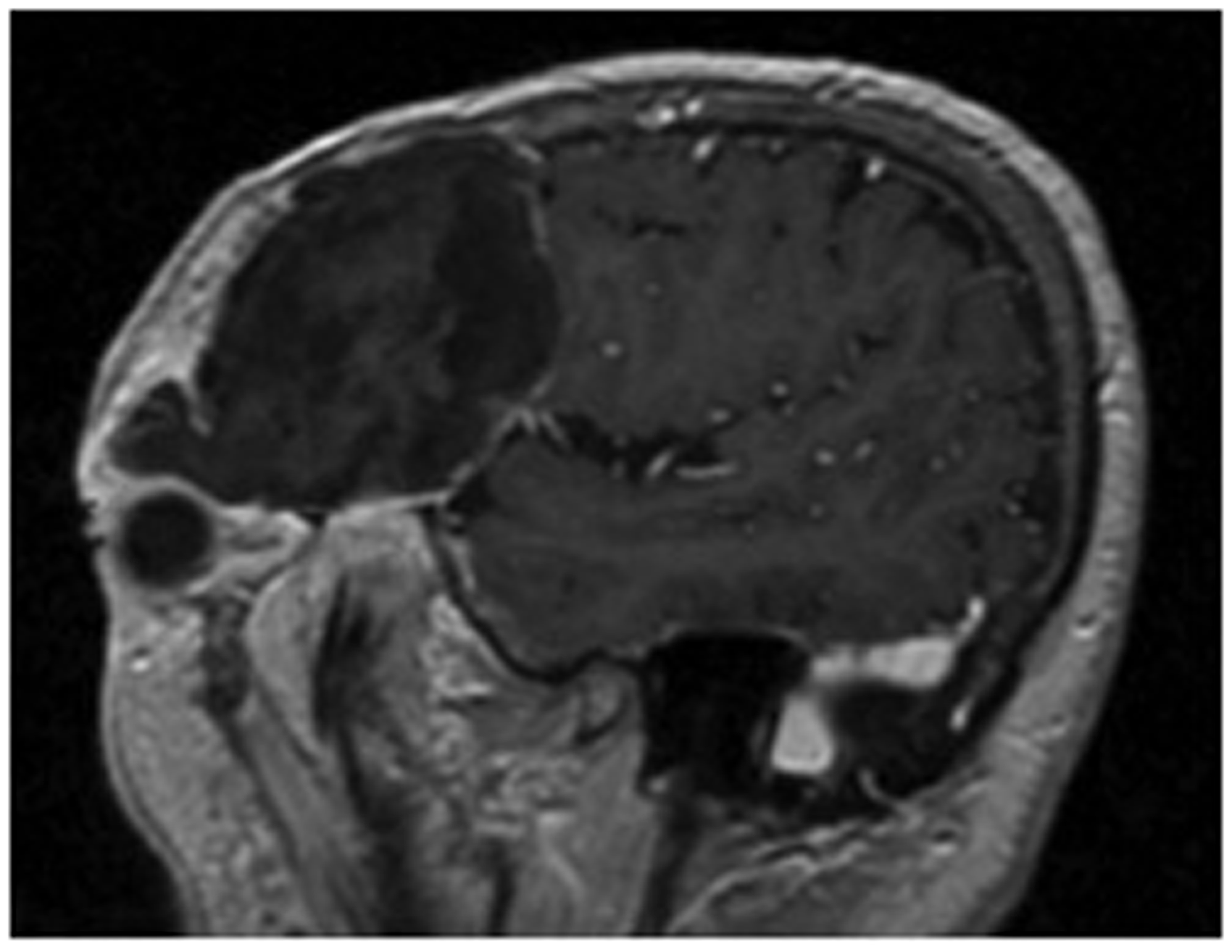

Figure 3.

Sagittal image after intravenous gadolinium administration. The lesion showed slight peripheral enhancement, without involvement of the dura or the brain parenchyma.

After intravenous contrast medium administration (gadolinium, 0.1 mml/kg), the lesion showed slight peripheral enhancement, without involvement of the dura or the brain parenchyma (Figure 4). OPEN IN VIEWER

The MRI features suggested either dermoid cyst or mucocele.

At CT scan the lesion appeared as a well-defined, lobulated, heterogeneous, hypodense mass with intralesional calcifications.

Three days later the patient underwent neurosurgical removal of the mass to avoid further complications. Intraoperatively, the mass was well circumscribed and contained sebaceous and keratin-like material.

Histopathology examination revealed numerous keratinized squamous cells, confirming the diagnosis of dermoid cyst.

Discussion

Dermoid cysts are rare, benign, congenital ectodermal inclusion cysts comprising skin supplements surrounded by squamous epithelium in the craniofacial region; dermoid cysts are extremely rare (about 0.04–0.7% of cranial tumors) and are most commonly seen in frontonasal-sphenoidal suture lines and the periorbital region in early life. ³ Nasal dermoids are a special variety of dermoids associated with the dermal sinus tract into the intracranial cavity. Orbital dermoids frequently have an intracranial extension. Extension into the frontal sinus has also been reported in the literature. ⁴

Because of the very slow growth of the mass, the onset of signs and symptoms is often late, over a period of months to years. Typical symptoms of presentation include headaches due to erosion of the calvarium, and seizures due to local pressure. These lesions usually present as painless bony swellings under the scalp. ⁵ The cysts may perforate the dura, rupture into the subarachnoid space resulting in chemical meningitis, or involve the brain parenchyma.

Imaging play an important role in the diagnosis; on CT scans, performed with high-performance equipment to detect bone involvement,^6,7 they appear as hypodense lesions, while MR images reveal inhomogeneous T1 signal hypointensity and inhomogeneous T2-fluid-attenuated inversion recovery (FLAIR) signal hyperintensity. Dermoid cysts do not enhance after intravenous contrast medium administration; when present, contrast enhancement is minimal and peripheral. ⁸ DWI is a valuable imaging sequence in diagnosing epidermoid cysts, since they show restricted diffusion with higher signal intensity than that of cerebrospinal fluid.

Differential diagnoses may include sebaceous cyst, dermoid cyst, hematoma with fibrosis, lipoma, and fibroma. ⁹

Microscopically, the wall of the cystic tumor is lined by squamous epithelium and the cyst is filled with lamellated keratin content.

Complete surgical resection with careful follow-up is the treatment of choice. ¹⁰

Conclusion

Few cases of pure intradiploic dermoids have been reported in the literature, mostly occurring in young individuals.^11,12 Our case is of interest because the patient was an elderly female with an isolated intradiploic lesion, with no intracranial extension, fistulous tract, or orbital nasal extension despite the large size of the mass. Complete resection, which has demonstrated keratinized squamous cells in the absence of other tissue, represents another particular finding of our case. Bone reconstruction is the only treatment needed for these lesions. Our case illustrates that an intradiploic dermoid must be kept in differential diagnosis of a slow-growing, calvarial mass in an elderly person and that MR study, in particular DWI/ADC sequences, can be helpful for the correct diagnosis.
