Pulmonary venous remodeling in COPD-pulmonary hypertension and idiopathic pulmonary arterial hypertension

Abstract

Pulmonary vascular arterial remodeling is an integral and well-understood component of pulmonary hypertension (PH). In contrast, morphological alterations of pulmonary veins in PH are scarcely described. Explanted lungs (n = 101) from transplant recipients with advanced chronic obstructive pulmonary disease (COPD) and idiopathic pulmonary arterial hypertension (IPAH) were analyzed for venous vascular involvement according to a pre-specified, semi-quantitative grading scheme, which categorizes the intensity of venous remodeling in three groups of incremental severity: venous hypertensive (VH) grade 0 = characterized by an absence of venous vascular remodeling; VH grade 1 = defined by a dominance of either arterialization or intimal fibrosis; and VH grade 2 = a substantial composite of arterialization and intimal fibrosis. Patients were grouped according to clinical and hemodynamic characteristics in three groups: COPD non-PH, COPD-PH, and IPAH, respectively. Histological specimens were examined by a cardiovascular pathologist blinded to clinical and hemodynamic data. Pathological alterations of pulmonary veins were present in all hemodynamic groups, with the following incidences of VH grade 0/1/2: 34/66/0% in COPD non-PH; 19/71/10% in COPD-PH; and 11/61/28% in IPAH. In COPD, explorative correlation analysis of venous remodeling suggested a modest positive correlation with systolic and mean pulmonary artery pressure (P = 0.032, respectively) and an inverse modest correlation with diffusion capacity for carbon monoxide (P = 0.027). In addition, venous remodeling correlated positively with the degree of arterial remodeling (P = 0.014). In COPD-PH and IPAH, advanced forms of pulmonary venous remodeling are present, emphasizing that the disease is not exclusively restricted to arterial lesions. In addition, venous remodeling may be related to the hemodynamic severity, but more rigorous analysis is required to clearly define potential relationships.

Keywords

pulmonary vasculature vascular changes pulmonary hypertension chronic obstructive pulmonary disease idiopathic pulmonary arterial hypertension

Pulmonary hypertension (PH) is a hemodynamic pathophysiological disorder involving the pulmonary circulation and the right ventricle. The pathogenesis of PH includes pulmonary arterial vascular remodeling, which is an integral and well described component caused by several complex cellular and molecular mechanisms.¹ Arterial remodeling affects all three layers of the arterial vasculature, thereby narrowing or obstructing the lumen and disrupting vascular compliance and distensability.² By contrast, limited information regarding the involvement of pulmonary veins exists. It is increasingly believed that venous abnormalities may be relevant in many clinical PH phenotypes besides pulmonary veno-occlusive disease (PVOD).³

This retrospective study examined explanted lungs from transplant recipients with an emphasis on pulmonary venous vascular remodeling in PH secondary to chronic obstructive pulmonary disease (COPD-PH) and idiopathic pulmonary arterial hypertension (IPAH). Specifically, the study objectives were to identify, examine, and classify pulmonary venous lesions. Next, to relate venous vascular remodeling in advanced COPD to hemodynamic and pulmonary function variables in advanced COPD. Lastly, to describe a potential correlation between the severity of arterial and venous remodeling in advanced COPD.

Methods

This was a retrospective investigation of explanted lungs from transplant recipients diagnosed with advanced COPD and IPAH at Copenhagen University Hospital, Rigshospitalet, Denmark during 1991–2015. During this period, 361 advanced COPD patients underwent lung transplantation and parallel hemodynamic assessment by right-heart catheterization (RHC) as part of the transplantation work-up program. The analysis of explanted lungs in COPD was focused on hemodynamic distinction based on the presence or absence of PH designated by the mean pulmonary artery pressure (mPAP), as follows: (1) COPD non-PH, defined by mPAP < 25 mmHg; and (2) COPD-PH, defined by mPAP ≥ 25 mmHg and pulmonary artery wedge pressure (PAWP) ≤ 15 mmHg. These groups were compared to patients with IPAH. Patients with COPD-PH and PAWP > 15 mmHg were excluded from analysis due to a possible post-capillary contribution. We randomly selected 35 of 196 COPD non-PH patients for inclusion. The COPD-PH group comprised 35 of 119 patients with mild–moderate COPD-PH (mPAP 25–34 mmHg) who were randomly selected, as well as 13 of 15 patients with severe COPD-PH (mPAP ≥ 35 mmHg; unavailable histological material in the remaining two patients) (Fig. 1). COPD patients were compared to 18 patients with IPAH. Clinical characteristics and description of pulmonary arterial remodeling related to the PH component in the advanced COPD cohort has previously been thoroughly described.^4,5 Transplant recipients met the criteria for lung transplantation in accordance with International Society for Heart and Lung Transplantation guidelines at the time of listing.⁶

Figure 1.

Study population. A total of 101 explanted lungs from transplant recipients with RHC data from pre-transplant hemodynamic evaluation. A random selection of 35/196 COPD non-PH patients were included in the analysis. Forty-eight patients with pre-capillary COPD were included, comprising a random selection of 35/110 patients with mild–moderate pre-capillary PH (mPAP 25–34 mmHg) and 13/15 with severe pre-capillary COPD-PH (unavailable histological material in two patients). Explanted lungs from 18 patients with IPAH were used as reference.

Histological analysis of pulmonary veins

Explanted lungs were formalin-inﬂated overnight after the transplantation procedure before being extensively sampled and embedded in parafﬁn. Sections (two to three from each lobe) were stained with hematoxylin and eosin (H&E). In addition, some sections were stained with Masson’s trichrome, Verhoeff or with combined Alcian, Orcein and Van Gieson stains for elastin. Sections were assessed by the same experienced pulmonary cardiovascular pathologist, who was blinded to clinical and hemodynamic data.⁵

Pulmonary veins were identified by their anatomical localization to distinguish them from pre-capillary vessels. Accordingly, veins were identified in the periphery of lung lobules in the interlobular septae and trabeculae, whereas smaller pulmonary venous branches were recognized by their position adjacent to, but not appositional to, bronchovascular bundles. Serial sections were used to track and confirm connection to the larger veins localized in the trabeculae. The study focused solely on the vascular changes observed in inter- and intra-lobular pulmonary veins.

A semi-quantitative grading scheme, which was pre-specified before analysis, was used to determine pulmonary venous hypertensive (VH) remodeling of increasing complexity (Table 1). The distinct groups are broadly characterized by: VH grade 0 = non-remodeled veins; VH grade 1 = predominance of either intimal fibrosis or arterialization; VH grade 2 = substantial intimal fibrosis and arterialization in conjunction. Pulmonary vascular venous changes were assessed overall and the most severe and widespread vascular lesion determined the overall degree of venous remodeling as reflected by the VH grade.

Table 1.

Semi-quantitative grading scheme describing pulmonary venous hypertensive (VH) lesions of increasing complexity.

0	No discernible pulmonary venous remodeling
	- Thin-walled vessel - Narrow fibrous intima and discrete muscle layer - Single elastic lamina
1	Arterialization or intimal fibrosis
	- Intimal fibroelastic thickening and increased cellularity (myofibroblastic) - Mild elastic lamina duplication/splitting tendency - Mild combinations of arterialization (smooth muscle cell hypertrophy) and intimal fibrosis can occur
2	Arterialization and intimal fibrosis
	- Intimal fibrotic thickening and increased cellularity due to myofibroblast proliferation and deposition of collagen and elastin - Severe elastic lamina duplication/splitting and multi layering (often fully concentric) - Generally more severe arterialization and intimal fibrosis

Statistical analysis

Continuous data are expressed as median (interquartile range [IQR]). Explorative correlation analysis between ordinal variables and continuous variables was investigated using Spearman’s rank-order correlation test. Two-tailed asymptotic significance levels are displayed. Correlation between ordinal variables with expected monotonous relationship was analyzed using Goodman and Kruskal’s Gamma (IBM SPSS/PAWP Statistics 22, Armonk, NY, USA). A significance level of α = 0.05 was applied.

Results

Venous remodeling was explored in COPD non-PH (n = 35), pre-capillary COPD-PH (n = 48), and IPAH (n = 18) patients. Consequently, explanted lungs from 101 transplant recipients with increasing hemodynamic severity were analyzed (Fig. 1). Baseline characteristics are summarized in Table 2. The median time from evaluation to transplantation was 372 (IQR = 194–777) days.

Table 2.

Clinical baseline characteristics.

	COPD
	Non-PH	COPD-PH	IPAH
	(n = 35)	(n = 48)	(n = 18)
Age (years)	52.9 (48.7–58.8)	54.8 (50.6–58.4)	31.3 (20.6–47.8)
BMI (kg/m²)	20.1 (18.5–24.6)	21.8 (18.8–24.1)	23.2 (20.5–25.7)
Gender (No. female [%])	23 (66)	21 (44)	12 (67)
Arterial blood gas values (mmHg)
PaO₂	66.3 (60.7–72.3)	63.4 (55.7–71.7)	68.2 (56.6–74.8)
PaCO₂	42.0 (38.3–47.3)	46.2 (42.7–57.4)	29.6 (26.4–33.0)
Pulmonary function tests
FEV₁ (L)	0.7 (0.6–0.8)	0.6 (0.5–0.7)	2.4 (1.7–3.4)
FEV₁ (% predicted)	23.6 (20.8–30.4)	18.6 (15.0–22.7)	84.7 (71.5–87.0)
FVC (L/s)	1.9 (1.5–2.2)	1.7 (1.3–2.1)	3.1 (2.6–4.3)
FVC (% predicted)	57.5 (48.3–66.1)	42.0 (33.3–57.0)	88.0 (81.3–95.5)
FEV₁/FVC (s^–1)	0.4 (0.3–0.4)	0.4 (0.3–0.4)	0.8 (0.7–0.8)
TLC (L)	7.6 (6.2–8.6)	8.1 (6.8–9.3)	4.8 (4.4–6.3)
TLC (% predicted)	128 (113–146)	129 (117–143)	98 (91–103)
RV (L)	5.2 (3.9–5.9)	6.2 (4.7–7.1)	1.7 (1.4–2.4)
RV (% predicted)	259 (226–304)	295 (242–330)	116 (93–126)
DL_CO (mmol/min/kPa)	2.4 (1.8–3.7)	1.9 (1.4–2.6)	5.4 (4.5–5.6)
DL_CO (% predicted)	30.4 (20.5–41.1)	22.5 (15.2–25.7)	56.0 (45.5–72.2)
K_CO (mmol/min/kPa/L)	0.6 (0.4–0.8)	0.5 (0.4–0.7)	1.2 (1.0–1.4)
K_CO (% predicted)	41.0 (26.3–51.0)	32.2 (23.0–43.1)	61.2 (31.6–68.7)
Hemodynamics
PAP (mmHg)
Systolic	28 (25–31)	43 (37–48)	83 (74–103)
Diastolic	14 (8–17)	22 (19–26)	39 (30–45)
Mean	18 (14–22)	30 (27–36)	53 (48–70)
mRAP (mmHg)	5 (4–6)	9 (7–10)	8 (6–16)
PAWP (mmHg)	9 (8–11)	12 (10–14)	16 (10–21)
CO (L/min)	5.0 (4.2–5.8)	5.5 (4.6–6.8)	3.5 (3.0–4.4)
CI (L/min/m²)	2.9 (2.6–3.4)	3.0 (2.7–3.6)	2.0 (1.6–2.6)
PVR (WU)	1.8 (1.0–2.6)	3.5 (2.7–4.3)	11.7 (8.4–17.6)

BMI, body mass index; CI, cardiac index; CO, cardiac output; COPD, chronic obstructive pulmonary disease; DL_CO, diffusion capacity for carbon monoxide; FEV₁, forced expiratory volume in 1 s; FVC, forced vital capacity; IPAH, idiopathic pulmonary arterial hypertension; K_CO; carbon monoxide transfer coefficient; mRAP, mean right atrial pressure; PaCO₂, partial pressure of arterial carbon dioxide; PaO₂, partial pressure of arterial oxygen; PAP, pulmonary artery pressure; PAWP, pulmonary artery wedge pressure; PH, pulmonary hypertension; PVR, pulmonary vascular resistance; RV, residual volume; TLC, total lung capacity.

Pathological alterations of veins were present in all groups, with the following incidences of VH grade 0/1/2: 34/66/0% in COPD non-PH; 19/71/10% in COPD-PH; and 11/61/28% in IPAH (Fig. 2). Fig. 3 illustrates the spectrum of pulmonary venous remodeling according to the introduced grading scheme, with elastin stains particularly related to remodeled veins.

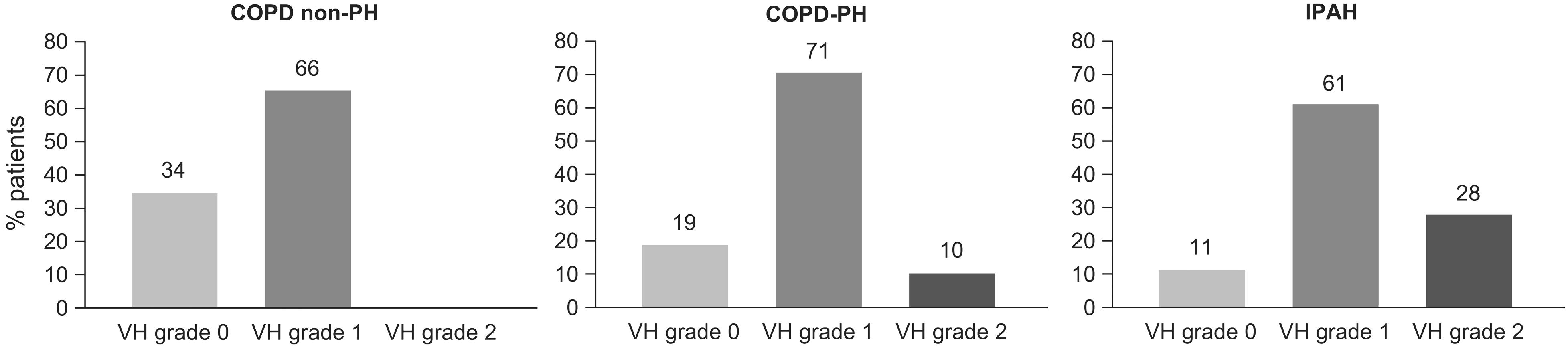

Figure 2.

Incidences of venous remodeling in pre-specified groups according to the severity of venous remodeling assessed by VH-classification.

Figure 3.

Histological examples of venous vascular remodeling. (a, b) VH grade 0 = vein without remodeling. Thin-walled vessel with discrete intima, delicate single-layered elastic lamina and discernable smooth muscle cells (H&E staining). (c, d) VH grade 1 = veins with increased vessel wall thickness, mainly due to fibroelastic deposition in the intima and a slight degree of myofibroblast proliferation. Prominent splitting/duplication of the elastic lamina. ((c) H&E staining; (d) Alcian/van Gieson/elastin staining). (e, f) VH grade 2 = increased vessel wall thickness, with more pronounced collagen and elastin deposition including myofibroblast proliferation in the intima and media. Multilayering of a split/duplicated elastic lamina in a concentric pattern combined with smooth muscle cell hypertrophy. ((e) Alcian/van Gieson/elastin staining; (f) Verhoeff staining).

Accordingly, the highest incidence of severe venous remodeling, corresponding to VH grade 2, was observed in IPAH, with a lower incidence in the COPD-PH group, but was not detected in COPD non-PH. Similarly, the lowest proportion of non-remodeled veins (VH grade 0) was observed in IPAH, while most frequently observed in COPD non-PH. Intimal fibrosis, usually without elaborate arterialization (VH grade 1), was quite evenly distributed among the groups.

Venous remodeling in COPD

Analysis of COPD patients showed that the extent of venous remodeling, assessed by VH grade scores, was statistically significantly higher in COPD-PH than in COPD non-PH (median rank 45.92 versus 36.63, Mann–Whitney U-test P = 0.033).

Explorative correlation analyses were conducted to assess the relationship between venous remodeling and hemodynamic indices in advanced COPD. We observed a modest positive correlation between the degree of venous remodeling, assessed by VH grade scores, and the systolic PAP (r_s = 0.239, P = 0.032) as well as the mPAP (r_s = 0.235, P = 0.032), whereas remaining hemodynamic indices did not correlate to the degree of venous remodeling (Table 3, Fig. 4).

Table 3.

Correlation between venous remodeling and clinical variables in COPD.

	Venous remodeling
	Correlation coefficient	P value
Age (years)	0.162	0.148
BMI (kg/m²)	0.060	0.597
Arterial blood gas values
PaO₂ (mmHg)	−0.018	0.883
PaCO₂ (mmHg)	0.202	0.086
Pulmonary function tests
FEV₁ (L)	−0.153	0.173
FEV₁ (% predicted)	−0.148	0.191
FVC (L/s)	−0.151	0.178
FVC (% predicted)	−0.173	0.128
FEV₁/FVC (s⁻¹)	−0.005	0.961
TLC (L)	−0.017	0.633
TLC (% predicted)	−0.056	0.633
RV (L)	0.039	0.749
RV (% predicted)	0.034	0.778
DL_CO (mmol/min/kPa)	−0.285	0.027
DL_CO (% predicted)	−0.246	0.056
K_CO (mmol/min/kPa/L)	−0.185	0.149
K_CO (% predicted)	−0.193	0.136
Hemodynamics
PAP (mmHg)
Systolic	0.239	0.032
Diastolic	0.185	0.151
Mean	0.235	0.032
mRAP (mmHg)	0.023	0.869
PAWP (mmHg)	0.198	0.080
CO (L/min)	−0.014	0.910
CI (L/min/m²)	−0.128	0.331
PVR (WU)	0.133	0.261

BMI, body mass index; CI, cardiac index; CO, cardiac output; COPD, chronic obstructive pulmonary disease; DL_CO, diffusion capacity for carbon monoxide; FEV₁, forced expiratory volume in 1 s; FVC, forced vital capacity; K_CO; carbon monoxide transfer coefficient; mRAP, mean right atrial pressure; PaCO₂, partial pressure of arterial carbon dioxide; PaO₂, partial pressure of arterial oxygen; PAP, pulmonary artery pressure; PAWP, pulmonary artery wedge pressure; PVR, pulmonary vascular resistance; RV, residual volume; TLC, total lung capacity.

Figure 4.

Plots of selected correlations according to VH-grade allocation.

Diffusion capacity for carbon monoxide (DL_CO) correlated modestly and inversely to the degree of venous remodeling (r_s = −0.285, P = 0.027; DL_CO % of predicted r_s = −0.246, P = 0.056), while no other pulmonary function variable correlated significantly (Table 3). Moreover, the analysis did not demonstrate a correlation between the extent of venous remodeling and PaO₂ (r_s = −0.018, P = 0.883) or PaCO₂ (r_s = 0.202, P = 0.086) (Table 3, Fig. 4).

Arterio-venous remodeling relationship in COPD

Progressive arterial lesions previously described in explanted lungs of advanced COPD patients, assessed by a modified Heath–Edwards (HE) six-grade classification scheme,^5,7 were included in a correlation analysis. Of 84 COPD patients included in this study, six (7%) showed no structural alterations, 24 (29%) presented with medial thickening of muscular arteries, 25 (30%) displayed further cellular intimal proliferation, and 26 (31%) had additional concentric intimal fibrosis, corresponding modified HE grades 0–3. Two (2%) had additional complex structural lesions comprising plexiform lesions with or without angiomatoid lesions, corresponding to modified HE grades 4–5, while no COPD patient presented with necrotizing arteritis (modified HE grade 6). The degree of venous remodeling in COPD, as denoted by VH classification, correlated positively and moderately to the severity of arterial remodeling (G = 0.408, P = 0.014).

Discussion

This study describes the frequency and severity of venous structural lesions in IPAH as well as advanced COPD with and without accompanying PH. While arterial remodeling is well-documented, venous remodeling is increasingly attracting attention in different forms of PH. However, pulmonary veins remain difficult to study. Lung venous endothelium and smooth muscle cells lack unique molecular markers to aid identification and distinction from pre-capillary vessels in humans.⁸ In this study, the anatomical localization was used to isolate veins, which provides a histological distinguishing feature of the present.

Severe venous remodeling, a composite of substantial arterialization and intimal fibrosis (VH grade 2), was exclusively observed in patients with PH, and most frequently in IPAH. Moreover, the majority of IPAH patients predominantly displayed intimal fibrosis with subtle features of arterialization in veins (VH grade 1). Thus, structural alterations of the venous vasculature seem apparent in IPAH, suggesting that the disease is not exclusively restricted to the arterial vasculature, thereby challenging the traditional dogma. This finding is in agreement with observed increases in intimal and adventitial thickness of pulmonary venous walls in primary PH⁹ and recently described pronounced muscular remodeling of septal veins in PAH lungs carrying BMPR2 mutation.¹⁰ It is noteworthy that the observed intensity of venous intimal fibrosis, irrespective of assigned grade, was not as severe as is typically characteristic for the extensive and diffuse fibrous occlusion of veins in PVOD^11,12 (Fig. 5). Furthermore, plexiform lesions (focal obliterative lesions of endothelial cell channels lined by smooth muscle cells, myofibroblasts and connective tissue matrix, typically considered a hallmark of PAH¹³) were present in 17 of 18 IPAH patients, which are not routinely observed in PVOD.¹⁴

Figure 5.

Venous vascular remodeling in a patient who underwent lung transplantation due to pulmonary veno-occlusive disease at our institution. (a) Partial and total occlusion of pre-septal veins with loose, cushion-like intimal fibrosis in addition to a slight capillary hemangiomatosis and numerous siderophages in the alveolar lumina. (H&E staining). (b) Totally obstructed pre-septal vein with occlusive fibroelastosis and duplication of external elastic lamina (Orcein staining). (c) Sub-totally and severely occluded pre-septal vein with cushion-like loose collagenous intimal fibrosis (H&E staining).

The pathogenic pathways and possible genetic mediators accountable for pulmonary venous remodeling remain unknown, although mutations in EIF2AK4 have been linked PVOD.¹⁵ Nonetheless, venous remodeling may be more common in different clinical forms of PH than anticipated. Venous fibrotic lesions have been identified in chronic thromboembolic PH¹⁶ while both arterialization as well as increased media, intima, and adventitial thickness of pulmonary veins in PH secondary to left heart disease have been described.^17–19 Here, we extensively describe venous remodeling in COPD. Histological analysis showed that intimal fibrosis with subtle arterialization (VH grade 1) was frequent in COPD-PH. It was also apparent in the COPD non-PH group, which may be expected given the fact that even arterial remodeling is evident in smokers and in COPD without PH.^5,20 Furthermore, the COPD non-PH group surely included patients with “borderline-PH” hemodynamic characteristics, in whom a vascular component and future manifest PH is likely as a consequence of hemodynamic progression.^21,22 However, the composite of marked arterialization and intimal fibrosis (VH grade 2) was only identified in COPD, when PH was present. Accordingly, advanced venous lesions similar to those observed in IPAH can be observed in COPD when PH is present. Interestingly, explorative correlation analysis suggested a positive relationship between the degree of venous remodeling and hemodynamic severity in COPD. More specifically, correlation to systolic and mPAP was observed. The relationship was modest and should be interpreted with respect to the variability and study design. Nevertheless, the association seems physiologically congruent and in accordance with the previously described (stronger) association between arterial structural lesions and hemodynamic severity in advanced COPD.⁵ Whether venous remodeling, in this context, represents a cause or consequence of hemodynamic worsening remains to be clarified. Notably, the degree of arterial and venous remodeling in COPD correlated positively suggesting that both pre-capillary and post-capillary vessels in COPD react to stimuli which promote vascular remodeling. Chronic exposure to hypoxia plays a pivotal role in the development of arterial remodeling.²³ Pulmonary veins, similar to pulmonary arteries, exhibit high sensitivity to hypoxia²⁴ and chronic exposure can perpetuate venous arterialization,²⁵ which is in keeping with the overall observations of venous remodeling in advanced COPD. It should be mentioned that simultaneous presence of both noteworthy arterial and venous lesions not necessarily implied severe COPD-PH. This could suggest that “vascular phenotypes” in COPD-PH may also be evident in the mild–moderate COPD-PH spectrum. Interestingly, venous remodeling correlated negatively to DL_CO in the explorative correlation analysis. Consequently, DL_CO may potentially aid identification of COPD patients with noteworthy venous remodeling alike its supportive role in detection of PVOD in presumed PAH.²⁶ In this context, it is noteworthy that DL_CO has been identified as an independent predictor of mortality in COPD-PH.²⁷

Various PH phenotypes, including COPD-PH and IPAH as shown, seem to include structural alterations of veins,^16–19 whereas PVOD ultimately represents a rare manifestation of PH with excessive venous structural changes.²⁸ The consequences of venous remodeling in non-PVOD PH are unknown. In particular, the specific influence of venous remodeling on the efficacy of pharmacological PAH treatment requires clarification. At present, it is challenging to relate vascular remodeling to responsiveness of pharmacological therapies or outcome, since sequential routine or even experimental biopsies are avoided due to the risk of severe complications in PH. Nonetheless, elaborate remodeling of post-capillary vessels in PH may aggravate the clinical course and alter the response to specific PAH therapy, similar to its role in PVOD.¹² Surely, the identification of pathogenic pathways, genetic mediators, and novel methods to identify patient phenotypes with venous remodeling is necessary to allow for a better understanding of the clinical implications of venous involvement in PH and may provide a basis for treatment differentiation.

Certain limitations of the study should be borne in mind. First, pulmonary veins are histologically difficult to distinguish from arteries. Given the current lack of unique pulmonary venous molecular markers, the anatomical localization is a reasonable distinctive feature although aberrations may occur in disease states. The analysis concerned a unified assessment of both inter- and intralobular veins (i.e. septal and non-septal veins) without uniform random sampling. Accordingly, the study does not allow for definite conclusion regarding the hetero- or homogeneity of remodeling in septal versus non-septal veins or the dissemination of venous remodeling related to particular lung segments. Subjectively, both septal and non-septal veins in a particular specimen presented with similar degrees of remodeling, which furthermore seemed to be equally distributed throughout the respective lung segments. Second, semi-quantitative analysis relies on subtle differences and could be subject to interpretation bias despite our efforts to avoid bias by blinding the observer to clinical and hemodynamic characteristics. Accordingly, the study design and methodology should be considered in the interpretation of the results. Nonetheless, a planimetric description is a relevant and a natural first step before more extensive and rigorous analysis with prospective computerized morphometric analysis of perfusion-fixated and dye-injected venous vessels, which can provide additional detailed insights of the venous structure, despite inherent difficulties of vessel calibration due to post-mortem vessel contraction.²⁹ Third, histological samples from explanted lungs may not be representative of the pathoanatomy during evaluation for transplantation. As the evolution of the vascular remodeling component over time is incompletely understood, pulmonary vascular alterations may have occurred after index RHC.

In conclusion, venous remodeling comprising intimal fibrosis and features of arterialization to a variable extent, is frequently encountered in advanced COPD and IPAH. Occasionally, venous remodeling in COPD reaches the same advanced degree as in IPAH, when PH is present. In exploratory correlation analysis, venous remodeling in COPD correlated with the hemodynamic severity, diffusion capacity for monoxide, and the extent of arterial remodeling. This finding needs further clarification by use of state-of-the-art morphometric analysis suitable for PH. The clinical importance of venous remodeling in PH and the implications for PAH specific treatment require further investigation.
