Transcatheter retrieval of Amplatzer Septal Occluder device embolized into the abdominal aorta

Introduction

The protocol and informed consent were approved by the Institutional Review Board, and the subject agreed for her case to be published.

The percutaneous closure of atrial septal defect (ASD) using Amplatzer Septal Occluder (ASO) device is a procedure with low rate of morbidity showing, in the meantime, various complications related to the device itself such as malposition, embolization up to the perforation of the cardiac chambers.^1,2

Embolization, despite quite rare and reported with a range from 0.5% up to 1.6% of cases, could become a potential fatal complication.^2,3

The most common site of migration is the main pulmonary artery (89% of cases) whereas the embolization to the aorta, as aforementioned, is only sporadic reported and usually is treated by surgery or, rarely, by conservative management.^2,4–6

Herein we report on a successfully total transcatheter retrieval of ASO device complicated, during ASD closure procedure, by acute embolization into the infrarenal abdominal aorta.

Case report

A Caucasian woman was referred to us, in emergency, from other Institution, because the interventional cardiologists, attempting a transcatheter closure of ASD, observed, few minutes after the device deployment, the migration of a 28.5/28.5 mm ASO into the infrarenal abdominal aorta (Figure 1(a)–(e)). Several attempts to retrieve the vascular plug failed and they decided to airborne transfer the patient.

OPEN IN VIEWER

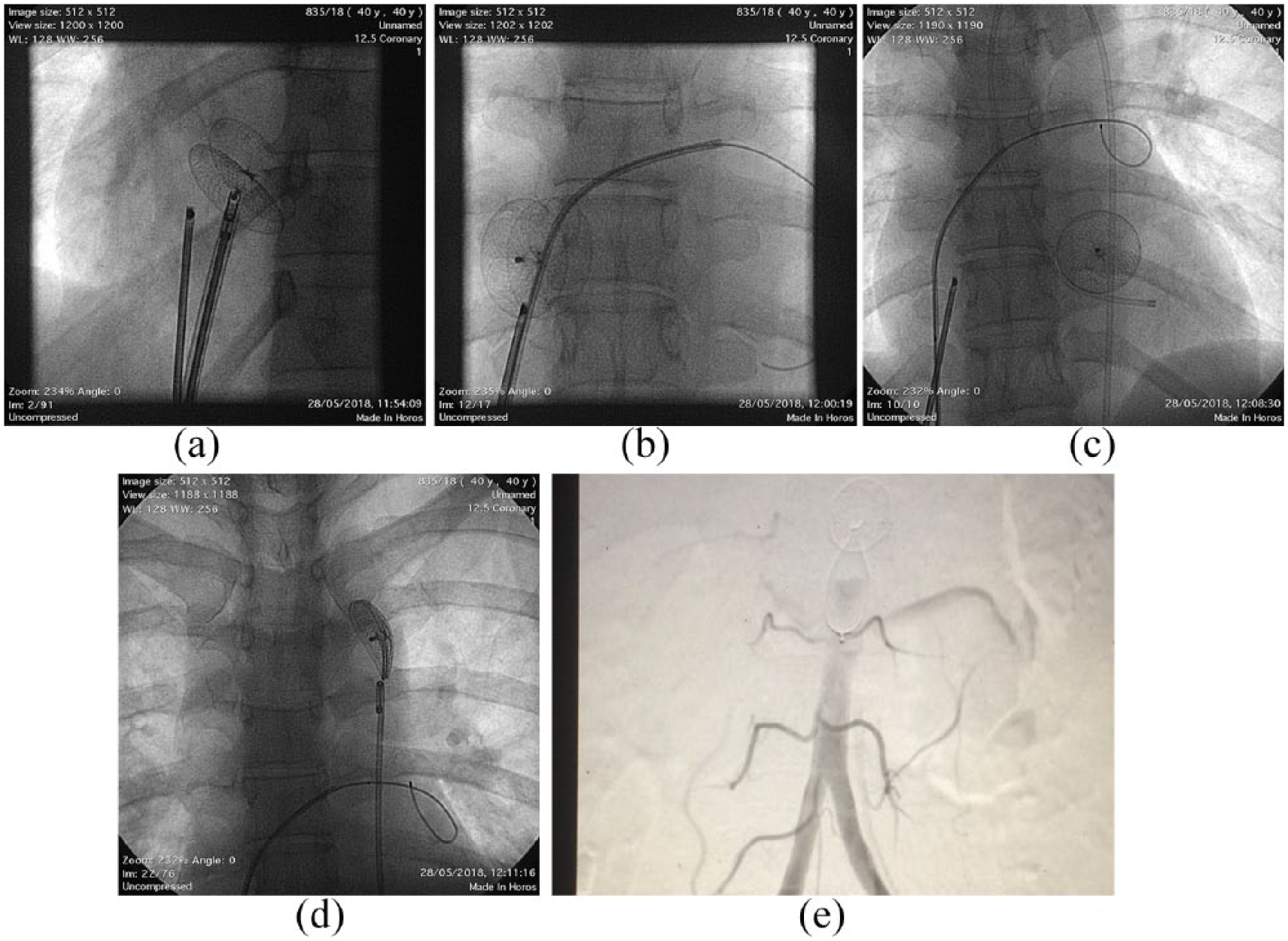

Figure 1.

Aortogram sequence shows (a) the deployment of the Amplatzer Septal Occluder, (b) the migration of the ASO in the left atrium, (c) the migration of the ASO in the left ventricle, (d) the embolization of the ASO in the thoracic aorta and (e) the embolization of the ASO into the abdominal aorta that is occluded below the level of renal arteries.

At arrival in our department, the patient, with synus rythm (96 bpm) with arterial blood pressure measuring 90/60 mmHg in upper limbs and O₂ saturation of 99%, was asymptomatic but showed the absence of peripheral pulse in lower limbs. In order to avoid onset of catastrophic vascular complications, the patient was immediately transferred to the hybrid operating room.

The previously inserted 7 F sheath in right femoral artery was replaced with a 11 F sheath (Cordis, Johnson-Johnson, Ireland). A 0.035 in, 260 cm long, angled guidewire (Terumo, Leuven, Belgium, Europe) was introduced up to the descending thoracic aorta. The guidewire in the right femoral artery was replaced with a 5 F, 100-cm long, pigtail catheter (Super Torque, Cordis, Johnson-Johnson, Ireland), and an angiography was performed confirming abdominal aorta occlusion below the level of the renal arteries; through this pigtail, a 0.035-in angled, 260 cm long, guidewire (Terumo, Leuven, Belgium, Europe) was introduced and passed through the nitinol wire mesh of the occluder (Figure 2(a)). One more 0.035-in, 260-cm long, buddy wire (Terumo, Leuven, Belgium, Europe) was positioned and passed between the ASO occluder and the inner lumen of the aorta, above the renal arteries up to the aortic valve plane (Figure 2(b)); the pigtail and the 11 F sheath were replaced with a 24 F sheath (33 cm) Dryseal Flex (Gore, USA), including both guidewires, that was placed just below the vascular plug (Figure 2(c)). A 6 F goose-neck Snare Merit Medical of 35 mm (Utah, USA) was advanced along the guidewire previously positioned (Figure 2(d)); therefore, this guidewire was withdrawn and the goose-neck advanced permitting to snare the guidewire passing through the ASO mesh (Figure 2(e)). The entire device was slenderized and pulled into the large 24 F sheath and successfully retrieved (Figures 3 and 4). At the end of the procedure, new clinical reappraisal confirmed the presence of peripheral pulses in the lower limbs.

OPEN IN VIEWER

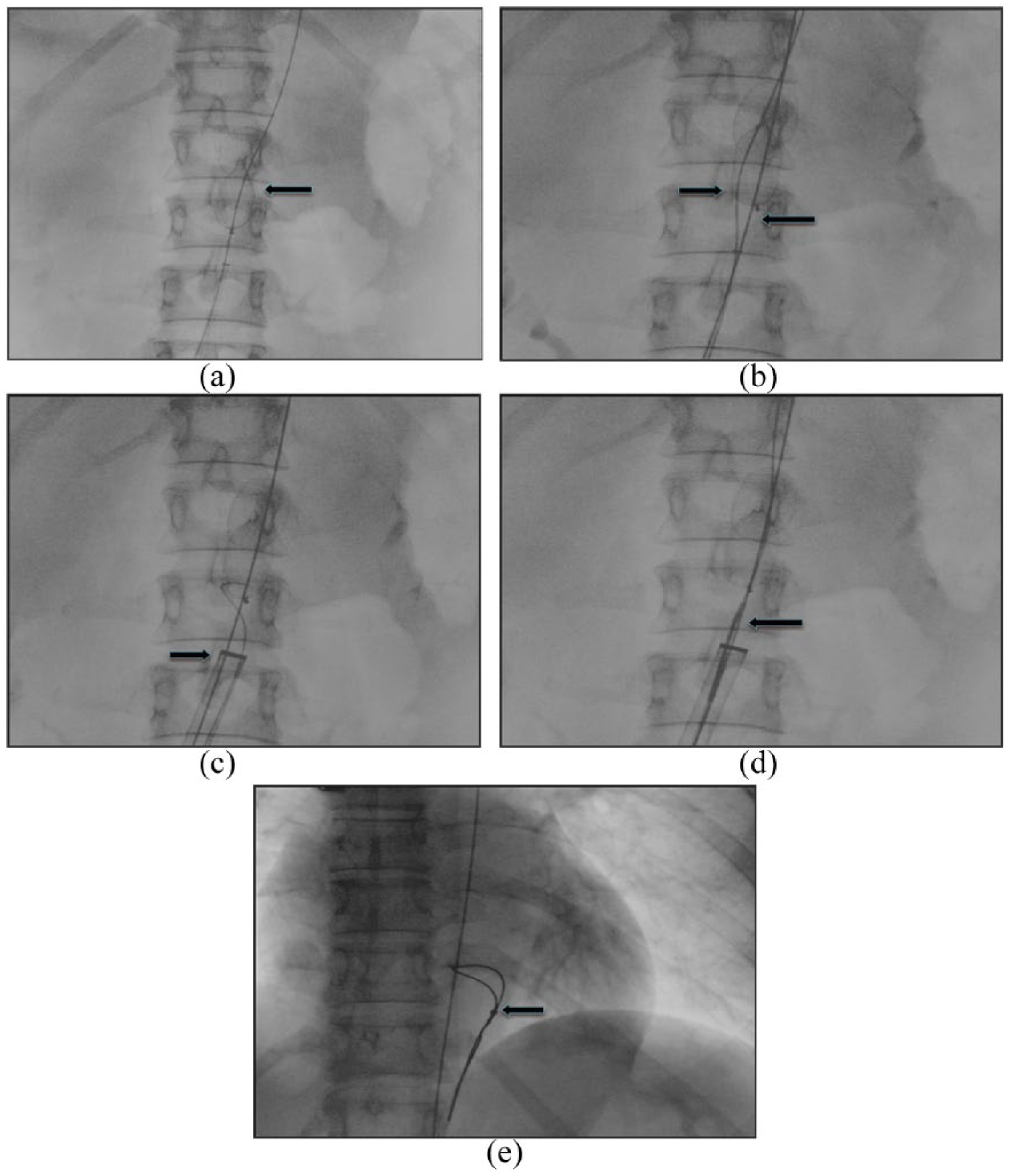

Figure 2.

Aortogram shows (a) a 0.035 guidewire passing through the nitinol mesh of the Amplatzer Septal Occluder (black arrow), (b) a 0.035 buddy wire (black arrow) passing between the inner lumen of the aorta and ASO, (c) the 24 F sheath (black arrow) including both guidewires just below the ASO, (d) the introduction of 6 F goose-neck snare (black arrow) and (e) the goose-neck snaring the guidewire (black arrow) previously passed through the ASO.

OPEN IN VIEWER

Figure 3.

Aortogram shows (a) the ASO device slenderized into the 24 F sheath (black arrow) and (b) complete retrieval of the device (black arrow).

OPEN IN VIEWER

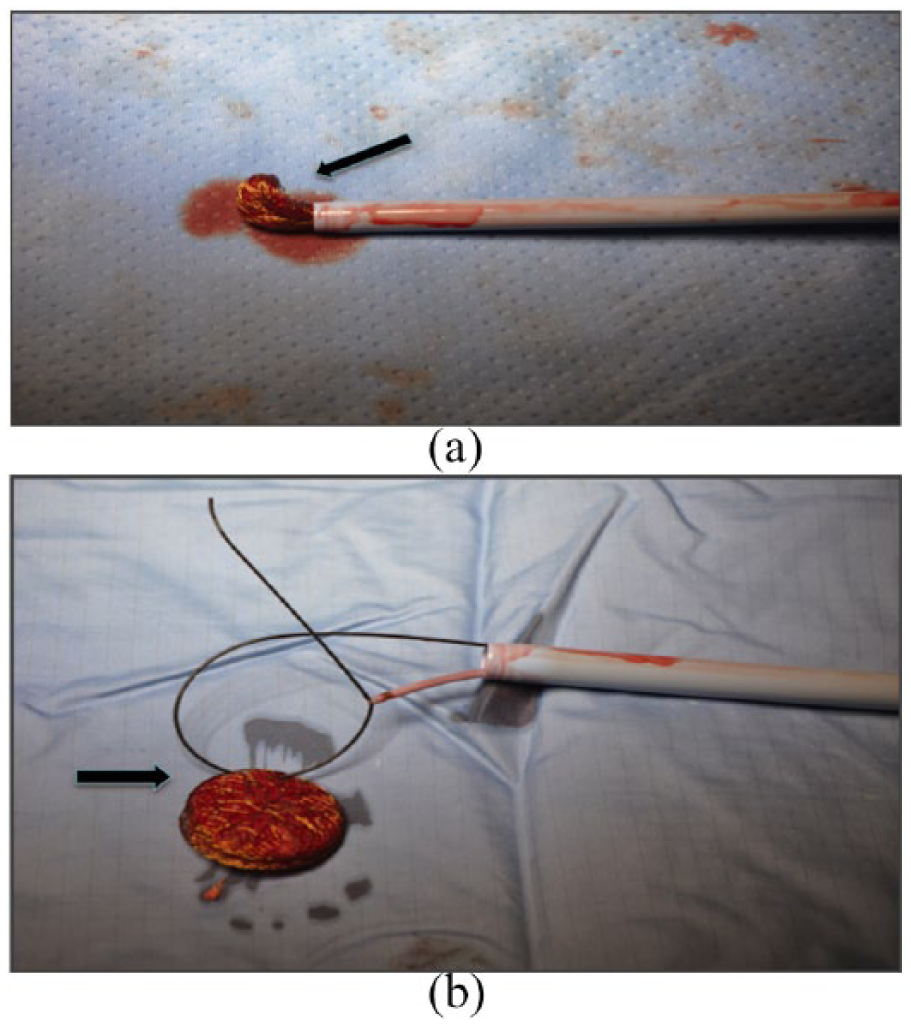

Figure 4.

Gross specimen shows (a) the 24 F sheath including the ASO device (black arrow) and (b) the guidewire passing through the mesh of the device out of the large sheath (black arrow).

The procedure run-time last 120 min while the fluoroscopy run-time last 30 min. Post-operative course was uneventful and the patient was discharged to home on third postoperative day (POD) addressed to the cardiac surgery division.

Discussion

The ASO device is widely used for percutaneous closure of ASD appearing as an effective alternative to open surgical repair because of the low complication rates and the shorter in-hospital stay.^7,8

ASO device is a cylindrical vascular plug made of self-expanding nitinol wire mesh that are tightly woven into two flat buttons; the device is available from 4 to 38 mm. There are radiopaque bands at each end of the plug; the proximal end has a stainless steel micro-screw that keeps the plug attached to the stainless steel delivery cable. The delivery cable with the plug attached comes preloaded within an introducer sheath. The device can be then introduced into the deliver catheter. The plug can be withdrawn and repositioned through the catheter before its detachment. ⁸

Whereas the device embolization represent a rare event, reported in up to 1.67% of cases, due to the self-expanding design that exerts a radially directed force on the vessel wall to maintain its position, furthermore, it may result in a potential fatal complication such perforation and/or aortic dissection.^2,9

Divekar et al., ¹⁰ reviewing all the 29 reported complications of ASO devices, found that embolization occur when the aortic rim was insufficient or when an improper sizing or a malposition of the device was done.

In a survey of the ASO company-designated proctors, the incidence of ASO embolization was 0.55% (21 embolizations in 3824 device placements) with a wide range of patient demographics, ASD sizes, and device sizes; 15 of the embolized devices were retrieved percutaneously with a goose-neck snare without morbidity or mortality and 6 were retrieved by surgery. ³

The dislocated device can migrate to the main pulmonary artery, left ventricle, left atrium, ascending aorta, aortic arch or descending thoracic aorta.^2,5,10–12

In the majority of the cases, the ASO device embolize into the main pulmonary artery (89%).^9,13

Most of the migrations (67%) are detected within the first 24 h while migration to the descending thoracic aorta in the late postoperative period (>1 year) is an extremely rare occurrence.^11,13,14

Surgical retrieval of ASO usually is required in 77% of patients immediately after device dislocation.^2,15,16 Moreover, noteworthy is that the endovascular retrieval of a migrated device could be difficult with a success rate ranging from 5% to 75% of cases, and in this regard, some author, even experienced, claims as irretrievable an embolized atrial septal occluder.^1,2

Only one report described migration of an ASO into the abdominal aorta for which conservative management was elected. ¹⁰

Several aspects of transcatheter retrieval technique have been described including the use of goose-neck snare, pigtail catheter to stabilize the device or bioptome to grasp it. Technical key-points of our procedure have been (1) the stabilization of the embolized device achieved by a stiff guidewire passed through the nitinol wire mesh and, after snared it and (2) the use of an oversized sheath (24 F) to allow an easier entry of the slenderized device during the pull-back manoeuvre.

Ferrero and colleagues, reviewing the English language reports and including their own, have found only six case reports of ASO migration within the abdominal aorta and only one into the iliac artery, all without limb ischemia; in two cases, after surgical exposure of the common femoral artery, a sheath (18 F and 20 F, respectively) was positioned close to the ASO device, it was grabbed and pulled partially inside the sheath and then down to the arteriotomy site; in one case, owing to total incorporation of the device, endoluminal retrieval was not possible; thus, the device was surgically removed through a medial laparotomy approach; finally in two cases, the ASO device was retrieved from the descending aorta by making a horizontal cut in the ascending aorta. ¹⁷

Crawford et al., ¹⁴ more recently, added the third case of endovascular retrieval of ASO embolized into the abdominal aorta.

Conclusion

The ASO device is widely used for percutaneous treatment of ASD but the procedure, even in rare case, may be complicated by acute embolization of the vascular plug that could represent a potential fatal threat. Only sporadic case reports described the abdominal aorta as the site of migration, and only in the minority of the reported cases, the retrieval of the device has been performed by percutaneous procedure because open surgery was preferred. In our opinion, totally endovascular retrieval of the ASO device from the abdominal aorta appears a safe and effective treatment and it has to be always attempted before to address the patient for open surgery.
