Persistent hyperprolactinemia,transient hypopituitarism,and transient contralateral third nerve palsy after endovascular treatment of an internal carotid artery aneurysm: Case report and review of the literature

Abstract

Intracranial aneurysms have an estimated prevalence of about 3%. A rare subgroup are aneurysms of the internal carotid artery that develop medially into the sellar region. Due to the risk of rupture with subsequent subarachnoid hemorrhage and of compression of surrounding structures, mechanical occlusion is advised. Hypopituitarism is not a rare disease and most often related to pituitary adenoma. Only 0.17% of cases with hypopituitarism are caused by unruptured intracranial aneurysms. Today, the predominant treatment of these aneurysms is endovascular coiling or application of flow diverting stents. We present the case of a 60-year-old female patient, who was treated with endovascular coiling for a right-sided, intracavernous, incidental internal carotid artery aneurysm. On postinterventional day 6, she was readmitted with contralateral third nerve palsy, mild hyponatremia und thyreotropic insufficiency. The symptoms recovered after anti-edematous treatment with corticosteroids; only an asymptomatic hyperprolactinemia persisted. To the best of our knowledge, this is the first case report of transient contralateral cranial nerve palsy combined with transient hypopituitarism after endovascular treatment of an internal carotid aneurysm. As treatment we propose corticosteroids, if necessary in combination with nonsteroidal anti-inflammatory drugs, in order to inhibit inflammatory reactions of the aneurysm wall compromising the nearby, partially compressed neural structures.

Keywords

Internal carotid artery aneurysm hypopituitarism hyperprolactinemia third nerve palsy

Introduction

Intracranial aneurysms occur with a prevalence of 3%–5%.¹ Most aneurysms remain asymptomatic, until rupture or mass effect occurs. The most dangerous complication is subarachnoid hemorrhage after rupture of the aneurysm. Therefore, depending on the risk of rupture, mechanical occlusion is usually necessary. Only 1%–2% of intracranial aneurysms are located in the sellar region close to the pituitary gland.² These aneurysms can become symptomatic by diplopia or vision impairment due to affection of cranial nerves as well as by endocrinological symptoms.

As Van ‘T Hoff et al. and White et al. have pointed out in their literature reviews in 1961, intrasellar aneurysms can simulate symptoms of pituitary tumors and must not be confused with them. They identified the first case report dating back to 1887.^3–5 Through a PubMed-based literature search, we could identify 34 further case reports and case series of hypopituitarism associated with unruptured intracranial aneurysms.^6–39 In only one of these cases, hypopituitarism occurred after treatment.³²

Usually, pituitary insufficiency is detected before treatment, or even initially leads to the diagnosis of the aneurysm. The therapy remains challenging, since in only three of the published cases hypopituitarism recovered after occlusion of the aneurysm^9,29,33 (Table 1).

Table 1.

Case reports published after the reviews by Van ‘T Hoff et al. and White et al.

Authors	Year	Onset of hypopituitarism	Cases	Treatment of aneurysm	Recovery of pituitary function
Gilman et al.⁶	1962	Before treatment	1	No	No
Dussault et al.⁷	1969	Before treatment	2	No	No
Shantharam⁸	1974	Before treatment	1	No	No
Verbalis et al.⁹	1982	Before treatment	1	Clipping and decompression	Yes
Ooi and Russell¹⁰	1986	Before treatment	1	No	No
Nukta and Taylor¹¹	1987	Before treatment	1	No	No
Chien et al.¹²	1989	Before treatment	1	No	No
Michils et al.¹³	1991	Before treatment	1	No	No
Heshmati et al.¹⁴	2001	Before treatment	7	Surgery	No
Ray et al.¹⁵	2002	Before treatment	1	No	No
Miljic et al.¹⁶	2003	Before treatment	1	No	No
Gondim et al.¹⁷	2004	Before treatment	1	No	No
Finny et al.¹⁹	2005	Before treatment	1	Coiling	No
Klose et al.¹⁸	2005	Before treatment	1	Clipping	No
Carrera et al.²⁰	2006	Before treatment	1	Balloon occlusion	No
Lawson et al.²¹	2008	Before treatment	1	No	No
Goto et al.²²	2008	Before treatment	1	No	No
Partridge et al.²³	2010	Before treatment	1	No	No
Lee et al.²⁴	2010	Before treatment	1	Not reported	Not reported
Orozco et al.²⁶	2011	Before treatment	1	Coiling	No
Tungaria et al.²⁵	2011	Before treatment	1	No	No
Munarriz et al.²⁷	2013	Before treatment	1	No	No
Ding et al.²⁸	2014	Before treatment	1	Pipeline flow-diverting stent	No
Tan et al.²⁹	2014	Before treatment	1	Flow-diverting stent	Yes
Seok et al.³⁰	2015	Before treatment	1	No	No
Gungor et al.³¹	2015	Before treatment	1	Flow-diverting stent and coiling	No
Hall et al.³²	2015	After treatment	1	Flow-diverting stent and coiling	No
Ono et al.³³	2017	Before treatment	1	High-flow bypass	Yes
Higgoda et al.³⁴	2017	Before treatment	1	No	No
Lamback et al.³⁵	2017	Before treatment	1	Flow-diverting stent	No
Wijethunga et al.³⁶	2018	Before treatment	1	Coiling	No
Ambulkar et al.³⁷	2018	Before treatment	1	Flow-diverting stents	No
Katsuhiro et al.³⁸	2019	Before treatment	1	Low-flow bypass	No
Kageyama et al.³⁹	2020	Before treatment	2	No	No

More generally, hypopituitarism is not an uncommon disease with a prevalence of 45.5/100.000 and can be accompanied by hyperprolactinemia due to pituitary stalk affection. Most cases (70%) are caused by tumorous lesions.^40,41 Only 0.17% are caused by intracranial aneurysms.¹⁴ While hypopituitarism can lead to unspecific symptoms such as chronic fatigue, loss of libido or hyponatremia, the accompanying hyperprolactinemia can cause galactorrhea, breast swelling or hypogonadism. Untreated hypopituitarism eventually ends with coma, cardiac arrythmia and death. The treatment of hypopituitarism consists in hormone substitution and, if possible, removal of the sellar tumor. This is especially true for pituitary adenomas, except for prolactinomas, which can be treated more efficiently with dopamine agonists.

Case report

A 60-year-old female presented to her general practitioner because of intermittent headaches. Computed tomography of the head brought up the suspicion of a right-sided internal carotid artery (ICA) aneurysm of 25 mm, protruding into the sellar region, which was confirmed by magnetic resonance imaging (MRI).

After digital subtraction angiography, endovascular coiling was recommended and the patient agreed to the intervention. Two months later, the aneurysm was densely packed with 24 platin coils (Penumbra 400) with assistance of a self-expanding stent (Neuroform EZ, 4.5 × 20). Final control showed complete occlusion of the aneurysm; no residual inflow could be detected (Figure 1). The patient was observed for four further days on our neurosurgical ward and then was dismissed home without neurological deficit.

Figure 1.

Left: Anterior–posterior digital subtraction angiography of the right ICA before treatment. The aneurysm develops medially into the sellar region and measures 25 mm. After interdisciplinary discussion, endovascular treatment was recommended and performed with application of 24 coils (Penumbra 400) with assistance of a self-expanding stent (Neuroform EZ, 4.5 × 20). Right: Control series at the end of the first intervention.

On postinterventional day 6, she was readmitted to the emergency room because of diplopia. Clinical examination revealed unilateral palsy of the left oculomotor nerve, contralateral to the site of the aneurysm. Endocrinological work-up disclosed new mild hyponatremia (133 mmol/L) and new thyreotropic insufficiency (Table 2). MRI on postinterventional day 7 did not detect subarachnoid hemorrhage or increased compression of neural structures, but revealed inflammatory signals in the aneurysm wall with contact to the pituitary stalk and the left oculomotor nerve (Figure 2). Anti-edematous treatment with dexamethasone led to full recovery of clinical symptoms and normalization of sodium and thyroid-stimulating hormone (TSH) serum levels within 1 week.

Table 2.

Serum concentrations of sodium (Na⁺), thyroid-stimulating hormone (TSH), free triiodthyronine (fT3), and free thyroxine (fT4) before treatment (2013), on postinterventional day 6 (onset of symptoms, 2014), and after completion of treatment (2017, no symptoms).

	Before first coiling, 2013	Postinterventional day 6, 2014	August 2017	Reference value
Na⁺ (mmol/L)	140.2	133.0	140.8	135–145
TSH (mU/L)	1.65	0.859	2.05	0.4–3.77
fT3 (pmol/L)	4.96	1.88	4.18	3.1–6.79
fT4 (pmol/L)	5.29	5.83	12.18	12.8–20.4

TSH: thyroid-stimulating hormone.

Note that hyponatremia and thyreotropic insufficiency resolved after completion of treatment.

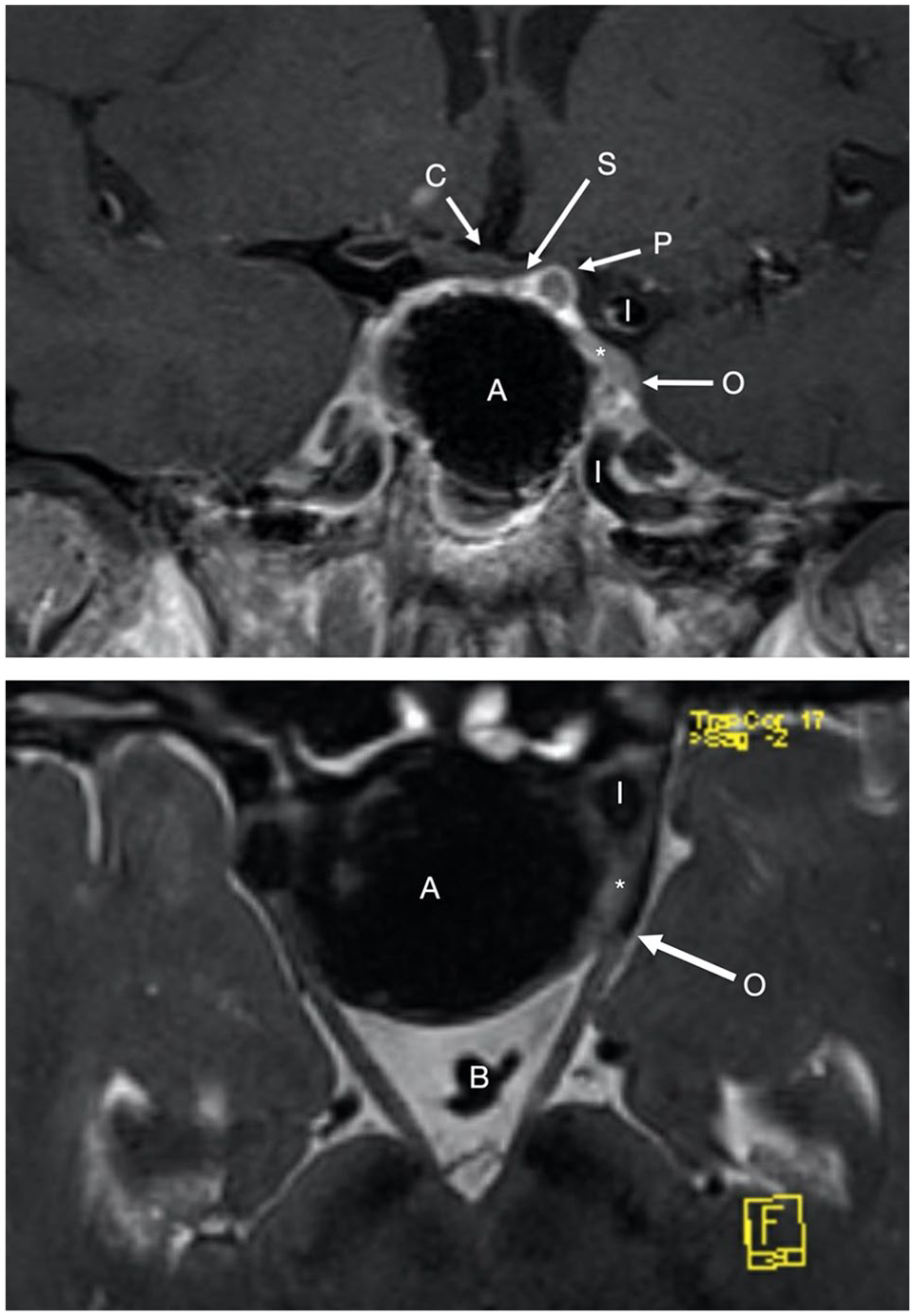

Figure 2.

Magnetic resonance imaging on postinterventional day 7. The mass effect of the aneurysm compromises all structures in proximity to the sella turcica. Note the strong inflammatory signal close to the left oculomotor nerve and the pituitary stalk, as well as around the whole wall of the aneurysm. Top: Coronal contrast enhanced T1 sequence of the sellar region. A: giant aneurysm of the right ICA after occlusion, I: left ICA, C: optic chiasm, S: pituitary stalk, P: pituitary, O: left oculomotor nerve in the wall of the cavernous sinus, *: inflammatory signal. Bottom: Axial T2 sequence of the sellar region. A: giant aneurysm of the right ICA after occlusion, I: left ICA, B: head of the basilar artery, O: left oculomotor nerve, *: inflammatory signal.

Subsequently, the patient needed multiple treatments for reperfusion of the aneurysm. In August 2014, 6 months after first intervention, 25 additional platin coils (Penumbra 400) were applied. In October 2015, 20 months after first intervention, two flow-diverting stents (Phenox p64, 3.5 × 15 and 3.5 × 21) were inserted. In February 2017, 3 years after first intervention, another flow-diverting stent (Phenox p64, 3.5 × 18) was administered. Consecutively, the aneurysm then was permanently occluded, as shown in the digital subtraction angiography from August 2017, 42 months after first treatment (Figure 3). In contrast to the first intervention, the subsequent steps went without further complications.

Figure 3.

Anterior–posterior digital subtraction angiography of the right ICA 42 months after first treatment. In addition to the first intervention, 25 platinum coils (Penumbra 400) and three flow-diverting stents (Phenox p64, 3.5 × 15, 3.5 × 21 and 3.5 × 18) have been applied in three additional interventions. In contrast to the first intervention, the subsequent steps went without further complications.

Meanwhile, the patient has received l-thyroxine from her general practitioner due to primary hypothyroidism with normal TSH serum levels. Asymptomatic serological hyperprolactinemia is persisting, which only came to attention as late as November 2018, 5 years after diagnosis of the aneurysm and 21 months after permanent occlusion (Table 3).

Table 3.

Pituitary hormones after completion of treatment at 57 and 61 months after first coiling.

	November 2018	March 2019	Reference value
Prolactin (mU/L)	2328.0	2148.0	102–496
LH (U/L)	1.65	1.45	7.7–58.5
FSH (U/L)	3.37	3.12	25.8–134.8
Estradiol (pmol/L)	<37	<37	<92
Random cortisol (nmol/L)	216.0	238.9	158–810
IGF-1 (isys, µg/L)	66.60	72.00	NA
IGF-1 SDS (isys)	−0.76	−0.56	−2.0 to +2.0

LH: luteinizing hormone; FSH: follicle-stimulating hormone.

Note that hyperprolactinemia was diagnosed only after completion of treatment and remained asymptomatic, even in the presence of low values for LH and FSH.

Discussion

Hypopituitarism and impairment of cranial nerves in the cavernous sinus are well-known symptoms when diagnosing a tumor of the sellar region. The case presented here points to an important differential diagnosis and fits well into the existing reports of ICA aneurysms provoking these deficits.

However, these symptoms usually stand at the beginning of the diagnostic work-up that finally detects the aneurysm, whereas in our case, the symptoms occurred within 1 week after endovascular treatment. Most likely, mass effect and inflammatory reactions of the aneurysmal wall lying in closest vicinity to the involved structures led to metabolic dysregulation and induced the deficits (Figure 2). This can explain the contralateral oculomotor nerve palsy and the resolution of symptoms by anti-edematous treatment with dexamethasone.

Literature research identified only one further case report, in which hypopituitarism occurred after treatment.³² In that case, hypopituitarism was delayed by 18 months after the placement of a flow-diverting stent and did not recover, rather suggesting a late ischemic event than inflammation as etiology. However, compression of surrounding structures by coil material or induced by intra-aneurysmal microbleeding has to be taken into account, too, since non-ischemic cerebral enhancing lesions occur in only 0.5% of endovascular interventions.⁴²

Recovery of pituitary function after occlusion of an ICA aneurysm as the underlying cause is rare and relies on residual pituitary function before treatment. Interestingly, the mode of occlusion seems to be unrelated, since recovery has been achieved by clipping and decompression,⁹ flow-diverting stent,²⁹ high-flow bypass surgery,³³ as well as, in our case, by anti-edematous treatment after endovascular coiling.

Conclusion

Hypopituitarism and cranial nerve impairment can occur after endovascular treatment of asymptomatic sellar aneurysms of the ICA. Treatment of choice comprises corticosteroids.
