Superficial temporal myofascial flap application in temporomandibular joint arthroplasty in a cat

Case description

Temporomandibular joint (TMJ) ankylosis can be caused by intra- or extra-articular injuries that can lead to a reduced range of movement and inability to open the mouth.^1,2 TMJ injuries are most frequently reported secondary to a fall or after vehicular trauma, with ankylosis observed in approximately 10% of cases.^2,3

A 2-year-old, 1.4 kg, intact female domestic longhair cat was referred for evaluation owing to its inability to open its mouth. Clinical history included a tibial fracture secondary to a fall from the fifth floor 2 months previously, which was managed by internal fixation.

The owner reported that since the traumatic incident the animal was only able to eat soft food. The difficulty in eating had increased progressively and most recently the animal could only eat liquid food. During a re-evaluation by the first-opinion veterinarian, the cat’s inability to open its mouth was noted. As the cat continued to lose weight, the case was referred.

General physical examination revealed cachexia and signs of dehydration. Oral examination revealed a normal occlusion, some missing teeth and an inability to open the mouth. There was no inflammation or ulceration of the gingiva, and manual opening of the mouth was not possible, even when force was applied.

The animal was hospitalised and normal hydration was re-established. Afterwards, the cat was sent to a nearby veterinary service to have computed tomography (CT) performed; intubation was impossible and during the examination oxygen was administered by nasal tube until recovery. The following day the animal was submitted to surgery. The sedation protocol included a combination of 5 μg/kg dexmedetomidine intramuscularly (IM) (Dexdomitor; Esteve Pharma) and 0.5 mg/kg morphine IM (Morfina 1%; B Braun). For induction of anasesthesia, Propofol (Propofol 1%, Lipuro; B Braun) was administered at a dose of 1 mg/kg intravenously to effect. After induction, the animal was positioned in dorsal recumbency in order for a temporary tracheostomy to be performed. General anaesthesia was maintained with isoflurane.

The maximum width of jaw opening was 3 mm, and the absence of the two maxillary canine and all the incisor teeth was noted. Head radiography showed possible involvement of both mandibles, causing ankylosis.

CT examination using a Philips Brilliance CT 16-slice (Philips Medical Systems) of the skull was performed with a 0.5 mm slice thickness. CT showed increased new bone around the right TMJ, which was compatible with TMJ ankylosis; slight new bone formation around the left TMJ; and synostosis between the coronoid process of the left mandible and the left zygomatic arch (Figure 1).

OPEN IN VIEWER

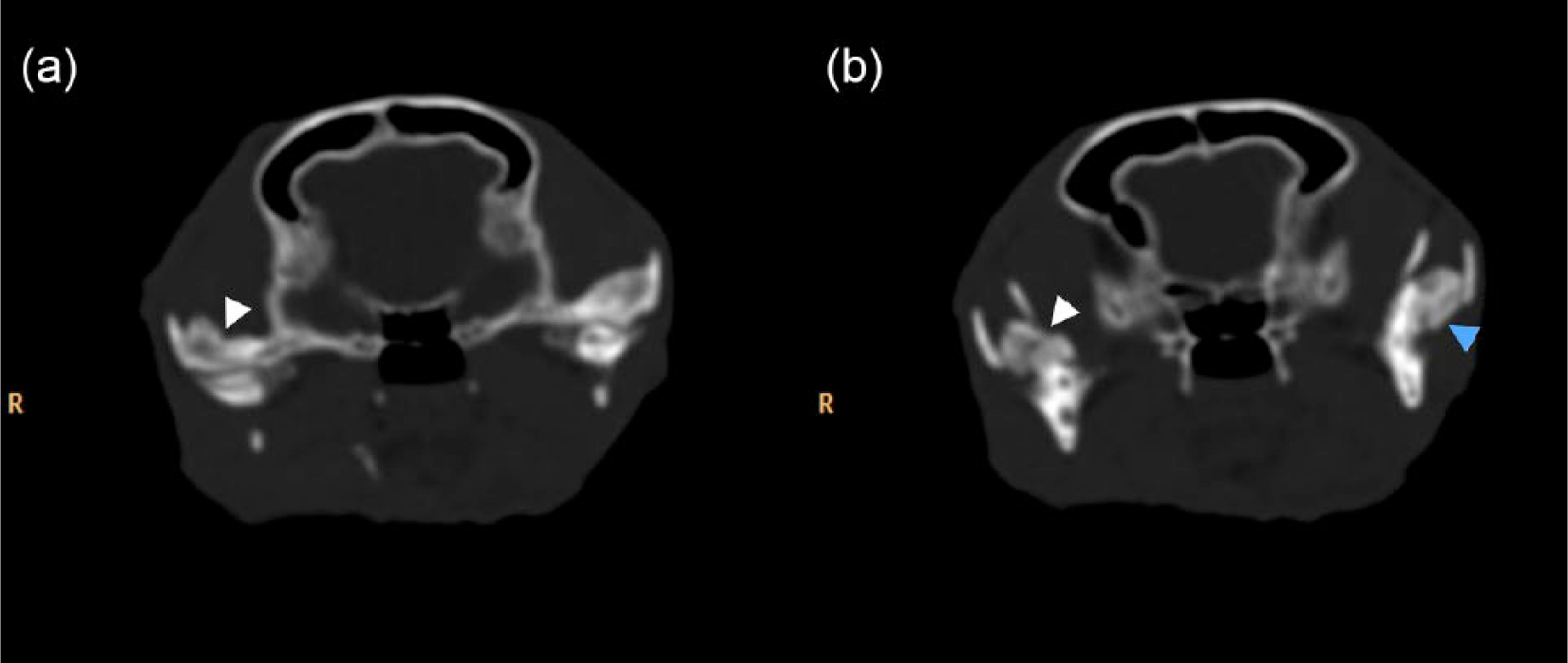

Figure 1

(a,b) Computed tomography axial plan showing increased new bone around the right temporomandibular joint (TMJ) compatible with TMJ ankylosis (white arrows). (b) On the left TMJ there is synostosis between the coronoid process of the left mandible and the left zygomatic arch (blue arrow)

The treatment plan included right zygomatic arch ostectomy and right condylectomy, followed by pseudoankylosis excision on the left side. Once two bones were involved in the pseudoankylosis it was necessary to perform a left zygomatic arch and a coronoid process ostectomy.

The animal was first placed in a right lateral recumbence. A 2 cm curved skin incision along the ventral border of the zygomatic arch was performed, followed by platisma muscle incision and periosteal incision of the masseter fascia. The masseter muscle was dissected and elevated from the ventral border of the zygomatic arch and the coronoid process laterally and medially. Exposure was extended as needed both at the left and right side in order to expose the limits of ostectomy. On the right side a partial ostectomy of the zygomatic arch and a condylectomy were performed, first with small perforations using a low-speed hand piece on the bone margins of the mandible and zygomatic arch. Approximately 1.5 cm of zygomatic bone was excised. After this first step, ostectomy was carefully completed using a chisel. A periosteal elevator was used to elevate the bone fragment and avoid laceration of the inferior alveolar nerve and respective blood vessels at the ventromedial aspect of the mandibular angle. On the left side the same surgical approach was used but a total ostectomy of the zygomatic arch and of the coronoid process, which included the pseudoankylosis, was performed. Immediately after the bilateral gap arthroplasty, maximum maxillomandibular distance was achieved.

Nerve branches and vessels were identified and avoided throughout the surgery. First, the palpebral branch of the facial nerve, which can be encountered dorsally to the zygomatic arch, and the auriculopalpebral nerve, can be identified caudal to the retroarticular process. The masticatory branches of the trigeminal nerve can be found medial to the condyle, as well as the maxillary, inferior alveolar and deep temporal arteries, ventromedial to the condyle.

After ostectomy, the subcutaneous tissue was dissected dorsally in order to expose the temporal fascia and temporal muscle. The temporal artery and vein with superficial and deep branches was identified and preserved. An incision was made from the cranial ventral aspect to the dorsal aspect of the muscle and the superficial belly of the temporal muscle was dissected for transposition. After transposition the dorsal free margin of the flap was sutured on the medial aspect of the mandible at the periosteum, filling the gap that had been created. This procedure was performed bilaterally, after each ostectomy using a 4/0 glyconate suture (Figures 2 and 3). After the procedure, jaw movement was verified again and found to be without restriction or signs of crepitation; the immediate maxillomandibular distance was 35 mm.

OPEN IN VIEWER

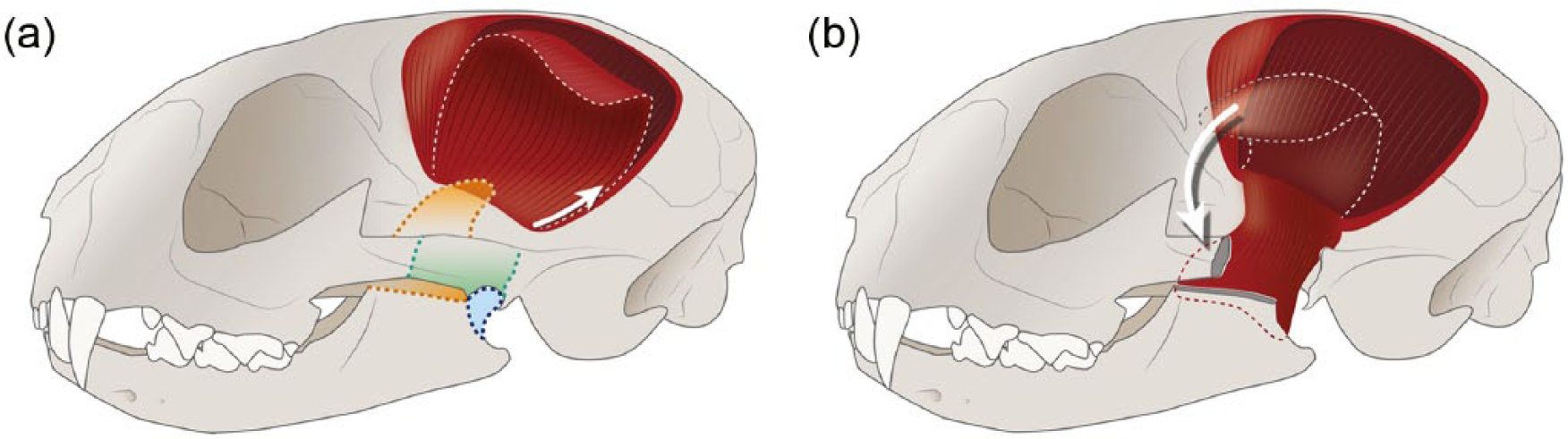

Figure 2

Schematic drawing of the temporalis myofascial flap transposition. (a) Incision and elevation of the myofascial flap. Coloured areas illustrate the different ostectomies performed: blue indicates right condilectomy, orange indicates coronoid process ostectomy and green indicates zygomatic arch ostectomy, which were performed on both sides. (b) Flap repositioned. © Diogo Guerra 2015

OPEN IN VIEWER

Figure 3

Photographs showing anterior dissection of the temporalis myofascial flap with the patient in (a) left lateral recumbency, and (b) ventral transposition and suture of the same flap with the patient in a right lateral recumbency.

Postoperative pain management was achieved with morphine 0.5 mg/kg q4h IM for 24 h followed by tramadol (Tramadol drops; Labesfal) 2mg/kg, PO, q 12h, for 10 days and meloxicam (Metacam; Boehringer Ingelheim) 0.05mg/kg q24h orally (PO) for 1 week. The cat was also given amoxicillin plus clavulanic acid (Synulox; Pfizer) 12.5 mg/kg q12h PO for 10 days.

The rehabilitation programme included daily forced manual mouth opening for 1 month, the provision of soft food every 2 h for 1 week and then a gradual return of hard food.

Two weeks after surgery, the cat was comfortable and showed functional occlusion with voluntary masticatory movements of the lower jaw. There were no signs of pain or friction on fully opening the mouth, and maxillomandibular distance was measured as 30 mm. However, bilateral facial nerve neuropraxia was observed, which gradually recovered within 3 weeks. The owners and referring veterinarian reported no signs of recurrence of mouth locking during the 1 year follow-up period (Figure 4).

OPEN IN VIEWER

Figure 4

Postoperative appearance at 17 days

Discussion

True and false ankylosis can be distinguished by observing if the cause of blocking is an intra- or extra-capsular lesion, respectively. ⁴ Ankylosis can result from fibrous or bony tissue resulting in a decreased range of motion. Although CT examination may not identify all soft tissue lesions, it is still superior to radiography in providing soft tissue information, and it has proved to be of great value in these cases. ⁵

Excision arthroplasty is the recommended treatment for these conditions, with the elimination of ankylosed tissue.^4,6

Mandibular drift and recurrence of the ankylosis have been reported after excision arthroplasty,^2,7–9 and a study performed in feline cadavers suggests that unilateral condylectomy causes a significant increase of laterolateral lower jaw movement, which could have an impact on occlusion. ¹⁰

In this case, it was necessary to perform bilateral ostectomies: a right excision arthroplasty and a left pseudoankylosis excision. Reports of the surgical management of TMJ ankylosis in the cat, in particular with the use of bilateral surgery is, to our knowledge, uncommon in the veterinary literature. In this case, recurrence of the ankylosis might be expected owing to the fact that the cat underwent bilateral surgery. Additionally, there was masticatory muscle atrophy, which could eventually cause a reduced distance between the two bone fragments and therefore lead to a recurrence of the problem. Furthermore, temporal muscle atrophy presented at the time of surgery limited the flap thickness and was subsequently aggravated after the transposition.

In humans, various interposition materials (prosthetic, autogenous and alloplastic) have been reported and tested.^11,12 Autogenous materials used are temporal myofascial flaps, fascia lata, masseter muscle and auricular cartilage; alloplastic grafts include proplast, metallic fossa implants and acrylic marbles.^11–13 Prostheses are also made out of metal alloy materials with fossa and/or condyle replacement; most are custom made using stereolithographic three-dimensional models. ¹³ The objective is to maintain the gap, isolating the cut edges and preventing recurrence of ankylosis. In the present case, temporal myofascial flap was the most obvious option as it would avoid recurrence and minimise mandibular drift. The flap is easy to mobilise and transpose.

The temporal muscle occupies the temporal fossa – originating from the temporal crest – extends ventrally and inserts on the coronoid process of the mandible. It is the strongest muscle of the head in carnivores, and its tendinous branch fuses with the deep layer of the masseter muscle. ¹⁴ The main tributaries of this muscle originate from the caudal and rostral deep temporal artery in its deep ventral belly, where the masseter is attached, before and after the alar canal. These anatomical characteristics favour the transposition of the temporalis myofascial flap medially without disrupting vascularisation. At the same time, maintaining both partial insertion on the zygomatic process of the temporal bone and the original insertion of the deep fibres helps to preserve basal flap vascularisation and survival of the transposed tissue. The fat content of this muscle may also help to prevent ossification and disrupt new bone formation. ¹⁵

Studies of the use of temporal myofascial flaps in the cat are mostly experimental in the reconstruction of large maxillary defects; ¹⁶ there is one case report of the use of this procedure in one cat for the management of unilateral TMJ ankylosis. ¹⁷ This case also had a successful outcome, despite a longer duration of injury.

To our knowledge, this technique has never been attempted bilaterally or described in such detail. The patient tolerated this technique very well, the postoperative period proceeded without incident, and the cat experienced a quick recovery. The cat did not show pain on manipulation during the rehabilitation procedures and was eating voluntarily – soft food at first and then a regular diet. There was full recovery of lower jaw movement; maintenance of functional occlusion and mandibular occlusal forces appeared to be preserved.

Early rehabilitation after TMJ surgery is advisable by feeding small amounts of food various times a day and encouraging mouth opening by manual manoeuvres or playing with toys. ⁵ In this case, a programme of daily manual mouth opening and feeding soft food every 2 h for 1 week was used.

Conclusions

The temporalis myofascial flap is an autogenous flap that could be considered as interposition material in the surgical management of TMJ ankylosis.
