Renewable Power Potential from Municipal Solid Waste: A Case Study in Jiangxi,China

Abstract

Development of renewable energy is important to modern society because climate change induced from fossil use has resulted in severe and possibly irreversible environmental impacts such as sea level rise, desertification, diminished land productivity, and increased possibility of extreme events. Therefore, the utilization of renewable and clean energy not only increases regional energy security but also alleviate the environmental risk. In this study, we employ the lifecycle assessment to examine the electricity generation from the use of municipal solid waste in China, and then investigate the emission reduction from this application. Different supply patterns of the wastes are also compared to make the results more robust. The results show that if recycled wastes are fully utilized, approximately 11,107 GWh can be generated, along with a profit of $1.2 billion from energy sales. In this case, the CO₂ emission will reduce by 9.7 million metric tons. If the food waste is used in compositing and animal feed, the net power generation and emission reduction are about 8,216 GWh and 7.32 million metric tons, respectively. If additional 30% of recycled wastes are assumed to be utilized in their past use, the power generation, profit, and emission reduction will further decrease to 5,750 GWh, $697 million, and 5.12 metric tons, respectively. The results point out that the utilization of recycled wastes can effectively reduce the reliance on fossil fuels, improve energy security, and increase social welfare. Insights of the results and policy implications are also discussed in detail.

Keywords

lifecycle assessment emission reduction incinerator renewable energy waste recycling

Introduction

Municipal solid wastes (MSW) have been greatly produced due to rapid growth of the economy and residents’ living standard. As indicated by Elsen and Vierin (2006), the daily generation of MSW is more than 10 billion tons worldwide and is likely to increase by 40% in 2020. However, inappropriate disposal of the wastes has also caused the deterioration of air, soil, and underground water quality, along with the negative influences on the environment and health of the habitants (Babayemi & Dauda, 2009). Therefore, looking for an effective approach to recycle and utilize MSW is an urgent task in the modern society.

Carbon emission related to the energy consumption in China was about 8,547 million metric tons in 2012, the largest carbon emission country in the world. Because the rapid increase in carbon dioxide emissions will not result in sustainable development, it has got national and international attention (Lin et al., 2016). For this reason, there is a need to change the energy policy and strategy of the country to mitigate the effects of global warming and reduce the level of CO₂ emission (Guo et al., 2014; Kung & McCarl, 2020). Because municipal solid waste is constantly supplied on a daily basis, it can be considered as a reliable renewable energy source to improve energy security, and thus the analysis of the power potential from MSW have been widely examined in many regions and countries.

China is the most populated country in the world and the greater the urbanization it is, the more MSW will be generated. In recent years the huge amount of MSW has attracted great concerns by the government because unregulated disposal of the wastes has resulted in severe environmental problems. Moreover, since the MSW is potentially applicable for power generation, how to appropriately deal with the wastes and to what extent the wastes can benefit have been highly focused.

Waste to energy technology is a mature process that has a positive perspective in China. While waste to energy plants faces some difficulties such as the emissions of toxins and public opposition, as well as the high development and financing costs, the reduction of greenhouse gas emission by its application may also bring substantial benefits to the producers and local governments. Therefore, the MSW application could be considered an effective approach to improve resource recycling, renewable energy production, and environmental protection, and the local governments have promoted such utilization in recent years (Xin-gang et al., 2016).

Many studies have analyzed the economic and environmental effects of MSW application in developed countries, but the analysis focusing on China’s populated zone is rarely found. Jiangxi, the southeastern province of China, has been experiencing rapid urbanization for the past two decades. In 1995, approximately 2.32 million tons of MSW was produced, which has been rapidly increased to 8.58 million tons in 2018 and such a huge amount of MSW has resulted in severe environmental problems. Therefore, the local government aims to explore how the use of wastes may alleviate environmental problems and increase the supply of renewable energy.

Based on these motivations, this study aims to investigate the following issues. First, we analyze the net economic and environmental benefit from MSW application in Jiangxi province. The lifecycle assessment will be employed to access the costs associated with input collection, transportation, pre-processing, and utilization, as well as the benefits from energy sales and emission offset. Second, this study investigates the potential electrical generation under different MSW utilization modes to examine whether the use of MSW would alter its efficiency.

By completing these tasks, this study draws a general picture with consideration of alternative uses of recycled MSW, the sufficiency of incinerator capacity, and level of energy security improvement. The implementation of cost and benefit analysis explores the feasibility and profitability of such an application. Specifically, this study makes the following contributions. First, the results provide the energy potential of MSW in major cities of Jiangxi province. This information is useful to local governments to understand whether this technology is applicable in a specific region. The results can prevent some cities from investing too much capital in a technology not feasible at the regional level. Second, this study improves the understanding of the environmental and economic consequences through the utilization of MSW. Third, this study incorporates a more general framework that can easily adjust regional characteristics for other China’s provinces.

Literature Review

The expansion of population and growth of economy result in substantial production of municipal solid waste in many regions including developing countries like China and India and developed countries like the United States and European Union (Couto et al., 2015). If the wastes are not dealt properly, it generally causes environmental problems. For example, from 1960 to 2013, in the United States the production of MSW is doubled to 250 million tons and this has results in numerous adverse effects on the environment and human health (Malinauskaite et al., 2017).

Municipal solid waste is normally processed in three ways such as thermal treatment, biological treatment, and landfilling. Landfilling is currently a dominant technology in China. It handles over 80% of MSW, but this approach is harmful to the surface water and groundwater (Asnani, 2006). In 2019, the portion of landfilling is reduced to 60.3% and the percentage of incineration application increases to 33.9% (Yao et al., 2019). Another reason for the decrease of landfilling is because the Chinese government released several policies to encourage MSW recycling (Chen, 2019; Lv et al., 2020).

Unlike landfilling, thermal treatment directly decreases the volume of municipal solid waste because it converts wastes into heat energy and biofuel (Chua et al., 2011). Another alternative to use municipal solid waste is the application of the pyrolysis process. Pyrolysis of wastes is considered a relatively cleaner method to incineration because of it emits less emission (Song et al., 2017). Therefore, Waste-to-Energy (WtE) technology is an attractive alternative to help improve energy security, reduce the volume of the wastes, and bring environmental benefits (Patumsawad & Cliffe, 2002).

In general, converting wastes into energy is profitable and proper management practices will help to reduce GHG and make this technology economically feasible. As shown by Tan et al. (2014), approximately $2,511 million and $61.30 million can be generated by energy sales and carbon credit, respectively. However, the efficiency of the plant operation is also a key factor to improve the environmental and economic benefits (Menikpura et al., 2016; Niskanen et al., 2013).

Life cycle analysis (LCA) is widely used to analyze the cost and benefit of the projects. In terms of WtE technology, the framework of life cycle analysis is built under the guidance of IPCC to assess the GHG emission during the whole process of collection, transportation, incineration, landfilling, incineration, and power generation (Maalouf & El-Fadel, 2019). Many researchers have utilized this approach to evaluate the economic and environmental benefits in waste management projects (Potdar et al., 2016). For example, Cheng and Hu (2010) show a net profit of $3.31 million, about 12.7% of total investment in 2006. Udomsri et al. (2010) also show such projects are economically viable because of desirable payback period, NPV and IRR estimates.

To encourage WtE application, China provides the national unified feed-in tariff for the waste to energy projects was $0.11/kWh in 2010 (China Solid Waste Network, 2010) and is providing up to 80% of subsidy on the interests engaged in WtE investment (Finance, 2016; Liu et al., 2019). The United States (Michaels, 2014), Canada (Shareefdeen et al., 2015), Japan (Finance, 2016), Germany (Finance, 2016), and Turkey (Marktscan, 2013) also have various forms of supports and policies to promote WtE application. Since 2013, the installed WtE capacity in the United States has been expanded to 2,800 MW and approximately 12.9% of electricity supply is provided by merely 80 processing plants (Michaels, 2014; Rezaei et al., 2018).

However, it is noticed that the compositions of MSW in China have some distinct features to developed countries. For example, food waste is 50% in China but only 20% to 30% in the US and Europe (Cheng et al., 2007; Li et al., 2001; Zhang et al., 2008), and thus the net power generation from MSW should be revisited if in the future the compositions of MSW in China are changed.

Examination of MSW-Based Power Potential

Table 1 displays the general information of the study region. Because a greater portion of the recycled MSW is landfilled, it implies that WtE technology, if well implemented, can potentially improve the domestic energy supply. Table 1 also indicates that the population is positively related to the supply of MSW. For example, Shangrao, Ganzhou, and Nanchang with more population have greater amounts of MSW that is more likely to have higher MSW power potential than smaller cities such as Jingdezhen, Xinyu, and Pingxiang.

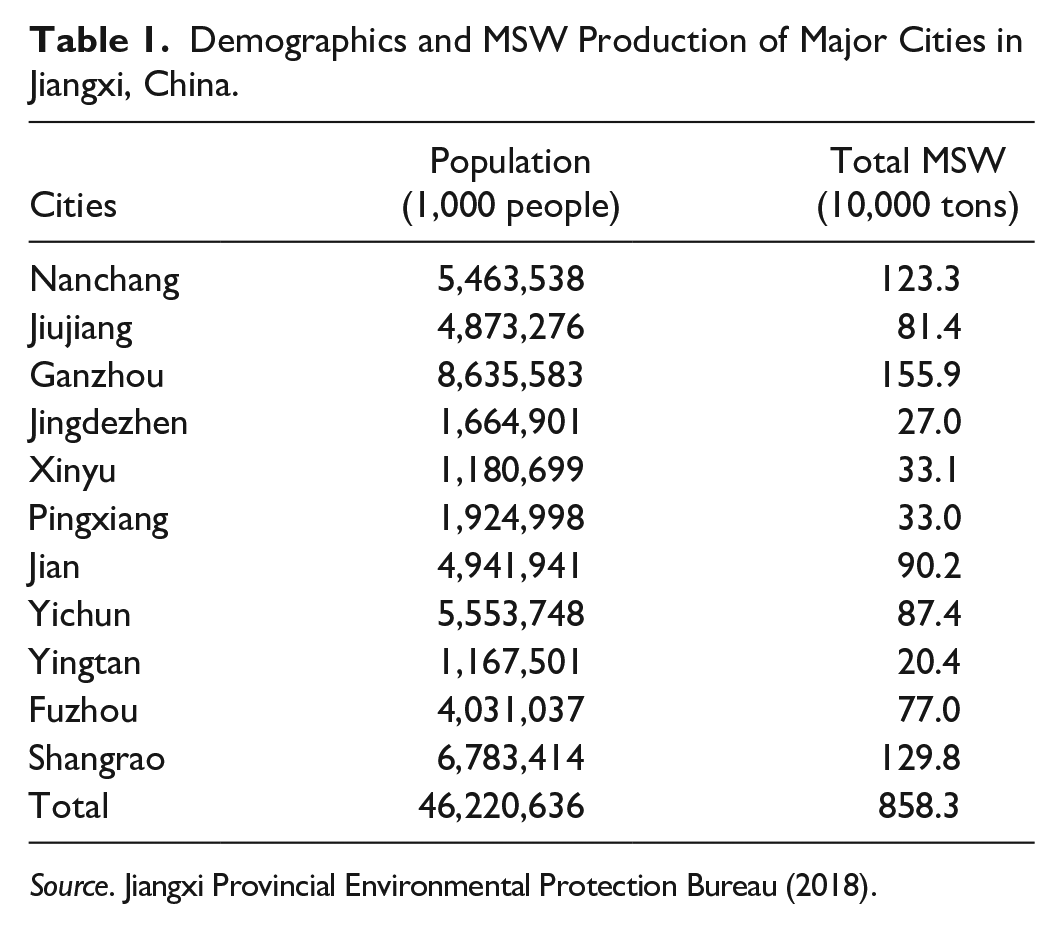

Table 1.

Demographics and MSW Production of Major Cities in Jiangxi, China.

Cities	Population (1,000 people)	Total MSW (10,000 tons)
Nanchang	5,463,538	123.3
Jiujiang	4,873,276	81.4
Ganzhou	8,635,583	155.9
Jingdezhen	1,664,901	27.0
Xinyu	1,180,699	33.1
Pingxiang	1,924,998	33.0
Jian	4,941,941	90.2
Yichun	5,553,748	87.4
Yingtan	1,167,501	20.4
Fuzhou	4,031,037	77.0
Shangrao	6,783,414	129.8
Total	46,220,636	858.3

Source. Jiangxi Provincial Environmental Protection Bureau (2018).

Compositions and Energy Content of MSW

Before we can investigate the power potential from MSW utilization, it is necessary to determine the compositions of components consisting of the MSW; otherwise, the power potential will be either under or overestimated. Table 2 displays the compositions and heat content of MSW in the 11 major cities.

Table 2.

General Information of MSW.

Base year: 2018	Supply (10,000/year)	Composition (%)^a	LHV (kMJ/t) ^b
Food waste	545.03	63.50	1.91b
Paper and cardboard	73.04	8.51	6.44^b
Plastics	105.23	12.26	20.14^b
Textile	19.40	2.26	11.79^b
Horticultural waste	14.93	1.74	9.31^b
Metal	5.49	0.64	0^b
Glass	24.63	2.87	0^b
Ash residue	52.96	6.17	0^b
Other	16.99	1.98	Not available

Source. ^aWei et al. (2018); ^bXiong et al. (2016).

Table 2 shows that about 63.5% of MSWs consist of food waste, but whether it provides a substantial amount of renewable energy depends on the heat content. The lower heating value (LHV) is generally used to indicate the energy to be provided by a source. So far it is unclear that whether the proper utilization of food waste may contribute substantial renewable power, for which has a much smaller LHV than others. Moreover, since we are not incinerating metal and glass, we remove these materials and unidentified components such as “others” and “ash residue” from this study by assuming that they are left for the original uses.

Characteristics of Regional MSWs

Based on Tables 1 and 2, we can decompose the total MSW in each city to explore the energy potential from various wastes. Conceptually, we can use the following formula to express this manipulation:

W a s t e_{i j} = T o t a l M S W_{j} x C o m p o s i t i o n_{i}

(1)

where Waste_ij is an ith type of waste in city j, Total MSW_j is the annual MSW generation in city j, and Composition_i is the percentage of ith type of waste. By using this equation, we estimate the amount of various MSWs in each city. The results are presented in Table 3. The metal, glass, ash, and others have been removed from the total useable MSW.

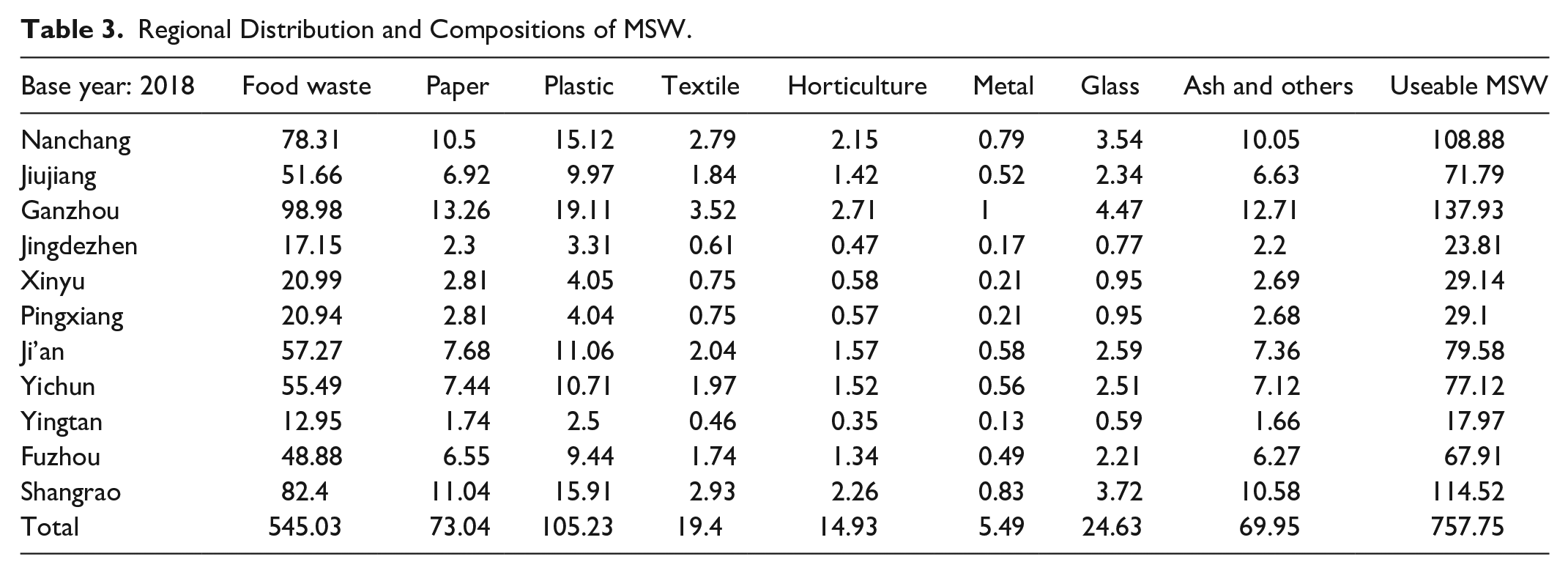

Table 3.

Regional Distribution and Compositions of MSW.

Base year: 2018	Food waste	Paper	Plastic	Textile	Horticulture	Metal	Glass	Ash and others	Useable MSW
Nanchang	78.31	10.5	15.12	2.79	2.15	0.79	3.54	10.05	108.88
Jiujiang	51.66	6.92	9.97	1.84	1.42	0.52	2.34	6.63	71.79
Ganzhou	98.98	13.26	19.11	3.52	2.71	1	4.47	12.71	137.93
Jingdezhen	17.15	2.3	3.31	0.61	0.47	0.17	0.77	2.2	23.81
Xinyu	20.99	2.81	4.05	0.75	0.58	0.21	0.95	2.69	29.14
Pingxiang	20.94	2.81	4.04	0.75	0.57	0.21	0.95	2.68	29.1
Ji’an	57.27	7.68	11.06	2.04	1.57	0.58	2.59	7.36	79.58
Yichun	55.49	7.44	10.71	1.97	1.52	0.56	2.51	7.12	77.12
Yingtan	12.95	1.74	2.5	0.46	0.35	0.13	0.59	1.66	17.97
Fuzhou	48.88	6.55	9.44	1.74	1.34	0.49	2.21	6.27	67.91
Shangrao	82.4	11.04	15.91	2.93	2.26	0.83	3.72	10.58	114.52
Total	545.03	73.04	105.23	19.4	14.93	5.49	24.63	69.95	757.75

Regional Power Potential From MSW

With the total useable amount of MSW, the percentage of the compositions of each waste category, and the lower heating value of each component, we can calculate the MSW-based power generation of each city, and the power potential from each useable source. The result is displayed in Table 4. The net power generation from MSW utilization is 11,107 GWh, of which 53% comes from plastic and 26% from food waste. In addition, 18.2%, 15.1%, and 14.4% of power generation are provided by Ganzhou, Shangrao, and Nanchang city because they have the greatest population. The results imply that the investment on WtE technology in these cities might be more efficient.

Table 4.

Power Generation in Different Cities (GWh per year).

	Power generation	Food waste	Paper	Plastic	Textile	Horticulture
Nanchang	1,596	416	188	846	91	56
Jiujiang	1,053	274	124	558	60	37
Ganzhou	2,017	525	237	1,069	115	70
Jingdezhn	349	91	41	185	20	12
Xinyu	428	111	50	227	24	15
Pingxiang	427	111	50	226	24	15
Ji’an	1,167	304	137	619	67	41
Yichun	1,131	294	133	599	65	39
Yingtan	264	69	31	140	15	9
Fuzhou	996	259	117	528	57	35
Shangrao	1,679	437	198	890	96	58
Total	11,107	2,892	1,307	5,887	635	386

Economic and Environmental Analysis from WtE Application

We have estimated the power generation in major cities of Jiangxi province, but whether the application is economically feasible is still uncertain. In this section we provide the economic analysis to demonstrate whether this application is profitable, and under what circumstances the investment should not be made.

Economic Analysis of WtE Application

Cost of installation and operation

Installation and operation costs, as well as the contract price of renewable energy generally differ from country to country. Table 5 shows the investment requirement, cost for plant operation, and power purchase price of different WtE facilities. The contract price in China is between $0.05 and $0.14, depending on the grid location. Here we use the average purchase price of renewable electricity to calculate the revenues from energy sales.

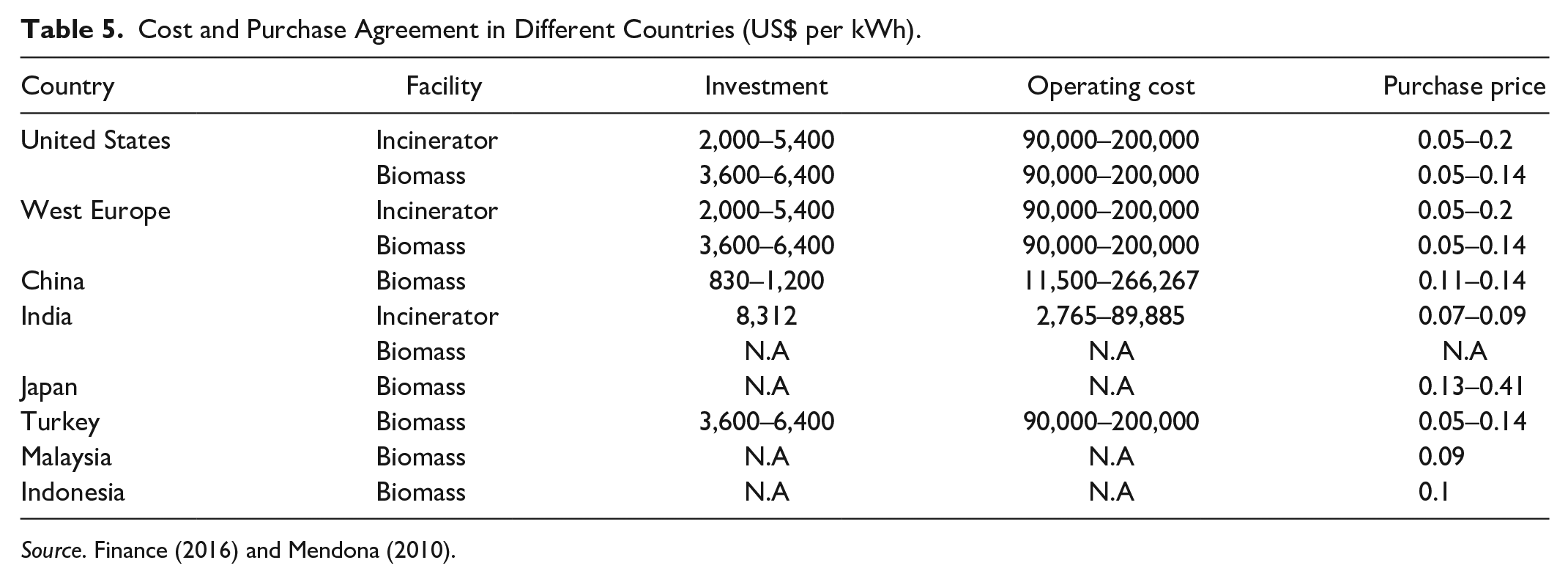

Table 5.

Cost and Purchase Agreement in Different Countries (US$ per kWh).

Country	Facility	Investment	Operating cost	Purchase price
United States	Incinerator	2,000–5,400	90,000–200,000	0.05–0.2
United States	Biomass	3,600–6,400	90,000–200,000	0.05–0.14
West Europe	Incinerator	2,000–5,400	90,000–200,000	0.05–0.2
West Europe	Biomass	3,600–6,400	90,000–200,000	0.05–0.14
China	Biomass	830–1,200	11,500–266,267	0.11–0.14
India	Incinerator	8,312	2,765–89,885	0.07–0.09
India	Biomass	N.A	N.A	N.A
Japan	Biomass	N.A	N.A	0.13–0.41
Turkey	Biomass	3,600–6,400	90,000–200,000	0.05–0.14
Malaysia	Biomass	N.A	N.A	0.09
Indonesia	Biomass	N.A	N.A	0.1

Source. Finance (2016) and Mendona (2010).

Revenues from energy sales

While revenue from energy sales is probably the most attractive indicator to producers, it can be received only after the wastes are transported to the incinerators and converted into electricity. Therefore, if the cost associated with the transportation is expected to be very high, then it is likely that the producers will not employ this technology. For this reason, it is necessary to explore the potential transportation costs in advance. Here we assume that the incinerator with 75,000 capacity is located in the center of a square surrounded by a square grid layout of roads, and thus the average hauling distance ( $\bar{D}$ ) and hauling cost (H) by French (1960) and McCarl et al. (2009).

\bar{D} = 0.4714 \sqrt{\frac{S}{640 Y}}

(2)

H = (b_{0} + 2 b_{1} \bar{D}) / L d

(3)

where S is the amount of regional wastes that will be hauled to the plant, Y is the average annual production in tones of municipal solid waste multiplied by an assumed waste density of 20% based on urbanization level. 640 is a conversion factor for the number of acres per square mile, Ld is the truckload size with an assumption of 23 tons per load, b₀ is a fixed loading charge of $90 per truckload, and b₁ is the hauling cost of $2 per km. We will double the hauling distance for the roundtrip. However, the loading charge b₀ will be zero for the returning trip.

Assuming there is no acquisition cost of MSW, the primary cost associated with the WtE application might be transportation. Table 6 indicates the revenue from energy sales and cost from waste transportation. The result is desired because the revenue is about 1.34 billion dollars and the cost only increased by 72 million dollars. As the supply of the waste is generally linearly increased with population, the larger cities such as Ganzhou, Shangrao, and Nanchang would have a higher potential in MSW-based renewable power generation. However, before we wholeheartedly embrace this result, the purchase price is much higher than the ongoing electricity price, implying that without such a subsidy the benefit from energy sale will decline. The detailed information of MSW transportation is provided in Supplemental Materials (Appendix A).

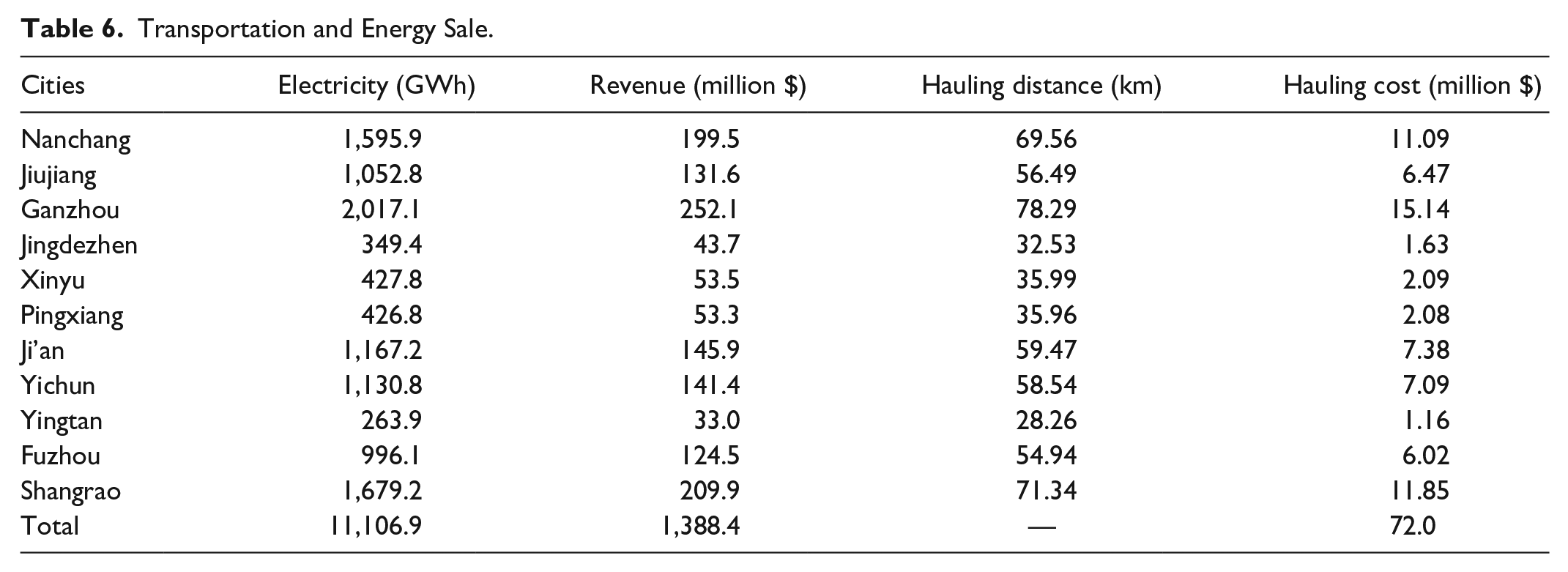

Table 6.

Transportation and Energy Sale.

Cities	Electricity (GWh)	Revenue (million $)	Hauling distance (km)	Hauling cost (million $)
Nanchang	1,595.9	199.5	69.56	11.09
Jiujiang	1,052.8	131.6	56.49	6.47
Ganzhou	2,017.1	252.1	78.29	15.14
Jingdezhen	349.4	43.7	32.53	1.63
Xinyu	427.8	53.5	35.99	2.09
Pingxiang	426.8	53.3	35.96	2.08
Ji’an	1,167.2	145.9	59.47	7.38
Yichun	1,130.8	141.4	58.54	7.09
Yingtan	263.9	33.0	28.26	1.16
Fuzhou	996.1	124.5	54.94	6.02
Shangrao	1,679.2	209.9	71.34	11.85
Total	11,106.9	1,388.4	—	72.0

Environmental Analysis of WtE Application

In this section, we further investigate the environmental consequences of WtE application. Specifically, we will use a lifecycle assessment to explore the emissions from transportation, operation and maintenance of incinerators, and fossil replacement from renewable energy. Transportation involves not only hauling cost but also emission from diesel use. We use the industrial average of 100 km on the 23-ton truck to estimate the net fuel use and subsequent emissions. The study also converts the fuel requirement for daily operation and maintenance into CO₂ equivalent measures. We use the standard energy content of thermal coal to calculate coal replacement. The results provide a basis to examine the environmental gain from emission trades and are presented in Table 7,

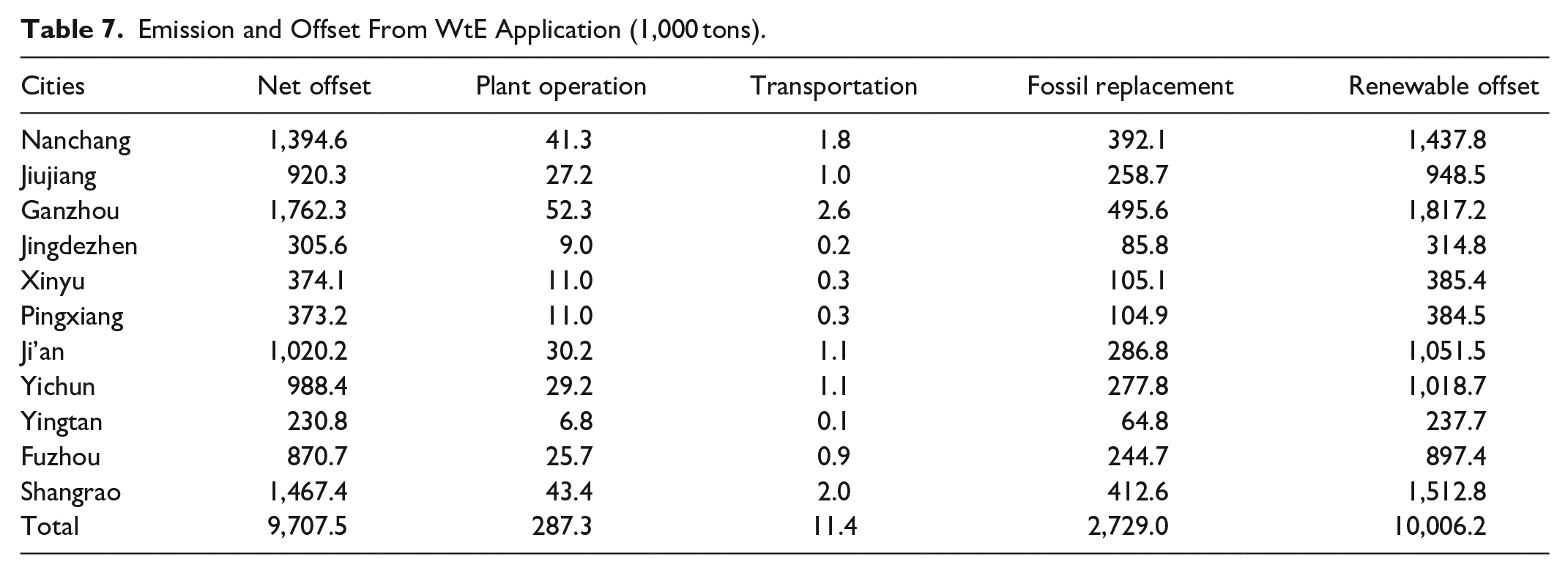

Table 7.

Emission and Offset From WtE Application (1,000 tons).

Cities	Net offset	Plant operation	Transportation	Fossil replacement	Renewable offset
Nanchang	1,394.6	41.3	1.8	392.1	1,437.8
Jiujiang	920.3	27.2	1.0	258.7	948.5
Ganzhou	1,762.3	52.3	2.6	495.6	1,817.2
Jingdezhen	305.6	9.0	0.2	85.8	314.8
Xinyu	374.1	11.0	0.3	105.1	385.4
Pingxiang	373.2	11.0	0.3	104.9	384.5
Ji’an	1,020.2	30.2	1.1	286.8	1,051.5
Yichun	988.4	29.2	1.1	277.8	1,018.7
Yingtan	230.8	6.8	0.1	64.8	237.7
Fuzhou	870.7	25.7	0.9	244.7	897.4
Shangrao	1,467.4	43.4	2.0	412.6	1,512.8
Total	9,707.5	287.3	11.4	2,729.0	10,006.2

Totality of Value

The WtE application brings economic and environmental benefits. While the economic measures have been provided, the environmental benefit such as emission reduction has not been estimated. In China, there are no prevailing emission prices and thus we take the emission price of $4 per ton to calculate the potential environmental gain, based on the recommendation of National Emissions Trading Scheme of China (2021). Table 8 shows all converted economic and environmental values of WtE application in China.

Table 8.

Profitability of WtE Application (in million US$).

		Cost			Revenue
Cities	Net benefit	Pre-processing	Fuel	Hauling	Emission	Energy sale
Nanchang	171.9	21.8	0.5	11.1	5.8	199.5
Jiujiang	114.3	14.4	0.3	6.5	3.8	131.6
Ganzhou	216.0	27.6	0.7	15.1	7.3	252.1
Jingdezhen	38.5	4.8	0.1	1.6	1.3	43.7
Xinyu	47.0	5.8	0.1	2.1	1.5	53.5
Pingxiang	46.9	5.8	0.1	2.1	1.5	53.3
Ji’an	126.5	15.9	0.3	7.4	4.2	145.9
Yichun	122.6	15.4	0.3	7.1	4.1	141.4
Yingtan	29.1	3.6	0.0	1.2	1.0	33.0
Fuzhou	108.2	13.6	0.2	6.0	3.6	124.5
Shangrao	180.7	22.9	0.5	11.9	6.1	209.9
Total	1,201.7	151.6	3.1	72.0	40.0	1,388.4

The results show that if WtE is properly implemented, the preprocessing cost of $151 million and the fuel and hauling cost of $72 million and a profit of approximately $1.2 billion can be expected. Compared to the revenues of energy sale, the environmental benefit is relatively smaller due to the low emission trade price of $4 per ton of CO₂. However, after the Paris Agreement, almost all parties agree to impose a more strict environmental regulation, which implies an increase in emission trade price, as well as the environmental benefit from emission reduction in the future.

Sensitivity Analysis

So far the study examines the “NET” power potential, economic feasibility, and emission reduction of WtE application in the study area. However, the above calculation is based on the situation that 100% of recycled wastes are incinerated, and this may not be true for two reasons. First, while the food waste is generally properly recycled, it is usually used for animal feed and compositing. This means that power generation is likely to be overestimated when we remove food waste. Second, the paper boxes, textiles, and other wastes usually have their original uses that cannot easily be replaced. Incorporation of these wastes with an assumption of perfect utilization of the wastes will also overestimate the power generation, profitability, and environmental benefits. Therefore, this study further investigates the biopower generation under different uses of wastes. Specifically, we examine (1) removal of food waste from power generation and (2) removal of 30% of other wastes, to investigate the influences of waste uses.

Case I: Removal of Food Waste

Table 9 shows that with the removal of the food waste, the net power generation has decreased from 10,167 to 8,215 GWh. In other words, when the food waste remains in the conventional uses such as feeds and compositing, the renewable power from incineration would reduce by about 26%. Here another question arises: is it possible to replace the animal feed and compositing with another source and keep incinerating food waste to enjoy higher energy output? The answer to this question is ambiguous because it makes the situation more complicated. For example, if the farmers can apply more fertilizer on cropland, then the requirement of compositing coming from food waste could be reduced, and this portion of food waste can still be utilized for power generation. But if the land is relatively bare and compositing can substantially improve the land quality and improve crop yield, the use of food waste in incineration implies that some economic incentives must be provided to farmers so that they are willing to purchase more expensive fertilizers; otherwise, no farmers will take this option. Additionally, the analysis of the uses of food wastes could be complicated because numerous regional characteristics will involve, and here we avoid this complexity by simply assuming the food waste will stay in its original use.

Table 9.

Power Generation Without Food Waste (in GWh).

Base year 2018	Paper	Plastic	Textile	Horticulture	Total
Nanchang	187.8	845.9	91.3	55.5	1,180.4
Jiujiang	123.9	558.0	60.2	36.6	778.7
Ganzhou	237.3	1,069.1	115.4	70.1	1,491.9
Jingdezhen	41.1	185.2	20.0	12.2	258.4
Xinyu	50.3	226.8	24.5	14.9	316.4
Pingxiang	50.2	226.2	24.4	14.8	315.7
Ji’an	137.3	618.6	66.8	40.6	863.3
Yichun	133.0	599.4	64.7	39.3	836.4
Yingtan	31.0	139.9	15.1	9.2	195.2
Fuzhou	117.2	528.0	57.0	34.6	736.8
Shangrao	197.6	890.0	96.1	58.4	1,242.0
Power generation	1,306.7	5,887.0	635.3	386.2	8,215.2

Case II: Removal of 30% of Other Wastes

Another scenario goes one step further to explore the lower bound of power generation. Now we take another 30% of wastes away to examine the power potential from useable recycled wastes. Not surprisingly, that the power generation would further decline to 5,750 GWh because fewer wastes can be used for power generation. We find that the power potential of the three largest cities decreases most significantly because they suffer the most from waste removal. Table 10 shows the result.

Table 10.

Lower Bound of MSW Power Generation (in GWh).

Base year 2018	Paper	Plastic	Textile	Horticulture	Total
Nanchang	131.4	592.1	63.9	38.9	826.3
Jiujiang	86.7	390.6	42.2	25.6	545.1
Ganzhou	166.1	748.4	80.8	49.1	1,044.3
Jingdezhen	28.8	129.6	14.0	8.5	180.9
Xinyu	35.2	158.7	17.1	10.4	221.5
Pingxiang	35.1	158.3	17.1	10.4	221.0
Ji’an	96.1	433.0	46.7	28.4	604.3
Yichun	93.1	419.6	45.3	27.5	585.5
Yingtan	21.7	97.9	10.6	6.4	136.6
Fuzhou	82.0	369.6	39.9	24.3	515.7
Shangrao	138.3	623.0	67.2	40.9	869.4
Power generation	914.7	4,120.9	444.7	270.4	5,750.6

Profitability of New Scenarios

In this section, we estimate the revenues from energy sales and emission trades, and the costs of waste transportation and plant operation to investigate to what extend the profitability will be affected under different scenarios. Table 11 shows the result of revenues from energy sales. When the amount of useable wastes decrease, the revenues sharply decline by 26% and 48.2%.

Table 11.

Revenue from Energy Sales (million US$).

Cities	Base	Removal 1	Removal 2
Nanchang	199.5	147.6	103.3
Jiujiang	131.6	97.3	68.1
Ganzhou	252.1	186.5	130.5
Jingdezhen	43.7	32.3	22.6
Xinyu	53.5	39.6	27.7
Pingxiang	53.3	39.5	27.6
Ji’an	145.9	107.9	75.5
Yichun	141.4	104.5	73.2
Yingtan	33.0	24.4	17.1
Fuzhou	124.5	92.1	64.5
Shangrao	209.9	155.3	108.7
Total	1,388.4	1,026.9	718.8

Note. The Base is the energy sale when 100% of MSW is utilized in power generation, Removal 1 indicates the removal of food wastes, and Removal 2 indicates the removal of 30% of other wastes.

The next step is to analyze the emission consequences under various scenarios. Since the usable waste is reduced in the assumed scenarios, it is obvious that the transportation efforts will decline; thereby reducing fuel used in transportation and associated CO₂ emissions. We also assume the plant operation cost and fuel used to incinerate wastes will reduce proportionally to the waste received. With such a formulation, we again use equations (2) and (3) to estimate the emissions during the entire application cycle. The result is presented in Table 12.

Table 12.

Emission from Plant Operation, Transportation, and MSW Application.

Cities	Net offset	Fossil replacement 1,000 tons	Offset from renewables	MSW application	Plant operation tons	Transportation
Scenario: Removal of food wastes
Nanchang	1,052	290	1,063	11,854	11,581	273
Jiujiang	694	191	702	7,786	7,640	146
Ganzhou	1,329	367	1,344	15,025	14,637	388
Jingdezhen	230	63	233	2,563	2,535	28
Xinyu	282	78	285	3,142	3,104	38
Pingxiang	281	78	284	3,135	3,097	38
Ji’an	769	212	778	8,640	8,470	171
Yichun	745	206	754	8,369	8,206	163
Yingtan	174	48	176	1,933	1,915	18
Fuzhou	656	181	664	7,363	7,228	134
Shangrao	1,106	305	1,119	12,480	12,185	294
Total	7,319	2,018	7,401	82,289	80,598	1,690
Scenario: Removal of 30% of recycled wastes
Nanchang	736	203	744	8,266	8,107	160
Jiujiang	486	134	491	5,434	5,348	86
Ganzhou	930	257	941	10,473	10,246	227
Jingdezhen	161	44	163	1,791	1,775	16
Xinyu	197	54	200	2,195	2,173	22
Pingxiang	197	54	199	2,190	2,168	22
Ji’an	538	148	544	6,029	5,929	100
Yichun	522	144	527	5,839	5,744	95
Yingtan	122	34	123	1,351	1,340	11
Fuzhou	459	127	465	5,139	5,060	79
Shangrao	775	214	783	8,702	8,530	172
Total	5,123	1,413	5,181	65,711	56,419	990

By removing food waste from renewable energy production the emission released from MSW application is about 80,600 tons while that for removal of 30% waste is approximately 65,700 tons. Since the reduced input means less energy output, we also need to estimate the emission offset from fossil replacement to verify the amount of total emission reduction.

For the food removal scenario, the net emission reduction is 7.32 million metric tons and 5.12 million metric tons for the 30% removal case. While the result is desirable, we find that the net emission reduction decreased by 24.6% for the food removal scenario and 47.2% for the 30% removal scenario, implying that the stability of waste supply is important to total emission reduction. There is merit to make further discussion of this issue because in recent years, Jiangxi Province is losing its population due to slow economic development and low wage rates. If this trend cannot be reversed, power potential from MSW utilization will inevitably decrease further because less population is equivalent to less waste supply.

While the emission reduction seems substantial, it is estimated under the experimental coefficients that usually reflect optimal values, and it is likely to have substantial loss of heat during energy conversion process. Therefore, when we use this assumption for large-scale WtE application and if the energy conversion loss is not taken into account, the result is likely to be overestimated. Although in this study we merely focus on the net energy available from MSW and WtE application rather than the accurate estimate of end-point power use, it is necessary to understand that in reality there are many issues influencing the results (Table 13).

Table 13.

Profitability of MSW Application Under Waste Removal Scenarios.

Cities	Net benefit	Processing	Fuel use	Hauling	Emission trade	Energy sale
Removal of food wastes
Nanchang	139.7	6.1	0.1	2.2	0.6	147.6
Jiujiang	92.3	4.0	0.0	1.3	0.4	97.3
Ganzhou	176.4	7.7	0.1	3.0	0.7	186.5
Jingdezhen	30.7	1.3	0.0	0.4	0.1	32.3
Xinyu	37.6	1.6	0.0	0.5	0.1	39.6
Pingxiang	37.5	1.6	0.0	0.5	0.1	39.5
Ji’an	102.3	4.5	0.0	1.5	0.4	107.9
Yichun	99.1	4.3	0.0	1.5	0.4	104.5
Yingtan	23.2	1.0	0.0	0.3	0.1	24.4
Fuzhou	87.3	3.8	0.0	1.2	0.3	92.1
Shangrao	147.0	6.4	0.1	2.4	0.6	155.3
Total	969.3	42.5	4.3	14.6	3.8	1,026.9
Removal of 30% of recycled wastes
Nanchang	97.9	4.3	0.0	1.4	0.4	103.3
Jiujiang	64.7	2.8	0.0	0.9	0.3	68.1
Ganzhou	123.7	5.4	0.1	1.9	0.5	130.5
Jingdezhen	21.5	0.9	0.0	0.2	0.1	22.6
Xinyu	26.3	1.1	0.0	0.3	0.1	27.7
Pingxiang	26.3	1.1	0.0	0.3	0.1	27.6
Ji’an	71.7	3.1	0.0	1.0	0.3	75.5
Yichun	69.5	3.0	0.0	0.9	0.3	73.2
Yingtan	16.3	0.7	0.0	0.2	0.1	17.1
Fuzhou	61.2	2.7	0.0	0.8	0.2	64.5
Shangrao	103.0	4.5	0.0	1.5	0.4	108.7
Total	679.7	29.8	2.5	9.5	2.7	718.8

Under the waste removal scenarios, the utilization of MSW in power generation can still make substantial profits, primarily from energy sales. It is also noticed that for the food removal scenario, the net economic benefit only decreases by 17% but 41.7% for the 30% of waste removal case. Additionally, because the costs associated with execution, monitoring, and management are not incorporated, it is also possible to observe an even lower net profits if these costs are substantial. Based on the results, several policy recommendations can be provided:

First, it is recommended that MSW application for energy generation is an economically and environmentally feasible solution even if a portion of MSW is reutilized for other purposes. Second, research and development are needed to improve the operating efficiency of incineration technology and reduce the per-unit cost of energy generation, both of which will eventually increase total emission reduction from MSW utilization. Third, if China is able to establish an Emission Trading System (ETS), the existence of the emission trading price would benefit the power producers and thus possibly further improve the large-scale development of MSW application. Fourth, the composition of the MSW may differ from region to region so that the development of the “waste to energy (WtE)” facility needs to incorporate the regional characteristics of MSW. Finally, the application of GIS or Real Road System would better reflect the estimates of the total transportation distance, fuel usages, and transportation costs that help the exploration of the economic and environmental consequences.

Conclusion Remarks

While municipal solid waste is generally considered to be useless and landfilled in China, it indeed is a valuable resource if it is properly utilized. In modern society, energy security is a major concern because fossil energy will inevitably be depleted and emissions from its use could hamper environmental sustainability. Therefore, converting the heat contained in MSW becomes an attractive and applicable approach for renewable power generation and environmental protection. This study employs the lifecycle analysis to examine how the alternative uses of MSW would benefit.

The results show under the fully utilized MSW, removal of food waste, and 30% removal of total MSW scenarios, the power potential would be 11,107, 8,216, and 5,750 GWh, respectively. The economic benefits of these scenarios would be $1.20 billion, $995.1 million, and $697.8 million, along with the emission reduction of 9.7, 7.3, and 5.1 million tons, respectively.

We show that the application of MSW is profitable, but it is also noticed that the heat loss during the conversion and transmission stage may vary under different incinerating modes, which is likely to alter the end-point electricity output and social benefits. The types of incinerating engines should be taken into account to not to be over-optimistic about the WtE application and regional power potential.

Some limitations of the study are also illustrated so that the future researches could conduct further investigations. First, it is noted that the production of MSW is rising continuously for years while the population of Jiangxi province is not growing proportionally. Therefore, the per capita supply of MSW may not be a good estimate in the future. Second, the cost associated with the pre-possessing and transportation may vary across cities and the uses of MSW are based on the historical patterns. Under this assumption, the real benefits from the MSW application may not be reflected. Third, in this study, we did not take the heat loss during the conversion and transmission stage into account, and thus the results only illustrate the net power potential rather than end-point electricity. For places where efficiency is relatively lower, this assumption may be released to not be over-optimistic about the WtE application and regional power potential.

Supplemental Material

sj-docx-1-sgo-10.1177_21582440211061316 – Supplemental material for Renewable Power Potential from Municipal Solid Waste: A Case Study in Jiangxi, China

Supplemental material, sj-docx-1-sgo-10.1177_21582440211061316 for Renewable Power Potential from Municipal Solid Waste: A Case Study in Jiangxi, China by Rafiq Muhammad Aftab, Liguo Zhang and Chih-Chun Kung in SAGE Open

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The author(s) thank for the financial support of the National Natural Science Fundation of China (41861042; 72173006) and the Natural Science F0undation of Jiangxi (20202BABL205024).

ORCID iD

Chih-Chun Kung

Supplemental Material

Supplemental material for this article is available online.

References

Asnani

P.U.

(2006). Solid waste management. India Infrastructure Report, 160–189.

Babayemi

J. O.

Dauda

K. T.

(2009). Evaluation of solid waste generation, categories and disposal options in developing countries: A case study of Nigeria. Journal of Applied Sciences and Environmental Management, 13(3), 83–88.

Chen

(2019). Shanghai leads nation in new era of garbage sorting. China Daily. Shanghai. http://www.chinadaily.com.cn/cndy/2019-09/10/content_37508972.html

Cheng

(2010). Municipal solid waste (MSW) as a renewable source of energy: Current and future practices in China. Bioresource Technology, 101(11), 3816–3824.

Cheng

Zhang

Meng

(2007). Municipal solid waste fueled power generation in China: A case study of waste-to-energy in Changchun city. Environmental Science & Technology, 41, 7509–7515.

China Solid Waste Network. (2010). Research on waste-to-energy incineration in China, E20 environment platform. (in Chinese).

Cucchiella

D’ Adamo

Gastaldi

(2014). Sustainable management of waste-to-energy facilities. Renewable and Sustainable Energy Reviews, 33, 719–728.

Chua

K. H.

Sahid

E. J. M.

Leong

Y. P.

(2011). Sustainable municipal solid waste management and GHG abatement in Malaysia. ST-4: Green & Energy Management, 4(2), 1–8.

Couto

N. D.

Silva

V. B.

Monteiro

Rouboa

(2015). Assessment of municipal solid wastes gasification in a semi-industrial gasifier using syngas quality indices. Energy, 93, 864–873.

10.

Elsen

Vierin

(2006). Report: Waste management in French speaking world. Parliamentary assembly of the French speaking world. Morocco.

11.

Finance

B. N. E.

(2016). New energy outlook 2016. Long-term projections of the global energy sector. Executive summary. https://about.bnef.com/blog/?tactic-page=443258

12.

French

B.C.

(1960). Some considerations in estimating assembly cost functions for agricultural processing operations. Journal of Farm Economics, 42(4), 767–778.

13.

Guo

Liu

Mao

Jin

Chen

Cheng

(2014). Willingness to pay for renewable electricity: A contingent valuation study in Beijing, China. Energy Policy, 68, 340–347.

14.

Jiangxi Provincial Environmental Protection Bureau. (2018). Annual report of waste processing and recycling (In Chinese).

15.

Kung

C. C.

McCarl

B. A.

(2020). The potential role of renewable electricity generation in Taiwan. Energy Policy, 138, 111227.

16.

Lin

Omoju

O. E.

Okonkwo

J. U.

(2016). Factors influencing renewable electricity consumption in China. Renewable and Sustainable Energy Reviews, 55, 687–696.

17.

Liu

Xia

Cui

Jiang

Skitmore

(2019). Enhancing public acceptance towards waste-to-energy incineration projects: Lessons learned from a case study in China. Sustainable Cities and Society, 48, 101582.

18.

Yan

Chi

(2001). Analysis on calorific value of Chinese cities’ municipal solid waste. Zhongguo Huanjing Kexue, 21, 156–160.

19.

Dong

Geng

(2020). Optimization of recyclable MSW recycling network: A Chinese case of Shanghai. Waste Management, 102, 763–772.

20.

Maalouf

El-Fadel

(2019). Towards improving emissions accounting methods in waste management: A proposed framework. Journal of Cleaner Production, 206, 197–210.

21.

Malinauskaite

Jouhara

Czajczyńska

Stanchev

Katsou

Rostkowski

Thorne

R. J.

Colón

Ponsá

Al-Mansour

Anguilano

Krzyżyńska

López

I. C.

Spencer

(2017). Municipal solid waste management and waste-to-energy in the context of a circular economy and energy recycling in Europe. Energy, 141, 2013–2044.

22.

Marktscan

(2013). Development of sanitary landfills and waste-to-energy from landfill gas in Turkey.

23.

McCarl

B. A.

Peacocke

Chrisman

, et al. (2009). Economics of biochar production, utilization, and GHG offsets. In Lehmann

Joseph

(Eds.), Biochar for environmental management: Science and technology (pp. 341–357). Earthscan Publisher.

24.

Mendona

(2010). Powering the green economy: The feed-in tariff handbook. Taylor & Francis.

25.

Menikpura

S. N.

Sang-Arun

Bengtsson

(2016). Assessment of environmental and economic performance of Waste-to-Energy facilities in Thai cities. Renewable Energy, 86, 576–584.

26.

Michaels

(2014). The 2014 ERC Directory of Waste-To-Energy Facilities. Energy Recovery Council.

27.

National Emissions Trading Scheme of China. (2021). Prospective of greenhouse gas emissions and management. (In Chinese).

28.

Niskanen

Värri

Havukainen

Uusitalo

Horttanainen

(2013). Enhancing landfill gas recovery. Journal of Cleaner Production, 55, 67–71.

29.

Patumsawad

Cliffe

K. R.

(2002). Experimental study on fluidised bed combustion of high moisture municipal solid waste. Energy Conversion and Management, 43, 2329–2340.

30.

Potdar

Singh

Unnikrishnan

Naik

Nimkar

Patil

(2016). Innovation in solid waste management through clean development mechanism in developing countries. Procedia Environmental Sciences, 35, 193–200.

31.

Rezaei

Ghobadian

Samadi

S. H.

Karimi

(2018). Electric power generation from municipal solid waste: A techno-economical assessment under different scenarios in Iran. Energy, 152, 46–56.

32.

Shareefdeen

Elkamel

Tse

(2015). Review of current technologies used in municipal solid waste-to-energy facilities in Canada. Clean Technologies and Environmental Policy, 17(7), 1837–1846.

33.

Song

Sun

Jin

(2017). PESTEL analysis of the development of the waste-to-energy incineration industry in China. Renewable and Sustainable Energy Reviews, 80, 276–289.

34.

Tan

S. T.

Hashim

Lim

J. S.

W. S.

Lee

C. T.

Yan

(2014). Energy and emissions benefits of renewable energy derived from municipal solid waste: Analysis of a low carbon scenario in Malaysia. Applied Energy, 136, 797–804.

35.

Udomsri

Martin

A. R.

Fransson

T. H.

(2010). Economic assessment and energy model scenarios of municipal solid waste incineration and gas turbine hybrid dual-fueled cycles in Thailand. Waste Management, 30(7), 1414–1422.

36.

Wei

X. X.

Wang

X. M.

, et al. (2018). Temporal and spatial characteristics of municipal solid waste generation and treatment in China from 1979 to 2016. China Environmental Science Press.

37.

Xin-gang

Gui-wu

Ang

Yun

(2016). Technology, cost, a performance of waste-to-energy incineration industry in China. Renewable and Sustainable Energy Reviews, 55, 115–130.

38.

Xiong

T. S. A.

Wang

(2016). An optimization model for economic feasibility analysis and design of decentralized waste-to-energy systems. Energy, 101, 239–251.

39.

Yao

Kong

Qiu

Chen

Shen

(2019). Patterns of heavy metal immobilization by MSW during the landfill process. Chemical Engineering Journal, 375, 122060.

40.

Zhang

Chen

Meng

Cheng

(2008). Experimental and thermodynamic investigation on transfer of cadmium influenced by sulfur and chlorine during municipal solid waste (MSW) incineration. Journal of Hazardous Materials, 153, 309–319.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.02 MB
