Visualizing the Knowledge Domain of Academic Discourse Studies at the Beginning of 21st Century: A Bibliometric Analysis

Data Source and Collection

Building upon the bibliometric analyses conducted by Han and Li (2021) and Wang et al. (2022), which used “discourse” and “text” as search terms, this study expanded the search parameters to include “discourse,” “text,” “genre,” and “publication” alongside the additional term “academic” (see Figure 1). The current study included the “research article” and “review” published in English between 2000 and 2021. The data were retrieved through “TOPIC” (including the title, abstract, and keywords) in WOS. Additionally, the study utilized the “remove duplicate (WOS)” feature in CiteSpace to refine the dataset. Finally, a total of 2,024 documents were collected for subsequent analysis, and data inclusion is illustrated in the PRISMS 2020 statement (Page et al., 2021) for systematic review in Figure 1.

OPEN IN VIEWER

Figure 1.

PRISMA flow chart of data inclusion and exclusion.

Threshold in CiteSpace

CiteSpace is continuously developed to fulfill the visual analytic needs of scientific mapping tasks. It is designed to synthesize and visualize research in the form of a co-citation network with co-cited references visualized as nodes, as illustrated in Figure 2.

OPEN IN VIEWER

Figure 2.

An example of a node.

A node’s citation history can be visualized through the use of different colors, from gray (e.g., 2000) to red (e.g., 2021), and through the thickness of its tree rings; the thicker a node’s tree ring, the more frequently a reference is cited. Moreover, these nodes can be categorized into various cultures based on the relativity and interconnectivity between references to a particular topic (Chen, 2006).

The essential thresholds used in this study are listed in Table 1, and the co-citation and co-word analyses in CiteSpace are based on these thresholds. The calculation was performed based on the following settings: g-index = 25, Top N = 50, Top N = 10%, and time slice = 1. When a visualized figure emerges, a combination of the “path finder, pruning slice networks, and pruning the merged network” algorithms is adopted. These thresholds and apparatuses are exactly the same when performing co-citation (containing cluster and citation burstiness), term, and keyword analyses, and are derived empirically from Chen and Song (2019). The design of the CiteSpace software and its principles and formula in calculation are clearly introduced in Chen (2006, 2017).

OPEN IN VIEWER

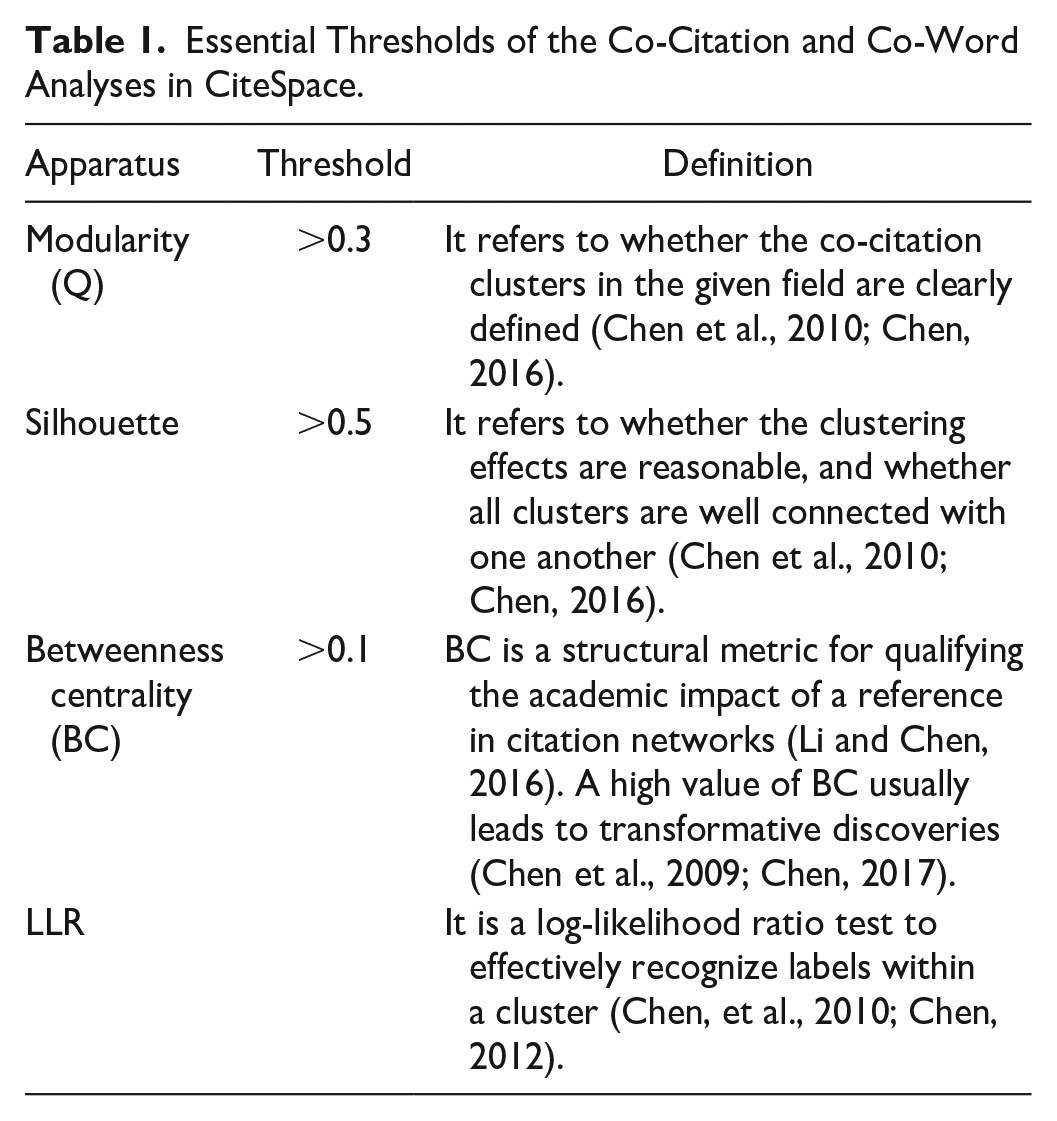

Table 1.

Essential Thresholds of the Co-Citation and Co-Word Analyses in CiteSpace.

Apparatus	Threshold	Definition
Modularity (Q)	>0.3	It refers to whether the co-citation clusters in the given field are clearly defined (Chen et al., 2010; Chen, 2016).
Silhouette	>0.5	It refers to whether the clustering effects are reasonable, and whether all clusters are well connected with one another (Chen et al., 2010; Chen, 2016).
Betweenness centrality (BC)	>0.1	BC is a structural metric for qualifying the academic impact of a reference in citation networks (Li and Chen, 2016). A high value of BC usually leads to transformative discoveries (Chen et al., 2009; Chen, 2017).
LLR		It is a log-likelihood ratio test to effectively recognize labels within a cluster (Chen, et al., 2010; Chen, 2012).

Cluster Analysis

The co-citation function in CiteSpace constructs networks of cited references and builds a network model. The network model is divided into (co-citation) clusters of references. Therefore, each cluster contains a theme, that is, the label of each cluster shared by the cited references. Cluster analysis depicts the details of the major clusters with high silhouette (over 0.9) and modularity (0.95) values as the thresholds illustrated in Table 1.

Based on the co-citation analysis, six major clusters that were labeled using Log-likelihood ratio (LLR) were generated, with a silhouette value of 0.956 and a modularity value of 0.949 (Figure 4). Table 2 lists the silhouette values of the six clusters, from the largest, #0 (wide audience), to the smallest, #23 (red herring). Although the six clusters were all calculated using CiteSpace, there were significant differences in their size values, that is, the number of keywords in the ADS shared by each cluster. Therefore, the size of each cluster clearly reveals the different statuses of the most cited references in each cluster. Thus, the most cited references in Cluster #23 were not as influential as those in Clusters #0 and #1.

OPEN IN VIEWER

Figure 4.

Landscape view of the co-citation network in ADS from 2000 to 2021.

OPEN IN VIEWER

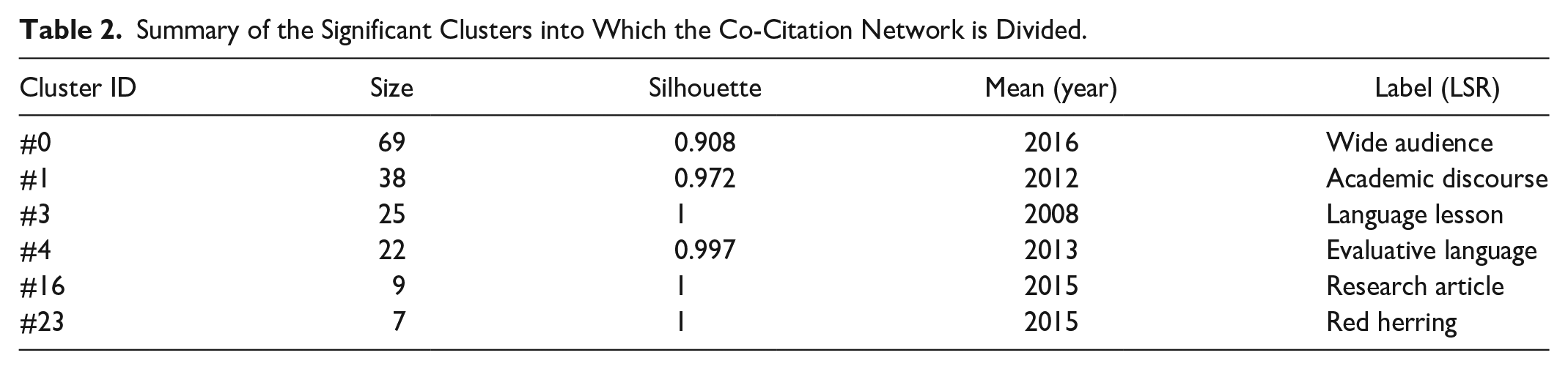

Table 2.

Summary of the Significant Clusters into Which the Co-Citation Network is Divided.

Cluster ID	Size	Silhouette	Mean (year)	Label (LSR)
#0	69	0.908	2016	Wide audience
#1	38	0.972	2012	Academic discourse
#3	25	1	2008	Language lesson
#4	22	0.997	2013	Evaluative language
#16	9	1	2015	Research article
#23	7	1	2015	Red herring

In Figure 5, the most cited references of ADS occur early in Clusters #3 and #4 from 2004, and move to Clusters #0 and #1 after 2013. This information flow is nearly consistent with the burst of ADS publications.

OPEN IN VIEWER

Figure 5.

A timeline visualization of the co-citation network in ADS.

To discuss the theoretical basis for ADS, Table 3 lists the first three cited references in each of the six clusters, as they are generalized based on co-citation, in which the “frequently cited paper represents the key concepts, methods, or experiments in a field” (Small, 1973, pp. 265–266). Based on the timeline results, the frequency tended to decrease from Cluster #0 to Cluster #23, and most references were published after 2013. In addition, five were academic monographs (with gray backgrounds) rather than articles.

OPEN IN VIEWER

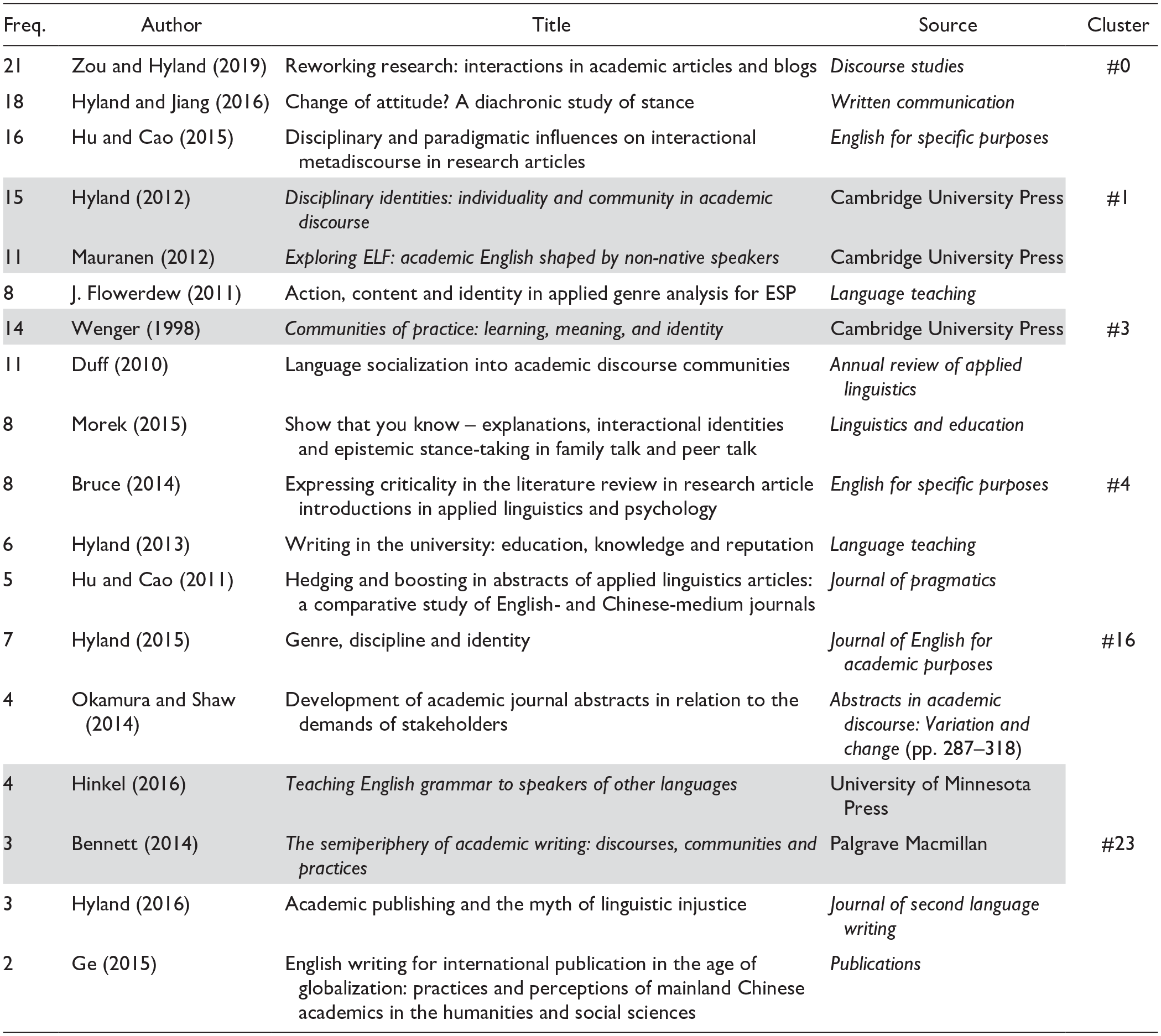

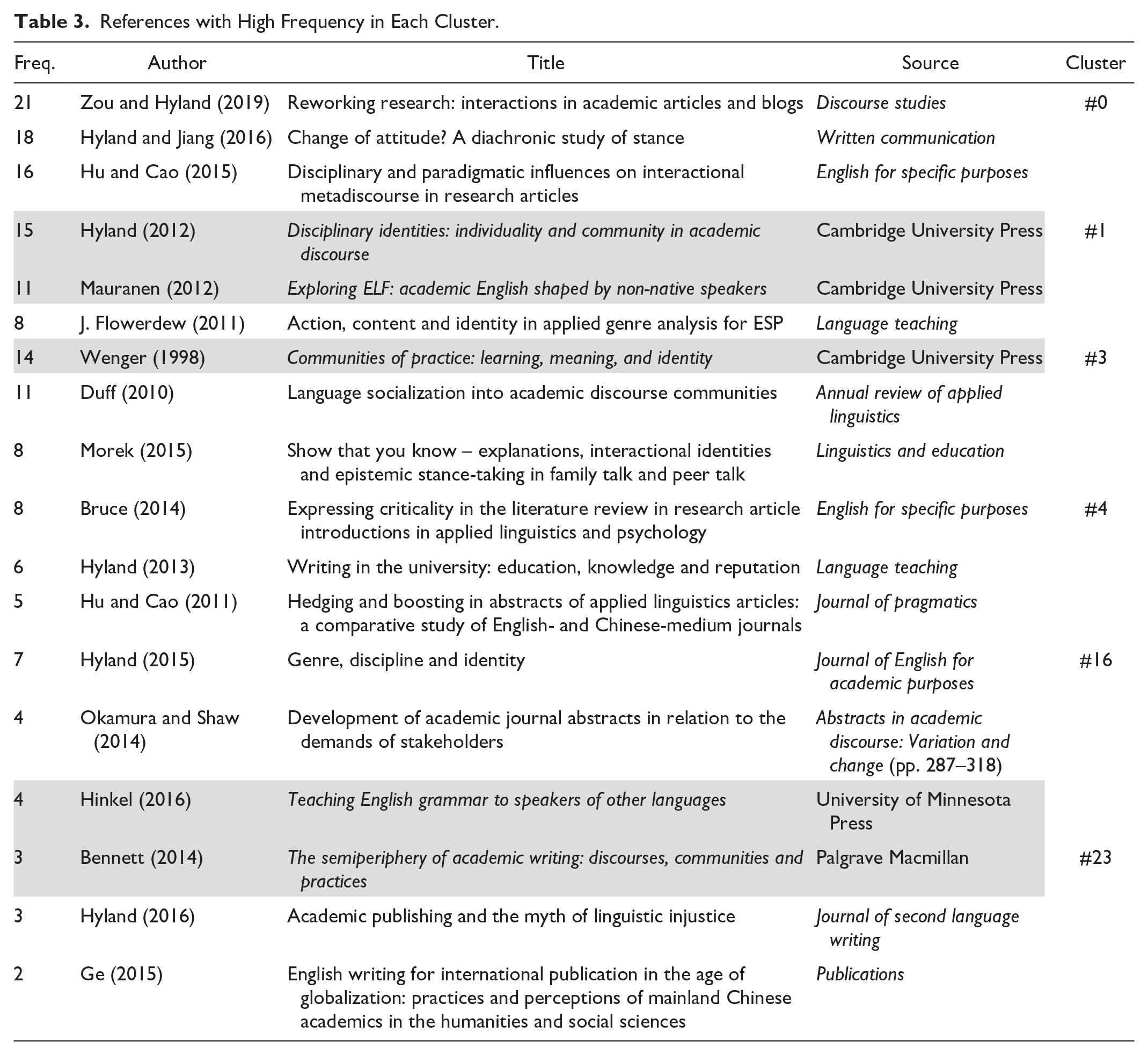

Table 3.

References with High Frequency in Each Cluster.

Cluster #0: wide audience. The word audience in this cluster refers to the ADS readership. It is concerned with disseminating writers’ new results to a wider audience of experts or lay people. The most-cited references in Table 2 present three different paradigms. Hu and Cao (2015) examined disciplinary and pragmatic influences on the use of interactional metadiscourse in the post-method sections of AD. They found a series of discrepancies in the use of hedges, boosters, and attitude and engagement markers in three social science disciplines (i.e., education, applied linguistics, and psychology) based on quantitative and qualitative methods. Hyland and Jiang (2016) also focused on ways of expressing writers’ opinions diachronically, however, through an investigation of stance relating to evaluative, attitudinal, or obscure meanings. They tracked how expressions of the authorial stance have changed in academic writing over the past 50 years. Similarly, Zou and Hyland (2019) employed Hyland’s (2005) stance and engagement models to probe writer-reader interactions and explored how writers recontextualized recently published materials in their academic blogs. This cluster focused on the interpersonal meaning conveyed by AD and was borrowed primarily from Hyland’s models.

Cluster #1: academic discourse. This cluster contains 38 cited references. It concentrated on the actual use of English in different genres to establish academic identity, particularly in EAP (Hyland, 2012), English as a lingua franca (ELF) (Mauranen, 2012), and English for specific purposes (J. Flowerdew, 2011). In EAP, Hyland (2012) presented a style of author identity in AD, focusing on the relationship between authors and disciplinary knowledge. In contrast, Mauranen (2012) explored academic English shaped by non-native speakers through empirical linguistic descriptions and detailed discussions of the particular characteristics of academic ELF for ELF specialists and EAP practitioners. Regarding EAP, J. Flowerdew (2011) considered basic issues in genre analysis that are important for language teaching, including action, propositional content, and genre identity. Compared with the first two references in this cluster, J. Flowerdew’s (2011) research is a more theoretical discussion of basic concepts related to genre analysis than discourse analysis. Nevertheless, her discussion process compared different types of resources with respect to constructing good genres and suggested that genre analysis should focus on content and identity rather than on language as an action. Consequently, this reference can be reasonably categorized as an investigation of the actual use of English in different genres.

Cluster #3: language lesson. This cluster contained 25 cited references and was the only influential reference from the 1990s (Wenger, 1998). This cluster concerned language learning within the academic community. According to Wenger (1998), the key to learning academic English in such contexts is the negotiation of interpersonal meaning and the formation of personal and social identity. This is the tendency of research on socialization into AD or literacy in people’s first or subsequent languages, which is often multimodal, multilingual, and highly intertextual (Duff, 2010). An investigation of such social identity also occurred in Morek’s (2015) study. Morek (2015) examined the local sequential negotiation of interactional identities and epistemic stance taking in both family and peer talk and revealed that these linguistic items of epistemic stance taking and interactional identities explained that talk in a classroom would influence identificatory compatibility with respect to students’ interactional experiences and identities outside their school lives. The introduction of the three most-cited references clearly reveals an emphasis on learning English in AD. Compared with the previous two clusters, a clear transition from language use to language learning can be seen, while the chief subjects in ADS are learners (e.g., students) rather than scholars (e.g., researchers or teachers). Additionally, the timelines in Figure 5 indicate that studies on English learning in academic contexts began before other research tendencies. However, it appears that they did not influence the other clusters as much as Clusters #0, #1, and #4, as presented in Figure 5.

Cluster #4: evaluative language. This cluster, similar to the first, is also concerned with interpersonal meaning. However, from a comparative perspective, it depicts attitudinal resources across different languages (Hu & Cao, 2011), students (Hyland, 2013), and disciplines (Bruce, 2014). For example, Hu and Cao (2011) drew a quantitative comparison of Chinese and English journals of applied linguistics (based on a model by Connor & Moreno (2005)) in the use of rhetorical resources in academic texts across languages and cultures. The second most-cited reference was Hyland’s plenary speech. He explained the difficulties that both students and academics faced in using the conventions of disciplinary courses by deeming literacy to be embedded in the beliefs and practices of individual disciplines. This means that the control of disciplinary academic language is bound by each discipline, rather than a generic skill that students fail to develop in school. Bruce’s (2014) comparative study was conducted around the AD of linguistics and psychology based on a (cognitive) genre model by Bruce (2008). Indeed, the comparative method also occurred in other clusters; however, studies in this cluster focused more on the differences in the learning and use of the English academic language than on the general features across different disciplines or academics.

Cluster #16: research article. Although this cluster’s label is similar to that of Cluster #1 (academic discourse), it contains a few (nine) cited references and multifarious topics. The most cited references listed in Table 3 do not share an evident topic for generalizing their similarities. Okamura and Shaw (2014) studied abstracts in the disciplines of economics, marketing, and cell biology, and found a shift, over the last 20 years (before 2014), of proposition-evaluating verb phrases to a style of active voice and first person as subject. Hyland (2015) illustrated how genres can provide insights for readers to understand the contexts of situations and cultures based on genre analysis. The third reference is a collection of symposium articles edited by Hinkel, concentrating on three areas of English grammar teaching: (1) the principles and foundations of grammar teaching, (2) strategies and techniques of grammar teaching, and (3) grammar for productive skills such as writing and speaking. The three most cited references suggest that this cluster contains mutually independent studies that cannot be systematically unified. Among the three references, despite the fact that Hyland (2015) discussed identity based on genre analysis, this reference cannot fall into previous clusters because its primary aim is to explore the relationships between community expectation and the individual writer, which does not fit into previous clusters. This may be the reason for labeling this cluster as research article.

Cluster #23: red herring. This cluster contains seven cited references. The interesting label refers to the fact that studies in this cluster investigate AD from the perspective of non-English speaking countries to discuss the dominance of English academic publishing and the communicative inequality between English and non-native English speakers. “Native English speakers are thought to have an advantage as they acquire the language naturally, while second language users must invest more time, effort, and money into formally learning it and may experience greater difficulties when writing in English” (Hyland, 2016, p. 58). This phenomenon led to another problem revealed by Hyland’s (2016) survey: non-native English writers always believed that editors and reviewers were prejudiced against them for non-standard English expressions. He named this phenomenon linguistic injustice, and called for a more inclusive view of academic publishing. Ge’s (2015) study can be considered a concrete example of Hyland’s (2016) argument. Ge (2015) presented the case of Mainland Chinese scholars in the humanities and social sciences with respect to their international publications. From a more general perspective, Bennett’s (2014) symposium related AD to social classes, exploring academic contexts in Eastern and Southern Europe, which were characterized as the middle class. The middle class academic context has endured significant managerial pressure from the evaluation frameworks of Eastern and Southern European countries. In contrast to the previous clusters, this study focused on the publication of ADS instead of strategies or linguistic resources in AD writing. This opened another possibility for the publication of ADS from the perspective of the publication process and revealed the injustice in international academic publishing. Nevertheless, this cluster did not demonstrate any influence on other clusters in Figure 5 diachronically and shared no connections with them, as presented in Figure 4 synchronically.

The presentation of each cluster clearly depicts the major influential research areas in ADS. It reflects the dominant position of English in research objects and the three approaches proposed by Charles et al. (2009). Synchronically, these six clusters were distributed in a relatively dispersed manner, as presented in Figure 4, suggesting that they did not have mutual connections. Diachronically, ADS began in academic English learning and subsequently propagated to discourse analysis. Furthermore, irrespective of whether the perspective is synchronic or diachronic, the primary task of ADS is to devote themselves to interpersonal relationships to facilitate writers’ (whether native or non-native English) communication of their opinions in accordance with the conventions in a particular discipline or academic community, while the discrepancy among scholars was the adoption of different perspectives for their studies.

Term and Keyword Analyses

Keyword analysis revealed the roots of ADS and possible topics in the branch of linguistics, whereas term analysis suggested more than the major terms adopted by ADS scholars. These two kinds of analyses were conducted to further investigate the relationships among the collected data. Figure 6 presents the two knowledge domains of the term and keyword networks from the references in the collected data. Both term (silhouette = 0.939, modularity = 0.884) and keyword (silhouette = 0.922, modularity = 0.840) visualizations revealed close connections between various terms or keywords. The keyword visualization contained only one large tree ring labeled academic discourse, and other macroscopic tree rings randomly scattered in the connections. However, the term visualization presented two similar-sized tree rings labeled research article and social sciences, and other smaller tree rings were distributed close to one another in the central position. In Figure 6, the tree ring for research article was close to that for applied linguistics but far from that for the social sciences. This indicated that these two terms were differentiated in the AD analysis. The research article category was more about teaching and learning related to applied linguistics, whereas the social sciences category preferred to concretize the linguistic method of analyzing language resources (e.g., rhetorical moves, corpus, and frequent mean). Other smaller tree rings in the central position appeared to absorb features and orientations from the two large tree rings and presented some specific labels in the ADS (e.g., graduate students, qualitative analysis, cohesive device, comparative analysis, and authorial stance). This hypothesis is supported by the time zone presented in Figure 7.

OPEN IN VIEWER

Figure 6.

Landscape view of the keyword and term networks in ADS from 2000 to 2021.

OPEN IN VIEWER

Figure 7.

A time zone visualization of the keyword and term analyses in ADS.

Figure 7 illustrates that ADS initially occurred in applied linguistics (i.e., language teaching and learning) and thereafter in the field of discourse analysis relating to social sciences. A combination of the two methods after 2010 and many smaller tree rings burst from 2010 to 2021. The time-zone visualization of the keyword analysis in Figure 7 is consistent with the tree rings demonstrated in Figure 6. The largest tree ring academic discourse, occurred at the beginning of this century, with others distributed throughout the timeline. It means that the significant topics in ADS varied from time to time but were never far away from the central discourse.

To provide more details that may be helpful in understanding the future development of ADS, we listed the top 10 ranked terms and keywords by their BCs, as presented in Table 4. Most of the terms and keywords were consistent with those depicted in the cluster analysis and visualization of terms and keywords, such as social sciences, second language, student, and foreign languages. However, unexpected expressions with high BC values (e.g., qualitative analysis, comparative analysis, cohesive devices) may suggest future ADS tendencies.

Citation Burst Analysis

OPEN IN VIEWER

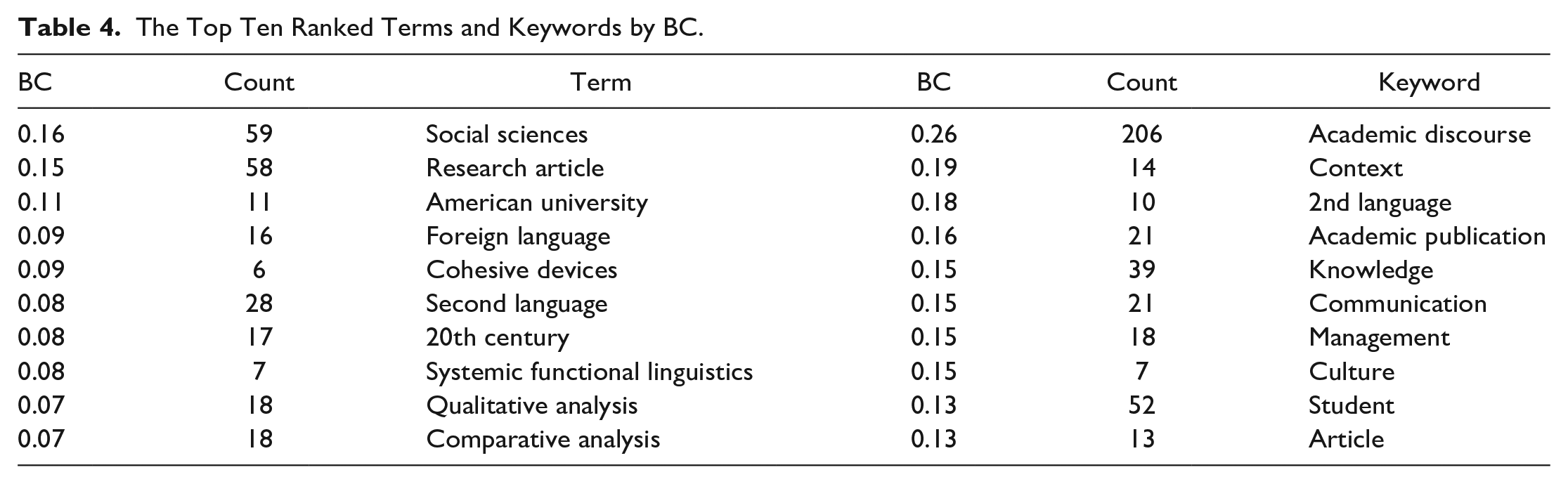

Table 4.

The Top Ten Ranked Terms and Keywords by BC.

BC	Count	Term	BC	Count	Keyword
0.16	59	Social sciences	0.26	206	Academic discourse
0.15	58	Research article	0.19	14	Context
0.11	11	American university	0.18	10	2nd language
0.09	16	Foreign language	0.16	21	Academic publication
0.09	6	Cohesive devices	0.15	39	Knowledge
0.08	28	Second language	0.15	21	Communication
0.08	17	20th century	0.15	18	Management
0.08	7	Systemic functional linguistics	0.15	7	Culture
0.07	18	Qualitative analysis	0.13	52	Student
0.07	18	Comparative analysis	0.13	13	Article

According to Chen (2017), citation burst in CiteSpace is a computational technique for identifying references that attract increased attention in potential research and tracing the development of the focus of a study. Therefore, citation burst analysis should diachronically benefit the generalization of ADS development. Temporal changes in citation burstiness indicate the development of a focus of study (i.e., influential references from 2003 to 2019) and constitute a spiral escalation. Table 5 presents the four stages of the ADS development. The first stage was a theoretically driven epoch that drew on theories from social constructionism, pragmatic concepts (Hyland, 2000), genre analysis (Swales, 2004), and the social theory of learning (Wenger, 1998). The duration of citation burstiness in Table 5 suggests that from 2003 to 2012, the ADS preferred to focus on theories or models in the three references. From 2008 to 2010, ADS scholars appeared to focus on the interpersonal meaning conveyed by AD writers because the two studies were both concerned with such meaning in terms of personal pronouns (Harwood, 2005) and resources of stance and engagement (Hyland, 2005). The following stage of ADS manifested another research stream for non-native English scholars: teaching, learning (Mauranen, 2012; Zareva, 2013), and publishing (Lillis et al., 2010).

OPEN IN VIEWER

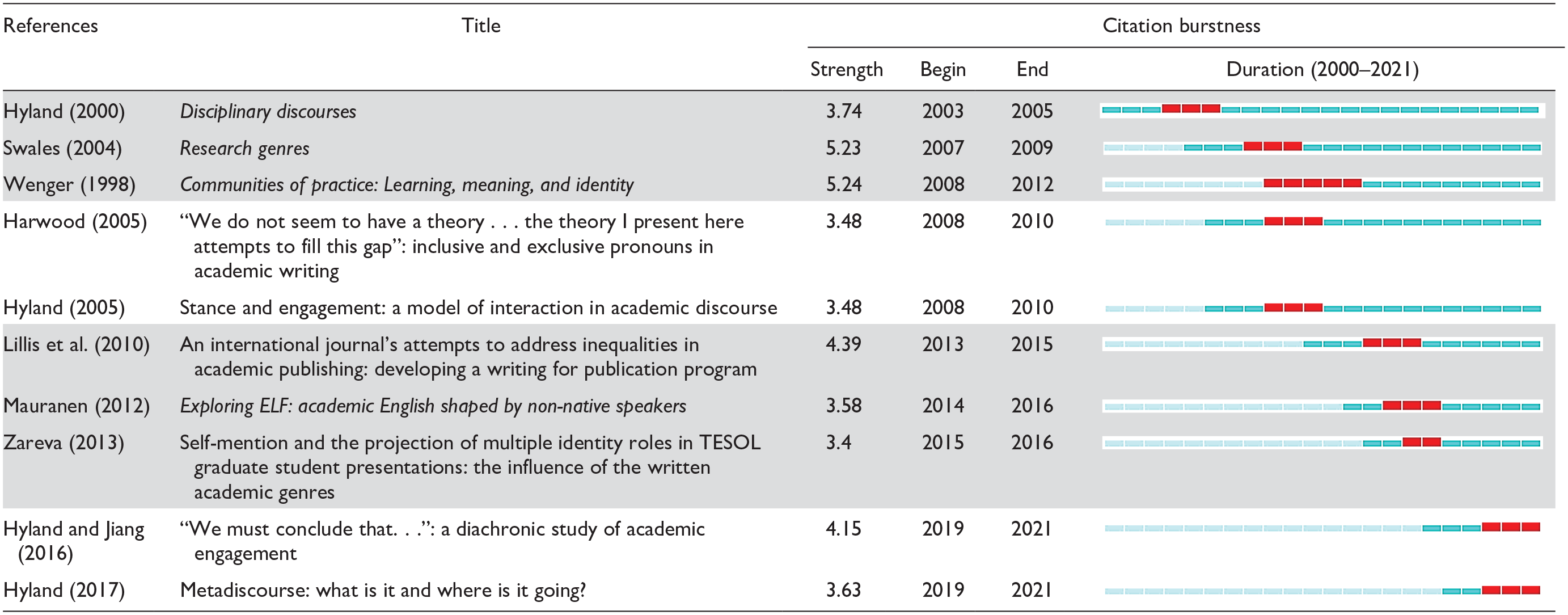

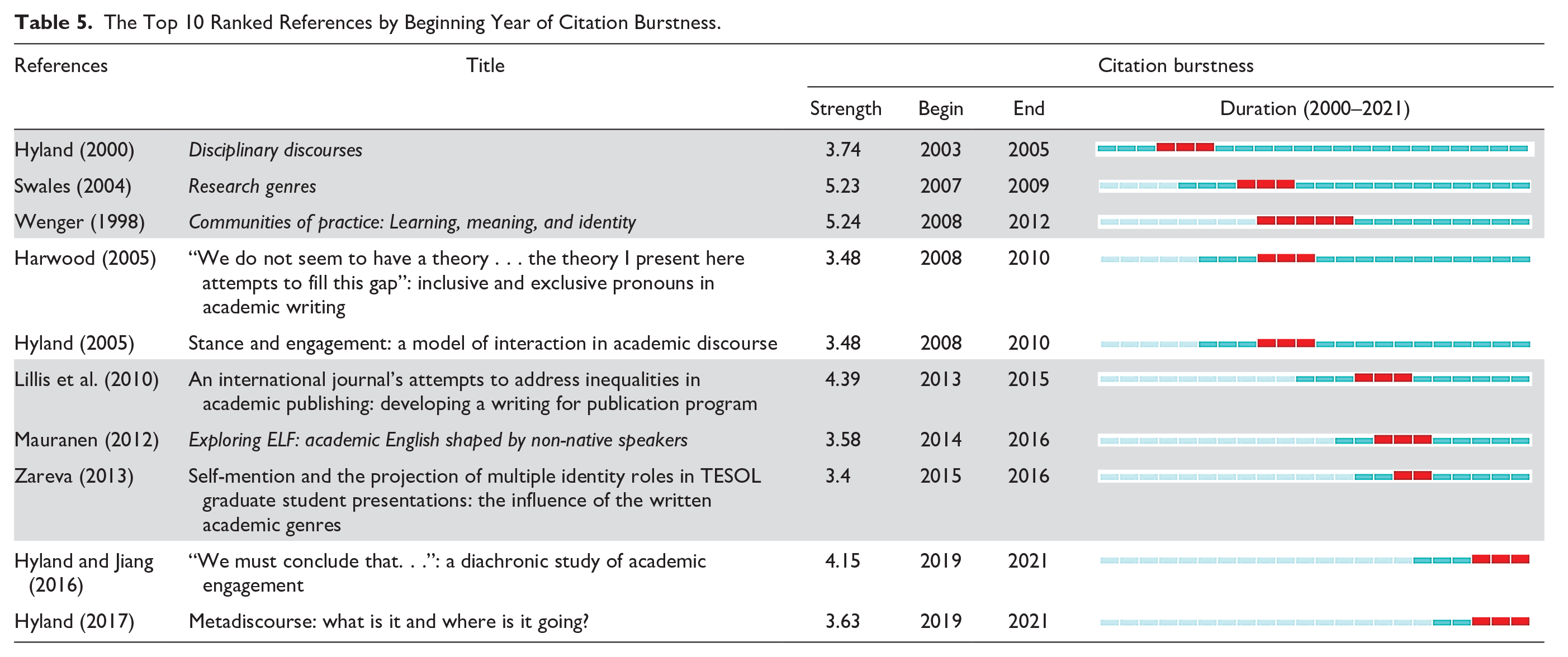

Table 5.

The Top 10 Ranked References by Beginning Year of Citation Burstness.

The last two studies shared similar topics with the previous three stages, however, from a different perspective. For instance, Hyland and Jiang (2016) focused on academic engagement through expressions such as, “we must conclude that. . .,” to probe the construction of interpersonal meaning in AD. However, their investigation presented an avenue for conducting diachronic ADS. Hyland (2017) interpreted the concept of metadiscourse from the perspective of ADS and explained how such an approach could be adopted to analyze academic writing. These two studies ostensibly discussed the topic or theory in the previous ADS; however, they began new perspectives on old themes, which is also the reason for this stage being a spiral escalation.

Major Findings and Divergences of Opinions in ADS: A Synchronic Perspective

Term and keyword analyses have delineated the research contents of ADS in the past 20 years, and yielded three major findings. First, ADS is a topic-driven area that combines different types of analytical approaches. Visualization of the six clusters illustrates this concept based on the dispersed distribution of these clusters. Moreover, this finding explains why the citation counts or frequencies of references, terms, and keywords are smaller than those of other bibliometric analyses of linguistic research with similar numbers of collected references (Fu et al., 2020; Wang et al., 2022). Within the topic-driven ADS, the relationships between the topics were not close (see Figures 6 and 7) between 2020 and 2021. Moreover, this explains why previous reviews of ADS have often focused on specific topics instead of conducting a disciplinary analysis. Second, although the cluster analysis demonstrates a disperse distribution of ADS topics, there also exists a focus that connects most of the ADS, that is, the interpersonal meanings, which cannot be unfolded through traditional qualitative review of particular topics in ADS such as identity (J. Flowerdew & Wang, 2015) and academic writing (Khedri et al., 2013). Of the six major clusters, three (#0, #3, and #4) concern interpersonal meaning in relation to attitude (Hyland & Jiang, 2016), academic interaction (Zou & Hyland, 2019), stance (Morek, 2015), and hedging (Hu & Cao, 2011). These most-cited studies investigated interpersonal meaning from various perspectives and achieved the particular purpose of deconstructing communication between writers and readers of AD, thus benefiting teaching and learning for non-native English scholars. Based on the second finding, the third is evident: most of the ADS works fall within the scope of EAP. One possible reason is that the collected data were all written in English, although not all writers were native English speakers. Another reason is that the EAP reflects the dominant status of English in current international academic publications. In summary, the research context of ADS illustrates its generalities and discrepancies; moreover, it justifies the notion that academic language is a special variant derived from general language as a sublanguage (Harris, 1968, 1988).

Furthermore, cluster analysis reveals the major theories and models employed in ADS from a disciplinary perspective, including Swales’s (1990) genre analysis, Hyland’s metadiscourse (Hyland, 2004) and stance and engagement (Hyland, 2005) models, some pragmatic theories (Bu, 2014; Reershemius, 2012), and a systemic functional approach (Benelhadj, 2018; Coffin & Donohue, 2012). Another feature shared by the most-cited articles in the six clusters was that all the influential works devoted themselves to research descriptions and strategies. A popular paradigm in this trajectory is to propose a research question from teaching practice or actual situations of academic publications and develop a series of strategies based on a theory or model at the discourse level. This finding highlights the link between linguistics and education.

Alongside these major findings, two crucial divergences of opinions of carrying out ADS were revealed via cluster, term, and keyword analyses. The first divergence arises from the ADS methodology. Although Charles et al. (2009) indicated a tendency for cooperation between the qualitative (i.e., discourse approach) and quantitative (i.e., corpus approach) approaches, the former demonstrates a higher BC value in the term analysis in Table 4, which means that it is more significant for ADS, presently, and probably in the future. The quantitative approach to discourse analysis was once regarded as “a research technique for the objective, systematic, and quantitative description of manifest content of communication” (Berelson, 1952, p. 18). Compared with the quantitative approach, the qualitative method in discourse analysis works more like a method (Jäger, 2001; JØrgensen & Phillips, 2002) and a methodology (Goom, 2008; Powers, 2001). These labels imply a close association between instances of theoretical construction and empirical operations (Sayago, 2015). This finding supplements the review of ADS approaches by Charles et al. (2009). Although these two approaches (or methods) may cooperate, most studies prefer to employ only one of them. A qualitative approach to discourse analysis may have substantial potential for the theoretical development of ADS, which will ultimately promote its applied research. This is probably the reason why the qualitative approach has influenced ADS more methodologically than the quantitative approach over the past two decades and will continue to do so in the future.

Apart from the division between qualitative and quantitative methods, the introduction of the analyses of six clusters and citation burstiness, raise another divergence in ADS: description versus explanation. Most of the studies introduced above are descriptive, focusing on linguistic resources that realize a particular type of interpersonal meaning or strategy for communicating academic argumentation in the social sciences. This feature also occurs in previous reviews of ADS by Khedri et al. (2013) and J. Flowerdew and Wang (2015), which may further indicate that ADS is not a theory-based research area. A description delineates a subject or provides an account thereof, whereas an explanation provides a clear cause or reason (Novak, 1996) for it. These two primaries are distinct because “description tells us what is there, explanation why it is there” (Bergmann, 1957, p. 79). Therefore, explanations are theory-based and cannot be realized through descriptions (Reese, 1999). Theories influence description (Skinner, 1953), and “all scientific descriptions of facts are selective, [and] they always depend on theory” (Popper, 1966, p. 260). This tendency confirms that ADS is a topic-driven rather than a theory-based research area. However, the results of our bibliometric analysis did not indicate that there are no theories in ADS. Cluster analysis has displayed a series of theories, ranging from metadiscourse (Hyland, 2004) to a systemic functional approach (Benelhadj, 2018; Coffin & Donohue, 2012). The problem is that those theoretical discussions did not account for a large proportion of the publications on ADS and thus cannot have high BC values. From a disciplinary perspective, these results further indicate that ADS is concerned with the application of these theories in different research areas such as education and linguistics. The divergence between description and explanation has manifested a tendency for application in ADS over the past 20 years, and this orientation also resonates with other bibliometric analyses of particular subareas in ADS, such as Han and Li (2021) and Wang et al. (2022). Nevertheless, whether this tendency will be maintained for a long period of time requires further diachronic discussion.

Future Development of ADS: A Diachronic Perspective

To discuss the future development of ADS, it is unavoidable to decide the present stage it is in and the features of its current development stage, as well as the expectations from subsequent development stage. According to Shneider (2009), the evolution of scientific disciplines can be divided into four stages. In the first stage, scholars are occupied with a new subject matter in the realm of scientific analysis with the help of a new scientific language that adequately describes the new subject matter. However, at this stage, “scientists rarely focus their interests on one single field of study” (Shneider, 2009, p. 219). The second stage focuses on developing all major techniques that enable scholars to investigate a broader spectrum of phenomena. Therefore, the second-stage advancements may be the most cited in the development of particular disciplines. The third stage appears to be a reaction to the findings of the second stage because scholars would re-describe their subject matter through new insights and answers and raise new questions. The last stage involves the application of previously generated knowledge for particular purposes. Based on the four-stage theory, ADS is likely in its second stage, and several quantitative and qualitative methods have been adopted in a wider spectrum of academic activities, ranging from discourse analysis to publication. According to Shneider (2009), in the next stage of ADS, new insights and answers to previous questions related to language use, teaching, and academic publications will emerge. The keyword and term analyses result in Table 3 with high BC values indicate some potential topics and methods, such as cohesive devices, systemic functional linguistics, and qualitative analysis, which are likely to generate new ideas leading to the development of ADS. On the other hand, the citation burstiness presented in Table 4 reveals that the current popular theory of ADS is the metadiscourse analysis. It’s worth noting that although the development of ADS has clear features of the second stage, it is difficult to state when the ADS will reach its next stage because there is no evidence in our results to justify the commencement of the third stage. Consequently, studies of AD would probably continue concerning popular topics in the analyzed clusters for a certain period.

Although no evidence for the occurrence of the third stage was found, some diachronic changes in the analysis results were observed, which may ultimately lead to new notions or insights into traditional ADS problems in its following stage. First, cluster analysis clearly demonstrated two trends in the ADS. One is the expanding scope of participants conducting academic research, which has grown from language resources (Morek, 2015; Zou & Hyland, 2019) and non-native English scholars (Hinkel, 2016; Mauranen, 2012) to publishers and reviewers (Ge, 2015; Hyland, 2016). Further, ADS is becoming increasingly more specifically comparative between disciplines or languages (Bruce, 2014; Hu & Cao, 2011) than the earlier general description of one language (Swales, 2004; Wenger, 1988). These conclusions are corroborated by the citation burstiness presented in Table 4 for terms such as comparative analysis, second language, and foreign languages.

Second, the description and explanation methodologies of ADS may gradually be differentiated from each other through diachronic and synchronic analyses. According to Egré (2015), one explanatory method in linguistics is historical explanation; thus, the diachronic method in ADS can be treated as a kind of explanatory study. Although synchronic description is the mainstream paradigm in the collected references, a diachronic study by Hyland and Jiang (2016) has already been completed and has a citation burstiness from 2019 to 2021, indicating that several scholars in the field of ADS have focused on the diachronic paradigm in ADS. This may prompt them to diachronically examine other classical topics in ADS, ultimately leading to spiral escalation. Moreover, there is also possibly a tendency for cooperation between synchronic and diachronic methods, similar to the cooperation between qualitative and quantitative approaches. The terms may be distinct from each other, literally; however, “it is possible to have both diachronic emergence and synchronic emergence occurring in a single process” (Humphreys, 2016, p. 43).

The third change in the current ADS is the divergence between qualitative and quantitative methods. The timelines of development of the six major clusters clearly indicate that the basis of ADS initially lies in the construction or perfection of models and theories to fit the needs of ADS, followed by the burstiness of application of those models and theories using the corpus approach. This indicates a transition from qualitative to quantitative methods in discourse analysis (DA). This transition reflects Krippendorff’s (1980, p. 10) earlier recognition that “[p]erhaps the term DA no longer fits this larger context in which messages and symbolic and data are and must be understood” and the attempt of the quantitative approach, revealed by Sayago (2015, p. 3), “to extend its scope to the semantic and pragmatic relationships that link the text to the context, that is, to something more than the content of the text.” They highlighted the shortcomings of the qualitative methodology and the advantages of the quantitative technique in ADS. Nevertheless, the transition from the qualitative to the quantitative method does not suggest a declining status of the qualitative method in ADS because it still possesses a high BC value. In this case, the interpretation of the qualitative method versus quantitative technique is that the quantitative technique appears when the qualitative method does not work effectively.
