Comparative Cost-Effectiveness of Cranioplasty Implants

Abstract

French

Purpose:

The aim of this study was to compare operative duration and total hospital costs incurred for patients undergoing elective cranioplasty with a variety of materials, including manually shaped autogenous bone graft and titanium mesh, custom patient-specific titanium mesh, polymethyl methacrylate (PMMA) acrylic, and polyetheretherketone (PEEK) implants.

Methods:

A single-centre retrospective chart review was used. Patient demographics, defect characteristics, total operative time, and length of hospital stay were obtained. Total costs were sourced from Sunnybrook and standardized to the 2014 to 2015 year. Bivariate and age-controlled multivariate analyses were performed with (n = 119) and without (n = 101) outliers.

Results:

When outliers were removed, an age-controlled analysis revealed that autogenous implants resulted in an operative time of 178 ± 37 minutes longer than manually shaped titanium implants (P < .01). The average cost of cranioplasty was CAD$18 335 ± CAD$10 265 for manually shaped titanium implants, CAD$31 956 ± CAD$31 206 for custom patient-specific titanium implants, CAD$20 786 ± CAD$13 075 for PMMA, CAD$14 291 ± CAD$5562 for autogenous implants, and CAD$27 379 ± CAD$4945 for PEEK implants (P = .013). When outliers were removed, cranioplasty with PMMA and PEEK incurred greater costs, CAD$4442 ± CAD$2100 and CAD$13 372 ± CAD$2728, respectively, more than manually shaped titanium implants (P < .01).

Conclusions:

Manually shaped titanium mesh is the most cost-effective implant choice for small cranial defects. Large unknown defects and frontal paranasal sinus defects are most effectively treated with autogenous bone or titanium mesh. Despite prolonged operative duration and inpatient admission, total costs were not significantly increased. Both PMMA and PEEK implants were significantly more costly, which may be a result of higher complications necessitating reoperation.

Keywords

cranioplasty autogenous bone PMMA PEEK titanium implants cost operative time

Introduction

Cranioplasty is a reconstructive procedure that repairs functional and aesthetic defects of the skull. It aims to restore skull integrity,¹ improve cerebral hemodynamics,^2,3 and relieve psychological and social disabilities.^4
-6

The material used for cranioplasty must obliterate the skull defect while restoring cranial surface morphology. It should be cost-effective, radiolucent and non-ferromagnetic, infection resistant, lightweight, biologically inert,⁷ osteoinductive, and osteoconductive.^5,7,8 At present, there are various materials available for cranioplasty, including autogenous bone, polymethyl methacrylate (PMMA) acrylic, polyetheretherketone (PEEK), and titanium implants.

The potential for revascularization and consolidation of autogenous split skull bone grafts results in the preference of this material for cranioplasty, particularly in reconstruction of frontal skull defects adjacent to paranasal sinuses.^1,9

-12 Nonetheless, pitfalls of autogenous implants include long operative durations, donor site morbidity, and a high risk of reabsorption resulting in visible surface contour irregularities.^9,10,13,14

Advances in biocompatible materials and custom computer-generated implants (CCGIs)^1,15 have broadened the reconstructive options available to surgeons. Polymethyl methacrylate is a moldable acrylic resin that is lightweight, radiolucent, and permanently maintains both shape and volume.^13,16 Polymethyl methacrylate however lacks osteoconductive properties and incurs an exothermic reaction that poses a threat to adjacent tissues. More importantly, it is a polymer that does not tolerate contamination and is therefore contraindicated in frontal reconstruction with potential exposure to paranasal sinuses.^1,9,17 Polyetheretherketone is easily shaped, radiolucent, and lightweight.^5,18,19 However, PEEK implants are expensive⁷ and, similar to all polymer implants, are contraindicated in frontal reconstruction. Finally, titanium implants are an excellent choice for large cranioplasties due to biocompatibility, handling characteristics, strength, and low infection rates.^8,20 Titanium mesh is more tolerant of contamination and is the preferred material in the reconstruction of frontal defects adjacent to sinuses. Titanium mesh is versatile, allowing intraoperative modification in the size and shape of the implant and incorporation of bone graft or bone segments within the reconstructive construct. Reported aesthetic outcomes and long-term, patient-reported satisfaction are excellent.²¹ However, titanium implants can result in erosion of the overlying soft tissues with implant exposure in 14% of patients²²; possibly due to fluctuations in the pressure gradient between the atmosphere and the intracranial space acting through a mesh structure.²³ The risk of mesh exposure may be particularly high in patients undergoing postoperative radiotherapy.^20,24

Presently, there is no consensus on which material is superior, and the choice is typically based on surgeon preference.⁵ One key consideration in the choice of implant material is cost. Cranioplasty with CCGI or patient-specific implants (PSIs) is significantly costlier than cranioplasty with autogenous bone grafts.^12,25,26 Yet, when costs associated with operative duration or intensive care unit (ICU) admission are considered, Gilardino et al¹⁵ observed no significant difference in costs between autogenous and CCGI. When the costs of reoperation for complications are included in the cost–benefit analysis,¹⁵ cranioplasty with autogenous implants was found to be more expensive.

Overall, the cost-effectiveness of different cranioplasty implant materials is unclear. Previous studies are limited by small sample size, the comparison of few implant materials, or incomplete analysis of costs.²⁰ For this reason, we aimed to elucidate the costs incurred in a large sample of cranioplasty patients treated with several implant materials including manually shaped titanium implants, autogenous split skull autografts, custom patient-specific (CPS) titanium implants, PMMA acrylic implants, and PEEK implants. The present investigation is a single-centre retrospective chart review of patients who underwent elective cranioplasty by a single surgeon (O.A.). The primary objective of this study is to summarize the total hospital costs incurred for a series of cranioplasty patients, with the interest of comparing operative time, inpatient stay, complications, and the material of reconstruction.

Materials and Methods

Participants

Following Research Ethics Board approval, a single-centre retrospective chart review was used. Consecutive patients between January 2000 and July 2016 of 1 surgeon (O.A.) were assessed for inclusion. Patients were eligible if they underwent elective cranial vault reconstruction with autologous split skull bone graft, manually shaped or CPS titanium implants, PMMA, or PEEK. Patients were excluded if (1) a postoperative computed tomography scan was unavailable, (2) they failed to attend follow-ups (>1 month), (3) they incurred a primary cranial defect, or (4) calcium phosphate bone cement exclusively or in association with any of the above-named implant materials was used.

Cranioplasty Techniques

Five different cranioplasty techniques were used and are compared in this study:

Manually shaped titanium implants require direct intraoperative manipulation of a sheet of titanium mesh to restore a 3-dimensional anatomical shape. Although simple and versatile, this technique is only applicable in small defects (Figure 1).

Split skull autogenous cranioplasty relies on the harvesting of autograft, manual carving, and assembly of bone segments into a 3-dimensional construct. It is a laborious and technically challenging procedure (Figure 2).

Custom PEEK implants are prefabricated commercially available (Depuy Synthes, Raynham, Massachusetts) polymer implants that are suitable for stable, unalterable skull defects (Figure 3).

Custom PMMA implants are cast intraoperatively using prefabricated patient-specific molds and forming tools (Calavera Surgical Design, Toronto, Canada; Figure 4).

Custom patient-specific titanium implants are shaped intraoperatively using patient-specific molds, forming tools, and a press to shape a sheet of titanium mesh into a 3-dimensional anatomical implant (Calavera Surgical Design). These implants are indicated in the reconstruction of “unknown defects,” that is, ablative defects where the extent of ablation cannot be predicted and in the reconstruction of craniofrontal defects with potential paranasal sinus exposure (Figure 5).

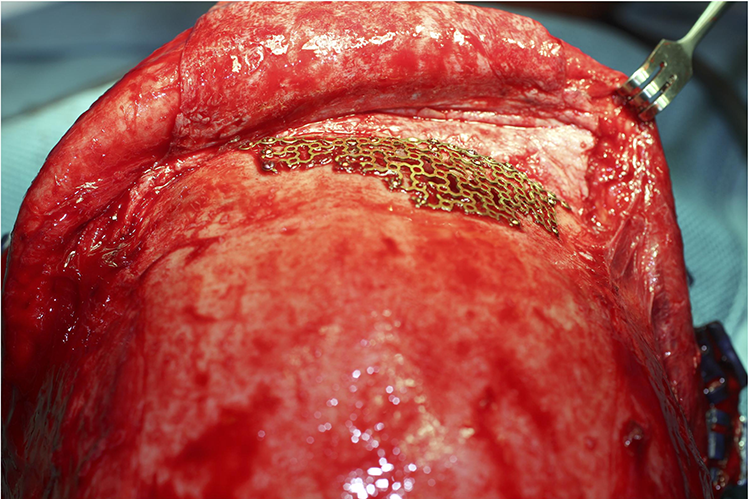

Figure 1.

Manually shaped titanium mesh relies on intraoperative manipulation of a 2-dimensional sheet of titanium mesh into a 3-dimensional shape. It is a simple and effective technique for small defects.

Figure 2.

Autogenous cranioplasty necessitates harvesting of split skull bone graft. For a large bifrontal defect, bilateral parietal craniotomies are performed to harvest bone graft (A), which is split into inner and outer tables. The inner table bone reconstructs the craniotomy donor sites, while outer table grafts are carved and assembled to reconstruct the skull defect (B).

Figure 3.

Polyetheretherketone (PEEK) cranioplasty employs a prefabricated polymer implant to resurface a stable skull defect.

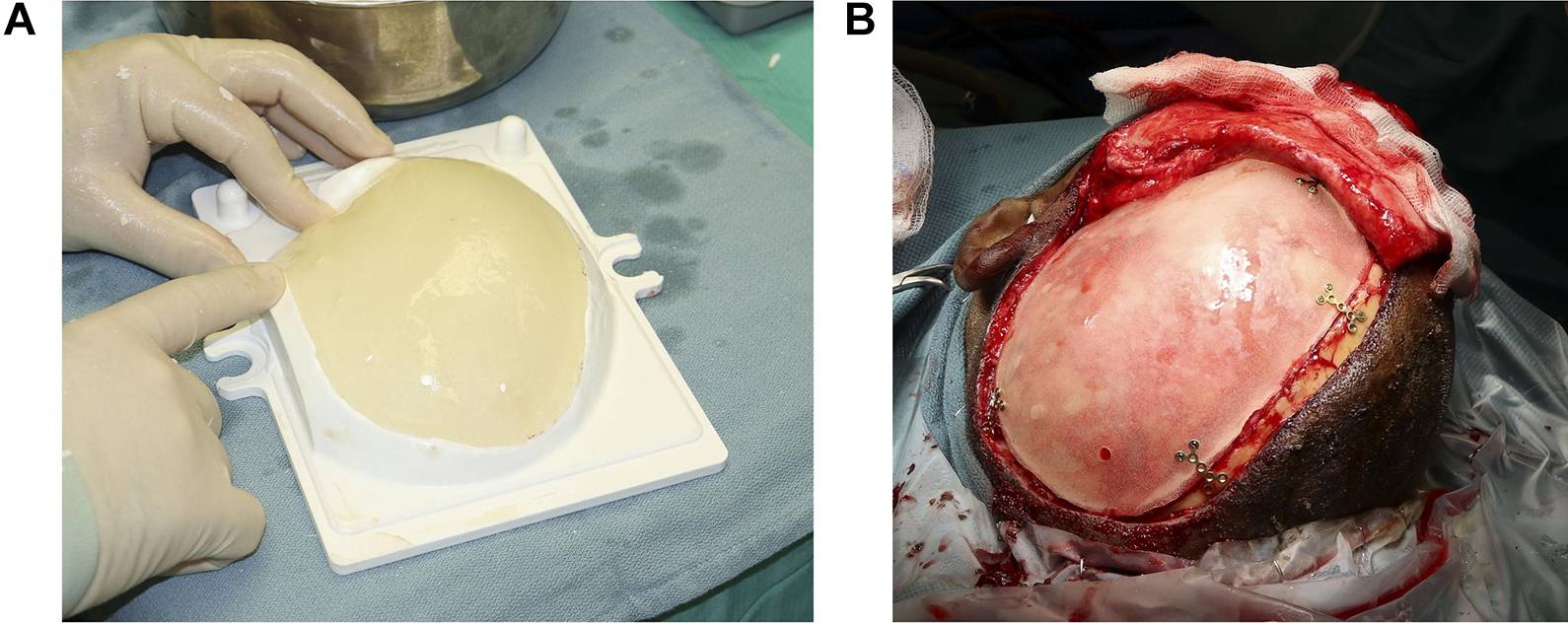

Figure 4.

Intraoperative fabrication of a patient-specific polymethyl methacrylate (PMMA) implant using a custom mold (A; Calavera Surgical Design, Toronto, Canada) provides a polymer implant which fits the defect and restores normal skull shape (B).

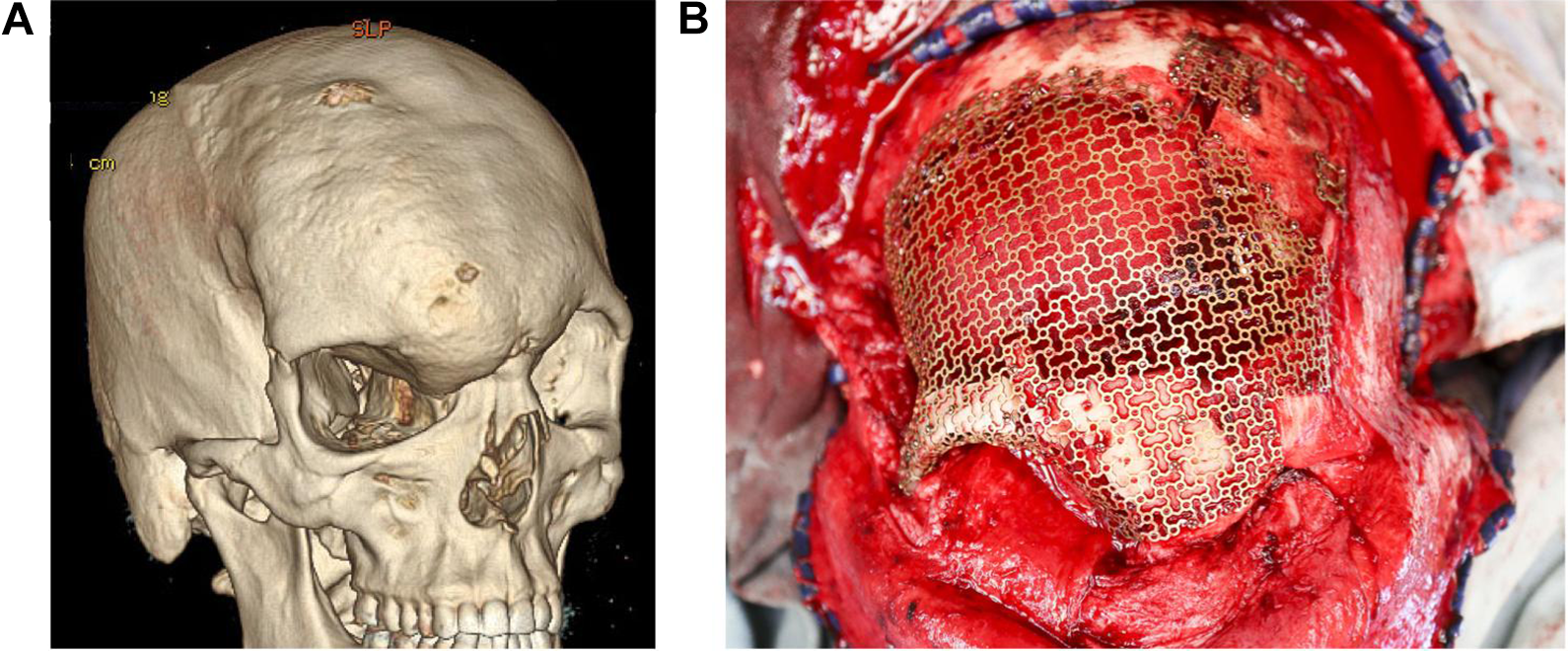

Figure 5.

Three-dimensional computed tomography (CT) demonstrating a right craniofrontal dysplasia (A). The extent of tumour ablation and therefore the size and shape of the skull defect are “unknown” prior to surgery. A patient-specific titanium mesh can be shaped intraoperatively (B) using a press and custom mold and forming tool (Calavera Surgical Design, Toronto, Canada) and trimmed appropriately to fit any defect. The titanium mesh is versatile in that it can be adapted to any shape and size of defect, can incorporate bone grafts, and can be used in reconstructing paranasal sinus regions.

Data Collection

Patient demographics (age, sex), defect characteristics (etiology, size), soft tissue coverage (free flap or transposition flap), perioperative radiotherapy, complication rates, operative time, ICU admission, and hospital inpatient stay (recovery on ward) were obtained.

Total costs were sourced from Sunnybrook Health Sciences Centre (Alliance Decision Support Case Costing System) and standardized. The 2014 to 2015 cost data were obtained for the implant, the ICU (CAD$4596) and ward stay (CAD$639) per day, and the operating room cost per minute (CAD$20.5). Indirect costs (wages lost) and intangible costs (pain) were not assessed.¹⁵ Complication costs were calculated as procedural costs and did not include outpatient medication or the costs associated with a new implant. When a reoperation was required, the cases were treated separately. All data were managed with a database software (FilemakerPro 12; Filemaker Inc, Santa Clara, California).

Of the 132 consecutive patients reviewed, 119 met the inclusion criteria (Table 1). Outliers were identified (A.B. and O.A.), removed, and a separate analysis was performed (Table 2). These included surgical cases where operative duration was prolonged for extraneous reasons (frozen section for cancer ablation and free tissue transfer for resurfacing).

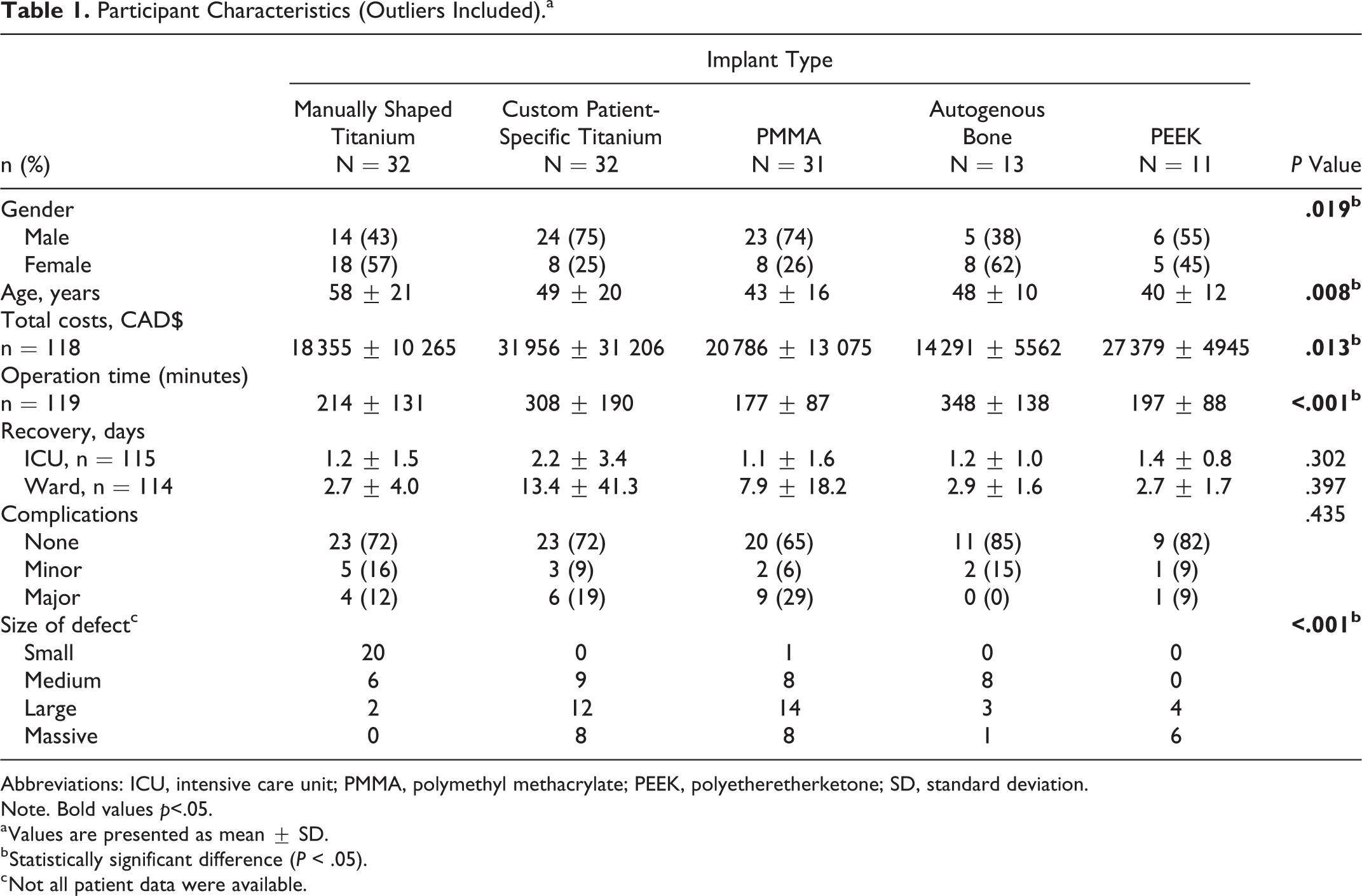

Table 1.

Participant Characteristics (Outliers Included).^a

n (%)	Implant Type					P Value
	Manually Shaped Titanium	Custom Patient- Specific Titanium	PMMA	Autogenous Bone	PEEK
	N = 32	N = 32	N = 31	N = 13	N = 11
Gender						.019^b
Male	14 (43)	24 (75)	23 (74)	5 (38)	6 (55)
Female	18 (57)	8 (25)	8 (26)	8 (62)	5 (45)
Age, years	58 ± 21	49 ± 20	43 ± 16	48 ± 10	40 ± 12	.008^b
Total costs, CAD$
n = 118	18 355 ± 10 265	31 956 ± 31 206	20 786 ± 13 075	14 291 ± 5562	27 379 ± 4945	.013^b
Operation time (minutes)
n = 119	214 ± 131	308 ± 190	177 ± 87	348 ± 138	197 ± 88	<.001^b
Recovery, days
ICU, n = 115	1.2 ± 1.5	2.2 ± 3.4	1.1 ± 1.6	1.2 ± 1.0	1.4 ± 0.8	.302
Ward, n = 114	2.7 ± 4.0	13.4 ± 41.3	7.9 ± 18.2	2.9 ± 1.6	2.7 ± 1.7	.397
Complications						.435
None	23 (72)	23 (72)	20 (65)	11 (85)	9 (82)
Minor	5 (16)	3 (9)	2 (6)	2 (15)	1 (9)
Major	4 (12)	6 (19)	9 (29)	0 (0)	1 (9)
Size of defect^c						<.001^b
Small	20	0	1	0	0
Medium	6	9	8	8	0
Large	2	12	14	3	4
Massive	0	8	8	1	6

Abbreviations: ICU, intensive care unit; PMMA, polymethyl methacrylate; PEEK, polyetheretherketone; SD, standard deviation.

Note. Bold values p<.05.

^a Values are presented as mean ± SD.

^b Statistically significant difference (P < .05).

^c Not all patient data were available.

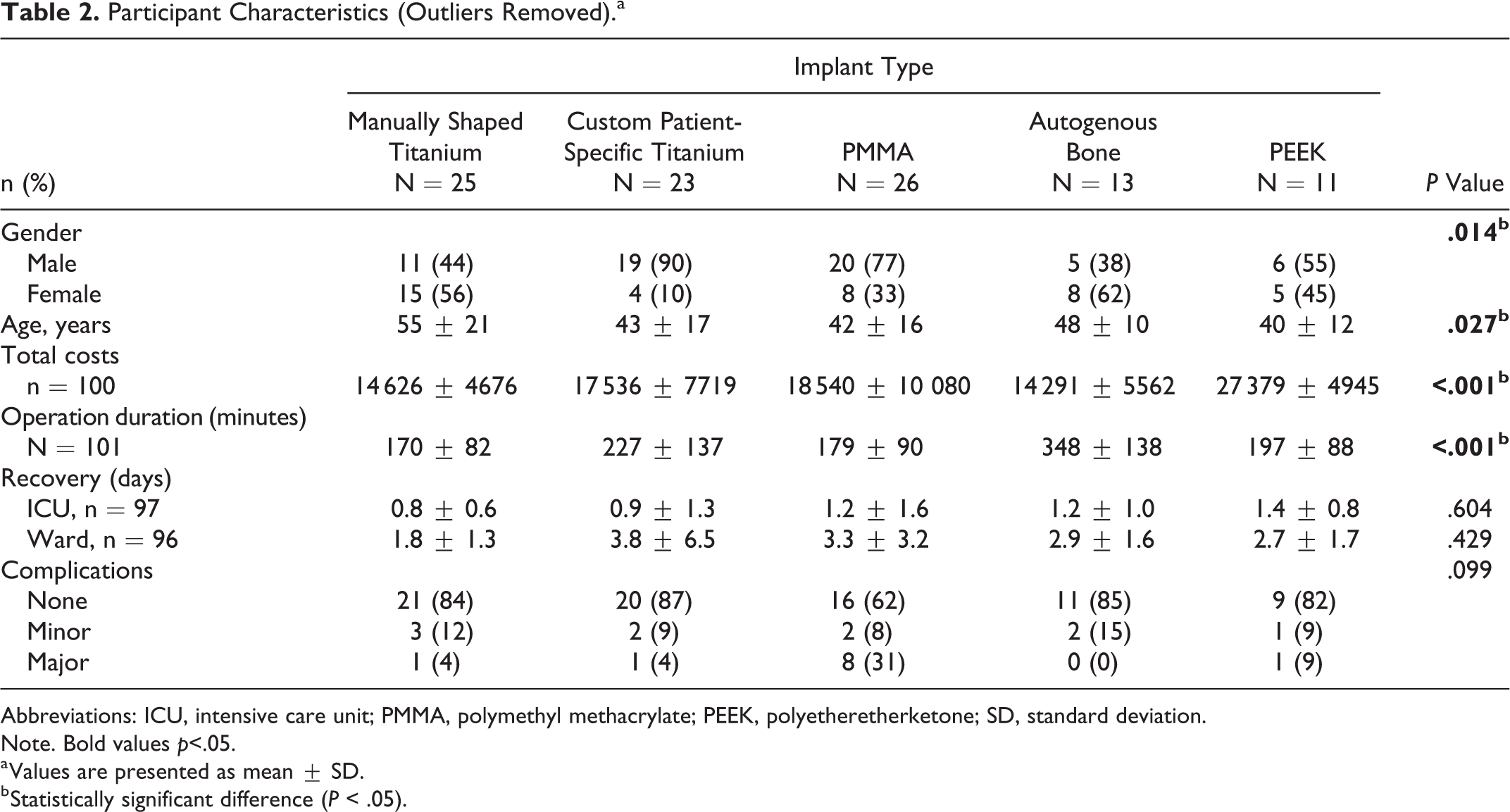

Table 2.

Participant Characteristics (Outliers Removed).^a

n (%)	Implant Type					P Value
	Manually Shaped Titanium	Custom Patient- Specific Titanium	PMMA	Autogenous Bone	PEEK
	N = 25	N = 23	N = 26	N = 13	N = 11
Gender						.014^b
Male	11 (44)	19 (90)	20 (77)	5 (38)	6 (55)
Female	15 (56)	4 (10)	8 (33)	8 (62)	5 (45)
Age, years	55 ± 21	43 ± 17	42 ± 16	48 ± 10	40 ± 12	.027^b
Total costs
n = 100	14 626 ± 4676	17 536 ± 7719	18 540 ± 10 080	14 291 ± 5562	27 379 ± 4945	<.001^b
Operation duration (minutes)
N = 101	170 ± 82	227 ± 137	179 ± 90	348 ± 138	197 ± 88	<.001^b
Recovery (days)
ICU, n = 97	0.8 ± 0.6	0.9 ± 1.3	1.2 ± 1.6	1.2 ± 1.0	1.4 ± 0.8	.604
Ward, n = 96	1.8 ± 1.3	3.8 ± 6.5	3.3 ± 3.2	2.9 ± 1.6	2.7 ± 1.7	.429
Complications						.099
None	21 (84)	20 (87)	16 (62)	11 (85)	9 (82)
Minor	3 (12)	2 (9)	2 (8)	2 (15)	1 (9)
Major	1 (4)	1 (4)	8 (31)	0 (0)	1 (9)

Abbreviations: ICU, intensive care unit; PMMA, polymethyl methacrylate; PEEK, polyetheretherketone; SD, standard deviation.

Note. Bold values p<.05.

^a Values are presented as mean ± SD.

^b Statistically significant difference (P < .05).

Data Analysis

Summary statistics were calculated for all variables. Continuous variables were assessed for normality using the Kolmogorov-Smirnov test, skewness, and kurtosis. Data are displayed as mean ± standard deviation. One-way analysis of variance and χ² tests (categorical variables) were performed to compare demographics, defect characteristics, complication rates, operative duration, total costs, and recovery (ICU or Ward) between implant types. A bivariate analysis was performed with (n = 119) and without outliers (n = 101). Multiple regression analysis adjusting for age was conducted for total costs (n = 118), operative duration (n = 119), recovery in ICU (n = 115), and recovery on ward (n = 114). An age-controlled multivariate analysis was also performed in the absence of outliers: total costs (n = 100), operative duration (n = 101), recovery in ICU (n = 97), and recovery on ward (n = 96). Multiple regression analysis utilized manually shaped titanium implants as the reference group. Data are reported as mean ± standard error with the 95% confidence intervals (95% CIs). A P value of .05 was used to denote statistical significance. All analysis were performed using SPSS statistical package version 20 (version 23.0; IBM SPSS Statistics for Windows, Armonk, New York) or SAS version 9.4.

Results

Defect Etiology

There was no statistically significant difference in defect location between the groups (P = .111; Table 1). There was, however, a significant difference in the size of the defect between groups (P < .001). Manually shaped titanium implants were primarily used to treat small defects, whereas CPS titanium implants and PMMA were used for large cranial defects. In most ablative, postinfection cases or in close proximity to paranasal sinus, autogenous bone or manually shaped titanium implants were used.

Operative Time

Operative time was significantly different between the groups (n = 119, P < .001). The average operative time was 214 ± 131 minutes for manually shaped titanium implants, 308 ± 190 minutes for CPS titanium implants, 177 ± 87 minutes for PMMA, 348 ± 138 minutes for autogenous implants, and 197 ± 88 minutes for PEEK (Figure 6). After adjusting for age, CPS titanium implants, autogenous implants, PMMA, and PEEK groups were compared to manually shaped titanium implants (reference group, 214 ± 131 minutes). Cranioplasty with CPS titanium implants and autogenous implants resulted in a significantly longer operative duration, 113 ± 34 (95% CI: 46-181) minutes and 154 ± 45 (95% CI: 66-242) minutes, compared to manually shaped titanium implants (P < .01; Table 3). When outliers were removed, only autogenous implants were associated with an operative duration 178 ± 37 (95% CI: 105-252) minutes longer than manually shaped titanium implants (P < .01; Table 4).

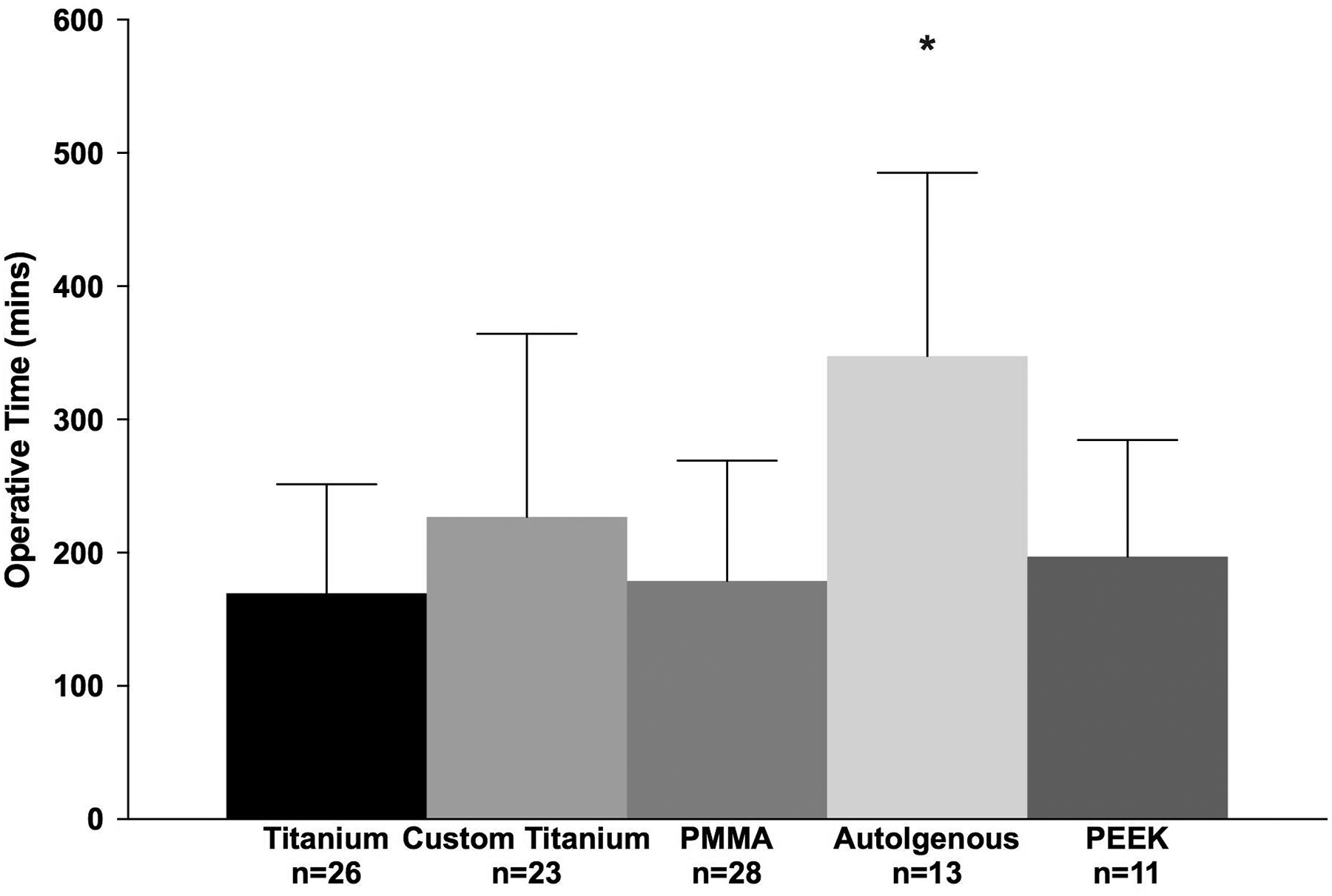

Figure 6.

Operative time (minutes) for cranial vault reconstruction. Outliers removed; after adjusting for age, autogenous implants were associated with a greater operative time compared to manually shaped titanium implants (P < .01). *Significant difference (P < .05).

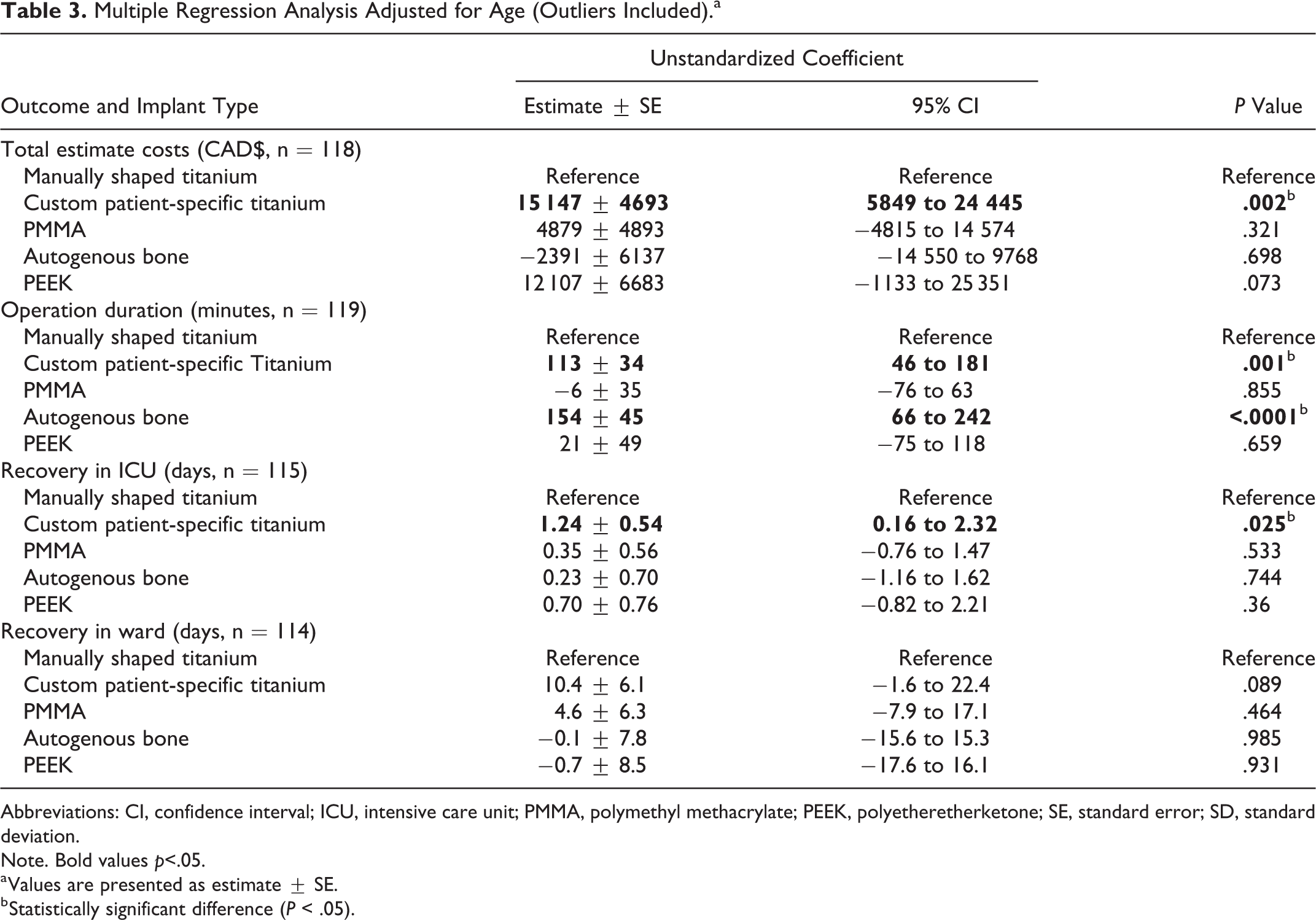

Table 3.

Multiple Regression Analysis Adjusted for Age (Outliers Included).^a

Outcome and Implant Type	Unstandardized Coefficient		P Value
Outcome and Implant Type	Estimate ± SE	95% CI	P Value
Total estimate costs (CAD$, n = 118)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	15 147 ± 4693	5849 to 24 445	.002 ^b
PMMA	4879 ± 4893	−4815 to 14 574	.321
Autogenous bone	−2391 ± 6137	−14 550 to 9768	.698
PEEK	12 107 ± 6683	−1133 to 25 351	.073
Operation duration (minutes, n = 119)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific Titanium	113 ± 34	46 to 181	.001 ^b
PMMA	−6 ± 35	−76 to 63	.855
Autogenous bone	154 ± 45	66 to 242	<.0001 ^b
PEEK	21 ± 49	−75 to 118	.659
Recovery in ICU (days, n = 115)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	1.24 ± 0.54	0.16 to 2.32	.025 ^b
PMMA	0.35 ± 0.56	−0.76 to 1.47	.533
Autogenous bone	0.23 ± 0.70	−1.16 to 1.62	.744
PEEK	0.70 ± 0.76	−0.82 to 2.21	.36
Recovery in ward (days, n = 114)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	10.4 ± 6.1	−1.6 to 22.4	.089
PMMA	4.6 ± 6.3	−7.9 to 17.1	.464
Autogenous bone	−0.1 ± 7.8	−15.6 to 15.3	.985
PEEK	−0.7 ± 8.5	−17.6 to 16.1	.931

Abbreviations: CI, confidence interval; ICU, intensive care unit; PMMA, polymethyl methacrylate; PEEK, polyetheretherketone; SE, standard error; SD, standard deviation.

Note. Bold values p<.05.

^a Values are presented as estimate ± SE.

^b Statistically significant difference (P < .05).

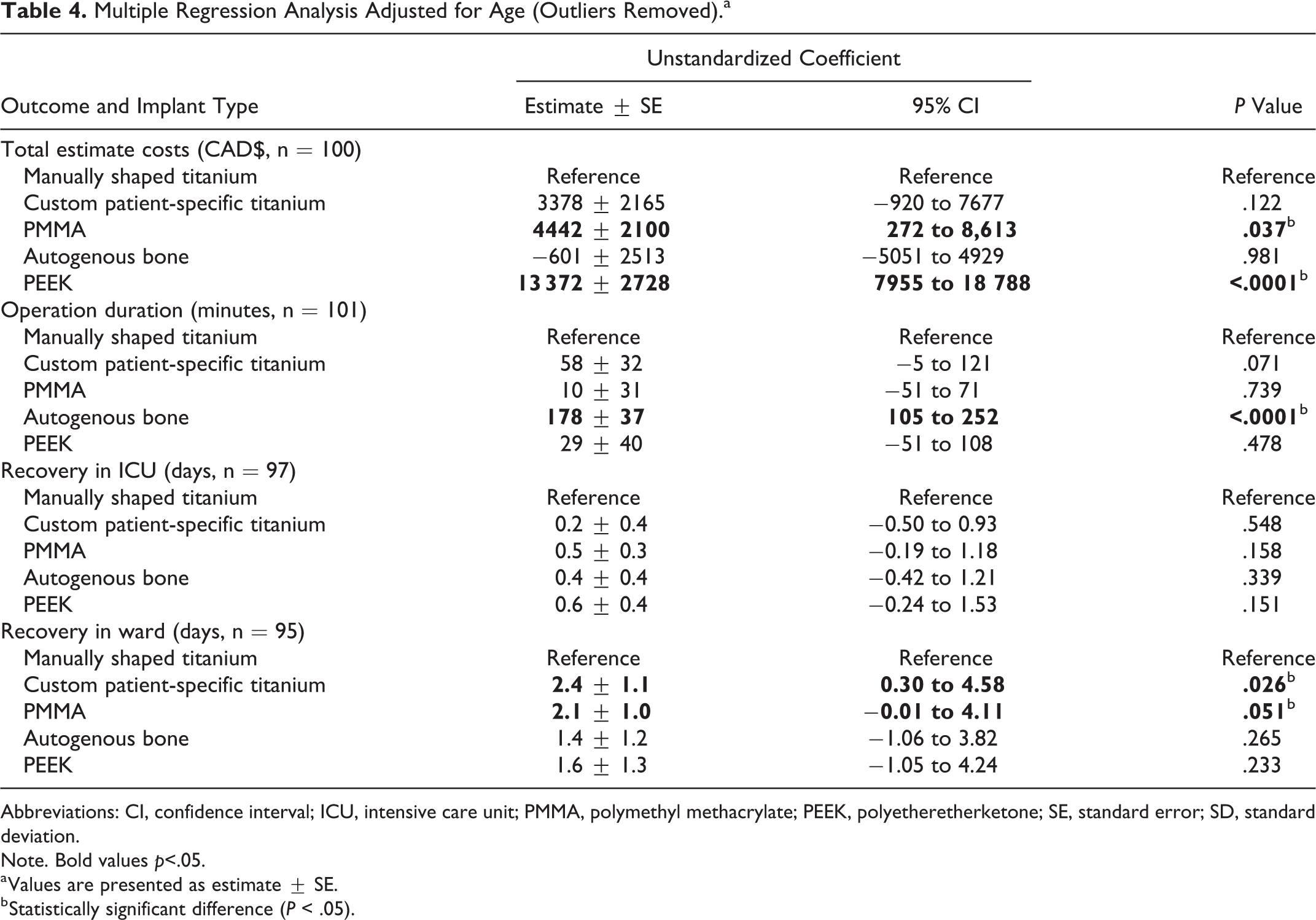

Table 4.

Multiple Regression Analysis Adjusted for Age (Outliers Removed).^a

Outcome and Implant Type	Unstandardized Coefficient		P Value
Outcome and Implant Type	Estimate ± SE	95% CI	P Value
Total estimate costs (CAD$, n = 100)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	3378 ± 2165	−920 to 7677	.122
PMMA	4442 ± 2100	272 to 8,613	.037 ^b
Autogenous bone	−601 ± 2513	−5051 to 4929	.981
PEEK	13 372 ± 2728	7955 to 18 788	<.0001 ^b
Operation duration (minutes, n = 101)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	58 ± 32	−5 to 121	.071
PMMA	10 ± 31	−51 to 71	.739
Autogenous bone	178 ± 37	105 to 252	<.0001 ^b
PEEK	29 ± 40	−51 to 108	.478
Recovery in ICU (days, n = 97)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	0.2 ± 0.4	−0.50 to 0.93	.548
PMMA	0.5 ± 0.3	−0.19 to 1.18	.158
Autogenous bone	0.4 ± 0.4	−0.42 to 1.21	.339
PEEK	0.6 ± 0.4	−0.24 to 1.53	.151
Recovery in ward (days, n = 95)
Manually shaped titanium	Reference	Reference	Reference
Custom patient-specific titanium	2.4 ± 1.1	0.30 to 4.58	.026 ^b
PMMA	2.1 ± 1.0	−0.01 to 4.11	.051 ^b
Autogenous bone	1.4 ± 1.2	−1.06 to 3.82	.265
PEEK	1.6 ± 1.3	−1.05 to 4.24	.233

Abbreviations: CI, confidence interval; ICU, intensive care unit; PMMA, polymethyl methacrylate; PEEK, polyetheretherketone; SE, standard error; SD, standard deviation.

Note. Bold values p<.05.

^a Values are presented as estimate ± SE.

^b Statistically significant difference (P < .05).

Recovery in ICU and on Ward

There was no significant difference between implant type and recovery in ICU (P = .302) with (n = 115; Table 1) or without outliers (n = 97; Table 2). However, an age-controlled multivariate analysis revealed that participants treated with CPS titanium implants remained in ICU 1.24 ± 0.54 (95% CI: 0.16-2.32) days longer than those treated with manually shaped titanium implants (P = .025; Table 3). When outliers were removed, there was no statistically significant association between implant type and recovery in the ICU (P > .05; Table 4).

There was no significant difference between implant type and recovery on ward with (n = 114; Table 1) or without outliers (n = 96, P = .397). The relationship remained non-significant after adjusting for age (P > .05; Table 3). However, when outliers were removed and the data adjusted for age, CPS titanium implants resulted in a longer recovery on ward 2.4 ± 1.1 (95% CI: 0.3-4.58) days compared to manually shaped implants (P = .026; Table 4). In addition, those treated with PMMA remained on ward 2.1 ± 1.0 (95% CI: −0.01 to 4.11) days longer than those treated with manually shaped titanium implants (P = .051; Figure 7).

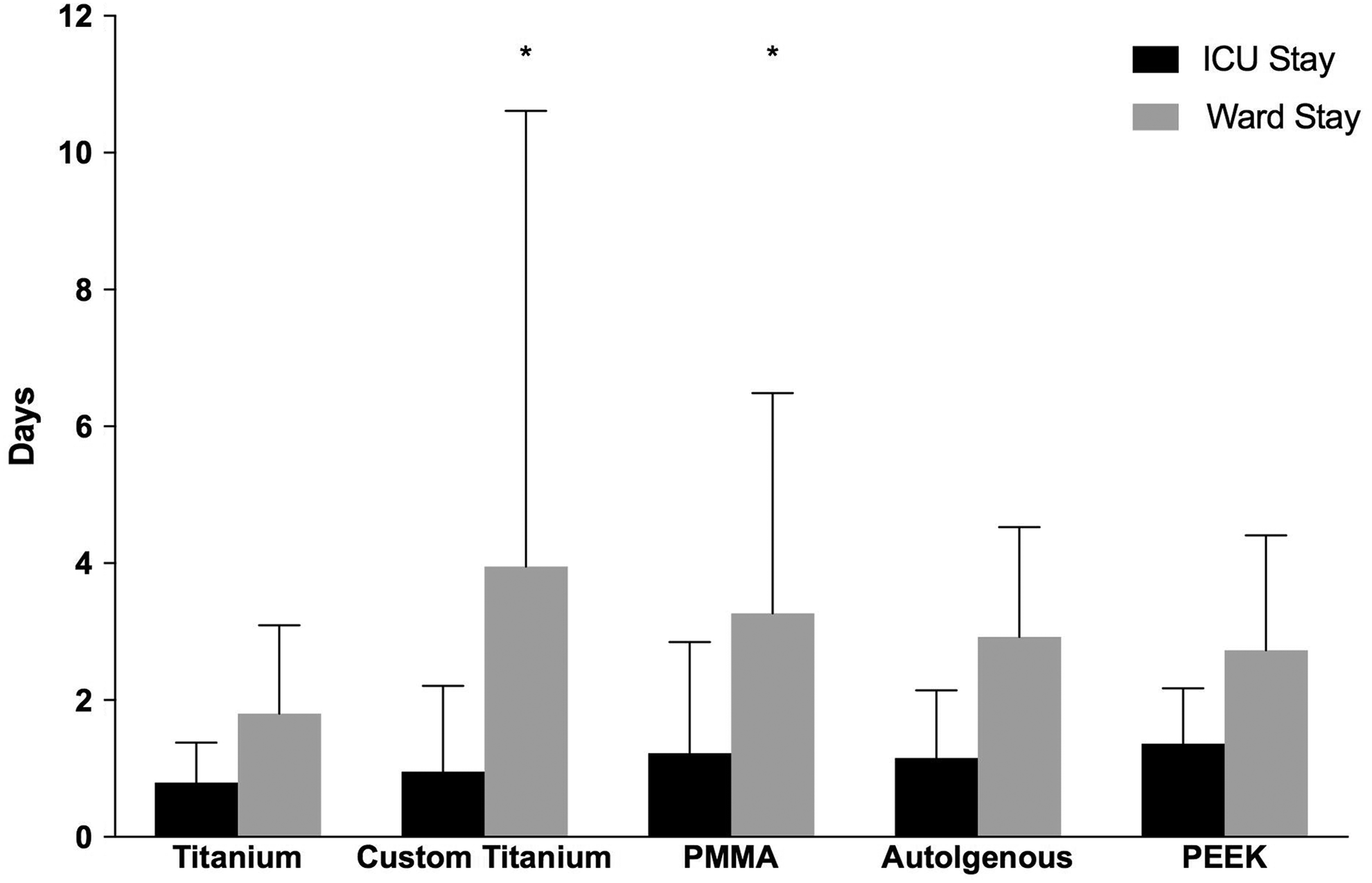

Figure 7.

Intensive care unit (ICU) and ward stay for cranial vault reconstructive patients treated with various implant types. Data are presented as mean ± standard deviation (SD) days. When outliers were removed and the data adjusted for age, patients treated with custom patient-specific titanium implants and polymethyl methacrylate (PMMA) implants remained in the ward longer (2.4 ± 1.1 and 2.1 ± 1.0 days, respectively) than those treated with manually shaped titanium implants (P < .05). After adjusting for age, there was no statistically significant difference between implant types and ICU stay. *Significant difference (P < .05).

Total Costs

Total costs were significantly different between the groups (Table 1; P = .013). The average cost was CAD$18 335 ± CAD$10 265 for manually shaped titanium implants, CAD$31 956 ± CAD$31 206 for CPS titanium implants, CAD$20 786 ± CAD$13 075 for PMMA, CAD$14 291 ± CAD$5562 for autogenous implants, and CAD$27 379 ± CAD$4945 for PEEK (Figure 8). After adjusting for age, cranioplasty with CPS titanium implants cost CAD$15 147 ± CAD$4693 (95% CI: 5849-24 445) more than cranioplasty with manually shaped titanium implants (P = .002; Table 3).

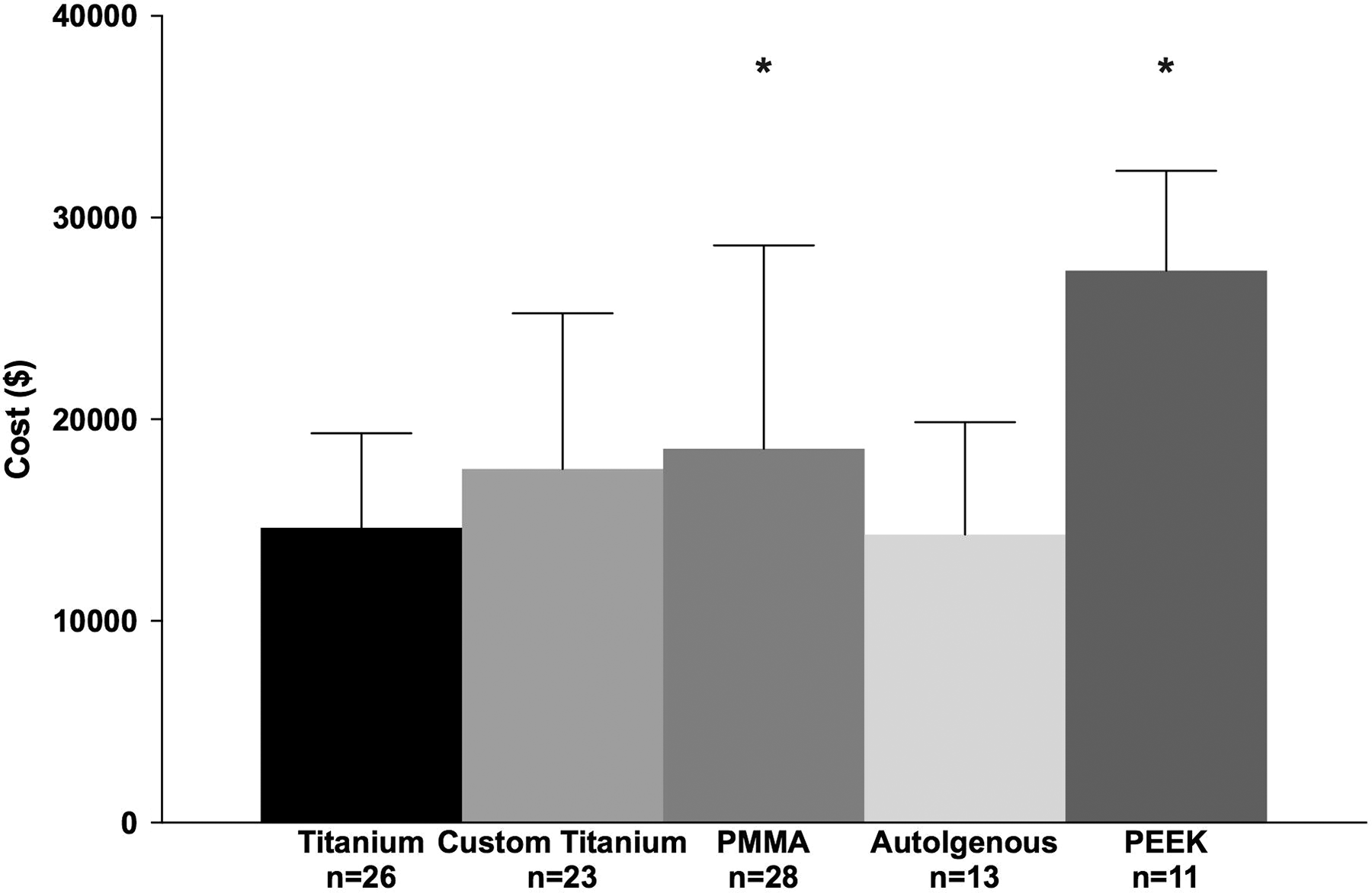

Figure 8.

Total cost (CAD$CAD) for cranial vault reconstruction. Outliers removed; after adjusting for age, polymethyl methacrylate (PMMA), and polyetheretherketone (PEEK) implants are associated with greater costs compared to manually shaped titanium implants (P < .05). *Significant difference (P < .05).

Upon the removal of outliers (n = 100), total costs were significantly different between the groups (P < .001). The average cost was CAD$14 626 ± CAD$4676 for manually shaped titanium implants, CAD$17 536 ± CAD$7719 for CPS titanium implants, CAD$18 540 ± CAD$10 080 for PMMA, CAD$14 291 ± CAD$5562 for autogenous, and CAD$27 379 ± CAD$4945 for PEEK (Figure 8). An age-adjusted multivariate analysis performed without outliers (n = 100) revealed that cranioplasty with PMMA incurred greater costs, CAD$4442 ± CAD$2100 (95% CI: 272-8613) more than cranioplasty with manually shaped titanium implants (P = .037; Table 4). Similarly, cranioplasty with PEEK was CAD$13 372 ± 2728 (95% CI: 7955-18 788) more than cranioplasty with manually shaped titanium implants (P < .01; Table 4).

Complication Rates

Complications associated with each implant type are listed in Table 5. There was no significant difference between implant type and complication rates with or without outliers (P > .05). The proportion of participants who experienced a complication requiring surgical intervention was 19% titanium implants, 29% for PMMA, 15% for autogenous bone, and 27% for PEEK (Figure 9).

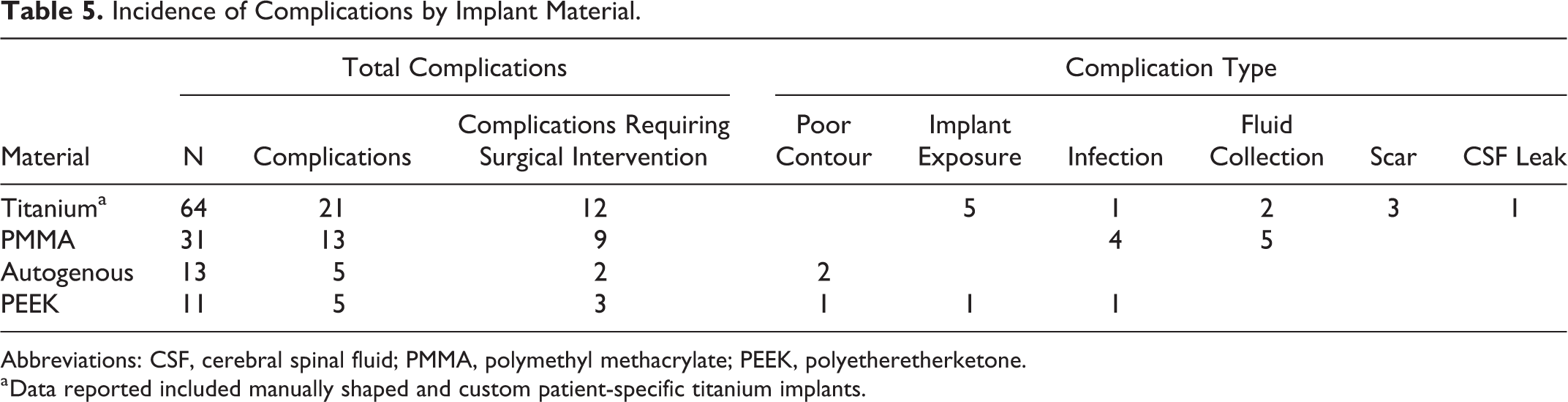

Table 5.

Incidence of Complications by Implant Material.

Material	Total Complications			Complication Type
Material	N	Complications	Complications Requiring Surgical Intervention	Poor Contour	Implant Exposure	Infection	Fluid Collection	Scar	CSF Leak
Titanium^a	64	21	12		5	1	2	3	1
PMMA	31	13	9			4	5
Autogenous	13	5	2	2
PEEK	11	5	3	1	1	1

Abbreviations: CSF, cerebral spinal fluid; PMMA, polymethyl methacrylate; PEEK, polyetheretherketone.

^a Data reported included manually shaped and custom patient-specific titanium implants.

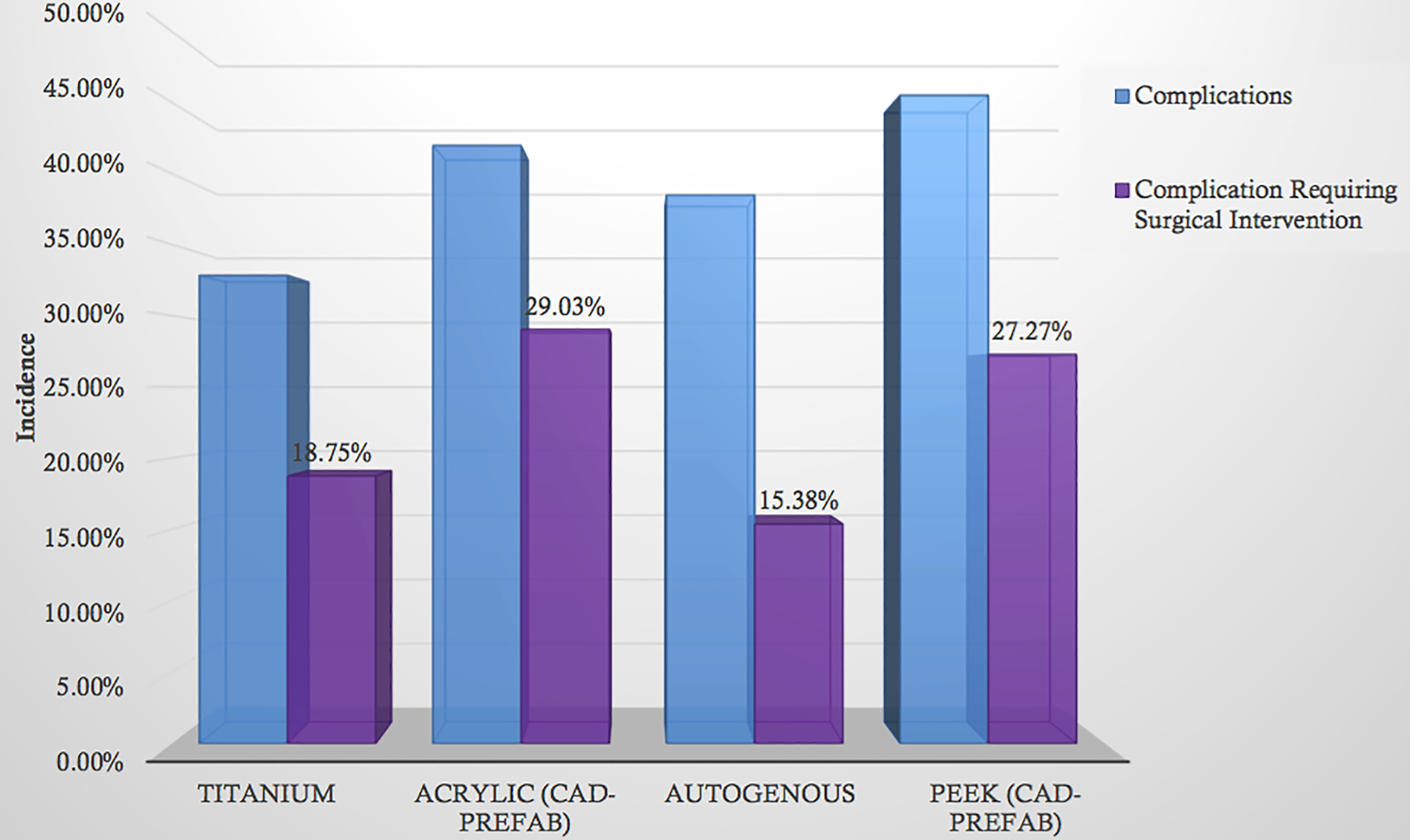

Figure 9.

Complication rates for patients treated with various cranioplasty implant types (n = 119). Data are presented as the total incidence of complications including headache, seizures, and pain, some of which may not be related to cranioplasty. Complications requiring surgical intervention are all related to the cranioplasty and range from scar revision, fluid aspiration, lumbar drain to implant removal. Polymethyl methacrylate (PMMA; acrylic) and polyetheretherketone (PEEK) were associated with higher complication rates (29% and 27%, respectively).

Discussion

This investigation is a single-centre retrospective chart review that compares operative duration, inpatient stay, and total hospital costs incurred for patients undergoing elective cranioplasty with manually shaped or CPS titanium implants, PMMA, autogenous bone implants, or PEEK. It is of vital importance to recognize that these patient populations are not strictly comparable because the clinical indications for the use of a specific implant type varies with etiology, size, and location of skull defect. Specifically, manually shaped titanium implants were used in small cranial defects only. Prefabricated PMMA or PEEK implants can only be used in the elective reconstruction of defined skull defects, where the size and/or shape of the defect will not be modified at the time of surgery. Autogenous split skull bone grafts and CPS titanium mesh implants are specifically designed for reconstruction of the “unknown defect,” that is, ablative surgery where the size and shape of the skull defect cannot be predicted. Autogenous split skull bone grafts and CPS titanium mesh implants are also preferentially used in frontal reconstruction, where there is a potential for encroachment on or exposure to paranasal sinuses. Certain reconstructive modalities, therefore, are used in more challenging recipient sites.

In terms of total hospital costs, our results indicate that cranioplasty using CPS titanium implants costs CAD$15 147 ± CAD$4693 more than cranioplasty using manually shaped titanium implants. However, if cases requiring cancer excision under frozen section control or free tissue transfer for resurfacing of extensive composite defects are removed, cranioplasty using PMMA and PEEK results in total costs CAD$4442 ± CAD$2100 and CAD$13 372 ± CAD$2728 more than cranioplasty with manually shaped titanium implants.

One factor contributing to total hospital costs is operative duration. The present investigation observed that cranioplasty with autogenous bone graft and CPS titanium implants resulted in a longer operative duration compared to manually shaped titanium implants. However, upon the removal of outliers, the average operative duration of CPS titanium implants decreased from 308 ± 190 minutes to 227 ± 137 minutes, leaving only cranioplasty with autogenous implants with a significantly longer operative duration. These data are similar to previous investigations that observed a longer operative duration for cranioplasty with autogenous compared to PSI or CCGI.^15,25,26 The longer operative duration for autogenous implants is driven, primarily, by the technical requirements of the procedure, including harvesting of bone, manual carving, shaping, and assembly of bone segments.²⁰

In addition to operative duration, total hospital costs are greatly influenced by the length of hospital stay. Some investigations report hospital stays up to 6 days for custom titanium implants,²⁷ 2 days for autogenous implants,²⁵ and 4.5 days for PEEK.¹⁹ In the present investigation, we observed an average ICU stay of 1.4 days, with no significant difference between the groups. However, a multivariate analysis revealed that CPS titanium implants resulted in an ICU stay 1.24 days longer than cranioplasty with manually shaped titanium implants. Further, upon the removal of outliers, cranioplasty with CPS titanium implants and PMMA resulted in a longer recovery on ward (2.4 and 2.1 days, respectively) compared to manually shaped titanium implants.

In contrast, recent investigations report that cranioplasty with autogenous implants results in a longer inpatient stay compared to CCGI, but this does not translate into statistically significant differences in total hospital costs.^15,25 Of note, despite a longer operative duration, hospital stay, implant issues, or infection, previous studies have documented that cranioplasty with an autogenous bone graft is cheaper than custom PEEK implants²⁴ or PSI in any other material.²⁵ In the present investigation, an age-controlled analysis revealed that cranioplasty with CPS titanium implants costs more than cranioplasty with manually shaped titanium implants. However, when outliers were removed, cranioplasty with PMMA and PEEK is more expensive than manually shaped titanium implants. Although not accounted for in our analysis, it is worth noting that CPS titanium implants and PMMA were used to treat large cranial defects, which may influence total costs and complication rates.^20,28 Of note, Li et al²⁸ analyzed 8275 cranioplasty patients and observed that defect size, time of cranioplasty, and previous infection, rather than implant material, increased complication rates and cost. Specifically, large cranioplasties (>5 cm) and delayed cranioplasties (>90 days) resulted in a higher complication rate, whereas the use of autographs did not.²⁸ Similar to Li et al²⁸ and despite the high complication rate associated with cranioplasty (10%-40%),⁴ we report no difference in major complication rates between the groups.

Although our sample size was substantially smaller than Li et al,²⁸ a strength of our investigation was the decision to perform the analysis twice. The decision to do so was 2-fold; first, the medium sample size encouraged the inclusion of outliers to increase the number of data points for the analysis. Second, we sought to examine the effect of complex cases (cancer resection with frozen section and free tissue transfer for associated scalp defect reconstruction) on our outcomes. Our results indicate that the inclusion of outliers differentially influenced operative duration, recovery in ICU or on ward, and total hospital costs. As such, our data suggest that investigations with small sample sizes (n < 50) should consider if the inclusion of outliers is appropriate and recognize the consequences of their removal.

To the best of our knowledge, this is the largest cost analysis to date examining various materials used for cranioplasty. Our aim was to provide objective evidence to inform reconstructive surgeons on the operative time, inpatient stay, and total costs associated with various implant materials. Although we performed a thorough analysis of various outcomes with and without outliers, this investigation is not without limitations. We used a single-centre retrospective chart review, and so the cost associated with cranioplasty may vary across Canadian centres. Further, we did not assess aesthetic or patient-reported satisfaction, and wages lost due to inpatient stay were not included in analyses.

In summary, small cranial defects are amenable to reconstruction with manually shaped titanium or autogenous split skull bone graft, and both of these techniques are the most cost-effective. Large paranasal sinus defects and large ablative “unknown” defects can only be reconstructed with autogenous bone or CPS titanium mesh. Autogenous bone reconstruction results in significantly prolonged operative duration, while CPS titanium mesh is associated with prolonged hospital ward admission. Despite this, the cost of autogenous bone or CPS titanium mesh reconstruction is not significantly greater than manually shaped titanium implants. Elective cranioplasty of large stable skull defects far removed from potential sinus contamination can be repaired by any type of implant material (titanium, PMMA, PEEK). Of these, custom PMMA and PEEK implants are significantly more costly, and the incidence of complications necessitating reoperations may contribute to this.
